Samsung WF45N6300AV/A5 Front Load Washer

User Manual - Transcript

• Page 1: Washer User manual WF45N6300A WF6300NDC6803665J00ENindd 1 20171206 51646
• Page 2 - English - : Contents English2 Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 Important safety precautions 5 Critical installation warnings 6 Installation cautions 8 Critical usage warnings 8 Usage cautions 10 Critical cleaning warnings 13 Installation 14 Unpacking your washer 14 Whats included 15 Installation requirements 17 Stepbystep installation 22 Before you start 28 Initial settings 28 Laundry guidelines 28 Detergent drawer guidelines 30 Operations 33 Feature panel 33 Simple steps to start 35 Cycle overview 36 Samsung Smart Home 42 WF6300NDC6803665J00ENindd 2 20171206 51646
• Page 3 - English - : Contents English 3 Maintenance 45 Self Clean 45 Smart Care 46 Emergency drain 47 Cleaning 48 Recovery from freezing 51 Care against an extended time of disuse 52 Cleaning the exterior 52 Cleaning the interior 52 Troubleshooting 53 Checkpoints 53 Information codes 57 Specications 59 Fabric care chart 59 Protecting the environment 60 Declaration of conformity 60 Specication sheet 61 Cycle chart 62 Warranty USA 63 Warranty CANADA 66 WF6300NDC6803665J00ENindd 3 20171206 51646
• Page 4 - English - : Safety information SAVE THESE INSTRUCTIONS English4 Safety information Congratulations on your new Samsung washer This manual contains important information on the installation use and care of your appliance Please take some time to read this manual to take full advantage of your washers many benets and features What you need to know about the safety instructions Please read this manual thoroughly to ensure that you know how to safely and efciently operate the extensive features and functions of your new appliance Please store the manual in a safe location close to the appliance for future reference Use this appliance only for its intended purpose as described in this instruction manual Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your washer Because the following operating instructions cover various models the characteristics of your washer may differ slightly from those described in this manual and not all warning signs may be applicable If you have any questions or concerns contact your nearest service center or nd help and information online at wwwsamsungcom Important safety symbols What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury death andor property damage CAUTION Hazards or unsafe practices that may result in personal injury andor property damage NOTE Indicates that a risk of personal injury or material damage exists These warning signs are here to prevent injury to yourself and others Please follow them explicitly After reading this manual store it in a safe place for future reference Read all instructions before using the appliance As with any equipment that uses electricity and moving parts potential hazards exist To safely operate this appliance familiarize yourself with its operation and exercise care when using it WF6300NDC6803665J00ENindd 4 20171206 51646
• Page 5 - English - : Safety information SAVE THESE INSTRUCTIONS English 5 Important safety precautions WARNING To reduce the risk of re electric shock or injury to persons when using your appliance follow basic precautions including the following 1 Read all instructions before using the appliance 2 Do not wash or dry articles that have been previously cleaned in washed in soaked in or spotted with gasoline drycleaning solvents other ammable or explosive substances as they give off vapors that could ignite or explode 3 Do not allow children to play on or in the appliance Close supervision of children is necessary when the appliance is used near children 4 Before the appliance is removed from service or discarded remove the door to the washing or drying compartment 5 Do not reach into the appliance if the drum is moving 6 Do not install or store this appliance where it will be exposed to the weather 7 Do not tamper with controls 8 Do not repair or replace any part of the appliance or attempt any servicing unless specically recommended in the usermaintenance instructions or in published user repair instructions that you understand and have the skills to carry out 9 Do not add gasoline drycleaning solvents or other ammable or explosive substances to the wash water These substances give off vapors that could ignite or explode 10 Under certain conditions hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more HYDROGEN GAS IS EXPLOSIVE If the hot water system has not been used for such a period before using a washer or combination washerdryer turn on all hot water faucets and let the water ow from each for several minutes This will release any accumulated hydrogen gas As the gas is ammable do not smoke or use an open ame during this time WF6300NDC6803665J00ENindd 5 20171206 51647
• Page 6 - English - : Safety information SAVE THESE INSTRUCTIONS Safety information English6 Critical installation warnings State of California Proposition 65 Warning US only This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm The installation of this appliance must be performed by a qualied technician or service company Failure to do so may result in electric shock re an explosion problems with the product or injury The appliance is heavy therefore take care when lifting it Plug the power cord into a wall socket that meets local electrical specications Use the socket for this appliance only and do not use an extension cord Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or re Ensure that the voltage frequency and current supplied to the washer matches those listed in the product specications Failure to do so may result in electric shock or re Plug the power plug into the wall socket rmly Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis Unplug the power plug and clean it with a dry cloth Failure to do so may result in electric shock or re Plug the power plug into the wall socket so that the cord is running towards the oor If you plug the power plug into the socket in the opposite direction the electric wires within the cable may be damaged and this may result in electric shock or re Keep all packaging materials out of the reach of children as these may be dangerous If a child places a plastic bag over his or her head he or she can suffocate If the appliance power plug or power cord is damaged contact your nearest service center This appliance must be properly grounded Do not ground the appliance to a gas pipe plastic water pipe or telephone line This may result in electric shock re an explosion or problems with the product WF6300NDC6803665J00ENindd 6 20171206 51647
• Page 7 - English - : Safety information SAVE THESE INSTRUCTIONS English 7 Never plug the power cord into a socket that is not grounded correctly Make sure that the socket is in accord with local and national regulations Do not install this appliance near a heater or any ammable material Do not install this appliance in a humid oily or dusty location or in a location exposed to direct sunlight or water rain drops Do not install this appliance in a location exposed to low temperatures Frost may cause the tubes to burst Do not install this appliance in a location where gas may leak This may result in electric shock or re Do not use an electric transformer to power the washer This may result in electric shock or re Do not use a damaged power plug damaged power cord or loose wall socket This may result in electric shock or re Do not pull or bend the power cord excessively Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance This may result in electric shock or re Do not pull the power cord when unplugging the power plug Unplug the power plug by pulling the plug Failure to do so may result in electric shock or re This appliance should be positioned so that the power plug the water supply taps and the drain pipes are accessible WF6300NDC6803665J00ENindd 7 20171206 51647
• Page 8 - English - : Safety information SAVE THESE INSTRUCTIONS Safety information English8 Installation cautions CAUTION This appliance should be positioned in such a way that the power plug is easily accessible Failure to do so may result in electric shock or re due to electric leakage Install your appliance on a solid level oor that can support its weight Failure to do so may result in abnormal vibrations movement noise or problems with the product Critical usage warnings WARNING If the appliance is ooded turn off the water amp power supplies immediately and contact your nearest service center Do not touch the power plug with wet hands Failure to do so may result in electric shock If the appliance generates a strange noise a burning smell or smoke unplug the power plug immediately and contact your nearest service center Failure to do so may result in electric shock or re In the event of a gas leak such as propane gas LP gas etc ventilate immediately without touching the power plug Do not touch the appliance or power cord Do not use a ventilating fan A spark may result in an explosion or re Do not let children play in or on the washer In addition when disposing of the appliance remove the washer door lever Children can suffocate to death if trapped inside the product Make sure to remove the packaging sponge styrofoam attached to the bottom of the washer before using it Do not wash items contaminated with gasoline kerosene benzene paint thinner alcohol or other inammable or explosive substances in the washer This may result in electric shock re or an explosion WF6300NDC6803665J00ENindd 8 20171206 51647
• Page 9 - English - : Safety information SAVE THESE INSTRUCTIONS English 9 Do not open the washer door by force while it is operating hightemperature washing dryingspinning Water owing out of the washer may result in burns or cause the oor to be slippery This may result in injury Opening the door by force may result in damage to the product or injury Do not insert your hand under the washer while an operation is in progress This may result in injury Do not touch the power plug with wet hands This may result in electric shock Do not turn the appliance off by unplugging the power plug while an operation is in progress Plugging the power plug into the wall socket again may cause a spark and result in electric shock or re Do not let children or the inrm use this washer without proper supervision Do not let children climb in or onto the appliance This may result in electric shock burns or injury Do not insert your hand or a metal object under the washer while it is operating This may result in injury Do not unplug the appliance by pulling the power cord Always grip the plug rmly and pull it straight out of the outlet Damage to the power cord may cause a shortcircuit re andor electric shock Do not attempt to repair disassemble or modify the appliance yourself Do not use a fuse such as copper steel wire etc other than a standard fuse When the appliance needs to be repaired or reinstalled contact your nearest service center Failure to do so may result in electric shock re problems with the product or injury If the water supply hose comes loose from the faucet and oods the appliance unplug the power plug Failure to do so may result in electric shock or re Unplug the power plug when the appliance is not being used for long periods of time or during a thunder or lightning storm Failure to do so may result in electric shock or re WF6300NDC6803665J00ENindd 9 20171206 51647
• Page 10 - English - : Safety information SAVE THESE INSTRUCTIONS Safety information English10 If any foreign substance enters the appliance unplug the power plug and contact your nearest Samsung Customer Service This may result in electric shock or re Do not let children or pets play in or on your washer The washer door does not open easily from the inside and children may be seriously injured if trapped inside Usage cautions CAUTION If the washer is contaminated by a foreign substance such as detergent dirt food waste etc unplug the power plug and clean the washer using a damp soft cloth Failure to do so may result in discoloration deformation damage or rust The front glass may be broken by a strong impact Take care when using the washer If the glass is broken it may result in injury After a water supply failure or when reconnecting the water supply hose open the faucet slowly Open the faucet slowly after a long period of nonuse The air pressure in the water supply hose or the water pipe may damage a product part or result in a water leak If a draining error occurs during an operation check if there is a draining problem If the washer is used when it is ooded because of a draining problem it may result in electric shock or re Insert the laundry into the washer completely so that the laundry does not get caught in the door If laundry gets caught in the door it may result in damage to the laundry or the washer or result in a water leak Turn the water supply off when the washer is not being used Ensure that the water supply hose connectors are properly tightened Ensure that the rubber seal and front door glass are not contaminated by a foreign substance eg waste thread hair etc If a foreign substance is caught in the door or the door is not completely closed it may cause a water leak WF6300NDC6803665J00ENindd 10 20171206 51647
• Page 11 - English - : Safety information SAVE THESE INSTRUCTIONS English 11 Open the faucet and check if the water supply hose connectors are rmly tightened and that there are no water leaks before using the product If the connectors on the water supply hoses are loose it may result in a water leak The product you have purchased is designed for domestic use only Using the product for business purposes qualies as a product misuse If the product is used for business purposes it will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse Do not stand on the appliance or place objects such as laundry lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance This may result in electric shock re problems with the product or injury Do not spray volatile material such as insecticide onto the surface of the appliance As well as being harmful to humans this may result in electric shock re or problems with the product Do not place objects that generate electromagnetic elds near the washer This may result in injury due to a malfunction Water drained during a hightemperature wash or drying cycle is hot Do not touch the water This may result in burns or injury Do not wash spin or dry waterproof seats mats or clothing unless your appliance has a special cycle for washing these items Woollen bedding rain covers shing vests ski pants sleeping bags diaper covers sweat suits and bicycle motor cycle and car covers etc Do not wash thick or hard mats even if the washer mark is on the care label This may result in injury or damage to the washer walls oor or clothing due to abnormal vibrations Do not wash throw rugs or doormats with rubber backing The rubber backing may come off and stick to inside the drum and this may result in malfunction such as a drainage error Do not operate the washer when the detergent drawer is removed This may result in electric shock or injury due to a water leak WF6300NDC6803665J00ENindd 11 20171206 51647
• Page 12 - English - : Safety information SAVE THESE INSTRUCTIONS Safety information English12 Do not touch the insides of the drum during or just after drying as it is hot This may result in burns Do not insert your hand into the detergent drawer This may result in injury as your hand may be caught by the detergent input device Do not use the liquid detergent container on applicable models only for powdered detergent Remove the container and put powdered detergent directly into the Main wash compartment Do not place any objects such as shoes food waste animals other than laundry into the washer This may result in damage to the washer or injury and death in the case of pets due to the abnormal vibrations Do not press the buttons using sharp objects such as pins knifes ngernails etc This may result in electric shock or injury Do not wash laundry contaminated by oils creams or lotions usually found in skincare shops or massage clinics This may cause the rubber seal to become deformed and result in a water leak Do not leave metal objects such as safety pins hair pins or bleach in the drum for long periods of time Doing either may cause the drum to rust If rust starts appearing on the surface of the drum apply a neutral cleansing agent to the surface and use a sponge to clean it Never use a metal brush Do not use dry cleaning detergent directly and do not wash rinse or spin laundry contaminated by dry cleaning detergent This may result in spontaneous combustion or ignition due to the heat from the oxidation of the oil Do not use water from water coolingheating devices This may result in problems with the washer Do not use natural handwashing soap for the washer If it hardens and accumulates inside the washer it may result in problems with the product discoloration rust or bad odors WF6300NDC6803665J00ENindd 12 20171206 51647
• Page 13 - English - : Safety information SAVE THESE INSTRUCTIONS English 13 Place socks and brassieres in a washing net and wash them with the other laundry Do not wash large laundry items such as bedding in the washing net Failure to do so may result in injury due to abnormal vibrations Do not use hardened detergent If it accumulates inside the washer it may result in a water leak Make sure that the pockets of all the clothing items to be washed are empty Hard sharp objects such as coins safety pins nails screws or stones can cause extensive damage to the appliance Do not wash clothing with large buckles buttons or other heavy metal objects in the washer Sort the laundry by color on the basis of its colorfastness and select the recommended cycle water temperature and additional functions Failure to do this may result in discoloration or fabric damage Take care that childrens ngers are not caught in the door when you close it Failure to do so may result in injury Critical cleaning warnings WARNING Do not clean the appliance by spraying water directly onto it Do not use a strong acidic cleaning agent Do not use benzene thinner or alcohol to clean the appliance This may result in discoloration deformation damage electric shock or re Before cleaning or performing maintenance unplug the appliance from the wall socket Failure to do so may result in electric shock or re WF6300NDC6803665J00ENindd 13 20171206 51647

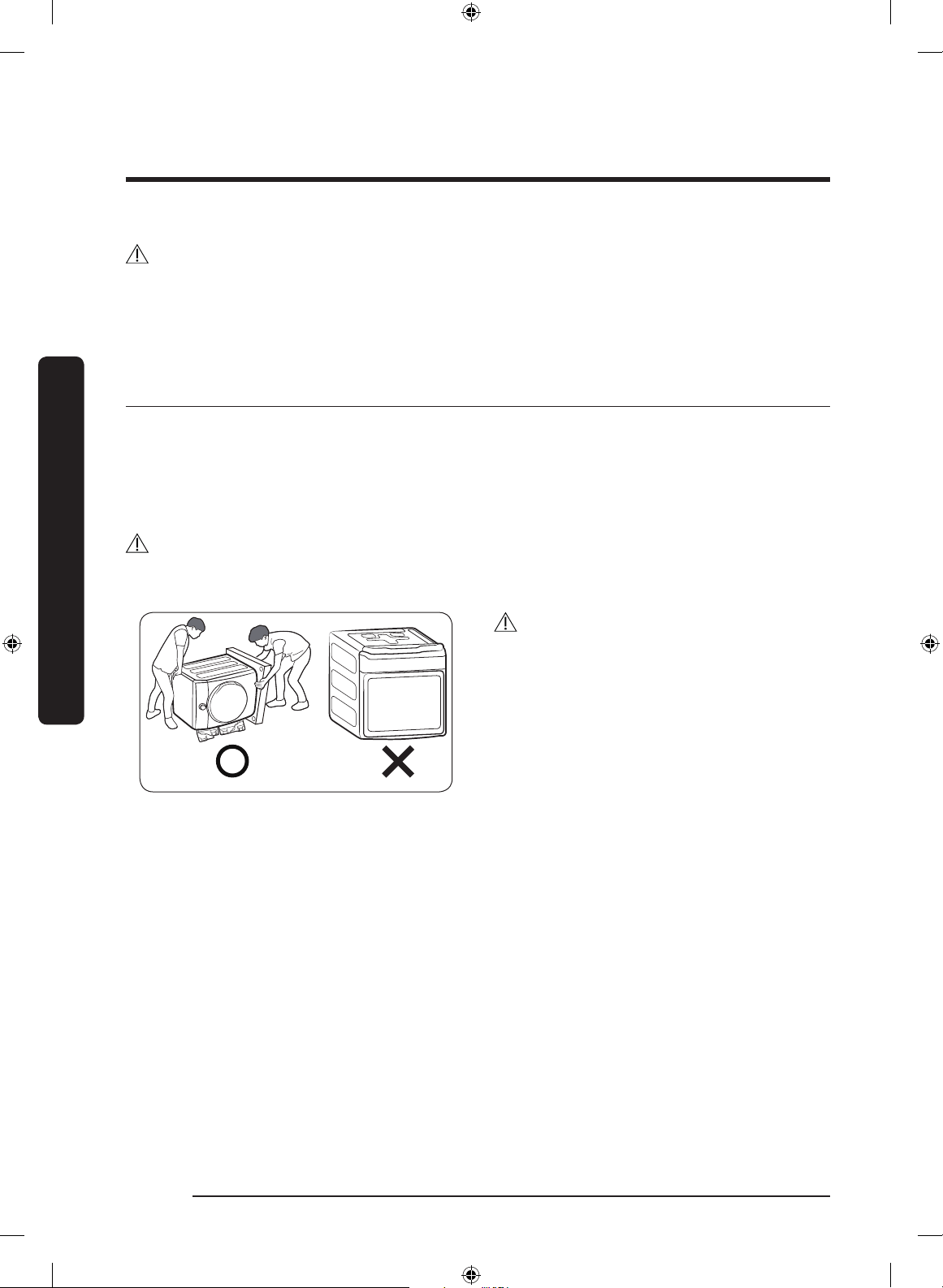

• Page 14 - English - : Installation English14 Installation Follow these instructions carefully to ensure proper installation of your washer and to prevent accidents when doing laundry WARNING Control board heat sink motor inlet valve and pump are intentionally not grounded and may present a risk of electric shock only during servicing Unpacking your washer Unpack your washer and inspect it for shipping damage Make sure you have received all the items shown below If your washer was damaged during shipping or you do not have all of the items call 1800SAMSUNG 18007267864 To prevent personal injury or strain wear protective gloves whenever lifting or carrying the unit WARNING Packing materials can be dangerous to children Keep all packing material plastic bags polystyrene etc well out of childrens reach CAUTION When unpacking the washer a 2 person collaboration is needed To remove the cushion bottom of the packing materials do not tip the washer over on its front side When you lay the washer down to remove the carton base protect the side of the washer and lay it down carefully Never lay your washer on its back or front WF6300NDC6803665J00ENindd 14 20171206 51647

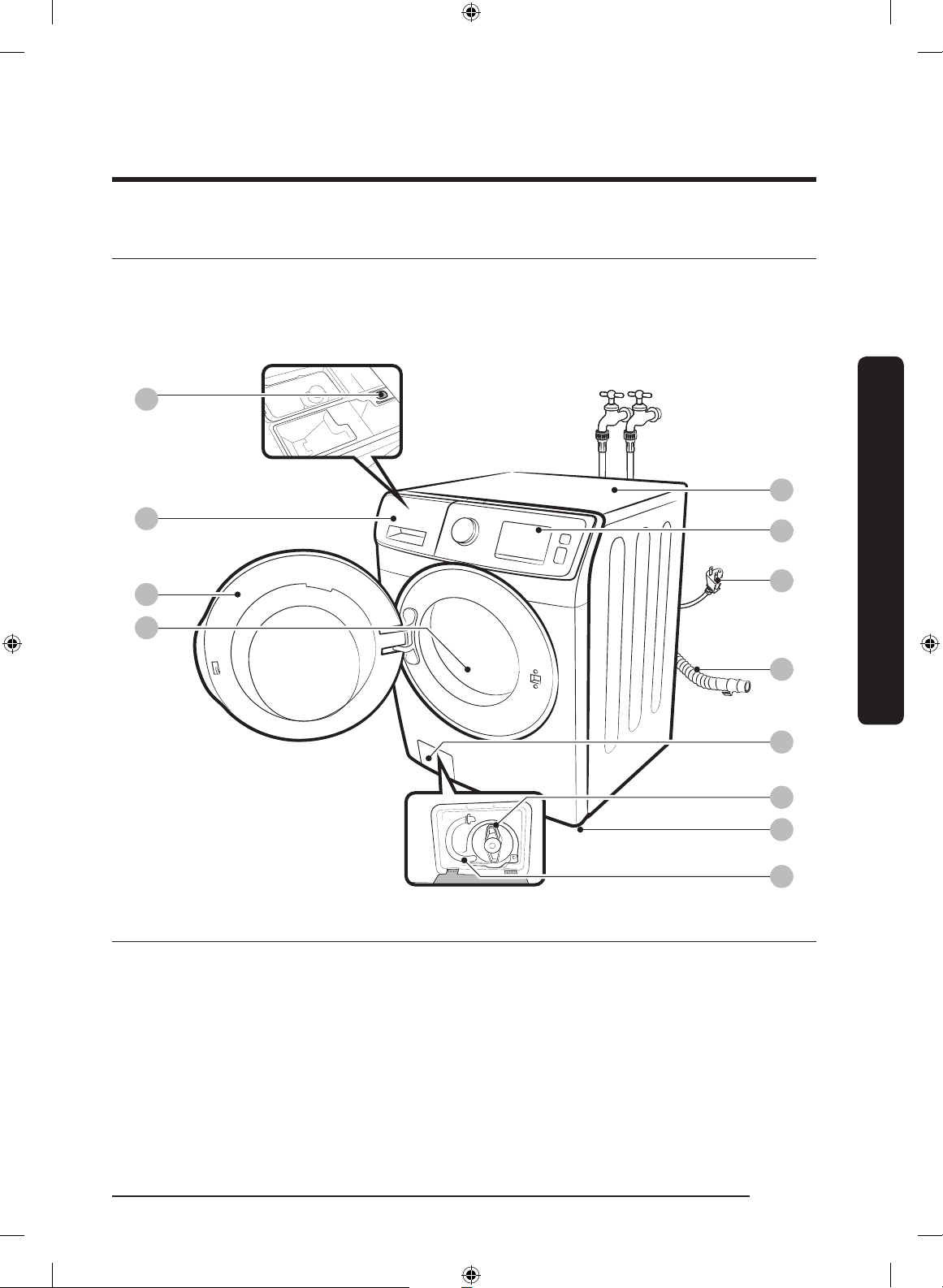

• Page 15 - English - : Installation English 15 Whats included Make sure all the parts are included in the product package If you have a problem with the washer or the parts contact a local Samsung customer center or the retailer 01 Release lever 02 Detergent drawer 03 Door 04 Drum 05 Filter cover 06 Pump lter 07 Emergency drain tube 08 Worktop 09 Control panel 10 Power plug 11 Drain hose 12 Levelling feet WF6300NDC6803665J00ENindd 15 20171206 51649

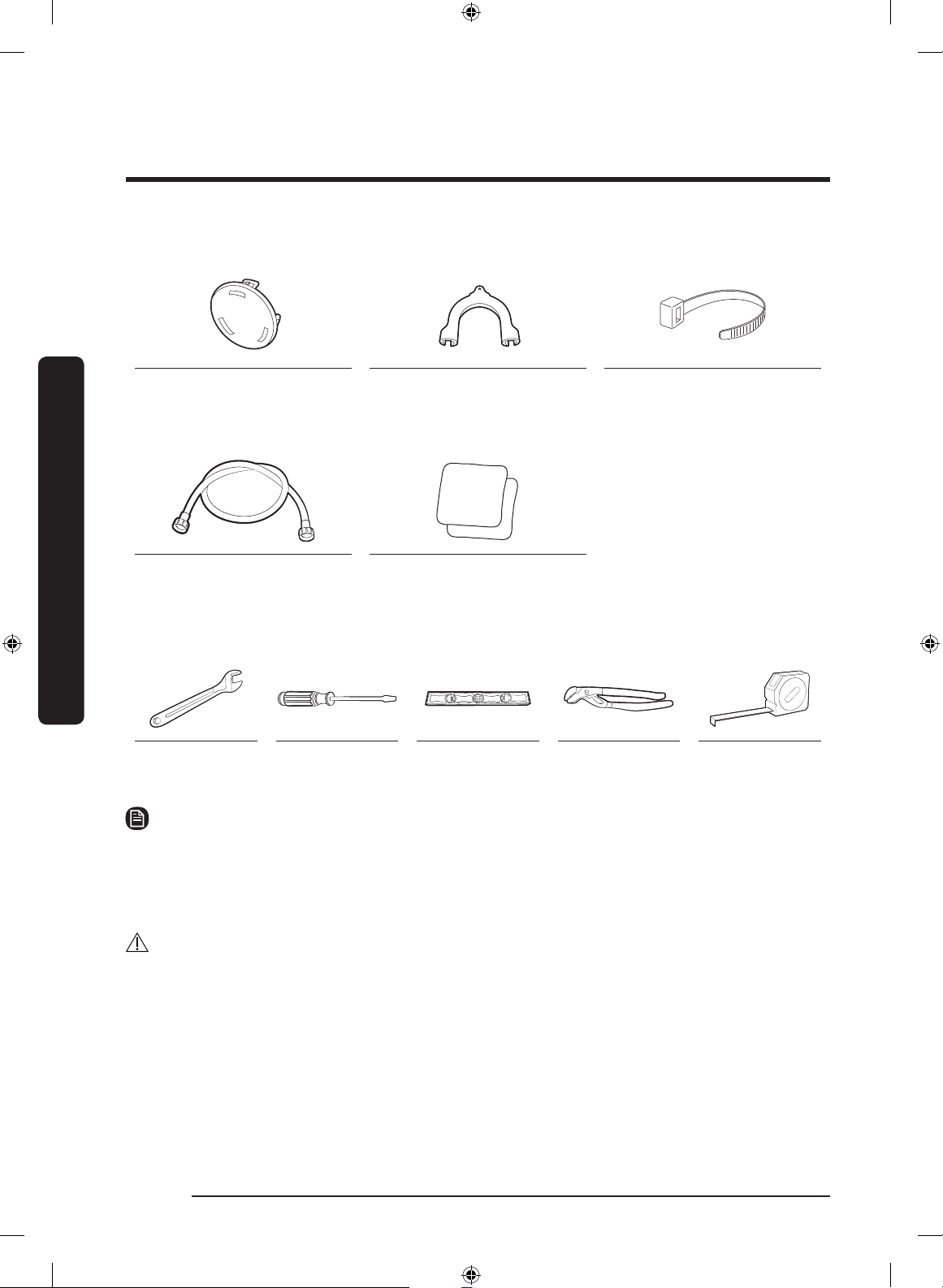

• Page 16 - English - : Installation Installation English16 Parts supplied Bolt caps Hose guide Tie straps Parts not supplied Water hoses sold separately Antislip pads sold separately Tools needed for installation Wrench Phillips screwdriver Level Adjustable Plier Measuring tape NOTE Bolt caps The number 3 to 6 of bolt caps provided depends on the model The appearance of the washer and provided accessories may differ with the model To purchase an accessory or lost part contact a local Samsung service center or the retailer CAUTION Do not reuse old water hoses which may leak or burst causing ooding andor property damage Make sure rubber washers are inserted in each coupling of both water hoses WF6300NDC6803665J00ENindd 16 20171206 51652
• Page 17 - English - : Installation English 17 Installation requirements Electrical supply and grounding AC 120 V 60 Hz fuse or circuit breaker is required Use an individual branch circuit Connect only the washer to the circuit To ensure proper grounding the washer comes with a power cord featuring a threeprong grounding plug for use in a properly installed and grounded outlet Check with a qualied electrician or service person if you are not sure about the grounding Do not modify the provided plug If it does not t the outlet call a qualied electrician to install a proper outlet WARNING Do NOT use an extension cord Use only the power cord that comes with the washer Do NOT connect the ground wire to plastic plumbing gas lines or hot water pipes Improperly connected grounding conductors may cause electric shock To prevent unnecessary risk of re electrical shock or personal injury all wiring and grounding must be done in accordance with local codes or in the absence of local codes in accordance with the National Electrical Code ANSI NFPA No 70Latest Revision for the US or the Canadian Electrical Code CSA C221 Latest Revisions and local codes and ordinances It is your responsibility to provide adequate electrical service for your washer Water supply Proper water pressure for this washer is between 20116 psi 137800 kPa Water pressure less than 20 psi 137 kPa may cause the water valve not to close completely Or it may take longer to ll the drum causing the washer to turn off Faucets must be within 4 feet 122 cm from the rear of the washer so that the provided inlet hoses reach the washer To reduce the risk of leaks Make sure faucets are easily accessible Turn off the taps when the washer is not in use Check for any leaks at the water inlet hose ttings on a regular basis CAUTION Before using the washer for the rst time check all connections at the water valve and taps for any leaks WF6300NDC6803665J00ENindd 17 20171206 51652
• Page 18 - English - : Installation Installation English18 Drain Samsung recommends a standpipe 18 in 46 cm high The drain hose must be connected through the hose clip to the standpipe and the standpipe must fully cover the drain hose Flooring For best performance the washer must be installed on a solid oor Wood oors may need to be reinforced to minimize vibration andor unbalanced loads Carpeting and soft tile surfaces do not provide good resistance to vibrations and may cause the washer to move slightly during the spin cycle CAUTION Do NOT install the washer on a platform or a poorly supported structure Water temperature Do not install the washer in areas where water may freeze as the washer always retains some water in its water valves pumps andor hoses Frozen water left in the connection parts may cause damage to belts the pump and other components of the washer Alcove or closet installation Minimum clearance for stable operation Sides 1 in 25 mm Top 17 in 432 mm Rear 59 in 150 mm Front 2 in 51 mm If both the washer and a dryer are installed in the same location the front of the alcove or closet must have at least a 72 in² 465 cm² unobstructed air opening Your washer alone does not require a specic air opening WF6300NDC6803665J00ENindd 18 20171206 51652

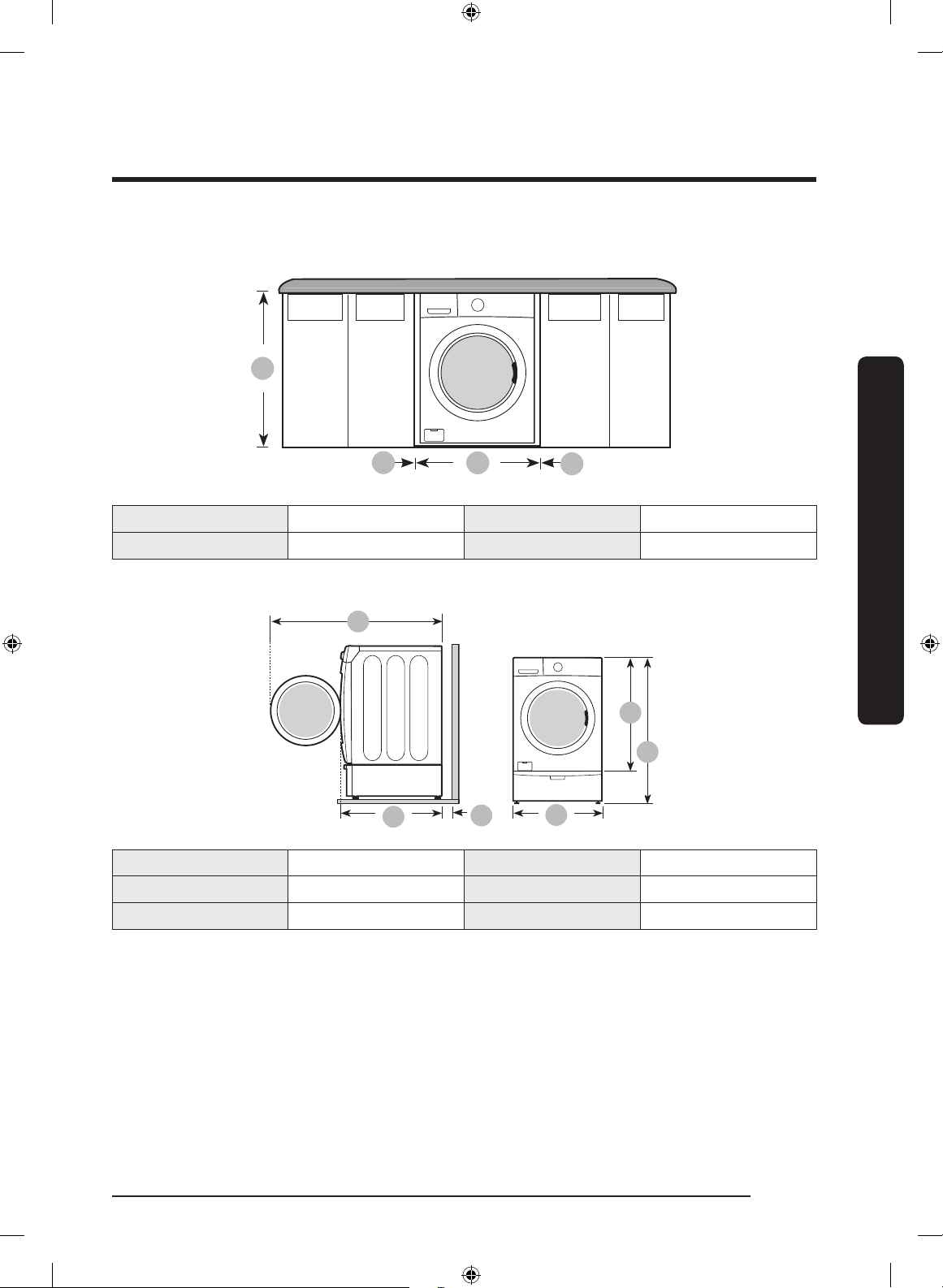

• Page 19 - English - : Installation English 19 Undercounter installation B D C A A 39 in 991 mm C 27 in 686 mm B 1 in 25 mm D 1 in 25 mm Installation on a pedestal A B D E F C A 531 in 1350 mm D 27 in 686 mm B 34 in 864 mm E 387 in 984 mm C 59 in 150 mm F 534 in 1356 mm WF6300NDC6803665J00ENindd 19 20171206 51652

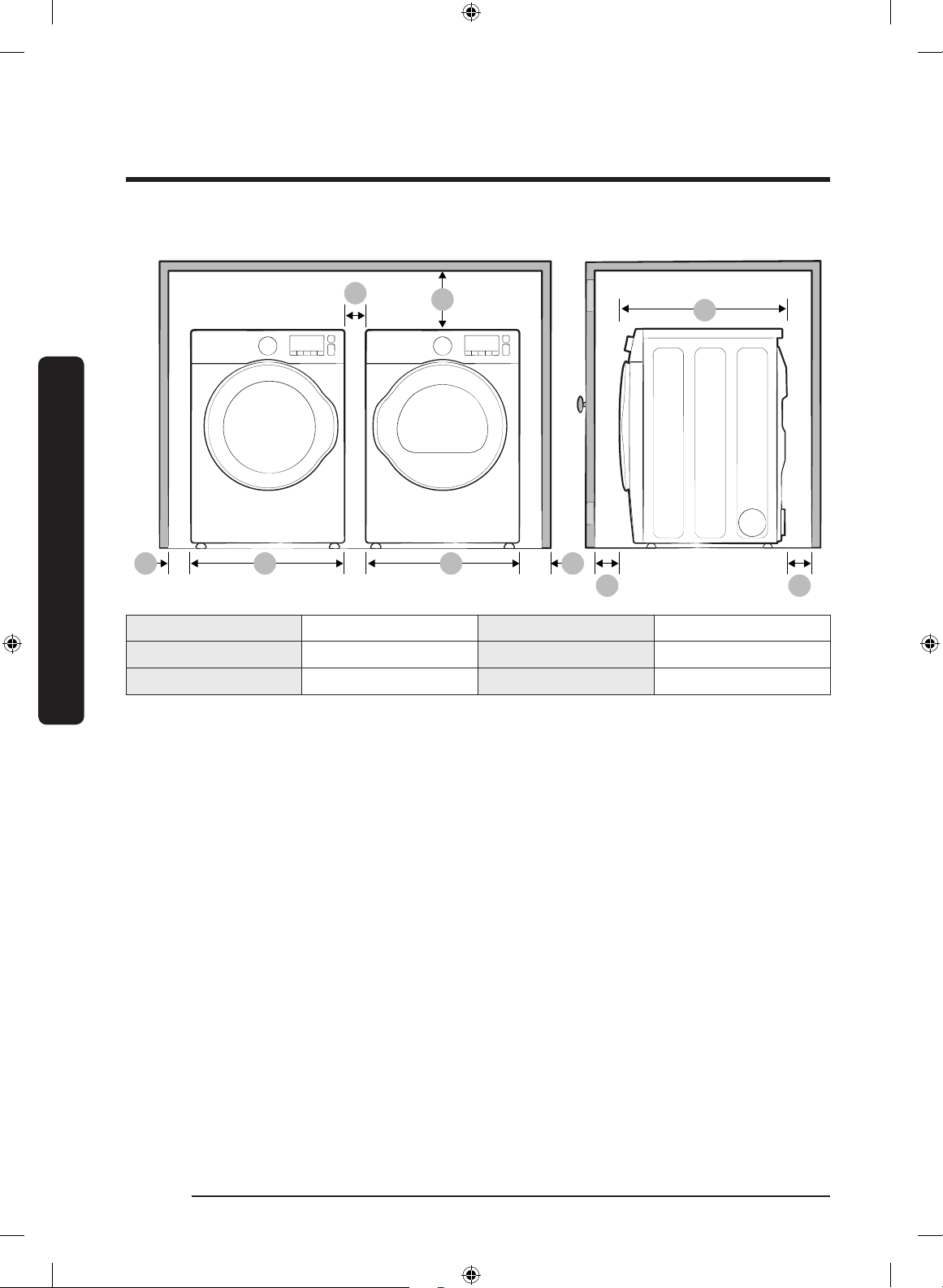

• Page 20 - English - : Installation Installation English20 Side by side installation A E A A C B B F D A 1 in 25 mm D 34 in 864 mm B 27 in 686 mm E 2 in 51 mm C 17 in 432 mm F 59 in 150 mm This clearance is not applicable to standalone washers WF6300NDC6803665J00ENindd 20 20171206 51653

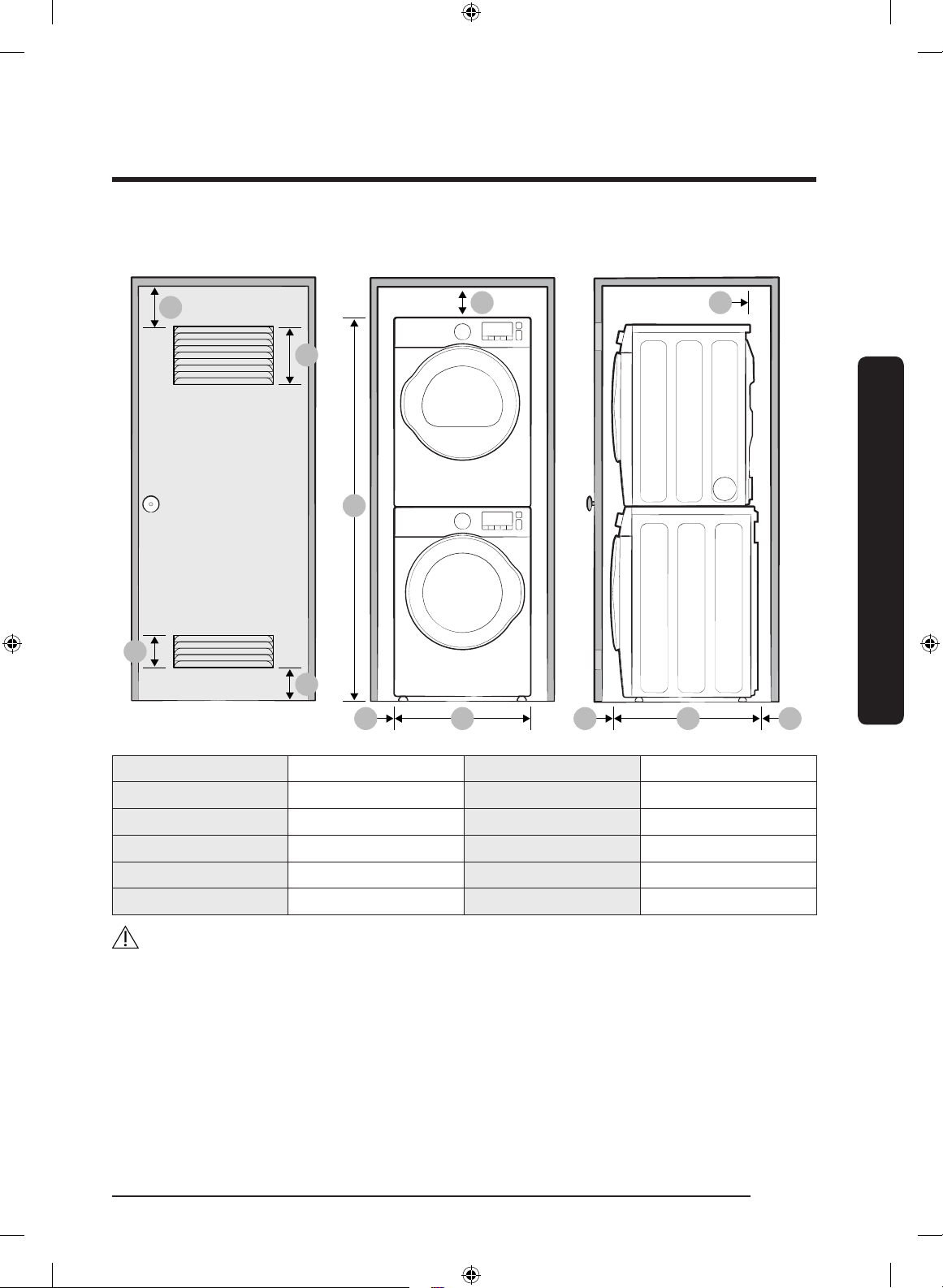

• Page 21 - English - : Installation English 21 Stacked installation Model SKK7A A LG C D B F H J K I E A 3 in 76 mm G 1 in 25 mm B 48 in² 31000 mm² H 27 in 686 mm C 24 in² 15500 mm² I 55 in 140 mm D 3 in 76 mm J 3 in 76 mm E 6 in 152 mm K 34 in 864 mm F 1068 in 1968 mm L 475 in 120 mm WARNING Samsungs washers and dryers can be stacked to maximize usable space The dryer legs need to be removed to stack the washer and dryer You can purchase an optional stacking kit from your Samsung retailer WF6300NDC6803665J00ENindd 21 20171206 51653

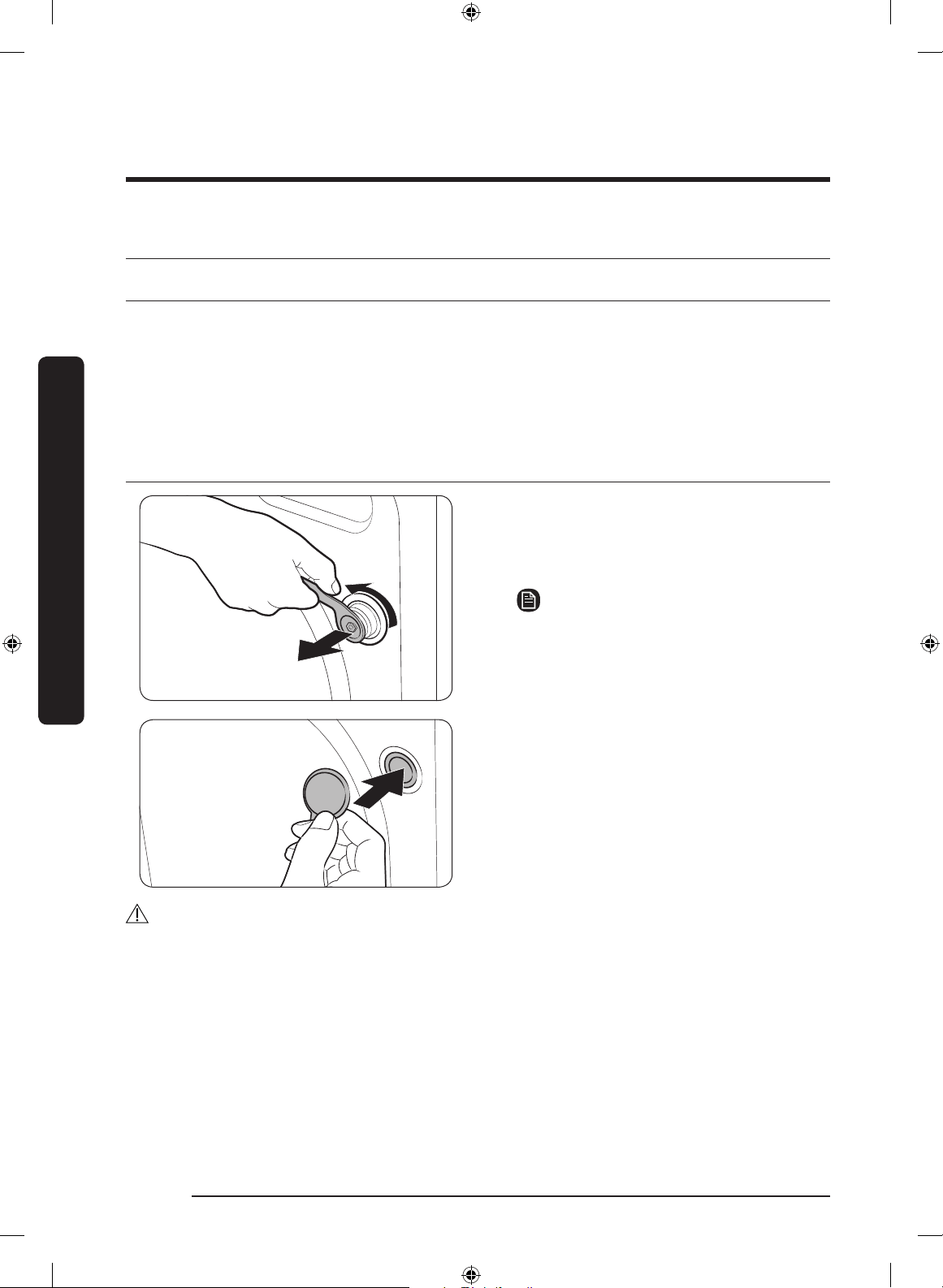

• Page 22 - English - : Installation Installation English22 Stepbystep installation STEP 1 Select a location Location requirements A solid level surface without carpeting or ooring that may obstruct ventilation No direct sunlight Adequate room for ventilation and wiring Ambient temperature always higher than the freezing point 32 F 0 C Away from heat sources STEP 2 Remove the shipping bolts Unpack the product package and remove all shipping bolts 1 Loosen all shipping bolts on the rear of the machine using the spanner NOTE An adjustable wrench or 10 mm open end wrench is required for removing the shipping bolts 2 Fill the holes with the supplied plastic bolt caps Keep the shipping bolts for future use WARNING Packaging materials can be dangerous to children Dispose all packaging material plastic bags polystyrene etc out of childrens reach WF6300NDC6803665J00ENindd 22 20171206 51654

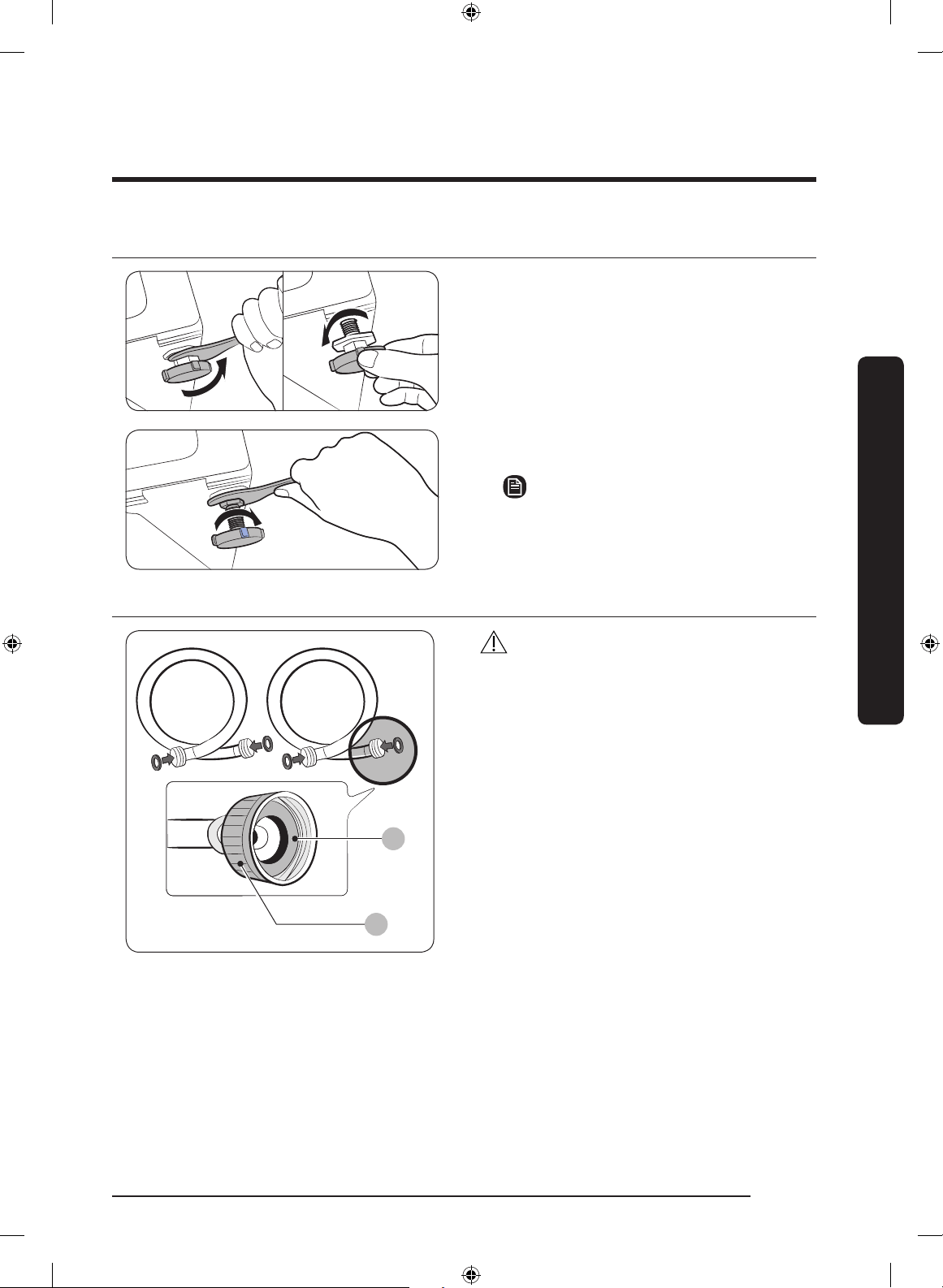

• Page 23 - English - : Installation English 23 STEP 3 Adjust the levelling feet 1 Gently slide the washer into position Excessive force may damage the levelling feet 2 Level the washer by manually adjusting the levelling feet 3 When levelling is complete tighten the nuts using the spanner NOTE An adjustable wrench or 17 mm open end wrench is required to loosen or tighten the leveling feet STEP 4 Connect the water hose B A CAUTION Make sure you use a new water hoses and there are rubber gaskets B inside the couplings A at either end of each water hose A water hose without the gasket may leak If there is a water leak stop using the washer and contact a local Samsung service center A water leak may cause electric shock Do not stretch the water hoses by force If a hose is too short replace the hose with a longer highpressure hose To prevent leaks make sure both water hoses are not bent or kinked A water leak may cause electric shock WF6300NDC6803665J00ENindd 23 20171206 51655

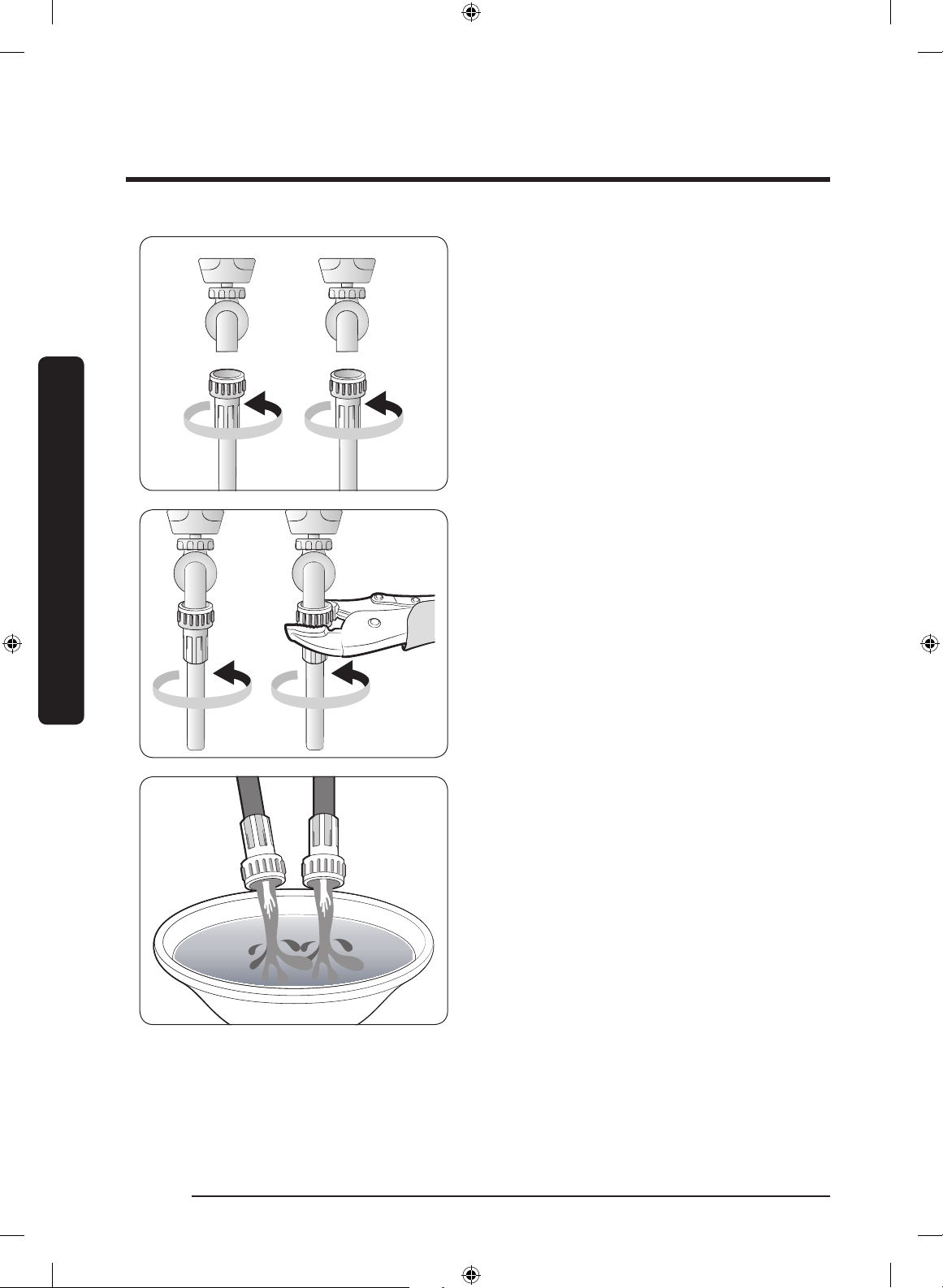

• Page 24 - English - : Installation Installation English24 To connect the water hoses to the faucets 1 Connect one end of each water hose to the Hot or Cold tap 2 Turn the ttings by hand until they are tight and then tighten them by just an additional twothirds of a turn with a pliers Do not overtighten the ttings You can damage them 3 When done pull the water hoses up and down to check if they are properly connected 4 Put the other ends of the hoses into a bucket and open the taps for 10 15 seconds to remove impurities When done close the taps WF6300NDC6803665J00ENindd 24 20171206 51655

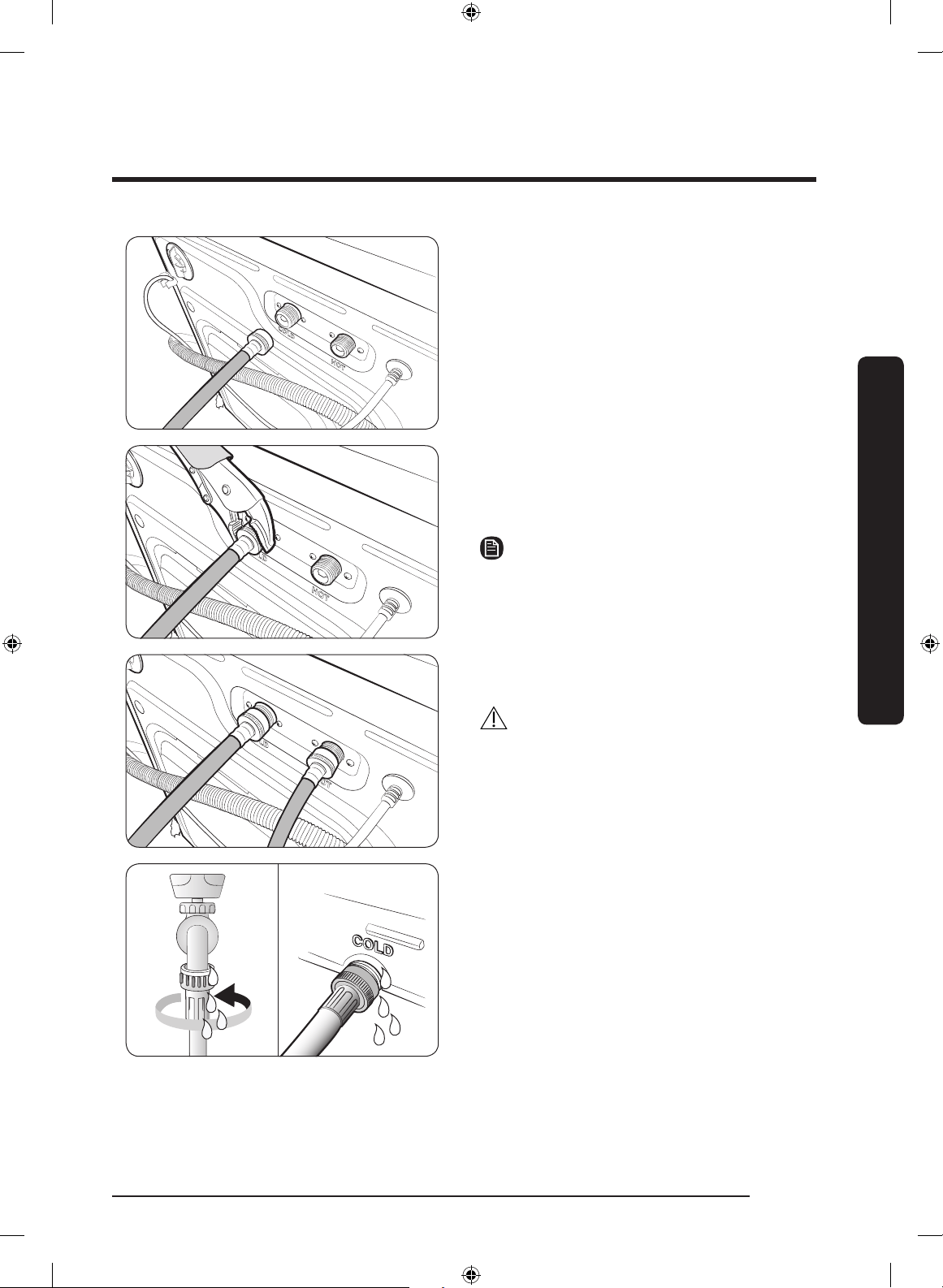

• Page 25 - English - : Installation English 25 5 Connect the other ends of the water hoses to the corresponding inlets on the rear of the machine as specied Make sure the hot water hose is connected to the hot inlet and the cold water hose to the cold inlet 6 Repeat step 2 above on the other ttings Make sure both water hoses are connected properly See the 4C information code for troubleshooting 7 Open both faucets and check if there is a leak NOTE If you do not want to use the hot water hose insert the inlet cap into the hot water inlet In this case you must select Tap Cold for the water temperature All other water indicators turn off CAUTION To prevent water hoses from being bent or kinked make sure there is at least a 6 inch 150 mm space between the washer and the rear wall WF6300NDC6803665J00ENindd 25 20171206 51657

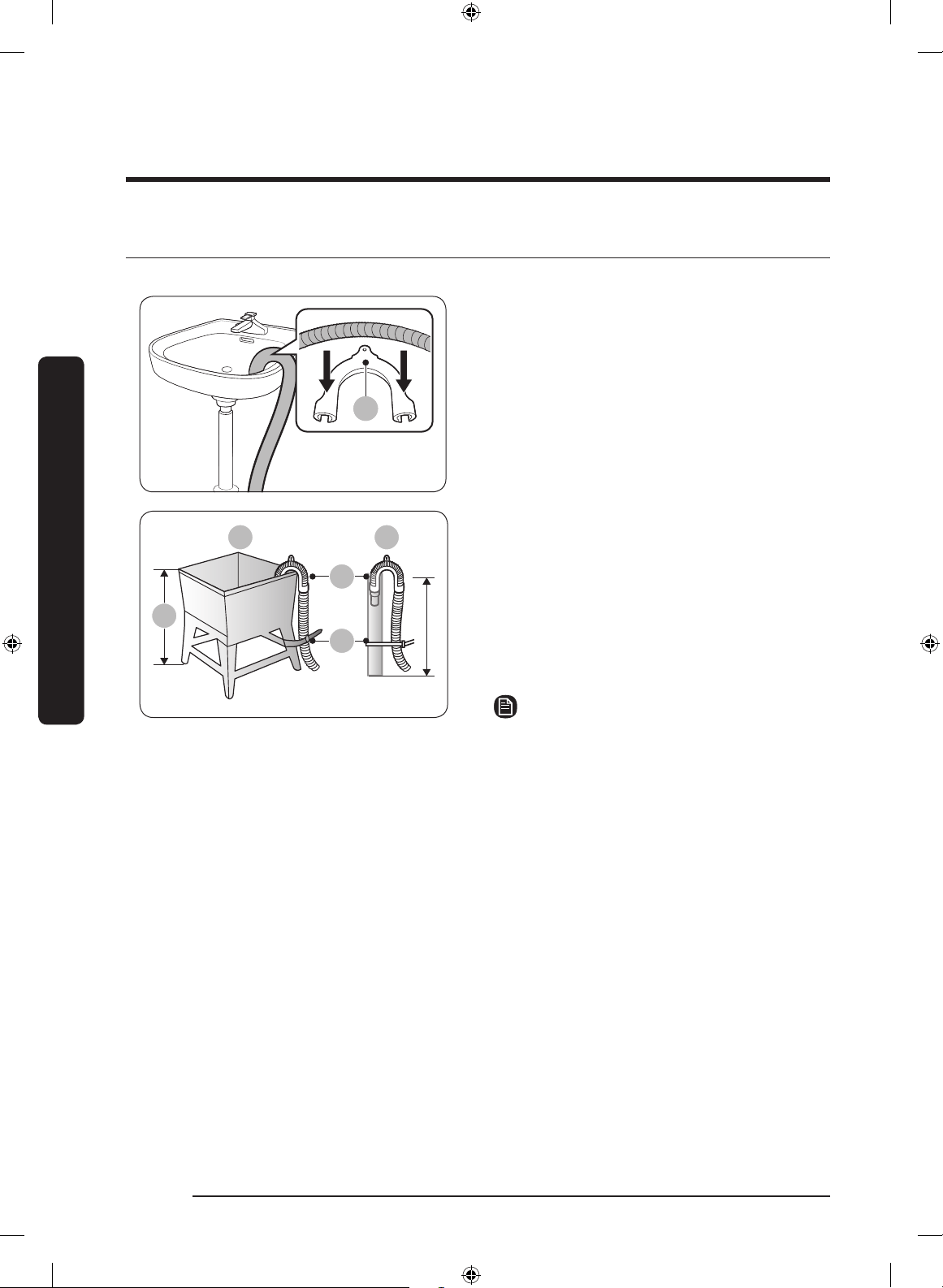

• Page 26 - English - : Installation Installation English26 STEP 5 Position the drain hose The drain hose can be positioned in three ways AA Over the edge of a wash basin The drain hose must be placed at a height of between 24 in 60 cm and 35 in 90 cm from the oor To keep the spout of the drain hose bent use the supplied plastic hose guide A Secure the guide to the wall using a hook to ensure stable drainage B C D E ln a standpipe or laundry tub The laundry tub B or standpipe C must be no shorter than 18 in 46 cm and no higher or longer than 96 inches 245 cm Make sure the drain hose and the standpipe are not airtight NOTE D Hose guide E Tie straps A CAUTION Connect the hose guide A within 6 in 15 cm of the end of the drain hose If the drain hose is extended beyond the end of the hose guide mold or microorganisms could spread inside the washer The drain hose can be installed up to 96 in 245 cm high but the draining capability can be reduced at the maximum height Water remaining in the drain system may cause an odor If the drain hose is installed less than 18 in 46 cm high water can be drained during the process due to a siphon phenomenon If this happens a 4C information code appears on the display WF6300NDC6803665J00ENindd 26 20171206 51657
• Page 27 - English - : Installation English 27 A Wall standpipe drain system The drain hose must be placed into a wall standpipe drain system To keep the end of the drain hose bent use the supplied hose guide A Secure the guide to the wall using a hook to ensure stable drainage STEP 6 Power on Plug the power cord into an AC 120 V 60 Hz approved electrical outlet protected by a fuse or circuit breaker Then press POWER to turn on the washer WF6300NDC6803665J00ENindd 27 20171206 51658
• Page 28 - English - : Before you start English28 Before you start Initial settings Run Calibration recommended Calibration ensures accurate weight detection by the washer Make sure the drum is empty before running Calibration 1 Press POWER to turn on the washer 2 Press and hold Temp and Delay End simultaneously for 3 seconds 3 Press STARTPAUSE to start Calibration The door is locked during the operation The drum keeps rotating clockwise and anticlockwise for several minutes 4 When complete the washer turns off automatically Laundry guidelines STEP 1 Sort Sort the laundry according to these criteria Care Label Sort the laundry into cottons mixed bres synthetics silks wools and rayon Color Separate whites from colors Size Mixing different sized items together in the drum improves the washing performance Sensitivity Wash delicate items separately For pure new woolen items curtains and silk items check the labels on the items NOTE Make sure to check the care label on all clothing and sort clothing accordingly before starting the wash STEP 2 Empty pockets Empty all the pockets of your laundry items Metal objects such as coins pins and buckles on clothing may damage other laundry items as well as the drum Turn clothing with buttons and embroideries inside out If pants or jacket zippers are open while washing the drum may be damaged Zippers should be closed and xed with a string Clothing with long strings may become entangled with other clothes Make sure to tie the strings before starting the wash STEP 3 Use a laundry net Brassieres water washable must be placed in a laundry net Metal parts of the brassieres may break through and tear other laundry items Small light clothing such as socks gloves stockings and handkerchiefs may become caught around the door Place them inside a ne laundry net Do not wash the laundry net by itself without other laundry This may cause abnormal vibrations that could move the washer and result in injury WF6300NDC6803665J00ENindd 28 20171206 51658
• Page 29 - English - : Before you start English 29 STEP 4 Prewash if necessary Select the Prewash option for the selected cycle if the laundry is heavily soiled Do not use the Prewash option if you will be adding detergent manually to the drum STEP 5 Determine the load capacity Do not overload the washer Overloading may cause the washer to wash improperly NOTE When washing bedding or bedding covers the wash time may be lengthened or the spin efciency may be reduced For bedding or bedding covers the recommended maximum spin level is Low or Medium Spin and the load capacity is 30 kg or less CAUTION If the laundry is unbalanced and the UB information code is displayed redistribute the load Unbalanced laundry may reduce the spinning performance STEP 6 Add the correct detergent type The type of detergent depends on the type of fabric cotton synthetic delicate items wool color wash temperature and degree of soiling Always use low suds HE laundry detergent which is designed for automatic washers NOTE Follow the detergent manufacturers recommendations based on the weight of the laundry the degree of soiling and the hardness of the water in your local area If you are not sure about the water hardness contact a local water authority Do not use detergent that tends to harden or solidify This detergent may remain after the rinse cycle blocking the drain outlet Use HE detergent only Your washer is designed to use high efciency HE detergents For the best cleaning results use a high efciency detergent such as Tide HE Wisk HE Cheer HE or Gain HE High efciency detergents contain suds suppressors that reduce or eliminate suds When fewer suds are produced the load tumbles more efciently and cleaning is maximized Brand names are trademarks of their respective manufacturers WARNING Regular detergent is not recommended Use HE detergents only WF6300NDC6803665J00ENindd 29 20171206 51658

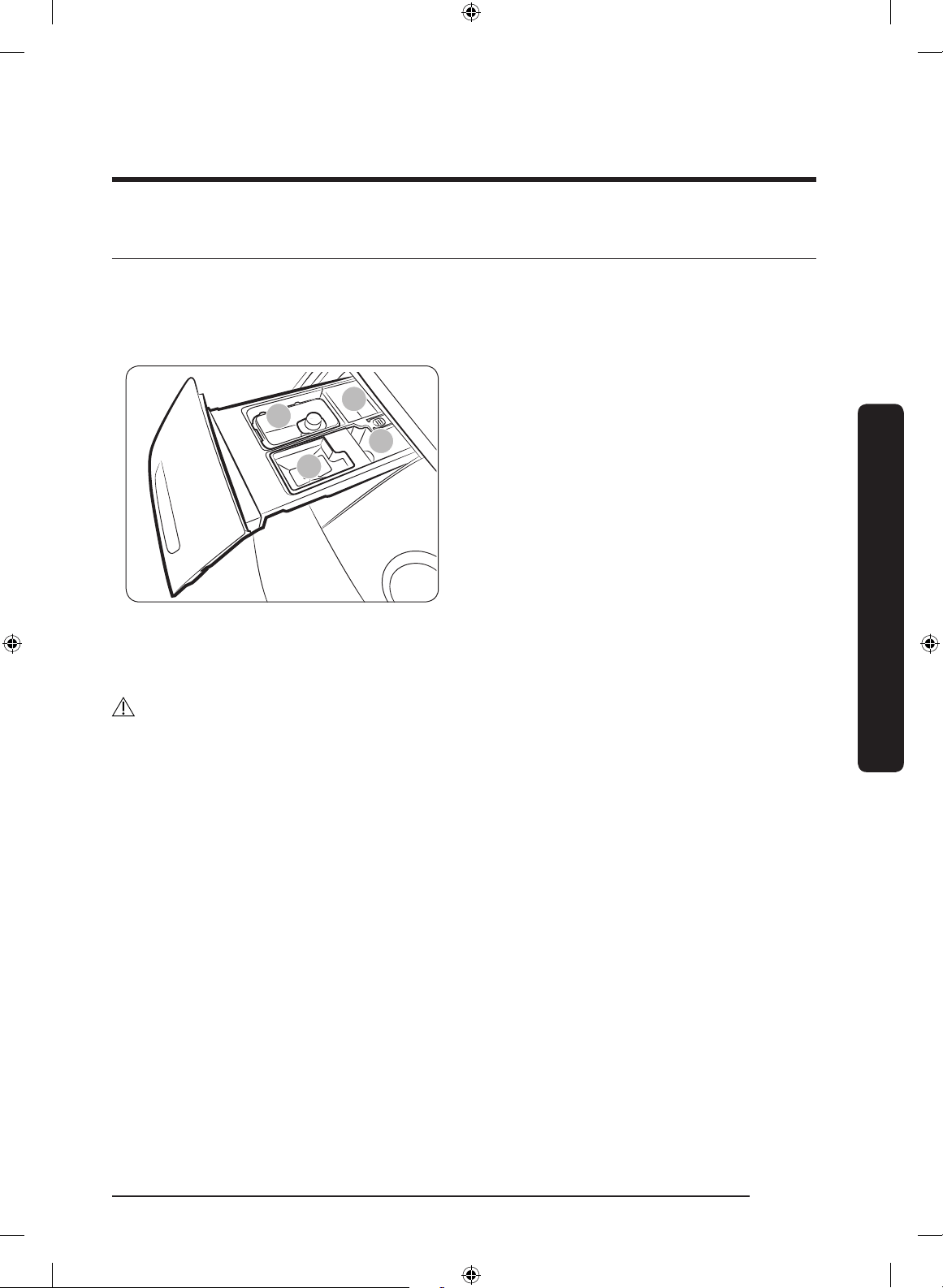

• Page 30 - English - : Before you start Before you start English30 Detergent drawer guidelines The washer provides a fourcompartment dispenser the frontleft compartment for the main wash the rearleft for prewash the frontright for fabric softeners and the rear right for the liquid chlorine bleach C A D B 1 Prewash compartment A Add prewash detergent or starch 2 Mainwash compartment B Add main wash detergent water softener soaking detergent colorsafe nonchlorine bleach andor stain removers 3 Softener compartment C Add fabric softener Do not exceed the max line 4 Bleach compartment D Add liquid chlorine bleach Do not exceed the max line CAUTION Do not open the detergent drawer while the washer is operating Do not use the following types of detergent Tablet or capsule types Ball or net types To prevent the compartment from clogging concentrated or highlyenriched agents fabric softener or detergent must be diluted with water before being added To add washing agents to the detergent drawer A Adding liquid detergent 1 Slide open the detergent drawer 2 Add the liquid laundry detergent to the liquid detergent container in the main wash compartment Make sure that the detergent does not exceed the marked max line A NOTE Do not add powdered laundry detergent or other powdered laundry agents to the liquid laundry container To use powdered detergent see page WF6300NDC6803665J00ENindd 30 20171206 51658
• Page 31 - English - : Before you start English 31 A 3 Add fabric softener to the softener compartment Do not exceed the max line A CAUTION Powdered fabric softener is not recommended Use liquid fabric softener only Concentrated fabric softener must be diluted with water before being added Do not add mainwash detergent to the softener compartment 4 If you want to prewash add prewash detergent to the prewash compartment as instructed or recommended by the manufacturer NOTE If you use a high efciency HE detergent apply 13 of the recommended amount to the prewash compartment and 23 of the recommended amount to the main wash compartment 5 Close the detergent drawer WF6300NDC6803665J00ENindd 31 20171206 51658

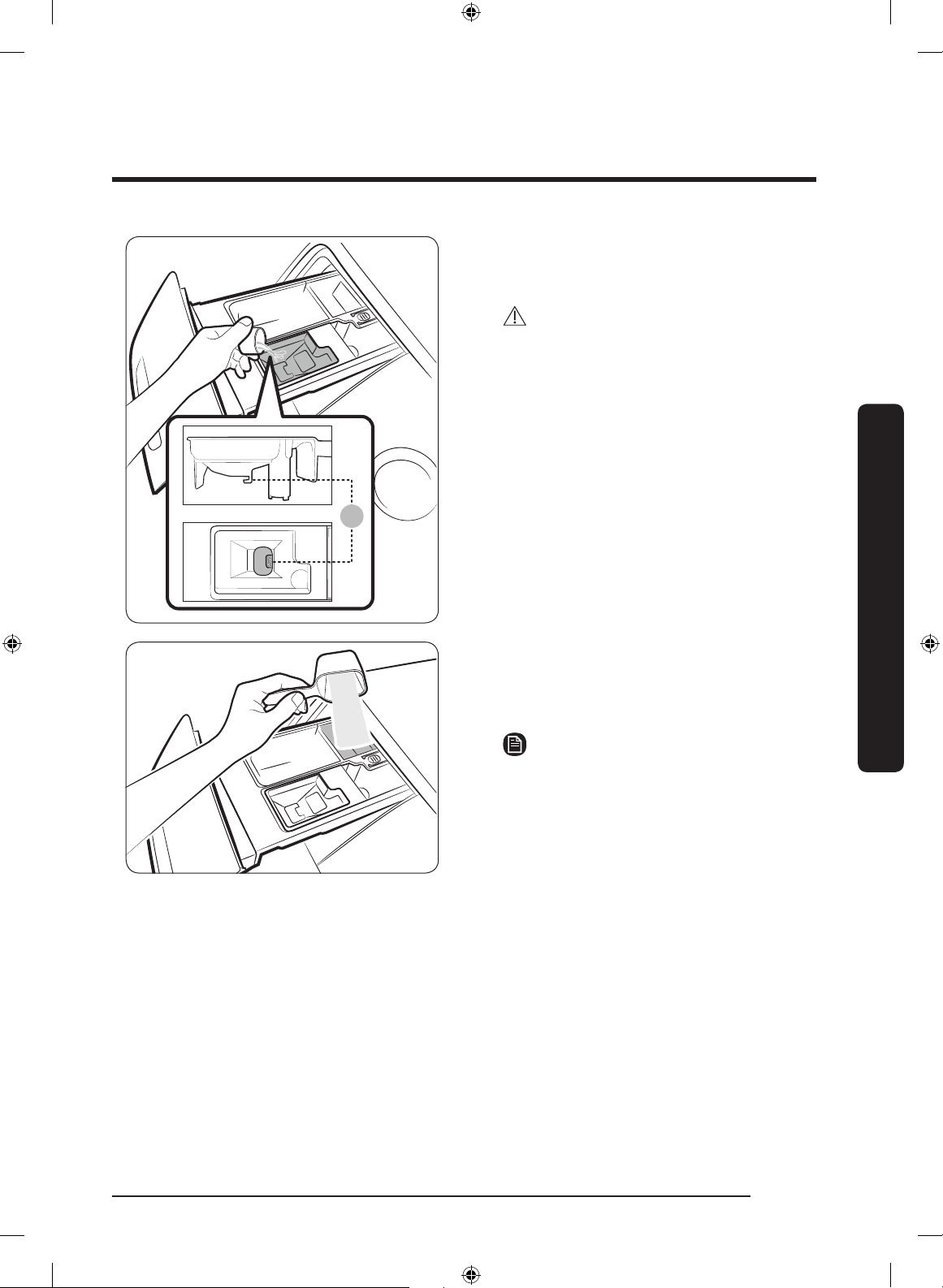

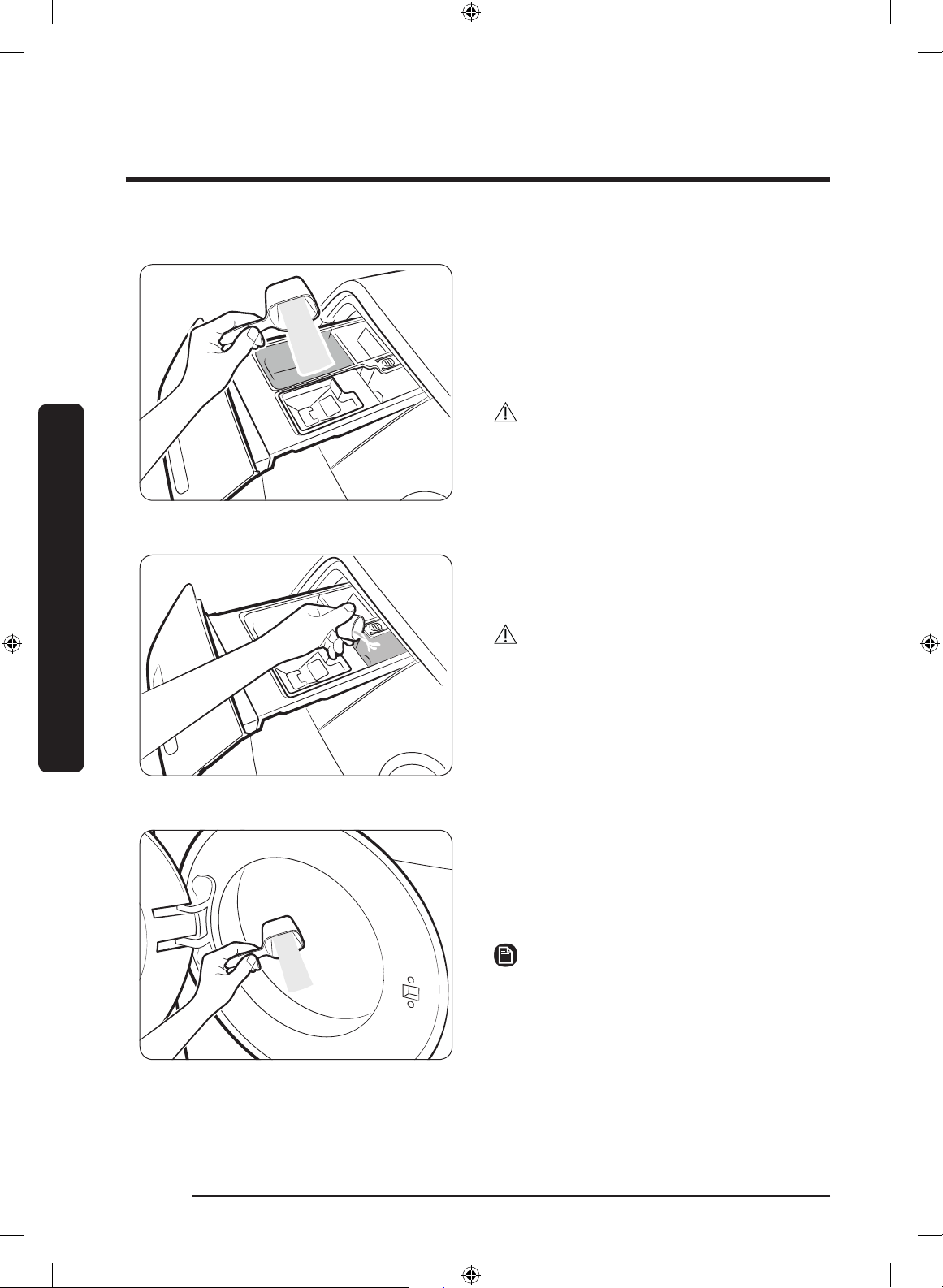

• Page 32 - English - : Before you start Before you start English32 To use powdered detergent First remove the provided liquid detergent container from the main wash compartment Then add powdered detergent to the mainwash compartment according to the detergent manufacturers instructions CAUTION Do not add powdered detergent to the liquid detergent container To use the bleach compartment Add only liquid chlorine bleach to the bleach compartment Do not exceed the max line CAUTION Do not add undiluted liquid chlorine bleach directly to the load or to the drum It is a powerful chemical and can cause fabric damage such as weakening of the bers or color loss if not use properly To use oxygen boosters or colorsafe bleach Oxygen boosters or colorsafe bleach can increase washing performance Make sure to add the oxygen booster or colorsafe bleach after putting the laundry into the drum NOTE To use both powdered detergent and powdered oxygen booster or powdered colorsafe bleach it is more effective to put them together into the drum before loading the laundry WF6300NDC6803665J00ENindd 32 20171206 51659

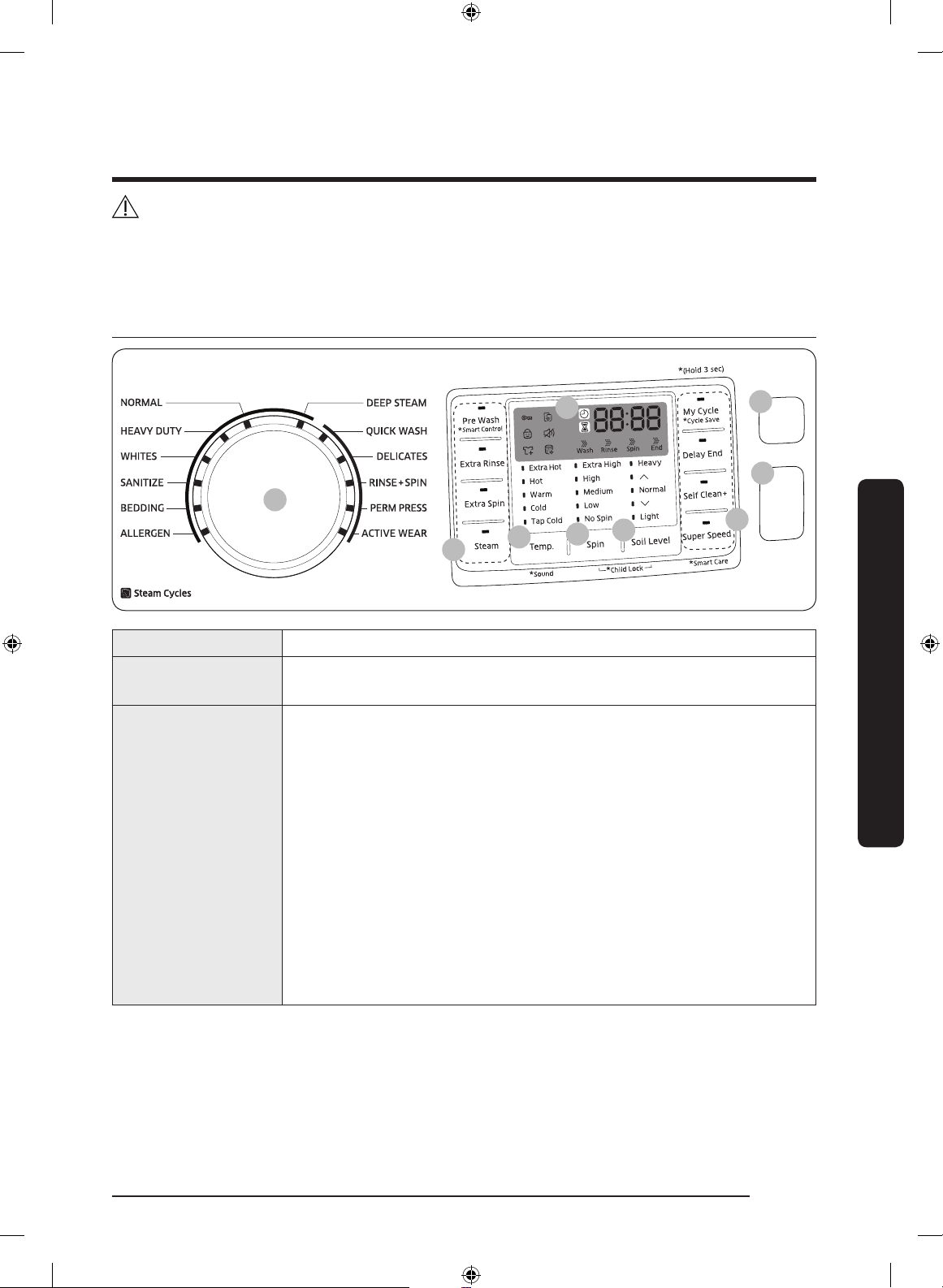

• Page 33 - English - : Operations English 33 Operations WARNING To reduce the risk of re electric shock or injury to persons read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance Feature panel 01 Cycle Selector Turn the dial to select a cycle 02 Display The display shows current cycle information and estimated time remaining or an information code if the washer needs to be checked 03 Temp Press to change the water temperature for the current cycle Extra Hot Heavily soiled colorfast items Only available with NORMAL HEAVY DUTY and SANITIZE Hot Whites and heavily soiled colorfast items Warm Uses warm water only in the nal rinse process This is for energy saving purposes Cold Uses only cold water without driving the heater No warm water is supplied Tap Cold Uses only cold water without driving the heater No warm water is supplied WF6300NDC6803665J00ENindd 33 20171206 51659
• Page 34 - English - : Operations Operations English34 04 Spin Press to change the spinning speed for the current cycle Extra High Extends the spinning process to effectively remove moisture from the load NOTE Extra High uses a stronger spinning process to remove moisture so it is not suitable for wrinklefree or noiron fabrics or overloads High Underwear tshirts jeans and sturdy cottons Medium Jeans wrinklefree or washandwear items and synthetics Low Delicate items that requires a lower spinning speed No Spin The drum does not spin after the nal drain process Rinse Hold No lamp turns on The nal rinse process is suspended so that the laundry remains in the water To unload the laundry run a drain or spin process NOTE Spin Only This cycle is dedicated to the spinning process Press and hold Spin for 3 seconds With the cycle time on the display press Spin repeatedly until a desired spinning speed is selected Then press STARTPAUSE to start the cycle This cycle is available only when no specic cycle is selected 05 Soil Level Press the button to select the soil levelwashing time Heavy For heavily soiled loads Normal For moderately soiled loads This setting is best for most loads Light For lightly soiled loads 06 Options Press the buttons to select different cycle options 07 STARTPAUSE Press to Start or Pause operation 08 POWER Press to turn the washer on or off WF6300NDC6803665J00ENindd 34 20171206 51700

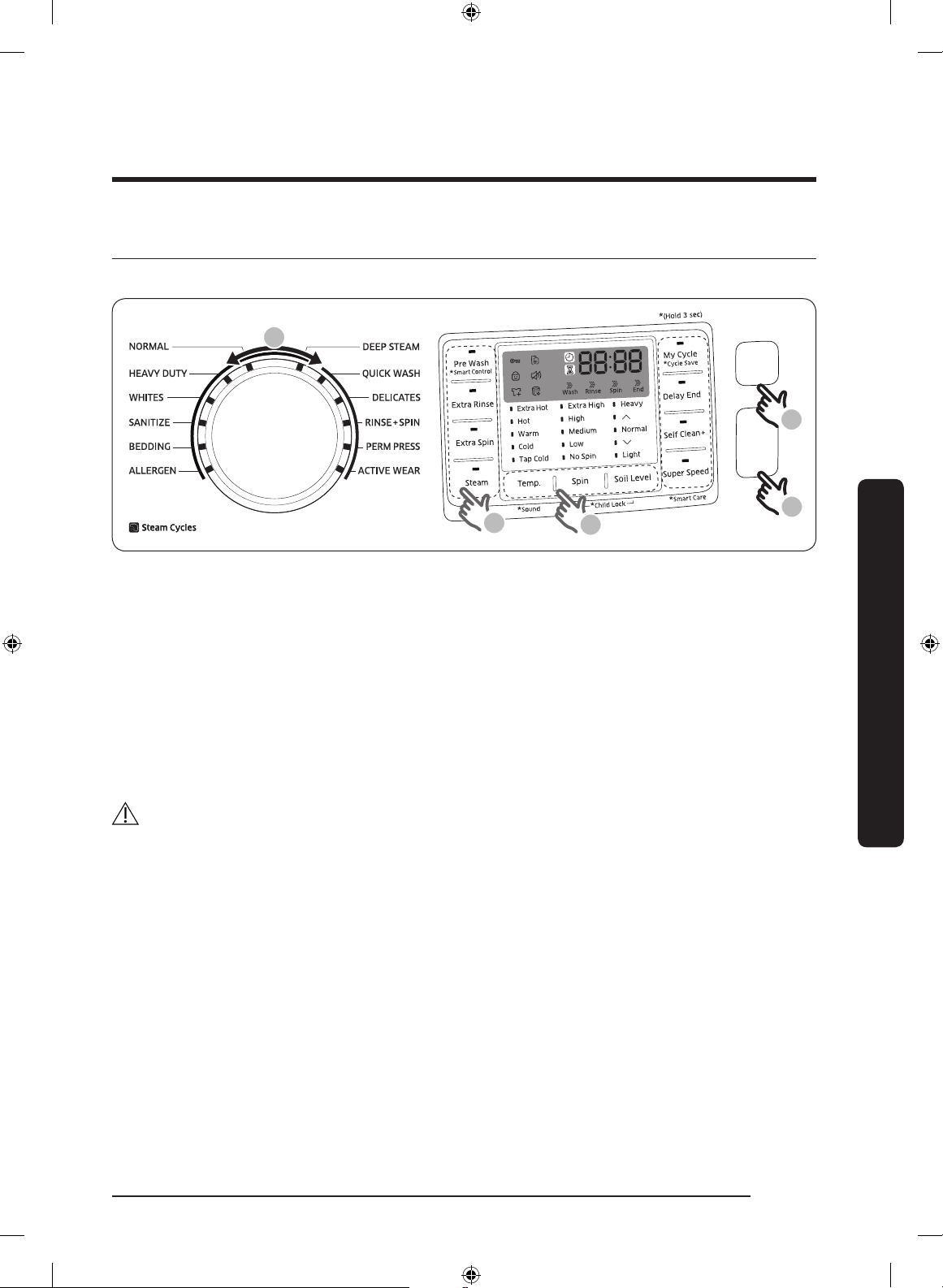

• Page 35 - English - : Operations English 35 Simple steps to start WF45N6300A 1 Press POWER to turn on the washer 2 Turn the Cycle Selector to select a cycle 3 Change the cycle settings Temp Spin and Soil Level as necessary 4 Select desired options as necessary 5 Press STARTPAUSE To change the cycle during operation 1 Press STARTPAUSE to stop operation 2 Select a different cycle 3 Press STARTPAUSE again to start the new cycle WARNING Do not place anything on top of your washer while it is running WF6300NDC6803665J00ENindd 35 20171206 51700
• Page 36 - English - : Operations Operations English36 Cycle overview Standard cycles Cycle Description QUICK WASH For lightly soiled items that you want to nish washing quickly DELICATES For sheer fabrics bras lingerie silk and other handwash only fabrics For best performance use liquid detergent RINSESPIN Features an additional rinse process after fabric softener is applied to the laundry PERM PRESS For washandwear synthetic fabrics and lightly to normally soiled items ACTIVE WEAR For exercise wear such as sports jerseys training pants shirtstops and other performance clothing This cycle provides effective soil removal with controlled drum rotation for special fabric care WF6300NDC6803665J00ENindd 36 20171206 51700
• Page 37 - English - : Operations English 37 Steam cycles Cycle Description DEEP STEAM For heavily soiled colorfast items This cycle uses steam and a high water temperature to effectively remove stains NORMAL For cottons bed linens table linens underwear towels or shirts The washing time and the number of rinses are automatically adjusted according to the load HEAVY DUTY For sturdy colorfast fabrics and heavily soiled items WHITES For white items with or without bleach SANITIZE For heavily soiled colorfast items This cycle heats the water to 150 F to eliminate bacteria NOTE If you press STARTPAUSE during the heating portion of SANITIZE cycle your washer door will remain locked for your safety BEDDING For bulky items such as comforters blankets and sheets For best results wash only 1 type of bedding For bulky items use liquid detergent and do not roll the items in the drum because they might get stuck in the drum ALLERGEN Use to remove dust mites pet dander or other allergic substances WF6300NDC6803665J00ENindd 37 20171206 51700
• Page 38 - English - : Operations Operations English38 Options Option Description Pre Wash This will add a preliminary washing process before the main wash cycle a Add detergent to the prewash section of the detergent compartment b Turn the Pre Wash option on The washer lls with cold water and detergent tumbles then drains and advances to the selected wash cycle NOTE This option is not available with some cycles Extra Rinse Adds an additional rinse at the end of the cycle to remove laundry additives more thoroughly Extra Spin Adds additional spin time to remove more water from loads Steam Press this button to use the Steam function Steam is available with the NORMAL HEAVY DUTY BEDDING SANITIZE DEEP STEAM and ALLERGEN For heavily soiled colorfast items the Steam function improves stain treatment and uses less water My Cycle Create your own washing cycle with preferred settings and use the cycle with a single button push Delay End Set the washer to nish your wash automatically at a later time Choose a delay of between 1 to 24 hours in 1 hour increments Self Clean Cleans the drum by removing dirt and bacteria from the drum Perform once every 40 washes with no detergent or bleach added Make sure the drum is empty Do not add any drum cleaning agents Super Speed Press this button if you need to shorten the washing time applicable for NORMAL DEEP STEAM HEAVY DUTY BEDDING or ALLERGEN The shortened time may differ depending on the selected cycleloadoptions Smart Control After connecting the lower washer to your home network using the Samsung Smart Home app you can control the washer remotely When started the Smart Control indicator blinks and the front door locks The washer enters waiting mode and waits for remote commands For more information visit the Samsung Smart Home app page WF6300NDC6803665J00ENindd 38 20171206 51700
• Page 39 - English - : Operations English 39 Delay End You can set the washer to nish your wash automatically at a later time by choosing a delay of between 1 to 24 hours in 1 hour increments The hour displayed indicates the time the wash will nish 1 Select a cycle Then change the cycle settings if necessary 2 Press Delay End repeatedly until a desired end time is set 3 Press STARTPAUSE The indicator turns on with the clock running 4 To cancel Delay End restart the washer by pressing POWER Reallife case You want to nish a twohour cycle 3 hours from now To do this you add the Delay End option to the current cycle with a 3hour setting and then press STARTPAUSE at 200 pm The washer starts operating at 300 pm and ends at 500 pm Provided below is the time line for this example 200 pm Set the Delay End to 3 hours 300 pm Start 500 pm End Steam With the Steam cycle the washer senses the weight of the load and controls the steam effect according to the load size This improves washing performance Available Steam cycles are NORMAL HEAVY DUTY BEDDING SANITIZE ALLERGEN and DEEP STEAM 1 Turn the Cycle Selector to select a Steam cycle 2 Press Steam 3 Add detergent and fabric softener as instructed 4 Press STARTPAUSE to start the cycle NOTE Steam may not be visible or present during the cycle This is normal Unlike other Steam cycles you dont need to press Steam for DEEP STEAM as the Steam function turns on automatically WF6300NDC6803665J00ENindd 39 20171206 51701
• Page 40 - English - : Operations Operations English40 Child Lock To prevent accidents by children or infants Child Lock locks all buttons except for the Power button To activate Child Lock Press and hold both Soil Level and Spin for 3 seconds Then press STARTPAUSE to activate The door locks and the Child Lock indicator turns on To deactivate Child Lock temporarily You can deactivate Child Lock temporarily for 1 minute To do this press and hold both Soil Level and Spin for 3 seconds The door is unlocked for 1 minute and the Child Lock indicator blinks NOTE If you open the door 1 minute after deactivating Child Lock an alarm sounds for up to 2 minutes If you close the door within 2 minutes the door locks and Child Lock is reactivated If you do not close the door or the door is not properly closed the alarm keeps sounding for 2 minutes To add laundry after activating Child Lock deactivate Child Lock or restart the washer To cancel Child Lock Press and hold both Soil Level and Spin for 6 seconds The door unlocks and the Child Lock indicator turns off WF6300NDC6803665J00ENindd 40 20171206 51701
• Page 41 - English - : Operations English 41 My Cycle Create your own washing cycle with preferred settings and use the cycle with the push of a single button To create your own cycle 1 Turn the Cycle Selector to select a cycle 2 Change the cycle settings Temp Spin and Soil Level as necessary 3 Add an option to your preference For more information see the Options section 4 Press and hold My Cycle for 3 seconds to save your settings Applicable indicators blink for 3 seconds Once you save the cycle you can use it by pressing My Cycle NOTE If you press and release My Cycle within 3 seconds the previously saved cycle and options appear Sound Mute or unmute the sound To mute or unmute the sound press and hold the Temp button for 3 seconds When the sound is muted the indicator turns on ATC Auto Temperature Control ATC enables the washer to control water temperatures in each washing cycle using the internal thermistor It is designed to maintain certain washing temperatures for best results NOTE If you select NORMAL or HEAVY DUTY you may notice the washer supplying cold water This is normal because the machine is designed to reduce power consumption In these cycles the Hot temperature is similar to bathwater temperatures and the Warm temperature to comfortable swimming pool temperatures To wash clothes at a specic temperature you must choose a different cycle rst WF6300NDC6803665J00ENindd 41 20171206 51701
• Page 42 - English - : Operations Operations English42 This product is a smart washer that supports the Samsung Smart Home service The amount of time the EZ setup function for connecting the washer to your network can take to complete the network connection varies depending on your network conditions Samsung Smart Home Installation Visit the Google Play Store Galaxy Apps or Apple App Store and search for Samsung Smart Home Download and install the Samsung Smart Home app provided by Samsung Electronics to your smart device NOTE The Samsung Smart Home app is designed for Android 40 ICS or higher or iOS 80 or higher and is optimized for Samsung smartphones Galaxy S and Galaxy Note series On other devices some functions may operate differently For improved performance the Samsung Smart Home app is subject to change without notice Registering a Samsung account To use the Samsung Smart Home app you must rst sign in to your Samsung account If you dont have a Samsung account select Register in the app and then follow the on screen instructions to create an account NOTE If you have a registered Samsung account log into your Samsung account If you have a Samsung smartphone you can go to the Settings menu on your smartphone select Accounts and then sign in to your Samsung account This will allow you to log in without additional authentication For thirdparty smart phones the app account must be the same as the EZ Setup account WF6300NDC6803665J00ENindd 42 20171206 51702
• Page 43 - English - : Operations English 43 Getting started Using Samsung Smart Home you can control your washer from your smart device remotely For improved performance the content and design of the app is subject to change without notice 1 Launch the Samsung Smart Home App on your smartphone 2 If Washer is not listed tap Add Device gt Select other device gt Washer on the app screen 3 Press and hold Smart Control on your washers control panel for more than 5 seconds until the AP message appears on the display 4 When the device registration is complete turn on the Smart Control function on your washer and control your washer remotely WF6300NDC6803665J00ENindd 43 20171206 51702
• Page 44 - English - : Operations Operations English44 Open Source License Notice The software included in this product contains open source software You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailtoossrequestsamsungcom It is also possible to obtain the complete corresponding source code in a physical medium such as a CDROM a minimal charge will be required The following URL httpopensourcesamsungcomopensourceSimpleConnectTPseq0 leads to the download page of the source code made available and open source license information as related to this product This offer is valid to anyone in receipt of this information WF6300NDC6803665J00ENindd 44 20171206 51703
• Page 45 - English - : Maintenance English 45 Maintenance Keep the washer clean to prevent its performance from deteriorating and to preserve it throughout its life cycle WARNING Control board heat sink motor inlet valve and pump are intentionally not grounded and may present a risk of electric shock only during servicing Self Clean Perform this cycle regularly to clean the drum and to remove bacteria from it 1 Make sure the drum is empty 2 Press POWER to turn on the washer 3 Press Self Clean 4 Press STARTPAUSE NOTE The water temperature for Self Clean is set to HOT which cannot be changed CAUTION Do not use any cleaning agents Do not add detergent or bleach Chemical residue in the drum degrades the cleaning performance Self Clean reminder The Self Clean reminder appears on the main screen once every 40 washes It is advisable to perform the Self Clean regularly If you do not run the cycle within 1 hour when the Self Clean reminder appears the reminder turns off automatically When you rst see this reminder you can ignore the reminder for 6 consecutive washes From the 7 th wash the reminder no longer appears However it appears again on the second 40 th wash WF6300NDC6803665J00ENindd 45 20171206 51703
• Page 46 - English - : Maintenance Maintenance English46 Smart Care The Smart Care function helps you diagnose and troubleshoot your washer if it has a problem To enable this function you must rst download the Samsung Smart Washer app from the Play Store or the Apple Store and install it on a mobile device that has a camera The Smart Washer Smart Care function has been optimized for Galaxy and iPhone series devices It is not supported by some models As the washer operates it runs its selfdiagnosis function in the background If it senses a problem it displays an information code on the display which you can scan using the apps Smart Care function The Smart Care function will then display detailed information about the code 1 To enable the Smart Care function Press and hold Super Speed for 3 seconds to enter the Smart Care mode 2 Run the Samsung Smart Washer app on your mobile device and tap Smart Care 3 Hold the mobile device so that the mobile device and the washers display panel face each other The app will recognize the information code automatically 4 When the information code is recognized correctly the app provides detailed information about the symptom and recommends further action NOTE The function name Smart Care may differ depending on your language If the washer display is reecting light the app may fail to recognize the information code If the app fails to recognize the Smart Care code a number of times consecutively enter the information code manually onto the app screen WF6300NDC6803665J00ENindd 46 20171206 51703

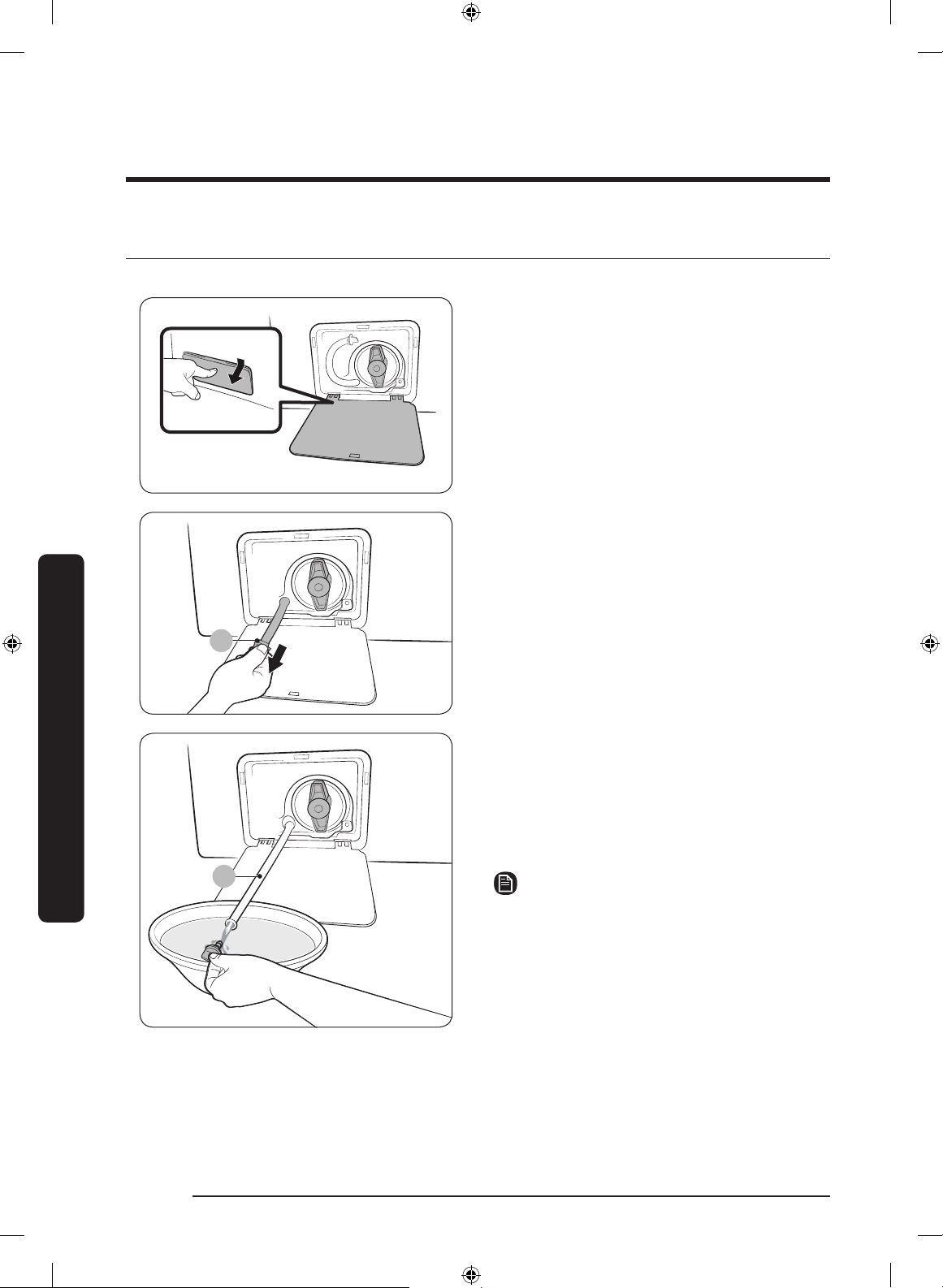

• Page 47 - English - : Maintenance English 47 Emergency drain In case of a power failure drain the water inside the drum before taking out the laundry 1 Power off the washer and then unplug it from the electrical outlet 2 Gently press the top area of the lter cover to open A 3 Put an empty spacious container around the cover and stretch the emergency drain tube to the container while holding the tube cap A B 4 Open the tube cap and let water in the Emergency drain tube B ow into the container 5 When done close the tube cap and reinsert the tube Then close the lter cover NOTE Use a spacious container because the water in the drum may be more than expected WF6300NDC6803665J00ENindd 47 20171206 51704
• Page 48 - English - : Maintenance Maintenance English48 Cleaning Surface of the washer Use a soft cloth with a nonabrasive household detergent Do not spray water onto the washer Mesh lter Clean the mesh lter of the water hose once or twice a year 1 Turn off the washer and then unplug the power cord 2 Close the faucet 3 Loosen and disconnect the water hose from the back of the washer Cover the hose with a cloth to prevent water from gushing out 4 Use pliers to pull out the mesh lter from the inlet valve 5 Submerge the mesh lter deeply in water so that the threaded connector is also submerged 6 Dry the mesh lter completely in a shaded area 7 Reinsert the mesh lter into the inlet valve and reconnect the water hose to the inlet valve 8 Open the faucet NOTE If the mesh lter is clogged the 4C information code appears on the the washers display screen WF6300NDC6803665J00ENindd 48 20171206 51705
• Page 49 - English - : Maintenance English 49 Pump lter It is advisable to clean the pump lter 5 or 6 times a year to prevent its clogging A clogged pump lter may reduce the bubble effect A 1 Turn off the washer and unplug the power cord 2 Drain the remaining water inside the drum See the Emergency drain section on page 47 3 Gently press the top area of the lter cover to open 4 Turn the pump lter knob A to the left and drain off the remaining water 5 Clean the pump lter using a soft brush Make sure the drain pump propeller inside the lter is not clogged 6 Reinsert the pump lter and then turn the lter knob to the right 7 Close the lter cover NOTE Some pump lters feature a safety knob that is designed to prevent children from accidentally opening the lter compartment To open the safety knob of the pump lter push in and turn it counterclockwise The spring mechanism of the safety knob helps open the lter To close the safety knob of the pump lter turn it clockwise The spring makes a rattling sound which is normal NOTE If the pump lter is clogged the 5C information code appears on the washers display screen WF6300NDC6803665J00ENindd 49 20171206 51706
• Page 50 - English - : Maintenance Maintenance English50 CAUTION Make sure the lter knob is closed properly after cleaning the lter Otherwise this may cause a leak Make sure the lter is inserted properly after cleaning it Otherwise this may cause an operational failure or a leak Detergent drawer A 1 While holding down the release lever A inside the drawer slide open the drawer and then remove the drawer from the washer 2 Remove the liquid detergent container from the drawer 3 Clean the drawer components in owing water using a soft brush NOTE Other parts of the drawer can also be removed They can fall out if you hold the drawer upside down 4 Clean the drawer recess using a soft brush 5 Reinsert the liquid detergent container into the detergent drawer 6 Slide the drawer into the drawer recess and then push it inward until it is fully closed NOTE To remove remaining detergent run a RINSESPIN cycle with the drum empty WF6300NDC6803665J00ENindd 50 20171206 51707
