Washing Machine
User manual
WW90*G3M0***/WW80*G3M0***/WW70*G3M0***
Untitled-1 1Untitled-1 1 2025-02-13 11:17:412025-02-13 11:17:41
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Critical installation warnings 7
Installation cautions 8
Critical usage warnings 9
Usage cautions 10
Critical cleaning warnings 13
Instructions about the WEEE 14
Ecodesign 14
Installation 15
What’s included 15
Installation requirements 17
Step-by-step installation 19
Before you start 29
Test run 29
Laundry guidelines 29
Detergent recommendation 32
Detergent drawer guidelines 33
Operations 36
Control panel 36
Simple steps to start 38
Cycle overview 39
Settings 41
Untitled-1 2Untitled-1 2 2025-02-13 11:17:412025-02-13 11:17:41
English 3
Maintenance 42
DRUM CLEAN 42
Emergency drain 43
Cleaning 44
Recovery from freezing 47
Care against an extended time of disuse 47
Troubleshooting 48
Checkpoints 48
Information codes 52
Specifications 54
Fabric care chart 54
Protecting the environment 56
Spare parts guarantee 56
Specification sheet 57
EPREL information 58
Indicative information (According to EU 2019/2023) 58
Contact information 59
QUESTIONS OR COMMENTS? 59
Untitled-1 3Untitled-1 3 2025-02-13 11:17:412025-02-13 11:17:41
English4
Safety information
• Congratulations on your new Samsung washing machine. This manual contains important information
on the installation, use, and care of your appliance. Read this manual thoroughly before using the
washing machine to ensure that you know how to safely and efficiently operate the features and
functions that your new washing machine offers.
• To check the product’s model name, see the label enclosed with the product or attached to the product.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance. Please store the manual in a safe location close
to the appliance for future reference. Use this appliance only for its intended purpose as described in this
instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution and care when installing,
maintaining and operating your washing machine.
Because the following operating instructions cover various models, the characteristics of your washing
machine may differ slightly from those described in this manual and not all warning signs may be
applicable. If you have any questions or concerns, contact your nearest service centre or find help and
information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
Read the instructions
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this
appliance, familiarize yourself with its operation and exercise care when using it.
Untitled-1 4Untitled-1 4 2025-02-13 11:17:422025-02-13 11:17:42
English 5
Important safety precautions
To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
1. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
3. Children should be supervised to ensure that they do not play with the
appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
5. CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
6. The new hose-sets supplied with the appliance are to be used and that old hose-
sets should not be reused.
7. This appliance is intended to be used in household only and it is not intended to
be used such as:
‒ staff kitchen areas in shops, offices and other working environments;
‒ farm houses;
‒ by clients in hotels, motels and other residential type environments;
‒ bed and breakfast type environments;
‒ areas for communal use in blocks of flats or in launderettes.
Untitled-1 5Untitled-1 5 2025-02-13 11:17:422025-02-13 11:17:42
Safety information
English6
8. For appliances with ventilation openings in the base, that a carpet must not
obstruct the openings;
9. For use in Europe: Children of less than 3 years should be kept away unless
continuously supervised.
NOTE
From the number 10 through the end of the list are only applicable for models with
a drying function.
10. The tumble dryer is not to be used if industrial chemicals have been used for
cleaning.
11. The lint trap has to be cleaned frequently, if applicable.
12. Lint must not to be allowed to accumulate around the tumble dryer. (not
applicable for appliances intended to be vented to the exterior of the building)
13. Adequate ventilation has to be provided to avoid the back flow of gases into the
room from appliances burning other fuels, including open fires.
14. Do not dry unwashed items in the tumble dryer.
15. Items that have been soiled with substances such as cooking oil, acetone,
alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of detergent before being
dried in the tumble dryer.
16. Items such as foam rubber (latex foam), shower caps, waterproof textiles,
rubber backed articles and clothes or pillows fitted with foam rubber pads
should not be dried in the tumble dryer.
17. Fabric softeners, or similar products, should be used as specified by the fabric
softener instructions.
18. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items will
not be damaged.
19. Remove all objects from pockets such as lighters and matches.
Untitled-1 6Untitled-1 6 2025-02-13 11:17:422025-02-13 11:17:42
English 7
20. WARNING: Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat is
dissipated.
21. WARNING: The appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly switched on
and off by a utility.
22. Exhaust air must not be discharged into a flue which is used for exhausting
fumes from appliances burning gas or other fuels.
23. The appliance must not be installed behind a lockable door, a sliding door or a
door with a hinge on the opposite side to that of the tumble dryer, in such a way
that a full opening of the tumble dryer door is restricted.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualified technician or service company.
• Failure to do so may result in electric shock, fire, an explosion, problems with the appliance, or injury.
The appliance is heavy, therefore take care when lifting it.
Plug the power cord firmly into a wall socket that meets local electrical specifications. Use the socket for
this appliance only, and do not use an extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power cord may result
in electric shock or fire.
• Ensure that the power voltage, frequency, and current are the same as those of the product
specifications. Failure to do so may result in electric shock or fire.
Remove all foreign substances such as dust or water from the power plug terminals and contact points
using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.
Plug the power plug into the wall socket so that the cord is running towards the floor.
• If you plug the power plug into the socket in the opposite direction, the electric wires within the cable
may be damaged and this may result in electric shock or fire.
Keep all packaging materials out of the reach of children as these may be dangerous.
• If a child places a bag over its head, it may suffocate.
When the appliance, power plug or power cord is damaged, contact your nearest service centre.
This appliance must be properly grounded.
Untitled-1 7Untitled-1 7 2025-02-13 11:17:422025-02-13 11:17:42
Safety information
English8
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, fire, an explosion, or problems with the appliance.
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in
accordance with local and national regulations.
Do not install this appliance near a heater or any inflammable material.
Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or
water (rain drops).
Do not install this appliance in a location exposed to low temperatures.
• Frost may cause the tubes to burst.
Do not install this appliance in a location where gas may leak.
• This may result in electric shock or fire.
Do not use an electric transformer.
• This may result in electric shock or fire.
Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power
cord between objects, or push the power cord into the space behind the appliance.
• This may result in electric shock or fire.
Do not pull the power cord when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or fire.
This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are
accessible.
Following the repair by a non-authorized service provider, self-repair or non-professional repair of the
product, Samsung is not liable for any damage to the product, any injury or any other product safety issue
caused by any attempt to repair the product which does not carefully follow these repair and maintenance
instructions. Any damage to the product caused by an attempt to repair the product by any person other
than a Samsung certified service provider will not be covered by the warranty.
Installation cautions
CAUTION
This appliance should be positioned in such a way that the power plug is easily accessible.
• Failure to do so may result in electric shock or fire due to electric leakage.
Untitled-1 8Untitled-1 8 2025-02-13 11:17:422025-02-13 11:17:42
English 9
Install your appliance on a solid, level floor that can support its weight.
• Failure to do so may result in abnormal vibrations, movement, noise, or problems with the appliance.
Critical usage warnings
WARNING
If the appliance is flooded, turn off the water & power supplies immediately and contact your nearest
service centre.
• Do not touch the power plug with wet hands.
• Failure to do so may result in electric shock.
If the appliance generates a strange noise, a burning smell, or smoke, unplug the power cord immediately
and contact your nearest service centre.
• Failure to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the
power plug. Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
Remove the washing machine door lever before disposing the appliance.
• If trapped inside the appliance, children may suffocate to death.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washing machine
before using it.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other
inflammable or explosive substances.
• This may result in electric shock, fire, or an explosion.
Do not open the washing machine door by force while it is operating (high-temperature washing/drying/
spinning).
• Water flowing out of the washing machine may result in burns or cause the floor to be slippery. This may
result in injury.
• Opening the door by force may result in damage to the appliance or injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not turn the appliance off by unplugging the power cord while an operation is in progress.
• Plugging the power cord into the wall socket again may cause a spark and result in electric shock or fire.
Do not let children climb in or onto the appliance.
• This may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washing machine while it is operating.
• This may result in injury.
Untitled-1 9Untitled-1 9 2025-02-13 11:17:422025-02-13 11:17:42
Safety information
English10
Do not unplug the appliance by pulling the power cord. Always grip the plug firmly and pull it straight out of
the outlet.
• Damage to the power cord may cause a short-circuit, fire and/or electric shock.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use a fuse (such as copper, steel wire, etc.) other than a standard fuse.
• When the appliance needs to be repaired or reinstalled, contact your nearest service centre.
• Failure to do so may result in electric shock, fire, problems with the appliance, or injury.
If the water supply hose comes loose from the water tap and floods the appliance, unplug the power cord.
• Failure to do so may result in electric shock or fire.
Unplug the power cord when the appliance is not being used for long periods of time or during a thunder or
lightning storm.
• Failure to do so may result in electric shock or fire.
If any foreign substance enters into the appliance, unplug the power cord and contact your nearest
Samsung Customer Service.
• This may result in electric shock or fire.
Do not let children (or pets) play in or on your washing machine. The washing machine door does not open
easily from the inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
When the washing machine is contaminated by a foreign substance such as detergent, dirt, food waste, etc.,
unplug the power cord and clean the washing machine using a damp, soft cloth.
• Failure to do so may result in discolouration, deformation, damage, or rust.
The front glass may be broken by a strong impact. Take care when using the washing machine.
• If the glass is broken, it may result in injury.
Open the water tap slowly after a long period of non-use, water supply failure, or when reconnecting the
water supply hose.
• The air pressure in the water supply hose or the water pipe may damage a part of the appliance or result
in a water leak.
If a draining error occurs during an operation, check if there is a draining problem.
• If the washing machine is used when it is flooded because of a draining problem, it may result in electric
shock or fire.

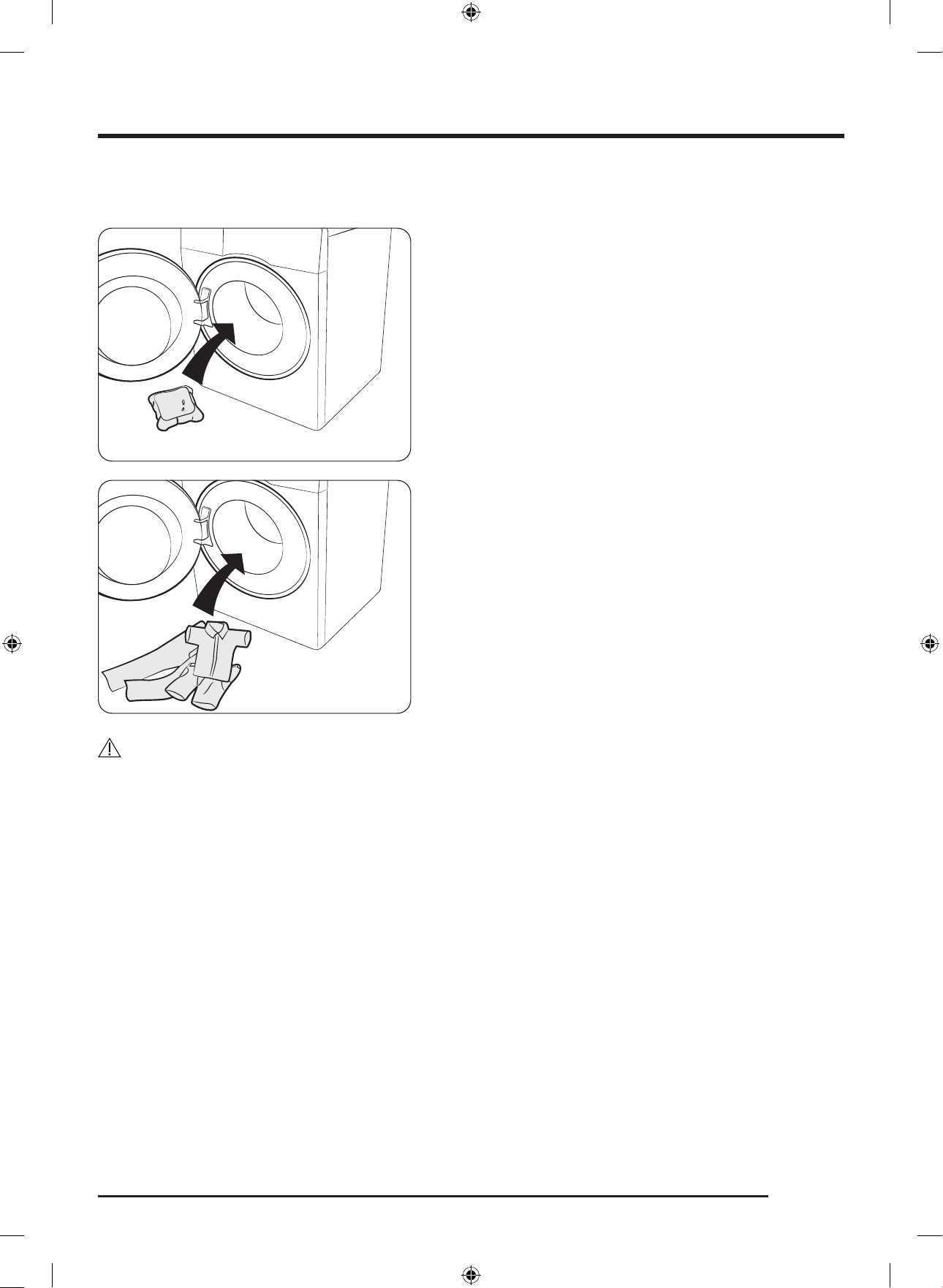

Insert the laundry into the washing machine completely so that the laundry does not get caught in the door.
• If laundry gets caught in the door, it may result in damage to the laundry or the washing machine, or
result in a water leak.
Turn the water supply off when the washing machine is not being used.
• Ensure that the screws on the water supply hose connector are properly tightened.
Untitled-1 10Untitled-1 10 2025-02-13 11:17:422025-02-13 11:17:42
English 11
Ensure that the rubber seal and front door glass are not contaminated by a foreign substance (e.g. waste,
thread, hair, etc.).
• If a foreign substance is caught in the door or the door is not completely closed, it may cause a water
leak.
Open the water tap and check if the water supply hose connector is firmly tightened and that there is no
water leak before using the appliance.
• If the screws on the water supply hose connector are loose, it may result in a water leak.
The appliance you have purchased is designed for domestic use only.
Using the appliance for business purposes qualifies as an appliance misuse. In this case, the appliance will
not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to
Samsung for malfunctions or damages resulting from such misuse.
Do not stand on the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes,
chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the appliance, or injury.
Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, this may result in electric shock, fire or problems with the
appliance.
Do not place objects that generate electromagnetic fields near the washing machine.
• This may result in injury due to a malfunction.
Water drained during a high-temperature wash or drying cycle is hot. Do not touch the water.
• This may result in burns or injury.
Draining time may vary depending on the water temperature. If the water temperature is too high, the
draining process starts after the water cools down.
Do not wash, spin, or dry water-proof seats, mats, or clothing (*) unless your appliance has a special cycle
for washing these items.
(*): Woollen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers, sweat suits, and
bicycle, motor cycle and car covers, etc.
• Do not wash thick or hard mats even if the washing machine mark is on the care label. This may result in
injury or damage to the washing machine, walls, floor, or clothing due to abnormal vibrations.
• Do not wash throw rugs or doormats with rubber backing. The rubber backing may come off and stick to
inside the drum, and this may result in malfunction such as a drainage error.
Do not operate the washing machine when the detergent drawer is removed.
• This may result in electric shock or injury due to a water leak.
Do not touch the insides of the drum during or just after drying as it is hot.
• This may result in burns.
The door glass becomes hot during washing and drying. Therefore, do not touch the door glass.
Untitled-1 11Untitled-1 11 2025-02-13 11:17:422025-02-13 11:17:42
Safety information
English12
Also, do not allow children to play around the washing machine or touch the door glass.
• This may result in burns.
Do not insert your hand into the detergent drawer.
• This may result in injury as your hand may be caught by the detergent input device.
Remove the liquid detergent guide (applicable models only) when using powdered detergent.
• If not, water may leak through the front of the detergent drawer.
Do not place any objects (such as shoes, food waste, animals) other than laundry into the washing machine.
• This may result in damage to the washing machine, or injury and death in the case of pets due to the
abnormal vibrations.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
• This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare shops or massage
clinics.
• This may cause the rubber seal to become deformed and result in a water leak.
Do not leave metal objects such as safety pins, hair pins or bleach in the drum for long periods of time.
• This may cause the drum to rust.
• If rust starts appearing on the surface of the drum, apply a (neutral) cleansing agent to the surface and
use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry
cleaning detergent.
• This may result in spontaneous combustion or ignition due to the heat from the oxidation of the oil.
Do not use water from water cooling/heating devices.
• This may result in problems with the washing machine.
Do not use natural hand-washing soap for the washing machine.
• If it hardens and accumulates inside the washing machine, it may result in problems with the appliance,
discolouration, rust, or bad odours.
Place socks and brassieres in a washing net and wash them with the other laundry.
Do not wash large laundry items such as bedding in the washing net.
• Failure to do so may result in injury due to abnormal vibrations.
Do not use hardened detergent.
• If it accumulates inside the washing machine, it may result in a water leak.
Make sure that the pockets of all the clothing items to be washed are empty.
• Hard, sharp objects such as coins, safety pins, nails, screws, or stones can cause extensive damage to the
appliance.
Do not wash clothing with large buckles, buttons or other heavy metal objects.
Untitled-1 12Untitled-1 12 2025-02-13 11:17:422025-02-13 11:17:42
English 13
Sort the laundry by colour on the basis of its colorfastness and select the recommended cycle, water
temperature and additional functions.
• This may result in discolouration or fabric damage.
Take care that children’s fingers are not caught in the door when you close it.
• Failure to do so may result in injury.
To prevent odours and mould, leave the door open after a wash cycle to allow the drum to dry.
To prevent limescale build up, leave the detergent drawer open after a wash cycle and dry inside it.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use a strong acidic cleaning agent.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or fire.
Untitled-1 13Untitled-1 13 2025-02-13 11:17:422025-02-13 11:17:42
Safety information
English14
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and
its electronic accessories (e.g. charger, headset, USB cable) should not be disposed
of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these
items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract. This product and its electronic accessories should not be mixed
with other commercial wastes for disposal.
For information on Samsung’s environmental commitments and product regulatory obligations, e.g. REACH,
visit our sustainability page available via www.samsung.com
Product disposal in France
Points de collecte sur www.quefairedemesdechets.fr
!
REPRISE
À LA LIVRAISON
À DÉPOSER
EN MAGASIN
À DÉPOSER
EN DÉCHÈTERIE
OU OU
FR
Cet appareil
et ses accessoires
se recyclent
Ecodesign
For detailed instructions on installation and cleaning of the washing machine and ecodesign information
(according to (EU)2019/2023), visit the Samsung website (http://www.samsung.com), go to Support >
Support home, and then enter the model name.
Untitled-1 14Untitled-1 14 2025-02-13 11:17:422025-02-13 11:17:42
English 15
Installation
Follow these instructions carefully to ensure proper installation of the washing machine and to prevent
accidents when doing laundry.
What’s included
Make sure all the parts are included in the product package. If you have a problem with the washing
machine or the parts, contact a local Samsung customer centre or the retailer.
01 Release lever 02 Detergent drawer 03 Control panel
04 Door 05 Drum 06 Debris filter
07 Emergency drain tube 08 Filter cover 09 Worktop
10 Power plug 11 Drain hose 12 Levelling feet
Untitled-1 15Untitled-1 15 2025-02-13 11:17:432025-02-13 11:17:43
Installation
English16
Spanner Bolt caps Hose guide
Cold water hose Hot water hose
NOTE

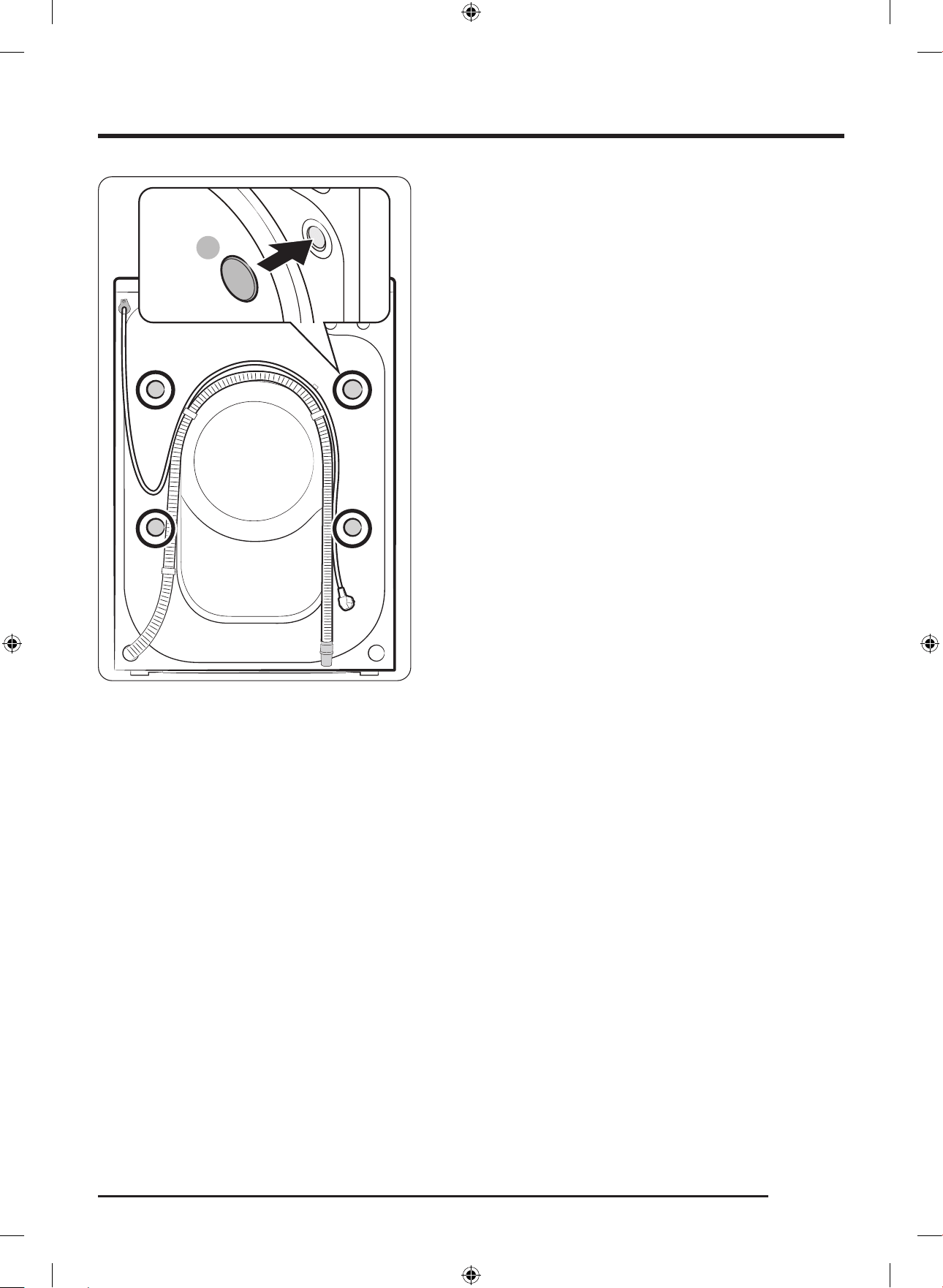

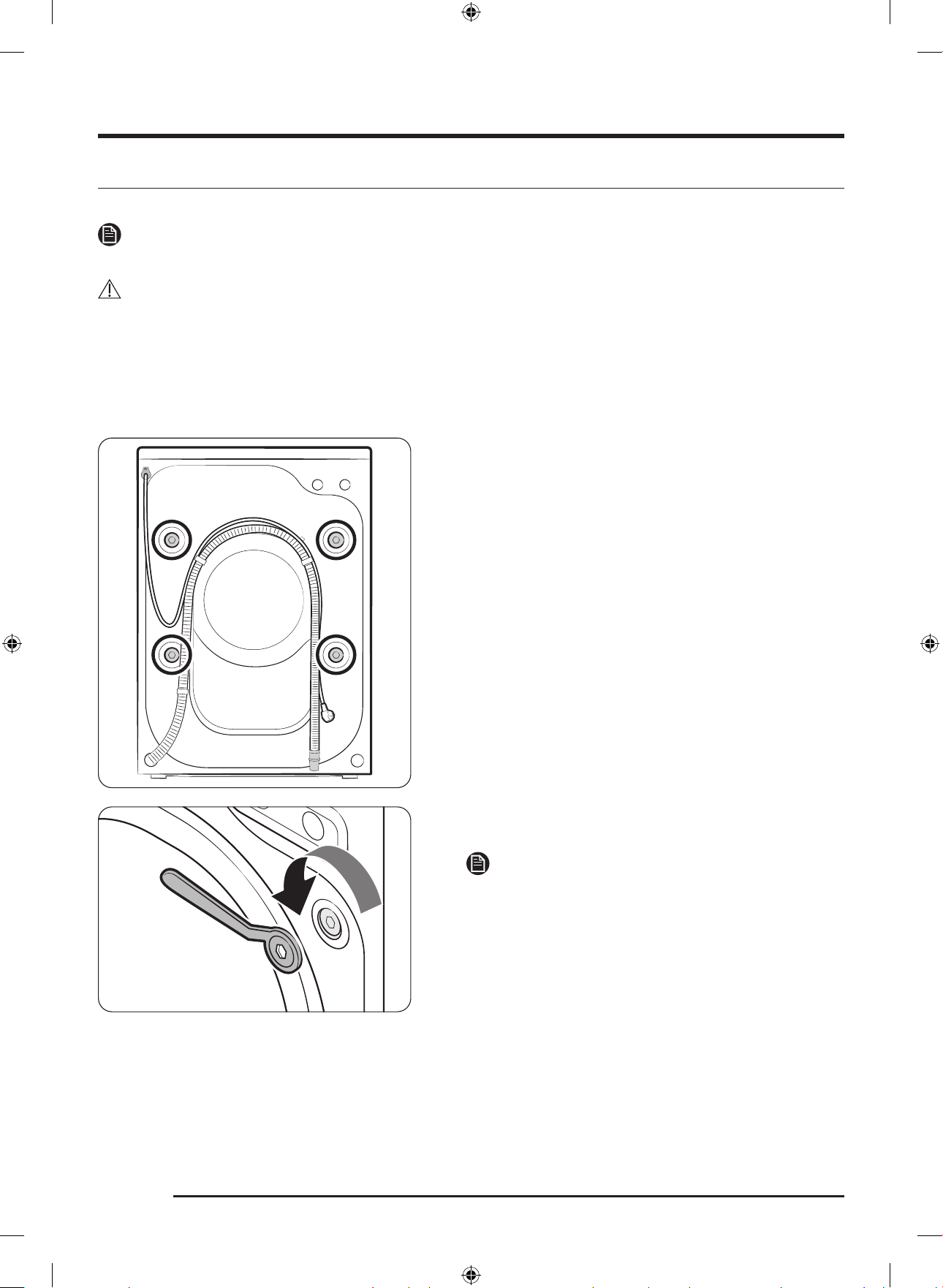

• Spanner: For removing the shipping bolts and levelling the washing machine.
• Bolt caps: For covering the holes after removing the shipping bolts. The provided number of bolt caps
depends on the model.

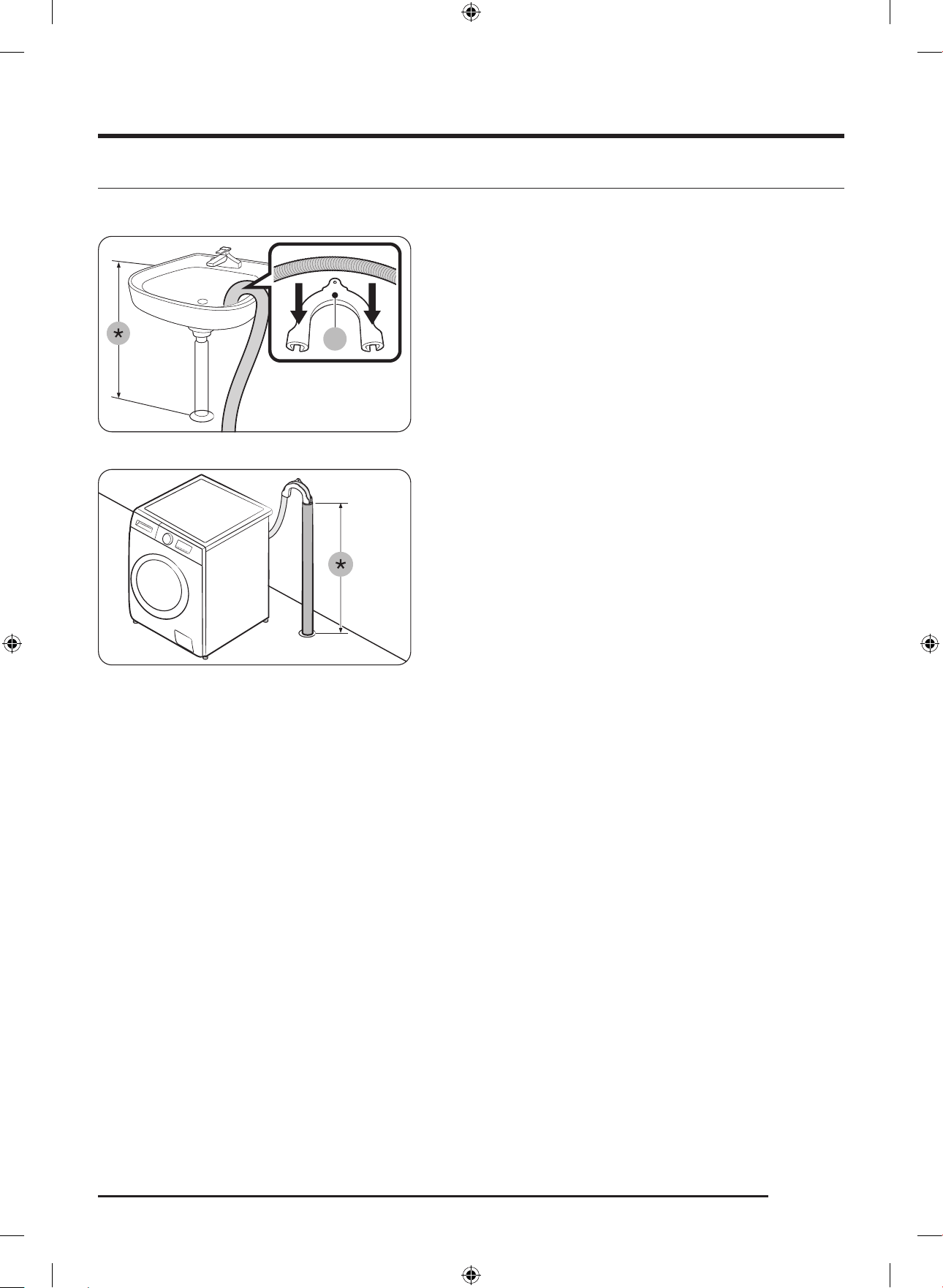

• Hose guide: For hanging the drain hose in the drainpipe or wash-basin.

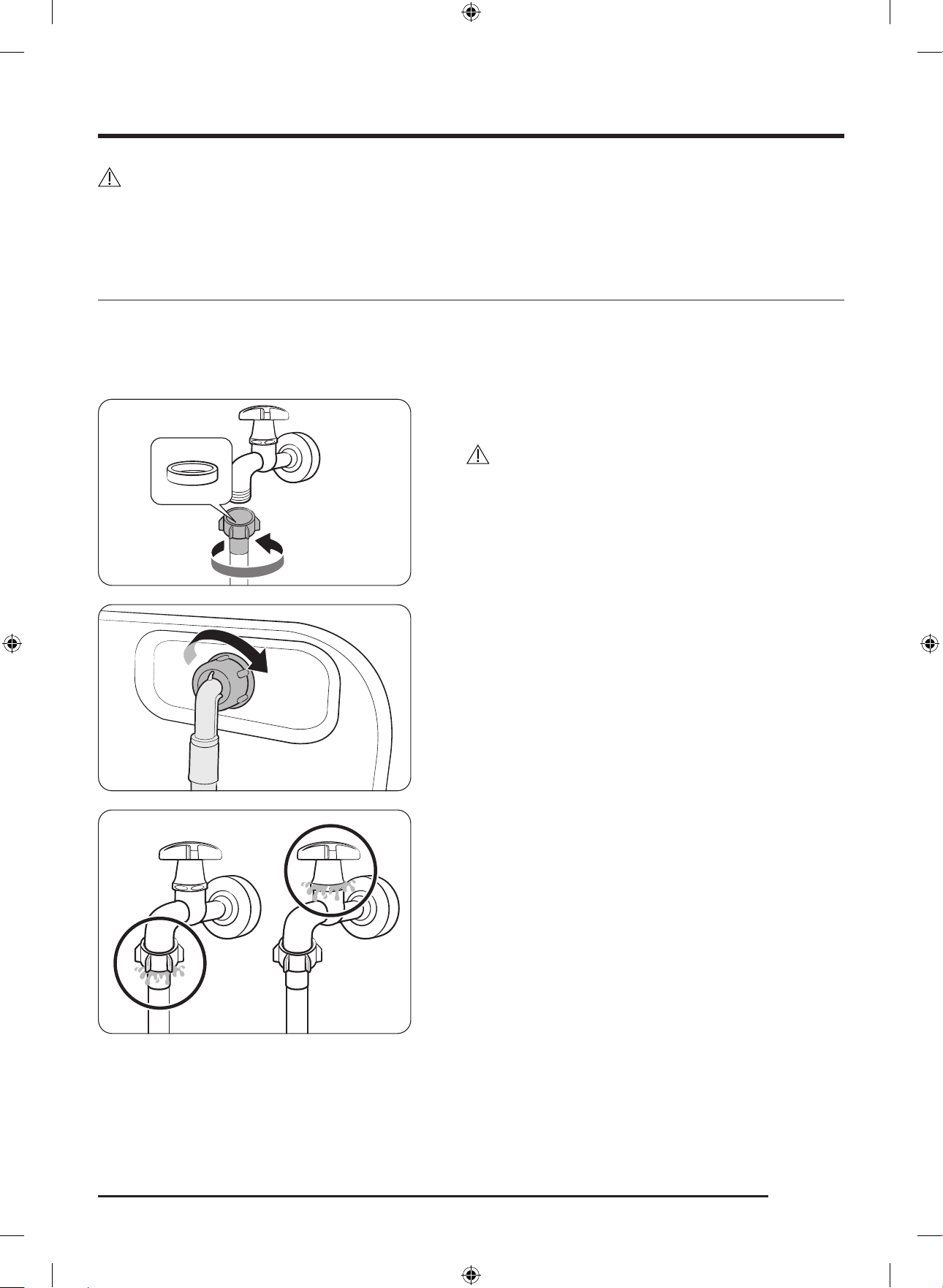

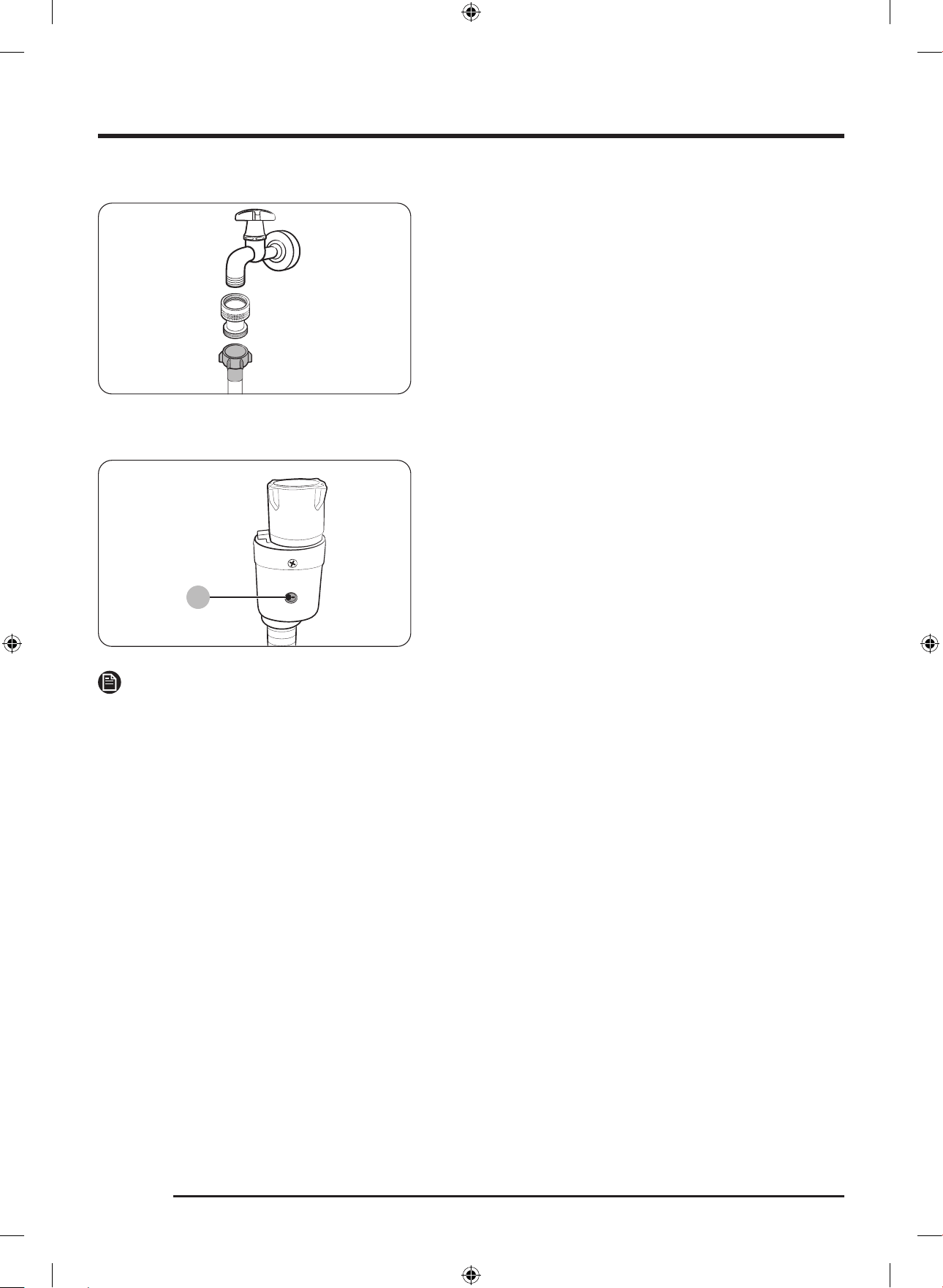

• Cold/Hot water hose: For supplying water to the washing machine. (Hot water hoses is for applicable
models only.)
Untitled-1 16Untitled-1 16 2025-02-13 11:17:432025-02-13 11:17:43
English 17
Installation requirements
Electrical supply and grounding
• Use an individual branch circuit specific to the
washing machine.
To ensure proper grounding, the washing machine
comes with a power cord featuring a three-prong
grounding plug for use in a properly installed and
grounded outlet.
Check with a qualified electrician or service person
if you are not sure about the grounding.
Do not modify the provided plug. If it does not fit
the outlet, call a qualified electrician to install a
proper outlet.
WARNING
• Do NOT use an extension cord.
• Use only the power cord that comes with the
washing machine.
• Do NOT connect the ground wire to plastic
plumbing, gas lines, or hot water pipes.
• Improperly connected grounding conductors
may cause electric shock.
Water supply
A proper water pressure for this washing machine
is between 50 kPa and 800 kPa. Water pressure
less than 50 kPa may cause the water valve not to
close completely. Or, it may take longer to fill the
drum, causing the washing machine to turn off.
Water taps must be within 120 cm from the rear
of the washing machine so that the provided inlet
hoses reach the washing machine.
To reduce the risk of leaks:
• Make sure water taps are easily accessible.
• Turn off the taps when the washing machine is
not in use.
• Check for any leaks at the water inlet hose
fittings on a regular basis.
CAUTION
Before using the washing machine for the first
time, check all connections at the water valve and
taps for any leaks.
Drain
Samsung recommends a standpipe in height of 60-
90 cm. The drain hose must be connected through
the hose clip to the standpipe, and the standpipe
must fully cover the drain hose.
Untitled-1 17Untitled-1 17 2025-02-13 11:17:432025-02-13 11:17:43
Installation
English18
Flooring
For best performance, the washing machine must
be installed on a solid floor. Wood floors may need
to be reinforced to minimise vibration and/or
unbalanced loads. Carpeting and soft tile surfaces
are not a good resistance to vibrations and may
cause the washing machine to move slightly during
the spin cycle.
CAUTION
Do NOT install the washing machine on a platform
or a poorly supported structure.
Water temperature
Do not install the washing machine in areas where
water may freeze as the washing machine always
retains some water in its water valves, pumps, and/
or hoses. Frozen water left in the connection parts
may cause damage to belts, the pump, and other
components of the washing machine.
Alcove or closet installation
Minimum clearance for stable operation:
Sides 25 mm
Top 25 mm
Rear 50 mm
Front 550 mm
If both the washing machine and a dryer are
installed in the same location, the front of the
alcove or closet must have at least a 550 mm
unobstructed air opening. Your washing machine
alone does not require a specific air opening.
Untitled-1 18Untitled-1 18 2025-02-13 11:17:432025-02-13 11:17:43
English 19
Step-by-step installation
NOTE
While unpacking the washing machine, lift the
washing machine from the foam base. Make sure the
drum support was removed from the bottom of the
washing machine.
STEP 1 Select a location
Location requirements:
• Solid, level surface without carpeting or flooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for ventilation and wiring
• The ambient temperature is always higher than the freezing point (0 °C)
• Away from a heat source
NOTE
• To prevent excessive vibration while operating the washing machine, consider stability before anything
else.
• Install your washing machine on a solid and level floor.
• Do not install your washing machine on soft floors or floor coverings.
• If you install your washing machine on a wood floor, install a water-resistance wooden panel (min 1.18 in.
/ 30 mm thick) to the floor. Also, we recommend installing your washing machine on the corner of the
wood floor.
Untitled-1 19Untitled-1 19 2025-02-13 11:17:432025-02-13 11:17:43
Installation
English20
STEP 2 Remove the shipping bolts
Unpack the product package and remove all shipping bolts.
NOTE
Number of shipping bolts may differ depending on the model.
WARNING
• Packaging materials can be dangerous to children. Dispose all packaging material (plastic bags,
polystyrene, etc.) out of children’s reach.
• To avoid injury, cover the holes with bolt caps after removing the shipping bolts. Do not move the
washing machine without the shipping bolts in place. Assemble the shipping bolts before moving the
washing machine to another location. Keep the shipping bolts in a safe place for future use.
1. Locate the shipping bolts (marked with circle in the
figure) on the rear side of the washing machine.
2. Using the supplied spanner, loosen all the shipping
bolts by turning them anticlockwise.
NOTE
You must keep the shipping bolts for future use.
Untitled-1 20Untitled-1 20 2025-02-13 11:17:442025-02-13 11:17:44
English 21
A
3. Insert the bolt caps (A) to the holes (marked with
circle in the figure).
Untitled-1 21Untitled-1 21 2025-02-13 11:17:442025-02-13 11:17:44
Installation
English22
STEP 3 Adjust the levelling feet
1. Gently slide the washing machine into position.
Excessive force may damage the levelling feet.
2. Level the washing machine by manually adjusting
the levelling feet.
3. When levelling is complete, tighten the nuts using
the spanner.
CAUTION
When installing the product make sure the levelling
feet is not pressing the power cord.
Untitled-1 22Untitled-1 22 2025-02-13 11:17:442025-02-13 11:17:44
English 23
CAUTION
Make sure all the levelling feet are seating on the floor surface to avoid the washing machine from moving
or generating noise due to vibration. Then, check if the washing machine is rocking. If the washing machine
is not rocking, tighten the nuts.
STEP 4 Connect the water hose
The provided water hose may differ depending on the model. Please follow the instruction according to the
provided water hose.
Connecting to a threaded water tap
1. Connect the water hose to the water tap, and then
turn it to the right to tighten.
CAUTION
Before connecting the water hose, make sure there is
a rubber washer in the hose connector. Do not use the
hose if the washer is damaged or missing.
2. Connect the other end of the water hose to the
inlet valve on the back of the washing machine,
and then turn it to the right to tighten.
3. Slowly open the water tap and check if there are
any leaks around the connection areas. If there are
water leaks, repeat step 1 and 2.
Untitled-1 23Untitled-1 23 2025-02-13 11:17:452025-02-13 11:17:45
Installation
English24
WARNING
If there is a water leak, stop operating the washing machine and disconnect it from the electrical supply.
Then, contact a local Samsung service centre in case of a leak from the water hose, or contact a plumbing
technician in case of a leak from the water tap. Otherwise, this may cause electric shock.
CAUTION
Do not stretch the water hose by force. If the hose is too short, replace the hose with a longer, high-pressure
hose.

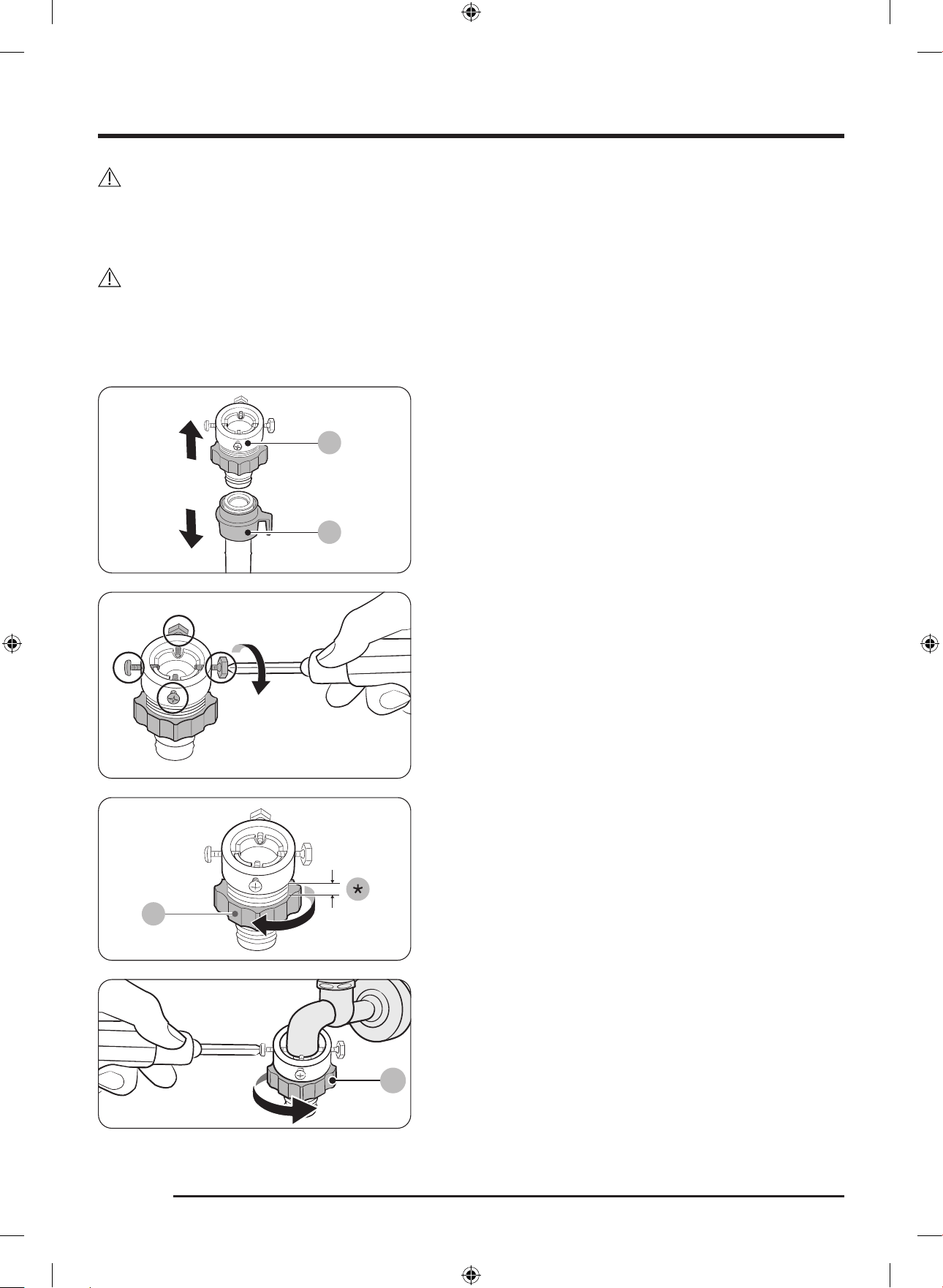

Connecting to a non-threaded water tap
A
B
1. Remove the adaptor (A) from the water hose (B).
2. Use a Phillips screwdriver to loosen four screws on
the adaptor.
C
3. Hold the adaptor and turn part (C) in the arrow
direction to loosen it by 5 mm (*).
C
4. Insert the adaptor onto the water tap, and then
tighten the screws while lifting the adaptor.
5. Turn part (C) in the arrow direction to tighten it.
Untitled-1 24Untitled-1 24 2025-02-13 11:17:452025-02-13 11:17:45
English 25
D
6. While pulling down part (D) on the water hose,
connect the water hose to the adaptor. Then,
release part (D). The hose fits into the adaptor with
a clicking sound.
7. To complete connecting the water hose, see 2 and
3 on the “ Connecting to a threaded water tap”
section.
NOTE
• After connecting the water hose to the adaptor, pull the water hose down to check if it is connected
properly.
• Use a popular type of water taps. If the tap is square-shaped or too big, remove the spacer ring before
inserting the tap into the adaptor.
For models with an additional hot water inlet:
1. Connect the red end of the hot water hose to the
hot water inlet on the back of the machine.
2. Connect the other end of the hot water hose to the
hot water tap.
Untitled-1 25Untitled-1 25 2025-02-13 11:17:452025-02-13 11:17:45
Installation
English26
Check valve (applicable models only)
Before connecting the water hose to a water tap,
connect the supplied check valve to the water tap and
then connect the water hose.
Aqua stop hose (applicable models only)
A
The aqua stop hose alerts users of a risk of water
leaks. It senses the water flow and turns red on the
centre indicator (A) in case of a leak.
NOTE
The end of the aqua stop hose must be fitted to the water tap and not the machine.
Untitled-1 26Untitled-1 26 2025-02-13 11:17:462025-02-13 11:17:46
English 27
STEP 5 Position the drain hose
The drain hose can be positioned in three ways:
A
Over the edge of a wash basin
The drain hose must be placed between 60 cm and
90 cm (*) above from the floor. To keep the spout of
the drain hose bent, use the supplied plastic hose
guide (A). Secure the guide to the wall using a hook to
ensure stable drainage.
In a drain pipe
The drain pipe should be between 60 cm and 90 cm
high (*). It is advisable to use a 65 cm high vertical
pipe.
• To ensure the drain hose stays in position, use the
plastic hose guide provided (see the figure).
• To prevent the siphoning of water flow during
drainage, make sure to insert the drain hose 15 cm
in the drain pipe.
• To prevent the drain hose from moving around,
secure the hose guide to the wall.
Drain standpipe requirements:
• Minimum diameter of 5 cm
• Minimum carry-away capacity of 60 litres per
minute
Untitled-1 27Untitled-1 27 2025-02-13 11:17:462025-02-13 11:17:46
Installation
English28
In a sink drain pipe branch
The drain pipe branch must be above the sink siphon
so that the end of the hose is at least 60 cm (*) above
the ground.
CAUTION
Remove the lid on the sink drain pipe branch before
connecting the drain pipe to it.
STEP 6 Power on
Plug the power cord into a wall socket that is correctly rated, grounded, and protected by a fuse or circuit
breaker. Then, turn the Cycle Selector and select a cycle to turn on the washing machine.
NOTE
If the door is locked during installation, plug the power cord, and turn on the power. The door will unlock.
Untitled-1 28Untitled-1 28 2025-02-13 11:17:462025-02-13 11:17:46
English 29
Before you start
NOTE
Before doing your laundry for the first time, you must run a complete wash cycle without any items in the
drum.
Test run
1. Slide open the detergent drawer and apply about 10 g of laundry detergent into the main-wash
compartment.
2. Turn the Cycle Selector and select ECO 40-60 .
- The washing machine turns on when you select a cycle.
3. Press Start/Pause .
Laundry guidelines
STEP 1 Sort
Sort the laundry according to these criteria:
• Care Label: Sort the laundry into cottons, mixed fibres, synthetics, silks, wools, and rayon.
• Colour: Separate whites from colours.
• Size: Mixing different sized items together in the drum improves the washing performance.
• Sensitivity: Wash delicate items separately using an Easy Iron option for pure, new woollen items,
curtains, and silk items. Check the labels on the items.
NOTE
Make sure to check the care label on the clothing, and sort them accordingly before starting the wash.
STEP 2 Empty pockets
Empty all the pockets of your laundry items
• Metal objects such as coins, pins, and buckles on clothing may damage other laundry items as well as
the drum.
Turn clothing with buttons and embroideries inside out
• If pants or jacket zippers are open while washing, the drum may be damaged. Zippers should be closed
and fixed with a string.
• Clothing with long strings may become entangled with other clothes. Make sure to tie the strings before
starting the wash.
STEP 3 Use a laundry net
• Brassieres (water washable) must be placed in a laundry net. Metal parts of the brassieres may break
through and tear other laundry items.
• Small, light clothing such as socks, gloves, stockings, and handkerchiefs may become caught around the
door. Place them inside a fine laundry net.
• Do not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that
could move the washing machine and result in injury.
Untitled-1 29Untitled-1 29 2025-02-13 11:17:462025-02-13 11:17:46
Before you start
English30
STEP 4 Prewash (if necessary)
Select the Prewash option for the selected cycle if the laundry is heavily soiled. When selecting the Prewash
option, make sure to put powder-type detergent into the main wash compartment.
STEP 5 Determine the load capacity
Do not overload the washing machine. Overloading may cause the washing machine to not wash properly.
For the load capacity for the type of clothing, see page 39.
NOTE
When washing bedding or bedding covers, the wash time may be lengthened or the spin efficiency may be
reduced. For bedding or bedding covers, the recommended maximum spin cycle speed is 800 rpm, and the
load capacity is 2.0 kg or less.
CAUTION
• Unbalanced laundry may reduce the spinning performance.
• Do not slam the door. Close the door gently. Otherwise, the door may not be closed properly.
CAUTION
Make sure the laundry is fully inserted in the drum
and not caught in the door.
STEP 6 Apply a proper detergent type
The type of detergent depends on the type of fabric (cotton, synthetic, delicate items, wool), colour,
wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for
automatic washing machines.
NOTE
• Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree
of soiling, and the hardness of the water in your local area. If you are not sure about the water hardness,
contact a local water authority.
• Do not use detergent that tends to be hardened or solidified. This detergent may remain after the rinse
cycle, blocking the drain outlet.
CAUTION
When washing wool using the WOOL/DELICATES cycle, use only a neutral liquid detergent. If used with the
WOOL/DELICATES cycle, powder detergent may remain on the laundry and discolour the laundry.
Untitled-1 30Untitled-1 30 2025-02-13 11:17:472025-02-13 11:17:47
English 31
Laundry capsules
To get the best results from using laundry capsules, please follow these instructions.
1. Put the capsule in the bottom of the empty drum
towards the rear.
2. Put the laundry in the drum on top of the capsule.
CAUTION
For cycles using cold water or cycles that complete in less than one hour, it is recommended to use a liquid
detergent. Otherwise, the capsule may not dissolve completely.
Untitled-1 31Untitled-1 31 2025-02-13 11:17:472025-02-13 11:17:47
Before you start
English32
Detergent recommendation
The recommendations apply to the temperature ranges given in the cycle chart.
Recommended Liquid detergent only
– Not recommended Powder detergent only
Cycle
Detergent
Temp. (°C)
Universal
Delicates and
woollens
Specialist
ECO 40-60 – – 40
COTTON – – Cold-90
SYNTHETICS – – Cold-60
QUICK WASH 15' – – Cold
MIXED LOAD – – Cold-40
HYGIENE STEAM – – 75
COLOURS – – Cold-40
WOOL/DELICATES – 20
BEDDING – – Cold-60
NOTE
The values given for programmes other than the ECO 40-60 programme are indicative only.
Untitled-1 32Untitled-1 32 2025-02-13 11:17:472025-02-13 11:17:47
English 33
Detergent drawer guidelines
The washing machine provides a three-compartment dispenser: the left compartment for the main wash,
the centre for fabric softeners, and the right for the preliminary wash.
1. Prewash compartment: Apply prewash
detergent or starch.
2. Main-wash compartment: Apply main-wash
detergent, water softener, soaking detergent,
bleach, and/or stain removers.
3. Softener compartment: Apply additives such as
fabric softener. Do not exceed the max line (A).
NOTE
The actual appearance of the softener guide may
differ with the model.
CAUTION
• Do not open the detergent drawer while the washing machine is operating.
• Do not use the following types of detergent:
- Tablet or capsule types
- Ball or net types
• To prevent the compartment clogging, concentrated or highly-enriched agents (fabric softener or
detergent) must be diluted with water before being applied.
• When Delay End is selected, do not apply detergent directly into the drum. Otherwise, this may discolour
the laundry. Use the detergent drawer when Delay End is selected.
Untitled-1 33Untitled-1 33 2025-02-13 11:17:472025-02-13 11:17:47
Before you start
English34
To apply washing agents to the detergent drawer
A
1. Slide open the detergent drawer.
2. Apply laundry detergent to the main-wash
compartment as instructed or recommended by
the manufacturer.
Do not exceed the max line (A) when adding
detergent.
3. Apply fabric softener to the softener
compartment. Do not exceed the max line (A).
Softener is dispensed into the wash during the
final rinse.
4. If you want to prewash, apply prewash detergent
to the prewash compartment as instructed or
recommended by the manufacturer.
5. Close the detergent drawer.
Untitled-1 34Untitled-1 34 2025-02-13 11:17:482025-02-13 11:17:48
English 35
CAUTION
• Do not apply powder detergent to the liquid
detergent guide.
• Concentrated fabric softener must be diluted with
water before applied.
• Do not apply main-wash detergent to the
softener compartment.
Untitled-1 35Untitled-1 35 2025-02-13 11:17:482025-02-13 11:17:48
English36
Operations
Control panel
01
02
03
04
05
07
08
06
01 Cycle Selector Turn the dial to select a cycle.
02 Power
Select this icon using the Cycle Selector to turn off the washing machine.
• Turn the Cycle Selector away from this icon and select a cycle to turn
on the washing machine.
• Even if you do not turn the Cycle Selector back to this position, the
washing machine automatically turns off when the cycle completes.
03 Display
The display shows current cycle information and estimated time
remaining, or an information code when a problem occurs.
NOTE
The actual washing time may differ from the estimated time initially
displayed on the control panel upon cycle selection.
04 Start/Pause
Press to start or stop operation.
05 Delay End
Delay End lets you set the end time of the current cycle. Based on your
settings, the start time of the cycle will be determined by the machine’s
internal logic. For example, this setting is useful for programming your
machine to finish a wash at the time you normally return home from
work.
• Press to choose a preset unit of hours.
06 Temp.
Press to change the water temperature for the current cycle.
07 Spin
Press to change the spinning speed for the current cycle.
• Rinse Hold (No indicator): The final rinse process is suspended so that
the laundry remains in the water. To unload the laundry, run a drain or
spin process.
- To use the Rinse Hold option, press Spin repeatedly until all the
Spin option indicators turn off.
• No Spin : The drum does not spin after the final drain process.
- To use the No Spin option, press Spin repeatedly until the
option indicator ( ) turns on.
Untitled-1 36Untitled-1 36 2025-02-13 11:17:492025-02-13 11:17:49
English 37
08 Options
Press repeatedly to cycle through the available options in the following
order: Extra Rinse > Prewash > Soak > Prewash + Extra Rinse
> Soak + Extra Rinse > Off
NOTE
Available options depend on the selected cycle.
• Soak : This function helps remove a wide variety of stubborn stains.
• Prewash : Use this function to add a preliminary washing cycle
before the main wash cycle.
• Extra Rinse : Use this function to add an additional rinse cycle.
Icon description
Option Description
Door Lock
• This icon indicates the door is locked and cannot be opened.
• The door locks automatically during a cycle and this indicator turns
on.
• You can open the door when this icon disappears.
Child Lock
• This icon indicates that Child Lock is on.
• For more information on Child Lock , see page 41.
Sound Off
• This icon indicates that the alarm sound is off.
• For more information on Sound Off , see page 41.
DRUM CLEAN
reminder
• This icon indicates that you should clean the drum using the DRUM
CLEAN cycle.
• After every 40 cycles, this icon appears for an hour and then turns
off automatically. The icon will appear for 5 more cycles, turn off, and
then will not appear for another 40 cycles.
Untitled-1 37Untitled-1 37 2025-02-13 11:17:502025-02-13 11:17:50
Operations
English38
Simple steps to start
1
2 345
1. Turn the Cycle Selector and select a cycle.
- The washing machine turns on when you select a cycle.
2. Change the cycle settings ( Temp. , and Spin ) as necessary.
3. To add an option, press the Options .
4. Set Delay End if you want to finish the wash cycle at the desired time.
5. Press Start/Pause .
To change the cycle during operation
1. Press Start/Pause to stop operation.
2. Select a different cycle.
3. Press Start/Pause again to start the new cycle.
Untitled-1 38Untitled-1 38 2025-02-13 11:17:502025-02-13 11:17:50
English 39
Cycle overview
Standard cycles
Cycle Description
9 kg
model
8 kg
model
7 kg
model
ECO 40-60
• For cleaning normally soiled cotton items which
are declared to be washable at 40 °C or 60 °C,
together in the same cycle. This cycle is used to
assess the compliance with the EU Ecodesign
legislation.
• This cycle is set as a default.
9 8 7
COTTON
• For cottons, bed linens, table linens, underwear,
towels, or shirts. The washing time and the rinse
count are automatically adjusted according to
the load.
9 8 7
SYNTHETICS
• For fabrics that are made of polyester(diolen,
trevira), polyamide (perlon, nylon), or the like.
4.5 4 3.5
RINSE+SPIN
• Featuring an additional rinse process after
applying fabric softener to the laundry.
9 8 7
DRAIN/SPIN
• For draining the water inside the drum and
running an additional spin process to effectively
remove moisture from laundry.
9 8 7
DRUM CLEAN
• Cleans the drum by removing dirt and bacteria
from it.
• Make sure the drum is empty.
• Do not use any cleaning agents for cleaning the
drum.
- - -
QUICK WASH 15'
• For lightly soiled items in less than 2.0 kg that
you want to wash quickly.
2 2 2
MIXED LOAD
• For mixed load consisting of cotton and
synthetic.
4.5 4 3.5
HYGIENE STEAM
• Cotton and linen fabric which have been in
direct contact with the skin, e.g. underwear.
• Steam cycles feature allergy care and bacteria
elimination (sterilize).
2 2 2
COLOURS
• Featuring additional rinses and reduced
spinning to ensure that the laundry is washed
gently and rinsed thoroughly.
4.5 4 3.5
Untitled-1 39Untitled-1 39 2025-02-13 11:17:502025-02-13 11:17:50
Operations
English40
Cycle Description
9 kg
model
8 kg
model
7 kg
model
WOOL/DELICATES
• Specific for machine-washable wool and
delicates fabrics such as sheer fabrics, bras,
lingerie (silk), and other handwash-only fabrics.
• The WOOL/DELICATES cycle features gentle
cradling and soaking to protect fibres from
shrinkage/distortion.
2 2 2
BEDDING
• For bed spreads, bed sheets, bedding covers,
etc.
• For best results, wash only 1 type of bedding.
2 2 2
NOTE
• Loading the household washing machine or the household washer-dryer up to the capacity indicated by
the manufacturer for the respective programmes will contribute to energy and water savings.
• The noise and remaining moisture content are influenced by the spinning speed: the higher the spinning
speed in the spinning phase, the higher the noise and the lower the remaining moisture content.
• The most efficient cycle in terms of energy consumption are generally those that perform at lower
temperatures and longer duration.
Untitled-1 40Untitled-1 40 2025-02-13 11:17:502025-02-13 11:17:50
English 41
Settings
Child Lock
To prevent accidents by children, Child Lock locks all buttons.
• To activate or deactivate the Child Lock function, press and hold Temp. and Spin simultaneously for
3 seconds. When the Child Lock function is activated, the indicator lights up.
Sound Off
You can turn on or off the sound from the washer.
• To turn on or off the sound, press and hold Spin and Options simultaneously for 3 seconds. When
the sound is off, the indicator lights up.
Delay End
You can set the washing machine to finish your wash automatically at a later time, choosing a delay of
between 3 to 24 hours (in 1 hour increments). The hour displayed indicates the time the wash will finish.
1. Select a cycle. Then change the cycle settings if necessary.
2. Press Delay End repeatedly until a desired end time is set.
3. Press Start/Pause .
The corresponding indicator turns on with the clock running.
4. To cancel the Delay End , turn the washing machine off and then turn it on.
Real-life case
You want to finish a two-hour cycle 3 hours later from now. For this, you add the Delay End option to the
current cycle with the 3-hour setting, and press Start/Pause at 2:00 p.m. Then, what happens? The
washing machine starts operating at 3:00 p.m., and ends at 5:00 p.m. Provided below is the time line for
this example.
2:00 pm
Set Delay End to 3 hours
3:00 pm
Start
5:00 pm
End
Untitled-1 41Untitled-1 41 2025-02-13 11:17:502025-02-13 11:17:50
English42
Maintenance
Keep the washing machine clean to prevent deteriorated performance and to preserve its life cycle.
DRUM CLEAN
Perform this cycle regularly to clean the drum by removing bacteria from it. This cycle heats the water
between 60 °C and 70 °C, and it also removes accumulated dirt from the rubber door gasket.
1. Turn the Cycle Selector and select DRUM CLEAN .
- The washing machine turns on when you select a cycle.
2. Press Start/Pause .
NOTE
• The water temperature for DRUM CLEAN is set to 70 °C, which cannot be changed.
• It is recommended to run the DRUM CLEAN cycle once every 40 washes.
• To prevent limescale, add the proper amount of detergent according to your local water hardness or add
a water softener additive together with the detergent.
DRUM CLEAN reminder
Depending on the model, the DRUM CLEAN reminder is either an icon or an LED.
For icons, the icon lights up on the control panel.
For LEDs, the LED lights up next to DRUM CLEAN , or on the option area of the control panel.
• The DRUM CLEAN reminder blinks on the control panel once every 40 washes. It is advisable to perform
DRUM CLEAN regularly.
• When you first see this reminder blinking, you can ignore the reminder for 6 consecutive washes. From
the 7
th
wash, the reminder no longer appears. However, it appears again on the second 40
th
wash.
• Even if the DRUM CLEAN reminder does not disappear, the machine operates normally.
• It is recommended to run the cycle regularly for hygienic purposes.
Untitled-1 42Untitled-1 42 2025-02-13 11:17:502025-02-13 11:17:50
English 43
Emergency drain
In case of a power failure, drain the water inside the drum before taking out the laundry.
A
1. Power off and unplug the washing machine from
the electrical outlet.
2. Open the filter cover (A) with tools such as coins
according to the direction of the graphic.
B
3. Put an empty, spacious container around the
cover, and stretch the emergency drain tube to the
container while holding the tube cap (B).
C
4. Open the tube cap and let water in the emergency
drain tube (C) flow into the container.
5. When done, close the tube cap, and reinsert the
tube. Then, close the filter cover.
NOTE
Use a spacious container because the water in the
drum may be more than expected.
Untitled-1 43Untitled-1 43 2025-02-13 11:17:512025-02-13 11:17:51
Maintenance
English44
Cleaning
Surface of the washing machine
Use a soft cloth with a nonabrasive household detergent. Do not spray water onto the washing machine.
Mesh filter
Clean the mesh filter of the water hose once or twice a year.
1. Turn off the washing machine, and unplug the
power cord.
2. Close the water tap.
3. Loosen and disconnect the water hose from the
back of the washing machine. Cover the hose with
a cloth to prevent water from gushing out.
4. Use pliers to pull out the mesh filter from the inlet
valve.
5. Submerge the mesh filter deeply in water so that
the threaded connector is also submerged.
6. Dry the mesh filter completely in the shade.
7. Reinsert the mesh filter into the inlet valve, and
reconnect the water hose to the inlet valve.
8. Open the water tap.
NOTE
If the mesh filter is clogged, an information code of “ 4C” appears on the screen.
Untitled-1 44Untitled-1 44 2025-02-13 11:17:512025-02-13 11:17:51
English 45
Debris filter
It is advisable to clean the debris filter every 2 months to prevent its clogging. A clogged debris filter may
reduce the bubble effect.
A
1. Turn off the washing machine, and unplug the
power cord.
2. Drain the remaining water inside the drum. See the
“ Emergency drain” section.
3. Open the filter cover (A) with tools such as coins
according to the direction of the graphic.
4. Turn the debris filter knob to the left, and drain off
the remaining water.
5. Clean the debris filter using soft brushes. Make
sure the drain pump propeller inside the filter is
unclogged.
6. Reinsert the debris filter, and turn the filter knob
to the right. Then, close the filter cover.
NOTE
If the debris filter is clogged, an information code of “ 5C” appears on the screen.
CAUTION
• Make sure the filter knob is closed properly after cleaning the filter. Otherwise, this may cause a leak.
• Make sure the filter is inserted properly after cleaning it. Otherwise, this may cause an operational
failure or a leak.
Untitled-1 45Untitled-1 45 2025-02-13 11:17:512025-02-13 11:17:51
Maintenance
English46
Detergent drawer
A
1. While holding down the release lever (A) on the
inner of the drawer, slide open the drawer.
2. Remove the release lever and the liquid detergent
guide from the drawer.
3. Clean the drawer components in flowing water
using a soft brush.
4. Clean the drawer recess using a bottle brush to
remove detergent residues and limescale on the
drawer recess.
5. Reinsert the release lever and the liquid detergent
guide to the drawer.
6. Slide the drawer inward to close it.
NOTE
To remove remaining detergent, perform the RINSE+SPIN cycle with the drum being empty.
Untitled-1 46Untitled-1 46 2025-02-13 11:17:522025-02-13 11:17:52
English 47
Recovery from freezing
The washing machine may freeze when it drops below 0 °C.
1. Turn off the washing machine, and unplug the power cord.
2. Pour warm water over the water tap to loosen the water hose.
3. Disconnect the water hose, and soak it in warm water.
4. Pour warm water into the drum and leave it for about 10 minutes.
5. Reconnect the water hose to the water tap.
NOTE
If the washing machine still doesn’t operate normally, repeat the above steps until it operates normally.
Care against an extended time of disuse
Avoid leaving the washing machine unused for an extended time. If this is the case, drain the washing
machine and unplug the power cord.
1. Turn the Cycle Selector and select RINSE+SPIN .
- The washing machine turns on when you select a cycle.
2. Empty the drum, and press Start/Pause .
3. When the cycle is complete, close the water tap and disconnect the water hose.
4. Turn off the washing machine, and unplug the power cord.
5. Open the door to let air circulate through the drum.
Untitled-1 47Untitled-1 47 2025-02-13 11:17:522025-02-13 11:17:52
English48
Troubleshooting
Checkpoints
If you encounter a problem with the washing machine, first check the table below and try the suggestions.
Problem Action
Does not start.
• Make sure the washing machine is plugged in.
• Make sure the door is properly closed.
• Make sure the water taps are open.
• Make sure to press Start/Pause to start the washing machine.
• Make sure Child Lock is not activated.
• Before the washing machine starts to fill, it will make a series of clicking
noises to check the door lock and does a quick drain.
• Check the fuse or reset the circuit breaker.
Water supply is
insufficient, or no water
is supplied.
• Fully open the water tap.
• Make sure the door is properly closed.
• Make sure the water supply hose is not frozen.
• Make sure the water supply hose is not kinked or clogged.
• Make sure there is sufficient water pressure.
After a cycle, detergent
remains in the
detergent drawer.
• Make sure the washing machine is running with sufficient water pressure.
• Make sure the detergent is added to the centre of the detergent drawer.
• Make sure the rinse cap is inserted properly.
• If using granular detergent, make sure the detergent selector is in the
upper position.
• Remove the rinse cap and clean the detergent drawer.
Excessive vibrations or
makes noise.
• Make sure the washing machine is installed on a level, solid floor that is not
slippery. If the floor is not level, use the levelling feet to adjust the height
of the washing machine.
• Make sure the shipping bolts are removed.
• Make sure the washing machine is not contacting any other object.
• Make sure the laundry load is balanced.
• The motor can cause noise during normal operation.
• Overalls or metal-decorated clothes can cause noise while being washed.
This is normal.
• Metal objects such as coins can cause noise. After washing, remove these
objects from the drum or filter case.
Untitled-1 48Untitled-1 48 2025-02-13 11:17:522025-02-13 11:17:52
English 49
Problem Action
Does not drain and/ or
spin.
• Make sure the drain hose is straightened all the way to the drain system. If
you encounter a drain restriction, call for service.
• Make sure the debris filter is not clogged.
• Close the door and press Start/Pause . For your safety, the washing
machine will not tumble or spin unless the door is closed.
• Make sure the drain hose is not frozen or clogged.
• Make sure the drain hose is connected to a drain system that is not clogged.
• If the washing machine is not supplied with sufficient power, the washing
machine temporarily will not drain or spin. As soon as the washing machine
regains sufficient power, it will operate normally.
Spinning does not work.
• Make sure laundry is spread out evenly.
• Make sure the washing machine is on a flat, stable surface.
The door does not open.
• Press Start/Pause to stop the washing machine.
• It may take a few moments for the door lock mechanism to disengage.
• Make sure all the water in the drum is drained.
• The door may not open if water remains in the drum. Drain the drum and
open the door manually.
• Make sure the door lock light is off. The door lock light turns off after the
washing machine has drained.
Excessive suds.
• Make sure you use the recommended types of detergent as appropriate.
• Use high efficiency (HE) detergent to prevent oversudsing.
• Reduce the detergent amount for soft water, small loads, or lightly soiled
loads.
• Non-HE detergent is not recommended.
Cannot apply additional
detergent.
• Make sure the remaining amount of detergent and fabric softener is not
over the limit.
Stops.
• Plug the power cord into a live electrical outlet.
• Check the fuse or reset the circuit breaker.
• Close the door and press the Start/Pause button to start the washing
machine. For your safety, the washing machine will not tumble or spin
unless the door is closed.
• Before the washing machine starts to fill, it will make a series of clicking
noises to check the door lock and does a quick drain.
• There may be a pause or soak period in the cycle. Wait briefly and the
washing machine may start.
• Make sure the mesh filter of the water supply hose at the water taps are
not clogged. Periodically clean the mesh filter.
• If the washing machine is not supplied with sufficient power, the washing
machine temporarily will not drain or spin. As soon as the washing machine
regains sufficient power, it will operate normally.
Untitled-1 49Untitled-1 49 2025-02-13 11:17:522025-02-13 11:17:52
Troubleshooting
English50
Problem Action
Fills with the wrong
water temperature.
• Fully open both taps.
• Make sure the temperature selection is correct.
• Make sure the hoses are connected to the correct taps. Flush water lines.
• Make sure the water heater is set to supply a minimum 120 °F (49 °C) hot
water at the tap. Also, check the water heater capacity and recovery rate.
• Disconnect the hoses and clean the mesh filter. The mesh filter may be
clogged.
• While the washing machine fills, the water temperature may change
as the automatic temperature control feature checks incoming water
temperature. This is normal.
• While the washing machine fills, you may notice just hot and/or just cold
water going through the dispenser when cold or warm temperatures are
selected. This is a normal function of the automatic temperature control
feature as the washing machine determines the water temperature.
Load is wet at the end of
a cycle.
• Use the High or Extra High spin speed.
• Use high efficiency (HE) detergent to reduce oversudsing.
• Load is too small. Small loads (one or two items) may become unbalanced
and not spin completely.
• Make sure the drain hose is not kinked or clogged.
Leaks water.
• Make sure the door is properly closed.
• Make sure all hose connections are tight.
• Make sure the end of the drain hose is correctly inserted and secured to the
drain system.
• Avoid overloading.
• Use high efficiency (HE) detergent to prevent oversudsing.
• Check if there is something stuck between the door and the diaphragm.
- If there is something stuck between the door and the diaphragm, it may
cause a leak or damage to the diaphragm.
Has odours.
• Excessive suds collect in recesses and can cause foul odours.
• Run cleansing cycles to sanitize periodically.
• Clean the door seal (diaphragm).
• Dry the washing machine interior after a cycle has finished.
No bubbles are seen
(Bubble models only).
• Overloading may screen bubbles.
• Severely contaminated laundry may not generate bubbles.
Increased time of
washing.
• The actual washing time may differ from the estimated time initially
displayed on the control panel upon cycle selection.
Untitled-1 50Untitled-1 50 2025-02-13 11:17:522025-02-13 11:17:52
English 51
Problem Action
Stains on the clothes.
• Do not pour fabric softener directly onto your clothes. Applying it directly
to clothing can leave stains (for example, oily spots or ingrained dirt) that
might be difficult to remove.
• If a problem persists, contact a service center. The number of the service center is on the label attached
to the product.
• Samsung is not liable for any damage to the product, any injury, or any other product safety issue caused
by a repair which does not follow the instructions in these Repair Guides. Any damage to the product
caused by an attempted repair (by anyone other than a Samsung certified service provider) will also not
be covered by the warranty.
Untitled-1 51Untitled-1 51 2025-02-13 11:17:522025-02-13 11:17:52
Troubleshooting
English52
Information codes
If the washing machine fails to operate, you may see an information code on the screen. Check the table
below and try the suggestions.
Code Action
4C
Water is not supplied.
• Make sure the water taps are open.
• Make sure the water hoses are not clogged.
• Make sure the water taps are not frozen.
• Make sure the washing machine is running with sufficient water pressure.
• Make sure that the cold water tap and the hot water tap are properly connected.
• Clean the mesh filter as it may be clogged.
5C
Water is not draining.
• Make sure the drain hose is not frozen or clogged.
• Make sure the drain hose is positioned correctly, depending on the connection
type.
• Clean the debris filter as it may be clogged.
• Make sure the drain hose is straightened all the way to the drain system.
• If the information code remains, contact a customer service centre.
dC
Operating the washing machine with the door open.
• Make sure the door is properly closed.
• Make sure laundry is not caught in the door.
dC1
Door cannot be locked.
• Make sure the door is properly closed.
• Turn off the washing machine, and then turn it on again.
• If the information code remains, contact a customer service centre.
OC
Water is overflowed.
• Restart after spinning.
• If the information code remains on the display, contact a local Samsung service
centre.
LC
Check the drain hose.
• Make sure the end of the drain hose is not placed on the floor.
• Make sure the drain hose is not clogged.
• If the information code remains, contact a customer service centre.
3C
Check the motor for operation.
• Try restarting the cycle.
• If the information code remains, contact a customer service centre.
TC1
Water heating temperature sensor needs to be checked.
• If the information code remains, contact a customer service centre.
Untitled-1 52Untitled-1 52 2025-02-13 11:17:522025-02-13 11:17:52
English 53
Code Action
HC
High temperature heating check.
• If the information code remains, contact a customer service centre.
1C
The Water Level sensor is not working properly.
• Try power off and restarting the cycle.
• If the information code remains, contact a customer service centre.
AC
Check communications between main and sub PBAs.
• Try power off and restarting the cycle.
• If the information code remains, contact a customer service centre.
AC6
Inverter communication check.
• If the information code remains, contact a customer service centre.
If any information code keeps appearing on the screen, contact a local Samsung service centre.
Untitled-1 53Untitled-1 53 2025-02-13 11:17:522025-02-13 11:17:52
English54
Specifications
Fabric care chart
The following symbols provide garment care
direction. The Clothing care labels include
symbols for drying, bleaching, drying and ironing,
or dry cleaning when necessary. The use of
symbols ensures consistency among garment
manufacturers of domestic and imported items.
Follow care label directions to maximize garment
life and reduce laundering problems.
Washing
95 °C normal wash.
60 °C normal wash.
60 °C mild wash.
40 °C normal wash.
40 °C mild wash.
40 °C very mild wash.
30 °C normal wash.
30 °C mild wash.
30 °C very mild wash.
Hand wash.
Do not wash.
NOTE
The numbers in the wash tub specify the maximum
washing temperatures in degrees celsius which
must not be exceeded.
Bleaching
Any bleach allowed.
Only oxygen bleach allowed.
Do not bleach.
Drying
Tumble drying / normal temperture /
maximum exhaust temperatue 80 °C.
Tumble drying / lower temperature /
maximum exhaust temperature 60 °C.
Do not tumble dry
Line drying.
Drip line drying.
Flat drying.
Drip flat drying.
Line drying in the shade.
Drip line drying in the shade.
Flat drying in the shade.
Drip flat drying in the shade.
NOTE
• The dots indicate the drying level of the dryer.
• The lines indicate the type and place of the
drying.
Untitled-1 54Untitled-1 54 2025-02-13 11:17:552025-02-13 11:17:55
English 55
Ironing
Iron at maximum sole plate
temperature of 200 °C.
Iron at maximum sole plate
temperature of 150 °C.
Iron at maximum sole plate
temperature of 110 °C.
Caution when using steam irons (work
without steam).
Do not iron.
NOTE
The dots indicate the temperature ranges for
ironing (regulator, steam, travel irons and ironing
machines).
Professional care
Professional dry-cleaning in
perchloroethylene and/or
hydrocarbons (heavy benzines) with
normal process.
Professional dry-cleaning in
perchloroethylene and/or
hydrocarbons (heavy benzines) with
gentle process.
Professional dry-cleaning in
hydrocarbons (heavy benzines) with
normal process.
Professional dry-cleaning in
hydrocarbons (heavy benzines) with
gentle process.
Do not dry-clean.
Professional wet-cleaning.
Mild professional wet-cleaning.
Very mild professional wet-cleaning.
Do not wet-clean.
NOTE
• The letters in a circle indicate the solvents ( P , F )
used in dry cleaning or wet cleaning ( W ).
• Generally, the line under the symbol indicates
a milder treatment (e.g. gentle cycle for easy-
care items). The double line indicates care levels
with particularly gentle treatment.
Untitled-1 55Untitled-1 55 2025-02-13 11:17:572025-02-13 11:17:57
Specifccaiion
English56
Protecting the environment
• This appliance is manufactured from recyclable materials. If you decide to dispose of it, please observe
local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected
to a power source. Remove the lid so that animals and small children cannot get trapped inside the
appliance.
• Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions.
• Use stain removal products and bleaches before the wash cycle only when necessary.
• Save water and electricity by only washing full loads (the exact amount depends upon the program
used).
Spare parts guarantee
We guarantee that the following spare parts will be available to professional repairers and end-users for a
minimum period of 10 years after placing the last unit of the model on the market.
• Door, door hinges and seals, other seals, door locking assembly, and plastic peripherals such as
detergent dispensers.
• Listed parts can be purchased at below website.
- http://www.samsung.com/support
Untitled-1 56Untitled-1 56 2025-02-13 11:17:572025-02-13 11:17:57
English 57
Specification sheet
“*” Asterisk(s) means variant model and can be varied (0-9) or (A-Z) .
A
B
C
D
E
Type Front loading washing machine
Model name WW90FG3M05** WW80FG3M05** WW70FG3M05**
Dimensions
A (Width) 595 mm
B (Height) 850 mm
C (Depth)
520 mm 480 mm 455 mm
D 560 mm 520 mm 495 mm
E 978 mm 938 mm 913 mm
Water pressure 50-800 kPa
Net weight 64.0 kg 59.0 kg 57.0 kg
Maximum load capacity
Washing and
spinning
9.0 kg 8.0 kg 7.0 kg
Power
consumption
Washing and
heating
AC 220-240 V
/ 50 Hz
1900 W
Spin revolutions 1400 RPM
NOTE
• The design and specifications are subject to change without notice for quality improvement purposes.
• The dimensions stated here may differ slightly from the actual measurements depending on the
measuring method.
Untitled-1 57Untitled-1 57 2025-02-13 11:17:572025-02-13 11:17:57
Specifccaiion
English58
EPREL information
To access energy labelling information about this product on the European Product Registry for Energy
Labelling (EPREL), go to https://eprel.ec.europa.eu/qr/****** where ****** is the product’s EPREL
registration number. You can find the registration number on the rating label of your product.
Indicative information (According to EU 2019/2023 )
Model Cycles Capacity (kg)
Program Time
(HH:MM)
Energy
Consumption
(kWh/Cycle)
Water
Consumption
(L/cycle)
Maximum
Temperature
(°C)
Remaining
Moisture
Content (%)
Spinning
Speed (RPM)
WW90FG3M05**
ECO 40-60
9.0 3:48 0.812 67.0 37 53.9 1400
4.5 2:54 0.501 46.0 33 53.9 1400
2.5 2:54 0.217 37.0 26 53.9 1400
COTTON 90°C 9.0 2:19 2.409 80.0 72 83.0 800
COTTON 60°C
+ Soak
9.0 2:11 1.477 73.8 55 81.0 800
WOOL/
DELICATES
2.5 0:44 0.098 49.0 20 125.9 400
QUICK WASH 15' 2.5 0:15 0.020 28.0 16 93.7 800
WW80FG3M05**
ECO 40-60
8.0 3:38 0.740 61.0 37 53.9 1400
4.0 2:48 0.426 44.0 32 53.9 1400
2.0 2:48 0.216 36.0 25 53.9 1400
COTTON 90°C 8.0 2:19 2.015 72.6 70 81.0 800
COTTON 60°C
+ Soak
8.0 2:11 1.407 67.0 55 81.0 800
WOOL/
DELICATES
2.0 0:44 0.092 47.0 20 128.9 400
QUICK WASH 15' 2.0 0:15 0.019 27.0 16 93.7 800
WW70FG3M05**
ECO 40-60
7.0 3:28 0.670 56.0 38 53.90 1400
3.5 2:42 0.378 42.0 31 53.90 1400
2.0 2:42 0.198 34.0 25 53.90 1400
COTTON 90°C 7.0 2:19 1.900 68.0 70 81.0 800
COTTON 60°C
+ Soak
7.0 2:11 1.184 65.0 55 83.0 800
WOOL/
DELICATES
2.0 0:44 0.090 46.0 20 125.6 400
QUICK WASH 15' 2.0 0:15 0.017 27.0 16 93.4 800
• The values given for programmes other than the ECO 40-60 programme and the wash and dry cycle are
indicative only.
• The time values stated here may differ from the actual values due to the influence of the water
pressure/hardness/temperature, type/amount/soiling level of the laundry, type/amount of the
detergent used, power supply, and the selected additional functions.
Untitled-1 58Untitled-1 58 2025-02-13 11:17:572025-02-13 11:17:57
English 59
Contact information
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
UK 0333 000 0333 www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
GERMANY 06196 77 555 77 www.samsung.com/de/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support
SPAIN 91 175 00 15 www.samsung.com/es/support
PORTUGAL
210 608 098
Chamada para a rede fixa nacional
Dias úteis das 9h às 20h
www.samsung.com/pt/support
LUXEMBURG 261 03 710 www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100 www.samsung.com/nl/support
BELGIUM 02-201-24-18
www.samsung.com/be/support (Dutch)
www.samsung.com/be_fr/support (French)
NORWAY 21 62 90 99 www.samsung.com/no/support
DENMARK 70 70 19 70 www.samsung.com/dk/support
FINLAND 030-622 75 15 www.samsung.com/fi/support
SWEDEN 0771-400 300 www.samsung.com/se/support
AUSTRIA 0800 72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
SWITZERLAND 0800 726 786
www.samsung.com/ch/support (German)
www.samsung.com/ch_fr/support (French)
HUNGARY 0680SAMSUNG (0680-726-7864) www.samsung.com/hu/support
CZECH 800 - SAMSUNG (800-726786) www.samsung.com/cz/support
SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/sk/support
CROATIA 072 726 786 www.samsung.com/hr/support
BOSNIA 055 233 999 www.samsung.com/ba/support
North
Macedonia
023 207 777 www.samsung.com/mk/support
MONTENEGRO 020 405 888 www.samsung.com/support
SLOVENIA 080 697 267 (brezplačna številka) www.samsung.com/si/support
SERBIA 011 321 6899 www.samsung.com/rs/support
Kosovo 038 40 30 90 www.samsung.com/support
ALBANIA 045 620 202 www.samsung.com/al/support
Untitled-1 59Untitled-1 59 2025-02-13 11:17:572025-02-13 11:17:57
Contact information
English60
COUNTRY CALL OR VISIT US ONLINE AT
BULGARIA
0800 111 31 - Безплатен за всички
оператори
*3000 - Цена на един градски
разговор или според тарифата на
мобилният оператор
09:00 до 18:00 - Понеделник до
Петък
www.samsung.com/bg/support
ROMANIA
0800872678 - Apel gratuit
*8000 - Apel tarifat în reţea
Program Call Center
Luni - Vineri: 9 AM - 6 PM
www.samsung.com/ro/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
CYPRUS
8009 4000 only from landline, toll
free
www.samsung.com/gr/support
GREECE
80111-SAMSUNG (80111 726 7864)
from mobile and land line
(+30) 210 6897691 from mobile and
land line
POLAND
801-172-678*
* (opłata według taryfy operatora)
http://www.samsung.com/pl/support/
LITHUANIA 8-800-77777 www.samsung.com/lt/support
LATVIA 8000-7267 www.samsung.com/lv/support
ESTONIA 800-7267 www.samsung.com/ee/support
UKRAINE 0-800-502-000 www.samsung.com/ua/support
Untitled-1 60Untitled-1 60 2025-02-13 11:17:572025-02-13 11:17:57
Memo
Untitled-1 61Untitled-1 61 2025-02-13 11:17:572025-02-13 11:17:57
Memo
Untitled-1 62Untitled-1 62 2025-02-13 11:17:572025-02-13 11:17:57
Memo
Untitled-1 63Untitled-1 63 2025-02-13 11:17:572025-02-13 11:17:57
Untitled-1 64Untitled-1 64 2025-02-13 11:17:572025-02-13 11:17:57
