Sharp CD-BK3100W Audio User Manual

– 1 –

CD-BK3100W

No. S8147CDBK3100

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

VOLTAGE SELECTION ..................................................................................................................................................... 2

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR ................................................................................................. 2

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

OPERATION MANUAL ...................................................................................................................................................... 6

DISASSEMBLY .................................................................................................................................................................. 8

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 11

ADJUSTMENT ................................................................................................................................................................. 12

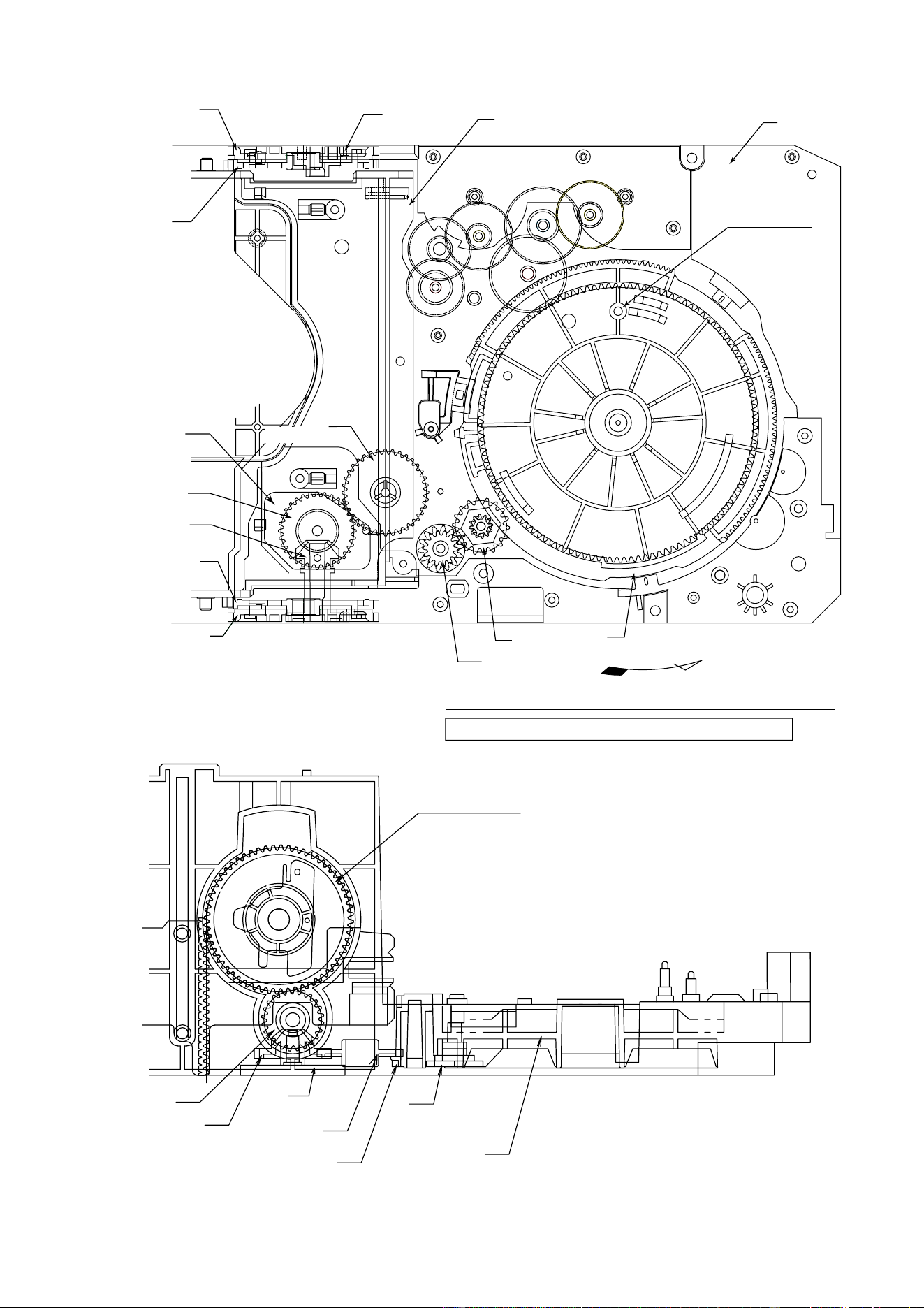

CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/ADJUSTING PROCEDURE................................... 15

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 22

TYPES OF TRANSISTOR AND LED............................................................................................................................... 22

BLOCK DIAGRAM ........................................................................................................................................................... 23

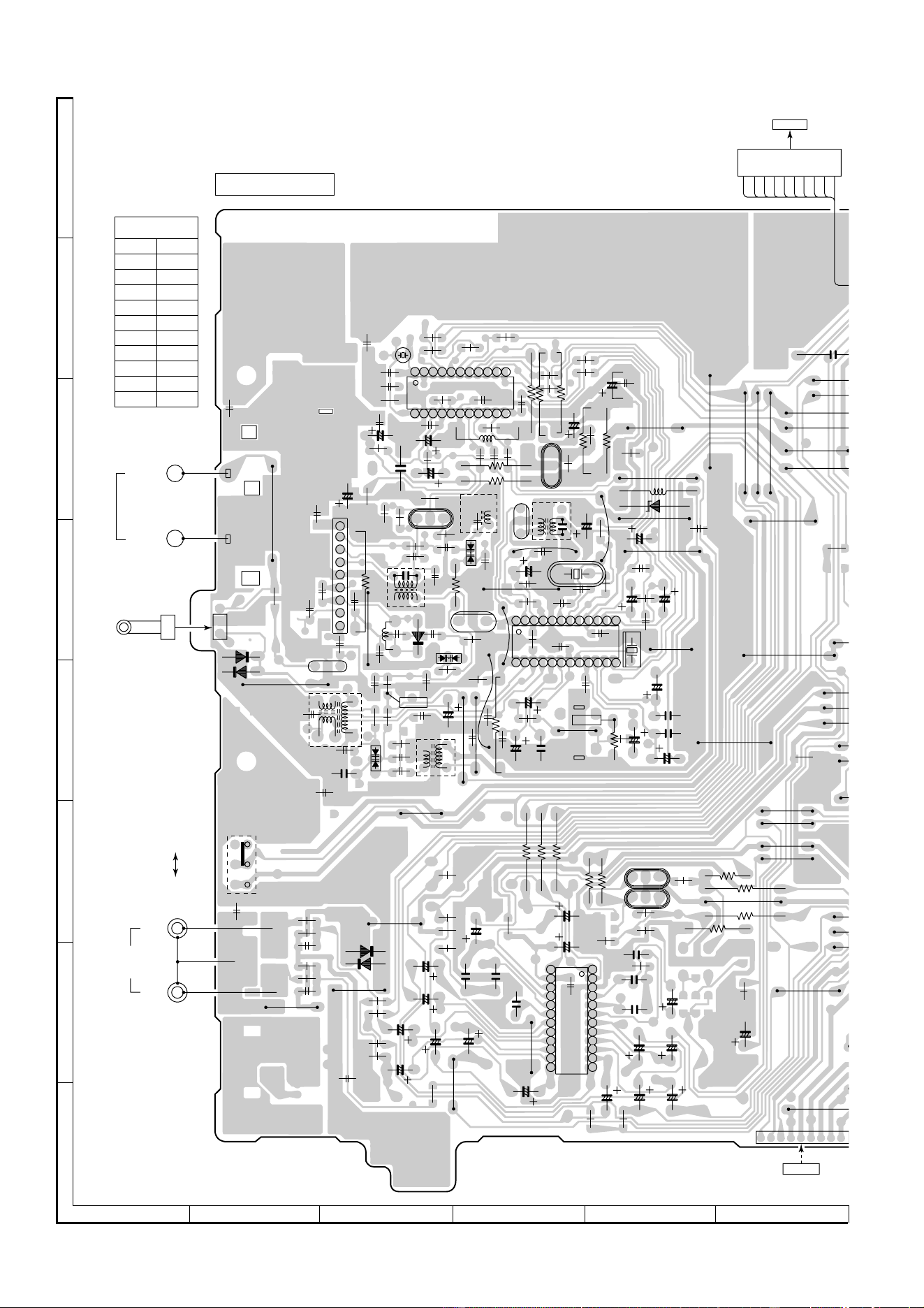

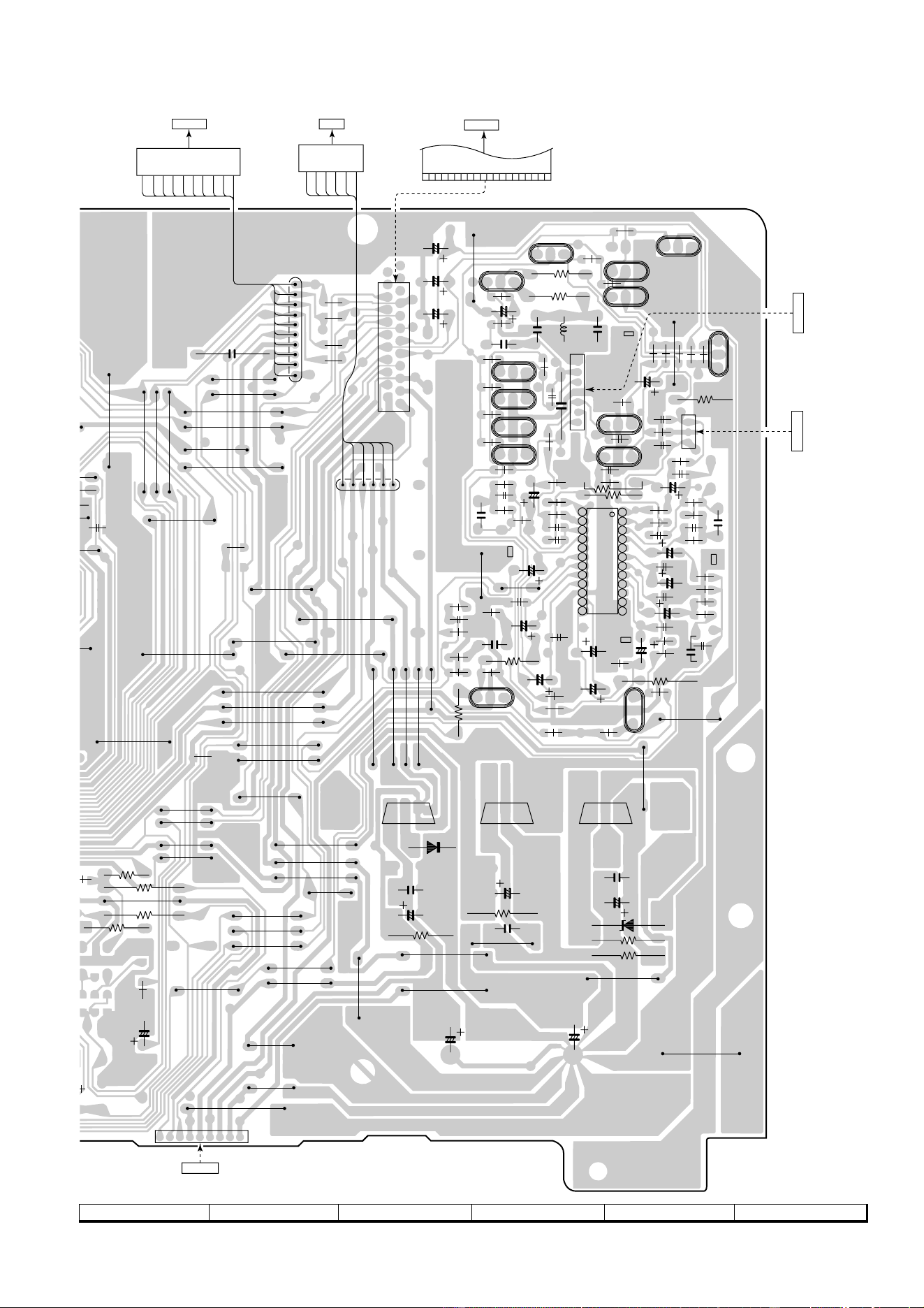

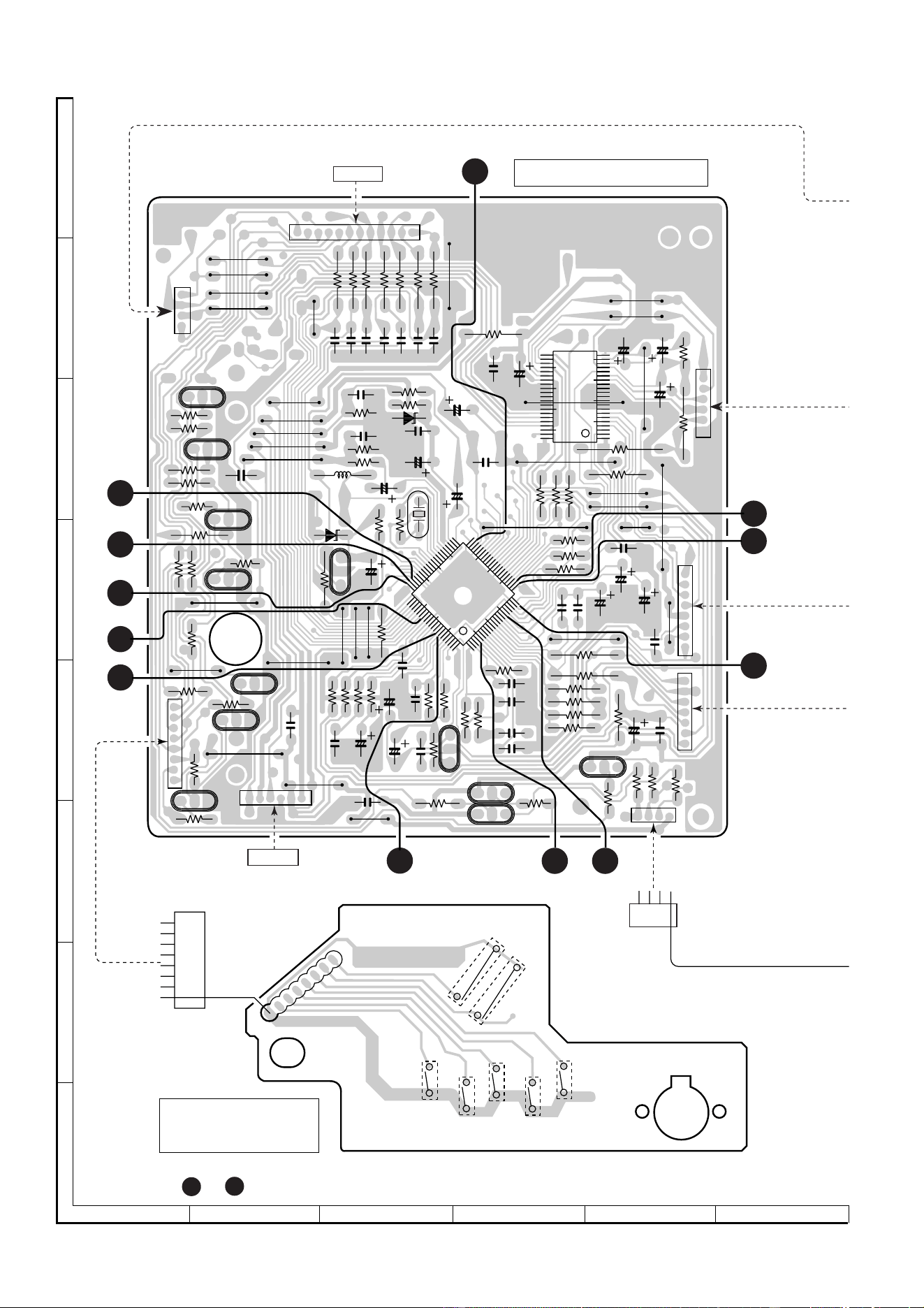

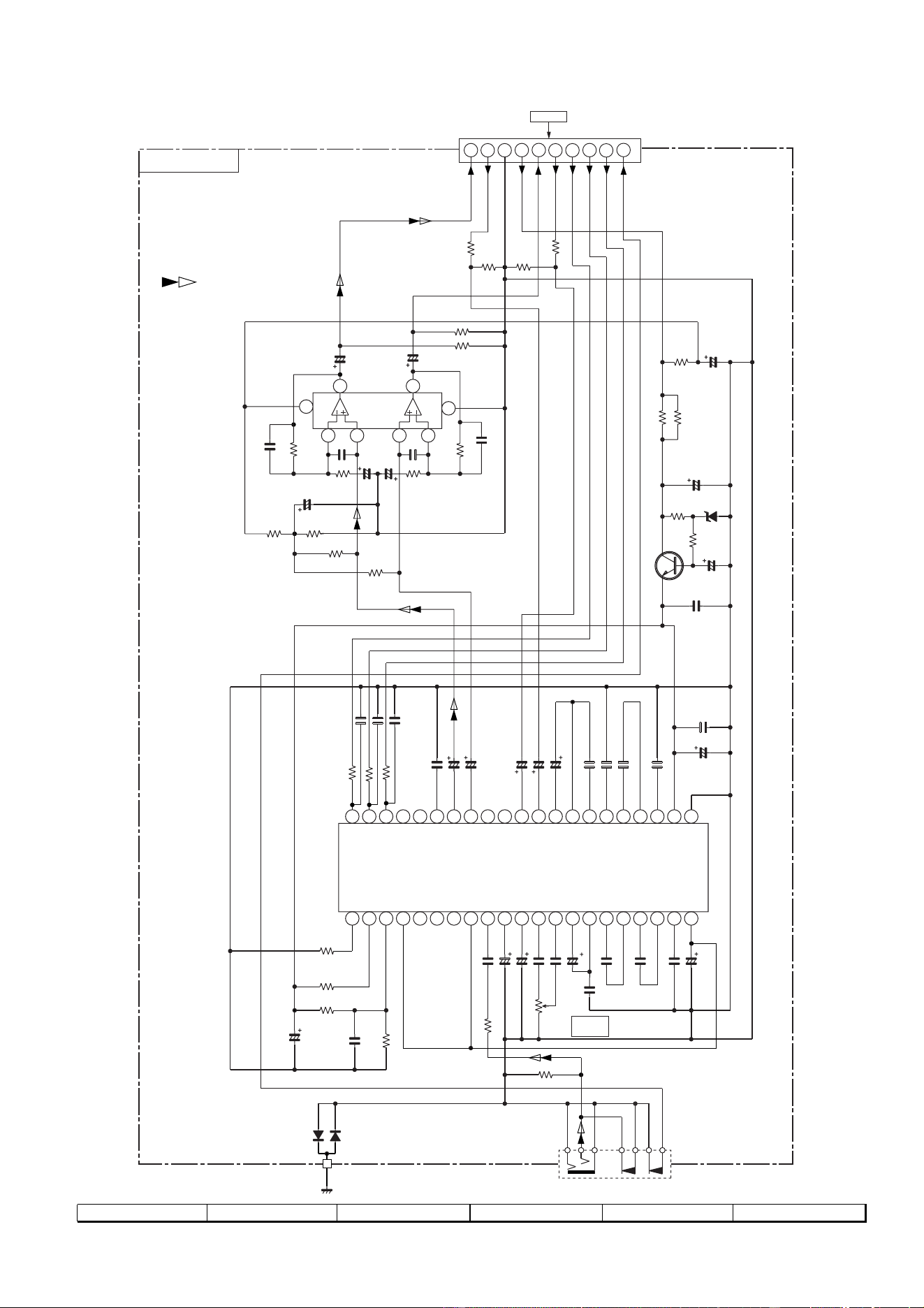

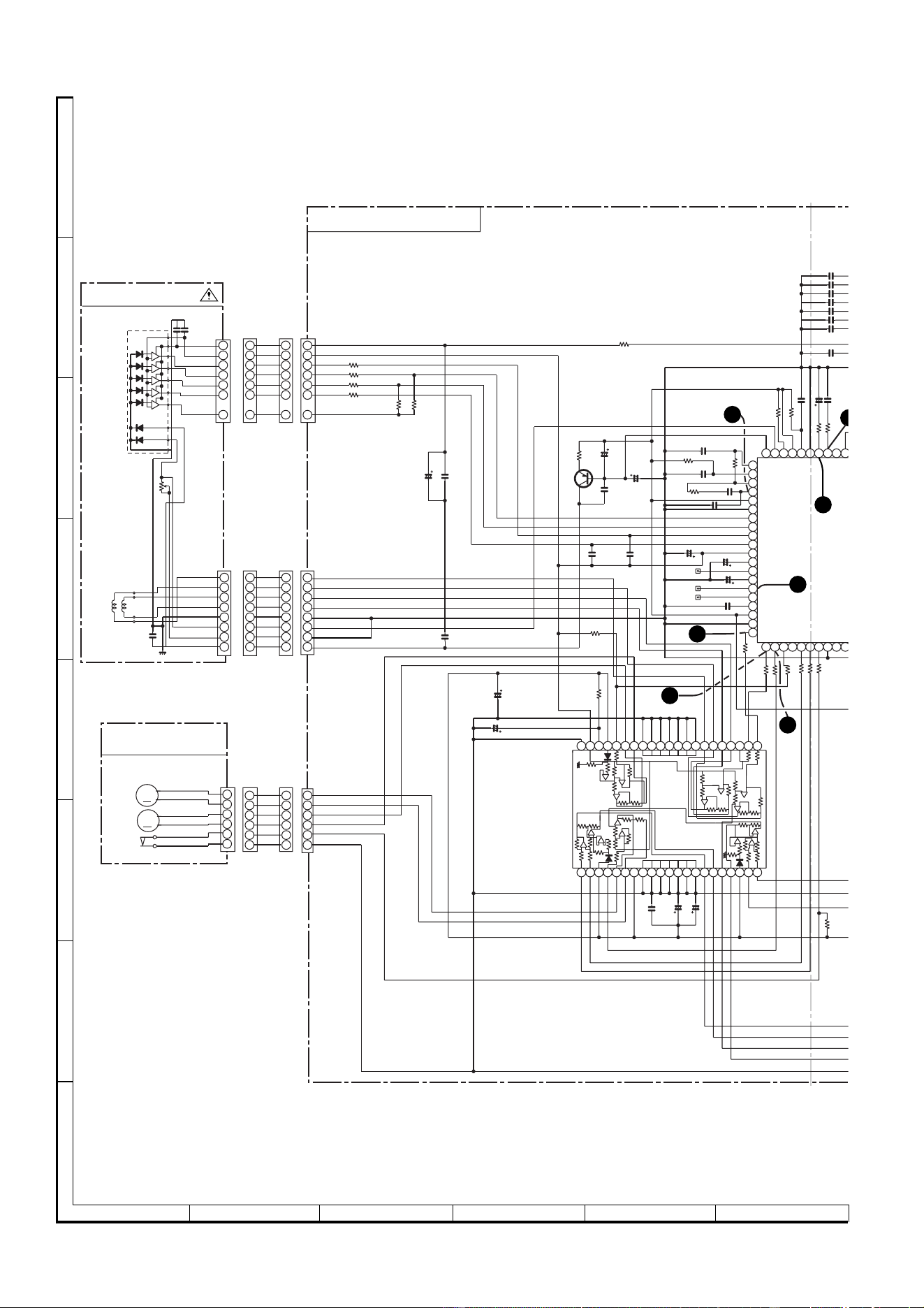

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD ............................................................................................. 26

VOLTAGE ........................................................................................................................................................................ 45

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 46

TROUBLESHOOTING ..................................................................................................................................................... 47

FUNCTION TABLE OF IC................................................................................................................................................ 51

FL DISPLAY ..................................................................................................................................................................... 59

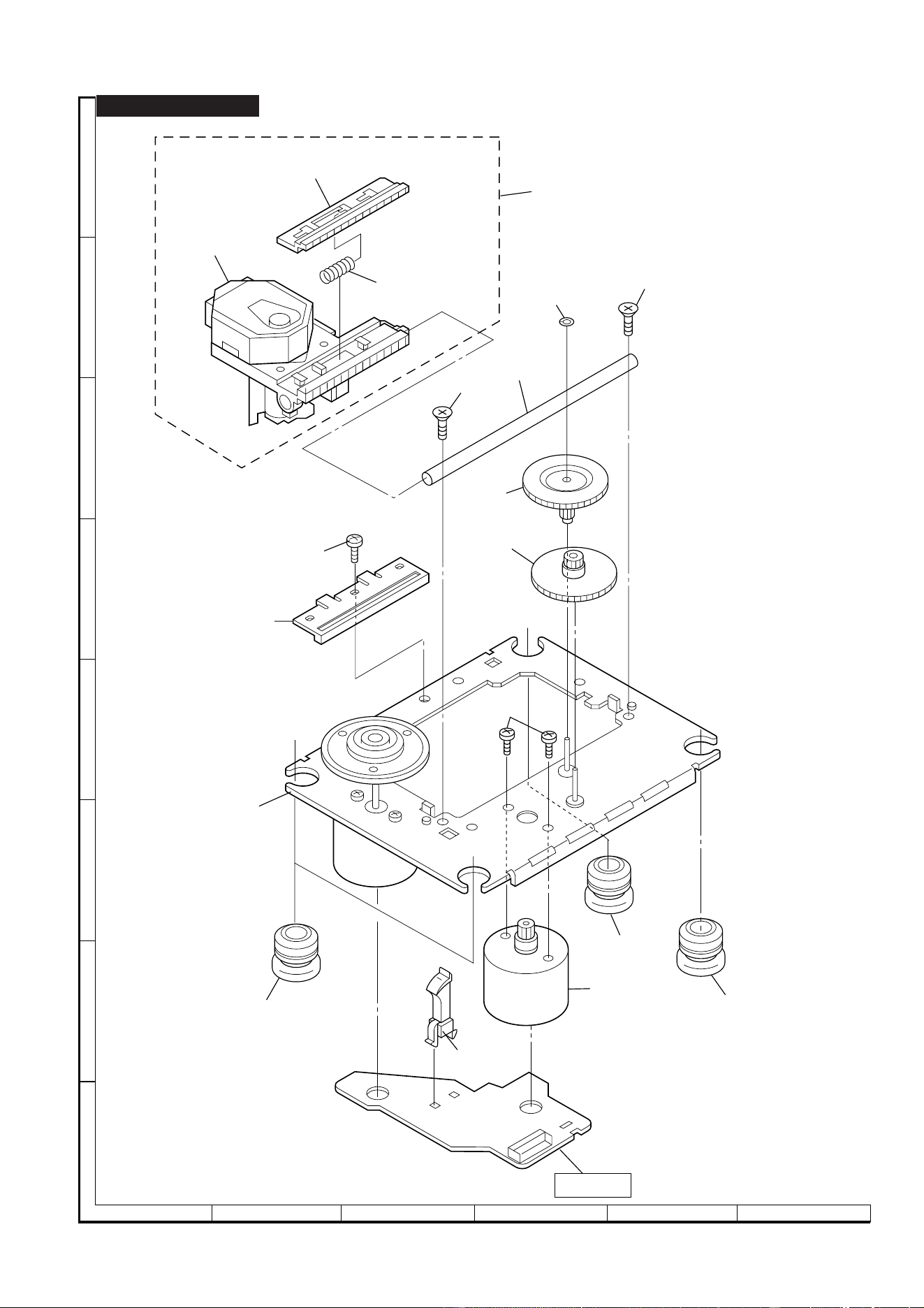

REPLACEMENT PARTS LIST/EXPLODED VIEW

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

SERVICE MANUAL

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

CD-BK3100W Mini Component System consisting of

CD-BK3100W (main unit) and CP-BK3100 (speaker system).

MINI COMPONENT SYSTEM

MODEL CD-BK3100W

CD-BK3100W

– 2 –

SAFETY PRECAUTION FOR SERVICE MANUAL

WARNINGS

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER

COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS

IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES

AGAINST EXPOSURE TO THE LASER BEAM.

1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE

PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT

LOOK INTO THE PICKUP LENS.

2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY

PRESET BEFORE SHIPMENT.

DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.

3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.

4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

VOLTAGE SELECTION

Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage

as follows.

Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V-240 V AC).

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM

OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ

IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I

STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE. ALA

TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA EJ

IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE INN I

STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.

QACCA0003AW00

QACCB0011AW00

QACCE0010AW00

QACCL0005AW00

QACCJ0007AW00/QACCZ0007AW00

QPLGA0003AWZZ QPLGA0004AWZZ

QACCE0008AW00

– 3 –

CD-BK3100W

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

SPECIFICATIONS

CD-BK3100W

CP-BK3100

Specifications for this model are subject to change without

prior notice.

General

Amplifier

CD player

Tuner

Cassette deck

Power source

AC 110/127/220/230 - 240 V, 50/60 Hz

Power consumption

175 W

Dimensions

Width: 260 mm (10-1/4")

Height: 338 mm (13-5/16")

Depth: 375 mm (14-13/16")

Weight

9.1 kg (20.1 lbs.)

Output power

MPO: 334 W (167 W + 167 W) (10 % T.H.D.)

Main speaker (woofer and tweeter): 134 W (67 W + 67 W)

Subwoofer: 200 W (100 W + 100 W)

RMS: 200 W (100 W + 100 W) (10 % T.H.D.)

Main speaker (woofer and tweeter): 80 W (40 W + 40 W)

Subwoofer: 120 W (60 W + 60 W)

RMS: 184 W (92 W + 92 W) (0.9 % T.H.D.)

Main speaker (woofer and tweeter): 74 W (37 W + 37 W)

Subwoofer: 110 W (55 W + 55 W)

Output terminals

Speakers: 6 ohms

Headphones: 16 - 50 ohms (recommended: 32 ohms)

Input terminals

Video/Auxiliary (audio signal): 500 mV/47 kohms

Microphone: 1 mV/600 ohms

Type

6-disc multi-play compact disc player

Signal readout

Non-contact, 3-beam semiconductor laser pickup

D/A converter

1-bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

Frequency range

FM: 88 - 108 MHz

AM: 531 - 1,602 kHz

Frequency response

50 - 14,000 Hz (Normal tape)

Signal/noise ratio

55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter

0.3 % (WRMS)

Type

3-way type speaker system

5 cm (2") Tweeter

13 cm (5-1/4") Woofer

13 cm (5-1/4") Subwoofer

Maximum input power

(Total)

200 W

Rated input power

(Total)

100 W

Impedance

6 ohms

Dimensions

Width: 280 mm (11")

Height: 330 mm (13")

Depth: 272 mm (10-11/16")

Weight

4.8 kg (10.6 lbs.)/each

CD-BK3100W

– 4 –

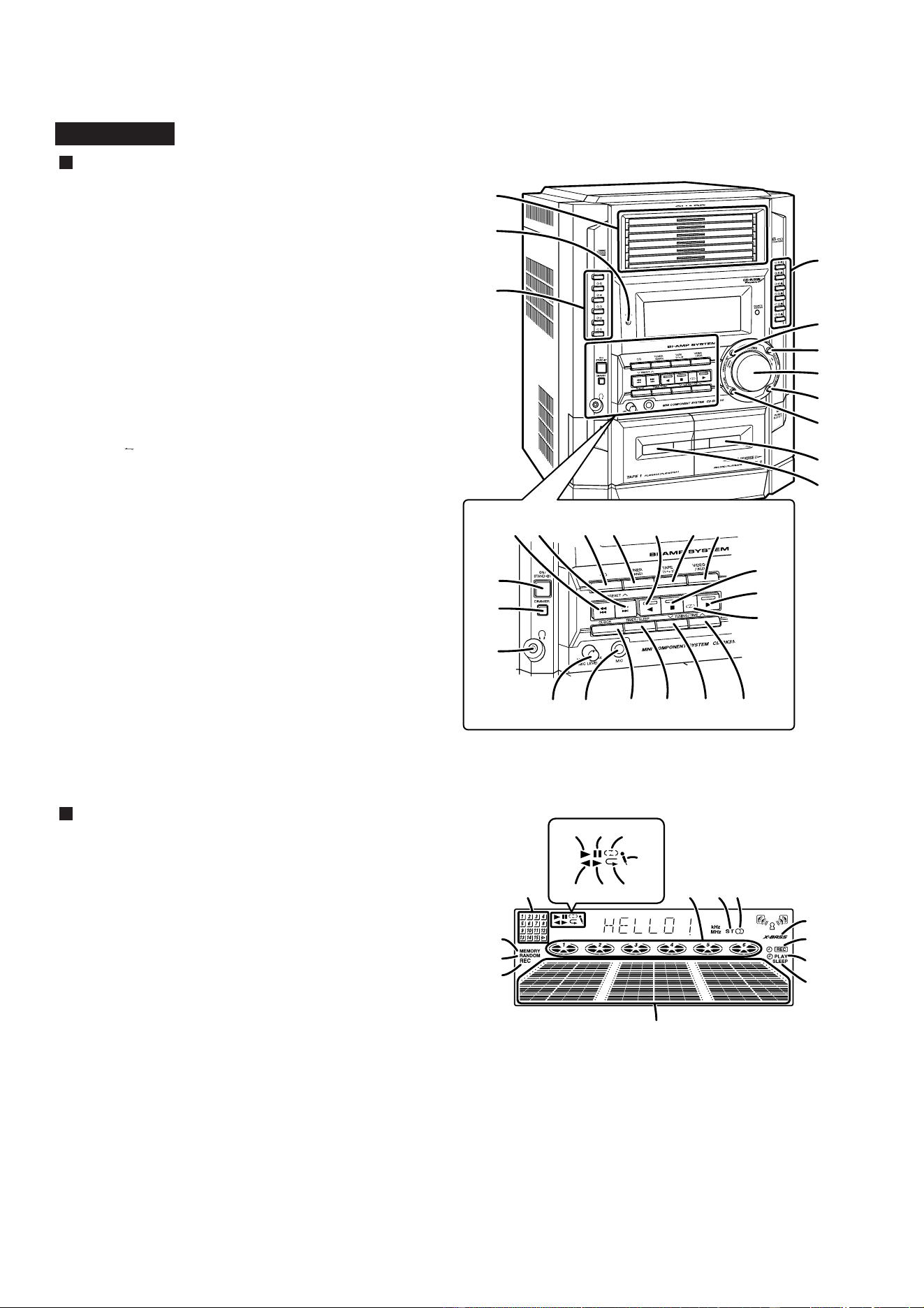

NAMES OF PARTS

CD-BK3100W

Front panel

1. Disc Trays

2. Timer Set Indicator

3. CD Direct Play Buttons

4. CD Eject Buttons

5. Memory/Set Button

6. Equalizer Mode Select Button

7. Volume Control

8. Extra Bass/Demo Mode Button

9. Tape 2 Record Pause Button

10. Tape 2 Cassette Compartment

11. Tape 1 Cassette Compartment

12. CD Track Down or Fast Reverse, Tape 2 Fast Wind,

Tuner Preset Down Button

13. CD Track Up or Fast Forward, Tape 2 Fast Wind,

Tuner Preset Up Button

14. CD Button

15. Tuner (Band) Button

16. Tape 2 Reverse Play Button (with Indicator)

17. Tape (1 2) Button

18. Video/Auxiliary Button

19. On/Stand-by Button

20. Dimmer Button

21. Headphone Socket

22. CD or Tape Stop Button (with Indicator)

23. CD Play or Repeat, Tape 1 Play,

Tape 2 Forward Play Button (with Indicator)

24. Tape 2 Reverse Mode Select Button

25. Microphone Level Control

26. Microphone Socket

27. Clock Button

28. Timer/Sleep Button

29. Tuning and Time Down Button

30. Tuning and Time Up Button

3029282725 26

13 14 15 16 17

Display

1. CD Music Schedule Indicators

2. CD Indicators

3. FM Stereo Mode Indicator

4. FM Stereo Receiving Indicator

5. Memory Indicator

6. CD Random Play Indicator

7. Tape 2 Record Indicator

8. Extra Bass Indicator

9. Timer Recording Indicator

10. Timer Play Indicator

11. Sleep Indicator

12. Spectrum Analyser/Volume Level Indicator

13. CD Play Indicator

14. CD Pause Indicator

15. Tape Reverse Mode Indicator

16. Tape 2 Reverse Play Indicator

17. Tape 1 Play or Tape 2 Forward Play Indicator

18. CD Repeat Play Indicator

19. Karaoke Mode Indicator

432

181716

13 14 15

– 5 –

CD-BK3100W

Remote control

1. Remote Control Transmitter

2. Echo Level Up and Down Buttons

3. Karaoke Mode Button

4. CD Direct Play Buttons

5. CD Clear Button

6. Tape 2 Record Pause Button

7. CD Track Down or Fast Reverse, Tape 2 Fast Wind,

Tuner Preset Down Button

8. Equalizer Mode Select Button

9. Tape 2 Reverse Play Button

10. CD Button

11. Tuner (Band) Button

12. On/Stand-by Button

13. Extra Bass Button

14. CD Random Button

15. CD Memory Button

16. CD Pause Button

17. CD Track Up or Fast Forward, Tape 2 Fast Wind,

Tuner Preset Up Button

18. CD or Tape Stop Button

19. CD Play or Repeat, Tape 1 Play,

Tape 2 Forward Play Button

20. Video/Auxiliary Button

21. Tape (1 2) Button

22. Volume Up and Down Buttons

Buttons with " " mark in the illustration can be operated on the remote control

only.

Other buttons can be operated both on the main unit and the remote control.

Rear panel

1. Transport screw

2. FM 75 Ohms Aerial Terminal

3. FM Aerial Earth Terminal

4. AM Loop Aerial Socket

5. Span Selector Switch

6. Video/Auxiliary (Audio Signal) Input Sockets

7. Speaker Terminals

8. AC Power Lead

9. AC Voltage Selector

Transport screw

This product has a transport screw.

Be sure to drive it when transporting the unit.

Before tuning the power on, be sure to remove the transport screw

on the back of the unit using a flat-blade screwdriver a coin.

1. Subwoofer

2. Bass Reflex Duct

3. Tweeter

4. Woofer

5. Speaker wire for SUBWOOFER terminals

6. Speaker wire for MAIN terminals

CP-BK3100

CD-BK3100W

– 6 –

OPERATION MANUAL

Setting the Clock

In this example, the clock is set for the 24-hour (0:00) display.

Note:

The "CLOCK" or time will flash at the push of the CLOCK button when the AC power

supply is restored after a power failure or unplugging the unit.

Readjust the clock as follows.

To readjust the clock:

Perform "Setting the Clock" from the beginning. If the time display is flashing, step 3

(for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

Press the ON/STAND-BY button to turn the power on.

Press the CLOCK button and within 5 seconds, press the MEMO-

RY/SET button.

Press the TUNING/TIME ( or ) button to select 24-hour or 12-

hour display and then press the MEMORY/SET button.

"0:00" The 24-hour display will appear.

(0:00 - 23:59)

"AM 12:00" The 12-hour display will appear.

(AM 12:00 - PM 11:59)

"AM 0:00" The 12-hour display will appear.

(AM 0:00 - PM 11:59)

Note that this can only be set when the unit is first installed or it has been reset.

[Refer to "Clearing all the memory (reset)".]

Press the TUNING/TIME ( or ) button to adjust the hour and then

press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.

Hold it down to advance continuously.

When the 12-hour display is selected, "AM" will change automatically to "PM".

Press the TUNING/TIME ( or ) button to adjust the minutes and

then press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1

minute. Hold it down to change the time in 5-minute intervals.

The hour will not advance even if minutes advance from "59" to "00".

The clock begins counting from "0" seconds. (Seconds are not displayed.)

The time display will disappear after a few seconds.

To confirm the time display:

Press the CLOCK button.

The time display will appear for about 5 seconds.

1 Clear all the programmed contents. [Refer to "Clearing all the memory (reset)".]

2 Perform "Setting the Clock" from the beginning.

System Connections

Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before plug-

ging the unit into a wall socket. If necessary, adjust the selector to correspond to the

AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage num-

ber appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

Connecting the AC power lead

After making all connections, plug the unit. If you plug the unit first,

the unit will enter the demonstration mode.

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a pro-

longed period of time.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration is used, connect

the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug

adaptor is not included in areas where the wall socket and AC power plug can be

directly connected (see illustration ).

Setting the FM/AM span selector

The International Telecommunication Union (ITU) has established that member coun-

tries should maintain either a 100 kHz or a 50 kHz interval between broadcasting fre-

quencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows

the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).

Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the

interval (span) of your area.

To change the tuning zone:

Caution:

This operation will erase all data stored in memory including clock, timer settings,

tuner preset, and CD programme.

1 Press the ON/STAND-BY button to enter the stand-by mode.

2 Set the SPAN SELECTOR switch (on the rear panel) as follows.

For 50 kHz FM interval (9 kHz in AM) 50/9

For 100 kHz FM interval (10 kHz in AM) 100/10

3 Whilst pressing down the MEMORY/SET button and the X-BASS/DEMO button,

press the ON/STAND-BY button until "CLEAR AL" appears.

– 7 –

CD-BK3100W

Troubleshooting Chart

Many potential problems can be resolved by the owner without calling a service tech-

nician.

If something is wrong with this product, check the following before calling your autho-

rised SHARP dealer or service centre.

General

CD player

Tuner

Cassette deck

Karaoke

Remote control

Symptom Possible cause

The clock is not on time. Did a power failure occur? Reset the

clock.

When a button is pressed, the unit

does not respond.

Set this unit to the power stand-by mode

and then turn it back on.

If the unit still malfunctions, reset it.

No sound is heard. Is the volume level set to "0"?

Are the headphones connected?

Are the speaker wires disconnected?

Is the karaoke mode set to "L-CH", "R-CH"

or "V-CANCEL"?

Symptom Possible cause

Playback does not start. Is the disc loaded upside down?

Playback stops in the middle or is

not performed properly.

Does the disc satisfy the standards?

Is the disc distorted or scratched?

Playback sounds are skipped, or

stopped in the middle of a track.

Is the unit located near excessive vibra-

tions?

Is the disc very dirty?

Has condensation formed inside the unit?

Symptom Possible cause

Radio makes unusual noise con-

secutively.

Is the unit placed near the TV or comput-

er?

Is the FM aerial or AM loop aerial placed

properly? Move the AC power lead away

from the aerial if located near.

Symptom Possible cause

Cannot record. Is the erase-prevention tab removed?

Cannot record tracks with proper

sound quality.

Is it a normal tape? (You cannot record on

a metal or CrO tape.)

Cannot erase completely.

Sound skipping. Is there any slack?

Is the tape stretched?

Cannot hear treble. Are the capstans, pinch rollers, or heads

dirty?

Sound fluctuation.

Cannot remove the tape. If a power failure occurs during playback,

the heads remain engaged with the tape.

Do not open the compartment forcibly.

Wait until electricity resumes.

Symptom Possible cause

The vocal part of a multiplexed

disc is not heard.

Is the karaoke mode set to "L-CH", "R-CH"

or "V-CANCEL"?

Symptom Possible cause

The remote control does not oper-

ate.

Is the AC power lead of the unit plugged

in?

Is the battery polarity respected?

Are the batteries dead?

Is the distance or angle incorrect?

Does the remote control sensor receive

strong light?

Troubleshooting Chart

If trouble occurs

When this product is subjected to strong external interference (mechanical shock,

excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is

operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.

2 If the unit is not restored in the previous operation, unplug and plug in the unit,

and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Clearing all the memory (reset)

1 Press the ON/STAND-BY button to enter the power stand-by mode.

2 Whilst pressing down the MEMORY/SET button and the X-BASS/DEMO button,

press the ON/STAND-BY button until "CLEAR AL" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings,

tuner preset, and CD programme.

Before transporting the unit

On the back of this unit is equipped with a transport screw in order to prevent damage

during transportation.

1 Press the ON/STAND-BY button to turn the

power on.

2 Remove all discs from the unit, close the

disc tray.

"NO DISC" is displayed.

3 Press the ON/STAND-BY button to enter the

stand-by mode.

"GOOD-BYE" is displayed.

4 When "GOOD-BYE" disappears, unplug the

AC power lead from the wall socket.

5 Insert the transport screw into the back of

the unit and tighten it with a flat-blade screw-

driver or a coin.

Remote Control

Test of the remote control

Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the

music.

0.2 m - 6 m

(8" - 20')

Remote sensor

CD-BK3100W

– 8 –

1 Top Cabinet 1. Screw ...................... (A1) x5 8-1

2 Side Panel 1. Screw .................... (B1) x10 8-1

(Left/Right) 2. Hook ........................ (B2) x2

3 Rear Panel with 1. Screw ...................... (C1) x3 8-2

Fan Motor 2. Screw ...................... (C2) x7

3. Screw ...................... (C3) x2

4. Socket ..................... (C4) x1

4 CD Changer Unit 1. Socket ..................... (D1) x2 8-2

2. Hook ........................ (D2) x2

3. Flat Cable ............... (D3) x1 8-3

5 Main PWB 1. Screw ...................... (E1) x1 8-2

2. Socket ..................... (E2) x3 8-3

6 Power Amp. PWB 1. Screw .......................(F1) x6 9-1

2. Socket ......................(F2) x3 8-3,9-1

3. Flat Wire...................(F3) x1 9-1

4. PWB Holder .............(F4) x2

7 Front Panel 1. Screw ...................... (G1) x2 9-1

2. Hook ........................ (G2) x2

8 Eject Switch PWB 1. Screw ...................... (H1) x2 9-2

2. Socket..................... (H2) x1

9 Play Switch PWB 1. Screw ....................... (J1) x2 9-2

10 Mic PWB 1. Screw ...................... (K1) x1 9-2

2. Tip ........................... (K2) x1

11 Display PWB 1. Knob ......................... (L1) x1 9-2

2. Screw ....................... (L2) x8

3. Flat Cable ................ (L3) x1

Headphones PWB

1. Screw ...................... (M1) x1 9-2

2. PWB Washer .......... (M2) x1

13 Tape Mechanism 1. Open the cassette holder. .. 9-2

2. Screw ...................... (N1) x6

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to

be removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take sufficient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 8-2

Figure 8-3

STEP

REMOVAL

PROCEDURE

FIGURE

Figure 8-1

CD-BK3100W

(B1)x4

ø3x10mm

(B1)x2

ø3x12mm

Rear

Panel

(B1)x2

ø3x12mm

(B2)x2

Side Panel

(Right)

Side Panel

(Left)

(A1)x2

ø3x16mm

(A1)x2

ø3x16mm

(B1)x1

ø3x12mm

Top Cabinet

(B1)x1

ø3x12mm

(A1)x1

ø3x10mm

(D1)x1

CD Servo

PWB

Pull

(D2)x1

CD Changer

Unit

(D1)x1

CD Servo

PWB

(E1)x1

ø3x10mm

Lug Wire

(C3)x2

ø3x10mm

Main PWB

(C2)x7

ø3x10mm

Power Amp.

PWB

(C4)x1

(C1)x3

ø3x10mm

Rear

Panel

Main PWB

Power Amp.

PWB

Power B PWB

(D3)x1

Power A PWB

(F2)x1

(E2)x1

Tape

Mechanism

MIC

PWB

– 9 –

CD-BK3100W

1 Top Cabinet 1. Screw ................. (A1) x5 8-1

2 Side Panel 1. Screw ............... (B1) x10 8-1

(Left/Right) 2. Hook ................... (B2) x2

3 Rear Panel with 1. Screw ................. (C1) x3 8-2

Fan Motor 2. Screw ................. (C2) x7

3. Screw ................. (C3) x2

4. Socket ................ (C4) x1

4 CD Changer Unit 1. Socket ................ (D1) x2 8-2

2. Hook ................... (D2) x2

3. Flat Cable ........... (D3) x1 8-3

5 CD Servo PWB 1. Screw ................. (P1) x4 9-3

(Note) 2. Screw ................. (P2) x4

3. Socket ................ (P3) x4

4. Flat Wire ............. (P4) x2

6 CD Mechanism 1. Screw ................. (Q1) x4 9-3

Figure 9-1

Figure 9-2

Figure 9-3

STEP

REMOVAL PROCEDURE FIGURE

CD-BK3100W (CD CHANGER MECHANISM UNIT)

Note:

After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the

front end of connector remove to protect the optical pickup

from electrostatic damage.

Power

Amp. PWB

(F1)x2

ø3x8mm

(F1)x2

ø3x10mm

(F2)x1

Front Panel

(F4)x1

(F1)x1

ø3x10mm

(G1)x2

ø3x8mm

Push

(F4)x1

Push

(F1)x1

ø3x10mm

Pull

(G2)x1

Pull

(G2)x1

Headphones

PWB

(F3)x1

(L3)x1

(L1)x1

Display PWB

Play Switch

PWB

Open

Cassette

Holder

(H2)x1

(N1)x6

ø3x10mm

Tape

Mechanism

(H1)x2

ø3x10mm

(J1)x2

ø3x10mm

Eject Switch

PWB

Lug Wire

Headphones

PWB

MIC

PWB

(M1)x1

ø3x10mm

(K1)x1

ø3x10mm

(K2)x1

(M2)x1

(L2)x8

ø3x10mm

(P2)x4

ø3x10mm

(P1)x4

ø3x14mm

(P4)x1

(P3)x1

(P4)x1

(P3)x2

(Q1)x4

ø2.6x10mm

CD Servo PWB

CD Changer

Mechanism

Unit

CD Changer

Bracket

CD Mechanism

CD-BK3100W

– 10 –

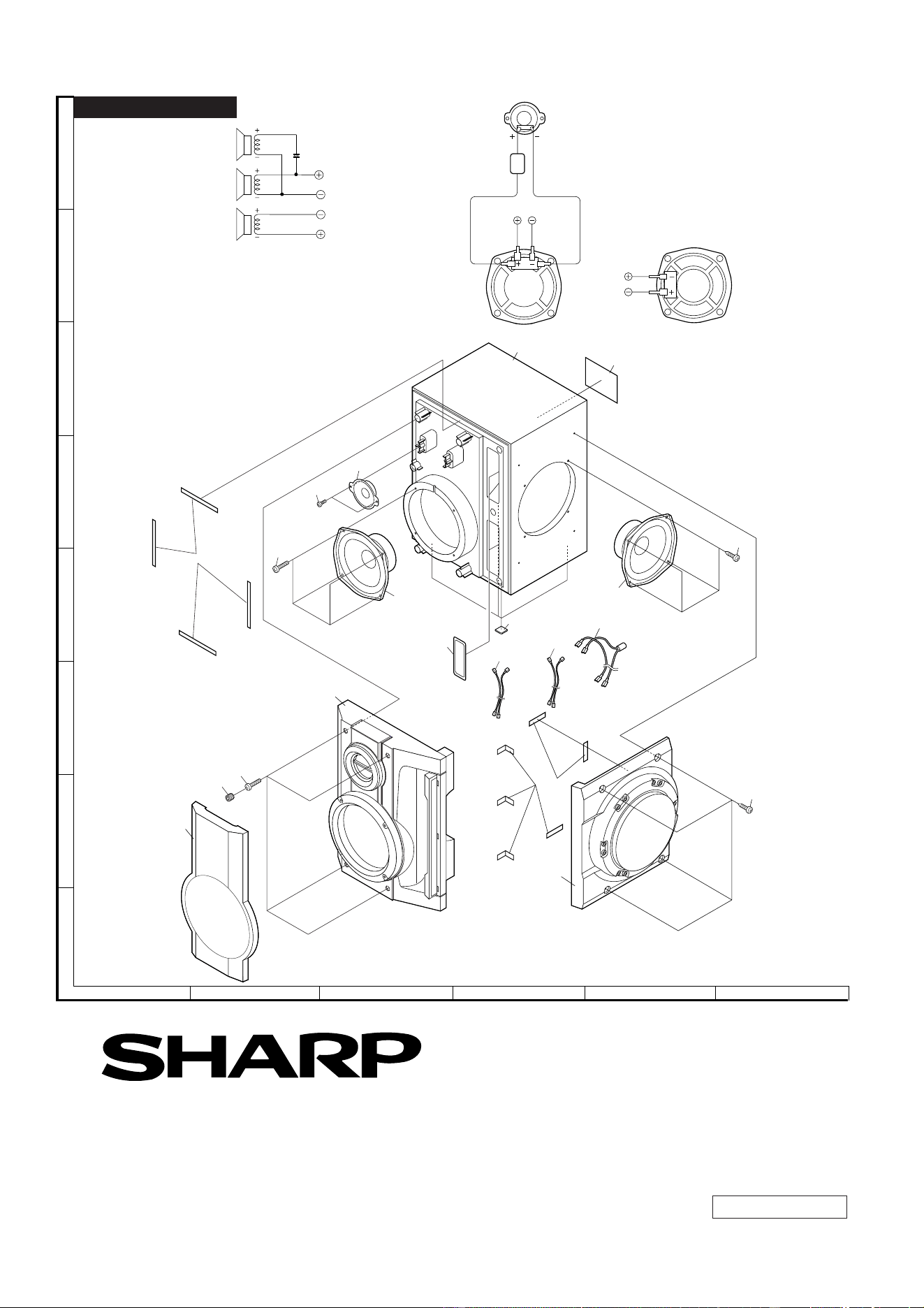

CP-BK3100

1 Side Panel/ 1. Screw ..................... (A1) x4 10-1

Front Panel 2. Net.......................... (A2) x1

3. Catching Holder ..... (A3) x4

4. Screw ..................... (A4) x4

2 Subwoofer 1. Screw ..................... (B1) x4 10-2

3 Woofer 1. Screw ..................... (C1) x4 10-2

4 Tweeter 1. Screw ..................... (D1) x2 10-2

STEP

REMOVAL PROCEDURE

FIGURE

Figure 10-1

Figure 10-2

(A1)x4

ø4x20mm

(A4)x2

ø4x20mm

(A3)x2

(A2)x1

(A4)x2

ø4x20mm

Side Panel

Front Panel

(C1)x4

ø4x16mm

(B1)x4

ø4x16mm

(D1)x2

ø3x10mm

Tweeter

Woofer

Subwoofer

– 11 –

CD-BK3100W

Figure 11-1

Figure 11-2

Figure 11-3

Figure 11-4Figure 11-5

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 3 and 7, 13 of the disassembly method to

remove the tape mechanism. (See page 8.)

How to remove the record/playback and erase

heads (TAPE 2) (See Fig. 11-1)

1. When you remove the screws (A1) x 2 pcs., the recording/

playback head and three-dimensional head of the erasing

head can be removed.

How to remove the playback head (TAPE 1)

(See Fig. 11-2)

1. When you remove the screws (B1) x 2 pcs., the playback

head.

How to remove the pinch roller (TAPE 1/2)

(See Fig. 11-3)

1. Carefully bend the pinch roller pawl in the direction of the

arrow <A>, and remove the pinch roller (C1) x 1 pc., in the

direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring

mounting position.

How to remove the belt (TAPE 2) (See Fig. 11-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1) (See Fig. 11-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 11-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

(A1)x2

Ø2x6mm

TAPE 2

Record/Playback

Head

Erase Head

Clutch Ass'y

(B1)x1

Ø2x9mm

(B1)x1

Ø2x5mm

TAPE 1

Playback

Head

Clutch Ass'y

Pinch Roller

(C1)x1

<A>

Pull

<B>

Pull

Pinch

Roller

Pawl

TAPE 2

TAPE 1

Main Belt

(E1)x1

TAPE 2

Main Belt

(D1)x1

TAPE 1

FF/REW

Belt

(D2)x1

FF/REW

Belt

(E2)x1

Motor

Main Belt

(D1)x1

Main Belt

(E1)x1

(F1)x2

Ø2.6x5mm

Motor

Clutch Ass'y

CD-BK3100W

– 12 –

Figure 12-2

Figure 12-1

ADJUSTMENT

MECHANISM SECTION

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm

Fast forward: TW-2231 — 70 to 180 g.cm

Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± 30 Hz Speaker

speed Resistor in Terminal

motor. (Load

resistance:

6 ohms)

• Tape Speed

Figure 12-3

TAPE MECHANISM

Tape

Motor

Variable Resistor in motor

CD MECHANISM SECTION

Perform steps 1 to 6 of the disassembly method to remove the

CD mechanism. (See page 9.)

Note:

After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the

front end of connector remove to protect the optical pickup

from electrostatic damage.

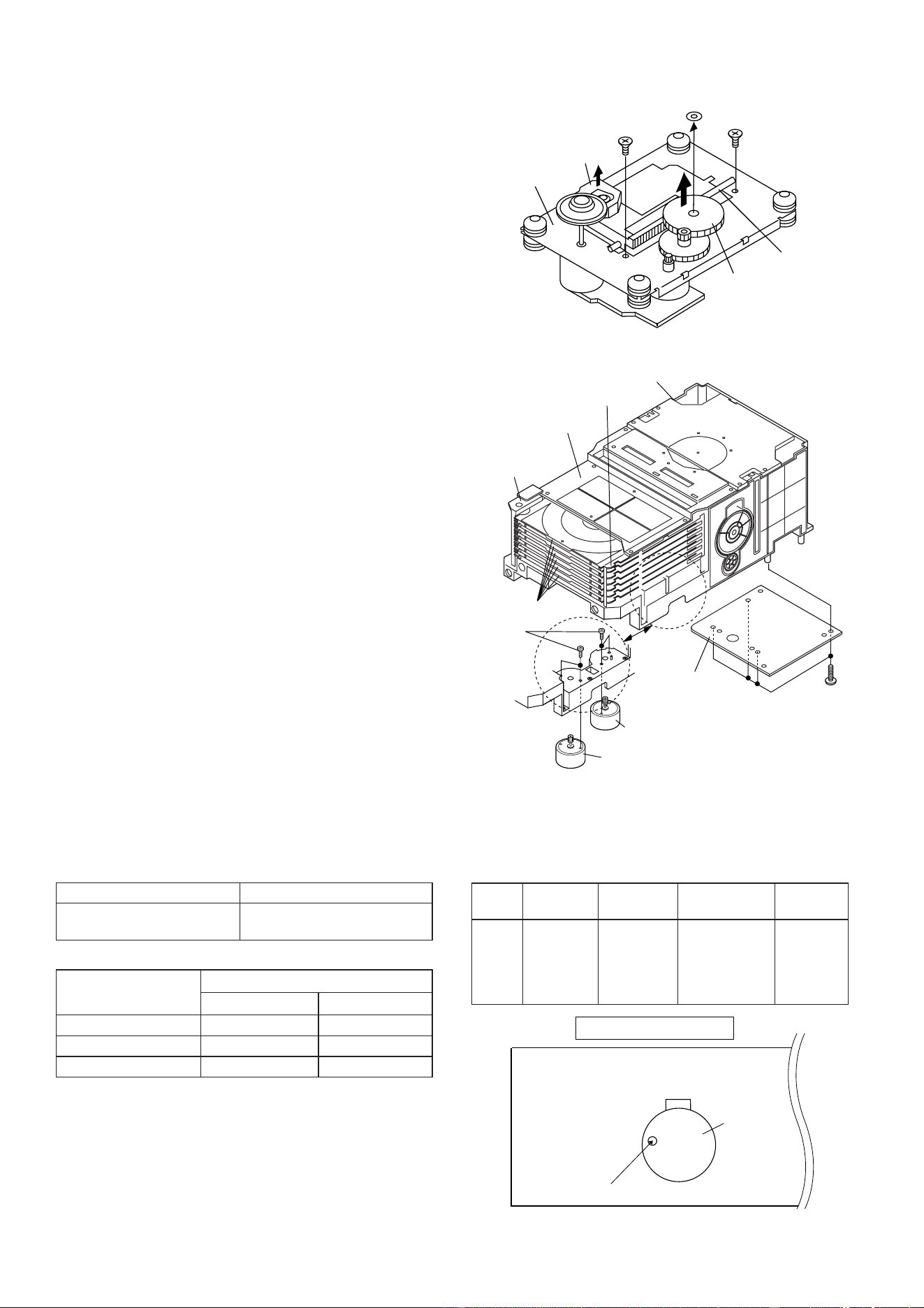

How to Remove the pickup (See Fig. 12-1)

1. Remove the screws (A1)x 2 pcs., to remove shaft (A2)x 1

pc.

2. Remove stop washer (A3)x 1 pc., to remove gear (A4)x 1 pc.

3. Remove the pickup.

How to Remove the tray motor/main cam motor

(See Fig. 12-2)

1. Remove the screws (B1)x 4 pcs., to remove the CD Servo

PWB.

2. Remove the (1) front top plate, (2) changer box, left/right

and (3) disc trays 1~6. After that, disassemble as shown in

the figure.

3. Remove the screws (B2)x 4 pcs.

4. Remove the tray motor and main cam motor.

CD CHANGER MECHANISM SECTION

Perform steps 1 to 4 of the disassembly method to remove the

CD changer mechanism. (See page 9.)

Note:

The parts of (1), (2) and (3) correspond to the drawing Nos.

117, 102, 103 and 108 to 113 of the CD change mechanism

disassembly drawing.

Remove the screws of 117, 102 and 103, and the parts of (1),

(2) and (3) will be ready for removal and the screws of the tray

motor and main cam motor will be visible.

(A1)x1

ø2.6x6mm

Mechanism

Stop Washer

(A3)x1

Gear

(A4)x1

Shaft

(A2)x1

Pickup

(A1)x1

ø2.6x6mm

Main Cam Motor

Tray Motor

CD Servo

PWB

(1)Front Top Plate

(2)Changer Box

Left

(2)Changer Box

Right

(3)Disc Tray,1~6

CD Changer Mechanism

(B1)x4

ø3x10mm

(B2)x4

ø2.6x4mm

– 13 –

CD-BK3100W

CD SECTION

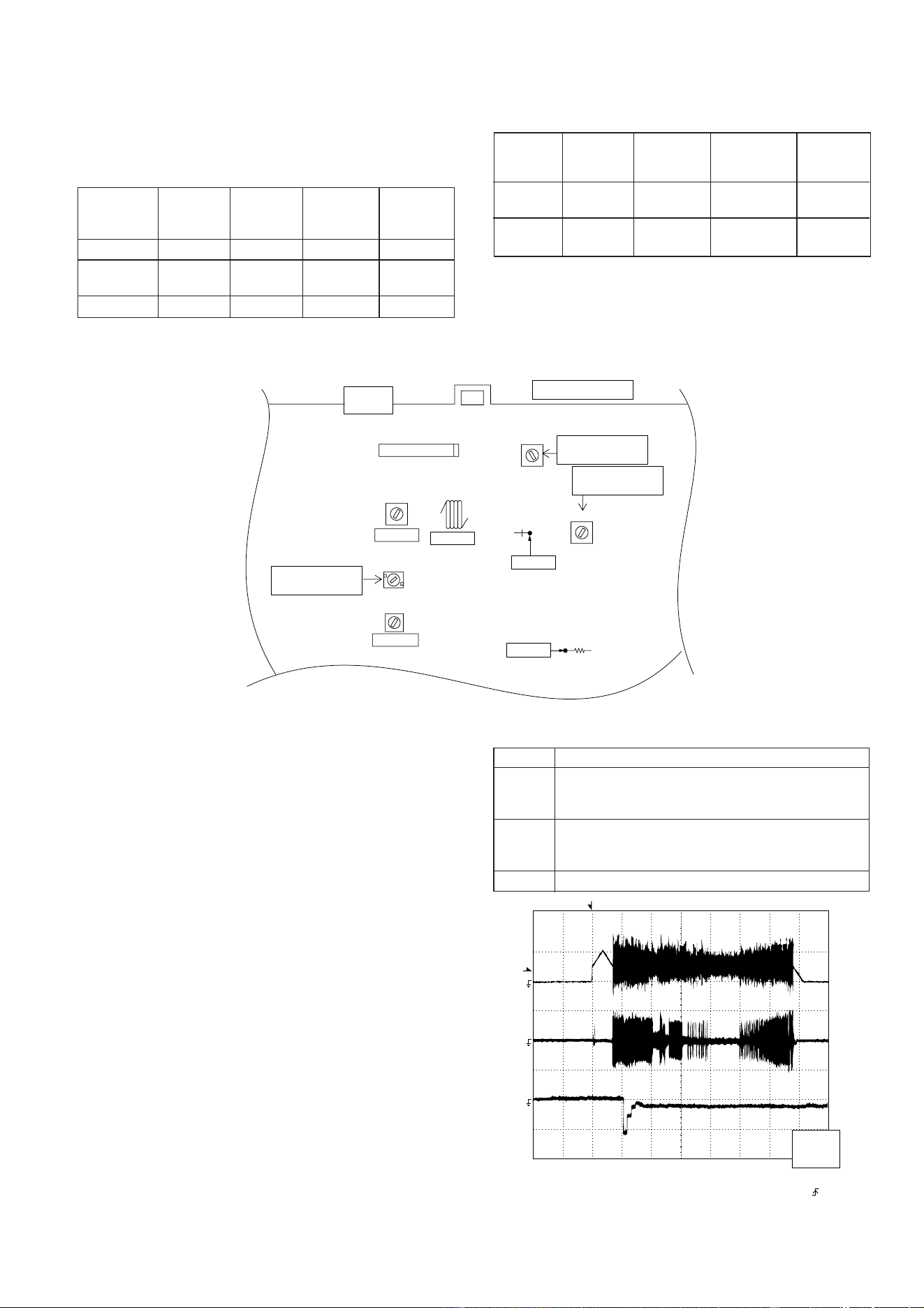

Figure 13-1 ADJUSTMENT POINTS

Figure 13-2

CD ERROR CODE DESCRIPTION

Error State Code

[Pickup Mechanism Error]

ER-CD00 Pickup mechanism error

ER-CD01 Pu-in SW detection NG

[CD Changer Mechanism Error]

ER-CD10 Changer error

ER-CD11 Initial error

ER-CD20 Tray error

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is

compensated inside the IC.)

* Focus offset adjustment

* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing

Fig.13-2 EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will

be 0 dB.)

* Focus gain adjustment

* Tracking gain adjustment

• Adjustment

Since this CD system incorporates the following automatic

adjustment functions, readjustment is not needed when

replacing the pickup. Therefore, different PWBs and pickups

can be combined freely.

Each time a disc is changed, these adjustments are performed

automatically. Therefore, playback of each disc can be

performed under optimum conditions.

EFBL

FDO

Stopped

CH1=500 mV

DC 10:1

CH2=200 mV

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : SINGLE

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH2

v/DIV

200 mV

1999/04/05 20:26:47

Test Stage Frequency

Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

*1. Input: Antenna Output: TP302

*2. Input: Antenna Output: TP301

TUNER SECTION

fL: Low-range frequency

fH: High-range frequency

AM IF 450 kHz 1,602 kHz T351 *1

AM Band — 531 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V

AM Tracking 990 kHz 990 kHz (fL): T303 *1

*1. Input: Antenna Output: TP301

*2. Input: Antenna Output: Speaker terminal

• FM RF

Signal generator: 1 kHz, 40 kHz dev., FM modulated

FM Band — 88.00 MHz T301(fL): *1

Coverage

1.3 V ± 50 mV

FM RF 98.00 MHz 98.00 MHz L312 *2

(10-30 dB)

Test Stage

Instrument

Connection

Frequency Frequency

Display

Setting/

Adjusting

Point

IC301

AM IF

FM IF

FM RF

T303

T306

T302

L312

TRACKING fL

AM BAND

COVERAGE fL

T301

T351

FM BAND

COVERAGE fL

MAIN PWB

CNP301

AM LOOP

ANTENNA

SO302

FM ANTENNA

TERMINAL

TP302

R357

R316

TP301

CD-BK3100W

– 14 –

TEST MODE

During POWER OFF mode, push below each 2 keys and [POWER] key. Then go to each Test Mode.

KEY TEST MODE CONTENTS

[CD] [X-BASS] + [POWER] TEST 1 CD Test mode

[TAPE] [X-BASS] + [POWER] TEST 2 Tape test mode

[TUNER] [X-BASS] + [POWER] TEST 3 Tuner preset memory clear

[VIDEO/AUX] [X-BASS] + [POWER] TEST 4 Tuner preset for production

[MEMORY/SET] [X-BASS] + [POWER] TEST 5 All clear (reset)

[EQUALIZER] [X-BASS] + [POWER] TEST 6 Audio test

[ ] [DIMMER] + [POWER] TEST 7 Key and display test

[TUN UP] [DIMMER] + [POWER] TEST 8 RDS Test 1

[TUN DOWN] [DIMMER] + [POWER] TEST 9 RDS Test 2

[ ] [CD] + [POWER] TEST 10 CD Changer test

[ ] [CD] + [POWER] TEST 11 Production initialize for changer

[EQUALIZER] [TUN UP] + [POWER] TEST 12 Graphic equalizer test

CD TEST MODE

• Setting the test mode

Any one of test mode can be set by pressing several keys as follows.

<X-BASS> + <CD> + <POWER> TEST: CD operation test.

Enter test 1 mode key.

C D T E S T

OPEN/CLOSE operation is using manual.

Do TOC IL. Do normal play.

When these following key is input into PLAY key,

track number can be appoint directly.

<<PLAY>> key input.

<<MEMORY>> key input.

Laser ON.

<<MEMORY>> key input.

Tracking OFF play at that specific point.

<<MEMORY>> key input.

<< 1>> key: Track 1

<< 2>> key: Track 3

<< 3>> key: Track 7

<< 4>> key: Track 11

<< 5>> key: Track 13

<< 6>> key: Track 15

Tracking ON play from that specific point.

<<MEMORY>> key input

a) Display "FOFF_XX"

b) Display "TOFF_XX"

c) Display "TBAL_XX"

d) Display "TGAN_XX"

e) Display "FGAN_XX"

f) Display "RFLS_XX"

<< >>, << >> buttons make pick's slide possible.

<<STOP>> key input.

STOP

<<MEMORY>> key input.

a) Display "FOFF_XX"

b) Display "TOFF_XX"

c) Display "TBAL_XX"

d) Display "TGAN_XX"

e) Display "FGAN_XX"

f) Display "RFLS_XX"

Display every auto setting result for every 2 sec.

<<STOP>> key input.

STOP

VOL –– Last memory

BAL –– CENTER

P.GEQ –– FLAT

X-BASS –– OFF

Sliding the PICKUP with

<< >>, << >> button

must only be in STOP mode.

Display each step for 2 sec. XX: HEX VALUE

a) "FOFF_XX" Focus off set

b) "TOFF_XX" Tracking off set

c) "TBAL_XX" Tracking balance

d) "TGAN_XX" Tracking gain

e) "FGAN_XX" Focus gain

f ) "RFLS_XX" RF level shift

To cancel : Power OFF

– 15 –

CD-BK3100W

1. Motor assembly (x 2) mounting (screw x 4) 01/29 Fig.16

2. MT idle gear mounting (screw x 1) 25 Fig.16

3. MT system gear assembly 23/24/26/27 Fig.16

4. STB/tray drive system gear and others assembling/ 37/38/45/46 (53)/47/48 Fig.16

mounting (screw x 3)

5. Tray big gear assembly 31 Fig.16 Gear positioning

6. T.M SW PWB mounting (screw x 3) Fig.17

7. STB holder assembling 03 Fig.16

8. STB drive gear L/R assembly mounting (screw x 2) 11 (10)/12 (10) Fig.16

9. Tray joint gear R/tray drive gear R assembling 34/36 Fig.17 Gear positioning

10. Tray gear A/B assembling 32/33 Fig.17 Gear positioning

11. Lift gear B/C assembling 43/44 Fig.18 Gear positioning

12. MT idler gear F assembling, mode big gear 28/42 Fig.18

mounting (screw x 1)

13. Change box R mounting (screw x 4) 04 Fig.18

14. Lift gear A assembling 42 Fig.18 Gear positioning

15. Change box L assembly mounting (screw x 4) 02/30/35 Fig.19

16. Lift cam assembling (shaft inserting) 44 Fig.19 Gear positioning

17. STB holder height adjusting Fig.20 Check/adjustment

18. Top plate F/disc OB LEV. Mounting (screw x 6) 80 Fig.20

19. Trays 1 - 6 assembling 91/92/93/94/95/96 Fig.21

20. Top plate R mounting (screw x 6) ––

Applied Part No.

Work Content

Assembly Fig. No.

Remarks

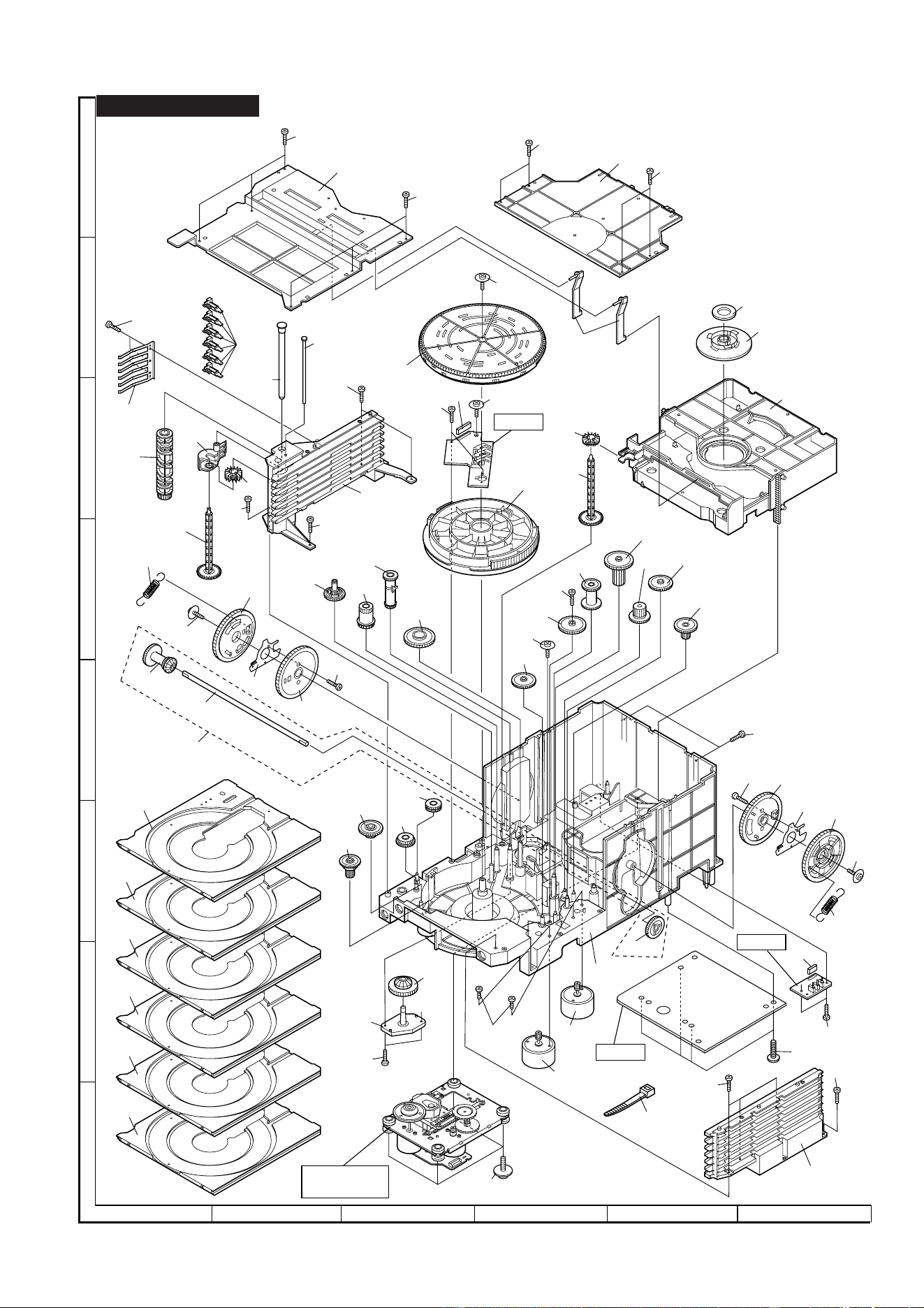

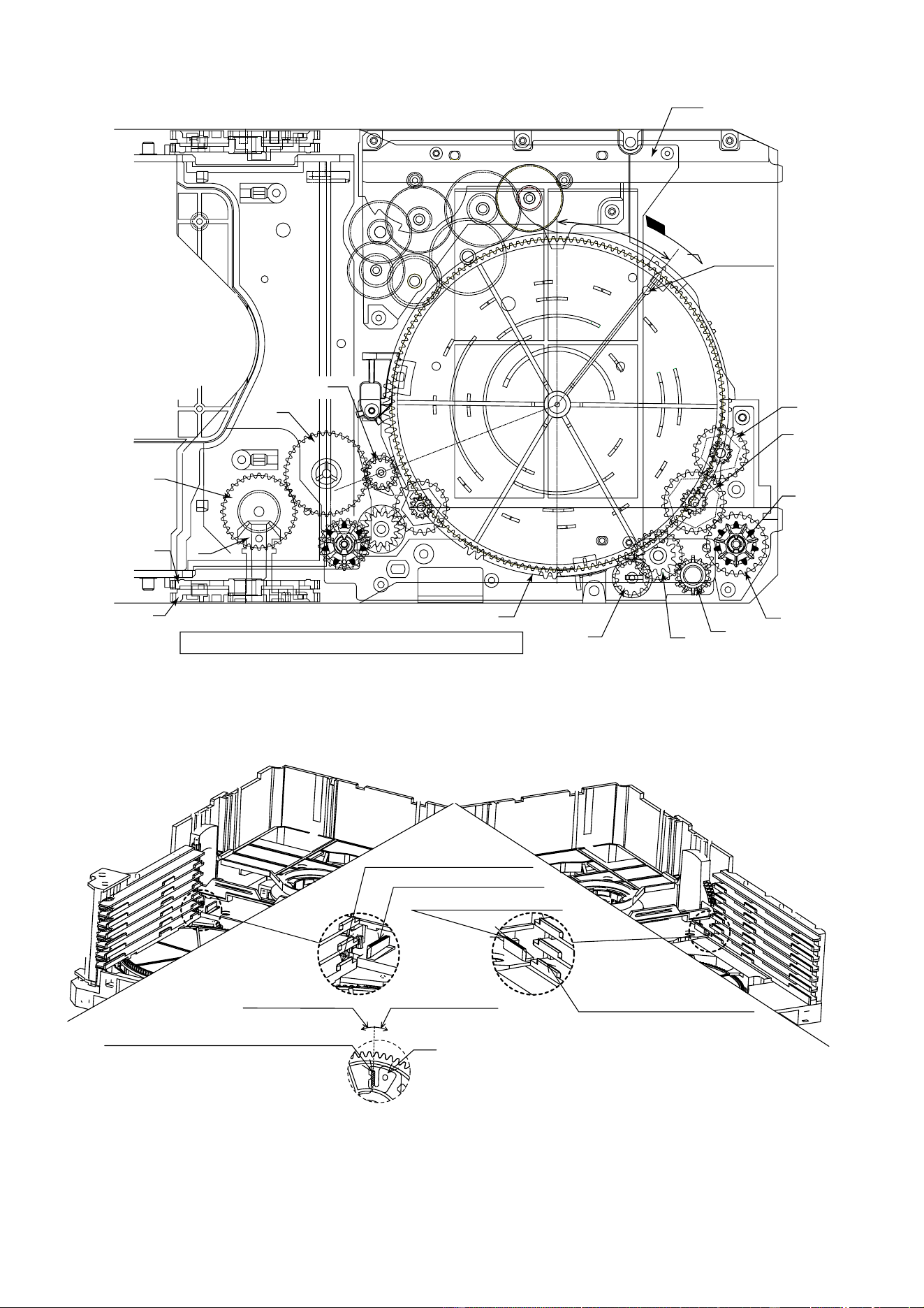

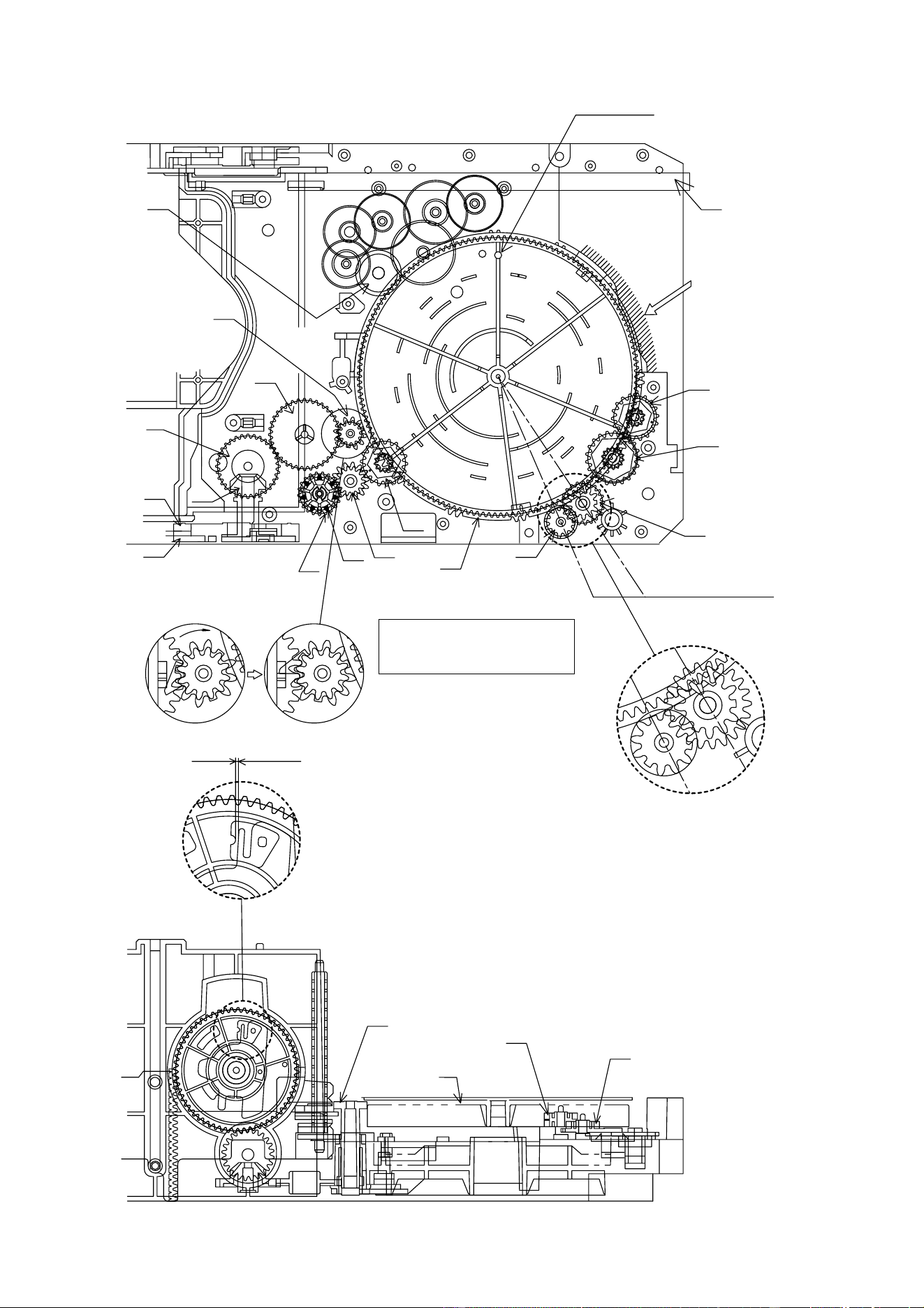

CD CHANGER MECHANISM MAIN BASE PARTS ASSEMBLING/ADJUSTING

PROCEDURE

01 (101) MAIN BASE

02 (102) CHANGE BOX L

03 (147) STB HOLDER

04 (103) CHANGE BOX R

10 (119) STB DRIVE GEAR A

11 (120) STB DRIVE GEAR L

12 (122) STB DRIVE GEAR R

20 (149) STABILIZER FH

23 (141) MT IDLER GEAR A

24 (138) MT IDLER GEAR B

25 (137) MT IDLER GEAR C

26 (140) MT IDLER GEAR D

27 (139) MT IDLER GEAR E

28 (131) MT IDLER GEAR F

29 (MOB1,2) MOTOR GEAR

30 (143) TRAY DRIVE GEAR F

31 (134) TRAY BIG GEAR

32 (135) TRAY GEAR A

33 (136) TRAY GEAR B

34 (124) TRAY DRIVE GEAR R

35 (144) TRAY JOINT GEAR F

36 (125) TRAY JOINT GEAR R

37 (142) TRAY GEAR C

38 (130) TRAY IDLER GEAR

Part Name

No.

40 (115) LIFT CAM

41 (126) MODE BIG GEAR

42 (127) LIFT GEAR A

43 (128) LIFT GEAR B

44 (129) LIFT GEAR C

45 (132) STB GEAR A

46 (104) STB GEAR B

47 (133-1) STB GEAR C

48 (133-3) STB GEAR D

50 (145) LIFT LEVER

51 (106) TRAY LOCK LEVER

52 (118) DISC OB LEVER

53 (105) STB GEAR ANG.

80 (117) TOP PLATE F

81 (114) TOP PLATE R

91 (108) TRAY 1

92 (109) TRAY 2

93 (110) TRAY 3

94 (111) TRAY 4

95 (112) TRAY 5

96 (113) TRAY 6

Part NameNo.

CD CHANGER MECHANISM PARTS LIST

The number of ( ) is the number of the parts guide.

CD-BK3100W

– 16 –

Figure 16

STB HOLDER

STB GEAR D

STB DRIVE GEAR R

(ASSY)

STB DRIVE GEAR A

MAIN BASE

Mark position

After assembling TRAY BIG GEAR, turn it in the arrow direction.

TRAY BIG GEAR ASSEMBLING POSITION

TRAY BIG GEAR

TRAY GEAR C

TRAY IDLER GEAR

STB GEAR C

STB GEAR B

STB DRIVE GEAR A

STB DRIVE GEAR L

(ASSY)

STB GEAR ANG.

STB GEAR A

11(/12) (10)

STB DRIVE GEAR L(/R)

(ASS'Y)

STB GEAR B

TRAY GEAR C

STB GEAR C

TRAY BIG GEAR

TRAY IDLER GEAR

STB GEAR A

STB GEAR ANG.

– 17 –

CD-BK3100W

M T SW PWB

TRAY

GEAR B

TRAY GEAR A

TRAY GEAR B

TRAY GEAR A

TRAY DRIVE GEAR R

TRAY JOINT GEAR R

TRAY DRIVE GEAR R

TRAY JOINT GEAR R

Mark position

TRAY BIG GEAR SET POSITION

Direct the recess part

(trapezoidal side) of the axis

35 in this direction.

* This position becomes the

reference (stock) position

of the tray.

These holes must align.

It must not rotate in contact

with the peripheral (hatched)

part of 31.

These holes must align.

After assembling 32,

assemble 33.

*1: To position the axis part of 36, engage it with 38.

*2: When it is aligned as described in *1, the hatched part

(low gear-height part of gear) will be positioned in this position.

Note: After positioning the tray big gear in the set position, engage these gears.

Scale: 2 magnifications

< Importance >

Figure 17

CD-BK3100W

– 18 –

LIFT GEAR B

MODE BIG GEAR

CHANGE BOX R

MT IDLER GEAR F

Mark position

(Assemble the mode big gear in this position.)

LIFT GEAR A

LIFT GEAR C

(A)

(C)

(B)

LIFT GEAR C

LIFT GEAR B

LIFT GEAR A

MODE BIG GEAR

Note:

To assemble the mode

big gear, incline it,

bring it into contact with

the circumference and

put the center hole into

position since the

hatched part of the main

base is overlapped with

the circumference.

Direct the short tooth

toward the center.

MODE BIG GEAR

LIFT GEAR A/B/C

ASSEMBLING POSITION

Scale: 2 magnifications

After setting up the mode big gear in the

shown position, engage it with the STB gear A

(gear on the lower side) at the position (A),

and assemble them, turning it in the arrow direction

into the position (B). (The short tooth directs toward the

center of the mode big gear.)

Check the gap (C) after assembly.

If no gap is found, repeat the above procedure.

>ABS<

GAP (0.3-1.5 mm)

< Importance >

Figure 18

– 19 –

CD-BK3100W

Mark position

37°

TRAY DRIVE GEAR F

TRAY JOINT GEAR F

CHANGE BOX L

< Importance >

Direct the recess part

(trapezoidal side) of the

axis 35 in this direction.

*1: To position the axis part

of 35, engage it with 33.

*2: When it is aligned as

described in *1, the hatched part

(low gear-height part of gear)

will be positioned as shown.

Since this gear engagement is not

visually checked, verify that it does

not float when the gear box L is installed.

TRAY DRIVE GEAR F

TRAY JOINT GEAR F

LIFT

CAM

Scale: 2 magnifications

TRAY JOINT GEAR F

(CHANGE BOX L ASS'Y) ASSEMBLING POSITION

LIFT CAM

Assembling procedure

1. Turn the mode big gear approx. 37 degrees in the arrow direction.

2. Assemble the change box L ass'y.

Note: At this time, the tray joint gear F must be located in the position shown in figure.

Moreover, the gear must be engaged securely.

3. After assembly, return the mode big gear to the initial position.

4. Assemble the lift cam.

Note: At this time, the lift cam (No.40) must be located in the position shown in figure 19.

LIFT GEAR A

LIFT CAM

Scale: 2 magnifications

During assembly, make the

O part visible in this direction.

Note: Among 4 ribs on the

circumference, one rib alone

is provided with O.

< Importance >

TRAY DRIVE GEAR F

TRAY JOINT GEAR F

Figure 19

CD-BK3100W

– 20 –

Figure 20

Adjusting procedure

1. Turn the mode big gear approx. 37 degrees in the arrow direction.

2. Viewing from the front side of the mechanism, verify that the guide ribs

(CHANGE BOX L/R and STB HOLDER)of tray are as tall as each other.

3. If they are not, bend the lever for adjustment. (Refer to the details.)

Note: Also apply the same adjustment on the R side.

STB HOLDER HEIGHT ADJUSTING METHOD

LIFT GEAR A

Mark position

TOP PLATE F

37°

(121)

OS LEVER

Bend this portion to adjust the STB HOLDER

When high

(Narrow the gap.)

When low

(Broaden the gap.)

Adjustment procedure

1. Rotate the MODE BIG GEAR by 37° in the arrowed direction.

2. Check that the guide ribs (CHANGE BOX L/R and STB HOLDER) on the arrowed

TRAY are at the same height when looked from the front.

3. If they are not, bend the OS LEVER to adjust them. (Refer to the detail drawing.)

Note: Adjust the R portion in the same procedure.

02(102) CHANGE BOX L RIB

03(147) STB HOLDER RIB

04(103) CHANGE BOX R RIB

– 21 –

CD-BK3100W

Measure to be taken when a disc cannot be removed due to a mechanism trouble

First, remove the mechanism unit section from the set, and check for the state of the disc.

(Remove the top plate R if necessary.)

(1) When the disc is in the normal PLAY (chucking) position → Try to eject the disc by turning the mode big gear/tray big gear

manually.

* At this time, be sure to adjust the tray's position (height).

(2) When the disc is in the normal STOCK position → Try to eject the disc by turning the tray big gear manually.

* At this time, be sure to adjust the tray's position (height).

(3) When the disc is not in the normal position → The tray or disc is not in the normal position.

(The tray or disc may catch somewhere.)

↓

Remove the TOP PLATE F/DISC OB lever.

Unlock the tray lock lever and pull out the tray which is not caught.

Move the caught tray or disc and remove the disc.

In case of (1) and (2), the mechanism is normal (defective circuit parts, etc.). However, it may stop somewhere.

This is the reason why you should try to turn the tray big gear first.

In case of (3), either of the big gears does not turn.

Figure 21

91~96

TRAY1~TRAY6

Mark position

Be sure to assemble the tray into this position.

Insert it along the guide of

the change box.

Rear

side

TRAY No.1~6

Rear surface: Stamped.

Note: During insertion,

Do not accidentally rearrange

tray numbers.

Tray installing method: (After adjusting the height of the STB holder)

1. Turn the mode big gear to the mark position to lower the STB holder to

the bottom area.

2. From the front side, install the tray. (Securely insert it to the lock position.)

TRAY 6

TRAY 5

TRAY 4

TRAY 3

TRAY 2

TRAY 1

LIFT GEAR A

CD-BK3100W

– 22 –

NSW1 PICKUP IN ON—OFF

SW601 SPANSELECTOR 9 kHz/50 kHz—

10 kHz/100 kHz

SW701 ON/STAND-BY ON—OFF

SW706 DISC 1 PLAY ON—OFF

SW707 DISC 2 PLAY ON—OFF

SW708 DISC 3 PLAY ON—OFF

SW709 DISC 4 PLAY ON—OFF

SW710 DISC 5 PLAY ON—OFF

SW711 DISC 6 PLAY ON—OFF

SW712 DISC 5 EJECT ON—OFF

SW713 DISC 6 EJECT ON—OFF

SW714 DIMMER ON—OFF

SW715 CD ON—OFF

SW716 TAPE ON—OFF

SW717 TUNER(BAND) ON—OFF

SW718 VIDEO/AUX ON—OFF

SW719 MEMORY/SET ON—OFF

SW720 EQUALIZER ON—OFF

SW721 DISC 1 EJECT ON—OFF

SW722 DISC 2 EJECT ON—OFF

SW723 DISC 3 EJECT ON—OFF

SW724 DISC 4 EJECT ON—OFF

SW727 REWIND ON—OFF

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

indicates AM

indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means pico-farad and the unit of the capacitor

without such a symbol is microfarad. As to electrolytic

capacitor, the expression “capacitance/withstand voltage”

is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

TYPES OF TRANSISTOR AND LED

SW728 FAST FORWARD ON—OFF

SW729 PLAY ON—OFF

SW730 STOP ON—OFF

SW731 REVERSE MODE ON—OFF

SW732 REVERSE PLAY ON—OFF

SW733 CLOCK ON—OFF

SW734 TIMER/SLEEP ON—OFF

SW735 TUNING/TIME UP ON—OFF

SW736 TUNING/TIME DOWN ON—OFF

SW737 REC PAUSE ON—OFF

SW738 X-BASS/DEMO ON—OFF

SW801 VOLTAGE SELECTOR 110 V—127 V—

220 V—230-240 V

SWB101 DISC DETECT 1 ON—OFF

SWB102 DISC DETECT 2 ON—OFF

SWB103 DISC DETECT 3 ON—OFF

SWB104 MODE 1 ON—OFF

SWB105 MODE 2 ON—OFF

SWB106 MODE 3 ON—OFF

SWB107 MODE 4 ON—OFF

SWB108 MODE 5 ON—OFF

SWB109 TRAY 1 ON—OFF

SWB110 TRAY 2 ON—OFF

REF. NO

DESCRIPTION

POSITION

(1) (2) (3)

(S) (G) (D)

E C B

FRONT

VIEW

2SA1015 GR

2SC1845 F

2SC380 O

KTA1266 GR

KTA1273 Y

KTA1274 Y

KTC3199 GR

KTC2026 4204SRT121

4204UYT121

SLR325MC

BCE

FRONT

VIEW

FRONT

VIEW

KTC3194 Y

KTC3203 Y

KRA107 M

KRC102 M

KRC104 M

KRC107 M

REF. NO

DESCRIPTION

POSITION

– 23 –

CD-BK3100W

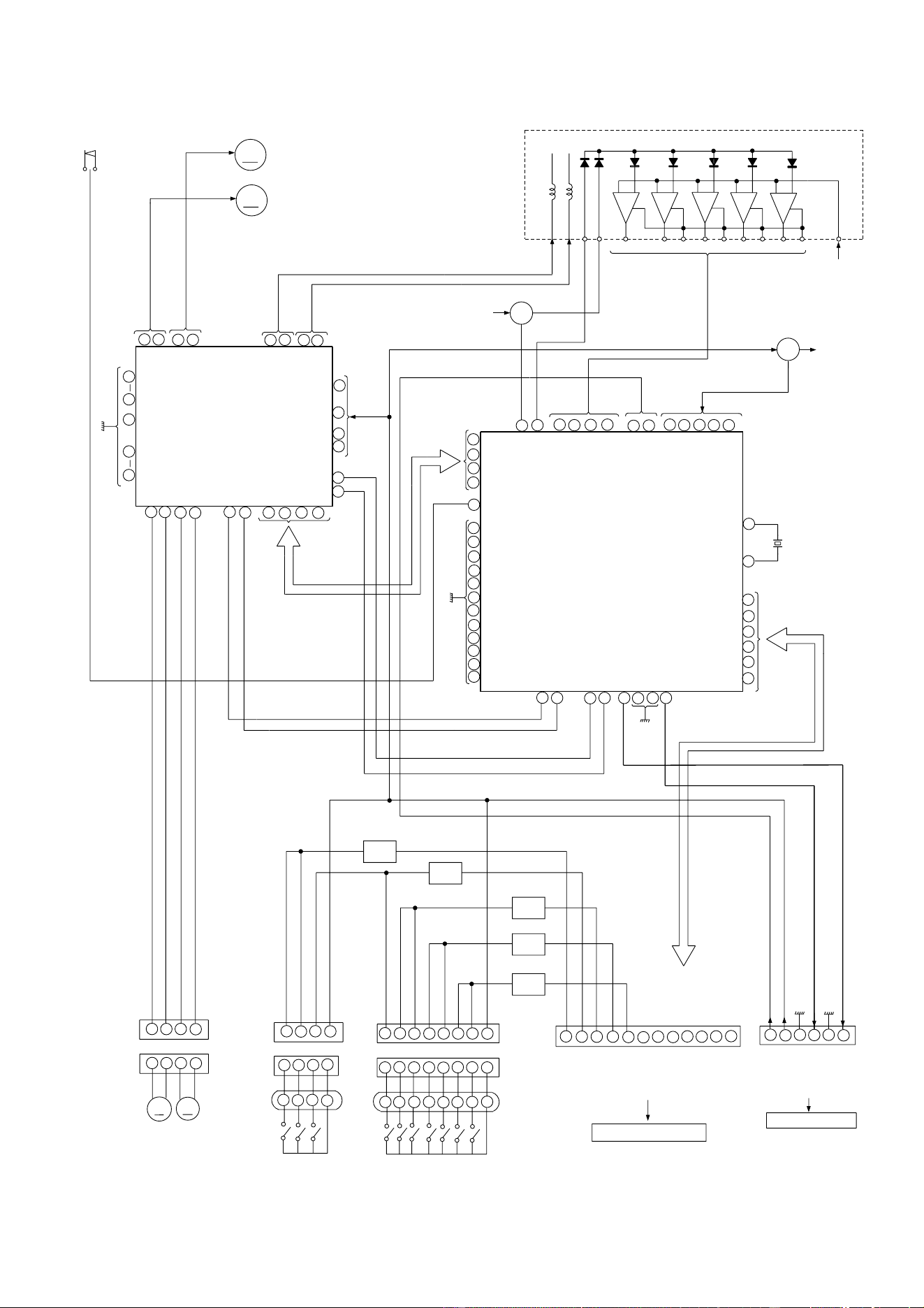

Figure 23 BLOCK DIAGRAM (1/3)

+5V

+3.3V

+5V

+3.3V

+3.3 V

TM+

TM–

VCC3

VCC2

VCC4

VCC1

36 37

41 42

39 38

1 7

6 5 16 2627

VVDD

LDD

LDS

XVDD

RVDD

LVDD

VDD

ADAVDD

RFVDD

TIN2

TIN1

FIN2

FIN1

TD0

FD0

SPDO

SLDO

PU IN

RSVSS

ADAVSS

SBCK/FG

VSS

TEST

FSX/16MIN

XVSS

ASLRCK

ASDACK

ASDFIN

VSS

VVSS

XIN

XOUT

RES

WRQ

CLK

CONT5

CONT2

CONT3

CONT4

RCHO

RVSS

LVSS

LCHO

1838477780 79 5414610 9 8 7

25 26

71 45 43 44 70

R–CH

+B6 (+5 V)

DGND

L–CH

AGND

TRAY_B_C

CAMA_B_T_A

CAMA_E_B_A

CAMA_C_D

CAMA_A_B

CD RES

CLK

DRF

WRQ

SWB110

SWB109

SWB108

SWB107

SWB106

SWB105

SWB104

SWB103

SWB102

SWB101

–

MOB2

TRAY

MOTOR

MOB1

CAM

MOTOR

51623

CNP7

11 10

1234

86 12345

86 123457

3 2

1 3 2

SWITCHING

TO MAIN SECTION

TRAY

SWITCH

CAM

SWITCH

CNP5

CNP4

CNP6

TO DISPLAY SECTION

CONSTANT

VOLTAGE

LASER

DRIVER

PICKUP UNIT

IC1

LC78645NE

CD SERVO

CNP8

TRACKING COIL

FOCUS COIL

NM2

SLED

MOTOR

NM1

SPINDLE

MOTOR

33.8688 MHz

IC2

M63001FP

FOCUS/TRACKING/

SPIN/SLED DRIVER

NSW1

PICKUP

Q11

Q12

Q10

CD-BK3100W

– 24 –

Figure 24 BLOCK DIAGRAM (2/3)

+B6

–20dB A

Q603

Q604

VEE

VDD

STB

CLK

DIN

IC702

D16315GB

FL DISPLAY

DRIVER

JK601

VIDEO/AUX IN

CNS601

Q103~

Q106

+B6

IC701

IX0464AW(2/

IC703

BA3835F

5 BAND

PASS FILTER

Q121

Q122

REC/PLAY

CLK

+B4

MUTING

P.B.

REC

AC BIAS

TAPE

TUNER

FROM CD SECTION

CNP8

ERASE

HEAD

SWITCHING

BIAS

Q110

Q111

Q109

Q126

SWITCHING

Q124

BIAS

OSC

Q128

L104

Q107

Q108

REC/P.B.

HEAD

TAPE 2

P.B. HEAD

TAPE 1

L-CH

R-CH

L-CH

R-CH

IC601

LC75341

AUDIO PROCESSOR

H/N

P.B

+B4

LPB

REC

L NF

R NF

ALC

REC

T1/T2

NOR/

HIGH

REF

R REC

L REC

POP REDUCE

R NF

L NF

SWITCHING

L(T2)

R(T2)

R(T1)

L(T1)

IC101

AN7345K

PLAYBACK AND RECORD

/PLAYBACK AMP.

3331

2923

987

84 2

83 82

91314

2 4

81817

SYSTEM

MUTE

SO302

FM ANTENNA

TERMINAL

ANTENNA

B.P.F

BF301

FM IF

T302

843

5 7

IC301

TA7358AP

FM FRONT END

+B4

CONSTANT

VOLTAGE

Q360

AM BAND

COVERAGE

AM TRACKING

T303

T306

OSC

BUFF

OSC

Q302

FM RF

OSC

L312

T301

IC303

LA1832S

FM IF DET./

FM MPX./

AM IF

CF303

STEREO

AM RF IN

AM OSC IN

98517

1821 121623 7

FM/AM

OUT

FM/AM

MPXIN

MO/ST

VCO

DET

FM+B

GND

AM IF

AM MIX

450 kHz

CF352

AM IF

T351

X351

456 kHz

CF351

+B4

X352

4.5 MHz

34 6

22 111615

CLK

IC302

LC72131

PLL(TUNER)

MO/ST

FM/AM

OSC

910 21

AM LOOP

ANTENNA

+B4

QK1

VRK1

MIC

VOLUME

JK1

MIC

MIC IN

LATCH

CLK

DATA

LOUT

ROUT

L IN

R IN

VCC

ICK1

M65856SP

MIC AMP.

IC903

KIA4558P

OPE AMP.

+B4

– 25 –

CD-BK3100W

Figure 25 BLOCK DIAGRAM (3/3)

67 65

D804~D807

+B5

+B3

+B5

SW701

SW706-SW724

SW727-SW738

+B5

+B3

+B6

+B5

–20dB ATT

Q603

Q604

TO CD

SECTION

TO TAPE

MECHANISM ASS'Y

TO TAPE

MECHANISM

ASS'Y

Q909

VLOAD

FL LATCH

KARAOKE LATCH

MIC SW

JOG 1

JOG 0

DRF

–20dB ATT

LCK 0

SPRLY

T_BIAS

T_T1/T2

REC/PLAY

RESOUT

RESET

VDDO

Q701

Q702

Q703

VDD

VEE

VDD

STB

CLK

DIN

IC702

D16315GB

FL DISPLAY

DRIVER

SP DET

TUN_SM/

SPAN

T2 RUN

T1 RUN

KEY0-KEY2

REMOCON

VDD1

AVDD

–VF

VF2

VF1

Q801

+B6

+5 V

Q852

+B4

+B3

+B1

–B1

+B2

–B2

+B6

JOG

VOLUME

JOG701

RX701

REMOTE

SENSOR

IC701

IX0464AW(2/2)

D803

D802

RY902

RY901

JK670

HEADPHONES

M901

FAN MOTOR

M902

FAN MOTOR

Q910

Q707

Q901

Q902

Q903

Q904

Q905

Q906

Q907

Q908

Q851

Q850

IC901

STK40270N

POWER AMP.

A+10 V

M12 V

F805

T2A L 250V

F804

T2A L 250V

F803

T5A L 250V

F801

T4A L 250V

F800

T4A L 250V

L-OUT

R-OUT

F802

T5A L 250V

CLK

MAIN

REC/PLAY

SUBWOOFER

R-OUT

L-OUT

CE_O

XL701

4.194304 MHz

–Vcc

+Vcc

IC902

STK40270N

POWER AMP.

BIAS

T1/T2

KEY

T.F.

IC701

IX0464AW

SYSTEM

MICROCOMPUTER

(1/2)

FL701

FL DISPLAY

100

656361535243423325

79865

3331

2923

987

66 64 63 62 60 58

26 1318

731

11 12

84 2

83 82

132

–Vcc

+Vcc

16 17 20 21

56 53 52 51

3 569

~~~~~~

~~~

+B5

P_IN

Q990

Q991

Q705

Q706

T801

MAIN POWER

TRANSFORMER

230-240 V

220 V

127 V

110 V

+B5

UNSW 5 V

AC POWER

SUPPLY CORD

AC 110/127/220/230-240 V

50/60 Hz

K801

K802

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

FAN MOTOR

DRIVER

SP RELAY

ON-OFF

Q704

MOTOR

DRIVER

SOLENOID

DRIVER

SYSTEM

MUTE

RESET

SW601

SPAN

SELECTOR

+B4

+B6

LED709

LED710

LED711

LED714~

LED718

LED725

CLK

SW801

VOLTAGE

SELECTOR

IC705

BU2092F

INPUT/OUTPUT

EXPANDER

SO901

SPEAKER

TERMINAL

CD-BK3100W

– 26 –

Figure 26 SCHEMATIC DIAGRAM (1/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 22.

CD MOTOR

PWB-G

PICKUP UNIT

VREF

VCC

VREF

80 797877 76 75 74 737271

292827262524232221

CONT2

VVDD

PCKIST

VVSS

PDO2

PDO1

CONT1

SBCK/FG

PU IN

CONT5

CONT4

GPDAC

SLDO

SPDO

FDO

TDO

REFI

VREF

ADAVSS

ADAVDD

JITTC

RFMON

TEC

TIN2 F

TIN1 E

FIN2 B

FIN1 A

RSVSS

RFVDD

EFMIN

SLCIST

SLCO

TP1

TP2

TP3

GND

FO–

FO+

TR+

TR–

TR+

FO+

FO–

MUTE

101112131415161718192021

87654321

SLDO

VCC

STANDBY

VREF

SL–

SL+

TR–

TR+

FO+

FO–

GND

TM–

TM+

CM+

CM–

–

VCC4

M–

M+

VCC3

SPO

VCC2

SP–

SP+

GND

PUIN

SL+

SL–

SP–

SP+

–

DEFECT

V/*P

CD SERVO PWB-C

IC2

M63001FP

FOCUS/TRACKING/

SPIN/SLED DRIVER

C54 22P(CH)

C53

47/25

C12

100P

C38

2.2/50

C11

0.22/50

R17 1K

27K

C15

220/16

LC786

CD SE

C18

100/16

CNP3

CNS3B

CNP3A

CNS3A

CNS2B

CNS2A

CNS1B

CNS1A

CNP2

0.01

47/25

C13

0.01

8.2K

R1 33K

R2 8.2K

R3 8.2K

R4 33K

0.0

C17

470/16

C16

0.047

C14

100/16

R12

12K

C41 1

C47 1

R39

12K

R40

1.2K

C39

0.1

R38 680

R37 680

C37

0.04

C46 1

C43 1

C44 1

C42 1

C45 1

R13

KTA1266 GR

3.3

R15

R16 1K

R14

0.001

C56

0.001

C55

0.001

47/25

R18 1K

R19 1K

100/16

0.1

0.047

R11

330

0.0047

R10

10K

C10

10/50

LDD

LDS

NM1

SPINDLE

MOTOR

NM2

SLED

MOTOR

NSW1

PICKUP IN

CNP1

LASER DRIVER

R65

3.3K

– 27 –

CD-BK3100W

Figure 27 SCHEMATIC DIAGRAM (2/10)

8 9 10 11 12

• The numbers 1 to 12 are waveform numbers shown in page 46.

CD_RES

DRF

WRQ

A_5V

M_5V

D_GND

L-CH

A_GND

R-CH

DRF

WRQ

CD_RES

TRAY_B_C

CAMB_B-T_A

CAMA_E-B_A

CAMA_C_D

CAMA_A_B

87776757473727170696867666564636261

4039383736353433323130292827262524

CONT3

CONT2

VVDD

PCKIST

VVSS

PDO2

PDO1

CONT1

VSS

VDD5

DRF

*RES

*WRQ

DATA

DATACK

LRSY

ASDFIN

ASDACK

ASLRCK

16MOUT

EFLG

C2F

XVSS

FSX/16MIN

XIN

XOUT

XVDD

RVDD

RCHO

RVSS

LVSS

LCHO

LVDD

TEST

DOUT

VDD

VSS

SBCK/FG

PU IN

CONT5

CONT4

GPDAC

SLDO

CAMA_A_B

TRAY SWITCH

PWB-E

CAMB_B

CAMB_A

CAMA_E

CAMA_D

CAMA_C

CAMA_B

CAMA_A

M_5V

TRAY_A

TRAY_B

TRAY_C

CAM SWITCH

PWB-F

TRAY_B_C

CAMB_B_T_A

CAMA_E_B_A

CAMA_C_D

–

MONI5

MONI4

MONI3

MONI2

MONI1

DEFECT

FSEQ

V/*P

CNS601

FROM MAIN PWB

CNS704

FROM DISPLAY PWB

P28 1 - A

P31 12 - C

Q3~Q12: SWITCHING

C52

0.01

R50

15K

R49

8.2K

R48

15K

Q12

KRC107 M

Q11

KRC107 M

Q10

KRC107 M

R63

R61

R62

CNP5

R47

8.2K

R45

8.2K

R44

15K

R43

8.2K

R42

15K

R41

8.2K

KRC107 M

R60

R59

R58

R57

R56

R55

KRC107 M

R46

15K

KRC107 M

C51

0.001

R54

CNP6

FW2

FW3

CNP7

CNP4

CNS4

33.8688 MHz

C38

2.2/50

CNP8

R52 220

R27 2.2K

R28 2.2K

R29

R17 1K

0.82µH

ZD2

DZ3.9BSB

C23

47/25

C48

0.01

R21

220

R69

3.3(1/4W)

Fusible

IC1

LC78645NE

CD SERVO

R23

2.2K

C28

10/50

C27

0.0047

C30

0.022

C29

330/6.3

R22

1.5K

ZD1

DZ3.3BSB

R24

1.5K

C31

0.0047

R25

2.2K

C32

10/50

KTC3203 Y

C40

0.022

C41 100P

R30 1K

R36 1K

C47 100P

R39

12K

C39

0.1

R38 680

R37 680

C37

0.047

R31 1K

C46 100P

C43 100P

C44 100P

C42 100P

C45 100P

R35 1K

R34 1K

R33 1K

R32 1K

R16 1K

R26

100

R18 1K

R19 1K

C25

100/16

C24

0.022

MOB2

TRAY MOTOR

MOB1

MAIN CAM

MOTOR

SWB104

MODE 1

SWB110

TRAY 2

SWB109

TRAY 1

SWB108

MODE 5

SWB107

MODE 4

SWB106

MODE 3

SWB105

MODE 2

SWB103

DISC DETECT 3

SWB102

DISC DETECT 2

SWB101

DISC DETECT 1

R53

10K

R64

CONSTANT

VOLTAGE

8 3

CD SIGNAL

CD-BK3100W

– 28 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 22.

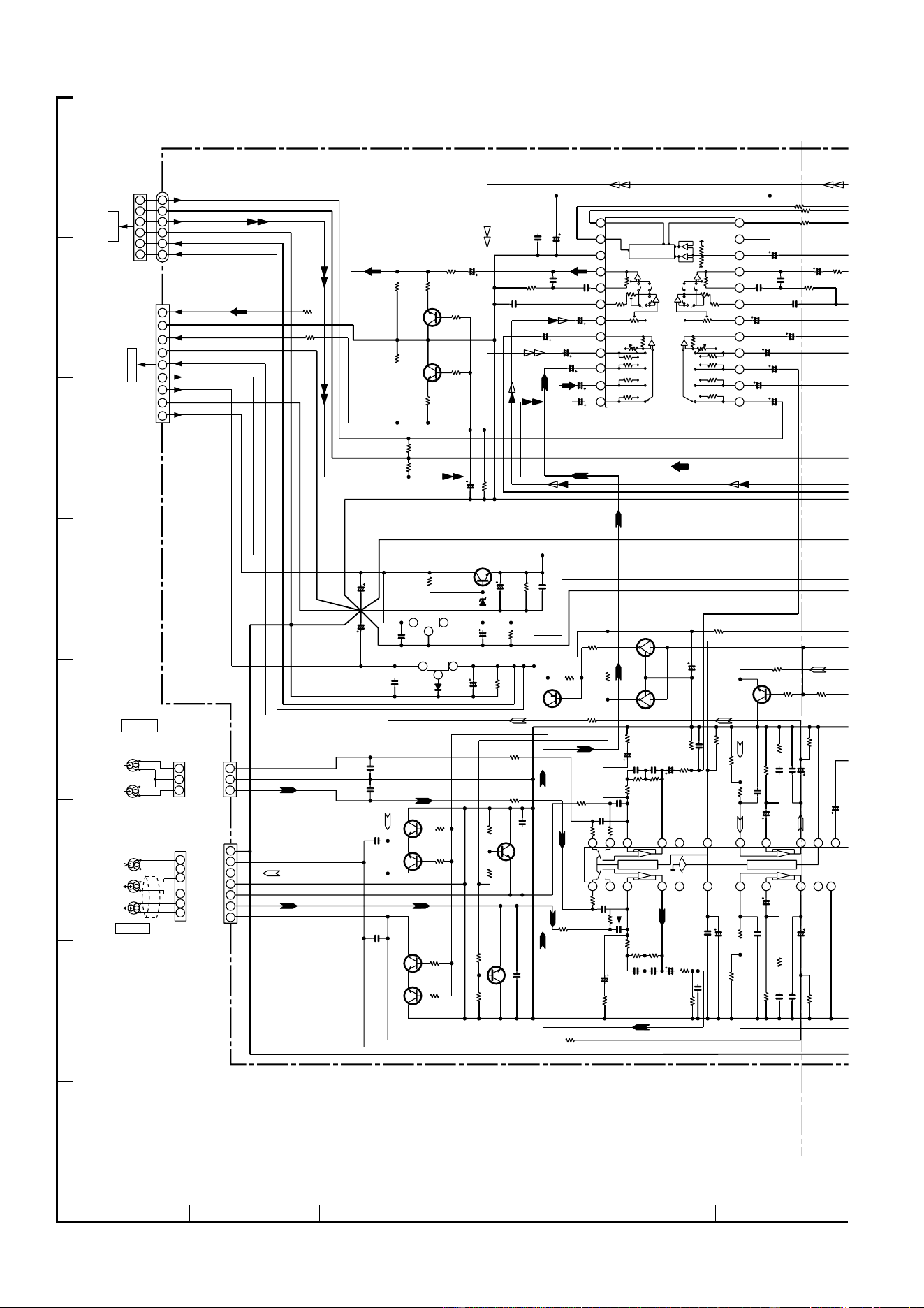

Figure 28 SCHEMATIC DIAGRAM (3/10)

0.7V

+B(18V)

9.3V

8.6V

9.3V

3.4V

0.7V

BI601

CNP806

R609

330

CNS601

CNP101CNP102

Q105

2SC1845 F

R105

3.3K

R103

2.2K

Q103

2SC1845 F

C105

180P

R107

47K

Q107

KTC3199 GR

R109

4.7K

C107

560P

C108

560P

R110

4.7K

R108

47K

R101

R102

Q108

KTC3199 GR

Q104

2SC1845 F

R104

2.2K

R106

3.3K

Q106

2SC1845 F

C101

560P

C106

180P

C102

560P

C850

2200/35

C861

4700/16

C855

0.047I(ML)

Q851

KIA7810AP

R856

560

ZD801A

DZ2.4BSB

Q850

KTC2026 Y

C851

22/50

R852

22K

C852

0.047(ML)

C857

47/25

R853

22K

Q852

KIA7805AP

C858

0.047(ML)

D801

DS1SS133

C860

47/25

R854

10K

R112

15K

R113

10K

R115

4.7K

R114

10K

Q110

KRC104 M

Q111

KRC104 M

R120

C118

0.033

C120

560P

R132

33K

R174

R172

R170

R126

5.6K

C124

0.0022

R124

2.7K

C122

47/25

R122

100K

C114

330P

R118

C112

330P

R138

6.8K

C132

270P

R134

68K

R136

3.9K

R140

1.5K

C136

0.022

R142

100

C140

0.0033

C142

47/25

R146

10K

C134

22/50

C145

22/50

KTC3

R153

10K

Q122

KTC3199 GR

R154

10K

R156

220K

R155

150

C153

100/16

R611

100K

R612

100K

R614

680

Q604

KTC3199 GR

R616

2.2K

R615

2.2K

R613

680

R607

10K

C613

2.2/50

C607

0.1(ML)

R605

3.9K

C611

0.0027(ML)

C609

0.1(ML)

C619

1/50

C623

1/50

C621

10/50

C625

1/50

C627

1/50

C604

0.022

C606

100/16

IC601

LC75341

AUDIO PROCESSOR

R641 1K

R642 1K

R643 1K

C602

22/50

C614

2.2/50

R606

3.9K

C608

0.1(ML)

C610

0.1(ML)

C612

0.0027(ML)

C620

1/50

C622

10/50

C624

1/50

C626

1/50

C628

1/50

C630

1/50

R145

10K

C141

47/25

C139

0.0033

R141

100

C133

22/50

R139

1.5K

C131

270P

R137

6.8K

R135

3.9K

C123

0.0022

R131

33K

R125

5.6K

C127

0.022

C128

3.3/50

C121

47/25

C119

560P

R123

2.7K

R121

100K

C117

0.033

C115

47/25

R119

C113

330P

R117

C111

330P

R111

15K

IC101

AN7345K

PLAYBACK AND

C617

22/50

R617

3.9K

R618

3.9K

R619

22K

Q603

KTC3199 GR

C135

0.022

C116

47/25

Q109

KTA1266 GR

C629

1/50

R610

330

R173

R169

R171

12 13

1415161718192021222324

4321

REC

M_+12V

A_+5.6V

+5.6V(A)

GND

+B(+18V)

GND

A_+10V

M_GND

GND

M_GND

A_GND

M_+12V

+5.6V (FAN MOT)

A_GND

R-CH

L-CH

CNP8

+5.6V(M)

M_GND

L-CH

A_GND

R-CH

MAIN PWB-A (1/2)

T1_R

T1_L

A_GND

M_GND

ERASE

T2_R2

T2_R1

T2_L1

T2_L2

ERASE HEAD

TAPE 2

RECORD/

PLAYBACK HEAD

TAPE 1

PLAYBACK HEAD

R-CHL-CH

R-CH

L-CH

TUNER

DECK

AUX

VSS

LOUT

LBASS

LTRE

LIN

CLK

VDD

VREF

ROUT

RBASS

RTRE

RIN

RSEL0

CCB

INTERFACE

–

LSEL0

ALC

GND

ALC

RIPPLE

Nor/CrO2

–

Hich=T1

–

Hich=CHROME

56K 112K

P32 1 - E

TO POWER AMP. PWB

P27 11 - C

TO CD SERVO PWB

CNP906

SYSTEM MUTE

Q850~Q852: VOLTAGE REGULATOR

Q103~Q108 : SWITCHING

Q109~Q111: SWITCHING

– 29 –

CD-BK3100W

Figure 29 SCHEMATIC DIAGRAM (4/10)

8 9 10 11 12

0.7V

11.6V

11.7V

11.6V

270P

R140

1.5K

C136

0.022

R142

100

C140

0.0033

C142

47/25

R146

10K

C134

22/50

C145

22/50

C146

220/10

Q121

KTC3199 GR

R153

10K

Q122

KTC3199 GR

R154

10K

R156

220K

R157

220K

R641 1K

R642 1K

R643 1K

C602

22/50

R608

10K

C614

2.2/50

R606

3.9K

C608

0.1(ML)

C610

.1(ML)

C612

0.0027(ML)

C620

1/50

C622

10/50

C624

1/50

C626

1/50

C628

1/50

C630

1/50

R631

6.8K

R632

6.8K

C631

390P

C632

390P

R633

33K

R634

33K

JK601

VIDEO/AUX

D601

DS1SS133

D602

DS1SS133

C634

0.001

CNP602

FFC702

C152

47/25

Q128

KTC3203 Y

R168

4.7

C150

0.0082

(PP)

L104

330µH

C151

0.039(ML)

C154

0.047(ML)

R166

22K

R167

47K

R160

Q126

KRC104 M

R164

4.7K

Q124

2SA1015 GR

R162

47K

R158

220

C157

1/50

C156

47/25

C155

22/50

R145

10K

C141

47/25

C139

0.0033

R141

100

C133

22/50

R139

1.5K

270P

IC101

AN7345K

PLAYBACK AND

RECORD/

PLAYBACK AMP.

R637

180K

R638

180K

C135

0.022

R626

15K

R624

10K

R623

10K

R625

15K

BI602

CNS602

C654

100P

SW601

SPAN

SELECTOR

1314151617

TUN_L

CLK

A_+10V

GND

A GND

TUN_R

REC_L

REC_R

KOK_LATCH

MIC IN

TUN_SM/SPAN

CLK

REC/PLAY

T-T1 T2

T_BIAS

–20dB ATT

+5V

S_MUTE

A_+10V

D_GND

M_+12V

M_GND

AIN

S_MUTE

KOK OUT(L)

KOK OUT(R)

KOK IN(R)

KOK IN(L)

–20dBATT

CHASSIS

P30 1 - E

TO DISPLAY PWB

P34 6 - A, B

TO TUNER SECTION

R-CH

L-CH

56 78 9

11 12 13

15 16 17

VCC

ALC

GND

ALC

RIPPLE

Nor/CrO2

–

ich=CHROME

56K

Q121,Q122 : MUTING

BIAS OSC

BIAS

KOK OUT(L)

KOK OUT(R)

KOK IN(L)

KOK IN(R)

CLK

KOK LATCH

MIC IN

A_GND

A_+10V

CNPK1

P35 10 - A

TO MIC PWB

CNP702

SPAN

SWITCHING

9 kHz/50 kHz

10 kHz/100 kHz

FM SIGNAL

PLAYBACK SIGNAL

RECORD SIGNAL

CD SIGNAL

VIDEO SIGNAL

MIC SIGNAL

CD-BK3100W

– 30 –

Figure 30 SCHEMATIC DIAGRAM (5/10)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 22.

P23

P24

P25

P26

P27

P28

P29

P30

P31

P32

P33

P34

P35

P36

P37

P38

P39

P40

P41

4321

G10

G11

G12

G13

G14

G15

G16

P22

KEY2

KEY1

BG1

BG2

BG3

BG4

BG5

BG6

BG7

BG8

BS1

BS2

BS3

BS4

BS5

BS6

BS7

BS8

BS9

BS10

BS11

BS12

BS13

BS14

BS15

BS16

BS17

BS18

BS19

BS20

STB

CLK

DIN

DOUT

OSC

VEE

VDD

VSS

P41

P40

P39

P38

P37

P36

P35

P34

P33

P32

P31

P30

P29

P28

P27

P26

P25

P24

P23

P22

G16

G15

G14

G13

G12

G11

G10

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

100

65 64 63 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20

19 18 17 16

79 78 77 76 75 74 73 72 71 70 69 68 67

14 13 12 11 10

4321

/SPEANA SEL C

/SPEANA SEL B

/SPEANA SEL A

FIP0

FIP1

FIP2

FIP3

FIP4

FIP5

FIP6

FIP7

FIP8

FIP9

FIP10

FIP11

FIP12

FIP13

FIP14

FIP15

FIP16

FIP17

FIP18

FIP19

VLOAD

VDD2

FIP20

FIP21

FIP22

FIP23

FIP24

FIP25

FIP26

FIP27

FIP28

DIST IN

MPEG_POW

KARAOKE LATCH

AVSS

TUN_SM/SPN

T2RUN

T1RUN

KEY2

KEY1

KEY0

ANI5

ANI4

ANI3

ANI2

ANI1

AVDD

SPEANA

AOUT

P13

P12

P11

P10

P14

P15

P16

P17

P18

P19

P20

P21

CLK

KOK_LATCH

MIC IN

TUN_SM/SPAN

REC/PLAY

ANI1

ANI2

ANI3

ANI4

ANI5

M_GND

AIN

D_GND

A_+10V

+5V

S-MUTE

–20dB ATT

T_BIAS

T_T1 T2

M_+12V

P29 10 - H

TO MAIN PWB

P32 1 - F

TO POWER AMP. PWB

BACK_UP

+VF2

VF1

–VF

SP DET

P_IN

SP RLY

UN_SW 5V

GND

AOUT

TEST

SEL

VCC

AIN

CIN

DIFOUT

RREF

VREFC

BIASC

CNP905

CNP602

D717

DS1SS133

R745

10K

R77

D716

DS1SS133

CNP702

FFC702

CNS905

BI701

R761 10K

R762 10K

R766 10K

R792 10K

R798 10K

C727

0.0015

R703

82K

R712

47K

R713

10K

R714

10K

R715

10K

D711 DS1SS133

D713 DS1SS133

D712 DS1SS133

C709

0.1

C707

0.1

C708

0.1

C710

0.1

R711

100K

R702

47K

R701

47K

RS701

RS702

C705

47/25

R708 1K

R709 1K

R710 1K

R707

C706

0.022

C702

47/25

IX0

MICRO

C704

0.022

R704

100K

R705

100K

R706

100K

Q703

KTC3199 GR

Q702

KTC3199 GR

Q701

KTC3199 GR

C701

0.022

R727 1K

C713

0 022

R717

10K

R716

10K

IC702

D16315GB

FL DISPLAY

DRIVER

C703

47/50

C711

18P

R719 1K

R718 1K

R724 1K

R725 1K

R726 1K

R728 1K

R729 1K

R723 1K

R722 1K

R721 1K

R720 1K

R773 1K

R774 1K

IC703

BA3835F

5 BAND PASS FILTER

FL701

FL DISPLAY

D701

DS1SS133

D703

D705

D708

DS1SS133

D703, D705: DS1SS133

– 31 –

CD-BK3100W

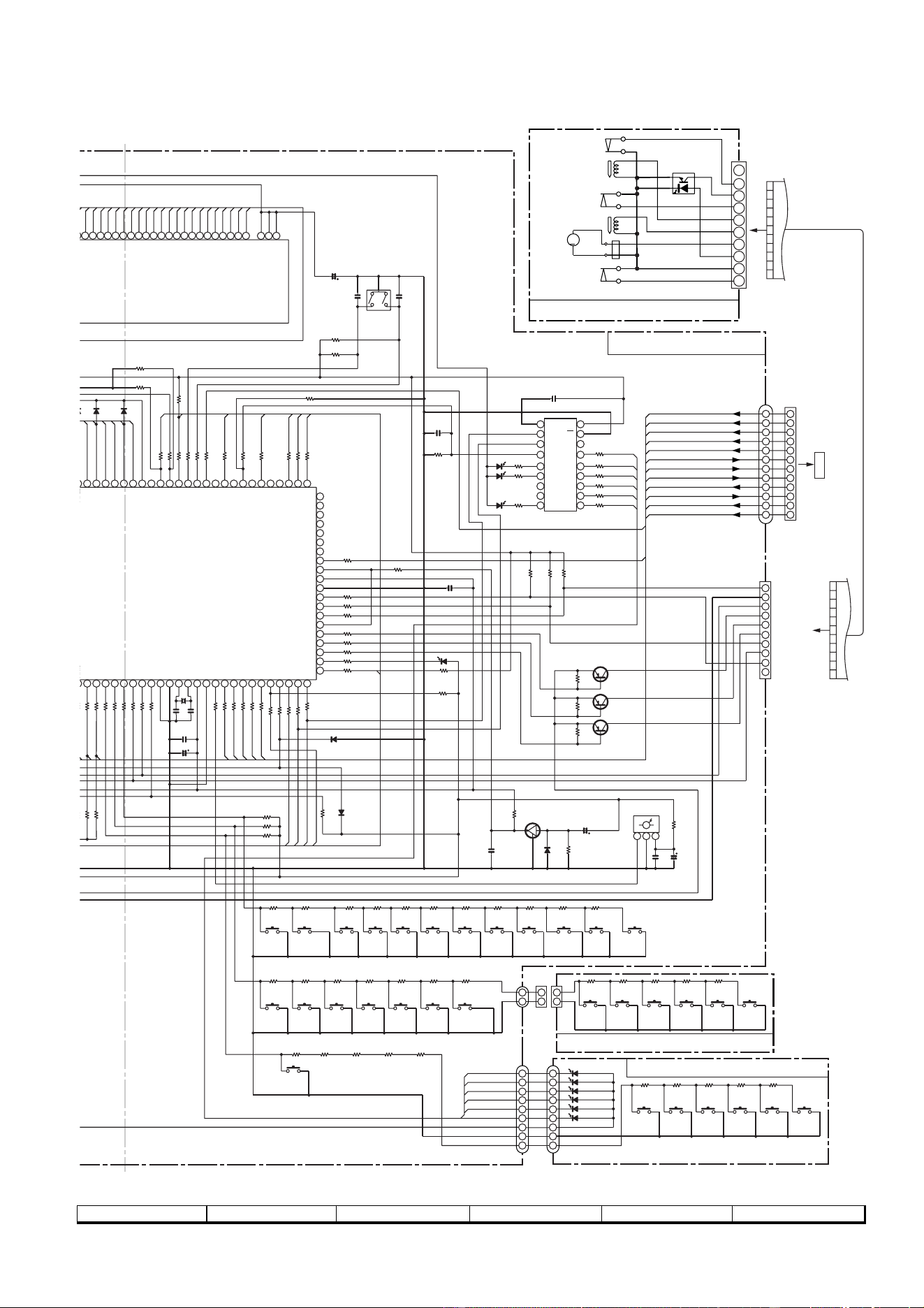

Figure 31 SCHEMATIC DIAGRAM (6/10)

8 9 10 11 12

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

EJECT SWITCH PWB-B2

DISPLAY PWB-B1

PLAY SWITCH PWB-B3

P25

P26

P65

P27

P66

P67

P47

ANI4

ANI5

ANI1

ANI3

ANI2

P27 11 - D

TO CD SERVO PWB

CAM_A SW_A/CAM_A SW_B

CAM_A SW_C/CAM_A SW_D

CAM_A SW_E/CAM_B SW_A

CAM_B SW_B/TRAY SW_A

TRAY SW_B/TRAY SW_C

CD DO

CD DI

CD CLK

CD CE

WRQ

DRF

RESOUT

P65

P47

26 25 24 23 22 21 20

19 18 17 16 15 14 13 12 11 10

98765 321

75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

302928272625242322212019 1817 16 15 14 13 12 11 10

EL C

EL B

EL A

FIP22

FIP23

FIP24

FIP25

FIP26

FIP27

FIP28

DIST IN

MPEG_POW

KARAOKE LATCH

FL LATCH

MIC SW

JOG 1

JOG 0

SP DET

SMUTE

–20dBATT

LCK 1

LCK 0

AC RLY

SPRLY

CE_2

CE_1

T_BIAS

T_T1/T2

REC/

PLAY

DSA_

STB

DSA_DATA

AC3_SCK/DSA_ACK

AC3_SO/RDS READY/ESS_DO

AC3_SI/RDS RDCL/ESS_DI

AC3_SS_/RDS RDDA/ESS_STB

AC3_RST/RDS RST/ESS_ACK

RESOUT

RESET

VDD0

VSS0

FPB

FPA

PLAY SW B

PLAY SW A

T_MOTOR

T_SOL_B

T_SOL_A

TIMER LED

CLK

CE_O

P_IN

DRF/DVD BUS 5

WRQ/DVD BUS 4

CD CE/DVD BUS 3

CD CLK/DVD BUS 2/SCK

CD DI/DVD BUS 1/SI

CD DO/DVD BUS 0/SO

REMOCON

IC(VPP)

VDD1

VSS1

AVSS

TUN_SM/SPN

T2RUN

T1RUN

KEY2

KEY1

KEY0

ANI5

ANI4

ANI3

ANI4

ANI5

P27

P26

P25

P67

P66

FPA

M_GND

T1RUN

FPB

SOL_A

SOL_B

T_MOTOR

T2RUN

PLAY_SW_B

CLK

CEO

SP_DET

KEY0

KEY1

KEY2

GND

KEY0

+_10V

DISC1

DISC2

DISC3

DISC4

DISC5

DISC6

321

STOP

PLAY

TAPE MECHANISM PWB-H

TAPE

MOTOR

PLAY

F. PLAY

CASSETTE

SOLENOID

VSS

DATA

CLOCK

LCK0

Q10

Q11

VDD

DISC6

DISC5

DISC4

DISC3

DISC2

DISC1

MOTOR

DRIVER

Q705, Q706: SOLENOID DRIVER

CNP7

R749

R745

10K

R776

10K

BI703A

BI703B

CNS702

D715

DS1SS133

SW729

PLAY

SW730

STOP

SW731

REVERSE

MODE

FFC701

BI702

RD06

2.7K

RD09

10K

RD10

15K

SW708

DISC 3

PLAY

SW707

DISC 2

PLAY

SW706

DISC 1

PLAY

RD08

5.6K

RD07

3.9K

RD18

2.7K

RD13

680

SW714

DIMMER

RD16

1.5K

SW718

VIDEO/

AUX

SW716

TAPE

SW715

RD19

3.9K

SW717

TUNER

(BAND)

SW719

MEMORY/

SET

SW720

EQUALIZER

RD15

RD14

820

RD17

2.2K

SW701

ON/STAND-BY

RD01

680

RD02

820

RD05

2.2K

RD03

RD04

1.5K

RD21

10K

RD20

5.6K

CNP704

RD22

15K

SW712

DISC 5

EJECT

RD12

100K

RD11

33K

CNP701

R792 10K

R798 10K

BI704

CNS704

R788

10K

R791

10K

R790

10K

R789

10K

R746 1K

RD35

33K

RD34

15K

SW737

REC

PAUSE

SW738

X-BASS/

DEMO

SW736

TUNING/

TIME DOWN

C725

47/25

C724

0.022

RX701

REMOTE

SENSOR

R785

100

R797

10K

RD25

680

RD30

2.7K

RD29

2.2K

RD32

5.6K

RD26

820

RD28

1.5K

RD27

RD31

3.9K

RD33

10K

C723

0.022

D718

DS1SS133

R784

100K

R795

10K

LED701

4204SRT121

SW735

TUNING/

TIME UP

SW728

FAST

FORWARD

SW733

CLOCK

SW734

TIMER/

SLEEP

SW732

REVERSE

PLAY

SW727

REWIND

R769 1K

R736 1K

C715

0.022

IC701

IX0464AW

SYSTEM

MICROCOMPUTER

D714

DS1SS133

R727 1K

C714

220/10

C713

0.022

R737 1K

R738 1K

R739 1K

R740

R750

R741

R742 1.8K

R743 2.2K

R793

10K

R794

10K

R770 100

R783

47K

C726

47/50

Q705

KTA1273 Y

Q706

KTA1273 Y

Q704

KTA1273 Y

R779

10K

R780

10K

R781

10K

R760 47K

R763 1K

R765 1K

R767 1K

XL701

4.194304 MHz

C712

15P

C711

18P

R735 1K

R734 1K

R733 1K

R731 1K

R730 1K

R771 100

R772 1K

R777

10K

R724 1K

R744 2.2K

R799 2.2K

R747 1K

R748 1K

Q707

KRC102 M

JOG701

JOG VOLUME

C716

0.001

C717

0.001

R758 1K

R759 1K

R725 1K

R726 1K

R728 1K

R729 1K

R723 1K

R722 1K

R732 100

R773 1K

R774 1K

C722

3.3/50

R787

10K

R786

10K

SW709

DISC 4

PLAY

SW710

DISC 5

PLAY

SW711

DISC 6

PLAY

SW713

DISC 6

EJECT

SW721

DISC 1

EJECT

SW722

DISC 2

EJECT

SW723

DISC 3

EJECT

SW724

DISC 4

EJECT

R782

10K

D705

D708

DS1SS133

C728

470P

RS725

68K

RS703 10K

LED711

LED710

RS710

1.5K

RS709

1.5K

LED709

RS706

1.5K

C721

0.022

RS724 560

RS717 560

RS716 560

RS715 560

RS714 560

RS713 560

IC705

BU2092F

INPUT/OUTPUT

EXPANDER

LED725

LED718

LED717

LED716

LED715

LED714

SS133

LED709~LED711: 4204UYT121

LED714~LED718, LED725: SLR325MC

CD-BK3100W

– 32 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 22.

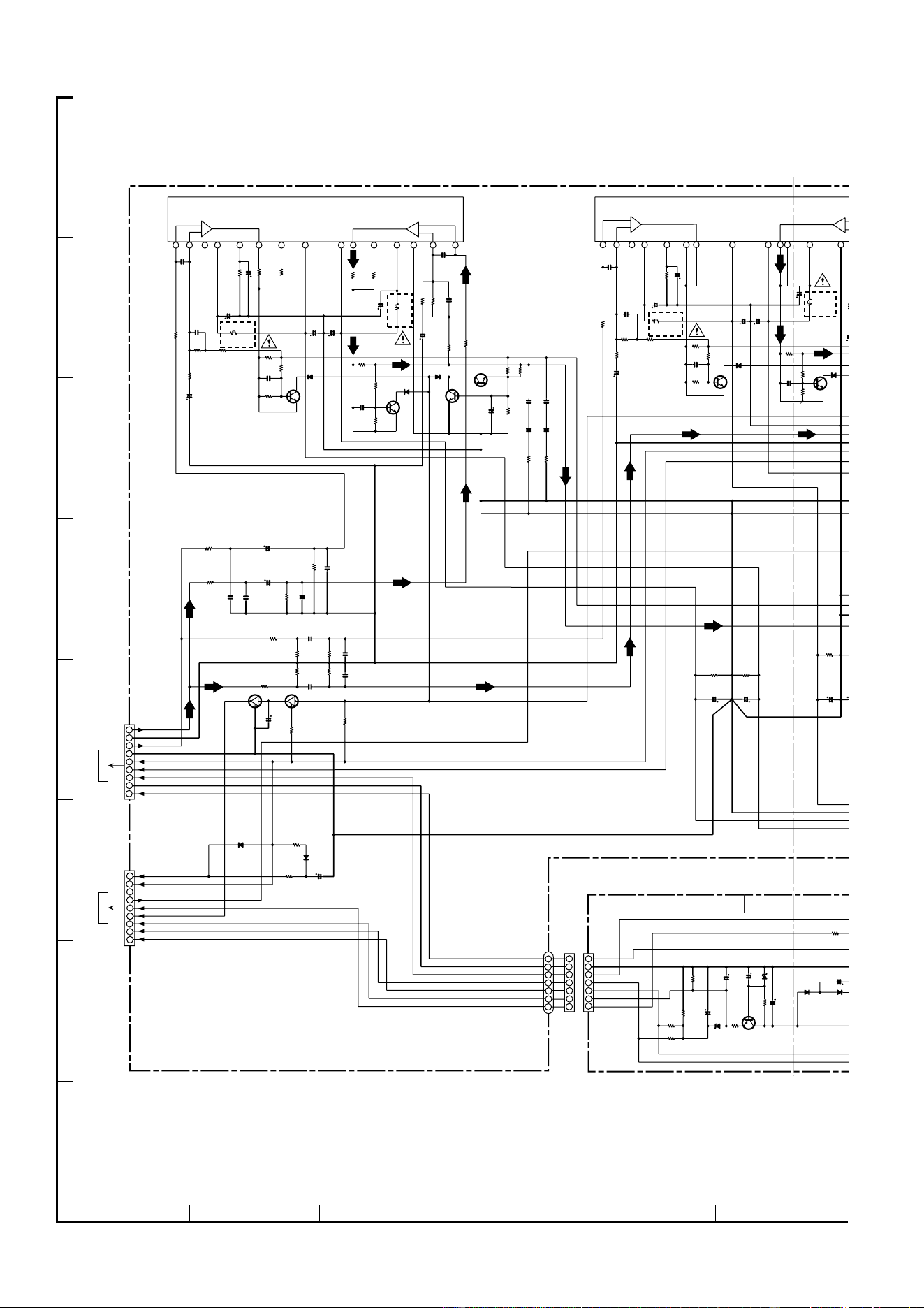

Figure 32 SCHEMATIC DIAGRAM (7/10)

L OUT

+5V(BACK_UP)

SP RLY

SP DET

+5V(UN_SW)

–VF

VF1

VF2

P_IN

P_IN(SYS REST)

+B(+18V)

+B(+9V)

GND

VF2

VF1

–VF

P30 1 - G

FROM DISPLAY PWB

GND

+B(+9V)

+B(+18V)

GND

+5.6V

P_IN(SYS REST)

+B(+18V)

+B(+9V)

GND

L-CH

A_GND

R-CH

P28 1 - B

TO MAIN PWB

VF1

VF2

–VF

M_12V

R OUT

1413

121110

543

121110

543

–VCC

+VCC

CH2

OUT

CH1

CH2

CH1

FRONT_L

CH2

FRONT_R

CH1

–

CH1

OUT

CH2

POWER A PWB-D2

-B

C906

0.0015

C910

15P

R918

R904

56K

R908

R906

560

R902

22K

C903

100/50

R901

100(1/4W)

Fusible

C990 0.22/50

R994

0.22

(2W)

R996

0.22

(2W)

R912

0.1

(1W)

R914

C912

0.022

R916

6.8K

Q902

KTC3199 GR

D902

DS1SS133

C902

10/50

R911

0.1(1W)

C905

0.022

R915

6.8K

R913

Q901

KTC3199 GR

D901

DS1SS133

Q903

KTC3199 GR

D903

DS1SS133

C904

100/50

R910

100(1/4W)

Fusible

R907 560

C911

10/50

R903 56K

C909

15P

R909

R917

C907

0.0015

R920

56K

R921

56K

Q904

KTC3199 GR

C917

0.1

(ML)

C916

0.1

(ML)

C918

0.1

(ML)

C919

0.1

(ML)

C914

47/50

R919

56K

R923

4.7

R922

4.7

R956

18K

C958

0.22/50

C959

0.22/50

R970

68K

C960

0.1

(ML)

R957

18K

C954

0.082(ML)

C955

0.082

(ML)

R971

68K

C961

0.1

(ML)

R998

27K

R972

68K

C942

0.015(ML)

R974

68K

C944

0.001

C943

0.001

R975

68K

R973

68K

R997

27K

C941

0.015(ML)

Q991

KRA107 M

R828

100

C825

3.3/50

Q990

KRC107 M

CNP906

CNP806

D819

DS1SS133

CNP905

CNS905

R808

150

D820

DS1SS133

C830

1000/6.3

R809

2.2K

IC901

STK40270N

POWER AMP.

IC902

STK40270N

POWER AMP.

C926

0.0015

C928

15P

R976

C922

100/50

R926

22K

C991

0.22/50

R924

100(1/4W)

Fusible

R928

56K

R932

R930

820

C930

1/50

R934

0.1

(1W)

R938

C924

0.022

R936

10K

Q906

KTC3199 GR

D905

DS1SS133

C920

10/50

C921

10/50

C923

100/50

R925

100

(1/4W)

Fusible

R929 820

D904

DS1SS133

Q905

KTC3199 GR

R937

R935

10K

C925

0.022

R933

0.1(1W)

D809

DS1N40

D818

DS1N404S

C807

100/50

R826

220K

C802

C801

2200/50

C810

47/50

ZD801

DZ30BSC

C809

220/50

R801

2.2K

Q801

KTA1274 Y

R802

C811

47/50

R804

47K

ZD802

DZ6.2BSA

C812

100/35

R803

12K

R829

R830

CNP901

BI901

CNS901

C908

10/50

R819

22K

R805

22K

R967

22K

C814

2200/56

C813

2200/56

C901

10/50

R806

10K

R993

0.22

(2W)

R995

0.22

(2W)

– 33 –

CD-BK3100W

8 9 10 11 12

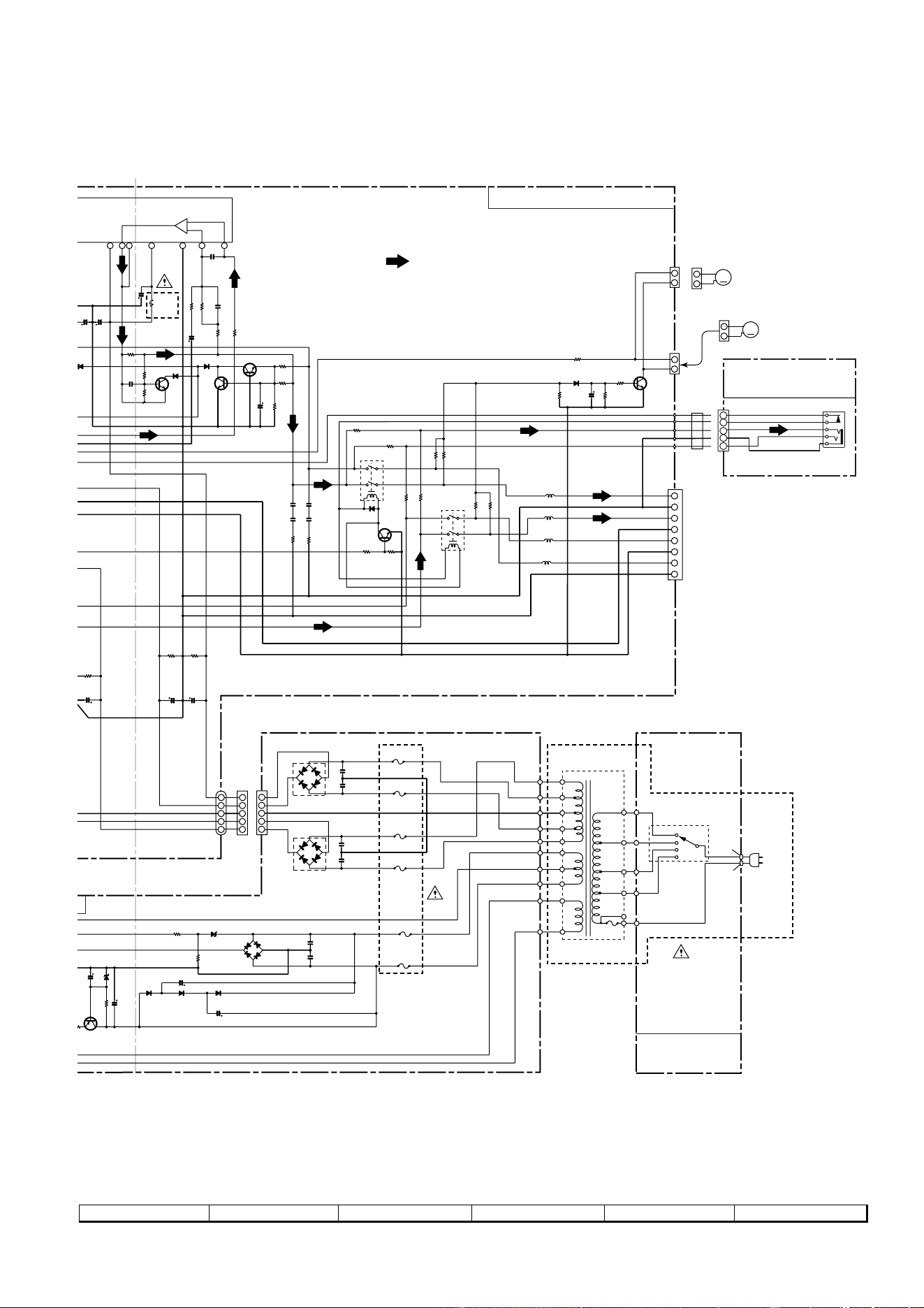

Figure 33 SCHEMATIC DIAGRAM (8/10)

AC POWER

SUPPLY CORD

AC 110/127/220/230-240 V

50/60 Hz

SP_R-CH_GND (LOW)

SP_R-CH (LOW)

SP_L-CH_GND (LOW)

SP_L-CH (LOW)

SP_L-CH_GND (HI)

SP_R-CH (HI)

SP_R-CH_GND (HI)

SP_L-CH (HI)

–

1413

121110

–VCC

CH2

OUT

CH2

–

HEADPHONES

PWB-B4

POWER B

PWB-D3

POWER AMP. PWB-D1

+B2

T.F.

220 V

127 V

110 V

230-240 V

230-

240 V

SW801

VOLTAGE

SELECTOR

127 V

110 V

K801

K802

SP RELAY

ON-OFF

FAN MOTOR

DRIVER

+B +B

-B

270N

AMP.

D905

DS1SS133

920

0/50

C921

10/50

C923

100/50

R925

100

(1/4W)

Fusible

R929 820

C931

1/50

R927 56K

C927

0.0015

C929

15P

R931

R977

D906

DS1SS133

D904

DS1SS133

Q905

KTC3199 GR

R937

R935

10K

C925

0.022

R933

0.1(1W)

Q907

KTC3199 GR

C932 47/50

Q908

KTC3199 GR

R940

56K

R939

56K

R941

56K

RY901

R946

270

D907

DS1SS133

C939

0.1(ML)

C940

0.1(ML)

C936

0.1

(ML)

C935

0.1

(ML)

R943

4.7

R942

4.7

R979

R980

10K

RY902

R951

2.2K

R950

2.2K

L903

0.29µH

L905

0.29µH

L904

0.29µH

L902

0.29µH

R955

4.7

D909

DS1SS133

R952

15K

C938

10/50

R953

68K

R954

M901

FAN MOTOR

CNP904

CNP907

CNS904

M902

FAN MOTOR

CNS907

FW901

SO901

SPEAKER

TERMINAL

T801

POWER

TRANSFORMER

F800

T4A L 250V

F801

T4A L 250V

C833

0.047(ML)

C832

0.047(ML)

D802

TS6B04GM

F802

T5A L 250V

F803

T5A L 250V

C803

0.047

(ML)

C804

0.047

(ML)

D803

TS6B04GM

CNP902

F804

T2A L 250V

F805

T2A L 250V

C808

100/50

D809

DS1N404S

D818

DS1N404S

D808

DS1N404S

C807

100/50

R827

47K

R826

220K

ZD806

DZ11BSB

D804

DS1N404S

D807

DS1N404S

D806

DS1N404S

D805

DS1N404S

C805

0.047(ML)

C806

0.047(ML)

BI902

CNS902

C802

2200/50

C801

2200/50

C810

47/50

ZD801

DZ30BSC

C809

220/50

R801

2.2K

Q801

KTA1274 Y

R805

22K

R967

22K

R966

22K

C813

200/56

R948

2.2K

R949

2.2K

R947

270

R944

270

R945

270

Q909

KTC3199 GR

Q910

KTC3203 Y

JK670

HEADPHONES

WT601

FM SIGNAL

CD-BK3100W

– 34 –

23456

Figure 34 SCHEMATIC DIAGRAM (9/10)

• NOTES ON SCHEMATIC DIAGRAM can be found on page 22.

D_GND

TUN_R

TUN_L

A_GND

CLK

A_10V

TP301

TP302

CONT

FM/AM

AM LOOP

ANTENNA

MO/ST

ST IND

MO/ST

VSS

AOUT

AIN

VDD

FM IN

AM IN

X IN

X OUT

IF IN

REG

AM IF IN

GND

STEREO

FM DET

VCC

IF OUT

PHASE

(FM/AM)

PHASE

L-CH OUT

R-CH OUT

MPX IN

MPX VCO

FM/AM OUT

VSM

AM LOW CUT

AM RF IN

AM OSC IN

FM AFC

AM OSC OUT

AM MIX OUT

FM IF IN

MAIN PWB-A (2/2)

P29 12 - C, D

TO MAIN SECTION

FM IF

OSC BUFF

FM OSC.

75 OHMS

GND

AM OSC.

AM BAND

COVERAGE fL

AM ANT.

AM TRACKING fL

AM IF

CONSTANT

VOLTAGE

C338

0.001

D301

DS1SS133

D302

DS1SS133

C323

0.022

C303

10P(CH)

C304

0.01

C305

4.7P

(CH)

L312

C309

0.001

C320

0.001

D305

DS1SS133

R311

100K

C308

4.7P(UJ)

VD302

SVC211S

R314

R313

33K

C317

0.001

C316

0.022

C315

0.0047

C314

0.0047

C301

0.001

R327

Q302

KTC3194 Y

C318

100P

R325

47K

R322

680

C312

0.022

T301

T302

C311

18P

C310

15P(CH)

C307

10/50

C324

3.9P

(UJ)

VD303

SVC211S

R309

10K

C313

22P

(CH)

CF303

R316

4.7K

T306

C334

22P(CH)

C335

560P

R323

68K

R336

10K

C384

0.001

C382

15P

(CH)

C381

12P

(CH)

X352

4.5 MHz

C397

0.022

R382

150

C394

47/25

C392

0.001

C380

10/50

R380

1.5K

C393

1/50

L351

100µH

R379

2.2K

C385

0.01

R377

47K

C386

330P

R376

R386

22K

R395

47K

R360

4.7K

R387

5.6K

C352

10/50

C350

0.022

T351

CF352

R352

C353

0.022

CF351

C354

0.022

R353

270

C357

2.2/50

C356

0.001

C355

22P

C358

1/50

R355

3.3K

C370

1/50

R388

3.9K

C398

100/10

C399

0.022

R393

L352

100µH

C396

100/10

C395

0.022

R392

270

R391

270

ZD351

DZ5.1BSB

Q360

KTA1266 GR

R383

5.6K

R385

5.6K

C391

47/25

R384

5.6K

R359

1.8K

CNP301

T303

C330

15P

C331

0.047

C388

0.001

R351

5.6K

C342

0.022

R358

3.9K

R365

10K

C361

0.022

C362

3.3/50

C363

0.022

C366

0.001

C365

0.022

C364

2.2/50

C367

1/50

R350

2.7K

X351

456 kHz

R357

470K

C373

0.015

C371

1/50

C372

1/50

C374

0.015

C369

27P(UJ)

R356

C368

1/50

IC303

LA1832S

FM IF DET./

FM MPX./AM IF

BF301

BAND

PASS FILTER

IC301

TA7358AP

FM FRONT END

C306

0.022

R302

C332

0.022

VD301

SVC348S

C351

0.022

R381

10K

R372 1K

R378 1K

R373 1K

R374 1K

R375

470

IC302

LC72131

PLL(TUNER)

C387

0.022

FM RF

SO302

FM ANTENNA

TERMINAL

FM SIGNAL

AM SIGNAL

– 35 –

CD-BK3100W

Figure 35 SCHEMATIC DIAGRAM (10/10)

8 9 10 11 12

MICSW

DATA

CLOCK

LATCH

PS2

PS1

VCF IL

L OUT

R OUT

SOURCEOUT

KEYCONIN

R IN

L IN

VOL IN

LPF2OUT

LPF2IN2

LPF2IN1

DAINTOUT

DAINTIN

DACONT

VCC

GND

MCLKCONT

VACL

MIC1 IN

ALC1

ALC2

MIC1NF IN

MIC2NF IN

MIC1 OUT

MIC2 OUT

MIC1VOL IN

MIC2VOL IN

MICOUT

LPF1 IN1

LPF2 IN2

LPF1 OUT

AD INTIN

ADCONT

REF

AD INTOUT

MIC2 IN

MIC IN

CLK

KOK LATCH

KOK OUT(R)

KOK IN(R)

A_+10V

A_GND

KOK OUT(L)

KOK IN(L)

CHASSIS

GND

MIC PWB-J

CNS602

P29 12 - E

FROM MAIN PWB

MIC

VOLUME

RK40

RK37

390

RK39

CK41

100/16

CK10 0.1

CK11 0.1

CK7 0.47

CK44

47/25

CK72

100/16

RK42

10K

VRK1

20K(B)

CK53

47/50

RK48

10K

RK50

10K

CK47

220P

RK43

18K

CK48

220P

RK46

18K

CK45

2.2/50

CK46

2.2/50

RK49

10K

RK41 10K

CK51

1/50

CK52

1/50

RK47

8.2K

RK45

6.8K

RK44

6.8K

CK49

100P

CK50

100P

CNPK1

CK42

0.022

RK38

100

RK14

100

RK15

100

RK36

390

CK19

0.022

RK8 5.6K

CK23 0.001

CK1

0.01

RK11

RK10

RK9

CK43

47/25

CK18

100/16

ZDK1

MTZJ5.6B

RK12

100

RK13

1.2K

QK1

KTC3203Y

ICK1

M65856SP

MIC AMP.

RK2

56K

RK3

56K

RK4

10K

RK7 1K

JK1

MIC

CK9 2.2/50

CK8 4.7/50

CK13

0.0047

CK17

220/10

CK16 0.22

CK15 0.068

CK25 2.2/50

CK26 2.2/50

CK12

2.2/50

CK14 0.001

CK21 0.068

CK24 2.2/50

CK33

47P

CK30 2.2/50

CK29 2.2/50

CK31

0.15

CK35

47P

CK34

47P

CK22 0.0047

CK20 0.22

DK1

DS1SS133

PINK1

DK2

DS1SS133

RK1

10K

IC903

KIA4558P

OPE AMP.

MIC SIGNAL

CD-BK3100W

– 36 –

Figure 36 WIRING SIDE OF P.W.BOARD (1/9)

23456

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

C388

R614

R619

R637

R638

C604

R605

R606

R618

R617

R611

R607

R613

C335

C332

R323

R356

C363

C342

R350

C334

C361

R365

C369

C316

R313

C366

R311

C309

C308

C399

R351

C355

C353

R352

R355

C354

C350

R353

C312

C356

C310

C313

C351

C311

R327

R302

C324

R383

R380

R395

R393

C385

C318

R385

R377

C392

R379

C387

C386

R360

C395

R359

R376

R388

R374

R372

R378

R373

C384

C382

C381

C301

C397

R381

C306

R322

R325

C305

C315

C304

C303

C314

C317

R336

R316

C323

C330

C338

C634

R634

R632

C632

R631

R633

C631

R624

R623

R625

R626

C1002

MAIN PWB-A

L352

ZD351

C358

C373

C374

C372

R608

R610

R609

R612

C613

C617

C621

C625

CNP806

CNP906

C630

C619

C627

C628

C623

C626

C629

C624

C609

IC601

C622

C612

C607

C610

C608

C620

C611

C606

C614

C602

Q603

Q604

R615

R616

R641

R643

R642

T306

C365

C364

C368

R357

R358

C362

C367

C371

IC303

X351

D305

CF303

C357

T302

R309

CF351

C352

C370

Q302

C398

T301

T351

CF352

R382

C393

R375

Q360

C380

R391

R392

L351

C391

IC302

R384

R386

R387

C396

X352

C394

C320

C307

IC301

R314

CNP301

L312

D301

BF301

D302

T303

C331

D601

D602

10987654321

CNPK1

P44 3 - D

TO MIC PWB

C654

1 2 3

GND

75OHMS

SO302

FM ANTENNA

TERMINAL

SW601

SPAN SELECTOR

9 kHz/50 kHz

10 kHz/100 kHz

P41 11 - E

TO POWER AMP. PWB

R-CH

L-CH

JK601

VIDEO/AUX

AM LOOP

ANTENNA

1516

BCE

11 12

21 20

18 17 16 15 14

VD302

VD301

VD303

132

BCE

1213

123456789

TP302

TP301

– 37 –

CD-BK3100W

Figure 37 WIRING SIDE OF P.W.BOARD (2/9)

8 9 10 11 12

R113

R114

R162

R164

R115

R109

R110

R108

C101

R107

C108

C102

R101

C107

C111

R117

R120

R173

R170

R169

R121

R172

R171

C119

C114

C113

R123

C112

C127

R125

R131

C131

R139

R141

C139

C140

R137

C123

R135

R145

R157

R146

R153

R154

R136

R132

R142

R134

C124

R140

R126

C132

R174

R122

C120

R124

R111

R105

R118

R103

C106

R104

R106

R112

R166

R167

C388

R619

ECB

Q126

Q109

Q110

R160

Q111

R168

C151

L104

Q124

CNP102

C153

C105

R155

CNP101

Q108

Q107

R119

C115

R102

C117

C121

C128

C133

C135

C141

C146

R158

C145

Q121

C852

C851

ZD801A

R856

R852

C850

C861

R854

C855

R853

C860

C857

C858

D801

R156

Q122

C142

R138

C136

C134

C122

C118

C116

BI601

Q105

Q103

Q104

Q106

C154

CNP602

C150

C156

C152

C157

Q128

C155

CNS601CNS602

FFC702

CNP8

CNP702

C373

C374

C372

R608

R610

R609

R612

C617

C621

CNP806

CNP906

Q852

Q851

Q850

IC101

EC B

BCE

321

119

P39 11 - D

TO DISPLAY PWB

123456

10987654321

P42 2 - F

TO CD SERVO PWB

CNPK1

P44 3 - D

TO MIC PWB

FROM TAPE 2

RECORD/PLAYBACK

ERASE HEAD

FROM

TAPE 1 PLAYBACK

HEAD

P44 4 - H

P44 5 - H

BI602

C654

P41 11 - E

TO POWER AMP. PWB

123456789

BC E

12 3

CD-BK3100W

– 38 –

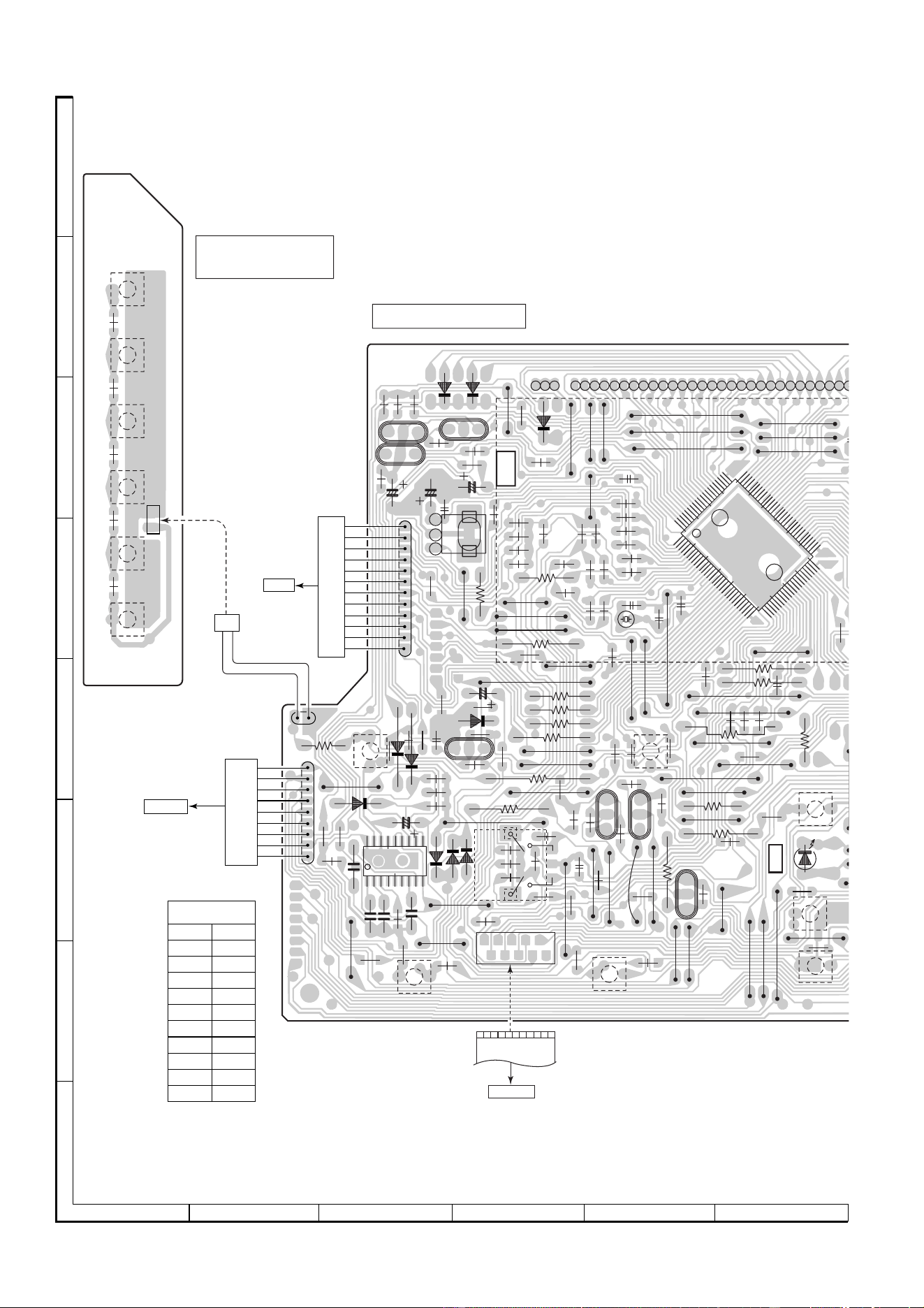

Figure 38 WIRING SIDE OF P.W.BOARD (3/9)

23456

SW713

DISC6

EJECT

SW712

DISC5

EJECT

SW724

DISC4

EJECT

SW723

DISC3

EJECT

CNP704

SW722

DISC2

EJECT

SW721

DISC1

EJECT

SW737

REC PAUSE

SW735

TUNING/TIME

SW732

REVERSE

PLAY

Q705

R744

LED710

RD17

SW718

VIDEO/AUX

R739

Q706

Q704

SW719

MEMORY/

SET

R742

R749

R741

R750

XL701

FL701

Q703

Q701

Q702

C725

C705

CNS704

CNP7

CNP905

C726

RX701

BI704

R798

R785

R733

C722

R731

R732

D718

R734

D711

D713

R735

SW720

EQUALIZER

RD19

Q707

RD18

D712

R769

C714

D717

D714

D715

C710

JOG701

C709

C708

C707

CNP701

P44 3 - D

FFC701

SW738

X-BASS/DEMO

BI701

BI702

CNS702

CNS905

R730

C724

R783

R711

TO CD SERVO

PWB

P41 8 - H

TO POWER AMP.

PWB

TO TAPE MECHANISM PWB

13579

2468

123

ECB

123 56789

101112 13 14151617181920 21222324 2526 2728 29 3031 3233

BCE

EJECT SWITCH

PWB-B2

DISPLAY PWB-B1

D701

D703

D705

P42 3 - A

100

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

RD34

R787

R794

R799

R795

R786

C717

R738

R737

R743

R788

R789

C716

R716

R793

R790

R717

R791

C723

R784

R715

R713

R714

R712

RD35

IC703

R704

R705

R706

R708

R710

R709

R707

R724

R725

R723

R722

R721

R780

R720

R719

C706

R718

R792

R779

R781

R766

R761

R726

R762

R729

IC701

C711

C712

R728

C713

R727

R747

R748

R746

C715

R740

C704

RD12

RD11

RD22RD21

RD20

R782

– 39 –

CD-BK3100W

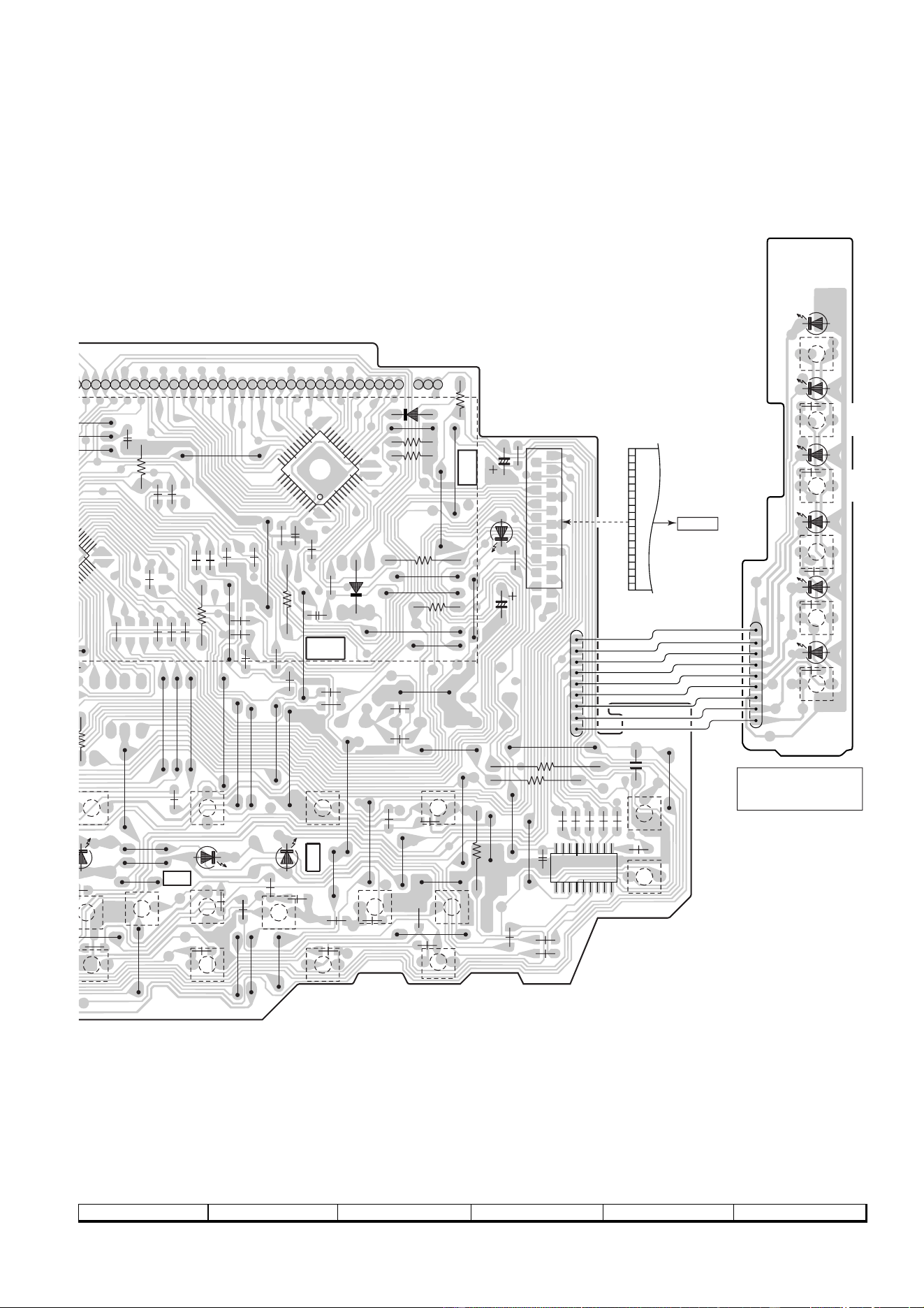

Figure 39 WIRING SIDE OF P.W.BOARD (4/9)

8 9 10 11 12

SW711

DISC6

PLAY

SW710

DISC5

PLAY

SW709

DISC4

PLAY

BI703B

SW708

DISC3

PLAY

SW707

DISC2

PLAY

SW706

DISC1

PLAY

SW733

CLOCK

SW727

REWIND

SW714

DIMMER

RD13

SW715

SW701

ON/

STAND-BY

RD05

RD01

BI703A

RD02

C702

LED701

CNP702

R702

C703

R701

RS701

RS702

D716

R736

R777

SW716

TAPE

SW717

TUNER

(BAND)

LED711

SW728

FAST

FORWARD

SW729

PLAY

SW730

STOP

SW731

REVERSE

MODE

SW734

TIMER/

SLEEP

SW736

TUNING/TIME

DOWN

W735

ING/TIME

SW732

REVERSE

PLAY

LED709

W718

EO/AUX

R745

CNP602

PLAY SWITCH

PWB-B3

29 3031 3233 34 353637 383940414243444546 4748 49 50 5152 5354 55 56 57 58 59 6061 636465

TO MAIN PWB

FFC702

P37 9 - A

LED725

LED718

LED717

LED716

LED715

LED714

C728

D708

RD10

RD09

RD08

RD07

RD06

RS709

RS706

RS713

RS714

RS715

RS716

RS717

RS724

RS710

RD31

RD25

RD26

RD27

RD32

RD14

RD15

RD28

RD29

RD30

RD33

RD16

C704

IC702

C701

C721

R703

C727

R767

R765

RS703

RS725

R797

RD04

R773

R774

R771

R776

R772

R770

R763

R760

R759

R758

RD03

IC705

CD-BK3100W

– 40 –

23456

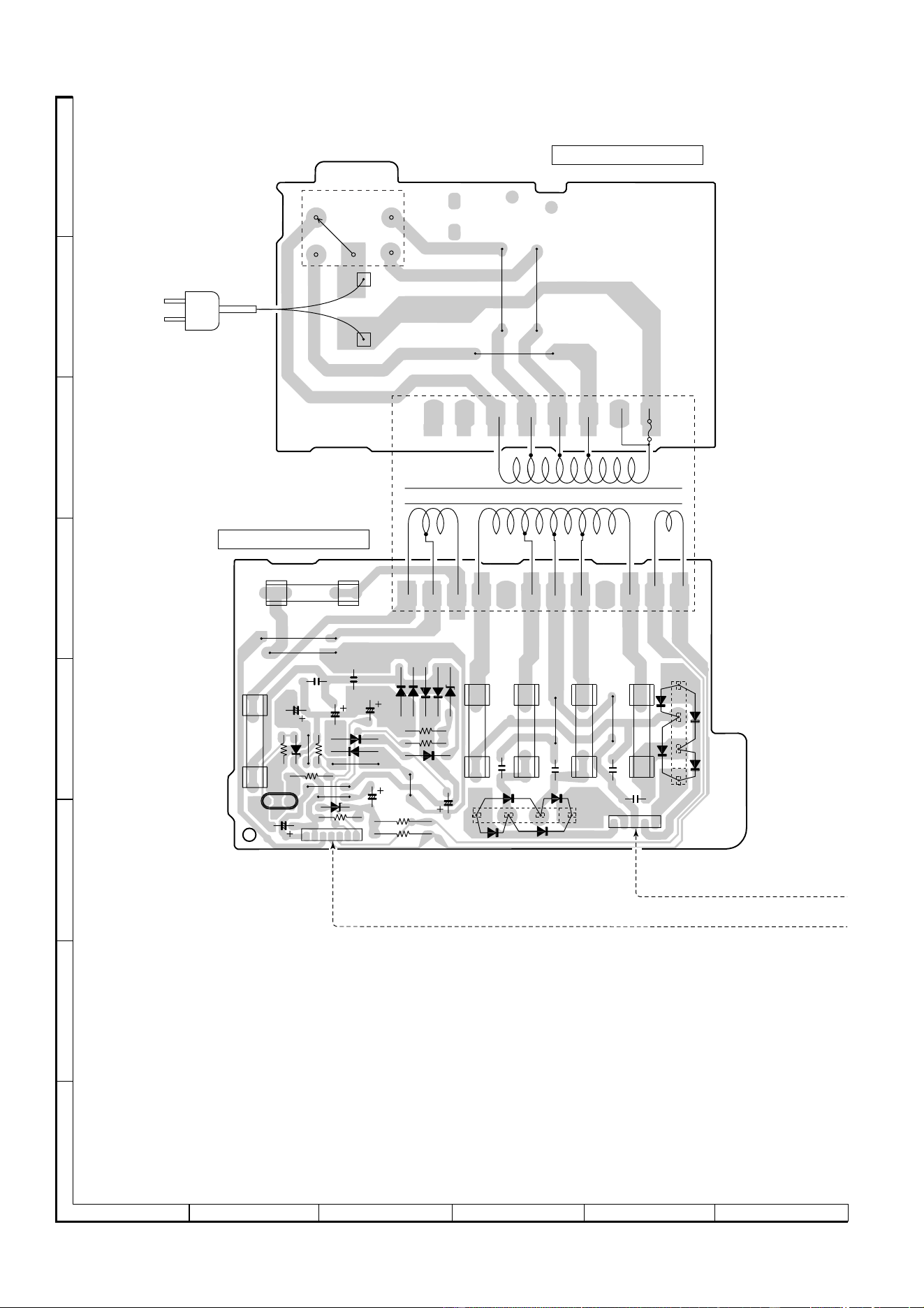

Figure 40 WIRING SIDE OF P.W.BOARD (5/9)

D803

C803

C804

C832

D802

C833

ZD806

C808

D804

D808

R826

R827

D805

D806

R830

R829

R802

D807

C812

C811

D818

D809

C806

R803

ZD802

CNP901

CNP902

C807

R804

C809

ZD801

C810

Q801

R801

C805

F805

T2A L 250V

T801

POWER

TRANSFORMER

F804

T2A L 250V

F802

T5A L 250V

F800

T4A L 250V

F801

T4A L 250V

F803

T5A L 250V

POWER B PWB-D3

POWER A PWB-D2

BCE

T.F.

AC POWER

SUPPLY CORD

AC 110/127/220/230-240 V

50/60 Hz

12345

K801

230-240V

220V

127V

110V

K802

SW801

VOLTAGE

SELECTOR

– 41 –

CD-BK3100W

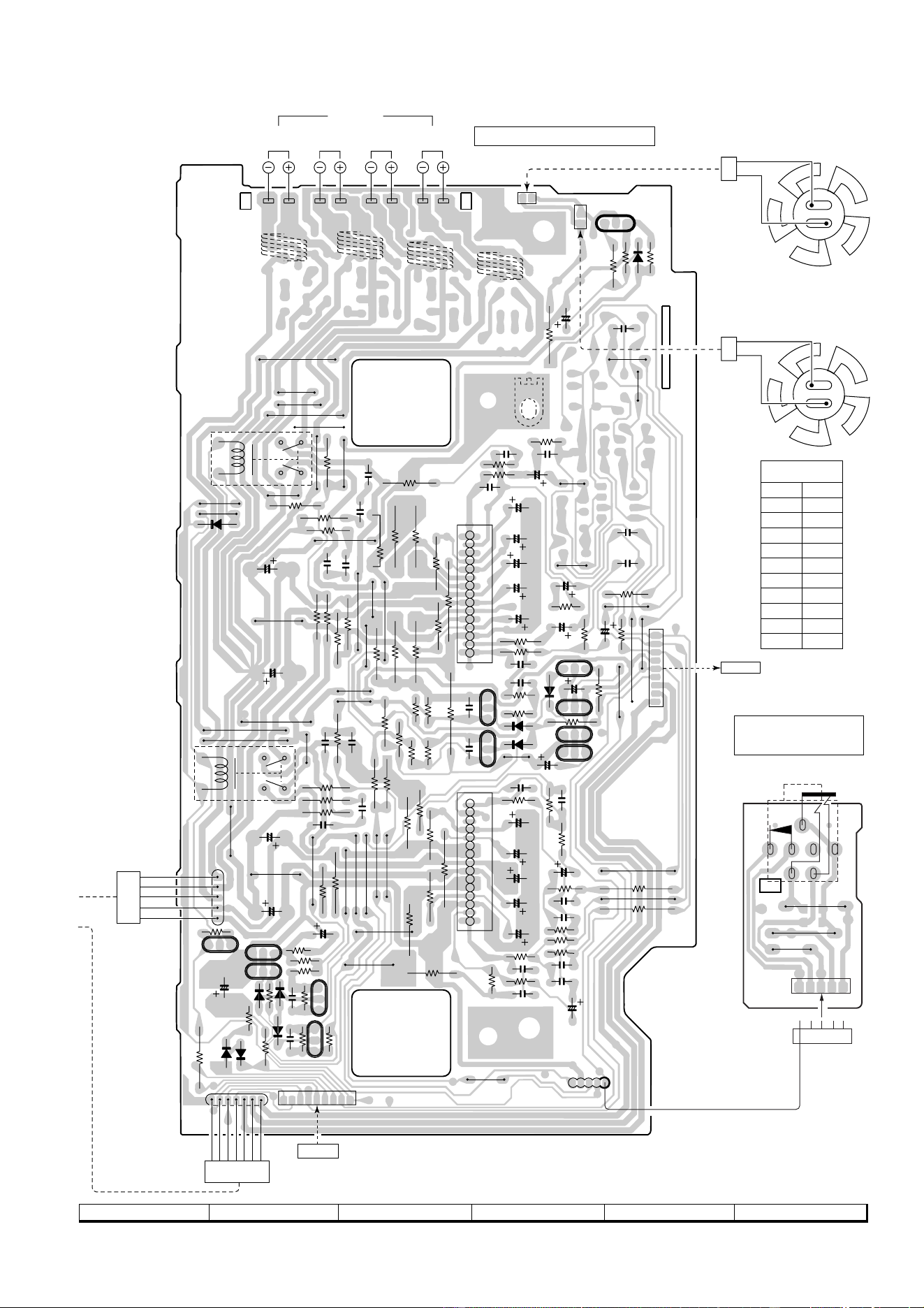

Figure 41 WIRING SIDE OF P.W.BOARD (6/9)

8 9 10 11 12

RY902

D907

RY901

C801

R980

Q909

Q908

Q907

C830

D906

R808

D820

D819

R979

BI901

CNS901

P38 1 - F

FROM DISPLAY

PWB

CNS905

CNP905

R809

C925

R935

Q905

R937

D904

C924

R936

Q906

R939

R966

R967

D905

R931

R938

R940

R941

R933

C932

C802

R925

R926

R924

R934

C939

R932

C935

R942

R943

R946

R944

R945

R914

R916

C936

C940

R920

R947

R921

R919

R915

R913

R911

R993

R995

R819

R910

R805

R949

R948

R902

C919

C917

R901

R912

R994

R996

R923

C918

R922

R951

R908

C916

R950

L905

L902

L904

SO901

SPEAKER

TERMINAL

Q910

L903

R953

D909

R952

R954

C938

C955

R955

LG901

R970

C960

C910

R904

R918

C958

C906

C903

C954

C990

C961

C901

C908

C902

R957

IC901

R906

C904

C911

C959

R907

R971

R956

R917

C907

Q991

CNP906

CNP806

TO MAIN PWB

C909

C825

R903

R828

D903

Q990

R909

C905

Q901

R806

D901

Q904

D902

Q903

C912

Q902

C914

C926

R976

C928

R928

C922

R930

C991

C930

IC902

C920

R972

R998

R997

C942

C921

C944

R974

C923

R975

R973

R977

C941

C927

C943

R929

R927

C929

C931

BI902

CNS902

FW901

CNP904

CNP907

WT601

JK670

HEADPHONES

C813

C814

CNS904

M901

FAN MOTOR

CNS907

M902

FAN MOTOR

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

R-CH

(HI)

R-CH

(LOW)

L-CH

(HI)

L-CH

(LOW)

POWER AMP. PWB-D1

BCE

321

ECB

1234567

987654321

HEADPHONES

PWB-B4

12345

P36 6 - H

CD-BK3100W

– 42 –

Figure 42 WIRING SIDE OF P.W.BOARD (7/9)

23456

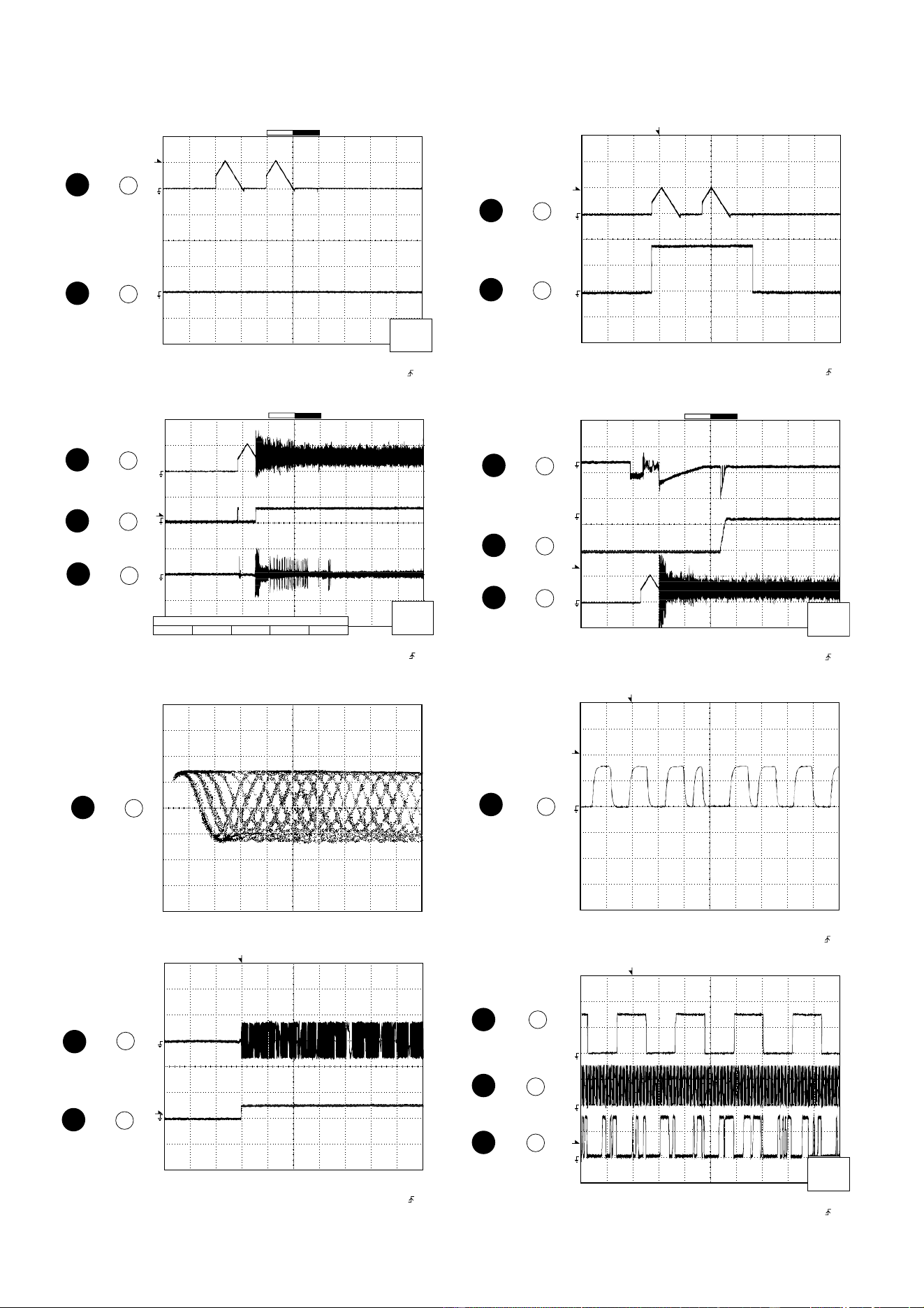

• The numbers 1 to 12 are waveform numbers shown in page 46.

5 4

IC1

IC2

CNP1

CNP2

R61

C13

C55

C56

R62

C10

R63

Q11

R49

R50

C54

Q10

Q12

R11

R10

R40

R48

R39

C39

C40

C53

R29

R38

C38

R37

R28

C37

R27

C52

CNP8

R56

R54

R55

R57

R59

R41

R42

R46

R45

R43

R44

R58

R47

R60

C51

C46

ZD2

C43

R22

C27

R25

R24

C31

C23

R21

R69

C41

C32

R52

ZD1

R26

R23

C47

C44

C42

C29

C30

C45

C28

C25

C24

C16

C18

R15

R17

R18

R13

R14

R16

C11

C15

R19

C12

C48

C17

C14

R53

CNP3

R34

R64

R65

R36

R30

R33

R32

CNP7

R31

R35

CNP4

CNP6

CNP5

R12

FW2

SWB104

MODE1

SWB105

MODE2

SWB106

MODE3

SWB107

MODE4

SWB108

MODE5

SWB109

TRAY1

SWB110

TRAY2

CNS704

P38 2 - D

FROM DISPLAY PWB

CNS601

P37 9 - A

FROM MAIN PWB

321

123456

321

123

321

1234

FW3

CD SERVO PWB-C

123456789

321

TRAY SWITCH

PWB-E

– 43 –

CD-BK3100W

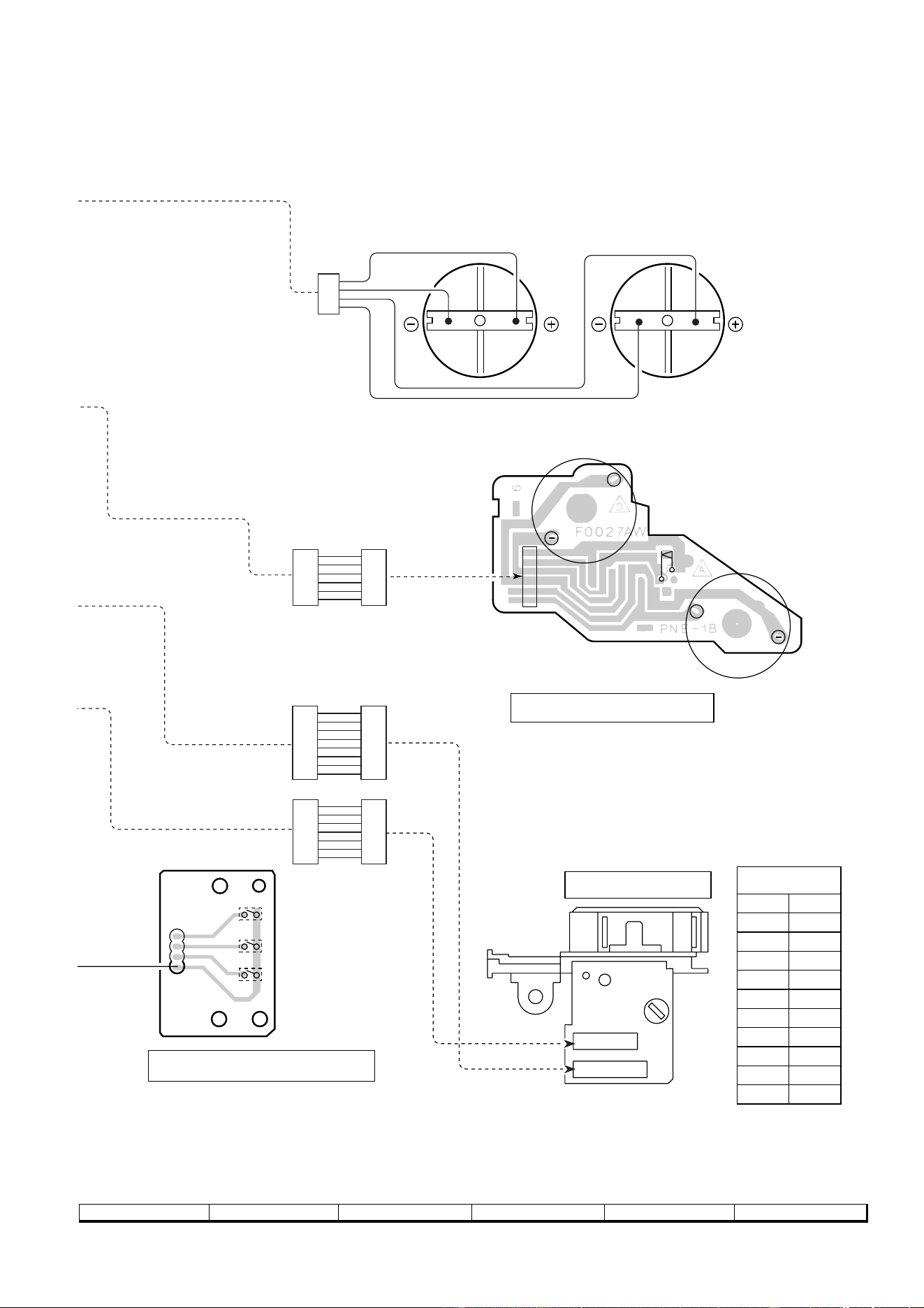

Figure 43 WIRING SIDE OF P.W.BOARD (8/9)

8 9 10 11 12

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CNS4

MOB2

TRAY MOTOR

MOB1

MAIN CAM MOTOR

NM2

SLED MOTOR

CNS3A

CNS3B

NSW1

PICKUP IN

CNP3A

NM1

SPINDLE

MOTOR

CD MOTOR PWB-G

CNS2A

CNS2B

CNS1A

CNS1B

8 7 6 5 4 3 2 1

7 6 5 4 3 2 1

PICKUP UNIT

CAM SWITCH PWB-F

SWB103

DISC

DETECT3

SWB101

DISC

DETECT1

SWB102

DISC

DETECT2

CD-BK3100W

– 44 –

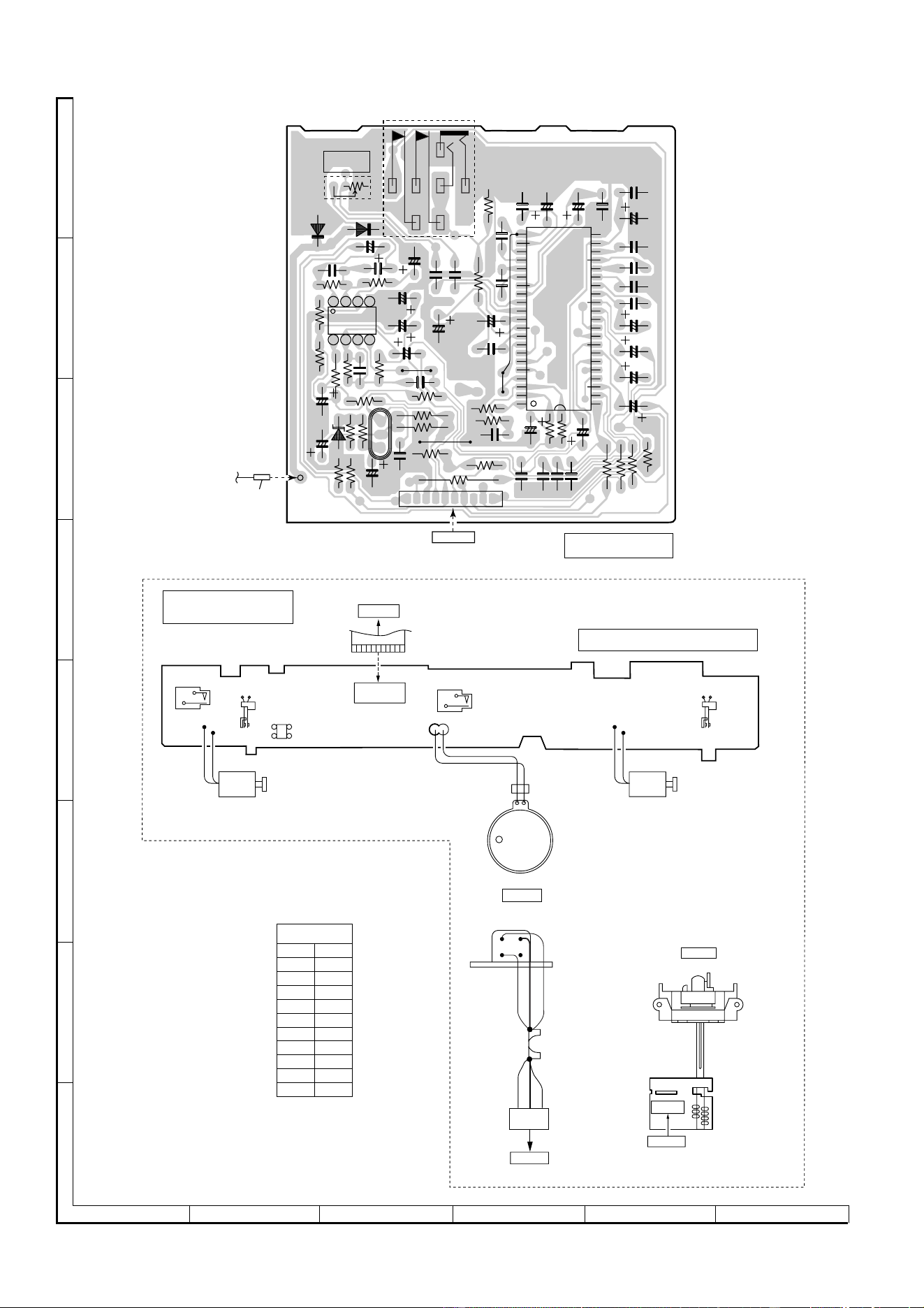

Figure 44 WIRING SIDE OF P.W.BOARD (9/9)

23456

CK19

CK18

CK20

CK21

CK22

CK23

CK24

CK25

CK26

CK29

CK35

CK30

CK41

CK34

CK33

CK31

RK37

RK39CNPK1

RK40

CK1

CK49

CK45

CK50

CK46

DK2

DK1

CK48

CK53

CK51

RK7

CK10

CK11

CK8

CK52

CK7

CK9

CK14

CK72

CK47

RK48

RK47

RK43

RK44

RK50

CK42

QK1

CK43

CK44

PINK1

(238)

CK15

CK16

CK17

CK12

CK13

RK8

RK36

RK14

RK15

RK49

RK4

RK1

RK9

RK3

RK2

RK10

RK11

RK41

RK42

ICK1

ZDK1

RK13

RK12

RK38

RK45

RK46

IC903

VRK1

MIC

VOLUME

JK1

MIC

1234

8765

21 22

MIC PWB-J

12345678910

CNS602

P36 6 - A

FROM MAIN PWB

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CNP701

P38 4 - H

TO DISPLAY PWB

TAPE MECHANISM

ASSEMBLY

SOLENOID

TAPE

MOTOR

SOLENOID

TAPE MECHANISM PWB-H

TAPE 1

PLAYBACK HEAD

TAPE 2

RECORD/PLAYBACK/ERASE HEAD

CNP101

P37 12 - C

TO MAIN PWB

CNS102

P37 12 - B

TO MAIN PWB

654321

FFC701

– 45 –

CD-BK3100W

VOLTAGE

1818

VOLTAGE

3.3 V

IC302

2.4 V

0.6 V

0.8 V

2 V

4.2 V

0.1 V

2.3 V

5 V

0 V

2.2 V

0 V

4.8 V

5.1 V

2.5 V

0 V

2.9 V

0 V

VOLTAGE

–20.8 V

–21.2 V

–19.0 V

–18.9 V

–20.7 V

–19.6 V

–19.9 V

–14.4 V

–23.5 V

–23.4 V

–18.8 V

–22.8 V

–22.9 V

–22.6 V

–23.1 V

–20.5 V

–15.6 V

–20.6 V

–21.8 V

–28.4 V

4.8 V

–21.0 V

–21.3 V

–16.3 V

–16.4 V

–16.1 V

–16.4 V

–20.2 V

–16.0 V

–15.7 V

4.8 V

0 V

2.5 V

4.9 V

0 V

4.3 V

0 V

4.8 V

4.3 V

0 V

4.3 V

4.6 V

100

VOLTAGE

0 V

0.6 V

0 V

0.6 V

0 V

4.9 V

0 V

4.9 V

0 V

4.9 V

0 V

12.3 V

4.4 V

5.0 V

3.0 V

3.4 V

0 V

2.3 V

5.4 V

0.7 V

0 V

4.8 V

0 V

0.7 V

5.4 V

0 V

4.8 V

2.9 V

2.4 V

0 V

0.5 V

0 V

4.9 V

0 V

4.8 V

VOLTAGE

IC701

IC2

3.7 V

4.9 V

2.1 V

0 V

4.2 V

0 V

2.1 V

1.6 V

4.9 V

0 V

1.6 V

3.0 V

4.9 V

1.6 V

2.1 V

0 V

2.0 V

2.1 V

1.7 V

1.8 V

1.7 V

VOLTAGE

3.7 V

0 V

3.2 V

0 V

4.9 V

4.7 V

0 V

3.2 V

0 V

3.2 V

0 V

3.2 V

3.7 V

0 V

3.7 V

VOLTAGE

1.6 V1

IC1

1.0 V

1.6 V

1.8 V

3.3 V

0 V

1.6 V

1.5 V

0.8 V

3.2 V

0 V

1.6 V

0 V

3.2 V

0 V

1.6 V

0 V

3.2 V

10 V

21 V

Q851

0 V

12.9 V

12.2 V

Q850

21 V

1.5 V

3.6 V

0 V

3.6 V

IC301

0.8 V

3.5 V

2.8 V

1.5 V

3.6 V

0 V

–37.7 V

IC901

37.6 V

0 V

–37.1 V

0 V

–35.5 V

0 V

36.8 V

5 V

0 V

5 V

3.4 V

10 V

3.0 V

IC601

5.6 V

0.7 V

Q852

10 V

0 V

–31.2 V

32.1 V

IC902

–32.3 V

31.1 V

–29.7 V

0 V

IC903

0 V

–13.0 V

13.2 V

0 V

N.C.

4.5 V

IC303

2.1 V

0 V

0.3 V

4.5 V

3.0 V

2.4 V

4.6 V

3.3 V

0 V

4.6 V

1.2 V

2.1 V

3.3 V

2.1 V

3.9 V

3.5 V

2.7 V

1.2 V

2.0 V

2.6 V

5 V

9 V

IC705

9 V

1 V

0.5 V

9 V

0.5 V

4 V

3.5 V

4 V

3.5 V

0 V

4 V

9 V

2.5 V

4.9 V

1.5 V

IC703

2.5 V

0 V

2.5 V

0.9 V

2.5 V

0.4 V

4.9 V

0.5 V

1.9 V

0.6 V

3.3 V

4.0 V

6.7 V

3.3 V

0.6 V

1.9 V

0.5 V

0 V

IC101

0 V

4.9 V

–25.4 V

–28.1 V

–28.4 V

–11.8 V

–24.6 V

–27.9 V

–14.9 V

–27.9 V

–18.2 V

–18.1 V

–14.9 V

–26.9 V

–24.6 V

–14.9V

–27.9V

4.9 V

2.5 V

3.5 V

3.0 V

1.9 V

0 V

IC702

VOLTAGE

CD-BK3100W

– 46 –

WAVEFORMS OF CD CIRCUIT

FDO

TDO

Stopped

CH1=500 mV

DC 10:1

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.000 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

IC1 21

IC1 20

FDO

DRF

Stopped

CH1=500 mV

DC 10:1

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2

Position

0.20 div

IC1 21

IC1 67

IC1 15

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

IC1 4

DRF

Stopped

CH1=10 V

DC 10:1

CH2=1 V

DC 10:1

100 ms/div

(100 ms/div)

NORM: 100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.0 V

CH2 : 0.00 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

IC1 67

IC1 15

FDO

SPDO

Stopped

CH1=200 mV

DC 10:1

CH2=500 mV

DC 10:1

500 ms/div

1999/04/07 09:51:15

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

IC1 21

IC1 22

FDO

PDO2

PDO1

Stopped

CH1=500 mV

DC 10:1

CH3=1 V

DC 10:1

CH4=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

1999/04/05 17:33:17

IC1 21

IC1 73

IC1 74

DOUT

Stopped

CH1=2 V

DC 10:1

500 ns/div

1999/04/07 09:25:28

(500 ns/div)

NORM: 200 MS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 1 K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

IC1 39

DATA

DATACK

LRSY

Stopped

CH1=2 V

DC 10:1

CH2=2 V

DC 10:1

CH3=2 V

DC 10:1

5 µs/div

(5 µs/div)

NORM: 100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 5 K

Zoom : 100

Mode : AUTO

Type : EDGE CH3

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH3

v/DIV

2 V

1999/04/05 20:50:17

IC1 58

IC1 59

IC1 60

– 47 –

CD-BK3100W

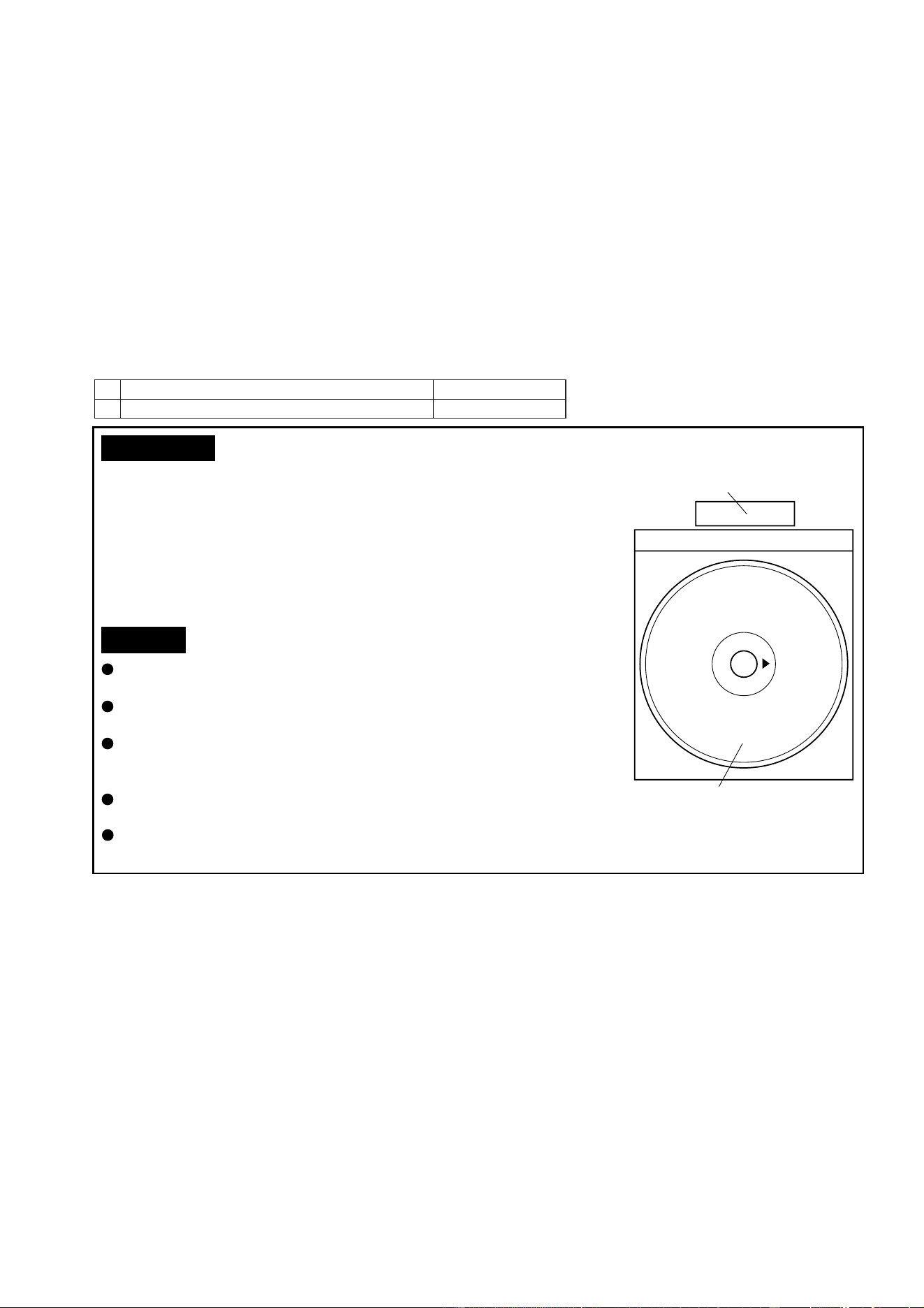

HOW TO USE

CAUTION

Cleaning fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the

brush on the CD cleaner disc which has the mark next to it.

Place the CD cleaner disc onto the CD disc tray with the brush side down,then

press the play button.

You will hear music for about 20 seconds and the CD player will automatically stop.

If it continuous to turn, press the stop button.

The CD lens cleaner should be effective for 30-50 operations, however if the

brushes become worn out earlier then please the cleaner disc.

If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft

cloth.

Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the

event of this happening then drink and / or rinse with clean water and seek medical

advice.

The CD cleaner disc must not be used on car CD players or on computer CD-ROM

drives.

is prohibited by law.

TROUBLE SHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean

the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check

the following items.

Remove the cabinet and follow the trouble shooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup

lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn off the power, and wipe the lens softly using a cleaning paper moistened with commercially available cleaning solution so

as not to damage it. Be careful not to touch the lens with bare hands.

Dust gradually accumulates on the objective lens during use, and it may degrade performance. To avoid this problem, use a

cleaning disc designed for CD optical pickup lenses.

When a CD cannot be played

1. "E-CD01" is displayed.

(1) Check the power to IC1 (LC78645NE), the presence of the clock signal (33.8688 MHz) and the status of the RESET terminal

(pin 48 on IC1).

(2) Does the pickup move to the PICKUP-IN Switch (NSW1) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, but playback does not occur.

(1) Focus-HF system check

(2) Tracking system check

(3) Spin system check

(4) PLL system check

(5) Others

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

CD-BK3100W

– 48 –

Vp-p=1.0 V~1.3 V

0.5 mV/div,0.5 µsec/div

FDO

DRF

Stopped

CH1=500 mV

DC 10:1

CH2=10 V

DC 10:1

CH3=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

-3 div -1 div 0 div +1 div +3 div

CH Position To

CH2

Position

0.20 div

FDO

TDO

Stopped

CH1=500 mV

DC 10:1

CH3=500 mV

DC 10:1

500 ms/div

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH1

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.000 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

If the level is not normal.

1. Is focus servo activated ?

(Waveform drawing Figure 48-2.)

Pins 7~12, 79 and 80 on IC1.

Check the laser diode driver Q1 peripheral circuit.

When a disc is loaded, start playback operation.

2. Does DRF change from "L" to "H" ?

Is the disc rotating ?

3. Is the HF waveform normal ?

(Waveform drawing Figure 48-3.)

Check the spin system.

If the disc is spinning and a HF waveform is generated,

DRF will go H.

Figure 48-1

Check the laser diode driver Q1 peripheral circuit.

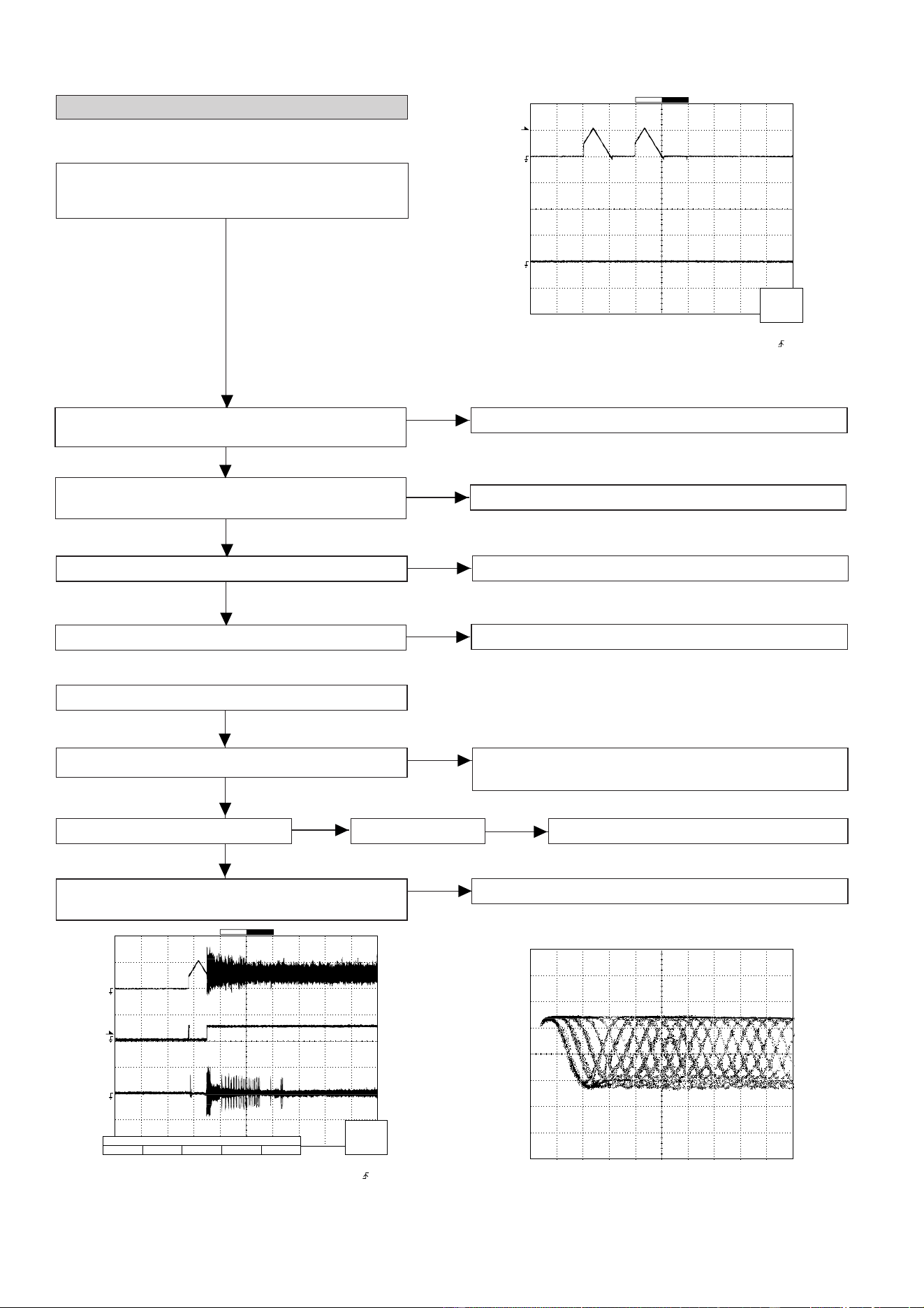

(1) Focus-HF system check.

Although a CD is inserted and the cover is closed, "NO

DISC" is displayed.

1. Does the pickup move to the PICKUP-IN Switch (NSW1)

position ?

Sled motor (NM2).

Press the Disc 1~6 Eject switch (SW712, SW713,

SW721~SW724) without inserting a disc, and try starting the

playback operation.

2. Does the focus (lens) move up and down ?

(Waveform drawing Figure 48-1.)

Check the focus peripheral circuit.

3. Is the laser lit ?

Spindle motor (NM1).

4. Is the turntable rotating ?

Figure 48-2

Figure 48-3

Yes

– 49 –

CD-BK3100W

FDO

SPDO

Stopped

CH1=200 mV

DC 10:1

CH2=500 mV

DC 10:1

500 ms/div

1999/04/07 09:51:15

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.000 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH2

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

DRF

Stopped

CH1=10 V

DC 10:1

CH2=1 V

DC 10:1

100 ms/div

(100 ms/div)

NORM: 100 kS/s

=Record Length=

Smoothing : ON CH1 : 0.0 V

CH2 : 0.00 V

Main : 100 K

Zoom : 2 K

Mode : NORMAL

Type : EDGE CH1

Delay : 2.924 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

The tracking servo is not activated.

Check the peripheral circuits at pins 14, 15 and 20 on IC1, and

CNS1A/B.

If the waveform shown in Figure 49-1 appears and soon after

NO DISC appears ?

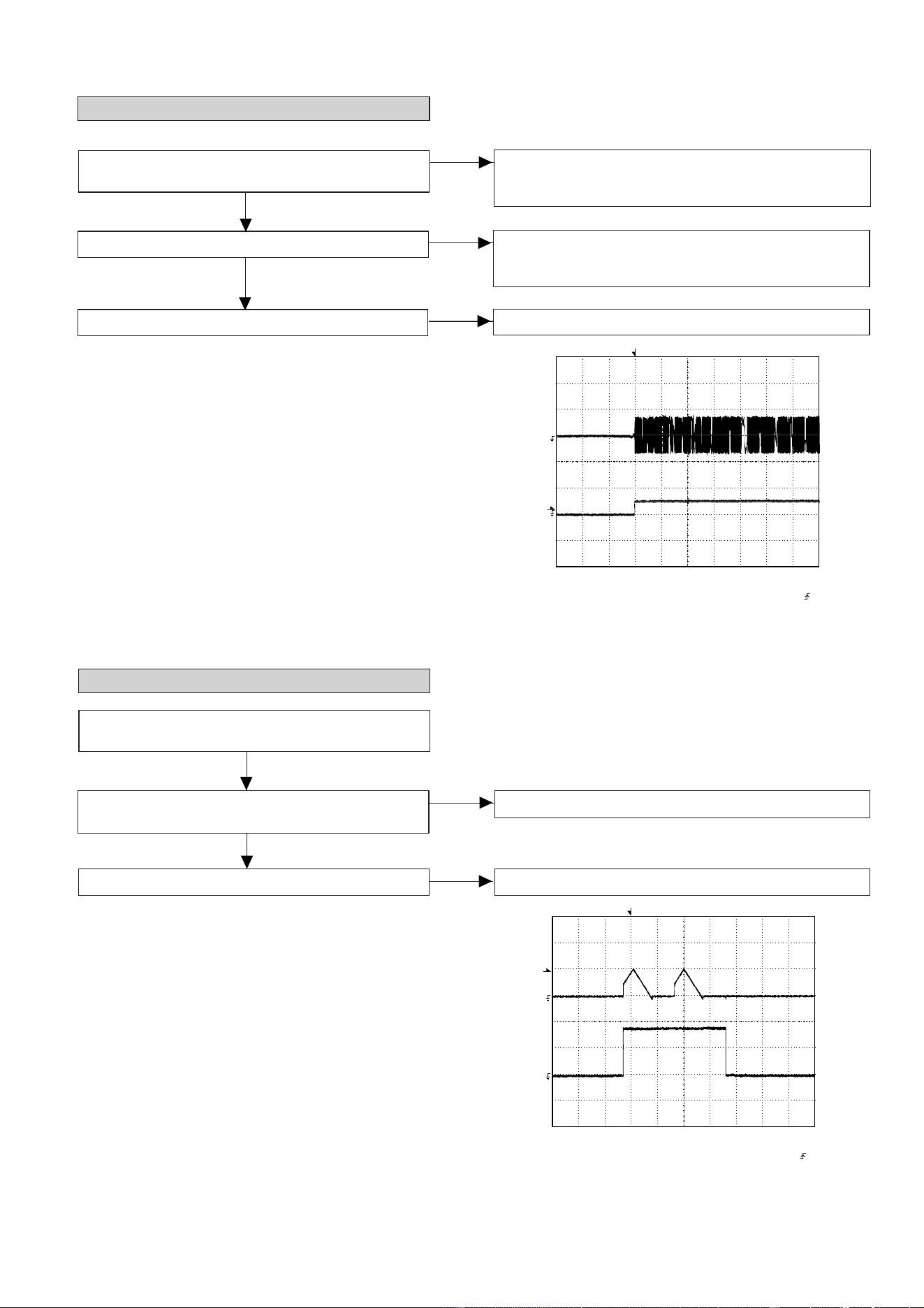

(2) Tracking system check.

Check the TE waveform at pin 15 on IC1.

A normal jump operation cannot be completed or the beginning of

the track cannot be found.

Check the around pin 20 on IC1.

"Initialization" is possible, but play is not possible ?

Data cannot be read. Check the VCO-PLL system.

"Initialization" is not possible.

Figure 49-1

Figure 49-2

Press the Disc 1~6 switch without inserting a disc, and then

try starting the play operation.

(3) Spin system check.

The spin driver circuit is OK.

1. The turntable rotates a little ?

(Waveform drawing Figure 49-2.)

Check around pin 22 on IC1, pins 26 and 27 on IC2, and CNS3A/B.

2. The turntable doesn't rotate.

Yes

CD-BK3100W

– 50 –

FDO

PDO2

PDO1

Stopped

CH1=500 mV

DC 10:1

CH3=1 V

DC 10:1

CH4=1 V

DC 10:1

500 ms/div

(500 ms/div)

NORM: 20 kS/s

=Record Length=

Smoothing : ON CH1 : 0.000 V

CH2 : 0.0 V

Main : 100 K

Zoom : 2 K

Mode : AUTO

Type : EDGE CH2

Delay : 0.0 ns

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger==Filter= =Offset=

CH1

v/DIV

500 mV

1999/04/05 17:33:17

Is pin 52 (C2F) on IC1 "L" ?

Yes

The HF waveform is normal and the time is displayed

normally, but no sound is produced. Or the sound

has dropouts.

(5) Others.

There are too many error flags on a damaged disc which

makes error correction impossible.

Check again using a known good disc.

1. When playing at normal speed

Check the peripheral circuit at pin 39 (DOUT) on IC1 and

the waveform (Figure 50-2).

If OK, Check the unit.

When a disc is loaded, start play operation.

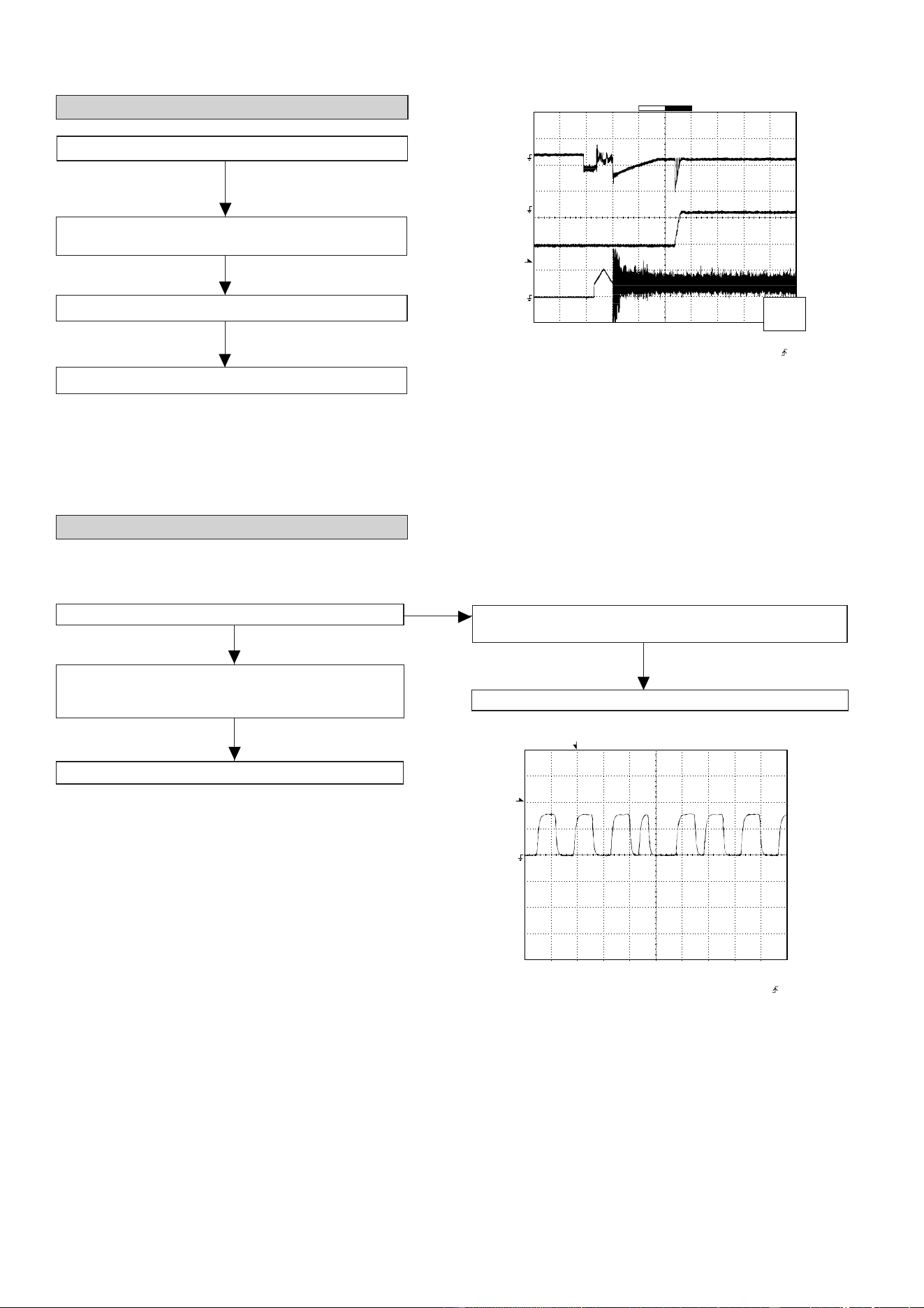

(4) PLL system check.

The HF waveform is normal, but the TOC data cannot be

read.

Check the PDO waveform (Figure 50-1).

Check around pins 73~78 on IC1.

Figure 50-1

Figure 50-2

DOUT

Stopped

CH1=2 V

DC 10:1

500 ns/div

1999/04/07 09:25:28

(500 ns/div)

NORM: 200 MS/s

=Record Length=

Smoothing : ON CH1 : 0.00 V

CH2 : 0.00 V

Main : 1 K

Zoom : 100

Mode : NORMAL

Type : EDGE CH1

Delay : 2.887 ms

Hold off : 0.2 µs

CH3 : 0.00 V

CH4 : 0.00 V

BW : FULL

=Trigger=

=Filter= =Offset=

– 51 –

CD-BK3100W

FUNCTION TABLE OF IC

IC1 VHiLC78645NE1: CD Servo (LC78645NE) (1/2)

1 SLCO Output — Control output.

2 SLCIST Input —

Resistor connection terminal for SLCO output current

setting.

3 EFMIN Input — RF signal input terminal.

4 RF Output — RF signal monitor terminal.

5 RFVDD Input — RF power terminal.

6 RFVSS — — RF earth terminal. To be connected to 0 V.

7 FIN1 A Input — A+C signal input terminal.

8 FIN2 B Input — B+D signal input terminal.

9 TIN1 E Input — E signal input terminal.

10 TIN2 F Input — F signal input terminal.

11 VREF Output RFVDD/2 VREF voltage output terminal.

12 REFI Input — Reference supply setting terminal.

13* FE Output ZHI FE signal monitor terminal.

14 TEC Output — LPF capacitor connection terminal for TE signal.

15* TE Output ZHI TE signal monitor terminal.

16* RFMON Output ZHI RF internal signal monitor terminal.

17 JITTC — — Capacitor connection terminal for jitter detection.

18 ADAVDD Input — Power terminal for servo A/D, D/A.

19 ADAVSS — — Earth terminal for serve A/D, D/A. To be connected to 0 V.

20 TDO Output ADAVDD/2 Output terminal for tracking control. D/A output.

21 FDO Output ADAVDD/2 Output terminal for focus control. D/A output.

22 SPDO Output ADAVDD/2 Output terminal for spindle control. D/A output.

23 SLDO Output ADAVDD/2 Output terminal for sled control. D/A output.

24* GPDAC Output ADAVDD/2 Servo D/A general-purpose output terminal.

25 CONT4 Input/Output Input Mode General-purpose I/O terminal 4.

26 CONT5 Input/Output Input Mode General-purpose I/O terminal 5.

27 SBCK/CONT6 Input/Output Input Mode General-purpose I/O terminal 6 or

Subcode reading clock input terminal.

28 SBCK/FG Input — Subcode reading clock input terminal/FG signal input terminal/external

emphasis setting terminal. Terminal functions are set by commands.

When not used, connect to 0 V.

29* DEFECT Output L Defect terminal.

30* V/*P Output H Auto switching monitor output terminal for rough servo phase control.

“H”: rough servo, “L”: phase servo.

31* FSEQ Output L Sync signal detection output terminal.

The status changes to “H” when the sync signal detected in EFM and the

sync signal of internal generation are identified.

32* MONI1 Output L Internal signal monitor terminal 1.

33* MONI2 Output L Internal signal monitor terminal 2.

34* MONI3 Output L Internal signal monitor terminal 3.

35* MONI4 Output L Internal signal monitor terminal 4.

36* MONI5 Output L Internal signal monitor terminal 5.

37 VSS — — Digital system earth terminal. To be connected to 0 V.

38 VDD Input — Digital system power terminal.

39* DOUT Output L Digital OUT output terminal. (EIAJ format)

40 TEST Input L Input terminal for test. To be connected to 0 V.

41 LVDD Input — Power supply for Left channel.

42 LCHO Output LVDD/2 Left channel output.

43 LVSS — — GND for Left channel. Must be connected to 0 V.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Controlled by commands from the

microcomputer. When not used, set

them as input terminals and connect

to 0 V, or set them as output

terminals and leave open.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Left channel

D/A converter

For slice level

control.

CD-BK3100W

– 52 –

44 RVSS — — GND for Right channel. Must be connected to 0 V.

45 RCHO Output LVDD /2 Right channel output.

46 RVDD Input — Power supply for Right channel.

47 XVDD Input — Power supply for crystal oscillator.

48 XOUT Output — Connected for the 33.8688 MHz crystal oscillator cement.

49 XIN Input —

50 FSX/16MIN Input/Output Input 7.35 kHz Synchronization signal monitor port.

or Clock input port for Digital filter & D/A

51 XVSS — — Crystal GND for crystal oscillator. Must be connected to 0 V.

Oscillator

52* C2F Output H C2 FLAG monitor port.

53* EFLG Output L C1, C2 error corrected monitor port.

54* 16MOUT Output Clock 16.9344 MHz output port.

55 ASLRCK Input — Word clock input port.

(If this port does not use, must be connect to 0 V.)

56 ASDACK Input — Bit clock input port.

(If this port does not use, must be connect to 0 V.)

57 ASDFIN Input —

Left/Right channel data input port.

(If this port does not use, must be connect to 0 V.)

58* LRSY Output L Word clock output port.

59* DATACK Output L Digital data Bit clock output port.

60* DATA Output L Left/Right channel data output port.

61 CE Input — Chip enable signal input port.

62 CL Input —

Microcomputer

Data transfer clock input port.

63 DI Input — Interface Data input port.

64 DO Output (H) Data output port. (N-ch. open drain output.)

65 *WRQ Output H Interruption signal output.

66 *RES Input — Chip reset signal input port.

This port must be set LOW after first applied power on.

67 DRF Output L Focus detection output port.

68 VDD5 Input — Power supply for Microprocessor.

69 VSS — — GND for digital circuit. Must be connected to 0 V.

70 CONT3 Input/Output Input General purpose port 1.

71 CONT2 Input/Output Input General purpose port 2.

72* CONT1 Input/Output Input General purpose port 3.

73 PDO1 Output — Internal VCO control phase comparator output port 1.

74 PDO2 Output Input Internal VCO control phase comparator output port 2.

75 VVSS — — GND for internal VCO. Must be connected to 0 V.

76 PCKIST Input — PDO output current adjustment resistor connection port.

77 VVDD Input — Power supply for internal VCO.

78 FR Input — VCO frequency range adjustment port.

79 LDS Input — LASER power detected signal input port.

80 LDD Output — LASER power control signal output port.

IC1 VHiLC78645NE1: CD Servo (LC78645NE) (2/2)

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Right channel

D/A converter

Crystal

Oscillator

Anti-shock

Controlled with serial data command from micro-

computer. When not used, General purpose input/

output terminal 7. Set it as the input terminal and open

it by connecting to 0 V, or set it as the output terminal

and open it.

PLL

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Be sure to supply the same potential to each power terminal. (VVDD, ADAVDD, VDD, LVDD, RVDD, XVDD)

Terminal witch is controlled by the power terminal (VDD5 V) for a microcomputer interface :

CE (61 pin), CL (62 pin), DI (63 pin), DO (64 pin), WRQ (65 pin), RES (66 pin), DRF (67 pin)

– 53 –

CD-BK3100W

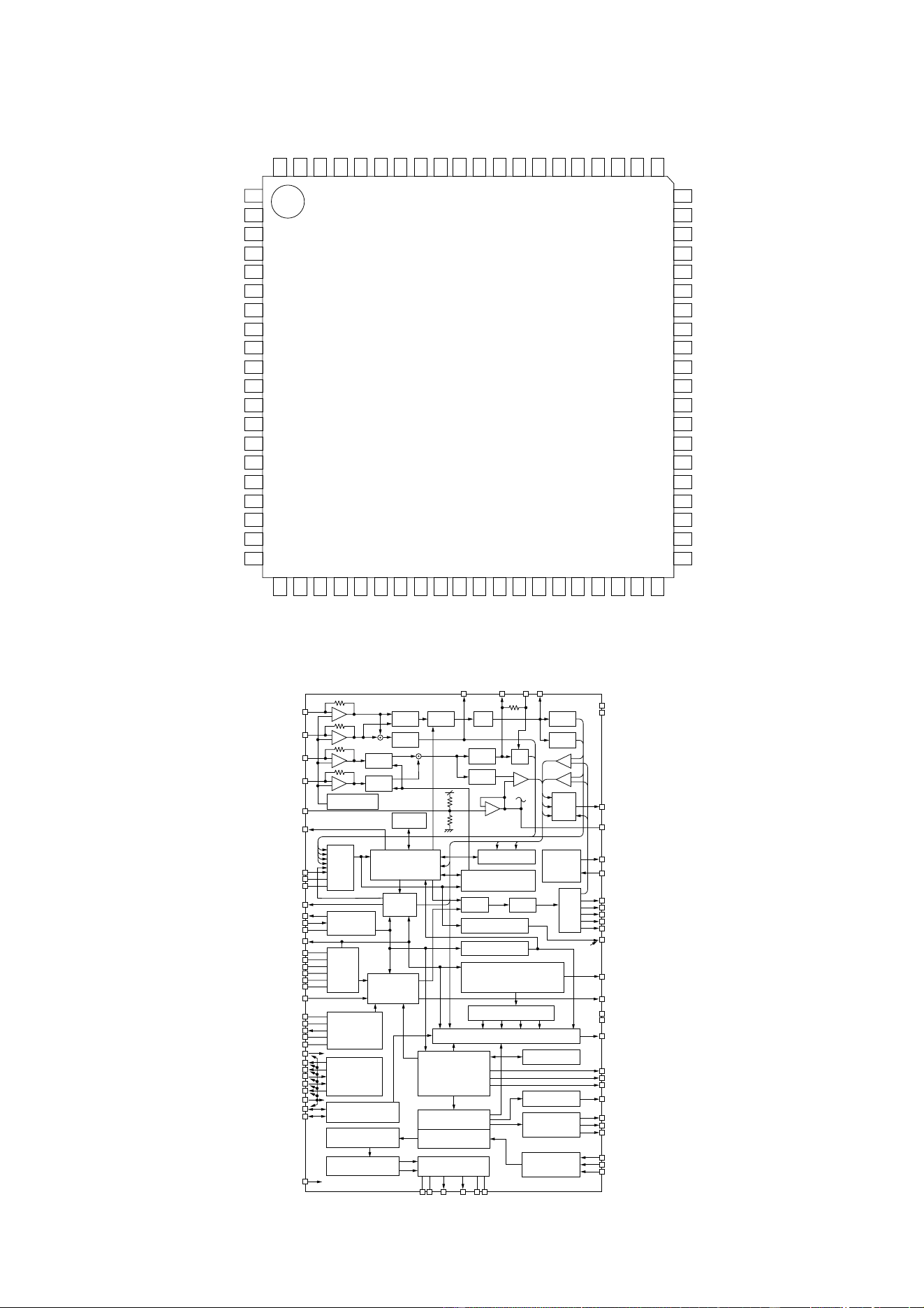

Figure 53 BLOCK DIAGRAM OF IC

IC1 VHiLC78645NE1: CD Servo (LC78645NE)

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61

SLCO

SLCIST

EFMIN

RFVDD

RFVSS

FIN1 A

FIN2 B

TIN1 E

TIN2 F

VREF

REFI

TEC

RFMON

JITTC

ADAVDD

ADAVSS

TDO

FDO

SPDO

SLDO

GPDAC

CONT4

CONT5

SBCK/CONT6

SBCK/FG

DEFECT

V/*P

FSEQ

MONI1

MONI2

MONI3

MONI4

MONI5

(3.3V)VSS

VDD

DOUT

TEST

LDD

LDS

VVDD

PCKIST

VVSS

PD02

PD01

CONT1

CONT2

CONT3

VSS

VDD5

DRF

*RES

*WRQ

DATA

DATACK

LRSY

ASDFIN

ASDACK

ASLRCK

16MOUT

EFLG

C2F

XVSS

FSX/16MIN

XIN

XOUT

XVDD

RVDD

RCH0

RVSS

LVSS

LCHO

LVDD

LC78645NE

–

MIX

LPF

TBAL

RAM

LEVEL SET

AGC EQ

–

MONI

CONT

A/D

SERVO PROCESSOR

TRACK JUMP

AUTO ADJUST

JITTER

DETECT

1bit DAC

8FS

DIGITAL FILTER

GENERAL-PURPOSE

PORTS

COMMAND

INTERFACE

CLOCK

GENERATOR

CLV,CAV

CONTROL

PLL

VCEC

SLICE LEVEL

CONTROL

APC

S/H

D/A

DRF

RUPTURE DEFECT

FRAME SYNC

DETECT,PROTECT INSERT,

EFN DECODE

VDD

SUBCODE DECODE CRC

MONITOR SIGNAL SELECTOR

RAM

ERROR

CORRECTION

AUDIO CD

AUDIO OUT

SERIAL

OUT

EXTERNAL

AUDIO IN

INTERPOLATION

MUTE

ATTENUATION

DEEMPHSIS

LPF

FIN1 A

FIN2 B

TIN1 E

TIN2 F

REFI

DETECT

ADIN

ADAVDD

ADAVSS

JITTC

SLCO

EFMIN

SLCIST

PCK

PDO1

PDO2

PCKIST

VVDD

VVSS

SBCK/FG

XIN

XOUT

16MOUT

XVDD

XVSS

*RES

*WRQ

VDD5V

CONT1, 2, 3

TEST

CONT4, 5

SBCK/CONT6

LVDD

LVSS

LCHO

RCHO

RVDD

RVSS

ASDFIN

ASDQCK

ASLRCK

DATA

DATACK

LRSY

DOUT

EFLG

C2F

FSK/16MIN

MONI1~5

VSS

VDD

V/*P

FSEQ

DRF

GPDAC

SPD0

SLD0

TD0

FD0

LDS

LDD

VREF

RFMON

RFVSS

RFVDD

TEC

CD-BK3100W

– 54 –

1 AVDD AVDD Input ANALOG VDD.

2 ANI0 SPEANA AOUT Input SPEANA INPUT.

3 ANI1 CAM A SW A Input CD CAM A SW A CONTROL.

CAM A SW B Input CD CAM A SW B CONTROL.

4 ANI2 CAM A SW C Input CD CAM A SW C CONTROL.

CAM A SW D Input CD CAM A SW D CONTROL.

5 ANI3 CAM A SW E Input CD CAM A SW E CONTROL.

CAM B SW A Input CD CAM B SW A CONTROL.

6 ANI4 CAM B SW B Input CD CAM B SW B CONTROL.

TRAY SW A Input CD TRAY SW A.

7 ANI5 TRAY SW B Input CD TRAY SW B.

TRAY SW C Input CD TRAY SW C.

8 ANI6 KEY 0 Input KEY INPUT.

9 ANI7 KEY 1 Input KEY INPUT.

10 ANI8 KEY 2 Input KEY INPUT.

11 ANI9 T1RUN Input TAPE 1 RUN PULSE INPUT.

12 ANI10 T2RUN Input TAPE 2 RUN PULSE INPUT.

13 ANI11 TUN_SM Input TUNER SIGNAL METER.

SPN Input TUNER SPAN SELECT.

14 AVSS AVSS — ANALOG GND.

15 VSS1 VSS1 — GND

16 X1 X1 Input MAIN CLOCK.

17 X2 X2 Output MAIN CLOCK.

18 VDD1 VDD1 Input (+) POWER SUPPLY.

19 IC(VPP) IC(VPP) — OPEN.

20 T100 REMOCON Input REMOTE CONTROL INPUT.

21 P25 CD DO/DVD BUS0/SO Input CD DSP CODE O OUT.

22 P26 CD DI/DVD BUS1/SI Output CD DSP COMMAND.

23 P27 CD CLK/DVD BUS2/SCK Output CD DSP CLOCK.

24 P67 CD CE/DVD BUS3 Output CD DSP CE.

25 P66 WRQ/DVD BUS4 Input CD DSP WRITE REQUEST.

26 INTP1 SP DET Input CD RF LEVEL DETECTION.

27 INTP0 P_IN Input SYSTEM STOP INPUT.

28 P63 CE_O Output CE OUTPUT.

29 P62 CLK Output CLOCK OUTPUT.

30 P61 DI Output DATA OUTPUT.

31 P60 DO Input DATA INPUT.

32 P57 TIMER LED Output TIMER LED CONTROL.

33 P56 T_SOL_A Output TAPE 1 SOLENOID CONTROL.

34 P55 T_SOL_B Output TAPE 2 SOLENOID CONTROL.

35 P54 T_MOTOR Output TAPE MOTOR CONTROL.

36 P53 PLAY SW A Input MICROCOMPUTER RESET.

37 P52 PLAY SW B Input PLAY SWITCH FOR TAPE 2.

38 P51 FPA Input TAPE 2 A-SIDE FULL PROOF.

39 P50 FPB Input TAPE 2 B-SIDE FULL PROOF.

40 VSS0 VSS0 — GND

41 VDD0 VDD0 Input (+) POWER SUPPLY.

42 RESET RESET Input RESET.

43 P47 RESOUT Output CD DSP RESET.

44* P46 AC3_RST/RDS RST/ESS_ACK Output RAM RESET/ESS SYS ACKNOL.

45* P45 AC3_SS_/RDS RDDA/ESS_STB Input RANSMIT DATA INPUT/ESS STB.

46* P44 AC3_SI/RDS RDCL/ESS_DI Output RDS CLOCK/ESS DATA OUTPUT.

IC701 RH-iX0464AWZZ: System Microcomputer (IX0464AW) (1/2)

Port Name

Terminal Name

Pin No.

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

– 55 –

CD-BK3100W

47* P43 AC3_SO/RDS READY/ESS DO Input READY/ESS DATA INPUT.

48* P42 AC3_SCK/DSA ACK Output DSA ACKNOWLEDGE.

49* P41 DSA_DATA Input DSA DATA INPUT.

50* P40 DSA_STB Input/Output DSA STROBE.

51 P107 REC/PLAY Output TAPE REC/PLAY CHANGE.

52 P106 T_T1/T2 Output TAPE T1/T2 CHANGE.

53 P105 T_BIAS Output TAPE RECORD BIAS.

54* P104 CE_1 Output CE OUTPUT AUDIO PRO 1.

55* P103 CE_2 Output CE OUTPUT AUDIO PRO 2.

56 P102 SPRLY Output SPEAKER RELAY.

57* P101 AC RLY Output AC RELAY CONTROL.

58 P100 LCK 0 Output LED DRIVER CLOCK 0. (BU209)

59* P97 LCK 1 Output LED DRIVER CLOCK 1. (BU209)

60 P96 -20dB ATT Output VOL -20dB ATTENUATOR.

61* P95 SMUTE Output SYSTEM MUTE.

62 P94 DRF/DVD BUS 5 Input CD DRF LEVEL DETECTION.

63 P93 JOG 0 Input KEY JOG INPUT 0.

64 P92 JOG 1 Input KEY JOG INPUT 1.

65 P91 MIC SW Input MIC SWITCH.

66 P90 FL LATCH Output FL DRIVER CONTROL.

67 P87 KARAOKE LATCH Output KARAOKE LATCH.

68* P86 MPEG_POW Output MPEG POW CONTROL.

69 P85 DIST IN Input DESTINATION INPUT.

70 FIP28 P1 Output FL DISPLAY SEGMENT DRIVER.

DIST 9 Output VCD LOGO

71 FIP27 P2 Output FL DISPLAY SEGMENT DRIVER.

DIST 8 Output VCD LOGO

72 FIP26 P3 Output FL DISPLAY SEGMENT DRIVER.

DIST 7 Output PAL/NTSC

73 FIP25 P4 Output FL DISPLAY SEGMENT DRIVER.

DIST 6 Output VIDEO 2 AND AC3 READY.

74 FIP24 P5 Output FL DISPLAY SEGMENT DRIVER.

DIST 5 Output KEY CONTROL MODE.

75 FIP23 P6 Output FL DISPLAY SEGMENT DRIVER.

DIST 4 Output KARAOKE MODE.

76 FIP22 P7 Output FL DISPLAY SEGMENT DRIVER.

DIST 3 Output TAPE REVERSE.

77 FIP21 P8 Output FL DISPLAY SEGMENT DRIVER.

DIST 2 Output ECO MODE.

78 FIP20 P9 Output FL DISPLAY SEGMENT DRIVER.

DIST 1 Output CLOCK DESTINATION.

79 VDD2 VDD2 Input VDD

80 VLOAD VLOAD Input FL DRIVER (–) POWER SUPPLY.

81 FIP19 P10 Output FL DISPLAY SEGMENT DRIVER.

DIST 0 Output TUNER DESTINATION.

82-84 FIP18-16 P11-P13 Output FL DISPLAY SEGMENT DRIVER.

SPEANA SEL A-C Output SPEANA SELECT A-C.

85-92 FIP15-FIP8 P14-P21 Output FL DISPLAY SEGMENT DRIVER.

93-100 FIP7-FIP0 G1-G8 Output FL DISPLAY GRID.

IC701 RH-iX0464AWZZ: System Microcomputer (IX0464AW) (2/2)

Port Name

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-BK3100W

– 56 –

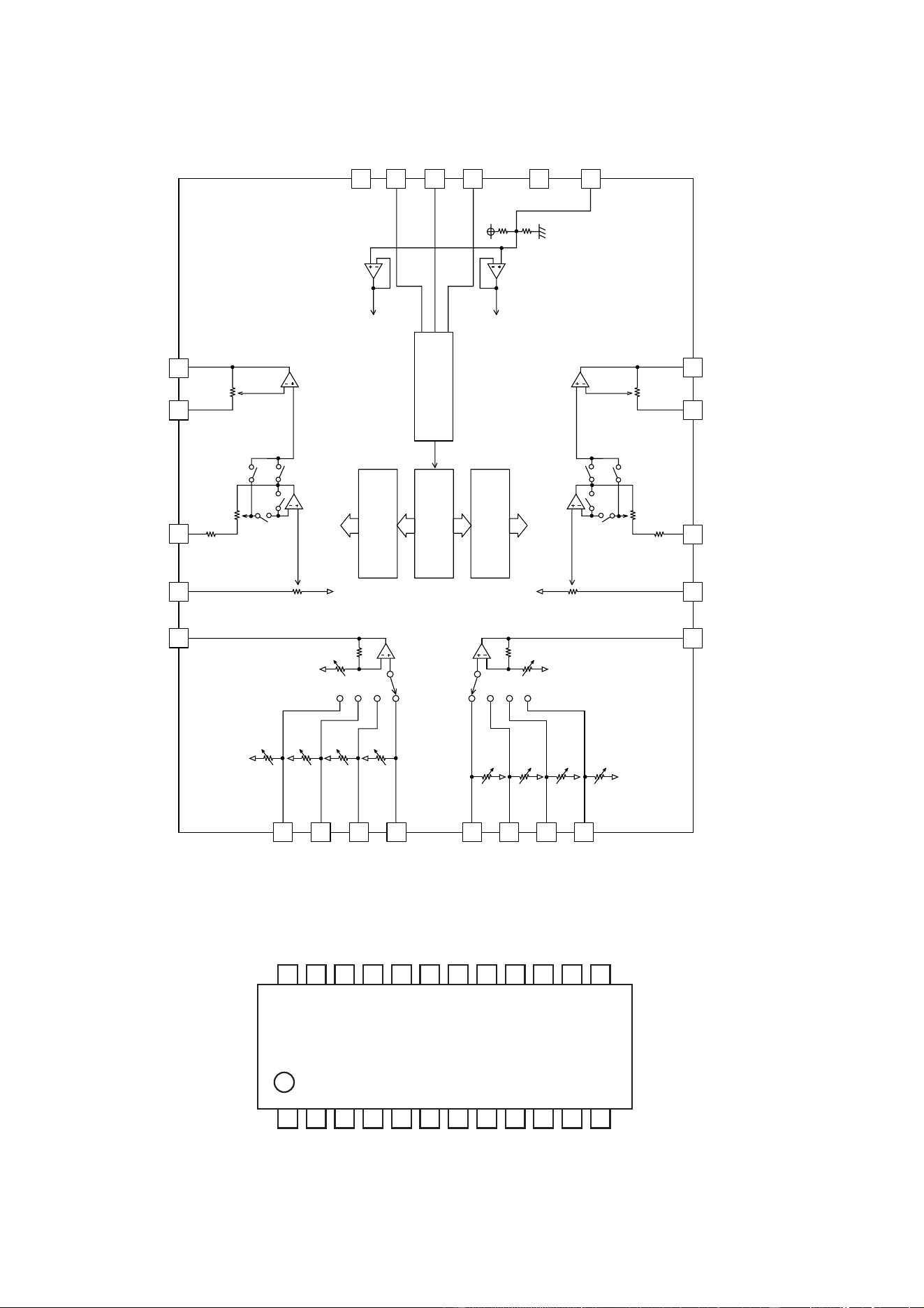

IC601 VHiLC75341/-1: Audio Processor (LC75341)

Figure 56 BLOCK DIAGRAM OF IC

222324

123

10 11 12 13 14 15 16

LVref

RVref

CONTROL

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CIRCUIT

LOUT

LBASS

LIN

LSEL0

L2 L1

R1 R2

R3 R4

RSEL0

RIN

RTRELTRE

RBASS

ROUT

VREF

VDD

CLK

VSS

CCB

INTERFACE

Tuner

Tape

Video

24 23 22 21 20 19 18 17 16 15 14 13

123456789101112

LC75341

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

CLK

VDD

VREF

ROUT

RBASS

RTRE

RIN

RSEL0

– 57 –

CD-BK3100W

1 MICSW Input Microphone SW L: MIC OFF, H: MIC ON

2 MCLKCONT — Clock Control.

Controls built-in clock generation circuit with external R.

3 VALC — ALC operating voltage setting terminal.

To set ALC operating voltage according to applied voltage.

4 MIC1 IN Input Microphone 1 input.

To connect MIC 1.

5* ALC1 — ALC1 control.

To connect ALC1 attack/recovery time setting capacitor.

6* MIC1NF IN Input Microphone 1 negative feedback input.

To connect low cut-off frequency of MIC 1 amplifier setting capacitor.

7* MIC1 OUT Output Microphone 1 output.

8 MIC1VOL IN Input Microphone 1 volume input.

To connect capacitor to reduce noise generated at time of volume change.

9 MIC2 IN Input Microphone 2 input.

To connect MIC 2.

10 ALC2 — ALC2 control.

To connect ALC2 attack/recovery time setting capacitor.

11 MIC2NF IN Input Microphone 2 negative feedback input.

To connect low cut-off frequency of MIC 2 amplifier setting capacitor.

12 MIC2 OUT Output Microphone 2 output.

13 MIC2VOL IN Input Microphone 2 volume input.

To connect capacitor to reduce noise generated at time of volume change.

14 MICOUT Output Microphone output.

Mixing output of MIC 1 and MIC 2.

15 LPF1 IN1 Input Low pass filter 1 input 1.

Pre-filter before A/D convertor for digital delay.

16 LPF1 IN2 Input Low pass filter 1 input 2.

Pre-filter before A/D convertor for digital delay.

17 LPF1 OUT Output Low pass filter 1 output.

Pre-filter before A/D convertor for digital delay.

18 AD INTOUT Output A/D integrator output.

Composes D/A conversion integrator with external capacitor.

19 AD INTIN Input A/D integrator input.

Composes D/A conversion integrator with external capacitor.

20 ADCONT — A/D control.

To determine adaptive time constant of A/D convertor with ADM system.

21 REF — Reference power output.

To connect 1/2 Vcc output and filter capacitor.

22 GND — Ground.

23 VCC Input Power supply.

24 DACONT — D/A control.

To determine adaptive time constant of D/A convertor with ADM system .

25 DAINTIN Input D/A Integrator input.

Composes D/A conversion integrator with external capacitor.

26 DAINTOUT Output D/A Integrator output.

Composes D/A conversion integrator with external capacitor.

27 LPF2IN1 Input Low pass filter 2 input 1.

Post-filter after D/A convertor for digital delay.

28 LPF2IN2 Input Low pass filter 2 input 2.

Post-filter after D/A convertor for digital delay.

29 LPF2OUT Output Low pass filter 2 output.

Post-filter after D/A convertor for digital delay.

30 VOL IN Input Echo effect/Echo feed back volume input.

To connect capacitor to reduce noise generated at time of volume change.

31 L IN Input Lch line input.

32 R IN Input Rch line input.

ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (1/2)

Port NamePin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-BK3100W

– 58 –

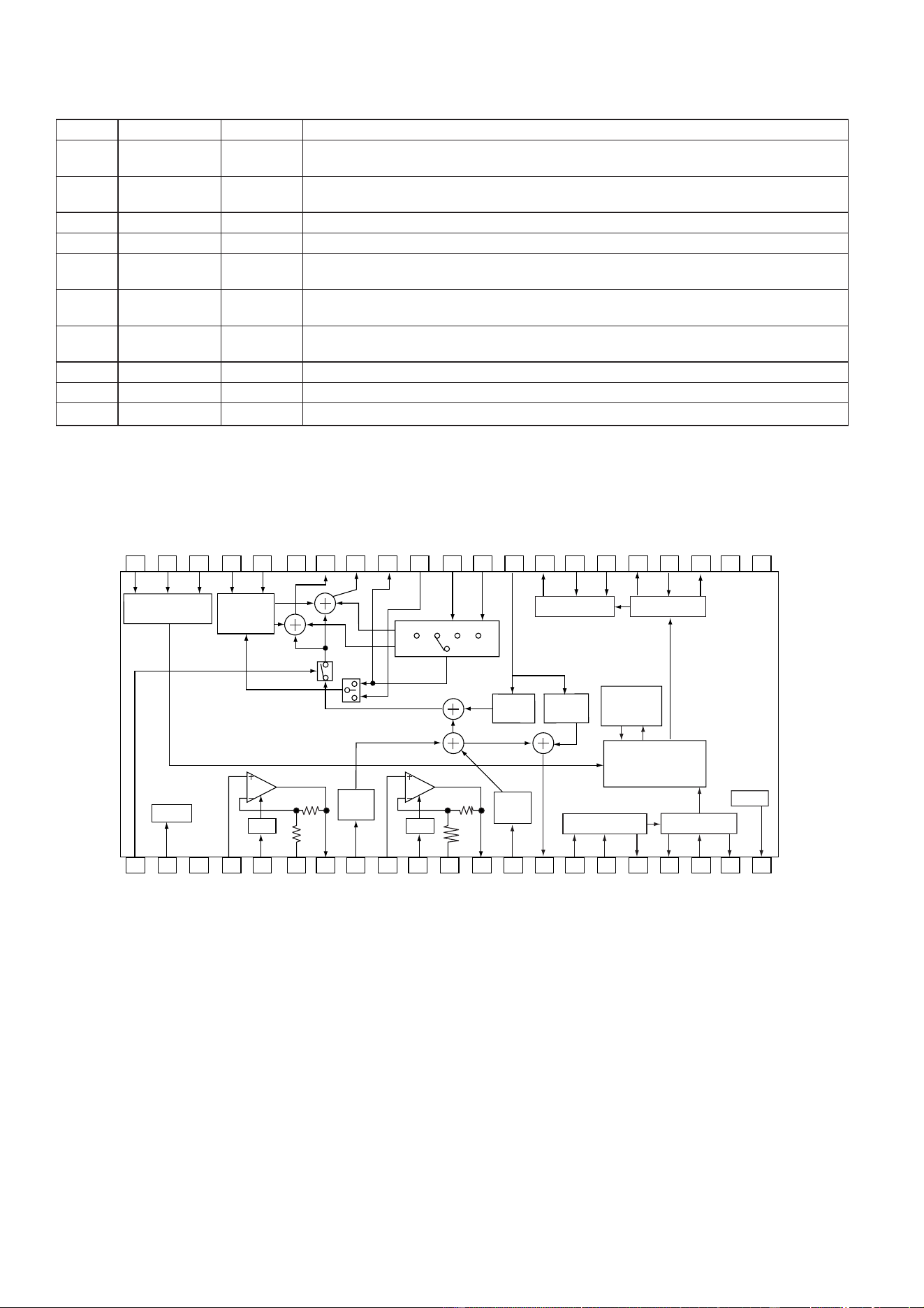

ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (2/2)

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

33* KEYCONIN Input Monaural input for external KEY CONTROL IC.

Input/Output interface terminal for external KEY CONTROL IC.

34* SOURCEOUT Output Monaural input for external KEY CONTROL IC.

Input/Output interface terminal for external KEY CONTROL IC.

35 R OUT Output Rch mixing output.

36 L OUT Output Lch mixing output.

37 VCF IL — Vocal cut filter.

Processes frequencies lower then the vocal band.

38* PS1 Input Phase shift input 1.

Determines a constant at time of phase shift.

39* PS2 Input Phase shift input 2.

Determines a constant at time of phase shift.

40 LATCH Input Latch input via serial bus.

41 CLOCK Input Clock input via serial bus.

42 DATA Input Data input via serial bus.

Port NamePin No.

Input/Output

Figure 58 BLOCK DIAGRAM OF IC

DATA

CLOCK

LATCH

PS2

PS1

VCF IL

L OUT

R OUT

SOURCEOUT

KEYCONIN

R IN

L IN

VOL IN

LPF2OUT

LPF2IN2

LPF2IN1

DAINTOUT

DAINTIN

DACONT

VCC

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

GND

MICSW

MCLKCONT

VALC

MIC1 IN

ALC1

MCLK

MIC

VOL

MIC SW

(L,R)/2

L R STEREO

MIC1NF IN

MIC1 OUT

MIC1VOL IN

MIC2 IN

ALC2

MIC2NF IN

MIC2 OUT

MIC2VOL IN

MICOUT

LPF1 IN1

LPF1 IN2

LPF1 OUT

AD INTOUT

AD INTIN

ADCONT

REF

µ-COM I/F

PHASE

SHIFTER

SURROUND

ALC

MIC

VOL

ECHO

VOL

ECHO

F.BVOL

LPF

16kbit

SRAM

MAIN LOGIC

LPF D/A

VCC GND

1/ZVcc

– 59 –

CD-BK3100W

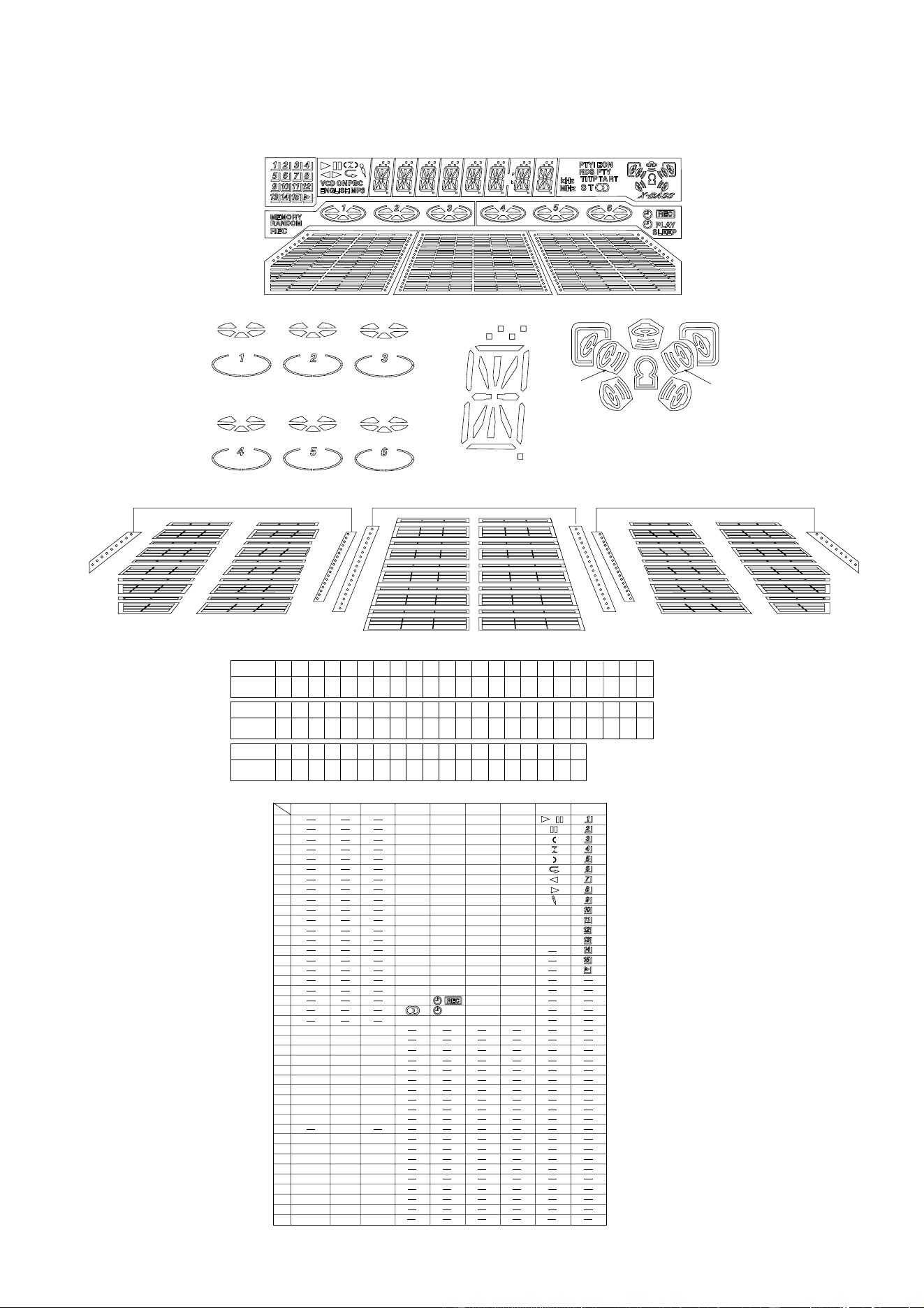

FL701 VVKNA16LM17-1: FL Display

2G 16G

15G 14G 13G 12G 9G BG

11G 10G

col

4G 5G 6G

S10

S11

S12

S13

S14

S15

S16

S17

S18

S10

S11

S12

S13

S14

S15

S16

S17

S18

( 3G )

( 7G )

( 9G-16G )

( BG )

PIN CONNECTION

65 64 63 62 61 60 59 58

57 56 55 54 53 52 51 50 49

46 45

43 42 41 40 39 38 37

23 22

212019181716151413121110987654

36 35 34 33 32 31 30 29 28 27

PIN NO.

CONNECTION

P16P15P14P13P12P11 P17 P18 P19 P20 P21 1G 2G 3G

P24P25P26 P23 P22 16G 15G 14G 13G 12G

P36P37P38P39P40P41 P35 P34 P33 P32 P31 P30 P29

48 47

P28 P27

11G

F2 F2 F2

5G 6G

7G 8G NP

F1 F1

P7P6

26 25

P10P8P5P4P3P2P19G

10G

Note

1) Fn: Filament pin

2) nG: Grid pin

3) Pn: Anede pin

4) NP: No pin

ANODE CONNECTION

11G-16G 10G 9G 8G 7G

6G-4G

3G 2G 1G

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

P22

P23

P24

P25

P26

P27

P28

P29

P30

P31

P32

P33

P34

P35

P36

P37

P38

P39

P40

P41

col

S10

S11

S12

S13

S14

S15

S16

S17

S18

S10

S11

S12

S13

S14

S15

S16

S17

S18

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

kHz

MHz

PTYI

EON

RDS

PTY

S T

X-BASS

PLAY

SLEEP

REC

RANDOM

MEMORY

( )

PBC

VCD ON

ENGLISH

MP3

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

( 4G )

( 5G )

( 6G )

B21

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21 B21

FL DISPLAY

CD-BK3100W

– 60 –

— M E M O —

– 61 –

CD-BK3100W

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

CD-BK3100W Mini Component System consisting of

CD-BK3100W (main unit) and CP-BK3100 (speaker system).

MINI COMPONENT SYSTEM

MODEL CD-BK3100W

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3100W

– 1 –

INTEGRATED CIRCUITS

IC1 VHILC78645NE1 J AY CD Servo,LC78645NE

IC2 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,

M63001FP

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K

IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S

IC601 VHILC75341/-1 J AM Audio Processor,LC75341

IC701 RH-IX0464AWZZ J System Microcomputer,

IX0464AW

IC702 VHID16315GB-1 J AM FL Display Driver,D16315GB

IC703 VHIBA3835F/-1 J AS 5 Band Pass Filter,BA3835F

IC705 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F

IC901,902 VHISTK40270N1 J AY Power Amp.,STK40270N

IC903 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P

ICK1 VHIM65856SP-1 J AX Mic Amp.,M65856SP

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q2 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q3~12 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F

Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR

Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q603,604 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q701~703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q704~706 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q707 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y

Q850 VSKTC2026//-1 J AF Silicon,NPN,KTC2026

Q851 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP

Q852 VHIKIA7805AP1 J AF Constant Voltage Regulator,

KIA7805AP

Q901~909 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q910 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q990 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q991 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

QK1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

DIODES

D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133

D305 VHDDS1SS133-1 J AB Silicon,DS1SS133

D601,602 VHDDS1SS133-1 J AB Silicon,DS1SS133

D701 VHDDS1SS133-1 J AB Silicon,DS1SS133

D703 VHDDS1SS133-1 J AB Silicon,DS1SS133

D705 VHDDS1SS133-1 J AB Silicon,DS1SS133

D708 VHDDS1SS133-1 J AB Silicon,DS1SS133

D711~718 VHDDS1SS133-1 J AB Silicon,DS1SS133

D801 VHDDS1SS133-1 J AB Silicon,DS1SS133

D802,803 VHDTS6B04GM-1 J AP Silicon,TS6B04GM

D804~809 VHDDS1N404S-1 J AB Silicon,DS1N404S

D818 VHDDS1N404S-1 J AB Silicon,DS1N404S

D819,820 VHDDS1SS133-1 J AB Silicon,DS1SS133

D901~907 VHDDS1SS133-1 J AB Silicon,DS1SS133

D909 VHDDS1SS133-1 J AB Silicon,DS1SS133

DK1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133

LED701 VHP4204SRT121 J AD LED,Red,4204SRT121

LED709~711 VHP4204UYT121 J AD LED,Yellow,4204UYT121

LED714~718 VHPSLR325MC-1 J AD LED,Green,SLR325MC

LED725 VHPSLR325MC-1 J AD LED,Green,SLR325MC

ZD1 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB

ZD2 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB

ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB

ZD801 VHEDZ300BSC-1 J AB Zener,30V,DZ30BSC

ZD801A VHEDZ2R4BSB-1 J AB Zener,2.4V,DZ2.4BSB

ZD802 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA

ZD806 VHEDZ110BSB-1 J AB Zener,11V,DZ11BSB

ZDK1 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter

CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

T301 RCILB0065AWZZ J AC FM OSC.

T302 RCILI0017AWZZ J AB FM IF

T303 RCILA0052AWZZ J AE AM Tracking

T306 RCILB0067AWZZ J AD AM OSC.

T351 RCILI0019AWZZ J AD AM IF

1 T801 RTRNP0359AWZZ J BK Power

COILS

L2 VP-XHR82K0000 J AC 0.82 µH

L104 VP-MK331K0000 J AB 330 µH,Choke

L312 RCILR0056AWZZ J AB FM RF

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L902~905 RCILZ0137AFZZ J AA 0.29 µH

VARIABLE RESISTOR

VRK1 92LVRR1674A J AF 20 kohms (B) [Mic Volume]

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S

VD302,303 VHCSVC211C/-1 J AG Variable Capacitance,SVC211C

VIBRATORS

X1 RCRM-0041AWZZ J AF Ceramic,33.8688 MHz

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0019AWZZ J AF Crystal,4.5 MHz

XL701 RCRSP0026AWZZ J AG Crystal,4.194304 MHz

CAPACITORS

C1 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C2 VCTYPA1CX103K J AA 0.01 µF,16V

C3 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C4 VCKYPA1HB102K J AA 0.001 µF,50V

C5 VCTYPA1CX473K J AA 0.047 µF,16V

C6 VCTYPA1CX104K J AB 0.1 µF,16V

C8 VCKYPU1HB472K J AA 0.0047 µF,50V

C9 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C10 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C11 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

C12 VCKYPA1HB101K J AA 100 pF,50V

C13 VCTYPA1CX103K J AA 0.01 µF,16V

C14 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C15 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic

C16 VCTYPA1CX473K J AA 0.047 µF,16V

C17 VCEAZA1CW477M J AC 470 µF,16V,Electrolytic

C18 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C23 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C24 VCKZPA1HF223Z J AA 0.022 µF,50V

C25 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C27 VCKYPU1HB472K J AA 0.0047 µF,50V

C28 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C29 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic

C30 VCKZPA1HF223Z J AA 0.022 µF,50V

C31 VCKYPU1HB472K J AA 0.0047 µF,50V

C32 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C37 VCTYPA1CX473K J AA 0.047 µF,16V

C38 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C39 VCTYPA1CX104K J AB 0.1 µF,16V

C40 VCKZPA1HF223Z J AA 0.022 µF,50V

C41~47 VCKYPA1HB101K J AA 100 pF,50V

C48 VCTYPA1CX103K J AA 0.01 µF,16V

C51 VCKYBT1HB102K J AA 0.001 µF,50V

C52 VCTYPA1CX103K J AA 0.01 µF,16V

C53 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C54 VCCCPA1HH220J J AA 22 pF (CH),50V

C55,56 VCKYPA1HB102K J AA 0.001 µF,50V

CD-BK3100W

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3100W

C101,102 VCKYMN1HB561K J AA 560 pF,50V

C105 VCKYBT1HB181K J AA 180 pF,50V

C106 VCKYMN1HB181K J AA 180 pF,50V

C107,108 VCKYMN1HB561K J AA 560 pF,50V

C111~114 VCKYMN1HB331K J AA 330 pF,50V

C115,116 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C117,118 VCTYPA1EX333K J AA 0.033 µF,25V

C119,120 VCKYMN1HB561K J AA 560 pF,50V

C121,122 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C123,124 VCTYMN1CX222K J AA 0.0022 µF,16V

C127 VCTYMN1EF223Z J AA 0.022 µF,25V

C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C131,132 VCKYMN1HB271K J AA 270 pF,50V

C133,134 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C135,136 VCTYPA1CX223K J AA 0.022 µF,16V

C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V

C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C145 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C146 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar

C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C153 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C154 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C155 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C156 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C157 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C301 VCKYMN1HB102K J AA 0.001 µF,50V

C303 VCCCMN1HH100J J AA 10 pF (CH),50V

C304 VCTYMN1CY103N J AA 0.01 µF,16V

C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V

C306 VCTYMN1EF223Z J AA 0.022 µF,25V

C307 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C308 VCCUMN1HJ4R7D J AA 4.7 pF (UJ),50V

C309 VCKYMN1HB102K J AA 0.001 µF,50V

C310 VCCCMN1HH150J J AA 15 pF (CH),50V

C311 VCCSMN1HL180J J AA 18 pF,50V

C312 VCTYMN1EF223Z J AA 0.022 µF,25V

C313 VCCCMN1HH220J J AA 22 pF (CH),50V

C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V

C316 VCTYMN1EF223Z J AA 0.022 µF,25V

C317 VCKYMN1HB102K J AA 0.001 µF,50V

C318 VCKYMN1HB101K J AA 100 pF,50V

C320 VCKYBT1HB102K J AA 0.001 µF,50V

C323 VCTYMN1EF223Z J AA 0.022 µF,25V

C324 VCCUMN1HJ3R9K J AA 3.9 pF (UJ),50V

C330 VCCSMN1HL150J J AA 15 pF,50V

C331 VCKYPA1HF473Z J AB 0.047 µF,50V

C332 VCTYMN1EF223Z J AA 0.022 µF,25V

C334 VCCCMN1HH220J J AA 22 pF (CH),50V

C335 VCKYMN1HB561K J AA 560 pF,50V

C338 VCKYMN1HB102K J AA 0.001 µF,50V

C342 VCTYMN1EF223Z J AA 0.022 µF,25V

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V

C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V

C355 VCCSMN1HL220J J AA 22 pF,50V

C356 VCKYMN1HB102K J AA 0.001 µF,50V

C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C361 VCTYMN1EF223Z J AA 0.022 µF,25V

C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C363 VCTYMN1EF223Z J AA 0.022 µF,25V

C364 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C365 VCTYPA1CX223K J AA 0.022 µF,16V

C366 VCKYMN1HB102K J AA 0.001 µF,50V

C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V

C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C373,374 VCTYPA1CX153K J AA 0.015 µF,16V

C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C381 VCCCMN1HH120J J AA 12 pF (CH),50V

C382 VCCCMN1HH150J J AA 15 pF (CH),50V

C384 VCKYMN1HB102K J AA 0.001 µF,50V

C385 VCTYMN1CY103N J AA 0.01 µF,16V

C386 VCKYMN1HB331K J AA 330 pF,50V

C387 VCTYMN1EF223Z J AA 0.022 µF,25V

C388 VCKYMN1HB102K J AA 0.001 µF,50V

C391 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C392 VCKYMN1HB102K J AA 0.001 µF,50V

C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C395 VCTYMN1EF223Z J AA 0.022 µF,25V

C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C397 VCTYMN1EF223Z J AA 0.022 µF,25V

C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic

C399 VCTYMN1EF223Z J AA 0.022 µF,25V

C602 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C604 VCTYMN1EF223Z J AA 0.022 µF,25V

C606 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

C607~610 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C611,612 VCQYKA1HM272K J AA 0.0027 µF,50V,Mylar

C613,614 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C617 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C619,620 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C621,622 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C631,632 VCKYMN1HB391K J AA 390 pF,50V

C634 VCKYMN1HB102K J AA 0.001 µF,50V

C654 VCKYBT1HB101K J AA 100 pF,50V

C701 VCTYMN1EF223Z J AA 0.022 µF,25V

C702 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C703 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C704 VCTYMN1EF223Z J AA 0.022 µF,25V

C705 RC-EZD476AF1E J AC 47 µF,25V,Electrolytic

C706 VCTYMN1EF223Z J AA 0.022 µF,25V

C707~710 VCKYBT1HF104Z J AC 0.1 µF,50V

C711 VCCSMN1HL180J J AA 18 pF,50V

C712 VCCSMN1HL150J J AA 15 pF,50V

C713 VCTYMN1EF223Z J AA 0.022 µF,25V

C714 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

C715 VCTYMN1EF223Z J AA 0.022 µF,25V

C716,717 VCKYMN1HB102K J AA 0.001 µF,50V

C721 VCTYMN1EF223Z J AA 0.022 µF,25V

C722 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C723,724 VCTYMN1EF223Z J AA 0.022 µF,25V

C725 RC-EZD476AF1E J AC 47 µF,25V,Electrolytic

C726 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C727 VCTYMN1CX152K J AA 0.0015 µF,16V

C728 VCKYBT1HB471K J AA 470 pF,50V

C801,802 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic

C803~806 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C807,808 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C809 VCEAZA1HW227M J AC 220 µF,50V,Electrolytic

C810,811 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C812 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic

C813,814 RC-EZ0064AWZZ J 2200 µF,56V,Electrolytic

C825 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic

C830 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic

C832,833 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C850 VCEAZW1VW228M J AH 2200 µF,35V,Electrolytic

C851 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic

C852 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C855 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C857 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C858 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar

C860 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

C861 VCEAZW1CW478M J AG 4700 µF,16V,Electrolytic

C901,902 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C903,904 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C905 VCKZPA1HF223Z J AA 0.022 µF,50V

C906,907 VCTYPA1EX152K J AA 0.0015 µF,25V

C908 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C909,910 VCCSPA1HL150J J AA 15 pF,50V

C911 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C912 VCKZPA1HF223Z J AA 0.022 µF,50V

C914 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C916~919 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C920,921 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C922,923 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic

C924,925 VCKZPA1HF223Z J AA 0.022 µF,50V

C926,927 VCTYPA1EX152K J AA 0.0015 µF,25V

C928,929 VCCSPA1HL150J J AA 15 pF,50V

C930,931 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

C932 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic

C935,936 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C938 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

C939,940 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C941,942 VCQYKA1HM153K J AB 0.015 µF,50V,Mylar

C943,944 VCKYPA1HB102K J AA 0.001 µF,50V

C954,955 VCQYKA1HM823K J AC 0.082 µF,50V,Mylar

C958,959 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

C960,961 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar

C990,991 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic

– 2 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3100W

CK1 VCTYPA1CX103K J AA 0.01 µF,16V

CK7 VCEAZA1HW474M J AB 0.47 µF,50V,Electrolytic

CK8 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic

CK9 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CK10,11 VCFYDA1HA104J J AB 0.1 µF,50V,Thin Film

CK12 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CK13 VCTYPA1CX472K J AA 0.0047 µF,16V

CK14 VCKYBT1HB102K J AA 0.001 µF,50V

CK15 VCFYDA1HA683J J AB 0.068 µF,50V,Thin Film

CK16 VCFYDA1HA224J J AB 0.22 µF,50V,Thin Film

CK17 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic

CK18 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

CK19 VCKZPA1HF223Z J AA 0.022 µF,50V

CK20 VCFYDA1HA224J J AB 0.22 µF,50V,Thin Film

CK21 VCFYDA1HA683J J AB 0.068 µF,50V,Thin Film

CK22 VCTYPA1CX472K J AA 0.0047 µF,16V

CK23 VCKYPA1HB102K J AA 0.001 µF,50V

CK24~26 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CK29,30 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CK31 VCFYDA1HA154J J AB 0.15 µF,50V,Thin Film

CK33~35 VCCSPA1HL470J J AA 47 pF,50V

CK41 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

CK42 VCKZPA1HF223Z J AA 0.022 µF,50V

CK43,44 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

CK45,46 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

CK47,48 VCCSPA1HL221J J AA 220 pF,50V

CK49,50 VCCSPA1HL101J J AA 100 pF,50V

CK51,52 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic

CK53 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

CK72 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

R1 VRD-ST2CD333J J AA 33 kohms,1/6W

R2,3 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R4 VRD-ST2CD333J J AA 33 kohms,1/6W

R5,6 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R7 VRD-ST2CD470J J AA 47 ohms,1/6W

R8 VRD-ST2CD3R3J J AA 3.3 ohms,1/6W

R9 VRD-ST2CD273J J AA 27 kohms,1/6W

R10 VRD-ST2CD103J J AA 10 kohm,1/6W

R11 VRD-ST2CD331J J AA 330 ohms,1/6W

R12 VRD-ST2CD123J J AA 12 kohms,1/6W

R13~19 VRD-ST2CD102J J AA 1 kohm,1/6W

R21 VRD-ST2CD221J J AA 220 ohms,1/6W

R22 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R23 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R24 VRD-ST2CD152J J AA 1.5 kohms,1/6W

R25 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R26 VRD-ST2CD101J J AA 100 ohm,1/6W

R27,28 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R29~36 VRD-ST2CD102J J AA 1 kohm,1/6W

R37,38 VRD-ST2CD681J J AA 680 ohms,1/6W

R39 VRD-ST2CD123J J AA 12 kohms,1/6W

R40 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R41 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R42 VRD-ST2CD153J J AA 15 kohms,1/6W

R43 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R44 VRD-ST2CD153J J AA 15 kohms,1/6W

R45 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R46 VRD-ST2CD153J J AA 15 kohms,1/6W

R47 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R48 VRD-ST2CD153J J AA 15 kohms,1/6W

R49 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R50 VRD-ST2CD153J J AA 15 kohms,1/6W

R52 VRD-ST2CD221J J AA 220 ohms,1/6W

R53 VRD-ST2CD103J J AA 10 kohm,1/6W

R54~63 VRD-ST2CD102J J AA 1 kohm,1/6W

R64 VRD-ST2EE1R0J J AA 1 ohm,1/4W

R65 VRD-ST2CD332J J AA 3.3 kohms,1/6W

1 R69 VRG-ST2EG3R3J J AB 3.3 ohms,1/4W,Fusible

R101 VRD-MN2BD102J J AA 1 kohm,1/8W

R102 VRD-ST2CD102J J AA 1 kohm,1/6W

R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W

R109,110 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R111,112 VRD-MN2BD153J J AA 15 kohms,1/8W

R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W

R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R117,118 VRD-MN2BD102J J AA 1 kohm,1/8W

R119 VRD-ST2CD560J J AA 56 ohms,1/6W

R120 VRD-MN2BD560J J AA 56 ohms,1/8W

R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W

R123,124 VRD-MN2BD272J J AA 2.7 kohms,1/8W

R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R131,132 VRD-MN2BD333J J AA 33 kohms,1/8W

R134 VRD-MN2BD683J J AA 68 kohms,1/8W

R135,136 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R137 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R138 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R139,140 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R141,142 VRD-MN2BD101J J AA 100 ohm,1/8W

R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W

R153,154 VRD-MN2BD103J J AA 10 kohm,1/8W

R155 VRD-ST2EE151J J AA 150 ohms,1/4W

R156 VRD-ST2CD224J J AA 220 kohms,1/6W

R157 VRD-MN2BD224J J AA 220 kohms,1/8W

R158 VRD-ST2EE221J J AA 220 ohms,1/4W

R160 VRD-RT2HD820J J AA 82 ohms,1/2W

R162 VRD-MN2BD473J J AA 47 kohms,1/8W

R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R166 VRD-MN2BD223J J AA 22 kohms,1/8W

R167 VRD-MN2BD473J J AA 47 kohms,1/8W

R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W

R169~174 VRD-MN2BD102J J AA 1 kohm,1/8W

R302 VRD-MN2BD100J J AA 10 ohm,1/8W

R309 VRD-ST2CD103J J AA 10 kohm,1/6W

R311 VRD-MN2BD104J J AA 100 kohm,1/8W

R313 VRD-MN2BD333J J AA 33 kohms,1/8W

R314 VRD-ST2CD220J J AA 22 ohms,1/6W

R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R322 VRD-MN2BD681J J AA 680 ohms,1/8W

R323 VRD-MN2BD683J J AA 68 kohms,1/8W

R325 VRD-MN2BD473J J AA 47 kohms,1/8W

R327 VRD-MN2BD330J J AA 33 ohms,1/8W

R336 VRD-MN2BD103J J AA 10 kohm,1/8W

R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W

R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R352 VRD-MN2BD102J J AA 1 kohm,1/8W

R353 VRD-MN2BD271J J AA 270 ohms,1/8W

R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R356 VRD-MN2BD102J J AA 1 kohm,1/8W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R365 VRD-MN2BD103J J AA 10 kohm,1/8W

R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W

R375 VRD-ST2CD471J J AA 470 ohms,1/6W

R376 VRD-MN2BD102J J AA 1 kohm,1/8W

R377 VRD-MN2BD473J J AA 47 kohms,1/8W

R378 VRD-MN2BD102J J AA 1 kohm,1/8W

R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R381 VRD-MN2BD103J J AA 10 kohm,1/8W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R386 VRD-ST2CD223J J AA 22 kohms,1/6W

R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W

R393 VRD-MN2BD102J J AA 1 kohm,1/8W

R395 VRD-MN2BD473J J AA 47 kohms,1/8W

R605,606 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R607 VRD-MN2BD103J J AA 10 kohm,1/8W

R608 VRD-ST2CD103J J AA 10 kohm,1/6W

R609,610 VRD-ST2CD331J J AA 330 ohms,1/6W

R611 VRD-MN2BD104J J AA 100 kohm,1/8W

R612 VRD-ST2CD104J J AA 100 kohm,1/6W

R613,614 VRD-MN2BD681J J AA 680 ohms,1/8W

R615,616 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R617,618 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R619 VRD-MN2BD223J J AA 22 kohms,1/8W

R623,624 VRD-MN2BD103J J AA 10 kohm,1/8W

R625,626 VRD-MN2BD153J J AA 15 kohms,1/8W

R631,632 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R633,634 VRD-MN2BD333J J AA 33 kohms,1/8W

R637,638 VRD-MN2BD184J J AA 180 kohms,1/8W

R641~643 VRD-ST2CD102J J AA 1 kohm,1/6W

R701,702 VRD-ST2CD473J J AA 47 kohms,1/6W

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3100W

R703 VRD-MN2BD823J J AA 82 kohms,1/8W

R704~706 VRD-MN2BD104J J AA 100 kohm,1/8W

R707 VRD-MN2BD330J J AA 33 ohms,1/8W

R708~710 VRD-MN2BD102J J AA 1 kohm,1/8W

R711 VRD-MN2BD104J J AA 100 kohm,1/8W

R712 VRD-MN2BD473J J AA 47 kohms,1/8W

R713~717 VRD-MN2BD103J J AA 10 kohm,1/8W

R718~730 VRD-MN2BD102J J AA 1 kohm,1/8W

R731 VRD-ST2CD102J J AA 1 kohm,1/6W

R732 VRD-ST2CD101J J AA 100 ohm,1/6W

R733~736 VRD-ST2CD102J J AA 1 kohm,1/6W

R737,738 VRD-MN2BD102J J AA 1 kohm,1/8W

R739 VRD-ST2CD102J J AA 1 kohm,1/6W

R740 VRD-MN2BD102J J AA 1 kohm,1/8W

R741 VRD-ST2CD102J J AA 1 kohm,1/6W

R742 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R743 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R744 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R745 VRD-ST2CD103J J AA 10 kohm,1/6W

R746~748 VRD-MN2BD102J J AA 1 kohm,1/8W

R749,750 VRD-ST2CD102J J AA 1 kohm,1/6W

R758,759 VRD-MN2BD102J J AA 1 kohm,1/8W

R760 VRD-MN2BD473J J AA 47 kohms,1/8W

R761,762 VRD-MN2BD103J J AA 10 kohm,1/8W

R763 VRD-MN2BD102J J AA 1 kohm,1/8W

R765 VRD-MN2BD102J J AA 1 kohm,1/8W

R766 VRD-MN2BD103J J AA 10 kohm,1/8W

R767 VRD-MN2BD102J J AA 1 kohm,1/8W

R769 VRD-ST2CD102J J AA 1 kohm,1/6W

R770,771 VRD-MN2BD101J J AA 100 ohm,1/8W

R772~774 VRD-MN2BD102J J AA 1 kohm,1/8W

R776 VRD-MN2BD103J J AA 10 kohm,1/8W

R777 VRD-ST2CD103J J AA 10 kohm,1/6W

R779~782 VRD-MN2BD103J J AA 10 kohm,1/8W

R783 VRD-MN2BD473J J AA 47 kohms,1/8W

R784 VRD-MN2BD104J J AA 100 kohm,1/8W

R785 VRD-ST2CD101J J AA 100 ohm,1/6W

R786~795 VRD-MN2BD103J J AA 10 kohm,1/8W

R797 VRD-MN2BD103J J AA 10 kohm,1/8W

R798 VRD-ST2CD103J J AA 10 kohm,1/6W

R799 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R801 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R802 VRD-ST2EE100J J AA 10 ohm,1/4W

R803 VRD-ST2CD123J J AA 12 kohms,1/6W

R804 VRD-ST2CD473J J AA 47 kohms,1/6W

R805 VRD-ST2EE223J J AA 22 kohms,1/4W

R806 VRD-ST2CD103J J AA 10 kohm,1/6W

R808 VRD-ST2CD151J J AA 150 ohms,1/6W

R809 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R819 VRD-ST2EE223J J AA 22 kohms,1/4W

R826 VRD-ST2CD224J J AA 220 kohms,1/6W

R827 VRD-ST2CD473J J AA 47 kohms,1/6W

R828 VRD-ST2CD101J J AA 100 ohm,1/6W

R829,830 VRD-ST2EE470J J AA 47 ohms,1/4W

R852 VRD-ST2EE223J J AA 22 kohms,1/4W

R853 VRD-ST2CD223J J AA 22 kohms,1/6W

R854 VRD-ST2CD103J J AA 10 kohm,1/6W

R856 VRD-ST2EE561J J AA 560 ohms,1/4W

1 R901 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R902 VRD-ST2CD223J J AA 22 kohms,1/6W

R903,904 VRD-ST2CD563J J AA 56 kohms,1/6W

R906,907 VRD-ST2CD561J J AA 560 ohms,1/6W

R908,909 VRD-ST2CD102J J AA 1 kohm,1/6W

1 R910 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R911,912 VRN-VV3AAR10J J AB 0.1 ohm,1W

R913,914 VRD-ST2CD102J J AA 1 kohm,1/6W

R915,916 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R917,918 VRD-ST2CD102J J AA 1 kohm,1/6W

R919~921 VRD-ST2CD563J J AA 56 kohms,1/6W

R922,923 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

1 R924,925 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R926 VRD-ST2CD223J J AA 22 kohms,1/6W

R927,928 VRD-ST2CD563J J AA 56 kohms,1/6W

R929,930 VRD-ST2CD821J J AA 820 ohms,1/6W

R931,932 VRD-ST2CD102J J AA 1 kohm,1/6W

R933,934 VRN-VV3AAR10J J AB 0.1 ohm,1W

R935,936 VRD-ST2CD103J J AA 10 kohm,1/6W

R937,938 VRD-ST2CD102J J AA 1 kohm,1/6W

R939~941 VRD-ST2CD563J J AA 56 kohms,1/6W

R942,943 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R944~947 VRD-RT2HD271J J AA 270 ohms,1/2W

R948~951 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R952 VRD-ST2CD153J J AA 15 kohms,1/6W

R953 VRD-ST2CD683J J AA 68 kohms,1/6W

R954 VRD-ST2CD102J J AA 1 kohm,1/6W

R955 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W

R956,957 VRD-ST2CD183J J AA 18 kohms,1/6W

R966,967 VRD-ST2EE223J J AA 22 kohms,1/4W

R970~975 VRD-ST2CD683J J AA 68 kohms,1/6W

R976,977 VRD-ST2CD102J J AA 1 kohm,1/6W

R979 VRD-ST2CD102J J AA 1 kohm,1/6W

R980 VRD-ST2CD103J J AA 10 kohm,1/6W

R993~996 VRN-VV3DAR22J J AC 0.22 ohms,2W

R997,998 VRD-ST2CD273J J AA 27 kohms,1/6W

RD01 VRD-ST2CD681J J AA 680 ohms,1/6W

RD02 VRD-ST2CD821J J AA 820 ohms,1/6W

RD03 VRD-MN2BD102J J AA 1 kohm,1/8W

RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RD05 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W

RD07 VRD-MN2BD392J J AA 3.9 kohms,1/8W

RD08 VRD-MN2BD562J J AA 5.6 kohms,1/8W

RD09 VRD-MN2BD103J J AA 10 kohm,1/8W

RD10 VRD-MN2BD153J J AA 15 kohms,1/8W

RD11 VRD-MN2BD333J J AA 33 kohms,1/8W

RD12 VRD-MN2BD104J J AA 100 kohm,1/8W

RD13 VRD-ST2CD681J J AA 680 ohms,1/6W

RD14 VRD-MN2BD821J J AA 820 ohms,1/8W

RD15 VRD-MN2BD102J J AA 1 kohm,1/8W

RD16 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RD17 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD18 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RD19 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD20 VRD-MN2BD562J J AA 5.6 kohms,1/8W

RD21 VRD-MN2BD103J J AA 10 kohm,1/8W

RD22 VRD-MN2BD153J J AA 15 kohms,1/8W

RD25 VRD-MN2BD681J J AA 680 ohms,1/8W

RD26 VRD-MN2BD821J J AA 820 ohms,1/8W

RD27 VRD-MN2BD102J J AA 1 kohm,1/8W

RD28 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RD29 VRD-MN2BD222J J AA 2.2 kohms,1/8W

RD30 VRD-MN2BD272J J AA 2.7 kohms,1/8W

RD31 VRD-MN2BD392J J AA 3.9 kohms,1/8W

RD32 VRD-MN2BD562J J AA 5.6 kohms,1/8W

RD33 VRD-MN2BD103J J AA 10 kohm,1/8W

RD34 VRD-MN2BD153J J AA 15 kohms,1/8W

RD35 VRD-MN2BD333J J AA 33 kohms,1/8W

RK1 VRD-ST2CD103J J AA 10 kohm,1/6W

RK2,3 VRD-ST2CD563J J AA 56 kohms,1/6W

RK4 VRD-ST2CD103J J AA 10 kohm,1/6W

RK7 VRD-ST2CD102J J AA 1 kohm,1/6W

RK8 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RK9~11 VRD-ST2CD102J J AA 1 kohm,1/6W

RK12 VRD-ST2CD101J J AA 100 ohm,1/6W

RK13 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RK14,15 VRD-RT2HD101J J AA 100 ohm,1/2W

RK36,37 VRD-ST2CD391J J AA 390 ohms,1/6W

RK38 VRD-ST2CD101J J AA 100 ohm,1/6W

RK39,40 VRD-ST2CD102J J AA 1 kohm,1/6W

RK41,42 VRD-ST2CD103J J AA 10 kohm,1/6W

RK43 VRD-ST2CD183J J AA 18 kohms,1/6W

RK44,45 VRD-ST2CD682J J AA 6.8 kohms,1/6W

RK46 VRD-ST2CD183J J AA 18 kohms,1/6W

RK47 VRD-ST2CD822J J AA 8.2 kohms,1/6W

RK48~50 VRD-ST2CD103J J AA 10 kohm,1/6W

RS701,702 VRD-ST2CD102J J AA 1 kohm,1/6W

RS703 VRD-MN2BD103J J AA 10 kohm,1/8W

RS706 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RS709,710 VRD-MN2BD152J J AA 1.5 kohms,1/8W

RS713~717 VRD-MN2BD561J J AA 560 ohms,1/8W

RS724 VRD-MN2BD561J J AA 560 ohms,1/8W

RS725 VRD-MN2BD683J J AA 68 kohms,1/8W

OTHER CIRCUITRY PARTS

BI601/CNS601 QCNWN1850AWZZ J AF Connector Ass’y,6/6Pin

BI602/CNS602 QCNWN1876AWZZ J Connector Ass’y,10/10Pin

BI701/CNS905 QCNWN1846AWZZ J AH Connector Ass’y,8/8Pin

BI702/CNS702 QCNWN1847AWZZ J AD Connector Ass’y,2/2Pin

BI703A/B QCNWN1855AWZZ J Connector Ass’y,9/9Pin

BI704/CNS704 QCNWN1849AWZZ J AK Connector Ass’y,12/12Pin

BI901/CNS901 QCNWN1851AWZZ J AG Connector Ass’y,7/7Pin

BI902/CNS902 QCNWN1852AWZZ J AF Connector Ass’y,5/5Pin

CNP1 QCNCM704GAWZZ J AC Plug,7Pin

– 4 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3100W

CNP2 QCNCM704HAWZZ J AC Plug,8Pin

CNP3 92LCONE6P53253 J AC Plug,6Pin

CNP3A 92LCONE6P53254 J AC Plug,6Pin

CNP4 92LCONE4P53254 J AC Plug,4Pin

CNP5 QCNCW026DAWZZ J AC Socket,4Pin

CNP6 QCNCW026HAWZZ J AC Socket,8Pin

CNP7 QCNCM932MAFZZ J AE Plug,12Pin

CNP8 92LCONE6P53254 J AC Plug,6Pin

CNP101 QCNCM705CAFZZ J AA Plug,3Pin

CNP102 QCNWN1974AWZZ J Plug,7Pin

CNP301 92LCONE2P5268 J AB Plug,2Pin

CNP602 QCNCWZG19AWZZ J Socket,19Pin

CNP701 QCNCWZY10AWZZ J Socket,10Pin

CNP702 QCNCWZF19AWZZ J Socket,19Pin

CNP704 92LCONE2P53254 J AB Plug,2Pin

CNP806 QCNCW010JAWZZ J AC Plug,9Pin

CNP901 92LCONE7P53253 J AC Plug,7Pin

CNP902 92LCONE5P5267X J AB Plug,5Pin

CNP904 92LCONE2P53253 J AB Plug,2Pin

CNP905 92LCONE9P53253 J AC Plug,9Pin

CNP906 QCNCM010JAWZZ J AC Socket,9Pin

CNP907 92LCONE2P53253 J AB Plug,2Pin

CNPK1 QCNCM705KAWZZ J AC Plug,10Pin

CNS1A/B QCNWN1981AWZZ J AF Connector Ass’y,7/7Pin

CNS2A/B QCNWN1982AWZZ J AG Connector Ass’y,8/8Pin

CNS3A/B QCNWN1980AWZZ J AF Connector Ass’y,6/6Pin

CNS4 QCNWN1983AWZZ J AD Connector Ass’y,4Pin

CNS904 QCNWN1841AWZZ J AD Connector Ass’y,2Pin

CNS907 QCNWN1955AWZZ J AD Connector Ass’y,2Pin

1 F800,801 QFS-D402CAWNI J AC Fuse,T4A L 250V

1 F802,803 QFS-D502CAWNI J AC Fuse,T5A L 250V

1 F804,805 QFS-D202CAWNI J AC Fuse,T2A L 250V

FFC701 QCNWN1845AWZZ J Flat Cable,10Pin

FFC702 QCNWN1855AWZZ J Flat Cable,19Pin

FL701 VVKNA16LM17-1 J BC FL Display

FW2 QCNWN1691AWZZ J AD Flat Wire,8Pin

FW3 QCNWN1693AWZZ J AC Flat Wire,4Pin

FW901 QCNWN1853AWZZ J AD Flat Wire,5Pin

JK1 QJAKJ0007AWZZ J AF Jack,Mic

JK601 QSOCJ0219AWZZ J AD Jack,Video/AUX In

JK670 QJAKM0004AWZZ J AK Jack,Headphones

JOG701 QSW-Z0014AWZZ J AF Switch,Push Type [Jog Volume]

1 K801,802 92LLUG1746A J AA Lug,Terminal

LG901 QLUGP0001AWZZ J AC Lug

M901/902 RMOTV0027AWZZ J AM Motor,Air Cooling Fan

MOB1 92LMTR3435DASY J AM Main Cam Motor Ass’y

MOB2 92LMTR3435DASY J AM Tray Motor Ass’y

NM1 92LMTR2996CASY J AS Motor with Chassis [Spindle]

NM2 92LMTR1854BASY J AP Motor with Gear [Sled]

NSW1 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

PINK1 QLUGP0002AWZZ J AB Lug

RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A

RY901,902 RRLYD0016AWZZ J AH Relay

SO302 QTANC0206AWZZ J AD Terminal,FM Antenna

SO901 QTANA0810AWZZ J AF Terminal,Speaker

SW601 QSW-S0024AWZZ J AE Switch,Slide Type

[Span Selector]

SW701 92LSWICH1401AT J AC Switch,Key Type [On/Stand-by]

SW706 92LSWICH1401AT J AC Switch,Key Type [Disc 1 Play]

SW707 92LSWICH1401AT J AC Switch,Key Type [Disc 2 Play]

SW708 92LSWICH1401AT J AC Switch,Key Type [Disc 3 Play]

SW709 92LSWICH1401AT J AC Switch,Key Type [Disc 4 Play]

SW710 92LSWICH1401AT J AC Switch,Key Type [Disc 5 Play]

SW711 92LSWICH1401AT J AC Switch,Key Type [Disc 6 Play]

SW712 92LSWICH1401AT J AC Switch,Key Type [Disc 5 Eject]

SW713 92LSWICH1401AT J AC Switch,Key Type [Disc 6 Eject]

SW714 92LSWICH1401AT J AC Switch,Key Type [Dimmer]

SW715 92LSWICH1401AT J AC Switch,Key Type [CD]

SW716 92LSWICH1401AT J AC Switch,Key Type [Tape]

SW717 92LSWICH1401AT J AC Switch,Key Type [Tuner (Band)]

SW718 92LSWICH1401AT J AC Switch,Key Type [Video/Aux]

SW719 92LSWICH1401AT J AC Switch,Key Type [Memory/Set]

SW720 92LSWICH1401AT J AC Switch,Key Type [Equalizer]

SW721 92LSWICH1401AT J AC Switch,Key Type [Disc 1 Eject]

SW722 92LSWICH1401AT J AC Switch,Key Type [Disc 2 Eject]

SW723 92LSWICH1401AT J AC Switch,Key Type [Disc 3 Eject]

SW724 92LSWICH1401AT J AC Switch,Key Type [Disc 4 Eject]

SW727 92LSWICH1401AT J AC Switch,Key Type [Rewind]

SW728 92LSWICH1401AT J AC Switch,Key Type [Fast Forward]

SW729 92LSWICH1401AT J AC Switch,Key Type [Play]

SW730 92LSWICH1401AT J AC Switch,Key Type [Stop]

SW731 92LSWICH1401AT J AC Switch,Key Type

[Reverse

Mode]

SW732 92LSWICH1401AT J AC Switch,Key Type [Reverse Play]

SW733 92LSWICH1401AT J AC Switch,Key Type [Clock]

SW734 92LSWICH1401AT J AC Switch,Key Type [Timer/Sleep]

SW735 92LSWICH1401AT J AC Switch,Key Type

[Tuning/Time Up]

SW736 92LSWICH1401AT J AC Switch,Key Type

[Tuning/Time Down]

SW737 92LSWICH1401AT J AC Switch,Key Type [REC Pause]

SW738 92LSWICH1401AT J AC Switch,Key Type [X-Bass/Demo]

1 SW801 QSOCE0009AWZZ J AH Switch,Slide Type

[Voltage Selector]

SWB101 QSW-P9005AWZZ J AD Switch,Push Type

[Disc Detect 1]

SWB102 QSW-P9005AWZZ J AD Switch,Push Type

[Disc Detect 2]

SWB103 QSW-P9005AWZZ J AD Switch,Push Type

[Disc Detect 3]

SWB104 QSW-P9003AWZZ J AD Switch,Push Type [Mode 1]

SWB105 QSW-P9003AWZZ J AD Switch,Push Type [Mode 2]

SWB106 QSW-P9003AWZZ J AD Switch,Push Type [Mode 3]

SWB107 QSW-P9003AWZZ J AD Switch,Push Type [Mode 4]

SWB108 QSW-P9003AWZZ J AD Switch,Push Type [Mode 5]

SWB109 QSW-P9004AWZZ J AE Switch,Push Type [Tray 1]

SWB110 QSW-P9004AWZZ J AE Switch,Push Type [Tray 2]

WT601 QCNCW012EAWZZ J AC Socket,5Pin

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0080AWZZ J AC Rail,Guide

304 NSFTM0020AWFW J AD Shaft,Guide

305 92LMCUSN1524A J AD Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— — Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

307 PCUSG0001AWSA J AD Cushion

308 PCUSG0004AWSA J AD Cushion

701 XBSSD26P06000 J AA Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 XBBSD20P03000 J AA Screw,ø2×3mm

704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm

NM1 92LMTR2996CASY J AS Motor with Chassis [Spindle]

NM2 92LMTR1854BASY J AP Motor with Gear [Sled]

NSW1 QSW-F9001AW01 J AD Switch,Push Type [Pickup In]

CHANGER MECHANISM PARTS

101 LCHSM0106AWZZ J AQ Main Base

102 PGIDM0033AWZZ J AH Change Box,L

103 PGIDM0034AWZZ J AG Change Box,R

104 NGERH0121AWZZ J AC Gear,STB B

105 PGIDM0035AWZZ J AH Bracket,STB Gear

106 MLEVP0098AWZZ J AB Lever,Tray Lock

107 MSPRP0040AWFW J AD Spring,Tray Lock Lever

108 GCOVA1354AWZZ J AF Tray 1

109 GCOVA1355AWZZ J AF Tray 2

110 GCOVA1356AWZZ J AF Tray 3

111 GCOVA1357AWZZ J AF Tray 4

112 GCOVA1358AWZZ J AF Tray 5

113 GCOVA1359AWZZ J AF Tray 6

114 LPLTP0010AWZZ J AG Top Plate,R

115 MCAMP0009AWZZ J AE Cam,Lift

116 NSFTT0057AWFD J AE Shaft,Lift Cam

117 LPLTP0009AWZZ J AH Top Plate,F

118 MLEVP0099AWZZ J AB Lever,Disc OB

119 NGERH0098AWZZ J AC Gear,STB Drive,A

120 NGERH0099AWZZ J AC Gear,STB Drive,L

121 MLEVF0055AWFW J AC Lever,OS,L/R

122 NGERH0100AWZZ J AC Gear,STB Drive,R

123 MSPRT0040AWFJ J AB Spring,OS Lever

124 NGERH0111AWZZ J AC Gear,Tray Drive,R

125 NGERH0113AWZZ J AF Gear,Tray Joint,B

126 NGERH0116AWZZ J AH Gear,Mode Big

127 NGERH0117AWZZ J AC Gear,Lift A

128 NGERH0118AWZZ J AB Gear,Lift B

129 NGERH0119AWZZ J AF Gear,Lift C

130 NGERH0115AWZZ J AC Gear,Tray Idler

131 NGERH0106AWZZ J AC Gear,MT Idler,F

132 NGERH0120AWZZ J AB Gear,STB A

133 NSFTT0055AWM1 J AH STB Gear Ass’y

133- 1 NGERH0122AWZZ J AC Gear,STB C

133- 2 NSFTT0055AWFD J AG Shaft,STB Gear

133- 3 NGERH0123AWZZ J AC Gear,STB D

– 5 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3100W

134 NGERH0108AWZZ J AK Gear,Tray Big

135 NGERH0109AWZZ J AB Gear,Tray A

136 NGERH0110AWZZ J AC Gear,Tray B

137 NGERH0103AWZZ J AB Gear,MT Idler,C

138 NGERH0102AWZZ J AC Gear,MT Idler,B

139 NGERH0105AWZZ J AB Gear,MT Idler,E

140 NGERH0104AWZZ J AB Gear,MT Idler,D

141 NGERH0101AWZZ J AD Gear,MT Idler,A

142 NGERH0114AWZZ J AB Gear,Tray C

143 NGERH0107AWZZ J AC Gear,Tray Drive,F

144 NGERH0112AWZZ J AF Gear,Tray Joint,F

145 MLEVP0097AWZZ J AB Lever,Lift

146 NSFTT0056AWFD J AC Shaft,Lift Lever

147 LHLDZ1270AWZZ J AH Holder,STB

148 PMAGF0001AWZZ J AF Magnet

149 LHLDM1011AWZZ J AD STB FH

150 92LNBAND1318A J AA Nylon Band,80mm

151 QCNCW025DAWZZ J AB Holder,Flat Wire,4Pin

152 QCNCW025HAWZZ J AC Holder,Flat Wire,8Pin

801 XBPSD26P04000 J AA Screw,ø2.6×4mm

802 XEBSD20P07000 J AB Screw,ø2×7mm

803 XEBSD20P10000 J AA Screw,ø2×10mm

804 XHBSD20P05000 J AA Screw,ø2×5mm

805 LX-EZ0005AWFD J AA Screw,ø2.6×10mm

806 LX-EZ0026AWFD J AB Screw,ø2×9mm

807 LX-JZ0105AFFN J AA Screw,ø1.7×5mm

808 XEBSD30P10000 J AA Screw,ø3×10mm

MOB1 92LMTR3435DASY J AM Main Cam Motor Ass’y

MOB2 92LMTR3435DASY J AM Tray Motor Ass’y

CABINET PARTS

201 92LCAB3632AASY J Front Panel Ass’y

201- 1 ———— — Front Panel

(Not Replacement Item)

201- 2 GDORF0101AWSA J AF Holder,Cassette [Tape 1]

201- 3 GDORF0102AWSA J AF Holder,Cassette [Tape 2]

201- 4 HDECQ0692AWSB J AE Panel,Cassette [Tape 1]

201- 5 HDECQ0781AWSA J Panel,Cassette [Tape 2]

201- 6 GCOVA1360AWSA J AH Cover,Cassette [Tape 1]

201- 7 GCOVA1361AWSA J AH Cover,Cassette [Tape 2]

201- 8 GDORF0103AWSA J AE Door,Changer

201- 9 HDECQ0783AWSA J Panel,Amp.

201-10 JKNBZ0785AWSA J AE Button,Power/Dimmer

201-11 JKNBZ0833AWSA J AD Button,Disc Number

201-12 JKNBZ0787AWSA J AD Button,Function

201-13 JKNBZ0819AWSA J AF Button,Play/Stop

201-14 JKNBZ0789AWSA J AF Button,Tuning

201-15 JKNBZ0790AWSA J AE Button,CD Eject

201-16 JKNBZ0791AWSA J AE Button,X-Bass

201-17 HDECQ0695AWSA J AG Panel,Top

201-18 GCOVA1395AWSA J AC Cover,Play/Stop

201-19 HDECQ0698AWSA J AE Panel,Changer Door

201-20 LHLDZ1335AWSA J AC Holder,Changer Door

201-21 MSPRD0160AWFJ J AB Spring,Changer Door

201-22 HDECQ0699AWSA J AG Panel,Main Control

201-23 GCOVA1287AWSA J AG Cover,Remote Sensor

201-24 GCOVA1364AWSA J AB Cover,Timer

201-25 HDECQ0708AWSA J AD Decoration Plate,Function,Left

201-26 MLIFP0010AWZZ J AD Damper

201-27 HBDGB1001AWSA J AD Badge,SHARP

201-28 MSPRD0165AWFJ J AB Spring,Cassette,Tape 1

201-29 MSPRD0166AWFJ J AB Spring,Cassette,Tape 2

202 92LCAB3629BASY J AN Side Panel Ass’y,Left

202- 1 ———— — Side Panel,Left

(Not Replacement Item)

202- 2 PCUSG0022AWZZ J AB Cushion,Leg

203 92LCAB3629CASY J AN Side Panel Ass’y,Right

203- 1 ———— — Side Panel,Right

(Not Replacement Item)

203- 2 PCUSG0022AWZZ J AB Cushion,Leg

204 GCAB-1193AWSA J AN Cabinet,Top

205 LCHSM0124AWFW J AQ Main Chassis

206 LHLDZ1334AWZZ J AE Holder,FL Display

207 GITAR0767AWSA J Rear Panel

[Except for Philippines]

207 GITAR0806AWSA J Rear Panel [For Philippines]

208 LANGK0188AWFW J AF Bracket,Fan Support

209 LANGK0236AWFW J AE Bracket,Heat Sink Left

210 LANGK0237AWFW J AE Bracket,Heat Sink Right

211 92LCSPR1431C J AA Spring,Ring

212 NFANP0001AWZZ J AD Rotary Fan

213 LANGK0256AWFW J AC Bracket,Cassette Lock [Tape 1]

214 LANGK0257AWFW J AC Bracket,Cassette Lock [Tape 2]

215 MLOKC0010AWZZ J AC Lever,Cassette Lock [Tape 1]

216 MLOKC0011AWZZ J AC Lever,Cassette Lock [Tape 2]

217 MSPRD0109AWFJ J AB Spring,Cassette Lock [Tape 1]

218 MSPRD0110AWFJ J AB Spring,Cassette Lock [Tape 2]

219 JKNBK0012AWSG J AK Knob,Karaoke

220 PRDAR0184AWFW J AH Heat Sink,Sub

221 PRDAR0192AWFW J AV Heat Sink,Main

1 222 QACCA0003AW00 J AL AC Power Supply Cord

1 222 QACCB0011AW00 J AS AC Power Supply Cord

1 222 QACCE0008AW00 J AG AC Power Supply Cord

1 222 QACCE0010AW00 J AK AC Power Supply Cord

1 222 QACCJ0007AW00 J AK AC Power Supply Cord

1 222 QACCL0005AW00 J AN AC Power Supply Cord

1 222 QACCZ0007AW00 J AP AC Power Supply Cord

223 QCNWN1860AWZZ J AC Lug Wire

224 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord

1 225 QFSHD0001AWZZ J AB Holder,Fuse

226 92LNBAND1318A J AA Nylon Band,80mm

227 LCHSZ0021AWZZ J AL Chassis,Changer

228 KMECB0022AWZZ J BH Tape Mechanism Ass’y

228- 1 92PF513-860 J BB Head Plate Block [Tape 2]

228- 2 92PF525-338 J BE Motor with Pulley [Tape]

228- 3 92PF567-649 J BA Tape Mechanism PWB Ass’y

228- 4 92PFF19U-12 J AL Belt,Main [Tape 2]

228- 5 92PF514-135 J AL Pinch Roller

228- 6 92PF19S-31 J AL Belt,FF/REW [Tape 2]

228- 7 92PFF19N-11 J AL Belt,Main [Tape 1]

228- 8 92PF522-061 J AZ Clutch Ass’y Block [Tape 1]

228- 9 92PFF19S-52 J AL Belt,FF/REW [Tape 2]

228-10 92PF513-861 J AG Head Plate Block [Tape 1]

228-11 92PF522-063 J AZ Clutch Ass’y Block [Tape 2]

229 PCUSG0022AWZZ J AB Cushion,Leg

230 JKNBZ0784AWSA J AF Knob,Volume

231 LANGK0272AWFW J AF Bracket,Fan Motor Support

232 PSHEZ0126AWZZ J AC PC Sheet

233 LHLDZ1356AWZZ J Holder,LED

234 92LCAUT1706A1 J AC Label,Class 3A

235 92LCAUT1706B J AA Label,Laser

236 LHLDK9001AW00 J AB Poly Core Tie

237 TSPC-0901AWZZ J Label,Specifications [For Taiwan]

237 TSPC-0902AWZZ J Label,Specifications

[For Thailand]

237 TSPC-0903AWZZ J Label,Specifications

[Except for Taiwan/Thailand]

238 QCNWN2030AW00 J Lug Wire

239 PCUSG0096AWZZ J PWB Cushion

601 LX-BZ2222AXZZ J AB Screw,Special

602 XEBSD30P08000 J AA Screw,ø3×8mm

603 XEBSD30P06000 J AA Screw,ø3×6mm

604 XEBSD30P14000 J AA Screw,ø3×14mm

605 LX-HZ0009AWFD J AC Screw,Special

606 XHBSD26P04000 J AA Screw,ø2.6×4mm

607 LX-LZ0006AWZZ J AC Holder,PWB

608 XESSD30P10000 J AA Screw,ø3×10mm

609 LX-HZ0082AFZZ J AA Screw,ø4×8mm

610 LX-JZ0010AFFD J AA Screw,ø3×10mm

611 XJBSD30P10000 J AA Screw,ø3×10mm

612 XJSSD30P10000 J AA Screw,ø3×10mm

613 XJBSD30P12000 J AA Screw,ø3×12mm

614 XBBSD20P04000 J AA Screw,ø2×4mm

616 XJBSF30P08000 J AA Screw,ø3×8mm

617 XJBSD30P16000 J AA Screw,ø3×16mm

619 XJBSD30P08000 J AA Screw,ø3×8mm

620 LX-BZ0880AFZZ J AC Screw,ø2×4mm

621 XEBSD30P12000 J AA Screw,ø3×12mm

622 LX-BZ0062AWF2 J AD Screw,Transport

ACCESSORIES/PACKING PARTS

QANTL0008AWZZ J AH AM Loop Antenna

QPLGA0003AWZZ J AF AC Plug Adaptor

QPLGA0004AWZZ J AF AC Plug Adaptor

SPAKA0297AWZZ J AM Packing Add.

SPAKC1134AWZZ J Packing Case

[For Australia/New Zealand]

SPAKC1135AWZZ J Packing Case

[Except for Australia/New

Zealand]

SPAKP0032AWZZ J AF Polyethylene Bag,Unit

SSAKA0007AWZZ J AB Polyethylene Bag,Accessories

– 6 –

PRICE

RANK

DESCRIPTIONNO.

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BK3100W

TCAUA0025AWZZ J Label,Caution [For Taiwan]

TCAUS0019AWZZ J AD Label,Warning

[For Thailand Only]

TCAUZ0035AWZZ J AB Sheet,Caution

TCAUZ0102AWZZ J Caution,Transport Screw

TCAUZ0110AWZZ J Sheet,Aproval [For Russia Only]

TGANE0011AW72 J Warranty Card [For Philippines]

TGANZ0028AW76 J Warranty Card [For Taiwan]

TINSE0381AWZZ J AG Operation Manual

[For Australia/New Zealand]

TINST0098AWZZ J Operation Manual [For Thailand]

TINSZ0704AWZZ J Operation Manual

[Except for Australia/New

Zealand/Thailand]

TLABB0001AWZZ J AB Label,Japan [For Set]

TLABE0481AWZZ J Label,Bar Code

TLABE0564AWZZ J Label,Bar Code

TLABG0002AWZZ J AB Label,Hong Kong

TLABG0006AWZZ J AB Label,Carton [For Argentine]

TLABG0007AWZZ J AC Label,Set [For Argentine Only]

TLABJ0003AWZZ J AB Label,Japan [For Packing Case]

TLABR1223AWZZ J Label,Bar Code

TLABS0324AWZZ J Label,Hong Kong

TLABS0325AWZZ J Label,CPA

TLABZ0838AWZZ J Label,FDA

TLABZ0874AWZZ J AC Label,Feature [Tape 1]

TLABZ0943AWZZ J Label,Carton [For Taiwan]

TLABZ0944AWZZ J Label,Feature

TLABZ0952AWZZ J Label,Feature [Tape1]

TTAG-0004AWZZ J AC Card Tag [For Argentine Only]

92LBAG1770A J AB Polyethylene Bag,AC Power

Supply Cord

92LBAG760C J AA Polyethylene Bag,AC Plug

Adaptor

92LFANT1746A J AD FM Antenna

92LGCARD1266E1 J AC Warranty Card

92LLABL1204C J AA Label,MADE IN MALAYSIA

92LLABL1507B J AA Label,Made in Malaysia

92LPANEL713A J AB Panel,MADE IN MALAYSIA

RRMCG0269AWSA J AR Remote Control

GFTAB1022AWSB J AK Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A 92LPWB3632MANS J — Main

PWB-B1~4 92LPWB3632DPLS J — Display/Eject Switch/Play Switch/

Headphones (Combined Ass’y)

PWB-C 92LPWB3631CDUS J — CD Servo

PWB-D1~3 92LPWB3632PWRS J — Power Amp./Power A/Power B

(Combined Ass’y)

PWB-E QPWBF0644AWZZ J AD Tray Switch (PWB Only)

PWB-F QPWBF0645AWZZ J AC Cam Switch (PWB Only)

PWB-G QPWBF0027AWZZ J AD CD Motor (PWB Only)

PWB-H 92PF567-649 J — Tape Mechanism

PWB-J 92LPWB3632MICS J — Mic

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

SPEAKER BOX PARTS

901 HPNLS1021AWSA J AY Front Panel,Left

901 HPNLS1022AWSA J AY Front Panel,Right

902 CWAKP1046AWSC J Net Frame Ass’y

903 GBOXS2005AWSB J BB Speaker Box Ass’y,Right

903 GBOXS4005AWSB J BB Speaker Box Ass’y,Left

904 CPNLS1026AWSA J AX Subwoofer Panel Ass’y,Left

904 CPNLS1028AWSA J AX Subwoofer Panel Ass’y,Right

905 PCUSS0049AWZZ J AD Port Cushion

906 PCUSG0022AWZZ J AB Foot Cushion

907 LHLDZ8001AWSA J AD Catching Holder

908 QCNWN1834AWZZ J AK Tweeter Cord

(With Capacitor C1,2)

909 XJBSD40P20000 J AA Screw,ø4×20mm

910 XJBSD40P16000 J AB Screw,ø4×16mm

911 XJBSD30P10000 J AA Screw,ø3×10mm

912 XMBSD40P16000 J AC Screw,ø4×16mm

913 XMBSF40P20000 J AC Screw,ø4×20mm

– 7 –

CP-BK3100

914 PFLT-0046AWZZ J AC Felt

915 TSPC-0880AWZZ J Label,Specifications

916 QCNWN1912AWZZ J Subwoofer Cord

917 QCNWN1835AWZZ J Woofer Cord

SP1,2 RSPA00010AW6T J AP Tweeter

SP3,4 RSPA10010AW6S J AX Woofer

SP5,6 RSPA10011AW6W J AY Subwoofer

PACKING PARTS

SPAKA0299AWZZ J AM Packing Add.

SPAKZ0696AWZZ J AE Layer Pad

SSAKH0053AWZZ J AC Polyethylene Bag,Speaker

CD-BK3100W

23456

Figure 8 CD MECHANISM EXPLODED VIEW

– 8 –

CD-BK3100W

701

304

701

302

301

NM1

703x2

305x2

NSW1

NM2

308

PWB-G

306-2

306

704

307

306-1

306-3

702

303

CD-BK3100W

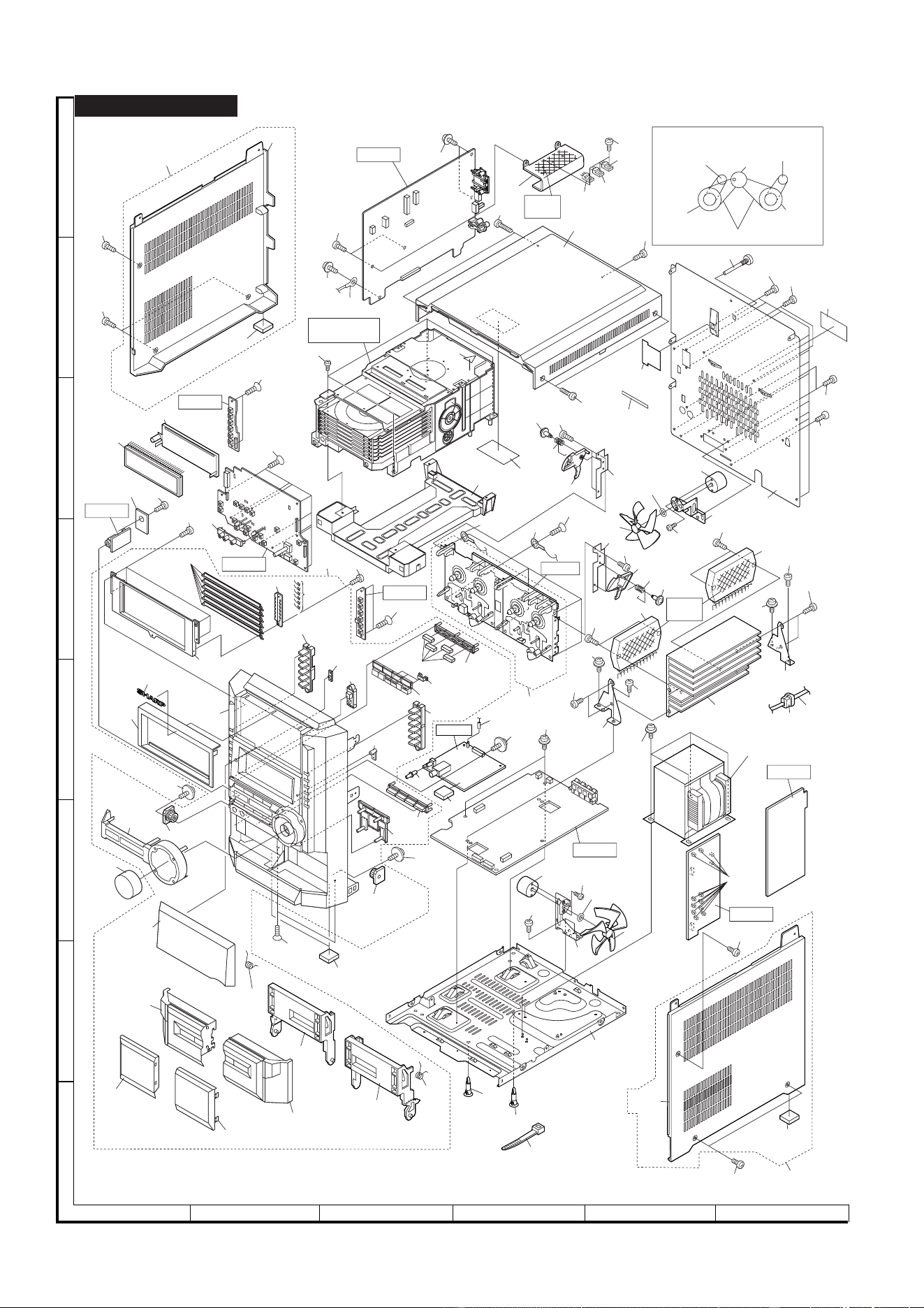

Figure 9 CABINET EXPLODED VIEW

23456

– 9 –

CD-BK3100W

236

202

613

202-1

202-2

613x2

PWB-B3

206

FL701

PWB-B1

608x2

604x4

PWB-A

220

223

610

Q851

Q850

Q852

616x2

610x2

611x3

Silicon

Grease

608x2

603

606x2

227

223

238

217

213

215

608x8

Tape

Motor

MAIN BELT

FLYWHEEL

ASS'Y

TAPE 1

FLYWHEEL

ASS'Y

TAPE 2

FF/REW

ROLLER

ASS'Y

FF/REW

ROLLER

ASS'Y

BELT CONNECTION

611x11

237

622

621x2

611x2

PWB-H

M901

232

211

212

214

216

218

207

208

IC902

IC901

224

222

PWB-D3

221

T801

209

614x2

M902

211

212

231

620x2

605

619

610

613x2

609x4

210

617x2

606x2

608x6

605

617x2

Silicon

Grease

PWB-B4

602

with

PWB

602x4

201-17

201

233

201-1

610x2

201-16

201-14

PWB-B2

201-12

228

238

601

228-1~

228-11

201-13

201-10

201-24

201-27

201-11

201-19

201-15

201-23

201-18x3

201-25x4

201-8x6

201-20

201-21

201-26

613x2

201-26

201-22

201-4

201-5

201-2

201-28

229x2

201-3

201-29

205

607

226

203

203-2

203-1

225x12

613

PWB-D1

PWB-D2

601

612x2

619x2

230

201-7

201-6

201-9

CD CHANGER

MECHANISM

204

617x2

611

601

234

235

PWB-J

219

239

611

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

CD-BK3100W

Figure 10 CD CHANGER MECHANISM EXPLODED VIEW

23456

– 10 –

CD-BK3100W

803x2

803x3

803x2

803x3

148

149

147

806

802x2

126

118x2

106x6

146

116

802x3

107

115

145

144

143

803

803x2

102

152

134

124

125

PWB-E

140

141

138

139

131

807

137

805

141

142

127

130

132

805

120

121

119

804

133-1

133-2

129

128

135

136

803x2

804

119

121

122

805

133-3

113

112

111

110

109

108

104

105

803x2

805x4

801x4

808x4

MOB1

MOB2

803x3

802x2

151

803

103

PWB-F

PWB-C

MECHANISM

133

150

123

114

117

101

CD-BK3100W

23456

SPEAKER EXPLODED VIEW

CP-BK3100

SP1,2

TWEETER

SP3,4

WOOFER

SP5,6

SUB

WOOFER

C1,2

Capacitor (N.P.)

3.3µF,100V

Electrolytic

C1,2

Capacitor (N.P.)

3.3µF,100V

SP3,4

WOOFER

SP1,2

TWEETER

SP5,6

SUB

WOOFER

909x4

907x4

902

901

914x4

910x4

SP1,2

SP3,4

906x4

905x2

911x2

912x4

915

903

SP5,6

913x4

916

904

914x6

917

(with Capacitor C1,2)

908

A0108-1463DS•HA•M

SA • SZ • EX

SHARP CORPORATION

AV Systems Group

Audio Systems Division

Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

Sharp CD-BK3100W Audio

Product's Documents

Service Manual

Specifications

Sharp CD-BK3100W Questions and Answers

Related Products

Sharp XL-BH250 Audio

Sharp GX-BT7 Audio

Sharp CD-BA150 Audio

Sharp CD-C401H Audio Mini Componet System

Sharp CD-ES111H Audio

Sharp CD-ES222E Audio
