SHARP CORPORATION
No. S1003CDBA150/
CONTENTS
Page
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................. 2
NAMES OF PARTS ........................................................................................................................................................... 3
OPERATION MANUAL ...................................................................................................................................................... 5
QUICK GUIDE ................................................................................................................................................................... 6
DISASSEMBLY .................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 10
ADJUSTMENT ................................................................................................................................................................. 11
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 13
WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 14
BLOCK DIAGRAM ........................................................................................................................................................... 15

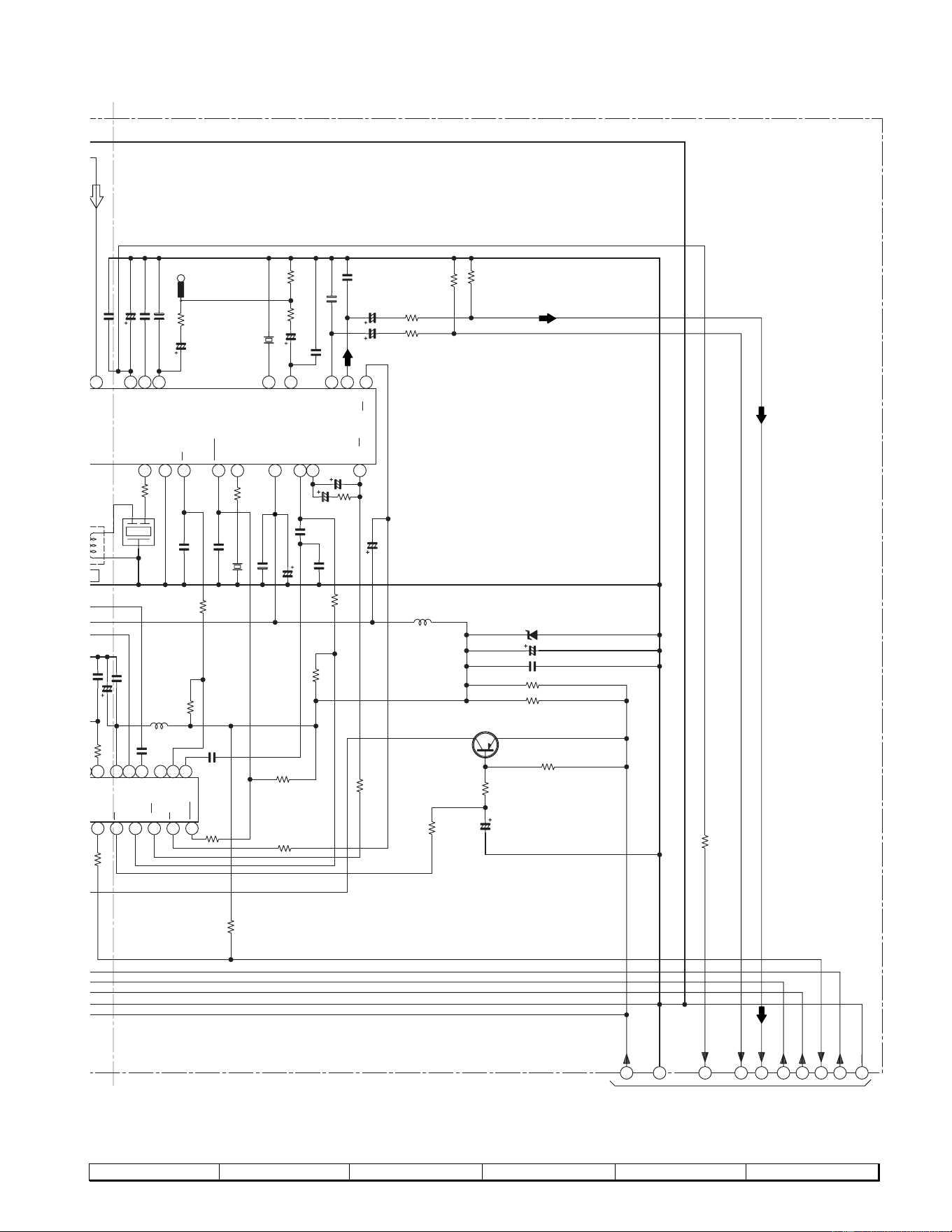

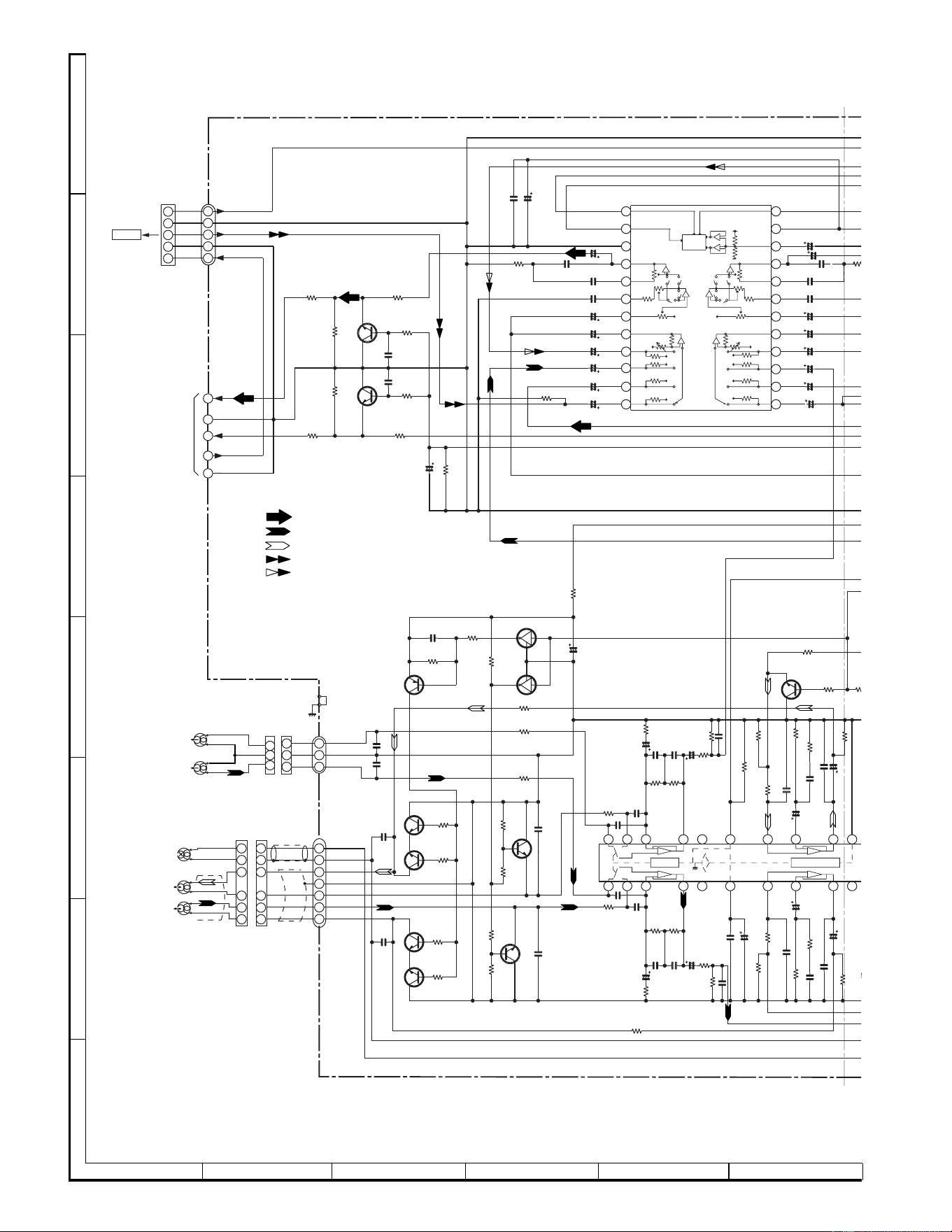

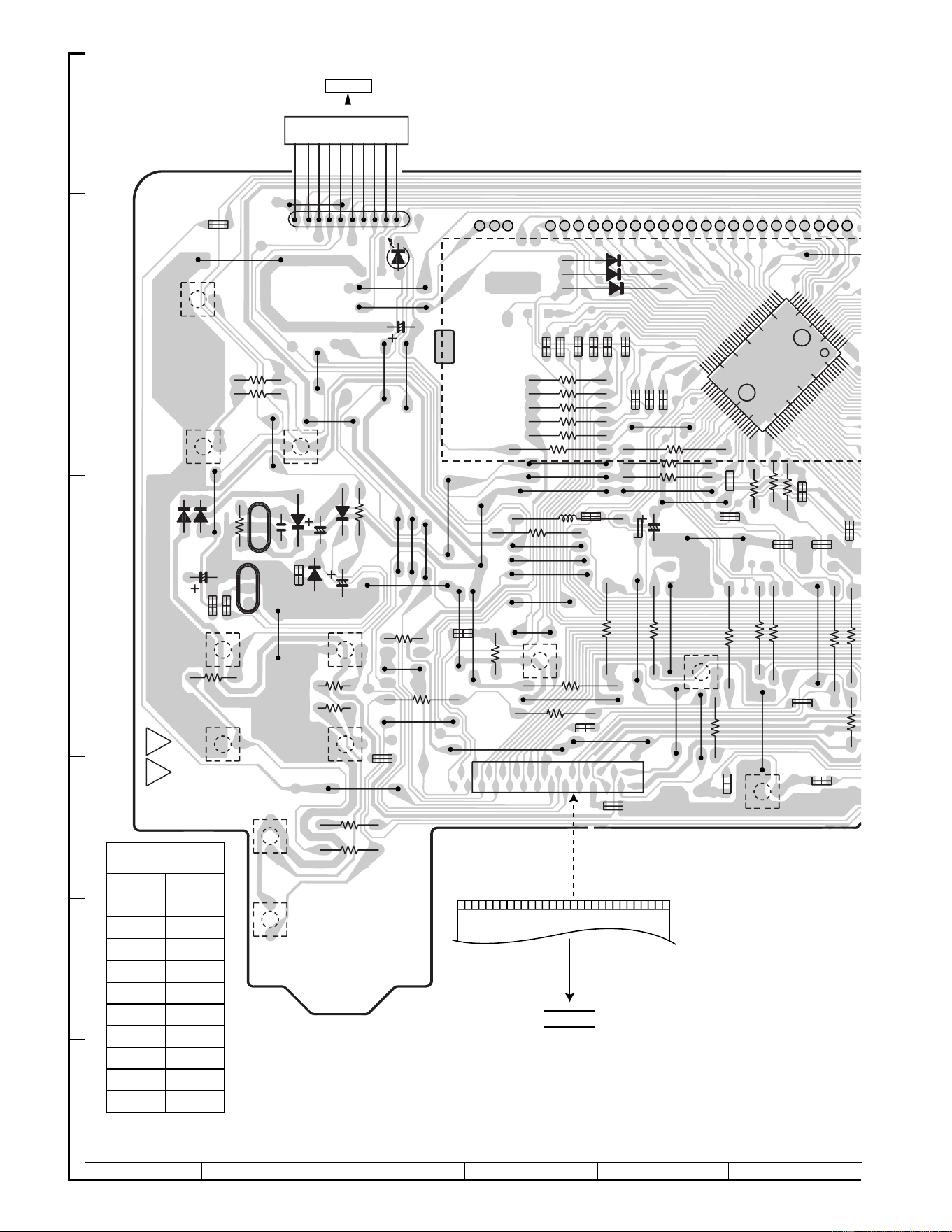

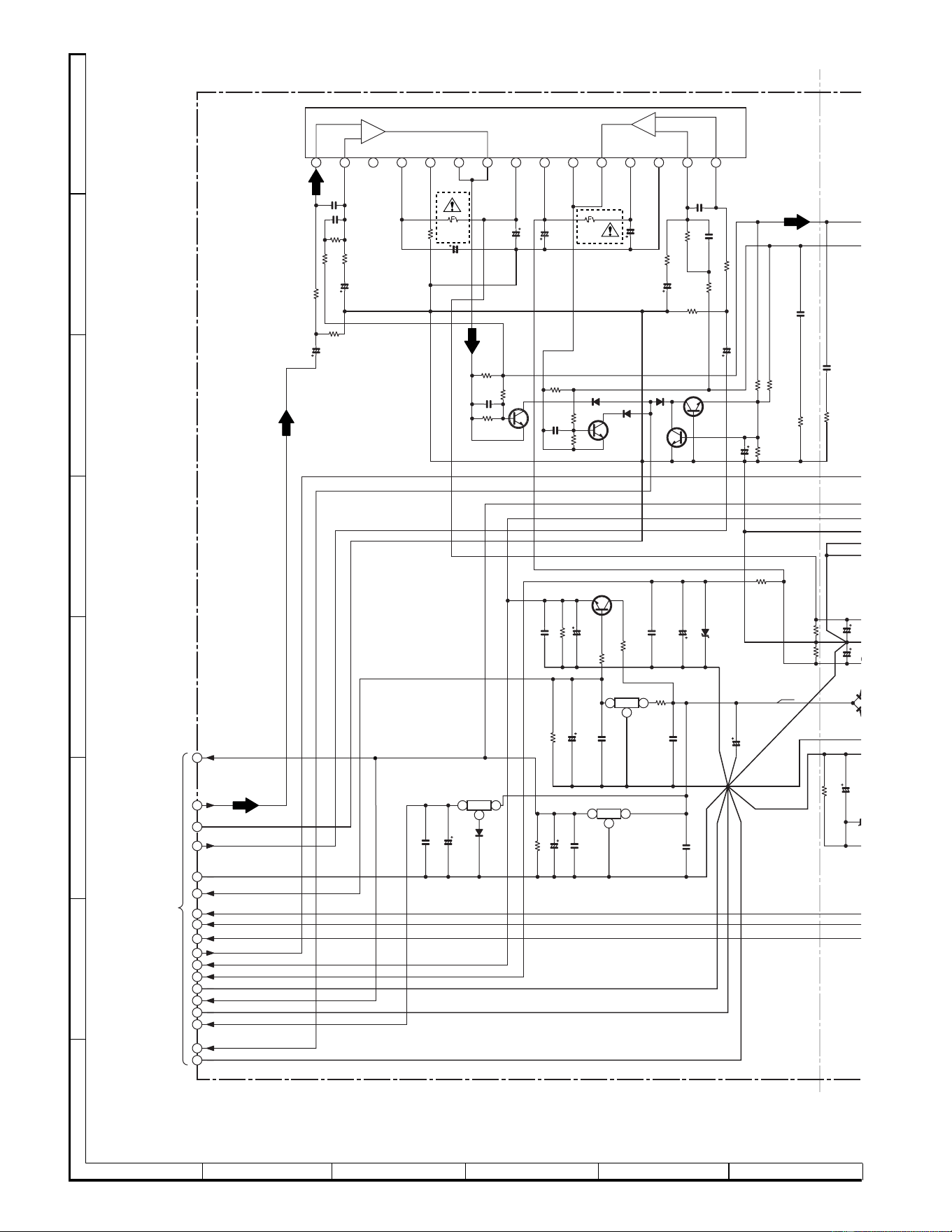

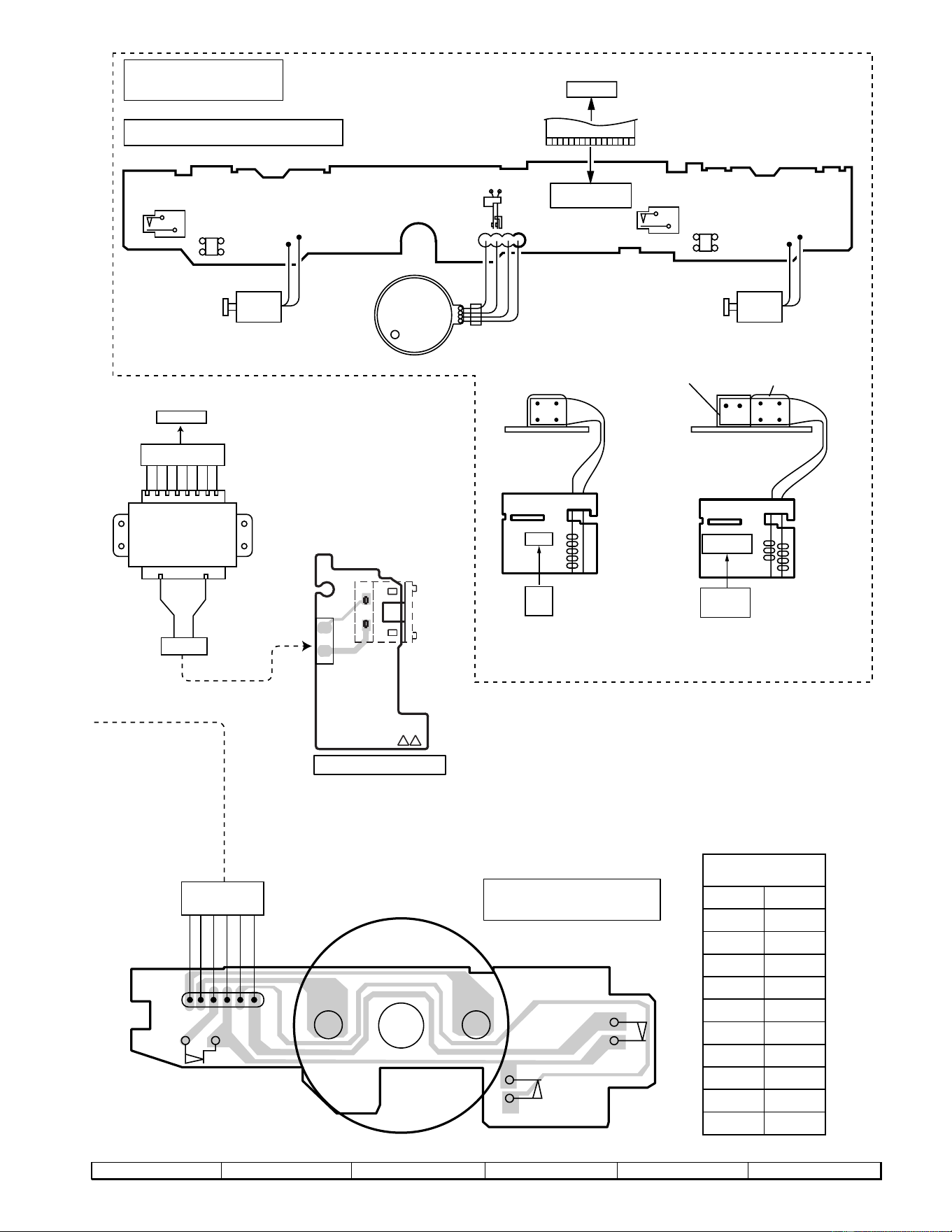

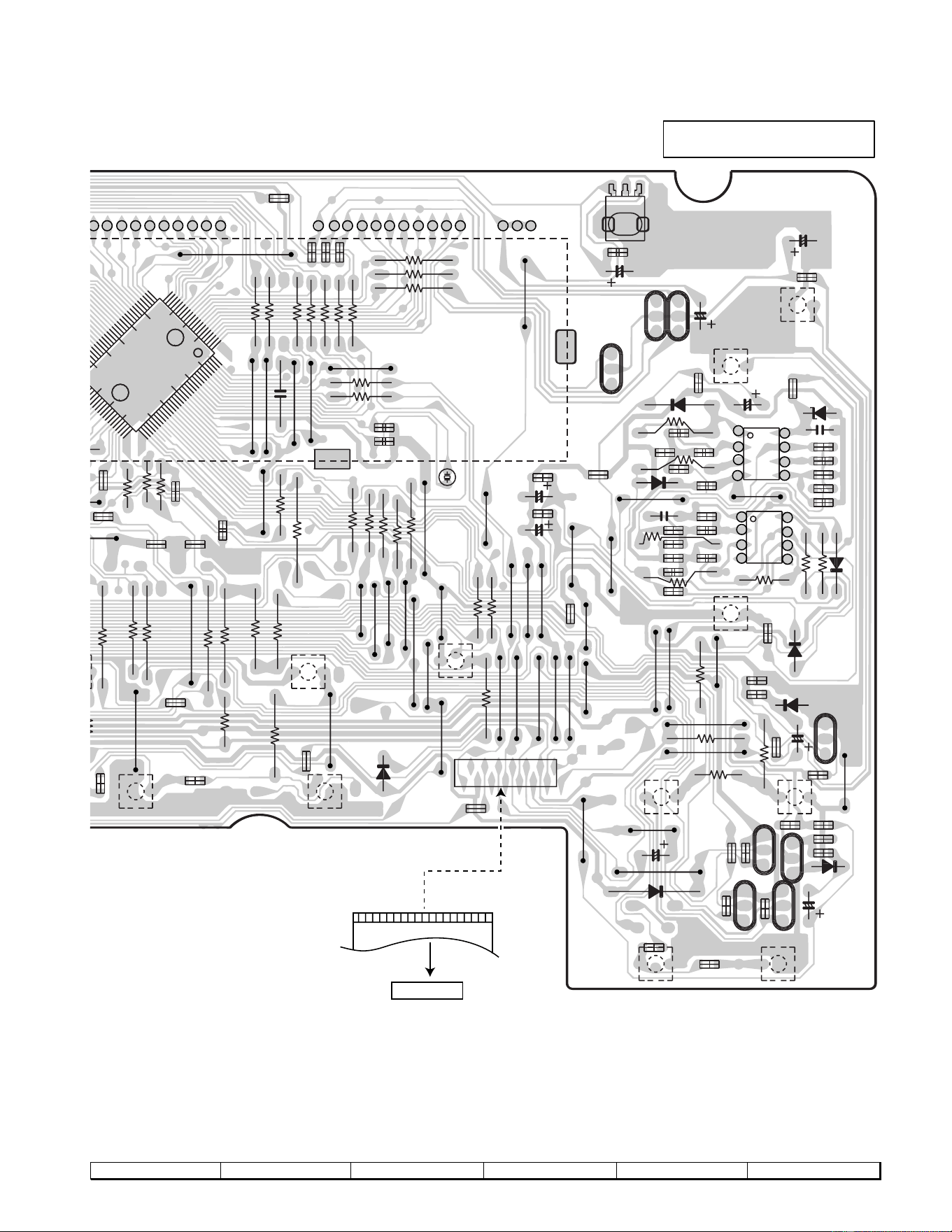

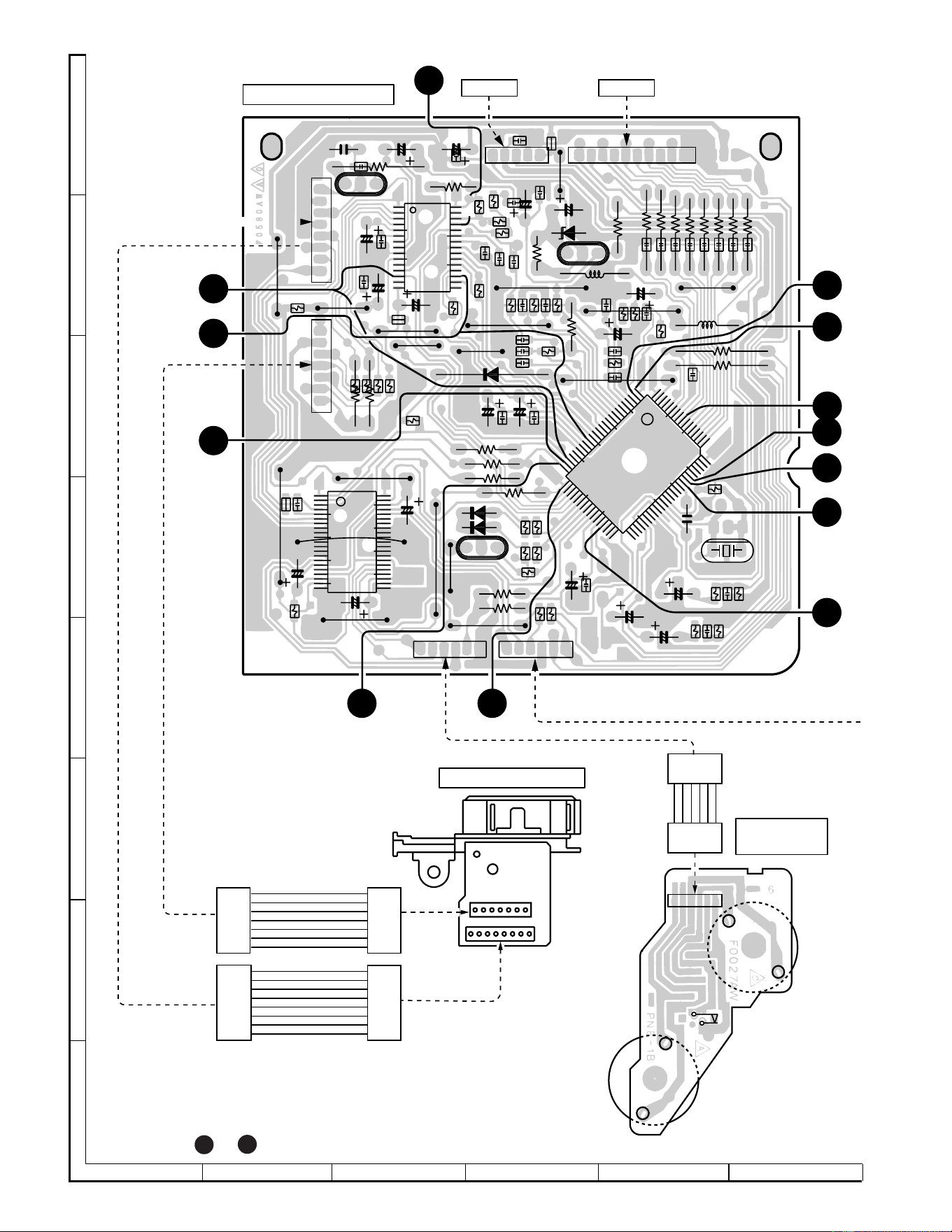

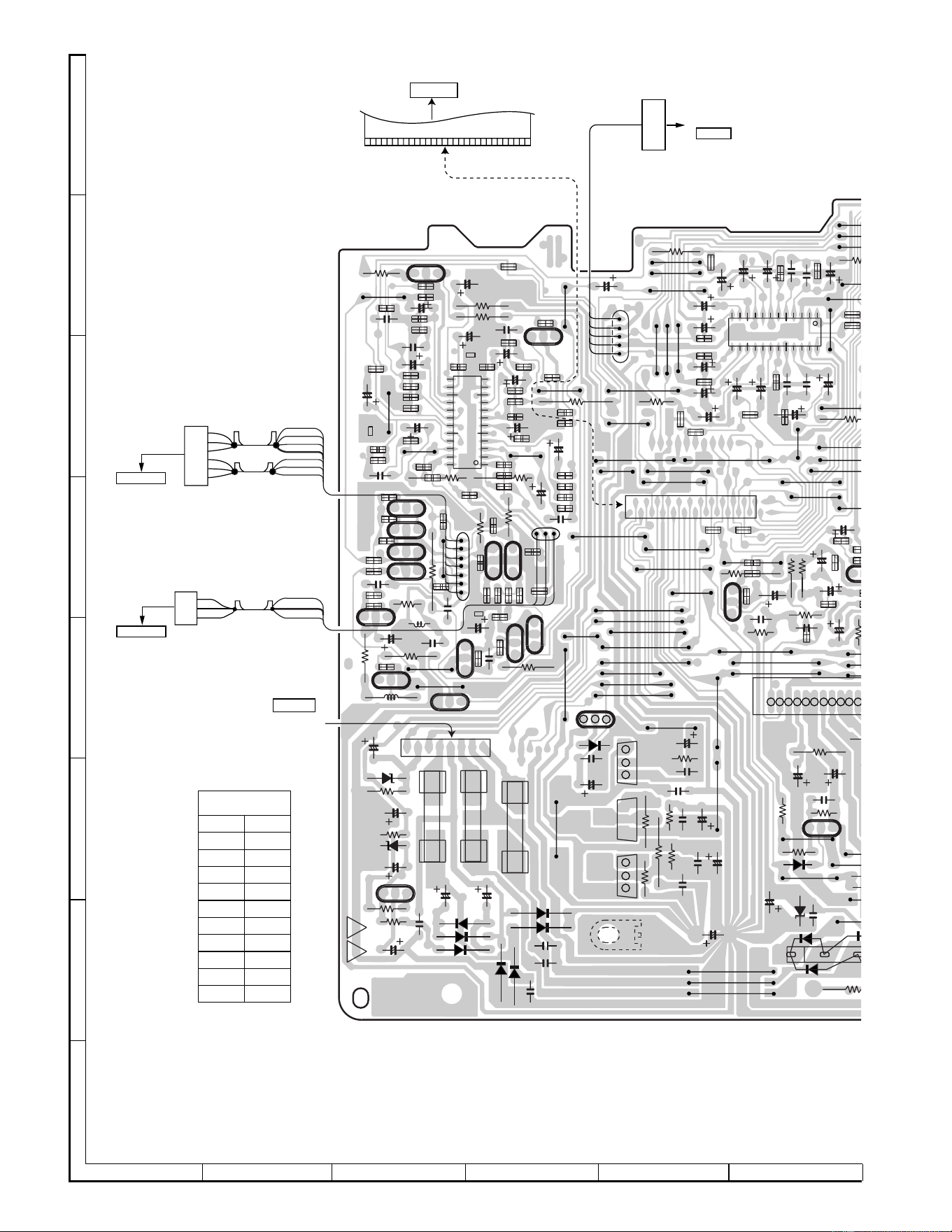

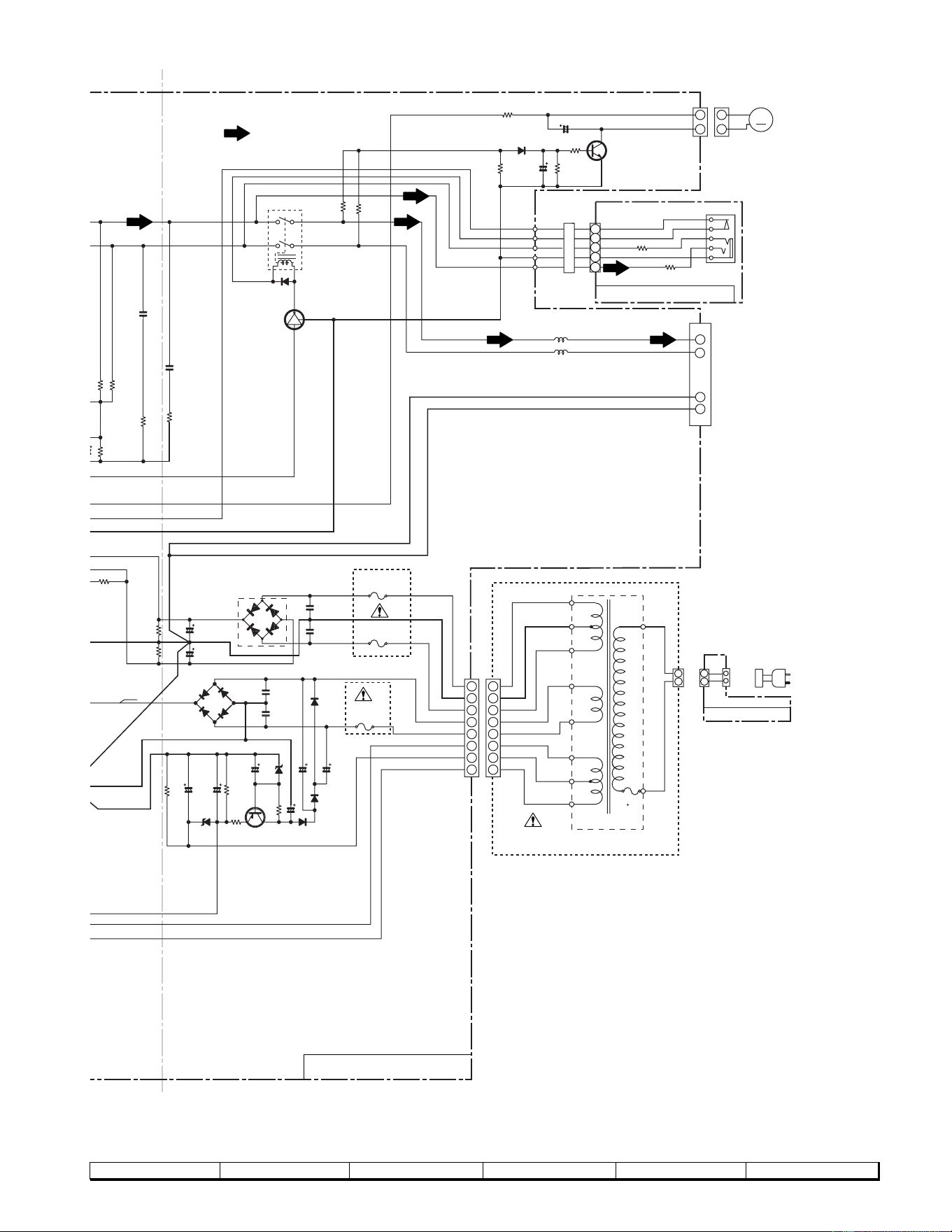

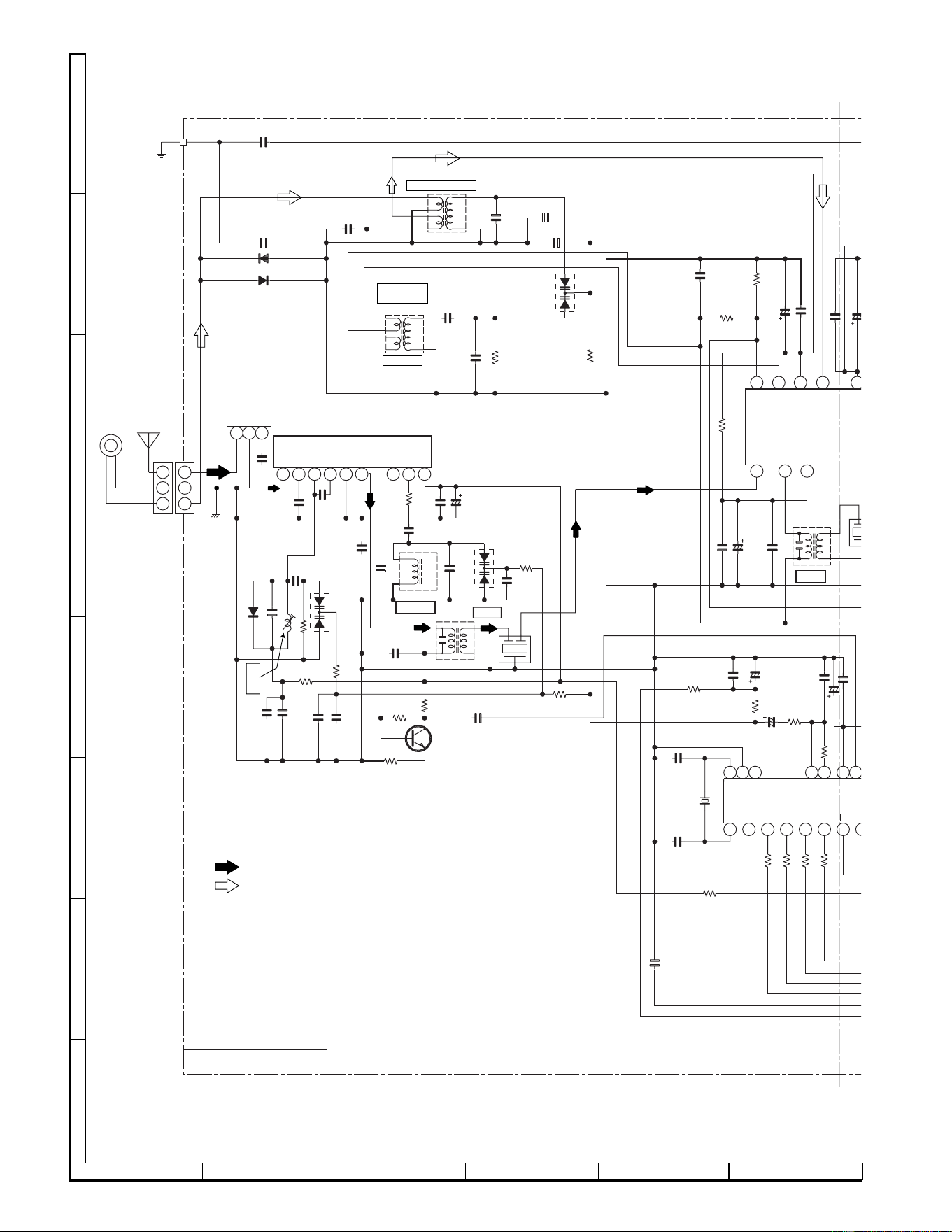

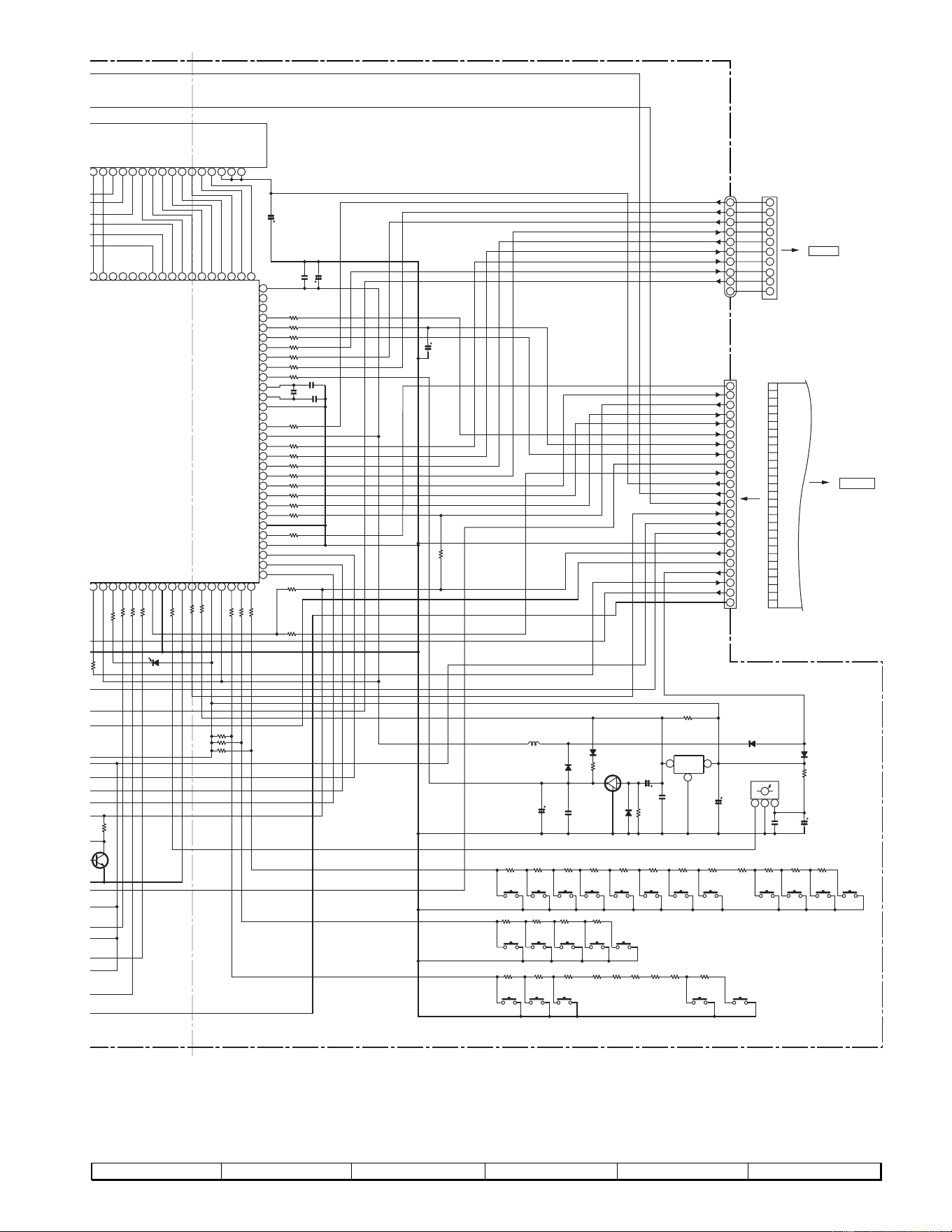

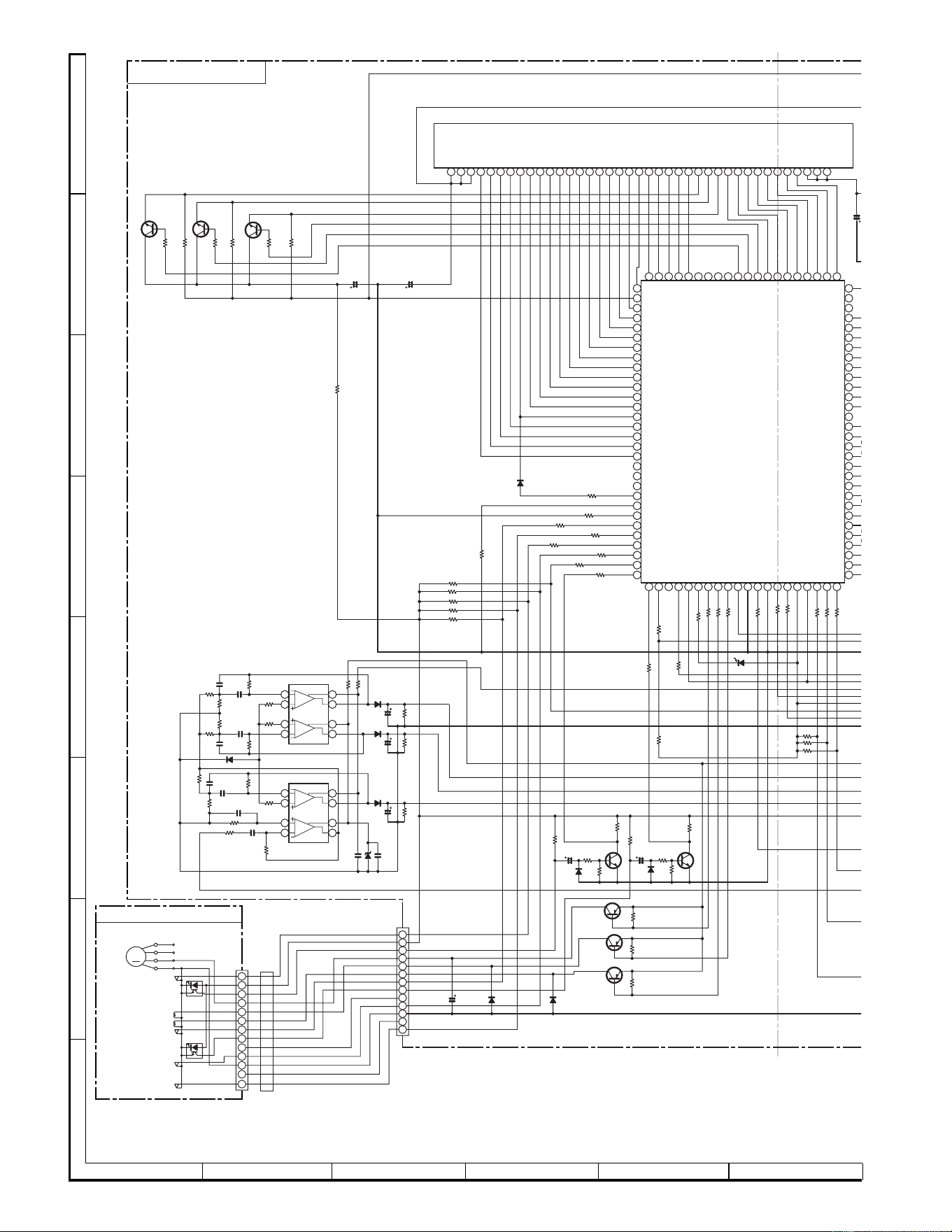

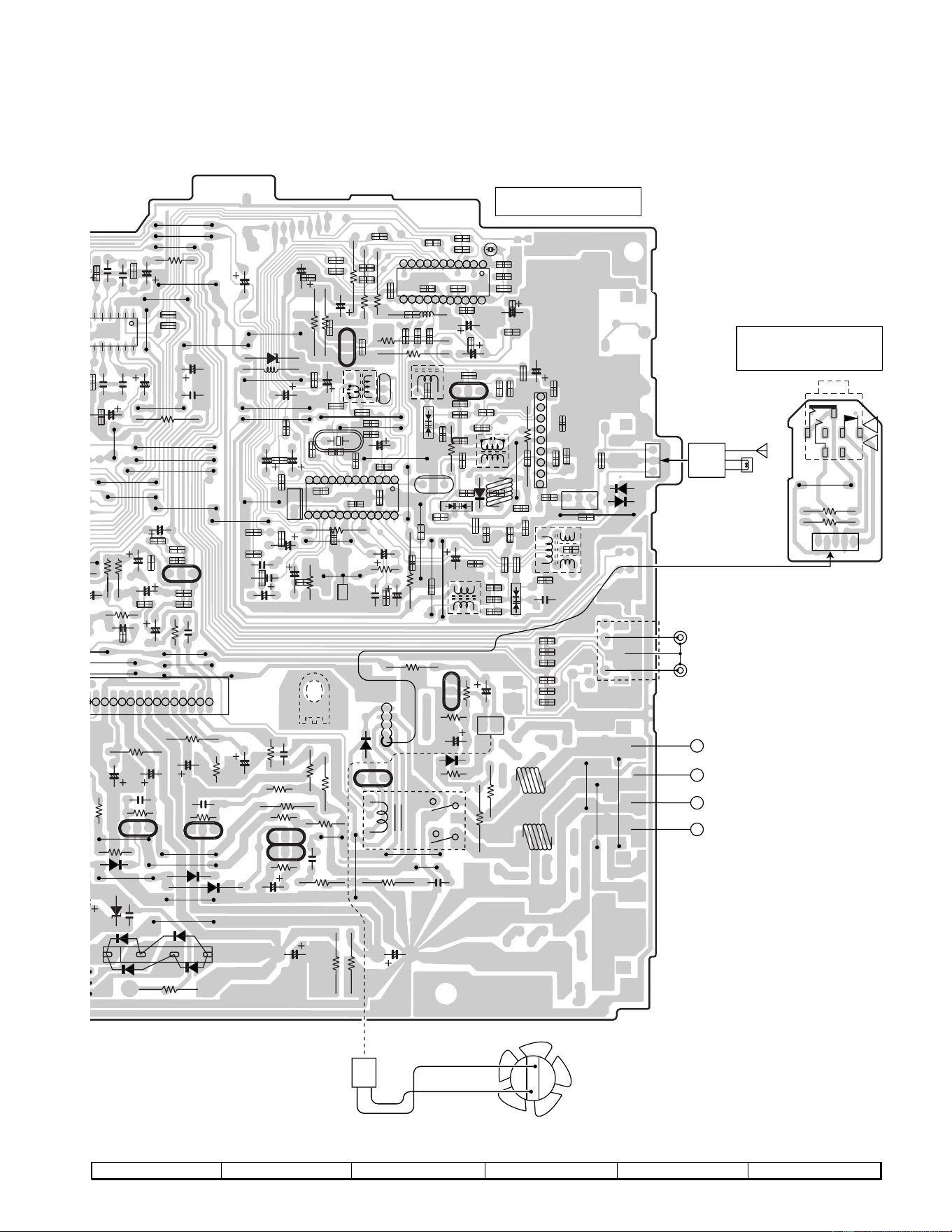

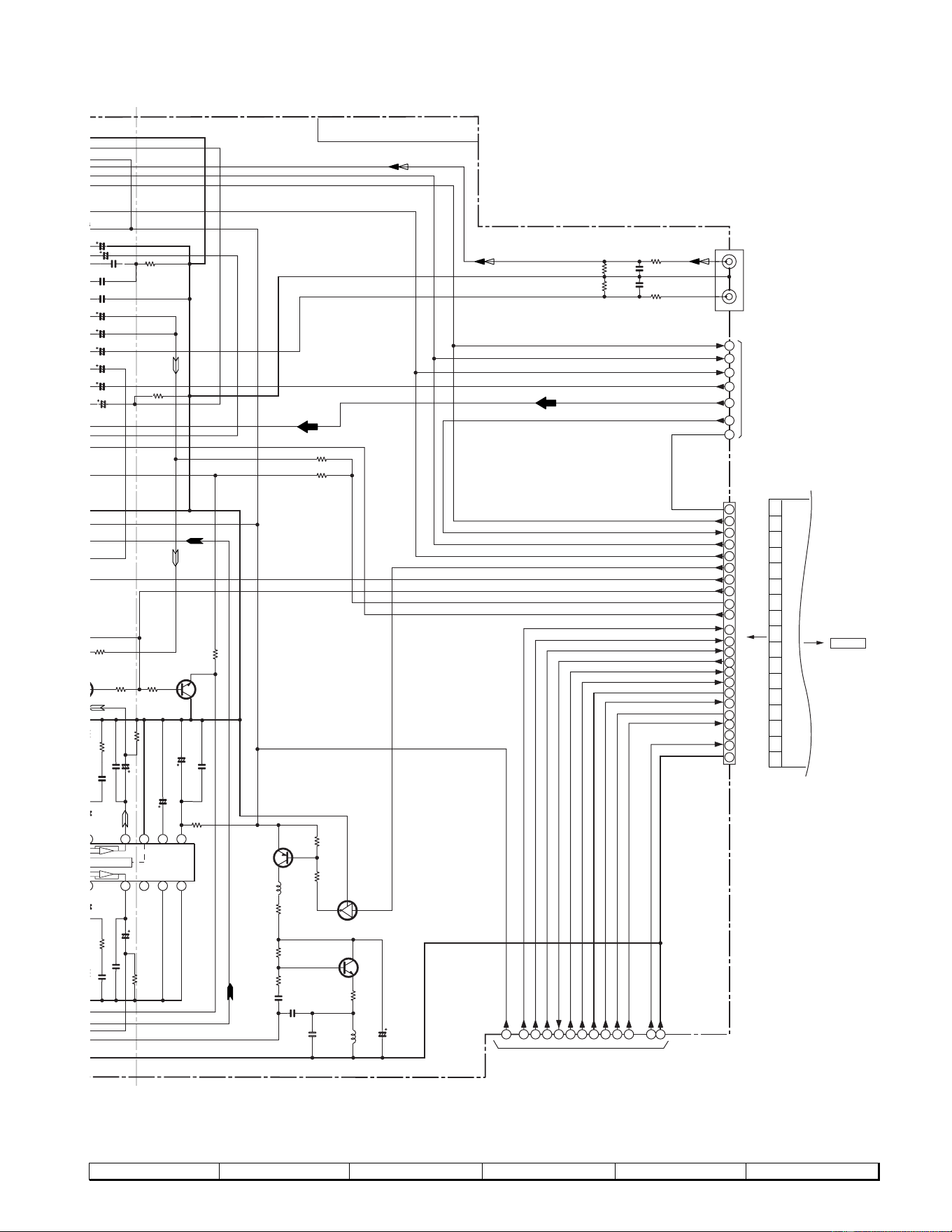

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 18
VOLTAGE ........................................................................................................................................................................ 34

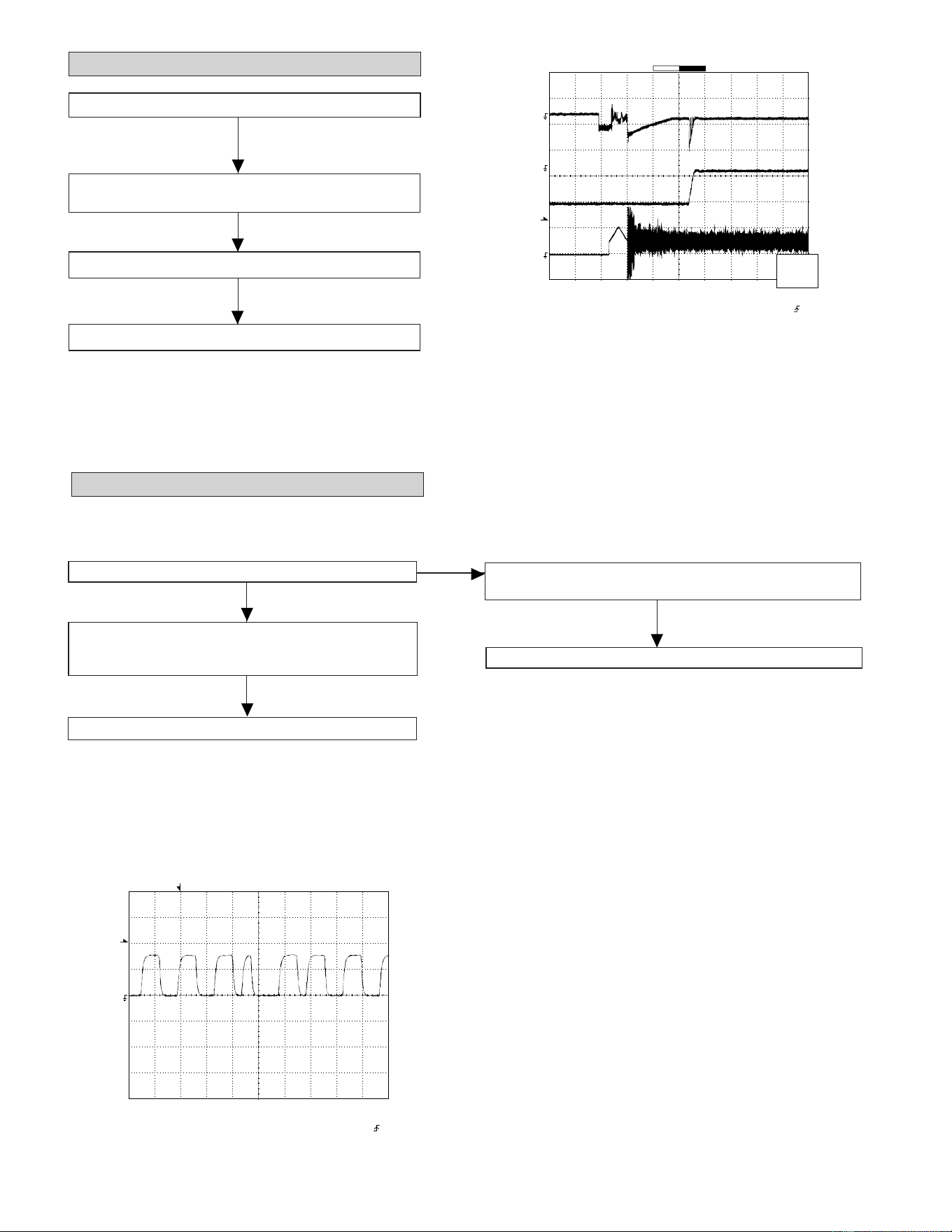

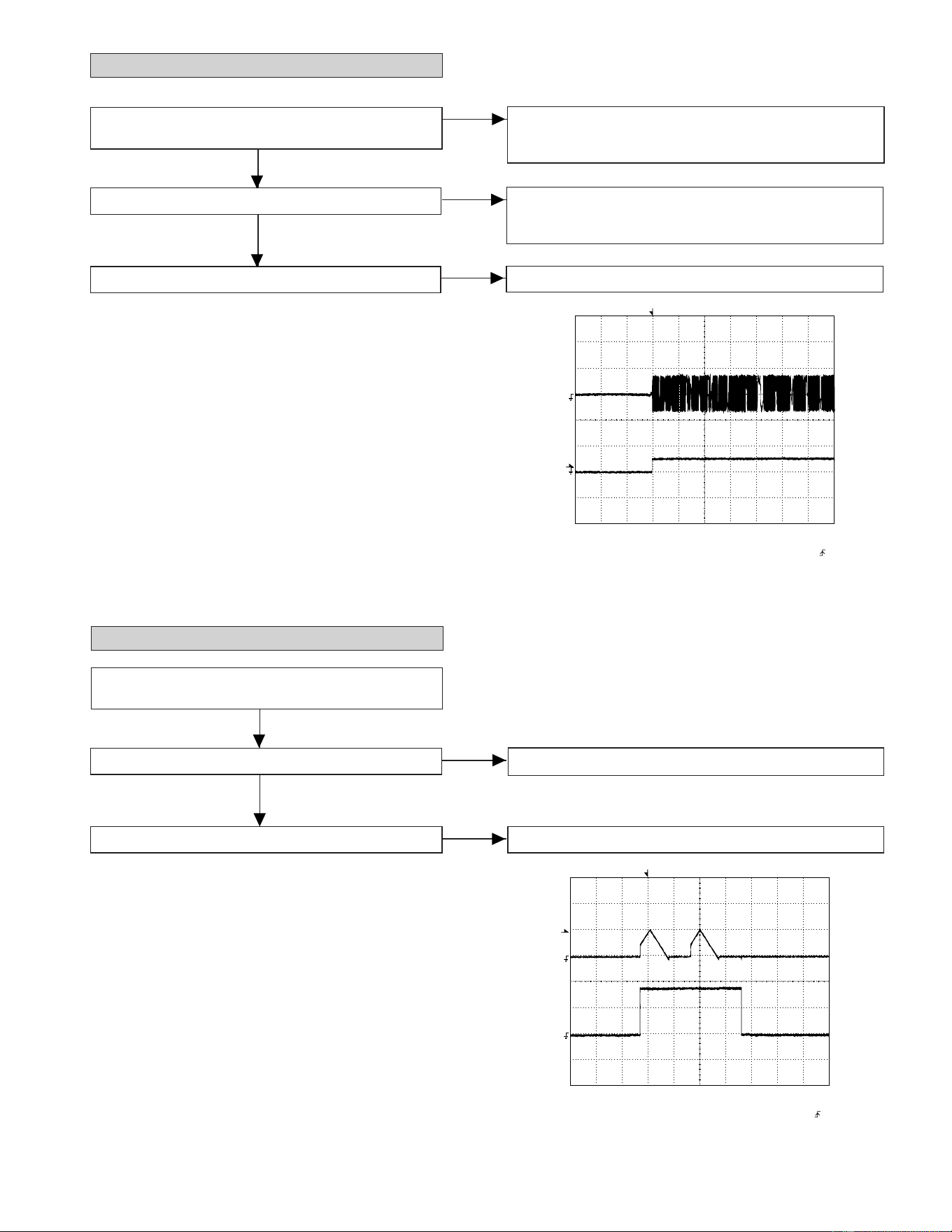

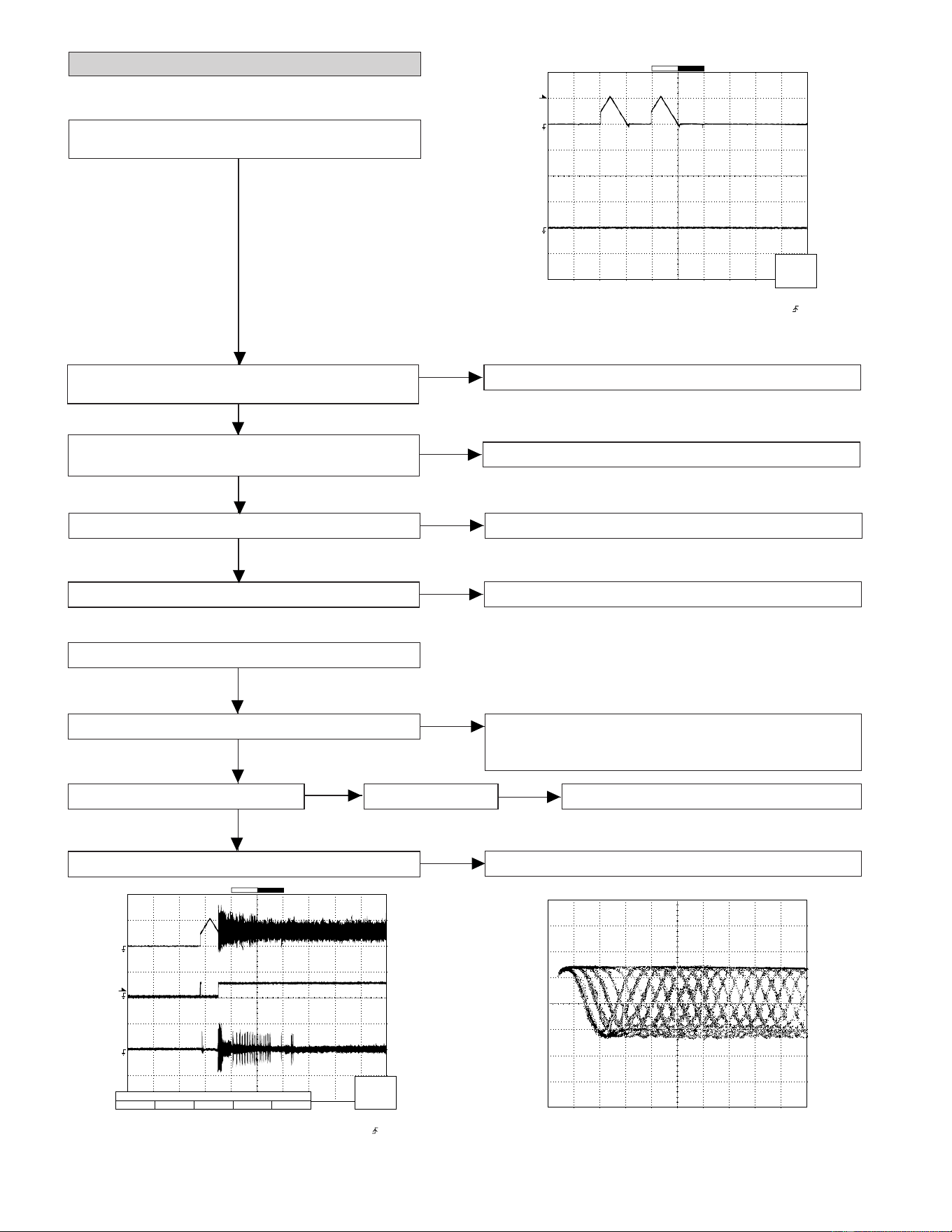

TROUBLESHOOTING (CD SECTION) ........................................................................................................................... 35

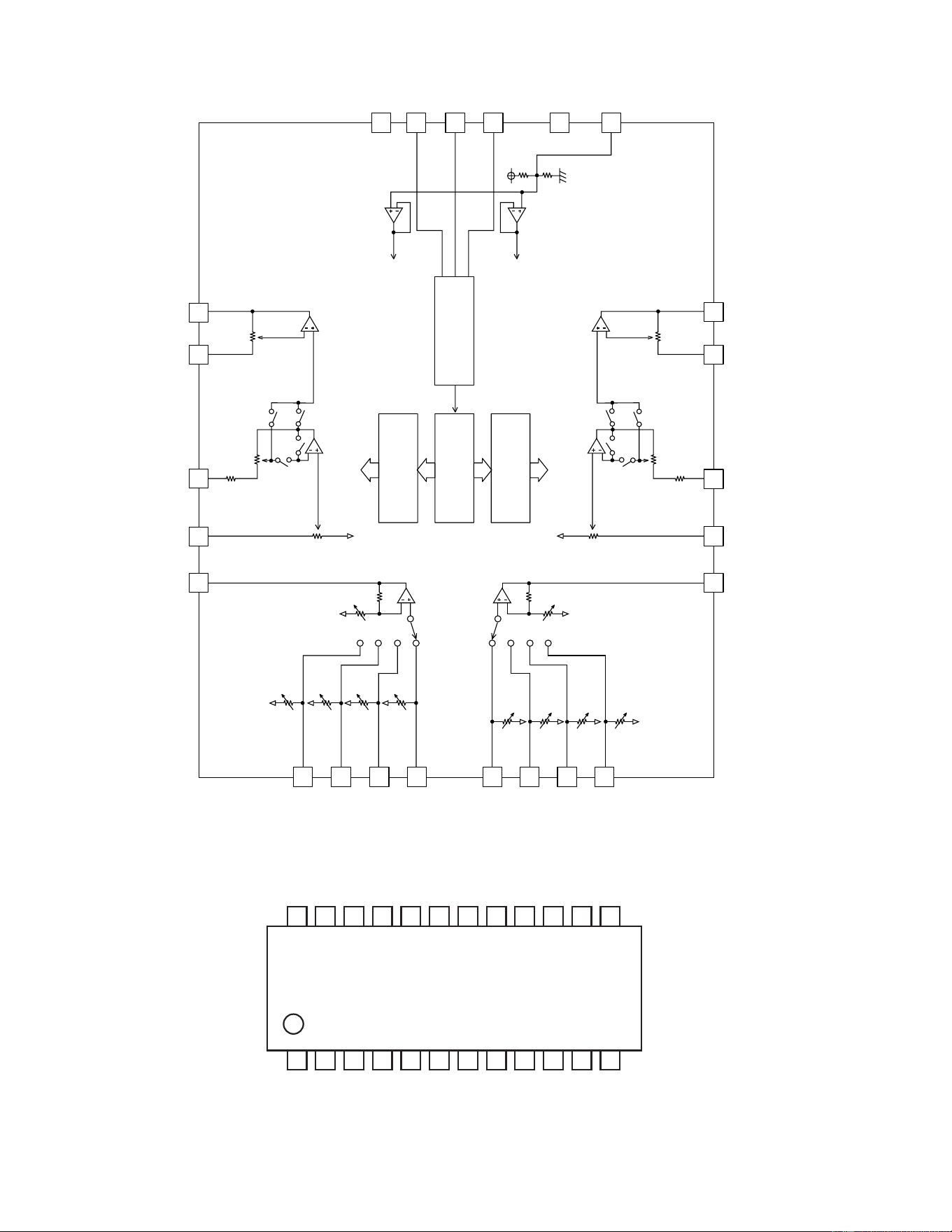

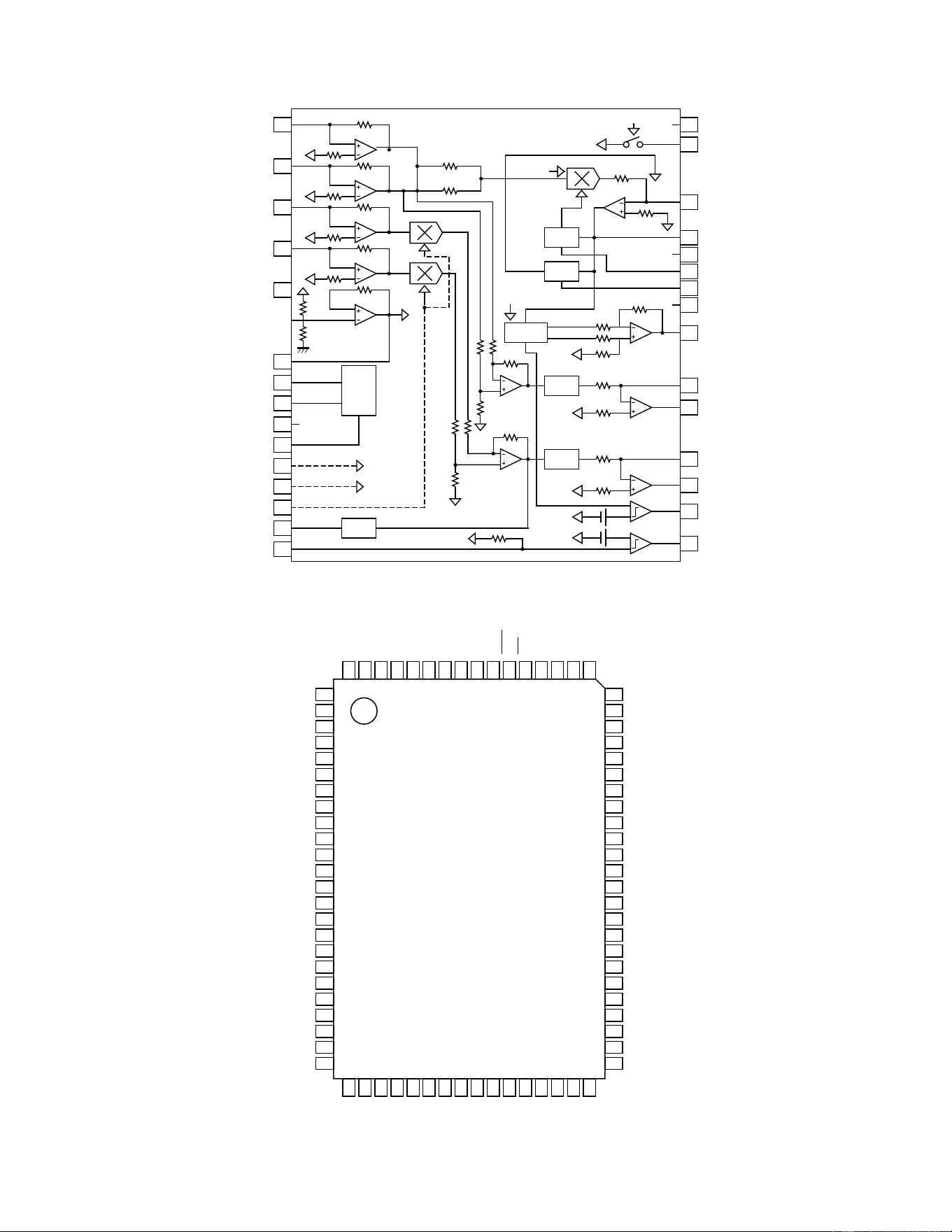

FUNCTION TABLE OF IC................................................................................................................................................ 39

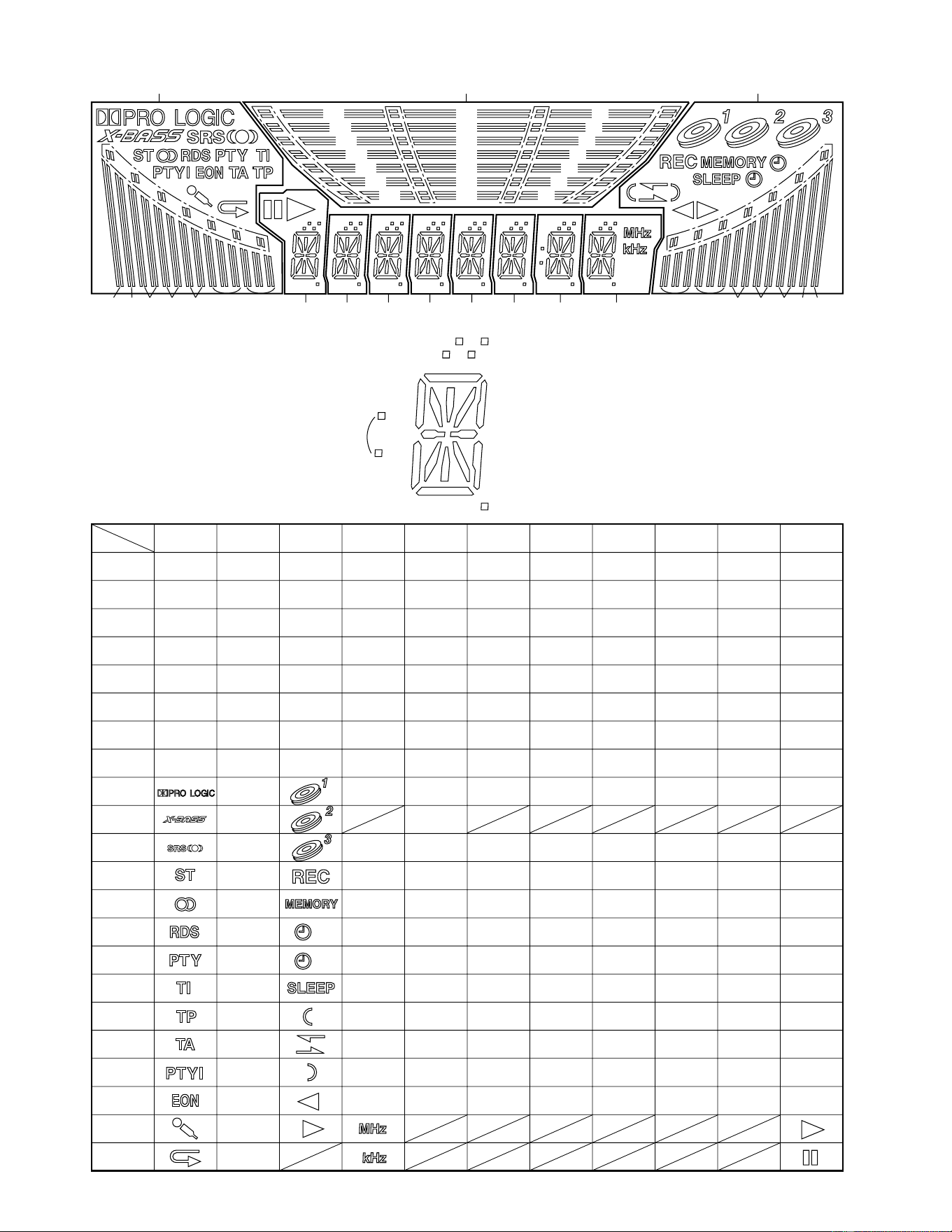

FL DISPLAY ...................................................................................................................................................................... 45

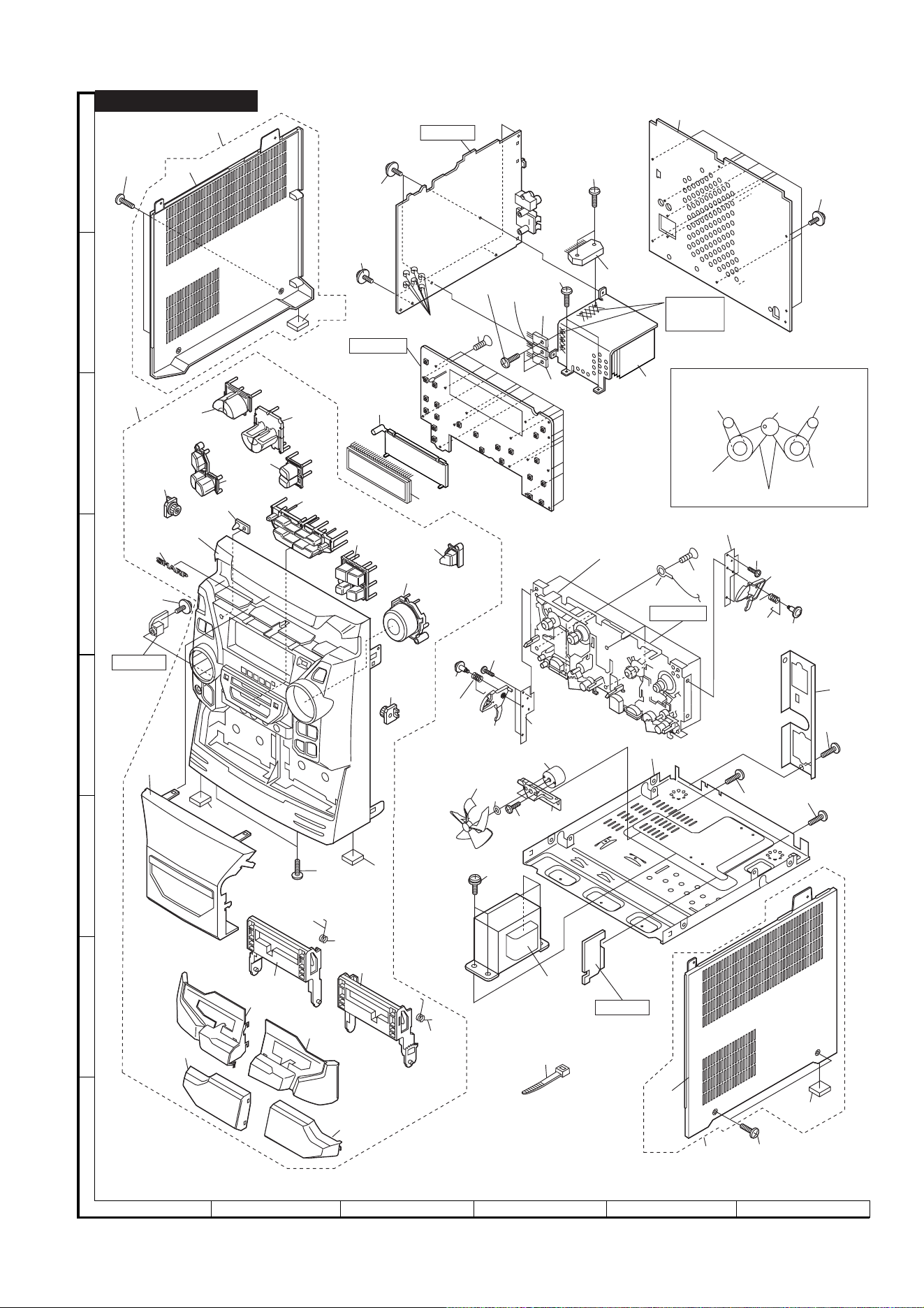

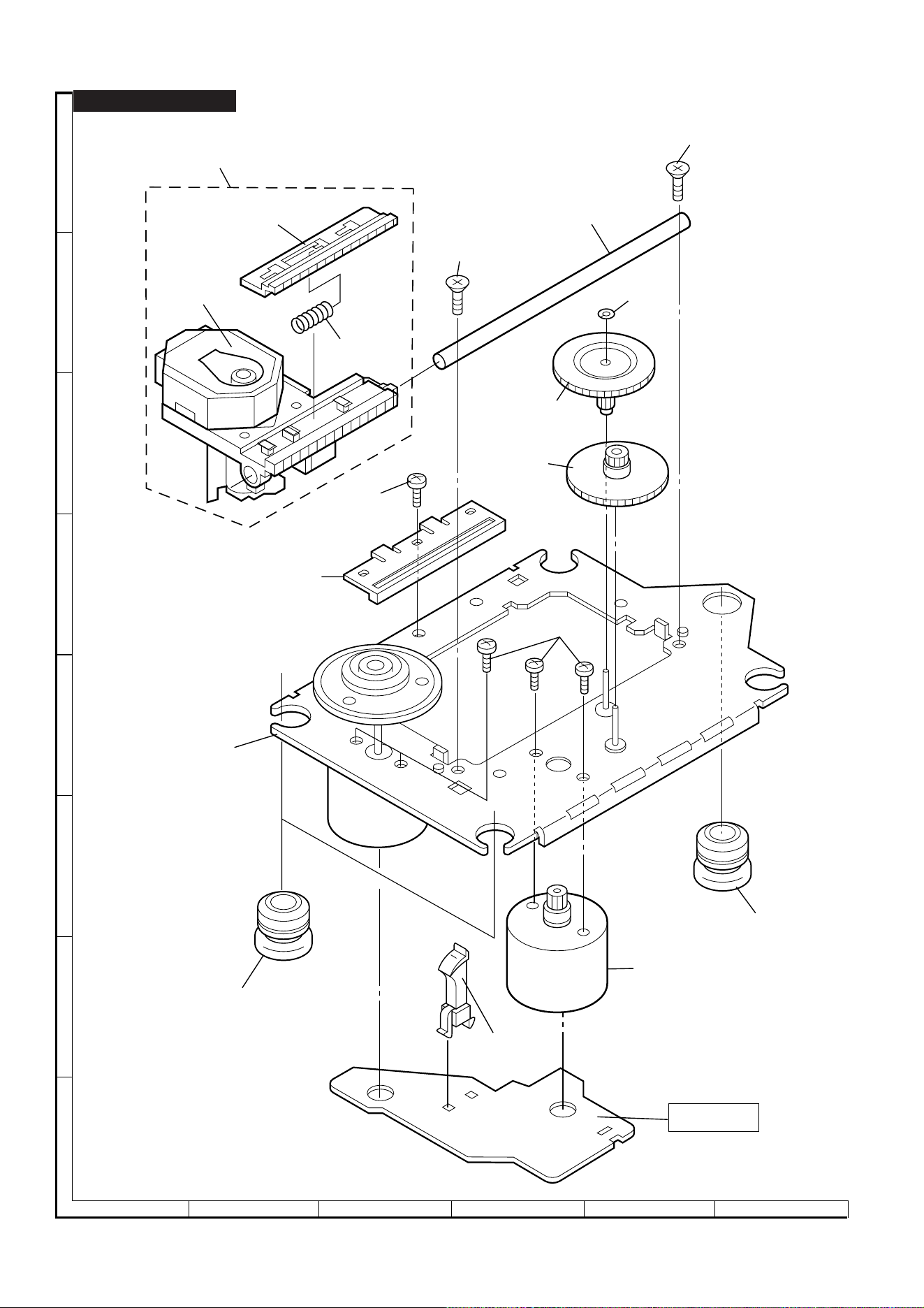

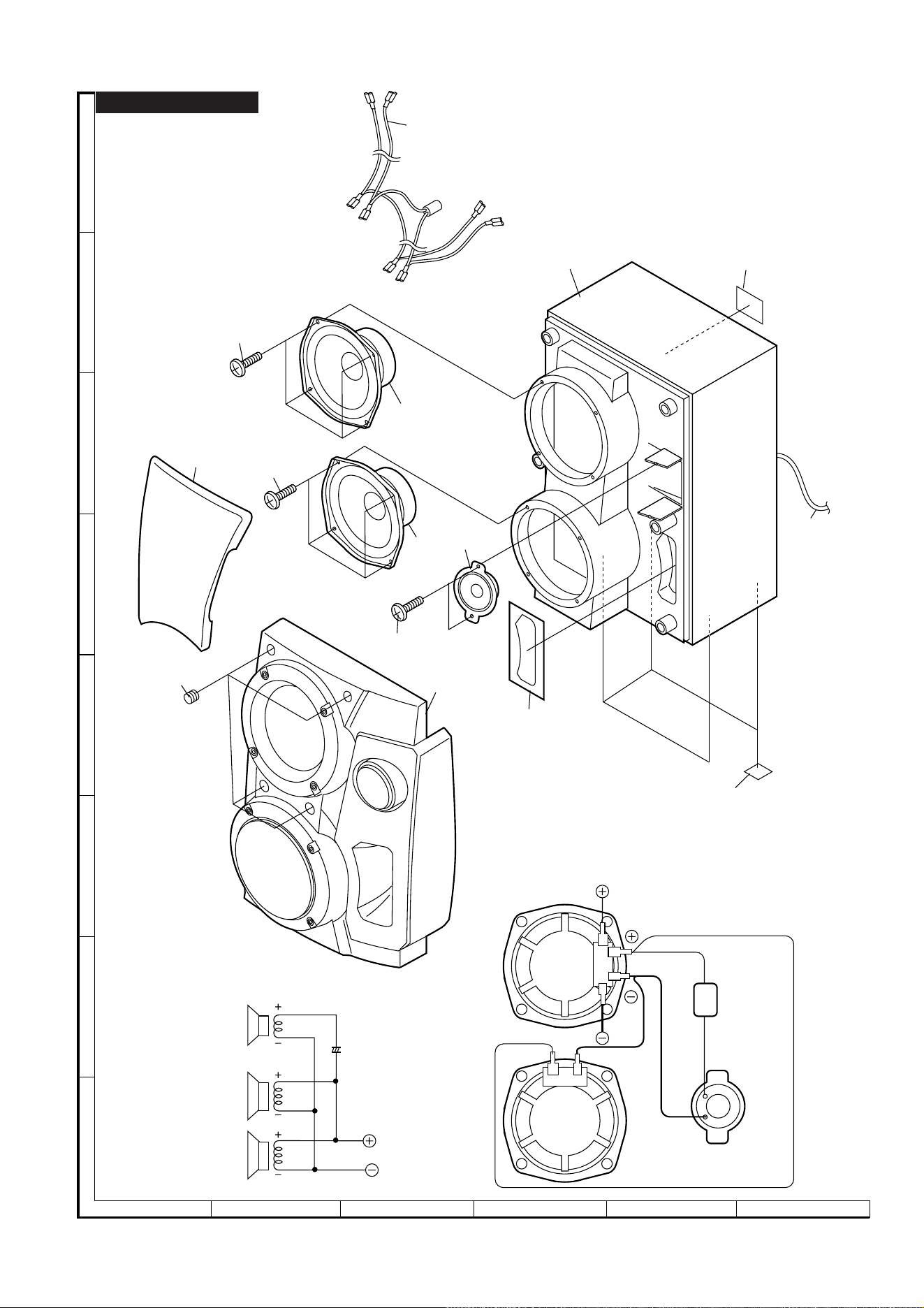

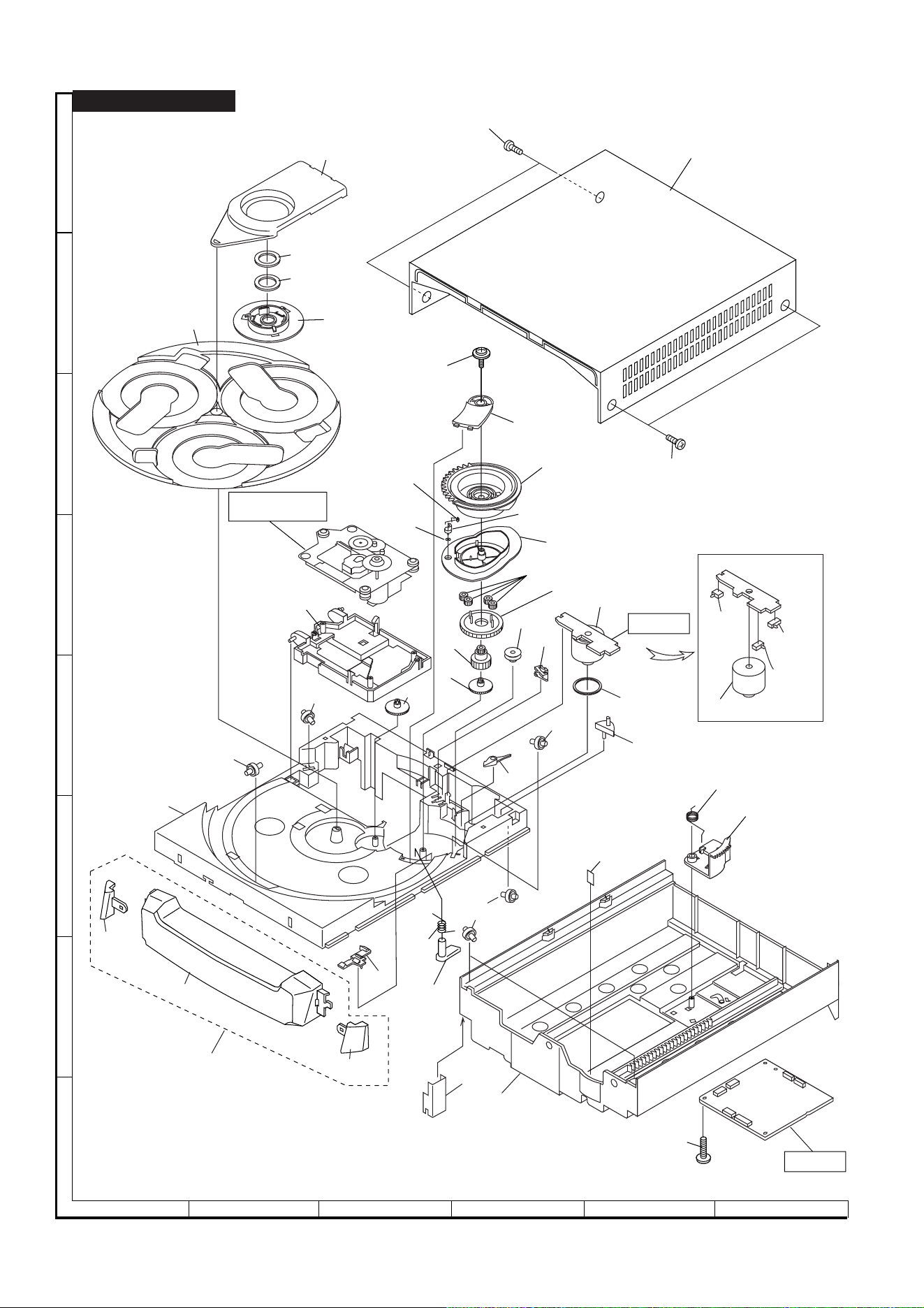

REPLACEMENT PARTS LIST/EXPLODED VIEW

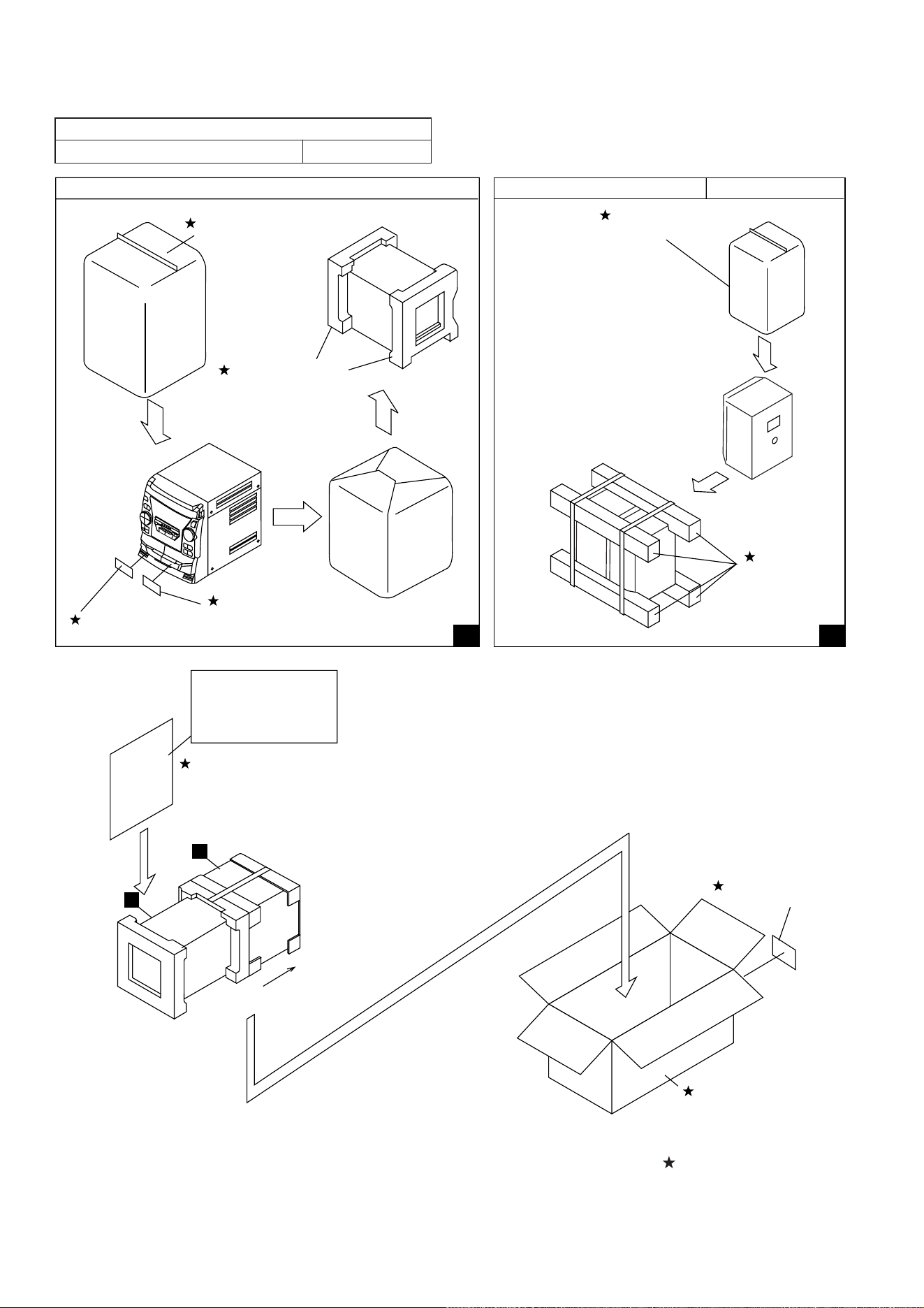

PACKING OF THE SET (FOR U.S.A. ONLY)
CD-BA150
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CD-BA150 Mini Component System consisting of CD-BA150
(mini unit) and CP-BA150 (speaker system).
CD-BA150
CD-BA150
– 2 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinched or that hardware is not lodged between the chassis
and other metal parts in the audio product.
2. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment covers
or shields, mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage
current in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5k ohm, 10 watt resistor
paralleled by a 0.15µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
* Connect the resistor connection to all exposed metal parts
having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
All check must be repeated with the AC line cord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-BA150
CP-BA150
● General
Power source: AC 120 V, 60 Hz
Power consumption: 105 W
Dimensions: Width; 10-5/8" (270 mm)
Height; 13" (330 mm)
Depth; 14-6/8" (375 mm)
Weight: 13.6 lbs. (6.2 kg)
● Amplifier section
Output power:
(Except for Canada)
50 watts minimum RMS per
channel into 6 ohms from 60
Hz to 20 kHz, 10 % total har-
monic distortion
Output terminals: Speakers; 6 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Input terminals: Video/Auxiliary (audio signal);
500 mV/47 kohms
● Compact disc player section
Type: 3-disc multi-play compact
disc player
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
D/A converter: 1-bit D/A converter
Frequency
response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
● Cassette deck section
Frequency response: 50-14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter: 0.3 % (WRMS)
● Speaker section
Type: 3-way type [3-15/16" (10 cm) woofer,
3-15/16" (10 cm) woofer and 2"
(5 cm) tweeter]
Maximum input power: 100 W
Rated input power: 50 W
Impedance: 6 ohms
Dimensions: Width; 9-1/8" (231.5 mm)
Height; 13" (330 mm)
Depth; 8-1/4" (210 mm)
Weight: 6.8 lbs. (3.1 kg)/each
Output power:
( for Canada)
RMS; 100 W (50 W + 50 W)
(10 % T.HD)
● Tuner section
Frequency range: FM; 87.5-108 MHz
AM; 530-1,720 kHz
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 µ F
1.5k ohms
10W
VTVM
AC SCALE
– 3 –
CD-BA150
NAMES OF PARTS
CD-BA150
1
2
3
4
5
89
67
10
12 13
14
2
2
15
11
25
17
18
19
20
21
22
23
26
27
28 29 30 31 32 33 34
24
16
35
36
■ Front panel
1.
(CD) Disc Tray
12.
Spectrum Analyzer/Volume Level Indicator
13.
Extra Bass Indicator
14.
FM Stereo Indicator
15.
FM Stereo Mode Indicator
16.
(CD) Repeat Indicator
17.
Sleep Indicator
18.
(CD/TUNER) Memory Indicator
19.
(TAPE 2) Record Indicator
10.
(CD) Disc Number Indicators
11.
Timer Play Indicator
12.
(CD) Pause Indicator
13.
(CD) Play Indicator
14.
Timer Record Indicator
15.
(TAPE) Play Indicator
16.
(CD) Track Down/Review Button
3
(TUNER) Preset Down Button
3
(TAPE 2) Rewind Button
17.
(CD) Track Up/Cue Button
3
(TUNER) Preset Up Button
3
(TAPE 2) Fast Forward Button
18.
Timer Set Indicator
19.
Power On/Stand-by Button
20.
Clock Button
21.
Timer/Sleep Button
22.
Function Selector Buttons
23.
Dimmer Button
24.
Volume Up/Down Buttons
25.
Equalizer Mode Selector Button
26.
Extra Bass/Demo Mode Button
27.
(CD) Open/Close Button
28.
Headphone Socket
29.
Tuning and Time Up/Down Buttons
30.
Memory/Set Button
31.
(CD/TAPE) Stop Button
32.
(CD) Play/Repeat Button
3
(TAPE) Play Button
33.
(TAPE 2) Record Pause Button
34.
(CD) Disc Skip Button
35.
(TAPE 1) Cassette Compartment
36.
(TAPE 2) Cassette Compartment
CD-BA150
– 4 –
CP-BA150
3
1
2
4
1
2
3
4
1
2
3
4
8
9
10
11
12
7
6
5
1413
15
19
22
20
18
17
16
21
23
■ Rear panel
11.
AC Power Input Socket
12.
FM/AM Loop Aerial Socket
13.
Video/Auxiliary (Audio Signal) Input Sockets
14.
Speaker Terminals
■ Front speaker
11.
Tweeter
12.
Bass Reflex Duct
13.
Woofers
14.
Speaker Wire
■ Remote control
11.
Remote Control Transmitter LED
● CD control section
12.
Disc Number Select Buttons
13.
Memory Button
14.
Pause Button
15.
Clear Button
16.
Track Down/Review Button
17.
Track Up/Cue Button
18.
Disc Skip Button
19.
Play/Repeat Button
10.
Stop Button
11.
Random Button
● Tuner control section
12.
Preset Up/Down Buttons
● Tape control section
13.
(TAPE 1) Play Button
14.
(TAPE 2) Record Pause Button
15.
(TAPE 1/2) Stop Button
16.
(TAPE 2) Play Button
17.
(TAPE 2) Rewind Button
18.
(TAPE 2) Fast Forward Button
● Common section
19.
Equalizer Mode Selector Button
20.
Function Selector Buttons
21.
On/Stand-by Button
22.
Extra Bass Button
23.
Volume Up/Down Buttons
– 5 –
CD-BA150
OPERATION MANUAL
SETTING THE CLOCK
POWER
ON/
STAND-BY
CLOCK
MEMORY/SET
TUNING/
TIME
( )
In this example, the clock is set for the 12-hour (AM 12:00) sys-
tem.
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Press the CLOCK button.
3
Within 5 seconds, press the MEMORY/SET button.
4
Press the TUNING/TIME ( or ) button to select the time
display mode.
"AM 12:00" → The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" → The 12-hour display will appear.
(AM 0:00 - PM 11:59)
"0:00" → The 24-hour display will appear.
(0:00 - 23:59)
●Note that this can only be set when the unit is first installed
or it has been reset.
5
Press the MEMORY/SET button.
6
Press the TUNING/TIME ( or ) button to adjust the hour.
● Press the TUNING/TIME ( or ) button once to advance
the time by 1 hour. Hold it down to advance continuously.
● When the 12-hour display is selected, "AM" will change auto-
matically to "PM".
7
Press the MEMORY/SET button.
8
Press the TUNING/TIME ( or ) button to adjust the
minutes.
● Press the TUNING/TIME ( or ) button once to advance
the time by 1 minute. Hold it down to change the time in 5
minute intervals.
● The hour setting will not advance even if minutes advance from
"59" to "00".
9
Press the MEMORY/SET button.
● The clock starts operating from "0" second.
(Seconds are not displayed.)
And then the clock display will disappear after a few seconds.
To see the time display:
Press the CLOCK button.
● The time display will appear for about 5 seconds.
Note:
● The clock display will flash on and off at the push of the CLOCK
button when the AC power supply is restored after a power
failure occurs or after the AC power cord is disconnected.
If this happens, follow the procedure below to change the clock
time.
To change the clock time:
①
Press the CLOCK button.
②
Within 5 seconds, press the MEMORY/SET button.
③
Perform steps 6 - 9 above.
To change the time display mode:
①
Perform steps 1 - 2 in the section "RESETTING THE
MICROCOMPUTER", on page 15.
②
Perform steps 1 - 9 above.
(Main unit operation)
AM 12:00 AM 0:00 0:00
2
3
4
7
6
5
8
9
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following conditions:
● To erase all of the stored memory contents (clock and timer
settings, and tuner and CD presets).
● If the display is not correct.
● If the operation is not correct.
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
While pressing down the button and the X-BASS/DEMO
button, hold down the ON/STAND-BY button for at least 1
second.
● "CLEAR AL" will appear.
Caution:
● The operation explained above will erase all data stored in
memory including clock and timer settings, and tuner and CD
presets.
X-BASS/
DEMO
POWER
ON/
STAND-BY
CD-BA150
– 6 –
MINI COMPONENT SYSTEM
Quick Guide/Guía rápida
CD-BA150
● Remote control x 1
●
Controlador remoto x 1
● 2 “AA” batteries
●
Dos pilas “AA”
Remote Sensor
Sensor remoto
2
Preparation for use /
Preparación para su uso
1
Check the supplied accessories /
Compruebe los accesorios suministrados
● FM/AM loop antenna x 1
●
Antena de cuadro de
FM/AM x 1
● Batteries are not included.
●
Las pilas no están incluidas.
8” - 20’ (0.2m - 6m)
0,2m - 6m
■ Speaker connection
■
Conexión de los altavoces
■ Antenna connection
■
Conexión de las antenas
Front speaker
(Right)
Altavoz delantero
(Derecho)
Front speaker
(Left)
Altavoz delantero
(Izquierdo)
● AM Loop Antenna
●
Antena de cuadro
de AM
● FM Antenna
●
Antena de FM
● AC 120 V, 60 Hz
●
120 V de CA, 60 Hz
Red
Rojo
■ Switching between power-on and stand-by mode
■
Cambio entre la conexión de la alimentación y el
modo de reserva
■ Remote control
■
Controlador remoto
15
15
Black
Negro
● AC power cord x 1
●
Cable de alimentación de
CA x 1
3
Listening to a CD /
Audición de discos CD
4
Listening to a tape /
Audición de una cinta
5
Listening to the radio /
Audición de la radio
6
Recording from CDs /
Grabaciones de discos CD
7
Sound control /
Control del sonido
● Label facing up
●
Etiqueta hacia arriba
■ To stop the playback
■
Para detener la reproducción
■ To stop the recording
■
Para detener la grabación
● Load the disc to be
recorded.
●
Introduzca el disco
que va a grabar.
● CD recording
starts.
●
La grabación de
CD empieza.
■ Volume
■
Volumen
■ Extra bass (X-BASS)
■
Graves extra (X-BASS)
■ Pre-programmed equalizer
■
Ecualizador preprogramado
Printed in Malaysia
Impreso en Malaysia
TINSZ0502AWZZ A9910.HK
FLAT ROCK
POPS
JAZZCLASSIC
VOCAL
■ To stop the playback
■
Para detener la reproducción
TAPE 1
TAPE 2
TAPE 2
– 7 –
CD-BA150
1 Top Cabinet 1. Screw ..................... (A1) x4 7-1
2 Side Panel 1. Screw ..................... (B1) x8 7-1
(Left/right)
3 CD Player Unit/ 1. Turn on the power supply, 7-2
CD Tray Cover
open the disc tray, take out the
CD cover, and close.
(Note 1)
2. Screw ..................... (C1) x1
3. Hook ....................... (C2) x3
4. Hook ....................... (C3) x2
5. Socket .................... (C4) x2
4 Main PWB/ 1. Screw ..................... (D1) x8 7-2,8-2
Rear Panel 2. Socket .................... (D2) x3 8-2
3. Flat Cable............... (D3) x1
4. Lug Wire................. (D4) x1
5. Flat Wire................. (D5) x1
5 Front Panel 1. Screw ..................... (E1) x2 8-2
6 Display PWB 1. Screw .....................
(F1) x15
8-3
2. Flat Cable............... (F2) x1
7 Tape Mechanism 1. Open the cassette holder. 8-3
2. Screw...................... (G1) x6
8
Headphones PWB
1. Screw ..................... (H1) x1 8-3
9 Turntable 1. Hook ....................... (J1) x2 8-4
2. Cover ..................... (J2) x1
10 Disc Tray 1.
Turn fully the lock lever in the
7-3
arrow direction.
2.
While holding the lock lever,rotate
8-1
the cam gear until the cam gear
rib engages with the clamp lever.
3.
Push the slide holder backward to
8-5
engage the claw with the groove
and remove it in the direction
of the arrow. ..............
(K1) x6
11 CD Servo PWB 1. Screw ..................... (L1) x1 8-6
(Note 2) 2. Hook ....................... (L2) x2
3. Socket .................... (L3) x4
12 CD Mechanism 1. Hook ....................... (M1) x2 9-1
2. Hook ....................... (M2) x3
13
Loading Motor PWB
1. Hook ....................... (N1) x5 9-1
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-2
Figure 7-3
CD-BA150
STEP REMOVAL
PROCEDURE
FIGURE
Note 1:
How to open the changer manually. (Fig. 7-3)
1. In this state, turn fully the lock lever in the arrow direction
through the hole on the loading chassis bottom.
2.
While holding the lock lever, rotate the cam gear anticlockwise
until the cam gear rib engages with the clamp lever.
(Fig. 8-1)
3. After that, push forward the CD slide holder.
Note 2:
1. After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of the connector so as to protect the optical pickup
from electrostatic damage.
Figure 7-1
CD-BA150
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2. When fining back the cam gear assembly, let it lock by front
movement.
(B1)x4
ø3x12mm
(B1)x2
ø3x10mm
Rear
Panel
(B1)x2
ø3x10mm
Side Panel
(Right)
Side Panel
(Left)
(A1)x2
ø3x12mm
(A1)x2
ø3x12mm
Top Cabinet
(D1)x2
ø3x10mm
(C3)x1
(C1)x1
ø3x10mm
(D1)x4
ø3x10mm
CD Player
Unit
CD Tray Cover
Rear
Panel
Pull
(C3) x1
(C4)x2
(C2) x3
1
1
2
Main PWB
CD Servo
PWB
LOCK LEVER
CD-BA150
– 8 –
Figure 8-2
Figure 8-3
Figure 8-4
Figure 8-5
Figure 8-6
Turntable
Disc Tray
(J2) x1
CD Player Unit
(J1) x2
1
2
(K1) x3
(K1) x3
(L3) x2
(L2) x2
(L3) x2
CD Servo
PWB
CD Player
Base
(L1)x1
ø3x8mm
(E1)x2
ø3x10mm
(D1)x2
ø3x10mm
(D3)x1
(D4)x1
(D2)x2
(D2)x1
Main PWB
(D5)x1
Headphones
PWB
(F1)x15
ø3x10mm
(F2)x1
(G1)x6
ø3x10mm
(H1)x1
ø3x10mm
Display PWB
Open
Cassette
Holder
Tape
Mechanism
CLAMP LEVER
CAM GEAR RIB
Figure 8-1
– 9 –
CD-BA150
CP-BA150
1 Woofer 1. Screw ..................... (B1) x8 9-3
2 Tweeter 1. Screw .................... (D1) x2 9-3
STEP REMOVAL
PROCEDURE
FIGURE
CP-BA150
Figure 9-2
Figure 9-1
Figure 9-3
Screw
Driver
Driver should
be pried away
from Speaker
Box.
(D1)x4
ø4x16mm
(D2)x2
ø3x10mm
(D1)x4
ø4x16mm
(M2) x3
(M1) x1
(N1) x5
(M1) x1
Loading
Motor
PWB
CD
Mechanism
Cam Gear
CD-BA150
– 10 –
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 5 and 7 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 10-1)
1. Carefully remove the record/playback head and erase head
screw (A1) x 2 pcs.
How to remove the playback head (TAPE 1)
(See Fig. 10-2)
1. Carefully remove the playback head screw (B1) x 2 pcs.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 10-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) upwards.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 1) (See Fig. 10-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 2) (See Fig. 10-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 10-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 10-1
Figure 10-2
Figure 10-3
Figure 10-4Figure 10-5
TAPE2
TAPE1
Main Belt
(D1)x1
TAPE2
Main Belt
(E1)x1
TAPE1
Main Belt
FF/REW
Belt
(E2)x1
FF/REW
Belt
(D2)x1
Motor
Motor
(A1)x2
Ø2 x 9mm
TAPE2
Record/Playback
Head
Erase Head
(B1)x2
Ø2 x 9mm
TAPE1
Playback
Head
Pinch Roller
(C1)x1
<A>
(F1) x2
Ø 2.6 x 5mm
Motor
– 11 –
CD-BA150
How to remove the pickup (See Fig. 11-2)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4).
3. Remove the pickup.
Figure 11-2
CD MECHANISM SECTION
Perform steps 1, 2, 3, 9, 12 and 13 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 11-1)
1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.
Figure 11-1
Note
After removing the connector for the optical pickup from the
connector wrap the conductive aluminium foil around the front
end of connector so as to protect the optical pickup from
electrostatic damage.
(A1)x2
(A1)x1
Loading Motor
CD Base
(A1)x2
(B1) x2
ø2.6 x6mm
Shaft
(B2) x1
Stop Washer
(B3) x1
Gear
(B4) x1
CD Mechanism
Pickup
ADJUSTMENT
MECHANISM SECTION
• Driving Force Check
Torque Meter
Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
• Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g. cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point
Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ± Speaker
speed Resistor in 30 Hz terminal
motor. (Load
resistance:
6 ohms)
• Tape Speed
Figure 11-3
TAPE MECHANISM
Motor
Variable Resistor in motor
CD-BA150
– 12 –
CD SECTION
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna, Output: TP302
*2. Input: Antenna, Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-renge frequency
AM IF 450 kHz 1,720 kHz T351 *1
AM Band — 530 kHz (fL): T306 *2
Coverage 1.1 ± 0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna, Output: TP301
*2. Input: Antenna, Output: Speaker terminal
• FM RF
Signal generator: 1 kHz, 22.5 kHz dev., FM modulated
FM Band — 87.50 MHz T301(fL): *1
Coverage 3.4 V ± 0.1V
FM RF 98.00 MHz 98.00 MHz L312 *2
(10-30 dB)
Test Stage
Instrument
Connection
Frequency
Frequency
Display
Serring/
Adjusting
Point
Figure 12-1 ADJUSTMENT POINT
Test Stage Frequency
Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
IC301
R381
TP302
TP301
R357
AM IF
FM IF
FM RF
T303
T306
T302
L312
AM
TRACKING fL
AM BAND
COVERAGE fL
T301
T351
FM BAND
COVERAGE fL
TUNER PWB
CNP301
AM LOOP
ANTENNA
1
Figure 12-2
CD ERROR CODE DESCRIPTION
Error State Code
[Servo System Error]
0001 Cannot detect Pickup-in SW
0002 DSP access error
[Error during close operation]
0101 Open/Close SW Low → High not functioning
0103 Open/Close SW High → Low not functioning
[Error during open operation]
0201 Open/Close SW Low → High not functioning
0203 Open/Close SW High → Low not functioning
[Error during skip operation]
0302 Pickup-in SW is not detected
0306 During Disc 1 search, Open/Close SW or Clamp SW
or Disc SW do not change to low.
0307 Clamp SW Low → High not functioning
0308 Clamp SW High → Low not functioning
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.
Items adjusted automatically
(1) Offset adjustment (The offset voltage between the head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing 12-2
EFBL)
(3) Gain adjustment (The gain is compensated inside the IC
so that the loop gain at the gain crossover frequency will
be 0dB.)
* Focus gain adjustment
* Tracking gain adjustment
• Adjustment
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1
CH2=200mV
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2k
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47
– 13 –
CD-BA150
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITION
SW617 TAPE ON—OFF
SW618 TUNING /TIME DOWN ON—OFF
SW619 MEMORY/SET ON—OFF
SW620 REWIND ON—OFF
SW621 FAST FORWARD ON—OFF
SW622 PLAY/REPEAT ON—OFF
SW623 STOP ON—OFF
SW625 REC/PAUSE ON—OFF
SW626 TUNING/TIME UP ON—OFF
SW627 VIDEO/AUX ON—OFF
SW628 TUNER (BAND) ON—OFF
SWM3 FOOL PROOF ON—OFF
SWM4 F.A.S ON—OFF
SWM5 CAM ON—OFF
REF. NO DESCRIPTION
SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW601 POWER ON—OFF
SW602 CLOCK ON—OFF
SW603 TIMER/SLEEP ON—OFF
SW609 DISC SKIP ON—OFF
SW610 OPEN/CLOSE ON—OFF
SW611 DIMMER ON—OFF
SW612 X-BASS/DEMO ON—OFF
SW613 EQUALIZER ON—OFF
SW614 VOLUME UP ON—OFF
SW615 VOLUME DOWN ON—OFF
SW616 CD ON—OFF
Figure 13 TYPES OF TRANSISTOR AND LED
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
KTA1266 GR
KRC102 M
KRC104 M
KTA1271 Y
KTA1274 Y
2SC1845 F
KTA1273 Y
KTC3203 Y
KTC3199 GR
KRC107 M
KTC3194 Y
KTC2026
4204SRT7
BCE
FRONT
VIEW
FRONT
VIEW
CD-BA150
– 14 –
WAVEFORMS OF CD CIRCUIT
T
FDO
TDO
Stopped
CH1=500mV
DC 10:1
CH3=500mV
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.000V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1
IC2 24
2
IC2 23
T
FDO
DRF
TE
Stopped
CH1=500mV
DC 10:1
CH2=10V
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
-3div -1div 0div +1div +3div
CH Position To
CH2
Position
0.20div
1
IC2 24
3
IC2 72
4
IC1 18 ,
IC2 16
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
5
IC1 27
T
T
TE
DRF
Stopped
CH1=10V
DC 10:1
CH2=1V
DC 10:1
100ms/div
(100ms/div)
NORM:100kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0V
CH2 : 0.00V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
3
IC2 72
4
IC1 18 ,
IC2 16
T
T
FDO
SPDO
Stopped
CH1=200mV
DC 10:1
CH2=500mV
DC 10:1
500ms/div
1999/04/07 09:51:15
(500ms/div)
NORM:20kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
1
IC2 24
6
IC2 25
T
FDO
PDO2
PDO1
Stopped
CH1=500mV
DC 10:1
CH3=1V
DC 10:1
CH4=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1999/04/05 17:33:17
1
IC2 24
7
IC2 1
8
IC2 2
T
T
DOUT
Stopped
CH1=2V
DC 10:1
500ns/div
1999/04/07 09:25:28
(500ns/div)
NORM:200MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 1K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
9
IC2 37
T
T
DATA
DATACK
LRSY
Stopped
CH1=2V
DC 10:1
CH2=2V
DC 10:1
CH3=2V
DC 10:1
5us/div
(5us/div)
NORM:100kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 5K
Zoom : 100
Mode : AUTO
Type : EDGE CH3
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH3
v/DIV
2 V
1999/04/05 20:50:17
10
IC2 57
IC2 58
IC2 59
11
12
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1
CH2=200mV
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2k
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47
1
IC2 24
4
IC1 18 ,
IC2 16
IC1 13 ,
IC2 22
13
– 15 –
CD-BA150
Figure 15 BLOCK DIAGRAM (1/3)
CNP12
CNP11
Q2
+3.3V
+5V
CONT5
CONT2
CONT3
CONT4
CONT7
CONT6
SLD0
SPD0
FD0
TD0
+5V
TO DISPLAY SECTION
CLAMP SW
CDINT
WRQ
CE
DO
CLK
DI
CD RES
GND
DRF
CNS4
BI4
CNP4
M2
SLED
MOTOR
M1
SPINDLE
MOTOR
M
M
TRACKING COIL
FOCUS COIL
PICKUP UNIT
TE
FE
RFEV
HFL
VVDD
ADAVDD
VDD
LVDD
RVDD
XVDD
VDD5V
RFEV
FE-
FE
TE-
TE
HFL
+3.3V
CONSTANT
VOLTAGR
+5V
Q1
Q3
LASER
DRIVER
LDD
PD
VCC3
VCC2
VCC4
VCC1
TIN2
TIN1
FIN2
FIN1
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLIDE DRIVER
IC1
LA9235M
SERVO AMP.
TO MAIN SECTION
(TO IC401)
R-CH
L-CH
AGND
DGND
+5V(+B3)
RCHO
RVSS
LVSS
LCHO
IC2
LC78641E
SERVO/SIGNAL
CONTROL
-
+
M
SW1
OPEN/
CLOSE
XL1
16.9344MHz
6
5
43
3
2
5
4
1
12
34
7
8
217
89
10
12
4
3
5
SW2
CLAMP
SW3
DISC
NUMBER
M3
T/T
UP/DOWN
MOTOR
6
12
4
3
56
12
4
3
56
75
76
45 46
47 48 32 31
30
65
66
67
68
69
70
71
72
CE
CL
DI
DO
INT
WRQ
RES
DEF
52
51
XOUT
XIN
73
5
18
36
44 49 50 7 14 15 16
23
24
25
26
33
3
13
19
40
64
74
17
18 19 20
21
22
30
23
11
9
1
4567
15
16 26 27
2 1725 4142 3839
35
29
22
21
14
8
40
18
24
23
28
SW4
PICKUP IN
+3.3V
CD-BA150
– 16 –
Figure 16 BLOCK DIAGRAM (2/3)
REC/PLAY
CL
CE
DI
SYSTEM
MUTE
Q401
Q402
DO
CL
DI
CE
MO/ST
+B2
SWITCHING
+B2
FM/AM
IC302
LC72131
PLL(TUNER)
FM/AM
OUT
+B4
L
R
BIAS
T1/T2
MUTING
Q110
Q111
P.B.
REC
AC BIAS
R
L
SO401
VIDEO/AUX
L
L
R
R
R
L
R
L
AUX
TAPE
TUNER
CD
PB
CNS402
FROM
CD SECTION
CNP11
ERASE
HEAD
SWITCHING
SWITCHING
SWITCHING
BIAS
Q102
Q103
Q101
Q113
SWITCHING
Q112
L103
OSC
BIAS
Q114
L104
Q108
Q109
REC PB HEAD
TAPE 2
PB HEAD
TAPE 1
R-CH
L-CH
R-CH
L-CH
IC401
LC75341
AUDIO PROCESSOR
H/N
P.B
+B2
R
L
R
L REC
L NF
R NF
ALC
REC
T1/T2
T1/T2
NOR/
HIGH
REF
R REC
L REC
POP
REDUCE
R NF
L NF
SWITCHING
Q104~
Q107
L(T2)
R(T2)
R(T1)
L(T1)
IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.
R
L
FM/AM
MPXIN
STEREO
AM RF IN
AM OSC IN
FM
Q360
VT
FM OSC
OSC BUFF
OSC
X352
4.5MHZ
AM BAND
COVERAGE
AM TRACKING
T303
Q302
X351
456KHz
MO/ST
VCO
FM
DET
VCC
GND
AM IF
CF351
AM IF
IC303
LA1832S
FM/AM IF MPX.
AM MIX
CF352
T351
FM RF
FM
OSC
L312
CF303
T302
FM IF
IC301
TA7358AP
FM FRONT END
BF301
CNP301
FM
AM
22
3
21
4
24
2
1
8
18
17
5
4
3
9
10
18
11
16
3
15
10
9
7
23
14
12
13
1
2
20
19
7
18
10
8
17
13
21
4
5
2
24
23
6
9
16
14
12
15
1
5
14
3
8
4
3
2
1
1
2
3
21
7
9
8
5
6
21
2
1
20
22
11
17
1615
9
6
5
7
13
14
12
15
16
23
4
7
FM
+B
4
T306
T301
17
Q708
+3B
+3B
M
Q704
Q705
IC701
54PIN
IC701
53PIN
IC701
56PIN
IC701
55PIN
TAPE
MOTOR
SOLENOID
T2 PLAY
T1 PLAY
R. PLAY
F. PLAY
MOTOR
DRIVER
– 17 –
CD-BA150
Figure 17 BLOCK DIAGRAM (3/3)
PT801
POWER TRANSFORMER
F802
4A/125V
5V
~
REC/PLAY
VLOAD
+B4
RESET IC
SYS. STOP
RESET
IC704
Q609
Q971
+B3
+B2
FAN
MOTOR
M
SPEAKER
TERMINAL
MAIN
(FRONT)
SO901
RL951
+B4
+B4
+B4
+B4
VDD
VDD
VDD
R-OUT
L-OUT
SP. DET.
Q901
Q902
Q903
Q904
UNSWITCH
+5V
A10V
+B4
+B3
+B2
+B1
–B1
~
IC852
IC851
IC841
SYSTEM
MUTE
Q401
Q402
CE
DI
CL
DO
+B4
XL701
~
D802~D805
D803
F803
2A/250V
F801
4A/125V
~
~
~
~
~
-Vcc
+Vcc
IC901
STK402040
POWER AMP.
BIAS
T1/T2
AVDD
KEY
SW601~SW603
SW609~SW623
SW625~SW628
TO CD
SECTION
Q601~
Q603
AC POWER
SUPPLY CORD
AC 120V 60Hz
130 C
TF
IC701
IX0328AW
SYSTEM
MICROCOMPUTER
FL701
FL DISPLAY
~
~
~
7
13
9
8
15
1
10
1
3
4948
47
93
92
90
63
29
44
28
23
16
14
13
6 5
4 1
2
85
80
33
31
45
46
7
11 12139 10 15 16 17
20
21 22
24
100
79
78
59 58
57 5554 53
52 51
49
48
47
44 43 42
44
39
38
37
36
35
34
36
2
1
40
5056
23
L
R
JK951
HEADPHONES
CD-BA150
– 18 –
Figure 18 SCHEMATIC DIAGRAM (1/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
42
41
40
39
38
37
36
LOADING M-
VCC4
LD_M+
LD_M-
LOADING M+
35
34
33
32
31
30
29
28
27
26
25
24
23
22
SPDO
VCC3
VCC2(SPN)
SP-
SP+
SPO
GND
+B
EFBL
P
H
TDO
NC
TEST
HFL
TE
TE-
FE
FE-
RFEV
BH
PH
RF
RF-
RFSW
VCC
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
REF
ODRV
AGCON
ODRV
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
AGCON
ODRV
APC
LPF
DH
PH
LPF
LPF
PH/BH
LDON
EFBL
FIN1
FIN2
REF1
TIN2
TIN1
AGON
LDD
TEST0
GND
VREF
TES1
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
FIN2
FIN1
TIN2
TIN1
+B
+B
2
5
3
1
7
6
4
4
3
2
1
7
6
5
CD SERVO PWB-B
5
1
3
7
6
4
2
4
3
2
1
7
6
5
Vcc
C
Vref
F
B
E
A
LD
VR
PD
GND
FO-
FO+
TR+
TR-
5
2
1
2
3
4
5
6
7
88
3
6
7
1
4
TR-
TR+
FO+
FO-
GND
PD
VR
LD
ACTUATOR
FO+
FO-
TR-
TR+
1
2
3
4
5
6
7
88
3
6
7
1
4
5
2
PICKUP UNIT
GND(D)
PUIN
SP+
SP-
SL+
SL-
3
2
5
1
4
6
2
3
5
1
4
6
3
6
1
4
5
22
3
5
1
4
6
CD MOTOR PWB-C
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SLDO
FDO
TDO
MUTE
Vref
STANDBY
VCC1
SL-
SL+
GND
TR+
TR-
FO-
FO+
FO
FD
TO
+B
+B
+
+
+
+
+
+
+
+
+
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+
+
+B
+B
+B
+B
+
-
-
+
M
M
+
+
+
+
R54 68K
R53 68K
R52 68K
R51 68K
CNP1
R56
68K
R55
68K
C6
100/10
C54
47/10
C55
0.01
C51
47/10
C53
0.001
R25
10K
C7
10/16
C8
0.1
R47
3.3
Q3
KTA1266GR
LASER DRIVER
R50
47
C14
0.33
C13
0.01
R42
120K
R3
100K
R4
10K
C11
0.47/6.3
R6
27K
R7
6.8K
R5
39K
C12
0.1
C18
3P
(CH)
C19
100/10
R8
330
R10
27K
C26
0.047
C22
100P
R80
1M
R79
1.5M
C24
2.2/50
C21
0.1
C23
0.047
R12
680
R11
12K
C2
7
0.1
C17
0.0047
R15
10K
C20
0.1
C42
68P
C25
0.1
C41
100/10
C28
47/10
C82
0.022
R
1
D93
DS1SS133
R43
220K
C47
100/16
C49
100/16
C50
100/16
C46
0.022
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
R48
6.8K
C52
0.01
CNP2
CNP3
CNS3A
CNS3B
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
SW4
PICKUP IN
IC1
LA9235M
SERVO AMP.
CNS1A
CNS1B
CNS2A
CNS2B
CNP3A
13
2
5
8
4
– 19 –
CD-BA150
Figure 19 SCHEMATIC DIAGRAM (2/10)
7
8 9 10 11 12
• The numbers 1 to 13 are waveform numbers shown in page 14.
CD SIGNAL
RES
WRQ
CE
DO
CL
DI
DRF
INT
+B
XVDD
RVSS
RCHO
RVDD
XIN
51
50
49
48
47
63
62
61
60
59
58
57
56
55
54
53
52
XOUT
XVSS
ASLRCK
ASDACK
ASDFIN
LRSY
DATACK
DATA
16M
SFSY
SBSY
PW
64
SBCK
CE
CL
DI
DO
INT
WRQ
SERIAL
OUT
EXTERNAL
AUDIO IN
DIGITAL
FILTER
1BIT
DAC
LPF
INTERPOLATION
MUTE
ATTENUATION
DEEMPHASIS
CLOCK
GENERATOR
SUBCODE
DECODE
CRC
COMMAND
INTERFACE
AGND
R-CH
EMPH
MUTEL
MUTER
LVDD
LCHO
LVSS
+5V
DGND
1
2
3
4
5
+B
+B
CNS402
P20 1 - B
TO MAIN PWB
INT
DRF
WRQ
CE
DO
DI
CL
RES
DRF
GND
CD RES
DI
CLK
DO
CE
WRQ
CDINT
CLAMP SW
10
9
7
1
2
3
4
5
6
8
+B
+B
+B
P27 12 - B
CNS701
TO DISPLAY PWB
DISC_NO
O/C
GND(D)
M-
M+
CD LOADING
MOTOR PWB-E
TEST
DOUT
VDD
C2F
PCK
40
39
38
37
36
35
34
33
32
31
30
29
28
27
EFLG
41
FSX
CONT5
CONT4
CONT3
CONT2
CONT1
LASER
+B
+B
+B
1
32
L
OADING M-
V
CC4
L
D_M+
L
D_M-
L
OADING M+
SPDO
V
CC3
V
CC2(SPN)
S
P-
S
P+
S
PO
G
ND
+B
+B
JITTC
JITTV
EFMIN
EFBL
FDO
TDO
TBLO
BHREF
PHREF
ADAVSS
ADAVDD
VREF
TE
FE
PH(RFENV)
BH
TDO
SLDO
SPDO
FDO
SPDO
FG(D_Vref)
SLDO
AUDIO
OUT
ERROR
CORRECT
GENERAL
SW
SERVO
PROCESSEROR
AUTO
ADJUST
S/H
JITER
DEFECT
CONTROL
A/DSW
D/A
+B
+B
5
4
3
2
1
PCKIST
VVDD
VVSS
PD02
PD01
73
80
79 78
77
76
75
74
FRAME SYNC
DEFECT,PROTECT
EFM DECODE
CLV
CONTROL
GENERAL
SLICE
LEVEL
CONTROL
PLL
VCEC
SLCO
SLCIST
HFL
FR
VDD5V
CONT7
CONT6
VSS
V/vP
FSEQ
DEFECT
EFMO
RES
DEF
O/C
DISC_NO
+B
72
71
70
69 68
67
66
65
11
10
9
8
7
6
24
23
22
21
20
19
18
17
16
15
14
13
12
-
+
+B
+
-
1
2
3
4
5
66
5
4
3
2
1
5
4
3
2
1
M
6
L-CH
+B
+B
46
45
44
43
42
+B
26
25
+B
C19
100/10
R8
330
R10
27K
C26
0.047
C22
100P
R80
1M
R79
1.5M
C24
2.2/50
C21
0.1
C23
0.047
R12
680
R14
1.2K
R11
12K
R13
680
C81
0.022
C27
0.1
C17
0.0047
R15
10K
C20
0.1
C42
68P
C25
0.1
C41
100/10
C28
47/10
C82
0.022
R44
1K
C29
0.1
D93
DS1SS133
R43
220K
R35
1K
R38
270
R39
470
R16
10K
R17 1K
R46 1K
R45 1.2K
R40 1.2K
C31
100/10
C30
0.1
L61
0.82µH
C64
0.47/6.3
ZD61
DZ3.9BSB
R19
47
C39
10/16
R58
220
Q1
2SC3203Y
CONSTANT VOLTAGE
C56
330/6.3
C83
0.022
R84
10K
C40
0.0015
C43
0.0015
R83
10K
C34
0.022
R82
2.2K
R81
2.2K
C38
10/16
R20
220
XL1
16.9344MHz
C45
100/10
C44
0.1
C80
0.1
R73 1K
R71 1K
C72 0.01
R72 1K
C71 100P
C73 100P
C75 100P
C76 100P
C77 100P
C78 100P
R75 1K
R76 1K
R77 1K
R78 1K
C74 100P
R74 1K
L62
2.2µH
R94
10K
R95
10K
R67 1K
R68 1K
IC2
LC78641E
SERVO/SIGNAL
CONTROL
CNP11
CNP12
CNP4
SW3
DISC
NUMBER
SW2
CLAMP
SW1
OPEN/
CLOSE
D21
DS1SS133
R21
470
R22
470
Q2
KRC102M
D22
DS1SS133
C47
100/16
BI4
CNS4
M3
T/T
UP/DOWN
LOADING
1
6
9
13
2
10
11
12
3
7
8
CD-BA150
– 20 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
Figure 20 SCHEMATIC DIAGRAM (3/10)
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
M_GND
TAPE1_R
TAPE1_L
A_GND
A_GND
ERASE
TAPE2_R2
TAPE2_R1
TAPE2_L1
TAPE2_L2
9.3V
8.6V
9.3V
0V
3.4V
3.4V
0V
0V
0V
2
3
1
1
2
3
0V
0V
0.7V
0V
0.7V
0V
0V
0V
0.7V
0V
0V
0V
0.7V
0V
0V
0V
0V
0V
0.7V
ERASE
HEAD
TAPE2
RECORD/
PLAYBACK HEAD
TAPE1
PLAYBACK HEAD
R-CH
L-CH
R-CH
L-CH
3
1
7
6
5
3
2
1
4
2
24
23
22
21
22
19
18
17
16
15
10
9
8
7
6
5
4
3
2
1
6
5
3
2
1
4
6
5
3
2
1
4
3
1
2
3
1
2
+5v
CD_GND
L-CH
A_GND
R-CH
1
2
3
4
5
GND (A_GND)
L
GND (CD_GND)
+5V
R
TO
POWER
SECTION
P22 1 - F
CD
TUN
DECK
AUX
LSEL0
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
CCB
INTERFACE
R1
R2
R3
R4
RSEL0
RIN
RTRE
RBASS
ROUT
VREF
VDD
CLK
L1
L2
L3
L4
LIN
LTRE
LBASS
LOUT
VSS
CE
DI
L
R
ALC
Nor/CrO2
-
+
-
+
Hich=T1
+
+
-
-
Hich=CHROME
56K
112K
56K
112K
q
t
r
j
s
3
4
2
1
5
CNP11
TO CD SERVO
PWB
P19 12 - F
IC401
LC75341
AUDIO PROCESSOR
C406 22/50
C408 10/50
C410
0.1(ML)
C412 0.1(ML)
C418 1/50
C414 0.0027
C424 1/50
C422 1/50
C420 1/50
C426 1/50
C428 1/50
R418
3.3K
R1
4
10
K
Q
KTC
3
R140
10K
R142
220K
Q110
KTC3199 GR
R136
10K
C132
0.0033
R134
100
C134
47/25
C130
0.022
R132
1.5K
C128
22/25
C126
270P
R128 6.8K
R130
3.9K
C144
0.001
R126 68K
R122
5.6K
C122
47/25
R124
33K
R116
56
C116
100/25
C118
0.033
R118
100K
R120
3.9K
C114
330P
R114
1K
C112
330P
IC101
AN7345K
R13
5
10
K
C135
47/25
C133
0.0033
R133
100
C129
22/25
C131
0.022
R131
1.5K
C127
270P
R127
6.8K
R129
3.9K
C139
3.3/50
C143
0.001
C137
0.023
R123
5.6K
R125
33K
C123
47/25
C121
560P
R121
3.9K
R119
100K
C117
100/25
R117
56
C115
330P
R115
1K
R138
15K
C113
330P
C106
0.001
Q108
KTC3199 GR
C107
0.001
C119
0.033
Q109
KTC3199 GR
R112
4.7K
R110
47K
R111
4.7K
R113
47K
R107
2.2K
Q105
2SC1845 F
R109
3.3K
C105
180P
Q107
2SC1845 F
Q106
2SC1845 F
R108
3.3K
R106
2.2K
Q104
2SC1845 F
C104
180P
R105
1K
R104
1K
C120
560P
R137
15K
C103
0.001
C102
0.001
Q101
KTA1266 GR
Q103
KRC104 M
R103
4.7K
R101
10K
C101
0.047
R102
10K
Q102
KRC104 M
Q401,Q402 : SYSTEM MUTE
C108
100/16
R157
150
R425
22K
C403
22/25
R410
10K
Q402
KTC3199 GR
R417
3.3K
C421 1/50
C427 1/50
C425 1/50
C423 1/50
C419 1/50
C417 1/50
C413 0.0027
R415
3.9K
C407
10/50
C409
0.1(ML)
C411 0.1(ML)
C404
100/16
C405
0.022
R409
10K
R401
330
R403
2.7K
R407
2.2K
C401
0.001
C402
0.001
R408
2.2K
R404
2.7K
R402
330
BI101
CNS101
LUG961
BI102
CNS102
BI402
CNS402
Q401
KTC3199 GR
CHASIS
+B
+B
+B
+B
+B+B
FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
CD SIGNAL
VIDEO SIGNAL
MUTING
– 21 –
CD-BA150
Figure 21 SCHEMATIC DIAGRAM (4/10)
7
8 9 10 11 12
TUN_R
TUN_L
DI
CLK
DO
CE
TO
TUNER
SECTION
P25 11 - H
TO
TUNER
SECTION
P22 1 - G, P25 11 - H
A_10V
VF1
-VP
VF2
SP_RLY
M_10V
-15V
GND (D_GND)
+5V
GND (A_GND)
UN_SW_5V
SP_DET
GND (M_GND)
M_GND
SP_DET
UN_SW 5V
A_GND
+5V
D_GND
-15V
M_10V
SP_RLY
VF1
VF2
-VP
T_BIAS
SPA_SIG
SMUTE
REC/PLAY
T_T1/T2
CE
DI
CLK
DO
REC_L
REC_R
0.7V
0.7V
0V
0V
0V
11.7V
11.6V
11.6V
0V
0V
3
3
2
0V
0V
0V
22
23
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
2
1
7
16
15
14
13
12
11
10
9
8
3
R-ch
L-ch
Vcc
ALC
GND
ALC
RIPPLE
Nor/CrO2
+
+
-
-
i
ch=CHROME
56K
56K
B
A
C
E
F
D
G
g
a
b
c
p
hfki
l
enm
+B
+B
–B
–B
+B
+B
+B
1
23
FC701
CNP702
P27 12 - C
TO DISPLAY PWB
MAIN PWB-A1(1/3)
SO401
VIDEO/AUX
CNP401
C142
47/25
R149
4.7
L104
330µH
(ML)
C141
0.039
(ML)
Q114
KTC3203 Y
C140
0.0082(PP)
C148
0.047(ML)
R148
22K
R147
47K
Q113
KRC104 M
R145
4.7K
R144
47K
Q112
KTA1266 GR
L103
100µH
R146
82(1/2W)
R423 470K
R424 470K
R419
5.6K
R420
5.6K
C430
390P
C429
390P
R422
27K
R421
27K
0
6 22/50
0
8 10/50
4
10
(
ML)
2 0.1(ML)
8
1/50
R416
3.9K
4 0.0027
4 1/50
2 1/50
0
1/50
6 1/50
8 1/50
R418
3.3K
R143
220K
R141
10K
Q111
KTC3199 GR
R140
10K
R142
220K
Q110
T
C3199 GR
R136
10K
C132
0.0033
C145
0.001
R134
100
C134
47/25
C138
220/10
C136
22/25
R139
220
C130
0.022
C128
22/25
IC101
PLAYBACK AND RECORD/
PLAY BACK AMP.
R135
10K
C135
47/25
C133
0.0033
R133
100
C129
22/25
C131
0.022
1.5
K
+B
+B
+B
+B
+B
+B
B
B
+B
G
BIAS
CD-BA150
– 22 –
Figure 22 SCHEMATIC DIAGRAM (5/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
3 1
3
1
3 1
+B
–B
5.7V
20V
10V
9.9V
9.9V
GND (M_GND)
SW_5V
GND (D_GND)
M_10V
GND A_GND
VF1
VF2
-VP
SP_RLY
-15V
SP_DET
+5V
A_10V
GND (CD_GND)
R
L
+5V
GND (A_GND)
TO
MAIN
SECTION
P20 1 - C
2
2
2
4.9V
4.1V
0V
0V
0V
0V
4.1V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Out
Ch2
Out
Ch1
Out
Out
Ch2
Ch1
Ch2
Ch1
+Vcc
-Vcc
-
-
+
+
20V
20V
i
q
t
r
s
g
b
c
a
p
h
f
k
j
l
e
n
m
ZD802
DZ6R2BSA
C813
100/35
R807
12K
D805
1N4004S
D803
1N4004
S
C
22
0
C
22
0
R801
22K
R802
22K
R803
680(2W)
C831 220/25
C832 0.022
C807
3300/25
C851
0.1(ML)
IC851
KIA7805P
VOLTAGE
REGULATOR
IC841
KIA7810AP
VOLTAGE
REGULATOR
C852 0.022
C853 47/25
R851 10K
IC852
AN78L05
CONSTANT
VOLTAGE
REGULATOR
D851
DS1SS133
C854 47/25
C855
0.047(ML)
Q831
KTC2026 Y
R832
33(1/2W)
C833
22/25
R833
22K
C834
0.047(ML)
R831
3.3(1/2W)
Q902
KTC3199 GR
D901
DS1SS133
D902
DS1SS133
R910
1K
R912
10K
C908
0.022
R908
0.1(1W)
Q903
KTC3199 GR
Q904
KTC3199 GR
C917
47/50
R915
56K
R916
4.7
D903
DS1SS133
C936
10/50
R913
56K
R914
56K
C915
0.047(M
L
C916
0.047
(ML)
R917
4.7
R934
68K
R932
1K
R906
1K
C906
47/50
C904
15P
R902
56K
R904
820
C909
100/50
R918
100
C912
10/50
C911
10/50
C910
100/50
R919
100
R920
22K
C905
47/50
R903
820
R901
56K
R905
1K
C903
15P
R931
1K
R933
68K
C935
10/50
R907
0.1(1W)
C842
0.1(ML)
C843
47/25
R841
22K
C841
0.1(ML)
R842
3.3
IC841
KIA7810AP
C907
0.022
R909
1K
R911
10K
Q901
KTC3199 GR
C901
220P
IC901
STK40204(2Ch)
POWER AMP.
C902
220P
ZD803 DZ130BSB
+B
+B
+B
+B
+B
+B
+B
–B
–B
–B
–B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
– 23 –
CD-BA150
Figure 23 SCHEMATIC DIAGRAM (6/10)
7
8 9 10 11 12
+B
+B
–B
–B
-28V
-33V
-28V
4.9V
4.4V
FRONT SPEAKER
6 ohm
TF
130 C
4
3
2
1
1
R1_OUT
L1_OUT
SP_R Ch_GND
SP_L Ch_GND
SP_R Ch
SP_L Ch
5
6
7
8
1
2
3
4
5
6
7
8
1
1
2
1
2
2
3
4
1
22
1
M
0.2V
2
1
3
5
5
AC POWER
SUPPLY CORD
AC120V,60Hz
–
–
JK951
HEADPHONES
SO901
SO801
CNP801
SOCKET PWB -A4
PT801
RTRNP0294AWZZ
CNS802
F803
2.0A/250V
D807
1N4004S
C808
100/50
D808
1N4004S
C810
220/50
C809
100/50
D806
1N4004S
R804
2.2K
ZD801
DZ300BSB
Q801
KTA1274 Y
R806
10
R805
47K
C811
47/50
47/50
C812
ZD802
DZ6R2BSA
C813
100/35
R807
12K
D805
1N4004S
D804
1N4004S
D802
1N4004S
D803
1N4004S
C806
0.047(ML)
C805
0.047(ML)
F802
4.0A/125V
F801
4.0A/125V
D801
TS6B04GM
C803
2200/50
C804
2200/50
R801
22K
R802
22K
R803
680(2W)
7
5
0
R915
56K
R916
4.7
R913
56K
R914
56K
C915
0.047(ML)
C916
0.047
(ML)
R917
4.7
D951
DS1SS133
R953
4.7K
R954
4.7K
RL951
RELAY
Q951
KRC107 M
R973
15K
C972
10/50
D971
DS1SS133
R975
4.7(1/2W)
R972
68K
R971
1K
C971
47/50
Q971
KTC3203 Y
CNP971
CNS971
M901
FAN MOTOR
FW951
CNS951
R952
330(1/2W)
R951
330(1/2W)
L921
0.29µH
L920
0.29µH
C802
0.047(ML)
C801
0.047(ML)
HEADPHONES PWB-A3
+
+
+B
+B
+B
+B
FM SIGNAL
MAIN PWB-A1(2/3)
CD-BA150
– 24 –
Figure 24 SCHEMATIC DIAGRAM (7/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
AM
FM
VSM
AM OSC OUT
FM IF IN
3
2
1
3
2
1
24
23
22
21
2
0
321
3 2 1
9
8
7
6
5
4321
22
21
20
19
18
17
16
8
7
6
5
4321
REG
AM RF IN
AM OSC IN
FM AFC
AM MIX OUT
IF
FM/AM
VSS
AOUT
AIN
PD
VDD
FM IN
DO
CL
DI
CE
X IN
X OUT
+B
+B
C302 0.001
C323
0.022
C338 0.001
D301 DS1SS133
D302 DS1SS133
T303
T306
C335
560P
C334
27P
(UJ)
IC301
TA7358AP
FM FRONTEND
BF301
B.P.F
CNP301
C303
10P
(CH)
C304
0.01
C305
4.7P
R302
10
C306
0.022
C307
10/16
C311
18P(CH)
C310
15P
VD303
SVC211C
C324
8.2P(UJ)
CF303
FM IF
C313
22P
(CH)
R309
10K
T302
T301
C320
0.001
C312
0.022
VD302
KDV147B
C309
0.001
D305
DS1SS133
C308 4.7P
L312
R311
100K
R314
22
C314
0.0047
C315
0.0047
C316
0.022
R327
33
Q302
KTC3194 Y
R325
47K
R322
680
C318
100P
R316
4.7K
C317
0.001
R313
33K
C381
12P(CH)
C382
15P(CH)
X352
4.5MHz
R374 1K
R372 1K
R373 1K
R378 1K
R375
470
C384
0.001
IC302
LC72131
R381
10K
C393
1/50
R380
1.5K
R379
2.2K
C380
10/16
C392
0.001
C394
47/16
C397
0.022
R382
150
C387
0 022
T351
C350 0.022
R35
1
K
C352 10/16
C351 0.022
R351 5.6K
C362 3.3/50
R365
10K
R358
3.9K
C342
0.022
R336
10K
R323
68K
VD301
SVC348S
C330
15P(UJ)
C331
0.047
C332
0.022
C364 10/16
C363 0.022
F
M
C361 0.022
AM OSC
AM TRACKING
FM RF
FM IF
FM OSC
1
1
1
2
AM IF
FM SIGNAL
AM SIGNAL
MAIN PWB-A1(3/3)
AM BAND
COVERAGE
OSC BUFF
– 25 –
CD-BA150
Figure 25 SCHEMATIC DIAGRAM (8/10)
7
8 9 10 11 12
TP
(FM/AM)
VSM
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
18
17
16
15
14
13
12
11
10
9
8
7
6
TUN_SM
TUN_L
A_10V
TUN_R
GND
CLK
DI
DO
CE
D GND
GND A GND
MO/ST
AM IF IN
GND
SD
STEREO
FM DET
VCC
IF OUT
PHASE
PHASE
L-CH OUT
R-CH OUT
MPX IN
MPX VCO
FM/AM OUT
AM LOW CUT
AM RF IN
CONT
IF
FM/AM
FM/AM
SD
ST IND
MO/ST
PD
VDD
FM IN
AM IN
DO
IF IN
+B
+B
+B
+B
+B
+B
+B
TO
MAIN SECTION
P21 12 - C, 10 - H
R378 1K
R379
2.2K
C380
10/16
C387
0.022
R377
47K
L351
100µH
C385
0.01
C386
330P
R376
1K
R386
22K
R360
4.7K
R395
47K
R387
5.6K
R388
3.9K
C398
100/10
C399
0.022
R393
1K
C355
22P
C356
0.001
CF351
FM IF
C354 0.022
C353 0.022
CF352
AM IF
5
1
R352
1K
R353
270
C365 0.022
C364 10/16
C363 0.022
C367
1/50
R350
2.7K
C366 0.001
X351
456KHz
C369
27P
(UJ)
C368
1/50
R356
1K
R357
470K
C373
0.015
C371
1/50
R361
10K
R362
10K
C372
1/50
R364
10K
R363
10K
C370 1/50
C358
1/50
R355
3.3K
C357
2.2/50
L352
100µH
R359
1.8K
R384
5.6K
C391
47/16
R385
5.6K
R383
5.6K
Q360
KTA1266 GR
R392 270
R391 270
C395 0.022
C396 100/10
ZD351 DZ5.1BSB
R370
1K
IC303
LA1832S
FM IF DET./FM MPX./AM IF
C374
0.015
1
3
1
I
F
g
lG
EF ABDCK
SWITCHING
CD-BA150
– 26 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
Figure 26 SCHEMATIC DIAGRAM (9/10)
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
9.3V
9.3V
9.3V
9.3V
0V
0V
8.6V
9.3V
9.3V
4.2V
4.2V
-25.7V
-25.7V-25.7V
-25.7V
-25.7V
-25.7V
3.3V
3.3V
3.3V
M10V
F
F
T2 RUN
F
F
F
F
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
KEY 0
KEY 1
KEY 2
49
48
47
44
43
42
41
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
16
15
14
13
12
11
10
9
8
7
6
3 2 1
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
50
49
48
47
46
45
44
43
42
41
39
38
37
36
35
34
33
32
31
S-BUSY
SP_RLY
SPK_DET
USE
DISTOUT/SW OUT
SPN
MIC IN
FPB
PLAY SW_A
T1 RUN
AVref
S
P
XT2
DRF
FPA
CD CLAMP
SW
T_SOL_B
VDD
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
VLOAD
P16/DIST1
P17/DIST2
P18/DIST3
P19
P20
P21
P22
KARAOKE LATCH
PLAY SW_B
AC RLY_CONT
VDD
TIMER LED
T_MOTOR
T_SOL_A
SMUTE
VSS
REMOCON
NO
SYS STOP
S
P
S
P
N
O
M-BUSY/TUN SM
AVSS
DO
DI
CLK
CD DO
CD CLK
VPP/IC
RES OUT
REC/PLAY
CE
P15/DIST0
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
CD INT
WRQ
CD DI
CD CE
RESET
AVDD
X2
X1
VDD
T_T1/T2
T-BIAS
1
2
3
4
5
6
7
8
9
10
11
12
13
COM
T1 RUN
T2 SOL
MTR +
T2 PLAY
T2 RUN
+5V
T1 SOL
R_REC
T1 RUN
F-REC
4
1
8
7
2
3
5
6
4
1
8
7
2
3
5
6
40
40
13
12
11
10
9
8
7
2
1
3
4
5
6
- -
B
A
+
M
TAPE MECHANISM PWB-D
TAPE
MOTOR
DISPLAY PWB-A2
R672
10K
R671
10K
R670
10K
R675
1K
R674
1K
R673
1K
R669 10K
R668 1K
R667
1K
LED722
R659
1K
R661 2.2K
R663 2.2K
R664 2.2K
R665 2.2K
R653
1K
R654
1K
R656
10K
R660
10K
Q608
KTC3199 GR
R655
1K
R658
47K
D615
DS1SS133
C618
10/16
R650
68K
R649
10K
Q604
KTC3199 GR
R638
47K
R637
1K
C617
10/16
D611
DS1SS133
Q607
KTA1273Y
R662
10K
R651
10K
R652
10K
Q606
KTA1271 Y
Q605
KTA1271 Y
D614
D613
C620
47/25
CNP703
C611
0.022
ZD601
DZ6.2BSC
C610
0.022
C614
2.2/50
R627
100K
D604
DS1SS133
R626
100K
C613
2.2/50
D603
DS1SS133
C612
2.2/50
R625
100K
D602
DS1SS133
R636
68K
R624
270
R623
270
IC702
KIA4558P
OPE. AMP.
R618
220K
R617
220K
R613
820K
C605
270P
C601
270P
R603
10K
R607
33K
R608
68K
R604
12K
C602
0.0027
R614
390K
D601
DS1SS133
R605
56K
C603
0.0068
R609
470K
C604
0.0068
R619
2.2M
C607
0.022
R615
150K
R620
180K
C608
0.022
R610
15K
IC703
KIA4558P
OPE AMP.
R612
1M
C606
0.0027
R621
33
Q601
KTC3199 GR
R601
1K
R602
100K
Q602
KTC3199 GR
R606
1K
R611
100K
Q603
KTC3199 GR
R616
1K
R622
100K
C609
47/50
C616
1/50
FL701
FL DISPLAY
D607
DS1SS133
R640 1K
R642 22K
R646 1K
R645 22K
R644 1K
R643 1K
R648 1K
R725
10K
R632 10K
R629 10K
R633 10K
R634 10K
R635 10K
R
6
R
6
R
6
R
R
R
R
R
6
R
6
R
6
X
L
R
6
R
6
R
6
R
6
R
6
IC701
IX0328AW
SYSTEM
MICROCOMPUTER
R647 1K
R
6
R
6
FC702
+B
+B
+B
+B
+B
+B
–B
+B
+B
+B
+B
+
+B
+B
– 27 –
CD-BA150
7
8 9 10 11 12
Figure 27 SCHEMATIC DIAGRAM (10/10)
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
3 1
4.8V
0V
0V
5.9V
0V
5.9V
4.2V
SPA_SIG
M_GND
SP_DET
M10V
DO
5V BACK UP
F
CLK
CE
DI
M_10V
AC_RLY CONT
UN_SW 5V
RES OUT
T_BIAS
T_T1/T2
REC/PLAY
DRF
+5V
-15V
A_GND
D_GND
SP_RLY
SMUTE
-VP
VF2
VF1
CD CLK
CD CE
CD DI
CD DO
CLAMP SW
WRQ(DSP)
CD INT
F
F
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
P01
P02
KEY 0
KEY 1
KEY 2
23
22
15
16
18
17
12
8
1
2
3
4
5
6
7
8
9
10
2
4
23
16
15
14
13
12
11
10
9
8
7
6
3 2 1
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
8
4
4
7
46
45
44
43
42
41
39
38
37
36
35
34
33
32
31
2 31
2
1
2
3
4
5
6
7
8
9
10
S-BUSY
SP_RLY
USE
S
W OUT
_
A
AVref
SPEANA1
XT2
DRF
P
T_SOL_B
VDD
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
LATCH
_
B
AC
RLY
_
CONT
VDD
TIMER LED
T_MOTOR
T_SOL_A
SMUTE
VSS
REMOCON
NO
SYS STOP
SPEANA0
SPEANA2
NO USE
M-BUSY/TUN SM
AVSS
DO
DI
CLK
CD DO
CD CLK
VPP/IC
RES OUT
REC/PLAY
CE
P2
P1
CD INT
WRQ
CD DI
CD CE
RESET
AVDD
X2
X1
VDD
T_T1/T2
T-BIAS
3
4
2
1
7
6
5
9
11
10
14
13
21
20
19
40
CNP12
P19 12 - F
TO
CD SERVO PWB
1
23
CNP401
TO MAIN PWB
P21 12 - E
CNS701
BI701
CNP702
D621
DS1SS133
D620
DS1SS133
RX701
REMOTO SENSOR
C632
47/25
C631
0.022
C630
10/50
SW628
TUNER
(BAND)
SW627
VIDEO/
AUX
R724
100K
SW626
TUNING
/TIME UP
R722
33K
SW625
REC/
PAUSE
R721
18K
R719
10K
SW623
STOP
R718
5.6K
R714
3.9K
SW622
PLAY/
REPEAT
SW621
FAST
FORWARD
R712
2.7K
SW620
REWIND
R709
2.2K
SW619
MEMORY/
SET
R706
1.5K
SW618
TUNING
DOWN
R703
1K
SW617
TAPE
R699
820
SW616
CD
R697
680
R695
680
SW611
DIMMER
SW612
X-BASS/
DEMO
SW613
EQUALIZER
SW614
VOLUME
UP
R698
820
R701
1K
R707
1.5K
SW615
VOLUME
DOWN
SW610
OPEN/
CLOSE
SW609
DISC
SKIP
R720
100K
R717
68K
R715
3.9K
R713
2.7K
R710
2.2K
R705
1.5K
R702
1K
SW603
TIMER/
SLEEP
R700
820
SW602
CLOCK
SW601
POWER
R696
680
R672
10K
R671
10K
R670
10K
R666
1K
R676
4.7K
R675
1K
R674
1K
R673
1K
R669 10K
R668 1K
R667
1K
LED722
9
R661 2.2K
R663 2.2K
R664 2.2K
R665 2.2K
10K
6
60
0K
Q
608
C
3199 GR
R685 1K
R686 1K
R687 1K
R688 1K
R689 1K
R690 1K
R691 1K
R692 1K
R693 1K
R694 1K
XL701
C623
18P(CH)
C622
15P(CH)
R684 1K
R680 1K
R683 1K
R678 1K
R679 1K
C624
0.022
C625
220/10
C621
1/50
C633
10/16
R708
10K
R716
4.7K
IC704
KIA7042AP
RESET
C629
0.022
R711
100K
D618
DS1SS133
C628
3.3/50
Q609
KRC102M
D617
DS1SS133
D616
DS1SS133
C627
0.01
C626
0.1/50
L601
100µH
R704
47K
R723
100
IC701
IX0328AW
SYSTEM
MICROCOMPUTER
R681 1K
R682 1K
+B
+B
+B+B
+B
+B
–B
–B
–B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
1
3
2
FC701
CD-BA150
– 28 –
Figure 28 WIRING SIDE OF P.W.BOARD (1/6)
A
B
C
D
E
F
G
H
1
23456
R142
C138
R139
C134
R140
C144
C131
Q111
C136
C130
C135
C128
C129
C122
IC101
C116
C139
C118
R116
R117
R115
Q107
R114
Q105
BI101
Q108
Q109
Q104
BI102
R138
Q106
C148
C140
R149
Q114
L104
Q103
C108
Q102
C142
C141
R146
Q101
F803
2.0A/250V
F802
4.0A/125V
F801
4.0A/125V
C101
R145
R157
Q112
L103
Q113
C813
CNS802
ZD802
R807
C812
R805
ZD801
C811
C808
C809
Q801
R806
D803
C805
R804
D807
D805
D806
D808
C810
D802
D804
C806
C807
C802
C801
LG901
C841
IC841
Q831
C842
C843
R841
R842
R831
R832
E
C
B
C834
C833
R833
C851
C854
C852
C855
R851
IC851
D851
C853
IC852
R902
C904
Q402
R408
C119
CNP401
C117
C123
C418
R143
R424
C424
C422
C428
C427
BI402
1
1
1
7
YL
YL
YL
YL
PK
PK
PK
PK
PK
WH
WH
WH
WH
BK
BK
BK
BK
WH
WH
WH
WH
PK
PK
PK
YL
YL
1
WH
BK
PK
3
1
5
10
12
13
15
20
24
2
3
4
5
6
7
8
9
10
11 13 15 1719
21
23
1
5
10
12
13
15
20
24
22
2018161412
5
C425
C423
C419
C421
R423
C417
C411
C407
C409
IC401
C412
C410
C408
C420
C406
R
C
C906
R934
R933
C935
C936
R904
C905
C902
IC901
R918
C9
1
C909
C912
C908
R906
R912
Q90
2
R910
D902
D9
0
C831
ZD803
C832
D801
R80
3
A
0
QPWBF0582AWZZ
Q110
CNS402
1
2
3
4
5
CNP11
P32 4 - A
TO CD SERVO
PWB
GY
WH
GY
WH
RD
1
2
3
4
5
6
P33 11 - D
CNS102
P33 10 - D
TO TAPE2 RECORD/
PLAYBACK HEAD
87654
3
2
1
321
E
C
B
E
C
B
E
C
B
E
E
C
B
E
E
1
2
3
1
2
3
C
B
C
B
C
B
E
C
B
E
C
B
E
C
B
CNS101
FROM
POWER
TRANSFORMER
TO TAPE1
PLAYBACK HEAD
1
2
3
1
1
2
2
3
3
56789
101112131415
E
C
B
E
C
B
B
B
C
E
B
C
E
R132
R136
R124
C132
R134
R135
C145
R122
R130
R128
R131
C126
R127
R126
C127
C137
R118
C120
R120
C113
C114
C115
C112
R105
R104
R109
C105
C107
R107
R106
C102
C106
R137
R108
C104
R110
R113
R112
R111
C103
R148
R147
R103
R102
R101
R144
R402
R404
C402
R119
C121
R121
R123
R125
C143
R129
R133
R418
R417
R141
R415
C413
C414
R416
R
4
R935
R931
R932
C133
23
1
FC701
GR
GR
GR
2
3
1
CNP702
TO
DISPLAY PWB
P30 4 - H
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
P33 7 - C
– 29 –
CD-BA150
Figure 29 WIRING SIDE OF P.W.BOARD (2/6)
7
8 9 10 11 12
1
123
1
1
2
3
BCE
E
C
B
23
2
3
5
6
7
8
9
4
902
9
04
1
5
20
24
R409
C411
C407
C409
C426
0
1
ZD351
C404
C412
C410
C408
L352
C370
C405
C406
R410
C358
C403
C371
C906
C373
R934
R933
Q401
C374
C935
C372
C
936
R904
C905
R903
C901
C902
IC901
R919
R901
C903
R918
C910
R920
C911
C909
C912
R909
C908
R906
C907
R908
R912
R911
Q902
Q901
Q904
Q903
1
0
0
2
R915
D901
D903
C917
ZD803
C832
D801
R803
R802
R801
C803
R917
C915
R914
R913
RL951
R953
R954
Q951
R907
R973
R905
D971
C972
D951
CNP971
R972
FW951
LG902
R971
C971
Q971
R975
T306
C365
TP
C364
C368
R357
R350
R358
C367
C362
R370
VD302
IC303
X351
D305
L312
CF303
C357
T302
C352
CF351
R309
VD303
Q302
T301
T351
CF352
C398
R382
C393
R375
Q360
C380
L351
R391
R392
C394
C391
IC302
R384
R387
C396
R386
X352
C307
IC301
R314
CNP301
D301
BF301
D302
T303
VD301
C331
SO401
VIDEO/AUX
SO901
SPEAKER
L920
L921
C916
R916
C804
123456789
1011121314
5
AM LOOP
ANTENNA
FM ANTENNA
1
2
3
1
1
5
2
3
C308
RD
CNS971
BR
12
1
123
2
M901
FAN MOTOR
B
E
C
B
E
C
B
E
C
B
E
C
B
B
C
E
C
E
R-CH
L-CH
R-CH
L-CH
R-CH
L-CH
0
4
R415
C413
R416
C356
R355
C355
R361
R363
R407
R425
R364
R935
C401
R362
R401
R931
R932
C335
C332
C363
R323
R356
C342
C334
R336
C361
C369
C316
R365
R313
C366
C309
C399
R351
R352
C353
R311
C354
R353
C312
C351
C310
C313
C350
C311
R327
C324
R325
R302
R395
R383
R380
R381
R393
C385
C318
R385
R377
C392
C387 R379
C386
R360
C395
C381
R376
R359
C382
R388
R373
R372
R374
R378
C397
R322
C306
C347
C304
C315
C305
C303
C314
R326
C317
R316
C323
C330
R422
C430
R420
R421
R419
C429
R403
123
4
567
89
101112
13 1415
16
17181920
21
22
23 24
1234
56789
1011
12 13
14
15
16 17
18
1920
21
22
JK951
HEADPHONES
R952
R951
A
0
QPWBF0582AWZZ
1
2
3
4
5
CNS951
MAIN PWB-A1
HEADPHONES
PWB-A3
+
+
–
–
CD-BA150
– 30 –
Figure 30 WIRING SIDE OF P.W.BOARD (3/6)
A
B
C
D
E
F
G
H
1
23456
FROM
MAIN PWB
P28 3 - A
CNS701
CNP401
BI701
SW601
POWER
1
10
R696
R700
3
2
1
1
2
3
SW602
CLOCK
D617
R723
D620
D616
D621
IC704
R716
C629
C628
D618
C630
C626
Q609
SW616
CD
R697
R724
R722
SW617
TAPE
SW626
TUING UP
R721
R699
SW618
TUING
DOWN
CNP702
R706
R703
R656
SW619
MEMORY/
SET
R725
R708
R705
R654
R702
C625
L601
R661
R632
R629
R633
R635
R634
C616
D607
D608
D609
LED722
FL701
IC701
R675
R672
R674
R664
R665
R710
R663
R668
SW620
REWIND
R676
R709
A
0
QPWBF0582AWZZ
R669
R670
R673
SW623
STOP
SW603
TIMER/
SLEEP
SW628
TUNER
SW627
VIDEO/
AUX
3579
11131517192123
1
24
68
10121416182022
1
FC701
23
1
30
25
20
15
10
5
31
50
51
55
60
65
70
75
80
81
85
90
95
45
40
35
10
0
R711
C627
R704
R666
R641
R659
R653
R646
R647
R648
R640
R643
R644
R642
R645
R671
C624
R718
R714
2324
25262728293031323334474849
35363738394041424344
CNP12
P32 4 - A
TO CD SERVO PWB
BK
WH
BK
WH
BK
WH
BK
BK
WH
RD
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
– 31 –
CD-BA150
Figure 31 WIRING SIDE OF P.W.BOARD (4/6)
7
8 9 10 11 12
R686
R687
R685
R681
IC701
C624
R675
R672
R674
R667
R689
R713
R664
R715
R665
R710
R663
R668
0
D
R676
R712
CNP703
D613
R719
SW625
REC
PAUSE
R694
R693
C613
R692
R691
R678
R690
R688
C612
XL701
R680
R679
R682
R683
R684
R616
R606
R601
RX701
C609
C632
SW611
DIMMER
Q602
Q601
123
C621
Q603
B
C
E
B
C
E
B
C
E
SW614
VOLUME
UP
C614
D604
DZ601
C611
R612
IC703
R619
D601
C601
IC702
R604
R623
R624
D602
R617
R614
SW615
VOLLUME
DOWN
D603
R701
D615
C618
Q608
R650
R695
R698
SW613
EQUALIZER
Q606
Q604
C620
D611
D614
Q605
Q607
C617
SW609
DISC SKIP
SW612
X-BASS
SW610
OPEN/
CLOSE
SW621
FAST
FORWARD
SW622
PLAY/
REPEAT
SW623
STOP
13579
1113
12 10
86
42
1
30
25
20
15
10
5
31
55
60
65
70
75
80
81
85
90
95
45
40
35
100
FC702
13
1
E
C
B
E
C
B
E
C
B
E
C
B
B
C
E
R602
R671
C624
R718
R714
R626
R625
C623
C622
R611
R622
C631
R621
R627
C603
R620
R609
C608
R605
R615
C610
R610
C607
R613
R603
R607
R608
C606
R618
R707
R658
R655
R660
R649
R638
R652
R637
R651
R662
R717
R720
C604
C605
C602
R636
1
2
3
4
5
6
7
8
1
2
3
4
6
5
7
8
1236789
101112131415162324
25262728293031
3
2
TO
TAPE MECHANISM PWB
P33 10 - A
DISPLAY PWB-A2
CD-BA150
– 32 –
Figure 32 WIRING SIDE OF P.W.BOARD (5/6)
A
B
C
D
E
F
G
H
1
23456
• The numbers 1 to 13 are waveform numbers shown in page 14.
C49
C50
CNP3
CNP4
R16
R17
Q2
C31
D22
C56
C39
C38
XL1
C34
D21
R38
R39
R35
R44
C47
C28
C41
R55
R56
CNP1
C6
D93
R80
L61
R67
R68
C24
C19
R72
R77
R76
R75
R74
R73
R78
R71
R19
CNP12
ZD61
Q1
L62
C64
C11
R58
CNP11
C45
R25
C51
R47
C52
Q3
C7
C54
CNP2
CNS402
P28 5 - A
TO MAIN PWB
CNS701
P30 2 - A
TO DISPLAY PWB
-
M1
SPINDLE MOTOR
17
1
8
CNS1B
CNS1A
CNS2BCNS2A
CNS3B
CNS3A
RD
WH
GY
WH
GY
WH
GY
WH
RD
WH
GY
WH
GY
WH
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
1
2
3
4
5
6
7
6
7
PICKUP UNIT(306)
CD SERVO PWB-B
CD MOTOR
PWB-C
SW4
PICKUP IN
M2
SLED MOTOR
+
-
+
12345
6
12345
6
12345
6
CNP3A
RD
WH
BL
WH
BL
WH
BL
ECB
BCE
123
IC2
IC3
R48
C46
R21
R40
R45
R22
R46
R95
R94
C30
R82
C40
R84
R81
C43
R83
C80
R12
C23
R79
R13
C21
C81
R11
C25
R14
C22
R10
C20
R8
C27
C42
C26
R15
C82
C29
R4
R3
R54
R51
R53
R52
C55
R50
R43
IC1
C8
C53
C44
R42
R7
C18
C83
C12
C14
C17
C13
R6
R5
C71
C78
C73
C74
C75
C76
C77
C72
1
5
10
15
20
21 22
25
30
35
40
42
R20
1
5
10
20
30
25
15 16
1
5
10
15
20
24
25
30
35
40 41
45
50
55
60
64
65
70
75
80
12 45312453679108
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
123456123456
3
2
4
5
1 6
13
7
8
10
9
11
12
– 33 –
CD-BA150
Figure 33 WIRING SIDE OF P.W.BOARD (6/6)
7
8 9 10 11 12
CD LOADING MOTOR
PWB-E
SOCKET PWB-A4
16
123
456
BI4
M3
T/T UP/DOWN
MOTOR
RD
WH
BK
WH
BK
WH
–
+
SW3
DISC
NUMBER
SW2
CLAMP
SW1
OPEN/
CLOSE
TAPE MOTOR
B
A
-
+
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
1
13
CNP702
SOLENOIDESOLENOIDE
TAPE MECHANISM PWB-D
TAPE MECHANISM
ASSEMBLY
P31 9 - H
TO DISPLAY PWB
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
123
CNS101
231
P28 1 - E
TO MAIN PWB
P28 1 - E
TO MAIN PWB
CNS102
654321
654321
TAPE 1
PLAYBACK HEAD
TAPE 2
ERASE HEAD
RECORD/PLAYBACK
HEAD
FC702
CNS4
CNS802
TO MAIN PWB
P28 2 - E
BR
BK
BR
YL
YL
RD
BL
RD
PT801
POWER
TRANSFORMER
RD
BL
1 2 3 4 5 6 7 8
12
CNP801
A
0
QPWBF0582AWZZ
1
2
S0801
CD-BA150
– 34 –
VOLTAGE
0V
0V
0V
0V
0V
0V
4.8V
4.89V
0V
2.06V
2.38V
4.84V
0.87V
5.0V
5.0V
5.0V
5.0V
0V
5.0V
0V
1.2V
0V
1.4V
0V
2.3V
4.44V
0.3V
0V
0V
0V
0V
5.1V
5.1V
5.1V
4.9V
5.0V
4.9V
4.9V
0V
5.0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
37
36
35
34
33
32
31
PIN
NO. NO.
VOLTAGE
IC701
PIN
VOLTAGE
4.29V
4.29V
4.29V
4.29V
4.29V
–27.7V
–25.9V
–22.1V
–20.4V
–27.7V
–27.7V
4.29V
0V
0V
–27.8V
–27.8V
0V
0V
–27.7V
–27.7V
–27.7V
–27.7V
–24.1V
–24.4V
60
59
58
57
56
55
54
53
52
51
61
74
73
72
71
70
69
68
67
66
65
64
63
62
–25.7V
–25.8V
–25.8V
2.58V
2.38V
–24.0V
–25.9V
–22.2V
–22.2V
–22.3V
–27.8V
–27.7V
–27.7V
27.7V
–20.3V
–20.3V
78
77
76
75
79
90
89
88
87
86
85
84
83
82
81
4.29V
1.7V
8.0V
7.9V
8.0V
3.8V
4.89V
4.89V
4.89V
4.29V
50
49
48
47
46
45
44
43
42
41
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
100
99
98
97
96
95
94
93
92
91
80
1.9V
4.9V
0V
0V
1.6V
1.6V
2.1V
0V
0V
0V
0V
0V
2.1V
2.1V
2.1V
1.6V
1.6V
1.8V
2.1V
0V
0V
2.1V
4.9V
3.5V
4.9V
1.6V
2.1V
2.1V
0V
0V
0V
0V
0V
0V
0V
4.2V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
36
35
34
33
32
31
0V
2.1V
2.1V
4.9V
2.1V
41
2.1V
42
40
39
38
37
PIN
NO.
VOLTAGE
IC3
0V
–32.9V
0V
0V
0V
34.4V
0V
35.4V
–35.1V
0V
0V
–34.0V
9
8
7
6
5
4
3
2
1
12
11
10
0V
0V
0V
15
14
13
PIN
NO.
VOLTAGE
IC901
2.8V (0.2V)
0V (0V)
0.8V (0V)
1.5V (0V)
3.6V (0.4V)
1.5V (0V)
3.6V (0.4V)
3.5V (0.3V)
3.6V (0.3V)
9
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC301
19.4V
0V
5.76V
3
2
1
PIN
NO.
VOLTAGE
IC852
19.4V
0V
5V
3
2
1
PIN
NO.
VOLTAGE
IC851
19.41V
0V
10V
3
2
1
PIN
NO.
VOLTAGE
IC841
10.0V
19.41V
10.0V
3
2
1
PIN
NO.
VOLTAGE
Q831
5.0V
0V
5.0V
3
2
1
PIN
NO.
VOLTAGE
IC704
0V
0V
0V
0V
0V
–11.0V
0V
5.58V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC702
0V
0V
0V
0V
0V
–11.0V
0V
5.58V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC703
0V
3.0V
3.3V
3.3V
0V
0V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
1.7V
4.7V
0V
1.6V
0V
2.4V
3.3V
0V
1.6V
3.0V
0V
3.3V
0V
0.7V
0V
0V
0V
0V
0V
1.6V
3.3V
0V
1.6V
1.6V
1.6V
1.6V
0V
2.1V
2.1V
0V
3.3V
3.5V
3.3V
3.3V
3.3V
1.6V
1.6V
1.5V
0V
1.5V
3.0V
3.3V
1.8V
3.0V
0V
0V
0V
1.7V
2.4V
0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
51
64
63
62
61
60
59
58
57
56
55
54
53
52
3.4V
0V
0V
3.2V
0V
0V
0V
0V
0V
4.8V
4.9V
4.9V
4.6V
0V
4.9V
0V
68
67
66
65
69
80
79
78
77
76
75
74
73
72
71
70
IC2
0V (0V)
0V (0V)
0V (0V)
0V (0V)
0.5V (0.5V)
1.9V (1.9V)
0V (0V)
0.6V (0.6V)
3.3V (3.3V)
3.3V (3.3V)
0V (0V)
0V (0V)
9
8
7
6
5
4
3
2
1
12
11
10
0V (0V)
6.7V (6.7V)
4.0V (4.0V)
3.3V (3.3V)
0.6V (0.6V)
0V (0V)
0V (0V)
0V (0V)
17
16
15
14
13
20
19
18
1.9V (1.9V)
0.5V (0.5V)
0V (0V)
0V (0V)
21
24
23
22
PIN
NO.
VOLTAGE
IC101
5.0V
5.0V
0V
0V
0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
9
8
7
6
5
4
3
2
1
12
11
10
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
17
16
15
14
13
20
19
18
5.0V
5.0V
10.0V
0V
21
24
23
22
PIN
NO.
VOLTAGE
IC401
0.1V (9.9V)
4.6V (4.7V)
2.4V (2.4V)
0V (0V)
0V (0V)
0V (0V)
4.8V (4.9V)
4.2V (0V)
3.3V (0V)
3.4V (0V)
4.6V (4.9V)
2.2V (0V)
9
8
7
6
5
4
3
2
1
12
11
10
0V (2.4V)
4.6V (4.9V)
0V (0V)
2.3V (0V)
4.6V (4.9V)
0.8V (4.9V)
0.8V (4.9V)
1.1V (0V)
17
16
15
14
13
20
19
18
0V (0V)
2.5V (3.0V)
21
22
PIN
NO.
VOLTAGE
IC302
4.6V (4.6V)
0V (0V)
2.1V (2.4V)
4.5V (4.8V)
2.1V (2.1V)
2.1V (2.1V)
4.6V (4.6V)
2.4V (3.2V)
4.5V (4.8V)
3.9V (0V)
3.3V (1.8V)
3.3V (1.1V)
9
8
7
6
5
4
3
2
1
12
11
10
1.2V (1.2V)
3.5V (2.0V)
1.2V (1.2V)
2.0V (2.0V)
2.7V (0V)
2.1V (0.9V)
0V (1.9V)
0.3V (0.9V)
17
16
15
14
13
20
19
18
2.6V (2.0V)
3.5V (3.0V)
21
22
PIN
NO.
VOLTAGE
IC303
1.6V
0V
1.6V
1.6V
1.6V
0V
0V
1.6V
3.3V
0V
0V
0V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
2.6V
1.6V
1.6V
1.6V
1.6V
1.6V
0V
0V
0V
1.6V
3.3V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC1
– 35 –
CD-BA150
Parts code
1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ
TROUBLE SHOOTING
When the CD does not function
When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
HOW TO USE
CAUTION
Cleaner Fluid
Cleaner disc
Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it continuous to tum, press the stop button.
1.
2.
3.
The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the
event of this happening then drink and / or rines with clean water and seek medical
advice.
The CD cleaner disk must not be used on car CD players or on computer CD ROM
drives.
All rights reserved.Unauthorized duplicating, broadcasting and renting this product is
(1) Check the power to IC2 (LC78641E), the presence of the clock signal (16.93 MHz) and the status of the RESET terminal
(pin 71 on IC2).
(2) Did the pickup move to the PICKUP-IN Switch (SW4) position?
If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).
2. Pressing the CD operation key is accepted, butplayback does not occur.
(1) Focus-HF system check
(2) Tracking system check
(3) Spin system check
(4) PLL system check
(5) Others
1. "E-CD01" is displayed.
When a CD cannot be played
CD-BA150
– 36 –
If the level is not normal, check around pins 27~29 on IC1.
1. Is focus servo activated? (Waveform drawing 36-2)
Pins 1~11 on IC1
Check the laser diode driver Q3 peripheral circuit.
Focus error circuit (pins 20 and 21 on IC1)
When a disc is loaded, start playback operation.
2. Does DRF change from "L" to "H"?
Is the disc rotating?
3. Is the HF waveform normal? (Waveform drawing 36-3)
Check the spin system.
If the disc is spinning and a HF waveform is generated,
DRF will go H.
Figure 36-1
Check the laser diode driver Q3 peripheral circuit.
(1) Focus-HF system check
Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.
1. Did the pickup move to the PICKUP-IN Switch (SW4)
position?
Sled motor (M2)
Press the OPEN/CLOSE switch (SW1) without inserting a
disc, and try starting the playback operation.
2. Does the focus (lens) move up and down?
(Waveform drawing 36-1).
Check the focus peripheral circuit.
3. Is the laser lit?
Spindle motor (M1).
4. Is the turntable rotating?
Figure 36-2
Figure 36-3
Yes
Yes
Yes
No
No
No
No
No
No
No
Yes
Yes
No
T
FDO
TDO
Stopped
CH1=500mV
DC 10:1
CH3=500mV
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.000V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
T
FDO
DRF
TE
Stopped
CH1=500mV
DC 10:1
CH2=10V
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
-3div -1div 0div +1div +3div
CH Position To
CH2
Position
0.20div
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
– 37 –
CD-BA150
The tracking servo is not activated.
Check the peripheral circuits at pins 18 and 19 on IC1, pin 23 on
IC2, and CNS1A/B.
If the waveform shown in Figure 37-1 appears and soon after
NO DISC appears.
(2) Tracking system check
Check the TE waveform at pin 18 on IC1.
A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 23 on IC2.
"Initialization" is possible, but play is not possible.
Data cannot be read. Check the VCO-PLL system.
"Initialization" is not possible.
Figure 37-1
Figure 37-2
Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.
(3) Spin system check
The spin driver circuit is OK.
1. The turntable rotates a little. (Waveform drawing 37-2)
Check around pin 25 on IC2, pins 15 and 16 on IC3, and CNS3A/B.
2. The turntable doesn't rotate.
T
T
TE
DRF
Stopped
CH1=10V
DC 10:1
CH2=1V
DC 10:1
100ms/div
(100ms/div)
NORM:100kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0V
CH2 : 0.00V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
T
T
FDO
SPDO
Stopped
CH1=200mV
DC 10:1
CH2=500mV
DC 10:1
500ms/div
1999/04/07 09:51:15
(500ms/div)
NORM:20kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
Yes
No
Yes
No
Yes
No
CD-BA150
– 38 –
Is pin 35 (C2F) on IC2 "L"?
Yes
No
The HF waveform is normal and the time is displayed
normally, but no sound is produced. Or the sound has
dropouts.
(5) Others
There are too many error flags on a damaged disc which
makes error correction impossible.
Check again using a known good disc.
1. When playing at normal speed
Check the peripheral circuit at pin 37 (DOUT) on IC2 and
the waveform (Figure 38-2).
If both 1. and 2. are OK.
When a disc is loaded, start play operation.
(4) PLL system check
The HF waveform is normal, but the TOC data cannot be
read.
Check the PDO waveform. (Figure 38-1)
Check around pins 1~6 on IC2.
Figure 38-1
Figure 38-2
T
FDO
PDO2
PDO1
Stopped
CH1=500mV
DC 10:1
CH3=1V
DC 10:1
CH4=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1999/04/05 17:33:17
T
T
DOUT
Stopped
CH1=2V
DC 10:1
500ns/div
1999/04/07 09:25:28
(500ns/div)
NORM:200MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 1K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
– 39 –
CD-BA150
FUNCTION TABLE OF IC
Figure 39 BLOCK DIAGRAM OF IC
IC1 VHiLA9235M/-1: Servo Amp. (LA9235M)
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E)
REF
LA9235M
REF
REF
REF
REF
REF
REF
REF
REF
AGCON
ODRV
AGCON
ODRV
REF
REF
LPF
LPF
APC
ODRV
REF
REF
REF
REF
LPF
PH/BH
PH
BH
1 30FIN1 VCC
2
29
FIN2
RFSW
3FIN3
4
27
FIN4
RF
26 N/C
25 PH
24 BH
23 N/C
5REF1
15
16
TESI
14TESO
13EFBL
12AGON
11ODRV
10LDOF
9VEE
8LDD
7LDS
6VREF
TES
17 HFL
18 TE
19 TE-
20 FE
21 FE-
22 RFEV
28 RF-
1
PDO1
2
PDO2
3
VVSS
4
PCKIST
5
VVDD
6
FR
7
HFL
8
SLCIST
9
SLCO
10
EFMIN
11
JITTV
12
JITTC
13
BH
14
PH(RFENV)
15
FE
16
TE
25
SPDO
26
SLDO
27
FG
28
LASER
29
CONT1
30
CONT2
CONT3
CONT4
CONT5
31
32
33
34
PCK
35
C2F
36
VDD
37
DOUT
38
FSX
39
EFLG
40
TEST
EFMO
DEFECT
FSEQ
V/P
CONT7
CONT6
VSS
VDD
DRF
RES
WRQ
INT
DO
DI
CL
CE
17
VREF
18
ADAVDD
19
ADAVSS
20
PHREF
21
BHREF
22
TBLO
23
TDO
24
FDO
SBCK
PW
SBSY
SFSY
16M
DATA
DATACK
LRSY
ASDACK
ASLRCK
ASDFIN
XVSS
XOUT
XIN
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD
MUTER
MUTEL
EMPH
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
61
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
LC78641E
CD-BA150
– 40 –
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (1/2)
1 PDO1 Output – For PULL Phase-comparison output terminal for built-in VOC control.
2 PDO2 Output – Phase-comparison output terminal for built-in VOC control.
Rough servo : OFF, phase servo : ON.
3 VVSS – – Ground terminal for built-in VCO.
4 PCKIST AI – Resistor terminal for setting the PDO output current.
5 VVDD – – Power terminal for built-in VCO.
6 FR AI – Resistor terminal for setting the VCO frequency range.
7 HFL Input – Mirror detection signal input terminal.
8 SLCIST AI – For slice level control
Resistance connection terminal for current adjustment of
SLCO output.
9 SLCO Output – Control output.
10 EFMIN Input – EFM signal input terminal.
11* JITTV Output Unfixed Jitter detection/monitor terminal.
12 JITTC Output – Jitter detection/adjustment terminal.
13 BH Input – BH signal input terminal. A/D input.
14 PH(RFENV) Input – PH signal or RFENV signal input terminal. A/D input.
15 FE Input – FE signal input terminal. A/D input.
16 TE Input – TE signal input terminal. A/D input.
17 VREF Input – VREF signal input terminal. A/D input.
18 ADAVDD – – AD for servo, D/A power terminal.
19 ADAVSS – – AD for servo, D/A ground terminal.
20* PHREF Output (1/2VDD) PH reference output terminal. D/A output.
21* BHREF Output (1/2VDD) BH reference output terminal. D/A output.
22 TBLO Output (1/2VDD) Output terminal for tracking balance. D/A output.
23 TDO Output (1/2VDD) Output terminal for tracking control. D/A output.
24 FDO Output (1/2VDD) Output terminal for focus control. D/A output.
25 SPDO Output (1/2VDD) Output terminal for spindle control. D/A output.
26 SLDO Output (1/2VDD) Output terminal for sled control. D/A output.
27* FG Input – FG signal input terminal. (When not used,connect to 0V)
28 LASER Output L LASER ON/OFF control terminal.
29 CONT1 In/Output Input mode General purpose input/output terminal 1.
Controlled with serial data command
30 CONT2 In/Output Input mode General purpose input/output terminal 2.
from microcomputer
.
When not used,
31 CONT3 In/Output Input mode General purpose input/output terminal 3.
set it as the input terminal
and
32 CONT4 In/Output Input mode General purpose input/output terminal 4.
open it by connecting
to 0V, or set it
33 CONT5 In/Output Input mode General purpose input/output terminal 5.
as the output terminal and open it.
34* PCK Output H Clock monitor terminal for EFM data replay. 4.3218MHz as phase clock.
35* C2F Output H C2 flag output terminal.
36 VDD – – Power terminal of digital system.
37* DOUT Output L Output terminal of digital OUT. (EIAJ format)
38* FSX Output L
Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.
39* EFLG Output L C1,C2 correct monitor terminal.
40 TEST Input – Input terminal for test. Surely connected to 0V.
41* EMPH In/Output Input mode
Emphasis terminal. After resetting, it is configured as an input terminal. It can be controlled
from the outside. It is also becomes a emphasis monitor terminal under command control.
42* MUTEL Output H Mute output terminal for L channel.
43* MUTER Output H Mute output terminal for R channel.
Pin No.
Function
Terminal Name
Input/Output
Setting in Reset
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
– 41 –
CD-BA150
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (2/2)
44 LVDD – – L channel Power terminal for L channel.
45 LCHO Output 1/2VDD D/A converter L channel output terminal.
46 LVSS – – Ground terminal for L channel. Surely connected to 0V.
47 RVSS – – R channel Ground terminal for R channel. Surely connected to 0V.
48 RCHO OUTPUT 1/2VDD D/A converter R channel output terminal.
49 RVDD – – Power terminal for R channel.
50 XVDD – – For quartz Power terminal for quartz oscillation.
51 XIN Input Oscillation oscillation Ground terminal of 16.9344MHz quartz oscillation.
52 XOUT Output Oscillation
53 XVSS – – Ground terminal for quartz oscillation. Surely connected to 0V.
54 ASLRCK Input – For anti L/R clock input terminal. (When not used,connect to 0V)
55 ASDACK Input – shock mode Bit clock input terminal. (When not used,connect to 0V)
56 ASDFIN Input – L/R channel data input terminal. (When not used,connect to 0V)
57* LRSY Output L For digital L/R clock output terminal.
58* DATACK Output L data output Bit clock output terminal.
59* DATA Output L L/R channel data output terminal.
60* 16M Output Clock output 16.9344MHz output terminal.
61* SFSY Output L Output terminal of synchronous signal of subcode frame.
It drops when subcode stand by.
62* SBSY Output L Output terminal of synchronous signal of subcode block.
63* PW Output L Output terminal of subcodes P,A,R,S,T,U and W.
64 SBCK Input – Clock input terminal to read subcode. (When not used,connect to 0V)
65 CE Input – For Chip enable signal input terminal.
66 CL Input –
microcomputer
Data transmission clock input terminal.
67 DI Input – interface Data input terminal.
68 DO Output L Data output terminal.
69 INT Output H Interruption signal output terminal.
70 WRQ Output H Interruption signal output terminal.
71 RES Input – Reset input terminal of LC78640. When turning on power, set it at "L".
72 DRF Output L Focus ON detection terminal.
73 VDD5V – – Power terminal for microcomputer interface.
74 VSS – – Ground terminal of digital system. Surely connected to 0V.
75 CONT6 In/Output Input mode General purpose input/output terminal 6.
Controlled with serial data command
from microcomputer
.
When not used,
76 CONT7 In/Output Input mode General purpose input/output terminal 7.
set it as the input terminal
and
open it by connecting
to 0V, or set it
as the output terminal and open it.
77* V/ *P Output H Monitor output terminal for automatic switch of rough servo/phase control.
"H" for rough servo, and "L" for phase servo.
78* FSEQ Output L
Output terminal synchronous signal detection. "H" is output when synchronous
signal
detected by EFM signal matches synchronous signal
internally generated.
79 DEFECT In/Output Input mode
Defect terminal. After resetting, it is configured as an input terminal. It can be controlled
from the outside. It also becomes a defect monitor terminal under command control
80* EFMO Output Unfixed
EFM signal output terminal.
Pin No.
Function
Terminal Name
Input/Output
Setting in Reset
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Be sure to supply the same potential to each power terminal. (VVDD,ADAVDD,VDD,LVDD,RVDD,XVDD)
Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :
CE (65pin), CL (66pin), DI (67pin), DO (68pin), INT (69pin), WRQ (70pin), RES (71pin), DRF (72pin),
CONT6 (75pin), CONT7 (76pin)
CD-BA150
– 42 –
IC701 RH-iX0328AWZZ: System Microcomputer (IX0328AW) (1/2)
Port Name Terminal NamePin No. Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Function
1 VDD VDD — (+) POWER SUPPLY
2* P37 — — GND
3* P36 S-BUSY Output COMMIJNTCATE TO MPEG U–COM
4 P35 T–BTAS Output TAPE RECORD BIAS
5 P34 T–T1/T2 Output TAPE T1/T2 CHANGE
6 P33 REC/PLAY Output TAPE REC/PLAY CHANGE
7 P32 RES OUT Output CD DSP RESET & MPEG UCOM RESET
8 P31 DRF Input CD RF LEVEL DETECTION
9 P30 WRQ Input CD DSP WRITE REQUSET
10 RESET RESET Input RESET
11 X2 X2 Output MAIN CLOCK
12 X1 X1 Input MAIN CLOCK
13 Vpp/IC Vpp/IC — GND
14* XT2 XT2 — OPEN
15 P04 CD TNT Input CD DSP INTERRUPT
16 VDD VDD — (+) POWER SUPPLY
17 P27 CD CLK/MCLK Output CD DSP CLOCK/MPEG UCOM CLOCK
18 P26 CD ID/MDI Outout CD DSP COMMAND/MPEG UCOM COMMA
19 P25 CD DO/MDO Input CD DSP CODE Q OUT/MPEG UCOM DATA INPUT
20 P24 CD CE Output CD DSP CE OUTPUT
21 P23 CE Output CE OUTPUT
22 P22 CLK Output CLOCK OUTPUT
23 P21 DT Output DATA OUTPUT
24 P20 DO Output DATA INPUT
25 AVss AVSS — ANALOG GROUND
26 ANI7 TUN SM Input TUNER SIGNAL METER INPUT
P17 M–BUSY Input COMMUNJCATE TO MPEGU COM M_BUSY
27 ANI6 NO USE Input GND
28 ANI5 SPEANA 2 Input SPEANA DATA INPUT 16 KHz
29 ANI4 SPEANA 1 Input SPEANA DATA INPUT 1 KHz
30 ANI3 SPEANA 0 Input SPEANA DATA INPUT 63 KHz
31-33 ANI2-ANI0 KEY2-KEY0 Input KEY INPUT
34 AVDD AVDD — ANALOG VDD
35 AVREF AVREF — ANALOG REF VOLTAGE
36 INTP3 SYS STOP Input SYSTEM STOP INPUT
37 P02 SPRLY Output SPEAKER OUTPUT RELAY CONTROL
38 INTP1 NO USED Input GND
39 INTP0 REMOCON Input REMOCON INPUT
40 Vss VSS — GROUND VOLTAGE
41 P74 SMUTE Output SYSTEM MUTE CONTROL
42 P73 T_SOL_B Output TAPE2 SOLENOID CONTROL
43 P72 T_SOL_A Output TAPE1 SOLENOID CONTROL
44 P71 T_MOTOR Output TAPE MOTOR CONTROL
45 P70 TIMER LED Output TIMER LED CONTROL
46 VDD VDD — (+) POWER SUPPLY
47 P127 AC RLY_CONT Output AC RELAY CONTROL
48* P126 SPRLY Output SPEAKER OUTPUT RELY CONTROL
49 P125 SP DET Input SPEAKER OUTPUT DETDCTION
50 P124 T1 RUN Input TAPE1 RUN PULSE INPUT
51 P123 T2 RUN Input TAPE2 RUN PULSE INPUT
52 P122 CD CLAMP SW Intput CD CHANGER CLAMP SWITCH
53 P121 PLAY SW_A Input PLAY SWITCH FOR T1
– 43 –
CD-BA150
54 P120 PLAY SW_B Input PLAY SWITCH FOR T2
55 P119 PPA Input TAPE2 A–SIDE FULL PROOF
56 P118 FPB Input TAPE2 B_SIDE FULL PROOF
57 P117 MIC SW Input MIC SWITCH
58 P116 KARAOKE LATCH Output KARAOKE LATCH
59 P115 DISTOUT Output DISTINATION OUTPUT
60* FIP39 SPN Input TUNER SPAN CHANGE
6*-62* FIP38-FIP37 NO USE Input OPEN
63-66 FIP36-FIP33 P22-P19 Output FL DISPLAY DRIVER
67-70 FIP32-FIP29 P18-P15 Output FL DISPLAY DRIVER
P103-P100 DIST3-DIST0 Input DISTINATION INPUT
71-78 FIP28-FIP21 P14-P7 Output FL DISPLAY DRIVER
79 VLOAD VLOAD –– FL DRIVER (–) POWER SUPPLY.–30V
80-85 FIP20-FIP15 P6-P1 Output FL DISPLAY SEGMENT
86*-89* FIP14-FIP11 –– Input OPEN
90-100 FIP30-FIP0 G11-G1 IOutput FL DISPLAY SEGMENT DRIVER
IC701 RH-iX0328AWZZ: System Microcomputer (IX0328AW) (2/2)
Port Name Terminal NamePin No. Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Function
1 IN2- CH2 inverted input.
2 IN1A- CH1 inverted input.
3 IN1B- CH1 output offset control.
4 OUT1- CH1 inverted output.
5 OUT1+ CH1 non-inverted output.
6 OUT2- CH2 inverted output.
7 OUT2+ CH2 non-inverted output.
8-14 GND GND
15 OUT3+ CH3 non-inverted output.
16 OUT3- CH3 inverted output.
17 IN3- CH3 inverted input.
18 VCC1 Power supply 1 (CH1, CH2, CH3)
19 STANDBY STANDBY signal input.
20 VRFE CH1-CH4 Reference voltage input.
21 MUTE Mute signal input (CH6).
22 IN5- CH5 inverted input.
23 IN5+ CH5 non-inverted input.
24 VCC2 Power supply 2 (CH4).
25 IN4- CH4 inverted input.
26 OUT4- CH4 inverted output.
27 OUT4+ CH4 non-inverted output.
28 VCC3 Power supply 3 (CH5).
29-35 GND GND
36 OUT5+ CH5 non-inverted output.
37 OUT5- CH5 inverted output.
38 OUT6+ CH6 non-inverted output.
39 OUT6- CH6 inverted output.
40 VCC4 Power supply 4 (CH6).
41 IN6- CH6 inverted input.
42 IN6+ CH6 non-inverted input.
IC3 VHiM63001FP-1: Focus/Tracking/Spin/Slide Driver (M63001FP)
Pin No. Terminal
Name
Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
27
26
25
24
23
22
IN2–
IN1A–
IN1B–
OUT1–
OUT1+
OUT2–
OUT2+
OUT3+
OUT3–
IN3–
VCC1
STANDBY
VTEF
MUTE
GND
GND
VCC3
OUT4+
OUT4–
IN4–
VCC2
IN5+
IN5–
IN6+
IN6–
VCC4
OUT6–
OUT6+
OUT5–
OUT5+
M63001FP
Figure 43 BLOCK DIAGRAM OF IC
CD-BA150
– 44 –
IC401 VHiLC75341/-1: Audio Processor (LC75341)
Figure 44 BLOCK DIAGRAM OF IC
19
20
21
222324
123
4
5
6
7
8
9
10 11 12 13 14 15 16
18
17
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT
LBASS
0.1uF
LIN
LSEL0
L4
L3
L2 L1
R1 R2
R3 R4
RSEL0
R1N
RTRELTRE
RBASS
0.1uF
ROUT
Yref
VDD
CL
DI
CE
YSS
CCB
INTERFACE
CD
Tuner
Tape
Video
24 23 22 21 20 19 18 17 16 15 14 13
123456789101112
LC75341
DI
CE
VSS
LOUT
LBASS
LTRE
LIN
LSEL0
L4
L3
L2
L1
CL
VDD
VREF
ROUT
RBASS
RTRB
RIN
RSEL0
R4
R3
R2
R1
– 45 –
CD-BA150
FL701 VVKBJ749GNK-1: FL Display
Figure 45 FL DISPLAY
S1
9G
B1 B2 B3 B4 B5 B6 B7
B7 B6 B5 B4 B3 B2 B1
S5
1G 2G 3G 4G 5G 6G 7G 8G
11G 10G
S1
B8
B9
B10
B11
B12
B13
B14
S1S1
S1
S1
S4
S3
S2
col
f
a
bk
j
h
mg
c
n
e
r
p
Dp
d
B21
B20
B19
B18
B17
B16
B15
B1
B2
B3
B4
B5
B6
B7
11G
S1
B1
B2
B3
B4
B5
B6
B7
10G
S1
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
9G
S1
B1
B2
B3
B4
B5
B6
B7
8G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
7G
Dp
d
c
n
p
r
e
m
g
col
b
k
j
h
f
a
S2
S3
S4
S5
6G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
5G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
4G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
3G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
2G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
1G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
— M E M O —
– 46 –
CD-BA150
PARTS GUIDE
NOTE:
Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
MODEL
CD-BA150
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER 2. REF. No.
3. PART NO. 4. DESCRIPTION
MARK: SPARE PARTS-DELIVERY SECTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN............... Cylindrical type (without lead wire)
VC • • TV................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
Resistors
VRD ....................... Carbon-film type
VRS........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN............... Cylindrical type (without lead wire)
VR • • TV................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
CD-BA150 Mini Component System consisting of CD-BA150
(mini unit) and CP-BA150 (speaker system).
CAUTION: FOR CONTINUED PROTECTION AGAINST FIER HAZARD,
REPLACE ONLY WITH SAME TYPE F801,F802 4.0A,
125V / F803 2.0A, 250V FUSES
ATTENTION: POUR ASSURER UNE LONGUE PROTECTION CONTRE
UN INCENDIE, REMPLACER SEULEMENT PAR UN FUSIBLE
DE TYPE F801,F802 4.0A, 125V / F803 2.0A, 250V
CD-BA150
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA150
– 1 –
CD-BA150
INTEGRATED CIRCUITS
IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M
IC2 VHILC78641E-1 J AV Servo/Signal Control,LC78641E
IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,
M63001FP
IC101 VHIAN7345K/-1 J AM Playback and Record/Playback
Amp.,AN7345K
IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,
LA1832S
IC401 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0328AWZZ J AX System Microcomputer,
IX0328AW
IC702,703 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC704 VHIKIA7042AP1 J AC Reset,KIA7042AP
IC841 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
IC851 VHIKIA7805P-1 J AF Voltage Regulator,KIA7805P
IC852 VHIAN78L05/-1 J AE Constant Voltage Regulator,
AN78L05
IC901 VHISTK40204-1 J AX Power AMP.,STK40204
TRANSISTORS
Q1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q2 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q3 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q101 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q102,103 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q104~107 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q108~111 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q113 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q114 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q401,402 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q601~604 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q605,606 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q607 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q608 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q609 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q831 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
Q901~904 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q951 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q971 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
DIODES
D21,22 VHDDS1SS133-1 J AB Silicon,DS1SS133
D93 VHDDS1SS133-1 J AB Silicon,DS1SS133
D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133
D305 VHDDS1SS133-1 J AB Silicon,DS1SS133
D601~604 VHDDS1SS133-1 J AB Silicon,DS1SS133
D607 VHDDS1SS133-1 J AB Silicon,DS1SS133
D611 VHDDS1SS133-1 J AB Silicon,DS1SS133
D613~618 VHDDS1SS133-1 J AB Silicon,DS1SS133
D620,621 VHDDS1SS133-1 J AB Silicon,DS1SS133
D801 VHDTS6B04GM-1 J AP Silicon,TS6B04GM
D802~808 VHD1N4004S/-1 J AB Silicon,1N4004S
D851 VHDDS1SS133-1 J AB Silicon,DS1SS133
D901~903 VHDDS1SS133-1 J AB Silicon,DS1SS133
D951 VHDDS1SS133-1 J AB Silicon,DS1SS133
D971 VHDDS1SS133-1 J AB Silicon,DS1SS133
LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7
VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCKDV147B/-1 J AH Variable Capacitance, KDV147B
ZD61 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD601 VHEDZ6R2BSC-1 J AB Zener,DZ6.2BSC
ZD801 VHEDZ300BSB-1 J AB Zener,30V,DZ300BSB
ZD802 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD803 VHEDZ130BSB-1 J AB Zener,DZ130BSB
FILTERS
BF301 RFILR0008AWZZ J AE Band Pass Filter
CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF
TRANSFORMERS
! PT801 RTRNP0294AWZZ J BC Power
T301 RCILB0065AWZZ J OSC,FM
T302 RCILI0017AWZZ J AB FM IF
T303 RCILA0052AWZZ J AE AM Tracking
T306 RCILB0058AWZZ J AC AM OSC
T351 RCILI0019AWZZ J AM IF
COILS
L61 VP-XHR82K0000 J AC 0.82 µH
L62 VP-XH2R2K0000 J AB 2.2 µH,Choke
L103 VP-DH101K0000 J AB 100 µH,Choke
L104 VP-MK331K0000 J AB 330 µH,Choke
L312 RCILR0056AWZZ J FM RF
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L601 VP-DH101K0000 J AB 100 µH,Choke
L920,921 RCILZ0137AFZZ J AA 0.29 µH
VIBRATORS
X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz
XL1 92LCRSTL1746AT J AH Crystal,16.9344 MHz
XL701 RCRSP0003AWZZ J AH Crystal,
CAPACITORS
C6 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C7 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C8 VCKYTV1HB104K J AB 0.1 µF,50V
C11 RC-EZY474AF0J J 0.47 µF,6.3V,Electrolytic
C12 VCKYTV1HB104K J AB 0.1 µF,50V
C13 VCKYTV1HB103K J AA 0.01 µF,50V
C14 VCKYTV1EF334Z J AB 0.33 µF,25V
C16 VCCSPA1HL6R0J J AA 6 pF,50V
C17 VCKYTV1HB472K J AA 0.0047 µF,50V
C18 VCCCTV1HH3R0C J AA 3 pF (CH),50V
C19 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C20,21 VCKYTV1HB104K J AB 0.1 µF,50V
C22 VCKYTV1HB101K J AA 100 pF,50V
C23 VCKYTV1HB473K J AA 0.047 µF,50V
C24 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C25 VCKYTV1HB104K J AB 0.1 µF,50V
C26 VCKYTV1HB473K J AA 0.047 µF,50V
C27 VCKYTV1HB104K J AB 0.1 µF,50V
C28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C29,30 VCKYTV1HB104K J AB 0.1 µF,50V
C31 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C34 VCTYBT1EF223Z J AA 0.022 µF,25V
C38,39 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C40 VCKYTV1HB152K J AA 0.0015 µF,50V
C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C42 VCCSTV1HL680J J AA 68 pF,50V
C43 VCKYTV1HB152K J AA 0.0015 µF,50V
C44 VCKYTV1HB104K J AB 0.1 µF,50V
C45 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C46 VCKYTV1EF223Z J AA 0.022 µF,25V
C47 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C49,50 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C51 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C52 VCTYPA1CX103K J AA 0.01 µF,16V
C53 VCKYTV1HB102K J AA 0.001 µF,50V
C54 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C55 VCKYTV1HB103K J AA 0.01 µF,50V
C56 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic
C64 RC-EZY474AF0J J 0.47 µF,6.3V,Electrolytic
C71 VCKYTV1HB101K J AA 100 pF,50V
C72 VCKYTV1HB103K J AA 0.01 µF,50V
C73~78 VCKYTV1HB101K J AA 100 pF,50V
C80 VCKYTV1HB104K J AB 0.1 µF,50V
C81~83 VCKYTV1EF223Z J AA 0.022 µF,25V
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA150
– 2 –
C101 VCKZPA1HF473Z J AA 0.047 µF,50V
C102,103 VCKYMN1HB102K J AA 0.001 µF,50V
C104,105 VCKYMN1HB181K J AA 180 pF,50V
C106,107 VCKYMN1HB102K J AA 0.001 µF,50V
C108 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C112~115 VCKYMN1HB331K J AA 330 pF,50V
C116,117 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C118,119 VCTYPA1EX333K J AA 0.033 µF,25V
C120,121 VCKYMN1HB561K J AA 560 pF,50V
C122,123 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C126,127 VCKYMN1HB271K J AA 270 pF,50V
C128,129 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C130,131 VCTYPA1CX223K J AA 0.022 µF,16V
C132,133 VCTYMN1CX332K J AA 0.0033 µF,16V
C134,135 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C136 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C137 VCTYMN1EF233Z J 0.023 µF,25V
C138 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C139 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic
C140 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C141 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C143 VCKYMN1HB102K J AA 0.001 µF,50V
C144 VCKYPA1HB102K J AA 0.001 µF,50V
C145 VCKYMN1HB102K J AA 0.001 µF,50V
C148 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C301 VCTYMN1EF223Z J AA 0.022 µF,25V
C302 VCKYMN1HB102K J AA 0.001 µF,50V
C303 VCCCMN1HH100J J AA 10 pF (CH),50V
C304 VCTYMN1CY103N J AA 0.01 µF,16V
C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C306 VCTYMN1EF223Z J AA 0.022 µF,25V
C307 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C308 VCCSMN1HL4R7C J AA 4.7 pF,50V
C309 VCKYMN1HB102K J AA 0.001 µF,50V
C310 VCCCMN1HH150J J AA 15 pF (CH),50V
C311 VCCCMN1HH180J J AA 18 pF (CH),50V
C312 VCTYMN1EF223Z J AA 0.022 µF,25V
C313 VCCCMN1HH220J J AA 22 pF (CH),50V
C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V
C316 VCTYMN1EF223Z J AA 0.022 µF,25V
C317 VCKYMN1HB102K J AA 0.001 µF,50V
C318 VCKYMN1HB101K J AA 100 pF,50V
C320 VCKYMN1HB102K J AA 0.001 µF,50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ8R2D J AA 8.2 pF (UJ),50V
C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V
C331 VCKZPA1HF473Z J AA 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C342 VCTYMN1EF223Z J AA 0.022 µF,25V
C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C365 VCKZPA1HF223K J 0.022 µF,50V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C384 VCKYMN1HB102K J AA 0.001 µF,50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C401,402 VCKYMN1HB102K J AA 0.001 µF,50V
C403 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C404 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C405 VCKZPA1HF223Z J AA 0.022 µF,50V
C406 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C407,408 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C409~412 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C413,414 VCTYMN1CX272K J AA 0.0027 µF,16V
C417~428 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C429,430 VCKYMN1HB391K J AA 390 pF,50V
C601 VCCSPA1HL271J J AA 270 pF,50V
C602 VCTYMN1CX272K J AA 0.0027 µF,16V
C603,604 VCTYMN1CX682K J AA 0.0068 µF,16V
C605 VCKYMN1HB271K J AA 270 pF,50V
C606 VCTYMN1CX272K J AA 0.0027 µF,16V
C607,608 VCTYMN1EF223Z J AA 0.022 µF,25V
C609 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C610 VCTYMN1EF223Z J AA 0.022 µF,25V
C611 VCKZPA1HF223Z J AA 0.022 µF,50V
C612~614 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic
C616 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C617,618 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C620 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C621 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C622 VCCCMN1HH150J J AA 15 pF (CH),50V
C623 VCCCMN1HH180J J AA 18 pF (CH),50V
C624 VCTYBT1EF223Z J AA 0.022 µF,25V
C625 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C626 VCEAEA1HW104M J AB 0.1 µF,50V,Electrolytic
C627 VCTYMN1CY103N J AA 0.01 µF,16V
C628 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic
C629 VCKZPA1HF223Z J AA 0.022 µF,50V
C630 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C631 VCTYMN1EF223Z J AA 0.022 µF,25V
C632 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C633 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C801,802 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C803,804 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic
C805,806 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C807 VCEAZA1EW338M J 3300 µF,25V,Electrolytic
C808,809 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C810 VCEAZV1HW227M J AD 220 µF,50V,Electrolytic
C811,812 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C813 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C831 VCEAZA1EW227M J AC 220 µF,25V,Electrolytic
C832 VCKZPA1HF223Z J AA 0.022 µF,50V
C833 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C834 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C841,842 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C843 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C851 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C852 VCKZPA1HF223Z J AA 0.022 µF,50V
C853,854 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C855 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C901,902 VCCSPA1HL221J J AA 220 pF,50V
C903,904 VCCSPA1HL150J J AA 15 pF,50V
C905,906 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C907,908 VCKZPA1HF223Z J AA 0.022 µF,50V
C909,910 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C911 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C915,916 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C917 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C935,936 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C971 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C972 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
RESISTORS
VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory
VRS-TV2AB000J J AA 0 ohm,Jumper,1.25×2mm,Green
R3 VRS-TV2AB104J J AA 100 kohm,1/10W
R4 VRS-TV2AB103J J AA 10 kohm,1/10W
R5 VRS-TV2AB393J J AA 39 kohms,1/10W
R6 VRS-TV2AB273J J AA 27 kohms,1/10W
R7 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R8 VRS-TV2AB331J J AA 330 ohms,1/10W
R10 VRS-TV2AB273J J AA 27 kohms,1/10W
R11 VRS-TV2AB123J J AA 12 kohms,1/10W
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA150
– 3 –
R12,13 VRS-TV2AB681J J AA 680 ohms,1/10W
R14 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R15 VRS-TV2AB103J J AA 10 kohm,1/10W
R16 VRD-ST2CD103J J AA 10 kohm,1/6W
R17 VRD-ST2CD102J J AA 1 kohm,1/6W
R19 VRD-ST2CD470J J AA 47 ohms,1/6W
R20 VRS-TV2AB221J J AA 220 ohms,1/10W
R21,22 VRS-TV2AB471J J AA 470 ohms,1/10W
R25 VRD-ST2CD103J J AA 10 kohm,1/6W
R35 VRD-ST2CD102J J AA 1 kohm,1/6W
R38 VRD-ST2CD271J J AA 270 ohms,1/6W
R39 VRD-ST2CD471J J AA 470 ohms,1/6W
R40 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R42 VRS-TV2AB124J J AA 120 kohms,1/10W
R43 VRS-TV2AB224J J AA 220 kohms,1/10W
R44 VRD-ST2CD102J J AA 1 kohm,1/6W
R45 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R46 VRS-TV2AB102J J AA 1 kohm,1/10W
R47 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W
R48 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R50 VRS-TV2AB470J J AA 47 ohms,1/10W
R51~54 VRS-TV2AB683J J AA 68 kohms,1/10W
R55,56 VRD-ST2CD683J J AA 68 kohms,1/6W
R58 VRD-ST2CD221J J AA 220 ohms,1/6W
R71~78 VRD-ST2CD102J J AA 1 kohm,1/6W
R79 VRS-TV2AB155J J AA 1.5 Mohms,1/10W
R80 VRD-ST2CD105J J AA 1 Mohm,1/6W
R81,82 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R83,84 VRS-TV2AB103J J AA 10 kohm,1/10W
R94,95 VRS-TV2AB103J J AA 10 kohm,1/10W
R101,102 VRD-MN2BD103J J AA 10 kohm,1/8W
R103 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R104,105 VRD-MN2BD102J J AA 1 kohm,1/8W
R106,107 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R108,109 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R110 VRD-MN2BD473J J AA 47 kohms,1/8W
R111,112 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R113 VRD-MN2BD473J J AA 47 kohms,1/8W
R114,115 VRD-ST2CD102J J AA 1 kohm,1/6W
R116,117 VRD-ST2CD560J J AA 56 ohms,1/6W
R118,119 VRD-MN2BD104J J AA 100 kohm,1/8W
R120,121 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R122,123 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R124,125 VRD-MN2BD333J J AA 33 kohms,1/8W
R126 VRD-MN2BD683J J AA 68 kohms,1/8W
R127~128 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R129,130 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R131,132 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R133,134 VRD-MN2BD101J J AA 100 ohm,1/8W
R135,136 VRD-MN2BD103J J AA 10 kohm,1/8W
R137 VRD-MN2BD153J J AA 15 kohms,1/8W
R138 VRD-ST2CD153J J AA 15 kohms,1/6W
R139 VRD-ST2EE221J J AA 220 ohms,1/4W
R140 VRD-ST2CD103J J AA 10 kohm,1/6W
R141 VRD-MN2BD103J J AA 10 kohm,1/8W
R142,143 VRD-ST2CD224J J AA 220 kohms,1/6W
R144 VRD-MN2BD473J J AA 47 kohms,1/8W
R145 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R146 VRD-RT2HD820J J AA 82 ohms,1/2W
R147 VRD-MN2BD473J J AA 47 kohms,1/8W
R148 VRD-MN2BD223J J AA 22 kohms,1/8W
R149 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R157 VRD-ST2EE151J J AA 150 ohms,1/4W
R302 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD103J J AA 10 kohm,1/6W
R311 VRD-MN2BD104J J AA 100 kohm,1/8W
R313 VRD-MN2BD333J J AA 33 kohms,1/8W
R314 VRD-ST2CD220J J AA 22 ohms,1/6W
R315 VRD-MN2BD154J J AA 150 kohms,1/8W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R319 VRD-ST2CD225J J AA 2.2 Mohms,1/6W
R322 VRD-MN2BD681J J AA 680 ohms,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R325 VRD-MN2BD473J J AA 47 kohms,1/8W
R327 VRD-MN2BD330J J AA 33 ohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361~365 VRD-MN2BD103J J AA 10 kohm,1/8W
R370 VRD-ST2CD102J J AA 1 kohm,1/6W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD471J J AA 470 ohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R386 VRD-ST2CD223J J AA 22 kohms,1/6W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R401,402 VRD-MN2BD331J J AA 330 ohms,1/8W
R403,404 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R407 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R408 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R409,410 VRD-ST2CD103J J AA 10 kohm,1/6W
R415,416 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R417,418 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R419,420 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R421,422 VRD-MN2BD273J J AA 27 kohms,1/8W
R423,424 VRD-ST2CD474J J AA 470 kohms,1/6W
R425 VRD-MN2BD223J J AA 22 kohms,1/8W
R601 VRD-ST2CD102J J AA 1 kohm,1/6W
R602 VRD-MN2BD104J J AA 100 kohm,1/8W
R603 VRD-MN2BD103J J AA 10 kohm,1/8W
R604 VRD-ST2CD123J J AA 12 kohms,1/6W
R605 VRD-MN2BD563J J AA 56 kohms,1/8W
R606 VRD-ST2CD102J J AA 1 kohm,1/6W
R607 VRD-MN2BD333J J AA 33 kohms,1/8W
R608 VRD-MN2BD683J J AA 68 kohms,1/8W
R609 VRD-MN2BD474J J AA 470 kohms,1/8W
R610 VRD-MN2BD153J J AA 15 kohms,1/8W
R611 VRD-MN2BD104J J AA 100 kohm,1/8W
R612 VRD-ST2CD105J J AA 1 Mohm,1/6W
R613 VRD-MN2BD824J J AA 820 kohms,1/8W
R614 VRD-ST2CD394J J AA 390 kohms,1/6W
R615 VRD-MN2BD154J J AA 150 kohms,1/8W
R616 VRD-ST2CD102J J AA 1 kohm,1/6W
R617 VRD-ST2CD224J J AA 220 kohms,1/6W
R618 VRD-MN2BD224J J AA 220 kohms,1/8W
R619 VRD-ST2CD225J J AA 2.2 Mohms,1/6W
R620 VRD-MN2BD184J J AA 180 kohms,1/8W
R621 VRD-MN2BD330J J AA 33 ohms,1/8W
R622 VRD-MN2BD104J J AA 100 kohm,1/8W
R623,624 VRD-ST2EE271J J AA 270 ohms,1/4W
R625~627 VRD-MN2BD104J J AA 100 kohm,1/8W
R628 VRD-MN2BD153J J AA 15 kohms,1/8W
R629 VRD-ST2CD103J J AA 10 kohm,1/6W
R632~635 VRD-ST2CD103J J AA 10 kohm,1/6W
R636 VRD-MN2BD683J J AA 68 kohms,1/8W
R637 VRD-MN2BD102J J AA 1 kohm,1/8W
R638 VRD-MN2BD473J J AA 47 kohms,1/8W
R640 VRD-MN2BD102J J AA 1 kohm,1/8W
R642 VRD-MN2BD223J J AA 22 kohms,1/8W
R643,644 VRD-MN2BD102J J AA 1 kohm,1/8W
R645 VRD-MN2BD223J J AA 22 kohms,1/8W
R646~648 VRD-MN2BD102J J AA 1 kohm,1/8W
R649 VRD-MN2BD103J J AA 10 kohm,1/8W
R650 VRD-ST2CD683J J AA 68 kohms,1/6W
R651,652 VRD-MN2BD103J J AA 10 kohm,1/8W
R653 VRD-MN2BD102J J AA 1 kohm,1/8W
R654 VRD-ST2CD102J J AA 1 kohm,1/6W
R655 VRD-MN2BD102J J AA 1 kohm,1/8W
R656 VRD-ST2CD103J J AA 10 kohm,1/6W
R657 VRD-ST2CD102J J AA 1 kohm,1/6W
R658 VRD-MN2BD473J J AA 47 kohms,1/8W
R659 VRD-MN2BD102J J AA 1 kohm,1/8W
R660 VRD-MN2BD103J J AA 10 kohm,1/8W
R661 VRD-ST2CD222J J AA 2.2 kohms,1/6W
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA150
CNP971 92LCONE2P53253 J AB Plug,2Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS802 QCNCM035HAWZZ J AB Plug,8Pin
CNS951 QCNCW012EAWZZ J AC Plug,5Pin
CNS971 QCNWN1389AWZZ J AC Connector Ass’y 2Pin
! F801,802 92LFUSET402D J Fuse,4A/125V
! F803 92LFUSET202D J AD Fuse,2A/250V
FC701 QCNWN1564AWZZ J AG Flat Cable,23Pin
FC702 QCNWN1544AWZZ J AE Flat Cable,13Pin
FL701 VVKBJ749GNK-1 J BD FL Display
FW951 QCNWN1563AWZZ J Connector Ass’y,5Pin
JK951 QJAKM0004AWZZ J AK Jack,Headphones
LG901,902 QLUGP0001AWZZ J AC Lug
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LTWMEN7E6Y J Motor with Worm Pulley
[T/T Up/Down Loading]
M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
RL951 RRLYD0014AWZZ J AK Relay
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
SO401 QSOCJ0219AWZZ J AD Jack,Video/AUX
SO801 QSOCA0209AWZZ J AH Socket,AC Input
SO901 QTANA0417AWZZ J AE Terminal,Speaker
SW1 SWMPU10780MLB J Switch,Push Type [Open/Close]
SW2 SWMPU11470MLB J Switch,Push Type [Clamp]
SW3 SWMPU11470MLB J Switch,Push Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
SW601 QSW-K0009AWZZ J Switch,Key Type [POWER]
SW602 QSW-K0009AWZZ J Switch,Key Type [CLOCK]
SW603 QSW-K0009AWZZ J Switch,Key Type
[TIMER/SLEEP]
SW609 QSW-K0009AWZZ J Switch,Key Type [DISC SKIP]
SW610 QSW-K0009AWZZ J Switch,Key Type
[OPEN/CLOSE]
SW611 QSW-K0009AWZZ J Switch,Key Type [DIMMER]
SW612 QSW-K0009AWZZ J Switch,Key Type
[X-BASS/DEMO]
SW613 QSW-K0009AWZZ J Switch,Key Type [EQUALIZER]
SW614 QSW-K0009AWZZ J Switch,Key Type [VOLUME UP]
SW615 QSW-K0009AWZZ J Switch,Key Type
[VOLUME DOWN]
SW616 QSW-K0009AWZZ J Switch,Key Type [CD]
SW617 QSW-K0009AWZZ J Switch,Key Type [TAPE]
SW618 QSW-K0009AWZZ J Switch,Key Type
[TUNING/TIME DOWN]
SW619 QSW-K0009AWZZ J Switch,Key Type
[MEMORY/SET]
SW620 QSW-K0009AWZZ J Switch,Key Type [Rewind]
SW621 QSW-K0009AWZZ J Switch,Key Type [Fast Forward]
SW622 QSW-K0009AWZZ J Switch,Key Type
[PLAY/REPEAT]
SW623 QSW-K0009AWZZ J Switch,Key Type [STOP]
SW625 QSW-K0009AWZZ J Switch,Key Type [REC/PAUSE]
SW626 QSW-K0009AWZZ J Switch,Key Type
[TUNING/TIME UP]
SW627 QSW-K0009AWZZ J Switch,Key Type [VIDEO/AUX]
SW628 QSW-K0009AWZZ J Switch,Key Type
[TUNER (BAND)]
WT601 QCNCW012EAWZZ J AC Plug,5Pin
CD MECHANISM PARTS
301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LM-CUSN1524A J AC Cushion
306 92LHPC1LXASY J BD Pickup Unit Ass’y
306- 1 ———— –– Pickup Unit
(Not Replacement Item)
306- 2 NGERR0043AFZZ J AC Gear,Rack
306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
– 4 –
R662 VRD-MN2BD103J J AA 10 kohm,1/8W
R663~665 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R666 VRD-MN2BD102J J AA 1 kohm,1/8W
R667,668 VRD-ST2CD102J J AA 1 kohm,1/6W
R669,670 VRD-ST2CD103J J AA 10 kohm,1/6W
R671 VRD-MN2BD103J J AA 10 kohm,1/8W
R672 VRD-ST2CD103J J AA 10 kohm,1/6W
R673~675 VRD-ST2CD102J J AA 1 kohm,1/6W
R676 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R678~694 VRD-ST2CD102J J AA 1 kohm,1/6W
R695~697 VRD-ST2CD681J J AA 680 ohms,1/6W
R698~700 VRD-ST2CD821J J AA 820 ohms,1/6W
R701~703 VRD-ST2CD102J J AA 1 kohm,1/6W
R704 VRD-MN2BD473J J AA 47 kohms,1/8W
R705,706 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R707 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R708 VRD-ST2CD103J J AA 10 kohm,1/6W
R709,710 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R711 VRD-MN2BD104J J AA 100 kohm,1/8W
R712,713 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R714 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R715 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R716 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R717 VRD-MN2BD683J J AA 68 kohms,1/8W
R718 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R719 VRD-ST2CD103J J AA 10 kohm,1/6W
R720 VRD-MN2BD104J J AA 100 kohm,1/8W
R721 VRD-ST2CD183J J AA 18 kohms,1/6W
R722 VRD-ST2CD333J J AA 33 kohms,1/6W
R723 VRD-ST2CD101J J AA 100 ohm,1/6W
R724 VRD-ST2CD104J J AA 100 kohm,1/6W
R725 VRD-ST2CD103J J AA 10 kohm,1/6W
R801,802 VRD-ST2EE223J J AA 22 kohms,1/4W
R803 VRS-VV3DA681J J AC 680 ohms,2W
R804 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R805 VRD-ST2CD473J J AA 47 kohms,1/6W
R806 VRD-ST2CD100J J AA 10 ohm,1/6W
R807 VRD-ST2CD123J J AA 12 kohms,1/6W
R831 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R832 VRD-RT2HD330J J AA 33 ohms,1/2W
R833 VRD-ST2CD223J J AA 22 kohms,1/6W
R841 VRD-ST2CD223J J AA 22 kohms,1/6W
R842 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R851 VRD-ST2CD103J J AA 10 kohm,1/6W
R901,902 VRD-ST2CD563J J AA 56 kohms,1/6W
R903,904 VRD-ST2CD821J J AA 820 ohms,1/6W
R905,906 VRD-ST2CD102J J AA 1 kohm,1/6W
R907,908 VRN-VV3AAR10J J 0.1 ohm,1W
R909,910 VRD-ST2CD102J J AA 1 kohm,1/6W
R911,912 VRD-ST2CD103J J AA 10 kohm,1/6W
R913~915 VRD-ST2CD563J J AA 56 kohms,1/6W
R916,917 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
! R918,919 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R920 VRD-ST2CD223J J AA 22 kohms,1/6W
R931,932 VRD-MN2BD102J J AA 1 kohm,1/8W
R933,934 VRD-ST2CD683J J AA 68 kohms,1/6W
R951,952 VRD-RT2HD331J J AA 330 ohms,1/2W
R953,954 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R971 VRD-RT2HD102J J AA 1 kohm,1/2W
R972 VRD-ST2CD683J J AA 68 kohms,1/6W
R973 VRD-ST2CD153J J AA 15 kohms,1/6W
R975 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
OTHER CIRCUITRY PARTS
BI101/CNS101 QCNWN1547AWZZ J Connector Ass’y,3/3Pin
BI102/CNS102 QCNWN1548AWZZ J Connector Ass’y,7/6Pin
BI402/CNS402 QCNWN1561AWZZ J AF Connector Ass’y,5Pin
BI701/CNS701 QCNWN1562AWZZ J AH Connector Ass’y,10/10Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAFZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP11 92LCONE5P53254 J AB Plug,5Pin
CNP12 92LCONEAP53254 J AD Plug,10Pin
CNP301 92LCONE3P5268 J AC Plug,3Pin
CNP401 QCNCWZG23AWZZ J AK Plug,23Pin
CNP702 QCNCWZF23AWZZ J AK Plug,23Pin
CNP703 QCNCWZF13AWZZ J Plug,13Pin
CNP801 QCNCM049BAWZZ J AC Plug,2Pin
254 92LPT0311101 J AB Lever,Clamp
255 92LPT0311102 J AC Lever,Disc
256 92LPT0312005 J Gear,Cam
257 92LPT0320201 J AE Support,Stabilizer
258 92LPT0330301 J AU Chassis,Loading
259 92LPT0330803 J AK CD,Chassis
260 92LPT0331003 J AT Chassis,Slide
262 92LSP0304303 J Spring,Stopper
263 92LSP0304305 J AB Spring,Lock
264 92LSP0304306 J Spring,Lock Gear
267 LANGK0184AWFW J AG Bracket,Tuner PWB
268 KMECB0011AWZZ J BH Tape Mechanism Ass’y
269 PSHEZ0069AWZZ J Bracket,PWB Sheet
270(SW1) SWMPU10780MLB J Switch,Push Type [Open/Close]
271(SW2) SWMPU11470MLB J Switch,Push Type [Clamp]
272(SW3) SWMPU11470MLB J Switch,Push Type [Disc Number]
273(M3) 92LTWMEN7E6Y J Motor with Worm Pulley
[T/T Up/Down Loading]
601 XBBSD20P04000 J AA Screw,ø2×4mm
604 XEBSF30P12000 J AA Screw,ø3×12mm
605 XESSD30P10000 J AA Screw,ø3×10mm
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 XJBSD30P12000 J AA Screw,ø3×12mm
608 XJBSD30P10000 J AA Screw,ø3×10mm
609 XJBSD30P14000 J AA Screw,ø3×14mm
610 XJBSF30P10000 J AA Screw,ø3×10mm
611 XJSSD30P10000 J AA Screw,ø3×10mm
612 LX-HZ0009AWFD J AC Screw,Special
613 LX-HZ0169AFFD J AA Screw,Special
614 LX-JZ0010AFFD J AA Screw,Special
615 XEBSD30P10000 J AA Screw,ø3×10mm
616 LX-BZ2222AXZZ J Screw,Special
617 LX-JZ0004AWFD J AA Screw,ø3×12mm
618 92LSC0308MBZI J AB Screw,ø3×8mm
619 92LSC0308RBZI J Screw,ø3×8mm
PACKING PARTS (Except for U.S.A.)
SPAKA0235AWZZ J Packing Add.,Left/Right
SPAKC0920AWZZ J Packing Case [For U.S.A.]
SPAKC0921AWZZ J Packing Case [For Canada]
SPAKC0922AWZZ J Packing Case
[For Central America/Mexico]
SPAKP0013AWZZ1 J AC Polyethylene Bag,Unit
92LBAG1460C1 J AB Polyethylene Bag,Accessories
92L411-0075 J Polyethylene Bag,Speaker
92L412-0133 J Packing Add.,Speaker
92L416-0068 J Layer Pad
ACCESSORIES (Except for U.S.A.)
QACCD0015AWOO J AC Power Supply Cord
[For Canada]
QACCD0020AWZZ J AN AC Power Supply Cord
[Except for Canada]
QANTL0007AWZZ J AK AM/FM Loop Antenna
TINSE0279AWZZ J AD Operation Manual
[For U.S.A.]
TINSK0097AWZZ J AF Operation Manual [For Canada]
TINSZ0501AWZZ J Operation Manual
[For Central America/Mexico]
TINSZ0502AWZZ J AD Quick Guide [U.S.A.Only]
TLABR1088AWZZ J AB Label,Bar Code
TLABZ0669AWZZ J Label,Feature,Tape 1
TLABZ0670AWZZ J Label,Feature,Tape 2
RRMCG0219AWSA J AR Remote Control
GFTAB1022AWSB J AK Battery Lid,Remote Control
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1~4 92LPWB3283MANS J –– Main/Display/Headphones/
Socket (Combined Ass’y)
PWB-B 92LPWB3303CDUS J –– CD Servo
PWB-C QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-D ———— –– Tape Mechanism
PWB-E 92LPC99C017 J CD Loading Motor (PWB Only)
CABINET PARTS
201 92LCAB3283AASY J Front Cabinet Ass’y
201- 1 ———— –– Front Panel
(Not Replacement Item)
201- 2 GDORF0074AWSA J AE Holder,Cassette,Tape 1
201- 3 GDORF0075AWSA J AE Holder,Cassette,Tape 2
201- 4 GCOVA1251AWSA J AH Cover,Cassette,Tape 1
201- 5 GCOVA1252AWSA J AH Cover,Cassette,Tape 2
201- 6 HDECQ0521AWSA J AD Panel,Cassette,Tape 1
201- 7 HDECQ0522AWSA J AD Panel,Cassette,Tape 2
201- 8 HDECQ0520AWSA J AK Panel,Amp.
201-10 JKNBZ0649AWSA J AF Button,Volume
201-11 JKNBZ0648AWSA J AG Button,Center Operation
201-12 JKNBZ0657AWSA J AF Button,Power/Clock
201-13 JKNBZ0658AWSA J AF Button,Function,A
201-14 JKNBZ0659AWSA J AF Button,Function,B
201-15 JKNBZ0660AWSA J AF Button,Tuning
201-16 JKNBZ0661AWSA J AE Button,Dimmer
201-20 GCOVA1258AWSA J AB Cover,LED,C
201-21 MLIFP0008AWZZ J AD Damper
201-22 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1
201-23 MSPRD0093AWFJ J AB Spring,Cassette,Tape 2
201-24 92LBADGE1671A J AC Badge,SHARP
201-25 JKNBZ0650AWSA J AF Button,Disc/X-BASS
202 92LCAB3283BASY J Side Panel Ass’y,Left
202- 1 ———— –– Side Panel,Left
(Not Replacement Item)
202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3283CASY J Side Panel Ass’y,Right
203- 1 ———— –– Side Panel,Right
(Not Replacement Item)
203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 92LCOV3303AASY J CD Tray Cover Ass’y
204- 1 ———— –– Cover,CD Tray
(Not Replacement Item)
204- 2 GCOVA1254AWSA J AE Cover,CD Tray Panel,Left
204- 3 GCOVA1255AWSA J AE Cover,CD Tray Panel,Right
205 GCAB-1184AWSA J AP Top Cabinet
206 GITAR0539AWSA J AH Rear Panel
[For U.S.A.]
206 GITAR0540AWSA J Rear Panel [For Canada]
206 GITAR0541AWSA J Rear Panel
[For Central America/Mexico]
208 LANGK0110AWFW1J AD Support,Cassette Lock,Tape 1
209 LANGK0111AWFW1J AD Support,Cassette Lock,Tape 2
210 LANGK0192AWFW J AD Bracket,Fan Support
213 LCHSM0094AWFW J AP Main Chassis
214 LHLDZ1241AWZZ J AE Holder,FL Display
219 MLOKC0003AWZZ J AD Lock Lever,Cassette,Tape 1
220 MLOKC0004AWZZ J AD Lock Lever,Cassette,Tape 2
221 MSPRD0109AWFJ J AB Spring,Cassette Lock,Tape 1
222 MSPRD0110AWFJ J AB Spring,Cassette Lock,Tape 2
223 NFANP0001AWZZ J AD Rotary Fan
224 92LPT0331105 J AM Table Loading
225 PCUSG0022AWZZ J AB Cushion,Leg
226 PRDAR0148AWFW J AR Heat Sink,Main
230 QCNWN1615AWZZ J AC Lug Wire
! 231 QFSHD0001AWZZ J AB Holder,Fuse
232 92LBE241414 J AD Belt
233 92LCSPR1431C J AA Spring,Ring
234 92LEVA0330702 J Velvet Carpet,Chassis
235 92LMAG0104302 J Magnet
236 92LMT0304302 J Plate,Metal
237 92LNBAND1318A J AA Nylon Band,80mm
238 92LNM0305401 J Velvet Carpet
239 92LPT0303002 J AB Roller
240 92LPT0304303 J AB Lever,Stop
241 92LPT0304304 J Stopper
242 92LPT0304305 J AE Lever,Lock
243 92LPT0304306 J Stabilizer
244 92LPT0304307 J AC Support,Cam
245 92LPT0304308 J Lock Gear Pin
246 92LPT0304309 J Cap,Pulley Stopper
247 92LPT0305413 J Cam Gear Lower
248 92LPT0309506 J AD Gear,Turntable Drive
249 92LPT0309507 J AD Gear,Open/Close Drive
250 92LPT0309508 J AD Gear,Planet
251 92LPT0309509 J AD Gear,Drive
252 92LPT0309510 J AE Gear,Pulley
253 92LPT0309511 J AD Gear,Middle
PARTS CODE
PRICE
RANK
DESCRIPTIONNO.
– 5 –
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE
CD-BA150
OTHER SERVICE PARTS
UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner
– 6 –
CP-BA150
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA150
SPEAKER BOX PARTS
901 92L126-0009 J BA Front Panel Ass’y,Left
902 92L126-0010 J BA Front Panel Ass’y,Right
903 92L121-0178 J AP Net Frame Ass’y
904 92L051-0079 J Speaker Box Ass’y,Left
905 92L051-0085 J Speaker Box Ass’y,Right
907 92L394-0056 J AC Foot Cushion
908 92L394-0055 J AC Port Cushion
909 92L351-0349 J Label,Specifications
910 VSP0051TBN46A J AQ Tweeter
911 VSPA010WB13CA J Woofer
912 92L319-0027 J AE Catching Holder
913 92L372-0109 J Screw,ø3×10mm
914 92L372-0110 J Screw,ø4×16mm
915 92L122-0048 J Speaker Cord Ass’y
(With Capacitor)
CD-BA150
– 7 –
A
B
C
D
E
F
G
H
1
23456
Figure 7 CD MECHANISM EXPLODED VIEW
CD-BA150
306-1
701
304
701
302
301
702
303
M1
703x4
305x2
SW4
M2
305
PWB-C
306-2
306-3
306
704
CD-BA150
– 8 –
Figure 8 CABINET EXPLODED VIEW (1/2)
A
B
C
D
E
F
G
H
1
23456
Note: Only tape mechanism assembly and consumable parts are supplied for replacement purposes.
CD-BA150
202-1
202
610x2
202-2
PWB-A2
PWB-D
206
605x6
613x4
203-1
203-2
203
201-7
201-6
201-4
201-5
201-2
201-3
201-23
PT801
201-22
201-8
PWB-A3
PWB-A4
223
233
601x2
611x2
610x2
225
225
210
M901
268
608
608
201-21
201-25
201-11
201-14
201-13
201-16
201-15
201-12
201-10
201-21
201
201-1
616
201-20
201-24
MM1
MAIN BELT
FLYWHEEL
ASS'Y
TAPE1
FLYWHEEL
ASS'Y
TAPE2
PWB-A1
614x3
231x6
226
IC901
IC851
Q831
IC841
615x15
607x3
614x2
609x2
617x9
610x2
FL701
214
213
237x4
612
606x2
221
219
208
612
222
606x2
220
209
230
608
267
Silicon
grease
FF/REW
ROLLER
ASS'Y
FF/REW
ROLLER
ASS'Y
BELT CONNECTION
CD-BA150
– 9 –
Figure 9 CABINET EXPLODED VIEW (2/2)
A
B
C
D
E
F
G
H
1
23456
CD-BA150
248
CD
MECHANISM
205
257
235
236
243
224
259
239
239
260
204-2
204-1
204-3
258
269
204
240
239x3
604x2
604x2
250x4
256
247
262
238
241
244
618
251
252
255
249
253
PWB-B
239
254
246
232
263
234
M3
273(M3)
PWB-E
242
272
(SW3)
271
(SW2)
270
(SW1)
619
264
245
CD-BA150
– 10 –
A
B
C
D
E
F
G
H
1
23456
Figure 10 SPEAKER EXPLODED VIEW
CP-BA150
904,905
909
911
911
914x4
914x4
903
913x2
910
908
907x4
901,902
912x4
C1,2
Capacitor
3.3µF,100V
C1,2
Capacitor
3.3µF,100V
Electrolytic
TWEETER
WOOFER
WOOFER
(with
Capacitor C1,2)
915
CD-BA150
PACKING OF THE SET (FOR U.S.A. ONLY)
Setting position of switches and knobs
Tape Mechanism STOP
Not Replacement Item
SPAKP0013AWZZ1
Polyethylene Bag, Unit
UNIT
92LBAG1460C1
Polyethylene Bag, Accessories
AM/FM Loop Antenna
Quick Guide
Operation Manual
Remote Control
SPAKC0920AWZZ
Packing Case
TLABR1088AWZZ
Label ,Bar Code
FRONT SIDE OF
SPEAKERS
SPAKA0235AWZZ
Packing Add., Left/Right
TLABZ0670AWZZ
Label, Feature Tape2
TLABZ0669AWZZ
Label, Feature Tape1
92L412-0133
Packing Add.
92L411-0075
Polyethylene Bag
Bottom
TOP
FRONT
A
B
A
FRONT SPEAKER CP-BA150
B
back
Top
– 11 –
CD-BA150
–– MEMO ––
– 12 –
CD-BA150
COPYRIGHT 2000 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
A0001-2627NS•HA•M
SC • SL • LAG
SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
©
