Use & Care Guide for Hood
PREPARE THE HOOD

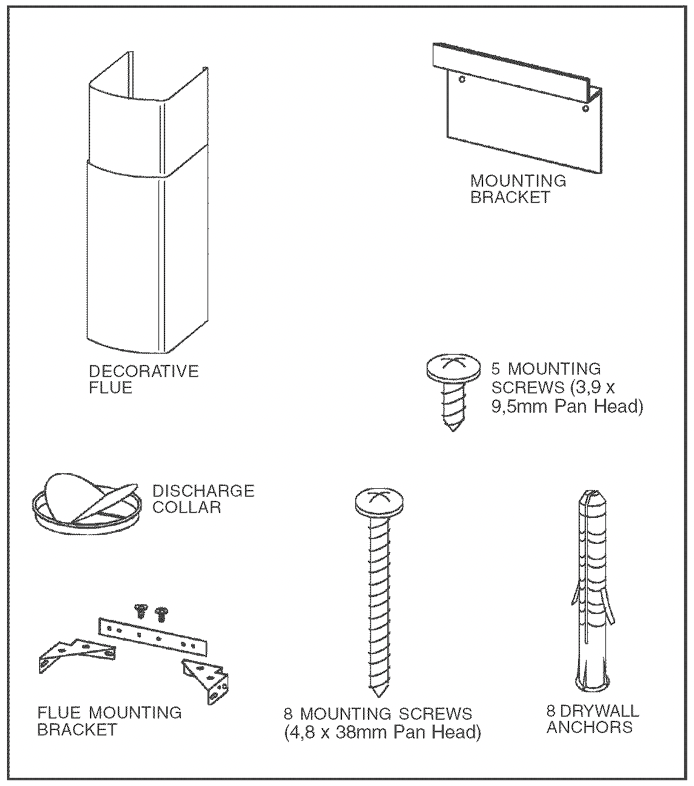

Unpack hood and check contents_ You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Parts Bag containing:
1 - Mounting Bracket
1 - Discharge Collar
1 - Flue Mounting Bracket
8 - Mounting Screws (4,8 x 38mm Pan Head)
5 - Mounting Screws (3,9 x 9,Smm Pan Head)
8 - Drywall Anchors
1 - Installation Instructions
INSTALL THE DUCTWORK
NOTE: To reduce metal ductwork, the risk of fire, use only

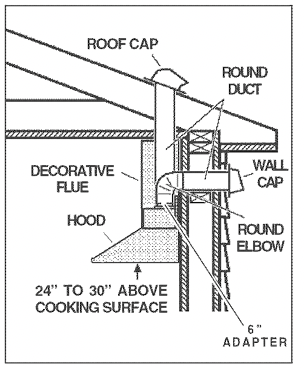

1. Decide where the ductwork will run between the hood and the outside.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows, and transitions wilI reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.
4. install a roof or wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.
INSTALL MOUNTING BRACKET

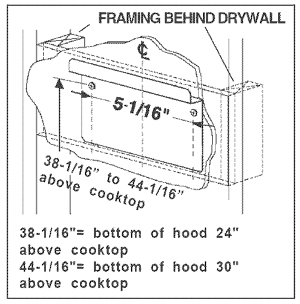

1. Construct wood wall framing that is flush with interior surface of wail studs. Make sure:
a) the framing is centered over installation location.
b) the height of the framing wilI allow the mounting bracket to be secured to the framing within the dimensions shown.
2. Afterwall surface is finished secure mounting bracket to framing using dimensions shown.
INSTALL THE HOOD

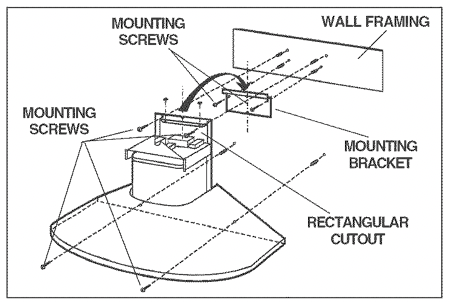

1. Hang the hood from the bracket through the rectangular cut-out on the back of the hood. Cut-out is larger than the bracket to allow for horizontal adjustment. The bottom of the hood should be 24" to 30" above the cooking surface.
2. Secure the hood mounting screws. Use drywall anchors, provided, if wall studs or framing are not available.
MOUNT THE PLATE
Mount the plate of the electricaI system attaching it with 3 screws.
WIRING
Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes.
GROUNDING INSTRUCTIONS
This appliance must be grounded, In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current, This appliance is equipped with a cord having a grounding wire with a grounding plug, The plug must be plugged into an outlet that is properly instaIled and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
ConsuIt a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, Do not use an extension cord, If the power supply cord is too short, have a qualified eIectrician install an outlet near the appliance.

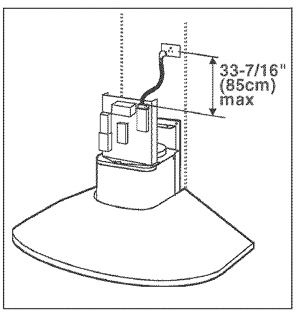

Set the electrical power supply within the space covered by the decorative flues, Position the power socket at a maximum distance of 33-7/16" (85 cm) from where the Iead exits from the hood (see ilIustration alongside).
Make sure this does not interfere with the bracket fastening area or with the decorative flue (where the flue touches the wall).
Fit the plug into the power socket.
CONNECT DUCTWORK
Ducted Configuration

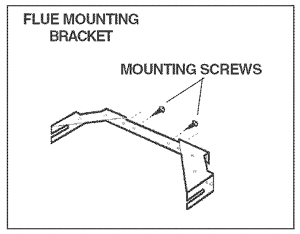

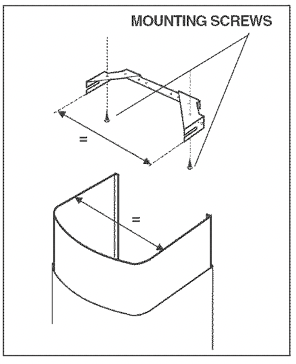

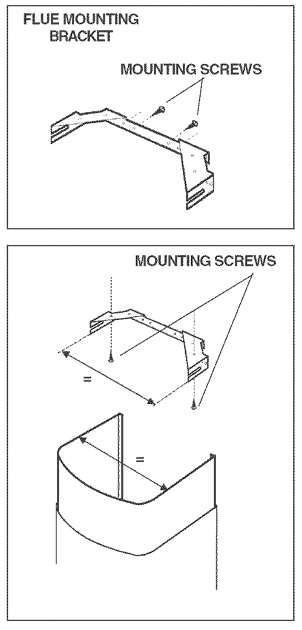

1. Adjust the width of the flue mounting bracket to equal the inside width of decorative flue. insert and tighten mounting screws to hold bracket width.
2. Use mounting screws and wall anchors to secure flue mounting bracket to the ceiling as shown.

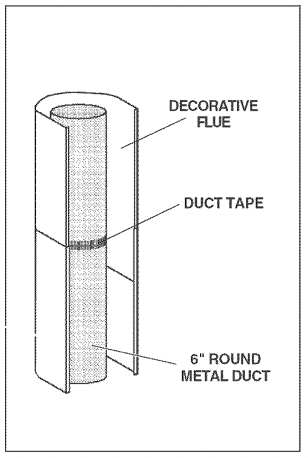

3. Use 6" round metal duct to connect the duct collar on the hood to the ductwork above.
4. Use duct tape to make alI joints secure and air tight.
5. Insert the decorative flues setting them on the hood.

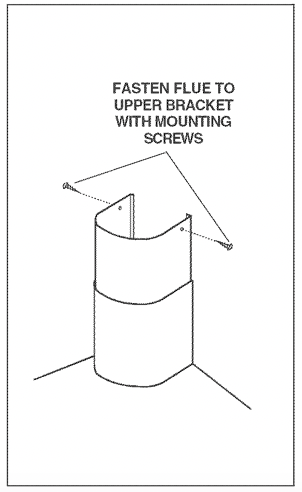

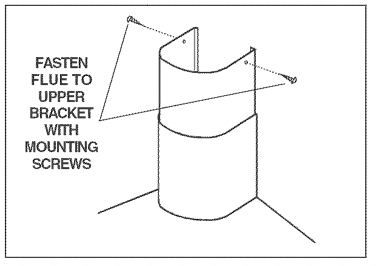

6. Extend the upper ftue to the ceiling and secure with two mounting screws.
Non-ducted recirculation Configuration
1. Adjust the width of the flue mounting bracket to equal the Inside width of decorative flue. Insert and tighten mounting screws to hold bracket width.
2. Use mounting screws and wall anchors to secure flue mounting bracket to the ceiling as shown.

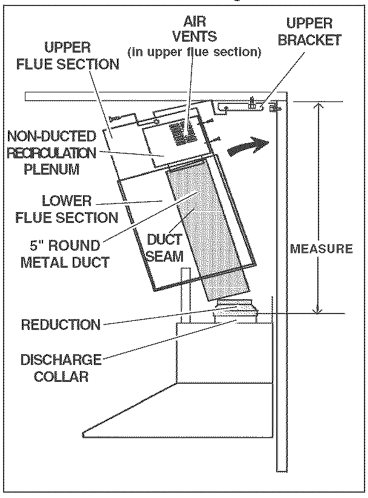

3. Turn upper flue section upside down so air vents are at the top. Slide upper flue section into lower flue section.
4. Connect the non-ducted recirculation plenum to the upper flue section with (4) fiat-head screws (supplied).
5. Install the reduction on the discharge collar.
6. Measure the distance from the top of the reduction to the ceiling. Cut a length of 5" round metai duct 5" shorter than this dimension.
7. Fit duct section over the non-ducted recirculation plenum. For best fit, make sure duct seam is toward the front.
8. Set duct/flue assembly on hood with top tilted away from wall. Reach around flue to engage bottom of duct with discharge collar on hood. Tilt flue up against wall. Duct seam can be cut to length if necessary.
9. Extend the upper flue to the ceiling and secure with two mounting screws.
NON-DUCTED RECIRCULATION FILTER INSTALLATION
1. Purchase a charcoal filter (B03300488) from your dealer.
2. Install the filter by pressing the 2 tabs on the filter down into the special housing and rotating upward.
MAINTENANCE
Proper maintenance of the Range Hood will assure proper performance of the unit.

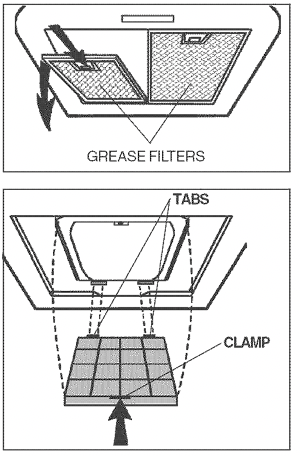

Grease Filters
The grease filters should be cleaned frequently. Use a warm detergent solution.
Grease filters are dishwasher safe.
Remove filter by pushing filter towards the back of hood and rotating filter downward.
Charcoal Filter
The charcoal filter should be changed every 6 months. To remove the filter press inward on the clamp and rotate the filter downward until the 2 tabs can be removed from the housing.
Hood Cleaning
Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its fine appearance.
Cleaning tips:
• Hot water with soap or detergent is all that is usually needed.
• Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water marks.
• For discolorations or deposits that persist, use a non-scratching household cleanser or stainless steel polishing powder with a little water and a soft cloth.
• For stubborn cases, use a plastic scouring pad or soft bristle brush together with cleanser and water. Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too much pressure which may mar the surface.
• DO NOT allow deposits to remain for long periods of time.
• DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface causing rust.
• DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
OPERATION
Controls

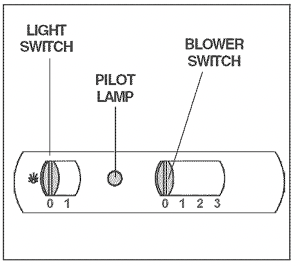

The hood is operated using the slide controls under the bottom of the hood.
The light switch turns the lamps on and off.
The blower switch makes it possible to select the motor operating speed. Position 0: motor off.
The pilot lamp lights up whenever the blower is on.
HALOGEN BULBS
This range hood requires two halogen bulbs {Type T4, 12V, 20W).
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY BEFORE CARRYING OUT ANY OPERATIONS ON THE APPLIANCE.
To change bulbs:

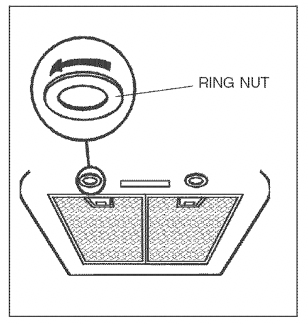

1. Loosen the ring nut by turning it counterclockwise.
2. Remove the bulb by pulling sideward(DO NOT ROTATE). CAUTION: BULB MAY BE HOT!
3. Replace with Type T4, 12V, 20W halogen bulb. Do not touch replacement bulb with bare hands!
FUSE REPLACEMENT
SWITCH OFF THE ELECTRICITY SUPPLY.
Remove the decorative flue.

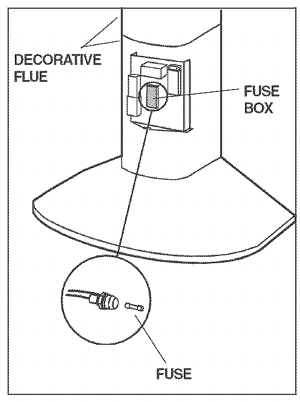

Open the fuse box.
Replace with the same type of fuse (5x20mm, 4A, 125V).
READ AND SAVE THESE INSTRUCTIONS
WARNING
SUITABLE FOR USE IN HOUSEHOLD COOKING AREA.
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing orcfeaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentalfy. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with ali applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and AirConditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boiiovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when cooking flaming foods.
C. Clean ventilating fans frequently. G rease should not be ailowed to accumulate on fan orfilter.
D. Use proper pan size. Always use cookware appropriate forthe size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFULTO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN-You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the Range Hood.
4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
5. To avoid motor bearing damage and noisy and/ or unbalanced impellers, keep dry wall spray, construction dust, etc. off power unit.
6. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24" and a maximum of 30" above the cooking surface.
8. Two installers are recommended because of the large size and weight of this hood.
9. Please read specification label on product for further information and requirements.
