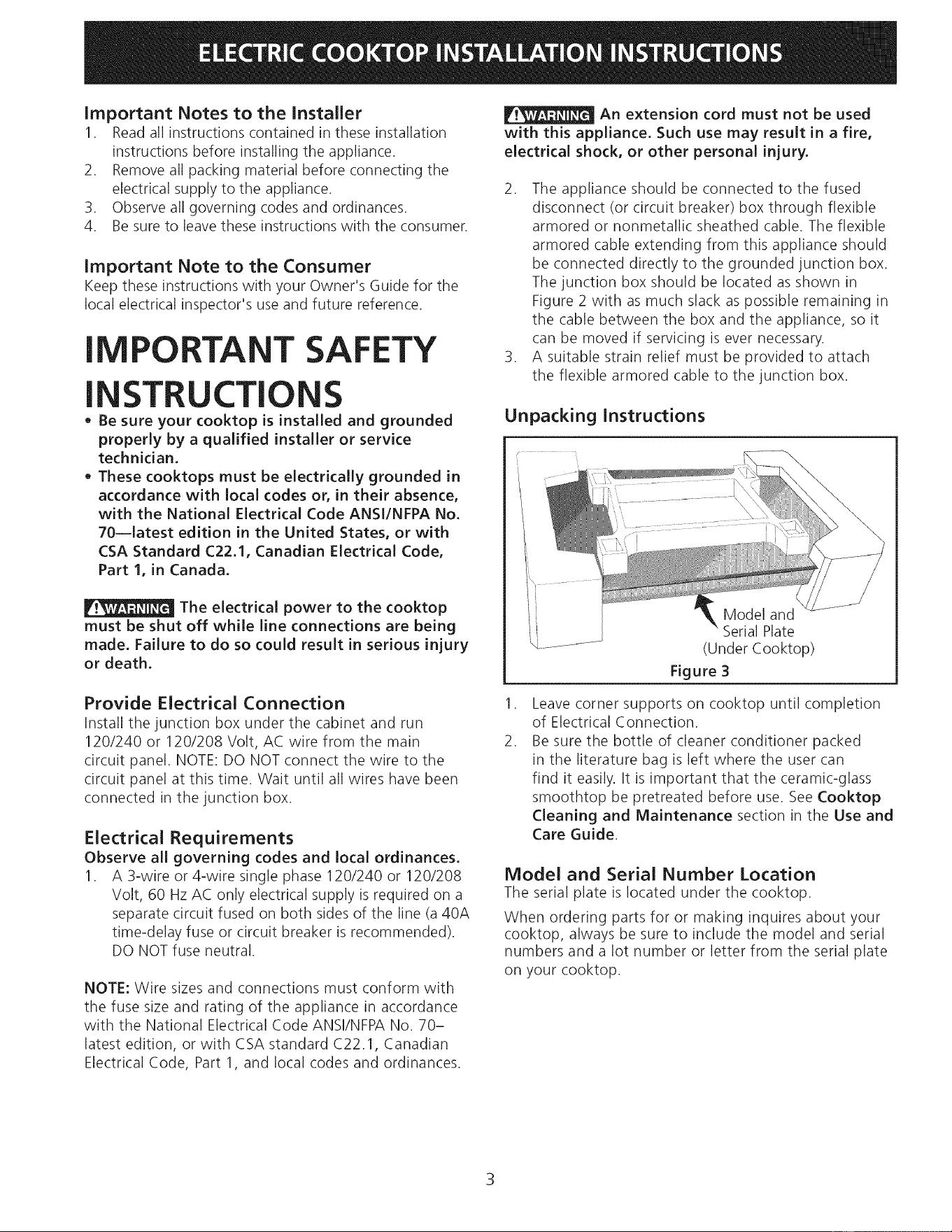

Important Notes to the Installer

1.  Read all instructions contained in these installation instructions before installing the appliance
2. Remove all packing material before connecting the electrical supply to the appliance.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.

IMPORTANT SAFETY INSTRUCTIONS

•  Be sure your cooktop is installed and grounded properly by a qualified installer or service technician.
•  These cooktops must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70--latest edition in the United States, or with CSA Standard C22.1, Canadian Electrical Code, Part 1, in Canada.

Electrical Requirements

1. A 3-wire or 4-wire single phase 120/240 or 120/208 Volt, 60 Hz AC only electrical supply is required on a separate circuit fused on both sides of the line (a 40A time-delay fuse or circuit breaker is recommended). DO NOT fuse neutral.

NOTE: Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No. 70- latest edition, or with CSA standard C22.1, Canadian Electrical Code, Part 1, and local codes and ordinances

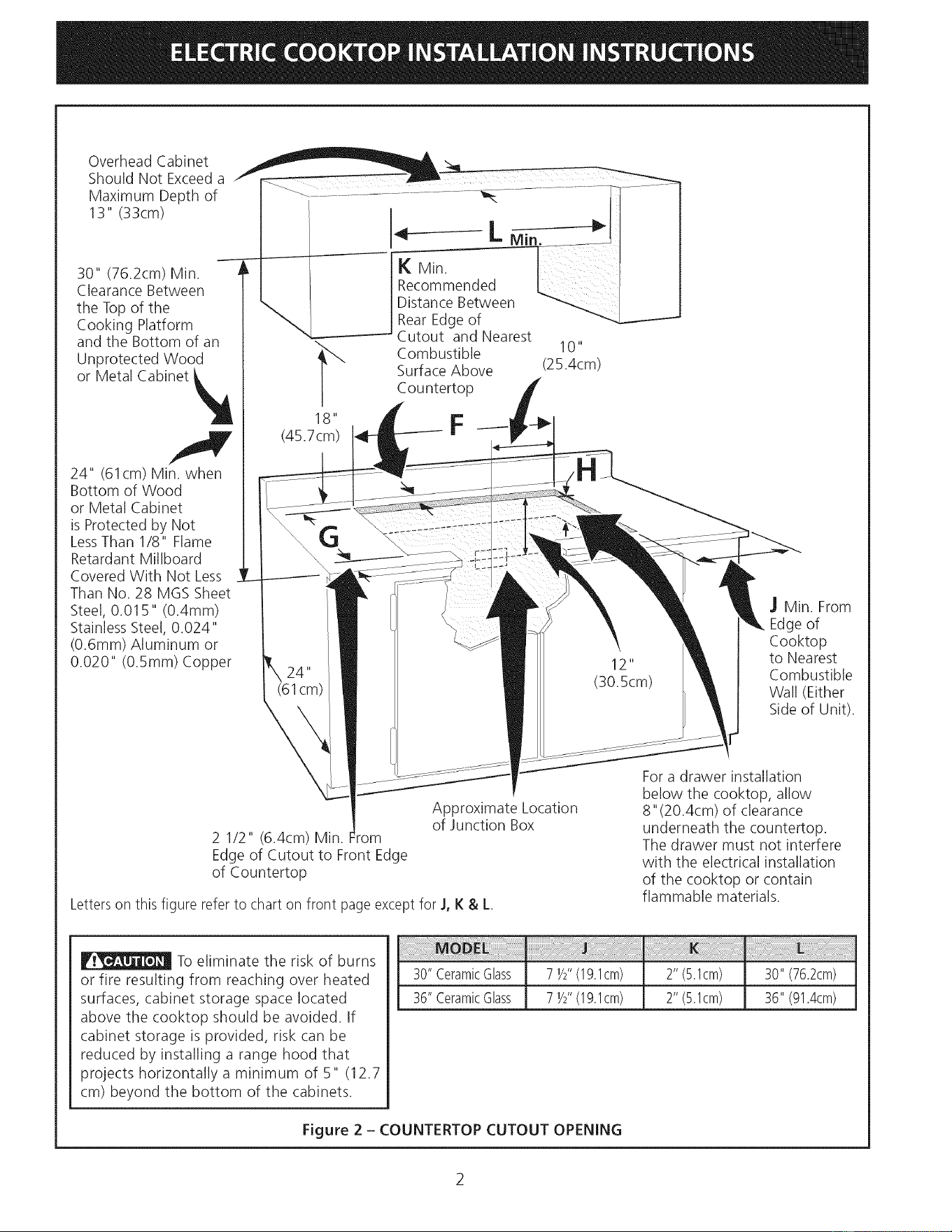

2. The appliance should be connected to the fused disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should be connected directly to the grounded junction box. The junction box should be located as shown in Figure 2 with as much slack as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.

3. A suitable strain relief must be provided to attach the flexible armored cable to the junction box
