User care Kenmore 52423 Hood

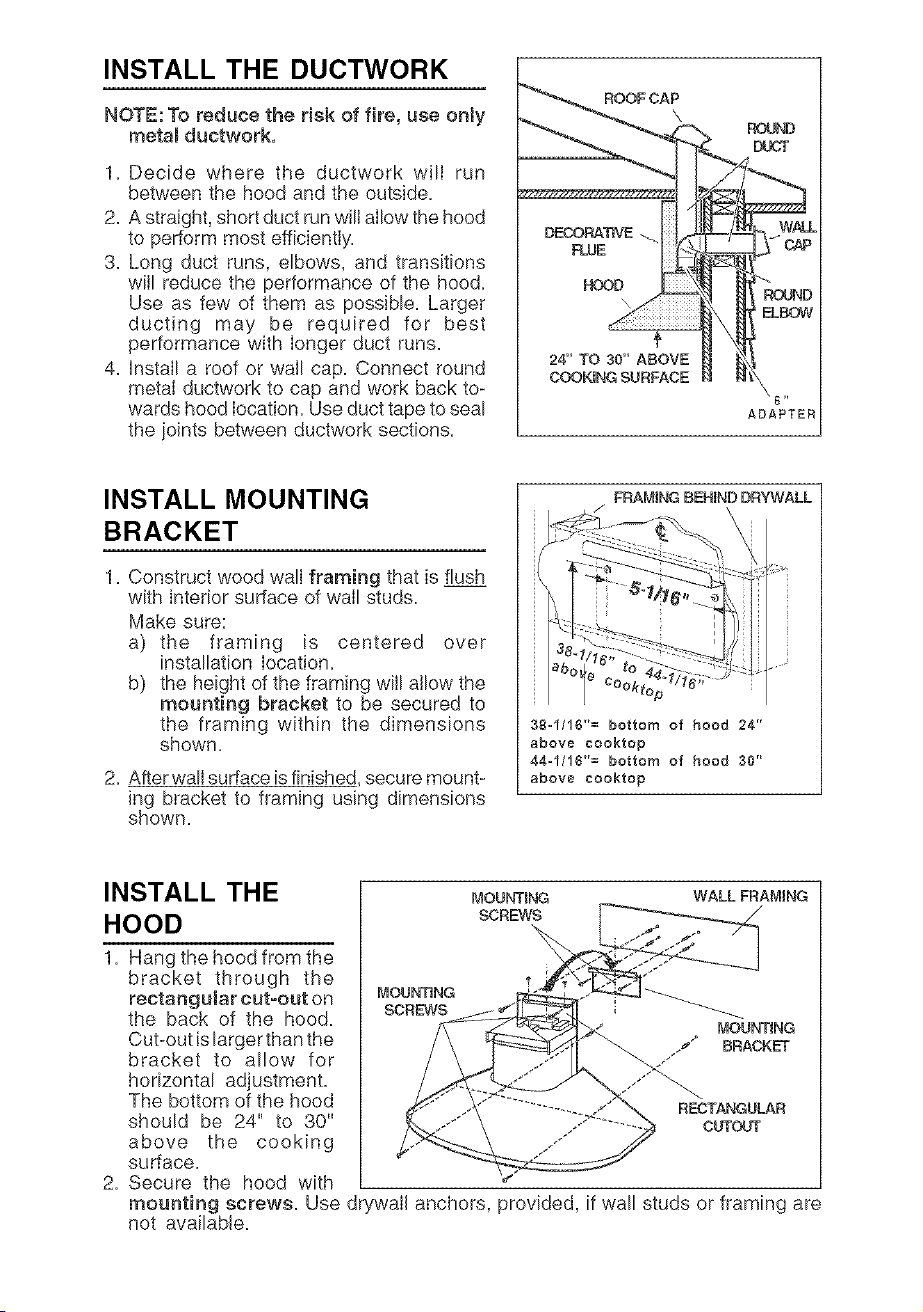

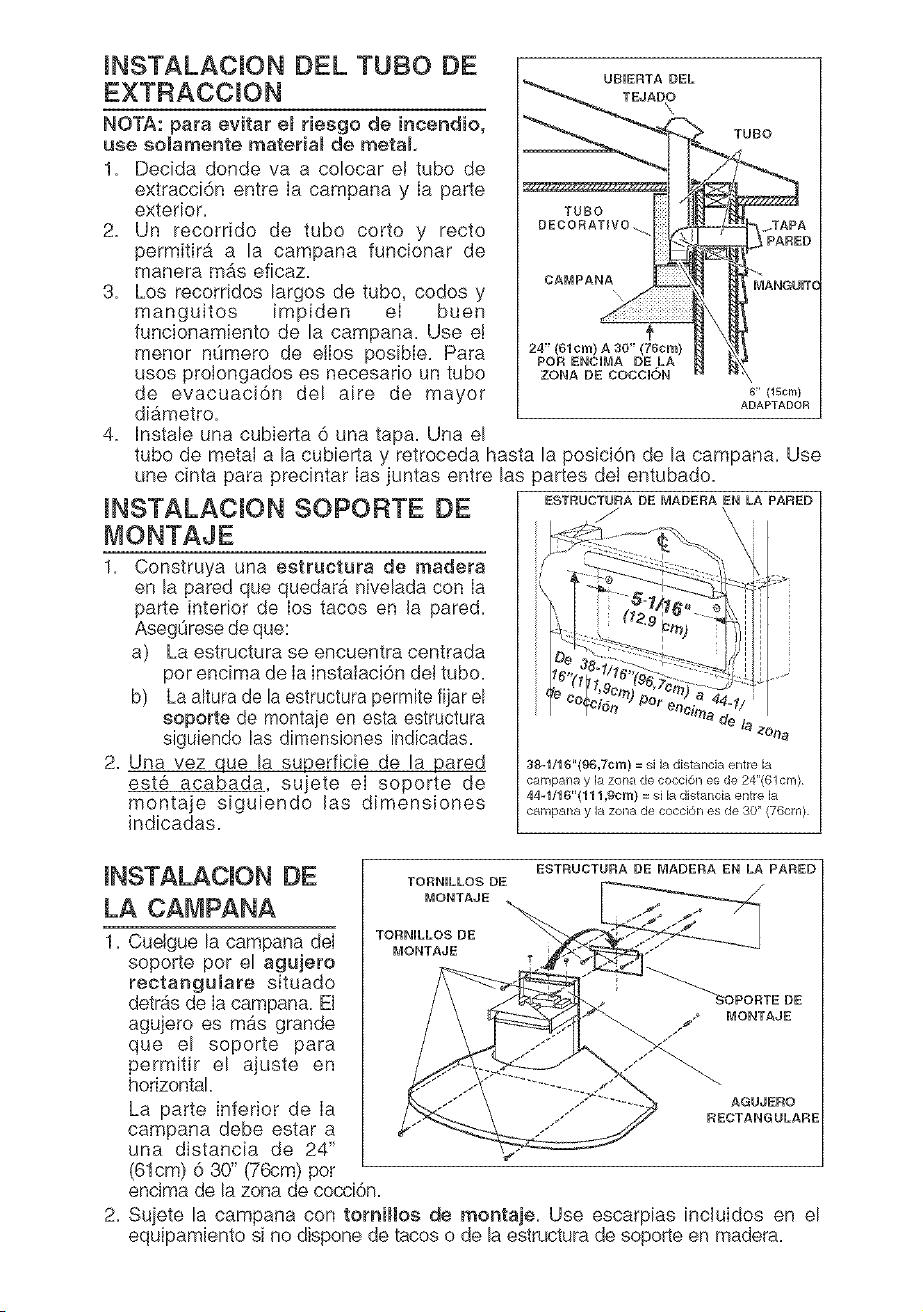

INSTALL THE DUCTWORK

NOTE:

To reduce the risk of fire, use only metal ductwork,

1. Decide where the ductwork will run between the hood and the outside.

2. A straight, short duct run will allow the hood to perform most efficiently.

3. Long duct runs, elbows, and transitions wilI reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.

4. install a roof or wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

INSTALL THE HOOD

1. Hang the hood from the bracket through the rectangular cut-out on the back of the hood. Cut-out is larger than the bracket to allow for horizontal adjustment. The bottom of the hood should be 24" to 30" above the cooking surface.

2. Secure the hood with mounting screws. Use dr not available.

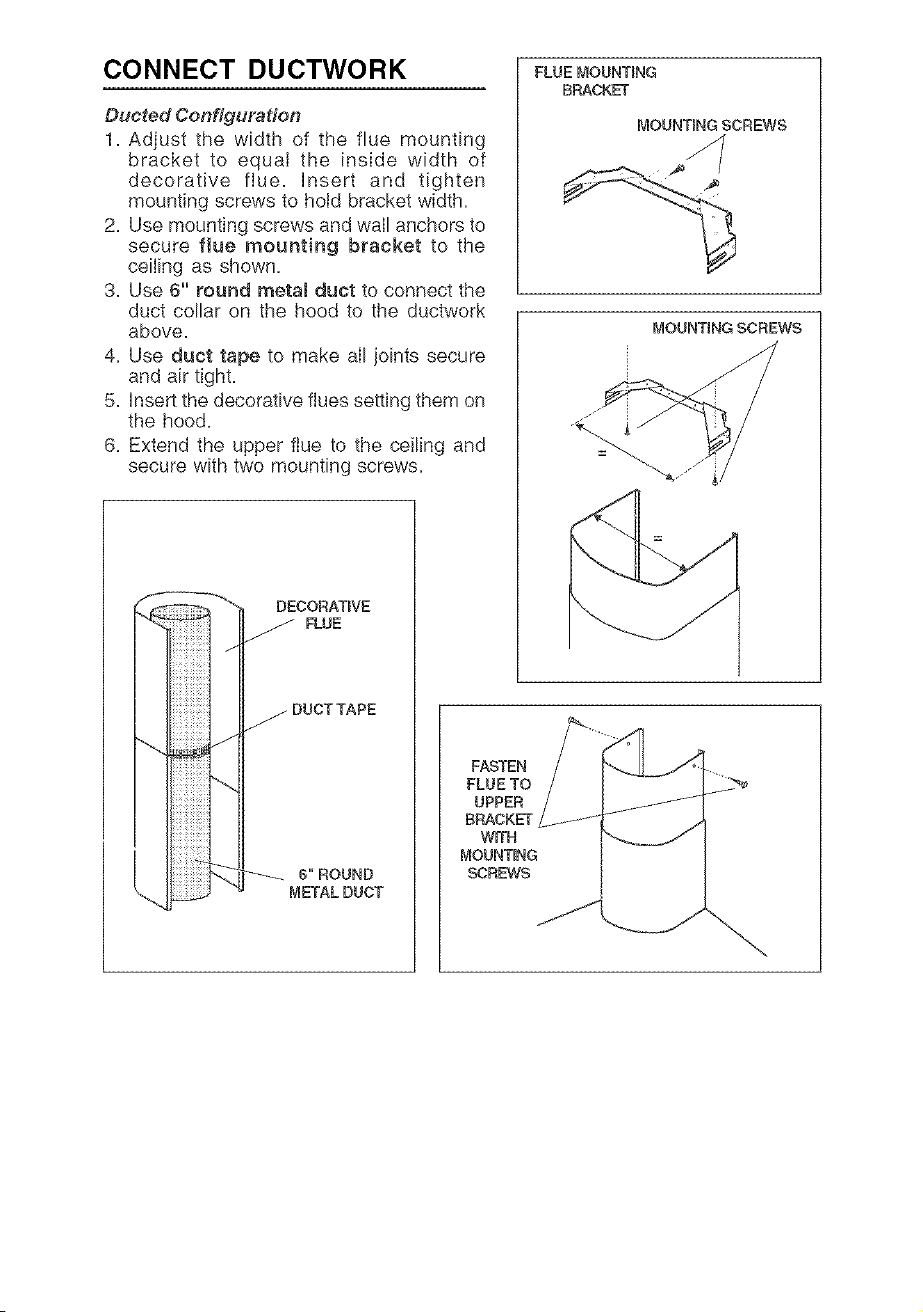

CONNECT DUCTWORK

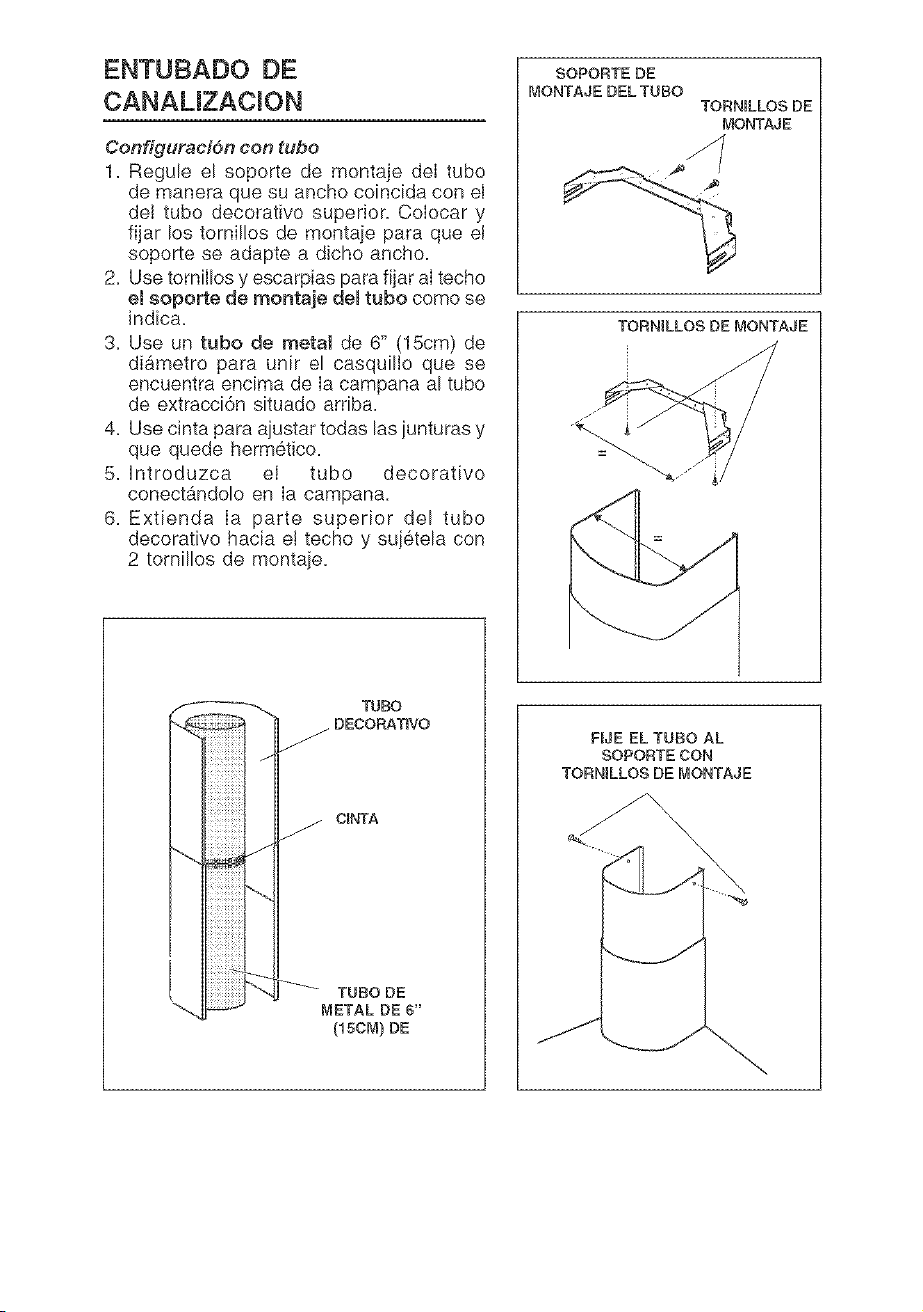

Ducted Configuration

1. Adjust the width of the flue mounting bracket to equal the inside width of decorative flue. insert and tighten mounting screws to hold bracket width.

2. Use mounting screws and wall anchors to secure flue mounting bracket to the ceiling as shown.

3. Use 6" round metal duct to connect the duct collar on the hood to the ductwork above.

4. Use duct tape to make alI joints secure and air tight. 5. Insert the decorative flues setting them on the hood. 6. Extend the upper ftue to the ceiling and secure with two mounting screws.

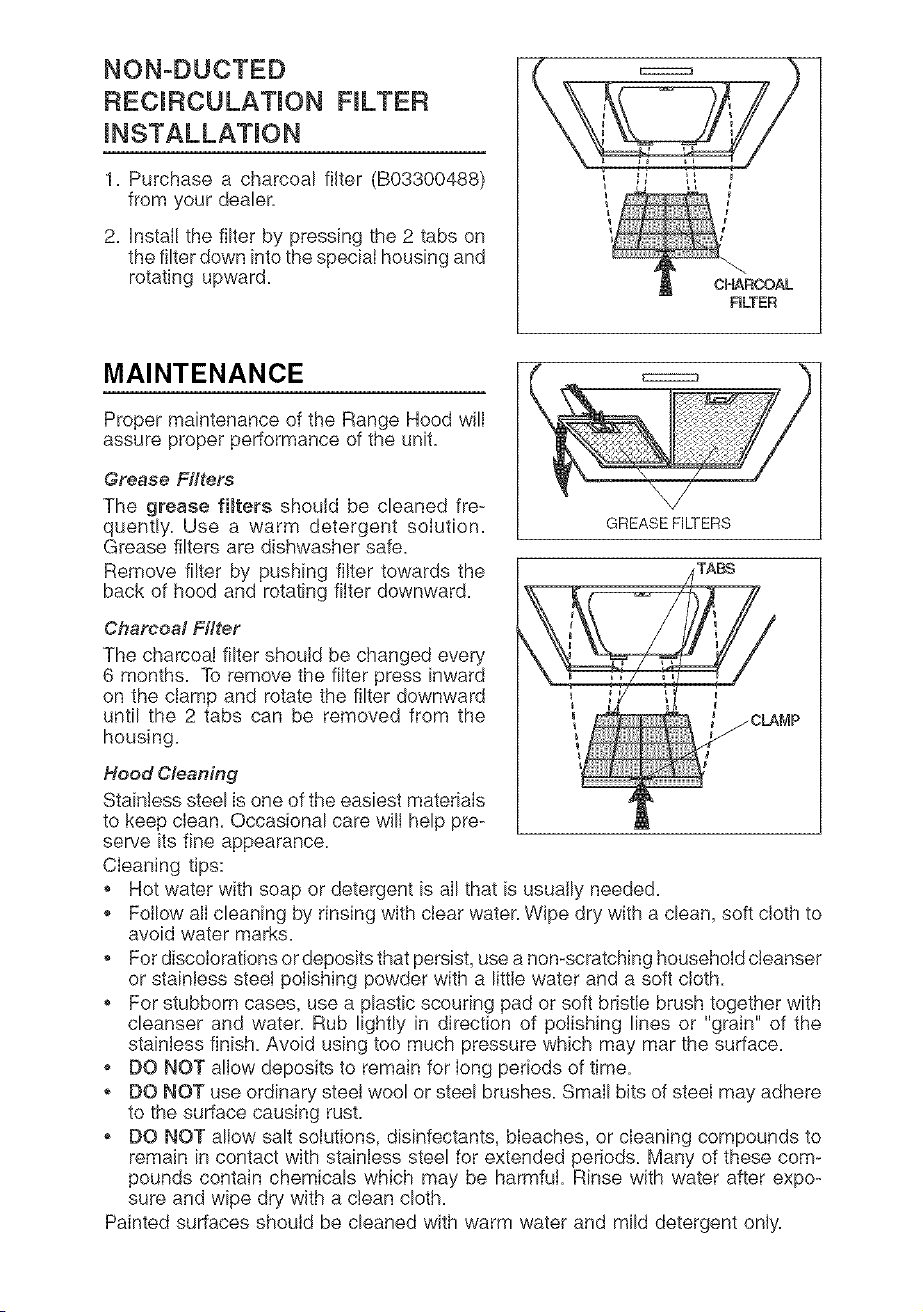

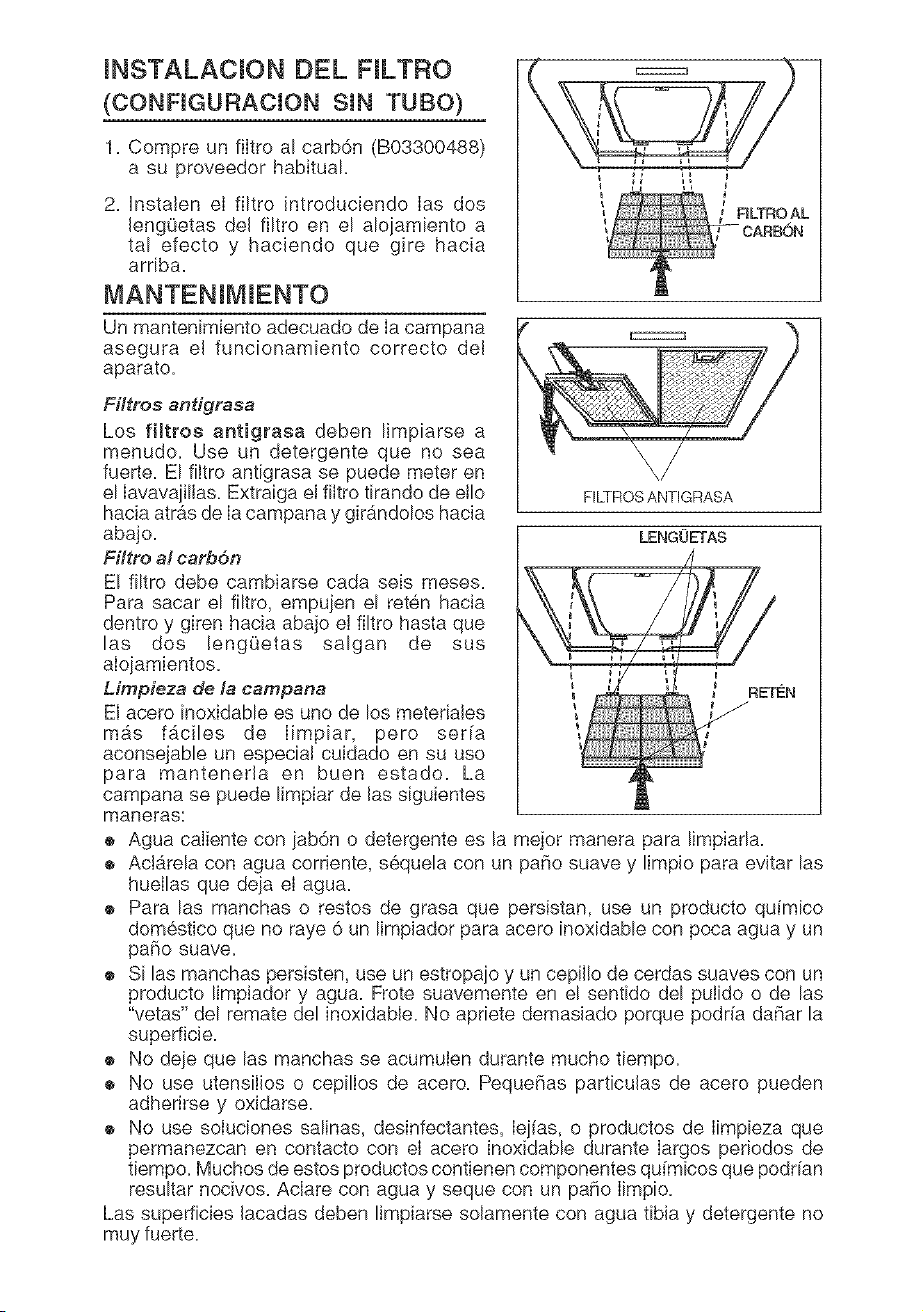

NON-DUDTED RECIRULATION FILTER INTALLATION

1. Purchase a charcoal filter (B03300488) from your dealer.

2. InstalI the filter by pressing the 2 tabs on the filter down into the speciaI housing and rotating upward.

Hood Cleaning

Stainless steel is one of the easiest materiaIs to keep clean. Occasional care will help preserve its fine appearance. Cleaning tips:

• Hot water with soap or detergent is all that is usually needed.
• FoIIow alI cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water marks.
• For discolorations or deposits that persist, use a non-scratching household cteanser or stainless steel polishing powder with a little water and a soft cloth.
• For stubborn cases, use a plastic scouring pad or soft bristle brush together with cleanser and water. Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too much pressure which may mar the surface.
• DO NOT allow deposits to remain for long periods of time.
• DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface causing rust.
• DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many of these com e pounds contain chemicals which may be harmfui. Rinse with water after exposure and wipe dry with a clean cloth.
