CD-DP2500H Mini Component System consisting of CD-
DP2500H (main unit), CP-DP2500H (front speakers),
GBOXS0038AWM1 (centre speaker) and GBOXS0039AWM1
(surround speakers).
MINI COMPONENT SYSTEM
MODEL
OPERATION MANUAL
CD-DP2500H
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read
this manual carefully.
It will guide you in operating your SHARP product.
Page
SPECIAL NOTES ..............................................................1-2
ACCESSORIES .................................................................... 2
PRECAUTIONS .................................................................... 3
NAMES OF CONTROLS AND INDICATORS ...................4-6
PREPARATION FOR USE ..............................................7-10

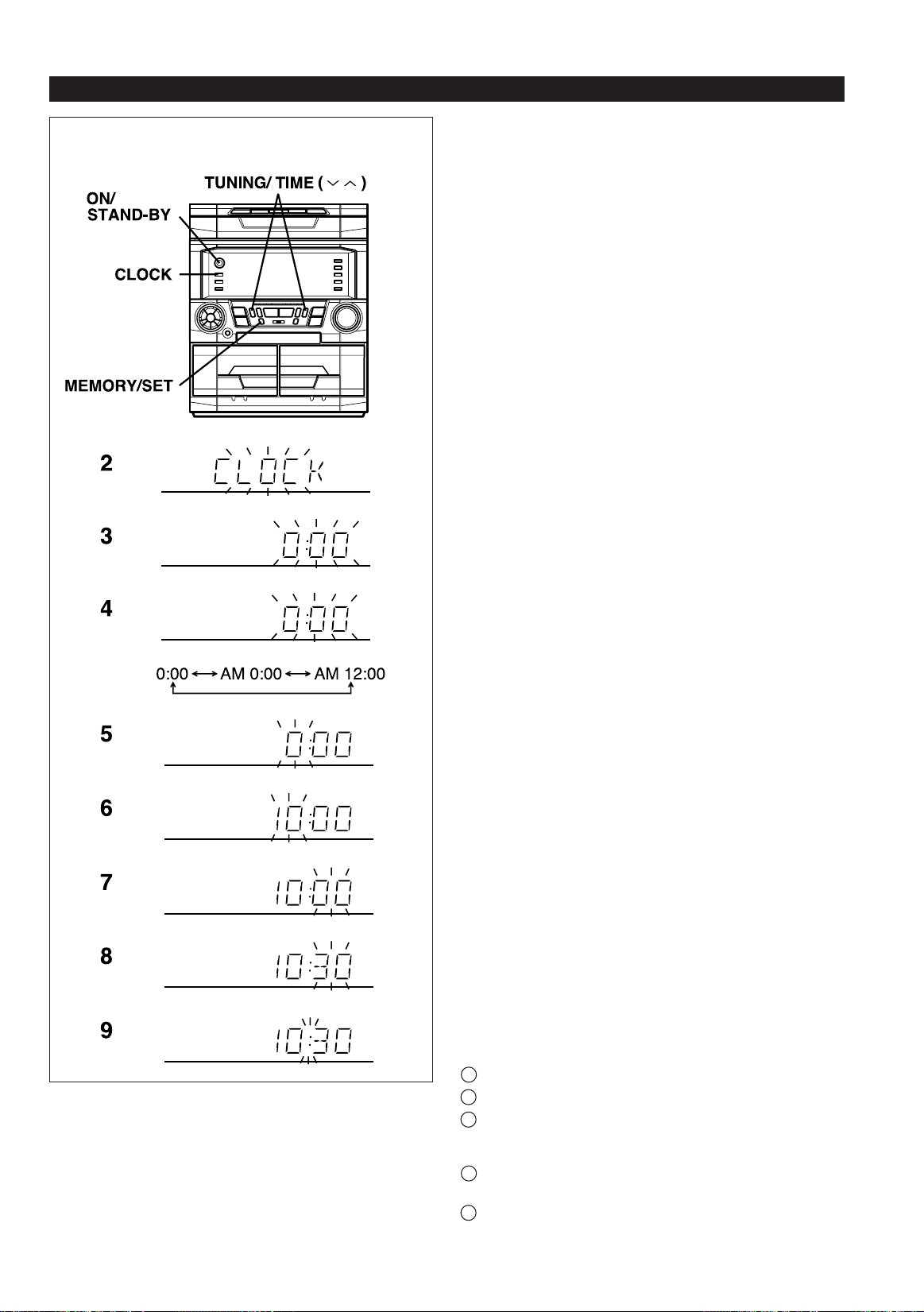

SETTING THE CLOCK ...................................................... 11
SOUND CONTROL .......................................................12-13

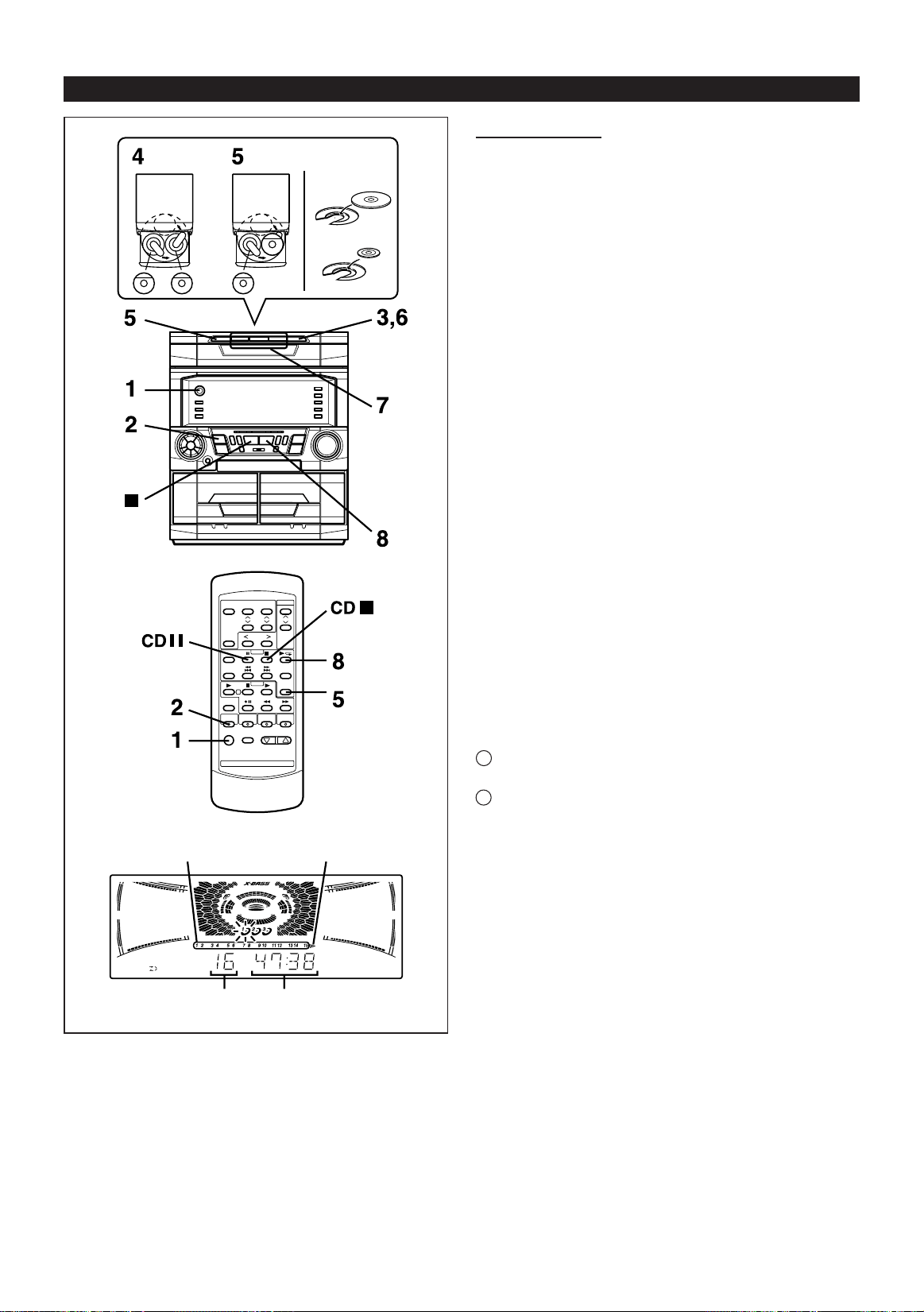

COMPACT DISC OPERATION .....................................14-16

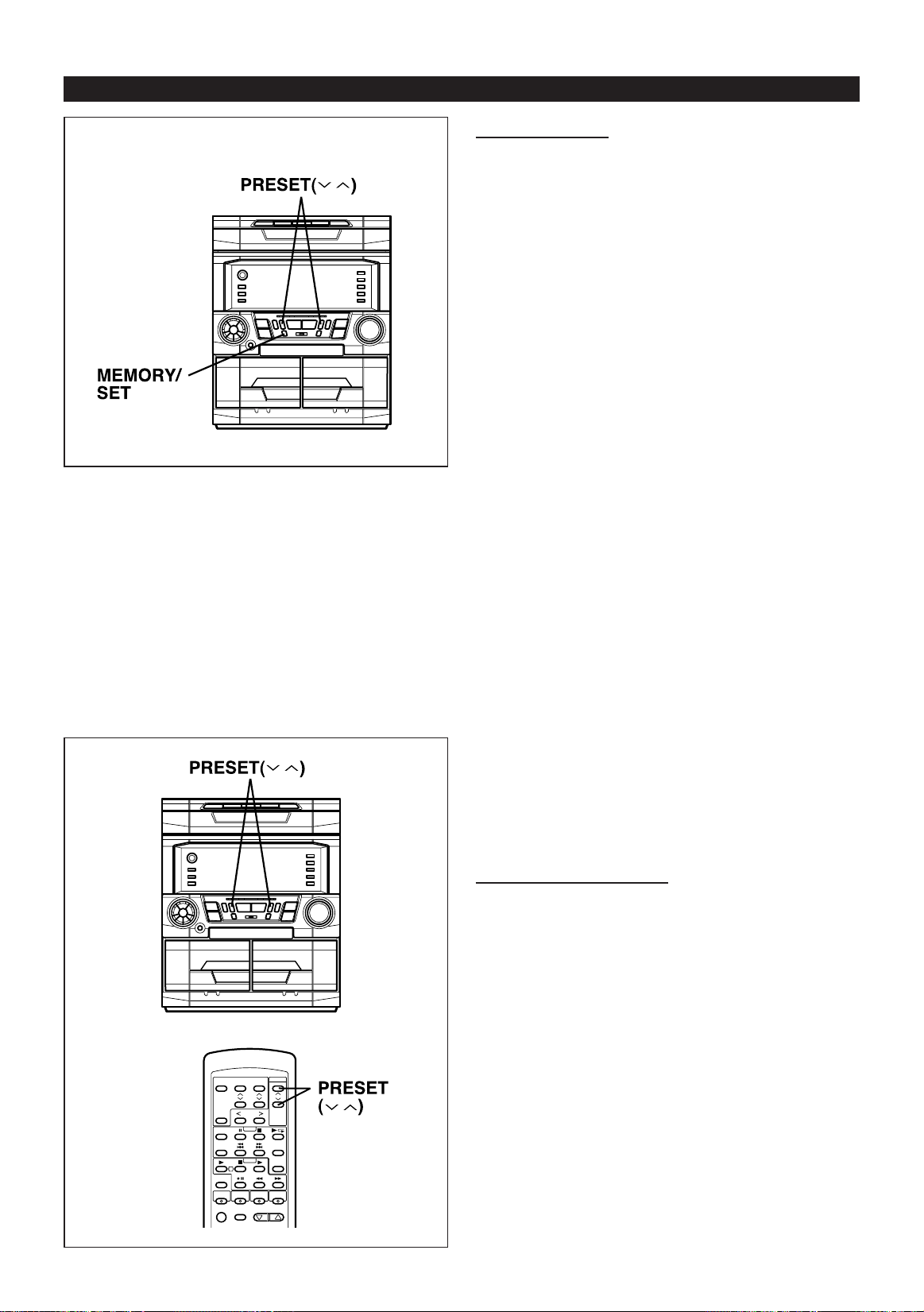

RADIO OPERATION .....................................................17-18
CONTENTS
Page

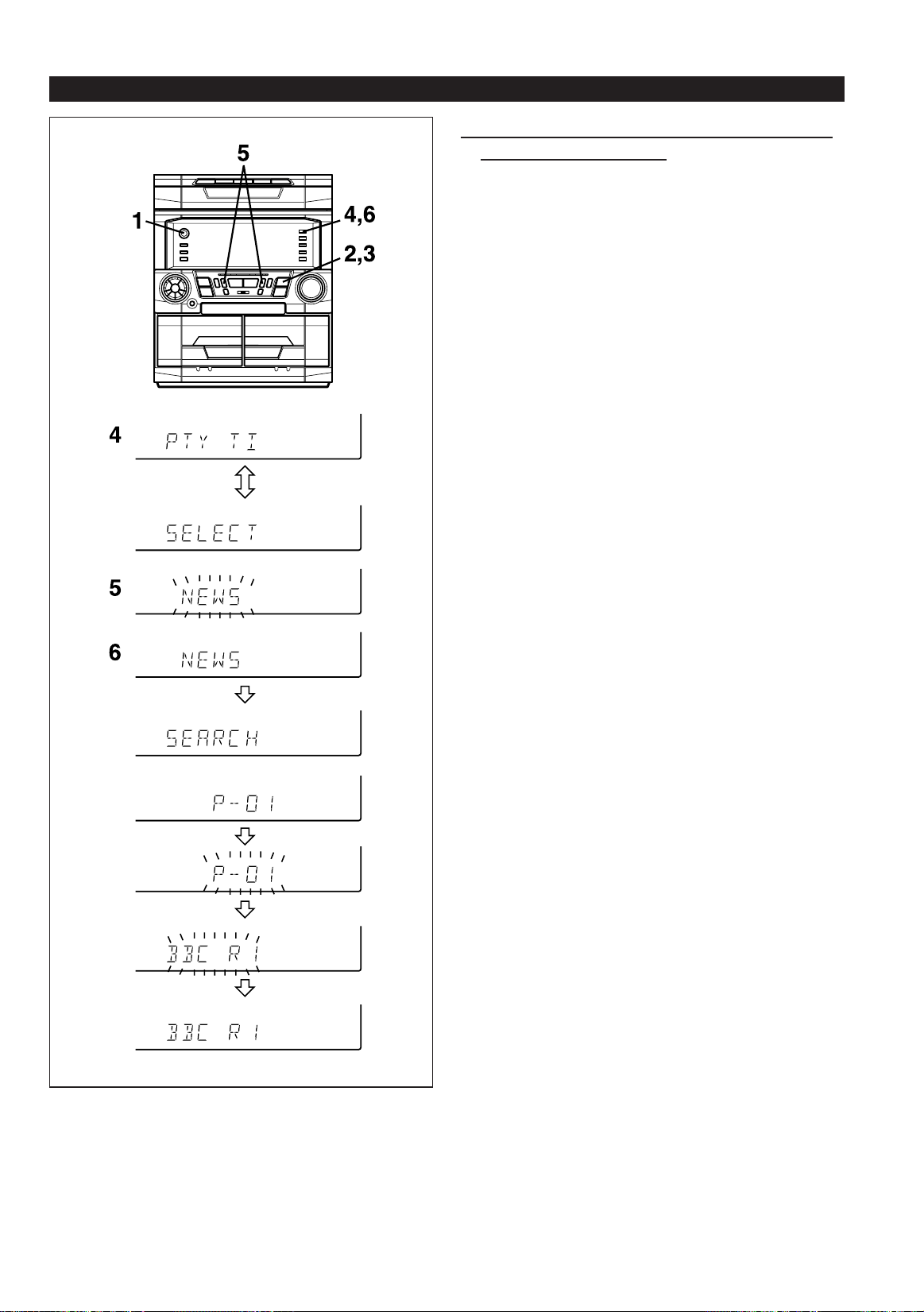

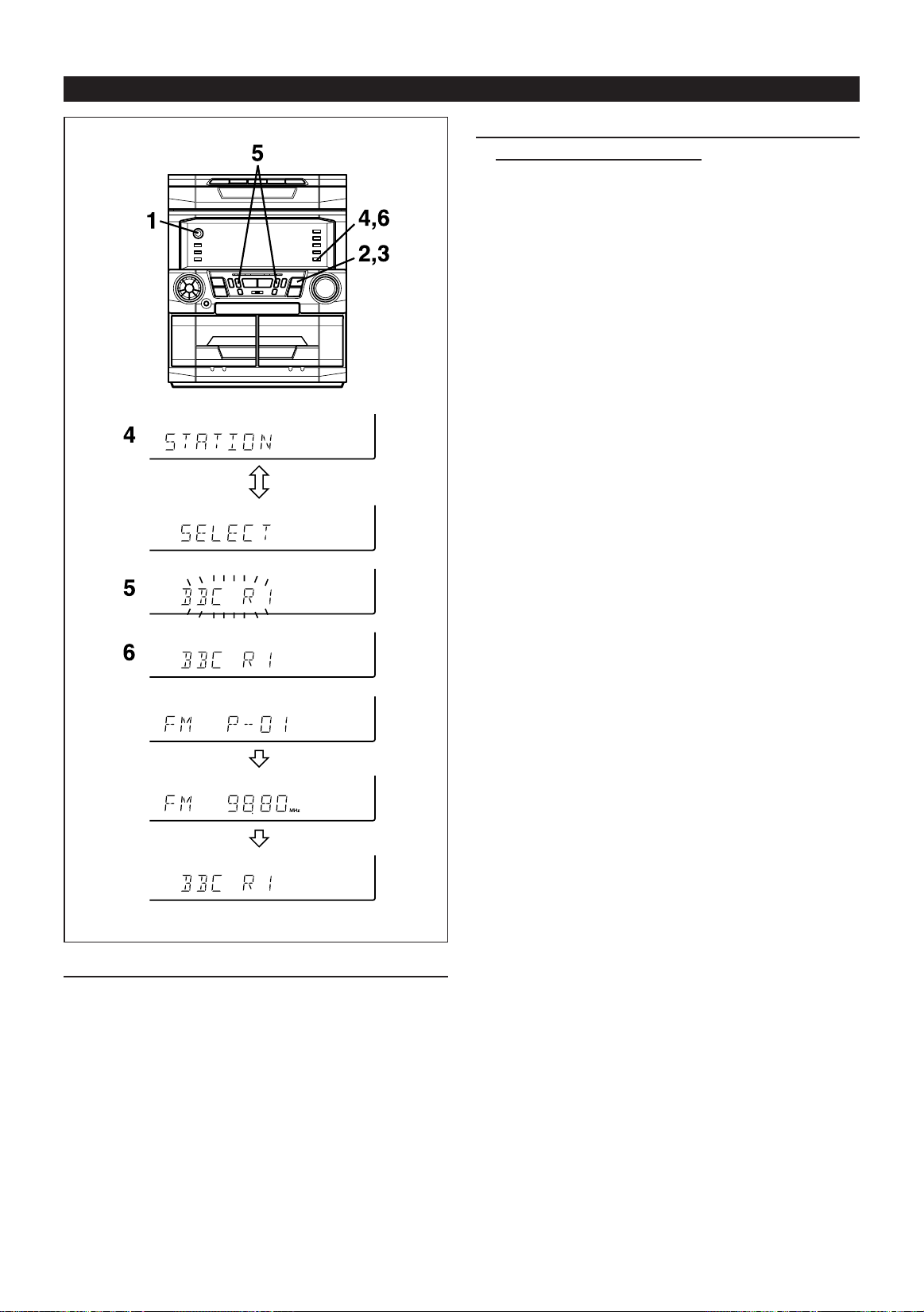

RDS (Radio Data System) OPERATION .....................19-27
CASSETTE OPERATION................................................... 27

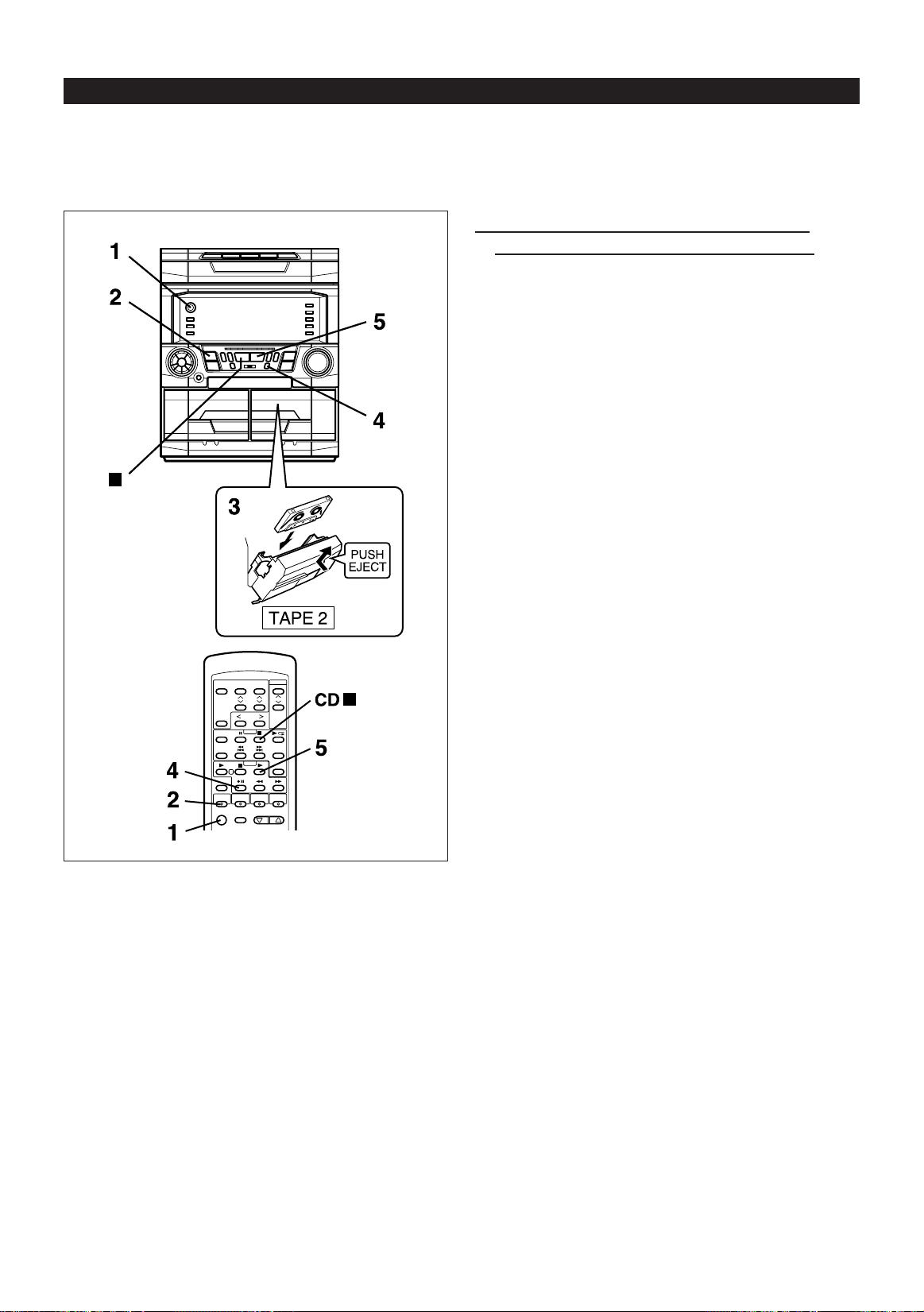

RECORDING .................................................................28-29

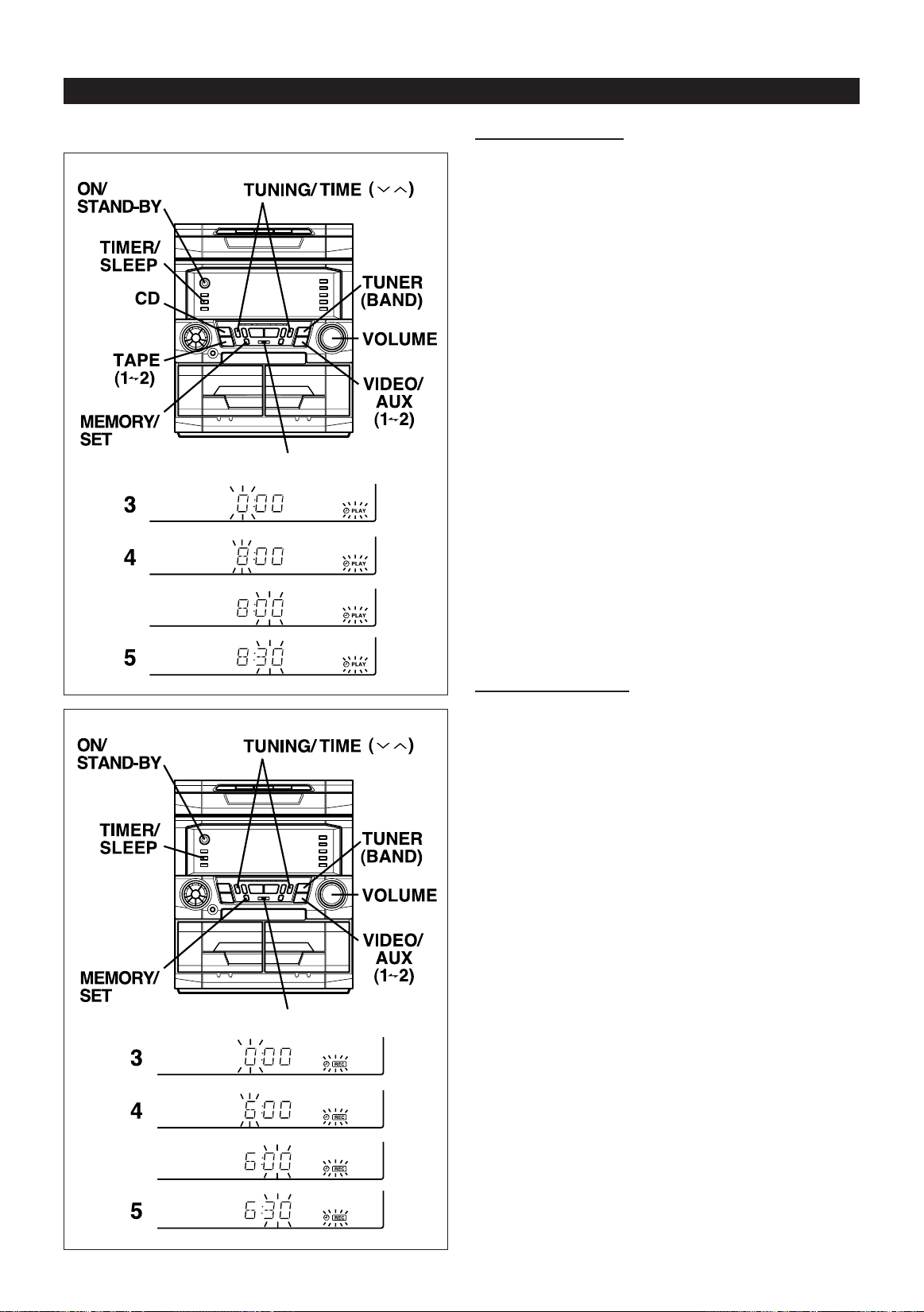

HOW TO USE THE BUILT-IN TIMER............................30-31
USING EXTERNAL UNITS............................................31-32
RESETTING THE MICROCOMPUTER.............................. 32
TRANSPORTING THE UNIT.............................................. 32

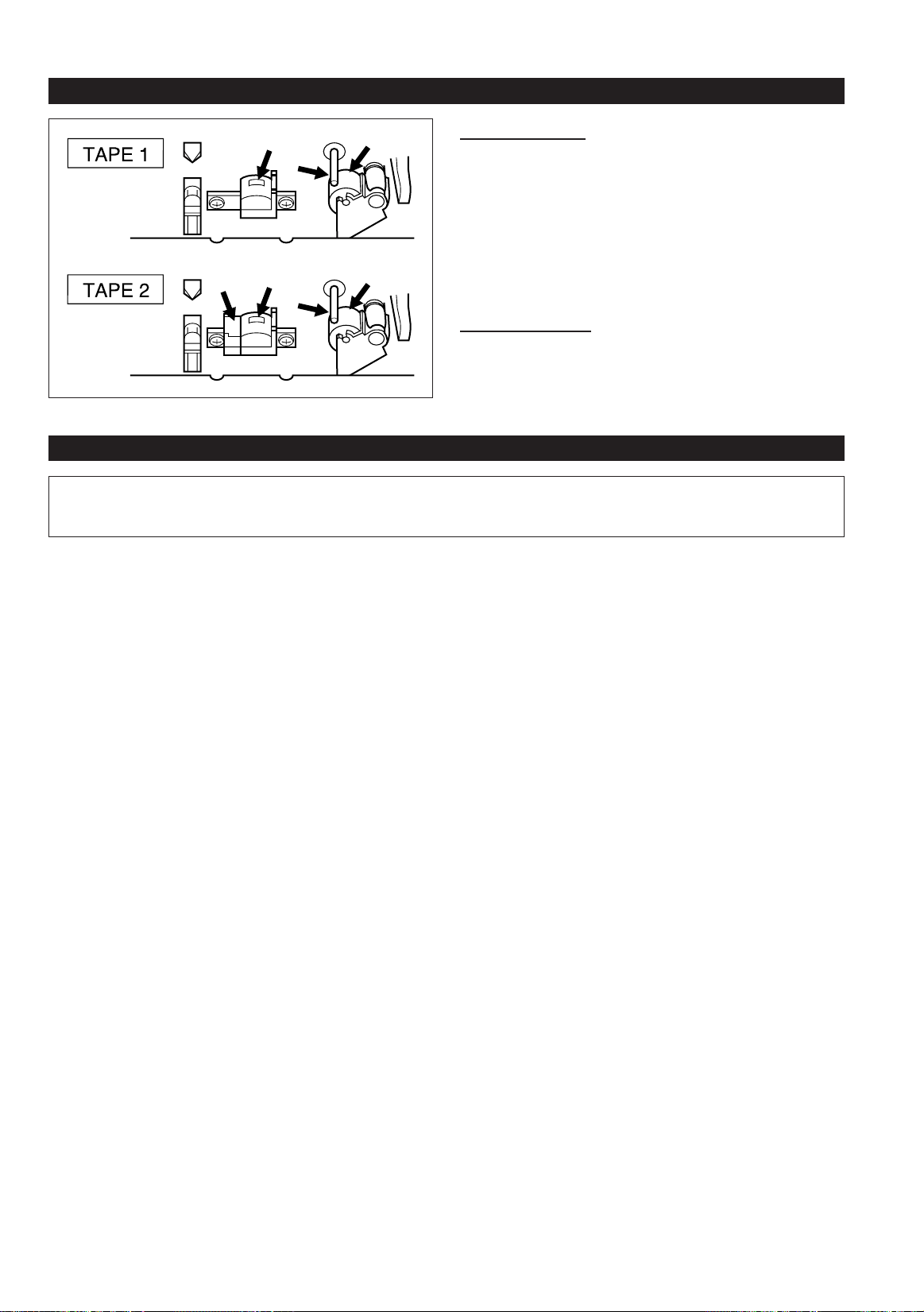

MAINTENANCE ................................................................. 33
SPECIFICATIONS .............................................................. 33
TERMS OF GUARANTEE...................................Back cover
Downloaded from: http://www.usersmanualguide.com/
SPECIAL NOTES
1
NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable
(moulded) plug incorporating a 3A fuse. Should the fuse need
to be replaced, a BSI or ASTA approved BS 1362 fuse marked
or and of the same rating as above, which is also indi-
cated on the pin face of the plug must be used.
Always refit the fuse cover after replacing the fuse. Never
use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not
being compatible with the plug supplied, cut-off the mains
plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the
cut-off plug destroyed immediately and disposed of in a safe
manner.
Under no circumstances should the cut-off plug be inserted
elsewhere into a 13A socket outlet as a serious electric shock
may occur.
To fit an appropriate plug to the mains lead, follow the in-
structions below:
IMPORTANT:
The wires in the mains lead are coloured in accordance with
the following code:
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this product
may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
● The wire which is coloured blue must be connected to the
plug terminal which is marked N or coloured black.
● The wire which is coloured brown must be connected to
the plug terminal which is marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected
to the earth terminal in your three pin plug.
Before replacing the plug cover, make sure that:
● If the new fitted plug contains a fuse, its value is the same
as that removed from the cut-off plug.
● The cord grip is clamped over the sheath of the mains
lead and not simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELEC-
TRICIAN.
SERVICE INFORMATION
In the unlikely event of your equipment requiring repair, please
contact the dealer or supplier from whom it was pur-chased.
Where this is not possible, please contact the tel-ephone
number listed below.
You will then be given details of how to obtain service.
- 0345-125387 -
Please note; all calls will be charged at local rate.
Certain replacement parts and accessories may be obtained
from our main parts distributor.
WILLOW VALE ELECTRONICS LTD.
MANCHESTER 0161-682-1415
READING 01189-876444
In the unlikely event of this equipment requiring repair dur-
ing the guarantee period, you will need to provide proof of
the date of purchase to the repairing company.
Please keep your invoice or receipt, which is supplied at the
time of purchase.
Downloaded from: http://www.usersmanualguide.com/
● Recording and playback of any material may require con-
sent, which SHARP is unable to give. Please refer par-
ticularly to the provisions of the Copyright Act 1956, the
Dramatic and Musical Performers Protection Act 1958,
the Performers Protection Acts 1963 and 1972 and to
any subsequent statutory enactments and orders.
● This equipment complies with the requirements of Direc-
tives 89/336/EEC and 73/23/EEC as amended by 93/68/
EEC.
● When the ON/STAND-BY button is set at STAND-BY posi-
tion, mains voltage is still present inside the unit.
When the ON/STAND-BY button is set at STAND-BY posi-
tion, the unit may be brought into operation by the timer
mode or remote control.
Warning:
● This unit contains no user serviceable parts. Never remove
covers unless qualified to do so. This unit contains danger-
ous voltages, always remove mains plug from the socket
before any service operation and when not in use for a long
period.
Warning:
● To prevent fire or shock hazard, do not expose this appli-
ance to dripping or splashing. No objects filled with liquids,
such as vases, shall be placed on the apparatus.
Manufactured under license from Dolby Laboratories Licens-
ing Corporation.
DOLBY, the double-D symbol G and “PRO LOGIC” are trade-
marks of Dolby Laboratories Licensing Corporation.
CAUTION
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
As the laser beam used in this compact disc player is harmful
to the eyes, do not attempt to disassemble the cabinet. Refer
servicing to qualified personnel only.

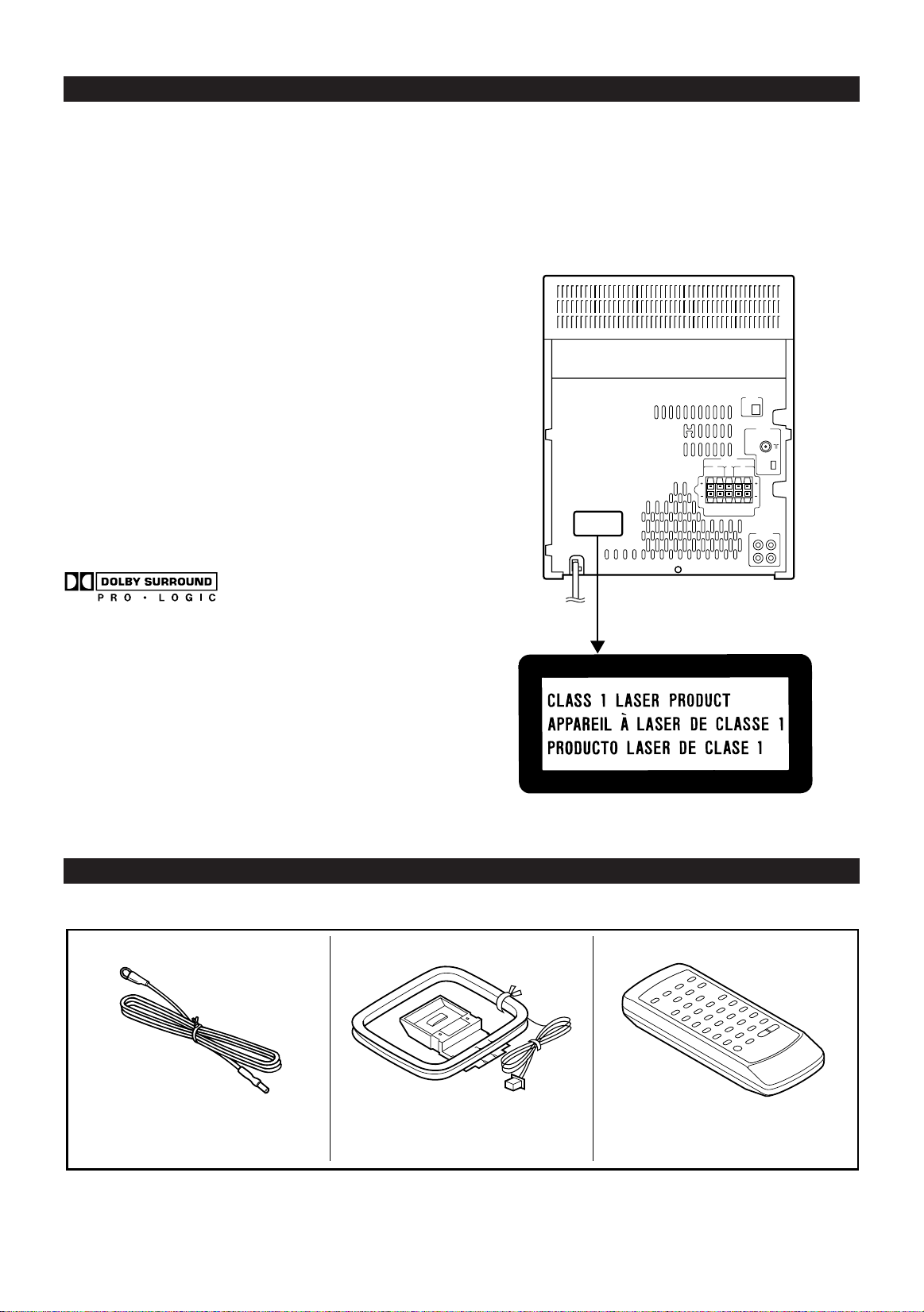

ACCESSORIES
Parts and accessories mentioned in this operation manual other than those in the drawing are not included.
2
(Continued)
FM aerial × 1 AM loop aerial × 1
Remote control × 1
Downloaded from: http://www.usersmanualguide.com/
3
■ General
● Please make sure that the unit is positioned in a well venti-
lated area and that there is at least 10 cm (4") of free space
along the sides and back. There must also be a minimum of
20 cm (8") of free space on the top of the unit.
● Do not use oil, solvents, petrol, paint thinners or insecti-
cides on the unit.
● Do not expose the unit to moisture, to temperatures higher
than 60˚C (140˚F) or to extreme low temperatures.
● Keep the unit away from direct sunlight, strong magnetic
fields, excessive dust, humidity and electronic/electrical
equipment (home computers, facsimiles, etc.) which gener-
ates electrical noise.
● Hold the AC power plug by the head when removing it from
the AC socket, as pulling the lead can damage internal wires.
● When cleaning the heads, pinch rollers, etc, remove the AC
power plug from the wall socket as the unit contains high
voltages.
Do not remove the outer cover, as this may result in electric
shock. Refer internal service to your local SHARP service
facility.
● Use the unit on a firm, level surface free from vibration, and
do not place anything on the top of the unit.
● If the unit does not work properly whilst in use, disconnect
the AC power lead from the AC socket. Plug the AC power
lead back in, and then press the ON/STAND-BY button to
turn the power on.
● If an electrical storm is taking place near you, it is suggested
that you disconnect the AC power lead from the AC socket
for safety.
● The ventilation should not be impeded by covering the ven-
tilation openings with items, such as newspapers, table-
cloths, curtains, etc.
● No naked flame sources, such as lighted candles, should
be placed on the apparatus.
● Attention should be drawn to the environmental aspects of
battery disposal
● The apparatus is designed for use in moderate climate.
Warning:
The voltage used must be the same as that specified on this
unit. Using this product with a higher voltage other than which
is specified is dangerous and may result in a fire or other type
of accident causing damage. SHARP will not be held respon-
sible for any damage resulting from use of this unit with a volt-
age other than that which is specified.

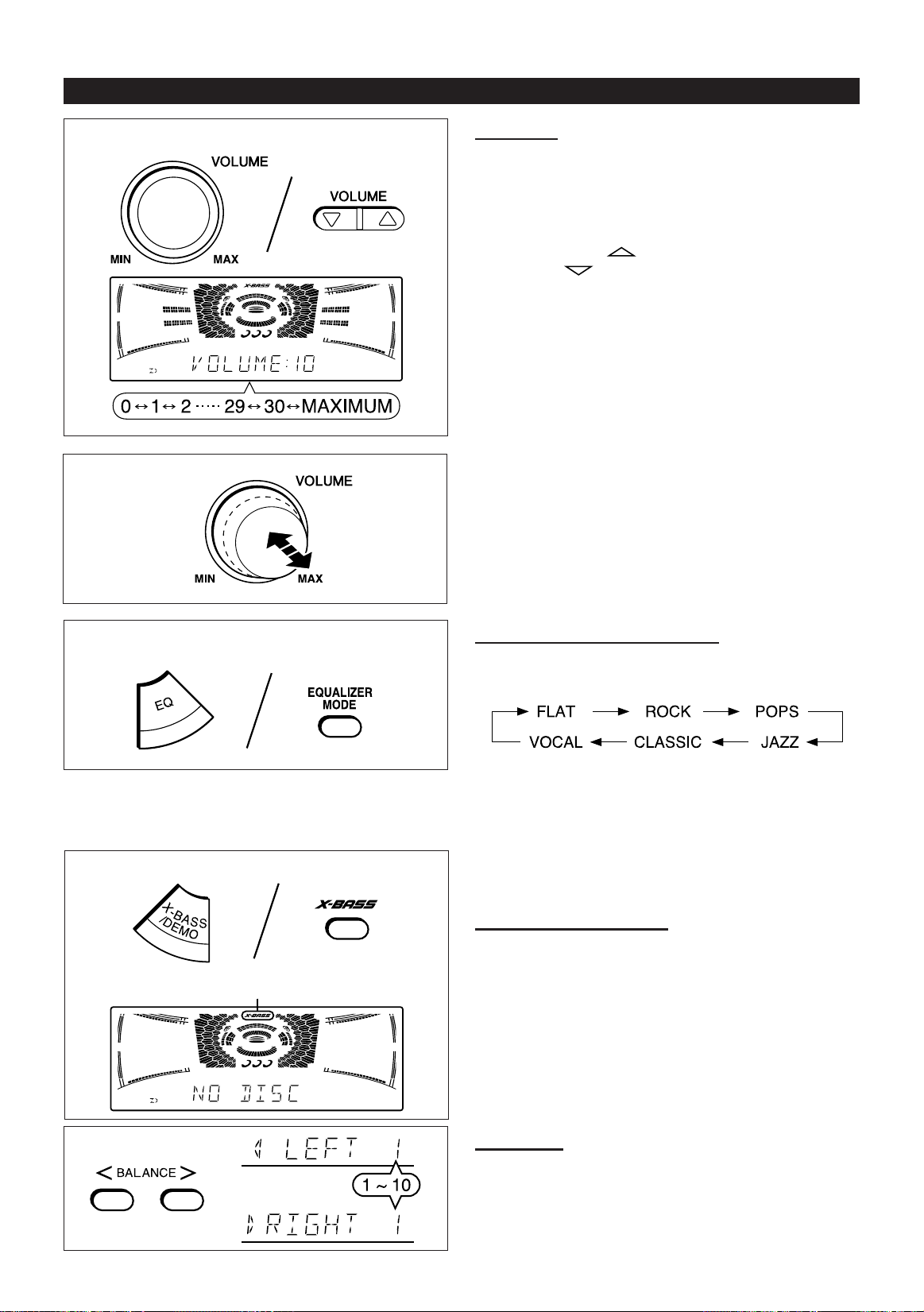

■ Volume control
The sound level at a given volume setting depends on a com-
bination of speaker efficiency, location and various other fac-
tors.
It is advisable to avoid exposure to high volume levels, which
occur whilst turning the unit on with the volume control setting
up high, or whilst continually listening at high volumes.
■ Condensation
Sudden temperature changes, storage or operation in an ex-
tremely humid environment may cause condensation inside the
cabinet (CD pickup, tape heads, etc.) or on the transmitter LED
on the remote control.
Condensation can cause the unit to malfunction.
If this happens, leave the power on with no disc (or cassette) in
the unit until normal playback is possible (about 1 hour).
Wipe off any condensation on the transmitter LED with a soft
cloth before operating the unit.
PRECAUTIONS
■ Care of compact discs
Compact discs are fairly resistant to damage, however mis-
tracking can occur due to an accumulation of dirt on the disc
surface.
Follow the guidelines below for maximum enjoyment from your
CD collection and player.
● Do not write on either side of the disc, particularly the non-
label side. Signals are read from the non-label side.
Do not mark this surface.
● Keep your discs away from direct sunlight, heat, and exces-
sive moisture.
● Always hold the CDs by the edges. Fingerprints, dirt, or wa-
ter on the CDs can cause noise or mistracking. If a CD is
dirty or does not play properly, clean it with a soft, dry cloth,
wiping straight out from the centre, along the radius.
■ Cassette tape
● For playback, use normal or low-noise tape for the best
sound. (Metal or CrO2 tape is not recommended.)
For recording, use only normal tape.
● Do not use C-120 tapes, tapes with large diameter reels, or
poor-quality tapes, as they may cause malfunctions.
● Before loading a tape into the cassette compartment, tighten
the slack with a pen or pencil.
● Cassettes have removable tabs which prevent accidental
recording or erasing from taking place. Removing the tab
will protect the corresponding side from being erased.
Cover the tab holes with adhesive tape to erase or record
again.
● TAPE 1: Playback only.
TAPE 2: Playback or record.
Side A (1)
Tab for side B (2) Tab for side A (1)
NO
YES
Correct
Downloaded from: http://www.usersmanualguide.com/
4
■ Front panel
01. (CD) Disc Tray
02. (CD) Disc Skip Button
03. (CD) Disc Number Select Buttons
04. (CD) Open/Close Button
05. Extra Bass Indicator
06. Spectrum Analyzer/Volume Level Indicator
07. (CD) Disc Number Indicators
08. (CD/TUNER) Memory Indicator
09. (TAPE 2) Record Indicator
10. (CD) Play Indicator
11. (CD) Music Schedule Indicators
12. (CD) More Tracks Indicator
13. (CD) Pause Indicator
14. (TAPE) Play Indicator
15. (CD) Repeat Indicator
16. Dynamic PTY Indicator
17. Programme Type Indicator
18. Traffic Information Indicator
19. EON Indicator
20. Traffic Programme Indicator
21. Sleep Indicator
22. RDS Indicator
23. FM Stereo Mode Indicator
24. Traffic Announcement Indicator
25. FM Stereo Indicator
26. Timer Record Indicator
27. Timer Play Indicator
28. On/Stand-by Button
29. Clock Button
30. Timer/Sleep Button
31. Dimmer Button
32. Phantom Button
33. Normal Button
34. Bypass Button
35. (TUNER) Programme Type/Traffic Information
Search Button
36. (TUNER) EON Button
37. (TUNER) ASPM Button
38. (TUNER) Display Mode Selector Button
39. (TUNER) Station Selector Button
40. Volume Control
41. Extra Bass/Demo Mode Button
42. Equalizer Mode Selector Button
43. Headphone Socket
44. Function Selector Buttons
45. Tuning and Time Up/Down Buttons
46. (CD) Track Down/Review Button
(TUNER) Preset Down Button
(TAPE 2) Rewind Button
47. Memory/Set Button
48. (CD/TAPE) Stop Button
49. Timer Set Indicator
50. (CD) Play/Repeat Button
(TAPE) Play Button
51. (TAPE 2) Record Pause Button
52. (CD) Track Up/Cue Button
(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button
53. (TAPE 1) Cassette Compartment
54. (TAPE 2) Cassette Compartment
NAMES OF CONTROLS AND INDICATORS
Downloaded from: http://www.usersmanualguide.com/
5
(Continued)
■ Rear panel
01. AC Power Lead
02. CD Digital Output Socket
03. FM 75 Ohms Aerial Socket
04. AM Loop Aerial Socket
05. Video/Auxiliary (Audio Signal) Input Sockets
06. Front Speaker Terminals
07. Center Speaker Terminals
08. Surround Speaker Terminals
■ Surround speaker
11. Full-Range Speaker
12. Speaker Wire
■ Centre speaker
11. Full-Range Speaker
12. Speaker Wire
■ Front speaker
11. Super Tweeter
12. Tweeter
13. Woofer
14. Bass Reflex Ducts
15. Speaker Wire
Downloaded from: http://www.usersmanualguide.com/
6
(Continued)

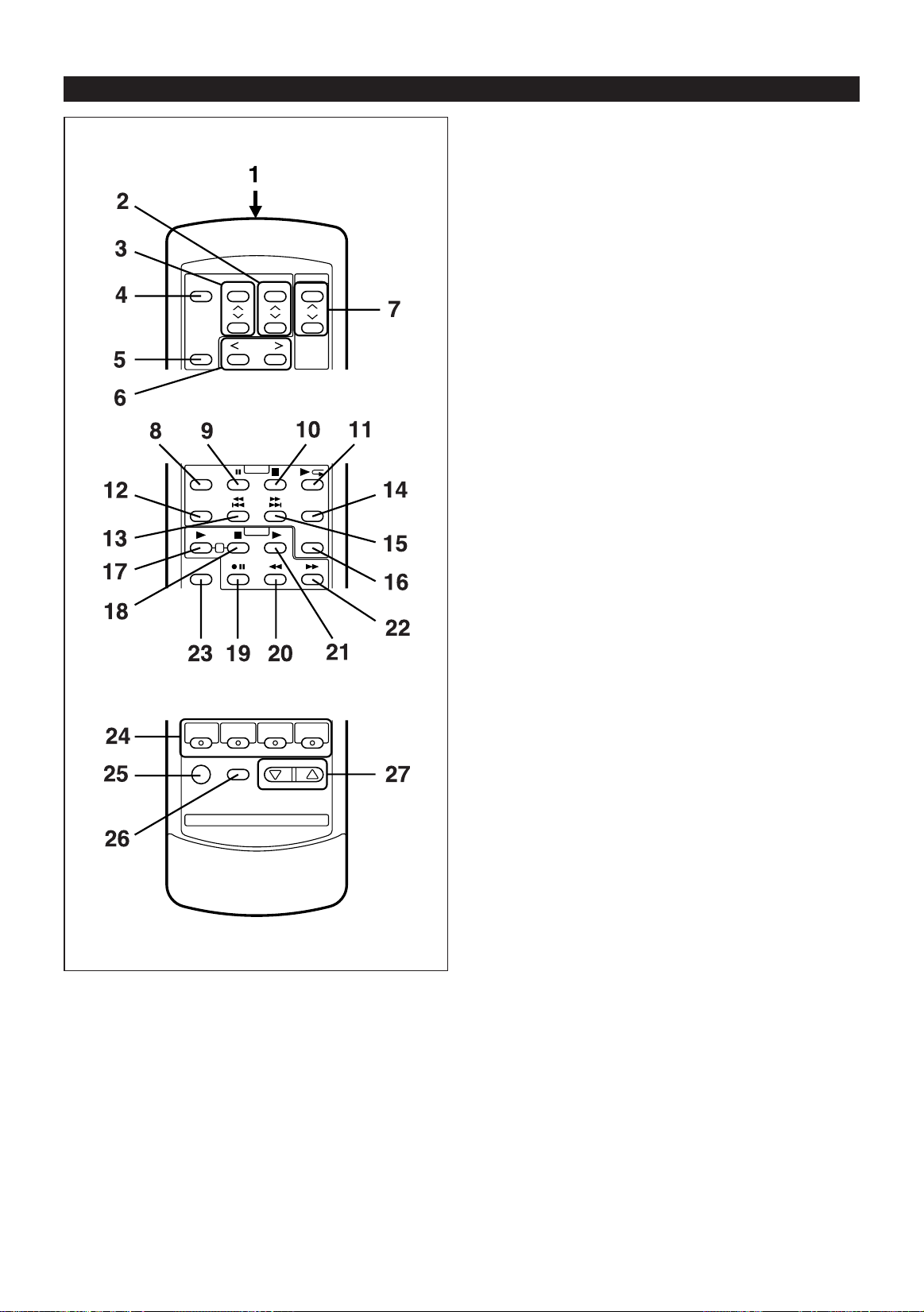

■ Remote control
01. Remote Control Transmitter LED
02. Surround Level Buttons
03. Centre Level Buttons
04. Dolby Pro Logic Button
05. Test Tone Button
06. Balance Control Buttons
● Tuner control section
07. Preset Up/Down Buttons
● CD control section
08. Memory Button
09. Pause Button
10. Stop Button
11. Play/Repeat Button
12. Clear Button
13. Track Down/Review Button
14. Random Button
15. Track Up/Cue Button
16. Disc Skip Button
● Tape control section
17. (TAPE 1) Play Button
18. (TAPE 1/2) Stop Button
19. (TAPE 2) Record Pause Button
20. (TAPE 2) Rewind Button
21. (TAPE 2) Play Button
22. (TAPE 2) Fast Forward Button
● Common section
23. Equalizer Mode Button
24. Function Selector Buttons
25. On/Stand-by Button
26. Extra Bass Button
27. Volume Up/Down Buttons
Downloaded from: http://www.usersmanualguide.com/
2
1
3
Black
Red
White
line
Surround
speaker
(Right)
Surround
speaker
(Left)
Centre
speaker
Front
speaker
(Right)
Front
speaker
(Left)
TV
Centre speaker
Main unit
Front speaker
(Right)
Surround
speaker
(Left)
Surround
speaker
(Right)
Front speaker
(Left)
7
PREPARATION FOR USE
● Unplug the AC power lead from the AC socket before
connecting or disconnecting any component.
■ Speaker connection
Connect the speaker wires to the SPEAKER terminals as
shown.
Front speakers
● Connect the black wire to the minus (–) terminal, and the
red wire to the plus (+) terminal.
Centre speaker and surround speakers
● Connect the wire with the white line to the minus (–) termi-
nal and the plain wire to the plus (+) terminal.
Caution:
● Do not mix the right channel and left channel wiring when
connecting the speakers to the unit.
● Do not let bare speaker wires touch each other as this may
damage the amplifier and/or speakers.
● Do not allow any objects to fall into or to be placed in the
bass reflex ducts.
● Do not stand or sit on the speakers. If the speakers fall or
collapse, you may be injured.
● When you use speakers other than the speakers included
with this unit, if their impedance is lower than that specified
for each speaker type, the unit may be damaged.
Front speakers: 6 ohms
Centre speaker: 6 ohms
Surround speakers:12 ohms
Placing the speakers
To enjoy the surround effect, add the extra speakers in addition
to the front speakers. Position them as shown in the illustration.
TV monitor location:
Place the centre speaker near the T.V.
The close proximity of this speaker will not adversely affect the
monitor as the speaker is shielded.
● Depending on the particular location of a TV monitor, colour
variations may appear on the TV monitor screen. If this oc-
curs, move the system’s speakers away from the TV moni-
tor and turn it off. After 15 - 30 minutes, turn on the TV moni-
tor again.
The TV monitor’s own demagnetising function should elimi-
nate the variations.
If the colour variations still appear, move the system further
away from the TV monitor.
● If any kind of magnet or an electromagnet is placed too close
to the TV monitor and the system, irregular colours may
appear on the TV monitor screen.
● Surround speakers
The surround speakers should be installed on the wall. lnstall
them 60 - 90 cm (23" - 35") above the height of your ears when
seated, if possible.
When the surround speakers are installed vertically, the speaker
badge will be upside down.
In this case, you can adjust the badge to face the proper direc-
tion.
Just turn it by hand.
Badge
Surround speaker
Wall
60 - 90 cm
(23" - 35")
Example: When installed on the wall
Example: When installed vertically
Downloaded from: http://www.usersmanualguide.com/
3
4
12
3.2 mm (1/8")
9 mm (3/8")
5 mm
(3/16")
Min. 22 mm (7/8")
Wall surface
Wall surface
(Continued)
■ To mount the surround speakers on the wall
The design of the surround speakers allows them to be hung
on the wall.
Be sure to use the type and size of screw that is shown to the
left.
1Make a hole in the wall using a drill.
2Drive a wall mount plug into the hole using a hammer. Drive
the wall mount plug in until it is flush with the wall surface.
3Drive one screw into the wall mount plug for each speaker
as shown in the illustration.
● Drive the screws, so there is about a 5 mm (3/16") space
between the wall and the head of the screw.
4Mount the surround speaker on the wall so that the screw
head is inserted into the slot on the surround speaker.
8
■ Removing the speaker grilles
1Remove the lower part of the speaker grille first.
2Remove the upper part of the speaker grille.
● The speaker grilles on the centre and surround speakers
are not removable.
Caution:
When the speaker grilles are removed, the speaker diaphragms
are exposed. Make sure nothing comes into contact with the
speaker diaphragms.
■ Mounting the speaker grilles
Fit the four posts on the speaker grille into the mounting holes
and push them lightly with the palm of your hand to secure.
32 mm
(1-1/4")
8-9 mm
(3/8")
Wall mounting screw
(Front speaker only)
Downloaded from: http://www.usersmanualguide.com/
9
■ Aerial connection
Supplied FM aerial
Connect the FM aerial wire to the FM 75 OHMS socket and
position the FM aerial wire in the direction where the strongest
signal can be received.
Supplied AM loop aerial
Connect the AM loop aerial wire to the AM LOOP socket. Posi-
tion the AM loop aerial for optimum reception.
Place the AM loop aerial on a shelf, etc., or attach it to a stand
or a wall with screws (not supplied).
Notes:
● Do not place the aerial on the main unit as it may result in
noise pickup from the internal digital electronics.
Place the aerial away from the unit for better reception.
● If the AM loop aerial and the FM aerial wire are placed near
the AC power lead, interference may result.
External FM aerial
Use an external FM aerial if you require better reception.
Consult your dealer.
(Continued)
External FM aerial
AM loop
aerial
FM aerial
■ Connecting the AC power lead
● After connecting the speakers, plug the AC power lead into
a convenient AC socket.
● Unplug the AC power lead from the AC socket if the unit will
not be in used for a prolonged period of time.
AC 230-240 V, 50 Hz
To an AC socket
Downloaded from: http://www.usersmanualguide.com/
10
(Continued)
■ Demo mode
When the AC power lead is first connected, the unit will enter
the demonstration mode.
To cancel the demonstration mode:
When the unit is in the stand-by mode (demonstration mode),
press the X-BASS/DEMO button.
● The demonstration mode will be cancelled and the unit will
be in the low power consumption mode.
To return to the demonstration mode:
When the unit is in the stand-by mode, press the X-BASS/DEMO
button again.
Notes:
● When the unit is in the low power consumption mode, the
display will disappear.
● When the power is on, the X-BASS/DEMO button can be
used to select the extra bass mode.
(Main unit operation)
(Main unit operation)
When bright
When dark
0.2 m - 6 m
(8" - 20’)
● 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar)
● Batteries are not included.
■ Remote control
● When inserting or removing the batteries, push them towards
the ë battery terminals.
● Installing the batteries incorrectly may cause the unit to
malfunction.
Precautions for battery use:
● Insert the batteries according to the direction indicated in
the battery compartment.
● Replace all old batteries with new ones at the same time.
● Do not mix old and new batteries.
● Remove the batteries if they are weak or if the unit will not
be used for long periods of time. This will prevent potential
damage due to battery leakage.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery,
etc.).
Notes concerning use:
● Replace the batteries if the operating distance is reduced or
if the operation becomes erratic.
● Periodically clean the transmitter LED on the remote con-
trol and the sensor on the main unit with a soft cloth.
● Exposing the sensor on the main unit to strong light may
interfere with operation. Change the lighting or the direction
of the unit.
● Keep the remote control away from moisture, excessive heat,
shock, and vibrations.
■ To change the brightness of the display
Press the DIMMER button.
● The display will be made dimmer.
To return to the original brightness:
Press the DIMMER button again.
Downloaded from: http://www.usersmanualguide.com/
11

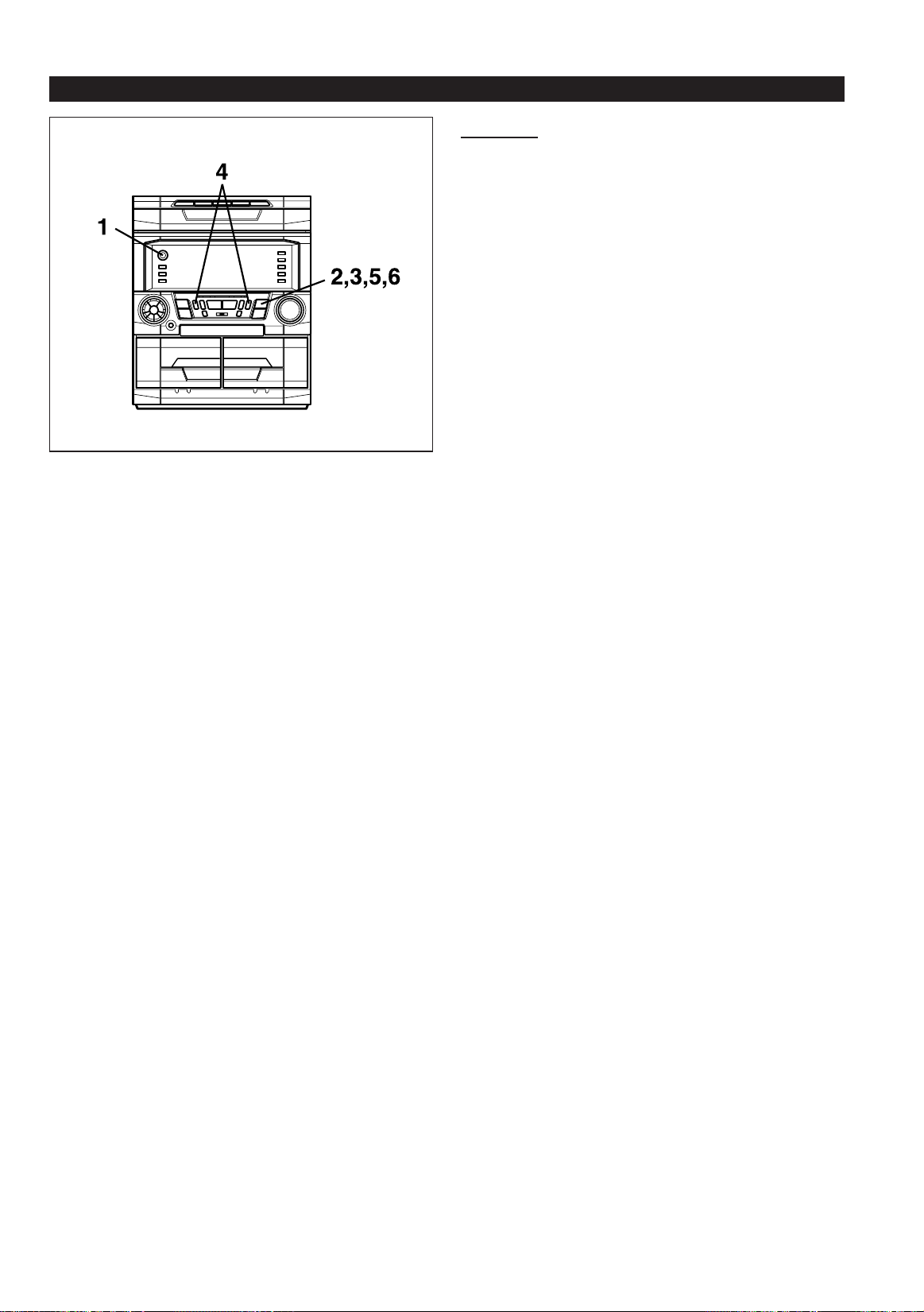

SETTING THE CLOCK
In this example, the clock is set for the 24-hour (0:00) system.
1Press the ON/STAND-BY button to enter the stand-by mode.
2Press the CLOCK button.
3Within 5 seconds, press the MEMORY/SET button.
4Press the TUNING/TIME (X or W) button to select the time
display mode.
“0:00” →The 24-hour display will appear.
(0:00 - 23:59)
“AM 0:00” →The 12-hour display will appear.
(AM 0:00 - PM 11:59)
“AM 12:00” →The 12-hour display will appear.
(AM 12:00 - PM 11:59)
● Note that this can only be set when the unit is first in-
stalled or it has been reset (see page 32).
5Press the MEMORY/SET button.
6Press the TUNING/TIME (X or W) button to adjust the hour.
● Press the TUNING/TIME (X or W) button once to ad-
vance the time by 1 hour. Hold it down to advance con-
tinuously.
● When the 12-hour display is selected, “AM” will change
automatically to “PM”.
7Press the MEMORY/SET button.
8Press the TUNING/TIME (X or W) button to adjust the min-
utes.
● Press the TUNING/TIME (X or W) button once to ad-
vance the time by 1 minute. Hold it down to change the
time in 5 minute intervals.
● The hour setting will not advance even if minutes advance
from “59” to “00”.
9Press the MEMORY/SET button.
● The clock starts operating from “0” second.
(Seconds are not displayed.)
And then the clock display will disappear after a few sec-
onds.
To see the time display:
Press the CLOCK button.
● The time display will appear for about 5 seconds.
Note:
● The clock display will flash on and off at the push of the
CLOCK button when the AC power supply is restored after
a power failure occurs or after the AC power lead is discon-
nected.
If this happens, follow the procedure below to change the
clock time.
To change the clock time:
1
Press the CLOCK button.
2 Within 5 seconds, press the MEMORY/SET button.
3
Perform steps 6 - 9 above.
To change the time display mode:
1
Perform steps 1 - 2 in the section “RESETTING THE MI-
CROCOMPUTER”, on page 32.
2
Perform steps 1 - 9 above.
(Main unit operation)
Downloaded from: http://www.usersmanualguide.com/
12
■ Volume
(Main unit operation)
When the VOLUME control is turned clockwise, the volume
will increase. When it is turned anti-clockwise, the volume will
decrease.
(Remote control operation)
Press the VOLUME
button to increase the volume and
the VOLUME
button to decrease the volume.
(Main unit) (Remote control)
X-BASS indicator
(Main unit) (Remote control)
■ Balance
(Remote control operation)
Press the BALANCE Z (LEFT) button to decrease the level of
the right speaker, and press the BALANCE Y (RIGHT) button
to decrease the level of the left speaker.
■ Extra bass (X-BASS)
When the power is first turned on, the unit will enter the extra
bass mode which emphasises the bass frequencies, and “X-
BASS” will appear.
To cancel the extra bass mode, press the X-BASS/DEMO (X-
BASS) button.
“X-BASS” will disappear.
■ Pre-programmed equalizer
When the EQ (EQUALIZER MODE) button is pressed, the cur-
rent mode setting will be displayed. To change to a different
mode, press the EQ (EQUALIZER MODE) button repeatedly.
FLAT: The sound is not modified.
ROCK: Bass and treble are emphasised.
POPS: Bass and treble are slightly emphasised.
JAZZ: Treble is cut a little.
CLASSIC: Treble is reduced a lot.
VOCAL: Vocals (midrange tones) are emphasised.
Servo powered volume:
● The VOLUME control automatically comes out when the
power is turned on, and goes back when the unit is set to
the stand-by mode.
Note:
Do not push in the VOLUME control forcibly with your finger.
(Main unit)
(Remote control)
SOUND CONTROL
Downloaded from: http://www.usersmanualguide.com/
13
(Continued)
Dolby Pro Logic Surround playback:
1Press the NORMAL or PHANTOM button on the main unit
to select the Dolby Pro Logic Surround mode.
To select the mode with the remote control, press the DOLBY
PRO LOGIC button.
● Each time you press the button, the display will change
as follows:
NORMAL: The centre speaker is used.
PHANTOM: Use this mode when a centre speaker is not
connected.
The centre channel signals are output through
the front speakers.
BYPASS: The Dolby Pro Logic Surround mode is can-
celled.
2Play the video software programme.
3To cancel the Dolby Pro Logic Surround mode, press the
BYPASS button on the main unit or the DOLBY PRO LOGIC
button on the remote control until “BYPASS” appears.
● The BYPASS button will light.
Note:
● You cannot use the Dolby Pro Logic Surround feature with
headphones.

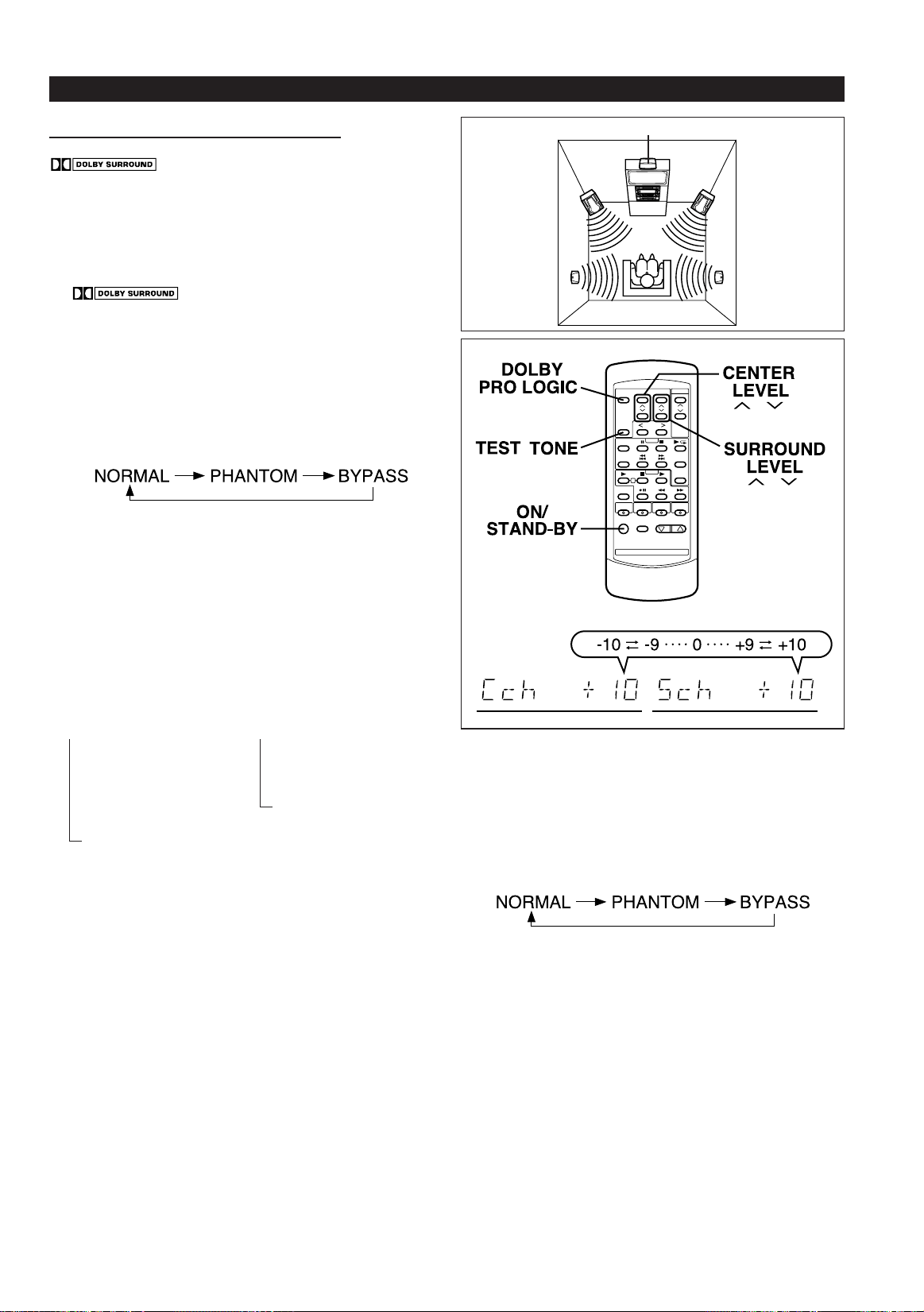

■ Dolby Pro Logic Surround mode
Video and DVD software programmes carrying the
trademark are recordings that contain the
same Dolby Surround data as used in movie theatres.
The Dolby Pro Logic Surround mode uses Dolby Surround data
to bring the full presence experienced in a movie theatre into
your home.
To use this mode, you must connect the surround and centre
channel speakers.
Before playing a video (or DVD) software programme carrying
the
trademark, be sure to complete the “Dolby
Pro Logic Surround setup” as follows.
Dolby Pro Logic Surround setup:
(Remote control operation)
1Press the ON/STAND-BY button to turn the power on.
● The BYPASS button will light.
2Press the DOLBY PRO LOGIC button to select “NORMAL”
or “PHANTOM”.
● Each time you press the button, the display will change
as follows:
NORMAL: The centre speaker is used.
PHANTOM: Use this mode when a centre speaker is not
connected. The centre channel signals are
output through the front speakers.
BYPASS:
The Dolby Pro Logic Surround mode is cancelled.
● The selected Dolby Pro Logic Surround mode is auto-
matically stored in memory and will be used the next time
you activate DOLBY PRO LOGIC. This mode is
memorised until it is changed.
3Press the TEST TONE button.
● The test tone is a tone that moves from one speaker to
the next, taking 2 seconds to go from speaker to speaker.
In NORMAL mode: In PHANTOM mode:
→ Left (L ch) → Left (L ch)
↓↓
Centre (C ch) Right (R ch)
↓↓
Right (R ch) Surround (S ch)
↓
Surround (S ch)
4Adjust the centre speaker volume or the volume of the
surround speakers.
To adjust the centre speaker volume to match the
level of the front speakers:
Press the CENTER LEVEL W button to increase the volume
and the CENTER LEVEL X button to decrease the volume.
● Do this adjustment in the NORMAL mode.
To adjust the volume of the surround speakers to
match the level of the front speakers:
Press the SURROUND LEVEL W button to increase the volume
and the SURROUND LEVEL X button to decrease the volume.
● Do this adjustment in the NORMAL or PHANTOM mode.
5
After adjusting the speaker volume, press the TEST TONE button.
● The test tone will stop.
Notes:
●
Be sure to adjust the sound from your favorite listening position.
● The volume is adjusted in 1 dB steps up or down each time
you press the CENTER LEVEL button or the SURROUND
LEVEL button.
● The volume settings for the centre and surround speakers
are stored in memory for future use. However, if the power
is disconnected or there is a power failure, the levels will
return to their initial settings.
Centre speaker
Front
speaker
(Left)
Front
speaker
(Right)
Surround
speaker
(Left)
Surround
speaker
(Right)
Downloaded from: http://www.usersmanualguide.com/
14
COMPACT DISC OPERATION
■ CD playback
1Press the ON/STAND-BY button to turn the power on.
2Press the CD button.
3Press the OPEN/CLOSE button to open the disc tray.
4Place the CD(s) on the disc tray, label side up.
● CDs can be placed on any open position on the disc tray.
● Be sure to place 8 cm (3") CD(s) in the middle of the disc
trays.
Caution:
Do not stack CDs in the tray.
This can damage the player and the CDs.
5When loading a third disc, press the DISC SKIP button to
turn the disc tray, then place the CD in the open position.
6Press the OPEN/CLOSE button to close the disc tray.
● The total number of tracks and the total playing time for
one disc will be displayed. At this time, the disc number
indicator is flashing.
● The music schedule will be displayed only for the number
of tracks on the disc.
● If the CD contains more than 15 tracks, “ C ” will appear.
7Press the desired disc number button (DISC-1 – DISC-3).
8Press the 0/R ( 0R ) button.
● Playback will begin from track 1 on the disc you have
selected to play.
● After the disc finishes playing, the next disc will automati-
cally play.
● When there is no CD in one of the disc 1 - 3 positions,
that position will be skipped and the next CD will be played.
● When the last track on the third disc has finished playing,
the unit will stop automatically.
To interrupt playback:
1
Press the CD 6 button on the remote control.
● “ 6 ” will appear.
2
Press the 0R button to resume playback from the same
point.
To stop playback:
Press the ■ (CD ■) button.
To remove the CDs:
Whilst in the stop mode, press the OPEN/CLOSE button.
● The disc tray will open. Remove the two discs. Then, press
the DISC SKIP button to rotate the disc tray and remove the
remaining disc.
After use:
Press the ON/STAND-BY button to enter the stand-by mode.
12 cm (5")
8 cm (3")
Music schedule More tracks indicator
Total number of tracks Total playing time
Downloaded from: http://www.usersmanualguide.com/
15
(Continued)
■ Disc number selection
1 When stopped, press the DISC SKIP button.
2 Press the 0/R ( 0R ) button.
● The next disc playback will begin, after which each fol-
lowing disc will be played sequentially.
Notes:
● When the DISC SKIP button is pressed during playback,
playback will begin automatically from the next disc.
(It is not necessary to press the 0/R ( 0R ) button.)
● When one of the disc number buttons (DISC-1 – DISC-3) is
pressed during playback, playback of the selected disc will
begin automatically.
(It is not necessary to press the 0/R ( 0R ) button.)
■ APSS (Auto Program Search System)
APSS automatically locates the beginning of any track.
To listen again to the track being played:
Press the 5 ( 5 3 ) button for less than 0.5 seconds
during playback.
To move to the beginning of the next track:
Press the 4 ( 2 4 ) button for less than 0.5 seconds
during playback.
● To skip a number of tracks at one time, press the 5 ( 5
3 ) or 4 ( 2 4 ) button repeatedly until the desired
track number is shown.
●
To start playback from a desired track, press the 5 ( 5 3 )
or 4 ( 2 4 ) button whilst in the stop mode to select the
track number, and then press the 0/R ( 0R ) button.
Note:
● APSS can only search for music on a single disc.
■ Cue and review
1Load a disc and begin playback.
2Hold down the 2 ( 2 4 ) button for audible fast for-
ward, and hold down the 3 ( 5 3 ) button for audible
fast reverse.
3Normal playback will resume when the 2 ( 2 4 ) or
3 ( 5 3 ) button is released.
Notes:
● When the end of the disc is reached whilst cueing, “END”
will appear in the display and CD operation will be paused.
(Even though the next disc has been loaded, the disc will
not be switched.)
Press the 3 ( 5 3 ) button for fast reverse or press the
■ (CD ■) button to stop CD operation.
● If the beginning of the disc is reached whilst reviewing, the
mode will automatically switch to normal playback at that
point.
■ Random play
(Remote control operation)
The tracks on the disc(s) can be played in random order auto-
matically.
1Load a disc(s) and close the disc tray.
2Press the RANDOM button to begin random play.
● “R” will appear.
Notes:
● If you press the 4 ( 2 4 ) button during random play,
you can move to the next track. On the other hand, the 5
( 5 3 ) button does not allow you to move to the previ-
ous track. The beginning of the track being played will be
located.
● When using random play, be sure to press the ■ (CD ■)
button after you are through listening.
Otherwise, the disc(s) will play continuously.
● In random play the unit will select and play tracks automati-
cally. (You cannot select the order of the tracks.)
To cancel random play:
Press the 0/R ( 0R ) button.
● “R” will go out.
Caution:
● Do not carry the unit with discs left in the disc trays.
The discs may come loose inside the unit and they
may be damaged or cause damage to the unit. This
may also cause malfunctions.
● Do not place two CDs in one disc position.
● Do not push the disc tray whilst it is moving.
● Do not attempt to turn the disc tray by hand. This may
cause malfunctions.
● If the power fails whilst the tray is open, wait until the
power is restored.
● If the disc tray is stopped forcibly, “ERR” will appear in
the display and the unit will not function.
If this occurs, press the ON/STAND-BY button to enter
the stand-by mode and then turn the power on again.
● If TV or radio interference occurs during CD operation,
move the unit away from the TV or radio.
● If a disc is damaged, dirty, or loaded upside down, the
disc will be skipped and the next disc will automatically
play.
Downloaded from: http://www.usersmanualguide.com/
16
(Continued)
■ APMS
(Automatic Programmable Music Selector)
You can playback the tracks on the CDs in the disc 1 - 3 posi-
tions in any order desired. By specifying the disc numbers from
1 to 3, and the track numbers from 1 to 99, you can choose up
to 32 selections for playback in the order you like.
1
When in the stop mode, use the disc number buttons (DISC-1
–
DISC-3) to select the desired disc number.
2Press the 5 ( 5 3 ) or 4 ( 2 4 ) button to select
the desired track.
3Press the MEMORY/SET (MEMORY) button.
● “MEMORY” will appear to show that the programmed
sequence is being entered into memory.
4Repeat steps 1 - 3 for any other track. Up to 32 tracks can
be programmed.
● If you make a mistake whilst in the programming mode
(“MEMORY” will appear) or if you wish to change your
selections, the programmed tracks can be cleared by
pressing the CLEAR button. The tracks will be cleared
sequentially, starting with the last track entered.
5Press the 0/R ( 0R ) button to start playback of pro-
grammed selections.
To clear the programmed selections:
Press the CLEAR button on the remote control whilst the disc
is stopped.
● Each time the button is pressed, one track will be cleared,
beginning with the last track programmed.
Notes:
● Opening the disc tray automatically cancels the programmed
sequence.
● Even if you press the ON/STAND-BY button to enter the
stand-by mode or the function is changed from CD to some
other function, the programmed selections will not be
cleared.
● During APMS operation, random play is not possible.
■ Repeat play
All tracks on up to 3 discs, or a programmed sequence can be
continuously repeated.
To repeat all tracks on up to 3 discs:
Press the 0/R ( 0R ) button twice.
● “ R ” will appear.
To repeat a programmed sequence:
1Programme a sequence of up to 32 tracks.
2Press the 0/R ( 0R ) button twice.
● “ R ” will appear.
To cancel repeat play:
Press the 0/R ( 0R ) button again.
● “ R ” will go out.
Note:
● When using repeat play, be sure to press the ■ (CD ■)
button after you are through listening.
Otherwise, the CD(s) will play continuously.
Repeat indicator
Selected disc number
Playback orderSelected track number
Downloaded from: http://www.usersmanualguide.com/
17
RADIO OPERATION
■ Tuning
1Press the ON/STAND-BY button to turn the power on.
2Press the TUNER (BAND) button.
3Press the TUNER (BAND) button to select the desired fre-
quency band. (FM ST, FM or AM)
4Press the TUNING/TIME (X or W) button to tune into the
desired station.
Manual tuning:
Press the TUNING/TIME (X or W) button as many times
as required to adjust the frequency shown on the display to
the frequency of the desired station.
Auto tuning:
When the TUNING/TIME (X or W) button is pressed for
more than 0.5 seconds, scanning will start automatically and
the tuner will stop at the first receivable broadcast station.
Notes:
● When radio interference occurs during auto scan tuning,
auto scan tuning may stop automatically at that point.
● If a weak station signal is found during auto scan tuning,
the station will be skipped.
● To stop the auto tuning, press the TUNING/TIME (X or
W) button again.
● When an RDS (Radio Data System) station is tuned in,
the frequency will be displayed first, and then the RDS
indicator will light, Finally, the station name will appear.
5To receive an FM stereo transmission, press the TUNER
(BAND) button so that the “ST” indicator on the display lights
up.
● “j” will appear when an FM broadcast is in stereo.
6If the FM reception is weak, press the TUNER (BAND) but-
ton so that the “ST” indicator goes out.
● Although the reception changes to monaural, the sound
becomes clearer.
After use:
Press the ON/STAND-BY button to enter the stand-by mode.
Note:
● The last station tuned in will be recalled, even after chang-
ing the tuning band or the function, or after switching the
unit to the stand-by mode.
(Main unit operation)
Downloaded from: http://www.usersmanualguide.com/
18
(Continued)
■ Preset tuning
You can store up to 40 stations in memory (40 stations consist-
ing of any combination of FM and AM stations you like) and
recall them at the push of a button.
To enter stations into memory:
1Perform steps 1 - 6 in the “Tuning” section.
2Press the MEMORY/SET button.
● “MEMORY” and the preset channel number will flash.
3Within 30 seconds, press the PRESET (X or W) button to
make the preset channel number flash in the display.
● Store the stations in memory, in order, starting with pre-
set channel 1.
4Within 30 seconds, press the MEMORY/SET button to store
that station in the selected station preset number memory.
● If the “MEMORY” and preset number indicators go out
before the station is memorised, repeat the operation from
step 2.
5Repeat steps 1 - 4 to set other preset stations, or to change
a preset station.
● When a new station is stored in the selected station pre-
set number memory, the contents previously memorised
will be erased.
● To store an RDS station in memory, perform steps 2 - 4
whilst the RDS station name is being displayed.
To recall a memorised station:
Press the PRESET (X or W) button for less than 0.5 seconds
to select the desired station.
● The stations (preset channel number, frequency and fre-
quency band) which have been stored in memory will ap-
pear in the display in numerical order, irrespective of the
frequency bands.
Note:
When searching for a memorised station, do not press the
PRESET button for more than 0.5 seconds.
When the PRESET button is pressed for more than 0.5 sec-
onds, the unit will enter the preset memory scan mode.
Backup function:
The backup function protects all station presets for a few hours
should there be a power failure or the AC power lead is re-
moved from the AC socket.
■ Preset memory scan
The stations saved in the preset memory can be scanned au-
tomatically.
1To scan the preset stations, press the PRESET (X or W)
button for more than 0.5 seconds.
● The station preset number will flash and the programmed
stations will be tuned in sequentially, for 5 seconds each.
2Press the PRESET (X or W) button again to stop the
memory scan at the desired station.
Note:
When the preset memory does not have any stations stored in
it, the preset memory scan will not function.
To erase all the contents in the preset memory:
1Press the ON/STAND-BY button to enter the stand-by mode.
2Press the ON/STAND-BY button whilst holding down the
TUNER (BAND) button and the X-BASS button.
● “TUNER CL” will appear.
● After performing this operation, all of the preset memory
information will be erased.
(Main unit operation)
Downloaded from: http://www.usersmanualguide.com/
19
RDS (Radio Data System) OPERATION
RDS is a broadcasting service which a growing number of FM
stations are now providing. It allows these FM stations to send
additional signals along with their regular programme signals.
For example, the stations send their station names, and infor-
mation about what type of programme they broadcast, such as
sports or music, etc.
When tuned to an FM station which provide the RDS service,
the RDS will appear, the station frequency (and then the sta-
tion name if sent) is displayed.
The TP (Traffic Programme) will appear on the display when
the received broadcast carries traffic announcements, and the
TA (Traffic Announcement) will appear whilst a traffic announce-
ment is being received.
EON will appear whilst the EON (Enhanced Other Networks
information) data is being broadcast.
The PTYI (Dynamic PTY Indicator) will appear whilst the
Dynamic PTY station is being received.
Note:
When the TP and TA appear at the same time, an an-
nouncement is being made.
When only the TA appears, an announcement is not being made.
(See page 26.)
■ Information Provided by RDS
With the CD-DP2500H, you can display three types of RDS
service. To show them in the display, press the DISPLAY MODE
button.
Each time you press the DISPLAY MODE button, the display
will change to show the following information.
Station names commonly known
will be displayed.
“NO PS” appears if no signal is
being received.
Programme type will be dis-
played.
“NO PTY” appears if no signal is
being received.
Radio text will be displayed.
“NO RT” appears if no signal is
being received.
Station frequencies.
↓
PS (Programme Service):
↓
PTY (Programme Type):
↓
RT (Radio Text):
↓
Station Frequency:
Downloaded from: http://www.usersmanualguide.com/
20
NEWS: Short accounts of facts, events and publicly
expressed views, reportage and actuality.
AFFAIRS: Topical programme expanding or enlarging
upon the news, generally in different presen-
tation style or concept, including debate, or
analysis.
INFO: Programmes whose purpose is to impart ad-
vice in the widest sense.
SPORT: Programme concerned with any aspect of
sport.
EDUCATE: Programme intended primarily to educate, of
which the formal element is fundamental.
DRAMA: All radio plays and serials.
CULTURE: Programmes concerned with any aspect of na-
tional or regional culture, including language,
theatre, etc.
SCIENCE: Programmes about the natural sciences and
technology.
VARIED: Used for mainly speech-based programmes
usually of light-entertainment nature, not cov-
ered by other categories. Examples include:
quizzes, panel games, personality interviews.
POP M: Commercial music, which would generally be
considered to be of current popular appeal,
often featuring in current or recent record sales
charts.
ROCK M: Contemporary modern music, usually written
and performed by young musicians.
EASY M: Cur rent contemporary music considered to
be “easy-listening”, as opposed to Pop, Rock
or Classical, or one of the specialized music
styles, Jazz, Folk or Country. Music in this cat-
egory is often but not always, vocal, and usu-
ally of short duration.
LIGHT M: Classical Musical for general, rather than spe-
cialist appreciation. Examples of music in this
category are instrumental music, and vocal or
choral works.
CLASSICS: Performances of major orchestral works, sym-
phonies, chamber music etc., and including
Grand Opera.
OTHER M: Musical styles not fitting into any of the other
categories. Particularly used for specialist mu-
sic of which Rhythm & Blues and Reggae are
examples.
WEATHER: Weather reports and forecasts and Meteoro-
logical information.
FINANCE: Stock Market reports, commerce, trading etc.
CHILDREN: For programmes targeted at a young audience,
primarily for entertainment and interest, rather
than where the objective is to educate.
SOCIAL: Programmes about people and things that in-
fluence them individually or in groups. Includes:
sociology, history, geography, psychology and
society.
RELIGION: Any aspect of beliefs and faiths, involving a God
or Gods, the nature of existence and ethics.
PHONE IN:
Involving members of the public expressing their
views either by phone or at a public forum.
TRAVEL: Features and programmes concerned with
travel to near and far destinations, package
tours and travel ideas and opportunities. Not
for use for Announcements about problems,
delays, or roadworks affecting immediate travel
where TP/TA should be used.
LEISURE: Programmes concerned with recreational ac-
tivities in which the listener might participate.
Examples include, Gardening, Fishing. Antique
collecting, Cooking, Food & Wine etc.
JAZZ: Polyphonic, syncopated music characterised
by improvisation.
COUNTRY: Songs which originate from, or continue the
musical tradition of the American Southern
States. Characterised by a straightforward
melody and narrative story line.
NATION M: Current Popular Music of the Nation or Region
in that country’s language, as opposed to In-
ternational ‘Pop’ which is usually US or UK in-
spired and in English.
OLDIES: Music from the so-called “golden age” of popu-
lar music.
FOLK M: Music which has its roots in the musical cul-
ture of a particular nation, usually played on
acoustic instruments. The narrative or story
may be based on historical events or people.
DOCUMENT: Programme concerned with factual matters,
presented in an investigative style.
TEST: Broadcast when testing emergency broadcast
equipment or receivers.
ALARM !: Emergency announcement made under excep-
tional circumstances to give warning of events
causing danger of a general nature.
NONE: No programme type (receive only).
TP: Broadcasts which carry traffic announcements.
TA: Traffic announcements are being broadcast at
present.
(Continued)
Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement)
With the CD-DP2500H, you can search for and receive the following PTY, TP and TA signals.
Note:
●
When the unit is in the EON stand-by mode and a programme
is selected, the unit will display “TI” instead of “TA”.
Downloaded from: http://www.usersmanualguide.com/
21
■ ASPM (Auto Station Program Memory)
It is recommended that you store stations in memory using
ASPM.
(This memory can be used for PTY searches, station select
and EON switching.)
When the ASPM button is pressed, whilst tuned to the FM band,
the RDS (Radio Data System) function will automatically search
for new RDS stations. Up to 40 stations can be stored in memory.
(If you have already stored some stations in memory, the num-
ber of new stations you can store will be less.)
1Press the ON/STAND-BY button to turn the power on.
2Press the TUNER (BAND) button.
3Press the TUNER (BAND) button to select the FM ST or FM
band.
4Press and hold down the ASPM button for at least 3 sec-
onds.
1
After “ASPM” has flashed for about 4 seconds, scanning
will start. (87.50 - 108.00 MHz)
2
When an RDS station is found, the RDS will appear for a
short time and the station will be stored in memory.
3
After scanning, the number of stations that have been
automatically stored in memory will be displayed for 4
seconds, and then “END” will appear for 4 seconds.
Notes:
● Only RDS stations will be stored in memory in numerical
order.
● If the same station is broadcasting on different frequencies,
the transmission with the strongest broadcast frequency will
be stored in memory.
● Any station which has the same frequency as one which
has been already stored in memory will not be stored again.
● The ASPM operation can be repeated until “END” appears.
● If a 40th station is stored in memory during a scan, the scan-
ning will stop at that station. The number of stations and
“END” will each be displayed for 4 seconds.
● If no stations have been stored in memory, “END” will ap-
pear for about 4 seconds.
● If 40 stations have already been stored in memory and the
ASPM button is pressed, “END” will appear immediately and
the scan will be aborted.
If you want to redo the ASPM operation from the beginning,
erase the preset memory, and then perform steps 1 - 4.
● If the RDS station broadcast signals are very weak, station
names may not be stored in memory.
To stop the ASPM operation before it is complete:
Press the ASPM button whilst it is scanning for stations.
● The stations that have already been stored in memory will
be kept there.
To erase all the contents in the preset memory:
1Press the ON/STAND-BY button to enter the stand-by mode.
2Press the ON/STAND-BY button whilst holding down the
TUNER (BAND) button and the X-BASS button.
● “TUNER CL” will appear.
● After performing this operation, all of the preset memory
information will be erased.
(Continued)
(4 seconds)
(Main unit operation)
(4 seconds)
Downloaded from: http://www.usersmanualguide.com/
22
(Continued)
Notes:
● When there are no station names stored in memory, you
cannot use this function. In this case, when the STATION
button is pressed, “NOTHING” will flash for 5 seconds, and
the unit will return to the original display.
● This function can only be used when the FM band has been
selected.
● The same station name can be stored in different preset
channels. Therefore, when you are choosing a station name
from the presets, the same station name may be encoun-
tered more than once.
● In a certain area or during certain time periods, the station
names selected using the station select function may tem-
porarily be different from the name of the station you are
actually receiving.
■ To specify station names and select stations
manually (station select)
You can receive a desired station by specifying the station name
(BBC R1, BBC R2, etc.) from among the stations that have
been stored in memory.
(ASPM is convenient for storing stations in memory.)
Before starting this operation, you must store one or more sta-
tion names in memory.
1Press the ON/STAND-BY button to turn the power on.
2Press the TUNER (BAND) button.
3Press the TUNER (BAND) button to select the FM ST or FM
band.
4Press the STATION button.
● “STATION” and “SELECT” will appear alternately for about
6 seconds.
5Within 6 seconds, press the PRESET (X or W) button to
select a desired station name you want.
● Each time the button is pressed, the station name will
appear.
If the button is held down for more than 0.5 seconds, the
station name will continuously change.
6Whilst the selected station name is flashing (within 6 sec-
onds), press the STATION button again.
● After the selected station name has been lit for 1 second,
the preset station which corresponds to the selected sta-
tion name will be recalled.
To cancel the station select operation:
Press the STATION button whilst “STATION” and “SELECT”
appear alternately.
To try to store a station name again, if the wrong
name was stored in memory by mistake:
When you store station names in memory using the ASPM func-
tion, the correct station names may not actually be stored if
there is lots of noise or if the RDS station signal is too weak.
In this case, try storing station names in memory using the fol-
lowing procedure.
1Press the STATION button.
2Within 6 seconds, press the PRESET (X or W) button to
check whether the station names are correct.
3If you find a station name that is wrong, press the STATION
button again within 6 seconds to recall the preset station,
which corresponds to the station name.
4After the preset station has been received and the correct
station name has been displayed, press the MEMORY/SET
button.
5Within 30 seconds, Press the MEMORY/SET button whilst
the preset channel number is flashing.
● The new station name has been stored in memory cor-
rectly.
(Main unit operation)
Downloaded from: http://www.usersmanualguide.com/
23
(Main unit operation)
(Continued)
■ To recall stations that have been stored in
memory (PTY search)
You can search for desired stations by specifying the
programme type (news, sports, traffic programme, etc. ... see
page 20) from among the stations that have been stored in
memory.
(ASPM is convenient for storing stations in memory.)
1Press the ON/STAND-BY button to turn the power on.
2Press the TUNER (BAND) button.
3Press the TUNER (BAND) button to select the FM ST or FM
band.
4Press the PTY.TI SEARCH button.
● “PTY TI” and “SELECT” will appear alternately for about
6 seconds.
5Within 6 seconds, press the PRESET (X or W) button to
select the programme type you want.
● Each time the button is pressed, the programme type will
appear. If the button is held down for more than 0.5 sec-
onds, the programme type will appear continuously.
6Whilst the selected programme type is flashing (within 4
seconds), press the PTY.TI SEARCH button again.
● After the name of the selected programme type has been
lit for 2 seconds, “SEARCH” will appear, and the search
operation will start.
Note:
If the programme type has changed from flashing to steadily lit
and the PTY.TI SEARCH button is pressed, nothing will hap-
pen.
In this case, start again from step 4.
Each time a station of the programme type you want is en-
countered, you will be able to listen to the broadcast.
The channel number will flash for about 3 seconds. The station
name will flash for 7 seconds, and then remain lit.
● If you want to listen to another station of that programme
type, press the PTY.TI SEARCH button whilst the channel
number or station name is flashing. The unit will look for the
next station of that type.
Note:
● If no station of the programme type you want can be found,
“NOT FOUND” will appear for 4 seconds.
★ If you have selected the traffic programme:
If you select traffic programme (TP) as the programme type in
step 5, to receive only radio stations which broadcast traffic
programmes, the TP will appear. (However, this does not nec-
essarily mean that you will hear any traffic announcements at
that time.)
When a traffic announcement is actually being made, the TA
will appear.
(When both the TP and TA will appear, an announcement is
being made.)
Downloaded from: http://www.usersmanualguide.com/
24
(Main unit operation)
(Continued)
(Main unit operation)
■ To manually recall the stations stored in
memory
Press the PRESET (X or W) button.
● Each time the button is pressed, the channel number will
change.
● After the channel number has been displayed for 2 sec-
onds, the frequency for that channel will appear for 2 sec-
onds, and then the station name will appear.
■ To switch the display
Each time the DISPLAY MODE button is pressed whilst an FM
station is tuned in, the display will switch as follows:
Station
→
Programme
→
Radio text
→
Frequency
name (PS) type (PTY) (RT)
↑
When the station you are tuning in is not an RDS station or
even if it is an RDS station but it is very weak signal, the dis-
play will change in the following order:
“NO PS”
→
“NO PTY”
→
“NO RT”
→
Frequency
↑
Notes:
● “NO PS”, “NO PTY” or “NO RT” will flash for about 5 sec-
onds, and then the frequency will be displayed.
● The display can only be switched whilst tuned to the FM
band.
■ Notes for Radio text
● The radio text for 8 characters will be displayed steadily for
4 seconds and then it will scroll across the display.
● If you tune into a station which is not broadcasting any radio
text, even if it is an RDS station, when you switch to the
radio text position “NO RT” will be displayed.
● Whilst radio text data is being received or when the text
contents change, “RT” will be displayed.
■ Notes for RDS operation
If any of the following events occur, it does not mean that the
unit is faulty.
● “PS”, “NO PS” and a station name appear alternately, and
the unit does not operate properly.
● If a particular station is not broadcasting properly or a sta-
tion is conducting tests, the RDS reception function may
not work properly.
● When you receive an RDS station whose signal is too weak,
information like the station name may not be displayed, even
if “RDS” is lit.
Downloaded from: http://www.usersmanualguide.com/
25
(Main unit operation)
(Continued)
■ EON-PTY
1Tune in the desired RDS station (when a station name is
being displayed).
2Press the EON button when “EON” appears.
● “PTY TI” and “SELECT” will appear alternately for about
6 seconds.
3Whilst they are being displayed, select the desired
programme type using the PRESET (X or W) button.
● The selected programme type will flash.
4Within 4 seconds, press the PTY.TI SEARCH button.
● The selected programme type and “WAITING” will be dis-
played for 2 seconds each.
● “PTY” will appear, and the unit will enter the EON-PTY
stand-by mode.
5When a programme of the type specified starts on an ON
(other network) station, the unit will automatically switch to
the station broadcasting the selected programme type, and
“PTY” will flash.
6When the programme specified for the ON station is over,
the unit will automatically return to the original station you
were tuned to.
Note:
● If the EON button is pressed when “EON” is not displayed,
“NO EON” will appear for 5 seconds to indicate that the unit
cannot enter the EON stand-by mode.
Checking the stand-by mode setting:
When in the EON stand-by mode, press the EON button.
(“Programme type” → “WAITING”)
To cancel the EON stand-by mode:
When in the EON stand-by mode, press the EON button. Within
4 seconds, press it again. The EON stand-by mode will be can-
celled.
● “PTY” will go out.
About the PTYI (Dynamic PTY Indicator):
PTYI (Dynamic PTY Indicator) will appear whilst the Dynamic
PTY station is being received.
Dynamic PTY indicates that the PTY for the station tuned in, or
the PTY referenced in the EON data, is assessed whenever
the programme changes and may be changed.
PTYI Meaning
Lights up Tuned into a dynamic PTY station.
Goes out Tuned into a static PTY.
Note:
● When “PTYI” appears, if you press the DISPLAY MODE but-
ton to display the programme type, you can check the type
of programme you are actually receiving.
Downloaded from: http://www.usersmanualguide.com/
26
(Main unit operation)
(Continued)
About the TP and TA indicators
TP indicator TA indicator Meaning
Not lit Not lit This programme does not carry traffic announcements nor
does it refer, via EON, to a programme that does.
Not lit Lit This programme carries EON information about another
programme which gives traffic information.
Lit Not lit This programme carries traffic announcements but none
are being broadcast at present and may also carry EON
information about other traffic announcements.
Lit Lit A traffic announcement is being broadcast on this
programme at present.
■ EON-TI
1Tune in the desired RDS station (when a station name is
being displayed).
2Press the EON button when “EON” appears.
● “PTY TI” and “SELECT” will appear alternately for about
6 seconds.
3Whilst they are being displayed, select the TI (Traffic Infor-
mation) using the PRESET (X or W) button.
● The selected “TI” will flash.
4Within 4 seconds, press the PTY.TI SEARCH button.
● “TI” and “WAITING” will appear for 2 seconds each.
● “TI” will appear, and the unit will enter the EON-TI stand-
by mode.
5When a TA specifed starts on an ON (other network) sta-
tion, the unit will automatically switch to that station, and
“TI” will flash.
6When the traffic announcement is over, the unit will auto-
matically return to the original station you were tuned to.
Note:
● If the EON button is pressed when “EON” is not displayed,
“NO EON” will appear for 5 seconds to indicate that the unit
cannot enter the EON stand-by mode.
Checking the stand-by mode setting:
When in the EON stand-by mode, press the EON button.
(“TI” → “WAITING”)
To cancel the EON stand-by mode:
When in the EON stand-by mode, press the EON button. Within
4 seconds, press it again. The EON stand-by mode will be can-
celled.
● “TI” will go out.
Note:
● If neither “TP” nor “TA” appear, then even if “EON” appears
the unit cannot enter the EON-TI stand-by mode. In this
condition, if the PTY.TI SEARCH button is pressed after TI
is selected, “NO TI” will flash for 4 seconds.
Downloaded from: http://www.usersmanualguide.com/
27
(Continued)
In the following cases, the EON stand-by mode will be can-
celled.
● When the unit is set in the stand-by mode
● When the unit is switched to another band in the EON stand-
by mode
● When you change the FM station whilst in the EON stand-
by mode
● When a preset call is made
Notes:
● During the same programme as the specified PTY (or TA) is
being broadcast on the station you are receiving, the unit
will not switch to other network station.
● If there are more than two other network stations you want
to listen to, compare the strength of each station’s signal
and tune in the station with the strongest signal. (EON-AF)
However, if the frequency of other network station has been
stored in the preset channel memory, the unit will switch to
that preset channel.
● If you want to cancel the reception of an ON (other network)
station which was tuned in by the EON system and return to
the original station you were receiving, press the EON but-
ton.
● After the unit returns to the original station, the stand-by
mode will still be active. (The “TI” or “PTY” will remain lit.)
● The unit will not switch from the ON station to another net-
work station. The unit returns to the original station.
● When the unit switches automatically to “other network” sta-
tion, if there is any problem with this station or the station
cannot be received properly “WEAK SIG” will appear and
the unit will return to the original station.
● Even if the unit switches from the station you are listening to
directly to some “other network” station, if the signals from
the other network stations are very weak, the unit will search
for the station with the strongest signal and switch to it.
However, if the signals from all the other network stations
are very weak, or if the tuning conditions are very bad (due
to electrical noise), the unit will stop searching, “WEAK SIG”
will be displayed, and the unit will return to the original sta-
tion you were receiving.
CASSETTE OPERATION
■ TAPE 1 or TAPE 2 playback
1Press the ON/STAND-BY button to turn the power on.
2Press the TAPE (1 V 2) button.
3Open the cassette door by pushing the area marked “PUSH
EJECT”.
4Load the cassette into the TAPE 1 or TAPE 2 cassette com-
partment.
5
With cassettes in both decks, press the TAPE (1 V 2) button
to switch operation from one deck to the other.
6Press the 0/R button to start playback.
● When playback is performed using the remote control,
press the TAPE 1 or TAPE 2 0 button.
To stop playback:
Press the ■ (TAPE ■) button.
Fast forward/rewind: (TAPE 2 only)
1
Press the ■ (TAPE ■) button, then press the TAPE (1 V 2)
button to select TAPE 2.
2
To advance the tape, press the 2 button.
To rewind it, press the 3 button.
Caution:
● To remove the cassette tape, press the ■ (TAPE ■) button,
and then open the cassette compartment.
● Before changing from one tape operation to another, press
the ■ (TAPE ■) button.
● If a power failure occurs during tape operation, the tape head
will remain engaged with the tape and the cassette door will
not open. In this case, wait until power is restored.
Downloaded from: http://www.usersmanualguide.com/
28
RECORDING
● When recording important selections, be sure to make a
preliminary test to ensure that the desired material is being
properly recorded.
● The volume and sound quality can be adjusted with no ef-
fect on the recorded signals (Variable Sound Monitor).
■ Recording from the built-in CD player
(CD Synchronised Recording System)
1Press the ON/STAND-BY button to turn the power on.
2Press the CD button and load the desired disc.
● Use the APMS function to store the tracks you want to
record in memory. (See page 16.)
3Load a cassette into the TAPE 2 cassette compartment.
4Press the REC PAUSE (● 6) button.
● “SYNC” and “REC” will flash.
5Press the 0/R (TAPE 2 0) button.
● “SYNC” will disappear and “REC” will light up.
● CD playback will start approximately 5 seconds after the
tape starts.
To stop recording:
Press the ■ (CD ■) button.
The CD and tape will stop.
Note:
● When the end of the tape is reached whilst recording, the
CD player will display the track number which was being
played at that time, and stop automatically.
If you want to restart recording from the beginning of the
interrupted track, turn over the tape, press the REC PAUSE
(● 6) button and then the 0/R (TAPE 2 0) button.
(If tracks have been stored in memory using the APMS func-
tion, recording will restart from the first track stored in
memory.)
● Metal and CrO2 tapes should not be used for recording or
dubbing.
Downloaded from: http://www.usersmanualguide.com/
29
(Continued)
■ Recording from the built-in radio
1Tune in to the desired station. (See pages 17-18.)
2Load a cassette into the TAPE 2 cassette compartment.
3Press the REC PAUSE (● 6) button.
● “REC” will flash.
4Press the 0/R (TAPE 2 0) button.
● “REC” will appear.
Note:
● If a whistling noise is heard whilst recording from an AM
station, move the AM loop aerial to a position where noise
is no longer heard from the unit.
To stop recording:
Press the ■ (TAPE ■) button.
■ Dubbing from tape to tape
1Press the ON/STAND-BY button to turn the power on.
2Load a prerecorded cassette into the TAPE 1 cassette com-
partment. Insert a blank tape into the TAPE 2 cassette com-
partment.
● It is recommended that the recording tape be the same
length as the master tape.
3Press the TAPE (1 V 2) button until “TAPE 1” appears in
the display.
4Press the REC PAUSE (● 6) button.
5Press the 0/R (TAPE 2 0) button.
To stop dubbing:
Press the ■ (TAPE ■) button.
● TAPE 1 and TAPE 2 will simultaneously stop.
■ Erasing recorded tapes
● Make sure that TAPE 1 is not in use.
1Load the tape to be erased into the TAPE 2 cassette com-
partment.
2Press the TAPE (1 V 2) button until “TAPE 2” appears in
the display.
3Press the REC PAUSE (● 6) button.
4Press the 0/R (TAPE 2 0) button.
Downloaded from: http://www.usersmanualguide.com/
30
HOW TO USE THE BUILT-IN TIMER
● Before setting the timer, make sure that the clock setting is
correct. (Page 11)
■ Timer playback
1Press the ON/STAND-BY button to turn the power on.
2Press the CD, TUNER (BAND), TAPE (1 V 2) or VIDEO/
AUX (1 V 2) button to select the desired function, and then
adjust the sound volume using the VOLUME control.
3Press the TIMER/SLEEP button repeatedly until “f PLAY”
is displayed.
● The timer set indicator will flash.
4Press the TUNING/TIME ( X or W ) button to set the hour
start time, then press the MEMORY/SET button.
5Press the TUNING/TIME ( X or W ) button to set the
minute start time, then press the MEMORY/SET button.
● The unit will enter the stand-by mode automatically, then
the timer set indicator will light up and finally “f PLAY”
will disappear.
6When the preset time is reached, the timer playback will start.
● The volume will increase gradually.
7If you select CD or TAPE, the unit will enter the stand-by
mode after the playback. If you select TUNER or VIDEO/
AUX, it will enter the stand-by mode one hour after the timer
playback starts.
Note:
● When performing timer playback using an external unit con-
nected to the VIDEO/AUX (1 or 2) socket, only the power of
the main unit will be turned off automatically. (The power of
the external unit will not be turned off.)
■ Timer recording
1Press the ON/STAND-BY button to turn the power on.
● Load a cassette for recording into the TAPE 2 cassette
compartment.
2Press the TUNER (BAND) or VIDEO/AUX (1 V 2) button to
select the desired function, and then adjust the sound vol-
ume using the VOLUME control.
3Press the TIMER/SLEEP button repeatedly until “f REC”
is displayed.
● The timer set indicator will flash.
4Press the TUNING/TIME ( X or W ) button to set the hour
start time, then press the MEMORY/SET button.
5Press the TUNING/TIME ( X or W ) button to set the
minute start time, then press the MEMORY/SET button.
● The unit will enter the stand-by mode automatically, then
the timer set indicator will light up and finally “f REC” will
disappear.
6When the preset time is reached, the timer recording will
start.
● The volume will increase gradually.
7When the recording tape reaches its end, the timer record-
ing will end, and the unit will enter the stand-by mode.
To cancel timer operation:
Press the ON/STAND-BY button to turn the power on.
To change the programmed contents:
Start again from step 1.
Note:
● Once the time is set, the setting will be retained until a new
time is entered.
(Main unit operation)
Timer set indicator
Timer set indicator
(Main unit operation)
Downloaded from: http://www.usersmanualguide.com/
31
(Continued)
USING EXTERNAL UNITS
■ Sleep operation
The radio, compact disc and cassette deck can all be turned
off automatically.
1Play back the desired sound source.
2Press the TIMER/SLEEP button repeatedly until “SLEEP”
is displayed.
To change the sleep time:
Whilst the sleep time is displayed, press the TUNING/TIME
(X or W) button to adjust the time.
(Maximum: 3 hours - Minimum: 1 minute)
The amount of sleep time can also be changed during the
sleep operation.
● 3 hours - 5 minutes → 5-minute intervals
● 5 minutes - 1 minute → 1-minute intervals
3Press the MEMORY/SET button.
4The unit will enter the stand-by mode automatically after
the preset sleep time has elapsed.
Note:
● Once the sleep time is set, it will remain the same duration
until the setting is changed.
To confirm the remaining sleep time:
Press the TIMER/SLEEP button.
To cancel the sleep operation:
Press the ON/STAND-BY button to enter the stand-by mode.
■ Video/Auxiliary (Audio signal) input
To listen to or record signals from external sources
through this unit:
1Use a separately available RCA lead to connect the desired
external unit to the VIDEO/AUX 1 or 2 sockets.
(red → right channel, white → left channel)
● When using video equipment (Laser Disc player or VCR),
be sure to connect the audio output to this unit and the
video output to a television.
2Press the ON/STAND-BY button to turn the power on.
3Press the VIDEO/AUX (1 V 2) button.
● Select either “VIDEO 1” or “VIDEO 2”.
4Operate the external unit.
5
To record the sound from the external unit, perform steps 2 - 4
of the “Recording from the built-in radio” section on page 29.
Note:
● To prevent hum interference, do not place this unit near tele-
vision receivers.
■ CD digital output (optical)
The CD digital signal from this unit can be recorded
by other DAT or MiniDisc recorders.
1Remove the CD DIGITAL OUT socket cover.
2
Use a commercially available digital cable to connect the unit
to the OPTICAL IN socket of a MiniDisc recorder or a DAT.
3Put the external unit in the recording mode.
4Play a CD on this unit.
Note:
● Only CD signals can be output.
(Main unit operation)
RCA
lead
To the line
output socket
Commercially
available digital
cable
Downloaded from: http://www.usersmanualguide.com/
32
(Continued)
RESETTING THE MICROCOMPUTER
TRANSPORTING THE UNIT
■ Headphones
● Before plugging in or unplugging the headphones, make
sure the volume level is reduced.
● Be sure your headphones have a 3.5 mm (1/8") diameter
plug and are between 16 ohms and 50 ohms impedance.
The recommended impedance is 32 ohms.
● When headphones are connected, the speakers are dis-
connected automatically. Adjust the VOLUME control for the
desired volume.
Note:
● If you use headphones, cancel the Dolby Pro Logic Sur-
round mode.
Even after the headphones are connected, if the unit is in
the Dolby Pro Logic Surround mode, sound will still be heard
from the surround and centre speakers.
Before you move this product to a new location, pro-
ceed as follows:
1Press the ON/STAND-BY button to turn the power on.
2Press the CD button.
3Press the OPEN/CLOSE button to open the disc tray.
● Remove all CDs inserted in the unit.
4Press the OPEN/CLOSE button to close the disc tray.
● Make sure that “NO DISC” is displayed.
5Press the ON/STAND-BY button to enter the stand-by mode,
and then unplug the AC power lead from the AC socket.
Reset the microcomputer under the following con-
ditions:
● To erase all of the stored memory contents (clock and timer
settings, and tuner and CD presets).
● If the display is not correct.
● If the operation is not correct.
1Press the ON/STAND-BY button to enter the stand-by mode.
2Whilst pressing down the 0/R button and the X-BASS/
DEMO button, hold down the ON/STAND-BY button for at
least 1 second.
● “CLEAR AL” will appear.
Caution:
● The operation explained above will erase all data stored in
memory including clock and timer settings, and tuner and
CD presets.
Downloaded from: http://www.usersmanualguide.com/
33
■ Internal care
● Dirty heads, capstans or pinch rollers can cause poor sound
and tape jams. Clean these parts with a cotton swab moist-
ened with commercial head/pinch roller cleaner or isopro-
pyl alcohol.
● After long use, the deck’s heads and capstans may become
magnetised, causing poor sound. Demagnetise these parts
once every 30 hours of playing/recording time by using a
commercial tape head demagnetiser. Read the
demagnetiser’s instructions carefully before use.
■ External care
● Periodically wipe the cabinet with a soft cloth and a diluted
soap solution, then wipe with a dry cloth.
● Do not use chemically treated cleaning cloths or other chemi-
cals.
MAINTENANCE
As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for
product improvement without prior notice. The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.
SPECIFICATIONS
● General
Power source: AC 230-240 V, 50 Hz
Power consumption: 155 W
Dimensions: Width; 270 mm (10-5/8")
Height; 330 mm (13")
Depth; 332 mm (13-1/16")
Weight: 8.2 kg (18.0 lbs.)
● Amplifier section
Output power: Front speakers;
RMS; 120 W (60 W + 60 W)
(10 % T.H.D.)
RMS; 96 W (48 W + 48 W)
(0.9 % T.H.D.)
Center speaker;
RMS; 30 W (10 % T.H.D.)
RMS; 24 W (0.9 % T.H.D.)
Surround speakers;
RMS; 30 W (15 W + 15 W)
(10 % T.H.D.)
RMS; 24 W (12 W + 12 W)
(0.9 % T.H.D.)
Output terminals: Front speakers; 6 ohms
Centre speaker; 6 ohms
Surround speakers; 12 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
CD digital output (optical)
Input terminals: Video/Auxiliary (audio signal) × 2;
500 mV/47 kohms
● Compact disc player section
Type: 3-disc multi-play compact disc player
Signal readout: Non-contact, 3-beam semiconductor
laser pickup
D/A converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
● Tuner section
Frequency range: FM; 87.5-108 MHz
AM; 522-1,620 kHz
● Cassette deck section
Frequency response: 50-14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter: 0.3 % (WRMS)
● Front speaker section
Type: 3-way type [13 cm (5-1/4") woofer,
5 cm (2") tweeter and super tweeter]
Maximum input
power: 120 W
Rated input power: 60 W
Impedance: 6 ohms
Dimensions: Width; 240 mm (9-1/2")
Height; 330 mm (13")
Depth; 255 mm (10-1/16")
Weight: 3.9 kg (8.5 lbs.)/each
● Centre speaker section
Type: 10 cm (4") full-range speaker
Maximum input
power: 60 W
Rated input power: 30 W
Impedance: 6 ohms
Dimensions: Width; 260 mm (10-1/4")
Height; 140 mm (5-1/2")
Depth; 155 mm (6-1/8")
Weight: 0.9 kg (2.0 lbs.)
● Surround speaker section
Type: 10 cm (4") full-range speaker
Maximum input
power: 30 W
Rated input power: 15 W
Impedance: 12 ohms
Dimensions: Width; 200 mm (7-7/8")
Height; 93 mm (3-11/16")
Depth; 170 mm (6-3/4")
Weight: 0.5 kg (1.1 lbs.)/each
Downloaded from: http://www.usersmanualguide.com/
A0002.YTTINSE0307AWZZ
SHARP ELECTRONICS (U.K.) LTD.
Sharp House, Thorp Road, Newton Heath, Manchester, M40 5BE
SHARP CORPORATION
TERMS OF GUARANTEE
Sharp Electronics (UK) Ltd. (“Sharp”) guarantees to provide for the repair, or at its option the replace-
ment, of this product subject to the conditions listed below:-
1. This guarantee shall only apply to faults which are due to inferior workmanship or materials. It does
not cover faults or damage caused by accident, misuse, fair wear and tear, neglect, tampering with
the product, or repair other than by a Service Facility appointed by Sharp.
2. As this product is intended for private domestic use only, the guarantee will not apply if the product
is used in the course of a business, trade or profession.
3. To benefit from this guarantee, any fault which occurs must be notified to Sharp, or its appointed
Service Facility within one year from the date this product was purchased. Proof of purchase must
be provided.
4. The guarantee does not cover carriage costs, jewelled styli, audio tapes, compact discs or batter-
ies.
5. In the unlikely event of this product requiring repair, please contact the supplier from whom it was
purchased. Where this is not possible, please contact the Sharp Customer Information Centre on
the telephone number given below.
6. No person has any authority to vary the terms or conditions of this guarantee.
7. This guarantee is offered as an additional benefit to your statutory rights, and does not affect these
rights in any way.
If you have any difficulty operating this product, or would like information on other Sharp products,
please telephone the Sharp Customer Information Centre on the number given below.
Sharp Customer Information Centre - Telephone 0345 125387
Downloaded from: http://www.usersmanualguide.com/
This file has been downloaded from:
www.UsersManualGuide.com
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
documentation manual, user maintenance, brochure, user reference, pdf manual
Downloaded from: http://www.usersmanualguide.com/
