Haier HWMSP60 Washing Machine

User Manual - Transcript

• Page 1 - English - : AUTOMATIC WASHING MACHINE USER MANUAL This manual is for @ Please read this manual carefully before using. ® Retain for future 0030807525J reference. Haier
• Page 2 - Dutch, Flemish - : Product OVerview «ect ttt tte tet tee see eee see cee eee cee eee nee Safety Precautions::: s+ srr srr see cee cee cee eee cee cee cee ees Installation and adjustment++: +++ +++ str eee ee tee tee eee ee Installation of drainage NOSe+:: +t: +++ stt etree eee tee Installation of water inlet hose Before washing:: woe coe coe cee coe cee cee cee cee coe cee cee cee Loading your laundry::: +++ s+ s++see ese ese ees cee eee cee eee eee Detergent usage guides: -** s+ sees cee see cee eee eee eee Operation & wash cycles «+: +++ sess see cee eee eee oes Ren tenance! xc ane sin sacs sw sams ncas cms wets wie nie aa id Packing JISTees ee cee cee cee ee cee cee cee cee cee cee cee cee cee ces ane Specifications & HIS; WRG 6 aw RWW W OS! KEW Hea GI ORIN WS 8 TET EHS. Sow wee aw SS
• Page 3 - English - : Product Overview Description of symbols Warning sign Forbidden sign Contents marked with this symbol are related to the safe use of the product and the personal safety of the user. Please operate in accordance to the contents of this manual. to avoid harm to the user or damage to the machine itself. Contents marked with this symbol indicate operations or actions that should not be undertaken by the user. Performing of such actions may result in injury to the user or damage to machine itself. and void warranty. SAFETY WARNING Please check power socket condition to ensure it has been earthed correctly prior to installation to ensure your safety
• Page 4 - English - : Safety Precautions A separate. earthed power socket is required for the power supply. Hold the plug - NOT the electric cable - when unplugging the washing machine. Do not insert or remove the power plug with wet hands. After installation of the washing machine. the power plug should be accessible. Ensure the plug is removed and the taps turned off in the following cases: Power failure. cleaning. moving. installation and when not in use. If the supply cord is damaged. it must be replaced by a special cord or assembly available from the manufacturer or its service QO Do not install this appliance in a damp or wet environment. Do not leave wet laundry on the Control Panel or spray water directly on to this appliance. as this may cause the washer to malfunction or cause an electrical CAUTION: If this appliance is supplied from a cord extension set or electrical portable outlet device. the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture. Do not connect to hot water higher than 65°C temperature The openings must not be obstructed by a carpet The ventilation holes at the bottom Do not wash water-proof clothing as this may affect load balance during spin cycle(s) come into contact with water or moisture If you are using an extension cord or a portable electrical outlet device (not recommended). ensure that it is positioned so that it does not
• Page 5 - English - : Safety precautions Do not attempt to move washing or Do not take apart. repair or place hands inside washing machine alter the machine by yourself. while in operation. Please ensure children are supervised around machine to avoid harm. Do not leave hot or heavy items on lid Do not wash laundry with chemicals or control panel as this may cause or other volatile materials (such as damage to the washer or make the petrol. solvents or thinners) as this washer may cause damage ee unsafe to to the machine. This appliance is not intended for use by persons! Keep washer away from heat (including children) with reduced physical. sources such as heaters. stoves or sensory or mental capabilities. or lack of direct sunlight. experience and knowledge. unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. e lf power cord or other parts of this machine become damaged or faulty. please contact a technician to have it repaired. DO NOT attempt repairs yourself as this may cause personal harm or void warranty. @ Please remove items such as coins. @ Check that water faucets are open buttons. sand and other solid materials after connection to machine. prior from clothing before washing. to operation and that pipes are connected correctly. ®@ Please use low suds/ high efficiency washing powder.
• Page 6 - English - : Installation & Adjustment Please install and adjust the machine according to the directions contained in this manual. It is very important to follow these directions for the safe operation of the machine. and to ensure your machine operates correctly. Install the lint filter After removing washer from outer packaging. take out the lint filter from the document bag. install it to the inner tub. See the figure opposite @ Please ensure the lint filter is installed correctly and maintained in good condition to ensure the water outlet is not blocked or the flow altered. If the lint filter is lost or damaged. contact Customer Care. Install the bottom plate The purpose of the bottom plate is to suppress noise from the washing machine during operation. 1. Lay the washer on its back. on a non-abrasive 2. Place the plate on to the bottom of the machine. Front 3. Use a screwdriver to tighten the screws ( in accessory bag) securing the panel to bottom of Back the washer. 4. Once all screws are tight and the panel is secure. return the washer to its standing Carpet Bottom plate Balance washing machine Do not install this machine on an incline greater than 2. Installing machine on an angle or on rough ground will result in unstable running or stoppage of the machine. Please adjust it by the following method: 1.Confirm it is level 2.Lift up the side of the machine slightly and twist the adjustable leg. Note:The distance between the washing machine and wall should be at least 20mm
• Page 7 - English - : Installation of drainage hose Install drainage hose @ First connect the drainage hose to the connection point on the lower back side of the cabinet. and fasten with drain hose hoop (provided). @ Connect drain hose guide on to the outside of drainage hose. To guide the drain hose over the tub or standpipe the hose guide MUST be fitted to the drain hose . Drain hose neck guide SS. Drain hose clamp Drain hose joint Placement of Drainage Hose @ The height of the standpipe or tub should be between 850 - 1200 mm. To avoid syphoning. the drain hose should not extend more than 20 mm from the end of the guide. @ Ensure drainage hose is held in place to avoid leaks or spills.

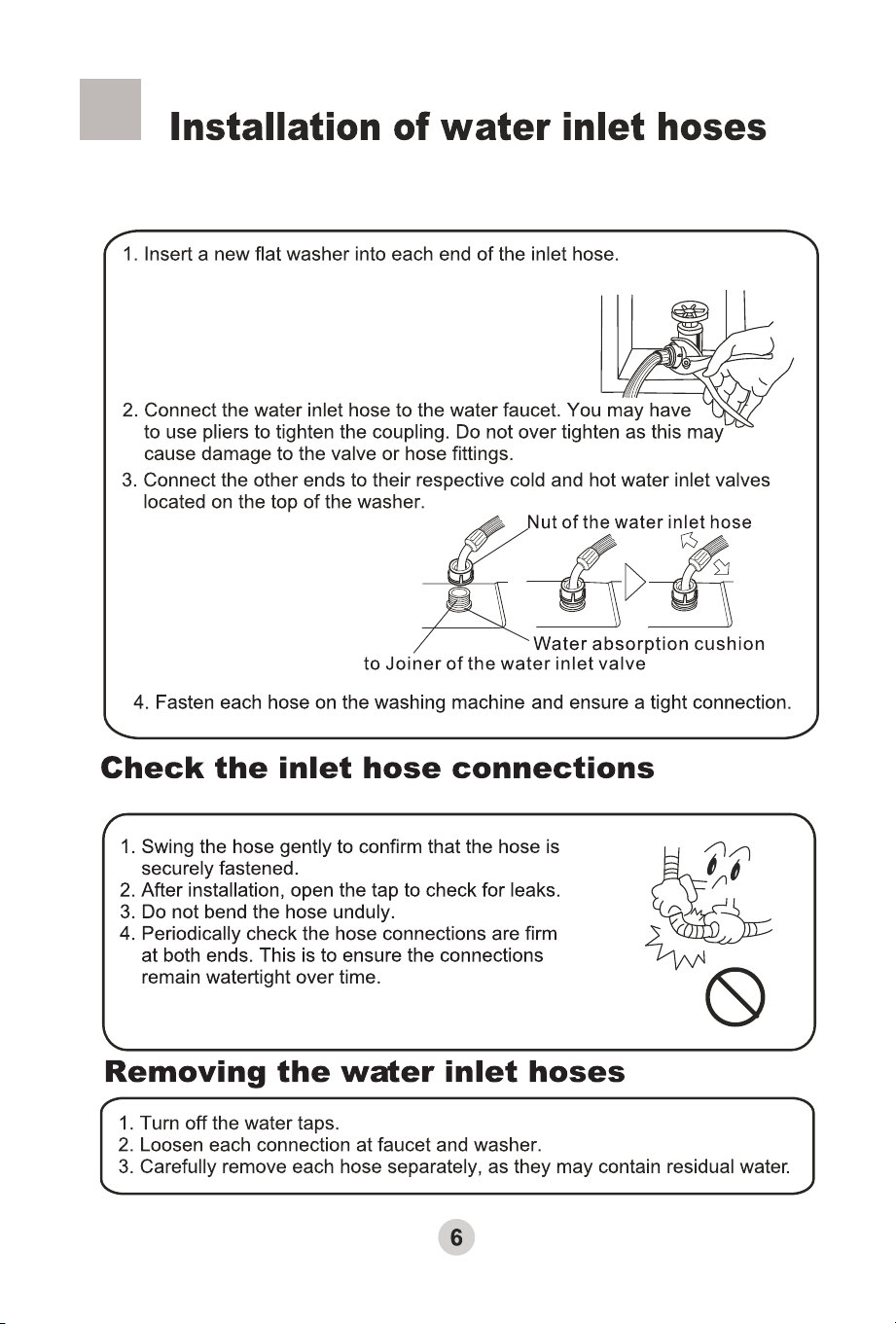

• Page 8 - English - : Installation of water inlet hoses The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. 1. Insert a new flat washer into each end of the inlet hose. to use pliers to tighten the coupling. Do not over tighten as this may cause damage to the valve or hose fittings. 3. Connect the other ends to their respective cold and hot water inlet valves located on the top of the washer. Nut of the water inlet hose Water absorption cushion to Joiner of the water inlet valve 4. Fasten each hose on the washing machine and ensure a tight connection. Check the inlet hose connections Swing the hose gently to confirm that the hose is AV) securely fastened. 6 6 After installation. open the tap to check for leaks. 0 Do not bend the hose unduly. Periodically check the hose connections are firm at both ends. This is to ensure the connections remain watertight over time. Removing the water inlet hoses 1. Turn off the water taps. 2. Loosen each connection at faucet and washer. 3. Carefully remove each hose separately. as they may contain residual water.

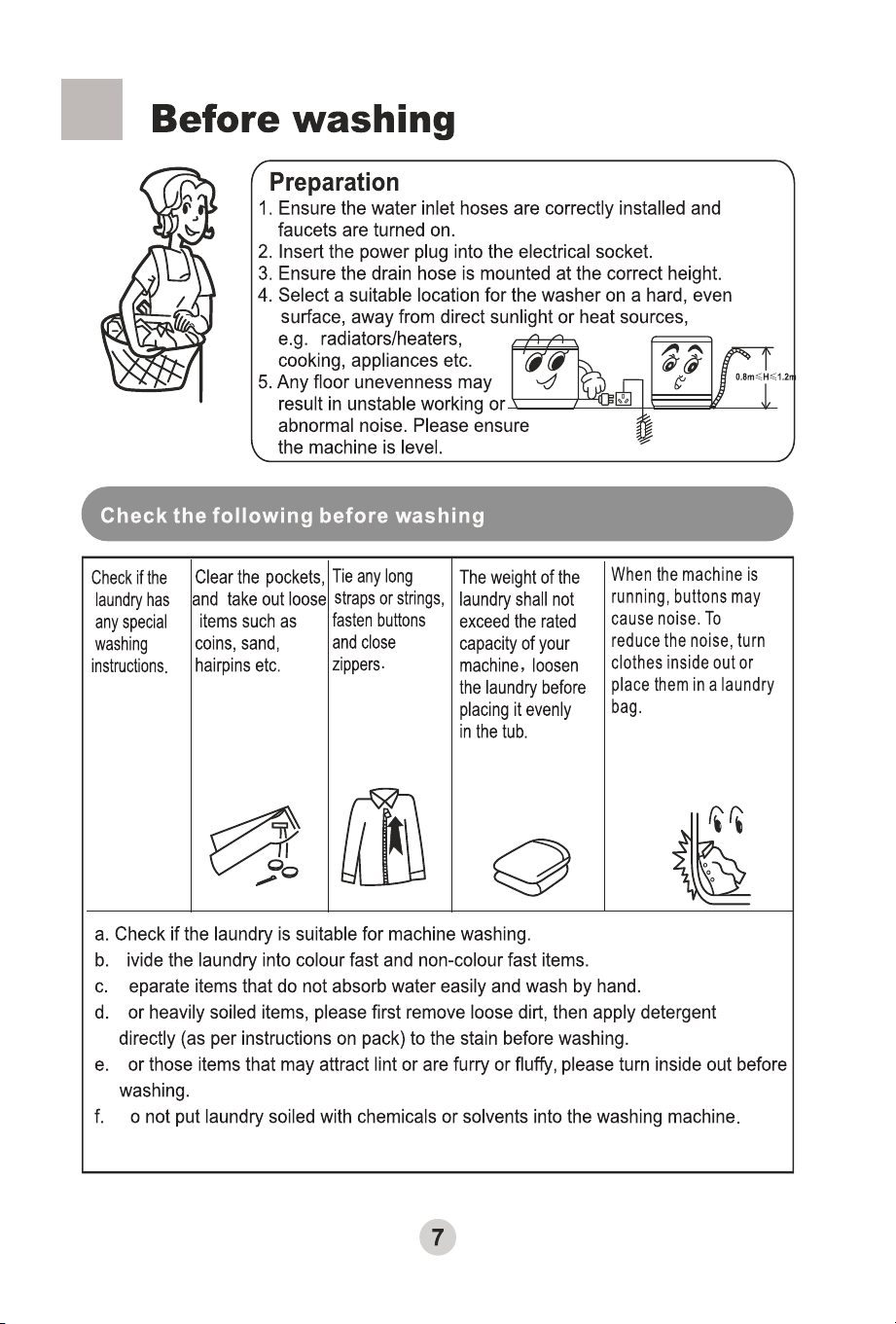

• Page 9 - English - : Before washing Preparation Ensure the water inlet hoses are correctly installed and faucets are turned on. Insert the power plug into the electrical socket. Ensure the drain hose is mounted at the correct height. Select a suitable location for the washer on a hard. even surface. away from direct sunlight or heat sources. e.g. radiators/heaters. a9 cooking. appliances etc. GG fe 5. Any floor unevenness may J pHa result in unstable working or <———7- "+ y abnormal noise. Please ensure the machine is level. Check ifthe | Clear the pockets. Tie any long The weight of the | When the machine is laundry has and take out loose straps or strings. | laundry shall not —_| running. buttons may any special | itemssuchas fasten buttons | exceed the rated _| cause noise. To washing coins. sand. and close capacity of your reduce the noise. turn instructions. hairpins etc. zippers. machine. loosen _| clothes inside out or the laundry before | place them ina laundry placing itevenly _| bag. in the tub. Check if the laundry is suitable for machine washing. Divide the laundry into colour fast and non-colour fast items. Separate items that do not absorb water easily and wash by hand. For heavily soiled items. please first remove loose dirt. then apply detergent directly (as per instructions on pack) to the stain before washing. For those items that may attract lint or are furry or fluffy. please turn inside out before Do not put laundry soiled with chemicals or solvents into the washing machine.
• Page 10 - English - : Loading your laundry The rated washing capacity refers to the largest dry weight of a load that can be washed. The thickness. size and type of clothes will influence the actual capacity. Do not select more than water Level “4” for clothes less than 1.0kg. to avoid splashing of water. It is recommended that Low suds/ high efficiency washing powder is used. Detergent Usage Guide Adding washing powder @ It is suggested to dissolve detergent before adding to the tub. see as below: 1. Prepare warm water (<35 C) in a container. 2. Add washing powder. stirring to dissolve it completely. Adding washing powder Fuzzy Logic Programs Add washing powder/liquid into the detergent box directly for "Fuzzy logic" programs and "Delay" program. Adding washing powder Normal Wash It is recommended that washing powder/liquid is dissolved with water and then directly emptied into the washing i 1. Add some water (select the "1" water level) How to use bleachiwhitener 2. Add washing powder/liquid. Run for about 30 seconds to fully dissolve the detergent. Then push the "Start/Pause" button to pause the wash cycle. Load laundry. Select suitable water level. Push the "Start/Pause" button again to recommence washing cycle @ Always refer to the bleach/ whitener instructions prior @ Fill water to desired level. @ Dilute the bleach/whitener in a container. Pour it slowly into the washing tub. @ If you select "Quick"program. it is recommended to use liquid detergent instead of washing powder to ensure the most effective wash results. @ Old or poor quality washing powder may causing caking in tub or detergent dispenser. @ Clean the detergent box periodically to ensure washing power is evenly distributed and remove any detergent Note: If a manufacture specifies only the use of a low-sudsing or high-efficiency type detergent. then detergent for drum type machines shall be used irrespective of the type of machine under test. Otherwise the detergent type to be used shall be chosen according to the type of clothes washing machine under test. as follows. @ Avoid using whitener on laundry with colour or patterns as they are prone lose colour. @ The bleach/whitener should NOT be directly applied to laundry directly. Close the lid f you open the lid during spin cycle the machine will stop and an audible | alarm will sound.

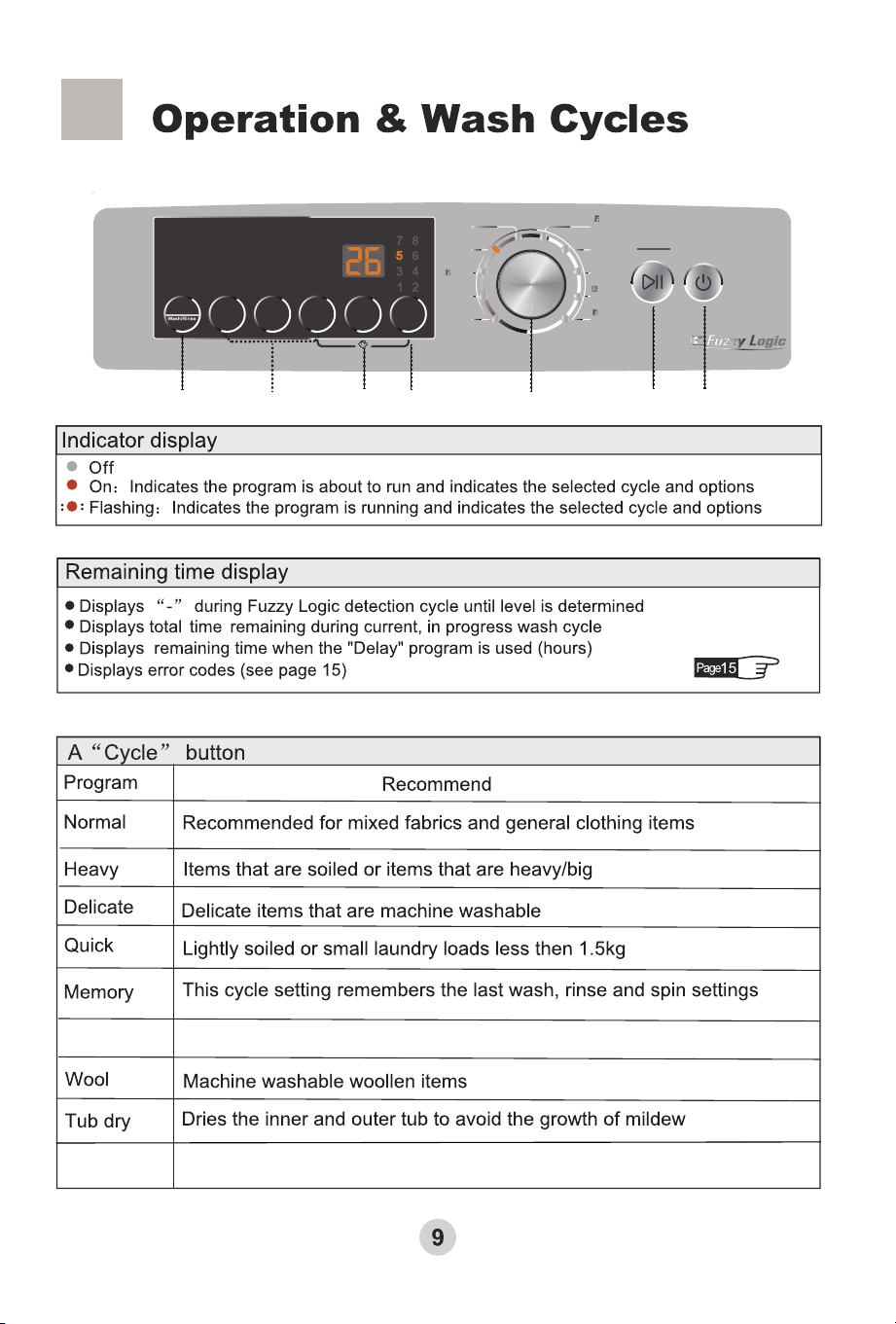

• Page 11 - English - : Operation & Wash Cycles PAUSE POWER ca? HWMSP60 Einzy Logic FE B COD A F G Indicator display ® On: Indicates the program is about to run and indicates the selected cycle and options :@®: Flashing: Indicates the program is running and indicates the selected cycle and options Remaining time display H @ Displays “-” during Fuzzy Logic detection cycle until level is determined ® Displays total time remaining during current. in progress wash cycle ® Displays remaining time when the "Delay" program is used (hours) ® Displays error codes (see page 15) A “Cycle” button Program Recommend Normal Recommended for mixed fabrics and general clothing items Items that are soiled or items that are heavy/big Delicate Delicate items that are machine washable Lightly soiled or small laundry loads less then 1.5kg Memory This cycle setting remembers the last wash. rinse and spin settings ECO The cycle of energy saving Wool Machine washable woollen items Tub dry Dries the inner and outer tub to avoid the growth of mildew Sock Wash | The program is suitable for washing socks class clothing

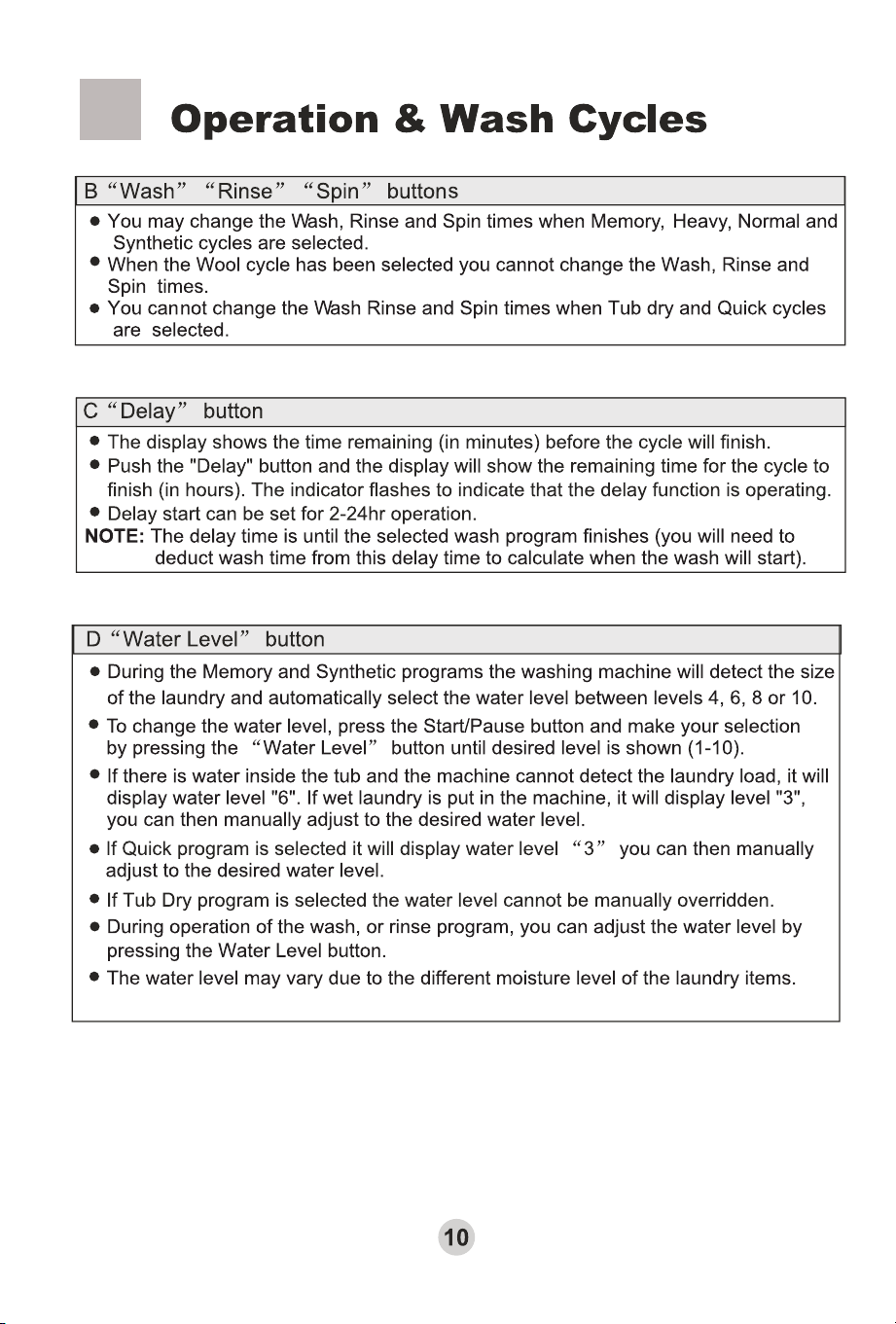

• Page 12 - English - : Operation & Wash Cycles B “Wash” “Rinse” “Spin” buttons @ You may change the Wash. Rinse and Spin times when Memory. Heavy. Normal and Synthetic cycles are selected. ® When the Wool cycle has been selected you cannot change the Wash. Rinse and Spin times. e You cannot change the Wash Rinse and Spin times when Tub dry and Quick cycles are selected. C “Delay” button ® The display shows the time remaining (in minutes) before the cycle will finish. ® Push the "Delay" button and the display will show the remaining time for the cycle to finish (in hours). The indicator flashes to indicate that the delay function is operating. ® Delay start can be set for 2-24hr operation. NOTE: The delay time is until the selected wash program finishes (you will need to deduct wash time from this delay time to calculate when the wash will start). D “Water Level” button e@ During the Memory and Synthetic programs the washing machine will detect the size of the laundry and automatically select the water level between levels 4. 6. 8 or 10. ® To change the water level. press the Start/Pause button and make your selection by pressing the “Water Level” button until desired level is shown (1-10). @ |f there is water inside the tub and the machine cannot detect the laundry load. it will display water level "6". If wet laundry is put in the machine. it will display level "3". you can then manually adjust to the desired water level. e If Quick program is selected it will display water level “3” you can then manually adjust to the desired water level. ® |f Tub Dry program is selected the water level cannot be manually overridden. e During operation of the wash. or rinse program. you can adjust the water level by pressing the Water Level button. ®@ The water level may vary due to the different moisture level of the laundry items.

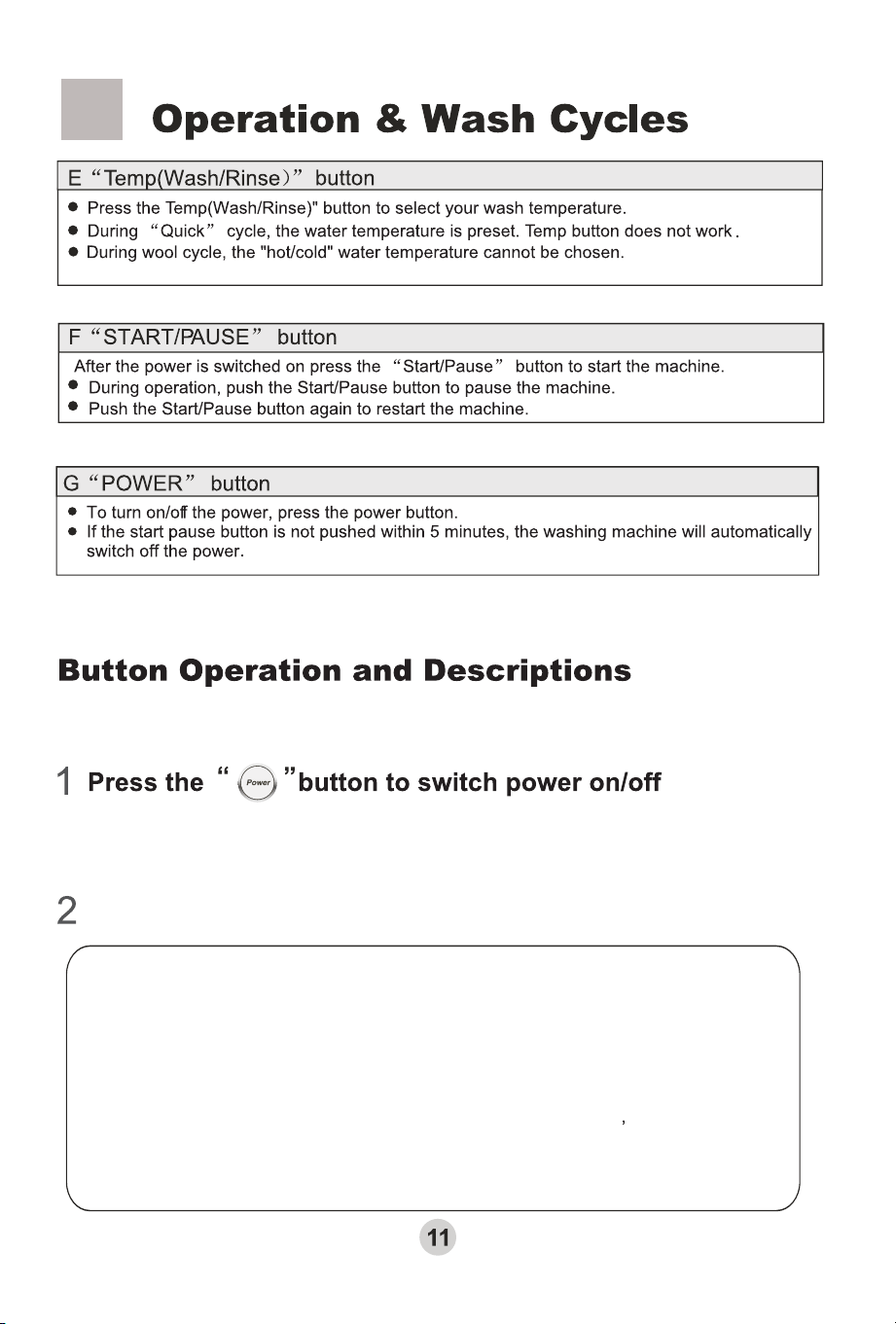

• Page 13 - English - : Operation & Wash Cycles @ Press the Temp(Wash/Rinse)" button to select your wash temperature. ®@ During “Quick” cycle. the water temperature is preset. Temp button does not work . ® During wool cycle. the "hot/cold" water temperature cannot be chosen. F “START/PAUSE” button After the power is switched on press the “Start/Pause” button to start the machine. ® During operation. push the Start/Pause button to pause the machine. ® Push the Start/Pause button again to restart the machine. G “POWER” button @ To turn on/off the power. press the power button. e lf the start pause button is not pushed within 5 minutes. the washing machine will automatically switch off the power. Button Operation and Descriptions 1 Press the “ ’putton to switch power on/off 2 Rotary program knob to select automatic program When the power is switched on “Normal” cycle is automatically set. To select a different automatic cycle. otary program knob till the corresponding indicator is on.Refer to the section on the “cycle” button E.g choose “Quick” cycle for a small load of lightly soiled laundry.When program is run .The washing cycle is automatically set while the water level and wash time can be selected according to the texture and size of the load.

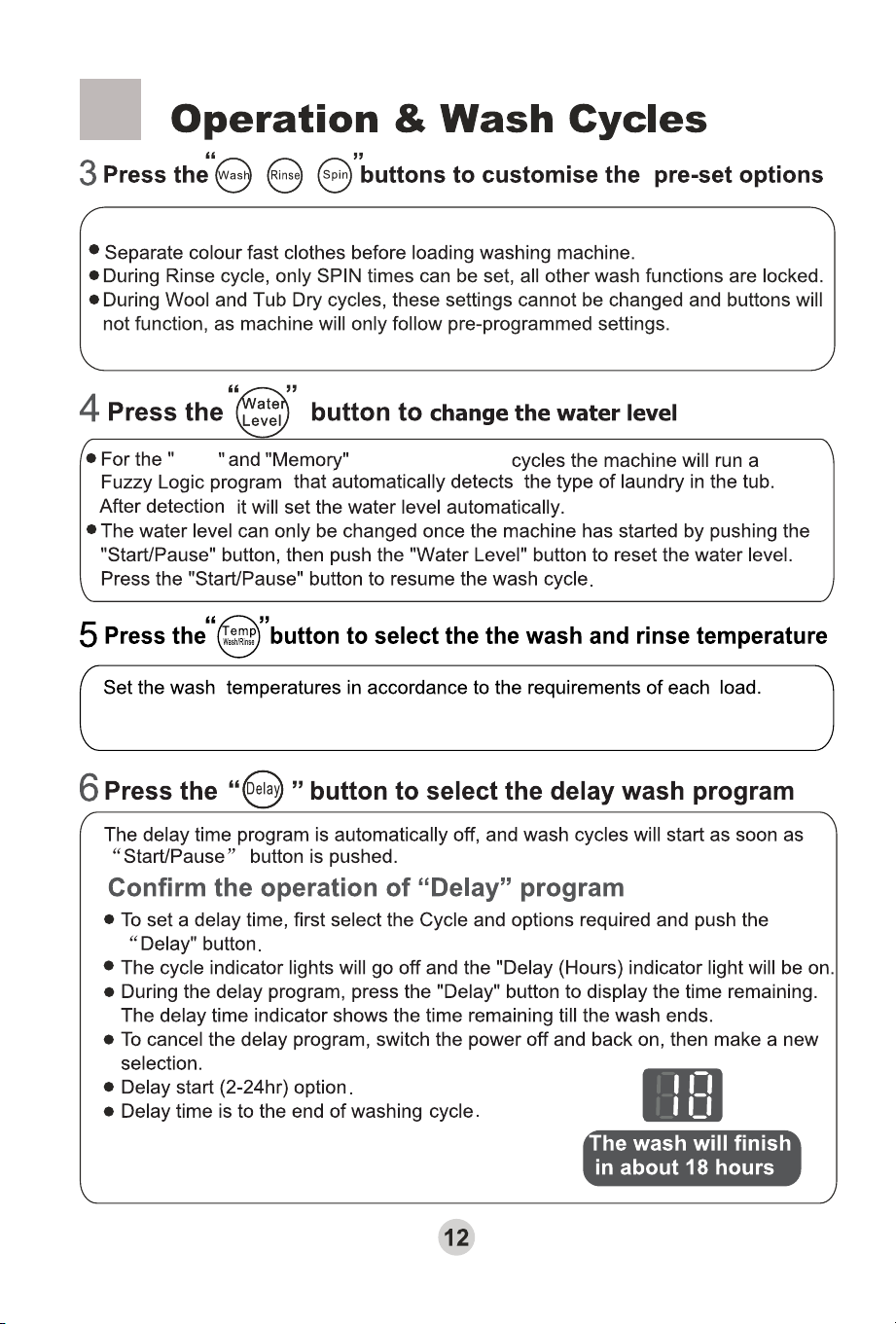

• Page 14 - English - : Operation & Wash Cycles 3 Press the (=) Gr) buttons to customise the pre-set options ® Separate colour fast clothes before loading washing machine. @ During Rinse cycle. only SPIN times can be set. all other wash functions are locked. @ During Wool and Tub Dry cycles. these settings cannot be changed and buttons will not function. as machine will only follow pre-programmed settings. 4 Press the button to change the water level @ For the "ECO" and "Memory" and “Sock Wash” cycles the machine will run a Fuzzy Logic program that automatically detects the type of laundry in the tub. After detection it will set the water level automatically. ® The water level can only be changed once the machine has started by pushing the "Start/Pause" button. then push the "Water Level" button to reset the water level. Press the "Start/Pause" button to resume the wash cycle. 5 Press the ((e2!) button to select the the wash and rinse temperature Set the wash temperatures in accordance to the requirements of each load. (i.e .if “Warm/Cold” is selected. the wash cycle will be warm/cold. he rinse cycle will be cold/cold) 6 Press the “ Gela) ” button to select the delay wash program The delay time program is automatically off. and wash cycles will start as soon as “Start/Pause” button is pushed. Confirm the operation of “Delay” program @ To set a delay time. first select the Cycle and options required and push the “Delay” button. ® The cycle indicator lights will go off and the "Delay (Hours) indicator light will be on. e During the delay program. press the "Delay" button to display the time remaining. The delay time indicator shows the time remaining till the wash ends. @ To cancel the delay program. switch the power off and back on. then make a new selection. @ Delay start (2-24hr) option. @ Delay time is to the end of washing cycle. A) in about 18 hours

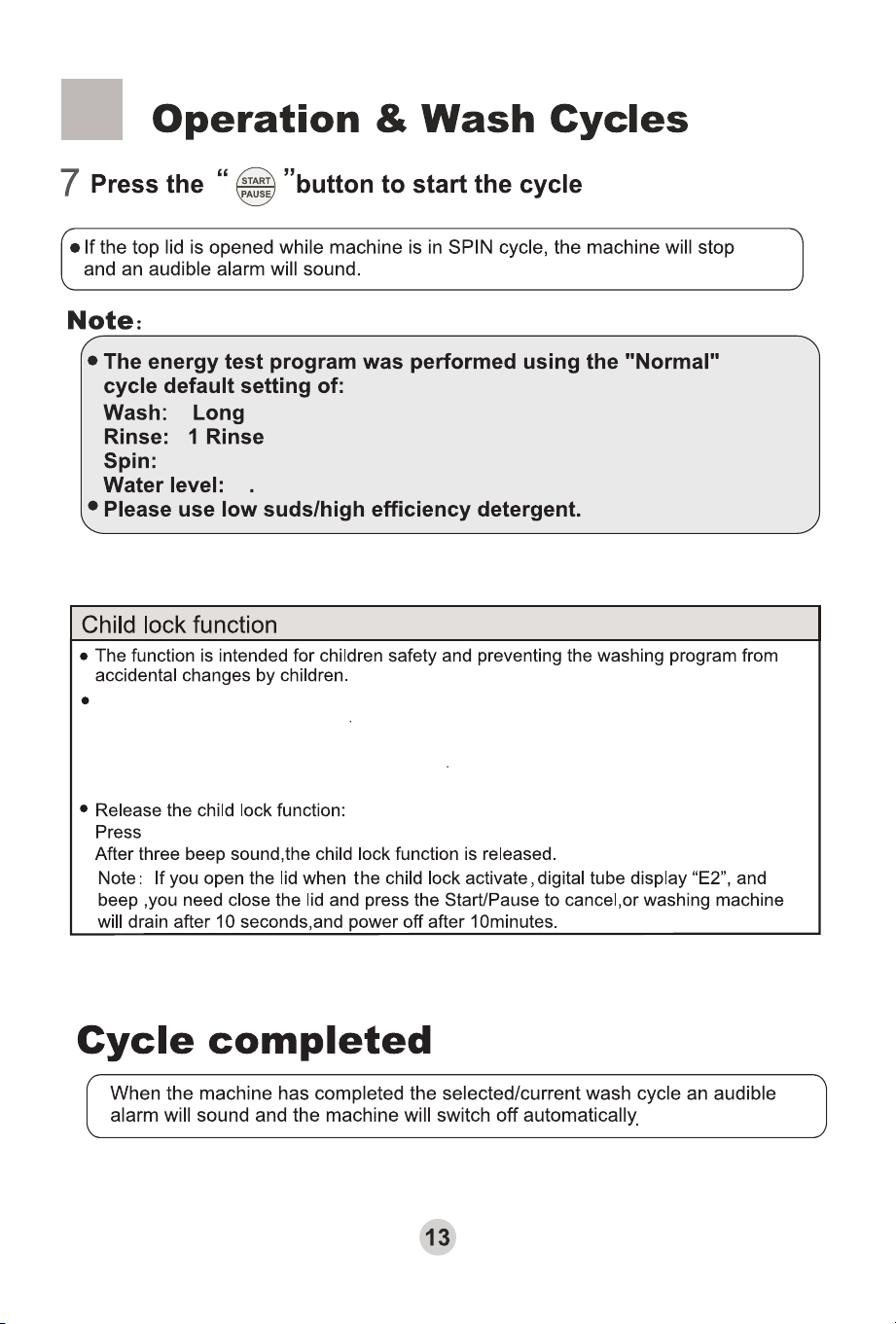

• Page 15 - English - : Operation & Wash Cycles 7 Press the “ =} "button to start the cycle e@ If the top lid is opened while machine is in SPIN cycle. the machine will stop and an audible alarm will sound. © The energy test program was performed using the "Normal" cycle default setting of: Wash: Long Rinse: 1 Rinse Spin: 9mins Water level: 8 . © Please use low suds/high efficiency detergent. Child lock function e The function is intended for children safety and preventing the washing program from accidental changes by children. e oct the desired washing program. fter seting. ress the Start/Pause Button. nd washing machine begin to run. Then hold the water level Button and spin Botton at the same time for more than 3 seconds. you will hear three beep sound. digital tub display“CL”. nd the child lock will activate. All of the Bottons are locked. and will no ® Release the child lock function: Press the water level button and spin Botton at the same time for more than 3 seconds» After three beep sound. he child lock function is released. Note: If you open the lid when the child lock activate. digital tube display “E2”. and beep. ou need close the lid and press the Start/Pause to cancel. r washing machine will drain after 10 seconds. nd power off after 1O0minutes. Cycle completed When the machine has completed the selected/current wash cycle an audible alarm will sound and the machine will switch off automatically.

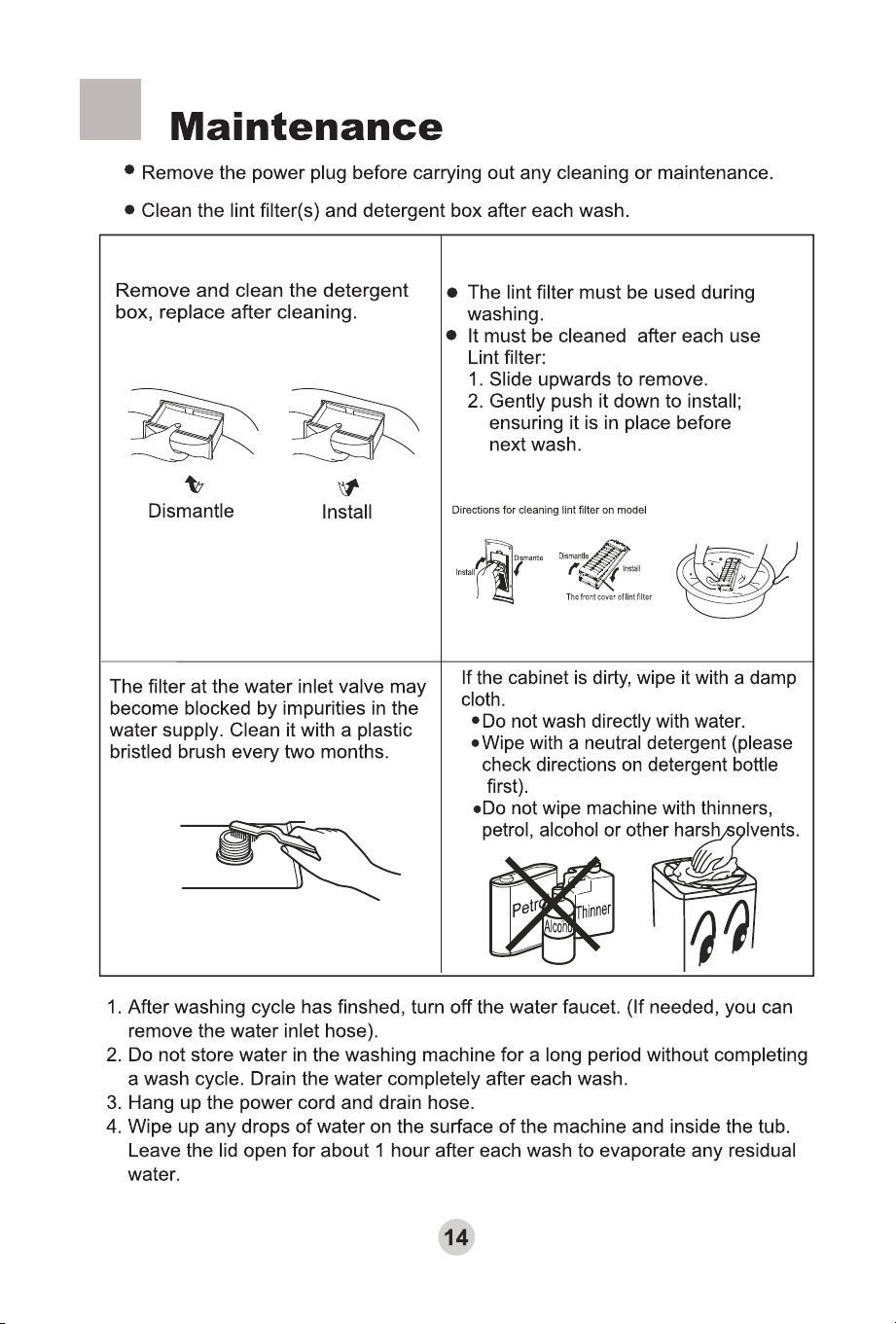

• Page 16 - English - : Maintenance ® Remove the power plug before carrying out any cleaning or maintenance. ® Clean the lint filter(s) and detergent box after each wash. Remove and clean the detergent @ The lint filter must be used during box. replace after cleaning. washing. @ It must be cleaned after each use Lint filter: 1. Slide upwards to remove. 2. Gently push it down to install; ensuring it is in place before next wash. Dismantle Install Directions for cleaning lint filter on model If the cabinet is dirty. wipe it with a damp Do not wash directly with water. e Wipe with a neutral detergent (please check directions on detergent bottle eDo not wipe machine with thinners. petrol. alcohol or other harshsolvents. The filter at the water inlet valve may become blocked by impurities in the water supply. Clean it with a plastic bristled brush every two months. 1. After washing cycle has finshed. turn off the water faucet. (If needed. you can remove the water inlet hose). 2. Do not store water in the washing machine for a long period without completing a wash cycle. Drain the water completely after each wash. 3. Hang up the power cord and drain hose. 4. Wipe up any drops of water on the surface of the machine and inside the tub. Leave the lid open for about 1 hour after each wash to evaporate any residual

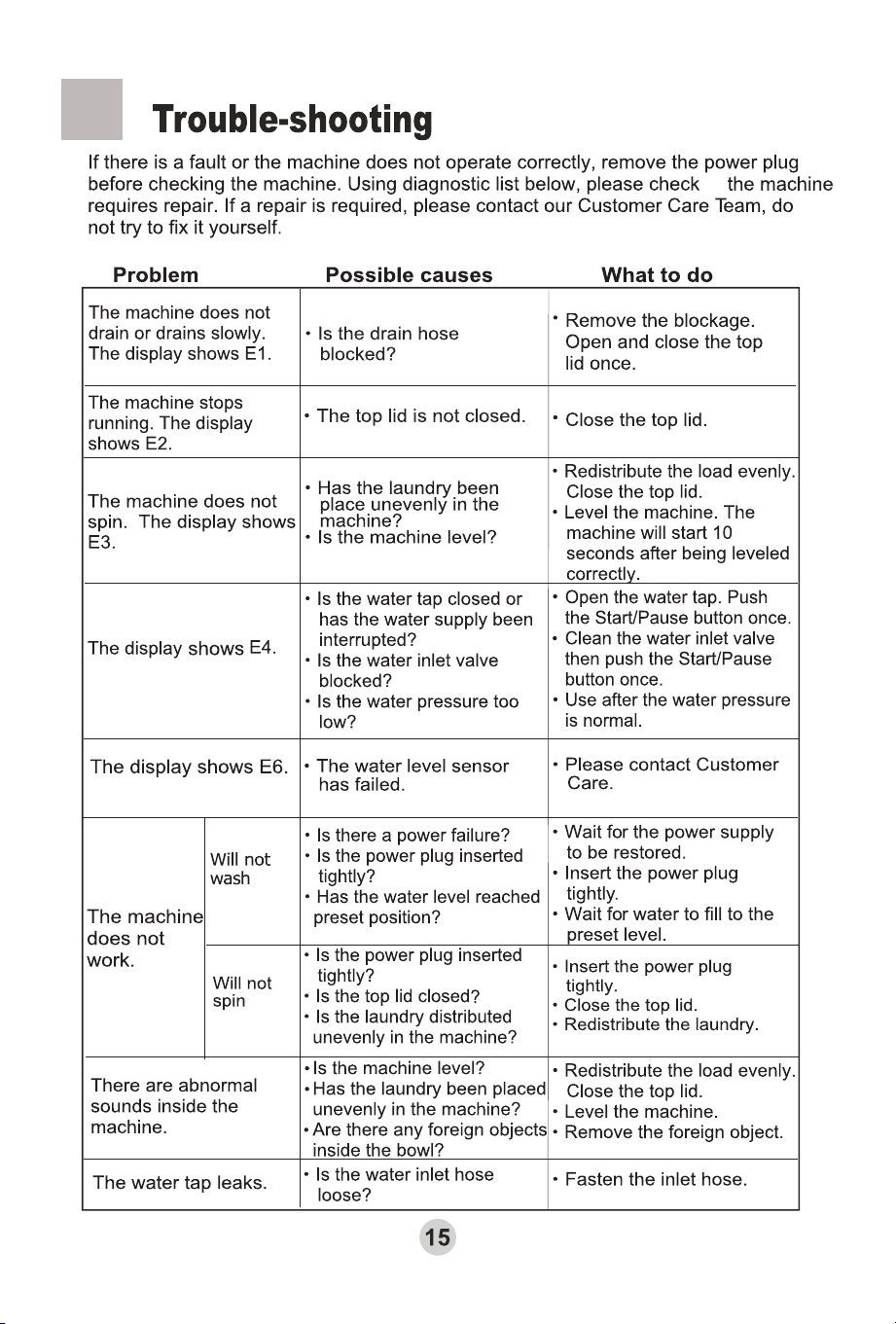

• Page 17 - English - : Trouble-shooting If there is a fault or the machine does not operate correctly. remove the power plug before checking the machine. Using diagnostic list below. please check if the machine requires repair. If a repair is required. please contact our Customer Care Team. do not try to fix it yourself. The machine does not drain or drains slowly. The display shows E1. Possible causes ¢ Is the drain hose What to do * Remove the blockage. Open and close the top The machine stops running. The display ¢ The top lid is not closed. * Close the top lid. The machine does not spin. The display shows * Has the laundry been place unevenly in the * Is the machine level? * Redistribute the load evenly. Close the top lid. * Level the machine. The machine will start 10 seconds after being leveled correctly. The display shows E4. * Is the water tap closed or has the water supply been interrupted? * Is the water inlet valve * Is the water pressure too * Open the water tap. Push the Start/Pause button once. ¢ Clean the water inlet valve then push the Start/Pause button once. * Use after the water pressure is normal. The display shows E6. ¢ The water level sensor has failed. ¢ Please contact Customer The machine * Is there a power failure? * Is the power plug inserted * Has the water level reached preset position? * Wait for the power supply to be restored. * Insert the power plug ¢ Wait for water to fill to the preset level. * Is the power plug inserted * Is the top lid closed? * Is the laundry distributed unevenly in the machine? * Insert the power plug * Close the top lid. * Redistribute the laundry. There are abnormal sounds inside the «ls the machine level? «Has the laundry been placed unevenly in the machine? «Are there any foreign objects inside the bowl? * Redistribute the load evenly. Close the top lid. * Level the machine. * Remove the foreign object. The water tap leaks. ¢ Is the water inlet hose ¢ Fasten the inlet hose.

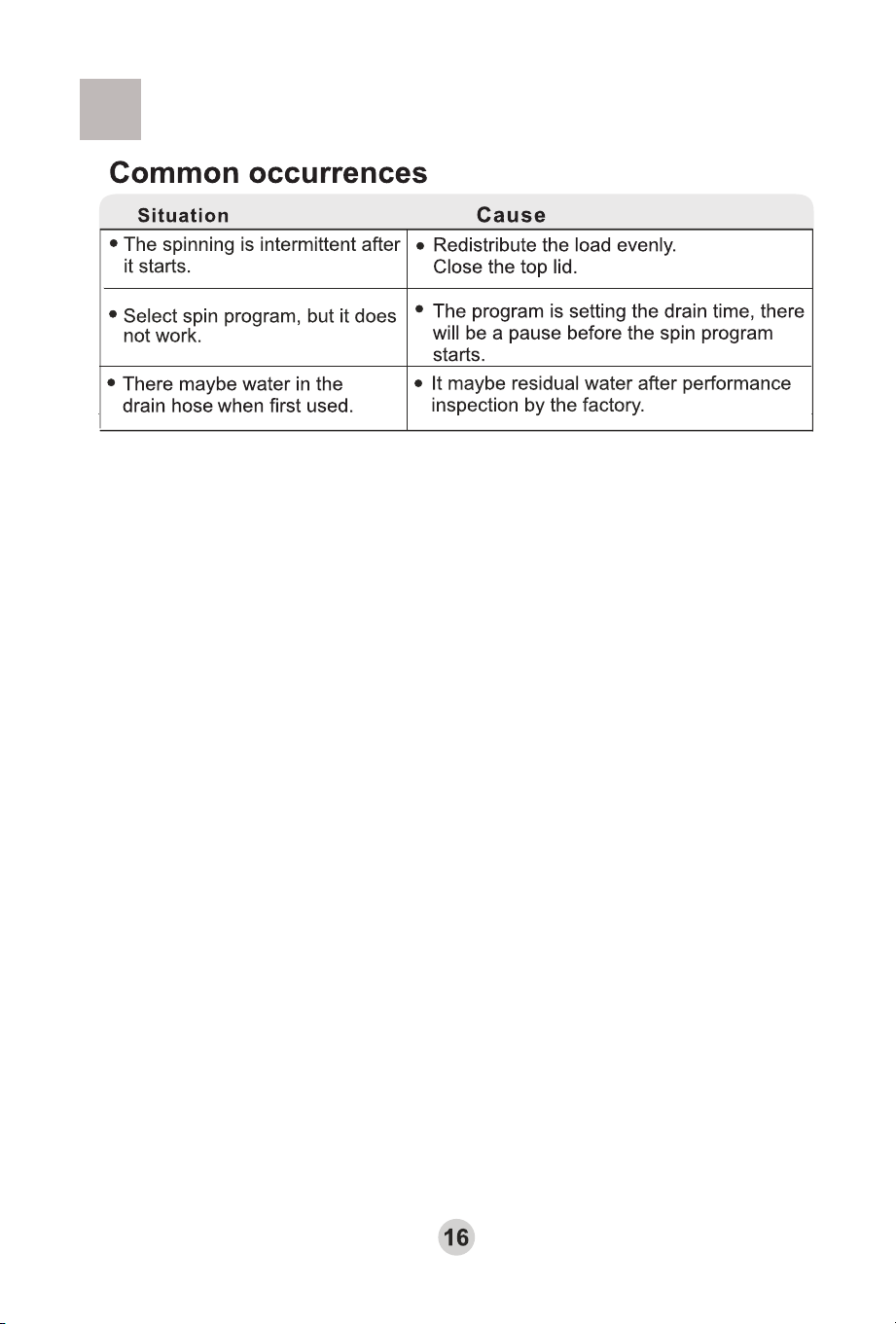

• Page 18 - English - : Common occurrences e The spinning is intermittent after it starts. e Redistribute the load evenly. Close the top lid. ® Select spin program. but it does e The program is setting the drain time. there will be a pause before the spin program e There maybe water in the drain hose when first used. e It maybe residual water after performance inspection by the factory.

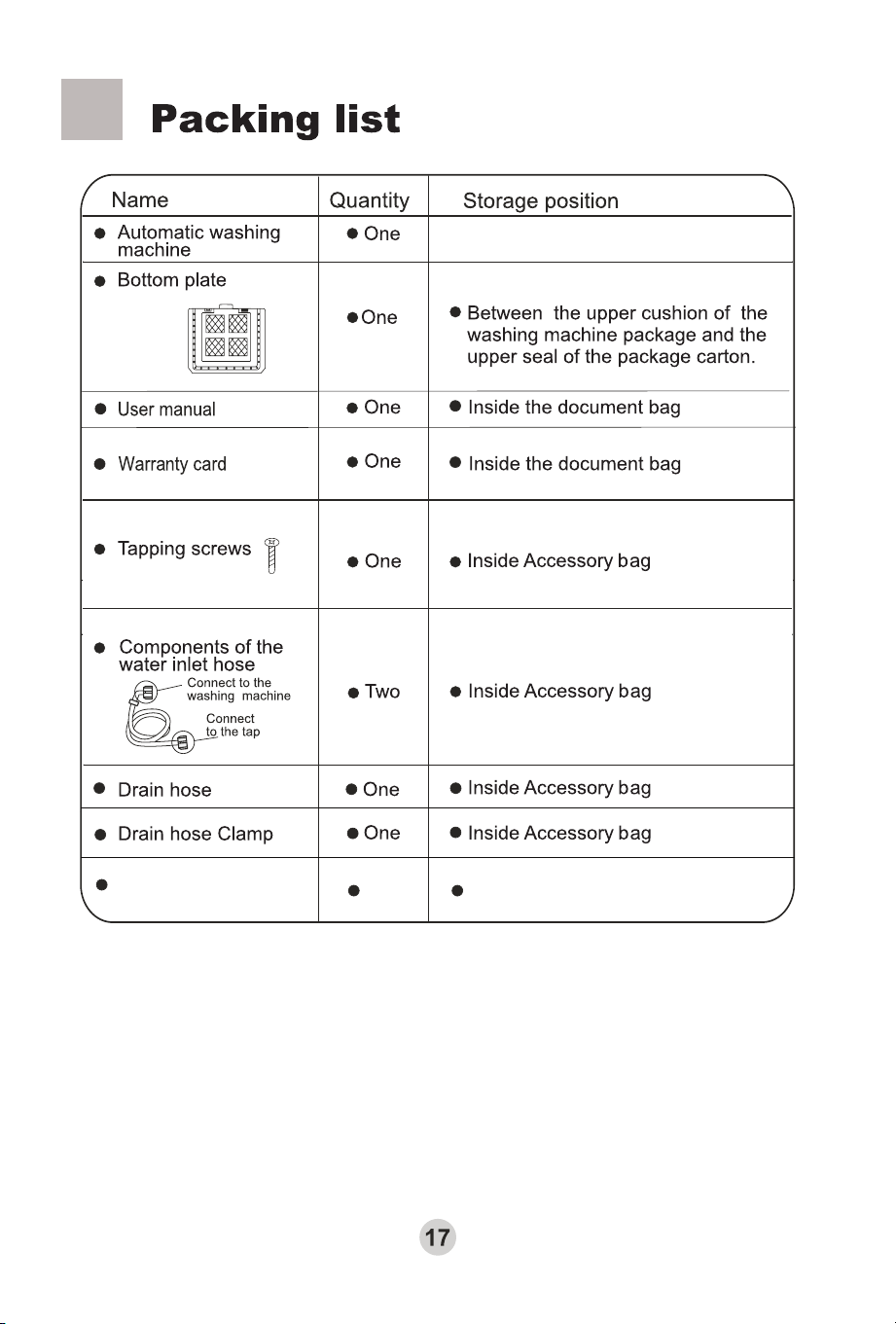

• Page 19 - English - : Packing list Name Quantity Storage position Automatic washing @ One Bottom plate ® Between the upper cushion of the washing machine package and the upper seal of the package carton. User manual @ Inside the document bag Warranty card @ Inside the document bag Tapping screws @ Inside Accessory bag Components of the water inlet hose Ci t to th x washing. machine @ Inside Accessory bag to the tap Drain hose @ Inside Accessory bag Drain hose Clamp @ Inside Accessory bag Drain hose hoop @ On The Drain hose

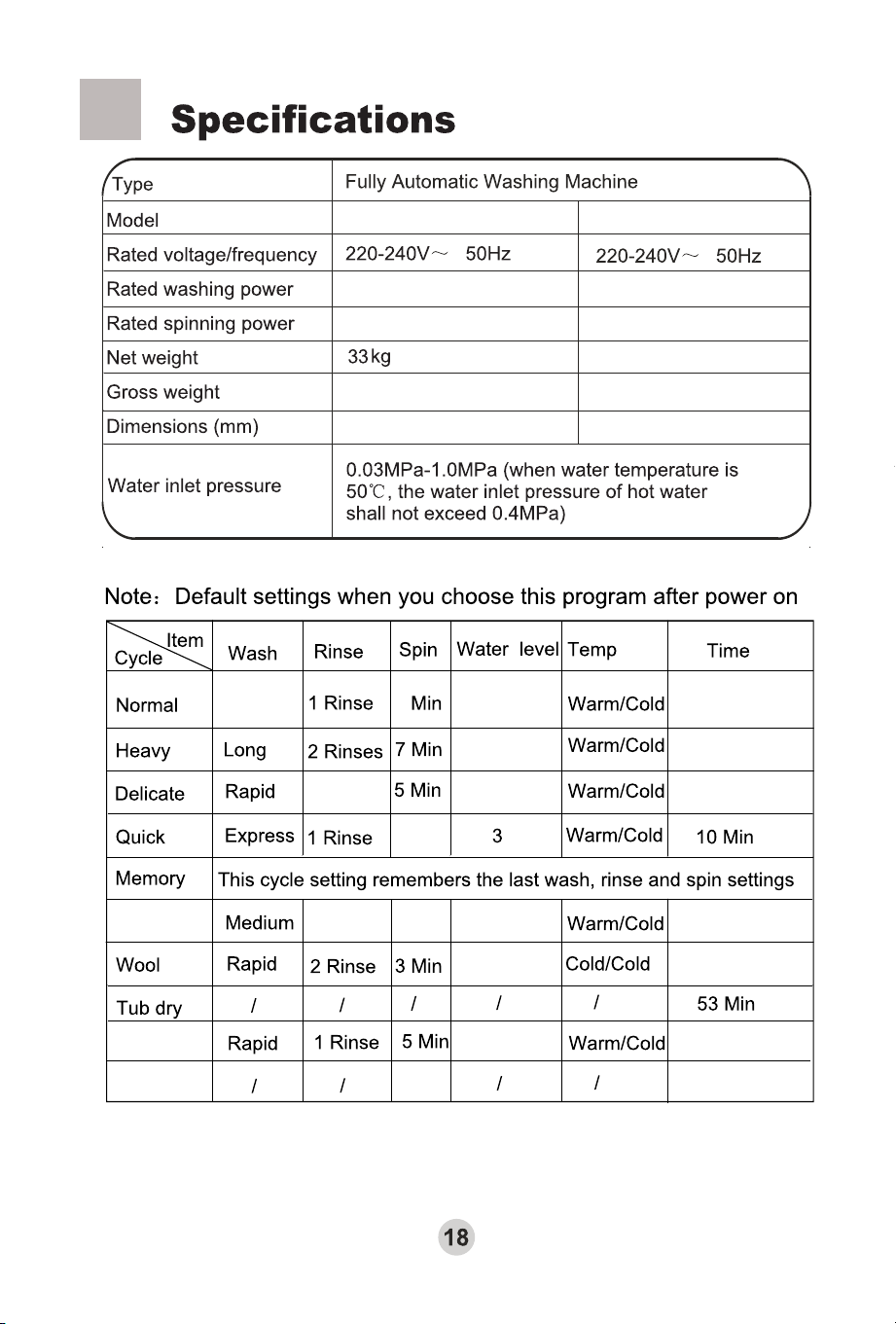

• Page 20 - English - : Specifications Fully Automatic Washing Rated voltage/frequency 220-240V~ 50Hz 220-240V~ 50Hz Rated washing power Rated spinning power Net weight Gross weight Dimensions (mm) L520 W530 H930 L550 W560 H955 Water inlet pressure 0.03MPa-1.0MPa (when water temperature is 50°C. the water inlet pressure of hot water shall not exceed 0.4MPa) Note: Default settings when you choose this program after power on Cycle tem | Wash | Rinse | Spin | Water level Temp Time Normal § Medium |1 Rinse |7 Min 4 Warm/Cold 44 Min Heavy Long 2 Rinses |7 Min 4 Warm/Cold| 58 Min Delicate Rapid |3 Rinses | Min 4 Warm/Cold|) 52 Min Quick Express |1 Rinse |3 Min 3 Warm/Cold| 10 Min Memory _ This cycle setting remembers the last wash. rinse and spin settings Soak Wash] Medium | 3 Rinses} 7 Min 4 Warm/Cold| 82 Min Wool Rapid | 2 Rinse |3 Min 4 Cold/Cold | 38 Min Tub dry / / / / / 53 Min ECO Rapid | 1 Rinse | 5 Min 4 Warm/Cold| 33 Min Spin / / 7Min| / / 7 Min
