TH-42PH12U (
1
/
2
)
M090423
Product summary
Product specification
(Design and specifications subject to change without notice)
• 42˝ High Definition Plasma Display for professional use.
• Equipped with three interchangeable slots-provide flexible and powerful system
solution boards by adding/exchanging wide variety of optional slot-in.
• Available with various unique professional features-Vertical Mounting, Dual picture
mode, Digital zoom, Built-in video wall image enlarger, etc..
• Various Energy-saving functions-DPMS, Auto power off, Power save mode, etc..
High DefinitionPlasma Display
TH-42PH12U
DISPLAY
Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H)
Resolution (H x V)
Pixel Pitch (H x V)
Brightnes
Contrast Ratio (Bright room)
Dynamic Contrast Ratio
Gradation
41.6-inch
16:9
36.3˝ x 20.4˝ (922 x 518 mm)
1,024 x 768 pixels (1 pixel=3 cells for R, G and B)
0.900 x 0.675 mm
1,400 cd/m
2
30,000:1 (400:1)
1,000,000:1
5,120 steps (equivalent)
APPLICABLE SIGNALS
Scanning Format
PC Signal Compatibility
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 625 (576) / 50p, 750 (720) / 60p · 50p,
1125 (1080) / 60i · 60p · 50i · 50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, WXGA, SXGA, UXGA
(Over XGA resolution : compressed)
Horizontal scanning frequency 15-110 kHz
Vertical scanning frequency 48-120 Hz
ELECTRICAL
Power Requirements
Operation Distance
Weight
DC 3 V (2 x AA Size batteries)
approx. 23 ft (7 m) in front of plasma display
approx. 3.5 oz (100 g) including batteries
MECHANICAL
SOUND
Dimensions (W x H x D)
Weight
Cabinet Color
Audio Output
40.2˝ x 24.1˝ x 3.5˝ (1,020x 610 x 89 mm)
55.2 lbs (25 kg)
Black
16 W [8 W + 8 W] (10 % THD)
RADIATION REGULATIONS
FCC Part 15 Class-B, ICES-003
SAFETY REGULATIONS
UL6500 Ver.2
REMOTE CONTROL TRANSMITTER
INCLUDED ACCESSORIES
• Fixing Band • AC Power Cord •
Operating Instruction Book
•
Remote Control Transmitter
• Batteries
OPTIONAL ACCESSORIES
• Wall-hanging Bracket (vertical, angled, drawer type) • Pedestal • Ceiling-hanging Bracket
• Mobile Stand • Touch Panel • Speakers • Anti-Glare Filter • Terminal Boards
INPUT / OUTPUT
Vacant
HDMI IN
COMPONENT IN
AUDIO IN (L/R)
PC IN
AUDIO IN
SERIAL
(Slot1)
(Slot2)
(Slot3)
(Fixed)
HDMI TYPE A connector x 2
BNC x 3 Y/G : with sync 1.0 V p-p (75 Ω)
PB/B, PR/R
: 0.7 V p-p (75 Ω)
RCA pin jack x 2 0.5 V rms
MINI D-SUB 15PIN x 1 (Female)
Y/G : with sync 1.0 V p-p (75 Ω)
PB/B, PR/R
: 0.7 V p-p (75 Ω)
HD/VD : 1.0~5.0 V p-p (high impedance)
Plug & Play (VESA DDC 2B)
M3 JACK x 1
D-SUB 9PIN x 1 (EXTERNAL CONTROL TERMINAL),
RS-232C COMPATIBLE
ENVIRONMENTAL
Temperature
Humidity
Altitude
Operating Environment
32 °F to 104 °F (0 °C to 40 °C)
20 % to 80 % (Non condensation)
0 to 9,100 feet (0 to 2,800 m)
Temperature
Humidity
Altitude
Storage Environment
–4 °F to 140 °F (–20 °C to 60 °C)
20 % to 90 % (Non condensation)
0 to 10,800 feet (0 to 3,300 m)
Power Requirements
Power Consumption
Power Off Condition
Stand-by Condition
110-127 V AC, 50 Hz/60 Hz
380 W
0.2 W
Save OFF 1.2 W, Save ON 0.4 W
TH-42PH12U (
2
/
2
)
M090416
AUDIO
SLOT1 SLOT2 SLOT3 PC IN SERIAL
Dimensions (Shown with optional Pedestal stand)
Units : inches (mm)
<Connection terminals>
<Terminal dimension>
36.3 (922)
3.5 (89)
1.8 (45)
12.9 (327)
27.0 (684)
26.0 (660)
5.6 (140)
20.4 (518)
5.6
(140)
2.9 (72)
26.4 (669)
5.7 (145) 5.7 (145)12.6 (320)
40.2 (1020)
24.1 (610)
12.3 (311.8)16.2 (410.9)10.5 (266.8)
1.2 (30.5)
<Connection terminals>
AC cord connection
With the option pedestal
TY-ST08 attached
Composite/Component Video
TY-42TM6Y
Component Video
TY-42TM6A/Z
PC Input
TY-42TM6P
RGB Active Through
TY-42TM6G
Composite Video
TY-42TM6B/V
BNC Dual Video
TY-FB9BD
DVI-D
TY-FB11DD
SDI
TY-FB7SD
HD-SDI
TY-FB9HD
HD-SDI with Audio
TY-FB10HD
HDMI
TY-FB8HM
Dual HDMI
TY-FB10HMD
Pin Assignment and Signal Name
NTSC 15.73 59.94 YYY
Pin No. Signal name
PAL 15.63 50.00 YYY
1CD
PAL60 15.73 59.94 YYY
2 RXD
SECAM 15.63 50.00 YYY
3 TXD
Modified NTSC 15.73 59.94 YYY
4 DTR
525(480)/60i 15.73 59.94 YYYY YYY Y
5 GND
525(480)/60p 31.47 59.94 YYYY Y YYY
6 DSR
625(575)/50i 15.63 50.00 YYYY YYY Y
7 RTS
625(575)/50p 31.25 50.00 YYYY Y
8 CTS
625(576)/50p 31.25 50.00 YYY
9RI
750(720)/60p 45.00 60.00 YYYY Y YYYYY
750(720)/50p 37.50 50.00 YYYY Y YYYYY
Transmitting Conditions
1125(1080)/60i 33.75 60.00 YYYY Y YYYYY
1125(1080)/60p 67.50 60.00 YYYY Y YY
1125(1080)/50i 28.13 50.00 YYYY Y YYYYY
1125(1080)/50p 56.25 50.00 YYYY Y YY
1125(1080)/30p 33.75 30.00 YYYY Y YY Y
1125(1080)/25p 28.13 25.00 YYYY Y YY Y
1125(1080)/24p 27.00 24.00 YYYY Y YY YY
1125(1080)/24sF 27.00 48.00 YYYY YY Y
1250(1080)/50i 31.25 50.00 YYYY Y
640×400@70Hz 31.46 70.07 YYYY Y
640×480@60Hz 31.47 59.94 YYYY Y YYY
640×480@72Hz 37.86 72.81 YYYY Y
640×480@75Hz 37.50 75.00 YYYY Y
640×480@85Hz 43.27 85.01 YYYY Y
800×600@56Hz 35.16 56.25 YYYY Y
800×600@60Hz 37.88 60.32 YYYY Y Y
800×600@72Hz 48.08 72.19 YYYY Y
800×600@75Hz 46.88 75.00 YYYY Y
Signal Name
800×600@85Hz 53.67 85.06 YYYY Y
Pin No.
852×480@60Hz 31.47 59.94 YYYY Y Y
1
1024×768@50Hz 39.55 50.00 Y
2
1024×768@60Hz 48.36 60.00 YYYY Y Y
3
1024×768@70Hz 56.48 70.07 YYYY Y
4
1024×768@75Hz 60.02 75.03 YYYY Y
5
1024×768@85Hz 68.68 85.00 YYYY Y
6
1066×600@60Hz 37.64 59.94 YYYY Y Y
7
1152×864@60Hz 53.70 60.00 Y
8
1152×864@75Hz 67.50 75.00
YYYY Y
9
1280×768@60Hz
47.70 60.00 YYYY Y
10
1280×960@60Hz 60.00 60.00 YYYY Y
11
1280×960@85Hz 85.94 85.00 YYYY Y
12
1280×1024@60Hz 63.98 60.02 YYYY Y Y
13
1280×1024@75Hz 79.98 75.03 YYYY Y
14
1280×1024@85Hz 91.15 85.02 YYYY Y
15
1366×768@50Hz 39.55 50.00 Y
1366×768@60Hz 48.36 60.00 YYYY Y Y
1400×1050@60Hz 65.22 60.00 Y
1600×1200@60Hz 75.00 60.00 YYYY Y Y
1600×1200@65Hz 81.25 65.00 YYYY Y
1920×1200@60Hz 74.04 59.95 Y
Mac13”䋨640×480䋩 35.00 66.67 YYYY Y
Mac16”䋨832×624䋩 49.72 74.54 YYYY Y
Mac21”䋨1152×870䋩 68.68 75.06 YYYY Y
TH-**PH12 series(3/3)
VDBG090508
vertical frequency
(Hz)
Composite
Not used
Ground
Optional Terminal Board
RGB Component / RGB
Signal name
horizontal frequency
(kHz)
Not used
PC IN(D-sub 15-pin)
Fixed Terminal
Descriptions
NC
Receive Data
Transmit Data
Serial RS232C : D-sub 9-Pin (Male)
NC (Not connected)
GND (Ground)
NC
ޓޓShort Circuit
Signal name
R (P
R
/C
R
)
G (Y)
B (P
B
/C
B
)
PC Input : D-Sub 15-Pin (Female)
Signal Level
GND (Ground)
GND (Ground)
GND (Ground)
+5V DC

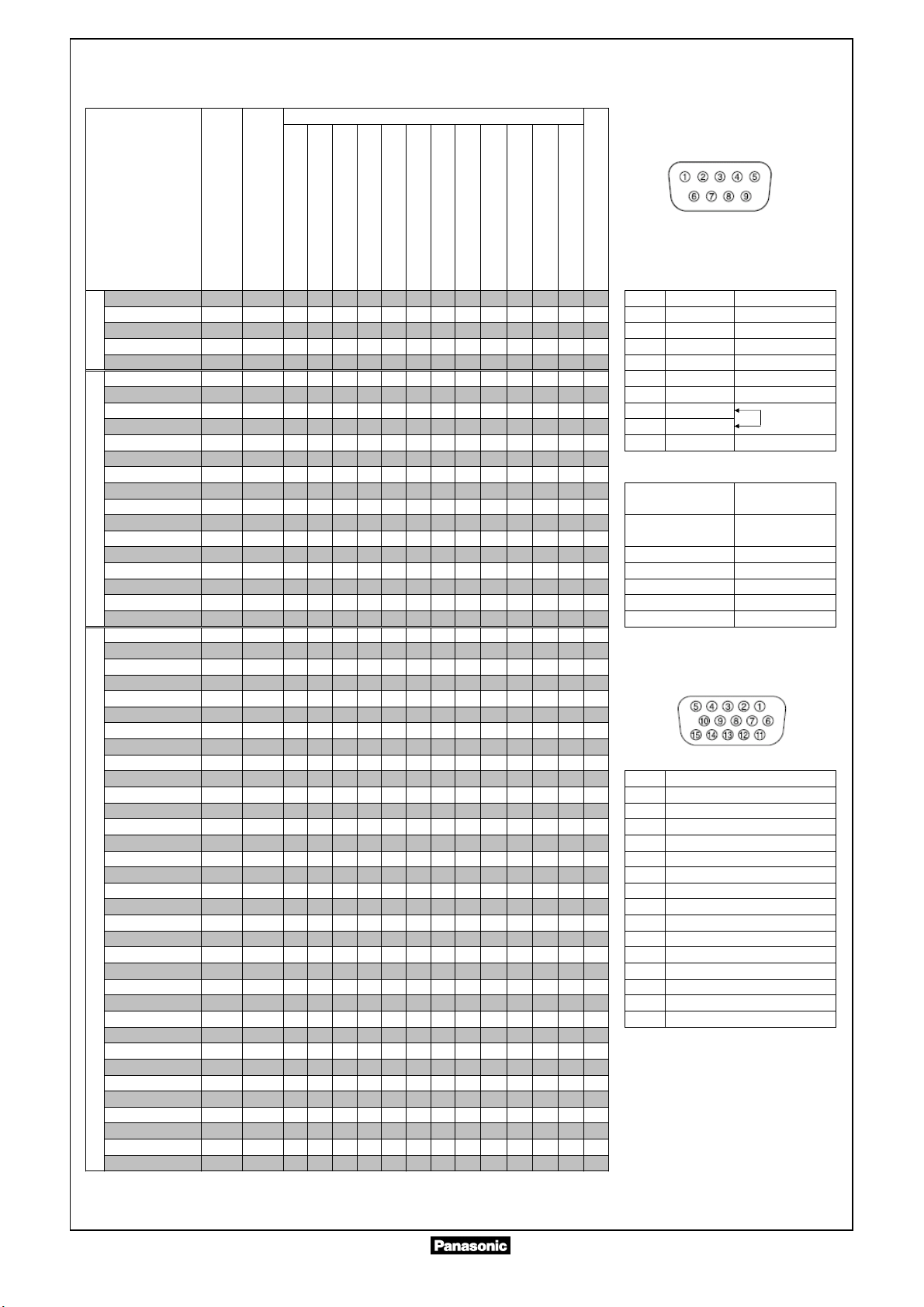

Preset Input Signals
Synchronization
VD
SCL
Character Length 8 bits
Stop Bit 1 bit
Flow control -
GND (Ground)
NC (Not connected)
SDA
HD/SYNC
Parity None
Complied with
RS232C
Asynchronous
method
Baud Rate 9600 bps
