• Page 1: Refrigerator User manual RS6N SEUK SAPL Free Standing Appliance Untitled13 1 20180416 44605
• Page 2 - English - : English2 Contents Contents Safety information 3 Important safety symbols and precautions 5 Severe warning signs for transportation and site 6 Critical installation warnings 7 Installation cautions 10 Critical usage warnings 11 Usage cautions 16 Cleaning cautions 19 Critical disposal warnings 21 Additional tips for proper usage 22 Saving Energy Tips 23 This appliance is intended to be used in household and similar applications such as 23 Instructions about the WEEE 24 Installation 25 Refrigerator at a glance 25 Stepbystep installation 27 Door removal for entrance 42 Operations 47 Feature panel 47 SmartThings available only with the optional adapter 52 Dispenser panel applicable models only 54 Special features 55 Maintenance 62 Handle and care 62 Cleaning 64 Replacement 66 Troubleshooting 68 General 68 Do you hear abnormal sounds from the refrigerator 72 SmartThings 74 Untitled13 2 20180416 44605
• Page 3 - English - : English 3 Safety information Before using your new Samsung Refrigerator please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efciently This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or those who lack experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your appliance Because these following operating instructions cover various models the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable If you have any questions or concerns contact your nearest service center or nd help and information online at www samsungcom R600a or R134a is used as a refrigerant Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator When this product contains ammable gas Refrigerant R600a contact your local authority in regard to safe disposal of this product Safety information Untitled13 3 20180416 44605
• Page 4 - English - : Safety information English4 Safety information In order to avoid the creation of a ammable gasair mixture if a leak in the refrigerating circuit occurs the size of the room in which the appliance may be sited depends on the amount of refrigerant used Never start up an appliance showing any signs of damage If in doubt consult your dealer The room must be 1 m in size for every 8 g of R600a refrigerant inside the appliance The amount of refrigerant in your particular appliance is shown on the identication plate inside the appliance Refrigerant squirting out of the pipes could ignite or cause an eye injury When refrigerant leaks from the pipe avoid any naked ames and move anything ammable away from the product and ventilate the room immediately Failing to do so may result in re or explosion Warning Risk of re ammable materials Untitled13 4 20180416 44606
• Page 5 - English - : English 5 Safety information Important safety symbols and precautions Please follow all safety instructions in this manual This manual uses the following safety symbols WARNING Hazards or unsafe practices that may result in severe personal injury property damage andor death CAUTION Hazards or unsafe practices that may result in severe personal injury andor property damage NOTE Useful information that helps users understand or benet from the refrigerator These warning signs are here to prevent injury to you and others Please follow them carefully After reading this section keep it in a safe place for future reference Untitled13 5 20180416 44606
• Page 6 - English - : Safety information English6 Safety information Severe warning signs for transportation and site WARNING When transporting and installing the appliance care should be taken to ensure that no parts of the refrigerating circuit are damaged Refrigerant leaking from the pipe work could ignite or cause an eye injury If a leak is detected avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes This appliance contains a small amount of isobutane refrigerant R600a a natural gas with high environmental compatibility that is however also combustible When transporting and installing the appliance care should be taken to ensure that no parts of the refrigerating circuit are damaged When transporting and installing the refrigerator do not touch the water hose on the back side of the refrigerator This may damage the refrigerator and as a result the water dispenser can not be used Untitled13 6 20180416 44606
• Page 7 - English - : English 7 Safety information Critical installation warnings WARNING Do not install the refrigerator in a damp location or place where it may come in contact with water Deteriorated insulation on electrical parts may cause an electric shock or re Do not place this refrigerator in direct sunlight or expose it to the heat from stoves room heaters or other appliances Do not plug several appliances into the same multiple power strip The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerators rating plate This provides the best performance and also prevents overloading of house wiring circuits which could cause a re hazard from overheated wires If the wall socket is loose do not insert the power plug There is a risk of electric shock of re Do not use a power cord that has cracks or abrasion damage along its length or at either end Do not bend the power cord excessively or place heavy objects on it Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance When moving the refrigerator be careful not to roll over or damage the power cord This may result in an electric shock or re Untitled13 7 20180416 44606
• Page 8 - English - : Safety information English8 Safety information Never unplug your refrigerator by pulling on the power cord Always grip the plug rmly and pull straight out from the outlet Damage to the cord may cause a shortcircuit re andor electric shock Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance Do not use aerosols near the refrigerator Using aerosols near the refrigerator may cause an explosion or re Do not install this appliance near a heater or inammable material Do not install this appliance in a location where gas may leak This may result in an electric shock or re This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it Connect the power plug in the proper position with the cord hanging down If you connect the power plug upside down the wire can get cut off and cause a re or electric shock Make sure that the power plug is not crushed or damaged by the back of the refrigerator Keep the packing materials out of reach of children There is a risk of death from suffocation if a child puts the packing materials on his or her head The appliance must be positioned so that the plug is accessible after installation Failing to do so may result in an electric shock or re due to electric leakage Untitled13 8 20180416 44606
• Page 9 - English - : English 9 Safety information Do not install this appliance in a humid oily or dusty location in a location exposed to direct sunlight and water rain drops Deteriorated insulation of electrical parts may cause an electric shock or re If any dust or water is in the refrigerator pull out power plug and contact your Samsung Electronics service center Otherwise there is a risk of re Do not stand on top of the appliance or place objects such as laundry lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance This may result in an electric shock re problems with the product or injury You need to remove all the protective plastic lm before you initially plug the product in Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips There is risk of death by suffocation if a child swallows a snap ring or water tube clip Keep the snap rings and water tube clips out of childrens reach The refrigerator must be safely grounded Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance Power leakages can cause severe electric shock Never use gas pipes telephone lines or other potential lightning attractors as an electrical ground You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator This may result in an electric shock re explosion or problems with the product Untitled13 9 20180416 44606
• Page 10 - English - : Safety information English10 Safety information Plug the power plug into the wall socket rmly Do not use a damaged power plug damaged power cord or loose wall socket This may result in an electric shock or re If the power cord is damaged have it replaced immediately by the manufacturer or one of its service agents The fuse on the refrigerator must be changed by a qualied technician or service company Failing to do so may result in an electric shock or personal injury When positioning the appliance ensure the supply cord is not trapped or damaged Do not locate multiple portable socketoutlets or portable power supplies at the rear of the appliance Installation cautions CAUTION Allow sufcient space around the refrigerator and install it on a at surface If your refrigerator is not level cooling efciency and durability can be declined Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions Allow the appliance to stand for 2 hours before loading foods after installation and turning on We strongly recommend you have a qualied technician or service company install the refrigerator Failing to do so may result in an electric shock re explosion problems with the product or injury Untitled13 10 20180416 44606
• Page 11 - English - : English 11 Safety information Critical usage warnings WARNING Do not insert the power plug into a wall socket with wet hands This may result in an electric shock Do not store articles on the top of the appliance When you open or close the door the articles may fall and cause personal injury andor material damage Do not insert hands feet or metal objects such as chopsticks etc into the bottom or the back of the refrigerator This may result in an electric shock or injury Any sharp edges may cause a personal injury Do not touch the inside walls of the freezer or products stored in the freezer with wet hands This may cause frostbite Do not put a container lled with water on the refrigerator If spilled there is a risk of re or electric shock Do not keep volatile or ammable objects or substances benzene thinner propane gas alcohol ether LP gas and other such products in the refrigerator This refrigerator is for storing food only This may result in re or explosion Children should be supervised to ensure that they do not play with the appliance Keep ngers out of pinch point areas Clearances between the doors and cabinet are necessarily small Be careful when you open the doors if children are in the area Do not put your ngers or childrens ngers between the doors Keep ngers out of the left and right door gaps Be careful when you open the doors if your ngers are in between the doors Untitled13 11 20180416 44606
• Page 12 - English - : Safety information English12 Safety information Do not let children hang on the door or door bins A serious injury may occur Do not let children go inside the refrigerator They could become trapped Do not insert your hands into the bottom area under the appliance Any sharp edges may cause personal injury Do not store pharmaceutical products scientic materials or temperature sensitive products in the refrigerator Products that require strict temperature controls must not be stored in the refrigerator Do not place or use electrical appliance inside the refrigerator freezer unless they are of a type recommended by the manufacturer If you smell pharmaceutical or smoke pull out power plug immediately and contact your Samsung Electronics service center If any dust or water is in Refrigerator pull out power plug and contact your Samsung Electronics service center Otherwise there is a risk of re Do not let children step on a drawer The drawer may break and cause them to slip Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator Do not allow babies or children go inside the drawer It can cause death from suffocation by entrapment or personal injury Do not overll the refrigerator with food When you open the door an item may fall out and cause personal injury or material damage Untitled13 12 20180416 44607
• Page 13 - English - : English 13 Safety information Do not spray volatile material such as insecticide onto the surface of the appliance As well as being harmful to humans it may also result in an electric shock re or problems with the product Never put ngers or other objects into the water dispenser hole ice chute and ice maker bucket It may cause a personal injury or material damage Do not use or place any substances sensitive to temperature such as ammable sprays ammable objects dry ice medicine or chemicals near or inside of the refrigerator Do not use a hair dryer to dry the inside of the refrigerator Do not place a lighted candle in the refrigerator for removing bad odours This may result in an electric shock or re Fill the water tank ice tray and water cubes only with potable water mineral water or puried water Do not ll the tank with tea juice or sports drink this may damage the refrigerator Do not stand on top of the appliance or place objects such as laundry lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance This may result in an electric shock re problems with the product or injury Do not put a container lled with water on the appliance If spilled there is a risk of re or electric shock Do not use mechanical devices or any other means to accelerate the defrosting process other than those recommended by the manufacturer Do not damage the refrigerant circuit Never stare directly at the UV LED lamp for long periods of time This may result in eye strain due to the ultraviolet rays Untitled13 13 20180416 44607
• Page 14 - English - : Safety information English14 Safety information Do not put fridge shelf in upside down Shelf stopper could not work It may cause a personal injury because of glass shelf drop Keep ngers out of pinch point areas Clearances between the doors and cabinet are necessarily small Be careful when you open the doors if children are in the area If a gas leak is detected avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes Do not touch the appliance or power cord Do not use a ventilating fan A spark may result in explosion or re Use only the LED Lamps provided by the manufacturer or its service agents Bottles should be stored tightly together so that they do not fall out This product is intended only for the storage of food in a domestic environment Never put ngers or other objects into the water dispenser hole ice chute and ice maker bucket It may cause a personal injury or material damage Do not attempt to repair disassemble or modify the refrigerator yourself Do not use any fuse such as cooper steel wire etc other than a standard fuse If your refrigerator needs to be repaired or reinstalled contact your nearest service center Failing to do so may result in an electric shock re problems with the product or injury Untitled13 14 20180416 44607
• Page 15 - English - : English 15 Safety information If the interior or exterior LED lamp has gone out contact your nearest service center If the refrigerator emits a burning smell or smoke unplug the refrigerator immediately and contact your Samsung Electronics service center Failing to do so may result in an electric or re hazards Pull the power plug out of the socket before changing the interior lamps of the refrigerator Otherwise there is a risk of electric shock If you experience difculty changing a nonLED light contact a Samsung service center If the product is equipped with LED lamps do not disassemble the Lamp Covers and LED lamps yourself Contact a Samsung service center Plug the power plug into the wall socket rmly Do not use a damaged power plug damaged power cord or loose wall socket This may result in an electric shock or re Untitled13 15 20180416 44607
• Page 16 - English - : Safety information English16 Safety information Usage cautions CAUTION Do not refreeze frozen foods that have thawed completely Do not place carbonated or zzy drinks in the freezer compartment Do not put bottles or glass containers in the freezer When the contents freeze the glass may break and cause personal injury Use only the ice maker provided with the refrigerator Have the refrigerators water supply connected only to a potable water supply To operate the ice maker properly water pressure of 138 862 kPa is required If you will be away from home for a long period of time on vacation for example and wont be using the water or ice dispensers close the water valve Otherwise water leakage may occur If you wont be using the refrigerator for a very long period of time 3 weeks or more empty the refrigerator including the ice bucket unplug it close the water valve wipe excess moisture from the inside walls and leave the doors open to prevent odors and mold To get the best performance from the product Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment Wrap food up properly or place it in airtight containers before putting it into the refrigerator Do not place glass bottles or carbonated beverages into the freezer They can freeze and break Broken beverage containers can cause injury Please observe maximum storage times and expiration dates of frozen goods Untitled13 16 20180416 44607
• Page 17 - English - : English 17 Safety information There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks However if you will be away for more than three weeks remove all the food and ice in the ice bucket unplug the refrigerator close the water valve wipe excess moisture from the inside walls and leave the doors open to prevent odors and mold Do not place glass or bottles or carbonated beverages into the freezer The container may freeze and break and this may result in injury Do not place carbonated or zzy drinks in the freezer compartment Do not put bottles or glass containers in the freezer When the contents freeze the glass may break and cause personal injury and property damage Service Warranty and Modication Any changes or modications performed by a 3rd party on this nished appliance are not covered under Samsung warranty service nor is Samsung responsible for safety issues that result from 3rd party modications Do not block the air vents inside the refrigerator If the air vents are blocked especially with a plastic bag the refrigerator can be over cooled If a cooling period lasts too long the water lter may break and cause water leakage Use only the icemaker provided with the refrigerator Wipe excess moisture from the inside and leave the doors open Otherwise odor and mold may develop If the refrigerator is disconnected from the power supply you should wait for at least ve minutes before plugging it back in Untitled13 17 20180416 44607
• Page 18 - English - : Safety information English18 Safety information If you have a long vacation planned or do not intend to use the refrigerator for a long period of time 3 weeks or more empty the refrigerator including the ice bucket pull out the power plug close the water valve wipe excess moisture from the inside walls and leave the doors open to prevent odors and mold When the refrigerator got wet by water pull out the power plug and contact your Samsung Electronics service center Do not strike or apply excessive force to any glass surface Broken glass may result in a personal injury andor property damage Fill the water tank and ice cube trays with potable water only tap water mineral water or puried water Do not ll the tank with tea or a sports drink This may damage the refrigerator Be careful that your ngers are not caught in If the refrigerator is ooded make sure to contact your nearest service center There is a risk of electric shock or re Do not keep vegetable oil in your refrigerators door bins The oil can solidify making it foultasting and difcult to use In addition the open container can leak and the leaked oil can cause the door bin to crack After opening an oil container it is best to keep the container in a cool and shaded place such as a cupboard or pantry Examples of vegetable oil olive oil corn oil grapeseed oil etc Untitled13 18 20180416 44607
• Page 19 - English - : English 19 Safety information Cleaning cautions CAUTION Do not spray water directly on the inside or outside the refrigerator There is a risk of re or electric shock Do not use a hair dryer to dry the inside of the refrigerator Do not place a lighted candle in the refrigerator to remove bad odors This may result in an electric shock or re Do not spray cleaning products directly on the display Printed letters on the display may come off If any foreign substance such as water has entered the appliance unplug the power plug and contact your nearest service center Failing to do so may result in an electric shock or re Use a clean dry cloth to remove any foreign matter or dust from the power plug blades Do not use a wet or damp cloth when cleaning the plug Otherwise there is a risk of re or electric shock Do not clean the appliance by spraying water directly onto it Do not use benzene thinner or Clorox Chloride for cleaning They may damage the surface of the appliance and may cause a re Never put ngers or other objects into the dispenser hole It may cause a personal injury or material damage Before cleaning or performing maintenance unplug the appliance from the wall socket Failing to do so may result in an electric shock or re Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator Untitled13 19 20180416 44607
• Page 20 - English - : Safety information English20 Safety information Do not use abrasive or harsh cleansers such as window sprays scouring cleansers ammable uids muriatic acid cleaning waxes concentrated detergents bleaches or cleansers containing petroleum products on exterior surfaces doors and cabinet plastic parts door and interior liners and gaskets These can scratch or damage the material Do not clean glass shelves or covers with warm water when they are cold Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping Untitled13 20 20180416 44607
• Page 21 - English - : English 21 Safety information Critical disposal warnings WARNING Please dispose of the packaging material from this product in an environmentally friendly manner Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal R600a or R134a is used as a refrigerant Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator If this refrigerator contains ammable gas Refrigerant R600a contact your local authority in regard to safe disposal of this product When disposing of this refrigerator remove the doordoor seals and door latch so that small children or animals cannot become trapped inside Children should be supervised to ensure that they do not play with the appliance If trapped inside a child may get hurt or suffocate to death If trapped inside the child may become injury and suffocate to death Cyclopentane is used in the insulation The gases in the insulation material require a special disposal procedure Please contact your local authorities in regard to the environmentally safe disposal of this product Keep all packaging materials well out of the reach of children as packaging materials can be dangerous to children If a child places a bag over his or her head the child could suffocate Untitled13 21 20180416 44607
• Page 22 - English - : Safety information English22 Safety information Additional tips for proper usage In the event of a power failure call the local ofce of your electric company and ask how long the failure is going to last Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures However you should minimize the number of door openings while the power is off Should the power failure last more than 24 hours remove and discard all frozen food The refrigerator might not operate consistently frozen contents can thaw or temperatures can become too warm in the frozen food compartment if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed In case of particular foods keeping it under refrigeration can have a bad effect on preservation due to its properties Your appliance is frost free which means there is no need to manually defrost your appliance This will be carried out automatically Temperature rise during defrosting complies with ISO requirements If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts wrap the frozen food in several layers of newspaper Do not refreeze frozen foods that have thawed completely The temperature of two star section sections or compartment compartments which have two star symbol is slightly higher than other freezer compartment compartments The two star section sections or compartment compartments is are based on the instruction andor the condition as delivered Untitled13 22 20180416 44607
• Page 23 - English - : English 23 Safety information Saving Energy Tips Install the appliance in a cool dry room with adequate ventilation Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat a radiator for example Not to block any vents and grilles is recommended for energy efciency Allow warm food to cool down before placing it in the appliance Put frozen food in the refrigerator to thaw You can then use the low temperatures of the frozen products to cool food in the refrigerator Do not keep the door of the refrigerator open for too long when putting food in or taking food out The shorter the time the door is open the less frost buildup youll have in the freezer It is recommended to install the refrigerator with clearance to the back and sides This will help reduce power consumption and keep your energy bills lower For the most efcient use of energy please keep the all inner ttings such as baskets drawers shelves on the position supplied by manufacturer This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops ofces and other working environments farm houses and by clients in hotels motels and other residential type environments bed and breakfast type environments catering and similar nonretail applications Untitled13 23 20180416 44607
• Page 24 - English - : Safety information English24 Safety information Instructions about the WEEE Correct Disposal of This Product Waste Electrical amp Electronic Equipment Applicable in countries with separate collection systems This marking on the product accessories or literature indicates that the product and its electronic accessories eg charger headset USB cable should not be disposed of with other household waste at the end of their working life To prevent possible harm to the environment or human health from uncontrolled waste disposal please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources Household users should contact either the retailer where they purchased this product or their local government ofce for details of where and how they can take these items for environmentally safe recycling Business users should contact their supplier and check the terms and conditions of the purchase contract This product and its electronic accessories should not be mixed with other commercial wastes for disposal For information on Samsungs environmental commitments and product specic regulatory obligations eg REACH visit samsung comukaboutsamsungsamsungelectronicscorporatecitizenship datacornerhtml For products sold in European countries only Untitled13 24 20180416 44608
• Page 25 - English - : English 25 Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it WARNING Use the refrigerator only for its intended purpose as described in this manual Any servicing must be performed by a qualied technician Dispose of the product packaging material in compliance with the local regulations To prevent electric shock unplug the power cord before servicing or replacements Refrigerator at a glance The actual appearance of your refrigerator may differ depending on the model and the country Dispenserfeatured models Installation Untitled13 25 20180416 44608
• Page 26 - English - : Installation English26 Installation 01 Freezer shelves 02 Multipurpose freezer bin 03 Dried food and meat storage drawer 04 Refrigerator bin 05 Refrigerator shelves 06 Vegetable drawer 07 Multipurpose drawer 08 Ice maker bucket 09 Wine rack 10 Dairy bin 11 FlexZone Applicable models only Dispenser models only NOTE The design of the egg container may differ with the model CAUTION Do not put the moving tray in the freezer when lled with water Water freezes and the moving tray breaks When the inner case is open do not open the show case The show case is likely to be pushed back and may be damaged Untitled13 26 20180416 44608
• Page 27 - English - : English 27 Installation Stepbystep installation STEP 1 Select a site Site requirements Solid level surface without carpeting or ooring that may obstruct ventilation Away from direct sunlight Adequate room for opening and closing the door Away from a heat source Room for maintenance and servicing Temperature range between 5 C and 43 C Effective temperature range The refrigerator is designed to operate normally in the temperature range specied by its class rating Class Symbol Ambient Temperature range C IEC 62552 ISO 15502 ISO 8561 Extended Temperate SN 10 to 32 10 to 32 Temperate N 16 to 32 16 to 32 Subtropical ST 16 to 38 18 to 38 Tropical T 16 to 43 18 to 43 NOTE The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature the dooropening frequency and the location of the refrigerator We recommend adjusting the temperature settings as appropriate Untitled13 27 20180416 44608
• Page 28 - English - : Installation English28 Installation Clearance See the pictures and table below for space requirements for installation A B D C E Depth A Recess Handle Type Depth A Bar Handle Type Width B 912 Height C 1747 Overall Height D 1780 unit mm 02 03 01 more than 50 mm recommended 02 165 03 170 04 564 mm 05 1726 mm 06 610 mm 07 912 mm 08 29 mm without handle 09 1165 mm NOTE The measurements in the above table may differ depending on the measuring method Untitled13 28 20180416 44609
• Page 29 - English - : English 29 Installation STEP 2 WiFi connection You can control the refrigerator remotely using the Smart Home Adapter that is sold separately To purchase the Smart Home Adapter visit wwwsamsungcom and follow the product information about the adapter NOTE You may not be able to purchase the Smart Home Adapter separately in some countries Please check with your dealer for availability CAUTION The Samsung Smart Home Adapter comes in two types one that is dedicated to Samsung smart TVs and the other one that is dedicated to Samsung home appliances You must purchase the Samsung Smart Home Adapter HD39N1230GW dedicated to home appliances Any other adapters may cause system failure 1 Press to unlock the arrow area of the adapter cover 2 Open up the adapter cover 3 Insert the Smart Home Adapter into the adapter port in the correct direction Untitled13 29 20180416 44610

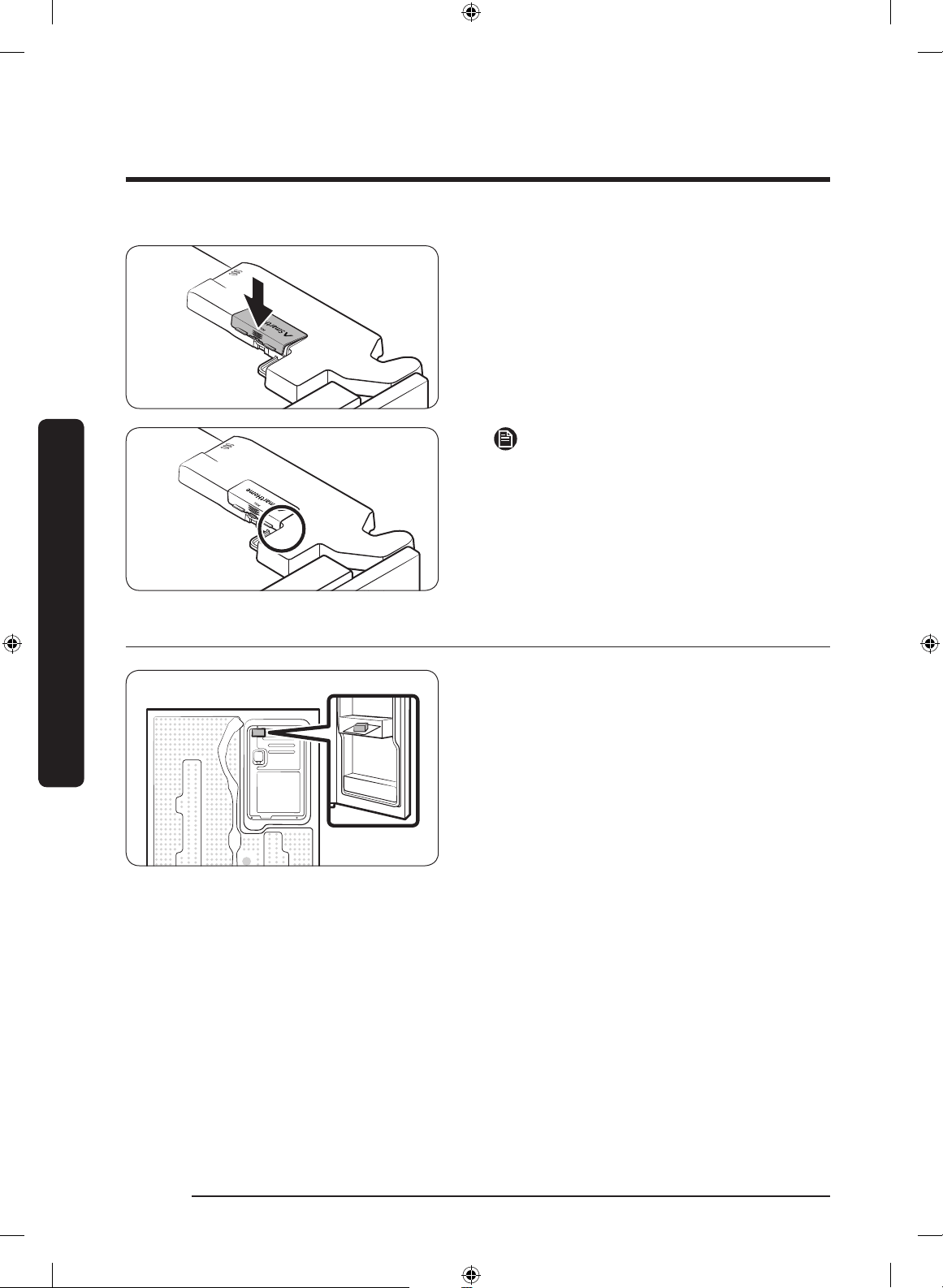

• Page 30 - English - : Installation English30 Installation 4 Insert the upper area of the adapter cover rst and then close to lock as shown NOTE The marked area is the cover of the optional adapter not a crack or defect STEP 3 Spacing applicable models only 1 Open the door and locate the provided spacer 2 Unpack the spacer and attach it to the rear of the refrigerator as shown It helps ventilate air to the rear wall and save power consumption Untitled13 30 20180416 44611
• Page 31 - English - : English 31 Installation STEP 4 Flooring The surface to install the refrigerator must support a fully loaded refrigerator To protect the oor put a large piece of cardboard on each leg of the refrigerator Once the refrigerator is in its nal position do not move it unless necessary to protect the oor If you have to use a thick paper or cloth such as old carpets along the movement path NOTE If the refrigerator cannot pass through the entrance due to its size see the Door removal for entrance section in the Installation chapter Untitled13 31 20180416 44611
• Page 32 - English - : Installation English32 Installation STEP 5 Adjust the levelling feet CAUTION The refrigerator must be levelled on a at solid oor Failing to do so can cause damage to the refrigerator or physical injury Levelling must be performed with an empty refrigerator Make sure no food items remain inside the refrigerator For safety reasons adjust the front side a little higher than the rear side The refrigerator can be levelled using the front legs that have a special screw leveller for levelling purposes Use a athead screwdriver for levelling To adjust the height of the freezer side Insert a athead screwdriver into the leveller of the freezerside front leg Turn the leveller clockwise to raise or turn it counter clockwise to lower To adjust the height of the fridge side Insert a athead screwdriver into the leveller of the fridgeside front leg Turn the leveller clockwise to raise or turn it counter clockwise to lower Untitled13 32 20180416 44612
• Page 33 - English - : English 33 Installation STEP 6 Adjust the door height as well as the door gap To adjust the height of a door The height of a door can be adjusted using the clamp nut and the height nut on the front bottom of each door B A 1 Open the door to adjust and locate the two nuts A and B on the front bottom of the door A 2 With a 19 mm spanner not provided turn the clamp nut A clockwise to loosen Then open the door and do the following inside the door To raise the door turn the height nut B counter clockwise To lower the door turn the height nut B clockwise A 3 When complete tighten the clamp nut A by turning it counter clockwise Untitled13 33 20180416 44613

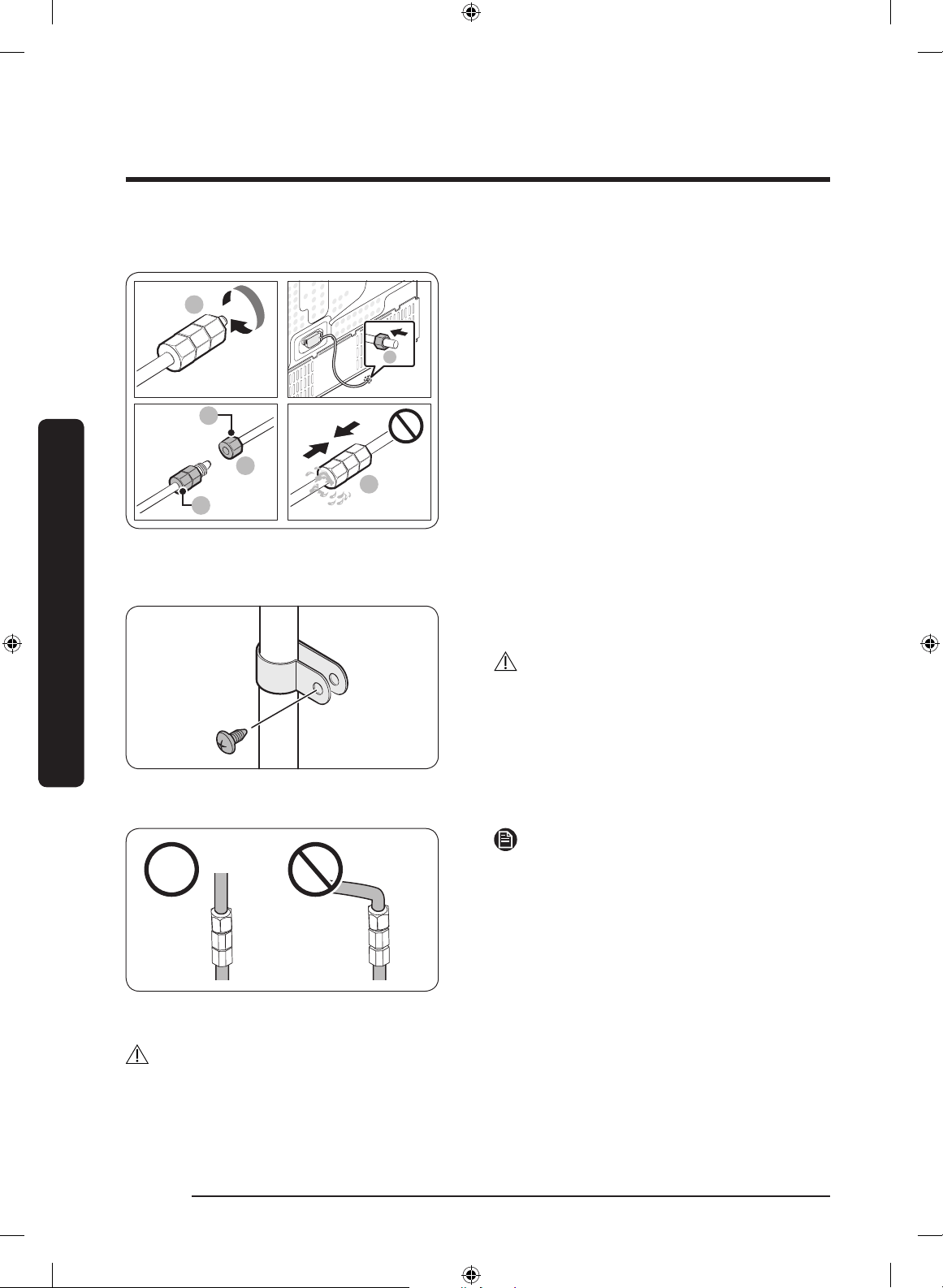

• Page 34 - English - : Installation English34 Installation STEP 7 Connect the water dispenser line applicable models only Parts and tools required Water line xer and screws Coupler Water line Water lter lockclip Water lter Check valve Installation external dispenser line 1 Assemble the water pipe line using couplers 2 Close the main water supply and then close the water tap 3 Connect the coupler to the cold water tap CAUTION Make sure you connect the coupler to the cold water tap Connection to the hot water tap may cause the water lter to be clogged and fail to operate normally The warranty for your refrigerator does not cover the water line installation The water line installation will be performed at your own costs unless the installation fee is included in the retailers price Samsung takes no responsibility for the water line installation If water leaks occur contact the installer of the water line The water line must be repaired by a qualied professional If you encounter a water leak contact a local Samsung service centre or the installer of the water line Untitled13 34 20180416 44615
• Page 35 - English - : English 35 Installation STEP 8 Connect to a water source applicable models only CAUTION The water line must be connected by a qualied technician The warranty for your refrigerator does not cover the water line installation The water line installation will be performed at your own costs unless the installation fee is included in the retailers price Samsung takes no responsibility for the water line installation If water leaks occur contact the installer of the water line To connect the cold water pipe to the water ltering hose CAUTION Make sure the water ltering hose is connected to a cold potable water source pipe Connecting to the hot water pipe may cause the water lter to malfunction A B A A Close Main Water pipe B No gap 1 Shut off the water supply by closing the main water valve 2 Locate the cold potable water pipe 1 3 Follow the Water Line Installation to connect to the water pipe NOTE New hosesets supplied with the appliance are to be used and old hosesets should not be reused Untitled13 35 20180416 44616
• Page 36 - English - : Installation English36 Installation To connect the water ltering hose to the water line a a a A B A Water Line from unit B Water Line from Kit 1 Loosen and remove the compression nut a from the water line of the refrigerator and insert it to the water ltering hose 2 Tighten up the compression nut a to connect the water ltering hose and the water line 3 Open the main water valve and check for any leaks 4 If there are no leaks dispense about 10 litres of water or dispense the water for 6 7 minutes before actually using the refrigerator to remove impurities inside the water ltering system 5 Secure the water line to a sink or a wall using a clip CAUTION Do not tighten the water line excessively Make sure the water line is not bent pinched or squashed Do not mount the water line on any part of the refrigerator This may damage the refrigerator NOTE If you have to relocate the refrigerator after connecting the water line make sure the joined section of the water line must is straight To repair the water line CAUTION The water line must be repaired by a qualied professional If you encounter a water leak contact a local Samsung service centre or the installer of the water line Untitled13 36 20180416 44617

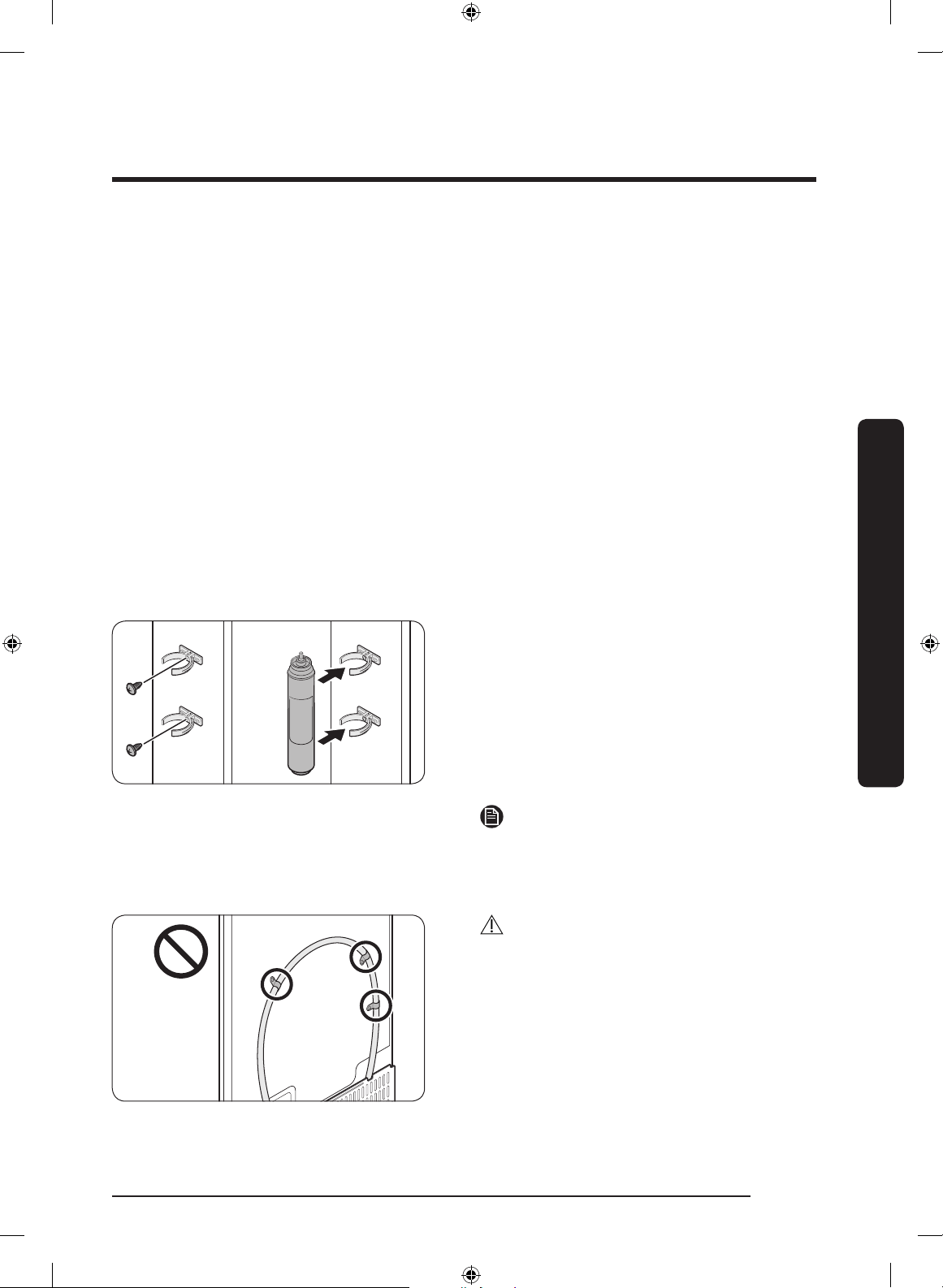

• Page 37 - English - : English 37 Installation Reverse osmosis water ltration system The water pressure of the water supply system to a reverse osmosis water ltration system must be between 241 kPa and 827 kPa The water pressure of the reverse osmosis water ltration system to the refrigerators cold water line must be at least 276 kPa If the water pressure is below the specied Check if the sediment lter in the reverse osmosis system is blocked Replace the lter if necessary Rell the water tank in the reverse osmosis system with water If your refrigerator has a water lter it may further reduce the water pressure when used in conjunction with a reverse osmosis system Remove the water lter For more information or servicing contact a licensed plumbing professional Ordering a new lter To purchase a new water lter part type HAFEXEXP contact a local Samsung service centre To mount the water lter into place 1 Attach the lock clips x2 to appropriate positions under the sink for instance Then x the lock clips rmly using screws 2 Insert the water lter into the upper and lower clips in the correct direction Make sure to check the vertical direction of the water lter NOTE If the lter is installed horizontally water may remain in the lter Therefore vertical installation is recommended CAUTION Do not mount the water lter on any part of the refrigerator This may damage the refrigerator Untitled13 37 20180416 44618

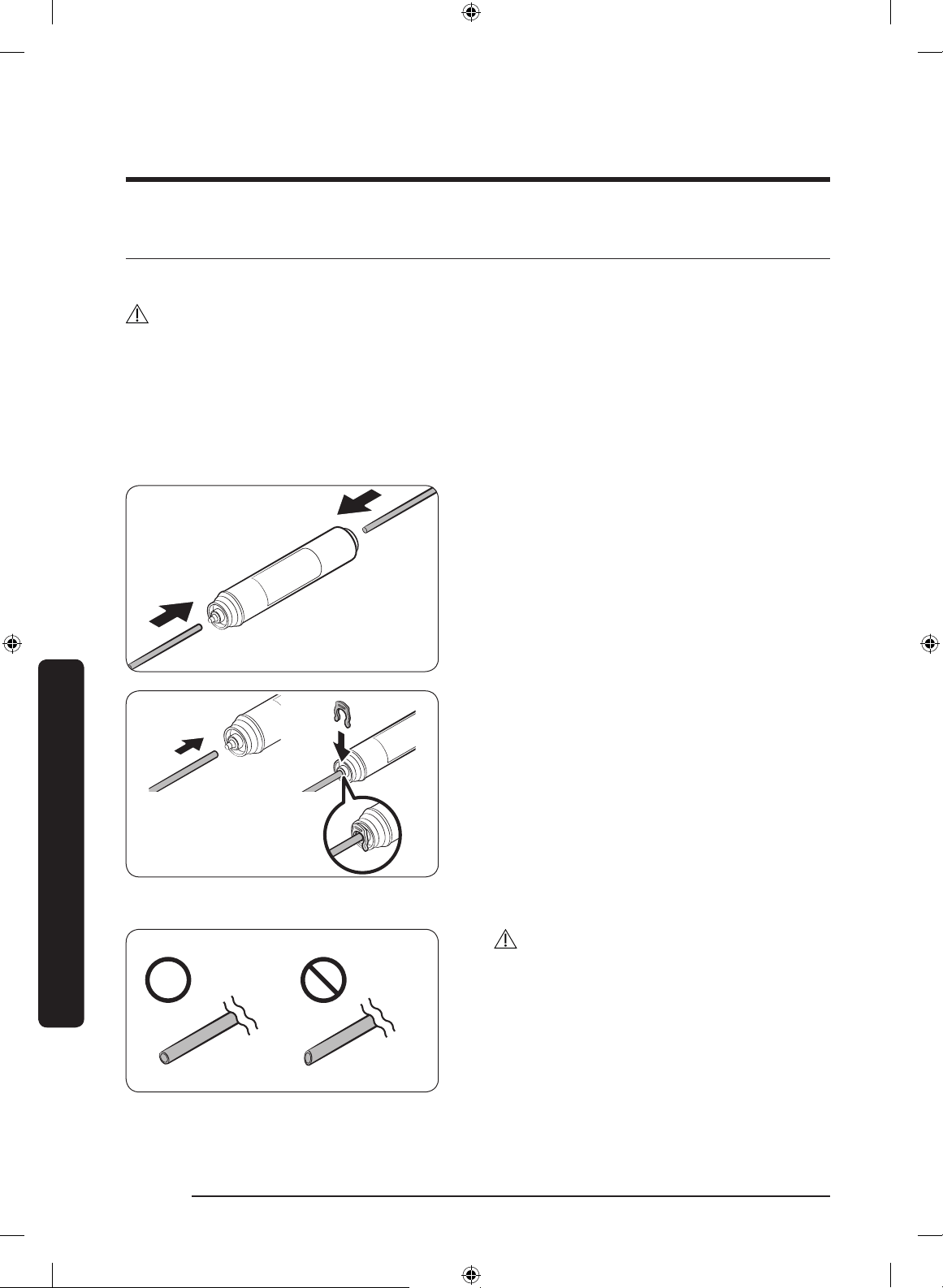

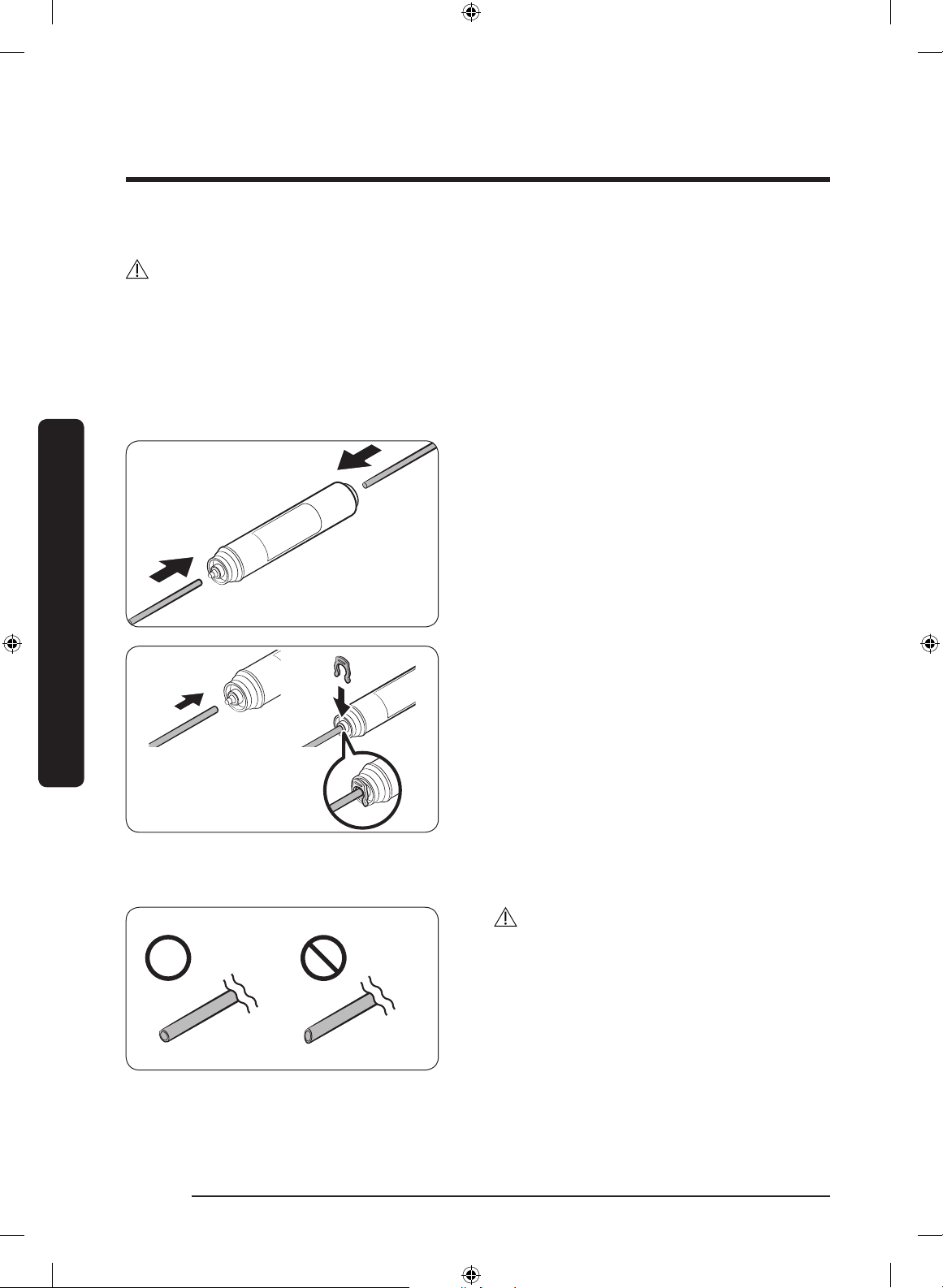

• Page 38 - English - : Installation English38 Installation Water lter replacement applicable models only CAUTION Do not use thirdparty water lters Use only Samsungprovided or approved lters Unapproved lters may leak and damage the refrigerator causing electric shock Samsung holds no responsibility for any damage that may occur from use of third party water lters The lter indicator turns red as a reminder that lets you know it is time to replace the water lter 1 Shut off the main water supply 2 Connect the water supply line to the inlet side of the lter to the end 3 Connect the dispenser line to the outlet side of the lter 4 Check if there is any leak If not x the lines with the clips 5 Put the water lter into place and x it with the clips 6 Press and hold Filter Reset for 3 seconds to reset the lter lifecycle 7 When replacing is complete ush 10 litres of water or dispense the water for 6 7 minutes to remove impurities from the water line CAUTION When adjusting the length of the water line tubing make sure to smooth out the cut surface at a right angle This is to prevent a water leak Untitled13 38 20180416 44619
• Page 39 - English - : English 39 Installation NOTE A newly installed lter may cause the water dispenser to spurt water briey This is because air has entered the water line This replacement process may involve the refrigerator to drip water onto the oor If this happens wipe up with dry cloths Untitled13 39 20180416 44619

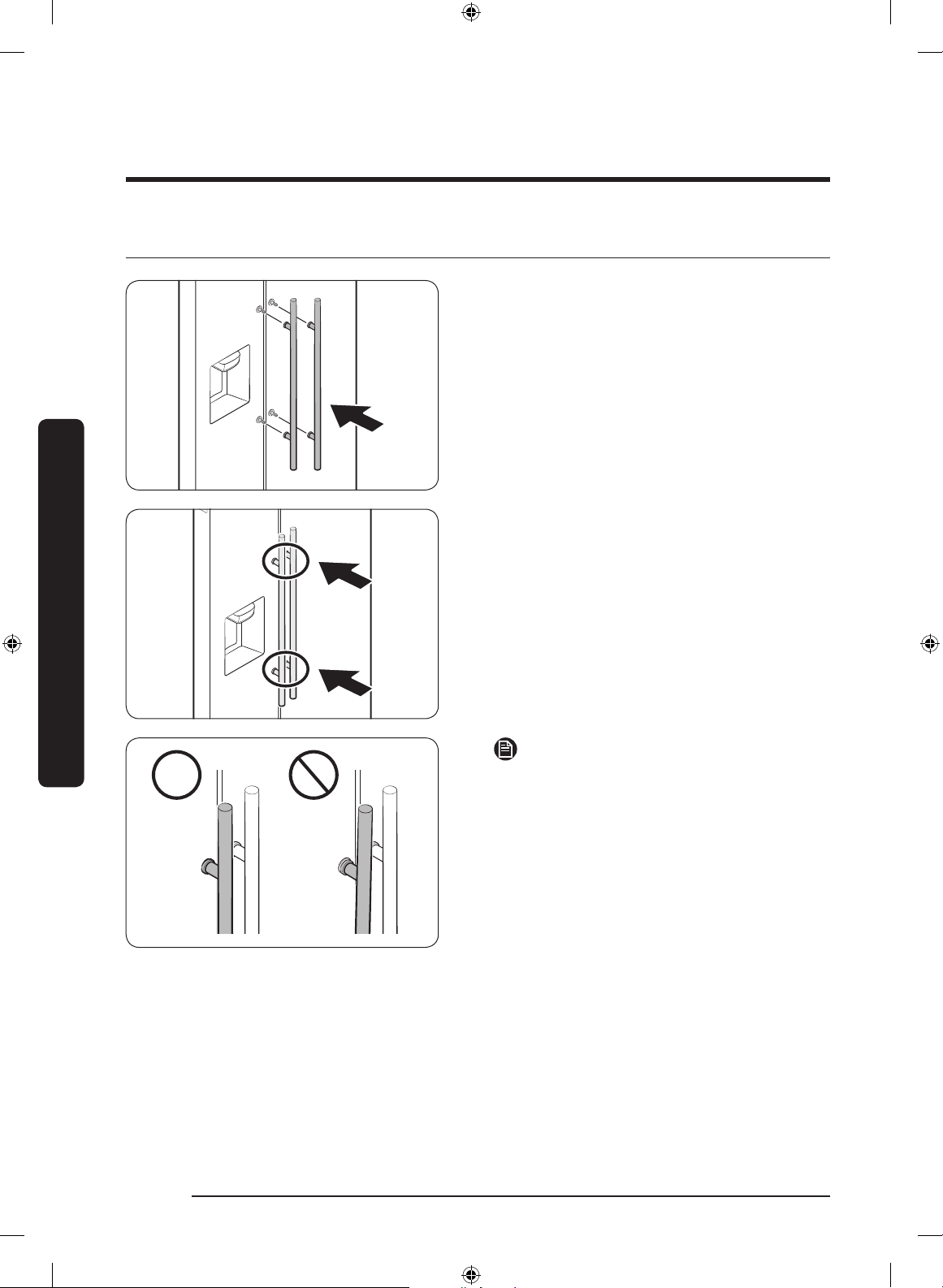

• Page 40 - English - : Installation English40 Installation STEP 9 To attach the handles applicable models only 1 Attach the handle supports on the brackets 2 Firmly press the handles at the supports Check and make sure the handles are rmly attached NOTE Make sure there is no gap between the supports and the door Untitled13 40 20180416 44620
• Page 41 - English - : English 41 Installation STEP 10 Initial settings By completing the following steps the refrigerator should be fully functioning 1 Plug the power cord into the wall socket to turn the refrigerator on 2 Open the door and check if the interior light lights up 3 Set the temperature to the coldest and wait for about an hour Then the freezer will be slightly chilled and the motor will run smoothly 4 Wait until the refrigerator reaches the set temperature Now the refrigerator is ready for use STEP 11 Final check When installation is complete conrm that The refrigerator is plugged into an electrical outlet and grounded properly The refrigerator is installed on a at level surface with a reasonable clearance from the wall or the cabinet The refrigerator is level and is sitting rmly on the oor The door opens and closes freely and the interior light turns on automatically when you open the door Untitled13 41 20180416 44620

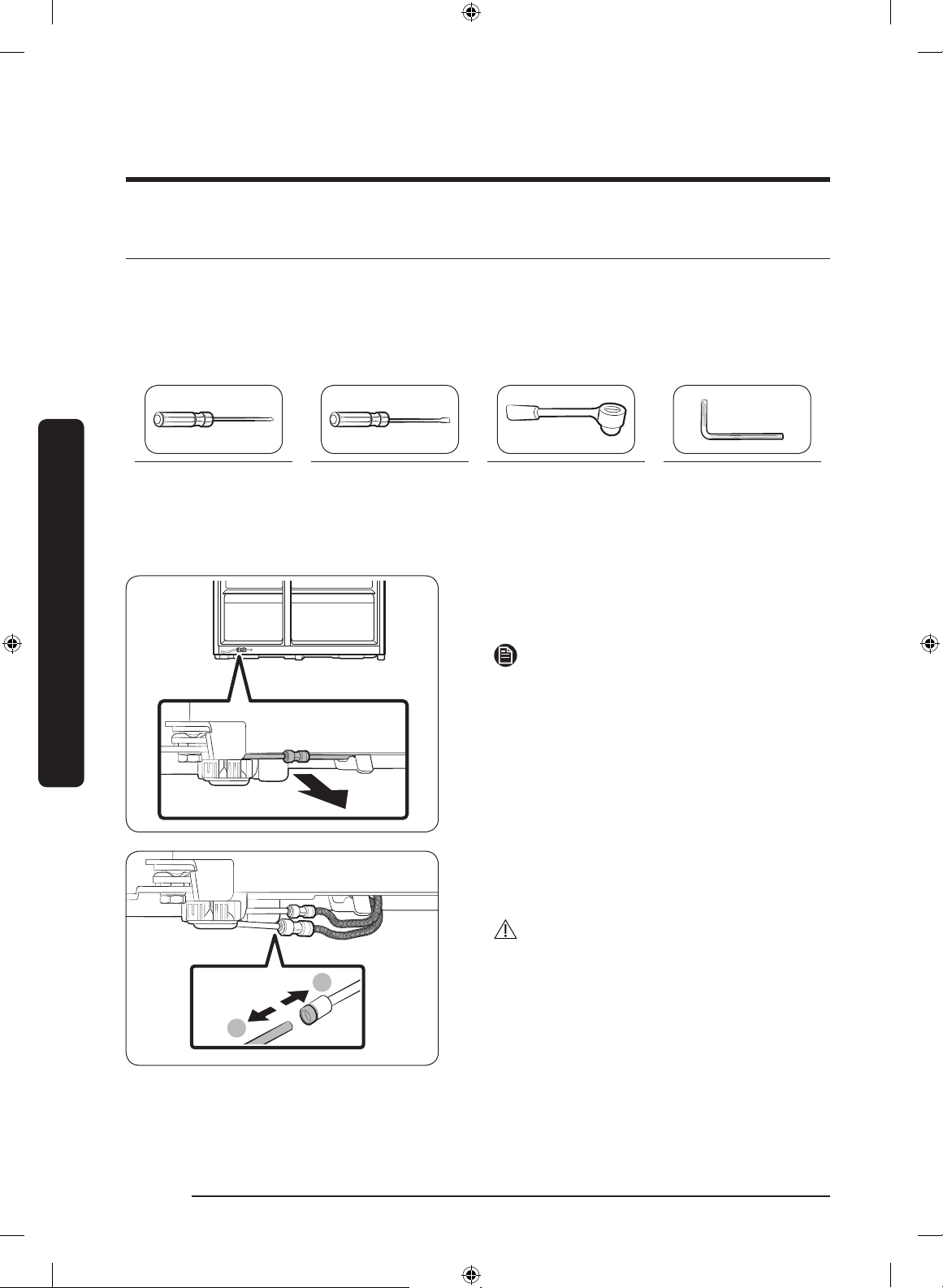

• Page 42 - English - : Installation English42 Installation Door removal for entrance If the refrigerator cannot pass through the entrance due to its size follow these instructions Tools required not provided These tools are used for removing the doors Phillips screwdriver Flathead screwdriver Socket spanner 10 mm Allen spanner 5 mm Disconnect the water line 1 From the bottom rear side of the refrigerator pull out the water line to the front NOTE The refrigerators water line is a water circulation line that connects between the water pipe from the water source and the hoses from the water ltering system of the refrigerator B A 2 To disconnect the hoses press and hold the transparent coupler A and detach the water hose B CAUTION Do not apply excessive force to the coupler It may break Untitled13 42 20180416 44622
• Page 43 - English - : English 43 Installation Detach the doors CAUTION The door may fall off or over and damage itself during any of these steps To prevent an accident use extreme caution when performing these steps A A 1 Use a Phillips screwdriver to unscrew the hinge covers A on the top of each door 2 Open the doors to loosen the hinges and remove the hinge covers Once the covers are removed close the doors 3 Disconnect the electrical harness 4 Gently lift the clamp NOTE To prevent damage to the clamp or injuries do not lift the clamp forcefully Untitled13 43 20180416 44623
• Page 44 - English - : Installation English44 Installation 5 Pull the clamp to remove 6 Open the door by 90 degrees While holding the door remove the hinge CAUTION If you remove the hinge without holding the door the door may fall and cause injury Reconnect the water hoses Once the refrigerator has passed through the entrance reconnect the water hoses A A Centre of transparent coupler CAUTION Make sure the water hoses are connected with matching colours To prevent water leaks each water hose must be inserted fully to the centre of the transparent coupler After reconnecting the water hoses push them under the cabinet and arrange them on the hook Untitled13 44 20180416 44625
• Page 45 - English - : English 45 Installation Reattach the doors CAUTION Before reattaching the doors make sure all the electrical connectors are properly connected The freezer door must be reattached before the fridge door 1 Hold the freezer door and hook to the hinge at the bottom of the refrigerator 2 Put the hinge into its position and then insert it into the hole on the door 3 Insert the clamp in the arrow direction Untitled13 45 20180416 44626
• Page 46 - English - : Installation English46 Installation 4 Press the clamp as shown 5 Connect the electrical harness 6 Insert the hinge covers with the front sides rst and then tighten the screws Use a Phillips screwdriver for this step Untitled13 46 20180416 44627
• Page 47 - English - : English 47 Operations Feature panel Type 1 01 04 0207 03 06 05 Type 2 01 0407 03 06 05 Type 3 01 0407 03 05 01 Freezer Power Freeze 02 FlexZone 03 Ice Maker 04 Fridge Power Cool 05 Door Alarm Vacation 06 Filter Reset 07 Network connection Applicable models only Operations Untitled13 47 20180416 44628
• Page 48 - English - : Operations English48 Operations 01 Freezer Power Freeze 3 sec Freezer The Freezer button can be used to set the freezer temperature or to activate Power Freeze Available temperatures are between 15 C and 23 C Power Freeze Power Freeze speeds up the freezing process at maximum fan speed The freezer keeps running at full speed for 50 hours and then returns to the previous temperature To activate Power Freeze press and hold Freezer for 3 seconds The corresponding indicator lights up and the refrigerator will speed up the freezing process for you To deactivate press and hold Freezer for 3 seconds again The freezer returns to the previous temperature setting To freeze large amounts of food activate Power Freeze for at least 20 hours before putting food in the freezer NOTE Using Power Freeze increases power consumption Make sure you turn it off and return to the previous temperature if you do not intend to use it 02 FlexZone The FlexZone is in the lower part of the fridge You can set the FlexZone to different modes Press FlexZone repeatedly to select a desired mode Mode Description Fruit amp Vegetable 3C Select this mode to keep fruits and vegetables fresh The temperature of the FlexZone will be kept at 3 C Beverage 1C Select this mode to keep beverages cold The temperature of the FlexZone will be kept at 1 C Meat amp Fish 0C Select this mode to keep meat and sh fresh The temperature of the FlexZone will be kept at 0 C Fridge Select this mode to set the FlexZone temperature to the fridge temperature Untitled13 48 20180416 44629
• Page 49 - English - : English 49 Operations 03 Ice Maker Ice Maker Press and hold Ice Maker for more than 3 seconds to turn the ice maker on or off The ice maker has 2 indicators ONOFF to indicate the operating status When the ice maker operates the ON indicator turns on When the ice maker is turned off the OFF indicator turns on In this case ice making is disabled even if you press the Cubed Ice or Crushed Ice buttons on the dispenser panel To enable ice making you must turn the ice maker on When the ice maker is off pressing the dispenser lever for more than 5 seconds will automatically turn on the ice maker When you turn the ice maker off you must wait at least 1 minute before you can turn it back on NOTE If the ice maker is turned off it will turn on if you press and hold the ice lever for more than 5 seconds 04 Fridge Power Cool 3 sec Fridge The Fridge button can be used to set the fridge temperature or to activatedeactivate Power Cool You can manually adjust the cooling temperature for the fridge Keep pressing Fridge to select a desired temperature between 1 C and 7 C Power Cool Power Cool speeds up the cooling process at maximum fan speed This is useful to quickly cool food that spoils quickly or after the door is left open for some time The fridge keeps running at full speed for several hours and then returns to the previous temperature Press and hold Fridge for 3 seconds Untitled13 49 20180416 44629
• Page 50 - English - : Operations English50 Operations 05 Door Alarm Vacation 3 sec Door Alarm You can set the alarm for a reminder If the door is left open for more than 2 minutes the alarm will sound with the alarm indicator blinking The alarm is enabled by factory default To disable the alarm press Door Alarm To enable press Door Alarm again Vacation The Vacation button can be used to activatedeactivate Vacation mode If you are going on vacation or a business trip or if you do not intend to use the refrigerator for an extended time use the Vacation feature Press and hold Vacation for 3 seconds to turn off the fridge operation with the Vacation indicator on NOTE It is strongly recommended to empty the fridge compartment and make sure the door is closed Device authentication When connecting the refrigerator to Smart Things App or Samsung smart devices such as Samsung Smart TVs follow the apps or devices onscreen instructions and press and hold Door Alarm for 5 seconds The temperature panel displays on for 5 seconds before proceeding with the authentication procedure Note that the Vacation function will be not affected by this authentication 06 Filter Reset 3 sec Filter Reset After about 6 months approximately 300 gallons of using the original water lter the Filter indicator turns red to remind you that the lter needs to be replaced If this happens replace the lter and press and hold Filter Reset for 3 seconds The lter indicator will be reset and the Filter indicator turns off NOTE Some regional areas have relatively large amounts of lime contained in the water This may reduce the lifecycle of the lter In these areas you will have to replace the water lter more often than specied above Untitled13 50 20180416 44629
