This device meets the EMC requirements for home appliances (Class
B) and is intended for home usage. This device can be used in all
regions.
• Image shown may differ from your projector.
• Your projector’s OSD (On Screen Display) may differ slightly from
that shown in this manual.
NOTE
4
SAFETYPRECAUTIONS
SAFETYPRECAUTIONS
Please take note of safety instructions to prevent any potential accident or
misuse of the product.
• Safety precautions are given in two forms, i.e. WARNING and CAUTION.
WARNING and CAUTION are understood to mean as follows:
WARNING: Failure to follow the instructions may cause serious
injury and even death
CAUTION: Failure to follow the instructions may cause minor injury
to people or damage to the product
• Read the owner's manual carefully and keep it handy for future
reference.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert the user to the
presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufcient magnitude to constitute a
risk of electric shock to persons.
The exclamation point
within an equilateral
triangle is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK
OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR
MOISTURE.
Readtheseinstructions.
Keeptheseinstructions.
Heedallwarnings.
Followallinstructions.
IndoorInstallation
WARNING
• Do not use the projector outside
and do not expose the product
to any humidity or water.
- Since the product is not
waterproof, this may result in
a re or electric shock.
• Do not place the projector in
direct sunlight or near heat
sources such as radiators, fires,
stoves, etc.
- This may result in re.
5
SAFETYPRECAUTIONS
• Do not place flammable
materials such as aerosols near
the projector.
- This may result in re.
• Do not allow children to cling to
or climb up to the projector.
- This may cause the projector
to fall, causing injury or
death.
• Do not install the product in a
place with no ventilation (e.g.,
on a bookshelf or in a closet) or
on a carpet or cushion.
- This may result in re due
to the increase in internal
temperature.
• Do not place the product close
to sources of steam, oil or oil
mist, such as humidifiers and
kitchen counters.
- Failure to do so may result
in re, electric shock, or
corrosion.
• Do not install the product onto
a wall or ceiling that is close to
sources of oil or oil mist.
- The product may be
damaged and fall, resulting in
serious injury.
• Do not place the projector where
it might be exposed to dust.
- This may result in re.
• Do not use the projector in a
damp place such as a bathroom
where it is likely to get wet.
- This may result in re or
electric shock.
• Do not allow a tablecloth or
curtain to block the air vent.
- This may result in re due to
the increase in the internal
temperature.
• Ensure good ventilation around
the projector. The distance
between the projector and the
wall should be at least 30 cm.
- This will prevent re due to
the increase in the internal
temperature.
CAUTION
• When placing the projector on a
table or shelf, be careful not to
put it near the edge.
- The projector could fall due
to bal ance problems, which
may cause personal injury or
damage to the product. Make
sure to use the pro jector
cabinet or stand that ts the
projector.
• When moving the projector,
make sure to switch it off and
remove the power plug and
cords.
- The power cord may be
damaged, resulting in re or
electric shock.
• Do not place the projector on
an unstable or vibrating surface
such as a wobbly shelf or a
slope.
- It may fall and cause injury.
8
SAFETYPRECAUTIONS
• Never open any cover on the
projector.
- There is a high risk of electric
shock.
• Do not look directly into the lens
when the projector is in use.
- The bright light may damage
your eyes.
• When the lamp is on or has just
been turned off, avoid touching
the air vent or lamp, because
these will be very hot.
• If there is a gas leak in the
room with the projector, do not
touch the projector or power
outlet. Open the windows for
ventilation.
- Sparks may cause re or
burns.
• Never touch the product or
power cord during storms with
thunder or lightning.
- This may cause electric
shock.
• Do not use the projector near
electronic devices that generate
a strong magnetic field.
• Keep the plastic film used for
packaging the product out of the
reach of children.
- If not handled safely, it can
cause suffocation.
• Do not keep your hand on the
projector for a long time when it
is running.
• When you play a game by
connecting a game console to
a projector, it is recommended
that you maintain a distance
of more than four times the
diagonal length of the screen.
- Make sure that the
connecting cable is long
enough. Otherwise, the
product may fall causing
personal injury or damage to
the product.
• Do not place the projector or its
remote control with battery in
an extremely high temperature
environment.
- This may result in re.
CAUTION
• Do not place heavy objects on
the projector.
- It may fall down and cause
personal injury.
• Be careful not to allow any impact
to the lens during transport.
• Do not touch the lens of the
projector.
- The lens may be damaged.
• Do not use any sharp tools on
the projector, such as a knife
or hammer, because this may
damage the casing.
• In the event that no image
appears on the screen or no
sound is heard, stop using the
projector. Switch off the projector,
unplug it from the power outlet
and contact our service center.
- This may result in re or
electric shock.
9
SAFETYPRECAUTIONS
• Do not drop anything onto the
projector or allow anything to
impact the projector.
- This may cause personal
injury or the projector to
malfunction.
• It is recommended that you
maintain a distance of more
than 5 - 7 times the diagonal
length of the screen.
- If you watch the screen at
a close distance for a long
time, your eye sight may
become worse.
• Do not block the light beam
emitted from the projector using
a book or other object.
- Lengthy exposure to the
projector beam may result in
re. In addition, the lens may
be overheated and damaged
by the reected heat.
• Do not start the projector with
the volume turned up high.
- High volume may damage
hearing.
• Do not use high voltage
electrical equipment near the
projector, (e.g. bug zapper).
- This may result in product
malfunction.
Cleaning
WARNING
• Do not spray water directly to
the projector when cleaning.
Do not allow water to get into
the product or do not allow it to
get wet.
- This may result in re or
electric shock.
• When there is smoke or a
strange smell coming out from
the projector or a foreign object
falls into the projector, switch it
off and unplug it from the power
outlet and contact our service
center.
- Otherwise, this may result in
re or electric shock.
• Use an air spray or soft cloth
or cotton swab moistened with
a lens cleaning chemical or
alcohol to remove dust or stains
from the front projection lens.
CAUTION
• Contact the sales representative
or service center for internal
cleaning of the projector about
once a year.
- If you do not clean the
projector, dust will accumulate
inside and may create a re
hazard or malfunction.
13
SAFETYPRECAUTIONS
ForUSA
NOTE TO CABLE/TV INSTALLER
This reminder is provided to
call the CATV system installer’s
attention to Article 820 - 40 of the
National Electric Code (U.S.A.).
The code provides guidelines
for proper grounding and, in
particular, species that the cable
ground shall be connected to the
grounding system of the building,
as close to the point of the cable
entry as practical.
14
SAFETYPRECAUTIONS
USA
FCCNotice
(For USA)
This equipment has been tested
and found to comply with the
limits for a Class B digital device,
pursuant to Part 15 of the FCC
Rules. These limits are designed
to provide reasonable protection
against harmful interference in
a residential installation. This
equipment generates, uses,
and can radiate radio frequency
energy and, if not installed
and used in accordance with
the instructions, may cause
harmful interference to radio
communications. However, there
is no guarantee that interference
will not occur in a particular
installation. If this equipment does
cause harmful interference to
radio or television reception, which
can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between
the equipment and the receiver.
- Connect the equipment to an
outlet on a circuit different from
that to which the receiver is
connected.
- Consult the dealer or an
experienced radio/TV technician
for help.
This device complies with part
15 of the FCC Rules. Operation
is subject to the following two
conditions: (1) this device may not
cause harmful interference and
(2) this device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Any changes or modications in
construction of this device which
are not expressly approved by the
party responsible for compliance
could void the user’s authority to
operate the equipment.
RiskGroup2
CAUTION Possibly hazardous
optical radiation emitted from this
product. Do not stare at operating
lamp. May be harmful to the eye.
15
CONTENTS
CONTENTS
LICENSES 2
SAFETYPRECAUTIONS 4
PREPARATION 17
Accessories 17
OptionalExtras 18
PartsandComponents 19
- Main Unit 19
- Back 20
Installation 21
- Installation Precautions 21
- Projection Distance per
Screen Size 22
- How to Install the Projector
On a Tripod 23
- Kensington Security
System 24
REMOTECONTROL 25
USINGTHEPROJECTOR27
ConnectingtheAntennaor
Cable 27
Usingthebattery 28
Batteryusingtime
information 28
WatchingProjector 30
- Turning the Projector On 30
- Focus of the Screen
Image 30
- Using the projector 31
SettingChannel 32
- Saving Currently
Broadcasting Channel 32
AdditionalOptions 35
- Adjusting Aspect Ratio 35
- Using the Keystone
Function 36
- Changing input device 36
- Blank Function 37
UsingtheQuickMenu 38
16
CONTENTS
MYMEDIA 39
BeforeUsing 39
- Connecting a USB Device 39
- Removing a USB Device 39
ToUseMyMedia 41
- Watching the Videos 43
- Viewing the Photos 49
- Listening to Music 52
- Viewing Files 55
CUSTOMIZING
SETTINGS 59
SETTINGS 59
PICTURESettings 60
AUDIOSettings 65
CHANNELSettings 67
TIMESettings 68
INFORMATION 69
LOCKSettings 70
OPTION1Settings 74
OPTION2Settings 76
CONNECTINGDEVICES 78
ConnectingHDReceiver,DVD
Player,orVCRPlayer 79
- HDMI Connection 79
ConnectingHeadphones 80
UsingtheMirroringFunction
ofaMobilePhone 81
- MHL/Slimport Connection 81
MAINTENANCE 82
Cleaning 82
- Cleaning the Lens 82
- Cleaning the Projector
Case 82
SPECIFICATIONS 83
17
PREPARATION
PREPARATION
The pictures may differ slightly from the actual product.
Accessories
Accessories included with the project are show below.
Accessories are subject to change without prior notice.
New accessories may be added or old ones removed.
Remote Control,
Lithium Battery (CR2032 / 3 V)
(See page 25)
Owner's Manual
AC-DC Adaptor Power cord
HDMI cable
18
PREPARATION
• When connecting an HDMI or USB
cable, or connecting a USB flash drive
to the HDMI or USB port, use a product
that has a width of 18 mm or less and
a height of 10 mm or less. If the USB
cable or USB flash drive does not fit
the USB ports of the projector, use an
extension cable that supports USB 2.0.
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a
connection error may occur. (Recommended HDMI cable types)
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
OptionalExtras
To purchase optional accessories, visit an electronics store or online
shopping site or contact the retail store where you purchased the product.
Optional accessories are subject to change without prior notice.
Projection Screen Tripod
MHL or Slimport Cable RF Cable
19
PREPARATION
PartsandComponents
This projector is manufactured using high-precision technology. You may,
however, see tiny black dots and/or bright colored dots (red, blue or green)
that continuously appear on the projector screen. This is a normal result of
the manufacturing process and does not indicate a malfunction.

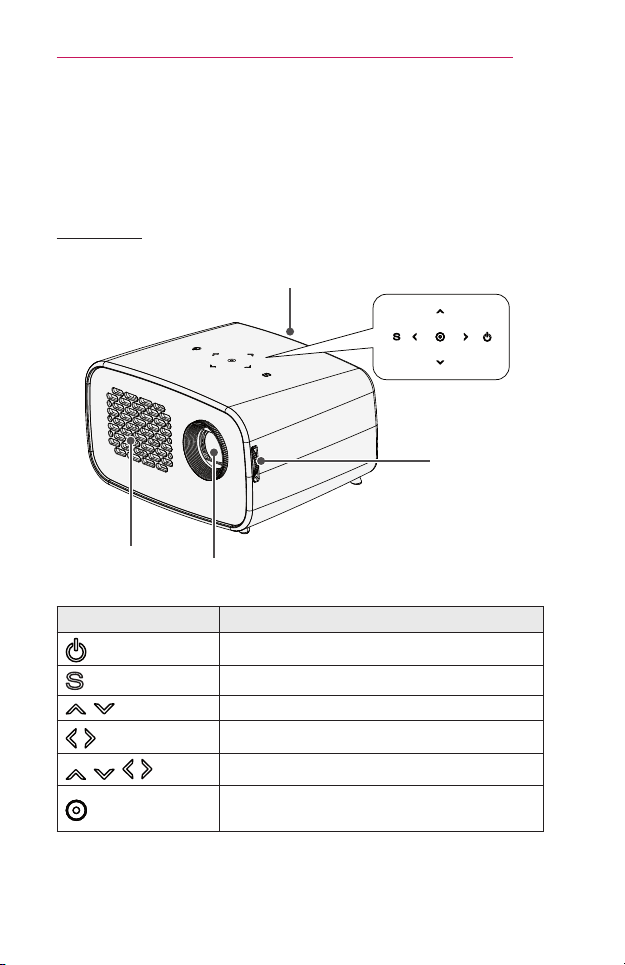

MainUnit
Control panel
Lens
2
Vent
1
Speaker
Focus Ring
Button Description
(POWER)
Turns the projector on or off.
(SETTINGS)
Displays or closes the Settings menu.
, (CHANNEL) Changes the TV channel.
, (VOLUME)
Adjusts the volume level.
, , ,
Sets the function or moves the cursor.
(OK)
Shows the current mode and saves changes to
the settings.
1 Due to the high temperature of vent area, do not get close to the vent area.
2 Do not touch the lens when using the projector. The lens may be damaged.
20
PREPARATION
Back
HDMI / MHL
OFF / ON
ANTENNA IN
DC IN
2 3 4 5 6
8
7
1
No. Description
1
(Headphone Port)
2
HDMI/MHL Port
3
OFF/ON Switch
- OFF: Turns the projector off completely.
- ON: Turns the projector on and the projector goes into
Standby mode.
Place the switch to OFF when you move the projector or when
you intend not to use the projector for long periods of time.
4
ANTENNAIN Port
5
Battery Charge Indicator
- Red: Charging
- Green: Charging complete
6
DCIN Port
7
(USB port)
8
Kensington security system connector
23
PREPARATION

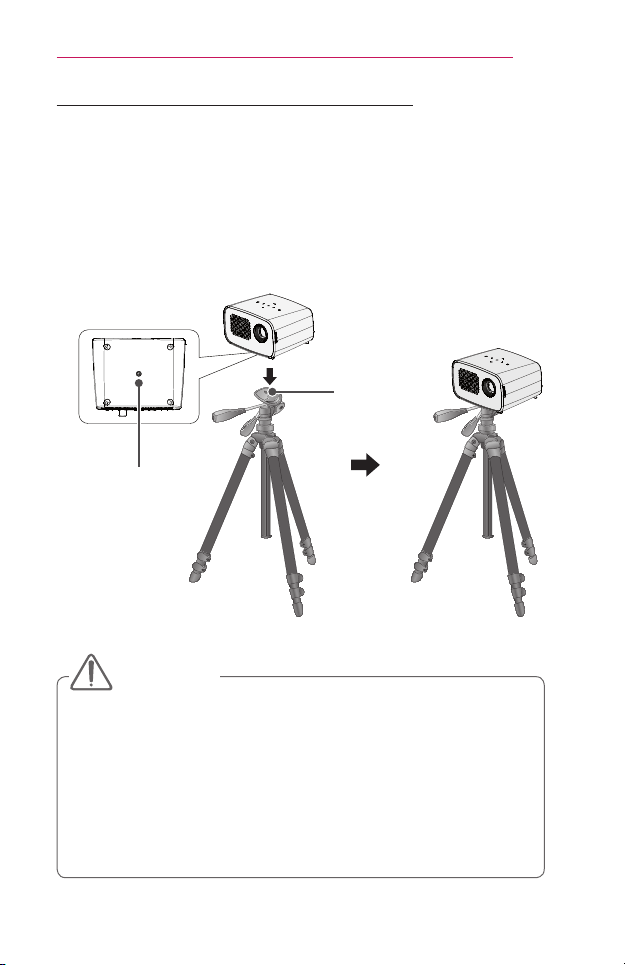

HowtoInstalltheProjectorOnaTripod
• You can install the projector using a camera tripod.
• As shown below, you can mount the projector instead of a camera on
the tripod.
• When stabilizing the tripod, we recommend using a locking bolt of
standard size 4.5 mm or less. The maximum size allowed for the locking
bolt is 5.5 mm. (If it is longer than the maximum allowed size, it may
damage the projector.)
Bottom of the
Projector
The projector is
connected to this part.
Tripod
Bolt used to
attach the
projector to
the tripod
• If you are using a tripod, be careful not to apply external force to the
tripod. Doing so may damage the projector.
• Do not place the tripod on an unstable surface.
• Be sure to use a tripod with a maximum load capacity of 3 kg or
more.
• To use the projector safely, position the tripod legs so that they are
as wide and stable as possible and be sure to securely attach the
projector to the tripod.
CAUTION
24
PREPARATION

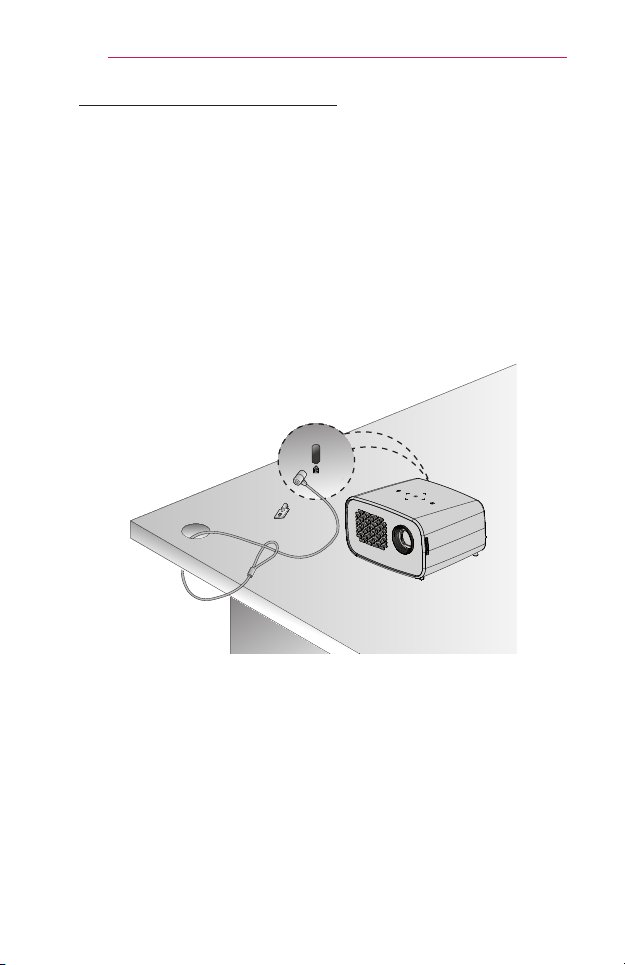

KensingtonSecuritySystem
• This projector has a Kensington Security Standard connector as an
anti-theft mechanism. Connect a Kensington Security System cable as
shown below.
• For more information on installation and use of the Kensington Security
System, refer to the user’s guide provided with the Kensington Security
System.
• The Kensington Security System is an optional accessory.
• What is Kensington?
Kensington is a company that provides safety systems for laptops and
other electronic devices.
Website: http://www.kensington.com
25
REMOTECONTROL
REMOTECONTROL
Open the lid at the back of the remote control
and insert the batteries as described in the
instructions. Use new batteries.
POWER
Turns the projector on or off.
MUTE
Mutes the sound of the projector.
INPUT
Changes the input source.
VOL+,-
Adjusts the volume level.
CH
,
Changes the channel or page.
PAGE
Moves to the previous/next page.
INFO
Views the information of the current
program and screen.
BLANK
Turns the projector screen on or off.
Up/Down/Left/Rightbuttons
Sets the function or moves the cursor.
OK
Shows the current mode and saves
changes to the settings.
FAV
Accesses your favorite channel.
Returns to the previous screen.
SETTINGS
Displays or closes the Settings menu.
Q.MENU
Enters the quick menu.
30
USINGTHEPROJECTOR
WatchingProjector
TurningtheProjectorOn
The menu screen display in this owner's manual is an example to help
users understand how to operate the product and may look different from
the actual screen.
1 Connect the power cord correctly to turn the projector on.
2 Place the OFF/ON switch on the rear port area to ON and press the
POWER button on the control panel or on the remote control. (If the
switch is placed to OFF, the projector will not turn on.)
3 On the Language and Time Zone Selection screen, select the
language and Time Zone you want.
4 Select the input signal you want using the INPUT button on the remote
control.
FocusoftheScreenImage
When an image appears on the screen, check if it is in focus and ts the
screen properly.
To adjust the focus of the image, rotate the focus ring.
Focus Ring
35
USINGTHEPROJECTOR
AdditionalOptions
AdjustingAspectRatio
1 Press the Q.MENU button.
2 Press the , buttons to select AspectRatio and press the OK
button.
Menu Description
16:9 Resizes images to the 16:9 ratio.
JustScan
Displays video images in the original size without
removing parts of the edge of the image.
• If you select JustScan, you may see image noises at
the edge or edges of the screen.
SetBy
Program
Displays images in the same aspect ratio as the original
image.
4:3 Resizes images to the previous standard 4:3.
Zoom
Resizes the image to t the screen width. The top and
bottom parts of the image may be cut off.
• Press the or button to zoom in or out of the
image.
• Press the or button to move the image.
Cinema
Zoom1
Formats an image to the cinemascope ratio, 2.35:1. It
ranges from 1 to 16.
• Press the or button to zoom in or out of the
image.
• Press the or button to move the image.
• If you enlarge or reduce an image, the image may be
distorted.
• Available picture size may differ depending on the input signal.
• You can also use the SETTINGS button.
NOTE
36
USINGTHEPROJECTOR
UsingtheKeystoneFunction
To prevent the screen image from becoming trapezoidal, Keystone
adjusts the top and bottom width of the image if the projector is not set up
at a right angle to the screen.
Because the Keystone function may cause inferior screen image quality,
use this function only when it is not possible to set up the projector at an
optimal angle.
• Keystone 0
◀
L R
▶
Close
1 Press the SETTINGS button.
2 Use the , , , or buttons to select OPTION2 and press the
OK button.
3 Use
the or buttons to select Keystone and press the OK button.
4 Use the or buttons to adjust Keystone.
5 Keystone can be adjusted from -40 to 40.
6 Press the OK button when nished.
Changinginputdevice
Toselectanexternalinput
You can select inputs connected to the projector.
• Press the INPUT button on the remote control to display the input
selection screen.
- Connected inputs are displayed rst.
• Select an input signal using the remote control's INPUT button to
connect the projector to the desired input.
You can use the or button to switch between all the input modes.
Input List
TV USB HDMI
ꔂ Move ꔉ OK
Exit
Input Label
37
USINGTHEPROJECTOR
SelectinganInputLabel
Displays which devices are connected to which input ports.
Input Label
HDMI
Close
1 Press the INPUT button on the remote control to display the input
selection screen.
2 Use the Redbutton.
3 Use the or button to select one of the input labels.
BlankFunction
UsingtheBlankFunction
This function may be effective when you need to draw attention during a
meeting or training.
1 Press the BLANK button, and the screen is covered by the
background color. You can change the background color by referring to
"Selecting the background color of the blank image".
2 Press any button to clear the blank function. To cover the screen
temporarily, press the BLANK button on the remote control. Do not
block the lens with any object while the projector is running. It may
become overheated and deformed or even cause a re.
39
MYMEDIA
MYMEDIA
BeforeUsing
ConnectingaUSBDevice
Connect a USB device (external
HDD, USB memory) to the USB port
of projector to enjoy the content les
stored in the USB device with your
projector. You cannot write or delete
data in the USB device. Connect a
USB ash drive as shown below.
USB ash
Drive
RemovingaUSBDevice
1 Press the Q.MENU button.
2 Use the or button to move to USBDevice and press the OK
button.
3 Select a USB to remove. Wait for conrmation that the USB device has
stopped before removing the USB.
• If detached early, an error may occur on the projector or the USB
storage device.
• Once a USB device has been selected for removal, it can no longer
be read. Remove the USB storage device and then re-connect it.
NOTE
40
MYMEDIA
TipsforusingaUSBdevice
• If the USB storage device has a built-in auto recognition program or uses
its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• If you use a USB extension cable, the USB device may not be
recognized or may not work properly.
• Use only USB storage devices formatted with the Windows FAT32 or
NTFS file system.
• For external USB HDDs, it is recommended that you use devices with a
rated voltage of less than 5 V and a rated current of less than 500 mA.
•
It is recommended to use a Hard Disk Drive with its own power supply.
(If the power being supplied is not sufficient, the USB storage device
may not be detected correctly.) Note, a USB Hub is not supported.
• It is recommended that you use USB flash drives of 32 GB or less and
USB HDDs of 1 TB or less.
• If a USB HDD with power-saving function does not work properly, turn
the power off and on. For more information, refer to the user manual of
the USB HDD.
• Data in USB storage device can be damaged so be sure to back
up important files to other devices. Data maintenance is the user's
responsibility and the manufacturer is not responsible for data loss.
42
MYMEDIA
Supportedaudiofiles
File
Format
Item Info
MP3
Bitrate 32 Kbps to 320 Kbps
SamplingRate 32 kHz to 48 kHz
AC3
Bitrate 32 kbps to 640 kbps
SamplingRate 32 kHz, 44.1 kHz, 48 kHz
MPEG
Bitrate 32 kbps to 448 kbps
SamplingRate 32 kHz to 48 kHz
AAC,
HEAAC
Bitrate 24 kbps to 3844 kbps
SamplingRate 8 kHz to 96 kHz
CDDA
Bitrate 1.44 Kbps
SamplingRate 44.1 kHz
LPCM
Bitrate 1.41 Mbps to 9.6 Mbps
SamplingRate
Multi Channel: 44.1 kHz, 88.2 kHz /
48 kHz, 96 kHz
Stereo: 176.4 kHz, 192 kHz
43
MYMEDIA
WatchingtheVideos
In the MovieList, you can watch movies stored on the connected USB
device.
Controls playback and sets options while viewing videos.
TipsforPlayingVideoFiles
• Some subtitles created by users may not work properly.
• The video and subtitle files should be placed in the same folder. For
subtitles to display correctly, the video and subtitle files must have the
same name.
• We do not support any stream that contains GMC (Global Motion
Compensation) or Qpel (Quarterpel Motion Estimation).
• Only H.264 / AVC profile level 4.1 and lower is supported.
• Video files that exceed 50 GB (gigabyte) are not supported for playback.
The file size limit is dependent on the encoding environment.
• DTS audio codec is not supported.
BrowsingMovieList
Play a video le stored from a connected device.
1 Connect a USB device.
2 Press the SETTINGS button.
3 Move to MYMEDIA.
4 Use the , or button to select MovieList and press the OK
button.
5 Use the , , , or button to select the le you want and press
the OK button.
USB STORAGE DEVICE
Page 1/1
Page 1/1
Drive1 Drive5Drive3 Drive4
Drive2
CH
Page Change
Movie List
Butterfly_...
01:34:33
Go to root folder
Go to upper folder
1
2
4
7 8
3
6
5
46
MYMEDIA
Item Description
Subtitle
Language
The subtitle can be turned on or off.
• Language: One of any of the available languages can
be selected.
• CodePage: A character set used for a subtitle can
be selected. By default, the subtitle is displayed in a
language configured in OPTION1→ Language.
- Sync: If a subtitle is not synchronized with its video,
you can adjust its speed at 0.5 seconds unit.
- Position: Moves the location of a subtitle.
- Size: Changes the subtitle font size.
Repeat
Turns the repeat function On or Off.
When it is set to off, the next le can be played
sequentially if the le name is similar.
SubtitleLanguage
Subtitle
Language
Language
Latin1
English, Spanish, French, German, Italian, Swedish,
Finnish, Dutch, Portuguese, Danish, Romanian, Norwegian,
Albanian, Gaelic, Welsh, Irish, Catalan, Valencian
Latin2
Bosnian, Polish, Croatian, Czech, Slovak, Slovenian,
Serbian, Hungarian
Latin4 Estonian, Latvian, Lithuanian
Cyrillic Bulgarian, Macedonian, Russian, Ukranian, Kazakh
Greek Greek
Turkish Turkish
Hebrew Modern Hebrew
Chinese Simplied Chinese
Korean Korean
Arabic Arabic
SetVideo.
You can change video settings. (Refer to "PICTURE Settings" on page 60.)
SetAudio.
You can change audio settings. (Refer to "AUDIO Settings" on page 65.)
47
MYMEDIA
RegisteringtheDivXcode
Checks DivX Reg. Code for replaying DivX protected videos. Register at
http://vod.divx.com.
Use Reg. Code to rent or purchase movies at www.divx.com/vod.
1 In the Settings menu, move to OPTION1 and press DivX(R)VOD.
Registration
Deregistration
Close
2 Press the or button to move to Registration and press the OK
button.
You must register your device to
play DivX(R) protected videos.
Registration Code: XXXXXXXXXX
Register at http://vod.divx.com
OK
3 Check the DivX RegistrationCode.
• Rented/purchased DivX files cannot be played if the DivX
Registration Code of a different device is used. Use only the DivX
Registration Code granted to this specific device.
• Converted files not conforming to the DivX Codec Standard may not
play or may produce abnormal sound.
NOTE
48
MYMEDIA
ToderegistertheDivXcode
Use the DivX deregistration code to deactivate the DivX DRM function.
1 In the Settings menu, move to OPTION1 and press DivX(R)VOD.
2 Use the or button to go to Deregistration and press the OK
button.
3 Select Yes.
No
No
Yes
Yes
Your device is already registered.
Are you sure you wish to deregister?
Deregistration code : ********
Deregister at http://vod.divx.com
Continue with registration?
• What is DRM [Digital Rights Management]?
DRM technologies and services protect the interests and rights of
copyright holders by preventing illegal use of digital content. Files
can be played after the license is verified through an online method,
etc.
NOTE
50
MYMEDIA
No. Description
1
Thumbnails
Abnormal le
File not supported
2
File List
3
Moves to the upper level folder.
4
Current page/Total no. of folder pages
5
Displays the remaining battery life.
6
Current page/Total no. of le pages
7
Moves to the top level folder.
8
Moves to the upper level folder.
6 Control playback by using the following buttons.
Q.MENU
2008/12/10
1920 x 1080
479 KB
[1/4]
Slideshow BGM Option Hide Exit
Item Description
Selects the previous or next photo.
Slideshow
All photos are displayed during slide show.
• Set SlideSpeed in the Option → SetPhotoView.
menu.
BGM
You can listen to music while viewing photos in full size.
Set the BGM in Option → SetPhotoView.menu.
52
MYMEDIA
SetVideo.
You can change video settings. (Refer to "PICTURE Settings" on page 60.)
SetAudio.
You can change audio settings. (Refer to "AUDIO Settings" on page 65.)
ListeningtoMusic
You can play audio les stored on the connected device.
SupportedMusicFiles
*.MP3
Bit rate range 32 Kbps to 320 Kbps
• Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz
• Sampling rate MPEG2 Layer3: 16 kHz, 22.05 kHz, 24 kHz
BrowsingMusicList
1 Connect a USB device.
2 Press the SETTINGS button.
3 Move to MYMEDIA.
4 Use the , or button to select MusicListand press the OK
button.
5 Use the , , , or button to select the le you want and press
the OK button.
USB STORAGE DEVICE
Page 1/1
Page 1/1
Drive1 Drive5Drive3 Drive4
Drive2
CH
Page Change
Music List
Butterfly_...
01:34:33
Go to root folder
Go to upper folder
1
2
4
7 8
3
6
5
54
MYMEDIA
Item Description
Pauses the media player.
Plays the previous/next le.
Reduces power consumption by adjusting peak screen
brightness.
Option Sets up the options of Music List.
Hide
Hides the playback bar.
• Press the OK button to make the playback bar appear.
Exit Returns to the Music List screen.
OptionsforMusicList
1 Press the Q.MENU button.
2 Use the or button to move to a desired option and press the OK
button.
3 Use the , , , or button to set up each item.
SetAudioPlay.
Item Description
Repeat Selects repeat play.
Random Selects random play.
SetAudio.
You can change audio settings. (Refer to "AUDIO Settings" on page 65.)
57
MYMEDIA
6 Control playback by using the following buttons.
• Click GoPage then the pop-up window for selecting the number of page
appears. Input the page to move to the page you want.
• Press the VOLUME+,- button to zoom in or zoom out.
Press the OK button and then use the Up/Down/Left/Right buttons to
move to GoPage or Zoom.
ꔦ
Q.MENU
Go Page Zoom Option Hide Exit
Item Description
GoPage
Moves to the page you want.
Use the Up/Down/Left/Right buttons to select a page
and press the OK button.
Zoom Enlarges or reduces the document.
Option Sets up the options of File Viewer.
Hide
Hides the menu.
• Press the OK button to make it appear.
Exit Returns to the File Viewer screen.
59
CUSTOMIZINGSETTINGS
CUSTOMIZINGSETTINGS
SETTINGS
1 Press the SETTINGS button.
2 Use the , , , or button to select the desired item and press
the OK button.
3 Use the , , , or button to set up the desired item and press
the OK button.
Menu Description
PICTURE Adjusts the image quality for optimal viewing.
AUDIO Adjusts the sound quality and volume level.
CHANNEL Sets up and edits a channel.
TIME Sets the time and time-related features.
INFORMATION Shows information about the Projector.
LOCK Locks or unlocks a channels or a programs.
OPTION1 Customizes the general settings.
OPTION2 Customizes the settings related the projector.
INPUT Selects the desired input source.
MYMEDIA Accesses photo, music, movie, and document les.
61
CUSTOMIZINGSETTINGS
Menu Description
PictureMode
Selects the picture mode optimized for the viewing
environment or the program.
You can also customize advanced options for each
mode.
Mode
Vivid
Maximizes the visual effect of video.
Heightens contrast, brightness and
sharpness to display vivid images.
Standard
Displays images in standard levels of
contrast, brightness and sharpness.
Cinema Optimizes the image for a movie.
Sport
Optimizes the image for sports by
emphasizing primary colors and
dynamic actions.
Game
Optimizes the image for playing games
on fast-moving screens.
Expert1/
Expert2
Menu for adjusting picture quality that
allows experts and amateurs to enjoy
the best Projector viewing.
- Expert mode is for picture tuning
professionals to control and ne-tune
using a specic image. For normal
images, the effects may not be
dramatic.
Contrast
Adjusts the difference between bright and dark
regions of the screen.
Brightness Adjusts the overall screen brightness.
Sharpness
Adjusts the sharpness of the borders between bright
and dark. Horizontal and Vertical Sharpness are
available only in Expert1/Expert2.
Color Adjusts the intensity of all colors.
Tint Adjusts the balance between red and green levels.
Advanced
Control
Customizes the advanced settings.
PictureOption Sets optional settings.
63
CUSTOMIZINGSETTINGS
ExpertControl
Menu Description
Dynamic
Contrast
Adjusts contrast and color to the optimal level
according to the screen’s brightness.
ColorGamut
Selects the range of colors that can be expressed.
• Standard: Displays the original colors of an input
signal regardless of the display features.
• Wide: Makes use of the display's rich colors.
EdgeEnhancer
Shows clearer and distinctive yet natural edges of
the video.
ExpertPattern Patterns used for expert adjustment.
ColorFilter
Filters a specic color spectrum in RGB colors to
ne-tune color saturation and hue accurately.
Color
Temperature
In Expert mode, you can customize the options of
each mode.
Gamma: Select 1.9, 2.2,or 2.4.
a. Method:2Points
- Pattern:Inner,Outer
- Points:Low,High
- Red/Green/Blue: The adjustment range for
each color is from -50 to +50.
- Applytoallinputs: The values of the Color
Temperature is applied to all the input modes.
b.Method:20PointIRE
- Pattern:Inner,Outer
- IRE(InstituteofRadioEngineers) is the unit
indicating the size of a video signal and can
be set to 5,10,15, ... 100.You can ne-tune for
each setting as shown below.
- Luminance: The adjustment range is 50 to
500.
- Red/Green/Blue: The adjustment range is -50
to +50.
- Applytoallinputs: The values of the Color
Temperature is applied to all the input modes.
65
CUSTOMIZINGSETTINGS
AUDIOSettings
1 Press the SETTINGS button.
2 Use the , , , or
button to select AUDIO and
press the OK button.
3 Use the , , , or
button to set up the desired item
and press the OK button.
- To return to the previous
menu, press the button.
AUDIO
• Sound Mode : Standard
• Sound Effect
• Auto Volume : On
ꔂ Move ꔉ OK
The available audio settings are described as follows.
Menu Description
Sound
Mode
Sets the sound mode.
Mode
Standard Suitable for all types of video.
News/Music
/Cinema/
Sport/Game
Sets audio optimized for a specic genre.
68
CUSTOMIZINGSETTINGS
TIMESettings
1 Press the SETTINGS button.
2 Use the , , , or
button to select TIME and press
the OK button.
3 Use the , , , or
button to set up the desired item
and press the OK button.
- To return to the previous
menu, press the button.
TIME
• Clock
• Off Time : Off
• On Time : Off
• Sleep Timer : Off
• Auto Off : 60 min.
• Automatic Standby : Off
ꔂ Move ꔉ OK
The available time settings are described as follows.
Menu Description
Clock Sets the time, date, or timer feature.
OffTime/
OnTime
Sets the time to turn on or off the projector automatically.
To use this feature, you should set the current time and
date in advance.
To use this feature, set the time correctly.
If you do not want to set OffTime/OnTime, select Off
in Repeat.
• If you set bothOfftime and Ontime features to
the same time, the Off time feature overrides the
On time feature.
• If you do not press any button within two hours after
the projector is turned on by the OnTime feature,
the projector enters standby mode automatically.
NOTE
Sleep
Timer
Turns off the Projector after a preset number of minutes.
To cancel the SleepTimer, select Off.
AutoOff
If there is no input signal or button press, the projector
automatically turns off after the preset time has elapsed.
Automatic
Standby
Turns off the projector automatically after a set period of
time if there is no button input on the projector.
72
CUSTOMIZINGSETTINGS
Menu Description
Lock
System
TVRating-
General
Blocks the TV programs that you
want based on the ratings by using
the Parental Control Function
(V-Chip).
The V-Chip electronically reads TV
program ratings and allows parents
to block program that are unsuitable
for children.
• Age TV-G (General audience,
suitable for all ages) TV-PG
(Parental guidance suggested,
containing material that are
unsuitable for younger children)
TV-14 (Parents strongly
cautioned, containing material that
are unsuitable for children age
14 and under) TV-MA (Mature
audience only, unsuitable for
children age
• Dialog (suggestive dialogue) TV-
PG or TV-14
• Language (coarse language)TV-
PG, TV-14, or TV-MA
• Sex (sexual situation) TV-PG,
TV-14, or TV-MA
• Violence TV-PG, TV-14, or
TV-MA
Downloadable
Rating
This function operates only when
TV has received Region5 Rating
data. The name of the rating option
may differ.
InputBlock Block the input sources.
73
CUSTOMIZINGSETTINGS
Menu Description
KeyLock
Locks control buttons on projector.
• Key Lock function remains intact even in case of
power outage or when the power cord is removed
from the wall socket.
• Key Lock function can only be set by remote control,
and not by the button on the projector.
• If you select On: You can turn the projector on only
with the Power button if you have turned the projector
off using the remote control. If you press a button on
the control panel while watching video, the message
"KeyLock" is displayed.
75
CUSTOMIZINGSETTINGS
Menu Description
Caption
Digital
Option
Set up the size and color of the subtitles
on DigitalOption. Please select Setby
Program or Custom.
Select Custom to adjust minute options
such as the subtitles’ size and color.
Item
Size Selects the wordsize.
Font Selects a typeface for the text.
TextColor Selects a color for the text.
Text
Opacity
Adjusts the opacity for the text
color.
BgColor
Selects a color for the
background color.
Bg
Opacity
Adjusts the opacity for the
background color.
Edge
Type
Selects an edge type.
Edge
Color
Selects a color for the edges.
DivX(R)
VOD
Sets DivX related settings.
Initial
Setting
Deletes all optional settings and returns to initial default
mode. Once initialization is complete, the projector will
turn off and on by itself.
• If LockSystem is activated, a pop-up password
prompt will appear.
• Do not turn off the power during initialization.
77
CUSTOMIZINGSETTINGS
Menu Description
High
Altitude
If the projector is used at an altitude higher than 1200
meters, turn this on.
Otherwise, the projector may overheat or its protection
function may be activated. If this happens, turn the
projector off and then on again after waiting for several
minutes.
Blank
Selects a background for blank Image.
Auto
Power
Makes the projector turn on automatically when the
adaptor plug is inserted.
Item
On
When the AC/DC plug is connected to the
projector, it turns on automatically.
Off
When the AC/DC plug is connected to the
projector, it goes into standby mode.
Self
Diagnosis
Troubleshoots functional problems that can arise while
using the product.
79
CONNECTINGDEVICES
ConnectingHD
Receiver,DVD
Player,orVCRPlayer
You can use various features after
connecting a HD receiver, DVD
player,VCR player, PC, laptop, etc.
to the projector with an HDMI cable.
HDMIConnection
With an HDMI cable, you can
enjoy high quality picture and
sound.
Using a HDMI cable, connect the
HDMI/MHL port of the projector to
the HDMI output port of the device
to connect. Both video and audio
are output at the same time.
Press the INPUT button on the
remote control and select HDMI.
HDMI / MHL
OFF / ON
ANTENNA IN
DC IN
HDMI / MHL
OFF / ON
ANTENNA IN
DC IN
Accessories
The table below shows examples
of switching the output. For
more information, refer to the
"External Output", "Connecting
to an External Monitor", or similar
sections of the owner's manual of
your computer.
Brand
Switching
Output
NEC [Fn]+[F3]
Panasonic [Fn]+[F3]
Toshiba [Fn]+[F5]
IBM
[Fn]+[F7]
Sony [Fn]+[F7]
Fujitsu
[Fn]+[F10]
LG [Fn]+[F7]
Samsung [Fn]+[F4]
Macintosh
Adjust the control
panel to enable
mirroring after
start-up.
80
CONNECTINGDEVICES
Connecting
Headphones
You can listen to the audio through
a headphone.
HDMI / MHL
OFF / ON
ANTENNA IN
DC IN
HDMI / MHL
OFF / ON
ANTENNA IN
DC IN
Optional Extras
81
CONNECTINGDEVICES
UsingtheMirroringFunctionofaMobile
Phone
MHL/SlimportConnection
You must use a HDMI adapter to connect your cell phone to the projector
and to output images and sound from your cell phone to the projector.
The compatible HDMI adapters are different, depending upon your cell
phone type. Therefore, purchase an appropriate MHL or Slimport adapter.
(To nd out whether your device is MHL/Slimport-certied, please contact
your device manufacturer.)
HDMI / MHL
OFF / ON
ANTENNA IN
Optional Extras
• When you connect a mobile phone to the HDMI/MHL port, you can
see the mobile phone screen through a projector.
- This only applies to mobile phones that support MHL/Slimport.
- You can use the remote control for some applications.
(However, , , , , and buttons on the remote control
are disabled.)
• Disconnect the MHL/Slimport cable from the projector when:
- The MHL/Slimport function is disabled.
- Your mobile device is fully charged in standby mode.
NOTE
82
MAINTENANCE
MAINTENANCE
Clean your Projector to keep it in optimal condition.
Cleaning
CleaningtheLens
If there is any dust or staining on the lens surface, you must clean the lens.
Use an air spray or a cleaning cloth to clean the lens.
To remove dust or stains, use an air spray or apply a small amount of
cleaning agent onto a swab or soft cloth to lightly rub the lens.
Please be aware that liquid may ow into the lens if the product is sprayed
directly onto the lens.
CleaningtheProjectorCase
To clean the projector case, rst unplug the power cord.
To remove dust or stains, use only a dry, lint-free, nonabrasive cloth to
polish the lens.
Do not use alcohol, benzene, thinners, or other chemicals, which may
damage the case.
83
SPECIFICATIONS
SPECIFICATIONS
MODELS PH300(PH300-NA)/PH300W(PH300W-NA)
Resolution(Pixel) 1280 (Horizontal) × 720 (Vertical)
AspectRatio
16:9 (Horizontal:Vertical)
Projection
Distance
(Videosize)
0.74 m to 3.76 m (50.8 cm to 254 cm)
RatioofUpward
Projection
100 %
Workingrangeof
theremotecontrol
3 m
AC-DCAdaptor
19 V
2.1 A
(Adaptor Input 100-240 V @ 50/60 Hz)
AudioOutput 1 W + 1 W
Receptiontype DTV-ATSC/TV-NTSC
Reception
channels
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69,
CADTV 1-135
ExternalAntenna
Impedance
75 Ω (VHF/ UHF)
Height(mm) 63.9 (front)/54.5 (rear), 65.9 (with foot)
Width(mm) 113.6
Depth(mm) 85.5
Weight(g)
430
USBDevice 5 V, 0.5 A (max.)
Power AC 100 - 240 V~, 50/60 Hz
85
SPECIFICATIONS
SupportedHDMI/DVI-DTVMode
Resolution
HorizontalFrequency
(kHz)
VerticalFrequency
(Hz)
480p
31.47
31.47
31.50
60
59.94
60
576p 31.25 50
720p
45.00
44.96
37.5
60.00
59.94
50
1080i
33.75
33.72
28.125
60
59.94
50
1080p
67.500
67.432
27.000
26.97
33.75
33.71
56.25
60
59.939
24.000
23.976
30.000
29.97
50
• To provide the best picture quality, a 1280 x 720 (720p) resolution is
recommended.
OpenSourceSoftwareNoticeInformation
To obtain the source code under GPL, LGPL, MPL, and other open source
licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers
and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a
charge covering the cost of performing such distribution (such as the cost of
media, shipping, and handling) upon email request to [email protected].
This offer is valid for three (3) years from the date on which you purchased the
product.
