PX700HD/PG700WU
PG705HD/PG705WU
DLP Projector
User Guide
Model No. VS17054/VS17346/VS17058/VS17060
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://
box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”
i
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the follow-
ing two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
y Consult the dealer or an experienced radio/TV technician for help.
Warning:
by the party responsible for compliance could void your authority to operate the
equipment.
For Canada
CAN ICES-3 (B)/NMB-3(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU and Low Voltage
Directive 2014/35/EU.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic
Equipment Directive 2012/19/EU (WEEE).
The mark indicates the requirement NOT to dispose the equipment
including any spent or discarded batteries or accumulators as unsorted
municipal waste, but use the return and collection systems available.
If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery
has a heavy metal content of more than 0.0005% Mercury or more than,
0.002% Cadmium, or more than 0.004% Lead.
ii
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth.
7. Do not block any ventilation openings. Install the unit in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs.
Convenience receptacles and the point where they exit from the unit. Be sure
that the power outlet is located near the unit so that it is easily accessible.
the manufacturer, or sold with the unit. When a cart is used, use
caution when moving the cart/unit combination to avoid injury from
tipping over.
13. Unplug this unit when unused for long periods of time.
unit has been damaged in any way, such as: if the power-supply cord or plug is
damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed
to rain or moisture, or if the unit does not operate normally or has been dropped.
iii
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use
of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued
by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr
6+
) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex III
of the RoHS2 Directives as noted below:
Examples of exempted components are:
1.
lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.
2. Lead in glass of cathode ray tubes.
3.
4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.
5. Copper alloy containing up to 4% lead by weight.
6. Lead in high melting temperature type solders (i.e. lead-based alloys containing
85% by weight or more lead).
7. Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or
ceramic matrix compound.
iv
Copyright Information
Copyright © ViewSonic
®
Corporation, 2018. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks
of Microsoft Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association.
DPMS and DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines
Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages resulting
from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves
-
ment may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means,
for any purpose without prior written permission from ViewSonic Corporation.
Product Registration
To fulfill possible future product needs, and to receive additional product information
as it becomes available, please visit your region section on ViewSonic’s website to
register your product online.
Registering your product will best prepare you for future customer service needs.
Please print this user guide and fill the information in the “For Your Records” section.
For additional information, please see the “Customer Support” section in this guide.
For Your Records
Product Name: PX700HD/PG700WU/PG705HD/PG705WU
ViewSonic DLP Projector
Model Number: VS17054/VS17346/VS17058/VS17060
Document Number: PX700HD/PG700WU/PG705HD/PG705WU_UG_ENG
Rev. 1% 0
--18
Serial Number: ________________________________________
Purchase Date:
________________________________________
Product disposal at end of product life
The lamp in this product contains mercury which can be dangerous to you and the
environment. Please use care and dispose of in accordance with local, state or
federal laws.
ViewSonic respects the environment and is committed to working and living green.
Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic
website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/eu/support/call-desk/
Taiwan: http://recycle.epa.gov.tw/
1
Table of contents
Important safety
instructions .......................2
Introduction......................5
Projector features ................................. 5
Shipping contents................................. 5

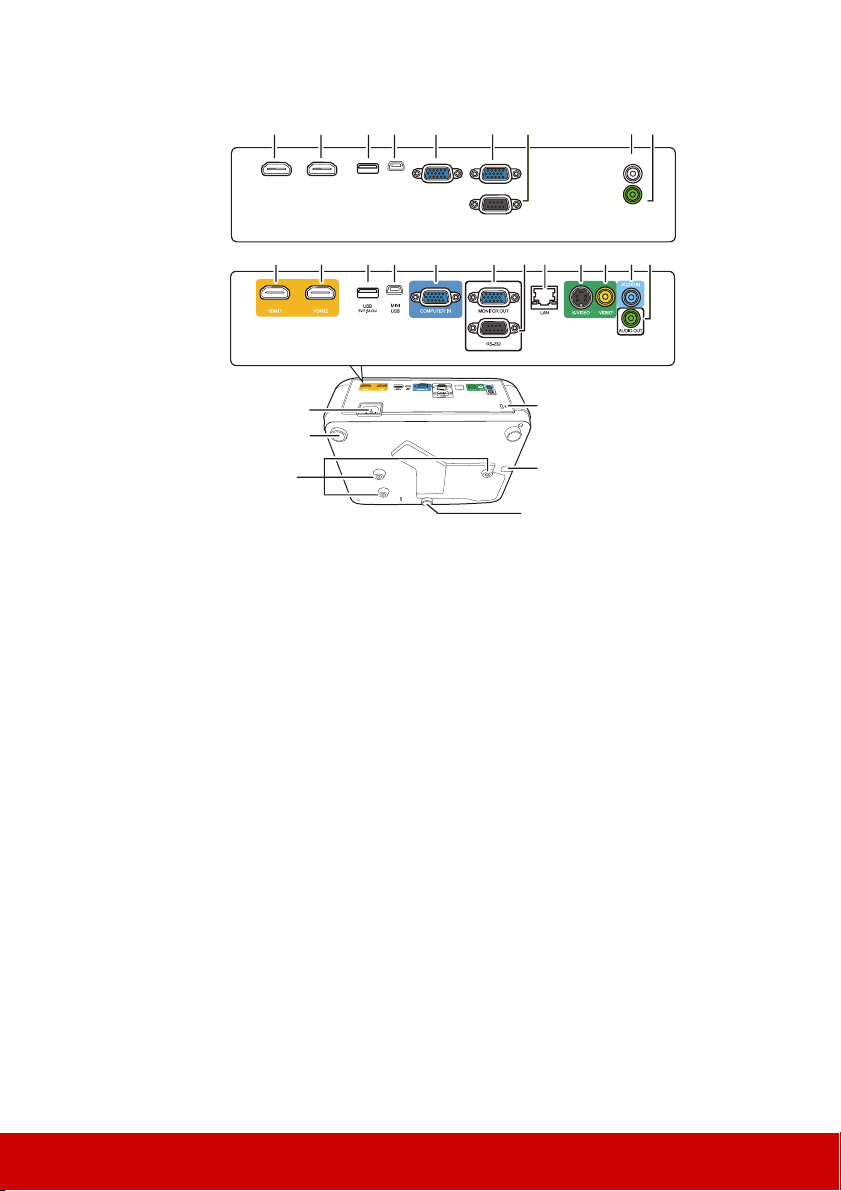

Controls and functions ......................... 6
Positioning your projector
..........................................12
Choosing a location............................ 12

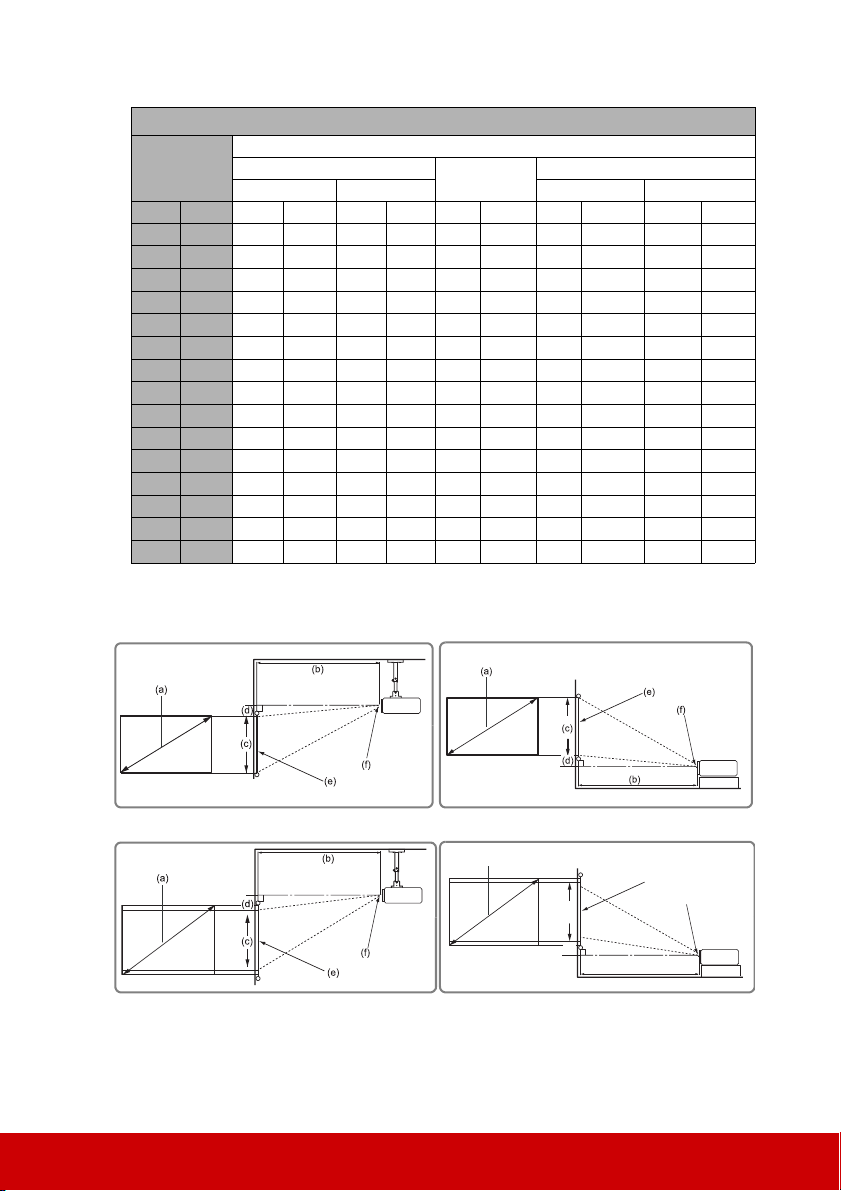

Projection dimensions........................ 13
Connection ......................19
Connecting a computer or monitor .... 20
Connecting Video source devices ...... 20
Playing sound through the projector .. 22
Operation ........................23
Starting up the projector..................... 23
Using the menus................................. 24
Utilizing the password function ......... 25
Switching input signal........................ 27
Adjusting the projected image ........... 28
Magnifying and searching for details
............................................................ 29
Selecting the aspect ratio ................... 29
Optimizing the image......................... 30
Setting the presentation timer ............ 34
Hiding the image................................ 35
Locking control keys.......................... 35
Operating in a high altitude environment
............................................................ 35
Using the CEC function ..................... 36
Using the 3D functions ...................... 36

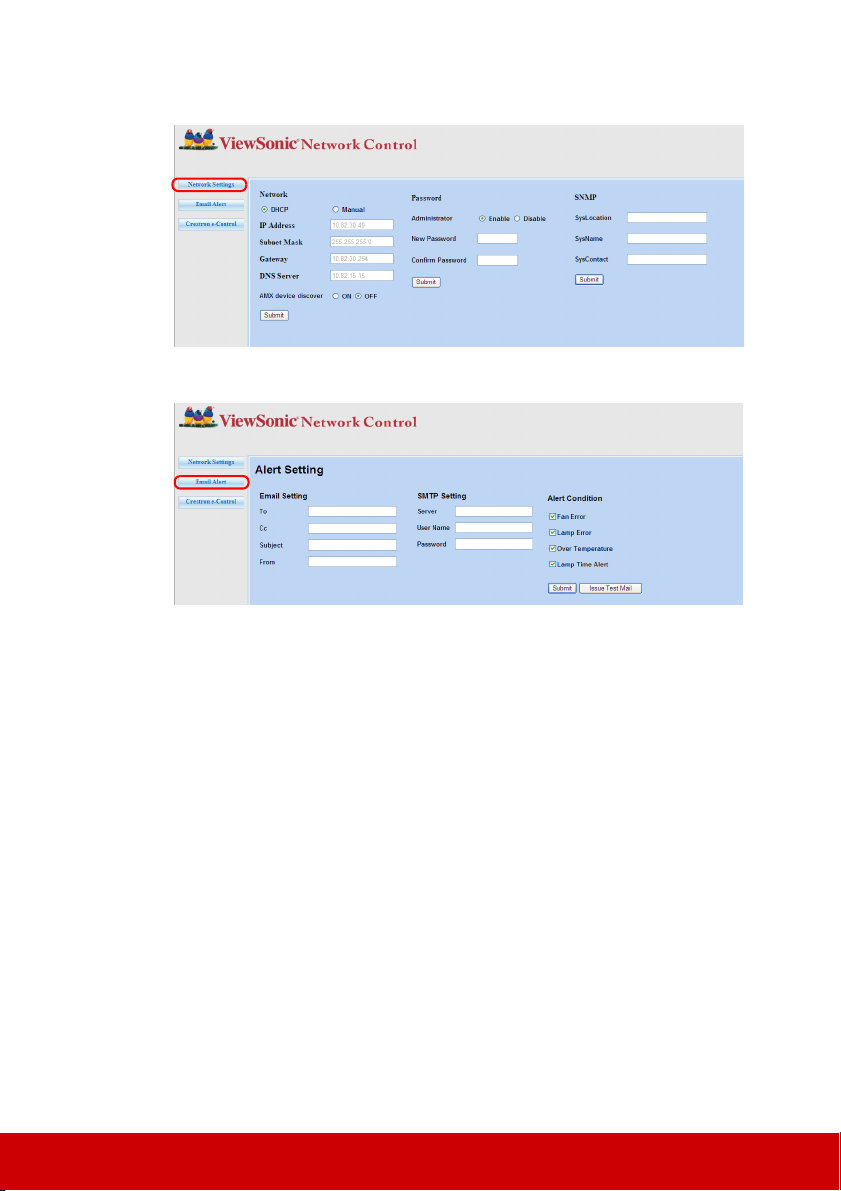

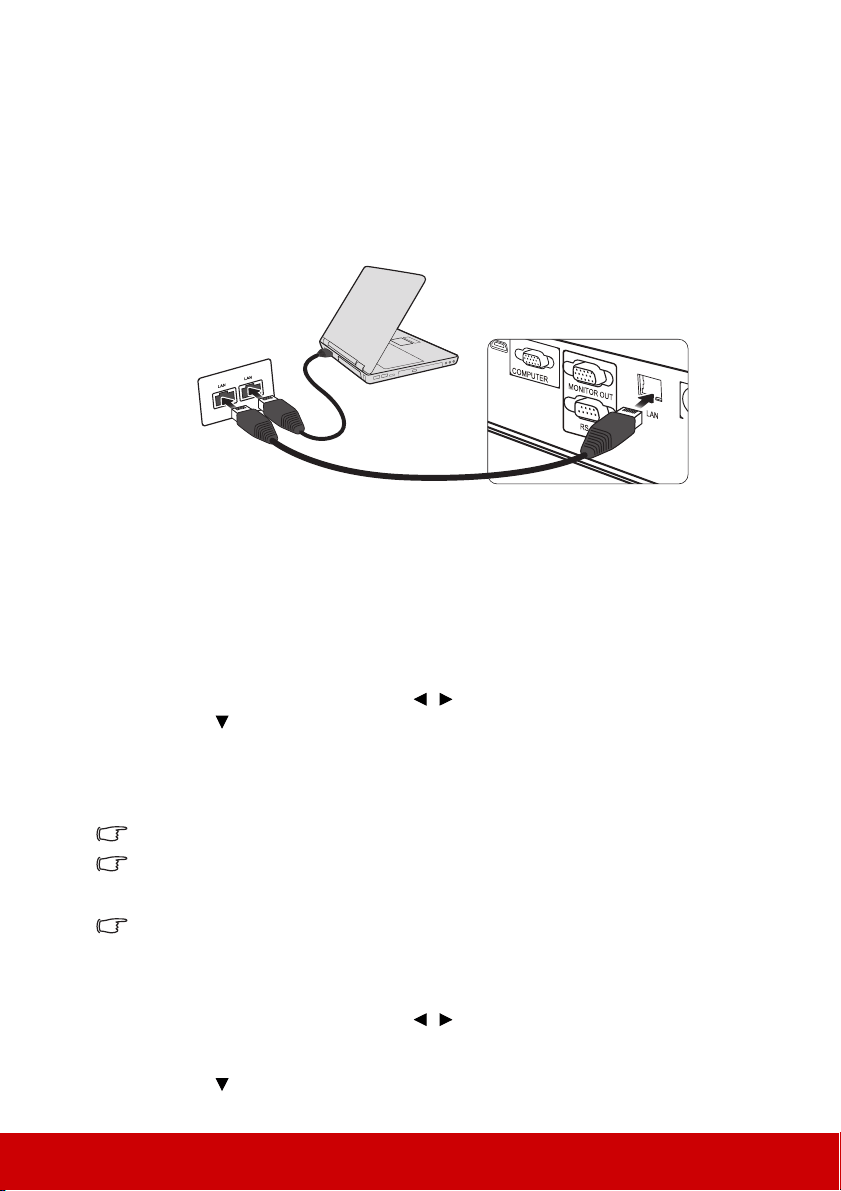

Controlling the projector through a LAN
environment (PG705HD/PG705WU)
........................................................... 37
Using the projector in standby mode. 44
Adjusting the sound ........................... 44
Shutting down the projector .............. 45
Menu operation.................................. 46
Maintenance ...................56
Care of the projector .......................... 56
Using the dust filter ........................... 56
Lamp information.............................. 58
Troubleshooting .............61
Specifications ..................62

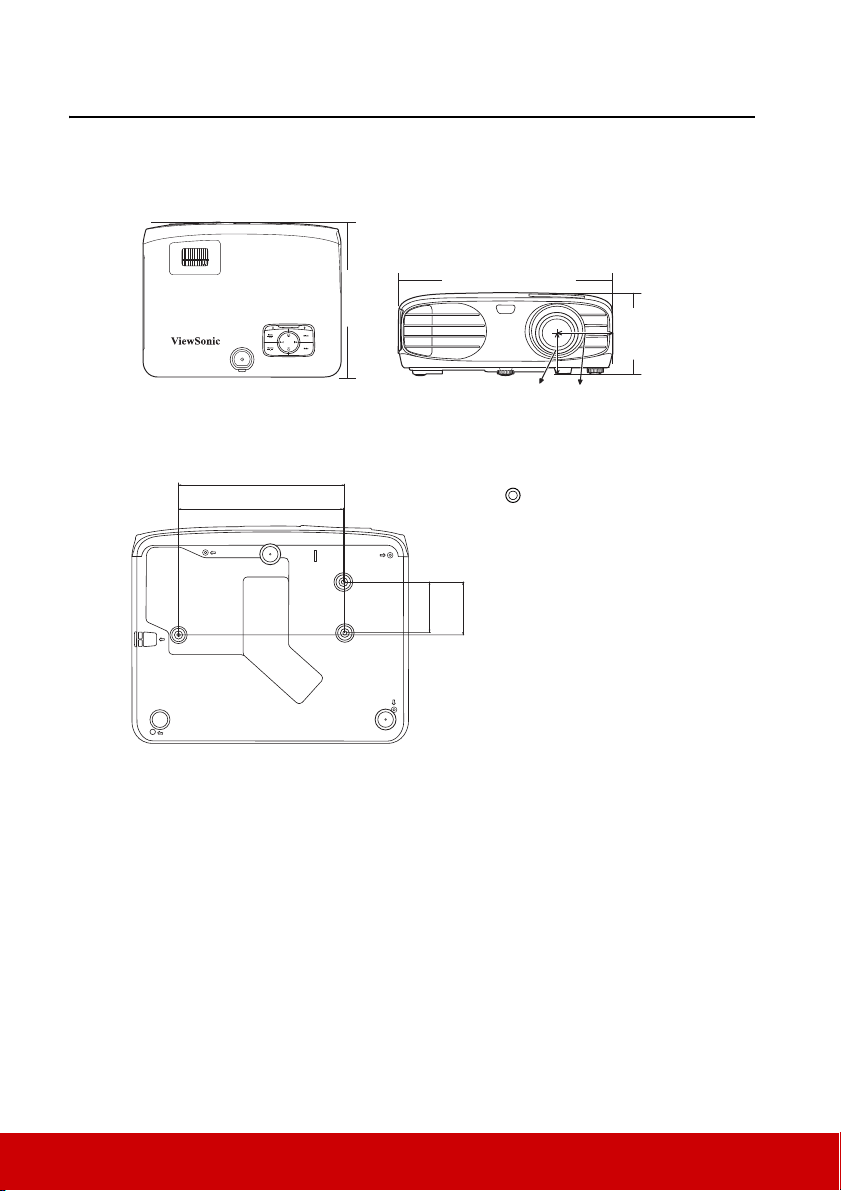

Dimensions ........................................ 62
Ceiling mount installation ................. 62
IR control table .................................. 63
RS232 command table....................... 64
Timing chart ...................................... 74
Projector specifications...................... 78
Copyright information...80
2
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that you
follow the instructions mentioned in this manual and marked on the product.
Safety Instructions
1. Please read this manual before you operate your projector. Save it for future
reference.
2. Do not look straight at the projector lens during operation. The intense light beam
may damage your eyes.
3. Refer servicing to qualified service personnel.
4. Always open the lens shutter or remove the lens cap when the projector lamp is
on.
5. In some countries, the line voltage is NOT stable. This projector is designed to operate
safely within a mains voltage between 100 to 240 volts AC, but could fail if power
cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate
or cut out, it is recommended that you connect your projector through a power
stabilizer, surge protector or uninterruptible power supply (UPS).
6. Do not block the projection lens with any objects when the projector is under
operation as this could cause the objects to become heated and deformed or even
cause a fire. To temporarily turn off the lamp, press BLANK on the projector or
remote control.
7. The lamp becomes extremely hot during operation. Allow the projector to cool for
approximately 45 minutes prior to removing the lamp assembly for replacement.
8. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps
beyond the rated life could cause them to break on rare occasions.
9. Never replace the lamp assembly or any electronic components unless the projector is
unplugged.
10. Do not place this product on an unstable cart, stand, or table. The product may fall,
sustaining serious damage.
11. Do not attempt to disassemble this projector. There are dangerous high voltages inside
which may cause death if you should come into contact with live parts.
Under no circumstances should you ever undo or remove any other covers. Refer
servicing only to suitably qualified professional service personnel.
12. Do not place this projector in any of the following environments.
- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls
and free flow of air around the projector.
- Locations where temperatures may become excessively high, such as the inside of a
car with all windows rolled up.
- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical
components, shortening the projector's life span and darkening the picture.
- Locations near fire alarms
- Locations with an ambient temperature above 40°C / 104°F
- Locations where the altitudes are higher than 3000 m (10000 feet).
3
13. Do not block the ventilation holes. If the ventilation holes are seriously obstructed,
overheating inside the projector may result in a fire.
- Do not place this projector on a blanket, bedding or any other soft surface.
- Do not cover this projector with a cloth or any other item.
- Do not place inflammables near the projector.
14. Always place the projector on a level, horizontal surface during operation.
- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of
more than 15 degrees front to back. Using the projector when it is not fully horizontal
may cause a malfunction of, or damage to, the lamp.
15. Do not stand the projector on end vertically. Doing so may cause the projector to fall
over, causing injury or resulting in damage to the projector.
16. Do not step on the projector or place any objects upon it. Besides probable physical
damage to the projector, doing so may result in accidents and possible injury.
17. Do not place liquids near or on the projector. Liquids spilled into the projector may
cause it to fail. If the projector does become wet, disconnect it from the power
supply's wall socket and call your local service center to have the projector serviced.
18. This product is capable of displaying inverted pictures for ceiling mount installation.
Use only qualified ceiling mount kit for mounting the projector and ensure it is
securely installed.
19. When the projector is under operation, you may sense some heated air and odor from
its ventilation grill. It is a normal phenomenon and not a product defect.
20. Do not use the Security bar for transporting or installation. It should be used with a
commercially available theft prevention cable.
21. CAUTION
Possibly hazardous optical radiation emitted from
this product. Do not stare at operating lamp. May be
harmful to the eyes. Risk Group 2. As with any bright
light source, do not stare into the beam, RG2 IEC 62471-5:201
Warning
• THIS APPARATUS MUST BE EARTHED.
• When installing the unit, incorporate a readily accessible disconnect device in the fixed
wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a
fault should occur during operation of the unit, operate the disconnect device to switch
the power supply off, or disconnect the power plug.
Safety instructions for ceiling mounting of the
projector
We want you to have a pleasant experience using your projector, so we need to bring this
safety matter to your attention to prevent damage to person and property.
If you intend to mount your projector on the ceiling, we strongly recommend that you use a
proper fitting projector ceiling mount kit and that you ensure it is securely and safely
installed.
If you use an inappropriate projector ceiling mount kit, there is a safety risk that the
projector may fall from the ceiling due to an improper attachment through the use of the
wrong gauge or length screws.
You can purchase a projector ceiling mount kit from the place you purchased your projector.
We recommend that you also purchase a separate security cable and attach it securely to
both the anti-theft lock slot on the projector and the base of the ceiling mount bracket. This
4
will perform the secondary role of restraining the projector should its attachment to the
mounting bracket become loose.
5
Introduction
Projector features
The projector integrates high-performance optical engine projection and a user-friendly
design to deliver high reliability and ease of use.
Some of the features may not be available on your projector. Actual performance may vary
and subject to model specifications.
• Power saving function decreasing the power consumption of the lamp by up to 70%
when no input signal can be detected for a set period of time.
• Presentation timer for better control of time during presentations
• LAN Settings allowing management of projector status from a remote computer
• Supports 3D display
•Color Management allowing color adjustments to your liking
• Less than 0.5W power consumption when power saving mode is turned on
• Screen Color correction allowing projection on surfaces of several predefined colors
• Quick auto search speeding up the signal detecting process
• Color modes providing choices for different projection purposes
• One-key auto-adjustment to display the best picture quality (only for analog signal)
• Digital keystone correction to correct distorted images
• Adjustable color management control for data/video display
• Ability to display 1.07 billion colors
• Multi-language On-Screen Display (OSD) menus
• Switchable normal and economic modes to reduce the power consumption
• Component HDTV compatibility (YP
bPr)
• HDMI CEC (Consumer Electronics Control) function allows synchronized power ON/
OFF operation between the projector and a CEC-compatible DVD player device
connected to the HDMI input of the projector
The apparent brightness of the projected image will vary depending on the ambient lighting
conditions, selected input signal contrast/brightness settings, and is directly proportional to
projection distance.
The lamp brightness will decline over time and may vary within the lamp manufacturers
specifications. This is normal and expected behavior.
Shipping contents
1. Projector
2. Power Cord
3. Quick Start Guide
4. Remote Control & Batteries
5. VGA Cable
6. Replacement lamp (optional) (Please contact qualified service personnel for changing
the lamp)
7. Soft carry case (optional)
6
Controls and functions
Projector
•Power
Toggles the projector between standby
mode and Power ON.
•/ (Keystone keys)
Manually corrects distorted images
resulting from an angled projection.
• Left/ Right/ Up/ Down
Selects the desired menu items and makes
adjustments when the On-Screen Display
(OSD) menu is activated.
•Menu
Turns on the On-Screen Display (OSD)
menu.
•Exit
Goes back to previous OSD menu, exits
and saves menu settings.
• Source
Displays the source selection bar.
• (Help)
Displays the HELP menu with a long
press for 3 seconds.
•Blank
Hides the screen picture.
•Enter
Enacts the selected On-Screen Display
(OSD) menu item when the On-Screen
Display (OSD) menu is activated.
• (Volume Up)
Increases the volume level.
• (Volume Down)
Decreases the volume level.
Focus ring
Power indicator light
Lamp indicator lightTemperature indicator
light
Zoom ring
Projection lens
Vent (heated air exhaust)
7
1. HDMI 1
HDMI port.
2. HDMI 2
HDMI port.
3. USB 5V/1.5A Out
USB Type A port for power supply.
4. MINI USB
Mini USB port.
5. COMPUTER IN
RGB (PC)/Component video (YPbPr/
YCbCr) signal input socket.
6. MONITOR OUT
RGB signal output socket.
7. RS-232
RS-232 control port.
8. LAN
RJ45 LAN port.
9. S-VIDEO
S-Video input socket.
10. VIDEO
Video input socket.
11. AUDIO IN
Audio signal input socket.
12. AUDIO OUT
Audio signal output socket.
RS-232
HDMI 1 HDMI 2
MONITOR OUT
AUDIO IN
AUDIO OUT
USB
5V/1.5A Out
MINI
USB
COMPUTER IN
PG705HD/PG705WU
PX700HD/PG700WU
71 2 3 4 56 1211
71 2 9 103 4 5 6 12118
Security bar for anti-theft lock
slot
Kensington anti-theft lock slot
AC power cord inlet
Ceiling mount holes
Adjuster foot
Adjuster foot
8
Remote control
To use the remote mouse control keys (Page Up, Page Down), see "Using the remote
PgUp/PgDn function" on page 10 for details.
Some functions may not be available on some models. The following functions are not
available for this projector: horizontal keystone and 4 corner adjustment.
•On/Off
Toggles the projector between standby
mode and Power ON.
•COMP
Selects source from COMPUTER IN
port for display.
•HDMI 1
Selects source from HDMI 1 port for
display.
•HDMI 2
Selects source from HDMI 2 port for
display.
• Auto Sync
Automatically determines the best
picture timings for the displayed
image.
• Source
Displays the source selection bar.
• / (Keystone keys)
Manually corrects distorted images
resulting from an angled projection.
•Enter
Enacts the selected On-Screen Display
(OSD) menu item.
PG705HD/PG705WU
PX700HD/PG700WU
9
Remote control code
The projector can be assigned to 8 different remote control codes, 1 to 8. When several
adjacent projectors are in operation at the same time, switching the remote control codes
can prevent interference from other remote controls. Set the remote control code for the
projector first before changing that for the remote control.
To switch the code for the projector, select from among 1 to 8 in the SYSTEM > Remote
Control Code menu.
To switch the code for the remote control, press ID set and the number button
corresponding to the remote control code set in the projector OSD together for 5 seconds or
more. The initial code is set to 1. When the code is switched to 8, the remote control can
control every projector.
• Left/ Right/ Up/ Down
Selects the desired menu items and makes
adjustments.
•Menu
Turns on the On-Screen Display (OSD)
menu.
•Exit
Exits and saves menu settings.
• (Laser)
Emits visible laser pointer light for
presentation purposes.
• Aspect
Displays the aspect ratio selection bar.
• Freeze
Freezes the screen picture.
• Pattern
Displays embedded test pattern.
•Blank
Hides the screen picture.
• PgUp (Page Up)/PgDn (Page Down)
Operates your display software program
(on a connected PC) which responds to
page up/down commands (like Microsoft
PowerPoint).
Only available when a PC input signal is
selected.
• (Presentation Timer)
Displays the presentation timer settings
menu.
•Eco Mode
Displays the lamp mode selection bar.
• (Volume Up)
Increases the volume level.
• (Volume Down)
Decreases the volume level.
• (Mute)
Toggles the projector audio between on
and off.
• (Zoom In)
Magnifies the projected picture size.
• (Zoom Out)
Reduces the projected picture size.
• (Information)
Displays the INFORMATION menu.
•Color Mode
Displays the color mode selection bar.
• Network
Displays the LAN Control Settings
menu.
10
If different codes are set on the projector and remote control, there will be no response from
the remote control. When that happens, a message will display to remind you to switch the
code for the remote control.
Using the remote PgUp/PgDn function
The capability of operating your computer with the remote control gives you more
flexibility when delivering presentations.
1. Set the input signal to a PC signal.
2. Connect the projector to your PC or notebook with a USB cable prior to using the
remote control in place of your computer’s mouse. See "Connecting a computer or
monitor" on page 20 for details.
3. To operate your display software program (on a connected PC) which responds to
page up/down commands (like Microsoft PowerPoint), press PgUp/PgDn.
Remote control effective range
Refer to the illustration about the location of the Infra-
Red (IR) remote control sensor(s). The remote control
must be held at an angle within 30 degrees
perpendicular to the projector's IR remote control
sensor(s) to function correctly. The distance between
the remote control and the sensor(s) should not exceed
8 meters (~ 26 feet).
Make sure that there are no obstacles between the
remote control and the IR sensor(s) on the projector
that might obstruct the infra-red beam.
Replacing the remote control batteries
1. To open the battery cover, turn the remote control over to view its back, press on the
finger grip on the cover and slide it down in the direction of the arrow as illustrated.
2. Remove any existing batteries (if necessary) and install two AAA batteries observing
the battery polarities as indicated in the base of the battery compartment. Positive (+)
goes to positive and negative (-) goes to negative.
3. Refit the cover by aligning it with the base and pushing it back down into position.
Stop when it clicks into place.
WARNING
• Avoid leaving the remote control and batteries in an excessive heat or humid environment
like the kitchen, bathroom, sauna, sunroom or in a closed car.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
A
pp
r
o
x
.
3
0
°
11
• Dispose of the used batteries according to the manufacturer's instructions and local
environment regulations for your region.
• Never throw the batteries into a fire. There may be danger of an explosion.
• If the batteries are drained or if you will not be using the remote control for an extended
period of time, remove the batteries to avoid damage to the remote control from possible
battery leakage.
12
Positioning your projector
Choosing a location
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable power
outlet, as well as the location and distance between the projector and the rest of your
equipment.
Your projector is designed to be installed in one of the following possible installation
locations:
1. Front Table
Select this location with the projector placed near
the floor in front of the screen. This is the most
common way to position the projector for quick
setup and portability.
2. Front Ceiling
Select this location with the projector suspended
upside-down from the ceiling in front of the screen.
Purchase the projector ceiling mount kit from your
dealer to mount your projector on the ceiling.
Set Front Ceiling in the SYSTEM > Projector
Position menu after you turn the projector on.
3. Rear Ceiling
Select this location with the projector suspended
upside-down from the ceiling behind the screen.
Note that a special rear projection screen and the
projector ceiling mounting kit are required for this
installation location.
Set Rear Ceiling in the SYSTEM > Projector
Position menu after you turn the projector on.
4. Rear Table
Select this location with the projector placed near
the floor behind the screen.
Note that a special rear projection screen is
required.
Set Rear Table in the SYSTEM > Projector
Position menu after you turn the projector on.
13
Projection dimensions
The "screen" mentioned below refers to the projection screen usually consisting of a screen
surface and a support structure.
Please see "Projector specifications" on page 78 for the native display resolution of this
projector.
PG705HD/PX700HD
PG705HD
(a) Screen Size
16:9 image on a 16:9 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 77 1952 92 2342 29 747 1.5 37 1.5 37
70 1778 90 2277 108 2732 34 872 1.7 44 1.7 44
80 2032 102 2602 123 3123 39 996 2.0 50 2.0 50
90 2286 115 2927 138 3513 44 1121 2.2 56 2.2 56
100 2540 128 3253 154 3903 49 1245 2.5 62 2.5 62
110 2794 141 3578 169 4293 54 1370 2.7 68 2.7 68
120 3048 154 3903 184 4684 59 1494 2.9 75 2.9 75
130 3302 166 4228 200 5074 64 1619 3.2 81 3.2 81
140 3556 179 4554 215 5464 69 1743 3.4 87 3.4 87
150 3810 192 4879 231 5855 74 1868 3.7 93 3.7 93
160 4064 205 5204 246 6245 78 1992 3.9 100 3.9 100
170 4318 218 5529 261 6635 83 2117 4.2 106 4.2 106
180 4572 231 5855 277 7026 88 2241 4.4 112 4.4 112
190 4826 243 6180 292 7416 93 2366 4.7 118 4.7 118
200 5080 256 6505 307 7806 98 2491 4.9 125 4.9 125
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(c)
(b)
(e)
(f)
(d)
(f): Center of lens(e): Screen
• 16:9 image on a 16:9 screen
• 16:9 image on a 4:3 screen
(a)
(d)
(c)
(b)
(e)
(f)
14
PG705HD
(a) Screen Size
16:9 image on a 4:3 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 71 1791 85 2150 27 686 1.4 34 1.4 34
70 1778 82 2090 95 2421 32 800 1.6 40 1.6 40
80 2032 94 2388 109 2767 36 914 1.8 46 1.8 46
90 2286 106 2687 123 3113 41 1029 2.0 51 2.0 51
100 2540 118 2986 136 3459 45 1143 2.3 57 2.3 57
110 2794 129 3284 150 3805 50 1257 2.5 63 2.5 63
120 3048 141 3583 163 4151 54 1372 2.7 69 2.7 69
130 3302 153 3881 177 4497 59 1486 2.9 74 2.9 74
140 3556 165 4180 191 4843 63 1600 3.2 80 3.2 80
150 3810 176 4478 204 5189 68 1715 3.4 86 3.4 86
160 4064 188 4777 218 5535 72 1829 3.6 91 3.6 91
170 4318 200 5075 232 5881 77 1943 3.8 97 3.8 97
180 4572 212 5374 245 6226 81 2057 4.1 103 4.1 103
190 4826 223 5672 259 6571 86 2172 4.3 109 4.3 109
200 5080 235 5971 272 6916 90 2286 4.5 114 4.5 114
PX700HD
(a) Screen Size
16:9 image on a 16:9 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 79 1996 86 2195 29 747 1.5 37.4 1.5 37
70 1778 92 2328 101 2561 34 872 1.7 43.6 1.7 44
80 2032 105 2661 115 2927 39 996 2 49.8 2 50
90 2286 118 2994 130 3293 44 1121 2.2 56 2.2 56
100 2540 131 3326 144 3659 49 1245 2.5 62.3 2.5 62
110 2794 144 3659 158 4025 54 1370 2.7 68.5 2.7 68
120 3048 157 3992 173 4391 59 1494 2.9 74.7 2.9 75
130 3302 170 4324 187 4757 64 1619 3.2 80.9 3.2 81
140 3556 183 4657 202 5123 69 1743 3.4 87.2 3.4 87
150 3810 196 4989 216 5488 74 1868 3.7 93.4 3.7 93
160 4064 210 5322 230 5854 78 1992 3.9 99.6 3.9 100
170 4318 223 5655 245 6220 83 2117 4.2 105.8 4.2 106
180 4572 236 5987 259 6586 88 2241 4.4 112.1 4.4 112
190 4826 249 6320 274 6952 93 2366 4.7 118.3 4.7 118
200 5080 262 6653 288 7318 98 2491 4.9 124.5 4.9 125
15
PG705WU/PG700WU
PX700HD
(a) Screen Size
16:9 image on a 4:3 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 72 1832 79 2015 27 686 1.4 34 1.4 34
70 1778 84 2137 93 2351 32 800 1.6 40 1.6 40
80 2032 96 2443 106 2687 36 914 1.8 46 1.8 46
90 2286 108 2748 119 3023 41 1029 2 51 2 51
100 2540 120 3053 132 3358 45 1143 2.3 57 2.3 57
110 2794 132 3358 145 3694 50 1257 2.5 63 2.5 63
120 3048 144 3664 159 4030 54 1372 2.7 69 2.7 69
130 3302 156 3969 172 4366 59 1486 2.9 74 2.9 74
140 3556 168 4274 185 4702 63 1600 3.2 80 3.2 80
150 3810 180 4580 198 5038 68 1715 3.4 86 3.4 86
160 4064 192 4885 212 5374 72 1829 3.6 91 3.6 91
170 4318 204 5190 225 5709 77 1943 3.8 97 3.8 97
180 4572 216 5496 238 6045 81 2057 4.1 103 4.1 103
190 4826 228 5801 251 6381 86 2172 4.3 109 4.3 109
200 5080 240 6106 264 6717 90 2286 4.5 114 4.5 114
(a)
(c)
(b)
(e)
(f)
(d)
(f): Center of lens(e): Screen
• 16:10 image on a 16:10 screen
• 16:10 image on a 4:3 screen
16
PG705WU
(a) Screen Size
16:10 image on a 16:10 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 75 1897 90 2276 32 808 0 0 0 0
70 1778 87 2213 105 2655 37 942 0 0 0 0
80 2032 100 2529 119 3034 42 1077 0 0 0 0
90 2286 112 2845 134 3414 48 1212 0 0 0 0
100 2540 124 3161 149 3793 53 1346 0 0 0 0
110 2794 137 3477 164 4172 58 1481 0 0 0 0
120 3048 149 3793 179 4552 64 1615 0 0 0 0
130 3302 162 4109 194 4931 69 1750 0 0 0 0
140 3556 174 4425 209 5310 74 1885 0 0 0 0
150 3810 187 4741 224 5690 79 2019 0 0 0 0
160 4064 199 5057 239 6069 85 2154 0 0 0 0
170 4318 212 5374 254 6448 90 2289 0 0 0 0
180 4572 224 5690 269 6828 95 2423 0 0 0 0
190 4826 236 6006 284 7207 101 2558 0 0 0 0
200 5080 249 6322 299 7586 106 2692 0 0 0 0
PG705WU
(a) Screen Size
16:10 image on a 4:3 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 70 1789 85 2147 30 762 0 0 0 0
70 1778 82 2087 95 2421 35 889 0 0 0 0
80 2032 94 2386 109 2767 40 1016 0 0 0 0
90 2286 106 2684 123 3113 45 1143 0 0 0 0
100 2540 117 2982 136 3459 50 1270 0 0 0 0
110 2794 129 3280 150 3805 55 1397 0 0 0 0
120 3048 141 3578 163 4151 60 1524 0 0 0 0
130 3302 153 3877 177 4497 65 1651 0 0 0 0
140 3556 164 4175 191 4843 70 1778 0 0 0 0
150 3810 176 4473 204 5189 75 1905 0 0 0 0
160 4064 188 4771 218 5535 80 2032 0 0 0 0
170 4318 200 5069 232 5881 85 2159 0 0 0 0
180 4572 211 5368 245 6226 90 2286 0 0 0 0
190 4826 223 5666 259 6571 95 2413 0 0 0 0
200 5080 235 5964 272 6916 100 2540 0 0 0 0
17
PG700WU
(a) Screen Size
16:10 image on a 16:10 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 76 1938 84 2132 32 808 0 0 0 0
70 1778 89 2261 98 2487 37 942 0 0 0 0
80 2032 102 2584 112 2842 42 1077 0 0 0 0
90 2286 114 2907 126 3198 48 1212 0 0 0 0
100 2540 127 3230 140 3553 53 1346 0 0 0 0
110 2794 140 3553 154 3908 58 1481 0 0 0 0
120 3048 153 3876 168 4263 64 1615 0 0 0 0
130 3302 165 4199 182 4619 69 1750 0 0 0 0
140 3556 178 4522 196 4974 74 1885 0 0 0 0
150 3810 191 4845 210 5329 79 2019 0 0 0 0
160 4064 203 5168 224 5685 85 2154 0 0 0 0
170 4318 216 5491 238 6040 90 2289 0 0 0 0
180 4572 229 5814 252 6395 95 2423 0 0 0 0
190 4826 242 6137 266 6750 101 2558 0 0 0 0
200 5080 254 6460 280 7106 106 2692 0 0 0 0
PG700WU
(a) Screen Size
16:10 image on a 4:3 Screen
(b) Projection distance
(c) Image
height
(d) Vertical offset
min. max. min. max.
inch mm inch mm inch mm inch mm inch mm inch mm
60 1524 72 1828 79 2011 30 762 0 0 0 0
70 1778 84 2133 92 2346 35 889 0 0 0 0
80 2032 96 2438 106 2681 40 1016 0 0 0 0
90 2286 108 2742 119 3017 45 1143 0 0 0 0
100 2540 120 3047 132 3352 50 1270 0 0 0 0
110 2794 132 3352 145 3687 55 1397 0 0 0 0
120 3048 144 3656 158 4022 60 1524 0 0 0 0
130 3302 156 3961 172 4357 65 1651 0 0 0 0
140 3556 168 4266 185 4692 70 1778 0 0 0 0
150 3810 180 4571 198 5028 75 1905 0 0 0 0
160 4064 192 4875 211 5363 80 2032 0 0 0 0
170 4318 204 5180 224 5698 85 2159 0 0 0 0
180 4572 216 5485 238 6033 90 2286 0 0 0 0
190 4826 228 5789 251 6368 95 2413 0 0 0 0
200 5080 240 6094 264 6704 100 2540 0 0 0 0
18
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should physically
test the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
determine the exact mounting position so that it best suits your installation location.
19
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 5). They are commercially available from electronics stores.
The connection illustrations below are for reference only. The connecting jacks available on
the projector vary with each projector model.
For detailed connection methods, see pages 20-22.
RS-232
HDMI 1 HDMI 2
MONITOR OUT
AUDIO IN
AUDIO OUT
USB
5V/1.5A Out
MINI
USB
COMPUTER IN
PG705HD/PG705WU
PX700HD/PG700WU
20
Connecting a computer or monitor
Connecting a computer
1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the
computer.
2. Connect the other end of the VGA cable to the COMPUTER IN signal input socket
on the projector.
3. If you wish to use the remote mouse control function, take a USB cable and connect
the larger end to the USB port of the computer, and smaller end to the MINI USB
socket on the projector. See "Using the remote PgUp/PgDn function" on page 10 for
details.
Many notebooks do not turn on their external video ports when connected to a projector.
Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a
function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press
FN and the labeled function key simultaneously. Refer to your notebook's documentation to
find your notebook's key combination.
Connecting a monitor
If you want to view your presentation close-up on a monitor as well as on the screen, you
can connect the MONITOR OUT signal output socket on the projector to an external
monitor with a VGA cable following the instructions below:
1. Connect the projector to a computer as described in "Connecting a computer" on page
20.
2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the
D-Sub input socket of the video monitor.
Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable
and connect the DVI end of the cable to the DVI input socket of the video monitor.
3. Connect the other end of the cable to the MONITOR OUT socket on the projector.
The MONITOR OUT output only works when COMPUTER IN connection is made to the
projector. To use this connection method in the standby mode, turn on the Active VGA Out
function under the POWER MANAGEMENT > Standby Settings menu.
Connecting Video source devices
You can connect your projector to various Video source devices that provide any one of the
following output sockets:
• HDMI
• Component Video
•S-Video
• Video (composite)
You need only connect the projector to a Video source device using just one of the above
connecting methods, however each provides a different level of video quality. The method
you choose will most likely depend upon the availability of matching terminals on both the
projector and the Video source device as described below:
Best video quality
The best available video connection method is HDMI. If your source device is equipped
with an HDMI socket, you can enjoy uncompressed digital video quality.
See "Connecting an HDMI device" on page 21 for how to connect the projector to an HDMI
source device and other details.
21
If no HDMI source is available, the next best video signal is Component video (not to be
confused with composite video). Digital TV tuner and DVD players output Component
video natively, so if available on your devices, this should be your connection method of
choice in preference to (composite) video.
See "Connecting a Component Video source device" on page 21 for how to connect the
projector to a component video device.
Better video quality
The S-Video method provides a better quality analog video than standard composite Video.
If you have both composite Video and S-Video output terminals on your Video source
device, you should elect to use the S-Video option.
See "Connecting an S-Video source device" on page 22 for how to connect the projector to
an S-Video device.
Least video quality
Composite Video is an analog video and will result in a perfectly acceptable, but less than
optimal result from your projector, being the least video quality of the available methods
described here.
See "Connecting a composite Video source device" on page 22 for how to connect the
projector to a composite Video device.
Connecting audio
You can make use of the projector speaker in your presentations, and also connect separate
amplified speakers to the Audio Out socket of the projector. The audio output is controlled
by the projector Volume and Mute settings.
Connecting an HDMI device
You should use an HDMI cable when making connection between the projector and HDMI
devices.
1. Take an HDMI cable and connect one end to the HDMI output port of the video
device.
2. Connect the other end of the cable to the HDMI 1 or HDMI 2 input port on the
projector.
In the unlikely event that you connect the projector to a DVD player via the projector’s HDMI
input and the projected picture displays wrong colors, please change the color space to YUV.
See "Changing HDMI input settings" on page 27 for details.
Connecting a Component Video source device
Examine your Video source device to determine if it has a set of unused Component Video
output sockets available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
1. Take a VGA (D-Sub)-Component adaptor cable and connect the end with 3 RCA type
connectors to the Component Video output sockets of the Video source device. Match
the color of the plugs to the color of the sockets; green to green, blue to blue, and red
to red.
2. Connect the other end of the VGA (D-Sub)-Component adaptor cable (with a D-Sub
type connector) to the COMPUTER IN socket on the projector.
22
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
Connecting an S-Video source device
Examine your Video source device to determine if it has an unused S-Video output socket
available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
1. Take an S-Video cable and connect one end to the S-Video output socket of the Video
source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
If you have already made a Component Video connection between the projector and this S-
Video source device using Component Video connections, you need not connect to this
device using an S-Video connection as this makes an unnecessary second connection of
poorer picture quality. See "Connecting Video source devices" on page 20 for details.
Connecting a composite Video source device
Examine your Video source device to determine if it has a set of unused composite Video
output sockets available:
• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.
1. Take a Video cable and connect one end to the composite Video output socket of the
Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the projector.
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
You need only connect to this device using a composite Video connection if Component Video
input is unavailable for use. See "Connecting Video source devices" on page 20 for details.
Playing sound through the projector
You can make use of the projector speaker in your presentations, and also connect separate
amplified speakers to the AUDIO OUT socket of the projector.
23
Operation
Starting up the projector
1. Plug the power cord into the projector and into a
wall socket. Turn on the wall socket switch
(where fitted).
2. Press Power to start the projector. As soon as
the lamp lights up, a "Power On Ring Tone" will
be heard. The Power indicator light stays blue
when the projector is on.
(If necessary) Rotate the focus ring to adjust the
image clearness.
If the projector is still hot from previous activity, it will run the cooling fan for approximately 90
seconds before energizing the lamp.
To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning
it off.
To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 44 for details.
3. If the projector is activated for the first time, select your OSD language following the
on-screen instructions.
4. Switch all of the connected equipment on.
5. The projector will start to search for input signals. The current input signal being
scanned appears in the upper left corner of the screen. If the projector doesn't detect a
valid signal, the message 'No Signal' will continue to be displayed until an input
signal is found.
You can also press Source to select your desired input signal. See "Switching input
signal" on page 27 for details.
If the frequency/resolution of the input signal exceeds the projector's operating range, you will
see the message 'Out of Range' displayed on a blank screen. Please change to an input signal
which is compatible with the projector's resolution or set the input signal to a lower setting.
See "Timing chart" on page 74 for details.
24
Using the menus
The projector is equipped with On-Screen Display (OSD) menus for making various
adjustments and settings.
The OSD screenshots below are for reference only, and may differ from the actual design.
Below is the overview of the OSD menu.
To use the OSD menus, please select your language first.
1. Press Menu to turn the OSD menu
on.
3. Press to highlight Language and
press Enter.
2. Use / to highlight the
SYSTEM menu.
4. Use / / / to select a
preferred language.
5. Press Enter to go back to main
menu and press Menu to leave the
OSD menu.
Current input signal
Main menu icon
Sub-menu
Highlight
Go to the
previous page
or to exit.
Status
25
Utilizing the password function
For security purposes and to help prevent unauthorized use, the projector includes an option
for setting up password security. The password can be set through the On-Screen Display
(OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on
page 24.
You will be inconvenienced if you enable the password function yet forget the password
somehow. Do make a note of your password, and keep the note in a safe place for later recall.
Setting a password
Once a password has been set and the power on lock is enabled, the projector cannot be used
unless the correct password is entered every time the projector is started.
1. Open the OSD menu and go to the SYSTEM > Security Settings menu.
2. Press Enter and the Security Settings page is displayed.
3. Highlight Power On Lock and select On by pressing / .
4. As pictured to the right, the four arrow keys
( , , , ) respectively represent 4 digits (1,
2, 3, 4). According to the password you desire to
set, press the arrow keys to enter six digits for the
password.
5. Confirm the new password by re-entering the
new password.
Once the password is set, the OSD menu returns
to the Security Settings page.
6. To leave the OSD menu, press Exit.
If you forget the password
If the password function is activated, you will be asked
to enter the six-digit password every time you turn on
the projector. If you enter the wrong password, the
password error message as pictured to the right is
displayed lasting for 5 seconds, and the message
'INPUT PASSWORD' follows. You can retry by
entering another six-digit password, or if you did not record the password in this user
manual, and you absolutely do not remember it, you can use the password recall procedure.
See "Entering the password recall procedure" on page 26 for details.
If you enter an incorrect password 5 times in succession, the projector will automatically
shut down in a short time.
26
Entering the password recall procedure
1. Press and hold Auto Sync on the remote control
for 3 seconds. The projector will display a coded
number on the screen.
2. Write down the number and turn off your
projector.
3. Seek help from the local service center to decode
the number. You may be required to provide
proof of purchase documentation to verify that
you are an authorized user of the projector.
The "XXX" shown in the above screenshot are numbers
that vary depending on different projector models.
Changing the password
1. Open the OSD menu and go to the SYSTEM > Security Settings > Change
Password menu.
2. Press Enter. The message 'INPUT CURRENT PASSWORD' is displayed.
3. Enter the old password.
• If the password is correct, another message 'INPUT NEW PASSWORD' is
displayed.
• If the password is incorrect, the password error message is displayed lasting for
5 seconds, and the message 'INPUT CURRENT PASSWORD' is displayed
for your retry. You can press Exit to cancel or try another password.
4. Enter a new password.
5. Confirm the new password by re-entering the new password.
6. You have successfully assigned a new password to the projector. Remember to enter
the new password next time the projector is started.
7. To leave the OSD menu, press Exit.
The digits being input will be displayed as asterisks on-screen. Do make a note of your
password, and then keep the note in a safe place for later recall.
Disabling the password function
1. Open the OSD menu and go to the SYSTEM > Security Settings > Power On Lock
menu.
2. Press / to select Off.
3. The message 'INPUT PASSWORD' is displayed. Enter the current password.
• If the password is correct, the OSD menu returns to the Security Settings page
with 'Off' shown in the row of Power On Lock. You will not have to enter the
password next time you turn on the projector.
• If the password is incorrect, the password error message is displayed lasting for
5 seconds, and the message 'INPUT PASSWORD' is displayed for your retry.
You can press Exit to cancel or try another password.
Though the password function is disabled, you need to keep the old password in hand should
you ever need to re-activate the password function by entering the old password.
27
Switching input signal
The projector can be connected to multiple devices at the same time. However, it can only
display one full screen at a time.
Be sure the Quick Auto Search function in the SYSTEM menu is On if you want the
projector to automatically search for the signals.
You can also manually select the desired signal by pressing one of the source selection keys
on the remote control, or cycle through the available input signals.
1. Press Source. A source selection bar is displayed.
2. Press / until your desired signal is selected and press Enter.
Once detected, the selected source information will be displayed on the screen for
seconds. If there are multiple devices connected to the projector, repeat steps 1-2 to
search for another signal.
Please see "Projector specifications" on page 78 for the native display resolution of this
projector. For best display picture results, you should select and use an input signal which
outputs at this resolution. Any other resolutions will be scaled by the projector depending
upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture
clarity. See "Selecting the aspect ratio" on page 29 for details.
Changing HDMI input settings
In the unlikely event that you connect the projector to a device (like a DVD or Blu-ray
player) via the projector’s HDMI input and the projected picture displays wrong colors,
please change the color space to an appropriate one that fits the color space setting of the
output device.
To do this:
1. Open the OSD menu and go to the ADVANCED > HDMI Settings menu.
2. Press Enter.
3. Highlight HDMI Format and press / to select a suitable color space according
to the color space setting of the output device connected.
• RGB: Sets the color space as RGB.
• YUV: Sets the color space as YUV.
• Auto: Sets the projector to detect the color space setting of the input signal
automatically.
4. Highlight HDMI Range and press / to select a suitable HDMI color range
according to the color range setting of the output device connected.
• Enhanced: Sets the HDMI color range as 0 - 255.
• Normal: Sets the HDMI color range as 16 - 235.
• Auto: Sets the projector to detect the HDMI range of the input signal
automatically.
This function is only available when the HDMI input port is in use.
Refer to the documentation of the device for information on the color space and HDMI range
settings.
28
Adjusting the projected image
Adjusting the projection angle
The projector is equipped with an adjuster foot. It changes the image height and vertical
projection angle. Screw the adjuster foot to fine tune the angle until the image is positioned
where you want it.
If the projector is not placed on a flat surface or the screen and the projector are not
perpendicular to each other, the projected image becomes trapezoidal. To correct this
situation, see "Correcting keystone" on page 28 for details.
Do not look into the lens while the lamp is on. The strong light from the lamp may cause
damage to your eyes.
Auto-adjusting the image
In some cases, you may need to optimize the picture quality. To do this, press Auto Sync on
the remote control. Within 5 seconds, the built-in Intelligent Auto Adjustment function will
re-adjust the values of Frequency and Clock to provide the best picture quality.
The current source information will be displayed in the upper left corner of the screen for 3
seconds.
The screen will display ViewSonic logo while auto adjustment is functioning.
This function is only available when PC D-Sub input signal (analog RGB) is selected.
Fine-tuning the image clarity
Correcting keystone
Keystoning refers to the situation where the projected image becomes a trapezoid due to
angled projection.
To correct this, besides adjusting the height of the projector, you will need to manually
correct it following one of these steps.
• Using the remote control
1. Press / to display the Keystone
correction page.
2. Press to correct keystoning at the top of
the image. Press to correct keystoning at
the bottom of the image.
• Using the OSD menu
1. Open the OSD menu and go to the
DISPLAY > Keystone menu.
2. Press Enter.
1. Adjust the projected image to the size
that you need using the zoom ring.
2. If necessary, sharpen the image by rotating
the focus ring.
Press /
Press /
29
3. Press to correct keystoning at the top of the image or press to correct
keystoning at the bottom of the image.
Magnifying and searching for details
If you need to find the details on the projected picture, magnify the picture. Use the
direction arrow keys for navigating the picture.
• Using the remote control
1. Press on the remote control repeatedly to magnify the picture to a desired size.
2. Press the directional arrows ( , , , ) to navigate the picture.
3. To reduce size of the picture, you can press Auto Sync on the remote control to
restore the picture to its original size. Or you can press repeatedly.
• Using the OSD menu
1. Open the OSD menu and go to the
DISPLAY > Zoom menu.
2. Press Enter. The Zoom bar is displayed.
3. Repeat steps 2-3 in the section of Using the remote control above.
This adjustable range may vary depending on different aspect ratios.
The picture can only be navigated after it is magnified. You can further magnify the picture
while searching for details.
Selecting the aspect ratio
The 'aspect ratio' is the ratio of the image width to the image height.
With the advent of digital signal processing, digital display devices like this projector can
dynamically stretch and scale the image output to a different aspect than that of the image
input signal.
To select an image ratio that suits your need (no matter what aspect the source is), you can
follow one of the following steps.
• Press Aspect repeatedly.
•Go to the IMAGE > Aspect Ratio menu and press Enter. Press / to select an
aspect ratio to suit the format of the video signal and your display requirements.
About the aspect ratio
1. Auto: Scales an image proportionally to fit the projector's native resolution in its
horizontal width. This is suitable for the incoming image which is neither in 4:3 nor
16:9 and you want to make most use of the screen without altering the image's aspect
ratio.
2. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect
ratio. This is most suitable for 4:3 images like computer monitors, standard definition
TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.
3. 16:9 (PG705HD/PX700HD): Scales an image so that it is displayed in the center of
the screen with a 16:9 aspect ratio. This is most suitable for images which are already
in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.
4. 16:10 (PG705WU/PG700WU): Scales an image so that it is displayed in the center of
the screen with a 16:10 aspect ratio. This is most suitable for images which are
already in a 16:10 aspect, as it displays them without aspect alteration.
30
5. Panorama: Scales the image proportionally to fit the projector's native resolution in
its vertical height and fills the screen in a non-linear manner.
6. 2.35:1: Scales an image so that it is displayed in the center of the screen with a 2.35:1
aspect ratio without aspect alteration.
7. Anamorphic: Scales a 2.35:1 aspect image so that it fills the screen.
The table below demonstrates the effects of the aspect ratio settings on projectors with
different native resolutions. Please see "Projector specifications" on page 78 for the native
display resolution of your projector.
In the pictures below, the black portions are inactive areas and the white portions are active
areas. OSD menus can be displayed on those unused black areas.
Optimizing the image
Selecting a picture mode
The projector is preset with several predefined picture modes so that you can choose one to
suit your operating environment and input signal picture type.
To select an operation mode that suits your need, you can follow one of the following steps.
Aspect ratio setting
When the native aspect ratio of your projector is...
4:3 16:9 16:10
Auto
4:3
16:9 Not available
16:10
Not
available
Not available
Panorama
Not
available
2.35:1
Anamorphic
Not
available
31
• Press Color Mode to display the selection bar and press / to select a desired mode
or press Color Mode repeatedly.
•Go to the IMAGE > Color Mode menu and press Enter. Press / to select a
desired mode.
Picture modes for different types of signals
The picture modes available for different types of signals are listed below.
1. Brightest mode: Maximizes the brightness of the projected image. This mode is
suitable for environments where extra-high brightness is required, such as using the
projector in well lit rooms.
2. Presentation mode: Is designed for presentations under daylight environment to
match PC and notebook coloring.
3. Standard mode: Is designed for normal circumstances under daylight environment.
4. Photo mode: Is designed for photo viewing.
5. Movie mode: Is appropriate for playing colorful movies, video clips from digital
cameras or DVs through the PC input for best viewing in a blackened (little light)
environment.
6. Sports mode: Optimized for viewing sport match in well-lit environments.
7. Gaming mode: Is suitable for playing video games in a bright living room.
Using Screen Color
In the situation where you are projecting onto a colored surface such as a painted wall which
may not be white, the Screen Color feature can help correct the projected picture’s colors to
prevent possible color difference between the source and projected pictures.
To use this function, go to the DISPLAY > Screen Color menu and press Enter. Press /
to select a color which is closest to the color of the projection surface. There are several
precalibrated colors to choose from: Whiteboard, Greenboard, and Blackboard. The
effects of these settings may vary depending on different models.
This function is only available for PC timings from a VGA or HDMI input signal.
Fine-tuning the image quality in user modes
According to the detected signal type, there are some user-definable functions available.
You can make adjustments to these functions based on your needs.
Adjusting Brightness
Go to the IMAGE > Brightness menu and press Enter.
The higher the value, the brighter the image. And the
lower the setting, the darker the image. Adjust this
control so the black areas of the image appear just as
black and that detail in the dark areas is visible.
Adjusting Contrast
Go to the IMAGE > Contrast menu and press Enter.
The higher the value, the greater the contrast. Use this
to set the peak white level after you have previously
adjusted the Brightness setting to suit your selected
input and viewing environment.
Adjusting Color
50
-30
+80
-30
0
+40
32
Go to the IMAGE > Advanced > Color menu and press / .
Lower setting produces less saturated colors. If the setting is too high, colors on the image
will be overpowering, which makes the image unrealistic.
This function is only available when the input signal is Video, YPbPr or YCbCr.
Adjusting Tint
Go to the IMAGE > Advanced > Tint menu and press / .
The higher the value, the more greenish the picture becomes. The lower the value, the more
reddish the picture becomes.
This function is only available when the input signal is Video, YPbPr or YCbCr.
Adjusting Sharpness
Go to the IMAGE > Advanced > Sharpness menu and press / .
The higher the value, the sharper the picture becomes. The lower the value, the softer the
picture becomes.
This function is only available when the input signal is Video, YPbPr or YCbCr.
Adjusting Brilliant Color
Go to the IMAGE > Advanced > Brilliant Color menu and press / .
This feature utilizes a new color-processing algorithm and system level enhancements to
enable higher brightness while providing truer, more vibrant colors in the projected picture.
It enables a greater than 50% brightness increase in mid-tone images, which are common in
video and natural scenes, so the projector reproduces images in realistic and true colors. If
you prefer images with that quality, select a level that suits your need. If you don’t need it,
select Off.
Reducing image noise
Go to the IMAGE > Advanced > Noise Reduction menu and press / .
This function reduces electrical image noise caused by different media players. The higher
the setting, the less the noise.
This function is only available when a PC or Video input signal is selected.
Selecting a gamma setting
Go to the IMAGE > Advanced > Gamma menu and select a preferred setting by pressing
/ .
Gamma refers to the relationship between input source and picture brightness.
Selecting a Color Temperature
Go to the IMAGE > Color Temp. menu and press / .
The options available for color temperature settings vary according to the signal type
selected.
1. Cool: With the highest color temperature, Cool makes the image appear the most
bluish white than other settings.
2. Normal: Maintains normal colorings for white.
3. Warm: Makes images appear reddish white.
Setting a preferred color temperature
33
1. Go to the IMAGE > Color Temp. menu and press Enter.
2. Press / to select Cool, Normal or Warm and press Enter.
3. Press / to highlight the item you want to change and adjust the values by
pressing /
.
• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green,
and Blue.
• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red,
Green, and Blue.
This function is only available for PC timings from a VGA or HDMI input
signal.
Color Management
Only in permanent installations with controlled lighting levels such as boardrooms, lecture
theaters, or home theaters, should color management be considered. Color management
provides fine color control adjustment to allow for more accurate color reproduction, should
you require it.
If you have purchased a test disc which contains various color test patterns and can be used
to test the color presentation on monitors, TVs, projectors, etc., you can project any image
from the disc on the screen and enter the Color Management menu to make adjustments.
To adjust the settings:
1. Open the OSD menu and go to the IMAGE > Advanced > Color Management
menu.
2. Press Enter and the Color Management page is displayed.
3. Highlight Primary Color and press / to select a color from among Red, Yellow,
Green, Cyan, Blue, or Magenta.
4. Press to highlight Hue and press / to select its range. Increase in the range
will include colors consisted of more proportions of its two adjacent colors.
Please refer to the illustration to the right for
how the colors relate to each other.
For example, if you select Red and set its
range at 0, only pure red in the projected
picture will be selected. Increasing its range
will include red close to yellow and red close
to magenta.
5. Press to highlight Saturation and adjust
its values to your preference by pressing /
. Every adjustment made will reflect to the
image immediately.
For example, if you select Red and set its
value at 0, only the saturation of pure red will
be affected.
Saturation is the amount of that color in a video picture. Lower settings produce less
saturated colors; a setting of “0” removes that color from the image entirely. If the saturation
is too high, that color will be overpowering and unrealistic.
6. Press to highlight Gain and adjust its values to your preference by pressing / .
The contrast level of the primary color you select will be affected. Every adjustment
made will reflect to the image immediately.
RED
BLUE
GREEN
Yellow
Cyan
Magenta
34
7. Repeat steps 3 to 6 for other color adjustments.
8. Make sure you have made all of the desired adjustments.
Setting the presentation timer
Presentation timer can indicate the presentation time on the screen to help you achieve
better time management when giving presentations. Follow these steps to utilize this
function:
• Using the remote control
1. Press on the remote control and press repeatedly or / to select a Timer
Period.
2. Press Enter or wait for 3 seconds to activate the timer.
3. To display the Presentation Timer page, select Advanced.
• Using the OSD menu
1. Go to the BASIC > Presentation Timer menu.
2. Press Enter to display the Presentation Timer page.
3. Highlight Timer Period and decide the time period by pressing / . The length of
time can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in 5-
minute increments.
If the timer is already on, the timer will restart whenever the Timer Period is reset.
4. Press to highlight Timer Display and choose if you want the timer to show up on
the screen by pressing
/ .
5. Press to highlight Timer Position and set the timer position by pressing / .
6. Press to highlight Timer Counting Direction and select your desired counting
direction by pressing / .
7. Press to highlight Sound Reminder and decide if you want to activate sound
reminder by pressing / . If you select On, a double beep sound will be heard at
the last 30 seconds of counting down/up, and a triple beep sound will be produced
when the timer is up.
8. To activate the presentation timer, press and press / to highlight Start
Counting and press Enter.
9. A confirmation message displays. Highlight Yes and press Enter to confirm. You will
see the message “Timer is On” displaying on the screen. The timer starts counting
when the timer is on.
Selection Description
Always
Displays the timer on screen throughout the presentation
time.
1 min/2 min/3 min Displays the timer on screen in the last 1/2/3 minute(s).
Never Hides the timer throughout the presentation time.
Top-Left Bottom-Left Top-Right Bottom-Right
Selection Description
Count Up Increases from 0 to the preset time.
Count Down Decreases from the preset time to 0.
35
To cancel the timer, perform the following steps:
1. Press on the remote control or go to the BASIC > Presentation Timer menu.
2. Highlight Off. Press Enter. A confirmation message displays.
3. Highlight Yes and press Enter to confirm. You will see the message “Timer is Off”
displaying on the screen.
Hiding the image
In order to draw the audience's full attention to the presenter, you can press Blank on the
projector or remote control to hide the screen image. Press any key on the projector or
remote control to restore the image. The word 'BLANK' appears at the lower right corner of
the screen while the image is hidden.
You can set the blank time in the BASIC
> Blank Timer menu to let the projector return
the image automatically after a period of time when there is no action taken on the blank
screen.
Once Blank is pressed, the projector enters SuperEco mode automatically.
CAUTION
Do not block the projection lens from projecting as this could cause the blocking object to
become heated and deformed or even cause a fire.
Locking control keys
With the control keys on the projector locked, you can prevent your projector settings from
being changed accidentally (by children, for example). When the Panel Key Lock is on, no
control keys on the projector will operate except Power.
1. Go to the SYSTEM
> Panel Key Lock menu
2. Press Enter and press / to select On.
3. A confirmation message is displayed. Select Yes to confirm.
To release panel key lock, press and hold on the projector for 3 seconds.
You can also use the remote control to enter the SYSTEM
> Panel Key Lock menu and
select Off.
Keys on the remote control are still functional when panel key lock is enabled.
If you press Power to turn off the projector without disabling panel key lock, the projector
will still be in locked status the next time it is turned on.
Operating in a high altitude environment
We recommend you use the High Altitude Mode when your environment is between 1500
m–3000 m above sea level, and temperature is between 5°C–25°C.
CAUTION
Do not use the High Altitude Mode if your altitude is between 0 m and 1499 m and temperature
is between 5°C and 35°C. The projector will be over cooled, if you turn the mode on under
such a condition.
36
To activate the High Altitude Mode:
1. Open the OSD menu and go to the SYSTEM > High
Altitude Mode menu.
2. Press Enter and press / to select On. A
confirmation message is displayed.
3. Highlight Yes and press Enter.
Operation under "High Altitude Mode" may cause a higher
decibel operating noise level because of increased fan speed
necessary to improve overall system cooling and
performance.
If you use this projector under other extreme conditions excluding the above, it may display
auto shut-down symptoms, which is designed to protect your projector from over-heating.
In cases like this, you should switch to High Altitude Mode to solve these symptoms.
However, this is not to state that this projector can operate under any and all harsh or
extreme conditions.
Using the CEC function
This projector supports CEC (Consumer Electronics Control) function for synchronized
power on/off operation via HDMI connection. That is, if a device that also supports CEC
function is connected to the HDMI input of the projector, when the projector’s power is
turned off, the power of the connected device will also be turned off automatically. When
the power of the connected device is turned on, the projector’s power will be turned on
automatically.
To turn on the CEC function:
1. Open the OSD menu and go to the POWER MANAGEMENT > Auto Power On >
CEC menu.
2. Press / to select Enable.
In order for the CEC function to work properly, make sure that the device is correctly
connected to the HDMI input of the projector via an HDMI cable, and its CEC function is turned
on.
Depending on the connected device, the CEC function may not work.
Using the 3D functions
This projector features 3D function which enables you to enjoy 3D movies, videos, and
sporting events in a more realistic way by presenting the depth of the images. You need to
wear a pair of 3D glasses to view 3D images.
If the 3D signal is input from an HDMI 1.4a compatible device, the projector detects the
signal for 3D Sync information and once detected, it projects images in 3D format
automatically. In other cases, you may need to manually select a 3D Sync format for the
projector to project 3D images correctly.
1. Go to the ADVANCED > 3D Settings menu.
2. Press Enter. The 3D Settings page is displayed.
3. Highlight 3D Sync and press Enter.
4. Press
to select a 3D Sync setting and then press Enter to confirm.
When the 3D Sync function is on:
• The brightness level of the projected image will decrease.
• The Color Mode, Zoom and OverScan cannot be adjusted.
37
If you discover the inversion of the 3D image depth, set the 3D Sync Invert function to “Invert”
to correct the problem.
Controlling the projector through a LAN
environment (PG705HD/PG705WU)
The projector supports Crestron
®
software. With correct settings for the LAN Control
Settings menu, you can manage the projector from a computer using a web browser when
the computer and the projector are properly connected to the same local area network.
Configuring the LAN Control Settings
If you are in a DHCP environment:
1. Take a RJ45 cable and connect one end to the RJ45 LAN input jack of the projector
and the other end to the RJ45 port.
2. Open the OSD menu and go to the ADVANCED > LAN Control Settings menu.
Press Enter to display the LAN Settings page. Or you can press Network to open the
LAN Control Settings menu directly.
3. Highlight LAN Settings and press / to select DHCP ON.
4. Press to highlight Apply and press Enter.
5. Please wait for around 15 - 20 seconds, and then re-enter the LAN Settings page. The
Projector IP Address, Subnet Mask, Default Gateway, and DNS Server settings
will be displayed. Note down the IP address displayed in the Projector IP Address
row.
If the Projector IP Address still does not appear, contact your network administrator.
If the RJ45 cables are not properly connected, the Projector IP Address, Subnet Mask, Default
Gateway, and DNS Server settings will display 0.0.0.0. Make sure the cables are properly
connected and perform the procedures above again.
If you need to connect to the projector in its standby mode, set Standby LAN Control to On in
the ADVANCED > LAN Control Settings menu.
If you are in a non-DHCP environment:
1. Repeat steps 1-2 above.
2. Highlight LAN Settings and press / to select Static IP.
3. Contact your ITS administrator for information on the Projector IP Address, Subnet
Mask, Default Gateway, and DNS Server settings.
4. Press to select the item you want to modify and press Enter.
(An example of connection)
MIN
IN
I
USB
38
5. Press / to move the cursor and the press / to enter the value. You can also
use the numeric buttons on the remote control to enter the value.
6. To save the settings, press Enter. If you do not want to save the settings, press Exit.
7. Press to highlight Apply and press Enter.
If the RJ45 cables are not properly connected, the Projector IP Address, Subnet Mask, Default
Gateway, and DNS Server settings will display 0.0.0.0. Make sure the cables are properly
connected and perform the procedures above again.
If you wish to connect to the projector in its standby mode, be sure you have selected Static IP
and obtained the Projector IP Address, Subnet Mask, Default Gateway, and DNS Server
information when the projector is on.
Controlling the projector through a web browser
Once you have the correct IP address for the projector and the projector is on or in standby
mode, you can use any computer that is on the same local area network to control the
projector.
If you are using Microsoft Internet Explorer, make sure it is version 7.0 or higher.
The screen shots in this manual are for reference only, and may differ from the actual design.
1. Enter the address of the projector in the address bar of your browser and press Enter.
2. The main page of the Network Control appears.
Accessing to Network Settings or Email Alert page requires Administrator password. The
default password is "0000".
3. This page allows you to make adjustments to the AMX and SNMP settings. In the
AMX device discover row, when ON is selected, the projector can be detected by
5
4
3
39
controllers of AMX connected to the same network. For the Details of AMX Device
Discovery, visit the AMX web site at http://www.amx.com/.
4. If your projector is connected to a network which supports Simple Mail Transfer
Protocol (SMTP), you can configure it to alert you via email on significant events.
5. The Crestron (e-Control) page displays the Crestron e-Control user interface. See
"About Crestron e-Control®" on page 41 for details.
40
Please pay attention to the limitation of input length (including space and other punctuation
keys) in the list blow:
/ > < $ % + \ ' " are prohibited.
Category Item Input Length
Maximum Number
of Characters
Network Settings
Network
DHCP/Manual (N/A)
IP Address XXX.XXX.XXX.XXX
Subnet Mask XXX.XXX.XXX.XXX
Gateway XXX.XXX.XXX.XXX
DNS Server XXX.XXX.XXX.XXX
AMX device discovery (N/A)
Password
Administrator (N/A)
New Password 4
Confirm Password 4
SNMP
SysLocation 22
SysName 22
SysContact 22
Email Alert
Email Setting
To 40
Cc 40
Subject 40
From 40
SMTP Setting
Server 30
User Name 21
Password 14
Alert Condition
Fan Error (N/A)
Lamp Error (N/A)
Over Temperature (N/A)
Lamp Time Alert (N/A)
Submit (N/A)
Issue Test Mail (N/A)
41
About Crestron e-Control
®
1. The Crestron e-Control
®
page provides a variety of virtual keys to control the
projector or adjust the projected pictures.
i. These buttons function the same as the ones on the OSD menus or remote control.
See "2. IMAGE menu" on page 51 and "Projector" on page 6 for details.
ii. To switch between input signals, click on your desired signal.
The Menu button can also be used to go back to previous OSD menus, exit and save menu
settings.
The source list varies according to the connectors available on the projector.
When you use the projector control panel or remote control to change the OSD menu settings,
it may take a while for the web browser to synchronize these changes with the projector.
2. The tools page allows you to manage the projector, configure the LAN control
settings and secure access of remote network operation on this projector.
i. This section is only used with the Crestron Control System. Please contact
Creston or refer to its user manual for setup information.
ii. You can name the projector, keep track of its location and the person in charge of
it.
i
i
i
ii
You can press
/ to
reveal more
buttons.
i iv
iii
ii
v
vi
42
iii. You can adjust the LAN Control Settings.
iv. Once set, access to the remote network operation on this projector has been
password-protected.
v. Once set, access to the tools page has been password-protected.
To prevent errors, only input the English alphabet and digits on the tools page.
After making the adjustments, press the Send button and the data will be saved for the
projector.
vi. Press Exit to go back to the remote network operation page.
Please pay attention to the limitation of input length (including space and other punctuation
keys) in the list blow:
Category Item Input Length
Maximum Number of
Characters
Crestron Control
IP Address 16
IP ID 4
Port 5
Projector
Projector Name 32
Location 32
Assigned To 32
Network Configuration
DHCP (Enabled) (N/A)
IP Address 16
Subnet Mask 16
Default Gateway 16
DNS Server 16
User Password
Enabled (N/A)
New Password 26
Confirm 26
Admin Password
Enabled (N/A)
New Password 26
Confirm 26
43
3. The info page displays the information and status of this projector.
4. After pressing the button “Contact IT Help”, the HELP DESK window will appear in
the upper right corner of the screen. You will be able to deliver messages to
RoomView™ software administrators/users who connect to the same local area
network.
For more information, visit http://www.crestron.com & www.crestron.com/getroomview.
**Crestron RoomView
On the “Edit Room” page, enter the IP Address (or hostname) as shown on the projector’s
on-screen display (OSD) menu, and “02” for IPID, “41794” for the reserved Crestron
control port.
About Crestron RoomView™ setting and command method, please access below website to
get RoomView™ User Guide and more information:
http://www.crestron.com/products/roomview_connected_embedded_projectors_devices/
resources.asp
PJLink™, SNMP, AMX and Xpanel formats supported
This projector is PJLink™, SNMP V.1, AMX or Xpanel V1.10 compliant. For details,
please follow its user guide or website respectively to control and manage projectors.
Turn on Active VGA Out in the Standby Settings menu and Wake On Lan in the LAN Control
Settings menu before using Extron integration system in standby mode.
Press Exit to
go back to the
remote network
operation page.
44
Using the projector in standby mode
Some of the projector functions are available in standby mode (plugged in but not turned
on). To use these functions, be sure the cable connections are correctly made. For the
connection methods, see the Connection chapter.
Active VGA Out
Selecting On in the POWER MANAGEMENT > Standby Settings > Active VGA Out
outputs a VGA signal when the Computer 1 and Monitor Out sockets are correctly
connected to devices. The projector outputs the signal received only from Computer 1.
Active Audio Out
Selecting On in the POWER MANAGEMENT > Standby Settings > Active Audio Out
outputs an audio signal when the Audio In and Audio Out sockets are correctly connected
to a proper device.
Adjusting the sound
The sound adjustments made as below will have an effect on the projector speaker. Be sure
you have made a correct connection to the projector audio input/output jacks. See
"Connection" on page 19 for more details.
Muting the sound
1. Open the OSD menu and go to the BASIC > Audio Settings > Mute menu.
2. Press / to select On.
Adjusting the sound level
1. Open the OSD menu and go to the BASIC > Audio Settings > Audio Volume menu.
2. Press / to select a desired sound level.
If available, you can press // on the remote control to adjust the projector’s sound
level.
Turning off the Power On/Off Ring Tone
1. Open the OSD menu and go to the BASIC > Audio Settings > Power On/Off Ring
Tone menu.
2. Press / to select Off.
The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound
mute or changing the sound level will not affect the Power On/Off Ring Tone.
45
Shutting down the projector
1. Press Power or Off and a confirmation
message is displayed prompting you.
If you don't respond in a few seconds, the
message will disappear.
2. Press Power or Off a second time.
3. Once the cooling process finishes, a "Power
Off Ring Tone" will be heard. Disconnect the
power cord from the wall socket if the
projector will not be used in an extended
period of time.
To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 44 for details.
CAUTION
• To protect the lamp, the projector will not respond to any commands during the cooling
process.
• Do not unplug the power cord before the projector shutdown sequence is complete.
46
Menu operation
Menu system
Please note that the on-screen display (OSD) menus vary according to the signal type
selected.
The menu items are available when the projector detects at least one valid signal. If there is
no equipment connected to the projector or no signal detected, limited menu items are
accessible.
Main menu Sub-menu Options
1.
DISPLAY
Screen Color Off/Whiteboard/Blackboard/Greenboard
Aspect Ratio
PG705HD/PX700HD: Auto/4:3/16:9/
Panorama/2.35:1/Anamorphic
PG705WU/PG700WU: Auto/4:3/16:10/
Panorama/2.35:1/Anamorphic
Keystone Vertical
Position
Phase
H. Size
Zoom
OverScan Off/1/2/3/4/5
3X Fast Input Inactive/Active
2.
Color Mode
PX700HD: Brightest/Standard/Sports/
Gaming/Movie
PG705HD/PG705WU/PG700WU:
Brightest/Presentation/Standard/Photo/
Movie
Brightness
Contrast
Color Temp.
Warm
Red Gain/Green Gain/
Blue Gain/Red Offset/
Green Offset/Blue Offset
Normal
Cool
Advanced
Color
Tint
Sharpness
Gamma
C1/C2/C3/C4/C5/C6/C7/C8/G1/G2/G3/
G4/G5/DICOM SIM/sRGB
Brilliant Color Off/1/2/3/4/5/6/7/8/9/10
Noise Reduction
Color
Management
Primary Color
Hue
Saturation
Gain
Reset Color Settings Reset/Cancel
47
Main menu Sub-menu Options
3.
POWER
MANAGEMENT
Auto Power On
Signal Disable/VGA/HDMI/All
CEC Disable/Enable
Direct Power On Off/On
Smart Energy
Auto Power Off Disable/10 min/20 min/30 min
Sleep Timer
Disable/30 min/1 hr /2 hr/3 hr/
4 hr/8 hr/12 hr
Power Saving Enable/Disable
Standby
Settings
Active VGA Out Off/On
Active Audio Out Off/On
Smart Restart Disable/Enable
Quick Power Off Disable/Enable
4.
BASIC
Audio Settings
Mute On/Off
Audio Volume
Power On/Off Ring
Tone
On/Off
Presentation
Timer
Timer Period 1~240 m
Timer Display
Always/1 min/2 min/3 min/
Never
Timer Position
Top-Left/Bottom-Left/Top-
Right//Bottom-Right
Timer Counting
Direction
Count Down/Count Up
Sound Reminder On/Off
Start Counting/Off
Pattern Off/Test Card
Blank Timer
Disable/5 min/10 min/15 min/
20 min/25 min/30 min
Message On/Off
Splash Screen
PG705HD/PG705WU: Black/
Blue/ViewSonic/Off
PX700HD/PG700WU: Blue/
ViewSonic/Off
48
Main menu Sub-menu Options
5.
ADVANCED
3D Settings
3D Sync
Auto/Off/Frame
Sequential/Frame
Packing/Top-Bottom/
Side-by-Side
3D Sync Invert Disable/Invert
HDMI Settings
HDMI Format Auto/RGB/YUV
HDMI Range Auto/Enhanced/Normal
LAN Control
Settings
(PG705HD/
PG705WU)
LAN Settings DHCP ON/Static IP
Projector IP Address
Subnet Mask
Default Gateway
DNS Server
Standby LAN Control Off/On
Apply
Lamp Settings
Lamp Mode
Normal/Eco/Dynamic
Eco/SuperEco
Reset Lamp Hours
Lamp Hours
Filter Settings
Filter Mode On/Off
Reset Filter Hours Reset/Cancel
Filter Hours
DCR On/Off
Closed Caption
(PG705HD/
PG705WU)
Closed Caption Enable On/Off
Caption Version CC1/CC2/CC3/CC4
Reset Settings Reset/Cancel
6. SYSTEM
Language
Multi-language OSD
selection
Projector Position
Front Table/Rear Table/
Rear Ceiling/Front
Ceiling
Menu Settings
Menu Display Time
5 sec/10 sec/15 sec/20
sec/25 sec/30 sec
Menu Position
Center/Top-Left/Top-
Right/Bottom-Left/
Bottom-Right
High Altitude Mode On/Off
Quick Auto Search Off/On
Security Settings
Change Password
Power On Lock Off/On
Panel Key Lock Off/On
Remote Control Code 1/2/3/4/5/6/7/8
Baud Rate
115200/2400/4800/9600/
14400/19200/38400/
57600
49
Main menu Sub-menu Options
7.
INFORMATION
• Source
• Color Mode
• Resolution
• Color System
• IP Address (PG705HD/PG705WU)
• MAC Address (PG705HD/PG705WU)
• Firmware Version
• 3X Fast Input
• S/N
50
Description of each menu
Function Description
Screen Color See "Using Screen Color" on page 31 for details.
Aspect Ratio See "Selecting the aspect ratio" on page 29 for details.
Keystone See "Correcting keystone" on page 28 for details.
Position
Displays the position adjustment page. To move the projected
image, use the directional arrow keys. The values shown on the
lower position of the page change with every key press you made
until they reach their maximum or minimum.
This function is only available when a PC input signal is
selected.
The adjustment range may vary under different timings.
Phase
Adjusts the clock phase to reduce image
distortion.
This function is only available when
a PC input signal is selected.
H. Size
Adjusts the horizontal width of the image.
This function is only available when a PC input signal is
selected.
Zoom
See "Magnifying and searching for details" on page 29 for
details.
OverScan
Adjusts the overscan rate from 0% to 5%.
This function is only available when a Composite Video or
HDMI input signal is selected.
3X Fast Input
Selecting Yes enables the function. This function is favorable to
frame rate reducing. Quick response time in native timing can be
achieved. When enabled, the following settings will return to
factory preset values: Aspect Ratio, Keystone, Position, Zoom,
OverScan,
This function is only available when a native timing input
signal is selected.
1. DISPLAY menu
51
Function Description
Color Mode See "Selecting a picture mode" on page 30 for details.
Brightness See "Adjusting Brightness" on page 31 for details.
Contrast See "Adjusting Contrast" on page 31 for details.
Color Temp.
See "Selecting a Color Temperature" on page 32 and "Setting a
preferred color temperature" on page 32 for details.
Advanced
Color
See "Adjusting Color" on page 31 for details.
Tint
See "Adjusting Tint" on page 32 for details.
Sharpness
See "Adjusting Sharpness" on page 32 for details.
Gamma
See "Selecting a gamma setting" on page 32 for details.
Brilliant Color
See "Adjusting Brilliant Color" on page 32 for details.
Noise Reduction
See "Reducing image noise" on page 32 for details.
Color Management
See "Color Management" on page 33 for details.
Reset Color
Settings
Returns all color settings to the factory preset values.
2. IMAGE menu
52
Function Description
Auto Power On
Signal
Selecting VGA/HDMI allows the projector to turn on
automatically once the VGA/HDMI signal is fed through the
VGA/HDMI cable. You can also select All and the projector
will turn on automatically upon receiving either a VGA or
HDMI signal.
CEC
See "Using the CEC function" on page 36 for details.
Direct Power On
Selecting On allows the projector to turn on automatically
once the power is fed through the power cord.
Smart Energy
Auto Power Off
See "Setting Auto Power Off" on page 58 for details.
Sleep Timer
See "Setting Sleep Timer" on page 59 for details.
Power Saving
See "Setting Power Saving" on page 59 for details.
Standby
Settings
See "Using the projector in standby mode" on page 44 for
details.
Smart Restart
Selecting Enable enables you to restart the projector
immediately within 120 seconds after turning it off. After 120
seconds, if the projector is not turned on again, it will directly
enter the standby mode.
It takes some time to initiate this function. Make sure
the projector has been turned on for more than 4
minutes. If the projector is resumed by using the Smart
Restart feature, this function can be executed
immediately.
When Enable is selected, the Quick Power Off function
will be automatically set to “Enable”.
Quick Power
Off
Selecting Enable enables the function and the projector will
not enter the cooling process after being shut down. Selecting
Disable disables the function and the projector will enter
normal cooling process after being shut down.
If you attempt to restart the projector right after it’s been
turned off, it may not be turned on successfully and will
rerun its cooling procedure.
When Disable is selected, the Smart Restart function
will be automatically turned off.
3. POWER MANAGEMENT menu
53
Function Description
Audio Settings See "Adjusting the sound" on page 44 for details.
Presentation
Timer
See "Setting the presentation timer" on page 34 for details.
Pattern
The projector can display several test patterns. It helps you
adjust the image size and focus and check that the projected
image is free from distortion.
Blank Timer See "Hiding the image" on page 35 for details.
Message
Selecting On displays the current information on the screen
when the projector is detecting or searching for a signal.
Splash Screen
Allows you to select which logo screen will be displayed
during projector start-up.
3D Settings See "Using the 3D functions" on page 36 for details.
HDMI Settings See "Changing HDMI input settings" on page 27 for details.
LAN Control
Settings
(PG705HD/
PG705WU)
See "Controlling the projector through a LAN environment
(PG705HD/PG705WU)" on page 37 for details.
Lamp Settings
Lamp Mode
See "Setting Lamp Mode" on page 58 for details.
Reset Lamp Hours
Resets the lamp timer after new lamp is installed. For
changing the lamp, please contact qualified service personnel.
Lamp Hours
See "Getting to know the lamp hour" on page 58 for details on
how the total lamp hour is calculated.
Filter Settings See "Using the dust filter" on page 56 for details.
DCR
Enables or disables the DCR (Dynamic Contrast Ratio)
function. Selecting On enables the function and the projector
will automatically switch the lamp mode according to the
input image detected.
This function is only available for PC timings from a
VGA or HDMI input signal.
After enabling DCR, frequent lamp mode switching may
shorten lamp life and noise level will vary during
operation.
4. BASIC menu
5. ADVANCED menu
54
Function Description
Closed Caption
(PG705HD/
PG705WU)
Closed Caption Enable
Activates the function by selecting On when the selected
input signal carries closed captions.
• Captions: An on-screen display of the dialogue, narration,
and sound effects of TV programs and videos that are
closed captioned (usually marked as "CC" in TV listings).
This function is only available when a Composite video
input signal is selected and its system format is NTSC.
Caption Version
To view captions, select CC1, CC2, CC3, or CC4 (CC1
displays captions in the primary language in your area).
Reset Settings
Returns all settings to the factory preset values.
The following settings will still remain: Keystone, Phase,
H. Size, OverScan, Language, Projector Position, High
Altitude Mode, Security Settings, Remote Control Code,
3D Sync, Filter Mode, HDMI Settings.
Language
Sets the language for the On-Screen Display (OSD) menus.
See "Using the menus" on page 24 for details.
Projector
Position
See "Choosing a location" on page 12 for details.
Menu Settings
Menu Display Time
Sets the length of time the OSD will remain active after your
last key press. The range is from 5 to 30 seconds in 5-second
increments.
Menu Position
Sets the On-Screen Display (OSD) menu position.
High Altitude
Mode
A mode for operation in high altitude areas. See "Operating in
a high altitude environment" on page 35 for details.
Quick Auto
Search
See "Switching input signal" on page 27 for details.
Security
Settings
See "Utilizing the password function" on page 25 for details.
Panel Key Lock See "Locking control keys" on page 35 for details.
Remote Control
Code
See "Remote control code" on page 9 for details.
Baud Rate
Selects a baud rate that is identical with your computer’s so
that you can connect the projector using a suitable RS232
cable and control the projector with RS232 commands.
5. ADVANCED menu
6. SYSTEM menu
55
Function Description
Source
Shows the current signal source.
Color Mode
Shows the selected mode in the IMAGE menu.
Resolution
Shows the native resolution of the input signal.
Color System
Shows input system format.
IP Address (PG705HD/PG705WU)
Shows the IP address of your projector.
MAC Address (PG705HD/PG705WU)
Shows the MAC Address of your projector.
MAC Address stands for Media Access Control Address,
which is a physical layer address used to uniquely
identify a network node.
Firmware Version
Shows the current firmware version.
3X Fast Input
Shows whether the function is activated or not.
S/N
Shows the serial number for this projector.
7. INFORMATION menu
56
Maintenance
Care of the projector
You need to keep the lens and/or filter (optional accessory) clean on a regular basis.
Never remove any parts of the projector. Contact your dealer when any part of the projector
needs replacing.
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface.
• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens
cleaner and gently wipe the lens surface.
CAUTION
Never rub the lens with abrasive materials.
Cleaning the projector case
Before you clean the case, turn the projector off using the proper shutdown procedure as
described in "Shutting down the projector" on page 45 and unplug the power cord.
• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH
detergent. Then wipe the case.
CAUTION
Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the
case.
Storing the projector
If you need to store the projector for an extended time, please follow the instructions below:
• Make sure the temperature and humidity of the storage area are within the
recommended range for the projector. Please refer to "Specifications" on page 62 or
consult your dealer about the range.
• Retract the adjuster foot.
• Remove the battery from the remote control.
• Pack the projector in its original packing or equivalent.
Transporting the projector
It is recommended that you ship the projector with its original packing or equivalent.
Using the dust filter
CAUTION
• It is recommended to clean the dust filter every 100 hours after the dust filter is installed.
• Be sure to turn off the projector and unplug it from power source before installing or
detaching the filter.
57
• If your projector is ceiling-mounted or is not easily accessible, pay special attention to
your personal safety when replacing the dust filter.
Installing the dust filter
1. Be sure to turn off the projector and
unplug it from power source.
2. As the arrows shown to the right, fit
the filter by aligning and inserting it
into the projector slots.
3. Tighten the screw the secures the
dust filter.
For first time installation:
4. Open the OSD menu and go to the ADVANCED > Filter Settings menu.
5. Press Enter and the Filter Settings page is displayed.
6. Highlight Filter Mode and press / to select On. The filter timer starts counting.
Set Filter Mode to On only when using the projector after the dust filer (optional accessory) is
properly attached. Failing to do so will result in a shorter lamp life.
Obtaining the filter hour information
1. Open the OSD menu and go to the ADVANCED > Filter Settings menu.
2. Press Enter. The Filter Settings page is displayed.
3. You will see the Filter Hours information on the menu.
Cleaning the dust filter
1. Be sure to turn off the projector and unplug it from power source.
2. Loosen the screw the secures the dust filter.
3. Use a small vacuum cleaner or a soft brush to sweep the dust on the filter away.
4. Re-install the dust filter.
Resetting the filter timer
5. Open the OSD menu and go to the ADVANCED > Filter Settings menu.
6. Press Enter and the Filter Settings page is displayed.
7. Highlight Reset Filter Hours and press Enter. A warning message is displayed
asking if you want to reset the filter timer.
8. Highlight Reset and press Enter. The filter time will be reset to '0'.
1
2
3
1
2
58
CAUTION
Remember to set Filter Mode to Off in the ADVANCED > Filter Settings menu when using the
projector with the dust filter removed. Setting Filter Mode to Off does not reset the filter timer.
The timer will continue counting the next time you fit the filter back on and set Filter Mode to
On.
Lamp information
Getting to know the lamp hour
When the projector is in operation, the duration (in hours) of lamp usage is automatically
calculated by the built-in timer.
To obtain the lamp hour information:
1. Open the OSD menu and go to the ADVANCED > Lamp Settings menu.
2. Press Enter and the Lamp Settings page is displayed.
3. You will see the Lamp Hours information on the menu.
4. To leave the menu, press Exit.
Extending lamp life
The projection lamp is a consumable item. To keep the lamp life as long as possible, you
can do the following settings via the OSD menu.
Setting Lamp Mode
Setting the projector in Eco/Dynamic Eco/SuperEco mode reduces system noise, power
consumption and extends the lamp operation life.
It is not recommended that you use the SuperEco mode for a long time.
To set the lamp mode, go to the ADVANCED > Lamp Settings > Lamp Mode menu and
press / to select. Or you can press Eco Mode on the remote control to select.
Setting Auto Power Off
This function allows the projector to turn off automatically after a set period of time once no
input source is detected to prevent unnecessary waste of lamp life.
1. Open the OSD menu and go to the POWER MANAGEMENT > Smart Energy
menu.
2. Press Enter and the Smart Energy page is displayed.
3. Highlight Auto Power Off and press / .
4. If the preset time lengths are not suitable for your need, select Disable. The projector
will not automatically shut down in a certain time period.
Lamp mode Description
Normal Provides full lamp brightness.
Eco
Reduces lamp power consumption by 30% and lowers brightness to
extend the lamp life and decreases the fan noise.
Dynamic Eco
Reduces lamp power consumption by up to 70% depending on the
content brightness level.
SuperEco
Reduces lamp power consumption by 70% and lowers brightness to
extend the lamp life and decreases the fan noise.
59
Setting Sleep Timer
This function allows the projector to turn off automatically after a set period of time to
prevent unnecessary waste of lamp life.
1. Open the OSD menu and go to the POWER MANAGEMENT > Smart Energy
menu.
2. Press Enter and the Smart Energy page is displayed.
3. Highlight Sleep Timer and press / .
4. If the preset time lengths are not suitable for your presentation, select Disable. The
projector will not automatically shut down in a certain time period.
Setting Power Saving
The projector lowers the power consumption if no input source is detected after 5 minutes to
prevent unnecessary waste of lamp life. You can further decide if you would like the
projector to turn off automatically after a set period of time.
1. Open the OSD menu and go to the POWER MANAGEMENT > Smart Energy
menu.
2. Press Enter and the Smart Energy page is displayed.
3. Highlight Power Saving and press / .
4. When Enable is selected, the projector lamp will be changed to Eco
mode after no signal is detected for 5 minutes.
The lamp power will be changed to SuperEco mode after no
signal is detected for 20 minutes.
Timing of replacing the lamp
Please install a new lamp or consult your dealer when the Lamp indicator light lights up.
An old lamp may cause a malfunction in the projector and in some instances the lamp may
explode.
CAUTION
The Lamp indicator light and Temperature indicator light will light up if the lamp becomes too
hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp indicator light or
Temperature indicator light still lights up after turning the power back on, please contact your
dealer. See "Indicators" on page 60 for details.
Replacing the lamp
Turn the power off and disconnect the projector from the power outlet. Please contact
qualified service personnel for changing the lamp.
60
Indicators
Light Status & Description
Power events
Blue
Flashing
Off Off
Stand-by mode
Blue Off Off
Powering up
Blue Off Off
Normal operation
Blue
Flashing
Off Off
Normal power-down cooling (3 sec)
Red Off Off
Downloading
Blue Blue Blue
Burn in off
Lamp events
Blue
Flashing
Off Red
First Lamp-Lit error cooling (60 sec)
Off Off Red
Lamp error in normal operation (30 sec)
Blue Off Red
CW start fail (30 sec)
Thermal events
Off Red Off
Fan 1 error (the actual fan speed is +25% outside the
desired speed.)
Off Red Red
Fan 2 error (the actual fan speed is +25% outside the
desired speed.)
Off Red Blue
Fan 3 error (the actual fan speed is +25% outside the
desired speed.)
Off Red Purple
Fan 4 error (the actual fan speed is +25% outside the
desired speed.)
Red Red Red
Thermal sensor 1 open error (the remote diode has an
open-circuit condition.)
Red Red Blue
Thermal sensor 2 open error (the remote diode has an
open-circuit condition.)
Blue Red Red
Thermal sensor 1 short error (the remote diode has an
short-circuit condition.)
Off Red Blue
Thermal sensor 2 short error (the remote diode has an
short-circuit condition.)
Purple Red Red
Temperature 1 error (over limited temperature)
Purple Red Blue
Temperature 2 error (over limited temperature)
Off Blue Red
Fan IC #1 I2C connection error
61
Troubleshooting
The projector does not turn on.
No picture
Blurred image
Remote control does not work
Cause Remedy
There is no power from the power cord.
Plug the power cord into the AC inlet on the
projector, and plug the power cord into the power
outlet. If the power outlet has a switch, make sure
that it is switched on.
Attempting to turn the projector on again
during the cooling process.
Wait until the cooling down process has completed.
Cause Remedy
The video source is not turned on or
connected correctly.
Turn the video source on and check that the signal
cable is connected correctly.
The projector is not correctly connected to
the input signal device.
Check the connection.
The input signal has not been correctly
selected.
Select the correct input signal with the Source key
on the projector or remote control.
Cause Remedy
The projection lens is not correctly focused. Adjust the focus of the lens using the focus ring.
The projector and the screen are not
aligned properly.
Adjust the projection angle and direction as well as
the height of the projector if necessary.
Cause Remedy
The battery is out of power. Replace the battery with a new one.
There is an obstacle between the remote
control and the projector.
Remove the obstacle.
You are too far away from the projector. Stand within 8 meters (26 feet) from the projector.
The remote control code on the projector
and that on the remote control are not
consistent.
Adjust the remote control code.
62
Specifications
Dimensions
332 mm (W) x 121 mm (H) x 261 mm (D) (Excluding extrusions)
Ceiling mount installation
261
121
332
Unit: mm
66.34
86.93
63.62
60.87
199.55
198.1
Ceiling mount screws:
M4 x 8 (Max. L = 8 mm)
Unit: mm
63
IR control table
Key Format Byte1 Byte2 Byte3 Byte4
PgDn NEC X3 F4 05 FA
PgUp NEC X3 F4 06 F9
Blank NEC X3 F4 07 F8
Auto sync NEC X3 F4 08 F7
Up NEC X3 F4 0B F4
Down NEC X3 F4 0C F3
Left NECX3F40EF1
Right NEC X3 F4 0F F0
Color Mode NEC X3 F4 10 EF
Enter NEC X3 F4 15 EA
Exit NEC X3 F4 28 D7
D. ECO
(Eco mode)
NECX3F42BD4
Menu NEC X3 F4 30 CF
Source NECX3F440BF
Pattern NEC X3 F4 55 AA
HDMI/MDMI 1 NEC X3 F4 58 A7
HDMI 2 NEC X3 F4 59 A6
Volume+ NEC X3 F4 82 7D
Volume- NEC X3 F4 83 7C
VGA1 NEC X3 F4 41 be
Power On NEC X3 F4 4F B0
Power Off NEC X3 F4 4E B1
Information NEC X3 F4 97 68
Zoom + NEC X3 F4 67 98
Zoom - NEC X3 F4 68 97
MUTE NEC X3 F4 14 EB
ASPECT NEC 83 F4 13 EC
FREEZE NEC X3 F4 03 FC
Network NEC X3 F4 69 96
Presentation Timer NEC X3 F4 27 D8
64
Address code
RS232 command table
<Pin assignment for this two end>
<Interface>
Code 1 83F4
Code 2 93F4
Code 3 A3F4
Code 4 B3F4
Code 5 C3F4
Code 6 D3F4
Code 7 E3F4
Code 8 F3F4
Pin Description Pin Description
1NC2RX
3TX4NC
5GND6NC
7RTSZ8CTSZ
9NC
RS-232 protocol
Baud Rate 115200 bps (default)
Data Length 8 bit
Parity Check None
Stop Bit 1 bit
Flow Control None
65
<RS232 command table>
Function Status Action cmd
Power
Write
Turn on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
Turn off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E
Read
Power status
(on/off)
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 0x5E
Reset all
settings
Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F
Reset Color
Settings
Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87
Splash
Screen
Write
Splash Screen
Black
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67
Splash Screen
Blue
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68
Splash Screen
ViewSonic
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69
Splash Screen
Off
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B
Read
Splash Screen
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A 0x68
Quick
Power Off
Write
Quick Power
Off Off
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68
Quick Power
Off On
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x01 0x69
Read
Quick Power
Off status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0B 0x69
High
Altitude
Mode
Write
High Altitude
Mode Off
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69
High Altitude
Mode On
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x01 0x6A
Read
High Altitude
Mode status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0C
0x6A
Lamp Mode
Write
Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x00 0x6D
Eco 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x01 0x6E
Dynamic Eco 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x02 0x6F
SuperEco 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x03 0x70
Read
Lamp Mode
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x10 0x6E
66
Message
Write
Message Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x00 0x84
Message On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x01 0x85
Read
Message
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x27 0x85
Projector
Position
Write
Front Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E
Rear Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F
Rear Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60
Front Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61
Read
projector
position status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00 0x5F
3D Sync
Write
OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x00 0x7E
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x01 0x7F
Frame
Sequential
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x02 0x80
Frame
Packing
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x03 0x81
Top-Bottom 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x04 0x82
Side-by-Side 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x05 0x83
Read
3D Sync
Status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x20 0x7F
3D Sync
Invert
Write
Off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x00 0x7F
On 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x01 0x80
Read
3D Sync Invert
Status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x21 0x80
Contrast
Write
Contrast
decrease
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60
Contrast
increase
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61
Read Contrast ratio 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x02 0x61
Brightness
Write
Brightness
decrease
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61
Brightness
increase
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62
Read Brightness 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x03 0x62
67
Aspect ratio
Write
Aspect ratio
Auto
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62
Aspect ratio
4:3
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64
Aspect ratio
16:9
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65
Aspect ratio
16:10
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66
Aspect ratio
Anamorphic
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x05 0x67
Aspect ratio
2.35:1
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x07 0x69
Aspect ratio
Panorama
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x08 0x6A
Read Aspect ratio 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x04 0x63
Auto Adjust Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x05 0x00 0x63
Horizontal
position
Write
Horizontal
position shift
right
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x01 0x65
Horizontal
position shift
left
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x00 0x64
Read
Horizontal
position
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06 0x65
Vertical
position
Write
Vertical
position shift
up
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x00 0x65
Vertical
position shift
down
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66
Read
read Vertical
position
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x07 0x66
Color
temperature
Write
color
temperature
Warm
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x00 0x66
color
temperature
Normal
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x01 0x67
color
temperature
Cool
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x03 0x69
Read
color
temperature
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08 0x67
Blank
Write
Blank on 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x01 0x68
Blank off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x00 0x67
Read Blank status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x09 0x68
68
Keystone-
Vertical
Write
Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x00 0x68
Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x01 0x69
Read
Keystone
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0A
0x69
Color mode
Write
Brightest 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x00 0x69
Movie 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x01 0x6A
Photo 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x13 0x7C
Standard 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x04 0x6D
Presentation 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x14 0x7D
Sports 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x11 0x7A
Gaming 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x12 0x7B
Read
Preset mode
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0B
0x6A
Primary
Color
Write
Primary color
R
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x00 0x6E
Primary color
G
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x01 0x6F
Primary color
B
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x02 0x70
Primary color
C
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x03 0x71
Primary color
M
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x04 0x72
Primary color
Y
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x05 0x73
Read
Primary color
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x10 0x6F
Hue
Write
Hue decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x00 0x6F
Hue increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x01 0x70
Read Hue 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x11 0x70
Saturation
Write
Saturation
decrease
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x00 0x70
Saturation
increase
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71
Read Saturation 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12 0x71
Gain
Write
Gain decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x00 0x71
Gain increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x01 0x72
Read Gain 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x13 0x72
69
Freeze
Write
Freeze on 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60
Freeze off 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F
Read Freeze status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00 0x60
Source
input
Write
Input source
VGA
0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60
Input source
HDMI
0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x03 0x63
Input source
HDMI2
0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x07 0x67
Input source
Composite
0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x05 0x65
Input source
S-Video
0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x06 0x66
Read Source 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01 0x61
Quick Auto
Search
Write
Quick Auto
Search on
0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62
Quick Auto
Search off
0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61
Read
Quick Auto
Search status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02 0x62
Mute
Write
Mute on 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x01 0x61
Mute off 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x00 0x60
Read Mute status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x00 0x61
Volume
Write
Increase
Volume
0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x01 0x00 0x61
Decrease
Volume
0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x02 0x00 0x62
Volume Set 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x2A 0x11 0x9A
Read Volume 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x03 0x64
70
Language
Write
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6E
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x14 0x75
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x15 0x76
Read Language 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00 0x62
Lamp Time
Write
Reset Lamp
usage hour
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x01 0x00 0x62
Read
Lamp usage
hour
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01 0x63
Tiếng Việt
71
HDMI
Format
Write
RGB 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x00 0x85
YUV 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x01 0x86
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x02 0x87
Read
HDMI Format
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x28 0x86
HDMI
Range
Write
Enhanced 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x00 0x86
Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x01 0x87
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x02 0x88
Read
HDMI Range
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x29 0x87
CEC
Write
Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x00 0x88
On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x01 0x89
Read CEC status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x2B 0x89
Error status Read
Read error
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x0D
0x66
Brilliant
Color
Write
Brilliant Color
0
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x00 0x6D
Brilliant Color
1
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x01 0x6E
Brilliant Color
2
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x02 0x6F
Brilliant Color
3
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x03 0x70
Brilliant Color
4
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x04 0x71
Brilliant Color
5
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x05 0x72
Brilliant Color
6
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x06 0x73
Brilliant Color
7
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x07 0x74
Brilliant Color
8
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x08 0x75
Brilliant Color
9
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x09 0x76
Brilliant Color
10
0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x0A 0x77
Read
Brilliant Color
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0F
0x6E
72
Remote
Control
code
Write
code 1 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x00 0xA0
code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1
code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2
code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3
code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4
code 6 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x05 0xA5
code 7 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x06 0xA6
code 8 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x07 0xA7
Read
Remote
Control code
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x048
0xA1
Screen
Color
Write
Screen color
Off
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x00 0x8F
Blackboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x01 0x90
Greenboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x02 0x91
Whiteboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x03 0x92
Read
Screen Color
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x32 0x90
Over Scan
Write
Overscan Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x00 0x90
Overscan 1 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x01 0x91
Overscan 2 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x02 0x92
Overscan 3 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x03 0x93
Overscan 4 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x04 0x94
Overscan 5 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x05 0x95
Read
Overscan
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x33 0x91
73
Remote Key Write
Menu 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0F 0x61
Exit 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x13 0x65
Up 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0B 0x5D
Down 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0C 0x5E
Left 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0D 0x5F
Right 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0E 0x60
Source 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x04 0x56
Enter 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x15 0x67
Auto 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x08 0x5A
74
Timing chart
Analog RGB
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
VGA 640 x 480 4:3 60/72/75/85
SVGA 800 x 600 4:3 60/72/75/85
XGA
1024 x 768 4:3 60/70/75/85
1152 x 864 4:3 75
WXGA
1280 x 768 15:9 60
1280 x 800 16:10 60/75/85
1360 x 768 16:9 60
Quad-VGA 1280 x 960 4:3 60/85
SXGA 1280 x 1024 5:4 60
WXGA 1366 x 768 16:9 59.7
SXGA+ 1400 x 1050 4:3 60
WXGA+ 1440 x 900 16:10 60
UXGA 1600 x 1200 4:3 60
WSXGA+ 1680 x 1050 16:10 60
HD 1280 x 720 16:9 60
MAC 13" 640 x 480 4:3 67
MAC 16" 832 x 624 4:3 75
MAC 19" 1024 x 768 4:3 75
MAC 21" 1152 x 870 4:3 75
HDTV (1080p) 1920 x 1080 16:9 60
WUXGA 1920 x 1200 16:10 60
75
HDMI
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
VGA 640 x 480 4:3 60
SVGA 800 x 600 4:3 60
XGA 1024 x 768 4:3 60
WXGA
1280 x 768 15:9 60
1280 x 800 16:10 60
1360 x 768 16:9 60
Quad-VGA 1280 x 960 4:3 60
SXGA 1280 x 1024 5:4 60
WXGA 1366 x 768 16:9 59.7
SXGA+ 1400 x 1050 4:3 60
WXGA+ 1440 x 900 16:10 60
WSXGA+ 1680 x 1050 16:10 60
HDTV (1080p) 1920 x 1080 16:9 50 / 60
HDTV (1080i) 1920 x 1080 16:9 50 / 60
HDTV (720p) 1280 x 720 16:9 50 / 60
SDTV (480p) 720 x 480 4:3 / 16:9 60
SDTV (576p) 720 x 576 4:3 / 16:9 50
SDTV (480i) 720 x 480 4:3 / 16:9 60
SDTV (576i) 720 x 576 4:3 / 16:9 50
WUXGA 1920 x 1200 16:10 60
76
3D (HDMI signal included)
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
SVGA 800 x 600 4:3 60* / 120**
XGA 1024 x 768 4:3 60* / 120**
HD 1280 x 720 16:9 50* / 60* / 120**
WXGA 1280 x 800 16:9 60* / 120**
HDTV (1080p) 1920 x 1080 16:9 60*
WUXGA 1920 x 1200 16:10 60*
for Video Signal
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
SDTV (480i)*** 720 x 480 4:3 / 16:9 60
*
50Hz and 60Hz signals are supported for
Side-by-Side
,
Top-Bottom
, and
Frame
Sequential
formats.
** 120 Hz signals are supported for Frame Sequential format only.
*** Video signal (SDTV 480i) is supported for Frame Sequential format only.
HDMI 3D
In Frame packing format
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
1080p 1920 x 1080 16:9 23.98/24
720p 1280 x 720 16:9 50/59.94/60
In Side by side format
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
1080i 1920 x 1080 16:9 50/59.94/60
720p 1280 x 720 16:9 50/59.94/60
In Top and Bottom format
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
1080p 1920 x 1080 16:9 23.98/24
720p 1280 x 720 16:9 50/59.94/60
77
Component video (PG705HD/PG705WU)
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
HDTV (1080p) 1920 x 1080 16:9 50 / 60
HDTV (1080i) 1920 x 1080 16:9 50 / 60
HDTV (720p) 1280 x 720 16:9 50 / 60
SDTV (480p) 720 x 480 4:3 / 16:9 60
SDTV (576p) 720 x 576 4:3 / 16:9 50
SDTV (480i) 720 x 480 4:3 / 16:9 60
SDTV (576i) 720 x 576 4:3 / 16:9 50
Composite video (PG705HD/PG705WU)
Signal Aspect Ratio Refresh Rate (Hz)
NTSC 4:3 60
PAL 4:3 50
PAL60 4:3 60
SECAM 4:3 50
78
Projector specifications
All specifications are subject to change without notice.
Not all models can be purchased in your region.
Model name PG705WU PG705HD PX700HD PG700WU
Product Specification
Resolution 0.48”
WUXGA
(1920 x
1200)
0.47” 1080p (1920 x
1080)
0.48”
WUXGA
(1920 x
1200)
Throw ratio 1.47~1.76
(87”±3%@
2.75m)
1.47~1.76
(95”±3%@
3.09m)
1.5~1.65
(95”±3%@
3.15m)
1.5~1.65
(87”±3%@
2.81m)
Display system 1-CHIP DMD
Lamp Type 240 W (RLC-117) 203 W (RLC-116)
Input connector
RGB-in 1
Component input shared with RGB-in
S-Video 1 -
Composite input 1 -
Audio-in 1
RCA R&L -
Mini USB 1 (firmware upgrade)
HDMI (1.4a) 2
HDMI/MHL
-
Output connector
RGB-out 1
USB-A (5V/1.5A) 1
Mini USB (5V/1.5A) -
Audio-out 1
Speaker 10 W 2 W
Control terminal
RS-232 serial control 9 pin x 1
LAN 1 -
IR receiver 1 (Front)
Mechanical
Net Weight 3.68 Kg (8.11 lbs) 3.6 Kg (7.94 lbs)
Electircal
Power Source AC100–240V, 50–60 Hz
Power Consumption STD: 335 W (Max);
< 0.5 W (Standby)
STD: 290 W (Max);
< 0.5 W (Standby)
Environmental Requirements
Operating Temperature 0°C–40°C at sea level
79
Operating Altitude 0–1499 m at 5°C–35°C
1500–3000 m at 5°C–25°C
Operating Relative
Humidity
10%–90% (without condensation)
80
Copyright information
Copyright
Copyright © 2018. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.
Disclaimer
ViewSonic Corporation makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Further, ViewSonic Corporation
reserves the right to revise this publication and to make changes from time to time in the
contents hereof without obligation to notify any person of such revision or changes.
*DLP and Digital Micromirror Device (DMD) are trademarks of Texas Instruments. Others
are copyrights of their respective companies or organizations.
Customer Support
For technical support or product service, see the table below or contact your reseller.
Note : You will need the product serial number.
Country/Region Website
T= Telephone
C = CHAT ONLINE
Email
Australia
New Zealand
www.viewsonic.com.au
AUS= 1800 880 818
NZ= 0800 008 822
Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/
Latin America
(Argentina)
www.viewsonic.com/la/
C= http://www.viewsonic.com/
la/soporte/servicio-tecnico
Latin America
(Chile)
www.viewsonic.com/la/
C= http://www.viewsonic.com/
la/soporte/servicio-tecnico
Latin America
(Columbia)
www.viewsonic.com/la/
C= http://www.viewsonic.com/
la/soporte/servicio-tecnico
Latin America
(Mexico)
www.viewsonic.com/la/
C= http://www.viewsonic.com/
la/soporte/servicio-tecnico
Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F.
Tel: 55) 6547-6454 55)6547-6484
Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico
Latin America
(Peru)
www.viewsonic.com/la/
C= http://www.viewsonic.com/
la/soporte/servicio-tecnico
Puerto Rico &
Virgin Islands
www.viewsonic.com
T= 1-800-688-6688 (English)
C= http://www.viewsonic.com/
la/soporte/servicio-tecnico
Singapore/
Malaysia/Thailand
81
Limited Warranty
ViewSonic
®
Projector
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and
workmanship, under normal use, during the warranty period. If a product proves to
be defective in material or workmanship during the warranty period, ViewSonic will,
at its sole option, repair or replace the product with a like product. Replacement
product or parts may include remanufactured or refurbished parts or components.
Limited Three (3) year General Warranty
Subject to the more limited one (1) year warranty set out below, North and South
America: Three (3) years warranty for all parts excluding the lamp, three (3) years
IRUODERUDQGRQH\HDUIRUWKHRULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHU
purchase.
Other regions or countries: Please check with your local dealer or local ViewSonic
RI¿FHIRUWKHZDUUDQW\LQIRUPDWLRQ
Limited One (1) year Heavy Usage Warranty:
Under heavy usage settings, where a projector’s use includes more than fourteen
(14) hours average daily usage, North and South America: One (1) year warranty
for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the
RULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHUSXUFKDVH(XURSH2QH\HDU
warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days
IRUWKHRULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHUSXUFKDVH
Other regions or countries: Please check with your local dealer or local ViewSonic
RI¿FHIRUWKHZDUUDQW\LQIRUPDWLRQ
/DPSZDUUDQW\VXEMHFWWRWHUPVDQGFRQGLWLRQVYHUL¿FDWLRQDQGDSSURYDO$SSOLHVWR
manufacturer’s installed lamp only. All accessory lamps purchased separately are
warranted for 90 days.
Who the warranty protects:
7KLVZDUUDQW\LVYDOLGRQO\IRUWKH¿UVWFRQVXPHUSXUFKDVHU
What the warranty does not cover:
$Q\SURGXFWRQZKLFKWKHVHULDOQXPEHUKDVEHHQGHIDFHGPRGL¿HGRUUHPRYHG
2. Damage, deterioration, failure, or malfunction resulting from:
D$FFLGHQWDEXVHPLVXVHQHJOHFW¿UHZDWHUOLJKWQLQJRURWKHUDFWVRIQDWXUH
LPSURSHUPDLQWHQDQFHXQDXWKRUL]HGSURGXFWPRGL¿FDWLRQRUIDLOXUHWRIROORZ
instructions supplied with the product.
E2SHUDWLRQRXWVLGHRISURGXFWVSHFL¿FDWLRQV
c. Operation of the product for other than the normal intended use or not under
normal conditions.
d. Repair or attempted repair by anyone not authorized by ViewSonic.
e. Any damage of the product due to shipment.
f. Removal or installation of the product.
J&DXVHVH[WHUQDOWRWKHSURGXFWVXFKDVHOHFWULFSRZHUÀXFWXDWLRQVRUIDLOXUH
K8VHRIVXSSOLHVRUSDUWVQRWPHHWLQJ9LHZ6RQLF¶VVSHFL¿FDWLRQV
i. Normal wear and tear.
j. Any other cause which does not relate to a product defect.
3. Removal, installation, and set-up service charges.
82
How to get service:
1. For information about receiving service under warranty, contact ViewSonic
Customer Support (please refer to “Customer Support” page). You will need to
provide your product’s serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated
sales slip, (b) your name, (c) your address, (d) a description of the problem, and
(e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized
ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center,
contact ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description
FRQWDLQHGKHUHLQLQFOXGLQJWKHLPSOLHGZDUUDQW\RIPHUFKDQWDELOLW\DQG¿WQHVVIRUD
particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product.
ViewSonic shall not be liable for:
1. Damage to other property caused by any defects in the product, damages based
XSRQLQFRQYHQLHQFHORVVRIXVHRIWKHSURGXFWORVVRIWLPHORVVRISUR¿WVORVVRI
business opportunity, loss of goodwill, interference with business relationships, or
other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
Effect of local law:
7KLVZDUUDQW\JLYHV\RXVSHFL¿FOHJDOULJKWVDQG\RXPD\DOVRKDYHRWKHUULJKWV
which vary from local authority. Some local governances do not allow limitations on
implied warranties and/or do not allow the exclusion of incidental or consequential
damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products sold outside of the
U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.
The warranty period for this product in mainland China (Hong Kong, Macao and
Taiwan Excluded) is subject to the terms and conditions of the Maintenance
Guarantee Card.
For users in Europe and Russia, full details of warranty provided can be found in
www.viewsoniceurope.com under Support/Warranty Information.
Projector Warranty Term Template In UG
VSC_TEMP_2005
83
Mexico Limited Warranty
ViewSonic
®
Projector
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal
use, during the warranty period. If a product proves to be defective in material or workmanship during
the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product.
Replacement product or parts may include remanufactured or refurbished parts or components &
accessories.
How long the warranty is effective:
3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of
WKH¿UVWFRQVXPHUSXUFKDVH
/DPSZDUUDQW\VXEMHFWWRWHUPVDQGFRQGLWLRQVYHUL¿FDWLRQDQGDSSURYDO$SSOLHVWRPDQXIDFWXUHU¶V
installed lamp only.
All accessory lamps purchased separately are warranted for 90 days.
Who the warranty protects:
7KLVZDUUDQW\LVYDOLGRQO\IRUWKH¿UVWFRQVXPHUSXUFKDVHU
What the warranty does not cover:
$Q\SURGXFWRQZKLFKWKHVHULDOQXPEHUKDVEHHQGHIDFHGPRGL¿HGRUUHPRYHG
2. Damage, deterioration or malfunction resulting from:
D$FFLGHQWPLVXVHQHJOHFW¿UHZDWHUOLJKWQLQJRURWKHUDFWVRIQDWXUHXQDXWKRUL]HGSURGXFW
PRGL¿FDWLRQXQDXWKRUL]HGDWWHPSWHGUHSDLURUIDLOXUHWRIROORZLQVWUXFWLRQVVXSSOLHGZLWKWKH
product.
b. Any damage of the product due to shipment.
F&DXVHVH[WHUQDOWRWKHSURGXFWVXFKDVHOHFWULFDOSRZHUÀXFWXDWLRQVRUIDLOXUH
G8VHRIVXSSOLHVRUSDUWVQRWPHHWLQJ9LHZ6RQLF¶VVSHFL¿FDWLRQV
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static
image is displayed on the product for an extended period of time.
4. Removal, installation, insurance, and set-up service charges.
How to get service:
For information about receiving service under warranty, contact ViewSonic Customer Support (Please
refer to the attached Customer Support page). You will need to provide your product’s serial number,
so please record the product information in the space provided below on your purchase for your future
use. Please retain your receipt of proof of purchase to support your warranty claim.
For Your Records
Product Name: ________________________ Model Number: ____________________________
Document Number: ____________________ Serial Number: ____________________________
Purchase Date: ________________________ Extended Warranty Purchase? _____________(Y/N)
If so, what date does warranty expire? __________
1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your
name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service
center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein
LQFOXGLQJWKHLPSOLHGZDUUDQW\RIPHUFKDQWDELOLW\DQG¿WQHVVIRUDSDUWLFXODUSXUSRVH
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not
be liable for:
1. Damage to other property caused by any defects in the product, damages based upon
LQFRQYHQLHQFHORVVRIXVHRIWKHSURGXFWORVVRIWLPHORVVRISUR¿WVORVVRIEXVLQHVVRSSRUWXQLW\
loss of goodwill, interference with business relationships, or other commercial loss, even if advised
of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.
84
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:
México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
Col. San Fernando Huixquilucan, Estado de México
Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:
Distribuciones y Servicios Computacionales SA de CV.
