BAYOU CREEK CEILING FAN
ATTACH YOUR RECEIPT HERE
Purchase Date
Español p. 21
4009654
ITEM #0955853
MODEL #CAF48BNK5L
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
PH18100
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook
if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of CAF48 including the light kit is: 16 lbs.
TABLE OF CONTENTS
2
SAFETY INFORMATION
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
Safety Information ...............................................................................................................
.
. 2
Package Contents ..............................................................................................................
.
. 4
Hardware Contents
...........................................................................................................................
Preparation ...........................................................................................................................
Initial Installation ...................................................................................................................
Downrod-Style Fan Mounting ...............................................................................................
Closemount-Style Fan Mounting ........................................................................................
.
..
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 12
Installing Fan Without Light Kit ............................................................................................
Operating Instructions ......................................................................................................... 17
Care and Maintenance ...................................................................................................
.
.... 18
Troubleshooting ..................................................................................................................
Limited Lifetime Warranty ...................................................................................................
Replacement Parts List .......................................................................................................
5
7
9
20
16
5
5
19
20
3
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic outlet
box. Secure the outlet box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is
larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead wires,
consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control device or
control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when installing them,
balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts OTHER than
those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid electrical
shock.
WARNING
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to ensure they are
secure.
The below FCC warning is for the included LED Light bulbs.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including Interference that may cause
undesirable operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV
technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
IMPORTANT: You must use the parts
provided with this fan for proper installation and
safety.
A
Downrod 1
B
Canopy
1
C
Mounting Bracket
1
(preassembled)
D Motor Housing 1
E
Yoke Cover 1
F Light Kit Fitter 1
G
Blade
5
H
Bulb
2
I Finial Plate (preassembled) 1
J Blade Arm 5
K Hex Nut (preassembled) 2
L Lock Washer (preassembled) 1
M Switch Housing Cap 1
(preassembled)
DESCRIPTIONPART
QUANTITY
N Switch Housing Cap Screw 3
(preassembled)
O Finial (preassembled) 1
P Glass Shade 1
Q Rubber Washer 1
(preassembled)
R Balancing Kit 1
S Motor Screw 10
(preassembled) + 1 extra
T Washer (preassembled) 10
+ 1 extra
U Pull Chain Extension 2
V Pin (preassembled) 1
W Clip (preassembled) 1
X Star Washer (preassembled) 4
Y Canopy Mounting Screw 4
(preassembled)
DESCRIPTIONPART
QUANTITY

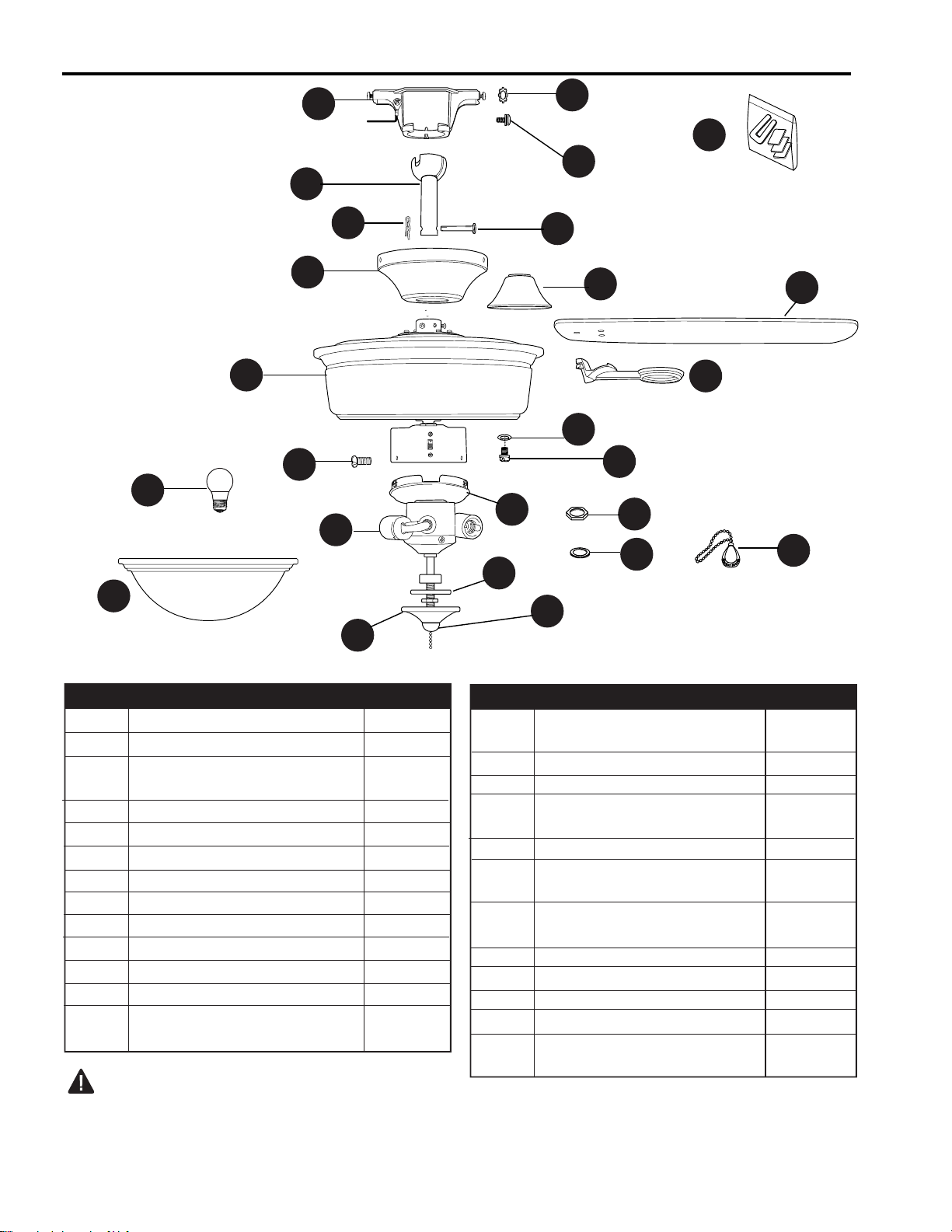

PACKAGE CONTENTS
4
E
D
B
H
C
G
J
L
K
I
F
M
P
N
O
Q
R
T
S
V
A
W
Y
X
U
5
PREPARATION
HARDWARE CONTENTS (shown actual size)
AA
BB
Cap
Qty. 1
CC
DD
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
Fiber
Blade
Washer
Qty. 15
+ 1 extra
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
INITIAL INSTALLATION
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
6
INITIAL INSTALLATION

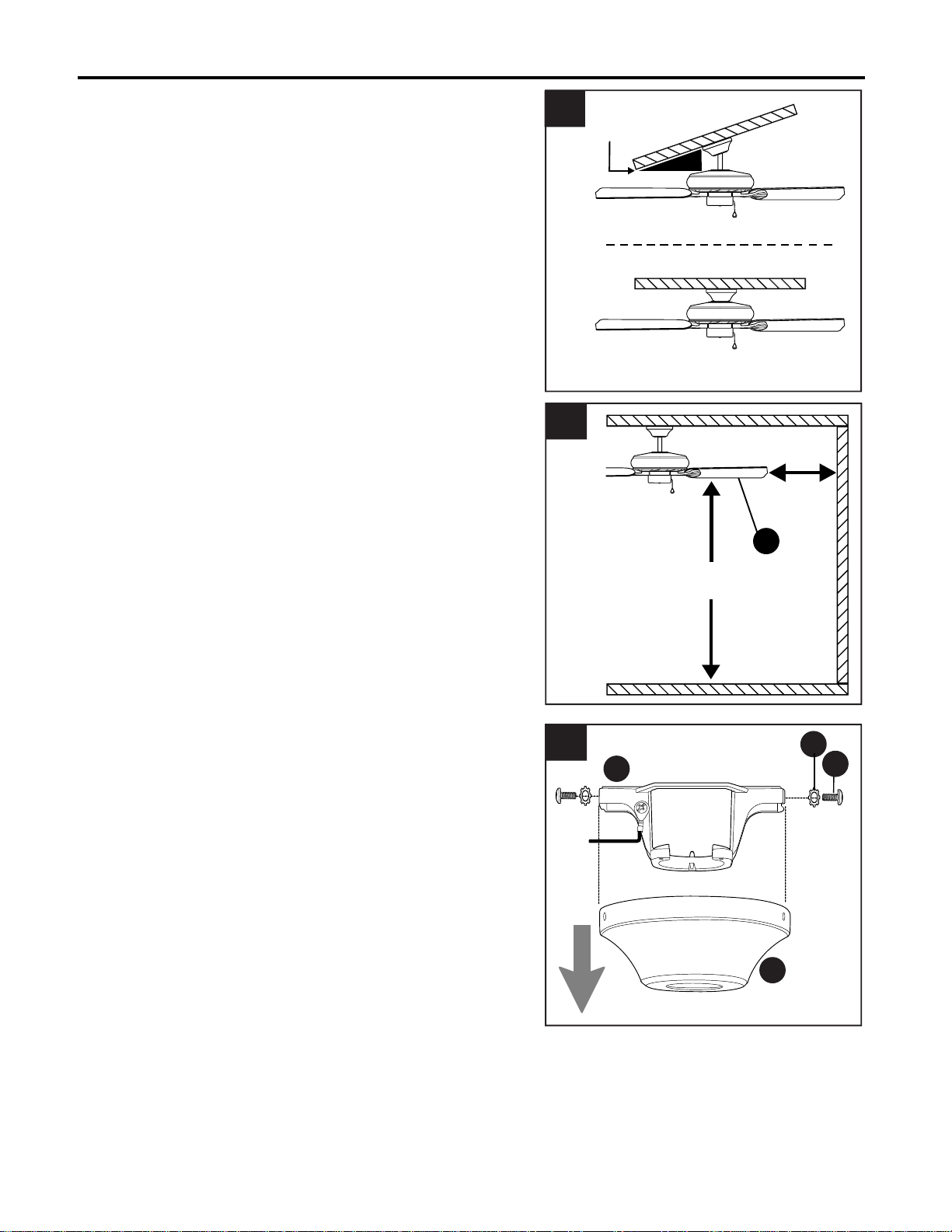

Check to make sure blades (G) will be at least 30
inches from any obstruction and at least 7 ft. above
the floor.
3.
3
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount-style mounting is more
suitable for ceilings lower than 8 ft.
2
4a.
Loosen canopy mounting screws (Y) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (Y) and star washers (X).
Save for later use.
Remove mounting bracket (C) from canopy (B).
4a
C
X
B
Y
A
B
19° max.
7 ft.
min.
30 in.
min.
G
INITIAL INSTALLATION
7
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling, and
ensure the ceiling angle is not steeper than 19º.
4b.
4b
Open End
C
C
ANGLE
MOUNT
STANDARD
MOUNT
5.
Remove preassembled motor screws (S) and
washers (T) from underside of motor housing (D). If
there are plastic motor blocks installed with the
motor screws (S), discard the plastic motor blocks.
Note: Make sure to keep loose hardware separate
to avoid confusion during installation.
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
5
S
T
D
Plastic
Motor
Block
DOWNROD-STYLE FAN MOUNTING
Remove pin (V) and clip (W) from downrod (A).
Partially loosen preassembled set screws and nuts
in motor housing yoke at top of motor housing (D).
1.
1
W
D
V
A
Yoke
Set Screw
and Nut
Sideview
8
DOWNROD-STYLE FAN MOUNTING

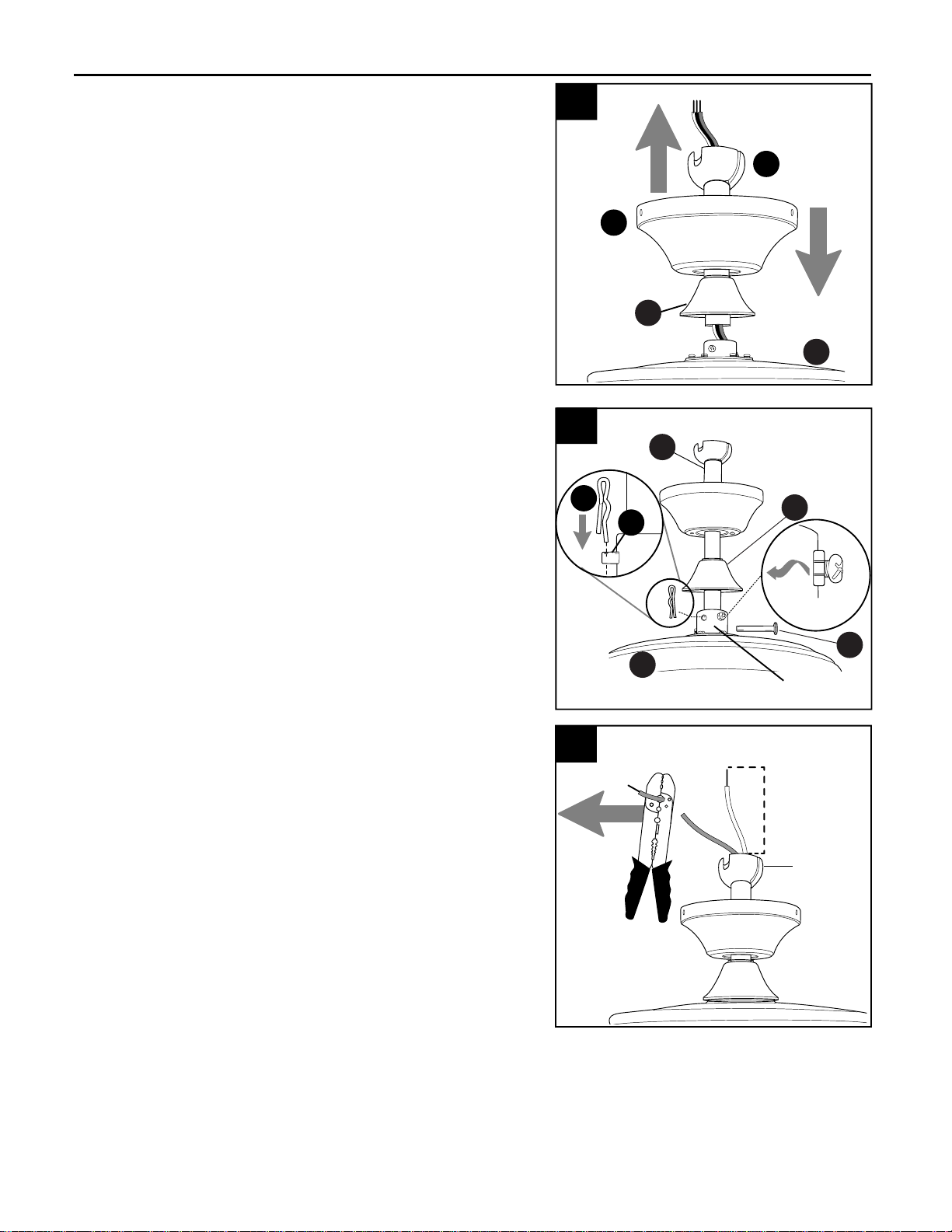

2.
Insert downrod (A) through canopy (B) and yoke
cover (E). Then, thread wires from motor
housing (D) up through downrod (A).
2
B
A
3.
Slip downrod (A) into yoke, align holes and
re-install pin (V) and clip (W). Tighten set screws
and then tighten nuts. Slide yoke cover (E) down
until it rests on top of motor housing (D).
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
Hanging
Ball
4
8 in.
E
D
A
V
E
3
W
V
Set Screw
and Nut
Sideview
Yoke
D
9
DOWNROD-STYLE FAN MOUNTING

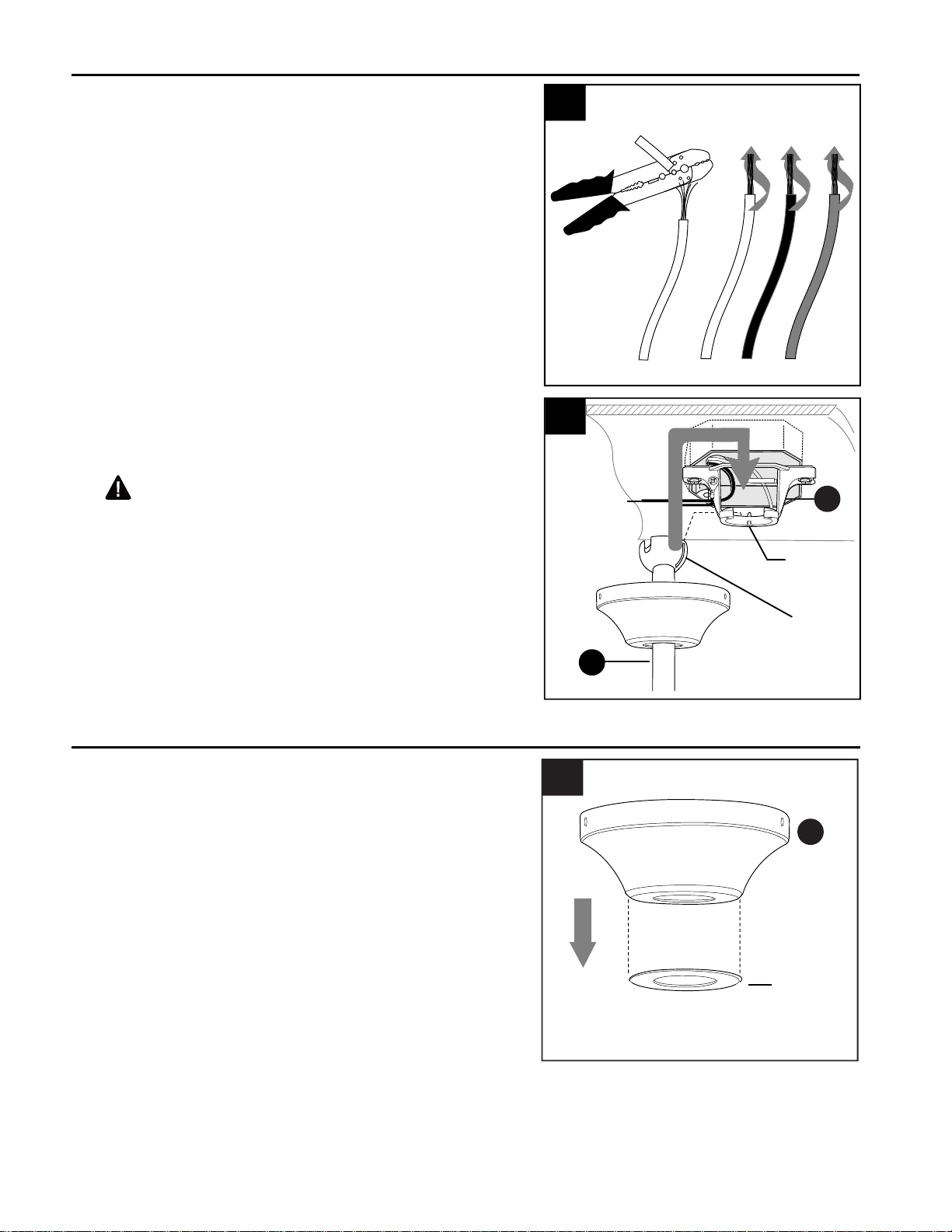

6.
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each
wire -- white, black, green and blue (if applicable).
Twist stripped ends of each strand of wire within
the insulation with pliers (not included).
5.
5
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Hanging
Ball Slot
A
6
C
Tab
CLOSEMOUNT-STYLE FAN MOUNTING
Remove preassembled canopy cover from bottom of
canopy (B). NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to remove
the canopy cover by tapping on the canopy cover
from the inside of the canopy (B).
NOTE: The downrod (A), yoke cover (E) and canopy
cover are not used in this type of installation.
1.
1
Canopy
Cover
B
10
CLOSEMOUNT-STYLE FAN MOUNTING
3.
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using three screws and lock washers
previously removed.
3
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
C
4
Remove every other preassembled screw and lock
washer from top of motor housing (D).
2.
B
Tab
Hole
Screw
Washer
Screw
Washer
2
D
B
D
J
11
WARNING: To reduce the risk of fire, electrical shock or personal injury, each wire connector
provided with this fan is designed to accept only one 12-gauge house wire and one lead wire from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fixture lead wires, consult an electrician.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: The wires from the outlet box must be connected to a corresponding color of the fan's
wires. Be sure wire colors match before making connections. If house wires are different colors than
referred to in the following steps, stop immediately. A professional electrician is recommended to
determine wiring.
WIRING
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
1.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK (POWER)
WHITE (NEUTRAL)
BLACK
GROUND/GREEN (BARE)
WHITE
BLUE &
BLACK
120V POWER
FROM CEILING
GREEN
GREEN
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
BLACK
BLACK
(WALL
SWITCH)
BLUE
1b
WHITE
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
BLACK
120V POWER
FROM CEILING
GREEN
GREEN
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c)
that fits your situation and make appropriate wiring
connections as follows: [NOTE: Use one of the
wire connectors (DD) provided to make each wire
connection, making sure to screw wire connector
(DD) on in a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from
fan to BLACK wire from ceiling. Connect WHITE
wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A), if applicable, and
mounting bracket (C)) to BARE/GREEN wire
from ceiling.
1b. FAN CONTROLLED BY PULL CHAIN,
LIGHT BY WALL SWITCH: If you intend to
control the fan light with a separate wall switch,
connect BLACK wire from fan to BLACK wire
from ceiling. Connect BLUE wire from fan to the
BLACK (or RED) wire from the independent wall
switch for the light. Connect WHITE wire from fan
to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan (on
downrod (A), if applicable, and mounting bracket
(C)) to BARE/GREEN wire from ceiling.
12
WIRING
Wrap electrical tape (not included) around each
individual wire connector (DD) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side of
the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
DD
2
DD
DD
Hardware Used
Wire Connector
x 4
DD
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. BARE/GREEN wire is ground.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
BLACK
BLUE
1c
WHITE
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
120V POWER
FROM CEILING
BLACK
BLACK
(WALL SWITCH
FOR LIGHT)
GREEN
1
1.
Lift canopy (B) to mounting bracket (C) and
align slotted holes in canopy (B) with loosened
canopy mounting screws (Y) in mounting
bracket (C). Twist canopy (B) to lock, then
insert the two canopy mounting screws (Y) and
star washers (X) previously removed (Step 4a,
page 6). Tighten all canopy mounting screws
(Y) securely.
B
B
A
D
D
Y
X
FINAL INSTALLATION
1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the
fan and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect
BLUE wire from fan to the BLACK (or RED) wire
from the other independent wall switch for the
light. Connect WHITE wire from fan to WHITE
wire from ceiling. Connect all GROUND (GREEN)
wires together from fan (on downrod (A), if
applicable, and mounting bracket (C)) to
BARE/GREEN wire from ceiling.
Downrod
Option
Closemount
Option
13
If you wish to use the fan with the light kit,
remove the three preassembled switch housing cap
screws (N) from switch housing cap (M) located at
top of light kit fitter (F).
Locate the BLUE (or BLACK) and WHITE molex
wires in the switch housing preassembled on motor
housing (D) that are labeled FOR LIGHT and
remove plastic from these two wires.
4.
N
M
F
N
2.
2
Partially insert three blade screws (BB) along with
three fiber blade washers (CC) into holes in blade
(G). Align pegs on blade arm (J) with blade screws
(BB), securing blade arm (J) to blade (G) by
tightening blade screws (BB) starting with the one in
the middle.
Repeat for remaining blades (G) and blade arms (J).
Hardware Used
Blade Screw
x 15
BB
Fiber Blade Washer
x 15
CC
CC
BB
G
J
Attach blade arms (J) to the bottom of motor
housing (D) with motor screws (S) and washers (T)
previously removed (Step 5, page 7). Tighten motor
screws (S) securely.
Note: Make sure to completely secure each blade
arm (J) before proceeding to the next.
3.
3
D
G
J
If you do NOT wish to use the light kit, skip
to INSTALLING FAN WITHOUT LIGHT KIT on
page 16.
If you DO wish to use the light kit, proceed to
Step 4.
4
D
Switch
Housing
White
Blue (or Black)
J
T
S
FINAL INSTALLATION
14
FINAL INSTALLATION
5.
Connect WHITE molex wire from switch housing to
WHITE molex wire from light kit fitter (F). Connect
BLUE (or BLACK) molex wire from switch housing
to BLACK molex wire from light kit fitter (F). Make
sure molex connections are secure.
Then, align holes in switch housing cap (M) with
holes in switch housing. Note: Make sure to align
notch on top edge of the switch housing cap (M)
with the reverse switch on switch housing for the
correct fit.
Re-insert the switch housing screws (N) previously
removed (Step 4, page 13), then tighten all switch
housing cap screws (N) with a Phillips screwdriver
(not included).
Install bulbs (H).
CAUTION: When replacing bulb(s), allow
bulb(s) and glass shade to cool down before
touching.
7
7.
H
H
Remove finial (O), finial plate (I), hex nut (K)
and rubber washer (Q) from the threaded rod
at the bottom of the light kit fitter (F). Save for
later use.
6.
6
Threaded
Rod
O
I
Q
F
K
N
N
M
Notch
5
Molex
Connections
D
Switch
Housing
Reverse
Switch
15
FINAL INSTALLATION

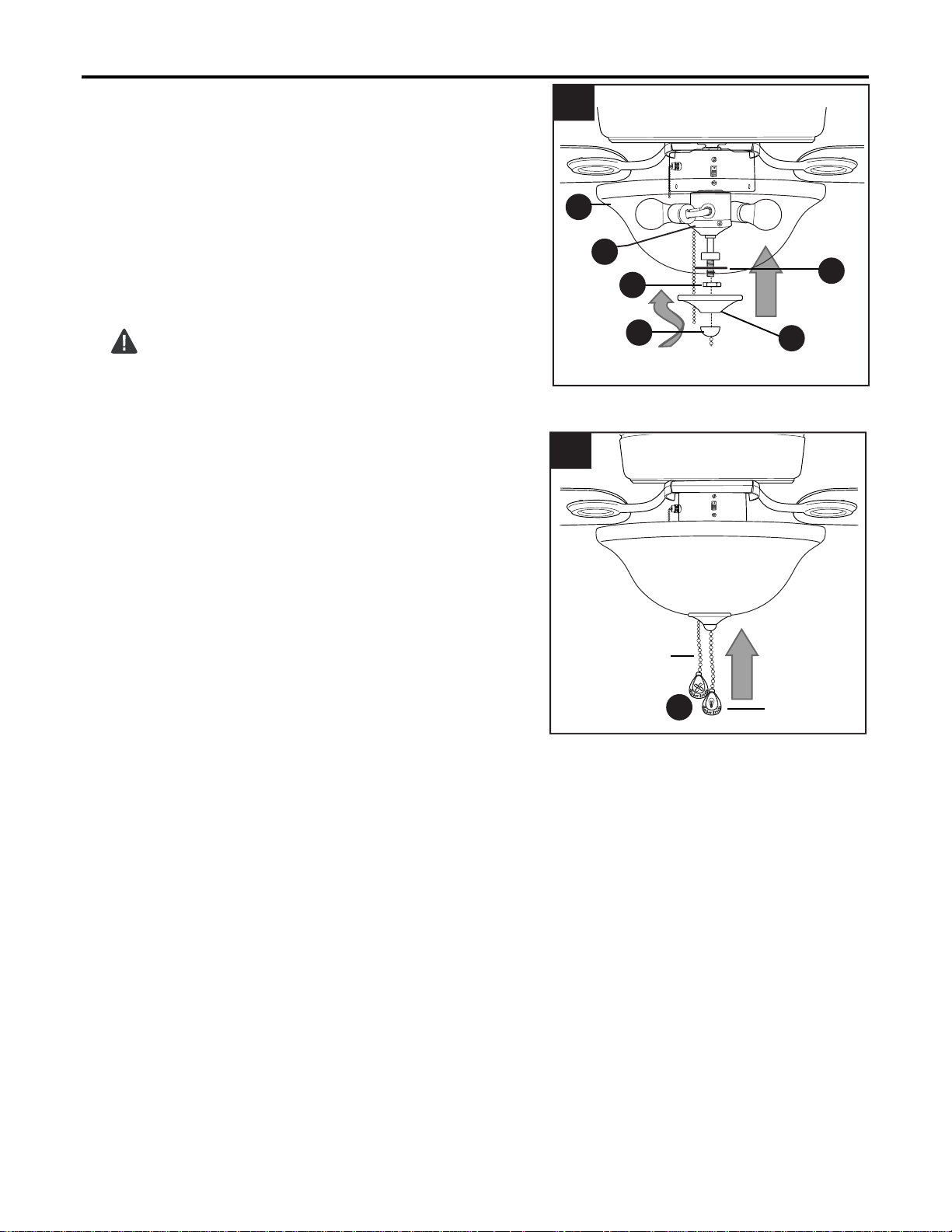

8.
Locate rubber washer (Q), hex nut (K), finial
plate (I), and finial (O) that were previously
removed (Step 6, page 14). Place rubber washer
(Q) inside glass shade (P) over center hole. Align
hole in center of glass shade (P) with threaded
rod on light kit fitter (F), allowing pull chains to
come through corresponding holes in glass
shade (P). Push up gently on glass shade (P)
until threaded rod comes through hole. (Be sure
fan pull chain does not rub against bulbs during
fan operation.) Secure glass shade (P) with hex
nut (K), finial plate (I) and finial (O).
CAUTION: Do NOT overtighten finial (O) as
glass may crack or break.
9.
9
(For Fan)
(For Light)
U
Attach applicable pull chain extensions (U) or
custom pull chain extensions (not included) to
the fan and light pull chains.
Assembly is now complete.
8
P
O
Q
F
K
I
16
If you wish to use the fan WITHOUT the light kit,
remove the three preassembled switch housing cap
screws (N) from switch housing cap (M) located at
top of light kit fitter (F).
Remove the preassembled hex nut (K) and lock
washer (L) from threaded rod at the top of light kit
fitter (F). Unscrew switch housing cap (M) to remove
it from the light kit fitter (F), and then gently feed the
BLACK and WHITE wires from the light kit fitter (F)
out through the hole in the middle of the switch
housing cap (M).
F
L
M
K
WHITE
BLACK
1.
1
2.
Hardware Used
Cap
x 1
AA
Place cap (AA) firmly in hole in middle of switch
housing cap (M). Align holes in switch housing cap
(M) with holes in switch housing, then attach switch
housing cap (M) with previously removed switch
housing cap screws (N). Note: Make sure to align
notch on top edge of the switch housing cap (M) with
the reverse switch on switch housing for the correct
fit.
2
AA
N
N
M
Switch
Housing
Notch
Reverse
Switch
3.
3
U
Attach applicable pull chain extension (U) or
custom pull chain extension (not included) to the
fan pull chain.
INSTALLING FAN WITHOUT LIGHT KIT
N
17
OPERATING INSTRUCTIONS
The pull chain located in the center is used to
turn the light ON or OFF.
2.
2
3.
Use the fan reverse switch, located on the switch
housing, to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3
Switch
Housing
Switch
Housing
The pull chain located on the switch housing
has four positions to control fan speed. One pull
is HIGH, two is MEDIUM, three is LOW and four
turns the fan OFF.
1.
1
18
3c. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
3a
3b
3c
CARE AND MAINTENANCE
At least twice each year, lower canopy to check downrod assembly, and then tighten all screws on fan.
Clean motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added
protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use standard-base 6.5-watt LED bulbs or incandescent/CFL equivalent.
OPERATING INSTRUCTIONS
3a. In warmer weather, setting the reverse switch
in the DOWN position will result in downward
airflow creating a wind chill effect.
3b. In cooler weather, setting the reverse switch in
the UP position will result in upward airflow that
can help move stagnant, hot air off the ceiling
area.
19
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
Excessive
wobbling.
1. Re-install bulb(s).
2. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 and 12.
3. Make sure wall switch to light is on.
4. Check molex connections in light
kit fitter and ensure they are
connected properly according to
instructions on page 14.
1. Bulb(s) not installed correctly.
2. Wires in canopy not wired
properly.
3. Wall switch to light is off.
4. Wires in light kit fitter not wired
correctly.
Fan operates but
light fails (if
applicable).
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side or use
balancing kit (R).
4. Turn power off. Carefully loosen
canopy and verify mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check male and female plugs
in switch housing are connected
properly according to instructions
on page 14.
20
LIMITED LIFETIME WARRANTY
Printed in China
JMLI1803
The distributor warrants this fan to be free from defects in workmanship and materials present at time of
shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to the
original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace the
ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of removal
and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling fan by
accident, misuse or improper installation, or by using parts not produced by the manufacturer of this fan or
affixing accessories not produced by the manufacturer of this fan, are the purchaser's own responsibility.
The distributor assumes no responsibility whatsoever for fan installation during the limited lifetime warranty.
Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the date of
purchase. For the balance of the warranty, call our customer service department (at 1-800-643-0067) for
return authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly packaged is/are the sole responsibility of the purchaser. There is no further
express warranty. The distributor disclaims any and all implied warranties. The duration of any implied
warranty which cannot be disclaimed is limited to the limited lifetime period as specified in our warranty.
The distributor shall not be liable for incidental, consequential or special damages arising at or in
connection with product use or performance except as may otherwise be accorded by law. This warranty
gives you specific legal rights and you may also have other rights which vary from state to state. This
warranty supersedes all prior warranties.

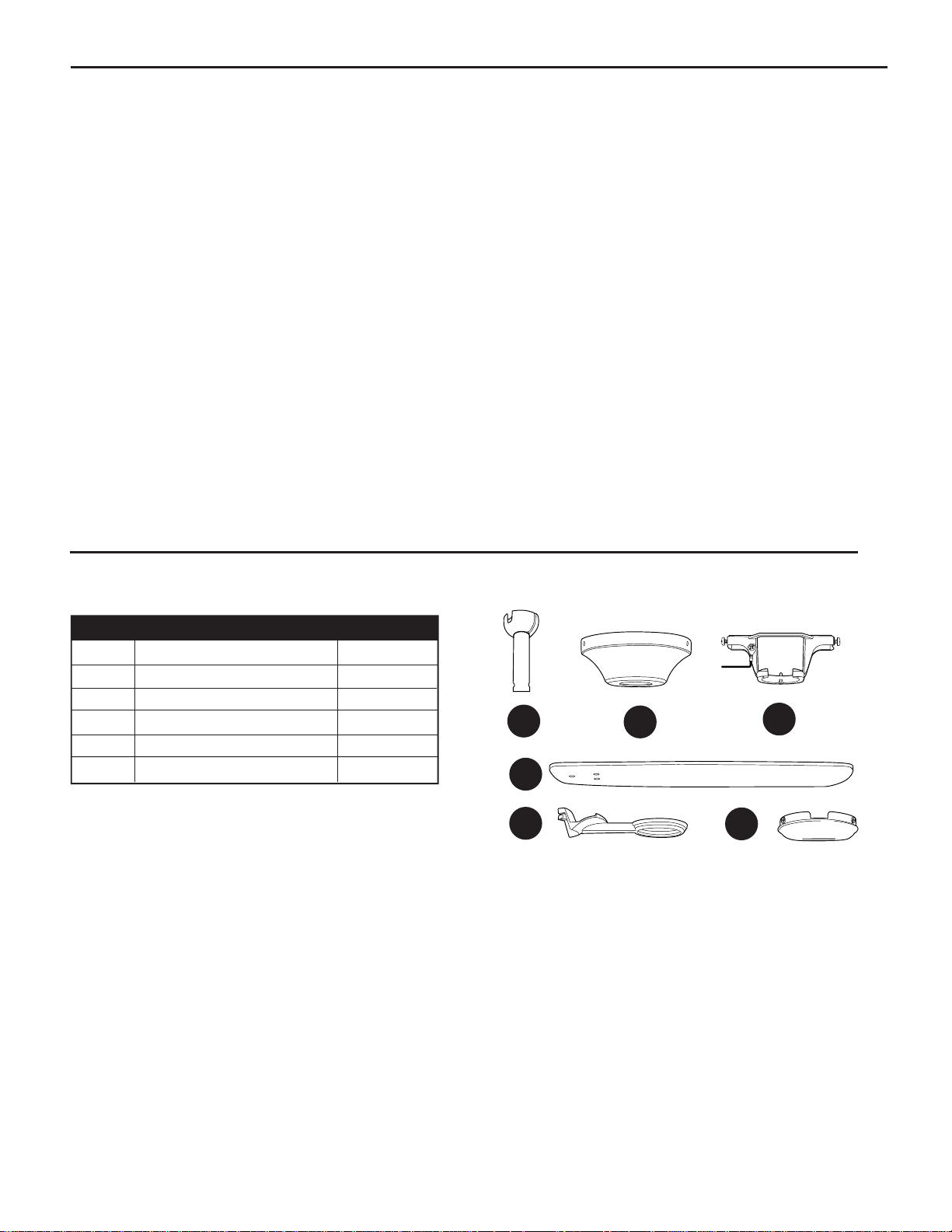

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
A
B
C
G
I
A Downrod
B Canopy
C Mounting Bracket
G Blade
J Blade Arm
M Switch Housing Cap
DESCRIPTIONPART
PART #
0995853-A
0995853-B
0995853-C
0995853-G
0995853-J
0995853-M
J
M
