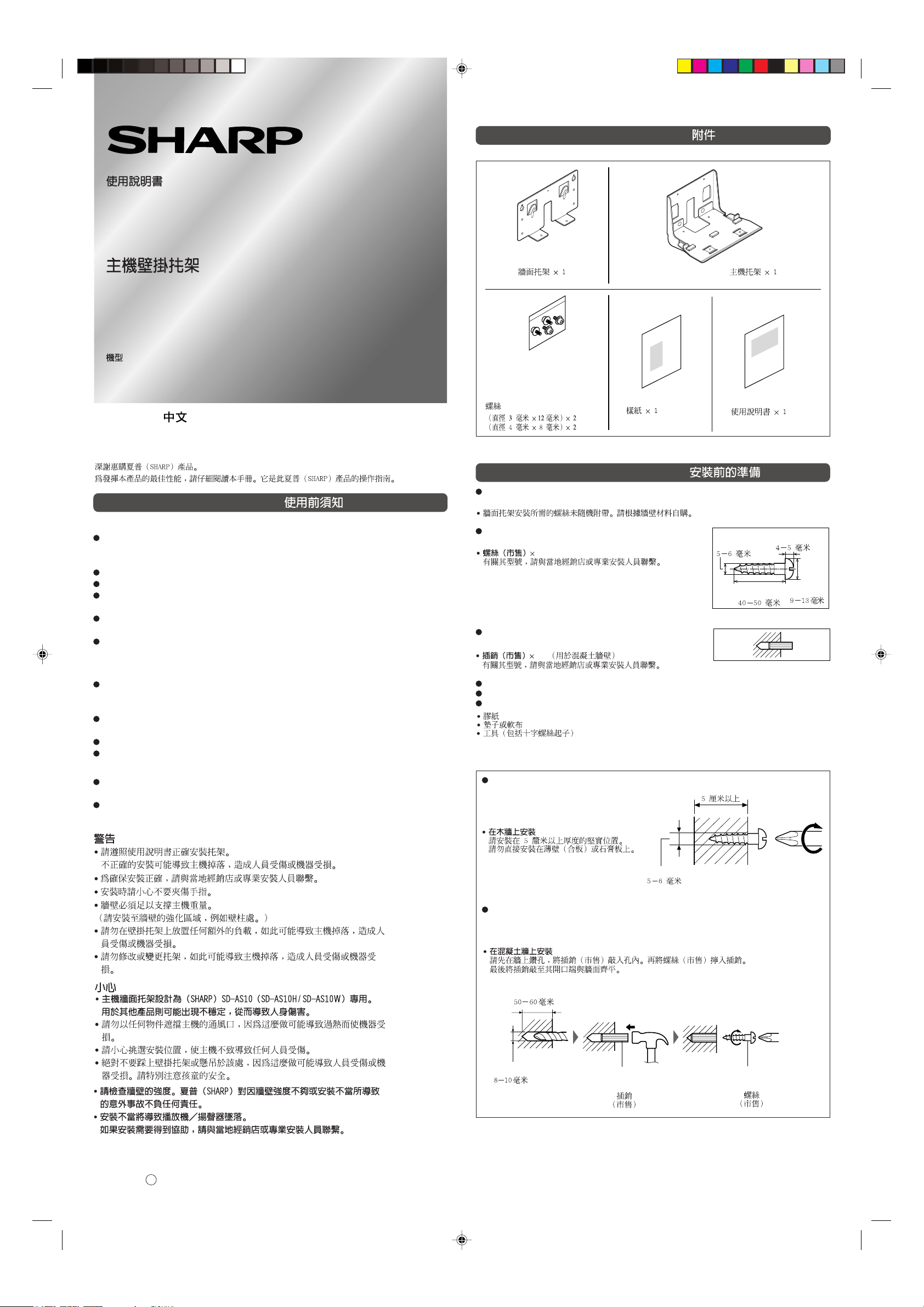

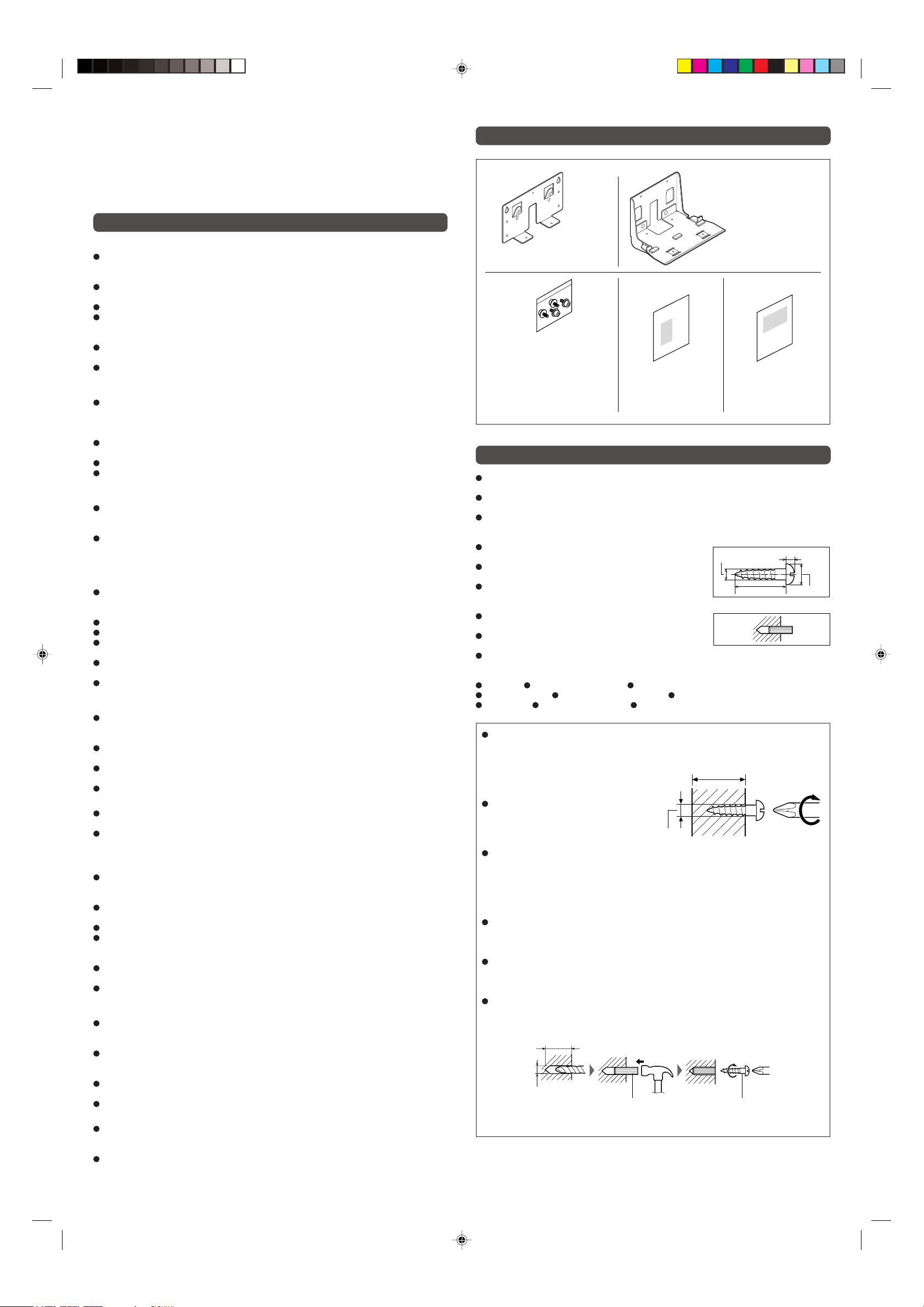

Supplied parts /
Prepare for mounting /
Screws to mount the wall bracket on the wall are not supplied. Purchase by yourself
according to the material of the wall.
Screw (commercially available) x 6
Consult your dealer or installer about the type.
6
Dowel (commercially available) x 6 (For concrete walls)
Consult your dealer or installer about the type.
6
Adhesive tape
Cushions or soft cloths
Tools (including Phillips screwdriver)

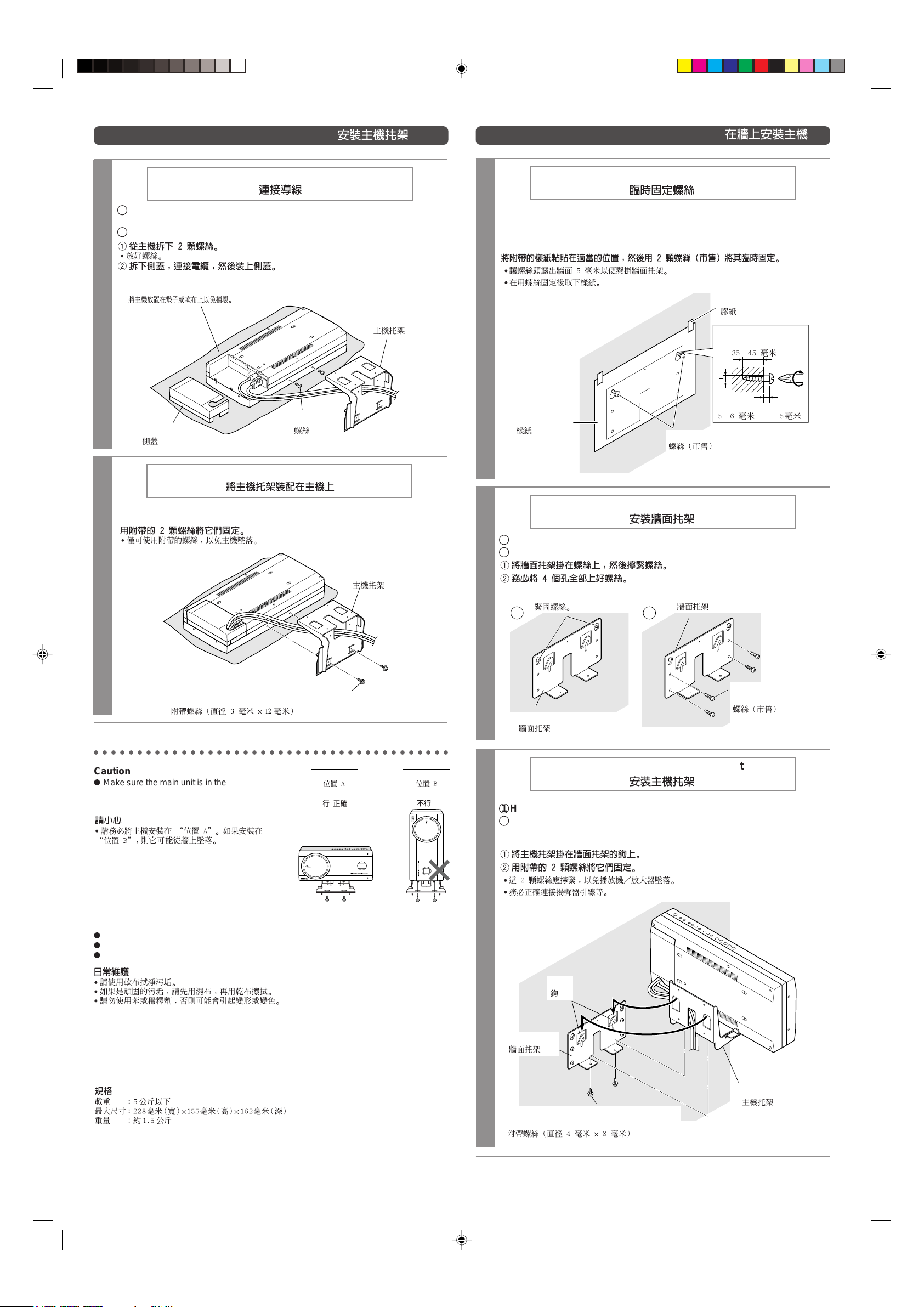

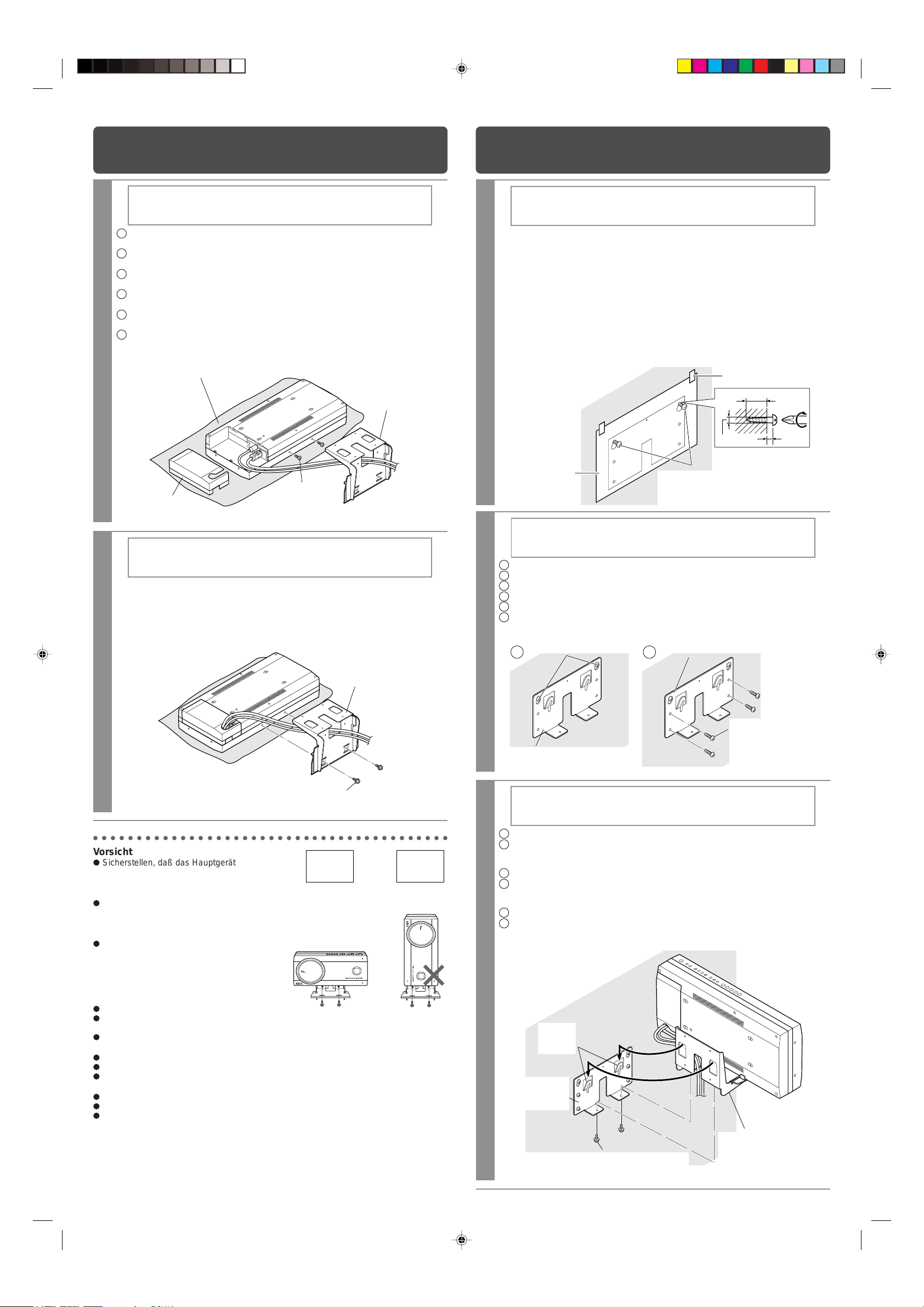

Mounting on a wooden wall
Mount on a sturdy part with thickness
of 5 cm (2”) or more.
Do not mount on a thin wall (plywood)
or plaster board.
Mounting on a concrete wall
Drill holes in the wall and hammer dowels (commercially available) into them.
Drive screws (commercially available) into the dowels.
Hammer in dowels until the open ends are even with the wall.
TINSZA122AWZZ
04K R YT
1
OPERATION MANUAL
GEBRAUCHSANLEITUNG
MODE D’EMPLOI
MANUAL DE MANEJO
MAIN UNIT WALL BRACKET
WANDHALTERUNG FÜR HAUPTGERÄT
SUPPORT MURAL POUR UNITÉ PRINCIPALE
SOPORTE DE PARED UNIDAD CENTRAL
MODEL MODELL
MODÈLE
MODELO
AD-AS10WA
ENGLISH /
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this manual carefully.
It will guide you in operating your SHARP product.
Precautions /
Warning
Install brackets properly by following the operation manual.
Improper installation may cause the main unit to fall leading to injury or damage
to the unit.
To ensure a proper installation, contact your dealer or installer.
During installation, be careful not to pinch your fingers.
The wall should be strong enough to support the weight of the main unit.
(Install into a reinforced area of the wall, e.g., stud.)
Do not put any extra load on the wall brackets. It may cause the main unit to fall
leading to injury or damage to the unit.
Do not modify or change the brackets. It may cause the main unit to fall leading
to injury or damage to the unit.
Caution
This main unit wall bracket is designed exclusively for SHARP’s SD-AS10
(SD-AS10H/SD-AS10W). Use with other products may result in instability
causing injury.
Do not block the ventilation openings of the main unit with anything as this can
cause excessive heat buildup leading to damage to the unit.
Carefully select a mounting position so the unit does not cause any bodily injury.
Never step on or hang from the wall mount bracket as this may cause injury or
damage to the unit. Pay especially close attention to children.
Check the wall strength. SHARP is not liable for accidents caused by insuf-
ficient strength of the wall or improper mounting.
Improper installation may cause the main unit to fall.
If you need assistance in installation, contact your dealer or installer.
5-6 mm (1/4")
5 cm (2") or more
5-6 mm (1/4")
4-5 mm
(1/8"- 1/4")
9-13 mm
(3/8"- 1/2")
40-50 mm
(1-5/8"- 2")
50-60 mm (2” - 2-3/8”)
8-10 mm (3/8”)
Dowel
(commercially available)
Screw
(commercially available)
Wall bracket x 1 Main unit bracket x 1
Screw
(3 mm in diameter x 12 mm) x 2
(3/32” x 1/2”)
(4 mm in diameter x 8 mm) x 2
Pattern paper x 1 Operation manual x 1
(1/8” x 3/8”)
Printed in Malaysia
Geduckt in Malaysia
Imprimé en Malaisie
Impreso en Malaysia
