Caution for the safety during servicing
1. SPECIFICATIONS
2. SAFETY DEVICES
3. OVERVIEW OF THE WASHING MACHINE
4. OVERVIEW OF THE CONTROL PANEL
5. MAIN FUNCTION
6. TECHNICAL POINT
7. GENERAL ERROR FUNCTION
8. TROUBLE DIAGNOSIS
9. TEST MODE
10. DESIGNATION OF MAIN COMPONENTS

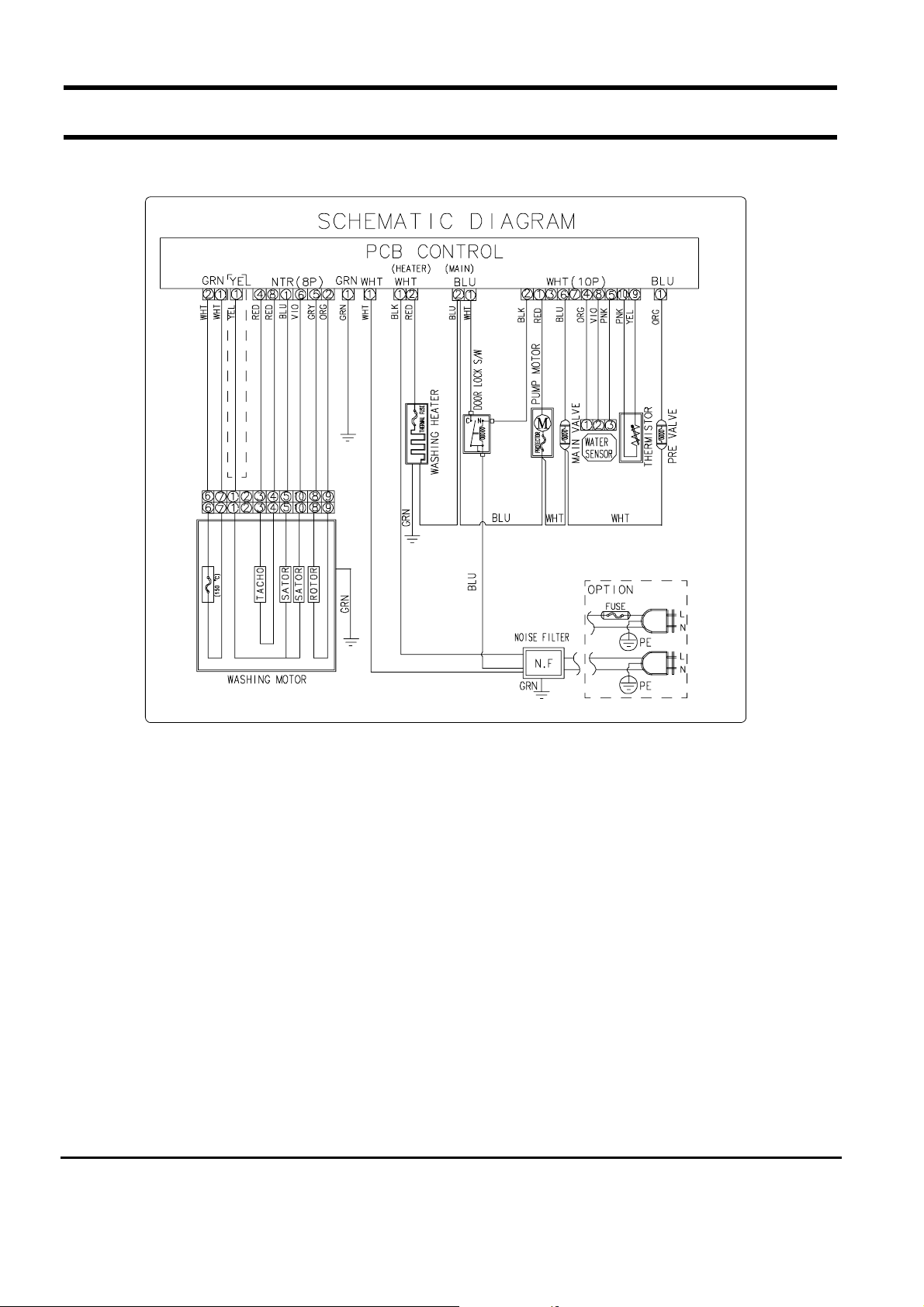

11. PCB SCHEMATIC DIAGRAM
11-1. PCB CIRCUIT DIAGRAM
12. SE TTING UP A WASH MACHINE
13. ASSEMBLE AND DISASSEMBLE
14

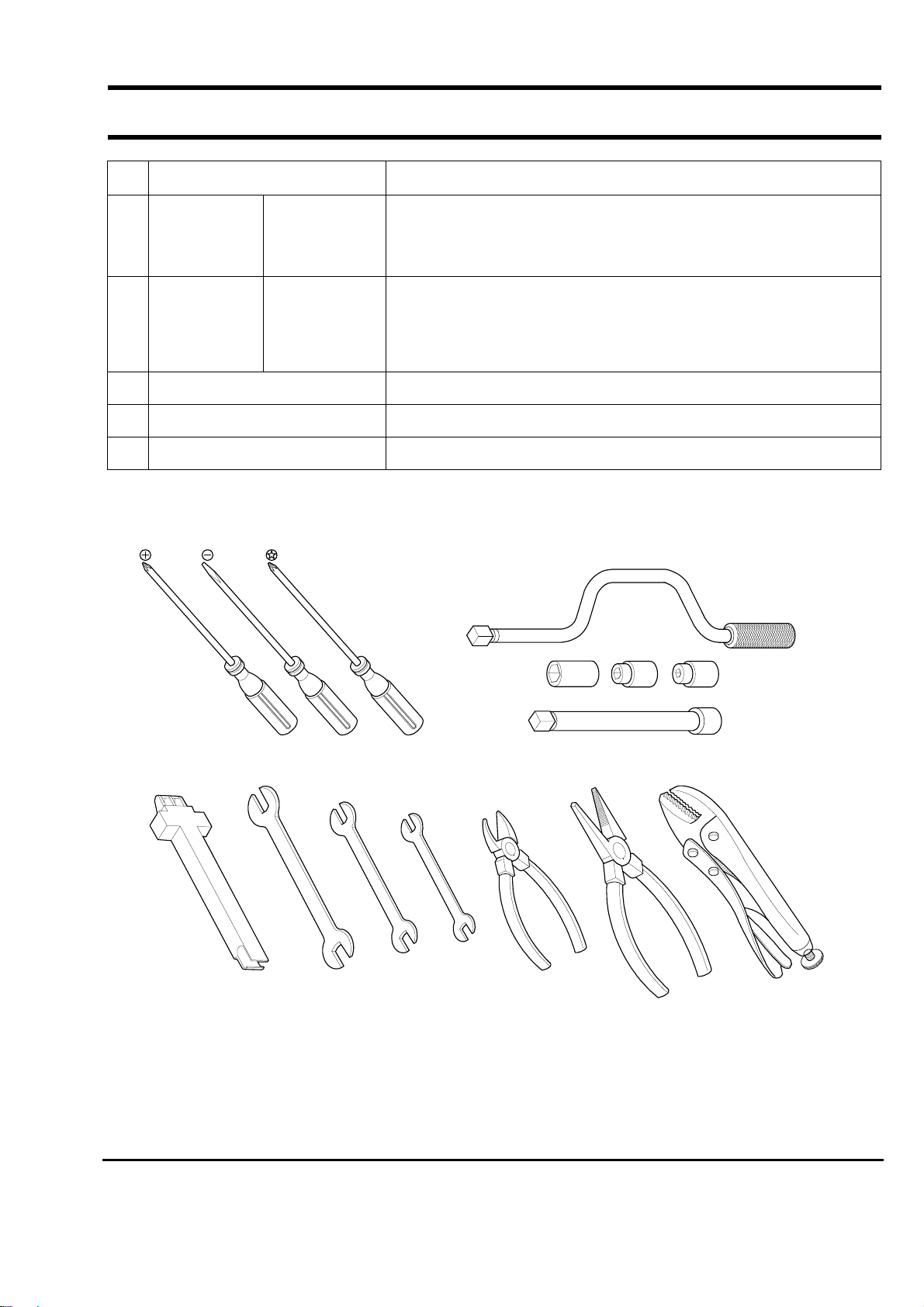

. TOOLS FOR DISASSEMBLY AND ASSEMBLY

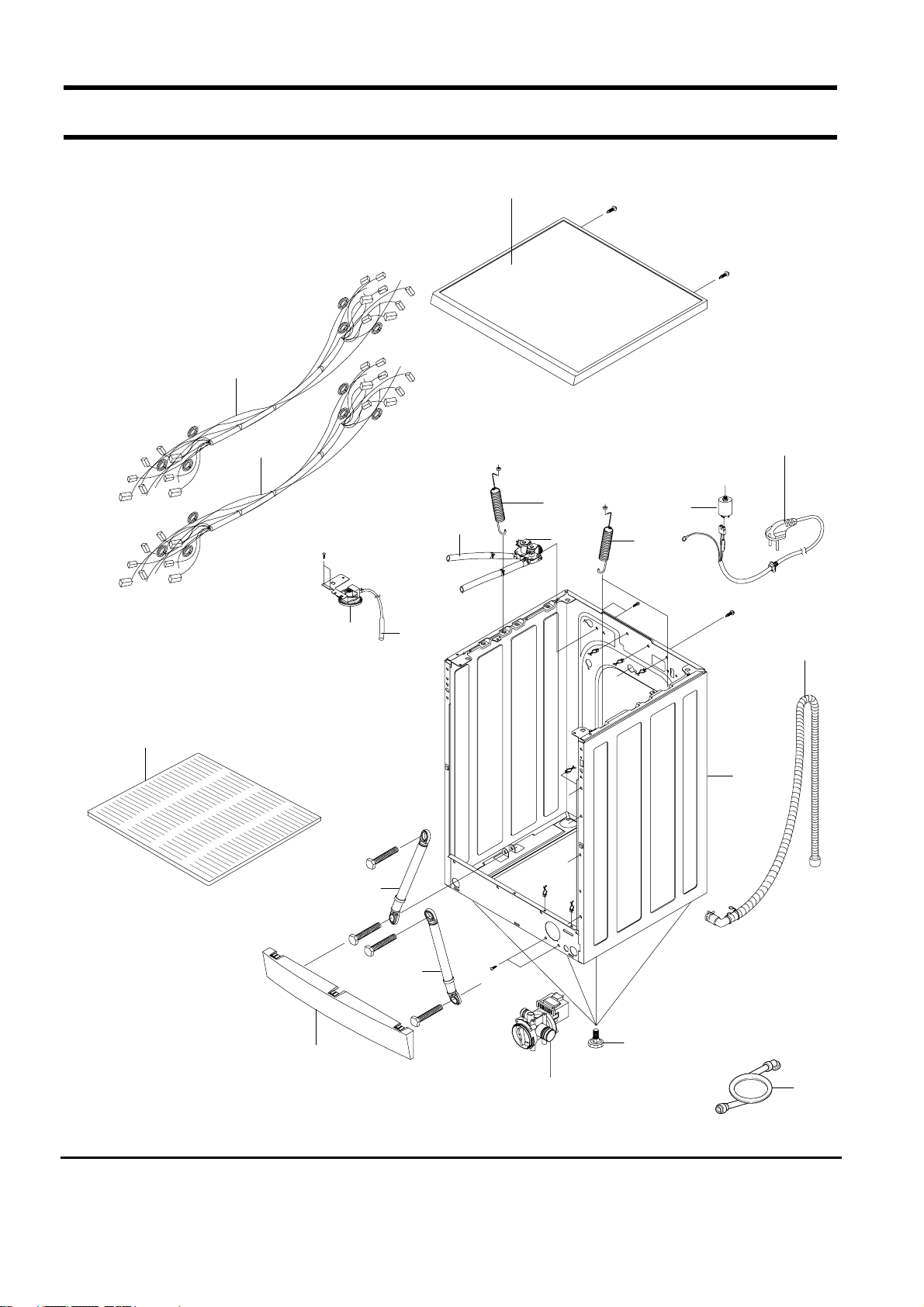

15. EXPLODED VIEW AND PARTS LIST
Manual
R1031GWS/YLR
R831GWS/YLR
1
Caution for the safety during servicing
1. Do not allow t he customer to repair the product.
☞
The person may be injured or the product life may be shortened.
2. Execute A/S after unplugging the power supply unit.
☞
Be care of the electric shock.
3. Do not plug several plugs in the same outlet.
☞
It may cause the fire due to overheat.
4. Check the damage, pressing or burning of the power plug or outlet.
☞
Replace it promptly if it has problem.(may cause the electric shock or fire)
5. Do not clean the main body with the water.
☞
It may cause the electric shock and fire and shorten the product life.
6. The wi ring of the harness shall be free from the moisture and tightened during serving.
☞
It shall not be deviated by certain impact.
7. Remove any dust or filth on the housing section,wiring section,connection section during servicing.
☞
Protect the cause of the fire such as the tracking,and etc.
8. Check any mark of the moisture on the electrical parts, harness section and etc.
☞
Replace the parts or remove the moisture.
9. Check the assembly status of the parts after servicing.
☞
Maintain the status before servicing.
10. Pull out the power cord with holding the plug.
☞
Be care of the electric shock and fire when the cord is damaged.
11. Unplug the power plug from the outlet when the wash machine is not used.
☞
Be care of the electric shock and fire due to the strike of the lightening.
12. Do not use or store the spray or flammable materials(including gasoline,alcohol and etc .)
around the wash mac hine.
☞
Be care of the explosion or fire due to the electric spark.
13. Do not put the bowl of water or wet laundry on the wash machine.
☞
If the water is penetrated to the wash machine, this may cause the electric shock or fire.
14. Do not install the wash machine in the place where the snow or rain falls.
☞
It may cause the electric shock and fire and shorten the product life.
15. Do not push the control buttons with the awl,pin, or s harp materials.
☞
It may the electric shock and trouble.
16. Check the wash machine is leveled horizontally and installed properly on the floor.
☞
The vibration may shorten the product life.
17. Joint the wire by the connector correctly.
☞
When the wire is jointed by the tape, this may cause the fire due to the tracking.

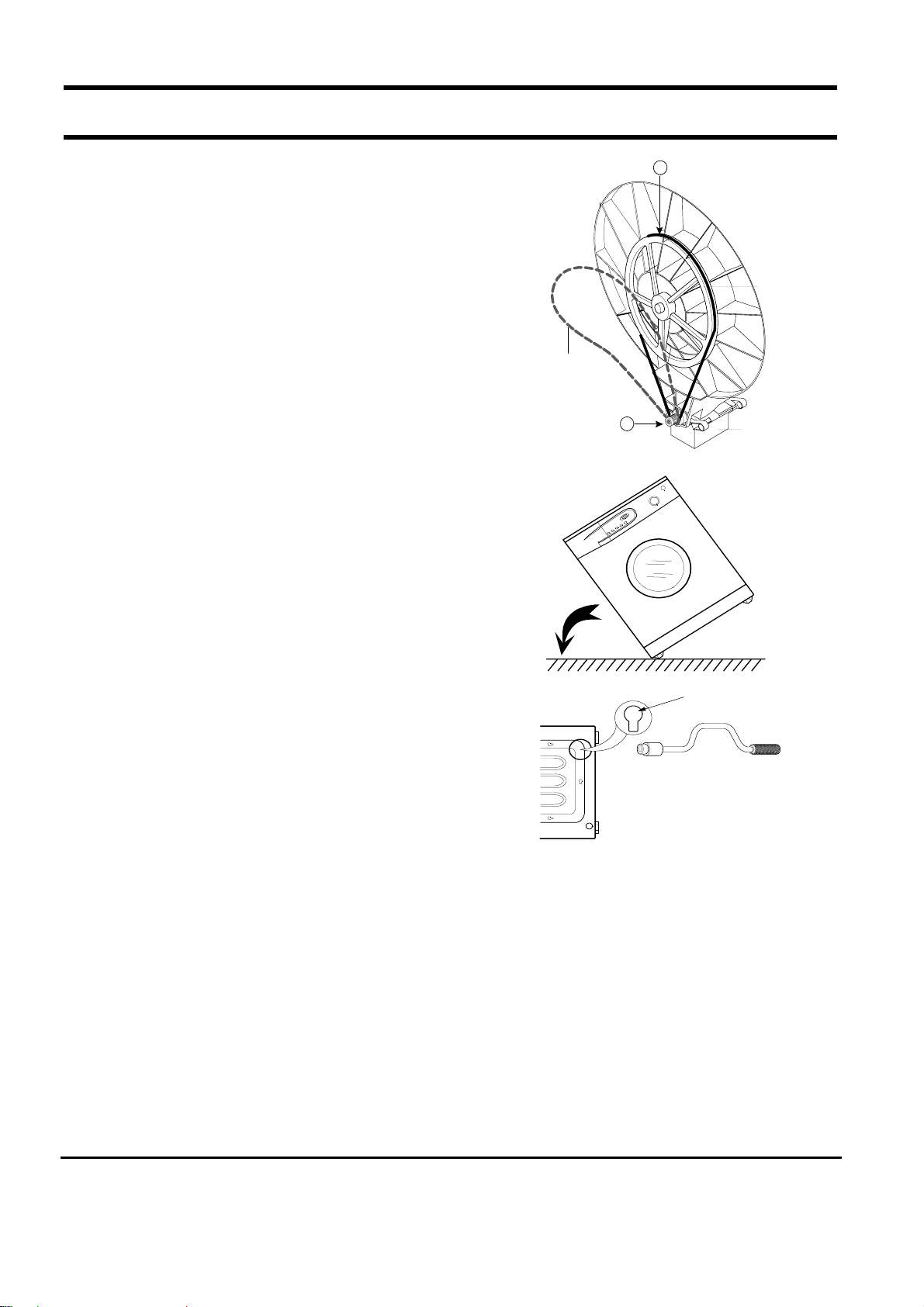

18. When the wash machine is to be laid for the service, put the pad on the floor and lay the product at
side slowly.
☞
If the wash machine is laid front, the relay may be damaged by the tub.
19. When the wash-heater is replaced, check it is inserted in the bracket-heater and screw the nut.
☞
If the wash--is not inserted in the bracket-heater properly, this may cause the noise and
leakage since it is contacted to the drum.
2
1. Specifications
WASH TYPE
FRONT LOADING TYPE
DIMENSION

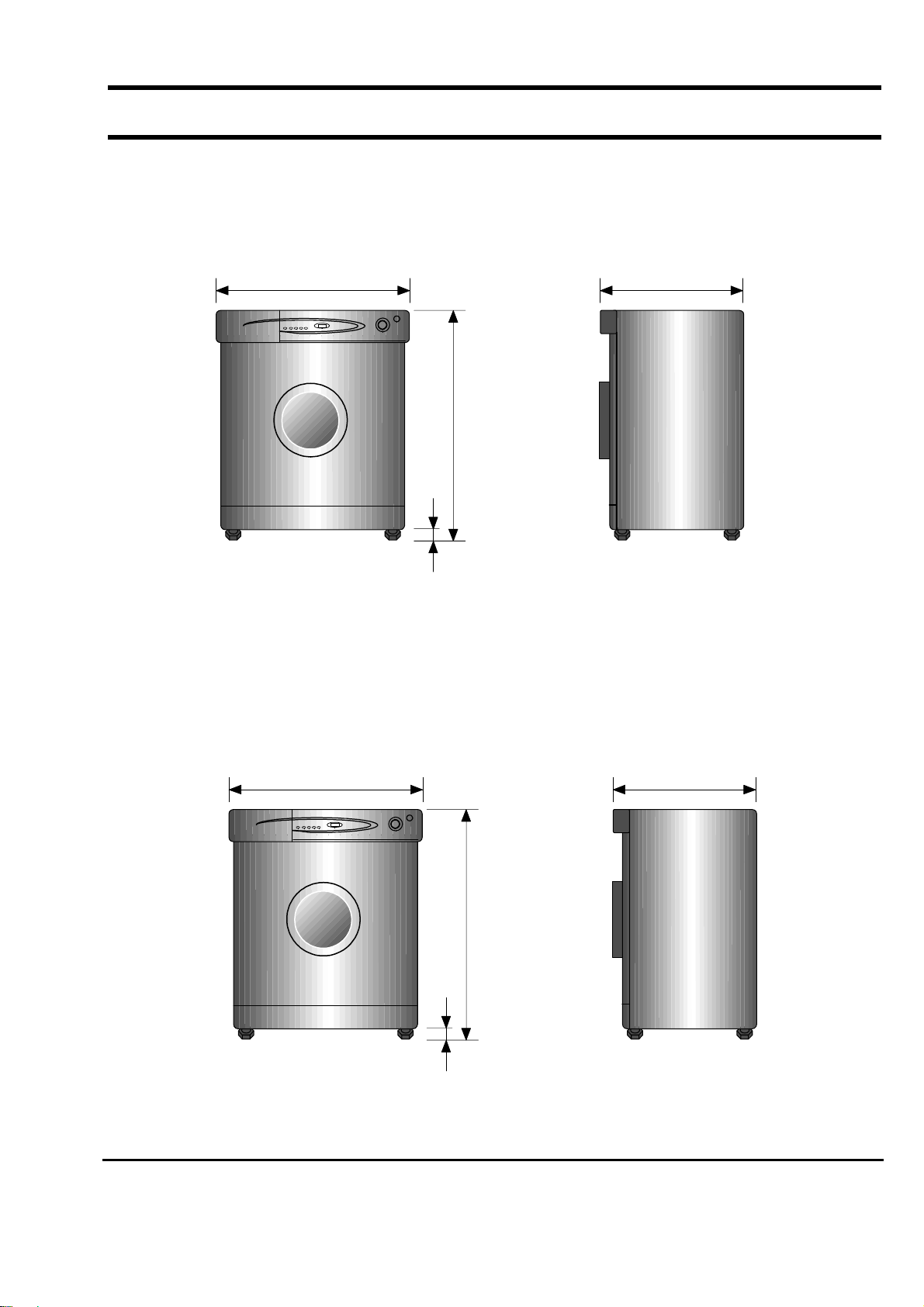

GROSS W 661mm X D 576mm X H 850mm
NET W 598mm X D 450mm X H 844mm
WATER PRESSURE
50 kPa ~ 800 kPa
WEIGHT
GROSS 69 kg
NET 66 kg
WA SH and SPIN CAPA CITY
5.2 kg (DRY LAUNDRY)
POWER CONSUMPTION
WASHING
220 V 180 W
240 V 180 W
WASHING and
HEATING
220 V 1800 W
240 V 2100 W
SPIN
MODEL R1031 R831 R631
230V 500W 430W 380W
PUMPING 34 W
WATER CONSUMPTION
49
ℓ
(STANDARD COURSE)
SPIN REVOLUTION
MODEL R1031 R831 R631
rpm 1000 800 600
3
2. Safety Devices
※
We adapt 5 safety devices for users to use this wash machine safely.
1) Balancing device (ASSY-Main PCB)
→
When the laundry is out of balance, to prevent the noises and vibrations, the unbalance
detecting sensor helps the laundry laid even and continue the dehydating process.
2) Anti-over water supply device
→
Because water supply value is broken, once water is supplied to the 2/3 level of the door, the
water supplied is drained automatically, Over -flow error is displayed on the panel
3) Temperature-regulating device(thermistor)
→
To prevent over-heating over the temperature setted up, THERMISTOR senses the temperature of
the machine continuously and helps the wash machine to work at the temperature given by users.
4 Overheating- controlling system
→
Under the circumstances of THERMISTOR inferiority or abnormal condition, if wash-heater is
overheated, automatically, assy -thermal fuse cuts off the power supply to protect the machine to
keep it safe.
5) Delicate clothing safeguard function(ASSY-Main PCB)
→
To protect the clothings which is weak to high temperature, the wash machine senses the
temperature inside the washing tub. if the temperature rises over 50
℃
wool washing course and
Delicate washing course display abnormal water temperature on the panel , after draining the
water.
4
3. Overview of the Washing Machine
5

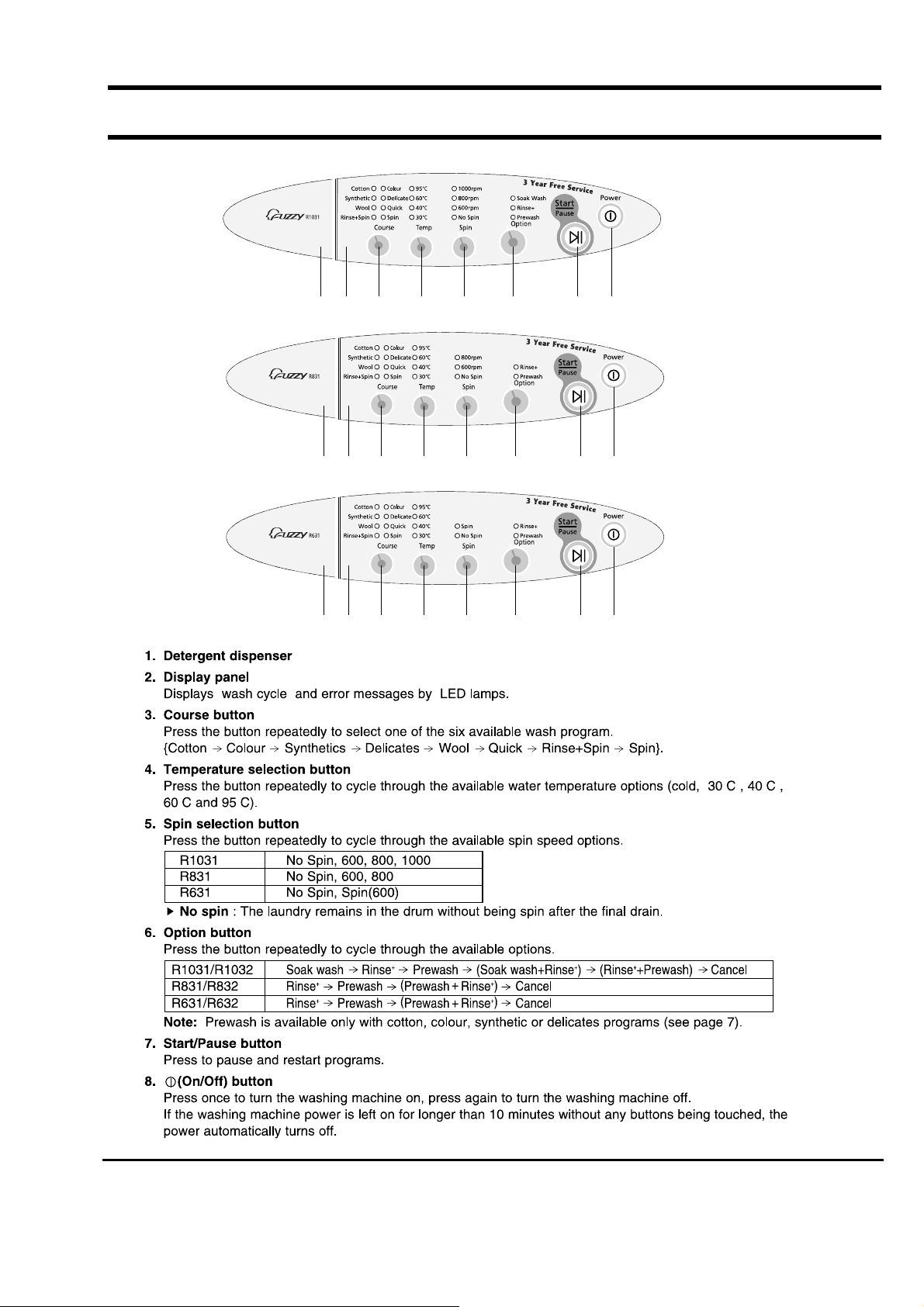

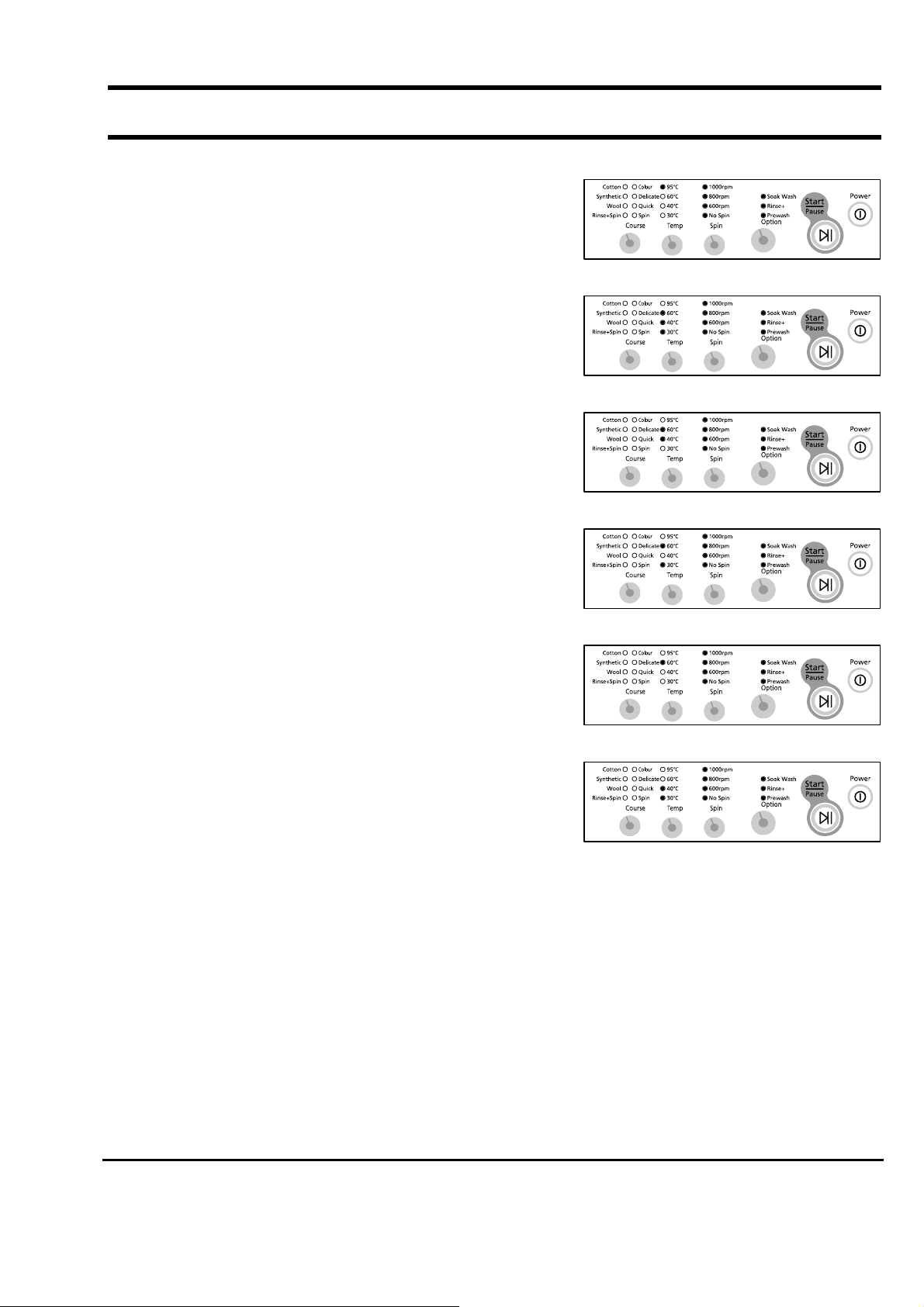

4. Overview of the control panel
R1031
R831
R631
R1031/R1032
R831/R832
R631/R632
① ② ③ ④⑤ ⑥ ⑦ ⑧
① ② ③ ④⑤ ⑥ ⑦ ⑧
① ② ③ ④⑤ ⑥ ⑦ ⑧
6
5. Main function
1) Auto power S/W off function
●
After power on, the auto power S/W off function automatically switches power off for you if you do not press
selection button for 10 minutes
●
After selecting the function, the auto power S/W off function automatically switches power off for you if you do
not press start/pause button for 10 minutes
●
After finishing the last function, the auto power S/W off function automatically switches
power off for you if you do not re-select the course button or manual button
2) Door open function
●
If door is open during the operating, all operating is halted, and door error message will be displayed and error
melody will coming out
●
Door open error can be cleared by colosing the door. the operating keeps going on
3) No spin function
●
If no spin function selected, the operating is finished after last rinse
7
5. Main function
4) Power-out compensation function
●
If power is out on selected process, the process before power out is stored to EEPROM, once power is back
the process before power out continues.
●
When power is back, washing process starts from the process at the point of the power out, rinse/drain process
starts from the initial process.
5) Water heater Error function
①
This function starts working, when the heater works abnormally.
(this function begins sensing the heater 1 minutes later, after the heater operating)
②
The value of the initial thermistor(A1) is compared with that of the thermistor(A2) in 2 minutes (Y=A2-A1)
- For 10 minutes, the variance of temperature(Y) is less than 2
℃
"course led 8ea on 40
℃
/60
℃
led on"
message is displayed on the panel.
③
The value of the initial thermistor(A1) is compared with that of the thermistor(A2) in 2 minutes (Y=A2-A1)
- For 2 minute the variance of temperature increases more than 7
℃
"course led 8ea on 30
℃
/60
℃
led on" message is displayed on the panel.
④
At this time heater, Error "course led 8ea on 30
℃
/60
℃
led on" is displayed and all working process off
⑤
The heater operating continues during heating hours, if washing hour is left over, the residual washing process
keeps going without heating.
POWER-OUT COMPENSATION FUNCTION PROCESS
WASHINGSTART
RINSE/DRAIN
PROCESS
RINSE/DRAIN
START
FINISH
POWER OUT
POWER BACK
SAVE DATA
to EEPROM
SAVE DATA
to EEPROM
READ DATA
(PROCESS+TIME)
MICOM RESTORE
MICOM RESTORE
RESTART
PROCESS
POWER OUT
POWER BACK
8
5. Main function
6) Fuzzy washing function ( weight-sensing)
☞
After finishing initial water supply, when the fall of the water level needs supplementary water supply,
Sensing function perceives the weght with the supplementary water supply numbers and starts to work.
Under the course of Cotton, if the supplementary water supply numbers become 3 - 4 times the
function is going at default condition ( high water level ), if 1-2 below that is going at middle level, if 0 below
low water level, heating hours and rinse hours depend on the above data.
※
After sensing weight, above hours is decreased from above default hours
7) Bubble -detecting function
At the each condition of washing&dehydrating , rinse&dehydrating , hydrating, bubble -detecting function works,
this function works 5times normally, if the function detects bubbles at 6 times , the bubble-detecting function
stops and go on to the next process.
●
The bubble-detecting function during washing & dehydrating to rinse & dehydrating
after 2 times instant dehydrating and before main dehydrating, if the water level is under 25.45KHZ, Bubble
→
Detecting function thinks there are bubbles and add the bubbles-removing rinse, needing hours are above
hours and 6 min 40 sec.
→
The bubble-detecting function during single hydrating process
after 2 times instant dehydrating and before main dehydrating , if the water level is 25.45KHZ below or
during main dehydrating, water level data is 23.80KHZ below Bubble-detecting function thinks there are
bubbles and add the bubbles-removing rinse 1 times, needing hours are above hours and 5 min 50 sec.
Washing hours
Rinse water level
Cotton
High Default Default
Middle Default-12 min 23.30KHZ
Low Default-25 min 23.70KHZ
draining &reverse
1 min 20sec
unbalance
detecting range
20 sec
laundry scattering
bubble detection
(default water level 25.45KHZ below)
210rpm
Bubble-detecting function operating process
5sec20sec 15sec 5sec
15sec
210rpm
9
5. Main function
8) Unbalance detecting & laundry balance positioning system
①
Just before the hydrating process and just after reversal rotation for balancing laundry position, this function is
carried out
②
The initial 6 sec is the period of reversal rotation for balancing laundry position , Drum rotates 50rpm for
initial 6 sec
③
Next 10 sec, the rotation increases the speed from 50 rpm to 90 rpm slowly
④
During the next 18 sec, drum rotates at the speed of 90 rpm, the sensor decides the degree of laundry
unbalance with TACHO data which is attached to motor
⑤
If the degree of unbalanced laundry is over 6 times to default value, laundry balancing system carryies out
feed back process 6 times
10
6. Technical point
1) Final dehydrating r.p.m at each course
※
You can change the r.p.m to the above a table by use spin button under no spin situation.
2) The water level data at each course
Model
Course
R1031 R831 R631
Cotton
1000 800 600
Colour
1000 800 600
Synthetics
800 800 600
Delicates
600 600 600
Wool
600 600 600
Quick
800 800 600
unit:rpm
Water level
Course
Default w ater level(khz)
Supplemetary water
START(Khz)
Supplemetary water
end(khz)
Cotton/Colour
Washing
23.60 24.20 23.85
Rinse
large 23.00
24.20 23.90middle 23.30
small 23.70
Synthetics
Washing
23.60 24.20 23.90
Rinse
23.10 24.20 23.90
Delicates
Washing
23.25 24.00 23.70
Rinse
23.00 24.20 23.90
Wool
Washing
23.00 24.00 23.70
Rinse
22.80 23.80 23.50
Quick
Washing
23.50 24.00 23.70
Rinse
22.45 24.00 23.50
unit:Khz
11
6. Technical point
3) The other water level data
※
If water level is 15KHZ below or 30 KHZ above , sensor-pressur is out of order so needs changing.
The water data unter each conditon
1st water supply (only preparation)
24.60 1st water supply level to washing tub
Overflow error
20.50 The water supplied reach 2/3 of door
Bubble
detectingatwashing/rinse/dehydrating
25.45 Bubble -detecting water level
Bubble detecting rinse w ater level
22.60 The water level which can detect bubbles
Water level w hich can open door
24.10
over
It is possible to open the door
Water level which can drive heater
24.50(3.5
ℓ
) Safety water level of wash heater
Water level w hich can reset the drain
24.50 The water level can be detected after 1st draining
unit:Khz
12
7. General Error Function
When an error occurs, this function starts to keep generating error melody sounds and displays error indicators as
shown in the followings per corresponding error by blinking in 0.5sec interval until the error status is completely cleared out.
In this case, all the driving devices are turned off until the error is cleared out.
1. WATER SUPPLY ERROR
- Display shows such as fig. 1
- Water Supply Error occurs when water level frequency does not show
changes more than 100Hz or water is not supplied
up to the water level presetting for 20 min or more at the time of initial
water supply.
-The error status can be cleared by turning POWER S/W OFF and
resuming the POWER ON initial status.
2. WATER DRAIN ERROR
- Display shows such as fig.2
- In case the water level frequency is 24.5KHz or less in the initial phase
of UNB-detecting cycle.
- Water Drain error can be cleared by turning POWER S/W OFF and
resuming the POWER ON initial status.
3. OVER-FLOW ERROR
- Display shows such as fig.3
- Over-Flow error occurs when the water level is in abnormal operation.
ItcanbeclearedbyturningPOWERS/WOFF.
Water is drained prior to POWER S/W OFF and it is forced to be drained
for 2 min if a frequency of more than 24.5 KHz is detected.
4. UNBALANCE ERROR
- Display shows such as fig4.
- Laundry load is unbalanced; loosen any tangled laundry.
- If only one item of clothing needs washing, such as a bathrobe or jeans,
the final spin result might be unsatisfactory and an error message will be
shown in the display panel such as fig 4..
- Unbalance error is cleared by POWER S/W OFF and by resuming the
POWER ON initial status.
5.WATERHEATERERROR
- Display shows such as fig.5 or fig.6
- In case the water temperature rises by 7∞C or more in 1 min. or by 2∞C
less in 10 min after heating is started.
- It can be cleared by turning POWER S/W OFF.
6 DOOR OPEN ERROR
- Display shows such as fig.7
- Door Open error can be cleared by closing the door.
7. ASSí Y PRESSURE S/W ERROR
* Generated Frequency Signal of WATER LEVEL(W/L) S/W (KHz)
Level Low Level High Level
Abnormal W/L Frequency 30.00 KHz 15.00 KHz
○ :Lighton
● :Lightoff

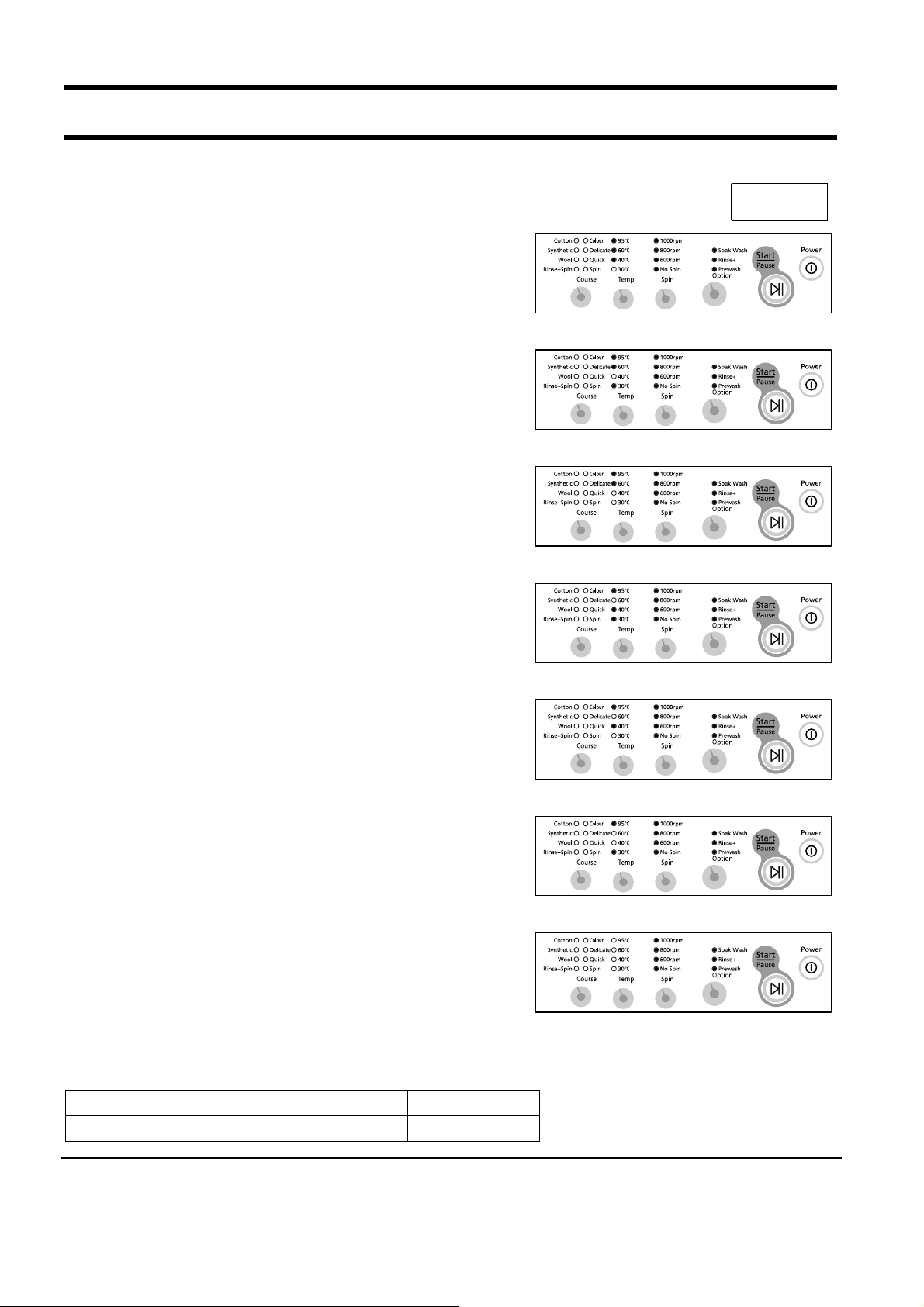

fig. 1
fig. 2
fig. 3
fig. 4
fig. 5
fig. 6
fig. 7
13
7. General Error Function
- If the same signal as the above table is detected for more than
5 seconds, it is a PRESSURE S/W Error.
- When the error occurs, water drain pump will operate for 3 min. and
then turn off the water drain pump.
Then the display shows fig. 8 indicating a pressure s/w error indicator.
8. ABNORMAL WATER TEMPERATURE ERROR
- In case the water temperature is 50∞C or more in Delicate and Wool
course.
- At the time of initial water supply, if the water temperature is not
appropriate, water starts to be drained and it is forced to be drained
for 2 min when the abnormal frequency of 24.5KHz is detected.
- Display shows fig. 9
- This error can be cleared by POWER S/W OFF.
9. WATER LEAKAGE ERROR (E9)
- Water Leakage error occures when water is drained naturally after
washing program starts.
10. Tacho Error
- This error occurs in case motor thaco is out of order or tacho siganals
inputted are fewer than 2
- Display shows fig. 11
- This error can be cleared by power s/w off
11. Motor Triac short Error
- This error occurs in case over 300 per 1 sec tacho signals are inputted
power S/w should be off.
-fig. 12 is diplayed.
- This error can be cleared by power s/w off
12. Thermistor error
- This error occurs, when Thermistor circuit is abnormal or the detected
electrical volt is 0.2v below or 4.5v over
- fig. 13 is displayed
- This error can be cleared by power s/w off
fig. 8
fig. 9
fig. 10
fig. 11
fig. 12
fig. 13
14
8. Trouble Diagnosis
- As the micom wash machine is configured of the complicate structure, there might be the service call.
Below information is prepared for exact trouble diagnosis and suitable repair guide.
Caution for the Repair and Replacement
1) As some electronic components are damaged by the charged static electricity from the resin part of wash
machine or the human body, prepare the human body earth or remove the potential difference of the
human body and wash machine by contacting the power supply plug when the work contacting to PCB is
executed.
2) Since AC220~240V is applied to the triac T1 and T2 on P.C.B, the electric shock may occur by touching
and be careful that the strong and weak electricity are mixed.
3) As the P.C.B assembly is designed for no trouble, do not replace the P.C.B assembly by the wrong
diagnosis and follow the procedure of the trouble diagnosis when the micom is not operated normally.
Please follow below instruction for the trouble diagnosis and parts replacement.
POWER SUPPLY PLUG
15
8-1. Trouble Diagnosis
No Item Cause and treatment
1 The power is not supplied
- Is the PCB connector connected well?
- Is the voltage normal?
- Is the power supply plug connected well?
- Is the noise filter connected well?
- Is the secondary output of the power supply transformation normal?
- Is the fuse disconnected? (option)
ï If above points are not found, the PCB assembly is out of order.
Replace it.
2 The water is not supplied.
- Is the knob open?
- Did you push START/PAUSE button after selecting the course?
- Is the water supply valve connected well?
- Is the winding of the water supply valve continuous?
- Is the connection and operation of the pressure switch normal?
ï If above points are not found, the PCB assembly is out of order.
Replace it.
3
The wash does not start though
the water supply is stopped.
- Is the connection and operation of the pressure switch normal?
- Is the pressure switch hose damaged so that the air is leaked?
- Is the pressure switch hose bent?
- Check the operation of the water level switch.
ï If above points are not found, the PCB assembly is out of order.
Replace it.
4
The drum does not rotate during
washing.
- Is the belt connected well?
- Is the winding of the motor continuous?
(Rotor winding, stator winding, generator)
- Is the motor protector normal?
ï If above points are not found, the PCB assembly is out of order.
Replace it.
5
The drum rotates by one direction
during washing. (The drum rotates
to one direction for SPIN.)
- The PCB assembly is out of order. Replace it.
(Inversion relay open trouble)
6 Drainage problem.
- Is the drainage hose bent?
- Is the winding of the drainage pump continuous?
- Is the drain filter clogged by the waste?
ï If above points are not found, the PCB assembly is out of order.
Replace it.
7 Dehydration problem.
- The unbalance is detected.
- Put in the laundry uniformly and start again.
8 Abnormal noise during SPIN.
- Is the pulley nut loosen?
- Is the transport safety device removed?
- Is the product installed on the level and stable place?
(Little noise may be generated during the high-speed SPIN.)
9
Leak breaker or current/leak
breaker is down during washing.
<When the leak breaker and current breaker is installed separately>
- When the leak breaker is down, check and make the earth of the outlet.
- When the current is down, the current is leaked.
<Is the breaker down when the leak/current breaker is combined?>
- Check the rated capacity of the current and leak breaker.
The current breaker may be down due to the lack of the current when the
wash machine and other apparatus are used.
In this case, execute the cold water wash to check whether the current capacity is lack.
10 The heating is not executed.
- Is the wash heater terminal unplugged?
- Is the wash heater normal?
- If above points are not found, the PCB assembly is out of order.
Replace it.
16
8-2 . Problem Checkking And Method Of Pcb
8-2-1 The Part Of Power Source
YES
YES
NO
YES
NO
YES
NO Power On
Check The Trans
Check The Diode(D6,7,8,9,11)
And Condenser(CE3)
Exchange IC2(7805) And
Check The
Condenser(CE5)
The Voltage Of
Between
ⓐ
and
ⓑ
Is
As Big As 12V?
7805
D6,7,8,9
D11
CE3
CE5
IC2
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
16
47
17
48
20
TRANS
2200UF
470UF
The Voltage Of
Between
ⓒ
and
ⓓ
Is
As Big As 12V?
The Voltage Of
Between
ⓔ
and
ⓓ
Is
As Big As 5V?
NO
R14
33K
R15
33K
17
8-2-2. Reset Part
NO
YES
8-2-3. Interrupt Part
The Value Of
Measurement Result Of
Between Micom 23 And
Gnd Is 5V?
Check The Power Source
23
7033
IC3
R36
CE6 1UF
Check IC3
TR13 KN3904
31
R17 2.2K
R46 4.7K
R49 C34
C32
ⓐ
Check The Curve
Output Of
ⓐ
?
Check D6 - D9
Check The Micom
Number 31 ?
Check TR13, R46
Check The Part Of
Oscillator
C36
18
8-2-4. Checking The Part Of An Oscillator
When The Micom 18,19
Check, The Value Is
8Mhz?
Check Resonator
Exchange Micom And Check R28
18
19
R28 1M
XTL1
8MHz
NO
YES
19
8-2-5. Driving Part Checking
◆
Confirm The Output Of DC5V, When The Every Part Of Micom Number Check,
According To The Some Problem Condition
ex) When The Drain Is Not Operating But Pump Motor Is Operating, Check
The 5Voltage Of Micom
※
Check The M icom 12th In The Above Method When The Cold W ater Is Bad
TRIAC4
R43
1
7
12
9
IC65003
MICOM
POWER
COLD
DOOR
PUMP
R26
R30
TRIAC2
TRIAC3
ⓐ
ⓐ
ⓐ
ⓐ
Micom Number, 9 Is
5Voltage?
Micom Bad
The Part Of
ⓐ
Is
0 Voltage?
Check The IC 65003
Check R38, TRIAC2
NO
NO
YES
YES
PRE
2
TRIAC5
R47
+12V
20
8-2-6. Confirm The Driving Part Of Motor
BD1
RELAY3
D12
TRIAC1
CM11
R5
R45
1W 300
CM2
R11
IC 65003
5
3
MICOM
12V
Motor Is Not Spinning
Check BD1, TRIAC1
Motor Is Not Turnning
Right And Left
Check RELAY3
Check The Tacho Part
YES
YES
NO
NO
COIL1
21
8-2-7. Checking The Tacho Part
Have The Motor Turn In Hand
Is The Rectangular
CurveInTheMicom
21,10th ?
Check The Surroundings
Circuit And TR11
R22 1K
TR11
R27 4.7K
R23
C17
KN3904
C14
21
Exchange The Motor
MICOM
NO
YES
C24
+5V
22
9. Test Mode
1. Driving Compartment Test Mode
A. Hold down ì 1î and ì 2î keys simultaneously and then press POWER S/W ì 4î on.
B. The driving compartment can be tested when you press ì 3î key right after entering
into the initial stage of the TEST MODE.
ï Driving Compartment Test
COLD VALVE ON(0.3sec)
→
OFF(0.3sec)
→
RRE VALVE ON(0.3sec)
→
OFF(0.3sec)
→
Pump MOTOR ON(0.3sec)
→
OFF(0.3sec)
→
MOTOR Left (0.5sec)
→
OFF(0.5 sec)
→
MOTOR Right (0.5sec)
→
OFF(0.3sec)
→
HEATER RELAY ON(0.3sec)
→
OFF(0.3sec)
→
DOOR OPEN
(Function continues when door is closed)
1 2 3 4
23

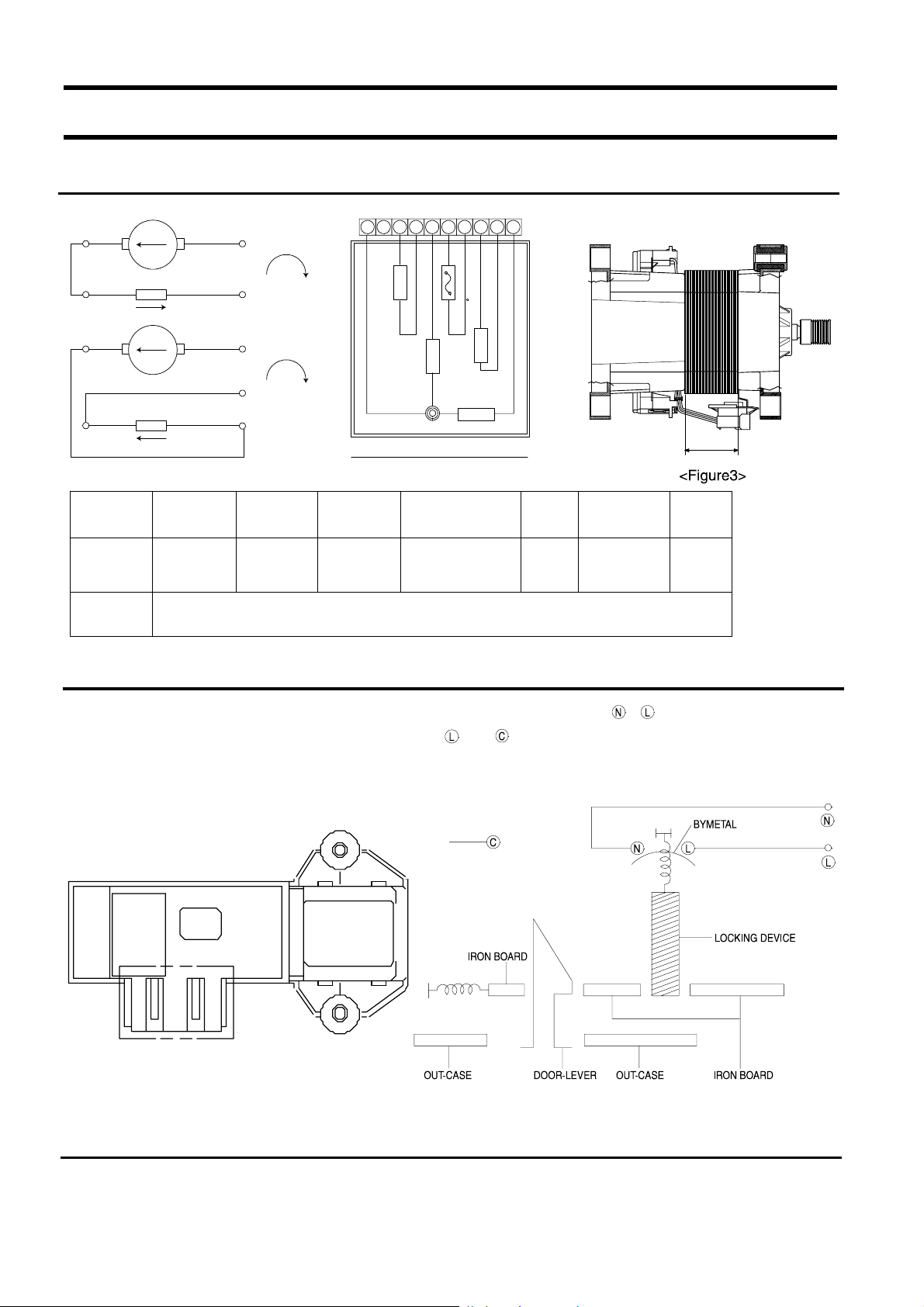

10. Designation of Main Components
10-1 Normal / Reverse R evolution of Motor and R. P. M. Control
10-2 Door safety Device
When Door is closed, door stay closed. if "set" is operated, power supplied to , wires have bymetal keep
the door closed, and electronical power flows between and make it operate.
+
-
89
510
Rotor
Stator coil
CW
+
-
89
5
5
10
Rotor
Stator coil
CCW
<Figure1> <Figure2>
12345678910
STATOR
WASHING MOTOR
T
A
C
H
O
H
I
G
H
-
S
P
E
E
D
S
T
A
T
O
R
P
R
O
T
E
C
T
O
R
M
I
D
D
L
E
-
S
P
E
E
D
R
O
T
O
R
(
1
5
0
C
)
H
(
±7%)
STATOR(51) ROTOR(8.9) TACHO(3.4) PROTECTOR(6.7) "H"(mm) Code-No. Remark
Resistance
value
2.08
Ω
1.99
Ω
38.8
Ω
0 39 DC31-00002E R1031
R831
R631
Rated
value
220~240V/50Hz
24
10-3 Heater
1) Capacity : AC 230V/1900W
2) Location : Bottom of TUB
3) Function : Raise the water temperature
supplied at the wash process.
4) Resistance value : 23~29
5) Thermal Fuse : 169∞C
10-4 Detergent tub and water supply value
A Detergent tub is composed of housing and 3 drawers . supplied water flows into the 3 drawer-detergent tub by
way of classifier at each washing process.
three open drainage way whith detergent and supplied water by way of connector located under the housing flows
into washing tub.
the water supply valve is composed of a hot water valve(1 way) and a cold water valve(3way) and water flow per
min in the valve is below.
10-5 Shock absorber and buffer spring
This wash machine is equipped with 2 Shock absorbers with same
capacity and with 2 buffer springs. 2 Shock absorber are placed
under the tub and outside case , 4 buffer springs are placed on the
right and left of the upper side of outside case.
Shock absorber function: during wash, dehydration absorb the shock.
buffer spring: buffering the vibration
device
capacity of Shock absorber
Shock absorber 8
±
2kg
Hot water valve(1 way)
water flow(L/min)
10L
resistance value
4.3
㏀
power consumption
AC 220v ~ 240V 50/60
㎐
usable water pressure
0.5 ~ 8
㎏
/
㎤
Thermistor
25
10-6 ASSY-TUB BACK
10-7 ASSY- DRUM
10-8 ASSY-PUMP DRA IN
1) Capacity : AC 230V 34W
2) Location : Front bottom(R)
3) Resistance : 150
Ω
~180
Ω
TYPE
(A) (B) (C) CODE-NO. REMARK
I ø30 ø23 ø35 DC97-01463H
Lifter type
R1031/R831/R631
TYPE INNER-BEARING(A) OUT-BEARING(B) OIL-SEAL(C) Assy-Housing Bearing(D) Assy-Tub Back
I ø30 ø25 ø34 DC97-05168A DC97-00214R
A
C
OIL-SEAL
INNER-BEARING
OUT-BEARING
B
(unit : mm)
A
C
B
(unit : mm)
26
11. PCB Schematic Diagram
27
11-1. PCB CIRCUIT DIAGRAM This Document can not be used without Samsung's authorization.
28
11-1. ASSY-PCB Part List
NO. Part Code Code NO Q'ty Description Spercificatio Remark
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
WB002
WB002
WB003
WB004
WB004
WB004
WB004
WB010
WB003
WB006
WB006
WB006
WB006
WB006
WB007
WB008
WB007
WB007
WB009
WB010
WB011
WB012
1401-001007
1401-001024
0402-001023
3501-001180
3501-001156
3501-001157
3501-001007
DC26-00005B
0402-000137
0504-000130
DE13-20016A
0504-000159
0504-001080
0501-000465
1202-000141
2802-001058
DE13-20017A
1103-001160
DE30-20016A
3404-001022
DE07-20040A
0703-001056
1
5
1
1
2
3
1
1
6
2
1
2
2
1
1
1
3
1
1
7
*
1
THYRISTOR-TRIAC
THYRISTOR-TRIAC
DIODE-BRIDGE
RELAY-MINIATURE
RELAY-POWER
RELAY-POWER
RELAY
TRANS-FORMER
DIODE-RECTIFIER
TR-DIGITAL
IC-VOLTREGU
TR-DIGITAL
TR-DIGITAL
TR-SMALL
IC-DRIVE
RESONATOR-CERAMIC
IC-DRIVE
IC-EEPROM
BUZZER
SWITCH-TACT
LED LAMP
LED DISPLAY
10A,SM10LZ47(TOSHIBA)
2A,SM2LZ47(TOSHIBA)
RBV1506,600V,15A,SIP-4
12VDC,RTE24012
12VDC,0.53W16000MA,1FORMC
12VDC,0.53W16000MA,1FORMC
12Vdc,200mW,5A,(TAKAMISAYA)
450MA,220~240VAC,11VDC
1N4007,1000V,1A
KSR1105
KA7805A
KSR2105
KRC246S
MMBT390X
7033,SOT-89
8MHz,02%,TP,10
×
5
×
8mm
KID65003AP,DIP,STICK
4C010,128
×
8BIT,DIP,8P
CBE2220BA,STICK
15V,20mA,130
°±
40gf,6
×
6
×
5mm
SLH-34VC70F,RED,T,P15
Y-GRN,4dig,7seg,46
×
19
×
24.6mm
TRIAC4
TRIAC2
BD1
RELAY3
RELAY5
RELAY1,2
RELAY6
TRANS
D15~D19
TR3,TR4
TR7
TR1,TR2
TR3,TR4
TR11-13
IC4
RESO
IC3,IC5,IC6
IC2
BZ
SW1~7
29

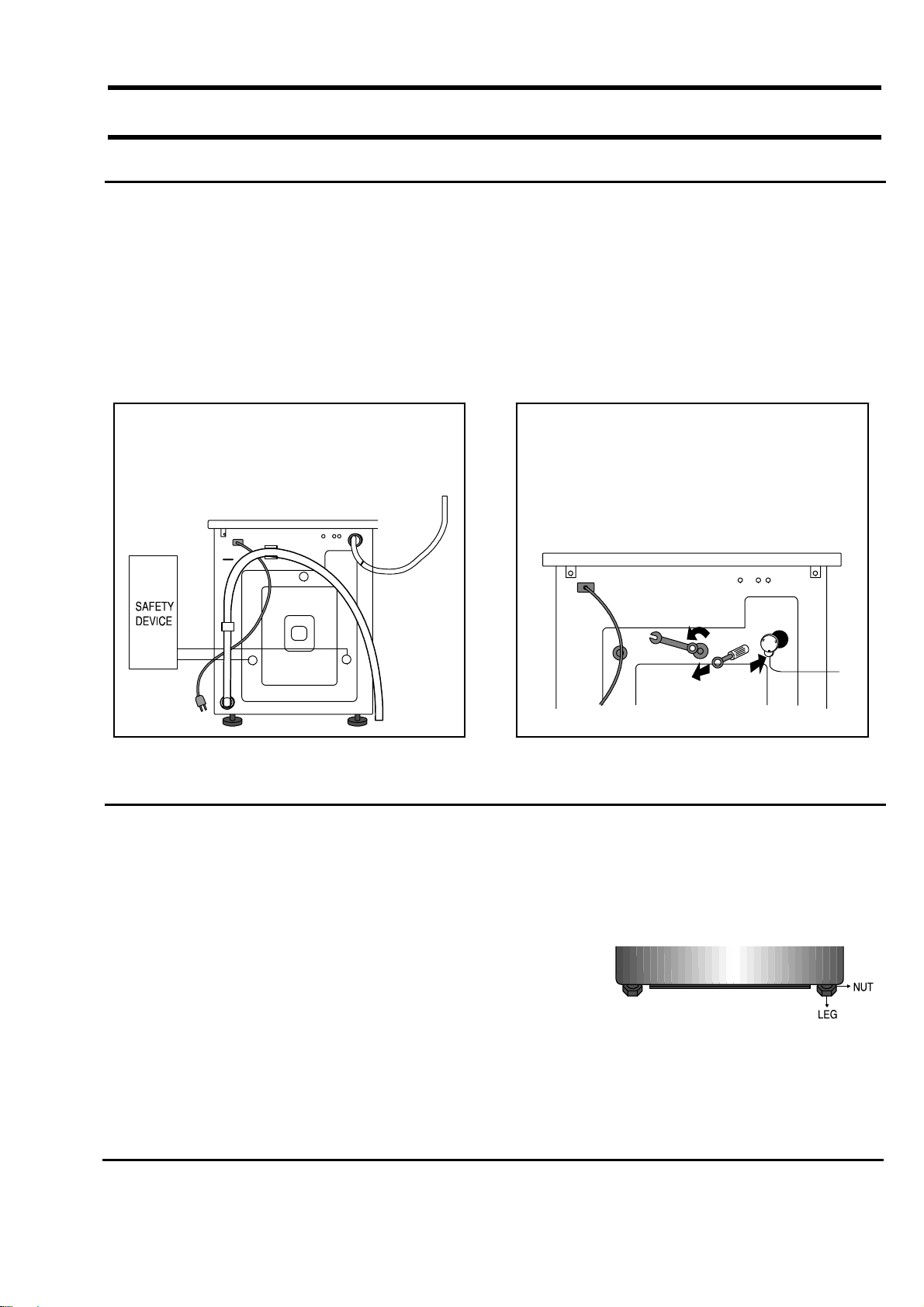

12. Setting up a wash machine.
12-1 Remove the safety device for carriage
1) Remove 3 safety device volts with a enclosed wrench for safety device remove
2) Plug the 3 holes with 3 caps after removing the 3 safety device volts.
*Takecareof3safetydevicevoltsandawrench,youneedthesewhenyoumovewashmachinesafely.
Caution
You must remove safety device before use , if not, you have much vibration or much load can br impacted on
the machine.
12-2 Install the wa sh machine on the leveled place.
With the water level adjustment device, adjust the 4 adjustment legs to install the machine leveled on the right,
left, front and rear side. machine's install condition and size is following.
12-2-1 Initial assembled condition (ass'y cover top)
1) Adjustment legs are stick to the bottom of the machine,
when the machine comes out of factory. this condition is
ideal for vibration and noise.
2) When you install the machine initially or move the machine in use,
unscrew the 4 legs to the left and place the machine level and spin
the locking nuts and tighten it strongly.
1. Remove safety device behind of machine
●
To protect the machine, remove the
assembled 3 safety device
2. Plug the 3 holes
●
Plug the 3 holes after safety device
withthecapsenclosedinsideof
washing tub
①
②
③
30
12. Setting up a wash machine.
3) Even though adjustment legs came out all the way, if machine is not levled , prop up the
machine with the wood or brick to make it even.
(Do not use fragile material or slippery material such as laminated paper)
12-2-2 The condition of setting up sink( Disassembled Ass'y- Cover Top)
1) Spin the adjustment leg to the left and remove them from the front and rear side of the machine.
2) Remove the 4 locking nuts from adustment legs, and put only adjustment legs back whert those were.
3) After removing the fixing screws(each on right, left side) from the machine whichi is behind ass'y- cover
top, disassemble the assy-cover top.
4) Install the sink.
340598
8
4
4
1
7
450
340598
8
4
4
1
7
450
31
12. Setting up a wash machine.
12-3.
Door Opening Dimension(Slim Model)
840 mm
Side
255 mm
Upper
※
Maximum door angle(
③
)is170
°
●
(When The Door Vertically Open )
The distance between door
①
and the rear side
②
is 760mm
①
●
(When the door extremely open
※
)
The distance between the door edge(
①
) and the left side of washing
machine(
②
)is255mm
②
③
①
②
225 mm
32
13. Assemble and Disassemble
1. ASSí Y-COVER TOP
1) Remove two screws fixing the top-cover on back side.
2) Push the top-cover back about 15mm and pull it up.
3) Ití s possible to exchange and service Assy-Panel
(PCB), the pressure-sensor, the noise-filter,
the water valve and trans(option).
2. FRAME FRONT
1) Remove the top-cover and the assí y drawer.
2) Remove two screws fixing the control-panel on
front side and the screw on right side.
3) Remove the cover-front(L) by using the (-)driver.
4) Pull the lever and open the assí y-door.
5) Part the diaphragm and the wire diaphragm
away from the frame-front.
6) Remove the eight screws fixing the frame-front.
7) Ití s possible to exchange and service the heater,
the pump, the shock-absorber and the door lock
s/w.
1
5
m
m
SCREW
33
13. Assemble and Disassemble
3. BELT
1) Remove the top-cover.
2) Disassemble and assemble the belt.
3) Check the belt is located at center of the motor-pulley.
<When assemble the belt>
Hook the belt on the motor pulley 1) and place it
around the pulley 2).
4. MOTOR
1) Lay down the washer on left side.
2) Remove the wire housing from the motor.
3) Remove the bolt fixing the motor with the box
drive on back side.
4) Remove the motor.
1
2
BELT
MOTOR
PULLEY
Motor Assemble Hole
34
14. Tools for Disassembly and Assembly
NO. TOOL
¿
Box driver
10mm
13mm
19mm
Heater (1)
Motor (1), Balance (5)
1 Pulley hole
¡
Double-ended
spanner
10, 13,19mm Replaceable for the box driver.
¬
Vice pliers Tool to protect the idle and abrasion of the bolt for the box driver.
√
Other(Driver, Nipper, Long nose) General tools for the after service.
ƒ
JIG for the Tub 1(DisassembleandAssemble)
√
¿
ƒ
¡
√ ¬
1
9
m
m
1
3
m
m
1
0
m
m
1
7
1
9
1
2
1
3
8
1
0
35
15. TOP(FRONT) - Exploded View
J006 C021
G007
C008
J014
F004
V016
V024
P003
Y001
C010
P002
V001
V009
V003
V002
C036
V010
36
15. TUB - Exploded View
R015
V007
R013
R003
R014
R025
R008
R020
T031
R018
R016
R021
R007
R028
R005
R024
R023
R006
R010
R026
37
15. CASE - Exploded View
C007
T024
J001
J012
J012
J008
G008
C009
G003
P001
B006
G025
G020
R012
R012
G009
C023
R017
G018
J010
38
15. Parts List
NO. CODE NO. DESCRIPTION;SPECIFICATION Q'TY REMARK
B006 DC97-02079D ASSY-LEG;SBP2,SD455,SD405,FLANG TYPE/25M 4
C007 DC96-00625A ASSY-M.WIRE HARNESS;SD405,ROLD-DOOR 1
C008 DC64-00647A PANEL-CONTROL;SBP-2,HIPS,-,-,-,-,WHT,40c 1
C009 DC62-00024F VALVE-WATER;B1215J,NYLON66/250TRMN,-,-,N 1
C010 DC61-10316B CAP-RINSE;SEW-740DR,PP(TB-52),-,-,-,WHT, 1
C013 DC63-00455A COVER-TOP;SD455-PJT,ABS,-,-,-,-,-,SNOW/W 1
C021 DC64-00739A INLAY-PANEL;R1031GWS/YLR,PC,T0.5,-,-,SIL 1 R1031
C021 DC64-00739B INLAY-PANEL;R831GWS/YLG,PC,T=0.5,-,-,SIL,ICON/SEBO/SEKO 1 R831
C023 DC32-30006P SENSOR PRESSURE;DN-S14(P1291),TERMINAL-T 1
C036 DC63-00450A COVER-FRONT;S821,PP,T1.8,-,-,-,-,WHT,ROL 1
F004 DC64-00646A HANDLE-DOOR;SD455-PJT,POM,-,-,-,-,WHT,RO 1
G003 DC97-00139K ASSY-HOSE DRAIN(O);SLIM/L1735MM,PP(BP110 1
G007 DC97-04628V ASSY-PANEL FRONT;R1031GWS/YLR,SBP/WHT/SI 1 R1031
G007 DC97-04628W ASSY-PANEL FRONT;R831GWS/YLR,SBP/WHT/SILVER-INLAY 1 R831
G008 DC96-00146A ASSY-POWER CORD;P1291~P6091,250V/16A(PV) 1
G009 DC96-00149A ASSY-PUMP DRAIN;P8091/P6091,220~240V/50H 1
G018 DC64-00693A SHUTTER;SD455,PP,4,-,-,WHT,45CM SLIM 1
G020 DC61-10672A COVER-FRONT(L);SWF-P12,PP(BJ-730),-,-,-, 1
G025 DC62-10289B HOSE-WATER(C);WIP4013SRW,PVC+NYLON,ID10. 1
J006 DC61-00366A BODY-DRAWER;SL-600,TB-53,-,-,-,-,-,- 1
J008 DC29-00006A FILTER-EMI;DFC-2712R,P/PV/SLIM,250V,12A, 1
J010 DC67-00051B HOSE-DRAWER;Q1636GW/XEU,EPDM,ID9.5,OD13. 0.42
J012 DC61-00708A SPRING-HANGER;F-PJT,HSWR,CD2.8,-,-,L170, 2
J012 DC61-00708B SPRING-HANGER;F-PJT,HSWR,CD2.8,-,-,L181, 2
J014 DC97-04748L ASSY-HOUSING DRAWER;SD455,5.2KG/COLD/2-W 1
J014 DC97-02132C ASSY-HOUSING DRAWER;S1093~S6093/2-WAY,SL 1
P001 DC99-00415A ASSY-PAINT;SD455/WHT,COLD 1
P002 DC97-00702A ASSY-FRAME FRONT;P6091,ROUND-TYPE 1
P003 DC97-00417A ASSY-FRAME PLATE(U);SWF-P12,FRAME-PLATE( 1
R003 DC91-12077A ASSY-CLAMP DIAPHGRAM;SWF-P12,TUB 1
R005 DC97-01463H ASSY-DRUM;SD405/SD455/LEFTER,5.2KG/NEW-D 1
R006 DC47-00006B HEATER;KAWAI,P-SLIM MODEL,SUS316L,-,-,23 1
R007 DC97-00214R ASSY-TUB BACK;SD405/SD455,5.2KG/1200rpm 1
R008 6602-001072 BELT-TIMING GEAR;POLYURETHAN,L1270,J5,ME 1
R010 DC61-00856A BRACKET-HEATER;SB-PJT,STS430,-,-,-,-,- 1
R012 DC66-00320A DAMPER-SHOCK;SB-PJT,ABS,-,-,-,-,WHT,AKS- 2
R013 DC61-20219E DOOR-DIAPHRAGM;SEW-HW107,EPDM,-,-,-,-,GR 1
R014 DC62-10303A HOSE-AIR;-,EPDM,ID24,-,-,L130,BLK,SWF-P1 1
R015 DC62-10305A HOSE-DRAWER TUB;-,EPDM,ID35,-,-,L158,BLK 1
R016 DC62-00121A HOSE-FILTER TUB;S1005J,EPDM,ID65,-,-,-,- 1
R017 DC67-00107A HOSE-PRESSURE;S821,PE-BLOW,ID13.2,OD6.2, 1
39
15. Parts List
NO. CODE NO. DESCRIPTION;SPECIFICATION Q'TY REMARK
R018 DC31-00002E MOTOR-DRUM;HXGN2I.02,SFW-P8,-,50Hz,-,-,L 1
R020 DC66-10176F PULLEY;SD405/SD455,ALDC,-,-,-,D297,-,DRU 1
R021 DC62-00160A SEAL-OIL;TS0-PJT,NBR(SD35),BLK,-,-,-,JIN 1
R023 DC61-00365B TUB-FRONT;SL-600,FRPP(GR15%)SAMBAK,-,-,- 1
R024 DC62-20311A VANE-CHECK;SWF-P12,EPDM,-,-,BLK,-, 1
R025 DC67-00042B WEIGHT-BALANCER;F1215,GC-150(CHINA),-,-, 1
R026 DC67-00050B WEIGHT-BALANCER;F-1215,GC-150,-,-,-,-,F- 1
R028 DC62-40183A PACKING-TUB;SWF-P12,EPDM,-,-,-,-,-,BLK,- 1
T024 DC96-00626A ASSY-WIRE HARNESS;SD405,SUB(HIGH) 1
T031 DC61-00041A CUSHION-MOTOR;SWF-6V,BUTYL,-,-,-,ID16/OD 1
V001 DC63-00353A COVER-DOOR;SB-PJT,ABS,-,-,-,-,-,-,ROUND 1
V002 DC97-00100C ASSY-HINGE;S1005J,OPEN ANGLE 180DEG 1
V003 DC97-04750A ASSY-HOLDER GLASS;SB-PJT,HOLDER+HINGE 1
V007 DC91-12078A ASSY-WIRE DIAPHRAGM;SWF-P12,FRAME-FRONT 1
V009 DC61-00013A DOOR-GLASS;GLASS,NTR,SWF-P12 1
V010 DC64-00653A DOOR-LOCK S/W;DA,PA6-G,-,H82,W50,-,BLK,2 1
V016 DC66-00355A LEVER-DOOR;SD455-PJT,POM,-,-,-,-,WHT,EMZ 1
V024 DC61-01065A SPRING-HANDLE;SEW-HR805,STS304,CD1.0,-,O 1
Y001 MFS-R1031-00 ASSY PCB PARTS;MF-R1031-00 1 R1031
Y001 MFS-R831-00 ASSY PCB PARTS;MF-R831-00 1 R831
40
15. Screw/Bolt List
CODE NO. DESCRIPTION SPECIFICATION Design LOC Q'TY
DC97-02412A ASSY-BOLT SWF-P12,MOTOR, M8*L62 MOTOR 1
DC97-02412A ASSY-BOLT SWF-P12,MOTOR, M8*L62 WEIGHT BALANCE(R) 1
DC97-02412A ASSY-BOLT SWF-P12,MOTOR, M8*L62 WEIGHT-BALANCER(L) 1
DC97-06080A ASSY-BOLT SEW-3HR107,BOLT+WASHER PULLEY+SHAFT 1
6011-001421 BOLT-FLANGE M7,L61(29.4),ZPC(YEL),SWRCH18A WEIGHT(L) 1
6011-001492 BOLT-FLANGE M8,L25,PASS,STS304,NYLOCK,P1.25 - 3
6011-001421 BOLT-FLANGE M7,L61(29.4),ZPC(YEL),SWRCH18A - 1
6011-001447 BOLT-HEX M8,L123(25),ZPC(YEL),SWRCH18A,WP,NYLOCK WEIGHT(U) 1
6011-001448 BOLT-HEX M8,L170(25),ZPC(YEL),SWRCH18A,WP,NYLOCK WEIGHT(U) 1
6011-001499 BOLT-HEX M8,L104.5(50),ZPC(YEL),SWCH10AK,2BODY,DAMPER TUB+DAMPER 2
DC60-40005A BOLT-HEX M4,L60,ZPC2(YEL),SS41C,-,-,-,- - 1
DC60-40144A BOLT-HEX M10,L41,ZPC2(YEL),SM10C/DAMPER DAMPER+FRAME 2
DC61-00201A BRACKET-NUT SBHG-R,P1291,T3,-,-,-,NO-PAINT/MOTO R MOTOR 1
DC61-40348B BRACKET-NUT SBHG-R,P1291,T3,-,-,-,NO-PAINT - 2
DC61-00201A BRACKET-NUT SBHG-R,P1291,T3,-,-,-,NO-PAINT/MOTO R - 1
DC61-40348B BRACKET-NUT SBHG-R,P1291,T3,-,-,-,NO-PAINT - 2
DC60-50010A NUT-DIAPHRAGM EGI,M4,-,-,2.5TX20X8 - 1
DC60-50010B NUT-DIAPHRAGM EGI,M4.2,-,-,2.5TX20X8 - 1
DD60-50018A NUT-FLANGE -,M5XP0.8,FZY,MSWR10,- HINGE 2
6006-001170 SCREW-ASSY TAPP WS,TH,+,M4,L10,ZPC(YEL) B/K-PRESSURE+FRAME 1
6006-001170 SCREW-ASSY TAPP WS,TH,+,M4,L10,ZPC(YEL) P/CORD(E/W) 1
6006-001170 SCREW-ASSY TAPP WS,TH,+,M4,L10,ZPC(YEL) E/W(SUB)+FRAME(F) 1
6006-001172 SCREW-ASSY TAPP WE,TH,+,M4,L12,ZPC(YEL) FRAME-FRAME FRONT 7
6006-001172 SCREW-ASSY TAPP WE,TH,+,M4,L12,ZPC(YEL) FRAME-PLATE-UPPER 4
6001-001773 SCREW-MACHINE TH,+,M5,L12, HINGE+FRAME 2
6001-001773 SCREW-MACHINE TH,+,M5,L12, HINGE+HOLDER 2
6009-001342 SCREW-SPECIAL TH,+,,M5,L11,ZPC(YEL) FRAME(TOP) 2
6009-001343 SCREW-SPECIAL PH,TORX,,M4,L10,PASS P/CORD 1
6002-000471 SCREW-TAPPING TH,+,1,M4,L12,PASS,STS304,- COVER-DOOR 4
6002-001310 SCREW-TAPPING TH,+,2S,M3.5,L20,PASS S/W-DOOR+FRAME 2
6002-000445 SCREW-TAPPING TH,+,2S,M4,L18,NTR,STS304 PANEL+FRM+HOUSING-D 3
6002-001327 SCREW-TAPPING PWH,+,1,M4,L12,NI PLT C/TOP+FRAME 2
6002-000630 SCREW-TAPPING PH,+,2S,M3,L8,ZPC(YEL),SWRCH18 B/K+PRE-S/W 2
6002-000213 SCREW-TAPPING TH,+,1,M 4,L12,ZPC(YEL),SWRCH18 TUB-FRONT+PRESSURE 1
6002-000444 SCREW-TAPPING TH,+,2S,M4,L14,NTR,STS304 B/K-HEATER 2
6002-000471 SCREW-TAPPING TH,+,1,M4,L12,PASS,STS304,- VANE-CHECK 1
6002-000213 SCREW-TAPPING TH,+,1,M 4,L12,ZPC(YEL),SWRCH18 C-PANEL+PCB 3
6002-000525 SCREW-TAPPING FH,+,1,M4,L12,PASS,STS304 C-PANEL+FRAME 1
6002-001006 SCREW-TAPPING TH,+,2S,M4,L12,-,STS410 PUMP+FRAME 2
6002-000630 SCREW-TAPPING PH,+,2S,M3,L8,ZPC(YEL),SWRCH18 - 2
6003-000226 SCREW-TAPTITE TH,+,S,M4,L8,ZPC(YEL),SWRCH18A W/V+FRAME 2
6003-000226 SCREW-TAPTITE TH,+,S,M4,L8,ZPC(YEL),SWRCH18A EARTH 1
DC60-60040A WASHER-NYLON -,ID10.5,OD32,T2,-,PBSP-1/2H FIXER 1
DC60-60044A WASHER-PLAIN -,ID10.5,OD30,T3,-,STS304 DAMPER+TUB 2
DC60-60044B WASHER-PLAIN SBC,ID8.4,OD30,T3,-,-,- FIXER 1
ELECTRONICS
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
©Samsung Electronics Co., Ltd. August 2003
PrintedinKorea
Code No. : DC68-01956A
