Table of contents

Features
Operating Instructions
Controls and Settings
Stain Removal Guide
Care & Cleaning
Solutions to Common Inquiries
Before Calling

Features

Model Series

1 power

2 LED display

3 cycle selector

4 temperature

5 soil level

6 spin speed

7 options

8 set/select

9 cancel

10 start

11 PODS® (select models)

This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown above for reference only. Your model may differ

Operating Instructions

Operating your washer

WARNING To reduce the risk of fire, electric shock or injury to persons, read the Important Safety Instructions in this Use & Care Guide before operating your washer.

WARNING RISK OF INJURY DO NOT wash water resistant and water repellent clothing or other materials. Failure to follow these instructions may result in an abnormal vibrating and outof-balance condition that could result in physical injury, property damage, and/or appliance damage.

CAUTION ENTRAPMENT and TIP-OVER HAZARD DO NOT leave the door open if there are small children or pets present. An open door could entice children to hang on the door or crawl inside the washer. If there are no small children present, you may leave the door ajar to prevent odor build up.

STEPS 1. Sort laundry into loads that can be washed together.

TIPS

• Sort by recommended cycle and water temperature.

• Separate white, light, and colorfast items from dark and non-colorfast items.

• Separate items that shed lint from items that attract lint. Casual, synthetic, knit, and corduroy items will pick up lint from towels, rugs, and bedspreads.

• Separate heavily soiled items from lightly soiled items.

• Separate lacy, sheer, loosely knit, or delicate items from durable items.

IMPORTANT

DO NOT machine wash items containing fiberglass. Small particles of fiberglass left in drum may transfer to fabrics in other loads and cause skin irritation and/or damage to fabrics.

DO NOT wash water resistant and water repellent type clothing or other materials

2. Prepare items for washing.

TIPS

• Empty pockets.

• Brush off lint and dirt. Shake out rugs and beach towels.

• Close zippers, fasten hooks, button buttons, and tie strings/sashes. Remove non-washable trims and ornaments.

• Place delicate and small items (bras, hosiery, etc.) in a mesh bag (not included).

IMPORTANT

Mend rips and tears to prevent further damage during washing.

Turn knit items inside out to prevent pilling.

3. Pretreat stains and heavy soil.

See stain treatment function in Cycle Options for your particular model or Stain Removal Guide for more information.

4. Add laundry load to wash tub.

TIPS

• Combine large and small items in a load. Load large items first.

• Large items should not be more than half the total wash load.

• Washing single items is inefficient and may cause an out-of-balance load. Add 1 or 2 similar items to help balance load.

• Wash single heavy items (comforter, sleeping bag, etc.) separately.

• The washer can be fully loaded, but the items should not be tightly packed. The door should close easily

IMPORTANT

DO NOT overload the washer.

DO NOT WASH: Water resistant and water repellent clothing or other materials.

5. Add wash products to dispenser.

TIPS

• Water conditioners, detergent boosters and enzyme products may be added with detergent.

• See Adding Laundry Products for detailed information on the use of the product dispensers.

• See Adding Laundry Products for detailed information on the use of various wash products (detergent, bleach, stain treatment, fabric softener, etc).

IMPORTANT

Follow manufacturer’s instructions and recommendations when using wash products.

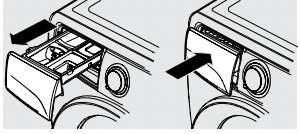

Open and close the dispenser drawer slowly. Closing the drawer too quickly could result in early dispensing of the bleach or fabric softener.

6. Select the cycle and settings for the load.

TIPS

• See Cycle Selection, Cycle Settings, and Cycle Options for detailed descriptions of cycle controls.

• See Cycle Setting Charts to determine which settings are available for each cycle.

• To provide the best care, not every setting or option is available with every cycle. If a setting or option is not available for the cycle selected, the indicator will not light.

IMPORTANT

Follow fabric care label instructions on items to be washed.

Make sure that the PODS® option is selected when using models that have a separate detergent pack compartment. See Adding Laundry Detergent to the Adaptive Dispenser™

7. Start the washer.

TIPS

• Close the door and press start/pause. The washer will not operate with the door open. “CLOSE DOOR” will be displayed as a reminder to close the door.

• To add a forgotten item to the washer any time during the wash portion of the cycle, press start/pause. When the door unlocks, open the door, add the item, close the door and press start/pause to resume cycle.

• To change settings or options after the cycle has begun, press start/pause, change the settings, and then press start/pause. If the cycle is not paused first, the unit will emit several beeps when the buttons are pressed but no changes to the cycle will be applied.

• To change the cycle once the cycle has begun, press cancel to cancel the cycle, select the new cycle, and press start/ pause to begin the new cycle. Changing a cycle selection without cancelling the current WILL NOT change the cycle.

• To cancel a cycle, press cancel.

• A signal will sound at the end of the cycle if the chime option is not set to mute.

IMPORTANT

DO NOT force door open. As a safety measure, the door will automatically lock during the entire wash cycle. Pause or cancel the wash load to unlock the door.

If the cycle is interrupted during spin, the door lock will not release until the tub has stopped spinning.

If the water level is above the bottom of the door opening/flexible door gasket, the lock will not release.

8. Remove items from washer when cycle has ended.

TIPS

• Remove items when the cycle ends and place in dryer, line dry or dry flat as directed on the fabric care label.

IMPORTANT

Excess wrinkling, color transfer or odors may develop in items left in the washer after the cycle has ended.

Adding Laundry Products

Laundry Product Dispensers

Detergent, stain additives (on select models), liquid chlorine bleach and liquid fabric softener will be dispensed at the proper times in the cycle.

Use the cap or scoop provided by the detergent manufacturer to measure the amount recommended. Detergent dosage may need to be adjusted for water temperature, water hardness, load size and soil level.

IMPORTANT Open and close the dispenser drawer slowly. Closing the drawer too quickly could result in early dispensing of the bleach or fabric softener.

For best results

Use a low-sudsing, high efficiency detergent to prevent oversudsing in front load washers. Look for this symbol on the detergent label

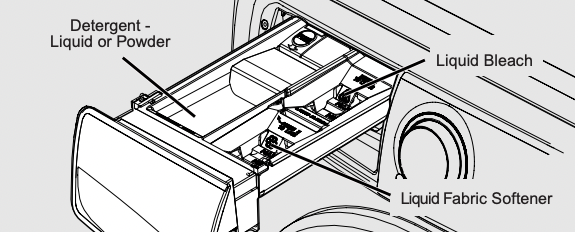

Adding Laundry Detergent to the Three Compartment Dispenser Liquid or Powder Detergent

• Use the cap or scoop provided by the detergent to add recommended amount of detergent.

• Amount of detergent may need to be adjusted for water temperature, water hardness, load size, and soil level. Follow manufacturers instruction.

In a three compartment dispenser use either liquid or powder detergent. DO NOT mix both.

IMPORTANT DO NOT mix liquids and powders.

IMPORTANT DO NOT exceed MAX fill line.

IMPORTANT DO NOT add detergent packs into the three compartment dispenser. Detergent packs should be added directly into the drum.

CAUTION Keep detergent packs away from children

Adding Laundry Detergent to the Adaptive Dispenser™

Liquid Detergent

• Use the cap or scoop provided by the detergent to add recommended amount of detergent to the detergent compartment. Pour directly into the detergent cup, not over the blue cover.

• Amount of detergent may need to be adjusted for water temperature, water hardness, and load size. Follow manufacturers instructions.

IMPORTANT Pour liquid into the liquid detergent cup. DO NOT pour over the blue cover. DO NOT exceed MAX fill line.

Powder Detergent

• Remove the liquid detergent cup and blue cover before adding powder detergent.

• Add powder detergent directly to the powder detergent compartment.

IMPORTANT Save the liquid detergent cup and blue cover for future use. DO NOT discard it while you are using powder detergent. DO NOT exceed MAX fill line

Detergent Pack

• For 400 Series, add detergent pack directly to the drum.

• For 500 and 600 Series, add the recommended quantity of (one or two) high efficiency detergent packs to the detergent pack compartment.

• DO NOT place more than two packs into the dispenser.

• When using the fast wash cycle, only one detergent pack should be used.

CAUTION Keep detergent packs away from children.

IMPORTANT

• When using the detergent pack compartment, make sure to select the PODS® option before starting the load.

• Once the PODS® option has been chosen, the washer will retain the PODS® setting until manually changed.

• The washer will ALWAYS use a small amount of HOT water to dissolve the pack when the PODS® option has been selected.

NOTE From time to time you may see water in the dispenser. This is part of the normal operation of the washer

Adding Other Wash Products

• Color-safe bleach, water conditioner, detergent booster and enzyme products may be added with detergent.

• Put liquid products in the Main Wash - liquid detergent compartment or powder products in the Main Wash - powder detergent compartment.

IMPORTANT DO NOT mix liquids and powders.

Stain Treatment (on select models)

• For heavily soiled or stained loads, select the Stain option (on select models only - StainTreat, StainTreatII, or StainSoak) and add the recommended amount of detergent or stain additive to pre-wash compartment (on select models only).

• See Cycle Options in this guide for specific information about the Stain options for your model.

• See Stain Removal Guide in this instruction for additional suggestions.

IMPORTANT Use of multi-product (detergent plus softener) sheets or color-absorbing sheets NOT recommended. They could disable your machine and result in unwarranted repair costs.

Liquid Chlorine Bleach

• If desired, add liquid chlorine bleach to the compartment labeled Liquid Bleach and marked with this symbol: .

• DO NOT fill above the MAX fill line.

• Add color-safe bleach with detergent.

IMPORTANT To prevent fabric damage, DO NOT overfill the “Liquid Bleach” compartment or pour bleach directly onto the load.

Liquid Fabric Softener

• If desired, pour the recommended amount of liquid fabric softener into the compartment labeled Fabric Softener and marked with this symbol: .

• DO NOT fill above the MAX fill line.

NOTE To prevent staining, DO NOT overfill Fabric Softener compartment or pour liquid fabric softener directly on wash load.

• Use of a fabric softener-dispensing ball is not recommended in front load washers.

Controls and Settings

These temperature, spin speeds, soil levels and options are available with the following cycles:

= Available selections.

= Factory presets.

= Non-modifiable presets

Cycle Selection

Press the power button to turn on the unit. Then, turn the cycle selector in either direction or press the cycles button (de- pendent on model) to scroll to the desired cycle. The indicator light for that cycle will be illuminated.

The estimated cycle time will appear on the LED display and indicator lights adjacent to the default settings (water temperature, final spin speed, and soil level) will illuminate for the cycle selected. See Washer Settings Chart for default settings for each cycle.

Cycle settings and cycle options can be changed using the temp, spin and soil buttons. See Cycle Settings andCycle Options for detailed directions and descriptions of available settings.

To change the cycle once the cycle has begun, press cancel, select a new cycle, and press start again.

NOTE Turning the cycle selector knob without canceling the cycle first, will not change the cycle.

To stop the cycle, press cancel.

For best results Follow the fabric care label instructions on items to be washed.

heavy duty

Use this cycle for heavily soiled, durable garments - ex. towels, sports gear, or fabric tote bags. For best soil and stain removal, use the hottest water safe for the fabrics being washed.

whitest whites (on select models)

Use this cycle for white fabrics and lightly colored clothing. Refer to fabric care label for use of liquid chlorine bleach.

normal

Use this load for light to normally soiled cottons, linens, towels, shirts, jeans and mixed loads.

activewear (on select models)

Use this cycle for lightweight, synthetic athletic apparel.

colors (on select models)

Use this cycle for lightly soiled, dark, or highly dyed fabrics which may be susceptible to dye loss.

20min fast wash (400 Series model)

Quickly wash a small, lightly soiled load in 20 minutes.

18min fast wash (500 Series model)

Quickly wash a small, lightly soiled load in 18 minutes.

15min fast wash (600 Series model)

Quickly wash a small, lightly soiled load in 15 minutes.

NOTE Using PODS® setting may increase fast wash time by several minutes.

delicates

Use this cycle for lightly soiled knits and delicates which require gentle washing.

rinse & spin

Select rinse & spin for loads that need a cold water rinse or to add fabric softener that may have been omitted in a regular cycle. Add the fabric softener to the dispenser compartment. Select the spin speed appropriate for the load.

NOTE For spin only cycle deselect extra rinse. For drain only cycle select no spin. See Cycle Options for rinse options and Cycle Settings for spin settings.

clean washer

To clean and freshen the washer, perform the clean washer cycle. If you wish to begin the cycle, empty the drum, add bleach and press start/pause. This maintenance cycle removes residue that may cause odor. See Inside Routine Cleaning (Preventive) for detailed instructions.

Cycle Settings

Washing Temperature

The appropriate washing temperature will automatically be indicated for the cycle selected. To change the preset temperature, press the temp button to scroll to the desired setting. Select a wash water temperature according to fiber content, colorfastness and soil level.

For best results Follow the fabric care label instructions on items to be washed.

To protect your fabrics, not all temperatures are available with every cycle. If a temperature is not appropriate for the cycle, it cannot be selected and will not be lit by pressing the temp button. The temperature selected for the cycle will be remembered and recalled each time that cycle is selected in the future. All wash water temperatures are automatically regulated to maximize detergent effectiveness and improve washing performance. The water heater setting and its distance from the washer, water usage in other parts of the home, and seasonally low ground water temperature in some geographic areas can affect water temperature.

sanitize (on select models)

Use the sanitize setting to clean and sanitize heavily soiled, colorfast fabrics including towels, bedding, cloth diapers, and children’s clothing. It is recommended that you set your water heater to 120° F (49° C) or higher to ensure proper performance during this cycle. If the setting is lower or the load is extra large, the cycle time may be extended. When used with the heavy duty and whitest whites cycles, the sanitize setting will kill 99.9% of bacteria with no carryover of bacteria between loads. No bleach or harsh chemicals are needed, but higher temperatures are required. Please check fabric care labels to prevent damage

NOTE The heavy duty and whitest whites with sanitize setting cycles have been designed to meet the requirements of NSF P172 protocol for sanitization efficacy.

NSF Protocol P172 Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers

NOTE If the voltage at your outlet is under 110v, the internal heater may not adequately heat the wash water. If the cycle is interrupted while the water is heating, the final temperature of the wash water may be lower and sanitation may be reduced.

The wash water is heated by an internal boost heater to a maximum of 152° F (67° C) as the load tumbles. Cold water is added to cool down the load prior to drain and spin. As a precaution, the washer door remains locked when the water temperature reaches 130° F (55° C)

NOTE If the wash cycle is paused or cancelled while the internal drum temperature is above 130° F (55° C), the door will remain locked until it cools. You may manually perform a rinse & spin cycle to cool the internal temperature sooner.

hot

Use this setting for heavily soiled white or colorfast cottons and blends.

warm

Use this setting for normally soiled white or colorfast cottons or blends.

cold

Some warm water will automatically blend with cold tap supply to achieve a precise cold. Use this setting for lightly soiled non-colorfast items, knits, delicates, and hand washables.

tap cold (on select models)

Wash and rinse temperatures are equivalent to temperature of cold tap supply. Use this selection for fabrics and colors that are prone to dye transfer. For use with cold water detergents.

NOTE The washer will ALWAYS use a small amount of HOT water to dissolve the pack when the PODS® option has been selected.

Soil Level

Adjust the wash time based on the soil level of each load. Solid soil (on select models), max (on select models), heavy, normal, light and extra light (on some models) soil levels are available.

Spin Speed

Max (on select models), high, medium and low (on some models) spin speeds are available for each cycle. The spin speed and/or duration of final spin vary from model to model and cycle to cycle. Increasing the spin speed will extract more water, decrease drying time and conserve energy. Decreasing the spin speed will reduce wrinkling.

Select low spin speed (on some models) to gently spin items that should be line dried. Use no spin to omit the final spin at the end of the cycle. The load will be very wet. Remove items from the wash drum to drip dry or select a spin only cycle to remove excess water at a more convenient time.

Cycle Options

The default options for each cycle will automatically be chosen when a cycle is selected. To protect fabrics, not all options are available for all cycles. If an option is not available for a cycle, the indicator will not light.

Selecting Options

Press the option button to scroll though the options until the indicator light for the desired option flashes, then press select. The indicator light will illuminate when the option has been selected. Follow the same steps to deselect an option. The indicator light will turn off when the option is deselected.

NOTE If changes to the settings or options are attempted after the cycle starts, you will hear several beeps when the buttons are pressed. To change the settings or op- tions, press start/pause, make the new selections and press start/pause again.

All settings or options selected for the cycle, except sanitize (on select models), perfect steamTM (on select models), and stain treatment options, will be remembered and recalled each time that cycle is selected in the future. To return to factory settings, press and hold soil and options buttons at the same time and hold for 3 seconds until the confirmation signal sounds. To prevent unintentional and accidental exposure of delicate material to excess heat or unexpected steam, the sanitize, perfect steamTM and all stain treatment options will need to be reselected each time.

Stain Treatment options (on select models)

Your washer is equipped with powerful stain treatment tools. Depending on your model, use one of the options below to deal with tough stains on your garments. See step 5 in the Operating Your Washer section in this guide for details on adding stain additives to the dispenser

IMPORTANT

• If steam is selected, rinse temperatures will be elevated.

• If the wash cycle is paused or cancelled during a steam cycle, the door will remain locked until it cools. You may manually perform a rinse & spin cycle to cool the internal temperature sooner.

• During a steam cycle, steam exiting from the rear vent of the washer is normal and not cause for alarm.

Wash Cycle Options

extra rinse

Use this option when additional rinsing is desired to remove excess dirt and detergent.

It is recommended for heavily soiled loads or if household members have sensitive skin.

wrinkle release (on select models)

After the final spin, the washer will perform a “dry” agitation to loosen the garments from the side of the drum.

extended refresh (on select models)

Select extended refresh if you will be unable to remove the load right after the cycle is complete. The washer recognizes the load has sat too long and will do a rinse and spin to keep the load fresh for up to 12 hours. When you are ready to remove the load during the extended refresh segment, you must press cancel to end the cycle and open the door.

PODS® (on select models)

Select this option when using a detergent pack in a model equipped with a PODS® button (on select dispenser only). This option will divert the flow of water to the detergent pack compartment optimizing the detergent pack performance.

Control Options

control lock

To lock the controls between cycles, scroll to the control lock option and press select. The control lock icon will show on the LED display. To unlock the controls scroll to the control lock option again and press select. Use this feature to reduce the likelihood of accidental operation by children. Washer cycles will not run when Control Lock is activated.

delay time

Use delay time to delay the start of the washing cycle from 30 minutes to 12 hours. After selecting the delay time option, press select button to scroll to the desired delay time. The delay time icon will illuminate on the LED display to indicate the delay time option is activated, The time will begin counting down on the LED display once the washer start/pause button has been pressed.

Chime

A signal will sound at the end of each cycle (and periodically during extended refresh) if option is activated. To mute or unmute the chime, press and hold the select button for 3 sec. This will not affect any of the other button tones.

hold ‘select’ 3 s to mute/unmute

Other Features

LED display

The estimated total cycle time will be displayed when the cycle is selected. The time may increase if water pressure is low, oversudsing occurs or the load becomes unbalanced. The approximate time remaining will be displayed during the cycle. As the washer progresses through the cycle phases, the row of cycle phase indicators lights up under the cycle time. The eco, control lock, close door, and delay time will also appear on this LED display.

Eco Indicator

The eco symbol will light up on the LED display to indicate that the selected combination of temperature, spin speed and options are eco friendly

Oversuds Protection

A situation where oversudsing has been detected by the washer will result in the washer requiring additional rinses until the suds have been cleared. Each extra rinse the washer performs to clear the suds will add approximately 5 minutes to the cycle duration. The LED will display “SU” followed by “dS” and then the remaining cycle time (0 min) for 60 seconds and then repeat. Press cancel to turn off the alert message. The washer will continue to perform rinse cycles until suds are removed.

Reversed Hose Detection

If condition is detected where the inlet hoses have been installed incorrectly (hot supply to cold inlet and cold supply to hot inlet), the washer will alert you. The LED will display “HO” followed by “SE” and then the remaining cycle time (0 min) for 60 seconds and then repeat. Acknowledge the reversed hose condition by pressing the cancel button. Shut off each water supply valve and attach each supply hose to the correct inlet connection on the washer.

Drum Light (on select models)

The drum light will come on whenever the door is opened to illuminate the drum during loading and unloading. Closing the door turns off the light. The drum light will automatically turn off if the door is left open more than 3 minutes.

Reversible Door (on select models)

Your washer may be equipped with a reversible door. The door can be hinged on the right or left side.

Door Stand Ventilation

Help prevent odor buildup and reduce humidity between washes by utilizing your washer’s door stand ventilation feature.

NOTE For step-by-step instructions on door reversal, refer to the Installation Instructions supplied with this washer.

Open the door, locate the stand below the door latch and rotate the stand counterclockwise to unlock it. The stand is spring loaded and will extend. Rotate it clockwise to lock in the extended position.

NOTE If unable to rotate the stand by hand, a coin or flat blade screw driver can be used.

To disengage the stand, rotate to unlock, push the stand in and rotate to lock position.

NOTE If door stand will not turn to locked position, fully turn it to unlock position and try to lock again.

Stain Removal Guide

Stain Removal Procedures

To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below: • Read and comply with all instructions on stain removal products.

• Keep stain removal products in their original labeled containers and out of children’s reach.

• Thoroughly wash any utensils used.

• DO NOT combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes can result.

• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.

• Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

For Successful Stain Removal:

• Remove stains promptly.

• Determine the kind of stain, then follow the recommended treatment in the stain removal chart on the next page.

• To pretreat stains, use a prewash product, liquid detergent, or a paste made from powder detergent and water.

• Use cold water on unknown stains as hot water can set stains.

• Consult care label instructions for treatments to avoid on specific fabrics.

• Check for colorfastness by testing stain remover products on an inside seam.

• Rinse and wash items after stain removal.

WARNING HARMFUL VAPOR HAZARD DO NOT use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

For best results Follow the fabric care label instructions on items to be washed.

Stain Removal Suggestions

Adhesive tape, gum, rubber cement

Apply ice. Scrape off excess. Place stain down on paper towels. Saturate with prewash stain remover or nonflammable dry cleaning fluid.

Baby formula, dairy products, egg

Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.

Beverages (coffee, tea, soda, juice, alcoholic beverages)

Pretreat stain. Wash using cold water and bleach safe for fabric.

Blood

Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing enzymes. Wash using bleach safe for fabric.

Candle wax, crayon

Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.

Chocolate

Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.

Collar or cuff soil, cosmetics

Pretreat with prewash stain remover or rub with bar soap.

Dye transfer on white fabric

Use packaged color remover. Wash using bleach safe for fabric.

Grass

Pretreat or soak in warm water using product containing enzymes. Wash using bleach safe for fabric.

Grease, oil, tar (butter, fats, salad dressing, cooking oils, car grease, motor oils)

Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.

Ink

Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured alcohol or nonflammable dry cleaning fluid.

Mildew, scorch

Wash with chlorine bleach if safe for fabric or soak in oxygen bleach and hot water before washing. Badly mildewed fabrics may be permanently damaged.

Mud Brush off dry mud.

Pretreat or soak with product containing enzymes.

Mustard, tomato

Pretreat with prewash stain remover. Wash using bleach safe for fabric.

Nail polish

May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain. Repeat, replacing paper towels frequently. DO NOT use on acetate fabrics.

Paint, varnish

WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it can’t be removed. OIL BASED AND VARNISH: Use solvent recommended on label. Rinse thoroughly before washing.

Perspiration

Use prewash stain remover or rub with bar soap. Rinse. Wash using non chlorine bleach in hottest water safe for fabric.

Rust, brown or yellow discoloration

Use rust remover safe for fabric. DO NOT use chlorine bleach because it may intensify discoloration.

Shoe polish

LIQUID: Pretreat with a paste of powder detergent and water. PASTE: Scrape residue from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid. Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.

Tomato

Pretreat with prewash stain remover. Wash using bleach safe for fabric.

Urine, vomit, mucus, feces

Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.

Wine

Pretreat or soak in cold water. Wash in hottest water and bleach safe for fabric

Care & Cleaning

Inside Routine Cleaning (Preventative)

To help prevent odors or humidity accumulation leave the door open with the door stand ventilation feature (on select models) for a few hours after use or whenever the washer is not in use.

To Refresh or Clean Inside of Washer

To clean and freshen the washer, perform the clean washer cycle. For best results perform the cycle once a month.

NOTE Every 50 cycles, your washer will remind you to perform the clean washer cycle by illuminating the clean washer cycle indicator.

To begin the cycle, select the clean washer cycle. If installed, remove the LIQUID DETERGENT cup from the dispenser. REMOVE ALL ITEMS FROM WASH DRUM before filling the detergent compartment with one (1) cup of liquid chlorine bleach OR one (1) pouch of TideTM Washing Machine Cleaner. DO NOT use both. Press start/pause to begin.

IMPORTANT Items left in washer while performing the clean washer cycle will cause a severe out-of-balance situation that could damage the washing machine.

To Clean the dispenser drawer

NOTE Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

Cleaning the three compartment dispenser

1. Remove the drawer by pulling the drawer out until it stops.

2. Reach back into the left rear corner of the drawer cavity and press down firmly on the lock tab. Pull out the drawer.

3. Remove all inserts from the drawers.

4. Rinse the drawer and inserts with hot tap water to remove traces of accumulated powders and liquids. Large amounts of fabric softener residue may indicate improper dilution or more frequent cleaning is required.

5. To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.

6. Replace the insert by pressing it in place until you hear a slight click.

7. Return the dispenser drawer to the unit.

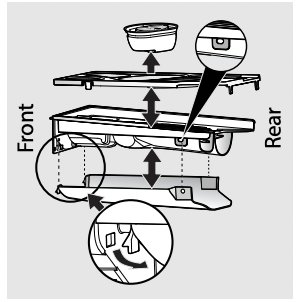

Cleaning the Adaptive Dispenser™

1. Remove the drawer by pulling the dispenser out until it stops.

2. Reach back into the right rear corner of the dispenser cavity and press down firmly on the lock tab. Pull out the dispenser drawer.

3. Remove the detergent cup and top cover from the dispenser drawer.

4. Remove the bottom cover from the dispenser drawer.

a) First, pull the two lock tabs at the rear of the dispenser drawer to unlatch the back cover.

b) Then, gently pull back the two clips on the front of the bottom cover to to fully release it from the dispenser drawer.

5. Rinse the dispenser drawer, covers, and detergent cup with hot tap water to remove traces of accumulated powders and liquids. Large amounts of fabric softener residue may indicate improper dilution or more frequent cleaning is required.

6. To clean the dispenser drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.

7. Reassemble dispenser drawer and check to ensure that all pieces are securely in place.

8. Return the dispenser drawer to the unit.

Inside Cleaning (Aggressive)

In cases where clean washer cycle along with care and cleaning of rubber gasket folds isn’t done, and severe odor or residue buildup have developed, follow the below cleaning procedure to help alleviate the problem.

Cleaning Procedure-Washer Drum

Ensure the wash tub is empty. Open the detergent drawer and pour eight cups of bleach into the MAIN WASH detergent compartment. Select clean washer cycle as described previously in Inside Routine Cleaning (Preventative). Upon cycle completion inspect the interior of the washer to see if the odor/residue has been eliminated. If any additional cleaning is required, repeat the above procedure. This may take several cycles depending on the severity of the odor/ residue. You may observe some remaining discoloration due to the long term effects of this residue. For especially contaminated areas visible inside the drum (including the front rubber seal), these areas might be more effectively cleaned by spraying a bleach cleaner on a scrub brush, soft sponge, or towel and scrubbing.

IMPORTANT Always wear rubber or latex gloves and protect floor and clothing from damage.

If odor is still left after bleach cycle(s) and bleach cleaner, open the detergent drawer and pour one (1) pouch of TideTM Washing Machine Cleaner in detergent drawer. Select clean washer cycle as above and start the washer.

IMPORTANT See Inside Routine Cleaning (Preventative) for future cleaning maintenance which is necessary to avoid repeating issues.

Three Compartment Preventative Cleaning

Outside Routine Cleaning

• When washing is completed, wipe top and sides of washer with a damp cloth.

• Clean the cabinet with mild soap and water. Never use harsh, gritty or abrasive cleansers

• If the cabinet becomes stained, clean with diluted chlorine bleach (1 part bleach to 8 parts water). Rinse several times with clear water.

• Remove glue residue from tape or labels with a mixture of warm water and mild detergent. Or, touch residue with the sticky side of tape.

• When cleaning chrome parts, it is best to use only a damp cloth.

• Before moving the washer, place a strip of cardboard or thin fiberboard under the front leveling legs to prevent damage to the floor.

IMPORTANT DO NOT store or place laundry products on top of washer at any time. They can damage the finish or controls. It is recommended to keep laundry products in the storage drawer between cycles if installed on a pedestal.

Winterizing Instructions

1. Turn off water supply faucets.

2. Disconnect hoses from water supply and drain water from hoses. Vacuum out each water supply inlet with a waterproof utility vac to ensure water valves are completely drained. Damage will occur if water in water inlet valves are allowed to freeze.

3. Plug electrical cord into a properly grounded electrical outlet.

4. Add 1 gallon (3.8 L) nontoxic recreational vehicle (RV) antifreeze to empty wash drum. Close door.

5. Select any cycle. Press start/pause and let the washer drain for 1 minute to drain out all the water. Not all of the RV antifreeze will be expelled.

6. Press cancel, unplug electrical power cord, dry off drum interior and close door.

7. Remove dispenser drawer. Drain any water in compartments and dry compartments. Replace drawer.

8. Store washer in an upright position.

9. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent. DO NOT add wash load

IMPORTANT If the washer is stored in an area where freezing can occur or moved in freezing temperatures, follow these winterizing instructions to prevent damage to the washer:

Solutions to Common Inquiries

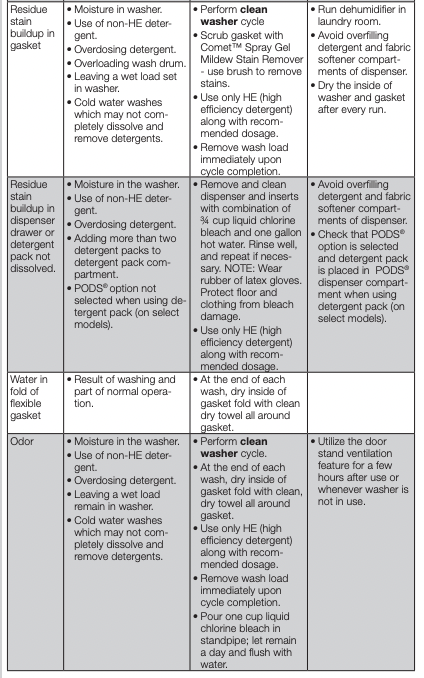

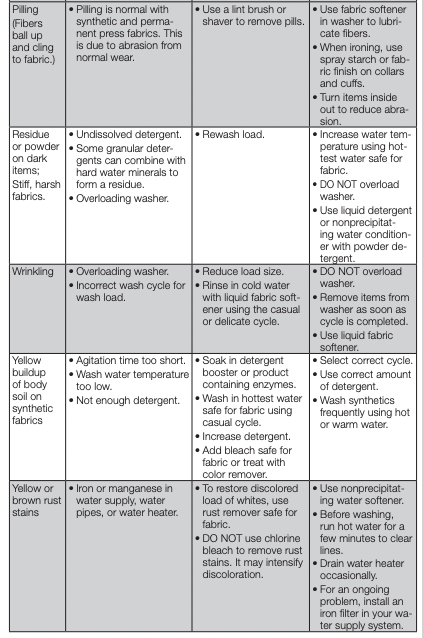

Common Washing Inquiries

Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent Association.

PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES

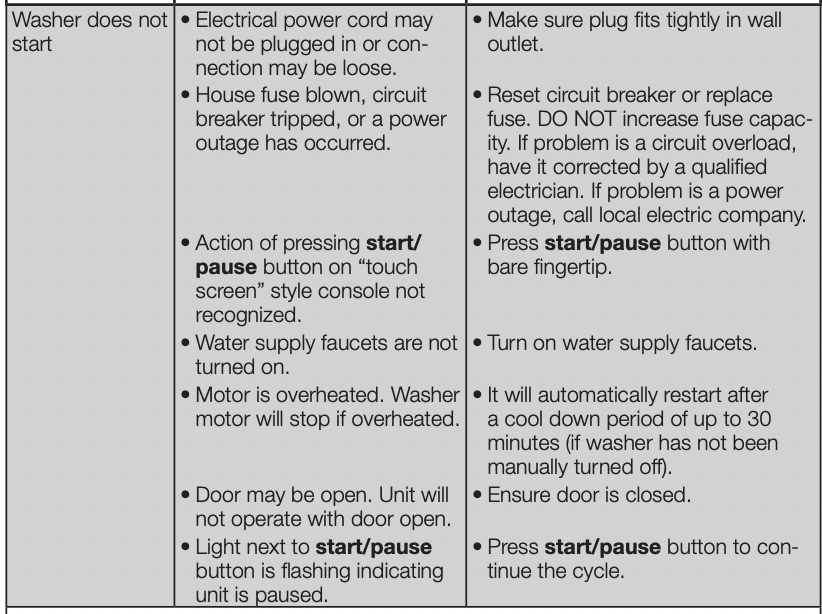

Before Calling

Before Calling

Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this washer.

OCCURRENCE POSSIBLE CAUSE SOLUTION

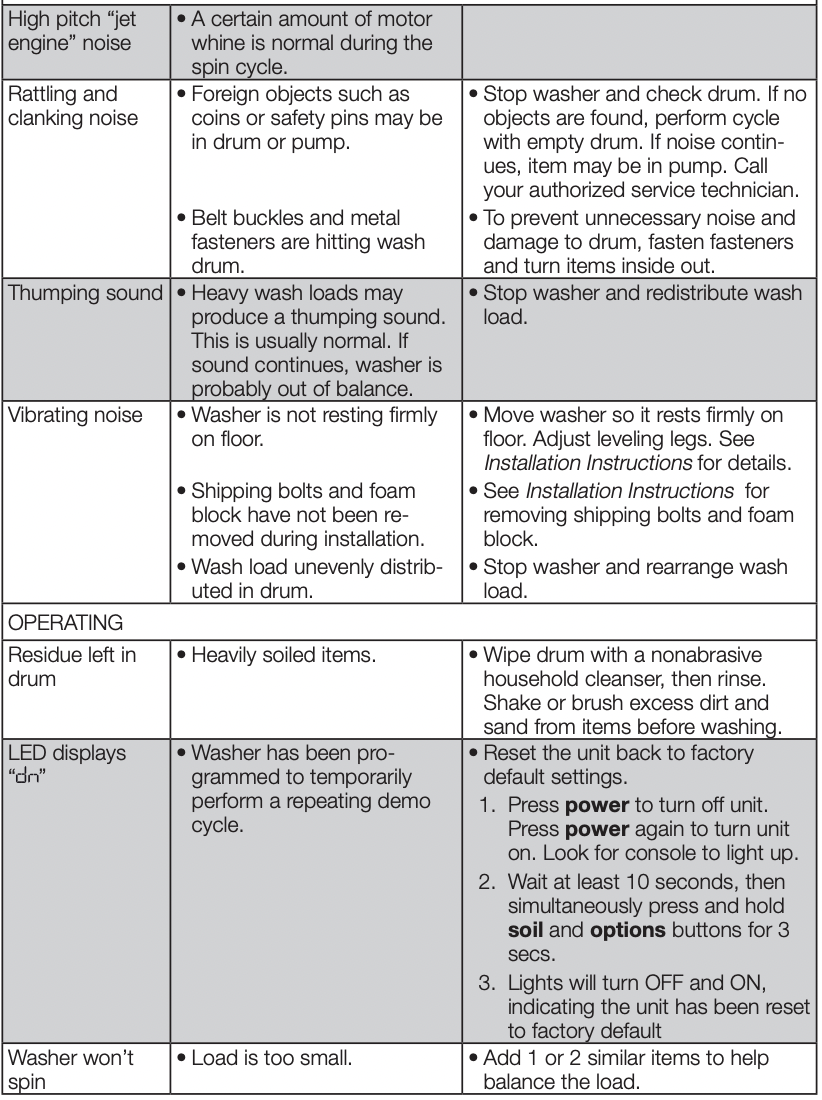

NOISE Please refer to “Normal Operating Sounds” at the beginning of this section
