User Manual Air Purifier

At a Glance

General

1. Air outlet (top)
2. Display and buttons
3. Display lighting
4. Filter holder
5. Air inlet / Front panel
6. Handle (rear side)
7. Dongle mount
   This model is provided with integrated Wi-Fi connectivity and does not require an external dongle to use this function.
8. Air outlet (side)
9. Laser PM sensor
10. Gas sensor
11. 2-in-1 filter(Deodorization Filter+Dust Collecting Filter)
12. Pre-filter

Display and buttons

1. Current fan speed
2. PM10 / PM2.5 / PM1.0 pollution / Concentration / Timer indicator
3. Air quality indicator
4. Gas pollution indicator
5. Filter replacement indicator
6. Wi-Fi function indicator
7. Lock indicator
8. Power button
9. Fan speed button
10. Sleep mode / Wi-Fi On or Off button
11. Timed on/off button
12. Lighting / Filter reset button
13. Air quality / Lock button

NOTE

• PM10: Dust in the air with a diameter of 10 ㎛ or less
  • Fine particles with about 1/5 of the diameter of a human hair
• PM2.5: Dust in the air with a diameter of 2.5 ㎛ or less
  • Fine particles with about 1/20 of the diameter of a human hair
• PM1.0: Dust in the air with a diameter of 1.0 ㎛ or less
  • Fine particles with about 1/50 of the diameter of a human hair
    * Diameter of a human hair: 50 to 70 ㎛

Bixby is the name of a Samsung AI solution and allows you to control the product with voice. To use the voice recognition function, you must connect the SmartThings app on your smartphone to the product. If the product does not support voice recognition directly, you can only control some functions using Bixby on your Samsung smartphone.

NOTE: Bixby only supports some languages, and the supported functions may differ depending on the geographical area.

Removing the filter

When using the 2-in-1 filter for the first time or replacing them with a new set, remove the vinyl packaging first.

STEP 1: Remove the front panel.

• Use your thumbs to press on the top of the product and pull the front panel forward with other fingers.

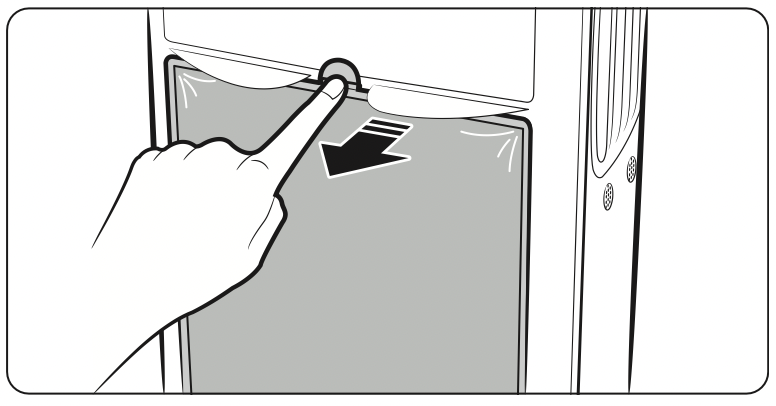

STEP 2: Remove the pre-filter.

STEP 3: Release the 2-in-1 filter.

• Rotate the filter holder 90˚ anticlockwise to release the filter.

STEP 4: Remove the 2-in-1 filter.

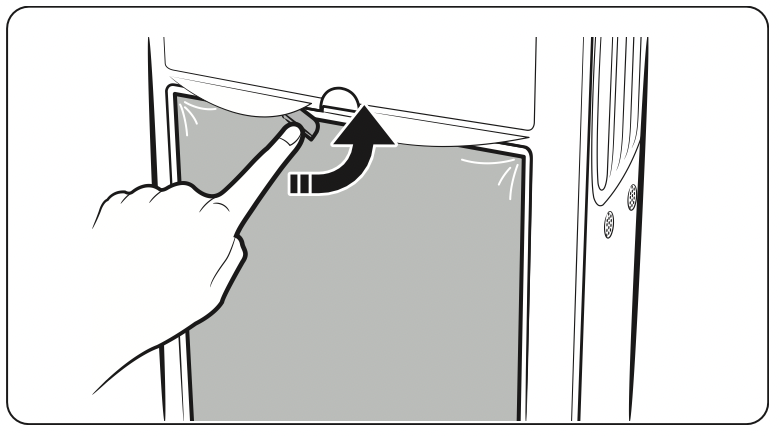

STEP 5: Remove the vinyl packaging from the filter.

Assembling the filter

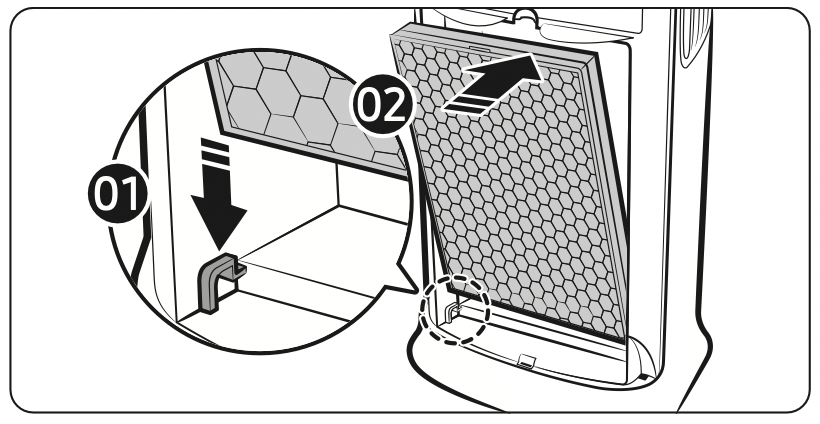

STEP 1: Place the 2-in-1 filter.

• Let the filter sit inside the grooves at the bottom.
• Check the insert direction before placing the filter.

STEP 2: Secure the 2-in-1 filter.

• Rotate the filter holder 90° clockwise to hold the filter in place.

STEP 3: Place the pre-filter.

STEP 4: Place the front panel.

• First, insert the hook on the panel into the groove at the bottom of the product.

STEP 5: Before using new filter, reset the filter replacement reminders.

• Press and hold the Lighting [ ] button for 3 seconds or longer.

NOTE

• The product is not as effective when it is operated without filter.
• You may notice a subtle odour from fresh filter when using your newly purchased air purifier for the first time, which will disappear naturally in about a day.
• Keep the windows and doors closed whenever you can while the product is running. Ventilate the air regularly to avoid high concentration of carbon dioxide when you keep the room enclosed for a duration of time. When the filter have a weak smell, regular ventilation also reduces the smell.
• Carbon monoxide (CO) is a harmful gas that cannot be removed by the filter and usually comes from an outdoor origin.
• The frequency of filter cleaning and replacement may vary depending on the operating environment.

Tips for using the 2-in-1 filter

• Operating the product without filter may cause abnormal air noise.
  Be sure to use the product with the 2-in-1 filter.
• In a room with persisting odours, using the product after ventilating the room first allows more effective odour control.
  • Operating the product while cooking food that has a strong odour may cause the deodorization filter to smell, and early replacement may be necessary.
  • If you operate the product after it has been unused for 2 weeks or more, or if there is a smell, run a cleaning operation by running the product in a well-ventilated space at the High fan speed for 4 hours or more, or dry the filter in the sunlight for 4 hours or more. This can help remove odours from the filter.
• The filter replacement reminder generates an alert when the maximum filter operation time has been reached based on the product uptime.
  The frequency of filter cleaning and replacement may vary depending on the operating environment.
• Do not wash the 2-in-1 filter with water. When using the product, be sure to keep the filter away from water.
• The replacement cycle of the 2-in-1 filter can be between 6 months to 1 year, provided that the product operates 24 hours every day.
  (Filter can be used longer when the duration of product operation is shorter.) Filter life depends on the air quality.

  See other models: SM-T510NZKGXAC VCA-SAE90A/SA RF22R7351SR/EU VS20R9045T3/SA SM-R810NZKAXSA
  The life span of filter may shorten depending on the usage environment, the frequency of use, and the amount of contaminants adsorbed.
• The indicator illuminates to notify when the filter need to be replaced. However, replace them regardless of the indicator status if they are visually dirty or smell, or if the output air flow is noticeably slowing down.
• The dust collecting filter is a high performance filter that removes fine particles in the air such as particulate matter (PM) and cigarette smoke particles.
• The deodorization filter is a high-performance active carbon (charcoal) filter, effectively controlling household odours from a toilet, food, and such.
• If the filter begin to smell when you operate the product due to absorbed odourants or heavy use, they are no longer usable and need to be replaced.
  • The 2-in-1 filter is a comsumable material, and even if the warranty period is free, replacement of filter that occurs during use will be charged.
• Replacement filters are available for sale from a Samsung retailer or a Samsung Service Centre.

Operation Features

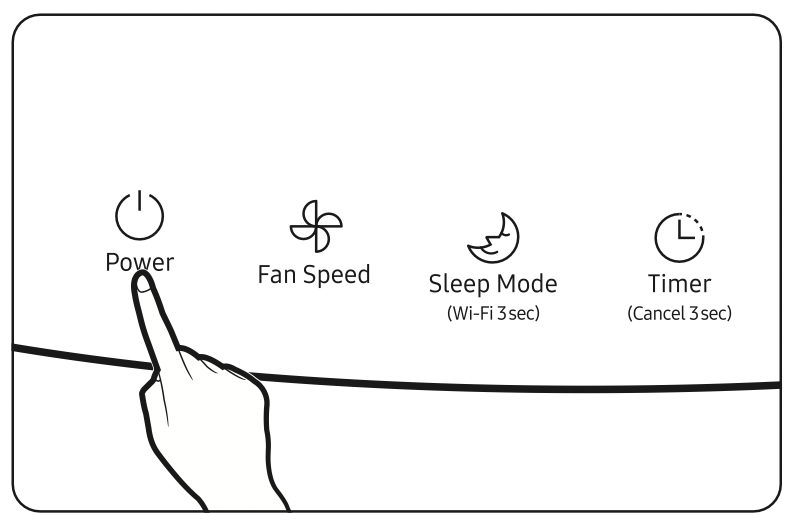

Turning the power on/off

• Press the Power button. The air purifier turns on with a notification sound and automatically begins operation.
  • Sensor preparation begins upon startup with a display indication and continues for 12 seconds. The air quality is then indicated by colour and the concentration level.
  • Coloured air quality indicator: PM10, PM2.5 and PM1.0 levels, and gas pollution display: PM10, PM2.5, PM1.0
    Sensor loading display

• When you turn off the power and turn it back on, the product operates at the last fan speed you used.

Controlling the fan speed

Use the button to select the intensity of air flow to purify the indoor air.

• Press the Fan speed [ ] button to change between the options.
  • Each time you press the button, the fan speed changes in the order of Low → Auto → High → Medium → Low.
• In Auto mode, the fan speed is automatically adjusted to the particle and odour levels around it to keep the room clean.

Sleep mode

Sleep mode provides a clean, quiet and comfortable room for a good night's sleep.

• Use Sleep mode to only allow the mode indicator and turn off all other display indicators.
• Changing the fan speed when Sleep mode has been active for 10 seconds or more will cancel the mode and the sensor loading display will appear. (See ‘Sensor loading display’ on page 15.)
• Lock feature becomes unavailable while Sleep mode is on. Cancel
• Press the Sleep mode [ ] button or Fan speed [ ] button.

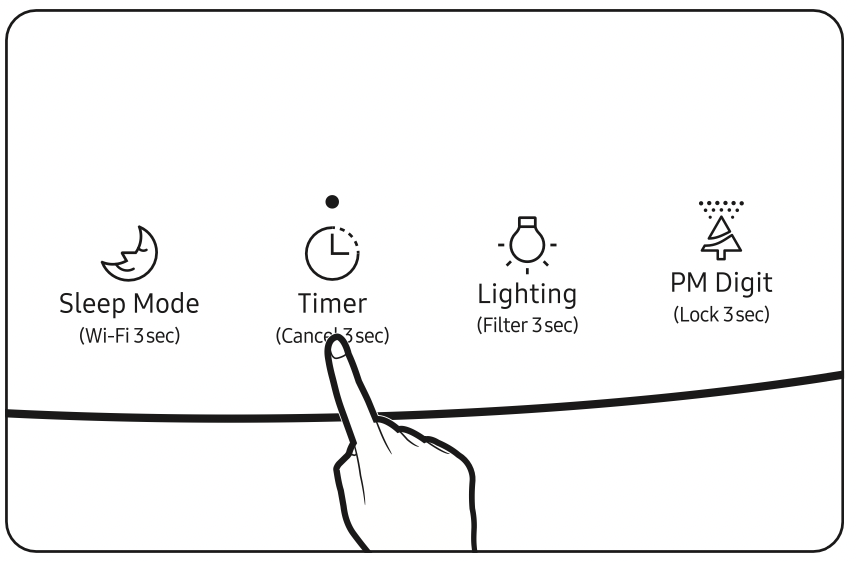

Timed on/off function

The product automatically turns off after a specified duration.

• You can select between 1 hour to 12 hours by pressing the Timed on/off [ ] button when the product is powered on. Time can be adjusted by hour.
• Timed off is scheduled 3 seconds after selecting the desired operating hours.

Cancel

• Press and hold the Timed on/off [ ] button for at least 3 seconds or press the Timed on/off [ ] button to set the timer to .

Display lighting

The air quality is displayed in pleasantly dimmed colour lighting.

• It reflects the PM10, PM2.5, PM1.0 or gas pollution level, whichever is the worst.
• Colours do not apply when using the product in Sleep mode.

Cancel

• Press the Lighting [ ] button.

Turning the Wi-Fi feature on/off

You can turn the Wi-Fi feature on or off.

• Press and hold the Sleep mode [ ] button for 3 seconds or more to turn the Wi-Fi on or off.
• To use this feature, first register the product to Samsung SmartThings app. Once connected, the Wi-Fi icon will automatically light up.
  • The Wi-Fi icon only lights up when the product is connected to SmartThings app.
  • About connecting to SmartThings app, see page 21.

Clearing the filter replacement reminder

This feature notifies when to replace the 2-in-1 filter (Deodorization Filter+Dust Collecting Filter).

• If you hear a beep and the filter replacement indicator [ ] lights up while the product is in use, replace the filter and press the Lighting [ ] button for 3 seconds or more to reset. The replacement reminder turns off after [ ] blink twice with the notification sound.
• Likewise, if the filter have been replaced before [ ] activation for other reasons, reset the status by pressing the Lighting [ ] button for longer than 3 seconds.
• After resetting the filter, press the Lighting [ ] button to reset this feature as well.

CAUTION: The filter change indicator may not work properly if you continue to use old filter without replacement or perform the reset process without filter.

Lock function

Use this feature to lock all buttons and prevent unintended button operation, especially by children.

• Press and hold the Air quality [ ] button for 3 seconds or more to activate this feature, which locks all buttons after a beep.
• All buttons become inaccessible while Lock feature is on.

Cancel

• Press and hold the Air quality [ ] button for 3 seconds or more. The feature is released after a beep.

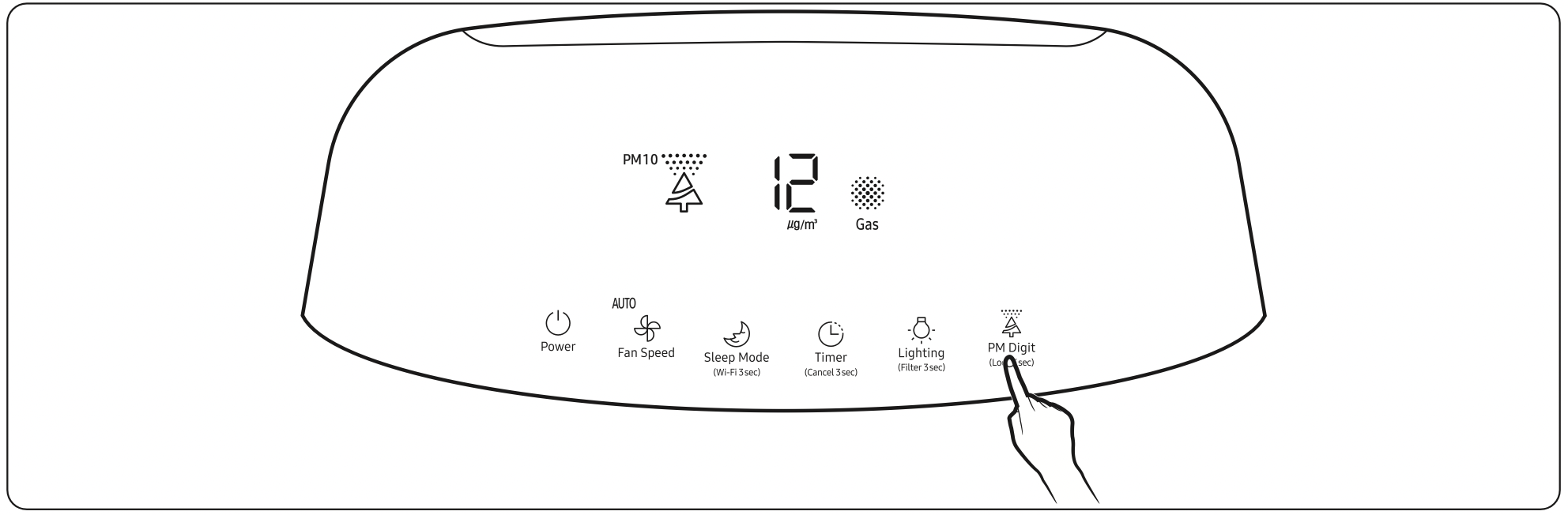

Checking the air quality

You can review the current air quality from the display panel with the colour (reflecting the PM10 / PM2.5 / PM1.0 / gas pollution) and the concentration level indicators.

• By default, the colour and PM10 / PM2.5 / PM1.0 level indicators reflect the PM10 concentration.
• Each time you press the Air quality [ ] button, the current state is displayed in the order of PM10 → PM2.5 → PM1.0.
  The PM2.5 and PM1.0 levels are displayed for 10 seconds, before automatically changes to the PM10 level.
  • The air quality will be ‘Very Poor’ when the PM2.5 / PM1.0 levels are worse than the PM10 level.
    If the concentration levels are same for all PM groups, the indicator will reflect the PM10 level.

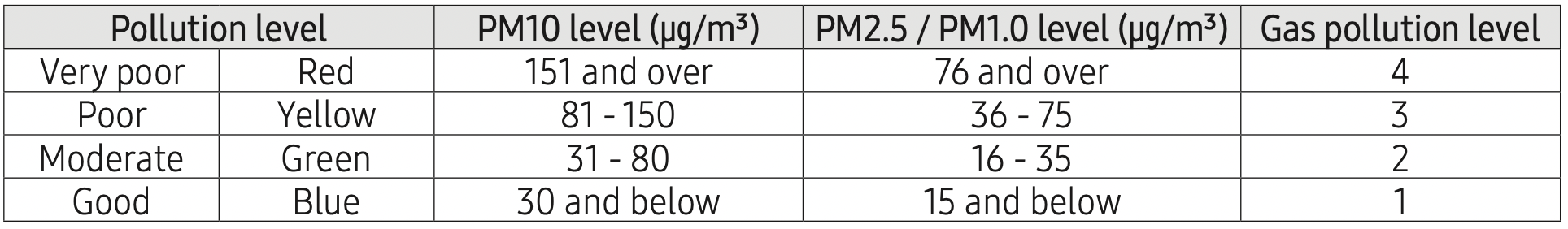

• Air quality levels

• PM10, PM2.5 nad PM1.0 measurement will be displayed in numbers 05 - 999.

NOTE

• The dust concentration may vary depending on the environmental conditions (for example, when the product is near a construction site, road, or fabric sofa, or when a vacuum cleaner is used or bedding and clothes are arranged near the product, etc.).
• The following conditions may cause temporarily high readings of PM level:
  • When the product is used near fur rugs or used in vets, clothes stores, or other places prone to high humidity, smoke or infestation
  • When humidifiers, electric pressure cookers, sprayers and such are being used in the same room
  • When the product is used where there is inflow of outside air with dust or other types of air pollution (e.g. proximity to the building’s HVAC or ventilation systems, or loose window frames)
• The gas pollution reading can be affected by odorous household items such as air fresheners, deodorants and detergents.
• If you are using more than one air purifier in the same room, the dust concentration reading on each unit may not be same as they affect air circulation. The dust concentration reading may vary depending on the sensor or product being used.
• If there is no change in the intensity of gas (odour), it may not be reflected in the gas pollution reading even though you can clearly smell it.
• PM levels on the display may differ from the official forecasts.
• Nearby electromagnetic waves or electrical noises may cause temporarily high readings of PM level.

Cleaning and Maintenance

Be sure to disconnect the power plug from the socket before cleaning the product.

Cleaning the air purifier exterior

• Dampen a soft cloth with lukewarm water and wring it out, and then wipe the product exterior with it.
• Wipe the grooves on the front panel with a cotton swab.
• If it is too hard to clean the dust from the front panel, remove the panel and wash it with water.

CAUTION:

• Do not wipe the product with an alkaline detergent.
• Do not wipe the product surface with sulphuric acid, hydrochloric acid, or organic solvents (thinner, kerosene, acetone, etc.). Do not attach a sticker to the product. Failure to do so may result in damage to the product surface.

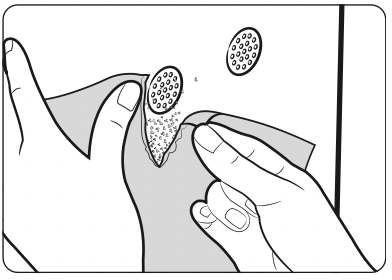

Cleaning the sensors

• If there is dust or foreign substance on a sensor, use a vacuum cleaner to clean the sensor and its surrounding.

CAUTION: Do not put any dust into the sensor openings.

Cleaning and drying the filter

NOTE: About removing/assembling the filter, see pages 11 and 12.

Cleaning the pre-filter

• Depending on the dust accumulation, first remove dust with a vacuum cleaner and gently wash the filter with a pH-neutral detergent diluted in lukewarm water.
  • Cleaning interval: 2 weeks (when using the product 24 hours every day)

CAUTION: Cleaning the pre-filter by rubbing with a brush or a similar tool may damage the superfine fibres.

Drying the filter

• Keep the filter in the shade until completely dry and away from direct sunlight.

Troubleshooting

Check the following before requesting service from the Service Centre.
