Thank you for purchasing this product.
Please read these instructions carefully before using this
product, and save this manual for future use.
Operating Instructions
Blu-ray Disc™ Recorder
Model No. DMR-UBT1
Software (Firmware) Update
To support the latest features, it’s very
important you install the latest updates
to maintain proper operation of your unit.
For details, refer to “Software
(Firmware) Update” (> 68) or
http://panasonic.jp/support/global/cs/
(This site is in English only.)
until
2017/08/17
GL
DMR-UBT1GL_eng.book 1 ページ ２０１７年７月２５日 火曜日 午後１時４５分
TQBS0146
2
This unit can play back Ultra HD Blu-ray discs
(Including BD/DVD discs).
Refer to “HDD and media information” (> 16)
Refer to “Enjoying Ultra HD Blu-ray”. (> 42)
This unit can play back 4K content stored on
external media, such as USB devices.
Refer to “Playing content (4K content, etc.) on the
HDD” (> 35)
Refer to “Playing contents on the media” (> 38)
Refer to “Operation during play”. (> 40)
Refer to “4K Networking”. (> 43)
Unit
• To reduce the risk of fire, electric shock or
product damage,
- Do not expose this unit to rain, moisture,
dripping or splashing.
- Do not place objects filled with liquids, such as
vases, on this unit.
- Use the recommended accessories.
- Do not remove covers.
- Do not repair this unit by yourself. Refer
servicing to qualified service personnel.
- Do not let metal objects fall inside this unit.
- Do not place heavy items on this unit.
AC mains lead
• To reduce the risk of fire, electric shock or
product damage,
- Ensure that the power supply voltage
corresponds to the voltage printed on this unit.
- Insert the mains plug fully into the socket
outlet.
- Do not pull, bend, or place heavy items on the
lead.
- Do not handle the plug with wet hands.
- Hold onto the mains plug body when
disconnecting the plug.
- Do not use a damaged mains plug or socket
outlet.
• The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
Features
Play Ultra HD Blu-ray Discs (Including
BD/DVD discs)
Play 4K content
Safety precautions
WARNING
Small object
• Keep the Memory Card out of reach of children
to prevent swallowing.
DMR-UBT1GL_eng.book 2 ページ ２０１７年７月２５日 火曜日 午後１時４５分
TQBS0146
3
Unit
• This unit utilizes a laser. Use of controls or
adjustments or performance of procedures other
than those specified herein may result in
hazardous radiation exposure.
• Do not place sources of naked flames, such as
lighted candles, on this unit.
• This unit may receive radio interference caused
by mobile telephones during use. If such
interference occurs, please increase separation
between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.
Placement
• Place this unit on an even surface.
• To reduce the risk of fire, electric shock or
product damage,
- Do not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
- Do not obstruct this unit’s ventilation openings
with newspapers, tablecloths, curtains, and
similar items.
- Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
Batteries
• Danger of explosion if battery is incorrectly
replaced. Replace only with the type
recommended by the manufacturer.
• Mishandling of batteries can cause electrolyte
leakage and may cause a fire.
- Do not mix old and new batteries or different
types at the same time.
- Do not heat or expose to flame.
- Do not leave the battery(ies) in a car exposed
to direct sunlight for a long period of time with
doors and windows closed.
- Do not take apart or short circuit.
- Do not recharge alkaline or manganese
batteries.
- Do not use batteries if the covering has been
peeled off.
- Remove batteries if you do not intend to use
the remote control for a long period of time.
Store in a cool, dark place.
• When disposing of the batteries, please contact
your local authorities or dealer and ask for the
correct method of disposal.
At the time of purchase, there is a protective
sheet placed between the unit’s front panel and
body. Before use, remove the protective sheet.
• If you try to peel off the adhesive tape with your
fingernails or similar objects, damage to the unit
may result. Hold the protective sheet to peel it off.

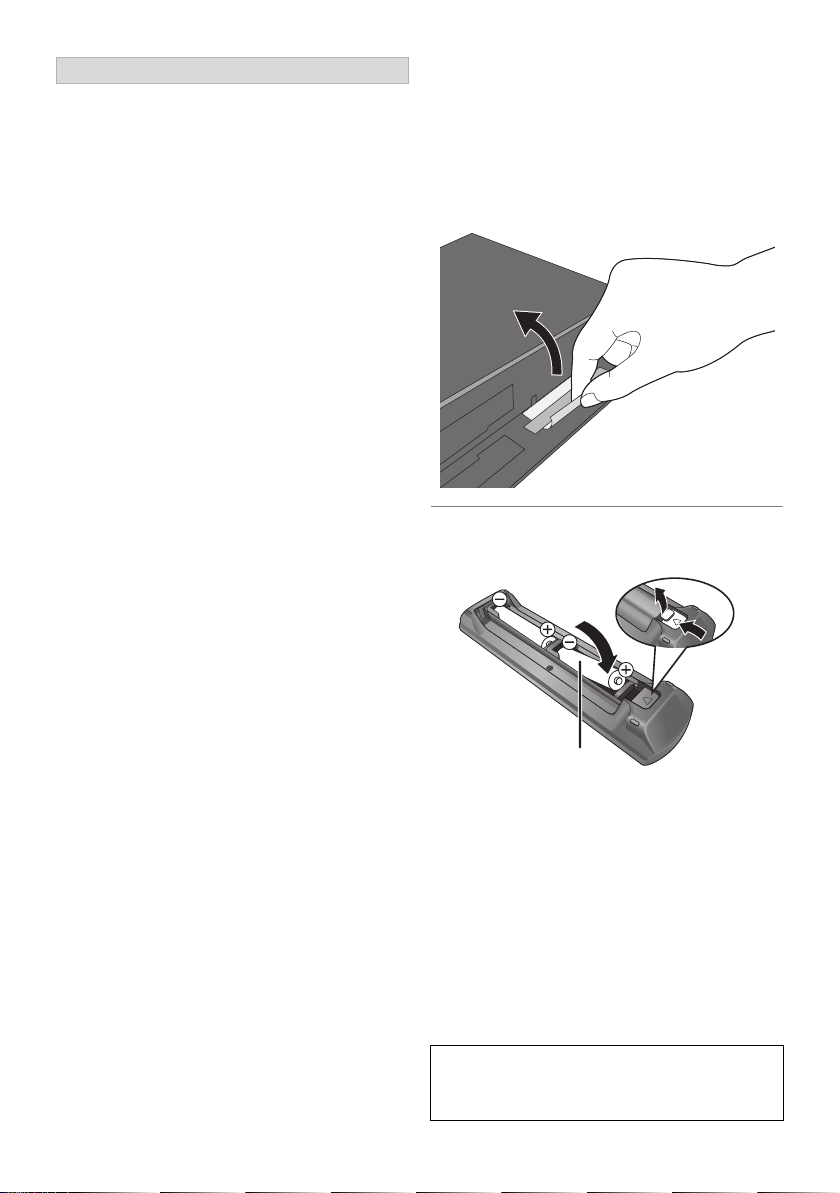

Insert batteries
Insert so the poles (i and j) match those in the
remote control.
Please check and identify the supplied accessories.
(Product numbers are correct as of July 2017.
These may be subject to change.)
• Do not use AC mains lead with other equipment.
CAUTION
Before use
Supplied accessories
Remote control (N2QAYB001077): 1pc.
Batteries for remote control: 2 pcs.
AC mains lead: 1pc.
RF coaxial cable: 1pc.
About descriptions in these operating instructions
• Pages to be referred to are indicated as “> ±±”.
• Images are for illustration purpose, contents may change
without notice.
R6/LR6, AA
(Alkaline or manganese batteries)
DMR-UBT1GL_eng.book 3 ページ ２０１７年７月２５日 火曜日 午後１時４５分
TQBS0146
4
Table of contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety precautions . . . . . . . . . . . . . . . . . . . . 2
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supplied accessories. . . . . . . . . . . . . . . . . . 3
Getting started
Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Main unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Control. . . . . . . . . . . . . . . . . . . . . . . 8
Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
HDD and media information . . . . . . . . . . . 16
FUNCTION MENU screen . . . . . . . . . . . . 21
Watching broadcasts
Watching broadcasts . . . . . . . . . . . . . . . . . 22
Recording
Recording TV programmes. . . . . . . . . . . . 25
Timer recording. . . . . . . . . . . . . . . . . . . . . . 27
Keyword Recording . . . . . . . . . . . . . . . . . . 31
Using the external HDD (USB HDD). . . . 33
Playing back video
Playing content (4K content, etc.) on the
HDD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Playing contents on the media . . . . . . . . . 38
Operation during play. . . . . . . . . . . . . . . . . 40
4K Networking. . . . . . . . . . . . . . . . . . . . . . . 43
Playback menu . . . . . . . . . . . . . . . . . . . . . . 44
Editing video
Deleting/Editing programmes . . . . . . . . . . 47
Copying video
Copying programmes. . . . . . . . . . . . . . . . . 50
Photo and Music
Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Network
Network Service . . . . . . . . . . . . . . . . . . . . . 62
TV Anytime . . . . . . . . . . . . . . . . . . . . . . . . . 62
Home Networking (DLNA) . . . . . . . . . . . . 63
With Other Equipment
Copying the HD Video (AVCHD) . . . . . . . 66
Other functions
VIERA Link . . . . . . . . . . . . . . . . . . . . . . . . . 67
Software (Firmware) Update . . . . . . . . . . 68
Other operations. . . . . . . . . . . . . . . . . . . . . 68
Setup
Basic Settings . . . . . . . . . . . . . . . . . . . . . . . 71
Reference
Troubleshooting guide . . . . . . . . . . . . . . . . 81
Specifications . . . . . . . . . . . . . . . . . . . . . . . 87
Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Limited Warranty . . . . . . . . . . . . . . . . . . . . 93
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
DMR-UBT1GL_eng.book 4 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
5
Unit care
• The HDD is a high precision recording
instrument and is easily susceptible to damage.
Therefore, be careful of the following points
while the unit is turned on, especially during
operation, otherwise the HDD and the recorded
content may be damaged:
- Do not subject the unit to any vibration and
shock.
- Do not remove the AC mains lead from the
household mains socket.
• If the HDD or USB HDD is damaged, the
recorded content cannot be recovered.
• Do not place on anything that generates heat
like a Set Top Box, etc.
• Place in an area where condensation does
not occur. Conditions where condensation
may occur
- When there is an extreme change in
temperature.
In the above situation, without turning the unit
on, let the unit adjust to the room temperature
and wait 2–3 hours until condensation is gone.
• The unit may breakdown if cigarette smoke
or bug spray/vapour, etc. gets inside the
unit.
Before moving the unit, ensure the disc tray is
empty.
1 Switch the unit to standby mode. (Wait until
“BYE” disappears from the display.)
2 Remove the AC mains lead from the
household mains socket.
3 Move only after the unit has come to a
complete stop (approx. 3 minutes) in order to
avoid subjecting to vibration and shock. (Even
after the unit is switched to standby mode, the
HDD continues operating for a short time.)
The registration of the USB HDD may be
cancelled in the process of repairing this unit.
You can use the USB HDD again by
re-registering, but all recorded content already on
the USB HDD will be lost. In such cases, the
recorded content (data) cannot be recovered.
This unit may contain private information. Before
disposing of or transferring this unit, perform the
following to delete the data, including personal or
secret information:
- Format HDD (> 73)
- Perform “Shipping Condition” (> 80)
HDD/USB HDD handling care
• The HDD is a temporary storage device
- It is recommended to save the recorded
content on a disc or to keep the original data or
CDs that they were copied from.
- If you notice a problem with the HDD such as
repetitive strange sounds, immediately save
(backup) all content and request service. If you
continue using the HDD with a problem, the
unit or the recorded content will be damaged.
Setup precautions
Getting started
When moving the unit
Cleaning
• Wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to
clean this unit.
• Before using chemically treated cloth, carefully
read the instructions that came with the cloth.
• Use the lens cleaner (not supplied) to clean the
unit’s lens.
When requesting this unit for repair
To dispose or transfer this unit
DMR-UBT1GL_eng.book 5 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
6
Main unit
1 Disc tray
2 USB port ( DC 5 V 900 mA)
• This port supports USB 3.0 Super Speed.
• For playback of 4K videos stored on a USB
device, use port on front of the unit.
3 SD CARD slot
• When removing the SD card, press on the
centre of the card and pull it straight out.
• For playback of 4K videos stored on an SD
card, use an SD card conforming to Class 10
of the SD Speed Class Rating.
4 Display (> 7)
5 Remote control signal sensor
• Angle: Approx. 20° up and down, 30° left and right
• Distance: Within approx. 7 m in front of the unit
6 Open/close disc tray
§
7 Standby/on switch
§
(Í/I)
Touch to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
§
These icons work just by touching the icons.
Do not place any objects on or around the icons.
• When inserting the media, ensure that it is facing the right way up.
• About SD card/USB device
- While writing to/reading from the media, do not switch the unit to standby mode or remove the media. Such action may
result in loss of the media contents.
- The USB port on the front side does not support USB HDDs. Connect a USB HDD to the USB port on the rear side.
(> 34, Connecting the USB HDD)
Front
Pull to flip down
the front panel.
Inserting or removing media
∫ Disc
Disc
∫ SD card/USB device
DMR-UBT1GL_eng.book 6 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
7
The symbols on this product represent the following.

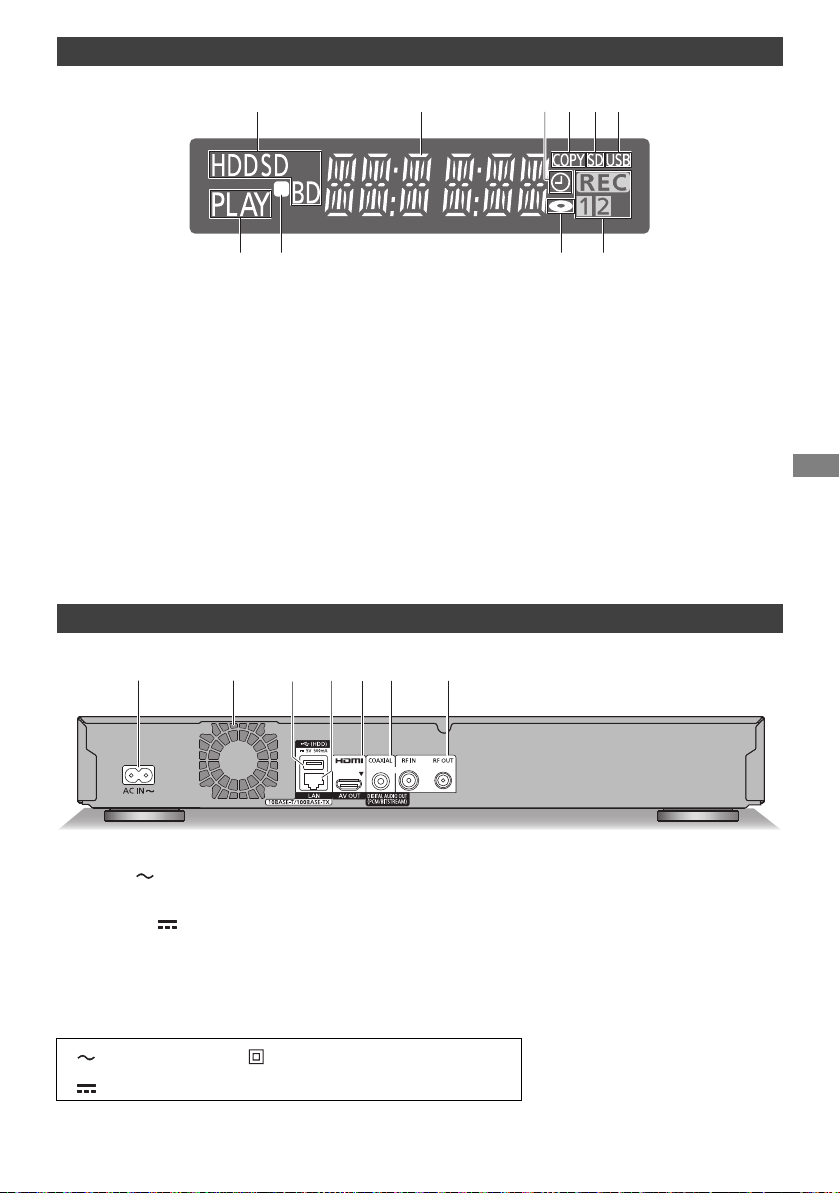

Display
1 Drive (HDD, BD or SD) indicator
2 Main display section indicator
• Messages and other information are
displayed. (> 86)
3 Timer recording indicator
• This indicator lights up when the timer
recording standby or Keyword Recording
standby is activated.
4 Copying indicator
5 SD card slot indicator
6 USB port indicator
7 Playback indicator
8 Remote control signal indicator
9 Disc indicator
: Recording indicator
• “REC” lights up while recording is in
progress.
• “1” flashes when the first timer recording
standby is activated or recording is paused,
and lights up while recording is in progress.
(In the same way as “1”, “2” lights up or
flashes for the second recording.)
Rear
1 AC IN ( ) terminal (> 10)
2 Cooling fan
3 USB port ( DC 5 V 500 mA)
• This port supports USB 2.0 High Speed.
• Connect a USB HDD to this USB port.
4 LAN port
5 HDMI terminal (> 10, 11)
6 COAXIAL terminal (> 11)
7 RF IN/OUT terminal (> 10)
AC
Class II equipment (The construction of
the product is double-insulated.)
DC
DMR-UBT1GL_eng.book 7 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
8
Remote Control
Instructions for operations are generally described using the remote control.
G
U
I
D
E
CH
CH
PAGE
AV
INPUT
TV
OK
VOL
RETURN
OPTION
DELETE
AUDIO
REC
TEXT
ST
TL
-10s
+60s
INTERNET
REWIND LIVE TV
0
2
abc
5
jkl
8
tuv
1
4
ghi
7
qrs
p
3
def
6
mno
9
xyz
w
F
U
N
C
T
I
O
N
M
E
N
U
STATUS
EXIT
SLOW
DRIVE
SELECT
x1.3
PROG/CHECK
PAUSE LIVE TV
LAST VIEW
1 Transmit the remote control signal
• Point it at remote control signal sensor on
this unit. (> 6)
2 Switch the unit from on to standby mode or
vice versa
3 Select channels and programme numbers,
etc./Enter numbers or characters
4 Switch to the previously watched channel
(> 22)
5 Manual skip (> 41)
-10s: Skip approx. 10 seconds backward
+60s: Skip approx. 1 minute forward
6 Basic operations for recording and play,
REWIND LIVE TV/PAUSE LIVE TV (> 24)
7 Show Information (> 22, 36, 40)
8 Selection/OK, Frame-by-frame (> 41)
9 Show Video Menu, Top Menu, Pop-up Menu
(> 35, 41)
: Show OPTION menu (> 44, 47, 58)
; Colour buttons (red, green, yellow, blue)
(Use in accordance with instruction on the
screen.)
< Select audio (> 22, 41)
= To delete unwanted recorded programmes,
timer programmes, video, photo or music
> TV operation buttons (> 13)
? Start recording (> 25)
@ Channel select (> 22)/Change pages in the
Video Menu screen etc.
A Select drive (HDD, Disc, SD or USB)
B Show the Timer Recording screen (> 28)
C Show NETFLIX screen
D Show the Network Service screen (> 62)
E Exit the menu screen
F Show the TV Guide screen (> 23)
G Show the FUNCTION MENU screen (> 21)
H Return to previous screen
I Show subtitles (> 22, 41)
J Show Teletext (> 22)
DMR-UBT1GL_eng.book 8 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
9
Connection
The unit can be played back 4K contents when this unit is connected to a compatible TV.
• Before making any connections, please disconnect all the units from AC power.
(Connect the AC mains lead after making all connections.)
• Use the High Speed HDMI cables. (18 Gbps)
• When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of
power, even when the unit is in standby mode. (> 87)
∫ Enjoying 4K output
• To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps.
Please use HDMI cables 5.0 meters or less.
• If you connect this unit to a 4K-compatible TV and perform “Easy Setting”, 4K (50p/60p) will
be automatically selected. (> 12)
• To view content in 4K/HDR format, a TV that supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR
signal is necessary.
∫ To enjoy Ultra HD Blu-ray Disc featured with High Dynamic Range (HDR)
If you see a message about HDR compatible issue while an Ultra HD Blu-ray Disc is played back,
please check your TV settings as follows.
An example of the message:
“This player is not connected to a HDR compatible TV.”
1 If you are using a Panasonic TV compatible with 4K and HDR released in 2015 or 2016,
(DX900/DX800/DX780/DX750/DX730/DX700 series etc.), please check your TV settings as
follows.
- Switch the TV to the HDMI input.
- Press “MENU” button of your TV remote control
- Select “HDMI HDR Setting” in “Setup”
- Select “On” in “HDMI HDR Setting”
2 If you use an other TV except Panasonic, compatible with 4K and HDR, please refer to the
operating instructions of the TV.
3 When you play a Ultra HD Blu-ray disc on a TV without HDR capability, the disc can be played back
(in non-HDR quality) even if the message appears.
DMR-UBT1GL_eng.book 9 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
10
• Keep the RF coaxial cables as far away as possible from other cables.
• To enjoy Ultra HD Blu-ray content, follow the setup instructions below, as well.
- Network connection (> 12)
- Network setting (> 14)

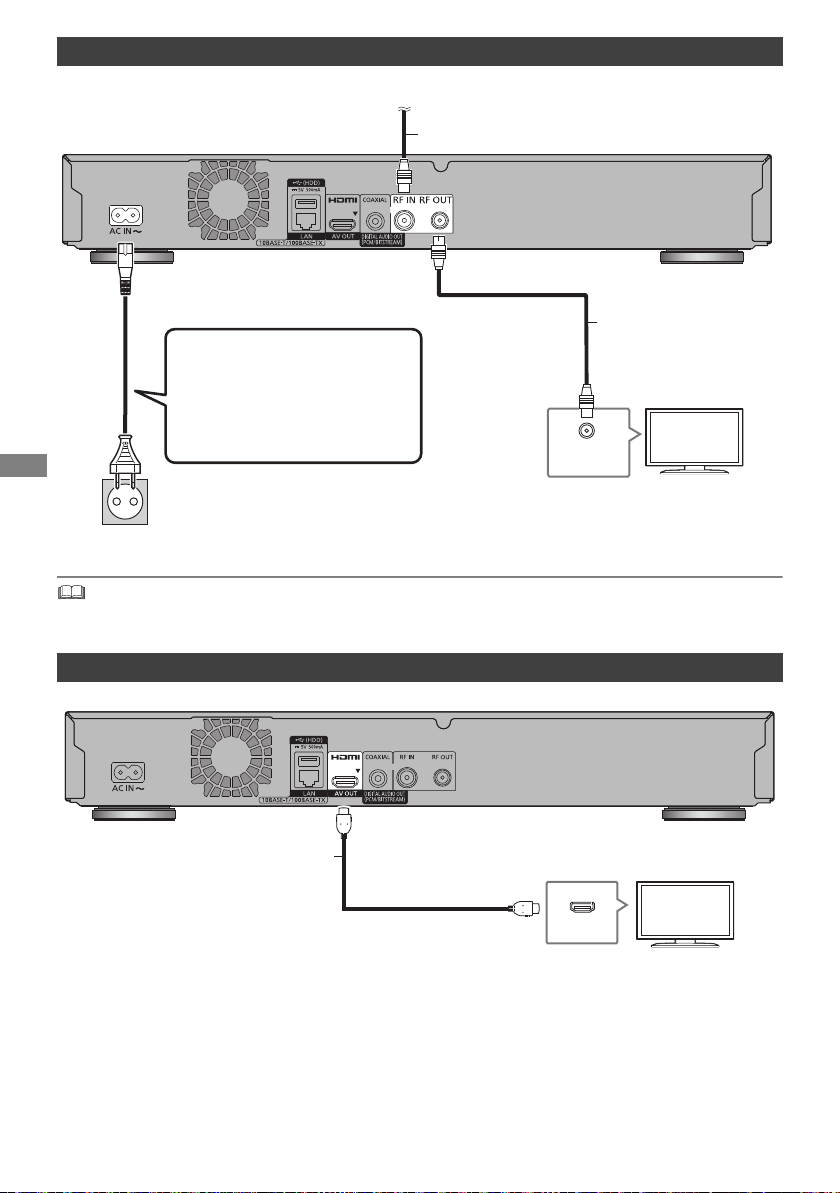

Antenna connections
Enjoying video and audio with a 4K-compatible TV
VHF/UHF
RF IN
This unit’s rear panel
Household mains socket
(AC 220 to 240 V, 50 Hz)
AC mains lead
(supplied)
• Connect only after all other
connections are complete.
To the Aerial
Aerial cable
RF coaxial cable
(supplied)
HDMI
This unit’s rear panel
HDMI cable
(18 Gbps)
DMR-UBT1GL_eng.book 10 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
11
• To enjoy Dolby Atmos
R
or DTS:X
TM
(> 75)
4K or 3D images can be played back when this unit is connected to a 4K or 3D compatible TV.
• This connection only supports up to 5.1ch.
• To connect a TV and amplifier with an HDMI cable, connecting terminals on both the TV and amplifier
must be ARC-compatible. (> above, “About ARC”)
•
To enjoy Dolby Atmos
R
or DTS:X
TM
(> 75)
Enjoying video with a 4K-compatible TV and audio with a 4K-compatible amplifier
• About ARC:
When using a TV or an amplifier/receiver that does not display “ARC” on the HDMI terminal, it is necessary to connect the TV
and the amplifier/receiver with a digital audio cable to enjoy the TV audio on the amplifier/receiver.
Enjoying 4K or 3D video by connecting a non-4K compatible amplifier
Enjoying audio with an amplifier connected to the COAXIAL terminal
• To enjoy audio with an amplifier connected to the COAXIAL terminal
Set “Audio Output” to “Off” in “Advanced Settings”. (> 77)
HDMI IN
(ARC)
HDMI OUT
(ARC)
HDMI IN
HDMI cable
(18 Gbps)
HDMI cable
(18 Gbps)
Amplifier/receiver
(4K-compatible)
HDMI OUT
(ARC)
HDMI IN
(ARC)
HDMI IN
Amplifier/receiver
HDMI cable
(18 Gbps)
HDMI cable
COAXIAL IN
Coaxial digital cable
Amplifier/receiver
DMR-UBT1GL_eng.book 11 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
12
When this unit is connected to the network, you
can enjoy network functions (Ultra HD Blu-ray
Playback, DLNA function, Network Service, TV
Anytime, etc.).
For details about connection method, refer to the
instructions supplied with the connected
equipment.
• Use category 5 or above straight LAN cables (STP) when
connecting to peripheral devices.
About wireless LAN connection (> 14, Easy
Network Setting)
• The unit is not compatible with public wireless LAN
services.
Settings
Before use, perform the initial setup of the unit.
1 Turn on the TV, then select the appropriate
AV input to suit the connections to this unit.
2 Press [Í] on the remote control or touch
[Í/I] on this unit.
• The Easy Setting will start at the initial power on.
• The “Region Selection” will appear. Select the region
you live in, and press [OK].
3 Follow the on-screen instructions and
perform the settings.
Auto Setup starts.
(This operation may take some time.)
e.g.,
4 Clock is set automatically.
If the clock setting screen appears, set the
time manually. (> 80, Clock)
5 Set the connection setting for the 4K TV.
When connected to a 4K (50p or
60p)-compatible TV, connection setting to 4K
TV below is displayed.
The screen above does not appear for a
non-4K compatible TV. Proceed to Step 6.
1 Press [OK] to start the setting.
A black screen appears for a few seconds
and then a message appears.
Network connection
After you make the LAN cable/Wireless LAN
connection, the network setting is needed.
(> 14, Easy Network Setting)
LAN cable connection
Wireless LAN connection
Broadband
router, etc.
Internet
LAN (ethernet)
cable
Easy Setting
Progress
Digital TV Auto Tuning
CH 6 69
RF Ch
Digital TV: 2
Searching
Quality
Type
Channel Name
This will take about 3 minutes.
35
10
10
35
Digital TV
Digital TV
4K(50p/60p) Output
Start connection check with your 4K TV.
Once connection check is started and if the video is not displayed
correctly, please wait for the next display. The connection check
could take up to 30 seconds to display the new message screen.
Press OK.
OK
RETURN
DMR-UBT1GL_eng.book 12 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
13
2 Select “Yes” and press [OK].
Connection to 4K TV is successful.
(
Go to Step 6
)
When the following screen appears:
“Yes”: Next setting is displayed.
“No”: Connection setting to 4K TV start again.
(Retry the setup process from Step 5.)
6 Set “Quick Start” to “On”, “Off” or “Timer
Setting for Quick Start”, then press [OK].
For details, refer to “Quick Start”. (> 79)
When “Easy Setting has been completed.”
appears, Easy Setting is completed.
• Select “Yes” to set network settings.
• Select “No” to finish the Easy Setting.
To stop partway
Press [RETURN ].
To restart setup (> 71, Auto Setup)
• If tuning is cancelled partway through, it may not be
possible to receive the channels. Restart setup again.
The TV can be operated from the TV operation
buttons of the remote control.
• Perform the setting if you cannot operate the TV
with the TV operation buttons.
While pressing [TV Í], enter the code with
the number buttons.
Manufacturer and Code No.
• If your TV brand has more than one code listed, select the
one that allows correct operation.
• If the brand of your TV is not listed or the code number is
invalid for your TV, this remote control is not compatible
with your TV.
• To reconnect this unit to a 4K (50p or 60p)-compatible
TV after connecting this unit to a non-4K compatible
TV and completing “Easy Setting”, set “4K(50p/60p)
Output” to “4K(50p/60p) 4:4:4” or “4K(50p/60p)
4:2:0”. (> 76)
4K(50p/60p) Output
Is this message displayed correctly ?
OK
RETURN
Yes
No
4K(50p/60p) Output
Connection check is finished.
Cannot connect with 4K.
Please check if the HDMI connected
device and cable are compatible with 4K.
Move on to the next setting ?
Select “Yes” for the next setting.
Select “No” to set again.
OK
RETURN
Yes
No
TV operation buttons
Manufacturer Code Manufacturer Code
AIWA 35
BENQ 58/59
BRANDT 10/15
CENTREX 66
CURTIS 05
DESMET 05
ELEMIS 05
FINLUX 61
Panasonic 01/02/03/04
AKAI 27/30
BEKO 05/71/72/73/74
BUSH 05
DAEWOO 64/65
DUAL 05
FERGUSON 10/34
FISHER 21
MITSUBISHI 05/19/20/47
METZ 05/28/79
MIVAR 24
NEC 36
NOKIA 25/26/27/60/61
OLEVIA 45
ORION 05
PHILCO 41/48/64
PHONOLA 05
PROVIEW 52
RADIOLA 05
NOBLEX 33
NORDMENDE 10
ONWA 30/39/70
PEONY 49/69
PHILIPS 05/06/46
PIONEER 37/38
PYE 05
SABA 10
FUJITSU 53
ITT
LG
GOLDSTAR 05/50/51
GRADIENTE 36
25
JVC 17/30/39/70
KOLIN 45
05/50/51
MAG 52
FUNAI 63/67
GOODMANS 05
GRUNDIG 09
IRRADIO 30
KDS 52
KONKA 62
HITACHI 05/22/23/40/41
SALORA 26
SANSUI 05
32/42/43/65/68SAMSUNG
SCHNEIDER 05/29/30
SELECO 05/25
SIEMENS 09
SONY 08
TELEFUNKEN 10/11/12/13/14
TOSHIBA 16/57
YAMAHA 18/41
05
WHITE
WESTINGHOUSE
SANYO 21/54/55/56
05/69/75/76/77/78
SEG
SINUDYNE 05
31/33/66/67/69TCL
TEVION 52
THOMSON 10/15/44
SHARP 18
DMR-UBT1GL_eng.book 13 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
14
Easy Network Setting
After completing “Easy Setting”, you can continue
with “Easy Network Setting”.
Follow the on-screen instructions to establish
your connection settings.
Select “Wired” or “Wireless”, then press [OK].
LAN cable connection (“Wired”)
Follow the on-screen instructions to apply your
connection settings.
Wireless LAN connection (“Wireless”)
Before beginning wireless connection setup
• Obtain your network name (SSID
§1
).
• If your wireless connection is encrypted, please
be sure that you know your encryption key.
• The default SSID, Password (Key) etc., may be
printed on the router.
Then follow the on-screen instructions and apply
the settings.
Search for wireless network:
The available wireless networks will be displayed.
Select your network name and press [OK].
- If your Network name is not displayed, search
again by pressing the red button on the remote
control.
- Stealth SSID
§2
will not be displayed. Enter
manually by using “Wireless Settings”. (> 77)
• If your wireless network is encrypted, Encryption
Key Input Screen will be displayed.
Input the encryption key of your network.
WPS (PUSH button):
If your Wireless router supports WPS (PUSH
button), you can easily perform the settings by
pressing WPS button on it.
WPS (Wi-Fi Protected Setup™) is a standard that
facilitates settings relating to the connection and
security of wireless LAN devices.
1 Press the green button on the remote control.
2 Press WPS button or corresponding button of
Wireless router until the lamp starts flashing.
• For details, refer to the operating instructions
of Wireless router.
3 Press [OK].
Easy Network Setting
OK
RETURN
Easy Network Setting
Select a connection mode.
Wired
Wireless
SSID XXXXXXXXXXXX
KEY XXXXXXXXXXXX
PIN XXXXXXXXX
e.g.,
※
3
e.g.,
Wireless
router
DMR-UBT1GL_eng.book 14 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
15
To restart Easy Network Setting
1 Press [FUNCTION MENU]. (> 21)
2 Select “Basic Settings” in “Setup”, then press
[OK].
3 Select “Easy Network Setting” in “Network”,
then press [OK].
To redo settings individually
If “Easy Network Setting” did not work properly or
when you change the settings individually,
perform the following steps:
1 Press [FUNCTION MENU]. (> 21)
2 Select “Basic Settings” in “Setup”, then press
[OK].
3 Select “Network Settings” in “Network”, then
press [OK].
4 Refer to “Network Settings”. (> 77)
Check security before using Home Network
function
If you set “Home Network function” to “On”, all
connected devices on the same network can
access this unit. Ensure that the router for your
home network has adequate security system to
prevent unauthorised access.
• Refer to the operating instructions of the hub or router.
• Do not use this unit to connect to any wireless network for
which you do not have usage rights.
During automatic searches in a wireless network
environment, wireless networks (SSID) for which you do
not have usage rights may be displayed; however, using
these networks may be regarded as illegal access.
• After performing network settings on this unit, the settings
(encryption level, etc.) of the Wireless router might change.
When you have trouble getting online on your PC, perform
the network settings on your PC in accordance with the
settings of Wireless router.
• Please be aware that connecting to a network without
encryption may result in the content of the communication
being illegitimately viewed by a third party, or the leaking of
data such as personal or secret information.
• If you set “Home Network function” or “TV Anytime” to “On”,
the setting for “Quick Start” is fixed to “On”.
§1
SSID:
An SSID (Service Set IDentification) is a name used by
wireless LAN to identify a particular network.
Transmission is possible if the SSID matches for both
devices.
§2
Depending on the settings of the wireless router, its SSID
may not be found. For details, refer to the operating
instructions for the wireless router.
§3
The wireless router compatible with Wi-Fi Protected
Setup
TM
may have the mark.
DMR-UBT1GL_eng.book 15 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
16

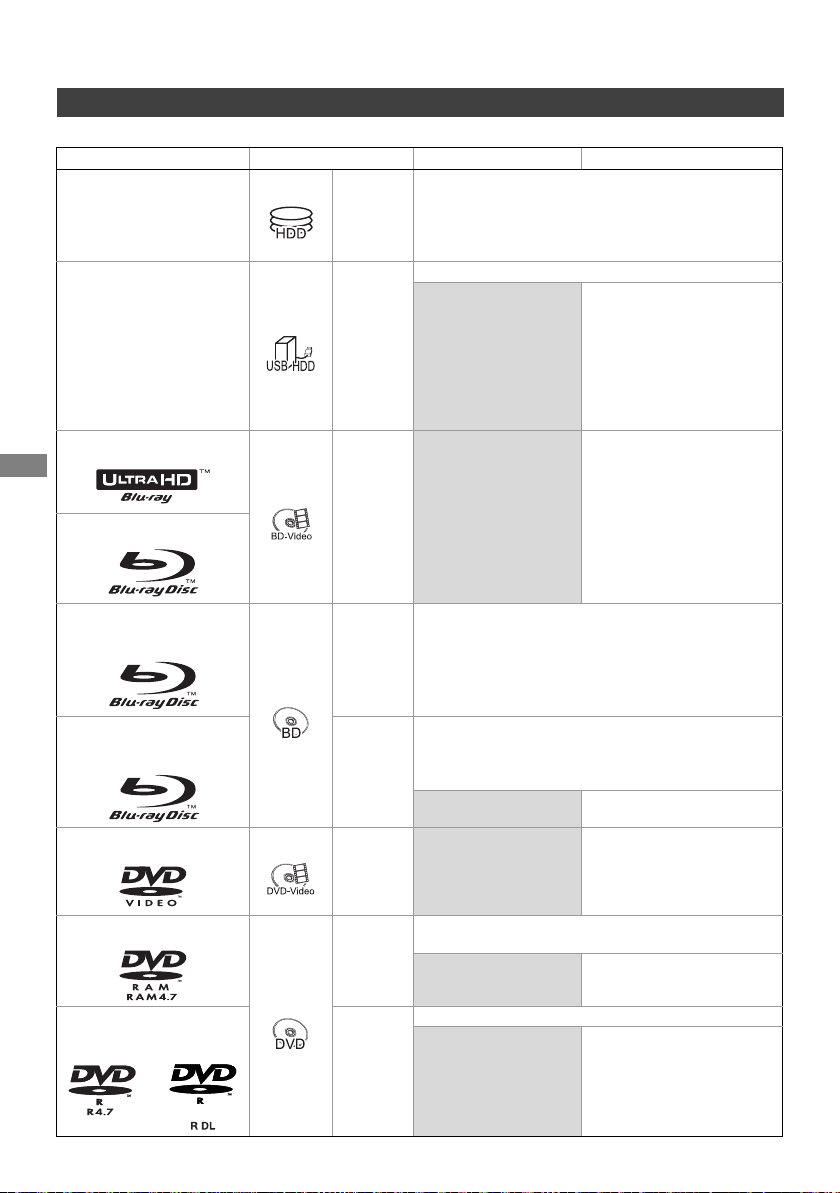

HDD and media information
For more details, refer also to the specifications. (> 87)
(–: Impossible)
Recordable/playable contents
Media type Standard symbol Recordable contents Playable contents
Built-in hard disk drive
(HDD)
[HDD]
•Video
• AVCHD/AVCHD 3D
•MKV
•MP4
• MPEG2
•JPEG
•MPO
(3D photo)
• AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
External hard disk drive
(USB HDD)
(> 19)
[USB_HDD]
•Video
§1
–
• AVCHD/AVCHD 3D
§2, 3
•MKV
•MP4
• MPEG2
•JPEG
•MPO
(3D photo)
• AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
Ultra HD Blu-ray
[BD-V]
–
•Video
BD-Video
BD-RE
BD-RE DL
[BD-RE]
•Video
• AVCHD/AVCHD 3D
§2
•JPEG
• MPO (3D photo)
BD-R
BD-R DL
[BD-R]
•Video
• AVCHD/AVCHD 3D
§2
•JPEG
• MPO (3D photo)
–
•MKV
DVD-Video
§4
[DVD-V] –
•Video
DVD-RAM
[RAM]
•Video •JPEG
• MPO (3D photo)
–
• AVCHD
§2
DVD-R
DVD-R DL
[DVD-R]
•Video
• AVCHD
§2
–
•MKV
•JPEG
•MPO
(3D photo)
• AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
DMR-UBT1GL_eng.book 16 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
17
(–: Impossible)
• [+RW] This unit cannot record to 8X Speed +RW disc.
• With certain recording states and folder structures, the play order may differ or playback may not be possible.
• It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the
recording method, and how the files were created.
Media type Standard symbol Recordable contents Playable contents
DVD-RW
[DVD-RW]
•Video
–
• AVCHD
§2
+R/+R DL [+R]
•Video
–
• AVCHD
§2
•MKV
• JPEG
•MPO
(3D photo)
•AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
+RW [+RW]
•Video
–
• AVCHD
§2
Audio CD (CD-DA)
[CD]
–
•Music
CD
(including CD-R/RW)
–
•MKV
• JPEG
•MPO
(3D photo)
•AAC
•ALAC
•FLAC
•MP3
•WAV
•WMA
SD Cards
[SD]
•MP4
•MPEG2
• JPEG
• MPO (3D photo)
–
• AVCHD/AVCHD 3D
§2
USB memory [USB] –
• AVCHD/AVCHD 3D
§2, 3
•MKV
•MP4
• MPEG2
• JPEG
•MPO
(3D photo)
•AAC
•ALAC
•DSD
•FLAC
•MP3
•WAV
•WMA
§1
It cannot be recorded directly. (Only compatible with copying from the built-in HDD)
§2
Recorded with AVCHD format compatible devices (Panasonic video camera, etc.). It may not be
able to play back, add, or edit depending on the device.
§3
It cannot be played back directly from the USB HDD or USB memory. Playback is possible by
copying to the built-in HDD. (> 66)
§4
Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL.
DMR-UBT1GL_eng.book 17 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
18
∫ Broadcast Recordings
Numbers of programmes that can be recorded:
• Maximum numbers of programmes are including
recordings of HD CAMCORDER.
∫ HD CAMCORDER Recordings
MPEG-4 AVC/H.264 (based on AVCHD)
Numbers of programmes that can be recorded:
• Maximum numbers of programmes are including
recordings of Broadcast.
∫ Photo files
Compatible pixels:
Between 34k34 and 8192k8192 pixels
Sub sampling: 4:2:2, 4:2:0
(Motion JPEG is not supported.)
Maximum numbers of contents:
∫ Video files/Audio files
Numbers of contents that can be copied to
internal HDD:
§
Bit rate up to 100 Mbps/resolution up to
3840k2160 50p/60p, 4096k2160 50p/60p.
[MP4, MKV and MPEG2 (TS) only]
USB device:
• A maximum of 1000 files can be copied to
the HDD at once.
• We recommend that you limit the depth of
folder trees to about five levels.
§1
TS only
§2
Unsupported for contents with HEVC video codec
• The video file and subtitle text files are inside the same
folder, and the file names are the same except for the file
extensions.
• Some files may not be played back even if they have these
extensions.
Information about contents
Media
Maximum
programmes
HDD 3000
BD-RE, BD-R 200
DVD-RAM, DVD-R, DVD-RW 99
+R, +RW 49
Media
Maximum
programmes
HDD 3000
BD-RE, BD-R 200
Media Folders Files
HDD – 20000
BD-RE, BD-R,
DVD-RAM,
DVD-R, +R,
CD-R, CD-RW,
USB device, SD
500 10000
Contents
Maximum numbers of
folders and files
Video
§
20000
Audio 20000
About extension of files
File format
Example of file
extension
MKV
(Compression methods
Video: H.264, HEVC
Audio: AAC, PCM, Vorbis,
FLAC)
“.mkv”
(Subtitle text files)
“.srt”
“.sub”
“.txt”
MP4
(
Compression methods
Video: H.264, HEVC
Audio: AAC, LPCM
§2
)
“.mp4”
“.mov”
MPEG2
(TS/PS)
(Compression methods
Video: MPEG2, H.264
§1
,
HEVC
§1
Audio: AAC
§1
,
Dolby Digital)
“.mpg”
“.mpeg”
“.m2ts”
“.mts”
“.ts”
JPEG “.jpg”
MPO “.mpo”
AAC “.m4a”
ALAC “.m4a”
DSD
“.dsf”
“.dff”
FLAC “.flac”
MP3 “.mp3”
WAV “.wav”
WMA “.wma”
DMR-UBT1GL_eng.book 18 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
19
§1
FR (Flexible Recording Mode):
The unit automatically selects the best possible recording rate between XP mode and LP mode.
§2
The SD quality programme cannot be changed to HD quality.
§3
You cannot select during play whether it appears or disappears.
Approximate recording times
Refer to “Recording modes (picture quality) and approximate recording times”. (> 88)
You can use an external HDD (USB HDD) in the
following two ways (A single HDD cannot handle
those two ways simultaneously.), and a USB
memory for data files.
• For recorded programmes
Moving programmes in the built-in HDD to a
USB HDD to save the capacity of the built-in
HDD.
• The USB HDD must first be registered on this
unit. (> 34)
• USB HDDs with a capacity smaller than
160 GB or greater than 3 TB cannot be used.
• Do not connect additional HDDs using a USB
hub.
• For details about connection method, refer to
the instructions supplied with the USB HDD.
• For data files
Playing back MP4, JPEG, MP3, etc. in a USB
device with this unit.
• The USB device must be formatted in FAT12,
FAT16, FAT32 or NTFS file system.
• The USB device over 2 TB is not usable.
• The USB port on the rear of the unit supports USB 2.0 High
Speed and the USB port on the front supports to USB 3.0
Super Speed.
• This unit does not recognise USB HDDs other than those in
which the size of one sector is 512-bytes or 4096-bytes.
(For details, consult the dealer of your USB HDD.)
• This unit supports USB mass storage device class.
• This unit does not guarantee connection with all USB
devices.
• For playback of 4K videos stored on a USB device, use
USB 3.0 port on front of the unit and USB device
conforming to USB 3.0.
Recording mode (Picture Quality)
Picture Quality DR HG/HX/HE/HL/HM
XP/SP/LP/FR
§1
Feature Programmes can be
recorded in a nearly
perfect broadcasted state.
Recording can be done
with reduced recording
volume in High definition
(HD) quality
§2
.
Recording can be done
with reduced recording
volume in Standard
definition (SD) quality.
Recordable
media
Multiple audio
Record all multiple audio
Record only one audio
Subtitles Can be recorded
Can be recorded (only one subtitle)
§3
Surround audio Surround audio as the
broadcast
Surround audio produced
by conversion of
broadcast audio format
Stereo audio
Notes
Notes for the USB device
DMR-UBT1GL_eng.book 19 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
20
Notes for the disc
• Region management information
The unit can play back BD-Video/DVD-Video
discs of the following regions codes, including
“ALL”:
e.g., BD-Video DVD-Video
• Disc recorded on another device
• It may be necessary to finalise the disc, create
Top Menu or close the session on the equipment
used for recording to play on this unit.
• [DVD-RW] Recorded in DVD Video Recording
(DVD-VR) format
- This unit can play back and copy to HDD.
- This unit does not support editing or recording.
- It is possible to record and edit with
DVD-Video (DVD-V) format by formatting
discs with this unit.
• Recording may not be possible to discs which
were used for recording on other equipment.
• Play on other players
•
[BD-RE]
[BD-R]
When these discs cannot be
played back on other Blu-ray Disc players, etc.,
change the picture quality to play them back.
(e.g., programmes recorded with HE-AAC audio
format) (
>
48, Picture Quality Change)
• [DVD- R] [DVD-RW ] [+R] Finalisation is needed.
(> 69)
• [+RW] If the disc failed to play on other
equipment, we recommend you create a Top
Menu. (> 70)
• [DVD- R] The disc created in AVCHD format can
only be played back on AVCHD compatible
equipment.
• Regarding 8 cm Disc
This unit cannot record or edit the 8 cm disc.
Only playback or copy to the HDD is possible.
• Discs that cannot be played
- DVD-RAM in a cartridge
- 2.6 and 5.2 GB DVD-RAM, 12 cm
- DVD-Audio
- Super Video CD, Super Audio CD, Video CD
• Operation and sound quality of CDs that do not conform to
CD-DA specifications (copy control CDs, etc.) cannot be
guaranteed.
Notes for the SD cards
• Compatible SD card
- SD Memory Card
(from 8 MB to 2 GB, FAT12 and FAT16
formats)
- SDHC Memory Card
(from 4 GB to 32 GB, FAT32 format)
- SDXC Memory Card
(48 GB, 64 GB, exFAT format)
• Using miniSD card or microSD card
Mini-type and micro-type cards can also be
used, but must be used with adaptor cards
(optional).
• If the SD card is formatted on other equipment, the time
necessary for recording may be longer or the card may not
be able to be used on this unit. In these cases, format the
card on this unit.
Media handling
• Do not touch the recorded surface of the discs
or the terminal surface of the SD cards.
• Wipe with a damp cloth and then wipe dry.
• Do not attach labels or stickers to discs.
• Do not use disc cleaning sprays, benzine,
thinner, static electricity prevention liquids or
any other solvent.
• Do not use the following discs:
- Discs with exposed adhesive from removed
stickers or labels (rental discs, etc.).
- Discs that are badly warped or cracked.
- Irregularly shaped discs, such as heart
shapes.
• Do not expose the terminals of the SD card to
water, garbage or other strange things.
DO DO NOT
DMR-UBT1GL_eng.book 20 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Getting started
TQBS0146
21
FUNCTION MENU screen
You can easily access the desired functions, such
as playback, timer recording, the unit’s settings
etc. via the FUNCTION MENU.
1 Press [FUNCTION MENU].
2 Select the item, then press [OK].
Your favourite programmes can be recorded by
entering keywords.
You can display the TV Guide.
You can enter up to 32 programmes within a
month in advance.
All the episodes of a series can be recorded by
using Series Timer Recording. (> 28)
Network Service allows you to access some
specific websites supported by Panasonic, and
enjoy Internet contents such as photos, videos,
etc. from Network Service home screen.
Play back programmes and other content (4K
content, etc.) recorded on the HDD.
- Recorded Programmes (> 35)
- Video ( AVCHD ) (> 35)
- Video ( MP4 / MKV ) (> 38)
- Photo (> 57)
-Music (> 60)
Home Networking (DLNA) allows you to watch the
contents and broadcasts.
This unit can be used both as Server and Client.
- Miracast (> 65)
- DLNA Client (> 63)
- Media Renderer (> 64)
- Wi-Fi Direct (> 65)
You can change the unit’s settings of Digital TV
Tuning, Sound, Display, Connection, Network etc.
in the menu.
- Basic Settings (> 71)
- HDMI Connection Settings (> 76)
- TV Anytime (> 62)
- Wallpaper
Personalise a background of the FUNCTION
MENU.
- BD-Video Data Management (> 39)
Play back content stored on media (discs, etc.).
- Disc
-SD Card
- USB device
- USB HDD
The unit can copy programmes between the
HDD, USB-HDDs, and discs.
- Copy Menu (> 52)
- Copy Video (AVCHD) to DVD-R (> 56)
FUNCTION MENU list
Keyword Recording (> 31)
TV Guide (> 23)
Timer Recording (> 27, 28)
Network Service (> 62)
RETURN
FUNCTION MENU
OK
Media
TV GuideKeyword Recording
Home Network
Copy VideoSetup
Timer Recording
Contents on HDDNetwork Service
Contents on HDD
Home Network
Setup
Media
Copy Video
DMR-UBT1GL_eng.book 21 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Watching broadcasts
TQBS0146
22
Watching broadcasts
To switch to the channel you have previously
watched
Press [LAST VIEW ].
• This function will work only for the channels you
have watched for more than 10 seconds.
If you have set a ratings level (> 72, Child Lock
( Parental Rating )), you may be asked to enter
the PIN. In that case, enter the 4-digit PIN with the
number buttons by following the on-screen
instructions.
• Make a note of the PIN you have decided on
in case you forget it.
• PIN can be changed via “PIN Entry”. (> 80)
While watching a programme
Press [STATUS ].
Channel Information appears.
You can restrict the viewing of channels
unsuitable to children. (> 72)
Current Category
Set timer (> 29)
3 Subtitle
4 Tel ete xt
5 Multiple audio
6 Catch Up TV (> 23)
To show detailed information
Press [STATUS ] again.
To hide the information screen
Press [EXIT ].
To change Category
Press the blue button.
• To register your favourite channels (> 71)
To switch between the current programme
and the next programme
Press [2, 1].
To switch to another channel
Press [3, 4], then press [OK].
When “ ” appears in Channel Information
Press [STTL ].
• Press again to hide subtitle.
When “ ” appears in Channel Information
1Press [TEXT ].
2Use [3, 4, 2, 1], number buttons or colour
buttons, etc. according to on-screen
instructions.
• You can change the display mode. (> 75, Teletext)
Press [AUDIO].
• Audio will switch according to the contents of
the programme every time it is pressed.
Press [CH WX] to select the channel.
• You can also select the channel by the
following operations
- Using number buttons.
- Using Channel Information (> below)
- Using TV Guide (> 23)
- Using Channel List (> 23)
If this unit requests a PIN
Using Channel Information
Wat ching
broadcasts
XXXXX
1
Now
Change category
All Digital Channels
XXXXX - XXXXX
Set timer
Rating: G Dolby D
e.g.,
To show subtitle
To show Teletext
Switching audio
DMR-UBT1GL_eng.book 22 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Watching broadcasts
TQBS0146
23
To use the data service function (Catch Up
Service), network connection and settings are
necessary. (> 12, 14)
• Set “HbbTV Setting (Catch Up TV)” to “On”.
(> 72)
To select the data service, follow the on-screen
instructions. (e.g., “Press colour button.” etc.)
• Operations may vary depending on the broadcaster.
• For information about other disclaimers.
(> 90, About Network Service in “Disclaimer”)
You can select from the list of channel names.
2 Select the channel, then press [OK].
To edit the channel list
Refer to “Channel List”. (> 71)
1 Press [GUIDE].
2 Select the programme, then press [OK].
3 Select “View”, then press [OK].
To change TV Guide view
Press [GUIDE] to switch between “Landscape”
view and “Portrait” view.
Page up/down
Press [CH WX].
To view a programme list for another day
Press the green button (Previous) or the yellow
button (Next).
To see programme information
Press [STATUS ].
To set a timer Recording using the TV Guide
System (> 27)
To find the programmes (> 28)
• Selection of channel is made easy by creating a Favourite
of the channels you watch often. (> 71, Favourites Edit)
To use data service (Catch Up TV)
Using Channel List
1 Press [OK].
All Digital Channels
Select
View
RETURN
7
6
5
4
3
2
1
Page up
Page down
Channel names
Using TV Guide
e.g. Landscape view
Page Down
Information
Page Up
Keyword Recording+24 hoursTimer Rec.
Portrait/Landscape
GUIDE
TUE 03.01
TV Guide
XXXXX - XXXXX
TUE 03.01.2017 XXXXX
Landscape
Category: All Digital Channels
XXXXX
OK
RETURNOPTION
XXXXX XXXXX XXXXX XXXXX XXXXX
DMR-UBT1GL_eng.book 23 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Watching broadcasts
TQBS0146
24
This unit temporarily saves a live TV programme
you are watching with this unit’s tuner on HDD.
You can rewind live TV programme to the point
where temporary save has started (up to
1.5 hours).
While watching TV
Press [6] to rewind.
You can pause live TV programme and restart
watching from the paused position.
While watching TV
Press [;] to pause.
• The maximum amount of the temporary save is
1.5 hours.
To resume watching TV
Press [1a1.3].
• You can perform search or Quick View, etc.
• If temporary save stops (> right), playback will
be performed by that point.
To stop REWIND LIVE TV or PAUSE LIVE TV
1Press [∫].
2 Select “Yes”, then press [OK].
To hide the display information
Press [EXIT ].
• Temporary save stops in the following cases:
- When switching to other channels or other screen
- When the unit has started recording using all tuners
- When performing PAUSE LIVE TV or REWIND LIVE TV
for more than 8 hours (This may vary depending on the
HDD free space.)
• These functions do not work in the following cases:
- When the clock is not set
- When all tuners are being used to record programmes
- While copying
- While watching a programme being recorded
- When a radio programme is selected
While pausing or rewinding a broadcast:
Press [STATUS ].
• Press [STATUS ] again.
The time that you can rewind the live
programme.
The amount of time temporarily saved on
HDD.
3 The time of the current playback position.
REWIND LIVE TV/PAUSE LIVE TV
REWIND LIVE TV
PAUSE LIVE TV
Display information
Pause
XXXXX
XXXXX
XXXXX
XXXXXX 03.01.2017
Play
XXXXXX
DMR-UBT1GL_eng.book 24 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
25
Recording
TV programmes
This unit can record two programmes being
broadcasted at the same time.
To record two programmes simultaneously
While recording, perform steps 1–3 (> above).
• Channel can only be switched between the recording
programmes.
• If a timer recording reaches its start time when all tuners
are being used for recording, the recording (OTR) of one of
the programmes terminates.
• Copying cannot be performed while recording.
• When “Automatic Standby after OTR” is set to “On”. (> 79)
1 Select “Recording Time” or “Continuous
recording” in step 3 (> above).
Recording Time:
You can set the length of recording time from
30 minutes to 4 hours.
• You can select the recording time with [
2
,
1
].
2 Press [OK].
This unit can record programmes in DR mode and
then automatically change their recording mode
(picture quality) to another setting while in
standby mode.
1 Press [OPTION].
2 Select “Recording Mode”.
3 Select the recording mode (picture quality),
then press [OK].
• Recording mode (Picture Quality) (> 19)
• The recording mode set here is used as
the default value for the next recording.
To change the recording mode after recording
in DR mode (> 48, “Picture Quality Change”)
To check to see if the recording mode change
is finished (> 49)
To cancel the recording mode change (> 49)
• Programmes in the original picture quality (DR mode) will be
deleted after their recording mode is changed.
• It takes about the same amount of time as recording to
change the recording mode.
• When the HDD does not have enough remaining space, the
recording mode change function does not operate.
• A recording mode change stops when this unit is turned on.
The process will start from the beginning again after the unit
is switched to standby mode.
• Even if you change the recording mode of a programme, its
audio, subtitle settings will remain the same as those at the
start of recording.
Preparation
If you want to change the recording mode (picture
quality) (
>
right)
1 Select the channel to record.
2 Press [REC ¥].
Recording will start.
3
Select “Automatic Stop”, then press [OK].
• One touch recording (OTR)
Recording stops automatically when the
programme ends.
To set the recording time
Recording
Automatic Stop at XXXXX
REC1/OTR
Recording Time
Continuous recording
30 min
XXXXX - XXXXX
To change the recording mode (picture quality)
HG
HX
HE
HL
HM
XP
SP
LP
DR(Original)
Recording Mode ( Picture Quality )
OK
RETURN
HDD Remain (DR)m
h
High
Definition
Standard
Definition
DMR-UBT1GL_eng.book 25 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
26
Following contents or media cannot be played
back while recording.
• Video file
• Photo
• USB HDD (For data files, > 19) and USB
memory
Press [STATUS ].
e.g., While recording two programmes simultaneously
Press [∫].
When recording one programme:
If the following screen appears
Select “Yes”, then press [OK].
After displaying the recording programme, press
[;].
• Press again to restart recording.
(A programme is not split into separate
programmes.)
• Timer recording programme cannot be paused.
You can play back the programme being recorded
to the HDD.
1 Press [VIDEO MENU].
“[” (red) is displayed on the recording
programme.
2 Select the programme, then press [OK].
Operation during Recording
To check the recording programme
To stop recording
When recording two programmes:
Following screen appears
1 Select the programme, then press [OK].
2 Select “Yes”, then press [OK].
REC2
HDD
REC1/OTR AUTO
5
Recording programme
displayed on the TV
Recording programme not displayed on the TV
Stop Recording
Yes
No
Recording of this programme is in progress.
Stop this recording ?
OK
RETURN
1
Stop Recording
2 recordings are in progress.
Which recording would you like to stop ?
OK
RETURN
1
2
To pause recording
Simultaneous rec and play
Duration
Channel Date Title Name
Movie
XXXXX 0:10(D
04.10
04.10
29.10
29.10
Channel Date Programme Name
DMR-UBT1GL_eng.book 26 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
27
Timer recording
You can enter up to 32 programmes within a
month in advance. (Each daily, weekly or series
programme is counted as one programme.)
This unit can record two programmes being
broadcasted at the same time.
In addition, depending on the programme you
have missed to watch or record, you may be able
to catch up on it later. (> 23)
To use TV Guide system (> 23)
Operation during Recording (> 26)
To edit the timer programme (> 30)
Select “Single Timer Rec.” or “Series Timer Rec.”
(> 28), then press [OK].
• The overlapped programmes are displayed
with if their repeat programmes (the
same programmes broadcast at different
times) are available for timer recording.
Preparation
If you want to change the recording mode
(picture quality) (> 25)
1 Press [GUIDE].
TV Guide screen appears.
2 Select the programme, then press the
red button.
The timer icon “F” (red) is displayed.
• If on-screen instructions are displayed,
follow them.
• Some broadcasters may not send programme information.
When programme information is not displayed correctly,
use manual timer recording. (> 28)
• You can set the start and finish time to make the timer
recording work successfully. (> 73, Timer Record Start
Buffer, Timer Record Stop Buffer)
If the screen for selecting single or series
timer recording appears
To edit the timer recording on the TV Guide
screen
1 Select the programme to edit, then press the
red button.
2 Select “Timer Rec Edit”, then press [OK].
3 Go to step 3 on page 28, “Manually
programming timer recording”.
To cancel a timer recording on the TV Guide
screen
1 Select the programme to cancel, then press
the red button.
2 Select “Timer Rec Cancel”, then press [OK].
(“F” disappears.)
If “Overlapped Timer Recording” screen
appears
You can eliminate the overlapping or may change
with repeat event for the duplicated programme.
1 Select “Change”, then press [OK].
2 Follow the on-screen instructions.
Red: Delete programme
Green: Record repeat programme
Yellow: Exit (Overlapping is not resolved)
Timer programme overlaps with others.
Some part or all of programmes may not be recorded completely.
Overlapped Timer Recording
Keep Change
Please delete unnecessary programme to resolve.
OK
RETURN
Overlapped Timer Recording
New Programme
ConfirmDelete
THU 11.10
XXXX - XXXX
TWO Wales
Existing Programmes
THU
11.10
Holiday
THU
11.10
Animals
Episode 01/ 02
R
XXXX - XXXX
XXXX - XXXX
Repeat
R
DMR-UBT1GL_eng.book 27 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
28
1 On the TV Guide screen:
Press [OPTION].
2 Select the item below, then press [OK].
Keyword Search
Displays programmes including the input
keyword.
• Refer to “Entering text”. (> 70)
Programme Type Search
Displays programmes of the selected type.
If, for example, you select “Arts/Culture”, only
the programmes related to arts and culture are
displayed.
• Select the programme type, then press [OK].
Category Selection
Displays channels in the selected category.
(Radio etc.)
• To return to the previous TV Guide list
Select “All Digital Channels”.
3 Select the programme, then press the red
button for timer recording.
• Category may not be assigned correctly depending on the
programme information.
This unit has several functions that enable timer
recordings to be controlled by the signal sent from
the broadcaster.
Series Timer Recording
You can record all the episodes of a series by
setting just one timer recording.
Guide Link
The recording’s start and stop times can be
controlled by the broadcaster, e.g. delayed start.
• The Guide Link function may not work correctly
if you manually change the start time or the stop
time over 10 minutes.
• To use this function, set “Guide Link” to “ON”.
(> 29)
• If the same episode has already been set for series timer
recording at a different time or on another channel (Repeat
programmes), “Series Timer Rec.” will not be selectable.
• Programmes recorded using “Series Timer Rec.” are
bundled and displayed as a “group” in the Video Menu
screen (> 35).
• The series recording will be cancelled if there has been no
episode of the series for 13 weeks.
2 Select “New Timer Programme”, then press
[OK].
3 Select the items and change the settings.
(> 29, Timer recording options)
4 Press [OK].
The timer programme is stored.
To confirm and edit the timer programme (
>
30)
Operation during Recording (> 26)
To find programmes quickly
Various functions with TV Guide
Manually programming timer
recording
1 Press [PROG/CHECK].
Channel Name
Schedule
Mode
Space
Timer Recording
154:04 DRTime Remaining
TUE 03.01.2017 XXXXX
New Timer Programme
Channel Name
Schedule
Mode
Space
Timer Recording
154:04 DRTime Remaining
TUE 03.01.2017 XXXXX
New Timer Programme
OK
Programme Name
WED 04.01
XXXX - XXXX
DR
DMR-UBT1GL_eng.book 28 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
29
Select the items and change the settings.
Channel
You can select Category with the red button.
Day/Date
You can select “Date” or “Weekly” by pressing the
green button, when “Day/Date” selected.
Auto Renewal Recording
(Only daily/weekly/series timer recording)
The unit will record the new programme over the
old one.
Press the yellow button.
“Renew : ON” is displayed.
Start/Stop
Press and hold [3, 4] to alter in 15-minute
increments.
Mode
Refer to “To change the recording mode (picture
quality)” (> 25).
Subtitles
You can choose whether or not to record subtitles
when the picture quality is changed.
(Only when item other than “DR” is selected in
“Mode”)
Programme Name
1 Select “Programme Name”, then press [OK].
2 Refer to “Entering text”. (> 70)
To use Guide Link
You can choose whether or not to use the Guide
Link function by pressing the blue button.
You can make timer recording of the current or
next programme.
1 While watching a programme
Press [STATUS ].
2 Display the Channel Information of a
programme to record.
• Switch the programme with [2, 1].
• Switch the channel with [3, 4].
3 Press the yellow button.
4 Go to step 3 on page 28, “Manually
programming timer recording”.
Timer recording options
Timer Recording
TUE 03.01.2017 XXXXX
154:04 DR
Channel
1 WED 04.01
Day/Date Stop
XXXXX XXXXX
Start
Programme Name
DR XP
Mode
OFF
Subtitles
Time Remaining
Guide Link : OFF
Date
e.g.,
Timer recording from Channel
Information
Notes on timer recording
• When you programme successive timer
recordings to start, about last 1 minute of earlier
programme will not be recorded.
• Timer recording will not start while:
- copying a programme by using Copy (Keep
Picture Quality) [to a finalised disc or a disc
with a Top Menu ([+RW])]
- copying a programme in Copy (Change
Picture Quality) mode
- changing the recording mode (picture quality)
of a programme in “Picture Quality Change”
(Only when “Now” is selected)
- copying HD Video (AVCHD) from USB device
or SD Card
- copying video/photos/music files
-formatting
- finalising/creating Top Menu
• When “Pure Sound mode” is activated, timer
recording does not start during playback the
discs. (> 72)
• When recording except in DR mode, the audio
content etc. will be selected according to the
following settings:
- “Audio Type for Digital Broadcast” (> 75)
- “Audio for HG / HX / HE / HL / HM
Recording” (> 75)
XXXXX
1
Now
Change category
All Digital Channels
NEWS
XXXX - XXXX
Set timer
e.g.,
DMR-UBT1GL_eng.book 29 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
30
1 Press [PROG/CHECK].
2 Select the programme, then perform the
operations.
To edit a timer programme
1 Press [OK].
2 Change the timer recording options.
• Refer to “Timer recording options”. (
>
29)
3 Press [OK].
To exit the timer recording list
Press [EXIT ].
• Programmes to be recorded with Keyword recording (> 31)
are not displayed.
To confirm and edit a timer
programme
• Red: To delete a timer programme
• Green:
To resolve an overlap timer programme
- The overlapped timer recording list will
appear. (> 27)
• Yellow:
To deactivate a timer programme
- The timer icon “F” will change from red to
grey.
- Press the yellow button again to activate
timer recording standby. (The timer icon
“F” will change to red.)
• [STATUS ]: Show programme information
Channel Name
Schedule
Mode
Space
OK
RETURN
Page Up
Page Down
Turn
Timer Off
Delete
Total 3/32
Timer Recording
154:04 DRTime Remaining
TUE 03.01.2017 XXXXX
Info
Keyword List
Resolve overlap
New Timer Programme
MON 13.01
MON 13.01
XXXX - XXXX
XXXX - XXXX
XXXX - XXXX
XXXX - XXXX
MON 13.01
TUE 07.01
DR
HG
DR
DR
OK
OK
Guide
Guide
e.g.,
Screen icons
Red: Timer recording standby is
activated.
Grey: Timer recording standby is
deactivated.
[
(Red)
Currently recording programme
A part or all of the programme will not
be recorded since the programme is
overlapping.
The HDD is full.
Copy-protected programme
It was not recorded.
The recording of the programme was
not completed because of some
reason.
Auto Renewal Recording is set.
(> 29)
Guide Link (> 29)
Series Timer Recording (> 28)
OK
Displayed if the recording can fit in the
remaining space
(Date)
Daily or weekly timer programme is set.
• The timer remains active until the
date indicated below .
It may not be possible to record
because:
- there is not enough space left.
- the number of possible programmes
has reached its maximum. (> 18)
- programmes are deactivated, etc.
DMR-UBT1GL_eng.book 30 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
31
Keyword Recording
The unit can find programmes that include
specified keywords from programme names and
programme information on TV Guide, and record
the programmes automatically.
• This unit can record two programmes being
broadcasted at the same time.
• Notes on timer recording (> 29)
• Programmes that are set to be recorded automatically with
Keyword Recording are not displayed on the Timer
Recording confirmation screen (> 30). (“> 32, To display
the list of programmes found with the set keyword”)
• On the TV Guide screen, up to 128 programmes are
displayed with the Keyword Recording icon “F” (blue).
When a search brings up too many programmes,
we recommend revising the search conditions.
1 On the TV Guide screen:
Select the programme for keyword
recording and press the blue button.
2 Select the items and change the items if
necessary.
• Refer to “Keyword Recording conditions”.
(> right)
3 Select “Set”, then press [OK].
4 Press [OK].
The Keyword Recording icon “F” (blue) is
displayed on the TV Guide screen.
Keyword Recording
TUE 03.01.2017 XXXXXX
Keyword1
Olympic
Search Target
Extra Word Settings
Programme Name only
Category
All Digital Channels
Detail Search Condition
Please specify Search Conditions and Recording Settings. To activate, select “Set”.
Recording Settings
Search Conditions.
e.g.,
Keyword Recording conditions
Search Conditions:
Keyword 1-16
Input the keyword to be registered.
• Refer to “Entering text”. (> 70)
• Default keyword is the programme title
selected on the TV Guide screen.
If the programme title includes its episode
number, etc., delete the number before
registering the title.
Search Target
Select the search target.
Extra Word Settings
1 Add up to two keywords and two excluded
words to refine search conditions.
2 Select “Set”, then press [OK].
Category
Narrow down the channels to be searched.
Detail Search Condition
Set the detailed search condition. Narrow down
programmes with specified criteria to search for
only the programme you want to record.
Programme Type
Select the programme type. If, for example,
you select “Art/Culture”, only arts and culture
are searched.
Remove Duplicates
When there are multiple programmes with the
same title, start time and length, only the
programme closest to the top of the channel
list will be recorded.
Recording Settings:
Recording Mode (Picture Quality) (> 25)
Subtitle
You can choose whether or not to record
subtitles when the picture quality is changed.
[Only when item other than “DR(Original)” is
selected in “Recording Mode (Picture Quality)”]
Guide Link (> 28)
You can choose whether or not to use the Guide
Link function.
DMR-UBT1GL_eng.book 31 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
32
To display the list of programmes found with
the set keyword
Press the yellow button in “Keyword Recording” screen.
Recording takes place in the following order of priority:
Keyword Recording may not work in some cases.
To avoid recording failure, we recommend using
Timer Recording instead of Keyword Recording.
Changing the recording method
Select the programme marked “
F” (Blue), then
press the red button on the Keyword Recording
status screen (> above) or TV Guide screen.
By default, when the HDD capacity is low, the unit
automatically deletes programmes recorded with
Keyword Recording, starting from the one with the
oldest recording date.
Perform the following not to delete them as
necessary. (> 37)
- Protect programmes.
- Change Delete Settings.
- Remove programmes from “Keyword Record”.
- Copy programmes before deleting them.
You can also set keywords from FUNCTION
MENU.
Select the Keyword and press [OK], then make
required settings.
• Refer to “Keyword Recording conditions” (> 31)
1 Select the Keyword, then press [OPTION]
button.
2 Select “Turn Keyword Off”, then press [OK].
• Select “Turn Keyword On” in step 2 to return to
Keyword Recording standby mode.
Press the yellow button.
F Blue: Recording has already been set with a
different Keyword.
F Red: Timer recording standby is activated.
Priority order of Keyword Recording
1 A programme that is already being recorded
2 Timer Recording
3 Keyword Recording (programmes will be
recorded in ascending order from keyword
number 1 to 16)
4 A programme that starts first
• Programmes set for timer recordings are not treated as
Keyword Recording programmes.
Automatic deletion of Keyword Recording
TUE 03.01
2
XXXXXX - XXXXXX Olympic opening ceremony
23
XXXXXX - XXXXXX Olympic opening ceremony
22
XXXXXX - XXXXXX Olympic Soccer
2
XXXXXX - XXXXXX Olympic Judo
22
XXXXXX - XXXXXX Olympic Boxing
Schedule Programme Name
Keyword List operations
Display the Keyword List
1 Press [FUNCTION MENU].
2 Select “Keyword Recording”, then press [OK].
To add/edit the Keyword
To deactivate the Keyword Recording
To search programmes matched with any of
the registered keywords
Keyword Recording TUE 03.01.2017 XXXXX
The programme including keyword is searched every day and timer registration is carried out automatically.
Keyword 1 World cup
All Keywords Search Timer RecordingDelete Video Menu
OK
RETURNOPTION
Keyword 2 Soccer
Keyword 3 Premier League
Keyword 4 Olympic
Keyword 5 --- (No Keyword)
Keyword 6 --- (No Keyword)
Keyword 7 --- (No Keyword)
Keyword 8 --- (No Keyword)
DMR-UBT1GL_eng.book 32 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
33
Press the green button.
• Refer to “Playing Keyword Recording
programmes” (> 37)
1 Select the Keyword, then press the red button.
2 Select “Yes”, then press [OK].
• Refer to “Priority order of Keyword Recording”
(> 32)
1 Press [OPTION].
2 Select “Change Priority”, then press [OK].
3Press [3, 4] to shift the position, then press
[OK].
Using the external
HDD (USB HDD)
If you intend to move recorded programmes to a
USB HDD, the USB HDD must be registered to
this unit first.
§
§
“For recorded programmes (> 19)” only
Limitation information
• Registering of a USB HDD will format the
USB HDD and all the content already recorded
will be deleted.
• Up to eight USB HDDs can be registered on this
unit. If you have already registered eight
USB HDDs, it will be necessary to delete one or
more of them before registering a new USB HDD.
• Registered USB HDDs cannot be used with
devices other than this unit.
• Certain non-recommended USB HDDs cannot
be used with this unit.
• If a problem occurs with the USB HDD, please
contact the manufacturer of the device.
To play programmes recorded with Keyword
Recording
To delete the registered Keyword
To change the recording priority of keywords
Regarding the external HDD (USB HDD)
DMR-UBT1GL_eng.book 33 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Recording
TQBS0146
34
Connect this unit with optional USB HDD.
• Only one USB HDD (For recorded
programmes, > 19) can be connected at the
same time.
• The USB HDD can be connected to the USB
port on the rear of this unit.
• If the registering screen appears when
connecting the USB HDD, go to step 5.
1 Press [FUNCTION MENU].
2 Select “Basic Settings” in “Setup”, then press
[OK].
3 Select “Settings for USB HDD” in “HDD /
Disc / USB HDD”, then press [OK].
4 Select “USB HDD Registration”, then press
[OK].
5 Select “Yes”, then press [OK].
6 When the registering is complete, message
screen appears.
Press [OK].
7 The confirmation screen appears.
Press [OK].
To cancel all USB HDD registrations (> 73)
• It is not possible to play back the content on the USB HDD
whose registration has been cancelled.
• You can check the registration number of the USB HDD on
the Video Menu. (> 35)
Disconnecting without following this procedure
may result in the loss of recorded content from
the USB HDD or the internal HDD.
1 Press [FUNCTION MENU].
2 Select “Basic Settings” in “Setup”, then press
[OK].
3 Select “Settings for USB HDD” in “HDD /
Disc / USB HDD”, then press [OK].
4 Select “USB HDD Disconnection”, then
press [OK].
5 Select “Yes”, then press [OK].
6 Disconnect the USB HDD from this unit.
Connecting the USB HDD
Registering the USB HDD
This unit’s rear panel
e.g.,
USB HDD
Disconnecting the USB HDD
DMR-UBT1GL_eng.book 34 ページ ２０１７年７月２５日 火曜日 午後１時４５分

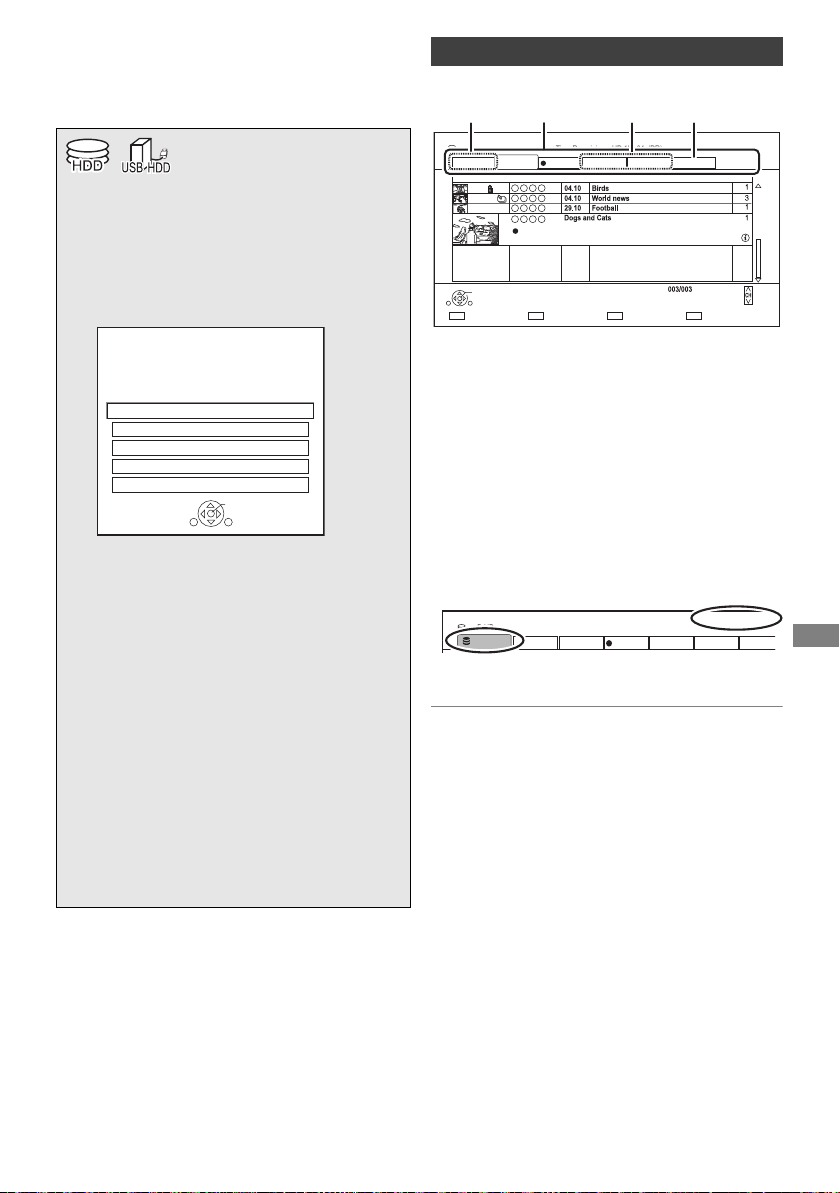

Playing back video
TQBS0146
35
Playing content (4K
content, etc.) on the
HDD
AVCHD tab
Tab (> 36)
Programme type
3 Keyword Recording
Refer to “Playing Keyword Recording
programmes” (> 37)
4 AVCHD tab
[USB_HDD] When connecting registered USB HDD,
“USB HDD” tab and registration number appears.
Select “USB HDD” tab.
Other screen icons (> 36)
§
§
“For recorded programmes (> 19)” only
1 Press [FUNCTION MENU].
2 Select “Contents on HDD”, then press
[OK].
e.g.,
3 To play recorded programmes:
Select “Recorded Programmes”, then
press [OK].
The Video Menu screen appears (> right).
To play HD Video (AVCHD):
Select “Video ( AVCHD )”, then press
[OK].
The AVCHD tab appears on the Video Menu
screen (> right).
To play video files:
Select “Video ( MP4 / MKV )”, then press
[OK].
The video list screen appears (> 38).
4 Select the programme, then press [OK].
Playing
back video
Contents on HDD
Recorded programmes can be played.
OK
RETURN
Video ( AVCHD )
Recorded Programmes
Video ( MP4 / MKV )
Music
Video Menu screen
e.g.,
e.g.,
Time Remaining HD 154:04 (DR)
HDD
Page
Select Copy
Grouped Programmes
Duration
Play
RETURN
Drama
AVCHDMovieNot Viewed
Video Menu
Channel Date Programme Name
All
Keyword Record
Page Up
Page Down
Movie
XXXX29.10 0:01(DR)
Delete
Time Remaining 154:04 (DR)
Registration number 1
USB-HDD
Grouped Programmes
Drama
AVCHD
Movie
Not Viewed
Keyword Record
Video Menu
All
USB HDD
DMR-UBT1GL_eng.book 35 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
36
You can quickly find the recorded programmes by
selecting the tab.
To select the tab
Press [2, 1].
To change the displayed programme type tab
1 Select the programme type, then press the
green button.
2 Select the item, then press [OK].
Select the programme, then press [STATUS ].
1 Press [OPTION].
2 Select “Grouped Programmes” or “All
Programmes”, then press [OK].
All Programmes
Screen icons
[
(Red)
Currently recording programme
Protected programme
• Programme was not recorded due
to recording protection
• Recording did not complete as the
timer recording has started.
t
Programme cannot be played.
(When data is damaged etc.)
Grouped programmes
[
(Blue)
Programme has not yet been played.
Programme is recorded using a
different system from that of the unit.
Change the “TV System” (> 76).
Radio programme
3D contents
Recorded in 1080/50p contents
Recorded in 1080/60p contents
Programme is restricted by Child
Lock ( Parental Rating ) (> 72).
Programme has been recorded in
Series timer recording.
Programme has been recorded in
Series timer recording and has not
yet been played.
Keyword recording programme which
has not yet been played
Grouped Keyword recording
programmes
Keyword recording programme which
has already been played
Notification icon for a new Keyword
Recording
Tab
Showing Information
Showing grouped programmes
Grouped Programmes:
• Two or more programmes recorded in the
daily/weekly/series timer recording mode are
bundled and displayed as one item.
• Two or more Keyword recording
programmes recorded from the same
Keyword.
Playing back grouped programmes
1 On the Grouped Programmes screen:
Select the item marked with or .
2 When playing all programmes:
Press [1a1.3].
When playing the individual programme:
Press [OK] and select the programme, then
press [OK].
DMR-UBT1GL_eng.book 36 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
37
1 Select the programme or the group, then press
the yellow button.
• A check mark is displayed. Repeat this step.
• Press the yellow button again to cancel.
2 Press [OPTION].
3 Select the item, then press [OK].
Create Group:
Selected programmes are bundled to form a
group.
Release Grouping:
All the programmes in the group are released.
Remove:
Selected programmes are removed from the
group.
1 Select the programme, then press [OPTION].
2 Select “Chapter View”, then press [OK].
e.g., [HDD]
3 Select the chapter, then press [OK].
To edit the chapter in Chapter View
Refer to “Editing chapters”. (> 49)
1 Select the programme, then press the green
button in step 3. (> above)
2 Select “Set up Protection”, then press [OK].
You can delete all programmes found with the
keywords.
1 Press the red button in step 2. (> above)
2 Select “Delete”, then press [OK].
Keyword Recording programmes removed from
“Keyword Record” will be treated as normal
programmes.
1 Select the programme, then press [OPTION]
in step 3. (> above)
2 Select “Remove from Keyword Record”, then
press [OK].
3 Select “Remove”, then press [OK].
If you select keywords before copying, you can
copy all the programmes contain the keywords.
• For information on copy operations, refer to
“Copying programmes”. (> 50)
Editing the grouped programmes
Playback from Chapter View
Press OK to start playing from
the selected chapter.
Selected chapter can be edited
via OPTION.
Press RETURN to go back to
previous menu.
Page 001/001
0:00.00
001
0:12.29
Play
SelectEdit Chapter Mark
Play
RETURN
Delete
Playing Keyword Recording
programmes
1 Select “Keyword Record” tab.
Recording mode (picture quality) to change
(> 25)
2 Select the Keyword, then Press [OK].
3 Select the programme, then press [OK].
To protect Keyword Recording programmes
To delete Keyword Recording programmes
To remove Keyword Recording programmes
from “Keyword Record”
To copy Keyword Recording programmes
HDD
1: World Cup
2: Soccer
3: Premier League
4: Olympic
5: --- (No Keyword)
6: --- (No Keyword)
Picture Quality
Drama
AVC HDMovieNot Viewed
Video Menu
AllKeyword Record
(DR HX)
0
0
Programme will be deleted if not enough space on HDD. Press OPTION to change.
Time Remaining 154:04 (DR)
DMR-UBT1GL_eng.book 37 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
38
e.g.,
• When video playback has ended, the next video will be
played back continuously if there is another video in the
same folder.
• When the following conditions are met, videos are played
back in 4K regardless of the image quality:
- When this unit is connected to a TV that is 4K and
24p/25p compatible
- When “Video Format” is set to “Automatic” (> 76)
- When “24p / 25p Conversion” is set to “Auto” (> 45)
This unit can not output 4K image when playing back in 3D.
Playing contents
on the media
Play back content stored on media (discs, etc.).
To play back the playlist created on other
equipment
1 Press [FUNCTION MENU].
2 Select “Disc” in “Media”, then press [OK].
3 Select “Playlists”, then press [OK].
4 Select the playlist, then press [OK].
Selecting screen for each operation is displayed
when the media is inserted, and you can access
the operation screen easily.
e.g., [USB]
• Display items differ depending on what is
recorded in each media.
Video list screen
Screen icons
Folder
Video files
Video files (4K)
Copy to SD card is not available
Move to the parent folder
Parent Folder
Video Menu
\ Video \
Folder 01
Folder 02
video01.mpeg
video02.mpeg
video03.mpeg
video04.mpeg
HDD
Page 0001/0003
Select CopyDelete
Play
RETURN
Page Up
Page Down
Play
08.02.2013 XXXXX
08.02.2012 XXXXX
08.02.2011 XXXXX
08.02.2010 XXXXX
§
§
“For data files (> 19)” only
1 Insert the media.
• AVCHD: If the menu screen is not displayed
Press [1a1.3].
2
When the Video Menu screen or menu screen
etc., appears:
Select the item or content, then press [OK].
• Repeat this step if necessary.
• When the following conditions are met, videos are played
back in 4K regardless of the image quality:
- When this unit is connected to a TV that is 4K and
24p/25p compatible
- When “Video Format” is set to “Automatic” (> 76)
- When “24p / 25p Conversion” is set to “Auto” (> 45)
This unit can not output 4K image when playing back in 3D.
• To enjoy Dolby Atmos
R
or DTS:X
TM
(> 75)
Menu screen
USB Device
OK
RETURN
USB device is inserted.
View Photos
Play / Copy Video
Play / Copy Music
Copy Video ( AVCHD )
Copy New Photos
DMR-UBT1GL_eng.book 38 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
39
If the menu screen is not displayed, display it
by performing the following operation.
1 While stopped
Press [FUNCTION MENU].
2 Select “Media”, then press [OK].
3 Select the media, then press [OK].
e.g., [USB]
About screen icons (> 38)
Showing Information
Select the programme, then press [STATUS ].
Playback from Chapter View (> 37)
[SD]
Showing Information
1 Select the programme, then press [OPTION].
2 Select “Information”, then press [OK].
[BD-V]
BD-Live allows you to enjoy more functions such
as subtitles, exclusive images and online games.
Preparation
1 Perform network connection and settings.
(> 12, 14)
2 Insert a disc.
For the playback method, refer to the
instructions for the disc.
If you no longer need BD-Live data recorded on
the built-in HDD, you can delete data with the
following operation.
1 Press [FUNCTION MENU].
2 Select “BD-Video Data Management” in
“Setup”, then press [OK].
3 Select “Delete BD-Video data”, then press
[OK].
4 Select “Yes”, then press [OK].
5 Select “Start”, then press [OK].
6 Press [OK].
• You can restrict Internet access when BD-Live functions are
used (> 72, BD-Live).
• When “Pure Sound mode” is set to “On”, this unit cannot
use BD-Live functions. (> 72)
Video list screen
Video Menu screen
e.g., [BD-RE]
Parent Folder
Video Menu
\ Video \
Folder 01
Folder 02
video01.mpeg
video02.mpeg
video03.mpeg
video04.mpeg
Page 0001/0003
Select Copy
Play
RETURN
Page Up
Page Down
Play
08.02.2013 XXXXX
08.02.2012 XXXXX
08.02.2011 XXXXX
08.02.2010 XXXXX
USB
Time Remaining
10:30 (DR)
BD-RE
Page 003/003
CopySelect
All Programmes
Birds
World news
Football
Dogs and Cats
XXXXX
XXXXX
XXXXX
29.10 XXXXX Duration 0:10(HM)
Play
RETURN
Video Menu
Channel Date Programme Name
All
Page Up
Page Down
Delete
Video Menu ( AVCHD ) screen
e.g.,
Notes for BD-Live discs
Delete BD-Video data
Video Menu ( AVCHD )
RETURN
Date Day
Time
Programme Name
Duration
0:30.41
Page 01/03
Page Up
Page Down
No.
01.01
XXXXX
Birds
02.01
XXXXX
World news
03.01
XXXXX
Football
03.01
XXXXX
House dog
04.01
XXXXX
Hunting
05.01
XXXXX
Shopping
05.01
XXXXX
Venus
06.01
XXXXX
Kitten
06.01
XXXXX
Moon
01.01
SUN
MON
TUE
TUE
WED
THU
THU
FRI
FRI
SUN
XXXXX
Dogs and Cats
Play
SD Card
001
002
003
004
005
006
007
008
009
010
DMR-UBT1GL_eng.book 39 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
40
Operation during play
Some operations may not work depending on the
media and contents.
• Discs continue to rotate while menus are displayed. Press
[∫] when you have finished playback to protect the unit’s
motor, your TV screen, etc.
Press [STATUS ].
• Each time you press [STATUS ], the display
information may change or disappear from the
screen.
e.g.,
Displayed when an HDR video signal is being
output.
e.g.,
“HDR (HLG)” is indicated for HDR (HLG)
programmes. (“HDR (PQ)” is indicated for HDR
(PQ) programmes.)
• Depending on media and contents, the display may change
or not appear.
Press [∫].
Resume play function
Press [1a1.3] to restart from the stopped
position.
• Discs: Only previous stopped position is memorised. The
position may be cleared if the tray is opened or the unit is
switched to standby mode.
Press and hold [1a1.3].
• Press again to return to normal speed.
• MKV, MP4 and MPEG2: Quick View is not effective.
• Quick View is not effective when playing back the DVD-RW
disc.
• Quick View may not work when recording in XP or FR
mode.
Press [6] or [5].
•Press [1a1.3] to restart play.
Press [;].
•Press [1a1.3] to restart play.
General operations
Status messages
Play
Ultra HD Blu-ray
HDR (High Dynamic Range)
XXXXXXX 03.01.2017
T1 C1 0:05.14 HDR(PQ)
0:30.00
Remain HDD 157:04 DR
Stop
Quick View
Search
• The speed increases up to 5 steps.
([+R] [+RW]: Up to 3 steps)
• Ultra HD Blu-ray, MKV, MP4 and MPEG2: Audio is not
heard during all levels search.
Pause
DMR-UBT1GL_eng.book 40 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
41
While paused, press [6] or [5].
•Press [1a1.3] to restart play.
While paused, press [2](2;) or [1](;1).
• Each press shows the next frame.
• Press and hold to change in succession forward
or backward.
•Press [1a1.3] to restart play.
Skip forward 1 minute:
Press [+60s].
Skip backward 10 seconds:
Press [-10s].
• Depending on the content that you play back, this function
is not available.
[BD-V] [DVD-V]
1 Press [OPTION].
2 Select “Playback Menu”, then press [OK].
3 Select “Top Menu”, “Pop-up Menu” or “Menu”,
then press [OK].
Press [:] or [9].
• [HDD] [USB_HDD] (For recorded programmes, > 19): It will
not skip the programme. But the programme in the grouped
programmes will be skipped. (> 36)
Press [AUDIO].
• It will switch depending on the contents
recorded every time it is pressed.
1 Press [STTL ].
2 Press [OK].
3 Select “On” or “Off”, then press [OK].
• If you want to switch the subtitle language,
select it in the Basic Operation menu (> 44).
[BD-V] [DVD-V], MKV:
Display with “Subtitle Settings” in the Basic
Operation menu (> 44).
Slow-motion
• The speed increases up to 5 steps.
• MKV, MP4 and MPEG2: Slow-motion is not effective.
• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction [5] only.
Frame-by-frame
• MKV, MP4 and MPEG2: Frame-by-frame is not effective.
• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction [1](;1)
only.
Manual Skip
To display menu
Skipping the content or chapter
Changing audio
Switching subtitles
[HDD] [USB_ HDD] (For recorded
programmes, > 19) [BD-RE] [BD-R]
DMR-UBT1GL_eng.book 41 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
42
You can enjoy the playback of Ultra HD Blu-ray
discs with this unit.
Preparation
• For 4K/HDR viewing, connect to a TV and
terminals that support HDCP2.2
§1
, 4K (50p/60p)
4:4:4 and HDR signals that meet Ultra HD
Blu-ray standards. (> 9)
• Network connection (> 12)
• Network setting (> 14)
Due to copyright restrictions, it may not be
possible to play back certain discs unless this
unit is connected to the Internet.
• When connected to a TV or terminal that does not support
HDCP2.2
§1
, this unit applies Dynamic Range Conversion
§2
to HDR signals to output them in 2K resolution. In addition,
depending on the disc, it may not be possible to perform
playback correctly.
• When connected to a TV or terminal that supports 4K
(50p/60p) 4:2:0 (8 bit) and lower, this unit plays back
50p/60p content by applying Dynamic Range Conversion
§2
to its HDR signals to output them.
• When connected to a TV or terminal that does not support
4K resolution, this unit applies Dynamic Range
Conversion
§2
to HDR signals to output them in 2K
resolution.
• When connected to a TV or terminal that does not support
HDR, this unit applies Dynamic Range Conversion
§2
to
HDR signals to output them. In addition, depending on the
disc, it may not be possible to output content in 2K
resolution or perform playback correctly.
§1
HDCP is a technology designed to prevent illegal copying.
“2.2” represents a version.
§2
Dynamic Range Conversion is a function that converts
HDR video signals into video signals suited to TVs that do
not support HDR input.
Preparation
Connect 3D compatible TV to this unit. (> 10)
• Perform the necessary preparations for the TV.
Play back following the instructions displayed
on the screen.
3D BD-Video Playback
It is also possible to play back 3D discs in 2D
(conventional video). (> 72)
3D AVCHD Output
If 2D AVCHD video is recognised as 3D video and
cannot be played back correctly, you may be able
to play it by changing the setting. (> 76)
3D Playback Message
Hide the 3D viewing warning screen. (> 76)
Enjoying Ultra HD Blu-ray 3D video playback
Preparatory 3D settings
DMR-UBT1GL_eng.book 42 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
43
Change this setting when the screen is not
correctly displayed for 3D compatible
programmes.
Graphic Display Level
Adjust the 3D position for the playback menu or
message screen etc.
• Please refrain from viewing 3D images if you do not feel
well or are experiencing visual fatigue.
In the event that you experience dizziness, nausea, or other
discomfort while viewing 3D images, discontinue use and
rest your eyes.
• Depending on the connected TV, the video being played
back might switch to 2D video due to changes in resolution
etc. Check the 3D setting on the TV.
• 3D video might not output the way it is set in “Video Format”
(> 76) and “24p Output” (> 76).
• It may display as Side-by-Side (2 screen structure) when
playback of the 3D video is started. Select “Side by side” in
“Signal Format”. (> above)
• This unit only guarantees the playback of the Frame
Sequential and the Side-by-Side (Half) programme types.
4K Networking
You can save 4K videos/photos recorded with
digital cameras and other 4K-compatible devices
to the HDD of this unit and play them back.
Compatible 4K content
• MP4, MKV and MPEG2 (TS) (4K/50p and 60p)
- bit rate up to 100 Mbps
- resolution up to 3840k2160 50p/60p,
4096k2160 50p/60p
• JPEG, MPO
- resolution 3840k2160
Photos with a resolution greater than
3840k2160 are played back in 3840k2160.
Preparation
• Connect a 4K-compatible TV to this unit. (> 10)
∫ 4K videos
[HDD]
Refer to “Playing content (4K content, etc.) on the
HDD”. (
>
35)
[SD] [USB]
Refer to “Playing contents on the media”. (> 38)
∫ Photos
Refer to “Playing photos”. (> 57)
• Video may not be played back smoothly depending on the
USB device.
• You can also watch the 4K contents stored in the DLNA Certified
media server. (
>
63, Home Networking (DLNA))
∫ 4K videos
Refer to “Copying video files”. (> 56)
∫ Photos
Refer to “Selecting and copying the photos”. (
>
59)
3D settings during playback
1 Press [OPTION].
2 Select “Playback Settings” in “Playback
Menu”, then press [OK].
3 Select “3D Settings”, then press [OK].
4 Select the item below, then press [OK].
Signal Format
- Original:
Keep original picture format.
- Side by side:
3D picture format comprising of left and right
screens.
Playing back 4K content
Copying 4K content
[HDD] ,. [SD]
[USB] > [HDD]
DMR-UBT1GL_eng.book 43 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
44
Playback menu
A variety of playback operations and settings can
be performed from this menu.
Available options differ depending on the playing
contents and the condition of the unit.
2 Select the menu, then press [OK].
3 Select the item, then press [OK].
4 Change the setting.
To clear the Playback menu
§
With some discs, you may only be able to
make changes using the menus on the disc.
1 Display the Playback menu.
1 Press [OPTION].
2 Select “Playback Settings” in “Playback
Menu” or select “Playback Settings”, then
press [OK].
Press [RETURN ] until the Playback menu
disappears.
Basic Operation
Primary Video MPEG-4 AVC
Repeat Play Off
Angle -
Subtitle Settings
Secondary Video
Soundtrack
1ENG DTS-HD MSTR Multi
Menu
Item
Setting
e.g.,
Basic Operation
Soundtrack
§
Show or change the soundtrack.
Audio Selection
Switch in the case of multiple audio.
Audio Channel
Change audio (LR/L/R) during playback.
Subtitles
§
Subtitle Settings
§
Turn the subtitle on/off, and change the
language depending on the media.
Subtitles
Subtitle Style
Subtitle Position
Subtitle Luminance
Subtitle Language
Select the subtitle language in the case of
multiple languages.
Angle
§
Change the number to select an angle.
Repeat Play
Select the item which you want to repeat.
Shuffle
Select whether to play shuffle or not.
Video
The original video recording method
(MPEG-4 AVC etc.) appears.
Primary Video
The original video recording method appears.
Secondary Video
Video
Select on/off of images.
The original video recording method appears.
Soundtrack
Select on/off of audio and the language.
Reception
The radio wave status during the playback of
Home Networking (DLNA) is displayed. (Only
when a wireless connection is used)
DMR-UBT1GL_eng.book 44 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
45
Picture Settings
Switch “Set 1”, “Set 2” or “Standard” by using
[2, 1].
• You can register desired settings to “Set 1” and
“Set 2”. Settings for BD Video playback and
settings for the playback of other types of media
are registered separately.
(The default settings for “Set 1”/ “Set 2” are the
same as the settings for “Standard”.)
• You cannot change the “Standard” settings.
Picture Type
Select the picture quality mode during play.
Sharpness Adjustment
Noise Reduction
Luminance/Colour Adjustment
Adjust the contrast, brightness, tone curve
(white/black) colour saturation and hue.
Bandwidth Limitation
Adjusts the bandwidth limitations.
Dynamic Range Adjustment
Adjusts the brightness of the entire screen
when HDR (High Dynamic Range) video is
output.
Dynamic Range Conversion Adjustment
When this unit is connected to a TV that does
not support HDR (High Dynamic Range) input,
HDR video is output converting to a SDR
(Standard Dynamic Range) video signal. If you
set a smaller value, their contrast will be
reproduced more faithfully, but the entire
screen will appear darker. To increase the
brightness, set a larger value.
Picture Settings
Picture Type
Sharpness Adjustment
Noise Reduction
Luminance/Colour Adjustment
Bandwidth Limitation
Normal
Dynamic Range Conversion Adjustment
Reset to Default Picture Settings
24p / 25p Conversion Off
Progressive Auto
Set 1
t
ure
T
yp
e
a
rpness Ad
j
ustmen
t
se
R
educ
ti
on
m
inance
/C
olour Adjustmen
t
ndw
idth
Limit
ation
Norma
a
a
Norma
a
a
Norma
a
Norma
l
l
nam
ic Ra
nge C
onversion
Adjus
tment
s
et to Default Picture Settings
p
/ 25p Conversion
O
ff
og
ress
i
v
e
A
uto
Set
1
Set 1
During BD-Video playback,
these icons switch to the
ones for BD Video content.
24p / 25p Conversion
Plays back videos with film-like motion.
• This function is available on the following
conditions:
- “Video Format” set to “Automatic”, “4K”,
“1080i”
§
or “1080p”
§
(> 76)
§
Only for 24p Conversion
- Connect 24p/25p compatible TV.
• Noise may appear on the image when you
switch the setting.
Progressive
Select the method of conversion for
progressive output to suit the type of content
being played.
•Auto
Automatically detects the film and video
content, and appropriately converts it.
•Video
Select this setting when the content is
distorted if “Auto” is selected.
•Film
Select this if the edges of the film content
appear jagged or rough when “Auto” is
selected. However, if the video content is
distorted, then select “Auto”.
Reset to Default Picture Settings
Restores the default settings of the Picture
Settings menu.
DMR-UBT1GL_eng.book 45 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Playing back video
TQBS0146
46
• The menu is not displayed when playing photos.
Display language list
Sound Settings
Sound Effects
• This function is effective when “Digital Audio
Output” is set to “PCM”. (> 74)
Night Surround
Enjoy a movie with powerful sound even
when the volume is kept low at night.
Remaster 1-3
Sound becomes more natural by adding
higher frequency signals not recorded on
the track.
Digital Tube Sound 1-6
This feature gives you a warm sound, like
that produced by a vacuum tube amplifier.
Sound Effects Frequency
Set the maximum sampling frequency for the
audio selected in “Sound Effects”.
DSD Decode Sampling Frequency
Select the settings that suit your sound quality
preferences.
DSD LPF Setting
Select the settings that suit your sound quality
preferences.
Dialogue Enhancer
The volume of the centre channel is raised to
make dialogue easier to hear.
High Clarity Sound
Stop processing signals that affect the audio
quality or turn off the front panel display to
make the audio quality clearer.
Select whether or not to output images.
This setting is able to switch by pressing the
green button during playing music.
3D Settings (> 43)
Signal Format
Graphic Display Level
ENG English JPN Japanese ARA Arabic
FRA French CHI Chinese HIN Hindi
DEU German KOR Korean PER Persian
ITA Italian MAL Malay IND Indonesian
ESP Spanish VIE Vietnamese MRI Maori
NLD Dutch THA Thai BUL Bulgarian
SVE Swedish POL Polish RUM Romanian
NOR Norwegian CES Czech GRE Greek
DAN Danish SLK Slovak TUR Turkish
POR Portuguese HUN Hungarian ¢ Others
RUS Russian FIN Finnish
DMR-UBT1GL_eng.book 46 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Editing video
TQBS0146
47
Deleting/Editing
programmes
Once deleted, divided or partially deleted,
content cannot be restored to its original
state. Make certain before proceeding.
§
§
“For recorded programmes (> 19)” only
1 On the Video Menu screen:
Select the programme.
2 Press the red button.
3 Select “Delete”, then press [OK].
Multiple selection
Select the programme, then press the yellow button.
A check mark is displayed. Repeat this step.
• Press the yellow button again to cancel.
1 Press [DELETE] while playing.
2 Select “Delete”, then press [OK].
• Available disc space after deleting
- [HDD] [USB_HDD] [BD-RE] [RAM]
The space deleted becomes available for recording.
- [BD-R] [DVD-R] [+R]
Available space does not increase even after the contents
are deleted.
- [DVD-RW] [+RW]
Available recording space increases only when the last
recorded programme is deleted.
1 On the Video Menu screen:
Select the programme.
• Multiple selection (> left)
2 Press [OPTION].
3 Select the item, then press [OK].
e.g.,
1 Select “Enter Programme Name” in “Edit”,
then press [OK].
2 Refer to “Entering text”. (> 70)
[HDD] [USB_ HDD] [BD-RE] [BD-R] [RAM] [+R] [+RW]
Protection setting prevents the programme from
accidental deletion.
1 Select “Set up Protection” or “Cancel
Protection” in “Edit”, then press [OK].
2 Select “Yes”, then press [OK].
appears when setting the protection.
[HDD] [USB_ HDD] [BD-RE] [BD-R] [RAM]
1 Select “Partial Delete” in “Edit”, then press [OK].
2 Press [OK] at the start point and end point to delete.
• You can find the desired point by using play,
search, etc. (> 40)
3 Select “Continue”, then press [OK].
• Select “Next”, then press [OK] to delete other
sections. Up to 20 sections can be set.
(> go to step 2)
4 Select “Delete”, then press [OK].
5 Press [RETURN ].
• Chapter Mark is generated in the scene that was partially deleted.
• If the disc is protected, release the protection. (> 68, Disc
Protection)
• PIN is required to edit the programmes with in some
functions. (> 36)
Deleting recorded programmes
Deleting during play
Editing video
Time Remaining 154:04 (DR)
HDD
Page
Select Copy
Grouped Programmes
Duration
Play
RETURN
Drama AVCHDMovieNot Viewed
Video Menu
Channel Date Programme Name
All
Keyword Record
Delete
Page Up
Page Down
Movie
XXXXX29.10 0:01(DR)
Editing recorded programmes
Entering programme name
Setting protection
Partial deleting
Set up Protection
Cancel Protection
Partial Delete
Divide Programme
Picture Quality Change
Enter Programme Name
Delete Programme
Playback
Information
Chapter View
Create Group
Release Grouping
Edit
All Programmes
DMR-UBT1GL_eng.book 47 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Editing video
TQBS0146
48
[HDD] [USB_HDD] [BD-RE] [BD-R] [RAM]
1 Select “Divide Programme” in “Edit”, then
press [OK].
2 Press [OK] at the point to divide the
programme.
• You can find the desired point by using play,
search, etc. (> 40)
3 Select “Continue”, then press [OK].
4 Select “Divide”, then press [OK].
To confirm the division point
After performing step 2.
Select “Preview”, then press [OK].
• The unit plays 10 seconds before and after the
division point.
To change the division point
After performing step 2.
Restart play and select “Divide”, then press [OK]
at the division point.
• [HDD] [USB_HDD] Divided programmes will become a group
of programmes.
[HDD] [USB_HDD]
The Picture Quality Change function changes the
recording mode of programmes in DR mode or
AVCHD format. Programmes will be smaller in
size after their recording mode is changed. It
takes about the same amount of time as
recording to change the mode.
1 On the Video Menu screen (> 47):
Select the programme in DR mode or the
AVCHD content.
• Multiple selection (> 47)
2 Press [OPTION].
3 Select “Picture Quality Change” in “Edit”, then
press [OK].
4 Set the picture quality change options, then
press [OK].
Picture Quality (> 19):
• [USB_HDD] You cannot select XP, SP and LP
mode.
Subtitles:
• Automatic
Subtitles will be recorded if they are included
in the programme.
•Off
Subtitle will not be recorded.
Timing:
•Now
A picture quality change starts immediately
after step 6.
• Time recordings cannot be made while a
picture quality change is in progress.
• During standby
A picture quality change starts after the unit
is switched to standby mode.
Dividing programme
Picture Quality Change
e.g.,
5 Select the item below, then press [OK].
Delete:
The original programme will be deleted to save
the storage capacity of the HDD after the
picture quality is changed.
Keep:
The original programme is retained even after
the picture quality is changed.
6 If you have selected “Now”:
Select “Start”, then press [OK].
If you have selected “During standby”:
Press [OK].
• Picture quality change will be performed
after the unit is switched to standby mode.
“COPY” or “CONV” on the front panel display stay
lit while a picture quality change is in progress.
Picture Quality Change
Change picture quality of the selected programme.
Please select picture quality and other options, then press OK.
RETURN
Subtitles
Off
Picture Quality
HL -- Longer Play
Timing
During standby
OK
DMR-UBT1GL_eng.book 48 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Editing video
TQBS0146
49
To cancel a picture quality change if you
selected “Now”
Press and hold [RETURN ] for more than
3 seconds.
To cancel a picture quality change if you
selected “During standby”
After performing steps 1–2 (> 47, Editing
recorded programmes)
1 Select “Picture Quality Change” in “Edit”, then
press [OK].
2 Select “Yes”, then press [OK].
To check to see if a picture quality change is
finished
Press [VIDEO MENU].
e.g.,
When “±± > ±±” (Picture quality change
display) is displayed, the process has not finished
yet.
• To use “Picture Quality Change”, the HDD needs enough
storage capacity.
• If “During standby” is set for the Picture Quality Change
function, the change being applied stops when this unit is
turned on. The process will start from the beginning again
once the unit is switched to standby mode.
• When the picture quality is changed, 3D information may be
lost.
• When the picture quality of a programme is changed, the
audio content will be selected according to the following
settings:
- “Audio Type for Digital Broadcast” (> 75)
- “Audio for HG / HX / HE / HL / HM Recording” (> 75)
[HDD] [USB_HDD] [BD-RE] [BD-R] [RAM]
1 Select “Chapter View”, then press [OK].
2 Perform the editing operations.
Edit Chapter Mark:
Select the point where you want to start a new
chapter while viewing the programme.
1 Press the green button.
2 Press [OK] at the point you want to divide.
• Repeat this step.
3 Press [RETURN ] to go to Chapter View
screen.
To delete the chapter:
1 Select the chapter, then press the red
button.
• Multiple selection (> 47)
2 Select “Delete”, then press [OK].
To combine chapters (Delete chapter
mark):
1 Select the chapter, then press [OPTION].
2 Select “Combine Chapters”, then press
[OK].
3 Select “Combine”, then press [OK].
The selected chapter is combined to the
next chapter.
Playback from Chapter View
Refer to “Playback from Chapter View”. (> 37)
• The maximum number of chapters:
(Depends on the state of recording.)
[HDD] [USB_HDD]: Approx. 1000 per programme
[BD-R E] [BD-R] [RAM]: Approx. 1000 per disc
• [HDD] [USB_HDD] When the programme has the maximum
number of chapters, you cannot perform the Resume play
function (> 40) with the programme.
1 On the video list screen:
Select the file or folder.
• Multiple selection (> 47)
2 Press the red button.
3 Select “Yes”, then press [OK].
• All files in the folder will be deleted.
Editing chapters
Duration
Channel Date Programme Name
Movie
XXXXX29.10
0:01(DR HL)
04.10
04.10
29.10
Deleting video files on the HDD
e.g.,
Parent Folder
Video Menu
\ Video \
Folder 01
Folder 02
video01.mpeg
video02.mpeg
video03.mpeg
video04.mpeg
HDD
Page 0001/0003
Select CopyDelete
Play
RETURN
Page Up
Page Down
Play
08.02.2013 XXXXX
08.02.2012 XXXXX
08.02.2011 XXXXX
08.02.2010 XXXXX
DMR-UBT1GL_eng.book 49 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Copying video
TQBS0146
50

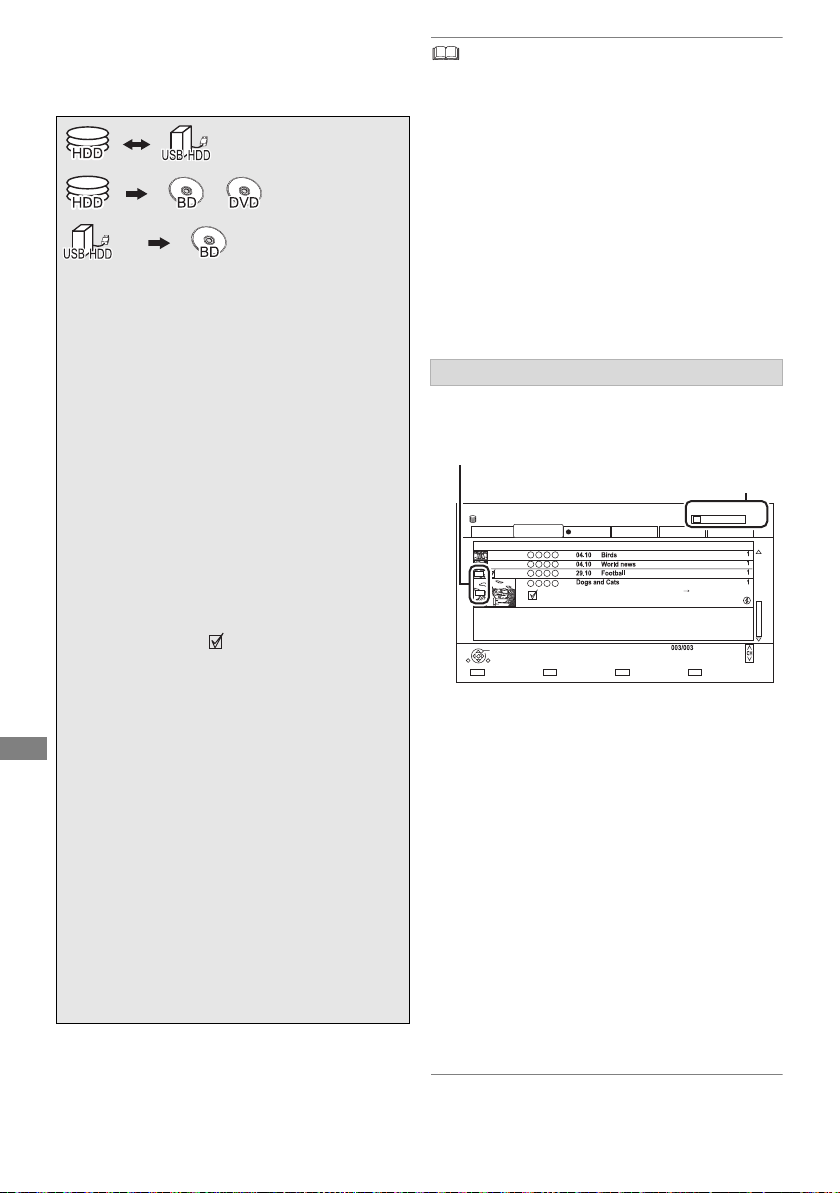

Copying programmes
The unit can copy programmes between the
HDD, USB-HDDs, and discs.
• Simultaneous operation is not possible while copying with
finalising or creating Top Menu.
• You cannot copy the following programmes.
- [USB_HDD] Protected programmes
- [USB_HDD] HD Video (AVCHD)
To register the external HDD (USB HDD)
(> 34)
To copy HD Video (AVCHD) to the DVD-R in
High Definition (> 56)
To copy video files (> 56)
Release the disc protection (> 68)
3 Press the blue button.
4 Go to step 6 (> left).
About screen icons on the Video Menu
Refer to “Screen icons”. (> 36)
§1, 2, 3
§1, 3
§1
“For recorded programmes (> 19)” only
§2
The programme in the source media will be
deleted.
§3
The recording mode (picture quality) cannot
be changed.
1 Insert or connect the media.
2 Press [FUNCTION MENU].
3 Select “Recorded Programmes” or
“Video ( AVCHD )” in “Contents on
HDD”, then press [OK].
4 Select the programme.
• Multiple selection
Select the programme, then press the
yellow button.
A check mark
is displayed. Repeat this
step.
• Press the yellow button again to cancel.
5 Press the blue button.
The copy direction selection screen is
displayed.
Select the copying direction, then press
[OK].
6 Select “Yes”, then press [OK].
• If you select “No”, you can change the
selection. (> right, To change the
selection)
7 Set other settings, then press [OK].
(> 51, Setting the copying options)
8 Select “Yes”, then press [OK].
Copying video
To change the selection
1 Select “No”, then press [OK] in step 6 (> left).
e.g., [HDD] > [BD-RE]
2 To change the selected programmes:
Select the programme, then press the yellow
button.
Repeat this step to select programmes.
To change the picture quality:
[HDD] > [BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW]
[+R] [+RW]
1 Select the programme, then press
[OPTION].
2 Select “Picture Quality Change”, then press
[OK].
3 Select the picture quality, then press [OK].
Repeat steps if necessary.
HDD
Page
Select Copy
Grouped Programmes BD-RE Remain
Duration
Copy
RETURN
Drama
AVCHDMovieNot Viewed
Copy
Channel Date Programme Name
All
Keyword Record
Page Up
Page Down
Movie
XXXXX29.10
1
2
90%
0:01(DR HG)
Remaining space
The order of copying
DMR-UBT1GL_eng.book 50 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Copying video
TQBS0146
51
1 Select the item in step 7 (> 50).
e.g.,
2Press [2, 1] to change the settings.
• You can perform “Finalise” (> 69) or “Create Top Menu”
(> 70) later.
[BD-RE] [BD-R] [RAM] [+RW] > [HDD]
1 Insert a disc.
The menu screen appears. (> 38)
2 Select “Play Video”, then press [OK].
3 Select the programme.
• Multiple selection (> 50)
4 Press the blue button.
• To change the detailed settings for copy,
refer to “Copying programmes with copying
list”. (> 52)
5 Select “Start Copying”, then press [OK].
6 Select “Yes”, then press [OK].
Setting the copying options
• Automatic Standby after Copy
On:
This unit is turned to standby mode when it is
not operated for approximately 5 minutes
after completing copy.
• Subtitles
Automatic:
Subtitles will be recorded if they are included
in the programme.
• Finalise
On:
[DVD-R] [DVD-RW] [+R] The discs become
play-only and you can also play them on
other DVD equipment.
• Create Top Menu
On:
[+RW] You can play the disc on other DVD
equipment.
Standby status can be changed if required.
Please press OK to start copying.
OK
RETURN
Automatic Standby after Copy
Off
Copying from media other than HDD
with Video Menu
Copy
1
2
3
Cancel All
Copy Direction
Picture Quality
Create List
Start Copying
HDD
Keep
RETURN
OK
2
Press OK to start copying.
Disc
DMR-UBT1GL_eng.book 51 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Copying video
TQBS0146
52
2 Set the copy direction.
1 Select “Copy Direction”, then press
[1] (right).
2 Set “Source” and “Destination”.
3Press [2].
3 Set the picture quality (> 19).
1 Select “Picture Quality”, then press
[1] (right).
2 Set “Picture Quality”.
3Press [2].
4 Register programmes for copy.
1 Select “Create List”, then press
[1] (right).
2 Select “New item”, then press [OK].
3 Select the programme, then press the
yellow button.
Repeat this step to select programmes.
• To change the appearance of the list
or show information of the
programme
1 Press [OPTION].
2 Select the item, then press [OK].
4 Press [OK].
5Press [2].
Copying programmes with copying list
[HDD] ,. [USB_HDD]
[HDD] >
[BD-RE] [BD-R] [RAM] [DVD-R]
[DVD-RW] [+R] [+RW]
[USB_HDD] > [BD-RE] [BD-R]
[BD-RE] [BD-R]
[RAM] [+RW]
> [HDD]
1 [HDD] ,. [USB_HDD]:
1 Press [FUNCTION MENU].
2 Select “Copy Menu” in “Copy Video”, then
press [OK].
Except “[HDD] ,. [USB_HDD]”:
1 Insert a disc.
The menu screen appears. (> 38)
2 Select “Copy”, then press [OK].
Copy
HDD
Disc
1
2
3
Source
Destination
Cancel All
Copy Direction
Picture Quality
Create List
Start Copying
HDD Disc
Keep
Select the copy direction.
RETURN
0
Information of the copy destination
- BD-RE
- Copy restricted programmes can be
copied on to disc
e.g., [HDD]
• The programmes will be copied in the order of
the copying list. If you want to specify the order,
edit the copying list after the programmes are
selected. (> 53, Editing the copying list)
Data size of each registered programme
Data size recorded to
the copy destination
RETURN
Time
Duration
Size 1360 MB
0:30 (DR)
XXXXX
Page
Select
Page Up
Page Down
HDD
OK
001/003
Create List Grouped Programmes
01.01
XXXXX
1
02.01
XXXXX
1
03.01
XXXXX
1
03.01
XXXXX
1
04.01
XXXXX
1
05.01
XXXXX
1
05.01
XXXXX
1
06.01
XXXXX
1
06.01
XXXXX
1
01.01
XXXXX
1
Date Channel
Time
Programme Name
Page 01/01
Size:
Destination Capacity:
No. Size
New item (Total=0)
Programme
( 0% )
0 MB
3200 MB
DMR-UBT1GL_eng.book 52 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Copying video
TQBS0146
53
5 Make other settings.
1 Select “Other Settings”, then press
[1] (right).
e.g.,
• This screen does not appear depending
on the copying mode. (> go to step 6)
2 Select the copying option, then press
[OK].
(> 51, Setting the copying options)
3 Select the item, then press [OK].
4Press [2].
6 Select “Start Copying”, then press [OK].
7 Select “Yes”, then press [OK].
To cancel all registered copying settings and
lists
After performing step 1
1 Select “Cancel All”, then press [OK].
2 Select “Yes”, then press [OK].
• Programmes in the grouped programmes and other
programmes cannot be registered simultaneously.
• [RAM] Radio programme cannot copy.
1 Select the programme after step 4-4 (> 52).
2 Press [OPTION].
3 Select the item below, then press [OK].
Delete All:
All
programme
s that you registered to copy are
deleted.
Add:
Add new items to the copying list.
1 Select the programmes with the yellow
button.
2 Press [OK].
Delete:
Selected programmes are deleted.
• Select the programme, then press the yellow
button before step 2.
Repeat this step to select programmes.
Move:
Change the order of items on the copying list.
• Select the programme to move before
step 2.
Select the destination, then press [OK].
§
The amount of time needed for a picture
quality change is the same as the length of the
programme to be copied.
About other screen icons (> 36)
Editing the copying list
Copy
1
2
3
Cancel All
Copy Direction
Picture Quality
Create List
4
Other Settings
Start Copying
HDD Disc
HG
Press OK to change the setting.
RETURN
1
Off
Off
Subtitles
Finalise
OK
Copy
1
2
3
Cancel All
Copy Direction
Picture Quality
Create List
4
Other Settings
Start Copying
HDD Disc
HG
Create copy list.
2
Page 01/01
Size:
Destination Capacity:
No. Size
New item (Total=2)
Programme
( 50% )
1:00
2:00
01
0:30 DR (25%)
0:30 DR (25%)
02
RETURN
OK
Screen icons
Programmes that can be copied to
discs using Copy (Change Picture
Quality)
§
.
Programmes that can be copied to
the HDD using Copy (Change Picture
Quality)
§
.
Programmes that cannot be copied
to disc
Programmes that cannot be copied
to HDD or USB-HDD
(NTSC)
(PAL)
Programme recorded using a
different encoding system from that
of the unit.
• Programmes displaying these
marks cannot be selected.
DMR-UBT1GL_eng.book 53 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Copying video
TQBS0146
54
The unit copies a programme while maintaining
its original picture quality and recording time. This
method can perform copying faster than Copy
(Change Picture Quality) can.
• Copy (Keep Picture Quality) is available for the
picture quality and media combinations below.
• Copy (Keep Picture Quality) can be used only
when there is enough recording capacity on the
destination media.
• Copy (Keep Picture Quality) is not available in the following
cases:
- [HDD] > [BD-RE] [BD-R] :
• Copying original radio programmes
- [HDD] > [DVD-R] [DVD-RW] [+R] [+RW] :
• Programmes that contain many deleted segments
- [HDD] > [+R] [+RW] :
• Programmes recorded in “FR” mode (with a recording
time of 5 hours or longer) or “EP” mode
§
• Programmes recorded in 16:9 aspect
§
Programmes recorded with another device in “EP” mode
and imported from an external media to the HDD of this
unit
The unit changes the picture quality of a
programme while copying it. Copying will take
about the same amount of time as the actual
recording time.
• When copying programme recorded in
1080/50p or 1080/60p, it cannot copy in
progressive.
• It may not display correctly in 3D when a copied
3D programme is played back. In such a case,
change the “Signal Format” during the playback
of the programme. (> 43)
• 3D information may not be copied.
• If you want to copy 3D AVCHD video to the disc
in 3D, use BD-R or BD-RE and must use Copy
(Keep Picture Quality).
• The position of the chapter might shift slightly.
• Maximum number of chapters on the disc is
limited.
- [BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] :
Approx. 1000
- [+R] [+RW] : Approx. 254
(Depends on the state of recording.)
Notes for copying
Copy (Keep Picture Quality)
Original
programme’s
picture quality
Media
DR
HG
HX
HE
HL
HM
XP
SP
LP
FR
§
DVD-RAM only
§
Copy (Change Picture Quality)
• [DV D-R] [DVD-RW] [+R] [+RW] You cannot copy to
the disc in the following cases.
- When there is not enough free space on the
HDD.
- When the number of programmes recorded on
the disc will exceed its maximum limit if
copying is performed. (> 18)
• Copying will continue up to the point cancelled.
- [DVD-R] [DVD-RW ] [+R] [+RW] If copy is cancelled
during the step while temporarily copying to
the HDD, then nothing will be copied.
- [BD-R] [DVD-R] [DVD-RW] [+R] [+RW] Even if the
programme was not copied to the disc, the
amount of remaining writable disc space
becomes less.
Copying 3D programmes
About maintaining the chapter mark
DMR-UBT1GL_eng.book 54 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Copying video
TQBS0146
55
[DVD-V] > [HDD]
While playing a disc, the content being played is
copied to the HDD according to the set time.
1 Press [FUNCTION MENU].
2 Select “Copy Menu” in “Copy Video”, then
press [OK].
3 Set “Picture Quality”.
1 Select “Picture Quality”, then press
[
1
] (right).
2 Press [OK], then select the picture quality
(XP/SP/LP).
3Press [2].
4 Set “Copy Time”.
1 Select “Copy Time”, then press
[1] (right).
2 Select “Time Setting”, then press [OK].
3 Select “On” or “Off”.
On:
Set the copying time.
• Set a few minutes longer than the
source title, in order to include the
operation time before play begins.
Off:
Copying all the content on the disc.
4Press [2].
5 Select “Start Copying”, then press [OK].
6 Select “Yes”, then press [OK].
• When the Top Menu is displayed:
Select the title you want to start copying,
then press [OK].
After the last title on the disc has finished
playing the Top Menu is recorded until the
set time is reached.
To stop copying
Press [∫].
• If stopped partway, copying will be up to that point.
• Operations and on-screen displays during copy are also
recorded.
1 Play back the programme to copy.
• Multiple audio and subtitle displayed during
playback will be copied.
- Select the multiple audio with “Audio
Selection” in the Basic Operation menu
(> 44)
- Select the subtitles with “Subtitle
Language” in the Basic Operation menu.
(> 44)
2 Press [OPTION].
3 Select “Copy Programme Playing”, then
press [OK].
4 Select “Start”, then press [OK].
Copying will start from the beginning of the
programme regardless of the playing
position.
To stop copying
Press and hold [RETURN ] for 3 seconds.
• You can record to or play the HDD while Copy (Keep
Picture Quality) is in progress.
Press [OK] to exit the screen display.
• Press [STATUS ] to confirm the current progress.
• About picture quality and copying
Copy (Keep Picture Quality) is available if
certain conditions are met. Refer to “Notes for
copying”. (> 54)
Copying a finalised disc
01/02
01
Mouse
03
02
04
Cattle
Tiger Rabbit
Copying Programme Playing
[HDD] > [BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] [+R]
[+RW]
• [BD-RE] [BD-R] When copying the programmes in DR
mode and the copy destination does not have enough
space, one from HG, HX, HE, HL or HM modes will be
selected to match the available space.
• [RAM] [DVD-R] [DVD-RW] [+R] [+RW] When copying a
programme in DR, HG, HX, HE, HL or HM modes, Copy
(Change Picture Quality) will be performed in FR mode.
• When copying a programme in XP, SP, LP or FR mode to
a destination with not enough space, Copy (Change
Picture Quality) will be performed in FR mode.
DMR-UBT1GL_eng.book 55 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Copying video
TQBS0146
56
You can copy HD Video (AVCHD) recorded on
HDD to a DVD-R in High Definition quality.
[HDD] > [DVD-R]
1 Insert an unformatted DVD-R or DVD-R DL.
The menu screen appears. (> 38)
2 Select “Copy Video ( AVCHD ) to Disc”, then
press [OK].
3 Go to step 4 on page 52, “Copying
programmes with copying list”.
To copy HD Video (AVCHD) from other
equipment
Refer to “Copying the HD Video (AVCHD)”.
(> 66)
• When a disc is named, formatting will be automatically
performed. Therefore, do not name a disc before this
operation. (> 68, Disc Name)
• Discs will be automatically finalised after copy.
• The following HD Videos (AVCHD) cannot be copied to the
disc in high definition.
- Exceeding 18 Mbps
- 1080/50p or 1080/60p
- Without the AVCHD information (video recorded with
certain non-Panasonic equipment, video copied to the
HDD after copying it to BD-R or BD-RE once, etc.)
• 3D video may not be copied correctly.
1 On the video list screen:
Select the file or folder.
• Multiple selection (> 50)
2 Press the blue button.
3 Select “Yes”, then press [OK].
To stop copying
Press and hold [RETURN ] for 3 seconds.
About the screen icons
Refer to “Screen icons”. (> 38)
• All files in the folder will be copied.
• The names of folders/files cannot be changed after they are
copied to the HDD. We recommend that you create a folder
with an easily identifiable name on a PC or other device first
and use the folder to perform copying.
• Up to 1000 files can be copied at once.
• While copying, no other operations can be performed.
Timer recordings will not proceed.
•MKV: Copying from the HDD to the SD card is not possible.
Copying HD Video (AVCHD) to the
DVD-R in High Definition
Copying video files
[HDD] ,. [SD]
[USB] > [HDD]
e.g.,
Parent Folder
Video Menu
\ Video \
Folder 01
Folder 02
video01.mpeg
video02.mpeg
video03.mpeg
video04.mpeg
Page 0001/0003
Select Copy
Play
RETURN
Page Up
Page Down
Play
08.02.2013 XXXXX
08.02.2012 XXXXX
08.02.2011 XXXXX
08.02.2010 XXXXX
USB
DMR-UBT1GL_eng.book 56 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Photo and Music
TQBS0146
57
You can play back pictures recorded on the HDD
of the unit and various media.
§1
§2
§1
“For data files (> 19)” only (JPEG, MPO)
§2
[RAM] [DVD-R] [+R] only
2 Select the folder, then press [OK].
• Photo menu screen appears. (> right)
3 Select the photo, then press [OK].
• Press [2, 1] to display the previous or
next photo.
• When the following conditions are met, photos are played
back in 4K regardless of the image quality:
- When this unit is connected to a TV that is 4K and 30p compatible
- When “Video Format” is set to “Automatic” (> 76)
This unit can not output 4K image when playing back in 3D.
1 While displaying a photo:
Press [OPTION].
2 Select the item below, then press [OK].
e.g., [HDD]
Photos imported to the HDD (> 59) are managed
using folders.
Folders and photos can be edited by pressing
[OPTION]. (> 58)
To select the tab
Press [2, 1].
To start Slideshow
Refer to “Slideshow settings”. (> 58)
[HDD] To display or exit the Calendar screen
Press [;].
Playing photos
1 [HDD]:
1 Press [FUNCTION MENU].
2 Select “Photo” in “Contents on HDD”,
then press [OK].
Except [HDD]:
1 Insert or connect the media.
The menu screen appears. (> 38)
2 Select “View Photos”, then press [OK].
Photo play option
Graphic Display Level
You can change the 3D position of the screen
display, etc., during the 3D photo playback.
Photo Menu
• Start Slideshow
You can start a slideshow.
Photo and Music
• Rotate RIGHT/Rotate LEFT
• The information of the rotated photos will
not be stored depending on the media.
• This function is not available during the
3D photo playback.
• Information
Information (shooting date etc.) is shown.
• Wallpaper
A photo being played back is registered as
wallpaper on the FUNCTION MENU
screen. (> 21)
Photo Menu screen
Screen icons
3D
(Tab)
3D photos (MPO)
Select from this tab to play back in
3D.
Photo protected
New photo which is not viewed
HDD
Page
SelectSlideshowDelete
Calendar
03.01.2012
29.10.2012
25.02.2013
15.03.2013
0002/0002
Copy
OK
RETURN
8
12
18
4
Photo Menu
All
3D
Page Up
Page Down
CH
Tab
DMR-UBT1GL_eng.book 57 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Photo and Music
TQBS0146
58
1 On the Photo Menu screen:
Press the green button.
2 Select the item below, then press [OK].
To pause the Slideshow
Press [;].
•Press [;] again to restart.
To stop the Slideshow
Press [RETURN ].
[HDD] [BD- RE] [ BD-R] [RAM] [SD]
2 Press [OPTION].
• Selectable items will change depending on
the media and the type of file.
3 Select the item below, then press [OK].
Slideshow settings
Start Slideshow
Interval
Set up the time until the next photo is to
display.
Transition Effect
§
Effect for the next photo to display can be
set.
Repeat Play
Music Selection
§
Select background music on (either from
HDD or USB) or off.
Background Music
§
Select background music from HDD or USB
(Folder).
Shuffle BGM
§
Play back the BGM (Background Music) in
shuffle order.
§
This function is not available during the
3D photo playback.
Slideshow
OK
RETURN
Start Slideshow
Interval
Transition Effect
Repeat Play
Normal
Fade
On
Music Selection
No background music
Background Music
No List
Shuffle BGM
Off
Editing photos
1 On the Photo Menu screen:
To edit the folder:
Select the folder.
To edit the photo:
1 Select the folder, then press [OK].
2 Select the photo to edit.
• To select multiple folders or photos
Press the yellow button when selecting the
folder or photo.
A check mark
is displayed. Repeat this
step.
• Press the yellow button again to cancel.
Enter Folder Name
Refer to “Entering text”. (> 70)
Combine Folders
[HDD]
Delete Folder
Move Photos
[HDD]
Select “Move to new folder” or “Move to
another folder”, then press [OK].
• If “Move to another folder” is selected, set a
destination folder.
Delete Photos
Set up Protection
[BD-RE] [BD-R] [RAM] [SD]
appears.
• Even if the protection is set, the photo may
be deleted by another unit.
Cancel Protection
[BD-RE] [BD-R] [RAM] [SD]
DMR-UBT1GL_eng.book 58 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Photo and Music
TQBS0146
59
2 Select the copying destination, then press
[OK].
To stop copying
Press and hold [RETURN ] for 3 seconds.
• The name of the copied photos will be changed.
Newly added photos will automatically be copied
to the HDD.
4 Once the copy is completed, select “Yes” or
“No”, then press [OK].
To stop copying
Press and hold [RETURN ] for 3 seconds.
• Photos without shooting date will be categorised using the
creation date.
• The name of the copied photos will be changed.
Selecting and copying the photos
[HDD] >
[BD-RE] [BD-R]
[RAM] [SD]
[BD-RE] [BD-R] [RAM]
[DVD-R] [+R] [CD]
> [HDD] [SD]
[USB_HDD] [S D] [USB] >
[HDD] [BD- RE]
[BD-R] [RAM]
1 On the Photo Menu screen:
To copy the folder:
Select the folder, then press the blue button.
To copy the photo:
1 Select the folder, then press [OK].
2 Select the photos to copy, then press the
blue button.
• To select multiple folders or photos
Press the yellow button when selecting the
folder or photo.
A check mark is displayed. Repeat this
step.
• Press the yellow button again to cancel.
3 Select “Yes”, then press [OK].
Copying will start.
Copying automatically
[USB_HDD] [BD-RE] [BD-R]
[RAM] [DV D-R] [+R] [CD]
[SD] [USB]
> [HDD]
1 Insert the media.
The menu screen appears. (> 38)
2 Select “Copy New Photos”, then press [OK].
e.g., [USB]
3 Select “Yes”, then press [OK].
Copying will start.
Yes No
Start copying ?
Copy New Photos
OK
RETURN
HDD
USB
DMR-UBT1GL_eng.book 59 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Photo and Music
TQBS0146
60
Music
You can play back music files recorded on the
HDD of the unit and various media.
§1
§2
§1
“For data files (> 19)” only
§2
[DVD-R] [+R] only
[CD] (CD-DA)
Insert the disc. Playback will automatically start.
To play other music (track)
Select the item, then press [OK].
[USB_HDD] [DVD-R] [+R] [CD] [USB]
1 Insert or connect the media.
The menu screen appears. (> 38)
• The track/artist/album name will be displayed if the
information is contained in music file.
1 Press [FUNCTION MENU].
2 Select “Music” in “Contents on HDD”, then
press [OK].
The music list screen appears.
3 Go to step 3 (> left, Playing music file on the
media).
Playing music CD (CD-DA)
Music Menu
No.
Track Name Play Time
Track List
01
02
03
04
05
CD
3.43
0.02
Track 1
e.g.,
Playing music file on the media
2 Select “Play / Copy Music”, then press [OK].
The music list screen appears.
3 Select the item, then press [OK].
• Repeat this step if necessary.
Playback will start.
Screen icons
Folder
Music
Move to the parent folder
Playing music file on the HDD
e.g.,
Parent Folder
Music Menu \ Music \
Folder 01
Folder 02
music01.mp3
music02.mp3
music03.mp3
music04.mp3
Page 0001/0003
Select Copy
Play
RETURN
USB
Page Up
Page Down
High Clarity Sound
Play
DMR-UBT1GL_eng.book 60 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Photo and Music
TQBS0146
61
Press [∫].
Press [;].
•Press [1a1.3] to restart play.
Press [6] or [5].
•Press [1a1.3] to restart play.
Press [:] or [9].
Refer to “Repeat Play” or “Shuffle” in Basic
Operation menu (> 44).
Refer to “Sound Effects” in Sound Settings menu
(> 46).
Refer to “High Clarity Sound” in Sound Settings
menu (> 46).
To play music continuously even if the Power
off link works
Refer to “Playing music continuously even after
turning off power to the TV”. (> 67)
[USB_HDD] [DVD-R] [+R] [CD]
§
[USB] > [HDD]
§
Except [CD] (CD-DA)
2 Press the blue button.
3 Select “Yes”, then press [OK].
To stop copying
Press and hold [RETURN ] for 3 seconds.
Multiple selection
Select the file or folder, then press the yellow
button.
A check mark
is displayed. Repeat this step.
• Press the yellow button again to cancel.
• While copying, no other operations can be performed.
Timer recordings will not proceed.
• All files in the folder will be copied.
• Up to 1000 files can be copied at once.
[HDD]
1 On the music list screen:
Select the file or folder.
• Multiple selection (> above)
2 Press the red button.
3 Select “Yes”, then press [OK].
• All files in the folder will be deleted.
Operations during music play
Stop
Pause
Search
Skip
Repeat Play/Shuffle
Sound Effects
High Clarity Sound
Copying music
1 On the music list screen:
Select the file or folder.
Deleting music
e.g.,
Parent Folder
Music Menu \ Music \
Folder 01
Folder 02
music01.mp3
music02.mp3
music03.mp3
music04.mp3
Page 0001/0003
Select Copy
Play
RETURN
USB
Page Up
Page Down
High Clarity Sound
Play
DMR-UBT1GL_eng.book 61 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Network
TQBS0146
62
Network Service
Network Service allows you to access some
specific websites supported by Panasonic, and
enjoy Internet contents such as photos, videos,
etc. from Network Service home screen.
e.g.,
Preparation
• Perform network connection and settings.
(> 12, 14)
1 Press [INTERNET].
• When a message is displayed, read it
carefully and then press [OK].
• NETFLIX can be accessed directly by
pressing [NETFLIX] button.
2 Select the item, then press [OK].
• Operable buttons:
[3, 4, 2, 1], [OK], [RETURN ], colour
buttons and number buttons.
To exit
Press [EXIT ].
• In the following cases, settings are possible using “Network
Service Settings”. (> 78)
- When restricting the use of Network Service.
- When the audio is distorted.
• For information about other disclaimers. (
>
90, “Disclaimer”)
TV Anytime
Operations such as the ones below can be
performed from anywhere with a smartphone or
tablet installed with Media Center App.
- Setting a recording
- Watching TV with this unit’s tuner
- Playing back programmes recorded on this unit
Use the Media Center App to complete user
registration to use these functions.
For details, please check the following website.
http://panasonic.jp/support/global/cs/av/mediacenter/
(This site is in English only.)
Preparation
• Perform network connection and settings.
(> 12, 14)
• TV Anytime Settings (> 78)
• This unit will always be connected to the Internet when this
function is activated.
• For information about other disclaimers. (
>
90, “Disclaimer”)
Network
MORE
BACK
XXX
XXXX
This unit
Smartphone
or tablet
Internet
Timer recording
Watching TV
Playback programmes
DMR-UBT1GL_eng.book 62 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Network
TQBS0146
63
Home Networking
(DLNA)
Home Networking (DLNA) allows you to watch the
contents and broadcasts on Server equipment
connected on the same network from Client
equipment.
This unit can be used both as Server and Client.
Additionally, if used as Client, this unit can also be
used as Media Renderer, which can be controlled
by a Smartphone, etc.
Preparation
• Perform network connection and settings.
(> 12, 14)
• Perform Home Network settings of the DLNA
compatible equipment.
• Ensure that the router for your home network has adequate
security system to prevent unauthorised access.
• If using slow network connection, the video may not be
displayed correctly. A high-speed home network with a
speed of at least 20 Mbps is recommended.
• Some video or broadcasts cannot be enjoyed depending on
the DLNA (Client) compatible equipment, the condition of
this unit, or the file type.
You can watch broadcasts received by this unit
(Multiroom TV Streaming), videos and photos
saved on HDD of this unit on DLNA (Client)
compatible equipment.
For details regarding the connection and
operation of equipment connected via a network,
refer to their respective operating instructions.
§
DLNA function compatible software should be
installed.
Preparation
• Perform Home Network settings. (> 78)
1 Operate the playback equipment (Client) to
display the list of contents on this unit.
2 Select the item, then press [OK].
• The programmes with access restriction (e.g., copy
restriction) signals sent from broadcasters are not available
for this function.
• If video frames are dropped, change the following settings.
- Conversion Setting for DLNA (> 78)
- Resolution Setting for DLNA (> 78)
• Files not on the HDD cannot be played back.
• Playing back 3D video recorded on this unit may not work
properly.
• 3D photos copied to this unit cannot be played back in 3D.
You can share videos, photos and music stored in
the DLNA Certified media server.
1 Press [FUNCTION MENU].
2 Select “DLNA Client” in “Home Network”,
then press [OK].
A list of equipment connected via the
network is displayed.
• This list can be updated by pressing the
green button.
3 Select the equipment, then press [OK].
4 Select the item, then press [OK].
• Menu structure will be different depending
on the equipment. Select the contents by
repeating the operation.
• Convenient functions can be used by
pressing [OPTION] depending on the
contents.
• Control Panel
Control Panel is displayed once the
playback starts.
• Press [OK] if the Control Panel is not
displayed. (It may not be displayed
depending on the conditions of use.)
• (While playing video or photo) Press
[RETURN ] to hide the Control Panel.
• Playlist of Windows Media
®
Player can play back only the
contents that are stored in the libraries.
• While playing back the 3D programme, you cannot set “3D
Settings”. (> 42)
Using this unit as Server
This unit (Server)DLNA compatible
equipment (Client)
§
Using this unit as Client
This unit (Client)
DLNA compatible
equipment (Server)
DMR-UBT1GL_eng.book 63 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Network
TQBS0146
64
When this unit works as a DLNA client, following
contents are playable.
Video (Recorded programmes)
Video
§1
Only when the server is another Panasonic
Blu-ray Disc Recorder, etc.
§2
2D playback only.
Audio
• Depending on the server, the contents other
than stated above can be played back.
This unit works as Media Renderer, which allows
you to play back the contents on DLNA Server by
operating a Digital Media Controller (a
smartphone, etc.).
§
Digital Media Controller compatible software
should be installed.
Following steps are necessary to use this unit as
Media Renderer.
1 Press [FUNCTION MENU].
2 Select “Media Renderer” in “Home Network”,
then press [OK].
3 Operate the Digital Media Controller
compatible equipment.
To exit from Home Network ( Media Renderer )
screen
Press [RETURN ].
Playable contents
Container
Video
codec
Audio codec
Example of
file
extension
XP/SP/LP/
FR
§
1
MPEG2
Dolby
®
Digital
Linear PCM
–
DR/HG/HX/
HE/HL/HM
§1
MPEG2
H.264
HEVC
MPEG
HE-AAC
Dolby
®
Digital
–
Container
Video
codec
Audio codec
Example of
file
extension
AVCHD
§1
H.264
Dolby
®
Digital
.mts
MP4 H.264
HEVC
AAC .mp4
PS MPEG2
Dolby
®
Digital
Linear PCM
.mpg
.mpeg
TS MPEG2
H.264
HEVC
Dolby
®
Digital
AAC
.m2ts
.ts
MKV H.264
HEVC
AAC-LC
MP3
Dolby
®
Digital
PCM
Vorbis
FLAC
.mkv
Format Example of file extension
JPEG .jpg
MPO
§1, 2
.mpo
Audio codec Example of file extension
MP3 .mp3
WAV .wav
AAC .m4a, .adts
WMA .wma
FLAC .flac
DSD .dsf, .dff
ALAC .m4a
Linear PCM –
Using this unit as Media Renderer
This unit
(Media Renderer)
Server
+
Controller
Controller
§
Server
This unit
(Media Renderer)
§
DMR-UBT1GL_eng.book 64 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Network
TQBS0146
65
Wi-Fi Direct is a standard that enables wireless
LAN devices to communicate each other directly
without a wireless broadband router.
This unit can be connected wirelessly and directly
to other DLNA compatible equipment on a
temporary basis, regardless of the network
connection and settings of this unit.
1 Press [FUNCTION MENU].
2 Select “Wi-Fi Direct” in “Home Network”,
then press [OK].
3 Select the item, then press [OK].
• Set up the device to be connected so that a
Wi-Fi Direct connection can be made. For
details, refer to the operating instructions
for the device to be connected.
4 Select the device to be connected, then
press [OK].
• If the device you want to connect to is not
displayed, switch the connection method
by pressing the yellow button.
If the corresponding device is not found even after
the search is run again, select “Next” and change
the connection method.
Select the connection method according to the
device to be connected.
You can enjoy the content you are viewing on a
Miracast-compatible smartphone, etc. on the big
screen of your TV.
• Compatible with Android
TM
device, ver. 4.2 and
above and Miracast certified.
For information on whether the smartphone, etc.
supports Miracast, contact the manufacturer of
the device.
1 Press [FUNCTION MENU].
2 Select “Miracast” in “Home Network”, then
press [OK].
3 Operate the Miracast compatible equipment.
To exit from Miracast
Press [EXIT ].
Using Home Networking (DLNA) with
Wi-Fi Direct
®
5 When selected “DLNA Client”:
Go to step 4 on page 63.
When selected “DLNA Server”:
Operate the playback equipment (Client).
When selected “Media Renderer”:
Operate the Digital Media Controller.
Wi-Fi Direct compatible
equipment
This unit
Connecting temporarily
When no devices are found
Using Miracast
®
Wi-Fi Direct Connection
Device not found.
To connect with a Wi-Fi Direct compatible device,
please check connection mode of pairing device and
select “Search again”.
To connect with a Wi-Fi Direct incompatible device,
please select “Next”.
OK
Search again
Next
Wi-Fi Direct Connection
Please select connection method. Press RED button to
change the wireless type of connection with
the pairing device.
Press RETURN to finish.
Current Wireless type :
Wireless type
802.11n/g/b (2.4GHz)
OK
RETURN
WPS (PUSH button)
Manual setting
WPS (PIN code)
Miracast compatible
equipment
This unit
DMR-UBT1GL_eng.book 65 ページ ２０１７年７月２５日 火曜日 午後１時４５分
With Other Equipment
TQBS0146
66
Copying the HD Video
(AVCHD)
You can import HD videos (AVCHD) recorded with
a video camera to the unit.
§
“For data files (> 19)” only
e.g., Connecting to the Panasonic video camera
1 Connect a video camera that has been
turned on or insert a media.
• Make the video camera ready for data transfer.
The menu screen
of this unit
appears. (> 38)
2 Select “Copy Video ( AVCHD )”, then press
[OK].
3 If the copying destination selection screen is
appeared:
Select “Copy to HDD” or “Copy to Blu-ray
Disc”, then press [OK].
4 Select a programme stored on the video
camera, then press the yellow button.
A check mark is displayed. Repeat this
step.
• Press the yellow button again to cancel.
5 Press [OK].
6 Select “Start”, then press [OK].
• Videos recorded in a signal format different from
the TV System setting of the unit cannot be
copied to the unit.
To stop copying
Press and hold [RETURN ] for 3 seconds.
About other screen icons
Refer to “Screen icons”. (> 36)
USB connection cable (optional)
With Other
Equipment
§
video camera, etc.
It will automatically format the unformatted
disc, such as a new disc.
• It may take time for the copying to start.
Screen icons
DMR-UBT1GL_eng.book 66 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Other functions
TQBS0146
67
VIERA Link
What is VIERA Link?
VIERA Link is a convenient function which will link
the operations of this unit and a Panasonic TV
(VIERA) or an amplifier/receiver. You can use this
function by connecting the equipment with the
HDMI cable. See the operating instructions for
connected equipment.
Automatic input switching/
Power on link
When the following operations are performed, the
input channel of the TV will be automatically
switched and the screen of this unit will be
displayed. Additionally when the TV is off, the TV
will automatically turn on.
- When play starts on this unit
- When an action that uses Video Menu etc, is
performed
Power off link
When you set the TV to standby mode, this unit is
also automatically set to standby mode.
• Power off link function does not work when
recording, copying etc.
Playing music continuously even after
turning off power to the TV
The following operations make it possible to keep
the power of the unit on and to play music
continuously.
When the unit is directly connected to an
amplifier/receiver.
1 While playing music
Press [OPTION].
2 Select “TV Power Off”, then press [OK].
• Sound may be discontinued for several seconds
when the power to the TV is turned off.
Other
functions
Easy control only with Panasonic TV’s
remote control
You can operate this unit using the TV remote
control.
Refer to the operating instructions of the TV about
the buttons that you can use.
• VIERA Link, based on the control functions provided by
HDMI which is an industry standard known as HDMI CEC
(Consumer Electronics Control), is a unique function that
we have developed and added. As such, its operation with
other manufacturers’ equipment that supports HDMI CEC
cannot be guaranteed.
• These functions may not work normally depending on the
equipment condition.
• Use the remote control supplied with this unit if you cannot
operate this unit using buttons on the TV remote control.
• The information provided on this page is correct as of July
2017 and is subject to change.
DMR-UBT1GL_eng.book 67 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Other functions
TQBS0146
68
Software (Firmware)
Update
Software of this unit can be updated automatically
by the following methods at the specified time.
• From Internet
Network connection and setting are required.
(> 12, 14)
If a software (firmware) update is available, a
notification is displayed.
• It is displayed on the Channel Information
(> 22) when the Software (Firmware) can be
updated immediately.
To execute, press the red button while the
Channel Information is displayed, and follow the
instructions on the screen.
Update of the software (firmware) will start when
the unit is turned to standby mode.
Use the “Software Update Now ( Internet )”
function. (> 80)
Other operations
[BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] [+R] [+RW]
[SD]
1 Press [FUNCTION MENU].
2 Select “Media”, then press [OK].
[BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] [+R] [+RW]
This function is to name a disc.
Refer to “Entering text”. (> 70)
• The disc name is displayed in the Blu-ray Disc
Management/DVD Management window.
• [DV D-R] [DVD-RW] [+R] With a finalised disc, the
name is displayed on the Top Menu.
• [+RW] The disc name is displayed only if you
play the disc on other equipment after creating
Top Menu.
• Do not perform this operation before copying HD Video
(AVCHD) to DVD-R or DVD-R DL. (> 56)
[BD-RE] [BD-R] [RAM]
Select “Yes”, then press [OK].
e.g.,
• To release the protection
Repeat the same steps.
• The screen icon will be switched to “Off”.
You cannot operate the unit until the update
is complete. Don’t remove the AC mains lead
during the update. Removing the AC mains
lead while the update is in progress may
damage the unit.
Update software (firmware) of this unit
To update the software (firmware) immediately
• It may take up to a few hours until the update is completed
depending on the network environment.
• The timer recording always takes preference over the
software (firmware) download; if the timer recording is
scheduled to start, the downloading will be performed at the
next opportunity.
• You can also download the latest software (firmware) from
the following website.
http://panasonic.jp/support/global/cs/
New software version has been found.
The software will be updated automatically
after this unit is switched to standby.
Do not disconnect the AC mains lead.
XXXXXX
1
Now
Dolby DRating: G
Change category
All Digital Channels
NEWS
XXXXX - XXXXX
Software update
e.g.,
Media management
3 Select the media, then press [OK].
4 Select the management item, then press
[OK].
• Selectable items will change depending on
the selected item and inserted media.
Disc Name
Disc Protection
On
Disc Name
Delete all programmes
Disc Protection
DMR-UBT1GL_eng.book 68 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Other functions
TQBS0146
69
[BD-RE] [BD- R] [RAM]
1 Select “Yes”, then press [OK].
2 Select “Start”, then press [OK].
• Photo data (JPEG/MPO) or computer data cannot be
deleted.
Format Disc/Format SD Card
[DVD-R] [DVD-RW] [+R] [+RW]
You can select the background for DVD-Video
Top Menu.
Select the background, then press [OK].
[DVD-R] [DVD-RW] [+R] [+RW]
You can select whether to show the Top Menu
after finalising or creating Top Menu.
Select “Top Menu” or “Title 1”, then press [OK].
Top Menu:
The Top Menu appears first.
Title 1:
The disc content is played without displaying the
Top Menu.
[DVD-R] [DVD-RW] [+R] (You can play the disc on
compatible DVD players by finalising it on the
unit.)
[BD-R] (Finalising BD-R prevents accidental
recording or editing.)
1 Select “Yes”, then press [OK].
2 Select “Start”, then press [OK].
3 Press [OK].
After finalising
• [BD-R] [DVD-R] [+R] The disc becomes play-only
and you can no longer record or edit.
• [DV D-RW] You can record and edit the disc after
formatting.
• Do not disconnect the AC mains lead while finalising.
This can cause the disc unusable.
• You cannot cancel finalising.
• Finalising takes up to 15 minutes (Up to 60 minutes in case
of DVD-R DL and +R DL).
• Depending on the disc, it may take longer than displayed on
the confirmation screen (approximately four times longer).
• You cannot finalise discs recorded on other manufacturer’s
equipment.
• [DVD-R] [DVD-RW] [+R] If you finalise discs recorded on
Panasonic equipment other than this unit, the background
selected as “Top Menu” may not be displayed.
• Discs finalised on this unit may not be playable on other
players due to the condition of the recording.
Delete all programmes
Format Disc/Format SD Card
[BD-RE] [RAM] [DVD -RW] [+RW] [SD]
[BD-R] [+R] (New disc only)
Formatting deletes all contents (including
computer data), and they cannot be restored.
Check carefully before proceeding.
1 Select “Yes”, then press [OK].
2 Select “Start”, then press [OK].
3 Press [OK].
[RAM] To stop formatting
Press [RETURN ].
• You can cancel formatting if it takes more than
2 minutes. The disc must be reformatted if you
do this.
• Do not disconnect the AC mains lead while formatting.
This can cause the disc or the card unusable.
• The contents are deleted when you format a disc or card
even if you have set protection.
• When a disc or card has been formatted using this unit, it
may not be possible to use it on any other equipment.
• It will become DVD Video format when a DVD-RW recorded
in DVD Video Recording format is formatted with this unit.
• [RAM] Formatting normally takes a few minutes; however, it
may take up to a maximum of 70 minutes.
Top Menu
Auto-Play Select
Finalise
DMR-UBT1GL_eng.book 69 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Other functions
TQBS0146
70
[+RW]
You can create Top Menu for displaying on other
equipment.
Make selections from “Top Menu” and “Auto-Play
Select” before creating Top Menu.
1 Select “Yes”, then press [OK].
2 Select “Start”, then press [OK].
3 Press [OK].
• You cannot use the Top Menu for playing on this unit.
• The created menu is deleted when you record or edit the disc.
The HOLD function disables all controls on the
remote control and the unit.
Press and hold [OK] and [RETURN ]
simultaneously until “X HOLD” appears on the
front panel display.
To cancel the HOLD function
Press and hold [OK] and [RETURN ]
simultaneously until “X HOLD” disappears.
Preparation
• Show the “Enter Programme Name” screen, etc.
1 Select a character, then press [OK].
Repeat this step to enter other characters.
2 Press [∫] (Finish).
“Writing...” appears then the screen returns
to the previous screen and so on.
To end partway
Press [RETURN ]. (Text is not added.)
• The maximum number of characters depends on the media.
Create Top Menu
HOLD function
Entering text
• Red: Enter Symbols
• Green: Enter Alphanumeric characters
• Yellow: Enter Other Characters, such as
umlaut mark or accent grave
•[;]: Delete a character
•[1a1.3]: Shift the alphabetic characters
on the screen to upper case/lower case
OK
RETURN
1
q
a
z
Backspace
2
w
x
/
3
e
c
:
4
r
v
~
5
t
b
_
6
y
n
-
7
u
m
,
8
i
@
;
9
o
*
‘
0
p
s d f g h j k l .
#
“
Symbols
Alphanumeric
Shift
Enter Programme Name
Finish
Other Characters
Name field: shows the text you have
entered
e.g.,
DMR-UBT1GL_eng.book 70 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
71
Basic Settings
You can change the unit’s settings of Digital TV
Tuning, Sound, Display, Connection, Network etc.
in the menu.
1 Press [FUNCTION MENU].
2 Select “Basic Settings” in “Setup”, then press
[OK].
3 Select the menu, then press [OK].
4 Select the item, then make the setting.
To return to the previous screen
Press [RETURN ].
Digital TV Tuning
Favourites Edit
You can create four favourites of channels for
making viewing and recording easier.
After editing as follows, save the Favourites.
Press [RETURN ], then press [OK].
• To select the other Favourites list:
Press the green button.
• To add channels to the Favourites list:
Select the channel in the “All Digital Channels”
column, then press [OK]. Repeat this step.
• Yellow: Add all the available channels to the
Favourites. (This function is available only
when there are no channels in the
“Favourites”.)
• To change the order of the channels list:
1 Select the channel in the “Favourites”
column to move, then press the green
button.
2 Select the new position, then press the
green button.
Setup
Basic Settings
OK
RETURN
Digital TV Tuning
HDD / Disc / USB HDD
Sound
Display
Connection
Network
Others
• To delete channels:
Select the channel in the “Favourites” column,
then press [OK].
• Yellow: Delete all channels.
• To change the name of the Favourites list:
1 Press the red button in the “Favourites”
column.
2Press [3, 4, 2, 1] to select a character,
then press [OK].
Repeat this step to enter other characters.
• Red: Delete a character.
• Blue: Delete all characters.
3 Press [RETURN ].
Channel List
You can edit the channel list.
• To hide unwanted channels
1 Select the channel.
2 Press [OK].
The check mark is removed.
• Yellow: Reveal all channels.
• To change the channel number assignment
1 Select the channel to change, then press the
green button.
2 Enter the channel number to reassign with
the number buttons.
3 Press [OK].
• To set the channel manually
1 Press the red button.
2 Refer to “Manual Tuning”. (> below)
Auto Setup
You can restart the Auto Setup. (> 12)
Select “Yes”, then press [OK].
• The timer recording programmes are cancelled.
Manual Tuning
You can add new channels manually.
1Press [3, 4] to select the physical channel.
• Adjust the frequency by checking the signal
strength and signal quality displays.
2 Press [OK] to start scan.
• The set channel is displayed in the table.
Update Channel List
You can update the channel list to the latest one.
DMR-UBT1GL_eng.book 71 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
72
Child Lock ( Parental Rating )
You can restrict the viewing of channels
unsuitable to children.
Set a ratings level to limit broadcast viewing and
playback.
• PIN is required to change. (> 22)
Signal Condition
You can check the quality and strength of signals.
Press [CH WX] to select the channel.
• The channels you can receive are affected by weather
conditions, seasons, time (day/night), region, length of the
cable that is connected to the aerial, etc.
• When the signal is too strong (red bar), reduce the signal
amplification at your aerial. (For details, consult your
dealer.)
New Channel Message
Set whether to obtain the information
automatically when a new digital channel is
added.
HbbTV Setting (Catch Up TV)
Turn on/off the HbbTV service.
• When “On” is selected, HbbTV service are
available.
HDD / Disc / USB HDD
Settings for Playback
3D BD-Video Playback
Select the playback method of 3D compatible
video software.
Soundtrack
Select the audio language.
• Enter a code with the number buttons when
you select “Other ¢¢¢¢”.
(> 89, Language code list)
Subtitles
Select the language for subtitle.
• Enter a code with the number buttons when
you select “Other ¢¢¢¢”.
(> 89, Language code list)
Menu
Select the language for disc menus.
• Enter a code with the number buttons when
you select “Other ¢¢¢¢”.
(> 89, Language code list)
BD-Live
You can restrict Internet access when BD-Live
functions are used.
• If “On ( Limit )” is selected, Internet access is
permitted only for BD-Live contents which
have content owner certificates.
BD-Video Parental Control
Set an age limit of BD-Video play.
• PIN is required to change. (> 22)
DVD-Video Parental Control
Set a rating level to limit DVD-Video play.
• PIN is required to change. (> 22)
Pure Sound mode
You can enjoy movies or music in an
environment more suitable for viewing by
stopping the rotation of the HDD when playing
back commercial BD-Videos, DVD-Videos or
music CDs.
• If “On” is selected, timer recording does not
start while playing back BD-Video,
DVD-Video or music CD.
DMR-UBT1GL_eng.book 72 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
73
Settings for Recording
Timer Record Start Buffer
This function sets the timer recording to start
earlier than the TV Guide time.
Timer Record Stop Buffer
This function sets the timer recording to stop
later than the TV Guide time.
REWIND LIVE TV
Turn on/off the REWIND LIVE TV function.
Aspect for Recording
Sets the aspect ratio when recording or
copying except in DR mode.
• “HG”, “HX”, “HE”, “HL” or “HM” mode:
If “Automatic” is selected, the programme
will be recorded with the original aspect
ratio.
• “XP”, “SP”, “LP” or “FR” mode:
If “Automatic” is selected, the programme
will be recorded with the original aspect ratio
at the time when recording started (including
when recording started at a commercial,
etc.).
• In the following cases, aspect is fixed to 4:3.
- When copying to a +R, +R DL and +RW.
Chapter Creation
Set the Chapter Creation method.
• Even if “Automatic” is selected, depending
on the programme to be recorded, the
chapter may not be created correctly.
Disc Speed for Copy
Select the speed for Copy (Keep Picture
Quality).
HDD Management
Press and hold [OK] for 3 seconds to show the
following settings.
Delete all programmes
Delete all recorded programmes and AVCHD
on the built-in HDD.
• Delete does not work if one or more
programmes are protected.
Delete all videos ( MP4 / MKV )
Delete all videos (MP4/MKV) on the built-in
HDD.
Delete all photos
Delete all photos on the built-in HDD.
Delete all music
Delete all Music on the built-in HDD.
Format HDD
Formatting deletes all contents on the
built-in HDD, and they cannot be restored.
Check carefully before proceeding.
Settings for USB HDD
USB HDD Registration
Register the USB HDD. (> 33)
USB HDD Disconnection
This function puts the USB HDD in a state in
which it can be safely disconnected. (> 34)
USB HDD Management
Press and hold [OK] for 3 seconds to show
the following settings.
Delete all programmes
Delete all programmes on the USB HDD.
• Delete does not work if one or more
programmes are protected.
Format USB HDD
Formatting deletes all contents, and
they cannot be restored. Check
carefully before proceeding.
Cancellation of all USB HDD Registrations
This function cancels the registrations of all
the USB HDDs registered on this unit.
Only do this if you are going to dispose of this unit.
• Before operation, perform “USB HDD Disconnection”
(> above) and remove the USB HDD.
DMR-UBT1GL_eng.book 73 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
74
Still Mode
Select the type of picture shown when you pause
play.
•Field:
Select if jittering occurs when “Automatic” is
selected. (The picture is coarser.)
• Frame:
Select if small text or fine patterns cannot be
seen clearly when “Automatic” is selected. (The
picture is clearer and finer.)
Sound
Dynamic Range Compression
To lower the dynamic range for playback (e.g., at
night).
• This does not work depending on broadcasts
and recorded programmes.
Downmix
Select the downmix system of multi-channel to
2-channels sound.
• Select “Surround encoded”, when the
connected equipment supports the virtual
surround function.
• There is no effect on “Bitstream” via HDMI AV
OUT and DIGITAL AUDIO OUT terminal.
• The audio will be output in “Stereo” in the
following cases.
- AVCHD playback
- [BD-V] : Playback of clicking sound on the
menu and audio with secondary video in
picture-in-picture mode.
Bilingual Audio Selection
Select whether to record the audio type (“M1” or
“M2”) when:
- Picture Quality Change (> 48)
- Copying to a DVD-R, DVD-RW, +R and +RW.
Digital Audio Output
PCM Down Conversion
Check the sampling frequencies supported by
the coaxial input of the connected device.
If the device does not support certain
sampling frequencies, set the appropriate
frequency setting.
• On ( 48kHz ):
The maximum sampling frequency of signals
is limited to 48 kHz.
(Choose if the connected device does not
support signals with a sampling frequency of
96 kHz or 192 kHz.)
• On ( 96kHz ):
The maximum sampling frequency of signals
is limited to 96 kHz.
(Choose if the connected device does not
support signals with a sampling frequency of
192 kHz.)
• Off:
Signals are output as 192 kHz.
Dolby D / Dolby D + / Dolby TrueHD
DTS / DTS-HD
MPEG
Select the audio signal to output.
• Select “PCM” when the connected
equipment cannot decode the respective
audio format.
• Not making the proper settings may result in
noise.
System Volume Adjustment
If the volume of a programme being watched
through this unit is different than the volume
of a programme being watched directly on the
TV, the gap may be reduced by switching this
setting to Mode 1 or Mode 2. (This function
works only while you are watching a
programme or playing back a programme
recorded in DR mode with this unit.)
DMR-UBT1GL_eng.book 74 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
75
BD-Video Secondary Audio
Select whether or not to mix the primary and
secondary audio (including the button click
sound).
If “Off” is selected, the unit outputs the primary
audio only.
• To enjoy BD-Video that supports Dolby Atmos
R
or
DTS:X
TM
Connect this unit to an AV amplifier or receiver that
supports it with an HDMI cable, and select the following
settings:
- Dolby D / Dolby D + / Dolby TrueHD: “Bitstream”
- DTS / DTS-HD: “Bitstream”
- BD-Video Secondary Audio: “Off”
Dolby Atmos is a trademark of Dolby Laboratories.
HDMI Output Settings of Music Playback
Select the HDMI output settings.
• If “Sound Quality Priority” is selected, the audio
noise is minimised during music playback by
automatically switching the video output to
1080i.
Settings for High Clarity Sound
This function is effective when “High Clarity
Sound” (> 46) is set to “On (Video Off)” or “On
(Video On)”.
Audio Output
Select the terminal from which you want to
output audio signals. (> 9 - 11)
• Set an option for video playback and audio
playback.
Front Panel Display
Select whether or not to turn on/off the front
panel display.
• Set an option for video playback and audio
playback.
Audio Delay
Mis-sync between the video and audio is
corrected by delaying the audio output.
Audio Type for Digital Broadcast
If the programme has more than one track (Dolby
Digital, etc.), you can set priorities.
• This setting will give effect in the following
conditions.
- The default setting when watching
broadcasts.
- The default setting when playing back the
programme recorded in DR mode.
- Picture Quality Change (> 48)
- Copy (Change Picture Quality) from the
programme recorded in DR mode. (> 50)
Audio for HG / HX / HE / HL / HM Recording
If the programme has multi channel audio
(5.1 ch or 2 ch), priority is given to what you
select.
• This setting will give effect in the following
cases.
- Timer recording (> 27)
- Picture Quality Change (> 48)
- Copy (Picture Quality Change) in HG, HX,
HE, HL or HM mode from a programme
recorded in DR mode. (> 52, 54)
Display
On-Screen Information
Select the time until the Channel Information
screen (> 22) disappears automatically.
Front Panel Display
Changes the brightness of the front panel display.
Screen Saver
This is to prevent image retention on the screen.
Teletext
Select the Teletext (> 22) display mode.
DMR-UBT1GL_eng.book 75 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
76
Connection
3D Settings
3D AVCHD Output
If 2D AVCHD video is recognised as 3D video
and cannot be played back correctly, you may
be able to play it by changing the setting.
3D Playback Message
Set to display or hide the 3D viewing warning
screen.
VIERA Link
Select “Off” when you do not want to use VIERA
Link.
Aspect for 4:3 Video
To play a 4:3 content, set how to show pictures
on a 16:9 TV.
•4:3:
Picture output expands left or right.
• 16:9:
Picture is output as original aspect with side
panels.
TV System
Set in accordance with the TV System for the
connected TV.
HDMI Connection Settings
Video Format
You can only select items compatible with the
connected equipment.
• If “Automatic” is selected, the output
resolution best suited to the connected TV
(4K, 1080p, 1080i, 720p or 576p/480p) is
automatically selected.
4K(50p/60p) Output
This unit automatically chooses to output
images in 4K (50p/60p) when connected to a
4K (50p or 60p) compatible TV.
• This item is available only when “Video
Format” is set to “Automatic” or “4K”.
• Images will not be output correctly with an
HDMI cable that does not support 18 Gbps.
• To connect to a TV that supports 4K
(50p/60p) 4:4:4/8 bit or 4K (50p/60p)
4:2:2/12 bit, select “4K(50p/60p) 4:4:4”.
• To connect to a TV that supports 4K
(50p/60p) 4:2:0/8 bit, select “4K(50p/60p)
4:2:0”.
24p Output
When playing BD-Video recorded in
24 frames, this unit displays each frame at
1/24 second intervals–the same interval
originally shot with the film movie.
• When this unit is connected to TV
compatible with 4K/24p and “Video Format”
is set to “Automatic”, images will be output in
4K/24p.
• When this unit is connected to a TV
compatible with 1080/24p and “Video
Format” is set to “Automatic”, “1080i” or
“1080p”, images will be output in 1080/24p.
• When BD-Video images other than 24p are played,
images are output at 60p.
• This unit can not output 4K image when playing back in
3D.
Advanced Settings
Press [OK] to show the following settings:
Colour Mode
This setting is for selecting colour-space
conversion of the image signal.
Deep Colour Output
Set the output method to be used when
this unit is connected to a TV that supports
Deep Colour.
HDR (High Dynamic Range) Output
Output images in HDR (High Dynamic
Range) format depending on the content
and connected TV.
DMR-UBT1GL_eng.book 76 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
77
HLG / PQ Conversion
Set whether or not to convert HDR (High
Dynamic Range) videos in HLG format to
PQ format before outputting them when
this unit is connected to a TV that supports
only HDR (PQ) format.
• When “HDR (High Dynamic Range)
Output” is set to “Off”, this setting is
disabled.
Audio Output
Select “Off” when connected to an
amplifier/receiver with a DIGITAL AUDIO
OUT terminal.
7.1ch Audio Reformatting
[BD-V]
Surround sound with 6.1 ch or less is
automatically expanded and played back
at 7.1 ch.
• If “Off” is selected, sound is played over
the original number of channels. (Note
that in the case of 6.1 ch audio, playback
will be at 5.1 ch)
Audio reformatting is enabled in the
following cases:
- When you have selected “PCM” in
“Digital Audio Output”. (> 74)
- When the audio is Dolby Digital, Dolby
Digital Plus, Dolby TrueHD or LPCM.
Contents Type Flag
If “Automatic” is selected, the optimal
method of playback depending on the TV
(e.g. cinema) will automatically be
selected (only when the TV supports
Contents Type Flag).
Network
Easy Network Setting
Press [OK] to start Easy Network Setting. (> 14)
Network Settings
LAN Connection Mode
Select the LAN connection method.
• When not using wireless LAN (when turning
it off), select “Wired”.
Wireless Settings
This allows to set and check the connection
settings of the Wireless router.
Search for wireless network
WPS (PUSH button)
WPS (PIN code)
Manual setting
Select a connection method to wireless
access point.
IP Address / DNS Settings
Check the connection of the network or set
the IP address and DNS.
• To set the IP address and DNS
1 Set “IP Address Auto-Assignment” and
“DNS-IP Auto-Assignment” to “Off”.
2 Select the item, then press [OK] to show
the respective setting.
• When the router’s DHCP server function is
not activated, check the numbers of other
connected devices such as personal
computers, then assign a number different
from those of other devices for the “IP
Address” and assign the same number for
“Subnet Mask” and “Gateway Address”.
Proxy Server Settings
Check and set the connection to the Proxy
server.
• Press [OK] to show the respective setting.
DMR-UBT1GL_eng.book 77 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
78
Network Service Settings
Second Screen Browsing
When this function is set to “On”, you can
enjoy the content you are viewing on a
Network Service application of
smartphone, etc. with the home network
on the big screen of your TV.
Lock
You can restrict using Network Service.
• PIN is required to change. (> 22)
Automatic Volume Control
Volume is adjusted automatically to the
standard volume while using Network
Service.
• Depending on contents, this function will
not work.
• Select “Off” when the audio is warped.
Notice
Displays the terms of service for the cloud
services.
• You must agree to the terms of use for
the Internet function and the privacy
policy.
TV Anytime Settings
You must register to a service to use this
function.
TV Anytime
When you control this unit from a
smartphone or a tablet away from home,
set this function to “On”. (> 62)
Device ID
This is the device ID and device password
required for registering to and using a
service. (> 62)
Initialize Device Password
The device password for this unit is
initialized. (> 62)
• When you initialize the device password,
you will not be able to use TV Anytime.
To use the TV Anytime again, you must
re-register to the service.
Home Network Settings
You can set the DLNA (Server) function.
(> 63)
Home Network function
You can switch between enable/disable of
the DLNA (Server) and DMR (Media
Renderer) function.
• If “On” is selected, the setting for “Quick
Start” is fixed to “On”. (> 79)
• If “Off” is selected, the setting for “TV
Anytime” is fixed to “Off”. (> left)
• This cannot be set to “On” if the
connection with the wireless broadband
router is not encrypted in the wireless
connection.
Setting device name
It is also possible to change the name of
this unit on the network.
• Select from a preset list
Select the preset name, then press [OK].
• Create name
Enter the name.
Refer to “Entering text”. (> 70)
Conversion Setting for DLNA
•On:
When playing back on DLNA (Client)
compatible equipment, this setting
reduces the chance of break-ups and
freezing of an image by lowering the
image quality.
• When this is set to “On”, switching the channel or
starting playback will take longer.
Resolution Setting for DLNA
When “Conversion Setting for DLNA” is set
to “On”, select the image quality.
DMR-UBT1GL_eng.book 78 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
79
Registration type for remote devices
• Automatic:
All connected devices on the same
network can access this unit.
• Manual:
Only registered devices can access this
unit.
Remote device list
• To register equipment manually
1 Select the device name or the MAC
Address for the device you want to
register, then press [OK].
2 Select “Yes”, then press [OK].
• To deregister equipment
1 Select the registered equipment, then
press [OK].
2 Select “Yes”, then press [OK].
• This function cannot be enabled when “Automatic”
is selected in “Registration type for remote
devices”. (> above)
• The maximum number of equipment that can be
registered is 16.
Others
Standby Settings
Quick Start
•On:
It is possible to start quickly from standby
mode.
•Off:
Power consumption in standby mode is
minimised. (> 87)
However, startup time from standby mode
will be longer.
• Timer Setting for Quick Start:
“Quick Start” is activated when the set time
comes.
• If you set “Home Network function” (> 78) or “TV
Anytime” (> 78) to “On”, the setting for “Quick Start” is
fixed to “On”.
Automatic Standby
Set the time to turn the unit to standby mode
automatically.
When the unit is not operating, the unit will be
turned to standby mode once the set time has
passed.
Automatic Standby after OTR
•On:
This unit is turned to standby mode when it
is not operated for approximately 5 minutes
after completing “Automatic Stop” or
“Recording Time” (> 25).
Automatic Standby after Copy
•On:
This unit is turned to standby mode when it
is not operated for approximately 5 minutes
after completing copy (> 51, Copying from
media other than HDD with Video Menu,
> 52, Copying programmes with copying
list).
RF OUT ( Aerial Signal )
Set whether to output the broadcasting signal
from RF OUT or not while in standby mode
(When “Quick Start” is not activated).
• If “On” is selected, the aerial signal is output
from this unit.
Power Save for Network Standby
You can minimise power consumption in
standby mode even when the “Quick Start”
function is activated. (> 87)
Remote Control
Change the remote control code on the main unit
and the remote control if you place other
Panasonic products close together.
• Use “BD 1”, the factory set code, under normal
circumstances.
1 Select the code, then press [OK].
2 While pressing [OK], press and hold the number
button ([1] to [6]) for more than 5 seconds.
3 Press and hold [OK] for more than 5 seconds.
4 Press [OK].
DMR-UBT1GL_eng.book 79 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Setup
TQBS0146
80
Clock
If the time is not set correctly, use the settings
listed in the method below.
• Automatic
This unit usually obtains time and date
information from digital broadcasts.
• Region Selection
Select the region where you live to adjust the
standard time.
• The time contained in the broadcast signal is
UTC (Universal time, coordinated).
• Daylight Saving Time
Select time offset from the standard time for
Summer Time.
• If there is a gap between displayed time and
actual time, set this function.
• Manual Setting
1 Select “Off” of “Automatic”, then press [OK].
2 Select the item you want to change.
3 Change the setting.
4 Press [OK] when you have finished the
settings.
PIN Entry
You can set/change the PIN for parental control.
1 Enter your 4-digit PIN with the number
buttons.
2 Enter the new 4-digit PIN with the number
buttons.
• Make a note of PIN in case you forget it.
e.g.,
3 Press [OK].
OK
Remember the PIN.
PIN Entry
0 0 0 0
System Update
Software Update in Standby
When you set this unit to standby mode,
software (firmware) updates (> 68) are
downloaded automatically at the time you
have specified.
Software Update Now ( Internet )
Refer to “Software (Firmware) Update”.
(> 68)
Software Licence
Information about the software licence is
displayed.
System Information
Display Software (firmware) version and Wireless
Module version (When using wireless connection
only) of this unit.
Initialize
Shipping Condition
All the settings except for some settings return
to the factory preset.
• The timer recording programmes are also
cancelled.
• The device password is also initialized.
(> 78)
Default Settings
All the settings other than the tuning settings,
clock settings, disc language settings, rating
PIN, remote control code, device password,
etc. return to the factory presets.
DMR-UBT1GL_eng.book 80 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
81
Troubleshooting guide
Before requesting service, make the following
checks. If the problem still persists, consult
your dealer for instructions.
Updating to the latest software (firmware) may
solve the problem. (> 68)
The unit does not work.
• Check the connections. (> 9)
• One of the unit’s safety devices may have been
activated.
Reset the unit as follows:
1 Touch [Í/I] on the main unit to switch the
unit to standby.
• If the unit does not switch to standby, touch
[Í/I] on the main unit for about 3 seconds.
The unit is forcibly switched to standby.
Alternatively, disconnect the AC mains
lead, wait one minute, then reconnect it.
2 Touch [Í/I] on the main unit to switch it on. If
the unit still cannot be operated, consult the
dealer.
The controls on the unit ([Í/I] and [<]) are not
working.
• Touch the icons with your finger. They may not
work if operated with your fingernails or hands
wearing gloves.
The controls on the unit ([Í/I] and [<]) are too
sensitive.
• The icons of the unit respond to light touch. Do
not place objects on or around them.
Cannot eject a disc.
1 Touch and hold [Í/I] on the main unit for at
least 3 seconds when it is turned off.
2 Press and hold [OK], the yellow button and the
blue button at the same time for more than
5 seconds.
• “00 RET” is displayed on the front panel
display.
3 Repeatedly press [1] (right) until “06 FTO” is
displayed on the front panel display.
4 Press [OK].
The remote control does not work.
• The remote control and main unit are using
different codes. Change the code on the remote
control.
“Remote Control ” appears on the right side of
the screen.
(“
∏” stands for a number.)
Startup is slow.
• Startup takes time in the following situations:
- A disc is inserted.
- The clock is not set.
- Immediately after a power failure or the AC
mains lead is connected.
- When a BD-J application is executing.
- When the “Quick Start” is not activated. (> 79)
“0:00” is flashing on the front panel display.
• Set the clock. (> 80)
The clock does not display on the unit when
switched to standby.
• The clock does not display when “Quick Start” is
not activated. (> 79)
The followings do not indicate a problem
with this unit:
• Regular disc rotating sounds or HDD rotating
sounds.
• Poor reception due to atmospheric conditions.
• When you switch the unit on or to standby
mode, there may be an unexpected sound.
General operation
Reference
Front panel display
Press and hold [OK] and
the indicated number
button at the same time
for more than 5 seconds.
(> 79)
Displays
DMR-UBT1GL_eng.book 81 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
82
Screen size is wrong.
• Adjust the aspect ratio setting on TV.
• Check “Aspect for Recording” before recording
or picture quality change. (> 73)
TV reception is not displayed.
• Broadcast signals are not output from this unit’s
RF OUT terminal. Select “On” in “RF OUT
( Aerial Signal )”. (> 79)
The black screen appears on the TV.
• This phenomenon may occur, depending on the
TV setting, when “Quick Start” is activated.
Depending on the TV, this phenomenon may be
prevented by reconnecting to a different HDMI
input terminal.
The screen changes automatically.
• If “Screen Saver” is set to “On”, the screen saver
function will be activated when there is no
operation for 5 minutes or more. (> 75)
There is a lot of image lag when playing video.
• Set to “0” all items in the “Noise Reduction”.
(> 45)
• Set “Audio Delay”. (> 75)
The images do not appear on the TV.
The picture is distorted during play, or video
is not played correctly.
• Check the connections. (> 9)
• Check the settings of the connected TV, etc.
• An incorrect resolution is selected in “Video
Format”. (> 76) Reset the setting as follows:
1 While the unit is on, press and hold [OK], the
yellow button and the blue button at the
same time for more than 5 seconds.
• “00 RET” is displayed on the front panel
display.
2 Repeatedly press [1] (right) until “04 PRG”
is displayed on the front panel display.
3 Press and hold [OK] for at least 3 seconds.
Set the item again.
• When Dolby Digital Plus, Dolby TrueHD,
and DTS-HD
®
audio are not output
properly, select “Yes” in “Default Settings”
and make proper settings. (> 80)
• The connected TVs are changed. Reset the
setting as follows:
1 While the unit is on, press and hold [OK], the
yellow button and the blue button on the
remote control at the same time for more
than 5 seconds.
• “00 RET” is displayed on the front panel
display.
2 Repeatedly press [1] (right) until “13 L4K” is
displayed on the front panel display.
3 Press and hold [OK] for at least 5 seconds.
Set the item again.
• “4K(50p/60p) Output” will be set to “Off”.
Make the correct setting again. (> 76)
• The unit’s TV System is different from that of the
disc. Change the TV System. (> 76, TV
System)
• The picture may be distorted or a black screen
may appear between scenes recorded with
different aspect ratios.
• Set “Deep Colour Output” (> 76) or “Contents
Type Flag” (> 77) to “Off”.
Video is not output in 4K or high-definition.
• Confirm that “Video Format” in the Setup menu
is set properly. (> 76)
• Confirm the HDMI cable, related connections
and the compatibility of TV video input.
To output images in 4K, connect the HDMI cable
to a 4K compatible terminal of the connected
TV. (> 9)
• To enjoy image in 4K (50p/60p), set
“4K(50p/60p) Output” to “4K(50p/60p) 4:4:4” or
“4K(50p/60p) 4:2:0”. (> 76)
• If “4K(50p/60p) Output” is set to “4K(50p/60p)
4:4:4”, check to see if the connected HDMI
cable supports 18 Gbps. (> 9, 76)
• If 4K images are not output from the connected
4K-compatible TV, set “4K(50p/60p) Output” to
“4K(50p/60p) 4:4:4” or “4K(50p/60p) 4:2:0”.
(> 76)
TV screen and video
DMR-UBT1GL_eng.book 82 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
83
Cannot output video in HDR quality (even
when connected to an HDR-compatible TV).
• When connected to a TV or terminal that does
not support HDR, this unit applies Dynamic
Range Conversion to HDR signals to output
them. In this case, “Dynamic Range Conversion
Output” is displayed on the screen. (> 40)
In addition, depending on the disc, it may not be
possible to output content in 2K resolution or
perform playback correctly. (> 42)
• Video may not be output from your TV in HDR
quality, depending on the content. Set “HDR
(High Dynamic Range) Output” and “HLG / PQ
Conversion” to “Automatic”. (> 76, 77)
3D video is not output correctly.
• 3D video may be output correctly by changing
the following settings:
- “Signal Format” (> 43, 3D settings during
playback)
• Check the settings of the connected TV.
• When a non-3D compatible amplifier/receiver is
connected between this unit and a TV, 3D video
is not output. (> 11)
• When “Audio Output” is set to “Off”, 3D video
may not be output correctly. (> 77)
Cannot play back videos on the USB device
smoothly.
• Use the port on the front side of this unit, which
supports USB 3.0. You may be able to improve
the performance.
No sound.
Distorted sound.
• Check the connections. (> 9)
• Check the settings of the connected TV, etc.
• Press [AUDIO] to select the audio. (> 22, 41)
• To output audio from a device connected with an
HDMI cable, set “Audio Output” to “On”. (> 77)
Cannot change audio channel.
• You cannot change the audio channel if “Digital
Audio Output” is set to “Bitstream”. (> 74)
There is no sound coming out.
• Refer to "Connection" (> 9 - 11) to check the
audio output settings suited to the connections
of your device.
Cannot record.
Cannot copy.
• Some broadcasts are copyright protected.
• You cannot record to the disc by pressing the
[REC ¥] or timer recording.
• The disc is protected. (> 68)
• [DV D-R] [DVD-RW] [+R] [+RW] Since it will copy to
HDD temporarily, copying is not possible if there
is insufficient available capacity on the HDD.
• This unit cannot record/copy NTSC signals to
discs that already have PAL signal recordings.
A part or whole of a recorded programme has
been lost.
• If there is a power failure or the AC mains lead is
disconnected from the household mains socket
while recording or editing, the programme may
be lost or the HDD may become unusable. We
cannot offer any guarantee regarding lost
programmes.
Timer recording does not work properly.
• When is displayed on the screen. (> 30)
Auto Renewal Recording does not work
properly.
• The programme will not be overwritten in the
following cases:
- the programme is protected
- any programme is being played back or copied
- a screen such as Video Menu is displayed
Instead, the programme will be saved as a
separate programme and that will be overwritten.
An unusually loud sound is coming from the
rotating disc.
• If you want copy to perform more quietly, select
“Normal ( Silent )” in “Disc Speed for Copy”.
(> 73)
Sound
Recording, timer recording and
copying
DMR-UBT1GL_eng.book 83 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
84
The time recorded on the disc and the
available time shown do not add up.
• [DV D-R] [+R] If you record or edit many times, the
remaining capacity is reduced and then
recording or editing may be disabled.
• Available disc space display may be different
from actual.
Keyword Recording does not work properly.
• The unit may not record a Keyword Recording
programme when part of its broadcast time
overlaps with that of another timer-recording
programme. When this occurs, the Keyword
Recording does not start even after the
timer-recording has finished.
• The unit cannot run a search correctly if Search
Conditions are not appropriate. Revise the
Search Conditions. (> 31)
Cannot play back.
• The disc is dirty. (> 20)
• The disc is scratched or marked.
• The disc may not be able to play back if it was
not finalised or a Top Menu was not created on
the equipment used for recording.
• Refer to “Screen icons”. (> 36)
• Depending on the Ultra HD Blu-ray disc, it may
not be possible to perform playback unless this
unit is connected to the Internet.
Audio and video momentarily pause.
• DVD-R DL and +R DL discs have two writable layers
on one side. Video and audio may momentarily cut
out when the unit is switching layers.
You have forgotten your rating PIN.
• The rating level returns to the factory preset.
1 When the unit is on and no media is loaded
or inserted, press and hold [OK] and the
yellow and blue buttons simultaneously for
more than 5 seconds.
• “00 RET” is displayed on the front panel
display.
2 Repeatedly press [1] (right) until “03 VL” is
displayed on the front panel display.
3 Press [OK].
• “INIT” is displayed on the front panel display.
Image for the Quick View is not smooth.
• Image may not be played back smoothly in case
of high definition contents.
Cannot edit.
• You may not be able to edit on the HDD if there
is no available space. Delete any unwanted
programmes to create empty space. (> 47)
This unit does not recognise the USB device
correctly.
• If inserted during playback the USB device may
not be recognised by this unit.
Disconnect and reconnect the USB device. If it
still does not recognise the connection, switch
the unit to standby mode and turn it on again.
• USB devices connected using a USB extension
cable other than a dedicated one or a USB hub
may not be recognised by this unit.
• Two USB devices cannot be used
simultaneously. If you insert a USB device while
watching TV, the USB device detection screen
is displayed. Use this screen to select the
device you want to use.
Play
Cannot play the disc on other players.
• Refer to “Play on other players”. (> 20)
Edit
The contents of the SD card cannot be read.
• Remove the card from the slot and then insert
again. If this does not solve the problem, switch
the unit to standby mode and turn it on again.
Photos do not play back normally.
• The images that were edited on the PC, such as
Progressive JPEG, etc., may not play back.
(> 18)
USB
DMR-UBT1GL_eng.book 84 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
85
The TV Guide information is not displayed
properly.
• Set the clock correctly. (> 80, Clock)
• There was a programme change, or TV Guide
information from a broadcast station was
possibly not correctly transmitted.
• If signal quality is bad, the TV Guide system
may not be able to receive any data.
• It may take time until the TV Guide screen is
displayed correctly. Wait for about a day.
Picture regularly breaks up on some channels.
• Adjust the reception with “Manual Tuning”. (
>
71)
The channel which was once selectable
cannot be selected.
• Reveal the channel on the channel list.
(> 71)
You cannot access this unit from DLNA
compatible equipment on the network.
• Check the network connection and the network
settings. (> 12, 14)
• It may not be possible to connect depending on
the types of the equipment or the status of the
equipment.
When using this unit as a server, video frames
are dropped.
• Change the following settings:
- Conversion Setting for DLNA (> 78)
- Resolution Setting for DLNA (> 78)
When using Wireless LAN connection, video
from the DLNA Certified media server is not
played back or video frames are dropped
during playback.
• Use 802.11n (2.4 GHz or 5 GHz) Wireless
router.
Simultaneous use with a microwave, cordless
telephone etc. at 2.4 GHz may result in
connection interruptions or other problems.
• On the “Wireless Settings” screen (> 77), the
continuous lighting of at least four “Reception”
indicators is the target for a stable connection. If
three or fewer indicators are lit or the connection
is being interrupted, change the position or
angle of your Wireless router. If there is no
improvement, connect to a wired network and
perform the “Easy Network Setting” (> 14, 77)
again.
To return all the settings to the factory preset
Perform “Shipping Condition” or “Default
Settings”. (> 80)
TV Guide
Broadcast
Network
You cannot play contents properly from DLNA
compatible equipment on the network.
• There may be some video that cannot be played
back on DLNA compatible equipment
depending on the equipment.
• Following programmes may not be played back:
- A programme with access restriction
- A programme with incompatible format
• Playback via DLNA compatible equipment may
not be performed when this unit is in the
following conditions:
- While playing back a BD-Video
- While simultaneously performing Copy (Keep
Picture Quality) and recording
- While displaying the Basic Settings menu
- While executing functions using a network,
such as Network Service
Reset
DMR-UBT1GL_eng.book 85 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
86
The following messages or service numbers appear on the
front panel display when something unusual is detected.
The remote control and main unit are using different codes.
Change the code on the remote control. (> 81)
The picture quality of the selected programme stored in the
USB HDD is being changed.
Do not disconnect the USB HDD from this unit.
TV Guide data is being downloaded.
You cannot delete items on this disc. The disc may be
damaged.
• The disc is dirty. (> 20) The unit cannot read the disc.
• The lens cleaner has finished cleaning.
Touch [< OPEN/CLOSE] on the main unit to eject the disc.
• Displayed when the unit is started and is switched to
standby mode.
• There was a power failure or the AC plug was disconnected
while the unit was on. The unit is carrying out its recovery
process. Wait until the message disappears.
There are already 32 timer programmes. Delete unnecessary
timer programmes. (> 30)
• You are trying to divide a programme when the maximum
possible number of programmes is already stored on the
media.
The USB device is drawing too much power. Remove the
USB device.
Update of the software (firmware) is started. You cannot
operate the unit until the update is complete. (> 68)
Software (firmware) is downloading.
Download will stop when the unit is turned on, or the timer
recording starts. (> 68)
The media is not supported.
The software (firmware) is being updated. You cannot
operate the unit until the update is complete. (> 68)
An error has occurred in the antenna’s power supply. Check
to see if the antenna’s cable core and braided wire shield are
in contact with each other.
The unit is hot. The unit switches to standby for safety
reasons. Wait for about 30 minutes until the message
disappears.
Install or place this unit with good ventilation.
(When a disc is not inserted) A malfunction has occurred. The
unit is trying to restore to the normal operation. Once the
message disappears you can use the unit again. If it remains
displayed, consult the dealer.
HDMI cannot be output because it is connected to a model
that does not support copyright protection.
Due to the current disc not having authorised copyright
information, video output is not performed.
(When a disc is inserted) There was something unusual
detected with the disc or the unit. The unit is trying to restore
to the normal operation. Once the message disappears you
can use the unit again. If it remains displayed, consult the
dealer.
The unit fails to operate properly. Touch [Í/I] on the main unit
to switch the unit to standby mode. Now touch [Í/I] on the
main unit again to turn the unit on.
The HOLD function is activated. (> 70)
Messages on the front panel display
BD
(“
∏” stands for a number.)
CONV
GUIDE
NoERAS
NoREAD
PLEASE WAIT
PROG FULL
REMOVE
START
SW-DL
UNSUPPORT
UPD /
(“
∏” stands for a number.)
U50
U59
U61
U76
U77
U88
U99
XHOLD
DMR-UBT1GL_eng.book 86 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
87
Specifications
Specifications are subject to change without
notice.
∫ General
Dimensions: 430 mm (W)
68 mm (H)
(including the projecting parts)
211 mm (D)
Mass: Approx. 3.0 kg
Power supply: AC 220 V to 240 V, 50 Hz
Power consumption: Approx. 37 W
Power consumption in standby mode:
“Quick Start” is not activated and
“RF OUT ( Aerial Signal )” is set to “Off”
Approx. 0.3 W
Operating temperature: 5 oC to 40 oC
Operating humidity range: 10 % to 80 % RH
(no condensation)
∫ Output terminal
Digital audio output (coaxial): 1 pc.
HDMI output (19 pin type A): 1 pc.
∫ Internal HDD capacity
2TB
∫ TV system
Tuner System: DVB-T
Country: Australia
Channel Coverage:
VHF 6 - 12
UHF 27 - 69
∫ Other terminals
USB Port (Type A)
Front: 1 pc., DC 5 V, Max. 900 mA
[Super-Speed USB (USB 3.0)]
Rear: 1 pc., DC 5 V, Max. 500 mA
[High-Speed USB (USB 2.0)]
SD Card Slot: 1 pc.
LAN (Ethernet) Port: 1 pc.
10BASE-T/100BASE-TX
∫ Wireless LAN
Standard compliance: IEEE802.11a/b/g/n
Frequency range: 2.4 GHz / 5 GHz band
Security
§
:
WPA™/WPA2™
(Encryption type: TKIP/AES,
Authentication type: PSK)
WEP (64 bit/128 bit)
§
This unit supports WPA™ and WPA2™
encryption.
∫ LASER specification
Class 1 LASER Product
Wave length:
405 nm (BDs)
661 nm (DVDs)
783 nm (CDs)
Laser power:
No hazardous radiation is emitted with
the safety protection
DMR-UBT1GL_eng.book 87 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
88
Depending on the content being recorded, the
recording time may become shorter than indicated.
∫ DR mode
∫ HG, HX, HE, HL, HM modes
∫ XP, SP, LP modes
§
It is not possible to copy programmes
recorded in XP/SP/LP mode to Blu-ray discs
while maintaining their original picture quality.
• Regarding recording time remaining:
This unit records using a VBR (Variable bit rate)
data compression system to vary recorded data
segments to match video data segments which
may cause differences in the displayed amount
of time and space remaining for recording.
Recording modes (picture quality) and
approximate recording times
Recording
Mode
(picture
quality)
HDD BD-RE, BD-R
(2 TB) Single
Layer
(25 GB)
Dual
Layer
(50 GB)
DR
(HD
quality)
282 hours 3 hours
20 min.
6 hours
40 min.
DR
(SD
quality)
529 hours 6 hours
30 min.
13 hours
• Recording time of DR mode may vary
depending on the bit rate of broadcasting:
• High Definition (HD) quality: estimated bit rate
is 15 Mbps
• Standard Definition (SD) quality: estimated bit
rate is 8 Mbps
Recording
Mode
(picture
quality)
HDD BD-RE, BD-R
(2 TB) Single
Layer
(25 GB)
Dual
Layer
(50 GB)
HG 315 hours 4 hours 8 hours
HX 471 hours 6 hours 12 hours
HE 707 hours 9 hours 18 hours
HL 946 hours 12 hours 24 hours
HM 1370 hours 17 hours
30 min.
35 hours
Recording
Mode
(picture
quality)
HDD BD-RE, BD-R
(2 TB) Single
Layer
(25 GB)
Dual
Layer
(50 GB)
XP 431 hours §§
SP 863 hours §§
LP 1726 hours §§
Recording
Mode
(picture
quality)
DVD-RAM DVD-R,
DVD-RW
,
+R,
+RW
(4.7 GB)
DVD-R
DL,
+R DL
(8.5 GB)
Single-
sided
(4.7 GB)
Double-
sided
(9.4 GB)
XP 1 hour 2 hours 1 hour 1 hour
45 min.
SP 2 hours 4 hours 2 hours 3 hours
35 min.
LP 4 hours 8 hours 4 hours 7 hours
10 min.
DMR-UBT1GL_eng.book 88 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
89
The audio output differs depending on which
terminals are connected to the amplifier/receiver,
and the setting on this unit. (> 74, Digital Audio
Output)
• The number of channels listed is the maximum
possible number of output channels when
connected to amplifier/receiver compatible with
the respective audio format.
§1
When “BD-Video Secondary Audio” is set to
“On”, the audio will be output as Dolby Digital,
DTS Digital Surround
TM
or 5.1ch PCM.
§2
The audio output is amplified from 5.1ch or
6.1ch to 7.1ch depending on the DTS, Inc.
specifications.
Audio information
Terminal
Digital Audio Output
Bitstream PCM
HDMI AV
OUT
Output using
original audio
§1
BD-Video:
7.1ch PCM
§1, 2
DVD-Video:
5.1ch PCM
DIGITAL
AUDIO
OUT
Dolby Digital/
DTS Digital
Surround
TM
Down-mixed 2ch
PCM
Language code list
Abkhazian: 6566
Afar: 6565
Afrikaans: 6570
Albanian: 8381
Amharic: 6577
Arabic: 6582
Armenian: 7289
Assamese: 6583
Aymara: 6589
Azerbaijani: 6590
Bashkir: 6665
Basque: 6985
Bengali; Bangla: 6678
Bhutani: 6890
Bihari: 6672
Breton: 6682
Bulgarian: 6671
Burmese: 7789
Byelorussian: 6669
Cambodian: 7577
Catalan: 6765
Chinese: 9072
Corsican: 6779
Croatian: 7282
Czech: 6783
Danish: 6865
Dutch: 7876
English: 6978
Esperanto: 6979
Estonian: 6984
Faroese: 7079
Fiji: 7074
Finnish: 7073
French: 7082
Frisian: 7089
Galician: 7176
Georgian: 7565
German: 6869
Greek: 6976
Greenlandic: 7576
Guarani: 7178
Gujarati: 7185
Hausa: 7265
Hebrew: 7387
Hindi: 7273
Hungarian: 7285
Icelandic: 7383
Indonesian: 7378
Interlingua: 7365
Irish: 7165
Italian: 7384
Japanese: 7465
Javanese: 7487
Kannada: 7578
Kashmiri: 7583
Kazakh: 7575
Kirghiz: 7589
Korean: 7579
Kurdish: 7585
Laotian: 7679
Latin: 7665
Latvian, Lettish: 7686
Lingala: 7678
Lithuanian: 7684
Macedonian: 7775
Malagasy: 7771
Malay: 7783
Malayalam: 7776
Maltese: 7784
Maori: 7773
Marathi: 7782
Moldavian: 7779
Mongolian: 7778
Nauru: 7865
Nepali: 7869
Norwegian: 7879
Oriya: 7982
Pashto, Pushto: 8083
Persian: 7065
Polish: 8076
Portuguese: 8084
Punjabi: 8065
Quechua: 8185
Rhaeto-Romance: 8277
Romanian: 8279
Russian: 8285
Samoan: 8377
Sanskrit: 8365
Scots Gaelic: 7168
Serbian: 8382
Serbo-Croatian: 8372
Shona: 8378
Sindhi: 8368
Singhalese: 8373
Slovak: 8375
Slovenian: 8376
Somali: 8379
Spanish: 6983
Sundanese: 8385
Swahili: 8387
Swedish: 8386
Tagalog: 8476
Tajik: 8471
Tamil: 8465
Tatar: 8484
Telugu: 8469
Thai: 8472
Tibetan: 6679
Tigrinya: 8473
Tonga: 8479
Turkish: 8482
Turkmen: 8475
Twi: 8487
Ukrainian: 8575
Urdu: 8582
Uzbek: 8590
Vietnamese: 8673
Volapük: 8679
Welsh: 6789
Wolof: 8779
Xhosa: 8872
Yiddish: 7473
Yo r u b a : 8 9 7 9
Zulu: 9085
DMR-UBT1GL_eng.book 89 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
90
About data service (Catch Up TV)
• On-screen instructions may not correspond to
the remote control buttons.
• It may take some time to show the data service.
• Some functions of the data service may be
deactivated during recording.
About Network Service
• Some features of websites or content of the
service may not be available.
• If using slow Internet connection, the video may
not be displayed correctly. A high-speed Internet
service with a speed of at least 6 Mbps is
recommended.
• The services through Network Service are
operated by their respective service providers,
and service may be discontinued either
temporarily or permanently without notice.
Therefore, Panasonic will make no warranty for
the content or the continuity of the services.
• A separate subscription is required to watch
Netflix.
About TV Anytime
• Please note that a regular maintenance or
unexpected trouble may interrupt the service,
and that the service content may be changed or
revoked and operation menu screens may be
changed with or without a prior notice.
• We recommend that you use a high-speed
connection, such as LTE or Wi-Fi
®
.
• TV Anytime services may be discontinued
temporarily or permanently without notice.
Disclaimer
The recording and playback of content on this
or any other device may require permission
from the owner of the copyright or other such
rights in that content. Panasonic has no
authority to and does not grant you that
permission and explicitly disclaims any right,
ability or intention to obtain such permission
on your behalf. It is your responsibility to
ensure that your use of this or any other
device complies with applicable copyright
legislation in your country. Please refer to that
legislation for more information on the
relevant laws and regulations involved or
contact the owner of the rights in the content
you wish to record or playback.
Personal information handling
To provide functions and services of this unit,
a device ID, device password and usage
history information are stored and managed
securely in an appropriate security
environment of Panasonic.
Please note that usage history and other
information may be collected for purposes
such as improving products and services in
such a way that individuals cannot be
identified.
Indemnity concerning recorded content
Panasonic does not accept any responsibility
for damages directly or indirectly due to any
type of problems that result in loss of
recording or edited content (data), and does
not guarantee any content if recording or
editing does not work properly. Likewise, the
above also applies in a case where any type
of repair is made to the unit (including any
other non-HDD related component).
DMR-UBT1GL_eng.book 90 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
91
Licenses
“AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/Progressive” are trademarks of Panasonic Corporation and
Sony Corporation.
Copyright 2004-2014 Verance Corporation. Cinavia
TM
is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677
and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living
Network Alliance.
DVB and the DVB logos are trademarks of the DVB Project.
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited. DTS, DTS-HD,
the Symbol, & DTS and the Symbol together are registered trademarks, and
DTS-HD Master Audio | Essential is a trademark of DTS, Inc.
© DTS, Inc. All Rights Reserved.
“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
This product is licensed under the AVC patent portfolio license for the personal use of a consumer or other uses in which it
does not receive remuneration to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to
provide AVC Video.
No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, L.L.C.
See http://www.mpegla.com
This product is licensed under the VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i)
encode video in compliance with the VC-1 Standard (“VC-1 Video”) and/or (ii) decode VC-1 Video that was encoded by a
consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide
VC-1 video.
No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C.
See http://www.mpegla.com
SDXC Logo is a trademark of SD-3C, LLC.
The Wi-Fi CERTIFIED
TM
Logo is a certification mark of Wi-Fi Alliance
®
.
The Wi-Fi Protected Setup
TM
Logo is a certification mark of Wi-Fi Alliance
®
.
“Wi-Fi
®
”, “Miracast
®
”, and “Wi-Fi Direct
®
” are registered trademarks of Wi-Fi Alliance
®
.
“Wi-Fi Protected Setup
TM
”, “WPA
TM
”, and “WPA2
TM
” are trademarks of Wi-Fi Alliance
®
.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc. in the United States and other countries.
DMR-UBT1GL_eng.book 91 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
92
Java is a registered trademark of Oracle and/or its affiliates.
Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.
Android is a trademark of Google Inc.
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without
even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed
terms and conditions thereof shown in the Basic Settings menu.
At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact
information provided below, for a charge no more than our cost of physically performing source code distribution, a complete
machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the
obligation to do so, as well as the respective copyright notice thereof.
Contact Information: [email protected]
The source code and the copyright notice are also available for free in our website below.
http://panasonic.net/avc/oss/
MS/PlayReady/Final Product Labeling
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology
outside of this product is prohibited without the appropriate license(s) from Microsoft.
MS/PlayReady/End User Notices
Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including
copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or
WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require
Microsoft to revoke the device’s ability to consume PlayReady-protected content.
Revocation should not affect unprotected content or content protected by other content access technologies. Content owners
may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access
content that requires the upgrade.
Vorbis, FLAC, WPA Supplicant
The software licenses are displayed when “Software Licence” in the Basic Settings menu is selected. (> 80)
Restriction on use of unauthorized copied content
This unit adopts the following technology for copyright protection.
Cinavia Notice
This product uses Cinavia technology to limit the use of unauthorized copies of some
commercially-produced film and videos and their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will be displayed and playback or copying will be
interrupted. More information about Cinavia technology is provided at the Cinavia Online
Consumer Information Center at http://www.cinavia.com
. To request additional information about
Cinavia by mail, send a postcard with your mailing address to:
Cinavia Consumer Information Center, P.O.
Box 86851, San Diego, CA, 92138, USA.
DMR-UBT1GL_eng.book 92 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
93
Limited Warranty
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as
noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal
domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation,
accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations),
introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the
product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
6. To claim warranty service, when required, you should:
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and
do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone
our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have
the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are
also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a
major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair
or replace the product and will do so in a reasonable period of time from receiving notice from you.
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia
website
www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual;
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or
any other device.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc
Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre
Locator for the name/address of the nearest Authorised Service Centre.
Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of
purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged
by you.
Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the
normal operating areas of the nearest Authorised Service Centres:
Plasma/LCD televisions / displays (screen size greater than 103 cm)
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 4.0 01-01-2011
DMR-UBT1GL_eng.book 93 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
94
Index
1 2 3...
4K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4K Networking. . . . . . . . . . . . . . . . . . . . . . . . . 43
A
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 41, 89
Auto Setup . . . . . . . . . . . . . . . . . . . . . . . . 13, 71
AVCHD . . . . . . . . . . . . . . . . . . . . . 35, 38, 56, 66
B
Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . 71
BD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
C
Catch Up TV . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Channel information . . . . . . . . . . . . . . . . . . . 22
Channel List . . . . . . . . . . . . . . . . . . . . . . . 23, 71
Chapter . . . . . . . . . . . . . . . . . . . . . . . . 37, 49, 73
Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
HOLD function . . . . . . . . . . . . . . . . . . . . . . . . 70
Parental Control . . . . . . . . . . . . . . . . . . . . . . 72
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Connection
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
AVCHD . . . . . . . . . . . . . . . . . . . . . . . . . . 56, 66
D
Delete
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 73
Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 73
Video . . . . . . . . . . . . . . . . . . . . . . . . . 47, 69, 73
Delete BD-Video data . . . . . . . . . . . . . . . . . . 39
Disc
Finalise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Media information . . . . . . . . . . . . . . . . . . . . . 16
Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
DVD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
E
Easy setting . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . 70
F
Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Finalise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Format
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
USB HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
FUNCTION MENU . . . . . . . . . . . . . . . . . . . . . 21
H
HDD
Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Media information . . . . . . . . . . . . . . . . . . . . . 16
HDR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 76
Home Networking (DLNA) . . . . . . . . . . . . 63, 78
Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Media Renderer . . . . . . . . . . . . . . . . . . . . . . 64
Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 78
K
Keyword Recording . . . . . . . . . . . . . . . . . 31, 37
L
Language code list . . . . . . . . . . . . . . . . . . . . 89
Lens cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
M
Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . . 71
Media Renderer . . . . . . . . . . . . . . . . . . . . . . . 64
Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Miracast
®
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
MKV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
MP4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
N
Network
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Easy Network Setting . . . . . . . . . . . . . . . 14, 77
Home Networking (DLNA) . . . . . . . . . . . 63, 78
Miracast
®
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Network Service . . . . . . . . . . . . . . . . . . . . . . 62
Wi-Fi Direct
®
. . . . . . . . . . . . . . . . . . . . . . . . . 65
P
PAUSE LIVE TV . . . . . . . . . . . . . . . . . . . . . . . 24
Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Picture Quality . . . . . . . . . . . . . . . . . . 19, 48, 88
PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 80
Playback menu . . . . . . . . . . . . . . . . . . . . . . . 44
Protection
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Pure Sound Mode . . . . . . . . . . . . . . . . . . . . . 72
DMR-UBT1GL_eng.book 94 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Reference
TQBS0146
95
Q
Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
R
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Timer recording . . . . . . . . . . . . . . . . . . . . . . . 27
Recording mode
(Picture Quality) . . . . . . . . . . . . . . . . . 19, 48, 88
Recording time . . . . . . . . . . . . . . . . . . . . . . . . 88
Remote control . . . . . . . . . . . . . . . . . . . . . . . . 8
HOLD function . . . . . . . . . . . . . . . . . . . . . . . . 70
Remote control code . . . . . . . . . . . . . . . . . . . 79
TV operation . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 84, 85
REWIND LIVE TV . . . . . . . . . . . . . . . . . . . 24, 73
S
SD Card
Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Media information . . . . . . . . . . . . . . . . . . 16, 20
miniSD / microSD . . . . . . . . . . . . . . . . . . . . . 20
Setting
Auto Setup . . . . . . . . . . . . . . . . . . . . . . . 13, 71
Easy setting . . . . . . . . . . . . . . . . . . . . . . . . . .13
Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Software (Firmware) Update . . . . . . . . . . . . . 68
T
Timer recording . . . . . . . . . . . . . . . . . . . . . . . 27
Top Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Create Top Menu . . . . . . . . . . . . . . . . . . . . . 70
Troubleshooting guide . . . . . . . . . . . . . . . . . 81
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Tuning
Channel List . . . . . . . . . . . . . . . . . . . . . . . . . 71
Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . 71
Parental Rating . . . . . . . . . . . . . . . . . . . . . . . 72
Signal Condition . . . . . . . . . . . . . . . . . . . . . . 72
TV Anytime . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
TV Guide
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Timer recording . . . . . . . . . . . . . . . . . . . . . . . 27
TV System . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
U
Ultra HD Blu-ray . . . . . . . . . . . . . . . . . . . . 38, 42
USB HDD (External HDD)
Cancellation of all USB HDD
Registrations . . . . . . . . . . . . . . . . . . . . . . . . . 73
Disconnection . . . . . . . . . . . . . . . . . . . . . 34, 73
Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Media information . . . . . . . . . . . . . . . . . . 16, 19
Registration . . . . . . . . . . . . . . . . . . . . . . . 34, 73
USB memories
Media information . . . . . . . . . . . . . . . . . . 16, 19
V
Video
AVCHD . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 38
BD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
DVD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . 38
MKV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Playback . . . . . . . . . . . . . . . . . . . . . . . . . 35, 38
Playlist created on other equipment . . . . . . . 38
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Ultra HD Blu-ray . . . . . . . . . . . . . . . . . . . 38, 42
Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 35
W
Wi-Fi Direct
®
. . . . . . . . . . . . . . . . . . . . . . . . . . 65
DMR-UBT1GL_eng.book 95 ページ ２０１７年７月２５日 火曜日 午後１時４５分
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycle systems
These symbols are only valid in the European Union and countries with recycle
systems.
If you wish to discard this product, please contact your local authorities or dealer and
ask for the correct method of disposal.
(Inside of product)
Panasonic Corporation
http://www.panasonic.com
p
TQBS0146
F0717YT0
© Panasonic Corporation 2017
DMR-UBT1GL_eng.book 96 ページ ２０１７年７月２５日 火曜日 午後１時４５分
