ABOUT THIS SUPPLEMENT
Thank you for choosing Ford Performance.
If you have owned or leased a Ford
Performance vehicle before, welcome
back. If this is your first Ford Performance
vehicle, welcome to the family. We are
confident that our dedication to
performance, quality, craftsmanship and
customer service will provide you with
many miles of exhilarating, safe and
comfortable driving.
We strive to build engaging vehicles that
involve the driver in every aspect of the
driving experience. Although performance
is at the heart of every Ford Performance
vehicle, we go further.
Our goal is to deliver a comprehensive,
complete vehicle, paying close attention
to the smallest details such as the sound
of the exhaust, the quality of the interior
materials and the functionality and the
comfort of the seats, to make sure that you
enjoy not only exceptional performance
but an outstanding driving environment as
well. This philosophy is expressed in this
vehicle through a sophisticated powertrain,
outstanding chassis dynamics and
significant interior and exterior
enhancements.
We have created this supplement to help
you get to know the unique features of your
Ford Performance vehicle. It only contains
the instructions for the unique features of
the Ford Performance vehicle and is not a
substitute for the Owner's Manual. You
must read the full instructions in the
Owner's Manual. The more that you know
about your vehicle, the greater the safety
and pleasure you will get from driving it.
Note: This supplement describes product
features and options available throughout
the range of available models, sometimes
even before they are generally available. It
may describe options not fitted to the
vehicle you have purchased.
Note: Some of the illustrations in this
supplement may show features as used in
different models, so may appear different
to you on your vehicle.
SVT
The Special Vehicle Team (SVT) was
established in 1991 to polish the Ford Oval
by creating low-volume, factory-produced
vehicles designed for people whose idea
of driving is a high-powered, passionate
experience - not just a means of getting
from A to B.
To support such spirited enthusiasm, we
carefully integrated the wide array of talent
in the company into a small,
cross-functional group of engineers and
product planners and located them under
one roof with a common mission to create
vehicles specifically designed to meet the
unique needs and desires of the driving
enthusiast.
We produced more than 250,000 SVT
vehicles since 1993 model year including
the SVT Mustang Cobra and the Cobra R,
the SVT F-150 Lightning, the SVT Contour,
the SVT Focus, Ford GT, Shelby GT500,
GT500KR and the F-150 SVT Raptor.
TEAM RS
Team RS traces its roots back nearly 60
years from the Lotus Cortina and Twin
Cam Escorts of the mid-1960s, through
the first RS branded Escorts of the 1970s
to the founding of Special Vehicle
Engineering (SVE) in 1980. Through the
1980s and 90s, SVE delivered a breadth
of vehicles from exciting XR and RS
branded road going performance cars
through homologation specials including
the iconic Sierra Cosworth RS500 and
RS200. The first ST vehicle appeared in
1996 as the ST24 Mondeo. The first
collaboration between our European and
3
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Introduction
North American performance teams
appeared in 2002 as the ST170 in Europe
and SVT Focus in North America. In 2003,
Team RS replaced SVE in Europe when we
brought performance car and motorsport
personnel together as one team.
FORD PERFORMANCE
The Special Vehicle Team (SVT) and
Team RS officially began working together
as one team in 2009. In 2015, we
combined them with Ford Racing to
establish Ford Performance as one team
responsible for all performance and racing
oriented products and activities worldwide
at Ford Motor Company.
We have designed and developed your
vehicle as a product of the four hallmarks
of Ford Performance:
• Performance.
• Substance.
• Exclusivity.
• Value.
We are proud and passionate about what
we do and we are glad you have made us
your choice.
E211570
4
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Introduction
UNIQUE FEATURES
E215060
Powertrain
• 2.3L EcoBoost engine.
• High-capacity intercooler.
• High-flow, dual-mode exhaust system.
• Enhanced torque vectoring control.
• All-wheel drive.
5
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
At a Glance
Chassis
• Brembo front brake calipers.
• Launch control.
• Drive modes.
• Dual-mode dampers.
Exterior
• Radiator grille.
• Underbody shield.
• Diffuser.
• Spoiler.
• Light-weight aluminum or forged
aluminum wheels.
• Michelin Pilot Super Sport or Michelin
Pilot Sport Cup 2 tires.
Interior
• Performance shift indicator.
• Sony 10-speaker audio system.
6
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
At a Glance
GAUGES
E215771
Oil temperature gauge.A
Turbocharger boost gauge.B
Oil pressure gauge.C
Oil Temperature Gauge
If the needle enters the red section, the
engine is overheating. Reduce engine
speed as soon as safely possible to allow
the engine to cool. If you continue to
operate the engine at high engine speeds
with the needle in the red section, the
engine speed reduces automatically to
prevent engine damage.
Turbocharger Boost Gauge
Indicates the added intake pressure
provided by the turbocharger.
Oil Pressure Gauge
Oil pressure varies with engine speed. The
pressure rises as engine speed rises and
drops as engine speed drops.
If the needle enters the red section a
warning lamp illuminates and a message
appears in the information display. Stop
your vehicle as soon as it is safe to do so
and switch the engine off. Check the
engine oil level.
WARNING LAMPS AND
INDICATORS
Performance Shift Indicator
E218767
It illuminates when the
powertrain reaches the optimum
upshift point. It flashes when the
engine is close to hitting the engine speed
limiter.
7
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Instrument Cluster
GENERAL INFORMATION
Launch Control
The system configures the chassis and
powertrain systems to deliver the fastest
possible acceleration when launching from
a standing start.
Note: When you switch the feature on, it
is only active once. You must switch the
feature on each time it is required.
To switch the feature on, do the following:
Note: Your vehicle must be completely stationary.
ActionStep
Fully press the clutch pedal and shift the gearshift lever to first gear.1
Access the following menus using the information display control.2
Expand the menu and then scroll to the following
menu item.
Settings3
Expand the menu and then scroll to the following
menu item.
Driver Assist4
Check the box to switch the feature on.Launch Control5
Fully press the accelerator pedal. Engine speed automatically limits to 5000
RPM.
6
Quickly release the clutch pedal when ready to launch.7
Note: Only use launch control when the front wheels are in the straight ahead position.
Make sure there are no objects in front of your vehicle.
The system does not operate in any of the
following conditions:
• The transmission is in reverse (R).
• The engine has not reached normal
operating temperature.
INFORMATION MESSAGES
Message Indicator
The message indicator
illuminates to supplement some
messages.
The indicator will be red or amber
depending on the severity of the condition
and it remains on until the condition is
resolved.
A system-specific symbol with a message
indicator may supplement some
messages.
8
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Information Displays
All-Wheel Drive
Action and DescriptionMessage
Displays when the system has been automatically disabled
to protect itself. This is caused by operating the vehicle with
a severely mismatched tire installed, if the system is over-
heating or if there is an issue with another vehicle system
preventing AWD operation. Overheating is most likely to occur
if the vehicle is operated in severe conditions, for example
track use, or if there is excessive wheel slip, for example your
vehicle become stuck in mud.
AWD OFF
The system resumes normal function and clears this message
after:
• You switch the ignition off and on and drive a short
distance with the correct wheels and tires installed.
• The system is allowed to cool.
• Other vehicle system issues are resolved.
Displays in conjunction with an amber Information icon if the
system is not operating correctly and defaults to front-wheel
drive only. If the warning remains on or continues appear,
have your vehicle checked as soon as possible.
AWD Malfunction Service
Required
Displays when the rear drive unit lubrication requires changing.
This message may appear if the vehicle is used for extended
periods of extreme driving, for example track use.
*
AWD System Oil Change
Due
*
The rear drive unit does not require any normal scheduled maintenance. The system
electronically monitors the rear drive unit and notifies you of required service by displaying
the message in the information display. The lubricant is more likely to require changing
if you use your vehicle for extended periods of extreme driving, for example track use. Do
not check or change the lubricant unless the rear drive unit shows signs of leakage or the
message displays. If the rear drive unit is submerged in water or to reset the message,
have your vehicle checked as soon as possible.
9
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Information Displays
MANUAL SEATS
WARNING
Make sure the seat fully locks into
place by rocking it backward and
forward.
E215587
B
C
A
Lift the handle to move the seat
backward and forward.
A
Repeatedly lift the lever up to
raise the seat.
B
Repeatedly push the lever down
to lower the seat.
Rotate the handle or move the
lever to recline the seatback.
C
10
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Seats
FUEL QUALITY
Choosing the Right Fuel
E185193
Use only premium unleaded gasoline with
a minimum pump (R+M)/2 octane rating
of 91. For optimal performance, use
premium unleaded gasoline with an octane
rating of 93 or higher.
The use of the correct fuel is an important
part of the proper maintenance of your
vehicle, and a condition of the vehicle
Warranty. For this vehicle, the use of
gasoline with an octane level of 91 or
higher is required. The use of gasoline with
an octane rating lower than 91 will
invalidate the vehicle Warranty. It can
degrade vehicle performance and lead to
severe mechanical damage.
Note: Use of any fuel other than those
recommended can impair the emission
control system and cause a loss of vehicle
performance.
Do not use:
• Diesel fuel.
• Fuels containing kerosene or paraffin.
• Fuel containing more than 15% ethanol
or E85 fuel.
• Fuels containing methanol.
• Fuels containing metallic-based
additives, including manganese-based
compounds.
• Fuels containing the octane booster
additive, methylcyclopentadienyl
manganese tricarbonyl (MMT).
• Leaded fuel (using leaded fuel is
prohibited by law).
The use of fuels with metallic compounds
such as methylcyclopentadienyl
manganese tricarbonyl (commonly known
as MMT), which is a manganese-based
fuel additive, will impair engine
performance and affect the emission
control system.
Do not be concerned if the engine
sometimes knocks lightly. However, if it
knocks heavily under most driving
conditions while you are using fuel with the
recommended octane rating, contact an
authorized dealer to prevent any engine
damage.
11
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Fuel and Refueling
MANUAL TRANSMISSION
The manual transmission has a starter
interlock that prevents cranking the engine
unless you fully press the clutch pedal.
Due to the high performance of the
powertrain, a certain amount of noise from
the transmission is normal.
Note: During each shift, you must fully press
the clutch pedal to the floor and fully
release the accelerator. Failure to follow
this may cause increased shift efforts,
prematurely wear transmission
components, or cause gear clash or damage
to the transmission.
Note: Do not attempt to shift when the
wheels do not have traction. Resulting
component damage may not be covered by
the vehicle Warranty.
Note: Do not drive with your foot resting on
the clutch pedal or use the clutch pedal to
hold your vehicle at a standstill while
waiting on a hill. Resulting component
damage may not be covered by the vehicle
Warranty.
Recommended Shift Speeds
We recommend you shift gears according
to the following guide to help achieve the
best fuel economy for your vehicle.
Vehicle Speed mph
( km/h)
Gear Shifts
15 (24)1–2
25 (40)2–3
40 (65)3–4
45 (72)4–5
50 (80)5–6
12
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Transmission
USING ALL-WHEEL DRIVE
Your vehicle has All-Wheel Drive with
Dynamic Torque Vectoring. This feature
uses all four wheels to power the vehicle
and independently controls the torque to
each rear wheel. The system also has the
ability to over speed the outside rear wheel
while cornering. This increases traction and
handling performance giving your vehicle
road holding capabilities that are superior
to conventional two-wheel drive and
four-wheel drive vehicles. The system is
active all the time and requires no input
from the driver. The system has different
Drive Mode calibration settings that
optimize all-wheel drive performance for
various conditions. See Drive Control
(page 20).
Your vehicle is not intended for off-road
use in the same way as an all-terrain
vehicle. The all-wheel drive feature gives
your vehicle some limited off-road
capabilities where driving surfaces are
relatively level, obstruction-free and similar
to normal on-road driving conditions.
Operating your vehicle under other than
those conditions could subject the vehicle
to excessive stress which can result in
damage not covered by the vehicle
Warranty.
The rear drive unit does not require any
normal scheduled maintenance. The
system is electronically monitored and any
required service messages appear in the
information display. The rear drive unit
lubricants may require changing if you use
your vehicle for extended periods of high
speed driving, for example track use. You
are not required to check or change the
rear drive unit lubricant unless there are
signs of leakage or a message appears in
the information display indicating that the
unit requires service.
Using Mismatched Tires or Wheels
WARNINGS
Only use replacement tires and
wheels that are of the same size,
load index, speed rating and type as
those originally fitted to your vehicle.
Using a tire or wheel that is not
recommended can affect the safety
and performance of your vehicle and
could result in a loss of vehicle control,
vehicle rollover, personal injury or death.
The recommended tire and wheel size can
be found on either the Safety Compliance
Certification Label or the tire information
label on the left-hand B-pillar or left-hand
front door. If this information is not located
as stated contact an authorized dealer as
soon as possible.
Note: Using a tire or wheel that is not
recommended could cause steering,
suspension, axle, power transfer unit or rear
drive unit failure. Incorrect tire or wheel use
can cause damage not covered by the
vehicle Warranty.
Your vehicle does not have a spare tire. We
do not recommend using a mismatched
tire or spare wheel. However, in an
emergency, the system can tolerate a
mismatched tire or spare wheel of a
different size to the original for a short
journey. The system may automatically
enter front-wheel drive only mode to
protect driveline components. An all-wheel
drive off warning message may appear in
the information display if you install a
mismatched tire or spare wheel. See
Information Messages (page 8). The
message turns off after you reinstall the
correct wheel and tire and you switch the
ignition off and on. We recommend that
you reinstall the repaired or replaced wheel
and tire as soon as possible.
13
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
All-Wheel Drive
Major mismatched tire or wheel sizes
between the front and rear axles, for
example 18 inch low profile tires on the
front axle and 20 inch high profile tires on
the rear axle could cause the system to
default to front-wheel drive only mode.
Damage to the system can occur that may
not covered by the vehicle Warranty.
The system can tolerate any combination
of new and worn tires of the same original
tire size. For example, using three worn
tires and one new tire.
Driving in Special Conditions
Your vehicle is capable of being driven on
sand, snow, mud or a loose surface.
However the operating characteristics are
different from conventional off-road
vehicles.
Note: Under severe operating conditions,
the air conditioning may turn on and off to
protect the engine from overheating.
Basic Operating Principles
WARNING
Be extremely careful when driving on
road surfaces that are made slippery
by loose sand, water, gravel, snow or
ice. Failure to adhere to this warning could
result in the loss of vehicle control, serious
personal injury or death.
Emergency Maneuvers
If your vehicle goes off the edge of the
road, slow down but avoid severe brake
application, only ease the vehicle back
onto the road after reducing your speed.
Do not turn the steering wheel too sharply
while returning to the road surface. It may
be safer to stay on the apron or shoulder
of the road and slow down gradually
before returning to the road surface. You
may lose control if you do not slow down
or if you turn the steering wheel too
sharply. It may be better to strike small
objects, for example highway reflectors,
with minor damage to your vehicle rather
than attempt a sudden return to the road
surface, which could cause your vehicle to
slide sideways out of control or rollover.
Remember, your safety and the safety of
others should be your primary concern.
In an unavoidable emergency situation
where a sudden sharp turn must be made,
remember to avoid over-driving your
vehicle. Only turn the steering wheel as
rapidly and as far as required. Excessive
steering results in less vehicle control, not
more. Additionally, smooth variations of
the accelerator or brake pedal pressure
should be utilized if changes in vehicle
speed are required. Avoid abrupt steering,
acceleration or braking which could result
in an increased risk of loss of vehicle
control, rollover and personal injury. Use
all available road surface to return the
vehicle to a safe direction of travel.
If your vehicle goes from one surface type
to another, for example from concrete to
gravel, there will be a change in the way
your vehicle responds to steering,
acceleration or braking.
If Your Vehicle Gets Stuck
WARNING
Do not spin the wheels at over
35 mph (56 km/h). The tires may fail
and injure a passenger or bystander.
If your vehicle gets stuck in mud or snow it
may be rocked out by shifting between
forward and reverse gears, stopping
between shifts, in a steady pattern. Press
lightly on the accelerator in each gear.
If your vehicle is stuck in mud or snow,
switching traction control off may be
beneficial while attempting to rock your
vehicle.
14
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
All-Wheel Drive
Note: Do not rock the vehicle if the engine
is not at normal operating temperature or
damage to the transmission may occur.
Note: Do not rock the vehicle for more than
a few minutes or damage to the
transmission and tires may occur or the
engine may overheat.
Sand
Most of the time traction control improves
tire traction by managing wheel slip
through brake, engine, and all-wheel drive
calibrations. However, during low speed
driving, disabling traction control in deep
sand can help keep the wheels moving to
maintain vehicle momentum.
When driving over sand, try to keep all four
wheels on the most solid area of the trail.
Do not reduce tire pressures, shift to a
lower gear and drive steadily through the
terrain. Apply the accelerator slowly and
avoid spinning the wheels.
When driving at slow speeds in sand under
high outside temperatures, use a low gear
when possible. Using a low gear maximizes
engine and transmission cooling capability.
Avoid excessive speed because vehicle
momentum can work against you and
cause the vehicle to become stuck to the
point that assistance may be required from
another vehicle. Remember, you may be
able to back out the way you came if you
proceed with caution.
Note: You may be able to reverse out the
way you came if you proceed with caution.
Do not drive your vehicle in deep sand for
an extended period of time. This could
cause the system to overheat and default
to front-wheel drive only mode. If this
occurs a message appears in the
information display. To resume normal
all-wheel drive function as soon as
possible, stop the vehicle in a safe location
and switch the engine off for at least 10
minutes. After the all-wheel drive system
has adequately cooled and the engine has
been restarted, the message turns off and
normal all-wheel drive function returns. If
you do not switch the engine off, the
message only turns off, when the system
adequately cools and the normal all-wheel
drive function returns.
Note: Under severe operating conditions,
the air conditioning may turn on and off to
protect the engine from overheating.
Mud and Water
If you must drive through water, drive
slowly. Traction or brake capability may
be limited. See Driving Through Water
(page 23).
Once through water, always try the brakes.
Wet brakes do not stop the vehicle as
effectively as dry brakes. Drying can be
improved by moving your vehicle slowly
while applying light pressure on the brake
pedal.
Be cautious of sudden changes in vehicle
speed or direction when you are driving in
mud. Even all-wheel drive vehicles can lose
traction in slick mud. Apply the accelerator
slowly and avoid spinning the wheels.
After driving through mud, clean off
excessive mud that has become stuck to
rotating drive shafts, wheels and tires.
Excessive mud stuck on these components
may result in an imbalance that could
cause damage not covered by the vehicle
Warranty.
If the transmission, power transfer unit or
rear drive unit is submerged in water have
your vehicle checked as soon as possible.
15
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
All-Wheel Drive
Hilly or Sloping Terrain
WARNING
Avoid driving across or turning on
steep hilly or sloping terrain. Your
vehicle may lose traction and slip
sideways increasing the risk of rolling over.
When driving on steep hilly or sloping
terrain, determine your route beforehand.
Do not drive over the crest of a hill without
assessing what conditions are on the other
side. Do not reverse over a hill without the
aid of an observer.
Although natural obstacles may make it
necessary to travel diagonally up or down
a hill or steep incline, you should always
try to drive straight up or straight down.
Apply just enough power to the wheels to
climb the hill. Too much power will cause
the tires to slip, spin or lose traction,
resulting in loss of vehicle control.
When climbing a steep hill or slope, start
in a lower gear rather than downshifting to
a lower gear from a higher gear once the
ascent has started. This reduces strain on
the engine and the possibility of stalling.
Note: If your vehicle stalls, do not try to turn
around as your vehicle may lose traction
and slip sideways increasing the risk of
rolling over. It is better to reverse down to a
safe location.
When descending a steep hill or slope,
start in a lower gear rather than
downshifting to a lower gear from a higher
gear once the descent has started. Do not
descend a steep hill or slope in neutral.
Avoid excessive brake application as this
causes the brakes to overheat. When
descending a steep hill or slope, avoid
sudden hard braking as you could lose
control. The front wheels must rotate in
order to steer your vehicle. Your vehicle has
anti-lock brakes, therefore apply the
brakes steadily. Do not pump the brake
pedal.
Snow and Ice
WARNING
If you are driving in slippery
conditions that require tire chains or
cables, then it is critical that you drive
cautiously. Keep speeds down, allow for
longer stopping distances and avoid
aggressive steering to reduce the chances
of a loss of vehicle control, personal injury
or death.
Note: The original equipment tires on your
vehicle are designed to optimize the
performance of your vehicle in dry or wet
summer road conditions. We recommend
using a dedicated set of winter tires in snow
and ice conditions. Do not mix summer
performance tires with winter tires on your
vehicle. See Using Winter Tires (page 34).
All-wheel drive vehicles have advantages
over two-wheel drive vehicles in snow and
ice but can skid like any other vehicle.
16
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
All-Wheel Drive
E223901
A
B
Direction of travel.A
Steering wheel rotation.B
If the rear of your vehicle starts to oversteer
and slide on snow or icy roads, turn the
steering wheel in the direction of travel as
shown above to help regain control.
Note: Excessive tire slippage can cause
driveline damage.
Avoid sudden applications of power and
quick changes of direction while driving on
snow or icy roads. Apply the accelerator
slowly and steadily when starting from a
full stop.
Avoid sudden braking while driving on
snow or icy roads. Although your vehicle
may accelerate better than a two-wheel
drive vehicle on snow and ice, stopping
distances are not reduced. Make sure you
allow sufficient distance for stopping. Drive
slower than usual and consider using a
lower gear. Your vehicle has anti-lock
brakes, therefore apply the brakes steadily.
Do not pump the brake pedal.
17
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
All-Wheel Drive
GENERAL INFORMATION
Your vehicle has a braking system designed
for high performance driving and superior
brake fade resistance. You may notice
occasional brake noise and elevated levels
of brake dust. This is normal and does not
affect system performance.
18
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Brakes
USING STABILITY CONTROL
WARNINGS
Do not switch off stability control or
use Sport, Track or Drift mode when
using a temporary spare wheel or
after inflating a tire using the temporary
mobility kit.
If you switch stability control off,
active city stop also turns off.
The system automatically turns on each
time you switch the ignition on.
E194298
Press the button on the center console to
switch sport mode on or to switch the
system off.
Switching Sport Mode On
Press and release the switch. You will see
a message in conjunction with an
illuminated icon in the display. Press and
release the switch again to return the
system to normal mode.
When you switch sport mode on, traction
control is switched off while stability
control intervention is reduced.
Note: You may not be able to switch Sport
mode on when using a programmed MyKey.
See MyKey for more information.
Switching the System Off
Press and hold the switch for
approximately five seconds. You will see
a message in conjunction with an
illuminated icon in the display. Press and
release the switch again to return the
system to normal mode.
Note: When using a programmed MyKey
you cannot switch this off.
19
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Stability Control
DRIVE CONTROL
WARNING
Do not use Sport, Track or Drift mode
when using a temporary spare wheel
or after inflating a tire using the
temporary mobility kit.
Your vehicle has various drive modes that
can deliver driving experiences through a
suite of sophisticated electronic systems.
Each mode has preset vehicle settings to
optimize steering, all-wheel drive, torque
vectoring, powertrain response, suspension
and electronic stability control.
Selectable Drive Modes
Press the button.
The available modes appear in the
information display. Repeatedly press the
button to scroll through the available
modes. When your desired mode appears
in the information display, wait for four
seconds while the system sets the selected
mode or press the OK button on the
steering wheel.
Note: You may not be able to choose one
of the selectable drive modes for a short
time after starting your vehicle in cold
ambient temperatures.
Selectable Drive Modes
Normal
The system defaults to normal
mode when you start the
vehicle. Vehicle settings tuned
for street driving.
Electronic stability control and traction
control systems fully enabled.
Note: When using a programmed MyKey
you cannot switch any other mode on.
Sport
Vehicle settings tuned for
performance street driving.
Electronic stability control and traction
control systems fully enabled.
Note: When using a programmed MyKey
you cannot switch this on.
Track
This mode is for track use only.
Vehicle settings tuned for
aggressive driving.
The system reduces brake system
intervention from the stability control
system and optimizes the road-holding
ability of your vehicle. Electronic stability
control is set to reduced mode while the
traction control system is disabled apart
from the electronic limited slip differential
function. Engine interventions from the
stability control and traction control
systems are also disabled.
Note: When using a programmed MyKey
you cannot switch this on.
Drift
This mode is for track use only.
Vehicle settings tuned for
spirited and aggressive driving.
The system reduces brake system
intervention from the stability control
system and increases torque transfer to
the rear axle to allow controlled oversteer
drifts.
Electronic stability control is set to reduced
mode while the traction control system is
disabled apart from the electronic limited
slip differential function. Engine
interventions from the stability control and
traction control systems are also disabled.
20
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Driving Aids
The electronic stability control or all-wheel
drive system may automatically turn off
during extreme drifting maneuvers. If a
system turns off, the electronic stability
control warning lamp illuminates or a
corresponding all-wheel drive message
appears in the information display.
Continue to drive and when normal driving
resumes, the systems automatically turn
on within a short period. If the electronic
stability control warning lamp remains
illuminated or a warning message remains
in the information display, have your
vehicle checked as soon as possible.
Note: When using a programmed MyKey
you cannot switch this on.
Suspension Damping
Selectable Suspension Damping
Normal
The system defaults to normal mode when
you start the vehicle. Vehicle suspension
damping tuned for street driving.
Sport
Vehicle suspension damping tuned for
performance driving on flat roads or for
track use. Sport mode gives firmer
suspension damping characteristics.
To select normal or sport mode, do the
following:
E219514
1. Press and hold the button for a short
period of time. The current setting
appears in the information display.
Release the button again to change the
setting.
Enhanced Torque Vectoring
Control
The system consists of two elements:
• Torque vectoring control.
Automatically applies brake torque on
the inner wheel in a curve to increase
traction and decrease understeer.
• Cornering understeer control.
Automatically controls the traction
response of the vehicle under braking
and acceleration on high and low
friction surfaces.
Unlike electronic stability control,
enhanced torque vectoring control does
not slow the vehicle. The system limits
excessive wheel slip giving greater
cornering ability.
Note: The system does not disable
enhanced torque vectoring control if you
switch the stability control system or
traction control system off.
In addition to enhanced torque vectoring
control, your vehicle also has all-wheel
drive with dynamic torque vectoring.
This feature further improves the
road-holding and traction abilities of your
vehicle. See All-Wheel Drive (page 13).
21
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Driving Aids
TOWING A TRAILER
WARNING
Your vehicle is not approved
for trailer towing. Never tow
a trailer with your vehicle.
22
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Towing
DRIVING THROUGH WATER
Your vehicle has aerodynamic devices
attached to the underbody designed to
help control airflow for superior
performance. Therefore, you must be
especially careful to avoid driving through
deep or standing water.
ENGINE OVERSPEED
WARNING
Do not operate the engine at high
engine speeds while the vehicle is
stationary. This can cause damage
not covered by the vehicle Warranty and
can result in serious injury.
Your vehicle has an engine speed limiter
that helps increase engine performance.
A narrow red line on the tachometer face
indicates the standard maximum engine
speed. The red line thickens where the
engine speed enters the overspeed limiter.
The system allows a maximum of three
seconds of engine overspeed. After this,
the engine speed limiter reduces engine
speed and holds it at a predetermined
limit. Once the engine speed drops below
the predetermined limit, the system resets
and permits a further three seconds of
engine overspeed.
Note: Do not run the engine at high engine
speeds until it reaches the normal operating
temperature.
ENGINE OVERBOOST
Your vehicle has an engine overboost
feature to allow additional torque delivery.
The overboost feature controls a variety
of engine parameters to deliver additional
torque. This feature widens the engine
speed range of the peak torque curve,
giving maximum performance while
passing another vehicle or launching from
a standing start.
The system allows a maximum of 20
seconds of engine overboost. After this
the system reduces turbo charger boost
and maximizes it at a predetermined limit.
Once the turbo charger boost drops below
the predetermined limit the system resets
and a further 20 seconds of engine
overboost is permitted.
Note: You do not need to take any action
as the system allows overboost when you
demand it.
23
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Driving Hints
TRANSPORTING THE VEHICLE
If your vehicle has to be towed, we
recommend that you contact a
professional towing service. If you are a
member of a roadside assistance program,
we recommend that you contact your
roadside assistance service provider.

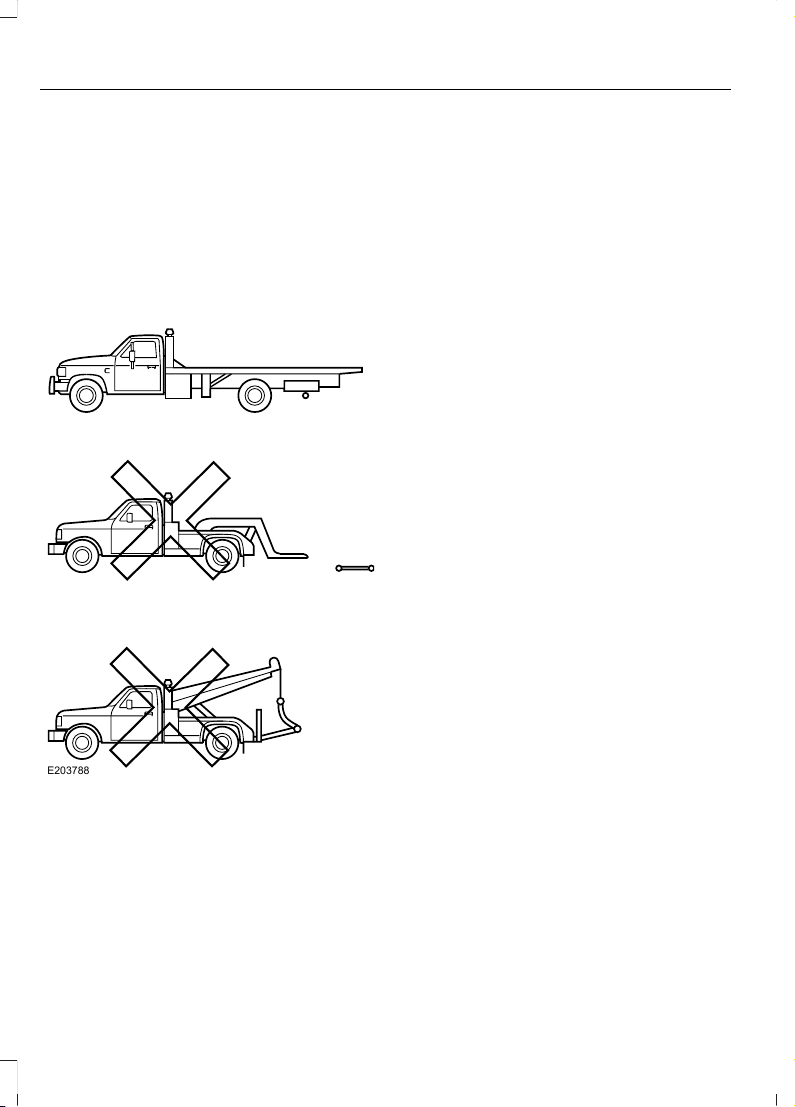

We recommend the use of flatbed
equipment to transport your vehicle.
E203788
Vehicle damage may occur if towed
incorrectly or by any other method.
• Do not tow your vehicle using wheel lift
equipment.
• Do not tow your vehicle using a
slingbelt.
Note: Incorrect towing methods can cause
damage not covered by the vehicle
Warranty.
24
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Roadside Emergencies

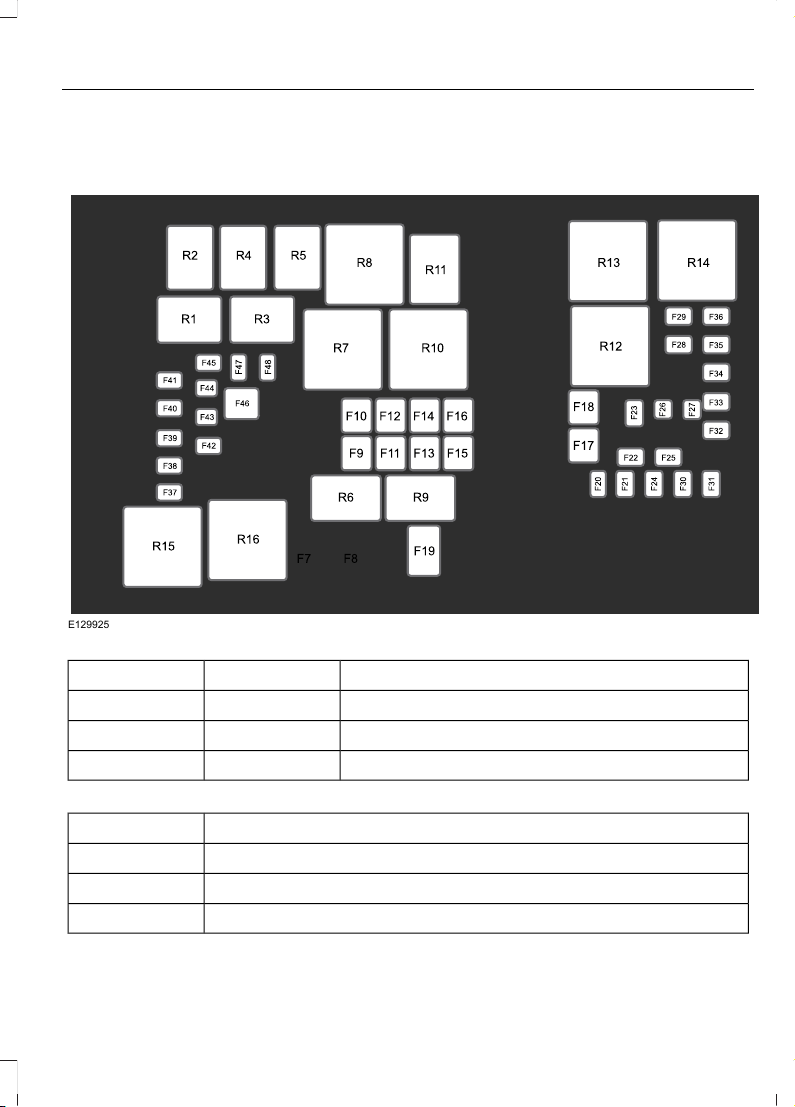

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
E129925
Circuit ProtectedFuse RatingFuse
Rear drive unit control.30AF17
Fuel pump electronic module 2 feed.20AF30
Exhaust valve.7.5AF36
Circuit SwitchedRelay
Fuel pump electronic module 2 feed.R1
Cooling fan control 5.R3
Cooling fan control 4.R5
25
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Fuses
Luggage Compartment Fuse Box
E129927
Circuit ProtectedFuse RatingFuse
Fuel control relay.
15AF21
Damper control relay.
Active noise control.
10AF22
Electronic sound enhancement.
Circuit SwitchedRelay
Fuel control module.R4
Damper control module.
26
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Fuses
UNDER HOOD OVERVIEW
A B C D
GH
E F
E213537
Engine coolant reservoir.A
Engine oil dipstick. See Engine Oil Dipstick (page 28).B
Engine oil filler cap.C
Brake fluid reservoir.D
Battery.E
Engine compartment fuse box. See Fuses (page 25).F
Air filter. See Changing the Engine Air Filter (page 28).G
Washer system fluid reservoir.H
27
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Maintenance
ENGINE OIL DIPSTICK
E169062
Minimum.A
Maximum.B
CHANGING THE ENGINE AIR
FILTER
WARNING
To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running.
Change the air filter element at the correct
interval. Only use the specified
replacement air filter. Incorrect
component use can cause damage not
covered by the vehicle Warranty.
When changing the engine air filter, do not
allow debris or foreign material to enter
the air induction system. The engine and
turbocharger are susceptible to damage
from even small particles.
To replace the air filter element do the
following:
E215050
3
2
1
x4
5
1. Remove the screws that secure the air
filter housing cover.
2. Remove the air filter housing cover.
3. Remove the air filter element from the
air filter housing.
28
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Maintenance
4. Wipe any dirt or debris from the air filter
housing and cover to make sure no dirt
gets in the engine and that you have a
good seal.
5. Install a new air filter element.
Note: Make sure you align the locating tab
on the air filter element with the fork in the
air filter housing.
6. Install the air filter housing cover.
7. Install the screws to secure the air filter
housing cover to the air filter housing.
DRIVE BELT ROUTING
E161383
A
B
Drives the water pump and
alternator and has two idler
pulleys.
A
Drives the air conditioning
compressor.
B
29
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Maintenance
We recommend that you only operate your
vehicle at high speeds at locations
designed to do so safely. Your vehicle has
electronic controls that may reduce power
or limit engine speed to help reduce
powertrain temperatures if required.
Note: When using your vehicle on a track,
have the vehicle serviced more frequently.
This recommendation may not necessarily
protect your vehicle or engine from damage
in competition conditions. Increased wear
and noise to certain parts of your vehicle
may also occur, for example brakes and
tires. The vehicle Warranty may not cover
mechanical failure or damage caused to
your vehicle as a result of track use.
Steering Assistance
Steering assistance reduces and
requires more steering effort
when you select sport or track
from the drive modes menu. See Drive
Control (page 20).
Prolonged track driving can result in high
steering gear temperatures. If the steering
gear overheats, you will notice a further
increase in steering effort being required.
High steering gear temperatures can be
reduced by doing any of the following:
• Reducing vehicle speed.
• Reducing steering input.
Normal track mode steering assistance
returns when the system cools down.
Note: Steering gear cooling time can be
reduced if you leave the ignition switched
on while taking a pit stop.
Before Track Use
Before operating your vehicle on a track,
check the following:
• Tire pressures. See Tire Pressures
(page 35). Do not exceed a cold tire
pressure of 50 psi (3.4 bar) for track
use.
• Wheels and tires for wear and damage.
• Engine coolant, engine oil and brake
fluid levels.
Do not operate your vehicle on a track
while:
• Carrying more than two people
including the driver.
• Carrying cargo in the luggage
compartment.
• Carrying cargo or loose objects inside
your vehicle.
After Track Use
After track use, leave the engine running
for a short time to allow it to reach the
normal operating temperature. If
conditions allow, complete a cool down
lap prior to taking a pit stop. Failure to
allow the engine to sufficiently cool may
result in a high coolant temperature
warning message appearing in the
information display.
You must replace the rear drive unit fluid
after 500 mi (800 km) of track use, or if
the following message appears in the
information display, whichever occurs first.
AWD System Oil Change Due
See All-Wheel Drive (page 13).
30
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Track Use
CLEANING THE EXTERIOR
Washing Your Vehicle
Your vehicle has heat exchangers
integrated with the front fascia designed
to maximize performance.
Do not apply a power washer or high
pressured spray nozzle directly to the heat
exchangers as damage to the cooling fins
could occur.
31
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Vehicle Care
WHEELS
Your vehicle has unique wheels. They can
be more susceptible to damage from poor
road conditions due to their diameter,
width and the use of low profile tires.
If the wheels encounter a harsh impact,
inspect the inside and outside diameters
for damage.
Inspect the wheels for damage on a regular
basis. If you damage a wheel, have it
checked as soon as possible.
To avoid damaging the wheels:
• Maintain correct tire pressures. See
Tire Pressures (page 35).
• When installing wheels, always use a
torque wrench and tighten the lug nuts
to the correct specification.
• Exercise caution when using
automated car washes. Hand washing
or using touchless car washes without
mechanical tracks is the best way to
avoid potential damage.
• Do not use snow chains on the original
equipment wheels and tires of your
vehicle.
• Only use snow chains with the
alternative winter wheels and tires, or
damage may be caused which will not
be covered by the vehicle Warranty.
Wheel Specification
19 in. x 8.0 in. 50 mm offset aluminum wheels.
Original equipment.
*
18 in. x 7.5 in. 50 mm offset aluminum wheels.
Alternative winter use wheel.
**
*
See Tires (page 33).
**
See Using Winter Tires (page 34).
Note: Alternative winter use wheels are not supplied with your vehicle.
32
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Wheels and Tires
TIRES
The tires on your vehicle are designed to
optimize its performance. They are not
optimized for off-road or winter
performance. The ride, noise and wear
characteristics are different to
non-performance tires. Your vehicle has
low profile tires. They can be more
susceptible to damage from poor road
conditions due to their diameter and width.
To make sure the tires perform as
intended, it is important to correctly
maintain them.
To correctly maintain the tires, do the
following:
• Maintain correct tire pressures. See
Tire Pressures (page 35).
• Do not overload your vehicle.
Maximum vehicle and axle weights are
listed on the tire information label.
• Take extra caution when operating
your vehicle near its maximum load,
including using the correct tire
pressures and reducing speeds.
• Take extra caution when operating on
rough roads to avoid impacts that
could cause tire damage.
• Inspect the tires for damage on a
regular basis. If a tire is damaged,
replace it as soon as possible.
• Correct suspension alignment is critical
for maximum performance and
optimal tire wear. If you notice uneven
tire wear, have the suspension
alignment checked as soon as possible.
• When replacing tires they must be of
the same size, speed and load rating
as the original tires. We recommend
that you replace tires as a set of four
and do not mix tire brands or models.
Note: Do not use snow chains on the
original equipment wheels and tires of your
vehicle.
Note: Only use snow chains with the
alternative winter wheels and tires, or
damage may be caused which will not be
covered by the vehicle Warranty. See Using
Winter Tires (page 34).
Tire Specification
235/35R19Size.
YSpeed rating.
91Load rating.
33
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Wheels and Tires
USING SUMMER TIRES
The original equipment tires on your vehicle
are designed to optimize its performance
in dry or wet summer road conditions. The
rubber compounds used in these tires lose
flexibility and may develop surface cracks
in the tread area at temperatures below
19°F (-7°C).
We do not recommend using the original
equipment tires when temperatures drop
below 45°F (7°C) or in snow and ice
conditions.
Storing Summer Tires
Note: Always store your tires indoors at
temperatures above 19°F (-7°C).
If the tires have been subjected to 19°F
(-7°C) or less, warm the tires for at least
24 hours in a heated space to at least 41°F
(5°C):
• Before installing them on a vehicle.
• Before moving a vehicle.
• Before checking tire inflation.
Note: Do not place tires near heaters or
heating devices used to warm the room
where the tires are stored.
Note: Do not apply heat or blow heated air
directly onto the tires.
Note: Always inspect the tires after storage
periods and before use.
USING WINTER TIRES
The original equipment tires on your vehicle
are designed to optimize its performance
in dry or wet summer road conditions.
They are not optimized for off-road or
winter performance and you must not use
them with snow chains. The use of any
type of snow chain with the original
equipment wheels and tires of your vehicle
may cause damage not covered by the
vehicle Warranty. We do not recommend
using the original equipment tires when
temperatures drop below 45°F (7°C) or in
snow and ice conditions.
We recommend that you use winter or
all-season tires when temperatures drop
below 45°F (7°C) or in snow and ice
conditions.
When using winter tires:
• Do not operate your vehicle above
posted speed limits or perform high
speed maneuvers.
• If you fit winter tires with a speed rating
less than the original equipment tires,
do not exceed the maximum speed
rating for the tire.
Tire Specification
235/35R19Original equipment size.
225/40R18
*
Alternative winter use size.
VSpeed rating.
92Load rating.
*
Required tire size for snow chain use to avoid tire, wheel or vehicle damage. See Wheels
(page 32).
34
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Wheels and Tires
TIRE PRESSURES
Check all tire pressures when they are cold,
at least once every two weeks. Check
them after the vehicle has been parked for
at least three hours. Tire pressure can
diminish over time and fluctuate with
temperature. Do not reduce the tire
pressure of warm tires.
The recommended tire inflation pressures
are on the tire information label on the
driver side B-pillar.
Note: Do not exceed a cold tire pressure of
50 psi (3.4 bar) for track use.
35
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Wheels and Tires
ENGINE SPECIFICATIONS
SpecificationDimension Description
138.0 in³ (2,261.4 cm³)Engine capacity.
3.4 in (87.5 mm)Engine bore.
3.7 in (94 mm)Engine stroke.
9.4:1Compression ratio.
1-3-4-2Ignition firing order.
Coil on spark plugIgnition system.
0.030 in (0.75 mm)Spark plug gap.
257.4/6000
*
Maximum net power kW/RPM.
350/6000
*
Maximum net power PS/RPM.
345/6000
*
Maximum net power hp/RPM.
440/2000-4500Maximum net torque Nm/RPM.
325/2000-4500Maximum net torque lb.ft/RPM.
6500Maximum continuous engine RPM.
6800Maximum intermittent engine RPM.
ChainCamshaft drive.
*
We derive engine performance figures according to Regulation (EC) 715/2007 and ECE
R85.
36
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
TRANSMISSION SPECIFICATIONS
Transmission and final drive ratios
6-Speed Manual Transmission - MMT6
Final Drive RatioGear RatioGear
4.0633.231st gear.
4.0631.952nd gear.
4.0631.323rd gear.
4.0631.034th gear.
2.9551.135th gear.
2.9550.946th gear.
2.9554.60Reverse gear.
37
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
BRAKE SYSTEM SPECIFICATIONS
in (mm)Dimension Description
0.4–1.2 (10–30)Brake pedal free travel.
0.9 (23)Front brake disc minimum thickness.
0.4 (9)Rear brake disc minimum thickness.
38
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
STEERING SPECIFICATIONS
Wheel Alignment
SpecificationDimension Description
0.20° ±0.20°Front wheel - Total Toe.
0.30° ±0.20°Rear wheel - Total Toe.
Turning Circle
SpecificationDimension Description
39.4 ft (12 m)Minimum turning circle.
39
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
SUSPENSION SPECIFICATIONS
SpecificationDimension Description
-1.51° (±1.25°)Front camber.
4.79° (±1°)Front caster.
-0.97° (±1.25°)Rear camber.
Macpherson strut.Front suspension.
Multilink.Rear suspension.
40 N/mmFront spring rate.
44 N/mmRear spring rate.
24.2 mmFront stabilizer bar.
20 mmRear stabilizer bar.
40
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
MOTORCRAFT PARTS
Part NumberComponent
FA-1908Air filter.
FL-910-S
Oil filter.
*
BAGM-48H6-760Battery.
SP-537
Spark plugs.
**
FP-70Cabin air filter.
WW-2802Driver side windshield wiper blade.
WW-2803Passenger side windshield wiper blade.
WW-1295Rear window wiper blade.
*
If you are unable to find a Motorcraft oil filter that meets the specification defined within
FL-910-S, it is acceptable to use an oil filter that is defined by the specification
SAE/USCAR-36.
**
We recommend that you contact an authorized dealer for spark plug replacement.
We recommend that you demand the use
of genuine Ford and Motorcraft parts
whenever your vehicle requires scheduled
maintenance or repair. Genuine Ford and
Motorcraft parts meet or exceed these
specifications. Incorrect component use
can cause damage not covered by the
vehicle Warranty.
TRANSMISSION CODE
DESIGNATION
CodeTransmission
VGetrag-Ford Transmission.
6-Speed Manual Transmis-
sion - MMT6
CAPACITIES AND
SPECIFICATIONS
WARNING
The air conditioning refrigerant
system contains refrigerant under
high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.
41
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
QuantityItem
5.7 qt (5.4 L)Engine oil fill capacity including the oil filter.
5.4 qt (5.1 L)Engine oil fill capacity excluding the oil filter.
9.7 qt (9.2 L)Engine coolant fill capacity.
Between MIN and MAX
on brake fluid reservoir.
Brake fluid fill capacity.
2.0 qt (1.9 L)Manual transmission fluid fill capacity.
0.8 qt (0.75 L)Power transfer unit fill capacity.
30.1 fl oz (890 ml)Rear drive unit fill capacity.
1.2 gal (4.5 L)Washer system fill capacity.
13.7 gal (52 L)Fuel tank fill capacity.
21.16 oz (0.6 kg)Air conditioning refrigerant fill capacity.
4.40 fl oz (130 ml)Air conditioning refrigerant compressor oil fill capacity.
Adding Engine Oil
Quantity
0.9 qt (0.85 L)
The quantity of engine oil required to raise
the indicated level on the dipstick from
minimum to maximum.
Specifications
Only use fluid that meets Ford
specifications.
Materials
SpecificationName
WSS-M2C931-CMotorcraft® SAE 5W-50 Full Synthetic Motor Oil (U.S.)
Full Synthetic Motor Oil / Huile Moteur Synthétique (Canada)
XO-5W50-QGT (U.S. & Canada)
WSS-M97B44-D2Motorcraft® Orange Prediluted Antifreeze/Coolant (U.S.)
Orange Prediluted Antifreeze/Coolant / Antigel/liquide de
refroidissement prédilué orange (Canada)
VC-3DIL-B (U.S.)
CVC-3DIL-B (Canada)
WSS-M6C65-A2Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid
(U.S.)
DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de
frein automobile haute performance DOT 4 LV (Canada)
42
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
SpecificationName
PM-20 (U.S. & Canada)
WSS-M2C200-D2Motorcraft® Dual Clutch Transmission Fluid (U.S.)
Dual Clutch Transmission Fluid / Huile pour boîtes embrayage double
(Canada)
XT-11-QDC (U.S. & Canada)
WSL-M2C192-AMotorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant (U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant
synthétique pour pont arrière SAE 75W-140 Motorcraft® (Canada)
XY-75W140-QL (U.S.)
CXY-75W140-1L (Canada)
WSS-M2C942-AMotorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant
(U.S.)
PREMIUM SYNTHETIC HYPOID GEAR LUBRICANT / HUILE
SYNTHÉTIQUE DE HAUTE QUALITÉ POUR ENGRENAGES
HYPOÏDES (Canada)
XY-75W85-QL (U.S. & Canada)
WSS-M14P19-AMotorcraft® Premium Windshield Wash Concentrate with Bitterant
(U.S.)
Premium Quality Windshield Washer Fluid / Liquide lave-glace de
haute qualité (Canada)
ZC-32-B2 (U.S.)
CXC-37-A/B/D/F (Canada)
WSS-M17B21-AR-1234yf Refrigerant (U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf (Canada)
YN-33-A (U.S.)
HS7Z-19B519-BA (Canada)
WSS-M2C300-A2Motorcraft® R-1234yf Refrigerant PAG Oil (U.S.)
R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
(Canada)
YN-35 (U.S. & Canada)
ESB-M1C93-BMotorcraft® Multi-Purpose Grease Spray (U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse multiusage
(Canada)
XL-5-A (U.S. & Canada)
-Penetrating and Lock Lubricant (U.S.)
Penetrating Fluid / Liquide dégrippant (Canada)
XL-1 (U.S.)
CXC-51-A (Canada)
43
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
E142732
If you are unable to find an engine oil that
meets the specification defined by
WSS-M2C931-C, it is acceptable to use a
motor oil of the recommended viscosity
grade that meets API SN requirements and
displays the API Certification Mark for
gasoline engines. Do not use oil labeled
with API SN service category unless the
label also displays the API certification
mark.
An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricants Specification
Advisory Council (ILSAC).
Note: Do not use more than 1.1 qt (1 L) of
the alternative engine oil between
scheduled service intervals.
Using oil and fluids that do not meet the
defined specification and viscosity grade
may lead to:
• Component damage which may not be
covered by the vehicle Warranty.
• Longer engine cranking periods.
• Increased emission levels.
• Reduced engine performance.
• Reduced fuel economy.
• Degraded brake performance.
Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.
44
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Capacities and Specifications
GENERAL MAINTENANCE
INFORMATION
Protecting Your Investment
Your vehicle is equipped with an intelligent
oil life monitoring system. Under normal
operating conditions, a message appears
in the information display to indicate the
regular oil change interval. High
performance vehicles tend to be driven in
such a way that the engine experiences
high speed and high load. As a result, some
oil consumption could occur and the
message appears earlier than the regular
oil change interval. If you drive your vehicle
this way, we recommend that you check
the engine oil level every 2,000 mi
(3,000 km) and fill the engine to the
maximum mark on the engine oil dipstick.
Note: Do not add oil further than the
maximum mark.
45
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Scheduled Maintenance
46
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
A
About This Supplement.................................3
ABS
See: Brakes..............................................................18
Air Filter
See: Changing the Engine Air Filter...............28
All-Wheel Drive................................................13
At a Glance..........................................................5
AWD
See: All-Wheel Drive............................................13
B
Brakes..................................................................18
General Information.............................................18
Brake System Specifications.....................38
C
Capacities and Specifications...................41
Adding Engine Oil.................................................42
Specifications........................................................42
Car Wash
See: Cleaning the Exterior..................................31
Changing the Engine Air Filter...................28
Cleaning the Exterior......................................31
Washing Your Vehicle..........................................31
D
Drive Belt Routing..........................................29
Drive Control....................................................20
Enhanced Torque Vectoring Control..............21
Selectable Drive Modes.....................................20
Suspension Damping...........................................21
Driving Aids.......................................................20
Driving Hints.....................................................23
Driving Through Water..................................23
E
Engine Oil Dipstick.........................................28
Engine Overboost...........................................23
Engine Overspeed..........................................23
Engine Specifications...................................36
F
Ford Performance............................................4
Fuel and Refueling...........................................11
Fuel Quality........................................................11
Choosing the Right Fuel.......................................11
Fuses...................................................................25
Fuse Specification Chart.............................25
Engine Compartment Fuse Box......................25
Luggage Compartment Fuse Box..................26
G
Gauges..................................................................7
Oil Pressure Gauge.................................................7
Oil Temperature Gauge.........................................7
Turbocharger Boost Gauge.................................7
Gearbox
See: Transmission.................................................12
General Maintenance Information..........45
Protecting Your Investment.............................45
I
Information Displays.......................................8
General Information..............................................8
Information Messages....................................8
All-Wheel Drive.......................................................9
Message Indicator..................................................8
Instrument Cluster............................................7
Introduction........................................................3
M
Maintenance.....................................................27
Manual Seats...................................................10
Manual Transmission.....................................12
Recommended Shift Speeds...........................12
Message Center
See: Information Displays...................................8
Motorcraft Parts..............................................41
R
Roadside Emergencies.................................24
47
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Index
S
Scheduled Maintenance.............................45
Seats....................................................................10
Stability Control...............................................19
Steering Specifications................................39
Suspension Specifications........................40
SVT.........................................................................3
T
Team RS...............................................................3
Technical Specifications
See: Capacities and Specifications...............36
Tire Pressures..................................................35
Tires.....................................................................33
Tires
See: Wheels and Tires........................................32
Towing a Trailer...............................................22
Towing................................................................22
Track Use..........................................................30
After Track Use.....................................................30
Before Track Use..................................................30
Steering Assistance............................................30
Transmission Code Designation................41
Transmission Specifications......................37
Transmission.....................................................12
Transporting the Vehicle.............................24
U
Under Hood Overview...................................27
Unique Features................................................5
Chassis........................................................................6
Exterior........................................................................6
Interior.........................................................................6
Powertrain.................................................................5
Using All-Wheel Drive...................................13
Driving in Special Conditions............................14
Using Mismatched Tires or Wheels................13
Using Stability Control..................................19
Switching Sport Mode On.................................19
Switching the System Off..................................19
Using Summer Tires......................................34
Storing Summer Tires........................................34
Using Winter Tires..........................................34
V
Vehicle Care.......................................................31
W
Warning Lamps and Indicators....................7
Performance Shift Indicator................................7
Washers
See: Cleaning the Exterior..................................31
Wheels and Tires............................................32
Wheels................................................................32
Winter Tires
See: Using Winter Tires......................................34
48
2017 Focus RS (CEW) RS, Canada/United States of America, HM5J 19A285 DA enUSA, Edition date: 201611, First Printing
Index
HM5J 19A285 DA, Edition date: 201611
