Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
W2442PE
User’s Guide
A1
This unit has been engineered and manufactured to ensure your personal safety,
however improper use may result in potential electrical shock or fire hazards. In
order to allow the proper operation of all safeguards incorporated in this display,
observe the following basic rules for its installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display:
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Important Precautions
A2
Important Precautions
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
Do not shock or scratch the front and sides of the screen with metallic objects.
Otherwise, it may cause damage to the screen.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
A3
Connecting the Display
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

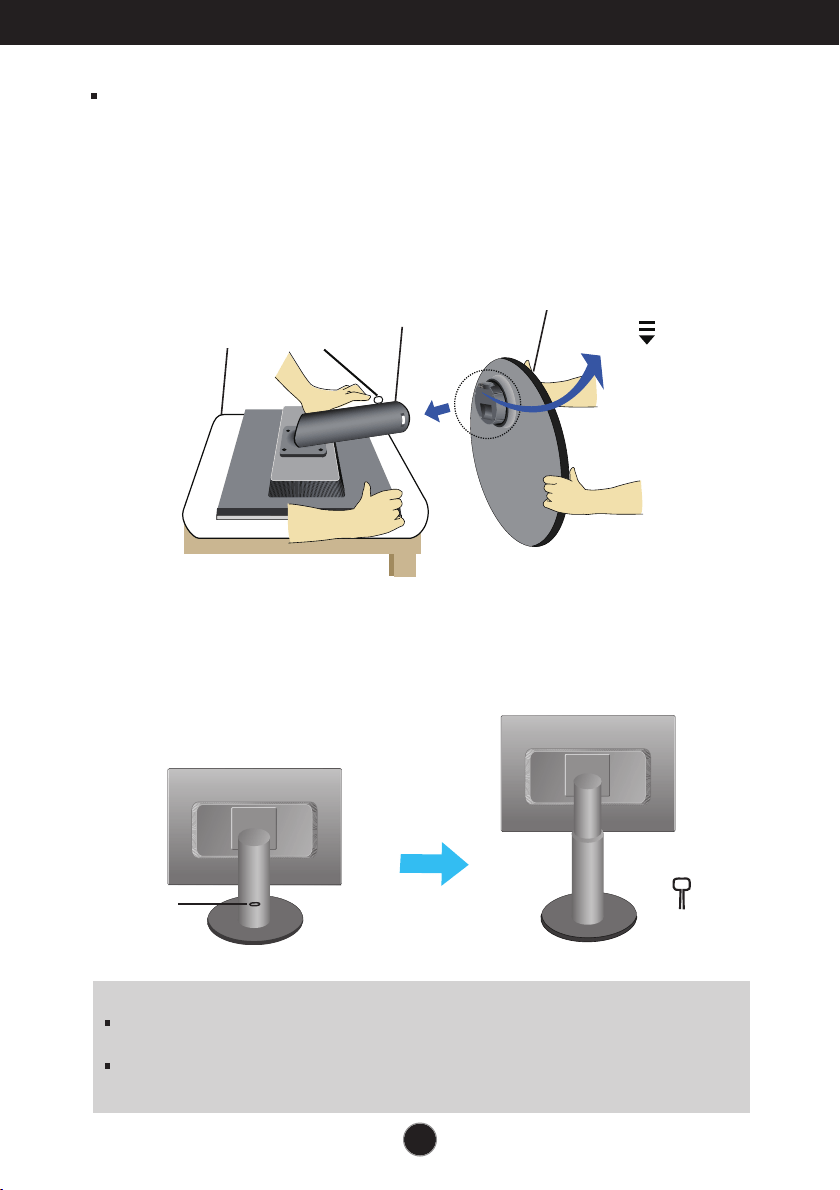

Connecting the stand
1. Place the monitor with its front facing downward on a cushion or soft cloth.
2. Assemble the Stand Base into the Stand Body.
Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.
3. Make the monitor stand , then pull out the Stop Pin.
Stand Base
FRONT
Stand Body
Stop PinSide
Stop Pin
Stop Pin
pull out the stop pin
The tape and locking pin may only be removed from those monitors
equipped with a standing base when the base is pulled up. Otherwise,
you may be injured by the protruding sections of the stand.
Warning:
A4
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range: -5˚~ 18˚ Swivel: 356˚
Ergonomic
It is recommended that in order to maintain an ergonomic and comfortable viewing
position, the forward tilt angle of the monitor should not exceed 5 degrees.
Height Range: maximum 4.33 inch (110.0 mm)
110.0 mm
First, remove
the locking pin.
-5˚ 18˚
A5
Connecting the Display

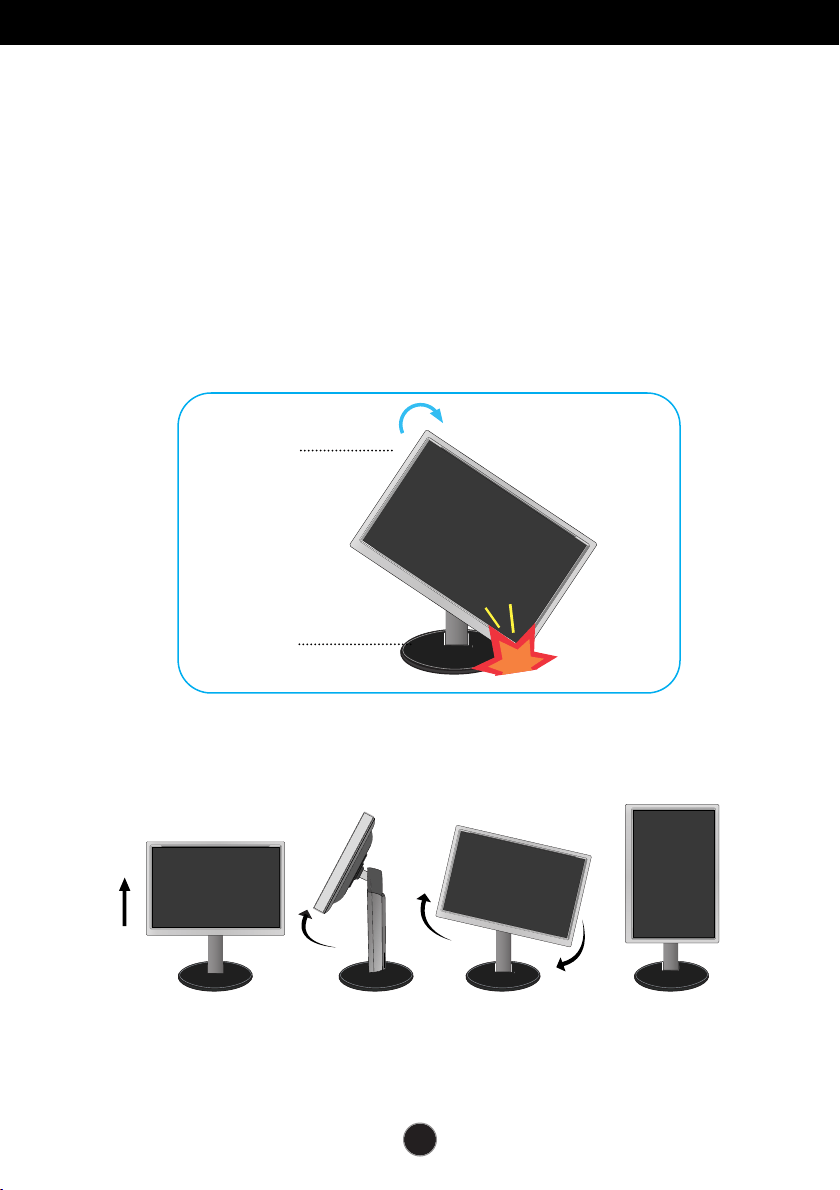

-The pivot function allows you to rotate the screen 90 degrees clockwise.
1
.
Lift the monitor to its highest height to utilize the Pivot function.
2. Landscape & Portrait : You can rotate the panel 90
o
clockwise.
Please be cautious and avoid contact between the monitor head and the
Stand Base when rotating the screen to access the Pivot function. If the
monitor head touches the Stand Base, then the Stand Base could crack.
3.
Be careful with the cables when rotating the screen.
Using the Pivot function
Stand section
Head section
A6
Connect DVI-D Cable
Connect D-sub Cable (PC)
Connect D-sub Cable (Mac)
Connect HDMI Cable
Connect Audio Cable
Using the Computer
1. Make sure to turn off the computer and product. Connect the cable as below sketch map
form to .
1
2. Press button on the front switch panel to turn the
power on. When monitor power is turned on, the
'Self Image Setting Function' is executed automatically.
(Only Analog Mode)
2
Connecting the Display
A
B
C
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user
connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual
input signals.
‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted
screen while using the device or after changing screen resolution, press the AUTO/SET function button to improve
resolution.
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from
the view as shown.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI
cable) with ferrite cores to maintain standard compliance for the product.
D
E
Wall-outlet type
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector on the
supplied cable to a 15 pin 2 row connector.
DVI-D(This feature is not
available in all countries.)
Power Cord
Varies according to model.
Signal Cable
Headphone/Earphone Input
AV equipment
(Set-Top Box, DVD, Video,
Video Game Console)
* HDMI is optimized on the AV equipment.
* Not supported PC
A7
Connecting the Display

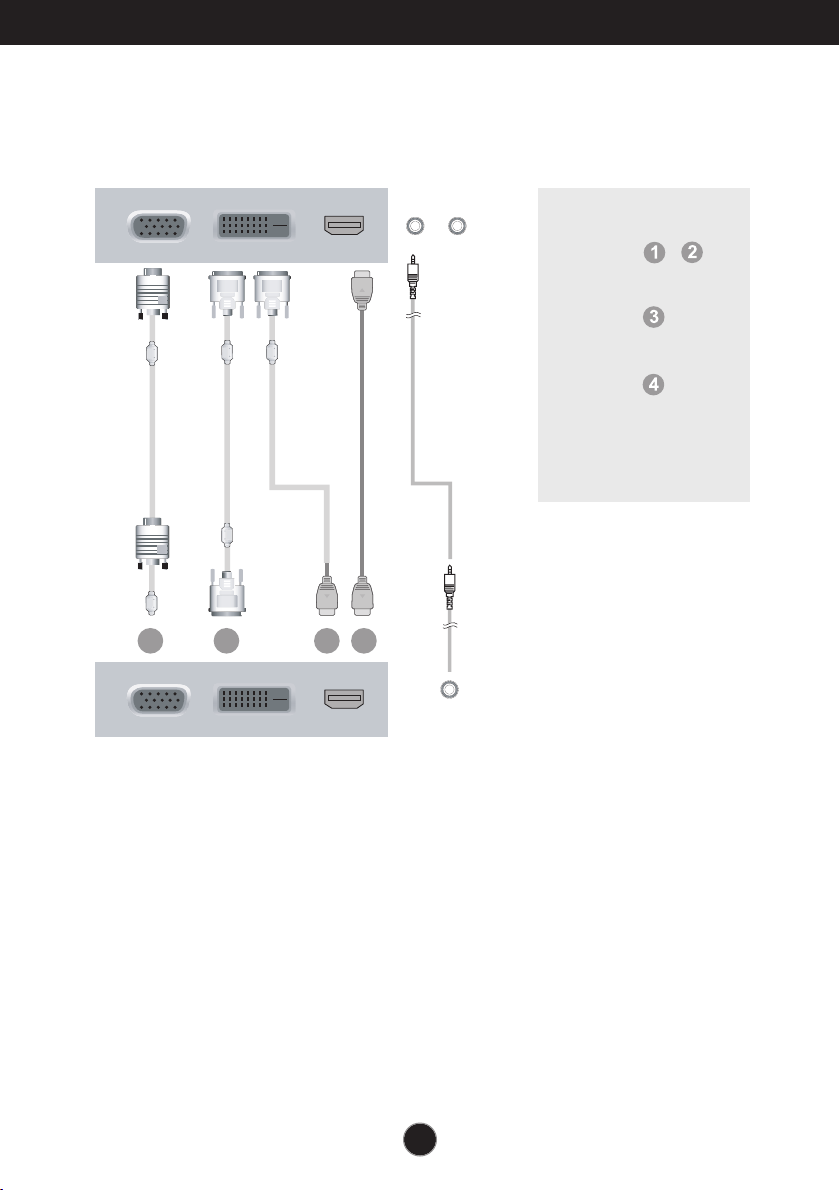

• Audio & Video connection
To hear sound, Connect Video and audio cable properly.
21 3 4
Audio cable
Monitor
Audio out
Connection scene
Connection , :
Use audio cable.
Connection :
Use audio cable.
Connection :
No need Audio cable
HDMI signal includes audio
data .
A8
Connecting the Display

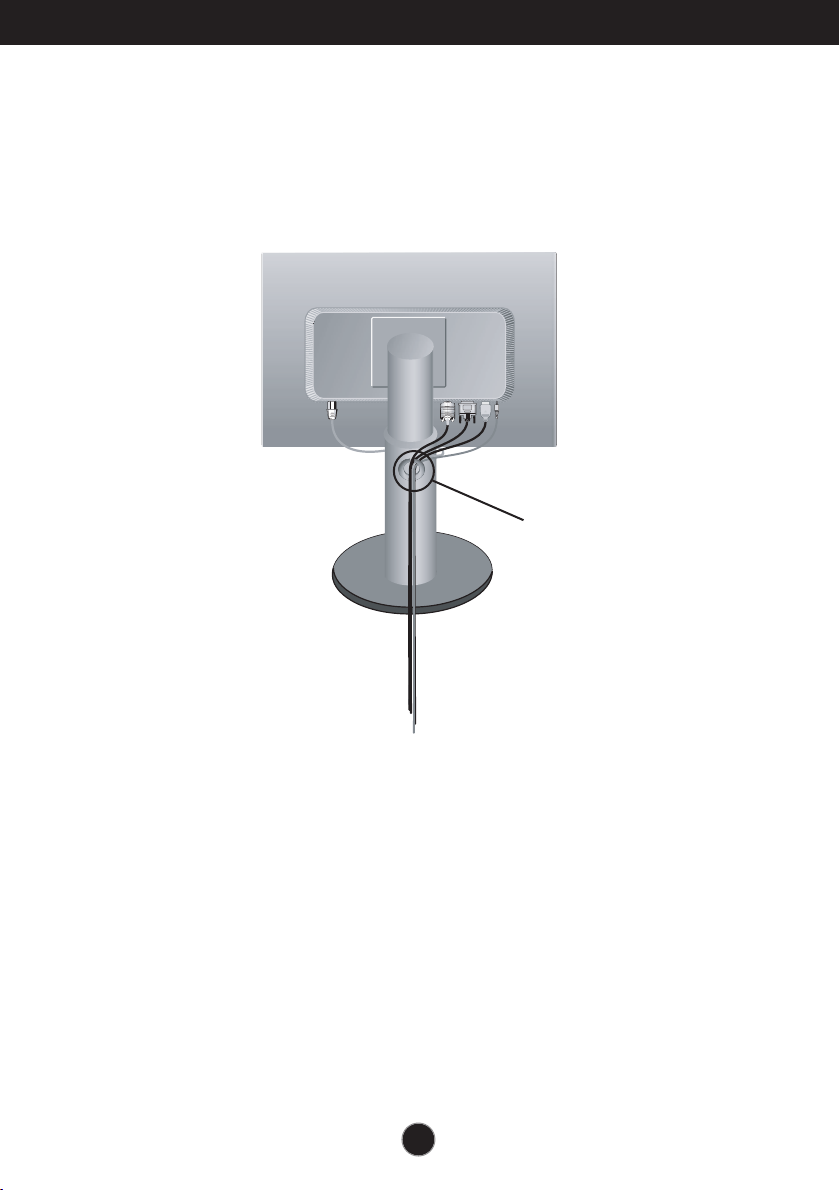

Using the cable holder
1. If you want to use the cable holder to let your cables together, please put them through
right as shown. For if you don't do like that, you cannot use Pivot function smoothly.
Cable Holder
A9

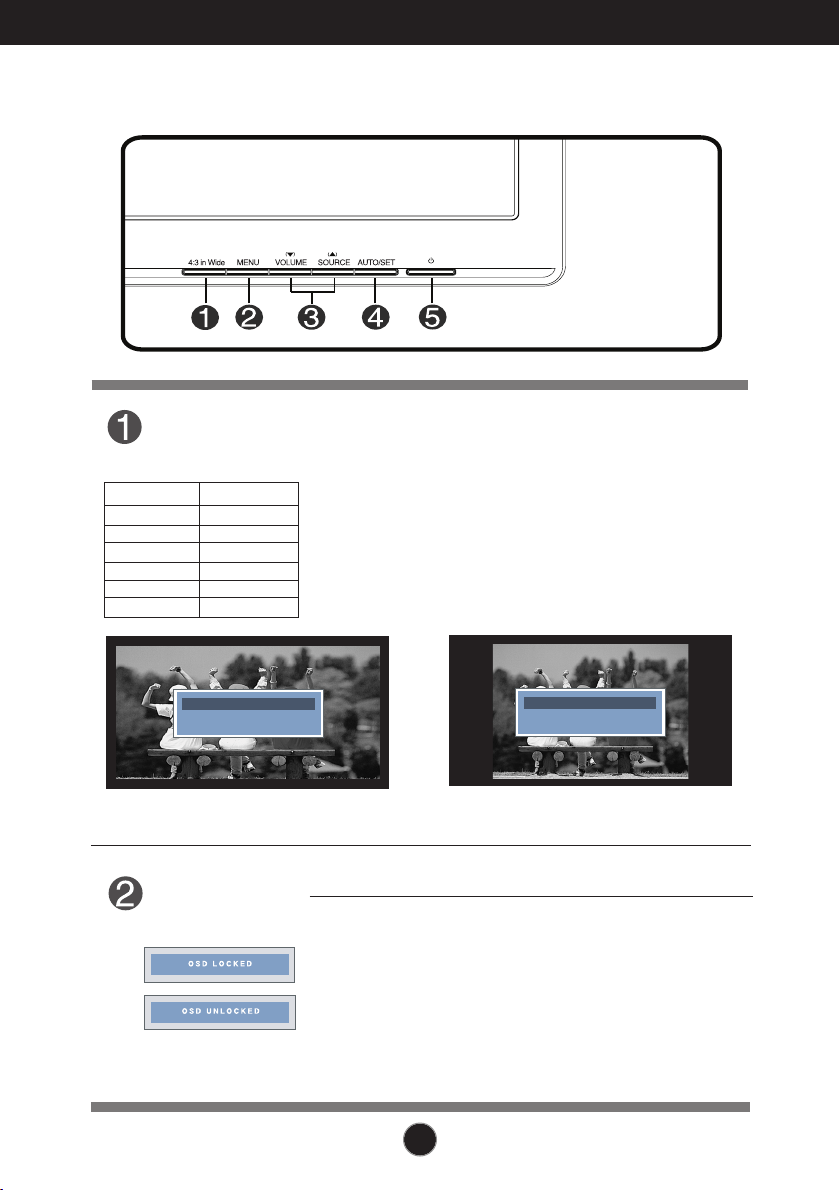

Control Panel Functions
MENU Button
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
Front Panel Controls
4 : 3 in Wide
Button
WIDE mode
4 : 3 display mode
It allows you to adjust the size of screen you are watching now.
• WIDE : The video source is displayed in full screen size.
• 4 : 3 :
Depending on the input video signal ratio, it is automatically
changed to an optimized screen ratio. (The 1280X1024
input signal is changed to 5:4 ratio and 1024X768 to 4:3.)
Resolution Screen ratio
1280x1024
1152x864
1024x768
800x600
640x480
720x480
5 : 4
4 : 3
4 : 3
4 : 3
4 : 3
3 : 2
❈ The input signal which the 4:3 IN WIDE does not support the '4:3'
is the following.
-
720 x 400, 1280 x 768, 1360 x 768, 1440 x 900, 1680 x 1050,
1920 x 1080
4 : 3 IN WIDE
WIDE
4 : 3 IN WIDE
4 : 3
A10
Control Panel Functions
This Indicator lights up blue when the display
operates normally(On Mode). If the display is in Sleep
Mode (Energy Saving), this indicator color changes
to amber.
Use this button to turn the display on or off.
Power Button
Power Indicator
Use this button to enter a selection in the On Screen
Display.
AUTO/SET
Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO/SET button before entering the On Screen
Display(OSD). This will automatically adjust your
display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is
W2442PE : 1920 x 1080
Buttons
Use these buttons to select or adjust functions in the
On Screen Display.
Use buttons to decrease or increase the speaker
volume.
Use this button to make RGB, DVI or HDMI connector
active. This feature is used when two computers are
connected to the display. The default setting is RGB.
*HDMI is optimized on the AV equipment.
Button
(SOURCE)
Button
(VOLUME)
A11
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating parameters of
the display is quick and easy with the On Screen Display Control system.
A short example is given below to familiarize you with the use of the controls.
The following section is an outline of the available adjustments and selections
you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the AUTO/SET Button.
Use the / Buttonsto adjust the image to the desired level. Use the
AUTO/SET Button to select other sub-menu items.
Push the MENU Buttononce to return to the main menu to select another
function. Push the MENU Buttontwice to exit from the OSD.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
AUTO/SET
MENU MENU
A12

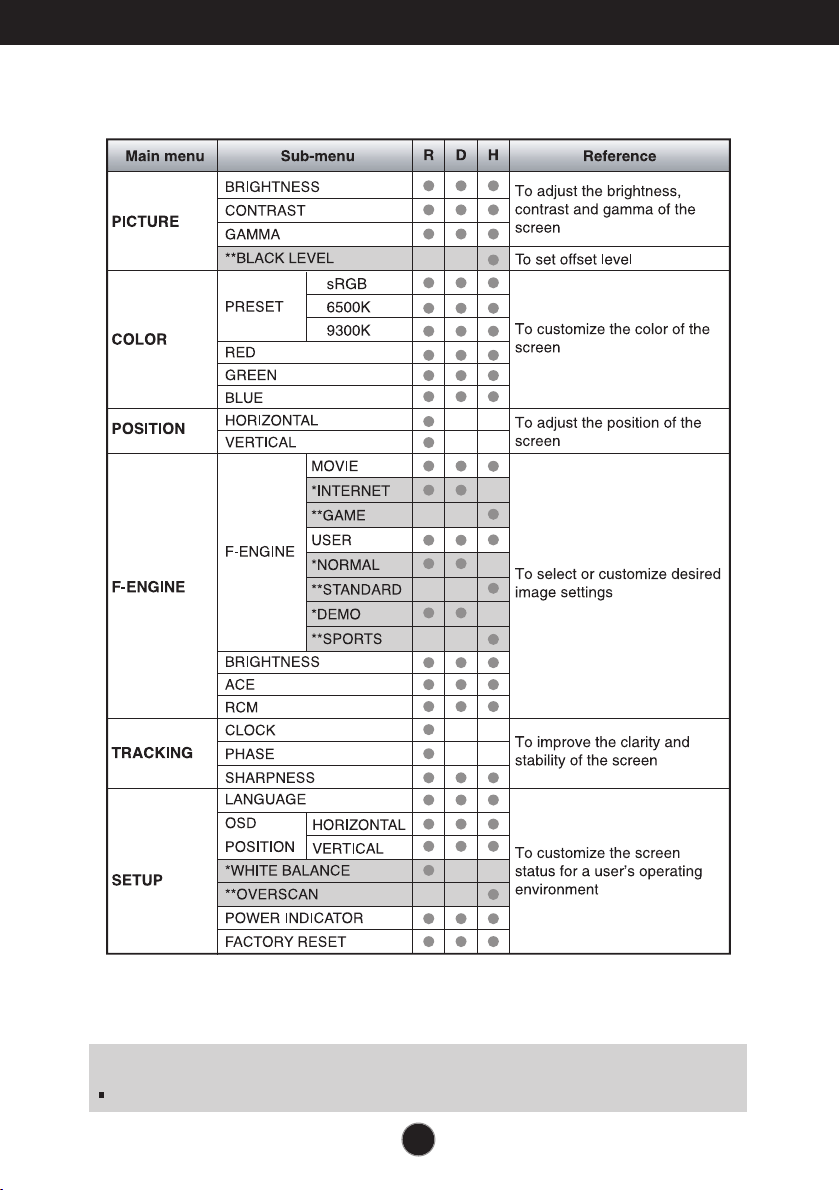

On Screen Display(OSD) Selection and Adjustment
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
●
: Adjustable R : RGB Input
* : only for RGB/DVI Input D : DVI Input
** : only for HDMI Input H : HDMI Input
NOTE
The order of icons may differ depending on the model (A12~A18 ).
A13
On Screen Display(OSD) Selection and Adjustment
Menu Name
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Press the MENU Button, then the main menu of the OSD appears.
Menu Name
Main Menu
Button Tip
MENU : Exit
: Adjust (Decrease/Increase)
SET : Enter
: Select another sub-menu
: Restart to select sub-menu
Sub-menus
Icons
A14

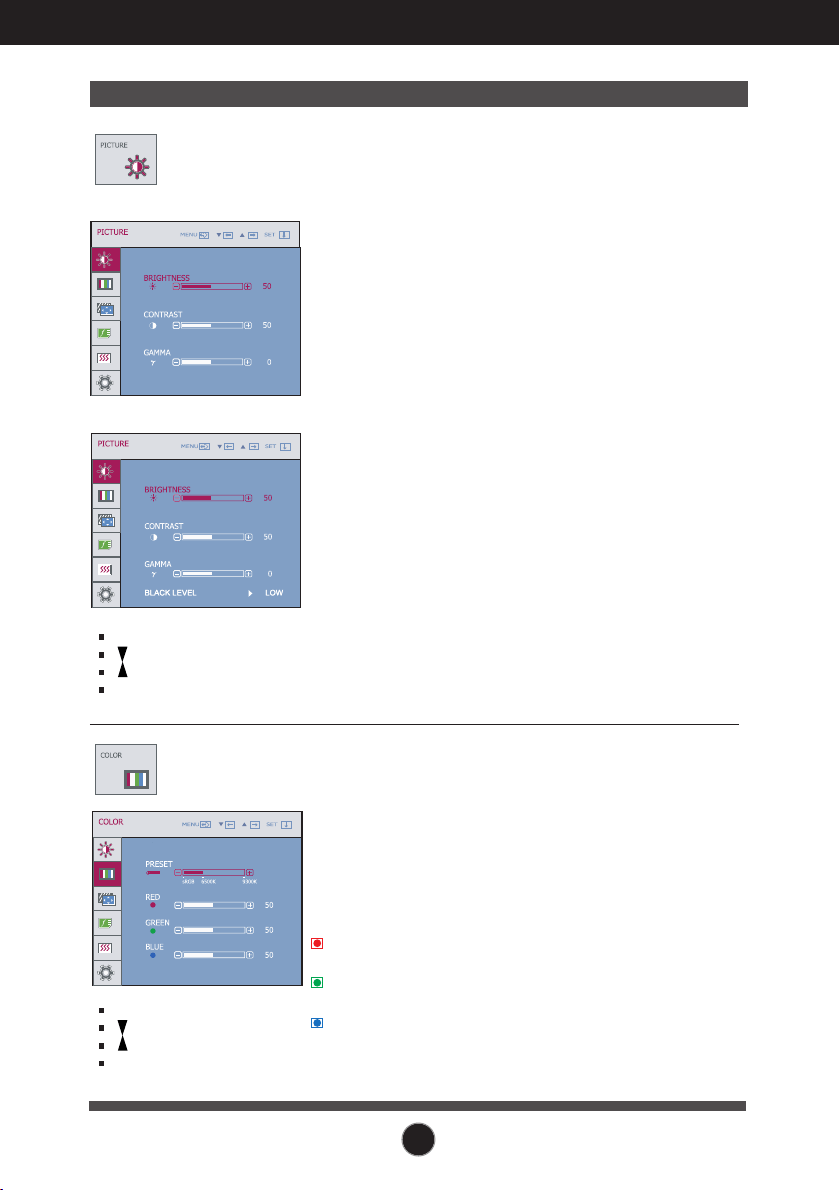

On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
PRESET
RED
GREEN
BLUE
• sRGB: Set the screen color to fit the
SRGB standard color
specification.
• 6500K: Slightly reddish white.
• 9300K: Slightly bluish white.
Set your own red color levels.
Set your own green color levels.
Set your own blue color levels.
COLOR
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
BRIGHTNESS
CONTRAST
GAMMA
BLACK LEVEL
To adjust the brightness of the screen.
To adjust the contrast of the screen.
Set your own gamma value. : -50/0/50
On the monitor, high gamma values
display whitish images and low gamma
values display high contrast images.
You can set the offset level. If you select
'HIGH', the screen will be bright and if you
select ‘LOW’, the screen will be dark.
(only for HDMI input)
* Offset? As the criteria for video signal, it is the
darkest screen the monitor can show.
RGB/DVI input
HDMI input
A15
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
POSITION
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
HORIZONTAL
VERTICAL
To move image left and right.
To move image up and down.
MENU : Exit
: Decrease
: Increase
SET :
Select another sub-menu
Select the sub-menu using the AUTO/SET
button and save the YES value using the ,
buttons.
You can manually adjust brightness, ACE or RCM.
You can save or restore the adjusted value even
when using a different environment.
...
(Brightness): Adjusts screen brightness.
...
ACE
(Adaptive Clarity Enhancer)
: Selects the clarity mode.
...
RCM(Real Color Management): Selects the color mode.
Not applied
Green enhance
Flesh tone
Color Enhance
0
1
2
3
USER

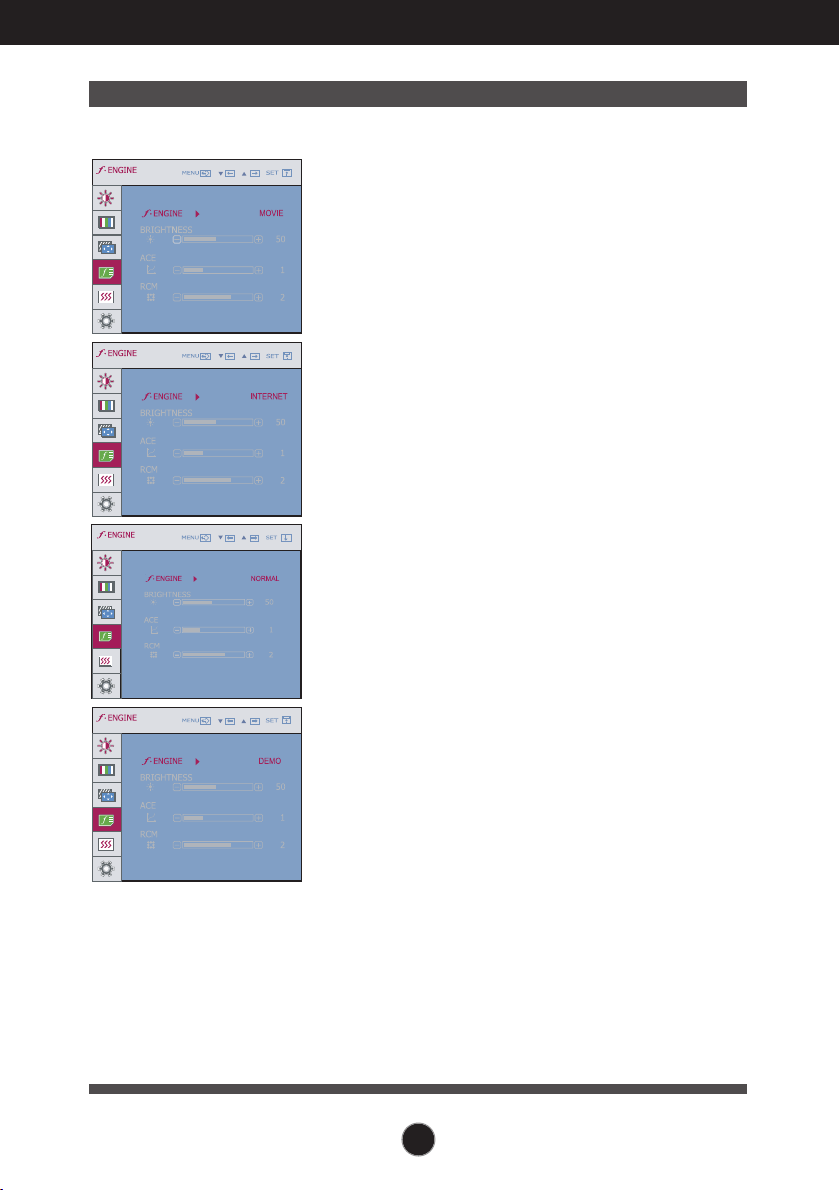

A16
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
MOVIE
INTERNET
GAME
NORMAL
STANDARD
DEMO
SPORTS
This is for animation images in videos or movies.
This is for text images (Word processing etc).
(only for RGB/DVI input)
This is for game images.
(only for HDMI input)
This is under normal operating conditions.
(only for RGB/DVI input)
* Normal mode is when f-ENGINE is turned off.
This is under standard operating conditions.
(only for HDMI input)
This is just for advertising to customer in the shops.
It's setting is same with Movie mode and screen is
divided by half.
(only for RGB/DVI input)
This is for sports image.
(only for HDMI input)
*These features let you easily select the best desired
image condition optimized to the environment (ambient
illumination, image types etc)
.
Movie, Game, sport mode are for Moving picture.
Standard mode is for internet, text.
On Screen Display(OSD) Selection and Adjustment
A17
Main menu Sub menu Description
CLOCK
PHASE
SHARPNESS
To minimize any vertical bars or
stripes visible on the screen
background.
The horizontal screen size will also
change.
To adjust the focus of the display.
This item allows you to remove
any horizontal noise and clear or
sharpen the image of characters.
To adjust the clearness of the
screen.
TRACKING
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu

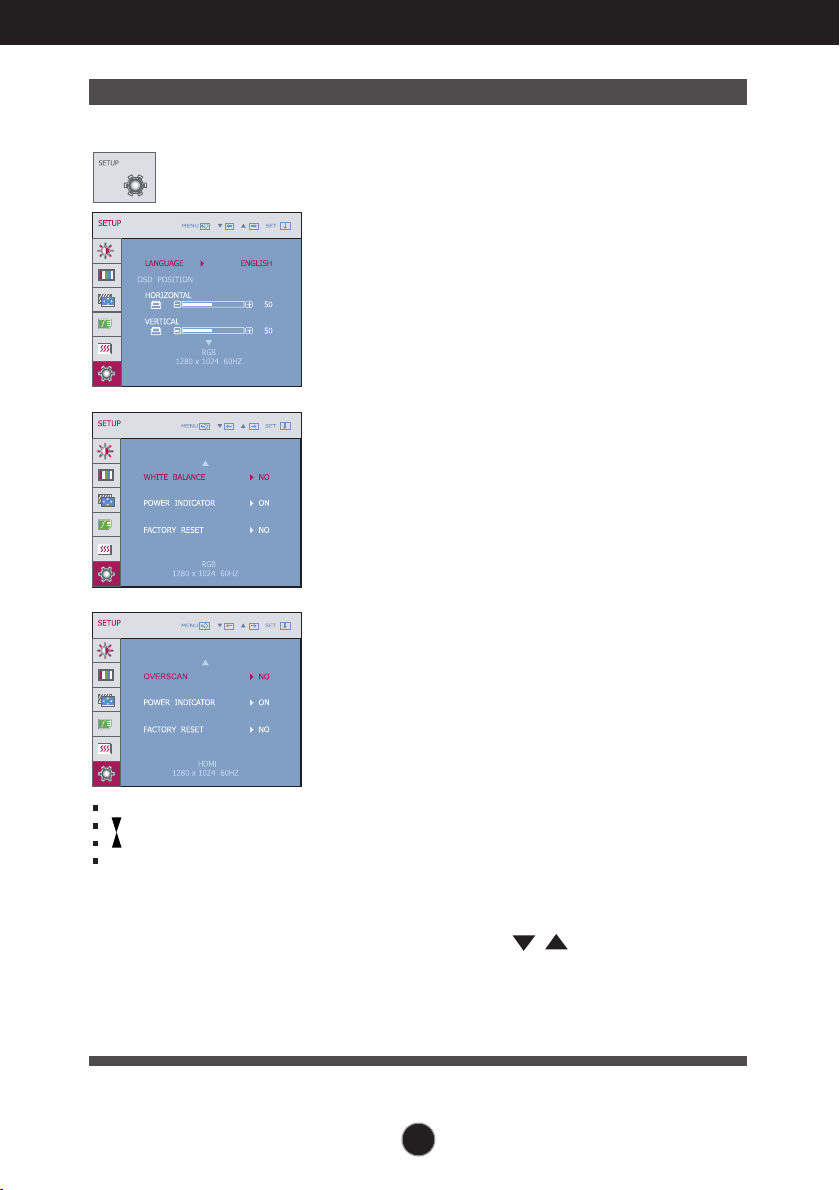

A18
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
If this does not improve the screen image, restore the factory default settings.
If necessary, perform the white balance function again. This function will be enabled only
when the input signal is an analog signal.
SETUP
Restore all factory default settings except
"LANGUAGE."
Press the , buttons to reset immediately.
To choose the language in which the
control names are displayed.
To adjust position of the OSD window
on the screen.
LANGUAGE
OSD
POSITION
WHITE
BALANCE
OVERSCAN
FACTORY
RESET
If the output of the video card is different
the required specifications, the color
level may deteriorate due to video
signal distortion. Using this function, the
signal level is adjusted to fit into the
standard output level of the video card
in order to provide the optimal image.
Activate this function when white and
black colors are present in the screen.
(only for RGB input)
To select the range of output image for
DTV timing in HDMI input.
(only for HDMI input)
Recommend overscan function to turn
on when connect AV equipment.
POWER
INDICATOR
Use this function to set the power
indicator on the front side of the monitor
to ON or OFF.
If you set OFF, it will go off.
If you set ON at any time, the power
indicator will automatically be turned on.
RGB/DVI input
HDMI input
MENU : Exit
: Adjust
: Adjust
SET : Select another sub-menu
A19
Troubleshooting
No image appears
Check the following before calling for service.
No image appears
Do you see a "OSD LOCKED" message on the screen?
● Is the power cord of the
display connected?
● Is the power on and the
power indicator blue or
green?
● Is the power indicator
amber?
● Do you see an "OUT OF
RANGE" message on
the screen?
● Do you see a "CHECK
SIGNAL CABLE"
message on the
screen?
•
Check and see if the power cord is connected
properly to the power outlet.
•
Adjust the brightness and the contrast.
•
If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.
• Try to turn on the PC
.
•
This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.
•
This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.
• You can secure the current control settings,
so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED” will appear.
●
Do you see “OSD
LOCKED” when you
push MENU button?
A20
Troubleshooting
Display image is incorrect
● Display Position is
incorrect.
● On the screen
background, vertical
bars or stripes are
visible.
● Any horizontal noise
appearing in any
image or characters
are not clearly
portrayed.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, adjust the image
position using the H position and V position icon
in the on screen display.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
vertical bars or stripes using the CLOCK icon in
the on screen display.
•
Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
horizontal bars using the PHASE icon in the on
screen display.
•
Check Control Panel --> Display --> Settings
and adjust the display to the recommended
resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits
(true color).
Important
Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
If the recommended resolution (optimal resolution) is not selected, letters may
be blurred and the screen may be dimmed, truncated or biased. Make sure to
select the recommend resolution.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.
A21
Troubleshooting
Display image is incorrect
● The screen color is
mono or abnormal.
● The screen blinks.
•
Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.
•
Make sure the video card is properly inserted in
the slot.
•
Set the color setting higher than 24 bits (true color)
at Control Panel - Settings.
•
Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA
DDC) monitor found" message?
●
Have you installed the
display driver?
•
Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lge.com.
•
Make sure to check if the video card supports
Plug&Play function.
A22A22
Specifications W2442PE
Display
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
& Weight
Range
Power Input
Environmental
Conditions
Stand Base
Power cord
24 inches (60.9 cm) Flat Panel Active matrix-TFT LCD
, Anti-
Glare coating
Visible diagonal size: 60.9 cm
0.276*0.276 mm pixel pitch
Horizontal Freq. Analog : 30 - 83 kHz (Automatic)
Digital : 30 - 83 kHz (Automatic)
Vertical Freq. Analog,Digital: 56 - 75 Hz (Automatic)
Input Form Separate TTL, Positive/Negative
SOG (Sync On Green), Digital (HDCP)
Signal Input 15 pin D-Sub Connector
DVI - D connector (Digital)
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital,HDMI
Max Analog : VESA 1920 x 1080 @60 Hz
Digital : VESA 1920 x 1080 @60 Hz
Recommend VESA 1920 x 1080 @60 Hz
DDC 2B(Digital,HDMI) ,DDC 2AB(Analog)
On Mode
: 42W(Typ.)
Sleep Mode ≤ 1 W
Off Mode ≤ 1 W
With Stand Without Stand
Width
58.22 cm / 22.92 inches 58.22 cm / 22.92 inches
Height
43.75 cm / 17.22 inches (Min) 35.40 cm / 13.94 inches
54.75 cm / 21.55 inches (Max)
Depth
27.02 cm / 10.64 inches 6.01 cm / 2.37 inches
Net 6.2 kg (13.78 lbs)
Tilt -5˚~ 18˚
Swivel 356°
Height 110 mm / 4.33 inches
AC 100-240V~ 50/60Hz 1.2A
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached ( ), Detached ( O )
Wall-outlet type
NOTE
Information in this document is subject to change without notice.
A23A23
Specifications
Indicator
On Mode
Sleep Mode
Off Mode
Blue
Amber
Off
LED Color
MODE
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
5
6
7
8
9
10
11
*12
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1680 x 1050
1920 x 1080
31.468
31.469
37.500
37.879
46.875
48.363
60.123
67.500
63.981
79.976
65.290
67.500
70
60
75
60
75
60
75
75
60
75
60
60
* Recommend Mode
RGB/DVI Timing
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
5
6
7
8
480P
576P
720P
720P
1080i
1080i
1080P
1080P
31.50
31.25
37.50
45.00
28.12
33.75
56.25
67.50
60
50
50
60
50
60
50
60
HDMI Timing
A24

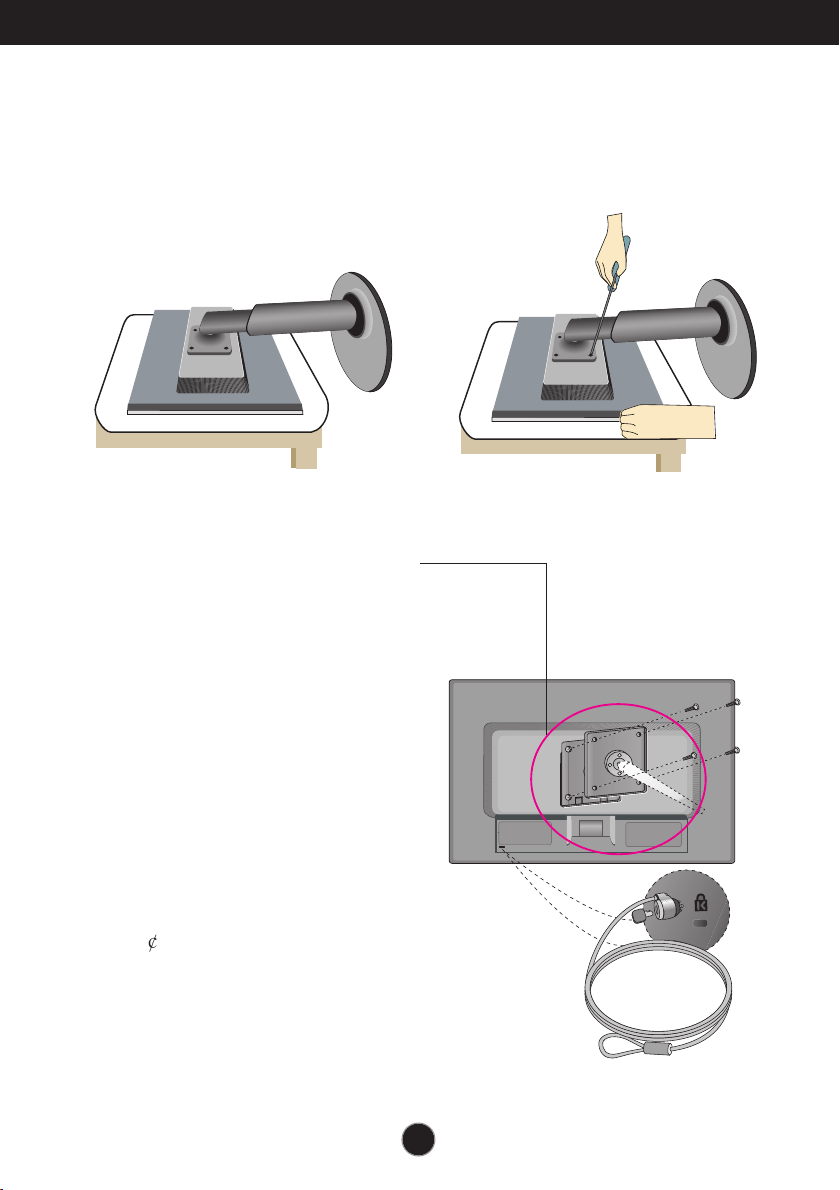

Installing the Wall mount plate
This monitor satisfies the specifications of the Wall mount plate or
the interchange device.
1. Place the monitor with its front facing downward on a soft cloth.
2. Separate the stand after firstly separating 4 screws by using a driver as figure.
3
.
Install the Wall mount plate.
Wall mount plate(Separate purchase)
This is stand-type or wall mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more details,
which is provided when Wall mount plate is purchased.
Kensington Security Slot
Connected to a locking cable that can be
purchased separately at most computer stores.
- Be sure to use screws and a wall mount that meet
VESA standards.
- Using screws longer than those recommended might
damage the product.
- Using screws that do not meet VESA standards might
either damage the product or result in it coming away
from the wall.We will not be held responsible for any
damage resulting from failure to follow these
instructions.
<Please use VESA standard as a recommendation.>
Mounting crew:
Interface pad thickness: 2.6mm
Screw : 4mm x pitch 0.7mm x length 10mm
Digitally yours
