Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
24BK750Y
27BK750Y
2
ENGLISH
CONTENTS
LICENSE ---------------------------- 3
ASSEMBLING AND PREPARING - 4
- Product Components -------------------------- 4
- Supported Drivers and Software -------------- 5
- Component and Button Description ---------- 6
- Moving and Lifting the Monitor --------------- 7
- Setting up the Monitor set ------------------- 8
Attaching the Stand Base
Mounting on a table
Using the cable holder
Adjusting the Stand Height
Adjusting the angle
Pivot Feature
Swivel stand
Detaching the Stand Body
Installing the wall mount plate
Installing to a wall
USING THE MONITOR SET ------ 16
- Connecting to a PC ---------------------------16
- Connecting to AV Devices --------------------18
- Connecting Peripherals -----------------------18
CUSTOMIZING SETTINGS ------ 20
TROUBLESHOOTING ------------ 23
SPECIFICATIONS ---------------- 24
- Preset Modes (Resolution) -------------------26
- Indicator ---------------------------------------26
3
ENG
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
The SuperSpeed USB Trident logo is a registered trademark of USB Implementers
Forum, Inc.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
4
ENG
ENGLISH
( This cable is not included in
all countries. )
USB Cable
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing
components, contact the retail store where you purchased the product. Note that the product and components may
look different from those shown here.
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image noises.
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to improve the
performance of the product.
y
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
where you purchased the product.
CAUTION
NOTE
CD(Owner's Manual) /
Card
( Depending on the country )
( This cable is not included in all
countries. )
( This cable is not included in all
countries. )
Power Cord
Audio Cable DisplayPort Cable
DVI-D Cable
( This cable is not included in all
countries. )
HDMI Cable
( This cable is not included in all
countries. )
Stand Body
Cable Holder ( x 2)
Stand Base
5
ENG
ENGLISH
Supported Drivers and Software
You can download and install the latest version from the LGE website (
www.lg.com
).
Drivers and Software Installation Priority
24BK750Y
27BK750Y
Monitor Driver Recommended O
OnScreen Control Recommended O
Dual Controller Optional O
6
ENG
ENGLISH
Component and Button Description
Power Indicator
y
Lighting On : Turned on
y
Lighting Off : Turned off
Input Connector
(Power Button)
Button
7
ENG
ENGLISH
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these in-
structions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regard-
less of its shape or size.
y
As far as possible, avoid touching the monitor screen.
This may result in damage to the screen or some of
the pixels used to create images.
y
It is advisable to place the monitor in the original box
or packing material before attempting to move it.
y
Before moving or lifting the monitor, disconnect the
power cord and all cables.
y
Hold the top and bottom of the monitor frame firmly.
Do not hold the panel itself.
y
When holding the monitor, the screen should face
away from you to prevent it being scratched.
y
When moving the monitor, avoid any strong shock or
vibrations to the product.
y
When moving the monitor, keep it upright, never turn
the monitor on its side or tilt it sideways.
CAUTION
8
ENG
ENGLISH
Setting up the Monitor set

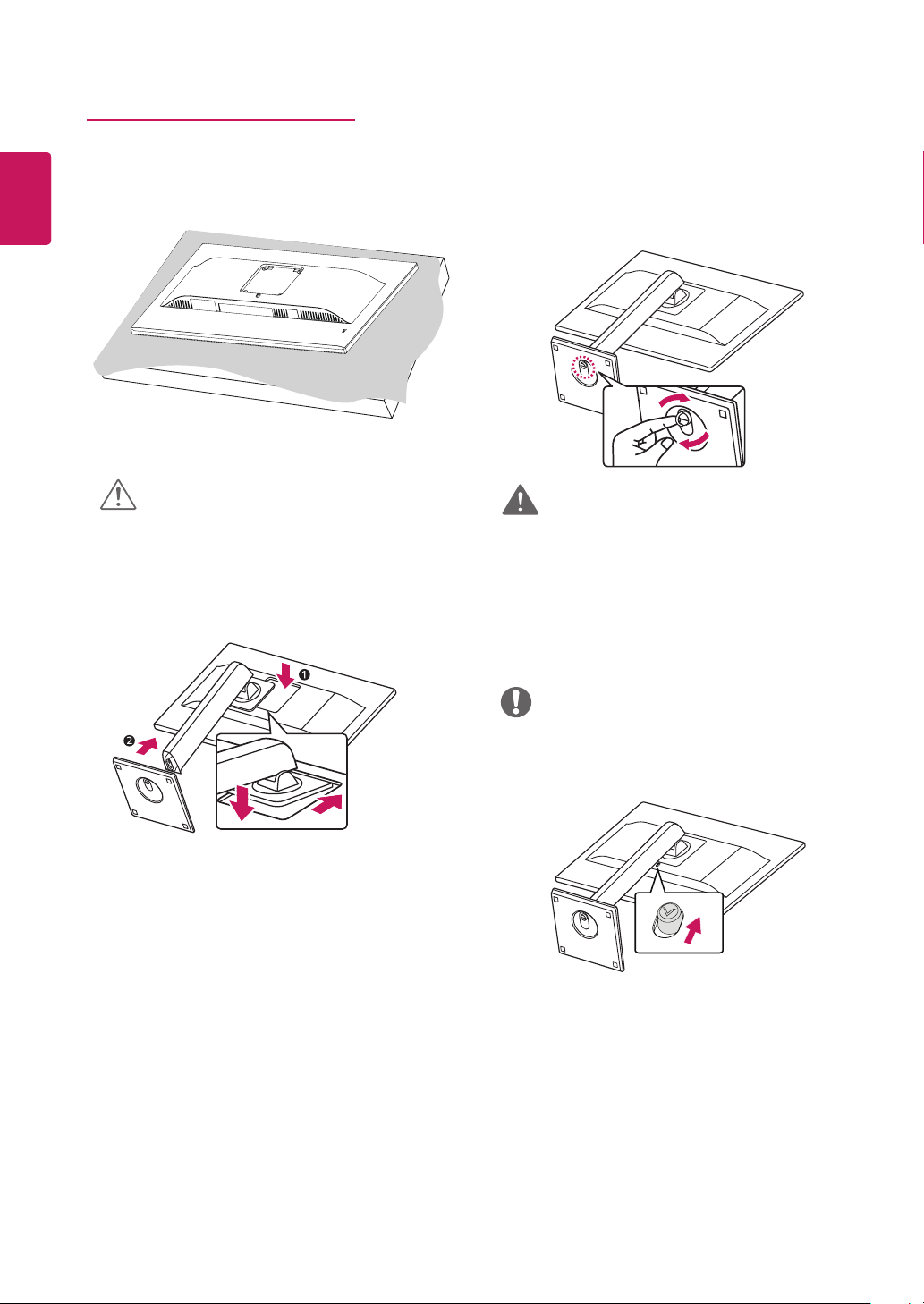

Attaching the Stand Base
y
To protect the screen from scratches, cover the
surface with a soft cloth.
y
To avoid injury to the fingers and foot when
Assembly Stand Body and Base, should hold Base
when assembly stand body and base.
CAUTION
1
2
3
y
Press the stand until the button reaches the top.
NOTE
WARNING
9
ENG
ENGLISH
y
Illustrations in this document represent typical
procedures, so they may look different from the actual
product.
y
Do not carry the monitor upside down by just holding
the stand base. This may cause the monitor to fall off
the stand and could result in personal injury.
y
When lifting or moving the monitor, do not touch the
monitor screen. The force applied to the monitor screen
may cause damage to it.
y
Do not apply foreign substances (oils, lubricants,
etc.) to the screw parts when assembling the
product. (Doing so may damage the product.)
y
Applying excessive force when tightening screws
may cause damage to the monitor. Damage caused
in this way will not be covered by the product
warranty.

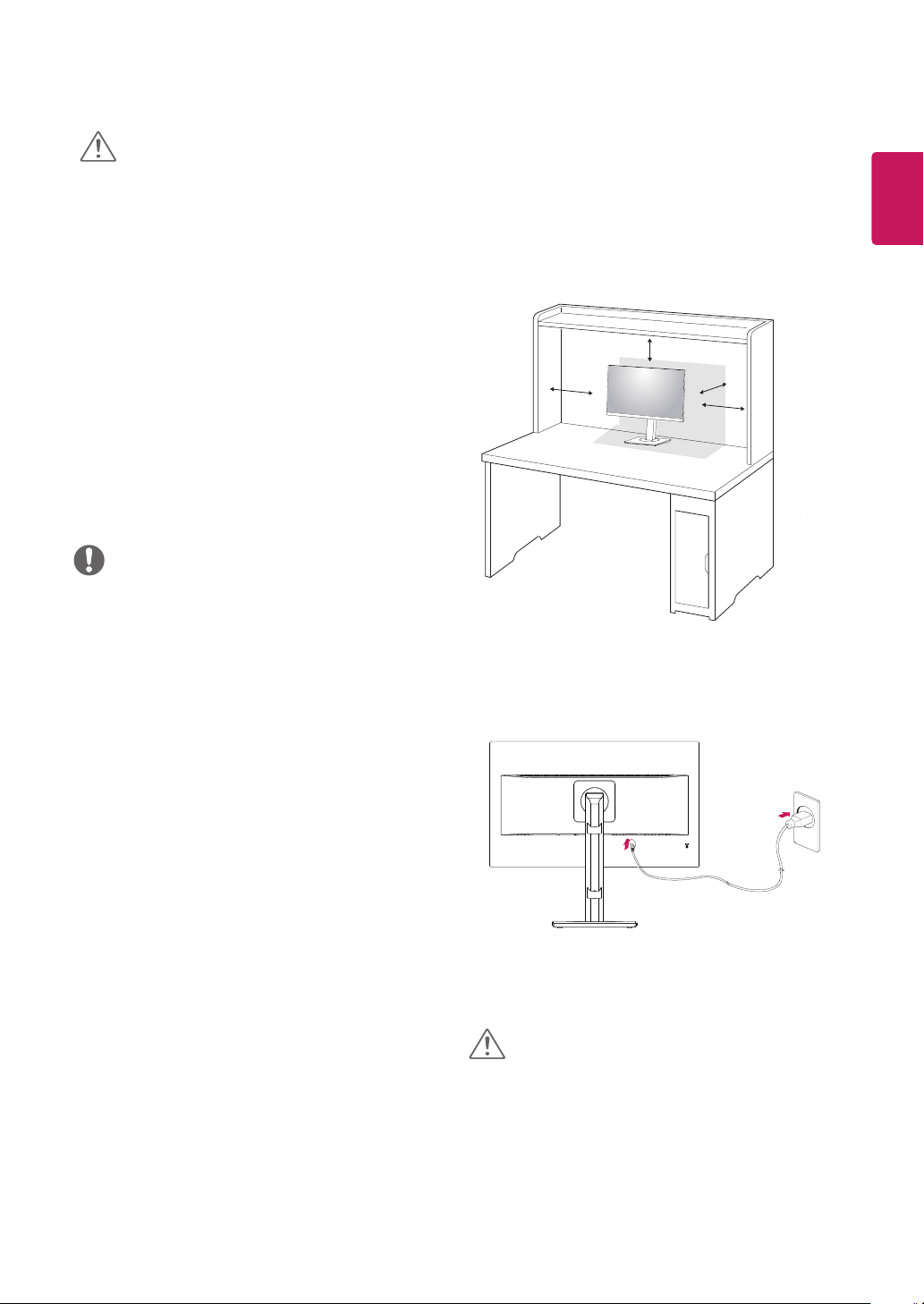

Mounting on a table
1
Lift and tilt the Monitor set into its upright position
on a table.
Leave a 100 mm (minimum) space from the wall for
proper ventilation.
2
Connect the Power cord to the monitor, then plug
the power cord into the wall outlet.
3
Press the Power button on the front of the monitor
to turn on the monitor.
100 mm
100 mm
100 mm
100 mm
CAUTION
CAUTION
y
You can disassemble the stand in the reverse
order of the assembly.
y
Unplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
NOTE
10
ENG
ENGLISH
Using the cable holder Adjusting the Stand Height
Cable holder
Arrange the cables using the cable holder as shown
in the illustration.
Rotate Set(Pivot) and put connectors. It is easy
to put connectors and manage cables using cable
holder.
100-240 V ~
Cautions When Connecting Power Cord
y
Make sure to use the power cord that is provided
in the product package and connect it to a
grounded power outlet.
y
If you need another power cord, please contact
your local dealer or the nearest retail store.
y
Do not put your fingers or
hand between the screen
and the base (chassis)
when adjusting the screen's
height.
1
Handle the monitor with both hands for safety.
2
The height can be adjusted up to 150.0 mm.
WARNING
150.0 mm
11
ENG
ENGLISH
25 ° -5°
Adjusting the angle
1
Place the monitor in an upright position, mounted
on the stand base.
2
Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards for a
comfortable viewing experience.
Front SideRear Side
y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
y
Be careful not to touch or press the screen area
when adjusting the angle of the monitor.
y
Do not put finger inside of stand.
WARNING
12
ENG
ENGLISH

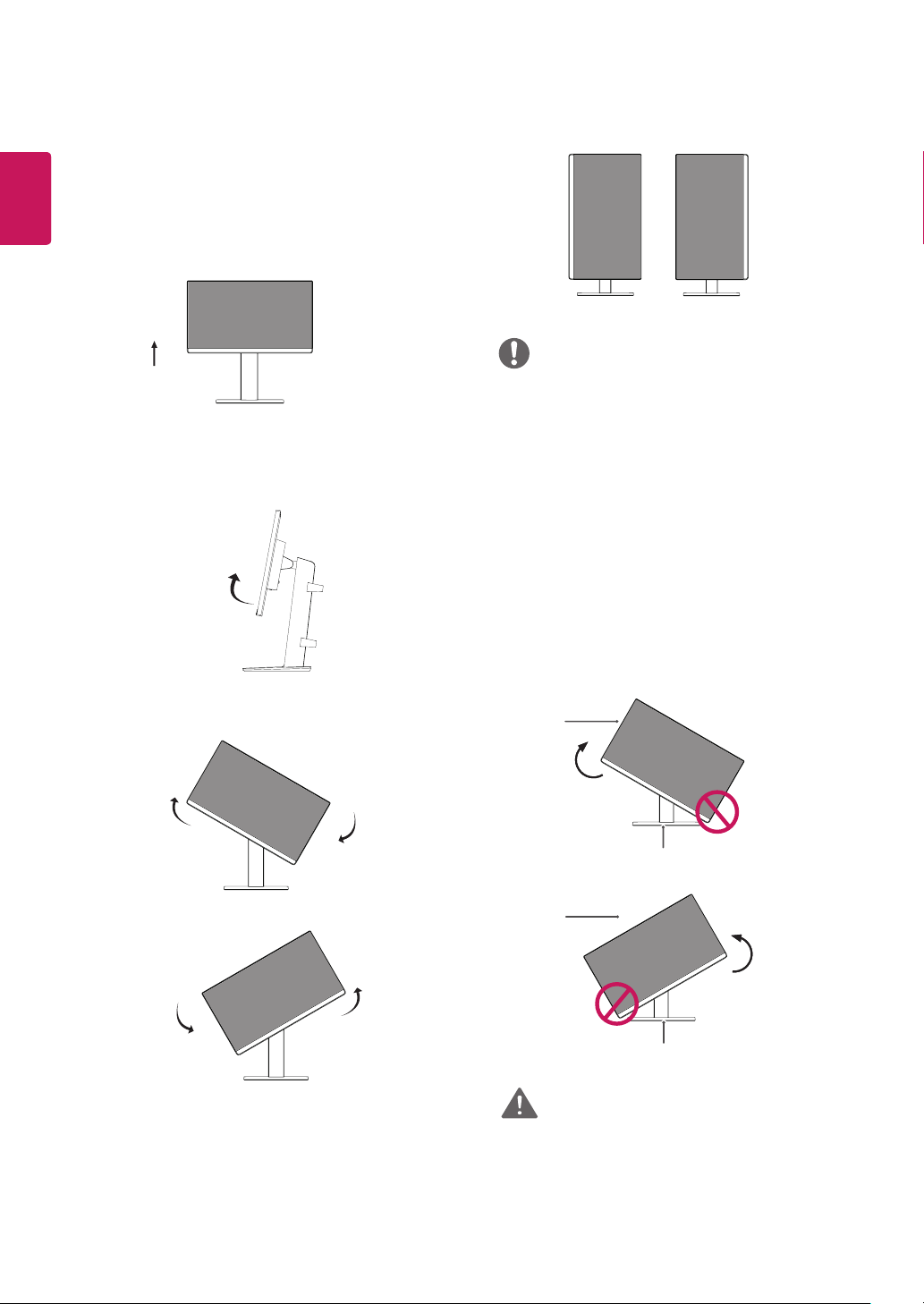

Pivot Feature
The pivot feature allows the monitor to rotate 90°
clockwise and -90° counter clockwise.
1
Raise the monitor to the maximum height.
2
Adjust the angle of the monitor in the direction of
the arrow as shown in the figure.
3
Rotate the monitor 90° clockwise and -90° counter
clockwise as shown in the figure.
4
Complete the installation by rotating the monitor
90° clockwise and -90° counter clockwise as shown
below.
Stand
Stand
Head
Head
y
Auto Pivot feature of the display is not supported.
y
The screen can be rotated easily using the screen-
pivot shortcut key provided with your Windows op-
erating system. Note that some Windows versions
and some graphics card drivers may use different
settings for the screen pivot key or may not sup-
port the pivot key at all.
y
Windows screen pivot shortcut keys
-
0°: Ctrl + Alt + Up arrow key (
↑
)
-
90°: Ctrl + Alt + Left arrow key (
←
)
-
180°: Ctrl + Alt + Down arrow key (
↓
)
-
270°: Ctrl + Alt + Right arrow key (
→
)
NOTE
y
To avoid scratching the stand base, make sure
that when rotating the monitor using the pivot
feature, the stand does not make contact with
the monitor.
WARNING
13
ENG
ENGLISH
Monitor head
Swivel (clockwise 45°)
Swivel (counter clockwise 45°)
y
Take care when rotating the monitor if the cable
is connected.
y
To avoid injury when rotating the display, do not
place your fingers between the display and the
stand base.
y
The left or right side of the monitor head can be
slightly rotated up or down (up to 3°). Adjust the
horizontal level of the monitor head.
NOTE
WARNING

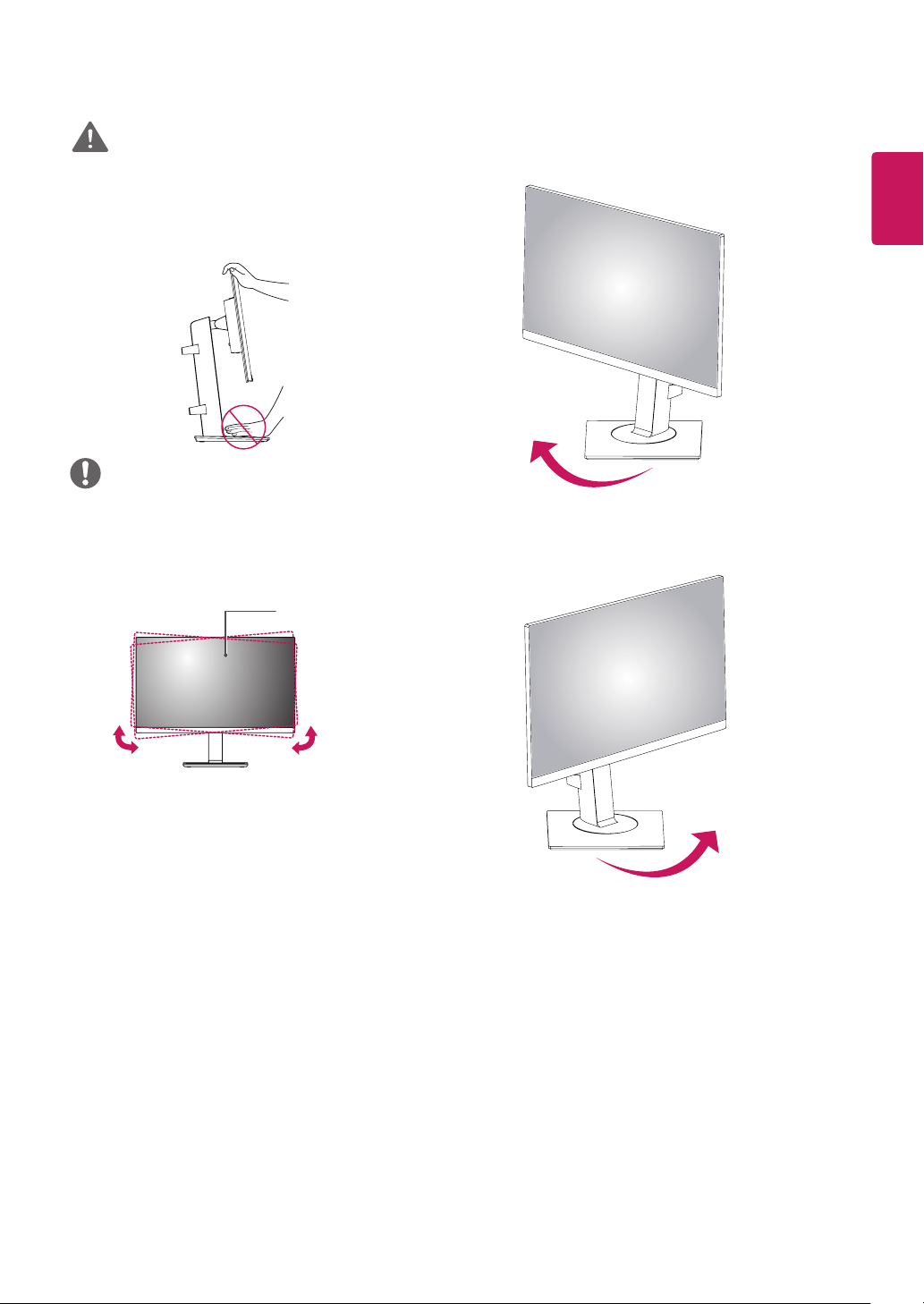

Swivel stand
14
ENG
ENGLISH
Detaching the Stand Body

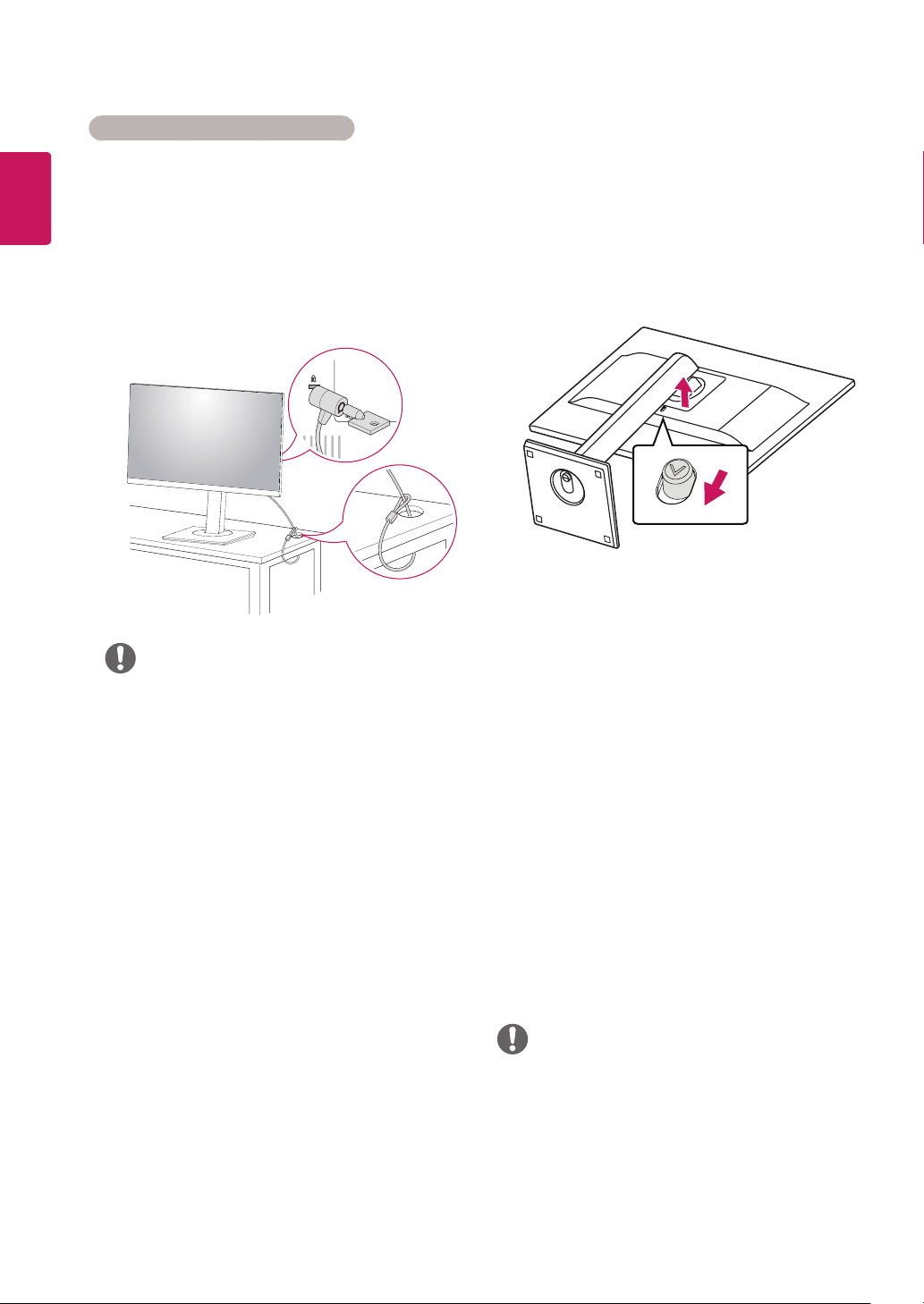

Using the Kensington security system
The Kensington security system connector is located at the
back of the Monitor set. For more information of installation
and using, refer to the manual supplied with the Kensington
security system or visit
http://www.kensington.com
.
Connect the Kensington security system cable between the
Monitor set and a table.
y
Use of the Kensington lock is optional. The
accessories can be purchased at your local
electronics store.
NOTE
Installing the wall mount plate
This monitor supports the specification of the standard
wall mount plate or compatible device.
1
Place the screen face down. To protect the screen
from scratches, cover the surface with a soft cloth.
2
Detaching the Stand Body.
3
Place the wall mount plate onto the monitor and
align it with the screw holes.
4
Tighten the four screws to fix the plate to the moni-
tor using a screwdriver.
1
Place the monitor’s screen face down. To protect the
screen from scratches, cover the surface with a soft
cloth.
2
Remove the stand from the monitor by pressing
the button on the bottom center of the back of the
monitor.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to the
wall mount plate's installation guide.
y
Be careful not to use excessive force when
mounting the wall mount plate, as this can
damage the monitor's screen.
NOTE
15
ENG
ENGLISH
To install the monitor to a wall, attach a wall mounting bracket
(optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to
the monitor and to the wall.
1 If you use screw longer than standard, the monitor might
be damaged internally.
2 If you use improper screw, the product might be damaged
and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Installing to a wall
Install the monitor at least 100 mm away from the wall
and leave about 100 mm of space at each side of the
monitor to ensure sufficient ventilation. Detailed instal-
lation instructions can be obtained from your local retail
store. Please refer to the manual to install and set up a
tilting wall mounting bracket.
100 mm
100 mm
100 mm
100 mm
y
Unplug the power cord before moving or installing
the monitor to avoid electric shocks.
y
Installing the monitor on the ceiling or on a slanted
wall may result in the monitor falling off, which
could lead to injury. Please use the genuine LG wall
mounting bracket. For more information, contact
your local retail store or a qualified installer.
y
Applying excessive force when fastening screws may
cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
y
Use the wall mounting bracket and screws that
conform to the VESA standard. Damage caused by
the use or misuse of inappropriate components will
not be covered by the product warranty.
y
Screw length from outer surface of back cover should
be under 8mm.
y
Use the screws specified by the VESA standard.
y
The wall mount kit includes the installation guide and
all necessary parts.
y
The wall mounting bracket is optional. The accessories
can be purchased at your local retail store.
y
The length of the screw may differ for each wall
mounting bracket. Ensure the correct length screw is
used.
y
For more information, please refer to the user manual
for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw:
Max.8mm
y
Wall Mount (A x B)
A
B
Wall Mount (A x B) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate
(Optional)
LSW 149
16
ENGLISH
USING THE MONITOR SET
Connecting to a PC
y
Your Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected device
that users connect to a PC and turn on, without
device configuration or user intervention.
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and the
Monitor set with the HDMI cable as shown in the following
illustrations.
DVI-D connection
Transmits a digital video signal from your PC to the
Monitor set. Connect the PC and the Monitor set with a
DVI cable as shown in the following illustrations.
y
If you use HDMI PC, it can cause compatibility problem.
y
Use a certified cable with the HDMI logo attached. If
you do not use a certified HDMI cable, the screen may
not display or a connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI®/
TM
Cable
- High-Speed HDMI®/
TM
Cable with Ethernet
NOTE
17
ENG
ENGLISH

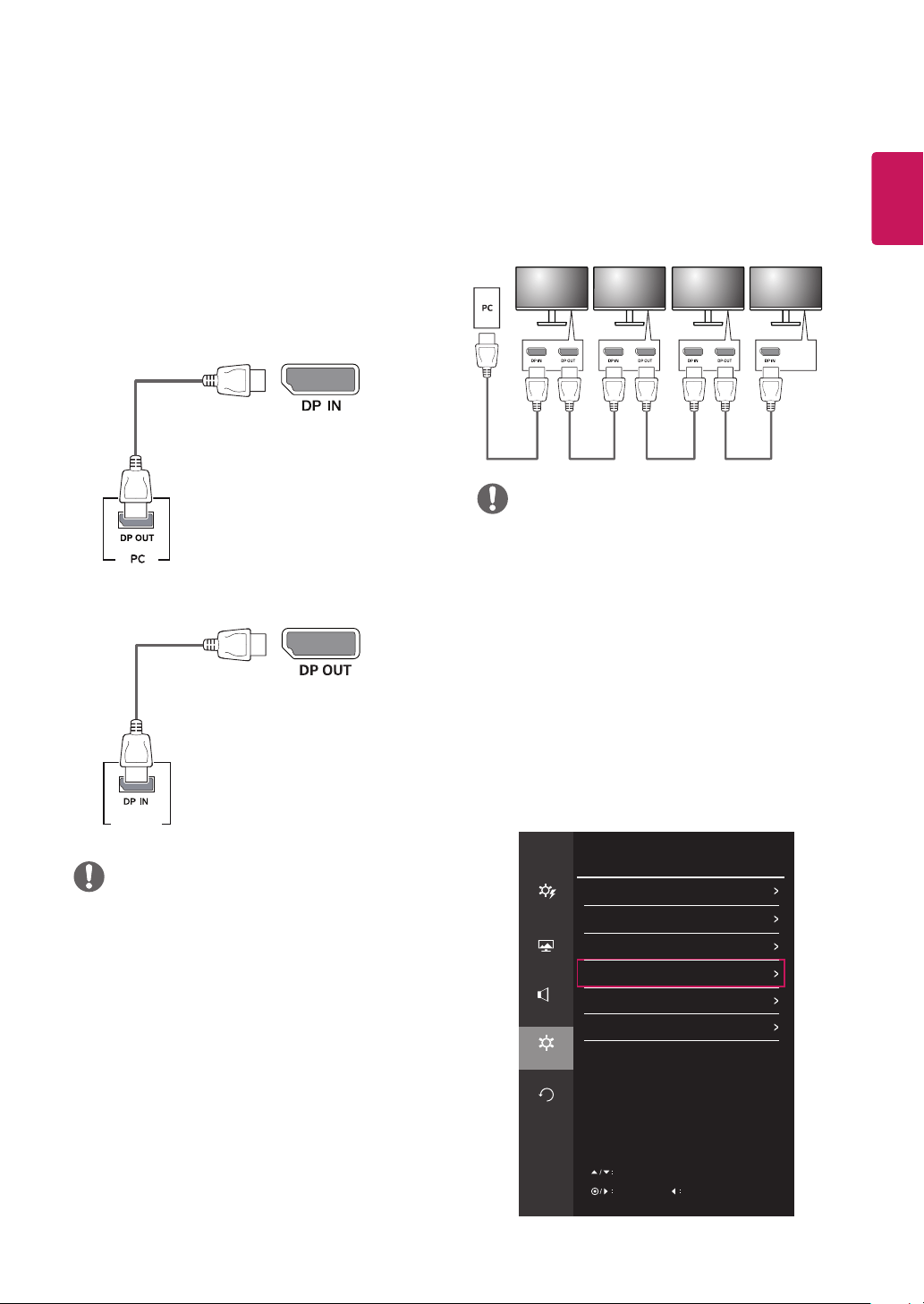

DisplayPort connection
Transmits the digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor
using the DisplayPort cable as illustrated below.
Connecting the monitor for DP Multi-
Stream Transport (MST) function
y
There may be no video or audio output depending
on the DP version of the PC.
y
If you use generic cables not certified by LG, the
screen may not display or there may be image
noises.
y
For supporting DP MST feature, your PC
graphics card must be certified to DP1.2 and
MST Option.
y
To enable MST connection, use DP cable as
provided in box (or other DP1.2 certified
cable) and change the DP setting to enable the
DisplayPort 1.2 in Monitor Menu.
y
The default out of factory setting is DP1.1a
(Disable the DisplayPort 1.2)
y
When using MST, many monitor cannot be
adjusted for OSD at the same time. Please
change the monitor settings.
y
MST with DisplayPort can be supported up to 4
monitors.
NOTE
NOTE
monitor
Sound
Quick Settings
General
Reset
General
Language
Power LED
English
Off
Automatic Standby Off
Exit
Move
Ok
DisplayPort1.2 Disable
Quick Charge Off
OSD Lock Off
Sound
Quick Settings
General
Reset
General
Language
Power LED
English
Off
Automatic Standby Off
Exit
Move
Ok
DisplayPort1.2 Disable
Quick Charge Off
OSD Lock Off
18
ENGLISH
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
AV devices to the monitor. Connect your AV device to
the monitor with the HDMI cable as illustrated below.
Connecting Peripherals
USB Type A port connection – mobile
phone
y
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
y
When connect to external device, it can be sound
volume difference. (For example : DVD player).
y
Suggest connect HDMI to PC play media.
Cautions When Using a USB Device
y
A USB device with an automatic recognition
program installed, or that uses its own driver, may
not be recognized.
y
Some USB devices may not be supported or may
not work properly.
y
It is recommended to use a USB hub or hard disk
drive with power supplied. (If the power supply
is not adequate, the USB device may not be
recognized properly.)
y
Cautions when using a charging function.
y
Some mobile phones may not be supported or
may not work properly.
y
Make sure to install the most recent Windows OS
service pack before using the product.
y
Peripheral devices are sold separately.
y
A keyboard, mouse, or USB device can be
connected to the USB port.
y
Quick charge is available throngh only USB1 port.
y
When the Monitor is gone to Power off,Quick
charge is not available.
y
The charging speed may vary depending on the
device.
NOTE
NOTE
(sold separately)
CAUTION
19
ENG
ENGLISH
(sold separately)
(sold separately)

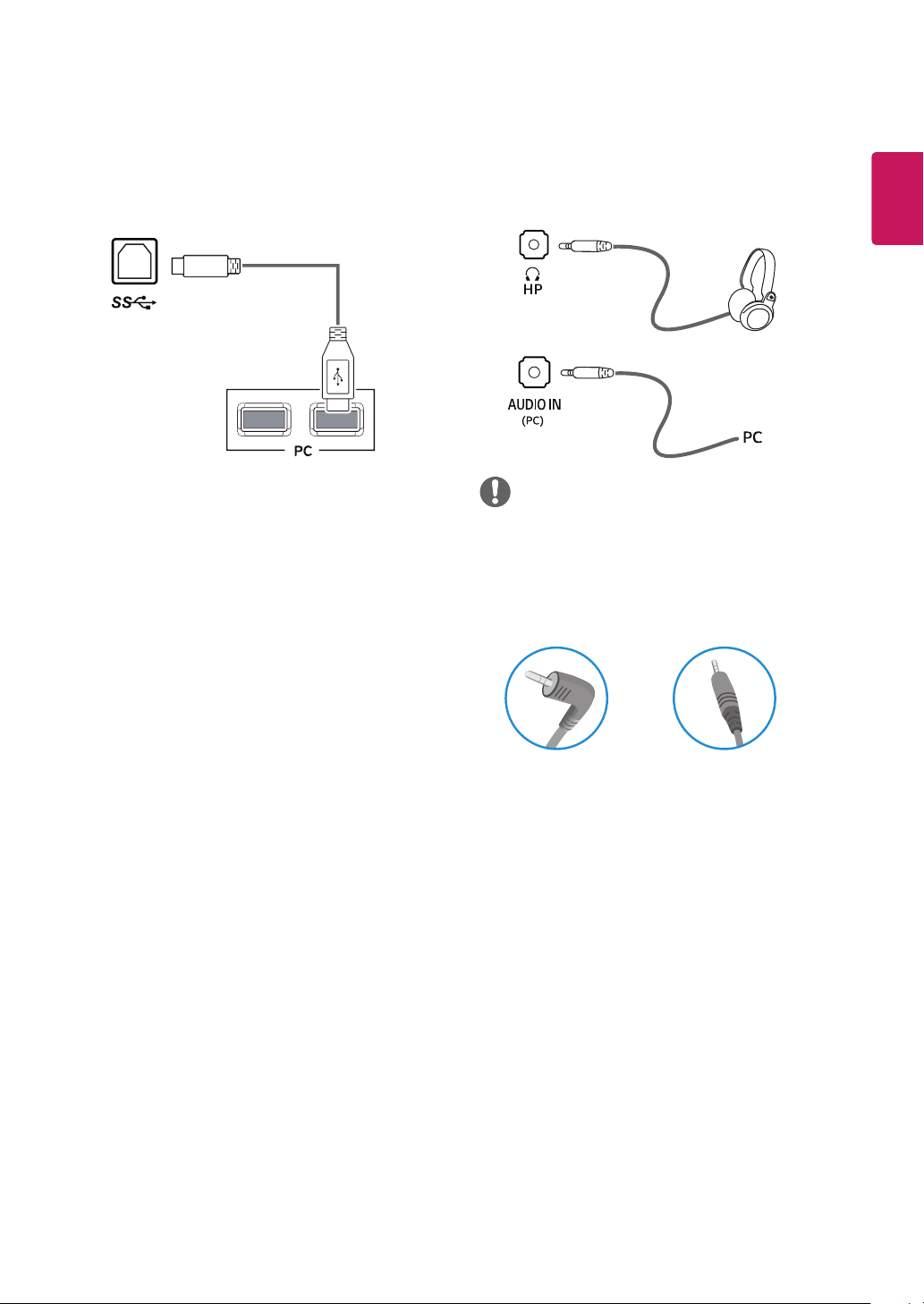

USB Type B port connection – PC
For using the USB downstream port, connect the USB
A/B type cable as picture
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
y
Peripheral devices are sold separately.
y
If you use angled headphones, it may cause a
problem with connecting another external device
to the monitor. Therefore, it is recommended to
use straight headphones.
Angle Type Straight Type
NOTE
y
Depending on the audio settings of the PC and
external device, headphones and speaker func-
tions may be limited.
20
ENG
ENGLISH
CUSTOMIZING SETTINGS
Activating the Main Menu
Picture Mode
Monitor buttons
1
Press the Menu ( ) button.
2
Use the , , , buttons to adjust the options.
3
Press the Menu ( ) button to exit the OSD menu.
Menu > Quick Settings Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
SMART ENERGY
SAVING
High Enables SMART ENERGY SAVING you can save energy with this energy- high efficient.
Low Enables SMART ENERGY SAVING you can save energy with this energy- low efficient.
Off Disables SMART ENERGY SAVING .
NOTE
y
The ratio is disabled in the interlaced signal.
y
Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor. If
you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher
depend on source.
* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.
Customizing settings
Button Description
Menu ( ) If the menu is inactive Activates the main menu.
If the menu is active Exits the OSD menu when the button is pressed.
If the menu is inactive Adjusts the volume level of the monitor.
If the menu is active Left directional key.
If the menu is inactive Adjusts the volume level of the monitor.
If the menu is active Right directional key.
INPUT Sets input mode. You can operate the change of input signals.
• When two input signals over are connected and press input key, input signal(DVI/HDMI/DP)will be changed
sequentially.
• When only one signal is connected, it is automatically detected. The default setting is DVI.
(Power Button)
Powers on or off.
Power Indicator When the monitor is in operating mode, the power indicator will turn white (on mode).
21
ENG
ENGLISH
Customizing settings
Menu > Picture Description
Picture Mode Custom Allow s the user to adjust each element. The color mode of the main menu can be adjusted.
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want screen more
bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright,
you can control brightness in Menu OSD.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Color
Weakness
This mode is for users who cannot distinguish between red and green. It enables users with color
weakness to easily distinguish between the two colors.
Game Optimizes the screen for gameplay.
Picture Adjust SUPER
RESOLU-
TION+
High Optimized picture quality is displayed when a user wants crystal clear images. It is effec-
tive forhigh quality video or game.
Middle The optimized picture quality is displayed when a user wants images between low and
high modes for comfortable viewing. It is effective for UCC or SD video.
Low The optimized picture quality is displayed when a user wants smooth and natural images.
It is effective for slow -moving pictures or still images.
Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
y
Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Low ers the black levels and raises the white levels from the current contrast ratio of the screen.
Response
Time
Sets a response time for displayed pictures based on the speed of the screen. For a normal
environment, it is recommended that you use Normal. For a fast-moving picture, it is recommended
that you use High. Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low .
Off Sets the response time to Off.
DFC On Adjusts the brightness automatically according to the screen.
Off Disables the DFC feature.
Black
Stabilizer
Black Stabilizer:
You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen.
(You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic
contrast on the screen.
Color Adjust Gamma The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the
lighter the image becomes. If you do not need to adjust the gamma settings, select Off.
Color Temp Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Custom: The user can adjust it to red, green or blue by customization.
Red/Green/
Blue
You can customize the picture color using Red, Green, and Blue colors.
Six Color Meets the user requirements for colors through adjusting the color and saturation of the six
colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue,
Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yellow_Saturation) and saving the
Six Color settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower the value, less saturated and bright
the colors become. The higher the value, the more saturated and dark the colors become.
Reset Returns the color settings to the default settings.
NOTE
y
This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off
this function.
y
This function can’t distinguish some colors in some images.
22
ENG
ENGLISH
Menu > Sound Description
Volume To adjust the Volume of headphone or speaker.
Main Audio To choose the audio source input.
Menu > General Description
Language To choose the language in which the control names are displayed.
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
Automatic Standby The monitor will automatically switch to standby mode after a certain period.
DisplayPort 1.2 Enables or disables DisplayPort 1.2.
NOTE
y
Be sure to configure this option according to the DisplayPort version supported by your graph-
ics card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.
Quick Charge Quick Charge is a feature that rapidly charges the device connected to the USB 3.0 port.
On Enables Quick Charge.
Off Disables Quick Charge.
NOTE
y
Quick charge is only available through the USB Port 1.
y
The charging speed may vary depending on the device.
OSD Lock Prevents incorrect key input.
On Key input is disabled.
NOTE
y
All function except for the OSD Lock mode, brightness, Contrast, Input and Volume are dis-
abled.
Off Key input is enabled.
Customizing settings
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
23
ENG
ENGLISH
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
y
Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on?
y
Press the Power button.
Do you see an "Out of Range"
message on the screen?
y
This message appears when the signal from the PC (video card) is out of horizontal
or vertical frequency range of the display. See the 'Specifications' section of this
manual and configure your display again.
Do you see a "NO SIGNAL" message on
the screen?
y
After the monitor is on "NO SIGNAL", the monitor goes to DPM mode.
y
This is displayed when the signal cable between the PC and the monitor is
missing or disconnected. Check the cable and reconnect it.
y
If monitor is DPM with power LED off condition,user should be press twice
DC button for wake up monitor screen.
Can 't you control some functions in OSD?
Can't you select some menu in
OSD?
y
You can unlock the OSD controls at any time by entering the OSD lock menu and
changing items to off.
y
Check Control Panel
►
Display
►
Settings and see if the frequency or the resolution were changed. If yes, readjust the
video card to the recommend resolution.
y
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed,
truncated or biased. Make sure to select the recommend resolution.
y
The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be
supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.
CAUTION
The screen is flickering.
Did you select the recommended
resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz, the screen may be flickering.
Change the resolution to the recommended resolution 1080P.
Display image is incorrect
The screen color is mono or abnormal.
y
Check if the signal cable is properly connected and use a screwdriver to fasten if
necessary.
y
Make sure the video card is properly inserted in the slot.
y
Set the color setting higher than 24 bits (true color) at Control Panel
►
Settings.
The screen blinks.
y
Check if the screen is set to interlace mode and if yes, change it to the recommend
resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?
y
Be sure to install the display driver from our web site:
http://www.lg.com
.
y
Make sure to check if the video card supports Plug&Play function.
24
ENG
ENGLISH
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD(Liquid Crystal Display) Screen
Pixel Pitch 0.2745mm x 0.2745mm
Resolution Maximum Resolution 1920 x 1080 @ 60Hz
Recommended Resolution 1920 × 1080 @ 60Hz
Video Signal Horizontal Frequency HDMI : 30 kHz to 83 kHz
DVI : 30 kHz to 83 kHz
DP : 30 kHz to 83 kHz
Vertical Frequency HDMI : 56 Hz to75 Hz
DP : 56 Hz to 75 Hz
DVI : 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN, DP(DisplayPort) IN, DP(DisplayPort) OUT, AUDIO IN(PC), H/P,USB
Power Consumption On Mode : 23 W Typ. ( Outgoing condition ) *
Sleep Mode ≤ 0.5 W ( Outgoing condition ) **
Off Mode ≤ 0.003 W
Power Input AC 100-240V ~ 50/60Hz 1.2 A
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
Less than 80%
Storage Temperature
Storage Humidity
-20 °C to 60 °C
Less than 85 %
Dimension Monitor Size (Width x Height x Depth)
With Stand 539.4 mm x 523.9 mm x 276.1 mm
Without Stand 539.4 mm x 326.4 mm x 58.7 mm
Weight (Without
Packaging)
With Stand 6.2 kg
Without Stand 3.4 kg
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
24BK750Y
25
ENG
ENGLISH
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD(Liquid Crystal Display) Screen
Pixel Pitch 0.3114mm x 0.3114mm
Resolution Maximum Resolution 1920 x 1080 @ 60Hz
Recommended Resolution 1920 × 1080 @ 60Hz
Video Signal Horizontal Frequency HDMI : 30 kHz to 83 kHz
DVI : 30 kHz to 83 kHz
DP : 30 kHz to 83 kHz
Vertical Frequency HDMI : 56 Hz to75 Hz
DP : 56 Hz to 75 Hz
DVI : 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN, DP(DisplayPort) IN, DP(DisplayPort) OUT, AUDIO IN(PC), H/P,USB
Power Consumption On Mode : 28 W Typ. ( Outgoing condition ) *
Sleep Mode ≤ 0.5 W ( Outgoing condition ) **
Off Mode ≤ 0.003 W
Power Input AC 100-240V ~ 50/60Hz 1.5 A
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
Less than 80%
Storage Temperature
Storage Humidity
-20 °C to 60 °C
Less than 85 %
Dimension Monitor Size (Width x Height x Depth)
With Stand 611.5 mm x 542.9 mm x 276.1 mm
Without Stand 611.5 mm x 367.5 mm x 59.0 mm
Weight (Without
Packaging)
With Stand 7.6 kg
Without Stand 4.9 kg
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
27BK750Y
26
ENG
ENGLISH
Preset Modes (Resolution)
DVI / HDMI / DP PC Timing
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical Frequency(Hz) Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
HDMI AV Timing
Factory support mode
(Preset Mode)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60
O
Recommend Mode
Indicator
Mode LED Color
On Mode White
Sleep Mode LED Off
Off Mode Off
Make sure to read the Safety Precautions before using the product.
The model and serial number of the product are located on the back and
on one side of the product.
Record them below in case you ever need service.
MODEL
SERIAL
