www.lg.com
IPS LED MONITOR MODEL
22MP58A
22MP58D
22MP58VQ
22MP58HQ
24MP58VQ
24MP58HQ
24MP58D
27MP58HQ
27MP58VQ
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER'S MANUAL
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
2
ENGLISH
TABLE OF CONTENTS
CONTENTS
3 LICENSE
4 ASSEMBLING AND PREPAR-
ING
4 Unpacking
6 Parts and buttons
6 - How to Use the Joystick Button
7 - Input Connector
8 Moving and Lifting the Monitor
9 Setting up the Monitor set
9 - Attaching the Stand Base
10 - Detaching the Stand Base
11 - Mounting on a table
12 - Using the cable holder
14 USING THE MONITOR SET
14 Connecting to a PC
14 - D-SUB connection
14 - DVI-D connection
14 - HDMI connection
15 Connecting to AV Devices
15 - HDMI connection
16 Connecting to External Devices
16 - Peripheral device connection
17 CUSTOMIZING SETTINGS
18 Customizing settings
18 - Menu Settings
18 - -Quick Settings
20 - -Picture
23 - -General
24 - -Auto Configuration
25 - -Reset
26 - -Picture mode
27 TROUBLESHOOTING
29 SPECIFICATIONS
35 Preset Modes (Resolution)
35 Indicator
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit
www.lg.com
for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-
ministrator, Inc.
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
22MP58VQ
22MP58HQ
24MP58HQ 27MP58VQ24MP58VQ 27MP58HQ
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
( This cable is not included
in all countries. )
27MP67VQ24MP67VQ22MP67VQ 23MP67VQ
22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
CD / Card
( Depending on the country )
( Depending on the country )
Power Cord
AC-DC Adapter
AC-DC Adapter
or
D-SUB Cable
( This cable is not included in all
countries. )
DVI-D Cable
( This cable is not included in all
countries. )
27MP67VQ24MP67VQ22MP67VQ 23MP67VQ
22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ
Stand Body
Stand Base
HDMI Cable
( This cable is not included in all
countries. )
Cable Holder
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Do not use any unapproved accessories to ensure the safety and product life span.
y
Any damages or injuries by using unapproved accessories are not covered by the warranty.
y
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

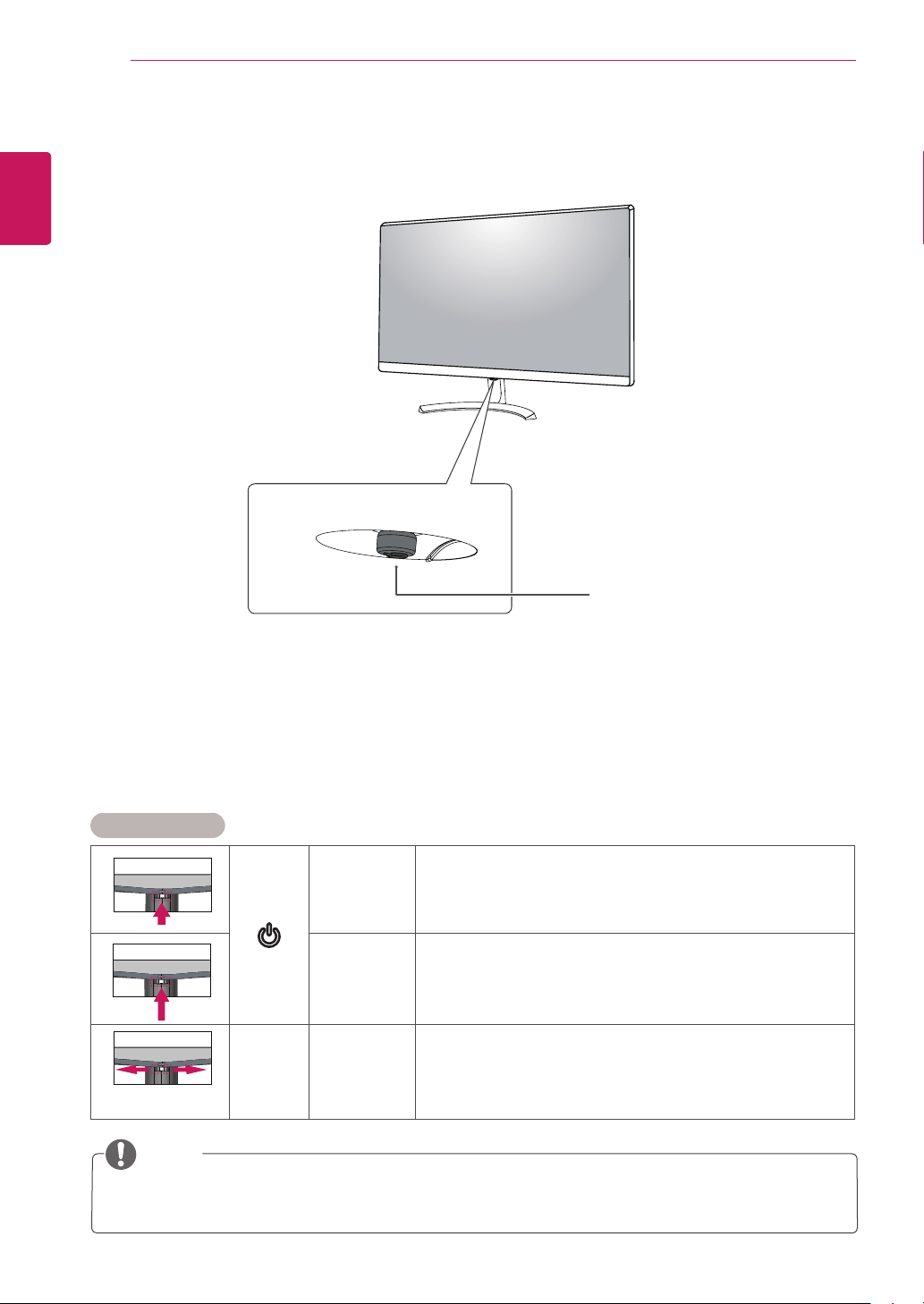

Parts and buttons
Joystick Button/
Power Indicator
y
On: power is on
y
Off: power is off
y
The joystick button is located at the bottom of the monitor.
NOTE
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the
monitor.
Power off
Press and hold the joystick button once with your finger to turn off
the monitor.
◄/►
Volume
Control
You can control the volume by moving the joystick button left/right.
8
ENG
ENGLISH
ASSEMBLING AND PREPARING

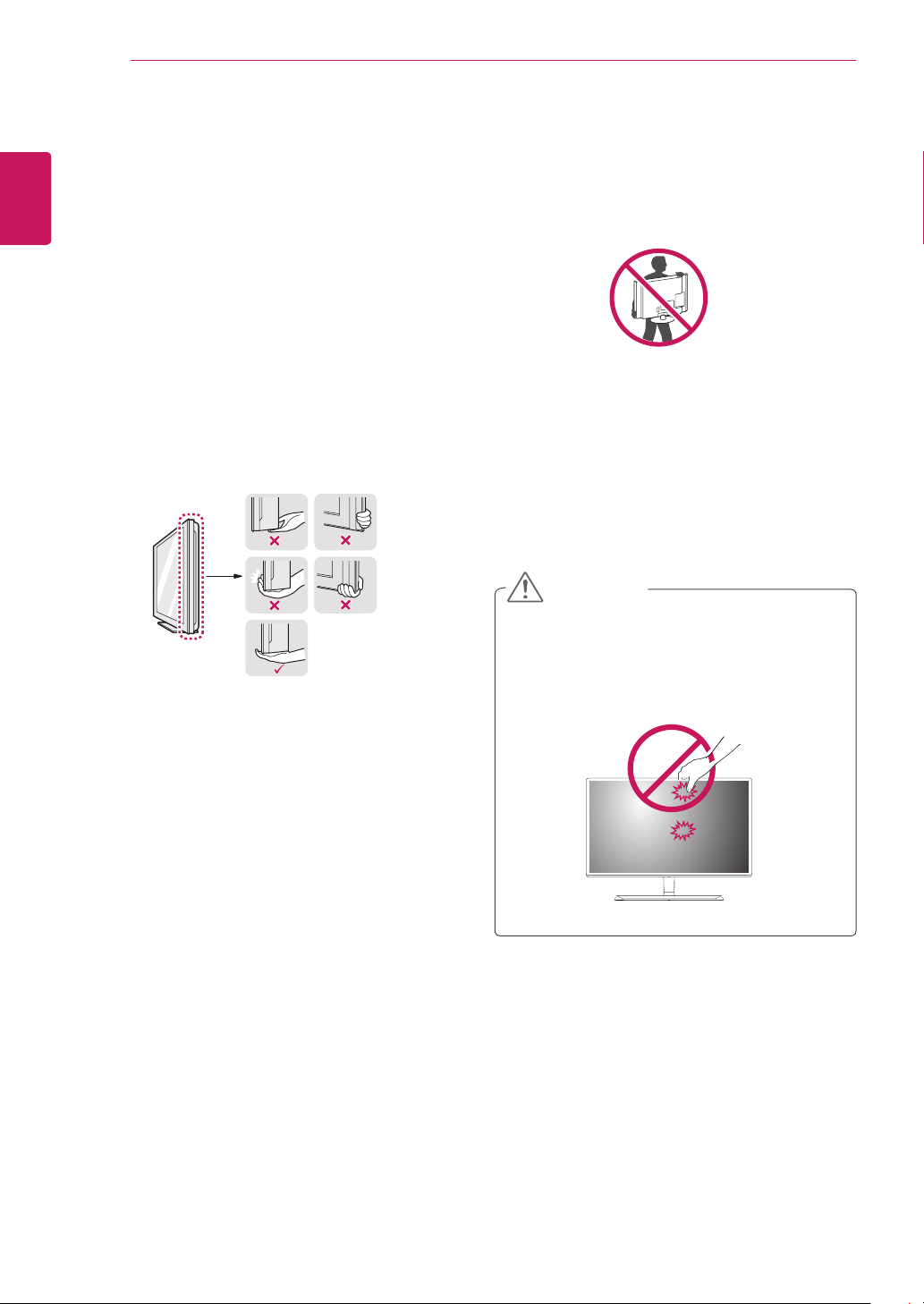

Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When moving the monitor, avoid any strong
shock or vibrations to the product.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the Monitor set
Attaching the Stand Base
1
Please put a soft cloth on a low table or box
to protect the screen of the monitor.
Please put the monitor on the soft cloth with
the screen facing down.
2
Please grab the
Stand body
in one hand, and
push it in the direction of the arrow to
hinge
body
.After assembling, you must check if the
Stand body
latched in or not.
3
Please push the
Stand Base
in the direction
of the arrow as shown below and assemble
together.
Please use a driver(-) or coin to insert thumb
screw and turn right arrow direction lock.
* It is necessary to thoroughly tighten it with
Thumb Screw
, or the monitor will shake.
4
Please set the Monitor upright, and install the
necessary cable.
* Must use one type input cable. Don't use
more than two types cable together.
1
2
1
2
Stand body
Stand Base

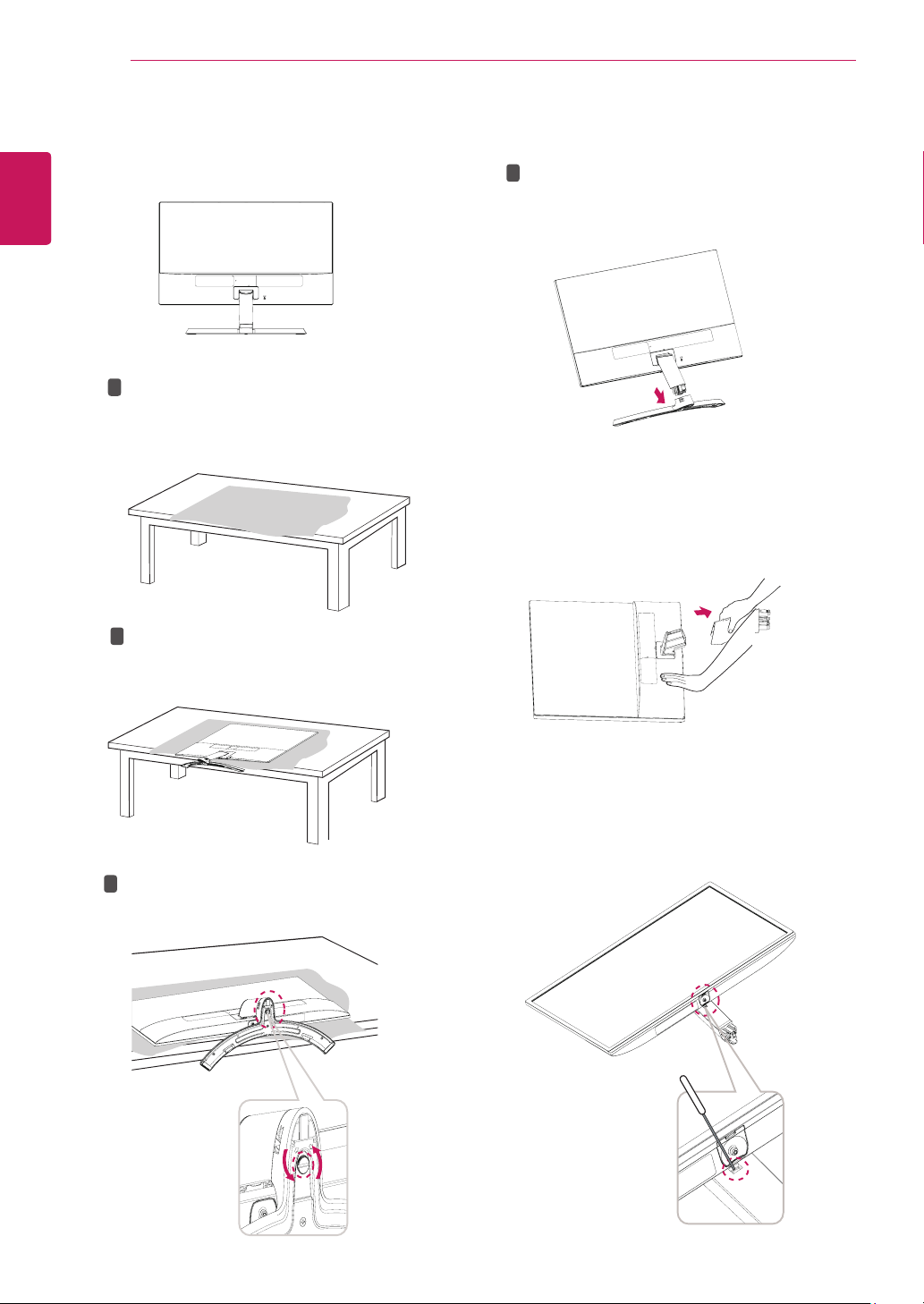

10
ENG
ENGLISH
ASSEMBLING AND PREPARING
1
Please remove the cable installed to the monitor.
2
Please put a soft cloth on a low table or box to
protect the screen of the monitor.
Please put the monitor on the soft cloth with
the screen facing down.
3
Please use the driver(-) or coin insert thumb
screw and turn left arrow direction unlock.
Please pull the
Stand Base
in the direction of
the arrow as shown below and disassemble
as shown below.
4
After fixing the monitor in one hand, remove the
Stand body
by pulling it strongly in the direction
of the arrow as shown below.
1
2
1
2
*
If it is difficult to remove, you can push the
Latch with a small flat-head screw driver or a
flat-headed tool and disassemble as shown
below.
Detaching the Stand Base
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a table
1
Lift and tilt the Monitor set into its upright
position on a table.
Leave a 100 mm (minimum) space from the
wall for proper ventilation.
2
Connect the AC-DC Adapter and Power Cord
to a wall outlet.
100 mm
100 mm
100 mm
100 mm
or
y
Illustrations in this document represent typical pro-
cedures, so they may look different from the actual
product.
y
Do not carry the monitor upside down by just hold-
ing the stand base. This may cause the monitor to
fall off the stand and could result in personal injury.
y
When lifting or moving the monitor, do not touch
the monitor screen. The force applied to the moni-
tor screen may cause damage to it.
y
If you use the monitor panel without the stand
base, its joystick button may cause the moni-tor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.
CAUTION
(19 V )
(19 V )
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the cable holder
3
Press the joystick button on the bottom of the
monitor to turn on the monitor.
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
CAUTION
Cable holder
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Do not touch or press the screen when
adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
WARNING
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the Monitor set and a table.
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
Tilt from +15 to -2 degrees up or down to adjust
the angle of the Monitor set to suit your view.
NOTE
Front Rear
14
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
y
Your Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
y
Mac adapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
y
When using a D-Sub signal input cable
connector for Macintosh
NOTE
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations.
DVI-D connection
Transmits a digital video signal from your PC to the
Monitor set. Connect the PC and the Monitor set with
a DVI cable as shown in the following illustrations.
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
NOTE
15
ENG
ENGLISH
USING THE MONITOR SET
y
Connect the signal input cable
and tighten it by turning the
screws clockwise.
y
Do not press the screen with
your finger for a long time as this may
result in temporary distortion on the screen.
y
Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION
y
When you want to use two PC in our Monitor,
please connect the signal cable(D-SUB/
DVI-D/HDMI) respectively in Monitor set.
y
If you turn the Monitor set on while it is cold,
the screen may flicker. This is normal.
y
Some red, green, or blue spots may appear
on the screen. This is normal.
NOTE
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your AV devices to the monitor. Connect your AV
device to the monitor with the HDMI cable as il-
lustrated below.
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
NOTE
16
ENGLISH
USING THE MONITOR SET
Connecting to External Devices

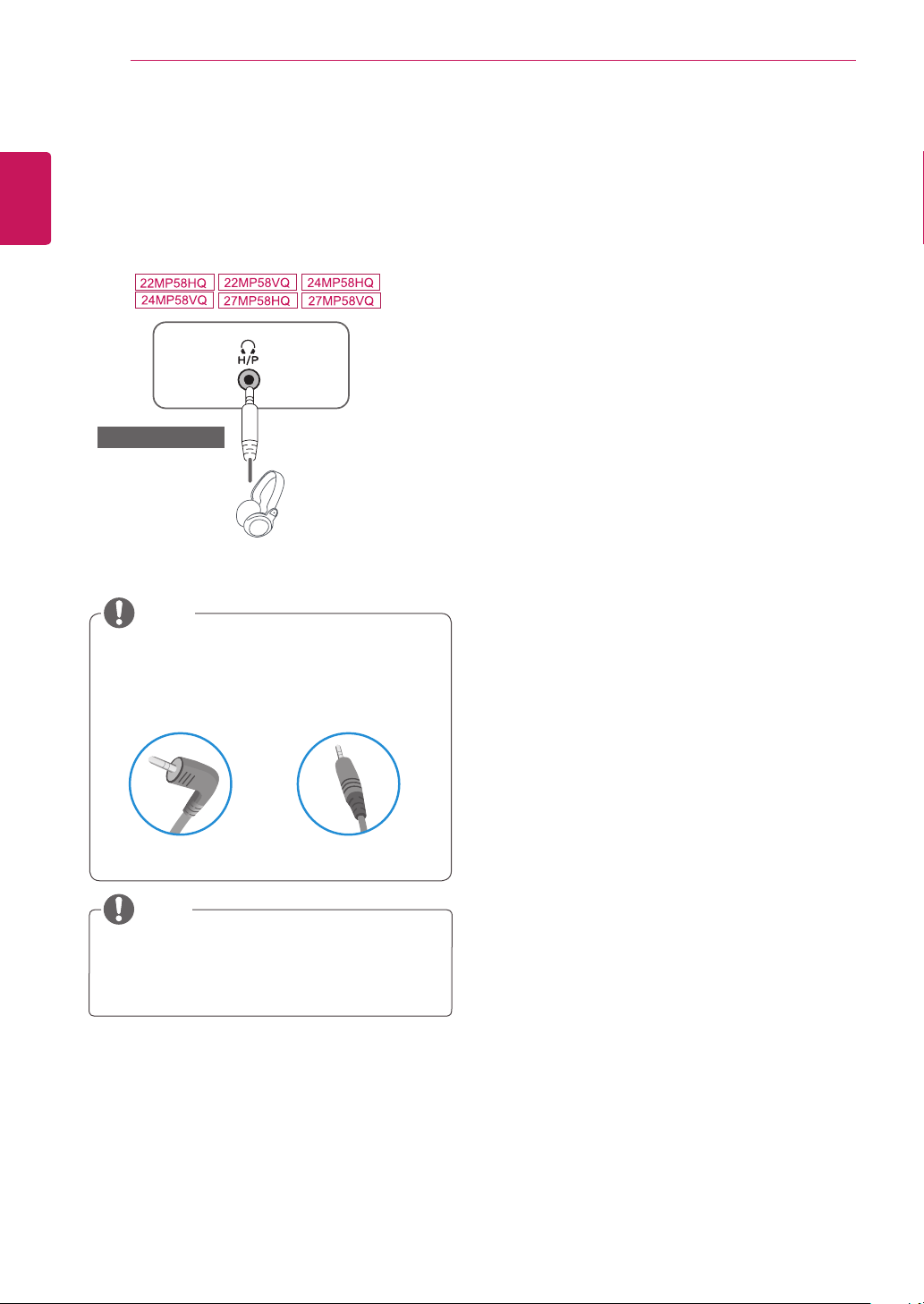

Peripheral device connection
Connect peripheral devices to the monitor using
headphone ports.
y
Peripheral devices are sold separately.
y
Cables with angled plugs may have clear-
ance issues, use straight plugs when pos-
sible.
Angle Type Straight Type
NOTE
NOTE
y
Headphones or speakers may not work nor-
mally, depending on the server PC settings.
(sold separately)
17
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Picture Mode
Joystick Button
Power Indicator
Picture Mode
Activating the Main Menu
Button Menu Status Description
Main menu disabled
Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor: You can turn off
the monitor this way at any time, including when the OSD is on.)
◄
Main menu disabled
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
Adjusts the monitor volume level.
22MP58A
22MP58D 24MP58D
Enables the main menu.
Main menu enabled
Enters the menu features.
►
Main menu disabled
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
Adjusts the monitor volume level.
22MP58A
22MP58D 24MP58D
Enables the main menu.
Main menu enabled
22MP58D
22MP58HQ
22MP58VQ
24MP58D
24MP58HQ
27MP58HQ
27MP58VQ24MP58VQ
Operates the Input change.
22MP58A
Operates the Auto function.
▲
Main menu disabled
Enables the main menu.
Main menu enabled
Enters the picture mode feature.
▼
Main menu disabled
Enables the main menu.
Main menu enabled
Turns off the monitor.
Main Menu Features
Main
Menu
Description
Menu
Configures the screen settings.
Mode
Select picture mode to achieve the best
display effect.
Input
You can operate the change of input sig nals.
• When two input signals over are con nected
and select the input menu, input signal(D-SUB/
DVI-D/HDMI) will be changed sequentially.
• When only one signal is connected, it is auto-
matically detected. The default setting is D-SUB.
Auto
Press the Auto button to automatically ad-
just your display image to the ideal setting.
(Only supported in Analog Mode)
Monitor
off
Turns off the monitor.
Exit
Exits the main menu.
1
Press the joystick button on the bottom of the monitor.
2
Move the joystick up/down (▲/▼) and left/right(◄/►) to
set the options.
3
Press the joystick button once more to exit the main
menu.
Picture Mode
Picture Mode
Picture Mode
22MP58A
22MP58D
22MP58HQ
22MP58VQ
24MP58D
24MP58HQ
27MP58HQ
27MP58VQ24MP58VQ
18
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Customizing settings
Menu Settings
-Quick Settings
1
To view the
OSD menu
, press the
joystick button
at the
bottom of the monitor and then enter the
Menu
.
2
Go to
Quick Settings >
Brightness
by moving the joystick.
3
Configure the options following the instructions that appear in the
bottom right corner.
4
To return to the upper menu or set other menu items, move the
joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until you
exit.
Menu > Quick Settings Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
Adjusts the volume.
NOTE
y
Jog joystick button down (
) in the Volume menu will
enable/disable the Mute function.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
SMART ENERGY
SAVING
High
Enables SMART ENERGY SAVING you can save energy with this energy- high efficient
function.
Low
Enables SMART ENERGY SAVING you can save energy with this energy- low
efficient function.
Off Disables SMART ENERGY SAVING .
NOTE
y
The display may look the same for Wide, Original options at the recommended resolution (1920 x
1080).
y
The ratio is disabled in the interlaced signal.
Color Adjust
Auto
Configuration
* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.
19
ENG
ENGLISH
CUSTOMIZING SETTINGS
y
The value of energy saving data may differ depending on panel and panel suppliers.
y
If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower
or higher depend on source.
NOTE
20
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
-Picture
1
To view the
OSD menu
, press the
joystick button
at
the bottom of the monitor and then enter the
Menu
.
2
Go to
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be ad-
justed.
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want
screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen
more bright, you can control brightness in Menu OSD.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Color
weakness
This mode is for users who cannot distinguish between red and green.It enables users
with color weakness to easily distinguish between the two colors.
Game Optimizes the screen for gameplay.
Color Adjust
Auto
Configuration
NOTE
y
This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen,
please turn off this function.
y
This function can’t distinguish some colors in some images.
21
ENG
ENGLISH
CUSTOMIZING SETTINGS
Picture Adjust SUPER RESOLU-
TION+
22MP58D
22MP58HQ
22MP58VQ
24MP58D
24MP58HQ
27MP58HQ
27MP58VQ
24MP58VQ
High Optimized picture quality is displayed when a user
wants crystal clear images. It is effective forhigh quality
video or game.
Middle The optimized picture quality is displayed when a
user wants images between low and highmodes for
comfortable viewing. It is effective for UCC or SD
video.
Low The optimized picture quality is displayed when a user
wants smooth and natural images. It iseffective for
slow-moving pictures or still images.
Off Select this option for everyday viewing. SUPER
RESOLUTION+ is turned off in this mode.
Sharpness Adjusts the sharpness of the screen.
Black Level
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
Sets the offset level (for HDMI only).
y
Offset:
as a reference for a video signal, this is the darkest color
the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels raises the write levels from
the current contrast ratio of the screen.
Response Time
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
Sets a response time for displayed pictures based on the speed of
the screen. For a normal environment, it is recommended that you
use Normal. For a fast-moving picture, it is recommended that you
use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Sets the response time to Off.
Overscan
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
To select the range of output image for DTV timing in HDMI input.
(only for HDMI input)Recommend overscan function to turn on when
connect AV equipment.
DFC Adjusts the brightness automatically according to the screen.
Black Stabilizer Black Stabilizer
: You can control the black contrast to have better visibility in dark
scenes.
Increasing the Black Stabilizer value brightens the low gray level
area on the screen. (You can easily distinguish objects on dark
game screens.)
Reducing the Black Stabilizer value darkens the low gray level area
and increases the dynamic contrast on the screen.
22
ENG
ENGLISH
CUSTOMIZING SETTINGS
Color Adjust Gamma The higher the gamma value, the darker the image becomes.
Likewise, the lower the gamma value, the lighter the image
becomes. If you do not need to adjust the gamma settings, select
Off.
Color Temp Selects the factory default picture color.
Warm:
Sets the screen color to a reddish tone.
Medium:
Sets the screen color between a red and blue tone.
Cool:
Sets the screen color to a bluish tone.
Custom
Red
Green
Blue
You can customize the picture color using Red,
Green, and Blue colors.
Six Color Meets the user requirements for colors through adjusting the color
and saturation of the six colors(
Red_Hue, Red_Saturation, Green_
Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue,
Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_
Hue, Yellow_Saturation
) and saving the settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower
the value, less saturated and bright the colors become. The higher
the value, the more saturated and dark the colors become.
Reset Returns the color settings to the default settings.
Display Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars or stripes visible on the screen
background.The horizontal screen size will also change.
Phase To adjust the focus of the display. This item allows you to remove
any horizontal noise and clear or sharpen the image of characters.
23
ENG
ENGLISH
CUSTOMIZING SETTINGS
Menu > General Description
Language To choose the language in which the control names are displayed.
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
Automatic Standby
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
The monitor will automatically switch to standby mode after a certain period.
Resolution User can set the desired resolution.This option is enabled only when the screen resolution on
your computer is set to the following(D-SUB only).
1024x768, 1280x768, 1360x768, 1366x768,Off
1280x960, 1600x900,Off
1440x900, 1600x900,Off
OSD Lock Prevents incorrect key input.
On Key input is disabled.
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Con-
trast, Volume, Input, and General are disabled.
Off Key input is enabled.
NOTE
The function is enabled only when the screen resolution on your computer is set to the
following, except that the PC output wrong resolution.
-General
1
To view the
OSD menu
, press the
joystick but-
ton
at the bottom of the monitor and then enter the
Menu
.
2
Go to
General
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Color Adjust
Auto
Configuration
Each option is described below.
24
ENG
ENGLISH
CUSTOMIZING SETTINGS
-Auto Configuration
1
To view the
OSD menu
, press the
joystick button
at the
bottom of the monitor and then enter the
Menu
.
2
Go to
Auto Configuration
by moving the joystick.
3
Configure the options following the instructions that appear in the
bottom right corner.
4
To return to the upper menu or set other menu items, move the
joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until
you exit.
Each option is described below.
Menu > Auto Configuration Description
Do you want to Auto confuguration?
Yes Operate the Auto configuration for optimal display in D-SUB.
Cancel Cancel the select.
Color Adjust
Auto
Configuration
NOTE
y
This function will be enable only in analog input.
25
ENG
ENGLISH
CUSTOMIZING SETTINGS
-Reset
1
To view the
OSD menu
, press the
joystick but-
ton
at the bottom of the monitor and then enter the
Menu
.
2
Go to
Reset
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick
to ◄ until you exit.
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
Color Adjust
Auto
Configuration
26
ENG
ENGLISH
CUSTOMIZING SETTINGS
-Picture mode
1
Press the joystick button on the bottom of the monitor.
2
Go to
Picture mode
by moving the joystick button to ▲.
3
Configure the options following the instructions that appear in the
bottom.
Joystick Button >
Picture Mode
Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want
screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Color weak-
ness
This mode is for users who cannot distinguish between red and green.It enables
users with color weakness to easily distinguish between the two colors.
Game Optimizes the screen for gameplay.
Each option is described below.
Color Adjust
Auto
Configuration
27
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
y
Check and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
y
Press the Power button.
Is the power indicator flickering?
y
If the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
y
Try to turn on the PC.
Do you see an "OUT OF RANGE"
message on the screen?
y
This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
Do you see a "NO SIGNAL"
message on the screen?
y
This is displayed when the signal cable between the PC and the
monitor is missing or disconnected. Check the cable and reconnect it.
Can 't you control some functions in OSD?
Can't you select some menu in
OSD?
y
You can unlock the OSD controls at any time by entering the OSD
lock menu and changing items to off.
Display image is incorrect
Display Position is incorrect.
y
Enter the Auto Configuration function and select the "Yes" item to
automatically adjust your display image to the ideal setting.
On the screen background, vertical
bars or stripes are visible.
y
Enter the Auto Configuration function and select the "Yes" item to
automatically adjust your display image to the ideal setting.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
y
Enter the Auto Configuration function and select the "Yes" item to
automatically adjust your display image to the ideal setting.
y
Check Control Panel ► Display ► Settings and adjust the display to
the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
28
ENG
ENGLISH
TROUBLESHOOTING
y
Check
Control Panel ► Display ► Settings
and see if the frequency or the resolution were
changed. If yes, readjust the video card to the recommend resolution.
y
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
y
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
CAUTION
The screen is flickering.
Did you select the recommended
resolution?
y
If the selected resolution is HDMI
1080i
60/50 Hz, the screen may
be flickering. Change the resolution to the recommended resolution
1080P
.
Display image is incorrect
The screen color is mono or
abnormal.
y
Check if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
y
Make sure the video card is properly inserted in the slot.
y
Set the color setting higher than 24 bits (true color) at
Control Panel
►
Settings
.
The screen blinks.
y
Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
y
Be sure to install the display driver from our web site:
http://www.
lg.com
.
y
Make sure to check if the video card supports Plug&Play function.
22MP58HQ
22MP58VQ
24MP58HQ
27MP58HQ
27MP58VQ24MP58VQ
29
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Display Screen Type Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Pixel Pitch 0.248 mm x 0.248 mm (Pixel Pitch)
Resolution Max 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Power
Consumption
On Mode : 22.1 W Typ. (Outgoing condition) *
Sleep Mode ≤ 0.3 W **
Off Mode ≤ 0.3 W
Power Input 19 V
1.3 A
AC-DC Adapter
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-25FSG-19 19025EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP51, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PA-1021-23, manufactured by Lite-On Technology Corporation
OUTPUT:
19 V 1.3 A
Dimensions
(Width x Height x
Depth)
With Stand 510.1 mm x 395.3 mm x 186.8 mm
Without Stand 510.1 mm x 308.4 mm x 86.8 mm
Weight 2.9 kg
Tilt Range -2° to 15°
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
≤ 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
≤ 85 %
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
22MP58A 22MP58D 22MP58HQ 22MP58VQ
30
ENG
ENGLISH
SPECIFICATIONS
22MP58A 22MP58D 22MP58HQ 22MP58VQ
Sync Input Horizontal
Frequency
30 kHz to 83 kHz
(Automatic)
● ● ● ●
30 kHz to 61 kHz
(Automatic)
Vertical
Frequency
56 Hz to 75 Hz (D-SUB)
● ● ● ●
56 Hz to 75 Hz (DVI-D)
● ●
56 Hz to 75 Hz (HDMI)
● ●
Input Form Separate Sync.
● ● ● ●
Digital
● ● ●
Video Input Signal Input 15 pin D-SUB
Connector
● ● ● ●
DVI-D Connector
(Digital)
● ●
HDMI Connector
● ●
Input Form RGB Analog (0.7 Vp-p/
75 ohm)
● ● ● ●
Digital
● ● ●
Plug & Play DDC 2B(Analog)
● ● ● ●
DDC 2B(Digital)
● ●
DDC 2B(HDMI)
● ●
31
ENG
ENGLISH
SPECIFICATIONS
Display Screen Type Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Pixel Pitch 0.2745 mm x 0.2745 mm (Pixel Pitch)
Resolution Max 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Power
Consumption
On Mode : 24.6 W Typ. (Outgoing condition) *
Sleep Mode ≤ 0.3 W **
Off Mode ≤ 0.3 W
Power Input 19 V
1.3 A
AC-DC Adapter
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-25FSG-19 19025EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP51, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PA-1021-23, manufactured by Lite-On Technology Corporation
or Type WA-24C19FS, manufactured by Asian Power Devices Inc.
or Type WA-24C19FU, manufactured by Asian Power Devices Inc.
or Type WA-24C19FK, manufactured by Asian Power Devices Inc.
or Type WA-24C19FB, manufactured by Asian Power Devices Inc.
or Type WA-24C19FN, manufactured by Asian Power Devices Inc.
or Type DA-24B19, manufactured by Asian Power Devices Inc.
OUTPUT:
19 V 1.3 A
Dimensions
(Width x Height x
Depth)
With Stand 550.5 mm x 419 mm x 186.8 mm
Without Stand 550.5 mm x 332.1 mm x 85.5 mm
Weight 3.2 kg
Tilt Range -2° to 15°
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
≤ 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
≤ 85 %
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
SPECIFICATIONS
24MP58D 24MP58HQ 24MP58VQ
32
ENG
ENGLISH
SPECIFICATIONS
24MP58D 24MP58HQ 24MP58VQ
Sync Input Horizontal
Frequency
30 kHz to 83 kHz
(Automatic)
● ● ●
30 kHz to 61 kHz
(Automatic)
Vertical
Frequency
56 Hz to 75 Hz (D-SUB)
● ● ●
56 Hz to 75 Hz (DVI-D)
● ●
56 Hz to 75 Hz (HDMI)
● ●
Input Form Separate Sync.
● ● ●
Digital
● ● ●
Video Input Signal Input 15 pin D-SUB
Connector
● ● ●
DVI-D Connector
(Digital)
● ●
HDMI Connector
● ●
Input Form RGB Analog (0.7 Vp-p/
75 ohm)
● ● ●
Digital
● ● ●
Plug & Play DDC 2B(Analog)
● ● ●
DDC 2B(Digital)
● ●
DDC 2B(HDMI)
● ●
33
ENG
ENGLISH
SPECIFICATIONS
Display Screen Type Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Pixel Pitch 0.3114 mm x 0.3114 mm (Pixel Pitch)
Resolution Max 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Power
Consumption
On Mode : 29.3 W Typ. (Outgoing condition) *
Sleep Mode ≤ 0.3 W **
Off Mode ≤ 0.3 W
Power Input 19 V
1.6 A
AC-DC Adapter
Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-32FSG-19 19032EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP51A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PA-1031-23, manufactured by Lite-On Technology Corporation
OUTPUT:
19 V 1.7 A
Dimensions
(Width x Height x
Depth)
With Stand 634.1 mm x 469.5 mm x 204.7 mm
Without Stand 634.1 mm x 382.7 mm x 91.1 mm
Weight 4.3 kg
Tilt Range -2° to 15°
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
≤ 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
≤ 85 %
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
SPECIFICATIONS
27MP58HQ 27MP58VQ
34
ENG
ENGLISH
SPECIFICATIONS
27MP58HQ 27MP58VQ
Sync Input Horizontal
Frequency
30 kHz to 83 kHz (Automatic)
● ●
30 kHz to 61 kHz (Automatic)
Vertical
Frequency
56 Hz to 75 Hz (D-SUB)
● ●
56 Hz to 75 Hz (DVI-D)
●
56 Hz to 75 Hz (HDMI)
● ●
Input Form Separate Sync.
● ●
Digital
● ●
Video Input Signal Input 15 pin D-SUB Connector
● ●
DVI-D Connector (Digital)
●
HDMI Connector
● ●
Input Form RGB Analog (0.7 Vp-p/ 75 ohm)
● ●
Digital
● ●
Plug & Play DDC 2B(Analog)
● ●
DDC 2B(Digital)
●
DDC 2B(HDMI)
● ●
35
ENG
ENGLISH
SPECIFICATIONS
Preset Modes (Resolution)
D-SUB/DVI-D/HDMI PC Timing
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
HDMI Timing(Video)
Factory support mode
(Preset Mode)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60
O
Recommend Mode
Indicator
Mode LED Color
On Mode White
Sleep Mode Blinking White
Off Mode Off
22MP58HQ
22MP58VQ
24MP58HQ
24MP58VQ
27MP58VQ
27MP58HQ
Make sure to read the Safety Precautions before
using the product.
The model and serial number of the product
are located on the back and on one side of the
product.
Record them below in case you ever need
service.
MODEL
SERIAL
