22MP56HQ
24MP56HQ
22EA56VQ
24EA56VQ
IPS LED MONITOR MODEL
www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
*LG LED Monitors are LCD Monitors with LED Backlighting.
Owner's Manual
IPS LED MONITOR
LED LCD MONITOR
(LED MONITOR*)
2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3 LICENSE
4 ASSEMBLING AND PREPAR-
ING
4 Unpacking

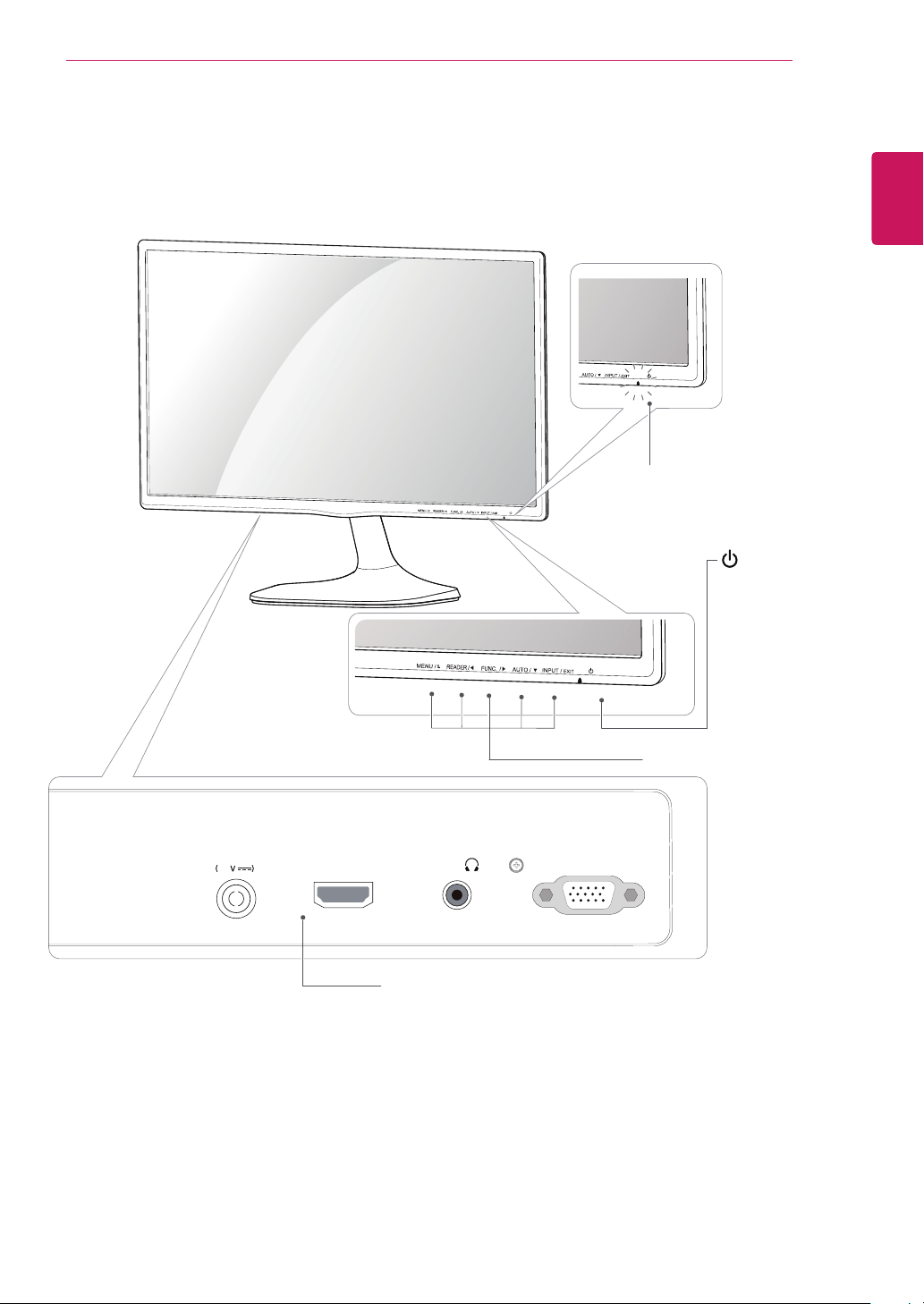

5 Parts and buttons
6 Moving and Lifting the Monitor
7 Setting up the Monitor set
7 - Attaching the Stand Base
7 - Detaching the Stand Base
8 - Mounting on a table
8 - Using the cable holder
10 - Mounting on a wall
11 USING THE MONITOR SET
11 Connecting to a PC
11 - D-SUB connection
11 - HDMI connection
12 Connecting to AV Devices
12 - HDMI connection
12 Connecting to External Devices
12 - Peripheral device connection
13 CUSTOMIZING SETTINGS
14 Customizing Settings
14 - Menu Settings
15 - Picture

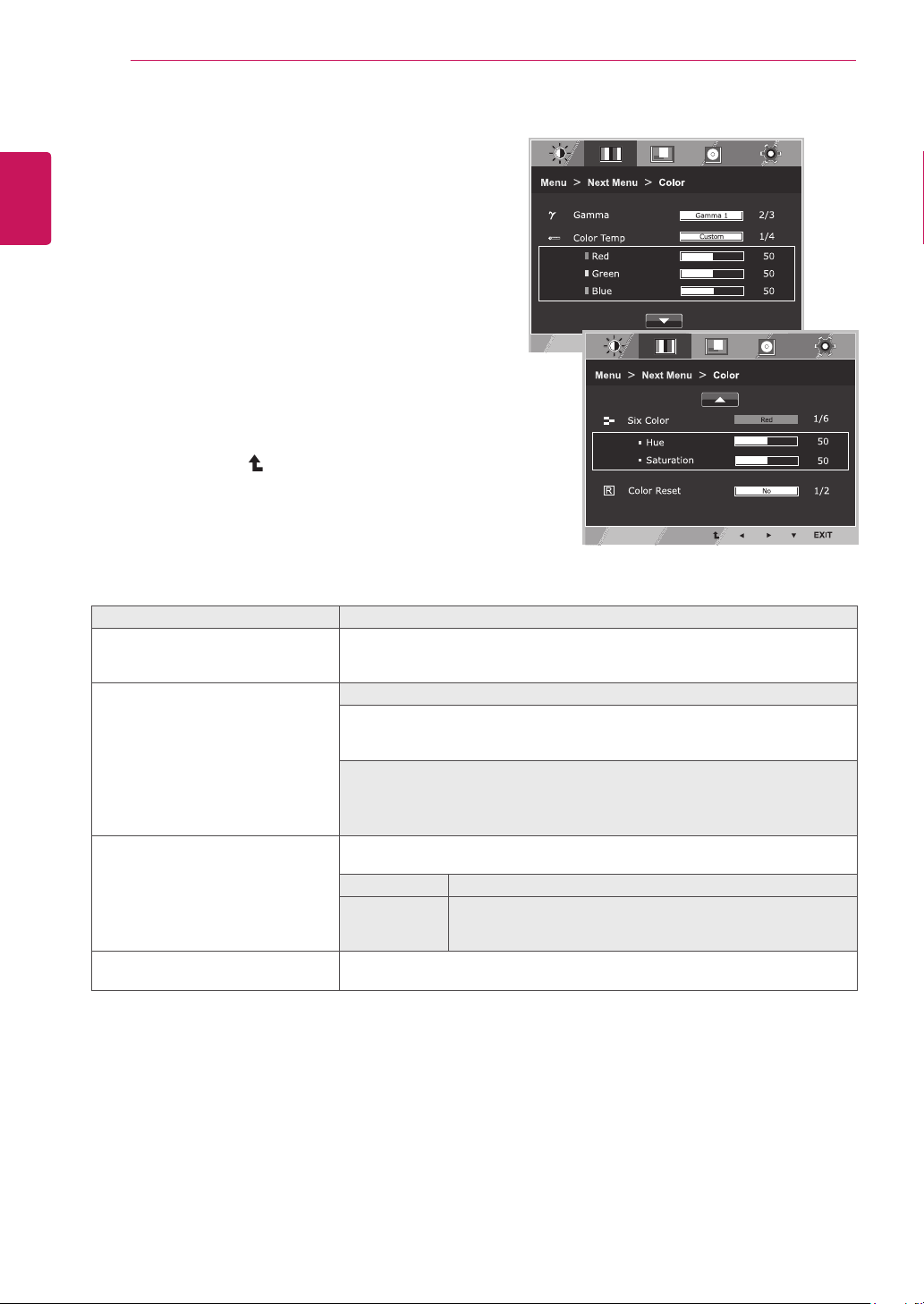

16 - Color

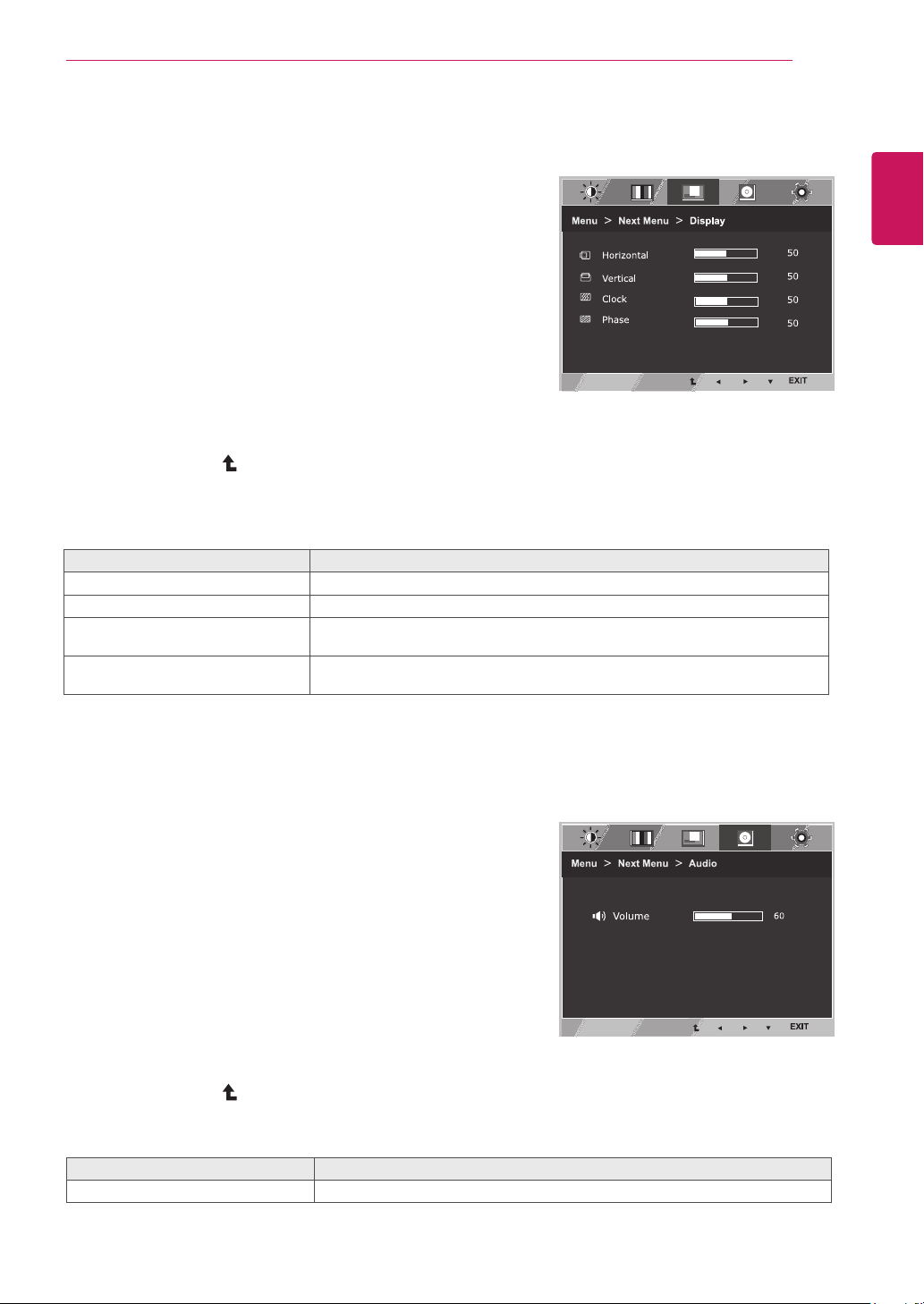

17 - Display
17 - Audio
18 - Others
19 READER Setting
20 FUNC. Setting
20 - SMART ENERGY SAVING

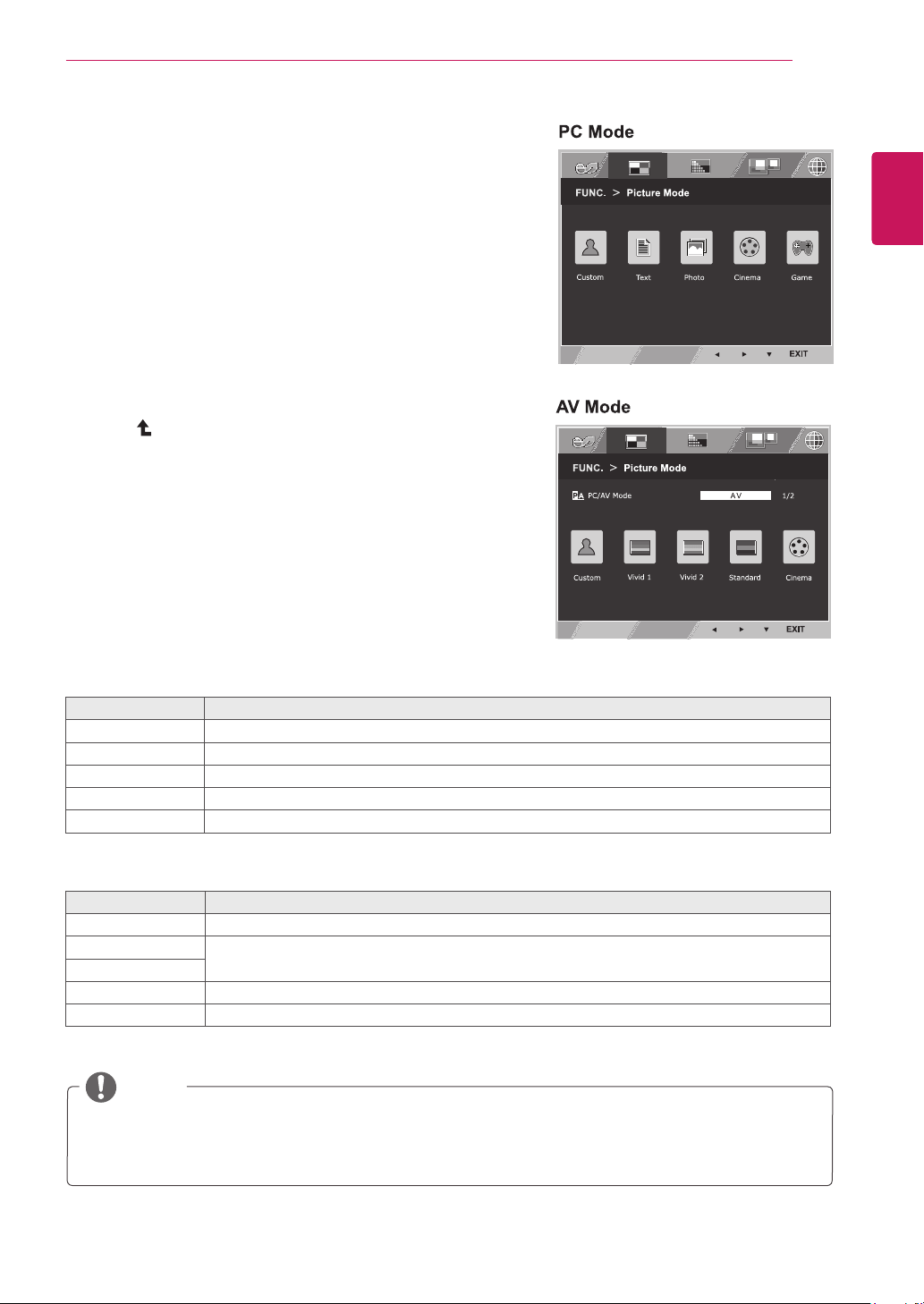

21 - Picture Mode
22 - SUPER RESOLUTION +

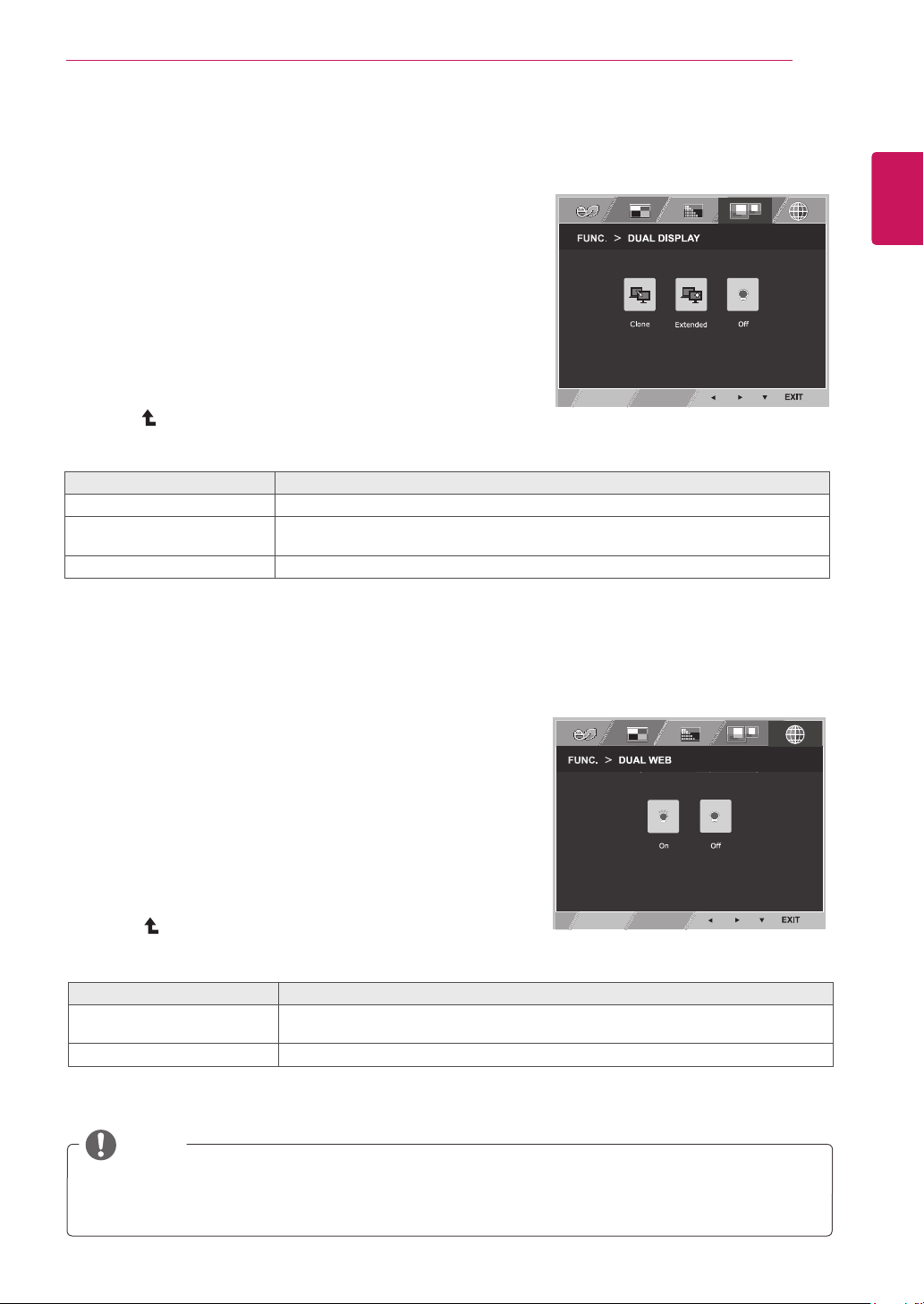

23 - DUAL DISPLAY
23 - DUAL WEB
24 TROUBLESHOOTING
26 SPECIFICATIONS
26 22MP56HQ/22EA56VQ
27 24MP56HQ/24EA56VQ
28 Preset Modes (Resolution)
28 Indicator

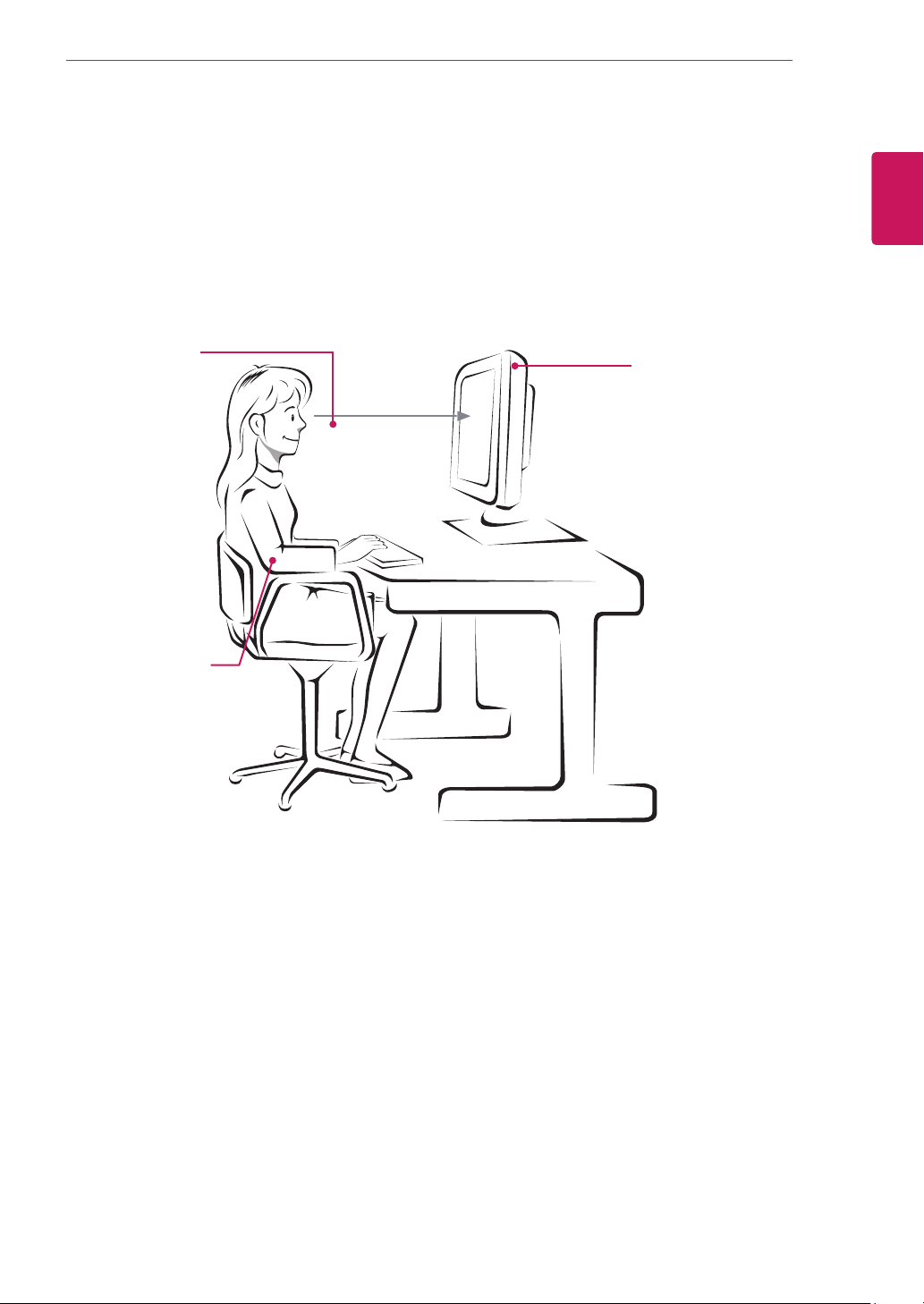

29 PROPER POSTURE
29 Proper posture for using the Monitor set.
3
LICENSE
ENG
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to
meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no
adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING

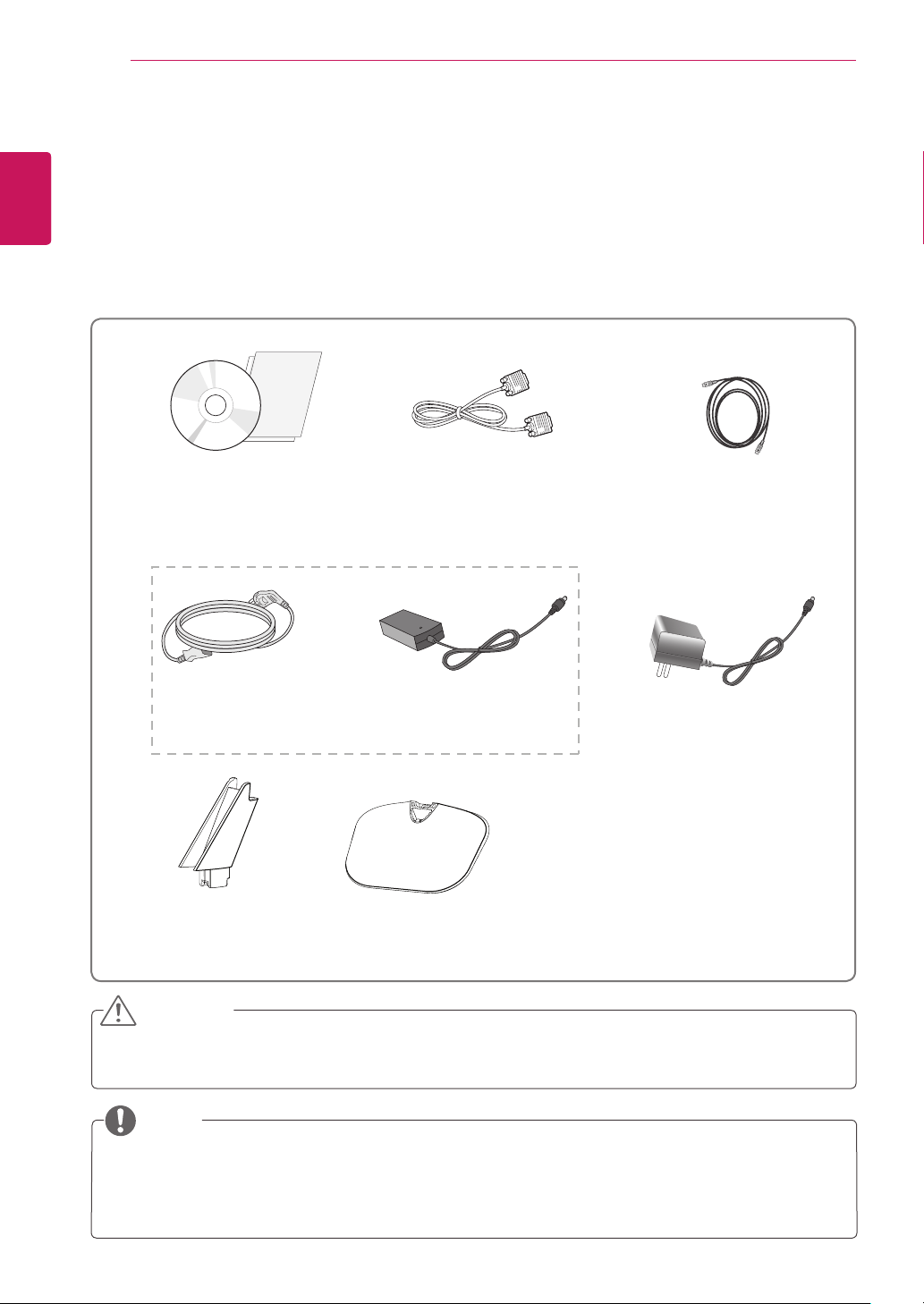

Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y
Do not use any unapproved accessories to ensure the safety and product life span.
y
Any damages or injuries by using unapproved accessories are not covered by the warranty.
y
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
Stand Body Stand Base
CD(Owner's Manual) /
Card
D-SUB Cable
(This cable is not included in all
countries.)
( Depending on the country ) ( Depending on the country )
Power Cord AC-DC Adapter AC-DC Adapter
or
HDMI Cable
(This cable is not included in all
countries.)
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When moving the monitor, avoid any strong
shock or vibrations to the product.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Attach the
Stand Body
to the monitor set.
Attach the
Stand Base
to
Stand Body
.
Tighten the screw to the right.
Setting up the Monitor set
Attaching the Stand Base
1
Place the Monitor set with the screen side
down on a flat and cushioned surface.
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
CAUTION
2
Stand Base
Stand Body
1
2
3
Detaching the Stand Base
1
Place the Monitor set with the screen side
down on a flat and cushioned surface.
Stand Base
Stand Body
Pull out the
Stand Body
and
Stand Base
from the monitor set.
Turn the screw to the left.
Pull out the
Stand Base
.
1
2
3
2
8
ENG
ENGLISH
ASSEMBLING AND PREPARING

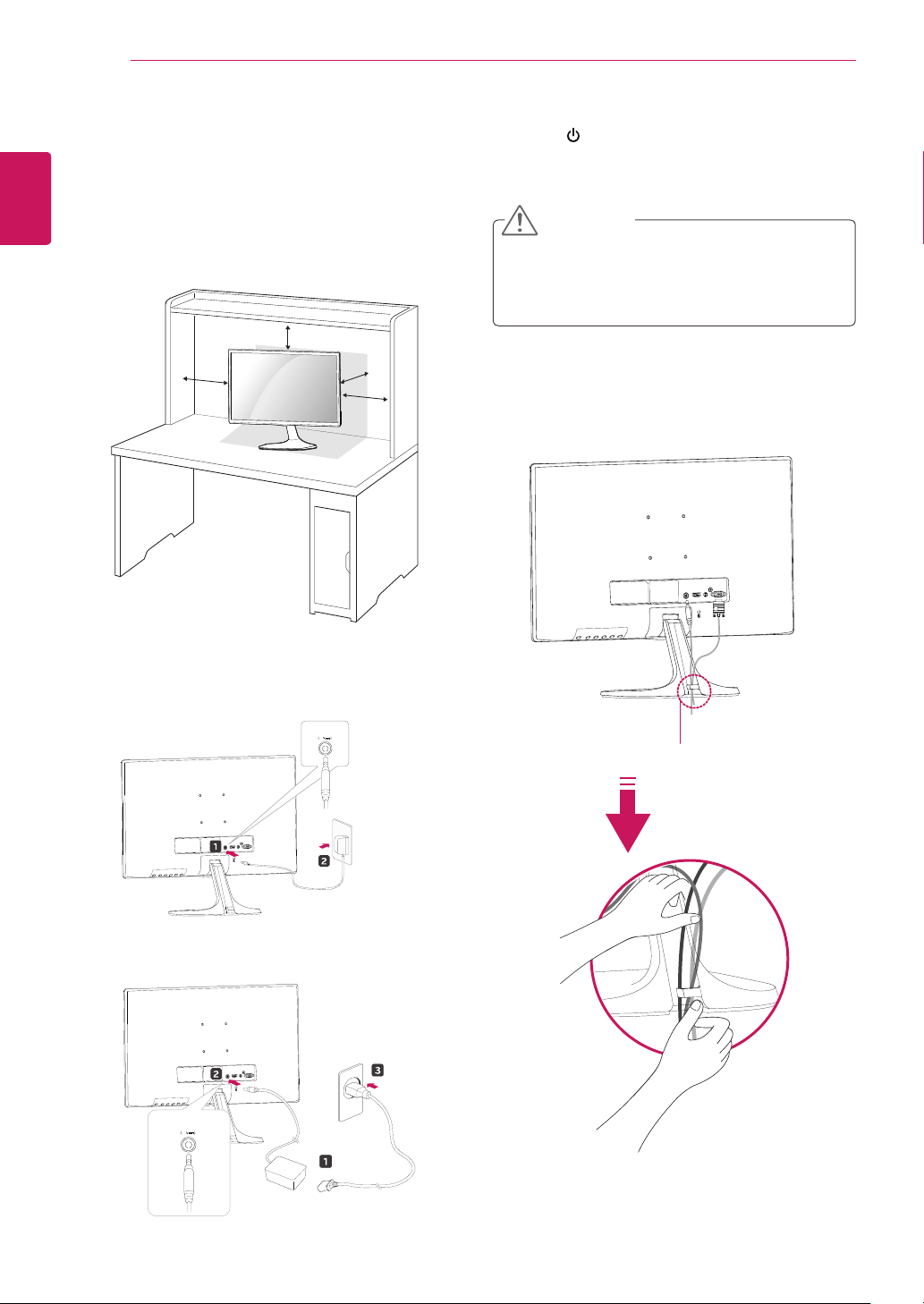

Mounting on a table
1
Lift and tilt the Monitor set into its upright
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
2
Connect the AC-DC Adapter and Power Cord
to a wall outlet.
3
Press (Power) button on the bottom switch
panel to turn the power on.
10 cm
10 cm
10 cm
10 cm
⭫Ⓠ䗉ޛ
DC-IN
19
⭫Ⓠ䗉ޛ
DC-IN
19
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
CAUTION
or

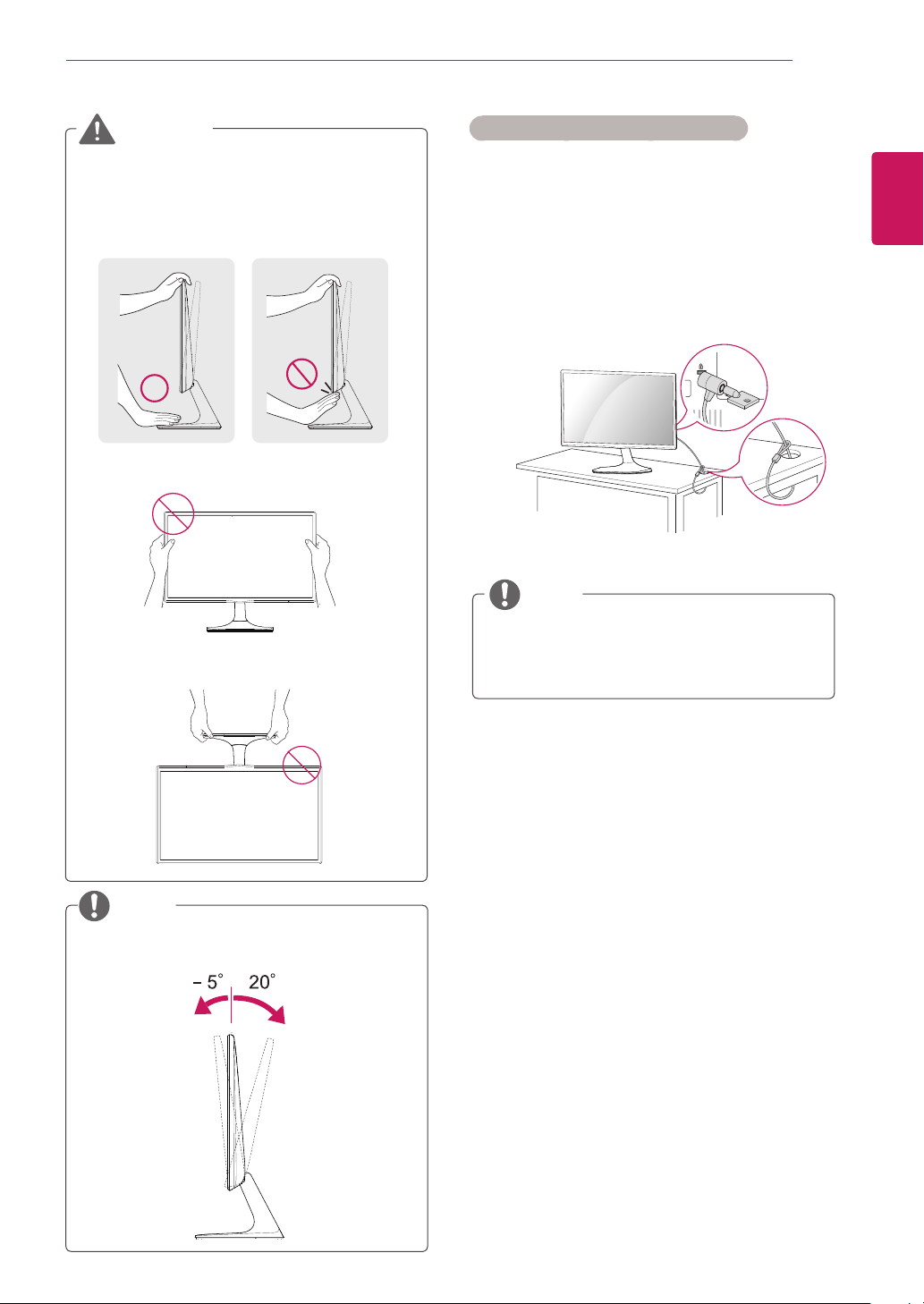

Using the cable holder
Cable holder
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the Monitor set and a table.
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Do not touch or press the screen when
adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
WARNING
Tilt from +20 to -5 degrees up or down to adjust
the angle of the Monitor set to suit your view.
NOTE
Front
Rear
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1
Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2
If you use screw longer than standard, the
monitor might be damaged internally.
3
If you use improper screw, the product might be
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4
VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
5
Please use VESA standard as below.
y
784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
y
787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
10 cm
10 cm
10 cm
10 cm
y
Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y
If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
y
Use only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y
Use only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
y
Screw length from outer surface of back
cover should be under 8mm.
y
Use the screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit will include an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y
For more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
Model
22MP56HQ
VESA (A x B) 75 x 75
Standard screw M4
Number of screws 4
24MP56HQ
24EA56VQ
22EA56VQ
Back Cover
Wall mount Pad
Wall mount Pad
Back Cover
Standard screw
Max.8mm
11
ENG
ENGLISH
USING THE MONITOR SET
USING THE MONITOR SET
Connecting to a PC
y
Your Monitor set supports Plug & Play*.
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
y
Mac adapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
y
When using a D-Sub signal input cable
connector for Macintosh
y
If you use HDMI PC, it can cause compatibility
problem.
y
When you want to use two PC in our Monitor,
please connect the signal cable(D-SUB/
HDMI) respectively in Monitor set.
y
If you turn the Monitor set on while it is cold,
the screen may flicker. This is normal.
y
Some red, green, or blue spots may appear
on the screen. This is normal.
NOTE
NOTE
⭫Ⓠ䗉ޛ
DC-IN
HDMI IN D-SUB IN
H / P
19
HDMI connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the HDMI cable as shown in
the following illustrations.
y
Connect the signal input cable
and tighten it by turning the
screws clockwise.
y
Do not press the screen with
your finger for a long time as
this may result in temporary distortion on
the screen.
y
Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION
12
ENG
ENGLISH
USING THE MONITOR SET
y
"Self Image Setting" Function.
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
y
‘AUTO’ Function.
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
NOTE
Self Image Setting Function
Press the power button on the rear panel to turn
the power on. When monitor power is turned on,
the "
Self Image Setting
" Function is executed
automatically. (Only supported in Analog Mode)
⭫Ⓠ䗉ޛ
DC-IN
HDMI IN D-SUB IN
H / P
19
y
Peripheral devices are sold separately.
y
Cables with angled plugs may have clear-
ance issues, use straight plugs when pos-
sible.
Angle Type Straight Type
NOTE
(sold separately)

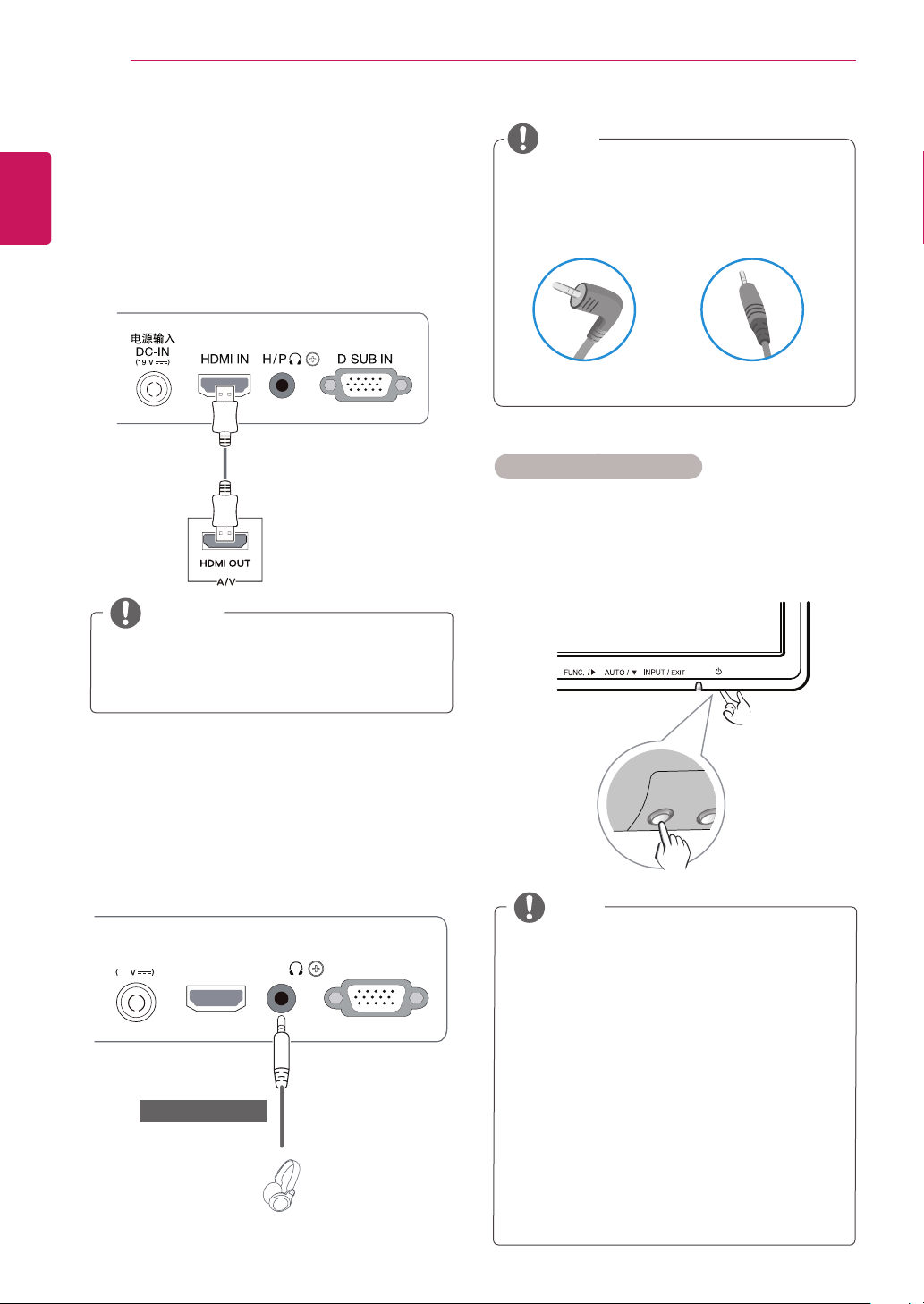

Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your AV devices to the monitor. Connect your AV
device to the monitor with the HDMI cable as il-
lustrated below.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
NOTE
Connecting to External Devices
Peripheral device connection
Connect peripheral devices to the monitor using
headphone ports.
13
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
1
Press the desired button on the rear of the Monitor set.
2
Change the value of the menu item by pressing the buttons on the rear of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow ( ) button.
3
Select
EXIT
to leave the OSD menu.
Monitor set Buttons
Button Description
Accesses the main menus.(See p.14)
OSD Locked/OSD
Unlocked
This function allow you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds. Then
OSD of “OSD Lock” will appear. After that, user can select
lock or unlock by pressing left/right button.
If user selects the “Lock” icon by pressing the “OK” button,
the message “OSD Locked” will appear. Otherwise, “OSD
Unlocked” will appear. After selecting the “Lock”, If you want
to change to Unlock, you can push the “MENU” button for
several seconds. The message “OSD Unlocked” will appear.
Use this button to enter Reader Mode menu. Its function works to display screen as
paper-like picture for Eye comfort.If you want to more information(See p.19).
Use this button to enter SMART ENERGY SAVING, Picture Mode, SUPER
RESOLUTION+, DUAL DISPLAY, DUAL WEB menus.(See p.20
~23)
When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode
1920 x 1080
You can choose the input signal.
• When two input signals are connected, you can select the input signal (D-SUB/HDMI)
you want.
• When only one signal is connected, it is automatically detected. The default setting is
D-SUB.
EXIT
EXIT the OSD(On Screen Display).
(Power Button)
Turns the power on or off.
Power Indicator
The power indicator stays white if the display is running
properly (On Mode). If the display is in Sleep Mode, the power
indicator blinks white.
Front
Rear
14
ENG
ENGLISH
CUSTOMIZING SETTINGS

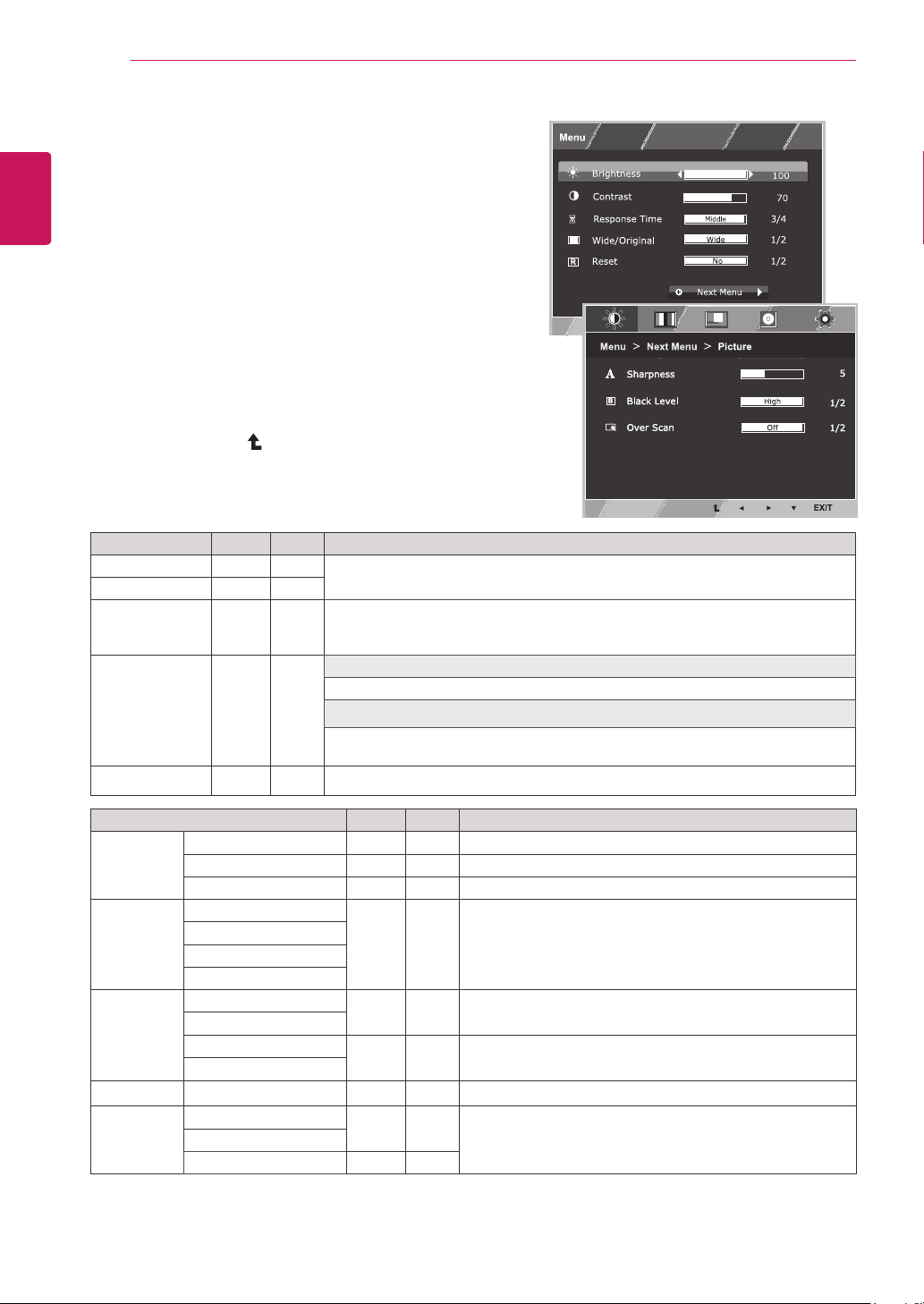

Customizing Settings
Menu Settings
1
Press
MENU
button on the rear of the Monitor set to
display the
Menu
OSD.
2
Set the options by pressing the ◄ or ► or ▼
buttons.
3
Select the "
Next Menu
" button to enter the more
option settings.
4
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu Analog HDMI Description
Picture Sharpness ● ●
To adjust the clearness of the screen
Black Level ●
To set offset level
Over Scan ●
To improve the clarity and stability of the screen
Color Gamma
● ●
To customize the color of the screen
Color Temp
Six Color
Color Reset
Display Horizontal
●
To adjust the position of the screen
Vertical
Clock
●
To improve the clarity and stability of the screen
Phase
Audio
Volume ●
To adjust the volume
Others Language
● ●
To customize the screen status for a user's operating
environment
Power Indicator
Automatic Standby ● ●
y
Analog:
D-SUB(Analog signal) input.
y
HDMI:
HDMI(Digital signal) input.
Menu Analog HDMI Description
Brightness ● ●
To adjust the brightness of the screen
Contrast ● ●
Response Time
● ●
You can set a response time for displayed pictures based on the speed of the
screen. For a normal environment, it is recommended that you use 'Off'. For a
fast-moving picture, it is recommended that you use 'High'.
Wide/Original
● ●
Wide
Switch to full screen mode according to input image signal.
Original
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset
● ●
Restore all factory default settings. Press the
◄
,
►
buttons to reset immediately.
15
ENG
ENGLISH
CUSTOMIZING SETTINGS
1
Press
MENU
button on the rear of the Monitor set to
display the
Menu
OSD.
2
Select the "
Next Menu
" button to enter the more
option settings.
3
Enter to
by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► or ▼
buttons.
5
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Picture Description
Sharpness
To adjust the clearness of the screen.
Black Level
You can set the offset level. If you select 'High', the screen will be bright and if
you select ‘Low’, the screen will be dark.(only for HDMI input)
* Offset?As the criteria for video signal, it is the darkest screen the monitor can
show.
Over Scan
To select the range of output image for DTV timing in HDMI input.(only for HDMI
input)Recommend overscan function to turn on when connect AV equipment.
16
ENG
ENGLISH
CUSTOMIZING SETTINGS
Color
1
Press
MENU
button on the rear of the Monitor set to
display the
Menu
OSD.
2
Select the "
Next Menu
" button to enter the more
option settings.
3
Select
Color
by pressing the ► button.
4
Enter to
Color
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► or ▼
buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Color Description
Gamma
Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,
high gamma values display whitish images and low gamma values display
blackish images.
Color Temp Custom
• Red:
Set your own red color levels.
• Green:
Set your own green color levels.
• Blue:
Set your own blue color levels.
Select the screen color.
Warm:
Set the screen to warm color temperature (more red).
Medium:
Set the screen to medium color temperature.
Cool:
Set the screen to cool color temperature (more blue).
Six Color
Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/
Magenta/Yellow) to satisfy the color requirements of a user.
Hue
Adjusts the screen hue.
Saturation
Adjusts the color sharpness on the screen. Lower values make
the color sharpness weaker and colors lighter while higher
values make the color sharpness stronger and colors dark.
Color Reset
Resets the color settings to the factory default settings for the current input
device.
17
ENG
ENGLISH
CUSTOMIZING SETTINGS
Display
1
Press
MENU
button on the rear of the Monitor set to
display the
Menu
OSD.
2
Select the "
Next Menu
" button to enter the more
option settings.
3
Select
Display
by pressing the ► button.
4
Enter to
Display
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► or ▼
buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Display Description
Horizontal
To move image left and right.
Vertical
To move image up and down.
Clock
To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
Phase
To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
Audio
1
Press
MENU
button on the rear of the Monitor set to
display the
MENU
OSD.
2
Select the "
Next Menu
" button to enter the more
option settings.
3
Select
Audio
by pressing the ► button.
4
Enter to
Volume
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Audio Description
Volume To adjust the volume of headphone/earphone.(Only for HDMI input)
18
ENG
ENGLISH
CUSTOMIZING SETTINGS
Others
1
Press
MENU
button on the rear of the Monitor set to
display the
Menu
OSD.
2
Select the "
Next Menu
" button to enter the more
option settings.
3
Select
Others
by pressing the ► button.
4
Enter to
Others
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► or ▼
buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Others Description
Language
To choose the language in which the control names are displayed.
Power Indicator
Use this function to set the power indicator on the bottom side of the monitor to
On or Off.If you set Off, it will go off.
If you set On at any time, the power indicator will automatically be turned on.
Automatic Standby
If you do not press any button on the monitor set for a certain period, the monitor
set will automatically switch to standby mode.
19
ENG
ENGLISH
CUSTOMIZING SETTINGS
NOTE
If option of Reader Mode is Reader 1 or Reader 2, Picture Mode will automatically be Custom and
SMART ENERGY SAVING will automatically be Off.
READER Setting
1
Press
READER
button on the bottom of the Monitor
set to display the
Reader Mode
OSD.
2
Set the options by pressing the ◄ or ► buttons.
3
Select
EXIT
to leave the OSD menu.
Reader Mode Description
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you
want screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Reader Off It is a mode that reader mode is off.
Each option is explained below.
20
ENG
ENGLISH
CUSTOMIZING SETTINGS
SMART ENERGY SAVING
1
Press
FUNC.
button on the bottom of the Monitor set to
display the
FUNC.
OSD.
2
Enter to
SMART ENERGY SAVING
by pressing the ▼
button.
3
Set the options by pressing the ◄ or ► buttons.
4
Select
EXIT
to leave the OSD menu.To return to the
upper menu or set other menu items, use the up arrow
( ) button.
Each option is explained below.
SMART ENERGY SAVING Description
High
Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.
Low
Enables SMART ENERGY SAVING you can save energy with this energy- low efficient
function.
Off Disables SMART ENERGY SAVING .
y
Saving Data depends on the Panel. So,those values should be different from each panel and panel
vendor.If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or
lower depend on source.
y
If option of SMART ENERGY SAVING is High or Low, Picture Mode will automatically be Custom and
Reader Mode will automatically be Reader Off.
NOTE
FUNC. Setting
*
SMART ENERGY SAVING:
Conserve energy by using luminance compensation algorithm.
21
ENG
ENGLISH
CUSTOMIZING SETTINGS
Picture Mode
1
Press
FUNC.
button on the rear of the Monitor set to
display the
FUNC.
OSD.
2
Select
Picture Mode
by pressing the ► button.
3
Enter to
Picture Mode
by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► buttons.
5
Select
EXIT
to leave the OSD menu.To return to the
upper menu or set other menu items, use the up
arrow( )button.
Picture Mode Description
Custom
It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Text
It is a mode that the screen is adjusted to the best for the textworks.
It is a mode that the screen is adjusted to the best to view pictures.
Cinema
It is a mode that the screen is adjusted to the best to view the videos.
Game
It is a mode that the screen is adjusted to the best to play a game.
Each option is explained below.
Picture Mode Description
Custom
It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Vivid 1
Adjusts the video image for the retail environment by enhancing the contrast, brightness, Colour,
and sharpness.
Vivid 2
Standard
Adjusts the image for the normal environment.
Cinema
It is a mode that the screen is adjusted to the best to view the videos.
NOTE
If option of Picture Mode is non-Custom , Reader Mode will automatically be Reader Off and SMART
ENERGY SAVING will automatically be Off.
22
ENG
ENGLISH
CUSTOMIZING SETTINGS
SUPER RESOLUTION +
1
Press
FUNC.
button on the rear of the Monitor set to
display the
FUNC.
OSD.
2
Select
SUPER RESOLUTION+
by pressing the ►
button.
3
Enter to
SUPER RESOLUTION+
by pressing the ▼
button.
4
Set the options by pressing the ◄ or ► buttons.
5
Select
EXIT
to leave the OSD menu.To return to the
upper menu or set other menu items, use the up
arrow( )button.
FUNC. > SUPER
RESOLUTION+
Description
Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
Low The optimized picture quality is displayed when a user wants smooth and natural images. It
iseffective for slow-moving pictures or still images.
Middle The optimized picture quality is displayed when a user wants images between low and
highmodes for comfortable viewing. It is effective for UCC or SD video.
High Optimized picture quality is displayed when a user wants crystal clear images. It is effective
forhigh quality video or game.
Each option is explained below.
23
ENG
ENGLISH
CUSTOMIZING SETTINGS
NOTE
y
When monitor goes to power saving mode with pc saving option-> Pressing any button -> OSD
appear and user should press dual button -> User can bring back to normal mode.
DUAL DISPLAY
1
Press
FUNC.
button on the rear of the Monitor set to
display the
FUNC.
OSD.
2
Select
DUAL DISPLAY
by pressing the ► button.
3
Enter to
DUAL DISPLAY
by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► buttons.
5
Select
EXIT
to leave the OSD menu.To return to the
upper menu or set other menu items, use the up
arrow ( ) button.
* Before using below functions, please install DUAL SMART SOLUTION programme.
Each option is explained below.
DUAL DISPLAY Description
Clone By selecting Clone,user can use secondary monitor as done mode of primary monitor.
Extended By selecting Extended,user can use secondary monitor as extended mode of primary
monitor.
Off If select Off,DUAL DISPLAY is off.
DUAL WEB
1
Press
FUNC.
button on the rear of the Monitor set to
display the
FUNC.
OSD.
2
Select
DUAL WEB
by pressing the ► button.
3
Enter to
DUAL WEB
by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► buttons.
5
Select
EXIT
to leave the OSD menu.To return to the
upper menu or set other menu items, use the up
arrow ( ) button.
* Before using below functions, please install DUAL SMART SOLUTION programme.
Each option is explained below.
DUAL WEB Description
On Help user to browse web efficiently by dividing in half. Help to arrange and move
windowson screen. Help user to control dividedwindows ratio.
Off If select Off,DUAL WEB is off.
24
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
y
Check and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
y
Press the Power button.
Is the power on and the power
indicator White?
y
Adjust the brightness and the contrast.
Is the power indicator flickering?
y
If the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
y
Try to turn on the PC.
Do you see an "OUT OF RANGE"
message on the screen?
y
This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
Do you see a "NO SIGNAL"
message on the screen?
y
When the monitor is on "No-Signal" in 5 minutes, the monitor goes to
DPM mode.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
y
You can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
Display image is incorrect
Display Position is incorrect.
y
Press the
AUTO
button to automatically adjust your display image to
the ideal setting.
On the screen background, vertical
bars or stripes are visible.
y
Press the
AUTO
button to automatically adjust your display image to
the ideal setting.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
y
Press the
AUTO
button to automatically adjust your display image to
the ideal setting.
y
Check
Control Panel ► Display ► Settings
and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
25
ENG
ENGLISH
TROUBLESHOOTING
Display image is incorrect
The screen color is mono or
abnormal.
y
Check if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
y
Make sure the video card is properly inserted in the slot.
y
Set the color setting higher than 24 bits (true color) at
Control Panel
►
Settings
.
The screen blinks.
y
Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
y
Be sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
y
Make sure to check if the video card supports Plug&Play function.
y
Check
Control Panel ► Display ► Settings
and see if the frequency or the resolution were
changed. If yes, readjust the video card to the recommend resolution.
y
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
y
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
CAUTION
The screen is flickering.
Did you select the recommended
resolution?
y
If the selected resolution is HDMI
1080i
60/50 Hz, the screen may
be flickering. Change the resolution to the recommended resolution
1080P
.
26
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti-
Glare coating
Visible diagonal size: 54.6 cm
Pixel Pitch 0.24795 mm x 0.24795 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency 56Hz to 75Hz (D-SUB)
56Hz to 61Hz (HDMI)
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector
HDMI Connector
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz
HDMI (Digital) : 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Plug & Play DDC 2B(Analog,HDMI)
Power
consumption
On Mode : 20 W (ENERGY STAR® standard) *
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
Power Input 19 V
1.3 A
AC-DC Adapter
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PSAB-L203A, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202B, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202C, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202D, manufactured by LG Innotek Co.,Ltd
OUTPUT:
19 V 1.3 A
Dimensions
(Width x Height x
Depth)
With Stand 50.9 cm x 41.1 cm x 18.8 cm
Without Stand 50.9 cm x 30.4 cm x 5.9 cm
Weight 2.8 kg
Tilt Range -5° to 20°
Environmental
conditions
Operating Temperature
Operating Humidity
10°C to 35 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20°C to 60 °C
5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
22MP56HQ/22EA56VQ
27
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Display Screen Type
60.4 cm (23.8 inch) Flat Panel Active matrix-TFT LCDAnti-
Glare coating
Visible diagonal size: 60.4 cm
Pixel Pitch
0.2745 mm x 0.2745 mm (Pixel Pitch)
Sync Input Horizontal Frequency
30 kHz to 83 kHz (Automatic)
Vertical Frequency
56Hz to 75Hz (D-SUB)
56Hz to 61Hz (HDMI)
Input Form
Separate Sync. Digital
Video Input Signal Input
15 pin D-SUB Connector
HDMI Connector
Input Form
RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max
D-SUB(Analog) : 1920 x 1080 @ 60 Hz
HDMI (Digital) : 1920 x 1080 @ 60 Hz
Recommend
VESA 1920 x 1080 @ 60 Hz
Plug & Play
DDC 2B(Analog,HDMI)
Power
consumption
On Mode : 17.1 W Typ. ( ENERGY STAR® standard ) *
24.6 W Typ. ( Outgoing condition ) **
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
Power Input 19 V
1.6 A
AC-DC Adapter
Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPG-1 manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
OUTPUT:
19 V 1.7 A
Dimensions
(Width x Height x
Depth)
With Stand
55.4 cm x 43.6 cm x 18.8 cm
Without Stand
55.4 cm x 32.9 cm x 5.9 cm
Weight
3.1 kg
Tilt Range
-5° to 20°
Environmental
conditions
Operating Temperature
Operating Humidity
10°C to 35 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20°C to 60 °C
5 % to 90 % non-Condensing
Stand Base
Attached ( ), Detached (O)
Power cord
Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** The On mode power consumption is measured with LGE test standard ( Full White pattern , Maximum
resolution).
24MP56HQ/24EA56VQ
28
ENG
ENGLISH
SPECIFICATIONS
Preset Modes (Resolution)
D-SUB Timing
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
HDMI Timing
Factory support mode
(Preset Mode)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60
O
Recommend Mode
Indicator
Mode LED Color
On Mode
White (only 15 seconds)
Sleep Mode
Blinking White
Off Mode Off
29
ENG
ENGLISH
PROPER POSTURE
Proper posture for using the Monitor set.
PROPER POSTURE
Adjust the
Monitor set and
your posture to
allow you to view
images at the
optimal viewing
angle.
Place your hands
gently on the
keyboard, keeping
your arms bent at
the elbows and
horizontally outright.
Adjust the location of the
Monitor set to avoid it
reflecting light.
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
*above information is only for USA FCC Regulatory
Declaration of Conformity
Trade Name: LG
Model : 22MP56HA, 24MP56HA,
22EA56VA, 24EA56VA
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
As an ENERGY STAR® Partner LGE
U. S. A., Inc. has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
ENERGY STAR® is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).
Refer to ENERGYSTAR.gov for more information
on the ENERGY STAR® program.
