Contents
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
To minimize the risk of re in a tumble dryer, the following should be observed 8
Critical installation warnings 9
Critical usage warnings 11
Usage cautions 12
Critical cleaning warnings 14
Installation 15

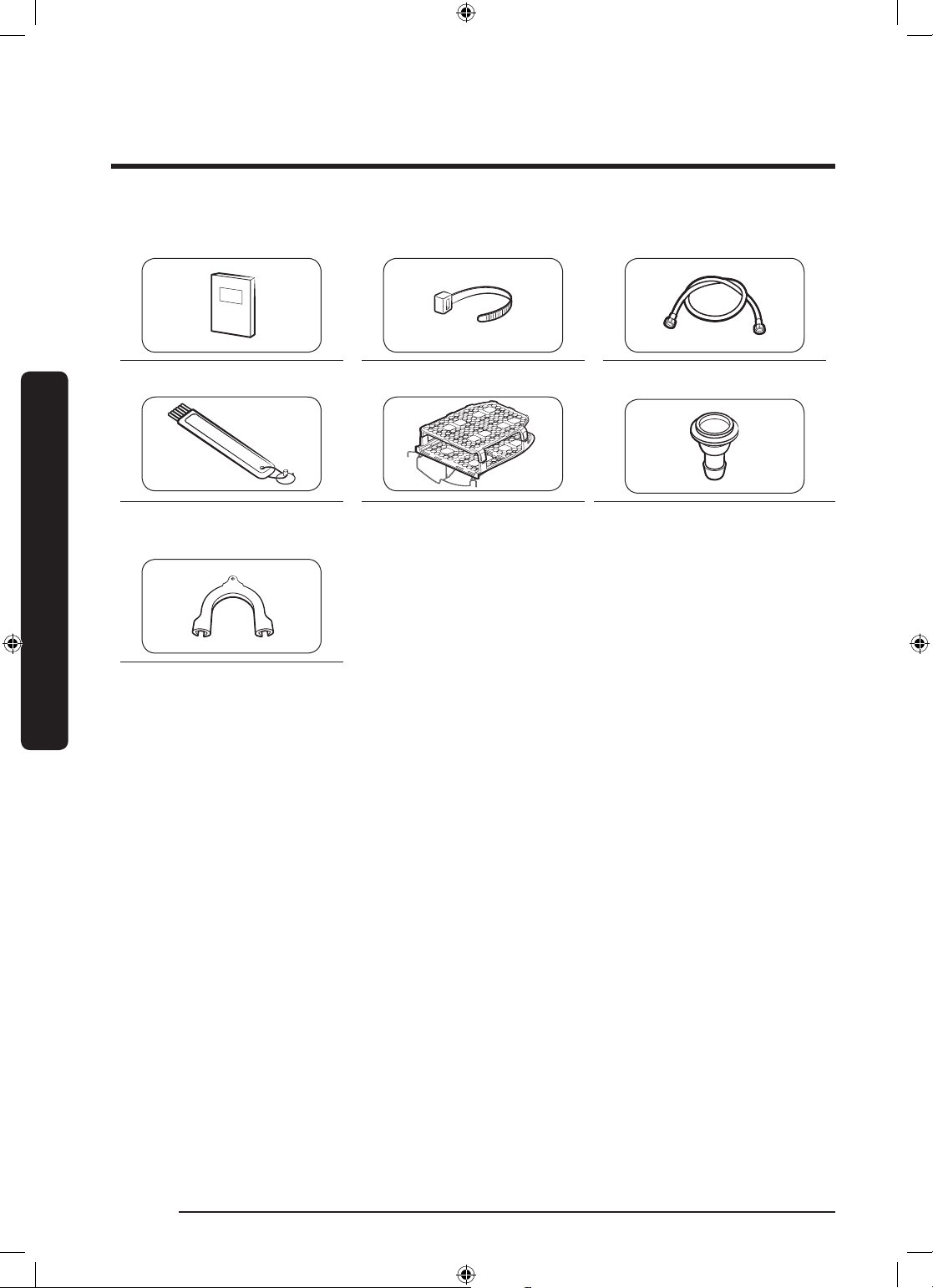

What’s included 15

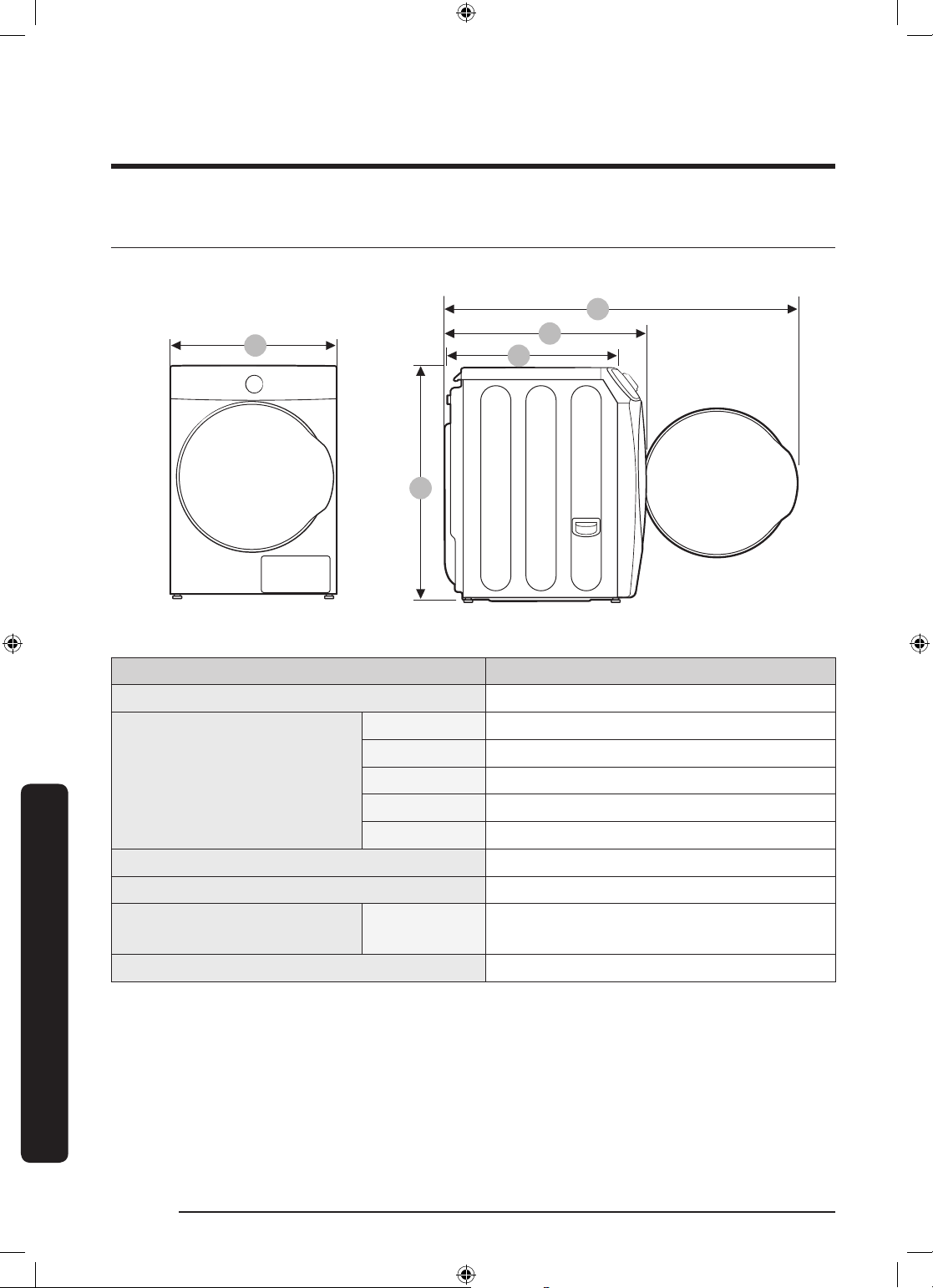

Installation requirements 17
Levelling 19
Drain hose (if necessary) 20
Before using the dryer 22
Environment 22
Operations 23

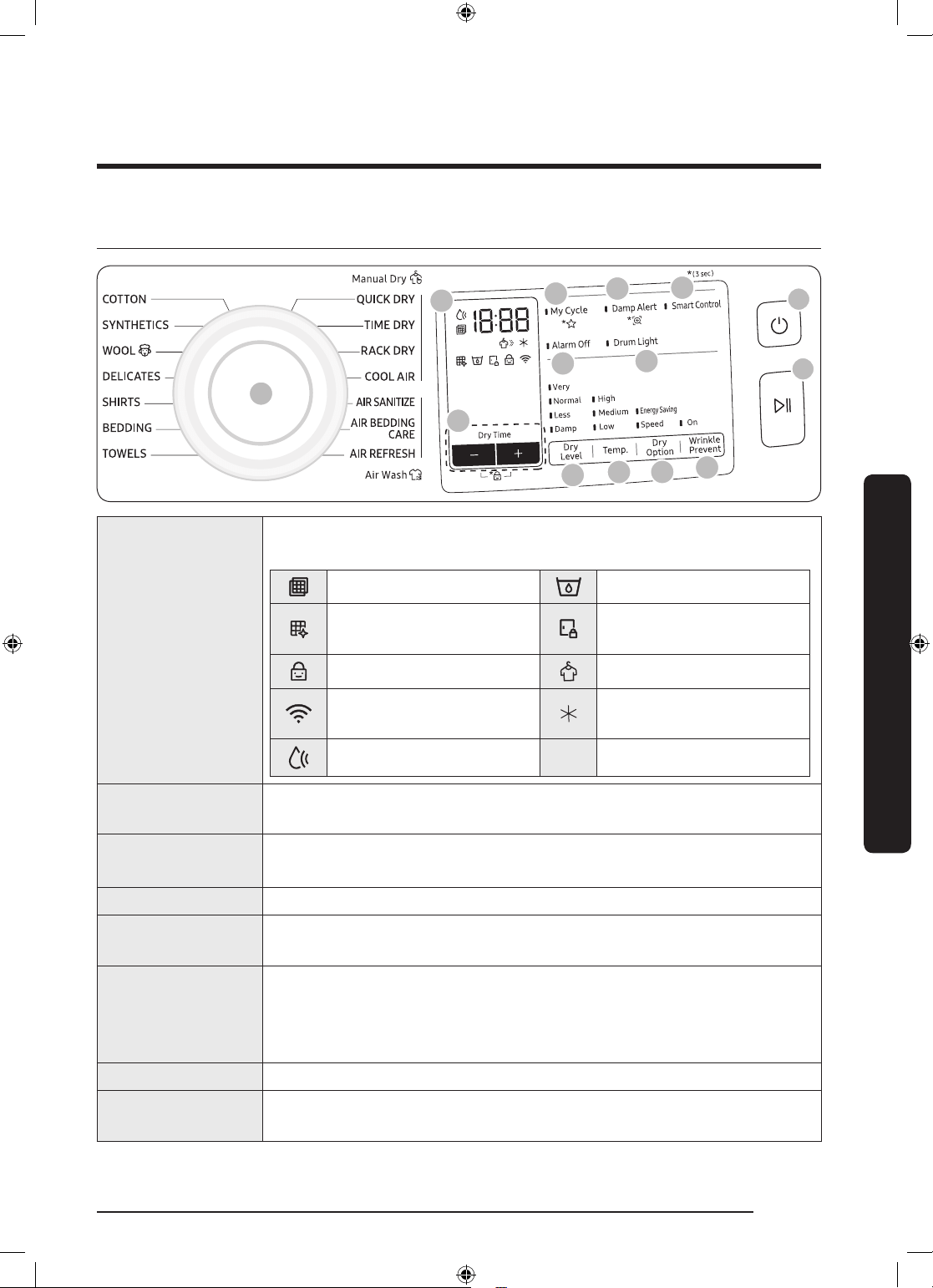

Control panel 23
Getting started 28
Special features 32
SmartThings 34
Maintenance 39
Control panel 39
Exterior 39
Drum 39
Care during the winter 39

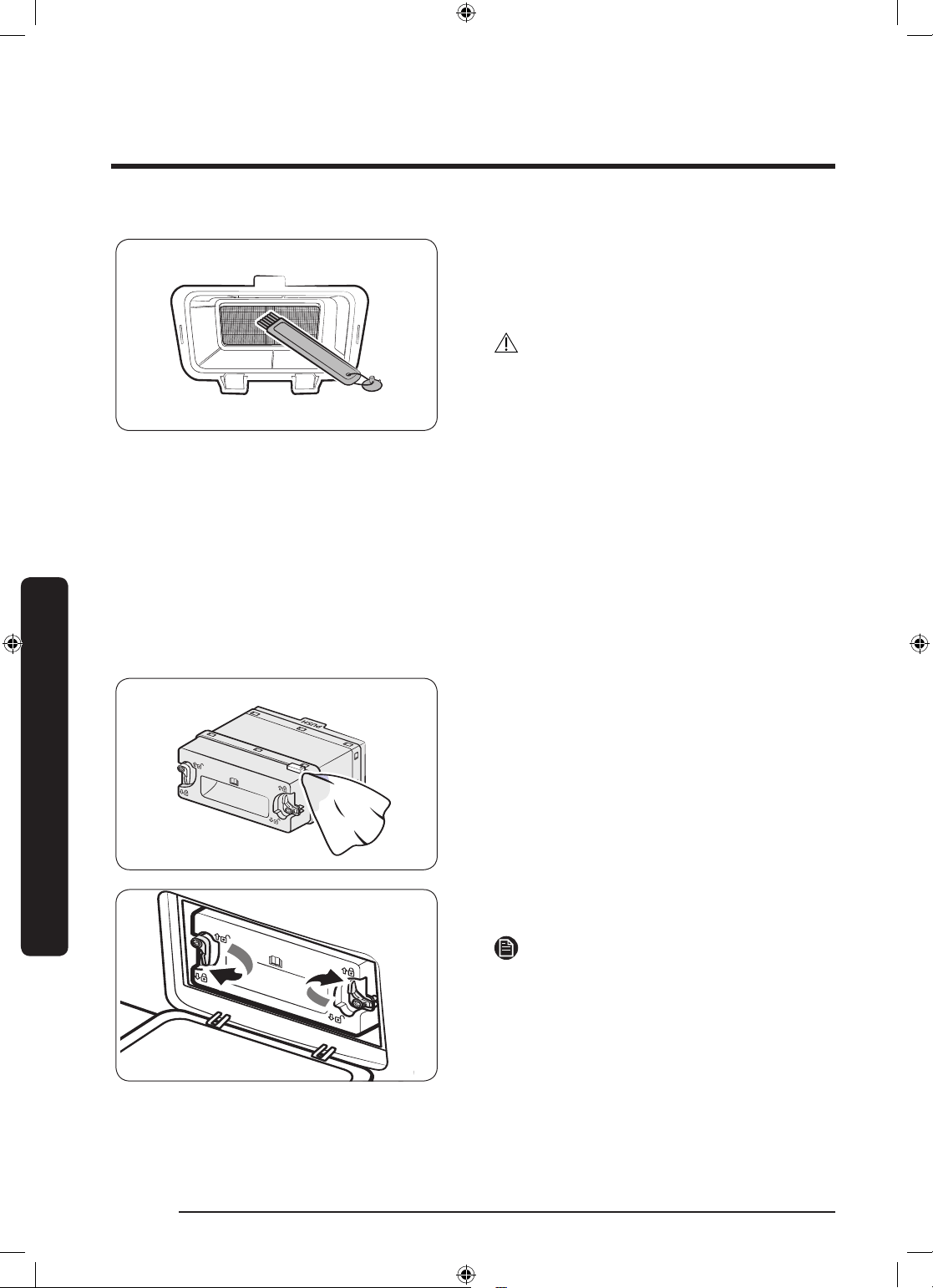

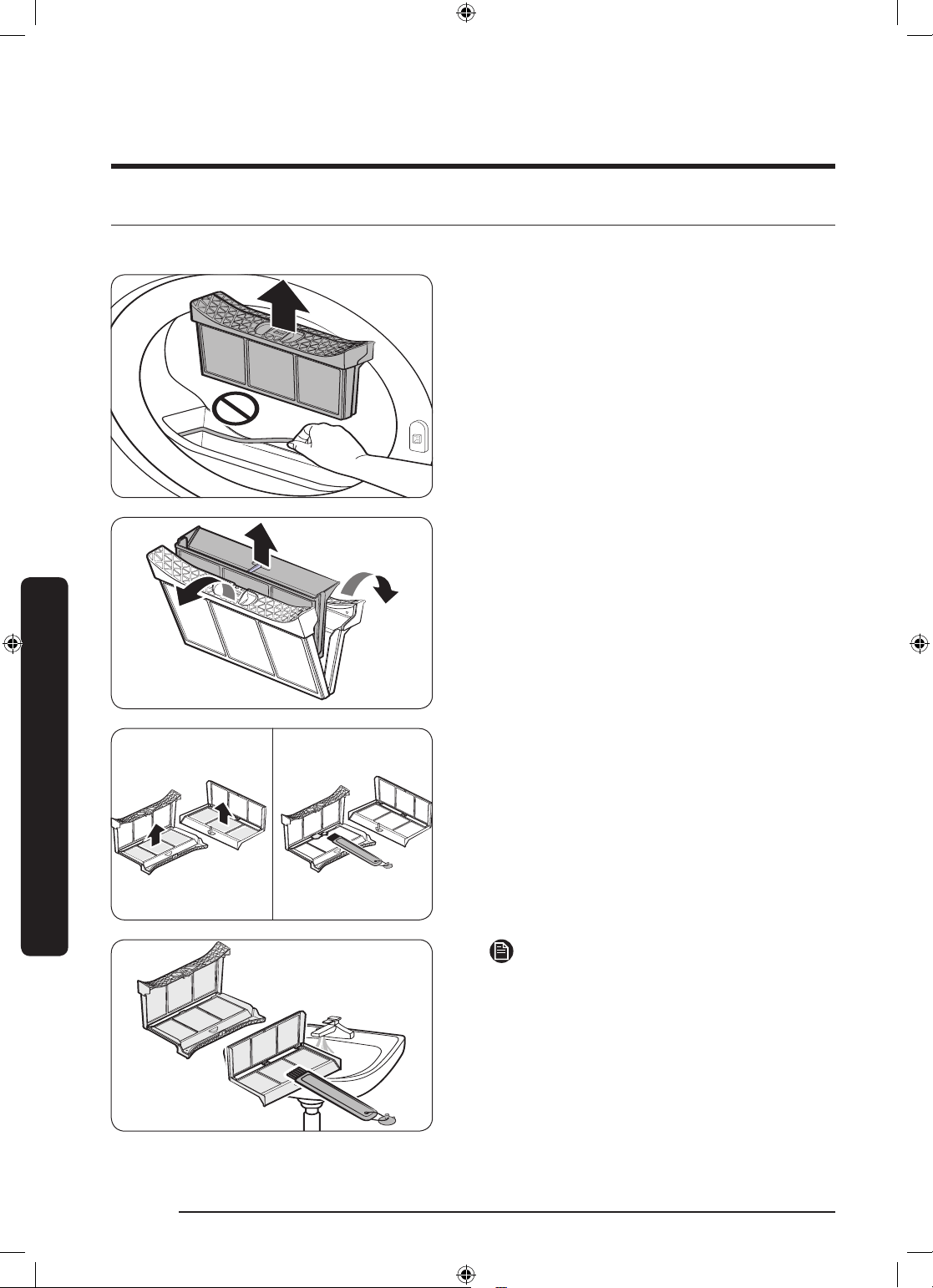

Lint lter 40
Water tank (applicable models only) 42

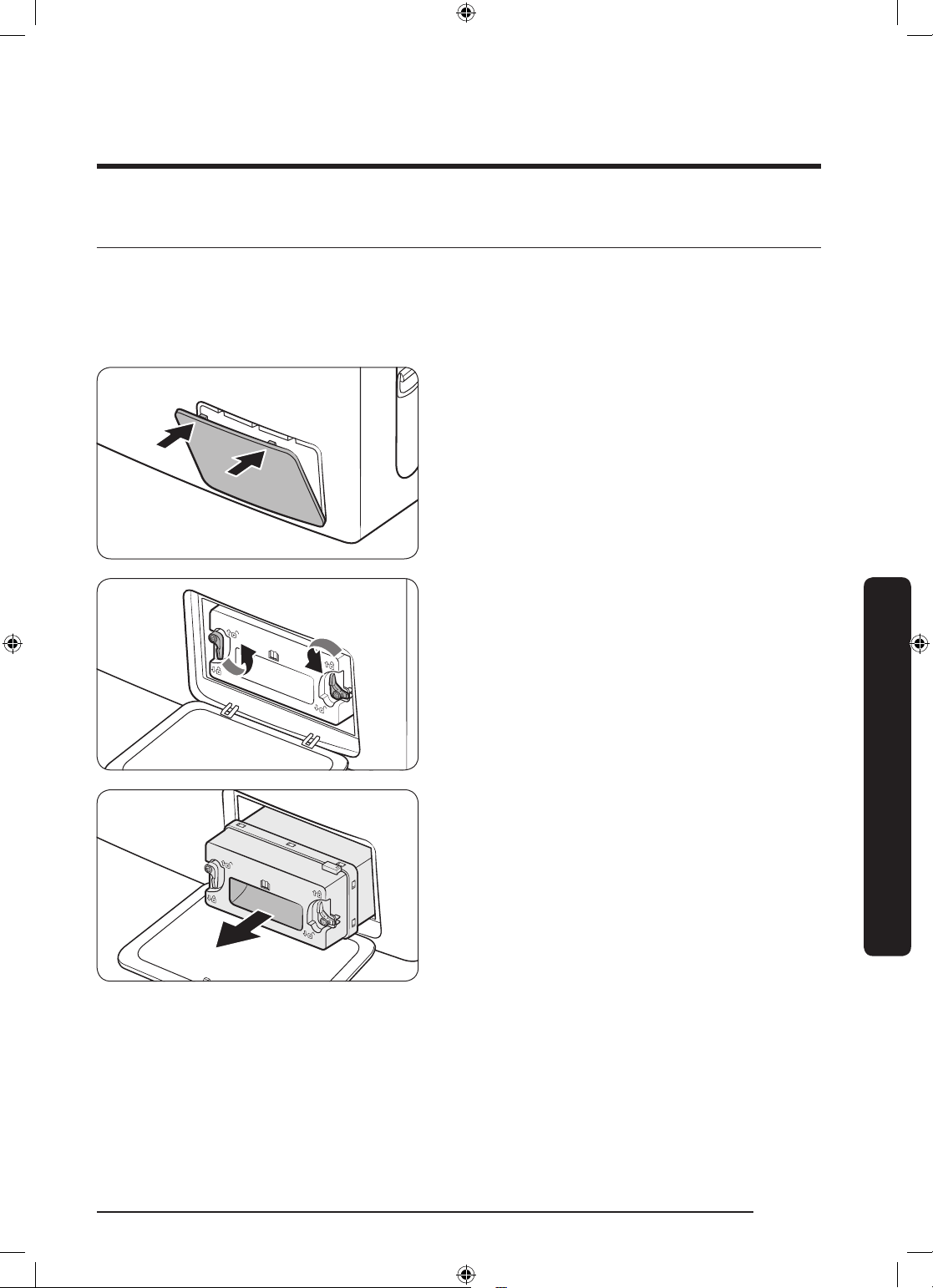

Heat exchanger 43
Humidity sensor 45
Door 45
DV10R8540GW_DC68-03913B_EN.indd 2 2019/3/6 15:51:12
English 3
Contents
Troubleshooting 46
Checkpoints 46
Information codes 47
Appendix 48
Fabric care chart 48
Protecting the environment 49
Specication 50
DV10R8540GW_DC68-03913B_EN.indd 3 2019/3/6 15:51:12
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use, and care of your appliance. Please take the time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
CAUTION
To reduce the risk of re or explosion, follow these basic precautions.
NOTE
Indicates that a risk of personal injury or material damage exists.
Read the instructions
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied technician.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
Safety information
DV10R8540GW_DC68-03913B_EN.indd 4 2019/3/6 15:51:14
English 5
Safety information
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons
when using your appliance, follow basic precautions, including the
following:
1. This appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
3. Children should be supervised to ensure that they do not play
with the appliance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
6. For appliances with ventilation openings in the base, that a carpet
must not obstruct the openings.
DV10R8540GW_DC68-03913B_EN.indd 5 2019/3/6 15:51:14
Safety information
English6
Safety information
7. For use in Europe: Children of less than 3 years should be kept
away unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting
of the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the
utility.
9. The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
10. The lint trap has to be cleaned frequently, if applicable.
11. Lint must not to be allowed to accumulate around the tumble
dryer. (not applicable for appliances intended to be vented to the
exterior of the building)
12. Adequate ventilation has to be provided to avoid the back ow
of gases into the room from appliances burning other fuels,
including open res.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine,
waxes and wax removers should be washed in hot water with
an extra amount of detergent before being dried in the tumble
dryer.
15. Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows tted with
foam rubber pads should not be dried in the tumble dryer.
16. Fabric softeners, or similar products, should be used as specied
by the fabric softener instructions.
DV10R8540GW_DC68-03913B_EN.indd 6 2019/3/6 15:51:14
English 7
Safety information
17. The nal part of a tumble dryer cycle occurs without heat (cool
down cycle) to ensure that the items are left at a temperature
that ensures that the items will not be damaged.
18. Remove all objects from pockets such as lighters and matches.
19. WARNING: Never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and spread out
so that the heat is dissipated.
20. Exhaust air must not be discharged into a ue which is used for
exhausting fumes from appliances burning gas or other fuels.
21. The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the tumble dryer, in such a way that a full opening of the tumble
dryer door is restricted.
22. WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
Heat pump model only: The instructions shall also include the
substance of the following:
WARNING: In the appliance enclosure or in the built-in structure,
keep ventilation openings clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
23. WARNING: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
DV10R8540GW_DC68-03913B_EN.indd 7 2019/3/6 15:51:14
Safety information
English8
Safety information
To minimize the risk of re in a tumble dryer, the following should be
observed
CAUTION
Items that have been spotted or soaked with vegetable or cooking oil constitute a
re hazard and should not be placed in a tumble dryer. Oil-affected items can ignite
spontaneously, especially when exposed to heat sources such as in a tumble dryer. The
items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If
the heat cannot escape, the items can become hot enough to catch re. Piling, stacking
or storing oil-affected items can prevent heat from escaping and so create a re hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in a tumble dryer they should rst be
washed in hot water with extra detergent – this will reduce, but not eliminate, the hazard.
The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the
items. They should not be removed from the tumble dryer or piled or stacked while hot.
Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/
gasoline, dry-cleaning solvents or other ammable or explosive substances should not
be placed in a tumble dryer. Highly ammable substances commonly used in domestic
environments include acetone, denatured alcohol, petrol/gasoline, kerosene, spot
removers(some brands), turpentine, waxes and wax removers.
Items containing foam rubber(also known as latex foam) or similarly textured rubber. Like
materials should not be dried in a tumble dryer on a heat setting. Foam rubber materials
can, when heated, produce re by spontaneous combustion.
Fabric softeners or similar products should not be used in a tumble dryer to eliminate
the effects of static electricity unless this practice is specically recommended by the
manufacturer of the fabric softener or product.
Undergarments that contain metal reinforcements should not be placed in a tumble dryer.
Damage to the tumble dryer can result if metal reinforcements come loose during drying.
When available a drying rack could be used for such items.
Plastic articles such as shower caps or babies’ waterproof napkin covers should not be
placed in a tumble dryer.
Rubber-backed articles, clothes tted with foam rubber pads, pillows, galoshes and
rubber-coated tennis shoes should not be placed in a tumble dryer.
Do not dry unwashed items in the tumble dryer(or washing machine drying mode,etc).
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,
Kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried in the tumble dryer.
DV10R8540GW_DC68-03913B_EN.indd 8 2019/3/6 15:51:14
English 9
Safety information
Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed
articles and clothes or pillows tted with foam rubber pads should not be dried in the
tumble dryer.
Fabric softeners, or similar products, should be used as specied by the fabric softener
instructions.
The nal part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that
the items are left at a temperature that ensures that the items will not be damaged.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as in a tumble dryer. The items become warm, causing an oxidation reaction in the
oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough
to catch re. Piling, stacking or storing oil-affected items can prevent heat from escaping
and so create a re hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in a tumble dryer they should rst be
washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Remove all objects from pockets such as lighters and matches.
The tumble dryer(or washing machine drying mode, etc) is not to be used if industrial
chemicals have been used for cleaning.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualied technician or service
company.
• Failure to do so may result in electric shock, re, an explosion, problems with the
product, or injury.
Plug the power cord into a wall socket and use the socket for this appliance only. In
addition, do not use an extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or re.
• Ensure that the power voltage, frequency and current are the same as those of the
product specications. Failure to do so may result in electric shock or re. Failure Plug
the power plug into the wall socket rmly.
DV10R8540GW_DC68-03913B_EN.indd 9 2019/3/6 15:51:14
Safety information
English10
Safety information
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or re.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
• If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, re, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in electric shock or re.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualied technician in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug after installation.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
• This may result in electric shock or re.
Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or re.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
Install this appliance in a location with solid, level oor.
• Failing to do so may result in abnormal vibrations, noise or problems with the product.
Since an ingredient in hair spray may degrade the hydrophile property of the heat
exchanger so that dew may appear on the outer surface of the appliance when the cooling
operation is running, do not install the appliance in a beauty salon.
DV10R8540GW_DC68-03913B_EN.indd 10 2019/3/6 15:51:14
English 11
Safety information
This appliance should be positioned so that the power plug, the water supply taps, and the
drain pipes are accessible.
Critical usage warnings
WARNING
Do not let children or pets on or into the product. In addition, when disposing of this
product, disassemble the door lock (lever).
• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
• This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Do not dry laundry contaminated by inammable materials such as gasoline, kerosene,
benzene, thinner, alcohol, etc.
• This may result in electric shock, re or explosion.
Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of
the product.
• Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power
cord, ventilate immediately.
• At this time, do not use the ventilating fan.
• A spark may cause an explosion or re.
Do not repair, replace, or attempt to service any part of the appliance unless specically
recommended in the user-repair instructions. You must also have the skills necessary to
service this appliance.
DV10R8540GW_DC68-03913B_EN.indd 11 2019/3/6 15:51:14
Safety information
English12
Safety information
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service
center.
• Failure to do so may result in electric shock, re, problems with the product, or injury.
The product you have purchased is designed for domestic use only.
The use for business purposes qualies as product misuse. In this case, the product will
not be covered by the standard warranty provided by Samsung and no responsibility can
be attributed to Samsung for malfunctions or damages resulting from such misuse.
If the product generates strange noise, smells of something burning, or generates smoke,
immediately cut-off the power and contact the service center.
• Otherwise, it may cause an electric shock or re as a result.
Do not let children (or pets) play in or on your product. The product door does not open
easily from the inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
• This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
• This may result in electric shock or injury.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
• If forming rubber is heated, it may start a re.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the
oil will not be removed when washing the laundry. In addition, use the Cool Down cycle so
that the laundry is not heated.
• The oxidization heat of the oil may start a re.
Make sure that the pockets of all clothing to be dried are empty.
• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
DV10R8540GW_DC68-03913B_EN.indd 12 2019/3/6 15:51:14
English 13
Safety information
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and
eyelets, button-up covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt ,
apron strings, and underwire bras which can dissolve or break during a cycle.
Dryer sheets are compatible with this model, and are recommended for better drying
performance.
Dryer sheets are also benecial in reducing the static electricity generated during a
drying cycle. Static electricity could lead to damage of laundry items and potentially the
appliance.
Do not use the dryer near dangerous powders such as coal dust, wheat our, etc.
• This may result in electric shock, re or an explosion.
Do not place inammable materials near the product.
• This may result in toxic gases from the product, damage to parts, electric shock, re or
an explosion.
• The appliance should not be placed behind lockable doors etc.
Do not touch the rear side of the appliance during or immediately after drying is
complete.
• The appliance remains hot and may cause burns.
Contains uorinated greenhouse gases.
Hermetically sealed equipment.
Do not vent gases into the atmosphere.
Refrigerant (Type): R-134a (GWP = 1430)
Refrigerant (Charging)
• DV1*R85**** : 0.40kg, 0.572tCO
2e
DV10R8540GW_DC68-03913B_EN.indd 13 2019/3/6 15:51:14
Safety information
English14
Safety information
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or re.
Clean the lter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service
engineer.
Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch
the heat exchanger with your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualied service personnel.
DV10R8540GW_DC68-03913B_EN.indd 14 2019/3/6 15:51:14
English 15
Installation
What’s included
Carefully unpack the dryer. Keep all packaging materials away from children. The parts
and location of parts shown below may differ from your dryer. Before installation, make
sure the dryer has all the parts listed here. If the dryer and/or parts are damaged or
missing, contact the nearest Samsung customer service centre.
Dryer at a glance
01
02
04
05
03
01 Door 02 Lint lter
03 Levelling legs 04 Top cover
05 Control panel
Installation
DV10R8540GW_DC68-03913B_EN.indd 15 2019/3/6 15:51:15
Installation
English16
Installation
Accessories (supplied)
User manual Cable tie Drain hose
Cleaning brush Dryer rack Hose connector
Hose guide
DV10R8540GW_DC68-03913B_EN.indd 16 2019/3/6 15:51:17
English 17
Installation
Installation requirements
NOTE
This dryer must be installed by a qualied installer. If service is required due to poor or
faulty installation, it is considered the owner’s responsibility and may void the warranty.
Keep these instructions for future reference.
WARNING
• Do not plug the power cord into a wall outlet before the dryer is completely installed.
• Have two or more persons help move the dryer.
• Do not let children or pets play in, on, or around the dryer. Proper supervision is
necessary at all times.
• Keep all packaging materials away from children.
• Do not replace a damaged power cord or power plug yourself. Have Samsung or a
qualied service technician replace a damaged power cord or power plug.
• Do not attempt to repair, disassemble, or modify the dryer. For any repairs, contact the
nearest Samsung service centre.
• Remove the door/lids from all discarded appliances to avoid children from suffocating.
• If the dryer generates a strange noise, burning smells, or smoke, unplug the power plug
immediately and contact the nearest Samsung service centre.
• Do not unplug the dryer while it is operating.
• Do not place ammable objects near the dryer.
DV10R8540GW_DC68-03913B_EN.indd 17 2019/3/6 15:51:17
Installation
English18
Installation
Location requirements
Select a level, well-constructed surface that will withstand vibrations.
WARNING
• Install the dryer indoors only.
• Do not install the dryer in areas exposed to the weather.
• Do not install the dryer where the temperature may fall below 5 °C or rise above 35 °C.
• Do not install the dryer where gas may leak.
• Do not block the cooling grill’s air inlet located at the dryer front.
Alcove or closet installation
For alcove or closet installation, the dryer requires the following minimum clearances:
Sides Top Front Rear
25 mm 25 mm 490 mm 50 mm
If installing the dryer with a washing machine, the front of the alcove or closet must have
an unobstructed air opening of at least 490 mm.
Electrical and grounding requirements
• The dryer requires an AC 220-240 V / 50 Hz electrical supply.
• The dryer must be properly grounded. If the dryer malfunctions or breaks down,
grounding reduces the risk of electric shock by providing a path of least resistance
for the electric current. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
• If you have any questions regarding the electrical or grounding requirements, please
contact Samsung or a qualied electrician.
WARNING
• Do not use a damaged power plug, cord, or loose or damaged wall outlet.
• Do not use an adapter or an extension cord.
• Improper connection of the equipment-grounding conductor may result in electric
shock. If you are unsure if the dryer is properly grounded, check with a qualied
electrician.
• Do not modify the power plug, power cord, or power outlet in any way.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
DV10R8540GW_DC68-03913B_EN.indd 18 2019/3/6 15:51:17
English 19
Installation
Levelling
Before you install the dryer, make sure you have read Installation requirements on
page 17. Please note that the following instructions are for installation without using a
drain hose. For instructions for using a drain hose, see the next section, Drain hose (if
necessary). For convenience, consider installing the dryer next to your washing machine.
A
B
1. Gently slide the dryer into the desired
location.
2. Use a level (A) and check the levelness
of the dryer from side to side and front
to back.
3. If the dryer is not level, adjust the
levelling leg (B). Turning the leg
counter-clockwise retracts the leg.
Turning the leg clockwise extends the
leg.
4. Once the dryer is level, make sure the
dryer stands rmly on the oor.
5. Plug in the dryer.
C D
NOTE
• To set the dryer to the same height
as the washing machine, fully retract
(C) the levelling legs by turning them
counter clockwise, then loosen (D) the
legs by turning them clockwise.
• Extend the levelling leg only as much
as necessary. Extending the levelling
leg more than necessary can cause the
dryer to vibrate.
DV10R8540GW_DC68-03913B_EN.indd 19 2019/3/6 15:51:18
Installation
English20
Installation
Drain hose (if necessary)
A
1. Insert the drain hose to the drain hole
(A) on the bottom-rear of the dryer.
2. Insert the other end of the hose in the
drain hole on the oor.
NOTE
You can use the provided cable ties to
arrange the drain hose through to the
drain hole. Make sure the hose is not
damaged or bent.
CAUTION
• For proper drainage, the maximum height of the drain hose must be less than 90 cm
from the oor.
• To prevent backow, make sure the drain hose is not submerged in water.
• To prevent a leak on the oor, make sure the drain hose is inserted properly into the
drain hole (A).
DV10R8540GW_DC68-03913B_EN.indd 20 2019/3/6 15:51:18
English 21
Installation
Over a wash basin:
A
CB
1. Make sure to place the end of the
accessory hose lower than 90 cm (*)
from the bottom of dryer.
2. To bend some point of the accessory
hose, use the supplied plastic hose
guide (B) and secure the guide to the
wall with a hook or to the tap with a
piece of string. Assemble the drain hose
(A) and the hose guide (B) and x them
with the cable-tie (C).
3. You can drain the condensed water by
connecting the accessory drain hose to
the drain-outlet directly.
CAUTION
Do not extend the drain hose. Water may
leak from the connected area. Use a long
drain hose.
By using the drain pipe of the wash basin:
A
1. Assemble the hose connector (A), and
attach it to the end of the accessory
hose as shown.
CAUTION
To prevent water leak, make sure to
connect the hose and the connector rmly.
DV10R8540GW_DC68-03913B_EN.indd 21 2019/3/6 15:51:19
Installation
English22
Installation
2. Connect the hose adapter directly to the
drain pipe of the wash basin.
Before using the dryer
• Make sure no accessory remains inside the drum.
• Plug in the power cord just before operating the dryer.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inammable objects near the dryer and keep the surroundings clean.
• Keep the dryer level with the ground.
• Do not remove the adjustable levelling legs of the dryer. They are necessary to keep
the dryer level with the ground.
Environment
Please dispose of the packaging materials for this product in an “environmentally friendly”
manner. For further detail, please contact your local area authority.
DV10R8540GW_DC68-03913B_EN.indd 22 2019/3/6 15:51:19
English 23
Operations
Control panel
01
14
13
04
05
06
07
08
10
11
12
02
09
03
01 Digital Graphic
Display
Displays all cycle information, including cycle time, information
codes, and dryer status. See the table below for status details.
Check lter alarm Empty the water tank
Heat-exchanger cleaning
alarm
Door lock
Child lock Drying
Wi-Fi reception
sensitivity
Cooling
Sensors drying
02 Cycle Selector
Turn the dial to select a cycle. See the Cycle overview on page 25
for available cycles.
03 Dry Time
Use – to reduce the drying time.
Use + to increase the drying time.
04 My Cycle You can save frequently used cycles for later use.
05 Damp Alert
This function noties that the item is dried suitably for ironing. It is
only available with COTTON, SYNTHETICS and SHIRTS.
06 Smart Control
Press to activate/deactivate the Smart Control function. When
the Smart Control function is activated, you can control your
dryer using your mobile device. For more information, see the
SmartThings section on page 34.
07 Alarm Off Press to mute/unmute the button tones or the alarm sound.
08 Drum Light
Press to turn on or off the interior lamp. The lamp stays lit for 2
minutes after it has turned on, and then turns off automatically.
Operations
DV10R8540GW_DC68-03913B_EN.indd 23 2019/3/6 15:51:21
Operations
English24
Operations
09 Dry Level
Press to select the dryness level for a selected cycle.
• Damp: Suitable for ironing.
• Less: Select this for clothes that could shrink.
• Normal: Select this for ordinary items.
• Very: Select this for thick or heavy clothes.
10 Temp. Use to select a desired drying temperature.
11 Dry Option
Use to reduce drying time or power consumption. Press to toggle
between Energy Saving and Speed modes.
12 Wrinkle
Prevent
Adds approximately 3 hours of intermittent tumbling at the end
of the selected cycle to reduce wrinkles. To activate, press Wrinkle
Prevent. The wrinkle prevent indicator blinks, and zero appears on
the display.
13 POWER
Press to turn the dryer on/off. If the dryer turns on for 10 minutes
without any button being pressed, the dryer automatically turns off.
14 START/PAUSE
Press to start or pause a cycle. If the dryer is running, press the
button once to pause the dryer. Press again to resume.
DV10R8540GW_DC68-03913B_EN.indd 24 2019/3/6 15:51:21
English 25
Operations
Cycle overview
• The dryer senses the load and the dryness of the load and starts and stops operation
accordingly. The actual operation time may differ from the displayed time.
• To dry thin or synthetic-bre items, select DELICATES to prevent damage and wrinkles
on the items.
Cycle Description
Max load
(kg)
COTTON
For normal items made of cotton or linen.
COTTON, Dry Level Normal, Temp. Medium, Dry
Option Energy Saving for energy labelling in
accordance with AS/NZS 2442.
10
SYNTHETICS
For blouses, and shirts that are made of polyester
(Diolen, Trevira), polyamide (Perlon, nylon), or other
similar blends.
7
WOOL
Use to dry wool items.
The Wool course may be terminated without
completely drying the laundry to prevent damage to
clothing caused by tumbling. For additional drying,
use the rack drying course.
1
DELICATES
For items to be handled with care such as underwear
or light-weighted items.
3
SHIRTS Use to dry a small load of shirts. 3 shirts
BEDDING
For bulky items such as blankets, sheets, comforters,
and light duvets.
4
TOWELS Use to dry bath towels. 6
Manual Dry
You can specify the dry time so that the dryer operates only for a set time.
Cycle Description
Max load
(kg)
QUICK DRY
For synthetics ber less than 1 kg. You can select a
time according to the load.
If the clothes weigh more than 1 kg, add more drying
time because it will cause partial damp.
1
TIME DRY Use to dry items for a specic time. -
RACK DRY Use to dry items on the dedicated rack. 1.5
COOL AIR Use COOL AIR for any items which only needs airing. -
DV10R8540GW_DC68-03913B_EN.indd 25 2019/3/6 15:51:22
Operations
English26
Operations
Air Wash
Use Air Wash cycles to sanitize or refresh items that are already dry.
Cycle Description Max load (kg)
AIR SANITIZE
Use to sterilize cotton items such as towels,
diapers, and handkerchiefs.
• Dry items : 4
• Wet items : 6
AIR BEDDING
CARE
Use to remove dirt from dry blankets or bedding. 3
AIR REFRESH Use AIR REFRESH to deodorize or refresh items. 1~2 items
CAUTION
• For best results, remove dirt from items before you input them in the dryer.
• Do not exceed the max load. Overloads may limit the rotation of the drum which may
cause uneven drying and wrinkles on the items.
• Unless otherwise specied in the product label, avoid drying wool or glass-bre items.
• Do not dry unwashed items.
• Do not dry items stained with oil, alcohol, or gasoline.
NOTE
For best results, follow the load size recommendations for each dry cycle.
• The number and availability of options and setting values vary with the cycle.
• For best performance, it is recommended to dry 50 % to 60 % of the max load capacity.
DV10R8540GW_DC68-03913B_EN.indd 26 2019/3/6 15:51:22
English 27
Operations
Cycle chart
NOTE
: factory setting, : can be selected
Cycle
Dry Level Temp. Dry Option
Damp Less Normal Very Low Medium High Speed Energy Saving
COTTON
SYNTHETICS
WOOL
DELICATES
SHIRTS
BEDDING
TOWELS
QUICK DRY
TIME DRY
RACK DRY
COOL DRY
AIR SANITIZE
AIR BEDDING CARE
AIR REFRESH
Cycle
Options
Wrinkle Prevent Dry Time Damp Alert Drum Light
COTTON
SYNTHETICS
WOOL
DELICATES
SHIRTS
BEDDING
TOWELS
QUICK DRY
TIME DRY
RACK DRY
COOL DRY
AIR SANITIZE
AIR BEDDING CARE
AIR REFRESH
DV10R8540GW_DC68-03913B_EN.indd 27 2019/3/6 15:51:24
Operations
English28
Operations
Getting started
Simple steps to start
1. Press Power to turn the dryer on.
2. Load the dryer and close the door.
3. Turn the Cycle Selector to select a cycle.
4. Change the cycle settings (Dry Level, and Temp.) as necessary.
5. Select necessary settings and options to your preference. (Wrinkle Prevent, Damp
Alert, and Alarm Off).
6. Press Start/Pause. The dryer indicator lights up, and the estimated cycle time appears
on the display.
NOTE
The number of available settings and options differs with the cycle.
To change the cycle during operation
1. Press Start/Pause to stop operation.
2. Select a different cycle.
3. Press and hold Start/Pause to start new cycle.
Sorting and loading
• Put only one wash load in the dryer at a time.
• Avoid mixing heavy and lightweight items together.
• To increase drying efciency when drying one or two items, add a dry towel to the
load.
• For best results, untangle items before inserting into the dryer.
• Overloading restricts the tumbling process, resulting in uneven drying and wrinkling.
• Unless recommended on the care label, avoid drying woollens or breglass items.
• Avoid drying unwashed items.
• Do not dry items soiled with oil, alcohol, gasoline, etc.
DV10R8540GW_DC68-03913B_EN.indd 28 2019/3/6 15:51:24
English 29
Operations
Rack Dry
Set the drying time up to 150 minutes according to the moisture and weight of the items
to dry. When drying laundry using the drying rack, the RACK DRY cycle is recommended.
1. Open the dryer door.
2. Put items on the rack with even space
between the items for air circulation.
For clothes, fold them beforehand.
3. Put the dryer rack inside the drum with
the front side of the rack above the
lter.
4. Close the door, and then turn the dryer
on.
5. Turn the cycle selector to select RACK
DRY.
6. Specify the drying time according
to the load and humidity of the load
between 60 minutes and 180 minutes.
7. Press Temp. to select a temperature.
To prevent damage from heat, it is
recommended to select a middle or
lower temperature.
8. Press START/PAUSE.
DV10R8540GW_DC68-03913B_EN.indd 29 2019/3/6 15:51:25
Operations
English30
Operations
Drying suggestions
Items (max 1.5 kg) Description
Washable sweaters (block to shape and lay
at on rack)
When drying the laundry using the rack,
fold and place the clothes on the rack
to prevent the clothing from becoming
wrinkled.
Stuffed toys
(cotton or polyester bre lled)
CAUTION
• Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the
items and lead to a re hazard.
• Products using adhesive are easily degummed or damaged by heat.
• Excessive drying can damage clothing.
• When drying clothes, if the weight of the clothes exceeds the limit (1.5kg), the product
may malfunction.
DV10R8540GW_DC68-03913B_EN.indd 30 2019/3/6 15:51:25
English 31
Operations
Cycle guide
Always follow the care label when drying. If care label instructions are not available, refer
to the following table.
Blankets • For best results, dry only one blanket at a time.
Down-lled items • Do not dry on a heat setting. Doing so may cause a re
hazard. Only use the COOL AIR cycle.
Foam rubber (rug backs,
stuffed toys, etc.)
• Do not dry on a heat setting. Doing so may cause a re
hazard. Only use the COOL AIR cycle.
Pillows • Add a few dry towels to help tumble and uff items.
• Do not dry kapok or foam pillows with heat. Use only the
COOL AIR cycle.
Plastics (shower
curtains, outdoor
furniture covers, etc.)
• Use COOL AIR or TIME DRY.
• Set the dry level to lower or the lowest.
CAUTION
Do not use the dryer to dry items that are not listed above.
DV10R8540GW_DC68-03913B_EN.indd 31 2019/3/6 15:51:25
Operations
English32
Operations
Special features
Dry Time
You can specify the drying time for a
selected cycle.
1. Select a manual cycle.
2. Press + or – as many as you want to
specify the drying time. Press and
hold the + or - button for 3 seconds to
quickly change the time.
3. Press START/PAUSE.
NOTE
This is only available with manual cycles
(QUICK DRY, TIME DRY, RACK DRY and
COOL AIR).
My Cycle
You can save frequently used cycles for
later use.
To save a cycle
1. Select a desired cycle, dry level, and
dry time as necessary.
2. Press and hold My Cycle for 3 seconds.
The corresponding indicator lights up.
To activate My Cycle
When the dryer turns on, press My Cycle.
Alarm Off
You can turn on or off the alarm sound.
Press Alarm Off to mute the alarm sound,
and press again to unmute it.
Drum Light
You can turn on or off the interior lamp.
Press Drum Light to turn the lamp on, and
press again to turn it off.
Dry Level
Available with 4 options: Damp, Less,
Normal, Very. Select Damp for ironing or
to leave clothes slightly damp to air dry.
Select Very for thick and heavy items that
require powerful drying performance.
Temperature
Select an appropriate temperature for the
load. Keep pressing Temp. to specify the
temperature.
Dry Option
• Energy Saving: In the COTTON or
SYNTHETICS cycle, select Energy Saving
to reduce power consumption.
• Speed: In the COTTON cycle, select
Speed to reduce the drying time.
Wrinkle Prevent
To prevent wrinkles on dried items, the
dryer circulates air for up to 3 hours until
you open the door and remove the items.
Child Lock
Child Lock prevents children from
playing with the dryer. When Child Lock
is activated, all buttons except for the
POWER button are disabled.
To activate/deactivate Child Lock, press
and hold both + and - of Dry Time
simultaneously for 3 seconds.
NOTE
If Child Lock is activated, and the dryer is
turned off and then on again, Child Lock
remains activated.
DV10R8540GW_DC68-03913B_EN.indd 32 2019/3/6 15:51:25
English 33
Operations
Smart Check
If the dryer has detected an issue, Smart
Check allows you to check the status of the
dryer using a smartphone. Please note that
Smart Check can only be used for Galaxy
and iPhone series smartphones.
To use Smart Check, make sure you have
downloaded the Samsung Smart Washer/
Dryer app, and then follow the steps
below.
1. Press and hold Damp Alert for 3
seconds or press Smart Check. The
LED’s on the display panel rotate, and
the Smart Check code is displayed.
2. On the smartphone, open the Samsung
Smart Washer/Dryer app and tap the
Smart Check button.
3. Focus the smartphone’s camera on the
Smart Check code shown on the display
panel.
4. If the information code is recognised,
the app provides detailed information
for the issue and further instructions.
NOTE
• If the dryer reects light on the display,
the smartphone may fail to recognise
the information code.
• If the smartphone fails to recognise the
code, manually enter the information
code into the smartphone.
DV10R8540GW_DC68-03913B_EN.indd 33 2019/3/6 15:51:26
Operations
English34
Operations
SmartThings
Wi-Fi connection
On your smartphone, go to the Settings and turn on the wireless connection and select an
AP (Access Point).
NOTE
• This device is designed for household use only (Class B), and can be used in all
residential areas.
• This device may cause wireless interference, and neither the manufacturer or the
installer of this device can provide a safety measure of any kind.
• Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed
Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.
• The reception sensitivity of a wireless network may be affected by surrounding
wireless environments.
• If your Internet provider has registered the MAC address of your PC or the modem
module for permanent use, your Samsung dryer fails to connect to the Internet. If this
is the case, contact your Internet provider.
• The Internet rewall may interrupt your Internet connection. If this happens, contact
your Internet provider.
• If Internet failure continues after following the measurement of your Internet provider,
contact a local Samsung retailer or service centre.
• For installing wired and wireless routers, refer to the user manual of the router you
use.
• Samsung dryer supports the Wi-Fi 2.4 GHz protocols.
• Samsung dryer supports the IEEE802.11 b/g/n (2.4 GHz), Soft-AP protocols.
(IEEE802.11n is recommended)
• An unapproved wired/wireless router may fail to connect to Samsung dryer.
Download
On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), nd the
SmartThings app with a search term of “SmartThings”. Download and install the app on
your device.
NOTE
• The SmartThings app is available on third-party devices with Android OS 6.0
(Marshmallow) or higher, Samsung devices with Android OS 5.0 (Lollipop) or higher,
and iOS devices with iOS 10.0 or higher (For iPhones, it must be iPhone 6 or higher).
The app is optimised for Samsung smartphones (Galaxy S and Note series).
• Some functions of the app may operate differently on third-party devices.
• The app is subject to change without notice for improved performance.
DV10R8540GW_DC68-03913B_EN.indd 34 2019/3/6 15:51:26
English 35
Operations
Log in
You must rst log into SmartThings with your Samsung account. To create a new Samsung
account, follow the instructions on the app. You don’t need a separate app to create your
account.
NOTE
If you have a Samsung account, use the account to log in. A registered Samsung
smartphone user automatically logs in.
To register your device to SmartThings
1. Make sure your smartphone is connected to a wireless network. If not, go to the
Settings and turn on the wireless connection and select an AP (Access Point).
2. Select to run SmartThings on your smartphone.
3. When a message of “A new device is found.”, select Add.
4. If no message appears, select + and select your dryer in a list of devices available. If
your dryer is not listed, select Device Type > Specic Device Model, and then add your
dryer manually.
5. Register your dryer to the SmartThings app as follows.
a. Log into SmartThings with your Samsung account.
b. Turn a Wi-Fi connection on.
c. Add your dryer to SmartThings. Make sure your dryer is connected to SmartThings.
d. When registration is complete, your dryer appears on your smartphone.
Dryer app
Integrated control: You can monitor and control your dryer both at home and on the go.
• Select the dryer icon on SmartThings. The dryer page appears.
• Check the operation status or notications related to your dryer, and change options or
settings if necessary.
DV10R8540GW_DC68-03913B_EN.indd 35 2019/3/6 15:51:26
Operations
English36
Operations
SmartThings
Category Checkpoint Description
Monitoring
Drying status
You can check the current cycle and
its options, and the remaining cycle
time.
Smart Control
The Smart Control status is shown
for the dryer.
Self Check
Use this to check if the dryer
operates normally.
Energy monitoring
Use this to monitor the energy
consumption status.
Control
Start/Pause/Cancel
Select a cycle and necessary
options, and then select Start/Pause/
Cancel to start an operation, to stop
temporarily, or to cancel the current
operation.
My Favorite
Add frequently used cycles and
options to My Favorite for later use.
Notication
Cycle completed
Noties you the current cycle is
complete.
Remaining laundry
(applicable models only)
Noties you of any laundry left
after a cycle is complete.
DV10R8540GW_DC68-03913B_EN.indd 36 2019/3/6 15:51:26
English 37
Operations
Category Checkpoint Description
Q-Rator
Laundry Recipe *
Select the fabric type, colour, and
soil level of your load and get
recommendations for the most
suitable programmes.
Laundry Planner *
• You can set the desired end
time for your cycle and get a
recommended cycle that can
nish within the set time.
• You can start or schedule the
recommended cycle.
HomeCare Wizard *
Get advice to help you maintain
your washing machine to keep it in
a perfect condition. Check your most
used cycles, energy consumption **
and get notied when it is time to
clean the pump lter.
* Requires the 'SmartThings’ app, available on Android and iOS.
Registration required.
** Indicative results only.
DV10R8540GW_DC68-03913B_EN.indd 37 2019/3/6 15:51:26
Operations
English38
Operations
Open Source Announcement
The software included in this product contains open source software. You may obtain the
complete corresponding source code for a period of three years after the last shipment of
this product by sending an email to mailto:[email protected].
It is also possible to obtain the complete corresponding source code in a physical medium
such as a CD-ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0
leads to the download page of the source code made available and open source license
information as related to this product. This offer is valid to anyone in receipt of this
information.
NOTE
Hereby, Samsung Electronics, declares that the radio equipment type appliance is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address: The ofcial Declaration of conformity may be
found at http://www.samsung.com, go to Support > Search Product Support and enter the
model name.
Wi-Fi max transmitter power : 20 dBm at 2.412 GHz – 2.472 GHz
DV10R8540GW_DC68-03913B_EN.indd 38 2019/3/6 15:51:27
English 39
Maintenance
WARNING
• Do not clean the dryer by directly spraying water onto the dryer.
• Do not clean the dryer with benzene, thinner, alcohol, or acetone. This may cause
discolouration, deformation, damage, electric shock, or re.
• Before cleaning the dryer, be sure to unplug the power cord.
Control panel
Clean with a soft, damp cloth. Do not use abrasive cleaners. Do not spray cleaners directly
on the panel. Immediately wipe up any spills or liquids from the control panel.
Exterior
Clean with a soft, damp cloth. Do not use abrasive cleaners. Avoid using or placing sharp
or heavy objects near/on the dryer. Keep detergent and laundry supplies on the pedestal
(sold separately) or in a separate storage container.
Drum
Clean with a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel.
Wipe remaining residue with a clean, dry cloth.
Care during the winter
• Install and maintain the dryer in a location without drafts and above zero Celsius.
• In winter, water remaining in the drain hose may freeze. Remove water or moisture
from the drain hose.
• If the drain hose is frozen, wrap it with a warm, damp cloth for about 10 minutes.
Maintenance
DV10R8540GW_DC68-03913B_EN.indd 39 2019/3/6 15:51:27
Maintenance
English40
Maintenance
Lint lter
Clean the lint lter after each load.
1. Open the door and pull the lter
upward to remove. Do not remove the
rubber packing.
2. Open the outer lter and remove the
inner lter.
3. Unfold both the inner and the outer
lters.
4. Remove the lint from both lters, and
then clean them using a soft brush.
NOTE
To remove stubborn dirt, clean the lters
in running water. When complete, dry
them thoroughly.
DV10R8540GW_DC68-03913B_EN.indd 40 2019/3/6 15:51:28
English 41
Maintenance
5. Put the inner lter into the outer lter,
and then reinsert the lint lter into the
original position.
CAUTION
• Clean the lint lter after each load. Otherwise, the drying performance may decrease.
• Do not operate the dryer without the inner lter inside the outer lter. This may
damage the load.
• Make sure both lters are completely dried before using the dryer.
• Using the dryer with a wet lint lter may cause mold, bad odours, or a decrease in
drying performance.
CAUTION
Use caution when cleaning the lter.
Do not shake the lter when removing
moisture from it.
DV10R8540GW_DC68-03913B_EN.indd 41 2019/3/6 15:51:28
Maintenance
English42
Maintenance
Water tank (applicable models only)
To avoid leaks, empty the water tank after every load.
1. Open the water-tank drawer, and then
pull the water tank forward and remove
with both hands.
2. Open the lid of the water tank, and then
empty the water tank.
3. Close the lid and put the water tank
back in the drawer. Then, close the
drawer.
NOTE
After you have emptied the water tank,
press START/PAUSE. The corresponding
indicator turns off.
CAUTION
Use caution when emptying a full water tank. A heavy water tank may fall, causing
physical injury.
DV10R8540GW_DC68-03913B_EN.indd 42 2019/3/6 15:51:29
English 43
Maintenance
Heat exchanger
• The heat exchanger indicator lights up on the display when the heat exchanger needs
to be cleaned.
• Clean the heat exchanger on a regular basis to prevent reduction of the performance
from dust or other impurities.
1. Gently press the arrow-marked
positions (x2) to open the outer cover.
2. Unlock both xers as shown.
3. Remove the inner cover of the heat
exchanger.
DV10R8540GW_DC68-03913B_EN.indd 43 2019/3/6 15:51:30
Maintenance
English44
Maintenance
4. Brush and clean the heat exchanger
using a soft, damp cloth. When done,
dry the heat exchanger using a dry
cloth or vacuum cleaner.
CAUTION
• To avoid physical injury and burns, do
not touch or clean the heat exchanger
with bare hands.
• Do not apply force to the heat
exchanger. Applying excessive force to
the heat exchanger may deform it, but
its performance is not affected.
• Do not spray water onto the heat
exchanger. This may cause a leak or
bad odours.
• To prevent difcult cleaning in
the future, dust the heat exchange
immediately after cleaning it.
5. Clean the inner cover using a soft,
damp cloth.
6. Reinsert the inner cover back in
position, and then lock the xers.
NOTE
Make sure the xers are locked properly.
7. Close the outer cover.
DV10R8540GW_DC68-03913B_EN.indd 44 2019/3/6 15:51:31
English 45
Maintenance
Humidity sensor
• The humidity sensor senses the
humidity of the load and adjusts the
drying time accordingly.
• To maintain optimal performance,
remove impurities on and around the
humidity sensor regularly.
CAUTION
A contaminated humidity sensor may cause an incorrect calculation, which results in an
extended drying time.
Door
• The door may be contaminated on or
around itself. Use a soft cloth or brush
to clean the door.
CAUTION
Do not remove the rubber packing from
the door.
DV10R8540GW_DC68-03913B_EN.indd 45 2019/3/6 15:51:32
English46
Troubleshooting
Checkpoints
If you encounter an issue with the dryer, rst check the table below and try the
suggestions.
Symptom Action
Dryer does not run
• Make sure the door is completely closed.
• Make sure the power cord is plugged in.
• Check the home’s circuit breaker and fuses.
• Empty the water tank.
• Clean the lint lter.
Dryer does not heat
• Check the home’s circuit breaker and fuses.
• Check the lint lter and heat exchanger lter. Clean them if
necessary.
• Dryer may be in the cool-down phase of the cycle.
Dryer does not dry
Check the above, plus…
• Make sure the dryer is not overloaded.
• Sort light and heavy items separately.
• Reposition large, bulky items to ensure even drying.
• Check that the dryer is draining properly.
• For small loads, add a few dry towels.
• Clean the lint lter and heat exchanger lter.
Dryer is noisy
• Check for coins, buttons, lighters, etc.
• Make sure the dryer is level and standing rmly on the
oor.
• The dryer may hum due to air moving through the drum
and fan. This is normal.
Dries unevenly
• Seams, pockets, and other parts of clothing are harder to
dry than others. This is normal.
• Sort heavy and light items separately.
Dryer emits an odour
• The dryer may draw household odours in from the
surrounding air and then exhaust them. This is normal.
Dryer turns off before
the load is dry
• Dryer load is too small. Add more items and restart the
cycle.
• Dryer load is too large. Remove items and restart the cycle.
Lint on clothes
• Make sure the lint lter is clean before every load.
• Dry lint-producing items (fuzzy towels) separate from lint
trappers, such as black linen pants.
• Divide larger loads into smaller loads.
Troubleshooting
DV10R8540GW_DC68-03913B_EN.indd 46 2019/3/6 15:51:32
English 47
Troubleshooting
Symptom Action
Items still wrinkled
after Wrinkle Prevent
• Small loads of 1-4 items work best.
• Load fewer items. Load similar type items.
Information codes
If the dryer fails to operate, you may see an information code on the display. Check the
table below and try the suggestions.
Information code Meaning Action
tC Air temperature sensor issue
Clean the lint lter and/or heat
exchanger lter. If this continues, call
for service.
tC5
Compressor temperature
sensor issue
Wait 2-3 minutes. Turn the power on
and restart.
dC
Running the dryer with door
open
Close the door and restart.
If this continues, call for service.
HC Compressor overheat Call for service.
9C2 Low voltage detected
Check if the power cord is plugged
in. If this continues, call for service.
5C
Water tank full
Drain pump is out of order
Empty the water tank, turn the
power on, and restart. If this
continues, call for service.
nC Filter issue
Check if the lter is assembled
correctly. If this continues, call for
service.
nC2
Inner cover of the heat
exchanger issue
Check if the inner cover of the heat
exchanger is assembled correctly. If
this continues, call for service.
For any codes not listed above, or if the information code continues to appear, call for
service.
DV10R8540GW_DC68-03913B_EN.indd 47 2019/3/6 15:51:32
English48
Appendix
Fabric care chart
The following symbols provide garment
care direction. The Clothing care labels
include symbols for drying, bleaching,
drying and ironing, or dry cleaning when
necessary. The use of symbols ensures
consistency among garment manufacturers
of domestic and imported items. Follow
care label directions to maximize garment
life and reduce laundering problems.
Wash cycle
Normal
Permanent Press / Wrinkle
Resistant / Wrinkle Control
Gentle / Delicates
Hand Wash
Water Temperature**
Hot
Warm
Cold
NOTE
** The dot symbols represent appropriate
wash water temperatures for various
items. The temperature range for Hot
is 41-52 °C, for Warm 29-41 °C and for
Cold 16-29 °C. (Wash water temperature
must be a minimum of 16 °C for detergent
activation and effective cleaning.)
Bleach
Any Bleach (when needed)
Only Non-Chlorine (colour-safe)
Bleach (when needed)
Tumble Dry Cycle
Normal
Permanent Press / Wrinkle
Resistant / Wrinkle Control
Gentle/ Delicates
Special instructions
Line Dry / Hang to Dry
Drip Dry
Dry Flat
Heat setting
High
Medium
Low
Any Heat
No Heat/Air
Appendix
DV10R8540GW_DC68-03913B_EN.indd 48 2019/3/6 15:51:37
English 49
Appendix
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do Not Wash
Do Not Wring
Do Not Bleach
Do Not Tumble Dry
No Steam (added to iron)
Do Not Iron
Dry-clean
Dry-clean
Do Not dry-clean
Line Dry/ Hang to Dry
Drip Dry
Dry Flat
Protecting the environment
This appliance is manufactured from recyclable materials. If you decide to dispose of this
appliance, please observe local waste disposal regulations. Cut off the power cord so that
the appliance cannot be connected to a power source. Remove the door so that animals
and small children cannot get trapped inside the appliance.
DV10R8540GW_DC68-03913B_EN.indd 49 2019/3/6 15:51:41
Appendix
English50
Appendix
Specication
B
A
D
E
C
TYPE FRONT LOADING DRYER
MODEL NAME DV1*R85****
DIMENSIONS
A 686 mm
B 984 mm
C 809 mm
D 866 mm
E 1398 mm
WEIGHT 77 kg
CAPACITY 10.0 kg
ELECTRICAL REQUIREMENTS
220–240 V /
50 Hz
2000-2100 W
ALLOWABLE TEMPERATURE 5-35 °C
DV10R8540GW_DC68-03913B_EN.indd 50 2019/3/6 15:51:42
Appendix
Memo
DV10R8540GW_DC68-03913B_EN.indd 51 2019/3/6 15:51:42
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
AUSTRALIA
1300 362 603 (Other)
1300 425 299 (HHP)
www.samsung.com/au/support
NEW ZEALAND
0800 726 786 (All Product)
0800 6 726 786 (Support for
Smart Mobile Devices)
www.samsung.com/nz/support
DC68-03913B-00
DV10R8540GW_DC68-03913B_EN.indd 52 2019/3/6 15:51:42
