MODEL #TEX52MBK5L
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Purchase Date
AB17794
1
Español p. 22
ITEM #0916890
THOROUGHBRED-LED
CEILING FAN
READ AND SAVE THESE INSTRUCTIONS
Safety Information .............................................................................................................. 2
Package Contents .............................................................................................................. 4
Hardware Contents ............................................................................................................ 5
Preparation ........................................................................................................................ 5
Initial Installation ................................................................................................................ 5
Fan Mounting ..................................................................................................................... 7
Wiring ................................................................................................................................. 9
Final Installation ................................................................................................................ 11
Installing Fan with Light Kit ............................................................................................... 13
Installing Fan without Light Kit .......................................................................................... 14
Operating Instructions ...................................................................................................... 16
Care and Maintenance ...................................................................................................... 18
Troubleshooting ................................................................................................................ 19
Limited Lifetime Warranty .................................................................................................. 20
Replacement Parts List ..................................................................................................... 21
TABLE OF CONTENTS
2
SAFETY INFORMATION
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 22 lbs.
SAFETY INFORMATION
WARNING
3
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure they are secure.
CAUTION
NOTE: Dimmable to 10% with select dimmers. See Lowes.com for more information.
PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
4
A
Downrod 1
B
Mounting Bracket
1
C
Canopy
1
D Canopy Cover 1
E
Yoke Cover
1
F
Bulb
3
G
Motor Housing 1
H
Switch Housing Plate
1
I
Light Kit Fitter
1
J
Glass Shade
1
K Finial Plate
(preassembled)
1
L Threaded Washer
1
(preassembled)
M Finial
(preassembled)
1
N
Blade Arm 5
O
Blade 5
DESCRIPTIONPART
QUANTITY
P
Pin (preassembled) 1
Q Clip (preassembled)
1
R
Motor Screw 10
(preassembled) + 1 extra
S Lock Washer 10
(preassembled)
+ 1 extra
T
Canopy Mounting Screw
2
(preassembled)
U
Switch Housing Screw
3
(preassembled)
V
Motor Plate Screw 3
(preassembled)
W
Pull Chain Extension
2
X
Hex Nut (preassembled)
1
Y
10 mm Lock Washer
1
(preassembled)
DESCRIPTION
QUANTITY
F
K
H
L
O
I
J
D
C
B
E
G
M
N
Q
P
R
S
T
U
V
W
X
Y
A
5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
PREPARATION
Blade
Washer
Qty. 15
+ 1 extra
CC
Blade
Screw
Qty. 15
+ 1 extra
Wire
Connector
Qty. 4
AA
BB
CC
HARDWARE CONTENTS (shown actual size)
DD
Cap
Qty. 1
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
INITIAL INSTALLATION
2.
Check to make sure blades (O) will be at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
3.
6
3
2
INITIAL INSTALLATION
Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Standard mounting is best suited for
ceilings 8 ft. high or higher. For taller ceilings, you
may want to use a longer downrod (not included).
Angle mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance.
Open End
4
B
B
ANGLE MOUNTSTANDARD MOUNT
Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (B)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (B) is installed facing
the higher point of the ceiling.
4.
7 ft.
min.
30 in.
min.
O
B
A
19° max.
5.
Remove pin (P) and clip (Q) from yoke at top of
motor housing (G) and partially loosen
preassembled set screws and nuts.
Remove motor screws (R) and lock washers (S)
from underside of motor housing (G) and save for
later on. Note: If there are plastic motor blocks
installed with the motor screws (R) and lock
washers (S), discard the plastic motor blocks.
INITIAL INSTALLATION
5
FAN MOUNTING
7
1.
1
2.
Insert downrod (A) through canopy (C), canopy
cover (D) and yoke cover (E).Thread wires from
motor housing (G) up through downrod (A).
NOTE: Canopy cover (D) must be turned with the
smooth side toward the motor housing (G).
2
R
S
Set Screws
and Nuts
Yoke
P
Q
G
G
D
A
C
E
G
FAN MOUNTING
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the ball on the downrod and
measure 8 in. of lead wire, and then cut the excess
wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
4.
3.
Slip downrod (A) into yoke, align holes and
re-install pin (P) and clip (Q). Tighten set screws
and then tighten nuts on the set screws. Slide
yoke cover (E) down until it rests on top of motor
housing (G).
8
4
3
If you decided to cut back the lead wires in Step 4,
strip a 1/2 in. of insulation from end of WHITE wire.
Twist stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat Step 5
for BLACK, BLUE (if applicable) and GREEN wires.
5.
5
Ball
A
8 in.
Set Screws
and Nuts
P
A
Q
G
E
Yoke
FAN MOUNTING
9
WIRING
6.
6
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to
the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
1.
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c) that
fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: For each wire
connection below, use one of the wire connectors
(CC), making sure to screw wire connector (CC) on in
a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect all
GROUND (GREEN) wires together from fan (on
downrod (A) and mounting bracket (B)) to
BARE/GREEN wire from ceiling.
NOTE: This fan is remote control adaptable (remote control not included). Please refer to instructions
provided with the remote control before proceeding with these wiring instructions.
Hanging
Ball Slot
Tab
A
B
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
BLACK (POWER)
WHITE (NEUTRAL)
BLACK
GROUND/GREEN (BARE)
WHITE
BLUE &
BLACK
120V POWER
FROM CEILING
GREEN
GREEN
Install hanging ball of downrod (A) into opening of
mounting bracket (B). Align the slot in hanging ball
with the tab in mounting bracket (B).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (B) may result in
serious injury or death.
WIRING
10
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side of
box from the BLACK and BLUE (if applicable)
connections.
Turn spliced/taped wires upward and gently push wires
and wire connectors (CC) into outlet box.
2.
Wire Connector x 4
Hardware Used
CC
2
CC
CC
CC
1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: If you intend to control the fan
and light with separate wall switches, connect
BLACK wire from fan to BLACK wire from the
independent wall switch for the fan. Connect BLUE
wire from fan to the BLACK wire from the other
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together from
fan (on downrod (A) and mounting bracket (B)) to
BARE/GREEN wire from ceiling.
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. BARE/GREEN wire is ground.
1b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: If you intend to control the fan
light with a separate wall switch, connect BLACK
wire from fan to BLACK wire from ceiling. Connect
BLUE wire from fan to the BLACK wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires together
from fan (on downrod (A) and mounting bracket (B))
to BARE/GREEN wire from ceiling.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
BLACK
BLUE
1c
WHITE
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
120V POWER
FROM CEILING
BLACK
BLACK
(WALL SWITCH
FOR LIGHT)
GREEN
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
BLACK
BLACK
(WALL
SWITCH)
BLUE
1b
WHITE
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
BLACK
120V POWER
FROM CEILING
GREEN
GREEN

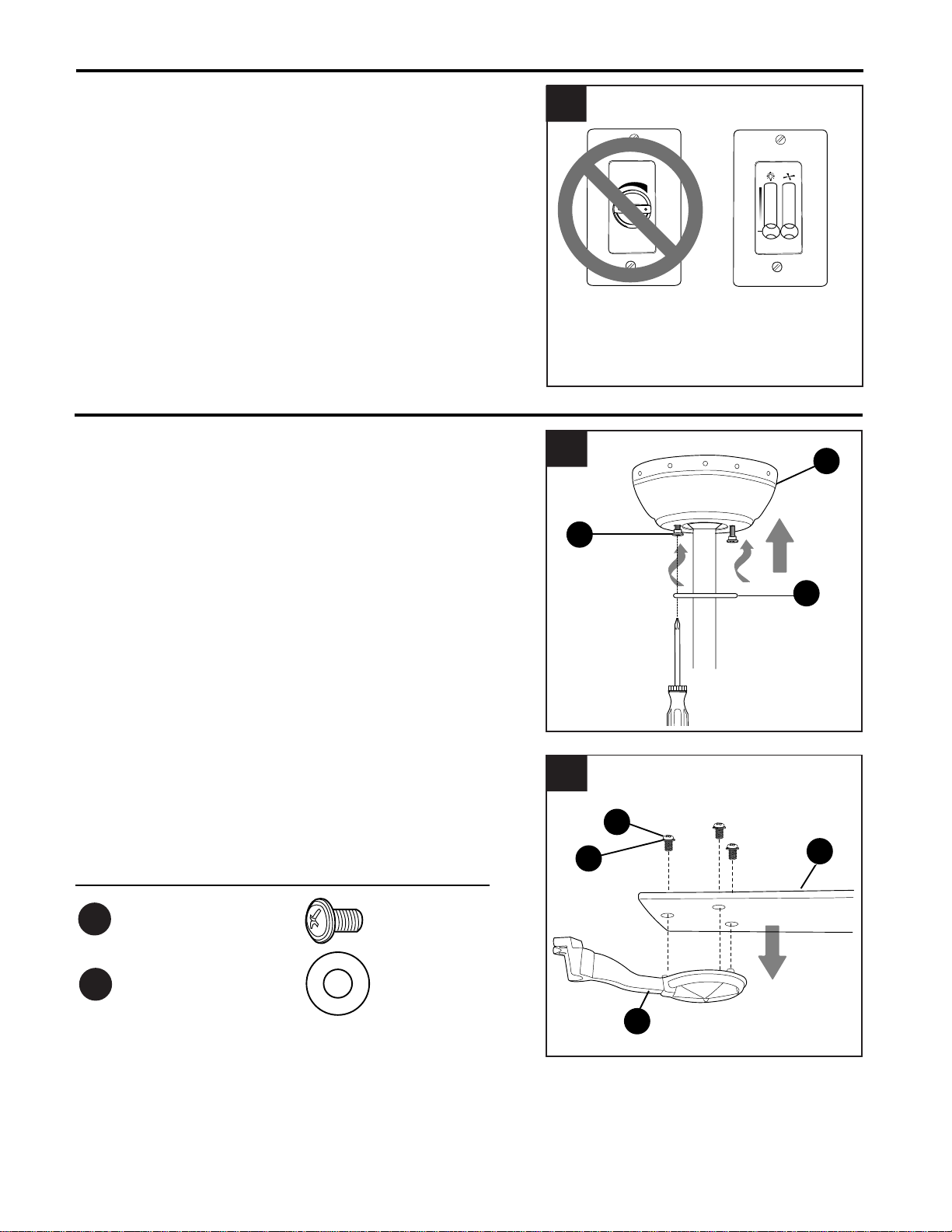

Locate two canopy mounting screws (T) on
underside of mounting bracket (B) and remove
canopy mounting screw (T) closest to the open end
of the mounting bracket (B). Partially loosen the
other canopy mounting screw (T). Lift canopy (C) to
mounting bracket (B). Place rounded part of slotted
hole in canopy (C) over loosened canopy mounting
screw (T) and push up. Twist canopy (C) to lock.
Re-insert canopy mounting screw (T) that was
removed, then tighten both canopy mounting screws
(T). Slide canopy cover (D) up to canopy (C),
aligning rounded part of slotted holes in canopy
cover (D) with screwheads in bottom of canopy (C).
Turn canopy cover (D) clockwise until it stops.
IMPORTANT: Using a full range dimmer switch (not
included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or
electrical shock, do NOT use a full range dimmer
switch to control fan speed.
3.
WIRING
Dimmer
Switch
Speed
Switch
For illustrative purposes only--not
intended to cover all types of controls
3
1
2
3
FINAL INSTALLATION
11
1.
1
Partially insert three blade screws (AA) along with
three blade washers (BB) to attach one blade arm
(N) to a blade (O). Then, tighten each blade
screw (AA) starting with the one in the middle.
Repeat for remaining blades (O).
2.
Blade Screw x 15
Blade Washer x 15
2
Hardware Used
AA
BB
D
T
C
AA
BB
I
J
N
O
O
I
N
S
R
G
Insert two motor screws (R) along with lock washers
(S) previously removed (Step 5, page 7) through
one blade arm (N) and back into the holes on the
underside of motor housing (G). Tighten motor
screws (R) securely. Repeat with remaining blade
arms (N), making sure to completely secure each
blade arm (N) before proceeding with the next.
3.
FINAL INSTALLATION
3
12
5.
Partially loosen two motor plate screws (V) in motor
plate on underside of motor housing (G) and
remove the other screw. Align slotted holes in
switch housing plate (H) with loosened motor plate
screws (V), allowing male plug from motor housing
(G) to come through hole in switch housing plate
(H). Twist switch housing plate (H) to lock.
Re-insert the motor plate screw (V) that was
removed and securely tighten all three motor plate
screws (V).
5
Partially loosen two switch housing screws (U) from
outer edge of switch housing plate (H) and remove
the other screw. Save for later use.
4.
4
To install the fan with the light kit, proceed to
INSTALLING FAN WITH LIGHT KIT on next page.
To install the fan without the light kit, skip to
INSTALLING FAN WITHOUT LIGHT KIT on page 14.
I
H
I
U
Motor
Plate
Male
Plug
I
H
I
V
G
I
U
Remove finial (M), finial plate (K) and threaded
washer (L) from threaded rod of light kit fitter (I) and
save for later use.
2.
If you wish to use the fan WITH the light kit,
connect male plug from motor housing (G) to female
plug from switch housing on top of light kit fitter (I),
matching up the colors on the male plug with the
colors on the female plug for a proper fit. Make sure
plugs are connected completely.
Align slotted holes in switch housing at top of light kit
fitter (I) with loosened screws in switch housing plate
(H). Twist light kit fitter (I) to lock, then re-install the
switch housing screw (U) previously removed (Step
4, page 12). Tighten all switch housing screws (U)
securely.
1.
INSTALLING FAN WITH LIGHT KIT
1
13
Install bulbs (F) into sockets on light kit fitter (I).
WARNING: When replacing bulbs, allow bulbs
and glass shade to cool down before touching.
3.
G
U
Female
Plug
Male
Plug
I
H
I
I
F
3
F
Threaded
Rod
2
L
I
I
K
M
I
I
W
14
5
Allow preassembled pull chains to come through light
kit fitter (I) slots. Then, align center hole in glass shade
(J) with threaded rod, allowing pull chains to come
through corresponding holes in glass shade (J). Push
up gently on glass shade (J) until threaded rod comes
through hole. Secure glass shade (J) with threaded
washer (L).
CAUTION: Do NOT overtighten threaded washer
(L) as glass may crack or break.
Thread pull chains through appropriate holes in finial
plate (K) and push up on finial plate (K), allowing
threaded rod to come through hole in middle of finial
plate (K). Secure with previously removed finial (M).
CAUTION: Do NOT overtighten finial (M) as glass
may crack or break.
4.
Attach pull chain extensions (W) or custom pull chain
extensions (not included) to fan and light pull chains.
Assembly is now complete.
5.
1.
1
If you do NOT wish to use the light kit, locate
wires in switch housing at top of light kit fitter (I)
labeled FOR LIGHT and gently pull molex
connections apart in order to disconnect these
wires.
Remove the hex nut (X) and 10 mm lock washer (Y)
from the threaded rod at the top of the light kit fitter
(I). Unscrew the switch housing to remove it from
the light kit fitter (I).
INSTALLING FAN WITHOUT LIGHT KIT
X
Y
I
Switch
Housing
Molex
INSTALLING FAN WITH LIGHT KIT
L
K
M
I
J
Threaded
Rod
4
I
I
15
INSTALLING FAN WITHOUT LIGHT KIT
3
4.
4
3.
Align slotted holes in switch housing with
loosened switch housing screws (U) in switch
housing plate (H). Twist switch housing to lock,
then re-install the switch housing screw (U)
previously removed (Step 4, page 12). Tighten all
switch housing screws (U) securely.
Attach pull chain extension (W) or custom pull
chain extension (not included) to fan pull chain.
Assembly is now complete.
Firmly place cap (DD) in hole in middle of switch
housing.
Connect male plug from motor housing (G) to
female plug from the switch housing, matching
up the colors on the male plug with the colors on
the female plug for a proper fit. Make sure plugs
are connected completely.
2.
2
Hardware Used
Cap
x 1
DD
Male
Plug
Female
Plug
DD
Switch
Housing
U
U
W
16
The pull chain (W) located on the switch housing
labeled FOR FAN has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW and four turns the fan OFF.
1.
1
2.
2
OPERATING INSTRUCTIONS
The pull chain (W) located on the switch housing
labeled FOR LIGHT has four positions to control
light output. One pull turns the UPLIGHT ON, two
pulls turns the UPLIGHT OFF and the DOWNLIGHT
ON, three pulls turns ALL of the lights ON, and four
pulls turns ALL of the lights OFF.
I
W
I
W
17
3.
Use the fan reverse switch, located on the switch
housing, to optimize your fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
OPERATING INSTRUCTIONS
3
3A. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow,
creating a wind chill effect.
3B. In cooler weather, setting the reverse switch in
the RIGHT position will result in upward airflow that
can help move stagnant, hot air off the ceiling area.
3C. IMPORTANT: Reverse switch must be set
either completely to the RIGHT or completely to
the LEFT for fan to function. If the reverse switch
is set in the middle position, fan will not operate.
3C
3A
3B
Switch
Housing
18
CARE AND MAINTENANCE
Uplight - Do NOT tamper with or attempt to repair LED component. The light source is designed for
this specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
At least twice each year, lower canopy (C) to check mounting bracket (B), and then tighten all screws
on fan. Clean fan with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
(O) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for
added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Downlight - Use standard-base 6.5-watt LED bulbs or incandescent/CFL
equivalent up to 60 watts.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
19
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either left or
right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check male and female plugs
in switch housing are connected
properly according to instructions
on page 13.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive wobbling. 1. Blades are loose.
2. Blade arms incorrectly attached.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move
fan to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower
canopy and verify set screw on
hanging ball is tightened securely.
20
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan operates but
light fails.
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Plugs not connected properly.
4. Light kit is lamped with more than the
allowable 190W, causing the wattage
limiting device to interrupt the flow of
electricity to the light kit.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 9 and 10.
2. Make sure that wall switch to fan
is on.
3. Check that male and female
plugs in switch housing are
connected properly according to
instructions on page 13.
4. Lamp light kit with bulbs that
total no more than 190W.
Note: A small amount of "wobble" is normal and should not be considered a defect.
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
Printed in China
21
PWLI1708
A Downrod
B Mounting Bracket
C Canopy
H Switch Housing Plate
I Light Kit Fitter
N Blade Arm
O Blade
PART DESCRIPTION PART #
916890-A
916890-B
916890-C
916890-H
916890-I
916890-N
916890-O
A
C
H
I
N
B
O
