User Manual

• User Manual - (English, Spanish)
• Quick Guide - (English)

Energy Guide

• Energy Guide - (English)

Table of contents

• Before you start
• Operations
• Maintenance
• Troubleshooting

User Manual for Washer

Before you start

Initial setup

• When you turn on the washer for the first time, the screen shows the initial setup process. Follow the on-screen instructions to complete it.

• Once you select a language, the language selection screen will not reappear. However, you must complete a wash cycle once to stop the tutorial screen from reappearing.

• The initial setup includes language selection and a brief tutorial.

• Tap OK to skip to the next screen.

Laundry guidelines

STEP 1 Sort

Sort the laundry according to these criteria:

• Care Label: Sort the laundry into cottons, mixed fibers, synthetics, silks, wools, and rayon.

• Color: Separate whites from colors.

• Size: Mixing different sized items together in the drum improves the washing performance.

• Sensitivity: Wash delicate items separately. For pure, new woolen items, curtains, and silk items, check the labels on the items.

NOTE Make sure to check the care label on all clothing, and sort clothing accordingly before starting the wash.

STEP 2 Empty pockets

Empty all the pockets of your laundry items

• Metal objects such as coins, pins, and buckles on clothing may damage other laundry items as well as the drum.

Turn clothing with buttons and embroideries inside out

• If pants or jacket zippers are open while washing, the drum may be damaged. Zippers should be closed and fixed with a string.
• Clothing with long strings may become entangled with other clothes. Make sure to tie the strings before starting the wash.

STEP 3 Use a laundry net

• Brassieres (water washable) must be placed in a laundry net. Metal parts of the brassieres may break through and tear other laundry items.
• Small, light clothing such as socks, gloves, stockings, and handkerchiefs may become caught around the door. Place them inside a fine laundry net.
• Do not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that could move the washer and result in injury

STEP 4 Determine the load capacity

Do not overload the washer. Overloading may cause the washer to wash improperly.

NOTE

When washing bedding or bedding covers, the wash time may be lengthened or the spin efficiency may be reduced.

For bedding or bedding covers, the recommended maximum spin level is Level 2 or Level 3, and the load capacity is 3.0 kg or less.

CAUTION

If the laundry is unbalanced and the “Unbalanced laundry detected” information code is displayed, redistribute the load. Unbalanced laundry may reduce spinning performance.

STEP 5 Add the correct detergent type

The type of detergent you use - general purpose, specifically for woolens, etc. - depends on the type of fabric (cotton, synthetic, delicate items, wool), color, wash temperature, and degree of soiling. Regardless of the specific type of detergent you use, always use “low suds” HE laundry detergent which is designed for automatic washers.

NOTE

• Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your local area. If you are not sure about the water hardness, contact your local water authority.
• Do not use detergent that tends to harden or solidify. This detergent may remain after the rinse cycle, blocking the drain outlet.

CAUTION

When washing wool using the WOOL cycle, use only a neutral liquid detergent. Powdered detergent used with the WOOL cycle can remain on the laundry and discolor it.

Use HE detergent only

Detergent drawer guidelines

The washer provides a three-compartment dispenser: the front-left compartment for the main wash, the front-right for fabric softeners, and the rear-right for the liquid chlorine bleach.

A. Main-wash compartment: Add main-wash detergent, water softener, soaking detergent, color–safe, and/or stain removers.

B. Softener compartment: Add fabric softener. Do not exceed the max line.

C. Bleach compartment: Add liquid chlorine bleach. Do not exceed the max line.

WARNING

• Do not open the detergent drawer while the washer is operating.

• Do not put a tablet or capsule type detergents into the detergent drawer. Put them directly into the drum.

• Do not use a ball type detergent.

• To prevent the compartment from clogging, concentrated or highly-enriched agents (fabric softener or detergent) must be diluted with water before being added.

To add washing agents to the detergent drawer

1. Slide open the detergent drawer.
2. Add liquid laundry detergent to the liquid detergent container in the main wash compartment.

CAUTION

• Make sure the liquid detergent container is inserted in the main wash compartment.
• Do not exceed the marked max line (A).

NOTE

• Do not add powdered laundry detergent or other powdered laundry agents to the liquid laundry container.
• To use powdered detergent, see page 32.

3. Add fabric softener to the softener compartment. Do not exceed the max line (B).

WARNING

• Powdered fabric softener is not recommended. Use liquid fabric softener only.

• Concentrated fabric softener must be diluted with water before being added.

• Do not add main-wash detergent to the softener compartment.

4. Close the detergent drawer.

To use powdered detergent

First, remove the provided liquid detergent container from the main-wash compartment. Then, add powdered detergent to the main-wash compartment according to the detergent manufacturer’s instructions.

CAUTION Do not add powdered detergent to the liquid detergent container.

To use the bleach compartment

Add only liquid chlorine bleach to the bleach compartment. Do not exceed the max line.

CAUTION Do not add undiluted liquid chlorine bleach directly to the load or to the drum. It is a powerful chemical and can cause fabric damage, such as weakening of the fibers or color loss if not used properly

To use oxygen boosters or color-safe bleach

Oxygen boosters or color-safe bleach can increase washing performance. Make sure to add the oxygen booster or color-safe bleach after putting the laundry into the drum.

NOTE To use both powdered detergent and powdered oxygen booster or powdered color-safe bleach, it is more effective to put them together into the drum before loading the laundry.

Operations

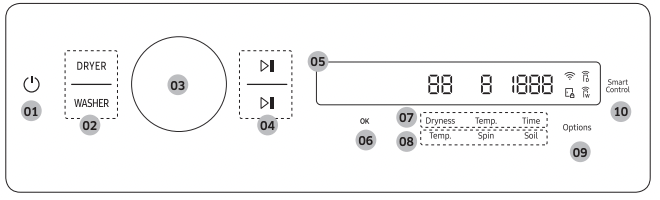

Multi-control panel

Icon descriptions

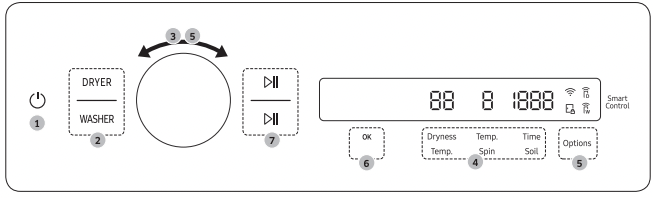

Operating a cycle

1. Tap to turn the power on.

2. Tap DRYER or WASHER.

- Tap WASHER to select the washer and use its features.

- Tap DRYER to select the dryer and use its features.

3. Turn the Navigation dial to select the cycle you want.

- For more information on Cycle overview, see page 38.

- For more information on the dryer’s cycles, please see the dryer’s user manual.

4. Change the default cycle options.

- For the washer, tap Temp., Spin, or Soil to change the default cycle settings.

- For the dryer, tap Dryness, Temp., or Time to change the default cycle settings.

5. Tap Options, and then turn the Navigation dial to select the desired additional function.

- For more information on Options, see page 42.

- For more information on the dryer’s additional functions, please see the dryer’s user manual.

6. Tap OK to change the settings for selected additional function.

- Not all cycles have additional functions available.

7. Tap and hold to start operation.

- Once you set the cycle you want, the screen displays a brief cycle description, and cycle time. You can also check the cycle progress, remaining cycle time, and information codes.

NOTE For detailed information on the dryer's cycles and using the dryer, please see the dryer's user manual.

Cycle overview

NOTE

For more information on the dryer’s cycles, please see the dryer’s user manual.

Cycle descriptions

You can add or delete cycles to personalize the cycle list in the My Cycles option. See page 43 for more information.

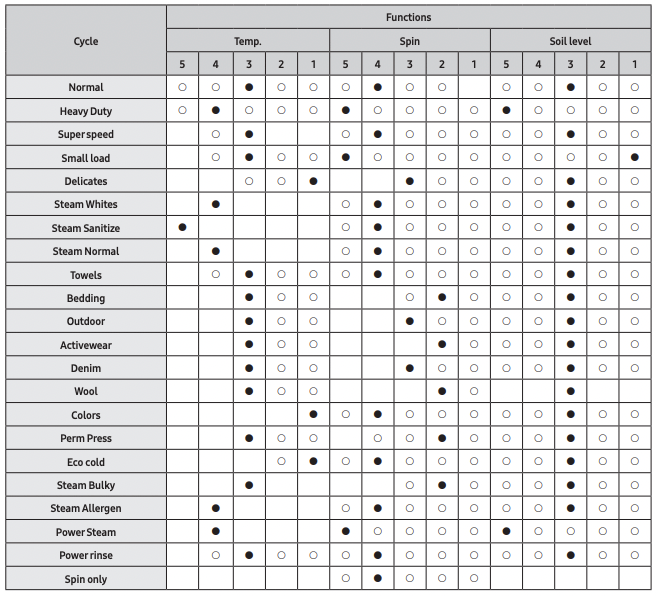

Cycle chart

Use this chart to set the best cycle and options for your laundry

: factory setting, : can be selected

Options

Using Options

1. Tap Options.
2. Turn the Navigation dial to select the desired additional function.
3. Tap OK to change the selected function’s settings or start the function.

NOTE

• To return to the main screen, tap Options again or turn the Navigation dial to select Back and tap OK.
• If the selected function is not supported, the "Currently not supported." message is displayed, and the OK button is not activated.
• When you select an additional function, a brief help message appears for the first ten times of use.

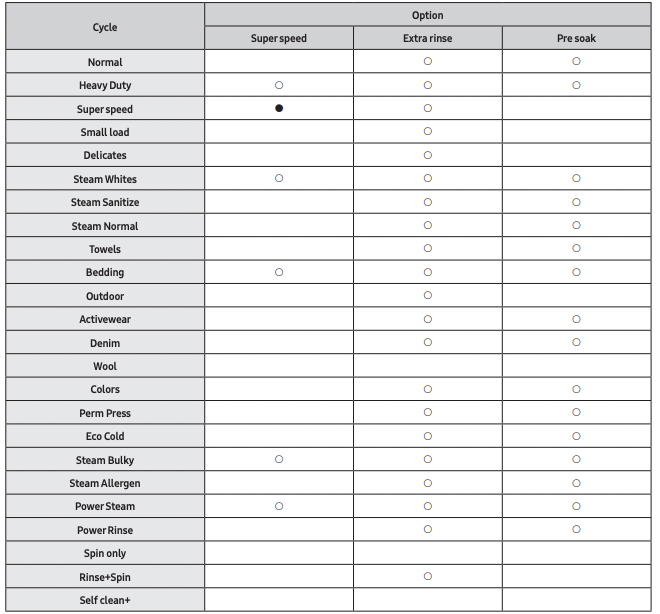

Super Speed

Use this function if you need to shorten the washing time.

1. Tap Options.
2. Turn the Navigation dial to select Super Speed, and then tap OK.
3. Tap OK to select On or Off.

Only available with Super speed, Heavy Duty, Power Steam, Bedding, Steam Bulky, and Steam Whites cycles.

The shortened time may differ depending on the load/options.

Extra Rinse

Adds an additional rinse at the end of the cycle to remove laundry additives more thoroughly.

1. Tap Options.
2. Turn the Navigation dial to select Extra Rinse, and then tap OK.
3. Tap OK to select On or Off.

Pre Soak

This adds 30 minutes of soaking time at the start of the wash cycle for better stain removal.

1. Select a cycle and change the cycle settings as necessary.
2. Tap Options.
3. Turn the Navigation dial to select Pre Soak, and then tap OK.
4. Tap OK to select On or Off.

My Cycles

Add or remove cycles to create a personal cycle list.

1. Tap Options.
2. Turn the Navigation dial to select My Cycles, and then tap OK.

You can only edit a cycle to create a personal cycle when the washer is not operating.

3. Turn the Navigation dial to select a desired cycle.

4. Tap OK to add or remove the selected cycle.

Addition and removal of the course is saved automatically.

5. Once you finish creating My Cycles, tap Options to return to the cycles screen.

NOTE

• The Normal and Self Clean+ cycles cannot be removed from the cycles list.
• You can also edit My Cycles in the SmartThings app.

Delay End

You can set the washer to finish your wash automatically at a later time, choosing a delay of between 1 to 24 hours (in 1 hour increments). The hour displayed indicates the time the wash will finish.

1. Select a cycle and change the cycle settings as necessary.
2. Tap Options.
3. Turn the Navigation dial to select Delay End, and then tap OK.
4. Turn the Navigation dial to select the desired time, and then tap OK.
5. Tap and hold .

Status shows in the display and the washer tumbles the drum to sense the weight of the load (if load sensing is preset for the selected cycle). When load sensing is complete, the display shows the remaining time until the end of the wash cycle.

To cancel Delay End, tap to restart the washer.

Child Lock

To prevent children or infants from accidentally starting or setting the washer, Child Lock locks all buttons except
for and Options.

1. Tap Options.
2. Turn the Navigation dial to select Child Lock, and then tap OK.
3. Tap OK to select On or Off.

NOTE

• When Child Lock is on, all buttons are disabled except for and Options. The washer door also locks.
• Tapping a button while Child Lock is on triggers an alarm with the “Child Lock On” message.
• You cannot open the door after a wash cycle when the Child Lock is on. Turn the function off before opening the door to take out the laundry.
• Setting Child Lock on the multi-control panel applies the function to both the washer and the dryer.

You can individually change the Child Lock setting for the dryer on the dryer's control panel.

Maintenance

Keep the washer clean to prevent deteriorated performance and to preserve its life cycle.

WARNING Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel – Do not contact the following parts while the appliance is energized: Control board, heat sink, motor, inlet valve and pump.

Self Clean+

Certain usage and environmental conditions may result in some residue build-up or odor in the washer drum. To prevent this build-up or odor and keep your washer drum fresh and clean, perform the Self Clean+ cycle at least once a month or every 40 cycles. Perform the recommended procedure below when using the Self Clean+ cycle.

1. Tap .
2. Turn the Navigation dial to select Self Clean+.
3. Tap and hold .

CAUTION

If there is chlorine bleach left in the washer drum for an extended period of time, rust can occur.

NOTE

• The water temperature for Self Clean+ is defaulted to Extra Hot. This temperature cannot be changed.
• In the case where residue is present in the washer drum, add liquid chlorine bleach to the MAX level line in the main-wash compartment before starting the Self Clean+ cycle. Do not add the liquid chlorine bleach to the bleach compartment (This is only the case for Self Clean+ cycle).
• Do not exceed the max line. Do not use or mix any other detergent or chemicals during the Self Clean+ cycle. If necessary, run a Rinse+Spin cycle after the Self Clean+ cycle has completed to help remove any remaining residue.

Self Clean+ reminder

• After every 40 cycles, the washer displays the “Drum Clean needed” message for an hour to alert you to run the Self Clean+ cycle.
• It is recommended to run the cycle regularly for hygienic purposes.
• You will see the Self Clean+ alert message when the washer completes a cycle. If you open the door, the message disappears, and the display shows the Self Clean+ cycle setting screen automatically. At this time, the dryer control panel displays the recommended drying cycle.
• The reminder will appear on the control panel for 5 additional consecutive cycles before turning off. The next reminder will not appear until another 40 cycles have been completed.

Emergency drain

In case of a power failure, drain the water inside the drum before taking out the laundry.

Cleaning

Surface of the washer

Use a soft cloth with a nonabrasive household detergent. Do not spray water onto the washer.

Mesh filter

Clean the mesh filter of the water hose once or twice a year.

NOTE If the mesh filter is clogged, an information code of “4C” appears on the screen.

Debris filter

It is advisable to clean the debris filter every 2 months to prevent its clogging. A clogged debris filter may reduce the bubble effect.

NOTE If the pump filter is clogged, an information code of “5C” appears on the screen.

CAUTION

• Make sure the filter knob is closed properly after cleaning the filter. Otherwise, this may cause a leak.

• Make sure the filter is inserted properly after cleaning it. Otherwise, this may cause an operational failure or a leak.

Detergent drawer

Door diaphragm

CAUTION Use bleach carefully and be sure to follow the bleach manufacturer’s use and care instructions.

Recovery from freezing

The washer may freeze when the temperature in its location drops below 32 °F (0 °C).

1. Turn off the washer, and then unplug the power cord.
2. Pour warm water over the water tap to loosen the water hose.
3. Disconnect the water hose, and then soak it in warm water.
4. Pour warm water into the drum and leave it for about 10 minutes.
5. Reconnect the water hose to the water tap.

NOTE

If the washer still doesn’t operate normally, repeat the steps above.

Care for an extended period of non-use

Avoid leaving the washer unused for an extended time. However, if you intend to leave the washer unused for a long period of time, follow the directions below:

1. Tap .
2. Turn the Navigation dial to select Rinse+Spin.
3. Empty the drum, and then tap and hold .
4. When the cycle is complete, close the water taps and disconnect the water hoses.
5. Turn off the washer, and then unplug the power cord.
6. Open the door to let air circulate through the drum.

Cleaning the exterior

1. Turn off the water taps after finishing the day’s washing. This will shut off the water supply to your washer and prevent the unlikely possibility of damage from escaping water. Leave the door open to allow the inside of your washer to dry out.
2. Use a soft cloth to wipe up all detergent, bleach, or other spills as they occur. Clean the following as recommended below:

Control Panel – Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray cleaners directly on the panel.

Cabinet – Clean with soap and water.

Cleaning the interior

Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your washer as a result of washing clothes.

CAUTION

Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your washer or laundry.

NOTE

Hard water deposits may be removed, if needed. Use a cleaner labeled “Washer safe”.

Troubleshooting

If there is any problem, check the information message on the LCD screen and follow the on-screen instructions. If the problem persists, please contact the service center.

Checkpoints

If you encounter a problem with the washer, first check the table below and try these suggestions.

Information codes

If the washer fails to operate, you may see an information code on the screen. Check the table below and try the suggestions.

If any information code keeps appearing on the screen, contact a local Samsung service centre.

See other models: DVE50A8800V/A3 DVE50A8600E/A3 NE63A6511SS/AA NE63A6311SS/AA NX60A6511SS/AA
