VIPER M2 TREADMILL
OWNER’S MANUAL
2
VIPER M2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. IMPORTANT ELECTRICAL INFORMATION 5
3. IMPORTANT OPERATING INSTRUCTIONS 6
4. ASSEMBLY INSTRUCTIONS 7
5. FOLDING INSTRUCTIONS 12
6. OPERATION GUIDE WITH PROGRAM CHART 13
7. EXERCISE GUIDE 21
8. MAINTENANCE INSTRUCTIONS 23
9. EXPLODED DIAGRAM 31
10. PARTS LIST 32
11. TROUBLE SHOOTING GUIDE 33
12. WARRANTY 34
PROGRAM CHARTS 36
3
VIPER M2
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this treadmill.
It is important your treadmill receives regular maintenance to prolong its useful life. Failing to
regularly maintain your treadmill may void your warranty.
Danger – To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to
cleaning and/or service work.
DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY
USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.
• Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.
• Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and
treadmill may result.
• Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of
the treadmill and any fixed object.
• Place your unit on a solid, level surface when in use
• When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should
you fall or move too far back on the treadmill.
• Keep hands away from all moving parts.
• Never operate the treadmill if it has a damaged power cord or plug. When damaged, these must be
replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard.
• Keep the cord away from heated surfaces.
• Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
• Never drop or insert any object into any openings.
• The treadmill is intended for in-home use only and is not suitable for commercial environments.
4
VIPER M2
• To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug
from the outlet.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Use the handrails provided; they are for your safety.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
• Before undertaking any type of exercise program, it is recommended that you consult a doctor.
• Injuries to health may result from incorrect or excessive training.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• WARNING heat rate monitoring systems may be inaccurate. If you feel faint stop exercising
immediately.
• Children should not be allowed on or around the equipment, even when not in use.
• Children should be supervised to ensure that they do not play with this machine
• Loose-fitting clothing or jewellery that could become an entanglement hazard should not be worn.
• Training shoes should be worn when using the equipment.
• Equipment must be used on a level and stable surface.
• All fixings should be checked before the equipment is used.
• All literature relating to the use of the equipment should be retained for future reference.
• Recommended operating temperature: 5-40°C
Remove the safety key after use to prevent unauthorized treadmill operation.
5
VIPER M2
2. IMPORTANT ELECTRICAL INFORMATION
WARNING!
• Route the power cord away from any moving part of the treadmill including the elevation mechanism
and transport wheels.
• NEVER remove any cover without first disconnecting AC power.
• NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near a pool, or in any other high humidity environment.
• This is a high-power item; please do not share the same outlet with other high power machines
such as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make
sure the fuse is 10A.
6
VIPER M2
3. IMPORTANT OPERATING INSTRUCTIONS
• Understand that changes in speed and incline do not occur immediately. Set your desired speed on
the display console and release the adjustment key. The display will obey the command gradually.
• Use caution while participating in other activities while walking on your treadmill, such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in
the centre of the belt; which may result in serious injury.
• In order to prevent losing balance and suffering unexpected injury, never mount or dismount the
treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the
belt during slow acceleration is proper after you have learned to operate this machine.
• Always hold on to handrail while making control changes.
• A safety key is provided with this machine. Remove the safety key will stop the walking belt
immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.
• Do not use excessive pressure on console control keys. They are precision set to function properly
with little finger pressure.
• Replace any defective components immediately. The machine must be kept out of use until
repaired.
• Belt wear-in period: all treadmills make a certain type of thumping noise due to the belt
riding over the rollers, especially new treadmills. This noise will diminish over time, although
may not completely go away. The belt will stretch over time, causing it to ride smoother
over the rollers.
7
VIPER M2
4. ASSEMBLY INSTRUCTIONS

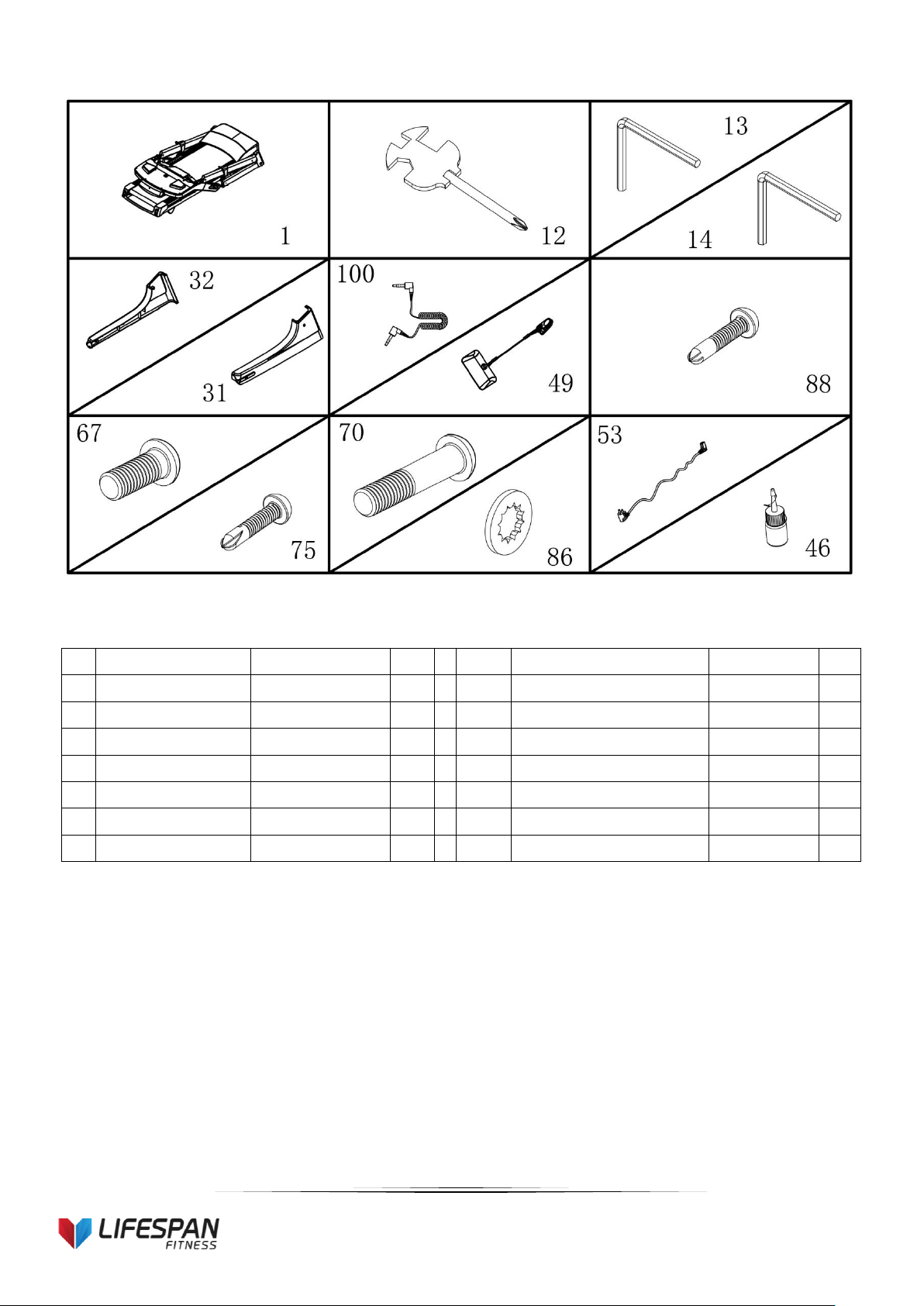

PARTS LIST
NO.
Description
Specification
Qty
NO.
Description
Specification
Qty
1
Main frame
1
67
Bolt
M8*20
8
12
Allen Wrench
S=13\14\15mm
1
70
Bolt
M8*55
2
13
5#Allen Wrench
5mm
1
86
Lock washer
8
10
14
6#Allen Wrench
6mm
1
75
Screw
ST4.2*19
10
32
Left base cover
1
53
Standard Power Line
1
31
Right base cover
1
100
Mp3 Wire
1
49
Safety key
1
ASSEMBLY TOOLS:
#5 Allen Wrench 5mm: 1pc
#6 Allen wrench 6mm: 1pc
Wrench w/screw Driver S=13, 14, 15: 1pcs
Notice: Do not connect power until after assembly is completed.
8
VIPER M2
STEP 1:
STEP 2:
1. Open the carton
2. Extract the parts listed above
3. Place the Main Frame onto level
ground

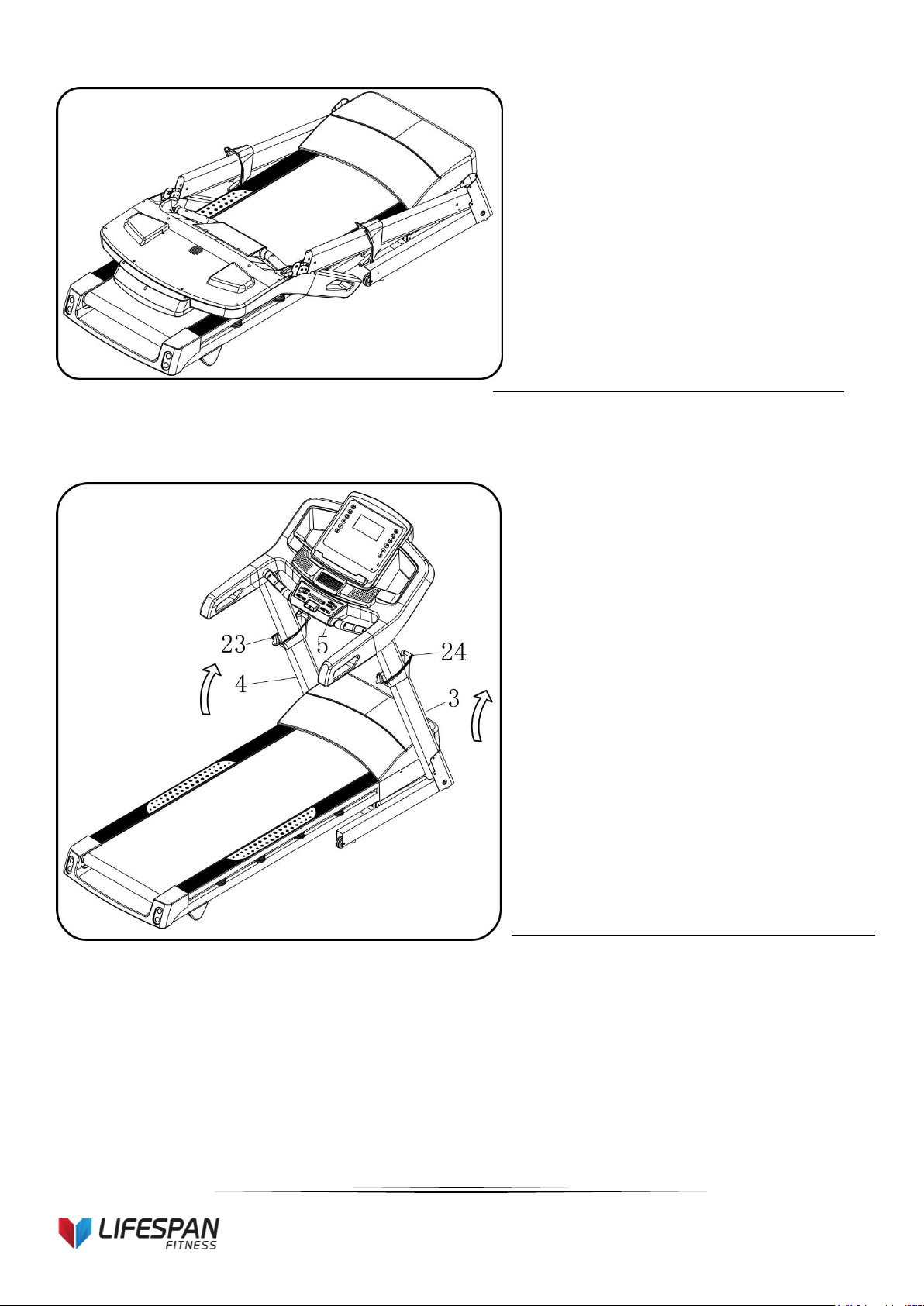

1. Erect the upright tubes in the direction
of the arrows.
Note: Take care not to damage the upright
covers (23, 24) or the wires inside the uprights
9
VIPER M2

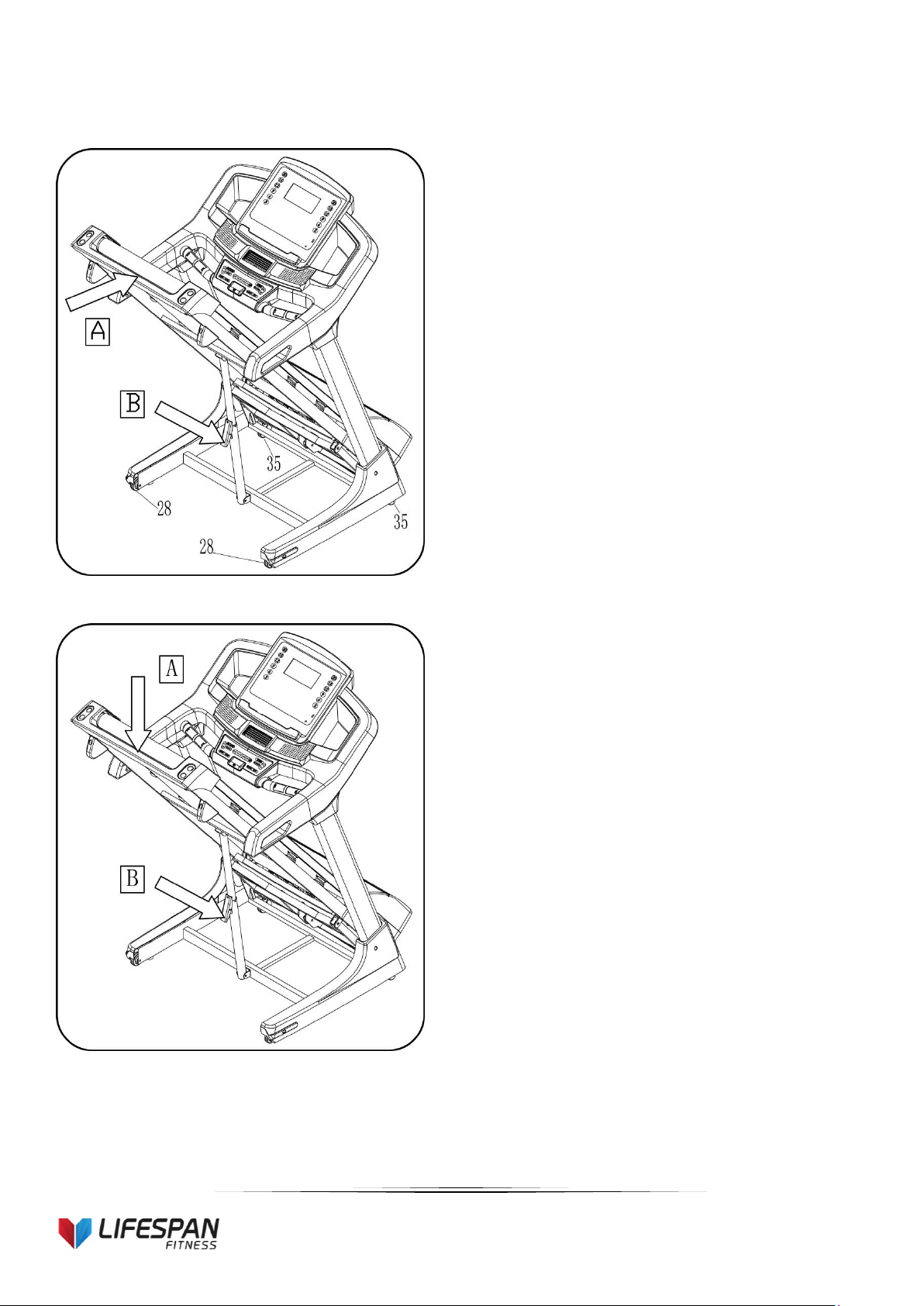

STEP 3:
STEP 4:

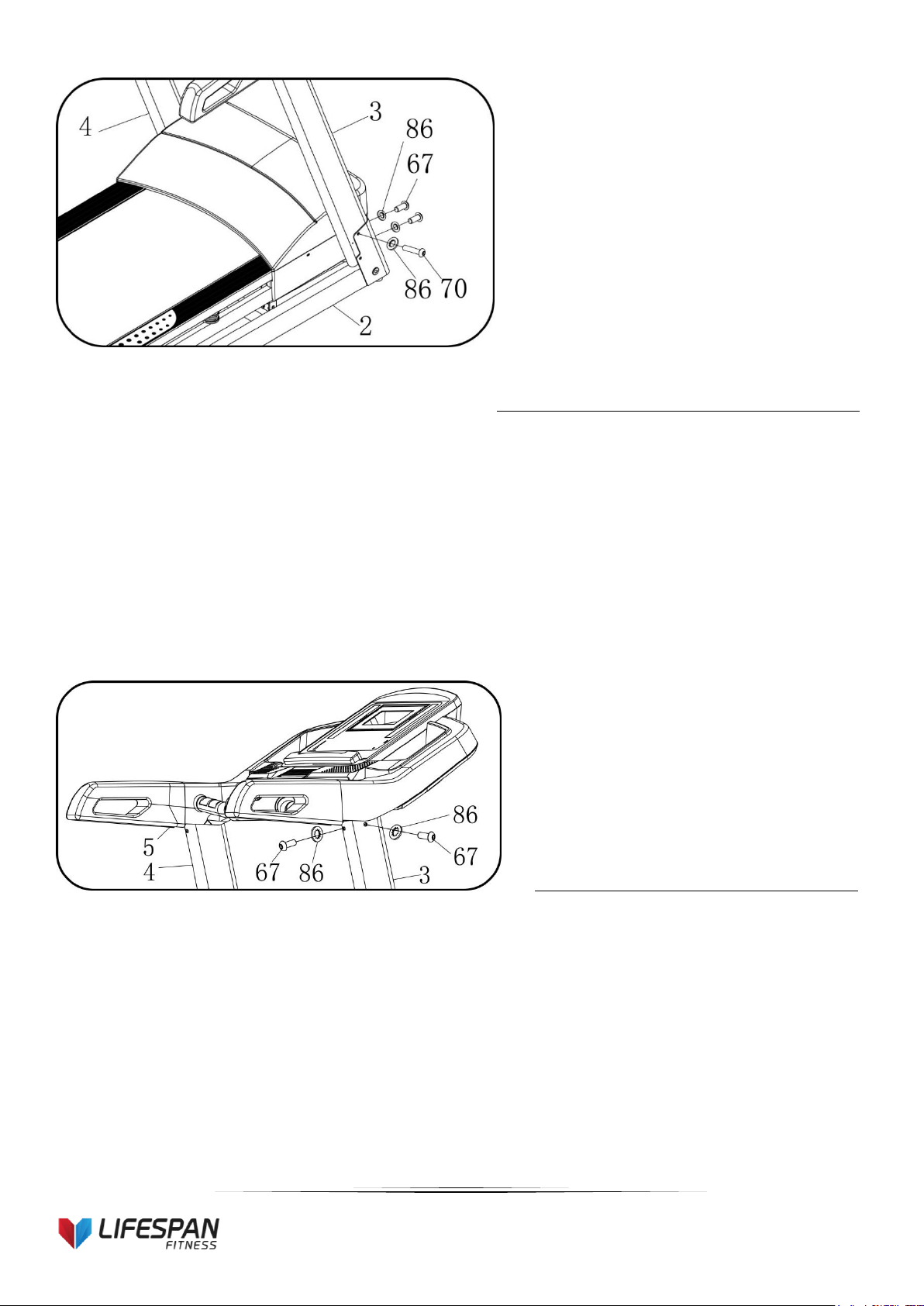

1. Attach the Right Upright to the base
frame (2) using 5# Allen wrench (13),
Bolt M8*55(70), Bolt M8*20 (67) and 2 x
Lock washer (86).
2. Repeat above steps to assemble the
left side.
Note: Support the upright with your hand to avoid
it falling down and causing injury.
1. Attach the computer frame onto the right
upright with the 5# Allen wrench (13),
M8*20 bolt (67) and lock washer (86).
2. Repeat above step to assemble the left
side.
10
VIPER M2
STEP 5:
STEP 6:

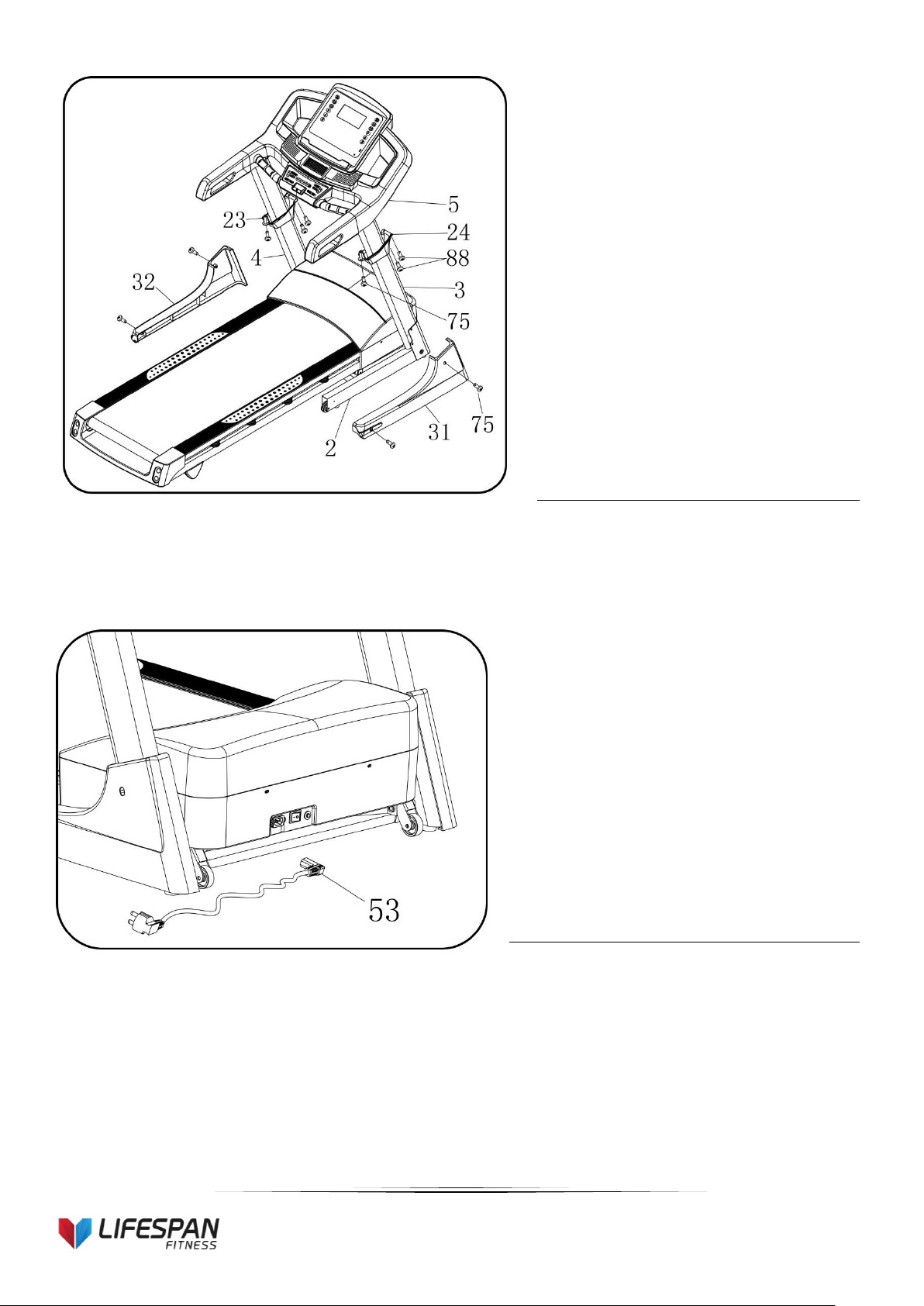

1. Attach the right upright cover to the
computer bracket with screw driver (12),
Bolt ST4.2*19 (75) and ST4.2*20 bolt
(88).
2. Attach the base cover (31) to the base
frame（2）using screw driver (12),
ST4.2*20 Bolt (88) and bolt (75).
3. Repeat above steps to assemble the left
side.
1. Connect the power cord (53) onto main
frame.
11
VIPER M2
STEP 7:

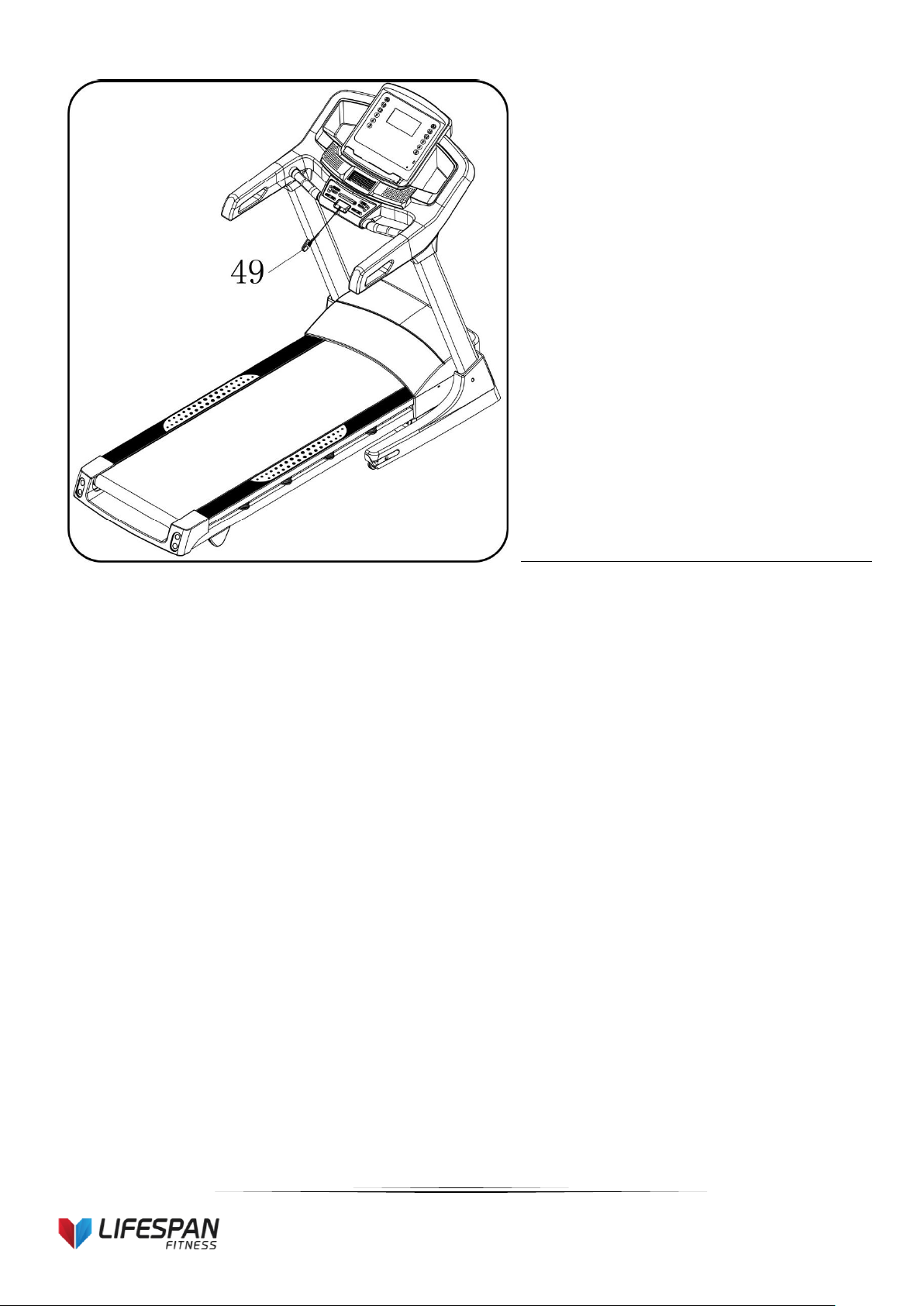

1. Place the safety key (49) onto the
computer.
12
VIPER M2
5. FOLDING INSTRUCTIONS
Folding:
Unfolding:
Place your hand on position (A), then pull
up the base frame until you hear the click
sound emitted when the air pressure bar
(B) is locked into the round tube.
Whilst supporting position A with your
hand, gently push the marked area on the
air pressure bar with your foot.
The base frame will descend
automatically. (Please keep people and
any pets away the machine during
descent)
Video Tutorial Available at:
http://youtu.be/cP9NtFHfWlc
Lifespan Fitness Channel:
http://www.youtube.com/user/treadmillsvideos
13
VIPER M2
6. OPERATION GUIDE WITH PROGRAM CHART

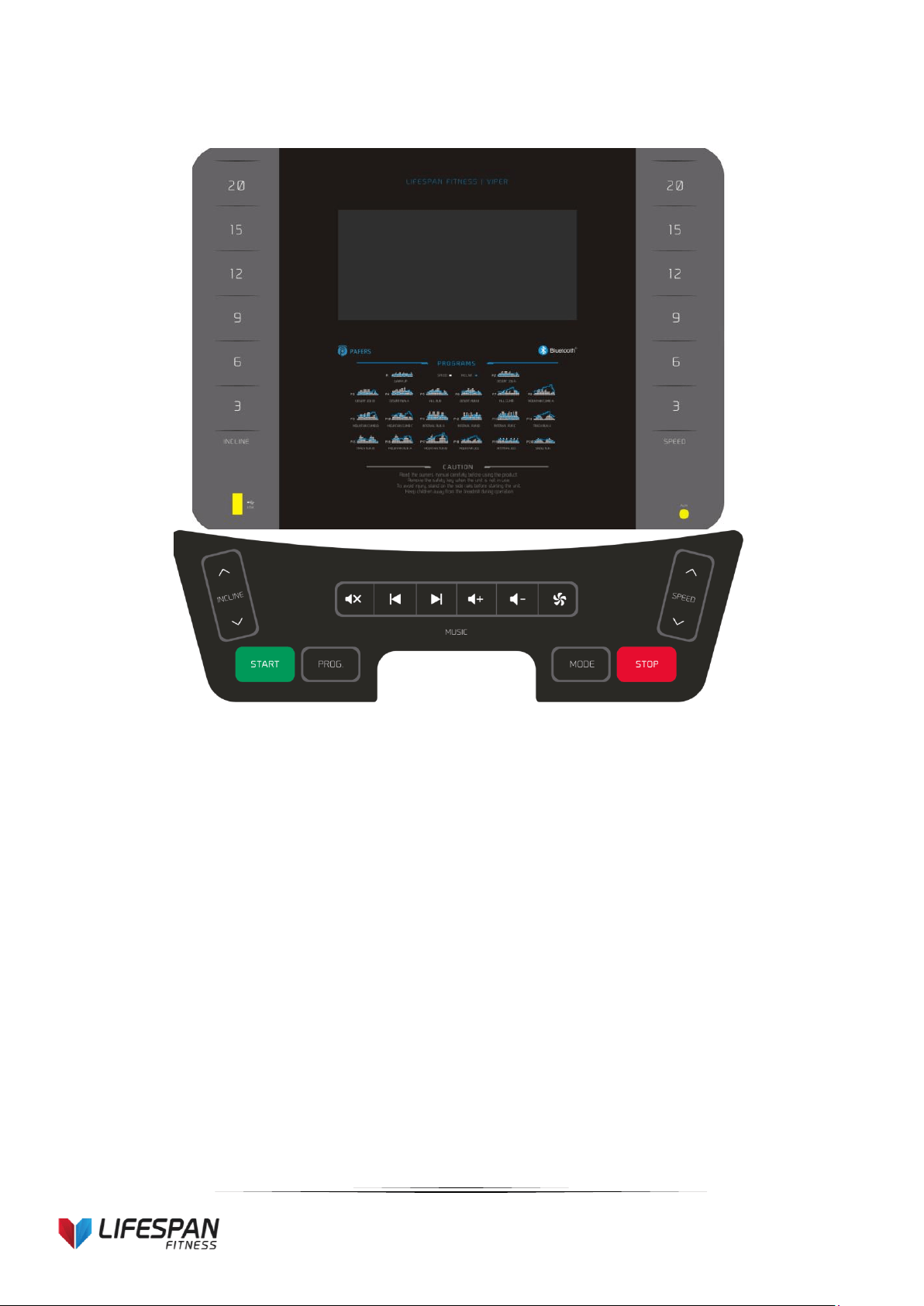

1. OVERVIEW
2. LCD WINDOW DISPLAY
1. Speed window: displays speed and program
2. Incline window: displays incline level
3. Time window: displays workout time
4. Distance window: displays workout distance
5. Calorie window: displays calories burnt
6. Pulse window: displays pulse
(Calorie and pulse data is an estimate intended for reference only. Not suitable for medical purposes.)
14
VIPER M2
3. BUTTON FUNCTIONS
1. “PROG”: when the treadmill is in standby mode, this button cycles through:
a. “HRC” – heart rate control programs
b. “P1-P40” - built in programs
c. “U1-U3” - user defined programs
d. “FAT” - body fat testing mode
2. “MODE”: mode selection button. Press this button to cycle through “time count down”, “distance count
down” and “calorie count down”
a. You can adjust the value with the Speed +/- or Incline +/ - buttons. Press “START” to start your
workout after setting the values.
3. “START”: begins workout after a 3 second countdown. When the power is on and safety key correctly
placed on the computer, press this button to start the treadmill.
4. “STOP”: press button once and the machine will slow down to a stop.
Pressing the STOP once button during your workout will pause the workout and data on the LCD will
remain. Press the START button to resume your workout. Instead of pressing START, you may clear the
workout data by pressing the STOP button a second time.
5. SPEED+\SPEED-: Increase or decrease speed when excising. Sets parameter when stopped.
6. “INCLINE+”, “INCLINE-”: increase or decreases incline. Adjust the incline level during excising. Sets
parameter when stopped.
7. “SPEED: 3, 6, 9, 12, 15, 20” Speed adjustment quick buttons
8. “INCLINE: 3, 6, 9, 12, 15, 20” Incline adjustment quick buttons.
9. “FAN”: Turns the fan ON/OFF
10. “VOL+”: Increases volume during USB memory stick playback
11. “VOL-”: Decreases volume during USB memory stick playback
12. : Track selection buttons
13. : Mute Button
15
VIPER M2
3. MAIN FUNCTIONS
3.1. Quick Start-up (Manual):
Attach the safety key. After a 3 second countdown, the treadmill will starting and running from the lowest
speed.
3.2. Countdown mode:
Press the MODE button to cycle options: time countdown, distance countdown, calorie countdown. The
default value corresponds to the window and flashing display. Once you reach your desired option, use the
SPEED +/- buttons to adjust to the desired value. Press START to start your workout.
You may also add and subtract speed and incline during the workout. When the countdown reaches 0, the
machine will stop. You can also directly press the STOP button or disconnect safety lock to stop.
Time Setting Range
99:59 min
Distance Setting Range
0.5-99.9 km
Calorie Setting Range
10.0 – 999.0 calories
3.3. Preset programs:
Press the program button; programs from P1 to P40 are built-in programs. The time window displays the
default value of TIME. When flashing, press the SPEED +/- and INCLINE +/- buttons to adjust to your desired
time. Built-in programs are divided into 20 equal segments.
After pressing the START button, the treadmill will automatically run through each time segment in order.
Speed and incline will automatically adjust to the pre-set value of each segment. Upon completion of all 20
segments, the program will end, slowing the treadmill down to a stop. During program operation speed incline
can still be adjusted but upon reaching the next segment, these values will be automatically adjusted to the
program defaults. Built-in program data is listed in the following table.
16
VIPER M2
3.4. User defined programs:
There are three programs U1, U2, U3 for user defined.
1. Setting
Press “PROGRAM” continuously during stand by to set user defined program (U1-U3). This will allow you to
customize each of the 20 time segments.
Press MODE to setup the first time segment. Adjust speed using “SPEED+”, “SPEED–”. Adjust incline using
“INCLINE+”, “INCLINE -”. Press MODE to finish and enter next time segment. After finishing the 20
th
time
segment the data will be stored in memory. You must complete all 20 time segments before exiting the
setting mode.
2. Start
Press “PROGRAM” continuously during standby to select user defined program (U1-U3). Press START to
being workout.
4. HEART RATE:
When holding the hand pulse with two hands, the pulse window will show your heart rate after 5 seconds. To
increase accuracy please check heart rate with the machine stopped and after keeping your hands on the
sensors for more than 30 seconds.
The heart rate data should be used as an estimation for reference purposes only. Please refer to page
xx for more information.
5. HEART RATE CONTROL (HRC) PROGRAMS:
DEFAULT is the default heart rate display parameter values (Default display)
Program Number
Functions
HP1
Incline only
HP2
Speed only
HP3
Speed and incline
17
VIPER M2
• HRC programs have a maximum duration of 22 minutes.
• In standby mode, press the "Program" key until the DISTANCE window displays HP1, HP2 or HP3.
When in the HP1/HP2/HP3 display interface, press the start key to select a HRC program. The system
will automatically recommend HRC parameters available to users. Default parameters:
"HP1" program: Maximum operating speed: 8.0km/h, 30 years of age, default target heart value of
150beats/min
"HP2" program: Maximum operating speed: 9.0km/h, 30 years of age, default target heart value of
160beats/min
"HP3" program: Maximum operating speed: 10.0km/h, 30 years of age, default target heart value of
170beats/min
• The time window will begin by showing the default age of 30. Use the INCLINE+/- or SPEED+/- buttons
to set the correct age. The age range is between 15 to 80 years old.
• After age is selected, press “MODE”. The system will recommend a suitable target heart rate, which will
be displayed on screen for reference. You may also use the INCLINE+/- or SPEED+/- buttons to choose
a desired target heart rate. The available option range is from 95 to 180beats/min.
• After setting desired age and target heart rate values, press START to start your workout or MODE to
return to standby mode.
• During a HRC program, INCLINE+/- or SPEED+/- buttons will be available to adjust speed and incline.
The system will also adjust speed and incline automatically to achieve the user’s target heart rate value.
18
VIPER M2
Scenario
Program
Number
Result
Actual heart
rate is less than
target heart rate
HP1
Incline will increase by 1 level every 10 seconds, until
the incline limit or the target heart rate is reached.
(speed is controlled by the user)
HP2
Speed will increase by 0.5km/h every 10 seconds, until
the speed limit or the target heart rate is reached.
(incline is controlled by the user)
HP3
Speed will increase by 0.5km/h every 10 seconds, until
the speed limit is reached. Once the maximum
speed limit is reached, incline will increase by 1
level every 10 seconds, until the incline limit is
reached.
Actual heart
rate is greater
than target
heart rate
HP1
Incline will decrease by 1 level every 10 seconds, until
minimum incline is reach or the target heart rate is
reached. (speed is controlled by the user)
HP2
Speed will decrease by 0.5km/h every 10 seconds, until
minimum speed or the target heart rate is reached.
(incline is controlled by the user)
HP3
Incline will decrease by 1 level every 10 seconds, until
the minimum incline is reached. Once the minimum
incline is reached, speed will decrease by 0.5km/h
every 10 seconds, until the minimum speed is
reached.
Values will stop changing once target heart rate is
reached.
During the program, pressing STOP or disconnecting the safety key will end the workout.
Note: Heart rate control programs can only be used with a wireless chest strap. This must be worn just below the
chest in direct contact with skin.
19
VIPER M2
6. BODY FAT TESTER
Press "PROGRAM” until the window displays "FAT".
Press "MODE" to select parameters after entering data (F1 = "SEX", F2 = "AGE", F3 = "HEIGHT", F4 =
"WEIGHT").
Use "SPEED+/-" to set data. After entering all data the window will display "F5".
Place both hands on the hand sensors for 5 seconds, and the window will display your body fat data.
Input parameter display and setting limits
PARAMETERS
ARRANGEMENT
DESCRIPTION
F-1
SEX
01--02
01= MALE 02= FEMALE
F-2
AGE
10—99 YEARS
F-3
HEIGHT
100—200 CM
F-4
WEIGHT
30—180 KGS
FA（BMI）
RESULT
≤19
UNDER WEIGHT
20--25
NORMAL WEIGHT
25--29
OVER WEIGHT
≥30
OBESE
20
VIPER M2
7. VALUE PARAMETERS:
SETTING
INITIAL
SETTING INITAIL
VALUE
SETTING RANGE
SHOW RANGE
TIME(MIN:SEC)
0:00
15:00
5:00-99:00
0:00－99:59
GRADE（SEGMENT）
0
0
0-20
0-20
SPEED（KM/H）
1.0
1.0
1.0-20
1.0-20
INCLINE（KM/H）
0
0
0-22
0-22
DISTANCE(KM)
0
1.0
0.5-99.9
0.00－99.9
HEART (PER/MIN)
P
N/A
N/A
50-200
CALORIE(KC)
0
50
10-999
0－999
8. POWER SAVING MODE:
The treadmill automatically enters sleep mode after 30 minutes of inactivity. Press any key on the display to
wake the treadmill.
9. SAFETY KEY FUNCTION:
The machine will not function without the safety key being correctly attached. Pulling out the safety will set the
display into “off” mode.
10. STOP KEY:
Pressing STOP once during your workout will pause your workout and slow your machine to a stop. After 5
minutes, the computer will display “PRESS START TO RESUME OR STOP TO END”.
- Press “stop” twice to stop the machine and end the workout.
- Press “stop” three times for the machine to return to IDLE mode.
11. CALORIE CALCULATION FORMULA:
70.3×V(Km/h)×t(h)×(1+?%)
When incline is 0, 7.3kc is lost.
21
VIPER M2
7. EXERCISE GUIDE
PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important
especially if you are over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect
the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress.
The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your
muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily
activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot
fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.

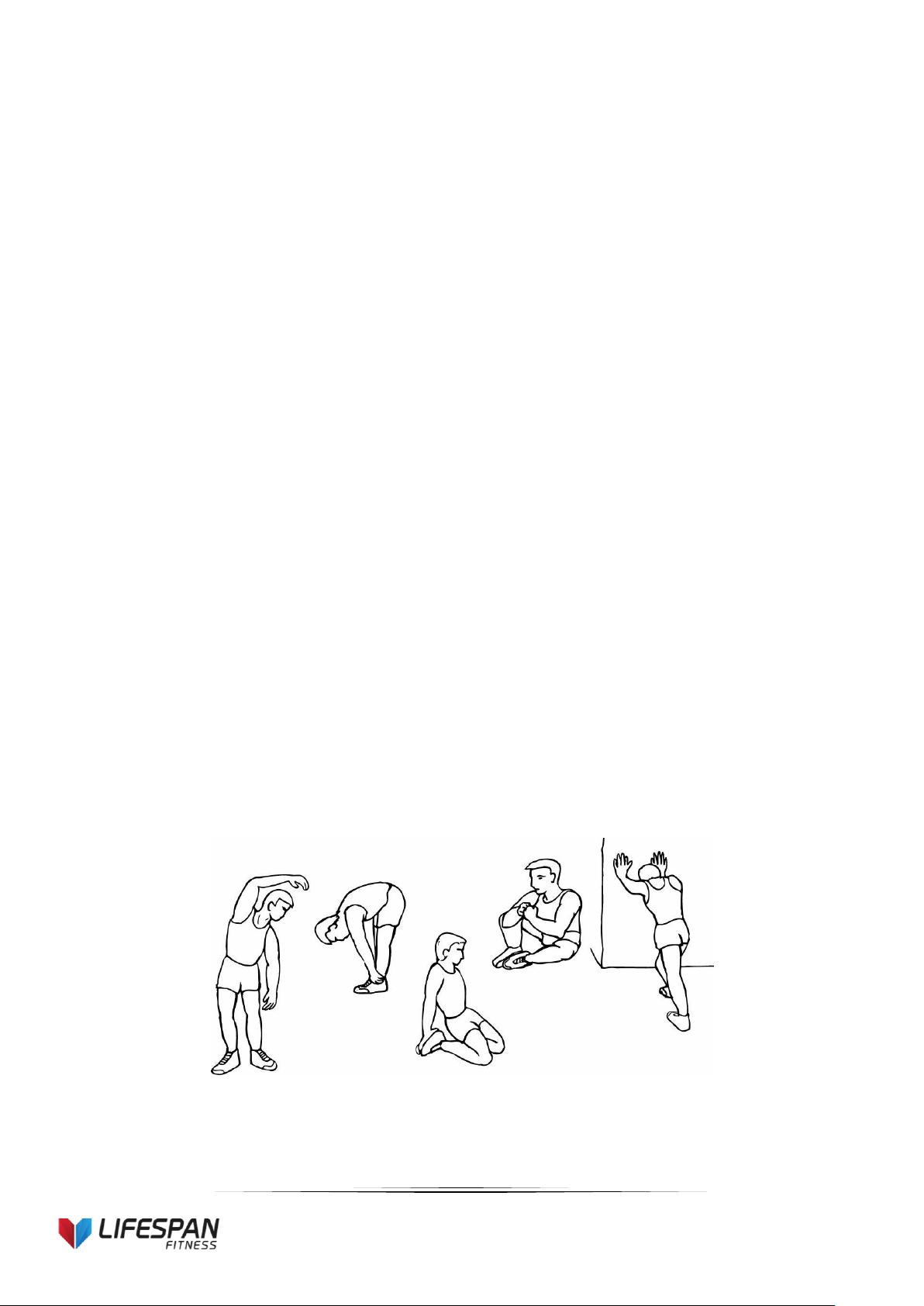

Warm-up
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases
your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.
22
VIPER M2
Training Zone Exercise
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for
maximum performance. Breathe regularly and deeply as you exercise.
Cool Down
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to
cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.
Workout Guidelines

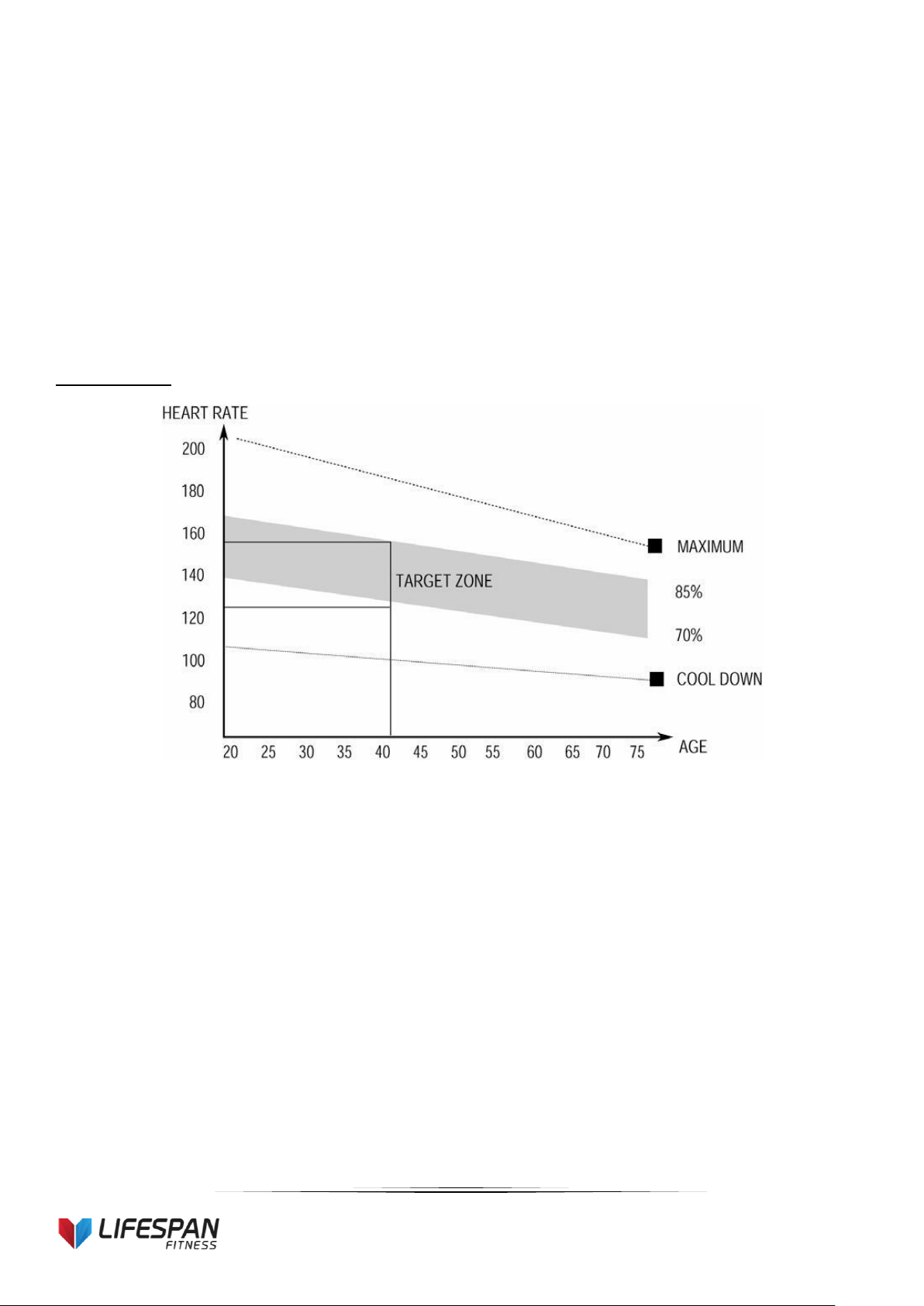

TARGET ZONE
This is how your pulse should behave during general fitness exercise. Remember to warm up
and cool down for a few minutes.
The most important factor here is the amount of effort you put in. The harder and longer you work, the more
calories you will burn.
23
VIPER M2
8. MAINTENANCE INSTRUCTIONS
Reasonable cleaning/lubricating should be made to extend the life time of this unit. Performance is maximized
when the belt and mat are kept as clean as possible.
WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE FUNCTION AND LIFE OF
YOUR TREADMILL AND THAT IS WHY WE RECOMMEND YOU CONSTANTLY LUBRICATE THIS
FRICTION POINT TO PROLONG THE USEFUL LIFE OF YOUR TREADMILL. FAILING TO DO THIS MAY
VOID YOUR WARRANTY.
WARNING: UNPLUG POWER CORD BEFORE MAINTENANCE
WARNING: STOP TREADMILL BEFORE FOLDING
1. General Cleaning
• Use a soft, damp cloth to wipe the edge of the belt and the area between the belt edge and frame. A mild
soap and water solution along with a nylon scrub brush will clean the top of the textured belt. This task
should be done once a month. Allow to dry before using.
• On a monthly basis, vacuum underneath your treadmill to prevent dust build up. Once a year, you should
remove the black motor shield and vacuum out dirt that may accumulate.
2. General Care
• Check parts for wear before use.
• Pay particular attention to the fixing knobs and make sure they are tight.
• Always replace the mat if worn and any other defective parts.
• If in doubt do not use the treadmill and contact us.
TAKE CARE TO PROTECT CARPETS AND FLOOR in case of leakages. This product is a machine that contains
moving parts which have been greased / lubricated and could leak.
24
VIPER M2
3. Belt/Deck/Roller Lubrication
The mat/deck friction may play a major role in the function and life of your treadmill and that is why we
recommend you constantly lubricate this friction point to prolong the useful life of your treadmill. You should
apply lubrication after approximately the first 30 hours of operation. We recommend lubrication of the deck
according to the following timetable:
o Light use (less than 3 hours per week) every 6 months
o Medium use (3-5 hours a week) every 3 months
o Heavy use (more than 5 hours per week) every 6-8 weeks
See below procedures for lubricating:
1. Use a soft, dry cloth to wipe the area between the belt and deck.
2. Spread lubricant onto the inside surface of belt and deck evenly (make sure the machine is turned off
and power is disconnected).
3. Periodically lubricate the front and rear rollers to keep them at their peak performance. If the treadmill
belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours before relubricating is
necessary.
Video Tutorial Available at:
http://youtu.be/cP9NtFHfWlc
Lifespan Fitness Channel:
http://www.youtube.com/user/treadmillsvideos
25
VIPER M2
4. How to check the running mat for proper lubrication:
1. Disconnect the main power supply.
2. Fold the treadmill up into the storage position.
3. Feel the underside surface of the running mat.
If the surface is slick when touched, then no further lubrication is needed.
If the surface is dry to the touch, apply a suitable silicone lubricant.
We recommend that you use a silicone based spray to lubricate your treadmill. This can be purchased
directly from us or any hardware store.
Video Tutorial Available at:
http://youtu.be/cP9NtFHfWlc
Lifespan Fitness Channel:
http://www.youtube.com/user/treadmillsvideos
26
VIPER M2

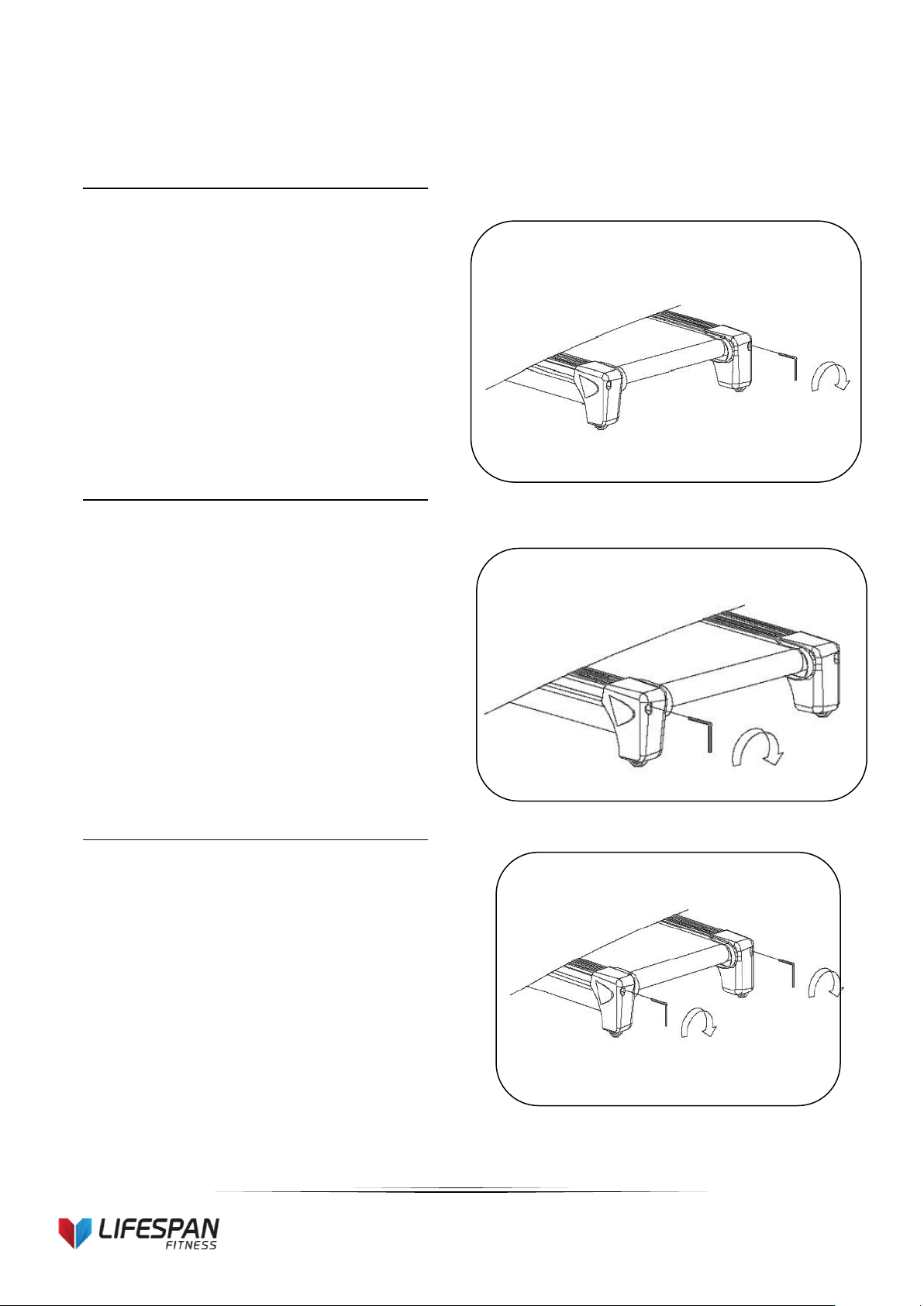

5. Adjusting the Running Belt
A
B
C
Place treadmill on a level surface. Run treadmill
at approximately 4km/h, checking the running
condition.
If the belt has drifted to the right:
Whilst the treadmill is running at 4km/h,
carefully turn the right adjusting bolt 1/4 turn
clockwise. Then monitor treadmill until the belt
centers. Repeat until the belt correctly centers.
See Picture A
If you have over adjusted the belt and it drifts to
the right, carefully turn the right adjusting bolt
anticlockwise until the belt centers.
If the belt has drifted to the left:
Whilst the treadmill is running at 4km/h,
carefully turn the left adjusting bolt 1/4 turn
clockwise. Then monitor treadmill until the belt
centers. Repeat until the belt correctly centers.
See Picture B
If you have over adjusted it, carefully turn the
left adjusting bolt anticlockwise and until the
belt centers.
To adjust the tightness of the belt:
Turn the treadmill off. Turn both the left and right
adjusting bolts 1/4 turn clockwise. Repeat until
the belt correctly tightens.
See Picture C
If the belt is over tightened, simply do the
opposite to loosen.
27
VIPER M2

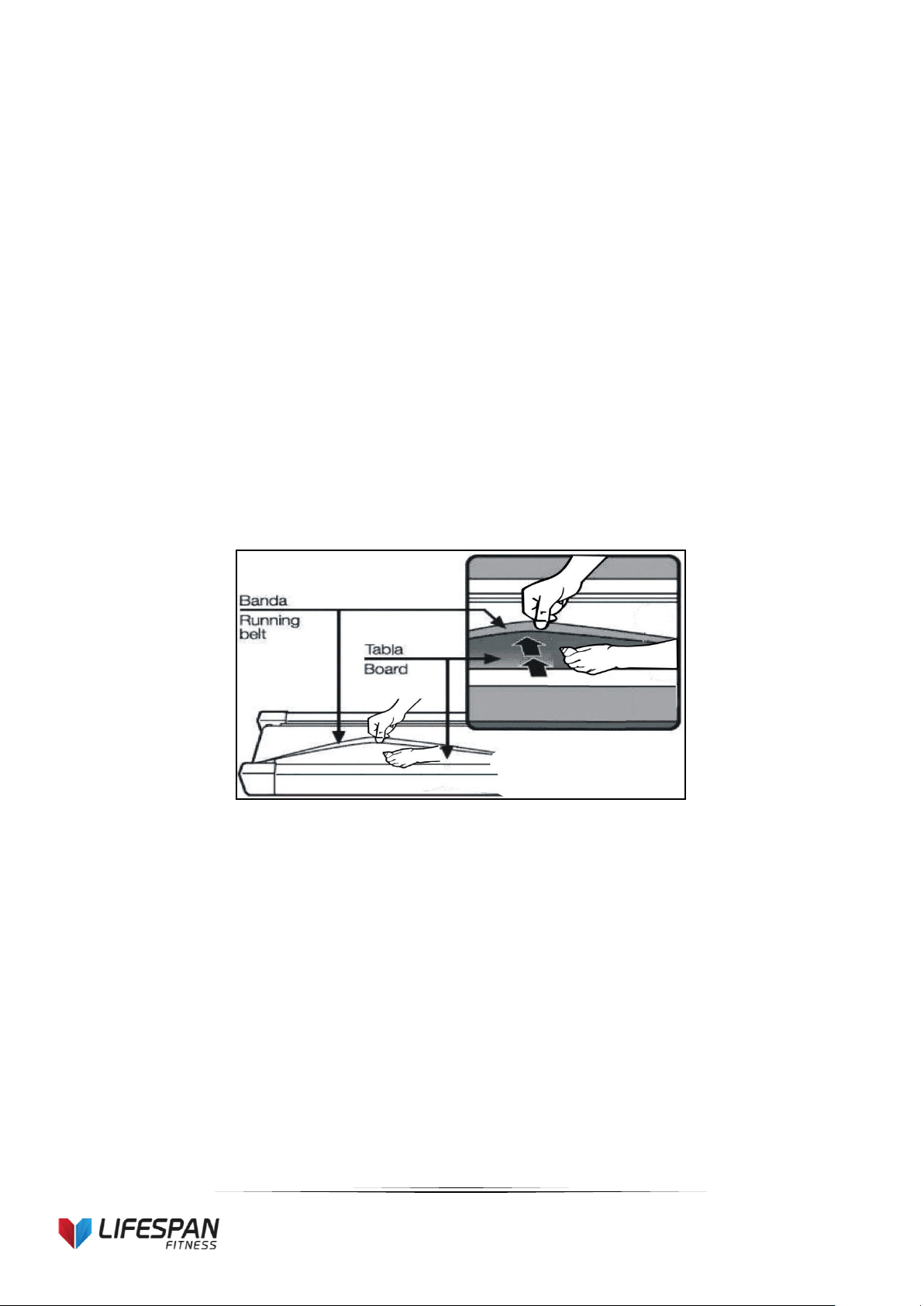

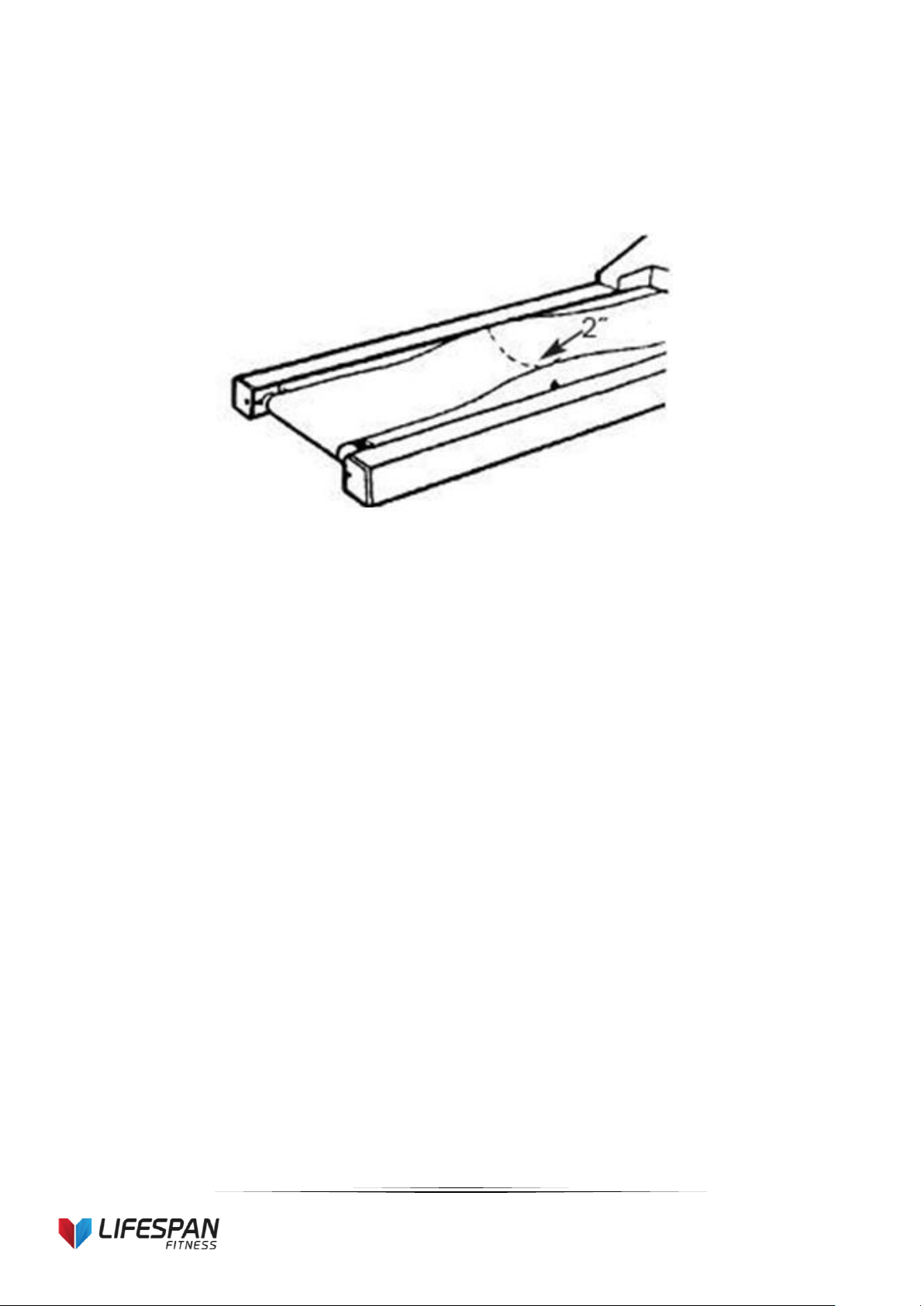

NOTE: When properly tightened, you should be able to peel the very edge of the side of the belt up approximately
2 inches. However this is a rough reference and not all treadmills are the same. Some treadmills that have longer
belts may give different measurements for correct belt tightness.
Simply, if the belt begins to slip during use, this is an indication that the belt still needs tightening.
Video Tutorial Available at:
http://youtu.be/vllsamTSvvA
Lifespan Fitness Channel:
http://www.youtube.com/user/treadmillsvideos
28
VIPER M2

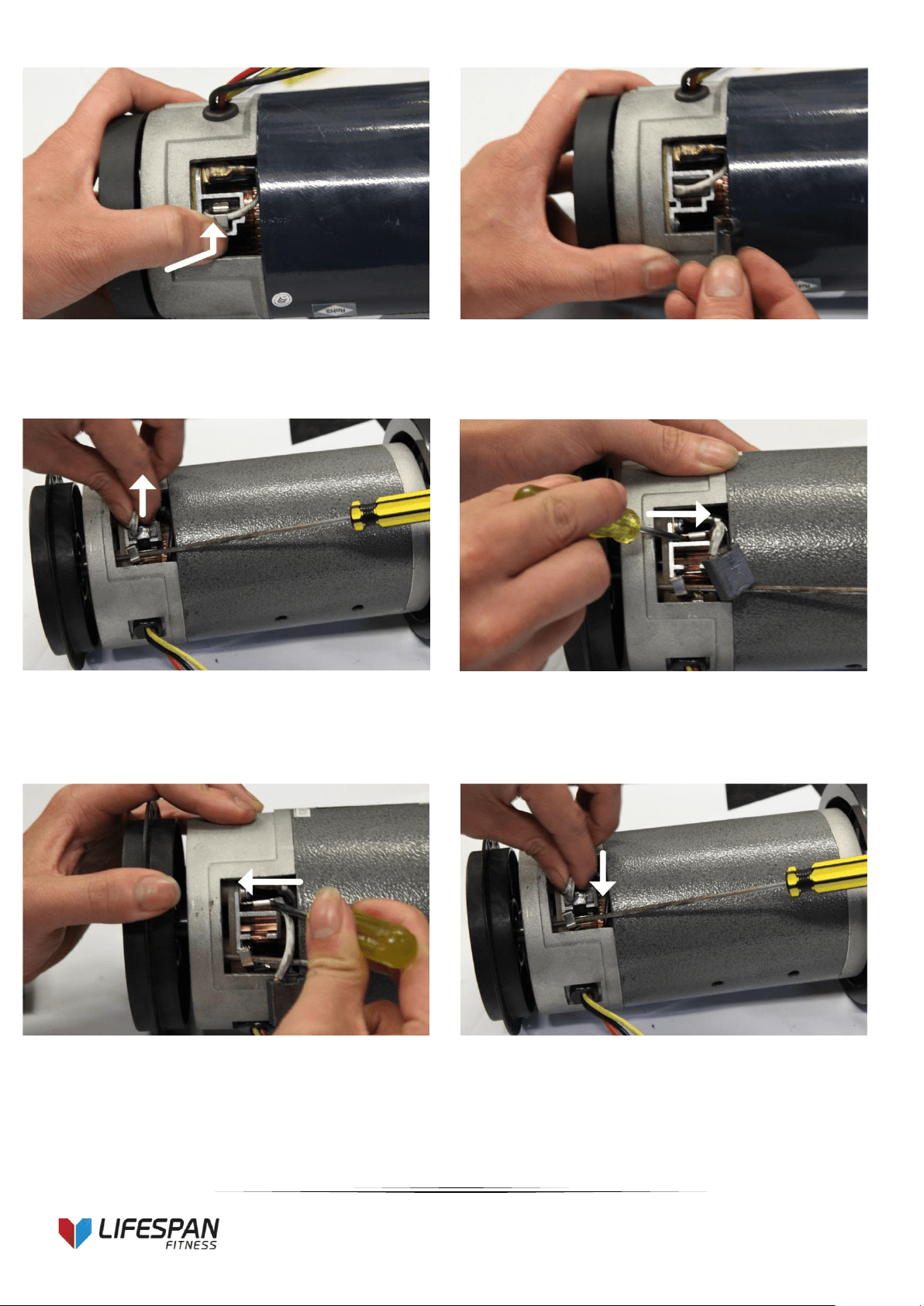

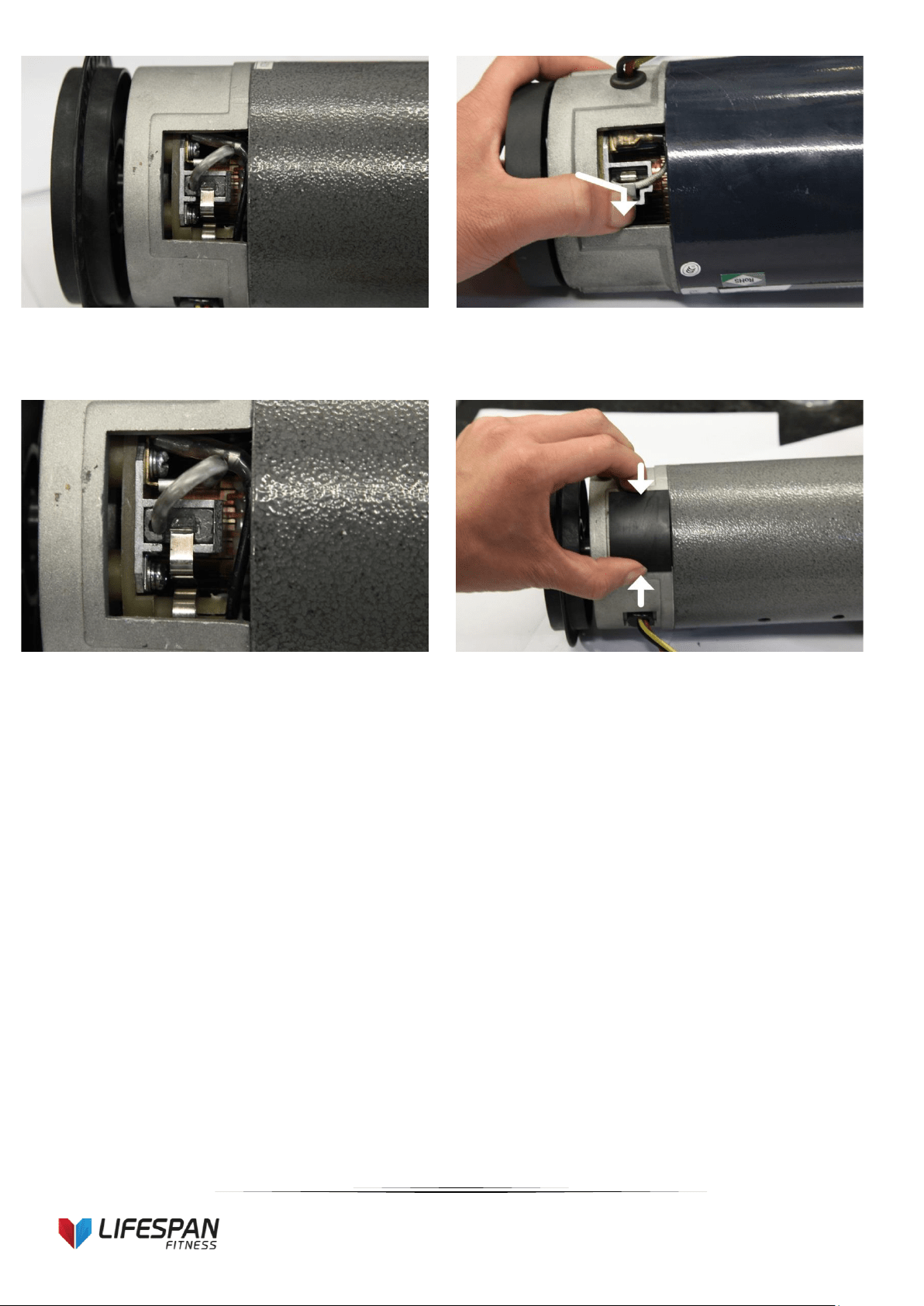

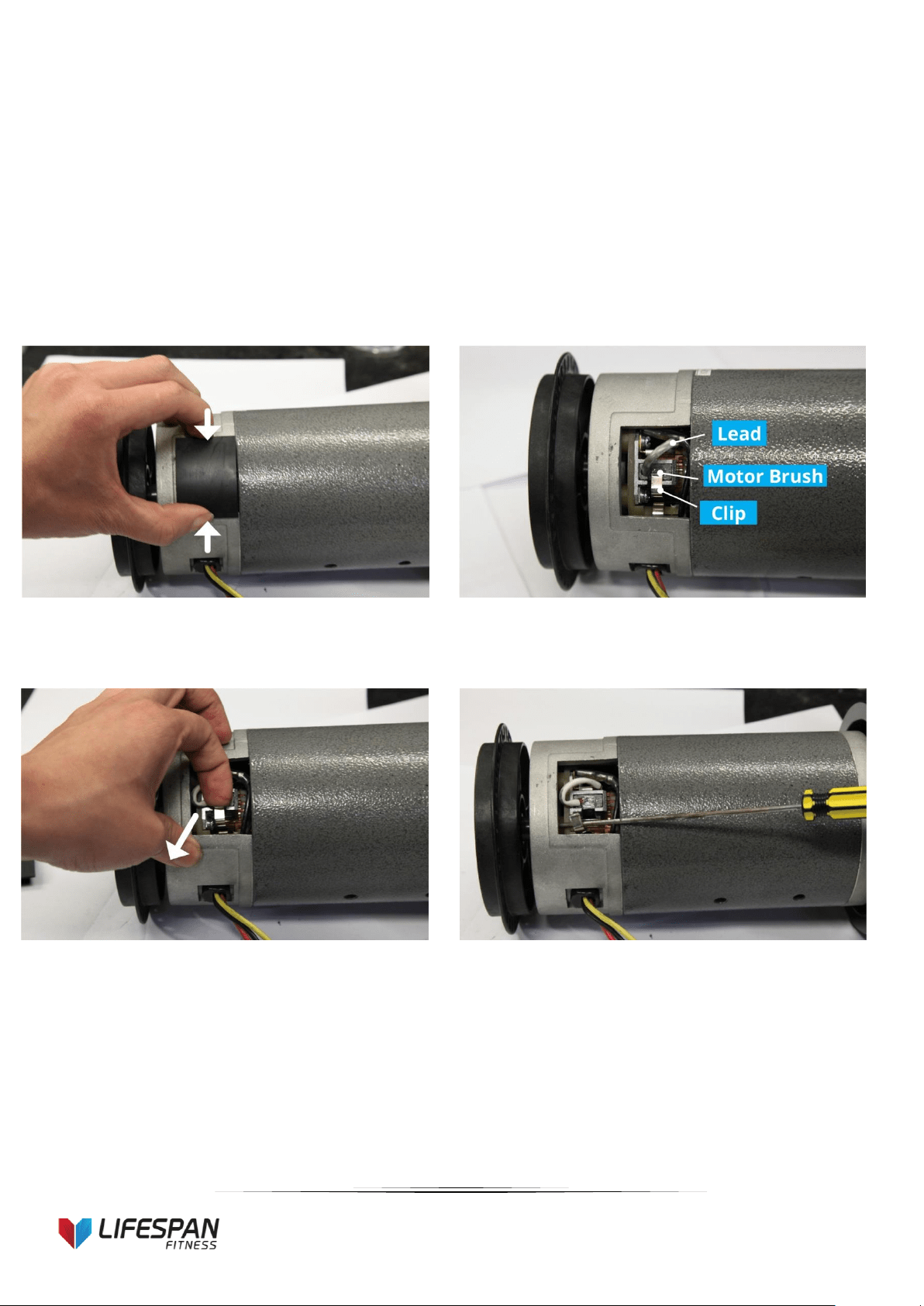

6. Replacing Motor Brushes
After extended use, the motor brushes in your treadmill motor will wear down, and this can lead to motor failure.
It is important that you maintain your motor by replacing the brushes on either side of the motor when they are
worn down. We recommend that you check your motor every 1000 hours of usage.
IMPORTANT: Before beginning the replacement of your motor brush, ensure that the treadmill is off and
unplugged from the electrical socket.
1. Remove the cover from the motor by squeezing it
from the sides.
2. You’ll find the motor brush held in with a clip, with
the lead plugged in.
3. Pull the clip out from its position.
4a. Hold the clip out of the way with a screwdriver or
similar object. Keep the screwdriver in this position
until step 9.
29
VIPER M2
4b. Some treadmill motors may use a push clip
instead. In this case, gently push the clip inwards
and then up to release it from its latch.
4c. Remove the clip, noting the direction in which it
was originally placed, and put it safely aside.
5. Slide the motor brush out from its slot. If the brush
is shorter than 2cm on the longest side, you will need
to replace both brushes.
6. Slide the motor brush lead off the terminal using a
another small screwdriver or needle-nosed pliers.
7. Plug the new motor brush lead into the terminal.
8. Slide the new motor brush into the slot.
30
VIPER M2
9a. Release the clip back into its position.
9b. If your motor uses a push clip, replace the push
clip by pushing it inwards and then down so that it
engages the catch.
10. Check that the motor brush is held firmly in place
by the clip, and that the lead is plugged securely onto
the terminal.
11. Replace the motor cover. Repeat steps 1-15 for
the second brush located on the opposing side of the
motor.
12. You have now successfully replaced the motor brushes. We also recommend that you remove any dirt and
dust from your treadmill motor fan using a vacuum cleaner before replacing the cover.
31
VIPER M2
9. EXPLODED DIAGRAM
32
VIPER M2
10. PARTS LIST
NO.
DESCRIPTION
SPEC.
QTY
NO.
DESCRIPTION
SPEC.
QTY
1
Main frame
1
51
Magnet Ring
1
2
Base frame
1
52
Power Switch
1
3
Left upright
1
53
Power Line
1
4
Right upright
1
54
Overload protection
1
5
Computer Bracket
1
55
AC Single Wire
1
6
Incline Bracket
1
56
Blue Single Wire
1
7
Motor Bracket
1
57
Brown Single Wire
1
8
Rotating pipe
2
58
Power cord jack
1
9
Cylinder
1
59
Lock nut
M10
4
10
Front roller
1
60
Lock nut
M8
12
11
Rear roller
1
61
Bolt
M8*25
2
12
wrench w/screw driver
S=13、14、15
1
62
Bolt
M8*48
5
13
#5 Allen wrench
5mm
1
63
Bolt
M6*16
4
14
#6 Allen wrench
6mm
1
64
Bolt
M8*32
4
15
Spring cushion
8
65
Bolt
M8*55
3
16
Running board
1
66
Bolt
M8*12
2
17
Left back cover
1
67
Bolt
M8*20
10
18
Right back cover
1
68
Bolt
M10*65
2
19
EVA pad
30*47*2
4
69
Bolt
M4*50
2
20
Side Rail
2
70
Bolt
M8*55
5
21
Running Belt
1
71
Bolt
M10*42
3
22
Motor Cover
1
72
Bolt
M10*60
1
23
Left Upright Cover
1
73
Bolt
M8*40
2
24
Right Upright Cover
1
74
Bolt
M6*40
1
25
pul-out piece spring
8
75
Bolt
ST4.2*19
22
26
Torsion Spring
1
76
Lock nut
M6
1
27
Hollow casing pipe
1
77
Bolt
ST4.2*12
10
28
Adjustable wheel
2
78
Bolt
ST2.9*6.5
2
29
Taper Cushion
2
79
Bolt
ST4.2*12
20
30
Rotating pipe
2
80
Bolt
ST4.2*55
2
31
Right base cover
1
81
Bolt
ST4.2*13
25
32
Left base cover
1
82
Lock Washer
10
4
33
Ring wire plug
2
83
Flat Washer
8
10
34
Hand pulse
2
84
Spring washer
8
6
35
Transport wheel
2
85
Lock washer
5
3
36
Face panel
1
86
Lock washer
8
21
37
Drive belt
1
87
Bolt
ST4.2*19
6
38
Motor bottom cover
2
88
Bolt
ST4.2*20
6
39
Left handle bar
1
89
Foot pad
4
40
Right handle bar
1
90
EVA
4
41
Incline Motor
1
91
IPAD rack
1
42
DC Motor
1
92
Fan blade
5
43
Computer top cover
1
93
Filter
1
44
Control board
1
94
Inductor
1
45
Computer bottom cover
ST4.2*12
2
95
CE fix board
1
46
Oil Bottle
1
96
Wind scooper
1
47
Computer up wire
1
97
Earth wire
1
48
Computer bottom wire
1
98
Connecting rod
2
49
Safety key
1
99
Non-slip pad
2
50
Light sensor
1
100
MP3 wire
optional
1
103
Spring bottom cover
8
101
Spring top cover
8
104
Fan
1
102
Spring cushion
8
33
VIPER M2
11. TROUBLE SHOOTING GUIDE
Error/Code
Description
Possible Solutions
Computer not
functioning after
connecting power
a. Please check if the overload protect jump, if it has, please press
it, let it continue operation.
b. Ensure the wires of the power switch, overload protection,
control board and the transformer are connected correctly.
c. Ensure the wire from the computer to the control board is
connected properly. Remove the upright tube and check the
connection between each wire. Ensure each wire is completely
plugged in; if wires are damaged please change the wire.
d. Check the state of the transformer is good, if broken, change it.
E1
Message failure
1. The wires from computer and bottom control board are not
properly connected, please check each wire. If the wire was
destroyed replace it.
2. Check the state of the transformer is good, if broken, change it.
E2
No sensor signal
1. The speed sensor signal was not detected within 5-8 seconds.
Check the sensor plug connection
2. See if the magnetic speed sensor is broken or damaged, re-
connect the plug well or change the sensor.
E3
Overload protection
1. Upon overload, the system will restart to prevent damage. If the
treadmill gets stuck and the motor cannot move it will lead to an
overload. Please locate the cause of this. A possible reason is a
lack of lubricant in a particular component. Then restart the
machine.
2. Check if the motor sounds like its being over worked or for a
burning smell. If so, change motor
3. Check control board. If control board is emitting a burning smell,
change it.
E4
Incline sensor error
1. Check connection of incline motor wires
2. Check to see if AC wire of incline motor is properly connected,
and if the AC wire of the motor is inserted properly with correct
sign on control board.
3. Check connection line of incline motor to see if it is destroyed,
exchange it or incline motor. Press “learning” button of bottom
control board to relearn upon completion of checks.
E6
Burst clash
1. Ensure power is correct, if not, use correct power to test.
2. Check if the bottom control boards is burnt out, if burnt out
replace it and then reconnect the motor wire.
E07
Control board error
1. Check and replace controller
E08
Control board error
1. Check and replace controller
Motor not functioning
after pressing START
button
1. the motor wire is damaged
2. the safety pipe is broken or has fallen off;
3. motor wire is not properly connected
4. IGBT on bottom control board is burnt out. Test the above
reasons and change the relevant part.
34
VIPER M2
12. WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with
guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
Warranty and Support:
Please email us at suppor[email protected]om.au for all warranty or support issues.
For all warranty or support related enquiries an email must be sent before contacting us via any other means.
35
VIPER M2
Hand Pulse Technology
Our products come equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run
through the body when your heart beats. These electrical EKG/ECG signals are very small and that they must be
amplified 1000 times to make the signal useful for the display to display your pulse.
To ensure proper operation:
- The user must maintain good, consistent contact on all four sensors
- The users skin cannot be too dry or too wet
Other factors that could affect the reading:
- Change of grip on the sensors (during slow pace walking and up to running)
- Tightening of hand muscles will produce small electrical signals
- Static electricity charges from the air or from walking on the treadmill
EKG/ECG Sensors may filter through actual EKG/ECG signals and “Noise” factors that may affect the reading. This will
cause the pulse reading to be delayed and will take longer to update the display as the heart rate changes. Too much
noise will create an incorrect reading. Medical conditions or having no electrical signal in the hands are other factors
that may affect pulse readings as well.
These are limitations of hand pulse technology and even the most expensive systems (which can cost upwards of
$3,000) used in hospitals have the same problems. The difference is that a patient in a hospital is not running on a
treadmill. Hand pulse technology works well on stationary exercise machines like bikes and even elliptical cross
trainers but are not perfect on a treadmill. We offer treadmills with a wireless heart rate receiver which may be a
more accurate option.
To test if your hand pulse sensors are working up to specification, hold them while standing on the side step rails,
not walking, and see if the reading is more in line with what you would expect. This will eliminate the movement and
static electricity factors. If your hands are dry, then wet them slightly (saliva works as a great conductor if this
doesn’t bother you).
For more information, please contact our Lifespan Technical Support Department
www.lifespanfitness.com.au
support@lifespanfitness.com.au
36
VIPER M2
Program Chart: Preset
Time
Program
Each column represents 1/20th of the total program time
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P01
SPEED
2
3
3
4
5
3
4
5
5
3
4
5
4
4
4
2
3
3
5
3
INCLINE
1
1
2
2
2
3
3
3
2
2
1
2
2
1
1
3
3
2
2
2
P02
SPEED
2
4
4
5
6
4
6
6
6
4
5
6
4
4
4
2
2
5
4
2
INCLINE
1
2
2
2
2
3
3
2
2
2
2
2
3
3
3
4
4
3
2
2
P03
SPEED
2
4
4
6
6
4
7
7
7
4
7
7
4
4
4
2
4
5
3
2
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P04
SPEED
3
5
5
6
7
7
5
7
7
8
8
5
9
5
5
6
6
4
4
3
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P05
SPEED
2
4
4
5
6
7
7
5
6
7
8
8
5
4
3
3
6
5
4
2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
P06
SPEED
2
4
4
4
5
6
8
8
6
7
8
8
6
4
4
2
5
4
3
2
INCLINE
3
5
5
5
4
4
4
3
3
3
3
4
4
4
3
3
3
4
3
2
P07
SPEED
2
3
3
3
4
5
3
4
5
3
4
5
3
3
3
6
6
5
3
3
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
4
4
P08
SPEED
2
3
3
6
7
7
4
6
7
4
6
7
4
4
4
2
3
4
4
2
INCLINE
4
5
5
5
6
6
6
7
8
9
9
9
10
10
10
12
12
8
6
3
P09
SPEED
2
4
4
7
7
4
7
8
4
8
9
9
4
4
4
5
6
3
3
2
INCLINE
5
5
5
6
6
6
4
4
6
6
5
5
8
8
9
9
9
7
4
2
P10
SPEED
2
4
5
6
7
5
4
6
8
8
6
6
5
4
4
2
4
4
3
3
INCLINE
5
6
6
6
7
5
8
8
4
4
4
5
5
8
8
10
10
8
6
3
P11
SPEED
2
5
8
10
7
7
10
10
7
7
10
10
5
5
9
9
5
5
4
3
INCLINE
4
5
3
2
6
6
2
2
2
2
2
4
5
6
3
2
5
5
2
0
P12
SPEED
3
4
9
9
5
9
5
8
5
9
7
5
5
7
9
9
5
7
6
3
INCLINE
1
2
3
2
3
5
5
0
0
2
3
5
7
3
3
5
6
5
3
3
P13
SPEED
3
6
7
5
9
9
7
5
5
7
9
5
8
5
9
5
9
9
4
3
INCLINE
3
3
5
6
5
3
3
7
5
3
2
0
0
5
5
3
2
3
2
1
P14
SPEED
2
2
4
5
6
5
4
3
2
1
2
3
4
5
6
5
4
3
2
1
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
4
4
P15
SPEED
2
4
6
8
6
6
4
4
2
2
2
4
6
8
6
6
4
4
2
2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
P16
SPEED
2
4
6
8
10
8
6
4
2
2
2
4
6
8
6
6
4
4
2
2
INCLINE
5
5
5
6
6
6
4
4
6
6
5
5
8
8
9
9
9
7
4
1
P17
SPEED
2
2
6
6
8
10
6
6
2
2
2
2
6
6
8
10
6
6
2
2
INCLINE
4
5
5
5
6
6
6
7
8
9
9
9
10
10
10
12
12
8
6
3
P18
SPEED
2
3
4
5
2
3
4
5
3
2
2
3
4
5
2
3
4
5
3
2
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
3
2
P19
SPEED
2
4
6
2
4
6
2
4
6
2
2
4
6
2
4
6
2
4
6
2
INCLINE
3
5
5
5
4
4
4
3
3
3
3
4
4
4
3
3
3
4
3
2
P20
SPEED
1
3
4
5
6
5
4
3
2
1
1
3
4
5
6
5
4
3
2
1
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
P21
SPEED
2
3
3
4
5
3
4
5
5
3
4
5
4
4
4
2
3
3
5
3
INCLINE
1
1
2
2
2
3
3
3
2
2
1
2
2
1
1
3
3
2
2
2
37
VIPER M2
P22
SPEED
2
4
4
5
6
4
6
6
6
4
5
6
4
4
4
2
2
5
4
2
INCLINE
1
2
2
2
2
3
3
2
2
2
2
2
3
3
3
4
4
3
2
2
P23
SPEED
2
4
4
6
6
4
7
7
7
4
7
7
4
4
4
2
4
5
3
2
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P24
SPEED
3
5
5
6
7
7
5
7
7
8
8
5
9
5
5
6
6
4
4
3
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P25
SPEED
2
4
4
5
6
7
7
5
6
7
8
8
5
4
3
3
6
5
4
2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
P26
SPEED
2
4
4
4
5
6
8
8
6
7
8
8
6
4
4
2
5
4
3
2
INCLINE
3
5
5
5
4
4
4
3
3
3
3
4
4
4
3
3
3
4
3
2
P27
SPEED
2
3
3
3
4
5
3
4
5
3
4
5
3
3
3
6
6
5
3
3
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
3
3
P28
SPEED
2
3
3
6
7
7
4
6
7
4
6
7
4
4
4
2
3
4
4
2
INCLINE
4
5
5
5
6
6
6
7
8
9
9
9
10
10
10
12
12
8
6
3
P29
SPEED
2
4
4
7
7
4
7
8
4
8
9
9
4
4
4
5
6
3
3
2
INCLINE
5
5
5
6
6
6
4
4
6
6
5
5
8
8
9
9
9
7
4
2
P30
SPEED
2
4
5
6
7
5
4
6
8
8
6
6
5
4
4
2
4
4
3
3
INCLINE
5
6
6
6
7
5
8
8
4
4
4
5
5
8
8
10
10
8
6
3
P31
SPEED
2
5
8
10
7
7
10
10
7
7
10
10
6
6
9
9
5
5
4
3
INCLINE
4
5
3
2
6
6
2
2
2
2
2
4
5
6
3
2
5
5
2
0
P32
SPEED
3
4
9
9
5
9
5
8
5
9
7
5
5
7
9
9
5
7
6
3
INCLINE
1
2
3
2
3
5
5
0
0
2
3
5
7
3
3
5
6
5
3
3
P33
SPEED
3
4
9
9
5
9
5
8
5
9
7
5
5
7
9
9
5
7
6
3
INCLINE
1
2
3
2
3
5
5
0
0
2
3
5
7
3
3
5
6
5
3
3
P34
SPEED
2
2
4
5
6
5
4
3
2
1
2
3
4
5
6
5
4
3
2
1
INCLINE
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
P35
SPEED
2
4
6
8
6
6
4
4
2
2
2
4
6
8
6
6
4
4
2
2
INCLINE
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
P36
SPEED
2
4
6
8
10
8
6
4
2
2
2
4
6
8
6
6
4
4
2
2
INCLINE
5
5
5
6
6
6
4
4
6
6
5
5
8
8
9
9
9
7
4
2
P37
SPEED
2
2
6
6
8
10
6
6
2
2
2
2
6
6
8
10
6
6
2
2
INCLINE
4
5
5
5
6
6
6
7
8
9
9
9
10
10
10
12
12
8
6
3
P38
SPEED
2
3
4
5
2
3
4
5
3
2
2
3
4
5
2
3
4
5
3
2
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
3
3
P39
SPEED
2
4
6
2
4
6
2
4
6
2
2
4
6
2
4
6
2
4
6
2
INCLINE
3
5
5
5
4
4
4
3
3
3
3
4
4
4
3
3
3
4
3
2
P40
SPEED
1
3
4
5
6
5
4
3
2
1
1
3
4
5
6
5
4
3
2
1
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
38
VIPER M2
Program Chart: HRC
HRC 1
HRC 2
HRC 3
Age
Target zone (L-H)
Age
Target zone (L-H)
Age
Target zone (L-H)
Lowest
Default
Highest
Lowest
Default
Highest
Lowest
Default
Highest
15
160
165
170
15
170
175
180
15
170
175
180
16
159
164
169
16
169
174
179
16
170
175
180
17
158
163
168
17
168
173
178
17
170
175
180
18
157
162
167
18
167
172
177
18
169
174
179
19
156
161
166
19
166
171
176
19
169
174
179
20
155
160
165
20
165
170
175
20
168
173
178
21
154
159
164
21
164
169
174
21
168
173
178
22
153
158
163
22
163
168
173
22
168
173
178
23
152
157
162
23
162
167
172
23
167
172
177
24
151
156
161
24
161
166
171
24
167
172
177
25
150
155
160
25
160
165
170
25
166
171
176
26
149
154
159
26
159
164
169
26
166
171
176
27
148
153
158
27
158
163
168
27
166
171
176
28
147
152
157
28
157
162
167
28
165
170
175
29
146
151
156
29
156
161
166
29
165
170
175
30
145
150
155
30
155
160
165
30
165
170
175
31
144
149
154
31
154
159
164
31
164
169
174
32
143
148
153
32
153
158
163
32
164
169
174
33
142
147
152
33
152
157
162
33
163
168
173
34
141
146
151
34
151
156
161
34
163
168
173
35
140
145
150
35
150
155
160
35
163
168
173
36
139
144
149
36
149
154
159
36
162
167
172
37
138
143
148
37
148
153
158
37
162
167
172
38
137
142
147
38
147
152
157
38
161
166
171
39
136
141
146
39
146
151
156
39
160
165
170
40
135
140
145
40
145
150
155
40
160
165
170
41
134
139
144
41
144
149
154
41
159
164
169
42
133
138
143
42
143
148
153
42
159
164
169
43
132
137
142
43
142
147
152
43
158
163
168
44
131
136
141
44
141
146
151
44
158
163
168
45
130
135
140
45
140
145
150
45
158
163
168
46
129
134
139
46
139
144
149
46
157
162
167
47
128
133
138
47
138
143
148
47
156
161
166
48
127
132
137
48
137
142
147
48
155
160
165
49
126
131
136
49
136
141
146
49
154
159
164
50
125
130
135
50
135
140
145
50
153
158
163
51
124
129
134
51
134
139
144
51
152
157
162
52
123
128
133
52
133
138
143
52
151
156
161
53
122
127
132
53
132
137
142
53
150
155
160
54
121
126
131
54
131
136
141
54
149
154
159
55
120
125
130
55
130
135
140
55
148
153
158
56
119
124
129
56
129
134
139
56
147
152
157
57
118
123
128
57
128
133
138
57
146
151
156
58
117
122
127
58
127
132
137
58
145
150
155
59
116
121
126
59
126
131
136
59
144
149
154
60
115
120
125
60
125
130
135
60
143
148
153
61
114
119
124
61
124
129
134
61
142
147
152
62
113
118
123
62
123
128
133
62
141
146
151
63
112
117
122
63
122
127
132
63
140
145
150
39
VIPER M2
64
111
116
121
64
121
126
131
64
139
144
149
65
110
115
120
65
120
125
130
65
138
143
148
66
109
114
119
66
119
124
129
66
137
142
147
67
108
113
118
67
118
123
128
67
136
141
146
68
107
112
117
68
117
122
127
68
135
140
145
69
106
111
116
69
116
121
126
69
134
139
144
70
105
110
115
70
115
120
125
70
133
138
143
71
104
109
114
71
114
119
124
71
132
137
142
72
103
108
113
72
113
118
123
72
131
136
141
73
102
107
112
73
112
117
122
73
130
135
140
74
101
106
111
74
111
116
121
74
129
134
139
75
100
105
110
75
110
115
120
75
128
133
138
76
99
104
109
76
109
114
119
76
127
132
137
77
98
103
108
77
108
113
118
77
126
131
136
78
97
102
107
78
107
112
117
78
125
130
135
79
96
101
106
79
106
111
116
79
124
129
134
80
95
100
105
80
105
110
115
80
123
128
133
