Accessories
4
Inserting the batteries
5
Operating range of the remote control unit
5
Features
6
High quality sound
6
High performance
6
Part names and functions
7

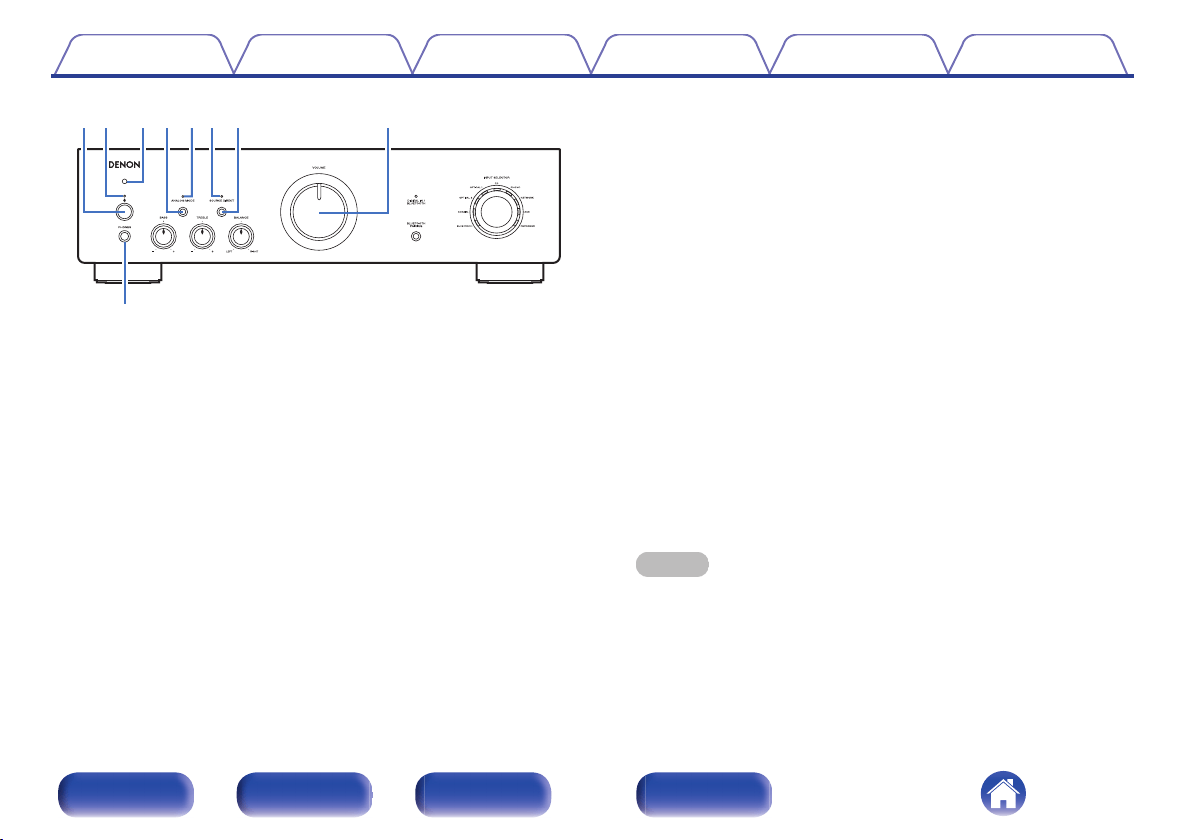

Front panel
7
Rear panel
10
Remote control unit
12
Connections
Connecting speakers
17

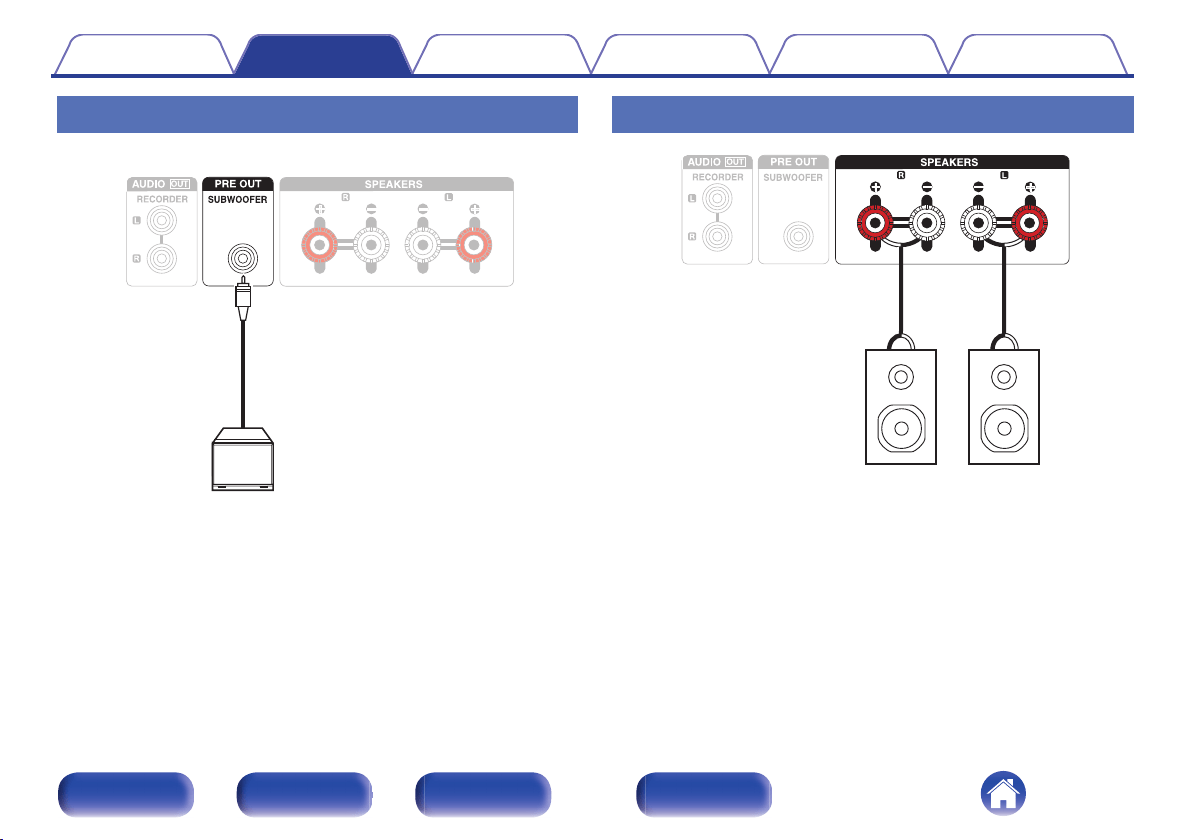

Subwoofer connection
18

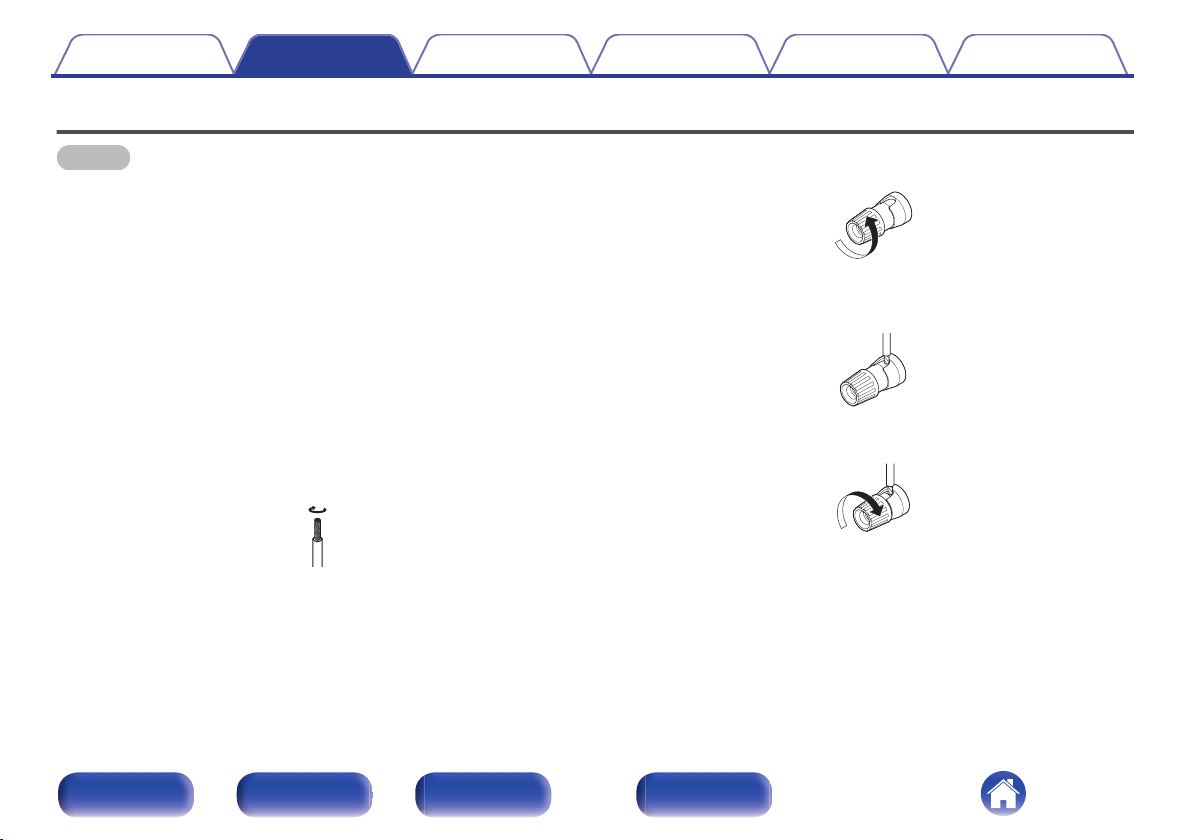

Speaker connection
18

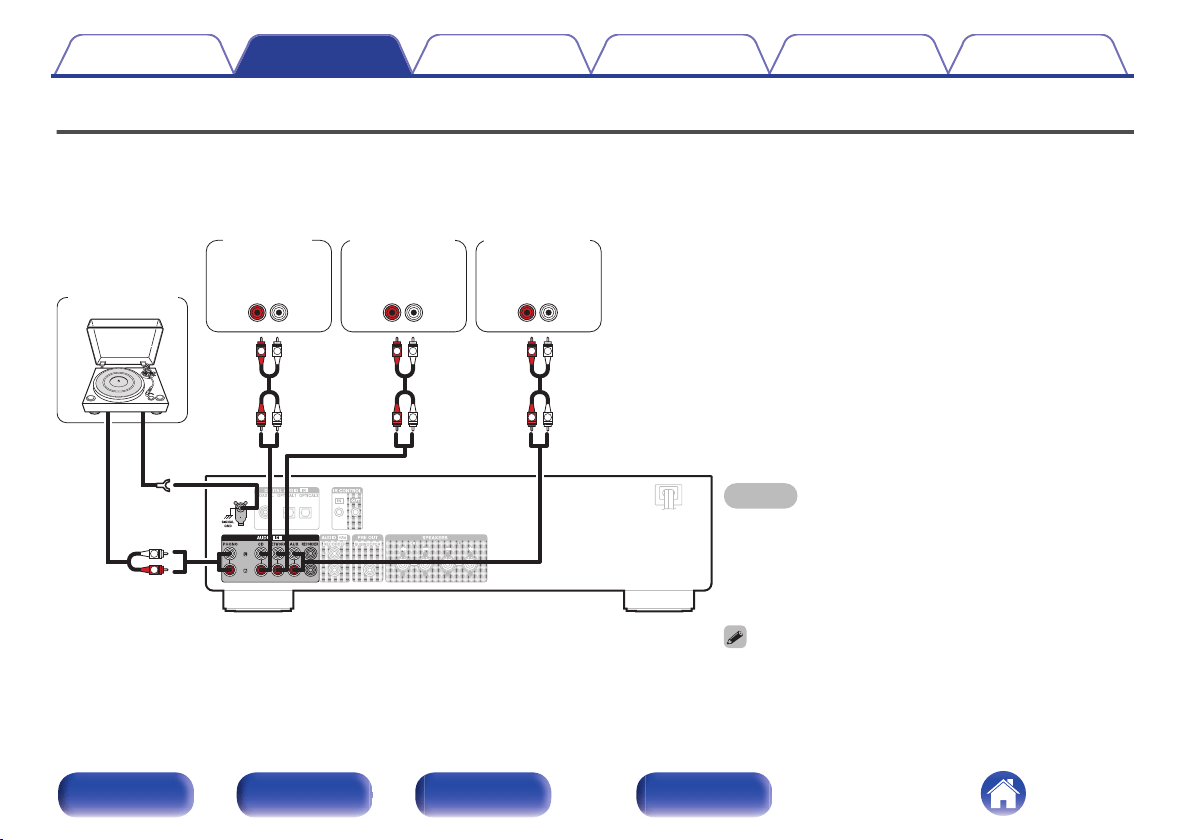

Connecting a playback device
19

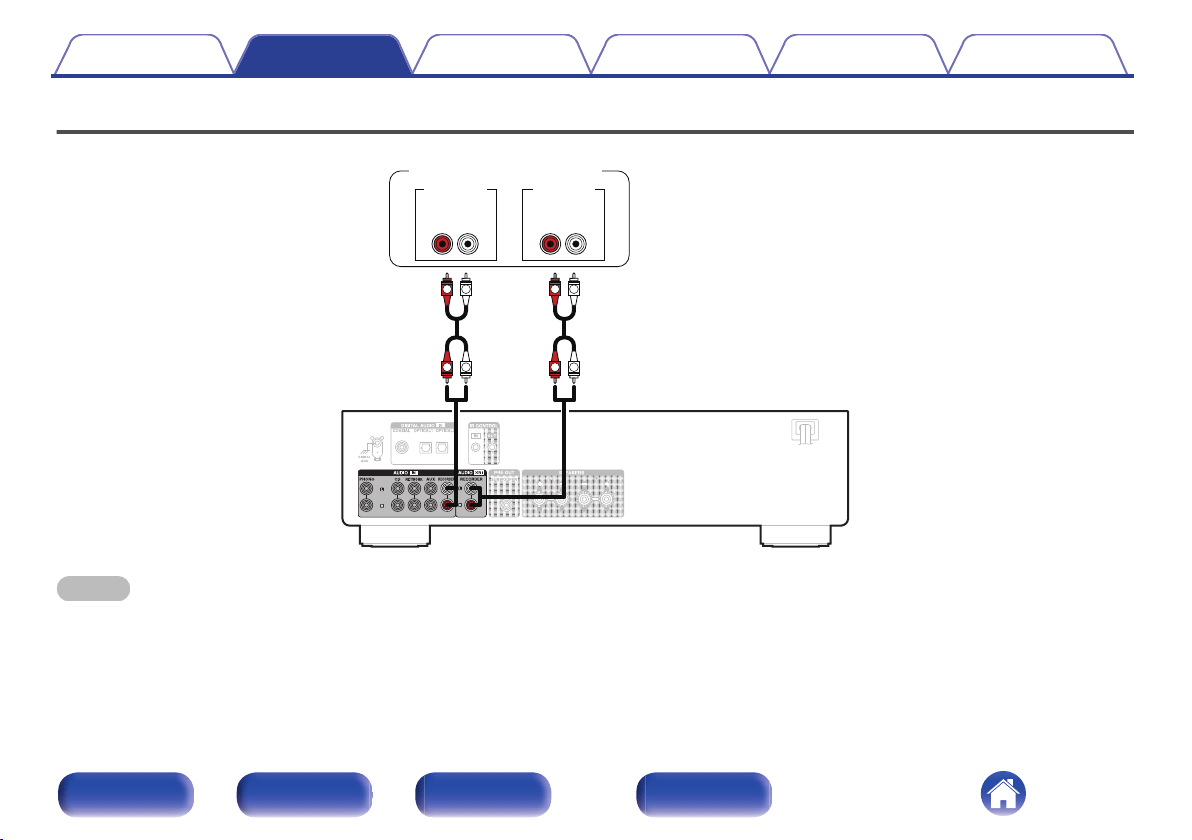

Connecting a recording device
20

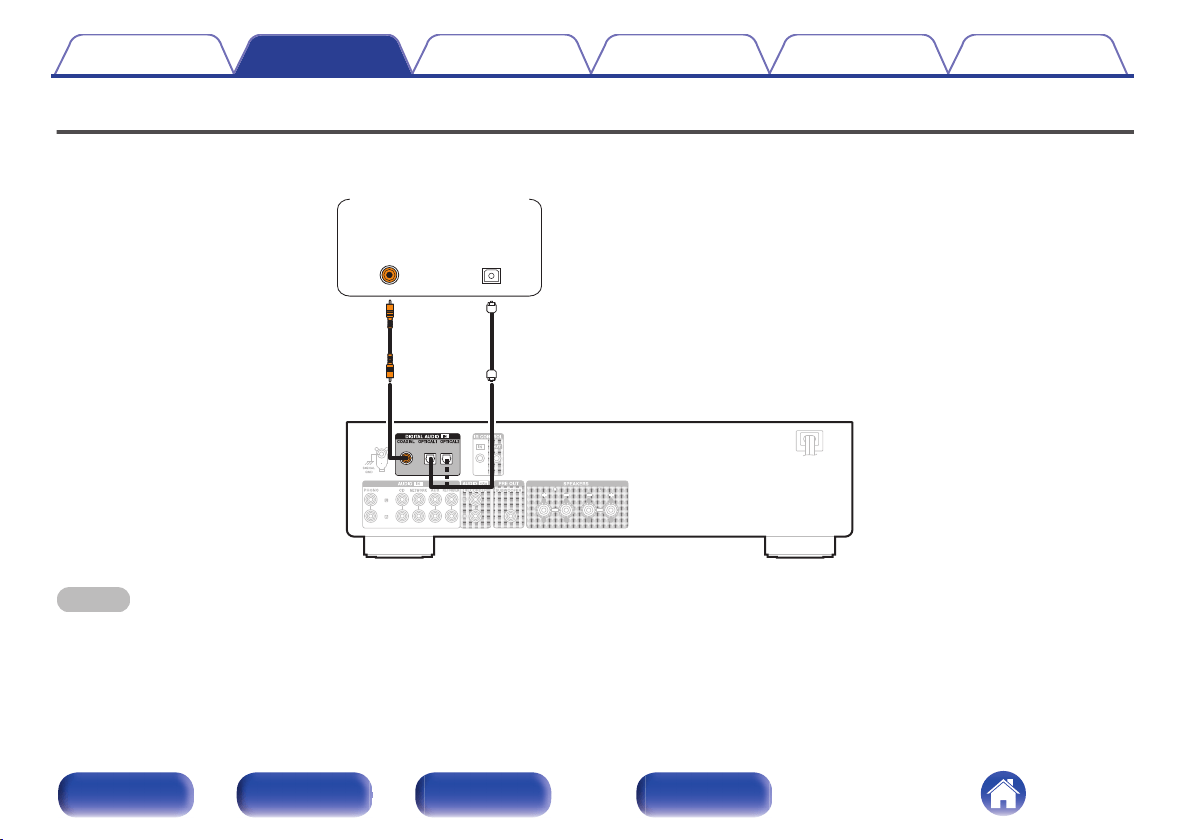

Connecting to a device with digital audio output connectors
21

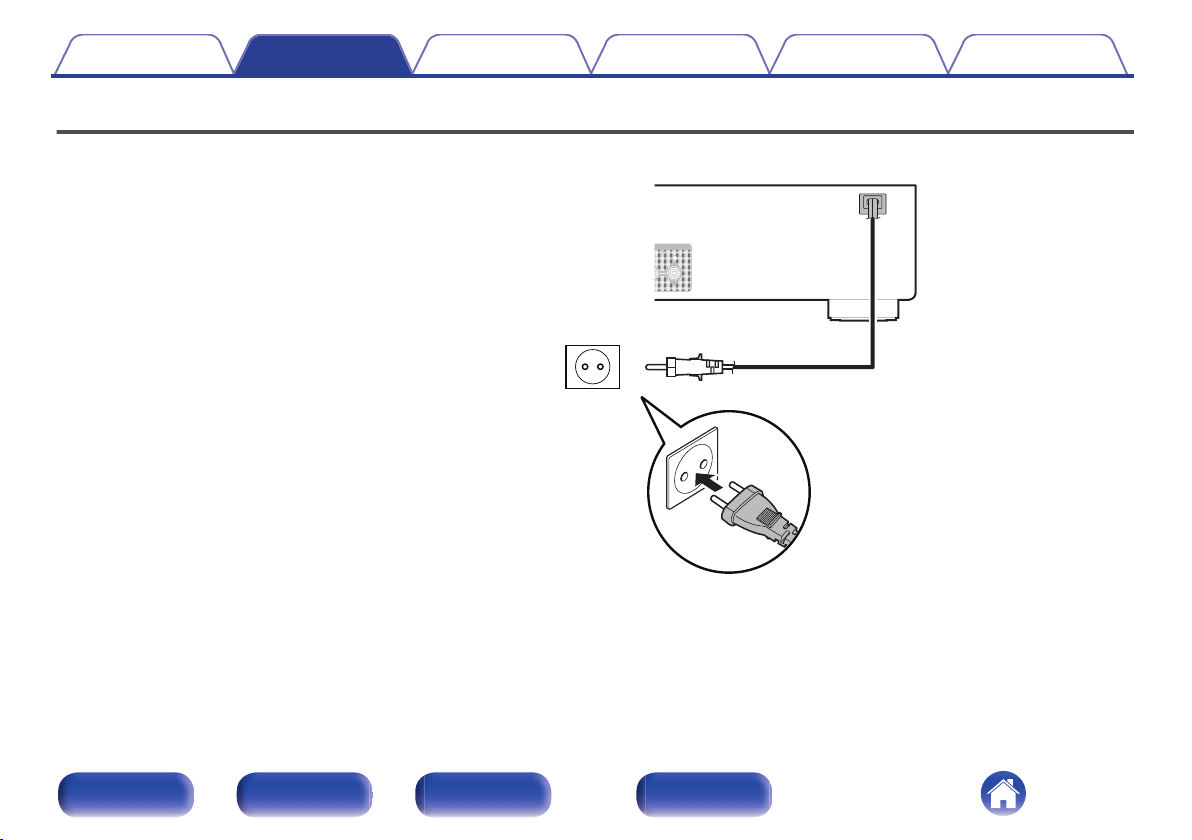

Connecting the power cord
22

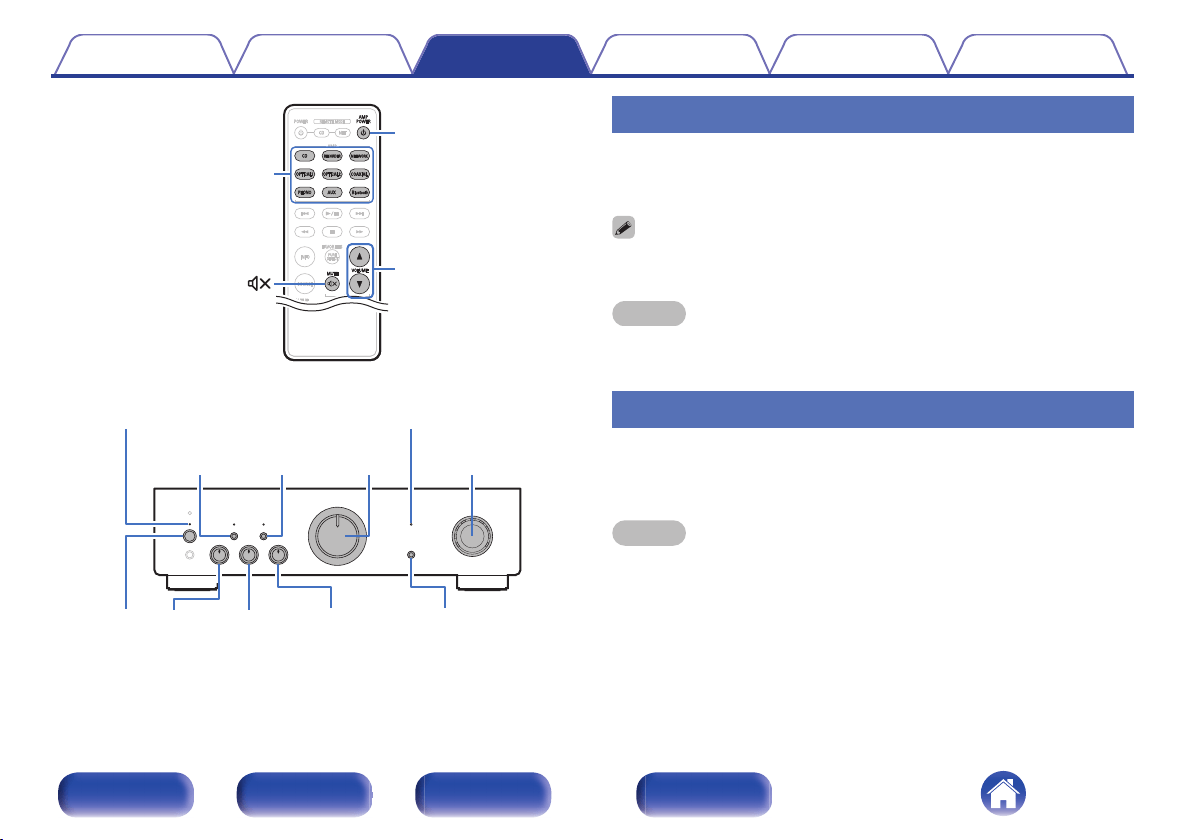

Playback
Turning the power on
24
Switching the power to standby
24
Selecting the input source
25
Adjusting the volume
25
Turning off the sound temporarily (Muting)
25
Adjusting the tone
25
Playing CDs
26
Listening to music on a Bluetooth device
28
Connecting and playing back from a digital device (Coaxial/
Optical)
30
Recording
31
Settings
Setting the Auto Standby mode
32
Contents Connections Playback Settings Tips Appendix
2
Front panel Rear panel
Remote control
unit
Index
Tips
Tips
34
Troubleshooting
35
Power does not turn on / Power is turned off
36
Operations cannot be performed through the remote control unit
37
No sound comes out
38
Desired sound does not come out
39
Sound is interrupted or noise occurs
40
Bluetooth cannot be played back
41
Audio from digital devices cannot be played back (Coaxial/
Optical)
42
Appendix
D/A converter
43
Playing back a Bluetooth device
43
Explanation of terms
44
Trademark information
45
Specifications
46
Index
51
Contents Connections Playback Settings Tips Appendix
3
Front panel Rear panel
Remote control
unit
Index
Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide
CD-ROM
(Owner’s Manual)
Safety Instructions
Cautions on Using Batteries
R03/AAA batteries
Remote control unit
(RC-1234)
Notes on radio
Contents Connections Playback Settings Tips Appendix
4
Front panel Rear panel
Remote control
unit
Index

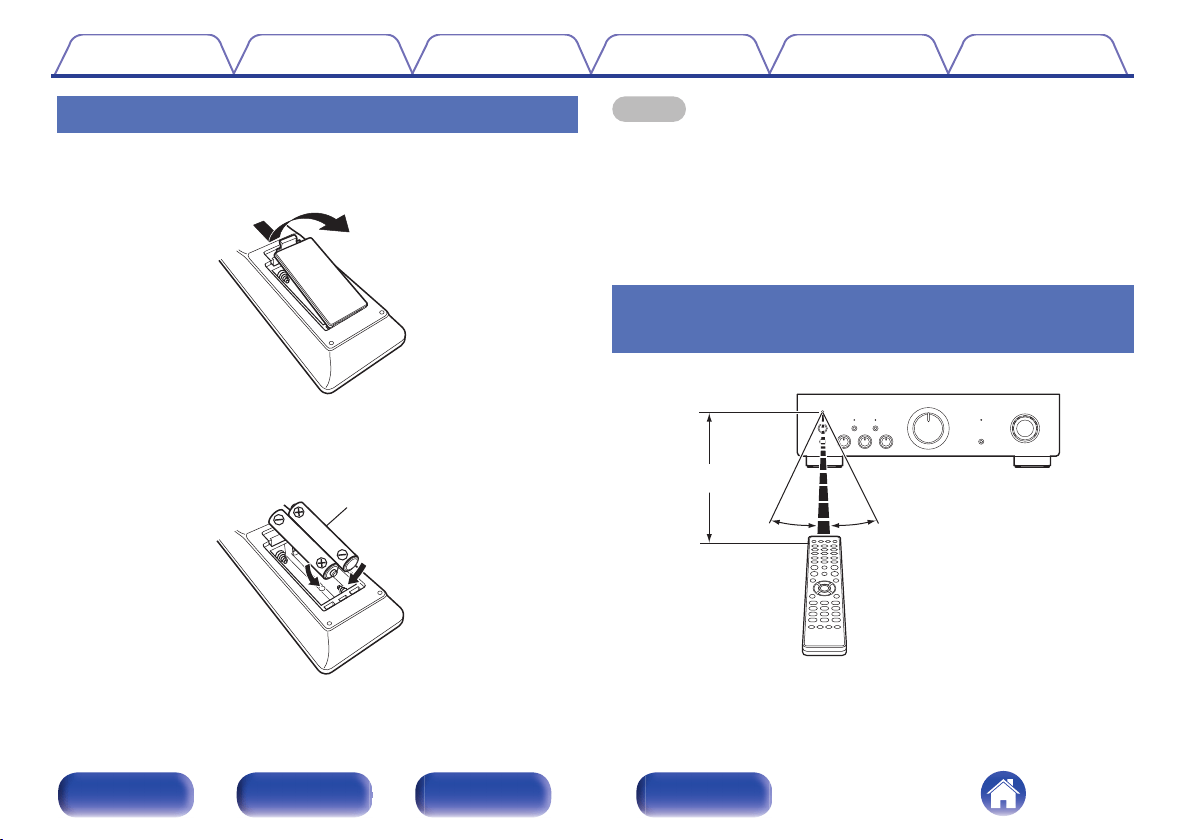

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 7 m
30°
Contents
Connections Playback Settings Tips Appendix
5
Front panel Rear panel
Remote control
unit
Index
Features
High quality sound
0
Equipped with an advanced high current single push-pull circuit
that achieves a perfect balance of delicacy with power
This unit is equipped with a HC transistor that allows a peak current that
is two to three times that of an ordinary audio power transistor, enabling
clear and stable musical expression from minute sound to high
volumes.
High performance
0
DIGITAL AUDIO IN connectors (COAXIAL/OPTICAL)
You can play back PCM signals up to 192 kHz/24 bits by inputting digital
audio signals from an external device into this unit.
0
Phono input connectors for turntables
This unit is equipped with a phono amplifier so that you can directly
connect a turntable and play records. (Only the MM cartridge can be
used.)
Contents Connections Playback Settings Tips Appendix
6
Front panel Rear panel
Remote control
unit
Index
.
rue
y
t
i
qw
o

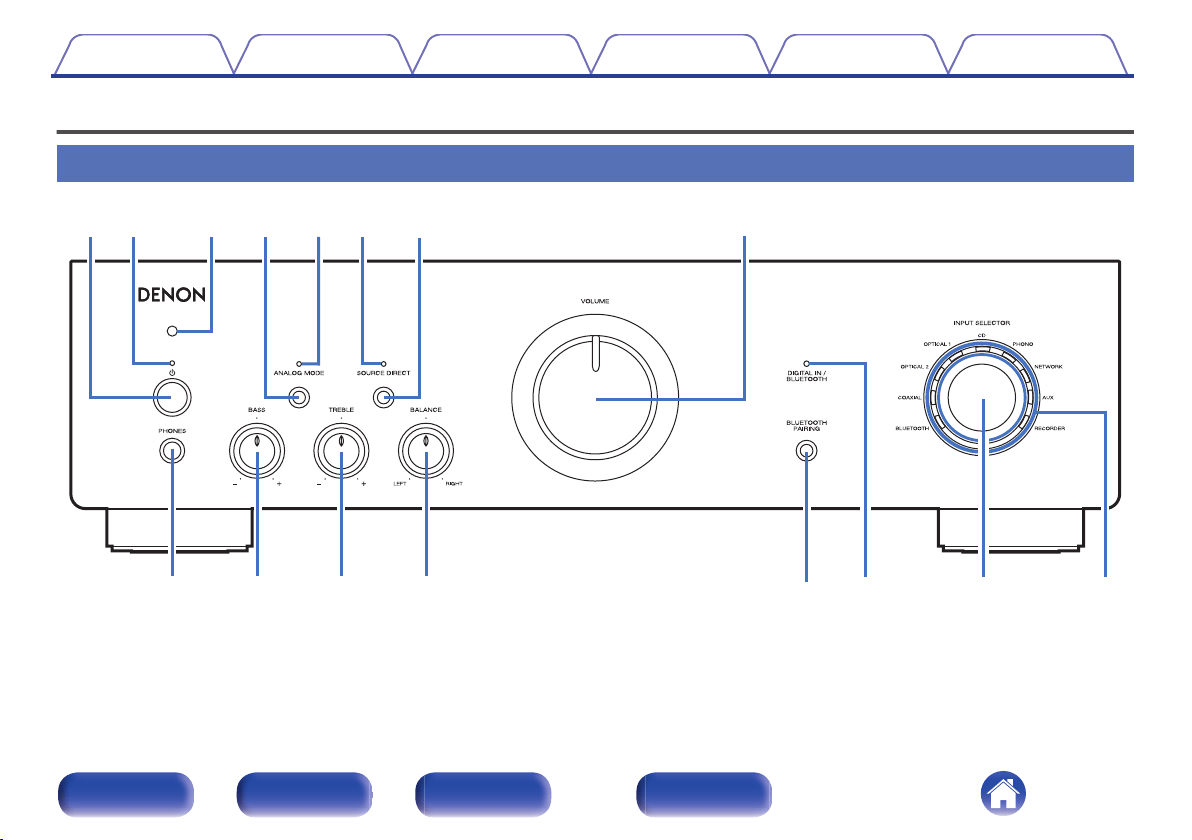

A
Power operation button (X)
This turns the power on/off. (v p. 24)
B
Power indicator
This is displayed as follows according to the power status:
0
Lit in green: Power on
0
Lit in red: Bluetooth standby (v p. 27)
0
Off: Normal standby
C
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
D
ANALOG MODE button
This turns the analog mode on/off.
(v p. 27)
E
ANALOG MODE indicator
This is displayed as follows, according to the analog mode status.
0
Lit in green: Analog mode on
0
Off: Analog mode off
F
SOURCE DIRECT indicator
This is displayed as follows according to the source direct status.
0
Lit in green: Source direct mode on
0
Off: Source direct mode off
G
SOURCE DIRECT button
This turns source direct mode on/off. (v p. 26)
H
VOLUME knob
This adjusts the volume level. (v p. 25)
I
Headphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index
.
Q
1
Q
2
Q
3
Q
0
Q
5
Q
6
Q
4

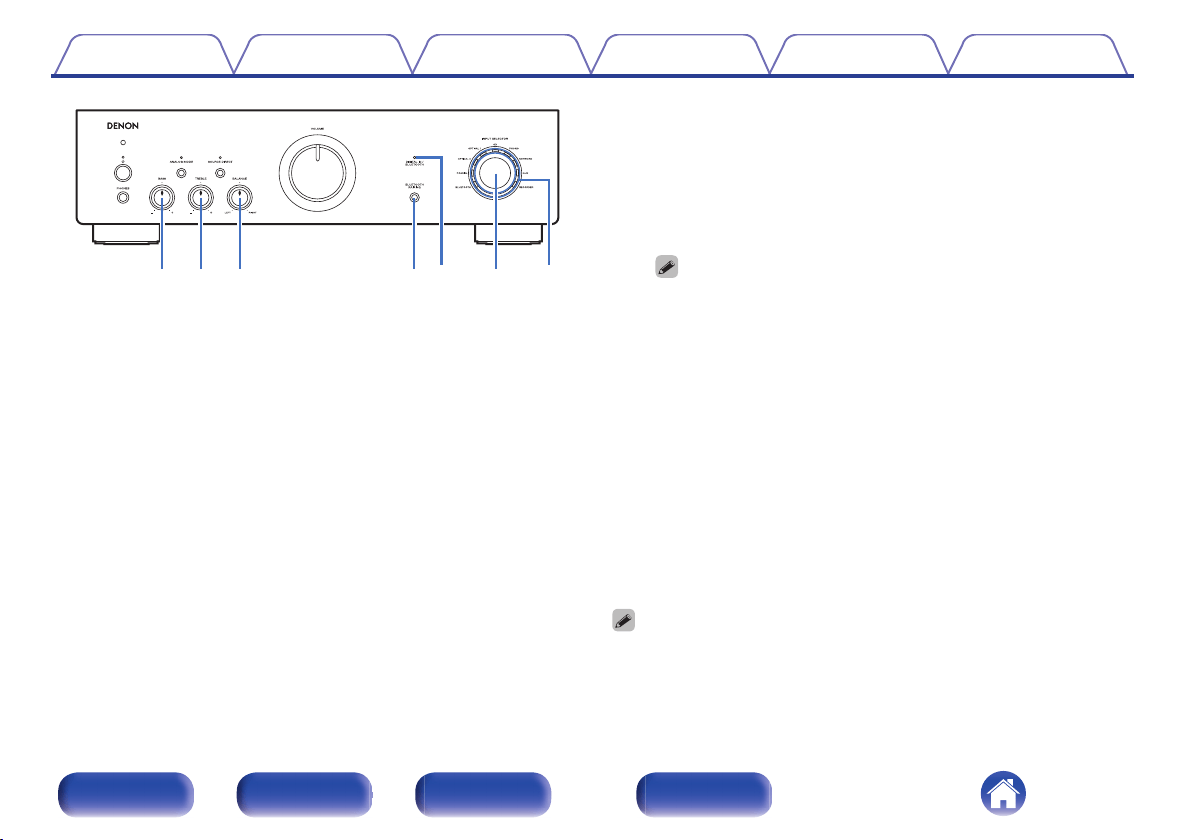

J
BASS control knob
This setting adjusts the volume level for the bass. (v p. 25)
K
TREBLE control knob
This setting adjusts the volume level for the treble. (v p. 25)
L
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v p. 25)
M
BLUETOOTH/PAIRING button
This switches the input source to “BLUETOOTH”. It is also pressed
during the pairing operation. (v p. 28)
N
DIGITAL IN/BLUETOOTH indicator
0
This is displayed as follows, according to the status of the digital
audio signals that are input to the digital audio input terminals on this
unit.
0
Lit in green: Playback is supported on this unit
0
Blinking in green: Playback is not supported on this unit
0
Off: Sampling frequency cannot be detected
0
For details on the audio signal specifications that are compatible with this
unit, see “D/A converter” (v p. 43).
0
This is displayed as follows according to the Bluetooth connection
status:
0
Blinking in blue (intervals of about 1 second): Pairing mode
0
Blinking in blue (intervals of about 2 seconds): Searching mode
(searching for a paired Bluetooth device and attempting to
connect via Bluetooth)
0
Lit in blue: Connecting mode (a Bluetooth connection has been
made with a Bluetooth device)
0
Off: Waiting mode (a Bluetooth connection has not been made
with any Bluetooth device)
O
INPUT SELECTOR knob
This selects the input source. (v p. 25)
P
Input indicators (v p. 25)
0
0, a and b can be adjusted when 6 is off (SOURCE DIRECT mode is off).
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index
.
y i
t
u
rqw e

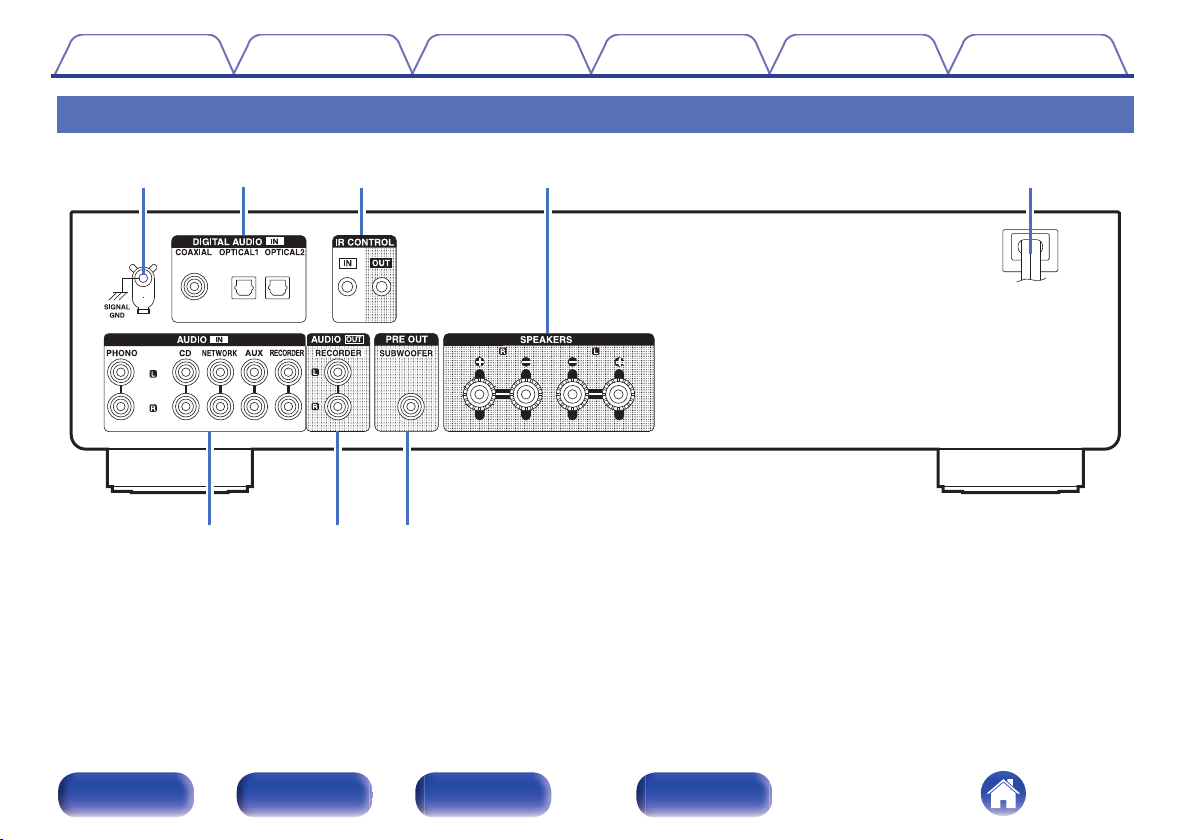

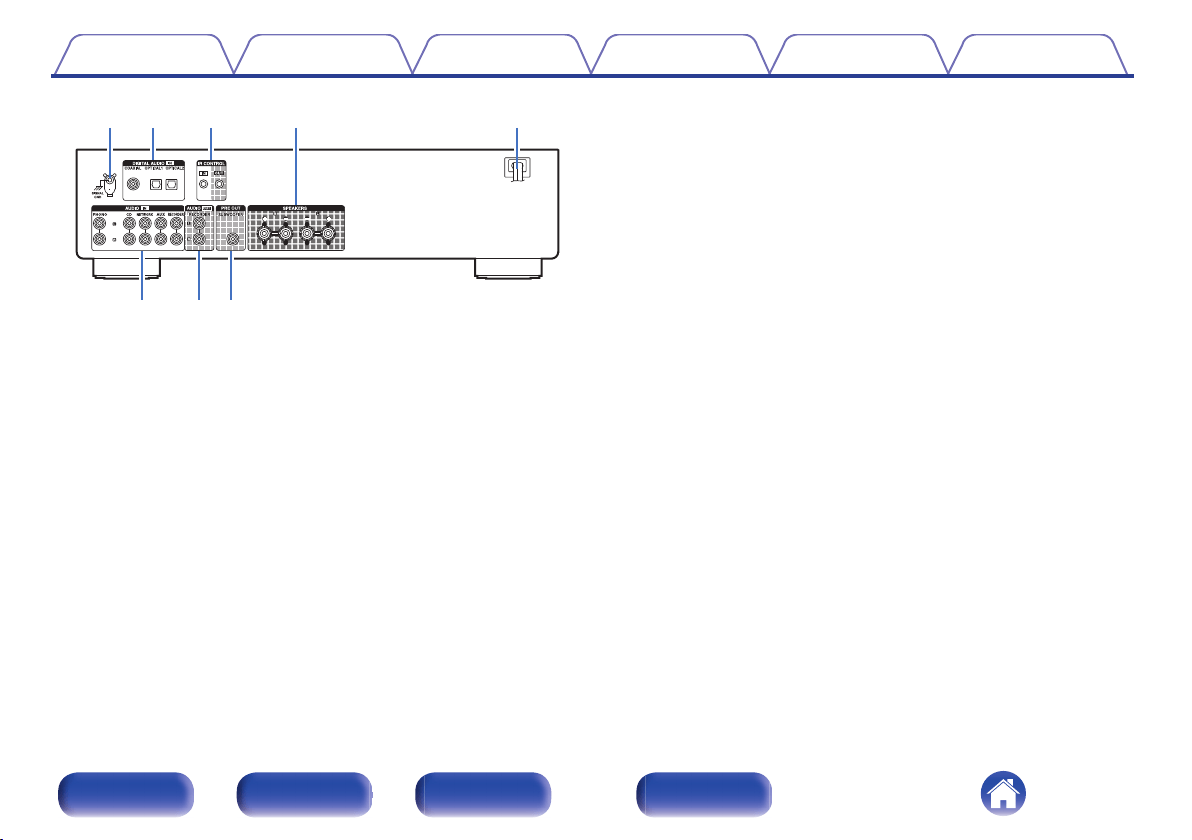

A
SIGNAL GND terminal
Used to connect the ground wire of a turntable.
(v p. 19)
B
DIGITAL AUDIO IN connectors
Used to connect devices equipped with digital audio output connectors.
(v p. 21)
C
IR CONTROL connectors
Used to connect Denon network audio players with an IR controller.
D
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 17)
E
Power cord (v p. 22)
F
Analog audio connectors (AUDIO IN)
Used to connect devices equipped with analog audio output
connectors.
0
“Connecting a playback device” (v p. 19)
0
“Connecting a recording device” (v p. 20)
G
AUDIO OUT connectors
Used to connect the input connector of a recorder. (v p. 20)
H
PRE OUT connector
Used to connect a subwoofer with a built-in amplifier.
(v p. 18)
Contents Connections Playback Settings Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index

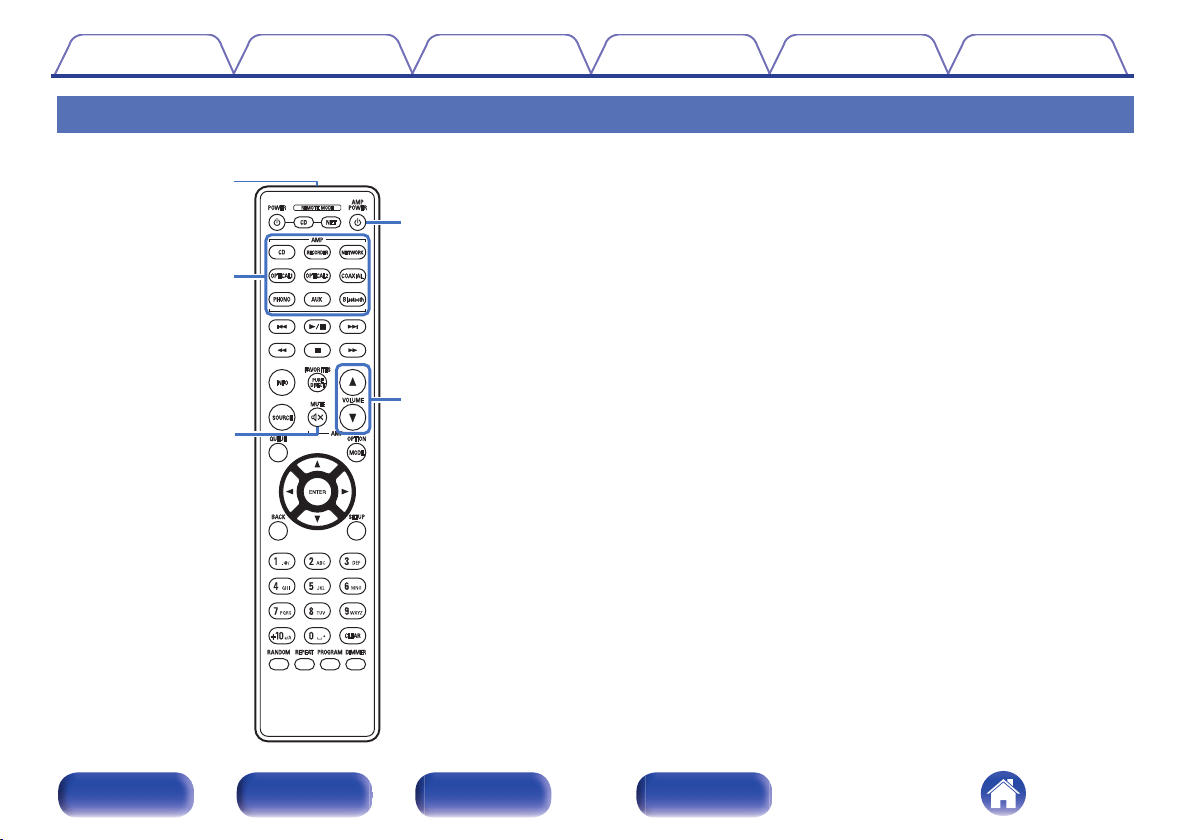

Remote control unit
.
w
e
r
t
q
The remote control provided with this unit can control a network audio
player in addition to a Denon CD player.
0
“CD player operations” (v p. 13)
0
“Network audio player operations” (v p. 14)
o
Operating this unit
A
Remote control signal transmitter
This transmits signals from the remote control unit. (v p. 5)
B
Input source select buttons
This selects the input source. (v p. 25)
C
MUTE button (:)
This mutes the output audio. (v p. 25)
D
Power operation button (AMP POWER X)
This turns the power on/off (standby).
(v p. 24)
E
VOLUME buttons (df)
These adjust the volume level. (v p. 25)
Contents Connections Playback Settings Tips Appendix
12
Front panel Rear panel
Remote control
unit
Index
w
e
q
r
t
i
o
Q0
y
u
Q4
Q2
Q5
Q6
Q3
Q1
o
CD player operations
A Denon CD player can be operated.
To operate a CD player, press the REMOTE MODE CD button to
switch the remote control to the CD player operation mode.
A
Power operation button (POWER X)
B
Remote mode select button
(REMOTE MODE CD)
C
System buttons
D
Information button (INFO)
E
SOURCE button
F
Cursor buttons (uio p)
G
BACK button
H
Number/letter buttons (0 – 9, +10)
I
RANDOM button
J
REPEAT button
K
PURE DIRECT button
L
MODE button
M
ENTER button
N
CLEAR button
O
DIMMER button
P
PROGRAM button
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index
o
Q0
w
e
q
t
y
r
u
i
o

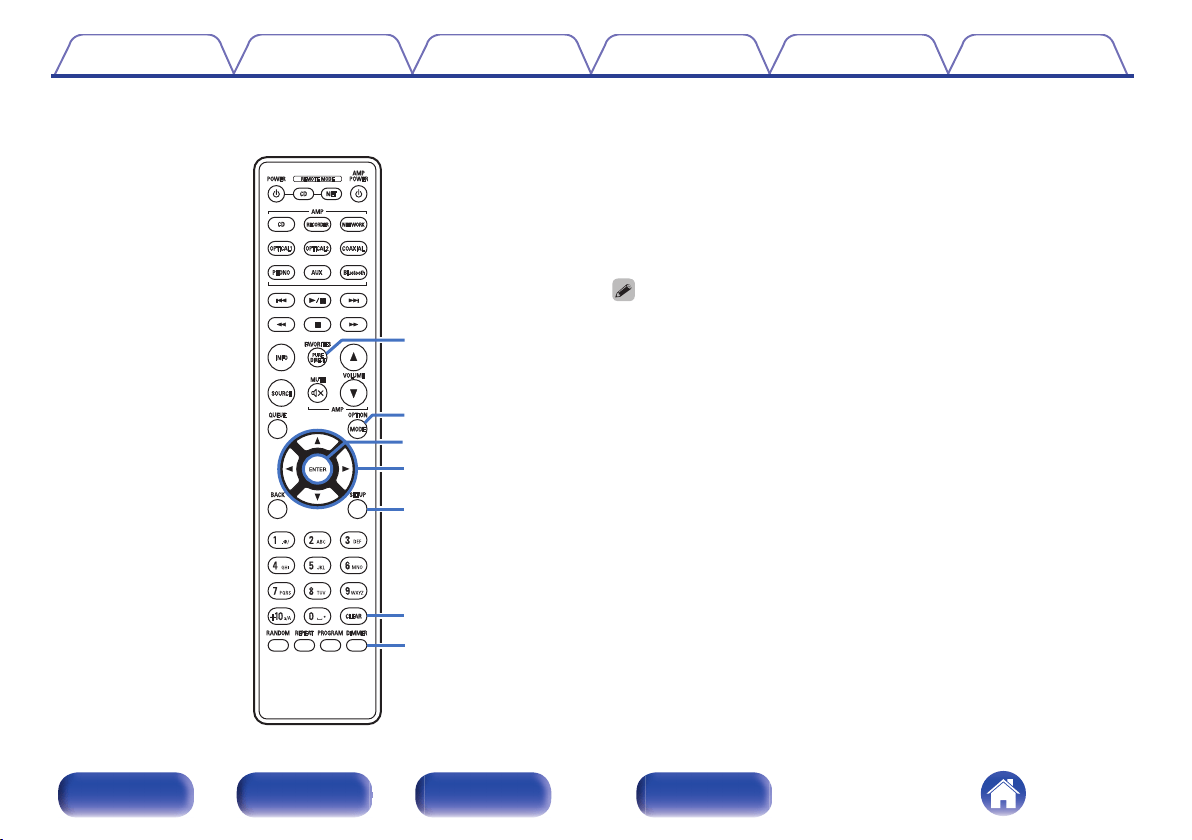

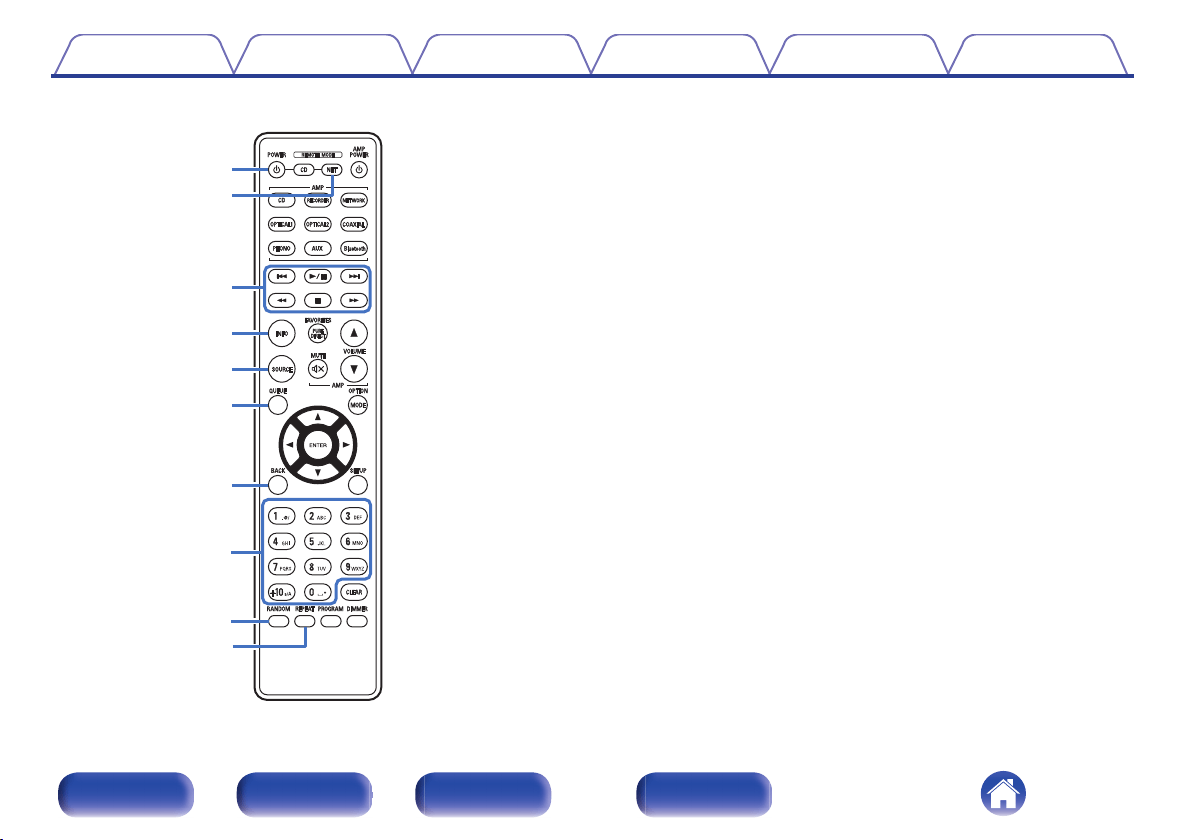

Network audio player operations
You can operate a Denon network audio player.
To operate a network audio player, press the REMOTE MODE NET
button to switch the remote control to the network audio player
operation mode.
A
Power operation button (POWER X)
B
Remote mode select button
(REMOTE MODE NET)
C
System buttons
D
Information button (INFO)
E
SOURCE button
F
QUEUE button
G
BACK button
H
Number/letter buttons (0 – 9, +10)
I
RANDOM button
J
REPEAT button
Contents Connections Playback Settings Tips Appendix
14
Front panel Rear panel
Remote control
unit
Index
o
Contents
Connecting speakers 17
Connecting a playback device 19
Connecting a recording device 20
Connecting to a device with digital audio output connectors 21
Connecting the power cord 22
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o

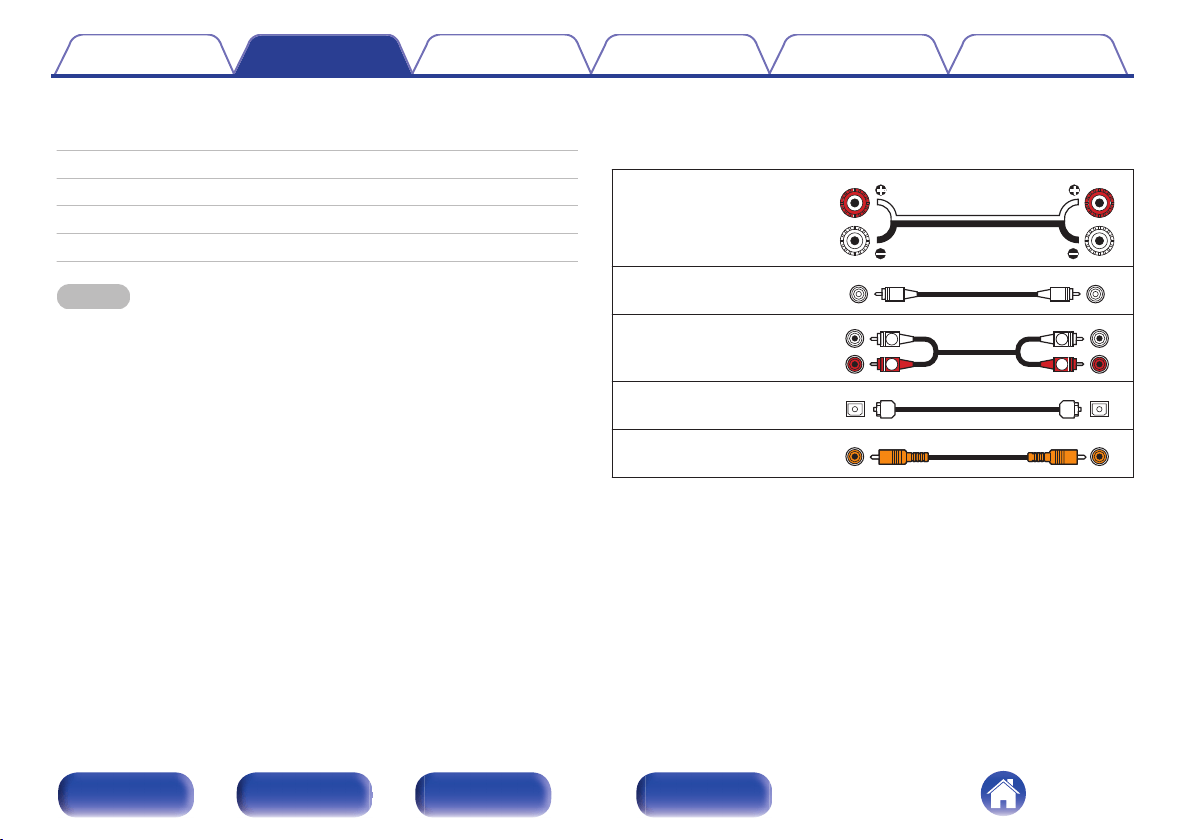

Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Subwoofer cable
.
Audio cable
.
R
L
R
L
Optical cable
.
Coaxial digital cable
.
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel
Remote control
unit
Index
Connecting speakers
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v p. 44))
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0
Use speakers with an impedance of 4 – 16 Ω/ohms.
o
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 10 mm of sheathing from the tip of the speaker
cable, then either twist the core wire tightly or terminate it.
.
2
Turn the speaker terminal counterclockwise to loosen it.
.
3
Insert the speaker cable’s core wire to all the way into
the speaker terminal.
.
4
Turn the speaker terminal clockwise to tighten it.
.
Contents
Connections Playback Settings Tips Appendix
17
Front panel Rear panel
Remote control
unit
Index
Connecting a playback device
You can connect turntables, CD players, network audio players and Blu-ray Disc players to this unit.
If you set this unit’s input source to “PHONO” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
NOTE
0
The earth terminal (SIGNAL GND) of this unit is not for safety
grounding purposes. If this terminal is connected when there is a
lot of noise, the noise can be reduced. Note that depending on
the turntable, connecting the ground line may have the reverse
effect of increasing noise. In this case, it is not necessary to
connect the ground line.
0
The PHONO input terminals are equipped with a short pin-plug.
Remove this plug to connect a record player. Store the removed
short pin-plug in a safe place so as not to lose it.
GND
AUDIO
OUT
L
R
AUDIO
OUT
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
L
L
R
R
L
L
R
R
L
L
R
R
Turntable
CD player
Network audio
player
Blu-ray Disc
player
Contents Connections Playback Settings Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index
Connecting to a device with digital audio output connectors
Input digital audio signals to this unit and convert the signals for playback using the D/A converter of this unit. (v p. 30)
.
OPTICAL
OUT
COAXIAL
OUT
CD player /
Satellite receiver etc.
NOTE
0
Linear PCM signals with a sampling frequency of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, or 192 kHz can be input into this unit.
0
Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes noise and could damage the speakers.
Contents Connections Playback Settings Tips Appendix
21
Front panel Rear panel
Remote control
unit
Index
o
Contents
Turning the power on 24
Switching the power to standby 24
Selecting the input source 25
Adjusting the volume 25
Turning off the sound temporarily (Muting) 25
Adjusting the tone 25
Playing CDs 26
Listening to music on a Bluetooth device 28
Connecting and playing back from a digital device (Coaxial/
Optical) 30
Recording 31
Contents Connections Playback Settings Tips Appendix
23
Front panel Rear panel
Remote control
unit
Index
.
ANALOG
MODE
BALANCE BLUETOOTH
PAIRING
INPUT
SELECTOR
VOLUME
BASS
X
SOURCE
DIRECT
TREBLE
AMP POWER
X
MUTE
VOLUME
df
Power indicator
Input source
select buttons
DIGITAL IN / BLUETOOTH
indicator
Turning the power on
1
Press X on the main unit to turn the power on.
The power indicator lights green.
0
Press AMP POWER X on the remote control unit to turn on power from standby
mode.
NOTE
0
Turn VOLUME on the main unit to adjust the volume to the lowest level before
turning on the power.
Switching the power to standby
1
Press AMP POWER X.
The unit switches to standby mode.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, either press X on the main unit to turn off the power, or unplug the power
cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
24
Front panel Rear panel
Remote control
unit
Index
Selecting the input source
1
Press the input source select button to be played back.
The indicator of the selected input source lights.
0
You can also select the input source by turning INPUT SELECTOR on the main
unit.
Adjusting the volume
1
Use VOLUME df to adjust the volume.
0
You can also adjust the volume by turning VOLUME on the main unit.
Turning off the sound temporarily
(Muting)
1
Press MUTE :.
The power indicator flashes green.
0
To cancel mute, press MUTE : again.
Adjusting the tone
1
Press SOURCE DIRECT on the main unit to turn off
source direct mode.
The SOURCE DIRECT indicator turns off.
2
Turn the BASS, TREBLE and BALANCE knobs to adjust
the tone.
Contents Connections Playback Settings Tips Appendix
25
Front panel Rear panel
Remote control
unit
Index
Playing CDs
This section uses playback from a CD as an example.
1
Press the input source select button (CD) to switch the
input source to “CD”.
The “CD” input indicator lights.
2
Playback the CD.
3
Use VOLUME df to adjust the volume.
o
Playback in source direct mode
The signal does not pass through the tone adjustment circuitry (BASS,
TREBLE and BALANCE), resulting in playback of a higher sound
quality.
1
Press SOURCE DIRECT on the main unit to turn on
source direct mode.
The SOURCE DIRECT indicator lights.
Contents Connections Playback Settings Tips Appendix
26
Front panel Rear panel
Remote control
unit
Index
o
Playback in ANALOG MODE
If analog mode is turned on when playing an analog input source
(PHONO, CD, NETWORK, AUX, RECORDER), power to the digital
input circuit and Bluetooth module is turned off. This enables you to
enjoy audio playback with high sound quality without sound quality
being affected by noise that occurs from the digital control circuit.
1
Press ANALOG MODE on the main unit to turn analog
mode on.
ANALOG MODE indicator lights.
0
Analog mode switches on or off each time the button is pressed.
Analog mode on:
The power of the digital input circuit and
Bluetooth module is turned off.
Analog mode off: Analog mode is not used.
0
A digital input source (“COAXIAL”, “OPTICAL 1”, “OPTICAL 2”) or “BLUETOOTH”
source cannot be selected when analog mode is on.
0
The input source automatically switches to “CD” if analog mode is turned on during
playback of a digital input source (“COAXIAL”, “OPTICAL 1”, “OPTICAL 2”) or
“BLUETOOTH” source.
0
When the analog mode is switched, the mute circuit is activated for about 5
seconds.
Contents Connections Playback Settings Tips Appendix
27
Front panel Rear panel
Remote control
unit
Index
Listening to music on a Bluetooth
device
Music files stored on Bluetooth devices such as smartphones, digital
music players, etc. can be enjoyed on this unit by pairing and connecting
this unit with the Bluetooth device.
In order to enjoy music from a Bluetooth device on this unit, the Bluetooth
device must first be paired with this unit.
Once the Bluetooth device has been paired, it does not need to be paired
again.
0
Communication is possible up to a range of about 30 m.
0
To play back music from a Bluetooth device, the Bluetooth device needs to
support the A2DP profile.
1
Press the input source select button (Bluetooth) to
switch the input source to “BLUETOOTH”.
When using for the first time, the unit will go into the pairing mode
automatically and the DIGITAL IN/BLUETOOTH indicator will blink
in blue in intervals of about 1 second.
0
The Bluetooth function does not work when analog mode is on. Turn the
analog mode off. (v p. 27)
2
Activate the Bluetooth settings on your Bluetooth
device.
3
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
The DIGITAL IN/BLUETOOTH indicator lights in blue when pairing is
complete.
0
Connect the Bluetooth device while the DIGITAL IN/BLUETOOTH
indicator is blinking in blue in intervals of about 1 second.
Perform the connection with the Bluetooth device close to the unit
(within about 1 m).
Contents
Connections Playback Settings Tips Appendix
28
Front panel Rear panel
Remote control
unit
Index
4
Play music using any app on your Bluetooth device.
0
The next time the input source is switched to “BLUETOOTH”, this
unit automatically connects to the last Bluetooth device that was
connected.
0
When this unit’s name is not displayed in the screen on the Bluetooth device,
search for devices on the Bluetooth device.
0
Enter “0000” when the password is requested on the screen of the Bluetooth
device.
0
The pairing mode on this unit lasts for approx. 5 minutes. When the pairing mode
on this unit is canceled before the pairing is completed, retry from step 1.
0
This unit cannot perform pairing against a Bluetooth device with a pass key other
than “0000”.
o
Pairing with other Bluetooth devices
Pair a Bluetooth device with this unit.
1
Activate the Bluetooth settings on your Bluetooth
device.
2
Press and hold the input source switching button
(Bluetooth) for at least 3 seconds.
The device will go into the pairing mode.
0
You can also switch to pairing mode by pressing and holding
BLUETOOTH PAIRING on this unit for at least 3 seconds.
3
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
When pairing is completed, the DIGITAL IN/BLUETOOTH indicator
is lit in blue.
0
This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th
Bluetooth device is paired, it will be registered in place of the oldest registered
device.
0
Enter “0000” when the password is requested on the screen of the Bluetooth
device.
Contents
Connections Playback Settings Tips Appendix
29
Front panel Rear panel
Remote control
unit
Index
o
Reconnecting to this unit from a Bluetooth
device
After pairing is completed, the Bluetooth device can be connected
without performing any operations on this unit.
This operation also needs to be performed when switching the
Bluetooth device for playback.
1
If a Bluetooth device is currently connected, deactivate
the Bluetooth setting of that device to disconnect it.
2
Activate the Bluetooth setting of the Bluetooth device
to be connected.
3
Select this unit from the Bluetooth device list on your
Bluetooth device.
4
Play music using any app on your Bluetooth device.
0
When the power of this unit is turned on and analog mode is off, the input source
will be automatically switched to “BLUETOOTH” if a Bluetooth device is
connected.
0
When a Bluetooth device is connected with the unit while on Bluetooth standby
state (while the power indicator is lit in red), the power of the unit will be turned on
automatically. To enable Bluetooth standby, set this unit to standby when analog
mode is off. (v p. 27)
Connecting and playing back from a
digital device (Coaxial/Optical)
1
Connect digital device to this unit. (v p. 21)
2
Press the input source select button (COAXIAL,
OPTICAL 1 or OPTICAL 2) to switch the input source to
“COAXIAL”, “OPTICAL 1” or “OPTICAL 2”.
The indicator of the selected input source lights.
3
Start playback of the digital device connected to this
unit.
The DIGITAL IN/BLUETOOTH indicator lights in green.
0
The DIGITAL IN/BLUETOOTH indicator blinks in green when audio signals that
are not supported by this unit are input.
0
If the sampling frequency cannot be detected, the DIGITAL IN/BLUETOOTH
indicator turns off.
Contents
Connections Playback Settings Tips Appendix
30
Front panel Rear panel
Remote control
unit
Index
o
Audio signals that can be played back
See “D/A converter” (v p. 43).
NOTE
0
Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes
noise and could damage the speakers.
0
If the sampling frequency switches, the sound may be cut for 1–2 seconds.
Recording
Audio signals input into this unit can be output to an external recording
device. When recording audio from a playback device connected to this
unit, audio can be recorded with the playback device still connected to this
unit.
1
Press X on the main unit to turn the power on.
2
Press the input source select button to switch to the
input source from which you want to record.
The indicator of the selected input source lights.
3
Recording starts.
0
For information on operations, see the owner’s manual of the
recording device.
Contents Connections Playback Settings Tips Appendix
31
Front panel Rear panel
Remote control
unit
Index

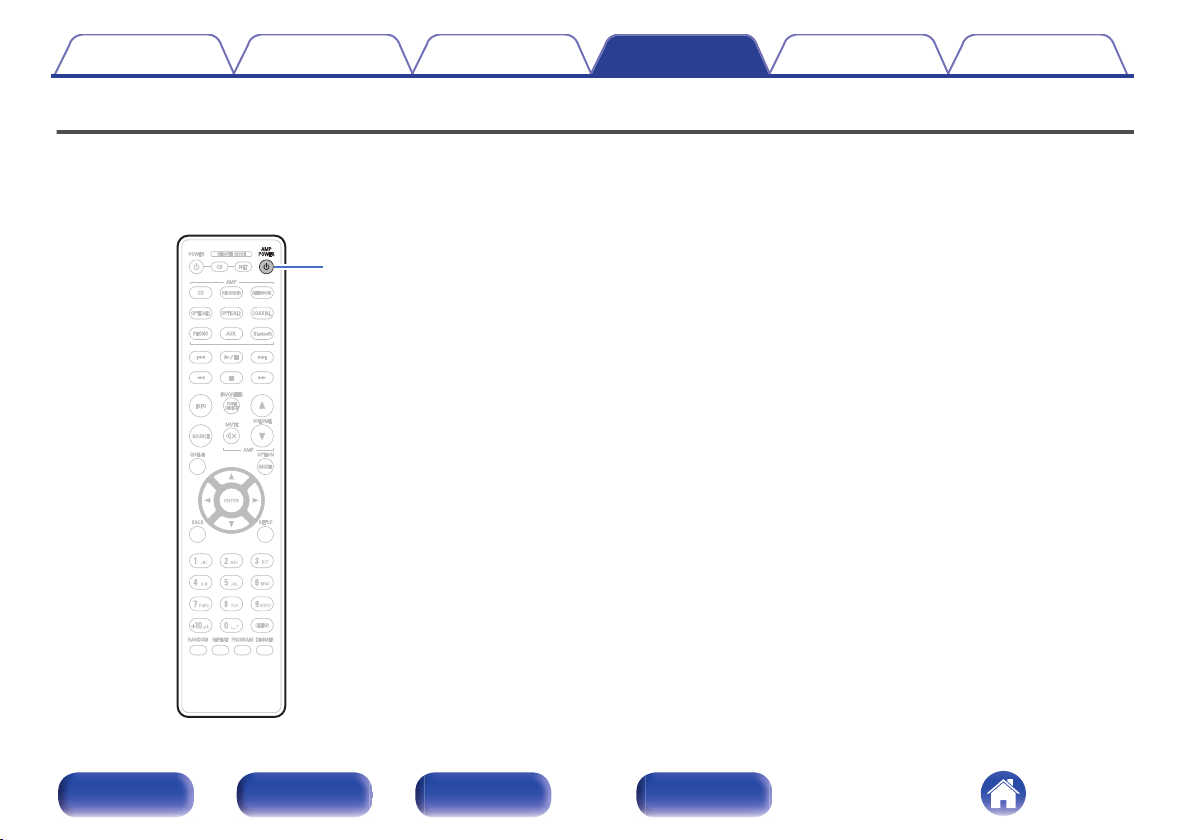

Setting the Auto Standby mode
You can set the unit to automatically switch to standby mode if the unit is
not operated for 30 minutes when there is no audio input (Auto Standby
mode).
Auto Standby mode is set to on by default.
.
AMP POWER
X
1
Press and hold AMP POWER X for 5 seconds or more
to switch it on and off.
The power indicator changes as follows each time it is switched on
and off.
0
When auto standby mode is on: The power indicator blinks in
green three times.
0
When auto standby mode is off: The power indicator blinks in
green once.
Contents Connections Playback Settings Tips Appendix
32
Front panel Rear panel
Remote control
unit
Index
o
Contents
Tips
I want to turn on power to this unit from a Bluetooth device 34
I want to adjust the tone myself 34
I want sound playback that is faithful to the original sound 34
I want to enjoy higher sound quality from the analog input source 34
Troubleshooting
Power does not turn on / Power is turned off 36
Operations cannot be performed through the remote control unit 37
No sound comes out 38
Desired sound does not come out 39
Sound is interrupted or noise occurs 40
Bluetooth cannot be played back 41
Audio from digital devices cannot be played back (Coaxial/Optical) 42
Contents Connections Playback Settings Tips Appendix
33
Front panel Rear panel
Remote control
unit
Index
Tips
I want to turn on power to this unit from a Bluetooth device
0
When this unit is on Bluetooth standby (the power indicator is lit in red), the power of this unit can be turned on by selecting this unit from the device list
on a Bluetooth device paired with this unit. (v p. 30)
I want to adjust the tone myself
0
Use the BASS, TREBLE and BALANCE knobs to adjust the sound as desired. (v p. 25)
I want sound playback that is faithful to the original sound
0
Set the source direct mode on. (v p. 26)
I want to enjoy higher sound quality from the analog input source
0
Set the analog mode on. (v p. 27)
Contents
Connections Playback Settings Tips Appendix
34
Front panel Rear panel
Remote control
unit
Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
35
Front panel Rear panel
Remote control
unit
Index
Power does not turn on / Power is turned off
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. (v p. 22)
Power automatically turns off.
0
The Auto Standby mode setting is on. The Auto Standby mode switches the unit to standby mode when there is no audio input and the unit is not
operated for approximately 30 minutes. To disable the Auto Standby mode, press and hold the AMP POWER X button for more than 5 seconds when
the Auto Standby mode is enabled. (v p. 32)
The power turns off and the power indicator shows one long blink and four short blinks in red.
0
The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down
sufficiently, and then turn the power on again. (v p. 44)
0
Please re-install this unit in a place having good ventilation.
The power turns off and the power indicator shows one long blink and five short blinks in red.
0
Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a
core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective
action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire. (v p. 17)
0
Turn down the volume and turn on the power again. (v p. 24)
When the power is turned on, the power indicator shows one long blink and three or six short blinks in red.
0
This unit’s amplifier circuit has failed. Unplug the power cord and contact our customer service center.
Contents
Connections Playback Settings Tips Appendix
36
Front panel Rear panel
Remote control
unit
Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v p. 5)
0
Operate the remote control unit within a distance of about 7 m from this unit and at an angle of within 30°. (v p. 5)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 5)
0
The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
Contents Connections Playback Settings Tips Appendix
37
Front panel Rear panel
Remote control
unit
Index
No sound comes out
No sound comes out of speakers.
0
Check the connections for all devices. (v p. 16)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (v p. 17)
0
Securely tighten the speaker terminals. Check speaker terminals for looseness. (v p. 17)
0
Check that the proper input source is selected. (v p. 25)
0
The volume is set to the minimum level. Adjust the volume to a suitable level. (v p. 25)
0
Cancel the muting mode. (v p. 25)
0
Check that the correct input source is selected when audio is being input to this unit from an external device. (v p. 25)
0
Check the digital audio output setting on the connected device. The initial settings may be off depending on the device.
0
When a headphone plug is inserted into the headphone jack of the unit, no sound is output from the speakers. (v p. 8)
Contents
Connections Playback Settings Tips Appendix
38
Front panel Rear panel
Remote control
unit
Index
Desired sound does not come out
No sound comes out of a specific speaker.
0
Check that speaker cables are properly connected. (v p. 17)
0
Adjust the BALANCE control knob. (v p. 25)
The left and right of stereo sound is reversed.
0
Check whether the left and right speakers are connected to the correct speaker terminals. (v p. 17)
No sound is produced from subwoofer.
0
Check the subwoofer connections. (v p. 18)
0
Turn on the subwoofer’s power.
Contents Connections Playback Settings Tips Appendix
39
Front panel Rear panel
Remote control
unit
Index
Sound is interrupted or noise occurs
When playing a record, the sound is distorted.
0
Adjust to a proper needle pressure.
0
Check the tip of the needle.
0
Replace the cartridge.
When playing a record, a humming noise comes out of the speakers.
0
Check that the turntable is connected correctly. (v p. 19)
0
If there is a TV or AV device near the turntable, such devices may affect the playback sound. Install the turntable in a location as far away as possible
from the TV or other AV devices.
When playing a record, a humming noise comes out of the speakers when the volume is high. (Howling phenomenon)
0
Install the turntable and speakers as far from each other as possible. (v p. 19)
0
The vibrations from the speakers are being transmitted to the player through the floor. Use cushions, etc., to absorb the speakers’ vibrations.
Contents
Connections Playback Settings Tips Appendix
40
Front panel Rear panel
Remote control
unit
Index
Bluetooth cannot be played back
Bluetooth devices cannot be connected to this unit.
0
The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function.
0
Bring the Bluetooth device near to this unit.
0
The Bluetooth device cannot connect with this unit if it is not compatible with the A2DP profile.
0
Turn the power of the Bluetooth device off and on again, and then try again.
0
Change the analog mode setting to Off. The Bluetooth function does not work when the analog mode setting is On. (v p. 27)
0
To playback via a Bluetooth connection, perform pairing between this unit and the Bluetooth device. (v p. 28)
The sound is cut off.
0
Bring the Bluetooth device near to this unit.
0
Remove obstructions between the Bluetooth device and this unit.
0
To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices.
0
Reconnect the Bluetooth device.
Contents
Connections Playback Settings Tips Appendix
41
Front panel Rear panel
Remote control
unit
Index
Audio from digital devices cannot be played back (Coaxial/Optical)
The DIGITAL IN/BLUETOOTH indicator is off.
0
When digital audio signals cannot be detected properly, the DIGITAL IN/BLUETOOTH indicator is off. (v p. 30)
The DIGITAL IN/BLUETOOTH indicator is blinking in green.
0
The DIGITAL IN/BLUETOOTH indicator blinks in green when audio signals that are not supported by this unit are input. Check the audio output signal
format from your digital device. (v p. 30)
0
Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes noise and could damage the speakers.
Contents Connections Playback Settings Tips Appendix
42
Front panel Rear panel
Remote control
unit
Index
D/A converter
o
Specifications of supported audio signals
n
Coaxial/Optical
Sampling frequency Bit length
Linear PCM
(2-channel)
32/44.1/48/88.2/96/
176.4/192 kHz
16/24 bits
Playing back a Bluetooth device
This unit supports the following Bluetooth profile.
0
A2DP (Advanced Audio Distribution Profile):
When a Bluetooth device that supports this standard is connected,
monaural and stereo sound data can be streamed at a high quality.
o
About Bluetooth communications
Radio waves broadcast from this unit may interfere with the operation
of medical devices. Make sure you turn off the power of this unit and
Bluetooth device in the following locations as radio wave interference
may cause malfunctions.
0
Hospitals, trains, aircraft, petrol kiosks and places where flammable
gases are generated
0
Near automatic doors and fire alarms
Contents
Connections Playback Settings Tips Appendix
43
Front panel Rear panel
Remote control
unit
Index
Explanation of terms
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. This is the
same system used for CD audio but uses 192 kHz, 96 kHz, and 48 kHz
sampling frequencies on Blu-ray Disc or DVD and provides higher
resolution than CD.
Speaker impedance
This is an AC resistance value, indicated in Ω (ohms).
Greater power can be obtained when this value is smaller.
Source direct
Playback with higher fidelity to the source becomes possible, as input
audio signals are output by bypassing the audio quality-control circuits
(BASS/TREBLE/BALANCE).
Pairing
Pairing (registration) is an operation that is required in order to connect a
Bluetooth device to this unit using Bluetooth. When paired, the devices
authenticate each other and can connect without mistaken connections
occurring.
When using Bluetooth connection for the first time, you need to pair this
unit and the Bluetooth device to be connected.
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
Contents
Connections Playback Settings Tips Appendix
44
Front panel Rear panel
Remote control
unit
Index
Trademark information
.
The Bluetooth
®
word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by D&M Holdings
Inc. is under license. Other trademarks and trade names are those of
their respective owners.
.
Adobe, the Adobe logo and Reader are either registered trademarks or
trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
Contents Connections Playback Settings Tips Appendix
45
Front panel Rear panel
Remote control
unit
Index
Specifications
o
Power amplifier section
Rated Output Power: 2-channel driving (CD → SP OUT)
45 W + 45 W (8 Ω/ohms, 20 Hz - 20 kHz, T.H.D. 0.07 %)
70 W + 70 W (4 Ω/ohms, 1 kHz, T.H.D. 0.7%)
Total harmonic distortion: 0.01 % (Rated output: –3 dB), 8 Ω/ohms, 1 kHz
Output terminals: Speaker: 4 – 16 Ω/ohms
Suited for headphones/stereo headphones
o
Pre amplifier section
Input Sensitivity/Input Impedance: PHONO (MM): 2.5 mV / 47 kΩ/kohms
CD, NETWORK, AUX, RECORDER:
100 mV / 40 kΩ/kohms (SOURCE DIRECT: Off)
100 mV / 17 kΩ/kohms (SOURCE DIRECT: On)
RIAA Deviation: PHONO: 20 Hz – 20 kHz ±0.5 dB
Maximum Input: PHONO (MM): 70 mV / 1 kHz
Output level: PRE OUT (SUBWOOFER): 1 V / 100 Hz (Input 100 mV, Volume: Max)
Contents Connections Playback Settings Tips Appendix
46
Front panel Rear panel
Remote control
unit
Index
o
Overall performance
SN Ratio (A network): PHONO (MM): 84 dB
(With input terminals short-circuited, 5 mV input signal)
CD, NETWORK, AUX, RECORDER: 105 dB (input terminals short-circuited)
Frequency response: 5 Hz – 100 kHz (0 – -3 dB)
Tone control: BASS: 100 Hz ±8 dB
TREBLE: 10 kHz ±8 dB
0
Digital input signal format
Format: Digital audio interface (Linear PCM)
Coaxial input: 0.5 Vp-p / 75 Ω/ohms
Optical input: More than -27 dBm
Optical wavelength: 660 nm
Contents Connections Playback Settings Tips Appendix
47
Front panel Rear panel
Remote control
unit
Index
o
Bluetooth section
Communications system: Bluetooth Version 4.2
Transmission power: Bluetooth Specification Power Class 1
Maximum communication range:
Approx. 30 m in line of sight
z
Used frequency range: 2.4 GHz
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles: A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP（Audio Video Remote Control Profile）1.6
Corresponding codec: SBC
AAC
Transmission range (A2DP): 20 Hz – 20,000 Hz
z
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from
microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
Contents
Connections Playback Settings Tips Appendix
48
Front panel Rear panel
Remote control
unit
Index
o
General
Operating temperature: +5 ℃ - +35 ℃
Power supply: AC 230 V, 50/60 Hz
Power consumption: 190 W
Power consumption in standby modes :
Standby modes
Setting item
Power consumption
ANALOG MODE
(v p. 27)
Normal standby On 0.3 W
Bluetooth standby Off 0.6 W
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents
Connections Playback Settings Tips Appendix
49
Front panel Rear panel
Remote control
unit
Index

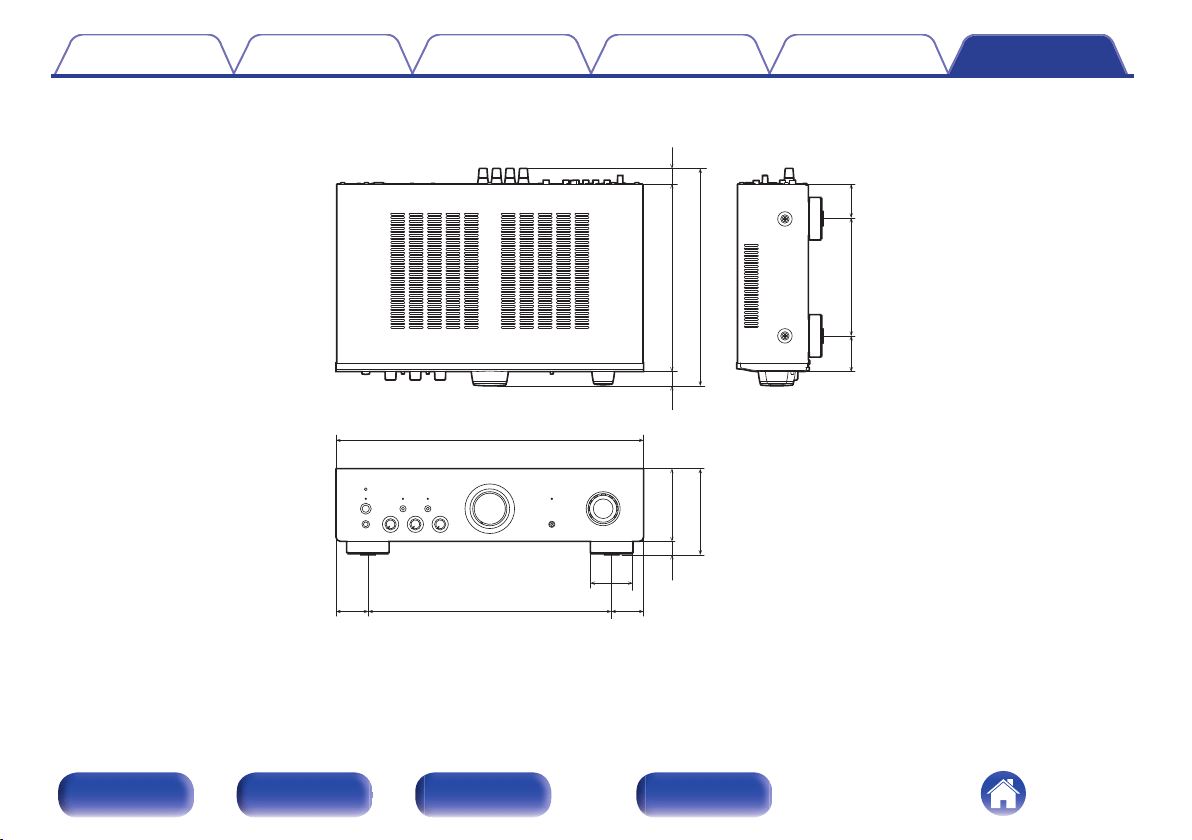

Index
v A
Auto Standby mode ........................................ 32
v B
BALANCE ...................................................... 25
BASS ............................................................. 25
Bluetooth device ............................................ 28
Blu-ray Disc player ......................................... 19
v C
CD player ................................................. 19, 21
v D
D/A Converter ................................................ 43
v I
Input source ................................................... 25
v M
Muting ............................................................ 25
v N
Network audio player ..................................... 19
v P
Protection circuit ............................................ 44
v R
Recording device ........................................... 20
Remote control unit ........................................ 12
v S
Satellite receiver ............................................. 21
Source direct ............................................ 26, 44
Speaker impedance ....................................... 44
Speakers ........................................................ 17
v T
Tips ................................................................ 34
Tone ............................................................... 25
TREBLE ......................................................... 25
Troubleshooting ............................................. 35
Turntable ........................................................ 19
v V
Volume ........................................................... 25
Contents
Connections Playback Settings Tips Appendix
51
Front panel Rear panel
Remote control
unit
Index
.
www.denon.com
3520 10697 10AD
Copyright © 2019 D&M Holdings Inc. All Rights Reserved.
52
