Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

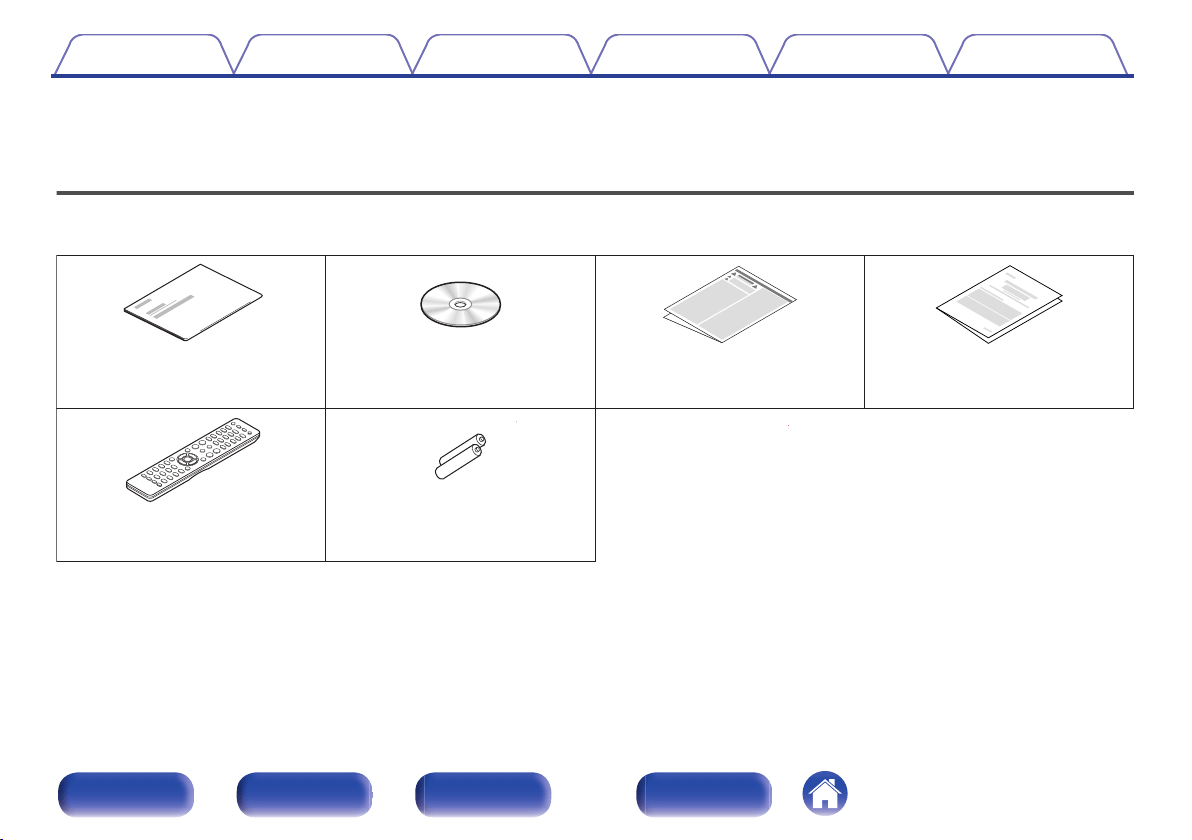

Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide
CD-ROM
(Owner’s Manual)
Safety Instructions
R03/AAA batteries
Remote control unit
(RC-1223)
Warranty
(for North America model only)
Contents Connections Playback Settings Tips Appendix
4
Front panel Rear panel
Remote control
unit
Index

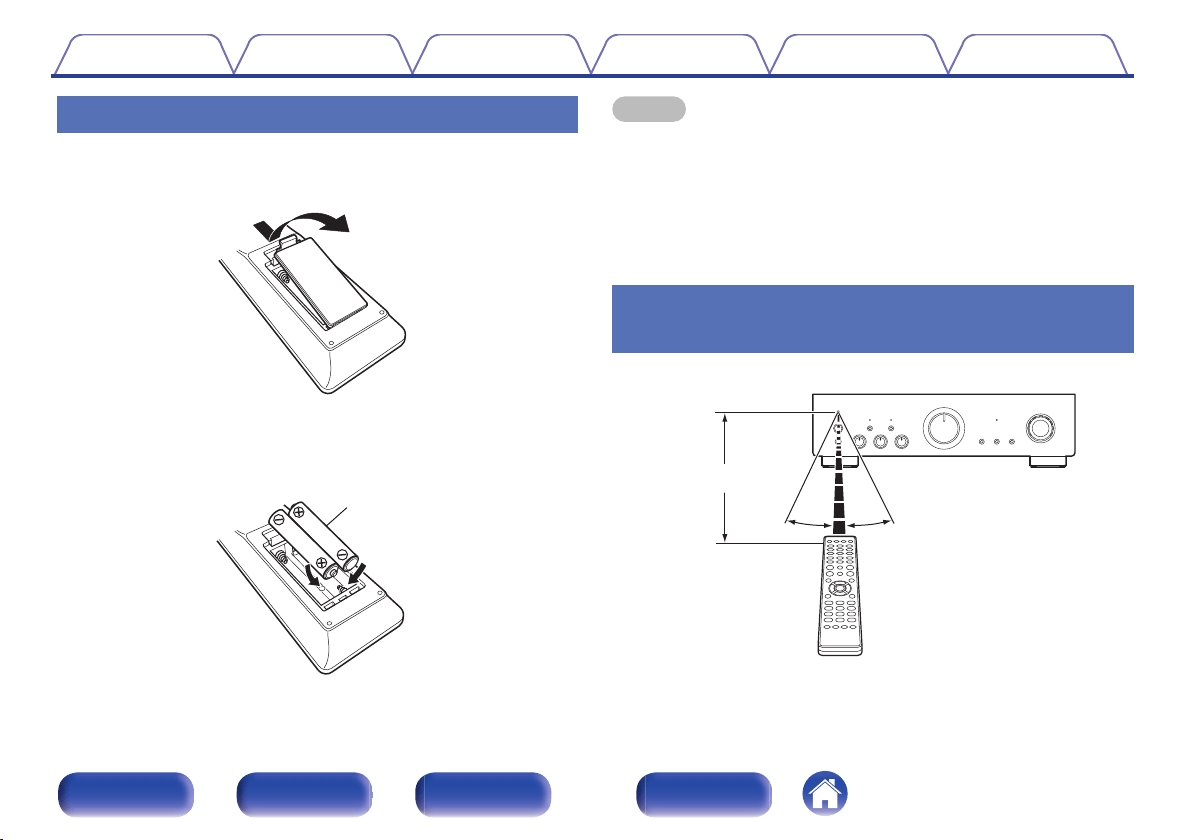

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 23 ft/7 m
30°
Contents
Connections Playback Settings Tips Appendix
5
Front panel Rear panel
Remote control
unit
Index
Features
High quality sound
0
Equipped with an advanced high current single push-pull circuit
that achieves a perfect balance of delicacy with power
Equipped with a HC transistor that allows a peak current that is two to
three times that of an ordinary audio power transistor that enables clear
and stable musical expression from minute levels to high volumes.
0
High Speed, Large Current Compatible Power Circuit
The power circuit is equipped with Denon’s customized block type
electrolytic capacitor and SBD (Schottky-Barrier Diode) that features a
short reverse recovery time and low rectification noise in order to draw
out the full capabilities of the HC single push-pull circuit.
High performance
0
DIGITAL AUDIO IN connectors (COAXIAL/OPTICAL)
You can play back PCM signals up to 192 kHz/24 bits by inputting digital
audio signals from an external device into this unit.
0
Phono Equalizer
Even a user who is particular about analog records is satisfied because
the Phono Equalizer circuit for the FET input supports MM/MC.
Contents Connections Playback Settings Tips Appendix
6
Front panel Rear panel
Remote control
unit
Index
Part names and functions

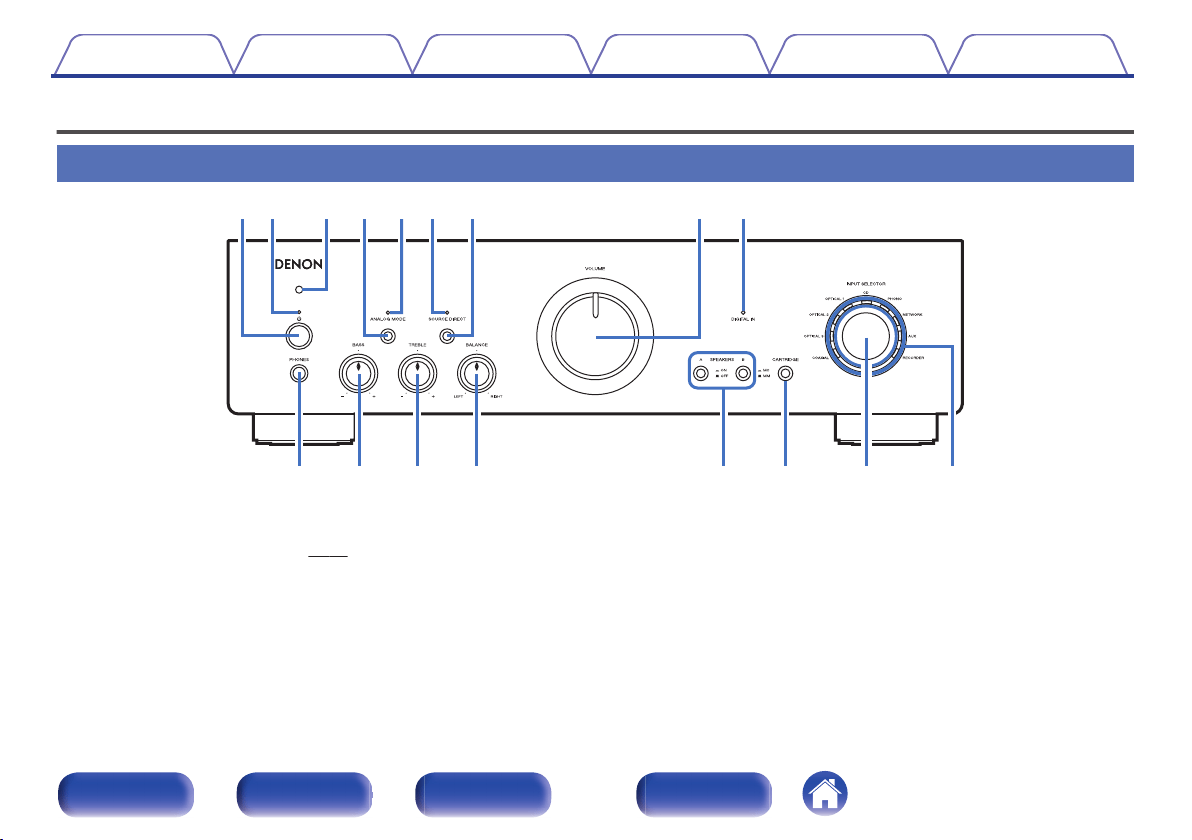

Front panel
.
rueqw
yo
t
i
Q
2
Q
3
Q
4
Q
6
Q
5
Q
1
Q
0
Q
7
A
Power operation button (X)
This turns the power on/off. (v p. 25)
B
Power indicator
This is lit as follows according to the power status:
0
Power on : Green
0
Standby : Off
0
Power off : Off
0
When the protection circuit is activated : Red (blinking)
Contents
Connections Playback Settings Tips Appendix
7
Front panel Rear panel
Remote control
unit
Index
.
rue
yo
t
i
C
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
D
ANALOG MODE button
This turns the analog mode on/off. (v p. 28)
E
ANALOG MODE indicator
This is lit as follows, according to the analog mode status.
0
Analog mode on: Green
0
Analog mode off: Off
F
SOURCE DIRECT indicator
This is lit as follows according to the source direct status.
0
Source direct mode on: Green
0
Source direct mode off: Off
G
SOURCE DIRECT button
This turns source direct mode on/off. (v
p. 28)
H
VOLUME knob
This adjusts the volume level. (v
p. 26)
I
DIGITAL IN indicator
This is lit as follows, according to the status of the digital audio signals
that are input to the digital audio input terminals on this unit.
0
When playback is supported on this unit: Green
0
When playback is not supported on this unit: Flashing
0
When the sampling frequency cannot be detected: Off
0
For details on the audio signal specifications that are compatible with this unit,
see “D/A converter” (v
p. 40).
Contents Connections Playback Settings Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index
.
Q
2
Q
3
Q
4
Q
5
Q
1
Q
0
Q
6
Q
7
J
Headphones jack (PHONES)
Used to connect headphones.
Press the SPEAKERS A/B button on the main unit to turn off speaker
output when using headphones. (v
p. 26)
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
K
BASS control knob
This setting adjusts the volume level for the bass. (v
p. 27)
L
TREBLE control knob
This setting adjusts the volume level for the treble. (v p. 27)
M
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v
p. 27)
N
SPEAKERS A/B buttons
These select the speaker for audio output. (v
p. 26)
O
CARTRIDGE button
Switch between MM (Y) or MC (Z) to match the type of cartridge
used in the record player connected to this unit.
P
INPUT SELECTOR knob
This selects the input source. (v p. 26)
Q
Input indicators (v p. 26)
0
a, b and c can be adjusted when 6 is off (SOURCE DIRECT mode is off).
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index

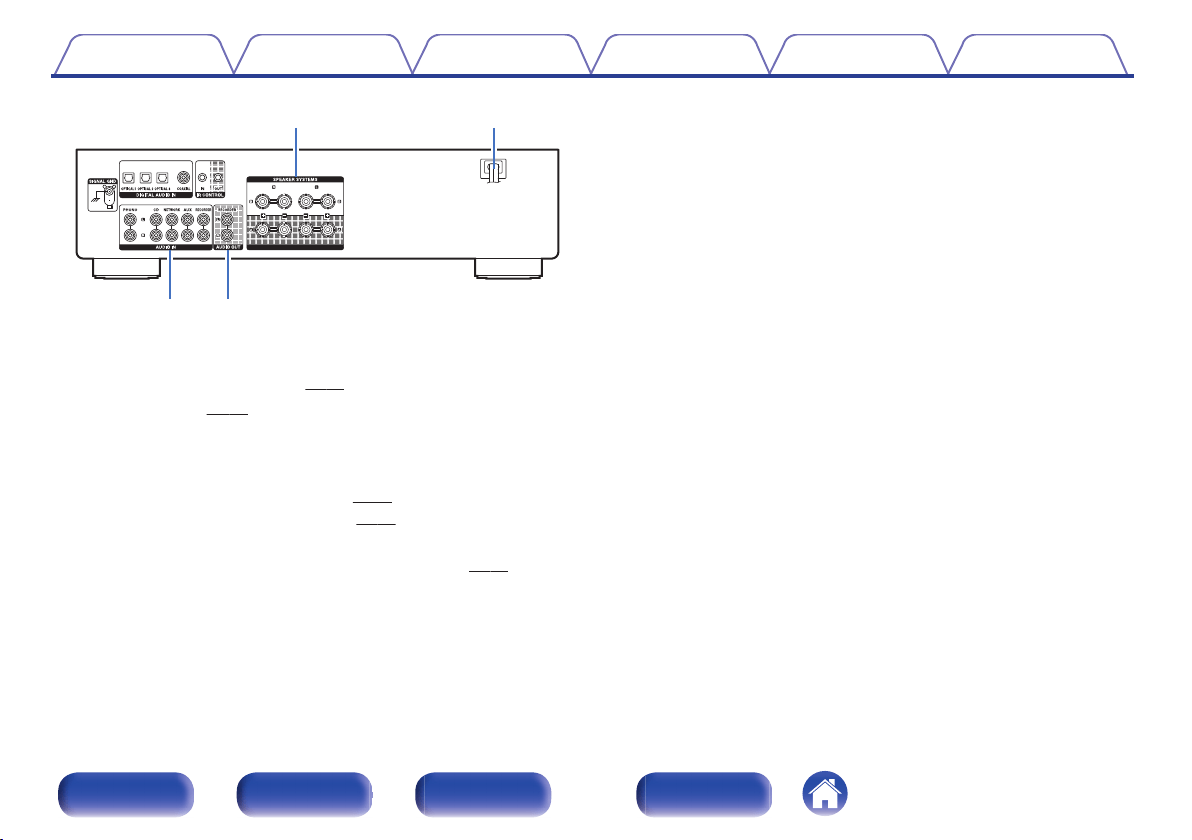

Rear panel
.
y u
er tqw
A
SIGNAL GND terminal
Used to connect the ground wire of a turntable.
(v p. 20)
B
DIGITAL AUDIO IN connectors
Used to connect devices equipped with digital audio output connectors.
(v p. 22)
C
IR CONTROL connectors
Used to connect Denon network audio players with an IR controller.
Contents Connections Playback Settings Tips Appendix
10
Front panel Rear panel
Remote control
unit
Index
.
y u
r t
D
Speaker terminals (SPEAKER SYSTEMS)
Used to connect speakers. (v p. 17)
E
Power cord (v p. 23)
F
AUDIO IN connectors
Used to connect devices equipped with analog audio output
connectors.
0
“Connecting a playback device” (v
p. 20)
0
“Connecting a recording device” (v p. 21)
G
AUDIO OUT connectors
Used to connect the input connector of a recorder. (v
p. 21)
Contents
Connections Playback Settings Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index

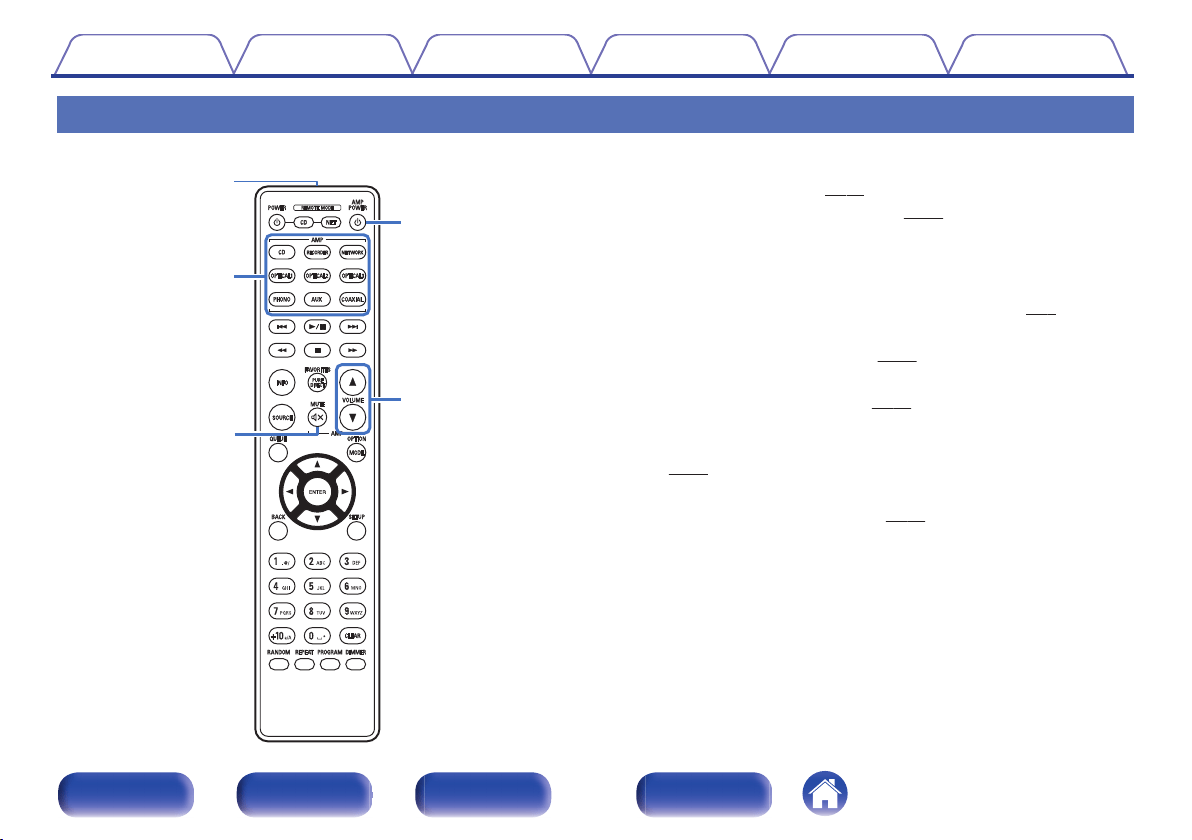

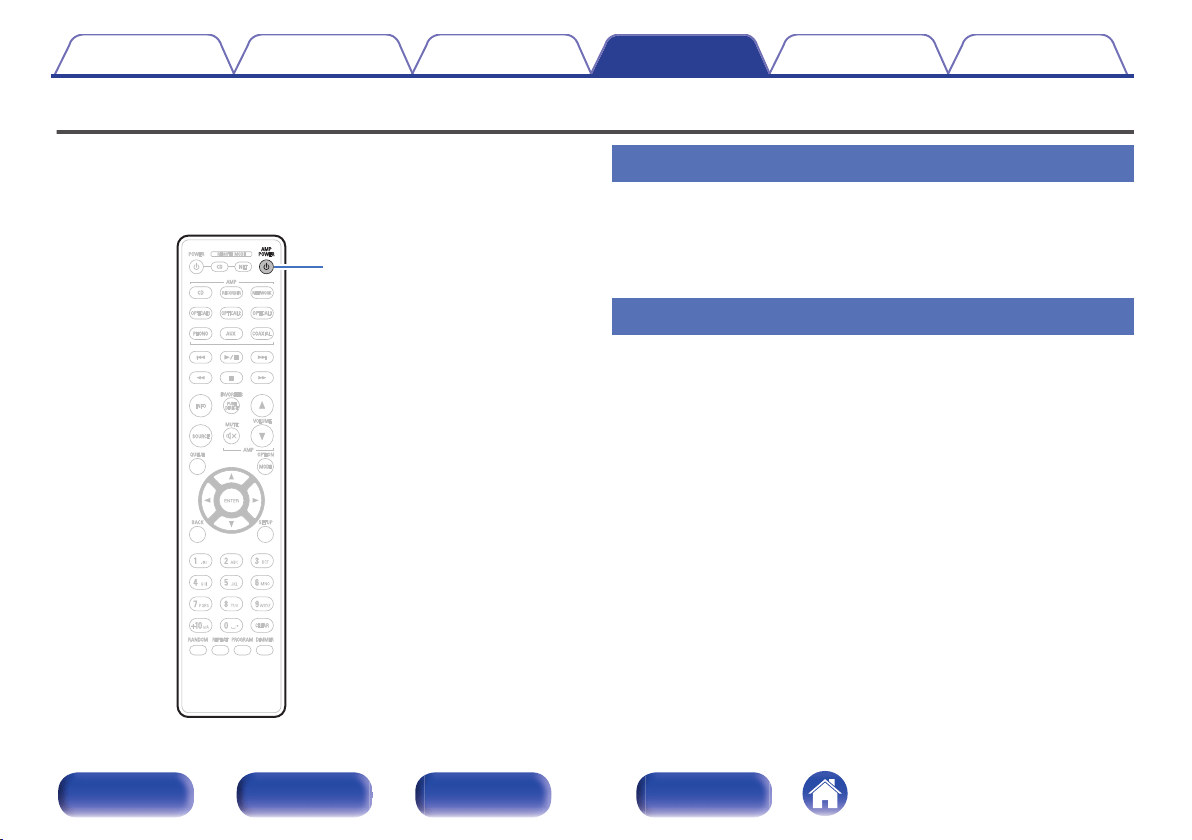

Remote control unit
.
w
e
r
t
q
The included remote control can be used to operate not only this unit but
other Denon CD players and network audio players too.
0
“CD player operations” (v p. 13)
0
“Network audio player operations” (v
p. 14)
o
Operating this unit
A
Remote control signal transmitter
This transmits signals from the remote control unit. (v
p. 5)
B
Input source select buttons
This selects the input source. (v p. 26)
C
MUTE button (:)
This mutes the output audio. (v
p. 27)
D
Power operation button (AMP POWER X)
This turns the power on/off (standby).
(v
p. 25)
E
VOLUME buttons (df)
These adjust the volume level. (v
p. 26)
Contents Connections Playback Settings Tips Appendix
12
Front panel Rear panel
Remote control
unit
Index
w
e
q
r
t
i
o
Q0
y
u
Q4
Q2
Q5
Q6
Q3
Q1
o

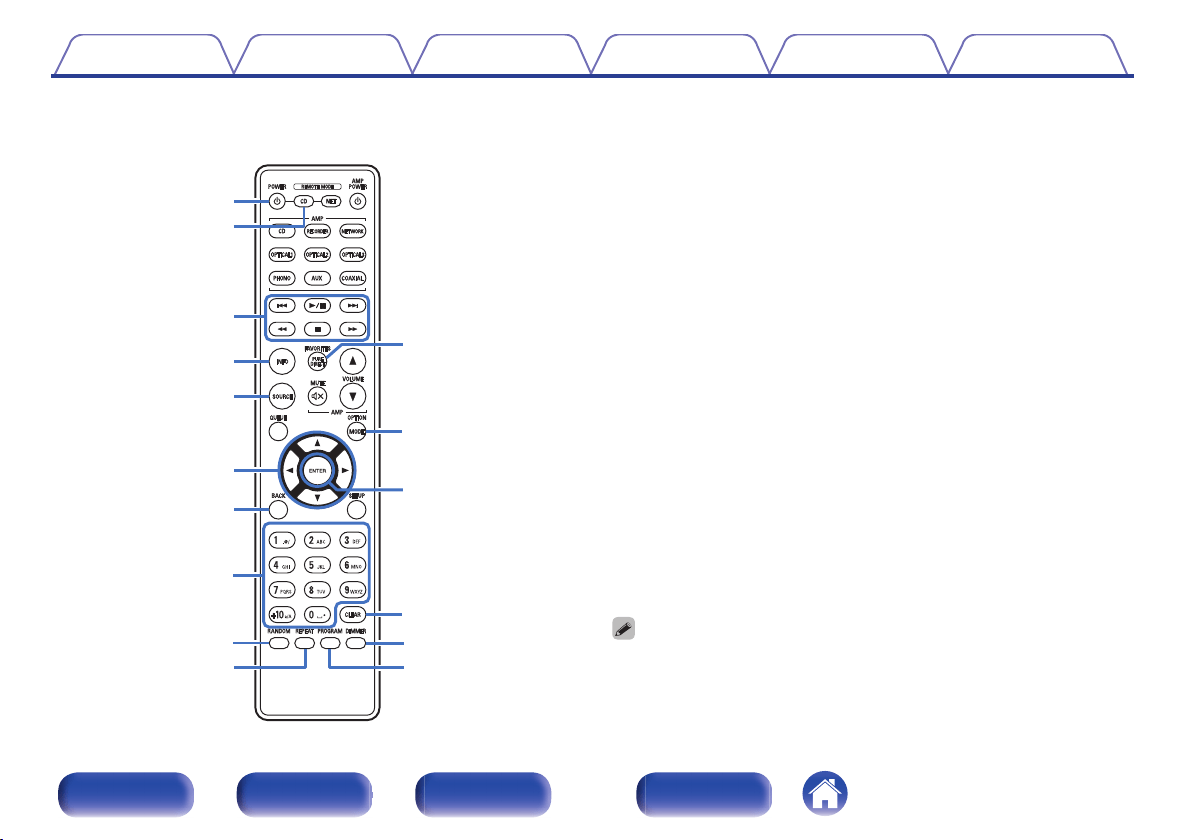

CD player operations
A Denon CD player can be operated.
To operate a CD player, press the REMOTE MODE CD button to
switch the remote control to the CD player operation mode.
A
Power operation button (POWER X)
B
Remote mode select button
(REMOTE MODE CD)
C
System buttons
D
Information button (INFO)
E
SOURCE button
F
Cursor buttons (uio p)
G
BACK button
H
Number/letter buttons (0 – 9, +10)
I
RANDOM button
J
REPEAT button
K
PURE DIRECT button
L
MODE button
M
ENTER button
N
CLEAR button
O
DIMMER button
P
PROGRAM button
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index
o
Q0
w
e
q
t
y
r
u
i
o
Network audio player operations
You can operate a Denon network audio player.
To operate a network audio player, press the REMOTE MODE NET
button to switch the remote control to the network audio player
operation mode.
A
Power operation button (POWER X)
B
Remote mode select button
(REMOTE MODE NET)
C
System buttons
D
Information button (INFO)
E
SOURCE button
F
QUEUE button
G
BACK button
H
Number/letter buttons (0 – 9, +10)
I
RANDOM button
J
REPEAT button
Contents Connections Playback Settings Tips Appendix
14
Front panel Rear panel
Remote control
unit
Index
o
Contents
Connecting speakers 17
Connecting a playback device 20
Connecting a recording device 21
Connecting to a device with digital audio output connectors 22
Connecting the power cord 23
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o

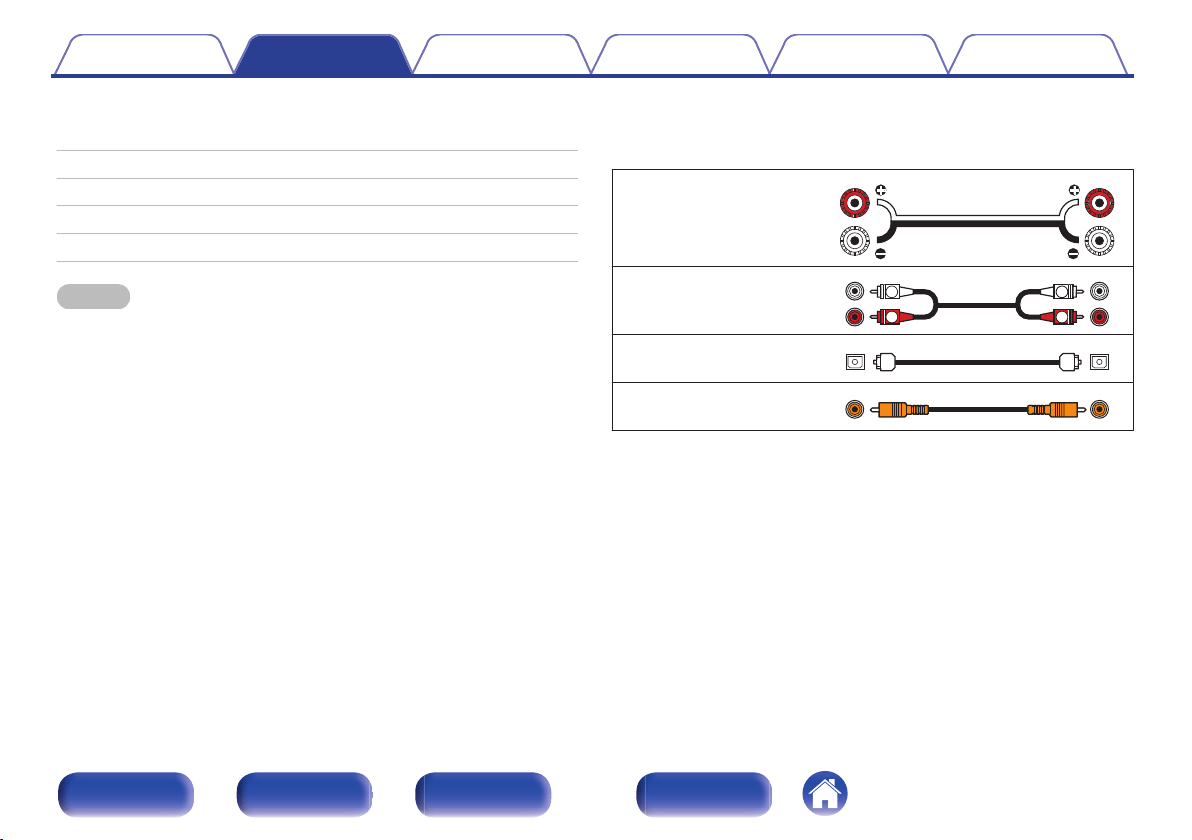

Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Audio cable
.
R
L
R
L
Optical cable
.
Coaxial digital cable
.
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel
Remote control
unit
Index
Connecting speakers
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v
p. 41))
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0
Use speakers with impedances within the ranges shown below to suit how they
are used.
Speaker terminals
used on this unit
No. of connected
speakers
Speaker
Impedance
SPEAKER
SYSTEMS A
(Standard
connection)
2 (one set) 4 – 16 Ω/ohms
SPEAKER
SYSTEMS B
2 (one set) 4 – 16 Ω/ohms
SPEAKER SYSTEMS
A and B
4 (two sets) 8 – 16 Ω/ohms
SPEAKER SYSTEMS
A and B
(Bi-wiring
connection)
2 (one set) 4 – 16 Ω/ohms
o
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then either twist the core wire
tightly or terminate it.
.
2
Turn the speaker terminal counterclockwise to loosen it.
.
3
Insert the speaker cable’s core wire to all the way into
the speaker terminal.
.
4
Turn the speaker terminal clockwise to tighten it.
.
Contents
Connections Playback Settings Tips Appendix
17
Front panel Rear panel
Remote control
unit
Index
Speaker connection
This unit is equipped with two sets of speaker terminals (SPEAKER SYSTEMS A and B). One set of speakers can be connected to each set of terminals,
and a total of two sets of speakers can be connected.
The same signal is output from the SPEAKER SYSTEMS A and B terminals.
When only one set of speakers is to be connected, use either the SPEAKER SYSTEMS A or B terminals.
.
wqwq
(R) (L)
wqwq
(R) (L)
SPEAKER
SYSTEMS A
SPEAKER
SYSTEMS B
0
You can use the SPEAKERS A and SPEAKERS B buttons on this unit to set which speaker terminals are to be used to output audio. Set according to the speakers connected
to this unit. (v p. 26)
Contents Connections Playback Settings Tips Appendix
18
Front panel Rear panel
Remote control
unit
Index
Bi-wiring connection
This connection limits the effects of signal interference between the high range speakers (tweeters) and low range speakers (woofers), allowing you to
enjoy high quality playback.
When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SPEAKER SYSTEMS A (or B), the low range terminals to
SPEAKER SYSTEMS B (or A).
.
wq
wq
HIGH
LOW
wq
w
HIGH
LOW
q
Speaker
(R)
Speaker
(L)
Remove shorting bar
Remove shorting bar
Remove shorting barRemove shorting bar
0
When using bi-wiring connections, switch both the SPEAKERS A and SPEAKERS B buttons on this unit “ON (Z)” to output audio from both SPEAKER SYSTEMS A and
SPEAKER SYSTEMS B speaker terminals. (v p. 26)
Contents Connections Playback Settings Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index

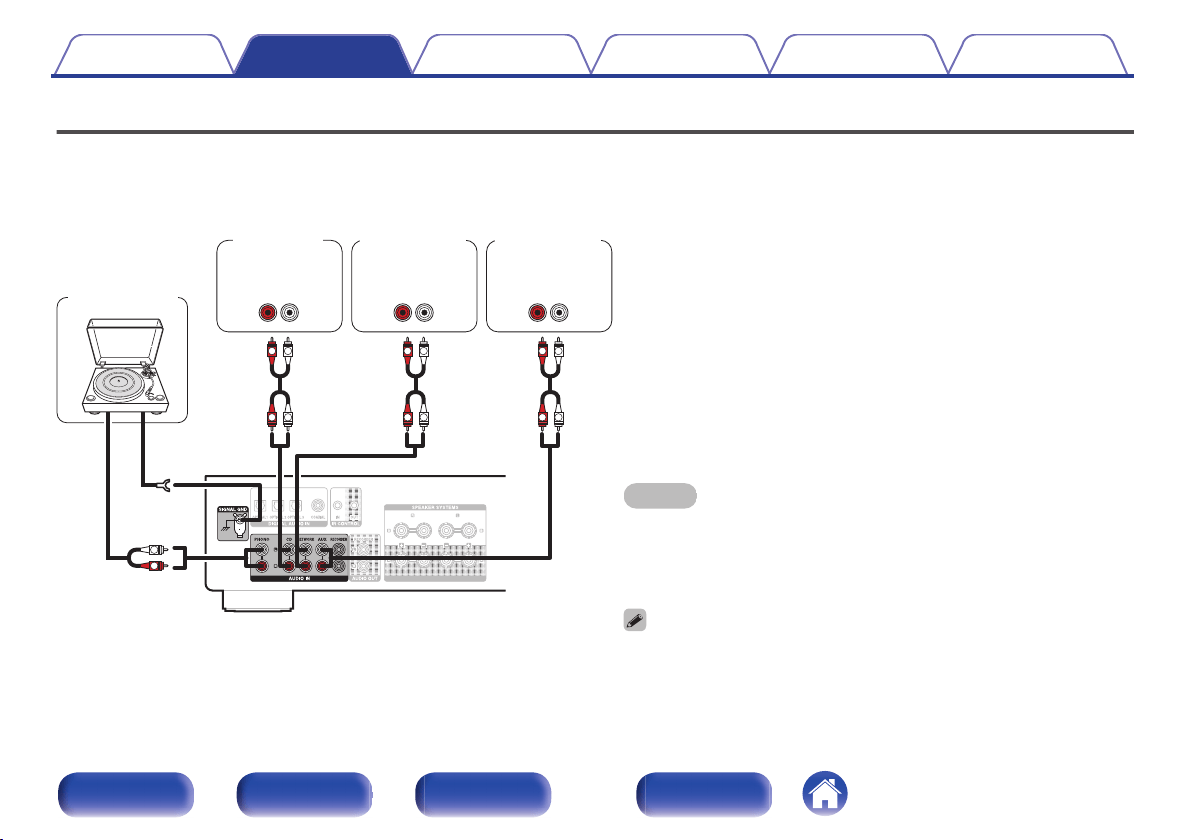

Connecting a playback device
You can connect turntables, CD players, network audio players and Blu-ray Disc players to this unit.
If you set this unit’s input source to “PHONO” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise
from the speakers.
NOTE
0
The earth terminal (SIGNAL GND) of this unit is not for safety grounding
purposes. If this terminal is connected when there is a lot of noise, the noise can
be reduced. Note that depending on the turntable, connecting the ground line
may have the reverse effect of increasing noise. In this case, it is not necessary
to connect the ground line.
0
The PHONO input terminals are equipped with a short pin-plug. Remove this
plug to connect a record player. Store the removed short pin-plug in a safe place
so as not to lose it.
GND
AUDIO
OUT
L
R
AUDIO
OUT
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
L
L
R
R
L
L
R
R
L
L
R
R
Turntable
CD player
Network audio
player
Blu-ray Disc
player

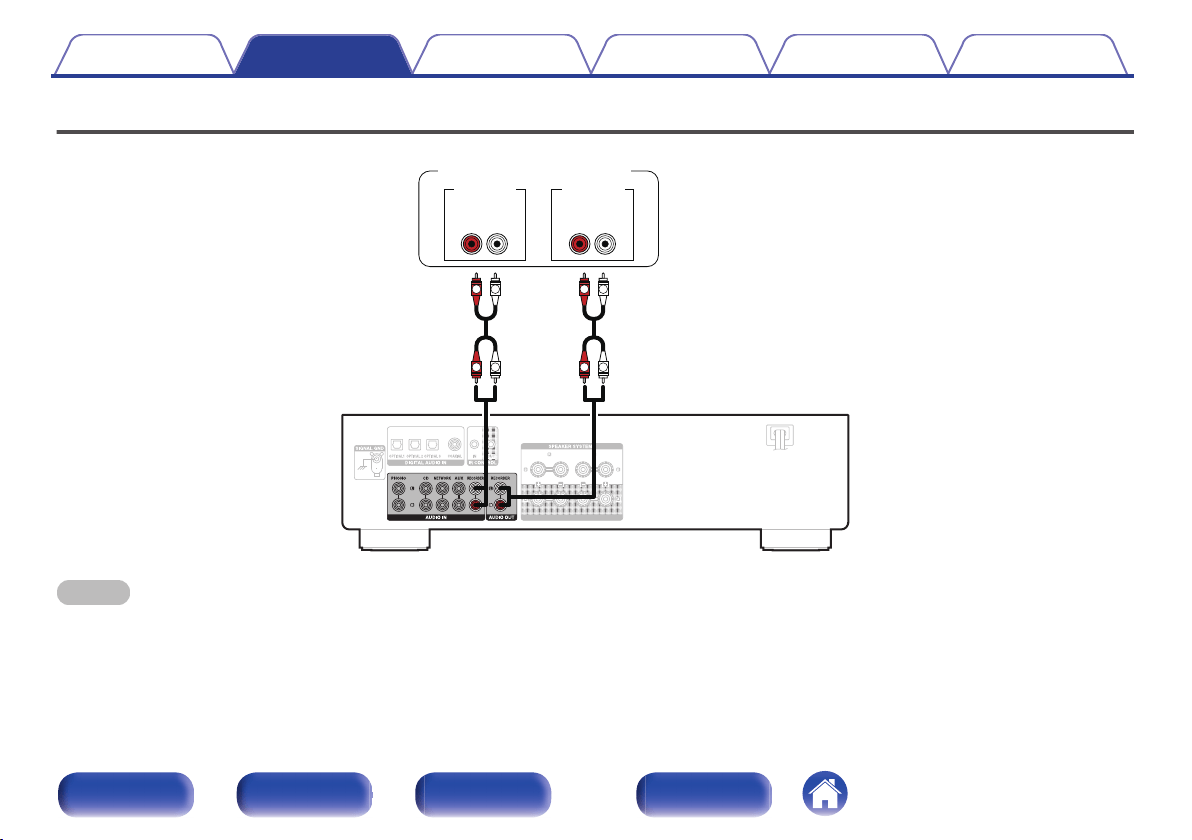

Contents Connections Playback Settings Tips Appendix
20
Front panel Rear panel
Remote control
unit
Index

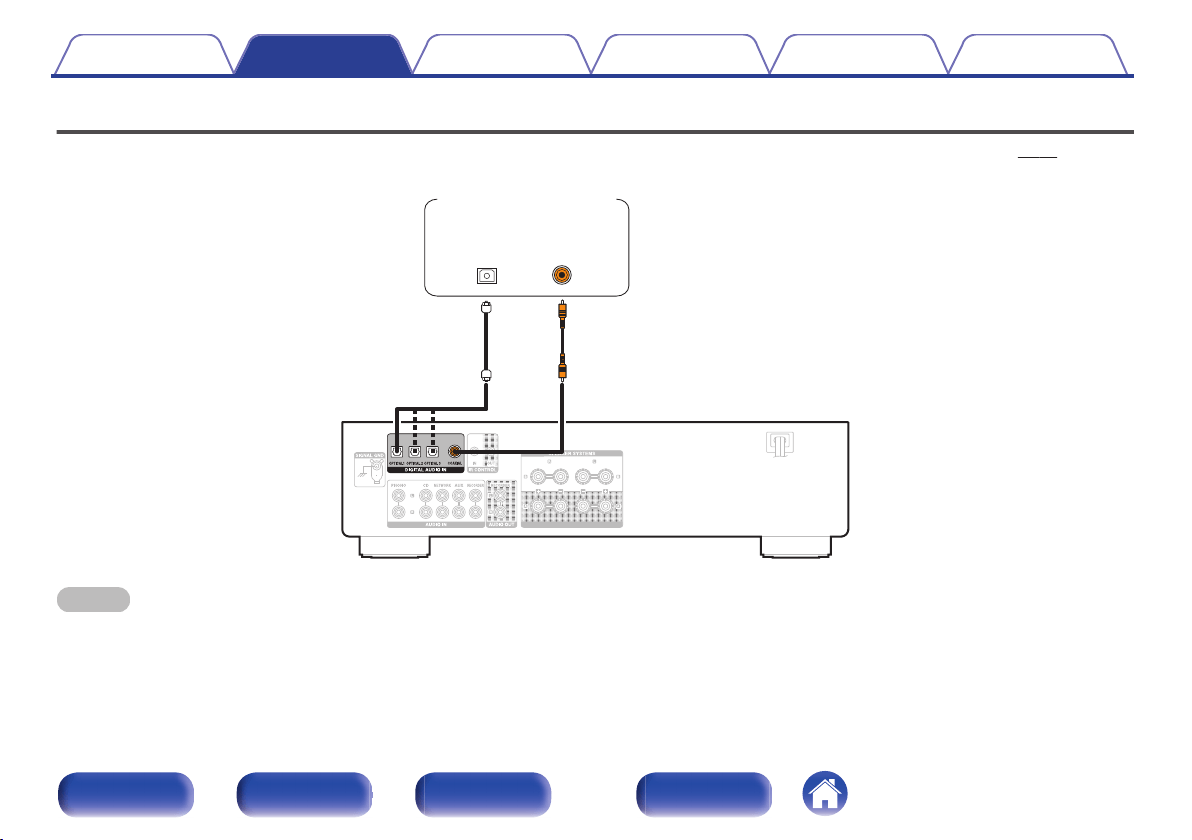

Connecting to a device with digital audio output connectors
Use this connection to input digital audio signals to this unit, and convert the signals for playback using the D/A converter of this unit. (v p. 29)
.
OPTICAL
OUT
COAXIAL
OUT
CD player /
Satellite receiver etc.
NOTE
0
Linear PCM signals with a sampling frequency of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, or 192 kHz can be input into this device.
0
Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes noise and could damage the speakers.
Contents Connections Playback Settings Tips Appendix
22
Front panel Rear panel
Remote control
unit
Index
o
Contents
Turning the power on 25
Switching the power to standby 25
Selecting the speakers for audio output 26
Selecting the input source 26
Adjusting the volume 26
Turning off the sound temporarily (Muting) 27
Adjusting the tone 27
Playing CDs 27
Connecting and playing back from a digital device (Coaxial/
Optical) 29
Recording 30
Contents Connections Playback Settings Tips Appendix
24
Front panel Rear panel
Remote control
unit
Index
.
ANALOG
MODE
BALANCE CARTRIDGE
SPEAKERS A/B
INPUT
SELECTOR
VOLUME
BASS
X
SOURCE
DIRECT
TREBLE
AMP POWER
X
MUTE
VOLUME
df

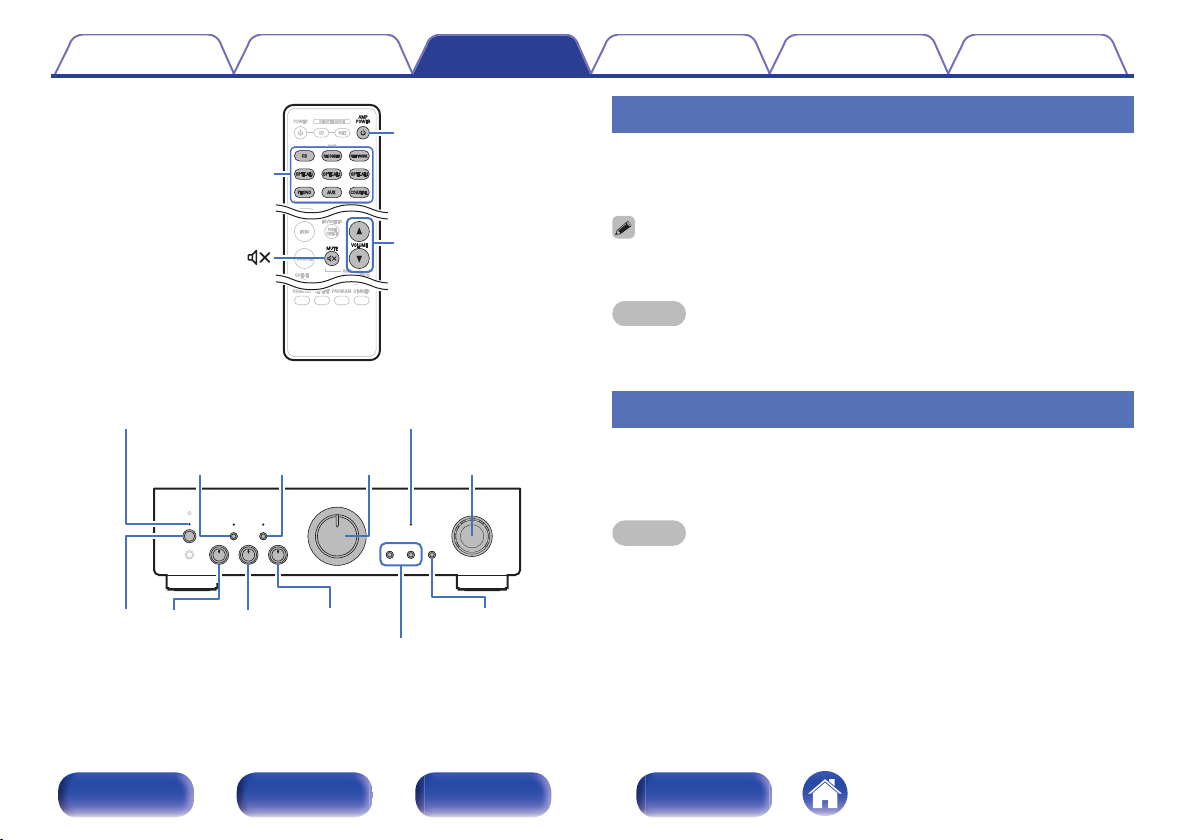

Input source select
buttons
Power indicator
DIGITAL IN
indicator
Turning the power on
1
Press X on the main unit to turn the power on.
The power indicator lights green.
0
Press AMP POWER X on the remote control unit to turn on power from standby
mode.
NOTE
0
Turn VOLUME on the main unit to adjust the volume to the lowest level before
turning on the power.
Switching the power to standby
1
Press AMP POWER X.
The unit switches to standby mode.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, either press X on the main unit to turn off the power, or unplug the power
cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
25
Front panel Rear panel
Remote control
unit
Index
Selecting the speakers for audio output
1
Use SPEAKERS A/B on the main unit to select the
speaker system to be used for playback.
0
If either SPEAKERS A or SPEAKERS B is “ON (Z)”, audio is output from the
associated speaker terminals.
0
If both SPEAKERS A and SPEAKERS B are “ON (Z)”, audio is output from both
of the speaker terminals. When using bi-wiring connections, turn both SPEAKERS
A and SPEAKERS B “ON (Z)”.
0
If both SPEAKERS A and SPEAKERS B are “OFF (Y)”, no audio is output from
the speaker terminals. Turn SPEAKERS A and SPEAKERS B “OFF (Y)” when
using headphones.
Selecting the input source
1
Press the input source select button to be played back.
The indicator of the selected input source lights.
0
You can also select the input source by turning INPUT SELECTOR on the main
unit.
Adjusting the volume
1
Use VOLUME df to adjust the volume.
0
You can also adjust the volume by turning VOLUME on the main unit.
Contents Connections Playback Settings Tips Appendix
26
Front panel Rear panel
Remote control
unit
Index
Turning off the sound temporarily
(Muting)
1
Press MUTE :.
The power indicator flashes green.
0
To cancel mute, press MUTE : again.
Adjusting the tone
1
Press SOURCE DIRECT on the main unit to turn off
source direct mode.
The SOURCE DIRECT indicator turns off.
2
Turn the BASS, TREBLE and BALANCE to adjust the
tone.
Playing CDs
This section uses playback from a CD as an example.
1
Press the input source select button (CD) to switch the
input source to “CD”.
The “CD” input indicator lights.
2
Playback the CD.
3
Use VOLUME df to adjust the volume.
Contents Connections Playback Settings Tips Appendix
27
Front panel Rear panel
Remote control
unit
Index
o
Playback in source direct mode
The signal does not pass through the tone adjustment circuitry (BASS,
TREBLE and BALANCE), resulting in playback of a higher sound
quality.
1
Press SOURCE DIRECT on the main unit to turn on
source direct mode.
The SOURCE DIRECT indicator lights.
o
Playback in analog mode
If analog mode is turned on when playing back an analog input source
(PHONO, CD, NETWORK, AUX, RECORDER), power to the digital
input circuit is turned off. This prevents the analog signal circuit from
being affected by noise generated by the digital control circuit,
resulting in high quality audio playback.
1
Press ANALOG MODE on the main unit to turn analog
mode on.
ANALOG MODE indicator lights.
0
Analog mode switches on or off each time the button is pressed.
Analog mode on: Turns the digital input circuit power off.
Analog mode off: Analog mode is not used.
0
A digital input source (COAXIAL, OPTICAL 1/2/3) cannot be selected when analog
mode is on.
0
The input source automatically switches to “CD” if analog mode is turned on during
playback of a digital input source (COAXIAL, OPTICAL 1/2/3).
0
When the analog mode is switched, the mute circuit is activated for about 5
seconds.
Contents Connections Playback Settings Tips Appendix
28
Front panel Rear panel
Remote control
unit
Index
Connecting and playing back from a
digital device (Coaxial/Optical)
1
Connect digital device to this unit. (v p. 22)
2
Press the input source select button (COAXIAL,
OPTICAL 1, OPTICAL 2 or OPTICAL 3) to switch the
input source to “COAXIAL”, “OPTICAL 1”, “OPTICAL 2”
or “OPTICAL 3”.
The indicator of the selected input source lights.
3
Start playback of the digital device connected to this
unit.
DIGITAL AUDIO IN indicator lights.
0
The DIGITAL AUDIO IN indicator blinks when audio signals that are not
supported by this unit are input.
0
If the sampling frequency cannot be detected, the DIGITAL AUDIO IN
indicator turns off.
o
Audio signals that can be played back
See “D/A converter” (v p. 40).
NOTE
0
Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes
noise and could damage the speakers.
0
If the sampling frequency switches, the sound may cut for 1 - 2 seconds.
Contents
Connections Playback Settings Tips Appendix
29
Front panel Rear panel
Remote control
unit
Index
Recording
Audio signals input into this unit can be output to an external recording
device. When recording audio from a playback device connected to this
unit, audio can be recorded with the playback device still connected to this
unit.
1
Press X on the main unit to turn the power on.
2
Press the input source select button to switch to the
input source from which you want to record.
The indicator of the selected input source lights.
3
Recording starts.
0
For information on operations, see the owner’s manual of the
recording device.
Contents Connections Playback Settings Tips Appendix
30
Front panel Rear panel
Remote control
unit
Index
Setting the Auto Standby mode
You can set the unit to automatically switch to standby mode if the unit is
not operated for 30 minutes when there is no audio input (Auto Standby
mode).
Auto Standby mode is set to off by default.
.
AMP POWER
X
Turning Auto Standby mode on
1
Press and hold AMP POWER X for more than 5
seconds to turn the Auto Standby mode on.
The power indicator flashes green three times.
Turning Auto Standby mode off
1
Press and hold AMP POWER X for more than 5
seconds to turn the Auto Standby mode off.
The power indicator flashes green once.
Contents Connections Playback Settings Tips Appendix
31
Front panel Rear panel
Remote control
unit
Index
o
Contents
Tips
I want to adjust the tone myself 33
I want sound playback that is faithful to the original sound 33
I want to enjoy higher sound quality from the analog input source 33
I want to use bi-wiring compatible speakers 33
Troubleshooting
Power does not turn on / Power is turned off 35
Operations cannot be performed through the remote control unit 36
No sound comes out 37
Desired sound does not come out 37
Sound is interrupted or noise occurs 38
Audio from digital devices cannot be played back (Coaxial/Optical) 39
Contents Connections Playback Settings Tips Appendix
32
Front panel Rear panel
Remote control
unit
Index
Tips
I want to adjust the tone myself
0
Use the BASS, TREBLE and BALANCE knobs to adjust the sound as desired. (v p. 27)
I want sound playback that is faithful to the original sound
0
Set the source direct mode on. (v p. 28)
I want to enjoy higher sound quality from the analog input source
0
Set the analog mode on. (v p. 28)
I want to use bi-wiring compatible speakers
0
This unit is compatible with bi-wiring connections. Enjoy high quality playback by using bi-wiring connections.
(v p. 19)
Contents
Connections Playback Settings Tips Appendix
33
Front panel Rear panel
Remote control
unit
Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
34
Front panel Rear panel
Remote control
unit
Index
Power does not turn on / Power is turned off
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. (v
p. 23)
Power automatically turns off.
0
The Auto Standby mode setting is on. The Auto Standby mode switches the unit to standby mode when there is no audio input and the unit is not
operated for approximately 30 minutes. Press and hold the AMP POWER X button for more than 5 seconds when in Auto Standby mode to cancel Auto
Standby mode. (v
p. 31)
Power turns off and the power indicator flashes in red approx. every 0.5 seconds.
0
The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down
sufficiently, and then turn the power on again. (v
p. 41)
0
Please re-install this unit in a place having good ventilation.
Power turns off and the power indicator flashes in red approx. every 0.25 seconds.
0
Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a
core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective
action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire. (v p. 17)
0
Turn down the volume and turn on the power again. (v
p. 25)
When the power is turned on, the power indicator flashes in red approx. every 0.25 seconds.
0
This unit’s amplifier circuit has failed. Unplug the power cord and contact our customer service center.
Contents
Connections Playback Settings Tips Appendix
35
Front panel Rear panel
Remote control
unit
Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v
p. 5)
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 5)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 5)
0
The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
Contents Connections Playback Settings Tips Appendix
36
Front panel Rear panel
Remote control
unit
Index
No sound comes out
No sound comes out of speakers.
0
Check the connections for all devices. (v
p. 16)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (v p. 17)
0
Securely tighten the speaker terminals. Check speaker terminals for looseness. (v
p. 17)
0
Check that the proper input source is selected. (v p. 26)
0
The volume is set to the minimum level. Adjust the volume to a suitable level. (v p. 26)
0
Cancel the muting mode. (v p. 27)
0
Check the settings of the SPEAKERS A/B buttons. (v
p. 26)
Desired sound does not come out
No sound comes out of a specific speaker.
0
Check that speaker cables are properly connected. (v p. 17)
0
Adjust the BALANCE control knob. (v
p. 27)
The left and right of stereo sound is reversed.
0
Check whether the left and right speakers are connected to the correct speaker terminals. (v p. 17)
Contents
Connections Playback Settings Tips Appendix
37
Front panel Rear panel
Remote control
unit
Index
Sound is interrupted or noise occurs
When playing a record, the sound is distorted.
0
Adjust to a proper needle pressure.
0
Check the tip of the needle.
0
Replace the cartridge.
When playing a record, a humming noise comes out of the speakers.
0
Check that the turntable is connected correctly. (v p. 20)
0
If there is a TV or AV device near the turntable, such devices may affect the playback sound. Install the turntable in a location as far away as possible
from the TV or other AV devices.
When playing a record, a humming noise comes out of the speakers when the volume is high. (Howling phenomenon)
0
Install the turntable and speakers as far from each other as possible. (v p. 20)
0
The vibrations from the speakers are being transmitted to the player through the floor. Use cushions, etc., to absorb the speakers’ vibrations.
Contents
Connections Playback Settings Tips Appendix
38
Front panel Rear panel
Remote control
unit
Index
Audio from digital devices cannot be played back (Coaxial/Optical)
DIGITAL AUDIO IN indicator is off.
0
When digital audio signals cannot be detected properly, the DIGITAL AUDIO IN indicator is off. (v
p. 29)
DIGITAL AUDIO IN indicator is flashing.
0
The DIGITAL AUDIO IN indicator blinks when audio signals that are not supported by this unit are input. Check the audio output signal format from your
digital device. (v p. 29)
Contents Connections Playback Settings Tips Appendix
39
Front panel Rear panel
Remote control
unit
Index
D/A converter
o
Specifications of supported audio signals
n
Coaxial/Optical
Sampling frequency Bit length
Linear PCM
(2-channel)
32/44.1/48/88.2/96/
176.4/192 kHz
16/24 bits
Explanation of terms
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. This is the
same system used for CD audio but uses 192 kHz, 96 kHz, and 48 kHz
sampling frequencies on Blu-ray Disc or DVD and provides higher
resolution than CD.
Contents
Connections Playback Settings Tips Appendix
40
Front panel Rear panel
Remote control
unit
Index
Speaker impedance
This is an AC resistance value, indicated in Ω (ohms).
Greater power can be obtained when this value is smaller.
Source direct
Playback with higher fidelity to the source becomes possible, as input
audio signals are output by bypassing the audio quality-control circuits
(BASS/TREBLE/BALANCE).
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
Trademark information
.
Adobe, the Adobe logo and Reader are either registered trademarks or
trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
Contents Connections Playback Settings Tips Appendix
41
Front panel Rear panel
Remote control
unit
Index
Specifications
o
Power amplifier section
Rated Output Power: 2-channel driving (CD → SP OUT)
50 W + 50 W (8 Ω/ohms, 20 Hz - 20 kHz, T.H.D. 0.07 %)
85 W + 85 W (4 Ω/ohms, 1 kHz, T.H.D. 0.7 %)
Total harmonic distortion: 0.01 % (Rated output: –3 dB), 8 Ω/ohms, 1 kHz
Output terminals: Speaker A or B: 4 – 16 Ω/ohms
Speaker A + B: 8 – 16 Ω/ohms
Suited for headphones/stereo headphones
o
Pre amplifier section
Input Sensitivity/Input Impedance: PHONO (MM): 2.5 mV / 47 kΩ/kohms
PHONO (MC): 200 μV / 100 Ω/ohms
CD, NETWORK, AUX, RECORDER:
105 mV / 40 kΩ/kohms (SOURCE DIRECT: Off)
105 mV / 17 kΩ/kohms (SOURCE DIRECT: On)
RIAA Deviation: PHONO: 20 Hz – 20 kHz ±0.5 dB
Maximum Input: PHONO (MM): 70 mV / 1 kHz
PHONO (MC): 6 mV / 1 kHz
Contents Connections Playback Settings Tips Appendix
42
Front panel Rear panel
Remote control
unit
Index
o
Overall performance
SN Ratio (A network): PHONO (MM): 86 dB
(With input terminals short-circuited, 5 mV input signal)
PHONO (MC): 71 dB
(With input terminals short-circuited, 0.5 mV input signal)
CD, NETWORK, AUX, RECORDER: 105 dB (input terminals short-circuited)
Frequency response: 5 Hz – 100 kHz (0 – -3 dB)
Tone control: BASS: 100 Hz ±8 dB
TREBLE: 10 kHz ±8 dB
0
Digital input signal format
Format: Digital audio interface (Linear PCM)
Coaxial input: 0.5 Vp-p / 75 Ω/ohms
Optical input: More than -27 dBm
Optical wavelength: 660 nm
o
General
Power supply: AC 120 V, 60 Hz
Power consumption: 200 W
Power consumption in standby mode: 0.3 W
Operating temperature: +5 ℃ - +35 ℃
For the purpose of improvement, the specifications and design are subject to change without notice.

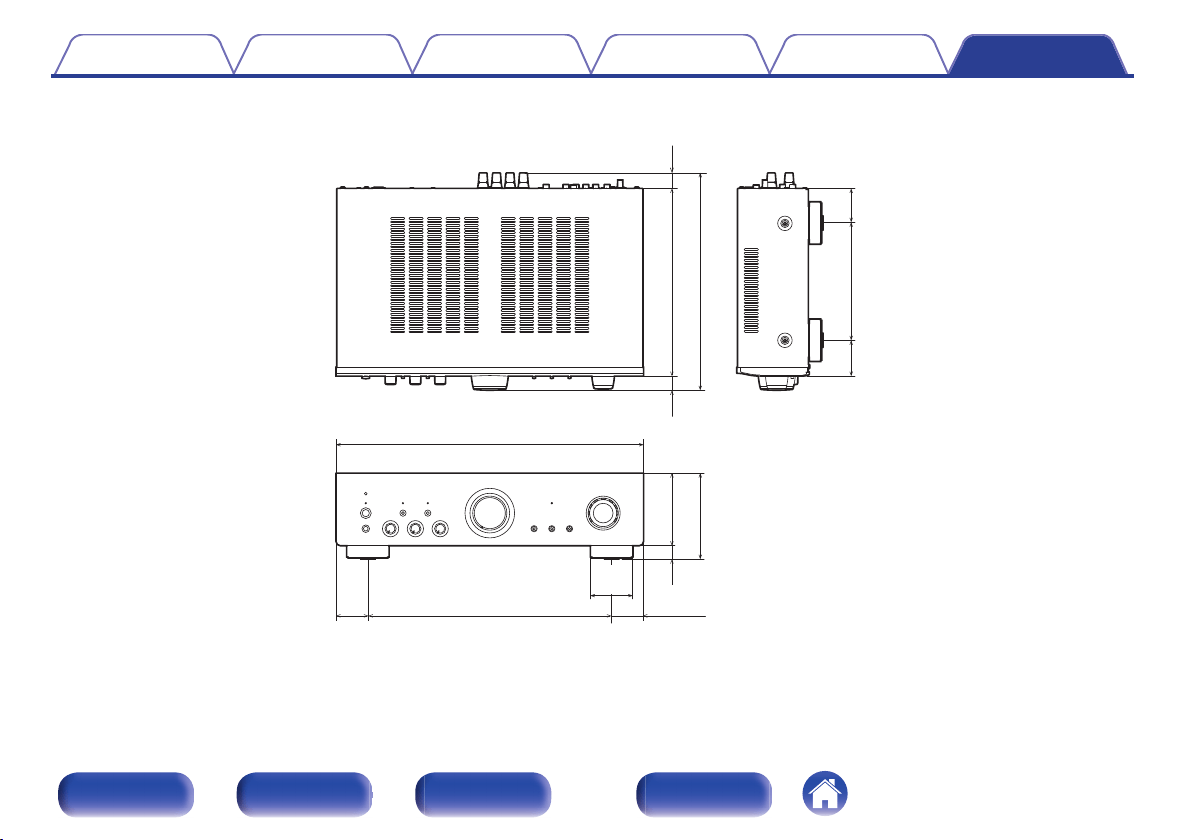

Contents
Connections Playback Settings Tips Appendix
43
Front panel Rear panel
Remote control
unit
Index
Index
v A
Auto Standby mode ........................................ 31
v B
BALANCE ...................................................... 27
BASS ............................................................. 27
Bi-wiring ......................................................... 19
Blu-ray Disc player ......................................... 20
v C
CD player ................................................. 20, 22
v D
D/A Converter ................................................ 40
v I
Input source ................................................... 26
v M
Muting ............................................................ 27
v N
Network audio player ..................................... 20
v P
Protection circuit ............................................ 41
v R
Recording device ........................................... 21
Remote control unit ........................................ 12
v S
Satellite receiver ............................................. 22
Source direct ............................................ 27, 41
Speaker impedance ....................................... 41
Speakers ........................................................ 17
v T
Tips ................................................................ 33
Tone ............................................................... 27
TREBLE ......................................................... 27
Troubleshooting ............................................. 34
Turntable ........................................................ 20
v V
Volume ........................................................... 26
Contents
Connections Playback Settings Tips Appendix
45
Front panel Rear panel
Remote control
unit
Index
.
www.denon.com
3520 10632 10AD
Copyright © 2018 D&M Holdings Inc. All Rights Reserved.
46
