Accessories
7
Inserting the batteries
8
Operating range of the remote control unit
8
Features
9
High quality sound
9
High performance
10
Part names and functions
12
Front panel
12
Rear panel
14
Remote control unit
17
Connections
Connecting speakers
22
Connecting the speaker cables
22
Connecting the subwoofer
23
Connecting speakers
23
Connecting a digital device
24
Connecting an analog device
25
Connecting a PC or Mac
26
Connecting a USB memory device to the USB port
27
Connecting an FM/AM antenna
28
Connecting to a home network (LAN)
30
Wired LAN
30
Wireless LAN
31
Connecting to the IR control connector
32
Connecting the power cord
33
Contents Connections Playback Settings Tips Appendix
2
Front panel Rear panel
Remote control
unit
Index
Playback
Basic operation
35
Turning the power on
35
Switching the power to standby
35
Selecting the input source
36
Adjusting the volume
36
Turning off the sound temporarily (Muting)
36
Listening to Internet Radio
37
Listening to Internet Radio
38
Playing back files stored on PC or NAS
39
Playing back files stored on PC or NAS
40
Playing a USB memory device
42
Playing files stored on USB memory devices
43
Listening to music on a Bluetooth device
45
Listening to music on a Bluetooth device
46
Pairing with other Bluetooth devices
47
Reconnecting to this unit from a Bluetooth device
48

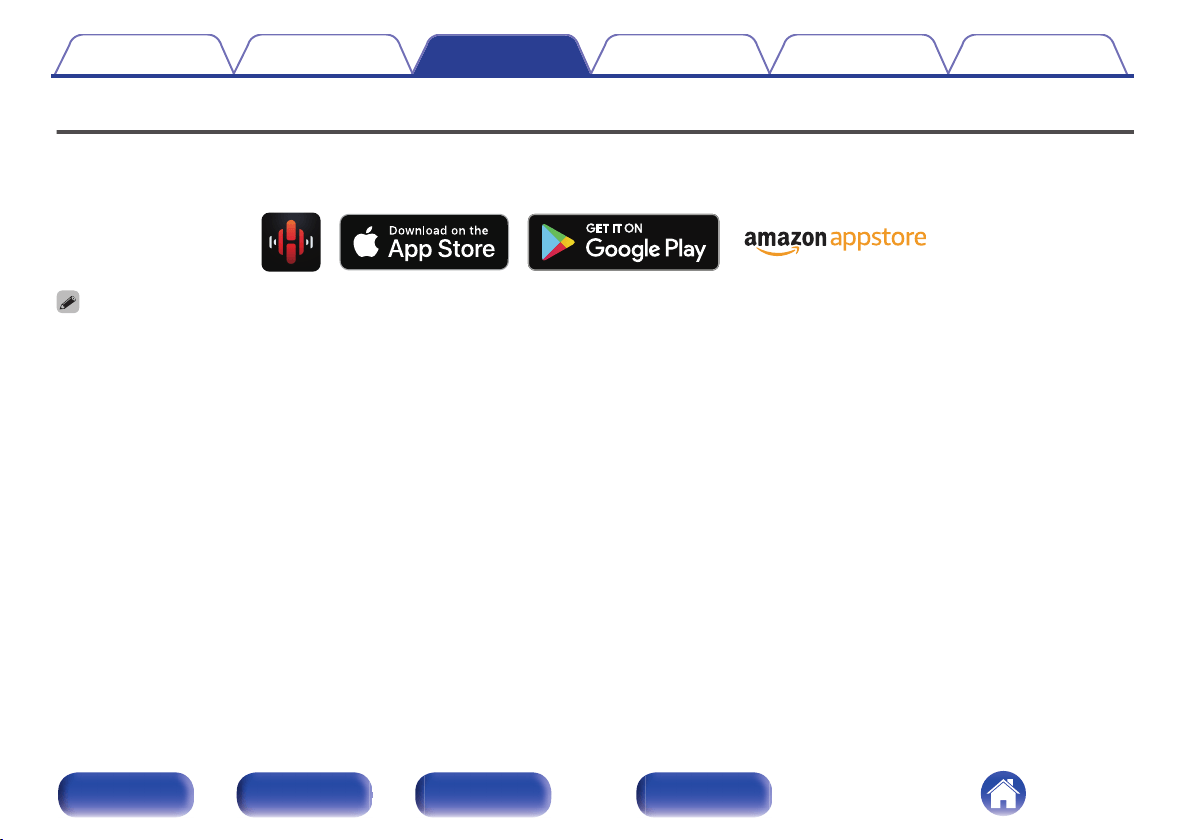

Getting the HEOS App
49
HEOS Account
50
Playing from streaming music services
51
Listening to the same music in multiple rooms
54
Listening to FM/AM broadcasts
58
Listening to FM/AM broadcasts
58
Changing the reception mode (Tune Mode)
59
Presetting FM/AM stations
59
Automatically presetting FM stations (Auto Preset)
60
Listening to stations registered in the preset list
60
Deleting a station from the preset list
61
Using as a D/A converter
62

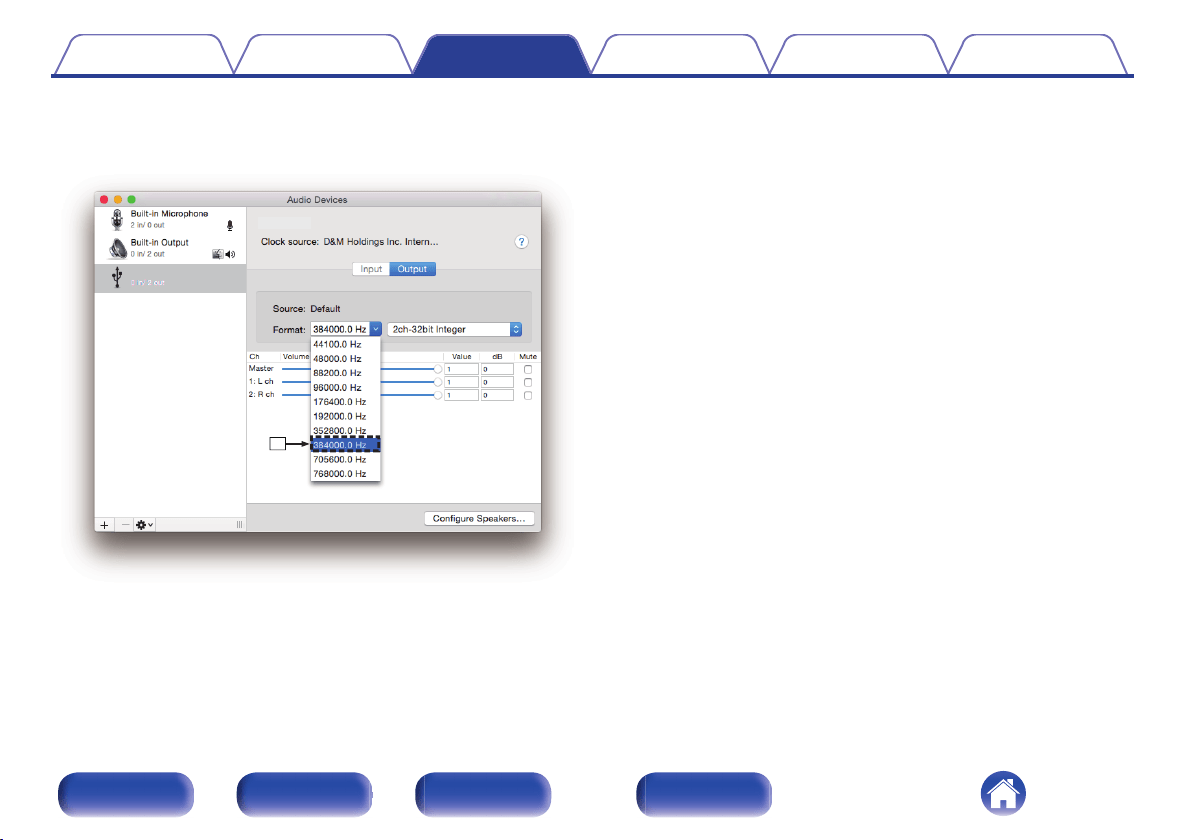

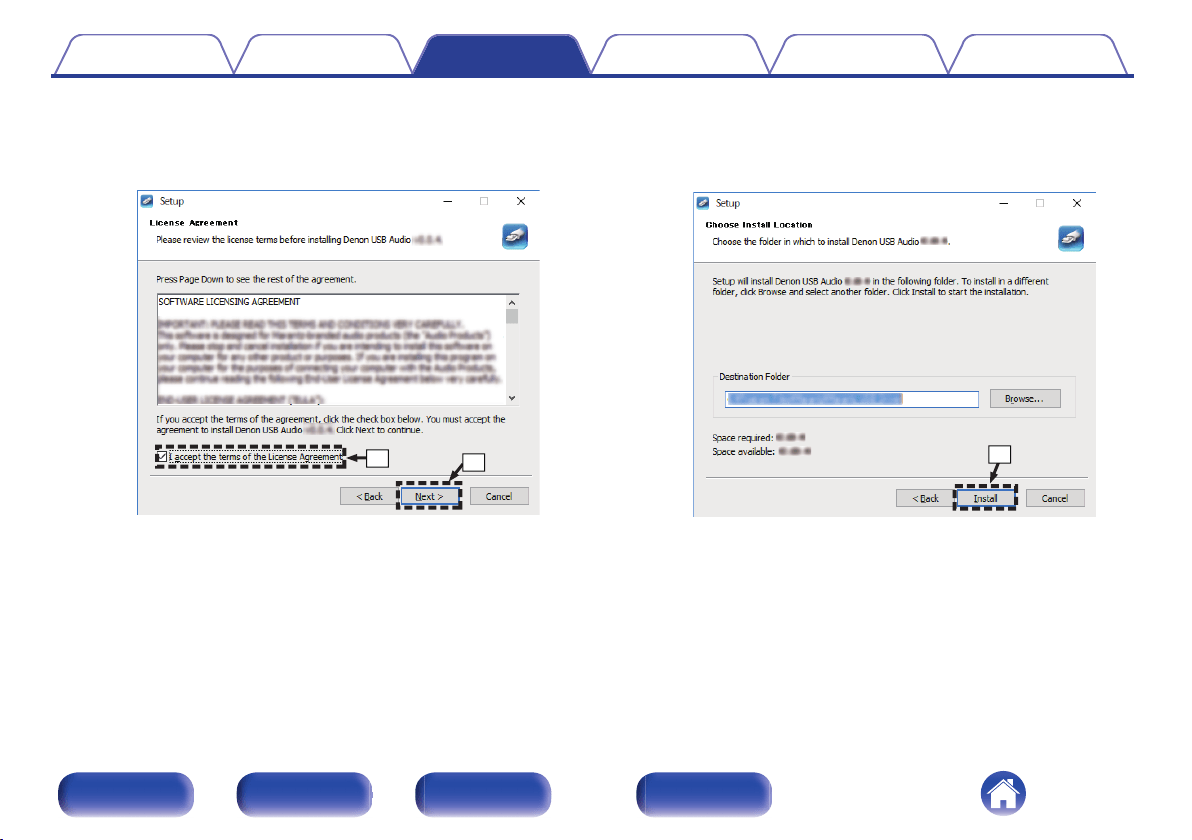

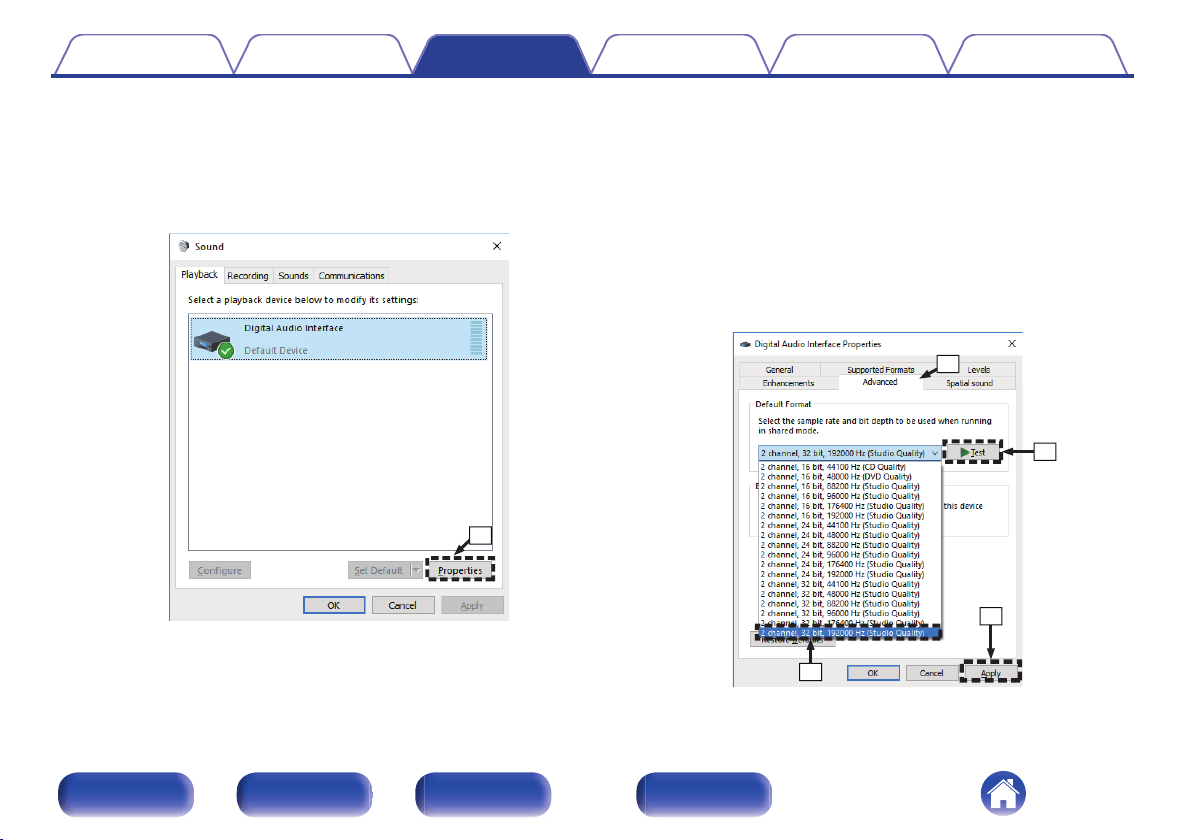

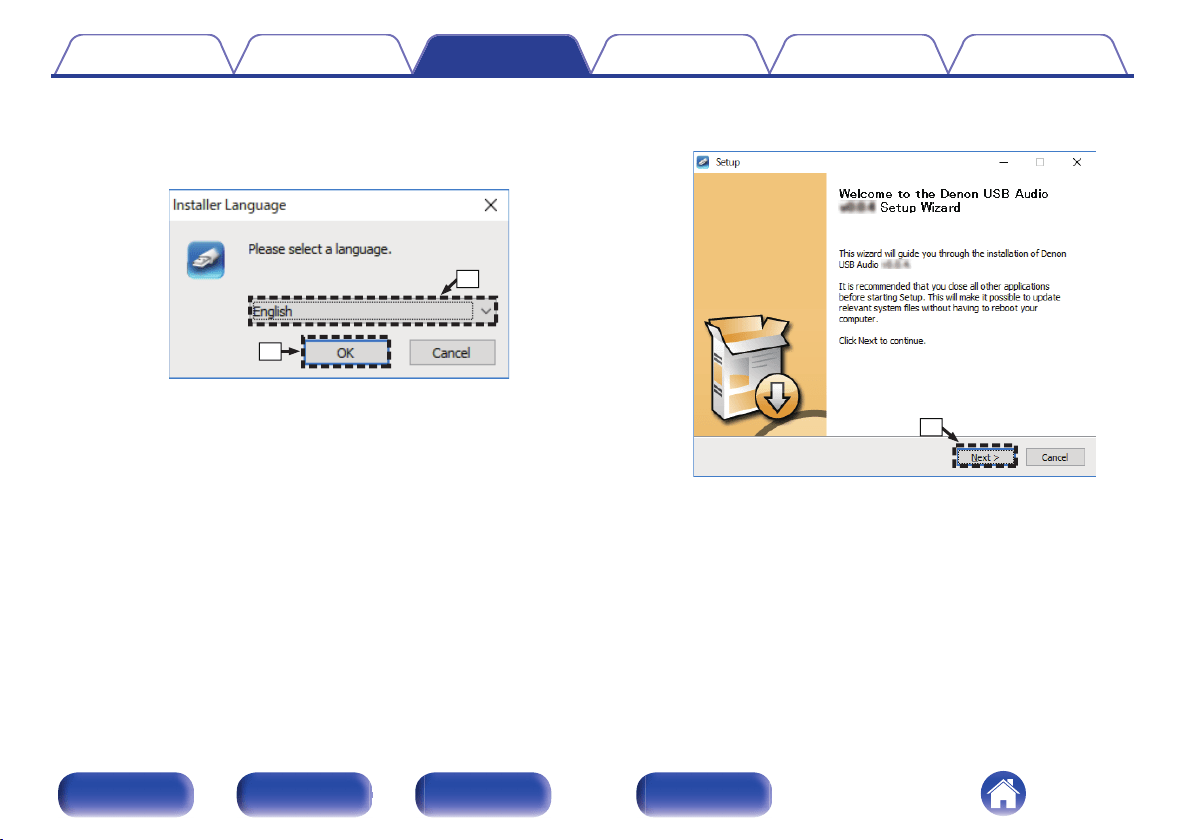

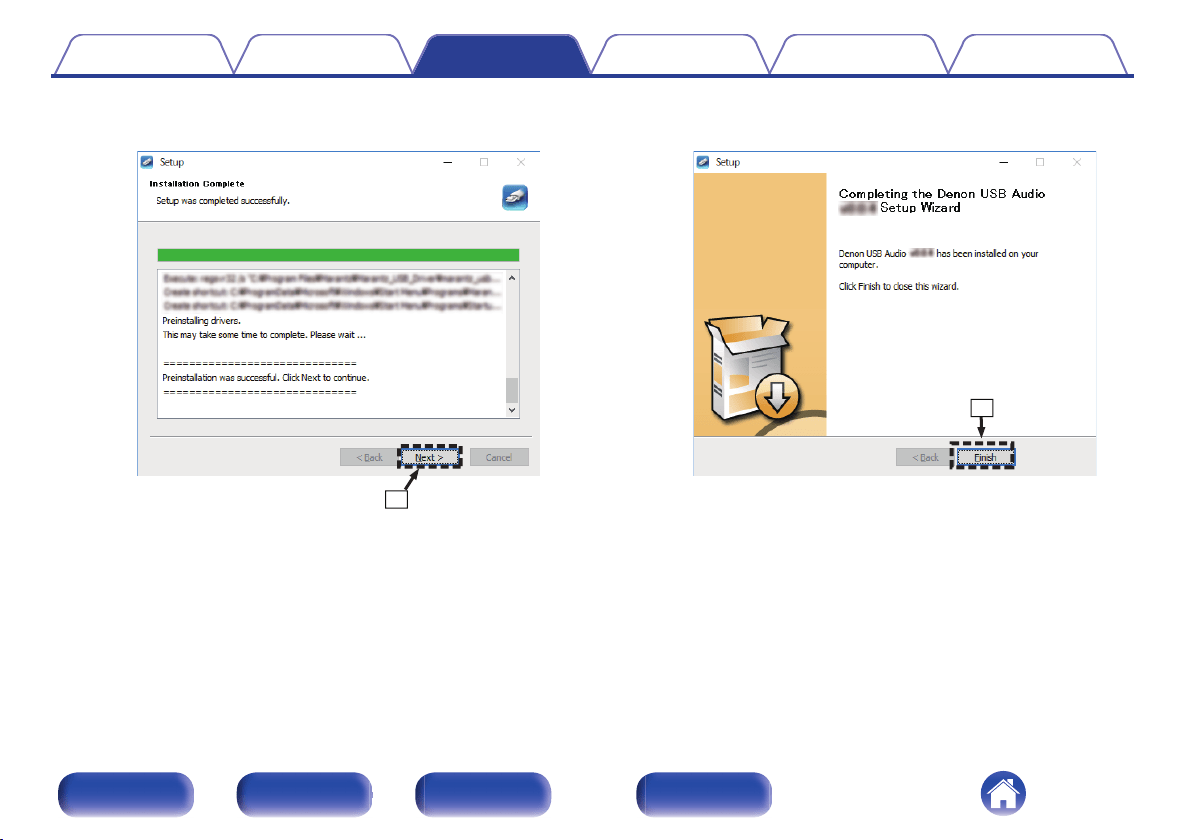

Connecting and playing back from a computer (USB-DAC)
63
Connect and playback from a digital device (Coaxial/Optical 1/
Optical 2)
72
Connect and play back from an analog device
74
Contents Connections Playback Settings Tips Appendix
3
Front panel Rear panel
Remote control
unit
Index
AirPlay function
75
Playing songs from your iPhone, iPod touch or iPad
76
Playing iTunes music with this unit
76
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2)
77
Spotify Connect function
78
Playing Spotify music with this unit
78
Convenience functions
79
Adding to HEOS Favorites
79
Playing back HEOS Favorites
80
Deleting a HEOS Favorites
80
Adjusting the tone
81
Switching the display’s brightness
82
Using the sleep timer
82
Settings
Menu map
83
Menu operation
88
Inputting characters
89
Using the number buttons
89
Using the cursor buttons
90
Audio
91
Volume Limit
91
H/P Amplifier Gain
91
General
92
TV Input
92
IR Control
93
Language
93
Auto-Standby
93
Usage Data
94
Firmware
94
Information
97
Reset
97
Contents Connections Playback Settings Tips Appendix
4
Front panel Rear panel
Remote control
unit
Index
Network
98
Network Information
98
Wi-Fi
98
Bluetooth
98
Network Control
99
Friendly Name
99
Connection
100
Settings
103
Diagnostics
104
HEOS Account
105
You have not signed in
105
You have already signed in
105
Tips
Tips
107
Troubleshooting
109
Power does not turn on / Power is turned off
110
LED is flashing
110
Operations cannot be performed through the remote control unit
111
No sound comes out
112
Sound is interrupted or noise occurs
113
Desired sound does not come out
114
AirPlay cannot be played back
115
USB memory devices cannot be played back
116
File names on the USB memory device are not displayed properly
117
Bluetooth cannot be played back
117
Contents Connections Playback Settings Tips Appendix
5
Front panel Rear panel
Remote control
unit
Index
The Internet radio cannot be played back
118
Music files on PC or NAS cannot be played back (Music server)
119
Various online services cannot be played
120
Cannot connect to a wireless LAN network
120
Music files on PC or Mac cannot be played back (USB-DAC)
121
Audio from digital devices cannot be played back (Coaxial/
Optical)
122
The input source switches to “Optical 1”, “Optical 2” or “Coaxial”
122
Update/upgrade error messages
123
Resetting network settings
124
Appendix
Playing back a USB memory devices
125
D/A converter
126
Playing back a Bluetooth device
127
Playing back files stored on a PC and NAS
128
Playing back Internet Radio
129
Last function memory
129
Explanation of terms
130
Trademark information
134
Specifications
135
Index
140
Contents Connections Playback Settings Tips Appendix
6
Front panel Rear panel
Remote control
unit
Index
Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide
Safety Instructions
Power cord
AM loop antenna
Remote control unit
(RC-1233)
IR control cable
R03/AAA batteries
FM indoor antenna
Warranty
(for North America model only)
Notes on radio
External antennas for
Bluetooth/wireless
connectivity
Contents Connections Playback Settings Tips Appendix
7
Front panel Rear panel
Remote control
unit
Index
Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3
Put the rear lid back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 23 ft/7 m
30°
Contents
Connections Playback Settings Tips Appendix
8
Front panel Rear panel
Remote control
unit
Index
Features
High quality sound
0
Equipped with a high-quality class D amplifier
The amplifier incorporates Qualcomm
®
DDFA
TM
technology. The
output stage circuit utilizes discrete BTL construction that realizes
higher S/N and lower distortion than conventional class D amplifiers.
Additionally, 70 W+70 W (4 Ω/ohms) output that is more powerful than
the size of the housing delivers the “delicate yet powerful sound” of
Denon’s ideal audio playback environment.
.
Qualcomm DDFA is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and
other countries. DDFA is a trademark of Qualcomm Technologies International, Ltd.,
registered in the United States and other countries.
0
High grade headphone circuit
The high-grade headphone circuit incorporates discrete output stage
construction for a high-quality listening experience, even when using
the headphones to listen to music late at night, etc.
0
High Bitrate and High Sampling with Advanced AL32 Processing
Plus
A high bitrate and high sampling has been achieved with Denon’s
unique data interpolation algorithm. 16 bit audio signals are converted
to a high bitrate of 32 bit and 44.1 kHz sampling signals are up-sampled
by 16x to achieve smoother recreation of sound waves. Data
interpolation is also used, predicting interpolation points from a large
number of surrounding points to provide audio as close as possible to
the original sound. This elaborate restoration of data lost during digital
recording achieves fine, distortion-free rendering, accurate sound
localizing, rich bass and recreation that is faithful to the original sound.
0
High sound quality electrolytic capacitor
The unit’s features the same audiophile-grade Denon original high
sound quality electrolytic capacitor specifically used in top-range
models.
Contents
Connections Playback Settings Tips Appendix
9
Front panel Rear panel
Remote control
unit
Index
High performance
0
Equipped with a USB-DAC function to support playback of high-
resolution sound sources
This unit supports the playback of high resolution audio formats such as
DSD (2.8/5.6/11.2 MHz) and PCM files up to 384 kHz/32 bits. It
provides high quality playback of high resolution files into this unit from a
computer via USB-B connection.
0
Supports a variety of devices with digital inputs
Equipped with two optical digital inputs and one coaxial digital input to
connect televisions and other devices with digital inputs. This unit also
has an automatic playback function. When a device connected to this
unit by digital connection is turned on, this unit automatically turns on
and plays audio from the device.
0
Can be operated with the remote control of your TV
By learning the infrared signal of the remote control of your TV, you can
operate this unit with the remote control of the TV. (v p. 93)
0
The device is equipped with a AirPlay
®
function in addition to
network functions such as Internet radio etc.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC. This unit also supports
Apple AirPlay which lets you stream your music library from an iPhone
®
,
iPad
®
, iPod touch
®
or iTunes
®
.
0
Supports AirPlay 2
®
wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
0
Wireless connection with Bluetooth devices can be carried out
easily
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0
Support for Gapless playback
Playback with no gap between music files.
(for WAV/FLAC/Apple Lossless/DSD only)
Contents
Connections Playback Settings Tips Appendix
10
Front panel Rear panel
Remote control
unit
Index
0
Compatible with the HEOS App
z
for performing basic operations
of the unit with an iPad, iPhone or Android™ devices (Google,
Amazon Kindle Fire)
z
Download the appropriate HEOS App for your iOS or Android devices. This unit
needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that
the iPad, iPhone or Android devices are connected to.
0
HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
0
Headphone Amplifier Gain selector function
This unit has a gain control function with three levels that can be
switched according to the characteristics of the connected headphones.
0
System remote control included
Includes a system remote control that can also be used for Denon’s CD
Player DCD-100 operations.
0
OLED (Organic Light Emitting Diode) display that can display 3
lines
0
Equipped with auto standby mode function that reduces power
consumption
Contents Connections Playback Settings Tips Appendix
11
Front panel Rear panel
Remote control
unit
Index
.
uioQ0 Q1
qrewty
A
Power operation button (X)
This turns the power on/off (standby). (v p. 35)
B
Standby indicator
Lights as follows according to unit status:
0
Not lit:
0
When powered on
0
During normal standby (When “Auto-Play” is set to
“Off” (v p. 92))
0
Orange:
0
When “Auto-Play” is set to “On” (v p. 92)
0
When “Network Control” is set to “On” (v p. 99)
C
Cursor keys (uio p)
These select items.
D
ENTER key
This determines the selection.
E
Display
This displays various pieces of information.
F
Volume control knob
Adjusts the volume.
G
USB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 27)
H
Headphones jack
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
I
BACK key
Returns to the previous item.
J
Input source switching key (q)
This selects the input source.
K
Remote control sensor
This receives signals from the remote control unit. (v p. 8)
Contents
Connections Playback Settings Tips Appendix
13
Front panel Rear panel
Remote control
unit
Index
.
q ewrt q
A
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v p. 31)
A
Place the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
B
Turn clockwise until the antennas is fully connected.
C
Rotate the antenna upwards for best reception.
.
qwe
B
AC inlet (AC IN)
Used to connect the power cord. (v p. 33)
C
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 22)
D
ANALOG IN connectors
Connecting to a device with analog audio output connectors.
(v p. 25)
E
DIGITAL IN connectors
Connecting to a device with digital audio output connectors.
(v p. 24)
Contents Connections Playback Settings Tips Appendix
15
Front panel Rear panel
Remote control
unit
Index
.
yui o
F
PRE OUT connector
Used to connect a subwoofer with a built-in amplifier. (v p. 23)
G
IR CONTROL jack
Connects to a Denon CD player that is equipped with a IR control jack.
(v p. 32)
H
Antenna terminals (ANTENNA)
Used to connect FM room antennas and AM loop antennas.
(v p. 28)
I
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 30)
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel
Remote control
unit
Index
Remote control unit
q
w
y
r
e
t
A
Remote control signal transmitter
This transmits signals from the remote control unit. (v p. 8)
B
Input source select buttons
These select the input source. (v p. 36)
C
System buttons
These perform playback related operations.
Channel buttons (CH +, –)
These select stations registered to the preset list. (v p. 60)
D
RANDOM button (P)
Switches the random playback.
E
TONE button
Adjusting the tone. (v p. 81)
F
FAVORITES ADD / CALL buttons
This allows you to register content to “HEOS Favorites” and call
registered content.
0
“Adding toHEOS Favorites” (v p. 79)
0
“Playing backHEOS Favorites” (v p. 80)
Contents
Connections Playback Settings Tips Appendix
17
Front panel Rear panel
Remote control
unit
Index
Q0
u
Q1
Q2
i
o
G
QUEUE button
This displays the queue.
0
“Playing back files stored on PC or NAS” (v p. 39)
0
“Playing a USB memory device” (v p. 42)
H
ENTER button
This determines the selection.
I
Cursor buttons (uio p)
These select items.
Tuning buttons (TUNE +, –)
These operate the tuner. (v p. 58)
J
BACK button
Returns to the previous item.
K
Number/letter buttons (0 – 9, +10)
These enter letters or numbers into the unit. (v p. 89)
L
SLEEP button
This sets the sleep timer. (v p. 82)
Contents
Connections Playback Settings Tips Appendix
18
Front panel Rear panel
Remote control
unit
Index
W0
W1
Q7
Q8
Q3
W2
Q6
Q5
Q9
Q4
M
Power operation button (AMP POWER X)
This turns the power on/off (standby). (v p. 35)
N
Remote mode select button
(REMOTE MODE AMP)
Switches the remote control operating mode to this unit.
O
REPEAT button (L)
Switches the repeat playback.
P
VOLUME buttons (df)
Adjusts the volume. (v p. 36)
Q
OPTION button
This displays the option menu on the display.
0
An option menu is not displayed for some input sources.
R
MUTE button (:)
This mutes the output audio. (v p. 36)
S
SETUP button
The setting menu is displayed on the display. (v p. 83)
T
CLEAR button
This cancels the settings.
U
Information button (INFO)
This switches the track information shown in the display during
playback.
V
DIMMER button
Adjust the display brightness of this unit. (v p. 82)
Contents
Connections Playback Settings Tips Appendix
19
Front panel Rear panel
Remote control
unit
Index
Q0
Q1
Q2
Q3
Q4
u
o
t
y
w
e
r
q
i
o
CD player operations
A Denon CD player can be operated.
A
Power button (CD POWER X)
B
Remote mode select button
(REMOTE MODE CD)
C
System buttons
0
Skip buttons (8, 9)
0
Play/pause button (1/3)
0
Stop button (2)
D
RANDOM button (P)
E
ENTER button
F
Cursor buttons (uio p)
G
Number buttons (0 – 9, +10)
H
SLEEP button
I
PROGRAM button
J
REPEAT button (L)
K
MODE button
L
CLEAR button
M
Information button (INFO)
N
DIMMER button
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
20
Front panel Rear panel
Remote control
unit
Index
o
Contents
Connecting speakers 22
Connecting a digital device 24
Connecting an analog device 25
Connecting a PC or Mac 26
Connecting a USB memory device to the USB port 27
Connecting an FM/AM antenna 28
Connecting to a home network (LAN) 30
Connecting to the IR control connector 32
Connecting the power cord 33
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords with connection cables. Doing so can result in
humming or noise.
o
Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
.
Subwoofer cable
.
Optical cable
.
Coaxial digital cable
.
Audio cable
.
R
L
R
L
USB Cable
.
LAN cable
.
IR control cable
(supplied)
.
Contents Connections Playback Settings Tips Appendix
21
Front panel Rear panel
Remote control
unit
Index
Connecting speakers
Here we connect the speakers in the room to this unit.
This section explains how to connect them using typical examples.
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. “Protection circuit” (v p. 133)
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock.
0
Use speakers with an impedance of 4 – 16 Ω/ohms.
Connecting the speaker cables
Connect the speaker cable to the + speaker terminal (red) and the -
speaker terminal (black).
1
Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then twist the core wire tightly.
.
2
Turn the speaker terminal counterclockwise to loosen
it.
.
3
Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
.
4
Turn the speaker terminal clockwise to tighten it.
.
Contents
Connections Playback Settings Tips Appendix
22
Front panel Rear panel
Remote control
unit
Index
Connecting a digital device
Connect this unit to a device with digital output connectors, such as a TV.
.
OPTICAL
OUT
COAXIAL
OUT
TV/Digital device
0
When connecting a TV to this unit, turn off the audio output of the TV’s internal
speakers. See the owner’s manual of your TV for details.
o
Specifications of supported audio formats
See “D/A converter” (v p. 126).
Contents Connections Playback Settings Tips Appendix
24
Front panel Rear panel
Remote control
unit
Index
Connecting a PC or Mac
By connecting a computer to the USB-DAC port on the rear panel of this unit using a commercially available USB connecting cable, this unit can be used
as a D/A converter. (v p. 62)
NOTE
0
Before USB connecting this unit to your computer, install the driver software in your computer. (v p. 63)
0
Download the driver software from the PMA-150H page of the Denon website.
0
Use a cable that is 10 ft (3 m) or less to connect to the computer.
.
Ty p e A
USB 2.0 cable
(Sold separately)
Ty p e B
Computer on which the driver software and
audio player software are installed
Contents
Connections Playback Settings Tips Appendix
26
Front panel Rear panel
Remote control
unit
Index
Connecting a USB memory device to the USB port
For operating instructions see “Playing a USB memory device”. (v p. 42)
.
USB memory
device
0
Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,
use that device’s supplied AC adapter.
NOTE
0
USB memory devices will not work via a USB hub.
0
It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
0
Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
Contents Connections Playback Settings Tips Appendix
27
Front panel Rear panel
Remote control
unit
Index
Connecting an FM/AM antenna
After connecting the antenna and receiving a broadcast signal, fix the
antenna with tape in a position where the noise level becomes minimal.
“Listening to FM/AM broadcasts” (v p. 58)
.
FM indoor antenna
(supplied)
AM loop antenna
(supplied)
q we
Black
White
0
If you are unable to receive a good broadcast signal, we recommend installing an
outdoor antenna. For details, inquire at the retail store where you purchased the
unit.
NOTE
0
Make sure the AM loop antenna lead terminals do not touch metal parts of the
panel.
Contents Connections Playback Settings Tips Appendix
28
Front panel Rear panel
Remote control
unit
Index
o
Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
.
Nail, tack, etc.
Standing alone
Use the procedure shown above to assemble.
When assembling, refer to “AM loop antenna assembly”.
.
o
AM loop antenna assembly
1
Put the stand section through the bottom of the loop
antenna from the rear and bend it forward.
2
Insert the projecting part into the square hole in the
stand.
.
Projecting part
Square hole
Stand
Loop antenna
Contents
Connections Playback Settings Tips Appendix
29
Front panel Rear panel
Remote control
unit
Index
Connecting to a home network (LAN)
This unit can connect to a network using a wired LAN or wireless LAN.
You can connect this unit to your home network (LAN) to enable various
types of playback and operations as described below.
0
Playback of network audio such as Internet Radio and from your media
server(s)
0
Playback of streaming music services
0
Using the Apple AirPlay function
0
Operation on this unit via the network
0
Operation with the HEOS wireless multi-room sound system
0
Firmware Update
For connections to the Internet, contact an ISP (Internet Service
Provider) or a computer shop.
Wired LAN
To make connections via wired LAN, use a LAN cable to connect the
router to this unit as shown in the figure below.
.
Internet
Modem
PC
Router
To WAN side
To LAN port
To LAN port
LAN port/
Ethernet
connector
LAN port/
Ethernet
connector
NAS
(Network Attached
Storage)
Contents
Connections Playback Settings Tips Appendix
30
Front panel Rear panel
Remote control
unit
Index
Wireless LAN
When connecting to the network via wireless LAN, connect the external
antennas for Bluetooth/wireless connectivity connection to the rear panel
and stand them upright.
See “Wi-Fi Setup” on how to connect to a wireless LAN router.
(v p. 100)
.
Internet
Modem
To WAN side
Router with access point
0
When using this unit, we recommend you use a router equipped with the following
functions:
0
Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
0
Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a
speed of 100 Mbps or greater.
0
Only use a shielded STP or ScTP LAN cable (readily available at electronics
stores). (CAT-5 or greater recommended)
0
The normal shielded-type LAN cable is recommended. If a flat-type cable or
unshielded-type cable is used, other devices could be affected by noise.
0
When using this unit connected to a network with no DHCP function, configure the
IP address, etc. in “Network”. (v p. 98)
NOTE
0
The types of routers that can be used depend on the ISP. Contact your ISP or a
computer shop for details.
0
This unit is not compatible with PPPoE. A PPPoE compatible router is required if
your contracted line is not set using PPPoE.
0
Do not connect a NETWORK connector directly to the LAN port/ Ethernet
connector on your computer.
0
Various online services may be discontinued without prior notice.
Contents Connections Playback Settings Tips Appendix
31
Front panel Rear panel
Remote control
unit
Index
Connecting to the IR control connector
Denon CD players connected to this unit can be controlled via the unit using the HEOS app.
o
Connection
Use the included IR control cable to connect the IR CONTROL OUT
jack of this unit to the IR CONTROL IN jack of the CD player.
0
Only Denon CD players with an IR CONTROL or REMOTE CONTROL jack on the
rear panel can be connected.
.
COAXIAL
OUT
DIGITAL
ANALOG
OUT
IN
IR CONTROL
OUT
This unit
CD player
IR control cable
(supplied)
Contents
Connections Playback Settings Tips Appendix
32
Front panel Rear panel
Remote control
unit
Index
o
Contents
Basic operation
Turning the power on 35
Switching the power to standby 35
Selecting the input source 36
Adjusting the volume 36
Turning off the sound temporarily (Muting) 36
Playback network audio/service
Listening to Internet Radio 37
Playing back files stored on PC or NAS 39
Getting the HEOS App 49
AirPlay function 75
Spotify Connect function 78
Playback a device
Playing a USB memory device 42
Listening to music on a Bluetooth device 45
Listening to FM/AM broadcasts 58
Using as a D/A converter 62
Connect and play back from an analog device 74
Convenience functions
Adding to HEOS Favorites 79
Playing back HEOS Favorites 80
Deleting a HEOS Favorites 80
Adjusting the tone 81
Switching the display’s brightness 82
Using the sleep timer 82
Contents Connections Playback Settings Tips Appendix
34
Front panel Rear panel
Remote control
unit
Index
Basic operation
.
AMP POWER
X
1
/
3
VOLUME
df
MUTE
Input source
select buttons
Turning the power on
1
Press AMP POWER X to turn on.
0
You can also press X on the main unit to turn on power from standby mode.
0
You can also press 1/3 to turn on power from standby mode.
Switching the power to standby
1
Press AMP POWER X.
The unit switches to standby mode.
0
You can also switch the power to standby by pressing X on the main unit.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, unplug the power cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
35
Front panel Rear panel
Remote control
unit
Index
Selecting the input source
1
Press the input source select button to be played back.
The selected input source appears on the display.
0
This unit switches between FM and AM each time TUNER is pressed.
0
Switches between Optical 1/2 each time OPTICAL is pressed.
0
Switches between Analog 1/2 each time ANALOG is pressed.
0
You can also select the input source by touching q on the main unit.
Adjusting the volume
1
Use VOLUME df to adjust the volume.
The volume level appears on the display.
0
You can also adjust the volume by turning the knob on the main unit.
Turning off the sound temporarily
(Muting)
1
Press MUTE :.
“Mute” is displayed on the display.
0
To cancel mute, either adjust the sound volume or press MUTE : again.
Contents Connections Playback Settings Tips Appendix
36
Front panel Rear panel
Remote control
unit
Index
Listening to Internet Radio
.
QUEUE
FAVORITES
ADD/CALL
INTERNET RADIO
9
8
2
1
/
3
INFO
BACK
ui
ENTER
0
Internet Radio refers to radio broadcasts distributed over the Internet.
Internet Radio stations from around the world can be received.
0
The Internet Radio station list on this unit the database service provided
by TuneIn Radio service.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playing back Internet Radio” (v p. 129) for details.
0
WMA
0
MP3
0
MPEG-4 AAC
Contents Connections Playback Settings Tips Appendix
37
Front panel Rear panel
Remote control
unit
Index
Listening to Internet Radio
1
Press INTERNET RADIO.
2
Select the station you want to play.
Operation buttons Function
1/3
z
Playback / Pause
2
Stop
8 9
z
Skip to previous track / Skip to next track
u i
Select the item
ENTER Enter the selected item / Playback
BACK Moving up a level in the hierarchy
FAVORITES CALL
Call from the “HEOS Favorites”
(v p. 80)
FAVORITES ADD
Adding to “HEOS Favorites”
(v p. 79)
INFO
Switching the radio station name and file
format
QUEUE This displays the queue
z Enabled when playing Podcasts.
0
Any characters that cannot be displayed are replaced with “.” (period).
NOTE
0
The radio station database service may be suspended or be otherwise unavailable
without notice.
Contents Connections Playback Settings Tips Appendix
38
Front panel Rear panel
Remote control
unit
Index
Playing back files stored on PC or NAS
.
9
8
2
MUSIC SERVERS
REPEAT
INFO
1
/
3
QUEUE
RANDOM
BACK
ui
ENTER
0
This unit can play back music files and playlists (m3u, wpl) from DLNA
compatible servers including PCs and NAS devices on your network.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playing back files stored on a PC and NAS” (v p. 128) for
details.
0
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
DSD
Contents Connections Playback Settings Tips Appendix
39
Front panel Rear panel
Remote control
unit
Index
Playing back files stored on PC or NAS
Use this procedure to play music files or playlists stored on DLNA files
servers on your local network.
1
Press MUSIC SERVERS to switch the input source to
“Music Servers”.
2
Select the name of your networked PC or NAS
(Network Attached Storage) server.
3
Browse the music on your PC/NAS and select
something to play.
0
When you select something to play you will be asked how you want to
queue up your music.
Play Now:
Inserts the item into the queue after the
currently playing track and plays the
selected item immediately.
Play Now & Replace
Queue:
Clears the queue and plays the
selected item immediately.
Play Next:
Inserts the item into the queue after the
current song and plays it when the
current song ends.
Add to End of Queue: Adds the item to the end of the queue.
Contents Connections Playback Settings Tips Appendix
40
Front panel Rear panel
Remote control
unit
Index
4
Use ui to select the “Play Now” or “Play Now &
Replace Queue”, then press ENTER.
Playback starts.
Operation buttons Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
u i
Select the item
ENTER Enter the selected item
BACK Moving up a level in the hierarchy
REPEAT L
Repeat playback
0
Switching between Single-track repeat
and All-track repeat.
RANDOM P
Random playback
INFO Switching the album name and file format.
QUEUE This displays the queue
NOTE
0
When playing back music files with your PC or NAS connected through wireless
LAN, audio may be interrupted depending on your wireless LAN environment. In
this case, connect using a wired LAN.
0
The order in which the tracks/files are displayed depends on the server
specifications. If the tracks/files are not displayed in alphabetical order due to the
server specifications, searching by the first letter may not work properly.
Contents Connections Playback Settings Tips Appendix
41
Front panel Rear panel
Remote control
unit
Index
Playing a USB memory device
.
USB
QUEUE
9
ui
ENTER
INFO
8
2
1
/
3
BACK
REPEAT
RANDOM
0
Playing back music files stored on a USB memory device.
0
Only USB memory devices conforming to mass storage class standards
can be played on this unit.
0
This unit is compatible with USB memory devices in “FAT32” or “NTFS”
format.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playing back a USB memory devices” (v p. 125) for details.
0
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
DSD
Contents
Connections Playback Settings Tips Appendix
42
Front panel Rear panel
Remote control
unit
Index
Playing files stored on USB memory
devices
1
Insert the USB memory device into the USB port.
2
Press USB to switch the input source to “USB Music”.
3
Select the name of this unit.
4
Browse the music on your USB memory device and
select something to play.
0
When you select something to play you will be asked how you want to
queue up your music.
Play Now:
Inserts the item into the queue after the
currently playing track and plays the
selected item immediately.
Play Now & Replace
Queue:
Clears the queue and plays the
selected item immediately.
Play Next:
Inserts the item into the queue after the
current song and plays it when the
current song ends.
Add to End of Queue: Adds the item to the end of the queue.
5
Use ui to select the “Play Now” or “Play Now &
Replace Queue”, then press ENTER.
Playback starts.
Contents
Connections Playback Settings Tips Appendix
43
Front panel Rear panel
Remote control
unit
Index
Operation buttons Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
u i
Select the item
ENTER Enter the selected item / Playback
BACK Moving up a level in the hierarchy
REPEAT L
Repeat playback
0
Switching between Single-track repeat
and All-track repeat.
RANDOM P
Random playback
INFO Switching the album name and file format.
QUEUE This displays the queue
NOTE
0
Note that Denon will accept no responsibility whatsoever for any problems arising
with the data on a USB memory device when using this unit in conjunction with the
USB memory device.
0
When a USB memory device is connected to this unit, the unit loads all of the files
on the USB memory device. Loading may take a while if the USB memory device
contains a large number of folders and/or files.
Contents Connections Playback Settings Tips Appendix
44
Front panel Rear panel
Remote control
unit
Index
Listening to music on a Bluetooth device
.
Bluetooth
9
8
INFO
OPTION
1
/
3
Music files stored on Bluetooth devices such as smartphones, digital
music players, etc. can be enjoyed on this unit by pairing and connecting
this unit with the Bluetooth device.
Communication is possible up to a range of about 98.4 ft/30 m.
NOTE
0
To play back music from a Bluetooth device, the Bluetooth device needs to
support the A2DP profile.
Contents Connections Playback Settings Tips Appendix
45
Front panel Rear panel
Remote control
unit
Index
Listening to music on a Bluetooth
device
In order to enjoy music from a Bluetooth device on this unit, the Bluetooth
device must first be paired with this unit.
Once the Bluetooth device has been paired, it does not need to be paired
again.
1
Press Bluetooth.
When playing content via Bluetooth on this unit for the first time, the
unit will go into the pairing mode automatically and “Bluetooth
Pairing Mode” will appear on the display of the unit.
2
Activate the Bluetooth settings on your Bluetooth
device.
3
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
Connect to the Bluetooth device while “Bluetooth Pairing Mode” is
being displayed on the display of the unit.
Perform the connection with the Bluetooth device close to the unit
(about 3.3 ft/1 m).
4
Play music using any app on your Bluetooth device.
0
The Bluetooth device can also be operated with the remote
control of this unit.
0
The next time the Bluetooth button is pressed on the remote
control unit, this unit automatically connects to the last Bluetooth
device that was connected.
Operation buttons
Function
1/3
Playback / Pause
8 9
Skip to previous track / Skip to next track
INFO
Switching the Bluetooth device name and
Album name.
Contents Connections Playback Settings Tips Appendix
46
Front panel Rear panel
Remote control
unit
Index
Pairing with other Bluetooth devices
Pair a Bluetooth device with this unit.
1
Activate the Bluetooth settings on your Bluetooth
device.
2
Press and hold Bluetooth for at least 3 seconds.
This unit will go into the pairing mode.
3
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
0
This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th
Bluetooth device is paired, it will be registered in place of the oldest registered
device.
0
You can also enter pairing mode by pressing the OPTION button when the
Bluetooth playback screen is displayed and selecting “Pairing Mode” from the
displayed option menu.
NOTE
0
To operate the Bluetooth device with the remote control of this unit, the Bluetooth
device needs to support the AVRCP profile.
0
The remote control of this unit is not guaranteed to work with all Bluetooth devices.
0
Depending on the type of Bluetooth device, this unit outputs audio that is coupled
to the volume setting on the Bluetooth device.
Contents Connections Playback Settings Tips Appendix
47
Front panel Rear panel
Remote control
unit
Index
Reconnecting to this unit from a
Bluetooth device
After pairing is completed, the Bluetooth device can be connected without
performing any operations on this unit.
This operation also needs to be performed when switching the Bluetooth
device for playback.
1
If a Bluetooth device is currently connected, deactivate
the Bluetooth setting of that device to disconnect it.
2
Activate the Bluetooth setting of the Bluetooth device
to be connected.
3
Select this unit from the Bluetooth device list on your
Bluetooth device.
4
Play music using any app on your Bluetooth device.
0
When the power of this unit and the Bluetooth function of this unit are turned on,
the input source will be automatically switched to “Bluetooth” if a Bluetooth device
is connected.
0
When the “Network Control” setting of this unit is set to “On” and a Bluetooth
device is connected and is played with the unit in the standby state, the power of
the unit will be turned on automatically. (v p. 99)
Contents Connections Playback Settings Tips Appendix
48
Front panel Rear panel
Remote control
unit
Index
Getting the HEOS App
You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose
from. For more information about which services are available in your area please visit http://www.HEOSbyDenon.com
Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for “HEOS”.
.
0
Specifications of the HEOS App may be changed without prior notice for improvement purposes.
Contents Connections Playback Settings Tips Appendix
49
Front panel Rear panel
Remote control
unit
Index
HEOS Account
HEOS Accounts can be registered in “HEOS Account” (v p. 105) in the
menu of this unit or by tapping “Music” tab - “Settings” icon a in the
HEOS App.
o
What is a HEOS Account?
A HEOS Account is master account or “keychain” for managing all of
your HEOS music services with one single username and password.
o
Why do I need a HEOS Account?
With the HEOS Account you just have to enter your music services
login names and passwords one time. This allows you to easily and
quickly use multiple controller apps on different devices.
You just log into your HEOS Account on any device and you will have
access to all of your associated music services, play history and
custom playlists, even if you are at a friend’s house listening to music
on their HEOS system.
o
Signing up for a HEOS Account
You will be instructed to signup for a HEOS Account the first time you
try to access any music service from the main “Music” menu of the
HEOS App. Follow the instructions in the HEOS App to complete the
operation.
o
Changing your HEOS Account
1
Tap the “Music” tab.
2
Select the Settings icon a in the upper left corner of
the screen.
3
Select “HEOS Account”.
4
Change your location, change your password, delete
your account or sign out of your account.
Contents Connections Playback Settings Tips Appendix
50
Front panel Rear panel
Remote control
unit
Index
Playing from streaming music services
A music service is an online music company that provides access to vast
music collections via free and/or paid subscriptions. Depending upon your
geographical location, there are several options to choose from. For more
information about which services are available in your area please visit
http://www.HEOSbyDenon.com
NOTE
0
The HEOS app and brand is not affiliated with any manufacturer of any mobile
device. Availability of music services may vary by region. Not all services may be
available at time of purchase. Some services may be added or discontinued from
time to time based on decisions of the music service providers or others.
o
Selecting a room/device
1
Tap the “Rooms” tab. If there are multiple HEOS
devices, select “Denon PMA-150H”.
0
Tap the Pencil icon e at the top right to switch edit mode. You can change the
displayed name.
.
Rooms
Drag one room into another to group them
Rooms
Now PlayingMusic
Song Name 3
Denon PMA-150H
Song Name 1
Dining L + Dining R
Song Name 2
Kitchen
Contents
Connections Playback Settings Tips Appendix
51
Front panel Rear panel
Remote control
unit
Index
o
Selecting the music track or station from
music sources
1
Tap the “Music” tab and select a music source.
0
All music services displayed may not be available in your location.
.
Now PlayingMusicRooms
This Phone
Music
Music Servers
USB Music
Playlists
History
Contents
Connections Playback Settings Tips Appendix
52
Front panel Rear panel
Remote control
unit
Index
2
Browse the music to play.
After selecting a music track or radio station the app will
automatically change to the “Now Playing” screen.
0
When you select a music track to play you will be asked how you want to
queue up your music.
Play Now:
Inserts the item into the queue after the
currently playing track and plays the
selected item immediately.
Play Now & Replace
Queue:
Clears the queue and plays the
selected item immediately.
Play Next:
Inserts the item into the queue after the
current song and plays it when the
current song ends.
Add to End of Queue: Adds the item to the end of the queue.
0
When you select a radio station the following items are displayed.
Play Now: Plays the selected item immediately.
Add to HEOS Favorites: Adds to HEOS Favorites.
.
Music
Rooms Now Playing
Album
Album
Play Now
Cancel
Play Now & Replace Queue
Play Next
Add to End of Queue
Track 01
Rooms
10 Tracks,60 Mins.,2014
Artist
MusicRooms Now Playing
Track 01
Album
0:50
-
2:51
Artist
Now Playing
Contents
Connections Playback Settings Tips Appendix
53
Front panel Rear panel
Remote control
unit
Index
Listening to the same music in multiple
rooms
The HEOS system is a true multi-room audio system that automatically
synchronizes audio playback between multiple HEOS devices so that the
audio coming from different rooms is perfectly in sync and always sounds
amazing! You can easily add up to 32 HEOS devices to your HEOS
system. You can join or group up to 16 individual HEOS devices into a
group of HEOS devices that function as if they were a single HEOS
device.
o
Grouping rooms
1
Press and hold your finger on room that is not playing
music.
2
Drag it into the room that is playing music and lift your
finger.
3
The two rooms will be grouped together into a single
device group and both rooms will be playing the same
music in perfect sync.
.
2
1
3
Now PlayingMusicRooms
Song Name 1
Dining
Kitchen
Drag one room into another to group them
Rooms
Now PlayingMusicRooms
Song Name 3
Song Name 3
Song Name 2
Song Name 2
Song Name 1
Bedroom
Bedroom
Dining
Living
Kitchen
Drag one room into another to group them
Rooms
Living
Drag a room out of this group to ungroup it
Living+Kitchen
Contents
Connections Playback Settings Tips Appendix
54
Front panel Rear panel
Remote control
unit
Index
o
Ungrouping rooms
1
Press and hold your finger on room that you want to
remove from the group.
2
Drag it out of the group and lift your finger.
NOTE
0
You can not remove the first room that started playing the music before grouping.
.
2
1
Song Name 3
Song Name 2
Song Name 1
Bedroom
Dining
Living
Kitchen
Drag one room into another to group them
Rooms
Song Name 4
Song Name 3
Song Name 2
Song Name 1
Bedroom
Dining
Living
Kitchen
Drag one room into another to group them
Rooms
Living
Now PlayingMusicRoomsNow PlayingMusicRooms
Contents
Connections Playback Settings Tips Appendix
55
Front panel Rear panel
Remote control
unit
Index
o
Grouping all rooms (party mode)
You can easily group 16 rooms together into Party Mode by using a
“pinch” gesture.
1
Place two fingers on the screen over the list of rooms.
2
Quickly pinch your two fingers together and release.
3
All of your rooms will be joined together and begin
playing the same music in perfect sync.
.
1
2
3
Song Name 1
Bedroom
Dining
Kitchen
Drag one room into another to group them
Rooms
Song Name 4
Song Name 3
Song Name 2
Song Name 1
Bedroom
Dining
Living
Kitchen
Drag one room into another to group them
Rooms
Living
Now PlayingMusicRooms Now PlayingMusicRooms
Drag a room out of this group to ungroup it
Dining+Living+...
Contents
Connections Playback Settings Tips Appendix
56
Front panel Rear panel
Remote control
unit
Index
o
Ungrouping all rooms
You can easily ungroup all of your rooms and exit Party Mode by using
a “spread” gesture.
1
Place two fingers close together on the screen over list
of rooms.
2
Quickly spread your two fingers apart from each other
and release.
3
All of your rooms will be ungrouped.
.
1
2
3
Song Name 1
Bedroom
Dining
Dining
Kitchen
Drag one room into another to group them
Rooms
Song Name 4
Song Name 3
Song Name 2
Song Name 1
Bedroom
Dining
Living
Kitchen
Drag one room into another to group them
Rooms
Living
Now PlayingMusicRooms
Now PlayingMusicRooms
Drag a room out of this group to ungroup it
Contents
Connections Playback Settings Tips Appendix
57
Front panel Rear panel
Remote control
unit
Index
Listening to FM/AM broadcasts
.
OPTION
uio
p
ENTER
TUNER
TUNE＋
TUNE
−
0 – 9, +10
CH
−
CH＋
2
For details about how to connect the antenna, see “Connecting an FM/AM
antenna” (v p. 28).
Listening to FM/AM broadcasts
1
Press TUNER to select the reception band.
FM: When listening to an FM broadcast.
AM: When listening to an AM broadcast.
2
Press TUNE + or TUNE – to select the station you want
listen to.
When a station is received, the a indicator lights.
Contents Connections Playback Settings Tips Appendix
58
Front panel Rear panel
Remote control
unit
Index
Changing the reception mode (Tune
Mode)
Change the reception mode to FM/AM. If you cannot tune in automatically
with “Auto” mode (AUTO), then change the mode to “Manual” mode (No
indication) and tune in manually.
1
Press OPTION during FM/AM reception.
An option menu is displayed.
2
Use ui to select “Tune Mode” then press ENTER.
3
Use ui to change to desired setting, then press
ENTER to enter the setting.
Auto (AUTO):
Automatically search for and tune to a
receivable radio station.
Manual
(No indication):
Manually change the frequency one
step at a time each time the button is
pressed.
Presetting FM/AM stations
Up to 50 stations can be registered in the preset list.
1
Press OPTION during reception of the station to be
registered.
An option menu is displayed.
2
Use ui to select “Preset Memory”, then press ENTER.
3
Use ui, select the number to register the station to in
the preset list and press ENTER.
“Added” is displayed and the registration is completed.
Contents Connections Playback Settings Tips Appendix
59
Front panel Rear panel
Remote control
unit
Index
Automatically presetting FM stations
(Auto Preset)
You can automatically register all FM stations that can be received to the
preset list. Up to 50 stations can be registered.
1
Press OPTION during FM reception.
An option menu is displayed.
2
Use ui to select “Auto Preset Memory”, then press
ENTER.
3
Use ui to select “Start”, then press ENTER.
The unit starts to tune in to radio stations automatically and preset
them.
0
When presetting is completed, “Complete!!” is displayed.
0
To stop auto tuning, press 2.
0
Broadcast stations whose antenna signals are weak cannot be preset
automatically. If you wish to preset such stations, tune them in manually.
0
Additional stations cannot be registered to the preset list after 50 stations are
registered.
0
AM stations cannot be automatically preset.
Listening to stations registered in the
preset list
1
Press OPTION during reception of a station.
An option menu is displayed.
2
Use ui to select “Preset List”, then press ENTER.
3
Use ui and select the radio station that you want to
listen to, then press ENTER.
4
Use ui to select “Play Now”, then press ENTER.
0
You can select the station you want to listen to from the preset list by pressing 0-9
and +10.
0
You can switch between preset stations by pressing CH+, CH- or o p.
Contents
Connections Playback Settings Tips Appendix
60
Front panel Rear panel
Remote control
unit
Index
Deleting a station from the preset list
1
Press OPTION during reception of a station.
An option menu is displayed.
2
Use ui to select “Preset List”, then press ENTER.
3
Use ui to select the station you want to delete, then
press ENTER.
4
Use ui to select “Remove from Preset List”, then
press ENTER.
“Removed” is displayed and the deletion is completed.
Contents Connections Playback Settings Tips Appendix
61
Front panel Rear panel
Remote control
unit
Index
Using as a D/A converter
.
USB-DAC
OPTICAL
COAXIAL
AMP POWER
X
Digital audio signals input from an external device or computer into this
unit can be converted and output as analog signals using this unit’s D/A
converter. (D/A converter function)
0
DSD is a registered trademark.
0
Microsoft, Windows 7, Windows 8, Windows 8.1 and Windows
10 are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
0
ASIO is a trademark of Steinberg Media Technologies GmbH.
0
Apple, Macintosh and macOS are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Contents Connections Playback Settings Tips Appendix
62
Front panel Rear panel
Remote control
unit
Index
Connecting and playing back from a
computer (USB-DAC)
You can enjoy high-quality audio playback from the D/A converter built in
to this unit by inputting music files into this unit from a computer via USB
connection.
0
Before USB connecting this unit to your computer, install the driver
software in your computer.
0
Drivers do not need to be installed for macOS.
0
Also, you can use whichever commercially available or downloadable
player software you like to playback files on your computer.
o
Computer (system requirements)
OS
0
Windows 7, Windows 8, Windows 8.1 or Windows 10
0
macOS 10.12, 10.13 or 10.14
USB
0
USB 2.0: USB High speed/USB Audio Class Ver. 2.0
0
This unit was checked the operation using the system requirements by us, but
it does not guarantee the operation of all systems.
Windows OS
Installing the dedicated driver
(v p. 63)
macOS
Audio Device Settings (v p. 70)
o
Installing the dedicated driver
(Windows OS only)
n
Installing the driver software
1
Disconnect the USB cable between your PC and the
unit.
0
The driver software cannot be installed correctly if your PC is
connected to the unit by a USB cable.
0
If the unit and your computer are connected by a USB cable and
the computer is switched on before installation, disconnect the
USB and restart the computer.
2
Download the dedicated driver from the “Download”
section of the PMA-150H page of the Denon website
onto your PC.
3
Unzip the downloaded file, and double-click the exe
file.
Contents Connections Playback Settings Tips Appendix
63
Front panel Rear panel
Remote control
unit
Index
D
Read the Software Licensing Agreement, and click “I accept the
terms of the License Agreement”.
E
Click “Next”.
.
t
r
F
Click “Install” on the installation start dialog.
0
The installation starts. Do not perform any operation on the PC
until the installation is completed.
.
y
Contents
Connections Playback Settings Tips Appendix
65
Front panel Rear panel
Remote control
unit
Index
I
Click “Yes”.
.
o
5
With the unit power off, connect the unit and PC using
a USB cable (sold separately).
0
For the connection procedure, refer to the “Connecting a PC or
Mac” section. (v p. 26)
6
Press AMP POWER X.
0
When the unit power is turned on, the PC automatically finds and
connects to the unit.
7
Press the input source select button (USB-DAC) to
switch the input source to “USB-DAC”.
8
Checking the installed driver.
A
Click the “Start” button and click “Control Panel” on the PC.
0
The control panel setting list is displayed.
B
Click “Sound”.
0
The sound menu window is displayed.
C
Check that there is a checkmark next to “Default Device” under in
“PMA-150H” of the “Playback” tab.
0
When there is a checkmark for a different device, click
“PMA-150H” and “Set Default”.
Contents Connections Playback Settings Tips Appendix
67
Front panel Rear panel
Remote control
unit
Index
9
Checking audio output.
Outputs a TEST signal from the PC and checks the audio output
from the USB-DAC function.
A
Select “PMA-150H” and click “Properties”.
0
The PMA-150H Properties window is displayed.
.
q
PMA-150H
B
Click the “Advanced” tab.
C
Select the sampling rate and bit rate to be applied to the D/A
converter.
0
It is recommended that “2 channel, 24 bit, 192000 Hz (Studio
Quality)” is selected (Windows 7).
0
It is recommended that “2 channel, 32 bit, 192000 Hz (Studio
Quality)” is selected (Windows 8/Windows 8.1/Windows 10).
D
Click “Apply”.
E
Click “Test”.
0
Check that audio from this unit is output from the PC.
.
w
e
r
t
Contents
Connections Playback Settings Tips Appendix
68
Front panel Rear panel
Remote control
unit
Index
0
The dedicated driver must be installed in the PC before this unit is connected to a
PC. Operation will not occur correctly if connected to the PC before the dedicated
driver has been installed.
0
Player software supporting the Audio Stream Input Output (ASIO) driver is
required to play files with a sampling frequency of 352.8 kHz/384 kHz without
downsampling. Check your player software before playing files with the ASIO
driver.
0
Operation may fail in some PC hardware and software configurations.
0
Please see the FAQ at www.denon.com if you experience any issues getting
audio to play from your computer through this unit. You may also want to check the
support pages for your audio player application.
Contents Connections Playback Settings Tips Appendix
69
Front panel Rear panel
Remote control
unit
Index
o
Audio device settings (macOS only)
A
With the unit power off, connect the unit and Mac using a USB cable
(sold separately).
0
For the connection procedure, refer to the “Connecting a PC or Mac”
section. (v p. 26)
B
Press AMP POWER X.
C
Press the input source select button (USB-DAC) to switch the input
source to “USB-DAC”.
D
Move the cursor to “Go” on the computer screen, and then click
“Utilities”.
0
The utility list is displayed.
E
Double-click “Audio MIDI Setup”.
0
The “Audio Devices” window is displayed.
F
Check that “Use this device for sound output” is checked in
“PMA-150H”.
0
If a different device is checked, select and “Secondary click” on
“PMA-150H”, and then select “Use this device for sound output”.
.
⑥
PMA-150H
PMA-150H
Contents
Connections Playback Settings Tips Appendix
70
Front panel Rear panel
Remote control
unit
Index
G
Select the “PMA-150H” format.
0
It is normally recommended to set the format to “384000.0 Hz” and
“2ch-32 bit Interger”.
.
⑦
PMA-150H
PMA-150H
H
Quit Audio MIDI Setup.
o
Playback
Install the desired player software on your computer beforehand.
Use the rear panel USB-DAC port to connect this unit to a computer.
(v p. 26)
1
Press USB-DAC to switch the input source to “USB-
DAC”.
Start playback on the computer’s player software.
0
If the sampling frequency cannot be detected, “Signal Unlock” will
be displayed.
0
“Unsupported” is displayed when audio signals that are not
supported by this unit are input.
o
Specifications of supported audio formats
See “D/A converter” (v p. 126).
Contents
Connections Playback Settings Tips Appendix
71
Front panel Rear panel
Remote control
unit
Index
0
Perform operations such as playback and pause on the computer. At this time, you
cannot perform operations with buttons on this unit or the remote control.
0
When this unit is functioning as a D/A converter, sound is not output from the
computer’s speakers.
0
If the computer is disconnected from this unit while the computer music playback
software is running, the playback software may freeze. Always exit the playback
software before disconnecting the computer.
0
When an error occurs on the computer, disconnect the USB cable and restart the
computer.
0
The sampling frequency of the music playback software and sampling frequency
displayed on this unit may differ.
0
Use a cable that is 3 m or less to connect to the computer.
Connect and playback from a digital
device (Coaxial/Optical 1/Optical 2)
1
Prepare for playback.
Check the connection, then turn on this units. (“Connecting a digital
device” (v p. 24))
2
Press COAXIAL or OPTICAL to switch the input source
to “Coaxial”, “Optical 1” or “Optical 2”.
3
Play the component connected to this unit.
0
If the sampling frequency cannot be detected, “Signal Unlock” will
be displayed.
0
“Unsupported” is displayed when audio signals that are not
supported by this unit are input.
0
When “TV Input” is set in the menu, this unit automatically turns on when the TV
connected to the unit is turned on, and the input source switches to “Optical 1”,
“Optical 2” or “Coaxial”. (v p. 92)
Contents Connections Playback Settings Tips Appendix
72
Front panel Rear panel
Remote control
unit
Index
Connect and play back from an analog device
.
ANALOG
1
Prepare for playback.
Check the connection, then turn on this units. (“Connecting an
analog device” (v p. 25))
2
Press ANALOG to switch the input source to “Analog
1” or “Analog 2”.
3
Play the component connected to this unit.
Contents Connections Playback Settings Tips Appendix
74
Front panel Rear panel
Remote control
unit
Index
AirPlay function
Music files stored on your iPhone, iPod touch, iPad or iTunes can be
played on this unit via the network.
0
Input source will be switched to “AirPlay” when AirPlay playback is started.
0
You can stop AirPlay playback by choosing other input source.
0
For information about how to use iTunes, also see the Help for iTunes.
0
The screen may differ depending on the OS and software versions.
NOTE
0
In playback using the AirPlay function, the sound is output at the iPhone, iPod
touch, iPad or iTunes volume setting level.
You should turn down the iPhone, iPod touch, iPad or iTunes volume prior to
playback and then adjust it to a suitable level.
This device supports AirPlay 2.
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
0
This unit supports AirPlay 2 and requires iOS 11.4 or later.
.
PC
Router
This unit
Contents Connections Playback Settings Tips Appendix
75
Front panel Rear panel
Remote control
unit
Index
Playing songs from your iPhone, iPod
touch or iPad
If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later, you can
stream music stored in your “iPhone/iPod touch/iPad” directly to this unit.
1
Connect your iPhone, iPod touch or iPad Wi-Fi to the
same network as this unit.
0
For details, see your device’s manual.
2
Play the song on your iPhone, iPod touch or iPad.
AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
3
Tap the AirPlay icon and select this unit.
.
AirPlay
AirPlay
D
rop:
AirDrop:
ryone
ryone
[Example] iOS 9
[Example] iOS 12
Playing iTunes music with this unit
1
Install iTunes 10, or later, on a Mac or Windows PC that
is connected to the same network as this unit.
2
Start iTunes and click the AirPlay icon to select this
unit.
.
[Example] iTunes
3
Choose a song and click play in iTunes.
The music will stream to this unit.
0
When “Network Control” is set to “On”, you can turn on this unit by operating
iTunes. (v p. 99)
Contents Connections Playback Settings Tips Appendix
76
Front panel Rear panel
Remote control
unit
Index
Play a song from your iPhone, iPod
touch or iPad on multiple synced
devices (AirPlay 2)
Songs from an iPhone, iPod touch or iPad operating iOS 11.4 or later can
be synced with multiple AirPlay 2 supported devices for simultaneous
playback.
1
Play the song on your iPhone, iPod touch or iPad.
AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.
.
2
Tap the AirPlay icon.
Displays a list of devices/speakers that can be played back on the
same network.
0
A circle is displayed to the right of AirPlay 2 compatible devices.
.
Speakers
Denon xxxxxxxx
iPhone
3
Tap the devices/speakers you want to use.
0
Multiple AirPlay 2 compatible devices can be selected.
0
Volume can be adjusted for each device individually or for all
synced devices simultaneously.
.
iPhone
Speakers
Denon xxxxxxxx
Contents
Connections Playback Settings Tips Appendix
77
Front panel Rear panel
Remote control
unit
Index
Spotify Connect function
Spotify is the world’s most popular streaming service. If you subscribe to
Spotify Premium, you can control your new speaker with your phone or
tablet. Because Spotify is built-in to your speaker, you can still take calls or
use other apps - the music never stops.
For information on how to set up and use Spotify Connect please visit
www.spotify.com/connect
.
Spotify server
Control
Spotify App
Audio
streaming/
control
This unit
Playing Spotify music with this unit
Download the “Spotify App” onto your iOS or Android device beforehand.
To play a Spotify track in this unit, you need to register in the Spotify
premium account first.
1
Connect the Wi-Fi settings of the iOS or Android device
in the same network as this unit.
2
Launch the Spotify App.
3
Play back the Spotify track.
4
Tap b on the playback screen and select this unit.
The music will stream to this unit.
Contents Connections Playback Settings Tips Appendix
78
Front panel Rear panel
Remote control
unit
Index
Convenience functions
.
OPTION
uio
p
ENTER
DIMMER
FAVORITES
ADD/CALL
SLEEP
TONE
0 – 9, +10
0
This section explains how to use convenient functions that can be used
for each input source.
0
Control of “HEOS Favorites” operations is optimized for the app. For
more information on acquiring the app, see “Getting the HEOS
App” (v p. 49).
Adding to HEOS Favorites
This function only works for streamed content.
1
While content is playing, press FAVORITES ADD.
The HEOS favorites list is displayed.
2
Use ui to select the “HEOS Favorites” number you
would like to save your contents to, then press ENTER.
0
Press OPTION on the remote control while content is playing back to display the
option menu. Content can also be added to “HEOS Favorites” from the option
menu.
Contents Connections Playback Settings Tips Appendix
79
Front panel Rear panel
Remote control
unit
Index
Playing back HEOS Favorites
1
Press FAVORITES CALL.
The “HEOS Favorites” is displayed.
2
Use ui to select the content you would like to
playback, then press ENTER.
3
Use ui to select “Play Now”, then press ENTER.
0
You can select content you would like to playback from your HEOS Favorites by
pressing 0-9 and +10.
Deleting a HEOS Favorites
1
Press FAVORITES CALL.
The “HEOS Favorites” is displayed.
2
While the HEOS Favorites content list is displayed, use
ui to select the item you want to remove from HEOS
Favorites, then press ENTER.
3
Use ui to select “Remove from HEOS Favorites”, then
press ENTER.
Contents Connections Playback Settings Tips Appendix
80
Front panel Rear panel
Remote control
unit
Index
Adjusting the tone
1
Press TONE.
The tone menu is displayed.
2
Use ui to select the item you want to adjust (“Source
Direct”/“Bass”/“Treble”/“Balance”), then press ENTER.
The menu for the selected item is displayed.
n
Source Direct
Use ui to switch it on and off.
On:
Playback sound is closer to the source
sound.
Off
(Default):
Do not use Source Direct function.
n
Bass
Use ui to adjust the bass.
-8 dB – +8 dB (Default: 0 dB)
n
Treble
Use ui to adjust the treble.
-8 dB – +8 dB (Default: 0 dB)
n
Balance
Use o p to adjust the left/right volume balance.
3
Press ENTER to enter the setting.
Contents Connections Playback Settings Tips Appendix
81
Front panel Rear panel
Remote control
unit
Index
Switching the display’s brightness
The display brightness can be adjusted between three levels.
1
Press DIMMER.
0
The brightness of the display switches each time the button is
pressed.
0
The display brightness is set to most brightly by default.
Using the sleep timer
You can have the power automatically switched to standby once a set time
has elapsed. This is convenient for listening while going to sleep.
1
Press SLEEP during playback and select the setting
time.
0
The o indicator on the display lights.
0
The sleep timer can be set to up to 90 minutes, in steps of 10
minutes.
0
After about 5 seconds, the setting is entered and the display
returns to as it was before.
o
To cancel the sleep timer
1
Press SLEEP to set “Sleep 1 Off”.
The o indicator on the display turns off.
0
The sleep timer setting is canceled when the unit switches to standby mode.
0
To check the time remaining until the sleep timer is activated, press SLEEP.
Contents Connections Playback Settings Tips Appendix
82
Front panel Rear panel
Remote control
unit
Index
Menu map
For menu operations, see the following page.
By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.
Setting items Detailed items Description Page
Audio Volume Limit Make a setting for maximum volume. The volume cannot be
increased above this setting.
91
H/P Amplifier Gain Set the gain of the headphone amplifier. By setting
according to the impedance of your headphone, you can
enjoy playing headphones at an appropriate volume.
91
Contents Connections Playback Settings Tips Appendix
83
Front panel Rear panel
Remote control
unit
Index
Setting items Detailed items Description/Detailed items Page
General TV Input Set this when playing audio from a TV on this unit. 92
IR Control Assign operations on this unit to the remote control of your
TV. This enables you to operate this unit with the remote
control of your TV.
93
Language Sets the language for display the menu. 93
Auto-Standby Sets the unit power to standby when the unit is not in use. 93
Usage Data Selects whether or not to send anonymous usage data to
Denon.
94
Firmware Set whether or not to check for firmware update, update the
firmware, and display update and upgrade notifications.
94
Check for Update 94
Auto-Update 95
Allow Update 95
Upgrade Notification 95
Add New Feature 96
Information Displays notifications. Also, sets whether or not to display
the notification when the power is turned on.
97
Notification Alerts 97
Check for Notifications 97
Reset Various settings are reset to the factory default values. 97
Contents Connections Playback Settings Tips Appendix
84
Front panel Rear panel
Remote control
unit
Index
Setting items Detailed items Description/Detailed items Page
Network Network Information Displays various information about the network. 98
Wi-Fi The Wi-Fi function can be stopped to prevent noise that
affects the sound quality.
98
Bluetooth Stopping Bluetooth function reduces a source of noise that
affects sound quality, enabling higher sound quality
playback.
98
Network Control Performs the On/Off settings for the network function when
in standby mode.
99
Friendly Name Edits a name displayed on the Internet. 99
Connection Choose whether to connect the home network to a wireless
LAN or a wired LAN.
100
Wi-Fi Use the wireless LAN (Wi-Fi) function to connect to a
network.
100
Auto-Scan 100
Share Wi-Fi setting from an iOS device 101
WPS Router 101
Manual 102
Wired Use a LAN cable to connect to a network. 100
Contents Connections Playback Settings Tips Appendix
85
Front panel Rear panel
Remote control
unit
Index
Setting items Detailed items Description/Detailed items Page
Network Settings Used for manually setting the IP address. 103
DHCP 103
IP Address
z
1
103
Subnet Mask
z
1
103
Gateway
z
1
103
DNS
z
1
103
Save 103
Diagnostics Used to check the network connection. 104
Physical Connection
z
2
104
Router Access 104
Internet Access 104
z
1
Displayed when the “DHCP” setting is “Off”.
z2
When connected using a wireless LAN, “Connection Wireless (Wi-Fi)” will be displayed.
Contents
Connections Playback Settings Tips Appendix
86
Front panel Rear panel
Remote control
unit
Index
Setting items Detailed items Description Page
HEOS Account 【When the user is signed out the HEOS Account】
I have a HEOS Account Selects to sign in. 105
Create Account Creates new HEOS Account. 105
Forgot Password If you have forgotten the password, an email explaining how
to reset the password will be sent.
105
【When the user is signed in the HEOS Account】
Signed in As Displays your HEOS Account. 105
Change Location Selects your location. 105
Change Password Changes your HEOS Account Password. 105
Delete Account Deletes your HEOS Account. 105
Sign Out Sign out of your HEOS Account. 105
Quick Setup – Performs the network settings using a Wizard style window.
For details on the operations, see the separate “Quick Start
Guide”.
–
Contents Connections Playback Settings Tips Appendix
87
Front panel Rear panel
Remote control
unit
Index
.
BACK
ui
ENTER
SETUP
Menu operation
1
Press SETUP.
The menu is displayed on the display.
2
Use ui to select the menu to be set or operated, then
press ENTER.
3
Use ui to change to desired setting.
4
Press ENTER to enter the setting.
0
To return to the previous item, press BACK.
0
Exiting the Menu, press SETUP while the menu is displayed. The
display returns to the normal display.
Contents Connections Playback Settings Tips Appendix
88
Front panel Rear panel
Remote control
unit
Index
Inputting characters
On this unit, you can change the name displayed on the following screens
to the names that you prefer.
0
Friendly Name (v p. 99)
0
Character input for the network functions
Using the number buttons
1
Display the screen for inputting characters.
0
To change a character, use o p to align the cursor with the
character that you want to change.
2
Press +10 to select the character type (upper case,
lower case, characters with diacritical marks or
numeric characters).
3
Use 0 – 9, +10 until the desired character is displayed.
0
The types of characters that can be input are as shown in the
following table.
.
1 . @ - _ / :
m n o M N O 6 ñ ö ò ó ô õ ø Ñ Ö Ò Ó Ô Õ Ø
a b c A B C 2 ä à á â ã å æ ć ç č Ä À Á Â Ã Å Æ Ć Ç Č
p q r s P Q R S 7 ß ŕ ř ś ş š ß Ŕ Ř Ś Ş Š
d e f D E F 3 ð ë è é ê Ð Ë È É Ê
t u v T U V 8 ü ù ú û Ü Ù Ú Û
g h i G H I 4 ï ì í î Ï Ì Í Î
w x y z W X Y Z 9 ý ź ž þ Ý Ź Ž Þ
j k l J K L 5
0
{ | } ¡ ¢ £ ¤ § © « ¯ ° ± » ¿
! “ # $ % & ‘ ( ) z
+ , ; < = > ? [ \ ] ^ `
(Space)
4
Repeat steps 2 and 3 to input characters then press
ENTER to register it.
Contents Connections Playback Settings Tips Appendix
89
Front panel Rear panel
Remote control
unit
Index
Using the cursor buttons
1
Display the screen for inputting characters.
0
To change a character, use o p to align the cursor with the
character that you want to change.
2
Use ui to change the character.
0
The types of characters that can be input are as shown below.
.
abcdefghijklmnopqrstuvwxyz
ABCDEFGHIJKLMNOPQRSTUVWXYZ
z + , - . / : ; < = > ? @ ! “ # $ % & ‘ ( )
[ \ ] ^ _ ` { | } ~ ¡ ¢ £ ¤ § © « ¯ ° ± » ¿
0123456789
äàáâãåæćçčðëèéêïìíîñöòóôõøßŕřśşšüùúûýźžþ
ÄÀÁÂÃÅÆĆÇČÐËÈÉÊÏÌÍÎÑÖÒÓÔÕØŔŘŚŞŠÜÙÚÛÝŹŽÞ
GLower case charactersH
GUpper case charactersH
GLowercase letters (with diacritical marks)H
GUppercase letters (with diacritical marks)H
GNumbersH
GSymbolsH
(Space)
3
Repeat step 2 to input characters then press ENTER to
register it.
0
Press CLEAR to erase the character that is currently selected.
0
Press and hold CLEAR for 3 seconds or more to erase all characters.
0
Press 9 to insert a space.
Contents
Connections Playback Settings Tips Appendix
90
Front panel Rear panel
Remote control
unit
Index
Audio
Make audio-related settings.
Volume Limit
Make a setting for maximum volume. The volume cannot be increased
above this setting.
Off
(Default):
Do not set a maximum volume. (100)
95 / 90 / 85 / 80
H/P Amplifier Gain
Set the gain of the headphone amplifier. Set this according to the
impedance of the connected headphones. It is recommended that this is
set on the “Low” side if the headphones have low impedance and on the
“High” side if they have high impedance.
High:
Set the gain of the headphone amplifier to
“High”. Set when there is insufficient
volume, even when the gain setting is
“Mid”.
Mid
(Default):
Set the gain of the headphone amplifier to
“Mid”.
Low:
Set the gain of the headphone amplifier to
“Low”. Set this if the volume is too high at
the factory default setting.
NOTE
0
The headphone volume varies depending on the H/P Amplifier Gain setting.
Decrease the volume or mute the audio first if changing this setting while listening
to audio.
Contents Connections Playback Settings Tips Appendix
91
Front panel Rear panel
Remote control
unit
Index
General
TV Input
Set this when playing audio from a TV on this unit. When the TV is turned
on, this unit turns on and the input source is automatically switched to
“Optical 1”, “Optical 2” or “Coaxial” so that the audio from the TV can be
played through this unit.
o
Default Input
Set the input source to be used when playing audio from the TV
through this unit. Set this according to the jack on this unit being used
to connect to the TV (OPTICAL 1, OPTICAL 2 or COAXIAL).
None / Optical In 1 / Optical In 2 / Coaxial In
(Default: Optical In 1)
o
Auto-Play
When a TV audio source is input to this unit, the unit automatically
switches to the input source set in “Default Input” and the Auto-Play
function for playing TV audio on this unit is set.
On
(Default):
Enables the Auto-Play function.
Off: Disables the Auto-Play function.
0
The Auto-Play function does not work when “Default Input” is set to “None”.
Set “Default Input” in advance.
Contents Connections Playback Settings Tips Appendix
92
Front panel Rear panel
Remote control
unit
Index
IR Control
Assign operations on this unit to the remote control of your TV. This
enables you to operate this unit with the remote control of your TV.
1
Use ui to select the operation on this unit to be
performed with the remote control of your TV and
press ENTER.
Volume Up / Volume Down / Mute / Power Toggle / Power On /
Power Off / Input Optical In 1 / Input Optical In 2 / Input
Coaxial In / Input Analog In 1 / Input Analog In 2
0
The operations indicated by a check mark are already assigned to the TV
remote control. To assign an operation to a different button, press ENTER
while the operation is indicated by a check mark to remove the check mark,
then configure the setting again.
2
Follow the instructions in the display to configure the
setting.
The set operation on this unit is indicated by a check mark after the
setting is complete.
Language
Sets the language for display the menu.
English / Français / Español (Default : English)
Auto-Standby
Sets the amount of time that must elapse without unit operation or an input
signal before the unit goes into standby automatically.
Off
(Default):
The unit does not go into standby
automatically.
1min: The unit goes into standby after 1 minutes.
5min: The unit goes into standby after 5 minutes.
15min: The unit goes into standby after 15 minutes.
Other:
Sets the minutes (between 1 and 99) before
the unit automatically goes into standby.
After setting the amount of time with 0 – 9,
+10 buttons, press ENTER to confirm the
setting.
Contents
Connections Playback Settings Tips Appendix
93
Front panel Rear panel
Remote control
unit
Index
Usage Data
For product improvement purposes, please send information on the
device settings and operating conditions of the functions to Denon.
Information provided by customers will be used as reference material for
product development purposes in the future.
Denon will never provide any information we collect to third parties.
Yes:
Provide information on the operating status
of this unit.
No:
Do not provide information on the operating
status of this unit.
Firmware
Checks for and installs the latest firmware information updates and
upgrades. Also sets the upgrade notification message display.
o
Check for Update
Check for firmware updates.
The firmware can be updated if a firmware update has been released.
Update Now:
Execute the update process. During the
update, the progress is shown on the
display.
Update Later: Update later.
0
This unit automatically retries updating if updating fails. If an update still
cannot be performed, an “Update Error” message appears in the display. See
“Troubleshooting” – “Update/upgrade error messages” for information on
update error messages. (v p. 123)
Check the conditions according to the message and try the update again.
0
This menu cannot be selected when “Allow Update” is set to “Off”.
Contents Connections Playback Settings Tips Appendix
94
Front panel Rear panel
Remote control
unit
Index
o
Auto-Update
This unit will automatically update to the newest firmware when in
standby mode.
n
Auto-Update
This unit will automatically update to the newest firmware when in
standby mode.
On: Turns on Automatic Updates.
Off
(Default):
Turns off Automatic Updates.
n
Time Zone
Change the time zone.
Set the time zone that matches the area where you live.
0
This menu cannot be selected when “Allow Update” is set to “Off”.
o
Allow Update
Enable or disable updates and upgrades for this unit.
On
(Default):
Enables this unit to receive updates and
upgrades.
Off:
Prevents this unit from receiving update
and upgrade.
0
This unit and HEOS App may become incompatible when this setting is set to
“Off”.
o
Upgrade Notification
When the latest Upgrade firmware is available, a notification message
is displayed on the display of this unit at power on.
The notification message is displayed for about 40 seconds when the
power is turned on.
On
(Default):
Display upgrade message.
Off: Do not display upgrade message.
0
This menu cannot be selected when “Allow Update” is set to “Off”.
Contents Connections Playback Settings Tips Appendix
95
Front panel Rear panel
Remote control
unit
Index
o
Add New Feature
Display new features that can be downloaded to this unit and perform
an upgrade.
Upgrade Package: Display the items to be upgraded.
Upgrade ID:
The ID number shown on the display is
needed when carrying out the procedure.
Upgrade Status:
Display a list of the additional functions
provided by the upgrade.
Start Upgrade:
Execute the upgrade process.
During the upgrade, the amount of
upgrade time which has elapsed is
displayed.
0
Information regarding the “Update” function and “Add New Feature” will be
announced on the Denon website each time related plans are defined. See
the Denon website for details about upgrades.
0
When the procedure is complete, “Registered” is displayed in this menu and
upgrades can be carried out. If the procedure has not been carried out, “Not
Registered” is displayed.
0
If the upgrade is not successful, “Upgrade Error” message appears in the
display. See “Troubleshooting” – “Update/upgrade error messages” for
information on upgrade error messages. (v p. 123)
Check the settings and network environment and then perform the upgrade
again.
0
This menu cannot be selected when “Allow Update” is set to “Off”.
Notes concerning use of “Update” and “Add New Feature”
0
In order to use these functions, you must have the correct system
requirements and settings for an Internet connection. (v p. 30)
0
Do not turn off the power until updating or upgrading is completed.
0
Even with a broadband connection to the Internet, approximately 20
minutes is required for the updating/upgrading procedure to be
completed.
0
Once updating/upgrade starts, normal operations on this unit cannot
be performed until updating/upgrading is completed. Furthermore,
there may be cases where backup data is reset for the parameters,
etc., set on this unit.
0
If the update or upgrade fails, press and hold the X on the main unit for
more than 5 seconds, or remove and re-insert the power cord. After
about 1 minute, “Please wait” appears on the display and update
restarts. If the error continues, check the network environment.
Contents Connections Playback Settings Tips Appendix
96
Front panel Rear panel
Remote control
unit
Index
Information
o
Notification Alerts
Sets whether or not to display the notification when the power is turned
on.
On
(Default):
Notification messages are displayed.
Off: Notification messages are not displayed.
o
Check for Notifications
Displays notifications.
Reset
Perform this procedure if the display is abnormal or if operations cannot be
performed. Restores the contents of each setting to the factory settings.
Make settings again.
Reset factory defaults: Unit is initialized.
Cancel: Unit is not initialized.
Contents Connections Playback Settings Tips Appendix
97
Front panel Rear panel
Remote control
unit
Index
Network
To use this unit by connecting it to a home network (LAN), you must configure network settings.
If you set up your home network (LAN) via DHCP, set “DHCP” to “On”. (Use the default setting.) This allows this unit to use your home network (LAN).
When assigning an IP address to each device manually, you need to assign an IP address to this unit using the “IP Address” settings, and enter
information about your home network (LAN) such as the gateway address and subnet mask, etc.
Network Information
Displays network information.
Friendly Name / Connection / SSID (Wi-Fi Signal Strength) / DHCP /
IP Address / MAC Address (Ethernet) / MAC Address (Wi-Fi)
Wi-Fi
The Wi-Fi function can be stopped to prevent noise that affects the sound
quality. Using a wired LAN to connect this unit to the network enables
playback with a high sound quality.
Enabled
(Default):
Enables the Wi-Fi function.
Disabled: Disables the Wi-Fi function.
Bluetooth
Stopping Bluetooth function reduces a source of noise that affects sound
quality, enabling higher sound quality playback.
Enabled
(Default):
Enables the Bluetooth function.
Disabled: Disables the Bluetooth function.
Contents Connections Playback Settings Tips Appendix
98
Front panel Rear panel
Remote control
unit
Index
Network Control
Enables network communication in standby power mode.
On
(Default):
Network is on during standby. Main unit
operable with a network compatible
controller.
Off: Suspend network function during standby.
0
When using the HEOS App, use with the “Network Control” setting set to “On”.
NOTE
0
When “Network Control” is set to “On”, the unit consumes more standby power.
Friendly Name
The Friendly Name is the name of this unit displayed on the network. You
can change the Friendly Name according to your preferences.
o
Friendly Name
Selects Friendly Name from the list.
When you select “Other”, you can change the Friendly Name
according to your preferences.
Current Friendly Name / Home Theater / Living Room / Family
Room / Guest Room / Kitchen / Dining Room / Master Bedroom /
Bedroom / Den / Office / Denon PMA-150H / Other
0
Up to 30 characters can be input.
0
For character input, see “Inputting characters” (v p. 89).
0
The default Friendly Name on first use is “Denon PMA-150H”.
Contents
Connections Playback Settings Tips Appendix
99
Front panel Rear panel
Remote control
unit
Index
Connection
Choose whether to connect the home network to a wireless LAN or a
wired LAN.
When connecting to the network using wired LAN, select “Wired” after
connecting a LAN cable.
When connecting to the network using wireless LAN, select “Wi-Fi” and
configure the “Wi-Fi Setup”. (v p. 100)
Wi-Fi:
Use the wireless LAN (Wi-Fi) function to
connect to a network.
Wired: Use a LAN cable to connect to a network.
o
Wi-Fi Setup
Connect to a wireless LAN (Wi-Fi) router.
The router can be connected in the following ways. Select the
connection method to suit your home environment.
0
“Wi-Fi Setup” is not displayed in the setting menu when “Connection” in the
setting menu is set to “Wired”.
n
Auto-Scan
Select the network you wish to connect to from the list of possible
networks shown on the display.
1. Select the network you wish to connect to from the list of wireless
networks.
Select “Rescan” if the network cannot be found.
2. Enter your password and press ENTER.
Contents Connections Playback Settings Tips Appendix
100
Front panel Rear panel
Remote control
unit
Index
n
Share Wi-Fi setting from an iOS device
Use your iOS device (iPhone/iPod/iPad) to connect to the network. By
connecting your iOS device to this unit using Wi-Fi, the unit can be
automatically connected to the same network as your device.
1. Select “Share Wi-Fi setting from an iOS device” on the display.
2. Check that your iOS device is connected to the wireless LAN (Wi-
Fi) router and select “Denon PMA-150H” from “SET UP NEW
AIRPLAY SPEAKER...” at the bottom of the Wi-Fi configuration
screen of your iOS device.
3. Tap “Next” on the screen of the iOS device.
0
The iOS device firmware version needs to support iOS 7 or later.
n
WPS Router
Use a WPS-compatible router to connect using the push button
method.
1. Select “WPS Router” on the display.
2. Switch to the WPS mode by pressing the WPS button of the router
you wish to connect to.
0
The time for pressing the button varies depending on the router.
3. Press ENTER within 2 minutes.
Contents
Connections Playback Settings Tips Appendix
101
Front panel Rear panel
Remote control
unit
Index
n
Manual
Enter the name (SSID) and password of the network you wish to
connect to.
1. Set the following items.
SSID:
Input the name of the wireless network
(SSID).
Security:
Select the encryption method according
to the encryption setting of the access
point you are using.
Password: Input the password.
2. Select “Test Connection” at the end of the setting.
0
The wireless LAN (Wi-Fi) settings of this unit can also be configured from a PC
or tablet that supports wireless LAN connection.
1.
Touch and hold the q and BACK keys on the main unit for at least 3
seconds when the power of the unit is on.
2. Connect the wireless LAN of the PC or tablet used to “Denon PMA-150H”
when the message “Connect your Wi-Fi device to Wi-Fi network
called “Denon PMA-150H”” appears in the display.
3. Start up the browser and enter “192.168.1.16/Settings/” in the URL.
4. Use the browser to enter the settings, select “Save Settings” and then exit
the settings.
0
Set “1” as the default key setting of the router when connecting to a WEP
encrypted network. (The default key of this unit is fixed as “1”.)
Contents Connections Playback Settings Tips Appendix
102
Front panel Rear panel
Remote control
unit
Index
Settings
Configure the IP address.
0
If you are using a broadband router (DHCP function), the information
required for network connection such as the IP address will be
automatically configured since the DHCP function is set to “On” in the
default settings of this unit.
0
Set up the IP Address, Subnet Mask, Gateway and DNS server
information only when assigning a fixed IP address or when connecting
to a network without DHCP function.
o
DHCP
Selects how to connect to the network.
On
(Default):
Configure the network settings
automatically from your router.
Off: Configure the network settings manually.
o
IP Address
Set the IP address within the ranges shown below.
0
The Network Audio function cannot be used if other IP addresses
are set.
CLASS A: 10.0.0.1 - 10.255.255.254
CLASS B: 172.16.0.1 - 172.31.255.254
CLASS C: 192.168.0.1 - 192.168.255.254
o
Subnet Mask
When connecting an xDSL modem or connector adapter directly to
this unit, input the subnet mask indicated in the documentation
supplied by your provider. Normally input 255.255.255.0.
o
Gateway
When connected to a gateway (router), input its IP address.
o
DNS
Enter the DNS address indicated in the documentation supplied by
your provider.
o
Save
Save settings
0
If you cannot connect to the Internet, recheck the connections and settings.
(v p. 30)
0
If you do not understand about Internet connection, contact your ISP (Internet
Service Provider) or the store from which you purchased your computer.
Contents
Connections Playback Settings Tips Appendix
103
Front panel Rear panel
Remote control
unit
Index
Diagnostics
Used to check the network connection.
o
Physical Connection
Checks the physical LAN port connection.
OK
Error:
The LAN cable is not connected. Check
the connection.
0
When connected using a wireless LAN, “Connection Wireless (Wi-Fi)” will
be displayed.
o
Router Access
Checks the connection from this unit to the router.
OK
Error:
Failed to communicate with the router.
Check the router settings.
o
Internet Access
Checks whether this unit has access to the Internet (WAN).
OK
Error:
Failed to connect to the Internet. Check
the Internet connection environment or
router settings.
Contents Connections Playback Settings Tips Appendix
104
Front panel Rear panel
Remote control
unit
Index
HEOS Account
Make HEOS Account-related settings.
HEOS Account is needed in order to use HEOS Favorites.
The menu displayed differs depending on the status of the HEOS Account.
You have not signed in
o
I have a HEOS Account
If you already have a HEOS Account, enter the current account name
and password to sign in.
o
Create Account
If you do not have a HEOS Account, create a new HEOS Account.
o
Forgot Password
If you have forgotten the password, an email explaining how to reset
the password will be sent.
You have already signed in
o
Signed in As
The currently signed in HEOS Account is displayed.
o
Change Location
Change the regional settings for the signed in HEOS Account.
o
Change Password
Change the password for the signed in HEOS Account.
o
Delete Account
Delete the signed in HEOS Account.
o
Sign Out
Sign out from the HEOS Account.
Contents
Connections Playback Settings Tips Appendix
105
Front panel Rear panel
Remote control
unit
Index
o
Contents
Tips
I want to listen to high sound performance playback 107
I want to adjust the tone myself 107
I want sound playback that is faithful to the original sound 107
I want to make the volume of the headphones the same as that of
the speakers 107
Simple operations in the power off state 108
I want the volume not to become too loud by mistake 108
Troubleshooting
Power does not turn on/Power is turned off 110
LED is flashing 110
Operations cannot be performed through the remote control unit 111
No sound comes out 112
Sound is interrupted or noise occurs 113
Desired sound does not come out 114
AirPlay cannot be played back 115
USB memory devices cannot be played back 116
File names on the USB memory device are not displayed properly 117
Bluetooth cannot be played back 117
The Internet radio cannot be played back 118
Music files on PC or NAS cannot be played back (Music server) 119
Various online services cannot be played 120
Cannot connect to a wireless LAN network 120
Music files on PC or Mac cannot be played back (USB-DAC) 121
Audio from digital devices cannot be played back (Coaxial/Optical) 122
The input source switches to “Optical 1”, “Optical 2” or “Coaxial” 122
Update/upgrade error messages 123
Contents Connections Playback Settings Tips Appendix
106
Front panel Rear panel
Remote control
unit
Index
Tips
I want to listen to high sound performance playback
0
The Wi-Fi function can be stopped to prevent noise that affects the sound quality. Set “Disabled” to the “Wi-Fi”. (v p. 98)
0
Stopping Bluetooth function reduces a source of noise that affects sound quality, enabling higher sound quality playback. Set “Disabled” to the
“Bluetooth”. (v p. 98)
I want to adjust the tone myself
0
Press the TONE button and set “Bass”, “Treble” and “Balance”. (v p. 81)
I want sound playback that is faithful to the original sound
0
Press the TONE button and set Source Direct to “On”. (v p. 81)
I want to make the volume of the headphones the same as that of the speakers
0
You can adjust the sound from the headphones in three steps without changing the volume of the speaker by changing the “H/P Amplifier Gain”
settings. (v p. 91)
Contents
Connections Playback Settings Tips Appendix
107
Front panel Rear panel
Remote control
unit
Index
Simple operations in the power off state
0
Press remote control input source select buttons, 1/3 buttons or FAVORITES CALL button to simultaneously perform each operation and switch the
unit on.
0
When the “Network Control” function is set to “On”, you can perform playback, or other operations through AirPlay or HEOS App. (v p. 99)
I want the volume not to become too loud by mistake
0
Set the volume upper limit for “Volume Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake.
(v p. 91)
Contents Connections Playback Settings Tips Appendix
108
Front panel Rear panel
Remote control
unit
Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
0
If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Continue pressing the X button on the unit until “Restart” appears in the display, or remove and re-insert the power cord of the unit.
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
109
Front panel Rear panel
Remote control
unit
Index
Power does not turn on / Power is turned off
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. (v p. 33)
0
This unit is in standby mode. Press the X button on the unit or the AMP POWER X button on the remote control. (v p. 35)
Power automatically turns off.
0
The sleep timer is set. Turn on the power again. (v p. 82)
0
“Auto-Standby” is set. “Auto-Standby” is triggered when there is no operation for a set amount of time. To disable “Auto-Standby”, set “Auto-Standby”
on the menu to “Off”. (v p. 93)
LED is flashing
Flashing red. (Flashes in 2-second intervals)
0
Protection circuit activated due to a rise in internal temperature. Turn off the power, wait for the set to fully cool down, then turn the power back on.
0
Please re-install this unit in a place having good ventilation.
0
Core wires of two speakers are touching each other or a core wire is sticking out of the terminal and touching the set’s rear panel, activating the
protection circuit. First unplug the power cord, then twist the core wires tightly or terminate the speaker cables, then reconnect.
Flashing red. (Flashes in 0.5-second intervals)
0
Turn down the volume and turn on the power again.
0
This unit’s amplifier circuit has failed. Disconnect the power and contact the repair center.
Contents
Connections Playback Settings Tips Appendix
110
Front panel Rear panel
Remote control
unit
Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v p. 8)
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 8)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 8)
0
The unit’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
0
Operations on this unit can be assigned to the remote controls of devices such as a TV using the “IR Control” function of the unit. Please note, however,
that some remote controls may not be compatible with the “IR Control” function. (v p. 93)
Contents
Connections Playback Settings Tips Appendix
111
Front panel Rear panel
Remote control
unit
Index
No sound comes out
No sound is produced. Or sound is distorted.
0
Check the connections for all devices. (v p. 21)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (v p. 22)
0
Securely tighten the speaker terminals. Check speaker terminals for looseness. (v p. 22)
0
Check that the proper input source is selected. (v p. 36)
0
Adjust the volume. (v p. 36)
0
Cancel the mute mode. (v p. 36)
0
Check that the correct input source is selected when audio is being input to this unit from an external device. (v p. 36)
0
Check the digital audio output setting on the connected device. The initial settings may be off depending on the device.
0
No sound is output from the speakers when headphones are connected. (v p. 13)
0
Do not input Dolby Digital, DTS, AAC or other non-linear PCM signals into the OPTICAL 1/2 or COAXIAL jacks of this unit. This causes noise and could
damage the speakers. (v p. 72)
0
To playback via a Bluetooth connection, perform pairing between this unit and the Bluetooth device. (v p. 45)
Contents
Connections Playback Settings Tips Appendix
112
Front panel Rear panel
Remote control
unit
Index
Sound is interrupted or noise occurs
During playback from the Internet radio or USB memory device, sound is occasionally interrupted.
0
When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted.
0
The network communication speed is slow or the radio station is busy.
When making a call on mobile phone, noise occurs in audio output on this unit.
0
When making a call, keep a distance of 0.7 ft/20 cm or longer between mobile phone and this unit.
Sound cuts out when using Wi-Fi connection.
0
The frequency band used by the wireless LAN is also used by microwave ovens, cordless telephones, wireless game controllers and other wireless
LAN devices. Using such devices at the same time as this unit may cause sound to cut out due to electronic interference. Sound cut out can be
improved using the following methods. (v p. 30)
- Install devices that cause interference away from this unit.
- Turn off the power supply to devices that cause interference.
- Change the settings of the router channel to which this unit is connected to. (See the instruction manual of the wireless router for details on how to
change the channel.)
- Switch to a wired LAN connection.
0
Particularly when you play back large music files, depending on your wireless LAN environment, the playback sound may be interrupted. In this case,
make the wired LAN connection. (v p. 100)
Noise often occurs in FM/AM broadcasting.
0
Change the antenna orientation or position. (v p. 28)
0
Use an outdoor antenna. (v p. 28)
0
Separate the AM loop antenna from the unit. (v p. 28)
0
Separate the antenna from other connection cables. (v p. 28)
Contents
Connections Playback Settings Tips Appendix
113
Front panel Rear panel
Remote control
unit
Index
Desired sound does not come out
The volume does not increase.
0
The maximum volume is set too low. Set the maximum volume using “Volume Limit” on the menu. (v p. 91)
Headphone volume is low.
0
Switch “H/P Amplifier Gain” to “High” if using headphones with high impedance or low sensitivity.
(v p. 91)
Left/right volume balance is unbalanced.
0
Press the TONE button on the remote control to adjust the “Balance”. (v p. 81)
No sound is produced from subwoofer.
0
Check the subwoofer connections. (v p. 23)
0
Turn on the subwoofer’s power.
Set values are not reflected in “Bass” and “Treble”.
0
“Bass” and “Treble” settings are not reflected in subwoofer output.
0
Press the TONE button to set “Source Direct” to “Off”. (v p. 81)
Contents
Connections Playback Settings Tips Appendix
114
Front panel Rear panel
Remote control
unit
Index
AirPlay cannot be played back
The AirPlay icon is not displayed on iTunes / iPhone / iPod touch / iPad.
0
This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit. (v p. 30)
0
The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay. Update the firmware to the latest version.
Audio is not output.
0
The volume on iTunes / iPhone / iPod touch / iPad is set to the minimum level. The volume on iTunes / iPhone / iPod touch / iPad is linked with the
volume on this unit. Set a proper volume level.
0
The AirPlay playback is not performed, or this unit is not selected. Click the AirPlay icon on the iTunes / iPhone / iPod touch / iPad screen and select this
unit. (v p. 76)
Audio is interrupted during the AirPlay playback on iPhone / iPod touch / iPad.
0
Quit the application running in the background of the iPhone/iPod touch/iPad, and then play using AirPlay.
0
Some external factors may be affecting the wireless connection. Modify the network environment by taking measures such as shortening the distance
from the wireless LAN access point.
iTunes cannot be played back through the remote control unit.
0
Enable the “Allow iTunes audio control from remote speakers” setting on iTunes. Then, you can perform playback, pause, and skip operations through
the remote control unit.
Contents
Connections Playback Settings Tips Appendix
115
Front panel Rear panel
Remote control
unit
Index
USB memory devices cannot be played back
USB memory device is not recognized.
0
Disconnect and reconnect the USB memory device. (v p. 27)
0
Mass storage class compatible USB memory devices are supported.
0
This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port.
0
The USB memory device must be formatted to FAT32 or NTFS.
0
Not all USB memory devices are guaranteed to work. Some USB memory devices are not recognized. When using a type of portable hard disc drive
compatible with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.
Files on the USB memory device are not displayed.
0
Files of a type not supported by this unit are not displayed. (v p. 42)
0
This unit is able to display files in a maximum of eight folder layers. A maximum of 5000 files (folders) can also be displayed for each layer. Modify the
folder structure of the USB memory device.
0
When multiple partitions exist on the USB memory device, only files on the first partition are displayed.
iOS and Android devices are not recognized.
0
The USB port of this unit does not support playback from iOS and Android devices.
Files on a USB memory device cannot be played.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 125)
0
You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.
0
Playback may not be possible if the album art file size exceeds 2 MB.
Contents
Connections Playback Settings Tips Appendix
116
Front panel Rear panel
Remote control
unit
Index
File names on the USB memory device are not displayed properly
The file names are not displayed properly (“...”, etc.).
0
Characters that cannot be displayed are used. This is not a malfunction. Characters that cannot be displayed have been used. On this unit, characters
that cannot be displayed are replaced with a “. (period)”.
Bluetooth cannot be played back
Bluetooth devices cannot be connected to this unit.
0
The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function.
0
Bring the Bluetooth device near to this unit.
0
The Bluetooth device cannot connect with this unit if it is not compatible with the A2DP profile.
0
Turn the power of the Bluetooth device off and on again, and then try again.
0
Set “Bluetooth” in the menu to “Enabled”. The Bluetooth function does not work when “Bluetooth” is “Disabled”.
(v p. 98)
The sound is cut off.
0
Bring the Bluetooth device near to this unit.
0
Remove obstructions between the Bluetooth device and this unit.
0
To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices.
0
Reconnect the Bluetooth device.
Contents
Connections Playback Settings Tips Appendix
117
Front panel Rear panel
Remote control
unit
Index
The Internet radio cannot be played back
A list of broadcasting stations is not displayed.
0
The LAN cable is not properly connected, or the network is disconnected. Check the connection status. (v p. 30)
0
Perform the network diagnostic mode.
Internet Radio cannot be played.
0
The selected radio station is broadcasting in a format that is not supported by this unit. Formats that can be played back in this unit are WMA, MP3 and
MPEG-4 AAC. (v p. 129)
0
The firewall function is enabled on the router. Check the firewall setting.
0
The IP address is not properly set. (v p. 103)
0
Check the power of the router is on.
0
To obtain the IP address automatically, enable the DHCP server function on the router. Also, set the DHCP setting to “On” on this unit. (v p. 103)
0
To obtain the IP address manually, set the IP address on this unit. (v p. 103)
0
Some radio stations broadcast silently during some time period. In this case, no audio is output. Wait for a while and select the same radio station, or
select another radio station. (v p. 38)
0
The selected radio station is not in service. Select a radio station in service.
Cannot connect to favorite radio stations.
0
Radio station is not currently in service. Register radio stations in service.
Contents
Connections Playback Settings Tips Appendix
118
Front panel Rear panel
Remote control
unit
Index
Music files on PC or NAS cannot be played back (Music server)
Files stored on a computer cannot be played.
0
Files are stored in a non-compatible format. Record in a compatible format. (v p. 128)
0
Files that are copyright protected cannot be played on this unit.
0
Even if PC is connected to the USB port on this unit, music files on it cannot be played back. Connect PC to this unit through the network. (v p. 30)
0
Media sharing settings on the server or NAS do not allow this unit. Change the settings to allow this unit. For details, see the owner’s manual of the
server or NAS.
Server is not found, or it is not possible to connect to the server.
0
The computer’s or router’s firewall is activated. Check the computer’s or router’s firewall settings.
0
Computer’s power is not turned on. Turn on the power.
0
Server is not running. Launch the server.
0
IP address of this unit is wrong. Check the IP address of this unit. (v p. 98)
Files on PC or NAS are not displayed.
0
Files of a type not supported by this unit are not displayed. (v p. 128)
Music stored on a NAS cannot be played.
0
If you use a NAS in conformity with the DLNA standard, enable the DLNA server function in the NAS setting.
0
If you use a NAS that does not conform with the DLNA standard, play the music via a PC. Set Windows Media Player’s media sharing function and add
NAS to the selected play folder.
0
If connection is restricted, set audio equipment as the connection target.
Contents
Connections Playback Settings Tips Appendix
119
Front panel Rear panel
Remote control
unit
Index
Various online services cannot be played
Various online services cannot be played.
0
The online service may have been discontinued.
Cannot connect to a wireless LAN network
Cannot connect to the network.
0
The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting
details of this unit. (v p. 102)
0
Shorten the distance from the wireless LAN access point and remove any obstructions to improve access first before re-connecting again. Place the
unit away from microwave ovens and other network access points.
0
Configure the access point channel settings away from channels that are being used by other networks.
0
This unit is not compatible with WEP (TSN).
Cannot connect to a WPS Router.
0
Check that the WPS mode of the router is operating.
0
Press the WPS button on the router and then press the ENTER button within 2 minutes.
0
A router/settings that are compatible with WPS 2.0 standards are required. Set the encryption time to “None”, WPA-PSK (AES) or WPA2-PSK (AES).
(v p. 101)
0
If the router encryption method is WEP/WPA-TKIP/WPA2-TKIP, you cannot connect by using the WPS button on the router. In this case, use the “Auto-
Scan” or “Manual” method to connect.
Cannot connect to the network using iPhone/iPod touch/iPad.
0
Update the iPhone/iPod touch/iPad firmware to the latest version.
0
When configuring the settings via a wireless connection, iOS 7 or later needs to be supported.
Contents
Connections Playback Settings Tips Appendix
120
Front panel Rear panel
Remote control
unit
Index
Music files on PC or Mac cannot be played back (USB-DAC)
This unit is not recognized on the computer.
0
Reconnect the USB cable to the USB port on your computer. When this unit is still not recognized after reconnection, connect to a different USB port.
(v p. 26)
0
Restart your computer.
0
Check the OS of your computer. (v p. 63)
0
When your computer is running on Windows, a dedicated driver software should be installed. (v p. 63)
This unit is not selected as the playback device.
0
Select this unit as the playback device in the sound settings on the computer. (v p. 62)
“Signal Unlock” is displayed.
0
When digital audio signals cannot be detected properly, “Signal Unlock” is displayed. (v p. 71)
“Unsupported” is displayed.
0
“Unsupported” is displayed when audio signals that are not supported by this unit are input. Check the settings on your computer or player software.
(v p. 71)
0
If the your computer is running a macOS, make sure the “PMA-150H” format is set to “384000.0 Hz” or less in “Audio MIDI Setup”. (v p. 71)
Contents
Connections Playback Settings Tips Appendix
121
Front panel Rear panel
Remote control
unit
Index
Audio from digital devices cannot be played back (Coaxial/Optical)
“Signal Unlock” is displayed.
0
When digital audio signals cannot be detected properly, “Signal Unlock” is displayed. (v p. 72)
“Unsupported” is displayed.
0
“Unsupported” is displayed when audio signals that are not supported by this unit are input. Check the audio output signal format from your digital
device. (v p. 72)
The input source switches to “Optical 1”, “Optical 2” or “Coaxial”
The input source automatically switches to “Optical 1”, “Optical 2” or “Coaxial” when the TV connected to this unit is turned on.
0
Set “Off” to “Auto-Play”. (v p. 92)
The input source automatically switches to “Optical 1”, “Optical 2” or “Coaxial” regardless of the TV connected to this unit is turned off.
0
Some TVs output digital signals even when the power is off. When using this unit with such TVs and a digital connection, its “Auto-Play” function may
activate regardless of the TV is turned off. The following settings link this unit to television remote control power on operations to enable automatic
playback through television audio.
A
Set the “Auto-Play” function in the settings menu to “Off”. (v p. 92)
B
Use the “IR Control” function in the settings menu to set “Input Optical In 1”, “Input Optical In 2” or “Input Coaxial In” operation to the power button of
your TV’s remote control. (v p. 93)
0
Set according to the terminal (OPTICAL 1, OPTICAL 2 or COAXIAL) of this unit that is connected to the TV.
Contents Connections Playback Settings Tips Appendix
122
Front panel Rear panel
Remote control
unit
Index
Update/upgrade error messages
If an update/upgrade is interrupted or fails, an error message appears.
Display Description
Connection failed. Please check your network, then try
again.
The network connection is unstable.
Connection to the server failed.
Check your network environment and try the update again.
Update failed. Please check your network, then try
again.
The download of the firmware failed.
Check your network environment and try the update again.
Upgrade failed. Please check your network, then try
again.
The download of the firmware failed.
Check your network environment and try the upgrade again.
Please check your network, unplug and reconnect the
power cord, and try again.
The update failed.
Press and hold the X on the main unit for more than 5 seconds, or remove and re-insert the
power cord.
The update restarts automatically.
Please contact customer service in your area. This unit may be broken.
Contact our Customer Service Center in your area.
Contents Connections Playback Settings Tips Appendix
123
Front panel Rear panel
Remote control
unit
Index
Resetting network settings
If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the
unit before returning the settings to the default settings. (v p. 109)
If the operations are not improved by restarting the unit, follow the steps below.
Network settings are reset to the factory default values. Make settings again.
However, the menu “Audio” settings are not reset.
.
BACK
X
1
Press X on the main unit to turn on power to the unit.
2
Touch q on the main unit and select “Internet Radio”,
“Music Servers” or “USB Music”.
3
Touch BACK while pressing and holding the X button
on this unit for at least three seconds when the power
is on.
4
Remove your fingers from the two buttons when
“Please wait...” appears on the display.
5
“Completed” is shown in the display when reset is
complete.
NOTE
0
Do not turn the power off until reset is complete.
Contents Connections Playback Settings Tips Appendix
124
Front panel Rear panel
Remote control
unit
Index
Playing back a USB memory devices
0
This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
0
This unit is compatible with WMA META tags.
0
If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/Apple Lossless/DSD) or 349 × 349 (MPEG-4 AAC), then music may not
be played back properly.
o
Specifications of supported files
Sampling frequency Bit rate Extension
WMA
z
1
32/44.1/48 kHz 48 – 192 kbps .wma
MP3 32/44.1/48 kHz 32 – 320 kbps .mp3
WAV
32/44.1/48/88.2/
96/176.4/192 kHz
– .wav
MPEG-4 AAC
z
1
32/44.1/48 kHz 48 – 320 kbps .aac/.m4a
FLAC
44.1/48/88.2/
96/176.4/192 kHz
– .flac
Apple Lossless
z
2
44.1/48/88.2/
96/176.4/192 kHz
– .m4a
DSD 2.8/5.6 MHz – .dsf/.dff
z1
Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be
copyright protected, depending on the computer’s settings.
z2
The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Contents
Connections Playback Settings Tips Appendix
125
Front panel Rear panel
Remote control
unit
Index
o
Maximum number of playable files and folder
The limits on the number of folders and files that can be displayed by
this unit are as follows.
Media
Item
USB memory device
Number of folder directory levels
z
1
8 levels
Number of folders 500
Number of files
z
2
5000
z1
The limited number includes the root folder.
z2
The allowable number of files may differ according to the USB memory device
capacity and the file size.
D/A converter
o
Specifications of supported audio formats
n
USB-DAC
Sampling frequency Bit length
DSD
(2-channel)
2.8/5.6/
11.2 MHz
1 bit
Linear PCM
(2-channel)
44.1/48/88.2/96/
176.4/192/352.8/
384 kHz
16/24/32
bits
n
Coaxial/Optical
Sampling frequency Bit length
Linear PCM
(2-channel)
32/44.1/48/88.2/96/
176.4/192 kHz
16/24 bits
Contents Connections Playback Settings Tips Appendix
126
Front panel Rear panel
Remote control
unit
Index
Playing back a Bluetooth device
This unit supports the following Bluetooth profile.
0
A2DP (Advanced Audio Distribution Profile):
When a Bluetooth device that supports this standard is connected,
monaural and stereo sound data can be streamed at a high quality.
0
AVRCP (Audio/Video Remote Control Profile):
When a Bluetooth device that supports this standard is connected, the
Bluetooth device can be operated from this unit.
o
About Bluetooth communications
Radio waves broadcast from this unit may interfere with the operation
of medical devices. Make sure you turn off the power of this unit and
Bluetooth device in the following locations as radio wave interference
may cause malfunctions.
0
Hospitals, trains, aircraft, petrol kiosks and places where flammable
gases are generated
0
Near automatic doors and fire alarms
Contents
Connections Playback Settings Tips Appendix
127
Front panel Rear panel
Remote control
unit
Index
Playing back files stored on a PC and NAS
0
This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
0
This unit is compatible with WMA META tags.
0
If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC) or 349 × 349 (MPEG-4 AAC), then music may not be played
back properly.
0
A server or server software compatible with distribution in the corresponding formats is required to play music files via a network.
For playing mentioned audio formats via a network a server software, for example Twonky Media Server or jRiver Media Server, needs to be installed
on your computer or NAS for full support. There are other server software available too. Please check supported formats.
o
Specifications of supported files
Sampling frequency Bit rate Extension
WMA
z
1
32/44.1/48 kHz 48 – 192 kbps .wma
MP3 32/44.1/48 kHz 32 – 320 kbps .mp3
WAV
32/44.1/48/88.2/96/
176.4/192 kHz
– .wav
MPEG-4 AAC
z
1
32/44.1/48 kHz 48 – 320 kbps .aac/.m4a
FLAC
44.1/48/88.2/
96/176.4/192 kHz
– .flac
Apple Lossless
z
2
44.1/48/88.2/
96/176.4/192 kHz
– .m4a
DSD 2.8/5.6 MHz – .dsf/.dff
z1
Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc., on a computer may be
copyright protected, depending on the computer’s settings.
z2
The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Contents
Connections Playback Settings Tips Appendix
128
Front panel Rear panel
Remote control
unit
Index
Playing back Internet Radio
o
Playable broadcast station specifications
Sampling frequency Bit rate Extension
WMA 32/44.1/48 kHz 48 – 192 kbps .wma
MP3 32/44.1/48 kHz 32 – 320 kbps .mp3
MPEG-4 AAC 32/44.1/48 kHz 48 – 320 kbps
.aac/
.m4a
Last function memory
This function stores the settings which were made before going into the
standby mode.
Contents
Connections Playback Settings Tips Appendix
129
Front panel Rear panel
Remote control
unit
Index
Explanation of terms
o
Audio
Apple Lossless Audio Codec
This is a codec for lossless audio compression method developed by
Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data
compressed to approximately 60 – 70 % can be decompressed to exactly
the same original data.
DSD (Direct-Stream Digital)
One of the audio data recording methods, it is the signal aspect used to
store audio signals on a super audio CD, and is Δ-Σ modulated digital
audio.
FLAC (Free Lossless Audio Codec)
FLAC stands for Free lossless Audio Codec, and is a lossless free audio
file format. Lossless means that the audio is compressed without any loss
in quality.
The FLAC license is as shown below.
Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009
Josh Coalson
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
0
Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
0
Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
0
Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
Contents
Connections Playback Settings Tips Appendix
130
Front panel Rear panel
Remote control
unit
Index
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4
These are the names for digital compression format standards used for
the encoding of video and audio. Video standards include “MPEG-1
Video”, “MPEG-2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.
WMA (Windows Media Audio)
This is the audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Contents
Connections Playback Settings Tips Appendix
131
Front panel Rear panel
Remote control
unit
Index
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Speaker impedance
This is an AC resistance value, indicated in Ω (ohms).
Greater power can be obtained when this value is smaller.
Bit rate
This expresses the read amount per 1 second of video/audio data
recorded in a disc. A larger number means higher sound quality, but also
means a larger file size.
o
Network
AirPlay
AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod
touch to a compatible device via the network.
WEP Key (network key)
This is key information used for encrypting data when conducting data
transfer. On this unit, the same WEP key is used for data encryption and
decryption, so the same WEP key must be set on both devices in order for
communications to be established between them.
Wi-Fi
®
Wi-Fi Certification assures tested and proven interoperability by the Wi-Fi
Alliance, a group certifying interoperability among wireless LAN devices.
WPA (Wi-Fi Protected Access)
This is a security standard established by the Wi-Fi Alliance. In addition to
the conventional SSID (network name) and WEP key (network key), it also
uses a user identification function and encrypting protocol for stronger
security.
WPA2 (Wi-Fi Protected Access 2)
This is a new version of the WPA established by the Wi-Fi Alliance,
compatible with more secure AES encryption.
Contents
Connections Playback Settings Tips Appendix
132
Front panel Rear panel
Remote control
unit
Index
WPA-PSK/WPA2-PSK (Pre-shared Key)
This is a simple authentication system for mutual authentication when a
preset character string matches on the wireless LAN access point and
client.
Network Names (SSID: Service Set Identifier)
When forming wireless LAN networks, groups are formed to prevent
interference, data theft, etc. These groups are based on “SSID (network
names)”. For enhanced security, a WEP key is set so that communication
is unavailable unless both the “SSID” and the WEP key match. This is
suitable for constructing a simplified network.
o
Other
Pairing
Pairing (registration) is an operation that is required in order to connect a
Bluetooth device to this unit using Bluetooth. When paired, the devices
authenticate each other and can connect without mistaken connections
occurring.
When using Bluetooth connection for the first time, you need to pair this
unit and the Bluetooth device to be connected.
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
Contents
Connections Playback Settings Tips Appendix
133
Front panel Rear panel
Remote control
unit
Index
Trademark information
.
Apple, AirPlay, iPad, iPad Air, iPad Pro and iPhone are trademarks of
Apple Inc., registered in the U.S. and other countries.
The trademark "iPhone" is used in Japan with a license from Aiphone
K.K.
Use of the Works with Apple badge means that an accessory has been
designed to work specifically with the technology identified in the badge
and has been certified by the developer to meet Apple performance
standards.
.
The Bluetooth
®
word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by D&M Holdings
Inc. is under license. Other trademarks and trade names are those of
their respective owners.
.
The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi
Alliance.
Wi-Fi Certification provides assurance that the device has passed the
interoperability test conducted by the Wi-Fi Alliance, a group that certifies
interoperability among wireless LAN devices.
Contents Connections Playback Settings Tips Appendix
134
Front panel Rear panel
Remote control
unit
Index
Specifications
o
Audio amplifier
0
Output characteristics
Rated output: Dual-channel drive
35 W+35 W (8 Ω/ohms, 1 kHz, T.H.D. 0.1 %)
70 W+70 W (4 Ω/ohms, 1 kHz, T.H.D. 0.1 %)
Output terminals: Speaker: 4-16 Ω/ohms (impedance)
Headphones: Φ6.3 mm jack
Total harmonic distortion: 0.002 % (Digital input, rated output -3 dB, 8 Ω/ohms, 1 kHz)
S/N ratio: 112 dB (Digital in, 35 W, 8 Ω/ohms, 1 kHz, IHF-A)
0
Digital input signal
Format: Digital audio interface (Linear PCM)
Coaxial input: 0.5 Vp-p / 75 Ω/ohms
Optical input: –27 dBm or more
Optical wavelength: 660 nm
0
Input characteristics
Input sensitivity/impedance: AUX: 0.47 V / 25 kΩ/kohms
Contents Connections Playback Settings Tips Appendix
135
Front panel Rear panel
Remote control
unit
Index
o
Tuner section
[FM] [AM]
Receiving Range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz
Effective sensitivity: 1.2 μV / 75 Ω/ohms 20 μV
FM Channel separation: 42 dB (1 kHz)
FM S/N ratio: Monaural : 70 dB
Stereo : 70 dB
FM THD+N (1 kHz): Monaural : 0.4 %
Stereo : 0.4 %
o
Wireless LAN section
Network type (wireless LAN standard): Conforming to IEEE 802.11a/b/g/n
(Wi-Fi
®
compliant)
z
1
Security: WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Used frequency range: 2.4 GHz, 5 GHz
z1
The Wi-Fi
®
CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Contents
Connections Playback Settings Tips Appendix
136
Front panel Rear panel
Remote control
unit
Index
o
Bluetooth section
Communications system: Bluetooth Specification Version 4.1
Transmission power: Bluetooth Specification Power Class 1
Maximum communication range:
Approx. 98.4 ft/30 m in line of sight
z
2
Used frequency range: 2.4 GHz
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles: A2DP (Advanced Audio Distribution Profile) 1.2
AVRCP (Audio Video Remote Control Profile) 1.5
Corresponding codec: SBC
Transmission range (A2DP): 20 Hz – 20,000 Hz
z2
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from
microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
Contents
Connections Playback Settings Tips Appendix
137
Front panel Rear panel
Remote control
unit
Index
o
General
Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)
Power supply: AC 120 V, 60 Hz
Power consumption: 65 W
Power consumption in standby mode : 0.3 W
Power consumption in “Network Control” –
“On” mode:
5 W
0
For purposes of improvement, specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
138
Front panel Rear panel
Remote control
unit
Index
o
Dimensions (Unit : in. (mm))
.
12 (304)
13 3/8 (337)
3/4
(16)
8 3/4 (220)
1 1/4
(30)
1 (25)
1 1/4
(30)
1/4 (6)
3/4
(17)
3 7/8 (98)
2 3/8 (60)
8 5/8 (218)
1 1/4
(30)
2 1/4
(56)
11 1/8 (280)
6 1/2 (164)
o
Weight : 12 lbs 6 oz (5.6 kg)
Contents Connections Playback Settings Tips Appendix
139
Front panel Rear panel
Remote control
unit
Index
Index
v A
AirPlay ............................................................ 75
Auto Standby ................................................. 93
v B
Bluetooth device ............................................ 45
v D
Display’s brightness ....................................... 82
v F
Firmware update ............................................ 94
Front panel ..................................................... 12
v H
HEOS Account ....................................... 50, 105
HEOS Favorites ............................................. 79
v I
Input source ................................................... 36
Inputting characters ........................................ 89
Internet Radio ................................................. 37
v M
Menu map ...................................................... 83
v N
NAS ........................................................ 39, 128
Network settings ............................................ 98
v P
Pairing ............................................................ 45
PC .................................................... 30, 39, 128
v Q
Queue ................................................ 40, 43, 53
Contents
Connections Playback Settings Tips Appendix
140
Front panel Rear panel
Remote control
unit
Index
v R
Rear panel ...................................................... 14
Remote control unit ........................................ 17
Resetting network settings ........................... 124
v S
Sleep timer ..................................................... 82
Spotify ............................................................ 78
v T
Tips .............................................................. 107
Troubleshooting ........................................... 109
v U
USB memory device ................................ 27, 42
v W
Wi-Fi settings ............................................... 100
Wired LAN .............................................. 30, 100
Wireless LAN ......................................... 31, 100
Contents Connections Playback Settings Tips Appendix
141
Front panel Rear panel
Remote control
unit
Index
.
www.denon.com
3520 10701 00AD
Copyright © 2019 D&M Holdings Inc. All Rights Reserved.
153
