CARBON PREMIUM PROGRAMMABLE
MAGNETIC ELLIPTICAL
SF-E3982
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 pounds (120 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2
EXPLODED DIAGRAM 1
1
1b
1a
2
3
4
5
5
6
6
7
7
8
8
9
9
10
12
11
13
11
11
11
12
12
12
12
12
12
12
13
13
13
13
13
13
13
13
13
13
14
14
15
15
16
16
17L
17R
18L
18R
19L
19R
20
20
21
21
22
22
22
22
23
23
25
11
11
25
26L
26R
27
30
28
28
29
27
28
28
29
30
31
31
32
33
34
33
34
35
36
35
36
37
37
37
37
38
13
38
38
38
39
39
39
39
40
41L
41R
42
42
43R
11
11
24
24
45
45
46
46
47
49
50
51
50
51
50
51
50
51
44
107
28
28
96
11
35
11
11
43L
48
48
46
48
28
28
96
35
48
48
48
46
47
95L
95R
97
97
98
99
100
100
98
99
100
100
101L
101R
102
103
105
104
104
106
106
105
103
102
#A S5 2PCS
#B S13-14-15 1PC
11
35
11
35
11
71
3

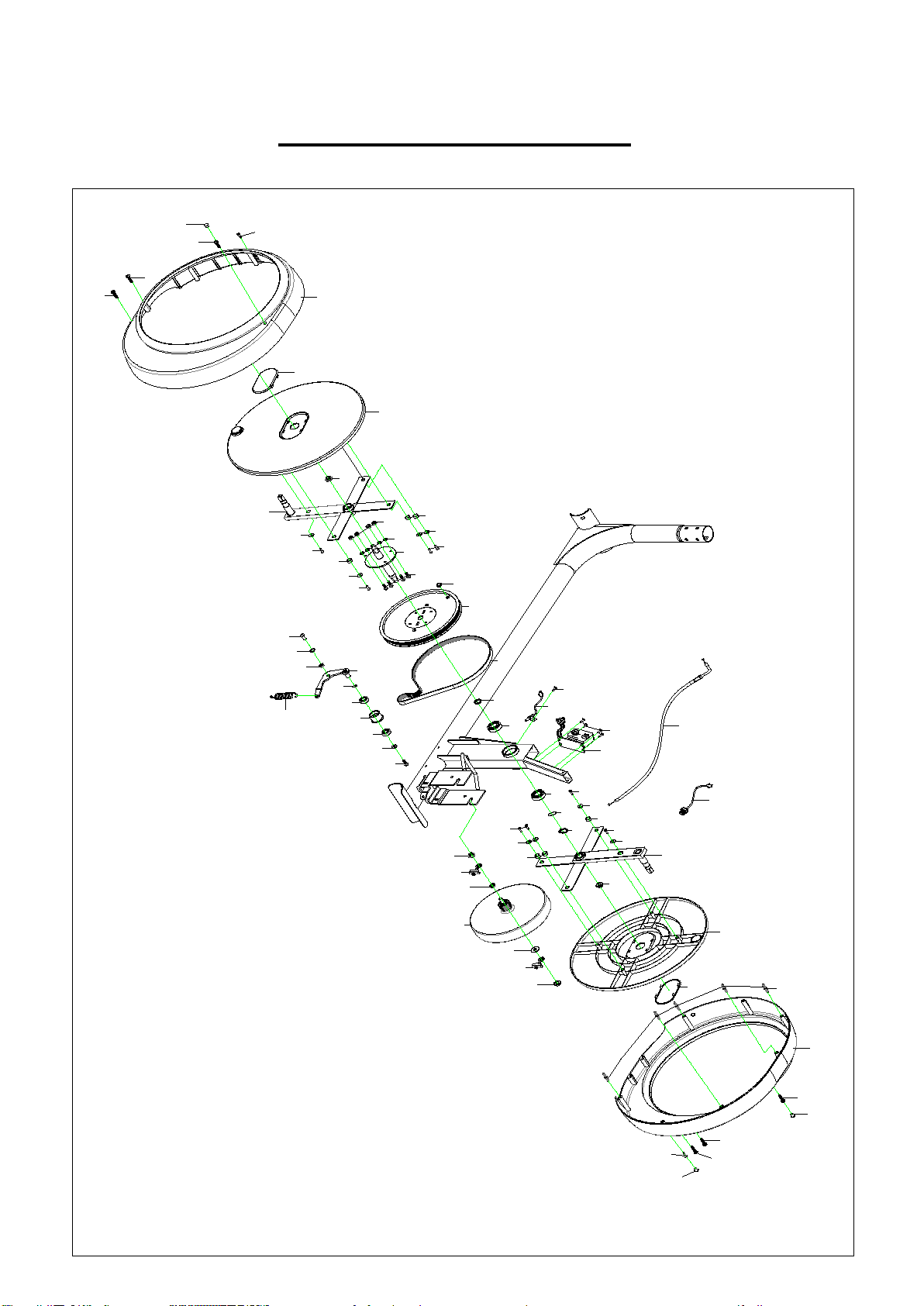

EXPLODED DIAGRAM 2
54L
53
53
53
52
54R
55
55
56
56
57
57
58
58
59
60
61
59
59
60
61
60
61
61
60
59
60
61
60
61
62
63
64
65
66
67
68
69
70
70
72
73
73
74
75
76
77
78
79
80
81
82
83
83
84
85
86
87
88
89
89
90
90
91
94
92
93
53
61
53
52
61
52
53
4
PARTS LIST
No. Description Spec. Qty. No. Description Spec. Qty.
1
Computer
1
43L/R
Pedal
2
1a
Computer Wire 1
1
44
Adapter
1
1b
Computer Wire 2
1
45
End cap
Φ48
2
2
Trunk Wire 1
1
46
Bearing
4
3
Upright Post
1
47
Washer
d8*Φ22*2
2
4
Middle Handlebar
1
48
C-clip
d40
6
5
Foam Grip
Φ23*3*350
2
49
Rear Stabilizer
1
6
Handle Pulse Plate 1
2
50
Adjustable Foot Pad
4
7
Handle Pulse Plate 2
2
51
Hexagon Nut
4
8
End Cap
2
52
End Cap
3
9
Bolt
ST3*25
4
53
Bolt
ST4.2*16
6
10
Handle Pulse Wire
1
54L/R
Belt Cover
2
11
Bolt
M8*20*S5
20
55
Decorative Cover
2
12
Arc Washer
d8*Φ20*2*R30
12
56
Rotation Cover
2
13
Spring Washer
d8
18
57
Crank
2
14
Grommet
Φ12
2
58
Nut
M10*1.25
2
15
End Cap
Φ32
2
59
Spacer
6
16
Foam Grip
Φ30*3*780
2
60
Washer
d6*Φ16*1.5
8
17L/R
L/R Handlebar
2
61
Bolt
ST4.2*19
10
18L/R
L/R Rear Handlebar
Cover
2 62 Middle Axle 1
19L/R
L/R Front Handlebar
Cover
2 63 Nylon Nut M6*H6*S10 4
20
Hexagon Bolt
M8*16*S14
2
64
Spring Washer
d6
4
21
Washer
d8*Φ32*2
2
65
Hexagon Bolt
M6*16*S10
4
22
Bushing 1
4
66
Belt Wheel
1
23
Wave Washer
d19
2
67
Belt
1
24
Bolt
M8*16*S5
2
68
Magnet
1
25
Arc Washer
d8*Φ20*2*R16
4
69
Inductor
1
26L/R
Swing Rod L/R
2
70
Screw
5
27 Bolt
M8*65*M6*15*
S5
2 71 Trunk Wire 2 1
28
Bushing 2
8
72
Motor
1
29
Spacer
2
73
Bearing
2
30
Screw
M6*15*S5
2
74
Spacer
1
31
Washer
d6*Φ16*1.5
2
75
Wave Washer
d20
1
32
Front Stabilizer
1
76
Washer
d20
1
33
Bolt
M8*42*15*S5
2
77
Electric Tension Wire
1
34
Transportation Wheel
2
78
Power Line
1
35
Washer
d8*Φ16*1.5
6
79
Bolt
1
36
Nylon Nut
2
80
Washer
d12*Φ17*0.5
1
37
Bolt
M8*73*20*H5
4
81
Idler Wheel Shaft
1
38
Cap Nut
M8*H16*S13
4
82
Wave Washer
d12
1
39
End Cap
4
83
Bearing
2
40
Main Frame
1
84
Idler Wheel
1
41L/R
L/R Pedal Rod
2
85
Washer
1
42
End Cap
Φ38
2
86
Hexagon Bolt
M6*12*S10
1
5
No. Description Spec. Qty. No. Description Spec. Qty.
87
Nylon Nut
M8*H7.5*S13
1
99
Washer
2
88
Tension Spring
1
100
Spacer
4
89 Nut M10*1*H8*S15 2 101L/R
L/R Connecting
Rod
2
90
Bolt Set
2
102
Crank Cover
2
91
Nut
M10*1*H5*S17
1
103
Bolt
M8*20
2
92
Flywheel
1
104
Small Crank
2
93
Plastic Column
5
105
Washer
d17
2
94
Washer
d10*20*2
1
106
Wave Washer
d17*Φ22*0.3
2
95L/R
Pedal Plate
2
107
Screw
M5*10
4
96
Spacer
2
A
Allen Wrench
S5
2
97
End Cap
2
B
Spanner
S13-14-15
1
98
Nylon Nut
2
HARDWARE PACKAGE
#13 d8 4PCS
#11 M8*20*S5 4PCS
#A S5 2PCS
#B S13-14-15 1PC
#25 d8*Φ20*2*R16 4PCS
#27 M8*65*M6*15*S5 2PCS
#31 d6*Φ16*1.5 2PCS
#30 M6*15*S5 2PCS
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
37
37
12
12
13
13
38
38
49
12
12
13
37
37
38
13
38
40
#37 M8*73*20*H5 4PCS
#12 d8*Φ20*2*R30 4PCS
#13 d8 4PCS
#B S13-14-15 1PC
32
#38 M8*H16*S13 4PCS

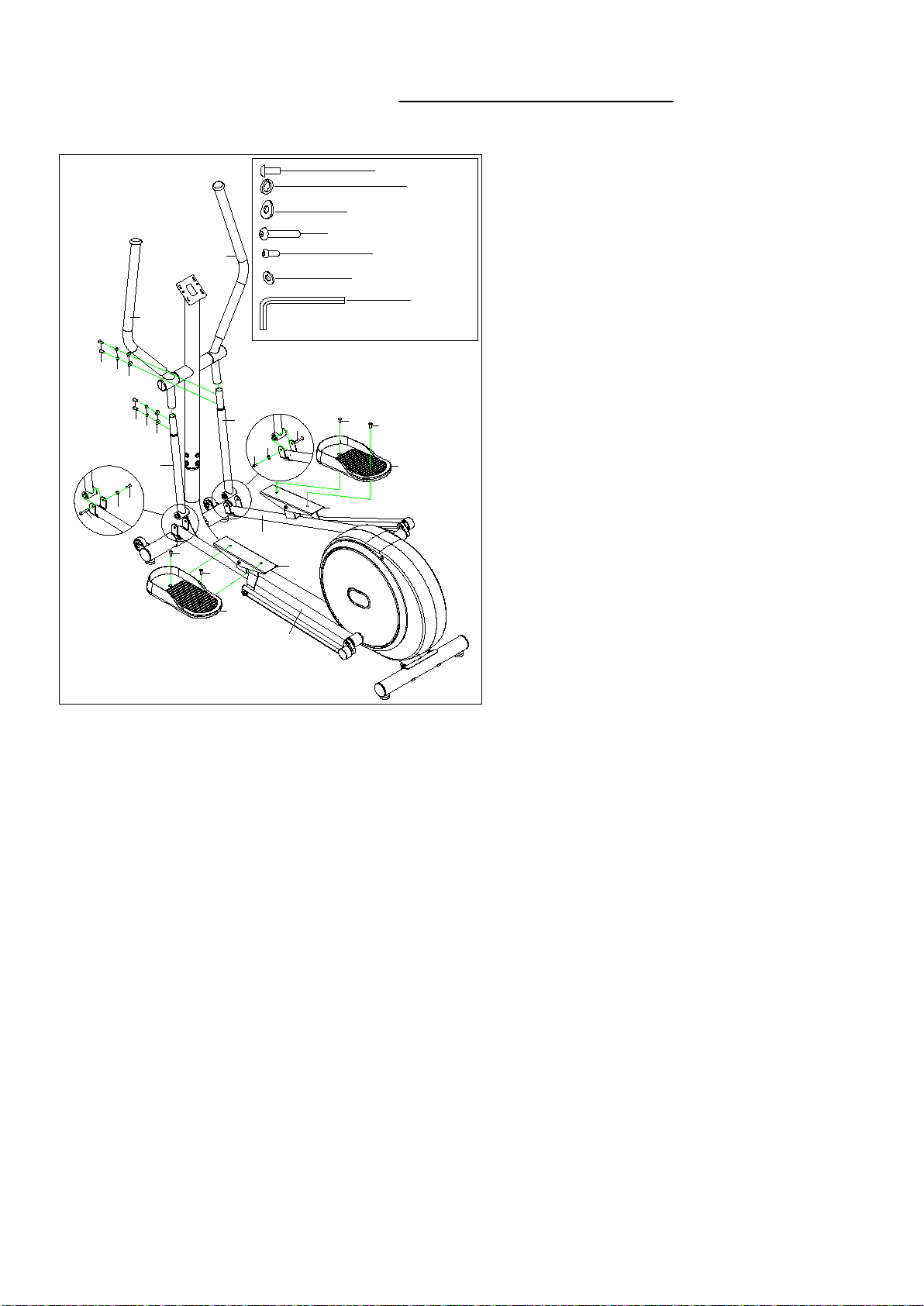

STEP 1:
Remove 4 Bolts (No. 37), 4 Arc Washers
(No. 12), 4 Spring Washers (No. 13), and
4 Cap Nuts (No. 38) from Front Stabilizer
(No. 32) and Main Frame (No. 40) with
Spanner (No. B).
Attach Front Stabilizer (No. 32) and Rear
Stabilizer (No. 49) to Main Frame (No. 40)
using 4 Bolts (No. 37), 4 Arc Washers
(No. 12), 4 Spring Washers (No. 13), and
4 Cap Nuts (No. 38) that were removed.
Tighten and secure with Spanner (No. B).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
23
13
18L
19L
20
21
23
19R
18R
21
13
20
3
17L
17R
40
2
71
71
2
11
13
11
12
13
12
12
13
11
#13 d8 8PCS
#20 M8*16*S14 2PCS
#21 d8*Φ32*2 2PCS
#23
d19
2PCS
#12 d8*Φ20*2*R30 6PCS
#11 M8*20*S5 6PCS
#A S5 1PC
#B S13-14-15 1PC
、
STEP 2:
Remove 6 Bolts (No. 11), 6 Spring
Washers (No. 13), and 6
Arc Washers
(No. 12) from Main Frame (No. 40) with
Allen Wrench (No. A).
Connect Trunk Wire 1 (No. 2) with Trunk
Wire 2 (No. 71).
Attach Upright Post (No. 3) to Main
Frame (No. 40) using 6 Bolts (No. 11), 6
Spring Washers (No. 13), and 6 Arc
Washers (No. 12) that were removed.
Tighten and secure with Allen Wrench
(No. A).
CAUTION: Please careful not to pinch the
wires when assembling the Upright Post
(No. 3).
Remove 2 Hexagon Bolts (No. 20), 2
Spring Washers (No. 13), 2 Washers
(No. 21) and 2 Wave Washers (No. 23)
from Upright Post (No. 3) with Spanner
(No. B).
Attach
Left & Right Handlebar (No.
17L/R) to Upright Post (No. 3) using 2
Hexagon Bolts (No. 20), 2 Spring
Washers (No. 13), 2 Washers (No. 21)
and 2 Wave Washers (No. 23) that were
removed. Tighten and secure with
Spanner (No. B).
Attach
Left & Right Front Handlebar
Covers (No. 19L/R) with
Left & Right
Rear Handlebar Covers (No. 18L/R) to
cover
Left & Right Handlebar (No.
17L/R).
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
#13 d8 4PCS
#25 d8*Φ20*2*R16 4PCS
#11 M8*20*S5 8PCS
#A S5 2PCS
11
11
43L
43R
11
11
27
30
31
30
27
31
13
25
11
26L
13
11
25
26R
Ⅱ
Ⅰ
#27 M8*65*M6*15*S5 2PCS
#31 d6*Φ16*1.5 2PCS
#30
M6*15*S5
2PCS
95L
95R
41L
41R
17L
17R
STEP 3:
Attach Left & Right Handlebars (No.
17L/R) to Left & Right Swing Rods (No.
26L/R) using 4 Bolts (No. 11), 4 Spring
Washers (No. 13) and 4 Arc Washers
(No. 25). Tighten and secure with Allen
Wrench (No. A).
Attach Left & Right Swing Rods (No.
26L/R) to Left & Right Pedal Rods (No.
41L/R) using 2 Bolts (No. 27), 2 Screws
(No. 30) and 2 Washers (No. 31). Tighten
and secure with 2 Allen Wrenches (No.
A).
Remove 4 Bolts (No. 11) from
Left &
Right Pedal Plates (No. 95L/R) with
Allen Wrench (No. A).
Attach Left & Right Pedals (No. 43L/R)
to Left & Right Pedal Plates (No. 95L/R)
using 4 Bolts (No. 11) that were removed.
Tighten and secure with Allen Wrench
(No. A).
9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
#13 d8 2PCS
#12 d8*Φ20*2*R30 2PCS
#11 M8*20*S5 2PCS
#A S5 1PC
#B S13-14-15 1PC
2
1a
#107 M5*10 4PCS
44
12
11
13
1a
107
2
1
4
14
40
3
10
1b
1b
10
STEP 4:
Remove 2 Bolts (No. 11), 2 Arc
Washers (No. 12), and 2 Spring
Washers (No. 13) from Upright Post
(No. 3) with Allen Wrench (No. A).
Attach Middle Handlebar (No. 4) to
Upright Post (No. 3) using 2 Bolts (No.
11), 2 Arc Washers (No. 12),
and 2
Spring Washers (No. 13)
that were
removed. Tighten and secure with Allen
Wrench (No. A).
Remove 4 Screws (No. 107) from
Computer (No. 1) with Spanner (No. B).
Insert the Handle Pulse Wire (No. 10)
through the hole in front of the Upright
Post (No. 3) and pull it out from the top of
the Upright Post (No. 3). Connect
Computer Wire 2 (No. 1b) with Handle
Pulse Wire (No. 10) and connect the
Computer Wire 1 (No. 1a) with Trunk
Wire 1 (No. 2). Then, use Grommet (No.
14) to cover the hole in front of the
Upright Post (No. 3).
Attach Computer (No. 1) to Upright Post
(No. 3) using 4 Screws (No. 107) that
were removed. Tighten and secure with
Spanner (No. B).
Insert the jack from Adapter (No. 44) to
adapter input on the back of Main Frame
(No. 40), then plug the Adapter (No. 44)
into an outlet.
The assembly is complete!
10

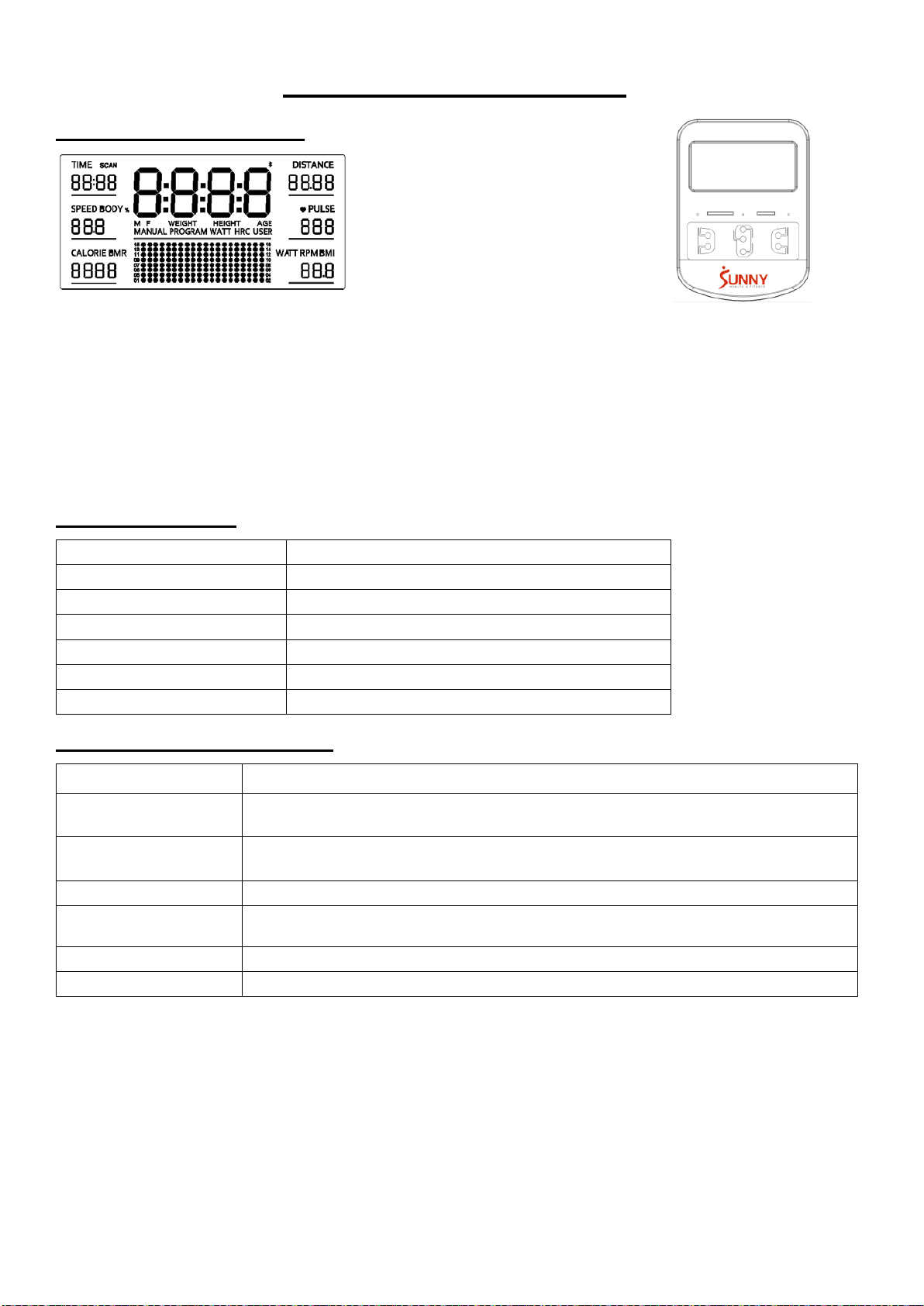

EXERCISE COMPUTER
DISPLAY INFORMATION
1. The main window displays the exercise status:
a. Scan mode: Display and switch among functions every 6 seconds:
TIME->DISTANCE->SPEED->PLUSE->CALORIE->WATT
b. Press “Display-ALT” key to select and lock on any specific function.
2. TIME, SPEED, CALORIE, DISTANCE, PULSE display window
3. WATT RPM display window
Press “ENTER” key to switch display between WATT or RPM during use.
4. Resistance level: 16 levels.
SPECIFICATIONS
TIME.
0m00s ~ 99m59s / 99m00s-0m00s
SPEED
0.0 ~ 99.9 MPH (Miles Per Hour)
DISTANCE
0.00 ~ 99.9 Miles
CALORIE
0 ~ 9999 KCAL
PULSE
40-240 BPM
Revolutions Per Minute
0 ~ 999 RPM
WATTS
0~899 W
FUNCTION DESCRIPTION
MANUAL MODE
PRORGAM 1: The resistance value is adjusted manually.
PROGRAM MODE
PROGRAM 2-11: The exercise is adjusted with preset value
automatically.
BODY FAT
PROGRAM 12: Calculate body fat percentage, Body Mass Index (BMI)
and Basal Metabolic Rate (BMR).
WATT MODE
PROGRAM 13: The exercise is controlled by watt target.
H.R.C MODE
PROGRAM 14-17: The exercise is controlled by target heartrate value -
65% ,75%,85%, user setting value.
USER MODE
PROGRAM18-21: The exercise is set by resistance value.
RECOVERY MODE
Based on the level of recovery heartrate.
11

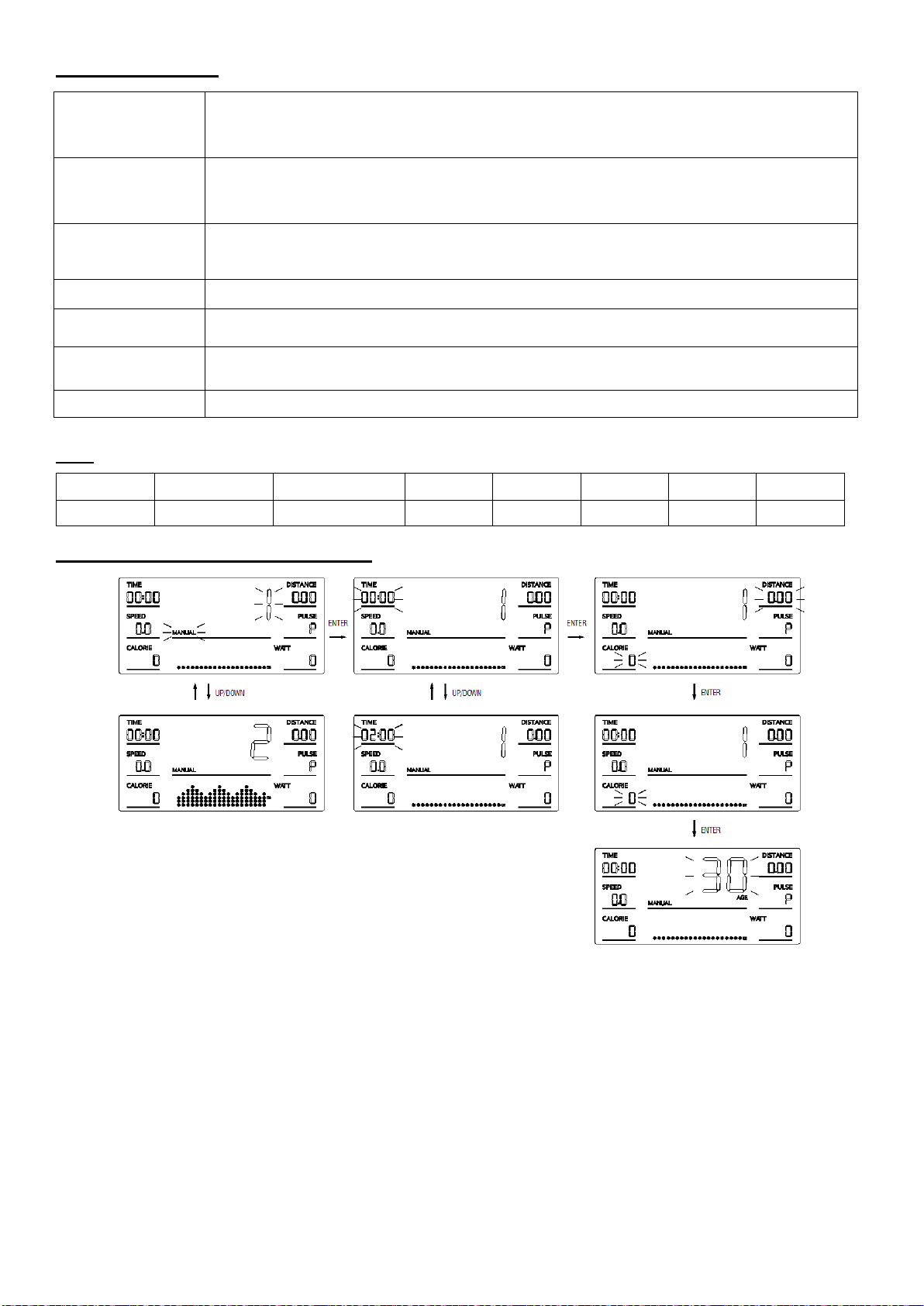

KEY FUNCTION
UNIT
MANUAL MODE (PROGRAM 1)
1. Press “START/STOP” to start the exercise, or press “ENTER” to enter Setting Mode.
2. In Setting Mode, press “ENTER” to choose setting items with relevant flashing window for
TIME, DISTANCE, CALORIE, AGE.
3. Press “UP” or “DOWN” to increase or decrease the value, and press “ENTER” to skip to next
item.
4. When all operations are complete, it will exit the setting mode automatically. Or press
“START/STOP” in the settings status to start.
5. Resistance level can be adjusted during use, with “UP” or “DOWN” key.
6. Once user begin the exercise, it will count down from the set value. When any of the setting
value count to 0, it will beep and stop the workout automatically.
7. Press “START/STOP” to stop the exercise automatically at any point during use.
UP
. Move up the selections in PROGRAM Mode.
. Increase value in the Setting Mode.
. Increase resistance level during use.
DOWN
. Move down the selections in PROGRAM Mode.
. Decrease value in the Setting Mode.
. Decrease the resistance level during use.
RESET
. Return to PROGRAM 1 from any status.
. Clear all values, except the user settings of U1-U4, WATT and PULSE.
START/STOP
. Start or stop the motion status.
RECOVERY
. To test the level of heartrate recovery.
ENTER
. To switch display between WATT or RPM during use.
. To choose function for setting.
Display-ALT
. Let you select and lock on to any function.
HEIGHT
WEIGHT
SPEED
RPM
DIST
CAL
WATT
PULSE
Ft’ in
LB
MPH
R / MIN
Miles
KCAL
W
BPM
12

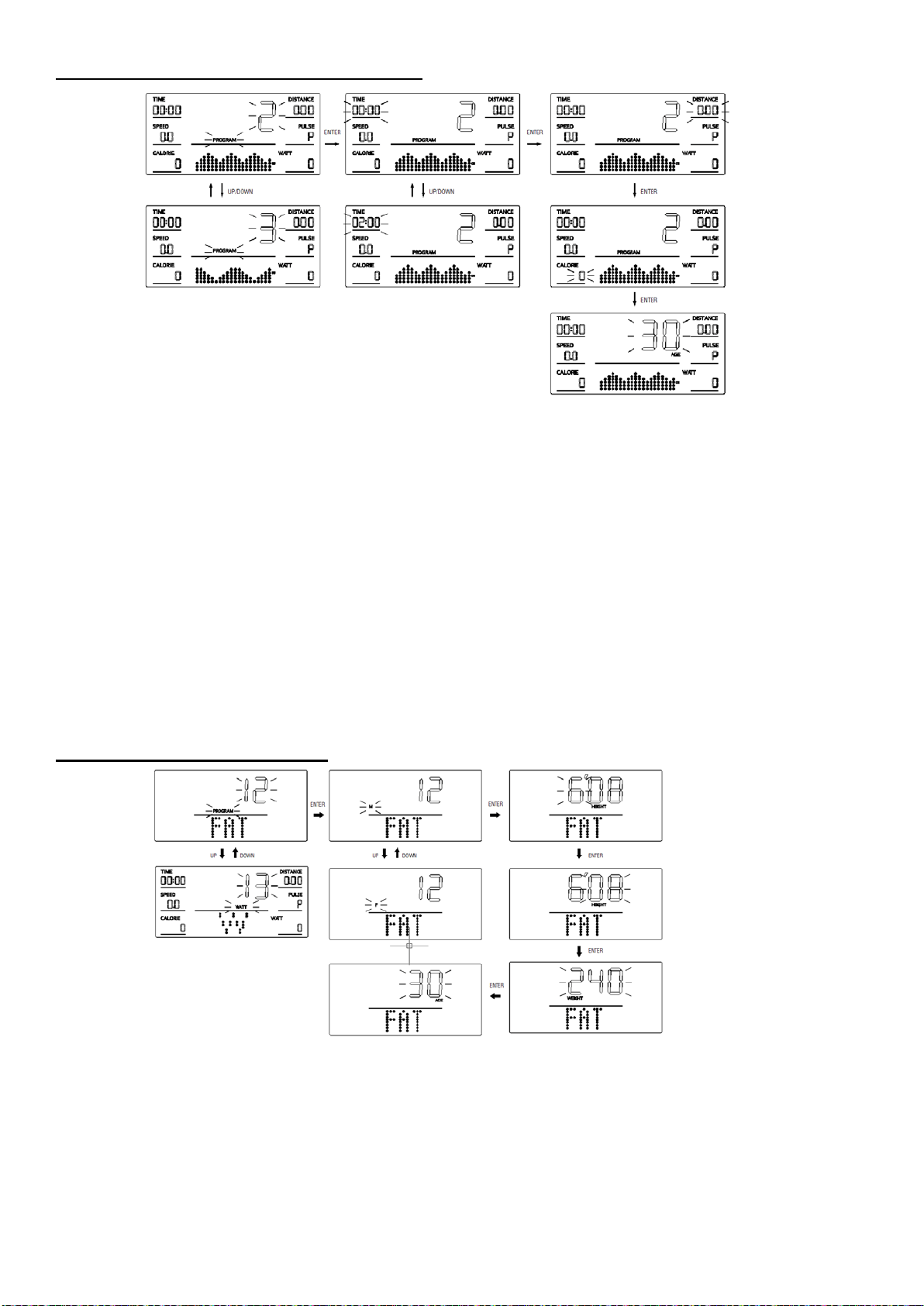

PROGRAM MODE (PROGRAM 2-11)
1. Press “UP” or “DOWN” to select any functions.
2. Press “START/STOP” to start the exercise, or press “ENTER” to enter Setting Mode.
3. In Setting Mode, press “ENTER” to choose setting items with relevant flashing window for
TIME, DISTANCE, CALORIE, AGE.
4. Press “UP” or “DOWN” to increase or decrease the value, and press “ENTER” to skip to next
item.
5. When all operations are complete, it will exit the setting mode automatically. Or press
“START/STOP” in the settings status to start.
6. Resistance level is adjusted automatically during workout for each program, or press “UP”/
“DOWN” to make adjustment manually.
7. Once user begin the exercise, it will count down from the set value. When any of the setting
value count to 0, it will beep and stop the workout automatically.
8. Press “START/STOP” to stop the exercise automatically at any point during use.
BODY FAT (PROGRAM 12)
Press “ENTER” to enter the Setting Mode.
1. In Setting Mode, press “ENTER” to choose setting items with relevant flashing window for
GENDER→HEIGHT(FOOT)→HEIGHT(INCH)→WEIGHT(LBS)→AGE.
2. Press “UP” or “DOWN” to increase or decrease the value, and press “ENTER” to skip to next
item.
3. Press “START/STOP” to start the test and hold the pulse sensors with your hands. Then the
display will show your body fat within 8 seconds.
4. You should keep your body relaxed to get the most accurate value.
13
B.M.I. (Body Mass Index)
Gender/Age
Underweight
Healthy
Slightly Overweight
Overweight
Obese
Male/ ≤ 30
< 14
14~20
20.1~25
25.1~35
> 35
Male/ > 30
< 17
17~23
23.1~28
28.1~38
> 38
Female/≤ 30
< 17
17~24
24.1~30
30.1~40
> 40
Female/ > 30
< 20
20~27
27.1~33
33.1~43
> 43
BODY FAT
Gender
Low
Medium
Slightly High
High
Male
<13%
13%-25.9%
26%-30%
>30%
Female
<23%
23%-35.9%
36%-40%
>40%
B.M.R (Basal Metabolic Rate)
The average number of calories burned per day for basic survival
Ref
：
1300±100
（
22-40years
）
BODY TYPE:
B1
B2
B3
B4
B5
B6
B7
B8
B9
Severely
Underweight
Underweight
Thin
Slightly
Thin
Healthy
Slightly
Overweight
Overweight
Obese
Extremely
Obese
WATT MODE (PROGRAM 13)
1. Press “ENTER” to enter Setting Mode.
2. In Setting Mode, press “ENTER” to choose setting items with relevant flashing window for
TIME→DISTANCE→WATT.
3. Press “UP” or “DOWN” to increase or decrease the value, and press “ENTER” to skip to next
item.
4. Press “START/STOP” to start.
5. Resistance level is adjusted automatically with WATT target value during workout.
6. Once user begin the exercise, it will count down from the set value. When any of the setting
value count to 0, it will beep and stop the workout automatically.
7. Press “START/STOP” to stop the exercise automatically at any point during use.
Note: the WATT value is decided by the TORQUE and RPM. in this program, the watt value will
keep at constant value. it means that if you peddle quickly, the load resistance will decrease and
if you peddle slowly, the load resistance will increase to ensure you at the same watt value.
14

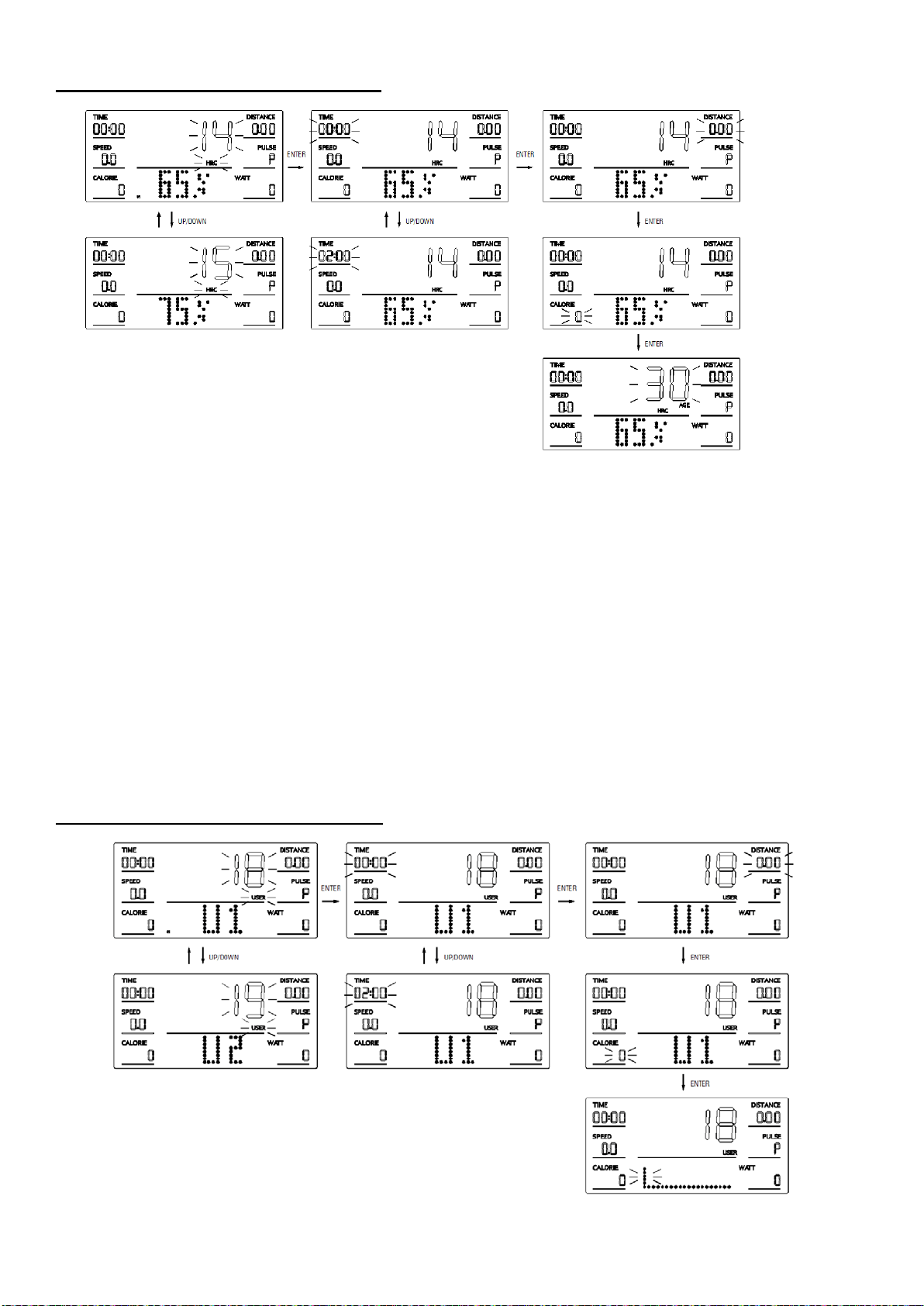

H.R.C MODE (PROGRAM 14-17)
1. Press “UP” or “DOWN” to select any functions.
2. Press “START/STOP” to start the exercise, or press “ENTER” to enter Setting Mode.
3. In Setting Mode, press “ENTER” to choose setting items with relevant flashing window for
TIME→DISTANCE→CALORIE→AGE (only PROGRAM 14-16) → T.H.R (only PROGRAM
17).
4. Press “UP” or “DOWN” to increase or decrease the value, and press “ENTER” to skip to next
item.
5. Press “START/STOP” to start.
6. Resistance level is adjusted automatically during workout with target T.H.R value.
7. Once user begin the exercise, it will count down from the set value. When any of the setting
value count to 0, it will beep and stop the workout automatically.
8. Press “START/STOP” to stop the exercise automatically at any point during use.
NOTICE: you must hold the pulse sensors during exercise.
USER MODE (PROGRAM 18-21)
15
1. Press “UP” or “DOWN” to select U1-U4 mode.
2. Press “START/STOP” to start the exercise, or press “ENTER” to enter Setting Mode.
3. In Setting Mode, press “ENTER” to choose setting items with relevant flashing window
TIME→DISTANCE→CALORIE→AGE →Resistance Value.
4. Press “UP” or “DOWN” to increase or decrease the value, and press “ENTER” to skip to next
item.
5. Press “START/STOP” to start.
6. Resistance level is adjusted automatically during workout in this program, or press “UP”/
“DOWN” to make adjustment manually.
7. Once user begin the exercise, it will count down from the set value. When any of the setting
value count to 0, it will beep and stop the workout automatically.
8. Press “START/STOP” to stop the exercise automatically at any point during use.

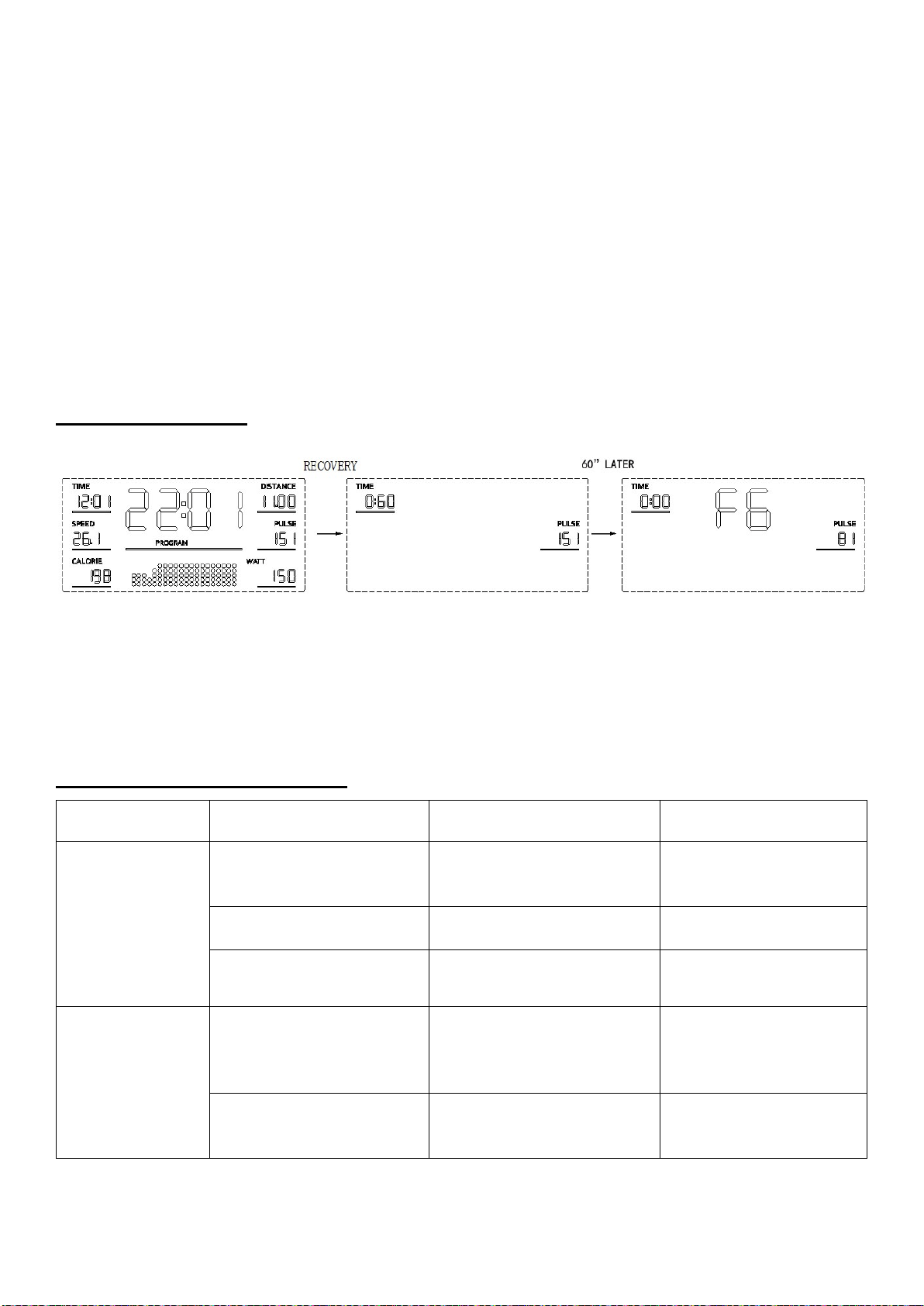

RECOVERY MODE
During use, first test your pulse as above mentioned. Then press “RECOVERY” key to enter
pulse recovery function. The display will show 1-minute count-down as well as your pulse rate.
Hold on the pulse sensors with your hands until it counts down to zero. Then, it will pop up your
pulse recovery level from F1 to F6, which is from the fastest recovery to slowest. The fastest
recovery F1 show the best.
FAULT CODE DESCRIPTION
FAULT CODE POSSIBLE CAUSE CHECK SOLUTION
E1
The motor doesn't
work.
Check if the motor wires
are plugged in or check if
the motor is stuck.
Pulse in the cable
again or change the
motor.
There is something
wrong with the cables.
Check if the cables are
damaged.
Change the cables or
plug in again.
The computer cannot
supply normal voltage to
the motor.
Change the computer.
E2
Hands aren't put on the
two handle pulses
immediately after
pressing START.
Put the hands on the
two
handle pulses
immediately after
pressing START.
Body Far Function
cannot receive the
signal for pulse.
Check if the pulse is
working when not in Body
Fat program.
Change the computer.
16
ADJUSTMENTS & USAGE GUIDE
50
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you must ensure
that the elliptical is stabled and secured. If you notice that the
elliptical is unbalanced during use, you should adjust the foot pads
located beneath the front and
rear stabilizers. To do so, simply
rotate the Adjustable Foot Pad (No. 50) until the elliptical becomes
levelled with the floor surface.
34
4
MOVING THE ELLIPTICAL
To move the elliptical, hold Middle Handlebar (No. 4) and tilt the
elliptical until the Transportation Wheels (No. 34) on
the front
stabilizer touch th
e ground. With the wheels on the ground, you can
transport the elliptical to the desired location with ease.
CLEANING
The elliptical can be cleaned with a soft, clean,
damp cloth. Do not use abrasives or solvents on
plastic parts. Please wipe your perspiration off the elliptical after each use. Be careful not to get
excessive moisture on the computer display panel as this might cause electrical hazard or
electronics to fail.
Please keep the elliptical, especially the computer,
out of direct sunlight to prevent screen
damage.
Please inspect all assembly bolts and pedals on the elliptical for proper tightness every week.
STORAGE
Store the elliptical in a clean and dry environment, away from children.
TROUBLESHOOTING
PROBLEM
SOLUTION
Ther
e is no display on the
computer.
1. Remove the computer and verify that the wires from
the computer is properly connected to the wires that
come from the upright post.
2. Check if the batteries are correctly positioned and
that the battery springs are in proper contact with
batteries.
3. The batteries in the computer may be unresponsive.
Change to new batteries.
The
elliptical wobbles when in use.
Turn the adjustable foot pads located on the front and
rear stabilizers as needed to level the elliptical.
The
elliptical makes a squeaking noise
when in use
.
The bolts may have become loose on the elliptical.
Please inspect all bolts and tighten any that may have
loosened.
Version 1.1
17
