User Manual Philips HD9280/91 Essential Airfryer XL Connected - 5 portions

• User Manual - (English)
• User manual - (German)
• User manual - (Spanish)
• User manual - (Italian)
• User manual - (Dutch - Holland)
• User manual - (Portuguese)

• EU Declaration of conformity - (English)
• Leaflet - (English)
• Important information manual - (English)

Table of contents

• General description
• Before first use
• The NutriU App
• Preparing for use
• Using the appliance
• Cleaning
• Factory reset
• Troubleshooting

General description

1. Control panel

A Temperature up button

B Temperature down button

C Menu button

D Preset menus

E On/Off button

F Time down button

G Time up button

H Time indicator

I Screen

J Temperature indicator

K Wi-Fi indicator

2. MAX indication

3. Basket

4. Basket release button

5. Pan

6. Power cord

7. Air outlets

8. Air inlet

WiFi Indicator Status

The Wi-Fi indicator is off	• Either your Airfryer is not connected to your home WiFi (no initial WiFi set-up done so far), or the connection to your home WiFi is lost due to e.g. home router has changed or the distance between the Airfryer and router is too far
The Wi-Fi indicator is on	• Configuration with the NutriU App is complete and the Airfryer is connected to the Home WiFi
The Wi-Fi indicator is blinking	• Either the Airfryer is in the "set-up“ mode during the WiFi set-up process. The screen shows three dashes and the buttons on the Airfryer are inactive; or if it was already connected, the blinking LED is an indication that the Airfryer is in the process of connecting to the home WiFi.
The Wi-Fi indicator is blinking with long break in between	• The WiFi functionality of the Airfryer has defect. You can either use the Airfryer without the connectivity features, or you can call the Philips service hot line or contact the Consumer Care Center in your country.

Before first use

1. Remove all packing material.
2. Remove any stickers or labels (if available) from the appliance.
3. Thoroughly clean the appliance before first use, as indicated in the cleaning chapter.

The NutriU App

Your Philips Airfryer is WiFi enabled and allows you to connect with the NutriApp to gain the full Airfryer experience. Within the App you can select your favorite recipes, send it to the Airfryer and start it from your smart device. You can start, monitor and adjust the cooking process on your smart device from wherever you are, even if you are not at home.

Connecting your Airfryer to the App

1. Put the plug of the Airfryer in the wall outlet.
2. Make sure that your smart device is within reach of your home WiFi network before you start the easy WiFi set-up process.
3. Download the Philips NutriU App on your smart device from the App store or from www.philips.com/nutriu, follow the registration process and select the connected Airfryer in your profile under "My Appliances".
4. Follow the instructions in the App to connect your Airfryer to your WiFi and to pair your Airfryer.
5. When the WiFi LED on the user interface of the Airfryer is solid on, the Airfryer is connected.

Note

• Make sure to connect your Airfryer to a 2.4 GHz 802.11 b/g/n home WiFi network.

• The easy WiFi set-up is needed to connect the Airfryer to your home WiFi.

• The pairing process is to connect the NutriU App with your smart Airfryer.

• The WiFi setup process can be cancelled via the App or by unplugging the Airfryer.

• You can pair only one smart device at the same time to your Airfryer. If a second user starts the pairing process, the first user is kicked out and has to pair again the next time when cooking with the Airfryer.

• To start the pairing process, long press the temperature down button and follow the instructions in the App, or start it from the settings in the NutriU App.

Preparing for use

1. Place the appliance on a stable, horizontal, level and heat-resistant surface.

Note

• Do not put anything on top or on the sides of the appliance. This could disrupt the airflow and affect the frying result.

• Do not place the operating appliance near or underneath objects that could be damaged by steam, such as walls and cupboard.

• Leave the rubber plug in the pan. Do not remove it before cooking.

Using the appliance

Food table

The table below helps you select the basic settings for the types of food you want to prepare.

Note

• Keep in mind that these settings are suggestions. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

• When preparing larger amount of food (e.g. fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients in the basket 2 to 3 times in order to achieve a consistent result.

Airfrying

Caution

• This is an Airfryer that works on hot air. Do not fill the pan with oil, frying fat or any other liquid.

• Do not touch hot surfaces. Use handles or knobs. Handle the hot pan with oven-safe gloves.

• This appliance is for household use only.

• This appliance may produce some smoke when you use it for the first time. This is normal.

• Preheating of the appliance is not necessary.

1. Put the plug in the wall outlet.

2. Remove the pan with the basket from the appliance by pulling the handle.

3. Put the ingredients in the basket.

Note

• The Airfryer can prepare a large range of ingredients. Consult the ‘Food table’ for the right quantities and approximate cooking times.

• Do not exceed the amount indicated in the ‘Food table’ section or overfill the basket beyond the ‘MAX’ indication as this could affect the quality of the end result.

• If you want to prepare different ingredients at the same time, make sure you check the suggested cooking time required for the different ingredients before you start to cook them simultaneously.

4. Put the pan with the basket back into the Airfryer.

Caution

• Never use the pan without the basket in it.

• Do not touch the pan or the basket during and for some time after use, as they get very hot.

5. Press the power On/Off button to switch on the appliance.

6. Press the temperature up or down button to choose the needed temperature.

7. Press the time up button to choose the needed time.

8. Press the On/Off button to start the cooking process.

Note

• During cooking the temperature and time are shown alternately.

• The last cooking minute counts down in seconds.

• Refer to the food table with basic cooking settings for different types of food.

• When the cooking process is started and your Airfryer is paired with your smart device, you can see, control and change the cooking parameters also in the NutriU App.

• To change the temperature unit from Celsius to Fahrenheit or the other way around on your Airfryer, press the temperature up and down button at the same time for about 10 seconds.

Tip

• During cooking, if you want to change the cooking time or temperature, press the corresponding up or down button at any time to do so.

• To pause the cooking process, press the On/Off button. To resume the cooking process, press the On/Off button again to continue the cooking process.

• The device is automatically in pause mode when you pull out the pan and the basket. The cooking process continues when the pan and the basket are put in the appliance again.

Note

• If you do not set the required cooking time within 30 minutes, the appliance automatically shuts off for safety reasons.

• Some ingredients require shaking or turning halfway through the cooking time (see ‘Food table’). To shake the ingredients, pull out the pan with the basket, place it on a heat resistant work top, slide the lid and press the basket release button to remove the basket and shake the basket over the sink. Then put the basket into the pan, and slide them back into the appliance.

• If you set the timer to the half of the cooking time and you hear the timer bell it is time to shake or turn the ingredients. Be sure to reset the timer to the remaining cooking time.

9. When you hear the timer bell, the cooking time has elapsed.

Note

• You can stop the cooking process manually. To do this, press the On/Off button.

10. Pull out the pan and check if the ingredients are ready.

Caution

• The Airfryer pan is hot after the cooking process. Always place it on a heat resistant work top (eg. trivet, etc.) when you remove the pan from the device.

Note

• If the ingredients are not ready yet, simply slide the pan back into the Airfryer by the handle and add a few extra minutes to the set time.

11. To remove small ingredients (e.g. fries), lift the basket out of the pan by sliding the lid first, and then pressing the basket release button.

Caution

• After the cooking process, the pan, the basket, the interior housing and the ingredients are hot. Depending on the type of ingredients in the Airfryer, steam may escape from the pan.

12. Empty the basket contents into a bowl or onto a plate. Always remove the basket from the pan to empty contents as hot oil may be in the bottom of the pan.

Note

• To remove large or fragile ingredients, use a pair of tongs to lift out the ingredients.

• Excess oil or rendered fat from the ingredients is collected on the bottom of the pan.

• Depending on the type of ingredients cooking, you may want to carefully pour off any excess oil or rendered fat from the pan after each batch or before shaking or replacing the basket in the pan. Place the basket on a heat-resistant surface. Wear oven-safe gloves to pour off excess oil or rendered fat. Return the basket into the pan.

When a batch of ingredients is ready, the Airfryer is instantly ready for preparing another batch.

Note

• Repeat steps 3 to 12 if you want to prepare another batch.

Choosing the keep warm mode

1. Press the menu button as often as the keep warm icon is blinking.

2. Press the On/Off button to start the keep warm mode.

Note

• The keep warm timer is set to 30 minutes. To change the keep warm time (1 - 30 minutes), press the time down button. The time will be confirmed automatically.

• The temperature cannot be changed in keep warm mode.

3. To pause the keep warm mode, press the On/Off button. To resume the keep warm mode, press the On/Off button again.

4. To exit the keep warm mode, long press the On/Off button.

Tip

• If food like French fries loses too much crispness during the keep warm mode, either shorten the keep warm time by switching off the appliance earlier or crisp them up for 2-3 minutes at the temperature of 180°C/350°F.

Note

• During the keep warm mode, the fan and heater inside of the appliance turn on from time to time.

• The keep warm mode is designed to keep your food warm immediately after it is cooked in the Airfryer. It is not meant for reheating.

Cooking with a preset

1. Follow steps 1 to 5 in chapter "Airfrying".

2. Press the Menu button. The frozen snacks icon is blinking. Press the Menu button as often as your needed preset is blinking.

3. Start the cooking process by pressing the On/Off button.

Note

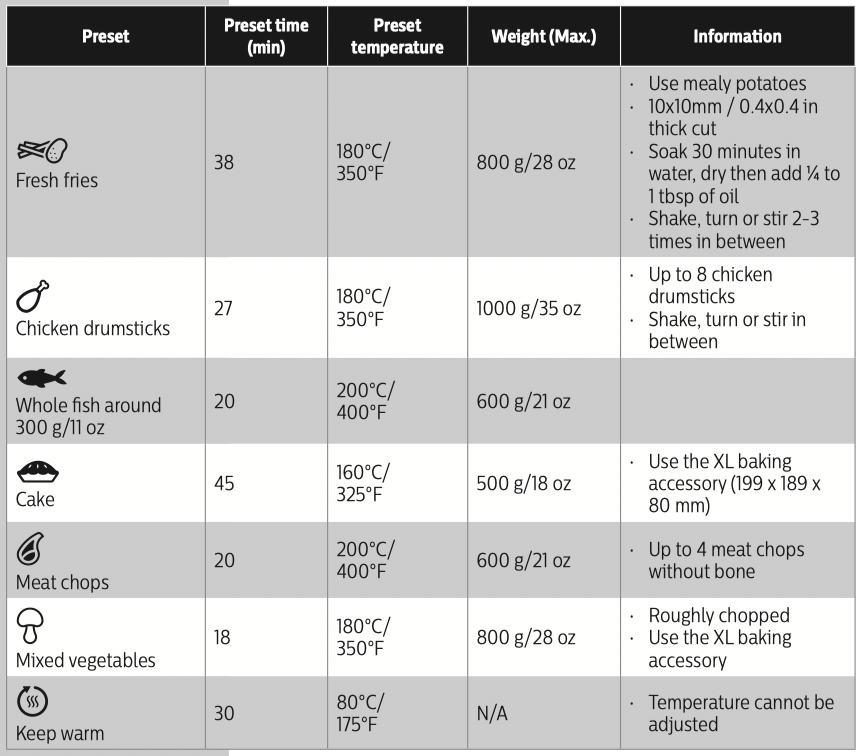

• In the following table you can find more information about the presets.

Changing to another preset

1. During the cooking process long press the power On/Off button to stop the cooking process. The device is then in stand-by mode.

2. Press the On/Off button again to turn on the device.

3. Press the menu button as often as your needed preset is blinking.

4. Press the On/Off button to start the cooking process.

Starting a recipe from the NutriU App

1. Press the On/Off button to turn on the Airfryer.
2. Open the NutriU App on your smart device and look for your preferred recipe.
3. Open the recipe and start the cooking process in the App.

Note

• Make sure that when cooking recipes that are developed for your Airfryer, use the same amount of food mentioned in the recipes. When using different ingredients or a different amount of food items, adjust the cooking time. When cooking recipes that are not developed for your Airfryer, be aware the time and temperature might be adjusted.

Tip

• Via the filter in the recipe search you can filter your smart Airfryer to get the recipes that are developed for your device.

• When the cooking process is started from the App, you can see the cooking settings also on the screen of the Airfryer.

• You can pause the cooking process or change the settings on the Airfryer or in the App.

• When the cooking process is over you can start the keep warm mode in the App or start it from the "keep warm" preset on the Airfryer.

• If the food is not done yet, you can also prolong the cooking process within the App or on the Airfryer.

• To exit the cooking process before the cooking time is over, long press the On/ Off button on the Airfryer or press the pause and then the stop icon in the App.

• You can also start your individual time and temperature in the NutriU App.

• On the bottom of the Home Screen there is the button to go to the home screen, the recipes, manual mode, articles or your profile. Press the manual mode button and send your individual time and temperature to the Airfryer.

Making home-made fries

To make great home-made fries in the Airfryer:

- Choose a potato variety suitable for making fries, e.g. fresh, (slightly) floury potatoes.

- It is best to air fry the fries in portions of up to 800 g/28 oz for an even result. Larger fries tend to be less crispy than smaller fries.

1. Peel the potatoes and cut into sticks (10 x 10 mm/0.4 x 0.4 in thick).

2. Soak the potato sticks in a bowl of water for at least 30 minutes.

3. Empty the bowl and dry the potato sticks with a dish towel or paper towel.

4. Pour one tablespoon of cooking oil into the bowl, put the sticks in the bowl and mix until the sticks are coated with oil.

5. Remove the sticks from the bowl with your fingers or a slotted kitchen utensil so excess oil remains in the bowl.

Note

• Do not tilt the bowl to pour all the sticks in the basket at once to prevent excess oil from going into the pan.

6. Put the sticks into the basket.

7. Fry the potato sticks and shake the basket 2-3 times during cooking.

Cleaning

Warning

• Let the basket, the pan, and the inside of the appliance cool down completely before you start cleaning.

• The pan, the basket, and the inside of the appliance have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating.

1. Press the power On/Off button to switch off the appliance, remove the plug from the wall outlet and let the appliance cool down.

Tip

• Remove the pan and the basket to let the Airfryer cool down more quickly.

2. Dispose of rendered fat or oil from the bottom of the pan.

3. Clean the pan and the basket in a dishwasher. You can also clean them with hot water, dishwashing liquid and a non-abrasive sponge (see ‘Cleaning table’).

Note

• Put the pan with the rubber plug in the dishwasher. Do not remove the rubber plug before cleaning.

Tip

• If food residues stuck to the pan or the basket, you can soak them in hot water and dishwashing liquid for 10–15 minutes. Soaking loosens the food residues and makes it easier to remove. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the pan or the basket and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser.

• If necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element.

4. Wipe the outside of the appliance with a moist cloth.

Note

• Make sure no moisture remains on the control panel. Dry the control panel with a cloth after you have cleaned it.

5. Clean the heating element with a cleaning brush to remove any food residues.

6. Clean the inside of the appliance with hot water and a non-abrasive sponge.

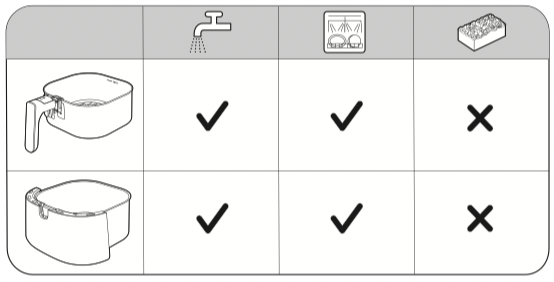

Cleaning table

Storage

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry before storing.

Note

• Always hold the Airfryer horizontally when you carry it. Make sure that you also hold the pan on the front part of the appliance as the pan with the basket can slide out of the appliance if accidentally tilted downwards. This can lead to damaging of these parts.

• Always make sure that the removable parts of the Airfryer are fixed before you carry and/or store it.

Factory reset

For a factory reset of the Airfryer, press the temperature and time up buttons at the same time for 10 seconds.

Your Airfryer is then no more connected to your home WiFi and not paired with your smart device anymore.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit philips/support for a list of frequently asked questions or contact the Consumer Care Center in your country.
