Operating Instructions
Blu-ray Disc
TM
Player
Model No. DMP-BBT01
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
GN
VQT3X48
until
2012/5/21
DMP-BBT01GN-VQT3X48_mst.book 1 ページ ２０１２年４月２０日 金曜日 午後２時４４分
2
VQT3X48
Getting started

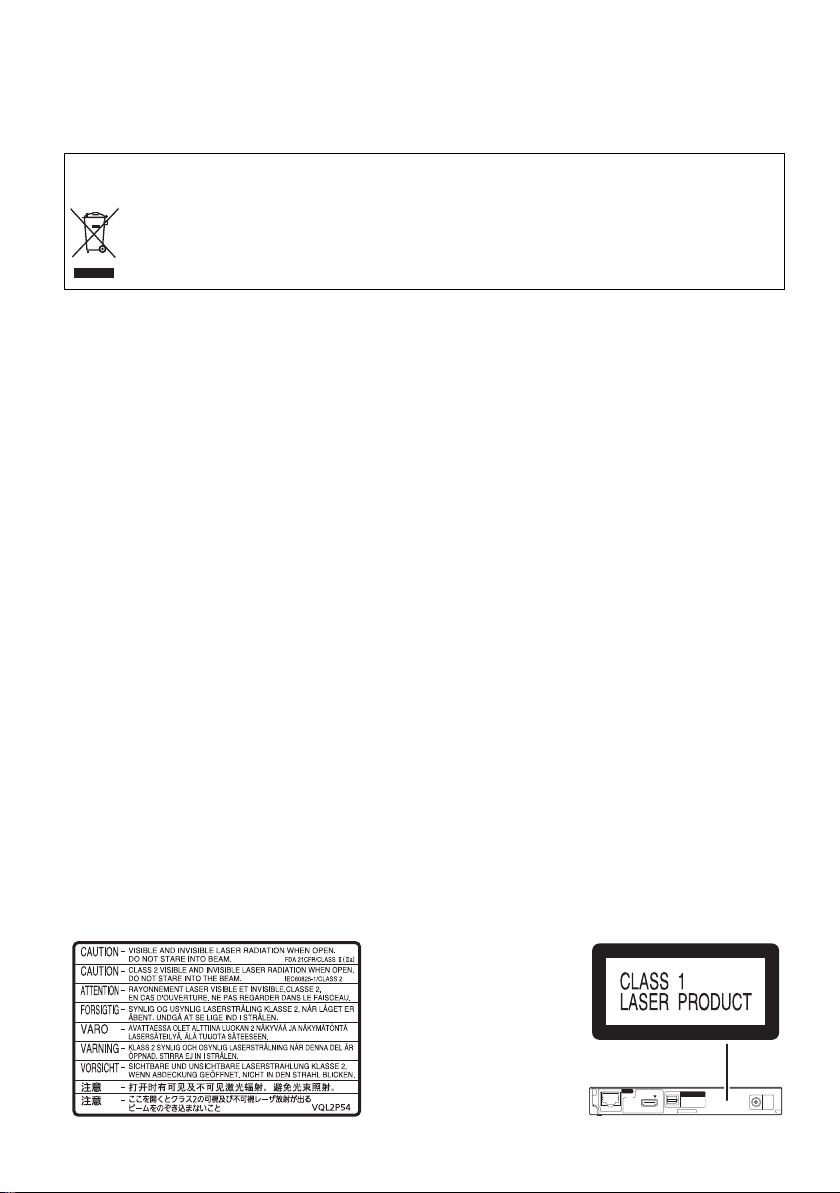

Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask
for the correct method of disposal.
(Inside of product)
DMP-BBT01GN-VQT3X48_mst.book 2 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Getting startedConnections and settingsPlaybackSettingsReference
3
VQT3X48
Table of contents
Getting started
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . 4
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unit and media care. . . . . . . . . . . . . . . . . . . . . . 5
Playable media . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control reference guide . . . . . . . . . . . . . . . . . . . 8
Using the touchpad . . . . . . . . . . . . . . . . . . . . . 10
Connections and settings
STEP 1 : Installing the Unit . . . . . . . . . . . . . . . 12
STEP 2 : Connecting to a TV. . . . . . . . . . . . . . 13
STEP 3 : Connecting to
an amplifier/receiver. . . . . . . . . . . . 14
STEP 4 : Connecting to the network . . . . . . . . 15
STEP 5 : Connecting the AC mains lead . . . . . 15
STEP 6 : Settings. . . . . . . . . . . . . . . . . . . . . . . 16
STEP 7 : Reprogramming
the remote control . . . . . . . . . . . . . 18
Playback
Inserting or removing media . . . . . . . . . . . . . . 19
HOME menu . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Multi User Mode. . . . . . . . . . . . . . . . . . . . . . . . 20
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
VIERA Connect
(Enjoying Internet Service) . . . . . . . . . . . . . . 25
Home Network feature . . . . . . . . . . . . . . . . . . . 26
VIERA Link “HDAVI Control™” . . . . . . . . . . . . 28
Settings
Option menu . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Reference
Indicator illumination . . . . . . . . . . . . . . . . . . . . 38
Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Troubleshooting guide . . . . . . . . . . . . . . . . . . . 40
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Precautions for wireless LAN connection . . . . 45
Supplemental information . . . . . . . . . . . . . . . . 45
≥ Restriction on use of unauthorized
copied content (> 43)
≥ Firmware updates (> 18)
DMP-BBT01GN-VQT3X48_mst.book 3 ページ ２０１２年４月２０日 金曜日 午後２時４４分
4
VQT3X48
Unit
To reduce the risk of fire, electric shock or product damage,
≥ Do not expose this unit to rain, moisture, dripping or
splashing.
≥ Do not place objects filled with liquids, such as vases, on
this unit.
≥ Use only the recommended accessories.
≥ Do not remove covers.
≥ Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
≥ Do not let metal objects fall inside this unit.
≥ Do not place heavy items on this unit.
AC mains lead
To reduce the risk of fire, electric shock or product damage,
≥ Ensure that the power supply voltage corresponds to the
voltage printed on this unit.
≥ Insert the mains plug fully into the socket outlet.
≥ Do not pull, bend, or place heavy items on the lead.
≥ Do not handle the plug with wet hands.
≥
Hold onto the mains plug body when disconnecting the plug.
≥ Do not use a damaged mains plug or socket outlet.
Install this unit so that the AC mains lead can be unplugged
from the socket outlet immediately if any problem occurs.
Small object
≥ Keep the Memory Card out of reach of children to prevent
swallowing.
≥ Keep the screw out of reach of children to prevent
swallowing.
Unit
≥ This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
≥ This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
Placement
Place this unit on an even surface.
To reduce the risk of fire, electric shock or product damage,
≥ Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
≥ Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
≥ Do not place the unit on amplifiers/receivers or equipment
that may become hot. The heat can damage the unit.
≥ Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive vibration.
Batteries
Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
≥ Do not mix old and new batteries or different types at the
same time.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
≥ Do not take apart or short circuit.
≥ Do not recharge alkaline or manganese batteries.
≥ Do not use batteries if the covering has been peeled off.
Remove batteries if you do not intend to use the remote
control for a long period of time. Store in a cool, dark place.
AC adaptor
The AC adaptor operates on AC between 100 V and 240 V.
But obtain a suitable plug adaptor if the plug does not fit the
AC mains socket.
Safety precautions
WARNING CAUTION
≥ This unit is intended for use in moderate climates.
DMP-BBT01GN-VQT3X48_mst.book 4 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Getting started
5
VQT3X48
Accessories
Check the supplied accessories before using this
unit.
≥ Do not use AC mains lead with other equipment.
Unit and media care
∫ Clean this unit with a soft, dry cloth
≥ Never use alcohol, paint thinner or benzine to
clean this unit.
≥ Before using chemically treated cloth, carefully
read the instructions that came with the cloth.
∫ This unit’s lens
∫ Clean discs
Wipe with a damp cloth and then wipe dry.
∫ Disc and card handling precautions
≥ Handle discs by the edges to avoid inadvertent
scratches or fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use disc cleaning sprays, benzine,
thinner, static electricity prevention liquids or
any other solvent.
≥ Clean any dust, water, or foreign matter from
the terminals on the rear side of the card.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed
stickers or labels (rented discs, etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart
shapes.
∫ To dispose or transfer this unit
The unit may keep the user settings information in
the unit. If you discard this unit either by disposal
or transfer, then follow the procedure to return all
the settings to the factory presets to delete the
user settings. (> 40, “To return all settings to the
factory preset.”)
≥ The operation history may be recorded in the
memory of this unit.
1 Remote control
(N2QAYB000713)
2 Batteries for remote control
1 AC adaptor
1 AC mains lead
1 HDMI cable
1 Pedestal
≥ Product numbers provided in these operating instructions
correct as of April 2012. These may be subject to change.
∫ Using the remote control
Insert so the poles (i and j) match those in the
remote control.
Point it at the remote control signal sensor on this
unit. (> 9)
LR6, AA
(Alkaline batteries)
The disc drive of this unit has sufficient dust
resistance, so there is no need to clean the lens.
DO
DO NOT
DMP-BBT01GN-VQT3X48_mst.book 5 ページ ２０１２年４月２０日 金曜日 午後２時４４分
6
VQT3X48
Playable media
Device Disc markings Device types Contents format
BD-Video Video
BD-RE Video, JPEG, MPO
BD-R
Video, DivX
®
, MKV
DVD-Video Video
DVD-R
Video, AVCHD, DivX
®
,
MKV, JPEG, MPO,
FLAC, MP3, WAV
DVD-R DL
DVD-RW
Video, AVCHD
— +R/+RW/+R DL
Music CD Music [CD-DA]
—
CD-R
CD-RW
DivX
®
, MKV, JPEG,
MPO, FLAC, MP3,
Music [CD-DA], WAV
SD Memory Card (from 8 MB to 2 GB)
SDHC Memory Card (from 4 GB to 32 GB)
SDXC Memory Card (48 GB, 64 GB)
(Compatible with both mini and micro types)
AVCHD, AVCHD 3D,
MP4, MPEG2, JPEG,
MPO
—
USB devices
(up to 2 TB)
DivX
®
, MKV, MP4,
MPEG2, JPEG, MPO,
FLAC, MP3, WAV
≥ See pages 7 and 44 for more information on the types of content that can be played.
BD
DVD
CD
SD
USB
DMP-BBT01GN-VQT3X48_mst.book 6 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Getting started
7
VQT3X48
∫ Discs that cannot be played by this
unit
∫ Region management information
∫ Finalize
DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW
recorded by a recorder, etc. needs to be finalized
by the recorder to play on this unit. Please refer to
the recorder’s instructions.
∫ BD-Video
This unit supports high bit rate audio (Dolby
®
Digital Plus, Dolby
®
TrueHD, DTS-HD High
Resolution Audio and DTS-HD Master Audio)
adopted in BD-Video.
∫ 3D
≥ 3D videos and 3D still pictures can be played
back when this unit is connected to a 3D
compatible TV using a High Speed HDMI
Cable.
∫ Music CD
Operation and sound quality of CDs that do not
conform to CD-DA specifications (copy control
CDs, etc.) cannot be guaranteed.
∫ SD card
≥ miniSD Cards, microSD Cards,
microSDHC Cards and
microSDXC Cards can be used,
but must be used with an adaptor
card. These are usually supplied
with such cards, or otherwise
customer provided.
≥ To protect the card’s contents,
move the record prevention tab (on the SD
card) to “LOCK”.
≥ This unit is compatible with SD Memory Cards
that meet SD Card Specifications FAT12 and
FAT16 formats, as well as SDHC Memory
Cards in FAT32 format and SDXC Memory
Cards in exFAT.
≥ If the SD card is used with incompatible
computers or devices, recorded contents may
be erased due to the card being formatted etc.
≥ Usable memory may be slightly less than the
card capacity.
∫ USB device
≥ This unit does not guarantee connection with all
USB devices.
≥ This unit does not support USB device
charging.
≥ FAT12, FAT16, FAT32, and NTFS file systems
are supported.
≥ This unit supports USB2.0 High Speed.
≥ This unit can support an HDD formatted to
FAT32 and NTFS.
Some types of HDD may require the use of its
external power supply unit.
≥ It may not be possible to play the above media in some
cases due to the type of media, the condition of the
recording, the recording method
,
and how the files were
created.
≥ The producers of the disc can control how discs are
played, so you may not always be able to control play as
described in these operating instructions. Read the disc’s
instructions carefully.
≥ DVD-RAM
≥ Super Audio CD
≥ Photo CD
≥ DVD-Audio
≥ Video CD and Super
Video CD
≥ WMA discs
≥ DivX Plus HD discs
≥ HD DVD
BD-Video
This unit can play BD-Video discs supporting the
region code “B”.
Example:
DVD-Video
This unit can play DVD-Video discs supporting
the region number “4” or “ALL”.
Example:
≥ 2D video can be enjoyed as 3D virtually. (> 31)
4 ALL
3
4
2
∫ BD-RE, BD-R
Discs recorded in DR mode using Panasonic
Blu-ray Disc recorders may not play back the
audio etc., correctly.
DMP-BBT01GN-VQT3X48_mst.book 7 ページ ２０１２年４月２０日 金曜日 午後２時４４分
8
VQT3X48
Control reference guide
Remote Control
INTERNET
R G Y B
OPTION
RETURN
HOME
KEYS
1
2
3
4
5
6
7
8
10
9
1 Turn the unit on and off
2 Show the Home screen of the VIERA
Connect (> 25)
3 Show HOME menu (> 19)
4 Touchpad (> 10)
Used for various operation
Move the highlight, confirm the selection, etc.
5 Show Option menu (> 29)
6 Coloured buttons (red, green, yellow, blue)
Used for various purposes depending on the
display
7 Start up a video communication (> 25)
8 Set up 3D effects (> 31)
9 Show KEYS screen on the screen (> 11)
10 Return to previous screen
DMP-BBT01GN-VQT3X48_mst.book 8 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Getting started
9
VQT3X48
Unit
1
2
3
56
4
7891011
Pull to flip down
the panel.

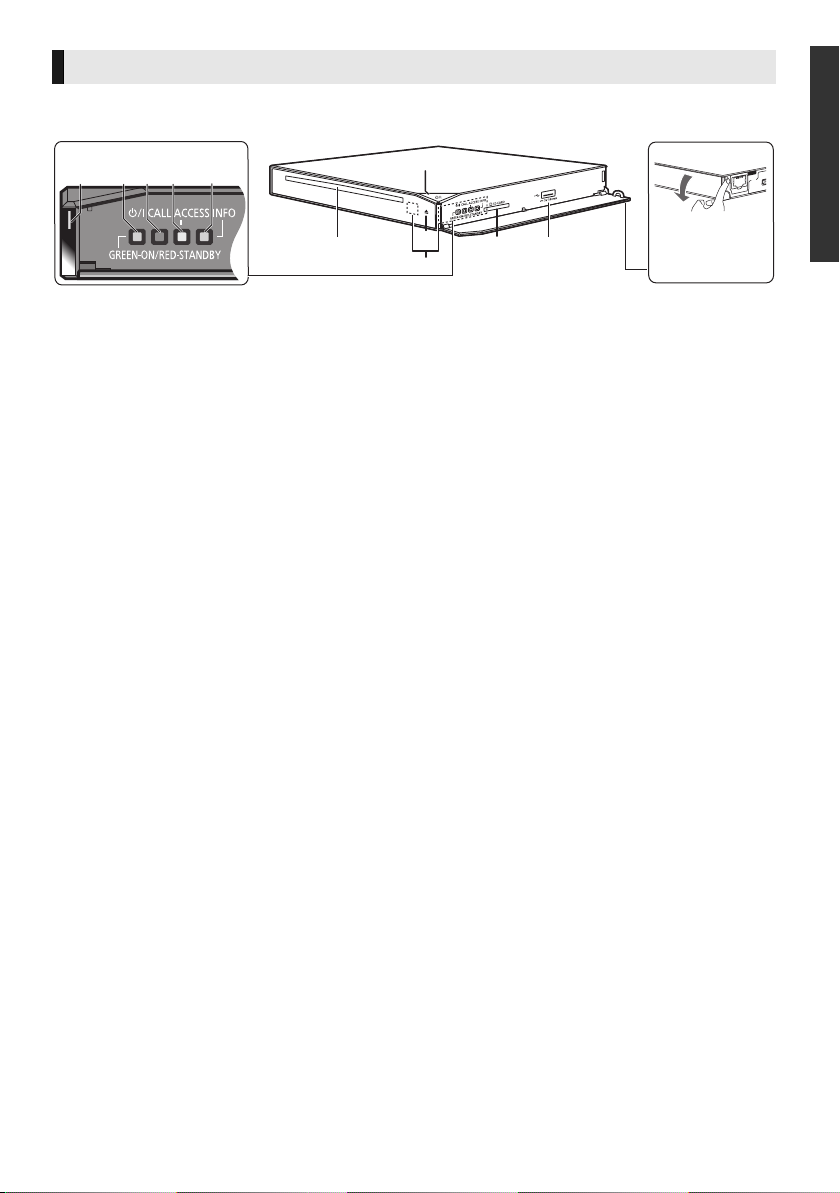

Indicator LEDs
1 Standby/on switch* (Í/I) (> 16)
Touch to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Disc slot (> 19)
3 Eject the disc* (> 19)
4 Remote control signal sensor
One of the two sensors will operate
depending on the installation method of the
main unit. (> 12)
Distance: Within approx. 7 m
Angle (Against front of the sensor):
Approx. 20e up and down, 30e left and right
5 SD card slot (> 19)
6 USB port (> 19)
7 Status LED (blue/red)
≥ This will light up in blue when the unit is
turned on.
≥ Blue and red will light up simultaneously
when an error occurs. (> 38)
≥ This will flash in blue when this unit
receives incoming call etc. of the video
communication. (> 25)
8 Standby/on LED (red/green)
When the unit is connected to the AC mains
supply, this indicator lights red in standby
mode and lights green when the unit is turned
on. It is also possible to set to turn off when
the unit is in standby mode. (> 37, “Standby
LED”)

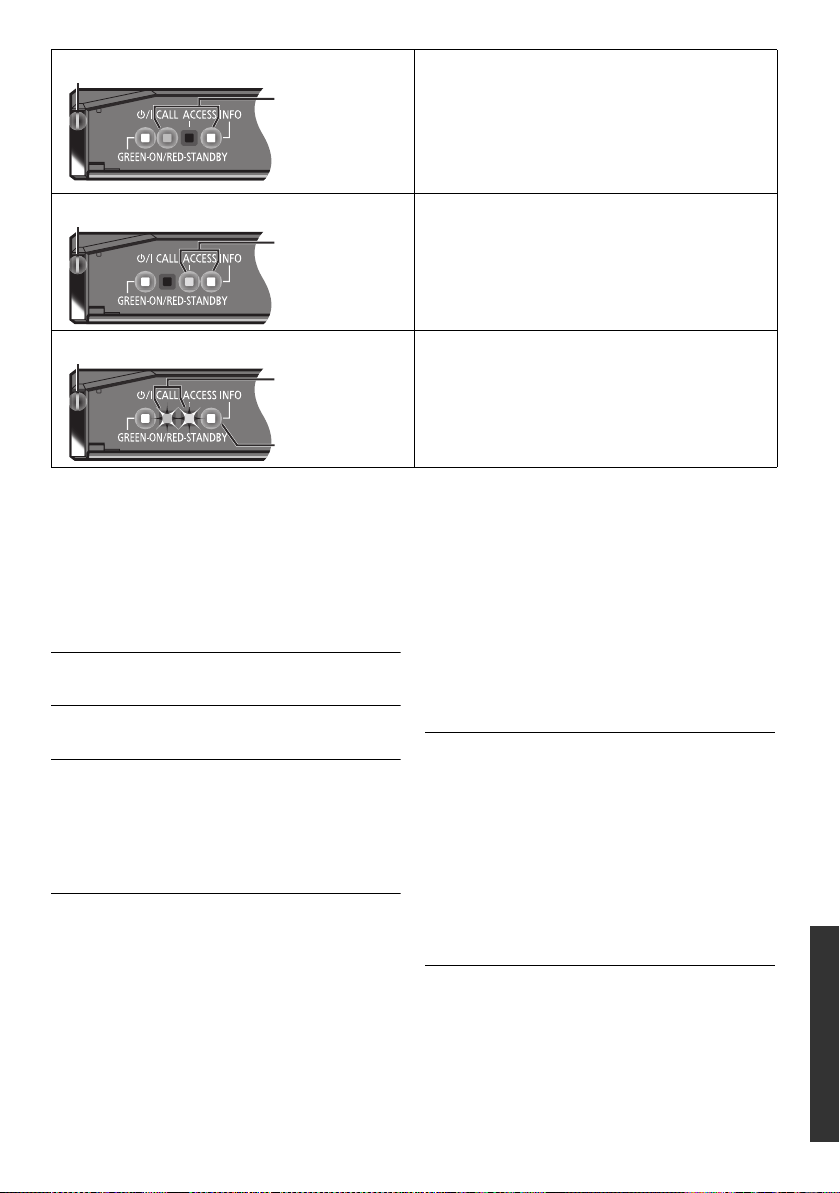

9 CALL LED (blue)
The LED will light up when this unit receives
incoming call etc. of the video
communication. (> 25)
10 ACCESS LED (amber)
This will flash while accessing the SD card or
USB device.
11 INFO LED (red)
This will light up at the time of error, etc.
(> 38)
* These switches work just by touching the marks. Be
careful not to touch them unintentionally.
The volume of operation sound can be adjusted by “Unit
Operation Volume”. (> 37)
DMP-BBT01GN-VQT3X48_mst.book 9 ページ ２０１２年４月２０日 金曜日 午後２時４４分
10
VQT3X48

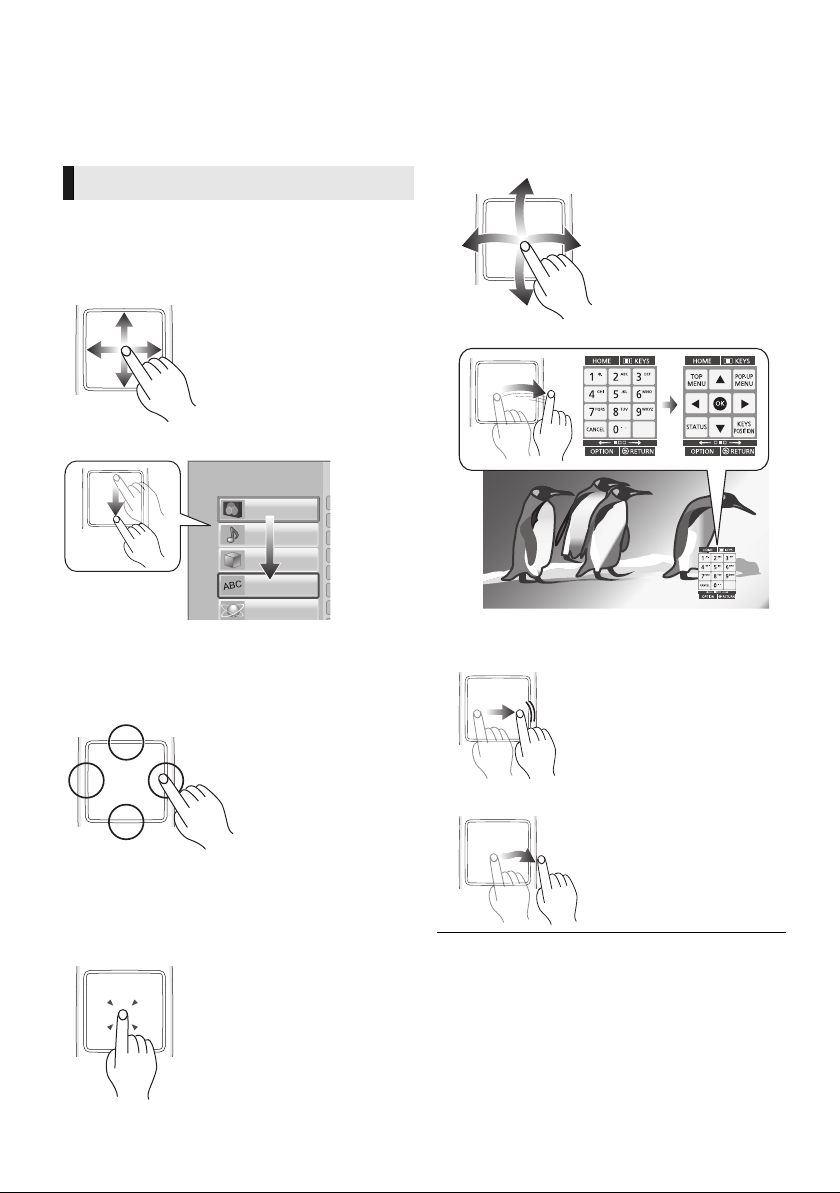

Using the touchpad
The touchpad of the remote control is used for
various operations such as moving the highlight
or pointer, confirming the selection, playback
control, entering characters, etc.
Basic touchpad operation
∫ Move the highlight or the pointer
While touching the touchpad, the highlight or
pointer will move according to the movement of
your finger.
e.g.,
You can move the highlight continuously to up,
down, left and right, by touching and holding an
edge of the touchpad.
≥ It may not work depending on the screen.
∫ Confirm the selection
Tap the touchpad to confirm the selection.
Release your finger as soon as it touches the
touchpad.
Player Settings
Network
Language
3D
Sound
∫ Switching the screen
Some screens can be switched by lightly flicking
your finger horizontally or vertically on the
touchpad.
Flick your finger quickly and release from the
touchpad.
e.g.,
Bad example of flicking
Finger stops on the touchpad
Movement is too slow
≥ It may not operate correctly in following cases:
– Operation with your fingernails
– Operation wearing gloves
– Operation with wet hand
≥ Do not press the touchpad with pointed objects such as
ballpoint pen, etc., or press with excessive force.
DMP-BBT01GN-VQT3X48_mst.book 10 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Getting started
11
VQT3X48

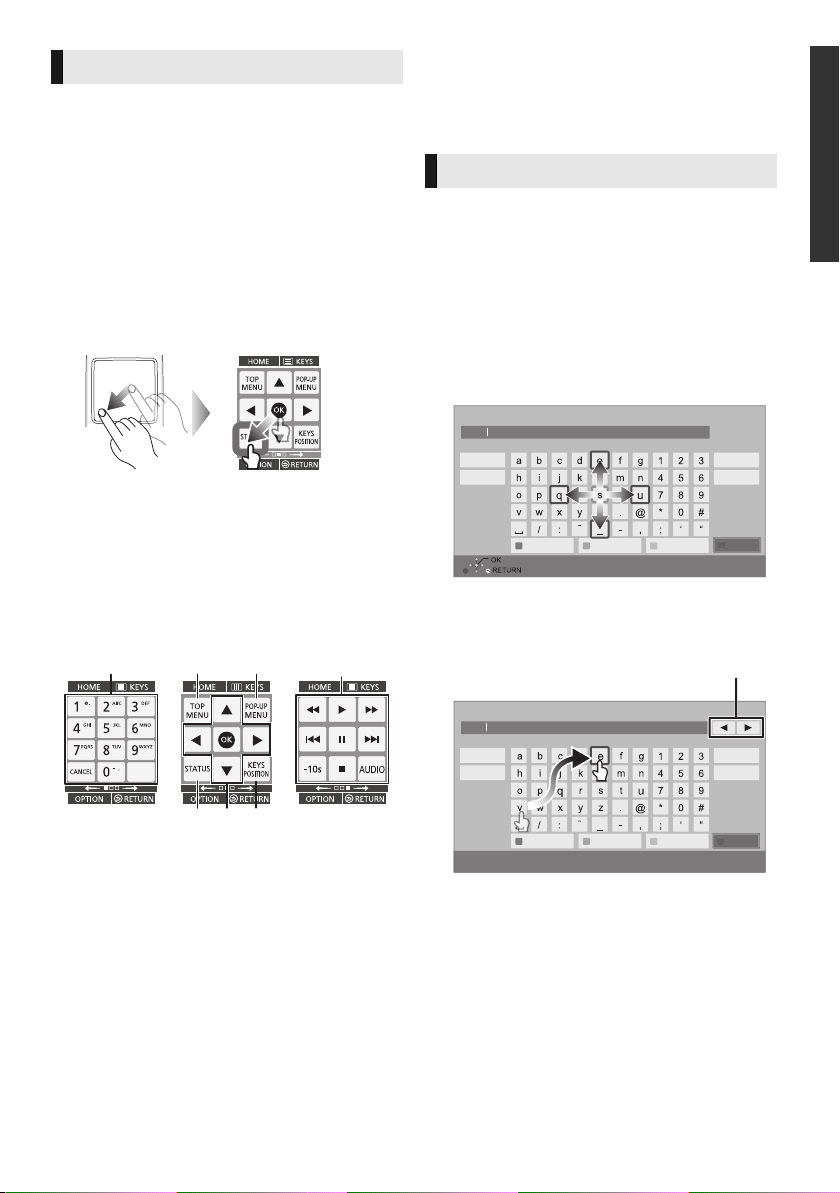

Using the KEYS screen
The KEYS screen that can perform item
selection, playback control, text input, etc., is
displayed on the screen when [KEYS] is pressed.
KEYS screen operation will take priority over all
other operation on the screen.
1 Select the screen to operate by pressing
on [KEYS] several times.
(> below, Types of KEYS screen)
≥ Screen can also be switched by flicking
horizontally.
2 Move the pointer onto the key to select.
3 Release your finger and then tap.
To hide the KEYS screen
Press [RETURN].
∫ Types of KEYS screen
Following screens switch in turn each time
[KEYS] is pressed.
1 Select title numbers, etc./Enter numbers or
characters
2 Show Top menu (> 22)
3 Show Pop-up menu (> 22)
4 Show status messages (> 22)
5[3, 4, 2, 1] : Move the highlight for
selection
[OK] : Confirm the selection
6 Change the display position of the KEYS
screen. The position switches each time the
key is selected.
23
4
5
6
7
1
7 Basic playback control buttons (> 21)
≥ [HOME], [KEYS], [OPTION] and [RETURN]
indications are only for guidance purpose.
Selection of these keys is not possible on the
KEYS screen.
Entering characters
1 When the keyboard screen appears:
Move the highlight or the pointer onto
“Input Mode”, then tap.
You can select the input method from two
types as follows. The mode switches each
time “Input Mode” is selected.
Mode 1:
The highlight moves vertically or horizontally
as your finger moves on the touchpad.
Mode 2:
The pointer moves freely according to the
movement of your finger.
2 Move the highlight or the pointer onto a
key, then tap.
Symbols Alphanumeric Other Characters
Input Nickname
Shift
Input Mode
Delete
Finish
User 2
L
Input Nickname
Shift
Input Mode
Delete
Finish
User 2
Symbols Alphanumeric Other Characters
Select to move the cursor in the text box
DMP-BBT01GN-VQT3X48_mst.book 11 ページ ２０１２年４月２０日 金曜日 午後２時４４分
12
VQT3X48
Connections and settings

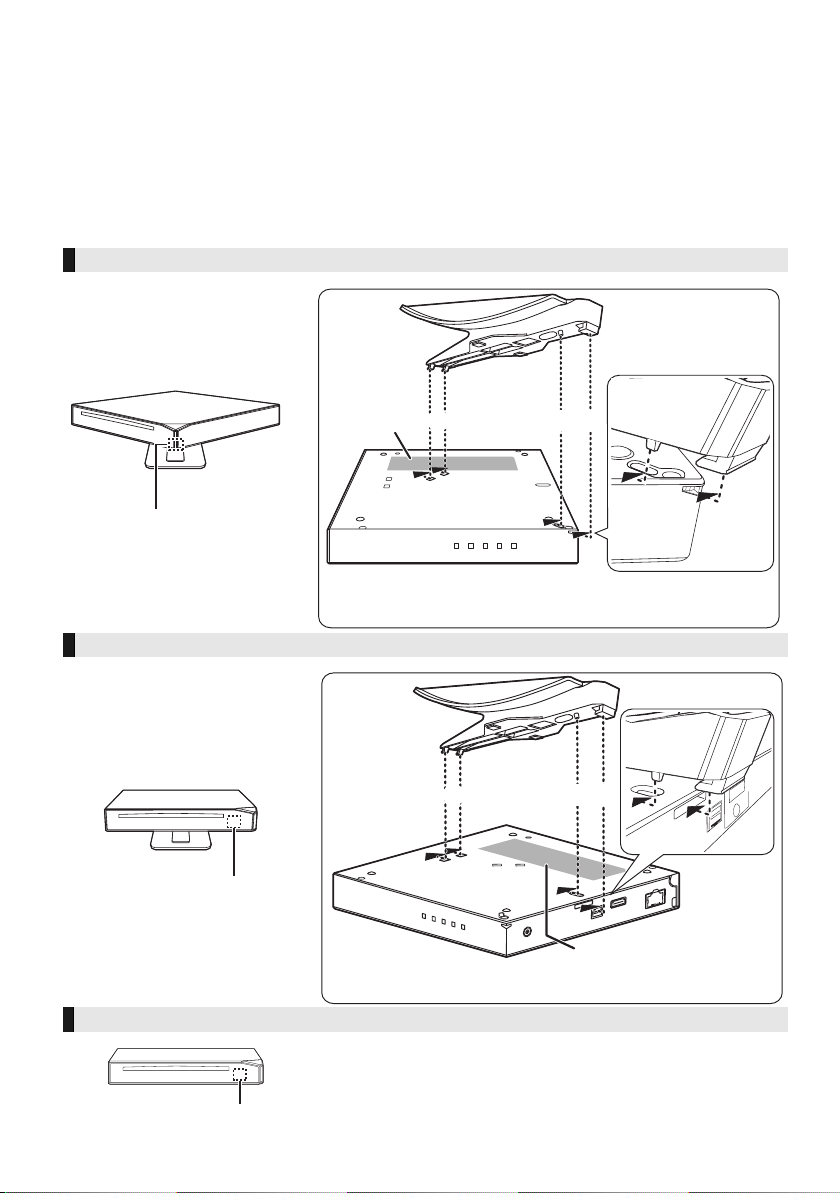

STEP 1 : Installing the Unit
The unit can be installed in following four ways.
≥ Use the pedestal supplied with the unit.
≥ Beware of tipping or falling of the main unit when connecting the cables after installation.
≥ The remote control signal sensor that will operate will change depending on the installation, so
please note this when pointing the remote control at the unit.
≥ Assemble on a level surface. To prevent damage or scratches,lay down a soft cloth and perform
assembly on it.
Horizontal diagonal installation with pedestal
Label on the
bottom
Remote control signal sensor
≥ Secure the pedestal by fitting it in the direction of the arrows.
Horizontal installation with pedestal
Horizontal installation with no pedestal
Label on the bottom
Remote control signal sensor
≥ Secure the pedestal by fitting it in the direction of the arrows.
Remote control signal sensor
DMP-BBT01GN-VQT3X48_mst.book 12 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Connections and settings
13
VQT3X48
It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use
HDMI cables 5.0 meters or less.
Recommended part number (High Speed HDMI Cable):
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.

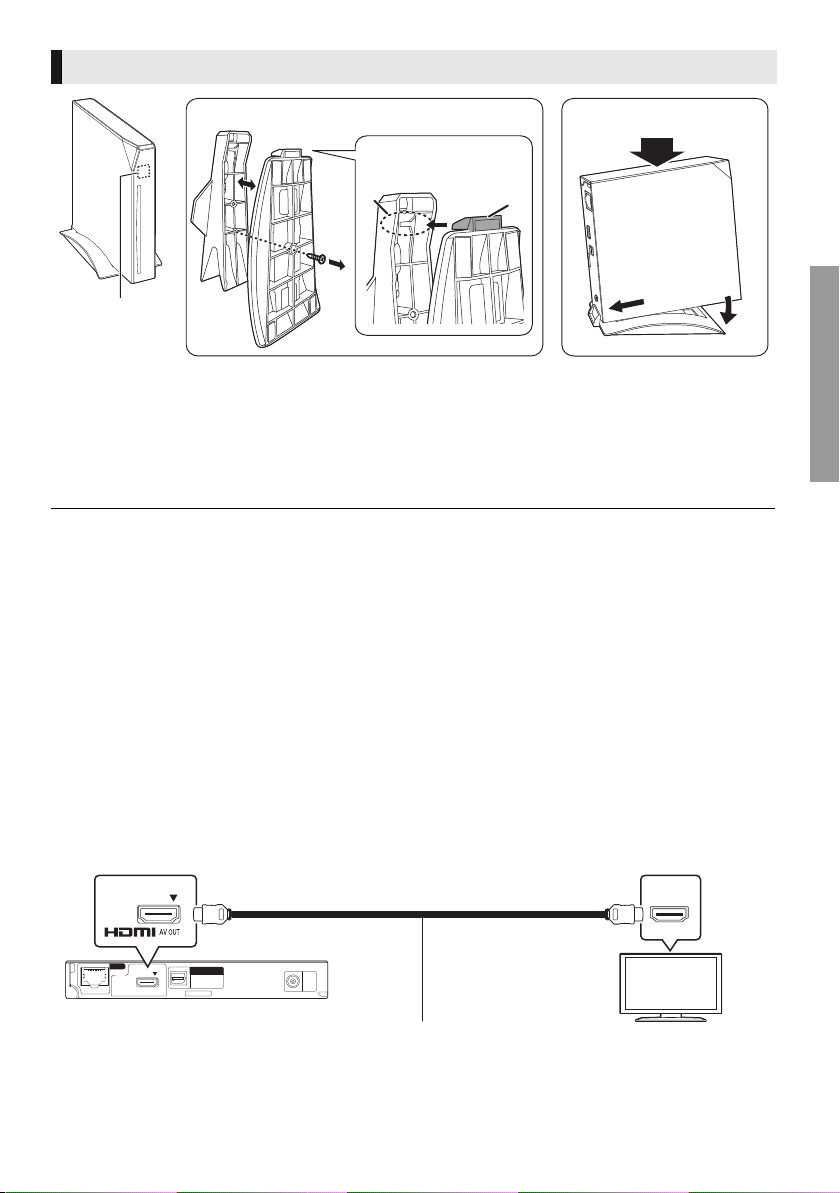

Vertical installation with pedestal
1 Remove the screw at the bottom of the supplied pedestal using a screwdriver (+), and separate the
top section and the bottom section of the pedestal. Top section of the pedestal is not used.
2 Align the rear end of the main unit against the rear end of the pedestal, and lower the main unit.
Press and secure the main unit into the pedestal.
To reattach the pedestal
Fit the projecting part (A) into the groove (B). Secure the two sections with the screw.
≥ Do not install in a way other than described above. Also, do not move the unit during playback. It may cause
malfunction of the unit or damage the disc.
≥ Do not hold the pedestal to lift up or carry the unit.
Remote control
signal sensor
To reattach (> below)
STEP 2 : Connecting to a TV
≥ Before making any connections, we recommend that you temporarily disconnect all the units from AC
power.
≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
The HDMI-compliant cable is supplied with this unit.
HDMI cable (supplied)
HDMI IN
DMP-BBT01GN-VQT3X48_mst.book 13 ページ ２０１２年４月２０日 金曜日 午後２時４４分
14
VQT3X48
Perform either one of the following connections in accordance with your amplifier/receiver input
terminal.
≥ When connecting to a non-3D compatible amplifier/receiver, connect this unit to a TV via HDMI AV
OUT, then connect the TV and the amplifier/receiver. Please note, however, that the audio can only
be up to 5.1ch.
≥ When using the TV or amplifier/receiver that does not have the indication of “(ARC)”
(non-ARC-compatible) on the HDMI terminal, in order to enjoy TV’s sound by amplifier/receiver it is
also required to connect the amplifier/receiver and TV using an optical digital cable.
≥ Set “HDMI Audio Output” to “Off” (> 33).
≥ Set “Digital Audio Output” (> 33).
STEP 3 : Connecting to an amplifier/receiver
HDMI AV OUT
HDMI cable (supplied) HDMI cable
Amplifier/receiver
HDMI IN
(ARC)
HDMI OUT
(ARC)
HDMI IN
≥ Set “Digital Audio Output” (> 33).
DIGITAL AUDIO OUT (OPTICAL)
Optical digital cable
Amplifier/receiver
OPTICAL IN
DMP-BBT01GN-VQT3X48_mst.book 14 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Connections and settings
15
VQT3X48
The following services can be used when this unit is connected to broadband.
For details about connection method, refer to the instructions supplied with the connected equipment.
≥ For up-to-date compatibility information on your wireless router, refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
≥ Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.
≥ Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.
STEP 4 : Connecting to the network
≥ Firmware can be updated (> 18)
≥ You can enjoy BD-Live (> 23)
≥ You can enjoy VIERA Connect (> 25)
≥ You can access other devices (Home Network) (> 26)
≥ This unit supports Wi-Fi Direct
TM
and can make a wireless connection to wireless devices without
router. You can use this function when enjoying Home Network feature, etc. Internet access is not
available while connected via Wi-Fi Direct
TM
. (> 26, 35)
Wireless LAN connection
This unit can be connected to a wireless router wirelessly.
Wireless router, etc. Internet
≥ The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc.
≥ See page 45 for the precautions for wireless LAN connection.
LAN cable connection
LAN Cable
Internet
Broadband router, etc.
STEP 5 : Connecting the AC mains lead
AC mains lead (supplied)
To a household mains socket
AC adaptor (supplied)
≥ This unit consumes a small amount of AC power (> 44) even when turned off. In the interest of
power conservation, if you are not planning to use the unit for an extended period of time, please
disconnect the AC mains lead from the household mains socket.
≥ The unit is in the standby condition (Standby/on LED lights red) (> 9) when the AC mains lead is
connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical
outlet.
≥ Do not use any other AC adaptors except the supplied one.
DMP-BBT01GN-VQT3X48_mst.book 15 ページ ２０１２年４月２０日 金曜日 午後２時４４分
16
VQT3X48
After connecting your new player for the first time
and pressing [Í], a screen for the basic settings
will appear.
Preparation
Turn on the television and select the
appropriate video input on the television.
1 Press [Í].
Please wait until the Status LED lights blue.
Setup screen appears.
2 Follow the on-screen instructions and
apply the settings.
∫ “Wired” connection
Follow the on-screen instructions to apply your
connection settings.
∫ “Wireless” connection
STEP 6 : Settings
Easy Setting
≥ You can perform this setup anytime by selecting “Easy
Setting” in the Setup menu. (> 36)
≥ If this unit is connected to a Panasonic TV (VIERA)
supporting HDAVI Control 2 or later via an HDMI cable,
then the setting information on the TV is acquired by this
unit.
Easy Network Setting
After completing “Easy Setting”, you can perform
“Easy Network Setting”.
Select “Wired” or “Wireless”.
Before beginning wireless connection setup
≥ Obtain your network name (SSID*
1
).
≥ If your wireless connection is encrypted,
please be sure that you know your
encryption key.
Select “Search for wireless network” or “WPS
(PUSH button)”, then follow the on-screen
instructions and apply the settings.
RETURN
Easy Network Setting
Wired
Wireless
Select a connection mode.
Current setting : Wired
OK
Wireless Settings
Select a connection method to wireless access point.
Please refer to the operating instructions of your wireless
access point about connection methods.
Search for wireless network
WPS (PUSH button)
DMP-BBT01GN-VQT3X48_mst.book 16 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Connections and settings
17
VQT3X48
≥ If your wireless network is encrypted,
Encryption Key input screen will be displayed.
Input the encryption key of your network.
≥ Refer to the operating instructions of the hub or router.
≥ You can perform this setup anytime by selecting “Easy
Network Setting” in the Setup menu. (> 35)
≥ You can redo these settings individually using “Network
Settings”. (> 35)
≥ Do not use this unit to connect to any wireless network for
which you do not have usage rights.
During automatic searches in a wireless network
environment, wireless networks (SSID) for which you do
not have usage rights may be displayed; however, using
these networks may be regarded as illegal access.
≥ After performing network settings on this unit, the settings
(encryption level, etc.) of the wireless router might change.
When you have trouble getting online on your PC, perform
the network settings on your PC in accordance with the
settings of the wireless router.
≥ Please be aware that connecting to a network without
encryption may result in the content of the communication
being illegitimately viewed by a third party, or the leaking of
data such as personal or secret information.
*1
An SSID (Service Set IDentification) is a name used by
wireless LAN to identify a particular network. Transmission
is possible if the SSID matches for both devices.
*2
The wireless router compatible with Wi-Fi Protected
Setup
TM
may have the mark.
WPS (PUSH button):
If your wireless router supports
WPS (PUSH button), you can
easily perform the settings by
pressing WPS button on it.
WPS (Wi-Fi Protected Setup
TM
) is a standard that
facilitates settings relating to the connection and
security of wireless LAN devices.
1 Press WPS button or corresponding button of
the wireless router until the lamp starts
flashing.
≥ For details, refer to the operating instruction
of the wireless router.
2 Select “Start”.
Search for wireless network:
≥ When you select “Search for wireless network”,
the available wireless networks will be
displayed. Select your network name.
– If your network name is not displayed, search
again by pressing the red button on the
remote control.
– Stealth SSID will not be displayed when you
select “Search for wireless network”. Enter
manually by using “Manual setting”.
(Press [HOME] > select “Setup” > select
“Player Settings” > select “Network” > select
“Network Settings” > select “Wireless
Settings” > select “Connection Setting” >
select “Manual setting”)
*
2
e.g.
DMP-BBT01GN-VQT3X48_mst.book 17 ページ ２０１２年４月２０日 金曜日 午後２時４４分
18
VQT3X48
Occasionally, Panasonic may release updated
firmware for this unit that may add or improve the
way a feature operates. These updates are
available free of charge.
This unit is capable of checking the firmware
automatically when connected to the Internet via
a broadband connection.
When a new firmware version is available, the
following message is displayed.
To update the firmware
DO NOT DISCONNECT the unit from the AC
power or perform any operation while the update
takes place.
≥ If downloading on this unit fails or this unit is not
connected to the Internet, then you can download the
latest firmware from the following website and burn it
to a CD-R to update the firmware.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
To show the firmware version on this unit. (> 37,
“Firmware Version Information”)
≥ Downloading will require several minutes. It may take
longer or may not work properly depending on the
connection environment.
≥ If you do not want to check for the latest firmware version,
set “Automatic Update Check” to “Off”. (> 37)
If you have more than one Panasonic player/
recorder and the remote control operates both
products at once, you will need to change the
remote control code to prevent this occurrence.
(> 37, “Remote Control”)
Firmware updates
Press [HOME] > select “Setup” > select
“Player Settings” > select “System” > select
“Firmware Update” > select “Update Now”
ACCESS LED will light up while downloading the
firmware. The unit cannot be operated until the
ACCESS LED is turned off.
After the firmware is installed, the unit will restart
and the following screen will be displayed.
New firmware is available.
Please update firmware in Setup.
The firmware has been updated.
Current Version:
x.xx
STEP 7 : Reprogramming
the remote control
DMP-BBT01GN-VQT3X48_mst.book 18 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Playback
19
VQT3X48
Playback
Inserting or removing
media
Notes
≥ When inserting a media item, ensure that it is
facing the right way up.
≥ When removing the SD card, press the centre
of the card and pull it straight out.
≥ If you connect a Panasonic product with a USB
connection cable, the setup screen may be
displayed on the connected equipment. For
details, refer to the instructions for the
connected equipment.
HOME menu
Major functions of this unit can be operated from
the HOME menu.
Preparation
Turn on the television and select the appropriate
video input on the television.
1 Press [Í] to turn on the unit.
≥ If there are any other items, repeat this
step.
To show the HOME menu
Press [HOME].
≥ Items to be displayed may vary with the media.
Inserting disc in the disc slot
≥ The disc will be pulled in when inserted
partially.
≥ The power will be turned on automatically when
the disc is inserted while in the standby mode.
To eject the disc
Touch
[
<
].
≥ Remove the disc with your hands once the disc
is ejected partially. If the disc is not removed,
the unit will pull in the disc for safety reasons. In
this case, playback does not start automatically.
e.g., When installed vertically
≥ To insert a disc that was ejected partially, do not
force the disc back in, but re-insert it after
removing the disc completely.
≥ Do not leave a disc that is partially ejected. It is
recommended to completely take out the disc
from this unit if the disc is not going to be used.
Connections and settings
Label side
2 Operate the touchpad to select the item.
Tap to select the centred item.
Swipe or flick your finger up, down, left, or
right to select other items.
Videos/Photos/Music
Disc
Play back the contents.
(> 21)
≥ When multiple contents are
recorded, select the types
of contents or the title.
SD Card
USB
Network
Network
Service
Displays the Home screen of
VIERA Connect. (> 25)
Home Network
DLNA Client (> 26)
Media Renderer (> 27)
Setup
Player Settings
(> 32)
SD Card
Management
(> 23)
Wallpaper
Changes the background of
HOME menu.
MusicPhotos Setup
Network
HOME
Blu-ray Disc Player
Register
1st user
Videos
DMP-BBT01GN-VQT3X48_mst.book 19 ページ ２０１２年４月２０日 金曜日 午後２時４４分
20
VQT3X48
Multi User Mode
Multi User Mode is a function that enables
switching of multiple settings easily.
Up to 4 people can use the unit with their own
settings.
The following settings can be personalized.
≥ The user icon
≥ The wallpaper of HOME menu
≥ The audio and picture settings (> 29, 32)
A The user name and icon currently selected
B Personalize a new user and switch the users
with coloured buttons.
1 Press [HOME].
2 Press a coloured button that indicates
new user personalization.
3 Select an item and change the settings
according to the indications.
The following items can be set.
To change the personalized user information
Select “Edit User Information” from Setup menu.
(> 37)
There are three ways to switch the user as follows.
∫ Using coloured buttons
Press the coloured buttons in the HOME menu
to switch to the user corresponding to the
button.
∫ Using facial recognition
(Only when connected to Communication
Camera > 25)
This is a function for fun using the Communication
Camera and enables user switching by facial
recognition. Perform “Create from Photos” (> left)
to personalize your facial photo before using this
function.
2 Turn the face to Communication Camera.
The camera captures your face and determines
the closest face from the personalized user
photos, and then displays the results.
≥ Accuracy of the recognition may be
reduced depending on the captured image.
3 Follow the indications on the screen.
≥ To redo the facial recognition, press
[RETURN].
∫ Using registered smartphones
When the unit is turned on using the
registered smartphone, the user who
registered the smartphone will automatically
be selected.
≥ Perform the “Remote Device Settings”. (> 35)
≥ To use smartphones as a remote control, installation of
dedicated software is required. For more details, refer to
the following website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
Personalizing a new user
Input
Nickname
Personalize a user name.
Select Icon
Personalize a user icon.
Select from Illustrations
The image can be selected from
prepared illustrations.
Create from Photos
If the Communication Camera is
connected, you can shoot and
personalize your photo.
≥ You can also select a photo in
recording media as an icon.
(> 29, “Icon Registration”)
Select
Wallpaper
Personalize a background of the
HOME menu.
≥ Other than prepared
wallpapers, you can also select
a photo in recording media as a
wallpaper. (> 29, “Wallpaper”)
A
B
MusicPhotos Setup
Network
HOME
Blu-ray Disc Player
User 1
Register
2nd user
User 1
Videos
Register
Smartphone
Smartphone used as a remote
control can be registered with
respect to each user.
≥ Multiple users cannot be
registered for one smartphone.
4 Select “Confirm”.
Switching the user
1 Press [OPTION] in the HOME menu and
select “Facial Recognition”.
DMP-BBT01GN-VQT3X48_mst.book 20 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Playback
21
VQT3X48
Playback
1 Insert the media.
Playback starts depending on the media.
Repeat this procedure if necessary.
≥ To save on electricity, the unit is turned off automatically if
there is no button operation for about 30 minutes when not
playing back (such as when paused, displaying the menu,
displaying still pictures, etc.).
The following functions may not work depending
on the media and contents.
The stopped position is memorized.
Resume play function
≥ On BD-Video discs including BD-J, the
resume play function does not work.
Search
≥ Music and MP3: The speed is fixed to a single
step.
Slow motion
≥ BD-Video and AVCHD: [5] only.
The speed increases up to 5 steps.
Skip to the title, chapter or track.
You can change the audio channel number or
soundtrack language, etc.
2 Select the item to play.
≥ DISCS CONTINUE TO ROTATE WHILE MENUS ARE
DISPLAYED. Select [∫] from the KEYS screen when you
have finished playback to protect the unit’s motor, your
television screen and so on.
≥ DivX and MKV: Successive play is not possible.
≥ It is not possible to play back AVCHD and MPEG2 videos
which have been dragged and dropped or copied and
pasted to the media.
Operations during playback
1 Repeatedly press [KEYS] to display the
playback control screen.
2 Select a key.
See page 11 for the KEYS screen operation.
Stop
Select [1] (PLAY) to restart from this position.
≥ The position is cleared if the disc is ejected or
you select [∫] several times to display the
HOME menu.
Pause
Select [;] again or [1] (PLAY) to restart play.
Frame-by-frame
1 While paused, repeatedly press [KEYS] to
display the cursor key screen.
2 Select [2] or [1].
≥ Select [1] (PLAY) to revert to normal playback
speed.
≥ BD-Video and AVCHD: [1] only.
Search/Slow-motion
While playing, select [6] or [5].
While paused, select [6] or [5].
≥ Select [1] (PLAY) to revert to normal playback
speed.
Skip
Skip backward
10 seconds
It will play back after skipping backward
approximately 10 seconds every time the key is
selected.
Changing audio
DMP-BBT01GN-VQT3X48_mst.book 21 ページ ２０１２年４月２０日 金曜日 午後２時４４分
22
VQT3X48
≥ Depending on media and contents, the display
may change or may not appear.
e.g., BD-Video
A T: Title, C: Chapter, PL: Playlist
B Elapsed time in the title
C Current position
D Tota l ti m e
e.g., JPEG
Quick playback control

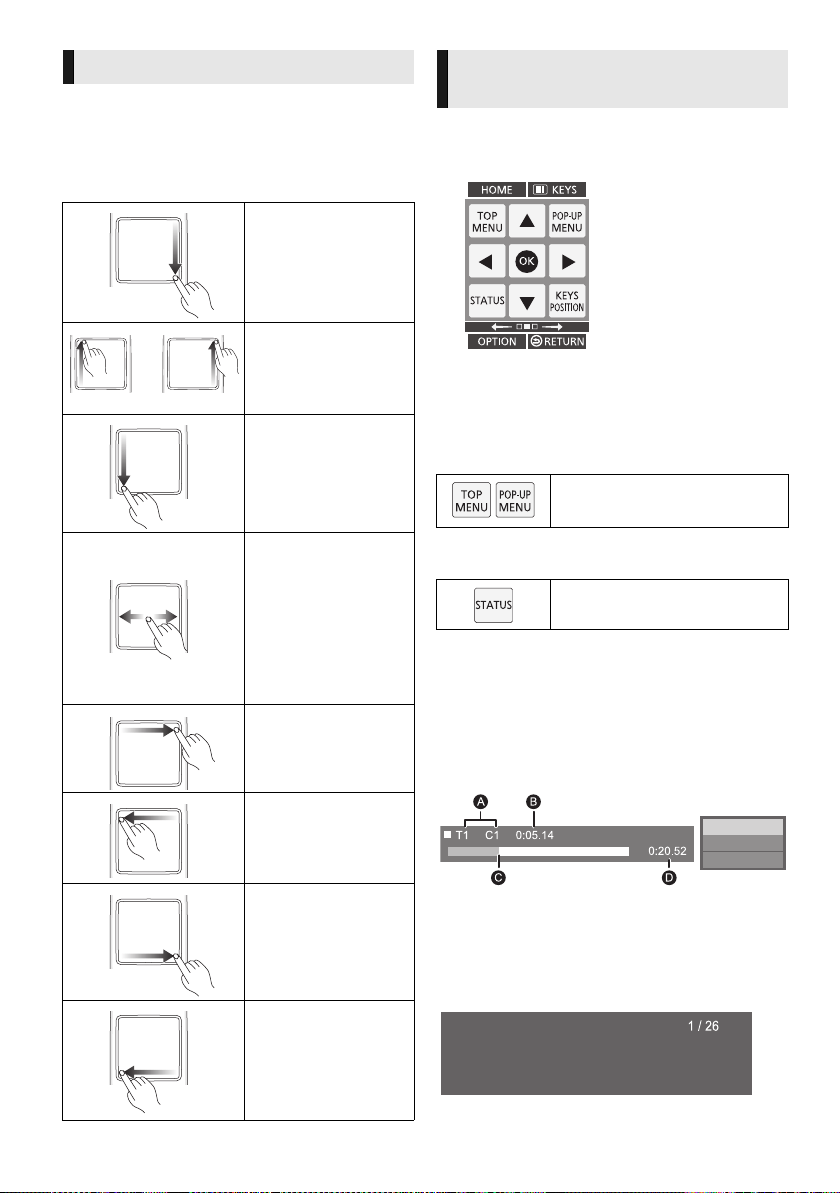

Basic operation can be performed by swiping the
edge of the touchpad with your finger, such as the
following.
≥ Perform the operation when the KEYS screen
is not displayed.
Stop
Play
Pause
Frame-by-frame
(during pause)
Forward: Swipe your
finger from left to
right.
Backward: Swipe
your finger from right
to left.
Search forward
Search backward
Skip forward
Skip backward
or
Displaying menus and playback
information
1 Repeatedly press [KEYS] to display the
cursor key input screen.
2 Select a key.
See page 11 for the KEYS screen operation.
The following functions may not work depending
on the media and contents.
Show top menu/pop-up
menu
Select the item.
Show the status
messages
The status messages give you information about
what is currently being played. Each time you
select [STATUS], the display information may
change or will disappear from the screen.
Play
BD-Video
Date 11.12.2007
Size 500 x 375
Manufacturer
Equipment
DMP-BBT01GN-VQT3X48_mst.book 22 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Playback
23
VQT3X48
Preparation
≥ Perform the necessary preparations for the TV.
≥ Play back following the instructions displayed
on the screen.
≥ 3D Settings (> 31, 34)
≥ Please refrain from viewing 3D images if you do not feel
well or are experiencing visual fatigue.
In the event that you experience dizziness, nausea, or
other discomfort while viewing 3D images, discontinue use
and rest your eyes.
≥ 3D video might not output the way it is set in “HDMI Video
Format” or “24p Output” (> 32).
≥ When playing back 3D photos from “Photos” screen, select
from the “3D” list. (Still pictures in “2D” are played back in
2D.)
If “2D” and “3D” indications are not displayed, press the
red button to switch the view of playback contents.
With “BD-Live” discs, you can enjoy bonus
contents that use Internet access.
For this BD-Live function, insertion of an SD card
is necessary along with Internet connection.
1 Perform network connection and settings.
(> 15, 16)
2 Insert an SD card with 1 GB or more free
space.
≥ The SD card is used as the local storage.
3 Insert the disc.
∫ Deleting data/Formatting SD cards
≥ The usable functions and the operating method may vary
with each disc, please refer to the instructions on the disc
and/or visit their website.
≥ “BD-Live Internet Access” may need to be changed for
certain discs (> 36).
Enjoying 3D video and photos
Connect this unit to a 3D compatible TV.
(> 13, 14)
Enjoying BD-Live

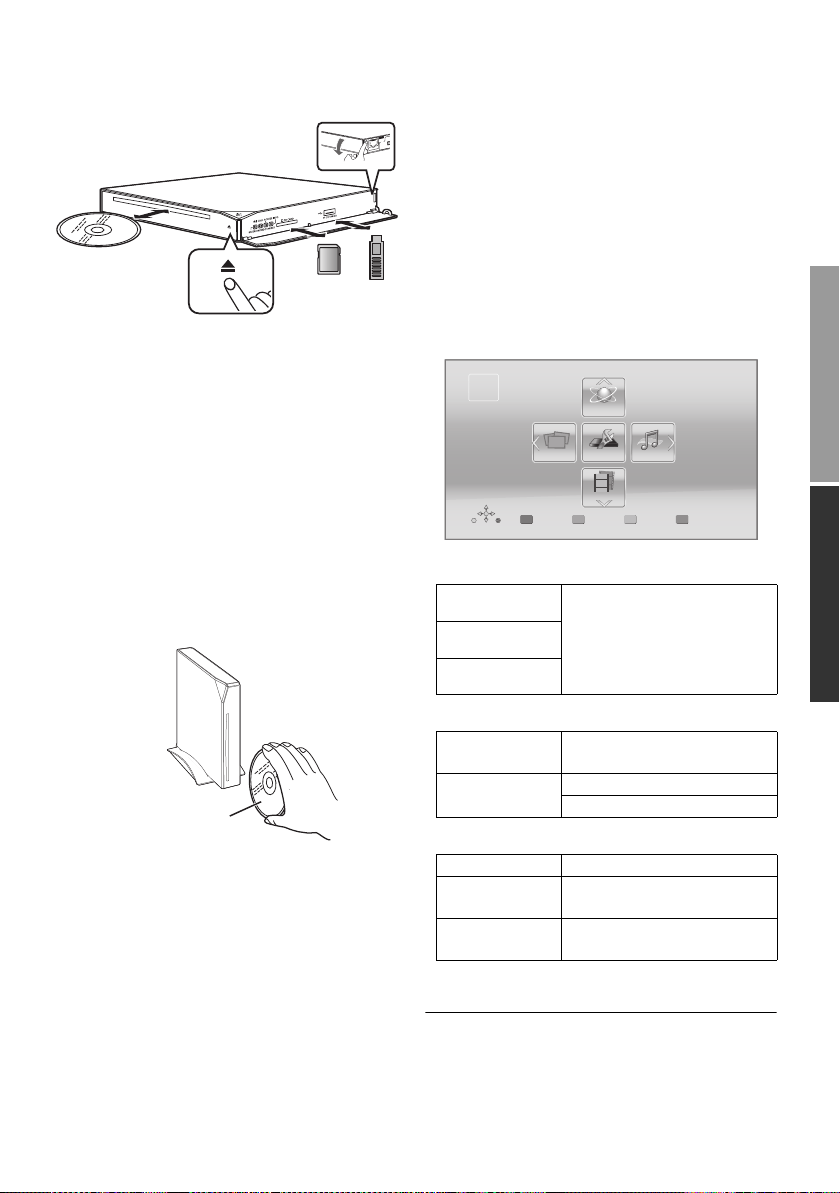

Select “SD Card Management” in the HOME
menu (> 19), then select “BD-Video Data
Erase” or “Format SD Card”.
DMP-BBT01GN-VQT3X48_mst.book 23 ページ ２０１２年４月２０日 金曜日 午後２時４４分
24
VQT3X48
Play a slideshow of photos and make various
settings during the playback.
1 Insert the media.
2 Select “Photos”.
The following items can be set.
≥ Still pictures displayed as “ ” cannot be played back
with this unit.
≥ When both the music CD and the USB device with
recorded music are inserted into this unit, the music CD
has priority to be played back as background music.
Slideshow
3 Select an item and press the green button.
Start
Slideshow
Start the slideshow.
You can display still pictures in
the selected folder one by one
at a constant interval.
Interval Change the display interval.
Transition
Effect
Select the effect when sliding
pictures.
Repeat Play
Set whether to repeat the
slideshow.
Soundtrack
Set whether to play
background music.
≥ FLAC, MP3 and WAV on the
USB device can be played
back during the slideshow of
JPEG on the USB device or
the SD card.
≥ A music CD can also be
played back during the
slideshow of JPEG on the
SD card.
Soundtrack
Folder
Select the folder from which
the music files are played.
Random
Soundtrack
Background music is played in
random order.
DMP-BBT01GN-VQT3X48_mst.book 24 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Playback
25
VQT3X48
VIERA Connect
(Enjoying Internet
Service)
)

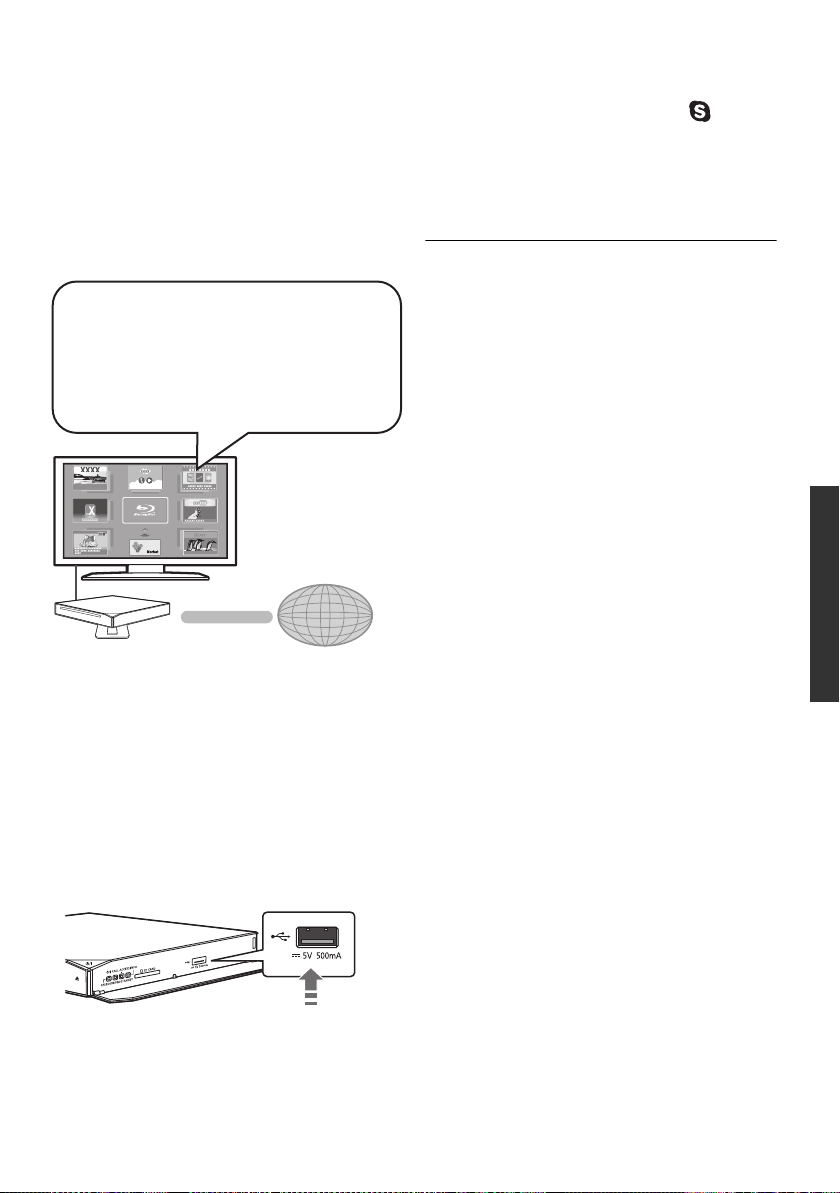

VIERA Connect allows you to access some
specific websites supported by Panasonic, and
enjoy Internet contents such as photos, videos,
etc. from VIERA Connect Home screen. This unit
has no full browser function and all features of
websites may not be available.
* Images are for illustration purposes, contents may change
without notice.
Preparation
≥ Network connection (> 15)
≥ Network setting (> 16)
To enjoy video communication (e.g. Skype
TM
) :
≥ Connect this unit with optional Communication
Camera (TY-CC20W or TY-CC10W).
Depending on your location, this optional
camera may not be available. Please consult
your local Panasonic dealer for advice.
1 Press [INTERNET].
To exit from VIERA Connect
≥ When playing content in the media, VIERA Connect cannot
be accessed by pressing [INTERNET].
≥ In the following cases, settings are possible using the
Setup menu items.
– When restricting the use of VIERA Connect
(> 36, “Network Service Lock”)
– When the audio is distorted
(> 35, “Audio Auto Gain Control”)
– When wrong time is displayed
(> 35, “Time Zone”, “Summer Time”)
≥ If using slow Internet connection, the video may not be
displayed correctly. A high speed Internet service with a
speed of at least 6 Mbps is recommended.
≥ Be sure to update the firmware when a firmware update
notice is displayed on the screen. If the firmware is not
updated, you will not be able to use the VIERA Connect
function. (> 18)
≥ VIERA Connect Home screen is subject to change without
notice.
≥ The services through VIERA Connect are operated by their
respective service providers, and service may be
discontinued either temporarily or permanently without
notice. Therefore, Panasonic will make no warranty for the
content or the continuity of the services.
≥ All features of websites or content of the service may not
be available.
≥ Some content may be inappropriate for some viewers.
≥ Some content may only be available for specific countries
and may be presented in specific languages.
*
MORE
BACK
XXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXX
XXXX
VIERA Connect provides a variety of
selected Internet services such as the
following.
≥ Online movie rental service
≥ Video communication service
≥ Video browsing service
Internet
Communication Camera
TY-CC20W or TY-CC10W
≥ The video communication service can be
accessed directly by pressing [ ] button.
2 Select the item.
Press [HOME].
DMP-BBT01GN-VQT3X48_mst.book 25 ページ ２０１２年４月２０日 金曜日 午後２時４４分
26
VQT3X48
Home Network feature
Preparation
1 Perform network connection (> 15) and
network settings (> 16) of this unit.
2 Perform Home Network settings of the
connected equipment.
3 Add the contents and folder to the libraries of
the Windows Media
®
Player or the
smartphone, etc.
≥ Playlist of Windows Media
®
Player can play
back only the contents that are stored in the
libraries.
1 Press [HOME].
2 Select “Network”.
3 Select “Home Network”.
4 Select “DLNA Client”.
≥ You may be able to use convenient
functions depending on the content by
pressing [OPTION].
To exit from Home Network
Playing back contents on the
DLNA server
You can share photos, videos and music stored in
the DLNA Certified media server (PC with
Windows 7 installed, smartphone, etc.)
connected to your home network, and enjoy the
contents with this player.
You can also enjoy viewing the video and photos
recorded in Panasonic DLNA compatible
recorders (DIGA).
Refer to our website about the sales area, etc.
(> 27)
When connected to other than DIGA,
When connected to DIGA,
3 Register this unit to your DIGA.
Player
Server
≥ The list can be updated by pressing the red
button on the remote control.
≥ The connection method can be switched to
Wi-Fi Direct by pressing the green button
on the remote control.
5 Select the equipment.
6 Select the item to play.
≥ Control Panel (> 30) is displayed once the
playback starts. Tap the touchpad if the
Control Panel is not displayed, and press
[RETURN] to hide the Control Panel.
Press [HOME].
DMP-BBT01GN-VQT3X48_mst.book 26 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Playback
27
VQT3X48
You can use the smartphone, etc. as the Digital
Media Controller (DMC) to play back contents
from DLNA server on the Renderer (this unit).
Possible applications:
* DMC compatible software should be installed.
Preparation
4 Perform the “Remote Device Settings”.
(> 35)
≥ You can register up to 16 devices.
1 Press [HOME].
2 Select “Network”.
3 Select “Home Network”.
4 Select “Media Renderer”.
6 Operate the DMC compatible devices.
To exit from Media Renderer screen
Press [HOME].
≥ Depending on the contents and the connected equipment,
playback may not be possible.
≥ Items displayed in grey on the display cannot be played
back by this unit.
≥ This unit can be played back via connected equipment only
when controlled using DMC.
Using the Digital Media Controller
Perform steps 1 and 2. (> 26)
3 Add the contents and folder to the libraries of
the Windows Media
®
Player or the
smartphone, etc.
≥ Playlist of Windows Media
®
Player can play
back only the contents that are stored in the
libraries.
5 Select “Home Network” or “Wi-Fi Direct”,
then follow the indications on the screen.
*
*
*
Renderer
Server
Controller
Renderer
Server
i
Controller
For more details, refer to the following website and the
operating instructions for each of the equipment.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
≥ Wi-Fi Direct connection while using Home Network feature
is only temporary, and the network connection method
returns to the original setting when exiting.
DMP-BBT01GN-VQT3X48_mst.book 27 ページ ２０１２年４月２０日 金曜日 午後２時４４分
28
VQT3X48
VIERA Link “HDAVI
Control™”
Preparation
1 Set “VIERA Link” to “On” (> 37).
(The default setting is “On”.)
2 Set the “HDAVI Control” operations on the
connected equipment (e.g., TV).
3 Turn on all “HDAVI Control” compatible
equipment and select this unit’s input channel
on the connected TV so that the “HDAVI
Control” function works properly.
Also, when the connection or settings are
changed, repeat this procedure.
When the following operations are performed, the
input channel of the television will be
automatically switched and the screen of this unit
will be displayed.
When the television is off, the television will
automatically turn on.
– When play starts on the unit
– When an action that uses the display screen is
performed
(e.g., HOME menu)
All connected equipment compatible with “HDAVI
Control”, including this unit, automatically turns off
when you switch the television off.
Playing music continuously even after turning
off the television
When the unit is connected to a Panasonic TV
(VIERA) that supports HDAVI Control 2 or later
and an amplifier/receiver supports VIERA Link.
1 While playing music
Press [OPTION].
Only when TV supports “HDAVI Control 2” or
later
By using the TV remote control, you can perform
various playback operations and settings.
See the operating instructions of the TV for more
details.
≥ The buttons that you can use for this unit vary depending
on the TV. For details, refer to the operating instructions of
the TV.
≥ The operation of this unit may be interrupted when you
press certain buttons on the TV remote control.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the newest standard (current as of
November, 2011) for Panasonic’s HDAVI Control
compatible equipment. This standard is compatible with
Panasonic’s conventional HDAVI equipment.
≥ VIERA Link “HDAVI Control”, based on the control
functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a
unique function that we have developed and added. As
such, its operation with other manufacturers’ equipment
that supports HDMI CEC cannot be guaranteed.
≥ Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
What is VIERA Link “HDAVI Control”?
VIERA Link “HDAVI Control” is a
convenient function which will link the
operations of this unit and a Panasonic
TV (VIERA) or other device under “HDAVI
Control”.
You can use this function by connecting
the equipment with an HDMI cable. See
the operating instructions for connected
equipment for operational details.
Automatic input switching
Power on link
Power off link
2 Select “TV Power”.
Easy control only with VIERA
remote control
DMP-BBT01GN-VQT3X48_mst.book 28 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Settings
29
VQT3X48
Settings
Option menu
A variety of playback operations and settings can
be performed from this menu.
Available options differ depending on the playing
contents and the condition of the unit.
About Multi User Mode
: Settings of the items with this indication are
saved by the respective users registered in the
HOME menu.
Please refer to page 20 for details about user
registration and switching.
1 Press [OPTION].
e.g., BD-Video
2 Select an item and change the settings.
To exit the screen
Press [OPTION].
Regarding Language : (> 45)
∫ Soundtrack
Show or change the soundtrack.
∫ Audio channel
Select the audio channel number.
∫ Subtitle
Change the subtitle settings.
∫ Angle
Select the number of the angle.
∫ Repeat Play
Select the item that you want to repeat.
≥ The items displayed differ depending on the
type of media.
≥ Select “Off” to cancel.
∫ Random
Select whether or not to play random.
∫ Start Slideshow
Start the slideshow.
∫ Status
Show the status messages.
∫ Rotate RIGHT
∫ Rotate LEFT
Rotate the still picture.
∫ Wallpaper
Set the still picture to the wallpaper of HOME
menu. (> 19)
∫ Icon Registration
Set the still picture as your user icon. (> 20)
∫ Video
The recording method of original video appears.
∫ Secondary Video
≥ When playing music, select “Playback
Settings”.
Operation Menu
Playback
Operation Menu
Pop-up Menu
Top Menu
Playback Information Window
Control Panel
Status
Repeat Play
Angle
Subtitle
Soundtrack
Off
Secondary Video
1
1 ENG DTS-HD MSTR Multi
Video
Select on/off for images. The
recording method of original
video appears.
≥ During search/slow motion
or frame-by-frame, only the
primary video is displayed.
Soundtrack
Select on/off for audio and
language.
∫ Playback Information Window
Displays the following.
Audio/video attribute information of disc.
Settings status of “Digital Audio Output”
(> 33).
HDMI output information.
Press [RETURN] to exit.
DMP-BBT01GN-VQT3X48_mst.book 29 ページ ２０１２年４月２０日 金曜日 午後２時４４分
30
VQT3X48
∫ Control Panel
Display the Control Panel.
Playing back while using VIERA Link, etc.
e.g.,
Press [RETURN] to hide the Control Panel.
∫ Top Menu
Display Top Menu.
∫ Pop-up Menu
Display Pop-up Menu.
∫ Menu
Display Menu.
You can access settings to enjoy special features
of this unit from this category.
Refer to “Picture Settings” and “Sound Settings”
(> 31) for more details on each setting item.
∫ Picture Mode
Select the picture quality mode during play.
≥ If you select “User”, you can change settings in
“Picture Adjustment”.
∫ Picture Adjustment
Specific picture quality settings can be performed.
≥ 3D NR:
Reduces the rough noise in the background to
give a greater feeling of depth.
When “24p Output” is set to “On”, this function
may not operate. (> 32)
≥ Integrated NR:
Smooths block noise and reduces the
smudging that appears around contrasting
sections of the picture.
∫ Chroma Process
The high resolution processing of HDMI chroma
signals produces a high resolution picture with
rich picture quality.
∫ Detail Clarity
The picture is sharp and detailed.
∫ Super Resolution
Pictures of normal image quality are corrected to
sharp and detailed images when output as 1080i/
1080p from HDMI AV OUT.
∫ Progressive
Select the method of conversion for progressive
output to suit the type of material being played.
∫ 24p
Movies and other material recorded on
DVD-Video at 24p are output at 24p.
∫ Screen Aspect
Switch the screen mode.
∫ Reset to Default Picture Settings
Return picture settings to the factory preset.
Tap to select the centre key.
Swipe your finger up, down, left, or right to select
the keys accordingly.
Personal Taste
Picture Settings
EXIT
≥ If the video is disrupted when “Auto” is
selected, select either “Video” or “Film”
depending on the material to be played back.
≥ Only when you have selected “On” in “24p
Output” (> 32) and play discs recorded at a
rate of 60 fields per second.
≥ This may not work with the PAL contents.
DMP-BBT01GN-VQT3X48_mst.book 30 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Settings
31
VQT3X48
∫ Sound Effects
*1, *2
Select the sound effect.
≥ Night Surround :
Enjoy a movie with powerful sound even when
the volume is kept low at night. The audio is set
in such a way that it can be heard easily.
≥ Re-master :
This feature gives you brighter sound by
increasing the high frequency portion of the
audio. (Discs recorded at 48 kHz or less)
Recommended setting
∫ Dialogue Enhancer
*2
The volume of the centre channel is raised to
make dialog easier to hear.
*1
Not every function can be set individually.
∫ Signal Format
∫ 3D Picture Mode
∫ Manual Settings
∫ Graphic Display Level
(Only when “Full HD” is selected in “3D Type”
(> 34).)
3D position for the Option menu or message
screen, etc. can be adjusted during 3D playback.
Sound Settings
Re-master 1 Pop and rock
Re-master 2 Jazz
Re-master 3 Classical
≥ Digital Tube Sound :
This feature gives you a warm sound, like that
produced by a vacuum tube amplifier.
Recommended setting
Digital Tube
Sound 1
A crisp, delicate sound
Digital Tube
Sound 2
A tight, hi-fi sound
Digital Tube
Sound 3
A soft, rich sound
Digital Tube
Sound 4
A clear, powerful sound
Digital Tube
Sound 5
A distinctive mid-range
sound
Digital Tube
Sound 6
A soft, enveloping sound
∫ High Clarity Sound Plus
When playing back music contents, it improves
the sound quality by stopping the video output.
≥ When “No HDMI Output” is selected, the sound
is output only from the DIGITAL AUDIO OUT.
*2
This function is effective for audio from HDMI AV OUT or
DIGITAL AUDIO OUT only when “Digital Audio Output” is
set to “PCM” (> 33). (However, in this case, audio is
output as 2ch from DIGITAL AUDIO OUT.)
3D Settings
These settings are also displayed by pressing
[].
Original Keep original picture format.
Side by side
3D picture format comprising
of left and right screens.
2D to 3D
Converts 2D pictures to 3D
effect.
Normal
Play back pictures with normal
3D effects.
Soft
You can enjoy 3D pictures with
a feeling of broadness, holding
back the depth perception.
Manual
Play back 3D pictures with
settings of “Manual Settings”.
Distance
Set the amount of depth
perception.
Screen Type
Selects how the screen
appears during 3D playback
(flat or round).
Frame Width
Set the amount of feathering at
the edge of screen.
Frame Colour
Set the colour of feathering at
the edge of screen.
DMP-BBT01GN-VQT3X48_mst.book 31 ページ ２０１２年４月２０日 金曜日 午後２時４４分
32
VQT3X48
Setup menu
Change the unit’s settings if necessary. The
settings remain intact even if you switch the unit
to standby.
Some items in the Setup menu are common to
the Option menu. You can get the same effect
with both menus.
About Multi User Mode
: Settings of the items with this indication are
saved by the respective users registered in the
HOME menu.
Please refer to page 20 for details about user
registration and switching.
1 Press [HOME].
3 Select “Player Settings”.
4 Select an item and change the settings.
To exit the screen
Press [HOME].
∫ Picture Mode (> 30)
∫ Picture Adjustment (> 30)
∫ Chroma Process (> 30)
∫ Detail Clarity (> 30)
∫ Super Resolution (> 30)
∫ HDMI Output
¾ HDMI Video Format
The items supported by the connected devices
are indicated on the screen as “¢”. When any
item without “¢” is selected, the images may be
distorted.
≥ If “Automatic” is selected, the best suited
output resolution to the connected television
is automatically selected.
≥ To enjoy high-definition video up-converted to
1080p, you need to connect the unit directly
to 1080p compatible HDTV (High Definition
Television). If this unit is connected to an
HDTV through other equipment, the other
equipment must also be 1080p compatible.
¾ 24p Output
When this unit is connected to a TV supporting
1080/24p output using an HDMI cable, movies
and other material recorded at 24p are output at
24p.
≥ When playing DVD-Video, set to “On” and
then set “24p” in “Picture Settings” (> 30) to
“On”.
≥ When BD-Video images other than 24p are
played, images are output at 60p.
≥ 24p : A progressive image recorded at a rate
of 24 frames per second (motion-picture film).
Many BD-Video movie contents are recorded
in 24 frames/second in accordance with the
film materials.
¾ HDMI Colour Mode
This setting is for selecting colour-space
conversion of the image signal when the unit is
connected using an HDMI cable.
¾ Deep Colour Output
This setting is for selecting whether to use Deep
Colour output when a television that supports
Deep Colour is connected.
¾ Contents Type Flag
Depending on the playback content, the TV will
output adjusting to the optimal method when a
TV that supports this function is connected.
2 Select “Setup”.
HDMI Output
Super Resolution
Detail Clarity
Chroma Process
Picture Adjustment
Picture Mode
Seamless Play
Still Mode
On
Automatic
Advanced
Normal
Player Settings
System
Ratings
Network
Language
3D
Sound
Tap to show the following settings:
DMP-BBT01GN-VQT3X48_mst.book 32 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Settings
33
VQT3X48
∫ Still Mode
Select the type of picture shown when you pause
playback.
∫ Seamless Play
The chapter segments in playlists are played
seamlessly.
≥ Select “On” when the picture freezes for a
moment at the chapters segment in playlists.
∫ Sound Effects (> 31)
∫ Dialogue Enhancer (> 31)
∫ Dynamic Range Compression
You can listen at low volumes but still hear dialog
clearly.
(Dolby Digital, Dolby Digital Plus and Dolby
TrueHD only)
≥ “Automatic” is effective only when playing Dolby
TrueHD.
∫ Digital Audio Output
¾ Dolby D/Dolby D +/Dolby TrueHD
¾ DTS/DTS-HD
¾ MPEG Audio
Select the audio signal to output.
≥ Select “PCM”, when the connected
equipment cannot decode the respective
audio format. This unit decodes the audio
format and transmits to the connected
equipment.
≥ Not making the proper settings may result in
noise.
¾ BD-Video Secondary Audio
Select whether or not to mix the primary and
secondary audio (including the button click
sound).
If “Off” is selected, the unit outputs the primary
audio only.
¾ HDMI Audio Output
This setting selects whether or not to output
audio from HDMI.
∫ PCM Down Conversion
Select how to output audio with a sampling
frequency of 96 kHz for the PCM output from the
DIGITAL AUDIO OUT.
≥ If “On” is selected, the signals that are
converted to 48 kHz are output.
≥ If “Off” is selected, and the connected
equipment does not support 96 kHz, the sound
will not be output normally.
≥ Signals are converted to 48 kHz despite the
settings in the following cases:
– when the signals have a sampling frequency
of 192 kHz
– when the disc has copy protection
– when “BD-Video Secondary Audio” is set to
“On”
∫ Downmix
Select the downmix system of multi-channel to
2-channel sound.
≥ Select “Surround encoded”, when the
connected equipment supports the virtual
surround function.
≥ There is no effect on “Bitstream” via HDMI AV
OUT and DIGITAL AUDIO OUT.
≥ The audio will be output in “Stereo” in the
following cases:
– AVCHD playback
– Playback of secondary audio (including the
button click sound).
Automatic
Automatically selects the type
of picture shown.
Field
Select if jittering occurs when
“Automatic” is selected.
Frame
Select if small text or fine
patterns cannot be seen
clearly when “Automatic” is
selected.
Sound
Tap to show the following settings:
≥ Select “Off” when the TV is connected to this
unit via HDMI AV OUT, and this unit is also
connected to other devices, such as an
amplifier/receiver via DIGITAL AUDIO OUT.
DMP-BBT01GN-VQT3X48_mst.book 33 ページ ２０１２年４月２０日 金曜日 午後２時４４分
34
VQT3X48
∫ Audio Delay
Synchronization between picture and sound is
corrected by adjusting the delay time of the audio
output.
∫ 3D BD-Video Playback
Select the playback method of 3D compatible
video software.
∫ 3D AVCHD Output
Select the output method of 3D AVCHD videos.
∫ 3D Type
Select the format of the connected TV.
∫ 3D Playback Message
Set to display or hide the 3D viewing warning
screen when playing back the 3D compatible
video software.
∫ Manual Settings (> 31)
∫ Graphic Display Level (> 31)
∫ Soundtrack Preference
Choose the language for audio.
≥ If “Original” is selected, the original language of
each disc will be selected.
≥ Enter a code (> 45) when you select
“Other ¢¢¢¢”.
∫ Subtitle Preference
Choose the language for the subtitle.
≥ If “Automatic” is selected and the language
selected for “Soundtrack Preference” is not
available, subtitles of that language will
automatically appear if available on that disc.
≥ Enter a code (> 45) when you select
“Other ¢¢¢¢”.
∫ Menu Preference
Choose the language for the disc menus.
≥ Enter a code (> 45) when you select
“Other ¢¢¢¢”.
∫ 7.1ch Audio Reformatting
Surround sound with 6.1ch or less is
automatically expanded and played back at
7.1ch.
≥ If “Off” is selected, sound is played over the
original number of channels. (Note that in the
case of 6.1ch audio, playback will be at 5.1ch.)
≥ Audio reformatting is enabled in the following
cases:
– When you have selected “PCM” in “Digital
Audio Output”.
– When the audio is Dolby Digital, Dolby Digital
Plus, Dolby TrueHD or LPCM.
– BD-Video playback
3D
≥ Change the settings for 3D on the TV also
when “Side by side” is selected.
Language
∫ Subtitle Text
Select a suitable item according to the language
used for DivX or MKV subtitles text.
≥ This item is displayed only after playing back a
file.
DMP-BBT01GN-VQT3X48_mst.book 34 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Settings
35
VQT3X48
∫ Easy Network Setting (> 16)
∫ Network Settings
Perform network-related settings individually.
¾ LAN Connection Mode
Select the LAN connection method.
¾ Wireless Settings
This allows the wireless router and connection
settings to be set. Current connection settings
and connection state can be checked.
Connection Setting
The wireless router connection wizard will be
displayed.
Double Speed Mode Setting (2.4GHz)
When a 2.4 GHz wireless format is used, this
sets the connection speed.
≥ If you connect using the “Double Speed
Mode (40MHz)”, 2 channels use the same
frequency band, and there is consequently
a greater risk of reception interference. This
can cause the connection speed to drop or
become unstable.
¾ IP Address / DNS Settings
This is for checking the state of the network
connection and setting the IP address and
DNS-related.
¾ Proxy Server Settings
This is for checking the state of connection with
the Proxy server and performing settings.
¾ Network Service Settings (> 25)
(VIERA Connect)
Audio Auto Gain Control
Volume that is different depending on the
contents is adjusted automatically to the
standard volume while using the VIERA
Connect.
≥ Depending on contents, this function effect
will not work.
≥ Select “Off” when the audio is distorted.
Time Zone
By selecting the time zone, it is possible to set
the unit’s time to match your location.
≥ Some VIERA Connect contents require the
time zone to be set. Set the time zone if
necessary.
Summer Time
Select “On” when using Daylight Saving time.
¾ Remote Device Settings (> 27)
Remote Device Operation
Enable to operate by DMC.
≥ If “On” is selected, “Quick Start” will be
activated.
Device Name Entry
Set the name of this unit to be displayed on
the connected equipment.
Network
Tap to show the following settings:
≥ Select “Wireless Master” when you make a
direct wireless connection between this unit
and a Home Network device. Internet
connection is not available when this item is
selected.
Tap to show the respective setting.
Tap to show the respective setting.
Tap to show the following settings:
¾ Network Drive Connection
It is possible to access the shared folder of
equipment not compatible with DLNA, such as
the Windows XP operating system, and play
back video, still pictures, and music on this unit.
For the setting and operation method of
connected equipment, refer to the following
website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
Tap to show the following settings:
DMP-BBT01GN-VQT3X48_mst.book 35 ページ ２０１２年４月２０日 金曜日 午後２時４４分
36
VQT3X48
Registration Type
Remote Device List
Registering/deregistering of the displayed
equipment can be performed when “Manual”
in “Registration Type” is selected.
¾ BD-Live Internet Access (> 23)
You can restrict Internet access when BD-Live
functions are used.
≥ If “Limit” is selected, Internet access is
permitted only for BD-Live contents which
have content owner certificates.
The following items use the same password.
Don’t forget your password.
∫ DVD-Video Ratings
Set a ratings level to limit DVD-Video play.
∫ BD-Video Ratings
Set an age limit of BD-Video play.
∫ Network Service Lock
You can restrict the usage of VIERA Connect.
∫ Easy Setting
You can execute basic settings.
∫ TV Settings
¾ TV Aspect
Set to match the type of television connected.
When connected to a 4:3 aspect television and
playing 16:9 ratio image:
When connected to a 16:9 widescreen
television and playing 4:3 ratio image:
¾ Screen Saver Function
This is to prevent burn-in on the screen.
≥ When this is set to “On”:
If a list of playback content is displayed and
there is no operation for 10 minutes or more,
the screen switches to HOME menu
automatically.
≥ While playing and pausing, etc., this function
is not available.
¾ On-Screen Messages
Choose whether to show status messages
automatically.
Automatic
Allow connection to all the
equipment that is
accessing this unit.
Manual
Set the permission of the
connection individually for
the equipment that is
accessing this unit.
Ratings
System
Tap to show the following settings:
4:3 Pan & Scan
The sides are
cut off so the
picture fills
the screen.
When playing BD-Video,
video is output as “4:3
Letterbox”.
4:3 Letterbox
Black bands
appear at
the top and
bottom of
the picture.
16:9
Video is displayed as a 4:3
ratio image in the centre of
the screen.
16:9 full
Video is displayed as a
horizontally stretched 16:9
image.
¾ TV System
Perform the setup so it matches the TV System
of the connected TV.
DMP-BBT01GN-VQT3X48_mst.book 36 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Settings
37
VQT3X48
¾ VIERA Link
Set to use “HDAVI Control” function when
connected via HDMI cable to a device that
supports “HDAVI Control”.
≥ Select “Off” when you do not want to use
“HDAVI Control”.
∫ Unit Settings
¾ Edit User Information
Change the user information registered in the
HOME menu.
∫ Quick Start
Speed of startup from standby mode is increased.
≥ When set to “On”, the internal control unit will be
powered and the idle power consumption will
increase so compared to when set to “Off”.
(About the power consumption > 44)
∫ Remote Control
Change the remote control code if other
Panasonic products react to this remote control.
∫ Firmware Update (> 18)
¾ Automatic Update Check
When this equipment remains connected to the
Internet, it will check for the latest firmware
version when it is turned on and you can update
it if necessary.
¾ Update Now
You can update the firmware manually if a
firmware update is available.
∫ System Information
¾ Software Licence
Information about the software used by this unit
is displayed.
¾ Firmware Version Information
∫ DivX Registration
You need this registration code to purchase and
play DivX Video-on-Demand (VOD) content.
∫ Default Settings
This returns all values in the Setup menu and the
Option menu to the default settings, except for
some settings of network, ratings, remote control
code, etc.
Tap to show the following settings:
¾ Standby LED
Set the Standby/on LED to either light up or
turn off when the unit is in standby mode.
¾ Unit Operation Volume
Set the volume of operation of this unit.
∫ Touchpad Guide
Show the operation guide for the touchpad.
Tap to show the following settings:
Tap to show the following settings:
Display firmware version of this unit and
wireless LAN module.
DMP-BBT01GN-VQT3X48_mst.book 37 ページ ２０１２年４月２０日 金曜日 午後２時４４分
38
VQT3X48
Reference

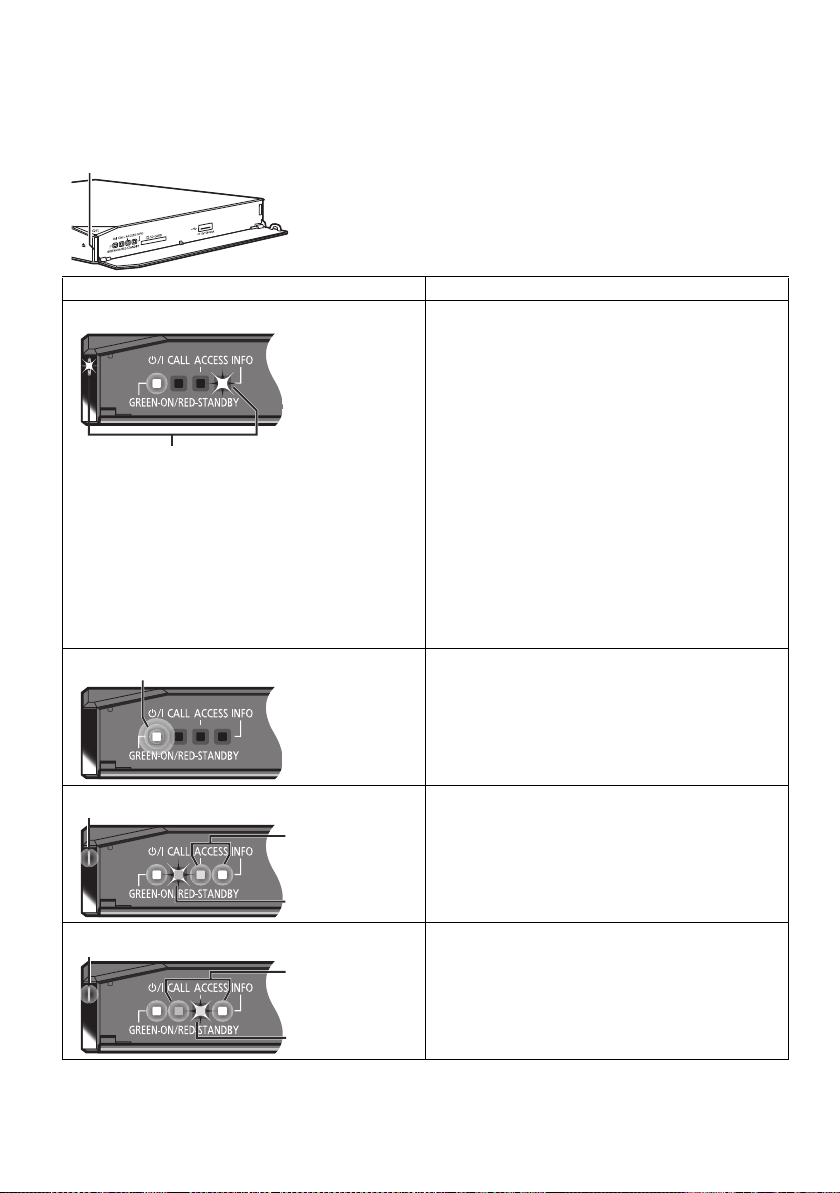

Indicator illumination
Confirm the following items in correspondence to the status of the LED of the unit.
An error condition exists when the Status LED is red. Open the panel at the side of the main unit and
check the status of the indicator LEDs. If the red LED does not turn off even when following operation is
performed, contact your dealer.
Indicator LEDs Description
Red flashes for 6 times
The remote control and main unit are using
different codes. Remote control code may be
changed when the battery is changed. Reset the
settings of the main unit and the remote control to
the states at the time of purchase with following
operation.
1 Turn the unit off once, and then turn it on
again.
2 Touch and hold
[
<
] on the main unit for more
than 4 seconds while the HOME menu is
displayed.
3 Press and hold [OPTION] and the green
button at the same time for more than
5 seconds.
Remote control code for the main unit and the
remote control will be set to “1”. Change the
settings as necessary. (> 37, “Remote Control”)
The unit is carrying out an internal process. This is
not a malfunction. You cannot operate the unit
while the light is flashing. Wait for a while.
The unit fails to operate properly. Touch and hold
[Í/I] on the main unit for 3 seconds to switch the
unit to standby, then switch back on.
The USB device is drawing too much power.
Please disconnect or remove the USB device from
the unit.
The USB device may be incompatible.
The red or green light flashes slowly.
Lights up
Flashes
Red lights up
Flashes
Lights up
Red lights up
DMP-BBT01GN-VQT3X48_mst.book 38 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Reference
39
VQT3X48
The unit is hot.
If the maximum operating temperature is
exceeded the unit automatically switches to
standby.
In this case turn the unit off for approximately
30 minutes and make sure that there is adequate
air flow around the unit.
The copyright protected disc cannot be played
back.
One of the devices connected to the main unit via
the HDMI cable (TV, amplifier, etc.) does not
support copyright protection.
The disc in use cannot be played back since the
copyright information is invalid.
Messages
Cannot play.
¾ You inserted an incompatible disc.
Cannot play on this unit.
¾ You tried to play a non-compatible image.
No disc inserted.
¾ The disc may be upside down.
$ This operation is not available.
¾ Some operations are unsupported by the
unit. For example;
– BD-Video: During playback, reverse slow
motion or reverse frame-by-frame is not
possible.
IP address is not set.
¾ The “IP Address” in “IP Address / DNS
Settings” is “---. ---. ---. ---”. Set the “IP
Address”, “Subnet Mask”, and “Gateway
Address”. (Select the automatic address
acquisition if necessary.)
The wireless access point currently has a low
network security setting. It is recommended
to change to a higher setting.
¾ Authentication type for the wireless LAN is
set to “Open system”, or the encryption type
is set to “No encryption”. It is recommended
to encrypt for safety reasons. For details,
refer to the instructions of the wireless router
being used. Encryption is required when
playing back video, etc., from DLNA
compatible devices.
Lights up
Red lights up
Lights up
Red lights up
Flashes
Lights up
Red lights up
DMP-BBT01GN-VQT3X48_mst.book 39 ページ ２０１２年４月２０日 金曜日 午後２時４４分
40
VQT3X48
Troubleshooting guide
Before requesting service, please perform the
following checks.
If the problem remains unresolved, consult
your dealer for instructions.
The following do not indicate a problem with
this unit:
– Regular disc rotating sounds.
– Image disturbance during search.
– Image disturbance when replacing 3D discs.
– If still unable to turn the unit off, disconnect the
AC mains lead, wait 1 minute, then reconnect
the AC mains lead.
∫ Cannot eject disc.
To return to the factory preset.
¾ Select “Yes” in “Default Settings” in the Setup
menu. (> 37)
To return all settings to the factory preset.
¾ Reset the unit as follows:
This unit is turned off when the input for the
TV is switched.
¾ This is a normal phenomenon when using
VIERA Link (HDAVI Control 4 or later). For
details please read the operating instructions
for the TV.
The remote control doesn’t work properly.
¾ Change the batteries in the remote control.
(> 5)
The TV tuner mode is not displayed when the
TV is switched on.
¾ This phenomenon may occur, depending on
the TV setting, when “Quick Start” is set to
“On”.
¾ Depending on the TV, this phenomenon may
be prevented by reconnecting the HDMI cable
to a different HDMI input terminal or by
changing the HDMI auto connection setting.
Do you have the latest firmware installed?
Firmware updates may be released to correct
operating irregularities that are discovered with
certain movies. (> 18)
∫ Unit doesn’t respond to remote
control or the unit’s switches.
Touch and hold [Í/I] on the main unit for
3 seconds.
1 Turn the unit off.
2 Press and hold [KEYS], the yellow button and
the blue button at the same time for more
than 5 seconds.
– Status LED and INFO LED start to flash.
3 Press the red button repeatedly until
ACCESS LED lights up.
4 Press the green button.
(> 9, “Indicator LEDs”)
General operation
1 Turn the unit off.
2 Press and hold [KEYS], the yellow button and
the blue button at the same time for more
than 5 seconds.
– Status LED and INFO LED start to flash.
3 Press the red button repeatedly until the
CALL LED lights up and ACCESS LED
flashes.
4 Press and hold the green button for more
than 3 seconds.
¾ The remote control and main unit are using
different codes. If the Status LED and INFO
LED flash for six times when a button is
pressed on the remote control, reset the
codes on the unit and the remote control.
(> 38)
(> 9, “Indicator LEDs”)
DMP-BBT01GN-VQT3X48_mst.book 40 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Reference
41
VQT3X48
You have forgotten your ratings password.
You want to cancel the ratings level.
¾ The ratings level returns to the factory preset.
This unit does not recognize the USB
connection correctly.
¾ Disconnect and reconnect the USB cable. If it
still does not recognize the connection, turn
this unit off and on again.
¾ USB devices may not be recognized by this
unit when connected using the following:
– a USB hub
¾ If you connect USB HDD to this unit, use the
USB cable that is supplied with the HDD.
The images from this unit do not appear on
the television.
Picture is distorted.
¾ An incorrect resolution is selected in “HDMI
Video Format”. Reset the setting as follows:
Set the item again. (> 32)
¾ When “3D BD-Video Playback” in the Setup
menu is set to “Automatic”, images may not
be output depending on the connection
method. After removing the disc from this unit,
select “Set before play” in the Setup menu,
and select “2D Playback” in the setup screen
displayed when playing 3D discs. (> 34)
1 Turn the unit on.
2 Press and hold [KEYS], the yellow button and
the blue button at the same time for more
than 5 seconds.
– Status LED and INFO LED start to flash.
3 Press the red button repeatedly until the
CALL LED lights up.
4 Press the green button.
– a USB extension cable
The switches of the unit do not work.
¾ Touch the switches with your finger. They
may not work if operated with your fingernails
or hands wearing gloves.
(> 9, “Indicator LEDs”)
1 Turn the unit on.
2 Press and hold [KEYS], the yellow button and
the blue button at the same time for more
than 5 seconds.
– Status LED and INFO LED start to flash.
3 Press the red button repeatedly until the
CALL LED flashes.
4 Press and hold the green button for more
than 3 seconds.
– When Dolby Digital Plus, Dolby TrueHD,
and DTS-HD audio are not output in
bitstream, select “Yes” in “Default Settings”
and make proper settings. (> 37)
¾ The unit and television are using different
video systems.
1 Turn the unit on.
2 Press and hold [KEYS], the yellow button and
the blue button at the same time for more
than 5 seconds.
– Status LED and INFO LED start to flash.
3 Press the red button repeatedly until the
CALL LED flashes and ACCESS LED lights
up.
4 Press and hold the green button for more
than 3 seconds.
The system switches from PAL to
NTSC
or
vice versa.
¾ The system used on the disc doesn’t match
your television.
– PAL discs cannot be correctly viewed on an
NTSC television.
(> 9, “Indicator LEDs”)
(> 9, “Indicator LEDs”)
DMP-BBT01GN-VQT3X48_mst.book 41 ページ ２０１２年４月２０日 金曜日 午後２時４４分
42
VQT3X48
Video is not output in high-definition.
¾ Confirm that “HDMI Video Format” in the
Setup menu is set properly. (> 32)
3D video is not output.
¾ Change the settings as required by the
connected TV format. (> 34, “3D Type”)
¾ Is there a non-3D compatible amplifier/
receiver connected between this unit and a
TV? (> 14)
¾ Are the settings on this unit and the TV
correct? (> 23)
¾ Is the amplifier/receiver that is connected
between this unit and TV on?
¾ Depending on the connected TV, the video
being played back might switch to 2D video
due to changes in resolution etc. Check the
3D setting on the TV.
3D video is not output correctly as 2D.
¾ Select “Set before play” in the Setup menu,
and select “2D Playback” in the setup screen
displayed when playing 3D discs. (> 34, “3D
BD-Video Playback”)
¾ Discs that have recorded titles with Side by
side (2 screen structure) and that can be
enjoyed in 3D are played back in accordance
with the settings of the TV.
A black band is displayed around the edge of
the screen.
The aspect ratio of the screen is abnormal.
¾ Confirm the “TV Aspect” is set properly.
(> 36)
¾ Adjust the aspect setting on the television.
Cannot switch audio.
Cannot hear the desired audio type.
¾ Check the connections and the “Digital Audio
Output” settings. (> 14, 33)
¾ To output audio from a device connected with
an HDMI cable, set “HDMI Audio Output” to
“On” in the Setup menu. (> 33)
Disc cannot be played.
¾ The disc is dirty. (> 5)
Still pictures (JPEG) do not play back
normally.
¾ The images that were edited on the PC, such
as Progressive JPEG, etc., may not be played
back.
I can’t play back BD-Live.
¾ The SD card is write-protected. (> 7)
¾ Confirm that this unit is connected to the
broadband Internet. (> 15)
¾ Confirm the “BD-Live Internet Access”
settings. (> 36)
¾ Confirm an SD card is inserted into the SD
card slot. (> 19)
Audio
¾ When connecting an amplifier/receiver using
DIGITAL AUDIO OUT or HDMI AV OUT
terminal, you cannot switch the audio if
“Digital Audio Output” is set to “Bitstream”.
Set “Digital Audio Output” to “PCM”. (> 33)
Playback
DMP-BBT01GN-VQT3X48_mst.book 42 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Reference
43
VQT3X48
I can’t connect to the network.
¾ Confirm the network connection and settings.
(> 15, 16, 35)
¾ Check the operating instructions for each
device and connect accordingly.
When using wireless LAN connection, video
from the DLNA Certified media server is not
played back or video frames are dropped
during playback.
¾ Higher transfer rate router such as 802.11n
(2.4 GHz) wireless router may solve the
problem. If you use 802.11n (2.4 GHz)
wireless router, it is necessary to set the
encryption type to “AES”.
Simultaneous use with a microwave, cordless
telephone etc. at 2.4 GHz may result in
connection interruptions or other problems.
Network
¾ On the “Wireless Settings” screen (> 35), the
continuous lighting of at least 4 “Reception”
indicators is the target for a stable
connection. If 3 or fewer indicators are lit or
the connection is being interrupted, change
the position or angle of your wireless router
and see if the connection state improves. If
there is no improvement, connect to a wired
network and perform the “Easy Network
Setting” (> 16) again.
Restriction on use of
unauthorized copied content
This unit adopts the following technology for
copyright protection.
Cinavia Notice
This product uses Cinavia technology to limit
the use of unauthorized copies of some
commercially-produced film and videos and
their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will
be displayed and playback or copying will be
interrupted.
More information about Cinavia technology is
provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia
by mail, send a postcard with your mailing
address to:
Cinavia Consumer Information Center, P.O.
Box 86851, San Diego, CA, 92138, USA.
DMP-BBT01GN-VQT3X48_mst.book 43 ページ ２０１２年４月２０日 金曜日 午後２時４４分
44
VQT3X48
Specifications
≥ With certain recording states and folder structures, the play
order may differ or playback may not be possible.
The audio output differs depending on which
terminals are connected to the amplifier/receiver,
and the settings on the unit. (> 33, Digital Audio
Output)
≥ The number of channels listed is the maximum possible
number of output channels when connected to amplifier/
receiver compatible with the respective audio format.
*1
When “BD-Video Secondary Audio” is set to “On”, the
audio will be output as Dolby Digital, DTS Digital Surround
or 5.1ch PCM.
*2
The audio output is amplified from 5.1ch or 6.1ch to 7.1ch
depending on the DTS, Inc. specifications.
Specifications are subject to change without
notice.
Signal system PAL/NTSC
Operating temperature
range
i5 oC to i35 oC
Operating humidity
range
10 % to 80 % RH (no
condensation)
Digital audio output Optical digital output (Optical
terminal)
HDMI AV output Output connector: Type A
(19 pin) 1 system
SD card slot 1 system
USB slot USB2.0
1 system
Ethernet 10BASE-T/100BASE-TX
1 system
Wireless LAN Standard Compliance:
IEEE802.11 b/g/n
Frequency range: 2.4 GHz
band
Security: WPA
TM
/WPA2
TM
(Encryption Type: TKIP/AES,
Authentication Type: PSK),
WEP (64 bit/128 bit)
LASER Specification Class 1 LASER Product
Wave length: 790 nm (CDs)/
660 nm (DVDs)/405 nm (BDs)
Laser power: No hazardous
radiation is emitted with the
safety protection
Power supply DC 12 V (DC IN terminal)
Power consumption* Approx. 8.9 W
Power consumption in
standby mode*
Approx. 0.5 W
Power consumption in
quick start standby
mode*
Approx. 4 W
AC Adaptor Power source: 100 to 240 V,
50/60 Hz
Power consumption: 42 W
DC output: DC 12 V 2500 mA
Dimensions (WkHkD)
Horizontal installation
with no pedestal
179 mmk27 mmk180 mm
≥ Including the projecting parts
Dimensions (WkHkD)
Horizontal diagonal
installation with
pedestal
253 mmk95 mmk250 mm
≥ Including the projecting parts
Mass Approx. 0.9 kg
Mass
Including pedestal
Approx. 1.0 kg
* Using supplied AC adaptor
≥ Product Identification Marking is located on the bottom of
the main unit and AC adaptor respectively.
File format
File
format
Extension Reference
MP3 “.MP3”, “.mp3”
This unit supports ID3
tags, but only titles, artist
names and album names
can be displayed.
JPEG “.JPG”, “.jpg”
≥ MOTION JPEG and
Progressive JPEG
are not supported.
≥ You may not be able
to play back the file if
you have edited the
folder structure or
the file name on a
PC or other device.
DivX
“.DIVX”, “.divx”,
“.AVI”, “.avi”
≥
The video file and
subtitles text file are
inside the same
folder, and the file
names are the same
except for the file
extensions.
≥
Some DivX and MKV
file may not play
back, depending on
the video resolution
and frame rate
condition.
Subtitles text file
“.SRT”, “.srt”,
“.SUB”, “.sub”,
“.TXT”, “.txt”
MKV
“.MKV”, “.mkv”
Subtitles text file
“.SRT”, “.srt”,
“.SSA”, “.ssa”,
“.ASS”, “.ass”
FLAC “.flac”
Maximum sampling
rate: 192 kHz/24 bit
WAV “.wav”
Maximum sampling
rate: 48 kHz/16 bit
MPO “.mpo” 3D still picture
Audio information
Terminal
“Digital Audio Output”
“Bitstream” “PCM”
HDMI AV
OUT
Outputs using original
audio
*1
BD-Video :
7.1ch PCM
*1*2
DVD-Video :
5.1ch PCM
DIGITAL
AUDIO OUT
Dolby Digital/
DTS Digital Surround
Down-mixed 2ch
PCM
DMP-BBT01GN-VQT3X48_mst.book 44 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Reference
45
VQT3X48
Precautions for wireless
LAN connection
∫ Display languages list
∫ Language code list
The following limits are in place regarding the
usage of this unit. You must be aware of these
limits before using this unit.
Panasonic will in no way be responsible for any
incidental damage which may arise due to a
failure to obey these limits, or to any condition of
use or disuse of this unit.
≥ Data transmitted and received over radio
waves may be intercepted and monitored.
≥ This unit contains delicate electronic
components.
Please use this unit in the manner in which it
was intended and follow the following points:
– Do not expose this unit to high temperatures
or direct sunlight.
– Do not bend, or subject this unit to strong
impacts.
– Keep this unit away from moisture.
– Do not disassemble or alter this unit in any
way.
Supplemental information
Display Language Display Language Display Language
Language Code Language Code Language Code
ENG
FRA
DEU
ITA
ESP
NLD
SVE
NOR
DAN
POR
RUS
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
ARA
HIN
PER
IND
MRI
BUL
RUM
GRE
TUR
JPN
CHI
KOR
MAL
VIE
THA
POL
CES
SLK
HUN
FIN
Japanese
Chinese
Korean
Malay
Vietnamese
Thai
Polish
Czech
Slovak
Hungarian
Finnish
Arabic
Hindi
Persian
Indonesian
Maori
Bulgarian
Romanian
Greek
Turkish
Others
Abkhazian: 6566
Afar: 6565
Afrikaans: 6570
Albanian: 8381
Amharic
:
6577
Arabic: 6582
Armenian: 7289
Assamese: 6583
Aymara: 6589
Azerbaijani: 6590
Bashkir: 6665
Basque: 6985
Bengali; Bangla:
6678
Bhutani: 6890
Bihari: 6672
Breton: 6682
Bulgarian: 6671
Burmese: 7789
Byelorussian: 6669
Cambodian: 7577
Catalan: 6765
Chinese: 9072
Corsican: 6779
Croatian: 7282
Czech: 6783
Danish: 6865
Dutch: 7876
English: 6978
Esperanto: 6979
Estonian: 6984
Faroese: 7079
Fiji: 7074
Finnish: 7073
French: 7082
Frisian: 7089
Galician: 7176
Georgian: 7565
German: 6869
Greek: 6976
Greenlandic: 7576
Guarani: 7178
Gujarati: 7185
Hausa: 7265
Hebrew: 7387
Hindi: 7273
Hungarian: 7285
Icelandic: 7383
Indonesian: 7378
Interlingua: 7365
Irish: 7165
Italian: 7384
Japanese: 7465
Javanese: 7487
Kannada: 7578
Kashmiri: 7583
Kazakh: 7575
Kirghiz: 7589
Korean: 7579
Kurdish: 7585
Laotian: 7679
Latin: 7665
Latvian, Lettish: 7686
Lingala: 7678
Lithuanian: 7684
Macedonian: 7775
Malagasy: 7771
Malay: 7783
Malayalam: 7776
Maltese: 7784
Maori: 7773
Marathi: 7782
Moldavian: 7779
Mongolian: 7778
Nauru: 7865
Nepali: 7869
Norwegian: 7879
Oriya: 7982
Pashto, Pushto: 8083
Persian: 7065
Polish: 8076
Portuguese: 8084
Punjabi: 8065
Quechua: 8185
Rhaeto-Romance:
8277
Romanian: 8279
Russian: 8285
Samoan: 8377
Sanskrit: 8365
Scots Gaelic: 7168
Serbian: 8382
Serbo-Croatian: 8372
Shona: 8378
Sindhi: 8368
Singhalese: 8373
Slovak: 8375
Slovenian: 8376
Somali: 8379
Spanish: 6983
Sundanese: 8385
Swahili: 8387
Swedish: 8386
Tagalog: 8476
Tajik: 8471
Tamil: 8465
Tatar: 8484
Telugu: 8469
Thai: 8472
Tibetan: 6679
Tigrinya: 8473
T
onga: 8479
Turkish: 8482
Turkmen: 8475
Twi: 8487
Ukrainian: 8575
Urdu: 8582
Uzbek: 8590
Vietnamese: 8673
Volapük: 8679
Welsh: 6789
Wolof: 8779
Xhosa: 8872
Yiddish: 7473
Yoruba: 8979
Zulu: 9085
DMP-BBT01GN-VQT3X48_mst.book 45 ページ ２０１２年４月２０日 金曜日 午後２時４４分
46
VQT3X48
“AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/Progressive” are trademarks of Panasonic Corporation and Sony
Corporation.
Java is a registered trademark of Oracle and/or its affiliates.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929;
7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are
registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All
Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMILicensing LLC in
the United States and other countries.
This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial
use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii)
decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained
from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional
information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
HDAVI Control™ is a trademark of Panasonic Corporation.
VIERA Connect is a trademark of Panasonic Corporation.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
SDXC Logo is a trademark of SD-3C, LLC.
“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.
“Wi-Fi”, “Wi-Fi Protected Setup”, “Wi-Fi Direct”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance.
DivX
®
, DivX Certified
®
and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
ABOUT DIVX VIDEO:
DivX
®
is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified
®
device that
plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified
®
device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device setup menu.
Go to vod.divx.com for more information on how to complete your registration.
DMP-BBT01GN-VQT3X48_mst.book 46 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Reference
47
VQT3X48
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2 (GPL v2),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL v2.1) and/or,
(5) open sourced software other than the software licensed under the GPL v2 and/or LGPL v2.1
For the software categorized as (3) and (4), please refer to the terms and conditions of GPL v2 and LGPL v2.1, as the case may be at
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.
In addition, the software categorized as (3) and (4) are copyrighted by several individuals. Please refer to the copyright notice of those
individuals at
http://panasonic.net/avc/oss/bdplayer/AWBPP12.html
The GPL/LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Panasonic will give to any third party who contacts us at the contact information
provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable
copy of the corresponding source code covered under GPL v2/LGPL v2.1.
Contact Information
cdrequest.bdplayer@gg.jp.panasonic.com
Source code is also freely available to you and any other member of the public via our website below.
http://panasonic.net/avc/oss/bdplayer/AWBPP12.html
For the software categorized as (5) includes as follows.
1. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
(http://www.openssl.org/)
2. This product includes software developed by the University of California, Berkeley and its contributors.
3. FreeType code.
4. The Independent JPEG Group's JPEG software.
(1) MS/WMA
This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such
technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
(2) Vorbis, FLAC, WPA Supplicant
The software licenses are displayed when “Software Licence” in the Setup menu is selected. (> 37)
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network
Alliance.
Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.
Skype, associated trade marks and logos and the “ ” logo are trade marks of Skype Limited.
Copyright 2004-2010 Verance Corporation. Cinavia
TM
is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and
worldwide patents issued and pending under license from Verance Corporation. All rights reserved.
DMP-BBT01GN-VQT3X48_mst.book 47 ページ ２０１２年４月２０日 金曜日 午後２時４４分
Panasonic Corporation
Web Site: http://panasonic.net
p
C Panasonic Corporation 2012
VQT3X48
F0512CY0
DMP-BBT01GN-VQT3X48_mst.book 48 ページ ２０１２年４月２０日 金曜日 午後２時４４分
