USER GUIDE
NZ AU UK IE SG
ACTIVESMART™ REFRIGERATOR
CONTEMPORARY
QUAD DOOR FRIDGE FREEZER ICE & WATER
RF605QDU, RF605QN, RF605QZ
QUAD DOOR FRIDGE FREEZER NON-ICE & WATER
RF605QD
3
CONTENTS
Safety and warnings 5
Before you begin 9
Using the control panel (RF605QD models) 10
Main compartment 10
Variable temperature zone 11
Using the control panel (RF605QN & RF605QZ models) 12
Using your appliance (all models) 13
Temperature control 13
Door alarms 14
Alarm mute 14
Key mute 14
Key lock 15
Sabbath mode 15
Using your water dispenser 16
Water filter 17
Using your appliance (RF605QD models) 20
Variable temperature zone 20
Features 22
Using your appliance (RF605QN & RF605QZ models) 25
Variable temperature zone 25
Features 27
Cleaning and care 30
Foodcare 36
Moving or storing your appliance 37
ActiveSmart™ sounds 38
Troubleshooting 39
Manufacturer’s warranty 44
European Directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE) 45
Registration
To register your product visit our website: fisherpaykel.com/register
5
WARNING!
Electric Shock Hazard
Failure to follow this advise may result in
death, electric shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
WARNING!
Risk of fire/flammable material
This refrigerator contains flammable refrigerant
isobutane (R600a).
READ AND SAVE THIS GUIDE
Use this appliance only for the intended purpose as described in this user guide.
When using this appliance always exercise basic safety precautions
including the following:
General
z
This product has been designed for use in a normal domestic (residential) environment.
z
This appliance can be used by children aged 8years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
z
Children aged 3 to 8 years may load and unload this appliance under supervision.
z
Children should be supervised to ensure that they do not play with the appliance.
z
Cleaning and user maintenance shall not be made by children without supervision.
z
Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
z
Do not damage the refrigerant circuit.
z
In case of damage to the refrigerant circuit, ventilate the area by opening all windows.
Do not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher&Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
z
In Queensland the authorised service person must hold a gas work licence or
authorisation for hydrocarbon refrigerants to carry our service or repairs which involve
removal of covers.
z
Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
z
This refrigerating appliance is optimally intended to be used at ambient temperatures
ranging from 16 °C to 38 °C.
SAFETY AND WARNINGS
6
Electrical
z
This appliance must be installed in accordance with the installation instructions
before use.
z
To allow disconnection of the appliance from the supply after installation, incorporate a
switch in the fixed wiring in accordance with the wiring rules.
z
Never unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
z
Do not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
z
Repair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or
at either the plug or appliance end.
z
If the power supply cord is damaged, it must only be replaced by your Fisher&Paykel
trained and supported service technician because special purpose tools are required.
z
When moving your appliance away from the wall, be careful not to roll over or damage
the power cord.
z
Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
z
When positioning the appliance, ensure the power cord is not trapped or damaged.
z
Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Servicing
z
The LED light cannot be serviced by the user. Contact your Fisher & Paykel trained and
supported service technican.
z
Your refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher&Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
z
It is hazardous for anyone other than a Fisher&Paykel trained and supported service
technician to service thisappliance.
Cleaning
z
Many commercially available cleaning products contain solvents that may attack the
plastic components of your refrigerator and cause them tocrack.
z
Avoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plastic components.
z
Please refer to the ‘Cleaning and care’ section of this user guide for further information.
Disposal
z
Extreme care must be taken when disposing of your old appliance to avoid hazards:
z
The flammable refrigerant gas must be safely removed.
z
The thermal insulation foam in this appliance contains flammable insulation blowing
gases, any exposed foam may be highly flammable and must be carefully treated
during disposal.
z
The doors and panels should be removed and the shelves left in place so that
children may not easily climb inside.
SAFETY AND WARNINGS
7
z
Your Fisher&Paykel trained and supported service technician will be able to give
advice on environmentally friendly methods of disposing of your old refrigerator
or freezer.
Food Safety
z
Regularly clean surfaces that come into contact with food.
z
Ensure any raw meat or fish is stored in sealed containers to prevent
cross-contamination.
z
Immediately clean any drips or spills on surfaces.
z
If the appliance will be left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
z
Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
Storing food and drinks
z
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
z
Never store volatile or flammable materials in your refrigerator as they may explode.
z
Never freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
z
Never freeze carbonated drinks. They may explode.
z
Do not consume food if it is too cold. Food removed from the freezer compartment
may be cold enough to cause damage when brought into contact with bare skin, eg
frozen ice cubes.
Power failure — food safety
z
Do not refreeze frozen foods that have thawed completely. The food may be dangerous
to eat. Follow the recommendations below if you discover food in your freezer
has thawed:
z
Ice crystals still visible — food may be refrozen but should be stored for a shorter
period than recommended.
z
Thawed but refrigerator cold — refreezing generally not recommended. Fruits
and some cooked food can be refrozen but use as soon as possible. Meat, fish,
poultry — use immediately or cook then refreeze. Vegetables — discard as they usually
go limp and soggy.
z
Thawed and warmer than 5°C — discard all food.
Water filter
z
The water filter cartridge needs to be changed when the replacement indicator icon
illuminates. This will happen every 6 months.
z
If the water filtration system has been allowed to freeze, replace filter cartridge. Failure
to replace the disposable filter at recommended intervals may lead to reduced filter
performance and failure of the filter, causing property damage from water leakage
or flooding.
z
In cases of excessively reduced filter life — we recommend that you consult a local
plumber or your water supplier for advice on suitable filtration requirements for the
water supplied to your home.
z
Filter replacement is the consumer’s responsibility and will not be covered by the
warranty except in the case of faulty parts or materials within the filter cartridge.
SAFETY AND WARNINGS
8
z
To reduce the risk associated with choking:
z
DO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.
z
If using the automatic icemaker after an extended period of no use, or if the ice has
developed an unpleasant taste of odour, dispose of ice in the storage container.
If the problem persists, replace the water filter cartridge and refer to the flushing
instructions detailed in the guide provided with your filter or your installation guide for
your appliance.
z
If the water tank has not been used for an extended period of time, or has developed
an unpleasant taste or odour, flush the water system. If the problem persists, replace
the water filter cartridge and refer to the flushing instructions detailed in the guide
provided with your filter or your installation guide for your appliance.
z
To avoid serious illness or death, only connect your water filter to safe drinking water.
Ice making
z
Avoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice-making mechanism while the appliance is
inoperation.
SAFETY AND WARNINGS
9
BEFORE YOU BEGIN
z
Ensure the installer has completed the final checklist in the installation guide.
z
Read this guide, taking special note of the safety and warnings section.
z
Remove all packaging and dispose of it responsibly. Recycle items that you can.
Refrigerator features
1 Water filter
2 Shelving
3 Bottle racks
4 Humidity control
compartments
5 Bin
6 Dairy compartment
7 Door shelves
8 Gallon shelf
Freezer features
1 Ice storage bin with scoop
2 Mid bin
3 Large bottom bin
4 Variable Temperature Zone
Freezer compartment
3
6
8
4
5
1
2
7
1
3
2
Refrigerator compartment
4
10

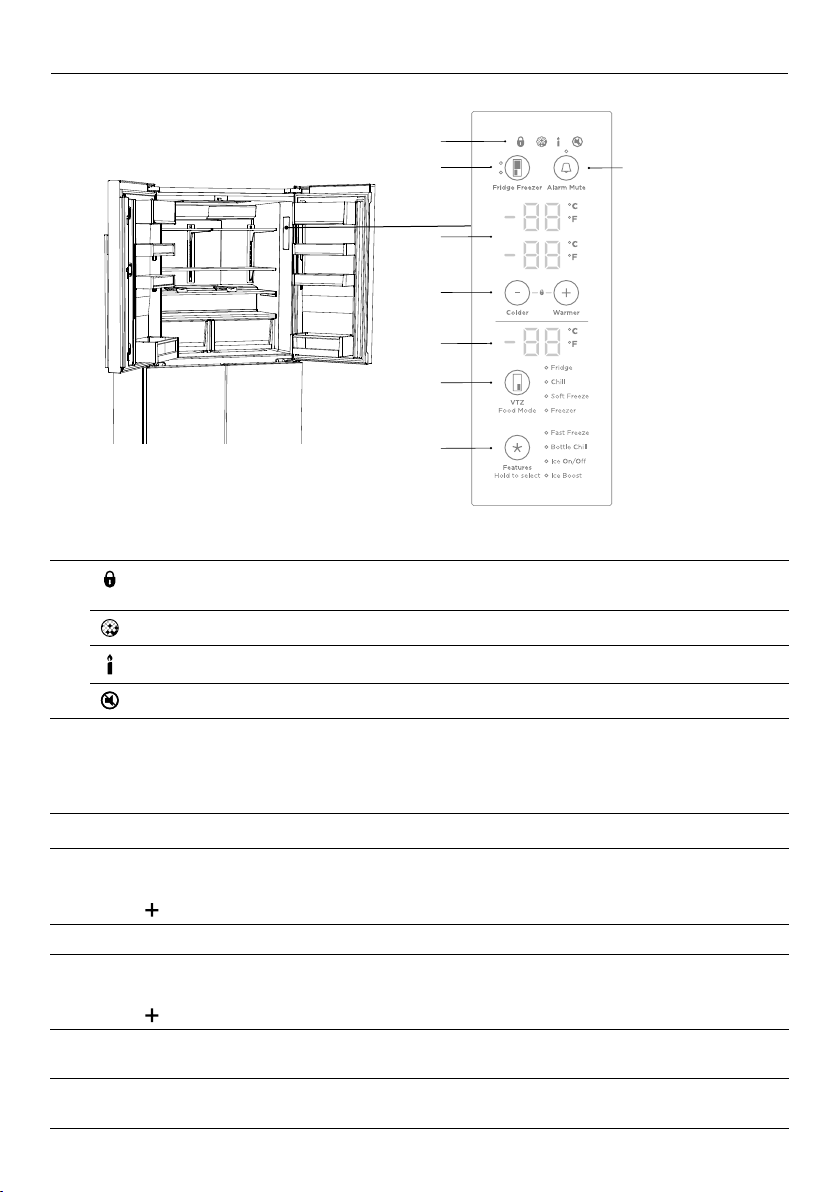

USING THE CONTROL PANEL (RF605QD MODELS)
1
Illuminates to indicate that the keys on the control panel are locked. When the
door is closed the display is automatically locked.
Illuminates when the water filter needs replacing.
IIluminates to indicate that Sabbath mode is activated.
Illuminates to indicate key press sounds are deactivated.
2
Compartment activates control panel when pressed. Allows you to select the
compartment to adjust the temperature.
z
Upper light to indicate the refrigerator compartment is selected.
z
Lower light to indicate the freezer compartment is selected.
3
Alarm mute deactivates the door alarm for 20minutes.
4
Displays the set temperature of the compartments.
To change between Celsius and Fahrenheit on the display:
Press
for sixseconds.
5
Allows you to adjust the temperature of the selected compartment.
6
Allows you to select features:
FAST FREEZE
BOTTLE CHILL
ICE ON/OFF ICE BOOST
1
2 3
4
5
6
Main compartment
11
1 2 3 4 5 6 7
1
FOOD MODE
Enables you to change the setting of the Variable Temperature
Zone —
FREEZER, SOFT FREEZE, CHILL, FRIDGE.
2
KEYLOCK
Illuminates to indicate that the keys on the control panel are locked.
When the door is closed the display is automatically locked.
3
FREEZER
MODE
(-18°C)
For general frozen food items that
require storage between 1 – 12 months.
Meat, poultry, seafood,
pre-cooked foods and
leftovers, some fruits and
vegetable, ice cream, and
other frozen desserts.
4
SOFT FREEZE
MODE
(-7°C)
Allows easy portioning of food and
the ability to heat, cook or serve foods
straight from the compartment without
waiting for it to thaw.
Meats, seafood, soups, sauces,
pureed foods, bread, desserts
and pastries.
Not recommended for storage
of creamy desserts such as
ice cream.
5
CHILL MODE
(-0.5°C)
Is an extension of FRIDGE MODE
providing the perfect storage zone for
highly perishable food to ensure they
retain their vital freshness and quality.
These items will last slightly longer
here compared with storage at
FRIDGE MODE.
Highly perishable meats,
poultryand seafood.
Alcoholic beverages such
asbeer.
6
FRIDGE MODE
(3°C)
The ideal mode for fresh foods such as
fruit and vegetables, dairy products,
meats and drinks.
Fruit and vegetables, dairy
products, jams and chutneys/
preserves, meats and drinks.
7
Temperature
adjustment
Allows you to adjust the temperature of the selected FOOD MODE.
Variable temperature zone
USING THE CONTROL PANEL (RF605QD MODELS)
12
1
Illuminates to indicate that the keys on the control panel are locked. When the
door is closed the display is automatically locked.
Illuminates when the water filter needs replacing.
IIluminates to indicate that Sabbath mode is activated.
Illuminates to indicate key press sounds are deactivated.
2
Fridge/Freezer activates control panel when pressed. Allows you to select the fridge
or freezer compartment to adjust the temperature.
z
Upper light to indicate the refrigerator compartment is selected.
z
Lower light to indicate the freezer compartment is selected.
3
Alarm mute deactivates the door alarm for 20minutes.
4
Displays the set temperature of the Fridge/Freezer compartments.
To change between Celsius and Fahrenheit on the display:
Press
for sixseconds.
5
Allows you to adjust the temperature of the selected compartment.
6
Displays the set temperature of the Variable Temperature Zone.
To change between Celsius and Fahrenheit on the display:
Press
for sixseconds.
7
Allows you to select the food mode for the Variable Temperature Zone — FRIDGE, CHILL,
SOFT FREEZE
, FREEZER. Lights illuminate to indicate which food mode is selected.
8
Allows you to scroll and select features: FAST FREEZE, BOTTLE CHILL, ICE ON/OFF,
ICE BOOST.
1
2 3
4
5
8
7
6
USING THE CONTROL PANEL (RF605QN & RF605QZ MODELS)
13

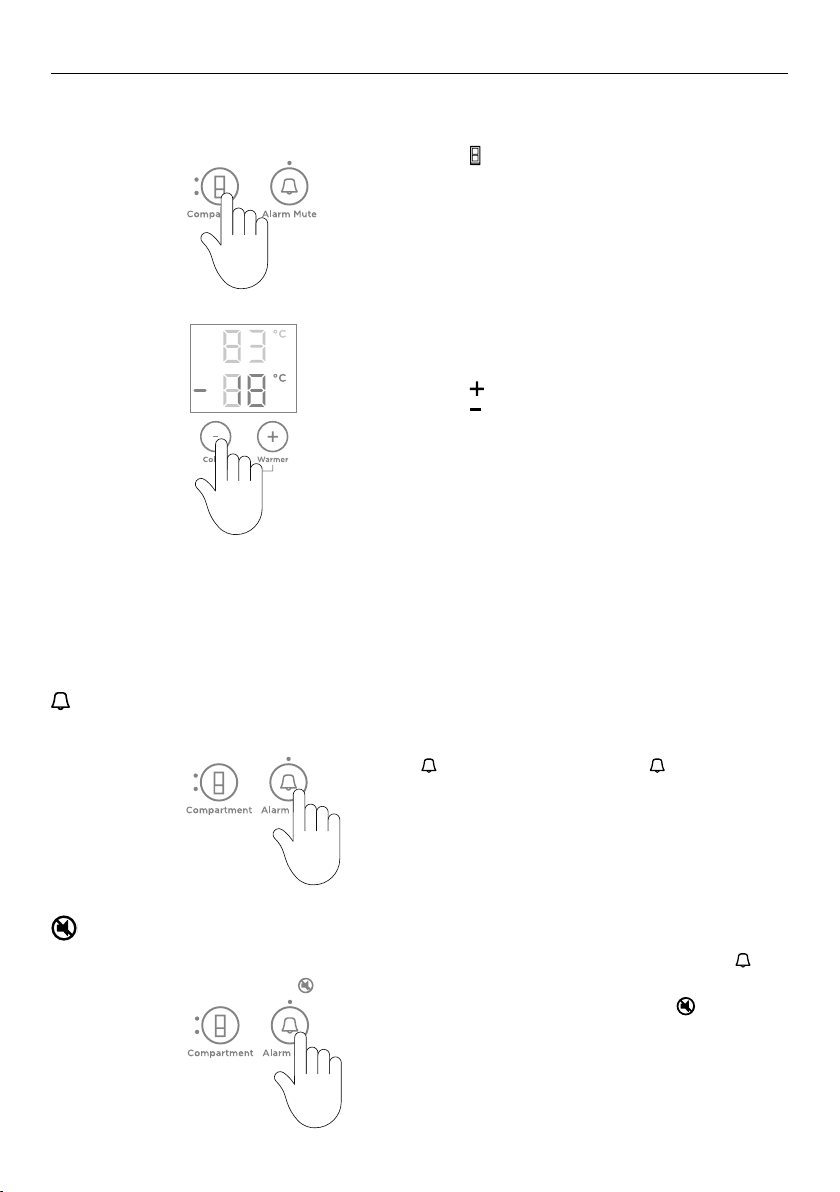

How to adjust the temperature — Fresh food compartment
Press
once.
The fresh food compartment light
will illuminate.
Press
to increase the temperature,
press to decrease the temperature.
1
2
Temperature control
When you turn your refrigerator on for the first time, the cooling system will automatically
cool all compartments to their set temperatures within 2-3 hours.
The internal control panel enables you to change and control the temperature of all
compartments accurately and independently. The internal control panel default setting is to
show the set temperature for the fresh food compartment.
For common foodstuffs, the factory default setting provides the optimum setting
for foodcare.
The images in this section are for reference only, your models control panel may differ slightly.
USING YOUR APPLIANCE (ALL MODELS)
14
1
Key mute
To activate/deactivate KEY MUTE, press for
fourseconds.
Once
KEY MUTE is activated the icon on
the internal control panel illuminates, all key
sounds are silenced.
Door alarms and the
BOTTLE CHILL alarm are
still operational.
86.116%150%>70%
Door alarms
If the fresh food compartment door is left open, the alarm will beep after 90seconds, if the
freezer door is left open the alarm will beep after 60seconds. If either of the doors remains
open, subsequent beeps will sound every 30 seconds for fiveminutes.
Alarm mute
To activate/deactivate ALARM MUTE, press
once. The light above the button will
illuminate to indicate the refrigerator is
muted.
ALARM MUTE will automatically deactivate
after 20minutes or when the door is closed.
1
Press twice to adjust the frozen food
compartment temperature.
The frozen food compartment light
will illuminate.
How to adjust the temperature — Frozen food compartment
Press
to increase the temperature,
press to decrease the temperature.
1
2
USING YOUR APPLIANCE (ALL MODELS)
15
Key lock
KEY LOCK allows you to disable the buttons on the internal control panel. This is useful
when cleaning your refrigerator.
To activate/deactivate KEY LOCK, press and
together for fourseconds.
When
KEY LOCK is activated the icon on
the internal control panel will illuminate.
Pressing any of the buttons will sound several
beeps to tell you that they are disabled.
1
Sabbath mode
In
SABBATH MODE, alarms, lights and displays are deactivated for 80 hours.
Once in Sabbath mode:
z
The interior light will not turn on when you open the refrigerator.
z
The door alarms will not operate.
z
The display will not illuminate, except the Sabbath mode icon.
z
The internal and external control panels will not operate.
z
Sabbath mode automatically deactivates after 80 hours.
To activate/deactivate SABBATH MODE, press
, and together for fourseconds. The
icon on the internal control panel will
illuminate when SABBATH MODE is activated.
1
If you turn off your refrigerator while in SABBATH MODE it will resume automatically once
the refrigerator is switched on again.
USING YOUR APPLIANCE (ALL MODELS)
16

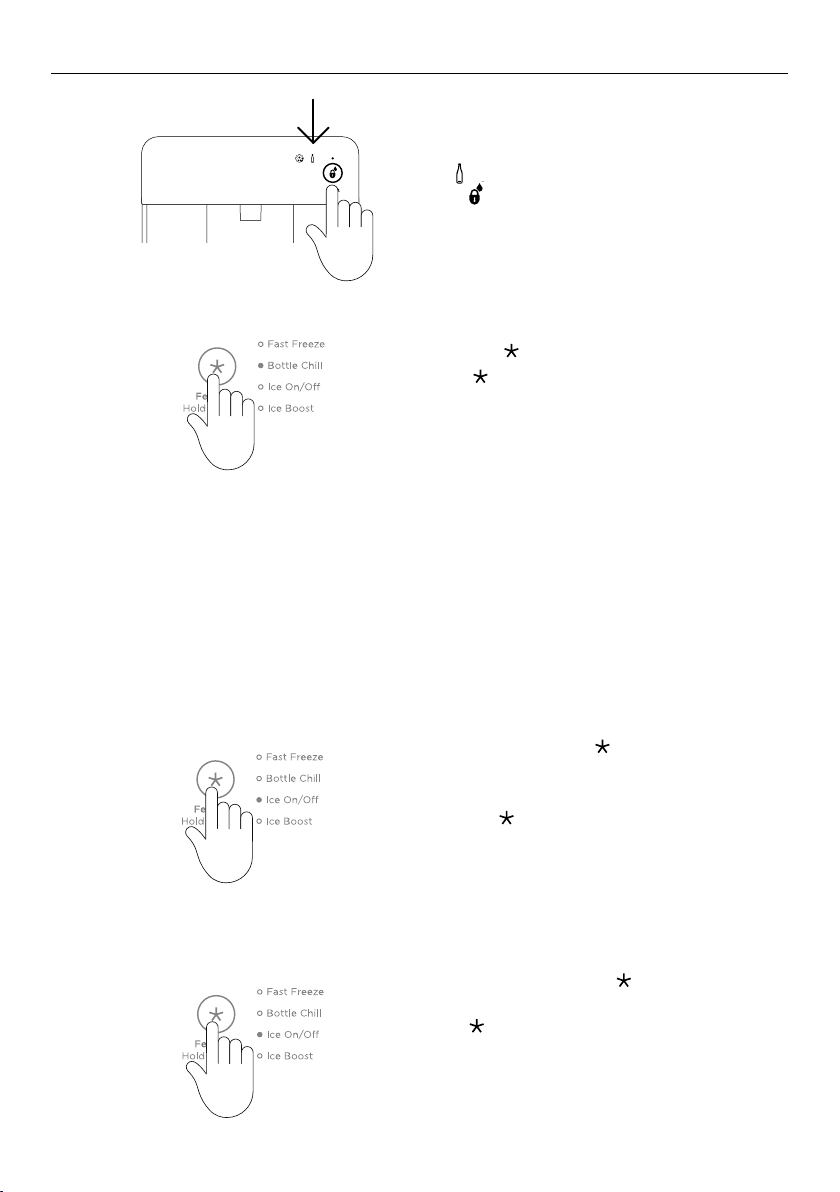

Using your water dispenser
Ensure you have followed the steps outlined in your installation guide prior to your first use
of the water dispenser.
To dispense water, gently press the dispensing pad with a glass
or container.
To stop the flow of water, simply pull your glass or container
away from the dispensing pad.
Pressing hard against the dispensing pad will not increase the
flow or dispense more water.
Dispensing
Your water dispenser is designed for one-handed operation.
3 2 1
1
Dispenser lock
button and
LED light
Locks/unlocks the water dispenser. The LED above the lock
button will illuminate when dispenser is locked.
2
Bottle Chill
indicator
Icon will illuminate when BOTTLE CHILL isactivated and flashes
when the beverage is ready.
3
Filter change
indicator
Icon will illuminate when water filter requires changing.
Water-dispensing models only
USING YOUR APPLIANCE (ALL MODELS)
17
Dispenser lock
The
DISPENSER LOCK is located on the external display and can be activated to prevent
water from being dispensed. Thisisuseful when you are cleaning the external display or
when there are small children around.
To activate/deactivate DISPENSER LOCK, press
for fourseconds.
When activated the light above the button
will illuminate.
When the dispenser pad is pressed, several
beeps will sound to alert the user that water
cannot be dispensed.
1
Information about your ice maker
Your automatic ice maker will produce approximately eight cubes of ice every 3 – 4hours,
depending on the freezer compartment temperature and the number of door openings.
The ice cube tray will fill with water. When cubes are frozen, they will be ejected from the
ice tray into the ice storage bin. Ice making will continue until the storage bin is full. Ice
making will resume once you start to use the stored ice.
Your Ice & Water product comes with a smaller ice bin inside the larger freezer bin.
Attached to the ice storage bin is the scoop for the ice. This scoop provides hygienic access
to the ice. If a large amount of ice is required, remove an ice storage bin and allow ice to fall
into the larger bin. For maximum ice storage, level the stored cubes with the ice scoop.
If ice is not used often, old cubes will become cloudy, taste stale, will shrink and may
stick together. Empty the ice storage bin periodically and wash in lukewarm water. Dry
thoroughly and place back into the correct position.
Turn your ice maker off if:
z
There is no water supply for several hours.
z
You are removing the ice storage bin for a period of time.
z
You are going on holiday/vacation.
USING YOUR APPLIANCE (ALL MODELS)
Water filter
The water supplied to your refrigerator is filtered to remove impurities through a filter
located internally at the top right corner of the refrigerator. Replace your filter cartridge
every 6months.
z
There is a replacement indicator icon on the internal control panel and external
display which will appear when the filter needs replacing. The icon will flash, as a
reminder, when water isdispensed.
z
Replacement filter cartridges are available from your Fisher & Paykel dealer, online or
from a Fisher & Paykel service technician. The details of the replacement filter cartridge
are labelled on the cartridge.
Changing the water filter cartridge
Guidance of how to replace your water filter and reset your indicator icon
can be found
at fisherpaykel.com/water-filter.
18

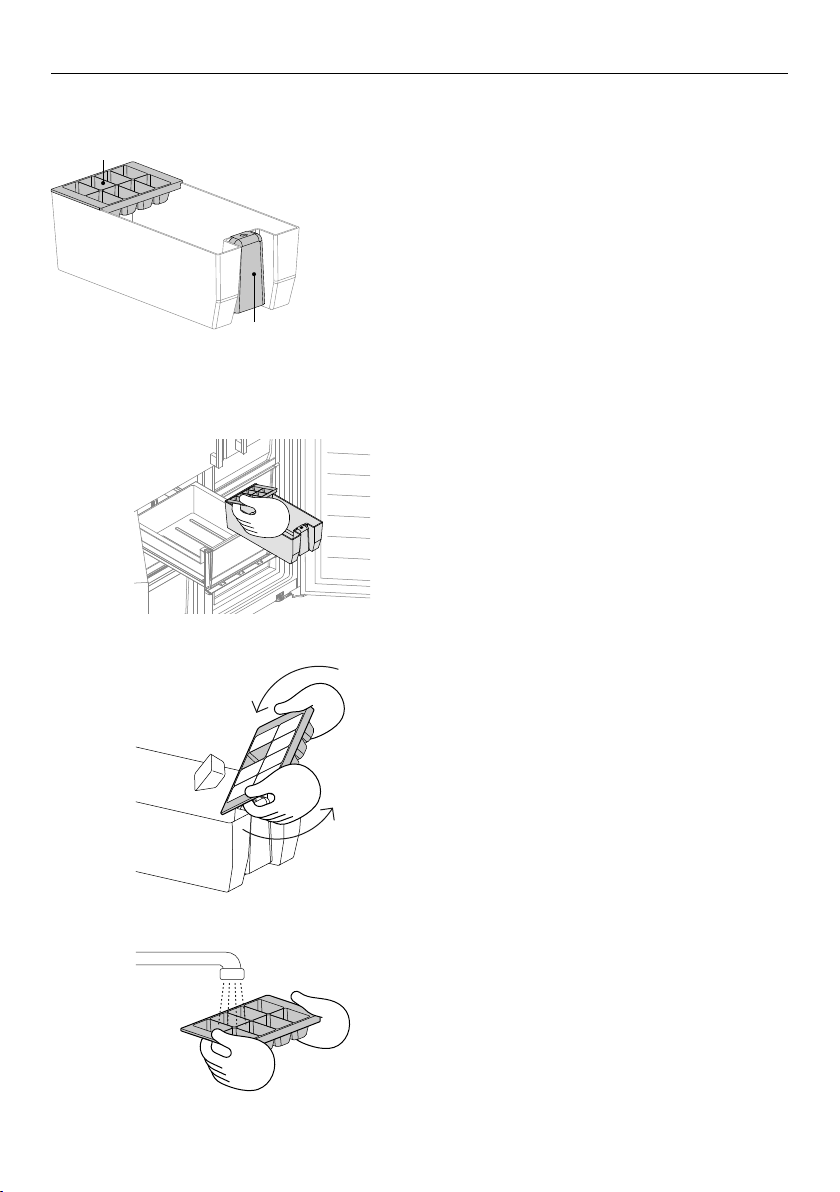

Manual ice system (where present)
Ice scoop
Ice tray
An ice storage bin which sits inside the top
freezer bin provides storage for andgives
you access to clean, clear ice cubes. Attached
to the ice storage bin is the ice scoop which
provides hygienic access to ice.
1
Fill the ice tray with clean water and repeat
to fill the ice storage bin.
3
2
Take the ice tray from the top of the
ice storage bin. Fill the tray with water.
Carefully position the tray back onto the ice
storage bin.
Once the ice is solid, take the ice tray off the
ice storage bin and twist the ice tray at each
end in opposite directions. Turn the ice tray
over the ice storage bin to dislodge the cubes
into the bin.
To make ice
USING YOUR APPLIANCE (ALL MODELS)
19
Bottle holder
Bottle holders can be used to store a variety of bottles. Unused bottle holders can be
stacked up on top of one another so they do not take up unnecessary shelf space. Bottles
are best stored with the neck of the beverage facing the front of the refrigerator.
To position the bottle holder in your
refrigerator, slot the back edge of the bottle
holder onto the back trim of any shelf in the
fresh food compartment.
1

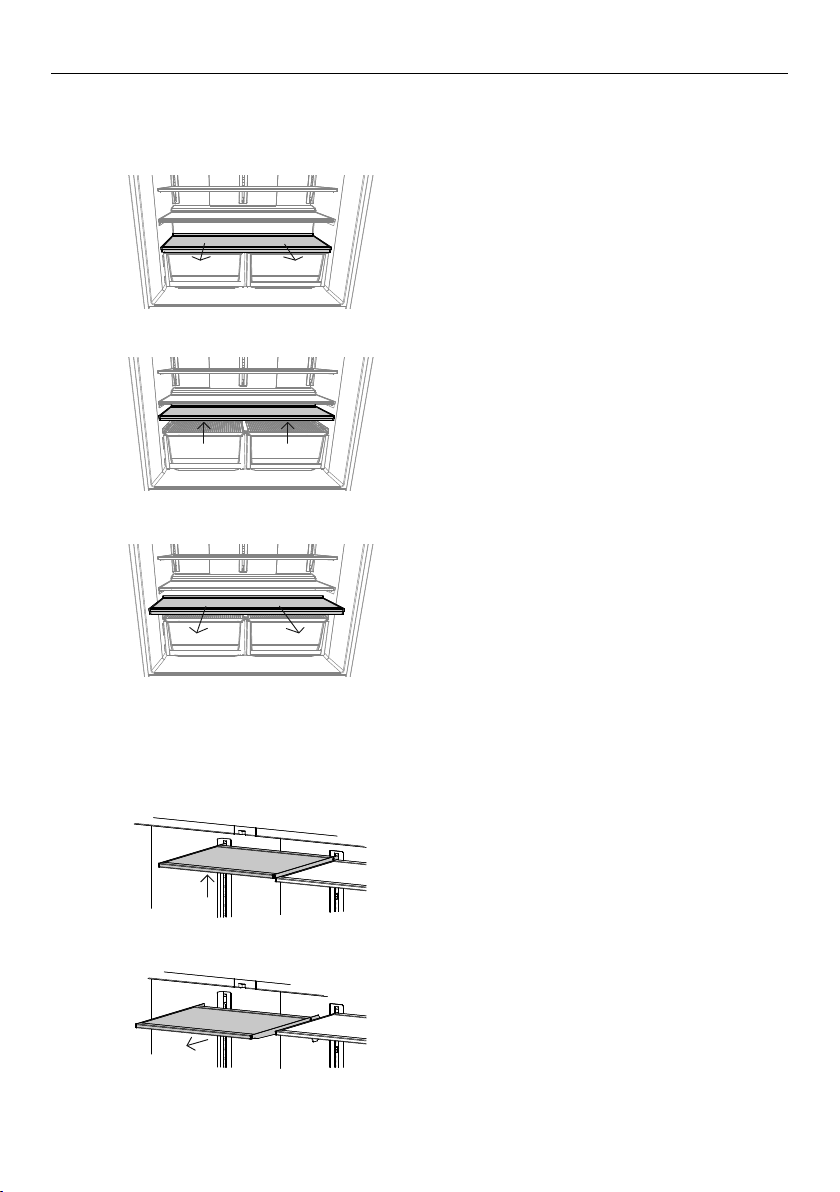

Glass shelves
Standard glass shelves can not be repositioned in your refrigerator.
The cantilever glass shelves are designed to be strongand versatile. The half-width and
full-width shelves are removable and can be repositioned in your refrigerator.
Some models have glass shelving under the freezer bins. These can be removed if required.
Refer to ‘Cleaning and care’ for details on how to remove glass shelves.
USING YOUR APPLIANCE (ALL MODELS)
Humidity control lids
The control lids are fitted to the fruit and vegetable bins of your refrigerator.
These lids provide a humid microclimate to extend the storage times of fruit and
vegetables.
The lids have specially designed grooves that retain moisture to prevent condensation
from dripping onto the fruit and vegetables at times of high humidity.
20
Changing the Food Mode
Change the mode by pressing
.
FOOD MODE scrolls from left to right
(coldest setting to warmest setting).
The
FOOD MODE selected will illuminate.
The Variable Temperature Zone display will
automatically lock after 10 seconds or once
the compartment is closed.
2
Unlock the Variable Temperature Zone
display by pressing and together for
fourseconds.
1
USING YOUR APPLIANCE (RF605QD MODELS)
The default temperature for each FOOD MODE
will show as one illuminated light in the
centre of the scale.
3
Variable temperature zone
21
If you adjust the temperature for a FOOD MODE this adjustment will be remembered for the
next time you use this FOOD MODE. For example if you select FREEZER as the FOOD MODE
and adjust the temperature to the coldest setting, the next time you use the compartment
as freezer it will remember your setting.
Key Lock
The Variable Temperature Zone display can
be locked by pressing
and together for
threeseconds.
When locked, the
icon will illuminate.
Deactivate by pressing
and together for
fourseconds.
1
2
USING YOUR APPLIANCE (RF605QD MODELS)
Adjusting the temperature
To increase the temperature of your selected
FOOD MODE press .
Each light displayed will increase the
temperature setting slightly. When all three
lights on the right are showing this is the
warmest setting.
To decrease the temperature of your selected
FOOD MODE press .
Each light displayed will decrease the
temperature setting slightly. When all three
lights on the left are showing this is the
coldest setting.
1
2
Each FOOD MODE will automatically default to the recommended temperature setting for
this food mode. Once you have selected the required FOOD MODE the temperature can be
adjusted as desired.
22
Fast Freeze
For best results activate the function before it is required. Alternatively, activate it
whenplacing food into the freezer.
2
To activate, press on the internal display.
The FAST FREEZE light will illuminate.
To deactivate before the 12hours has
elapsed, press
again.
When FAST FREEZE is deactivated the light
is off.
1
Bottle Chill
To activate, press on the control panel.
The BOTTLE CHILL light will illuminate.
The
icon will illuminate on the external
display (Ice & Water models only).
1
USING YOUR APPLIANCE (RF605QD MODELS)
Features
FAST FREEZE boosts freezing speed by dropping to its coldest temperature for 12 hours,
helping retain freshness, texture and taste during the freezing process.
BOTTLE CHILL rapidly chills your beverages in the freezer for a set time of 15 minutes.
Depending on bottle size, you may need to return it to the freezer and reset.
23
An alarm will sound after 15minutes to
remind you to remove your beverage.

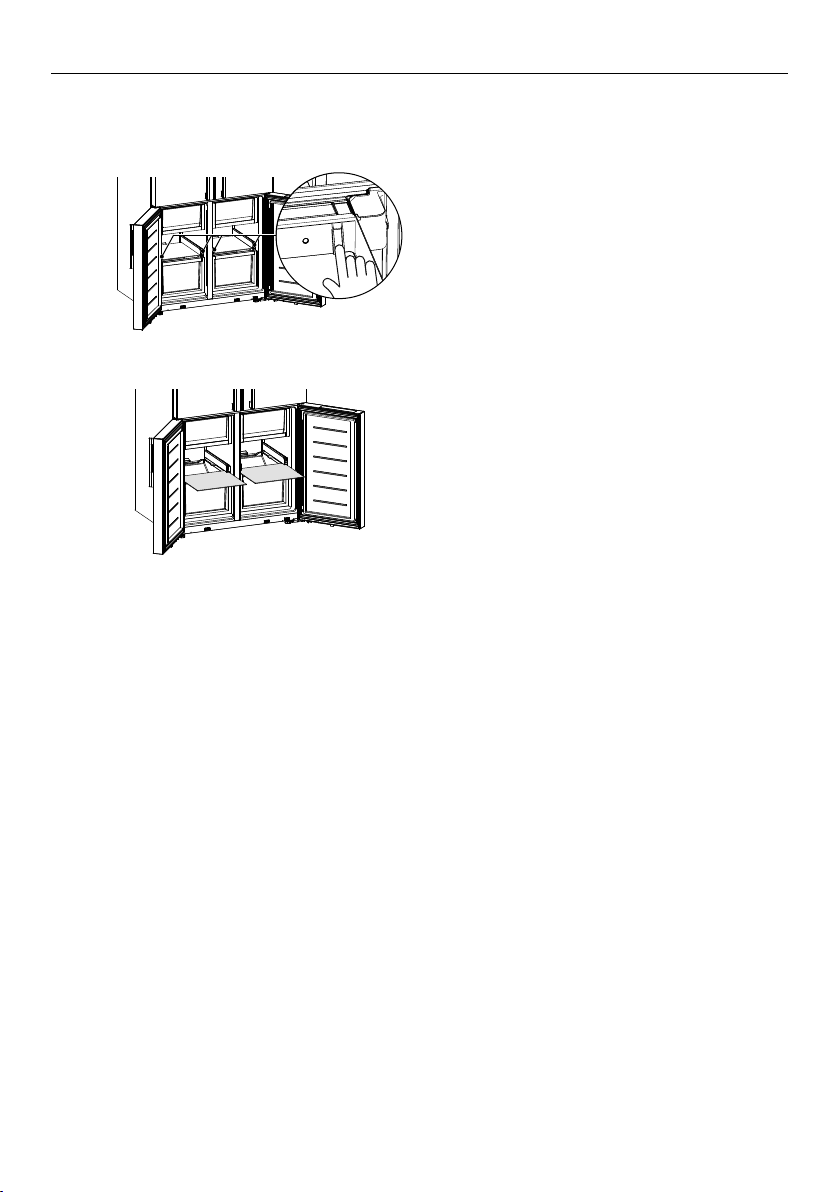

For non water-dispensing models
Open the fresh food compartment door and
press anybutton on the control panel to
silence the alarm.
2
4
To deactivate BOTTLE CHILL before 15minutes,
press the button on the control panel.
When
BOTTLE CHILL is deactivated, the
light will not illuminate and the icon is not
visible on the external display (Ice & Water
model only).
For water-dispensing models
The
icon will flash on the external display.
Press on the external display to silence the
alarm.
3
IceOn/Off
ICE ON/OFF activates automatic ice - this is only available in the lower compartment.
Your ice maker is designed to automatically dispense ice into the ice storage bin below
until it detects the bin is full. The more ice you use, the more it makes. Before first use the
automatic ice systems needs to be flushed.
To activate/deactive, press .
When the ice maker is activated the light will
illuminate.
USING YOUR APPLIANCE (RF605QD MODELS)
1
24
2
Ice Ice Boost
When you first turn your ice maker on, ICE
BOOST
is off.
To activate, press
. The light above the
button will illuminate.
ICE BOOST will pause once your ice bin is full.
To manually deactivate press
again.
The light will not illuminate.
Activating
ICE BOOST will automatically turn
on ice making.
Deactivating ice making automatically
deactivates
ICE BOOST.
1
150%>70%
150%>70%
USING YOUR APPLIANCE (RF605QD MODELS)
ICE BOOST increases ice production by up to 30% and will automatically deactivate after 24
hours.
To flush the automatic icemaker
1
Press and hold , and together for
4seconds then close the door(s). The ice
tray will flip twice and empty the water
into the bin below. The ice tray will flip
only after the doors are closed.
Repeat the cycle to help remove any
dust in the ice tray collected during
manufacture and transport.
Empty the water in the bin and return the bin correctly. Ensure that the scoop is located in
front of the bin.
Once your ice maker is turned on, discard the first 3harvests of ice (8cubes per harvest).
This will flush away any impurities in the water line and ensure the best ice quality.
Carrying out the above steps after a holiday/vacation or extended periods of not using ice.
+
25
USING YOUR APPLIANCE (RF605QN & RF605QZ MODELS)
Food modes
FREEZER
MODE
(-18°C)
For general frozen food items that
require storage between 1 – 12 months.
Meat, poultry, seafood,
pre-cooked foods and
leftovers, some fruits and
vegetable, ice cream, and
other frozen desserts.
SOFT FREEZE
MODE
(-7°C)
Allows easy portioning of food and
the ability to heat, cook or serve foods
straight from the compartment without
waiting for it to thaw.
Meats, seafood, soups, sauces,
pureed foods, bread, desserts
and pastries.
Not recommended for storage
of creamy desserts such as
ice cream.
CHILL MODE
(0°C)
Is an extension of FRIDGE MODE
providing the perfect storage zone for
highly perishable food to ensure they
retain their vital freshness and quality.
These items will last slightly longer
here compared with storage at
FRIDGE MODE.
Highly perishable meats,
poultryand seafood.
Alcoholic beverages such
asbeer.
FRIDGE MODE
(3°C)
The ideal mode for fresh foods such as
fruit and vegetables, dairy products,
meats and drinks.
Fruit and vegetables, dairy
products, jams and chutneys/
preserves, meats and drinks.
Variable temperature zone
Changing the Food Mode
Press the
VTZ FOOD MODE button.
The digital display for the Fridge/Freezer
compartment will not be illuminated.
The
FOOD MODE scrolls from top to bottom
(warmest setting to coldest setting).
The
FOOD MODE selected will illuminate.
1
The FOOD MODE will be activated once the control panel is locked.
The Variable Temperature Zone display will automatically lock after 10 seconds or once the
compartment is closed.
26
Adjusting the temperature
To increase the temperature of your selected
FOOD MODE press .
The digital display will change, at the
warmest point pressing the
button again
will sound the invalid button press melody
and nothing will change.
To decrease the temperature of your selected
FOOD MODE press .
The digital display will change, at the coldest
point pressing the
button again will sound
the invalid button press melody and nothing
will change.
1
2
Each FOOD MODE will automatically default to the recommended temperature setting for
this food mode, which is illuminated on the digital display. Once you have selected the
required FOOD MODE the temperature can be adjusted as desired.
If you adjust the temperature for a
FOOD MODE this adjustment will be remembered for the
next time you use this FOOD MODE. For example if you select FREEZER as the FOOD MODE
and adjust the temperature to the coldest setting, the next time you use the compartment
as FREEZER it will remember your setting.
USING YOUR APPLIANCE (RF605QN & RF605QZ MODELS)
27
For best results activate the function before it is required. Alternatively, activate it
whenplacing food into the freezer.
2
To activate, press the button to scroll
through the features to FAST FREEZE.
The light next to the feature will flash.
To select the feature, press the
button for
two seconds until flashing light turns solid.
To activate, press the
button, scroll to
BOTTLE CHILL. The light next to the feature
will flash.
Press the
button for two seconds until the
flashing light turns solid.
An alarm will sound after 15minutes to
remind you to remove your beverage.
1
1
To deactivate before the 12 hours has
elasped, press the button and scroll to
FAST FREEZE.
Press
button for two seconds.
USING YOUR APPLIANCE (RF605QN & RF605QZ MODELS)
Features
Fast Freeze
FAST FREEZE boosts freezing speed by dropping to its coldest temperature for 12 hours,
helping retain freshness, texture and taste during the freezing process.
Bottle Chill
BOTTLE CHILL rapidly chills your beverages in the freezer for a set time of 15 minutes.
Depending on bottle size, you may need to return it to the freezer and reset.
28
USING YOUR APPLIANCE (RF605QN & RF605QZ MODELS)
To deactivate before the time has elapsed,
press the button, scroll to BOTTLE CHILL.
Press
button for two seconds.
When
BOTTLE CHILL is deactivated the light
will not illuminate.
3
To activate, press the button, scroll to
ICE ON/OFF. The light next to the feature will
flash.
Press the
button for two seconds until the
light turns solid.
1
Ice On/Off
ICE ON/OFF activates automatic ice - this is only available in the lower compartment.
Your ice maker is designed to automatically dispense ice into the ice storage bin below
until it detects the bin is full. The more ice you use, the more it makes. Before first use the
automatic ice systems needs to be flushed.
To deactivate, press the
button, scroll
to ICE ON/OFF.
Press
button for two seconds.
When
ICE ON/OFF is deactivated the light will
not illuminate.
2
2
For water-dispensing models
The
icon will flash on the external display.
Press on the external display to silence the
alarm.
29
2
To activate, press the button, scroll to
ICE BOOST. The light next to the feature will
flash.
Press the
button for two seconds until the
light turns solid.
1
To deactivate, press the button, scroll
to ICE BOOST.
Press
button for two seconds.
When
ICE BOOST is deactivated the light will
not illuminate.
Deactivating ice making automatically
deactivates the ‘Ice Boost’ function
USING YOUR APPLIANCE (RF605QN & RF605QZ MODELS)
Ice Boost
ICE BOOST increases ice production by up to 30% and will automatically deactivate after 24
hours.
Press and hold
, and together for
4seconds.
The ice tray will flip twice and empty the
water into the bin below. Repeat the cycle
to help remove any dust in the ice tray
collected during manufacture and transport.
To flush the automatic icemaker
1
Empty the water in the bin and return the bin correctly. Ensure that the scoop is located in
front of the bin.
Once your ice maker is turned on, discard the first 3harvests of ice (8cubes per harvest).
This will flush away any impurities in the water line and ensure the best ice quality.
Carrying out the above steps after a holiday/vacation or extended periods of not using ice.
+
30
CLEANING AND CARE

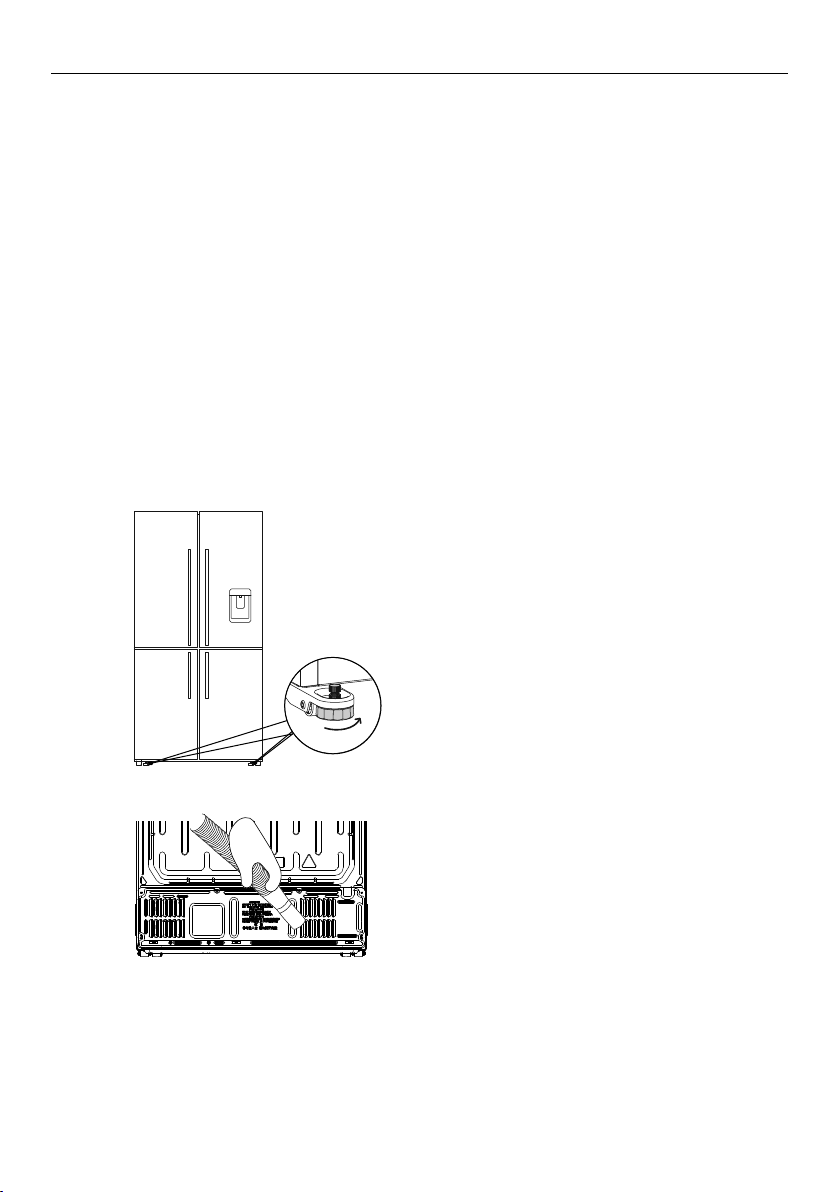

Cabinet surround
To maximise operating efficiency regularly vacuum the flooring around your refrigerator.
Cleaning behind your refrigerator is required once or twice a year.
Vacuum the flooring behind your
refrigerator and the rear compartment cover
(wherefitted) to remove dust.
Useadry lint-free cloth to clean the
refrigerator walls and surrounding cabinetry.
After cleaning, plug in and switch on.
Pushtherefrigerator into position and wind
feetdown.
1
Wind up the feet and carefully ease
the refrigerator out of its position.
Switch off andunplug.
2
Exterior
Clean all surfaces with liquid dishwashing detergent dissolved in warm water andasoft
cloth. Rinse with clean water and dry with a clean, lint-free cloth.
Do not use any abrasive stainless steel cleaners, glass cleaners, solvents or scourer pads as
these will damage the door surface.
For glass door products, clean the gap between the glass and the door or the handles with
a toothbrush or small bottle/straw brush.
Door gasket
Clean the magnetic door gasket every three months with a toothbrush, and liquid detergent
dissolved in warm water.
31
CLEANING AND CARE
Drip tray (Water-dispensing models only)
Remove the drip tray from the
dispenser panel.
Pull the two halves of the tray apart.
Clean with liquid detergent dissolved in water
and a soft lint-free cloth.
Rinse with clean water and dry with a clean,
lint-free cloth.
Securely clip the two halves together.
Re-insert the drip tray back into the
dispenser panel, rounded sides first.
1
2
Interior
Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents,
solvents or abrasive scouring pads on any part of your refrigerator. Some ofthese
chemicals may dissolve, damage and/or discolour the interior of yourrefrigerator.
Remove the shelves from the cabinet and door. Wipe all interior surfaces, using only liquid
dishwashing detergent dissolved in warm water or baking soda dissolved in warm water
(add1tspofbaking soda to every 500ml of water) and a soft lint-free cloth. Rinse with
clean water and dry with a clean, lint-free cloth.
Add a few drops of vanilla essence or vinegar to the water before cleaning to help remove
“stale refrigerator” smell.
External display and water dispenser (Water-dispensing models only)
Activate the
DISPENSER LOCK to prevent
water from dispensing when cleaning, refer
‘Dipenser lock’ section for details.
Clean the pad and external display with a
damp, soft lint-free cloth.
1
32
CLEANING AND CARE
Glass shelves – Refrigerator
To remove
Hold the shelf firmly and pull the shelf
towards you.
1
Slide the shelf towards you.
3
Lift the shelf up vertically.
2
Cantilever glass shelves — half-width and full-width
To remove
Hold the front and back edge of the
shelf firmly.
Push the shelf up vertically to dislodge
from backsupport lugs.
Slide the shelf towards you.
1
2
33
CLEANING AND CARE
1
2
Fixed bins and Freezer bins
To remove
Remove food from the bin.
Hold the centre front of the bin handle.
Lift vertically to unclip from the runners.
Pull bin towards you to remove from
the refrigerator.
Push both runners back into the refrigerator.
1
2
How to replace
Extend the runners out from the refrigerator.
Place the bin on top of the runners.
Push the bin down slowly until you feel it clip.
34
Support lugs
Remove all shelving, follow the steps in
section ‘Glass shelves- Refrigerator’.
Clean the support lugs with liquid detergent
dissolved in water and a tube brush or a clean
lint-free cloth.
1
CLEANING AND CARE
Humidity control lid
To remove
Remove all shelving, follow the steps in
section ‘Glass shelving’.
Hold the lid firmly and lift the outside
edge of the lid up vertically.
Slide the lid towards the outside wall of
the fridge until the lid unclips from the
centre bracket.
Pull the shelf towards you.
1
2
35
CLEANING AND CARE
Ice storage bin
Clean your ice bin and discard any old ice in the bottom of the bin(s) regularly. Ensure that
the ice scoop is placed in correct position in the bin, right hand side or atthe front of the
bin (model dependent).
Glass shelves - Freezer (if present)
To remove
Remove the bin above the glass shelf,
refer to ‘Fixed bins and Freezer bins’.
Push on the clips on both sides of the shelf.
Lift the shelf up to remove from the supports.
1
2
36
FOODCARE
For best food care
z
Store only high-quality, fresh food in your refrigerator.
z
Store perishable foods in the refrigerator immediately after purchase. Storingatroom
temperature increases the rate of deterioration and can allow harmfulmicrobialgrowth.
z
Foods such as meat, poultry and seafood should be well wrapped or sealed in
suitablepackaging to prevent dehydration, colour deterioration, loss of flavour, and
transfer ofodour.
z
We recommend storing these foods on the bottom shelf of your refrigerator orinone
of the bins to prevent potential spills and cross-contamination with otherfoods.
z
Ensure hot foods and beverages are cooled sufficiently before placing them into
therefrigerator. Hot items may cause other foods to warm to unsafe temperatures. Hot
items mayalso cause sealed items to sweat/condensate — which is undesirable.
z
Beverages are best stored standing upright in the door shelves or on the bottle
racksprovided.
z
Ensure raw and cooked foods are stored separately to avoid cross-contamination.
z
Consume food items within the recommended storage times. Discard foods that
showsign of spoilage.
z
Keep door openings to a minimum to maintain optimum storage temperatures inside
your refrigerator.
z
We recommend using FAST FREEZE when you are adding food items toyour refrigerator,
such as after grocery shopping. This feature will ensure the food isfrozen within the
shortest period of time, locking in the freshness andextending the shelf life of your food.
z
For storage of general household foods in the most efficient manner, it is recommended
to use the product in the factory configuration supplied. Moving the shelves and bins will
have a minimal impact on efficiency.
z
Storing at temperatures other than settings recommended may impact the storage life.
Items stored in your refrigerator
z
Dairy items such as butter and cheeses should be stored in the covered door shelf
tominimise any transfer of odour or odour absorption from other foods.
z
Eggs should be stored in their carton to avoid absorption of strong odours through
theirporous shell structure.
Items stored in your freezer
z
We recommend cooling carbonated beverages only when the BOTTLE CHILL
function isactive.
z
Do not store carbonated drinks without this function in the freezer.
Failure toremove beverages could lead to freezing liquid and the likelihood
ofbottle/canexplosion.
z
Ensure air is removed from packaging to avoid large formation of ice crystals and
prevent freezer burn.
z
To maintain freshness and quality, we recommend defrosting foods in the refrigerator.
Ensure partially or fully defrosted foods are never re-frozen — cook immediately.
37
MOVING OR STORING YOUR APPLIANCE
If your refrigerator is turned off for any reason, wait 10 minutes before turning it back on.
This will allow the refrigeration system pressures to equalise before restarting.

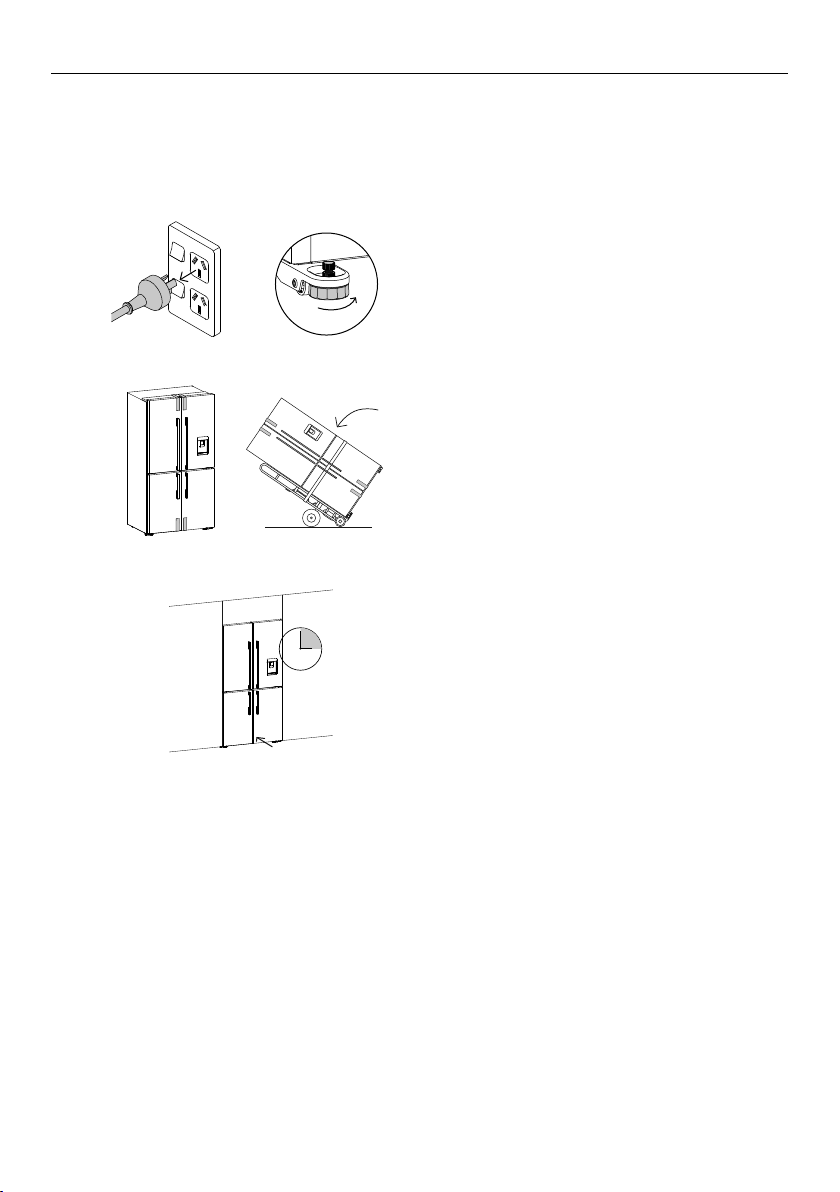

Moving your refrigerator
Turn off the refrigerator and unplug from the
power point. Remove all food.
Turn the adjustable feet to the right as far as
they will turn.
1
Relocate and install. If the refrigerator has
been left on its side for any length of time,
leave it standing upright as long as you can
(a few hours) before turning on.
Ease the refrigerator out of its position.
Tuck the power cord away, tape the shelves
in place and tape the doors closed. If the
cabinet needs to be placed at an angle or laid
down, carefully lay it on its side (the left hand
side when viewed from the front).
2
3
Take care when moving this refrigerator, ensure all obstacles are removed to prevent any
physical impact that may cause damage.
Storing your Refrigerator
z
When storing your cleaned refrigerator, leave the doors open. This allows air to circulate
and prevents the build up of bacteria and moulds.
z
Before using again, clean well using a mixture of warm water and a small amount of
liquid dishwashing detergent. Rinse with clean water and dry with a soft lint-free cloth.
Holiday/Vacation time
Leave your refrigerator operating while you are on holiday/vacation.
38
ACTIVESMART™ SOUNDS
Normal refrigerator sounds
Your refrigerator is designed with innovative ActiveSmart™ features that can produce
sounds that may be different from your old refrigerator.
Normal operational sounds include:
z
Fan air flow sound. ActiveSmart™ refrigerators have fans which change speed depending
on demand. During cooling periods, such as after frequent door openings, fans circulate
the cold air in the refrigerator and freezer compartments producing some air flow sound.
This is quite normal.
z
Cracking or popping sound which may occur when the defrost function is operating.
z
Running water sound. This is the liquid refrigerant in the system and can be heard as a
boiling or gurgling noise.
z
An audible hissing sound after closing the freezer door. This is due to the pressure
difference between the warm air that has entered the cabinet and suddenly cooled, and
the outside air pressure.
z
Other sounds may be heard for the following reasons:
z
Cabinet not level.
z
Floor uneven or weak.
z
Bottles or jars rattling on shelves.
z
If this is your first refrigerator with an ice maker, you will hear occasional sounds that
may be unfamiliar. They are normal ice making sounds and are not cause for concern.
z
The following sounds are normal with the operation of an ice maker:
z
Motor operation (low humming).
z
Running water as the ice maker and/or water tank fills.
z
Water valve opening and closing (hissing sound).
z
Ice being loosened from the ice moulding tray (cracking).
z
Ice dropping into bin (clunking).
39
TROUBLESHOOTING
If there is a problem with your refrigerator, please check the following points before
contacting your local Fisher&Paykel trained and supported service technician or the
Customer Care Centre.
Product parts and accessories can be purchased through Fisher&Paykel Customer Care
Centre or online at fisherpaykel.com (this service is available to selected markets only).
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Refrigerator does
not operate
No electricity at power outlet. Check that the plug is
correctly connected and power
switched on.
Check another refrigerator at the
same outlet.
Check house fuse.
Light
not working
Light not functioning. The LED light cannot be
serviced by the user. Contact
your Fisher&Paykel Dealer or
Fisher&Paykel trained and
supported service technician.
Refrigerator not working. Check refrigerator is turned on
at wall.
Light and display
not working
Product in
SABBATH MODE.
Press and hold
, and
together for four seconds.
Motor operates
for long periods
Hot weather. Minimise door openings to allow
temperature to stabilise.
Frequent door openings.
Large amount of food
recentlyadded.
Temperature control set toolow. Refer to section
‘Temperature control’.
Doors not sealing properly. Check that cabinet is level and
gasket seals are clean.
Storage
compartments
too warm
Temperature setting not correct. Refer to section
‘Temperature control’.
Frequent door openings. Minimise door openings to allow
temperature to stabilise.
Large amount of food
recentlyadded.
Food freezing in
the refrigerator
Temperature setting not correct. Refer to section
‘Temperature control’.
Food placed directly in front of
air outlets.
Move chill sensitive foods
away from the centre back of
the shelves.
40
TROUBLESHOOTING
All models
PROBLEM POSSIBLE CAUSES WHAT TO DO
Unfamiliar noises Cabinet not stable or level. Refer to your Installation guide
or ‘ActiveSmart™ sounds’.
Freezer is defrosting.
Water in the
vegetable bins
Condensation is formed by
the water produced by fruit
and vegetables.
A small amount of condensation
is beneficial for fruit and
vegetable storage.
Wipe out water with a cloth.
Exterior of
cabinet is warm
This is normal.
Condensation
on outside of
refrigerator/
freezer
Not unusual during periods of
high humidity.
Wipe dry.
Condensation
inside fresh food
compartment
Frequent or long door openings. Minimise door openings.
Door gasket leaking. Check that gasket is sitting flat
and sealing tightly.
Not unusual during periods of
high humidity.
Wipe dry.
Door out of
alignment
With time and usage, movement
may occur.
Refer to your installation guide.
Tray/bin does
not slide in and
out evenly
Packaging trapped. Check to ensure no food or
packaging is trapped behind
the tray/bin.
Runners not extending fully. Holding onto sides of tray/
bin, extend the runners fully by
using a firm pull — this will reset
the runner.
Refrigerator
operating
inefficiently
Accumulation of dust
on or behind the rear
compartment cover.
Refer to section
‘Cleaning and care’.
If problem persists please
contact Customer Care.
Cannot adjust
temperature
in frozen food
compartment
Either
BOTTLE CHILL, FAST FREEZE
or ICE BOOST is activated.
Deactivate BOTTLE CHILL,
FAST FREEZE
or ICE BOOST if
function is not desired.
41
TROUBLESHOOTING
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Automatic ice
maker does
notwork
Ice maker has not been turned on. Switch on ice maker.
Bin is in the wrong way or there
is no bin in place.
Place bin so scoop is on the
left side.
Ice bin sits directly under ice
maker on top left side of freezer.
Water supply turned off or
not connected.
Connect water supply.
Freezer compartment not working. Contact Customer Care.
Water pressure too low. Check water pressure.
Water line kinked/squashed. Check water line for
kinks/squashing.
Filter clogged. Water filter may need replacing.
Ice cubes have
odour/taste
Unsealed packages may be
transmitting odour/taste.
Old cubes need to be discarded.
Ensure food packaging is sealed.
Interior of freezer needs cleaning. Ice storage bin needs to be
emptied and washed.
Clean refrigerator.
Poor taste from incoming water. Filter may need to be replaced
with new one.
Force 2 – 3 ice tray flips.
Slow ice cube
freezing
Door may have been left ajar. Close door.
Freezer compartment too warm. Turn temperature to a
colder setting.
Wet ice/
iceclumping
Low water pressure. Check water pressure.
Filter blocked. Replace filter.
Long freezer door openings. Gently tap ice with scoop to
unstick or, if large clumps occur,
empty ice bin and make new ice.
High ambient temperature.
Ice bin left out of freezer
compartment for a length of time.
Ice will stick together over time.
Filter warning
light
is flashing
Filter needs replacing. Replace filter as soon as possible.
42
TROUBLESHOOTING
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Ice build up
inside freezer
compartment
Freezer door not closing tightly. Arrange items in freezer so door
can close tightly.
Check and clean door gasket seal.
Ice maker
makes unfamiliar
sounds or
seems too loud
Normal ice maker operation. Refer to section
‘ActiveSmart™ sounds’.
Ice boost
function not
increasing rate of
ice production
Ambient temperature very warm. Minimise door openings.
Refrigerator is in high usage.
43
Ice & Water models only
PROBLEM POSSIBLE CAUSES WHAT TO DO
Water has poor
taste/odour
Refrigerator not used for an
extended period.
Dispense 4L of water so fresh
water supply is replenished.
New filter installed.
Water dispenser
does not work
Water supply turned off or
not connected.
Turn water on.
Press dispenser for fourminutes
to remove trapped air from water
line and to fill the water system.
Supply line may be blocked. Check supply for kinks or leaks.
On first installation there may be
air in water system.
To remove air, run 3L of water
through the dispenser.
Filter may be blocked and
need replacing.
Replace filter (see your ‘Service
& Warranty’ document provided
with your refrigerator).
DISPENSER LOCK activated.
Press and hold
for
fourseconds.
Water frozen in tank. Increase temperature to a
warmer setting in fresh food
compartment andfreezer.
Water in first
glass is warm
Water dispenser not used for
extended period.
Discard first glass of
water dispensed.
Tank capacity used recently. Allow water time to cool.
Drips overflow
drip-shelf
Air trapped in tank. Flush 3L water through dispenser,
stopping intermittently.
New filter installed. Dispense 4L of water through
the dispenser, and then another
4L after four minutes.
Water flow rate
has slowed down
Filter cartridge is restricted. Replace filter as soon as possible.
TROUBLESHOOTING
44
MANUFACTURER’S WARRANTY
For details of your Manufacturer’s Warranty and contacts for servicing, please refer to your
separate ‘Service & Warranty’ book provided with your refrigerator.
This product has been designed for use in a normal domestic (residential environment). This
product is not designed for any commercial use. Any commercial use by the customer will
affect this products Manufacturer’s Warranty.
For spare parts, please contact Fisher & Paykel Customer Care. Spare parts are available
for all Fisher & Paykel refrigerators for a minimum period of 10 years from the date
of manufacture.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Tow n
Country
45
EUROPEAN DIRECTIVE 2012/19/EU ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
GB This appliance is marked according to the European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate handling of this product.
The symbol
marked on the serial plate, or on the documents accompanying the product,
indicates that this appliance cannot be treated as household waste. It shall be handed over
to the applicable collection point for the recycling of electrical and electronic equipment.
Disposal of the appliance shall be carried out in accordance with the local environment
regulations for waste disposal and ensure the refrigerant circuit is not damaged.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or your
Fisher&Paykel retailer/dealer from whom you purchased this product.
INSTALLATION GUIDE
NZ AU UK IE SG
ACTIVESMART™ REFRIGERATOR
CONTEMPORARY
QUAD DOOR FRIDGE FREEZER ICE & WATER
RF605QDU, RF605QN, RF605QZ
QUAD DOOR FRIDGE FREEZER NON-ICE & WATER
RF605QD
3
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
Safety and warnings 5
ActiveSmart™ Refrigerator 7
Unpacking and moving your appliance 8
Before installation 10
Supplied parts 11
Product dimensions 12
Cabinetry dimensions — PROUD 14
Cabinetry dimensions — FLUSH 16
Electrical 18
Water connection (Ice & Water models) 19
Flushing the water filter (Ice & Water models) 21
Positioning your refrigerator 22
Complete installation 24
Final checklist 25
5
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Failure to follow this advise may result in
death, electric shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this guide before operating
this appliance.
!
WARNING!
Risk of fire/flammable material
This refrigerator contains flammable refrigerant
isobutane (R600a).
READ AND SAVE THIS GUIDE
Use this appliance only for the intended purpose as described in the user guide.
When using this appliance always exercise basic safety precautions
including the following:
z
Keep ventilation openings, in the appliance enclosure or the built-in structure, clear
of obstruction.
z
Do not damage the refrigerant circuit.
z
In case of damage to the refrigerant circuit, ventilate the area by opening all windows.
Do not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher&Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
z
It is hazardous for anyone other than a Fisher&Paykel trained and supported service
technician to service thisappliance.
z
In Queensland the authorised service person must hold a gas work licence or
authorisation for hydrocarbon refrigerants to carry out service or repairs which involve
removal of covers.
z
Your refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher&Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
z
This refrigerating appliance is not intended to be used as a built-in appliance.
z
It is hazardous for anyone other than a Fisher&Paykel trained and supported service
technician to service thisappliance.
z
This refrigerating appliance performs optimally at ambient temperatures ranging
from 16°C to 38°C.
6
Electrical
z
This appliance must be installed in accordance with the installation
instructions before use.
z
To allow disconnection of the appliance from the supply after installation, incorporate a
switch in the fixed wiring in accordance with the wiring rules.
z
Never unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
z
Do not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
z
Repair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or
at either the plug or appliance end.
z
If the power supply cord is damaged, it must only be replaced by your Fisher&Paykel
trained and supported service technician because special purpose tools are required.
z
When moving your appliance away from the wall, be careful not to roll over or damage
the power cord.
z
Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
z
When positioning the appliance, ensure the power cord is not trapped or damaged.
z
Do not locate multiple portable socket-outlets or portable power supplies at the rear
of the appliance.
Water filter
z
To reduce the risk associated with choking:
z
DO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.
z
The water connection to your Ice & water refrigerator must be installed by a qualified
plumber or Fisher&Paykel trained and supported service technician and comply with
all state and local laws.
z
Installation and use MUST comply with all state and local plumbing codes. Checkwith
your local public works department for plumbing codes. You must follow their
guidelines as you install the water filtration system.
z
To avoid serious illness or death, only connect your water filter to safe drinking water.
z
The water filter cartridge needs to be changed when the replacement indicator icon
illuminates. This will happen every 6 months.
z
If the water filtration system has been allowed to freeze, replace filter cartridge.
Failure to replace the disposable filter at recommended intervals may lead to reduced
filter performance and failure of the filter, causing property damage from water
leakage or flooding.
z
When installing the product use new tubing supplied with the refrigerator, DO NOT
reuse any existing water connections.
z
The water system is designed to operate between 138–827kPa (20–120psi). DO NOT
install if water pressure exceeds 827kPa (120psi). Ensure the supplied pressure limiting
valve is installed before installing the water filtration system.
z
To reduce the risk associated with property damage due to water leakage or flooding:
z
DO NOT install systems in areas where ambient temperatures may go above 38°C or
drop below 0.6°C.
z
DO NOT install on hot water supply lines. The water filter system is designed with a
maximum inlet temperature of 38°C.
z
DO NOT install where water hammer conditions may occur. If water hammer
conditions exist, you must install a water hammer arrester.
z
To avoid serious illness or death, only connect your water filter to safe drinking water.
SAFETY AND WARNINGS
7
ACTIVESMART™ REFRIGERATOR
Quad Door Fridge Freezer, 905mm,
605L, Ice & Water
Contemporary
RF605QDU
Quad Door Fridge Freezer, 905mm,
605L, Non-Ice & Water
Contemporary
RF605QD
Quad Door Fridge Freezer, 905mm,
605L, Ice & Water
Contemporary
RF605QNU & RF605QZU
8
UNPACKING AND MOVING YOUR APPLIANCE
Check that your appliance is the correct model as per your order.
Follow the steps below to move your appliance to the install location. Be careful when
tilting the appliance forward/backward. Tape the door shut to prevent opening while
moving the appliance.
1
2
Tilt the appliance slightly forward
and Insert the hand truck between
pallet and appliance.
Restrain the appliance with a strap.
Model drawings may differ from your appliance.
9
UNPACKING AND MOVING YOUR APPLIANCE
3
Tilt backward to load appliance
onto hand truck and push to
install location.
Model drawings may differ from your appliance.
10
BEFORE INSTALLATION
Please follow the installation steps below to ensure your appliance operates correctly.
Before installation
Power
z
Install your appliance where the plug is easily accessible.
z
Connect your refrigerator to a separate power point. Avoid sharing the power point with
other appliances. Do not use extension cords and double adaptors as the combined
weight of two power cords can pull the double adaptor from the power outlet.
z
For power requirements, refer to the information on the serial plate located at the front
bottom right-hand side of the refrigerator when the door is open.
z
Ensure your appliance is properly grounded (earthed).
z
Connect the appliance to the electrical supply (220V – 240V 50Hz) with the
fitted plug and lead.
z
Connections to the mains supply should be in accordance with local regulations.
Ice & Water models
z
Your Ice & Water refrigerator must be installed by a qualified plumber or Fisher&Paykel
trained and supported service technician as incorrect plumbing can lead to water leaks.
z
Fisher&Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.
11
SUPPLIED PARTS
User/Installation guide (1)
USER GUIDE
NZ AU UK IE SG
ACTIVESMART™ REFRIGERATOR
CONTEMPORARY
QUAD DOOR FRIDGE FREEZER ICE & WATER
RF605QDU, RF605QN, RF605QZ
QUAD DOOR FRIDGE FREEZER NON-ICE & WATER
RF605QD
MISCELLANEOUS ITEMS PACK
Quick fitting (1) Tubing 3.5m (1) Pressure limiting valve
PLV (1)
Tubing 0.5m (1) Tap adaptor & short
tubing (1) – NZ AU only
Clip collet locking (3)
Tap adaptor 1/4 OD 3/4
BSP (1) – UK only
Wine bottle holder (4)
WATER FILTER KIT
12
PRODUCT DIMENSIONS
FRONT
C
b
b
PLAN
E
D
C
GF
PROFILE
A
13
PRODUCT DIMENSIONS
PRODUCT DIMENSIONS
MM
A Overall height of product 1790
B Overall width of product 905
C Overall depth of product
(excludes handle)
688
D Depth with door open – from rear of fridge – 90° rotation 1084
E Depth with door open – from flush with door – 90° rotation 396
F Height to top of chassis 1754
G Height to top of hinge cover 1775
Actual product dimensions may vary by ± 2 mm
14
CABINETRY DIMENSIONS — PROUD
CABINETRY DIMENSIONS (incl. minimum air clearances)
RF605QD RF605QN/QZ
MM MM
A Inside height of cavity* 1810 1810
B Inside width
z
90° rotation**
z
full rotation
1025
945
985
945
C Overall depth 640 640
B
C
a
CUTOUT
*Measurement includes a feet increase of 10mm.
**For full drawer/shelf access, the doors need to be open past 90°. To avoid damaging the product
ensure doors do not contact the adjacent cabinetry/wall.
15
CABINETRY DIMENSIONS — PROUD
MINIMUM CLEARANCE DIMENSIONS
RF605QD RF605QN/QZ
MM MM
A Vent (above refrigerator cabinet or around
top of cupboard)
50 50
B Side clearance
z
90° rotation*
z
full rotation
100
20
60
20
C Rear clearance 30 30
D Door clearance
z
90° rotation*
z
full rotation
N/A
320
N/A
320
CLEARANCES
b
a
C
b
*For full drawer/shelf access, the doors need to be open past 90°. To avoid damaging the product
ensure doors do not contact the adjacent cabinetry/wall.
a
D
16
CABINETRY DIMENSIONS — FLUSH
CABINETRY DIMENSIONS (incl. minimum air clearances)
RF605QD RF605QN/QZ
MM MM
A Inside height of cavity* 1810 1835
B Inside width
z
90° rotation**
z
full rotation
1105
1105
1065
1105
C Inside depth 718 718
b
CUTOUT
*Measurement includes a feet increase of 10mm.
**For full drawer/shelf access, the doors need to be open past 90°. To avoid damaging the product
ensure doors do not contact the adjacent cabinetry/wall.
C
a
17
CABINETRY DIMENSIONS — FLUSH
MINIMUM CLEARANCE DIMENSIONS
RF605QD RF605QN/QZ
MM MM
A Vent (above refrigerator cabinet or around
top of cupboard)
50 50
B Side clearance
z
90° rotation*
z
full rotation
100
100
60
100
C Rear clearance 30 30
D Door clearance
z
90° rotation*
z
full rotation
N/A
240
N/A
240
d
CLEARANCES
b
b
c
a
*For full drawer/shelf access, the doors need to be open past 90°. To avoid damaging the product
ensure doors do not contact the adjacent cabinetry/wall.
a
18
ELECTRICAL
Electrical connection should be located in an adjacent cabinet to either side of the
refrigerator or above the refrigerator cavity. We recommend the use of an isolating switch
that is easily accessible to the user after the refrigerator is installed.
19

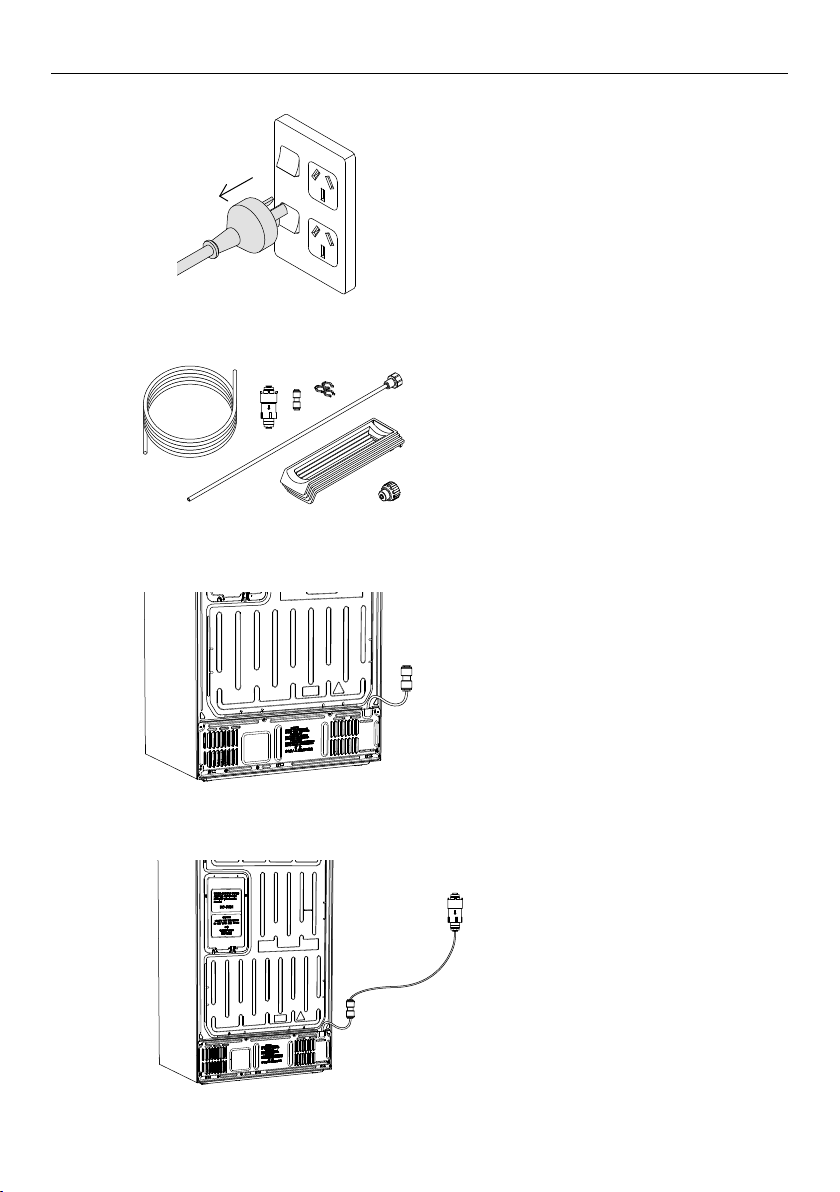

WATER CONNECTION (ICE & WATER MODELS)
0.15 pt
0.15 pt
Ensure the refrigerator is NOT
plugged into a power supply. Locate
the isolation tap for cold water
connection (tee and tap fitting
not supplied).
1
2
3
4
Uncoil tubing from the back of
the refrigerator and connect the
quick fitting.
Connect one end of the long tubing
(3.5m) to the quick fitting, and insert
the other end to the PLV.
Ensure the short arrow on the PLV
is pointing away from the tap. The
arrow indicates the direction of
water flow.
Locate the water fitting kit to
complete water connection installation.
20

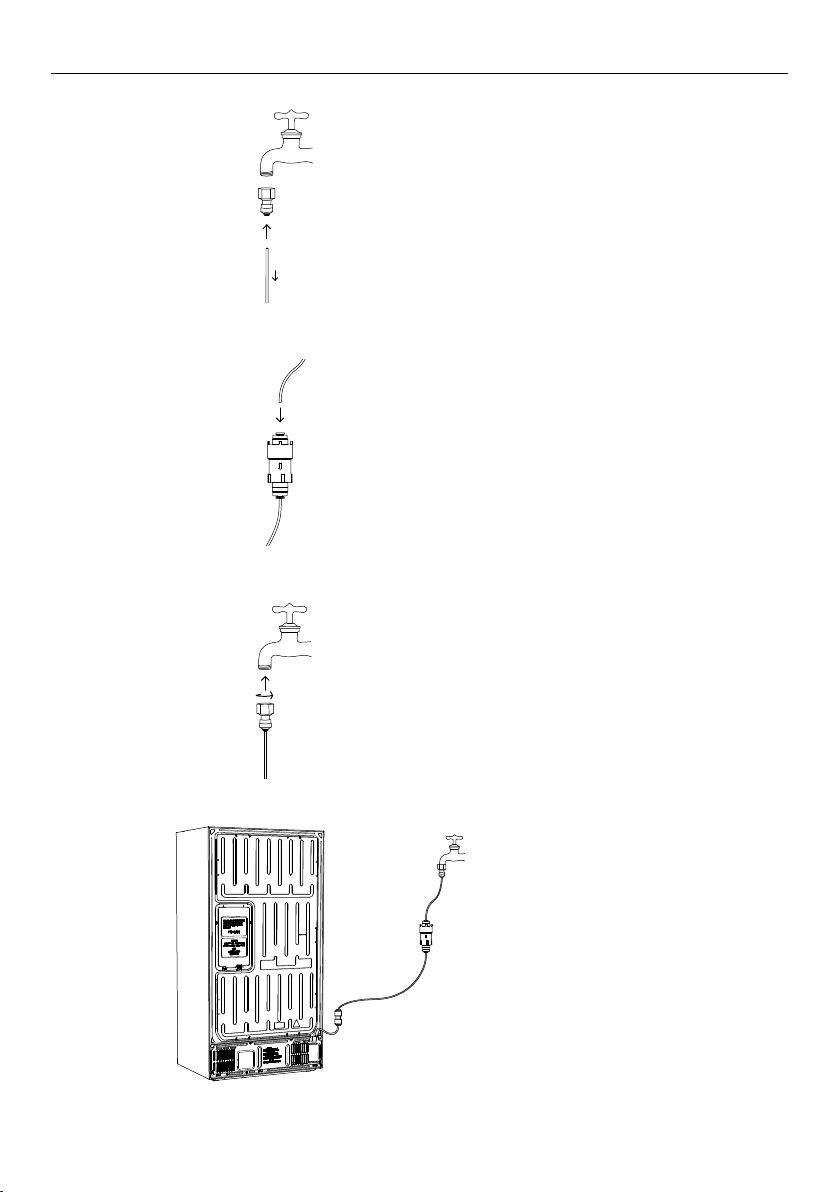

WATER CONNECTION (ICE & WATER MODELS)
Insert the short tubing into the water
tap adaptor, push tubing in at least
16mm before reaching the stop.
Pull gently on the short tubing to
ensure it is locked in place.
If the short tubing is already attached
to the tap adaptor, move to step 6.
Insert the other end of the short
tubing firmly to the PLV.
5
6
7
Fasten the water tap adaptor to the
isolation tap. Take care not to over-
tighten the water tap adaptor.
8
Pull gently on all tubing connections
to ensure they are locked in place.
Turn isolation tap on and check
thatall connections are dry and free
of drips.
Before first use, you need to flush
water through the filter to remove
impurities or trapped air in the water
tank and filter system.
21
FLUSHING THE WATER FILTER (ICE & WATER MODELS)
There may be a few drips of water coming out of the dispenser for a few days after
installation. This is normal and occurs as the remaining trapped air is cleared from the system.
Ensure your refrigerator has cooled for at least 2hours beforeuse.
1 Press the water dispenser pad to dispense
4L of water. Wait for fourminutes before
dispensing again.
2 Dispense 4L of water and then wait for
another fourminutes. There may be
carbon residue dispensed together with
water. This is not harmful, and is normal
during the flushing process.
3 Dispense another 4L of water. This
prevents excessive dripping of water from
your dispenser.
22
POSITIONING YOUR REFRIGERATOR
Your Fisher&Paykel ActiveSmart™ refrigerator is fitted with front and rear rollers to allow
you to easily move your refrigerator forward and backward. Avoid moving your refrigerator
sideways to prevent damaging the rollers or the floor coveringsurface.
Your refrigerator will arrive with the front feet wound up to assist with moving the product
into its final location.
1
2
Roll the refrigerator into its final
position ensuring there is the
correct air gap between the product
and surrounding cabinetry. See
minimum clearance in cabinetry
dimensions table.
Adjust the front feet down until the
refrigerator is leaning backward with
the front approximately 10mm higher
than the back. This will ensure a
good door closing action.
Levelling of refrigerator doors
Open the door that is out
of alignment.
Lift the door upwards.
Clip the spacer onto the centre
hinge pin.
Close the door to recheck alignment.
3
23
POSITIONING YOUR REFRIGERATOR
Gently push the refrigerator back until
the rear rollers contact the floor.
Measure the gap under the front foot,
which has come off the floor.
Obtain some solid packing material
(hardwood, plastic,etc) which fits
firmly into the gap under the foot.
1
2
3
Wind both front feet up and roll the
product out ofposition.
Place the packing material in the
location diagonally opposite the front
roller that lifts off the floor.
Ensure the packing material stays in
place when the product is pushed
back into position.
Roll the refrigerator back into
position and adjust front feet. Check
alignment and door closing action are
satifactory. Make small adjustments to
the front feet where necessary.
What to do if your product is unstable
24
COMPLETE INSTALLATION
Before placing food in the fresh food or freezer compartments
z
Remove all internal packaging. Ensure that all transit clips are removed from the
refrigerator. These are small rubber stoppers located at the back of the shelves.
z
Clean the inside of the appliance with a mix of warm water and a small amount of liquid
detergent. Use a soft cloth to remove dust collected during manufacture and transport.
z
Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each
compartment to cool to the appropriate temperature.
z
The appliance may have an odour on its initial operation, this will go when the
refrigerator and freezer have cooled sufficiently.
25
FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Ensure that:
Check all parts are installed.
Ensure the appliance is level.
Ensure all internal and external packaging is removed from the appliance before use.
Ensure the water filter is installed and has been flushed.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
864777B 07.20
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2020. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
