Ed : 03/14 Rev : 00
Codice :
INSTRUCTION
GRLDEVEFSTEPTW
1
2
3
4
5
5
6
7
6
8
9
10
11
12
13
13
13
14
15
16
17
18
19
20
17
18
19
20
21
21
21
22
22
22
23
23
24
26
25
24
25
26
27
27
28
30
29
31
13
32
32
33
33
34
35
36
37
38
22
39
40
41
42
43
20
20
42
14
40
43
44
21
30
36
37
38
38
38
9

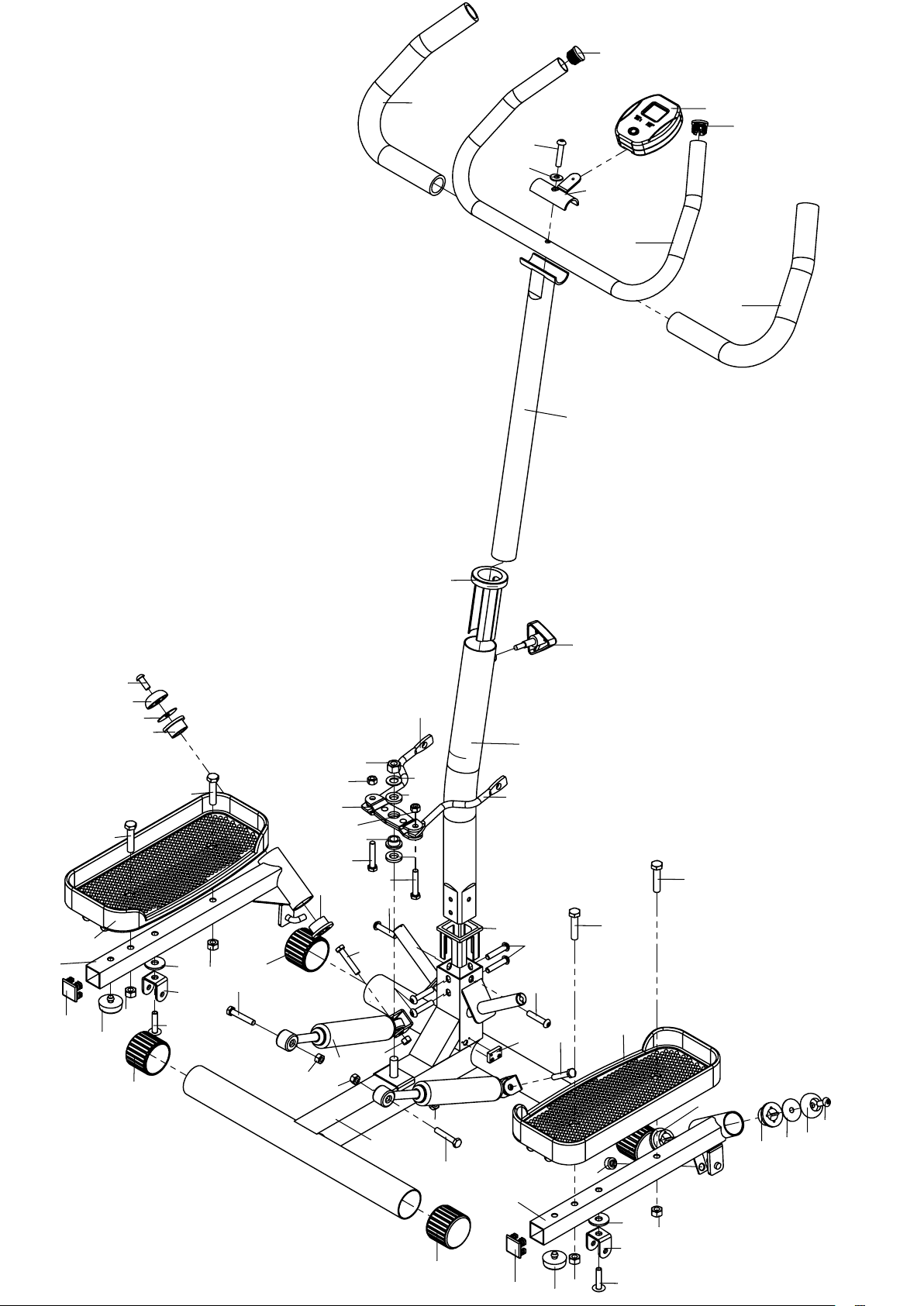

Nr. Description QTY
1 COMPUTER 1
2 HEXBOLTM8*40 1
3 CURVEWASHERФ20*Ф8*1.2T 1
4 COMPUTERINSERTPLATE 1
5 ENDCAPofHANDLEBAR 2
6 FOAMGRIP 2
7 HANDLEBAR 1
8 UPPERHANDLEBAR 1
9 BUSHING 1
10 ADJUSTKNOB 1
11 LOWERHANDLEBAR 1
12 BUSHING 1
13 REARSTABLIIER 4
14 CONNECTINGPLATE 2
15 SENSOR 1
16 BASEFRAME 1
17 HEXBOLTM8*20 2
18 NYLONCAP 2
19 WASHER35*Ф8*1T 2
20 NYLONBUSHING 2
21 HEXAGONBOLTM8*45 4
22 NYLONNUTM8 4
23 PLATFORM 2
24 WASHERФ30*Ф10.5*2.5T 2
25 "U"TYPEPLATE 2
26 RIVET 2
27 BUFFERKNOB 2
28 PLATFORMTUBE(L) 1
29 PLATFORM
TUBE(R)
1
30 ENDCAPofHANDLEBAR 2
31 MAGNETIC 1
32 HEXAGONSCREWM8*40 2
33 NYLONNUTM8 2
34 HYDRAULICCYLINDER 2
35 BLANCEPLATE 1
36 NYLONNUTM8 2
37 HEXAGONBOLTM8*45 2
38 HEXBOLTM8*20 6
39 NYLONNU
T
（1/2"‐12) 1
40 NYLONWASHERФ13.5*Ф24*2T 2
41 BRASSWASHER 1
42 NYLONNUTM8 2
43 HEXAGONBOLTM8*30 2
44 NYLONWASHERФ13*Ф24*1.5T 1

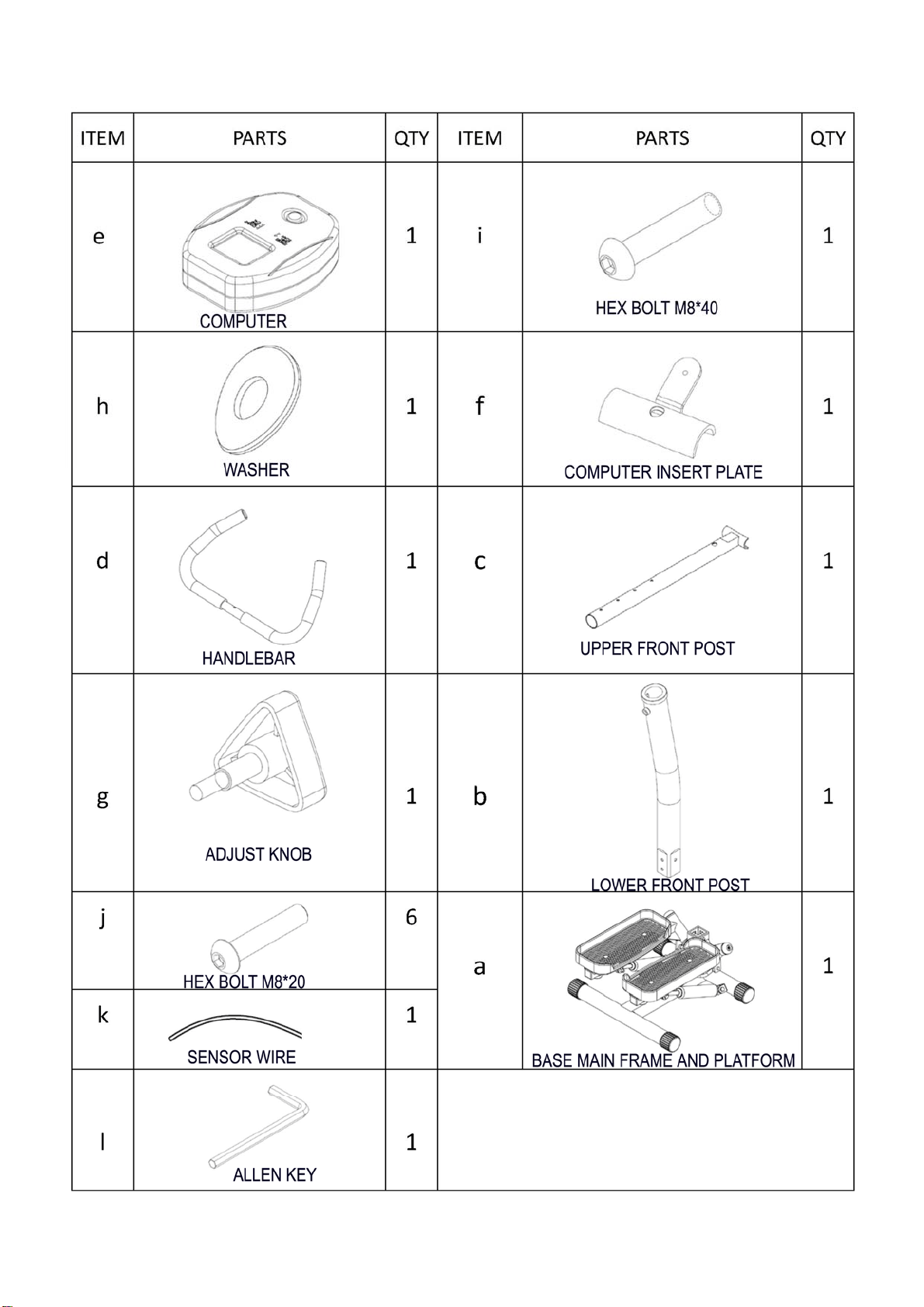

a
b
c
j
g
f
d
h
e
i
k
l

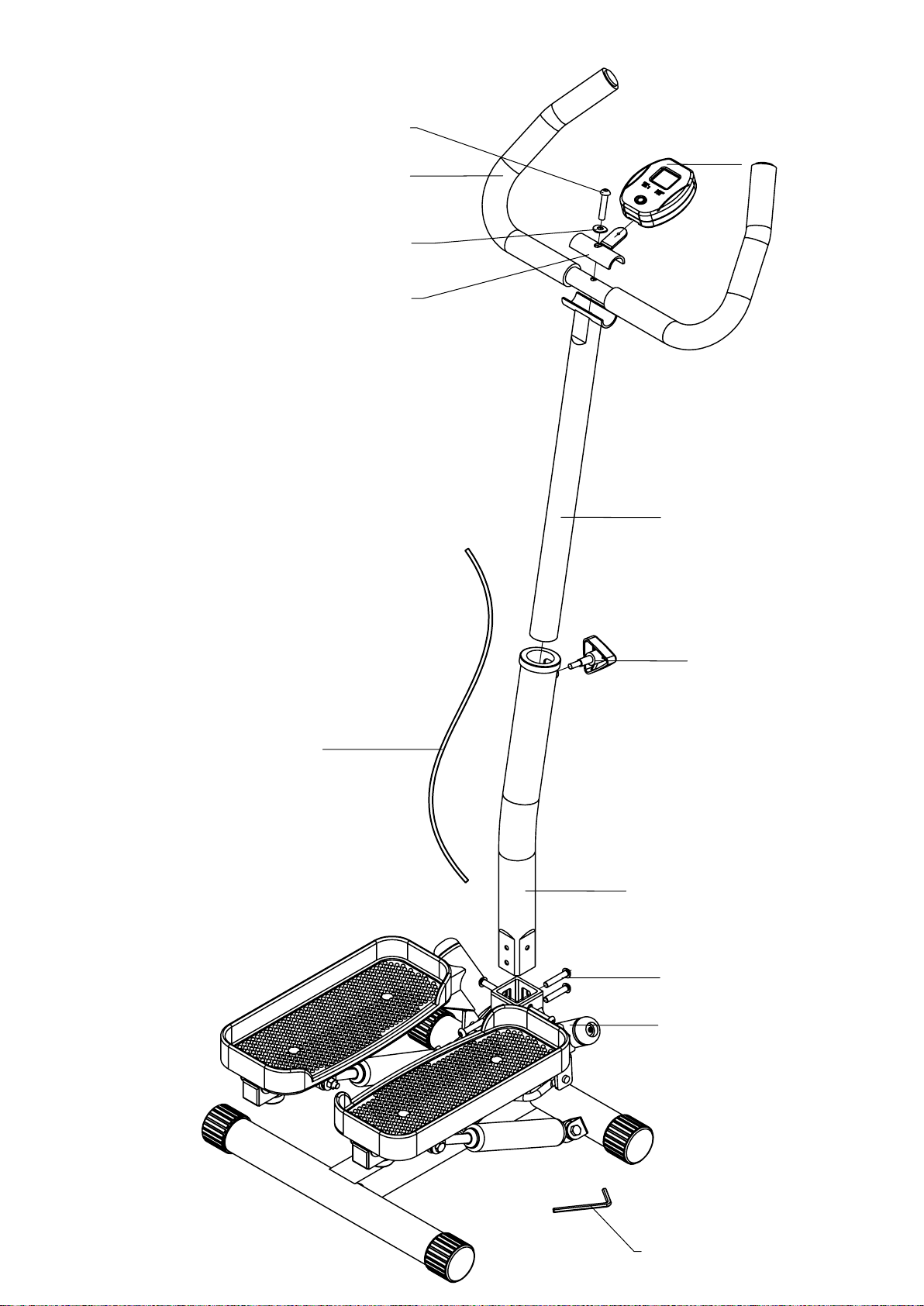

ASSEMBLY STEP
STEP 1: BASE MAIN FRAME (a) AND LOWER HANDLE BAR (b) USE HEX
BOLTS (j) M8*20 TIGHTEN.
PLACE THE SENSOR WIRE (k) THROUGH OUT FROM LOWER FRONT
POST (b).
STEP 2:HANDLE BAR(d) AND COMPUTER INSERT PLATE (f) USE HEX
BOLTS M8*40 (i) WITH WASHER (h) TIGHTEN ONTO UPPER HANDLE
BAR (C).
STEP 3:INSERT UPPER HANDLE BAR (C) DOWN TO LOWER HANDLE
BAR (b).AFTERWARDS THE SENSOR WIRE (K) THROUGH OUT TO THE
UPPER HANDLE BAR (C).

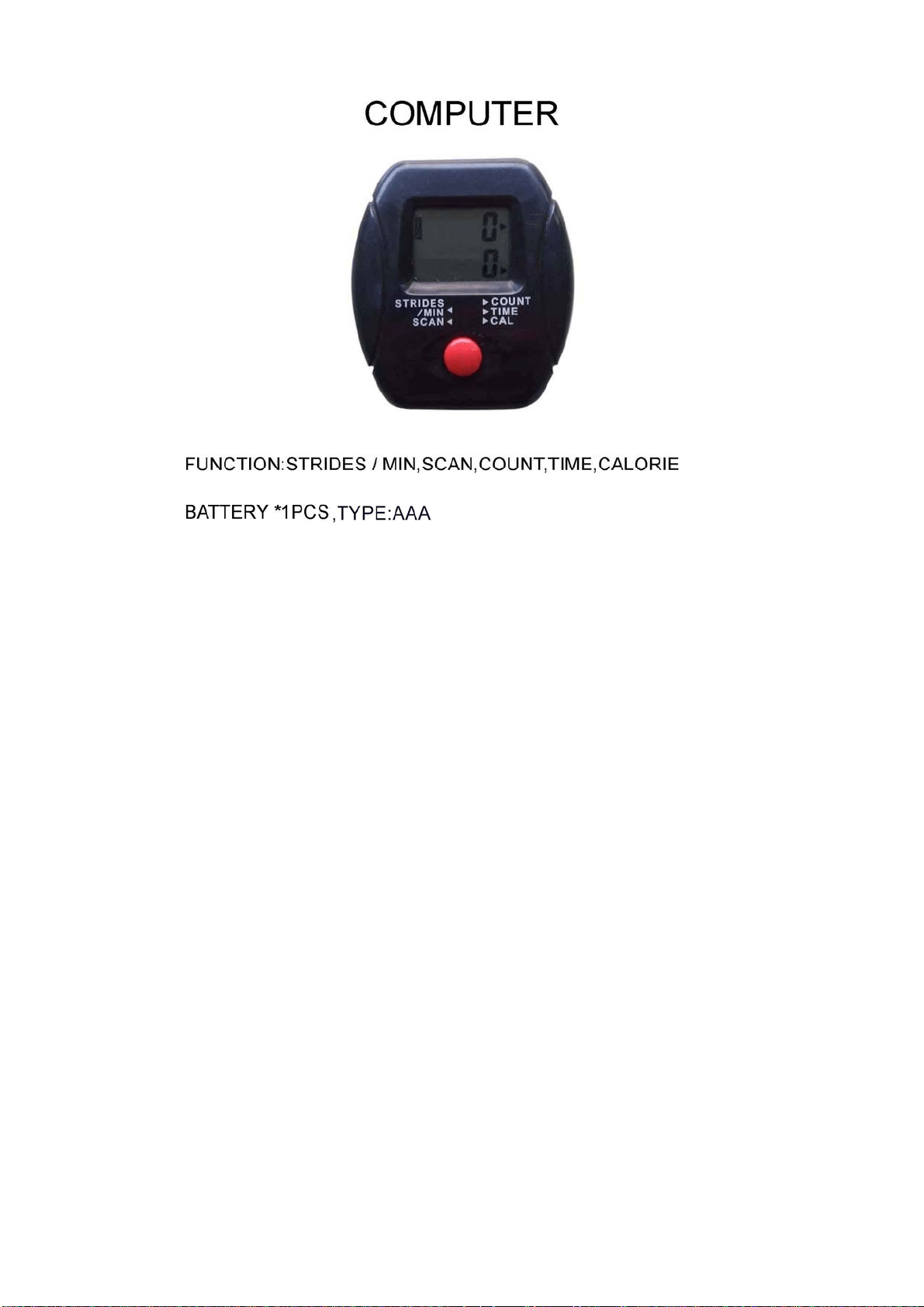

STEP 4:INSTALL THE COMPUTER (e) TO THE INSERT PLATE
(f),CONNECTING THE SENSOR WIRE TO COMPUTER PLUG.
STEP 5:ADJUSTING THE FRONT POST POSITION AS YOU DESIRED
THEN TIGHEN THE ADJUST KNOB (g) TO FIXED.
THE MAX .USER WEIGHT:100KGS
