Listing Constructional Data Report (CDR)
Report Number
141015030GZU-001
Original Issued: 8-Jan-2015 Revised: None
Standard(s)
Applicant Manufacturer
Address Address
Country Country
Contact Contact
Phone Phone
FAX FAX
Email Emailyork@oceangd.com york@oceangd.com
0750-30903820750-3090382
Motor-Operated Household Food Preparing Machines
-UL 982, 6th Edition, Rev. Jun. 9, 2010
Portable Electrical Motor-Operated and Heating Appliances: Particular Requirements for
Electrical Motor-Operated Kitchen Appliances
-CSA C22.2 No.1335.2.14-93 R2013, See also CSA C22.2 No.1335.1-93 R2013
York liang York liang
1.0 Reference and Address
No. 11, Tongle Rd., Tangxia town,
Pengjiang Qu, Jiangmen, Guangdong,
China
0750-3097695 0750-3097695
No. 11, Tongle Rd., Tangxia town,
Pengjiang Qu, Jiangmen, Guangdong,
China
China
Sinsion Technology Industrial Co., Ltd
China
Sinsion Technology Industrial Co.,
Ltd
Page 1 of 33
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 2 of 33
Issued: 8-Jan-2015
Revised: None
Product
Brand name
Models
Model Similarity
Ratings
Other Ratings NA
120 V, 60 Hz, 240 W.
2.0 Product Description
ROCKET BLENDER
SENSIO, COOKS
Description
The product covered by this report are ROCKET BLENDERs having a rating of 120 V, 60 Hz,
for household and indoors use only, provided with a non-detachable power supply cord
terminated in a 2-wire polarized type plug.
HB-1102, HB-1102A, HB-1103
HB-1102 is identical with HB-1102A, except the side enclosure of HB-1102 is metal.
HB-1103 is identical with HB-1102A, except the shape of enclosure.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 3 of 33
Issued: 8-Jan-2015
Revised: None
Photo 1 - External View of HB-1102 and Accessories
3.0 Product Photographs
17
1
Blender Cup
Coffee mill Cup
Photo 2 - External View of HB-1102
16
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 4 of 33
Issued: 8-Jan-2015
Revised: None
3.0 Product Photographs

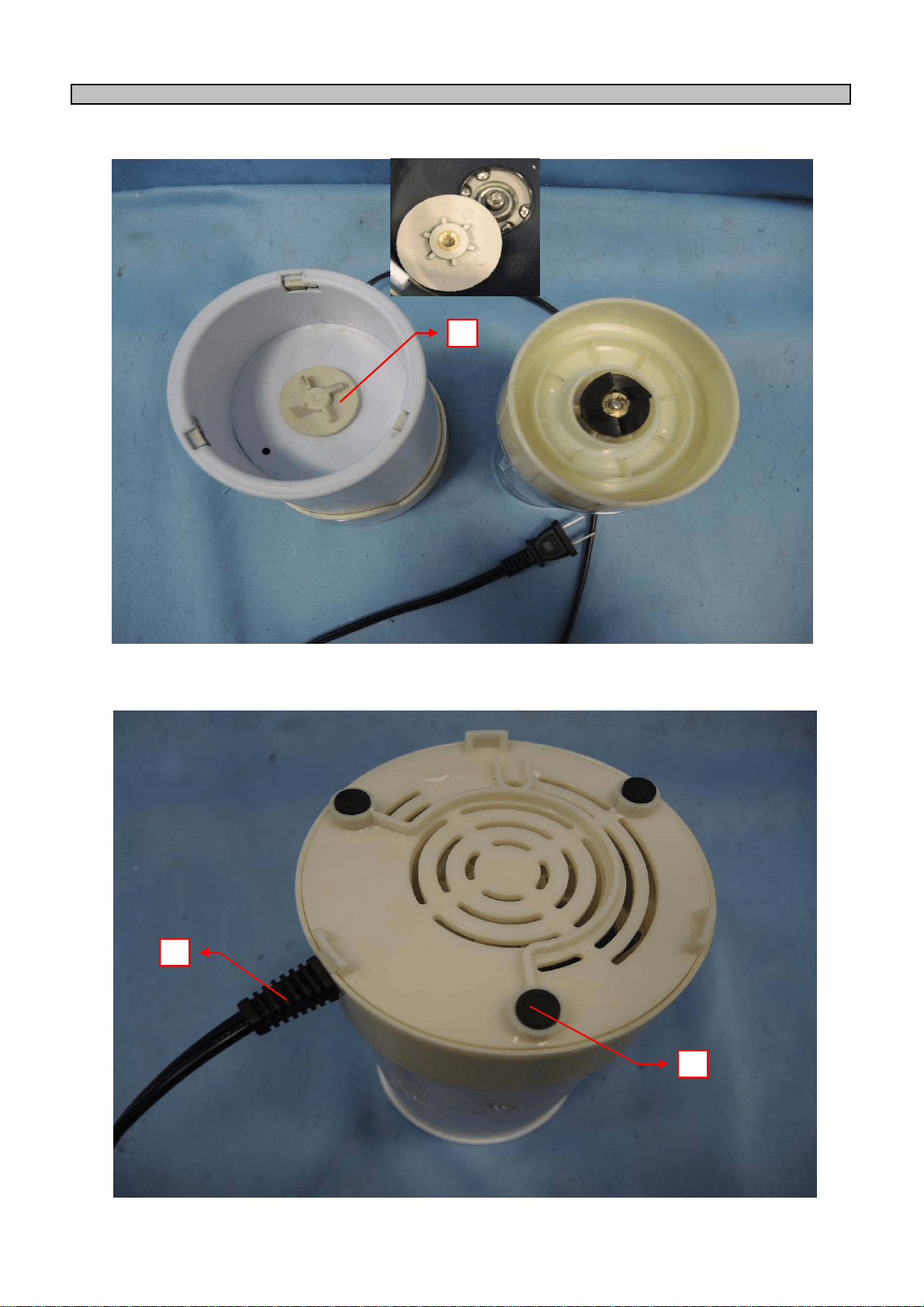

Photo 3 - External View of HB-1102
15
Photo 4 - Bottom View of HB-1102 and HB-1102
A
2
5
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 5 of 33
Issued: 8-Jan-2015
Revised: None
3.0 Product Photographs
Photo 5 - Internative View of HB-1102 and HB-1102
A
3
4
Photo 6 - Internative View of HB-1102
13
12
14
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 6 of 33
Issued: 8-Jan-2015
Revised: None
3.0 Product Photographs

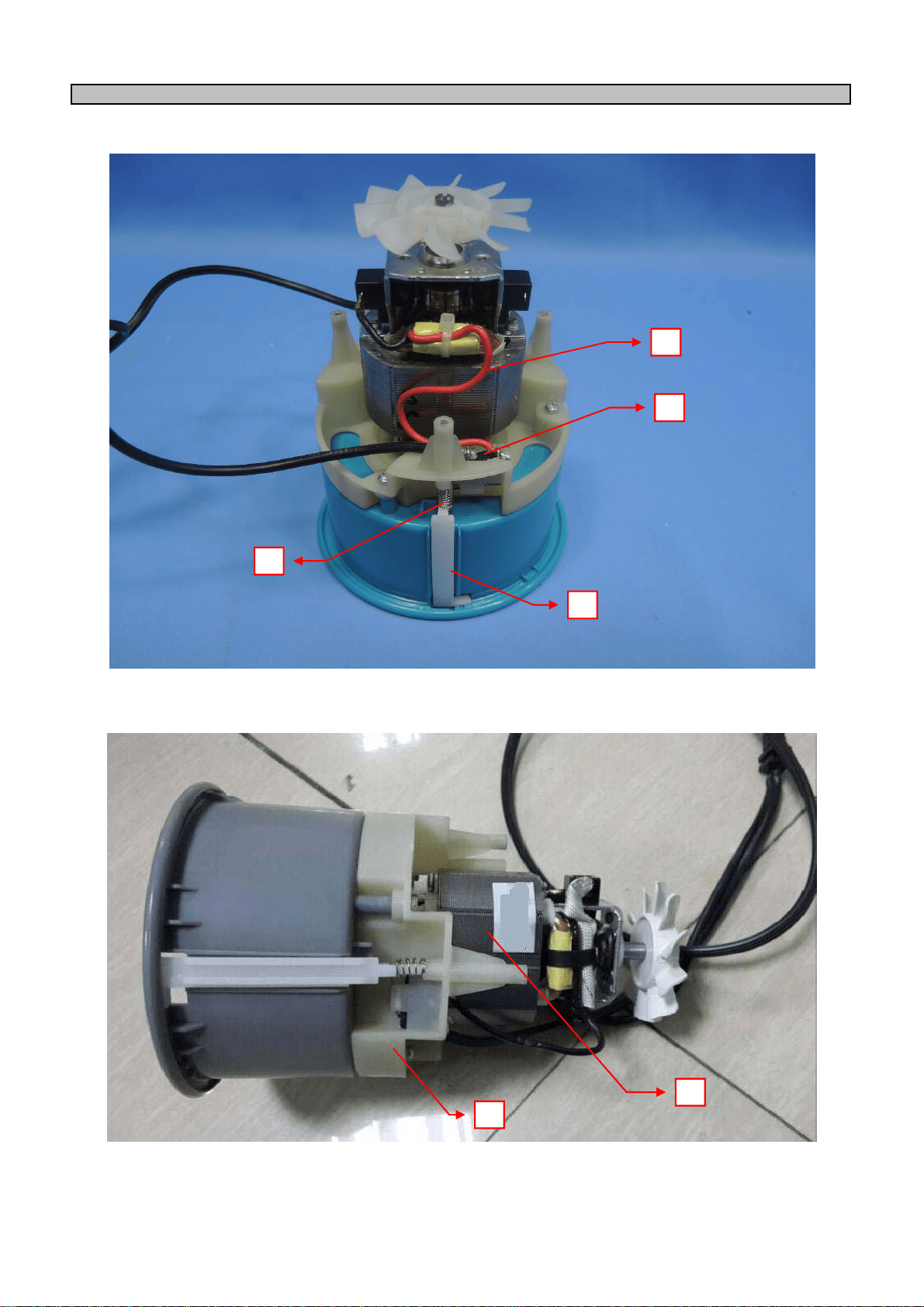

Photo 7 - Internative View of HB-1102 and HB-1102
A
6
7
8
9
Photo 8 - Internative View of HB-1102 and HB-1102
A
10
11
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 7 of 33
Issued: 8-Jan-2015
Revised: None
3.0 Product Photographs
Photo 9 - External View of HB-1102
A
Photo 10 - External view of HB-1103
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 8 of 33
Issued: 8-Jan-2015
Revised: None
3.0 Product Photographs
Photo 11 - Bottom view of HB-1103
Photo 12
-
Internal View of HB
-
1103
12
Internal
View
of
HB 1103
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 9 of 33
Issued: 8-Jan-2015
Revised: None
3.0 Product Photographs
Photo 13 - Extenal view of alternative outside
(
with plated Lower Enclosure
)
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 10 of 33
Issued: 8-Jan-2015
Revised: None
Photo #
Item
no.
1
Name
Manufacturer/
trademark
2
Type / model
2
Technical data and securement
means
Mark(s) of
conformity
3
1 1 Power Cord Set Various SPT-2
Rated 300 V, 105 ºC, VW-1, 18
AWG x 2C. Not less than 0.61 m
from cord entry to plug face,
flexible cord integrally molded on
a recognized 2-wire polarized type
1-15P plug.
cURus
4 2 Cord Bushing
KINGFA SCI &
TECH CO LTD
VSLOY-PM
Rated V-0, HWI=1, HAI=0, 95 ℃,
minimum 1.5 mm thick.
cURus
5 3 Cord Clamp
A SCHULMAN
PLASTICS
(DONGGUAN)
LTD
XP 31 R
PC material. Rated HB, 80 ℃,
minimum 1.5 mm thick.
cURus
5 4 Bottom Cover
HUIZHOU WOTE
ADVANCED
MATERIALS CO
LTD
2100-FR615
ABS material. Rated V-0, HWI=3,
HAI=1, CTI=1, 60 ℃, minimum
1.6 mm thick. Overall measured Ф
114 mm x 65 mm for HB-1102,
HB-1102A, measured Ф113 mm x
71 mm for HB-1103.
cURus
4 5 Foot Various Various
Rubber material. Rated HB
minimum, measured 10 mm in
diameter and 2 mm extended.
cURus
7 6 Internal Wire Various 1015
Rated 600 V, VW-1, 105 ℃,
minimum 22 AWG, servised as
motor leadin
g
wire.
cURus
GUANGZHOU
TAIHENG
ELECTRONIC &
ELECTRICAL CO
LTD
THW-3
Two provided. Rated 125 V, 5 A,
125 ℃. 6000 cycles endurance.
cURus
GUANGZHOU
QUANTAI
ELECTRIC CO
LTD
SMA-2
Two provided. Rated 125 V, 6 A,
85 ℃. 6000 cycles endurance.
cURus
YUEQING
DONGNAN
ELECTRONICS
CO LTD
KW4A
Two provided. Rated 125 V, 5 A,
85 ℃. 6000 cycles endurance.
cURus
7 8 Interlock Shaft
ASAHI-DUPONT
POM
(ZHANGJIAGANG
) CO LTD
3510
POM material. Rated HB, 90 ℃,
minimum 0.9 mm thick.
cURus
8 9 Spring Various Various
Steel Wire measured Ф0.5 mm.
Measured 15 mm long.
cURus
8 10 Motor
Sinsion
Technology
Industrial Co., Ltd.
SX54/30
Rated 120 V, 60 Hz, tested with
appliance.
See 5.0
8 11 Motor Bracket RTP CO
RTP PA66 30
GF FR0 BLK
PA6/6 material. Rated V-0, 105
℃, minimum 0.8 mm thick.
Overall measured Ф89.5 mm x
46.5 mm.
cURus
6 12 Lower Enclosure
HUIZHOU WOTE
ADVANCED
MATERIALS CO
LTD
2100-FR615
For HB-1102, HB-1102A only.
ABS material. Rated V-0, HWI=3,
HAI=1, CTI=1, 60 ℃, minimum
1.6 mm thick. Overall measured Ф
117.8 mm x 46.5 mm. May be
p
lated outside.
cURus
4.0 Critical Components
Interlock Switch77
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 11 of 33
Issued: 8-Jan-2015
Revised: None
Photo #
Item
no.
1
Name
Manufacturer/
trademark
2
Type / model
2
Technical data and securement
means
Mark(s) of
conformity
3
4.0 Critical Components
HUIZHOU WOTE
ADVANCED
MATERIALS CO
LTD
2100-FR615
For HB-1102 only. ABS material.
Rated V-0, HWI=3, HAI=1, CTI=1,
60 ℃, minimum 1.6 mm thick.
Overall measured Ф110 mm x Ф
98.5 mm x 121.5 mm.
cURus
Various Various
For HB-1103, HB-1102A only.
SUS201 material. Minimum 0.4
mm thick, overall measured Φ110
mm x Φ98.5 mm x 121.5 mm for
HB-1102 A, Φ113 mm x Φ99 mm
x 199 mm for HB-1103.
NR
6 14 Upper Enclosure
HUIZHOU WOTE
ADVANCED
MATERIALS CO
LTD
2100-FR615
ABS material. Rated V-0, HWI=3,
HAI=1, CTI=1, 60 ℃, minimum
1.6 mm thick. Overall measured Ф
103 mm x 61.5 mm.
cURus
3 15 Driving Coupler RTP CO
RTP PA66 30
GF FR0 BLK
PA6/6 material. Rated V-0, 105
℃, minimum 0.8 mm thick.
cURus
2 16 Cup
NINGBO LG
YONGXING
CHEMICAL CO
LTD
80HF
SAN material. Rated HB, 50 ℃,
minimum 1.5 mm thick. Overall
measured Ф86.5 mm x Ф68.5
mm x 157.5 mm long for blender,
measured Φ86.5 mm x Φ68.5 mm
x 102 mm long for coffee mill.
Both cups are marked max. line
on the side.
cURus
1 17 Cutter Base Various Various Consisted of following parts. cURus
1 17a Coupler Match
Dongguan AMG
Electronics Ltd
GTP-(X)
Silicone Rubber, rated V-0, 105
℃, minimum 0.5 mm thick.
cURus
1 17b Plastic Base RTP CO
RTP 20(o) FR
XC
Rated V-0, 105 ℃, minimum 0.75
mm thick. Measured Ф84.5 mm x
38.5 mm.
cURus
1 17c Shaft Various Various
SUS303 material. Measured Ф6.0
mm x 31.5 mm long.
NR
1 17d Blade Various Various
SUS301 material. Measured 1.0
mm thick.
NR
1 17e Shaft Seal Ring
3M CHINA CO
LTD
5516-ST
Silicone. Rated V-0, 105 ℃,
minimum 0.5 mm thick.
cURus
1 17f Cup Seal Ring
Dongguan AMG
Electronics Ltd
GTP-(X)
Silicone Rubber, rated V-0, 105
℃, minimum 0.5 mm thick.
cURus
418
Marking Label
(Not Shown)
Various Various
For ABS and stainless steel
surface. Rated min. 70 ℃.
cURus
13 Side Enclosure
3) Indicates specific marks to be verified, which assures the agreed level of surveillance for the component. "NR" - indicates Unlisted and
only visual examination is necessary. "See 5.0" indicates Unlisted components or assemblies to be evaluated periodically refer to section
5.0 for details.
1) Not all item numbers are indicated (called out) in the photos, as their location is obvious.
2) “Various“ means any type, from any manufacturer that complies with the "Technical data and securement means" and meets the "Mark(s)
of conformity" can be used.
NOTES:
6
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 12 of 33
Issued: 8-Jan-2015
Revised: None
Photo # Item no.
810
A
Motor
INSULATED COIL
Rated 250VAC, 5 A, Tf=130℃. Others same as
above.
P2-3A-F
Rated 250VAC, 3A, Tf=115℃. Enclosed by
impregnated fiberglass tubing, and wrap by
insulating tape,then tightly secured to the
stator winding by metal clamp.
AUPO
ELECTRONICS
LTD
120 V, 60 Hz, 240 W. Insulation class
5.0 Critical Unlisted CEC Components
Name Manufacturer/Trademark
Various
PA material, rated at least 105 °C, used for
binding the lead wires and thermal protector.
HB-77
Vulcanized fibre Industrial laminates. Rated HB,
110 ºC, minimum 0.71 mm thick.
Type / model
MATERIALS LIST (refer to illustration 4 for assembly drawing)
Component
Manufacturer Type/model Dimensions/thickness/assembly information
Sinsion Technology
Industrial Co., Ltd.
SX54/30
Component Standard used: Tested with appliance.
Electrical Rating:
Stator Magnet Wire
Consisted of Si steel sheets.Each sheet 0.5 mm
thick.
Rotor Lamination Various Various
Consisted of Si steel sheets. Each sheet 0.5
mm thick.
Stator Lamination Various Various
Rotor Magnet Wire
DONG GUAN
YIDA
INDUSTRIAL CO
LTD
1PEW
ANSI Type MW 5-C, Temperature Class: 155.
Ф0.25 mm, total 60 coils.
410
Aramid Insulating Paper, rated V-0, HWI=0,
HAI=0, CTI=3, 220°C, min. 0.254mm thick.
ANSI Type MW 79-C, Temperature Class: 155.
Ф0.43 mm, total 170 coils.
Various Various
Copper material. Overall 15 mm OD by 10
mm long. Consists of 10 segments, each 4.0
mm wide, insulated from motor shaft by
phenolic composition ring.
1022/(#)
PA material, Rated HB, HWI=0, HAI=0,
CTI=1, 105 °C. Minimum 1.5 mm thick.
DONGGUAN
SHENGJIA
ENAMELLED
WIRE CO LTD
2UEW
PANASONIC
CORPORATION
CN4610
Phenolic, rated V-0, HWI=0, HAI=0, CTI=2, 150
°C. Minimum 0.75 mm thickness.
Various
Slots Liner for Stator
and Rotor
E I DUPONT DE
NEMOURS & CO
INC
HOKUETSU
TOYO FIBRE CO
LTD
Cable Tie
Solvay Specialty
Polymers USA L L
C
Thermal Protector
Insulated Tubing Various Various
AUPO
ELECTRONICS
LTD
P4-5A-F
Impregnated fiberglass sleeving.
Cable Tie Various Various
Rated 105℃minimum, VW-1.
Insulating Tape Various Various
Rated min.130℃.
Fan Blade Various Various
PA66 material. Rated HB minimum, 105 °C
minimum, Min. 0.8 mm thick, with 10 blades,
tightly secured to the shaft of the motor.
Commutator
Spider of Rotor
Wedge
Commutator Holder
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 13 of 33
Issued: 8-Jan-2015
Revised: None
5.0 Critical Unlisted CEC Components
170 / /
60 / /
Frequency:
Annual 1
Brush Holder
SHANGHAI
EUROPEANASIA
N SYNTHETIC
MATERIAL CO
LTD
EA-7501J
Two provided, Melamine / Phenolic Compound,
rated V-0, HWI=0, HAI=0, CTI=0, 150°C.
Minimum 0.8mm thickness.
WINDING(S) RESISTANCE
Winding
Designation
Wire Size
(
A
WG or mm
2
)
Wire Type Turns Volts Amps
DC resistance
(Ω) +/- 10%:
Test Name Test Parameters
Stator Magnet Wire Ф0.43 mm Cu wire 2.6
Rotor Magnet Wire Ф0.25 mm Cu wire 7.0
Dielectric Strength
Apply voltage Between Test Voltage Test Time
Primary to core 1000 60
Winding resistance See resistance per winding above.
VERIFICATION PROCESS
Test Site:
CEC
Number of samples to test:
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 14 of 33
Issued: 8-Jan-2015
Revised: None
2. Mechanical Assembly - Components such as switches, fuseholders, connectors, wiring terminals and display
lamps are mounted and prevented from shifting or rotating by the use of lockwashers, starwashers, or other
mounting format that prevents turning of the component.
3. Corrosion Protection
- All ferrous metal parts are protected against corrosion by painting, plating or the
equivalent.
4. Accessibility of Live Parts
- All uninsulated live parts in primary circuitry are housed within a metal or non-
metallic enclosure constructed with no openings other than those specifically described in Sections 4 and 5.
5. Polarized Connection
- This product is provided with a polarized power supply connection. All single pole
switches and fuses are connected only to the ungrounded supply circuit conductor.
6. Internal Wiring
- Internal wiring is routed away from sharp or moving parts. Internal wiring leads terminating
in soldered connections are made mechanically secure prior to soldering. Recognized Component
separable (quick disconnect) connectors of the positive detent type, closed loop connectors, or other types
specifically described in the text of this report are also acceptable as internal wiring terminals. At points
where internal wiring passes through metal walls or partitions, the wiring insulation is protected against
abrasion or damage by plastic bushings or grommets.
7. Marking
- The product is marked on a component labeling system as follows:
- manufacturer’s name, trade name
- model number
- date of manufacture
- electrical ratings (volts, power & frequency)
- refer to Marking 1 for details.
8. Installation, Operating and Safety Instructions
- Instructions for installation and use of this product are
provided by the manufacturer. Upper case and lower case letters shall not be less than 2.0 mm and 1.6 mm
in height respectively. The phrases “IMPORTANT SAFEGUARDS” and “SAVE THESE INSTRUCTIONS”
shall be in letters not less than 4.8 mm in height. (Refer to Illustration 2 for details.)
9. Carton Markings
- The following are required:
-The “HOUSEHOLD USE ONLY” or “HOUSEHOLD TYPE” must be located on at least one outside
surface.
-Appear in lettering not less than the height as specified:
The dimension of the carton panel (mm) Minimum height of lettering (mm)
0~152 3.2
152~254 4.8
more than 254 6.4
Critical Features/Components
- An essential part, material, subassembly, system, software, or accessory of a
product that has a direct bearing on the product’s conformance to applicable requirements of the product
standard.
Construction Details
- For specific construction details, reference should be made to the photographs and
descriptions. All dimensions are approximate unless specified as exact or within a tolerance. In addition to the
specific construction details described in this Report, the following general requirements also apply.
Recognized Component
- A component part, which has been previously evaluated by an accredited certification
body with restrictions and must be evaluated as part of the basic product considering the restrictions as specified
by the Conditions of Acceptability.
6.0 Critical Features
Unlisted Component
- A part that has not been previously evaluated to the appropriate designated component
standard. It may also be a Listed or Recognized component that is being used outside of its evaluated Listing or
component recognition.
1. Spacing
- In primary circuits, 1.6 mm minimum spacing are maintained through air and over surfaces of
insulating material between current-carrying parts of opposite polarity and 1.6 mm minimum between such
current-carrying parts and dead-metal parts or low voltage isolated circuits.
Listed Component
- A component part, which has been previously Listed or Certified by an accredited
Certification Organization with no restrictions and is used in the intended application within its ratings.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 15 of 33
Issued: 8-Jan-2015
Revised: None
Illustration 1 - Markin
g
7.0 Illustrations
Note:
1) “CAUTION: DO NOT IMMERSE IN WATER”, “FOR HOUSEHOLD USE ONLY”, “READ ALL
INSTRUCTIONS BEFORE USING” and their equivalent French shall be not less than 2.4 mm high in letters.
2) “NEVER PLACE BLADE ASSEMBLY ON BASE UNLESS ASSEMBLED TO JAR” and its equivalent
French shall be not less than 2.4 mm high in letters.
3) The ETL logo shall not be less than 8 mm in width and 8 mm in height, and the “C” and “US” shall not be
less than 2 mm in height. "Intertek" shall not be less than 3 mm in height. "CONFORMS TO UL STD. 982",
"CERTIFIED TO CSA STD. C22.2 No. 1335.1 & 1335.2.14" and the control no. "4008084" and the letter
height shall not be less than 2 mm in height.
4) Date Code “YYWW”, "YY" means year , "WW" means week.
5) For "ITEM#" on the marking label, "X" may be 0-9.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 16 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations
Illustration 1a - Markin
g
Note:
1) “CAUTION: DO NOT IMMERSE IN WATER”, “FOR HOUSEHOLD USE ONLY”, “READ ALL
INSTRUCTIONS BEFORE USING” and their equivalent French shall be not less than 2.4 mm high in letters.
2) “NEVER PLACE BLADE ASSEMBLY ON BASE UNLESS ASSEMBLED TO JAR” and its equivalent
French shall be not less than 2.4 mm high in letters.
3) The ETL logo shall not be less than 8 mm in width and 8 mm in height, and the “C” and “US” shall not be
less than 2 mm in height. "Intertek" shall not be less than 3 mm in height. "CONFORMS TO UL STD. 982",
"CERTIFIED TO CSA STD. C22.2 No. 1335.1 & 1335.2.14" and the control no. "4008084" and the letter
height shall not be less than 2 mm in height.
4) Date Code “YYWW”, "YY" means year , "WW" means week.
5) For "ITEM#" on the marking label, "X" may be 0-9.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 17 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations
Illustration 1b - Markin
g
Note:
1) “CAUTION: DO NOT IMMERSE IN WATER”, “FOR HOUSEHOLD USE ONLY”, “READ ALL
INSTRUCTIONS BEFORE USING” and their equivalent French shall be not less than 2.4 mm high in letters.
2) “NEVER PLACE BLADE ASSEMBLY ON BASE UNLESS ASSEMBLED TO JAR” and its equivalent
French shall be not less than 2.4 mm high in letters.
3) The ETL logo shall not be less than 8 mm in width and 8 mm in height, and the “C” and “US” shall not be
less than 2 mm in height. "Intertek" shall not be less than 3 mm in height. "CONFORMS TO UL STD. 982",
"CERTIFIED TO CSA STD. C22.2 No. 1335.1 & 1335.2.14" and the control no. "4008084" and the letter
height shall not be less than 2 mm in height.
4) Date Code “YYWW”, "YY" means year , "WW" means week.
5) For "ITEM#" on the marking label, "X" may be 0-9.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 18 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations

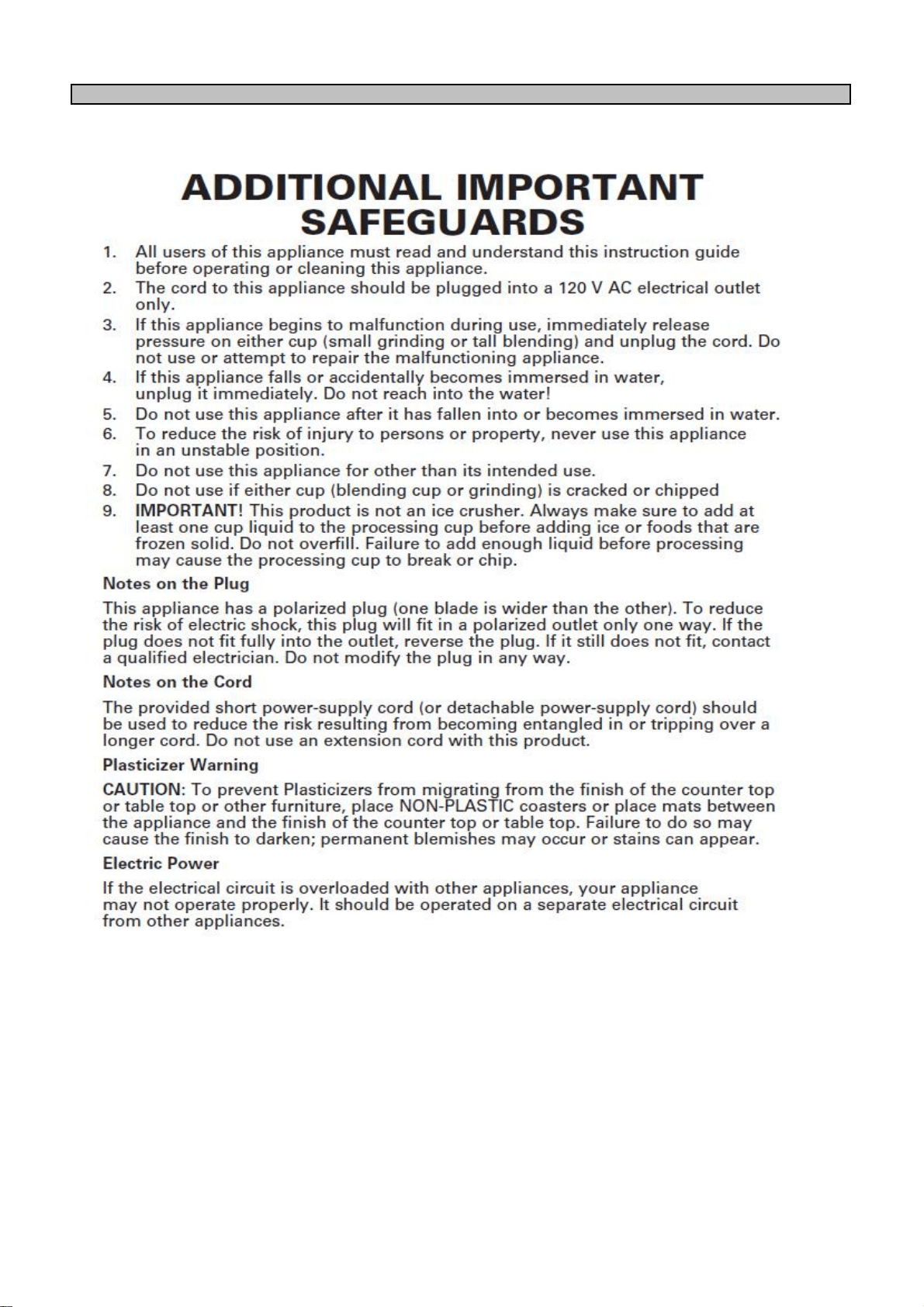

Illustration 2 - Instruction Manual
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 19 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations

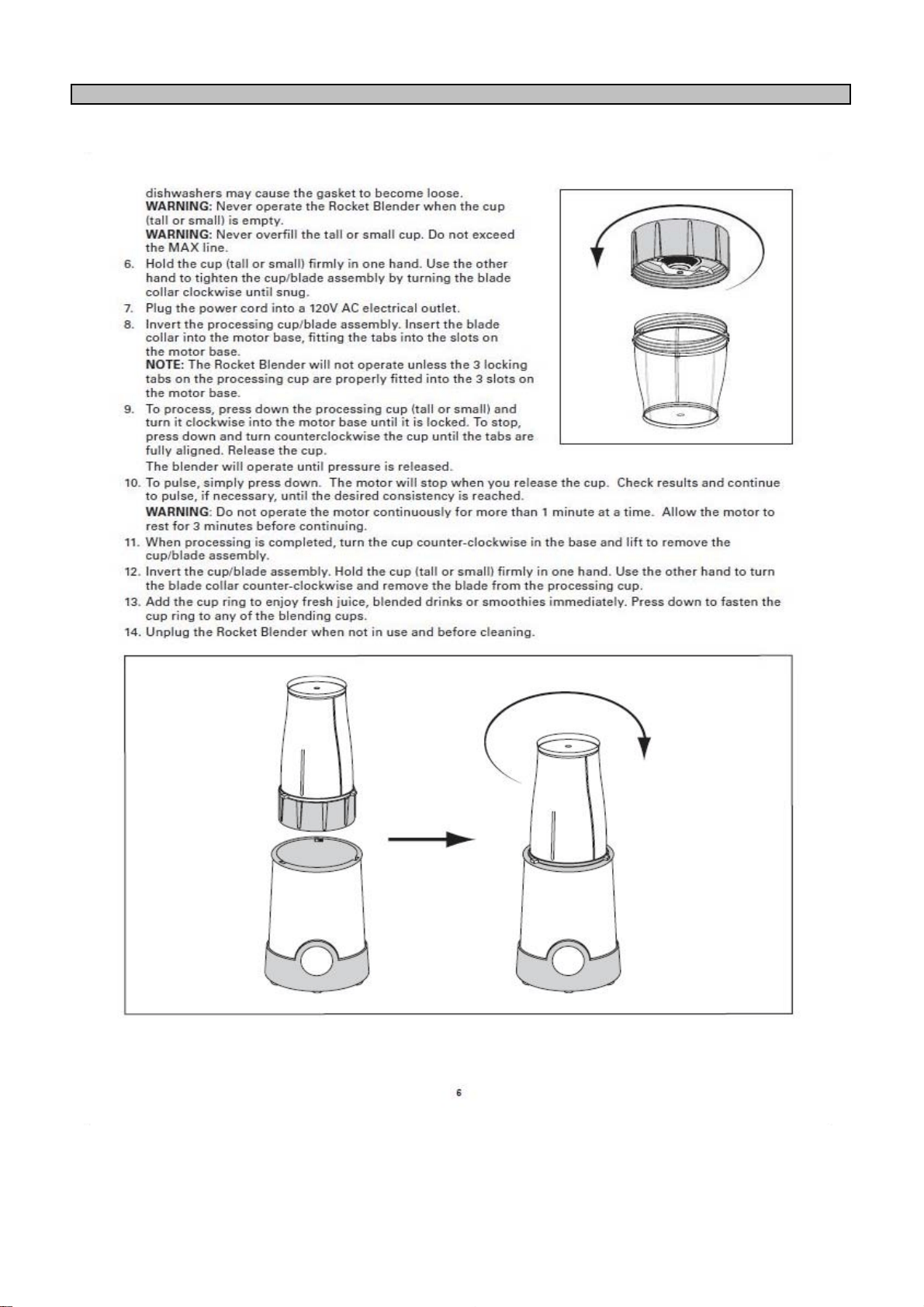

Illustration 2a - Instruction Manual
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 20 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations
Illustration 2b - Instruction Manual
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 21 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations
Illustration 2c - Instruction Manual
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 22 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations
Illustration 2d - Instruction Manual
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 23 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations

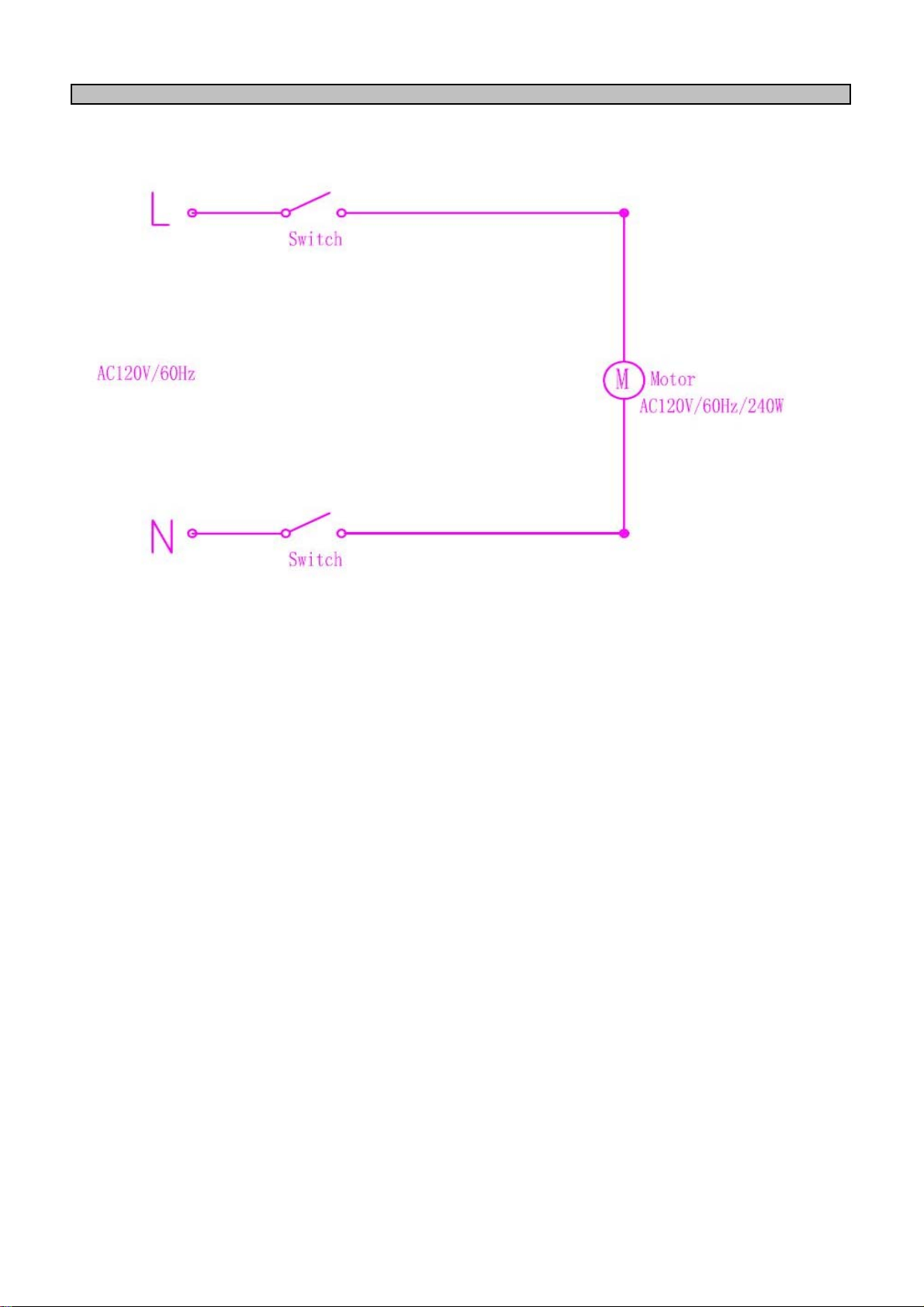

Illustration 3 - Circuit Dia
g
ram
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 24 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations
Illustration 4 - Drawin
g
of Moto
r
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 25 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations
Illustration 5 - Drawin
g
of Blade
For Blender
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 26 of 33
Issued: 8-Jan-2015
Revised: None
7.0 Illustrations

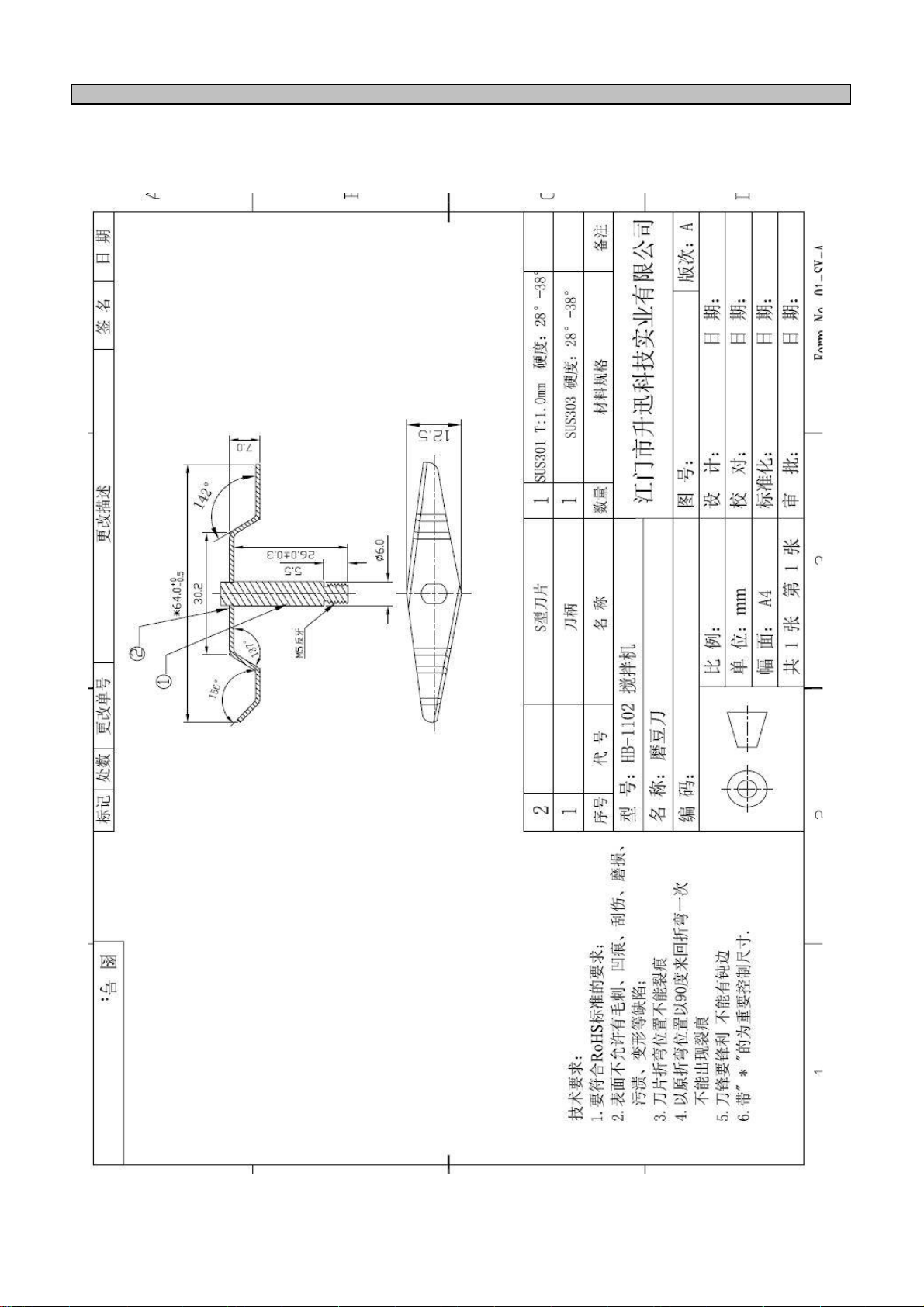

Illustration 5a - Drawin
g
of Blade
For Coffee Mill
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 28 of 33
Issued: 8-Jan-2015
Revised: None
BASIC LISTEE
Address
Country
Product
MULTIPLE LISTEE 1
Address
Country
Brand Name
ASSOCIATED
MANUFACTURER
Address
Country
BASIC LISTEE MODELS
MULTIPLE LISTEE 2
Address
Country
Brand Name
ASSOCIATED
MANUFACTURER
Address
Country
BASIC LISTEE MODELS
MULTIPLE LISTEE 3
Address
Country
Brand Name
ASSOCIATED
MANUFACTURER
Address
Country
BASIC LISTEE MODELS
None
9.0 Correlation Page For Multiple Listings
The following products, which are identical to those identified in this report except for model number and Listee
name, are authorized to bear the ETL label under provisions of the Intertek Multiple Listing Program.
Sinsion Technology Industrial Co., Ltd
No. 11, Tongle Rd., Tangxia town, Pengjiang Qu, Jiangmen, Guangdong, China
China
ROCKET BLENDER
MULTIPLE LISTEE 1 MODELS
MULTIPLE LISTEE 2 MODELS
None
MULTIPLE LISTEE 3 MODELS
None
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 29 of 33
Issued: 8-Jan-2015
Revised: None
10.0 General Information
The Applicant and Manufacturer have agreed to produce, test and label ETL Listed products in accordance with
the requirements of this Report. The Manufacturer has also agreed to notify Intertek and to request authorization
prior to using alternate parts, components or materials.
COMPONENTS
Components used shall be those itemized in this Intertek report covering the product, including any amendments
and/or revisions.
LISTING MARK
The ETL Listing mark applied to the products shall either be separable in form, such as labels purchased from
Intertek, or on a product nameplate or other media only as specifically authorized by Intertek. Use of the mark is
subject to the control of Intertek.
The mark must include the following four items:
1) applicable country identifiers "US" and/or "C" or "US", "C" and "EU"
2) the word "Listed" or "Classified" or "Recognized Component" (whichever is appropriate)
3) a control number issued by Intertek
4) a product descriptor that identifies the standards used for certification. Example:
For US standards, the words, “Conforms to” shall appear with the standard number along with the word, “
Standard” or “Std.” Example: “Conforms to ANSI/UL Std. XX.”
For Canadian standards, the words “Certified to CAN/CSA Standard CXX No. XX.” shall be used, or
abbreviated, “Cert. to CAN/CSA Std. CXX No. XX.”
Can be used together when both standards are used.
Note: A facsimile must be submitted to Intertek, Attn: Follow-up Services for approval prior to use.
The facsimile need not have a control number. A control number will be issued after signed Certification
Agreements have been received by the Follow-up Services office, approval of the facsimile of your
proposed Listing Mark, satisfactory completion of the Listing Report, and scheduling of a factory
assessment in your facility.
MANUFACTURING AND PRODUCTION TESTS
Manufacturing and Production Tests shall be performed as required in this Report.
FOLLOW‑UP SERVICE
Periodic unannounced audits of the manufacturing facility (and any locations authorized to apply the mark) shall
be scheduled by Intertek. An audit report shall be issued after each visit. Special attention will be given to the
following:
1. Conformance of the manufactured product to the descriptions in this Report.
2. Conformance of the use of the ETL mark with the requirements of this Report and the Certification Agreement.
3. Manufacturing changes.
4. Performance of specified Manufacturing and Production Tests.
In the event that the Intertek representative identifies non-conformance(s) to any provision of this Report, the
Applicant shall take one or more of the following actions:
1. Correct the non-conformance.
2. Remove the ETL Mark from non-conforming product.
3. Contact the issuing product safety evaluation center for instructions.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 30 of 33
Issued: 8-Jan-2015
Revised: None
10.1 Evaluation of Unlisted Components
Note to Intertek Follow Up Inspector: The Component Evaluation Center, CEC, will notify you in writing
when these com
p
onents must be selected and sent to the CEC for re-evaluation
Ship the samples to:
Intertek Testing Services Shenzhen Limited Guangzhou Branch
ETL Component Evaluation Center
Block E, No. 7-2 Guang Dong Software Science Park, Caipin Road, Guangzhou Science
City
CETDD Guangzhou, China.
Attn: Ms. Joey Kuang
Sample Disposition: Due to the destructive nature of the testing, all samples will be
discarded at the conclusion of testing unless, the manufacturer specifically requests the
return of the samples. The request for return must accompany the initial component
shipment.
Because Unlisted Components are uncontrolled, and they do not fall under a third party follow up program,
Intertek may require these components to be tested and/or evaluated at least once annually, more often for
certain components, as part of the independent certification process. The Unlisted Components in Section 5.0
require testing and/or evaluation as indicated.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 31 of 33
Issued: 8-Jan-2015
Revised: None
Product Test Volta
g
e Test Time
All products covered by this Report. 1000V 60 s
or
1240V 1 s
The test equipment shall incorporate a voltmeter in the output circuit to indicate directly the applied test potential
if the rated output of the test equipment is less than 500VA.
If the rated output of the test equipment is 500VA or more, the applied test potential may be indicated by either:
1 - a voltmeter in the primary circuit;
2 - a selector switch marked to indicate the test potential; or
3 - a marking in a readily visible location to indicate the test potential for test equipment having a single test
potential output.
In cases 2 and 3, the test equipment shall include a lamp or other visual means to indicate that the test potential
is present at the test equipment output. All test equipment shall be maintained in current calibration.
The test shall be conducted on products, which are fully assembled. Prior to applying the test potential, all
switches, contractors, relays, etc., should be closed so that all primary circuits are energized by the test potential.
If all primary circuits cannot be tested at one time, then separate applications of the test potential shall be made.
The test voltage specified below shall be applied between primary circuits and accessible dead-metal parts. The
test voltage may be gradually increased to the specified value but must be maintained at the specified value for
one second or one minute as required.
Test Equipment
11.1 Dielectric Voltage Withstand Test
Method
One hundred percent of production of the products covered by this Report shall be subjected to a routine
production line dielectric withstand test.
Products Requiring Dielectric Voltage Withstand Test:
The test equipment shall incorporate a transformer with an essentially sinusoidal output, a means to indicate the
applied test potential, and an audible and/or visual indicator of dielectric breakdown.
- Dielectric Voltage Withstand Test
- Polarization Test
11.0 Manufacturing and Production Tests
The manufacturer agrees to conduct the following Manufacturing and Production Tests as specified:
Required Tests
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 32 of 33
Issued: 8-Jan-2015
Revised: None
Products Requiring Polarization Test:
All products covered by this Report.
11.2 Polarization Test
Method
As a routine production-line verification, each cord-connected appliance provided with a 2-wire polarized plug,
shall be examined or tested for electrical continuity between the ungrounded circuit supply conductor of the
attachment plug (narrow blade) and all components intended to be connected to the ungrounded conductor. If
the continuity cannot be readily determined by visual inspection and component checking, an electrical continuity
test is to be conducted.
a) The switch, if employed and
b) The thermal protect device, if employed
Any indicating device such as ohmmeter, a battery-and-buzzer combination, or the like, shall be used to
determine compliance with the continuity requirements mentioned above.
ED 16.3.15 (1-Jan-13) Mandatory
Report No. 141015030GZU-001
Sinsion Technology Industrial Co., Ltd
Page 33 of 33
Issued: 8-Jan-2015
Revised: None
Date/ Project Handler/
Proj # Site ID Reviewer
None
12.0 Revision Summary
The following changes are in compliance with the declaration of Section 8.1:
Section Item Description of Change
ED 16.3.15 (1-Jan-13) Mandatory
