READ IT OR WATCH IT
Read instructions or watch easy-to-follow video.
Scan QR code or visit bit.ly/2PRGkhw
45739
PREMIUM RECESSABLE
LED PUCK LIGHTS
EXPANSION PACK

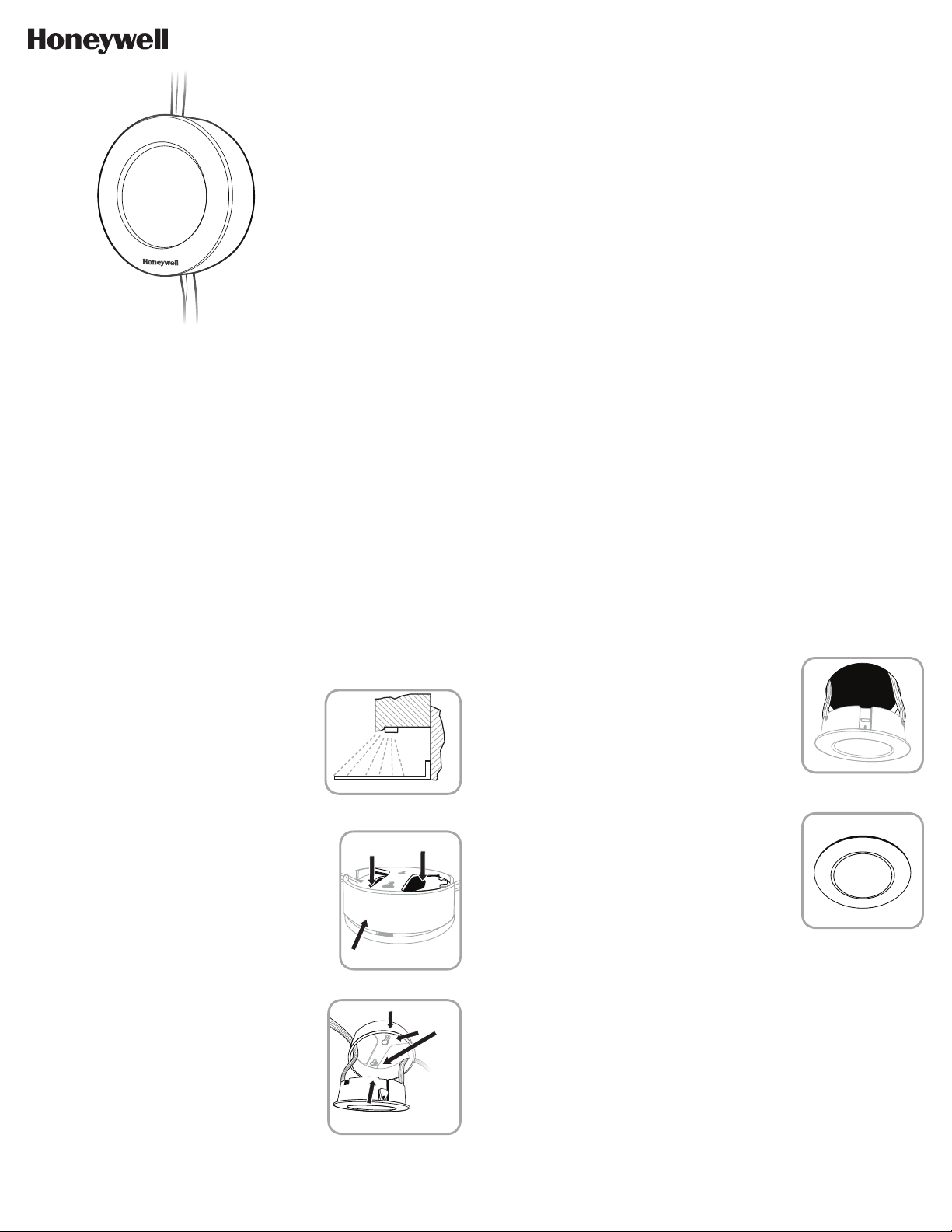

FIGURE 1
FIGURE 3
CABINET
COUNTER TOP
WALL
FIGURE 2
SAVE THESE INSTRUCTIONS FOR POSSIBLE FUTURE USE.
EXPANSION 1 PACK ONLY
This Honeywell Premium Linkable Recess Mountable LED Expansion 1 Pack is only intended to
allow you to add an additional puck to an existing string of previously installed Honeywell
Premium Recessable LED Puck Lights. See compatible products below:
45744 – Honeywell Premium Recessable LED Puck Lights – 3 Pack
45745 – Honeywell Premium Recessable LED Puck Lights – 5 Pack
INSTALLATION INSTRUCTIONS
Carefully plan out your installation prior to securing your lights to the mounting surface or drilling
any holes for recessed mounting. Be sure to consider distances to make sure LED puck lights will
interconnect via linking cords to previously installed LED puck lights.
For kitchen installations, the recommended mounting for LED puck lights is near the front lip of
your kitchen under cabinets as shown in Figure 1. This provides the best light distribution across
a countertop.
PUSH ON BACK OF PUCK
GRASP TRIM RING
TRIM RING
MOUNTING
SCREWS
PUSH
PUCK INTO
MOUNTED
TRIM RING
FIGURE 4
1. DO NOT ATTEMPT TO ATTACH ADDITIONAL LED PUCK
LIGHTS TO YOUR EXISTING SYSTEM WITHOUT
UNPLUGGING THE POWER SUPPLY CORD FROM THE
ELECTRICAL OUTLET OR DISCONNECTING THE
ELECTRICITY AT THE ELECTRICAL POWER PANEL.
2. DO NOT exceed a maximum of 40 LED puck lights in
a chain.
3. Select a suitable dry mounting location (indoor only).
Make sure mounting surface is capable of supporting
the LED puck light.
4. Locate position where the puck will be mounted.
(Keep in mind length of linking cords.)
5. Remove trim ring by firmly grasping ring and then firmly
pushing on back side of puck as shown in Figure 2.
6. For recessed mount applications, skip to Step 14. For
surface mount applications, continue with Steps 713.
7. Using the trim ring as a template, mark the locations of
the mounting holes on the mounting surface. Be sure to
orient the trim ring openings for routing linking cords.
8. Pre-drill holes in the mounting surface with a 1/16in.
(1.5mm) drill bit for soft woods and 3/32in. (2.4mm) drill
bit for hard woods.
9. Secure the trim ring with the mounting screws (included),
keeping the power cables threaded through trim ring
openings.
10. Secure the puck in the trim ring by firmly pushing the
puck into the trim ring while feeding the power cords
through the trim ring openings until the puck snaps into
place. See Figure 3.
11. Once installed, attach the linking cord between the initial
LED puck (previously installed) and the new LED puck.
12. Plug power cord plug into a 120VAC 60Hz outlet.
13. Surface mount installation is complete.
14. For Recessed Mount Applications: Discard the trim ring.
It will not be needed in recessed mount applications.
15. Mark the locations of the puck lights on the mounting
surface with a pencil. Before you drill, be sure to consider
distances to make sure pucks will interconnect via linking
cables.
16. Using a power drill and 2 ½in. hole saw, drill mounting
holes for the LED puck lights.
17. Route cords of LED puck lights through the holes
(see Figure 4) and press puck light into mounting hole
until fully seated (see Figure 5).
18. Once installed, attach the linking cord between the
previously installed LED puck light and the newly
installed LED puck light.
19. Plug the molded plug of the power supply cord back into
a 120 VAC 60Hz electrical outlet or restore electricity at
the electrical power panel.
20. Recessed mount installation is complete.
DIMMABLE FUNCTIONALITY
1. For use of dimming function, please purchase the
Honeywell-branded under cabinet fixture junction box,
part number 32612, and follow installation instructions
to hardwire your LED pucks.
2. Select a compatible LED dimmer.
3. Follow dimmer setup instructions for optimal
performance.
4. Compatible with the following In-wall Dimmers:
GE: ZWave Plus 14295, WiFi 40794
Legrand: WSCL450TCCCV4, RHCL453PTCCCV6,
WSCL453PTCCCV4
Lutron: LECL153PH, MACL153MLH
Leviton: CDR610667412A, R01DSL061TW,
CDR00RNL0612B, CDR620667412A,
CDC220667212A
CLEANING INSTRUCTIONS
Your fixture is made from quality materials that will last for many
years with minimum care. When cleaning, make sure you have
unplugged your fixture and have allowed sufficient time for the
unit to cool to room temperature. You should clean the housing
and lens using a soft, dry cloth. Do not use any liquid or harsh
abrasives to clean LED puck lights.
FIGURE 5
