PG-D210U
LCD PROJECTOR
PROJECTEUR LCD
PROYECTOR LCD
OPERATION MANUAL
MODE D’EMPLOI
MANUAL DE OPERACION
ENGLISH E
FRANÇAIS F
ESPAÑOL
ES
Contents E
• Important Information ................................................................... 1
• Important Safeguards................................................................... 2
• Cautions Concerning the Laser Pointer........................................3
• Notes on Operation ...................................................................... 4
• Outstanding Features................................................................... 4
• Location of Controls ..................................................................... 5

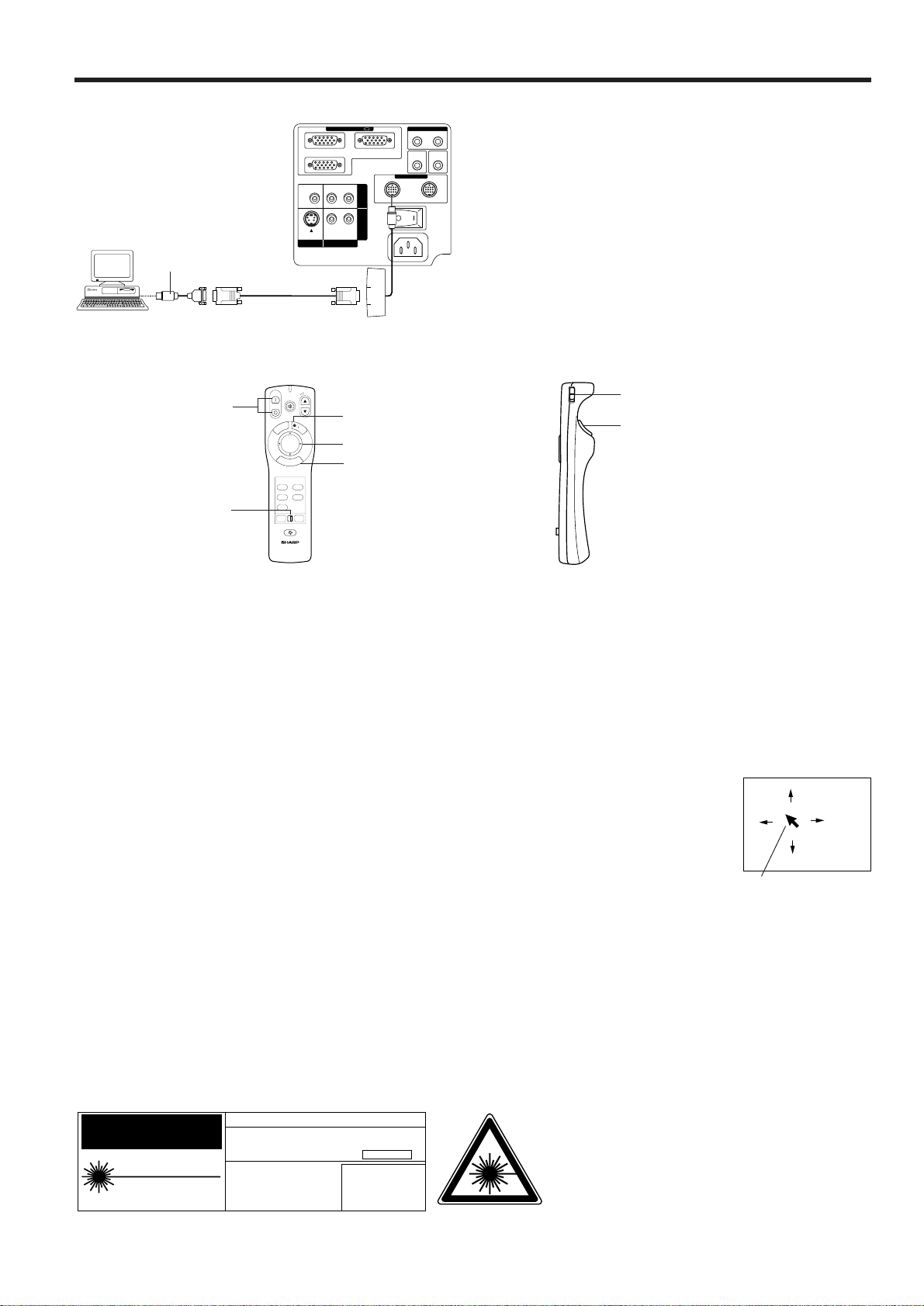

• Operating the Wireless Mouse Remote Control .......................... 6
• Wireless Mouse Functions ...........................................................8

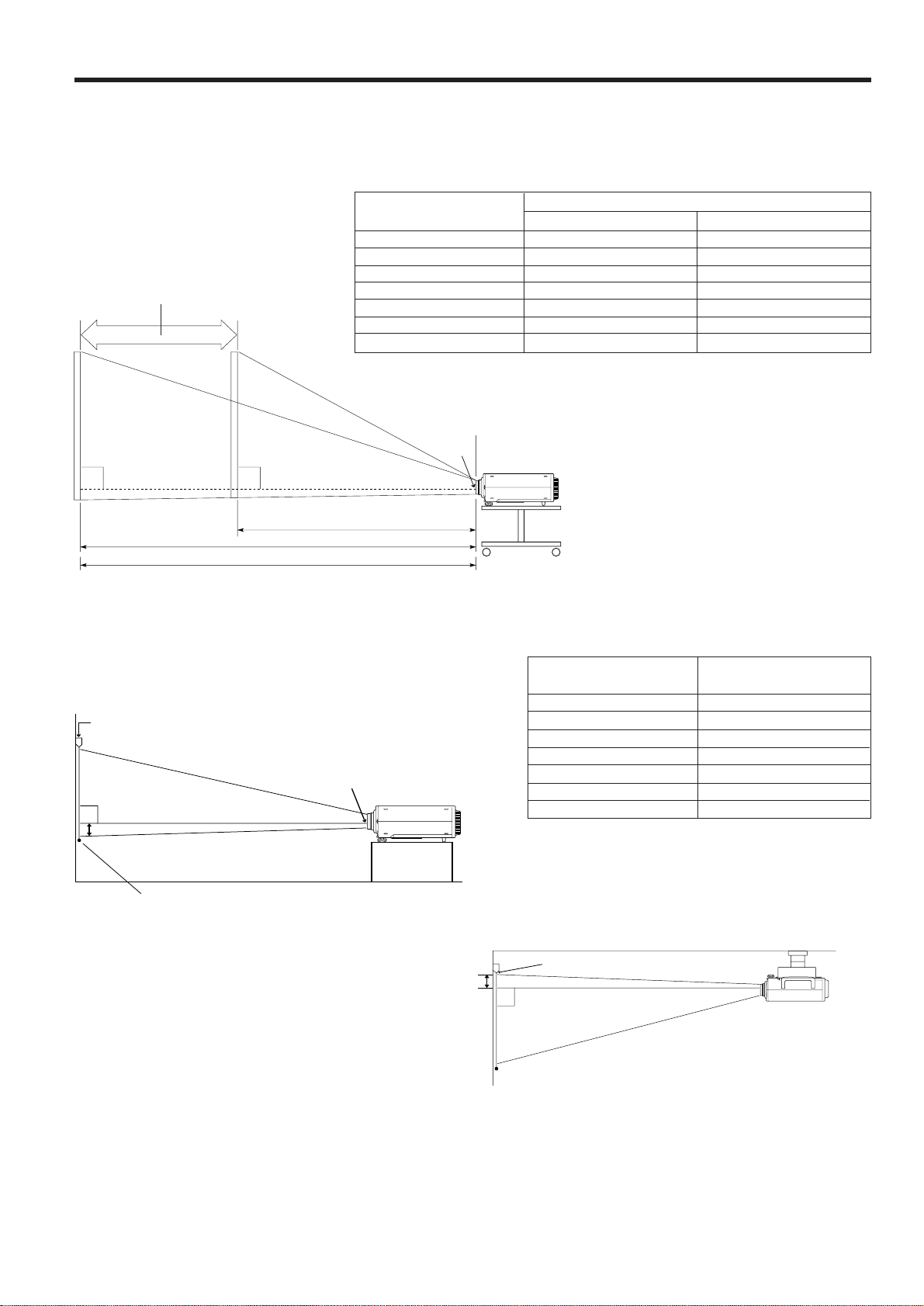

• Setting Up the Projector ............................................................... 9

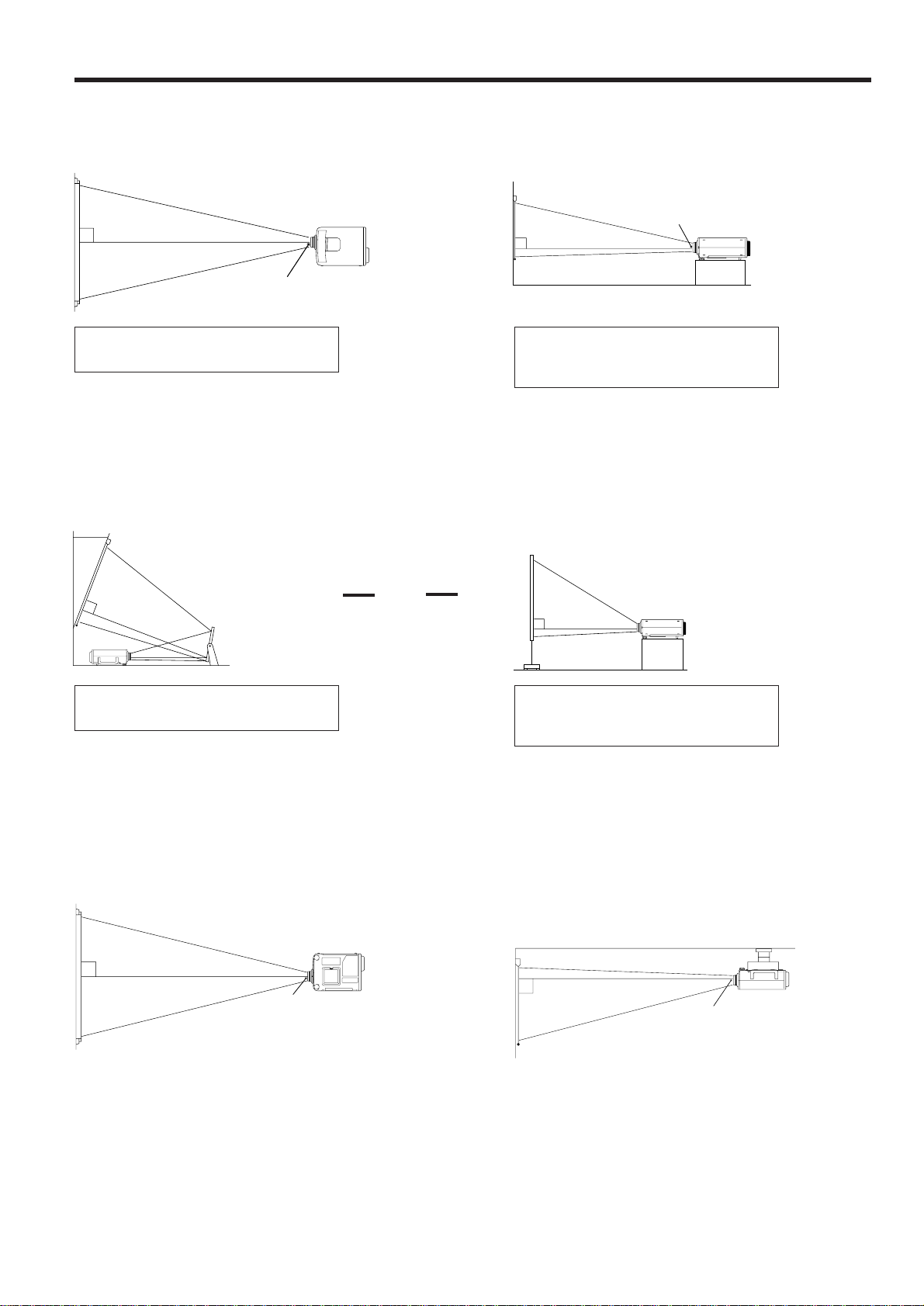

• Using the Image Invert/Reverse Function ..................................11
• Connecting the Projector (VIDEO 1, VIDEO 2) ......................... 14

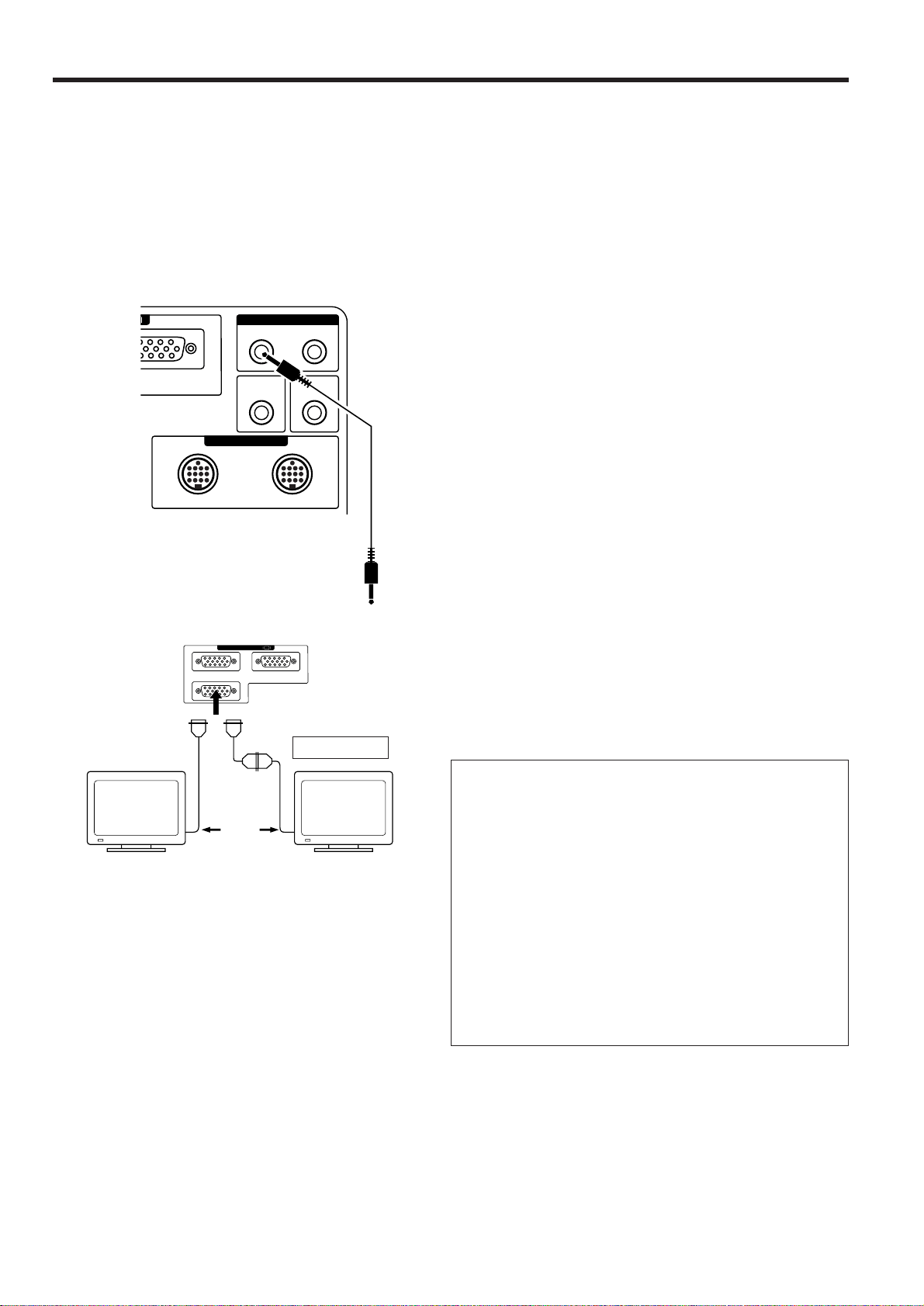

• Connecting the Projector (RGB 1, 2: Computer) ....................... 15
• Input Signals (Recommended Timing) .......................................18
• RGB Adjustment Controls .......................................................... 19
• Basic Operation of the Projector ................................................ 21
• Adjusting the Picture .................................................................. 24
• Adjusting the Audio .................................................................... 25
• Functions on the Projector ......................................................... 26
• Air Filter Maintenance ................................................................ 29
• Lamp/Maintenance Indicators ....................................................30
• Before Calling for Service........................................................... 30

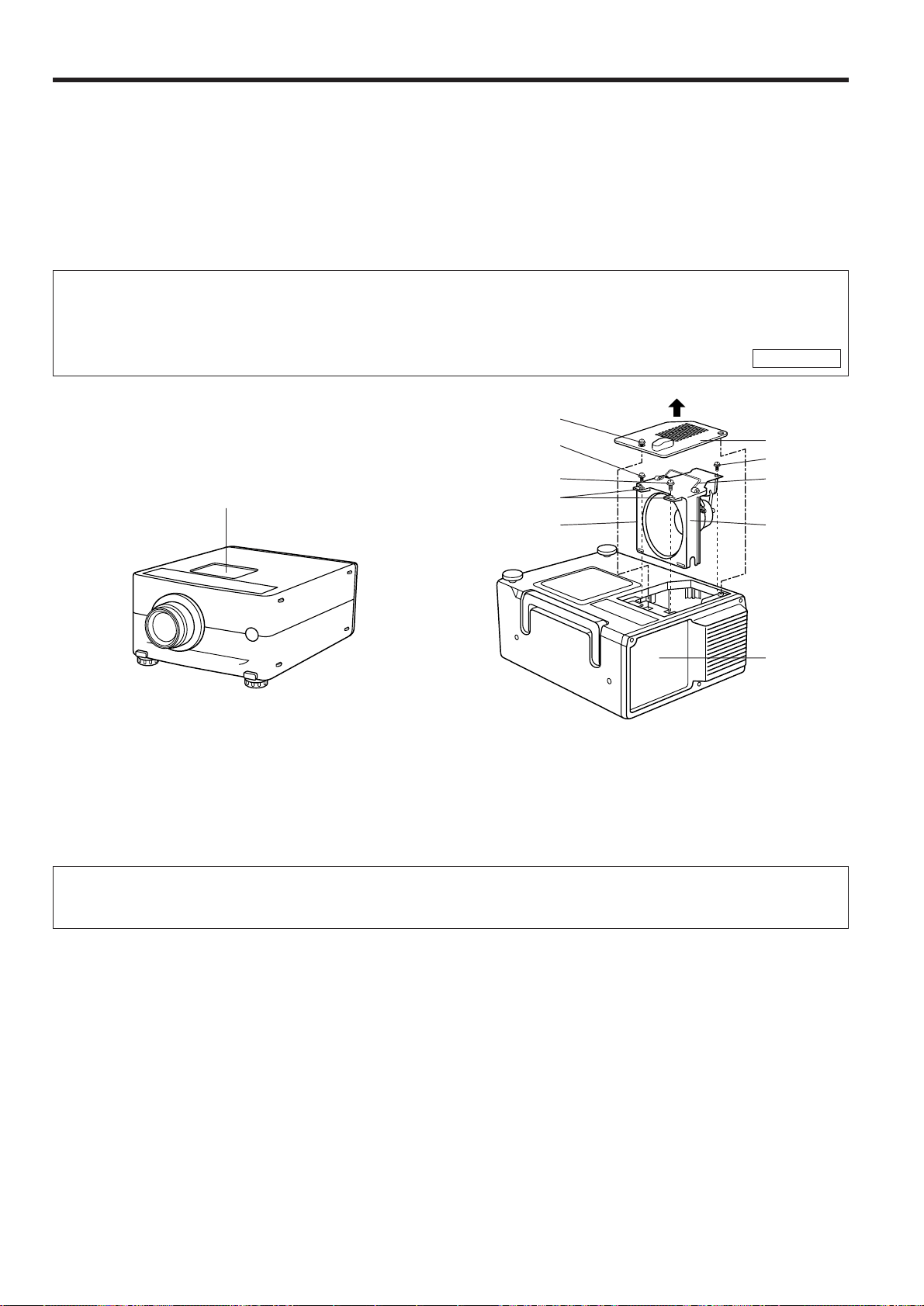

• Lamp Replacement .................................................................... 31

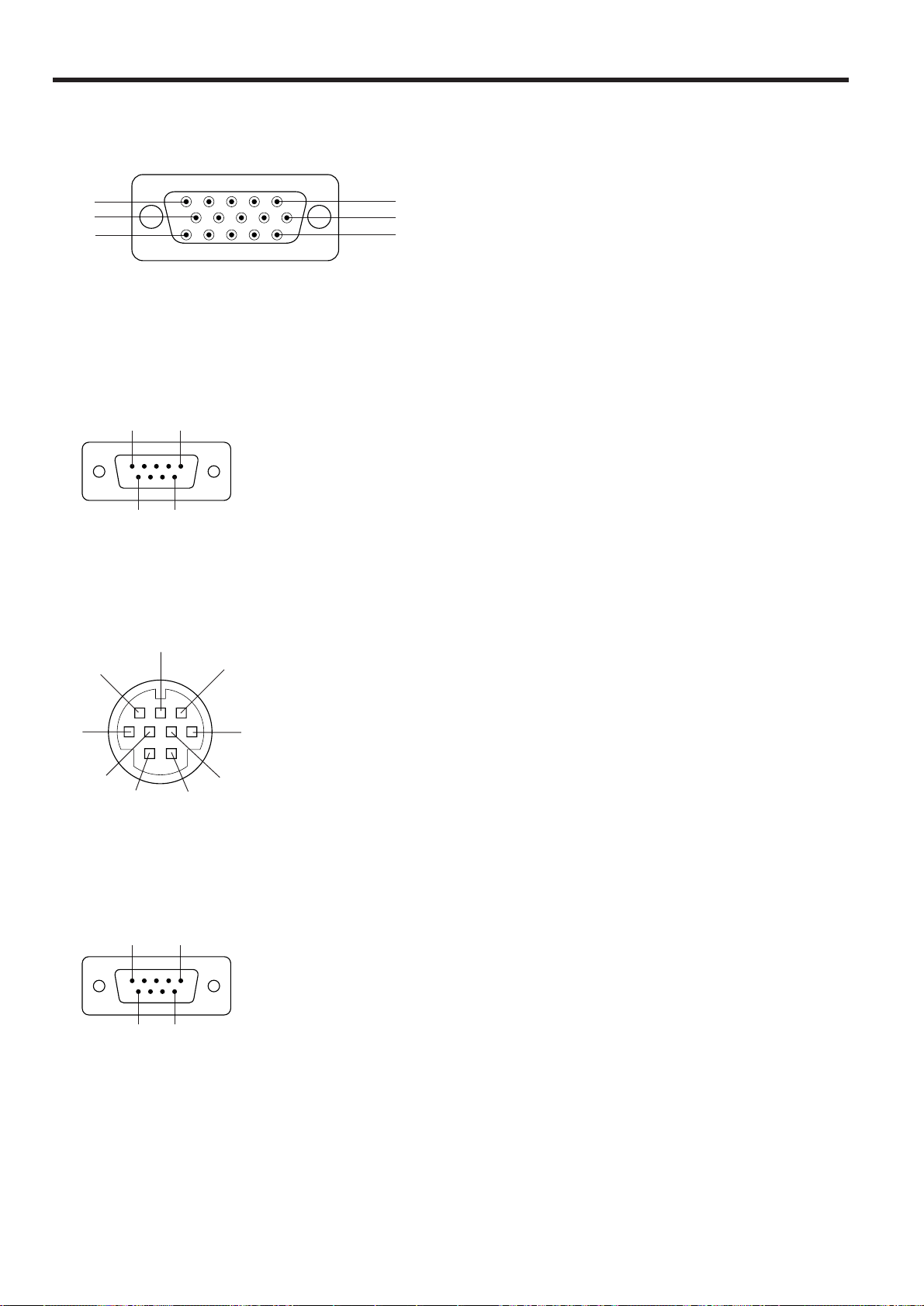

• Connection Pin Assignments ..................................................... 33
• RS-232C Terminal Specifications ............................................... 34
• Wired Remote Control Terminal Specifications ......................... 36
• Specifications ............................................................................. 37
• Dimensions ................................................................................ 38
Table des matières F
• Informations importantes.............................................................. 1
• Mises en garde importantes .........................................................2
• Précautions touchant le pointeur laser .........................................3
• Remarques sur le fonctionnement................................................4
• Caractéristiques spéciales ........................................................... 4
• Emplacement des commandes ....................................................5
• Utilisation de la télécommande/souris sans fil ..............................6
• Fonctions de la souris sans fil ...................................................... 8
• Installation du projecteur .............................................................. 9
• Utilisation de la fonction d’inversement/renversement............... 11
• Branchement du projecteur (VIDEO 1, VIDEO 2) ...................... 14
• Branchement du projecteur (RVB 1, 2: Ordinateur)................... 15
• Signaux d’entrée (synchronisation recommandée) ................... 18
• Commandes de réglage RVB..................................................... 19
• Fonctionnement de base du projecteur ......................................21
• Réglage de l’image .................................................................... 24
• Réglage du son .......................................................................... 25
• Fonctions du projecteur.............................................................. 26
• Entretien du filtre à air ................................................................ 29
• Lampe/Témoins d’entretien........................................................ 30
• Avant d’appeler un réparateur ....................................................30
• Changement de l’unité de lampe (lampe/boîtier)....................... 31
• Fonctions des broches du connecteur........................................33
• Fiche technique de la prise RS-232C.........................................34
• Fiche technique de la prise de la télécommande à fil................ 36
• Fiche technique .......................................................................... 37
• Dimensions ................................................................................ 38
Indice
ES
• Información importante ................................................................ 1
• Medidas de seguridad importantes ..............................................2
• Precauciones respecto al puntero láser .......................................3
• Notas acerca de la operación....................................................... 4
• Características más sobresalientes .............................................4
• Ubicación de los controles ........................................................... 5
• Utilización del control remoto inalámbrico tipo ratón ................... 6
• Funciones del ratón inalámbrico .................................................. 8
• Instalación del proyector .............................................................. 9
• Utilización de la función de imagen invertida/de espejo ............ 11
• Conexión del proyector (VÍDEO 1, VÍDEO 2) .............................14
• Conexión del proyector (RGB 1, 2: Ordenador) ........................ 15
• Señales de entrada (tiempos recomendados)............................18
• Controles de ajuste de RGB....................................................... 19
• Funcionamiento básico del proyector .........................................21
• Ajuste de la imagen.................................................................... 24
• Ajuste del sonido........................................................................ 25
• Funciones del proyector ............................................................. 26
• Mantenimiento del filtro de aire .................................................. 29
• Lámpara/indicadores de mantenimiento ....................................30
• Antes de solicitar el servicio de reparación ................................30
• Reemplazo de la lámpara .......................................................... 31
• Asignaciones de las conexiones de clavijas...............................33
• Especificaciones del terminal RS-232C .....................................34
•
Especificaciones del terminal del control remoto con cable ..........
36
• Especificaciones ........................................................................ 37
• Diagramas acotados .................................................................. 38
E-1
Dear SHARP Customer
Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Color
LCD Projector built for outstanding quality, reliability and performance.
Every SHARP Color LCD Projector is adjusted for a proper picture and has passed through the
most stringent quality control tests at the factory. We have prepared this OPERATION MANUAL
so that you have the ability to adjust the picture and color to your personal viewing preference.
We sincerely hope that you will be satisfied with the quality and performance of your Color LCD
Projector for many years to come.
Please read the instructions carefully, and keep them handy for future reference.
IMPORTANT
For your assistance in reporting the loss or
theft of your Color LCD Projector, please
record the Serial Number located on the rear
of the projector and retain this information.
Important Information
There are two important reasons for prompt warranty registration of your new SHARP LCD
Projector, using the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and
labor warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification,
or recall that SHARP may be required to give under the 1972 Consumer Product Safety
Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
U.S.A. ONLY
WARNING: High brightness light source. Do not stare into the beam of light, or view directly.
Be especially careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk or electric
shock to persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
CAUTION
Model No.: PG-D210U
Serial No.:
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
E-2
Important Safeguards
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to ensure
your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD.
In order not to defeat the safeguards incorporated into this LCD Projector, observe the following basic rules for its
installation, use and servicing. For your own protection and reliable usage of your LCD Projector, please be sure to
read these “Important Safeguards” carefully before use.
1. Read Instructions—All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions—The safety and operating instructions should be retained for future reference.
3. Heed Warnings—All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions—All operating and use instructions should be followed.
5. Cleaning—Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments—Do not use attachments not recommended by the product manufacturer as they may cause
hazards.
7. Water and Moisture—Do not use this product near water – for example, near a bathtub, wash bowl, kitchen
sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories—Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product
may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of
the product should follow the manufacturer’s instructions, and should use a mounting accessory recom-
mended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation—Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the
product and to protect it from overheating, and these openings must not be blocked or covered. The open-
ings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This prod-
uct should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been adhered to.
11. Power Sources—This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization—This product is equipped with a three-wire grounding-type plug, a plug having a
third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you
are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection—Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equipment.
The enclosed RGB signal cable and Macintosh adaptor must be used with the device. The cable and adaptor
are provided to ensure that the device complies with FCC Class A verification.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference at his own expense.
U.S.A. ONLY
U.S.A. ONLY
U.S.A. ONLY
E-3
14. Lightning—For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will pre-
vent damage to the product due to lightning and power-line surges.
15. Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
16. Object and Liquid Entry—Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
17. Servicing—Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
18. Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those con-
trols that are covered by the operating instructions, as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product to
normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance—this indicates a need for service.
19. Replacement Parts—When replacement parts are required, be sure the service technician has used replace-
ment parts specified by the manufacturer or with the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
20. Safety Check—Upon completion of any service or repairs to this product, ask the service technician to per-
form safety checks to determine that the product is in proper operating condition.
21. Wall or Ceiling Mounting—The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
22. Heat—The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
Cautions Concerning the Laser Pointer
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
CLASS II LASER PRODUCT
"COMPLIES WITH 21 CFR SUBCHAPTER J"
SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430
TEL : 1-800-BE-SHARP
U.S.A. ONLY
REMOTE CONTROL
MODEL NO. : G1414CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUÉ AU JAPON
AVOID EXPOSURE—
LASER RADIATION IS
EMITTED FROM THIS
APERTURE.
LASER LIGHT WINDOW
The laser pointer on the remote control
emits a laser beam from the laser light
window shown in the figure to the left. The
laser emitted is a class II laser; therefore,
do not look into the laser window or shine
the laser beam on yourself or other people.
The three marks to the left are the caution
labels for the laser beam.
Always use the laser pointer at tempera-
tures between 41°F and 104°F (`5°C and
`40°C).
Caution:
• Use of controls or adjustments or perfor-
mance of procedures other than those speci-
fied herein may result in hazardous radiation
exposure.
E-4
Notes on Operation
About the Temperature Monitor Function:
• If the projector starts to overheat due to set-up problems or a dirty air filter, “TEMP.” will flash
in the upper-left corner of the picture. If the temperature continues to rise, then the lamp will
turn off, the TEMPERATURE WARNING indicator will flash, and after a 90-second cooling-off
period the power will shut off. Refer to page 30, “Maintenance Indicators,” when the “TEMP.”
warning appears in the picture.
• The cooling fan regulates the internal temperature, and its performance is automatically
controlled. The sound of the fan may change during operation due to changes in the fan
speed.
TEMP.
Outstanding Features
Allows easy projection of large screen, full-color com-
puter and video images.
• Can be projected directly onto a video screen or white
wall.
• Lightweight, convergence-free system for easy installa-
tion.
DIRECT COMPUTER COMPATIBILITY
A multi-scan RGB Input accepts signals from SXGA
(1,280 dots 2 1,024 lines compressed), XGA (1,024 dots
2 768 lines), SVGA (800 dots 2 600 lines), VGA
(640 dots 2 480 lines) and Mac (1,024 dots 2 768 lines
maximum) compatible computers without the need for
any additional hardware.
HIGH PICTURE QUALITY
The three LCD panels contain 786,432 2 RGB pixels to
achieve exceptionally bright, high quality images.
INTELLIGENT COMPRESSION
SXGA images are compressed and projected without
image data loss.
VERSATILE REMOTE CONTROL
• Built-in wireless mouse allows simultaneous operation
of projector and computer.
• Built-in Laser Pointer for professional presentations.
FLEXIBLE USE
• In addition to the standard front projection mode, the
menu driven functions can be used to instantly reverse
the image for rear projection, and invert the image for
ceiling mounting.
• Screen projection size adjusts from 40 to 300 inches.
BUILT-IN STEREO SPEAKERS
Built in 2 W ` 2 W stereo amplifiers and speakers elimi-
nate the need for external audio components.
USE WITH “PLUG AND PLAY”
“Plug and Play” compatible with VESA DDC 1 and
DDC 2B standards.
E-5
Location of Controls
FRONT VIEW
Cautions:
• The exhaust vent, the lamp cage cover and adjacent areas may be
extremely hot during projector operation. To prevent injury, do not
touch these areas until they have sufficiently cooled.
• Allow at least 4( (10 cm) of space between the cooling fan (exhaust
vent) and the other nearest wall or obstruction.
• If the cooling fan becomes obstructed, a protection device will
automatically turn off the projector lamp. This does not indicate a
malfunction. Remove the projector plug from the wall outlet and wait
10 minutes. Then turn on the power by plugging the cord back in.
This will return the projector to its normal mode.
Remote sensor
Speakers
ENTER
BLACK
SCREEN
ON/OFF
POWER LAMP TEMP.
MUTE
INPUT SELECT
VOL
MENU
POWER indicator
TEMPERATURE WARNING indicator
LAMP REPLACEMENT indicator
MUTE button
VOLUME UP-
DOWN buttons
MENU button
INPUT SELECT button
Lens focusing ring
Cooling fan (Intake vent)
Zoom ring
ENTER button
ADJUSTMENT
(ß/©, ƒ/∂) buttons
BLACK SCREEN button
POWER ON/OFF button
OPERATION PANEL ON TOP OF PROJECTOR
COMPUTER AUDIO
PC CONTROL
COMPUTER RGB
VIDEO
S-VIDEO
12
L
OFF ON
R
LR
AUDIO
IN
2
IN
1
AUDIO
OUTPUT
IN 1
OUT
IN 2
WIRED
REMOTE
IN 1 IN 2
110-120V/
200-240V~
VIDEO INPUT 1
COMPOSITE
Video: RCA
Audio: RCA
• PC CONTROL 1:
Use the supplied computer control cable when operating the remote
control as a wireless mouse or when controlling the projector from
the RS-232C terminal.
• PC CONTROL 2:
Use the computer control cable (CTANZ0711CE01) (sold separately)
when operating the remote control as a wireless mouse.
Notes:
• RS-232C does not function when connected to PC CONTROL 2.
• See page 15 for connection.
COMPUTER RGB
INPUT 1 connector
(HD-15)
COMPUTER AUDIO INPUT 1
(3.5 mm Stereo Minijack)
COMPUTER RGB INPUT 2 connector (HD-15)
AUDIO OUTPUT
(3.5 mm Stereo Minijack)
(VIDEO/COMPUTER RGB)
AC INLET
MAIN POWER
switch
COMPUTER RGB
OUTPUT
connector (HD-15)
Cooling fan
(Exhaust vent)
Security Lock Anchor
This projector has a Kensington
Security Standard connector for use
with a Kensington MicroSaver
Security System. Refer to the
information that came with the
system for instructions on how to use
it to secure this model.
Note:
• Be sure to use the Computer
Control cable when connecting
the PC CONTROL terminals.
Carrying handle
VIDEO INPUT 2
S-Video: 4-pin mini DIN
Audio: RCA
COMPUTER AUDIO INPUT 2
(3.5 mm Stereo Minijack)
WIRED REMOTE
CONTROL INPUT
(3.5 mm Minijack)
SIDE AND REAR VIEW
E-6
Position of MOUSE/ADJUSTMENT switch
BLACK SCREEN (RED)
ON (RED)
ADJ.
MENU (RED)
ENTER (RED)
ADJ. ß/©, ƒ/∂ (NOT LIT)
—
Operating the Wireless Mouse Remote Control
The functions of your personal computer’s mouse have been built into the remote control enabling you to operate
your projector and personal computer with the remote control.
1. Slide the MAIN POWER switch on the rear of the projector on.
2. Press the POWER ON button on the front panel of the remote control to turn the projector power on.
3. When using the remote control as a wireless mouse, move the MOUSE/ADJUSTMENT switch to the MOUSE
position. When using the remote control to operate the projector, move the MOUSE/ADJUSTMENT switch to
the ADJ. position. To activate the remote control key back-light feature, press the LIGHT button on the remote
control. The colors of the buttons will change as shown in the table at the bottom of this page.
ON
MUTE
MN
B
BLACK
SCREEN
R-CLICK/ENTER
INPUT SELECT
DATA1
CHECK
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
DATA2
VIDEO1 VIDEO2
LASER/
MENU
VOL
OFF
R/C
OFF
ON
Wireless Mouse Remote Control
FRONT VIEW
ADJ. labelMOUSE label
TRANSMIT indicator
MUTE button
BLACK SCREEN
button
RIGHT-CLICK/ENTER
button
INPUT SELECT
buttons
INPUT CHECK button
MOUSE/ADJUSTMENT
switch
LIGHT button
VOLUME UP-DOWN
buttons
LASER POINTER/MENU
button
MOUSE/ADJUSTMENT
(ß/©), (ƒ/∂) buttons
Note:
• When transporting
the remote control,
turn off the MAIN
POWER switch to
avoid draining the
batteries.
LEFT-CLICK button
Using the remote control in a dark
room
• Press the LIGHT button to turn on the back-
lights for the operation buttons for about 5 sec-
onds. The back-light colors are described in the
table to the right.
Note:
• If the MAIN POWER switch on the remote con-
trol is left on for more than 10 minutes without
operation, the power will automatically turn off.
To turn the power back on, press any button on
the remote control for at least one second.
SIDE VIEW
POWER ON/OFF
buttons
MOUSE
LASER POINTER (GREEN)
RIGHT-CLICK (GREEN)
MOUSE (NOT LIT)
ON (NOT LIT)
Button name
LASER POINTER/MENU
RIGHT-CLICK/ENTER
MOUSE/ADJUSTMENT
LEFT-CLICK
BLACK SCREEN
POWER ON/OFF
VOLUME UP-DOWN
MUTE
DATA 1
DATA 2
VIDEO 1
VIDEO 2
INPUT CHECK
When you change the setting of the MOUSE/ADJUSTMENT switch,
the functions of certain buttons on the remote control change. You
can tell which function the button currently possesses by the color
of its back-light display.
Remote control handling precautions
• The laser beam used in this product is harmless when
directed onto the skin, however please be careful not to
project the beam directly into the eyes. Do not stare into
the beam using an optical instrument.
• Do not expose the remote control to shocks, liquids or
high humidity.
The remote control may not operate normally if exposed
to direct sunlight or other intense light sources. Should
this happen, reposition the light source or the projector.
MAIN POWER switch
of remote control
E-7
Inserting the batteries
Remove the battery cover as shown and insert four AA
size batteries making sure their polarities match the (`)
and (1) marks inside the battery compartment.
Notes:
Incorrect use of batteries may cause them to leak or burst.
• Insert the batteries with the (`) and (1) polarities as indi-
cated.
• Remove the batteries if the remote control will not be oper-
ated for an extended period of time.
• Maintain the batteries in a clean condition.
• Do not mix different brands of batteries. The life expectancy
of the new batteries will be shortened and the old batteries
may leak.
• When the batteries have been used up, remove them imme-
diately to prevent leakage and damage. Leaked battery fluid
may irritate the skin. Remove any battery fluid by wiping with
a cloth.
• Due to storage conditions and the shelf life of the supplied
batteries, they may run out after a short time. If so, replace
them with new batteries as soon as possible.
Remote control positioning
Use the remote control as shown in the figures on the left.
Note:
• The signal from the remote control can be reflected off the
screen for easy operation. However, the effective distance of
the signal may differ due to the screen material.
Transmission range
30°
Press in and
downward on
the arrow
mark and
remove.
Using the optional cable with the remote control
When the remote control cannot be used due to the
range or positioning of the projector (rear projection,
etc.), connect the optional cable from the Wired Remote
Control Input jack on the remote control to the Wired
Remote Input on the rear of the projector.
Note:
• The signal transmitter does not function when the optional
cable is connected to the remote control.
TOP VIEW
Insert the side
tabs into their
slots and
press in the
cover until
properly
seated.
30°
30°
45°
Max. distance: 23* (7 m)
Reception range
REMOTE CONTROL SIGNAL
TRANSMITTER
LASER LIGHT WINDOW
Laser light shines out of this window.
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
CLASS II LASER PRODUCT
"COMPLIES WITH 21 CFR SUBCHAPTER J"
SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430
TEL : 1-800-BE-SHARP
U.S.A. ONLY
REMOTE CONTROL
MODEL NO. : G1414CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUÉ AU JAPON
The laser pointer on the remote control
emits a laser beam from the laser light win-
dow shown in the figure to the left. The laser
emitted is a class II laser; therefore, do not
look into the laser window or shine the laser
beam on yourself or other people. The two
marks to the left are the caution labels for
the laser beam.
Always use the laser pointer at tempera-
tures between 41°F and 104°F (`5°C and
`40°C).
REAR VIEW
WIRED REMOTE CONTROL
INPUT (3.5 mm Minijack)
E-8
Wireless Mouse Functions
Connection Example
The wireless mouse functions and laser pointer on the
remote control can help you create a more professional
presentation.
• By connecting the supplied computer control cable to the
PC CONTROL terminal on your projector and the supplied
mouse control cables to the mouse terminal on your
personal computer, you can use the wireless mouse on the
remote control, instead of the mouse equipped with your
personal computer, to operate your personal computer.
The wireless mouse functions will work with personal
computers compatible with IBM PS/2, serial (RS-232C) or
Apple ADB type mouse systems.
POWER ON/OFF
buttons
ON
MUTE
MN
B
BLACK
SCREEN
R-CLICK/ENTER
INPUT SELECT
DATA1
CHECK
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
DATA2
VIDEO1 VIDEO2
LASER/
MENU
VOL
OFF
LASER POINTER button
MOUSE/ADJUSTMENT
switch
Functions and Operations
MOUSE buttons
COMPUTER AUDIO
PC CONTROL
COMPUTER RGB
VIDEO
S-VIDEO
12
L
OFF ON
R
LR
AUDIO
IN
2
IN
1
AUDIO
OUTPUT
IN 1
OUT
IN 2
WIRED
REMOTE
IN 1 IN 2
110-120V/
200-240V~
Rear terminals
Personal computer
To mouse terminal
Supplied mouse control cable (for IBM
PS/2, serial and Apple ADB type mouse)
R/C
OFF
ON
MAIN POWER switch of remote control
LEFT-CLICK button
The laser pointer on the remote control emits
a laser beam from the laser light window. The
laser emitted is a class II laser; therefore, do
not look into the laser window or shine the
laser beam on yourself or other people. The
two marks to the left are the caution labels for
the laser beam.
Always use the laser pointer at temperatures
between 41°F and 104°F (`5°C and
`40°C).
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
CLASS II LASER PRODUCT
"COMPLIES WITH 21 CFR SUBCHAPTER J"
SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430
TEL : 1-800-BE-SHARP
U.S.A. ONLY
REMOTE CONTROL
MODEL NO. : G1414CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUÉ AU JAPON
Supplied
computer
control cable
• First, connect the units as shown above, and turn the projector power on.
• Second, turn the computer power on.
• Next, slide the MAIN POWER switch on the side of the remote control.
• When using the remote control as a wireless mouse, move the MOUSE/ADJUSTMENT switch to the MOUSE position.
Notes:
• In some situations the wireless mouse may be inoperable if your computer port is not correctly set-up. Please refer to your computer owners
manual for details on setting-up/installing the correct mouse driver.
• Be sure to use the computer control cable when connecting the PC CONTROL terminals.
• Do not connect or remove the mouse control cables and computer control cable to/from your computer while it is on. This may damage your
computer.
• Only one set of connection cables is supplied with your projector. For additional connection cables, contact your nearest Authorized Sharp
Industrial LCD Products Dealer or Service Center.
• Do not connect the mouse input terminal for IBM/Mac and the mouse input terminal for PC98 simultaneously.
MOUSE buttons
By lightly pressing the up/down and right/left arrow buttons located on the front of the remote
control, you can move the mouse cursor on your monitor screen.
Note:
• The amount of pressure applied to the MOUSE button determines the speed the mouse cursor travels. Pressing
lightly on the periphery of the MOUSE button makes the mouse cursor move slowly. Pressing hard makes it move
quickly.
LEFT-CLICK button The LEFT-CLICK button on the back of the remote control corresponds to the left button
of the mouse on two-button mouse systems.
RIGHT-CLICK button The RIGHT-CLICK button on the front of the remote control corresponds to the right
button on two-button mouse systems.
Note: For one-button mouse systems use either the LEFT-CLICK or RIGHT-CLICK button.
LASER POINTER button Press the LASER POINTER button to activate the laser pointer.
When the button is pressed, the light stays on; when the button is released, the light
goes off. However, even when the button is pressed continuously, the light automati-
cally goes off 1 minute after it goes on. To turn it on again press the laser pointer button
one more time.
Mouse cursor
RIGHT-CLICK button
E-9

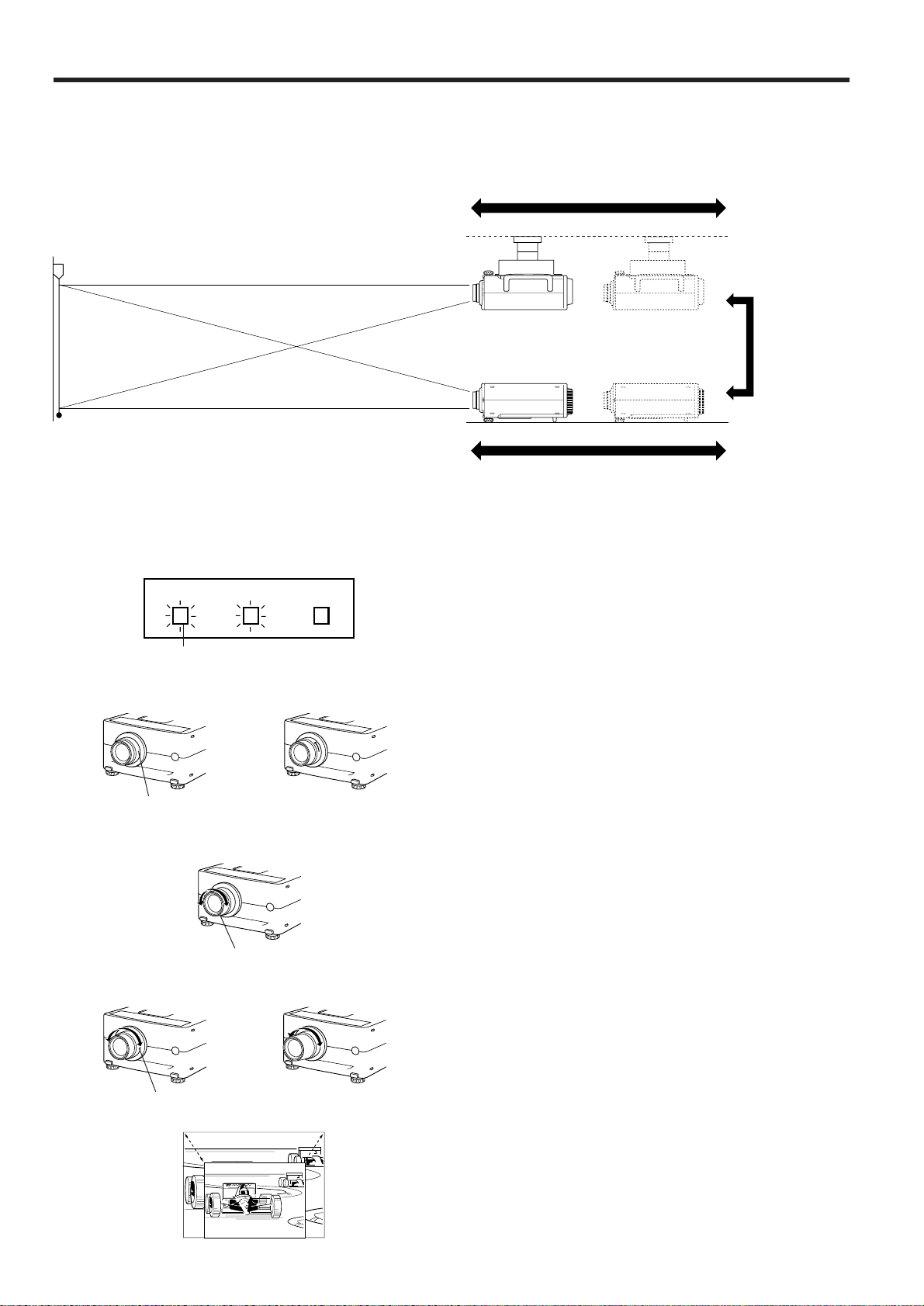

Setting Up the Projector
Using the Focus and Zoom
• Zoom, Focus and Reversed/Inverted Image mode functions broaden your options for projector placement.
• See pages 10, 11 and 12 for details on projector setup.
SIDE VIEW
1. Turn on the MAIN POWER
Turn on the MAIN POWER switch on the back of the
projector.
2. Turn on the POWER
Press the POWER ON/OFF button on the projector or the
POWER ON button on the remote control to turn on the
power.
Table setting
Zoom
3. Rotating the zoom ring (from the
housed position to the wide angle
position)
Rotate the zoom ring on the lens until it clicks. The pic-
ture can be adjusted within the zoom range.
4. Adjusting the focus
Rotate the lens focusing ring until the image on the
screen is in focus.
5. Adjusting the zoom
Rotate the zoom ring. The picture can be adjusted to the
desired size within the zoom range.
Zoom
Ceiling setting
Invert Image
3
→
(Wide angle)
Zoom ring
(Lens housed)
(Minimum picture size)
(Zoom)
↔
5
Zoom ring
(Maximum picture size)
Lens focusing ring
4
2
POWER LAMP TEMP.
POWER indicator
E-10
Height of Projector
Adjust to match the setup configuration.
Projector Distance and Picture Size Relationship
• The zoom lens allows adjustment of the image size within the projector’s range.
• For optimum picture adjustment, the projector should be placed and adjusted at a distance between 4.6 ft
(1.4 m) and 57.4 ft (17.5 m) from the screen.
Maximum projection distance
57.4 ft (17.5 m)
38.4 ft (11.7 m)
28.5 ft (8.7 m)
19.0 ft (5.8 m)
15.1 ft (4.6 m)
11.5 ft (3.5 m)
7.5 ft (2.3 m)
Minimum projection distance
35.8 ft (10.9 m)
23.9 ft (7.3 m)
17.7 ft (5.4 m)
11.8 ft (3.6 m)
9.5 ft (2.9 m)
6.9 ft (2.1 m)
4.6 ft (1.4 m)
Projection distance (L)
Picture size
(diag.)
300 in. (2409 W 2 1809 H)
200 in. (1609 W 2 1209 H)
150 in. (1209 W 2 90 9 H)
100 in. (809 W 2 609 H)
80 in. (649 W 2 48 9 H)
60 in. (489 W 2 36 9 H)
40 in. (329 W 2 24 9 H)
Maximum L: 19.0 ft (5.8 m)
Minimum L: 11.8 ft (3.6 m)
Distance between lens and screen: L
Lens
center
90˚ 90˚
300 in. (2409 W 2 1809 H)
200 in. (1609 W 2 1209 H)
150 in. (1209 W 2 90 9 H)
100 in. (809 W 2 60 9 H)
80 in. (64 9 W 2 48 9 H)
60 in. (48 9 W 2 36 9 H)
40 in. (32 9 W 2 24 9 H)
26.0 in. (66 cm)
17.3 in. (44 cm)
13.0 in. (33 cm)
8.7 in. (22 cm)
7.1 in. (18 cm)
5.1 in. (13 cm)
3.5 in. (9 cm)
Distance from lens center to
lower edge of screen (H)
Distance from screen
Picture size: 100 inches (254 cm)
Zoom adjustment range: 19.0 ft–11.8 ft
• Above is an illustration of maximum and minimum projection distances for the PG-D210U with a picture size of 100 inches
(254 cm). Move the projector forward or backward if the edges of the image are distorted.
Picture size
(diag.)
The formula for picture size and projection
distance
y
1
= (0.0586x 1 0.0544) 2 3.28
y
2
= (0.0367x 1 0.0702) 2 3.28
x: Picture size (diag.) (inches)
y
1
: Maximum projection distance (ft)
y
2
: Minimum projection distance (ft)
Note:
• There is an error of 54 inches (510 cm) in the
formula above.
Lens center
H
90˚
Rack/stand
90˚
High edge of screen
H
• Ceiling Mount
When the projector is in the inverted position, use the high
edge of the screen as the base line.
Note:
• Optimal image quality is produced with the projector positioned perpendicular to the screen with all feet flat and level.
Screen
Lower edge of screen
(white portion) = Standard (0) point
E-11
Using the Image Invert/Reverse Function
This projector is equipped with an image invert/reverse function. The projected image can be inverted or reversed
by using the MENU button and the ADJUSTMENT ƒ/∂ and ß/© buttons.
1
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
OFF
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
ON
]
[
OFF
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
2
2. Reversed Image Mode
In the “IMAGE ADJ.” menu, press the
ADJUSTMENT ƒ/∂ buttons to select “REVERSE”.
Then press the ADJUSTMENT ß/© buttons to
select “ON”. The reversed image will appear.
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
ON
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
3
3. Inverted Image Mode
In the “IMAGE ADJ.” menu, press the
ADJUSTMENT ƒ/∂ buttons to select “INVERT”.
Then press the ADJUSTMENT ß/© buttons to
select “ON”. The inverted image will appear.
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
ON
]
[
ON
]
[
OFF
]
:SEL.
:ADJ.
:END
MENU
4
4. Reversed Inverted Image Mode
In the “IMAGE ADJ.” menu, set the “REVERSE” and
“INVERT” functions to “ON”. The reversed inverted
image will appear.
5. Press the MENU button anytime to exit
“IMAGE ADJ.”
1. Press the MENU button
With the MENU screen displayed, press the AD-
JUSTMENT ƒ/∂ buttons to select “IMAGE ADJ.”.
Then press the ENTER button to display the
“IMAGE ADJ.” screen.
• The last MENU screen selected is indicated for about
30 seconds.
Cautions: When setting up the projector
• For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed
in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environ-
ments, the lens and filter must be cleaned more often. Periodically the filter should be replaced and the pro-
jector should be cleaned internally. As long as the projector is properly maintained in this manner, use in these
environments will not reduce the overall operation life. Please note that all internal cleaning must be performed
by an Authorized Sharp Industrial LCD Products Dealer or Service Center.
• Do not expose to extreme heat or cold.
Operating temperature: 41°F to 104°F (`5°C to `40°C)
Storage temperature: 14°F to 140°F (120°C to `60°C)
• Do not tilt the projector more than 5°.
How to set up the projector and screen
• Position the screen so that it is not in direct sunlight or room light. Light falling directly onto the screen washes
out colors, making viewing difficult. Close the curtains and dim the lights when using the screen in a bright or
sunny room.
• The best picture will be obtained when the projector is at a 90 degree angle to the screen. Position the projector
and screen as shown.
On-Screen Display
E-12
Example of a ceiling-mount setup
Before mounting the projector, be sure to contact your nearest Authorized Sharp Industrial LCD Products Dealer to
obtain the manufacturer recommended ceiling mount bracket (sold separately). (AN-XGCM40 Ceiling Mount
Bracket, AN-EP101AP Extension Tube for AN-XGCM40).
TOP VIEW
• If the relative positions of the projector and the screen are not properly adjusted, the picture will be distorted.
Example of a standard setup
TOP VIEW
If the projector and screen are not
centered properly, the picture will be
distorted, making viewing difficult.
▼
▼
90˚
90˚
Lens center
Lens center
90˚
SIDE VIEW
The projector lens should be centered
in the middle of the screen.
If the projector and screen are not
centered properly, the picture will be
distorted, making viewing difficult.
Lens center
Using the horizontal reverse function makes the following setups possible.
Example of a reversed image setup
• By placing a mirror (normal flat type) in front of the lens and using the horizontal reverse function, the image reflected from
the mirror can be projected onto the screen.
• Rear projection with a rear projection screen is also possible when using the horizontal reverse function.
AUDIENCE SIDE
Mirror
90˚
The projector lens should be centered
in the middle of the screen.
Rear Projection
90˚
SIDE VIEW
Lens center
90˚
Note:
• A polarizing screen cannot be used with this projector.
E-13
2
1
Adjuster release
Adjusting the Height of the Picture
Use the adjuster release to adjust the angle of the projector and height of the picture. Minor adjustments can be
made with the adjusters.
1. Press the adjuster release and lift the
projector to the desired angle with both
hands
• The adjuster legs will extend to the surface of the
table.
2. Remove your hand from the adjuster
release
• The adjuster legs will lock in position. Release the
projector once you are sure the adjuster legs
have locked in position.
3. Make any minor adjustments necessary
• Turn the adjusters to further adjust the angle of
the projector.
Adjuster
release
Adjusters
3
Carrying handle
When transporting the projector, carry it by the handle located on the
side of the unit.
Note:
• Always put on the lens cap to prevent damage to the lens when transporting
the projector.
Caution:
• Do not lift or carry the projector by the lens or the lens cap as this may
damage the lens.
Transporting the Projector
Use the carrying handle when carrying the projector.
Returning the projector to its original position
• While holding the projector with both hands, press the
adjuster release and slowly lower the projector to its original
position.
Notes:
• Adjustable up to approximately 5° from the horizontal.
• When adjustments are made with the adjusters, the picture may
become distorted, depending on the relative positions of the
projector and the screen.
• After adjusting, in some cases, all of the adjuster legs may not be
resting on the table.
To prevent the projector from wobbling, adjust the adjuster legs so
that they firmly contact the table.
Cautions:
• Do not press the adjuster release when the adjuster legs are
extended without firmly holding the projector.
• When lowering the projector, be careful not to get your fingers caught
in the area between the adjusters and the projector.
• Do not hold the lens when lifting or lowering the projector.
E-14
➔
Connecting the Projector (VIDEO 1, VIDEO 2)
To playback audio and video with the projector connected to a VCR, Laser Disc Player or external audio amplifier,
make the following connections.
• Always turn off the LCD Projector while connecting to video equipment, in order to protect both the projector and the
equipment being connected.
Amplifier
To
audio
output
terminals
To
S-video
output
terminal
➔
To
audio
output
terminals
To
audio
input
terminals
Video equipment VCR
Rear terminals
To
video
output
terminal
Used when the AV equipment
to be connected has an
S-VIDEO output terminal.
PlaybackPlayback
Select the audio you want to output by selecting VIDEO 1 or VIDEO 2.
Note the following when using the S-VIDEO INPUT terminal:
• The S-VIDEO INPUT terminal uses a video signal system in which the picture is separated into a color and a luminance signal
to realize a higher-quality picture.
• By using the external amplifier, the volume can be amplified for greater sound.
COMPUTER AUDIO
PC CONTROL
COMPUTER RGB
VIDEO
S-VIDEO
12
L
OFF ON
R
LR
AUDIO
IN
2
IN
1
AUDIO
OUTPUT
IN 1
OUT
IN 2
WIRED
REMOTE
IN 1 IN 2
110-120V/
200-240V~
E-15
Connecting the Projector (RGB 1, 2: Computer)
COMPUTER AUDIO
PC CONTROL
COMPUTER RGB
VIDEO
S-VIDEO
12
L
OFF ON
R
LR
AUDIO
IN
2
IN
1
AUDIO
OUTPUT
IN 1
OUT
IN 2
WIRED
REMOTE
IN 1 IN 2
110-120V/
200-240V~
15-pin D-Sub
RGB Signal Cable (Supplied)
Audio Cable for Personal Computer (Supplied)
Rear terminals
• Please carefully read the manual of the computer you will be con-
necting.
• Before connecting, be sure to turn both the projector and the computer
off. After making all connections, turn the projector on first. The com-
puter should always be turned on last.
Personal computer
6-pin DIN
Mouse Control
Cable for IBM
PS/2 (Supplied)
4-pin DIN
Mouse Control
Cable for
Macintosh
Series
(Supplied)
Macintosh Adaptor
(Supplied)
To RS-232C
terminal
RS-232C
cable (Cross
Type, sold
separately)
15-pin D-Sub
Computer Control Cable
(with mouse/RS-232C
input terminal) (Supplied)
Note:
• By using RGB INPUT 2 and PC CONTROL 2,
another computer can be connected to and
operated with the projector. The RS-232C func-
tion, however, will not operate when used with
the PC CONTROL 2 terminal.
Note:
• The arrows (←, ↔) indicate the
direction of the signals.
RS-232C (D-sub 9-pin)
Use when controlling the projector from your personal computer.
(RS-232C does not function when connected to PC CONTROL 2.)
MOUSE TERMINAL
Use when operating your personal computer with the wireless mouse
remote control.
Left Terminal: D-sub 9-pin (for IBM/Mac)
Right Terminal: 9-pin mini DIN (for NEC in JAPAN)
Mouse Control Cable (Supplied)
9-pin D-Sub
9-pin D-Sub
To display input terminal
COMPUTER CONTROL CABLE
• You can connect your projector to a computer for easy projection of full color computer images and an external monitor for
simultaneous viewing. See pages 16 and 17 for details of the connections.
• Refer to page 18 for a list of personal computers connectable to the projector. Use with computers other than those listed
may cause some of the functions not to work.
• When the RS-232C terminal on this unit is connected to a personal computer via an RS-232C cable (cross type) and the sup-
plied computer control cable, the personal computer can control the projector and the status of the projector can be
checked. See pages 34 and 35 for details.
• By connecting the supplied computer control cable to the PC CONTROL terminal on your projector and the supplied mouse
control cables to the mouse terminal on your personal computer, you can use the wireless mouse on the remote control,
instead of the mouse equipped with your personal computer, to operate your personal computer. Refer to page 8 for details.
Notes:
• The RS-232C function will only operate when the connection cable is connected to the PC CONTROL 1 terminal on the projector.
• The wireless mouse or RS-232C function may not operate if your computer port is not correctly set-up. Please refer to your computer owners
manual for details on setting-up/installing the correct mouse driver.
• Do not connect or remove the computer control cable, mouse control cables, or RS-232C cable to/from your computer while it is on. This may
damage your computer.
• Do not connect to the mouse input terminals on the computer control cable for IBM/Mac and PC98 simultaneously.
• Be sure to use the supplied computer control cable when connecting the PC CONTROL terminals.
“Plug and Play” Function
This projector is compatible with VESA DDC 1 and DDC 2B standards.
This projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy
set-up.
Note:
• The DDC, “Plug and Play” function of this projector is only functional when used in conjunction with a VESA DDC compatible computer.
E-16
Connecting to the Computer RGB Input (RGB 1, 2)/Output Terminals
You can connect your projector to a computer for easy projection of full-color computer images, and an external
monitor for simultaneous viewing.
2 !
1. Connecting to an IBM-PC (VGA, SVGA,
XGA, SXGA) Series computer—1,280 @
1,024 maximum resolution
Plug one end of the RGB signal cable into the RGB
INPUT terminal on the projector and the other end
into the RGB signal output terminal on the
computer, and secure the plugs by tightening the
thumb screws.
Notes:
• This connection is possible only when using a computer with a VGA/
SVGA/XGA/SXGA or Mac display output port.
• By using RGB INPUT 2 and PC CONTROL 2, another computer can
be connected to and operated with the projector.
COMPUTER RGB
IN 1 IN 2
ANALOG RGB OUT
1
IBM-PC (VGA,
SVGA, XGA, SXGA)
Series (computer)
RGB Signal
Output Socket
Rear view of the projector
RGB Signal
Input Socket
RGB Signal
Cable
(Supplied)
2. Connecting to a Macintosh Series
Computer
640
@
480, 832
@
624 or 1,024
@
768 resolution
! Set the proper switches on the supplied
adaptor.
• For 640 2 480 resolution, set switches 1 and
2 to “ON” and 3, 4, 5 and 6 to “OFF”.
• For 832 2 624 resolution, set switches 2 and
4 to “ON” and 1, 3, 5 and 6 to “OFF”.
• For 1,024 2 768 resolution, set switches 2
and 3 to “ON” and 1, 4, 5 and 6 to “OFF”.
@ Connect the supplied Macintosh adaptor to the
RGB signal output terminal on your Macintosh
Series computer, as shown on the left, and
secure the plugs by tightening the thumb
screws.
# Firmly plug one end of the supplied RGB signal
cable into the RGB input terminal on the
projector and the other end to the Macintosh
adaptor on the computer, and secure the plugs
by tightening the thumb screws.
Notes:
• Be sure to use the supplied Macintosh adaptor.
• Be sure the switches on the adaptor are properly set.
• Once the adaptor is connected to a computer and the computer is
turned on, the display mode cannot be changed even if the switches
on the adaptor are reset.
• The supplied adaptor is only for use with H-SYNC and V-SYNC out-
put. When connecting a Macintosh Series computer that only outputs
C-SYNC, use a special C-SYNC output adaptor (sold separately).
Macintosh Adaptor (Supplied)
ANALOG RGB OUT
@
Macintosh Adaptor (Supplied)
RGB Signal
Output Socket
ON
↑
↓
OFF
Macintosh
#
RGB Signal
Cable
(Supplied)
ANALOG RGB OUT
Macintosh
COMPUTER RGB
IN 1 IN 2
RGB Signal
Output Socket
RGB Signal
Input Socket
Rear view of the projector
E-17
5. Connecting an external monitor
Connect your computer monitor to the projector’s COM-
PUTER RGB OUTPUT terminal to view images simulta-
neously on the external monitor and the projection
screen. Select either RGB 1 or RGB 2 to output the
images to the monitor.
5
3. Connecting to other compatible
computers
When connecting the projector to a compatible computer
other than an IBM-PC (VGA/SVGA/XGA/SXGA) or
Macintosh series, a separate cable may be needed.
Please contact your dealer for ordering information.
Notes:
• Connecting computers other than the recommended types may
result in damage to the projector, the computer, or both.
• Connect the audio from the computer to the COMPUTER AUDIO
INPUT terminal.
4. Connecting to the COMPUTER AUDIO
INPUT
• The COMPUTER AUDIO INPUT 1 accepts audio from
the COMPUTER RGB 1 input, and the COMPUTER
AUDIO INPUT 2 accepts audio from the COMPUTER
RGB 2 input.
• Connect a 3.5 mm Stereo Minijack cable from the
audio output terminal on the computer to the
COMPUTER AUDIO INPUT terminal on the projector.
4
Caution (Apple Macintosh):
Do not connect the COMPUTER RGB OUTPUT to any moni-
tor except the following:
Apple Color RGB Monitor 13(/14( (640 2 480), 16(/17( (832
2 624) or 19( (1,024 2 768)
The output signal from the projector to the monitor should be
the same as the input signal from the computer to the
projector.
Examples:
Input 13(/14( (640 2 480) → Output (640 2 480)
Input 16(/17( (832 2 624) → Output (832 2 624)
Input 19( (1,024 2 768) → Output (1,024 2 768)
Note:
• The supplied adaptor is only for use with H-SYNC and V-SYNC
output. No picture will appear when connected to monitors that
only use C-SYNC.
COMPUTER RGB
IN 1
OUT
IN 2
Optional Macintosh
adaptor cable
External Macintosh
monitor
or
U.S.A. ONLY
External IBM-PC
monitor
Direct
connection
Notes:
• When using the projector with an external IBM-PC monitor, connect
the monitor using the supplied cable. When using the projector with a
Macintosh monitor, an optional adaptor cable is required. Before
using any other type of monitor, carefully check the monitor’s inter-
face specifications and make sure that they match the specifications
of the projector’s interface.
• The external monitor output will only display an analog computer
input signal. It will not display a digital or video input signal. To split
the composite video signal, use a video distribution amplifier. This is
available from your local dealer. The computer RGB output will only
loop through the same signal connected to the computer RGB input.
(VGA IN → VGA OUT, Mac IN → Mac OUT)
COMPUTER AUDIO
PC CONTROL
12
AUDIO
OUTPUT
IN 2
WIRED
REMOTE
IN 1 IN 2
E-18
Input Signals (Recommended Timing)
For IBM and compatibles
For Apple Macintosh Series
Input signals:
The video output signal timing of different types of
video signals are shown below for reference.
EDOM
MBIMBIMBIMBIMBIMBIMBIMBIMBIelppAelppAelppA
AGVASEVAGVSAGVSAGVSAGVSAGXAGXAGX
hsotnicaM
MT
IIis
hsotnicaM
MT
CL
hsotnicaM
MT
cihparGText
720 dots 640 dots 640 dots 640 dots
640 dots 832 dots
800 dots 800 dots 800 dots 800 dots 1,024 dots 1,024 dots 1,024 dots
350 lines 400 lines 350 lines 400 lines 480 lines 480 lines 480 lines
480 lines 624 lines
600 lines 600 lines 600 lines 600 lines 768 lines 768 lines 768 lines
cihparGcihparG
ASEV
enilediuG
ASEV
dradnatS
ASEV
dradnatS
ASEV
enilediuG
ASEV
dradnatS
ASEV
dradnatS
rotinoM"31rotinoM"31rotinoM"61
elppA
hsotnicaM
MT
rotinoM"91
OEDIV
LEVEL
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
p-pV7.0
57Ωdaol
.xamp-pV1
57Ωdaol
.xamp-pV7.0
57Ωdaol
.xamp-pV7.0
57Ωdaol
EPYT R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B R•G•B
R•G•B
CNYS.C
R•G•B
CNYS.C
R•G•B
CNYS.C
H
S
Y
N
C
HCROPTNORFatod71414242046561424261468713
CNYSbtod8016904278210210863163169462656
HCROPKCABctod5505821821884606106144167169611422
DOIREPOEDIVdtod027046046008008008008420,1420,1420,1046046238
)d+c+b+a(H1
tod009008238420,1650,1040,1650,1443,1823,1213,1468698251,1
µs4777.136777.13314.62444.82004.62008.02333.12776.02707.71066.614175.82595.82421.02
tod1sn2803.539127.93647.13777.72000.52000.02202.02 15.385 3.317.218860.33360419.13864.71
1H/zHk9864.138864.13068.73651.53978.73770.84578.64 48.363 674.65320.060000.53941179.43396.94
tod/1zHM223.82571.52005.13000.63000.04000.05005.94000.560.5757.870042.03941433.13642.75
LEVELTTL TTL TTL TLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLT
YTIRALOPCNYS–/++– +–– – –/+ +++–– + – – –
V
S
Y
N
C
HCROPTNORFwH8331833111911 73 1331 3 3 1
CNYS xH2222232463663 3 3 3
HCROPKCAByH95439543238222323212929282939393
DOIREPOEDIVzH053004053004084084006006006006867867867084084426
)z+y+x+w(V1
H944944944944525025526826666526608608008525525766
sm1862.411862.411862.411862.412386.61537.31877.71975.61358.31333.31666.61272.41823.3100.5100.51324.31
1v/zH6680.076680.073680.073680.075049.95908.27052.65713.06881.27000.57600.06960.07920.5776.6676.66205.47
LEVELTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLTTLT
YTIRALOPCNYS–/+– +– +– – –/+ +++–– +
MBI
SXGA SXGA
1,280 dots
1,024 lines
ASEV
dradnatS
p-pV7.0
57 Ω daol
R•G•B
48
112
248
1,280 1,280
1,688
15.6
9.3
63.981
108.000
TLT
+
1
3
38
1,024
1,066
16.7
60.020
TLT
+
MBI
1,280 dots
1,024 lines
ASEV
dradnatS
p-pV7.0
57 Ω daol
R•G•B
61
144
248
1,688
12.5
7.4
79.976
135.000
TLT
+
1
3
38
1,024
1,066
16.7
75.025
TLT
+–––
1,024 dots
768 lines
.xamp-pV7.0
57 Ω daol
R•G•B
CNYS.C
35
96
173
1,024
1,328
16.650
12.538
60.0
79.76
TLT
–
3
3
30
768
804
13.387
74.70
TLT
–
Notes:
• When connecting a notebook computer to the data-projector for display on an (800 2 600) LCD screen, the screen may
not show a full picture image. See page 20, “Computer Mode Memory Adjustments” for details.
• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. If this
occurs, turn off the LCD display on the notebook computer and output the display data in “CRT only” mode. Details on
how to change display modes can be found in your notebook computer’s operation manual.
e
a
b
c
d
w
x
y
z
VIDEO SIGNAL
C-SYNC(H)
C-SYNC(V)
VIDEO SIGNAL
V-SYNC
e = 2 dot
abc d
w
x
y
z
VIDEO SIGNAL
HORIZONTAL
SYNC SIGNAL
VIDEO SIGNAL
VERTICAL
SYNC SIGNAL
E-19
RGB Adjustment Controls
When displaying computer patterns which repeat every other dot (tiling, vertical stripes, etc.), interference may
occur between the LCD pixels, causing flickering, vertical stripes, or contrast irregularities in portions of the
screen. Should this occur, use the ADJUSTMENT ß/© buttons for HORIZONTAL (LEFT/RIGHT) and VERTICAL
(UP/DOWN) position adjustments to adjust for the optimum picture.
RGB Input Adjustments (“CLOCK”, “PHASE”, “V-POS”
and “H-POS”)
1. Select the input of the image you want to adjust (RGB 1 or
2) with the INPUT SELECT button and press the MENU
button.
With the MENU screen displayed, press the ADJUSTMENT ƒ/∂ buttons
to select “RGB 1 INPUT ADJ.” Then press the ENTER button to display the
“RGB 1 INPUT ADJ.” screen.
2. Select the item you wish to adjust with the ADJUST-
MENT ƒ/∂ buttons. Adjust the item with the ADJUST-
MENT ß/© buttons.
Note:
• To display only the item that you want to adjust, press the ENTER button after selecting the item
with the ADJUSTMENT ƒ/∂ buttons. Then adjust the item with the ADJUSTMENT ß/© buttons.
3. Press the MENU button anytime to exit RGB INPUT ADJ.
Description of Adjustment Items
CLOCK SPEED ADJUSTMENT (FAST/SLOW)
• Adjust the input signal horizontal frequency and the dot clock so that the screen
display is normal.
PHASE ADJUSTMENT (UP/DOWN)
• Used to reduce image distortion or improve contrast.
HORIZONTAL POSITION ADJUSTMENT (LEFT/RIGHT)
• Used to center the on-screen image by moving it to the left or right.
VERTICAL POSITION ADJUSTMENT (UP/DOWN)
• Used to center the on-screen image by moving it up or down.
MODE ADJUSTMENT
C
ONNECTING TO IBM-PC COMPUTERS
• Ordinarily, the type of input signal is detected and the correct resolution mode
(Text or Graphics) is automatically selected. However, for the following signals,
set “MODE” to “ON” or “OFF” to select the projector’s resolution mode to match
the computer display mode properly.
720 dots 2 400 lines, 720 dots 2 350 lines (Text Mode)
640 dots 2 400 lines, 640 dots 2 350 lines (Graphic Mode)
• For graphic mode, select “MODE” and set the “MODE” to “ON”.
• For text mode, select “MODE” again at this time, and set “MODE” to “OFF”.
C
ONNECTING TO MACINTOSH LC/II SERIES COMPUTERS
• When connecting to a Macintosh II with 35 kHz Dot Frequency, select “MODE”
and set “MODE” to “ON”.
• When connecting to a Macintosh LC Series computer with 34.97 kHz Dot Fre-
quency, set “MODE” to “OFF”.
• When connecting to third party video cards and other Macintosh computers, set
“MODE” to “ON” or “OFF” to select the correct display mode.
• When the input signal is automatically detected or when there is no input signal,
“MODE (---)” appears on the screen and the display mode cannot be changed.
INITIAL RESET
• To return the “H-POS”, “V-POS”, “PHASE” and “CLOCK” adjustments to their
initial settings, select “RESET” and then press the ENTER button.
MEMORY SELECT
• Used to store up to seven computer mode adjustments.
Note:
• Avoid displaying computer patterns which repeat every other line (horizontal stripes). (Flickering
may occur, making the picture hard to see.)
2
RGB1 INPUT ADJ.
PHASE
H-POS
V-POS
MODE
RESET
MEMORY SELECT
+
0
0
0
0
:SEL.
:ADJ.
:NEXT
ENTER
:END
MENU
[
OFF
]
-
+
-
+
-
+
-
CLOCK
On-Screen Display
E-20
Computer Mode Memory Adjustments
• The projector has been preset with different modes for
use with XGA and other compatible computers.
However, 7 memory positions are provided to store
mode adjustments.
• Each memory position can be used to store mode
adjustments to match the computer.
1. Press the ENTER button to select the
Memory Adjustment mode
• Press the MENU button. While the MENU screen
is displayed, press the ADJUSTMENT ƒ/∂ but-
tons to select “RGB1 INPUT ADJ.” Press the
ENTER button. The MENU mode changes as
shown.
• While the RGB INPUT adjustment menu is dis-
played, press the ADJUSTMENT ƒ/∂ buttons to
select “MEMORY SELECT”. Then press the
ENTER button to change the image.
2. Press the ADJUSTMENT ß /© buttons
• The screen shown on the left will appear. There
are 7 memory positions.
• Press the ADJUSTMENT ƒ button once to move
to the following screen. Press the ADJUSTMENT
ß/© buttons to select the number of the memory
you want to adjust. If that memory position has
not been set, the screen on the right will be dis-
played. If it has been set, the screen on the left
will be displayed. MEMORY No. 0 cannot be set.
It contains the fixed factory preset settings.
• To make or change a setting, press the ADJUST-
MENT ƒ/∂ buttons to move the cursor to “SET-
TING.” Then press the ENTER button to go to the
RGB INPUT adjustment menu screen. (If you do
not want to make any adjustments, press the
MENU button.)
• Select the item you want to adjust by pressing the
ADJUSTMENT ƒ/∂ buttons, then use the AD-
JUSTMENT ß/© buttons to make the adjust-
ments. When adjustments are completed, press
the MENU button. The display disappears and
the adjustments are stored in memory as a user
mode. See page 19 for details on the adjustment
items.
3. Press the MENU button anytime to exit
RGB INPUT ADJ.
1 When RGB 1 or 2 is selected.
2
RGB1 ADJ.
RGB1 INPUT ADJ.
IMAGE ADJ.
AUDIO
SYSTEM SETUP
LANGUAGE
:SEL. :NEXT
ENTER
:END
MENU
RGB1 INPUT ADJ.
PHASE
H-POS
V-POS
MODE
RESET
MEMORY SELECT
+
0
0
0
0
:SEL. :NEXT
ENTER
:END
MENU
[
OFF
]
-
+
-
+
-
+
-
CLOCK
MEMORY SELECT
:SEL.
:ADJ.
ENTER
:END
MENU
0 1 2 3 4 5 6 7
STANDARD SETTING STANDARD SETTING
SETTING
:ENTER
MEMORY SELECT
SETTING
:SEL. :BACK
ENTER
:END
MENU
0 1 2 3 4 5 6 7
MEMORY SELECT
NON
SETTING
:SEL.
:ADJ.
ENTER
:END
MENU
0 1 2 3 4 5 6 7
:ENTER
MEMORY SELECT
:SEL.
:ADJ.
ENTER
:END
MENU
0 1 2 3 4 5 6 7
RESOLUTION
HOR FREQ
VERT FREQ
SETTING
:ENTER
Hz
KHz 60.0
75
1024×768
On-Screen Display
E-21
Basic Operation of the Projector
1 1. Connect the AC cord
Connect the supplied AC cord to the AC inlet on
the back of the projector.
OFF ON
110-120V/
200-240V~
1 AC cord
2 2. Turn on the MAIN POWER
Press the MAIN POWER switch on the back of the
projector. The POWER indicator lights red and the
projector enters STANDBY mode.
ONOFF
POWER LAMP TEMP.
When the MAIN
POWER is on, the
POWER indicator
lights red.
Projector
ON/OFF
Remote control
ON/OFF
ON
OFF
3
POWER LAMP TEMP.
When the power is on, the LAMP
REPLACEMENT indicator flashes
to show the operating condition of
the lamp.
Green: Lamp is ready
Flashing green: Warming up
Red: Change bulb
3. Turn on the POWER
Press the POWER ON/OFF button on the projector or the
POWER ON button on the remote control.
• When the power is turned off by pressing the POWER
ON/OFF button, the POWER indicator will not turn off
until the fan has stopped running.
• See page 30, “Lamp/Maintenance Indicators” for
details.
Notes:
• When the POWER indicator is not lit, the remote control cannot be
used to operate the projector.
• The flashing green LAMP REPLACEMENT indicator indicates that the
lamp is warming up. Wait until the indicator stops flashing before
operating the projector.
• If the power is turned on immediately after it has been turned off, it
may take a short while before the lamp turns on. (During this period
the LAMP REPLACEMENT indicator flashes.)
• After the projector is unpacked and turned on for the first time, a
slight odor may be emitted from the exhaust fan. This odor will soon
disappear with use.
Caution:
• Be sure to take off the lens cap before operation of the projector. Do
not place the lens cap on the lens during operation. The lens cap
may become extremely hot.
E-22
4. Select one of eight ON-SCREEN
DISPLAY languages
You can return to the previous screen by se-
lecting the uppermost item (turquoise) with the
ADJUSTMENT ƒ/∂ buttons (in this case, “LAN-
GUAGE”) and then pressing the ENTER button.
The on-screen display is set to English at the fac-
tory. The language for the unit’s ON-SCREEN DIS-
PLAY can be set to English, German, Spanish,
Dutch, French, Italian, Swedish or Japanese.
Setting the ON-SCREEN DISPLAY language
1. Press the MENU button. The menu will appear on
the screen.
2. Press the ADJUSTMENT ƒ/∂ buttons to highlight
the “LANGUAGE” item yellow. Then press the
ENTER button to display the language menu.
3. Press the ADJUSTMENT ƒ/∂ buttons to highlight
the desired language yellow. Then press the ENTER
button to set the language. The ON-SCREEN DIS-
PLAY is now programmed to display in the language
chosen.
5. Change the system mode
The video input system mode is set to “AUTO” at
the factory, but it can be changed to a different
mode if the selected system mode is not
compatible with the connected audiovisual
equipment (when a color image appears in black
and white, etc.).
1. Press the MENU button. The menu will appear on
the screen.
2. Press the ADJUSTMENT ƒ/∂ buttons to highlight
the “IMAGE ADJ.” yellow. Then press the ENTER
button to display the “IMAGE ADJ.”.
3. Press the ADJUSTMENT ƒ/∂ buttons to highlight
“SYSTEM” yellow. Then press the ENTER button to
display the “SYSTEM”.
4. Press the ADJUSTMENT ƒ/∂ buttons to highlight
the desired video system yellow. Then press the
ENTER button to set the system.
Notes:
• In AUTO mode, “PAL,” “SECAM”, “NTSC 4.43” or “NTSC 3.58” is
displayed on the screen for a few seconds when the mode is
changed with the INPUT SELECT button.
• When the system mode is set to “AUTO”, you may not receive a clear
picture due to signal differences. If this happens, switch to the color
system you are viewing.
LANGUAGE
:SEL. :ENTER
ENTER
:END
MENU
NEDERLANDS
ESPAÑOL
DEUTSCH
ENGLISH
SVENSKA
ITALIANO
FRANÇAIS
On-Screen Display
4
5
:SEL. :NEXT
ENTER
:END
MENU
BLUE SCREEN
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
OFF
]
SYSTEM
[
OFF
]
[
ON
]
AUTO
SYSTEM
PAL
SECAM
NTSC 4.43
NTSC 3.58
:SEL. :ENTER
ENTER
:END
MENU
➞
E-23
6. Select input
Press the INPUT SELECT button on the projector to
switch the picture input. When you press the but-
ton, the current input mode is displayed for about 4
seconds. If you press the button again while the
input mode is displayed, the mode changes as
shown on the left.
Confirm the selected input terminal and press the
INPUT SELECT button.
Notes:
• The input can be selected directly using the VIDEO 1, VIDEO 2,
DATA 1 and DATA 2 buttons on the remote control. (When DATA 1 or
DATA 2 is selected, the RGB 1 or RGB 2 screen will appear
accordingly.)
• In VIDEO mode, the system being received will be indicated below
the “VIDEO” display.
• When selecting RGB mode, the resolution being displayed will be
indicated under “RGB,” as shown on the left. (Refer to the second
example when connecting to Mac display.)
• When no signals are being received, “NO SIGNAL” will be displayed.
When receiving a signal the projector is not preset to receive, “NOT
REG.” will be displayed. (This display function does not operate in
Video mode.)
• The picture size differs in RGB, NTSC, PAL and SECAM INPUT
modes.
7. Press INPUT CHECK
When the INPUT CHECK button on the remote con-
trol is pressed, the current input mode is displayed
for about 4 seconds.
Note:
• The INPUT CHECK button will not function if the “INPUT DISPLAY” is
turned off, as described on page 28.
8. Adjust the volume
Press the VOLUME UP-DOWN buttons on the pro-
jector or on the remote control to adjust the volume.
MUTE
• Press the MUTE button to temporarily turn off the
sound.
• Press the MUTE button once again to turn the
sound back on.
9. To turn off the power from the projector
or the remote control
• Press the POWER ON/OFF button on either the
projector or the remote control. The screen on the left
will appear.
• If you want to turn off the power, press the POWER
ON/OFF button on either the projector or the remote
control again within 4 seconds. The power is now
temporarily turned off.
• If you accidentally pressed the POWER ON/OFF button
and do not want to turn off the power, wait until the
On-Screen Display disappears.
The POWER indicator will turn red and the cooling fan
will run for 90 seconds, then the power will turn off,
and the projector will return to STANDBY mode.
The power can be turned on again either from the
projector or remote control. When the power is turned
on, the POWER indicator and LAMP REPLACEMENT
indicator light green.
Note:
• When the MAIN POWER is off on the projector set, the power cannot
be turned on from the remote control.
For viewing the picture from a
video source connected to:
VIDEO INPUT 1
COMPUTER RGB2
COMPUTER RGB1
VIDEO INPUT 2
Mac
On-Screen Display
6
7
9
POWER LAMP TEMP.
VOLUME
38
The number of displayed segments
(0–60) increases or decreases as the
volume is raised or lowered.
TURN POWER OFF?
YES: PRESS
NO: PLEASE WAIT
AGAIN
Mac
E-24
Adjusting the Picture
• This projector’s picture is factory preset to standard
settings. However, you can adjust it to suit your own
preferences with the ADJUSTMENT buttons on the
projector and the remote control.
• The adjustments can be memorized in RGB 1, RGB 2,
VIDEO 1 or VIDEO 2 separately.
• Four picture modes can be adjusted: “PICTURE,”
“BRIGHT,” “RED,” and “BLUE”.
Adjusting the Picture
1. Use the MENU button to select the mode
to be adjusted
• When the MENU button is pressed, the MENU
mode is indicated for about 30 seconds. Press
the ADJUSTMENT ƒ/∂ buttons to select “RGB 1
ADJ.”, then press the ENTER button.
2. Adjust the Picture
• Press the ADJUSTMENT ƒ/∂ buttons to high-
light yellow the picture adjustment item you want
to adjust.
• Press the ADJUSTMENT ß/© buttons to move
the “ ” mark of the selected adjustment item to
the desired setting.
• The adjustment mode is displayed for about
30 seconds.
Description of Adjustment Items
ADJUSTMENT ß button
For less contrast
For less brightness
For weaker red
For weaker blue
For less color intensity
For less sharpness
Selected item
BRIGHT
RED
BLUE
COLOR
TINT
SHARPNESS
RESET
ADJUSTMENT © button
For more contrast
For more brightness
For stronger red
For stronger blue
For more color intensity
For more sharpness
1
RGB1 ADJ.
RGB1 INPUT ADJ.
IMAGE ADJ.
AUDIO
SYSTEM SETUP
LANGUAGE
:SEL. :NEXT
ENTER
:END
MENU
On-Screen Display
RGB1 ADJ.
BRIGHT
RED
BLUE
RESET
+
0
0
0
0
:SEL.
:ADJ.
:NEXT
ENTER
:END
MENU
-
+
-
+
-
+
-
2
All RGB Video Adjustment items are returned to the
factory preset settings.
Note: To reset all adjustment items, select “RESET” in
“RGB 1 ADJ.” mode and press the ENTER
button.
3. Display only the item to adjust
• Press the ADJUSTMENT ƒ/∂ buttons to high-
light yellow the picture adjustment item you want
to adjust. If you press the ENTER button at this
time, only the selected item will be displayed.
• Press the ADJUSTMENT ß/© buttons to move
the “ ” mark of the selected adjustment item to
the desired setting.
• The adjustment mode is displayed for about 30
seconds.
Notes:
• When a VIDEO signal input has been selected, only “PICTURE,”
“BRIGHT,” “COLOR,” “TINT” and “SHARPNESS” can be adjusted.
• TINT only appears in NTSC 3.58 mode.
4. Press the MENU button anytime to exit
RGB ADJ.
+
:SEL.
:ADJ.
:ENTER
ENTER
:END
MENU
-
PICTURE 0
3
Skin tones become
purplish
Skin tones become
greenish
E-25
• The projector’s audio is factory preset to the standard
setting. However, you can adjust it to suit your own
preference with the ADJUSTMENT buttons on the
projector or the remote control.
• You can adjust the “BALANCE”, “TREBLE” and “BASS”.
Adjusting the Audio
• To return to the factory preset mode, press the AD-
JUSTMENT ƒ/∂ buttons to select “RESET”, then
press the ENTER button.
• Press the MENU button to select the normal screen
mode.
Adjusting the Audio
• Press the MENU button.
Select “AUDIO” with the ADJUSTMENT ƒ/∂ buttons.
Then press the ENTER button to change to the picture
indicated on the left.
• Select “BALANCE,” “TREBLE” or “BASS” with the AD-
JUSTMENT ƒ/∂ buttons. Adjust the mode you want
with the ADJUSTMENT ß/© buttons.
• To return to the factory preset mode, press the AD-
JUSTMENT ƒ/∂ buttons to select “RESET”, then press
the ENTER button.
Description of Adjustment Items
ADJUSTMENT ß
button
Increased audio from the
left speaker
Weaker treble
Weaker bass
ADJUSTMENT ©
button
Increased audio from the
right speaker
Stronger treble
Stronger bass
Selected
items
BALANCE
TREBLE
BASS
AUDIO
TREBLE
BASS
RESET
0
0
0
:SEL.
:ADJ.
:END
MENU
R
L
+
-
+
-
BALANCE
On-Screen Display
E-26
Functions on the Projector
Setting Up the System
Using this function, you can check the input signal and
lamp usage time, and select the remote mouse.
Checking the system and lamp usage time
• Press the MENU button. Select “SYSTEM SETUP” with the
ADJUSTMENT ƒ/∂ buttons. Then press the ENTER button to
change to the picture indicated on the left.
• The current system conditions, including the lamp usage
time, will be displayed on the screen.
• Press the MENU button to select the normal screen mode.
Note:
• In the video screen, the resolution and frequency settings will not be
displayed.
Selecting the Remote Mouse
• Separate settings can be selected for RGB 1 and RGB 2.
• Use the INPUT SELECT buttons to select DATA 1 (RGB 1) or
DATA 2 (RGB 2).
• Press the MENU button.
• Select “SYSTEM SETUP” with the ADJUSTMENT ƒ/∂
buttons. Then press the ENTER button.
• Select “REMOTE MOUSE” and then select either “[AT]” or
“[98] ”with the ADJUSTMENT ß/© buttons.
• Select “[AT]” when using IBM compatibles and Apple
Macintosh series.
• Select “[98]” when using NEC PC98 series (for Japan).
• Press the MENU button to select the normal screen mode.
Background Level
• The Background Level adjustment can be used to adjust the
picture white balance for the selected Video Input Source.
• Optimal image quality can be achieved by adjusting the
white portion of the picture to obtain the best color for the
selected source.
Adjusting the BACKGROUND LEVEL
• Press the MENU button.
Select “BACKGRND LVL” with the ADJUSTMENT ƒ/∂ but-
tons. Then press the ENTER button to change the picture as
indicated on the left.
• Select “RED” or “BLUE” with the ADJUSTMENT ƒ/∂ buttons.
Adjust the mode you want with the ADJUSTMENT ß/© but-
tons.
• To return to the factory preset mode, press the ADJUST-
MENT ƒ/∂ buttons to select “RESET” then press the ENTER
button.
• Press the MENU button to select the normal screen mode.
Note:
• To display only the item that you want to adjust, press the ENTER
button after selecting the item with the ADJUSTMENT ƒ/∂ buttons.
Then adjust the item with the ADJUSTMENT ß/© buttons.
On-Screen Display
SYSTEM SETUP
RESOLUTION
HOR FREQ
VERT FREQ
REMOTE MOUSE
:SEL.
:END
MENU
800@600
[
AT
]
:ADJ.
60Hz
LAMP USAGE 1234H
37.9 KHz
VIDEO1 ADJ.
BACKGRND LVL
IMAGE ADJ.
AUDIO
SYSTEM SETUP
LANGUAGE
:SEL. :NEXT
ENTER
:END
MENU
BACKGRND LVL
RED
BLUE
RESET
+
0
0
:SEL.
:ADJ.
:NEXT
ENTER
:END
MENU
-
+
-
SYSTEM SETUP
RESOLUTION
HOR FREQ
VERT FREQ
REMOTE MOUSE
:SEL.
:END
MENU
800@600
[
AT
]
:ADJ.
60Hz
LAMP USAGE 1234H
37.9 KHz
E-27
Using the Black Screen Function
This projector is equipped with a Black Screen Function.
This function can be used to black out the presentation
image.
• Press the BLACK SCREEN button on the projector or the
remote control to display the black screen. Press the BLACK
SCREEN button again to return to the presentation image.
Note:
• When “BLK SCRN DISP” is set to “OFF”, the On-Screen Display
(“BLACK SCREEN”) will not appear during black screen. See below.
LCD Projector
Black Screen On-Screen Display
Override
The On-Screen Display (“BLACK SCREEN”) that appears
during black screen can be turned off. When “BLK
SCRN DISP” is set to “OFF”, the On-Screen Display will
not appear during black screen.
• Press the MENU button. While the MENU screen is displayed,
press the ADJUSTMENT ƒ/∂ buttons to select “IMAGE
ADJ.”. Then press the ENTER button to display the “IMAGE
ADJ.” screen as shown. Press the ADJUSTMENT ƒ/∂ but-
tons to select “BLK SCRN DISP” and press the ADJUST-
MENT ß/© buttons to select “ON” or “OFF”.
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
:SEL.
:ADJ.
:END
MENU
[
OFF
]
[
OFF
]
[
OFF
]
[
ON
]
On-Screen Display
BLACK SCREEN
E-28
Using the Blue Screen Function
This projector is equipped with a Blue Screen function
that will turn the screen blue when the video input termi-
nal is not connected to anything, or the video component
is turned off.
• Press the MENU button. While the MENU screen is displayed,
press the ADJUSTMENT ƒ/∂ buttons to select “IMAGE
ADJ.”. Then press the ENTER button to display the “IMAGE
ADJ.” screen as shown. Press the ADJUSTMENT ƒ/∂ but-
tons to select “BLUE SCREEN,” and press the ADJUST-
MENT ß/© buttons to select “ON” or “OFF”. Press the MENU
button to return to the normal screen.
• When the Blue Screen function is on, the screen will turn blue
when no video signal is being input through the video input
terminal.
• When the Blue Screen function is on, and no video signal is
input via the input terminal for more than 15 minutes, the
power is automatically turned off.
• The indicators appear as shown each minute before the
power is turned off, from 5 minutes before until 1 minute
before.
Notes:
• The Blue Screen function does not operate in RGB mode.
• When the power is turned off, the POWER indicator will light red.
• To turn the power on again, press the POWER button to set it to OFF,
then press it again to set it to ON.
On-Screen Display
Using the Input Mode On-Screen Display
Override Function
The On-Screen Displays that appear during input select
(“RGB 1,024 2 768, 75 Hz,” etc.) can be turned off.
Once “INPUT DISPLAY” is turned off, the On-Screen Dis-
plays will not appear even if the INPUT CHECK button on
the remote control is pressed.
• Press the MENU button. While the MENU screen is displayed,
press the ADJUSTMENT ƒ/∂ buttons to select “IMAGE
ADJ.”. Then press the ENTER button to display the “IMAGE
ADJ.” screen as shown. Press the ADJUSTMENT ƒ/∂ but-
tons to select “INPUT DISPLAY,” and press ADJUST-
MENT ß/© buttons to select “ON” or “OFF”.
• When OFF is selected, the On-Screen Display (“RGB
1,024 2 768, 75 Hz,” etc.) will not be displayed during input
select.
BLUE SCREEN
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
[
OFF
]
[
OFF
]
[
OFF
]
SYSTEM
[
OFF
]
[
ON
]
:SEL.
:ADJ.
:END
MENU
REMAIN 5M
REMAIN 4M
REMAIN 1M
BLK SCRN DISP
IMAGE ADJ.
REVERSE
INVERT
INPUT DISPLAY
:SEL.
:ADJ.
:END
MENU
[
OFF
]
[
OFF
]
[
OFF
]
[
OFF
]
E-29
Air Filter Maintenance
• The air filter should be cleaned every 100 hours of use. Clean the filter more
often when the projector is used in a dusty or smoky location.
• Have your nearest Authorized Sharp Industrial LCD Products Dealer or Ser-
vice Center exchange the filter (PFILD0080CEZZ) when it is no longer pos-
sible to clean it.
Cleaning and Replacing the Filter
4 6
Insert the tab on the end of the
filter cover into the filter cover
opening and press the filter
cover into position.
Place the filter underneath the
tabs on the filter frame.
Return the air filter to its original
position in the filter cover
opening.
Clean the dust off the air filter
and cover with a vacuum
cleaner extension hose.
Clean the AIR FILTER.
5
Replace the AIR FILTER.
Replace
the FILTER COVER.
1 3
Turn OFF
the MAIN POWER.
2
Remove
the FILTER COVER.
Remove
the AIR FILTER.
Grasp the air filter between your
fingers and lift it out of the filter
cover.
Press the tab in the direction of
the arrow and lift open the filter
cover.
Tab
Open
POWER indicator goes off.
Unplug the power cord.
AIR FILTER cover
Note:
• Be sure the AIR FILTER COVER is securely installed. The power cannot be turned on unless it is correctly installed.
Press
ONOFF
Bottom Air Filter
E-30
Lamp/Maintenance Indicators
Lamp
The lamp operating life differs, depending on the usage environment. It is recommended that the lamp be
replaced after 4,000 cumulative hours of use.
• When the lamp is nearing the end of its operating life, the picture and color quality will deteriorate. At this point, replace the
lamp. (See pages 31 and 32.)
Check
• The projector AC cord is not plugged into the AC wall outlet.
• The main power switch is not pressed.
• The input is wrong. (See pages 22 and 23.)
• Cables improperly connected to rear panel of the projector. (See pages 14, 15, 16 and 17.)
• Remote control batteries have run down. (See page 7.)
• The optional cable for the remote control is improperly inserted.
• The main power of the remote control is not turned on.
• The remote control’s MOUSE/ADJUSTMENT switch is set to MOUSE.
• Cables improperly connected to rear panel of the projector. (See pages 14, 15, 16 and 17.)
• The PICTURE and BRIGHT adjustments are set to minimum position. (See page 24.)
• On-Screen Display (“BLACK SCREEN”) is turned off and Black Screen function is turned on, creating a
black image. (See page 27.)
• The COLOR and TINT adjustments are not correct. (See page 24.)
• Adjust the focus. (See page 9.)
• The projection distance is too long or too short to allow for proper focus. (See page 10.)
• Cables improperly connected to rear panel of the projector. (See pages 14, 15, 16 and 17.)
• Volume is set to minimum. (See page 23.)
• If the picture is normal, the sound is due to cabinet shrinkage caused by temperature changes. This
will not affect operation or performance.
• Refer to “Lamp/Maintenance Indicators” on page 30.
Problem
No picture and no sound.
Sound is heard but no picture
appears.
Color is faded or poor.
Picture is blurred.
Picture appears but no sound is
heard.
An unusual sound is occasionally
heard from the cabinet.
Maintenance indicator lights up.
Notes:
• If the TEMPERATURE indicator comes on, follow the above possible solutions and then wait until the projector has cooled down completely
before turning the power back on. (At least 5 minutes.)
• When the power is turned off and then turned on again, as during a brief rest, the LAMP REPLACEMENT indicator may be triggered, pre-
venting the power from going on. When this happens, take the power plug out of the AC outlet and put it back in again.
Before Calling for Service
Problem
• Blocked air intake.
• Clogged air filter.
• Cooling fan breakdown.
• Internal circuit failure.
• Burnt-out lamp.
• Lamp circuit failure.
Warning Indicator
The internal
temperature is
abnormally high.
TEMPERATURE
indicator
LAMP REPLACE-
MENT indicator
The lamp does not
light up.
Symptom Possible Solution
• Relocate projector to a proper location.
• Clean the filter.
(See page 29.)
• Take the projector to your nearest Autho-
rized Sharp Industrial LCD Products Dealer
or Service Center for repair.
• Carefully replace the lamp.
• Take the projector to your nearest Autho-
rized Sharp Industrial LCD Products Dealer
or Service Center for repair.
• The warning lights on the projector indicate problems inside the
projector.
• There are two warning lights: a TEMPERATURE indicator which warns
that the projector is too hot, and a LAMP REPLACEMENT indicator which
lets you know when to change the lamp.
• If a problem occurs, either the TEMPERATURE indicator or the LAMP
REPLACEMENT indicator will light up red, and the power will shut off.
After turning off the power, follow the procedures given below.
POWER LAMP TEMP.
LAMP REPLACEMENT
indicator
TEMPERATURE
indicator
Maintenance Indicators
Note: The lamp usage time can be checked with the On-Screen display. (See page 26.)
• If the new lamp does not light after replacement, take your projector to the nearest Authorized Sharp Industrial LCD Products
Dealer or Service Center for repair.
• Intense light hazard. Do not attempt to look into the aperture and lens while the projector is operating.
E-31
Lamp Replacement
The lamp in the projector has a finite service life. The lamp operating life differs, depending on the usage
environment. It is recommended that the lamp be replaced after 4,000 cumulative hours of use. The lamp usage
time can be checked at the On-Screen display. (See page 26.)
• Replace the lamp when the picture starts becoming dark and the color contrast deteriorates.
Purchase a replacement UHP lamp unit (lamp/cage module) of the current type BQC-XGNV2U//1 from your
nearest Authorized Sharp Industrial LCD Products Dealer. Then change the lamp by carefully following the
instructions below.
If you wish, you may bring the projector to your nearest Authorized Sharp Industrial LCD Products Dealer.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this
projector under warranty, including lamp replacement, must be obtained through an Authorized Sharp Industrial
LCD Products Dealer or Service Center. For the name of the nearest Authorized Sharp Industrial LCD Products
Dealer or Service Center, please call toll-free: 1-800-BE-SHARP (1-800-237-4277).
How to Change the Lamp
Precaution:
• Take care not to touch either the glass surface of the lamp
cage or the inside of the projector with your bare hands.
Removing the lamp unit (see figure)
1. Press the power button (a) and turn the instrument off. After the cooling fan stops, turn off the MAIN POWER
switch (b). Remove the power cord from the AC outlet.
2. The lamp may be extremely hot. Wait at least an hour after the power cord is disconnected before carrying
out the following procedures.
3. Turn over the projector and unfasten the user service screw (d) that secures the lamp cage cover (c) as
shown in the above diagram. Then remove the lamp cage cover by pulling it in the direction of the arrow.
4. After the lamp cage (i) has sufficiently cooled, remove securing screws (e), (f) and (g) from the lamp cage.
5. Hold the lamp cage (i) by the handle (h) and pull it towards you.
(i)
(k)
(f)
(e)
(g)
(h)
(j)
(a)
U.S.A. ONLY
(c)
(d)
(b)
Note:
• When the lamp cage cover (c) has been removed, check that the surface of the lamp cage (i) has fully cooled before pro-
ceeding with step 4.
E-32
Caution:
• Because some parts may not be sufficiently cooled, be sure to remove the lamp cage by the handle while taking care not
to touch the metallic areas.
Installing the lamp unit
1. Hold the lamp cage (i) by the handle (h) and press it in firmly while making sure that grooves on the side of
the lamp cage (j) are properly aligned with the projections inside the lamp cage compartment, and that the
holes on the top of the lamp cage (k) are aligned with the screw holes on the projector.
2. Tighten screws (e), (f), (g) and (d), then perform the above instructions in the reverse order.
1. Plug in the power cord.
2. While pressing the ADJUSTMENT ©, ADJUST-
MENT ƒ, and ENTER buttons on the projector, turn
on the MAIN POWER switch.
After the projector turns on, “LAMP 0000H” is displayed,
indicating that the lamp timer is reset.
Note:
• Only reset the lamp timer after replacing the lamp.
Resetting the lamp timer
1
OFF ON
110-120V/
200-240V~
2
3
ONOFF
LAMP
0000
H
E-33
Connection Pin Assignments
Analog RGB 1 and 2 Signal Input and Analog RGB Output Terminal: 15-pin mini
D-sub female connector
Computer Input
Analog
1. Video input (red)
2. Video input (green/sync on
green)
3. Video input (blue)
4. Reserve input 1
5. Composite sync
6. Earth (red)
7. Earth (green/sync on green)
1
15
5
6
11
10
8. Earth (blue)
9. Not connected
10. GND
11. GND
12. Bi-directional data
13. Horizontal sync signal
14. Vertical sync signal
15. Data clock
5
1
9
6
Pin No. Signal Name I/O Reference
1 CD Carrier Detect Input Connected to internal circuit
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 ER Equipment Ready Output Connected to internal circuit
5 SG Signal Ground Connected to internal circuit
6 DR Data Set Ready Output Not connected
7 RS Request to Send Output Connected to internal circuit
8 CS Clear to Send Input Connected to internal circuit
9 CI Ring Indicator Input Connected to internal circuit
Mouse Input Terminal (for IBM/Mac): 9-pin D-sub female connector
Pin No. Signal I/O Reference
1 `5V Input Computer output
2 XA Input Computer output
3 XB Input Computer output
4 YA Input Computer output
5 YB Input Computer output
6 LEFT Input Computer output
7 NC Input Not connected
8 RIGHT Input Computer output
9 GND Computer output
6
8
9
7
5
2
1
4
Mouse Input Terminal (for NEC PC98 series for Japan): 9-pin mini DIN connector
1
5
6
9
Pin No. Signal Name I/O Reference
1 CD Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 ER Not connected
5 SG Signal Ground Connected to internal circuit
6 DR Data Set Ready Output Not connected
7 RS Request to Send Output Connected to internal circuit
8 CS Not connected
9 CI Not connected
RS-232C terminal: 9-pin D-sub male connector
3
E-34
RS-232C Terminal Specifications
1. PC control
A personal computer can be used to control the projector by connecting the supplied computer control
cable to the PC CONTROL 1 terminal on the projector and an RS-232C cable (cross type) (not supplied) to
the computer, and then connecting the RS-232C cable to the computer control cable.
(RS-232C does not function when connected to PC CONTROL 2. See page 15 for connection.)
2. Communication conditions
Set the serial port settings of the computer to match that of the table below.
Signal format: Conforms to RS-232C standard.
Baud rate: 9,600 bps
Data length: 8 bits
Parity bit: NON
Stop bit: 1 bit
Flow control: None
3. Basic format
Commands from the computer are sent in the following order: command, parameter, and return code. After
the unit processes the command from the computer, it sends a response code to the computer.
Return code (0DH)
C1 C2 C3 C4 P1 P2 P3 P4
Response code format
Normal response
O K
Return code (0DH)
Problem response (communication error or incorrect command)
E R R
Return code (0DH)
Command 4-digits Parameter 4-digits
When more than one code is being sent, send each command only after the OK response code for the
previous command from the unit is verified.
Note:
• Using the computer control function of the unit, the liquid crystal projector conditions cannot be read to the computer. There-
fore, confirm the conditions by transmitting the display commands for each adjustment menu and checking the conditions
with the On-Screen Display. If the unit receives a command other than a menu display command, it will execute the command
without displaying the On-Screen Display.
Note:
• If a dash appears in the parameter
column, enter a space. If an asterisk
appears, enter a value in the range
indicated in brackets under CON-
TROL CONTENTS. See the example
on the next page.
Command format
4. Commands
CONTROL ITEM
COMMAND PARAMETER
CONTROL CONTENTS
C1 C2 C3 C4 P1 P2 P3 P4
INPUT SWITCHING
POWER SETTING
INPUT CHECK
___
VIDEO 2
___
VIDEO 1
___
POWER ON
___
POWER OFF
RGB 1
RGB 2
INPUT CHECK
ENGLISH
DEUTSCH
ESPANOL
NEDERLANDS
FRANCAIS
ITALIANO
SVENSKA
JAPANESE
AUTO
PAL
SECAM
NTSC 4.43
PICTURE (!30 – ~30)
BRIGHT (!30 – ~30)
COLOR (!30 – ~30)
TINT (!30 – ~30)
SHARPNESS (!30 – ~30)
VIDEO 1 DISPLAY
RESET
___
LANGUAGE
SELECTION
___
___
___
___
___
___
___
___
VIDEO
SYSTEM
SELECTION
VIDEO 1
ADJUSTMENT
___
___
___
___
_**
_**
_**
_**
___
___
___
___
I
I
P
P
I
M
M
M
M
M
M
M
M
M
M
M
M
V
V
V
V
V
V
V
I
I
V
V
O
O
R
E
E
E
E
E
E
E
E
E
E
E
E
A
A
A
A
A
A
A
R
C
E
E
W
W
G
L
L
L
L
L
L
L
L
S
S
S
S
P
B
C
T
S
R
R
G
H
D
D
R
R
B
A
A
A
A
A
A
A
A
Y
Y
Y
Y
I
R
O
I
H
E
E
B
K___
2
1
1
0
1
1
2
3
4
5
6
7
8
1
2
3
4
NTSC 3.58
___
MESY
5
*
*
*
*
*
0
1
PICTURE (!30 – ~30)
BRIGHT (!30 – ~30)
COLOR (!30 – ~30)
TINT (!30 – ~30)
SHARPNESS (!30 – ~30)
VIDEO 2 DISPLAY
RESET
VIDEO 2
ADJUSTMENT
VIDEO
BACKGROUND
LEVEL
_**
_**
_**
_**
___
___
___
_
___
V
V
V
V
V
V
V
B
B
B
B
B
B
B
P
B
C
T
S
R
R
I
R
O
I
H
E
E
*
*
*
*
*
0
1
2
0
RED (!30 – ~30)
BLUE (!30 – ~30)
RESET
_**
_
_
W
W
W
B
B
B
R
B
R
D
E
E
*
*
1
**
E-35
→
←
Unit
CONTROL ITEM
COMMAND PARAMETER
CONTROL CONTENTS
1C2C3C4C1P2P3P4P
VOLUME
ADJUSTMENT
_ _ * VOLUME (0 – 60)
_ _ _ MUTE OFF
_ _ _ MUTE ON
AUDIO
ADJUSTMENT
_ * * BALANCE (!30 – ~30)
_ * * TREBLE (!30 – ~30)
_ * * BASS (!30 – ~30)
_ _ _ AUDIO DISPLAY
_ _ _ RESET
RGB 2 ADJUSTMENT
_ * * PICTURE (!30 – ~30)
_
* * BRIGHT (!30 – ~30)
_ * * RED (!30 – ~30)
_ * * BLUE (!30 – ~30)
_ _ _ RGB DISPLAY
_ _ _ RESET
RGB INPUT
ADJUSTMENT
_ * * CLOCK (!60 – ~60)
_ * * PHASE (!60 – ~60)
_ * * H-POS (!60 – ~60)
_ * * V-POS (!30 – ~30)
_ _ _ RGB INPUT DISPLAY
_ _ _ RESET
SCREEN SETTING
_ _ _ BLUE SCREEN OFF
_ _ _ BLUE SCREEN ON
_ _ _ BLACK SCREEN OFF
_ _ _ BLACK SCREEN ON
_ _ _ INPUT DISPLAY OFF
_ _ _ INPUT DISPLAY ON
_ _ _ REVERSE OFF
_ _ _ REVERSE ON
_ _ _ INVERT OFF
_ _ _ INVERT ON
ON-SCREEN
DISPLAY SETTING
_ _ _ BLACK SCREEN DISPLAY OFF
_ _ _ BLACK SCREEN DISPLAY ON
MOUSE
ADJUSTMENT
_ _ _ REMOTE MOUSE AT
_ _ _ REMOTE MOUSE 98
RGB 1 ADJUSTMENT
_ * * PICTURE (!30 – ~30)
_
* * BRIGHT (!30 – ~30)
_ * * RED (!30 – ~30)
_ * * BLUE (!30 – ~30)
_ _ _ RGB DISPLAY
_ _ _ RESET
SCREEN MODE
MEMORY
V
M
M
A
A
A
A
R
R
R
R
R
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
R
R
R
R
R
R
A
R
I
R
M
O
U
U
A
A
A
A
B
B
B
B
B
N
N
A
A
A
M
M
M
M
M
M
M
M
M
M
M
M
E
A
A
A
A
A
A
B
A
A
E
L
T
T
B
T
B
R
P
B
R
B
R
C
P
H
V
R
B
B
D
R
I
B
B
D
R
I
B
B
M
P
B
R
B
R
R
R
R
R
M
A
E
E
L
E
A
E
I
R
D
E
E
L
H
P
P
E
E
K
I
E
N
E
K
I
E
N
O
O
O
I
R
D
E
E
E
E
E
E
A
R
M
E
E
M
M
O
A
_ _ _ MEMORY RELEASE
___
*
0
1
*
*
*
0
1
*
*
*
*
0
1
*
*
*
*
0
1
0
1
0
1
0
1
0
1
0
1
0
1
VIDEO
CONFIRMATION
_ _ _ DISPLAYSYSE 0
1
2
*
*
*
*
0
1
0
* MEMORY SELECTION (1 – 7)
Note:
• RGB INPUT ADJUSTMENT can only be set in the displayed computer mode.
Example:
When BRIGHT of RGB 1 IMAGE ADJUSTMENT is set to 110.
Computer
RABR 1 0__ 1
OK
E-36
Wired Remote Control Terminal Specifications
1. Specifications of wired remote control input
• 3.5ø minijack
• External: `5 V (1 A)
• Internal: GND
2. Function and transmission codes
Wired remote control function code
10110********10
C1 System Code C5 C6 Data Code C13 C14 C15
LSB MSB
• System codes C1 to C5 are fixed at “10110”.
• Codes C14 and C15 are reverse confirmation bits, with “10”
indicating “Front” and “01” indicating “Rear”.
Note:
• To operate the MOUSE, L-CLICK and R-CLICK functions
through the wired remote control input, connect the cable
from the wired remote control (supplied) terminal on the pro-
jector to the remote control. The codes for these functions are
complex and are, therefore, not listed here.
3. Sharp remote control signal format
1. Transmission format
a. 15-bit format
2. Wave form of output signal
• Output using Pulse Position Modulation
DDDDDD
DDDDDDD
67.5 ms 67.5 ms
“0”“1”“0”
D
“0”“0”“0”“1”
T
0T1
t
• t 4 264 µs
• To 4 1.05 ms
• T1 4 2.10 ms
• Pulse carrier frequency 4 455/12 kHz
• Duty ratio 4 1:1
3. Transmission control code
a. 15 bit b. Example of Reverse D to
C1
1
DC2
0
C3
1
C4
1
C5
0
C6
1
C7
0
C8
0
C9
0
C10
0
C11
0
C12
0
C13
0
C14
1
C15
0
C1
1
DC2
0
C3
1
C4
1
C5
0
C6
0
C7
1
C8
1
C9
1
C10
1
C11
1
C12
1
C13
1
C14
0
C15
1
C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14
System Address
D to D Common Data Bit Reverse in D
Function Key Data Bit
Data
Expansion
Data
Deter-
mination
Mask
C15
VOLUME UP
VOLUME DOWN
POWER ON
POWER OFF
CURSOR UP
CURSOR DOWN
ADJUST UP
ADJUST DOWN
MUTE
MENU
VIDEO 1
VIDEO 2
RGB1
RGB 2
ENTER
INPUT CHECK
BLACK SCREEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
C2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
C5
0
1
0
0
0
1
1
0
1
0
0
1
1
0
1
1
1
C6
0
0
1
1
0
0
1
0
1
0
1
1
0
1
1
1
0
C7
1
1
1
1
1
1
1
0
1
1
0
0
1
1
1
0
0
C8
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
1
1
C9
1
1
1
1
1
1
0
1
1
0
1
1
1
1
1
1
0
C10
0
0
0
0
0
0
0
0
0
0
1
1
1
1
0
0
1
C11
0
0
1
0
0
0
1
1
0
1
0
0
0
0
1
0
1
C12
0
0
0
1
1
1
0
0
0
1
0
0
0
0
0
0
0
C13
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
C14
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
C15
No. Control Item System Code Data Code External Code
(Function)
t
26.4 µs
E-37
Specifications
Product Type
Model
Video system
Display method
LCD panel
Lens
Projection lamp
Contrast ratio
Video input signal
S-video input signal
Horizontal resolution
Audio output
Computer RGB input signal
Computer Control Cable (Supplied)
RS-232C input terminal
Mouse input terminal (for IBM/Mac)
Mouse input terminal (for PC98)
Speaker system
Rated voltage
Input current
Rated frequency
Power consumption
Operating temperature
Storage temperature
Cabinet
I/R Carrier frequency
Laser Pointer of Remote Control
Dimensions (W 2 D 2 H)
Weight
Supplied accessories
Replacement parts
LCD Projector
PG-D210U
PAL/SECAM/NTSC 3.58/NTSC 4.43
LCD panel 2 3, RGB optical shutter method
Panel size: 1.3( (20.0 [H] 2 26.6 [W] mm)
Display method: Translucent TN liquid crystal panel
Drive method: TFT (Thin Film Transistor) Active Matrix panel
No. of dots: 786,432 dots (1,024 [H] 2 768 [V])
1–1.6 zoom lens, F2.5 to 3.6, f 4 47 to 76 mm
120 W UHP lamp
200:1
RCA Connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated
RCA Connector: AUDIO, 0.5 Vrms more than 22 kΩ (stereo)
4-pin mini DIN connector
Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
520 TV lines (video input), 700 TV lines (S-video input)
2 W ` 2 W (stereo)
Video signal
15-PIN MINI D-SUB CONNECTOR (RGB 1, 2):
RGB separate/composite sync/sync on green type analog input:
0–0.7 Vp-p, positive, 75 Ω terminated
S
TEREO MINIJACK:
AUDIO, 0.5 Vrms, more than 22 kΩ (stereo)
H
ORIZONTAL SYNC. SIGNAL:
TTL level (positive/negative) or composite sync
V
ERTICAL SYNC. SIGNAL:
Same as above
9-pin D-sub male connector for controlling personal computer
9-pin D-sub female connector for wireless mouse
9-pin mini DIN connector for wireless mouse
2.89 2 1.69 (7 2 4 cm) oval 2 2
AC 110–120/200–240 V
1.8 A/1.0 A
50/60 Hz
226 W
41°F to 104°F (`5°C to `40°C)
14°F to 140°F (120°C to `60°C)
Plastic
40 kHz
Wave length
670 nm
Max. output
1 mW
Class II Laser Product
10.3( 2 13.0( 2 5.4( (261 2 329 2 137 mm) (main body only)
10.5( 2 15.7( 2 6.1( (266 2 399 2 155 mm) (including lens, adjuster legs and
projecting parts)
14.6 lbs. (6.6 kg)
Remote control unit, Four AA batteries, Extra air filter, RGB signal cable
(9.88, 3 m), Macintosh adaptor, Computer control cable (3.38, 1 m), Mouse control
cable for IBM PS/2 (5.99, 15 cm), Mouse control cable for Mac (5.9(, 15 cm),
Mouse control cable (9.88, 3 m), Computer audio cable, AC cord, Lens cap
(installed)
Lamp unit (Lamp/cage module) (BQC-XGNV2U//1), Remote control
(RRMCG1414CESA), Air filter (PFILD0080CEZZ), RGB signal cable
(QCNW-5050CEZZ), Macintosh adaptor (QPLGJ1512CEZZ), Computer control
cable (CTANZ0711CE01), Mouse control cable for IBM PS/2 (QCNW-4754CEZZ),
Mouse control cable for Mac (QCNW-4755CEZZ), Mouse control cable
(QCNW-4620CEZZ), Computer audio cable (QCNW-4870CEZZ), AC cord
(QACCU5013CEZZ)
This will not affect the picture quality or the life expectancy of the unit.
If you have any questions about this matter, please call toll free 1-800-
BE-SHARP (1-800-237-4277). U.S.A. ONLY
Our projector uses LCD (Liquid Crystal Display) panels. These very
sophisticated panels contain 786,432 pixels (2 RGB) TFTs (Thin Film
Transistors).
As with any high technology electronic equipment such as large
screen TVs, video systems and/or video cameras, there are certain
acceptable tolerances that the equipment must conform to. This unit
has some inactive TRTs within acceptable tolerances which may result
in illuminated or inactive dots on the picture screen.
Specifications are subject to change without notice.
E-38
10.3 (261) 0.2 (5)
4.0 (101)(Max.)
1.9 (49)
10.5 (267) 1.9 (47)
0.8 (21)
13.0 (329)
1.1 (29)
2.8 (71)0.7 (18)
8.0 (204)
5.4 (137)
Dimensions
Side View
(Lens housed)
(Lens extended)
[Units: inches (mm)]
Front View
Rear View
Top View
Bottom View
SHARP CORPORATION
OSAKA, JAPAN
Printed in Japan
Imprimé au Japon
Impreso en Japón
TINS-6785CEZZ
T2184-A
9P06-JWG
