QUICK START GUIDE
Model: S3851w-D4
VIZIO
• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into
your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire
or electric shock.
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the
power cord and contact your dealer immediately. Do not try to repair your Unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the
internal components may function abnormally. Unplug the power cord immediately and contact your
dealer for repair. Continued use of your Unit may cause fire or electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments
with heavy dust or high humidity may cause fire or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Unit.
• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage
the wires inside the cord and cause fire or electric shock. When your Unit will not be used for an extended
period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery
to leak which can damage the remote control or injure the operator.
• See the important note and rating located on the bottom of the unit.
• WARNING - This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container
filled with liquid near the equipment (such as a vase or flower pot) or expose it to dripping, splashing,
rain, or moisture.
• CAUTION - Danger of explosion or fire if battery is mistreated. Replace only with the same or specified type.
• Do not leave the battery exposed to direct sunlight for a long period of time with doors and windows
closed. Do not disassemble the battery or dispose of it in fire.
• Disconnect the mains plug to shut off when you experience trouble or the device is not in use. The mains
plug shall remain readily operable.
• When wall mounting, be sure that the mounting surface is strong enough to bear the weight of the
Sound Bar.
Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric
shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use,
and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions
in a safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• To reduce the risk of electric shock or component damage, switch off the power before connecting other
components to your Unit.
• Unplug the power cord before cleaning your Unit. A damp cloth is sufficient for cleaning. Do not use a
liquid or a spray cleaner on your Unit. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Unit from an area of low temperature to an area of high temperature, condensation
may form in the housing. Wait before turning on your Unit to avoid causing fire, electric shock, or
component damage.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable
operation of your Unit and to protect it from overheating, be sure these openings are not blocked or
covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on
the top of your Unit. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids
on your Unit.
• The power cord must be replaced when using different voltage than the voltage specified. For more
information, contact your dealer.
• When connected to a power outlet, power is always flowing into your Unit. To totally disconnect power,
unplug the power cord.
• The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of un-isolated, dangerous voltage within your Unit that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
• The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and servicing instructions in the literature accompanying your Unit.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket should be located near your Unit and be easily accessible
h
IMPORTANT SAFETY INSTRUCTIONS
Package Contents .............................................................. 4
Controls & Connections ..................................................... 5
First-Time Setup ...................................................................8
Using the Remote ................................................................ 14
Adjusting Sound Bar Settings ............................................. 15
Programming the Sound Bar .............................................. 18
Resetting to Factory Default Settings ................................. 19
Re-linking the Subwoofer with the Sound Bar .................... 20

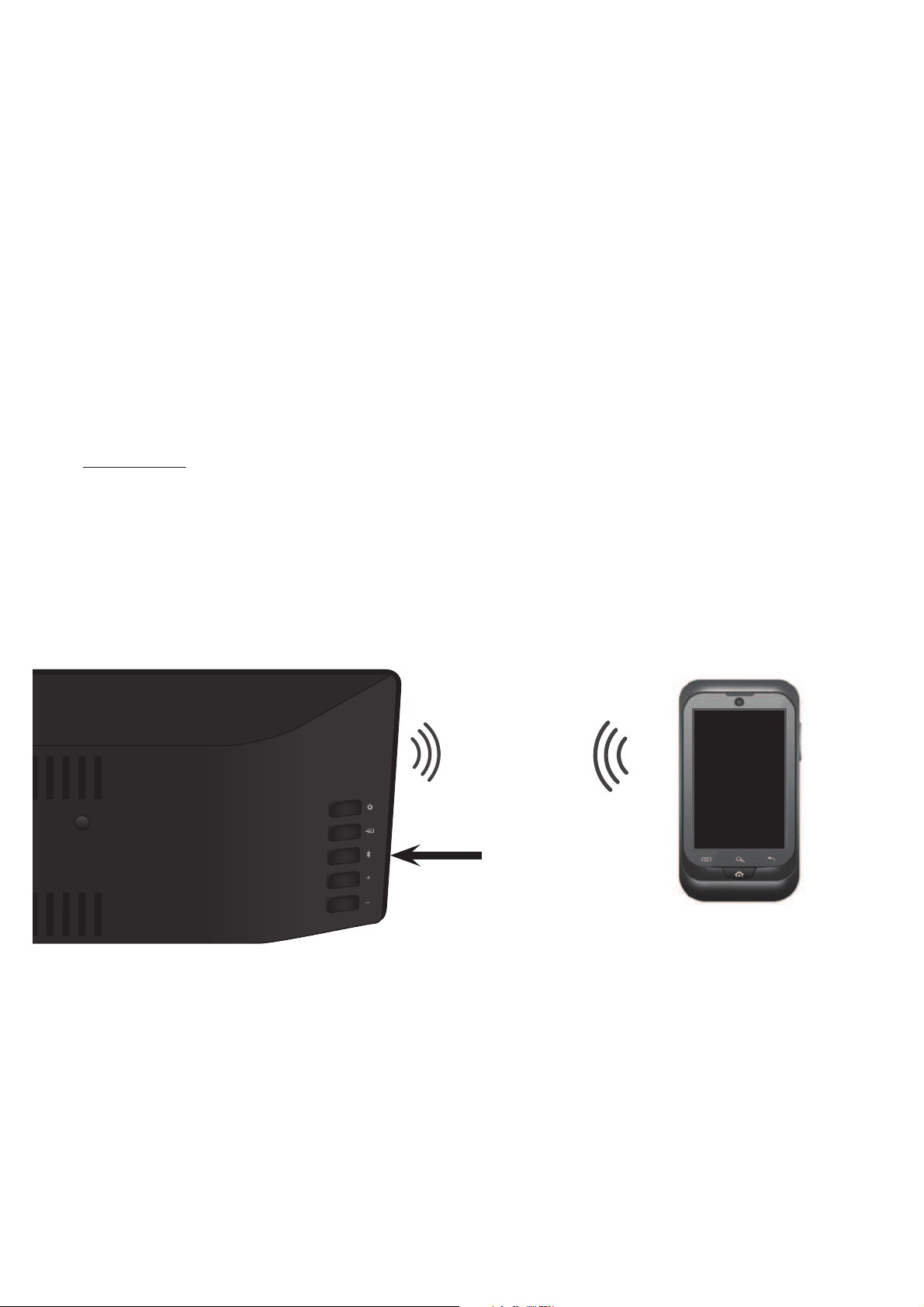

Bluetooth Pairing ................................................................. 22
Using Bluetooth Mode ........................................................23
Advanced Setup ................................................................24

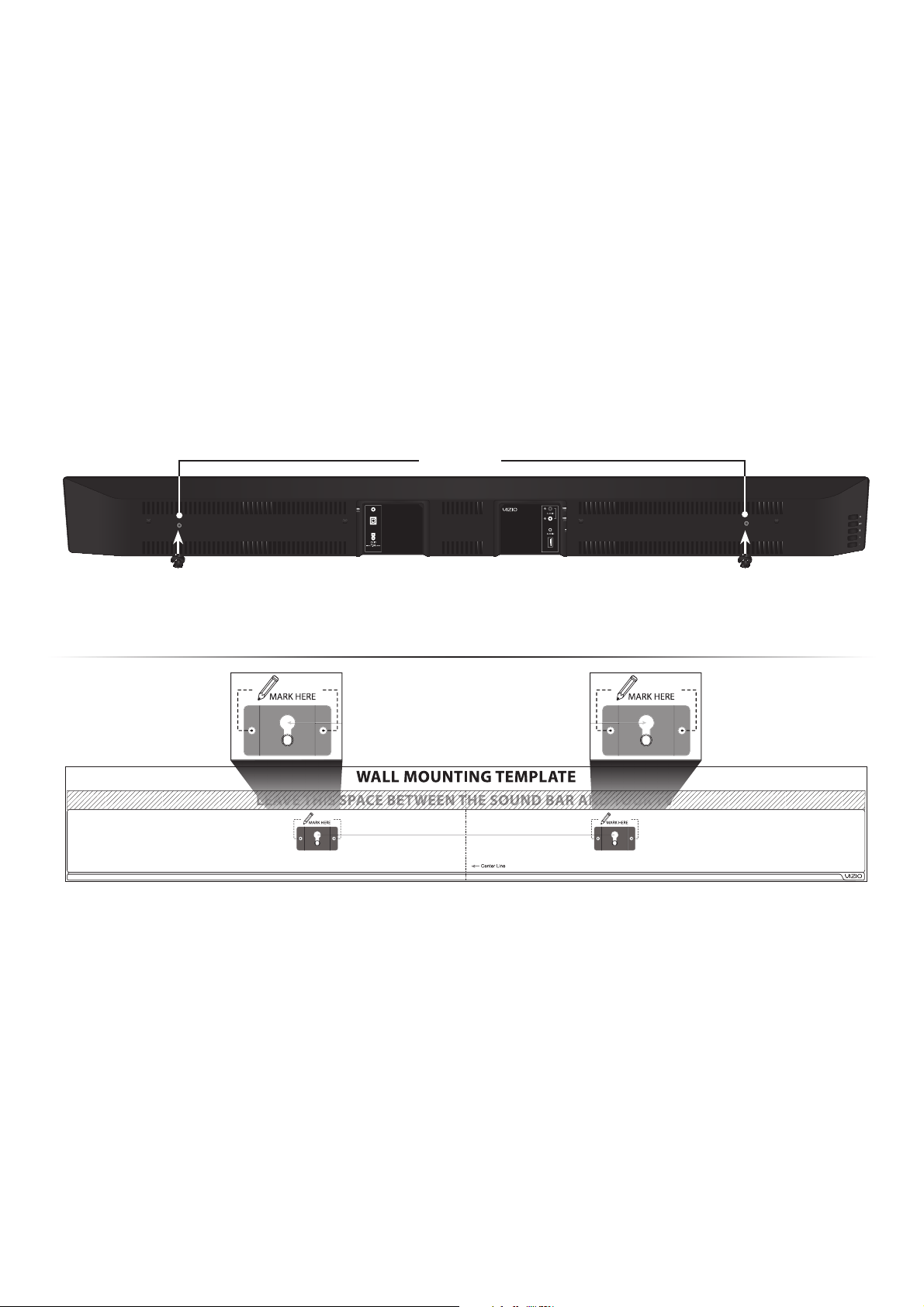

Wall Mounting the Sound Bar ............................................26
Wall Mounting the Satellite Speakers .................................28
Using Button Combinations ................................................29
Help & Troubleshooting ......................................................33
One-Year Limited Warranty ................................................. 34
Legal & Compliance ..........................................................35
TABLE OF CONTENTS
4
PACKAGE CONTENTS
2 x Satellite Speakers
This Quick
Start Guide
INPUT MENU
VI ZI O
Remote Control
with Batteries
High Definition Sound Bar with
Wireless Subwoofer
Digital Optical
Cable
Stereo RCA to 3.5mm
Audio Cable
Coaxial Audio
Cable
2 x Power
Cables
2 x Satellite Speaker
Audio Cables
2 x Sound Bar Wall
Mount Brackets
Wall Mount
Template
2 x Satellite Wall
Mount Brackets
4 x Wall
Mount Screws
(Size: M4 x 10)
4 x Velcro
Cable Ties
5

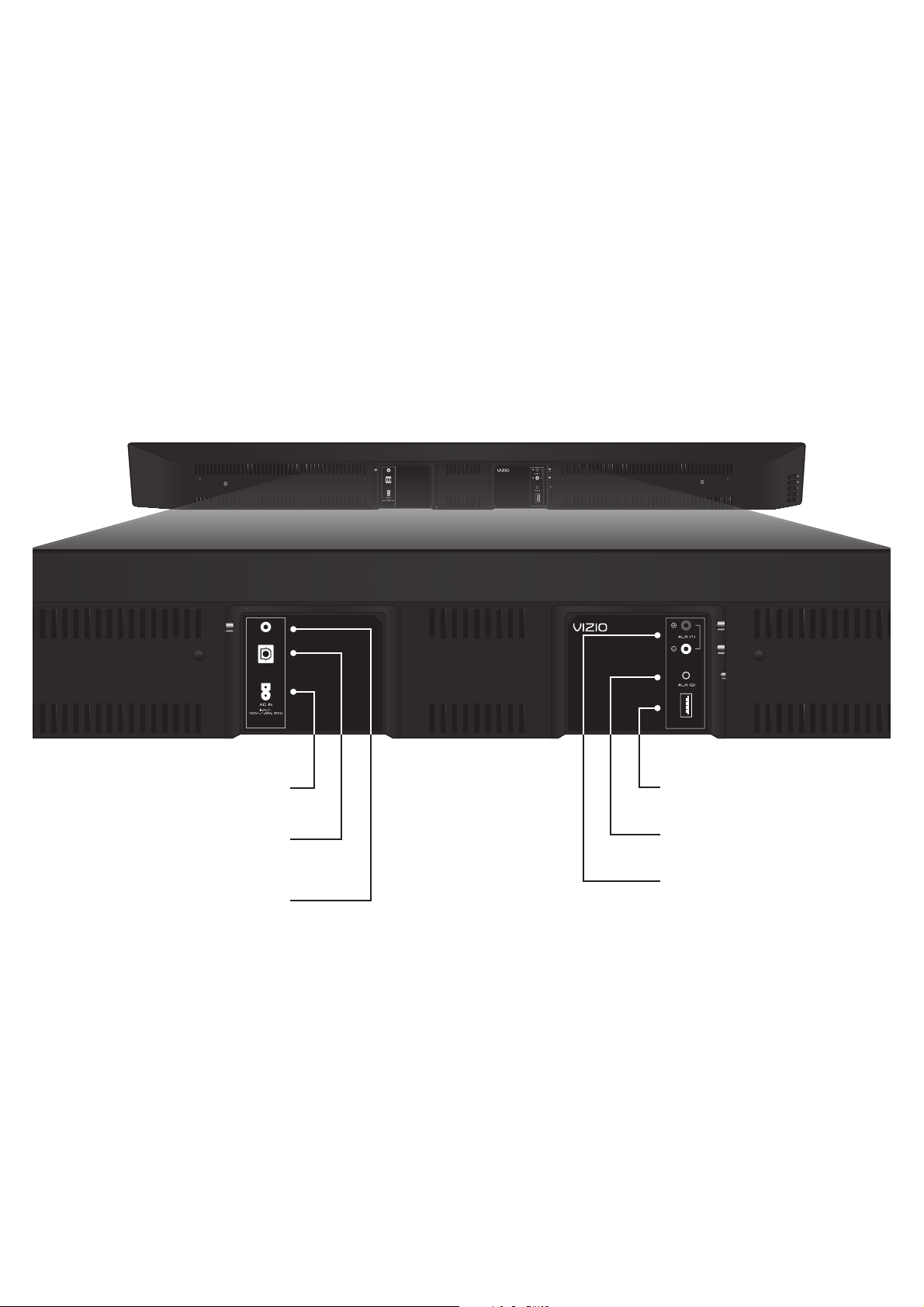

CONTROLS & CONNECTIONS
Power Port
Back of Sound Bar
(USB 5)
USB Port
(Optical 4)
Digital Optical
Audio In
(Digital 3)
Coaxial In
(Aux 2)
Analog Audio In
(Aux 1)
Analog Audio In
OPTICAL (4)
DIGITAL (3)
USB (5)
OPTICAL (4)
DIGITAL (3)
USB (5)
OPTICAL (4)
DIGITAL (3)
USB (5)
6
OPTICAL (4)
DIGITAL (3)
USB (5)

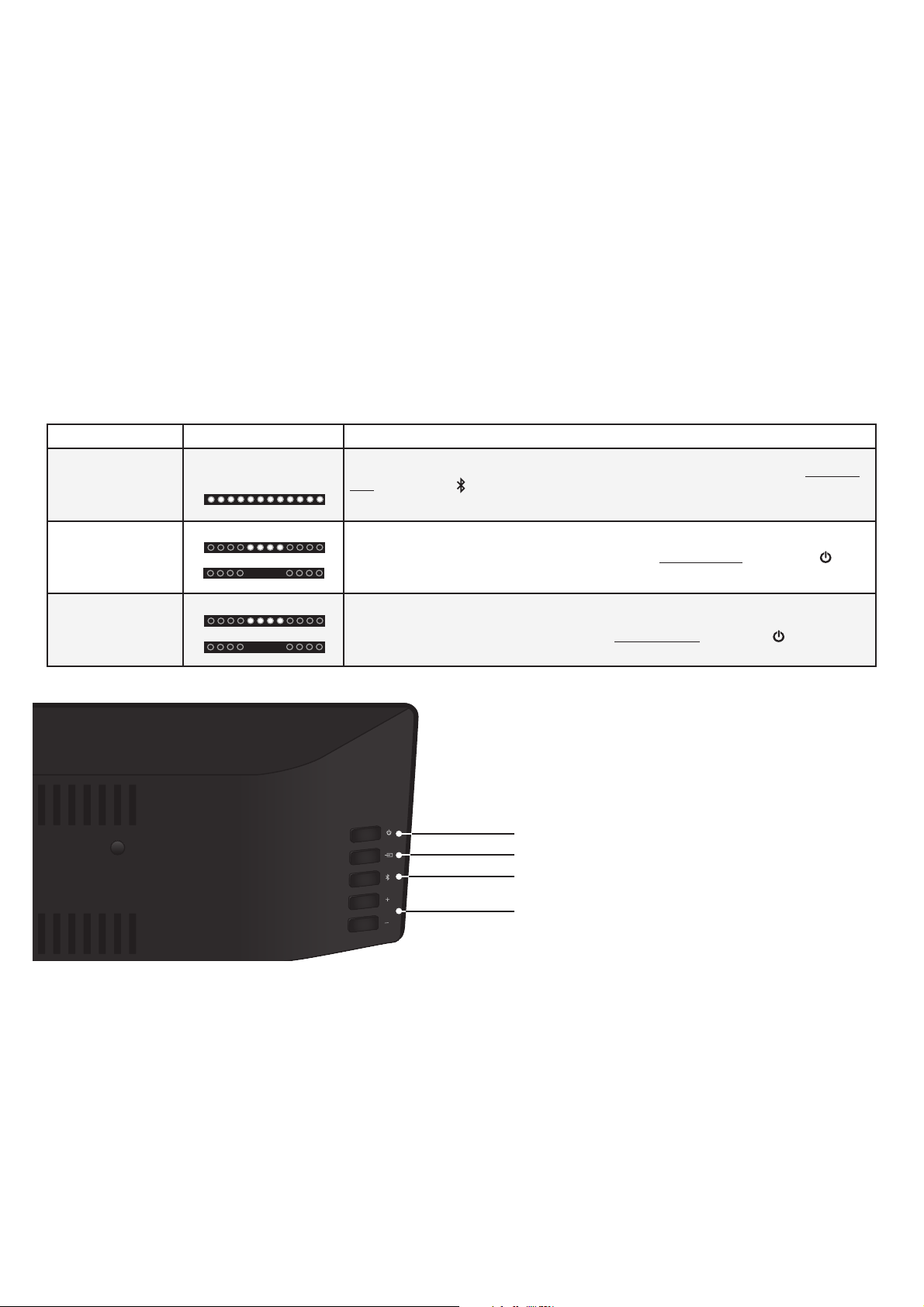

Control Buttons are located here
Back of Sound Bar
Input
Power
Volume Up/Down
Bluetooth Input
(Hold to force pair, See
Bluetooth Pairing on page 22
)
7
Back of Subwoofer
Pairing Button
LED Indicator
Satellite Speaker
Ports
(Connects to Speakers)
Power Switch
Power Port
Back of Satellite Speaker
Satellite Speaker Port
(Connects to Subwoofer)
8
FIRST-TIME SETUP
*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly
to your other devices (Blu-ray player, game system, etc) see your device’s user manual.
**When using either of the Digital Inputs, if there is no audio: (A) try setting the TV
output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not
pass through digital audio.
OPTICAL (4)
DIGITAL (3)
USB (5)
Connect one of the included cables to ONE TV audio output as shown.*
1
AND CONNECT IT TO YOUR TV
CHOOSE ONE CABLE:
BETTER
GOOD
GOOD GOODBETTER BETTER
3.5MM TO
RCA CABLE
3.5MM TO
RCA CABLE
DIGITAL COAXIAL
CABLE**
DIGITAL OPTICAL
CABLE**
9
OPTICAL (4)
DIGITAL (3)
USB (5)
OPTICAL (4)
DIGITAL (3)
3
Connect a Power Cable to
the Sound Bar.
Plug the Power Cable into
a Power Outlet.
2
10
4
Connected the Satellite Speakers to the Subwoofer
using the included Satellite Speaker Audio Cables.
Match the color coded speaker
cable to the matching speaker port.
BACK OF SUBWOOFER
BACK OF SATELLITE SPEAKERS
11
BACK OF SUBWOOFER
5
6
7
Connect a Power Cable
to the Subwoofer.
Plug the Power Cable into
a power outlet.
Flip the Power Switch into
the On position.
12
For the best surround sound experience, position the Sound Bar, Subwoofer, and Satellite Speakers as
shown. The Sound Bar and Satellite Speakers should be close to ear level.
Note: If you have speaker stands for the satellite speakers, you can fasten the speaker wires along the stand with the included velcro cable ties.
Sound Bar is centered
below the TV.
8
13
9
Locate the arrow on the battery cover
and gently slide it away from the remote
with your thumb. Insert the included AAA
batteries, matching the + and - symbols.
Gently slide the battery cover
back into place.
10
Power
INPUT MENU
V I Z I O
Turn your TV on, then press the Power
button on the remote to turn the
Sound Bar on.
Press the Input button to switch
between audio sources. For example,
if you connected your TV to Input 1, set
the Sound Bar to Input 1.
Setup is complete.
Input
14
Volume +
Press to increase volume.
INPUT MENU
V I Z I O
Volume -
Press to decrease volume.
USING THE REMOTE
Previous
Press to return to previous track.
(Changes audio settings in Menu)
Power
Press to turn on or off.
Mute
Press to mute/unmute.
Input
Press to change input source.
Enter/Play/Pause
Press to select an option.
Press to Play or Pause.
Next
Press to skip to the next track.
(Changes audio settings in Menu)
Menu
Press to access the menu settings,
press again to close the menu.
Up/Down
Press to cycle through settings
and options.
Display
Displays Sound Bar settings
15
LED Indicators are located here
ADJUSTING SOUND BAR SETTINGS
Press the Menu button and use the Up/Down Arrow buttons on the remote to access the different functions and acoustic settings
of the Sound Bar. Each function and setting will be displayed on the remote control’s LCD display. The LED Indicators will behave
differently with each function.
Function LED Behavior Description
Bluetooth Pairing
(When searching for device)
Flash from Left to Right
and back continuously.
Press the Enter button on the remote. The Sound Bar will be discoverable for
15 minutes. You can now search for the Sound Bar (VIZIO S3851w) using your
Bluetooth Device. The sound bar will power down if no device is found.
Note: Set your Bluetooth device into pairing mode prior to the Sound Bar.
Bass Levels
Two center LEDs
indicate Bass level 0.
Press the Next/Previous button to increase/decrease the bass level. The LED
indicators will move to the right with increasing levels and to the left with
decreasing levels.
Treble Levels
Two center LEDs
indicate Treble level 0.
Press the Next/Previous button to increase/decrease the treble level. The
LED indicators will move to the right with increasing levels and to the left with
decreasing levels.
Center Levels
Two center LEDs
indicate sound is
centered.
Press the Next/Previous button to increase/decrease the presence of the center
channel. The LED indicators will move to the right when the center presence is
increased and to the left when the center presence is decreased.
Surround Levels Two center LEDs
indicate surround is
centered.
Press the Next/Previous button to increase/decrease the surround sound level.
The LED indicators will move to the right with increasing levels and to the left with
decreasing levels.
Surround Balance Two center LEDs
indicate surround
balance is centered.
Press the Next/Previous button to move the Surround Balance level towards the
left/right rear channel speaker. The LED indicators will move to the right when
levels are adjusted to the right and to the left when adjusted to the left.
BT Pair
Bass
Treble
Center
Surround
Surr Bal
16
Function LED Behavior Description
Subwoofer Levels Two center LEDs
indicate Subwoofer
level 0.
Press the Next/Previous button to increase/decrease the level of the subwoofer.
The LED indicators will move to the right with increasing levels and to the left with
decreasing levels.
Surround On/Off
Surround On:
Surround Off:
Press the Next/Previous button to enable/disable Surround. When enabled
(On), all inputs will produce 5.1 surround sound. When disabled (Off), 5.1
surround sound sources will be downmixed to 3.1 channels.
TruVolume On/Off
TruVolume On:
TruVolume Off:
Press the Next/Previous button to enable/disable TruVolume. When enabled
(On), TruVolume provides a consistent and comfortable volume level for a more
enjoyable multimedia experience.
Night Mode On/Off
Night Mode On:
Night Mode Off:
Press the Next/Previous button to enable/disable Night Mode. When enabled
(On), the Sound Bar will lower bass frequency levels to provide a more quiet
environment (ideal for apartment living and homes with sleeping children).
AV Delay Two LEDs on
the left indicate
no delay.
Press the Next/Previous button to increase/decrease the amount of audio
delay. The LED indicators will move to the right with increasing audio delay levels.
Speaker Test
---
Press the Play button to begin a speaker test. When the test begins, a voice
will begin naming each speaker’s location in the following order: Front Left,
Center, Front Right, Rear Right, and Rear Left. The Subwoofer will emit a short
burst of bass.
Subwoofer
Surnd
TruVol
Night
AV Delay
Spkr Test
17
Function LED Behavior Description
TV Remote TV Remote On:
TV Remote Off:
Press the Next/Previous button to enable/disable VIZIO TV Remotes. When
enabled (On), you can use a VIZIO TV remote control to turn on the Sound Bar
(using the TV Volume Up button) and control volume.
Eco Power On/Off
Eco Power On:
Eco Power Off:
Press the Next/Previous button to enable/disable Eco Power Mode. When
enabled (On), the Sound Bar will go into standby after a period of inactivity.
Note: Enable this function if using a TV remote to control the sound bar.
Program Remote
---
Press the Next/Previous and Play buttons to toggle and select and program
your TV remote to control the Volume Down, Volume Up, and Mute functions
on your Sound Bar. See Programming The Sound Bar on page 18 for more
information.
Reset
---
Press the Next/Previous and Play buttons to select and reset your remote and
Sound Bar to the factory default settings. All paired Bluetooth devices will be
unpaired. All programmed IR remotes will also be removed. See Resetting to
Factory default Settings on page 19 for more information.
When a Dolby
Digital or DTS
signal is detected
Dolby Digital Logo
DTS Logo
Dolby Digital and DTS are only available on either the Coaxial In or Digital
Optical Audio In inputs. When a Dolby Digital or DTS signal is detected, the
Dolby Digital or DTS logo will light up for 5 seconds before fading away.
VZTV RMT ON
ECOPWR ON
PRG REMOTE
RESET NO
18
PROGRAMMING THE SOUND BAR
You can program your Sound Bar to accept TV remote IR commands. Press the Menu button on the remote, then use the Up/Down
buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute.
INPUT MENU
VI ZIO
Ensure that both the Sound Bar
and TV remotes are pointed at
the front of the Sound Bar.
TV Remote
Function LED Behavior Description
Learn Volume
Down
(Waiting to learn)
Flash from
Left to Right
and back
continuously.
All of the LEDs will
blink twice to confirm.
Press the Play button to put the Sound Bar into learning mode. While the Sound
Bar is in learning mode, press the Volume Down button on the TV remote control.
All of the LED Indicators on the Sound Bar will flash two times indicating that it
has successfully recognized the TV remote.
Learn Volume Up
Press the Play button to put the Sound Bar into learning mode. While the Sound
Bar is in learning mode, press the Volume Up button on the TV remote control.
All of the LED Indicators on the Sound Bar will flash two times indicating that it
has successfully recognized the TV remote.
Learn Mute
Press the Play button to put the Sound Bar into learning mode. While the Sound
Bar is in learning mode, press the Mute button on the TV remote control. All of
the LED Indicators on the Sound Bar will flash two times indicating that it has
successfully recognized the TV remote.
Learn Vol -
Learn Vol +
Learn Mute
When programming your Sound
Bar, turn off your TV speakers. See
your TV’s manual for instructions
on how to do this.
19
Function LED Behavior Description
Reset
All Indicator LEDs
will flash three
times confirming
factory reset.
To reset the Sound Bar to factory default settings:
1. Press the Menu button on the remote control.
2. Use the Up/Down buttons to navigate to Reset No.
3. Press the Next button to navigate to Reset Yes and press
the Play button.
4. ConfirmYes is displayed. Press the Play button to continue.
5. Confirmed is displayed. All of the Indicator LEDs on the
sound bar will flash three times confirming the reset.
Note: All previously paired Bluetooth devices must be repaired.
Reset No
Reset Yes
ConfirmYes
Confirmed
RESETTING TO FACTORY DEFAULT SETTINGS
20
RE-LINKING THE SUBWOOFER WITH THE SOUND BAR
Your Subwoofer has already been paired with
your Sound Bar by VIZIO. However, you may
need to re-link the Subwoofer to the Sound Bar
if there is no sound coming from the Subwoofer.
What does pairing mean?
Pairing means to wirelessly connect.
21
OPTICAL (4)
DIGITAL (3)
USB (5)
1
First confirm that the power switch is in
the ON position.
Press and hold the Pairing button on the back
of the Subwoofer for 5 seconds. The LED on the
back of the Subwoofer will begin to blink.
2
Press and hold the Power button on the
back of the Sound Bar for 5 Seconds. The LED
indicators on the front will
flash 3 times. The
Subwoofer is now linked with the Sound Bar.
Back of Subwoofer Back of Sound Bar
22
BLUETOOTH PAIRING
To pair the Sound Bar with a Bluetooth device:
1. Press and hold the Bluetooth button on the Sound
Bar for five (5) seconds or use the BT Pair menu
option from the remote. When the Sound Bar is in
Bluetooth Pairing Mode, the LED Indicators on the
Display Panel on the front of the Sound Bar will
light sequentially from left to right and back again.
Once the device is paired, the LED Indicators will
stop flashing.
Back of Sound Bar
2. You can now search for the Sound Bar (VIZIO
S3851w) using your Bluetooth device. For more
information, see the documentation that came
with your device.
3. Play audio from your Bluetooth device. Volume
can be controlled on your source device and the
Sound Bar.
23
USING BLUETOOTH MODE
Your Sound Bar supports music streaming from
smartphones, tablets, and computers with
Bluetooth capability. Device compatibility will
vary, see your device’s documentation for more
information.
Once you have paired your source device to the
Sound Bar, as long as you stay within range of
the Sound Bar, your device should remain paired,
even if you change the input on the Sound Bar.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet.
Keep in mind that Bluetooth is a compressed
audio format, so streamed music may lose some
integrity when compared to a wired connection.
Try the following if your sound quality is less than
optimal:
• If you hear any break-up or disconnect
while streaming music from your device,
move the source device closer to the
Sound Bar.
• Be sure that there are no solid obstructions
in the line-of-sight between the Sound Bar
and the source device.
• Other wireless devices can affect Bluetooth
range, including wireless security cameras,
wireless video baby monitors, cordless
phones, and microwave ovens. Turning
off or moving these devices may improve
Bluetooth range.
Your Sound Bar is not equipped
with a microphone, so it
cannot operate as a hands-
free device for a smartphone.
24
OPTICAL (4)
DIGITAL (3)
ADVANCED SETUP
DIGITAL OPTICAL
CABLE
Game Console Network Media Player Tablet/MP3 Player
DIGITAL COAXIAL
CABLE
RCA AUDIO
CABLE
*Supports .WAV file format playback only
Back of Sound Bar
25
USB (5)
Connect up to five (5) different
devices to the Sound Bar (devices
shown are examples-you can use
any device).
To listen to a device, change the input
source on the Sound Bar.
Optical, Coaxial, and 3.5mm cables
transmit audio only. If connecting
a video device, you will need a
separate video connection from the
device to your TV.
3.5mm AUDIO
CABLE
Laptop/Computer USB Thumb Drive*
26
WALL MOUNTING THE SOUND BAR
OPTICAL (4)
DIGITAL (3)
USB (5)
Insert and tighten two Wall-Mount Screws with a
Phillips-head screwdriver into the Wall-Mount Screw Holes.
1
2
Place the included wall mounting template against the wall
under your TV. Mark the four bracket holes using a pencil.
Wall-Mount
Screw Holes
27
Be sure your screws are attached
to wood studs or drywall anchors
(for drywall) or concrete anchors
(for brick/concrete walls). Wall
mounting hardware is not included.
If you are unfamiliar with power tools or the layout of
electrical wiring in the walls of your home, consult a
professional installer.
Wall Mount Screw
(Size: M4 x 10)
3
28
WALL MOUNTING THE SATELLITE SPEAKERS
If you are unfamiliar with power tools or the layout of
electrical wiring in the walls of your home, consult a
professional installer.
Be sure your screws are attached to wood
studs or drywall anchors (for drywall) or
concrete anchors (for brick/concrete walls).
Wall mounting hardware is not included.
Wall Mount Screw
(Size: M4 x 10)
1. Attach the Wall Mount Screw to the
back of the Satellite Speaker.
2. Attach the wall mount bracket to the wall.
3. Plug the speaker cable into the back
of the Satellite Speaker.
4. Align and mount the Satellite Speaker
with the Wall Mount Bracket.
29
USING BUTTON COMBINATIONS
There are 3 functions triggered by button combinations on the Sound Bar.
Input
Power
Volume
Bluetooth Input
Back of Sound Bar
Function LED Behavior Description
Factory
Reset
All 12 LEDs will
flash 3 times:
Reset the Sound Bar to the factory default settings. To perform a Factory Reset,
Press and
Hold the Bluetooth( ) and Volume Down (—) buttons for 5 seconds.
Note: This will erase all settings and preferences that you have set.
VIZIO TV
Remote
Control
Enable VIZIO TV Remote:
Disable VIZIO TV Remote:
Enable/disable the use of a VIZIO TV remote control to power on and adjust the volume
of the sound bar. To enable/disable this function,
Press and Hold the Power ( ) and
Volume Up ( + )buttons for 5 seconds.
Energy Star
Enable Energy Star:
Disable Energy Star:
When the Energy Star setting is enabled, the sound bar will automatically power down
after a period of inactivity. When disabled, the sound bar will remain powered on until
you turn it off. To enable/disable this function, Press and Hold the Power
( ) and Volume
Down (—)buttons for 5 seconds. Note: Energy Star setting is enabled by default.
Available at www.VIZIO.com
This Product Sold Separately
The VIZIO Co-Star™ Stream Player merges live TV and streaming entertainment into one experience,
turning any HDTV into the ultimate smart TV. Using the latest version of Google TV™, Co-Star decks
out your existing HDTV with apps, full-screen Web browsing and the best in streaming entertainment.
And with 1080p Full HD resolution, built-in Wi-Fi, and 3D-readiness, VIZIO Co-Star is the ultimate
entertainment upgrade for any high-definition television.
VIZIO RECOMMENDS
14” THIN+LIGHT
With uncompromising performance, and premium picture and audio quality in a remarkably thin profile,
the VIZIO Thin+Light is the Ultrabook that’s impossible to ignore. Ultra-responsive and ultra-portable, the VIZIO
Thin+Light boots up instantly and goes wherever you do. If good things come in small packages, this must be
the best there is.
THE ULTIMATE
ULTRABOOK™
Available at www.VIZIO.com
This Product Sold Separately
VIZIO RECOMMENDS
Do You Have Questions? Find Answers At
Find help with:
• New Product Setup
• Connecting Your Devices
• Technical Problems
• Product Updates
• And More
SUPPORT.VIZIO.COM
You can also contact our
award-winning support team at:
Phone:
Email:
(877) 878-4946 (TOLL-FREE)
techsupport@VIZIO.com
Hours Of Operation:
Monday - Friday: 5
AM TO 8 PM (PST)
Saturday - Sunday: 7 AM TO 4 PM (PST)
Live Chat
Support Available
There is no power.
• Press the POWER button on the remote control or on the top of your Sound Bar.
• Ensure the power cord is securely connected.
• Plug a different device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.
• Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUT on the remote or on the top of your Sound Bar to select a different input source.
• When using either of the Digital Inputs, if there is no audio: (A) try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other
source, some TVs do not pass through digital audio.
• Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV’s
user manual for more detailed information.
• If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.
• Use the Speaker Test function on the remote to perform a channel check on each speaker. See
Adjusting Sound Bar Settings
on page 15.
I hear buzzing or
humming.
• Ensure all cables and wires are securely connected.
• Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with
the original device.
• Connect your device to a different input on the Sound Bar.
The remote
isn’t working.
• Replace the remote batteries with new ones.
• Point the remote directly at the Sound Bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application. (e.g. Pandora
doesn’t support the Back button.)
HELP & TROUBLESHOOTING
There is no sound
coming from the
Subwoofer.
• If the light on the Subwoofer is blinking in a slow pattern, you will need to pair the Subwoofer with the Sound Bar. See
Re-linking the
subwoofer with The sound bar
on page 20.
• Move the Subwoofer closer to the Sound Bar.
• Turn the Subwoofer power switch to ON.
• To conserve power, the Subwoofer will automatically enter a low power state when not in use. It may take up to 10 seconds for the
Subwoofer to link after the Sound Bar is turned on.
• Use the Speaker Test function on the remote to perform a channel check on each speaker. See
Adjusting Sound Bar Settings
on page 15.
There is no sound
from the satellite
speakers.
• Ensure the satellite speaker wires are securely connected. These wires occasionally loosen during setup.
• Ensure that the Subwoofer is properly linked to the Sound Bar. If the light on the Subwoofer is blinking in a slow pattern, you will need to
pair the Subwoofer with the Sound Bar. See
Re-linking the subwoofer with The sound bar on page 20
.
• The Surround levels may be turned down. See
Adjusting Sound Bar Settings
on page 15.
• Turn on the Surnd (Surround) function from the remote control. See
Adjusting Sound Bar Settings
on page 15.
• Use the Speaker Test function on the remote to perform a channel check on each speaker. See
Adjusting Sound Bar Settings
on page 15.
34
ON PARTS AND LABOR
Covers units purchased as new in United States and Puerto Rico Only
VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90)
days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and
discretion.
To obtain warranty service, contact VIZIO Technical Support via email: TechSuppor[email protected] or via phone at 877 MY VIZIO (877.698.4946) from 5:00AM to 8:00PM Monday through
Friday and 7:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE
CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.
Parts and Labor
There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at VIZIO’s option and sole discretion. Replacement parts
and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.
Type of Service
Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping
to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.
Product returns to VIZIO’s service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO Technical Support
will provide instructions for packing and shipping the covered Product to the VIZIO service center.
Limitations and Exclusions
VIZIO’s one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper
operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modifications or adjustments, as well as installation
and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine
maintenance are not covered. This one year limited warranty does not cover Products sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABIL-
ITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND
DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE
OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL
LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.
CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.
ONE-YEAR LIMITED WARRANTY
Sound Bar: Three 3” Full-Range Drivers
Satellite
Speakers:
2½” Full-Range Transducer
Subwoofer: 6” Subwoofer Driver
Inputs: 1 x 3.5mm Stereo Audio
1 x RCA Stereo Audio
1 x Optical (Toslink)
1 x USB
1 x Digital Coaxial Audio
Sound Pressure Level (System): 102 dB
Frequency Response (System): 50 Hz - 20 KHz
Voltage: 120 VAC, 60 Hz
Compliances: UL, CSA, FCC
SPECIFICATIONS
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
IC Statement
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
Disposal and Recycling
You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic
components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal
and recycling options.
Other:
Image(s) used under license from Shutterstock.com
End Product Labeling: The final end product must be labeled in a visible area with the following: “Contains transmitter module IC:
7825A-AINSM5D2”.
Digital apparatus (ICES003), CAN ICES-3 (B)/NMB-3(B)
The Country Code Selection feature is disabled for products marketed in the US/Canada.
Co-located: This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note
that this is not intended to prohibit transmission of control or signalling information or the use of repetitive codes where required by the
technology.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile
satellite systems;
The maximum antenna gain permitted (for devices in the 5725-5825 MHz band) to comply with the e.i.r.p. limits specified for
point-to-point and non point-to-point operation as appropriate, as stated in RSS-210 Annex 9 A9.2(3).
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
LEGAL & COMPLIANCE
For DTS patents, see http://patents.dts.com. Manufactured
under license from DTS Licensing Limited. DTS, the Symbol, &
DTS and the Symbol together are registered trademarks, and
DTS Circle Surround is a trademark of DTS, Inc. © DTS, Inc. All
Rights Reserved.
For DTS patents, see http://patents.dts.com. Manufactured
under license from DTS Licensing Limited. DTS, the Symbol, &
DTS and the Symbol together are registered trademarks, and
DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All
Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured
under license from DTS Licensing Limited. DTS, the Symbol, &
DTS and the Symbol together are registered trademarks, and
DTS TruVolume is a trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
This product qualifies for ENERGY STAR in the “factory default”
setting and this is the setting in which power savings will be
achieved. Changing the factory default settings or enabling
other features will increase power consumption that could
exceed the limits necessary to qualify for ENERGY STAR rating
We want to help you save energy.
© 2014 VIZIO INC. ALL RIGHTS RESERVED.
140310OC-NC
