Sony DVP-S9000ES Sacd/dvd Player User Manual

SACD/DVD Player

DVP-S9000ES

3-063-397-12(1)

Operating Instructions

Welcome!

Thank you for purchasing this Sony

SACD/DVD Player. Before operating the

unit, please read this manual thoroughly

and retain it for future reference.

WARNING

To prevent fire or shock

hazard, do not expose the

unit to rain or moisture.

To avoid electrical shock,

do not open the cabinet.

Refer servicing to qualified

personnel only.

CAUTION

The use of optical instruments with this

product will increase eye hazard. As the

laser beam used in this SACD/DVD player

is harmful to eyes, do not attempt to

disassemble the cabinet.

Refer servicing to qualified personnel only.

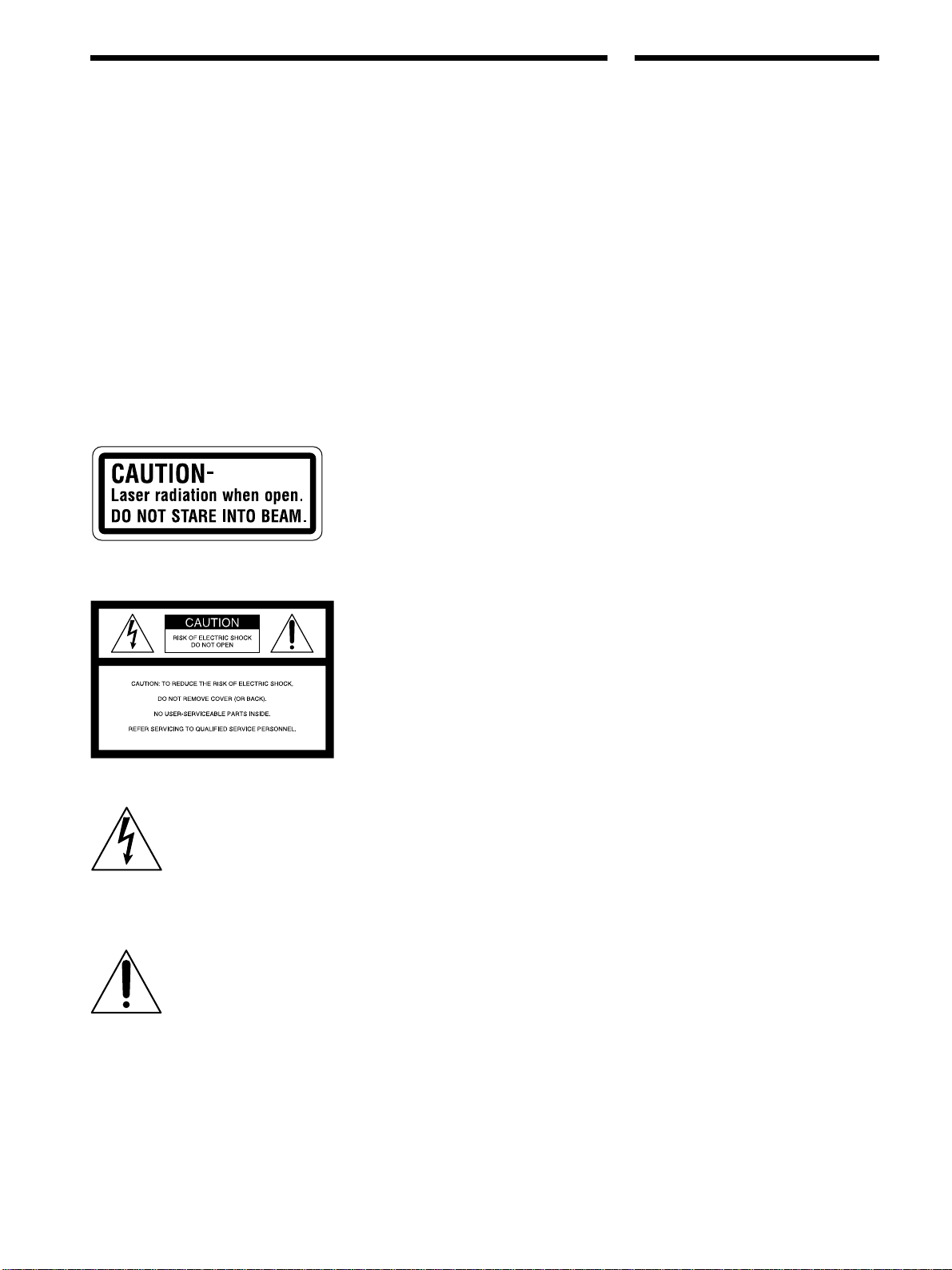

This label is located on the Laser protective

housing inside the enclosure.

This symbol is intended to

alert the user to the presence

of uninsulated “dangerous

voltage” within the product’s

enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock to persons.

This symbol is intended to

alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

CAUTION

TO PREVENT ELECTRIC SHOCK

MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

For customers in the U.S.A

Owner’s Record

The model and serial numbers are

located at the rear of the unit. Record the

serial number in the space provided below.

Refer to them whenever you call upon

your Sony dealer regarding this product.

Model No. DVP-S9000ES

Serial No.______________

CAUTION

You are cautioned that any change or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

NOTE:

This equipment has been tested and found

to comply with the limits for a Class B

digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment generates,

uses, and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may

cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur

in a particular installation. If this

equipment does cause harmful

interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user

is encouraged to try to correct the

interference by one or more of the

following measures:

– Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

TABLE OF CONTENTS

Settings and Adjustments 50

Using the Setup Display 50

Setup Display Item List 52

Setting the Display Language or Sound Track

(LANGUAGE SETUP) 53

Settings for the Display (SCREEN SETUP) 54

Custom Settings (CUSTOM SETUP) 56

Settings for the Sound (AUDIO SETUP) 60

Adjusting the Progressive video signal

(SET PROGRESSIVE OUTPUT) 62

Controlling Your TV or AV Receiver (Amplifier)

with the Supplied Remote 64

Additional Information 66

Troubleshooting 66

Self-diagnosis function 69

Specifications 70

Glossary 71

Language Code List 73

Index to Parts and Controls 74

Index 78

Features 4

About This Manual 5

This Player Can Play the Following Discs 5

Precautions 8

Notes About the Discs 8

Getting Started 9

Unpacking 9

TV Hookups 10

Receiver (Amplifier) Hookups 12

5.1 Channel Surround Hookups 14

Selecting the Language for the On-Screen

Display 16

Operation Sound Effects (Sound Feedback) 17

Playing Discs 18

Playing at Various Speeds/Frame by Frame 21

Resuming Playback from the Point Where You

Stopped the Disc (Resume Play) 23

Using the DVD’s Menu 24

Playing VIDEO CDs with PBC Functions (PBC

Playback) 25

Using the Front Panel Display 26

Using Various Functions with the

Control Menu 28

Using the Control Menu Display 28

Control Menu Item List 30

Searching for a Title/Chapter/Track/Index/

Scene 31

Checking the Playing Time and Remaining

Time 32

Selecting a Starting Point Using the Time Code 32

Labeling the Disc 33

Changing the Sound 35

Displaying the Subtitles 37

Changing the Angles 37

Adjusting the Picture (VIDEO CONTROL) 38

Checking the Play Information 42

Locking Discs (Custom Parental Control) 43

Creating Your Own Program (Program Play) 45

Playing in Random Order (Shuffle Play) 47

Playing Repeatedly (Repeat Play) 48

Repeating a Specific Portion (A–B Repeat) 49

Features

Thank you for purchasing this Sony SACD/DVD player.

Here are some of the features you will enjoy.

Compatible with progressive (480p) signal

format TVs

By connecting your TV to the COMPONENT VIDEO OUT

connectors on this player, you can choose between the

standard interlace signals or the high quality progressive

signals if your TV accepts the progressive signal format.

When outputting the progressive signal, you can set the

signal to match either video or film based software to

ensure a perfect match between the DVD software and

your hardware.

Capable of playing 2 channel SACDs (Super Audio

CD)

This player will play both standard audio CDs and the

high quality sounds contained in the HD (high density)

layer of stereo Super Audio CDs.

Capable of detailed video image settings

In addition to standard brightness and color settings, this

player also has a variety of ways to reduce noise, increase

sharpness and adjust the gamma value to create the ideal

image. Furthermore, these adjustments can either be

saved for each of your discs (Playback Memory) or can be

saved to one of five settings (memory 1 through 5) so you

can quickly adjust the player to the type of DVD software

that you are watching.

High quality sound reproduction

By pressing the AUDIO DIRECT button on the player, the

digital audio output and video output can be cut. This

will eliminate the effects of the digital audio and video

circuitry, thus providing even clearer analog audio output.

The VIDEO ON/OFF button on the remote can be used to

cut just the video signal. Use these buttons when you

want to experience the full clarity of an audio CD such as

an Super Audio CD.

Access control (Custom Parental Control)

You can set a password that will control the access of a

maximum of 300 discs.

Adjustable display brightness and high visibility

remote buttons

You can adjust the brightness of the front panel display, or

turn it off completely. This is useful when you are

watching a movie with the lights turned low and you do

not want to be disturbed by a bright display window.

Conversely, selected buttons on the remote can be set to

light up so that you can operate your player when the

room is dark.

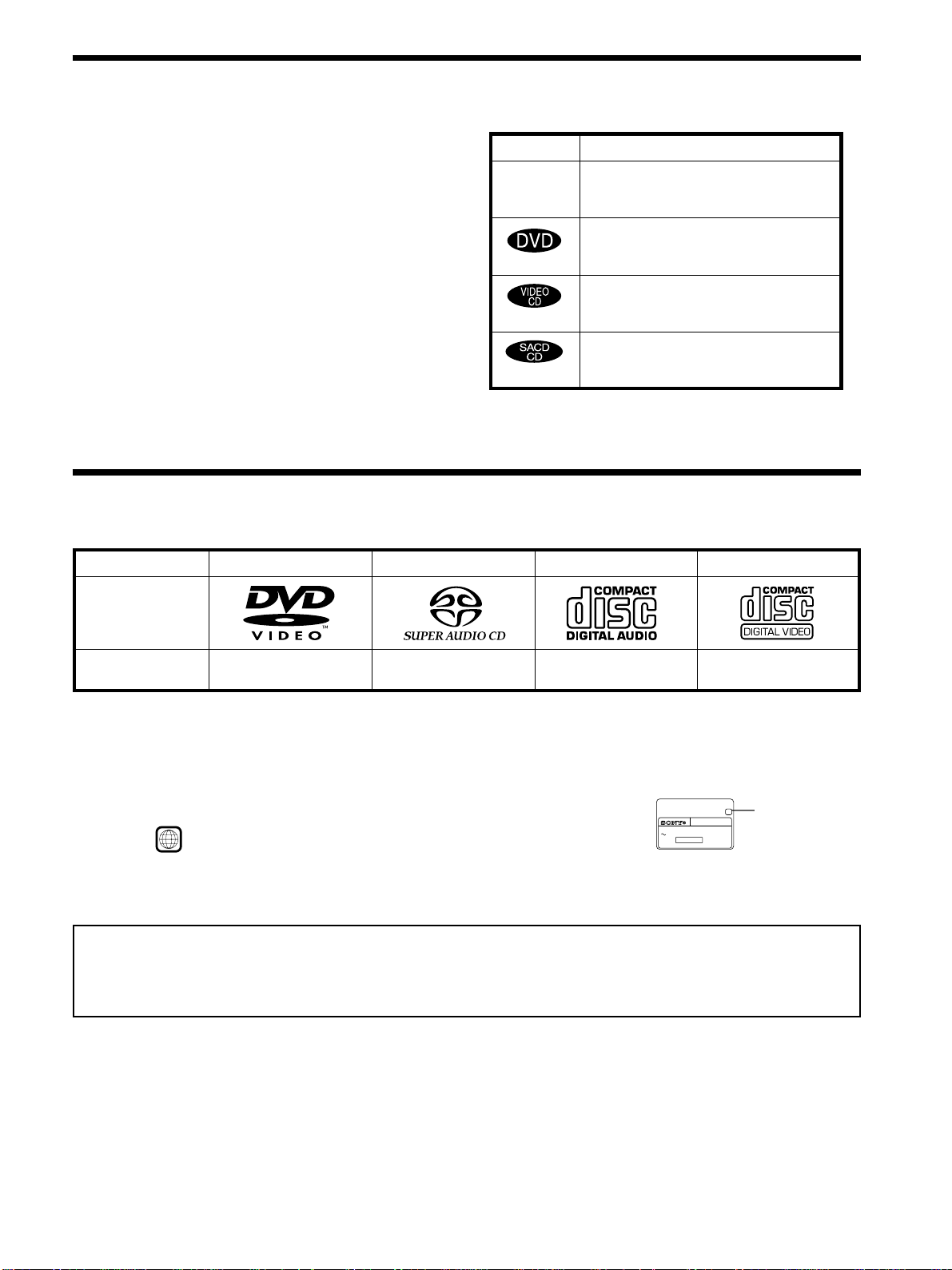

This Player Can Play the Following Discs

Disc logo

Contents

The “DVD VIDEO” logo is a trademark.

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

Region code of DVDs you can play on this unit

Your DVD player has a region code printed on the back of the unit and will only play DVDs

that are labeled with identical region codes.

DVDs labeled

ALL

will also play on this unit.

If you try to play any other DVD, the message “Playback prohibited by area limitations.” will

appear on the TV screen.

Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally fixed by software producers. Since this player plays DVDs

and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also

refer to the instructions supplied with the DVDs or VIDEO CDs.

Icon Meaning

Indicates tips and hints for making the

task easier.

Indicates that the function is for DVD

VIDEOs.

Indicates that the function is for VIDEO

CDs.

Indicates that the function is for SACDs

and for Audio CDs.

Audio + Video

DVD VIDEOs VIDEO CDs

Audio + VideoAudio

Region code

MODEL NO.

DVP–XXXX

CD/DVD PLAYER

AC 00V 00Hz

00W

NO.

SONY CORPORATION

MADE IN JAPAN

0-000-000-00

About This Manual

Conventions

• Instructions in this manual describe the controls on the remote.

You can also use the controls on the player if they have the

same or similar names as those on the remote.

• The icons on the right are used in this manual:

Audio CDs

Audio

Super Audio CDs

Super Audio CD (SACD)

An SACD disc can reproduce sounds that are extremely

faithful to the original sound by use of DSD (Direct

Stream Digital) technology. This technology utilizes a

sampling frequency of 2.8224MHz, which is 64 times that

of a conventional CD, and 1-bit quantization that enables

the disc to hold 4 times the amount of information that a

standard PCM format CD can hold. SACDs are divided

into the following types.

• Super Audio CD (single layer disc)

This disc consists of a single HD layer*.

Press SACD/CD repeatedly so that the SACD indicator

on the player lights up.

* High density signal layer for the Super Audio CD

• Super Audio CD (dual layer disc)

This disc consists of dual HD layers and is capable of

extended play over long periods.

Press SACD/CD repeatedly so that the SACD indicator

on the player lights up.

Also, as the dual layer disc consists of dual HD layers

on one side only, you do not have to turn the disc over

during playback.

• Super Audio CD + CD (Hybrid disc)

This disc consists of an HD layer and a CD layer. Press

SACD/CD while the disc is stopped to select the layer

you want to listen to. Also, as the dual layers are on one

side only, you do not have to turn the disc over during

playback. You can play the CD layer using a

conventional CD player.

This Player Can Play the Following Discs

DVD

A DVD disc contains both audio and visual data, and is

either 12 or 8 centimeters in diameter. A 12 centimeter disc

can hold 7 times the amount of data contained in a CD-

ROM, which translates to 4 consecutive hours of playing

time (8 hours for double-sided discs). DVD discs are

divided into 4 types: single sided single layer, single sided

double layer, double sided single layer, and double sided

double layer.

• Single-layer single-sided: Capacity 4.7 GB

• Double-layer single-sided: Capacity 8.5 GB

• Single-layer double-sided: Capacity 9.4 GB

• Double-layer double-sided: Capacity 17 GB

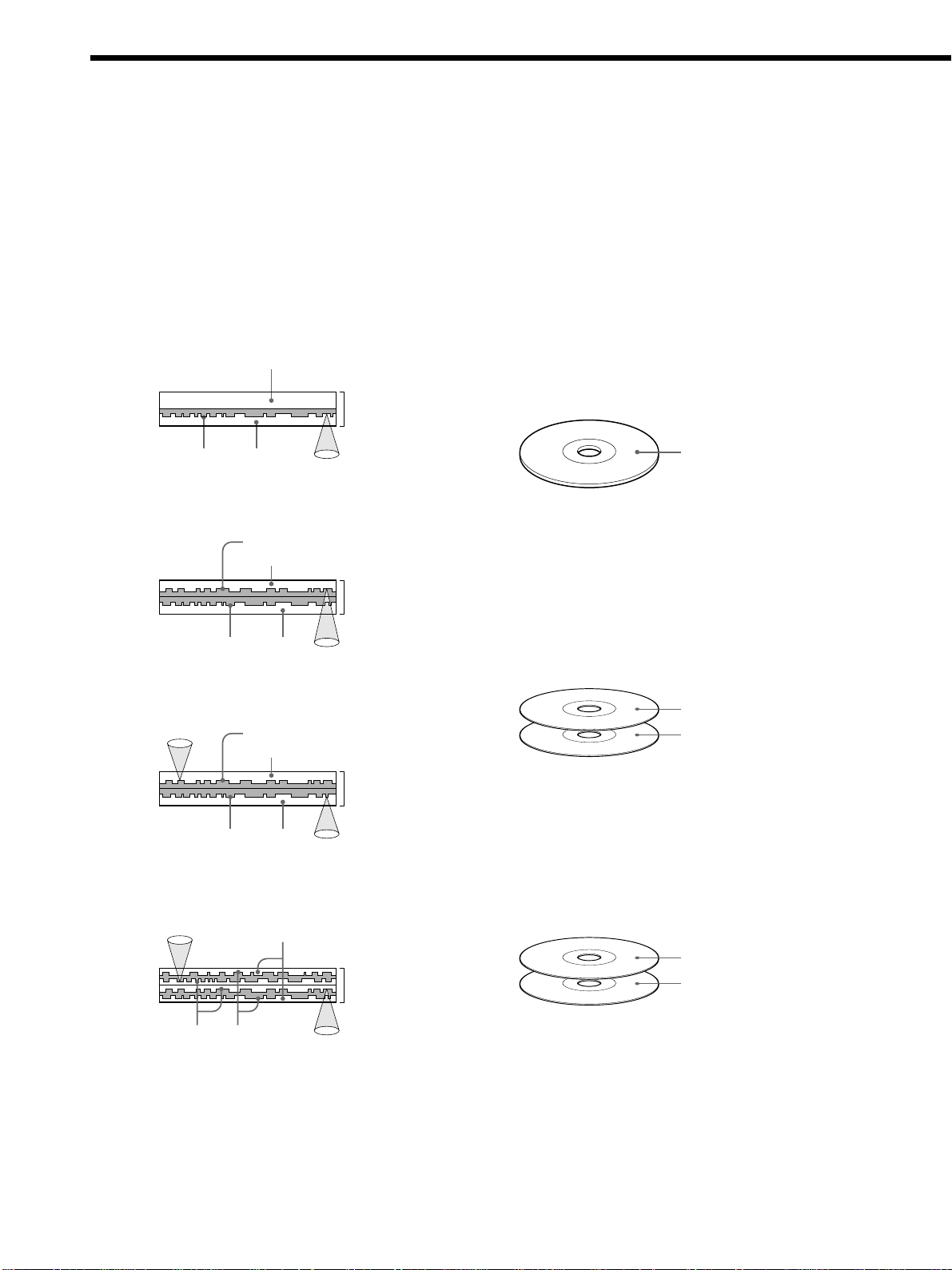

HD (high density) layer

HD layer

CD layer

HD layer

Substrate

Reflective layer Substrate Laser beam

Sectional view

of disc

Reflective layer

Semi- reflective layer Substrate Laser beam

Reflective layer Laser beam

Semi-reflective

layer

Laser beam

Reflective layer

Laser beam

Sectional view

of disc

Sectional view

of disc

Sectional view

of disc

Substrate

Reflective layer

Substrate

Audio CD

An audio CD contains audio data. The playing time is 74

minutes for a standard 12 centimeter CD, and 20 minutes

for an 8 centimeter CD single.

Video CD

A video CD can contain both audio and visual data in a

disc that is the same size as an audio CD. The playing

time is 74 minutes for a standard 12 centimeter CD, and

20 minutes for an 8 centimeter CD single.

Terms for discs

• Title

The longest section of a picture or music feature on a DVD, the

movie, etc. in video software, or the name of an album in audio

software.

• Chapter

Sections of a picture or a music feature that are smaller than

titles. A title is composed of several chapters. Each chapter is

assigned a chapter number enabling you to locate the chapter

you want. Depending on the disc, no chapters may be

recorded.

• Track

Sections of a picture or a music feature on a VIDEO CD or a

SACD/CD. Each track is assigned a track number enabling

you to locate the track you want.

• Index (SACD/CD) / Video Index (VIDEO CD)

A number that divides a track into sections to easily locate the

point you want on a VIDEO CD or an SACD/CD. Depending

on the disc, no indexes may be recorded.

• Scene

On a VIDEO CD with PBC (playback control) functions, the

menu screens, moving pictures and still pictures are divided

into sections called “scenes.” Each scene is assigned a scene

number enabling you to locate the scene you want.

DVD

structure

VIDEO CD or SACD/

CD structure

Disc

Title

Chapter

Disc

Track

You can

Enjoy video playback (moving pictures)

as well as music.

Play interactive software using menu

screens displayed on the TV screen (PBC

Playback), in addition to the video

playback functions of Ver. 1.1 discs.

Moreover, you can play high-resolution

still pictures if they are included on the

disc.

Index

Note on PBC (Playback Control) (VIDEO CDs)

This player conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD

standards. You can enjoy two kinds of playback according to the

disc type.

Disc type

VIDEO CDs

without PBC

functions

(Ver. 1.1 discs)

VIDEO CDs with

PBC functions

(Ver. 2.0 discs)

Discs that the player cannot play

The player cannot play discs other than the ones listed in

the table on page 5. CD-Rs, CD-ROMs including PHOTO

CDs, data sections in CD-EXTRAs, DVD-ROMs, DVD-

audio etc., cannot be played.

When playing DTS*-encoded CDs, excessive noise will be heard

from the analog stereo outputs. To avoid possible damage to the

audio system, the consumer should take proper precautions

when the analog stereo outputs of the DVD player are connected

to an amplification system. To enjoy DTS Digital Surround™

playback, an external 5.1-channel DTS Digital Surround™

decoder system must be connected to the digital output of the

DVD player.

This product incorporates copyright protection technology that

is protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation

and other rights owners. Use of this copyright protection

technology must be authorized by Macrovision Corporation, and

is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

Consumers should note that not all high definition television

sets are fully compatible with this product and may cause

artifacts to be displayed in the picture. In case of 480 progressive

scan picture problems, it it recommended that the user switches

the connection to the standard definition output. If there are

questions regarding your Sony TV set’s compatibility with this

model 480p DVD player, please contact our customer service

center.

* “DTS,” “DTS Digital Surround” and “DTS Digital Out” are

trademarks of Digital Theater Systems, Inc.

On handling discs

• To keep the disc clean, handle the disc by its edge. Do

not touch the surface.

• Do not stick paper or tape on the disc.

If there is glue (or a similar substance) on the disc,

remove the glue completely before using the disc.

• Do not expose the disc to direct sunlight or heat sources

such as hot air ducts, or leave it in a car parked in direct

sunlight as the temperature may rise considerably

inside the car.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,

commercially available cleaners or anti-static spray

intended for vinyl LPs.

On novelty discs

• Do not use irregularly shaped discs such as heart- or

star-shaped discs as they may cause the player to

malfunction.

IMPORTANT NOTICE

Caution: The enclosed DVD player is capable of

holding a still video image or on-screen display

image on your television screen indefinitely. If you

leave the still video image or on-screen display image

displayed on your TV for an extended period of time

you risk permanent damage to your television screen.

Projection televisions are especially susceptible to

this.

Notes About the Discs

On safety

• Caution – The use of optical instruments with this

product will increase eye hazard.

• Should any solid object or liquid fall into the cabinet,

unplug the player and have it checked by qualified

personnel before operating it any further.

On power sources

• The player is not disconnected from the AC power

source as long as it is connected to the wall outlet, even

if the player itself has been turned off.

• If you are not going to use the player for a long time, be

sure to disconnect the player from the wall outlet. To

disconnect the AC power cord, grasp the plug itself;

never pull the cord.

• Should the AC power cord need to be changed, have it

done at a qualified service shop only.

On placement

• Place the player in a location with adequate ventilation

to prevent heat build-up in the player.

• Do not place the player on a soft surface such as a rug

that might block the ventilation holes on the bottom.

• Do not place the player in a location near heat sources,

or in a place subject to direct sunlight, excessive dust or

mechanical shock.

On operation

• If the player is brought directly from a cold to a warm

location, or is placed in a very damp room, moisture

may condense on the lenses inside the player. Should

this occur, the player may not operate properly. In this

case, remove the disc and leave the player turned on for

about half an hour until the moisture evaporates.

• When you move the player, take out any discs. If you

don’t, the disc may be damaged.

On adjusting volume

• Do not turn up the volume while listening to a section

with very low level inputs or no audio signals. If you

do, the speakers may be damaged when a peak level

section is played.

On cleaning

• Clean the cabinet, panel and controls with a soft cloth

slightly moistened with a mild detergent solution. Do

not use any type of abrasive pad, scouring powder or

solvent such as alcohol or benzine.

If you have any questions or problems concerning your

player, please consult your nearest Sony dealer.

Precautions

Getting Started

Getting

Started

This section describes how to hook up

the SACD/DVD player to a TV (with

audio/video input jacks) and/or an

AV receiver (amplifier). You cannot

connect this player to a TV which

does not have a video input

connector. Be sure to turn off the

power of each component before

making the connections.

Unpacking

Check that you have the following items:

• Audio/video connecting cord (1)

• S-link (Control S) connecting cord (1)

• S video cord (1)

• Power cord (1)

• Remote commander (remote) RMT-D122A (1)

• Size AA (R6) batteries (2)

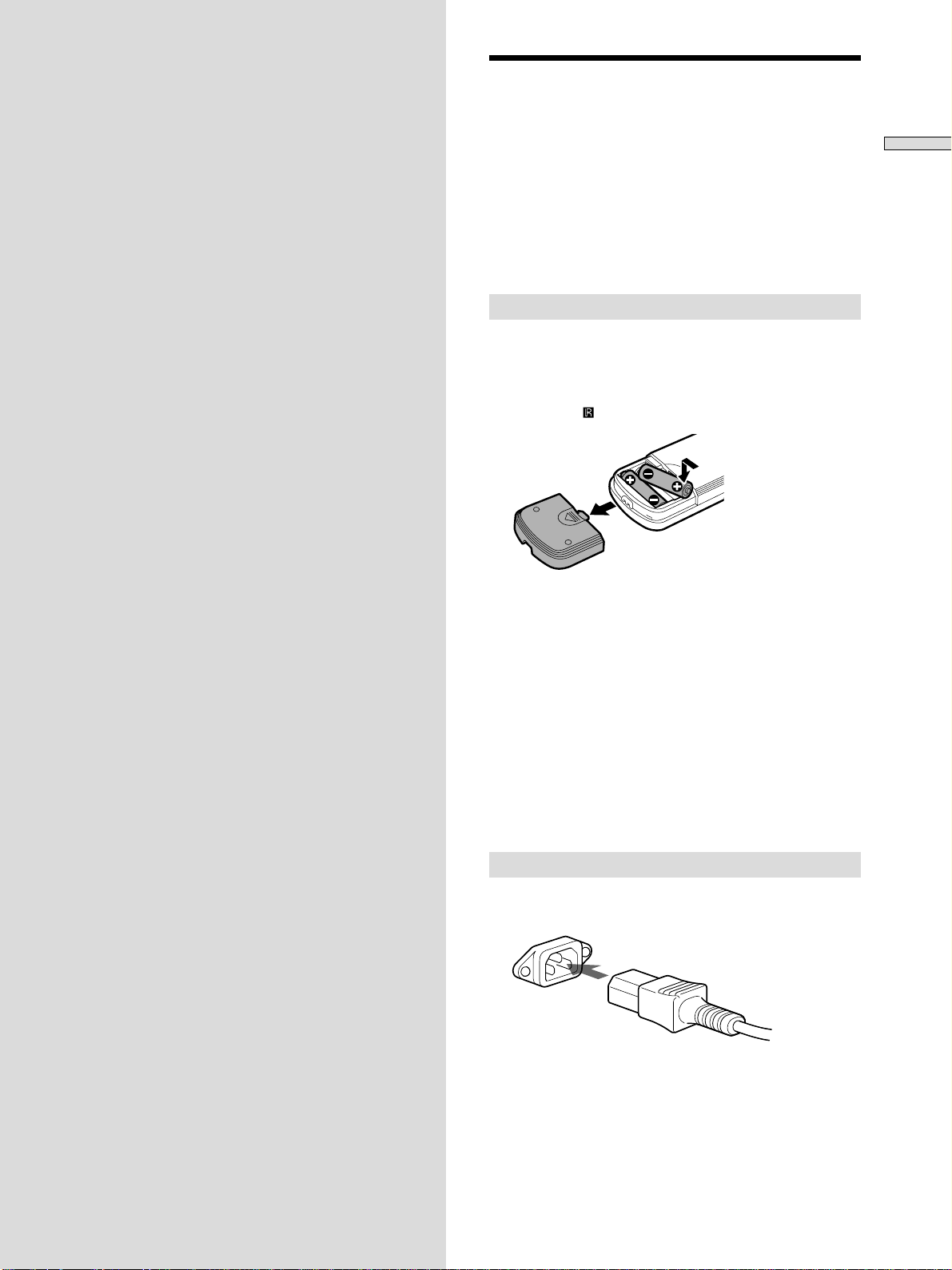

Inserting batteries into the remote

You can control the player using the supplied remote.

Insert two Size AA (R6) batteries by matching the + and –

ends on the batteries to the markings inside the

compartment. When using the remote, point it at the

remote sensor

on the player.

z You can control TVs and AV receivers (amplifiers) using the

supplied remote

See page 64.

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not drop any foreign object into the remote casing,

particularly when replacing the batteries.

• Do not expose the remote sensor to direct sunlight or lighting

apparatuses. Doing so may cause a malfunction.

• If you do not use the remote for an extended period of time,

remove the batteries to avoid possible damage from battery

leakage and corrosion.

Connecting the power cord

Connect the supplied power cord to the AC IN terminal of

the player.

Getting Started

AUDIO OUT

SCAN SELECT

SELECTABLE

INTERLACE

PROGRESSIVE

PCM/DTS/

DOLBY DIGITAL

CONTROL S IN

OPTICAL COAXIAL

DIGITAL OUT

COMPONENT VIDEO OUT

S VIDEO

OUT

VIDEO

OUT

S-LINK

S VIDEO

VIDEO

AUDIO

INPUT

S-LINK

CONTROL S

SACD/DVD player

: Signal flow

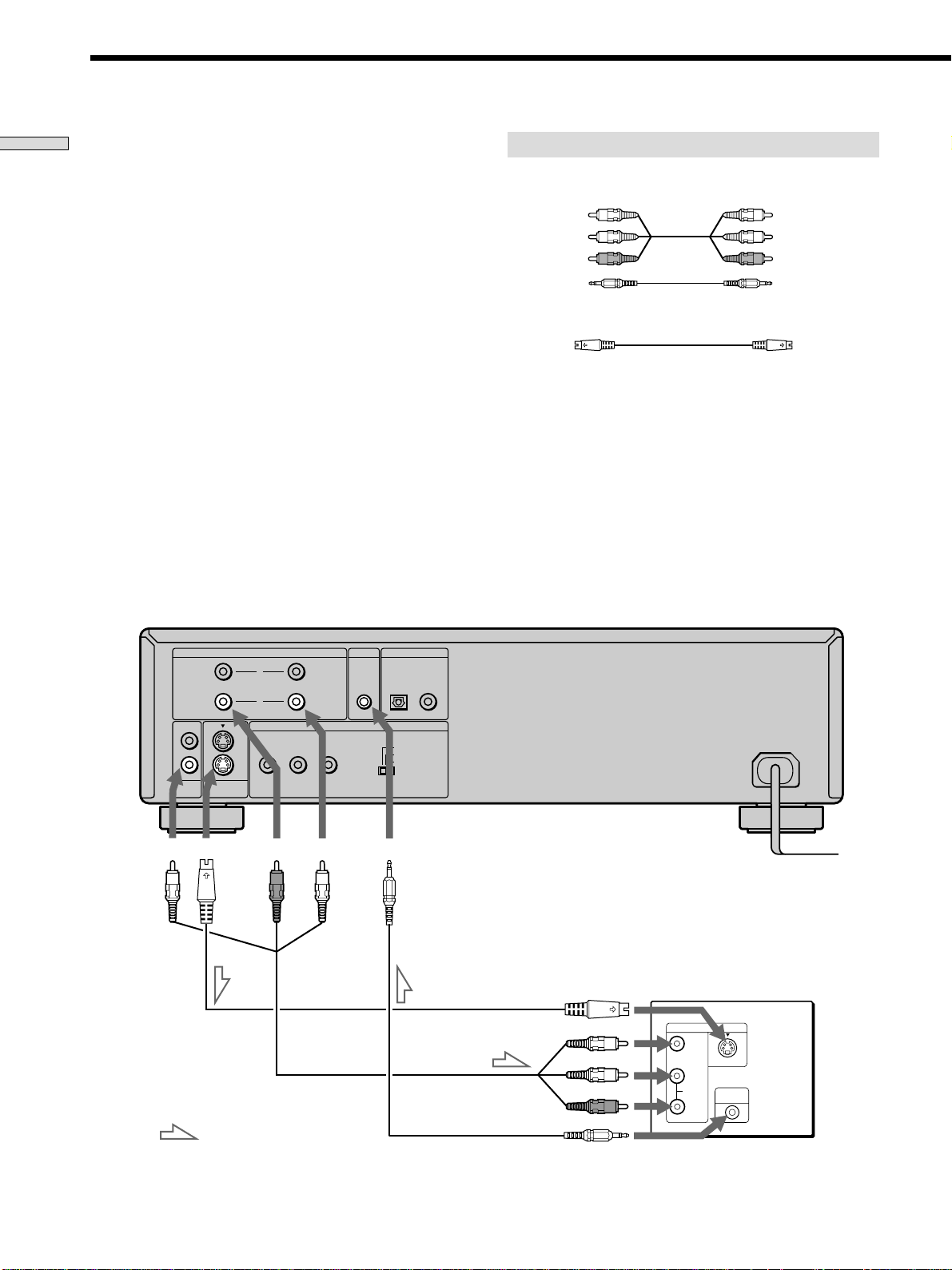

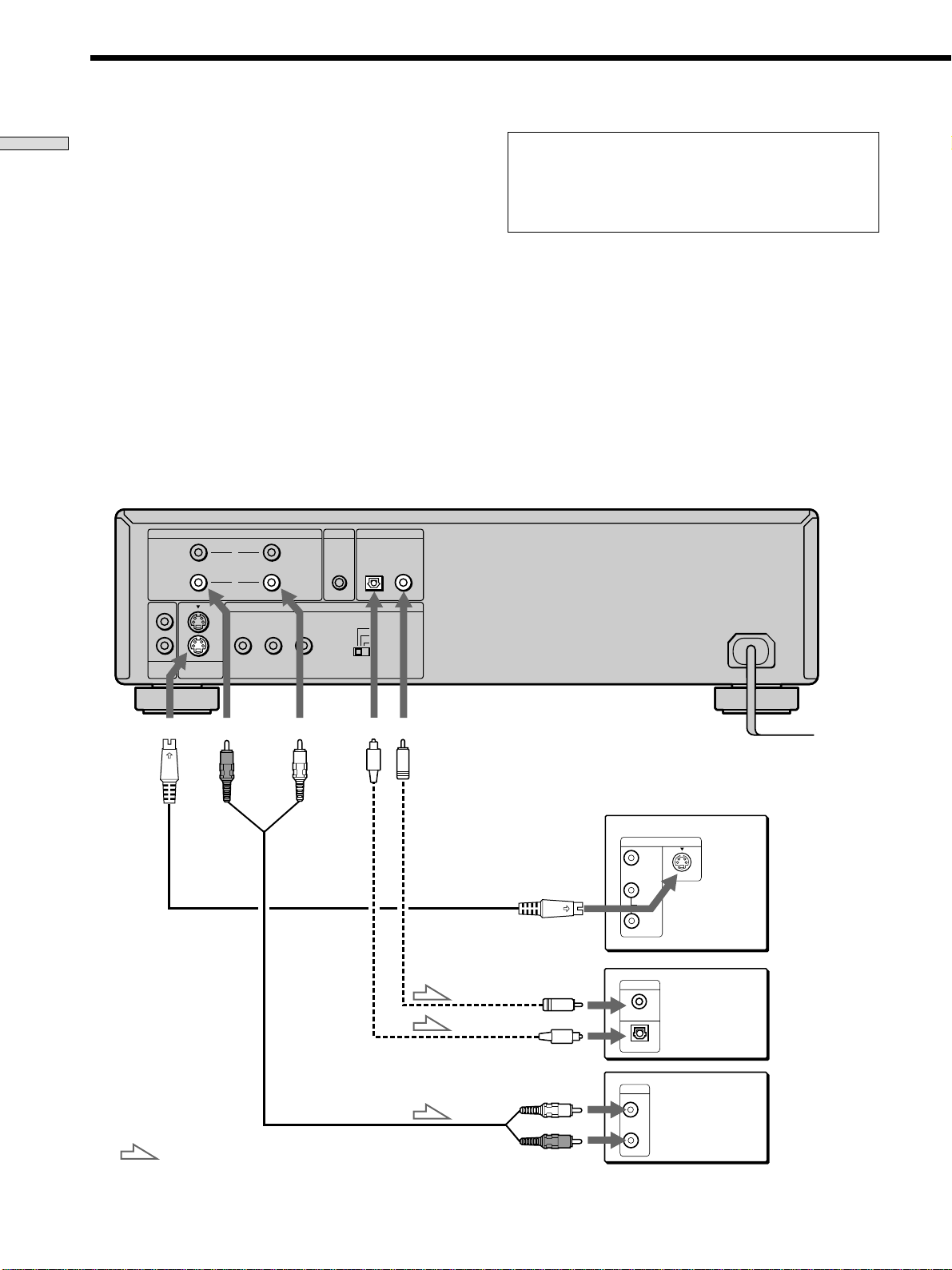

TV Hookups

This connection is for listening to the sound through TV

speakers (L: left, R: right). Refer to the instructions

supplied with the component to be connected.

Required cords

Audio/video connecting cord (supplied) (1)

S-link (control S) connecting cord (supplied) (1)

S video cord (supplied) (1)

When connecting the cords, be sure to match the color-coded

cord to the appropriate jacks on the components: Yellow (video)

to Yellow, Red (right) to Red and White (left) to White. Be sure to

make connections firmly to avoid hum and noise.

If your TV has an S-link (control S) connector, you can control the

SACD/DVD player from the TV. Connect the TV via the S-

LINK/CONTROL S IN connector.

If your TV has an S video input connector, connect the

component via the S VIDEO OUT connector using the supplied S

video cord. You will get a better picture.

Refer to the instructions supplied with the TV to be connected.

To AUDIO OUT

To an AC outlet

To S VIDEO

OUT

To VIDEO OUT

To S VIDEO

input

To S-LINK (control S)

Yellow

White (L)

Red (R)

Yellow

White (L)

Red (R)

To S-LINK/CONTROL S IN

S-LINK S-LINK

Getting Started

If you connect the player to a monitor or

projector having component video input

connectors that conform to output signals from

the COMPONENT VIDEO OUT (Y, P

B, PR) connectors

on the player

Connect the component via the COMPONENT VIDEO

OUT connectors using three video connecting cords (75 Ω

coaxial) (not supplied) of the same kind and length. You

will get a better picture.

SACD/DVD player

Monitor or projector

with component video

input connectors

COMPONENT VIDEO OUT

COMPONENT

VIDEO IN

PBYPR

Notes

• Refer to the instructions supplied with the component to be

connected.

• Do not connect this player to a video deck. If you do, noise

may appear in the picture.

• Depending on the TV or receiver (amplifier), sound distortion

may occur because the audio output level from this player is

high. In this case, set “AUDIO ATT” in “AUDIO SETUP” to

“ON” in the setup display. For details, see page 60.

zIf your TV has an S-link (control S) connector

You can control the player from the TV.

Connect the TV via the S-LINK/CONTROL S IN connector using

the S-link (control S) cord (supplied). Refer to the instructions

supplied with the TV to be connected.

Setups for the player

Some setup adjustments are necessary for the player

depending on the TV or other components to be

connected.

Use the setup display to change the various settings.

For details on using the setup display, see page 50.

• To connect the player to a normal TV

In the setup display, set “TV TYPE” in “SCREEN

SETUP” to “4:3 LETTER BOX” (default setting) or “4:3

PAN SCAN.” For details, see page 54.

• To connect the player to a TV having the WIDE

MODE function

In the setup display, set “TV TYPE” in “SCREEN

SETUP” to “16:9/4:3 WIDE MODE.” For details, see

page 54.

• To connect the player to a wide-screen TV

In the setup display, set “TV TYPE” in “SCREEN

SETUP” to “16:9/4:3 WIDE MODE.” For details, see

page 54.

• To connect the player to a TV that accepts

progressive (480p) format signals

Connect the player to your TV using the COMPONENT

VIDEO OUT connectors, and set “COMPONENT OUT”

in “CUSTOM SETUP” to “PROGRESSIVE.”

Connect

directly

VCR

SACD/DVD

player

S-link cord (supplied)

TVSACD/DVD player

CONTROL S IN

S-LINK

CONTROL S

Getting Started

AUDIO OUT

SCAN SELECT

SELECTABLE

INTERLACE

PROGRESSIVE

PCM/DTS/

DOLBY DIGITAL

CONTROL S IN

OPTICAL COAXIAL

DIGITAL OUT

COMPONENT VIDEO OUT

S VIDEO

OUT

VIDEO

OUT

S-LINK

DIGITAL IN

OPTICAL

COAXIAL

S VIDEO

VIDEO

AUDIO

INPUT

Receiver (Amplifier) Hookups

SACD/DVD player

To AUDIO OUT

To audio input

: Signal flow

Receiver

(Amplifier)

To an AC outlet

To S VIDEO OUT

To S VIDEO

input

To DIGITAL

OUT

(OPTICAL)

Take off the

cap.

DIGITAL

OUT

(COAXIAL)

To optical digital input

To coaxial digital input

Receiver

(Amplifier) with

a digital

connector, MD

deck, DAT deck,

etc.

Do not connect the AC outlet to a switched AC power

supply such as the AC outlet on a receiver (amplifier).

Doing so may cause the Playback Memory, Disc Memo and

menu settings to be cancelled when you turn off the

receiver.

* Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks

of Dolby Laboratories.

This connection is for listening to the sound through

speakers connected to a receiver lacking a built-in DTS or

Dolby* Digital decoder. Refer as well to the instructions

supplied with the component to be connected.

zIf you have a digital component with a built-in DTS or Dolby

Digital decoder

You can enjoy multi-channel surround sound by connecting the

component via the DIGITAL OUT OPTICAL or COAXIAL

connector using an optical or coaxial digital connecting cord (not

supplied). For details on hookups and settings, see page 14.

Getting Started

Required cords

Audio connecting cord (not supplied) (1)

S video cord (supplied) (1)

When connecting the cords, be sure to match the color-coded

cord to the appropriate jacks on the components: Red (right) to

Red and White (left) to White. Be sure to make connections firmly

to avoid hum and noise.

If you have a digital component such as a receiver (amplifier)

with a digital connector, DAT or MD, connect the component via

the DIGITAL OUT OPTICAL or COAXIAL connector using an

optical or coaxial digital connecting cord (not supplied).

Optical digital connecting cord (not supplied) (1)

Coaxial digital (75 Ω) connecting cord (not supplied) (1)

Notes

• You cannot enjoy a picture with an S video signal if your TV

does not conform to the S video signal. When your TV does

not have an S VIDEO input, connect the component via the

VIDEO INPUT connector using the audio/video connecting

cord (supplied) instead of the S video cord. For details, see

page 12.

Refer to the instructions supplied with your TV.

• You cannot make digital audio recordings of discs recorded in

multi-channel surround format directly using an MD deck or

DAT deck.

• SACD audio signals are not output from the DIGITAL OUT

OPTICAL or COAXIAL connectors.

When you have made the connections using an optical or

coaxial digital connecting cord, do not set “DOLBY

DIGITAL” to “DOLBY DIGITAL,” “DTS” to “ON” and “48kHz/

96kHz PCM” to “96kHz/24bit.” If you do, a loud noise will

suddenly come out from the speakers, affecting your ears

or causing the speakers to be damaged.

Setups for the player

Some setup adjustments are necessary for the player

depending on the components to be connected.

Use the setup display to change the various settings.

For details on using the setup display, see page 50.

• To listen to the sound through speakers connected

to a receiver (amplifier) which has a digital

connector and lacks a built-in DTS or Dolby Digital

decoder, or to output the sound to a digital

component such as a DAT or MD deck

Set the “AUDIO SETUP” items in the setup display

(page 60) as shown in the illustration below. These are

the default settings.

Note

When you output the signals which do not reproduce the Dolby

Surround (Pro Logic) effect from the DIGITAL OUT OPTICAL or

COAXIAL connector, set “DOWNMIX” to “NORMAL” in

“AUDIO SETUP” in the setup display (page 60).

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

AUDIO FILTER

DOWNMIX

DIGITAL OUT:

To set, press , then .

To quit, press .

OFF

STANDARD

SHARP

DOLBY SURROUND

ENTER

DOLBY DIGITAL:

DTS:

D-PCM

OFF

48kHz/96kHz PCM:

48kHz/16bit

DISPLAY

Set the

items as

shown

White (L)

Red (R)

White (L)

Red (R)

Getting Started

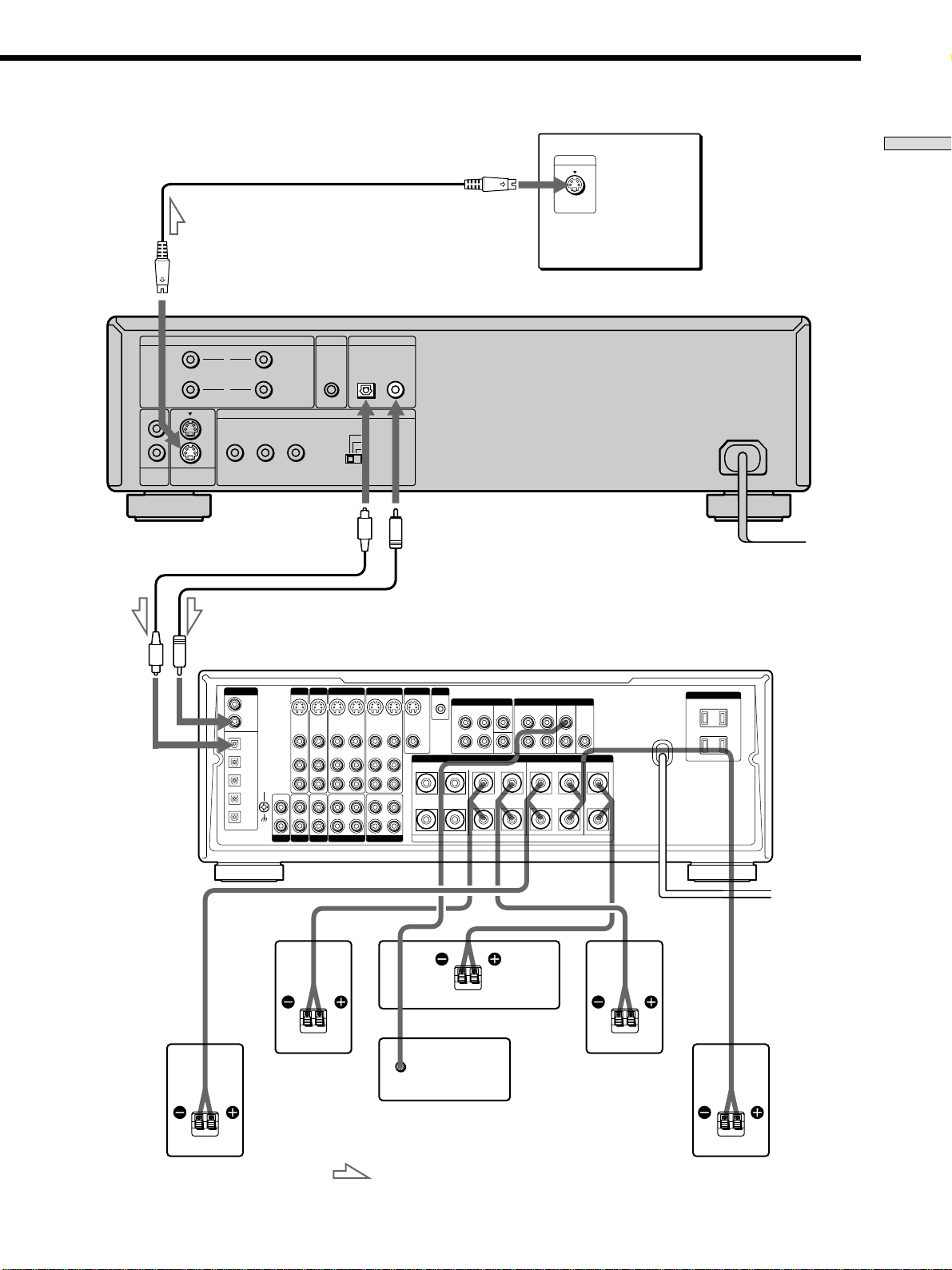

5.1 Channel Surround Hookups

With DVDs which contain DTS or Dolby Digital sound,

you can enjoy the surround sound while producing the

effect of being in a movie theater or a concert hall using a

digital component with a built-in DTS or Dolby Digital

decoder (not supplied). The player outputs the surround

sound signals from the DIGITAL OUT OPTICAL and

COAXIAL connectors.

Using a receiver (amplifier) having the OPTICAL or

COAXIAL connector and 6 speakers, you can enjoy even

greater real audio presence in the comfort of your own

home.

Required cords

Optical digital connecting cord* (not supplied) (1)

Coaxial digital (75 Ω) connecting cord* (not supplied) (1)

S video cord (supplied) (1)

* Connect the component via the DIGITAL OUT OPTICAL or

COAXIAL connector using an optical or coaxial digital

connecting cord (not supplied). You do not need to connect

both of these cords. See the figure on the next page.

Do not connect the AC outlet to a switched AC power

supply such as the AC outlet on a receiver (amplifier).

Doing so may cause the Playback Memory, Disc Memo and

menu settings to be cancelled when you turn off the

receiver.

Notes

• Do not connect the power cord to an AC outlet or press the

POWER switch before completing all connections.

• Refer to the instructions supplied with the component to be

connected.

• The cord connectors should be fully inserted into the jacks. A

loose connection may cause hum and noise.

• SACD audio signals are not output from the DIGITAL OUT

OPTICAL or COAXIAL connectors.

Setups for the player

Some setup adjustments are necessary for the player

depending on the components to be connected.

Use the setup display to change the various settings.

For details on using the setup display, see page 50.

• When you connect an audio component with a built-

in Dolby Digital decoder A

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and

then set “DOLBY DIGITAL” to “DOLBY DIGITAL” in

the setup display. (page 60, 61)

• When you connect an audio component with a built-

in DTS decoder B

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and

then set “DTS” to “ON” in the setup display. (page 60,

61)

• When you connect an audio component that accept

the 96kHz/24bit audio signal C

Set “DIGITAL OUT” in “AUDIO SETUP” to “ON” and

then set “48kHz/96kHz PCM” to “96kHz/24bit” in the

setup display. (page 60)

Notes

• When you do not connect an audio component with a

built-in Dolby Digital decoder, do not set “DOLBY DIGITAL”

to “DOLBY DIGITAL.”

• When you do not connect an audio component with a

built-in DTS decoder, do not set “DTS” to “ON.”

• When you do not connect an audio component that cannot

accept the 96kHz/24bit audio signal, do not set “48kHz/

96kHz PCM” to “96kHz/24bit.”

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

AUDIO FILTER

DOWNMIX

DIGITAL OUT:

To set, press , then .

To quit, press .

OFF

STANDARD

SHARP

DOLBY SURROUND

ENTER

DOLBY DIGITAL:

DTS:

DOLBY DIGITAL

48kHz/96kHz PCM:

96kHz/24bit

DISPLAY

Getting Started

AUDIO OUT

SCAN SELECT

SELECTABLE

INTERLACE

PROGRESSIVE

PCM/DTS/

DOLBY DIGITAL

CONTROL S IN

OPTICAL COAXIAL

DIGITAL OUT

COMPONENT VIDEO OUT

S VIDEO

OUT

VIDEO

OUT

S-LINK

S VIDEO IN

–

RLR LRL

CENTER

S-VIDEO

VIDEO

S-VIDEO

OUT

VIDEO

S-VIDEO

OUT

VIDEO

S-VIDEO

VIDEO

S-VIDEO

OUT

VIDEO

S-VIDEO

VIDEO

REC OUT

AUDIO

OUT

AUDIO

OUT

AUDIO

FRONT REAR WOOFER CENTER

TAPE

VIDEO 2

DVD

VIDEO 1

MONITOR

PRE OUT

REC OUT

MD/DAT

TUNER

PHONO

DVD IN OPT

DVD IN

COAX

TV/LD IN

AC-3 RF

SIGNAL

GND

DIGITAL

TV/LD IN OPT

CD IN OPT

MD/DAT OUT OPT

MD/DAT IN OPT

CTRL A1

AC OUTLET

WOOFER

FRONTB REARA

FRONT REAR

5.1 INPUT

CENTER

TV/LD

S-VIDEO

VIDEO

AUDIO

S-LINK

SPEAKERS

INPUT

Front speaker

(L)

Front speaker

(R)

Rear speaker (R) Rear speaker (L)

Center speaker

Subwoofer

(Active type)

AV Receiver

(Amplifier) with a

built-in DTS

decoder or Dolby

Digital decoder

SACD/DVD player

: Signal flow

To an AC outlet

To S VIDEO

OUT

To S VIDEO

input

To DIGITAL OUT

(OPTICAL)

Take off the cap.

To DIGITAL OUT

(COAXIAL)

To optical

digital

input

To coaxial

digital input

Getting Started

Select:

SETUP

ENTER

1 8

(

3 4

)

1 2

(

)

0 0 : 0 0 : 0 0

DVD

STOP

You can select the language for the setup display, the

Control Menu display or the messages displayed on the

screen. The default setting is “ENGLISH.”

1 When the player is in stop mode, press DISPLAY

and select “SETUP” using M/m.

The on-screen menu items are different depending on

whether there is a disc in the player or not.

2 Press ENTER.

The setup display appears on the TV screen.

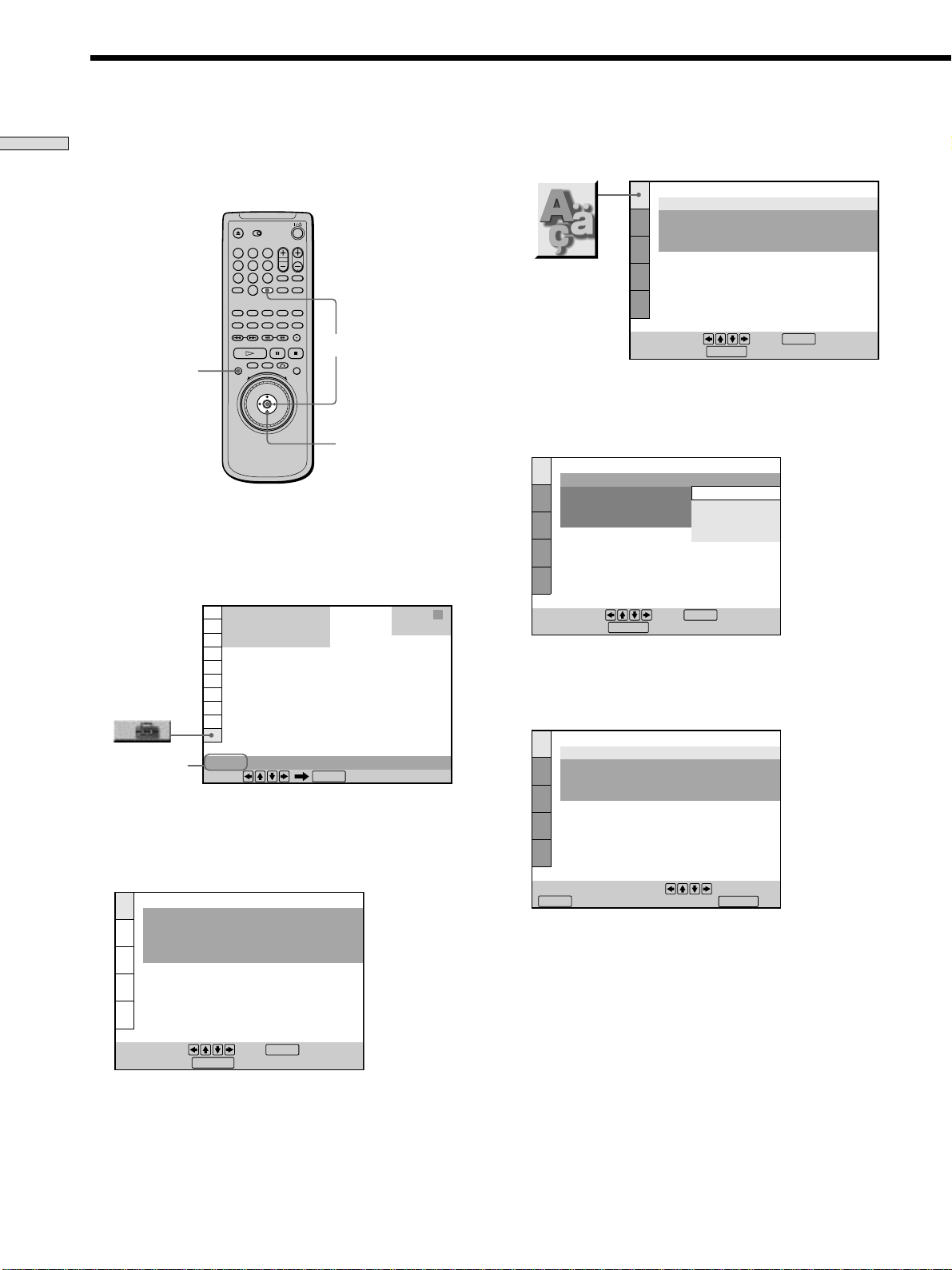

Selecting the Language for the On-Screen Display

3 Select “LANGUAGE SETUP” using M/m, and then

press ENTER.

4 Select “OSD” using M/m, then press , or ENTER.

The languages you can select are displayed.

5 Select the desired language using M/m, then press

ENTER.

6 Press DISPLAY.

The setup display disappears.

7 Press DISPLAY repeatedly to turn off the on-screen

menu.

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

To set, press , then .

ENGLISH

FRENCH

SPANISH

PORTUGUESE

ENTER

ENGLISH

To quit, press .

DISPLAY

CHOIX DE LA LANGUE

ECRANS:

MENU DVD :

AUDIO:

SOUS-TITRE:

Pour régler, appuyez sur , puis sur

FRANÇAIS

ANGLAIS

ORIGINAL

IDEM AUDIO

ENTER

Pour quitter, appuyez sur .

DISPLAY

Selected

item

DISPLAY

</M/m/,

ENTER

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

To set, press , then .

To quit, press .

ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

DISPLAY

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

To set, press , then .

ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

To quit, press .

DISPLAY

Getting Started

Operation Sound Effects

(Sound Feedback)

The player beeps when the following operations are

performed.

The default setting of the Sound Feedback function is set

to off.

Operation Operation sound

Power is turned on One beep

Power is turned off Two beeps

H is pressed One beep

X is pressed Two beeps

Playback is stopped One long beep

Operation is not possible Three beeps

1 Press POWER on the player, then press ?/1 on the

remote.

The power indicator lights up in green.

When there is a disc in the player, press A and remove

the disc. Then press A again to close the disc tray.

2 Press and hold S on the player for more than two

seconds.

You will hear one beep and the Sound Feedback

function is turned on.

To turn off the Sound Feedback Function

When there is no disc in the player, press and hold S on

the player for more than two seconds. You will hear two

beeps and the Sound Feedback function is turned off.

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Note

The languages you can select are the ones displayed in step 4.

For details, see page 53.

POWER

?/1

Playing Discs

With the playback

side facing down

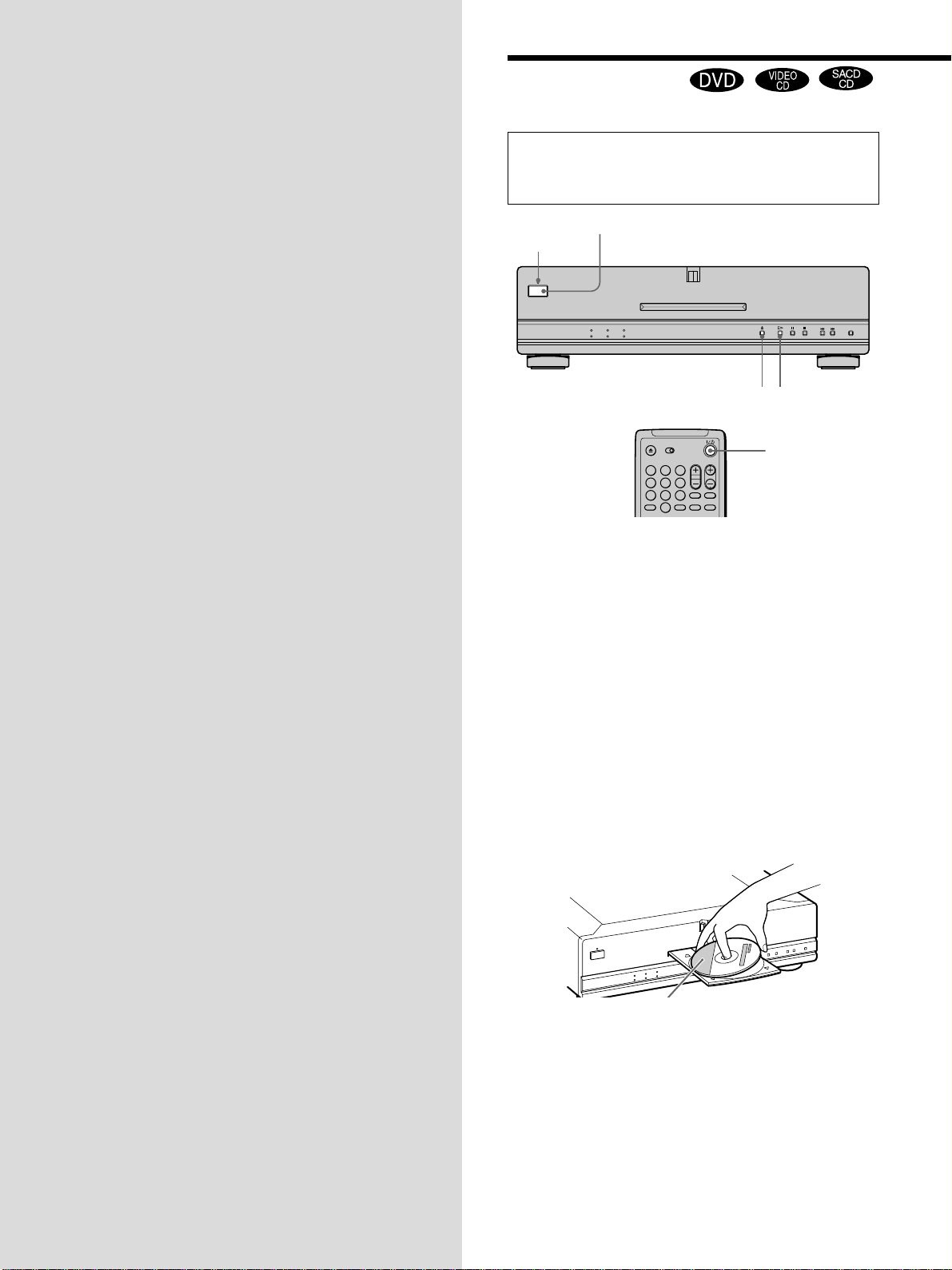

Playing Discs

This chapter describes how to play a

DVD/SACD/CD/VIDEO CD.

Depending on the DVD or VIDEO CD, some

operations may be different or restricted. Refer to the

instructions supplied with your disc.

1 Turn on your TV.

Turn on the TV and select the video input so that you

can view the pictures from this player.

When using a receiver (amplifier)

Turn on the receiver (amplifier) and select the

appropriate position so that you can listen to the

sound from this player.

2 Press POWER to turn on the player.

The player enters standby mode and the power

indicator lights up in red.

3 Press A on the player, and place a disc on the disc

tray.

The player automatically turns on and the power

indicator lights up in green.

4 Press H.

The disc tray closes and the player starts playback

(continuous play). Adjust the volume on the TV or the

receiver (amplifier).

POWER

Power

indicator

@/1

Playing Discs

Notes on playing DTS sound tracks on a DVD

The signals of the DTS sound tracks are output from the

DIGITAL OUT OPTICAL and COAXIAL connectors only. No

sound will be output from the AUDIO OUT connectors.

• If the player is connected to an audio component lacking a

built-in DTS decoder, do not set “DTS” in “DIGITAL OUT” to

“ON” in the setup display. Otherwise, when you play the DTS

sound track, a loud noise will come out from the speakers,

affecting your ears or causing the speakers to be damaged.

• When you set “DTS” in “AUDIO SETUP” to “OFF”, no sound

will come out from the DIGITAL OUT OPTICAL and

COAXIAL connectors even if you play DTS sound tracks on

DVDs.

Notes

• If you leave the player or the remote in pause or stop mode for

15 minutes, the screen saver image appears automatically. It

will also appear if you play back a CD for more than 15

minutes. To make the screen saver image go away, press H.

(If you want to set the screen saver function to off, see page 54.)

• While playing a disc, do not turn off the player by pressing

POWER. Doing so may cancel the settings of the menu. When

you turn off the player, press x first to stop playback and then

press @/1 on the remote. After the power indicator lights up in

red and the player enters standby mode, press POWER on the

player.

After following Step 4

xWhen playing a DVD

A DVD menu or title menu may appear on the TV

screen (see page 24).

xWhen playing a VIDEO CD

Depending on the VIDEO CD, a menu may appear on

the TV screen. You can play the disc interactively by

following the instructions on the menu. (PBC Playback,

see page 25.)

To turn on the player

Press POWER on the player. The player enters standby

mode and the power indicator lights up in red.

Then press @/1 on the remote. The player turns on and

the power indicator lights up in green. In standby mode,

the player also turns on by pressing A on the player or by

pressing H.

To turn off the player

Press @/1 on the remote. The player enters standby

mode and the power indicator lights up in red.

To disconnect the power of the player, press POWER on

the player.

Notes on playing DTS sound tracks on a CD

• Do not play DTS sound tracks without first connecting the

player to an audio component having a built-in DTS decoder.

The player outputs the DTS signal via the DIGITAL OUT

OPTICAL and COAXIAL connectors even if “DTS” in “AUDIO

SETUP” is set to “OFF” in the setup display, and may affect

your ears or cause your speakers to be damaged.

• Set the sound to “STEREO” when you play DTS sound tracks

on a CD. (See “Changing the Sound” on page 35.) If you set

the sound to “1/L” or “2/R”, no sound will come from the

DIGITAL OUT OPTICAL and COAXIAL connectors.

• If you play a CD with a DTS sound track, a loud noise may

come out from the AUDIO OUT connectors, affecting your ears

or causing the speakers to be damaged.

Playing Discs

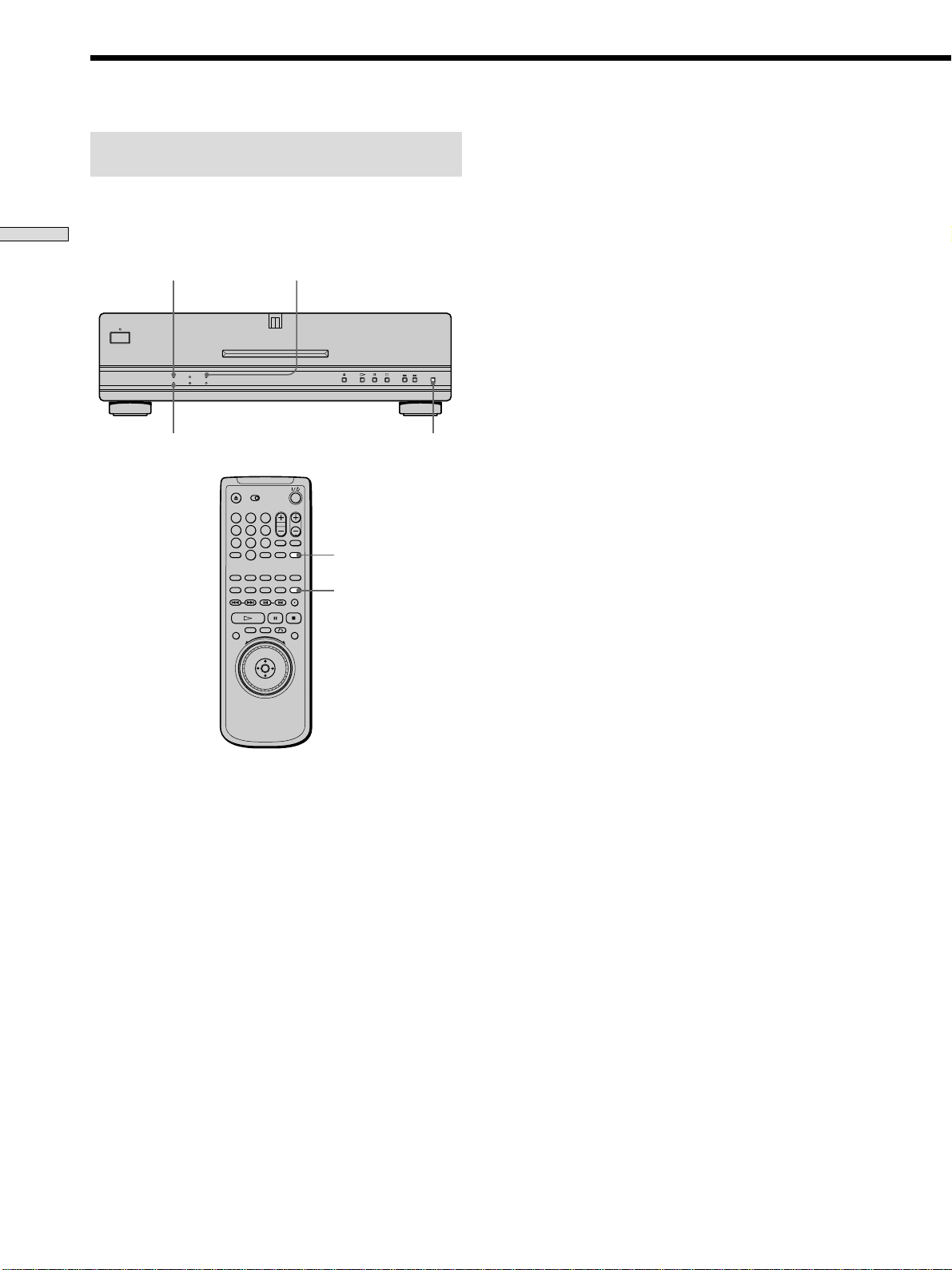

Achieving high quality sound

reproduction

The following settings enable you to play audio CDs, 96

kHz DVDs, and SACDs at the highest possible sound

quality.

By pressing AUDIO DIRECT on the player when it is

stopped, the video and digital audio output can be

switched on or off. When the playback audio signal is set

to be output from the digital connectors, this button will

cut the video signal. By setting the digital audio signal to

off, this button reduces the effect of the video and digital

circuitry on the audio signal. When no video signal is

output from the player, the VIDEO OFF indicator lights

up, and when the digital audio or video signal is cut, the

DIGITAL OFF indicator lights up.

By pressing the VIDEO ON/OFF button on the remote

when the player is stopped, the video output can be

switched on or off. When the video output is set to off, the

effect of the digital and analog video circuitry on the

audio signal is cut to a minimum. When no video signal

output from the player, the VIDEO OFF indicator lights

up on the player.

AUDIO DIRECT

VIDEO ON/OFF

When playing SACDs

When you are playing an SACD, the SACD indicator on

the player lights up. In order to select one of the layers on

a hybrid SACD (page 6), stop the player and press the

SACD/CD button on the remote. The SACD indicator on

the player turns off when a CD layer is played.

Notes

• When DIGITAL OUT is set to OFF in AUDIO SETUP, you

cannot turn the digital audio output back on using the AUDIO

DIRECT button.

• SACD signals are not output from the DIGITAL OUT OPTICAL

or COAXIAL connectors.

SACD/CD

DIGITAL OFF indicator

VIDEO OFF indicator SACD indicator

Playing Discs

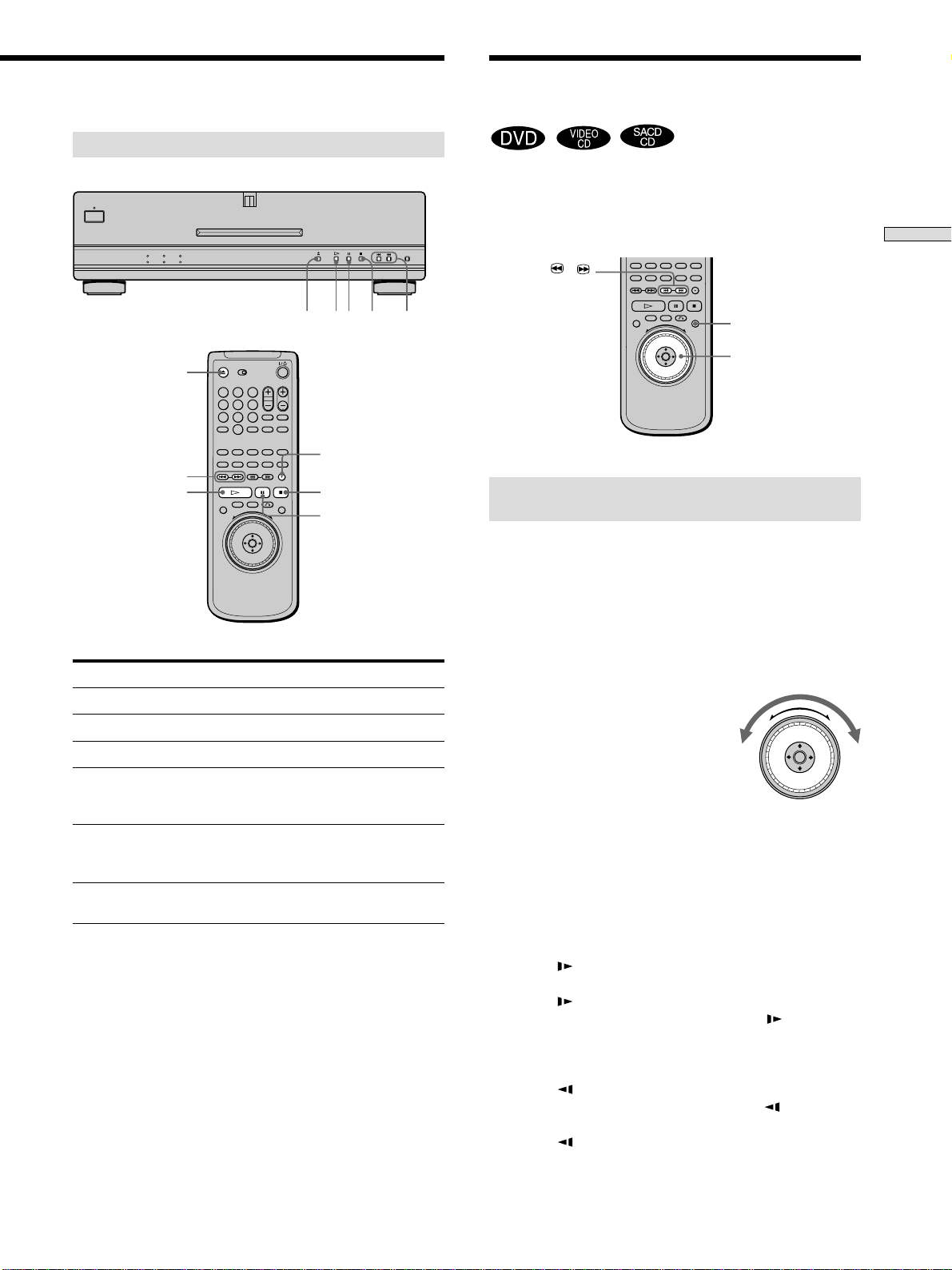

Playing at Various Speeds/

Frame by Frame

Using the click shuttle and the JOG button/indicator, you

can play back a DVD/SACD/CD/VIDEO CD at various

speeds or frame by frame. Each time you press JOG, it

changes between shuttle mode and jog mode.

To change the playback speed

(Shuttle mode)

Turn the click shuttle. The playback speed changes

depending on the turning direction and angle as follows:

When you play back a DVD

During playback

FF2M Fast forward (about 30 times the normal speed)

FF1M Fast forward (about 10 times the normal speed)

×2B (about twice the normal speed)

PLAYN (normal speed)

×2b (about twice the normal speed)

FR1m Fast rewind (about 10 times the normal speed)

FR2m Fast rewind (about 30 times the normal speed)

If you turn the click shuttle quickly, the playback speed

goes to FF2M or FR2m at once.

During pause

SLOW1 Slow (playback direction)

SLOW2 Slow

(playback direction – slower than “SLOW1 ”)

PAUSEX Pause

SLOW2 Slow

(opposite direction – slower than “SLOW1 ”)

SLOW1 Slow (opposite direction)

Click shuttle

JOG

Stop

Pause

Resume play after pause

Go to the next chapter,

track or scene in

continuous play mode

Go back to the preceding

chapter, track or scene in

continuous play mode

Stop play and remove the

disc

You can play discs in various modes such as Program Play

using the on-screen menu (Control Menu). For Control

Menu operations, see page 28.

To light up the buttons on the remote

When you press LIGHT on the remote, H, x, X and DISPLAY

light up. If you do not press any buttons for a short while, the

buttons will automatically turn off. Note, however, that using the

LIGHT function will shorten the battery life of the remote.

AsSH./>

./>

Operation

Press x

Press X

Press X or H

Press >

Press .

Press Z

Additional operations

LIGHT

Playing Discs

To play the disc frame by frame

(Jog mode)

1 Press JOG.

JOG lights up during jog mode.

2 Turn the click shuttle.

Depending on the turning speed, playback goes to

frame-by-frame playback in the direction that the click

shuttle is turned. If you turn the click shuttle at a

constant speed for a while, the playback speed goes to

slow or normal.

To return to Continuous Play

Press H.

Notes

• The JOG indicator shows the mode of the corresponding click

shuttle.

• If you don‘t operate the click shuttle for about 20 seconds after

pressing JOG, the click shuttle returns to shuttle mode.

Playing at Various Speeds/Frame by Frame

When you play back a SACD/CD/VIDEO CD

During playback

FF2M Fast forward (faster than “FF1M”)

FF1M Fast forward

×2B (about twice the normal speed)*

PLAYN (normal speed)

FR1m Fast rewind

FR2m Fast rewind(faster than “FR1m”)

* SACD/CD Only

If you turn the click shuttle quickly, the playback speed goes

to FF2M or FR2m at once.

During pause (VIDEO CD only)

SLOW1 Slow (playback direction)

SLOW2 Slow

(playback direction – slower than “SLOW1 ”)

PAUSEX Pause

To return to continuous play

Press H.

zTo search for a picture using the remote

Keep pressing or on the remote. The playback speed is the

same as FR1m or FF1M when using the click shuttle.

Note

Depending on the DVD/VIDEO CD, you may not be able to do

some of the operations described.

Playing Discs

Resuming Playback from the Point Where You Stopped the

Disc (Resume Play)

Notes

• Resume Play may not be available on some DVDs.

• Resume Play is not available in Shuffle or Program Play mode.

• Depending on where you stopped the disc, the player may

resume playback from a different point.

• The point where you stopped playing is cleared when:

– you open the disc tray

– you turn the power off by pressing POWER on the player

– you change the play mode

– you start playback after selecting a title, chapter or track

– you change the settings in the setup display

The player remembers the point where you stopped the

disc, and when “RESUME” appears on the front panel

display, you can resume playback from that point.

As long as you do not open the disc tray, Resume Play

will work even if the player enters standby mode by

pressing @/1 on the remote.

1 While playing a disc, press x to stop playback.

“RESUME” appears on the front panel display and

“Disc will restart from current point. To start from

beginning, press [STOP] again.” appears on the TV

screen.

If “RESUME” does not appear, Resume Play is not

available.

2 Press H.

The player starts playback from the point where you

stopped the disc in Step 1.

zTo play from the beginning of the disc

When the playing time appears on the front panel display before

you start playing, press x to reset the playing time, then press

Playing Discs

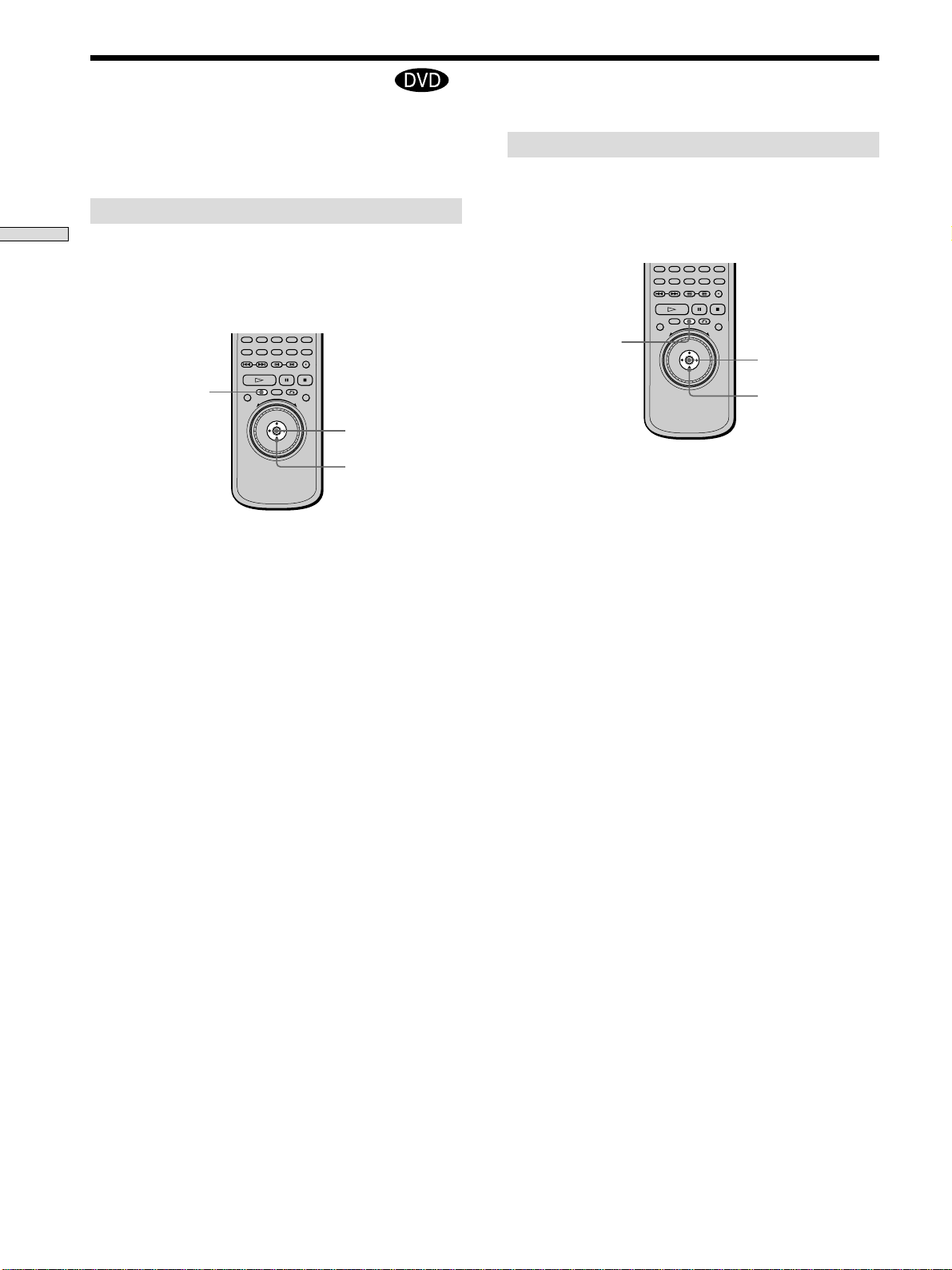

Some DVDs have a title menu or a DVD menu that is

provided with DVDs only.

Using the title menu

A DVD is divided into long sections of a picture or a

music feature called “titles.” When you play a DVD

which contains several titles, you can select the title you

want using the title menu.

1 Press TITLE.

The title menu appears on the TV screen. The contents

of the menu vary from disc to disc.

2 Press </M/m/, to select the title you want to

play.

Depending on the disc, you can use the number

buttons to select the title.

3 Press ENTER.

The player starts playing the selected title.

Notes

• On some DVDs, you may not be able to select the title.

• On some DVDs, a “title menu” may simply be called a “menu”

or “title ” in the instructions supplied with the disc. “Press

ENTER.” may also be expressed as “Press SELECT.”

Using the DVD’s Menu

TITLE

</M/m/,

ENTER

Using the DVD menu

Some DVDs allow you to select the disc contents using a

menu. When you play these DVDs, you can select the

language for the subtitles, the language for the sound, etc.,

using the DVD menu.

1 Press DVD MENU.

The DVD menu appears on the TV screen. The

contents of the menu vary from disc to disc.

2 Press </M/m/, to select the item you want to

change.

Depending on the disc, you can use the number

buttons to select the item.

3 To change other items, repeat Step 2.

4 Press ENTER.

zIf you want to select the language for the DVD menu

Change the setting using “DVD MENU” in “LANGUAGE

SETUP” in the setup display. For details, see page 53.

Note

Depending on the DVD, a “DVD menu” may simply be called a

“menu” in the instructions supplied with the disc.

</M/m/,

ENTER

DVD MENU

Playing Discs

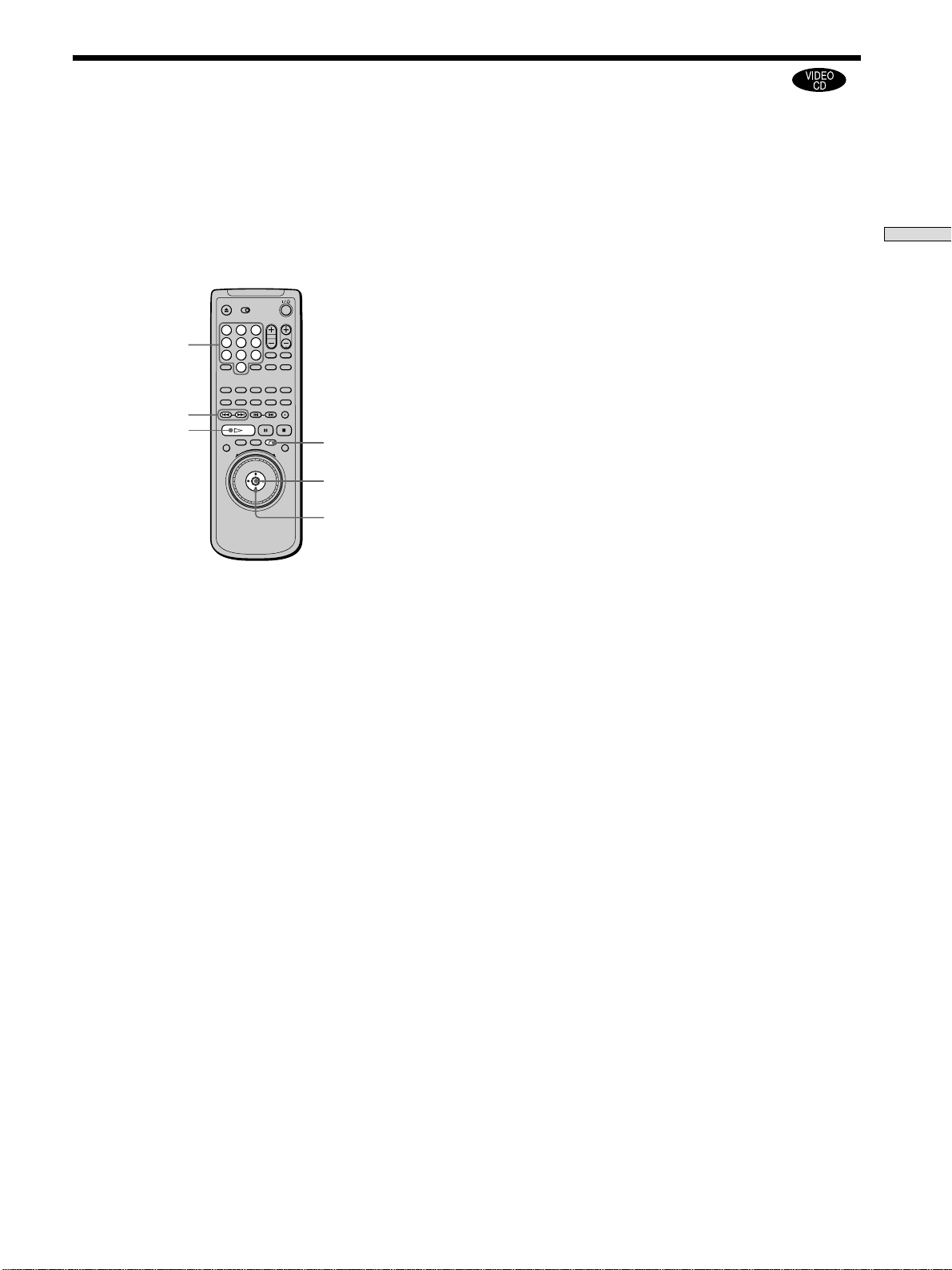

When playing VIDEO CDs with PBC (Play Back Control)

functions (Ver. 2.0 discs), you can enjoy simple interactive

operations, search functions, and other such operations.

PBC Playback allows you to play VIDEO CDs

interactively by following the menu on the TV screen.

On this player, you can use the number buttons, ENTER,

., >, M/m and ORETURN during PBC Playback.

1 Start playing a VIDEO CD with PBC functions by

following Steps 1 to 4 in “Playing Discs” on page

18.

2 Select the item number you want.

Press M/m to select the item number.

You can also select the item number with the number

buttons on the remote.

3 Press ENTER.

4 Follow the instructions in the menu for interactive

operations.

Refer to the instructions supplied with the disc, as the

operating procedure may differ according to the

VIDEO CD.

To go back to the menu

Press ORETURN, ., or >.

zTo cancel PBC playback of a VIDEO CD with PBC functions

and play the disc in continuous play mode

There are two ways.

• Before you start playing, select the track you want using .

or >, then press ENTER or H.

• Before you start playing, select the track number using the

number buttons on the remote, then press ENTER or H.

“Play without PBC” appears on the TV screen and the player

starts continuous play. You cannot play still pictures such as a

menu.

To return to PBC playback, press x twice then press H.

Note

Depending on the VIDEO CD, “Press ENTER” in Step 3 may be

expressed as “Press SELECT” in the instructions supplied with

the disc. In this case, press H.

Number buttons

ORETURN

ENTER

./>

Playing VIDEO CDs with PBC Functions (PBC Playback)

M/m

Playing Discs

12 22300

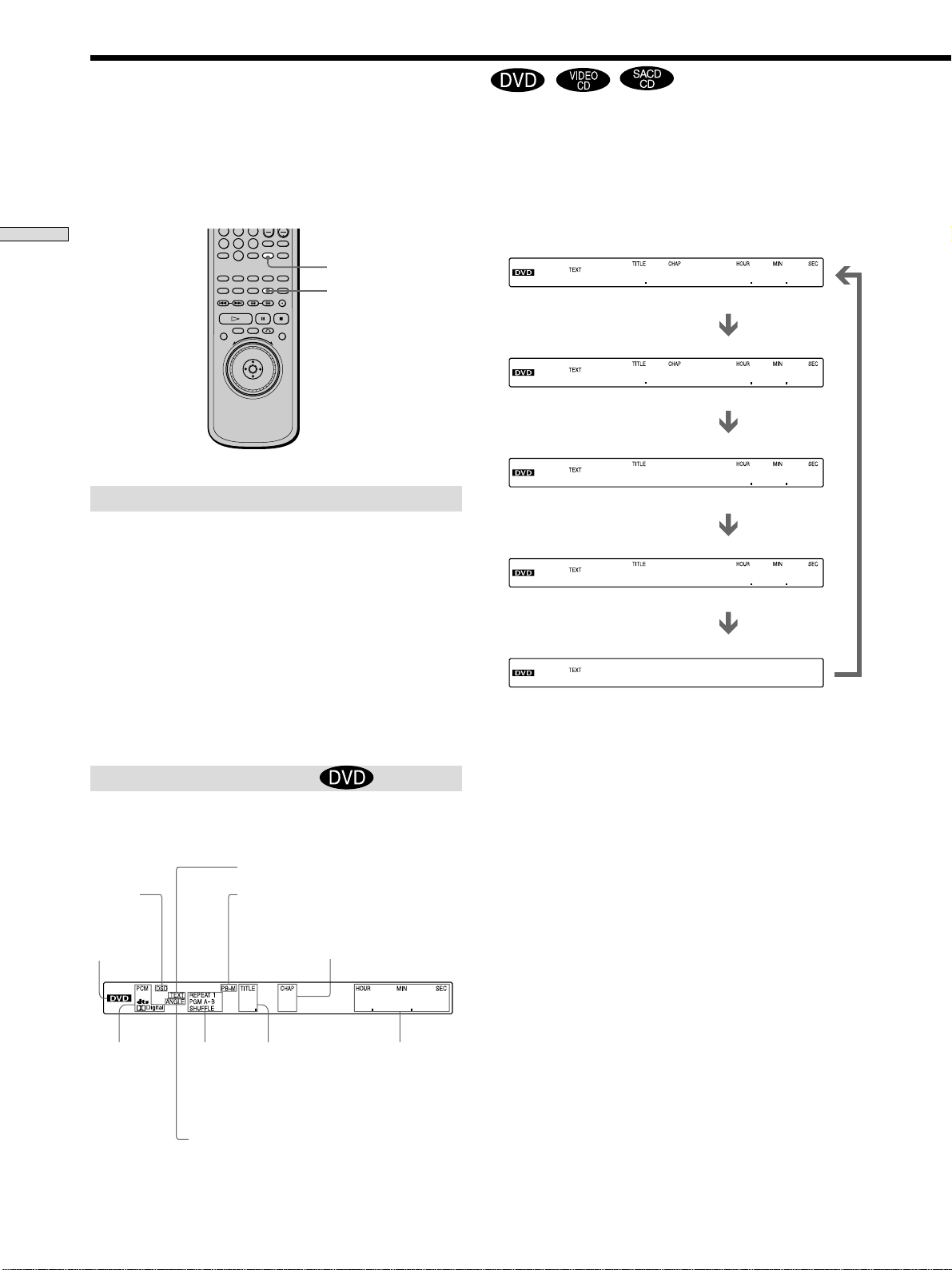

You can check information about the disc, such as the total

number of titles or tracks or remaining time, using the

front panel display. This display can be turned on or off

using the FL ON/OFF button.

Turning the front panel display on or off

You can turn the front panel display on or off using the

remote. Each time you press the FL ON/OFF button, the

display turns on and off. When the display is off, the FL

OFF indicator on the player lights up.

zYou can adjust the brightness of the front panel display

You can adjust the brightness of the front panel display or set it to

turn off automatically by selecting DIMMER in CUSTOM SETUP.

Note

The FL ON/OFF button does not work when DIMMER is set to

OFF in CUSTOM SETUP.

When playing back a DVD

Displaying information while playing the disc

TIME/TEXT

Using the Front Panel Display

Playing time and number

of the current chapter

Lights up when you can

change the angle

Current

play

mode

Playing timeCurrent title

number

1 2 22300

1 2 13200

1 03241

OSNYHITS/5

15361

Remaining time of

the current title

Playing time and number of

the current title

Remaining time of

the current chapter

Press TIME/TEXT

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing the disc, the

display changes as shown in the following chart.

Notes

• On some DVDs, the chapter number or time may not appear or

you may not be able to change the front panel display.

• During Shuffle Play or Program Play, the playing time of the

title and the remaining time of the title are not displayed.

Text or Disc Memo

FL ON/OFF

Current chapter number

Lights up when “PLAYBACK

MEMORY” is set to “ON” in the

“CUSTOM SETUP” display.

Lights up when the text or disc

memo is stored.

Current

audio

format

Disc type

Current

audio

format

Playing Discs

21 225

Checking the remaining time

Press TIME/TEXT.

Each time you press TIME/TEXT while playing a disc, the

display changes as shown in the following chart.

Note

While you are doing Shuffle Play, or Program Play, the playing

time of the disc and the remaining time of the disc are not

displayed.

When playing back a SACD/CD/VIDEO CD

Displaying information while playing a disc

zWhen playing VIDEO CDs with PBC functions

The current scene number is displayed instead of the current

track number and the current index number. In this case, the

front panel display does not change when you press TIME/

TEXT. If TEXT is recorded on the disc, the front panel display

changes to the Text display when you press TIME/TEXT (see

page 32).

Playing timeCurrent

play

mode

Current track

number

Current index number

21 225

3212

21 150-

2018-

OSNYHITS/5

Playing time and current

track number

Remaining time of the

current track

Remaining time of the disc

Playing time of the disc

Press TIME/TEXT

Text or Disc Memo

Press TIME/TEXT

Lights up when the text or disc

memo is stored.

Lights up when “PLAYBACK

MEMORY” is set to “ON” in the

“CUSTOM SETUP” display.

Lights up during PBC

playback (VIDEO CD only)

Disc type

Current

audio

format

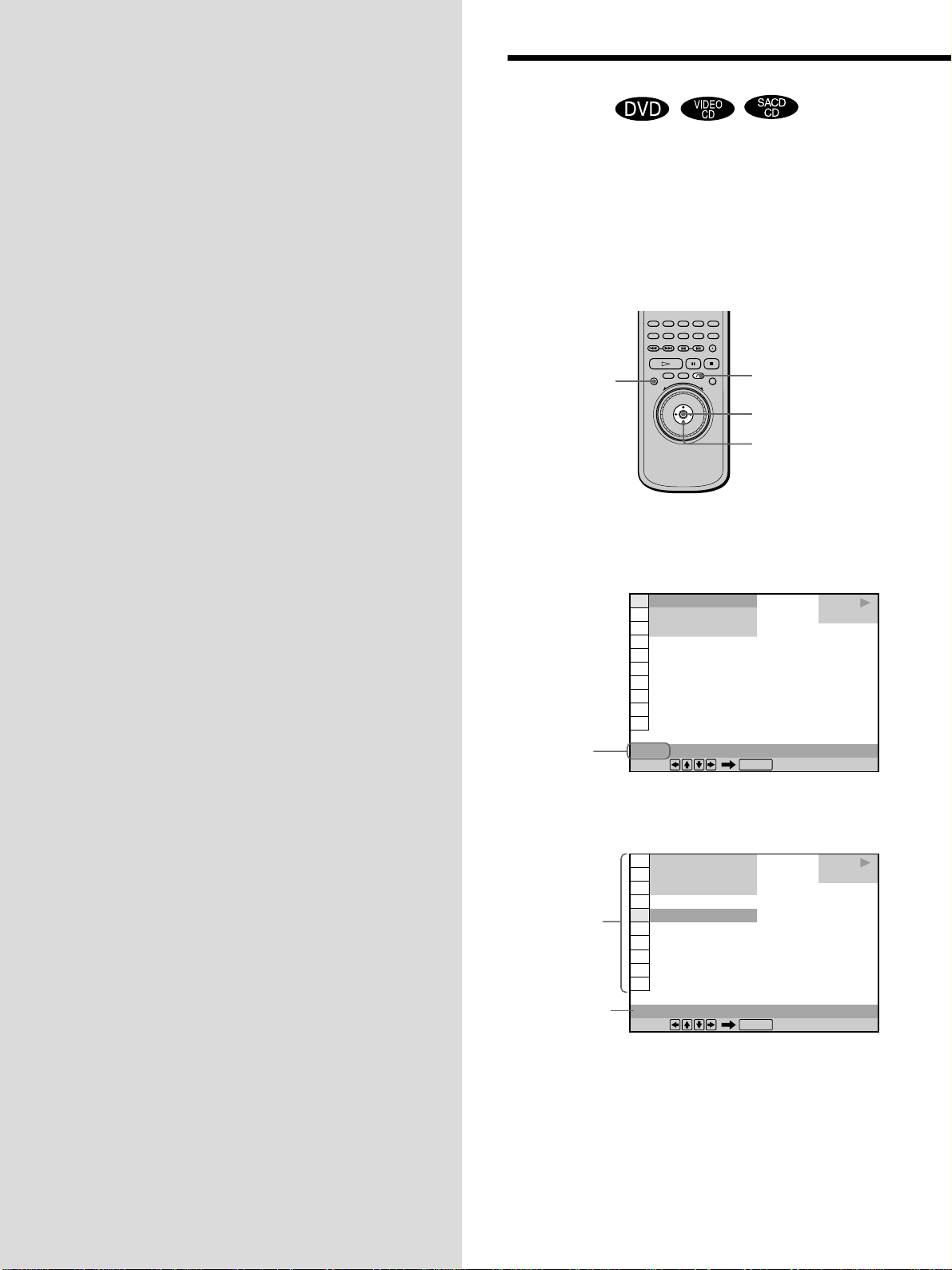

Using Various

Functions with

the Control

This chapter describes how to play

discs in various modes and how to

use the convenient features of the on-

screen menu (Control Menu).

Using the Control Menu

Display

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

TITLE

ENTER

PLAY

DISPLAY

ENTER

</M/m/,

ORETURN

Current item

Items

Selected

item

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

1: ENGLISH

DVD

Select:

SUBTITLE

ENTER

PLAY

Using the Control Menu display, you can select the

starting point, play scenes in any order you like, change

the viewing angles, make video control settings, and other

such operations.

The possible operations are different depending on the

kind of disc.

For details on each Control Menu display item, see pages

30 to 49.

1 Press DISPLAY to show the Control Menu display

on the TV screen.

2 Select the item you want using M/m.

Using Various Functions with the Control Menu

3 Press ENTER.

4 Select the item you want using M/m.

5 Press ENTER.

Items

Selected

item

To cancel while making a selection

Press O RETURN.

To display other items

Each time you press DISPLAY, the Control Menu display

changes as follows:

,Control Menu display 1

Control Menu display 2

(The items except the first three items from the top

are changed to other items.)

ADVANCED display (see page 42)

Control Menu display off

The Control Menu display items are different depending

on the disc.

zYou can select some items directly

Some items can be selected by pressing the corresponding button

on the remote. In this case, only the item you selected is

displayed. For instructions on using the remote, see the pages of

each relevant item.

Note

Some Control Menu display items require operations other than

selecting the setting. For details on these items, see the relevant

pages.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

DVD

Select: Cancel:

SUBTITLE

ENTER RETURN

PLAY

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select: Cancel:

SUBTITLE

ENTER RETURN

PLAY

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

SUBTITLE

ENTER

OFF

PLAY

Using Various Functions with the Control Menu

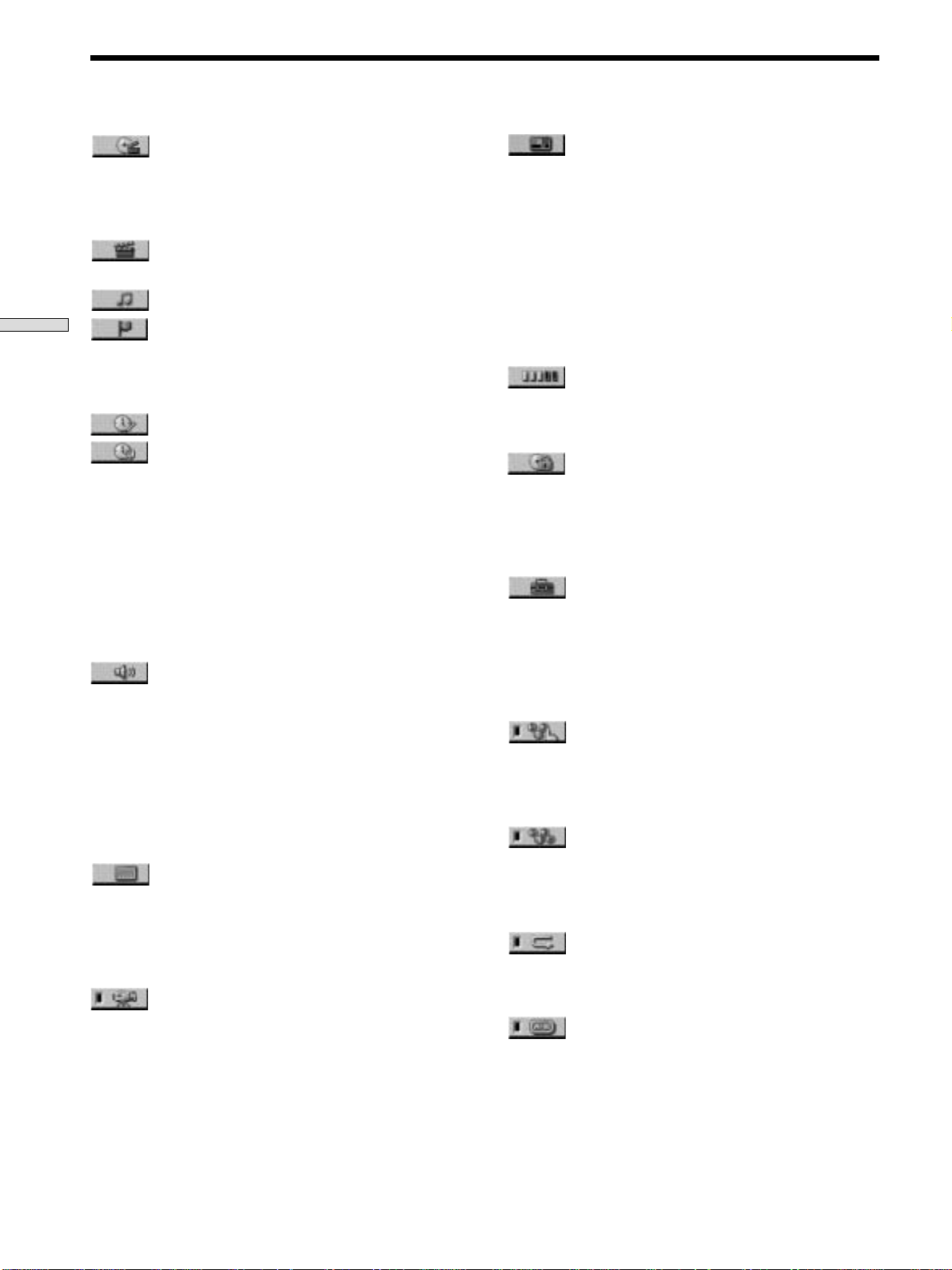

TITLE (DVD only) (page 31)/

SCENE (VIDEO CD during PBC playback

only) (page 31)/

TRACK (VIDEO CD only) (page 31)

CHAPTER (DVD only) (page 31)/

INDEX (VIDEO CD only) (page 31)

TRACK (SACD/CD only) (page 31)

INDEX (SACD/CD only) (page 31)

You can search for a point on the DVD by selecting the

title, chapter, track, index or scene.

TIME/MEMO (pages 32, 33, 34)

TIME/TEXT (pages 32, 33, 34)

You can check the playing time and remaining time of the

current title, chapter, track and the total playing time or

remaining time of the disc.

You can also search for a scene by inputting the time code.

You can check the DVD TEXT, SACD TEXT or CD TEXT

of the disc on the TV screen and the front panel display.

When the disc is a VIDEO CD or the DVD TEXT/SACD

TEXT/CD TEXT is not recorded on the disc, you can label

the disc using the Disc Memo function.

AUDIO (page 35)

If the DVD is recorded with multilingual tracks, you can

select the language you want while playing the DVD.

If the DVD is recorded in multiple audio formats (PCM,

Dolby Digital or DTS), you can select the audio format

you want while playing the DVD.

With CDs or VIDEO CDs, you can select the sound from

the right or left channel and listen to the sound of the

selected channel through both the right and left speakers.

SUBTITLE (DVD only) (page 37)

With DVDs on which multilingual subtitles are recorded,

you can change the subtitle language whenever you want

while playing the DVD, and turn it on or off whenever

you want.

ANGLE (DVD only) (page 37)

With DVDs on which various angles (multi-angles) are

recorded, you can change the angle of the scene.

VIDEO CONTROL (DVD and VIDEO CD

only) (page 38)

You can make detailed adjustments to the playback image

and store up to 5 different setting patterns in the player's

memory. This is useful when you want to store certain

settings for different genres such as movies or concerts.

You can also store individual settings in the player's

memory for up to 300 discs (playback memory). The

player can be programmed to automatically recall the

settings for a particular disc when that disc is played.

ADVANCED (DVD only) (page 42)

You can check play information about the bit rate or the

position where the disc is being played (layer).

CUSTOM PARENTAL CONTROL (page 43)

Using a registered password, you can set playback

restrictions for a desired disc.

The same password is used for both Parental Control

(page 57) and Custom Parental Control.

SETUP (page 50)

Using the setup display, you can do the initial setup,

adjust the picture and sound and set the various outputs.

You can also set a language for the subtitles and the setup

display, limit playback by children, and so on. For details

about the setup display, see page 50, 51.

PROGRAM (page 45)

You can play the contents of the disc in the order you

want by arranging the order of the titles, chapters or

tracks on the disc to create your own program.

SHUFFLE (page 47)

You can have the player “shuffle” titles, chapters or tracks

and play them in a random order. Subsequent “shuffling”

may produce a different playing order.

REPEAT (page 48)

You can play all the titles/tracks on a disc or a single title/

chapter/track repeatedly.

A-B REPEAT (page 49)

You can play a specific portion of a title, chapter, or track

repeatedly.

Control Menu Item List

Using Various Functions with the Control Menu

2 Press , or ENTER.

“

” changes to “— — ”.

3 Select the number of the title, chapter, track, index

or scene you want to search for using the number

buttons or M/m, then press ENTER.

The player starts playback at the selected number.

To cancel the number, press CLEAR before pressing

ENTER.

To cancel while making a selection

Press ORETURN.

Notes

• The title, chapter or track number displayed is the same

number recorded on the disc.

• The index numbers are not displayed during PBC playback of

VIDEO CDs.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

CHAPTER

ENTER

PLAY

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Number buttons Cancel:

CHAPTER

ENTER

– –

(

3 4

)

RETURN

PLAY

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

TITLE

ENTER

PLAY

You can search the disc by title, chapter, track, index or

scene.

Select “TITLE,” “ CHAPTER,” “ TRACK,” “INDEX” or

“SCENE” after pressing DISPLAY.

When you play back a DVD, “TITLE” and “CHAPTER”

are displayed.

When you play back a VIDEO CD/CD, “TRACK” and

“INDEX” are displayed. When you play back a VIDEO

CD with PBC functions, “SCENE” is displayed.

1 Select “TITLE,” “CHAPTER,” “TRACK,” “INDEX” or

“SCENE” using M/m.

“ ” is highlighted ( refers to a number).

The number in parentheses indicates the total number

of titles, chapters, tracks, indexes or scenes.

Searching for a Title/Chapter/Track/Index/Scene

Using Various Functions with the Control Menu

Checking the Playing Time

and Remaining Time

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

TIME/MEMO

ENTER

PLAY

Selecting a Starting Point

Using the Time Code

You can search for a starting point by inputting the time

code.

Select “TIME/MEMO” or “TIME/TEXT” after pressing

DISPLAY.

The time code corresponds to the approximate actual

playing time. For example, to search for a scene 2 hours 10

minutes 20 seconds past the beginning, input 2:10:20.

1 Select “C ” (playing time of the

current chapter) when playing a DVD.

2 Press , or ENTER.

Time code changes to “T – – : – – : – –”.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

TIME/MEMO

ENTER

PLAY

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

TIME/MEMO

ENTER

PLAY

1 2

(

2 7

)

T – – : – – : – –

DVD

Number buttons Cancel:

TIME/MEMO

ENTER

1 8

(

3 4

)

RETURN

PLAY

DISC MEMO INPUT

You can check the playing time and remaining time of the

current title, chapter or track and the total playing time or

remaining time of the disc.

Press DISPLAY. Then press TIME/TEXT on the remote to

change the time information.

You can also check the DVD TEXT, CD TEXT or Disc

Memo, and label the disc. See page 26.

When playing a DVD

x TIME/MEMO or TIME/TEXT

•C

: Playing time of the current chapter

•C –

: Remaining time of the current

chapter

•T

: Playing time of the current title

•T –

: Remaining time of the current title

When playing a VIDEO CD (during PBC playback)

x TIME/MEMO

•

: Playing time of the current scene

When playing a VIDEO CD (in continuous play) or

SACD/CD

x TIME/MEMO or TIME/TEXT

•T

: Playing time of the current track

•T –

: Remaining time of the current track

•D

: Playing time of the current disc

•D –

: Remaining time of the current disc

zYou can select “TIME/MEMO” or “TIME/TEXT” directly

Press TIME/TEXT on the remote. Each time you press the

button, the time information changes.

Note

The displayed time may vary depending on the play mode.

Using Various Functions with the Control Menu

You can label discs so that the label appears on your TV

screen and the front panel display when you play the disc.

If the disc already has DVD TEXT, SACD TEXT or CD

TEXT recorded on it, then this information will appear

instead.

Press DISPLAY. “TIME/MEMO” appears. Press TIME/

TEXT on the remote until the Disc Memo appears at the

bottom of the display. If the disc does not contain a label,

“NO TEXT” is displayed. Follow the steps below to label

a disc.

If the disc has DVD TEXT or CD TEXT already recorded

on it, “TIME/TEXT” appears instead. Press TIME/TEXT

on the remote until the information is displayed at the

bottom of the display. You cannot change this information.

zYou can select “TIME/MEMO” or “TIME/TEXT” directly

Press TIME/TEXT on the remote. To display DVD/CD TEXT or

Disc Memo, press TIME/TEXT until DVD/CD TEXT or Disc

Memo is displayed.

zYou can view the entire DVD/CD TEXT or Disc Memo recorded

on the disc

DVD/CD TEXT or Disc Memo is scrolled on the front panel

display.

Note

This player can only display the first level of DVD/CD TEXT

information.

Labeling discs (Disc Memo)

When DVD TEXT or CD TEXT is not recorded on the disc,

you can put a personal title on the disc by labeling it on

the on-screen display. You can input up to 20 characters

per disc.

You can also have the player display the Disc Memo each

time you select the disc. The Disc Memo can be anything

you like, such as a title, musician’s name, category or date

of purchase.

3 Input the time code using the number buttons,

then press ENTER.

The player starts playback at the selected time code.

To cancel the number, press CLEAR before pressing

ENTER.

To cancel while making a selection

Press ORETURN.

Note

When you input the time code, input the playing time of the title,

not the chapter or track time.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

TIME/MEMO

BRAHMS SYMPHONY NO – 4

PLAY

Disc Memo or

DVD/CD TEXT

Labeling the Disc

Using Various Functions with the Control Menu

1 Select “TIME/MEMO” and press ENTER.

“DISC MEMO INPUT,” appears.

2 Select “DISC MEMO INPUT,” and press ENTER.

The DISC MEMO INPUT display appears.

3 Select a character by pressing </M/m/,.

The selected character changes color.

4 Press ENTER.

BRAHMS

Select:

ENTER

Save: Cancel:

ENTERSAVE

RETURN

DISC MEMO INPUT

SAVE

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcdefghijklmnopqrstuvwxyz

0123456789

+–

/=\ <>()[]{}

:;.,!"#$%&’‘^|?_@

DISC MEMO INPUT

1 2

(

2 7

)

T – – : – – : – –

DVD

Number buttons Cancel:

TIME/MEMO

ENTER

1 8

(

3 4

)

RETURN

PLAY

DISC MEMO INPUT

Select:

ENTER

SAVE

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcdefghijklmnopqrstuvwxyz

0123456789

+–

/=\ <>()[]{}

:;.,!"#$%&’‘^|?_@

Save: Cancel:

ENTERSAVE

RETURN

5 Repeat steps 3 and 4 to input other characters.

6 When you have entered all the characters for the

Disc Memo, select [SAVE] by pressing </M/m/,

and then press ENTER.

The Disc Memo is stored.

To correct the characters

• To erase the characters:

1 Move the cursor to the character you want to erase

by pressing . or >.

2 Press CLEAR.

• To insert or overwrite the characters:

1 Move the cursor to the character you want to correct

by pressing . or >.

2 Select the correct character by pressing </M/m/,

or by turning the click shuttle.

3 To insert the character, press ENTER.

To overwrite, don’t press ENTER but move the

cursor by pressing . or >.

Notes

• Do not turn off the player by pressing POWER. Doing so may

cancel the settings. When you turn off the player, press x first

to stop playback and then press ?/1 on the remote. After the

power indicator lights up in red and the player enters standby

mode, press POWER on the player.

• You can label up to 300 discs. When you have the player store

over 300 discs in memory, each new Disc Memo erases the

oldest Disc Memo from those first stored.

Labeling the Disc

Select:

ENTER

Save: Cancel:

ENTERSAVE

RETURN

DISC MEMO INPUT

SAVE

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcdefghijklmnopqrstuvwxyz

0123456789

+–

/=\ <>()[]{}

:;.,!"#$%&’‘^|?_@

Using Various Functions with the Control Menu

zYou can select “AUDIO” directly

Press AUDIO on the remote. Each time you press the button, the

item changes.

Notes

• You cannot change the sound for SACDs.

• Depending on the DVD, you may not be able to change the

languages even if multilingual tracks are recorded on the DVD.

• While playing the CD/VIDEO CD, standard stereo playback

will be resumed when:

– you open the disc tray

– the player enters standby mode by pressing ?/1 on the

remote

– you turn the power off by pressing POWER on the player

• While playing the DVD, the sound may change automatically.

• If “DTS” is set to “OFF” in “AUDIO SETUP,” the DTS track

selection option will not appear on the screen even if the disc

contains DTS tracks.

If the DVD is recorded with multilingual tracks, you can

select the language you want while playing the DVD.

If the DVD is recorded in multiple audio formats (PCM,

Dolby Digital or DTS), you can select the audio format

you want while playing the DVD.

With multiplex CDs or VIDEO CDs, you can select the

sound from the right or left channel and listen to the

sound of the selected channel through both the right and

left speakers. In this case, the sound loses its stereo effect.

For example, with a disc containing a song, the right

channel may output the vocals and the left channel may

output the instrumental. If you only want to hear the

instrumental, you can select the left channel and hear it

from both speakers.

Select “AUDIO” after pressing DISPLAY.

x AUDIO

When playing a DVD

Select the language. The languages you can select are

different depending on the DVD. When 4 digits are

displayed, they represent the language code. Select the

language code from the list on page 73.

When the same language is displayed two or more times,

the DVD is recorded in multiple audio formats. The

current audio format is shown on the “PROGRAM

FORMAT” display.

When playing a VIDEO CD or a CD

The default setting is underlined.

•

STEREO : The standard stereo sound

• 1/L : The sound of the left channel (monaural)

• 2/R : The sound of the right channel (monaural)

Changing the Sound

DVD

AUDIO

2: FRENCH

3: SPANISH

1: ENGLISH

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

LRC

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

LFE

LS RS

1: ENGLISH

Select: Cancel:

ENTER RETURN

PLAY

Using Various Functions with the Control Menu

Displaying the audio information of the

disc

When you select “AUDIO,” the channels being played are

displayed on the screen.

For example, in Dolby Digital format, multiple signals

ranging from monaural to 5.1 channel signals can be

recorded on a DVD. Depending on the DVD, the number

of the recorded channels may be different.

* “PCM,” “DTS” or “DOLBY DIGITAL” is displayed. In

case of “DOLBY DIGITAL,” the channels in the playing

track are displayed by numbers as follows:

For Dolby Digital 5.1 ch:

** The letters in the program format display mean the

following:

L: Front (left)

R: Front (right)

C: Center (monaural)

LS: Rear (left)

RS: Rear (right)

S: Rear (monaural) - the rear component of the

Dolby Surround processed stereo signal and the

Dolby Digital Signal.

LFE: LFE (Low Frequency Effect)

Front component 2

+ Center component 1

Rear component 2

LFE (Low

Frequency Effect)

component 1

Current

audio

format*

Current

playing

program

format**

DOLBY DIGITAL

3 / 2

DVD

AUDIO

1: ENGLISH

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

LRC

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

LFE

LS RS

Select:

ENTER

PLAY

The display examples are as follows:

•PCM (stereo)

•Dolby Surround

•Dolby Digital 5.1ch

“LFE” is always enclosed in a solid line regardless of the

LFE signal component being output.

•DTS

“LFE” is always enclosed in a solid line regardless of the

LFE signal component being output.

1: ENGLISH

PCM 48kHz 24bit

PROGRAM FORMAT

AUDIO

Select:

ENTER

1: ENGLISH

AUDIO

Select:

ENTER

DOLBY SURROUND

DOLBY DIGITAL 2/0

L RC

PROGRAM FORMAT

1: ENGLISH

AUDIO

Select:

ENTER

LRC

DOLBY DIGITAL 3/2.1

PROGRAM FORMAT

LFE

LS RS

1: ENGLISH

AUDIO

Select:

ENTER

LRC

DTS 3/2.1

PROGRAM FORMAT

LFE

LS RS

Changing the Sound

Using Various Functions with the Control Menu

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

(

)

Number buttons Cancel:

ANGLE

ENTER

RETURN

PLAY

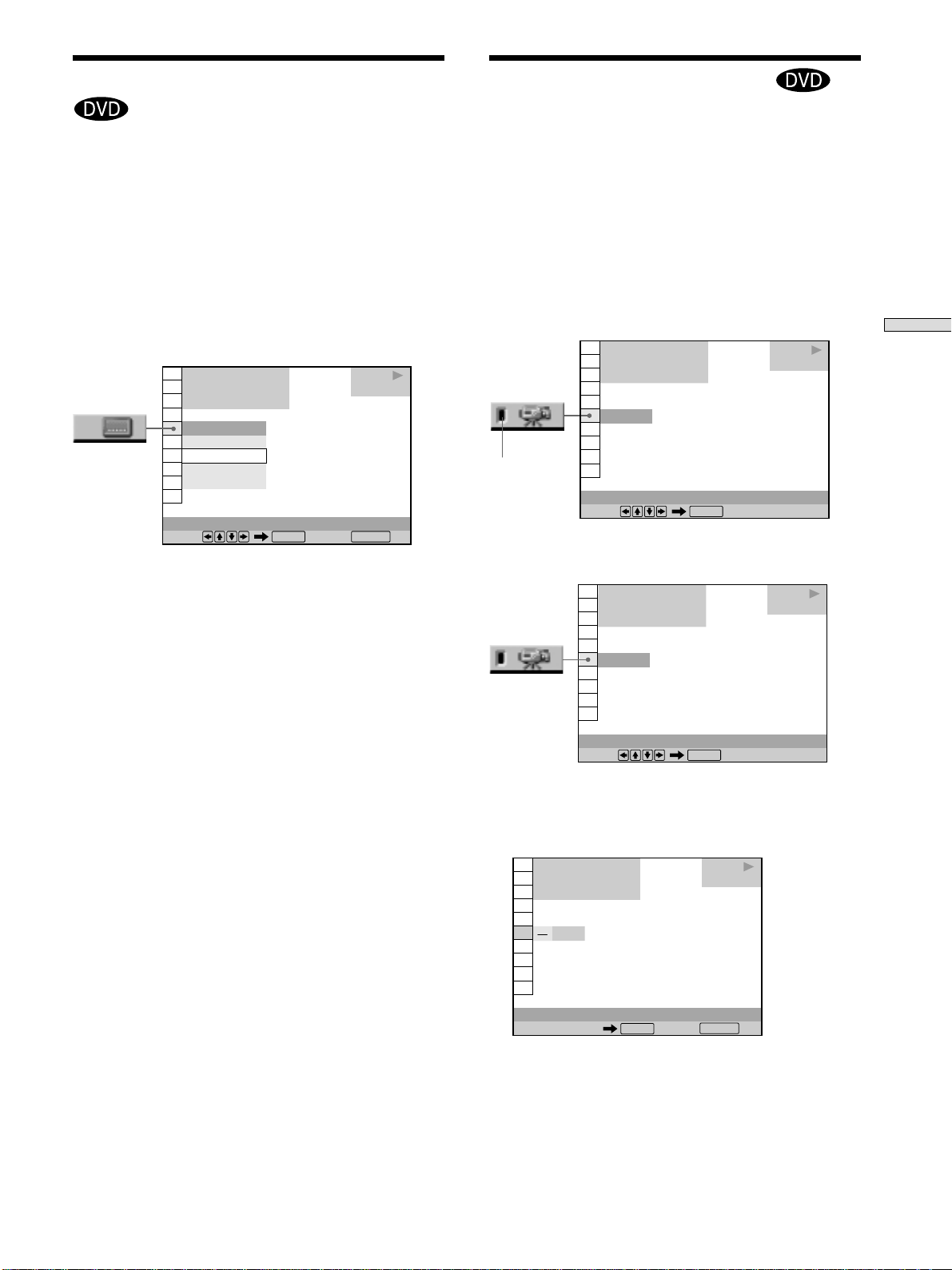

With DVDs on which various angles (multi-angles) for a

scene are recorded, you can change the angles. For

example, while playing a scene of a train in motion, you

can display the view from either the front of the train, the

left window of the train or from the right window without

having the train’s movement interrupted.

Select “ANGLE” after pressing DISPLAY. When the

angles can be changed, the “ANGLE” indicator lights up

in green.

1 Select “ANGLE.”

2 Press ,.

The number of the angle changes to “–”. The number

in parentheses indicates the total number of angles.

1 8

(

3 4

)

(

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

ANGLE

ENTER

PLAY

Changing the Angles

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

(

)

Select:

ANGLE

ENTER

PLAY

Indicator

Displaying the Subtitles

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

DVD

Select: Cancel:

SUBTITLE

ENTER RETURN

PLAY

With DVDs on which subtitles are recorded, you can turn

the subtitles on and off whenever you want while playing

the DVD.

With DVDs on which multilingual subtitles are recorded,

you can change the subtitle language whenever you want

while playing the DVD, and turn it on or off whenever

you want. For example, you can select the language you

want to practice and turn the subtitles on for better

understanding.

Select “SUBTITLE” after pressing DISPLAY.

x SUBTITLE

Select the language. The languages you can select are

different depending on the DVD. When 4 digits are

displayed, they indicate the language code. Select the

language code from the list on page 73.

zYou can select “SUBTITLE” directly

Press SUBTITLE on the remote. Each time you press the button,

the item changes.

Notes

• When playing a DVD on which no subtitles are recorded, no

subtitles appear.

• Depending on the DVD, you may not be able to turn the

subtitles on even if they are recorded on the DVD.

• Depending on the DVD, you may not be able to turn the

subtitles off.

• The type and number of languages for subtitles vary from disc

to disc.

• Depending on the DVD, you may not be able to change the

subtitles even if multilingual subtitles are recorded on it.

• While playing the DVD, the subtitle may automatically change.

Using Various Functions with the Control Menu

3 Select the angle number using the number buttons

or M/m, then press ENTER.

The angle is changed to the selected angle.

zYou can select the angle directly

Press ANGLE on the remote. Each time you press the button, the

angle changes.

Notes

• The number of angles varies from disc to disc or from scene to

scene. The number of angles that can be changed on a scene is

equal to the number of angles recorded for that scene.

• Depending on the DVD, you may not be able to change the

angles even if multi-angles are recorded on the DVD.

1 8

(

3 4

)

(

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select:

ANGLE

ENTER

PLAY

Adjusting the Picture

(VIDEO CONTROL)

Changing the Angles

You can adjust the playback image of a DVD to match the

light level of your room or the type of software that you

are watching.

By using the noise reduction function, you can lessen the

flickering that appears in the still areas of a playback

image. You also can adjust the gamma level to improve

the light areas of images that appear washed out or the

dark areas that lack definition.

By making settings for different DVD genres such as

movies or concerts and storing these settings in Memory 1

through 5, you can quickly adjust the player to the type of

DVD software that you are watching. You can also save

these settings for up to 300 individual discs using the

Playback Memory function. See page 56 for more

information about Playback Memory.

Select “VIDEO CONTROL” after pressing DISPLAY.

x VIDEO CONTROL

• PB MEMORYt

Plays a DVD according to the video control settings.

You can select this item only when you set “PLAYBACK

MEMORY” to “ON” in the “CUSTOM SETUP” display.

• MEMORY 1 to 5t

Plays a DVD according to the settings saved in memory

1 through 5. To make a setting, see “To adjust the

picture items” on the next page.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

PB MEMORY

MEMORY 1

MEMORY 2

DVD

VIDEO CONTROL

PLAY

Select: Cancel:

ENTER RETURN

Using Various Functions with the Control Menu

Selecting a video control setting to be

applied during playback

1 Select VIDEO CONTROL using M/m, then press

ENTER.

2 Select the video control setting you want to apply

during playback using M/m, then press ENTER.

The “VIDEO CONTROL” display appears.

3 Confirm the setting and press ORETURN.

Playback starts according to the selected setting.

zTo make additional changes to the selected setting

When “VIDEO CONTROL” is displayed in step 2, select the item

you want to adjust using M/m, then press ENTER. You can now

adjust the item.

The new setting can be saved to the Playback Memory for the

current disc regardless of the video control setting (PB

MEMORYt or MEMORY 1 to 5). However, the original

MEMORY 1 to 5 settings will not change.

Notes

• If you remove the disc or press ?/1 on the remote and place

the player in standby mode when “PLAYBACK MEMORY” is

set to “ON” in the “CUSTOM SETUP” display, the current PB

MEMORYt or MEMORY 1 to 5 settings are saved to Playback

Memory for the current disc.

• If you have selected MEMORY 1 to 5 but do not want to change

the Playback Memory setting for the current disc, select PB

MEMORYt before removing the disc or pressing ?/1 on the

remote to place the player in standby mode.

To adjust the picture items

You can adjust each element of the picture individually

and save the adjustments to each disc (Playback Memory)

or to one of the five settings (Memory 1 through 5).

• BLOCK NR (noise reduction): Reduce the “block noise”

or the mosaic like patterns that appear on your screen.

• Y (luminance) NR: This reduces the noise contained in

the luminance element of the image’s video signal.

• C (chroma) NR: This reduces the noise contained in the

color (chroma) element of the image’s video signal.

• CHROMA DELAY: Adjust this when the color of images

on your screen appear to have shifted horizontally.

• PICTURE: Changes the contrast.

• BRIGHTNESS: Changes the overall brightness.

• COLOR: Makes the colors deeper or lighter.

• HUE: Changes the color balance.

• SHARPNESS: This will sharpen the outline of images.

• GAMMA: This will adjust the washed out or darkened

areas of an image. See “Gamma Correction” on the next

page for more information.

1 Select “VIDEO CONTROL” using M/m and press

ENTER.

2 Select “PB MEMORYt” or memory number you

want to adjust using M/m and press ENTER.

The “VIDEO CONTROL” display appears.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

PB MEMORY

MEMORY 1

MEMORY 2

DVD

VIDEO CONTROL

PLAY

Select: Cancel:

ENTER RETURN

BLOCK NR 0

Y NR 0

C NR 0

CHROMA DELAY 0

1/3

VIDEO CONTROL

PB MEMORY

Select: Cancel:

ENTER RETURN

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

PB MEMORY

MEMORY 1

MEMORY 2

DVD

VIDEO CONTROL

PLAY

Select: Cancel:

ENTER RETURN

BLOCK NR 0

Y NR 0

C NR 0

CHROMA DELAY 0

1/3

VIDEO CONTROL

PB MEMORY

Select: Cancel:

ENTER RETURN

Using Various Functions with the Control Menu

Adjusting the areas of an image that are

too light or dark (Gamma Correction)

Depending on your TV or viewing environment, images

on the screen may lose definition because certain areas of

the image are too light or too dark. When it is too light,

the image will appear to be washed out, and when it is

too dark, the image will blend into the surrounding dark

areas.

By correcting the Gamma value, you can alter the

brightness of selected areas so that the image can be seen

clearly. Since the BRIGHTNESS adjustment controls the

brightness of the entire image, the Gamma adjustment is

useful when you need to increase the brightness of just

the area that is too bright or too dark.

Example: You are watching a movie that is rich in

shadows and you want to be able to see the details of the

scenery hidden in these shadows.

If you use the BRIGHTNESS function to increase the

brightness, the brightness of the entire image will

increase, thus causing the light areas of the image to

become washed out. By using the Gamma Correction

feature, you can gradually increase the brightness of just

the dark areas of an image without sacrificing the detail of

the entire image.

1 Select “VIDEO CONTROL” using M/m and press

ENTER.

2 Select “PB MEMORYt” or memory number you

want to correct the gamma value by pressing M/m

and press ENTER.

The “VIDEO CONTROL” display appears.

3 Press m to select “GAMMA” and press ENTER.

The “GAMMA” adjust display appears.

Adjusting the Picture (VIDEO CONTROL)

3 Select an item you want to adjust using M/m and

press ENTER.

The selected item appears.

To cancel adjusting the picture, press ORETURN

before pressing ENTER.

4 Adjust the item you selected using M/m and press

ENTER.

The adjusted value is displayed.

5 When you want to adjust another item, repeat

steps 3 to 4.

6 • If you selected “PB MEMORYt”

The adjusted values are stored in memory when you

remove the disc or press ?/1 on the remote and

place the player in standby mode.

•

If you selected a memory number

Select [SAVE] at the bottom of the “VIDEO

CONTROL” display by pressing M/m and press

ENTER.

The adjusted values are stored in memory for the

memory number you selected in step 2.

zTo reset the value you adjusted

Select “RESET” in the “VIDEO CONTROL” display by pressing

M/m and press ENTER.

Notes

• Depending on the disc, the effects of BLOCK NR, Y NR and C

NR maybe difficult to discern.

• HUE is not available when a interlace format (480i) signal is

output through the COMPONENT VIDEO OUT connectors.

BLOCK NR 5

Adjust: Cancel:

ENTER RETURN

BLOCK NR 5

Y NR 0

C NR 0

CHROMA DELAY 0

1/3

VIDEO CONTROL

PB MEMORY

Select: Cancel:

ENTER RETURN

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

Adjust: Cancel:

ENTER RETURN

128

160

192

224

RESET

100

Current

Gamma

setup value

Using Various Functions with the Control Menu

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

128

160

192

224

RESET

100

4 Press M/m to select areas of an image.

The upper region adjusts the dark areas and the lower

region adjusts the light areas.

5 Press </, to adjust the brightness level of the

area that you selected.

< will decrease the level (darkens the area), and ,

will increase the level (lightens the area). The level

can be adjusted between 16 and 235. However, the

level for the dark areas can never be greater than the

light areas.

6 Repeat steps 4 and 5 to adjust the brightness level

of other areas that you select.

Try to keep the line that connects the brightness level

of each area as smooth and straight as possible.

To prevent the image from appearing overly altered,

do not give the line any sharp changes. Gradually

make the adjustments while viewing the image on

your TV screen.

Press ORETURN to stop making adjustments to the

image.

How to darken the light

areas of an image.

Dark areas

Lighten

7 Press ENTER.

“VIDEO CONTROL” display appears.

8 • If you selected “PB MEMORYt”

The adjusted values are stored in memory when you

remove the disc or press ?/1 on the remote and

place the player in standby mode.

•

If you selected a memory number

Select [SAVE] at the bottom of the “VIDEO

CONTROL” display by pressing M/m and press

ENTER.

The adjusted values are stored in memory for the

memory number you selected in step 2.

To reset only the gamma value to the default

setting

Select “RESET” in the gamma adjustment display by

pressing M/m and press ENTER.

zYou can move the gamma adjustment display horizontally

By pressing ./>, you can move the gamma adjustment

display horizontally.

Light areas

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

120

128

160

192

224

RESET

100

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

128

160

192

224

RESET

100

OFF

1: ENGLISH

2: FRENCH

3: SPANISH

1: ENGLISH

105

128

150

159

174

RESET

100

How to lighten the dark

areas of an image.

Darken

Selected areas

of an image

Gamma value and the

position of the bar change

depending on your

adjustment.

Using Various Functions with the Control Menu

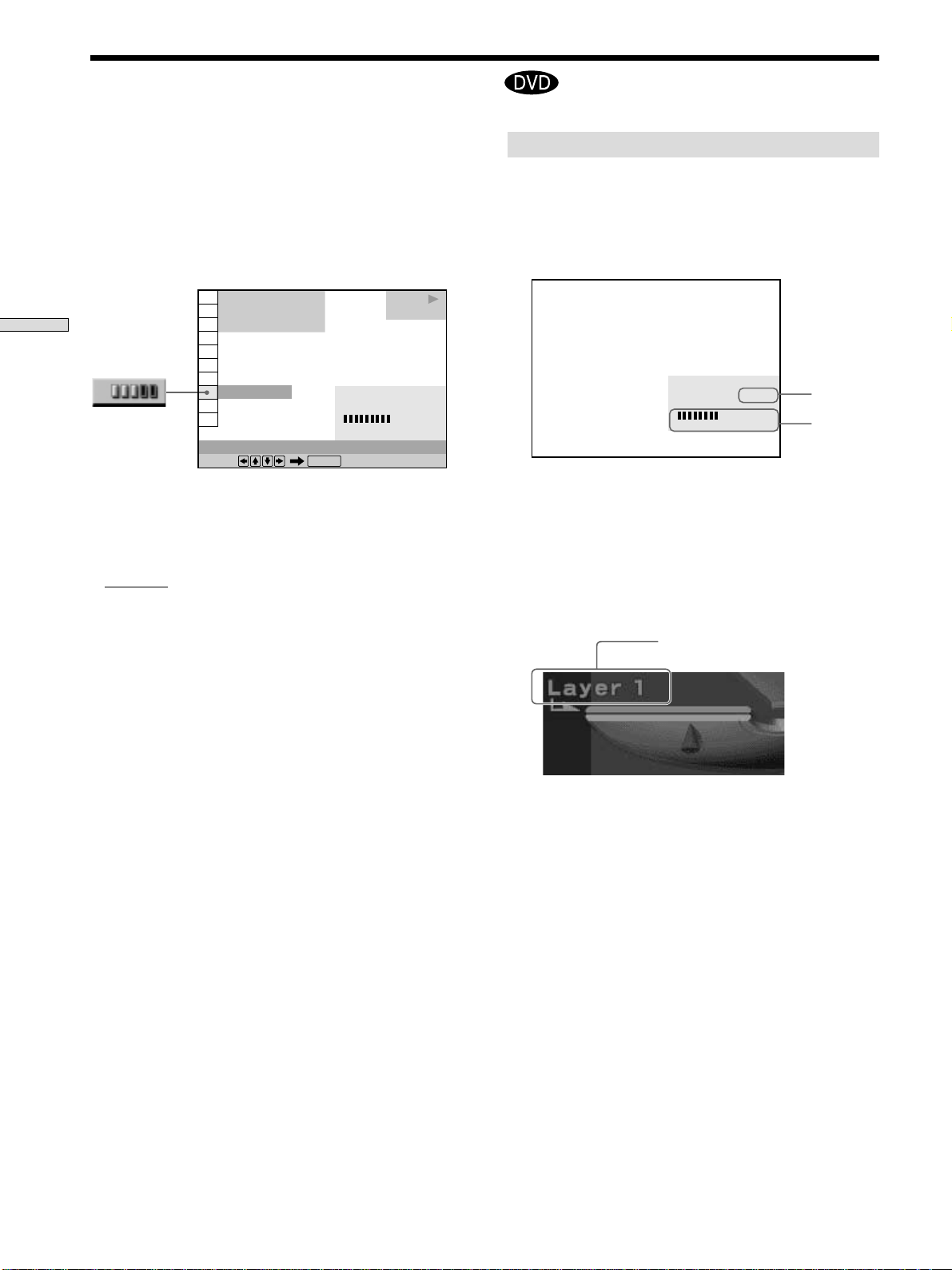

BIT RATE

kbps

Mbps

384

Displays of each item

By pressing DISPLAY repeatedly, you can display either

“BIT RATE” or “LAYER,” whichever was selected in

“ADVANCED.”

BIT RATE

Bit rate refers to the amount of video/audio data per

second in a disc. The higher the bit rate, the larger the

amount of data. When the bit rate level is high, there is a

large amount of data. However, this does not always

mean that you can get higher quality pictures or sounds.

LAYER

Indicates the approximate point where the disc is playing.

If it is a dual-layer DVD, the player indicates which layer

is being read (“Layer 0” or “Layer 1”).

For details on the layers, see page 71 (DVD).

Audio

Video

You can check information such as the bit rate or the disc

layer that is being played.

While playing a disc, the approximate bit rate of the

playback picture is always displayed as Mbps (Mega bit

per second) and the audio as kbps (kilo bit per second).

Select “ADVANCED” after pressing DISPLAY.

x ADVANCED

The default setting is underlined.

When playing a DVD

•

BIT RATE: displays the bit rate.

• LAYER: displays the layer and the pick-up point.

• OFF: turns off ADVANCED display.

Checking the Play Information

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

BIT RATE

DVD

Select:

ADVANCED

ENTER

PLAY

BIT RATE

384 kbps

Mbps

Appears when the DVD has

dual layers

Using Various Functions with the Control Menu

Locking Discs (Custom Parental Control)

Using a registered password, you can set playback

restrictions for the desired disc.

You can set the same Custom Parental Control password

for up to 300 discs. When you set the three hundred and

first disc, the first disc is canceled.

The same password is used for both Parental Control

(page 57) and Custom Parental Control.

Select “CUSTOM PARENTAL CONTROL” after pressing

DISPLAY.

Setting the Custom Parental Control for a

disc

1 Insert the disc you want to lock.

If a disc is playing, press x to stop playback.

2 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

OFF

DVD

CUSTOM PARENTAL CONTROL

Select:

ENTER

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

PLAY

OFF

PASSWORD

DVD

CUSTOM PARENTAL CONTROL

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

Select: Cancel:

ENTER RETURN

STOP

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password, then

press

To return, press .

RETURN

ENTER

CUSTOM PARENTAL CONTROL

Enter password, then press .

To return, press .

RETURN

ENTER

CUSTOM PARENTAL CONTROL

To confirm, enter password again,

then press

To return, press .

RETURN

ENTER

3 Select “ON,” using M/m, then press ENTER.

x If you have not entered a password

The display for entering a password appears.

x When you have already registered a password

The display for confirming the password appears.

Skip Step 4.

4 Enter a 4-digit password using the number

buttons, then press ENTER.

The digits change to asterisks (

), and the display for

confirming the password appears.

5 Enter the same 4-digit password using the number

buttons, then press ENTER.

“Custom parental control is set.” appears and then the

screen returns to the Control Menu display.

Using Various Functions with the Control Menu

To return to the normal screen

Press ORETURN.

To turn off the Custom Parental Control function

1 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

2 Select “OFF,” using M/m, then press ENTER.

3 Enter your 4-digit password using the number buttons,

then press ENTER.

To change the password

1 Select “CUSTOM PARENTAL CONTROL” using M/m,

then press ENTER.

2 Select “PASSWORD,” using M/m, then press ENTER.

3 Enter your 4-digit password using the number buttons,

then press ENTER.

The display for changing the password appears.

4 Enter a new 4-digit password using the number

buttons, then press ENTER.

5 To confirm your password, re-enter it using the number

buttons, then press ENTER.

Playing the disc for which the Custom

Parental Control is set

1 Insert the disc.

The CUSTOM PARENTAL CONTROL display

appears.

2 Enter your 4-digit password using the number

buttons, then press ENTER.

The player starts playback.

CUSTOM PARENTAL CONTROL

Custom parental control is already

set. To play, enter your password

and press

ENTER

zIf you forget your password

Enter the 6-digit number “199703” whenever the CUSTOM

PARENTAL CONTROL display asks you for your password, then

press ENTER. The display will ask you to enter a new 4-digit

password.

Note

Unless you enter the password, the player cannot play the disc

for which the Custom Parental Control is set. When you do not

know the password, press A and remove the disc.

Locking Discs (Custom Parental Control)

Using Various Functions with the Control Menu

“TRACK” is displayed when you play

a VIDEO CD or a SACD/CD.

PROGRAM

1. TITLE

ALL CLEAR

2. TITLE

– –

3. TITLE

– –

4. TITLE

– –

5. TITLE

– –

6. TITLE

– –

7. TITLE

– –

Set: Quit:

ENTER

Start:

PLAY

DISPLAY

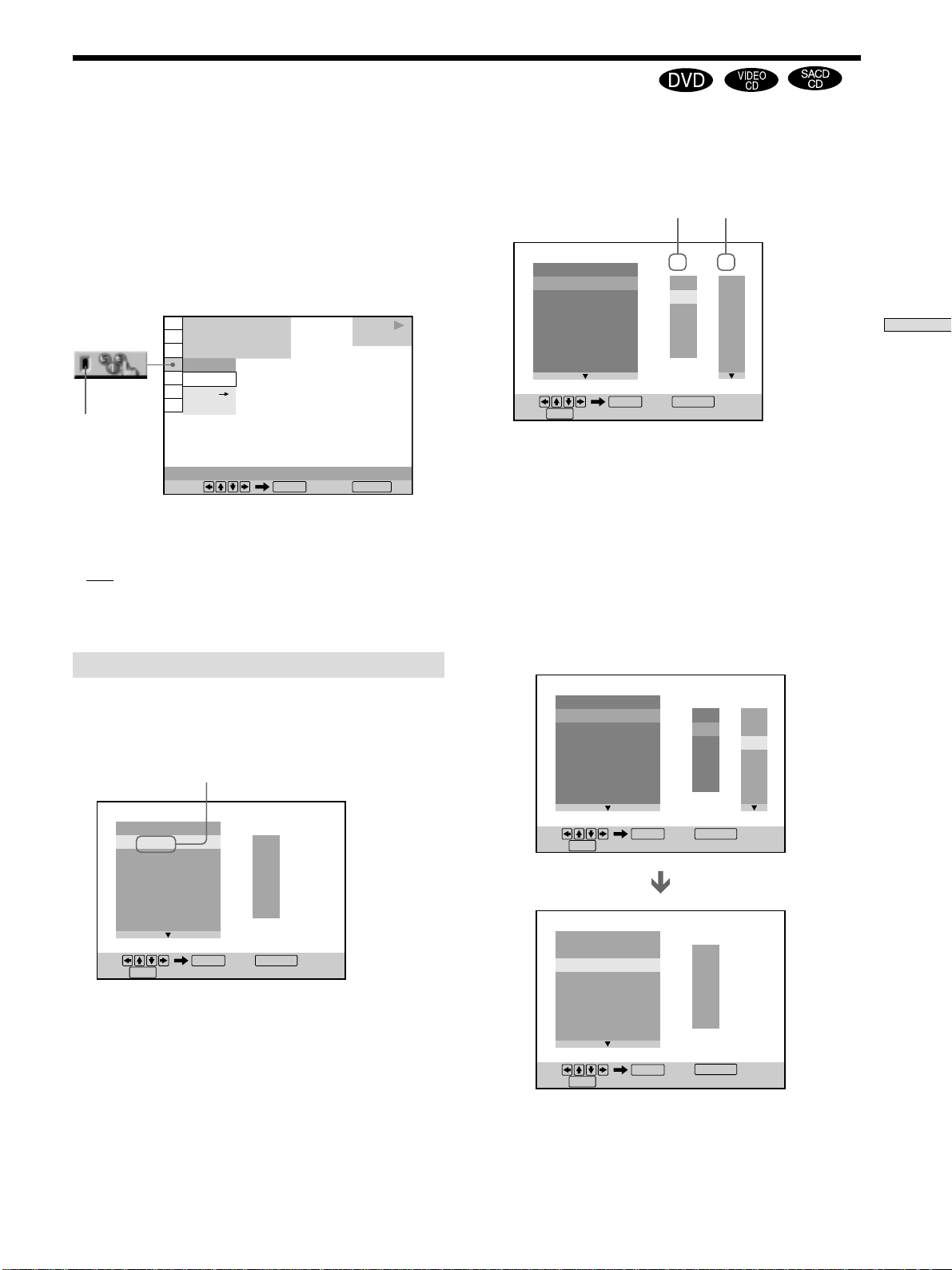

You can play the contents of the disc in the order you

want by arranging the order of the titles, chapters or

tracks on the disc and create your own program. One

program can be stored in the player and contain up to 99

titles, chapters and tracks.

Select “PROGRAM” after pressing DISPLAY. When you

select “ON,” the “PROGRAM” indicator lights up in

green.

x PROGRAM

The default setting is underlined.

•

OFF: plays normally.

• SET,: allows you to create your own program.

• ON: plays Program Play.

Creating the program

1 Select “SET,” in “PROGRAM.”

The programming display appears.

OFF

SET

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

PROGRAM

Select: Cancel:

ENTER RETURN

PLAY

Indicator

Creating Your Own Program (Program Play)

2 Press ,.

“01” is highlighted. It is ready to set the first title or

track for Program Play.

3 Select the title, chapter or track you want to

program using M/m, then press ENTER.

For example, select title or track 2.

(You can also use the number buttons and ENTER

button to make a selection. In this case, the selected

number is displayed on the screen.)

x When playing a DVD

When both titles and chapters are recorded on the

disc, select the title, then the chapter.

Title Chapter

PROGRAM

1. TITLE

– –

ALL CLEAR

2. TITLE

– –

3. TITLE

– –

4. TITLE

– –

5. TITLE

– –

6. TITLE

– –

7. TITLE

– –

ALL

– –

Set: Quit:

ENTER

Start:

PLAY

DISPLAY

PROGRAM

1. TITLE

– –

ALL CLEAR

2. TITLE

– –

3. TITLE

– –

4. TITLE

– –

5. TITLE

– –

6. TITLE

– –

7. TITLE

– –

ALL

– –

PROGRAM

1. TITLE 0 1

–

0 2

ALL CLEAR

2. TITLE

3. TITLE

– –

4. TITLE

– –

5. TITLE

– –

6. TITLE

– –

7. TITLE

– –

Set: Quit:

ENTER

Start:

PLAY

Set: Quit:

ENTER

Start:

PLAY

DISPLAY

Using Various Functions with the Control Menu

P01 T

P01 T03

P02 T

x When playing a VIDEO CD or SACD/CD

Select the track you want to program.

4 To program other titles, chapters or tracks, repeat

Step 3.

The programmed titles, chapters or tracks are

displayed in the selected order.

5 Press H to start Program Play.

To stop Program Play

Press CLEAR.

To cancel programming

Press PROGRAM on the remote.

To change the program

1 In Step 2, select the program number of the title, chapter

or track you want to change using M/m.

2 Follow Step 3 for new programming.

To cancel the programmed order

To cancel all the titles, chapters or tracks in the

programmed order, select “ALL CLEAR” in Step 2.

To cancel the selected program, select the program using

M/m in Step 2 then press CLEAR, or select “– –” in Step 3

then press ENTER.

Total time of the

programmed tracks

Set: Quit:

ENTER

Start:

PLAY

PROGRAM

1. TRACK 0 2

ALL CLEAR

2. TRACK

3. TRACK

– –

4. TRACK

– –

5. TRACK

– –

6. TRACK

– –

7. TRACK

– –

0:15:30

– –

DISPLAY

zThe program remains even after Program Play ends

When you press H, you can play the same program again.

zYou can do Repeat Play or Shuffle Play of the programmed

titles, chapters or tracks

During Program Play, press REPEAT or SHUFFLE on the remote.

Or set “REPEAT” or “SHUFFLE” to “ON” in the Control Menu

display.

zYou can select “PROGRAM” directly

Press PROGRAM on the remote.

zYou can select discs, titles, chapters and tracks for the

program by looking at the front panel display

You can program by looking at the front panel display instead of

using the programming display on the TV screen.

When you select Track 3 in a CD for program 1, the front panel

display will appear as follows:

Notes

• The number of titles, chapters or tracks displayed are the same

number of titles, chapters or tracks recorded on a disc.

• The program is canceled when:

– you open the disc tray

– the player enters standby mode by pressing ?/1 on the

remote

– you turn the power off by pressing POWER on the player

• Depending on the DVD, you may not be able to perform

Program Play.

• If you are using the PBC playback function, you must first stop

the disc before you can set a program.

• When playing SACDs, the track number appears as three

digits.

Program number

Track number

Creating Your Own Program (Program Play)

Using Various Functions with the Control Menu

Playing in Random Order (Shuffle Play)

You can have the player “shuffle” titles or tracks and play

them in a random order. Subsequent “shuffling” may

produce a different playing order.

Select “SHUFFLE” after pressing DISPLAY. When you

select a shuffle mode other than “OFF,” the “SHUFFLE”

indicator lights up in green.

x SHUFFLE

Selects the Shuffle Play setting.

The default settings are underlined.

When playing a DVD and when Program Play is

set to OFF

•

OFF: does not play a disc in random order.

• TITLE: has the player “shuffle” titles and play them in a

random order.

• CHAPTER: has the player “shuffle” chapters and play

them in a random order.

When playing a VIDEO CD or SACD/CD (when

Program Play is set to OFF)

•

OFF: does not play a disc in random order.

• TRACK: has the player “shuffle” tracks and play them

in a random order.

When playing a VIDEO CD, SACD/CD or DVD

(when Program Play is set to ON)

•

OFF: does not play a disc in random order.

• ON: has the player “shuffle” titles or tracks selected in

Program Play and play them in a random order.

To stop Shuffle Play

Press CLEAR.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

OFF

CHAPTER

TITLE

CHAPTER

DVD

PLAY

SHUFFLE

Select: Cancel:

ENTER RETURN

Indicator

zYou can set Shuffle Play while the disc is stopped

After selecting the “SHUFFLE” option, press H.

The player starts Shuffle Play.

zYou can select “SHUFFLE” directly

Press SHUFFLE on the remote. Each time you press the button,

the item changes.

Notes

• Shuffle Play is canceled when:

– you open the disc tray

– the player enters standby mode by pressing ?/1 on the

remote

– you turn the power off by pressing POWER on the player

• Depending on the DVD, you may not be able to perform

Shuffle Play.

• Up to 200 chapters in a disc can be played in random order

when “CHAPTER” is selected.

• You cannot perform Shuffle Play during PBC playback of

VIDEO CDs (page 25).

Using Various Functions with the Control Menu

Playing Repeatedly (Repeat Play)

You can play all of the titles or tracks on a disc or a single

title, chapter or track repeatedly.

In Shuffle or Program Play mode, the player repeats the

titles or tracks in the shuffled or programmed order.

You cannot perform Repeat Play during PBC playback of

VIDEO CDs (page 25).

Select “REPEAT” after pressing DISPLAY. When you

select a repeat mode other than “OFF,” the “REPEAT”

indicator lights up in green.

x REPEAT

Selects the Repeat Play setting.

The default settings are underlined.

When playing a DVD and when Program Play and

Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all of the titles.

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

When playing a VIDEO CD/SACD/CD and when

Program Play and Shuffle Play are set to OFF

•

OFF: does not play repeatedly.

• DISC: repeats all of the tracks on a disc.

• TRACK: repeats the current track.

When Program Play or Shuffle Play is on

•

OFF: does not play repeatedly.

• ON: repeats Program Play or Shuffle Play.

To stop Repeat Play

Press CLEAR on the remote.

zYou can set Repeat Play while the disc is stopped

After selecting the “REPEAT” option, press H.

The player starts Repeat Play.

zYou can select “REPEAT” directly

Press REPEAT on the remote. Each time you press the button, the

item changes.

Notes

• Repeat play is canceled when:

– you open the disc tray

– the player enters standby mode by pressing ?/1 on the

remote

– you turn the power off by pressing POWER on the player

• Depending on the DVD, you may not be able to perform

Repeat Play.

REPEAT

Select: Cancel:

ENTER RETURN

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

CHAPTER

DISC

TITLE

OFF

DVD

PLAY

Indicator

Using Various Functions with the Control Menu

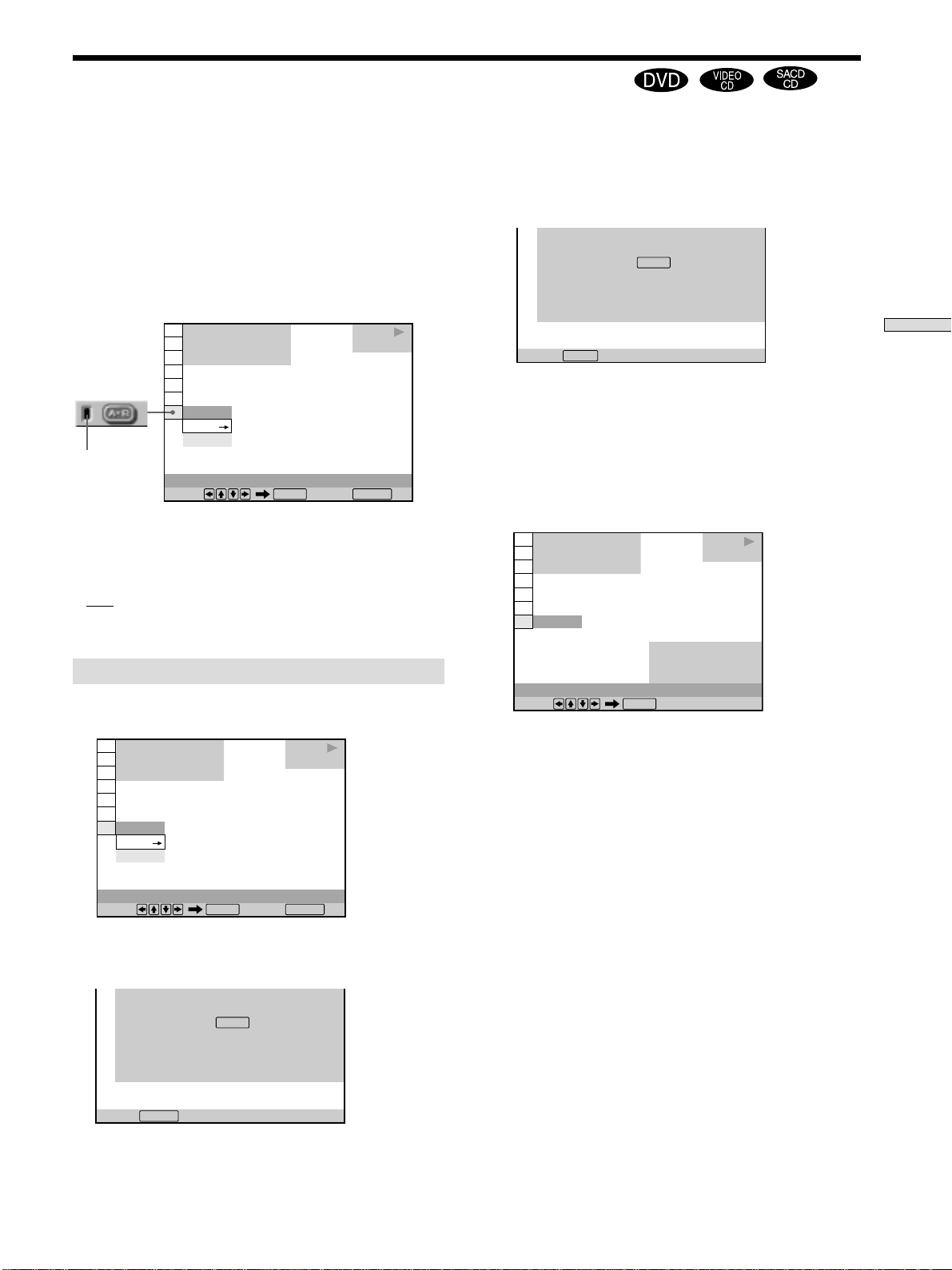

Repeating a Specific Portion (A–B Repeat)

You can play a specific portion of a title, chapter or track

repeatedly. This function is useful when you want to do

such things as memorize lyrics.

During PBC Playback of VIDEO CDs (page 25), this

function is available only while playing moving pictures.

Select “A-B REPEAT” after pressing DISPLAY. During

A-B Repeat Play, the “A-B REPEAT” indicator lights up in

green.

x A-B REPEAT

The default setting is underlined.

• SET,: sets the A and B points.

•

OFF: does not play a specific portion of a title/chapter/

track repeatedly.

Setting a portion for A-B repeat

1 Select “A-B REPEAT” and press ENTER.

2 Select “SET,” and press ENTER.

The A-B REPEAT setting display appears.

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

SET

OFF

DVD

Select: Cancel:

ENTER RETURN

A–B REPEAT

PLAY

Indicator

SET

OFF

To select, press , then .

1 8

(

3 4

)

1 2

(

2 7

)

1 : 3 2 : 5 5

DVD

Select: Cancel:

ENTER RETURN

A–B REPEAT

PLAY

Set point A with

A-B REPEAT

ENTER

Return:

RETURN

0 1 : 3 2 : 5 5

A: 18 – 1 : 32 : 55

CHAPTER

TIME

Set point B with .

ENTER

Cancel:

CLEAR

A-B REPEAT

1 8

(

3 4

)

1 2

(

2 7

)

1 : 34 : 30

DVD

A: 18 – 1 : 32 : 55

B: 18 – 1 : 34 : 30

CHAPTER

TIME

Select:

ENTER

A–B REPEAT

PLAY

3 During playback, when you find the starting point

(point A) of the portion to be played repeatedly,

press ENTER.

The starting point (point A) is set.

4 When you reach the ending point (point B), press

ENTER again.

The set points are displayed and the player starts

repeating this specific portion.

“A-B” appears on the front panel display during A-B

repeat play.

To stop A-B Repeat Play

Press CLEAR.

zYou can directly select the portion to be repeated

During playback, press the AyB button once to set the A

(starting) point. Press the button again to set the B (ending) point.

The portion between points A and B will be played repeatedly.

Notes

• You can set A–B Repeat for only one specific portion.

• A–B Repeat is canceled when:

– you open the disc tray

– the player enters standby mode by pressing ?/1 on the

remote

– you turn the power off by pressing POWER on the player

• When you set A-B Repeat, the settings for Shuffle Play, Repeat

Play and Program Play are canceled.

• You may not be able to set A-B Repeat for some DVD or VIDEO

CD scenes.

Settings and

Adjustments

This chapter describes how to set and

adjust the player using the on-screen

setup menu. Most settings and

adjustments are required to be set

when you first use the player.

This chapter also describes how to

control the TV or AV receiver

(amplifier) using the supplied remote.

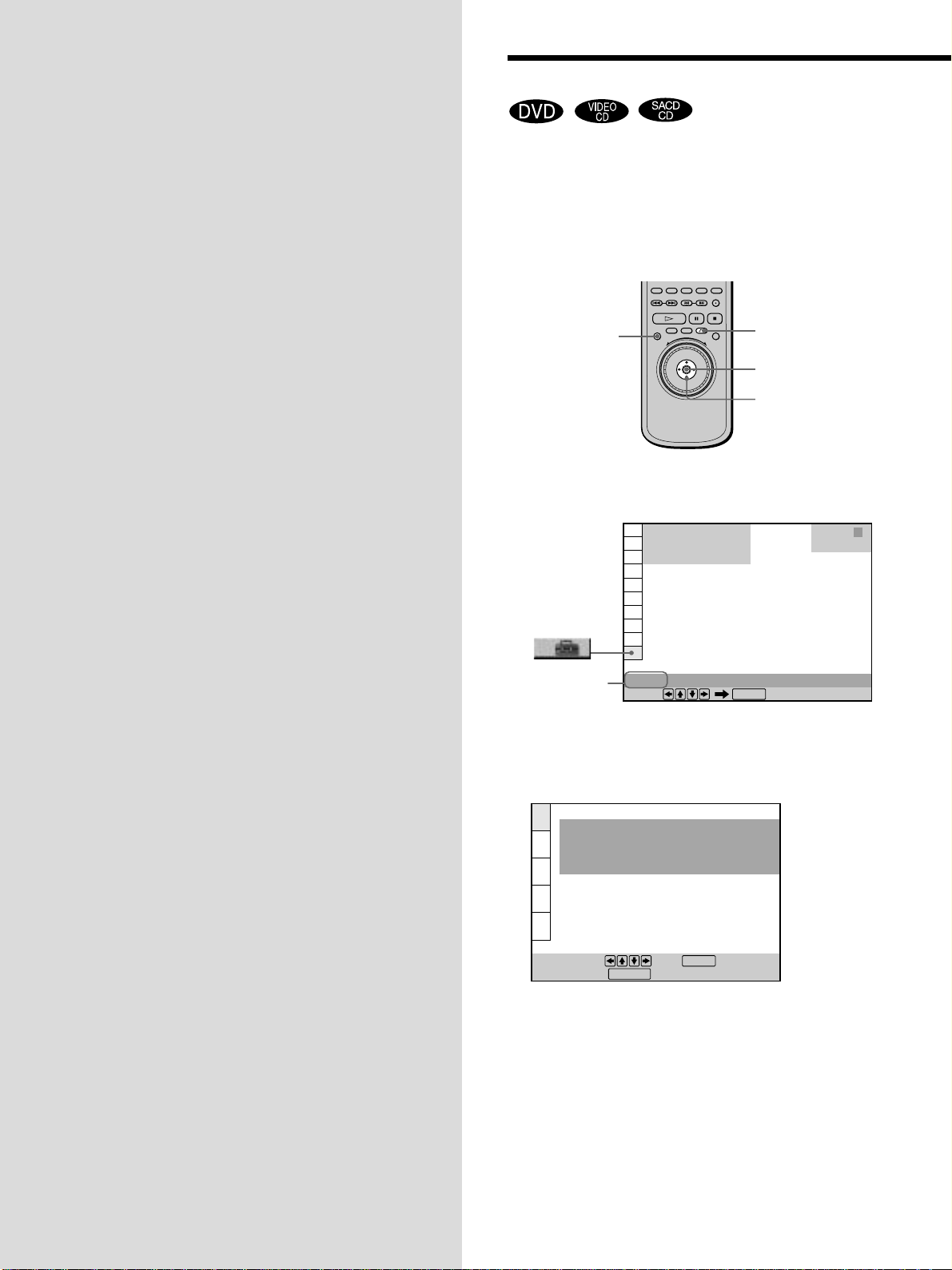

Using the Setup Display

Using the setup display, you can do the initial setup,

adjust the picture and sound and set the various outputs.

You can also set a language for the subtitles and the setup

display, limit playback by children, and so on.

For details on each setup display item, see pages 52 to 63.

1 Press DISPLAY and select “SETUP” using M/m.

2 Press ENTER.

The setup display appears.

Select:

SETUP

ENTER

1 8

(

3 4

)

1 2

(

)

0 0 : 0 0 : 0 0

DVD

STOP

ENTER

</M/m/,

DISPLAY

ORETURN

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

To set, press , then .

To quit, press .

ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

DISPLAY

Selected

item

Settings and Adjustments

7 Select the setting you want using </M/m/,.

8 Press ENTER.

9 Press DISPLAY.

The setup display disappears.

Press DISPLAY repeatedly to turn off the on-screen

menu.

To return to the previous screen

Press ORETURN.

To quit while making a selection

Press DISPLAY.

Notes

• You cannot change some setup display items unless the player

stops.

• Some setup display items require operations other than

selecting the setting. For details on these items, see the relevant

pages.

3 Select the main item you want using M/m.

4 Press ENTER.

The selected main item is highlighted.

5 Select the item you want using M/m.

6 Press ENTER.

Main item

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

To set, press , then .

To quit, press .

ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

DISPLAY

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

To set, press , then .

To quit, press .

4:3 LETTER BOX

JACKET PICTURE

STARTUP SCREEN: STANDARD

BLACK LEVEL: ON

ENTER

DISPLAY

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

STARTUP SCREEN:

To set, press , then .

To quit, press .

ENTER

DISPLAY

4:3 LETTER BOX

4:3 PAN SCAN

BLACK LEVEL:

16:9/4:3 WIDE MODE

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

To set, press , then .

To quit, press .

4:3 LETTER BOX

JACKET PICTURE

STARTUP SCREEN: STANDARD

BLACK LEVEL: ON

ENTER

DISPLAY

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

To set, press , then .

To quit, press .

4:3 LETTER BOX

4:3 PAN SCAN

BLACK LEVEL:

STARTUP SCREEN:

16:9/4:3 WIDE MODE

ENTER

DISPLAY

4:3 LETTER BOX

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

To set, press , then .

To quit, press .

JACKET PICTURE

STARTUP SCREEN: STANDARD

BLACK LEVEL: ON

ENTER

DISPLAY

16:9/4:3 WIDE MODE

Settings and Adjustments

Setup Display Item List

The default settings are underlined.

OSD

DVD MENU

OTHERS ,

AUDIO

ORIGINAL

SUBTITLE

AUDIO FOLLOW

FRENCH

SPANISH

ITALIAN

GERMAN

DUTCH

PORTUGUESE

CHINESE

JAPANESE

DANISH

SWEDISH

NORWEGIAN

RUSSIAN

FINNISH

(same as DVD MENU)

TRACK SELECTION

OFF

AUTO

ENGLISH

TV TYPE

4:3 PAN SCAN

16:9/4:3 WIDE MODE

4:3 LETTER BOX

BACKGROUND

JACKET PICTURE

PICTURE MEMORY

BLUE

BLACK

SCREEN SAVER

OFF

AUTO PLAY OFF

TIMER

DEMO1

DEMO2

DIMMER

BRIGHT

DARK

PAUSE MODE

AUTO

FIELD

FRAME

PARENTAL CONTROL ,

COMPONENT OUT

INTERLACE

PROGRESSIVE

LANGUAGE SETUP (page 53)

SCREEN SETUP (page 54)

CUSTOM SETUP (page 56)

AUDIO ATT

OFF

AUDIO DRC

STANDARD

TV MODE

WIDE RANGE

SHARP

SLOW

DOWNMIX DOLBY SURROUND

NORMAL

DOLBY

DIGITAL

DTS

D-PCM

DOLBY DIGITAL

DIGITAL OUT

OFF

AUDIO SETUP (page 60)

MODE

AUTO

VIDEO

4:3 OUTPUT

FULL

NORMAL

SET PROGRESSIVE OUTPUT (page 62)

AUTO OFF

OFF

AUTO DARK

GRAPHICS

STARTUP

SCREEN

STANDARD

PICTURE MEMORY

PLAYBACK MEMORY

OFF

CHROMA FILTER

OFF

AUDIO FILTER

48kHz/96kHz PCM

48kHz/16bit

96kHz/24bit

BLACK LEVEL

OFF

FRENCH

SPANISH

PORTUGUESE

Settings and Adjustments

Setting the Display Language or Sound Track

(LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various

languages for the on-screen display or sound track.

The default settings are underlined.

Select “LANGUAGE SETUP” in the setup display.

Notes

• When you select a language that is not recorded on the DVD,

one of the recorded languages is automatically selected for the

“DVD MENU,” “AUDIO” and “SUBTITLE” settings.

• Depending on the DVD, the player may not start playing with

the selected language even when you select a language in

“DVD MENU,” “AUDIO” or “SUBTITLE.”

x OSD (On-Screen Display)

Selects the language for the on-screen display.

•

ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

x DVD MENU

Selects the language for the DVD menu.

•

ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language

code from the list using the number buttons (page 73).

After you have made a selection, the language code (4 digits) is

displayed.

LANGUAGE SETUP

OSD:

DVD MENU:

AUDIO:

SUBTITLE:

To set, press , then .

To quit, press .

ENGLISH

ORIGINAL

AUDIO FOLLOW

ENTER

DISPLAY

x AUDIO

Selects the language for the sound track.

•

ORIGINAL: the language given priority in the disc

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language

code from the list using the number buttons (page 73).

After you have made a selection, the language code (4 digits) is

displayed.

x SUBTITLE

Selects the language for the subtitles.

•

AUDIO FOLLOW*

• ENGLISH

• FRENCH

• SPANISH

• PORTUGUESE

• GERMAN

• ITALIAN

• DUTCH

• CHINESE

• JAPANESE

• DANISH

• SWEDISH

• FINNISH

• NORWEGIAN

• RUSSIAN

• OTHERS,

When you select “OTHERS,,” select and enter the language

code from the list using the number buttons (page 73).

After you have made a selection, the language code (4 digits) is

displayed.

* When you select “AUDIO FOLLOW,” the language for the

subtitles changes according to the language you selected for the

sound track.

Settings and Adjustments

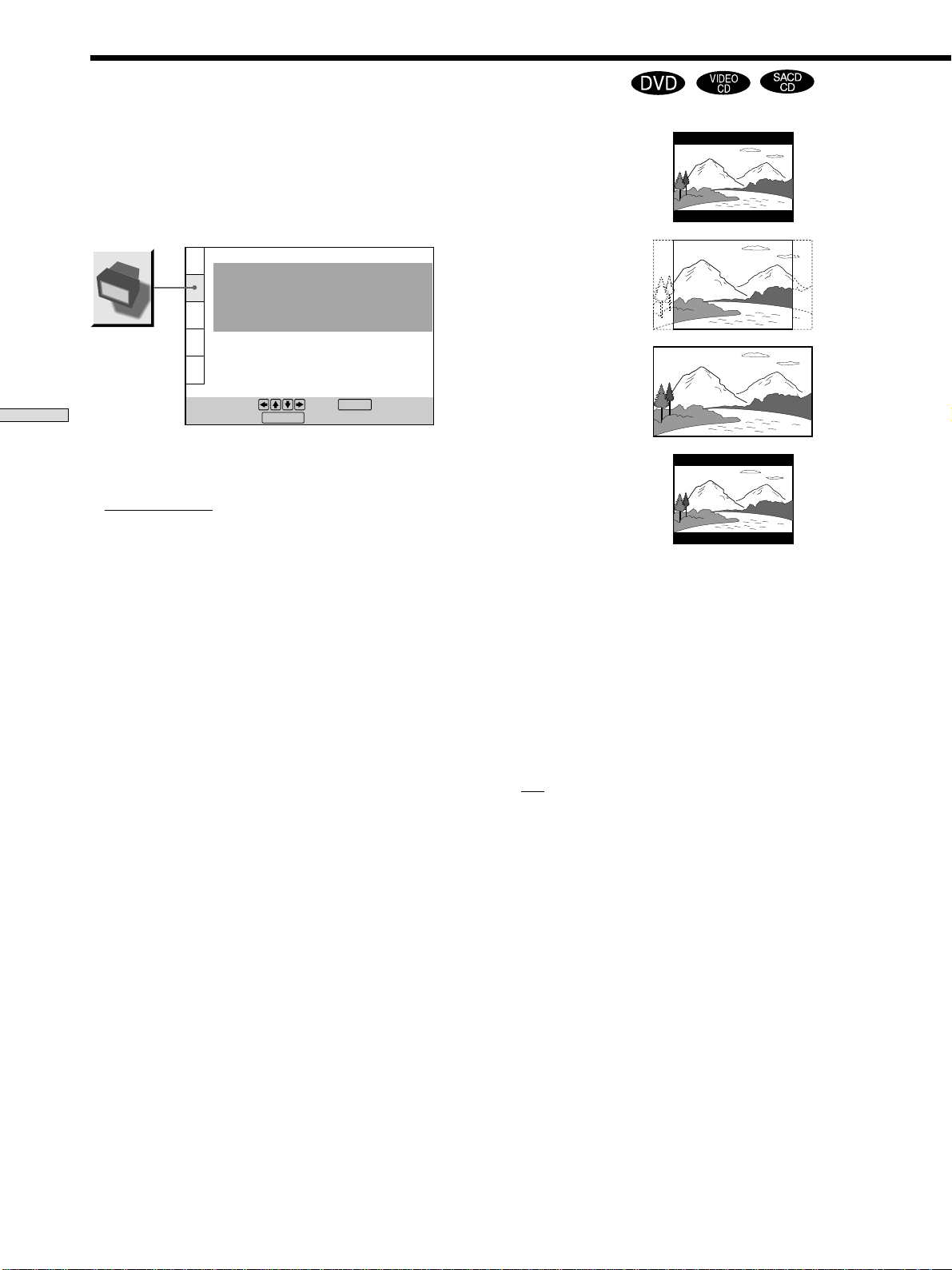

“SCREEN SETUP” allows you to set the display according

to the playback conditions.

The default settings are underlined.

Select “SCREEN SETUP” in the setup display.

x TV TYPE

Selects the aspect ratio of the TV to be connected.

•

4:3 LETTER BOX: select this when you connect a 4:3

normal screen TV to the player. Displays a wide picture

with bands on the upper and lower portions of the

screen.

• 4:3 PAN SCAN: select this when you connect a 4:3

normal screen TV to the player. Displays the wide

picture on the whole screen automatically and cuts off

the portions that do not fit.

• 16:9/4:3 WIDE MODE: select this when you connect a

wide-screen TV to the player or when you connect a TV

with the WIDE MODE function to the player (displays a

wide picture with bands displayed on the upper and

lower portions of the screen).

SCREEN SETUP

TV TYPE:

SCREEN SAVER:

BACKGROUND:

To set, press , then .

To quit, press .

4:3 LETTER BOX

JACKET PICTURE

STARTUP SCREEN: STANDARD

BLACK LEVEL: ON

ENTER

DISPLAY

Settings for the Display (SCREEN SETUP)

Note

Depending on the DVD, “4:3 LETTER BOX“ may be selected

automatically instead of “4:3 PAN SCAN” and vice versa.

x SCREEN SAVER

Turns on and off the screen saver. If you turn on the

screen saver, the screen saver image appears when you

leave the player or the remote in pause or stop mode for

15 minutes, or when you play back a CD for more than 15

minutes. The screen saver will help prevent your display

device from becoming damaged.

•

ON: turns on the screen saver.

• OFF: turns off the screen saver.

4:3 LETTER BOX

4:3 PAN SCAN

16:9

4:3 WIDE MODE

Settings and Adjustments

Notes

• The player can store only one scene in memory. The stored

picture appears in both the background and the startup screen.

• When the picture is stored in memory by pressing PICTURE

MEMORY, the picture stored before is erased.

• If you operate this player while the picture is being stored in

memory, the player will fail to store the picture.

• Depending on the DVD, some scenes cannot be stored in

memory.

x BLACK LEVEL

You can select the black level (setup level) for the output

video (NTSC) signal. Use this to adjust the picture when

dark objects are too pronounced, or when the picture

becomes whitish.

•

ON: This will set the black level of the output signal to

the standard level.

• OFF: This will lower the standard black level. Use this

setting when the picture becomes too white.

Notes

• The standard setup level may differ according to the connected

equipment. If the image becomes too white, set the level to

OFF.

• Black level setup does not work for progressive (480p) signals

output from the COMPONENT VIDEO OUT connectors.


MEMORY

x BACKGROUND

Selects the background color or picture on the TV screen

in stop mode or while playing a CD.

•

JACKET PICTURE: The jacket picture appears in the

background, but only when the jacket picture is already

recorded on the disc (for instance, a CD-EXTRA).

• PICTURE MEMORY: Your favorite picture appears in

the background. For an explanation of how to store

your favorite scene recorded on the disc for the

background picture, see the following section “Storing a

picture in memory.”

• GRAPHICS: A preset picture stored in the player

appears in the background.

• BLUE: The background color is blue.

• BLACK: The background color is black.

Note

If a disc which does not contain the jacket picture is played while

“BACKGROUND” is set to “JACKET PICTURE,“ the picture

stored in the player will automatically appear in the background.

x STARTUP SCREEN

Selects the startup screen. The startup screen image you

selected appears when you turn on the player.

•

STANDARD: The standard startup screen in the

player’s memory appears.

• PICTURE MEMORY: Your favorite picture appears in

the startup screen. For an explanation of how to store

your favorite scene recorded on the disc for the startup

screen, see the following section “Storing a picture in

memory.”

If you select PICTURE MEMORY before setting a

picture in memory, the standard startup screen will

appear.

Storing a picture in memory

During playback, when you find the scene to be stored

in memory, press PICTURE MEMORY on the remote.

The picture is stored in memory.

Settings and Adjustments

x DIMMER

Adjusts the lighting of the front panel display and

indicators.

•

BRIGHT: makes the front panel display bright.

• DARK: makes the front panel display dark.

• AUTO DARK: If you do not operate the player or

remote for a short while, the front panel display

becomes dark.

• AUTO OFF: If you do not operate the player or remote

for a short while, the front panel display turns off.

• OFF: This turns off the front panel display.

zYou can directly turn on/off the front panel display by using

the remote

By pressing FL ON/OFF on the remote, you can turn on/off the

front panel display regardless the “DIMMER” setting (except

when it it set to OFF).

x PAUSE MODE (DVD only)

Selects the picture in pause mode.

•

AUTO: Moving subjects are output with no jitter, and

still objects are shown at high resolution. The picture

remains clear even during slow playback when using

the shuttle ring (Clear Frame function). Normally select

this position.

• FIELD: A picture including subjects that move is output

with less jitter but at a lower resolution than “FRAME.”

• FRAME: A picture including subjects that do not move

dynamically is output with high resolution.

x CHROMA FILTER

This filter controls the level of the color (Chroma) element

of the image's video signal to control color saturation

level.

•

OFF: This turns off the chroma filter. The filter is

normally set to off.

• ON: This turns on the chroma filter and adjusts the

color saturation level so that colors do not bleed.

Notes

• This function is not available when the player is set to output

progressive video signals.

• If you use the COMPONENT VIDEO OUT connectors, set

CHROMA FILTER to OFF to maintain accurate color

reproduction.

x PLAYBACK MEMORY

The player can store the SUBTITLE, VIDEO CONTROL

and other settings of each disc for up to 300 discs

(Playback Memory).

Set the Playback Memory function on or off.

•

ON : stores the settings in memory when you eject the

disc or when you press ?/1 on the remote and the

player enters the standby mode with the disc still in the

player.

• OFF : does not store the settings in memory.

Custom Settings (CUSTOM SETUP)

CUSTOM SETUP

COMPONENT OUT:

DIMMER:

PAUSE MODE:

To set, press , then .

To quit, press .

INTERLACE

AUTO PLAY: OFF

BRIGHT

AUTO

OFF

TRACK SELECTION:

OFF

ENTER

PARENTAL CONTROL

DISPLAY

PLAYBACK MEMORY:

CHROMA FILTER

“CUSTOM SETUP” allows you to set the playback

conditions.

The default settings are underlined.

Select “CUSTOM SETUP” in the setup display.

x COMPONENT OUT

This will change the type of signal output from the

COMPONENT VIDEO OUT connectors on this player.

See page 71 for more information about the different

types.

•

INTERLACE: This outputs the signal in interlace

format. Select this when you are connected to a

standard (interlace format) TV.

• PROGRESSIVE: This outputs the signal in progressive

(480p) format. Select this when you have a TV that can

accept progressive signals.

Note

If you select “PROGRESSIVE” when you connect the player to a

TV that cannot accept the signal in progressive format (480p), the

image quality will deteriorate. In this case, set the SCAN

SELECT switch on the back panel of the player to

“INTERLACE.” Then set “COMPONENT OUT” to

“INTERLACE” when you can see the TV screen correctly, and set

SCAN SELECT to “SELECTABLE.”

x AUTO PLAY

Selects the Auto Play setting when you connect the AC

power cord to the AC outlet.

•

OFF: does not use “TIMER,” “DEMO1” or “DEMO2” to

start playback.

• TIMER: starts playing when the player is turned on, or

at any time you want when connected to a timer (not

supplied). Set the timer when the player is in standby

mode (the power indicator lights up in red).

• DEMO1: starts playing the first demonstration

automatically.

• DEMO2: starts playing the second demonstration

automatically.

Settings and Adjustments

Limiting Playback by Children (Parental

Control)

Playback of some DVDs can be limited depending on the

age of the users. The “Parental Control” function allows

you to set a playback limitation level.

Select “CUSTOM SETUP” in the setup display.

1 Select “PARENTAL CONTROL” using M/m, then press

ENTER.

x When you have not entered a password

The display for entering a password appears.

CUSTOM SETUP

To set, press , then .

To quit, press .

ENTER

DISPLAY

COMPONENT OUT:

DIMMER:

PAUSE MODE:

INTERLACE

AUTO PLAY: OFF

BRIGHT

AUTO

OFF

TRACK SELECTION:

OFF

PARENTAL CONTROL

PLAYBACK MEMORY:

CHROMA FILTER

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password, then

press

To return, press .

To cancel, press .

RETURN

ENTER

DISPLAY

CUSTOM SETUP

COMPONENT OUT:

DIMMER:

PAUSE MODE:

To set, press , then .

To quit, press .

INTERLACE

AUTO PLAY: OFF

BRIGHT

AUTO

OFF

TRACK SELECTION:

OFF

ENTER

PARENTAL CONTROL

DISPLAY

PLAYBACK MEMORY:

CHROMA FILTER

The following settings are stored in memory by the

Playback Memory function.

– AUDIO (page 35)*

– SUBTITLE (page 37)*

– ANGLE (page 37)*

– VIDEO CONTROL (page 38)

* DVD only

Notes

• The player can store the settings of up to 300 discs. When you

store the setting of disc number 301, the first disc setting is

canceled.

• Depending on the DVD, the information stored in the disc

takes priority over the Playback Memory settings and the

function does not work.

• Do not turn off the player by pressing POWER. Doing so may

cancel the settings. When you turn off the player, press x first

to stop playback and then press ?/1 on the remote. After the

power indicator lights up in red and the player enters standby

mode, press POWER on the player.

x PARENTAL CONTROL,

Sets a password and playback limitation level for DVDs

with playback limitation for children.

The same password is used for both Parental Control and

Custom Parental Control (page 43) .

For details, see “Limiting Playback by Children (Parental

Control) .”

x TRACK SELECTION

Gives the sound track which contains the highest number

of channels priority when you play a DVD on which

multiple audio formats (PCM, DTS or Dolby Digital

format) are recorded.

•

OFF : No priority given.

• AUTO : Priority given.

Notes

• When you set this item to “AUTO,” the language may change

depending on the “AUDIO” settings in “LANGUAGE SETUP.”

The “TRACK SELECTION“ setting has higher priority than the

“AUDIO” settings in “LANGUAGE SETUP” (page 53).

• If you set “DTS” in “AUDIO SETUP” to “OFF”, the DTS sound

track is not played even if you set this item to “AUTO” and the

highest-numbered audio channel is recorded in DTS format.

• If PCM, DTS and Dolby Digital sound tracks have the same

number of channels, the player selects PCM, DTS and Dolby

Digital sound tracks in this order.

• Depending on the DVD, the audio channel with priority may

be predetermined. In this case, you cannot give priority to the

DTS or Dolby Digital format by selecting “AUTO.”

Settings and Adjustments

5 Select a geographic area as the playback limitation

level standard using M/m, then press ENTER.

When you select “OTHERS,,” select and enter the

standard code in the table on the next page using the

number buttons.

6 Select “LEVEL” using M/m, then press ,.

7 Select the level you want using M/m, then press

ENTER.

The lower the value, the more strict the limitation.

To return to the normal screen

Press DISPLAY.

To turn off the Parental Control function and play

the DVD after entering your password

Set “LEVEL” to “OFF” in Step 7, then press H.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL:

OFF

USA

STANDARD:

CHANGE PASSWORD

USA

OTHERS

To set, press , then .

To quit, press .

ENTER

DISPLAY

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF

OFF

STANDARD:

CHANGE PASSWORD

NC17

To set, press , then .

To quit, press .

ENTER

DISPLAY

CUSTOM SETUP

PARENTAL CONTROL

LEVEL:

STANDARD:

CHANGE PASSWORD

USA

To set, press , then .

To quit, press .

ENTER

4: PG13

DISPLAY

Custom Settings (CUSTOM SETUP)

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press

To cancel, press .

ENTER

To return, press .

DISPLAY

RETURN

x When you have already registered a password

The display for confirming the password appears. Skip

Step 2.

2 Enter a password in 4 digits using the number

buttons, then press ENTER.

The digits change to asterisks (

), and the display for

confirming the password appears.

3 To confirm your password, enter it again using the

number buttons, then press ENTER.

The display for setting the playback limitation level

and changing the password appears.

4 Select “STANDARD” using M/m, then press ,.

CUSTOM SETUP

PARENTAL CONTROL

To confirm,enter password again,

then press

To cancel, press .

ENTER

To return, press .

DISPLAY

RETURN

CUSTOM SETUP

PARENTAL CONTROL

LEVEL:

OFF

STANDARD:

CHANGE PASSWORD

USA

To set, press , then .

To quit, press .

ENTER

DISPLAY

CUSTOM SETUP

PARENTAL CONTROL

LEVEL:

OFF

STANDARD:

CHANGE PASSWORD

USA

To set, press , then .

To quit, press .

ENTER

DISPLAY

Settings and Adjustments

To change the password

1 After Step 3, select “CHANGE PASSWORD” using

M/m, then press , or ENTER.

The display for changing the password appears.

2 Follow Steps 2 and 3 to enter a new password.

Playing a disc which is blocked by the playback

limitation level

1 Insert the disc and press H.

The PARENTAL CONTROL display appears.

2 Enter your 4-digit password using the number buttons,

then press ENTER.

The player starts playback.

When you stop playing the DVD, the level returns to

the original level.

zIf you forget your password

Enter the 6-digit number “199703” whenever the PARENTAL

CONTROL display asks you for your password, then press

ENTER. The display will ask you to enter a new 4-digit

password.

Notes

• When you play DVDs which do not have the Parental Control

function, playback cannot be limited on this player.

• If you do not set a password, you cannot change the settings

for playback limitation.

• Depending on the DVD, you may be asked to change the

parental control level while playing the disc. In this case, enter

your password, then change the level.

When you stop playing the DVD, the level returns to the

original level.

• The same password is used for both Parental Control and

Custom Parental Control (page 43) .

Standard Code number

Argentina 2044

Australia 2047

Austria 2046

Belgium 2057

Brazil 2070

Canada 2079

Chile 2090

China 2092

Denmark 2115

Finland 2165

France 2174

Germany 2109

Hong Kong 2219

India 2248

Indonesia 2238

Italy 2254

Japan 2276

Korea 2304

Malaysia 2363

Mexico 2362

Netherlands 2376

New Zealand 2390

Norway 2379

Pakistan 2427

Philippines 2424

Portugal 2436

Russia 2489

Singapore 2501

Spain 2149

Sweden 2499

Switzerland 2086

Taiwan 2543

Thailand 2528

United Kingdom 2184

Settings and Adjustments

x AUDIO FILTER

Selects the digital filter to reduce noises above the 22.05

kHz (Sampling frequency (Fs) of the audio source is 44.1

kHz) , 24 kHz (Fs is 48 kHz) or 48 kHz (Fs is above 96

kHz).

•

SHARP: provides a wide frequency range and spatial

feeling.

• SLOW: provides smooth and warm sound.

Notes

• There may be little effect by changing the digital filter,

depending on discs or playback environment.

• There is no effect on SACDs.

x DOWNMIX

Switches the mixing down methods when you play a

DVD on which rear signal components such as LS, RS, or

S are recorded in Dolby Digital format. For details on the

rear signal components, see “Displaying the audio

information of the disc” (page 36).

The “DOWNMIX” setting affects the following

connectors:

– AUDIO OUT connectors

– DIGITAL OUT OPTICAL and COAXIAL connectors

(when you set “DOLBY DIGITAL” to “D-PCM” in

“AUDIO SETUP” in the setup display)

•

DOLBY SURROUND: when the player is connected to

an audio component that conforms to Dolby Surround

(Pro Logic). The output signals which reproduce the

Dolby Surround (Pro Logic) effect are mixed down to 2

channels.

• NORMAL: when the player is connected to an audio

component that does not conform to Dolby Surround

(Pro Logic). The signals without the Dolby Surround

(Pro Logic) effect are output.

x DIGITAL OUT

Selects output signals via the DIGITAL OUT OPTICAL

and COAXIAL connectors.

•

ON: Normally select this position. When you select

“ON,” set “DOLBY DIGITAL,” “DTS” and “48kHz/

96kHz PCM.“ For details on setting these items, see

“Setting the Digital Output Signal.”

• OFF: when the player does not output the sound signals

via the DIGITAL OUT OPTICAL and COAXIAL

connectors, the influence of the digital circuit upon the

analog circuit is at a minimum.

Settings for the Sound

(AUDIO SETUP)

“AUDIO SETUP” allows you to set the sound according

to the playback conditions.

The default settings are underlined.

Select “AUDIO SETUP” in the setup display.

x AUDIO ATT (attenuation)

If the playback sound is distorted, set this item to “ON.”

The player reduces the audio output level.

Selects the setting of the output from the AUDIO OUT

(1, 2) connectors according to the audio equipment to be

connected.

•

OFF: turns off the audio attenuation. Normally select

this position.

• ON: reduces the audio output level so that no sound

distortion occurs. Select this when the playback sound

from the built-in TV speakers is distorted.

Note

The setting does not affect the output from the DIGITAL OUT

OPTICAL and COAXIAL connectors.

x AUDIO DRC (Dynamic Range Control)

(DVD only)

Makes the sound clear when the volume is turned down

when playing a DVD. This function works only when

you play a DVD which has the AUDIO DRC function.

This affects the output from the DIGITAL OUT connectors

only when “DOLBY DIGITAL” is set to “D-PCM”in

”DIGITAL OUT.”

•

STANDARD: Normally select this position.

• TV MODE: makes the low sounds clear even if you turn

the volume down. It is especially recommended when

you listen to the sound using the speakers of the TV.

• WIDE RANGE: It gives you the original sound recorded

in the disc. You may have difficulty hearing the audio,

depending on your environment.

Note

When you play DVDs without the AUDIO DRC function, there is

no effect on the sound.

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

DOWNMIX:

DIGITAL OUT:

To set, press , then .

To quit, press .

OFF

STANDARD

DOLBY SURROUND

ENTER

DOLBY DIGITAL:

D-PCM

DTS:

OFF

AUDIO FILTER:

SHARP

DISPLAY

48kHz/96kHz PCM:

48kHz/16bit

Settings and Adjustments

x DTS

Outputs the DTS signal from the DIGITAL OUT OPTICAL

and COAXIAL connectors.

•

OFF: when the player is connected to an audio

component lacking a built-in DTS decoder.

• ON: when the player is connected to an audio

component having a built-in DTS decoder.

If the player is connected to an audio component

lacking a built-in DTS decoder, do not set this.

Otherwise, when you play the DTS sound track, a loud

noise (or no sound) will come out from the speakers,

affecting your ears or causing the speakers to be

damaged.

x 48kHz/96kHz PCM (DVD only)

Selects the sampling frequency and word length of the

audio signal to be output via the DIGITAL OUT OPTICAL

and COAXIAL connectors.

•

48kHz/16bit: The audio signals of DVDs are always

converted to 48 kHz/16 bit.

• 96kHz/24bit: All types of signals including 96 kHz/24

bit are output in their original format. However, if the

signal is encrypted for copyright protection purposes,

the signal is only output as 48 kHz/16 bit.

Note

If you select “96kHz/24bit” when a receiver (amplifier) which

cannot accept 96 kHz is connected to the player, no sound or a

loud noise will come out from the speakers.

zYou can directly switch the digital audio output on or off

When “DIGITAL OUT” is set to “ON” and the player is stopped,

press AUDIO DIRECT on the player. The digital audio output is

turned on or off.

Note, however, that the “DIGITAL OUT” setting remains the

same.

Notes

• When you select “OFF,” you cannot set “DOLBY DIGITAL,”

“DTS” and “48kHz/96kHz PCM.“

• SACD sound signals are not output from the DIGITAL OUT

OPTICAL or COAXIAL connectors.

Setting the Digital Output Signal

Switches the methods of outputting audio signals when

you, connect 1. a digital component such as a receiver

(amplifier) having a digital connector, 2. an audio

component having a built-in decoder (Dolby Digital or

DTS), 3. a DAT or MD via the DIGITAL OUT OPTICAL or

COAXIAL connector using an optical or coaxial digital

connecting cord. For connection details, see page 13.

You cannot adjust “DOLBY DIGITAL,” “DTS” and

“48kHz/96kHz PCM” if you set “DIGITAL OUT” to

“OFF.”

x DOLBY DIGITAL

Selects the Dolby Digital signals to be output via the

DIGITAL OUT OPTICAL and COAXIAL connectors.

•

D-PCM (Downmix PCM): when the player is connected

to an audio component lacking a built-in Dolby Digital

decoder. If you play Dolby Digital sound tracks, the

output audio signals are mixed down to 2 channels.

You can select whether the signals conform to Dolby

Surround (Pro Logic) or not by making adjustments to

the “DOWNMIX” item in “AUDIO SETUP.”

• DOLBY DIGITAL: when the player is connected to an

audio component with a built-in Dolby Digital decoder.

If the player is connected to an audio component

lacking a built-in Dolby Digital decoder, do not set this.

Otherwise, when you play the Dolby Digital sound

track, a loud noise (or no sound) will come out from the

speakers, affecting your ears or causing the speakers to

be damaged.

AUDIO SETUP

AUDIO ATT:

AUDIO DRC:

DOWNMIX:

DIGITAL OUT:

DOLBY DIGITAL:

To set, press , then .

To quit, press .

OFF

STANDARD

DOLBY SURROUND

AUDIO FILTER:

SHARP

D-PCM

48kHz/96kHz PCM:

48kHz/16bit

DTS:

OFF

ENTER

DISPLAY

Settings and Adjustments

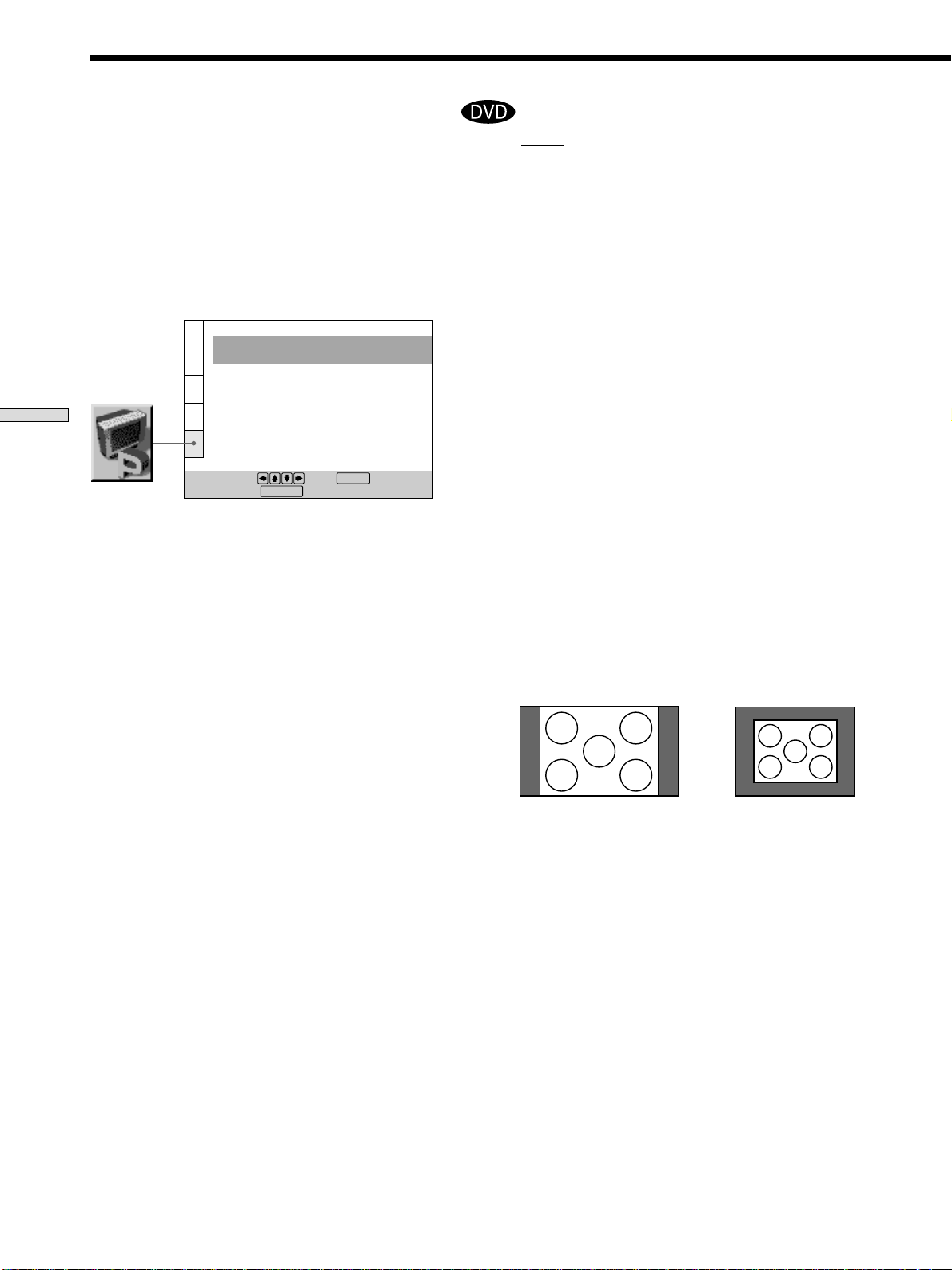

Adjusting the Progressive video signal

(SET PROGRESSIVE OUTPUT)

• AUTO: This will automatically detect if you are playing

Film based or Video based software and convert the

signal to the appropriate mode.

• VIDEO: This will convert the output signal for Video

based software, regardless of the type of software that

you are playing.

Notes

• Some DVD software contains both Video and Film. For

instance, DVDs of movies may contain the movie taken on film,

and a "Making of" sequence taken on video.

• If you select “VIDEO” and play back a DVD that contains Film

based software, sections of images may be unclear.

• When you select “AUTO,” sections of images may become

unclear. This happens when the output signal tag (progressive/

interlace) is not correct on the software. If this happens, set the

conversion mode to “VIDEO.”

x 4:3 OUTPUT

Adjust this when you watch progressive signals on a

standard 4:3 aspect ratio television. If you can change the

aspect ratio on your progressive format (480p) compatible

TV, change the setting on your TV, not the player.

•

FULL: when you can change the aspect ratio on your

TV.

• NORMAL: when you cannot change the aspect ratio on

your TV. A 16:9 aspect ratio signal will be shown with

black bands on left and right sides of the image, and a

4:3 aspect ratio signal will be shown with black bands

on all sides of the image.

You can fine-tune the Progressive (480p) video signal

output when you have selected “PROGRESSIVE” in

“COMPONENT OUT” of the “CUSTOM SETUP” display

and connect the player to the TV that be able to accept the

video signal in progressive format (480p).

The default settings are underlined.

Select “SET PROGRESSIVE OUTPUT” in the setup

display.

Note

If you select “PROGRESSIVE” in spite of you connect the player

to a TV that cannot accept the signal in progressive format, the

image quality will deteriorate. In this case, set SCAN SELECT

switch on the back panel of the player to “INTERLACE.” Then

set “COMPONEMT OUT” to “INTERLACE” after you can see

the TV screen correctly, and set SCAN SELECT to

“SELECTABLE.”

x MODE (Conversion Modes)

DVD software can be divided into two types: film based

software and video based software. Video based software

is derived from TV, such as dramas and sit-coms, and

displays images at 30 frames/60 fields per second. Film

based software is derived from film and displays images

at 24 frames per second. In order for these images to

appear natural on your screen when output in

PROGRESSIVE mode (60 frames per second), the

progressive video signal needs to be converted to match

the type of software that you are watching. For more

information about conversion modes, see "Progressive

Conversion methods of Film Based and Video Based

Software."

16:9 aspect ratio TV 4:3 aspect ratio TV

SET PROGRESSIVE OUTPUT

MODE:

4:3 OUTPUT:

To set, press , then .

To quit, press .

AUTO

FULL

ENTER

DISPLAY

Settings and Adjustments

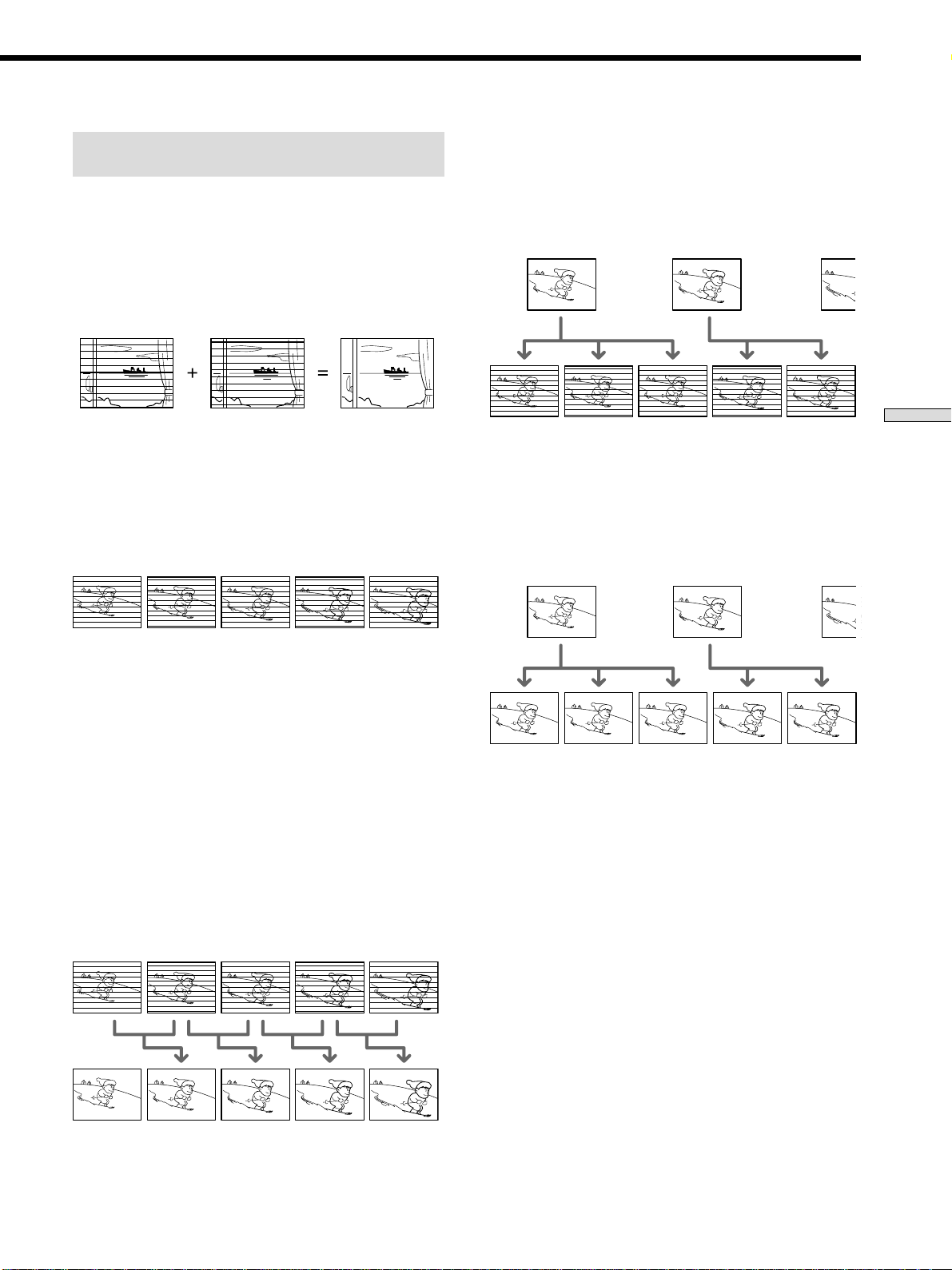

Progressive Conversion Methods of Film

Based and Video Based Software

This player converts video based software and film based

software in the following manner.

Video based software conversion

Video shows an image by alternately displaying every

other line of an image (field) at 30 frames (60 fields) per

second (Interlace format).

The Interlace format displays 30 frames (60 fields) per

second by displaying every other line of the image,

causing scanning lines to appear across the image.

Furthermore, since only half of the image is shown at

once, the amount of information contained in an image is

limited.

The Progressive format displays 60 entire frames per

seconds. The player accomplishes this by converting each

field into a frame by using either a field-based conversion

method or a frame-based conversion method. The

appropriate method is automatically selected by the

player according to the movement of the images on the

screen. If the movement on the screen is slow, the frame-

based conversion method makes borrows adjacent field

information to fill in the missing information. If the

movement on the screen is rapid, the field-based

conversion method creates the missing information by

predicting the movement of the images on the screen from

field to field. The end result is an image that is higher in

quality when compared to the Interlace format.

Film based software conversion

Film shows an image by displaying an entire image at 24

frames per second. When you watch a film on television,

the television displays every other line of the frame as a

field, thus reducing information level and the clarity of

the film image.

This player solves this problem by increasing the speed at

which the frames are displayed, consecutively showing 3

identical frames followed by 2 identical frames in the time

that it normally takes to show 2 consecutive frames. The

end result is that the 24 frames per second are increased to

60 frames per second, which is the speed at which

Progressive video signals are shown.

This not only allows film to be shown in a frame based

format, it also increases the clarity and sharpness which is

unique to Progressive format images.

Settings and Adjustments

TV/VIDEO

Number

buttons

TV/DVD

switch

VOL

By adjusting the remote signal, you can control your TV

or AV receiver (amplifier) with the supplied remote.

Controlling TVs with the remote

1 Slide the TV/DVD switch to TV.

2 Hold down ?/1, and enter your TV’s manufacturer’s

code (see the table) using the number buttons.

Then release ?/1.

Code numbers of controllable TVs

If more than one code number is listed, try entering them

one at a time until you find the one that works with your

TV.

?/1 (on/standby)

button

Number

buttons

TV/DVD

switch

Controlling Your TV or AV Receiver (Amplifier)

with the Supplied Remote

Manufacturer Code number

Sony (default) 01

Akai 04

AOC 04

Centurion 12

Coronado 03

Curis-Mathes 12

Daytron 12

Emerson 03,04,14

Fisher 11

General Electric 06, 10

Gold Star 03,04,17

Hitachi 02,03

J.C.Penney 04,12

JVC 09

KMC 03

Magnavox 03,08,12

Marantz 04,13

MGA/Mitsubishi 04,12,13,17

NEC 04, 12

Manufacturer Code number

Panasonic 06,19

Philco 03,04

Philips 08

Pioneer 16

Portland 03

Quasar 06,18

Radio Shack 05,14

RCA 04,10

Sampo 12

Sanyo 11

Scott 12

Sears 07,10,11

Sharp 03,05,18

Sylvania 08,12

Teknika 03,08,14

Toshiba 07

Wards 03,04,12

Yorx 12

Zenith 15

Notes

• If you enter a new code number, the code number previously

entered will be erased.

• When you replace the batteries of the remote, the code number

may be reset to the default setting. Reset the appropriate code

number.

Controlling the TV

You can control your TV using the buttons below. When

you set the TV/DVD switch to TV, you can also control

the number, ?/1 and ENTER buttons.

By pressing

?/1

TV/VIDEO*

VOL

CH*

WIDE MODE*

Number buttons

and ENTER

* These buttons also work when the TV/DVD switch is set to

DVD.

Note

Depending on the TV, you may not be able to control your TV or

to use some of the buttons above.

ENTER

You can

Turn the TV on or off

Switch the TV’s input source between

the TV and other input sources

Adjust the volume of the TV

Select the channel of the TV

Switch to or from the wide mode of a

Sony Wide TV.

Select the channel of the TV

ENTER

WIDE MODE

?/1 (on/standby)

button

Settings and Adjustments

VOL

Controlling AV receivers (amplifiers) with

the remote

1 Slide the TV/DVD switch to DVD.

2 Hold down ?/1, and enter your AV receiver’s

manufacturer’s code (see the table) using the

number buttons. Then release ?/1.

Code numbers of controllable AV receivers

(amplifier)

If more than one code number is listed, try entering them

one at a time until you find the one that works with your

AV receiver (amplifier).

Manufacturer Code number

Sony 91 (default), 89

Denon 84, 85, 86

Kenwood 92, 93

Onkyo 81, 82, 83

Pioneer 99

Sansui 87

Technics 97, 98

Yamaha 94, 95, 96

Notes

• If you enter a new code number, the code number previously

entered will be erased.

• When you replace the batteries of the remote, the code number

may be reset to the default setting. Reset the appropriate code

number.

?/1 (on/standby)

button

Number

buttons

TV/DVD

switch

Controlling the AV receiver (amplifier)

You can change the volume of the AV receiver (amplifier)

using VOL.

Note

Depending on the AV receiver (amplifier), you may not be able to

control your AV receiver (amplifier).

Additional

Information

Troubleshooting

If you experience any of the following difficulties while

using the player, use this troubleshooting guide to help

remedy the problem. Should any problem persist, consult

your nearest Sony dealer.

Power

The power is not turned on.

, Check that the AC power cord is connected

securely.


There is no picture.

, Check that the player is connected securely.

, The video connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the video

input connector on the TV. (page 10)

, Make sure you turn on the TV.

, Make sure you select the video input on the TV so

that you can view the pictures from the player.

Picture noise appears.

, Clean the disc.

, If the video signal from your DVD player has to go

through your VCR to get to your TV, the copy-

protection applied to some DVD programs could

affect picture quality. If you still experience

problems after checking your connections, please

try connecting your DVD player directly to your

TV’s S-input, if your TV is equipped with this

input. (page 10)

, You have selected “PROGRESSIVE” in

“COMPONENT OUT” even though your TV

cannot accept the signal in progressive format. In

this case, set the SCAN SELECT switch on the back

panel of the player to “INTERLACE.” Then set

“COMPONENT OUT” to “INTERLACE” after you

can see the TV screen correctly, and set SCAN

SELECT to “SELECTABLE.”

, Even if your TV is compatible with progressive

format (480p) signals, the image may be affected

when you set “COMPONENT OUT” to

“PROGRESSIVE.” In this case, set “COMPONENT

OUT” to “INTERLACE.”

Even though you set the aspect ratio in “TV

TYPE” in “SCREEN SETUP” of the setup display,

the picture does not fill the screen.

, The aspect ratio is fixed on your DVD.

Additional Information

Sound

There is no sound.

, Check that the player is connected securely.

, The audio connecting cord is damaged. Replace it

with a new one.

, Make sure you connect the player to the audio

input connectors on the receiver (amplifier). (page

12)

, Make sure you turn on the TV and the receiver

(amplifier).

, Make sure you select the appropriate input on the

receiver (amplifier) so that you can listen to the

sound from the player.

, The player is in pause mode or in Slow-motion

Play mode. Press H to return to normal play

mode.

, The player is in fast forward or fast reverse mode.

Press H to return to normal play mode.

, Check the speaker connections and setting (page

15). Refer to the operating manual of your receiver

(amplifier).

, If you use the DIGITAL OUT connectors, set

“DIGITAL OUT” to ”ON” in the setup display.

Otherwise no sound will come from the DIGITAL

OUT connectors. (page 60)

, SACD audio signals are not output from the

DIGITAL OUT OPTICAL or COAXIAL connectors.

Sound is noisy.

, Clean the disc.

, When you play a CD with DTS sound tracks, noise

will come from any connector other than the

DIGITAL OUT OPTICAL or COAXIAL connector.

(page 19)

Sound distortion occurs.

, In the setup display, set “AUDIO ATT” in ”AUDIO

SETUP” to “ON.” (page 60)

The sound loses its stereo effect when you play a

VIDEO CD or a CD.

, Set “AUDIO” to “STEREO” in the Control Menu

display. (page 35)

, Make sure you connect the player correctly. (pages

10, 12, 14)

Operation

The remote does not function.

, Remove any obstacles between the remote and the

player.

, Use the remote near the player.

, Point the remote at the remote sensor

on the

player.

, Replace all of the batteries in the remote with new

ones if they are weak.

The disc does not play.

, There is no disc inside (“Insert disc.” appears on

the TV screen).

Insert a disc.

, Insert the disc correctly with the playback side

facing down on the disc tray.

, Clean the disc.

, The player cannot play CD-ROMs, etc. (page 5)

Insert a DVD, a VIDEO CD, or CD.

, Check the region code of the DVD. (page 5)

, Moisture has condensed inside the player. Remove

the disc and leave the player turned on for about

half an hour. (page 8)

The player does not play from the beginning

when playing a disc.

, Program Play, Shuffle Play, Repeat Play or A-B

Repeat Play has been selected. Press CLEAR.

(pages 45 through 49)

, Resume Play has been selected.

Press x on the front panel or on the remote before

you start playing. (page 23)

, A title menu or a DVD menu automatically

appears on the TV screen when you play your

DVD, or a setup display automatically appears on

the TV screen when you play your VIDEO CD

with PBC functions.

The player starts playing the disc automatically.

, The DVD features the auto playback function.

, “AUTO PLAY” in “CUSTOM SETUP” is set to

“TIMER.” (page 56)

Playback stops automatically.

, The disc may contain an auto pause signal. While

playing such a disc, the player stops playback at

the signal.

Additional Information

You cannot perform some functions such as Stop,

Search, Slow-motion Play, Repeat Play, Shuffle

Play or Program Play.

, Depending on the disc, you may not be able to do

some of the operations above.

Messages do not appear on the TV screen in the

language you want.

, In the setup display, select the desired language for

the on-screen display in “OSD” under

“LANGUAGE SETUP.” (page 53)

The language for the sound track cannot be

changed when you play a DVD.

, Multilingual tracks are not recorded on the DVD.

, Changing the language for the track is prohibited

on the DVD.

The subtitle language cannot be changed when

you play a DVD.

, Multilingual subtitles are not recorded on the

DVD.

, Changing the language for the subtitles is

prohibited on the DVD.

The subtitles cannot be turned off when you play

a DVD.

, Depending on the DVD, you may not be able to

turn the subtitles off.

The angles cannot be changed when you play a

DVD.

, Multi-angles are not recorded on the DVD.

, Change the angles when “ANGLE” appears on the

front panel display. (page 37)

, Changing the angles is prohibited on the DVD.

The player does not operate properly.

, Static electricity, etc., may affect the player’s

operation.

Press POWER on the player to turn the player off

and then on again.

Nothing is displayed on the front panel display.

, In the set up display, “DIMMER” in “CUSTOM

SETUP” is set to “OFF.”

Press FL ON/OFF on the remote, or set

“DIMMER” to any setting other than “OFF.” (page

56)

5 numbers or letters are displayed on the screen

and on the front panel display.

, The self-diagnosis function was activated. See the

table on page 69.

The disc tray does not open and “LOCKED” is

displayed on the front panel display.

, Contact your Sony dealer or local authorized Sony

service facility.

Troubleshooting

Additional Information

Self-diagnosis function

When the self-diagnosis function activates to prevent the player from

malfunctioning, a five-character service number (combination of a letter and

digits) flashes on the screen and on the front panel display. In this case, check the

following table.

First three characters

C13

C31

Exx (xx is any number)

Cause and/or Corrective Action

•The disc is dirty.

, Clean the disc with a cleaning cloth. (page 8)

•The disc is not inserted correctly.

, Open the disc tray and insert the disc correctly.

•To prevent a malfunction, the player has performed the self-diagnosis function.

,When you contact your Sony dealer or local authorized Sony service facility, give

the 5-character service number. (example: E:61:10)

C:13:00

Additional Information

Specifications

SACD/DVD player

Laser Semiconductor laser

Signal format system

NTSC

Audio characteristics

Frequency response

DVD (PCM 96 kHz): 2 Hz to 44 kHz

(–2 dB ±1 dB at 44 kHz)

CD: 2 Hz to 20 kHz (±0.5 dB)

SACD: 2 Hz to 100 kHz

(–3 dB ±1 dB at 50 kHz)

Signal to noise ratio

more than 115 dB(DVD)

Harmonic distortion

DVD: Less than 0.0015%

CD: Less than 0.002%

SACD: Less than 0.0015%

Dynamic range

More than 103 dB

(DVD)

More than 103 dB (SACD)

More than 99 dB (CD)

Wow and flutter

Less than detected value

(±0.001% W PEAK)

Outputs

AUDIO OUT

(1, 2)

DIGITAL OUT

(OPTICAL)

DIGITAL OUT

(COAXIAL)

VIDEO OUT

(1, 2)

S VIDEO OUT

(1, 2)

COMPONENT

VIDEO OUT

(Y, PB, PR)

General

Power requirements

120 V AC, 60 Hz

Power consumption

43 W

Dimensions (approx.)

430 × 126 × 398 mm (17 × 5 × 15

/16 in.)

(w/h/d) incl. projecting parts

Mass (approx.)

12.6 kg (27 lb 12 oz)

Operating temperature

5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)

Operating humidity

25 % to 80 %

Supplied accessories

See page 9.

Design and specifications are subject to change without notice.

ENERGY STAR

is a U.S. registered mark.

As an ENERGY STAR

Partner, Sony Corporation has

determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

Jack

type

Phono

jacks

Optical

output

connector

Phono

jack

Phono

jacks

4-pin

mini DIN

Phono

jacks

Output

level

2 Vrms

(at 50 kilohms)

–18 dBm

0.5 Vp-p

1.0 Vp-p

Y: 1.0 Vp-p

C: 0.286 Vp-p

Y: 1.0 Vp-p

PB, PR:

±0.35 Vp-p

Load impedance

Over 10 kilohms

Wave length: 660 nm

75 ohms terminated

75 ohms,

sync negative

75 ohms,

sync negative

75 ohms terminated

75 ohms,

sync negative

75 ohms

Additional Information

Bit rate (page 42)

Value indicating the amount of video data compressed in

a DVD per second. The unit is Mbps (Mega bit per

second). 1 Mbps indicates that the data per second is

1,000,000 bits. The higher the bit rate, the larger the

amount of data. However, this does not always mean that

you can get higher quality pictures.

Chapter (page 7)

Sections of a picture or a music piece on a DVD that are

smaller than titles. A title is composed of several chapters.

Each chapter is assigned a chapter number enabling you

to locate the chapter you want.

Dolby Digital (pages 12, 61)

Digital audio compression technology developed by

Dolby Laboratories. This technology conforms to 5.1-

channel surround sound. The rear channel is stereo and

there is a discrete subwoofer channel in this format.

Dolby Digital provides the same 5.1 discrete channels of

high quality digital audio found in Dolby Digital cinema

audio systems. Good channel separation is realized

because all of the channel data is recorded discretely and

processed in digital.

Dolby Pro Logic (pages 12, 61)

Audio signal processing technology that Dolby

Laboratories developed for surround sound. When the

input signal contains a surround component, the Pro

Logic process outputs the front, center and rear signals.

The rear channel is monaural.

DTS (pages 12, 61)

Digital audio compression technology that Digital Theater

Systems, Inc. developed. This technology conforms to 5.1-

channel surround. The rear channel is stereo and there is

a discrete subwoofer channel in this format. DTS provides

the same 5.1 discrete channels of high quality digital

audio. Good channel separation is realized because all of

the channel data is recorded discretely and processed in

digital.

DVD (page 6)

A disc that contains up to 8 hours of moving pictures even

though its diameter is the same as a CD.

The data capacity of a single-layer and single-sided DVD

is 4.7 GB (Giga Byte) which is 7 times that of a CD. The

data capacity of a dual-layer and single-sided DVD is 8.5

GB, a single-layer and double-sided DVD is 9.4 GB, and a

dual-layer and double-sided DVD is 17 GB.

The picture data uses the MPEG 2 format, one of the

worldwide standards of digital compression technology.

The picture data is compressed to about 1/40 of its

original size. The DVD also uses a variable rate coding

technology that changes the data to be allocated according

to the status of the picture.

Audio data is recorded in Dolby Digital or DTS, as well as

in PCM, allowing you to enjoy a more real audio

presence.

Furthermore, various advanced functions such as the

multi-angle, multilingual, and Parental Control functions

are provided with the DVD.

Film based software (page 63)

DVDs can be classified as Film based or Video based

software. Film based DVDs contain the same images (24

frames per second) that are shown at movie theatres.

Interlace format (page 63)

Interlace format shows every other line of an image as a

single "field" and is the standard method for displaying

images on television. The even number field shows the

even numbered lines of an image, and the odd numbered

field shows the odd numbered lines of an image.

Multi-angle function (page 37)

Various angles for the scene (viewpoints of the video

camera) are recorded on some DVDs.

Multilingual function (pages 16, 37, 53)

Several languages for the audio track or subtitles in a

picture are recorded on some DVDs.

Parental Control (page 43, 57)

A function of the DVD used to limit playback of the disc

according to the age of the user and the limitation level in

each country. The limitation varies from disc to disc;

when it is activated, playback is completely prohibited,

violent scenes are skipped or replaced with other scenes,

and so on.

Glossary

Additional Information

Playback Control (PBC) (page 25)

Signals encoded on VIDEO CDs (Version 2.0) to control

playback.

By using menus recorded on VIDEO CDs with PBC

functions, you can enjoy playing simple interactive

programs, programs with search functions, and so on.

Progressive format (page 63)

Compared to the Interlace format that alternately shows

every other line of an image (field) to create one frame,

the Progressive format shows the entire image at once as a

single frame. This means that while the Interlace format

can show 30 frames (60 fields) in one second, the

Progressive format can show 60 frames in one second. The

overall picture quality increases and still images, text and

horizontal lines appear sharper. This player is compatible

with the 480 progressive format.

Super Audio CD (SACD) (page 6)

This audio format is based upon the current audio CD

standards but includes a greater amount of information

which provides higher quality sound. There are three

types of discs: single layer, double layer and hybrid discs.

The hybrid disc contains both standard audio CD and

Super Audio CD information.

Title (page 7)

The longest section of a picture or a music piece on a

DVD; a movie, etc., for a picture piece on video software;

or an album, etc., for a music piece on audio software.

Each title is assigned a title number enabling you to locate

the title you want.

Track (page 7)

Sections of a picture or a music piece on a CD or VIDEO

CD. Each track is assigned a track number enabling you to

locate the track you want.

Glossary

Video based software (page 62, 63)

DVDs can be classified as Film based or Video based

software. Television dramas or sit-coms are examples of

Video based software and display images at 30 frames (or

60 fields) per second.

VIDEO CD (page 7)

A compact disc that contains moving pictures.

The picture data uses the MPEG 1 format, one of the

worldwide standards of digital compression technology.

The picture data is compressed to about 1/140 of its

original size. Consequently, a 12 cm VIDEO CD can

contain up to 74 minutes of moving pictures.

VIDEO CDs also contain compact audio data. Sounds

outside the range of human hearing are compressed while

the sounds we can hear are not compressed. VIDEO CDs

can hold 6 times the audio information of conventional

audio CDs.

There are 2 versions of VIDEO CDs.

• Version 1.1: You can play only moving pictures and

sounds.

• Version 2.0: You can play high-resolution still pictures

and enjoy PBC functions.

This player conforms to both versions.

Additional Information

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volapük

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

1703 Not specified

Language Code List

For details, see pages 53.

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1066 Bengali; Bangla

1067 Tibetan

1070 Breton

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151 Basque

1157 Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish

1186 Scots Gaelic

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1235 Interlingua

1239 Interlingue

1245 Inupiak

1248 Indonesian

1253 Icelandic

1254 Italian

1257 Hebrew

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1327 Laothian

1332 Lithuanian

1334 Latvian; Lettish

1345 Malagasy

1347 Maori

1349 Macedonian

1350 Malayalam

1352 Mongolian

1353 Moldavian

1356 Marathi

1357 Malay

1358 Maltese

1363 Burmese

1365 Nauru

1369 Nepali

1376 Dutch

1379 Norwegian

1393 Occitan

1403 (Afan) Oromo

1408 Oriya

1417 Punjabi

1428 Polish

1435 Pashto; Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-Romance

1482 Kirundi

1483 Romanian

1489 Russian

1491 Kinyarwanda

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-Croatian

1503 Singhalese

1505 Slovak

1506 Slovenian

1507 Samoan

1508 Shona

1509 Somali

1511 Albanian

1512 Serbian

Additional Information

Index to Parts and Controls

Refer to the pages indicated in parentheses for details.

Front Panel

qa DIGITAL OFF indicator (20)

Lights up when:

– “DIGITAL OUT” is set to “OFF” in “AUDIO

SETUP.”

– you press AUDIO DIRECT on the player and cut

the digital output.

qs FILM indicator (63)

Lights up when film based DVD software is played

during normal playback. When playing film based

DVD software, it will blink if video based software is

sensed, or may turn off if film and video software

alternate. This is normal for DVDs that contain both

film and video based software.

qd FL OFF indicator (56)

Lights up when:

– “DIMMER” in “CUSTOM SETUP” is set to

“OFF.”

– you press FL ON/OFF on the remote to turn off

the front panel display.

qf Front Panel Display (26)

Indicates the playing time, etc.

For details, see page 26.

qg AOPEN/CLOSE button (18)

Opens or closes the disc tray.

qh H (play) button and indicator (18)

Plays a disc. The indicator lights up when a disc is

playing.

qj S (pause) button and indicator (21)

Pauses playing a disc. The indicator lights up when a

disc is paused.

qk s (stop) button (21)

Stops playing a disc.

1 POWER button and indicator (18)

Disconnects the power of the player or places the

player in standby mode.

2 VIDEO OFF indicator (20)

Lights up when:

– video output is set to off by using VIDEO ON/

OFF on the remote

– you press AUDIO DIRECT on the player.

3 PROGRESSIVE indicator (56)

Lights up when the video signal is output in the

progressive format from the COMPONENT VIDEO

OUT connector.

4 SACD indicator (20)

Lights up when SACD audio signals are played.

5 Disc indicator (18)

Lights up while the disc is inserted.

6 Disc tray (18)

Place a disc on the tray.

7 PREV ./> NEXT (previous/next) buttons (21)

Press to go to the next chapter or track, or to go back

to the previous chapter or track.

8 AUDIO DIRECT button and indicator (20)

Cuts off the video and audio digital signal output. The

indicator lights up when the video and audio signals

are cut.

9 SACD logo indicator (22)

Lights up when no disc is in the player, or when an

SACD disc is inserted and SACD audio signals are

played.

(remote sensor) (9)

Accepts the remote control signals.

Additional Information

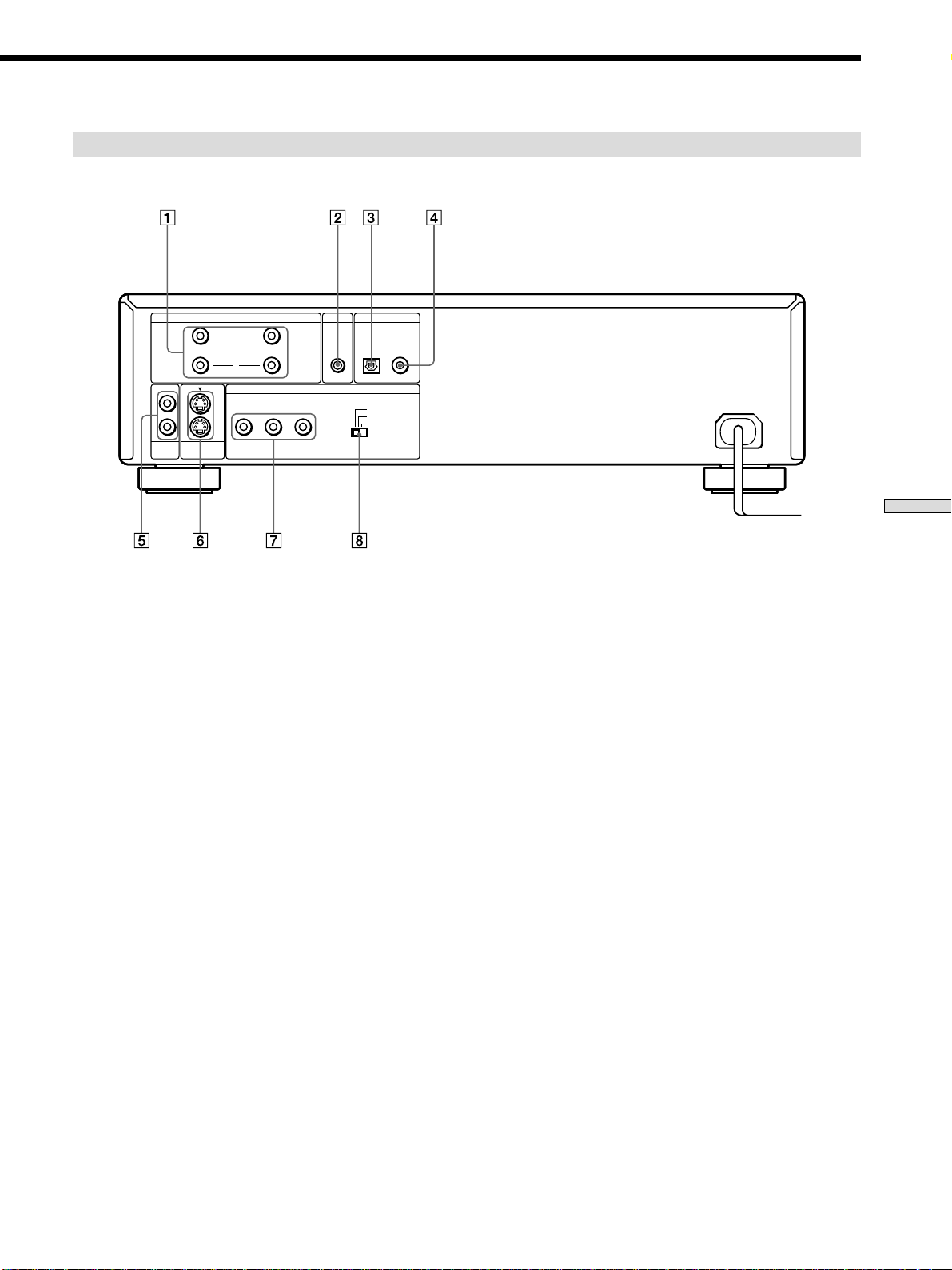

1 AUDIO OUT R (right)/L (left) 1/2 connectors (10, 12)

Connect to the audio input connector on your TV or

receiver (amplifier).

2 S-LINK/CONTROL S IN connector (10)

Connect to the S-link (Control S) connector on an

external component.

3 DIGITAL OUT OPTICAL connector (12, 15)

Connect to an audio component using an optical

digital connecting cord. Take off the cap.

4 DIGITAL OUT COAXIAL connector (12, 15)

Connect to an audio component using a coaxial digital

connecting cord.

5 VIDEO OUT 1/2 connectors (10)

Connect to the video input connector on your TV or

monitor.

6 S VIDEO OUT 1/2 connectors (10, 12, 15)

Connect to the S video input connector on your TV or

monitor.

Rear Panel

AUDIO OUT

SCAN SELECT

SELECTABLE

INTERLACE

PROGRESSIVE

PCM/DTS/

DOLBY DIGITAL

CONTROL S IN

OPTICAL COAXIAL

DIGITAL OUT

COMPONENT VIDEO OUT

S VIDEO

OUT

VIDEO

OUT

S-LINK

7 COMPONENT VIDEO OUT (Y, PB, PR) connectors (11)

Connects to a monitor or projector having component

video input connectors (Y, P

B, PR) that conform to

output signals from the player.

8 SCAN SELECT switch (62)

Select the component video signal format .

• SELECTABLE: changes the format according to the

setting made in “COMPONENT OUT” of the

“CUSTOM SETUP” display.

• INTERLACE: fixes to the format to interlace format.

• PROGRESSIVE: fixes to the format to progressive

format (480p).

Additional Information

Index to Parts and Controls

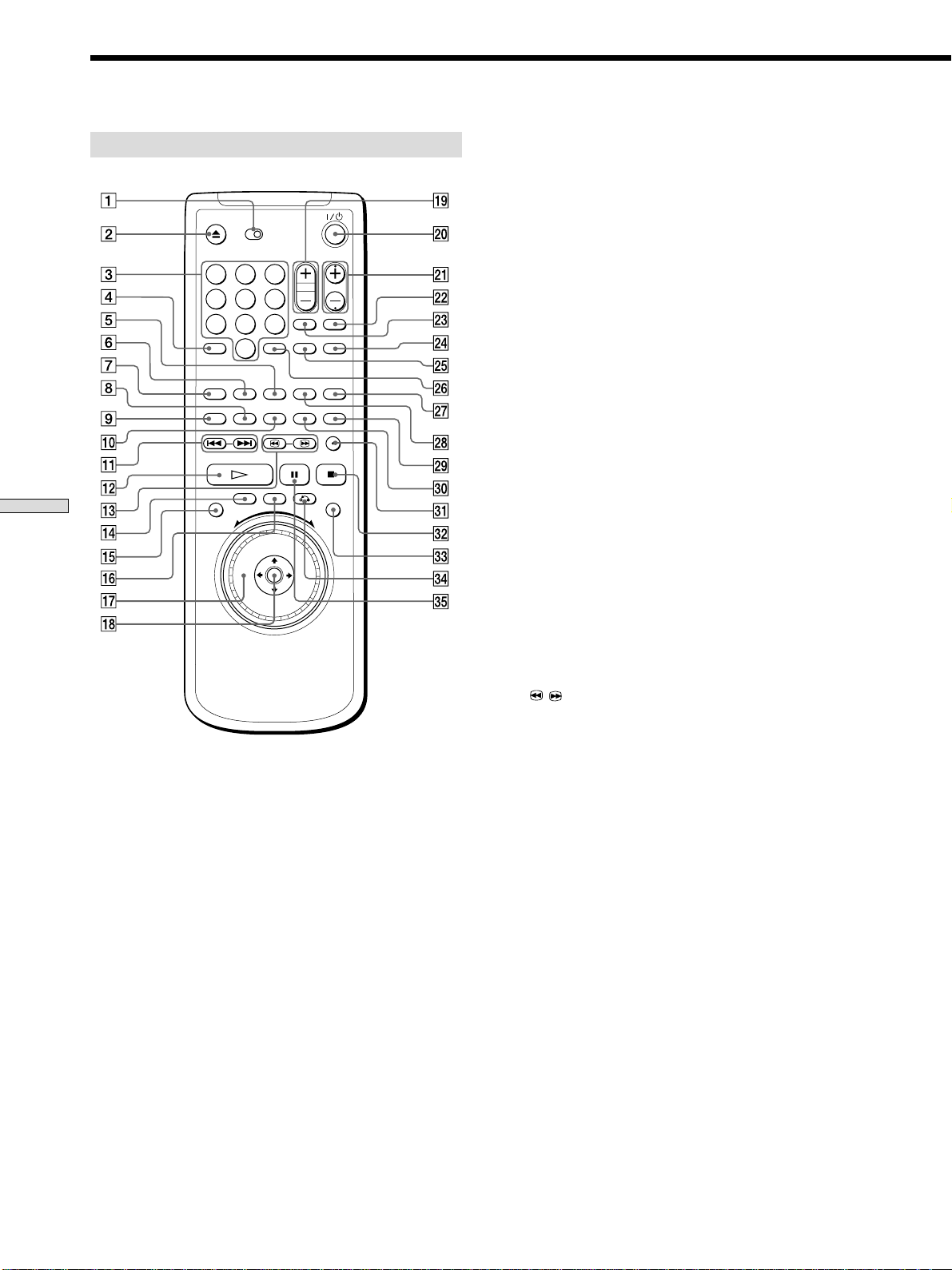

Remote

1 TV/DVD switch (64)

Selects to control the player and receiver or the TV

with the remote.

2 ZOPEN/CLOSE button (21)

Opens or closes the disc tray.

3 Number buttons

Selects and executes the items or settings.

4 CLEAR button (45 through 49)

Press to return to continuous play, etc.

5 REPEAT button (48)

Each time you press this button, the “REPEAT” setting

changes.

6 PROGRAM button (45)

Press for “PROGRAM” playback.

7 SHUFFLE button (47)

Each time you press this button, the “SHUFFLE”

setting changes.

8 ANGLE button (38)

Changes the angles when playing a DVD.

9 AUDIO button (35)

Changes the sound while playing a DVD, CD or

VIDEO CD.

0 SUBTITLE button (37)

Changes the subtitles when playing a DVD.

qa ./>PREV/NEXT (previous/next) buttons (21)

Press to go to the next chapter or track, or to go back

to the previous chapter or track.

qs HPLAY button (18)

Plays a disc.

/ SEARCH buttons (21)

While monitoring the picture, keep pressing to locate a

point quickly.

qf TITLE button (24)

Displays the title menu on the TV screen.

qg DISPLAY button (28)

Displays the Control Menu display on the TV screen

to set or adjust the items.

qh DVD MENU button (24)

Displays the DVD menu on the TV screen.

qj Click shuttle (21)

Changes the playback speed.

qk </M/m/,/ENTER buttons

Selects and executes the items or settings.

ql VOL button (65)

Changes the volume of the TV when the TV/DVD

switch is set to TV, or the volume of the receiver

(amplifier) when the switch is set to DVD.

w; ?/1 (on/standby) button (18)

Press to turn on the player or place it in standby mode

after power is connected by pressing POWER on the

player. When the TV/DVD switch is set to TV, this

button turns your TV on or off.

Additional Information

wa CH button (65)

Changes the channel of the TV.

ws TV/VIDEO button (65)

Changes the video input of the TV.

wd WIDE MODE button (65)

Changes the wide mode of the Sony TV.

wf VIDEO ON/OFF button (20)

Turns on/off the video output.

wg FL ON/OFF button (56)

Turns on/off the front panel display.

wh ENTER button

Executes the items or settings.

wj PICTURE MEMORY button (55)

Press to store a picture in memory.

wk AyB button (49)

Press to play the desired section of the software (A-B

repeat playback).

wl SACD/CD button (20)

Changes the playback layer between the HD (High

density) layer and CD layer when you insert a hybrid

SACD into the player.

e; TIME/TEXT button (32)

Displays the playing time of the disc, etc., on the front

panel display and the screen.

ea LIGHT button (21)

Press to light up HPLAY, XPAUSE, xSTOP and

DISPLAY buttons on the remote.

es xSTOP button (21)

Stops playing a disc.

ed JOG button / indicator (21)

Press to play a disc frame by frame using the click

shuttle.

ef ORETURN button (25, 29)

Press to return to the previously selected screen, etc.

eg XPAUSE button (21)

Pauses playing a disc.

Additional Information

Index

Numerics

4:3 LETTER BOX 54

4:3 OUTPUT 62

4:3 PAN SCAN 54

4:3 WIDE MODE 54

5.1 Channel Surround 14

16:9 54

48kHz/96kHz PCM 61

A-B REPEAT 49

ADVANCED 42

Angle 37

ANGLE 37

AUDIO 35, 53

AUDIO ATT 60

AUDIO DRC 60

AUDIO SETUP 60

AUTO PLAY 56

BACKGROUND 55

Batteries 9

BLACK LEVEL 55

CD 7

Chapter 7, 31, 71

CHAPTER 31

Clear Frame Function 56

CHROMA FILTER 56

COMPONENT OUT 56

Connecting 10, 12, 14

Continuous play

CD/VIDEO CD 18

DVD 18

Control Menu display 28

CUSTOM PARENTAL

CONTROL 43

CUSTOM SETUP 56

D, E

DIGITAL OUT 60

Digital output 14, 61

DIMMER 56

DISC MEMO 33

Display

Control Menu display 28

Front panel display 26

Setup display 50

DOLBY DIGITAL 12, 61, 71

DOWNMIX 60

DTS 12, 61, 71

DVD 6

DVD menu 24

DVD MENU 53

F, G

Fast Forward 21

Fast Rewind 21

Front panel display 26

Handling discs 8

Hooking up 10, 12, 14

I, J, K

Index 7, 31

INDEX 31

L, M, N

LANGUAGE SETUP 53

LAYER 42

LETTER BOX 54

Locating

a specific point 21

by watching the TV

screen 21

MODE 62

On-screen display

Control Menu display 28

Setup display 50

OSD 53

P, Q

PAN SCAN 54

PARENTAL CONTROL 47,

PAUSE MODE 56

PBC functions 25

PBC Playback 25, 72

PICTURE MEMORY 55

PLAYBACK MEMORY 56

PRO LOGIC 61

PROGRAM 45

PROGRESSIVE 56

Program Play 45

Remote 9, 65

REPEAT 48

Resume Play 23

S video output 10, 12, 14

SACD 6

SCAN SELECT 56

Scene 7

SCENE 31

SCREEN SAVER 54

SCREEN SETUP 54

Searching. See Locating.

Setup display 50

SHUFFLE 47

Shuffle Play 47

S-Link 10, 11

Slow-motion Play 21

Speakers

hookup 14

STARTUP SCREEN 55

SUBTITLE 37, 53

TIME/MEMO 32, 33, 34

TIME/TEXT 32, 33, 34

Title 7, 31, 72

TITLE 31

Title menu 24

Track 7, 31, 72

TRACK 31

TRACK SELECTION 57

Troubleshooting 66

TV TYPE 54

Usable discs 5

V, W, X, Y, Z

VIDEO CD 7, 18

VIDEO CONTROL 38

Sony Corporation Printed in Japan

Sony DVP-S9000ES Sacd/dvd Player

Product's Documents

User Manual

Specifications

Sony DVP-S9000ES Questions and Answers

Related Products

Sony DVP-NS900V Sacd/dvd Player

Sony DVP-CX985V 400 Disc Progressive DVD / SACD Player

Sony DVP-CX777ES Es 400 Disc Dvd/sacd/cd Player

Sony DVP-NS900V Sacd/dvd Player

Sony SCD-XE670 Single Disc Sacd/cd Player

Sony DVP-CX985V 400 Disc Progressive DVD / SACD Player
