1
FIREPLACE HEATER
MODEL: SFP202E
Thank you for choosing Trustech Fireplace Heater!
This user manual will provide you with valuable information necessary for the
proper care and maintenance of your new product. Please take a few
moments to thoroughly read it and start enjoying your warm winter!
Always here to help you
For any questions or help, please email us: Support@trustechproducts.com
2
SPECIFICATION
Parts List:
1 Electric heater
1 User manual
4 Legs
12 Screws
IMPORTANT INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER.
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
When switching on the appliance for the first time, allow it to run at full power
for about two hours to get rid of the unpleasant smell. Make sure that the
room in which the appliance is located is well ventilated during this operation.
It is normal for the appliance to emit small cracking sounds when you turn it on
if the first time.
Security Advice
1.
Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. Use handle when moving the unit. Keep flammable materials
such as furniture, pillows, bedding, papers, clothes, and curtains at least 3
feet (0.9 m) from the front and top of the heater and keep them away from
the sides and rear of the heater. Keep the rear grille away from walls or
Model
Voltage
Frequency
Power
SFP202E
120V~
60Hz
1500W
3
drapes so as not to block the air intake.
3. Extreme caution and supervision is necessary when any heater is used near
children or invalids and whenever the heater is left operating and
unattended.
4.
Always unplug heater when not in use.
5. Do not use any heater with a damaged cord or plug or after the heater
malfunctions or has been dropped or damaged in any manner. Discard
heater or return to an authorized service facility for examination and/or
repair.
6.
Do not use it outdoors.
7.
This heater is not intended for use in bathrooms, laundry areas or other
similar indoor locations. Never locate heater where it may fall into a
bathtub or other water container.
8. Do not run the cord under carpeting. Do not cover the cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from traffic areas and place it where it will
not be tripped over.
9. To disconnect heater, turn controls to off, then remove plug from outlet.
10. This appliance has a polarized plug (one blade is wider than the other). This
plug is intended to fit a polarized outlet only one way. If the plug does not
fit fully in the outlet, reverse the plug. If it still does not fit, consult a
qualified electrician. Do not connect the heater to extension cords, surge
protectors, timers, direct breakers, or an outlet with other appliances
connected to the same outlet. Risk of fire, overheat, malfunction, property
damage, injury, or even death may result if not adhered to!
11.
Connect to properly polarized outlets only.
12.
Do not insert or allow foreign objects to enter ventilation or exhaust
openings, as this may cause an electric shock or fire, or damage the heater.
13. To prevent a possible fire, do not block air intakes or exhaust in any manner.
Do not use on soft surfaces, like a bed, where openings may become
blocked.
14.
A heater has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
15.
Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, injury to
persons or other damage to property.
4
16.
This heater must be plugged into a 120V, 15 amp (or more) circuit of its own.
Nothing else can be plugged into the same circuit. If unsure if you home
meets this specification, consult a certified electrician prior to use. Risk of
fire, overheat, malfunction, property damage, injury, or even death may
result if not adhered to!
17. To prevent overload and blown fuses, be sure that no other appliance is
plugged into the same outlet or into another outlet wired into the same
circuit.
18.
It is normal for the heater’s plug and cord to feel warm to the touch. A plug
or cord that becomes hot to the touch or becomes distorted in shape may
be a result of a worn electrical outlet. Worn outlets or receptacles should be
replaced prior to further use of the heater. Plugging heater into a worn
outlet/receptacle may result in overheating of the power cord or fire.
19. Ensure the heater is on a stable, secure surface to eliminate the potential of
tipping over.
20.
Always plug heaters directly into a wall outlet/receptacle. Never use with
an extension cord or relocatable power tap (outlet /power strip).
21. Be sure that the plug is fully inserted into appropriate receptacle. Please
remember that receptacles also deteriorate due to aging and continuous
use: check periodically for signs of overheating or deformations evidenced
by the plug. Do not use the receptacle and CALL your electrician.
22.
Check that neither the appliance nor the power cable has been damaged in
any way during transportation.
23.
Make sure that no pieces of polystyrene or other packaging material have
been left between elements of the appliance. It may be necessary to pass
over the appliance with a vacuum cleaner.
24.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully
insert.
SAVE THESE INSTRUCTIONS
5
USER GUIDE:
Location of Controls
1. Thermostat control knob ( TEMPERATURE SETTING)- Adjust to maintain
room temperature
2. Flame switch - Switches flame effect and power on/off
3. Heating setting: please press “ ” for 750W
4. Heating
setting : please press “ ” and “ ” at the same time for 1500W (can not
operate without first press “ ”)
5. Flame dimmer control - Adjust to set flame intensity
6
ATTACHING THE LEGS
1. Turn product on its side to start attaching legs.
2. Place a leg on each corner and use 3 screws for each leg.
3. Tighten the screws clockwise until tight on each leg.
4. Turn the unit back up to standing position making sure it is stable.
5. Place the unit in the required location and plug in, it is now ready for use.
NOTE: The drawing below is for illustration purposes only, your product may
be slightly different in looks but the operations are the same.
7
Overheating safe device
If the heater stops working, turn the heater off and inspect the blockage of
inlet or outlet. Disconnect the plug and wait at least 10 minutes for the
protection system to reset before attempting to restart the heater. If the safe
device still switches the heater off and makes the heater fail to operate, take
the heater to your nearest service center for examination or repair.
Attention: before restarting the heater, the plug must be disconnected for at
least 10 minutes
Cleaning
1. Always disconnect the appliance from the main supply before cleaning.
2. Clean the outside of the heater by wiping with a damp or dry cloth.
3. Do not use petroleum, any other detergent or chemical solvent to clean
the heater.
4. When the heater is not used for a long time, it should be protected from
dust and stored in a clean dry place.
Disposal
Environmental Protection
Waste electrical production should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
8
WARRANTY
TRUSTECH warrants this product against defects in materials and/or
workmanship under normal use for a period of ONE (1) YEAR from the date of
purchase by the original purchaser (“Warranty Period”). If a defect arises and a
valid claim is received within the Warranty Period, at its option, TRUSTECH will
either 1) repair the defect at no charge, using new or refurbished replacement
parts, or 2) replace the product with a new product that is at least functionally
equivalent to the original product, or provide a store credit in the amount of the
purchase price of the original product. A replacement product or part, including
a user-installable part installed in accordance with instructions provided by
TRUSTECH, assumes the remaining warranty of the original product. When a
product or part is exchanged, any replacement item becomes your property and
the replaced item becomes TRUSTECH’ s property. When a store credit is given,
the original product must be returned to TRUSTECH and becomes TRUSTECH’ s
property. To obtain warranty service, e-mail TRUSTECH Limited Warranty Service
at Support@trustechproducts.com. Please be prepared to describe the product
that needs service and the nature of the problem.
This warranty does not apply to:
a) damage caused by failure to follow instructions relating to product
’
use or
the installation of components; b) damage caused by accident, abuse, misuse,
fire, floods, earthquake or other external causes; c) damage caused by service
performed by anyone who is not a representative of TRUSTECH; d) accessories
used in conjunction with a covered product; e) a product or part that has been
modified to alter functionality or capability; f) items intended to be periodically
replaced by the purchaser during the normal life of the product including,
without limitation, batteries or light bulbs; g) any product sold
“
as is
”
including,
without limitation, floor demonstration models and refurbished items; or h) a
product that is used commercially or for a commercial purpose.
9

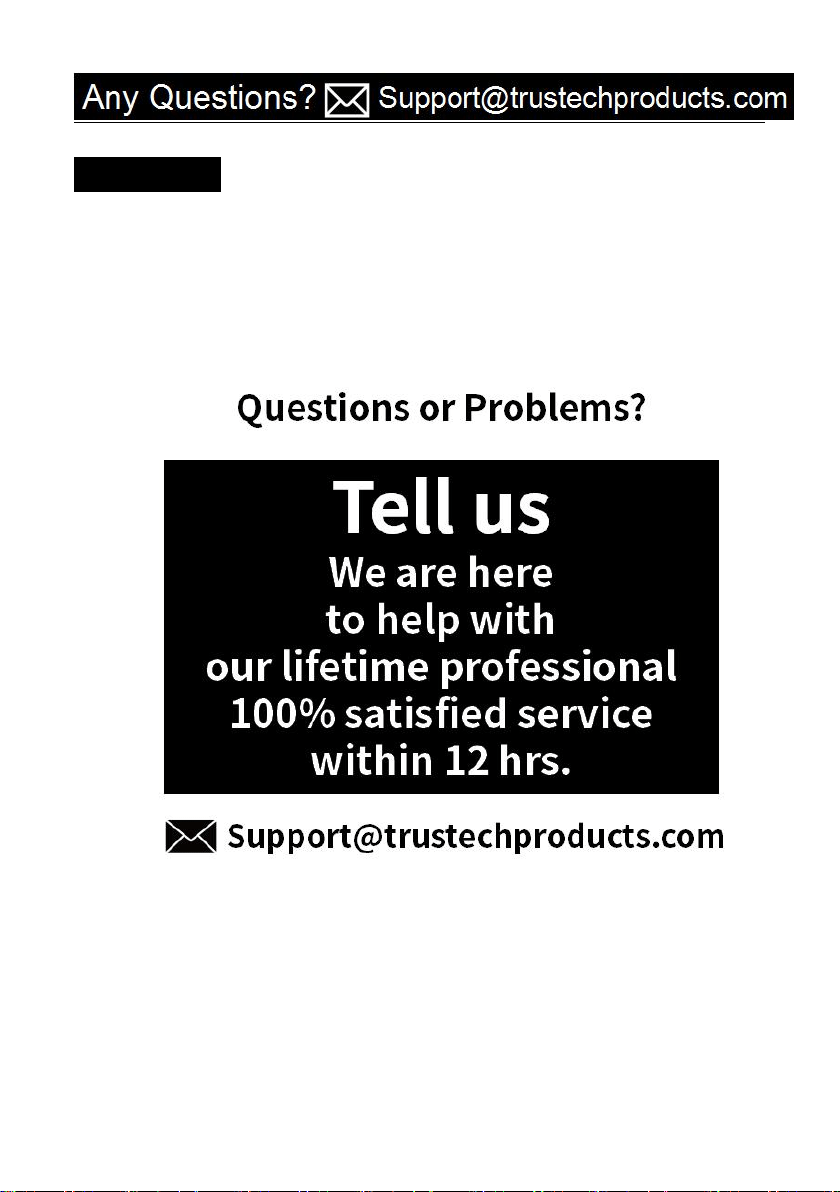

CONTACT US
Thank you for choosing TRUSTECH product.
For any customer product questions or honor your warranty, please
write to Support@trustechproducts.com. Our usual response time is
within 12 hours!
