FIREPLACE
MODEL: SFP201A-T3
INSTRUCTION MANUAL
Features:
·Realistic 3-D Flame Effect
·Three Settings:
·Power:3-D Flame、Low Heat、High Heat
·Adjustable temperature control
·AC 120V, 60Hz, 1500W
INTENDED USE:
This product is intended for indoor residential and office use only,
not for industrial or other commercial application. Use only with
electrical wiring that is in good working order and that meets
applicable codes and ordinances. This heater must be plugged into a
120V AC circuit. Do not pug anything additional into the same
circuit. If you have any questions whether your wiring is adequate,
consult a qualified electrician. Risk of fire, overheating, malfunction,
property damage, injury or even death result if not adhered to use
your heater-fan only with a working smoke detector located in the
vicinity of your heater/fan.
While using your heater/fan, you should follow the IMPORTANT
INSTRUCTIONS listed below. As part of those instructions, we have
used the word “WARNING” to indicate the level of hazard:
WARNING indicates a hazard which, if not avoided, could result in
injury or death.
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always b
e followed to reduce the risk of fire, electric shock, injury to persons
, and hyperthermia, including the following:
Read all the instructions before using this heater/fan.
1. This heater/fan is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. Use provided handle when moving this
heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes and curtains at least o.9 meters from the
front of the heater-fan and keep them away from the sides and rear.
2. Do not use heater unattended. Use of extreme caution is
necessary when any heater is used by or near children, invalids,
disabled persons or pets.
3. Do not operate the heater with a damaged power cord or after
the heater malfunctions, has been dropped or damaged in any
manner. Return heater to authorized service facility for examination,
electrical or mechanical adjustment or repair.
Do not use heater outdoors.
4. Use your heater only in dry environments. This heater is not
intended for use in a bathroom, laundry area, or similar locations,
or near sinks, washing machines, swimming pools or other sources
of water. Never locate heater where it may fall into a bathtub or
other water container. Do not use in damp environments such as
flooded basements.
5. Do not place the heater on a small, unlevel, uneven or any
surface which might allow heater to tip or fall.
For proper operation, heater should be placed on a smooth,
non-combustible surface. Do not place on rugs, carpet, vinyl
flooring or other plastic surfaces. Not for use outdoors or in wet
areas.
6. This heater is not designed as a primary heat source.
7. Always plug heaters directly into a wall outlet/receptacle. Never
use with an extension cord or relocatable power tap (outlet/power
strip).
8. Always unplug heater when not in use.
9. Do not run power cord under carpeting. Do not cover cord with
throw rugs, runners or similar coverings. Arrange cord away from
traffic area where it will not be tripped over.
10. To disconnect heater, turn controls off then remove plug from
outlet.
11. Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire or
damage the heater.
12. To prevent a possible fire, do not block air intakes or exhaust in
any manner. Do not use on soft surfaces like a bed, where openings
may become blocked.
13. A heater has hot and arcing or sparking parts inside. Do not use
it in areas where gasoline, paint or flammable liquids are used or
stored.
14. Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock or injury to persons or property.
15. Hyperthermia can result in death. Symptoms of hyperthermia
include high body temperature, headache, nausea, vomiting,
tiredness, dizziness, fainting, and rapid pulse. If you begin to
experience symptoms related to hyperthermia, turn off the heater
and seek medical attention.
16. To avoid excessive room temperatures which can cause
hyperthermia: DO NOT leave product running unattended in a
confined space around infants, or individuals with reduced physical,
sensory, or mental capabilities.
USAGE
HEATER OPERATION: Always operate the heater in the upright
position following all instructions and recommendations listed in
this manual HEATER LOCATION: Place the heater in the area of the
room that is coldest. HEATER CONNECTION: Plug heater directly
Into 120 volt A.C., 50Hz wall outlet. Be sure plug fits tightly in outlet.
A loose connection may cause overheating and damage to the plug
or heater. NOTE: To prevent overloading a circuit, do not plug the
heater into a circuit that is servicing other electrical needs.
TURNING HEATER ON:
For Flame Effect Only- Slide switch to
ON position, open the flame effect
without any heater functions. Slide
switch to OFF position, close the flame
effect.
For Low Heat-Slide main power ON/OFF
switch to ON position and Slide switch “I”
to ON position.
For High Heat-Slide main power ON/OFF
switch to ON position and slide both
switch “I” and switch “II” to ON position.
SETTING THERMOSTAT: After heater has been turned on and the
room has reached the desired temperature, slowly rotate the
thermostat knob counter-clockwise until the heater shuts off (you
should hear a faint “click”) By leaving the thermostat at the setting
it will automatically maintain this temperature. To lower the
temperature, rotate the knob further counter-clockwise towards
the LOW(-) position. To raise the temperature, rotate the
thermostat knob clockwise towards the HIGH(+) position.
TURNING OFF: Turn the Main Power On/Off power switch OFF to
discontinue use. The Low Heat Switch and High Heat Switch can
remain in any position and will have no power. They will continue to
have the same set functions when the heater is turned back on.
Heater should be unplugged when not in use.
IMPORTANT SAFETY FEATURES
The heater is equipped with an automatic overheat protection
device located inside the body of the heater. If the heater grille is
obstructed, or if the heater gets too hot for any reason, the
automatic overheat protection device will turn the heater off. To
reset the heater, simply turn power off and unplug the heater for 10
minutes until it cools down and you may plug the heater in and
restart the heater. Be sure that the heater is on a smooth level
surface with no obstructions.
CARE AND MAINTENANCE
CLEANING: CAUTION-Before cleaning the heater be sure to
disconnect power cord and allow the heater to cool completely.
Clean the outside surface with a clean damp cloth. Do not use harsh
chemical or abrasive cleaners. DO NOT IMMERSE THE HEATER IN
WATER. Allow heater to dry completely before use. Use a vacuum or
duster to keep heat and vent area clean and free of dust and dirt.
LEG ASSEMBLY:
Simple assembly is required if the legs of your heater arrive
unassembled Using a screwdriver, thread three screws through the
holes in each leg as illustrated in Fig.1 below and tighten them
down counter-clockwise onto the underside of the heater. Please
note: extra screws are provided, you may have some left over after
assembly.
REPAIR:
DO NOT OPERATE THE HEATGER WITHOUT THE GRILLE IN PLACE. DO
NOT USE THE HEATER IF IT HAS MALFUNCTIONED OR BECOME
DAMAGED IN ANY WAY. DO NOT REMOVE BACK COVER OF HEATER;
NO SERVICEABLE PARTS.
WARRANTY:
AIR CHOICE warrants this product against defects in materials
and/or workmanship under normal use for a period of ONE (1) YEAR
from the date of purchase by the original purchaser (“Warranty
Period”). If a defect arises and a valid claim is received within the
Warranty Period, at its option, AIR CHOICE will either 1) repair the
defect at no charge, using new or refurbished replacement parts, or
2) replace the product with a new product that is at least
functionally equivalent to the original product, or provide a store
credit in the amount of the purchase price of the original product. A
replacement product or part, including a user-installable part
installed in accordance with instructions provided by AIR CHOICE,
assumes the remaining warranty of the original product. When a
product or part is exchanged, any replacement item becomes your
property and the replaced item becomes AIR CHOICE’ s property.
When a store credit is given, the original product must be returned
to AIR CHOICE and becomes AIR CHOICE’ s property. To obtain
warranty service, e-mail AIR CHOICE Limited Warranty Service at
airchoice@afterservice.vip. Please be prepared to describe the
product that needs service and the nature of the problem.
This warranty does not apply to:
a) damage caused by failure to follow instructions relating to
product’ use or the installation of components; b) damage caused
by accident, abuse, misuse, fire, floods, earthquake or other
external causes; c) damage caused by service performed by anyone
who is not a representative of AIR CHOICE; d) accessories used in
conjunction with a covered product; e) a product or part that has
been modified to alter functionality or capability; f) items intended
to be periodically replaced by the purchaser during the normal life
of the product including, without limitation, batteries or light bulbs;
g) any product sold “as is” including, without limitation, floor
demonstration models and refurbished items; or h) a product that is
used commercially or for a commercial purpose.
CONTACT US:
Thank you for choosing AIR CHOICE product.
For any questions about your product or honor your warranty,
please try the following methods to get in touch with us:

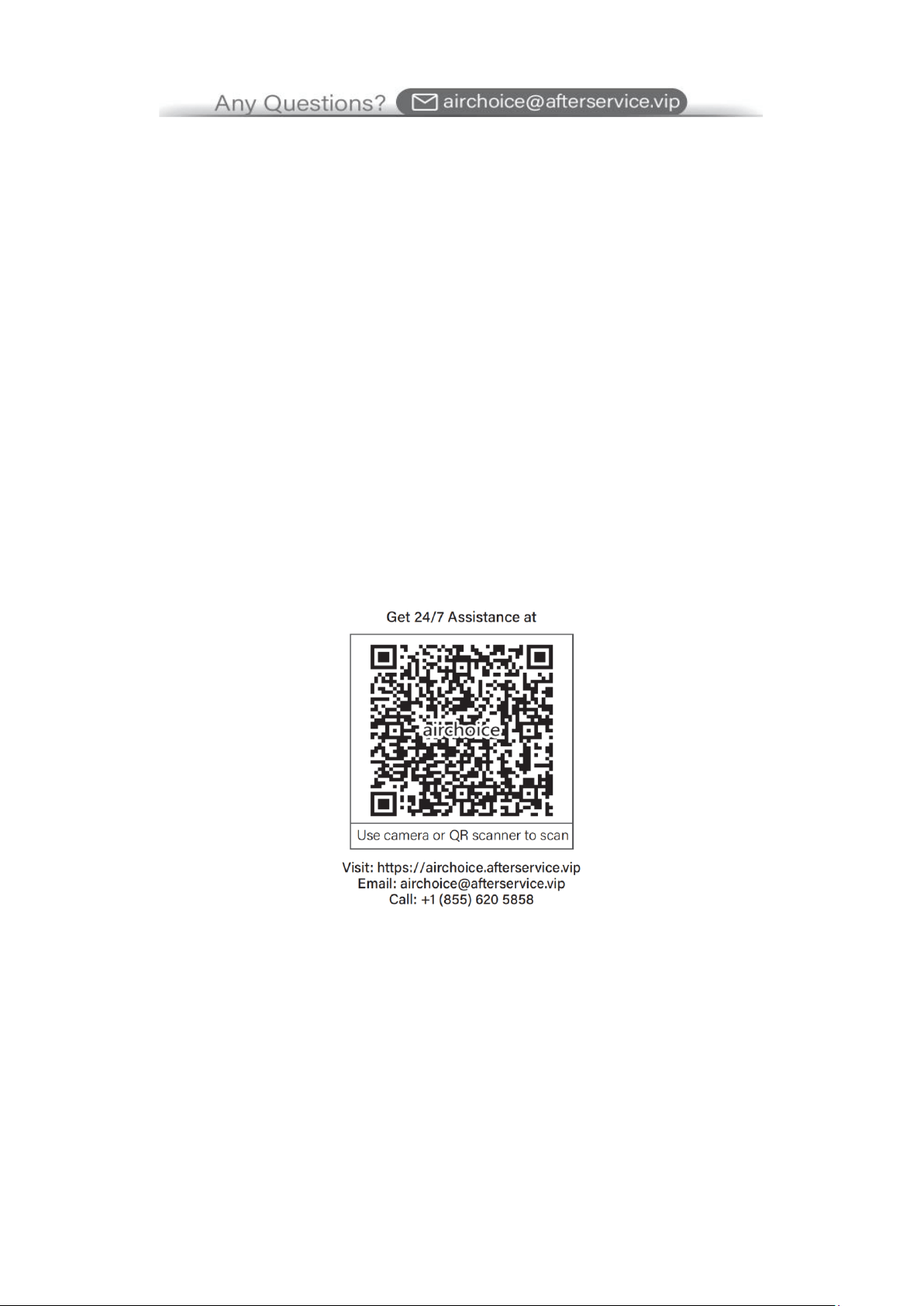

1. Scan the QR code below;
2. Write us at [airchoice@afterservice.vip];
3. Call us at +1 (855) 620 5858.
Our customer service time will respond ASAP within 24 hours!
