Electric Fireplace Stove User Manual
Model: FP401M-W
Thank you for choosing AIR CHOICE electric fireplace stove!
This user manual will provide you with valuable information necessary for the proper care and
maintenance of your new product. Please take a few moments to thoroughly read it and start enjoying
your warm winter!
Always here to help you
For any questions or help, please email us: Support@airchoiceproducts.com
2
INTRODUCTION
Please take a few minutes to read this manual carefully.
Proper maintenance and operation of this machine can provide better service.
WARNINGS
Read ALL instructions before using this unit.
CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater by yourself.
This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater.
Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft
from the front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or
other objects on the heater.
Extreme caution is necessary when any heater is used by or near children or the disabled, or when the
heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been dropped or
damaged in any manner. Return heater to authorized service facility for examination, electrical or
mechanical adjustment, or repair.
This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER
locate heater where it may fall into a bathtub or other water container. To protect against electrical
hazards, DO NOT immerse in water or other liquids.
DO NOT touch the control panel or plug with a wet hand.
DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings.
Arrange cord away from traffic area and where it will not be tripped over.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT use on soft
surfaces, like a bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint,
explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open
flames.
Always plug heaters directly into a wall outlet receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO
NOT unplug by pulling on the cord.
Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
Use only for intended household use as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not
recommended or sold by unauthorized dealers may cause hazards.
3
Always use on a dry, level surface. Use on floor only.
DO NOT use outdoors.
WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed
control device.
DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void
your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel should
perform all servicing only.
SPECIFICATIONS
Voltage Rating
120V (60Hz)
Power Consumption
1200W
Unit Size
13.46in. (W) x 6.49in. (D) x 9.84 in. (H)
Unit Weight
5.26KG
SAFETY FEATURES
Overheat Safety Feature
This heater is equipped with a overheat safety feature. When the heaters internal components reach a
certain temperature that could cause overheat and possible fire, the heater will automatically shut off.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
INSTRUCTIONS
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. FULLY INSERT.
CONSUMER SAFETY INFORMATION
THIS APPLIANCE HAS A POLARIZED PLUG (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to
fit in a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet.
DO NOT ATTEMPT TO MODIFY THIS PLUG OR DEFEAT THIS
SAFETY FEATURE IN ANY WAY.
4
PRODUCT DIAGRAM
OPERATING INSTRUCTION
Place the heater on a firm, level surface and plug into a 120V 60Hz power outlet. It can be used. Once the
Electric Fireplace has been properly assembled and connected to a electrical outlet, it is ready to operate:
1.Power switch “ O — ”
The Power switch is located on the Rear cover. Press the Power
switch with flame effect.
2. Heater switch
“
=
”
For heat function Press the Heater switch while the Power switch
function Opened.
MAINTENANCE
1. Glass Information
Under no circumstances should this product be operated with missing or broken glass.
Do not strike or slam the glass.
Do not use abrasive cleaners to clean the glass.
Replacement glass is available from the manufacturer and replacement should be carried out by a
qualified service person.
2. Cleaning
To clean the unit, first turn off controls on unit and unplug unit from power source.
To clean the glass door: remove dust with clean dry cloth or to remove finger prints and other marks
clean glass with clean damp cloth. Do not use abrasive cleaners or spray liquids on glass door surfaces.
Metal and metal painted parts should be cleaned with clean damp cloth only. Do not use abrasive
cleaners or spray liquids on this surface.
Carbon bed
Air outlet
Power
switch
Heater
switch
5
TROUBLESHOOTING
If the heater will not operate, please check the following before seeking repair of service:
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the outlet is working.
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original
packaging to repack the unit.
WARRANTY
AIR CHOICE warrants this product against defects in materials and/or workmanship under normal use for a
period of ONE (1) YEAR from the date of purchase by the original purchaser (
“
Warranty Period
”
). If a
defect arises and a valid claim is received within the Warranty Period, at its option, AIR CHOICE will either 1)
repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a
new product that is at least functionally equivalent to the original product, or provide a store credit in the
amount of the purchase price of the original product. A replacement product or part, including a user-
installable part installed in accordance with instructions provided by AIR CHOICE, assumes the remaining
warranty of the original product. When a product or part is exchanged, any replacement item becomes your
property and the replaced item becomes AIR CHOICE’ s property. When a store credit is given, the original
product must be returned to AIR CHOICE and becomes AIR CHOICE’ s property. To obtain warranty service, e-
mail AIR CHOICE Limited Warranty Service at Support@airchoiceproducts.com. Please be prepared to
describe the product that needs service and the nature of the problem.
This warranty does not apply to:
a. damage caused by failure to follow instructions relating to product’ use or the installation of
components;
b.
damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;
c. damage caused by service performed by anyone who is not a representative of AIR CHOICE;
d. accessories used in conjunction with a covered product
e. a product or part that has been modified to alter functionality or capability;
f. items intended to be periodically replaced by the purchaser during the normal life of the product
including, without limitation, batteries or light bulbs;
g. any product sold “as is” including, without limitation, floor demonstration models and refurbished
items; or
h. a product that is used commercially or for a commercial purpose.

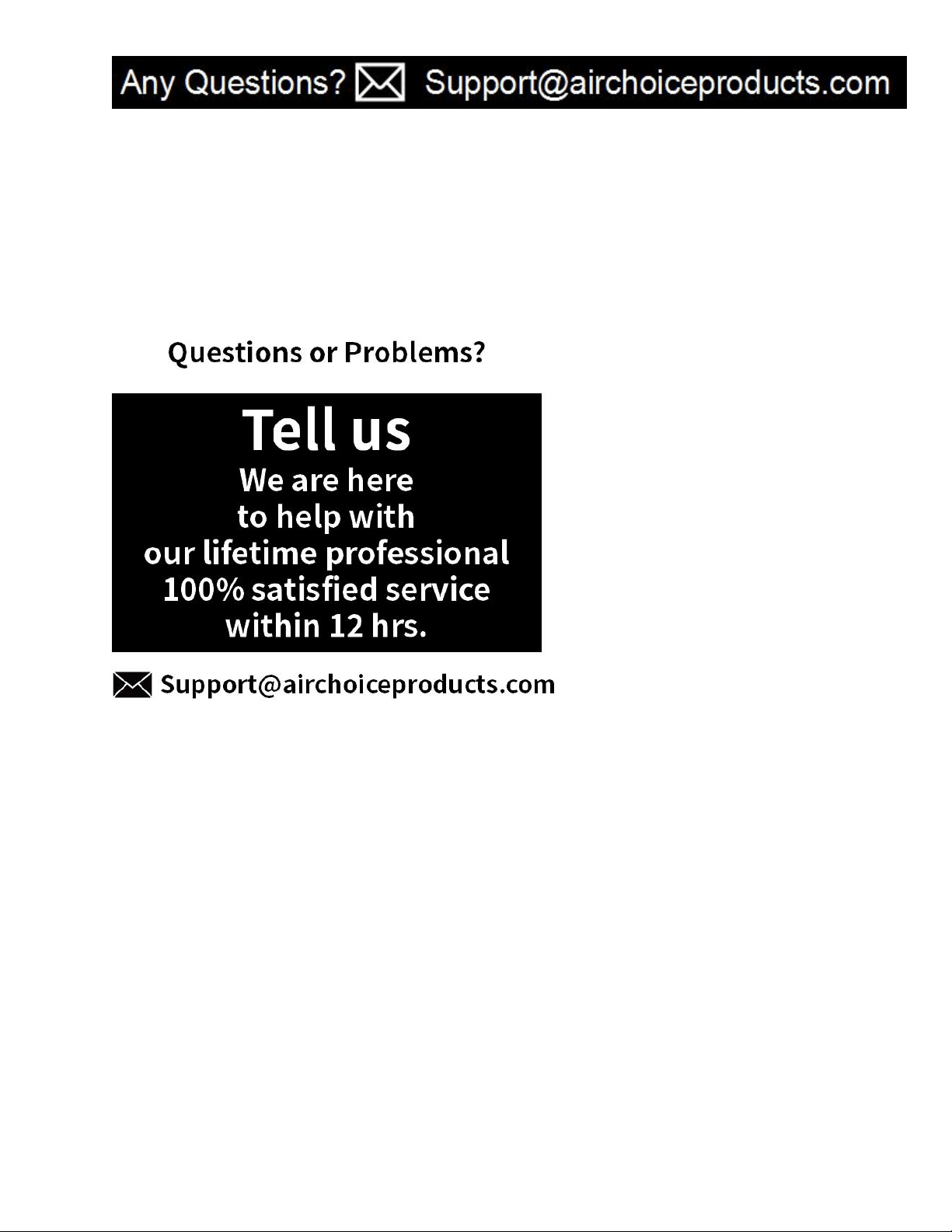

CONTACT US
6
Thank you for choosing AIR CHOICE product.
For any customer product questions or honor your warranty, please write to
[email protected]. Our usual response time is within 12 hours!
