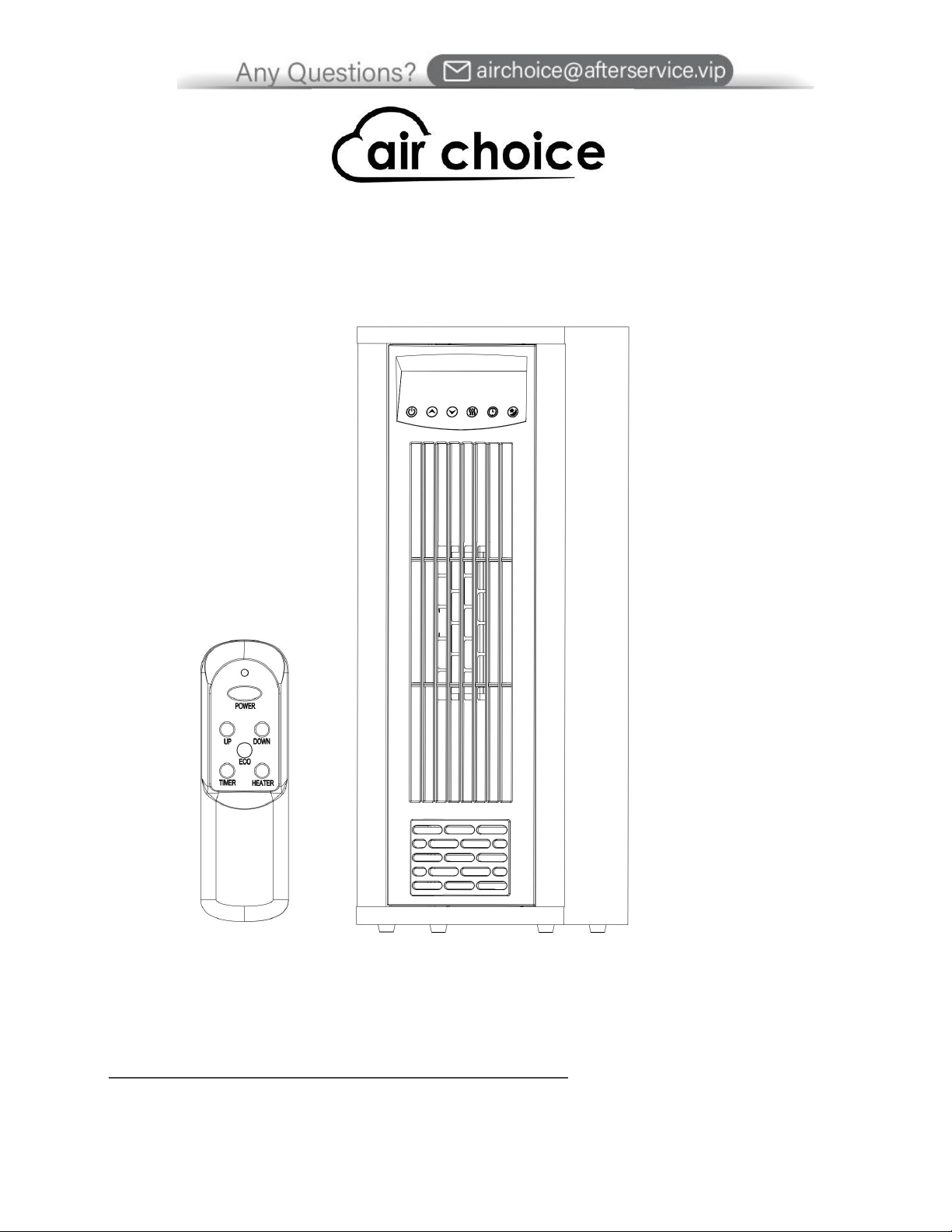

Electric Space Heater
MODEL: TWH-15Q2
Thank you for choosing AIR CHOICE Space Heater!
This user manual will provide you with valuable information necessary for the proper care and
maintenance of your new product. Please take a few moments to thoroughly read it and start enjoying
your warm winter!
Always here to help you
2
Warning: Please read the user manual carefully before using the unit and save it for future reference.
Thank you for choosing the products of AIR CHOICE. This user manual will provide you with valuable
information necessary for the proper care and maintenance of your new product. Please take a few
moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of
your new heater.
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, injury to persons, and hyperthermia, including the following:
IMPORTANT INSTRUCTIONS
When using this electric unit, basic safety precautions should always be followed to reduce the risk of
fire, electric shock, and injury to persons, including the following:
Read ALL instructions before using this unit.
1. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
2. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater.
3. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at
least 3 ft from the front of the heater and keep them away from the sides, top, and rear. DO NOT
place towels or other objects on the heater.
4. Extreme caution is necessary when any heater is used by or near children or the disabled, or when
the heater is left operating and unattended.
5. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been
dropped or damaged in any manner. Return heater to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER
locate heater where it may fall into a bathtub or other water container. To protect against electrical
hazards, DO NOT immerse in water or other liquids.
7. DO NOT touch the control panel or plug with a wet hand.
8. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar
coverings. Arrange cord away from traffic area and where it will not be tripped over.
9. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the heater.
10. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT use on
soft surfaces, like a bed, where openings may become blocked.
3
11. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint,
explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and
open flames.
12. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
13. To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
14. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug,
DO NOT unplug by pulling on the cord.
15. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
16. Use only for intended household use as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not
recommended or sold by unauthorized dealers may cause hazards.
17. Always use on a dry, level surface. Use on floor only.
18. Hyperthermia can result in death. Symptoms of hyperthermia include high body temperature,
headache, nausea, vomiting, tiredness, dizziness, fainting, and rapid pulse. If you begin to
experience symptoms related to hyperthermia, turn off the heater and seek medical attention.
19. To avoid excessive room temperatures which can cause hyperthermia: DO NOT leave product
running unattended in a confined space around infants, or individuals with reduced physical,
sensory, or mental capabilities.
20. DO NOT use outdoors.
21. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state
speed control device.
22. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will
void your warranty. The inside of the unit contains no user serviceable parts. Qualified personnel
should perform all servicing only.
23. Connect to properly grounded outlets only.
24. Save these instructions.
4
SPECIFICATION
Voltage Rating
120 V (60Hz)
Power Consumption
1500W
Unit Size
8.46 in. (W) x 10.23 in. (D) x 24.01 in. (H)
Unit Weight
14.9 lbs
SAFETY FEATURES
Tip-Over Safety Feature
This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch
will automatically shut the heater off. Once the heater is restored an upright position, the heater will
reset. To continue operation, turn on the heater using the supplied remote control or the control panel
on the heater.
Overheat Safety Feature
This heater is equipped with a overheat safety feature. When the heaters internal components reach a
certain temperature that could cause overheat and possible fire, the heater will automatically shut off.
WARNING: This heater has a voltage rating of 120
volts. The cord has a plug as shown in A. An
adapter as shown in C is available for connecting
three-blade grounding-type plugs to two-slot
receptacles. The grounding lug extending from the
adapter must be connected to a permanent
ground such as a properly grounded outlet box.
The adapter should not be used if a three-slot
grounded receptacle is available.
DO NOT DEFEAT THE SAFETY PURPOSE OF THE
GROUNDED PLUG.
WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the
outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a
different outlet. Contact a qualified electrician to inspect the original outlet for damage.
5
ITEMS IN THE BOX
·INFRARED ZONE HEATING SYSTEM
·
REMOTE CONTROL (It needs 2 AAA batteries, but not Included.)
·INSTRUCTION MANUAL
PRODUCT DIAGRAM
Air Outlet
Control Panel
Air Intake
Temp Sensor
Handle
REMOTE CONTROL
6
1、ON/OFF button: Powers the display on and off.
2
、
Temp up button: To increase desired temperature.
3、Temp down button: To decrease desired temperature.
4
、
Heating Mode button
：
To select between High and Low modes.
5、Timer button：Used to engage timer mode and to set hour value for the timer.
6
、
Eco button
：
Operate the machine in energy-saving mode.
7、Digital display：Indicate set room temperature or time or heating mode or lock.
8
、
Signal receiving window: For receiving remote control signal.
Control Panel
1
2
3
4
6
8
7
5
7
PREPARATION
Place the heater on a firm, level surface and plug it into a 120V 60Hz grounded power outlet. Turn on
the power switch in the rear part of the unit. Only operate the heater in the upright position. Insert 2
AAA batteries into the remote control before using the remote control. (The batteries are not included.)
Remote Control
ON/OFF button: Used for power-on or power-off
Mode button
：
Used for heating mode selection
Eco button：Used for energy saving mode
Timer button: Used for setting timer and adjust time value of timing
Temp up button: to make set temperature rise
Temp down button: to make set temperature decline
8
OPERATING INSTRUCTION
1、Start and select working mode
or
Turn the heater on by pressing the ON/OFF button on the control
panel or by pressing the Power button on the supplied remote
control.
Once power is off, heating element will stop working at first. Fan
will prolong working for 3 min to emit plenty of heat inside. This
mark will indicate running during the 3 min.
or
Select a heat Mode
Press the HEAT button to toggle between high and low heat
modes.
or
Press ECO button for ECO mode selection.
High Mode uses 1500W; Low Mode uses 1000W. ECO mode is an
Economic Energy Saving Function. When ECO mode is chosen, the
heater will manage itself from less to more heating power (watts)
in an attempt to maintain a constant warm 68℉.
2、Setting Desired Temperature
or
Adjust the desired temperature by pressing the Up/Down
arrows on the control panel or remote control.
Desired temperature options vary from 59℉ to 86℉. Once you
have chosen the desired temperature, the heater will remain
on until the room temperature increases to the temperature on
the digital display. The heater will cycle on and off to maintain
the desired room temperature.
9
3、Setting the POWER OFF TIMER Function
Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and
can only be set while the heater’s display is in the “On” position.
or
Turn the heater to the
“
On
”
position .Press the Timer button on
the heater’s control panel or the remote.
The digital display changes from the “temperature” to the
“hours” option for the timer. Continue to press the timer
button to change the number of hours you would like the
heater to run before powering itself off .The hour options for
the timer are from 0 to 12 hrs. (in 1 hr increments).
or
The selected hour increments will flash for a few seconds, then
revert back to the set desired temperature .The heater will
power OFF when the internal heater clock counts down the
hour increments you set.
4
、
Setting the POWER-ON-TIMER Function
(Note: The Power-ON-Timer Function will allow for the heater to power ON after a certain set time, and
can only be set while the heater
’
s display is in the
“
Off
”
position.
or
Turn the heater to the “OFF” position .Press the Timer button
on the heater
’
s control panel or the remote.
The digital display shows the “hours” option for the timer.
Continue to press the timer button to change the number of
hours you would like the heater
’
s internal clock to count down
before powering itself on .The hour options for the timer are
from 0 to 12 hrs. (in 1 hr increments).
or
As long as a timer is set, the digital screen will always display
the timing time. The heater will power itself ON when the
internal heater clock counts down the hour increments you set.
10
5、Setting electro lock
The Electro Lock can help avoid the heater from being accidentally engaged by children. The locking
mechanism can be set in both the ON and OFF modes.
And
Press Temp Up and Temp Down buttons at the same time for 3
seconds. Locking is complete when you hear a beep. When
locked, the functions of the control panel and remote will be
locked for use.（LC displayed on the digital screen）
And
When you need to unlock it, press Temp Up and Temp Down
buttons at the same time for 3 seconds. You will hear a
beep .The control panel and remote control will become
functional again.
MAINTENANCE
1. Turn off the heater on by pressing the ON/OFF button on the control panel or by pressing the
Power button on the supplied remote control.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a
mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let
liquid enter the heater.
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the unit is completely dry before use.
7. If won’t use the unit for a long time, please take out battery in remote control according to
following steps, then take care of the remote control.
11
STORAGE
Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the
original packaging to repack the unit.
TROUBLESHOOTING
If the heater will not operate, please check the following before seeking repair advice:
Check if the power cord is plugged into an electrical outlet, if not, plug in.
Check if electricity to the main fuse is working.
Check to see if the battery on the remote is placed correctly, undamaged.
NOTE: For the heater to function properly, the desired temperature on the heater must be set a
few degrees higher than the temperature in the room. If the seems to not be heating, increase the
desired temperature on the heater to engage the heat elements.
Battery
Lid
12
WARRANTY
AIR CHOICE warrants this product against defects in materials and/or workmanship under normal use for a
period of ONE (1) YEAR from the date of purchase by the original purchaser (
“
Warranty Period
”
). If a defect
arises and a valid claim is received within the Warranty Period, at its option, AIR CHOICE will either 1) repair
the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new
product that is at least functionally equivalent to the original product, or provide a store credit in the amount
of the purchase price of the original product. A replacement product or part, including a user-installable part
installed in accordance with instructions provided by AIR CHOICE, assumes the remaining warranty of the
original product. When a product or part is exchanged, any replacement item becomes your property and the
replaced item becomes AIR CHOICE
’
s property. When a store credit is given, the original product must be
returned to AIR CHOICE and becomes AIR CHOICE’s property. To obtain warranty service, e-mail AIR CHOICE
Limited Warranty Service at airchoice@afterservice.vip. Please be prepared to describe the product that
needs service and the nature of the problem.
This warranty does not apply to:
damage caused by failure to follow instructions relating to product’ use or the installation of components;
damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;
damage caused by service performed by anyone who is not a representative of AIR CHOICE;
accessories used in conjunction with a covered product
a product or part that has been modified to alter functionality or capability;
items intended to be periodically replaced by the purchaser during the normal life of the product including,
without limitation, batteries or light bulbs;
any product sold ‘as is’ including, without limitation, floor demonstration models and refurbished items; or
a product that is used commercially or for a commercial purpose.
13
CONTACT US
Thank you for choosing AIR CHOICE product.
If there is a defect arises during one year, please feel free to contact us to get
your valid claim. To obtain warranty service, please your model and order of the product via:
� airchoice@afterservice.vip
☎ +1（855）620 5858
Our usual response time is within 12 hours!
