DIGITAL VIDEO DISC PLAYER &
VIDEO CASSETTE RECORDER
DVP3200V/37
User Manual
Thank you for choosing Philips.
Need help fast?
Read your Quick Start Guide and/or
Owner’s Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.philips.com/usasupport
or call
1-888-PHILIPS (744-5477)
while with your product
(and Model / Serial number)
Philips vous remercie de
votre confiance.
Besoin d’une aide
rapide?
Les Guide de mise en route rapide et Manuel de
l’utilisateur regorgent d’astuces destinées à
simplifier l’utilisation de votre produit Philips.
Toutefois, si vous ne parvenez pas à résoudre
votre probléme, vous pouvez accéder à
notre aide en ligne à l’adresse
www.philips.com/usasupport
ou formez le
1-800-661-6162 (Francophone)
1-888-PHILIPS (744-5477) (English speaking)
Veillez à avoir votre produit à
portée de main
(et model / serial nombre)
Gracias por escoger Philips.
Necesita ayuda
inmediata?
Lea primero la Guía de inicio rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar
plenamente de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
www.philips.com/usasupport
o llame al teléfono
1-888-PHILIPS (744-5477)
y tenga a mano el producto
(y número de model / serial)
E8A21UD_EN1 5/29/06 3:13 PM Page 1
English
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so
don't miss out. Complete and return your Product Registration Card at once, or register online at
www.philips.com/usasupport to ensure:
Return your Product Registration Card or register online at
www.philips.com/usasupport today to get the very most from your purchase.
Know these
safety symbols
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
*Proof of
Purchase
Returning the enclosed card
guarantees that your date of pur-
chase will be on file, so no addi-
tional paperwork will be required
from you to obtain warranty ser-
vice.
*Product Safety
Notification
By registering your product, you'll
receive notification - directly
from the manufacturer - in the
rare case of a product recall or
safety defect.
*Additional
Benefits
Registering your product guaran-
tees that you'll receive all of the
privileges to which you're enti-
tled, including special money-sav-
ing offers.
Visit our World Wide Web Site at http://www.philips.com/usasupport
For Customer Use
Enter below the Serial No. which is located on the rear
of the cabinet. Retain this information for future
reference.
Model No. ______________________________________
Serial No. ______________________________________
This “bolt of lightning” indicates uninsulated material
within your unit may cause an electrical shock. For
the safety of everyone in your household, please do
not remove product covering.
The “exclamation point” calls attention to features
for which you should read the enclosed literature
closely to prevent operating and maintenance
problems.
WARNING: To reduce the risk of fire or electric
shock, this apparatus should not be exposed to rain or
moisture, and objects filled with liquids, such as vases,
should not be placed on this apparatus.
CAUTION: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
ATTENTION:Pour éviter les choc électriques, introduire la
lame la plus large de la fiche dans la borne correspondante de
la prise et pousser jusqu’au fond.
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.
You’ve selected one of the best-built, best-
backed products available today.We’ll do
everything in our power to keep you happy
with your purchase for many years to come.
As a member of the PHILIPS “family,” you’re
entitled to protection by one of the most
comprehensive warranties and outstanding
service networks in the industry.What’s
more, your purchase guarantees you’ll
receive all the information and special offers
for which you qualify, plus easy access to
accessories from our convenient home
shopping network.
Most importantly, you can count on our
uncompromising commitment to your total
satisfaction.
All of this is our way of saying welcome -
and thanks for investing in a PHILIPS
product.
P.S. To get the most from your
PHILIPS purchase, be sure to
complete and return your Product
Registration Card at once, or
register online at:
www.philips.com/usasupport
E8A21UD_EN1 5/29/06 3:13 PM Page 2

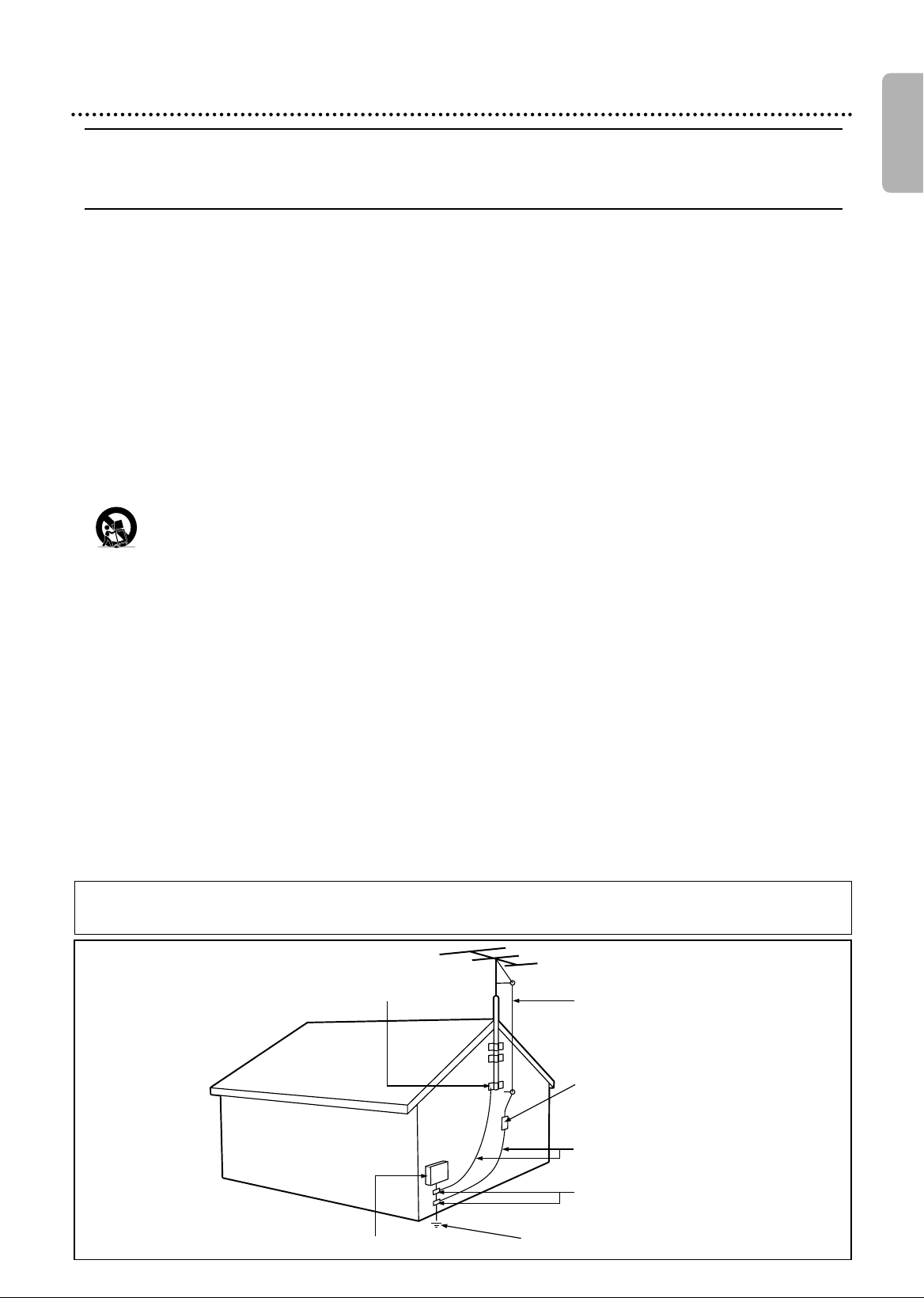

ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
Example of Antenna Grounding
as per NEC - National Electric Code
Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
Safety Information 3
English
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with
the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or groundingtype
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and third grounding prong. The
wide blade or third prong are provided for your safety. When the pro-
vided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus combina-
tion to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-sup-
ply cord or plug is damaged, liquid has been spilled or objects have fall-
en into apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. This product may contain lead and mercury. Disposal of these materials
may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the
Electronic Industries Alliance: www.eiae.org
16. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
17. Tilt/Stability - All televisions must comply with recommended interna-
tional global safety standards for tilt and stability properties of its cabi-
net design.
●
Do not compromise these design standards by applying excessive pull
force to the front, or top, of the cabinet which could ultimately overturn
the product.
●
Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could unsuspect-
ingly fall from the top of the set and cause product damage and/or per-
sonal injury.
18. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
19. Power Lines - An outdoor antenna should be located away from power
lines.
20. OutdoorAntenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70- 1984,
provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna dis-
charge unit, size of grounding connectors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode. See Figure below.
21. Object and Liquid Entry - Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through openings.
a) Warning: To reduce the risk of fire or electric shock, this apparatus
should not be exposed to rain or moisture and objects filled with liq-
uids, such as vases, should not be placed on this apparatus.
22. Battery Usage CAUTION - To prevent battery leakage that may result
in bodily injury, property damage, or damage to the unit:
●
Install all batteries correctly, with + and - aligned as marked on the
unit.
●
Do not mix batteries (old and new or carbon and alkaline, etc.).
●
Remove batteries when the unit is not used for a long time.
23. Overloading - Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric
shock.
24. Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage points
or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
25. Replacement Parts - When replacement parts are required, be sure the
service technician has used replacement parts specified by the manufac-
turer or have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
26. Safety Check - Upon completion of any service or repairs to this prod-
uct, ask the service technician to perform safety checks to determine
that the product is in proper operating condition.
E8A21UD_EN1 5/29/06 3:13 PM Page 3
4 Safety Information (cont’d)
English
Safety Precautions
Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.
Federal Communications Commission (FCC) Warning: Any unauthorized changes or
modifications to this equipment void the user’s authority to operate it.
• Do not stand the unit up vertically. Install the unit in a horizontal and stable position.
• Be sure to remove the disc and unplug the AC power cord from the outlet before carry-
ing the unit.
Department of Health and Human Services (DHHS) Certification: Complies with 21
Center for Radiation (CFR) chapter 1 subchapter J applicable at time of manufacture.
Laser Safety: This unit employs a laser. Only a qualified service person should remove
the cover or attempt to service this device, due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK
DEFEATED. DO NOT STARE INTO BEAM. THE BEAM IS LOCATED INSIDE, NEAR THE
DECK MECHANISM.
Special Information for Canadian Users: This Class B digital apparatus com-
plies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Radio/TV Interference: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio commu-
nications. However, there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and the receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiv-
er is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
Copyright Notice: The making of unauthorized copies of copy-protected material,
including computer programs, files, broadcasts and sound recordings, may be an infringement of
copyrights and constitute a criminal offence. This equipment should not be used for such pur-
poses.
Copyright Protection: Unauthorized copying, broadcasting, public performance, and
lending of Discs are prohibited.
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection technology
must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly
is prohibited.
Notice for Progressive Scan Use: Consumers should note that not all high defini-
tion television sets are fully compatible with this product and may cause artifacts to be dis-
played in the picture. In case of picture problems with 525 progressive scan output, it is recom-
mended that the user switch the connection to the ‘standard definition’ output. If there are
questions regarding your TV set compatibility with this 525p DVD player, please contact our
customer service center.
Declaration of Conformity
Model Number: DVP3200V/37
Trade Name: Philips
Responsible Party: Philips Consumer Electronics North America
P. O . Box 671539
Marietta, GA 30006-0026
1-888-PHILIPS (744-5477)
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby
Laboratories.
Copyright 2006 Philips. All rights reserved.
VCR Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation.The VCR Plus+
system is manufactured under license from Gemstar Development Corporation.
E8A21UD_EN1 5/29/06 3:13 PM Page 4
Table of Contents 5
General Information
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Playable Discs and Video Cassettes . . . . . . . . . . . . . .7
Initial DVD/VCR Setup

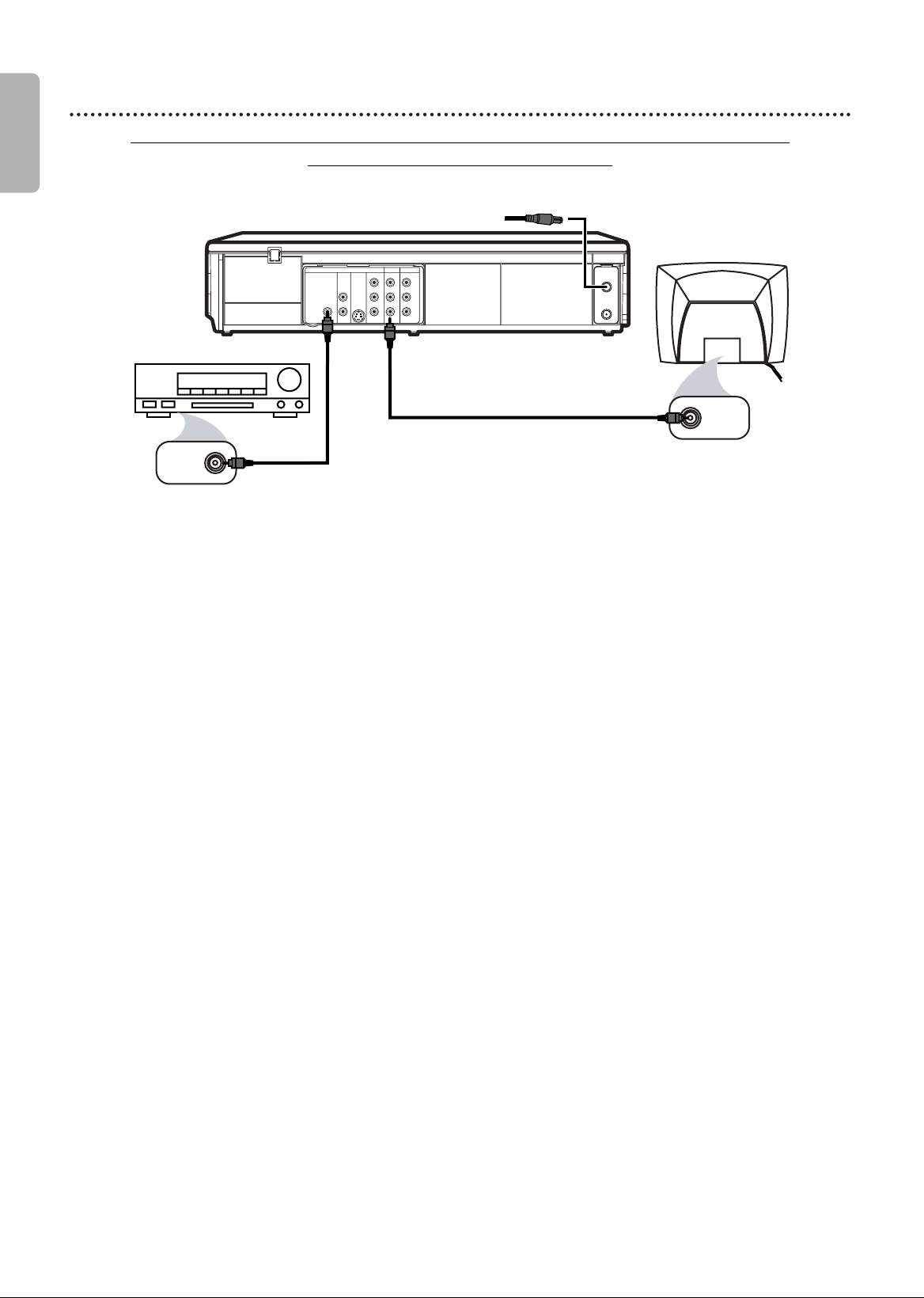

Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-14
Remote Control Setup . . . . . . . . . . . . . . . . . . . . . .15
First-time DVD/VCR Setup . . . . . . . . . . . . . . . . . . .16
Basic Playback
Video Cassette Playback . . . . . . . . . . . . . . . . . . . . .17
Disc Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Basic DVD/VCR Controls
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

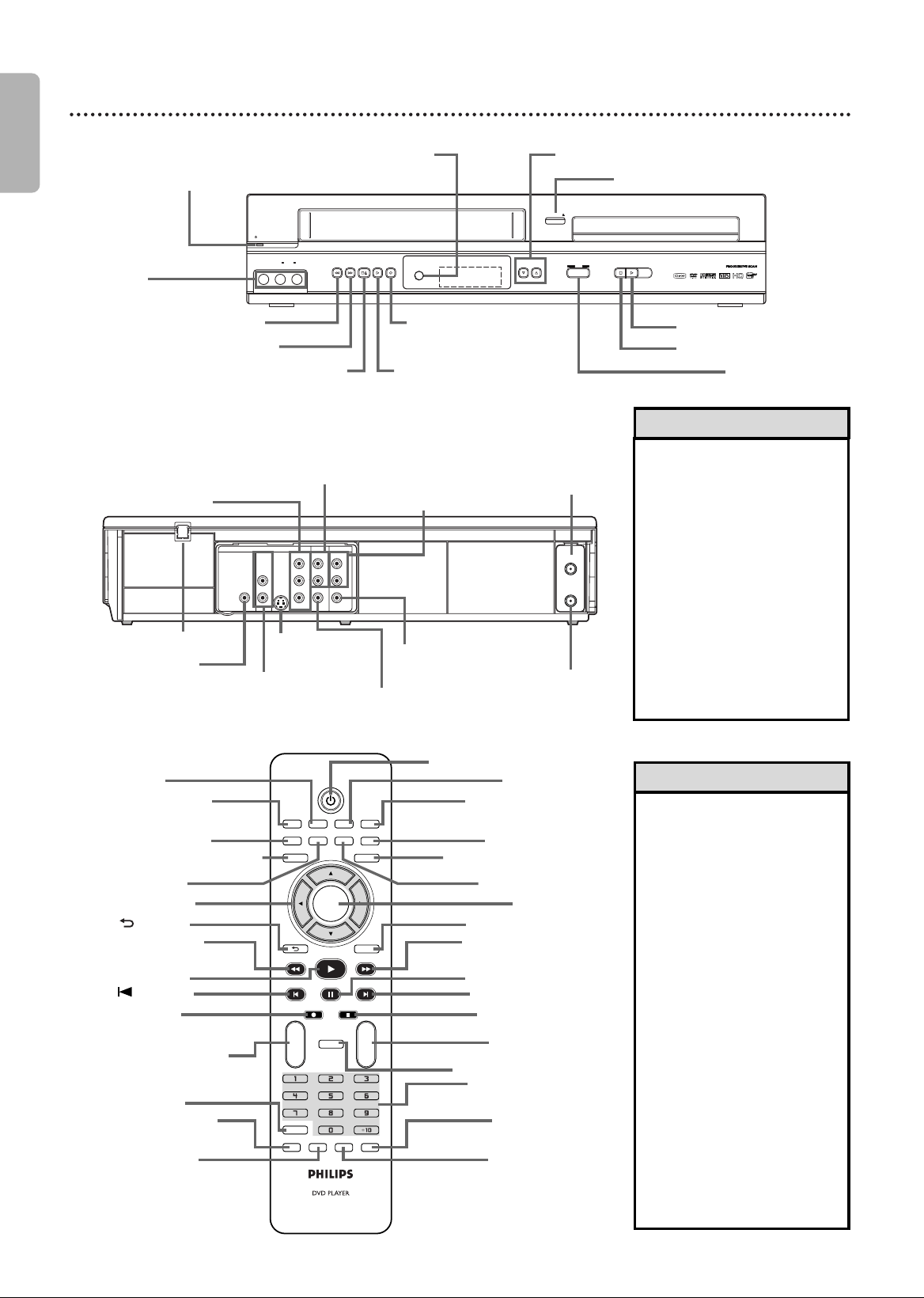

Front Panel, Rear Panel and Remote Control . . . . .20
Additional VCR Setup
Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Clock (VCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Language (VCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
VCR Status Displays . . . . . . . . . . . . . . . . . . . . . . . .23
VCR Recording Options
Videotape Recording . . . . . . . . . . . . . . . . . . . . . . . .24
Recording One Channel/Watching Another . . . . . .25
One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . .26
Rerecording (Tape Duplication) . . . . . . . . . . . . . . . .27
Timer Recording . . . . . . . . . . . . . . . . . . . . . . . .28-29
DVD to Videotape Duplication . . . . . . . . . . . . . . . .30
Video Cassette Playing Options
Setting Up the VCR Plus+
®
Programming System Manually . . . . . . . . . . . . . .31-32
Timer Recording with the VCR Plus+
Programming System . . . . . . . . . . . . . . . . . . . . .33-35
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Ta pe Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Time Search, Index Search . . . . . . . . . . . . . . . . . . . .37
Special Effects Playback . . . . . . . . . . . . . . . . . . . . . .38
Automatic Operation Features . . . . . . . . . . . . . . . .38
Additional VCR Features
Multi-Channel Television Sound/Hi-Fi Stereo . . . . . .39
Disc Playback Features
Menus, Playback Control (PBC) Function . . . . . . . .40
Fast Forward/Fast Reverse . . . . . . . . . . . . . . . . . . .41
x1.3 and x0.8 Rapid Play with Voice . . . . . . . . . . . . .41
Title/Chapter/Time Search . . . . . . . . . . . . . . . . . . .42
Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Paused and Step-by-Step Playback, Resume On . . .44
Repeat, A-B Repeat . . . . . . . . . . . . . . . . . . . . . . . . .45
Markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Subtitles, Camera Angles . . . . . . . . . . . . . . . . . . . . .47
Audio Language, Stereo Sound Mode . . . . . . . . . . .48
Slow Motion, Zoom . . . . . . . . . . . . . . . . . . . . . . . .49
Program /Random Playback . . . . . . . . . . . . . . . . . . .50
MP3/Windows Media
TM
Audio/JPEG Playback . . .51-52
DivX
®
Playback . . . . . . . . . . . . . . . . . . . . . . . . . .53-54
On-Screen Displays . . . . . . . . . . . . . . . . . . . . . .55-56
Black Level,Virtual Surround . . . . . . . . . . . . . . . . . .57
Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
DVD Player Setup Options
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58-59
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60-61
Progressive Scan . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Parental Password . . . . . . . . . . . . . . . . . . . . . . . . . .63
Parental Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65-66
Information You May Need
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . .68-70
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . .71
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Information Index . . . . . . . . . . . . . . . . . . . . . . . . . .73
English
E8A21UD_EN1 5/29/06 3:13 PM Page 5
English
6 Introduction
VCR Features
• Automatic Head Cleaner
• Channel Setup
• English, French and Spanish menus and
displays
• Multi-Channel TV Sound
• 19 Micron head
• Recording: One-Touch and Timer
• Repeat Playback
• Searching:Time, Index, Forward and
Reverse
• Still Picture
•Tape Counter
• The VCR Plus+ Programming System
•Tracking Adjustment
Welcome!
This DVD/VCR combines a Digital Video Disc (DVD) player and a Hi-Fi Video Cassette
Recorder (VCR) into one unit, letting you play DVDs, Audio Compact Discs (Audio
CDs), and Video Cassettes on one piece of equipment.
Read this owner’s manual carefully to learn how to use the features listed below.
Package Contents
The following items are provided with your new DVD/VCR.
• Remote Control and two AAA batteries
• One black RF coaxial cable, 75 ohm
• One set of Audio (red and white tips) and Video (yellow tips) cables
• This Owner’s Manual and Quick Start Guide
DVD Disc menus...
Some explanations in this manual describe DVD disc menus. DVD manufacturers set
the menus, which vary among DVDs. Not all DVDs have menus. If the DVD has a
menu, access it by pressing DVD, then DISC/VCR MENU on the remote control.
Details are on page 40.
DVD Player Setup menu...
Some instructions explain how to use the DVD player’s Setup menu to set up features
of the DVD player or a DVD. Access the DVD player menu by pressing DVD/SETUP
on the remote control when playback is stopped. Even if a feature is set in the DVD
player’s menu, it may not be available if the current DVD does not include that feature.
Available Disc Features...
All features described in this manual are not available on every disc. If the feature is
not available on the disc, you cannot use the DVD/VCR to make it
available. An “X” will appear in the top right corner of the TV screen if
you try to access a feature that is not currently available.
Disc Features
• Audio Language choices *
• Camera Angles *
• DVD menus in a desired
language *
• Markers
• MP3 Playback
• JPEG Playback
• DivX
®
Playback
• Windows Media
TM
Audio
Playback
• Dual Playback
• Parental control *
• Paused/Fast/Slow/
Step-by-Step Playback
• Program Playback
• Progressive Scan
• Random Playback
• Repeat, A-B Repeat
• Resume On
• Specific Time/Title/
Chapter/Track Search
• Subtitles *
• Zoom
* If available on the disc
E8A21UD_EN1 5/29/06 3:13 PM Page 6
English

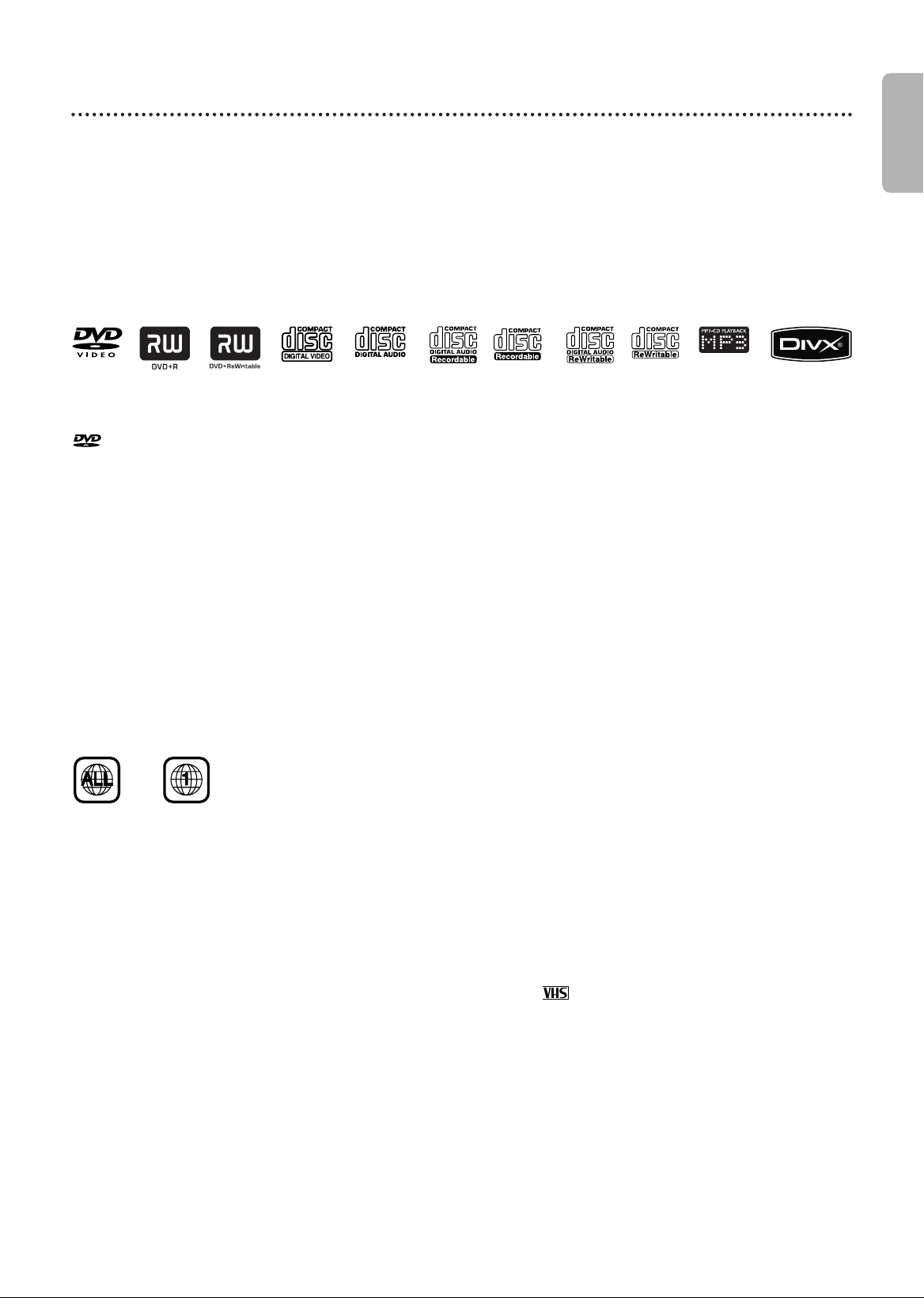

Playable Discs and Video Cassettes 7
Playable Discs
The DVD player will play Digital Video Discs (DVDs); finalized Digital Video Discs Rewritable (DVD+RW);Video
Compact Discs (VCDs);Audio Compact Discs (CDs); finalized Compact Discs Recordable (CD-R) and Compact
Discs Rewritable (CD-RW).
To play a DVD, make sure it meets the requirements for Region Codes and Color Systems as described
below. Discs that have the following logos will play on the DVD player. Other disc types are not guaranteed
to play in the DVD/VCR.
On a Super Audio CD, only the sound on the normal CD layer can be heard. The sound on the high-density
Super Audio CD layer cannot be heard.
• Do not stand the unit up vertically. Install the unit in a horizontal and stable position.
• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.
Windows Media is a trademark of Microsoft Corporation.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
• Official DivX Certified™ product; Plays DivX
®
6.0, DivX
®
5, DivX
®
4, DivX
®
3, and DivX
®
VOD video content
(in compliance with DivX Certified™ technical requirements).
• Discs containing the DivX
®
files with the DivX
®
GMC (Global Motion Compensation) playback feature, which
is DivX
®
supplemental function, cannot be played back on this unit.
ABOUT THE PBC FUNCTION OF VIDEO CD
This unit can play Video CD 1.1 (without PBC) and 2.0 (with PBC).
With version 2.0 (with PBC), you can use interactive menu (e.g., playlists) on the TV screen.
When playing a Video CD with PBC, some operations cannot be performed unless the PBC function is
cancelled temporarily. See page 40 for more details.
Region Codes
DVDs must be labeled for ALL regions or for Region 1 in order to play on this DVD player. You cannot play
DVDs that are labeled for other regions.
Look for the symbols below on your DVDs. If these region symbols do not appear on your DVD, you
cannot play the DVD in this player.
The number inside the globe refers to a region of the world. Region 1 represents the
United States, Canada, upper regions of North America, Bermuda, the U.S.Virgin
Islands, and small regions near Australia.
A disc encoded in a specific region format can only play on DVD players with the same region code. For
example, if a disc is labeled for Region 2, you cannot play the DVD on this player.
Color Systems
Different color systems are available throughout the world. The most common color systems are NTSC,
which is used primarily in the United States and North America, PAL, and SECAM.
This DVD player will play both NTSC and PAL DVDs. You cannot play DVDs recorded in other formats.
The color system of the DVD may be listed on the DVD or on the disc case. Your TV must have the NTSC
and/or PAL color system as well.
Playable Video Cassettes
The VCR of this DVD/VCR has a High Quality (HQ) system and is compatible with existing Video Home
System (VHS) equipment. Use only video cassettes that have the mark. The use of other tapes may
result in poor picture quality and excessive deposits on the video heads, which may not be covered by the
warranty if damage occurs.
The VCR also has a 19 micron head, which provides a better picture when you view tapes recorded in slow
speed (SLP).
Unacceptable Discs
If you insert an unacceptable type of disc, a Disc Error message may appear on the TV screen. The following
discs will not play on this DVD player.
• CD-ROM • Compact Disc-Interactive (CD-I) • DVD-RAM
• Video Single Disc (VSD) • DVD-ROM • DVD-Audio
• Unfinalized disc • DVD contains MP3, Windows Media
TM
Audio or JPEG files
• DVD-R or DVD-RW discs recorded in VR format or non-compatible recording mode
On the following disc, the sound may not be heard.
• Super Audio CD - Only the sound on the CD layer can be heard. The sound on the high-density Super
Audio CD layer cannot be heard.
DVD
MP3
files
Video
CD
DVD+R
DVD+RW
Audio
CD
DivX
®
files
is a trademark of DVD Format/Logo Licensing Corporation.
CD-R CD-RW
E8A21UD_EN1 5/29/06 3:13 PM Page 7
English
8 Hookups
Determining the best possible connection...
Your hookup will be determined primarily by your existing equipment, especially your TV. These guidelines describe
which options have the best picture and sound quality. You will not use all the jacks on the DVD/VCR.
If your TV only has an RF-style jack, usually labelled Antenna In, RF In or 75 ohm, use the ANT-OUT jack
of the DVD/VCR to connect to the TV. This hookup provides both audio and video in a single cable. Set
your TV to channel 3 or 4 - the output channel of the DVD/VCR. This connection allows you to use both
the DVD and VCR features. See page 9.
★★★★ If your TV has Component Video In jacks (which could be labelled Y CR CB,Y PR PB or YUV and may be
green, blue and red), use the Component Video jacks (Y C
B/PB
CR/PR) for the best picture quality. If you use
only this video connection, only the DVD picture will be available. To see DVD features on the TV, set the TV
to its Component Video In channel. Component Video provides the best picture quality. See page 12.
Progressive Scan provides less flickering and higher image resolution than traditional (525i/480i or interlace)
TV signals.
If your TV has Progressive Scan (525p/480p or progressive), connect the TV to the DVD/VCR’s
COMPONENT VIDEO OUT (Y C
B
/P
B
C
R
/P
R
) jacks. Set Progressive Scan (PROG. SCAN) to ON in the
DVD/VCR’s DISPLAY menu. See pages 60-61.P.SCAN will appear on the DVD/VCR’s display panel. Set your TV to
Progressive Scan also
.
If your TV does not have Progressive Scan but has Component Video In jacks, connect them to
the DVD/VCR’s COMPONENT VIDEO OUT jacks (Y C
B/PB CR/PR). Set
Progressive Scan (PROG. SCAN)
to
OFF either in the DISPLAY menu or by pressing and holding PLAY B (DVD) on the front of the DVD/VCR
for more than 5 seconds. See pages 60-61.
★★★ If your TV has an S-Video In jack (which also may be labelled Y/C or S-VHS), use the S-VIDEO OUT jack for
excellent picture quality. If you use only this video connection, only the DVD picture will be available. To see
DVD features on the TV, set the TV to its S-Video In channel. See page 12.
★★ If your TV has a single yellow Video In jack (which also may be labelled CVBS, Composite or baseband), use
the yellow DVD/VCR VIDEO OUT jack for good picture quality. This connection provides a picture for both
the DVD player and the VCR. To see DVD or VCR features on the TV, set the TV to its Video In channel. See
page 10.
★★★★ If you have a Stereo with a Coaxial Digital Audio In jack, this provides the clearest sound for the DVD player.
Connect the DVD/VCR’s COAXIAL DIGITAL AUDIO OUT jack to your Stereo for the best sound quality. If
you use only this audio connection, only disc sound (no VCR) will be available. See page 14.
★★★ If digital audio connections are not possible, connect the DVD/VCR’s red and white DVD/VCR AUDIO OUT
jacks to the Audio In jacks of your Stereo or TV. This connection provides sound for both the DVD player
and the VCR. See pages 12-13.
Before you begin...
● Refer to the manuals of your TV, Cable Box, Stereo or other devices as necessary. Note the style of jacks and
connectors on the other equipment. Determine how to choose different Audio and Video In channels on your
other equipment so you can see and hear the DVD/VCR material playing on the TV, Stereo, etc.
● Disconnect all equipment from the power outlets. Connect the equipment to power only after you have finished
hooking up everything. Never make or change connections with equipment connected to power.
Remember...
● Set the TV to the correct Video In channel. Such channels may be called AUX or AUXILIARY IN, AUDIO/VIDEO or
A/V IN, EXT1 or External In, etc. These channels often are located near channel zero (0). Or, your TV’s remote may
have a button or switch that selects the Video Input channel. See your TV manual for details. If you do not see the
DVD or VCR playback on the TV, go to the lowest TV channel (01 or 02) and change channels downward until you
see the DVD or VCR picture on the TV. Or, if your TV has only a single Antenna In jack and you are using the RF
coaxial cable (as described on page 9), set the TV to channel 3 or 4.
To help you find the right Audio/Video In channel, turn on the DVD/VCR. Press DVD to put the DVD/VCR in DVD
mode. With no disc in the player, a large DVD Video logo will appear on the TV screen when you get the TV on the
correct Audio/Video In channel or channel 3 or 4.
● Set the Stereo to the correct channel or “source” mode.
● Depending on your connection, you may need to purchase additional cables or adaptors. If your TV or monitor has
BNC-type connectors, you will need an adaptor.
● To use the VCR features, you must include a connection with the supplied yellow video cable and
red/white audio cable or with the supplied RF coaxial cable.
Once you determine the best option, find your choice on pages 9-14. Follow the steps for the hookup
you choose. Then, go to page 16 to complete the first-time setup.
E8A21UD_EN1 5/29/06 3:13 PM Page 8
English

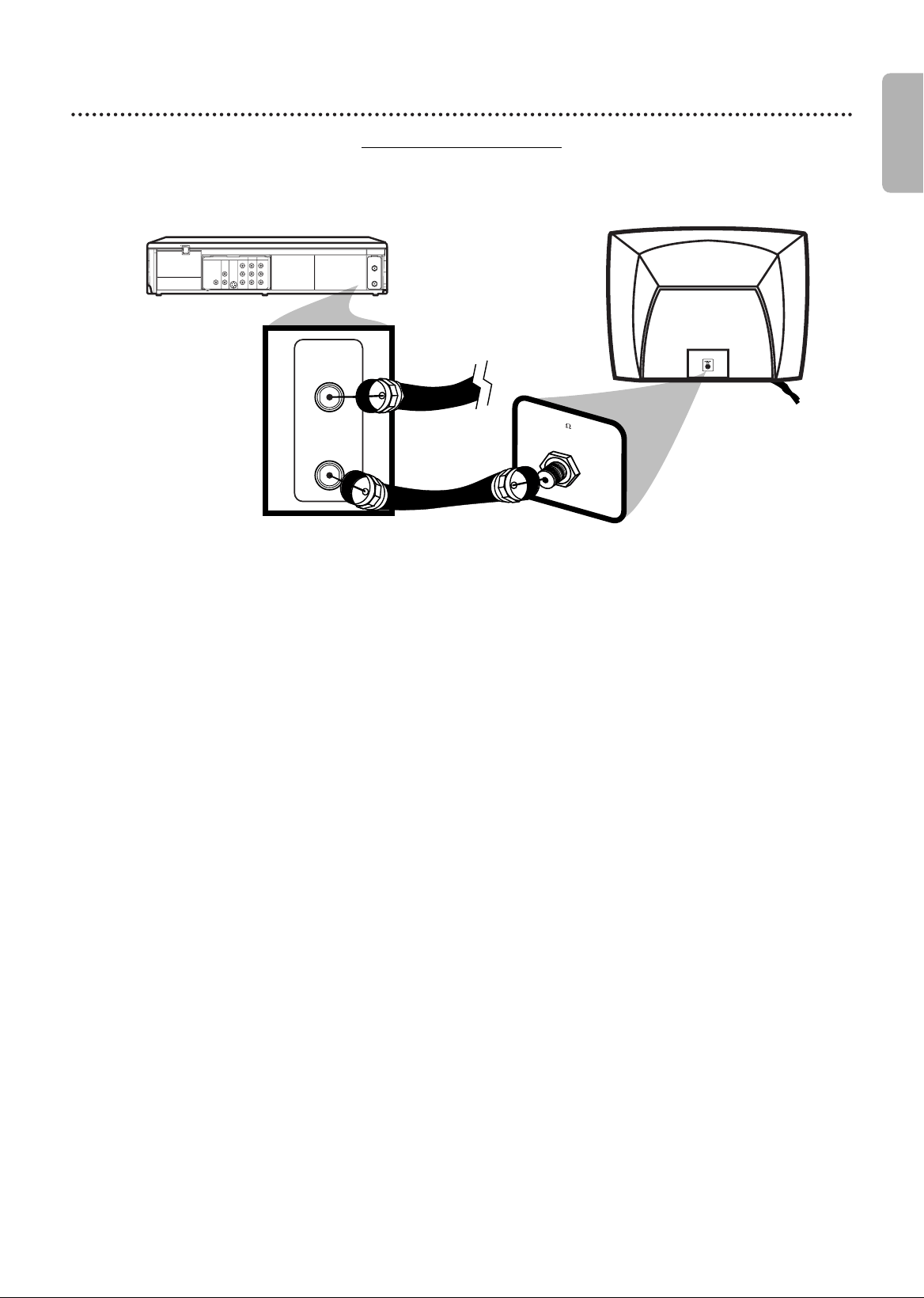

75
ANT /
CABLE
ANT
-
IN
ANT-OUT
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
Black RF coaxial
cable (supplied)
Antenna or
Cable TV
signal
Antenna In Jack
(on back of TV)
example only
1
2
Hookups (cont’d) 9
1
Disconnect the antenna or Cable TV signal from your TV and
connect it to the ANT-IN (Antenna In) jack of your DVD/VCR.
2
Connect the supplied black RF coaxial cable to the ANT-OUT
(Antenna Out) jack on the back of the DVD/VCR and to the
ANTENNA IN jack on the TV. The ANTENNA IN jack on the TV may be
labelled TV IN, RF IN, 75Ω (ohm) or ANT-IN. See your TV owner’s manual for
assistance.
3
Plug in the power cord of your TV. Turn on the TV and set it to
channel 3 or 4.
4
Plug in the power cord of the DVD/VCR. You are ready to turn on
the DVD/VCR. Go to page 16 before turning it on.
The DVD/VCR’s output channel is 3 when you purchase it. So, set your TV to
channel 3 when the DVD/VCR is new.
If you cannot use channel 3 at your TV, you can change the DVD/VCR’s output
channel to channel 4. To do so, press VCR to put the DVD/VCR in VCR mode.
VCR light will be on the front of the DVD/VCR. Insert a videotape and press
PLAY B to start playback. During playback, press and hold (VCR)
PLAY B on the front of the DVD/VCR for 3-5 seconds. Each time you
do this, the DVD/VCR’s output channel switches between 3 and 4, and the
selected channel number appears on the display panel. Change your TV to
channel 3 or 4 accordingly. (You cannot change the DVD/VCR’s output channel
while adjusting tracking manually. Press STOP C to stop playback and cancel
manual tracking, then press PLAY B to resume playing and change the output
channel.)
There is not a channel 3/4 switch on the DVD/VCR (as customary with most
VCRs).
DVD/VCR to TV only
Simplest connection using only the supplied black RF coaxial cable
This connection will let you use the features of both the VCR and the DVD player.
E8A21UD_EN1 5/29/06 3:13 PM Page 9
English

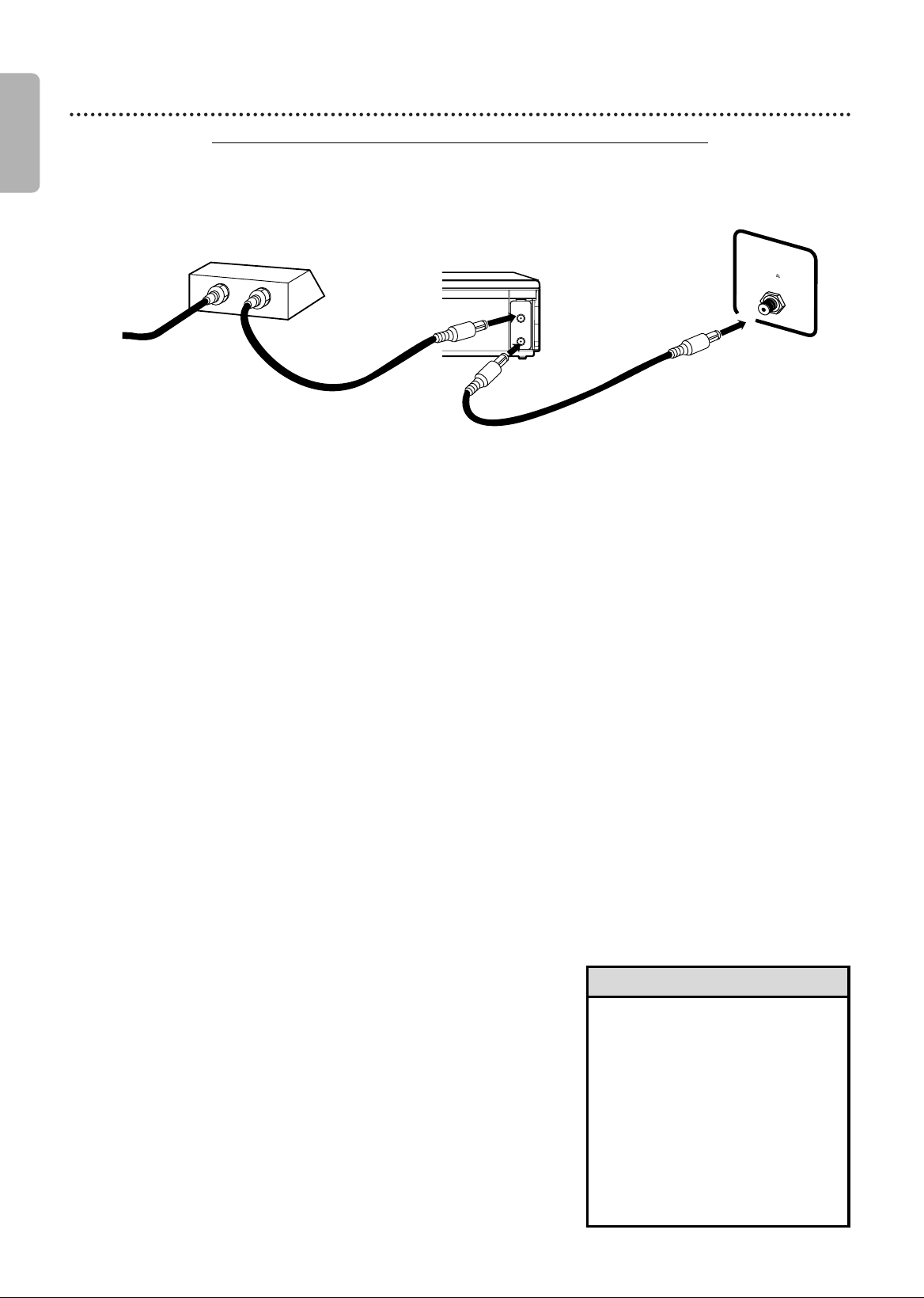

10 Hookups (cont’d)
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
OUT
IN
75
ANT /
CABLE
TV’s ANTENNA
IN Jack
Cable Box/Satellite Receiver
DVD/VCR
Connections
1
Connect a Cable TV or Satellite signal to the IN
jack on the Cable Box/Satellite Receiver.
2
Use an RF coaxial cable (as the one supplied) to
connect the OUT jack on the Cable Box/Satellite
Receiver to the ANT-IN (Antenna In) jack on the
DVD/VCR.
3
Use a second RF coaxial cable to connect the
ANT-OUT (Antenna Out) jack on the DVD/VCR to
the TV’s Antenna In jack.
4
Plug in the power cord of your TV. Turn on the TV
and set it to channel 3 or 4.
5
Plug in the power cord of the DVD/VCR. You are
ready to turn on the DVD/VCR. Go to page 16
before turning it on.
Remember...
There are two ways to connect your Cable Box/Satellite Receiver
to the DVD/VCR. With the connection on this page:
● Select TV channels at the Cable Box/Satellite Receiver, not the
DVD/VCR. To record or view TV channels, follow these steps:
1)Press VCR to put the DVD/VCR in VCR mode. VCR light will
appear on the front of the DVD/VCR.
2) Press CH + or CH - to set the DVD/VCR to the Cable
Box/Satellite Receiver output channel (03 or 04).
3) Set the TV to the DVD/VCR’s output channel (03 or 04).
The DVD/VCR’s output channel is channel 3 as a default. To
change it from 3 to 4, press and hold PLAY B (VCR) on the
DVD/VCR for 3-5 seconds during tape playback. For more
details, see step 4 on page 9.
4) Select the channel you want to view/record at the Cable
Box/Satellite Receiver.
●
You may not view a channel other than the one you are recording.
●
You can only program a timer recording for one channel at a time.
Set your Cable Box/Satellite Receiver to the channel you want to
record. When you enter the channel you want to record in a
timer recording, select channel 03 or 04 (the Cable Box/Satellite
Receiver output channel). (This is step 8 on page 28.) Leave the
Cable Box/Satellite Receiver on for a timer recording.
1
2
3
Cable
Signal
RF coaxial cable
RF coaxial cable
DVD/VCR to Cab
le Box or Satellite Receiver and
TV
Using only basic RF coaxial cables
This connection will let you use the features of both the VCR and the DVD player.
•If your Cable Box or Satellite
Receiver has Audio and Video
Out jacks, use audio and video
cables to connect them to the
VCR AUDIO IN and VIDEO IN
jacks on the rear of the
DVD/VCR. You will not need
the RF coaxial cable connection
between the Cable Box/Satellite
Receiver and the DVD/VCR as
described at step 2.
Helpful Hint
E8A21UD_EN1 5/29/06 3:13 PM Page 10
English

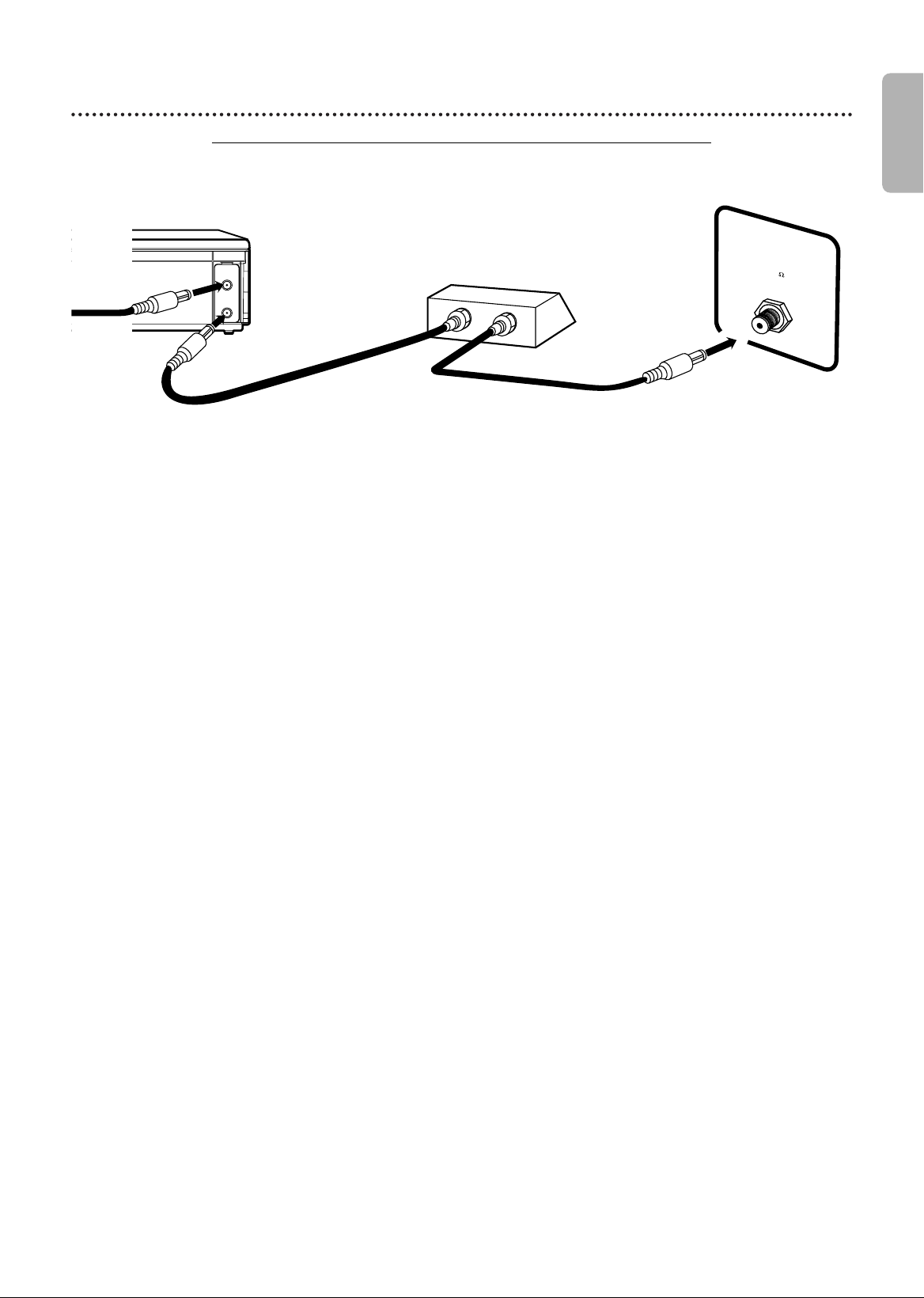

Hookups (cont’d) 11
ANT
-
IN
ANT-OUT
IN
OUT
75
AN
T /
C
AB
LE
TV’s ANTENNA
IN Jack
Cable Box/Satellite Receiver
DVD/VCR
Connections
1
Connect a Cable TV or Satellite signal to
the DVD/VCR’s ANT-IN (Antenna In) jack.
2
Use an RF coaxial cable (as the one supplied) to connect
the ANT-OUT (Antenna Out) jack on the DVD/VCR to
the IN jack on the Cable Box/Satellite Receiver.
3
Use a second RF coaxial cable to connect the OUT jack on
the Cable Box/Satellite Receiver to the ANTENNA IN jack
on the TV.
4
Plug in the power cord of your TV. Turn on the TV and set
it to channel 3 or 4.
5
Plug in the power cord of the DVD/VCR. You are ready to
turn on the DVD/VCR. Go to page 16 before turning it on.
Remember...
There are two ways to connect your Cable Box/Satellite Receiver to the
DVD/VCR. With the connection on this page:
● You may watch one channel while recording another. Follow these steps:
1) Put the Cable Box/Satellite Receiver on the same channel as the
DVD/VCR’s output channel (03 or 04). The DVD/VCR’s output
channel is channel 3 as a default. To alternate it between 3 and 4,
press and hold PLAY B (VCR) on the front of the DVD/VCR for 3-5
seconds during tape playback. For details, see step 4 on page 9. Set the
TV to the Cable Box/Satellite Receiver output channel (03 or 04).
2) Press VCR to put the DVD/VCR in VCR mode. VCR light will appear
on the front of the DVD/VCR.
3) Press TV/VIDEO on the remote to choose VCR position.
4) Press CH + or CH - to select the channel you want to record at the
DVD/VCR. Press REC
I to start the recording.
5) Press TV/VIDEO on the remote once to put the DVD/VCR in TV
position.
6) Select the channel you want to watch at the Cable Box/Satellite
Receiver.
● When you play a tape or disc, make sure the Cable Box/Satellite
Receiver is set to the DVD/VCR’s output channel (03 or 04).
Set the TV to the Cable Box/Satellite Receiver output channel (03 or 04).
1
2
3
Cable
Signal
RF coaxial cable
RF coaxial cable
DVD/VCR to Cab
le Box or Satellite Receiv
er and TV
Using only basic RF coaxial cables
This connection will let you use the features of both the VCR and the DVD player.
E8A21UD_EN1 5/29/06 3:13 PM Page 11
English

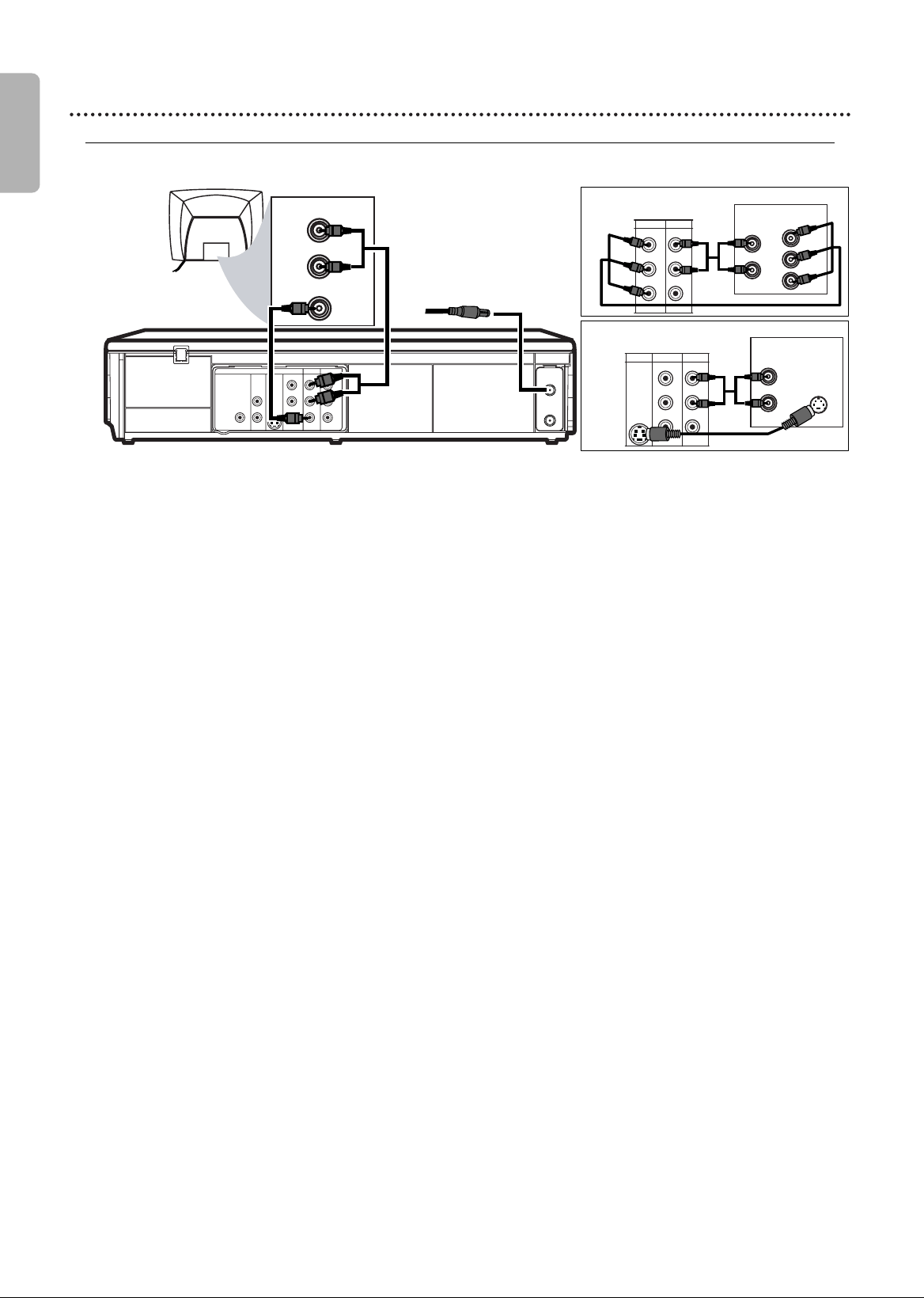

12 Hookups (cont’d)
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
L
R
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VIDEO OUT
C
R
/
P
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUD IO OUT
DVD/VCR
VIDEO OUT
C
R
/
P
R
AUDIO IN
Y
Cb/Pb
Cr/Pr
COMPONENT
VIDEO IN
L
R
AUDIO IN
S-VIDEO IN
L
R
Back of TV
Back of TV
Audio and
Video IN Jacks
on TV
Antenna or Cable TV
Signal to ANT-IN Jack
Audio Cable
Video Cable
AUDIO IN
VIDEO IN
L
R
1
2
2
2
3
b
3
c
3
a
1
Connect the antenna or Cable TV signal to the ANT-IN (Antenna In)
jack of your DVD/VCR.
2
Connect the red and white audio cable (supplied) to the red and white
DVD/VCR AUDIO OUT jacks on the DVD/VCR and to the red and
white AUDIO IN jacks on the TV. Match the cable colors to the jack colors. If
the TV has a single AUDIO IN jack, use the white audio cable to connect the
DVD/VCR’s white DVD/VCR AUDIO OUT (left) jack to the TV’s AUDIO IN jack.
You will not use the red cable. Or, purchase a “splitter” audio cable to go from the
left/right AUDIO OUT jacks of the DVD/VCR to the TV’s single AUDIO IN jack.
3
a
Connect the yellow video cable (supplied) to the DVD/VCR VIDEO
OUT jack on the DVD/VCR and to the VIDEO IN jack on the TV. The
VIDEO IN jack on the TV is usual
ly yellow and may be labelled CVBS,
Composite or Baseband video.
3
b
Connect component video cable (not supplied) to the COMPONENT
VIDEO OUT jacks on the DVD/VCR and to the COMPONENT
VIDEO IN jacks on the TV. The Co
mponent Video In jacks on the TV are
usually red, blue and green.
3
c
Connect an S-Video cable (not supplied) to the S-VIDEO OUT jack
on the DVD/VCR and to the S-VIDEO IN jack on the TV.
The connections 3b and 3c only supply video (picture) for the DVD player of
the DVD/VCR. Therefore, in order to use the VCR features or view TV channels
at the DVD/VCR, you still need to either connect the RF coaxial cable between
the ANT-OUT jack of the DVD/VCR and the TV’s Antenna In jack, or connect
the yellow video cable. To connect the supplied RF coaxial cable, see step 2 on
page 9. To
connect the supplied yellow video cable, see step 3a.
4
Connect the power cords of the TV and the DVD/VCR to a power
outlet. Turn on the TV and set it to the correct Video In channel.
If you are using the RF coaxial cable for VCR playback, choose channel 3 or 4 at
the TV. If you are using the yellow video cable for VCR playback, choose the Video
In channel at your TV. To find the correct Video In channel, go to your lowest TV
channel and change channels downward until you see VCR playback on the TV
screen.To help you find the right Video In channel, turn on the DVD/VCR. Press
DVD to put the DVD/VCR in DVD mode. With no disc in the player, a large DVD
Video logo will appear on the TV screen when you get the TV on the correct
Video In channel.
5
You are ready to turn on the DVD/VCR. Go to page 16 to complete the
first-time setup.
DVD/VCR to a
TV that has Audio/ Video
, Component Video or S-Video In jacks
E8A21UD_EN1 5/29/06 3:13 PM Page 12

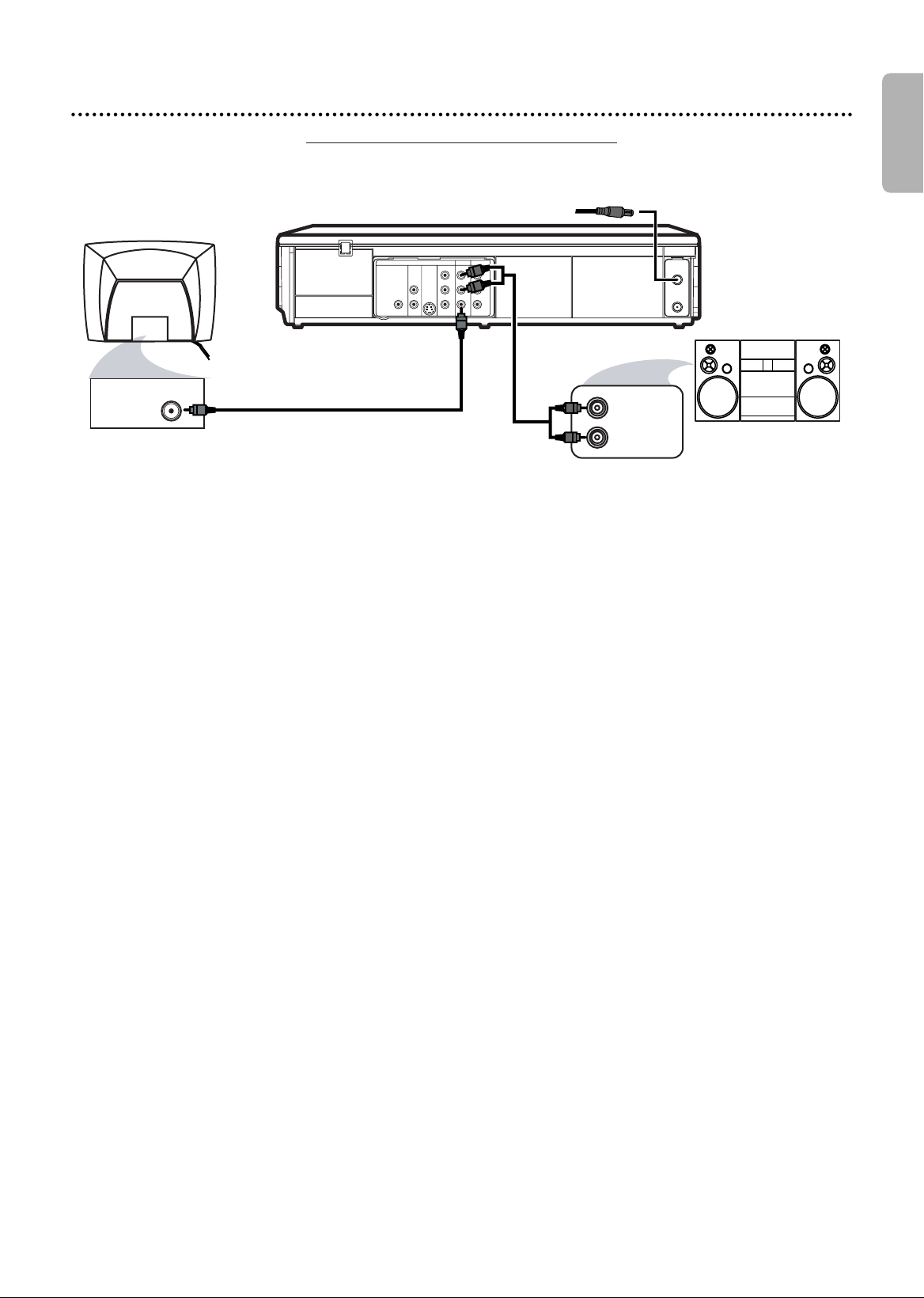

Hookups (cont’d) 13
DVD/VCR to a
TV and a Stereo
DIGITAL
AUDI O OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
VIDEO IN
AUDIO (LEFT) IN
AUDIO (RIGHT) IN
1
Connect the antenna or Cable TV signal to the ANT-IN (Antenna In)
jack of your DVD/VCR.
2
Connect the supplied red and white audio cable to the red and white
DVD/VCR AUDIO OUT jacks on the DVD/VCR and to the red and
white AUDIO IN jacks on the Stereo. Match the cable colors to the jack
colors.
3
Connect the supplied yellow video cable to the DVD/VCR VIDEO
OUT jack on the DVD/VCR and to the VIDEO IN jack on the TV.
To use Component Video cable or S-Video cable instead for the DVD player,
see page 12. You will still need the yellow video cable or RF coaxial cable for
VCR features.
4
Connect the power cords of the DVD/VCR, TV and Stereo to a
power outlet. Turn on the TV and set it to the Video In channel. Or,
simply go to your TV’s lowest channel (01 or 02) and continue changing
channels downward at the TV until you see VCR or DVD playback on the TV
screen.
To help you find the right Video In channel at the TV, turn on the DVD/VCR. Press
DVD to put the DVD/VCR in DVD mode. With no disc in the player, a large DVD
Video logo will appear on the TV screen when you get the TV on the correct
Video In channel.
Turn on the Stereo and set it to the correct auxiliary or source mode.
Check your Stereo manual for details.
5
You are ready to turn on the DVD/VCR. Go to page 16 before
turning on the DVD/VCR.
3
2
Antenna/Cable
TV Signal
1
English
Back of TV
(example only)
Stereo
E8A21UD_EN1 5/29/06 3:13 PM Page 13
English
1
Connect the antenna or Cable TV signal to the ANT-IN (Antenna In) jack
of your DVD/VCR.
2
Connect a coaxial digital audio cable (not supplied) to the DVD/VCR’s
COAXIAL DIGITAL AUDIO OUT jack and to the COAXIAL DIGITAL
AUDIO IN jack on the Stereo.
This digital audio connection only provides sound for the DVD player of the DVD/VCR.
So, in order to use the VCR features or hear TV channels at the DVD/VCR, you still
need to either connect the RF coaxial cable between the ANT-OUT jack of the
DVD/VCR and the TV’s Antenna In jack, or connect the supplied red/white audio cable.
To connect the supplied RF coaxial cable, see step 2 on page 9. To connect the red/white
audio cable, see step 2 on page 12.
3
Connect the supplied yellow video cable to the yellow DVD/VCR VIDEO
OUT jack on the DVD/VCR and to the VIDEO IN jack on the TV. To use
component video cable or S-Video cable instead for the DVD player, see
page 12.You will still need the yellow video cable or RF coaxial cable for VCR
features.
4
Plug in the power cords of the Stereo, TV and DVD/VCR. Turn on the
Stereo and select its Auxiliary IN channel. Turn on the TV and set it to
the correct Video In channel. Go to your TV’s lowest channel (01 or 02) and
change channels downward until you see DVD or VCR material on the TV screen.
To help you find the right Video In channel on the TV, turn on the DVD/VCR. Press
DVD to put the DVD/VCR in DVD mode. With no disc in the player, a large DVD
Video logo will appear on the TV screen when you get the TV on the correct Video
In channel.
Make sure
Progressive Scan (PROG. SCAN)
is OFF and P.SCAN does not appear on
the DVD/VCR’s display panel. Disable
Progressive Scan either in the DISPLAY
menu or by pressing and holding PLAY B (DVD) on the front of the
DVD/VCR for more than 5 seconds.
Details are on pages 8 and 61.
5
You are ready to turn on the DVD/VCR. Go to page 16 before turning on
the DVD/VCR.
Remember...
Some DVDs are recorded in Dolby Digital Multi-channel Surround Sound. Select Dolby
Digital Multi-channel Surround Sound in the DVD disc menu. If Dolby Digital Surround
Sound is not recorded on the disc, you will not have surround sound available.
If you connect the DVD/VCR to a Dolby Digital Stereo, set DOLBY DIGITAL to
BITSTREAM in the DVD player’s Setup menu. Details are on page 62. If the DVD/VCR is not
connected to a Dolby Digital-compatible Stereo, set DOLBY DIGITAL to PCM.
Incorrect settings may cause noise distortion and damage the speakers.
14 Hookups (cont’d)
DVD/VCR to a
TV and to a Stereo that is Dolby Digital-compatib
le
Using Digital Audio connections
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
VIDEO IN
COAXIAL
DIGITAL
AUDIO IN
2
3
Back of TV
(example only)
Stereo
Antenna/Cable TV Signal
1
E8A21UD_EN1 5/29/06 3:13 PM Page 14
English

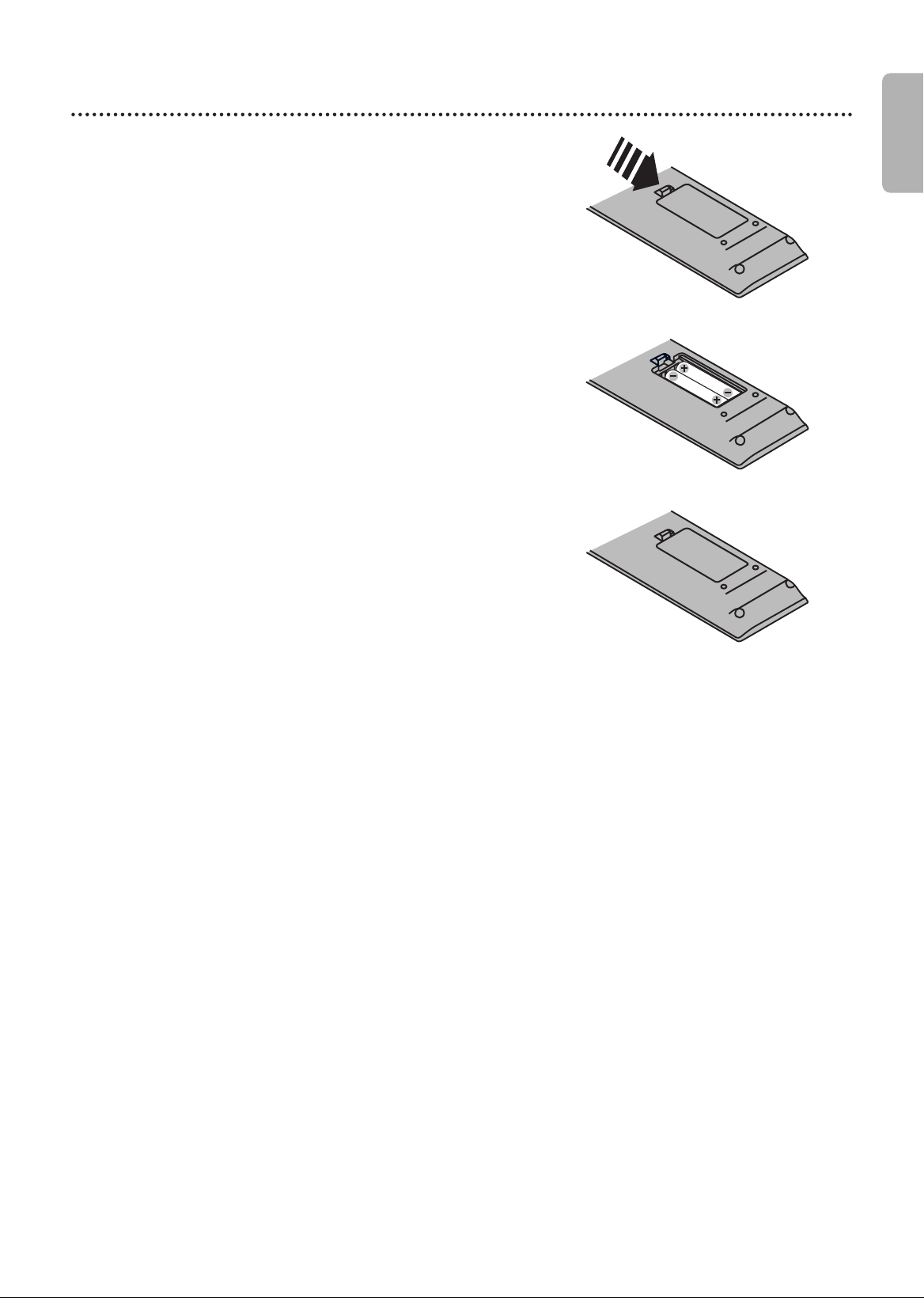

Remote Control Setup 15
Putting Batteries in the Remote Control
1
Remove the battery compartment lid on the bottom
of the remote control by pressing the tab, then lifting the
lid.
2
Place two AAA batteries inside the battery
compartment with their
+ and –
ends aligned as
indicated.
3
Replace the battery compartment lid.
Using the Remote Control
● Point the remote control at the DVD/VCR’s remote sensor (see
page 20) when using the remote to operate the DVD/VCR. Do
not point the remote at the TV.
● Do not put objects between the remote and the DVD/VCR.
Recycling Guidelines/Battery Safety
● Your new product and its packaging contain materials that can
be recycled and reused. Specialized companies can recycle your
product to increase the amount that needs to be properly
disposed. Your product uses batteries that should not be
thrown away when depleted but should be disposed of as small
chemical waste. Please find out about the local regulations on
disposal of your old product, batteries and packaging whenever
you replace existing equipment.
● Battery Usage CAUTION - To prevent battery leakage that may
result in bodily injury, property damage or damage to the unit:
• Install ALL batteries correctly, with the
+ and –
markings on
the battery aligned as indicated on the unit.
• Do not mix batteries, for example, old with new or carbon
with alkaline.
• Remove batteries when the unit will not be used for a long
time.
1
2
3
E8A21UD_EN1 5/29/06 3:13 PM Page 15
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
English

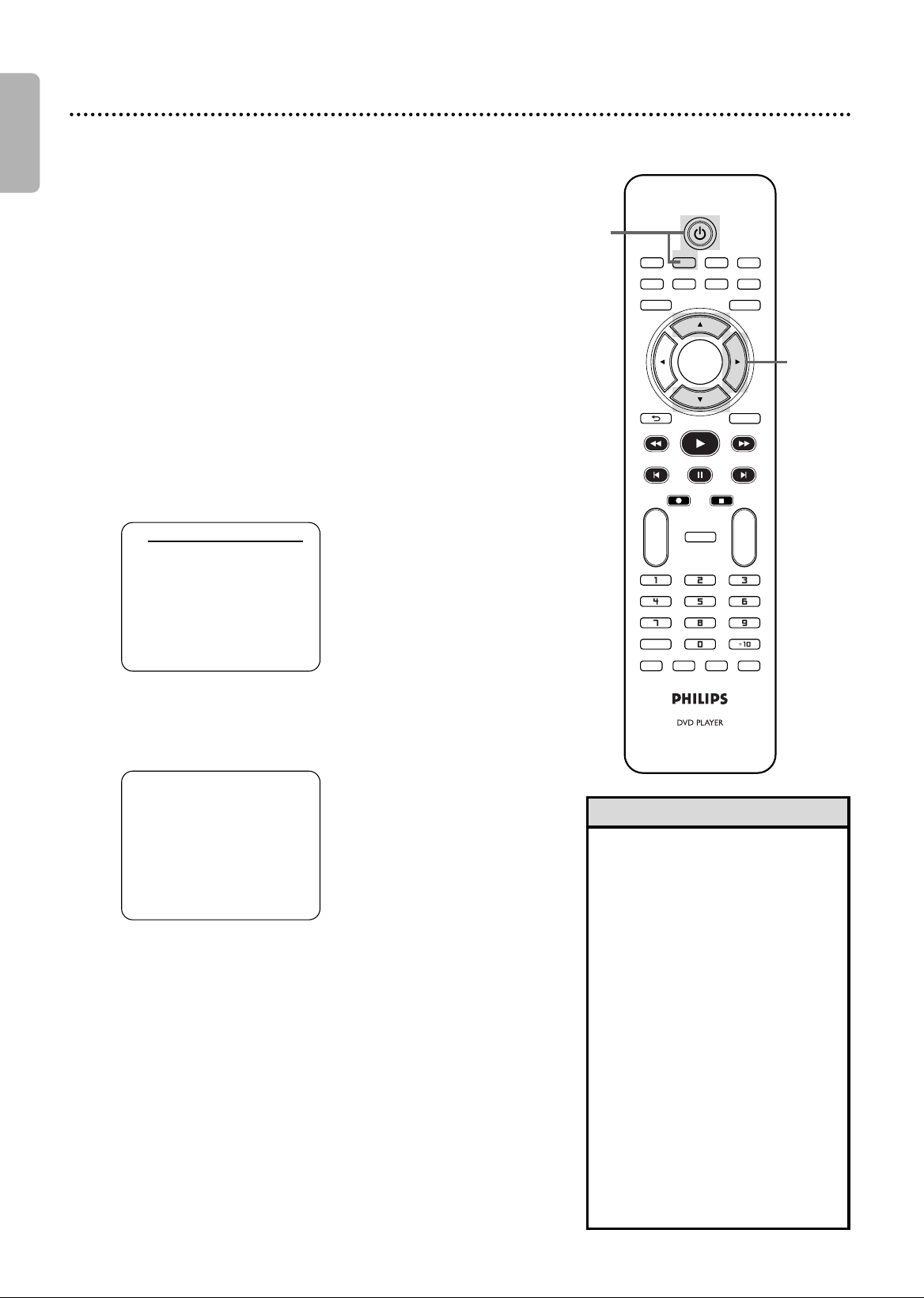

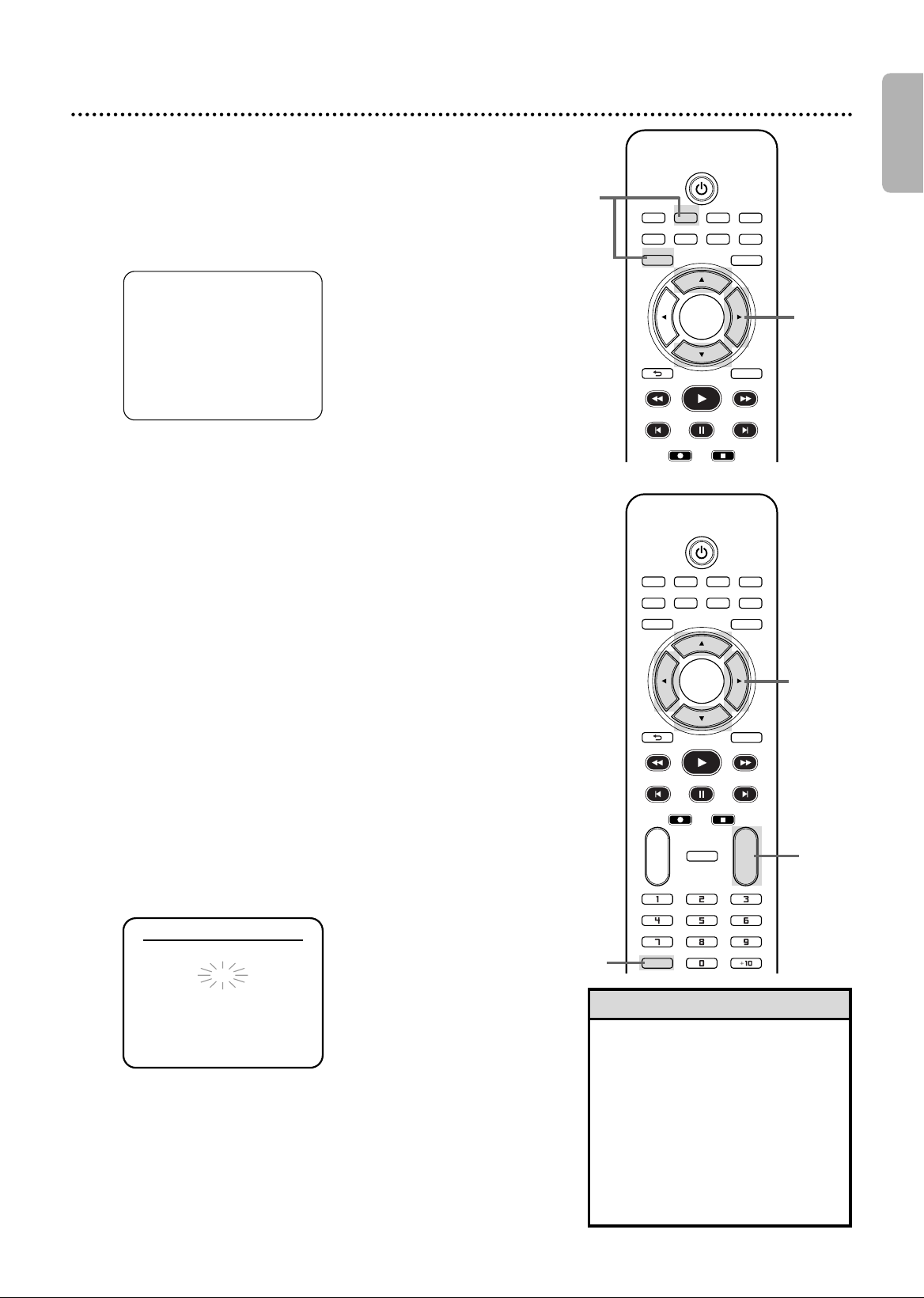

16 First-time DVD/VCR Setup
3
Press K or L to select ENGLISH, FRANCAIS
(French) or ESPAÑOL (Spanish) as the language for
VCR On-Screen Displays and menus. Then, press B. The
display shown below will appear.
4
Press B to begin channel programming. AUTO SET
UP will flash on the TV screen during the Channel Search.
The DVD/VCR will memorize all available channels.When
channel programming is complete, the lowest available
channel will appear on the TV.
These channels will be available when you want to watch
TV while in VCR mode. To put the DVD/VCR in VCR
mode, press VCR so VCR light appears. Use CH + or CH -
to select memorized channels. To select non-memorized
channels, use the Number buttons.
•To skip this feature and play a
tape immediately, insert a tape
with its record tab removed.
• If you like to skip step 4, press
DISC/VCR MENU as soon as the
search begins. The DVD/VCR will
stop the Channel Search, and the
VCR menus and displays will be
in English.
• If you try to program channels
when there is no antenna or
Cable TV signal connected to the
ANT-IN jack of the DVD/VCR,
programming will stop. AUTO
SET UP will stop flashing.
Connect an antenna or Cable TV
signal to the DVD/VCR’s
ANT-IN jack and press B again.
• Repeat this process if the power
fails.
Helpful Hints
Before turning on your DVD/VCR, make sure batteries are in the
remote control and the DVD/VCR and TV are connected correctly.
You cannot program channels if you are using a Cable Box or a
Satellite Receiver.
These menus may not appear if you have already turned
on the DVD/VCR.
1
Turn on the TV. Set it to channel 3 or 4 or its
AUDIO/VIDEO IN channel, depending on how you
connected the DVD/VCR to a TV.
2
Press VCR, then press y.VCR light will appear on the
front of the DVD/VCR. The display shown below will appear.
These menus may not appear if you have already turned on
the DVD/VCR. You may have turned on the DVD/VCR
before to find the Audio/Video In channel of the TV, for
example. If so, follow the steps on page 21 to set up
channels and page 23 to select a language for the VCR
menus.
1
Turn on the TV.
AUTO SET UP
PUSH B
2
3-4
LANGUAGE SELECT
BENGLISH [ON]
FRANCAIS
ESPAÑOL
PUSH B
E8A21UD_EN1 5/29/06 3:13 PM Page 16
English

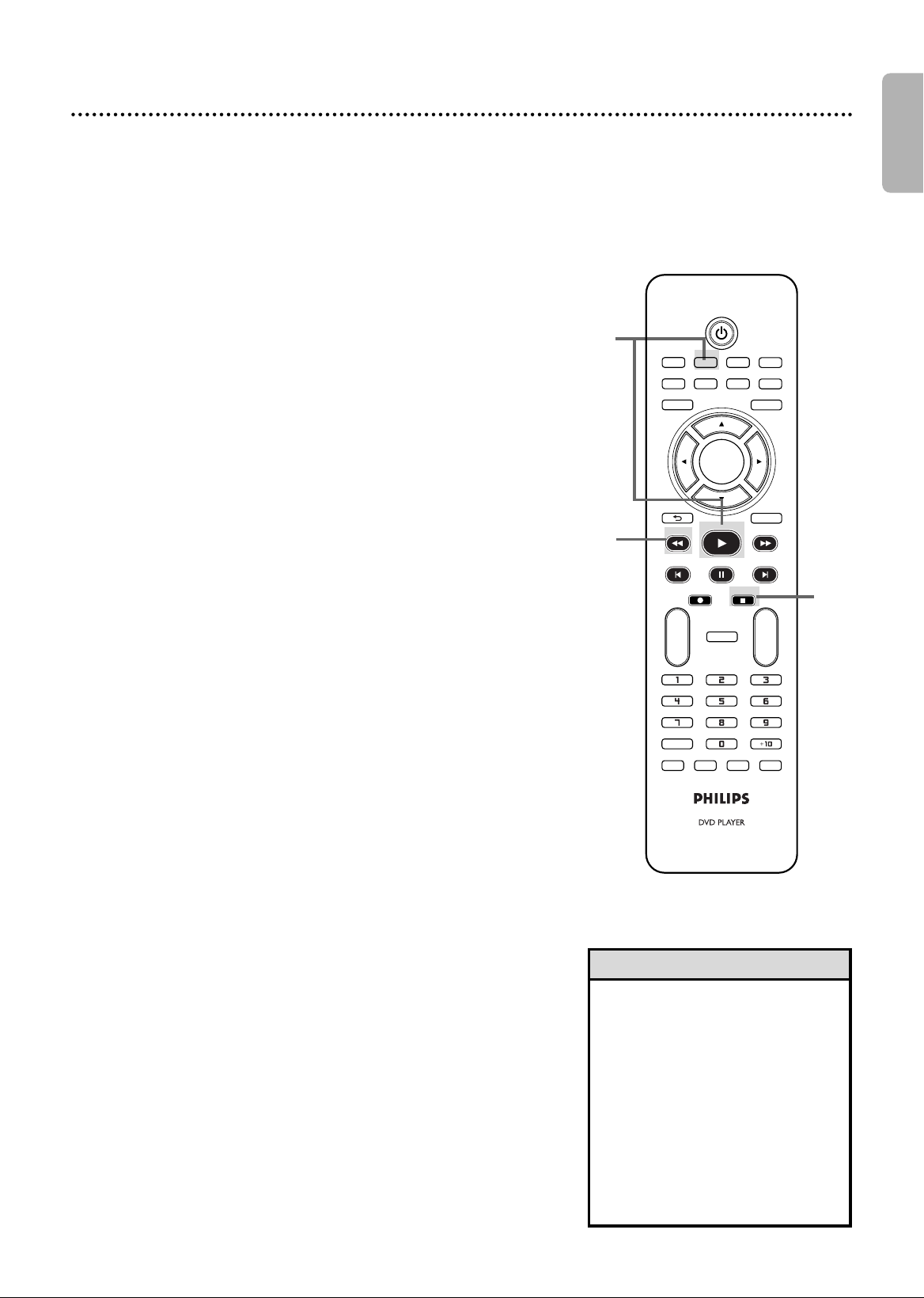

Video Cassette Playback 17
•Other tape playback features are
on pages 36-39.
• If AUTO REPEAT is ON, playback
will begin when you insert a tape,
even when the record tab is
intact. Details are on page 36.
•You must connect the DVD/VCR
to a TV using the RF coaxial
cable or the audio/video cables in
order to use the VCR features.
These hookups are explained on
pages 9 and 12.
Helpful Hints
Read and follow the steps below to play a tape.
1
Turn on the TV. Set it to channel 3 or 4 or its
AUDIO/VIDEO IN channel. This depends on how you
connected the DVD/VCR to a TV.
Details are on pages 8-14.
2
Insert a tape in the cassette compartment of the
DVD/VCR. VCR light will appear on the front of the
DVD/VCR. If the tape’s record tab has been removed,
playback will start automatically.
If the DVD/VCR power is already on, press VCR to put the
DVD/VCR in VCR mode if necessary. VCR light will appear
on the front of the DVD/VCR.
3
If playback does not start automatically, press VCR,
then press PLAY B.
4
Press STOP C to stop playback.
5
Press REW h to rewind the tape.
6
After the tape stops, press STOP/EJECT CA on the
front of the DVD/VCR to remove the tape.
1
2
6
Press STOP/EJECT C A
on the DVD/VCR.
Turn on the TV.
Insert a tape in the
DVD/VCR.
3
4
5
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
E8A21UD_EN1 5/29/06 3:13 PM Page 17
English
18 Disc Playback
• An “X” may appear at the top right
corner of the TV screen when you
try a feature. Either the feature is
not available on the disc, or the
DVD/VCR cannot access the
feature at this time. This does not
indicate a problem with the
DVD/VCR.
• If a disc is dirty or scratched, the
picture may appear distorted or
playback may stop. In such cases,
remove the disc and turn off the
DVD/VCR. Disconnect the power
cord, then reconnect it. Clean the
disc, then turn on the DVD/VCR
again and reinsert the disc for
playback.
• If a disc has multiple layers, the
picture may freeze occasionally. This
happens when the first layer
switches to the second layer. This is
not a malfunction.
• When the DVD or CD light
appears on the display panel, the
disc is loaded and ready for
playback.
• When you press OPEN/CLOSE A
or PLAY B (DVD) on the front of
the DVD/VCR when the power is
off, the DVD/VCR will turn on in
DVD mode. Otherwise, the
DVD/VCR will turn on in the mode
in which it was turned off.
•If you use PLAY B to close the
disc tray, playback starts
automatically. If you use
OPEN/CLOSE A to close the disc
tray, you have to press PLAY B to
start playback.
Helpful Hints

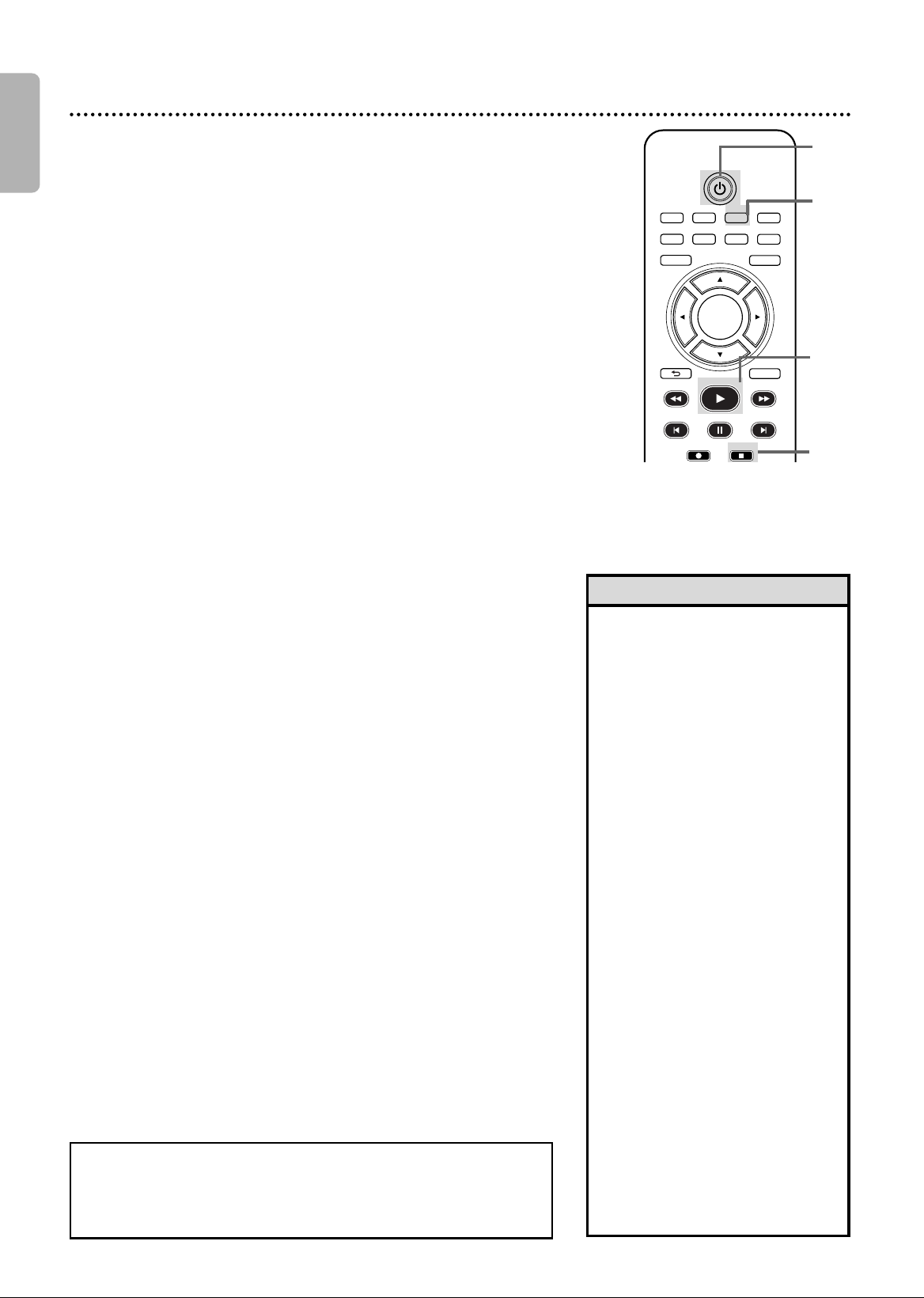

Before you begin, turn on the TV, Stereo and other equipment
connected to the DVD/VCR. Make sure the TV and the Stereo (if
applicable) are set to the correct channel.
Details are on pages 8-14.
1
Press y to turn on the DVD/VCR.
2
Press DVD so DVD light appears on the front of the
DVD/VCR.
3
Press OPEN/CLOSE A on the DVD/VCR to open
the disc tray.
4
Place a disc into the tray. If the DVD is recorded on
only one side, place the disc in the tray with the label facing
up and the shiny side facing down. Some DVDs are
recorded on both sides. Make sure the label of the side you
want to play is facing up.
5
Press PLAY B to close the tray. The tray will close and
playback will begin. If playback does not start automatically,
press PLAY B again.
If a DVD menu appears instead, see page 40.
To play MP3, Windows Media
TM
Audio, JPEG or DivX
®
files,
see pages 51-54.
You also can close the tray by pressing
OPEN/CLOSE A.
6
Press STOP C to stop playback.
Insert a disc.
4
REMINDER:This DVD/VCR
will play only certain discs.
See page 7 for details.
Press OPEN/CLOSE A
on the DVD/VCR.
3
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
2
5
6
1
E8A21UD_EN1 5/29/06 3:13 PM Page 18
English

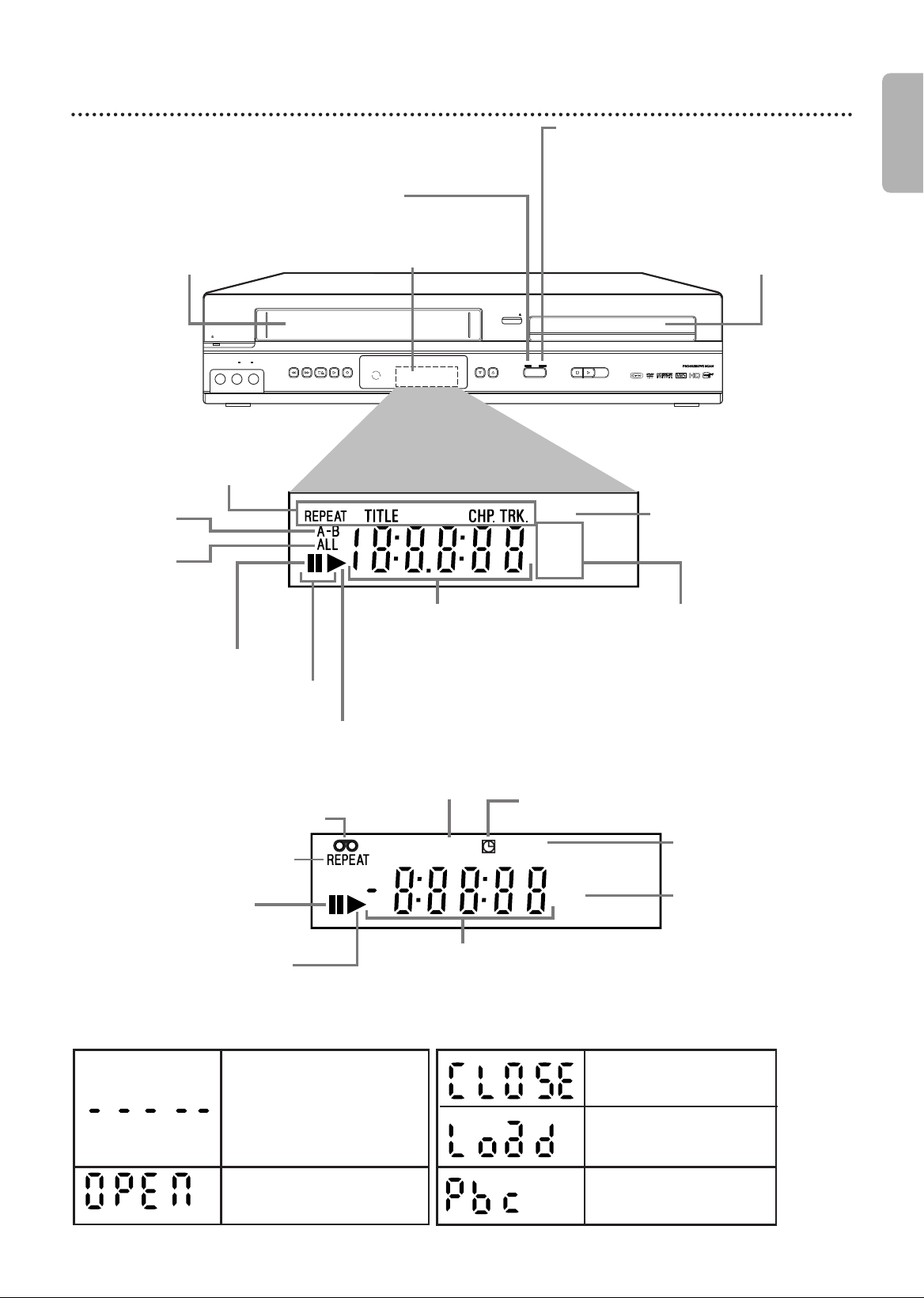

Display Panel 19
Appears after the disc tray
closes if the tray is empty,
if there is an error reading
the disc, or if an unacceptable
disc is installed.
Tray is opening or is open.
Tray is closing.
Disc is loading.
Appears when Playback
Control is active (Video CD).
Display Messages
STOP PLAY
REW F.FWD PLAY
REC CHANNELSTOP/EJECT
VIDEO AUDIOLR
SOURCE
STANDBY-ON
VCR DVD
DVD
OPEN/CLOSE
VCR REC
PM
GROUP P.SCAN
DVD
VCD
Disc tray
Insert a disc here.
DVD light
This light appears when the DVD/VCR is in
DVD mode. You can only watch DVDs when
DVD light is on. To make DVD light come
on, press SOURCE on the front of the
DVD/VCR or DVD on the remote.
Display
Messages about current disc operations
appear here. See Display Messages below.
VCR light
This light appears when the DVD/VCR is in VCR mode. You can only
watch videotapes or access VCR features and TV channels when VCR
light is on. To make VCR light come on, press VCR on the remote
control or SOURCE on the front of the DVD/VCR.
Cassette
Compartment
Insert a video
cassette here.
Appears when a repeat function
is active.
Appears when
A-B Repeat is on.
Appears when disc playback
is paused.
Appears during Slow Motion Playback
(DVD, Video CD, DivX
®
).
Appears during disc playback.
Displays the current disc type.
• DVD: DVD, DivX
®
on DVD
• VCD: Video CD
• CD: Audio CD, MP3,
Windows Media
TM
Audio,
JPEG, DivX
®
on CD
Appears when Progressive
Scan is active.
Indicates a tape is in the DVD/VCR.
Appears during playback when
the Auto Repeat function is on.
Appears if tape playback
is paused.
Appears during tape playback.
Indicates the elapsed playing time of a tape; also displays a channel
number, tape speed, remaining time for an OTR or the current time.
Indicates current time is P.M.
There is no A.M. indication.
Appears during recording;
flashes when recording is
paused.
Appears when a timer recording
or an OTR has been set.
Indicates VCR position.
Displays the elapsed time of the title
or track.
The number of a new title, chapter, or
track is displayed for 3 seconds when
a chapter or track is switched, or
DISPLAY is pressed during playback.
Appears when
ALL Repeat is on.
(Video CD, CD, MP3,
Windows Media
TM
Audio
,
JPEG and
DivX
®
)
DVD Display Panel
VCR Display Panel
E8A21UD_EN1 5/29/06 3:13 PM Page 19
English
20 Front Panel, Rear Panel and Remote Control
• The DVD S-VIDEO OUT,
DVD COMPONENT
VIDEO OUT, DVD
AUDIO OUT and DVD
COAXIAL DIGITAL
AUDIO OUT jacks are
only useful in DVD
mode.To have sound and
picture in VCR mode, you
must connect either the
RF coaxial cable or the
audio/video cables
supplied. Details are on
pages 9 and 12.
Helpful Hint
•For DVD player features,
press DVD before
pressing other buttons.
To put the DVD/VCR in
DVD mode, press DVD
or SOURCE so DVD
light appears on the front
of the DVD/VCR.
•For VCR features, press
VCR before pressing any
other buttons.To put the
DVD/VCR in VCR mode,
press VCR or SOURCE
so VCR light appears on
the front of the
DVD/VCR.
• In VCR mode,PREV
works as CH -, and
NEXT 3 works as CH +.
•In DVD mode, CH -
works as PREV , and
CH + works as NEXT 3.
3
3
Helpful Hints
STOP PLAY
REW F.FWD PLAY
REC CHANNELSTOP/EJECT
VIDEO AUDIOLR
SOURCE
STANDBY-ON
VCR DVD
DVD
OPEN/CLOSE
AUDIO and VIDEO
In jacks
STANDBY-ON y Button
REW h Button (VCR)
F.FWD g Button (VCR)
STOP/EJECT C A Button (VCR) PLAY B Button (VCR)
REC I
Button (VCR)
SOURCE Button
STOP C Button (DVD)
PLAY B Button (DVD)
OPEN/CLOSE A Button (DVD)
CHANNEL KL ButtonsRemote Sensor
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B /
PB
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
CR /
PR
DVD/VCR AUDIO
OUT jacks Left (white)
and Right (red)
DVD COMPONENT
VIDEO OUT
(Y C
B/PB CR/PR) jacks
(green, blue, red)
DVD AUDIO OUT
jacks Left (white)
and Right (red)
AC Power Cord
DVD COAXIAL
DIGITAL AUDIO
OUT jack (black)
DVD S-VIDEO
OUT jack
DVD/VCR VIDEO
OUT jack (yellow)
ANT-OUT
(Antenna Out)
jack
VCR VIDEO IN
jack (yellow)
ANT-IN
(Antenna In)
jack
VCR AUDIO IN
jacks Left (white)
and Right (red)
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
TV/VIDEO Button
SUBTITLE Button
DISC/VCR MENU Button DVD/SETUP Button
AUDIO Button
REC I Button
REW h Button
ANGLE Button
CH +/- Button
OK Button
s B KL Buttons
VCR Button
y(Standby-on) Button
DVD Button
REC MODE Button
CLEAR Button
SEARCH Button MODE Button
ZOOM Button
REPEAT/
REPEAT A-B Button
BACK Button
PLAY B Button
VCR Plus
+
Button
NEXT ∑ Button
Number Buttons
PREV Button
FFW g Button
DISPLAY Button
PAUSE k Button
TITLE Button
TIMER SET Button
STOP C Button
Front Panel
Rear Panel
Remote Control
E8A21UD_EN1 5/29/06 3:13 PM Page 20
Adding/Deleting Channels
You may want to add or delete TV channels if your channel lineup
changes or if you no longer watch some channels.
1
Follow the steps 1-2 above.
2
Press K or L to select MANUAL SET UP.
Then press B.
3
Press K or L to select the channel number you want
to add or delete.
To scan through only the memorized channels, use
CH
+
or CH
-.
4
Press s or B to switch ADD/DELETE.
5
After selecting your choice, press CLEAR to exit.
Your selection is activated now.
To select any existing channels (including the ones deleted),
use the Number Buttons. To flip through only the
memorized channels, use
CH + or CH -
.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
CHANNEL 30 (CATV)
ADD
MANUAL SET UP
Channel Setup 21
- M E N U 1 -
B TIMER PROGRAMMING
AUTO REPEAT [OFF]
CHANNEL SET UP
CLOCK SET
LANGUAGE SELECT
AUDIO OUT
TV STEREO [ON]
SAP
Although your DVD/VCR may automatically memorize the
channels you receive when you turn it on for the first time, you
can set up the channels again.
1
Press VCR, then press DISC/VCR MENU so MENU1
appears. If the clock has never been set, the CLOCK SET
menu may appear when you press DISC/VCR MENU. If so,
follow the instructions from step 3 on page 22.
2
Press K or L to select CHANNEL SET UP.
Then, press B.
3
Press K or L to select AUTO SET UP.
Then press B.
4
Auto Channel Setup will start as AUTO SET UP flashes on the
screen. When setup is complete, the lowest memorized
channel will appear on the TV.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
English
•You cannot program channels if
you are using a Cable Box or
Satellite Receiver.
•If you have an antenna, channels
2-69 will be possible. If you have
Cable TV, channels 1-125 will be
possible.
•To stop Channel Setup, press
DISC/VCR MENU while AUTO
SET UP is flashing.
Helpful Hints
2-3
2-4
3
5
1
E8A21UD_EN1 5/29/06 3:13 PM Page 21
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
English
22 Clock (VCR)
• If the clock has never been set,
the CLOCK SET menu may
appear when you press
DISC/VCR MENU. If so, follow
the instructions from step 3
above.
•Press DISPLAY repeatedly to
show the time on the TV
screen.
•Power failures of more than 30
seconds can erase the clock
setting.
•To reset the clock, follow steps
1-2. Select the information you
want to change using s or B.
When the information is
flashing, use K or L to enter
the correct information. Press
CLEAR to set the clock.
Helpful Hints
MONTH DAY YEAR
0 3 / – – – – – –
HOUR MINUTE AM/PM
– – : – – – –
CLOCK SET
MONTH DAY YEAR
0 3 / 1 9 – – – –
HOUR MINUTE AM/PM
– – : – – – –
CLOCK SET
MONTH DAY YEAR
0 3 / 2 0 MON 2 0 0 6
HOUR MINUTE AM/PM
– – : – – – –
CLOCK SET

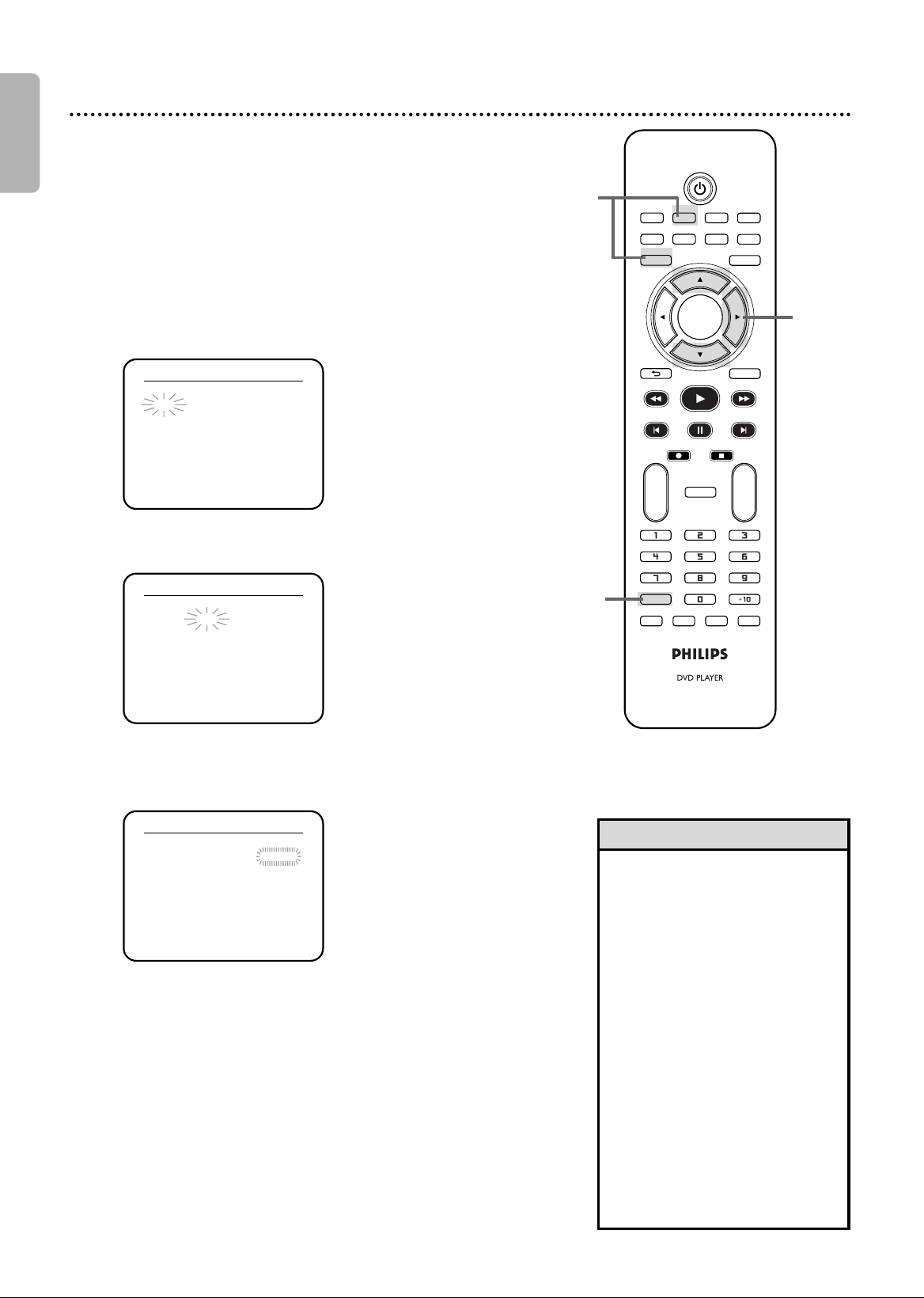

Follow these steps to set the VCR clock. Make sure:
1
Press VCR, then press DISC/VCR MENU so MENU1
appears. If the clock has never been set, the CLOCK SET
menu may appear when you press DISC/VCR MENU. If so,
follow the instructions from step 3 on this page.
2
Press K or L to select CLOCK SET. Then, press B.
3
While the MONTH space is flashing, press K or L
until the month appears. Then, press B.
4
While the DAY space is flashing, press K or L until
the day appears. Then, press B.
5
While the YEAR space is flashing, press K or L
until the year appears. Then, press B. The day of
the week will appear automatically.
6
While the HOUR space is flashing, press K or L
until the hour appears. Then, press B.
7
While the MINUTE space is flashing, press K or L
until the minute appears. Then, press B.
8
While the AM or PM space is flashing, press K or L
to point to AM or PM.
Your selection will flash on the screen in the AM/PM space.
9
Press CLEAR or B to start the clock.
1
2-9
9
E8A21UD_EN1 5/29/06 3:13 PM Page 22
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
OK
CLEAR

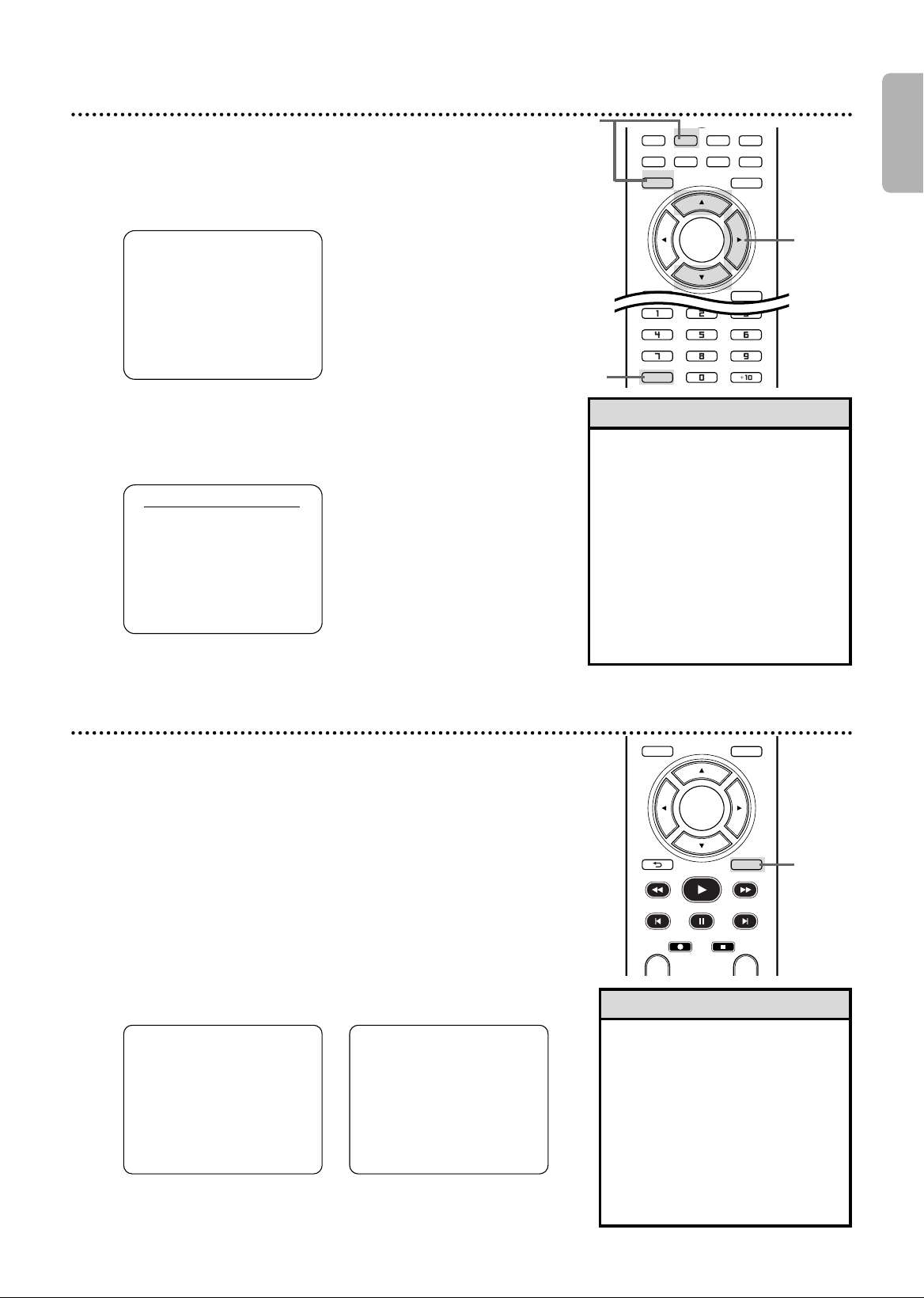

Language (VCR) 23
Follow the steps below to change the language of the VCR
On-Screen Displays and menus.
1
Press VCR, then press DISC/VCR MENU so MENU1
appears.
2
Press K or L to choose LANGUAGE SELECT,
then press B.
3
Press K or L to choose ENGLISH, FRANCAIS
(French) or ESPAÑOL (Spanish).
4
Press CLEAR to remove the menu.
• If you select FRANCAIS
(French), or ESPAÑOL (Spanish)
and need English:
1)Press DISC/VCR MENU so
MENU1 appears.
2) Press L to choose
SELECTION LANGUE or
SELEC. IDIOMA, then press B.
3) Press K or L to select
ENGLISH.
4) Press CLEAR.
Helpful Hint
LANGUAGE SELECT
B ENGLISH [ON]
FRANCAIS
ESPAÑOL
- M E N U 1 -
B TIMER PROGRAMMING
AUTO REPEAT [OFF]
CHANNEL SET UP
CLOCK SET
LANGUAGE SELECT
AUDIO OUT
TV STEREO [ON]
SAP
English
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
+
You may access Status Displays by pressing DISPLAY. The displays
may include the current time, channel and other information.
1
Press DISPLAY. The COUNT display will appear for 5
seconds. After 5 seconds, only the real-time tape counter
will appear. This counter shows you the elapsed playing
time of the tape (from the point at which the counter was
set to 0). The counter also will appear on the display panel
on the front of the DVD/VCR.
2
Press DISPLAY again. The CLOCK display will appear
for 5 seconds. After 5 seconds, only the time will appear
(the clock must be set). (If you are watching TV, the channel
number and the availability of stereo or second audio will
also appear.) The time also will appear on the display panel
on the front of the DVD/VCR.
3
Press DISPLAY again to remove all the displays.
STOP
SLP 0:12:34 HIFI
STOP 5:40 PM
CH 02
STEREO
SAP
SLP
23
VCR Status Displays
• If the channel you select has
no broadcast, the screen will
be solid blue.
•You cannot access a Status
Display when viewing a still
picture or during forward and
reverse searching.
• Channel numbers appear on
the screen for a few seconds
each time you change
channels.
Helpful Hints
1
4
2-3
1-3
E8A21UD_EN1 5/29/06 3:13 PM Page 23
English

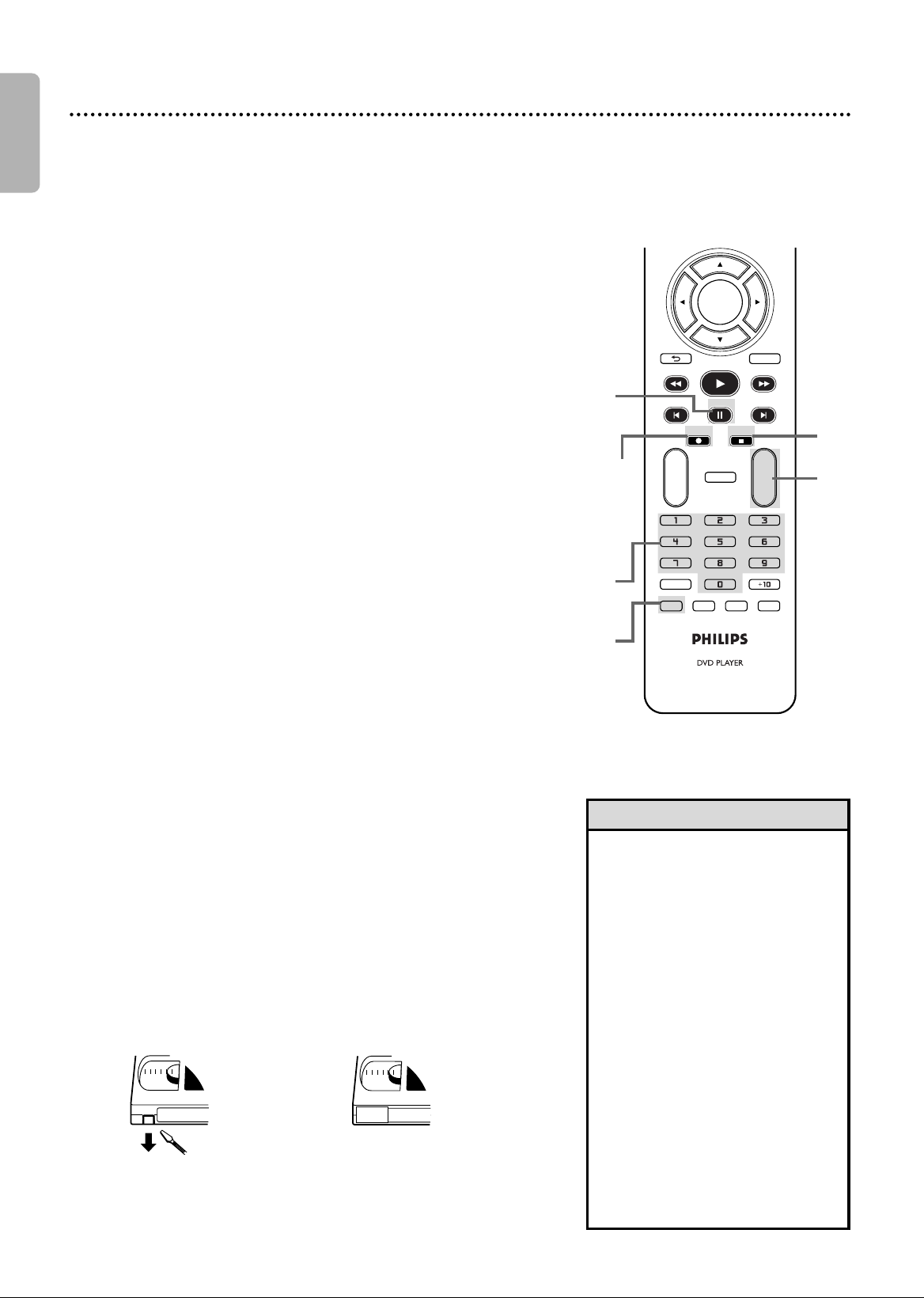

24 Videotape Recording
Read and follow the steps below to record a television program
onto a videotape.
● Before you begin, make sure the DVD/VCR is in VCR mode.
Press VCR so VCR light appears on the front of the DVD/VCR.
1
Turn on the TV and set it to channel 3 or 4 or the
Video In channel. If you connected the DVD/VCR to the
TV using the supplied audio and video cables, select your
TV’s Video In channel. Details are on page 12.
If you connected the DVD/VCR to the TV using the
supplied RF coaxial cable, choose channel 3 (or 4) at the TV.
Details are on pages 9-11.
2
Insert a tape with its record tab intact into the
cassette compartment of the DVD/VCR. If tape
playback begins, press STOP C.
3
Press REC MODE repeatedly until the desired tape
speed (SP or SLP) appears briefly on the screen.
Details about tape speed are on page 67.
4
Press CH + or CH - or the Number buttons to
select the TV channel to record.
5
Press REC I to start recording. “REC” will appear on
the DVD/VCR’s display panel.
6
To pause the recording, press PAUSE k once. “REC”
will flash. To r esume recording, press REC I or press
PAUSE k again. “REC” will reappear.
7
To stop recording, press STOP C.
Recording Prevention
Video cassettes have record tabs to ensure that recordings are
not accidentally erased.
1
To prevent recording, break off the tab with a
screwdriver.
2
To allow recording, cover the hole with clear tape.
• Other recording options are on
pages 25-30.
• The VCR will record in a preset
volume.
• Pause will switch to Stop after 5
minutes to protect the VCR and
the tape from damage. When a
recording is paused, review the
pause time remaining with
the ■ marks on the screen.
Each ■ mark equals
1 minute remaining. During the
last minute of paused recording,
the ■ mark will flash.
• If any menu is on the TV screen,
REC I on the remote does not
function. Press CLEAR to
remove the menu. Then, press
REC I.Or, use REC I on the
front of the DVD/VCR.
Helpful Hints
1
Turn on the TV.
2
Insert a tape in the
DVD/VCR.
Remove the
tab to prevent
recording.
Cover the
hole to allow
recording.
SETUPMENU
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
6
4
3
4
7
5-6
E8A21UD_EN1 5/29/06 3:13 PM Page 24
English
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE

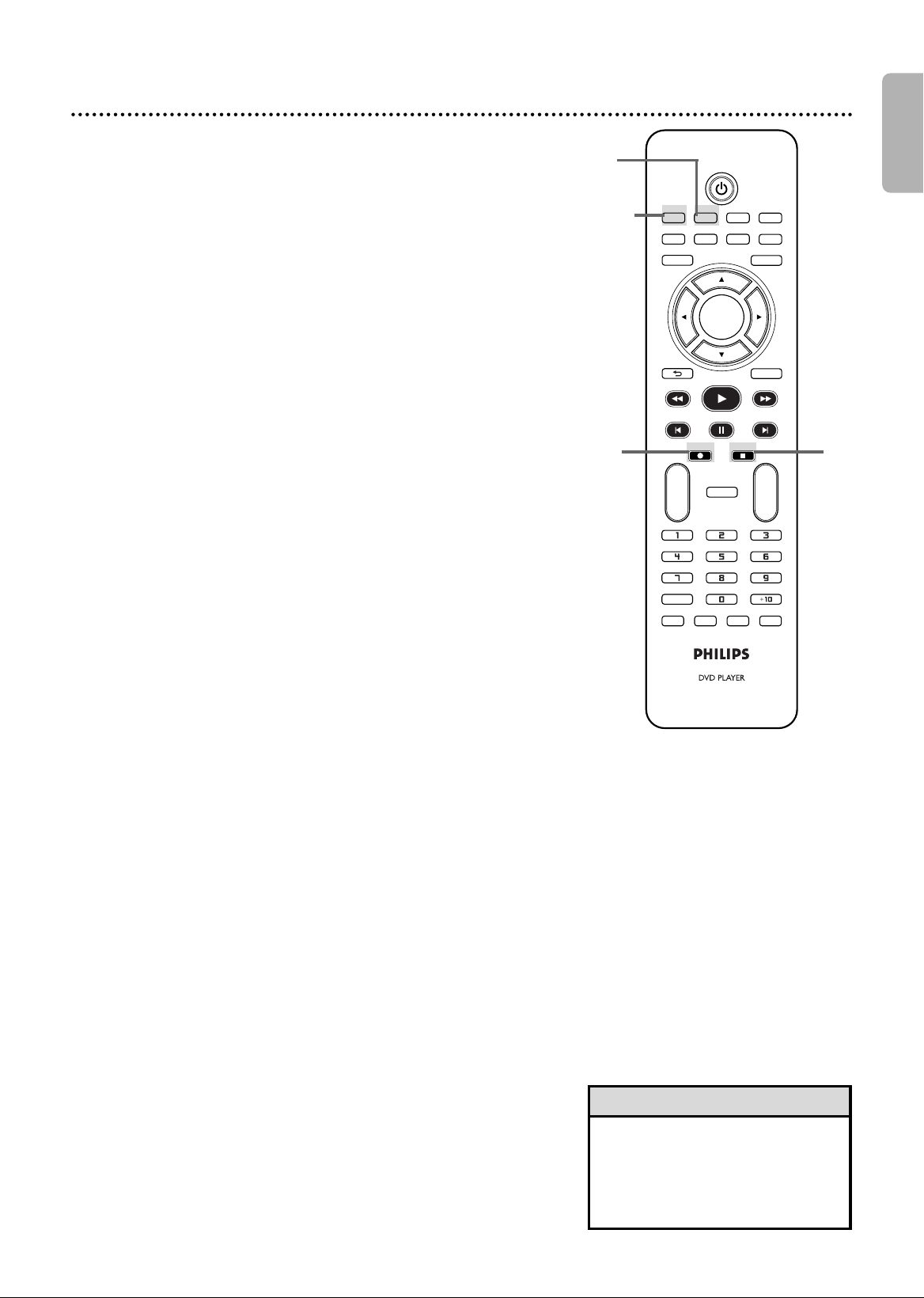

Recording One Channel/Watching Another 25
• If you use a Cable Box or
Satellite Receiver, you may not
be able to watch one channel
while recording another. See
pages 10-11 for details.
Helpful Hint
3
4
Select the channel you
want to watch at the TV.
Reselect channel 03, 04
or Video In at the TV.
1
Press VCR. Insert a recordable tape, then press
REC I to record the current TV channel. Details are
on page 24.
2
Press TV/VIDEO once to put the DVD/VCR in TV
position. The VCR light will disappear from the
DVD/VCR’s display panel.
3
Use the TV remote control to select the channel
you want to watch at the TV.
4
To r eturn to the channel being recorded, use the TV
remote control to return to channel 03 or 04 at the
TV. Details are on page 9. Or, if you connected the
DVD/VCR to the TV using audio and video cables, return
to the TV’s correct Video In channel. Details are on page 12.
5
Press TV/VIDEO on the DVD/VCR remote control
to put the DVD/VCR in VCR position. (The VCR light
will appear in the DVD/VCR’s display panel again.) The
channel being recorded will appear on the TV screen.
6
Press STOP C to stop the recording.
1
2,5
1 6
E8A21UD_EN1 5/29/06 3:13 PM Page 25
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
English

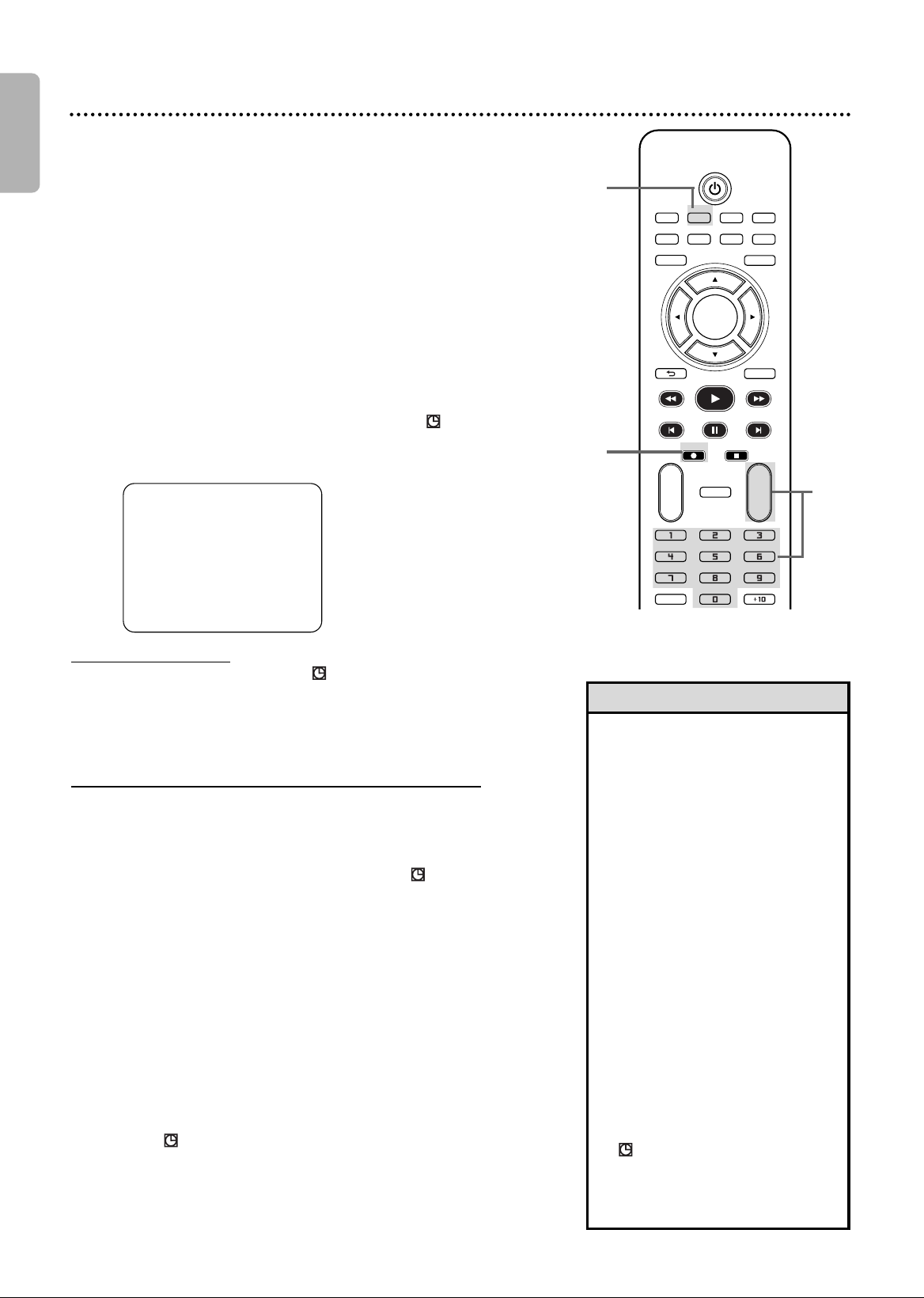

26 One-Touch Recording
OTR (0:30)
SP
One-Touch Recording (OTR) lets you set a timed recording 30
minutes to 8 hours long of the current TV channel. Before you
begin:
● Place the DVD/VCR in VCR mode. Press VCR so VCR light
appears on the front of the DVD/VCR.
● Select a recording speed (SP, SLP) by pressing REC MODE.
● Put a videotape in the cassette compartment. Make sure the
tape’s record tab is intact and the tape is long enough to record
the program(s).
1
Press VCR, then press CH + or CH - or the Number
buttons to select the channel you want to record.
2
Press REC I repeatedly until the desired recording
length (30 minutes to 8 hours) appears on the TV
screen. Recording will begin.“REC” and “ ” will appear
on the DVD/VCR’s display panel.
Stopping an OTR
To stop an OTR before recording is finished, press STOP C on the
remote control or STOP/EJECT C A on the front of the DVD/VCR.
To cancel the OTR but continue recording, press REC
I
repeatedly until REC appears in the upper left corner of the TV
screen, and “ ” disappears.
• The remaining recording time
will appear on the display panel
during an OTR. Press DISPLAY
to see it on the TV screen.
•To change the recording length
while an OTR is in progress,
press REC I repeatedly.
•You cannot pause an OTR.
• If the preset time for a timer
recording comes up during an
OTR, the OTR has priority. The
timer recording will not take
place.
• If the end of the tape is reached
during an OTR, the VCR will
stop recording, eject the tape,
and switch to DVD mode or
turn off.
• If one or more Timer
recordings are on standby when
one OTR ends, the DVD/VCR
will turn off automatically and
“
” will appear on the
DVD/VCR’s display panel
indicating that it is now ready
for another timer recording.
Helpful Hints
1
2
1
When an OTR ends
The DVD/VCR will turn off and “ ” on the DVD/VCR’s display
panel will flash indicating that the recording is complete, then goes
into the timer standby mode again. (It may switch to DVD mode
automatically.) At this point, you cannot use the VCR unless you
release the DVD/VCR from the timer standby mode.
To r elease the DVD/VCR from timer standby mode
● If the DVD component is active and no more timer recordings
are on standby, you can cancel the timer standby mode by
pressing TIMER SET or VCR on the remote control or by
pressing SOURCE or STOP/EJECT C A on the front panel.
● If the DVD component is not active, or the “ ” is not flashing
but lit indicating there are more timer recordings on standby,
you can cancel the timer standby mode only by pressing
TIMER SET on the remote control or by pressing
STOP/EJECT C A on the front panel.
● After releasing the DVD/VCR from timer standby mode, you
can use it as usual.
E8A21UD_EN1 5/29/06 3:13 PM Page 26
English

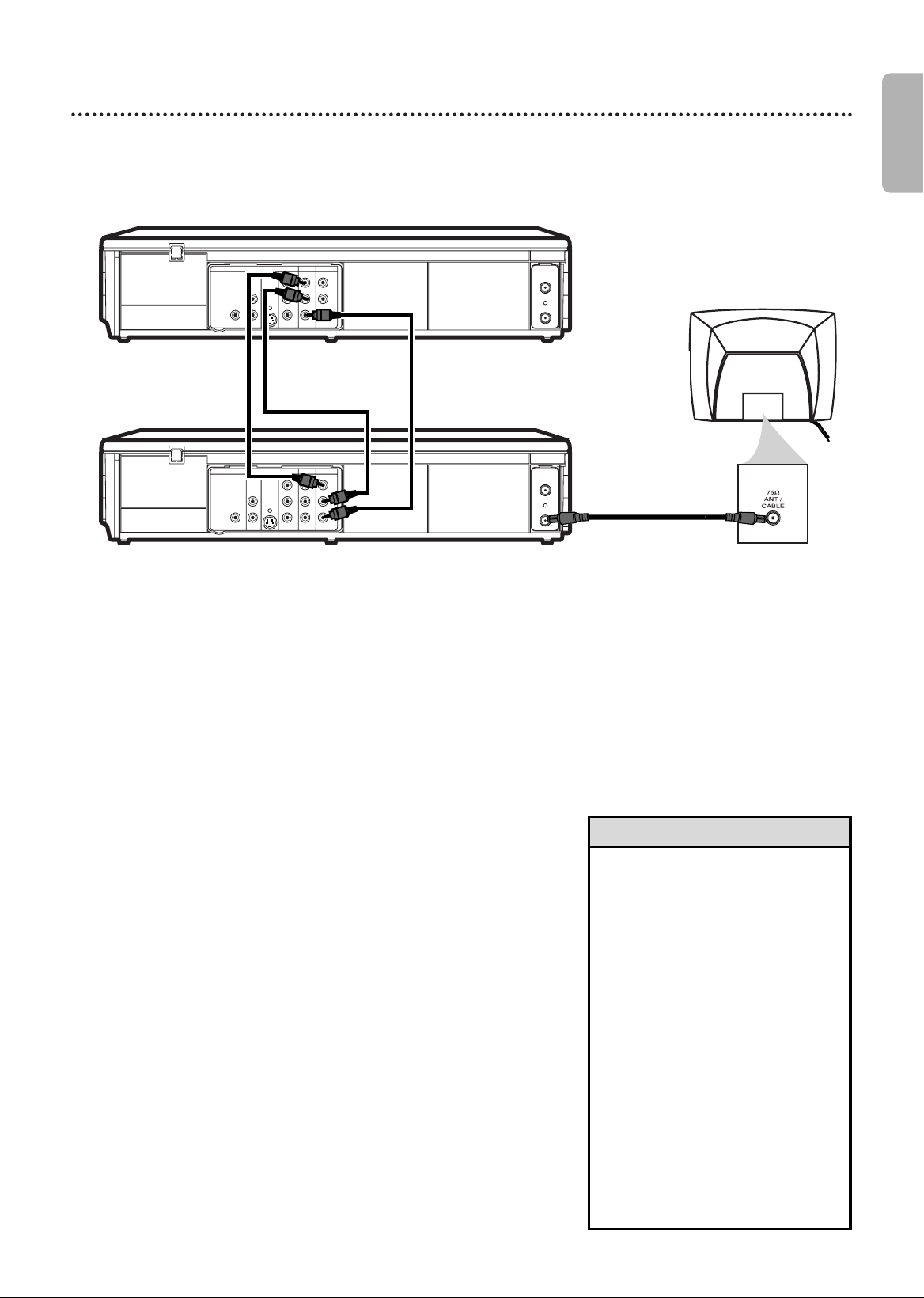

Rerecording (Tape Duplication) 27
1
Make the connections shown above.
2
DVD/VCR 1 will play your tape. Put a prerecorded tape
into the cassette compartment of DVD/VCR 1.
Press VCR to put the unit in VCR mode if necessary.
3
DVD/VCR 2 will record your tape. Insert a blank tape in
the cassette compartment of DVD/VCR 2. Press VCR
to put the unit in VCR mode if necessary.
4
Turn on the TV and set it to channel 03 or 04 (the
RF output channel of DVD/VCR 2). To determine the
DVD/VCR’s output channel, see step 4 on page 9.
5
Point the remote control at DVD/VCR 2. Press
Number buttons 0, 0, 1 or 0, 0, 2. (See Helpful Hints to
the right.)
6
Press REC MODE to select SP or SLP at DVD/VCR 2.
7
Press PLAY B (VCR) on the front of DVD/VCR 1
and REC I on the front of DVD/VCR 2 at the same
time.
To stop recording, press STOP/EJECT C A on DVD/VCR 2,
then press STOP/EJECT C A on DVD/VCR 1.
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B
/
P
B
AUDIO OUT
DVD/VCR
VCR
ANT
-
IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
C
R
/
P
R
DVD/VCR 1
Playing unit
DVD/VCR 2
Recording unit
1. Audio cable from AUDIO OUT jacks (red and white)
of DVD/VCR 1 to AUDIO IN jacks of DVD/VCR 2
3. RF coaxial cable from the ANT-OUT
(Antenna Out) jack of DVD/VCR 2
to the TV’s ANTENNA IN jack
•If you use the AUDIO and
VIDEO IN jacks on the back of
DVD/VCR 2, press Number
buttons 0, 0, 1 at step 5. L1 will
appear on the TV screen.
•If you use the AUDIO and
VIDEO IN jacks on the front of
DVD/VCR 2, press Number
buttons 0, 0, 2 at step 5. L2 will
appear on the TV screen.
• Unauthorized recording of
copyrighted television programs,
video tapes or other materials
may infringe on the rights of
copyright owners and violate
copyright laws.
• If a program has copyright
protection, it may not be
recorded clearly.
Helpful Hints
These instructions show you how to copy videotapes. The illustration uses two DVD/VCRs. Other VCRs or
Camcorders may operate differently.
2. Video cable from yellow VIDEO
OUT jack of DVD/VCR 1 to
VIDEO IN jack of DVD/VCR 2
E8A21UD_EN1 5/29/06 3:13 PM Page 27
English

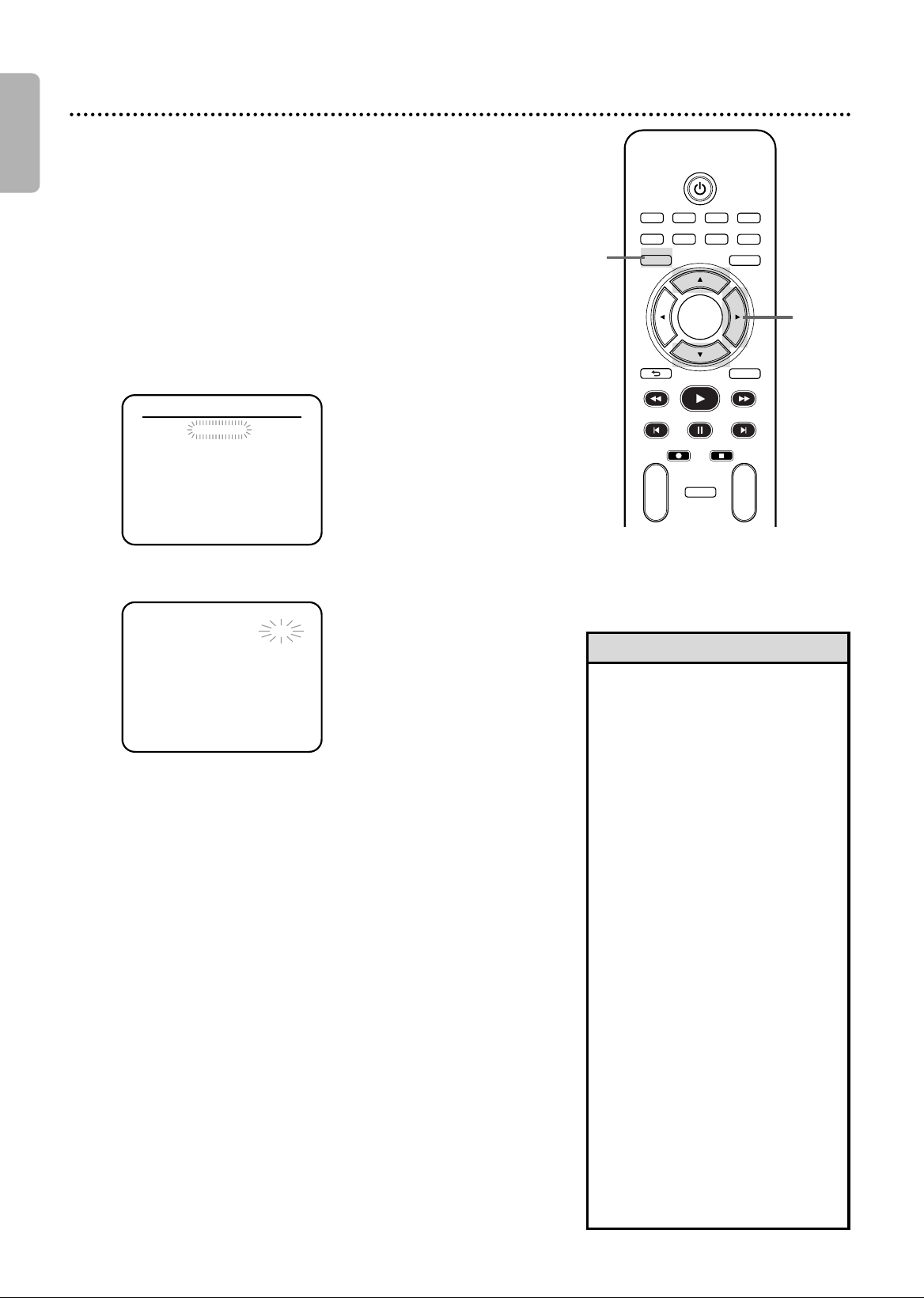

28 Timer Recording
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
Follow the steps below to program the VCR of the DVD/VCR to
record TV programs while you’re away from home. Before you begin:
● Set up the TV channels at the DVD/VCR. Details are on page 21.
● Set the clock. Details are on page 22.
● Put a tape in the cassette compartment of the DVD/VCR. Make
sure the tape’s record tab is intact and the tape is long enough
to record the program(s).
● Press VCR so VCR light appears on the front of the DVD/VCR.
1
Press DISC/VCR MENU so MENU1 appears.
2
Press
K or L
to select TIMER PROGRAMMING.
Then, press
B
. Program numbers that do not have a timer
recording stored will flash.
3
Press K or L to select an empty program.
Then, press B.
4
Press K or L to select ONCE, DAILY or WEEKLY.
Then, press B.
● ONCE - The VCR will record a TV program on any day you
choose, up to 12 months away.
● DAILY -
The VCR will record a TV program at the same time
on the same channel every day, Monday through Friday.
●
WEEKLY - The VCR will record a TV program at the same time
on the same channel every week, for example, every Monday.
5
To enter the recording date, press K or L until the
month appears. Then, press B.
Next, press K or L until the day appears. Then,
press B. The day of the week will appear. You cannot
record more than one year in advance.
6
To enter the recording’s start time, press K or L until the
hour appears. Press B.Press K or L until the minute
appears. Press B.Finally, press K or L to point to AM
or PM. AM or PM will flash beside the start time. Press B.
7
Repeat the procedure in step 6 to set the
recording’s end time.
8
Press K or L until the channel number appears.
Then, press B.
● If you are using a standard antenna/Cable TV hookup (as
shown on page 9), select the channel of the TV program
you want to record.
•You cannot access the TIMER
PROGRAMMING menu at step
2 if the clock is not set.The
CLOCK SET menu will appear.
Follow the steps on page 22 to
set the clock.
• Only programs that will air
Monday-Friday can be recorded
on a DAILY basis. If you select
DAILY at step 4, then enter a
Saturday or Sunday DATE at step
5, the correct program will not
be recorded. The VCR will alter
the recording date and record a
different program than the one
you intended.
•If you are recording from other
equipment, set CHANNEL to L1
or L2 at step 8. If you connected
the other equipment to the
AUDIO and VIDEO In jacks on
the front of the DVD/VCR,
choose L2. If you connected the
equipment to the AUDIO IN and
VIDEO IN jacks on the back of
the DVD/VCR, choose L1.
• Enter the information while the
space is flashing.
Helpful Hints
PROG. 12345678
DATE
START TIME
END TIME
CHANNEL
REC SPEED
TIMER PROGRAMMING
PROGRAM NUMBER 1
DATE – – / – –
START TIME – – : – – – –
END TIME – – : – – – –
CHANNEL – –
REC SPEED – –
1
2-8
E8A21UD_EN1 5/29/06 3:13 PM Page 28
English

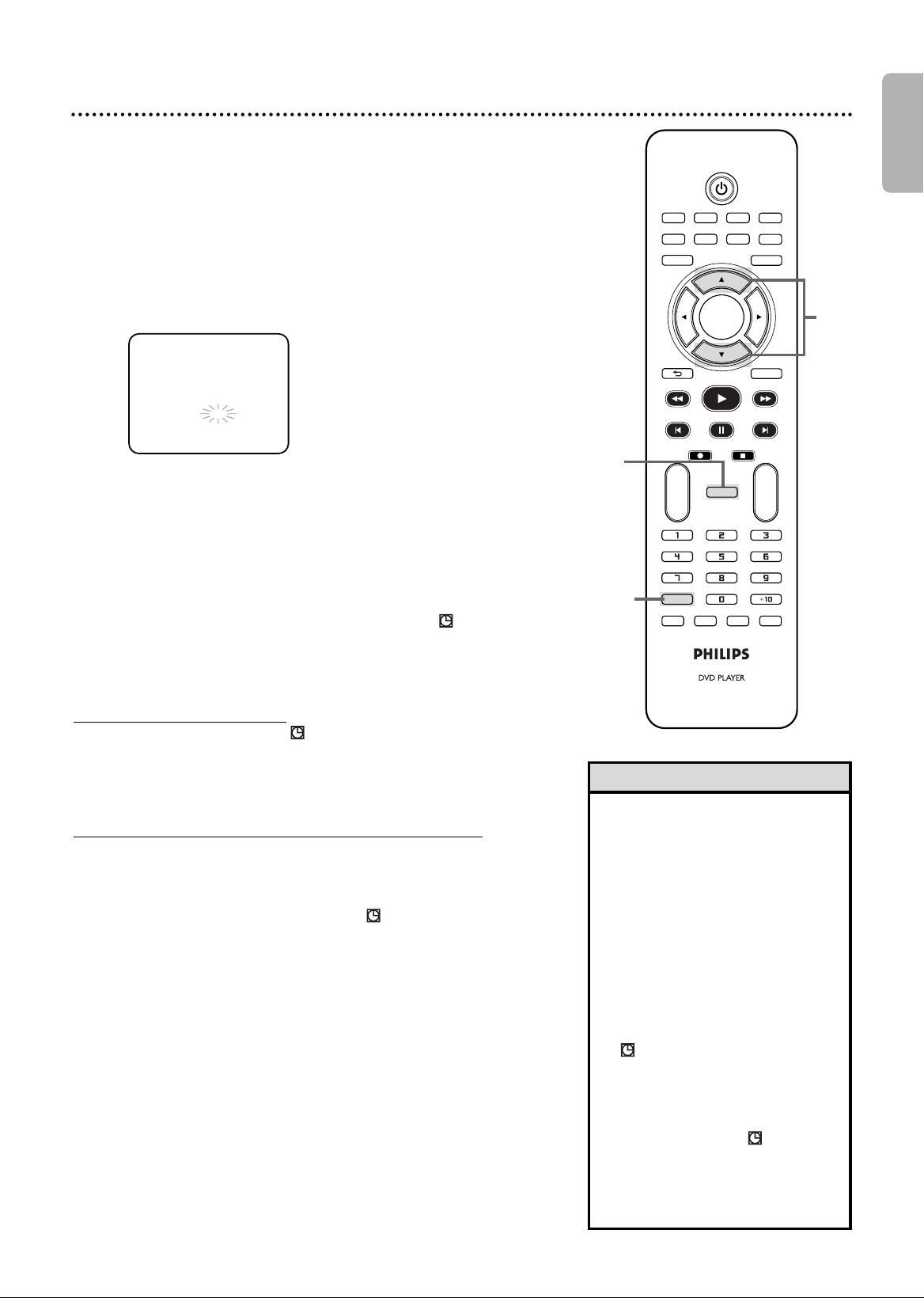

Timer Recording (cont’d) 29
●
If you are recording from other equipment, select L1 or L2. To
determine L1 or L2, refer to the Helpful Hints on page 28.
● If you are using a Cable Box/Satellite Receiver, select the
Cable Box/Satellite Receiver output channel (03 or 04).
Then, at the Cable Box/Satellite Receiver, select the channel
you want to record. Leave the Cable Box/Satellite Receiver
on for the timer recording.
Details are on page 10.
9
Press K or L to select a recording tape speed. The arrow
will appear beside your choice. The selected speed will flash
beside REC SPEED. Details about tape speed are on page 67.
You must select the recording speed to complete the timer programming.
•To stop a started timer
recording, press STOP/EJECT
C A on the front of the
DVD/VCR. (You cannot stop a
started timer recording with
STOP C on the remote.) More
Helpful Hints are on page 69.
•To change incorrect
information, press s or B to
choose the item you want to
change. Press K or L to adjust
the information.
• If there is no tape in the VCR
when you press TIMER SET,
“” will flash. Insert a tape.
• If one or more Timer
recordings are on standby when
one timer recording ends, the
DVD/VCR will turn off
automatically and “ ” will
appear on the DVD/VCR’s
display panel indicating that it is
now ready for another timer
recording.
Helpful Hints
PROGRAM NUMBER 1
DATE 0 5 / 0 3 WED
START TIME 0 7 : 3 0 P M
END TIME 0 8 : 3 0 P M
CHANNEL 16
REC SPEED S P
B SP
SLP
ONE TIME PROGRAM
10
Press
CLEAR to remove the menu.
11
Press TIMER SET. In some cases, the DVD/VCR will switch to
DVD mode instead. You may use the DVD player during a timer
recording.
If you want to use the VCR until time for the recording, don’t press
TIMER SET until a few minutes before the recording should start.
Or, press TIMER SET only when you know you won’t be using the
VCR anymore (until after the recording).When “ ”
is lit (not
flashing), you cannot put the DVD/VCR in VCR mode by pressing
VCR or SOURCE. You must first press TIMER SET on the remote
control or STOP/EJECT
C A
on the front panel to cancel the timer
recording temporarily. Then, you can use the VCR features again.
When a timer recording ends
The DVD/VCR will turn off and “ ” on the DVD/VCR’s display panel
will flash indicating that the recording is complete, then goes into the
timer standby mode again. (It may switch to DVD mode automatically.) At
this point, you cannot use the VCR unless you release the DVD/VCR
from the timer standby mode.
To r elease the DVD/VCR from timer standby mode
●
If the DVD component is active and no more timer recordings are on
standby, you can cancel the timer standby mode by pressing TIMER SET or
VCR on the remote control or by pressing SOURCE or STOP/EJECT
C A
on the front panel.
● I
f the DVD component is not active, or the “ ” is not flashing but lit
indicating there are more timer recordings on standby, you can cancel the
timer standby mode only by pressing TIMER SET on the remote control or
by pressing STOP/EJECT
C A
on the front panel.
●
After releasing the DVD/VCR from timer standby mode, you can use it as usual.
Cancelling a Timer Recording before the Recording Starts
1
PressVCR, then press DISC/VCR MENU so MENU1 appears.
2
Press K or L to select TIMER PROGRAMMING,
then press B.
3
Press
K
or
L
to find the program you want to cancel.
4
While the program number is flashing, press s to
clear all the information for that program.
5
Press CLEAR to remove the menu.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
9
11
10
E8A21UD_EN1 5/29/06 3:13 PM Page 29
English

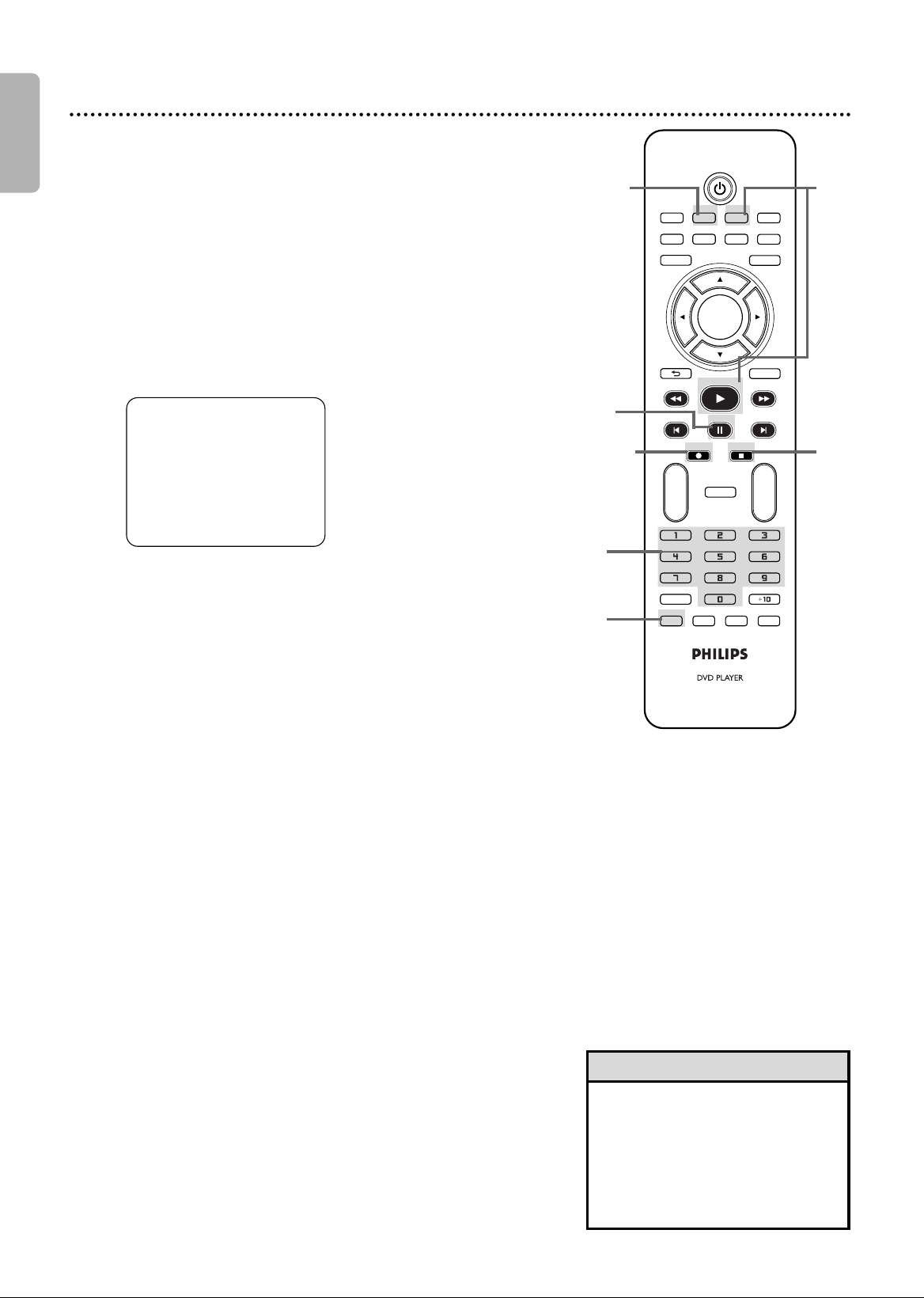

30 DVD to Videotape Duplication
Follow the steps below to copy a DVD to a videotape. This will
be possible only if the DVD is not copy protected.
Before you begin:
● Put a videotape in the cassette compartment. Make sure the
tape’s record tab is intact and the tape is long enough to record
the DVD.
● Put the DVD you want to copy in the disc tray.
● Press VCR so VCR light appears on the front of the DVD/VCR.
●
Turn on the TV and set it to channel 3, 4 or its Video Input.
1
Point the remote control at the DVD/VCR. Press
Number buttons 0, 0, 3. “DISC” will appear on the TV
screen.
2
Press REC MODE repeatedly until the desired tape
speed (SP or SLP) appears briefly on the screen.
Details about tape speed are on page 67.
3
Press REC I to start recording. “REC” will appear on
the display panel.
4
Press DVD. Press PLAY B to play the disc.
5
To pause the recording, press VCR, then press
PAUSE k once. “REC” will flash. To r esume
recording, press REC I or press PAUSE k again.
“REC” will reappear.
6
To stop recording, press VCR, then press STOP C.
DISC
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
•A timer recording is not
possible during DVD to
videotape duplication.
•You cannot copy a DVD to a
videotape if you are using
Progressive Scan. Details are on
page 14.
Helpful Hints
1
2
5,6
5
3,5
4
6
E8A21UD_EN1 5/29/06 3:13 PM Page 30
English
Setting Up the VCR Plus+
®
Programming System Manually
31
To have the VCR Plus
+
programming system work properly, you must assign correct User Channels to the Guide
Channels given to each TV/CATV stations.To do so, follow the steps below.
1
First, fill in the boxes on this page.
Since the channel numbers of the stations you receive may not be the same as the station numbers,
and since channel numbers differ from area to area, you must program the VCR with your local
channel information.To fill in the boxes, you will need 1) a cable channel list, if applicable (you can
request one from your cable company), and 2) a chart that lists VCR Plus+ channel numbers (Guide
channels), which you can find in your TV guide or the TV listings of your local newspaper.
NOTE: If you are using a Cable Box/DBS, the User channel must be 3 or 4 (the Cable
Box/DBS output channel) for every Guide channel.
Channels
Station
Call Letters
GUIDE CH.
USER CH.
Channels
Station
Call Letters
GUIDE CH.
USER CH.
Instructions continue on the next page.
E8A21UD_EN1 5/29/06 3:13 PM Page 31

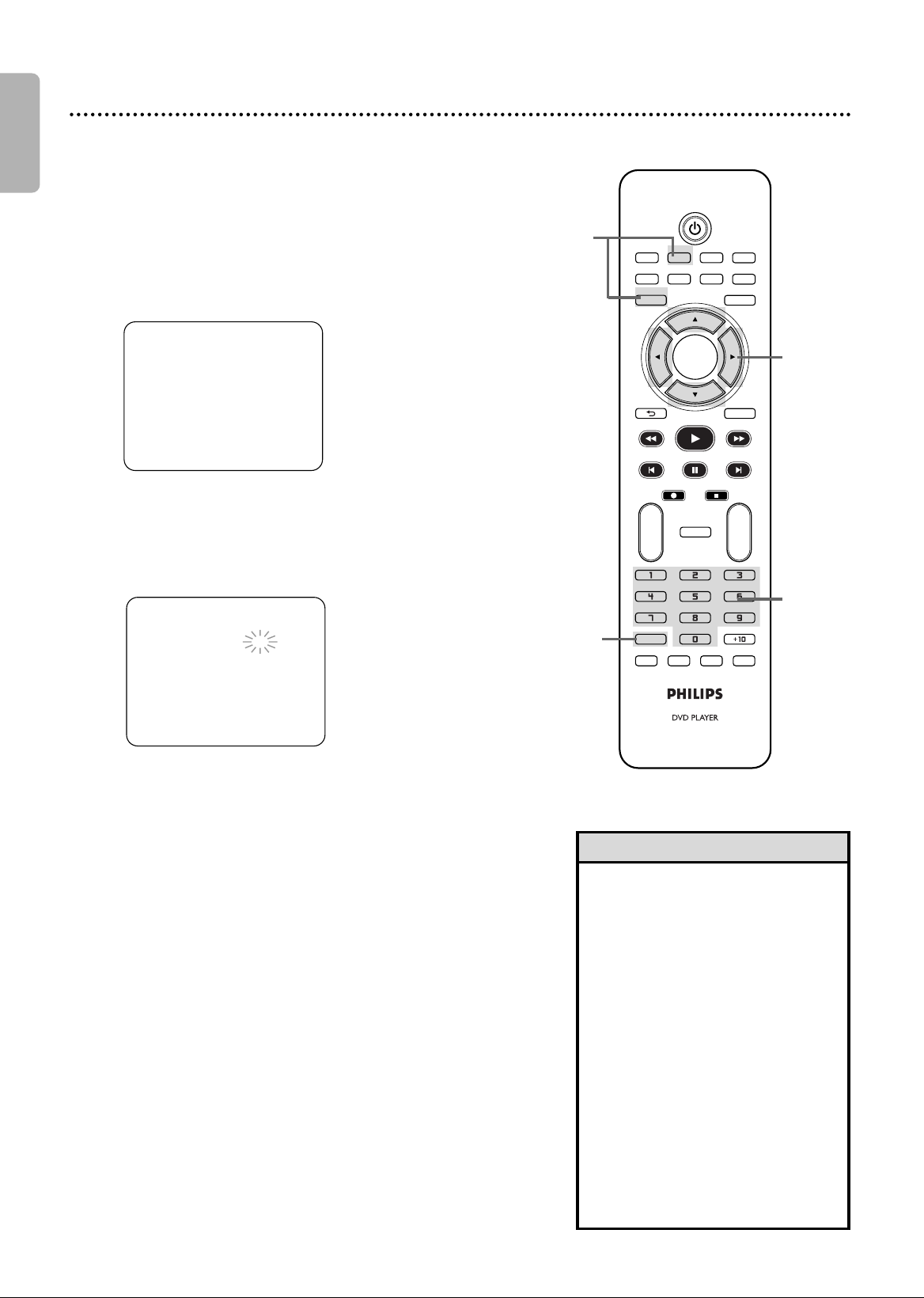

8
English
2
Now, compare the channel numbers you have written in
the GUIDE CH. and USER CH. columns. For stations
whose Guide and User channels do not match, you must
tell the VCR the Guide and User channels by following
steps 3-7.
3
Press VCR, then press DISC/VCR MENU repeatedly
until MENU2 appears.
- M E N U 2 -
B GUIDE CHANNEL SET
GUIDE CHANNEL MAP
GUIDE CHANNEL SET
GUIDE CH. 25
USER CH. _ _
6
Press the Number buttons, K, or L until the User
channel number you want appears. If you have an
antenna, choose channels 2-69. If you have Cable TV,
choose channels 1-125. If you want to select line input 1 or
2 (L1 or L2), press 0, 0, 1 or 0, 0, 2 on the remote control.
● Press s to go back one step from the current step.
7
Press B to memorize the Guide and User channels
you entered. To set more Guide and User channels,
repeat steps 5-7.
8
Press CLEAR to remove the menu.
4
Press K or L to select GUIDE CHANNEL SET, then
press B.
5
Press the Number buttons, K, or L until the Guide
channel number you want appears.Then, press B.
32
Setting Up the VCR Plus+
®
Programming System Manually (cont’d)
Examine the lists on page 31.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
3
4-7
5-6
• To check a User channel, press
DISC/VCR MENU until MENU2
appears. Press K or L to select
GUIDE CHANNEL MAP, then
press B. If the channel is not on
the screen, press B until you
reach the correct page.
• To erase a User channel, press s.
A pair of numbers will flash. Press
K or L until the numbers flash.
Press s to delete the User chan-
nel. Press CLEAR to remove the
menu.
• To correct a Guide channel,
repeat steps 3-5 on this page.
Then, press K, L, or the Number
buttons to enter the correct
number. Press B, then press
CLEAR to remove the menu.
Helpful Hints
Instructions continued from the previous page.
E8A21UD_EN1 5/29/06 3:13 PM Page 32
English

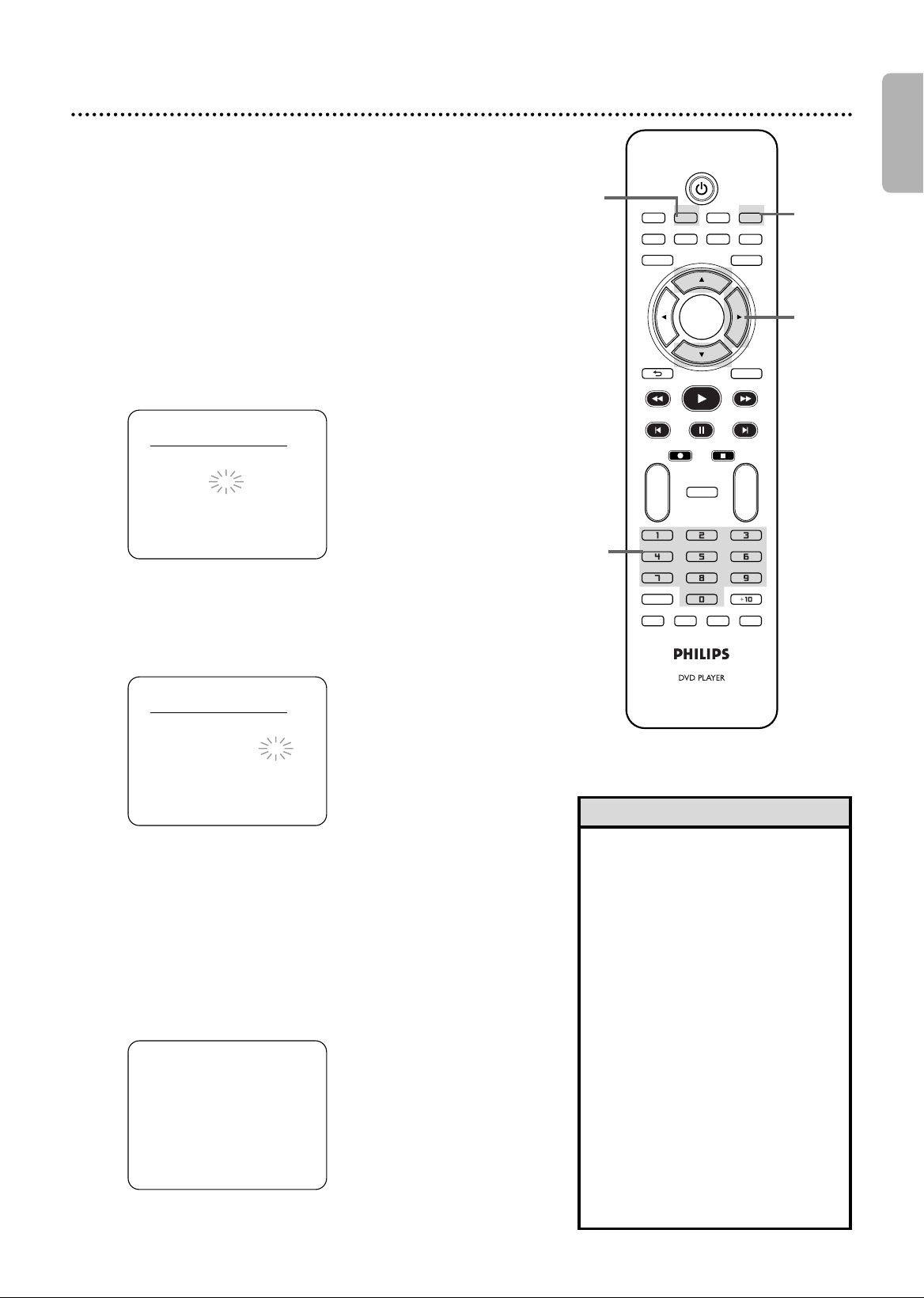

Timer Recording with the VCR Plus+ Programming System
33
• The number you entered may
flash on the screen after step 3 if
you enter an incorrect PlusCode
programming number (for
example, one that is too short).
The previous screen will appear.
Enter the correct PlusCode
programming number.
• If the number you entered flashes
on the screen after step 3, the
timer recording you just
programmed and another timer
recording overlap.The current
timer recording will not occur.
• You may use the VCR Plus+
Programming System to record
programs on Cable TV channels
up to channel 125.
• If the power fails for more than
30 seconds, programmed timer
recordings will be erased.
Helpful Hints
1
Press VCR.
2
Press VCR Plus+.
3
Press the Number buttons to enter the PlusCode
programming number of the program you wish to
record.
Then, press VCR Plus+.
4
Press K or L to select a ONCE, DAILY, or WEEKLY
recording.Then, press B.
● ONCE: The VCR will record a TV program on any day
you choose, up to 12 months away.
● DAILY: The VCR will record a program every day from
Monday to Friday – starting at the same time and record-
ing for the same length of time.
● WEEKLY: The VCR will record a program on the same
day, at the same time, and for the same length of time
every week.
VCR Plus
+
system
B ONCE
DAILY
WEEKLY
VCR Plus
+
system
PlusCode No. : – – – – – – – –
VCR Plus
+
system
PlusCode No. : 1 2 3 4 5 – – –
This DVD/VCR is equipped with the VCR Plus+ programming sys-
tem.
Follow these steps to set a timer recording with the PlusCode
programming numbers in your TV guide.
Before you begin:
● Set up the channels at the VCR (page 21).
● Set up the VCR Plus+ and Cable/TV channel numbers
(pages 31-32).
● Set the clock (page 22).
● Put a tape in the VCR.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
1
2-3
4
3
Instructions continue on the next page.
E8A21UD_EN1 5/29/06 3:13 PM Page 33
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
English
34

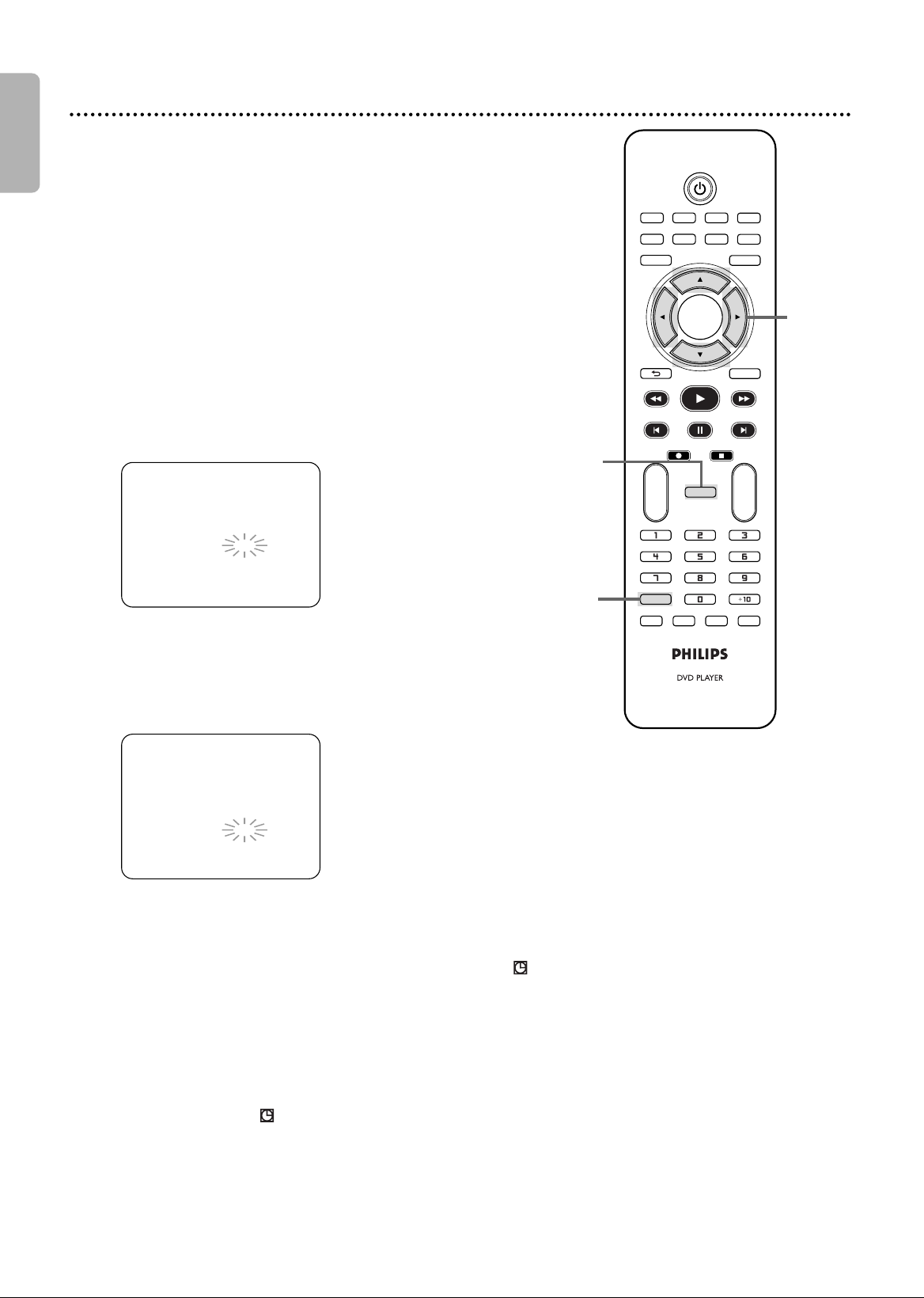

Timer Recording with the VCR Plus+ Programming System (cont’d)
5
Press K or L until your desired channel number
appears. Then, press B.
● If you are using a standard antenna/Cable TV hookup (as
shown on page 9), select the channel of the TV program
you want to record.
● If you are recording from other equipment, select L1 or L2.
To d etermine L1 or L2, refer to the Helpful Hints on page
28.
● If you are using a Cable Box/Satellite Receiver, select the
Cable Box/Satellite Receiver output channel (03 or 04).
Then, at the Cable Box/Satellite Receiver, select the channel
you want to record. Leave the Cable Box/Satellite Receiver
on for the timer recording.
Details are on page 10.
● The channel set here will be memorized as the User
Channel for the station you selected at the Cable
Box/Satellite Receiver, and saved in the GUIDE CHANNEL
MAP automatically.
6
Press K or L until your desired tape speed appears.
(Example: SP) There are cases in which the program
information does not match your area. If the incorrect
information appears, select the number you want to change
using s.Then, enter the correct numbers using K or L.
7
Press CLEAR.
8
Press TIMER SET. The DVD/VCR will turn off and
“”
will appear on the front of the DVD/VCR. In some cases,
the DVD/VCR will switch to DVD mode instead.You may
use the DVD Player during a timer recording.
If you want to use the VCR until time for the recording,
don’t press TIMER SET until a few minutes before the
recording should start. Or, press TIMER SET only when you
know you won’t be using the VCR anymore (until after the
recording).When
“”
is on, you cannot put the DVD/VCR
in VCR mode by pressing VCR or SOURCE.You must first
press TIMER SET to cancel the timer recording temporarily.
Then, you can use the VCR features again.
ONE TIME PROGRAM
PROGRAM NUMBER 1
DATE 05/07 SUN
START TIME 07:30 PM
END TIME 08:30 PM
CHANNEL B16
REC SPEED SP
SP
SLP
ONE TIME PROGRAM
PROGRAM NUMBER 1
DATE 05/07 SUN
START TIME 07:30 PM
END TIME 08:30 PM
CHANNEL 16
REC SPEED B SP
SP
SLP
5,6
8
7
Instructions continued from the previous page.
E8A21UD_EN1 5/29/06 3:13 PM Page 34
English
If you want to record programs via cable box/DBS using
the VCR Plus
+
Programming System, you must
- use the connection illustrated on page 9.
- assign 03 or 04 as the User Channel for all the Guide Channels.
- set the Cable Box/DBS to the channel you want to record, and
leave the Cable Box/DBS on for the timer recording.
Press TIMER SET
for the recording.
Insert a tape in the VCR.
Leave the Cable Box/DBS on
(if applicable).
Timer Recording with the VCR Plus+ Programming System (cont’d)
35
E8A21UD_EN1 5/29/06 3:13 PM Page 35
English
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
+
CLEAR
REC MODE SEARCH MODE TITLE

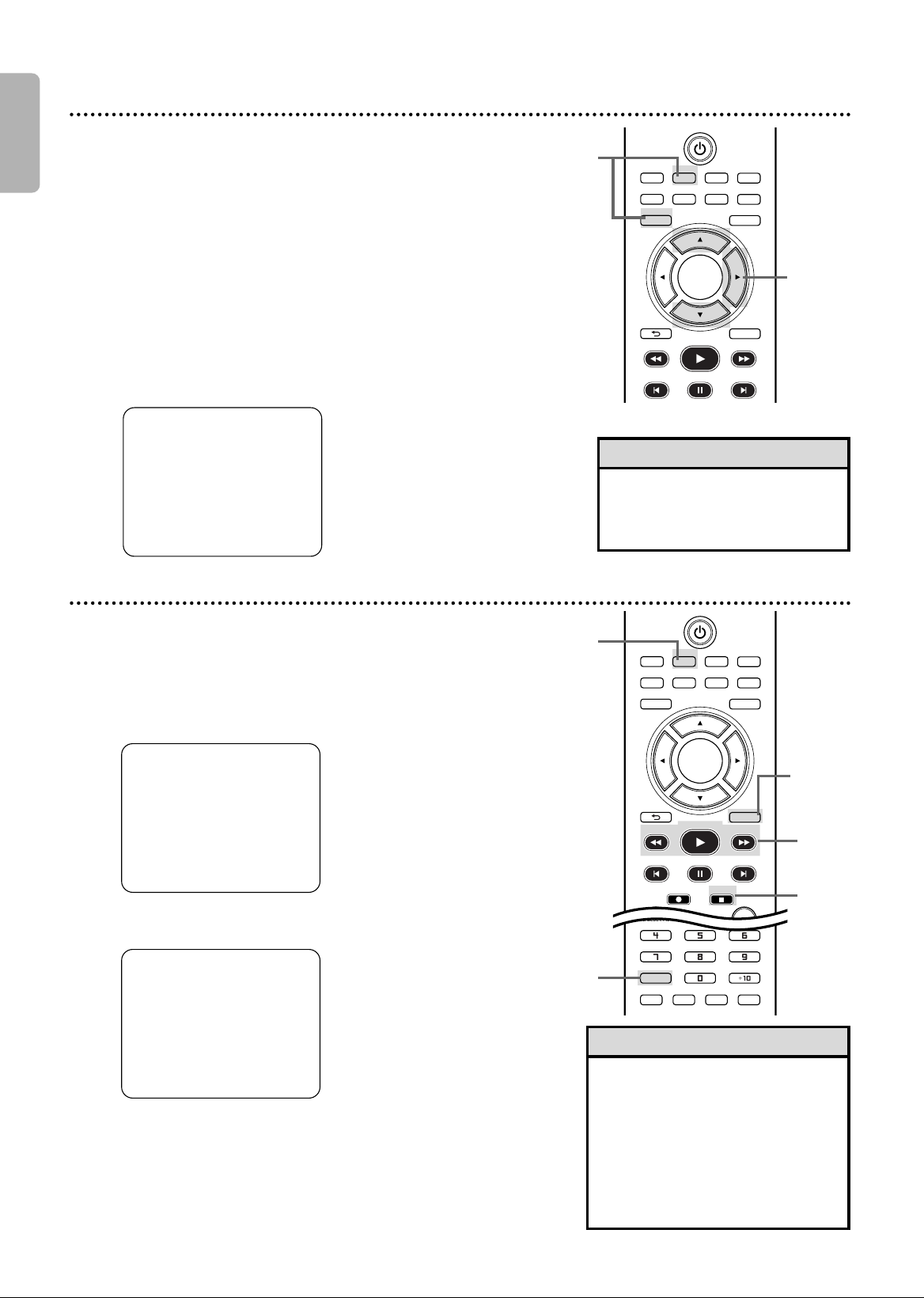

36 Repeat Playback
Follow the steps below to play a videotape repeatedly.
1
Press VCR, then press DISC/VCR MENU so MENU1
appears.
2
Press K or L to select AUTO REPEAT.
3
Press B so ON appears next to AUTO REPEAT.
Tape playback will begin immediately. AUTO REPEAT will
appear on the TV screen briefly. (If you are fast forwarding
or rewinding the tape, press CLEAR to remove the menu,
then press PLAY B to begin tape playback.) The tape will
play to the end, rewind, then play again. (TV programming
will appear on the screen while the tape is rewinding.)
- M E N U 1 -
TIMER PROGRAMMING
B AUTO REPEAT [ON]
CHANNEL SET UP
CLOCK SET
LANGUAGE SELECT
AUDIO OUT
TV STEREO [ON]
SAP
•To cancel Auto Repeat, follow
steps 1-2. At step 3, press B
so OFF appears beside AUTO
REPEAT. Press CLEAR.
Helpful Hint
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
OK
Tape Counter
•
You may only set the counter to 0
at one location at a time. Setting the
counter to zero at a second location
will erase the previous 0 setting.
•If you remove the tape, the
counter will reset to 0 at the
point at which you last stopped
playback whenever you reinsert
the tape.
Helpful Hints
STOP
SLP 1 : 23 : 45 HIFI
Follow the steps below to reset the VCR’s real-time tape counter
to 0 at a tape location you want to refer to later.
1
Press VCR, then play, fast forward or rewind a tape
to the location that you would like to refer to later.
Press STOP C to stop the tape.
2
Press DISPLAY to see the Status Display.
3
While the counter is on the screen, press
CLEAR to reset the counter to 0.
STOP
SLP 0 : 00 : 00 HIFI
4
When you later want to return to this point on the
tape, press DISPLAY so you can see the counter
(while tape playback is stopped). Press REW h or
FFW g.
As the tape rewinds or forwards, watch the counter. When
it reaches 0, press PLAY B to play the tape.
1
1
2-3
3
1,4
2,4
1
E8A21UD_EN1 5/29/06 3:13 PM Page 36
English

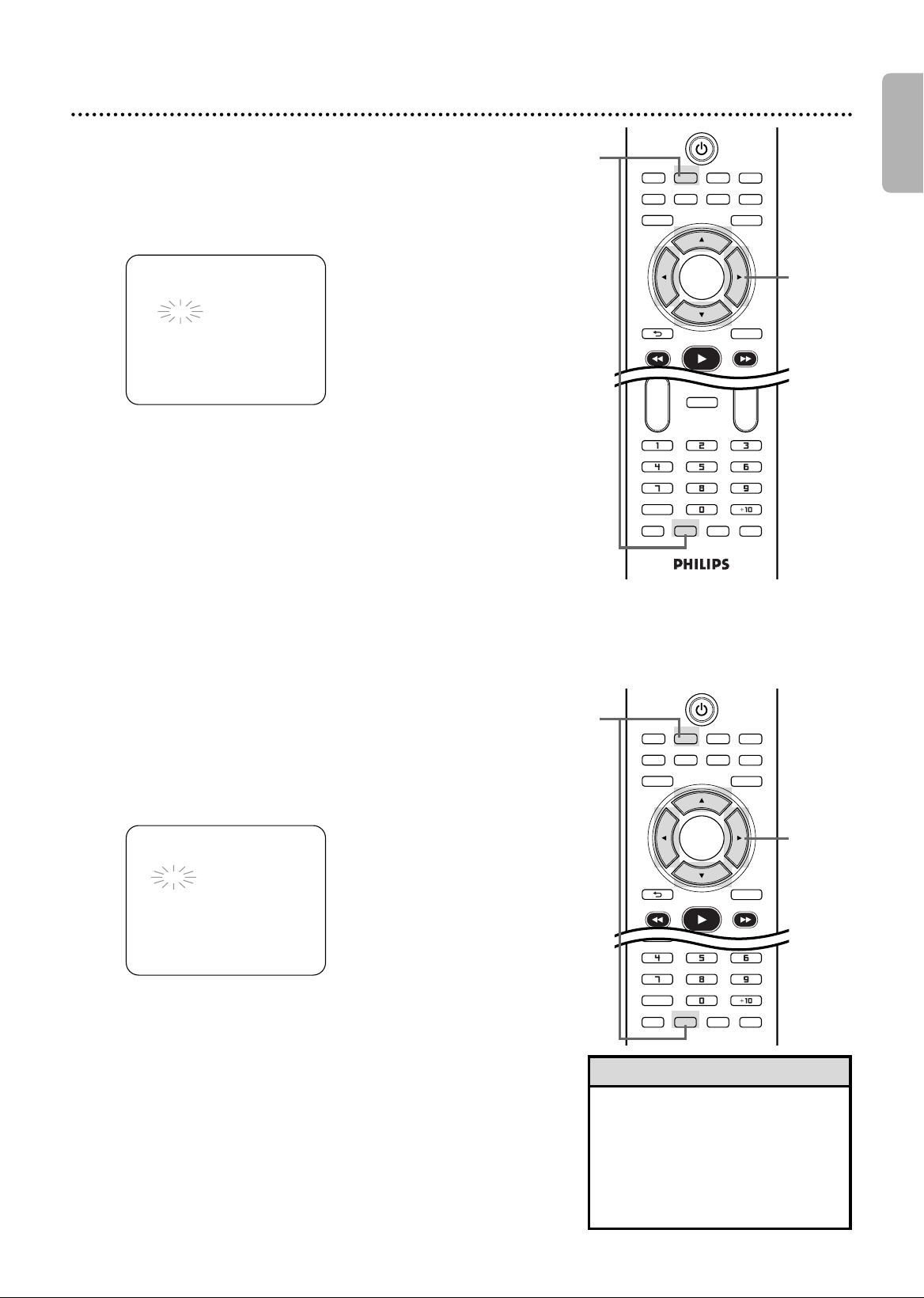

Time Search, Index Search 37
Time Search
Follow the steps below to search forward or backward on a tape
a specific length of time. There must be a tape in the cassette
compartment.
1
Press VCR, then press SEARCH repeatedly until the
TIME SEARCH screen appears.
• Time Search and Index Search
are not available during
recording.
•To remove a Search Display, press
CLEAR.
•To cancel a search, press
STOP C.
Helpful Hints
Index Search
An Index Mark is made automatically at the beginning of each
recording. Essentially, an Index Mark is a “bookmark.” Find the start
of a recording by following these steps.
1
Press VCR, then press SEARCH repeatedly until the
INDEX SEARCH screen appears.
2
Within 30 seconds, press K or L until the number of
programs you want to skip appears beneath INDEX
SEARCH. Include the current program in your number.
3
Within 30 seconds, press s (for a reverse search) or B
(for a forward search). When the tape finishes rewinding or
forwarding, playback will start. The program numbers will
count down beneath INDEX SEARCH during the search.
If the end of the tape is reached during the search, the search
will stop and the tape may rewind. Details are on page 38.
Recordings should be at least 1 minute long in SP speed, 2
minutes in LP, and 3 minutes in SLP. Otherwise, the Index
Mark will not be available. Details on tape recording speeds are
on page 67.
TIMER SET
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
OK
TIME SEARCH
- : - -
2
Within 30 seconds, press K or L until your desired
length of time appears. Or, press and hold K or L until
you reach the desired length of time.
You can set a Time Search for up to 9 hours and 59 minutes
(9:59).
3
Within 30 seconds, press s (for a reverse search) or B
(for a forward search). The VCR begins rewinding or fast
forwarding the tape.When the tape finishes rewinding or fast
forwarding the time you specified, playback will begin.
The time will count down beneath TIME SEARCH during the
search.
If the end of the tape is reached during the search, the search
will stop and the tape may rewind. Details are on page 38.
INDEX SEARCH
– –
1
2-3
CLEAR
REC MODE SEARCH MODE TITLE
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
OK
1
2-3
E8A21UD_EN1 5/29/06 3:13 PM Page 37
English

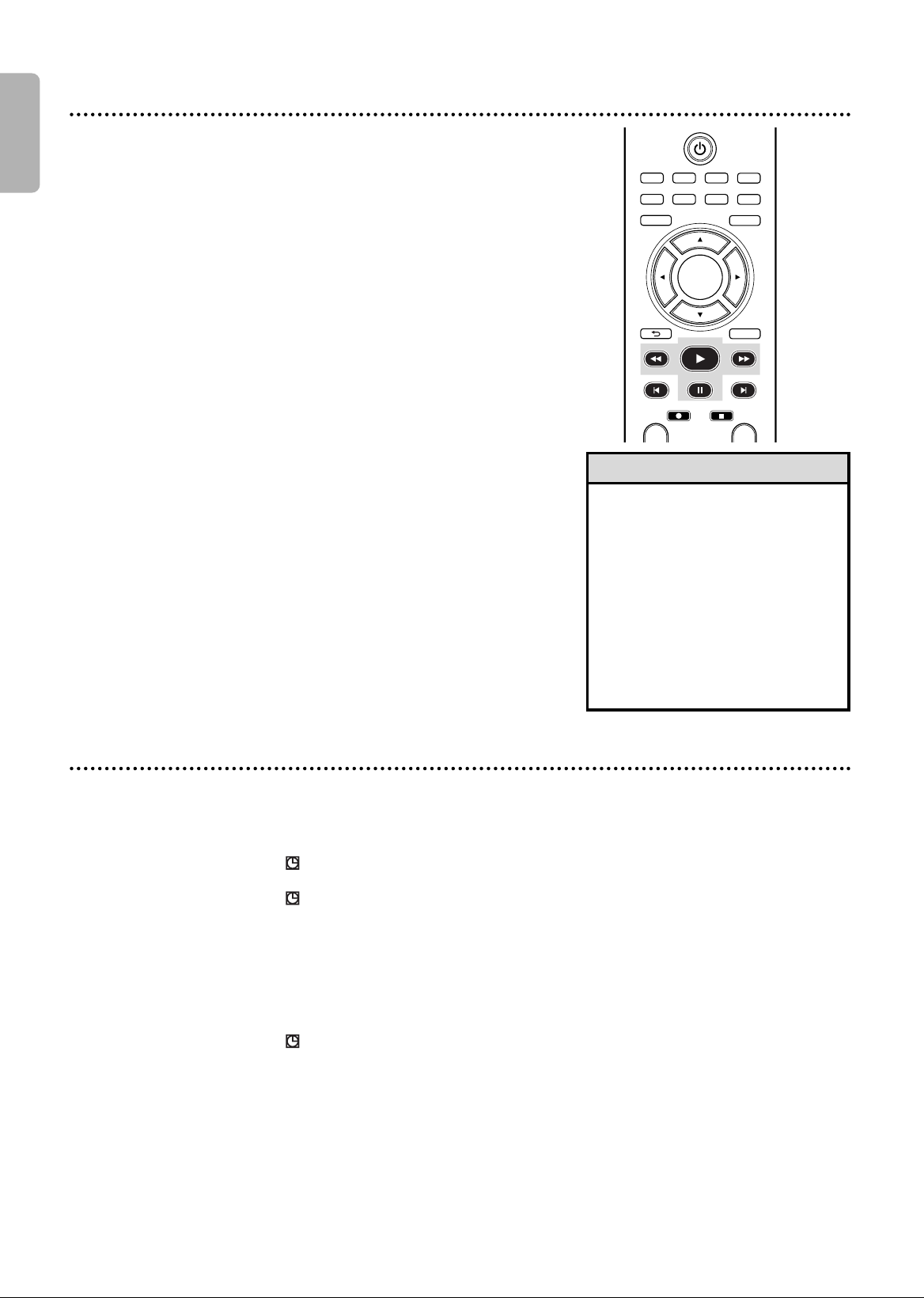

38 Special Effects Playback
● Before you begin, press VCR so VCR light appears on the front
of the DVD/VCR.
Forward and Reverse Searching (SP/LP/SLP) /
Super High Speed Searching (LP/SLP)
1
During tape playback, press and release FFW g
or REW h. A fast forward or reverse picture search
will begin.
Press FFW g or REW h, then press again. The
search speed will increase. Repeatedly pressing FFW g
or REW h will switch between Regular and High Speed
Searching.
2
To r eturn to normal playback, press PLAY B.
Viewing a Still Picture
1
During tape playback, press PAUSE k. A still picture
will appear on the screen.
2
To advance the still picture one frame at a time,
press PAUSE k repeatedly.
3
To r elease the still picture and return to playback,
press PLAY B.
• Still mode will switch to stop
mode after 5 minutes to
protect the DVD/VCR and the
tape from damage.
•
SP/LP/SLP means this feature will
work with tapes recorded in
Standard Playback, Long Playback
or Super Long Playback. LP/SLP
means this feature will work with
tapes recorded in Long Playback
or Super Long Playback. Tape
speed details are on page 67.
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
+

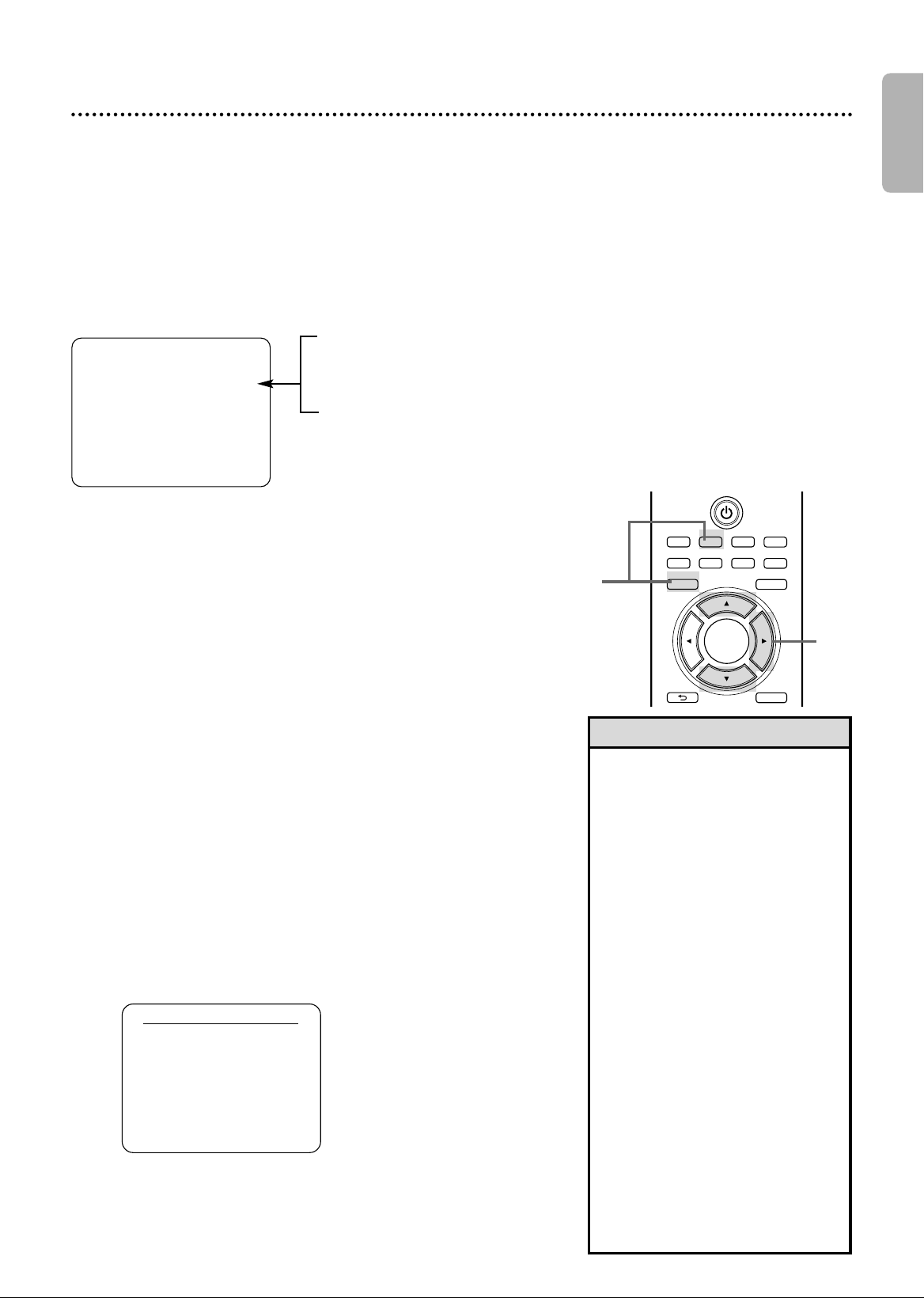

The following tape features are available in VCR mode. Press VCR so VCR light appears on the front of the DVD/VCR, if
necessary.
Automatic Playback
When you put a tape in the DVD/VCR, the power will come on. If the tape’s record tab is missing, playback will begin.
If a timer recording is set and “ ” is flashing in the display panel, the power will not come on automatically when
you insert a tape with the record tab intact.
If a timer recording is set and “ ” is flashing in the display panel, the DVD/VCR will eject the tape if the record
tab is missing.
Automatic Rewind, Eject
When a tape is played, fast forwarded or recorded to its end, the tape will rewind to the beginning, stop and eject
itself. This feature does not operate if AUTO REPEAT is ON. Details are on page 36.
Ta pe Eject
A tape can be ejected with the DVD/VCR power on or off (but the DVD/VCR must be plugged in).
If a timer recording is set and “ ” is shown on the display panel, press TIMER SET on the remote control or
STOP/EJECT C A on the front panel to cancel the timer standby mode, and then press STOP/EJECT C A to
remove the tape. Remember to insert a tape and press TIMER SET to reset the timer recording.
Automatic Tracking Adjustment
The VCR adjusts tracking automatically to give you the best possible picture quality. With some recordings, however,
you may get a better picture using manual tracking.
Manual Tracking
To manually adjust the tracking during normal playback of a videotape, press
CH
+
or CH - on the remote. Tracking
will return to Automatic Tracking when you press STOP C
or insert a tape. You can also press
CH
+ or
CH -
to
remove vertical jitter in a Still picture.
Automatic Operation Features
E8A21UD_EN1 5/29/06 3:13 PM Page 38
English
Multi-Channel Television Sound/Hi-Fi Stereo 39
To play programs in stereo, connect the DVD/VCR to a Stereo or TV as
described on pages 12-13. You will use the red and white AUDIO OUT jacks
on the DVD/VCR.
Your DVD/VCR can play tapes recorded in Hi-Fi (high fidelity) stereo, which produces a crisp, clear sound from
the left and right audio channels. Your DVD/VCR also can play tapes recorded in a second audio (usually, that
means your program is recorded in a second language). Of course, your DVD/VCR will play tapes recorded in
monaural (single-source) sound as well.Your DVD/VCR also will record on a video cassette in Hi-Fi stereo or in
second audio, so when you play that tape on the DVD/VCR, it will be in stereo or second audio. Read the
directions on this page to familiarize yourself with the stereo and second audio setups.Then follow the directions
below to record in stereo or second audio, or to play tapes recorded in Hi-Fi stereo.
Understanding Displays
When you watch TV channels through the DVD/VCR, portions of the display shown below will appear when you
press DISPLAY twice.
STOP 5:40 PM
CH 02
STEREO
SAP
SLP
If SAP or STEREO appears, the program is available in second audio or stereo.
Even though a program is available in second audio or stereo, you must
program the DVD/VCR to receive or record the program. Follow the directions
below.This display is not available during tape playback.
2
Press K or L to select TV STEREO or SAP (Second
Audio Program). Press B so ON appears beside your
selection.
3
Press DISC/VCR MENU to remove the menu.
•
You can only receive and record in
stereo or second audio programs that
are broadcast in stereo or second
audio.You can only play a tape in
Stereo or second audio if it was
recorded in stereo or second audio.
Please see above to determine if the
program is in stereo or second audio.
•
If SAP is ON but the program is not
broadcast in Second Audio, you will
hear and record the program in
normal audio.
•
Programs are recorded in both Hi-Fi
stereo sound and in monaural (single-
channel) sound.
•
The audio level of a tape recorded in
Hi-Fi stereo will differ from the audio
level of a tape not recorded in Hi-Fi
stereo.
•
You can change to MONO if you want
monaural audio playback. Follow steps
1-2, then press K or L to select
MONO at step 3. Press DISC/VCR
MENU. HIFI will disappear from the
Status Display.
•
If you play non-Hi-Fi tapes while
AUDIO OUT is set to HIFI, HIFI will
not appear on the Status Display. The
tape will play in monaural sound.
Please see additional notes on page
70.
Helpful Hints
1
Press VCR, then press DISC/VCR MENU so MENU1
appears.
To set the DVD/VCR to receive programs in stereo or
second audio, follow these steps.
2
Press K or L to select AUDIO OUT.
Then, press B.
1
Press VCR, then press DISC/VCR MENU so
MENU1 appears.
Multi-Channel Television Sound system broadcasts are recorded in
Hi-Fi stereo. To play in Hi-Fi stereo the tapes recorded in Hi-Fi
stereo, follow these steps.
3
Press K or L to select HIFI. ON will appear beside HIFI.
4
Press DISC/VCR MENU to remove the menu.
AUDIO OUT
B HIFI [ON]
MONO
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
OK
Multi-Channel Television Sound
Hi-Fi Stereo
1,
3-4
2,3
E8A21UD_EN1 5/29/06 3:13 PM Page 39
English

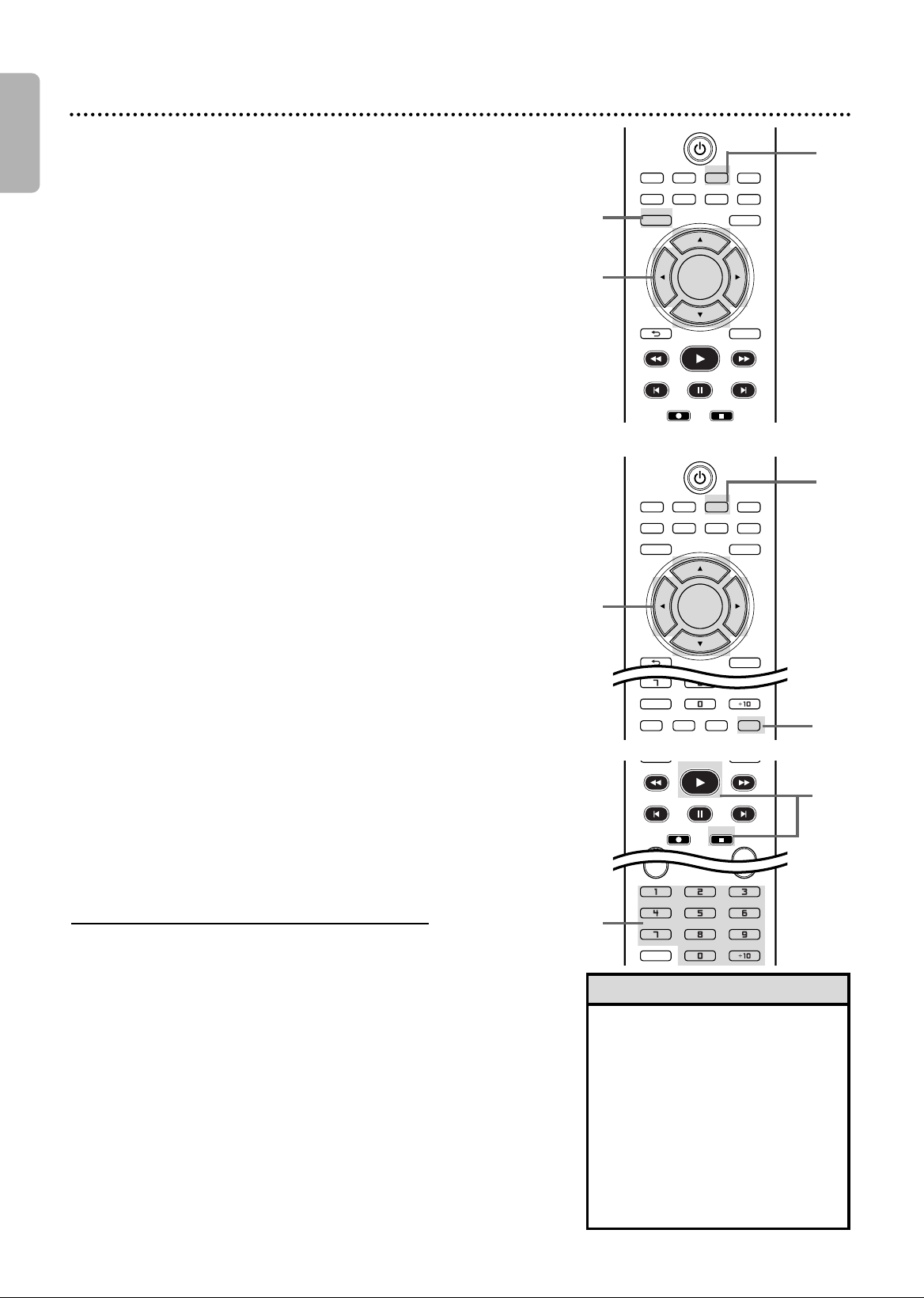

Using the Title Menu
Some DVDs have a Title menu, which lists the titles available on
the DVD. Use the Title menu to play a specific title.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press TITLE. The Title menu will appear.
If a Title menu is not available, the “X” may appear on the
TV screen. Or, if the DVD only has a main Disc menu as
described above, it may appear when you press TITLE.
3
Press K, L, s or B to select a title, then press OK.
Playback will begin at the title you selected.
• Menus vary among discs. Follow
the literature accompanying the
disc for details.
• Not all DVDs have Disc or Title
menus.
• Some DVDs may refer to
chapters as “scenes.” Some
DVDs may refer to the Title
menu as the “scene index.”
• TITLE will not be active with all
DVDs.
Helpful Hints
40 Menus, Playback Control (PBC) Function
DVD Disc menus
Some DVDs contain menus that describe the contents of the disc
or allow you to customize disc playback. For example, the menu
may offer choices for subtitle languages, director’s commentary or
Sound Track Playback. To use the DVD menu and select playback
features, follow these steps.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press DISC/VCR MENU. The DVD’s main Disc menu
will appear.
3
Press K, L, s or B to select an item, then press OK.
Continue this process to set up all the features you want.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
1
2
3
Playback Control (PBC) Function
When playing a Video CD with PBC (Playback Control), you
can use interactive menu (e.g., playlists) on the TV screen.
Refer to instructions accompanying your Video CD for more
details on PBC.
Some operations cannot be performed unless the PBC
function is cancelled temporarily.
Cancelling and calling back the PBC function
1
While playback is stopped, press the Number
Buttons to enter a track number.
PBC function is now cancelled and the playback of the
Video CD will start.
2
To call back the PBC function, press STOP C
twice, then press PLAY B.
The Title menu will appear on the TV screen.
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
REPEAT
+
REPEAT
A-B
-
CLEAR
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
OK
CLEAR
REC MODE SEARCH MODE TITLE
1
3
2
2
1
E8A21UD_EN2 5/15/06 8:04 PM Page 40
English

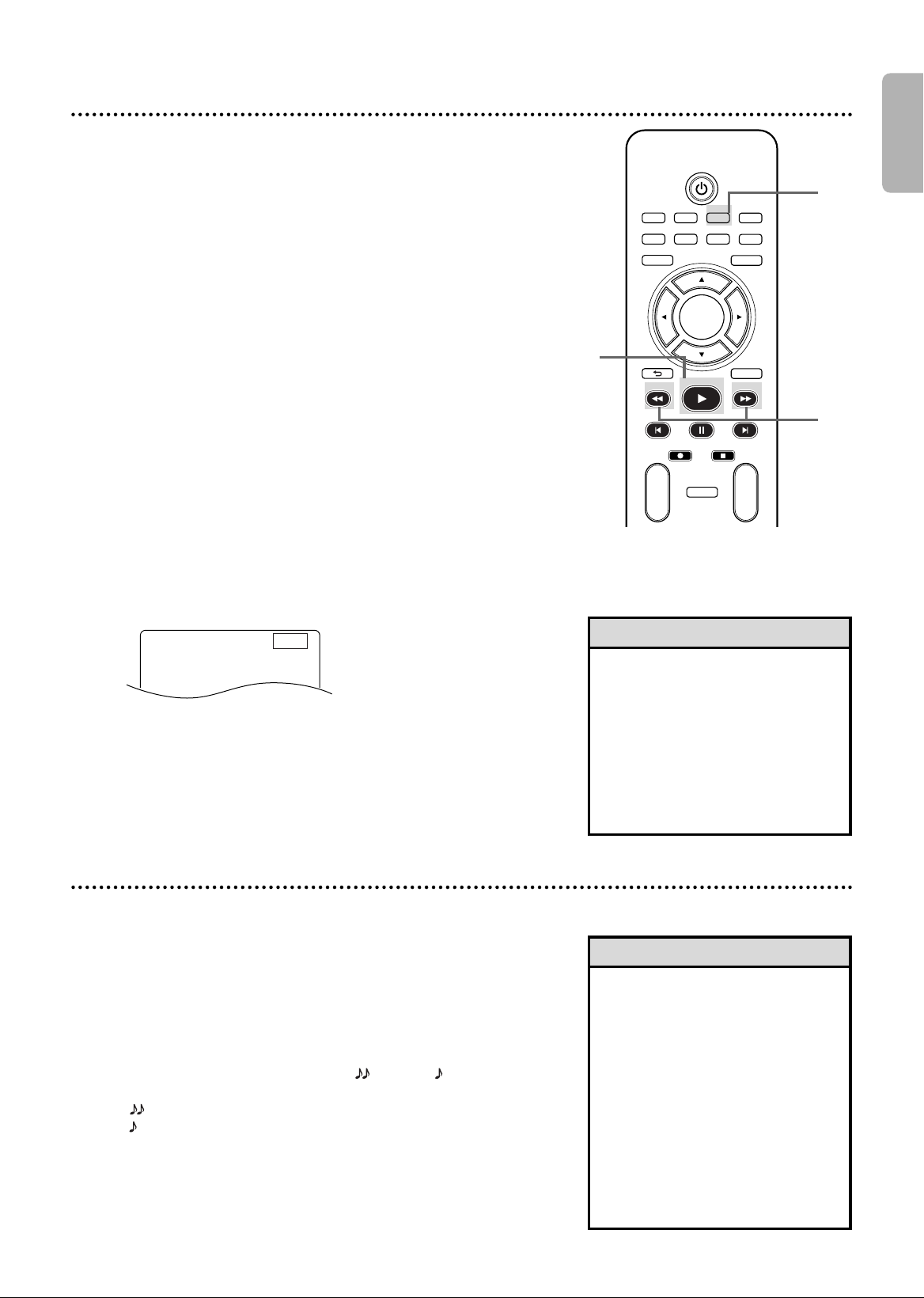

Fast Forward/Fast Reverse 41
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During playback, press FFW g or REW h on
the remote control.
● During DVD playback, pressing FFW g or REW h will
forward or reverse the picture at approximately 2, 8, 20, 50
or 100 times the normal speed. The speed may vary
depending on the disc. g 1, g 2, g 3, g 4 or
g 5 will appear briefly on the TV screen to indicate
forward searching. Or, h 1, h 2, h 3,h 4 or
h 5 will indicate fast reverse.
For DVD playback, the sound will be mute during the
search.
● For Video CDs,Audio CDs, MP3,Windows Media
TM
Audio
or DivX
®
playback, pressing FFW g or REW h will
forward or reverse the picture or sound at
approximately 2, 8 or 30 times the normal speed. The
speed may vary depending on the disc.
g 1, g 2 or g 3 will appear briefly on the TV
screen to indicate forward searching. Or, h 1, h 2
or h 3 will indicate fast reverse.
For Audio CD, MP3 or Windows Media
TM
Audio playback,
the sound will be intermittent during the search.
3
Press PLAY B to return to normal playback.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
E
1
Example: Playing a DVD in
reverse at twice the normal
playing speed.
• If you use FFW g or
REW h during Dual Playback,
JPEG playback will be paused.
• Picture quality of DivX
®
files in
fast reverse is lower than that
in fast forward.
•For some DivX
®
files, fast
forward/fast reverse may not
function.
Helpful Hints
x1.3 and x0.8 Rapid Play with Voice
Rapid Play with Voice is available only during playback on the
discs recorded in the Dolby Digital format (except for the
DivX
®
files). Rapid Play with Voice plays back in slightly
faster/slower speed while keeping the sound quality as in the
normal playback.
1
During playback, press MODE.
The current setting appears.
2
Press OK to switch among (x1.3), (x0.8) and
OFF.
: Plays back approximately at 1.3 times of normal playback.
: Plays back approximately at 0.8 times of normal playback.
OFF : No effects.
3
To r esume normal playback, press PLAY B.
• During Rapid Play with Voice;
-Audio Language setting, Black
Level setting and Virtual
Surround setting cannot be
changed.
- Virtual Surround does not
function.
- the PCM sound will be output
if using the digital audio
connection (COAXIAL).
- depending on the scenes you
are playing, Rapid Play with
Voice may be unavailable.
Helpful Hint
1
2
3
E8A21UD_EN2 5/15/06 8:04 PM Page 41
English

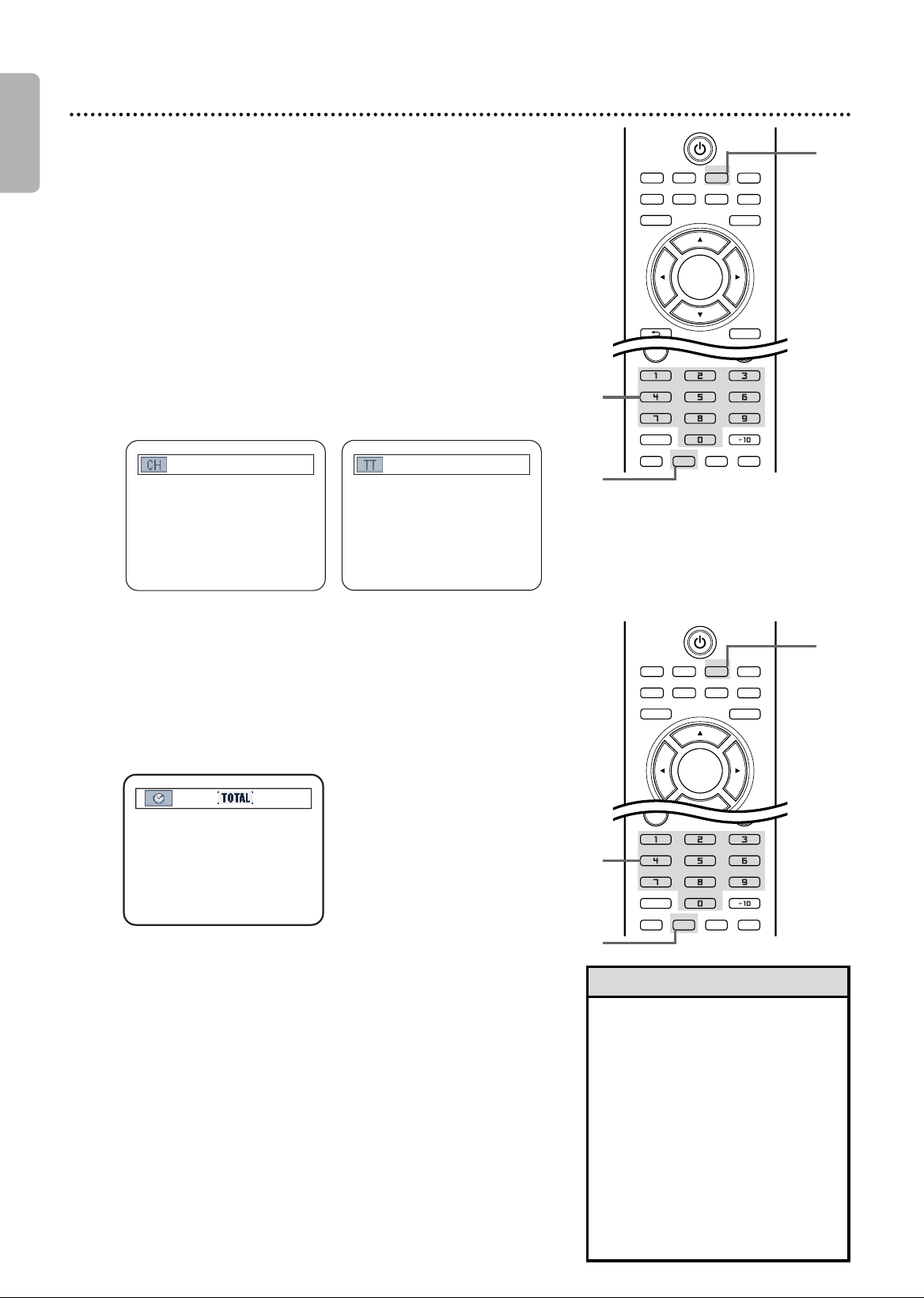

Time Search
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During DVD, Video CD (without PBC), Audio CD
or DivX
®
playback, press SEARCH repeatedly until
the Time Search Display appears.
42 Title/Chapter/Time Search
Title/Chapter Search
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During DVD playback, press SEARCH repeatedly
until CH (for chapter) or TT (for title) appears on the TV.
The number of available titles or chapters will appear at
the right ( /4, for example).
3
Enter the title or chapter number using the
Number buttons. The title or chapter will play.
● To select a single-digit track number when there are
more than 10 tracks, press OK to play the track.
● If you enter a track number that is not available on the
Disc, playback will not begin (or the current track will
continue to play).
3
Within 30 seconds, use the Number buttons to
enter the elapsed playing time (of the track or title)
at which you want playback to begin. Enter the time
in hours, minutes and seconds. Within a few seconds, play-
back will start at the specified time.
● Example: 1 hour, 23 minutes and 30 seconds
1 → 2 → 3 → 3 → 0
● Make sure the time you enter is within the total time of
the current title or track. If it is not, the time space will
clear and playback will continue at its current point. The
total time available in the current track or title will
appear in the Time Search Display.
● If you make a mistake entering the time, press CLEAR to
clear the time area. Enter the correct information.
12/17 4 /
4
_:_ _:_ _
1:29:00
• When playback is stopped, use
the Number buttons to select a
title for immediate playback.
During playback, use the
Number buttons to choose a
chapter for immediate playback.
• Title/Chapter Search is not
available with some DVDs.
• Time Search is not available for
MP3,Windows Media
TM
Audio
and JPEG files.
•For some DivX
®
files,Time
Search may not function.
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
OK
REPEAT
A-B
-
CLEAR
REC MODE SEARCH MODE TITLE
3
2
1
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
OK
REPEAT
A-B
-
CLEAR
REC MODE SEARCH MODE TITLE
1
3
2
E8A21UD_EN2 5/15/06 8:04 PM Page 42
English

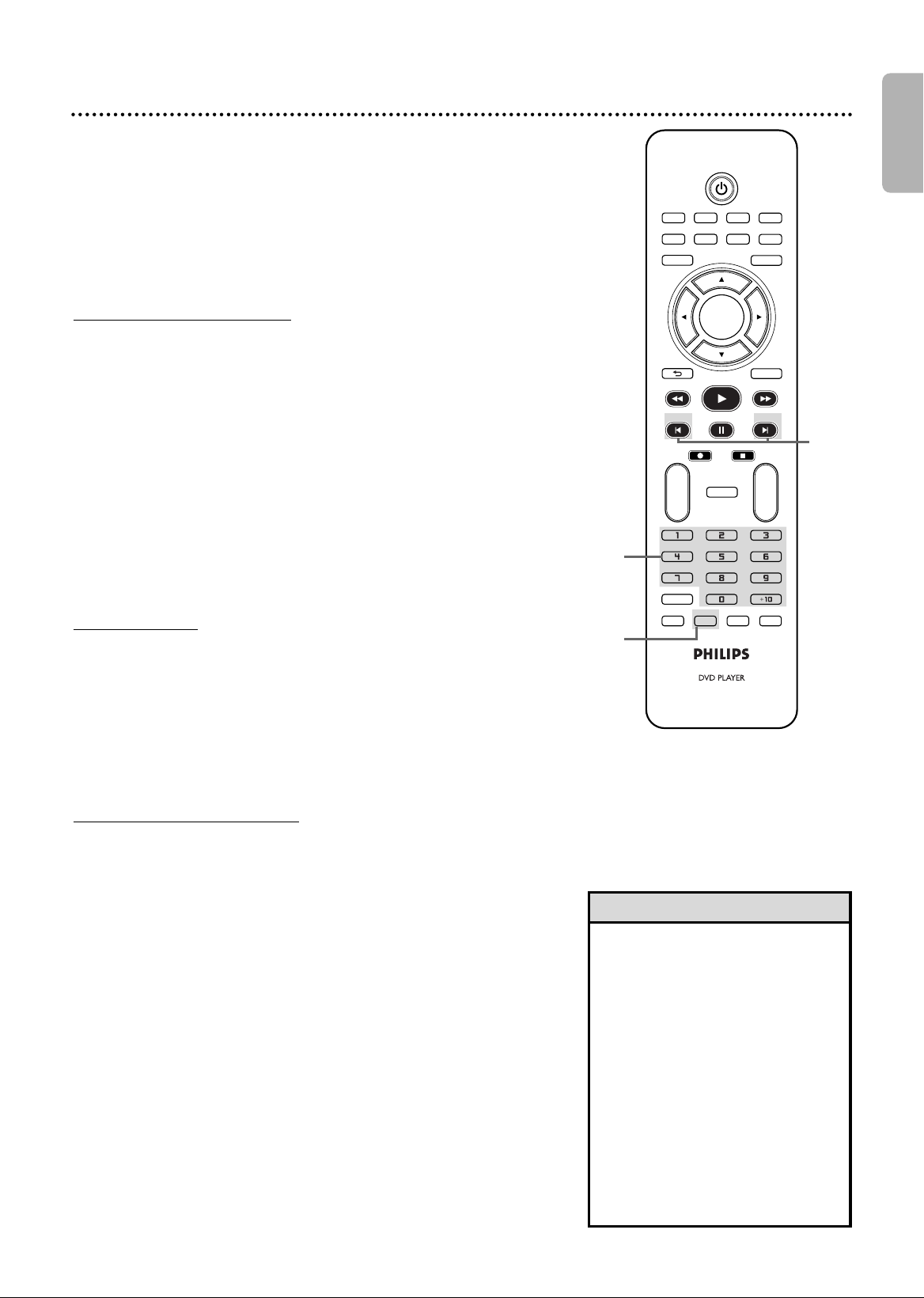

There are three ways to play a specific Video CD (without PBC),
Audio CD, MP3, Windows Media
TM
Audio, JPEG or DivX
®
track:
Use the Number buttons, the SEARCH button or NEXT ∑ and
PREV w.
● Before you begin, press DVD so DVD light appears on the front of
the DVD/VCR.
A
Using the Number Buttons
Press the Number buttons to enter a track number.
Playback will start at the selected track.
For tracks 10 and above, press the +10 button so the Search
Display (TR _ _ /12 - an example of total tracks) appears on the
TV. Press the Number button of the first digit, then press the
Number button of the second digit. For example, to play track 26,
press +10, then Number 2, then Number 6 (Each number must be
pressed within 30 seconds of the previous number).
For single-digit tracks (1-9), press a single Number button.
If you enter a track number that is not available on the disc, play will
not begin (or the current track will continue to play).
B
Using SEARCH
Press SEARCH so the Track Search Display (TR) appears.
Within 30 seconds, press the Number buttons to select the
track number. Playback will begin at the selected track. For a
single-digit track (1-9), enter 0 first. For example, to play track 5,
press 0, 5. You do not have to use the +10 button in search mode.
C
Using NEXT
∑∑
or PREV
ww
During playback, press NEXT
∑∑
to skip the current track
and move to the next track. The track number will appear
briefly on the DVD/VCR display panel.
Or, during playback, press PREV
ww
to return to the
beginning of the current track. Press PREV
ww
repeatedly
to go to previous tracks. The track number will appear briefly
on the DVD/VCR display panel.
Track Search 43
• NEXT 3 and PREV does
not function when playback is
stopped.
•You cannot use NEXT 3 to go
from the last track on the disc
to the first track.
• Using NEXT 3 or PREV
during Dual Playback will only
affect MP3 files. If you want to
skip JPEG files during Dual
Playback, press { or B. Please
note that pressing NEXT 3 or
PREV will affect both MP3
and JPEG files if SLIDE SHOW
is set to MUSIC.
3
3
3
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
A,B
B
C
E8A21UD_EN2 5/15/06 8:04 PM Page 43
English

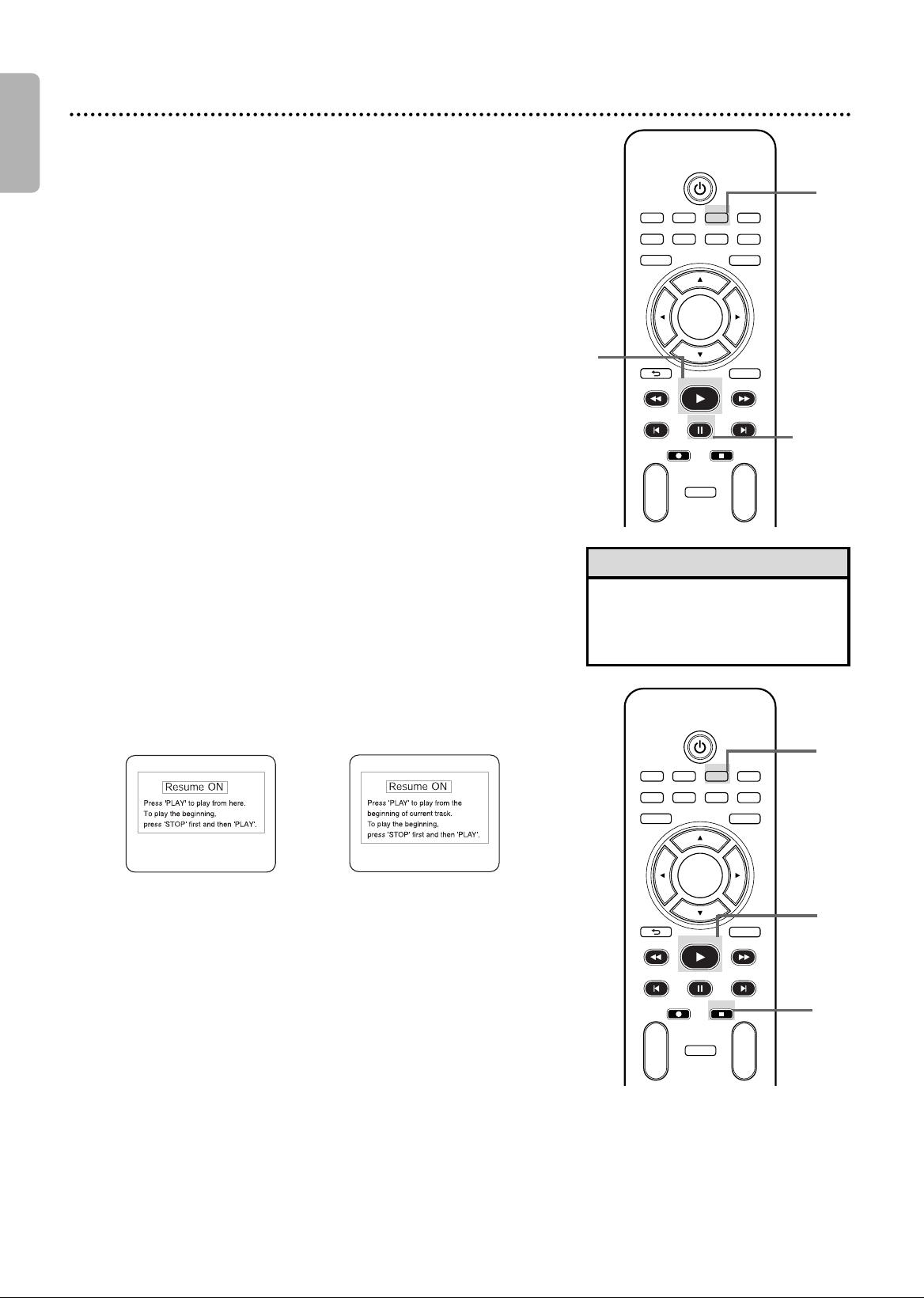

Resume On
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press STOP C during playback. In a few seconds, the
following Resume message will appear on the TV screen.
3
Press PLAY B. In a few seconds, playback will resume
from the point at which it stopped last.You can Resume
Playing at the same point even if you turn off the
DVD/VCR, then turn it on again later. However, opening the
disc tray will cancel the Resume feature. Playback will start
at the beginning the next time you insert the disc.
For MP3, Windows Media
TM
Audio and JPEG playback will
resume from the beginning of the current track.
To cancel Resume and start playing the disc from the
beginning, press STOP C again while playback is in the resume
stop mode.As for MP3,Windows Media
TM
Audio, JPEG and
DivX
®
playback, file list will appear when you cancel
Resume. Press PLAY B to start playing the disc from the
beginning.
● To Resume Playback of a Video CD with PBC function,
you have to cancel the PBC function first. See page 40 on
how to cancel the PBC function.
● For some DivX
®
files, Resume may not function.
44 Paused and Step-by-Step Playback, Resume On
Paused and Step-by-Step Playback
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During disc playback, press PAUSE k. Playback will
pause and the sound will be mute.
● Pressing PAUSE F once during Dual Playback will pause a
JPEG file only. Pressing PAUSE F one more time will
pause an MP3 playback.
3
When playing a DVD, Video CD or DivX
®
,press
PAUSE k repeatedly to see the picture advance
one frame (or step) at a time. The sound will remain
mute.
Pressing PAUSE k repeatedly during Audio CD, MP3,
Windows Media
TM
Audio or JPEG playback will have no
effect.
4
Press PLAY B to resume playback.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
• Set STILL MODE to FIELD in
the DISPLAY menu if paused
images are blurry. Details are on
pages 60-61.
Helpful Hint
For DVD, VideoCD,
AudioCD or DivX
®
:
For MP3,
Windows Media
TM
Audio
or JPEG:
1
2-3
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
1
3
2
4
E8A21UD_EN2 5/15/06 8:04 PM Page 44
English

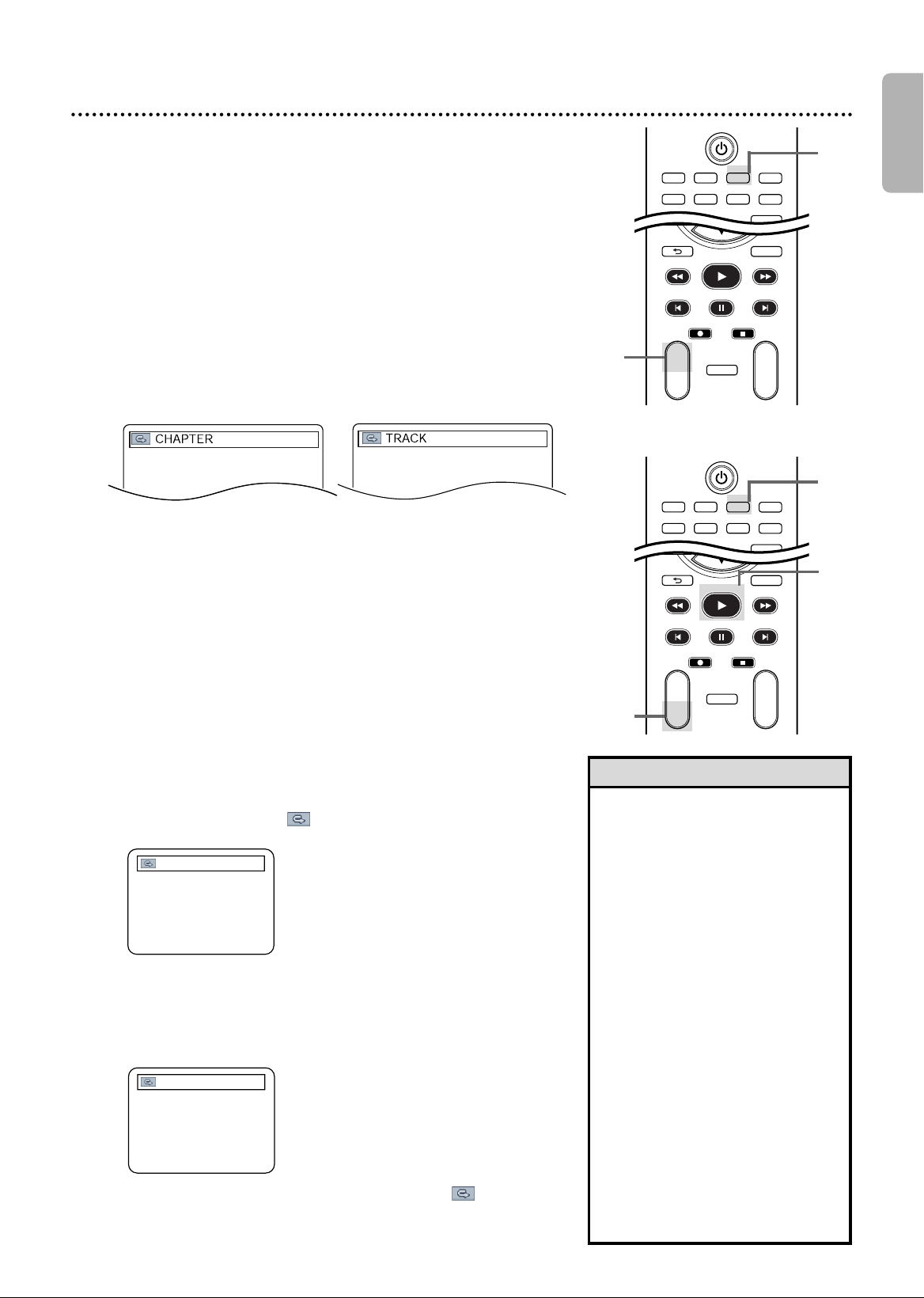

Repeat, A-B Repeat 45
•
Repeat Playback and A-B Repeat
are not available with some discs.
• The entire A-B Repeat section
must be within a single title or
track. If you do not enter Point
B before the end of the track
or title is reached, the end of
the track or title will become
Point B automatically.
•Point B must be later on the
disc than Point A.
• A-B Repeat is not available with
MP3, Windows Media
TM
Audio
and JPEG files.
•
For some DivX
®
files, A-B Repeat
may not function.
• If you choose GROUP Repeat
during Dual Playback, all tracks
or files in each folder will play
repeatedly. For example if you
choose GROUP Repeat during
Dual Playback of MP3 folder A
and JPEG folder B, all MP3 files
in folder A and all JPEG files in
folder B will be repeated.
Helpful Hints
A-B Repeat
You can play a specified section of a DVD, Video CD, Audio CD
or DivX
®
repeatedly. Follow these steps to set up the section you
want to repeat.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press PLAY B to play the disc to the point at which
you want repeated playback to begin.
3
Press REPEAT A-B to set the starting point (A).
If you make a mistake, press CLEAR. This will erase point A
and let you start over. OFF will appear briefly on the
TV screen.
4
Play the disc to the point at which you want
repeated playback to end, then press REPEAT A-B
again. Within a few seconds, the A-B section will begin to
play repeatedly.The segment will play over and over until
you cancel the A-B Repeat feature.
5
To cancel A-B Repeat, press REPEAT A-B. OFF will
appear on the TV screen. Regular playback will resume.
Example: Repeat a
DVD chapter
Example: Repeat a
Video CD, Audio CD
or DivX
®
track
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
REPEAT
REPEAT
A-B
CH
+
-
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
A –
A – B
Repeat
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During DVD, Video CD (without PBC), Audio CD, MP3,
Windows Media
TM
Audio, JPEG or DivX
®
playback, press
REPEAT repeatedly until the repeat mode you want
appears on the TV screen.
On a DVD, select CHAPTER, TITLE or OFF. On a Video CD
(without PBC) and Audio CD, select TRACK, ALL (all tracks on
the disc) or OFF.
With MP3, Windows Media
TM
Audio, JPEG or DivX
®
tracks, select
TRACK, GROUP (all tracks in the current folder), ALL or OFF.
Selecting a new track, chapter or title will cancel Repeat Playback.
1
2
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
REPEAT
REPEAT
A-B
CH
+
-
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
1
3-5
2
E8A21UD_EN2 5/15/06 8:04 PM Page 45
English

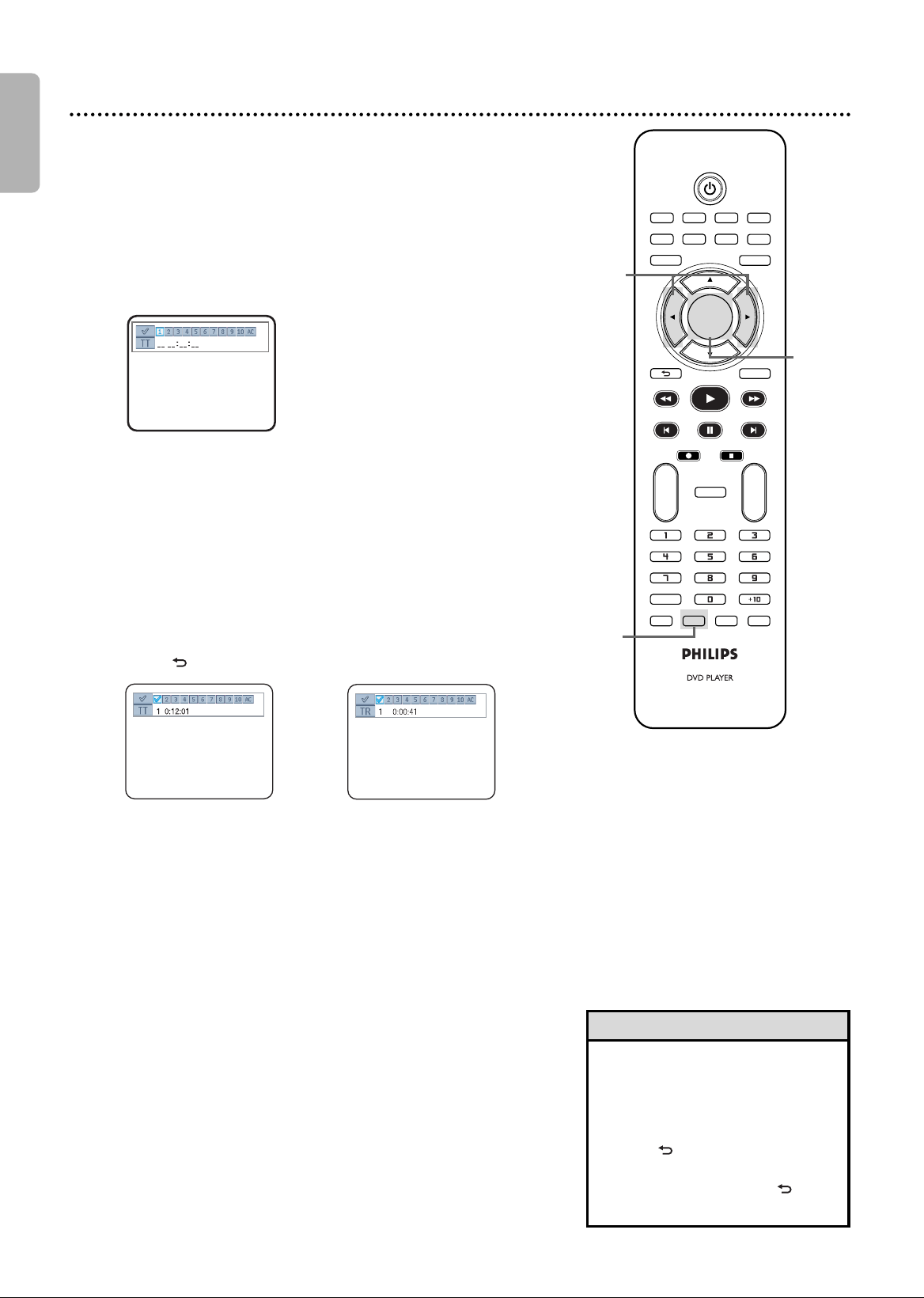

46 Markers
2
Within 30 seconds, press s or B to select a Marker
(1-10). Make sure _ _ :_ _ :_ _ appears beneath the number.
3
When the playback reaches the point you want to
remember, press OK. The title or track number and its
elapsed playing time will appear beneath the Markers.
A checkmark will replace the Marker number. The Marker
Display will disappear in about 30 seconds, or press
BACK or SEARCH again to remove it.
4
To r eturn to a Marker during playback, press
SEARCH repeatedly.
Press s or B to choose the Marker you want, then
press OK. Disc playback will continue from the marked
point.
• Opening the disc tray or turning
off the DVD/VCR will erase all
the Markers.
•Press s or B to select a
Marker. Press CLEAR. Press
BACK to remove the display.
•Press B to select AC, then
press OK. Press BACK to
remove the display.
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
Example: DVD
Example: Video CD
or Audio CD
Example: DVD
Use Markers to remember your favorite places on a DVD, Video
CD (without PBC) or Audio CD.
● Before you begin, place the DVD/VCR in DVD mode. Press
DVD so DVD light appears on the front of the DVD/VCR.
1
Play the disc to within 30 seconds of the point at
which you want to set the Marker. Press SEARCH
repeatedly until the Marker appears at the top of the TV
screen.
1,4
2,4
3-4
E8A21UD_EN2 5/15/06 8:04 PM Page 46
English
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK

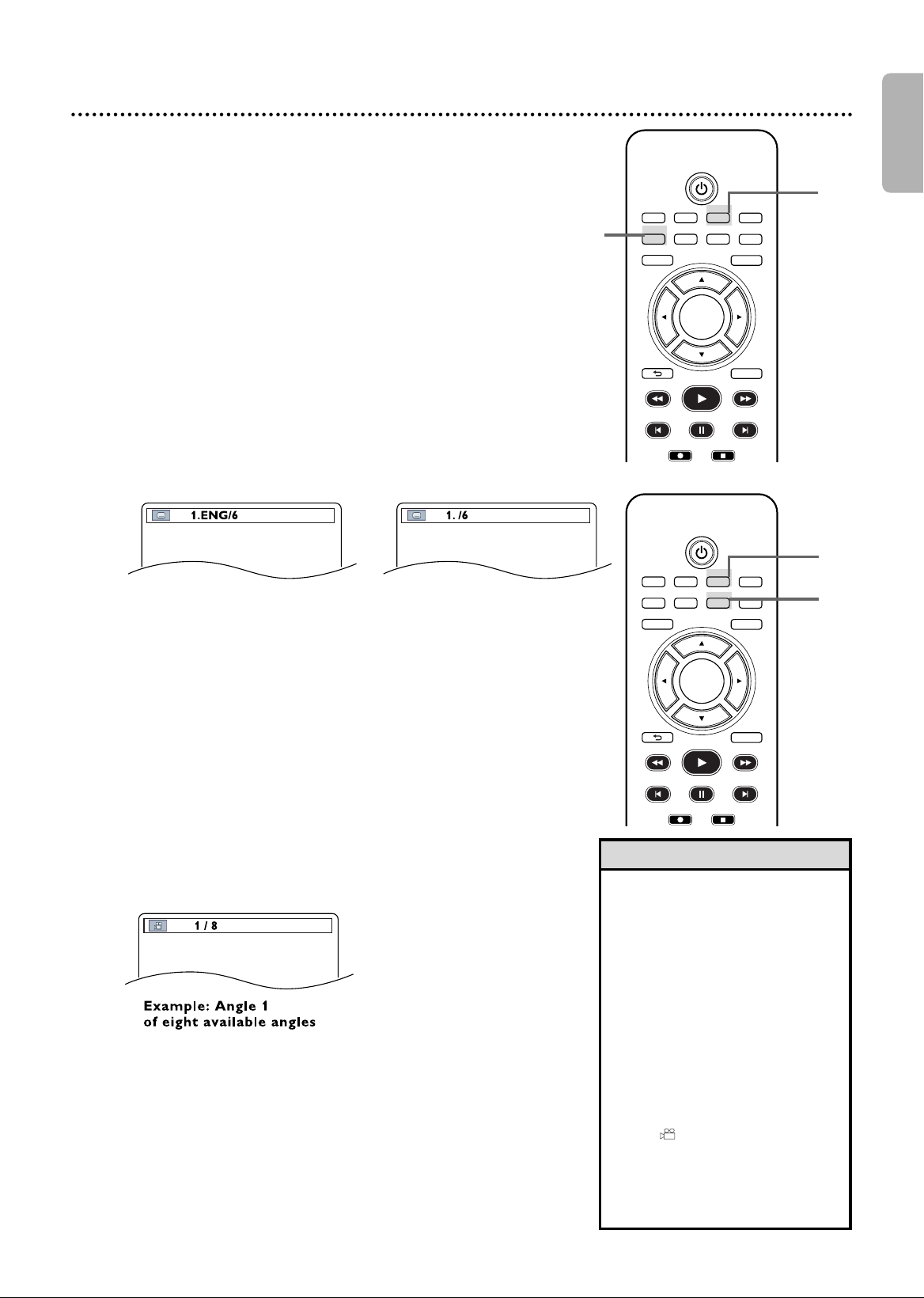

Subtitles
The DVD/VCR allows you to select a language for subtitles during
playback. You may select only languages that are available on the
DVD.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During DVD or DivX
®
(if available) playback, press
SUBTITLE repeatedly to select a subtitle language.
The number of available languages appears at the right of
the Subtitle Display. In the example below, six languages are
available ( /6).After a few seconds, the subtitles will appear.
For discs with DivX
®
files, the screen only displays the
number of subtitle languages.
Or, press SUBTITLE repeatedly to turn off subtitles.
When no subtitles are available,“NOT AVAILABLE”
appears at the right of the Subtitle Display.
Example: English as first
of six available subtitles (DVD)
Camera Angles
Some DVDs contain scenes recorded from different angles or
perspectives. The perspective will not change if the DVD does not
contain sequences recorded from different camera angles.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During playback, press ANGLE repeatedly to select
a different perspective. The number of available angles
appears at the right of the Angle Display. In this example,
eight angles are available ( /8).
Subtitles, Camera Angles 47
• With some DVDs, you must
select a subtitle language in
the Disc menu.
•
If the desired language does not
appear after pressing SUBTITLE
several times, the disc does not
have subtitles in that language.
• Opening the disc tray will
cancel your subtitle setting.
•For discs with DivX
®
files, the
screen only displays the
number of subtitle languages.
•
If the ANGLE ICON setting is
ON, will appear on the TV
screen when the current portion
of the disc has multiple camera
angles. To set the ANGLE ICON
ON or OFF, see page 65.
Helpful Hints
1
2
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
1
2
Example: DivX
®
E8A21UD_EN2 5/15/06 8:04 PM Page 47
English

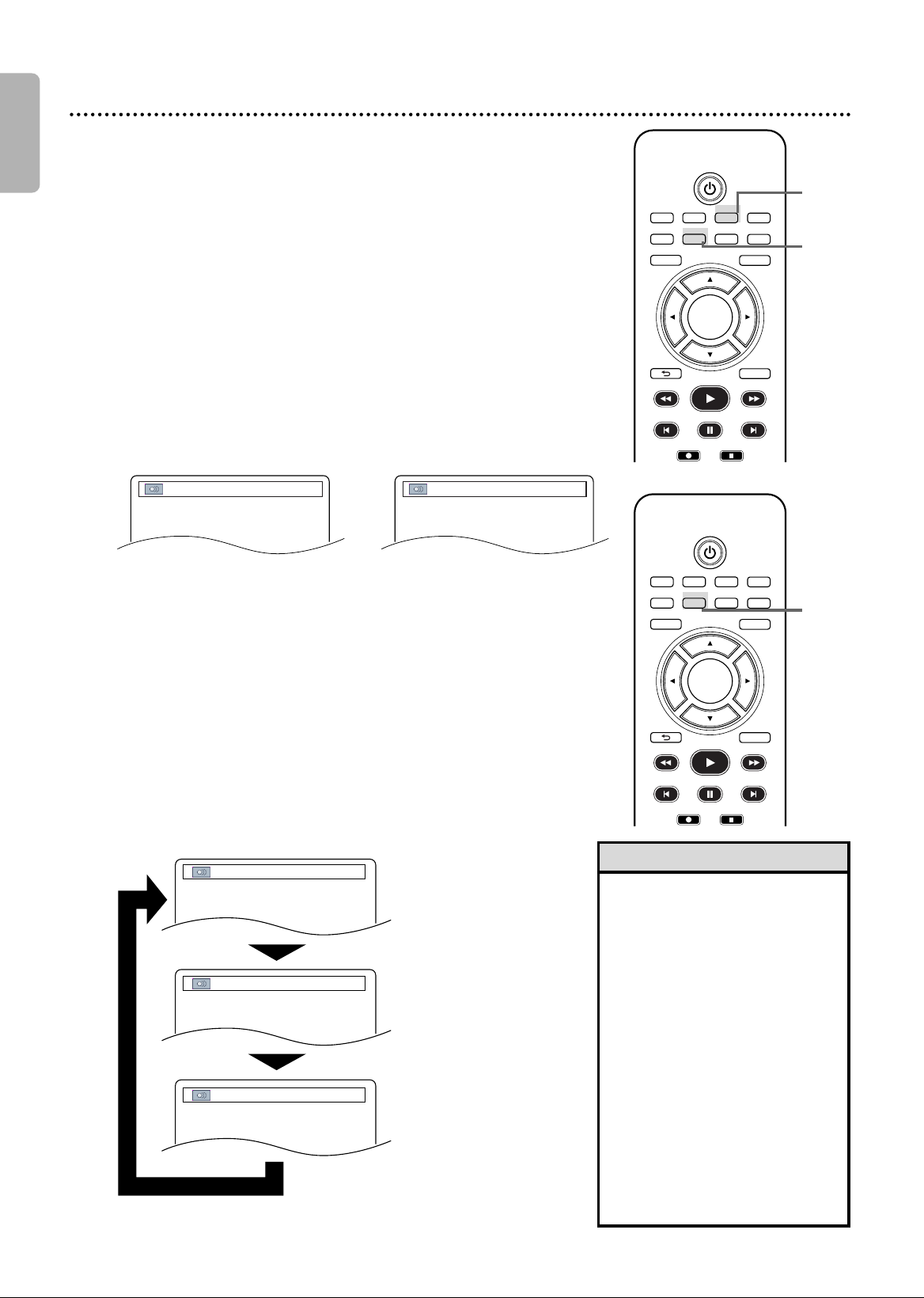

48 Audio Language, Stereo Sound Mode
Audio Language
You can select a language for DVDs during playback if multiple
languages are available.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During DVD or DivX
®
(if available) playback, press
AUDIO repeatedly to choose one of the available
languages. Audio Display appears at the top of the TV
screen, and the new audio will be heard. The display will
disappear after about 5 seconds.
The Audio Display may show the current settings for the
Dolby Digital or Multi-channel sound, if they are available on
the disc, and the sampling rate of the disc. The number of
available languages appears after the “ / ” at the right of the
display ( /3, for example).
•
If a language is not available after
pressing AUDIO several times, the
DVD does not have that language.
•
Some DVDs only let you change
the language in the Disc menu.
•
Audio languages may be
abbreviated (such as ENG for
English). Or, three dashes (- - -)
may appear instead of an
abbreviation.
•
Audio language selection cannot
be made during Rapid Play with
Voice. (Refer to page 41.)
•
For discs with DivX
®
files, the
screen only displays MP3, MP2 or
Dolby Digital audio. Other audio
sounds will be displayed with
“
- - -
”
.
Helpful Hints
Stereo Sound Mode
Adjust Stereo Sound to determine whether you will hear the
left channel, the right channel or both channels (stereo)
during Video CD or Audio CD playback.
If you connected the DVD/VCR to a Stereo using the
COAXIAL DIGITAL AUDIO OUT jack as described on page
14, or if you connected to a TV with only the RF coaxial
cable, you cannot adjust stereo sound mode.
1
Press AUDIO repeatedly during Video CD or
Audio CD playback to choose STEREO, L-ch or
R-ch.
Both right and left channels
are heard (stereo).
STEREO
Only the left channel
is heard.
L-ch
Only the right channel
is heard.
R-ch
Example: English audio (DVD)
1.ENG Dolby D 3/2.1ch 48k/3
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
1
2
1
1.MP3/3
Example: DivX
®
E8A21UD_EN2 5/15/06 8:04 PM Page 48
English

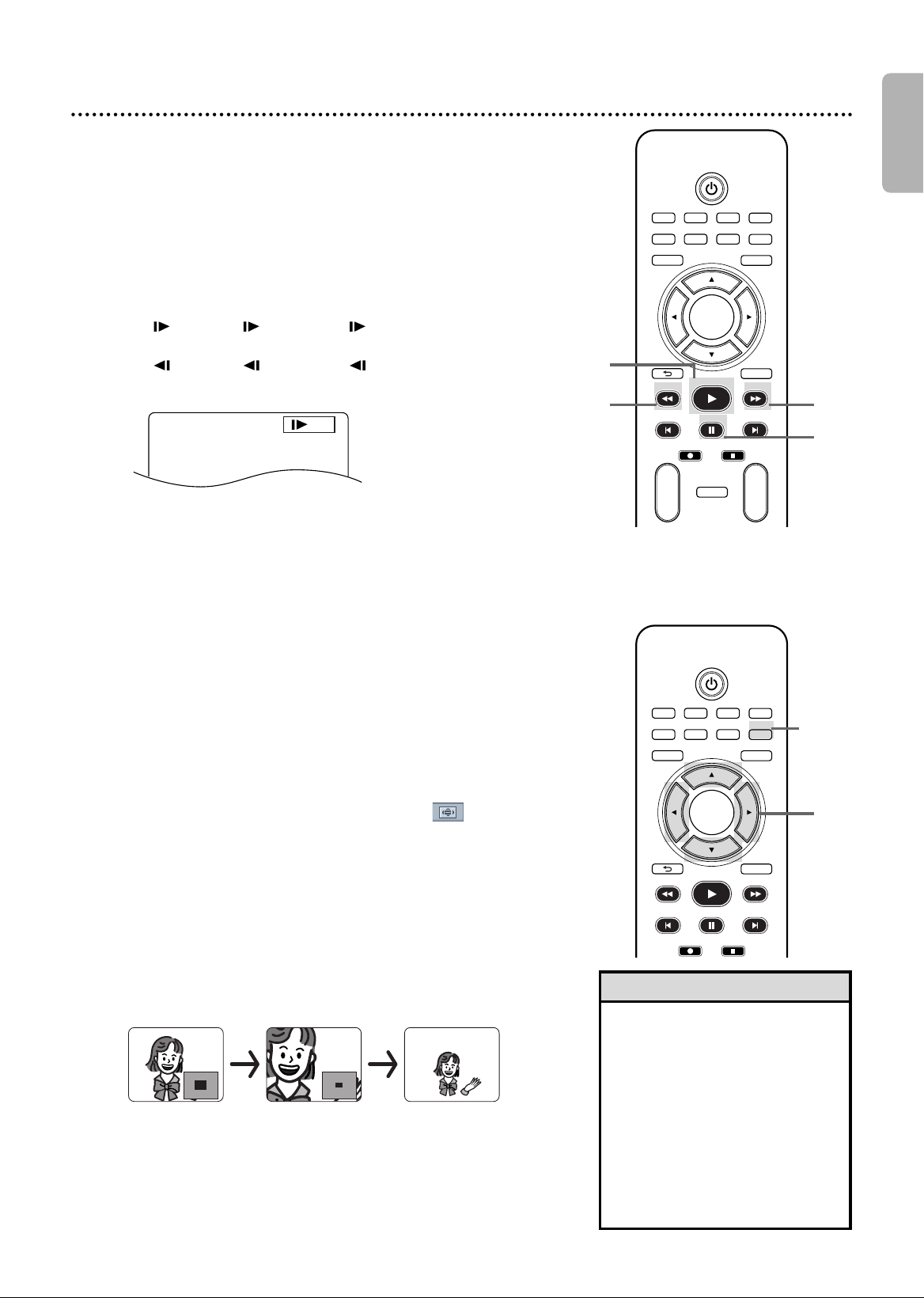

Slow Motion, Zoom 49
Slow Motion
1
Press PAUSE F during DVD, Video CD or DivX
®
playback.
2
Press FFW D or REW h. Slow Motion Playback will
begin. Press FFW D or REW h repeatedly during Slow
Motion Playback to play a DVD forward or backward at
approximately 1/16, 1/8 or 1/2 the normal speed. Reverse
slow motion is not available on a Video CD.
An 1 (1/16), 2 (1/8) or 3 (1/2) will appear
briefly on the TV screen to indicate Slow Forward Playback.
An 1 (1/16), 2 (1/8) or 3 (1/2) will indicate
Slow Reverse Playback.
3
Press PLAY B to return to normal playback.
Example: Playing a DVD forward
at half the normal speed.
3
Zoom
Zooming lets you enlarge the playback image of DVDs, Video CDs,
JPEG files or DivX
®
DVDs/CDs, and lets you pan through the
enlarged image.
1
Press ZOOM during playback or when playback is
paused. The picture will appear twice as large. Press
ZOOM again to make the picture four times larger than
normal. Either x2 or x4 will appear beside icon in the
upper left corner of the TV screen.
2
While the picture is enlarged, press
K, L, s or B to move the zoomed image up, down,
left or right.
The gray box with an inner blue box that shows during
Zoomed Playback is the position guide. To remove it or
show it, press OK. The position of the blue box inside the
gray box indicates the position of the zoomed image within
the overall picture.
3
To r eturn the picture to normal, press ZOOM
repeatedly.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
• Only slow forward is available
for Video CDs or DivX
®
files.
• The sound will be mute during
Paused or Slow Motion
Playback.
•
You cannot zoom a Disc menu.
•
The x4 zooming is not active
with some discs. Only x2
zooming is available for Video
CDs, JPEG and DivX
®
files.
•Position guide is not available
for JPEG playback.
Helpful Hints
3
1
2
2
2
1, 3
E8A21UD_EN2 5/15/06 8:04 PM Page 49
English

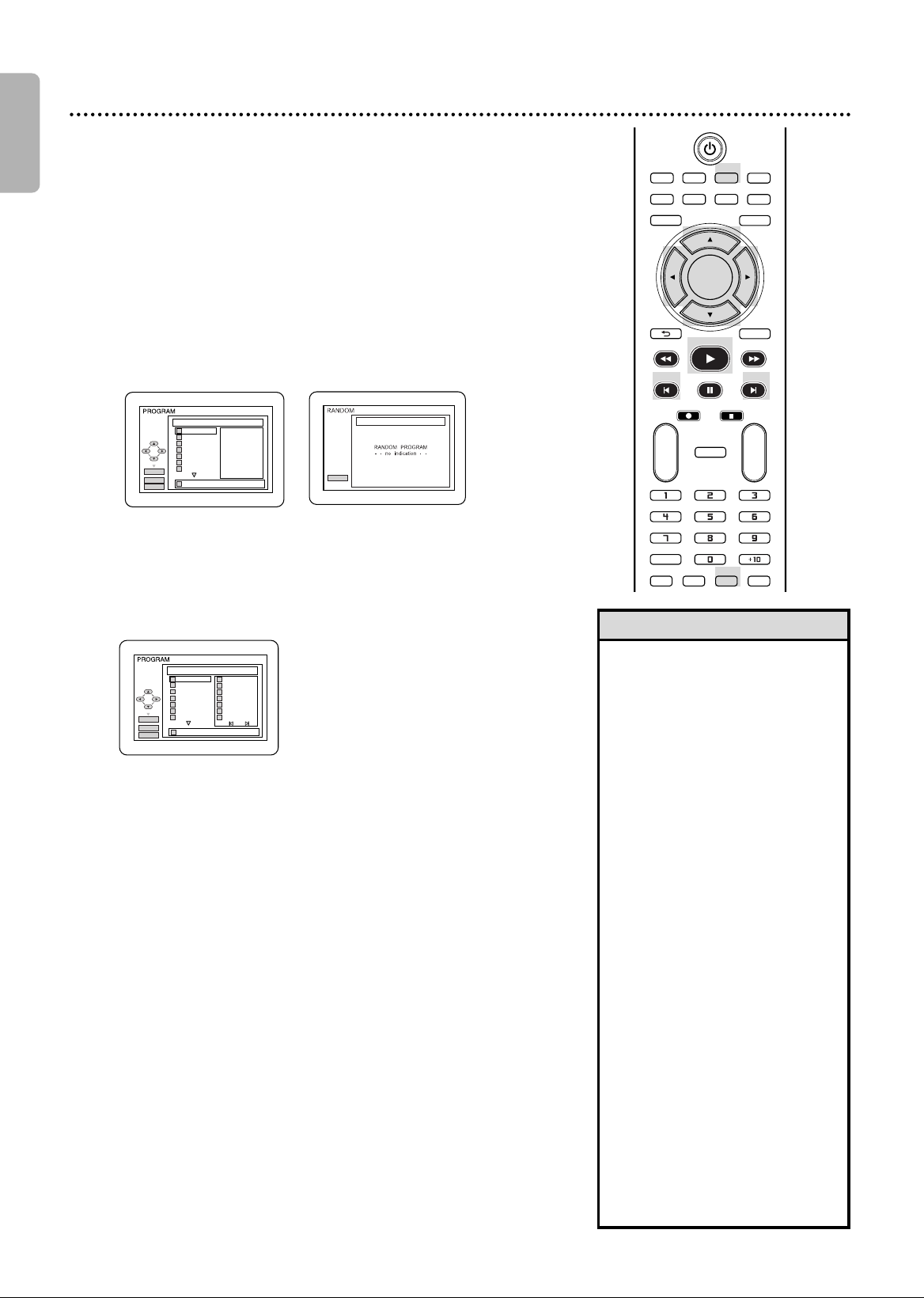

50 Program/Random Playback
Program Playback
You may determine the order in which Audio CD, MP3,
Windows Media
TM
Audio or JPEG tracks will play.
Random Playback
You may play the tracks of an Audio CD in Random order instead
of the order in which they are recorded (1,2,3...). You can also
use this feature for MP3, Windows Media
TM
Audio and JPEG tracks.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
While playback is stopped, press MODE
repeatedly until the PROGRAM/RANDOM screen
appears.
3
Press K or L to select a track you want to play,
then press OK.
Press CLEAR to erase the last track in the program if you
make an error. Additional tracks may be on other screens.
Press L to go on to the next page, and press K to go back
to the previous page. Repeat this step until you have
selected all the tracks you wish to play in the program.
To see tracks in a program when there are more than 8
tracks, use NEXT ∑, PREV w to see all the tracks. For
MP3, Windows Media
TM
Audio or JPEG folders, press s or
B to go to the previous or next level of folders. Press
TITLE to return to the first item in the highest level.
4
Press PLAY B. The tracks will play once in the order you
set. Turning off the player or opening the disc tray will
erase the program.
•
You cannot use the Number
buttons or SEARCH to select
another track during
Program/Random Playback. Use
NEXT ∑ or PREV w to select
other tracks.
•
You cannot combine Random
Playback with a program.
•
You may play a program or a
track within a program
repeatedly. During Program
Playback, press REPEAT so ALL
(all tracks in the program) or
TRACK appears.The entire
program or the current track
will play over and over.
•
You cannot alter a program
during playback.
•
You can start Program Playback
only while in the PROGRAM
screen.
•
A program can have a maximum
of 99 tracks.
•
To erase all tracks in the
program, select ALL CLEAR at
step 3.
•
Program/Random Playback of
MP3, Windows Media
TM
Audio
or JPEG tracks is not available
while DUAL PLAYBACK is ON.
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
OK
PLAY
CLEAR
CD-DA TOTAL 1:03:30
1 3:30
2 4:30
3 5:00
4 3:10
5 5:10
6 1:30
7 2:30
1 3:30
5 5:10
10 4:20
11 3:00
12 3:20
17 4:10
22 2:50
1 3:30
1/4
2/3
T
T
T
T
T
T
T
T
T
T
T
T
T
T
T
Example: Audio CD
Program Playback
Random Playback
3
While the RANDOM screen appears, press
PLAY B. The tracks will play in random order. After all
the tracks play once, playback will stop.
PLAY
Disc name
Example: MP3
(DUAL PLAYBACK - OFF)
CD-DA TOTAL 0:00:00
1 3:30
2 4:30
3 5:00
4 3:10
5 5:10
6 1:30
7 2:30
1
3:30
1/4
1/1
T
T
T
T
T
T
T
T
OK
PLAY
CLEAR
Example: Audio CD
E8A21UD_EN2 5/15/06 8:04 PM Page 50
English
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK

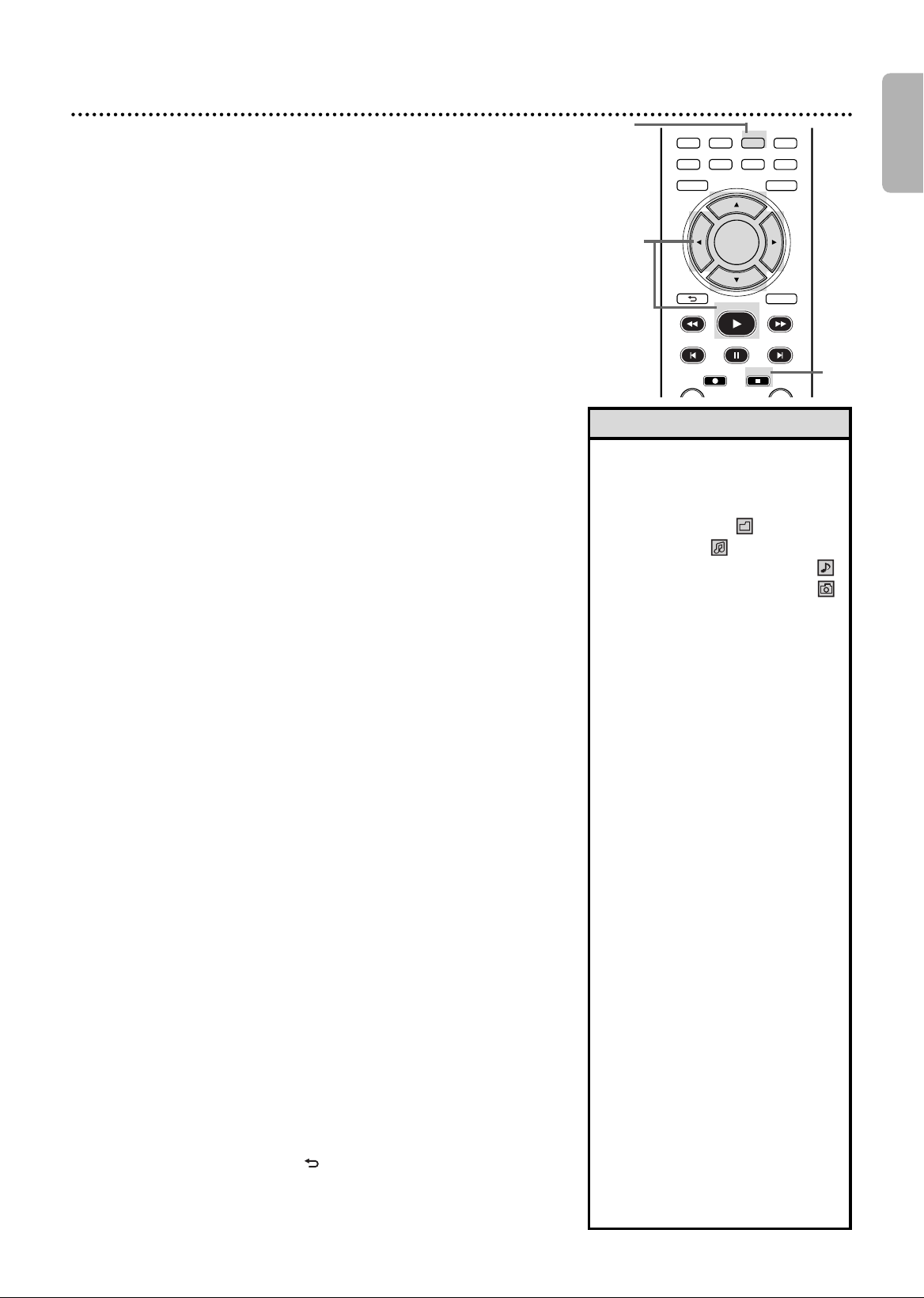

MP3/Windows Media
TM
Audio/JPEG Playback 51
The DVD/VCR will play MP3, Windows Media
TM
Audio and JPEG files
that you record and finalize on a CD-R (Compact Disc-Recordable)
or CD-RW (Compact Disc-Rewritable).
These discs may contain pictures in a JPEG format or audio tracks in
an MP3 or Windows Media
TM
Audio format. For example, you may have
photographic film developed by a retailer that places the pictures on a
CD-R for you. These pictures may be in JPEG format. Or, you may copy
or download MP3/Windows Media
TM
Audio music files from certain
legal Internet sites, then copy those files onto a CD-R or CD-RW.
You cannot make or record such discs using this DVD/VCR. See your
computer manual for details on recording.
Keep these characteristics in mind when making discs you intend to
play on the DVD player of this DVD/VCR.
● Record MP3 files at a sampling frequency of 44.1 kHz or
48 kHz. Record in a constant bit rate between 32 kbps and 320
kbps.
● Record Windows Media
TM
Audio tracks at a sampling frequency of
44.1kHz or 48kHz. Record in a constant bit rate between 48 kbps
and 192kbps.
● When recording JPEG files, the size of the picture should be
between 32 x 32 and 6300 x 5100 dots.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
When you put a CD-R or CD-RW with MP3,
Windows Media
TM
Audio or JPEG files in the DVD/VCR, a File
List will appear automatically. Or if the disc is already in the
DVD/VCR and you want to call up the file list, press
DISC/VCR MENU. (If you use PLAY B to close the disc tray,
Playback starts automatically.) Press K or L to select a
folder, MP3,Windows Media
TM
Audio or JPEG file.
3
If you choose a track or file, press PLAY B or OK.
Starting with the track or file you selected, the tracks/files will
play in the order they were recorded, i.e. 1,2,3.
If you select a folder an
d press OK, the tracks or files
within that folder will appear. Press K or L to select
the track or file you want to play, then press PLAY B
or
OK.
● Press TITLE to return to the first item in the highest level of
folders or files.You also can press { or B to return to
previous or next levels.
● To change the Transition Mode for JPEG playback, press
MODE repeatedly until Transition Mode appears on top of
the TV screen during playback.Then press { , B or OK to
switch CUT IN/OUT and FADE IN/OUT. If you choose
CUT IN/OUT, the images will cut in and out sharply as
playback progresses. If you choose FADE IN/OUT, the
images will fade in and out as playback progresses.
● To change the size of the playback image, press MODE
repeatedly until SIZE MODE appears at the top of the TV
screen during playback. Then press { , B or OK to switch
NORMAL(100%) and SMALL(95%).
● Press MODE or BACK to remove the display.
● During JPEG playback, press ANGLE to rotate a picture 90
degrees clockwise.
4
To stop playback, press STOP C.
• MP3/Windows Media
TM
Audio
tracks and JPEG images are
known as files. Groups of files
are called folders.
•Folders have the icon, MP3
files have the icon,Windows
Media
TM
Audio files have the
icon and JPEG files have the
icon.
•A maximum of 255 folders can
be recognized. A maximum of
999 files can be recognized.
• If you use PLAY B to close the
disc tray, playback starts
automatically. If you use
OPEN/CLOSE A to close the
disc tray, you have to press
PLAY B to start playback.
• During playback, use the
Number buttons or NEXT ∑
and PREV w to change tracks.
If a track is not available,“X”
will appear on the TV screen,
and playback may resume at an
incorrect track or may continue
with its current track.
•To see the File List during
playback, press DISC/VCR
MENU. The current track will
be highlighted.
•Progressive JPEGs (JPEG files
saved in the progressive format)
will not play on this DVD player.
• Copyright protected
Windows Media
TM
Audio files
will not play on this DVD player.
• High resolution JPEG files takes
longer to be displayed.
• SIZE MODE may have no effect
on some files (e.g. files with a
small picture size).
2-3
4
Helpful Hints
1
E8A21UD_EN2 5/15/06 8:04 PM Page 51

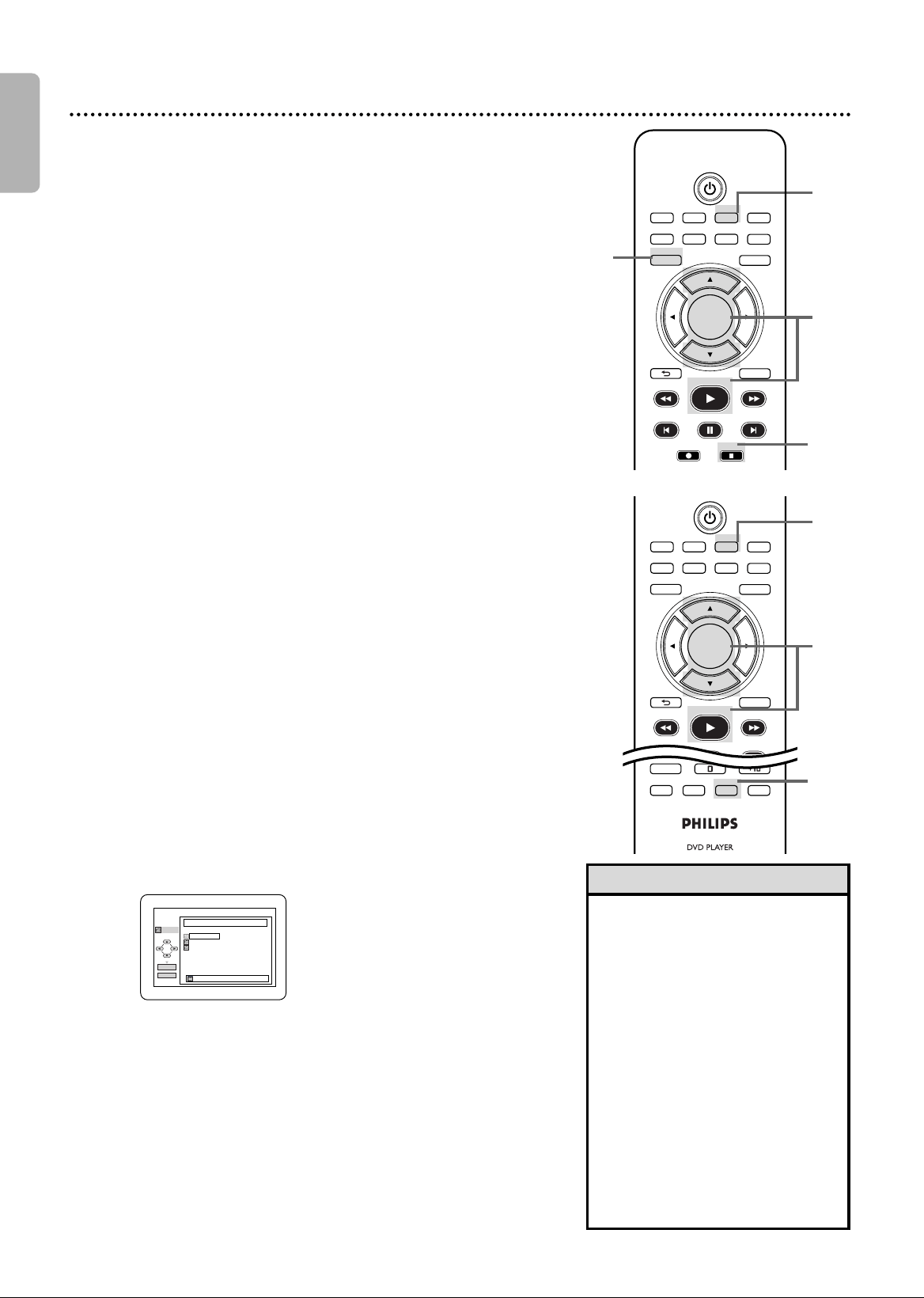

English
3
52
MP3/Windows Media
TM
Audio/JPEG Playback (cont’d)
Dual Playback
This feature lets you play MP3 and JPEG files simultaneously.
Available only when DUAL PLAYBACK is ON.
See pages 65-66 on how to set the DUAL PLAYBACK ON
or OFF.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press DISC/VCR MENU during MP3/JPEG
playback.
A File List will appear.
3
Press
KK
or
LL
to select a desired MP3/JPEG file
from the list and press PLAY B or OK.
4
To stop playback, press STOP C.
Folder Playback
You may select to play a folder containing MP3 and JPEG files.
Available only when DUAL PLAYBACK is ON.
See pages 65-66 on how to set the DUAL PLAYBACK ON
or OFF.
1
Press DVD to put the DVD/VCR in DVD mode.
A Folder List will appear.
2
While playback is stopped, press MODE.
DVD light will appear on the front of the DVD/VCR.
3
Press K or L to select a folder, then press
PLAY B or OK.
● MP3 and JPEG files in the selected folder will play
simultaneously.
● If Windows Media
TM
Audio files are in the folder,
those files will be skipped during Folder Playback.
OK
PLAY
DISC NAME
FOLDER LIST
001
001
002
003
ALL
FOLDER
• If you press PLAY B directly
after you inserted a disc which
contains both MP3 and JPEG files
and if the DUAL PLAYBACK
setting is ON, Dual Playback will
start automatically.
•You can not play Windows
Media
TM
Audio and JPEG files
together at the same time. If you
choose a Windows Media
TM
Audio
file during Dual Playback, only
Windows Media
TM
Audio file will
play.
•Dual Playback may not function
properly if MP3 and JPEG files on
the disc interfere each other due
to the difference in their data size.
Helpful Hints
1
4
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
2
3
2
CLEAR
REC MODE SEARCH MODE TITLE
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
OK
1
E8A21UD_EN2 5/15/06 8:04 PM Page 52

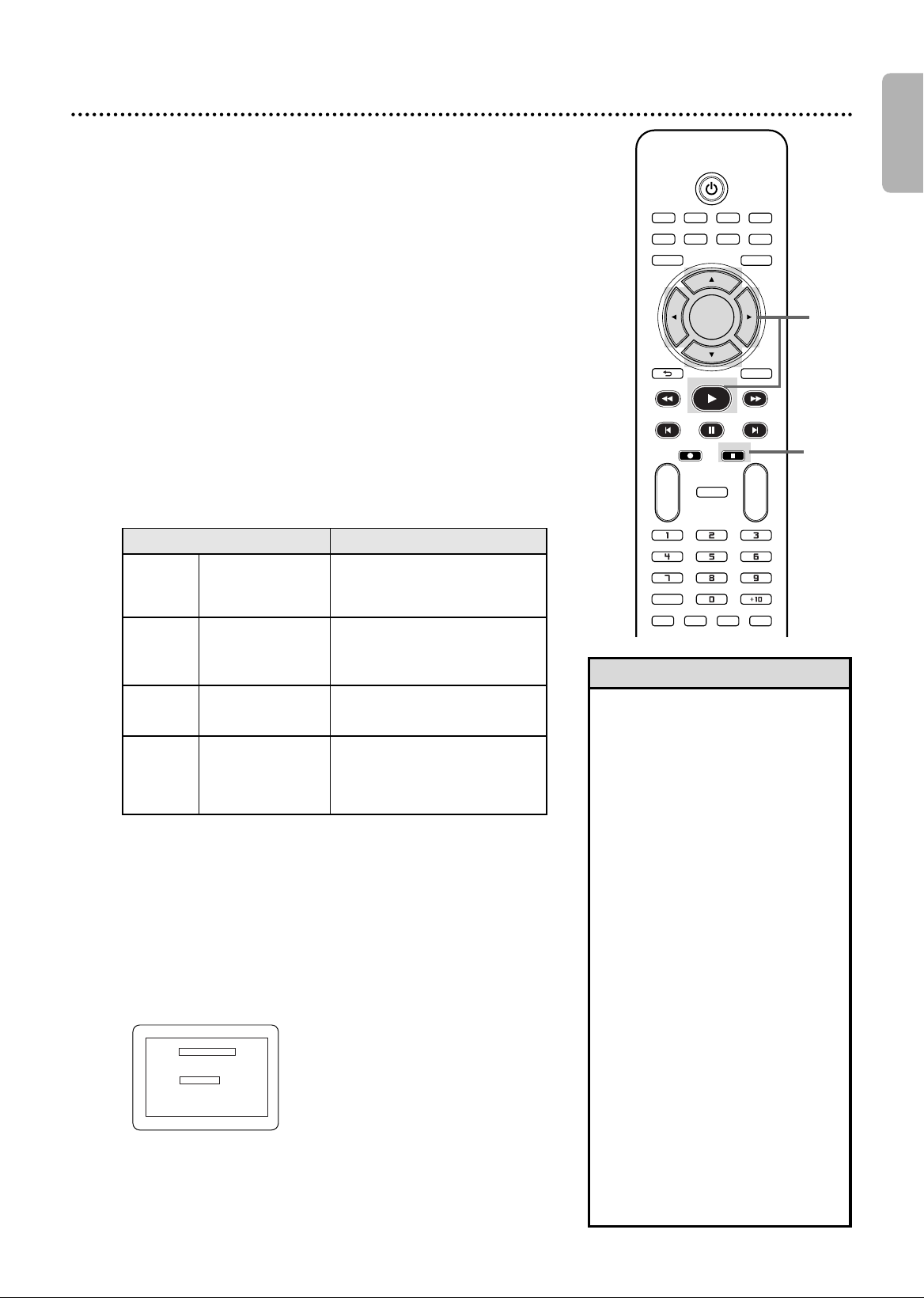

English
DivX
®
Playback 53
• DivX
®
subtitle can only be
displayed according to the same
name with an extension of the
DivX
®
file name.
• Files whose extension is other
than “.SMI”,“.smi”,“.SRT”,“.srt”,
“.SUB” and “.sub” will not be
listed in the Subtitle List.
• This DVD/VCR cannot be
recognized if the DivX
®
file and its
subtitle file are not in the one
folder.
• The subtitle may not be displayed
if the file size is too large.
•To change the subtitle, refer to
“Subtitles” on page 47 if multiple
subtitles are available.
• The subtitle cannot display while
the on-screen information is being
displayed.
• If DivX
®
SUBTITLE is set to OFF
in Language Menu, the Subtitle List
will not be displayed even if you
select a DivX
®
file with created
subtitle. (Refer to “DivX
®
SUBTITLE” on page 58.)
• Unrecognizable characters will be
replaced with asterisks.
Helpful Hints
This DVD/VCR can play back DVD+R/+RW and CD-R/-RW discs
recorded in DivX
®
Format.When a DVD+R/+RW or CD-R/-RW
with DivX
®
files is inserted in the DVD player and the VCR/DISC
MENU is pressed, the FILE LIST will appear.The number of tracks
will be also displayed on the front panel.
1
Press
KK
or
LL
to select the desired group (folder) or
track.
● To r eturn to the previous screen, press s.
● If a group (folder) is selected, press B or OK to go on
to the track selection screen. Press K or L to choose
track, then press PLAY B or OK.
● If a track is selected, press PLAY B or OK to start play-
ing back tracks.The selected track and the subsequent
tracks will be played back.
● When selecting the folders:
–Press B when you want to go to the next level.
–Press s when you want to go back to
previous level (except for the top level).
● Press TITLE to return to the first item.
2
Press STOP C to stop playback.
Constant bit rate of image between 500 kbps and 1500
kbps is recommended if you make DivX
®
files on a
CD-R/-RW.
DivX
®
Subtitle
The subtitle created by the user can be displayed during DivX
®
playback.
1
After selecting the DivX
®
file, the SUBTITLE LIST will
appear when the DivX
®
SUBTITLE is set to anything other
than OFF. (Refer to page 58.)
2
Press K or L to select the desired extension you want to
display, then press OK. DivX
®
with the subtitle starts play-
back.The subtitle cannot be displayed when the setting is
OFF.
● If there is more than one extension, the extension selec-
tion appears in the Subtitle List.
•They are recognized as MPEG4.
•When you made DivX
®
files on a
CD-R/-RW, the recommendation
maximum size of image is 480 x
260 @ 24 fps.
•It is prohibited to record MP3
sound on a digital device when
the connection is made digitally.
•MP3 files recorded at fixed bit
rate of 32 kbps or higher are
recommended.
Applicable DivX
®
file Remarks
Playable
Codec of
AVI files
Maximum
size of
Sampling
frequency
of audio
Audio type
DivX
®
3.1.1,
DivX
®
4.x,
DivX
®
5.1.1
DivX
®
6.0
720 x 480 @30 fps
720 x 576 @25 fps
8 kHz - 48 kHz
MPEG1
audio layer 3 (MP3)
MPEG1
audio layer 2
Dolby Digital
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
2
1
[OFF]
[SMI]
SUBTITLE LIST
FILE :
file name1
FILE LIST : MENU
E8A21UD_EN2 5/15/06 8:04 PM Page 53
English
54 DivX
®
Playback (cont’d)
Hint
• DivX
®
is a codec (compression/decompression)
that can compress images to a very small amount
of data.The software can compress video data
from almost any sources to the size that can be
sent on the Internet without compromising visual
quality of the images.
•A file with an extension of “.avi” and “.divx” is
called an DivX
®
file.All files with the “.avi”
extention are recognized as MPEG4.
• Files whose extension other than “.avi” and “.divx”
will not be listed on the DivX
®
menu. However,
unplayable groups or tracks may be displayed,
depending on the recording conditions.
•Even if the file has an extension of either “.avi” and
“.divx”, this DVD/VCR cannot play it back if it is
recorded in the format other than DivX
®
.
•Folders are known as Groups; files are known as
tracks.
• DivX
®
file have icon.
•A maximum of 255 folders or 999 files may be
recognized in one disc.
• Up to 8 hierarchies can be recognized in one
folder. Files in the 9th or deeper hierarchies
cannot be played back.
• If the track extends beyond the scope of screen, a
down arrow “L” appears, indicating that the files
continue on to the next page.The current page
number and the number of total pages are shown
on the left of the down arrow “L”.
•The name of group and track can be displayed up
to 25 characters. Unrecognizable characters will
be replaced with asterisks.
•You can play back the disc recorded in multi-
session.
• Playback will be paused if the File List is displayed
during the playback.
• It may take a while for audio and images to be
output after you inserted a disc and pressed
PLAY B.
• When playing back the files recorded in high bit
rates, the images can be interrupted in some
occasions.
• Although DivX
®
logo has been obtained for this
DVD/VCR, it may not be able to play back some
data, depending on the characteristics, bit rates, or
audio format settings, etc.
• Use the software recognized by the DivX, Inc.
when you make DivX
®
files.
•A DivX
®
file whose file size exceeds 2 GB cannot
be played back.
• When using tools or utilities to make up DivX
®
files, read their instruction manual beforehand.
•Never use the MPEG4 tools when you make
DivX
®
files. Otherwise, noise or disturbance of the
picture and sound may be generated.
• If a large-sized DivX
®
file is selected, it may take a
while to start the playback (over 20 seconds
sometimes).
• If DivX
®
files written on CDs cannot be played,
rewrite them on a DVD and try playing it back.
•For more information on DivX
®
,please visit
http://www.divx.com.
• If you insert a CD-R/-RW with DivX
®
files that are
mixed with MP3,Windows Media
TM
Audio or JPEG
files, the Playback Media Selection screen will be
displayed. Please select Video and proceed to step 1.
•Press TITLE to call up the Playback Media
Selection screen in stop mode.
• If you select Audio & Picture, instead of Video on
the Playback Media Selection screen, the
DVD/VCR can play MP3,Windows Media
TM
Audio
or JPEG files. Refer to page 51 for details.
•You cannot play the DivX
®
VOD files obtained
with different registration codes on this
DVD/VCR. Press DISC/VCR MENU and select
other files that can be played.
Hint for the purchased or rental official DivX
Certified™ product
• When you purchased or rental a DivX
®
file
through the official site of DivX
®
Video which is
called DivX
®
Video-On-Demand (VOD) services, a
registration code is required every time you get
the new file from the DivX
®
VOD services. Refer
to “Others” on page 66.
• Some DivX
®
VOD files are restricted with the
limited playable times (you cannot play them back
beyond the limit). If your DivX
®
VOD file has such
limit, the playback confirmation screen will appear.
Use s or B to select “YES” if you want to play
back the file, or to select “NO” if you do not wish
to play it back.Then, press OK to confirm the
selection.
•You cannot play back the DivX
®
VOD files, of
which rental period has been expired. In such case,
press DISC/VCR MENU and select other files that
can be played back.
Video
Audio & Picture
Please select the media to play back.
OK
This player is not authorized to
play this video.
Please push ‘MENU’.
AUTHORIZATION ERROR
E8A21UD_EN2 5/15/06 8:04 PM Page 54

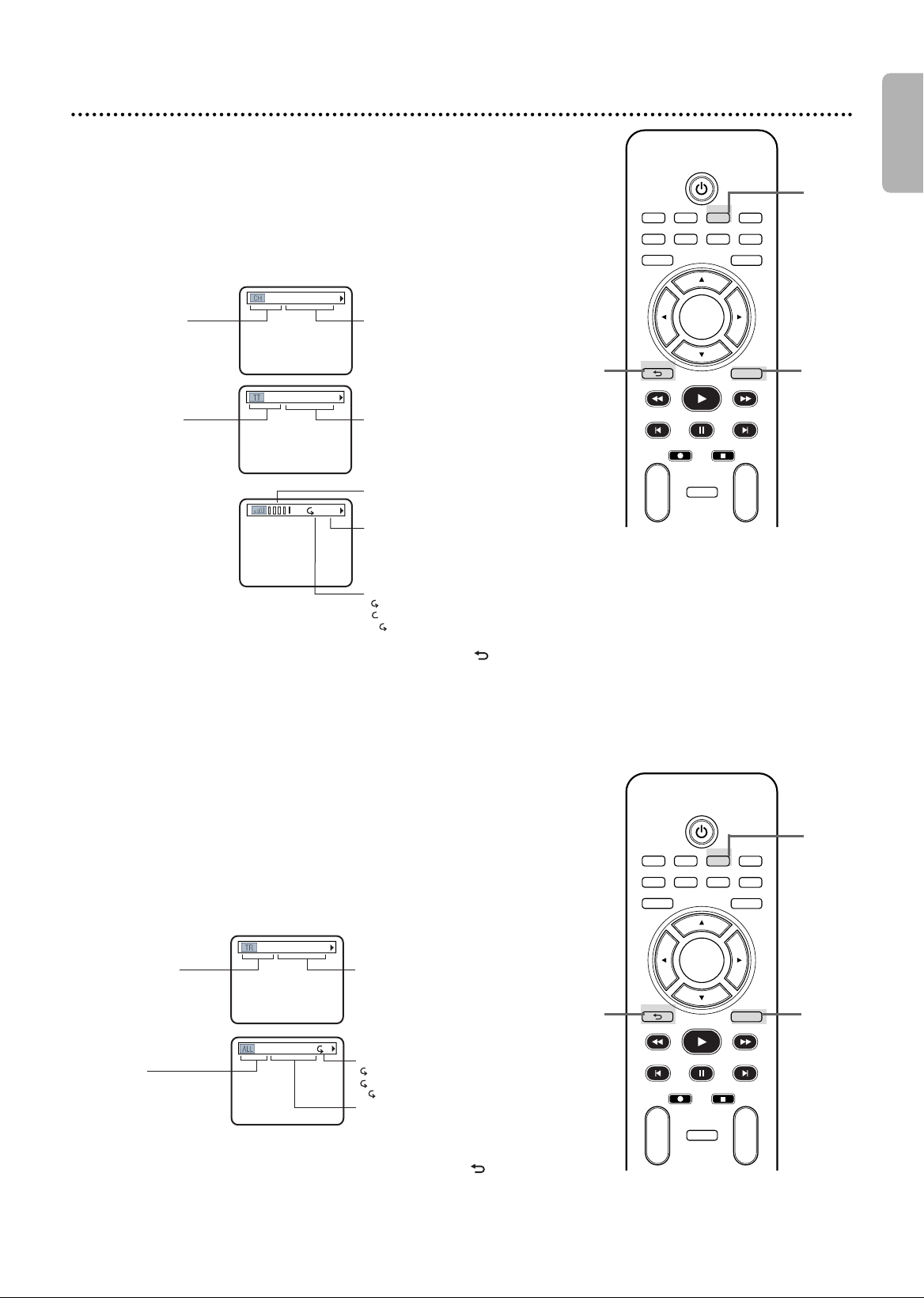

English
Video CD and Audio CD Displays
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press DISPLAY repeatedly to see the following
displays during Video CD (without PBC) or Audio
CD play.
3
Press DISPLAY repeatedly
or press
BACK
to
remove the display.
3
Press DISPLAY repeatedly or press BACK to
remove the display.
BIT RATE: The amount of audio
and video data currently being read.
C
L0
Layer number, appears
only when playing a
two-layered disc.
L0: Layer 0 is playing
L1: Layer 1 is playing
Current Repeat setting, if active
C: Chapter repeat
T: Title repeat
A B: A-B repeat
TR 4/12 0:03:21 - 0:02:15
TR (track):
Current track number/
total tracks
Elapsed playing time
of the current track;
remaining playing time
of the current track
ALL 4/12 0:13:45 - 0:45:40
ALL:
Current track number/
total tracks
Elapsed playing time
of the current Audio CD;
remaining playing time of
the current Audio CD
T
Current Repeat setting, if active
T: Track repeat
A: All tracks repeat
A B: A-B repeat
CH 7/49 0:01:46 - 0:03:27
CH (chapter):
Current chapter number/
total chapters
Elapsed playing time
of the current chapter;
remaining playing time
of the current chapter
TT 1/2 0:00:00 - 1:23:45
TT (title):
Current title number/
total titles
Elapsed playing time of the
current title; remaining playing
time of the current title
DVD Displays
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press DISPLAY repeatedly to see the following
displays during DVD playback.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
On-Screen Displays 55
1
2-33
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
1
2-33
E8A21UD_EN2 5/15/06 8:04 PM Page 55

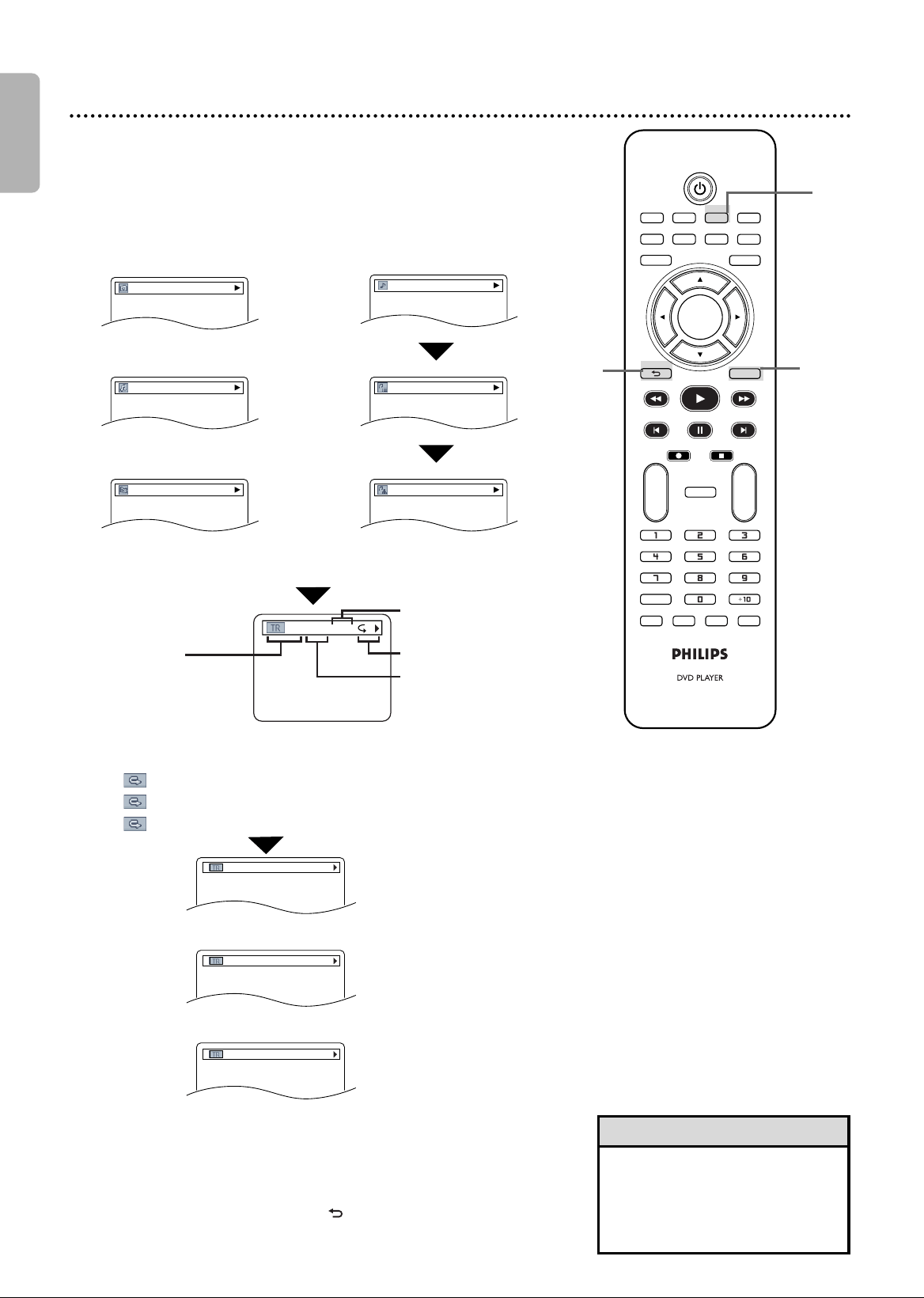

English
only during PROGRAM Playback
only during RANDOM Playback
56 On-Screen Displays (cont’d)
The following may appear to indicate Repeat Playback.
T: The current track will play repeatedly.
G:
Tracks in the current folder (group) will play repeatedly.
A: All tracks will play repeatedly.
● Program and Random Playback is available only when
DUAL PLAYBACK is OFF.
● Folder Playback is available only when DUAL PLAYBACK
is ON.
3
Press
DISPLAY
or BACK to remove the display.
or
RANDOM
or
FOLDER PLAYBACK
PROGRAM
only during FOLDER Playback
•For MP3 files recorded with
Variable Bit Rate (VBR), the
elapsed time displayed on the
screen may vary from the
actual elapsed time.
Helpful Hint
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
MP3/Windows Media
TM
Audio/JPEG/DivX
®
Displays
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
Press
DISPLAY
repeatedly until the current track
or file information appears.
2/25 0:01:15-0:28:45
Elapsed playing time
of the current track
(for MP3/Windows Media
TM
Audio/DivX
®
only)
Remaining playing time of the
current track (for DivX
®
only)
TR (track):
Current track number/
total tracks
T
Current repeat setting
Example: DivX
®
playback
MP3 file name
JPEG file name
track name
title name
artist name
or
During MP3 playback
During
Windows Media
TM
Audio
playback
During JPEG playback
● If Dual Playback is on, MP3
file name will be displayed
after JPEG file name.
2-3
1
3
DivX file name
or
During DivX
®
playback
E8A21UD_EN2 5/15/06 8:04 PM Page 56

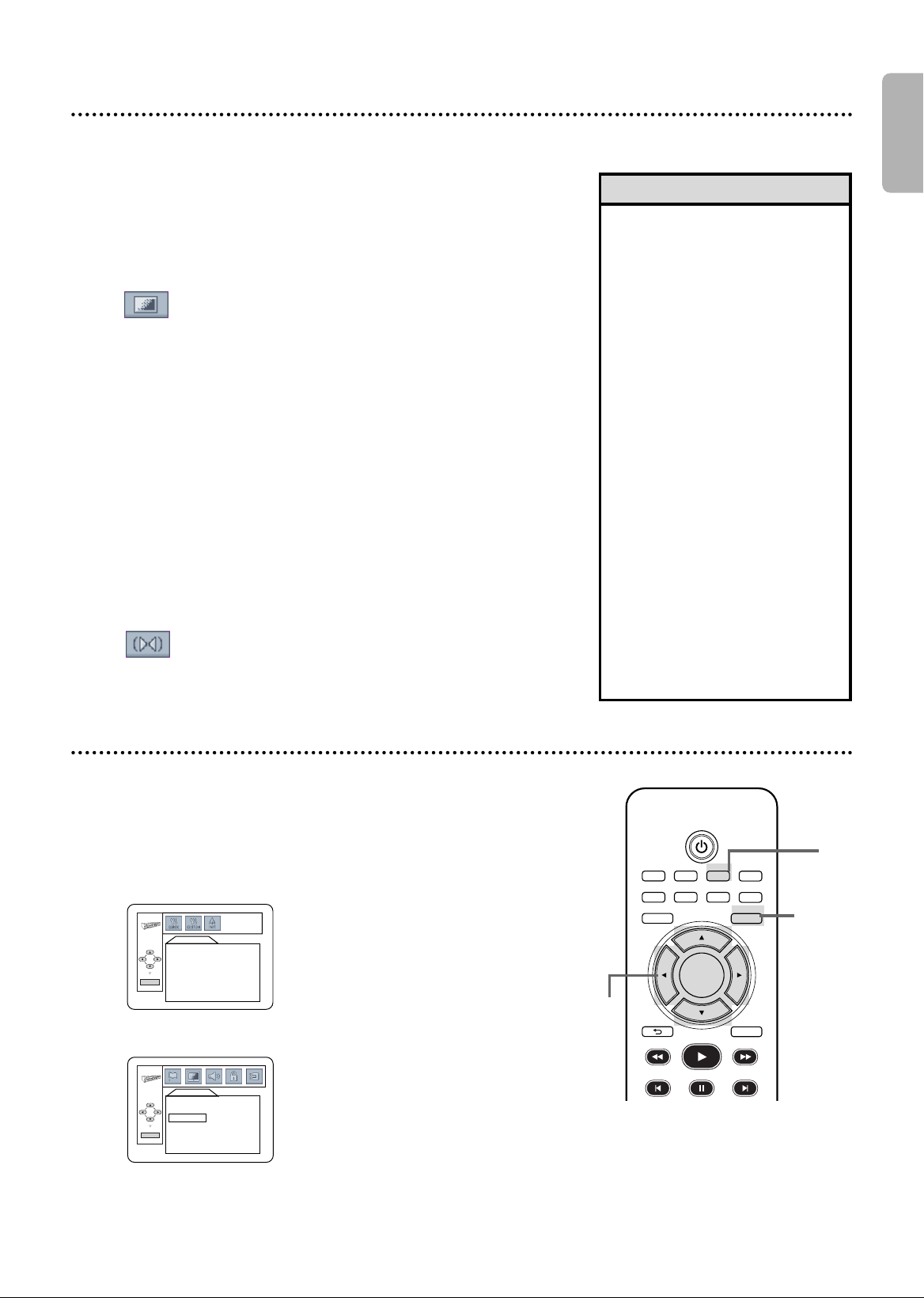

English
Black Level,Virtual Surround 57
Initializing
Black Level
Adjust Black Level to brighten the DVD, Video CD or
DivX
®
picture.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During DVD,Video CD or DivX
®
playback,
press MODE so the Black Level icon shows in the
top left corner of the TV screen.
3
While the Black Level icon is shown, press
s , B or OK repeatedly to choose ON or OFF.
ON brightens the dark parts of the picture. OFF
shows the original picture as recorded.
The icon will
disappear after about 10 seconds.
Virtual Surround
You can enjoy improved stereo sound when you play DVDs,
Video CDs, Audio CDs, MP3 or Windows Media
TM
Audio
files recorded in Dolby Digital or Pulse Code Modulation
(PCM). Check the disc case for details on availability.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
During disc playback, press MODE repeatedly
until the Virtual Surround icon appears in the top left
corner of the TV screen.
3
While the Virtual Surround icon is shown, press
s , B or OK to choose 1
(Natural)
, 2 (Emphasized)
or OFF. The icon will disappear after about 10 seconds.
The default setting is OFF.
• Black Level is not available for
a PAL DVD.
• Virtual Surround is available
only when the player is
connected to a Stereo or TV
using the red and white
AUDIO OUT jacks on the
player.
•For Video CDs and Audio
CDs, you can adjust Virtual
Surround only if you set
Stereo Sound to STEREO.
Details are on page 48.
• The Black Level and the Virtual
Surround settings will be saved
even if the player is turned off.
• When the Virtual Surround
function is active, 96 kHz
sound source will be down
sampled at 48 kHz, and output
as 48 kHz sound.
• The Black Level and Virtual
Surround Settings cannot be
used during x1.3 and x0.8
Rapid Play with Voice (refer to
page 41).
Helpful Hints
ON
OFF
Use INITIALIZE to return all your DVD player’s SETUP menu
items (except PARENTAL) to their default settings.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
While playback is stopped, press DVD/SETUP. The
QUICK SETUP screen appears.
QUICK SETUP
OSD LANGUAGE ENGLISH
TV ASPECT
4:3 LETTER BOX
PROG. SCAN OFF
DOLBY DIGITAL BITSTREAM
OK
3
Press s or B to select INIT. (INITIALIZE)
at the top of the menu, then press OK.
4
Press
KK
or
LL
to select YES. Then, press OK twice.
To cancel the process, select NO instead.
5
Press DVD/SETUP to remove the menu.
INITIALIZE
Initialize?
NO
YES
OK
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
OK
1
2,5
3-4
E8A21UD_EN2 5/15/06 8:04 PM Page 57

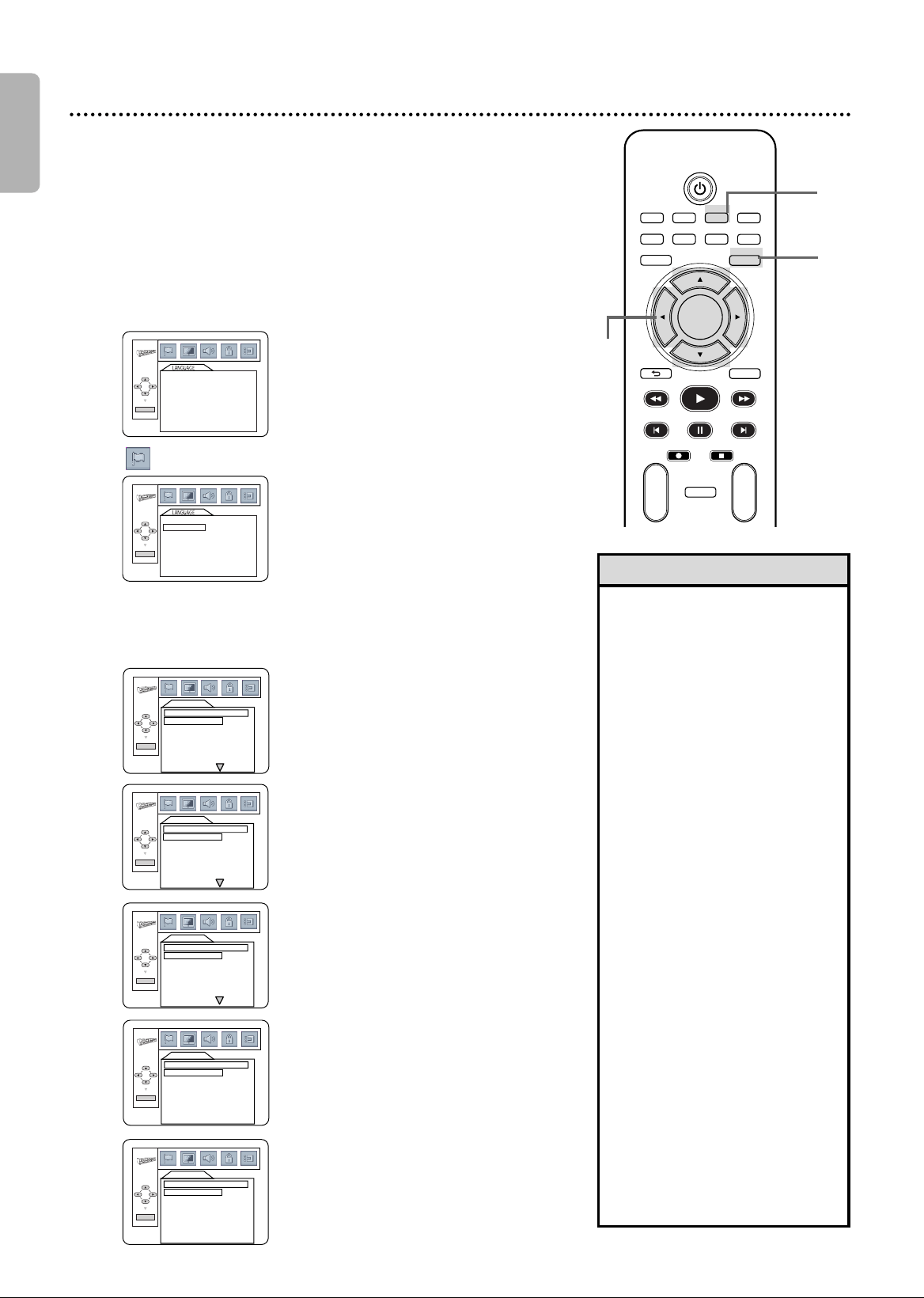

English
58 Language
You can select different languages for the Audio or Subtitles
of discs, as well as languages for the disc menus and the
Setup menus of the DVD player.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
While playback is stopped, press DVD/SETUP.
The QUICK SETUP screen appears.
3
Press s or B to select CUSTOM at the top of
the menu, then press OK.
4
(LANGUAGE) will be selected. Press OK.
5
Press
KK
or
LL
to select AUDIO, SUBTITLE, DISC
MENU, OSD LANGUAGE or DivX
®
SUBTITLE.
Press OK. The language options for the selected item
will appear.
AUDIO: The DVD’s audio plays
in the selected language.
The default setting is
ORIGINAL.
SUBTITLE: Subtitles appear in
the selected language.
The default setting is OFF.
DISC MENU: A DVD’s Disc
menu appears in the selected
language.
The default setting is ENGLISH.
OSD LANGUAGE: The DVD
player’s Setup menu can be in
English, French or Spanish only.
The default setting is ENGLISH.
DivX
®
SUBTITLE: DivX
®
subtitle
appear in the selected language.
The default setting is OFF.
AUDIO
SUBTITLE
DISC MENU
OSD LANGUAGE
DivX SUBTITLE
ORIGINAL
OFF
ENGLISH
ENGLISH
OFF
OK
LANGUAGE
AUDIO
ORIGINAL
ENGLISH
FRENCH
SPANISH
GERMAN
ITALIAN
SWEDISH
OK
LANGUAGE
SUBTITLE
OFF
ENGLISH
FRENCH
SPANISH
GERMAN
ITALIAN
SWEDISH
OK
LANGUAGE
DISC MENU
ENGLISH
FRENCH
SPANISH
GERMAN
ITALIAN
SWEDISH
DUTCH
OK
LANGUAGE
OSD LANGUAGE
ENGLISH
FRANÇAIS
ESPAÑOL
OK
AUDIO
SUBTITLE
DISC MENU
OSD LANGUAGE
DivX SUBTITLE
ORIGINAL
OFF
ENGLISH
ENGLISH
OFF
OK
•
If the DVD’s default settings for
Audio and Subtitle are the same
language, the subtitles may not
show unless you turn them on.
•
Use the AUDIO and SUBTITLE
buttons to select Audio and
Subtitles available on the DVD.
Details are on pages 47-48.
•
If you set AUDIO to ORIGINAL,
the default setting of the DVD
Audio will play.
•
If you set OSD LANGUAGE to
FRANÇAIS (French) or ESPAÑOL
(Spanish) and need English: Follow
steps 1-2. At step 3, the IDIOMA
or LANGUE menu will appear.
Press OK. Press L to select
LANGUE OSD or IDIOMA PANT.,
then press OK. Press K to select
ENGLISH, then press OK. The
menus will change to English. Press
DVD/SETUP to remove the menus.
•
You can change the OSD
LANGUAGE in the QUICK SETUP
menu that appears when you first
press DVD/SETUP. With QUICK
selected, press OK. OSD
LANGUAGE will be selected. Press
OK. Press K or L to choose a
language, then press OK. Press
DVD/SETUP to remove the menu.
•
The language settings may not take
effect until you restart disc playback
from the beginning.
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
3-5
1
2
LANGUAGE
DivX SUBTITLE
OFF
ENGLISH
FRENCH
SPANISH
OK
E8A21UD_EN2 5/15/06 8:04 PM Page 58

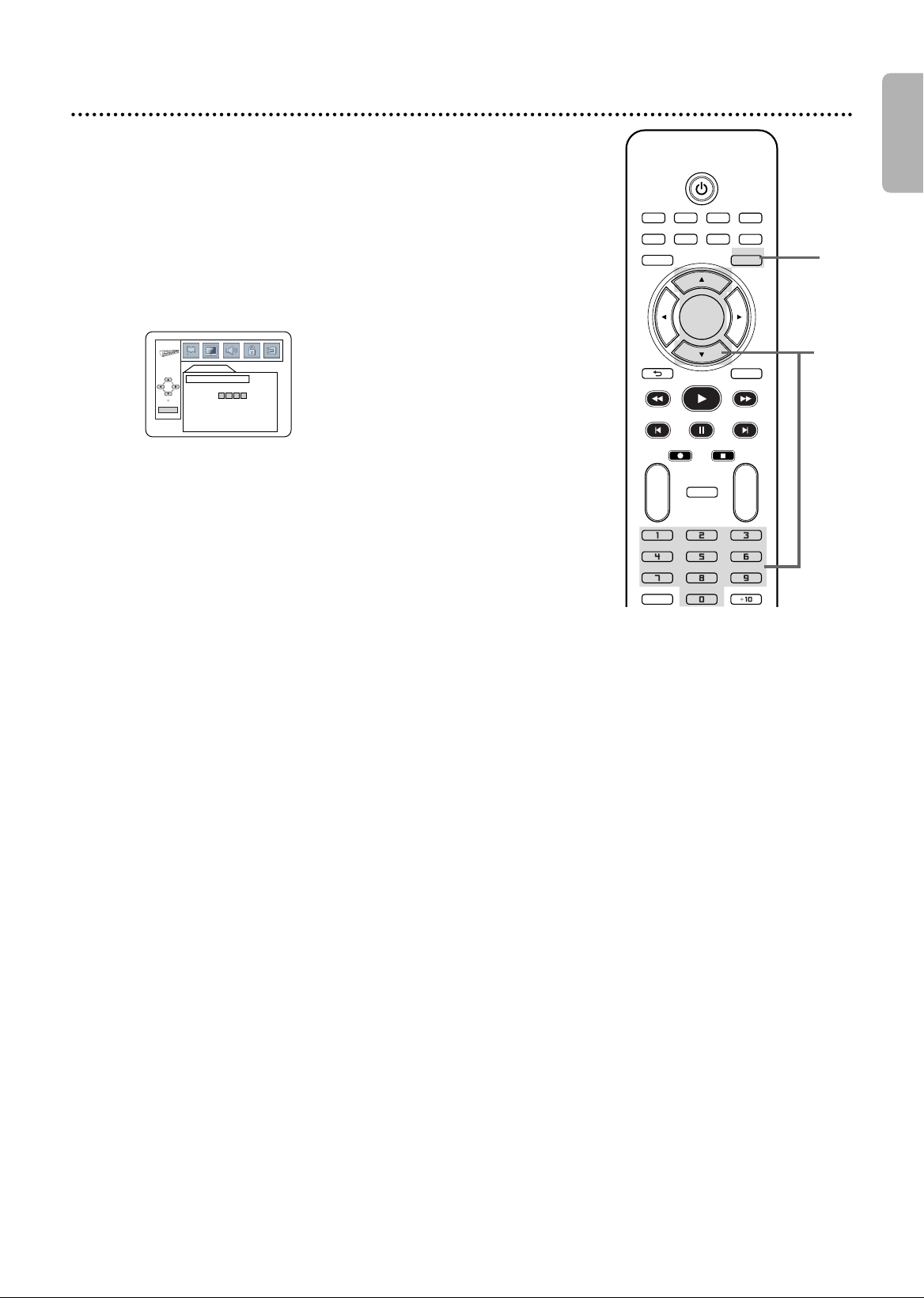

English
Language (cont’d) 59
6
Press K or L to select a language, then press
OK. The language lists may continue on multiple
screens. Press K or L to move to the other screens.
● If you select OTHER for AUDIO, SUBTITLE,
or DISC MENU, press four Number buttons
to enter the code for the language you desire.
Use one of the Language Codes listed below. The
language or language code you select will appear in
the Language menu beside AUDIO, SUBTITLE, or
DISC MENU.
● You can select other languages for AUDIO,
SUBTITLE and DISC MENU only if the language is
available on the disc. If the language you select is
not recorded on the DVD, changing these settings
will have no effect.
7
Press DVD/SETUP to remove the menu.
LANGUAGE
LANGUAGE CODE
Please enter a 4-digit language code.
OK
A-B
Abkhazian 4748
Afar 4747
Afrikaans 4752
Albanian 6563
Amharic 4759
Arabic 4764
Armenian 5471
Assamese 4765
Aymara 4771
Azerbaijani 4772
Bangla 4860
Bashkir 4847
Basque 5167
Bengali 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
C-E
Cambodian 5759
Catalan 4947
Chinese 7254
Corsican 4961
Croatian 5464
Czech 4965
Danish 5047
Dutch 6058
English 5160
Esperanto 5161
Estonian 5166
F-H
Faroese 5261
Fiji 5256
Finnish 5255
French 5264
Frisian 5271
Gaelic (Scots) 5350
Galician 5358
Georgian 5747
German 5051
Greek 5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Hungarian 5467
I-K
Icelandic 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish 5347
Italian 5566
Japanese 5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean 5761
Kurdish 5767
L-N
Laothian 5861
Latin 5847
Latvian 5868
Lettish 5868
Lingala 5860
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian 6061
O-R
Occitan 6149
Oriya 6164
Oromo (Afan)6159
Panjabi 6247
Pashto 6265
Persian 5247
Polish 6258
Portuguese 6266
Pushto 6265
Quechua 6367
Rhaeto-Romance 6459
Romanian 6461
Russian 6467
S
Samoan 6559
Sangho 6553
Sanskrit 6547
Serbian 6564
Serbo-Croatian
6554
Sesotho 6566
Setswana 6660
Shona 6560
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish 5165
Sundanese 6567
Swahili 6569
Swedish 6568
T
Tagalog 6658
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish 6664
Turkmen 6657
Tw i 6669
U-Z
Ukrainian 6757
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
Language Codes
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
7
6
E8A21UD_EN2 5/15/06 8:04 PM Page 59

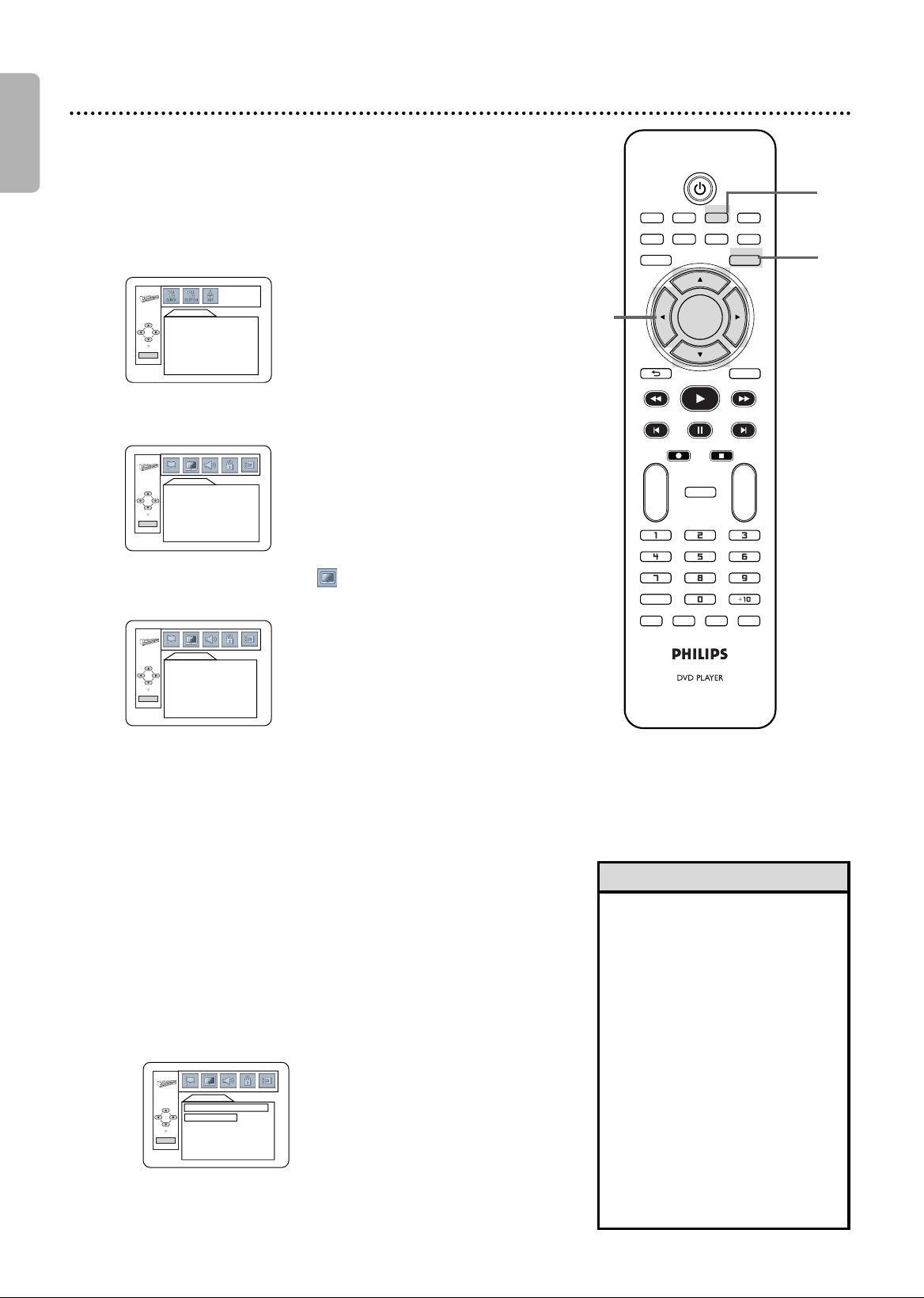

English
60 Display
• Selecting a different TV
ASPECT setting is only
effective if it is available on the
DVD. Check the DVD Disc
menu or case for details.
•You also can adjust TV
ASPECT in the QUICK
SETUP menu that appears
when you first press the
DVD/SETUP. With QUICK
selected, press OK. Press L to
select TV ASPECT, then press
OK. Press K or L to choose
a setting, then press OK. Press
DVD/SETUP to remove the
menu.
• This unit does not set the TV
aspect automatically.
Helpful Hints
You may adjust the TV Aspect ratio and still mode clarity, and
Progressive Scan compatibility.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
When playback is stopped, press DVD/SETUP.
The QUICK SETUP screen will appear.
4
Press s or B to select (DISPLAY), then
press OK.
QUICK SETUP
OSD LANGUAGE ENGLISH
TV ASPECT
4:3 LETTER BOX
PROG. SCAN OFF
DOLBY DIGITAL BITSTREAM
OK
3
Press s or B to select CUSTOM at the top of
the menu, then press OK.
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU ENGLISH
OSD LANGUAGE ENGLISH
DivX SUBTITLE
OFF
OK
5
Press K or L to select an item, then press OK.
● If you selected TV ASPECT, press K or L to
select a setting, then press OK.
Choose 4:3 LETTER BOX if you want to see the
entire, widened picture with black bars at the top and
bottom of the screen. This looks like the picture you
see when watching movies in a theater. This setting is
possible only if the DVD was recorded in the
letterbox or widescreen format.
Choose 4:3 PAN & SCAN for a full height picture,
with both sides trimmed. Some companies refer to
this as reformatting the picture to fit your TV screen
and may call it the regular or normal format.
Choose 16:9 WIDE if you connected a widescreen
TV to the DVD player.
The default setting is 4:3 LETTER BOX.
DISPLAY
TV ASPECT 4:3 LETTER BOX
STILL MODE AUTO
PROG. SCAN OFF
OK
DISPLAY
TV ASPECT
4:3
LETTER BOX
4:3
PAN & SCAN
16:9
WIDE
OK
TV ASPECT
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
2
1
3-5
E8A21UD_EN2 5/15/06 8:04 PM Page 60

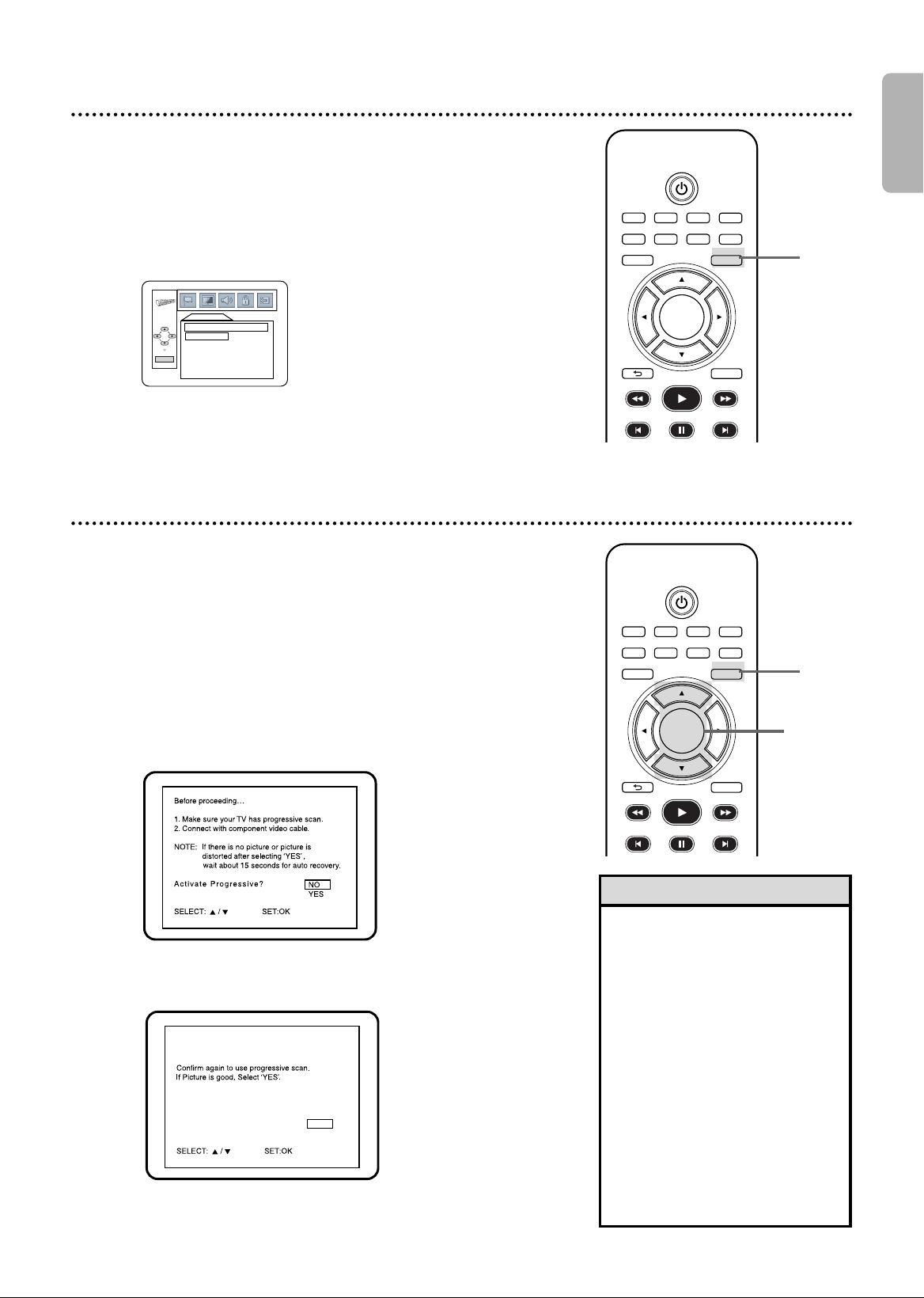

English
3
Press
DVD/SETUP
to remove the menu.
● If PROG. SCAN is ON, this message appears:
Press
K or L to make a selection, then press OK.
If you select NO, the menu disappears and
PROG. SCAN is OFF. If you select YES, this appears:
Confirm your setting, then press OK. The menu will dis-
appear and the Progressive Scan function will be activated.
If you do not press any buttons for 15 seconds,
Progressive Scan will switch to OFF.
Display (cont’d) 61
Progressive Scan
● If you selected STILL MODE, press K or L to
select a setting, then press OK.
This determines the
quality of an image in still mode.
If you select FIELD, still images will be stabilized but
coarse due to the small amount of data.
If you select FRAME, the images will be highly defined due
to the simultaneous output of two fields.
The default setting is AUTO.
6
Press
DVD/SETUP
to remove the menu.
DISPLAY
AUTO
FIELD
FRAME
STILL MODE
OK
STILL MODE
You may adjust the Progressive Scan compatibility.
1
Follow the steps 1-4 in the Display setup on page 60.
2
Press K or L to select
PROG. SCAN, then press OK
repeatedly to turn PROG. SCAN ON or OFF.
Choose ON if your TV has Progressive Scan and if the TV
is connected to the player’s COMPONENT VIDEO OUT
jacks. Choose OFF otherwise.
The default setting is OFF.
Confirm again to use progressive scan.
If Picture is good, Select “YES”.
SELECT: K / L SET:OK
NO
YES
NO
YES
2-3
•You can set PROG. SCAN to
OFF either in the DISPLAY
menu or by pressing and
holding PLAY B on the front
of the player for more than 5
seconds.
•You can adjust Progressive
Scan setting in the QUICK
SETUP menu that appears
when you first press
DVD/SETUP. With QUICK
selected, press OK. Press L to
select PROG. SCAN. Press
OK to choose OFF or ON.
Press DVD/SETUP to remove
the menu.
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
OK
6
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
BACK
PLAY
REW FFW
PREV NEXTPAUSE
OK
3
E8A21UD_EN2 5/17/06 6:13 PM Page 61
English
2,7

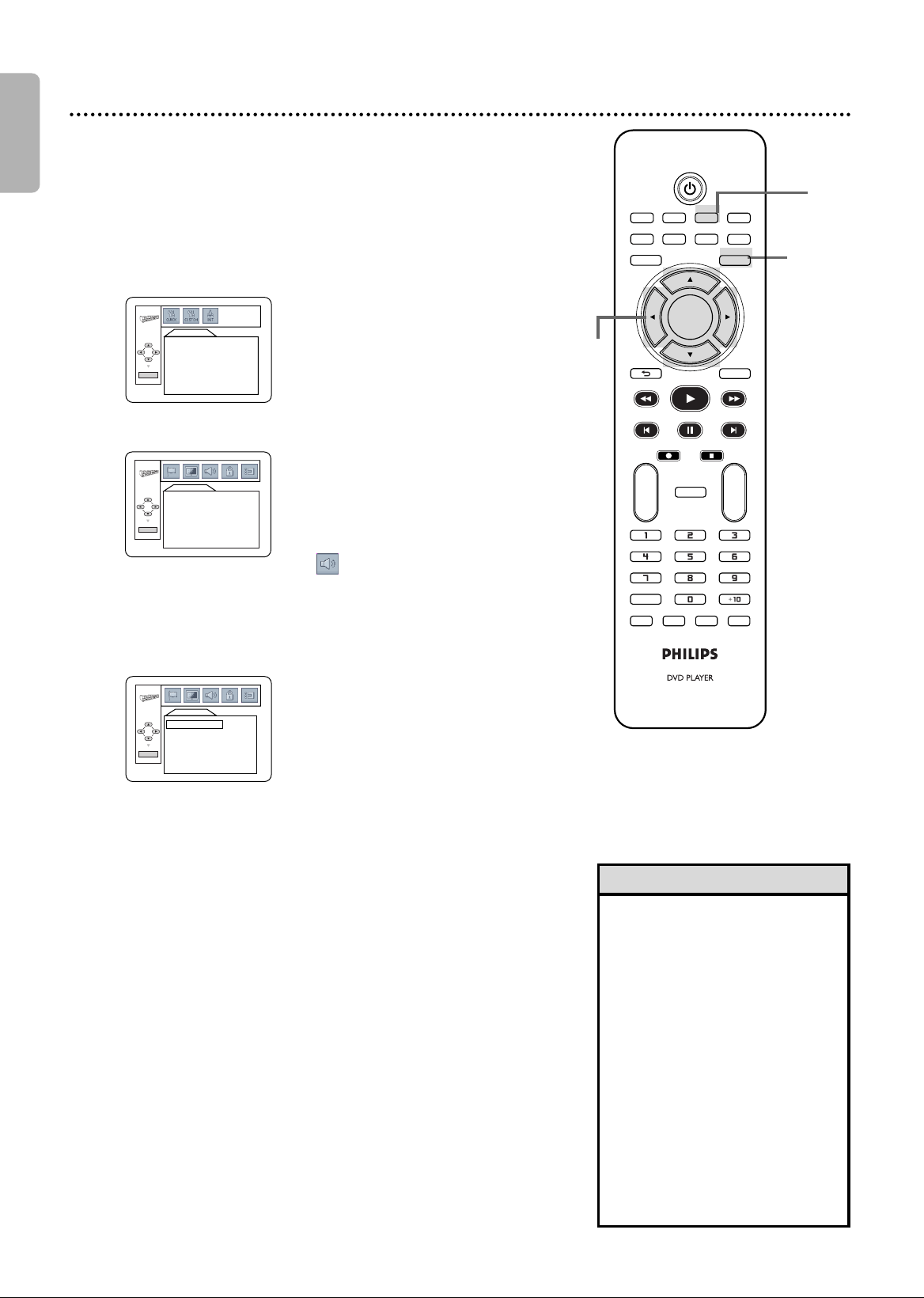

62 Audio
Change Audio settings based on other equipment you
connected to the DVD player or according to your disc
sound features. These setting only affect the Audio from the
DVD player of the DVD/VCR.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
While playback is stopped, press DVD/SETUP.
The QUICK SETUP screen will appear.
3
Press s or B to select CUSTOM at the top of
the menu, then press OK.
4
Press s or B to select (AUDIO) at the top
of the menu, then press OK.
5
Press
KK
or
LL
to select DRC, DOWN
SAMPLING, or DOLBY DIGITAL, then follow
step 6 accordingly.
6
● If you selected DRC, press OK repeatedly to
turn Dynamic Range Control (DRC) On or
Off. Choosing ON compresses the range of volume
by suppressing loud sounds and raising low sounds.
DRC is available only on discs recorded in the
Dolby Digital format.
The default setting is ON.
● If you selected Down Sampling, press OK
repeatedly to choose ON or OFF. Choose ON
to down sample the 96 kHz sound source to 48 kHz.
Choose OFF to output the sound source without
any down sampling.
DOWN SAMPLING is available only when the player
is connected to a Stereo using the COAXIAL
DIGITAL AUDIO OUT jack as described on page 14.
The default setting is ON.
● If you selected Dolby Digital, press OK
repeatedly to select BITSTREAM or PCM.
Select BITSTREAM if you used the COAXIAL
DIGITAL AUDIO OUT jack to connect the DVD
player to a stereo that is Dolby Digital compatible.
Details are on page 14. Otherwise, choose PCM.
The default setting is BITSTREAM.
7
Press DVD/SETUP to remove the menu.
AUDIO
DRC
ON
DOWN SAMPLING
ON
DOLBY DIGITAL
BITSTREAM
OK
QUICK SETUP
OSD LANGUAGE ENGLISH
TV ASPECT
4:3 LETTER BOX
PROG. SCAN OFF
DOLBY DIGITAL BITSTREAM
OK
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU ENGLISH
OSD LANGUAGE ENGLISH
DivX SUBTITLE
OFF
OK
• Dolby Digital sound must be
available on the DVD.
•You can adjust DOLBY
DIGITAL in the QUICK
SETUP menu that appears
when you first press
DVD/SETUP.With QUICK
selected, press OK. Press L to
select DOLBY DIGITAL. Press
OK to choose BITSTREAM or
PCM. Press DVD/SETUP to
remove the menu.
• When you play a disc that has
copyright protection,
downsampling will be at 48
kHz, even if you set DOWN
SAMPLING to OFF.
Helpful Hints
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
1
3-6
E8A21UD_EN2 5/15/06 8:04 PM Page 62
English

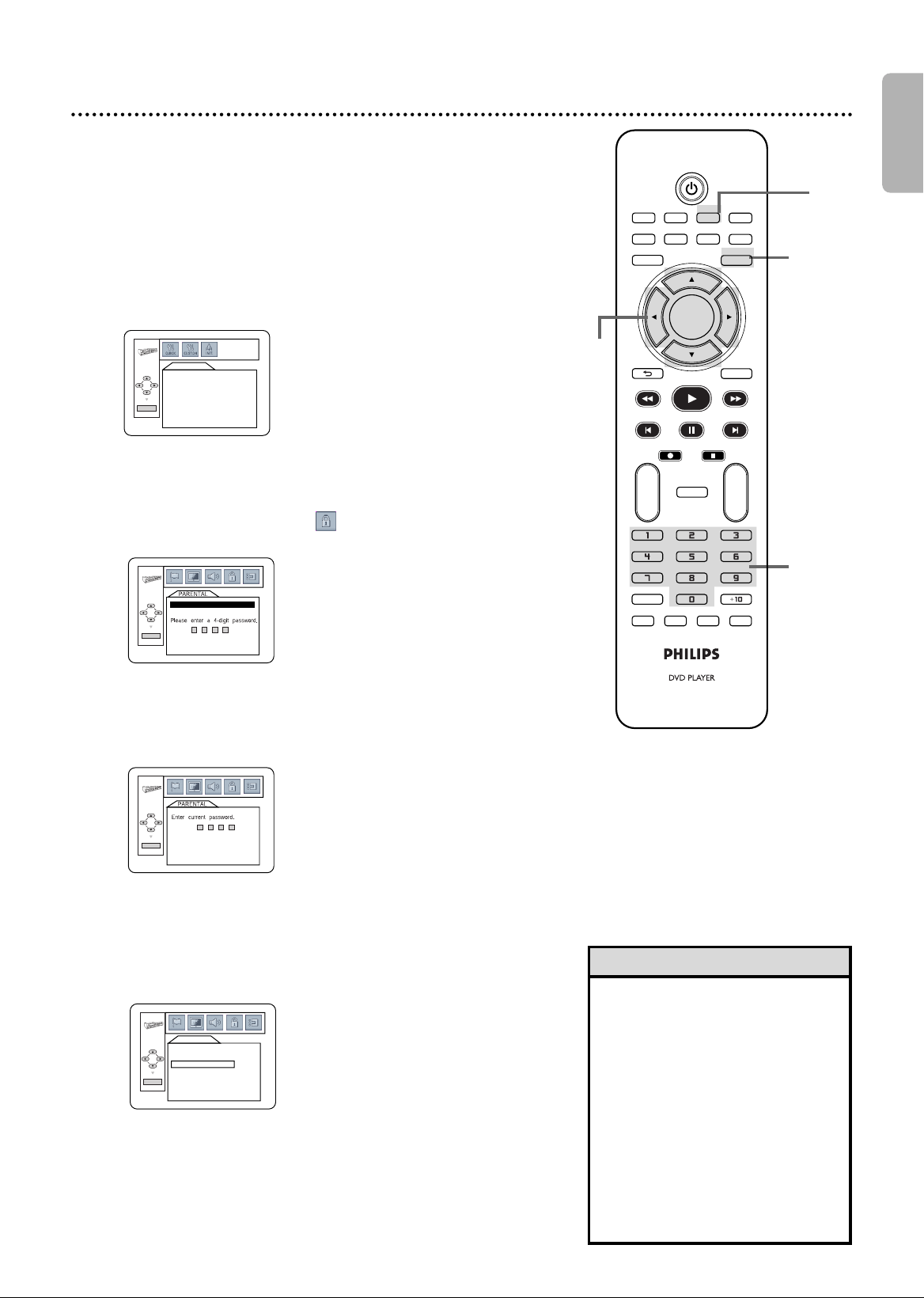

Parental Password 63
Parental Controls prevents viewing of DVDs that exceed your rating
limits. This feature will not limit viewing if the DVD is not rated or
coded. Check your DVDs and settings before letting children access
the DVD/VCR. You will need a password to change the Parental settings
or to play a blocked disc. Follow these steps to change your password.
1
Press DVD to put the DVD/VCR in DVD mode. DVD
light will appear on the front of the DVD/VCR.
2
While playback is stopped, press DVD/SETUP.
The QUICK SETUP screen appears.
4
Press
ss
or
BB
to select (PARENTAL), then press OK.
● If this is the first time you set a password, this menu will appear.
Press the Number buttons to enter a 4-digit password.
The password will appear on the screen. Write it down so you
will not forget it.
Press OK, and proceed to step 7.
● If you have set a password before, this menu will appear.
Press the Number buttons to enter your current
4-digit password. Asterisks (
*
) will appear instead of your
password. This protects its identity. Press OK, and proceed to
step 7.
5
If you like to change the password, press K or L to select
PASSWORD CHANGE, then press OK.
6
Press the Number buttons to enter a 4-digit password.
The password numbers will appear on the screen. Write down
the password so you will not forget it. Press OK. The previous
menu will reappear.
7
Press DVD/SETUP to remove the menu.
• The default password is 4737. If
you forget your password, press
Number buttons 4, 7, 3, 7 at
step 4. You will be prompted to
enter a new 4-digit password.
Use the Number buttons to
enter a new 4-digit password,
then press OK. PARENTAL
LEVEL will reset to ALL. See
page 64 to reset PARENTAL
LEVEL as you desire.
•A power failure will not erase
your password.
Helpful Hints
3
Press s or B to select CUSTOM, then press OK.
PASSWORD
OK
OK
PARENTAL
PARENTAL LEVEL ALL
PASSWORD CHANGE
OK
QUICK SETUP
OSD LANGUAGE ENGLISH
TV ASPECT
4:3 LETTER BOX
PROG. SCAN OFF
DOLBY DIGITAL BITSTREAM
OK
2,7
4,6
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
1
3-6
E8A21UD_EN2 5/15/06 8:04 PM Page 63
English

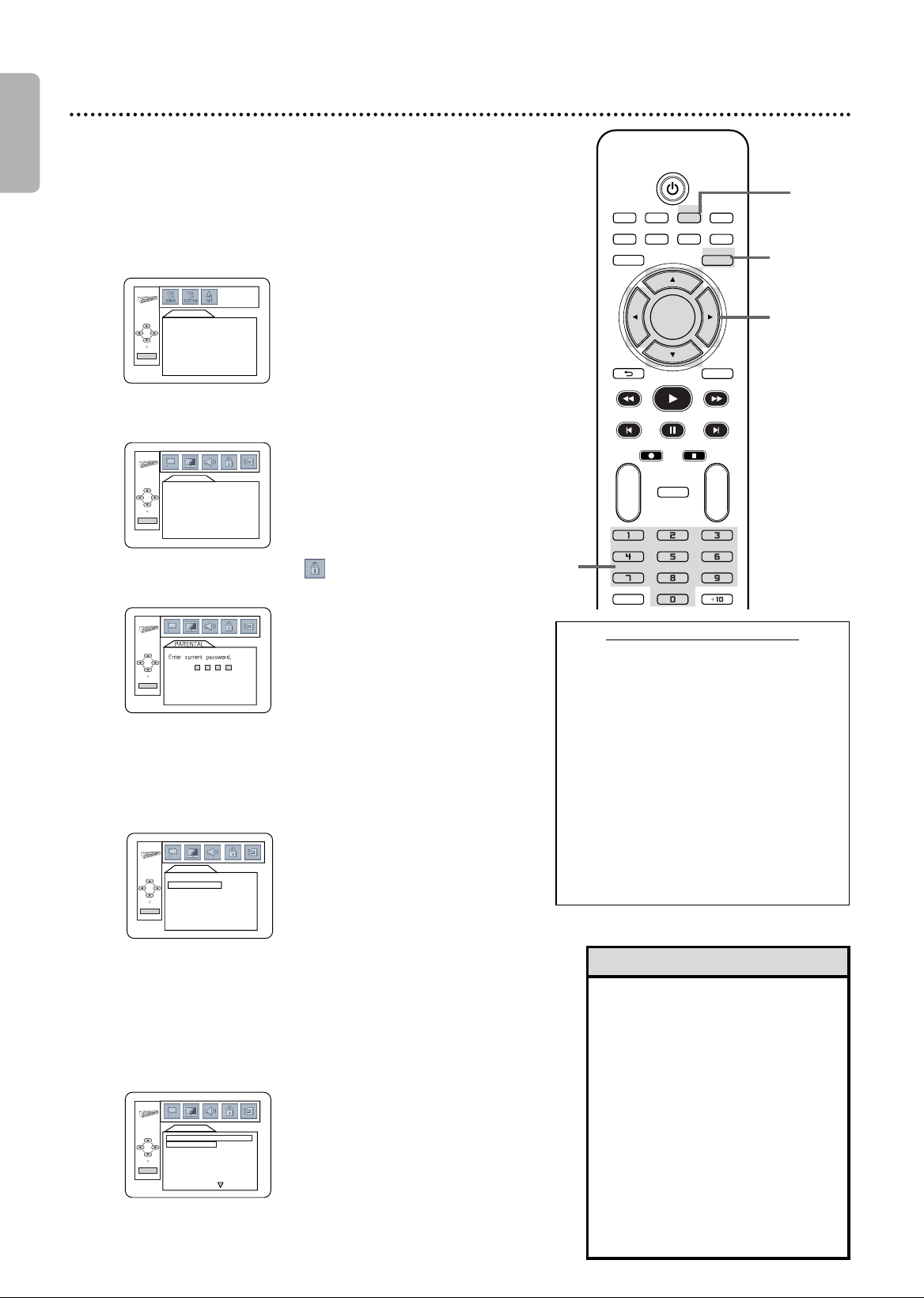

64 Parental Levels
Follow these steps to set the rating level for your DVDs. DVDs
whose ratings exceed the level you set will not play.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
While playback is stopped, press DVD/SETUP.
The QUICK SETUP screen appears.
5
Press the Number buttons to enter your 4-digit
password.
6
Press K or L to select PARENTAL LEVEL, then
press OK.
QUICK SETUP
OSD LANGUAGE ENGLISH
TV ASPECT
4:3 LETTER BOX
PROG. SCAN OFF
DOLBY DIGITAL BITSTREAM
OK
OK
7
Press K or L to select a level, then press OK.
The rating levels continue on two menu screens. Press
K or L repeatedly to move to the next or previous screen
to find the rating level you want.
After making your selection, the previous menu will appear.
The level you selected will appear beside PARENTAL
LEVEL.
PARENTAL
PARENTAL LEVEL ALL
PASSWORD CHANGE
OK
PA RE NTAL
PA RENTAL LEVEL
ALL
8 [ADULT]
7 [NC-17]
6 [R]
5 [PGR]
4 [PG13]
3 [PG]
OK
• When you try to play a DVD
whose rating exceeds the level
you set, an on-screen message
will indicate the DVD cannot
play. Remove the DVD, then set
PARENTAL LEVEL to ALL.
Reload the DVD and begin
playback. Some DVDs may let
you enter your 4-digit
password to begin playback.
Follow the on-screen messages
as prompted.
•You cannot use the default
password (4737) to play a DVD.
Helpful Hints
3
Press s or B to select CUSTOM at the top of the
menu, then press OK.
8
Press DVD/SETUP to remove the menu.
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU ENGLISH
OSD LANGUAGE ENGLISH
DivX SUBTITLE
OFF
OK
4
Press s or B to select
(PARENTAL)
,
at the top of
the menu,
then press OK.
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
RATING EXPLANA
TIONS
•ALL : Parental Control is inactive; all discs
can play.
•
8 [ADULT]: DVD softwares of any grades
(adult/general/children) can be played
back.
•
7 [NC-17]: No one under 17 admitted
•
6 [R]: Restricted; under 17 requires
accompanying parent or adult guardian
•
5 [PGR]: Parental Guidance
Recommended
•
4 [PG13]: Unsuitable for children under 13
•
3 [PG]: Parental Guidance suggested
•
2 [G]: General Audience
•
1 [KID SAFE]: Suitable for children
1
2,8
3-4,
6-7
5
E8A21UD_EN2 5/15/06 8:04 PM Page 64
English

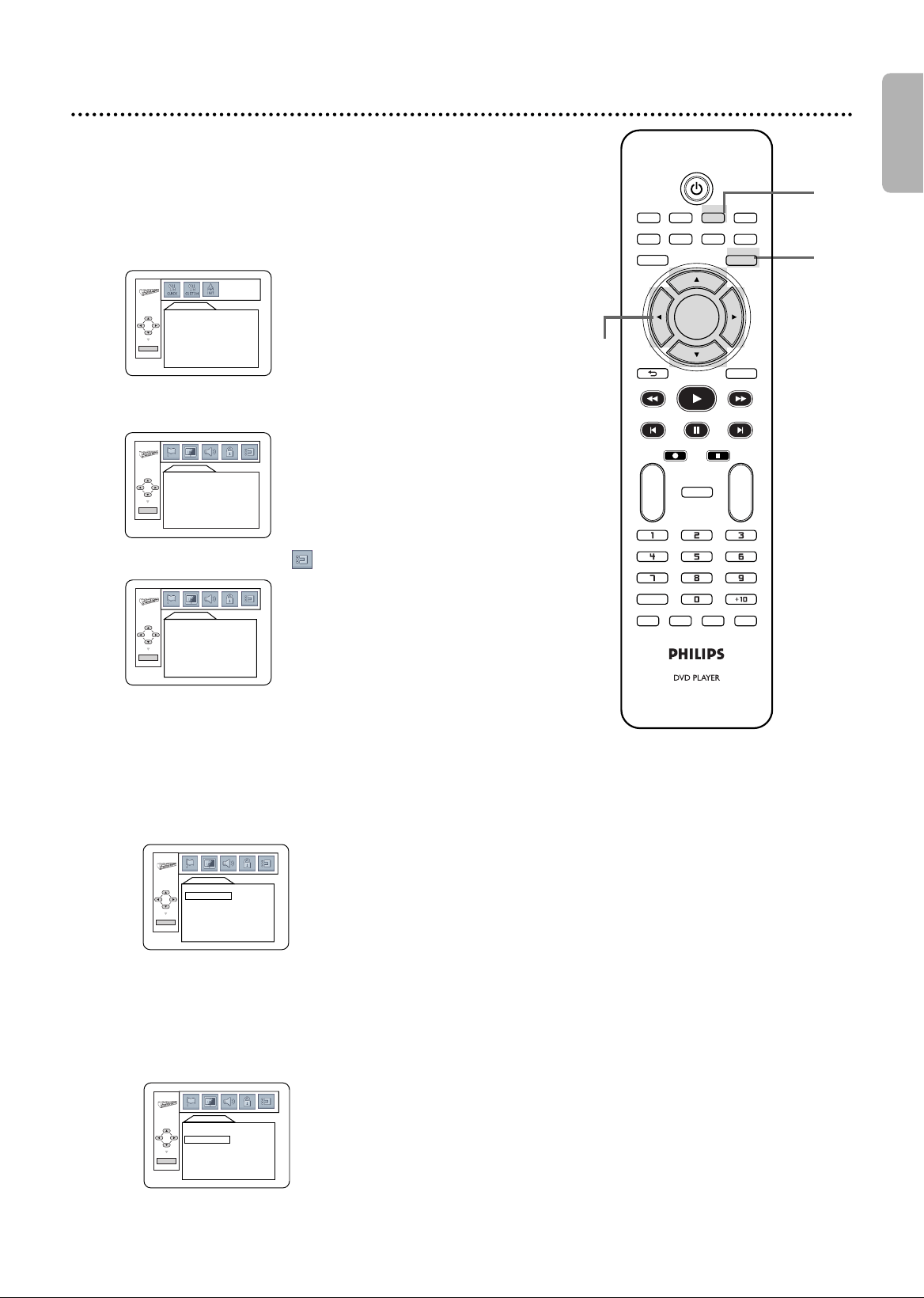

Others 65
You may adjust the Angle Icon,Automatic Power Off,
Dual Playback and Slide Show settings.
1
Press DVD to put the DVD/VCR in DVD mode.
DVD light will appear on the front of the DVD/VCR.
2
While playback is stopped, press DVD/SETUP.
The QUICK SETUP screen appears.
4
Press s or B to select (OTHERS), then press OK.
QUICK SETUP
OSD LANGUAGE ENGLISH
TV ASPECT
4:3 LETTER BOX
PROG. SCAN OFF
DOLBY DIGITAL BITSTREAM
OK
3
Press s or B to select CUSTOM at the top of
the menu, then press OK.
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU ENGLISH
OSD LANGUAGE ENGLISH
DivX SUBTITLE
OFF
OK
5
Press K or L to select an item, then press OK.
●
If you selected ANGLE ICON, press OK
repeatedly to select ON or OFF. Choose ON to
see the Angle icon when multiple camera angles are
available during DVD playback. Details are on page 47.
Choose OFF to disable the Angle icon.
The default setting is ON.
● If you selected AUTO POWER OFF, press OK
repeatedly to choose ON or OFF. Choose ON if
you want the player to turn off when there is no
activity at the player or its remote for 30 minutes.
The default setting is ON.
OTHERS
ANGLE ICON ON
AUTO POWER OFF ON
DUAL PLAYBACK OFF
SLIDE SHOW 5sec
DivX(R) VOD
OK
OTHERS
ANGLE ICON ON
AUTO POWER OFF
ON
DUAL PLAYBACK OFF
SLIDE SHOW 5sec
DivX(R) VOD
OK
ANGLE ICON
OTHERS
ANGLE ICON ON
AUTO POWER OFF
ON
DUAL PLAYBACK OFF
SLIDE SHOW 5sec
DivX(R) VOD
OK
AUTO POWER OFF
2
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
1
3-5
Instructions continue on the next page.
E8A21UD_EN2 5/15/06 8:04 PM Page 65
English

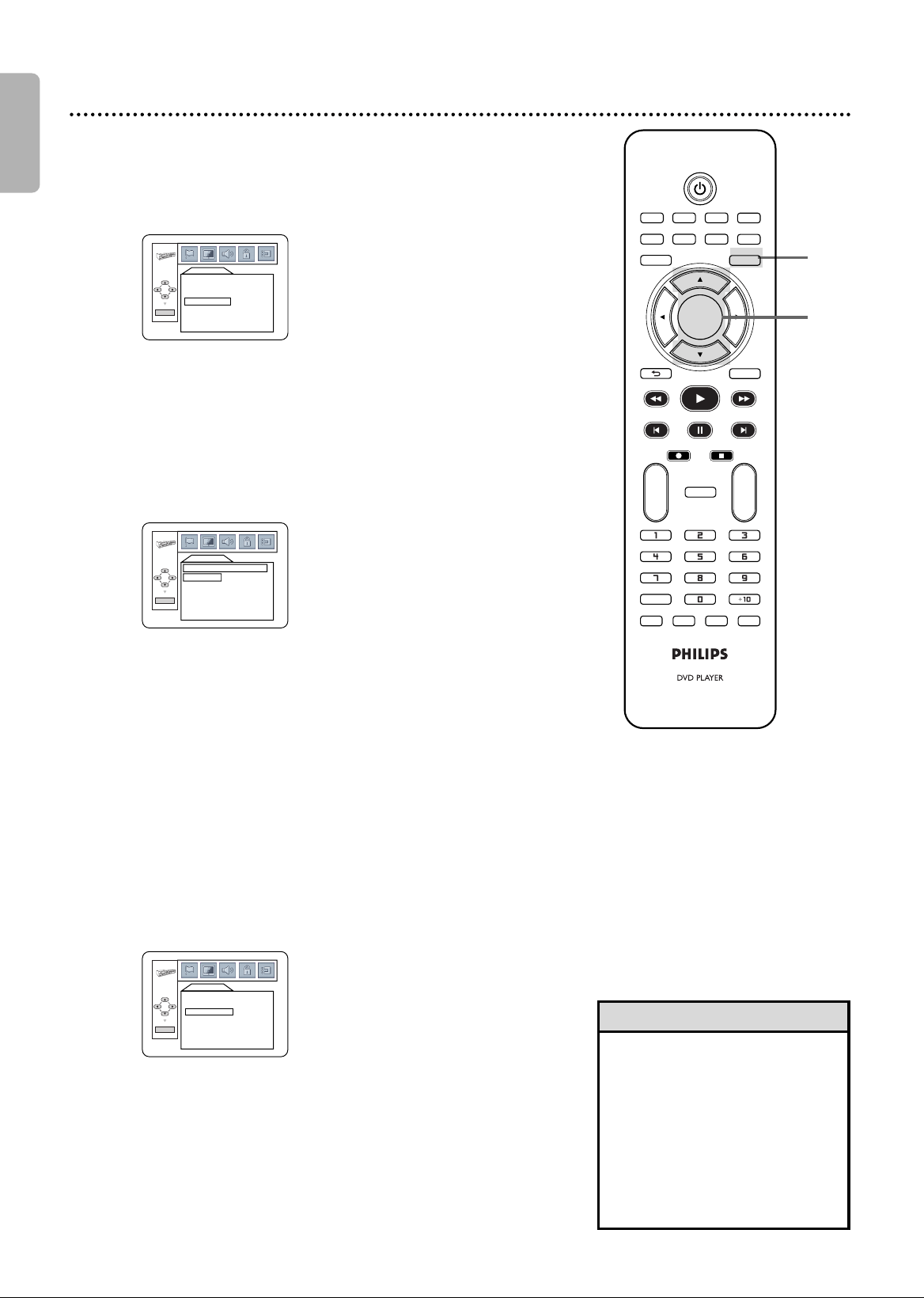

● If you selected DUAL PLAYBACK, press OK to
choose ON or OFF. This feature lets you play MP3 and
JPEG files simultaneously.
The default setting is OFF.
● If you selected SLIDE SHOW, press K or L to
choose 5sec, 10sec or MUSIC, then press OK. This
adjusts the playback speed of the SLIDE SHOW.
Choose 5 sec to display each image for 5 seconds.
Choose 10 sec to display each image for 10 seconds.
Choose MUSIC to display an image for each MP3 sound
file playback when DUAL PLAYBACK is ON.
The default setting is 5 sec.
●
DivX(R) VOD: Acquire DivX
®
VOD registration code
This DVD/VCR allows you to play back the files
purchased or rented from DivX
®
Video-On-Demand
(VOD) services.The files are available on the internet.
When you purchase or rent DivX
®
VOD files on the
internet, you will be asked to enter a registration code.
This menu item provides you with the registration code.
One registration code is only valid for one DivX
®
VOD
file.You must first download the file from the internet and
play it back on this DVD/VCR before you are able to get
another code.You must follow this step every time you
purchase or rent a DivX
®
VOD file from the internet.
For more information for DivX
®
, please visit
http://www.divx.com/vod.
6
Press DVD/SETUP to remove the menus.
• When MUSIC is selected, the
playback speed of the SLIDE
SHOW will be set to 5
seconds under the conditions
listed below:
- When DUAL PLAYBACK is
OFF.
- When DUAL PLAYBACK is
ON, but only the JPEG files
are playing.
Helpful Hint
66 Others (cont’d)
OTHERS
ANGLE ICON ON
AUTO POWER OFF
ON
DUAL PLAYBACK OFF
SLIDE SHOW 5sec
DivX(R) VOD
OK
DUAL PLAYBACK
OTHERS
SLIDE SHOW
5 sec
10 sec
MUSIC
OK
SLIDE SHOW
OTHERS
OK
DivX(R) VOD
Your registration code is:
1 2 3 4 5 6 7 8
To learn more visit
www.divx.com/vod
DivX(R) VOD
6
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
5
Instructions continued from the previous page.
E8A21UD_EN2 5/15/06 8:04 PM Page 66
English
Glossary 67
AUDIO IN/OUT Jacks: jacks on the front and back of the DVD/VCR that receive
audio from another source (IN) or send audio to another system (OUT). These jacks
are red (right) and white (left).
Automatic Channel Setup:
process in which the VCR memorizes all available TV
channels. Then, when you press CH + or CH - in VCR mode, you only scan through
channels you receive.
Bands:
settings that allow you to tune channels.
• Antenna – VHF (very high frequency; channels 2-13) and UHF (ultra high
frequency; channels 14-69).
• Cable – standard channels 1-125 can be available without a Cable Box.
Cab
le Box/Satellite Receiver Output Channel: 03 or 04.
CO
AXIAL DIGITAL AUDIO OUT jack: Sends digital audio to a Stereo, allowing
you to adjust the volume at the Stereo. This connection provides the Multi-channel
surround sound as heard in movie theaters. This jack on the DVD/VCR is black.
COMPONENT VIDEO OUT
(
Y C
B
/P
B
C
R
/P
R
)
Jacks: jacks on the back of the
DVD/VCR that send high-quality DVD video to a TV with Component Video In jacks.
This connection provides the best picture quality for the DVD player of the
DVD/VCR.
Dolb
y Digital:A surround sound system that provides Multi-channel sound as used
in movie theaters.
Dub
bing: copying a video cassette using another VCR.
HQ:
high quality; a feature in the VCR circuitry which provides enhanced picture
detail.
Line Input:
The channel to which you set your DVD/VCR during video cassette
copying. If you connected the other video equipment to the AUDIO and VIDEO In
jacks on the front of the DVD/VCR, select L2. If you used the AUDIO and VIDEO IN
jacks on the back of the DVD/VCR, select L1. If you accidentally enter line input
mode, press CH + or CH - or the Number buttons to select another channel.
O
TR: One-Touch Recording; a timed recording on the VCR that starts immediately
and records for 30 minutes to 8 hours.
RF coaxial cab
le: A black cable supplied with your DVD/VCR. Use it to connect
your DVD/VCR to your TV, Cable Box or Satellite Receiver.
S-Video:
Produces a clearer DVD picture by sending separate signals for the
luminance and the color. S-Video only provides a picture for the DVD player of the
DVD/VCR.
T
ape Speeds: how fast the video cassette travels during a recording or playback. The
faster the tape speed, the better the picture quality. Slower tape speeds affect picture
quality, but you can record more onto a videotape.
• SP (Standard Playback) – fastest tape speed (recording time for a T120 tape is
approximately 2 hours); best picture quality.
• LP (Long Playback) – average tape speed.You cannot record in LP with this VCR. If
tapes were recorded on a different VCR in LP speed, the tape will play in LP on the
DVD/VCR.
• SLP (Super Long Playback) – slowest tape speed (recording time for a T120 tape is
approximately 6 hours). This speed allows the maximum recording on a single
videotape.
VIDEO IN/OUT Jacks:
jacks on the front and back of the DVD/VCR that receive
video from another source (IN) or send video to other video equipment or a TV
(OUT). These jacks are yellow.
E8A21UD_EN2 5/15/06 8:04 PM Page 67
English
68 Helpful Hints
If you are having problems with your product, check this list of problems and possible solutions before requesting
service. You may be able to solve the problem yourself.
If you need to call a customer service representative, please know the model number and serial number of your
product before you call. This information is displayed on the back of the product. Also, please take a moment to identify
the problem you are having, and be prepared to explain this to the representative. If you believe the representative will
need to help you with operations, please stay near the product. Our representatives will be happy to assist you.
For online reference, please visit our web site at http://www.philips.com/usasupport
The DVD/VCR has no power.
•
Make sure the power cord is connected completely to an AC (alternating current) outlet.
•Pressy to turn on the DVD/VCR. The DVD/VCR usually turns on in the mode it was in when you
turned it off. If there has been a power failure, it will turn on in VCR mode. Press DVD to put the unit in
DVD mode. Press VCR to put the unit in VCR mode. Or, press SOURCE on the front of the DVD/VCR to
switch between the two modes.
The remote control will not operate the DVD/VCR.
•
Aim the remote control directly at the remote sensor on the front of the DVD/VCR, not toward the TV. Details are
on page 20.
•
Remove all obstacles between the remote control and the DVD/VCR.
•
Inspect and/or replace the batteries in the remote control. Details are on page 15.
•
Use the remote control within 23 feet (7m) of the DVD/VCR.
•
When using the DVD player, press the DVD button, then try the other DVD feature buttons. Press DVD so DVD
light appears on the front of the DVD/VCR. This means the DVD/VCR is in DVD mode.
•
To use the VCR, press VCR, then try the other VCR feature buttons. Press VCR so VCR light appears on the front of
the DVD/VCR. This means the DVD/VCR is in VCR mode.
There is no picture in DVD mode.
•
Make sure the video cable is connected correctly. You may connect either the yellow video cable (supplied), an
optional S-Video cable, or optional component video cables. Make sure the TV is set to the correct Video In channel
(usually the AUX IN, A/V IN, Auxiliary In, EXT or External In, Component Video In or S-Video In channel). Check
your TV owner’s manual for details. Details are on pages 8 and 12-14.
•
If you only used the supplied black RF coaxial cable, details are on pages 9-11. Make sure the TV is set to channel 3 or
4 (the output channel of the DVD/VCR). Or, if you have a Cable Box/Satellite Receiver, make sure the TV is set to the
Cable Box/Satellite Receiver output channel (usually 03 or 04).
•
Insert a DVD that is playable on this DVD/VCR. Details are on page 7.
•
Make sure the DVD/VCR is in DVD mode. Press DVD or SOURCE so DVD light appears on the front of the
DVD/VCR.
•
Check if Progressive Scan is set correctly according to your connection to a TV. Details are on page 8. Enable
Progressive Scan at the DVD player only if you used the Component Video connection to a TV that has Progressive
Scan. Details are on pages 8, 12 and 61.
Disc cannot be played.
•
Insert a playable disc. Details are on page 7.
•
Place the disc correctly in the disc tray. If the disc is one-sided, place the disc in the tray with the label facing up. If the
disc is two-sided, make sure the label of the side you want to play is facing up.
•
Clean the disc. Make sure the disc is not scratched or warped.
•
Cancel the Parental Controls, enter the password or change the control level. Details are on pages 63-64.
•
Make sure the disc is labelled for use in Region 1 or ALL regions and is NTSC or PAL compatible. Details are on page 7
.
There is no sound.
•
Connect the audio cable firmly. Make sure the cables are connected to the AUDIO IN jacks on the TV or Stereo.
Details are on pages 12-13.
•
Check the audio settings of the DVD player. Details are on page 62.
•
Check the audio settings of the DVD. For example, you may have selected “soundtrack” playback or an unavailable
sound setting (such as Dolby Digital). Details are on pages 48 and 62. Tr y other sound options provided in the DVD
Disc menu.
•
If you used audio cable (instead of only using the supplied black RF coaxial cable) make sure the TV or Stereo is set
to the correct Audio In channel (usually the AUX IN, Auxiliary In, A/V IN, Audio In or External In channel). See your
TV or Stereo owner’s manual for details.
The picture is distorted.
•
Connect the DVD/VCR directly to the TV. Details are on pages 8-14. Do not connect the DVD/VCR to a VCR, then
connect the VCR to the TV. Copyright protection systems in the VCR could distort the picture playing on the
DVD/VCR.
•
There are some cases where a disc or videotape picture may be distorted slightly because of the quality in which it
was recorded. This is not a malfunction of the DVD/VCR.
•
Make sure the disc is compatible with the DVD player of the DVD/VCR. Details are on page 7.
•
If your TV is not PAL compatible, DVDs recorded in the PAL color system may play only in black and white, the
picture may roll continuously, or the picture may appear distorted.
E8A21UD_EN2 5/15/06 8:04 PM Page 68
English
Helpful Hints (cont’d) 69
You cannot change the camera angle of a DVD.
•
The DVD might not contain segments recorded from different camera angles. See if multiple angles are available by
referring to the disc case or DVD Disc menu. Details are on page 47.
You cannot change the audio or subtitle language of a DVD.
•
The DVD does not contain audio or subtitles in the desired language. Not all DVDs contain audio or subtitles in
multiple languages. See if other languages are available by referring to the disc case or DVD Disc menu. Details are on
pages 47-48.
An X appears in the top right corner of the TV screen when you try a DVD feature.
•
The operation is not available at the current time or the feature is not available on the disc. Some features are only
available during playback. Others can be accessed only if playback is stopped. Try stopping or playing the disc, then try
the feature again.
The DVD/VCR switches from DVD mode to VCR mode after 30 minutes of no activity.
•
When AUTO POWER OFF is set to ON, the DVD/VCR switches itself from DVD mode to VCR mode if disc
playback stops for more than 30 minutes and you press no buttons on the remote or the DVD/VCR. Details are on
pages 65-66. This prevents possible damage to your TV’s picture tube that can occur if a still image is left on too long.
A screen saver appears on the TV screen during DVD mode.
•
The DVD logo will appear on the TV screen when you stop disc playback. You cannot remove it.
You want to use the DVD player during a VCR timer recording or while “ ” appears on the display
panel.
•Pressy to turn on the DVD/VCR. Press DVD to choose DVD mode, then continue with other DVD
features as described in this manual.
A maximum of 999 MP3/Windows Media
TM
Audio/JPEG files can be recognized.
Power Failure
•
Clock setting, language selection and channel setup may be lost if the power fails. See pages 21-23 to set up the
channels, clock and language again.
The VCR will not record a TV program.
•
Put the DVD/VCR in VCR mode. Press VCR or SOURCE so VCR light appears on the front of the DVD/VCR.
•
Check the connections between the DVD/VCR, TV, antenna/Cable TV signal and Cable Box/Satellite Receiver (if
applicable). Details are on pages 9-14.For VCR features, you must connect the DVD/VCR to a TV with the RF coaxial
cable or the yellow video cable as described on pages 9-12.
•
Make sure the video cassette has a record tab. Details are on page 24.
The VCR will not perform a timer recording.
•
Make sure the recording start and stop times are set correctly. Details are on pages 28-29.
•
Make sure a tape is in the VCR and the tape has a record tab. Details are on page 24. If, after programming a timer
recording, you press TIMER SET without putting a tape in the DVD/VCR,“ ” will blink on the display panel.
•
If the record tab on a tape is missing, the DVD/VCR will eject the tape.“ ” will blink.
•
Press TIMER SET to put the DVD/VCR in standby mode for the timer recording.
•
Make sure the VCR clock is set. Details are on page 22.
•
The VCR may not perform or continue a timer recording if the power fails.
•
If you have a Cable Box/Satellite Receiver, set timer recordings differently. Details are on page 10.
•
Finish programming a timer recording at least 5 minutes before it is set to begin.
•
12 p.m. is noon; 12 a.m. is midnight.
There is no picture or the picture is noisy or has streaks during video cassette playback.
•
Put the DVD/VCR in VCR mode. Press VCR or SOURCE so VCR light appears on the front of the DVD/VCR.
•
If you used the supplied RF coaxial cable to connect the DVD/VCR to the TV, make sure the TV is on the same
channel as the DVD/VCR’s output channel (03 or 04). The DVD/VCR’s output channel is channel 3 when you receive
it. To change it to channel 4, see page 9. Make sure channel 03 or 04 is properly adjusted at the TV.
Or, if you connected the DVD/VCR to the TV using audio and video cables, select the correct Video In channel at the
TV. Details are on pages 8 and 12.
•
Adjust the tracking. Details are on page 38.
•
TVs placed too close to the DVD/VCR can cause interference during tape playback. Move the DVD/VCR away from the TV
.
The Number buttons won’t work for TV channels above 69.
•
Enter channel numbers as a 2-digit number. If you want to select channels 100 and above, enter channel numbers as a
3-digit number. If you do not have Cable TV, only channels 2-69 are available.
TV programs cannot be watched normally.
•
Check the connections between the DVD/VCR, TV, antenna/Cable TV signal and Cable Box/Satellite Receiver (if
applicable). Details are on pages 9-14.
Poor reception
•
You may need to tune your TV again. Or, reset channels at the VCR using CHANNEL SET UP.
Details are on page 21.
E8A21UD_EN2 5/15/06 8:04 PM Page 69
English
You cannot insert a video cassette.
•
Insert the tape, window side up, with the record tab facing you.
•
Make sure a tape isn’t already in the VCR by pressing STOP/EJECT C A on the front of the DVD/VCR.
•
Gently push on the center of the tape when putting it in the VCR. Never force the tape into the VCR.
•
If a timer recording is set, you cannot insert a tape without a record tab.
You cannot remove the tape.
•
Make sure the power plug is completely connected to a power outlet.
•
If a timer recording has been set, press TIMER SET on the remote control or STOP/EJECT C A on the front panel to
cancel the timer standby mode temporarily.“ ” will disappear from the display panel.Then, press STOP/EJECT C A
on the front of the DVD/VCR to eject the tape. Insert another tape and press TIMER SET to reset the timer
recording.
• Unplug the DVD/VCR power cord for 5 minutes. Then, plug in the power cord again and pressy on the
DVD/VCR. Press STOP/EJECT C A on the DVD/VCR 3 to 5 times. If the tape still does not eject, you
may need to have an authorized servicer remove the tape.
DVD/VCR ejects the tape when you press REC I or TIMER SET.
•
Make sure the tape has a record tab. Details are on page 24.
Satellite Receiver Hookups
•
Watching one TV channel while recording another may not be possible if you have a Satellite Receiver. Set your TV to
channel 03 or 04, then make your channel selections at the Satellite Receiver.
•
With many Satellite Receiver hookups, if you use audio and video cables to connect your DVD/VCR to your TV, you
will have to put your DVD/VCR in line input mode (L1 or L2).
Line input mode
•
If you accidentally enter line input mode (L1 or L2 will appear on your TV screen briefly), press CH + or CH - or the
Number buttons to select another channel.
Hi-Fi Stereo Sound
•
During playback, Hi-Fi audio may normally revert to normal audio when you adjust tracking.
•
When connecting the DVD/VCR to a TV with the red and white audio cable, you will only get stereo sound if you
connect the DVD/VCR AUDIO OUT jacks on the DVD/VCR to the AUDIO IN jacks on your TV, and if the TV is on
its Audio/Video In channel. See your TV owner’s manual for details.
•
When you connect the DVD/VCR AUDIO OUT jacks on the DVD/VCR to the AUDIO IN jacks on your TV, the
stereo light on the TV might not glow. If the Status Display indicates you are receiving stereo, you are. Details are on
page 39.
•
Only tapes recorded in Hi-Fi audio will play in Hi-Fi audio. Tapes recorded in normal audio will play in monaural
(single-channel) audio.
Cleaning the Video Heads
•
Your DVD/VCR automatically cleans the video heads of the VCR each time you insert a tape. However, the heads may
become dirty. If so, have an authorized servicer clean the video heads. Eventually, the heads may need to be replaced.
The playback picture is too dim, too bright or fluctuates in brightness.
•
Some programs may be broadcast with copyright protection technology in order to protect the rights of copyright
owners. This technology is used on programs that are recorded on video cassettes or DVDs, as well as some
programs broadcast by antenna/cable/satellite television channels. Programs broadcast with copyright protection may
not record clearly. Likewise, if you play a tape that is a recording of a copyright protected program, the picture may
not be clear. Tapes of copyright protected programs may have a picture that is dark or dim, or the brightness of the
picture may fluctuate. Therefore, avoid recording or playing copies of copyright protected programs.
70 Helpful Hints (cont’d)
E8A21UD_EN2 5/15/06 8:04 PM Page 70
English
Care and Maintenance 71
Cleaning the DVD/VCR
• Wipe the front panel and other exterior surfaces of the DVD/VCR with a soft, slightly damp cloth.
• Never use a solvent, thinner, benzene or alcohol to clean the DVD/VCR. Do not spray insecticide liquid
near the DVD/VCR. Such chemicals may discolor the surface or damage the DVD/VCR.
Cleaning a Disc
• Use a soft, dry cloth to wipe the disc.
• Wipe the disc in a straight line from the center to the edge. Never wipe the disc in a circular motion.
• Do not use detergent or abrasive cleaning agents.
• Handle the discs so fingerprints and dust do not adhere to the discs.
• Always store the disc in its protective case when it is not in use.
Checking the Laser
• If the DVD/VCR does not operate as described in this manual, the DVD player’s laser may be dirty.
Consult an Authorized Service Center for inspection and cleaning of the laser.
Caring for Video Cassettes
• Use only cassettes with the mark.
• Remove any light adhesive stick-on notes from the video cassette before putting the cassette in the VCR.
Removable labels can jam the VCR.
Caring for the VCR’s Video Heads
• Periodic maintenance is required to maintain your DVD/VCR’s excellent performance. The VCR has an
Automatic Head Cleaner. However, the video heads will require replacement eventually. Only an
authorized service center should perform this service.
VCR Video Heads
4 heads - Hi-Fi
Antenna
VHF/UHF – 75 ohm external antenna terminal
VHF Output Signal
Channel 03 or 04
75 ohms unbalanced
DVD Color System
NTSC
Frequency Response
DVD (linear sound):
20 Hz to 22 kHz (sample rate: 48 kHz)
20 Hz to 44 kHz (sample rate: 96 kHz)
Audio CD: 20 Hz to 20 kHz
Signal-to-Noise Ratio
Audio CD: 100 dB JEITIA
(Japan Electronics and Information Technology Industries
Association)
Dynamic Range
DVD (linear sound): 90 dB
Audio CD: 85 dB (JEITIA)
Total Distortion Factor
Audio CD: 0.03% (JEITIA)
DVD: 0.03%
Wow and Flutter
Below the measurement limitation
(±0.001% W PEAK) (JEITIA)
Power Requirement
120V AC +/- 10%, 60 Hz +/- 0.5%
Power Consumption
Power on: 21 W
Power off: 3.8 W
Operating Temperature
41°F (5°C) to 104°F (40°C)
Relative Humidity
30% to 80%
Dimensions
17.1” (W) x 3.7” (H) x 9.2” (D)
(435mm x 94mm x 233mm)
Weight
6.0 lbs. (2.7 kg.)
NOTE: Designs and specifications are subject to change
without notice.
Specifications
E8A21UD_EN2 5/15/06 8:04 PM Page 71
English
72 Limited Warranty
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the
person receiving the product as a gift against defects in materi-
als and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect arises and
a valid claim is received by Philips within the Warranty Period.
At its option, Philips will either (1) repair the product at no
charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has
been manufactured from new, or serviceable used parts and is
at least functionally equivalent or most comparable to the origi-
nal product in Philips current inventory, or (3) refund the origi-
nal purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product
or part is exchanged, any replacement item becomes your
property and the replaced item becomes Philips’ property.
When a refund is given, your product becomes Philips’ proper-
ty.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all require-
ments can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIM-
ITATIONS:
This Limited Warranty applies only to the new products manu-
factured by or for Philips that can be identified by the trade-
mark, trade name, or logo affixed to it. This Limited Warranty
does not apply to any non-Philips hardware product or any
software, even if packaged or sold with the product. Non-
Philips manufacturers, suppliers, or publishers may provide a
separate warranty for their own products packaged with the
bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained with-
in the product, or any non-Philips product or part not covered
by this warranty. Recovery or reinstallation of programs, data
or other information is not covered under this Limited
Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, misapplication, or non-Philips product, (b) to
damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product
or a part that has been modified without the written permis-
sion of Philips, or (d) if any Philips serial number has been
removed or defaced, or (e) product, accessories or consum-
ables sold “AS IS” without warranty of any kind by including
refurbished Philips product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage occurring to product during shipping.
•A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifica-
tions.
•A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-
SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-
UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICA-
BLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILI-
TY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of inci-
dental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
3121 233 48801
E8A21UD_EN2 5/15/06 8:04 PM Page 72
English
Information Index 73
ac power cord . . . . . . . . . . . . . . . . .20
angle button . . . . . . . . . . . . . . . .20, 47
angle icon . . . . . . . . . . . . . . . . . .47, 65
ant-in (antenna in) jack . . . . . .9-14, 20
ant-out (antenna out) jack . . .9-11,20
arrow buttons . . . . . . . . . . . . . . . . .20
audio button . . . . . . . . . . . . . . . .20, 48
audio in/out jacks . . . . . . .12-13, 20, 27
audio settings . . . . . . . . . . . . . . . . . .62
auto power off . . . . . . . . . . . . . .65-66
auto repeat . . . . . . . . . . . . . . . . . . .31
automatic
tape playback . . . . . . . . . . . . . . . .38
tape rewind, eject . . . . . . . . . . . . .38
a-b repeat . . . . . . . . . . . . . . . . . . . .45
a-b repeat button . . . . . . . . . . . .20, 45
back button . . . . . . . . . . . . . . . . . . .20
batteries . . . . . . . . . . . . . . . . . . . . . .15
bit-rate display . . . . . . . . . . . . . . . . .55
black level . . . . . . . . . . . . . . . . . . . .57
camera angle . . . . . . . . . . . . . . . . . .47
cassette compartment . . . . . . . . . . .19
channel
adding . . . . . . . . . . . . . . . . . . . . . .21
deleting . . . . . . . . . . . . . . . . . . . .21
selection . . . . . . . . . . . . . . . . . . . .20
setup . . . . . . . . . . . . . . . . . . . .16, 21
chapters . . . . . . . . . . . . . . . . . . . . . .42
clear button . . . . . . . . . . . . . . . .20, 36
clock . . . . . . . . . . . . . . . . . . . . . . . .22
coaxial digital audio out jack . . .14, 20
component video out jacks . . . .12, 20
connections . . . . . . . . . . . . . . . . .8-14
contents, table of . . . . . . . . . . . . . . . .5
controls
dvd/vcr . . . . . . . . . . . . . . . . . . . . .20
remote . . . . . . . . . . . . . . . . . . . . .20
copyright protection . . . . . . . .3, 27, 70
counter . . . . . . . . . . . . . . . . . . . .23, 36
disc menus . . . . . . . . . . . . . . . . .41,58
disc tray . . . . . . . . . . . . . . . . . . . . . .19
disc/vcr menu button . . . . . . . . .20, 40
display button . . . . . . . . . . . .20, 23, 55
display messages . . . . . . . . . . . . . . . .19
display panel . . . . . . . . . . . . . . . . . . .19
displays . . . . . . . . . . . . . . . . .23, 55-56
DivX
®
playback . . . . . . . . . . . . . .53-54
dolby digital . . . . . . . . . . . . . . . . . . .62
down sampling . . . . . . . . . . . . . . . . .62
drc (dynamic range control) . . . . . .62
dual playback . . . . . . . . . . . . . . . . . .52
duplication (dvd to videotape) . . . . .30
duplication (tape) . . . . . . . . . . . . . . .27
dvd button . . . . . . . . . . . . . . . . . . . .20
dvd light . . . . . . . . . . . . . . . . . . . . . .19
dvd/setup button . . . . . . . . . . . .20, 57
ejecting a tape . . . . . . . . . . . .20, 38, 70
fast forward . . . . . . . . . . . . . . . .38 41
D (ffw) button . . . . . . . . . . . . . . . .20
fast reverse . . . . . . . . . . . . . . . . . . .41
folder playback . . . . . . . . . . . . . . . . .52
front panel . . . . . . . . . . . . . . . . . . . .20
glossary . . . . . . . . . . . . . . . . . . . . . .67
head cleaner . . . . . . . . . . . . . . . . . . .70
helpful hints . . . . . . . . . . . . . . . .68-70
hi-fi stereo sound . . . . . . . . . . . . . . .39
hookups
cable box/satellite receiver . . .10-11
component video . . . . . . . . . . . . .12
S-video . . . . . . . . . . . . . . . . . . . . .12
stereo . . . . . . . . . . . . . . . . . . .13-14
tv . . . . . . . . . . . . . . . . . . . . . . .9-14
index search . . . . . . . . . . . . . . . . . . .37
initializing . . . . . . . . . . . . . . . . . . . . .57
jpeg display . . . . . . . . . . . . . . . . . . . .56
jpeg playback . . . . . . . . . . . . . . . .51-52
language (dvd) . . . . . . . . . . . . . . .58-59
language (vcr) . . . . . . . . . . . . . . . . . .23
line input mode . . . . . . . . . . . . .27, 70
long playback . . . . . . . . . . . . . . . . . .67
lp . . . . . . . . . . . . . . . . . . . . . . . . . . .67
markers . . . . . . . . . . . . . . . . . . . . . .46
menus . . . . . . . . . . . . . . . . . . . . . .6, 40
mode button . . . . . . . . . . . . . . .20, 50
mp3 display . . . . . . . . . . . . . . . . . . .56
mp3 playback . . . . . . . . . . . . . . .51-52
next button . . . . . . . . . . . . . . . .20, 43
number buttons . . . . . . . . . . . . . . . .20
ok button . . . . . . . . . . . . . . . . . . . . .20
on-screen status displays (vcr) . . . . .23
one-touch recording . . . . . . . . . . . .26
open/close A button . . . . . . . . .18, 20
osd language . . . . . . . . . . . . . . . . . . .58
parental . . . . . . . . . . . . . . . . . . . .63-64
parental password . . . . . . . . . . . . . .63
pause button . . . . . . . . . .20, 38, 44, 49
play button . . . . . . . . . . . . . .17-18,20
playing discs . . . . . . . . . . . . . . . . . . .18
playing tapes . . . . . . . . . . . . . . . . . . .17
power
cord . . . . . . . . . . . . . . . . . . . . . . .20
on light . . . . . . . . . . . . . . . . . . . . .20
prev button . . . . . . . . . . . . . . . .20, 43
program . . . . . . . . . . . . . . . . . . . . . .50
progressive scan . . . . . . . . . . . . . . . .61
quick setup . . . . . . . . . . . . . . . . .58-62
random . . . . . . . . . . . . . . . . . . . . . .50
rapid play with voice . . . . . . . . . . . .41
rear panel . . . . . . . . . . . . . . . . . . . . .20
record I button . . . . . . . . . .20, 24, 26
recording
basic . . . . . . . . . . . . . . . . . . . . . . .24
one channel/watching another . . .25
prevention . . . . . . . . . . . . . . . . . .24
timer . . . . . . . . . . . . . . . . . . . .28-29
with the vcr plus+
programming system . . . . . . .33-35
remote control
batteries . . . . . . . . . . . . . . . . . . . .15
buttons . . . . . . . . . . . . . . . . . . . . .20
sensor . . . . . . . . . . . . . . . . . . . . .20
repeat button . . . . . . . . . . . . . . .20, 45
repeat (discs) . . . . . . . . . . . . . . . . . .45
repeat (tape) . . . . . . . . . . . . . . . . . .36
rerecording . . . . . . . . . . . . . . . . . . .27
resume on . . . . . . . . . . . . . . . . . . . .44
reverse searching . . . . . . . . . . . .38, 41
E (rew) button . . . . . . . . .20, 38, 41
rf coaxial cable . . . . . . . . . . . . . . .9-11
safety precautions . . . . . . . . . . . . . . .4
sap (second audio program) . . . . . .39
search button . . . . . . . . . .20, 37, 42-43
searching . . . . . . . . . . . . . . . . . . .38, 41
sensor (remote) . . . . . . . . . . . . . . . .20
slow motion . . . . . . . . . . . . . . . . . . .49
slp . . . . . . . . . . . . . . . . . . . . . . . . . .67
source button . . . . . . . . . . . . . . . . .20
sp . . . . . . . . . . . . . . . . . . . . . . . . . . .67
specifications . . . . . . . . . . . . . . . . . .71
speed button . . . . . . . . . . . . . . .20, 24
standard playback . . . . . . . . . . . . . . .67
standby-on y button . . . . . . . . . . .20
status display (vcr) . . . . . . . . . . . . . .23
step-by-step playback . . . . . . . . . . . .44
stereo broadcast
hookups . . . . . . . . . . . . . . . . .13-14
receiving/recording . . . . . . . . . . .39
stereo sound . . . . . . . . . . . . . . . . . .48
stereo TV hookups . . . . . . . . . . .13-14
still mode . . . . . . . . . . . . . . . . . . . . .61
still picture . . . . . . . . . . . . . . . . .38, 44
stop C button . . . . . . . . . . . . . . . . .20
stop/eject C A (vcr) button . . . . . . .20
subtitle button . . . . . . . . . . . . . .20, 47
super high speed searching . . . . . . .38
super long playback . . . . . . . . . . . . .67
s-video out jack . . . . . . . . . . . . .12,20
table of contents . . . . . . . . . . . . . . . .5
tape
duplication . . . . . . . . . . . . . . . . . .27
eject . . . . . . . . . . . . . . . . .20, 38, 70
speed . . . . . . . . . . . . . . . . . . . . . .67
time search . . . . . . . . . . . . . . . . . . .37
timer recording
cancelling . . . . . . . . . . . . . . . . . . .29
setting . . . . . . . . . . . . . . . . . . .28-29
timer set button . . . . . . . . . . . . .20, 29
title button . . . . . . . . . . . . . . . . .20, 40
titles . . . . . . . . . . . . . . . . . . . . . . . . .40
tracking . . . . . . . . . . . . . . . . . . . . . .38
tracks . . . . . . . . . . . . . . . . . . . . . . . .43
tv aspect . . . . . . . . . . . . . . . . . . .60-61
tv hookups . . . . . . . . . . . . . . . . . .9-14
tv/video button . . . . . . . . . . . . . . . .20
vcr
button . . . . . . . . . . . . . . . . . . . . .20
light . . . . . . . . . . . . . . . . . . . . . . .19
plus+ button . . . . . . . . . . . . . . . .33
plus+ programming system . . .31-32
video in/out jacks . . . . . . . . . .12-14, 20
virtual surround . . . . . . . . . . . . . . . .57
warranty . . . . . . . . . . . . . . . . . . . . .72
Windows Media
TM
Audio display
. . . . . .56
Windows Media
TM
Audio playback
. .51-52
zoom . . . . . . . . . . . . . . . . . . . . . . . .49
zoom button . . . . . . . . . . . . . . .20, 49
