IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is
important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved
if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if you are
taking any medication that affects your heart rate, blood pressure, or cholesterol level.
2.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3.
Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4.
Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety
, the equipment should have at least 2 feet (60 CM) of free space all around
it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety
of the equipment can only be maintained if it is regularly examined for damage and/or wear
and tear.
6.
Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7.
Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 230 pounds (105KG).
10. The equipment is not suitable for therapeutic use.
11.
To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in coo
l and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13.
This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

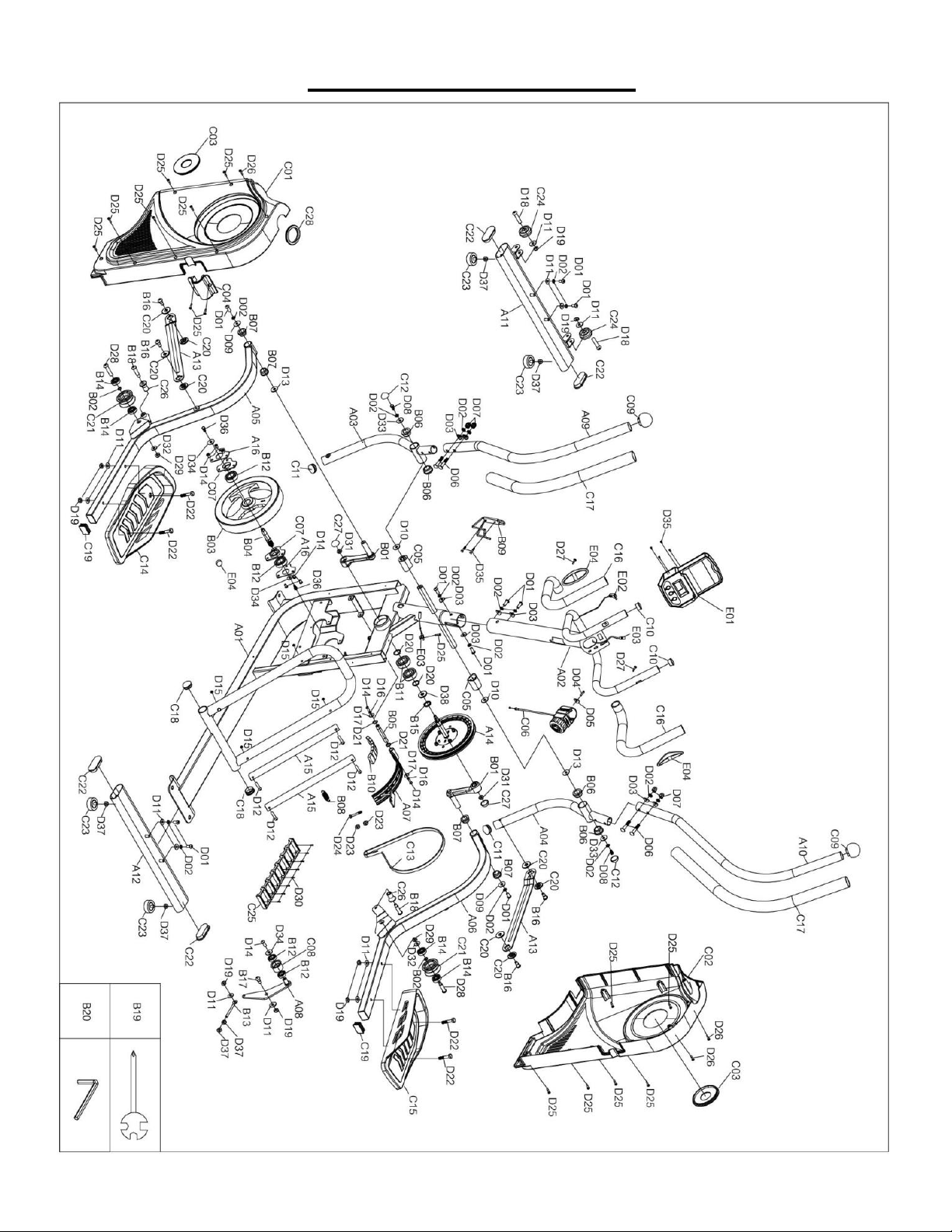

EXPLODED DIAGRAM
3
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
A01
Main Frame
1
C11
End Cap
∅28
2
A02
Upright Post
1
C12
Bolt Cap
S13
2
A03
Left Swing Rod
1
C13
Belt
1
A04
Right Swing Rod
1
C14
Left Pedal
1
A05
Left Pedal Tube
1
C15
Right Pedal
1
A06
Right Pedal Tube
1
C16
Foam Grip
2
A07
Magnetic Board
1
C17
Foam Grip
2
A08
Idle Wheel Shaft
1
C18
End Cap
∅32
2
A09
Left Handlebar
1
C19
End Cap
40*25*15
2
A10
Right Handlebar
1
C20
Bushing
8
A11
Front Stabilizer
1
C21
Pulley
2
A12
Rear Stabilizer
1
C22
End Cap
70*30
4
A13
Connection Plate
2
C23
Foot Pad
4
A14
Belt Wheel
1
C24
Transportation Wheel
2
A15
Stainless Steel Plate
2
C25
Magnetic Box
1
A16
Fixed Plate
2
C26
Wheel
2
B01
Crank
4"
2
C27
Bolt Cap
∅26
2
B02
Sleeve
2
C28
Ring
1
B03
Flywheel
4KG
1
D01
Bolt
M8*20
10
B04
Flywheel Axle
1
D02
Spring Washer
∅8
16
B05
Magnetic Board Axle
1
D03
Arc Washer
∅8*∅20*2
8
B06
Sleeve
4
D04
Bolt
M5*40
1
B07
Sleeve
4
D05
Flat Washer
∅5*∅10*1
1
B08
Tension Spring
1
D06
Carriage Bolt
M8*43
4
B09
Bottle Holder
1
D07
Nut
M8
4
B10
Magnet
40*25*10
7
D08
Bolt
M8*16
2
B11
Bearing
6203ZZ
2
D09
Flat Washer
∅8*∅24*2
2
B12
Bearing
6001-2RS
4
D10
Wave Washer
∅19*∅25*0.3
2
B13
Bolt
1
D11
Big Flat Washer
∅8*∅20*1.5
12
B14
Bearing
6200Z
4
D12
Bolt
M6*40
4
B15
Sleeve
1
D13
Wave Washer
∅16*∅21*0.3
2
B16
Bolt
M8*24.5
4
D14
Bolt
M6*12
9
B17
Bolt
M8*20
1
D15
Nut
M6
4
B18
Bolt
M8*52
2
D16
Spring Washer
M6
2
B19
Spanner
S=13-14-15
1
D17
Flat Washer
∅6*∅12*1.5
2
B20
Allen Wrench
#6
1
D18
Bolt
M8*40
2
C01
Left Belt Cover
1
D19
Nut
M8
8
C02
Right Belt Cover
1
D20
Spring Washer
∅17
2
C03
Crank Cover
∅97
2
D21
Spring Washer
∅12
2
C04
Cover
1
D22
Bolt
M8*45
4
C05
Sleeve
2
D23
Nut
M6
2
C06
Tension Control Knob
1
D24
Bolt
M6*40
1
C07
Bearing Bracket
2
D25
Screw
ST4.2*16
15
C08
Idler Wheel
1
D26
Screw
ST4.2*16
3
C09
End Cap
2
D27
Screw
ST4.2*19
2
C10
End Cap
∅25
2
D28
Bolt
M10*48
2
4

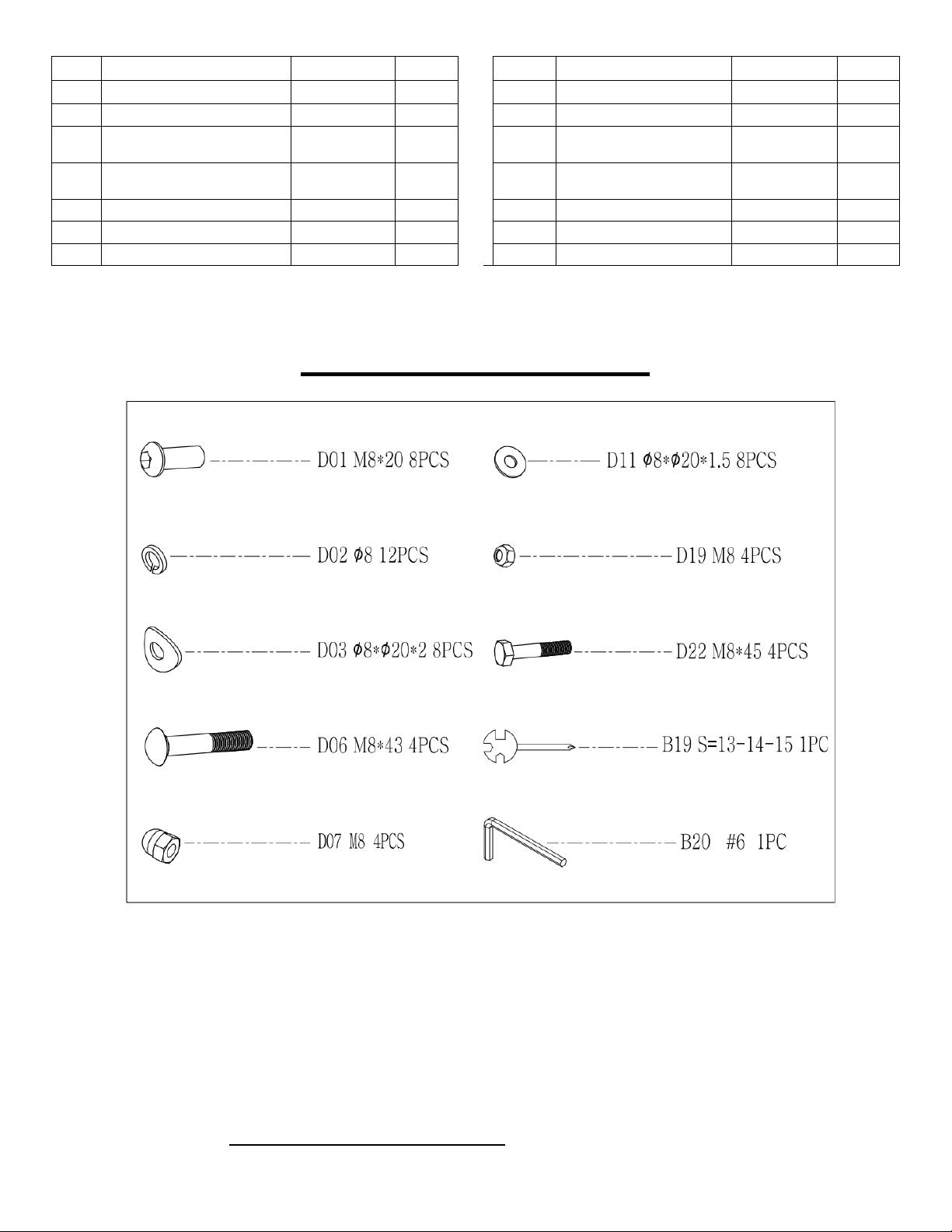

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
D29
Nut
M10
2
D36
Bolt
M6*16
2
D30
Screw
ST2.9*10
8
D37
Nut
M8
6
D31 Flange Nut M10*1.25 2
D38 Wave Washer
∅21*∅17.5*0
.3
1
D32 Flat Washer
∅10*∅20*1.
5
2
E01 Computer 1
D33
Flat Washer
∅8*∅32*1.5
2
E02
Handle Pulse Wire
1
D34
Flat Washer
∅6*∅18*1.5
3
E03
Sensor Wire
1
D35
Bolt
M5*10
6
E04
Handle Pulse Sensor
2
5
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

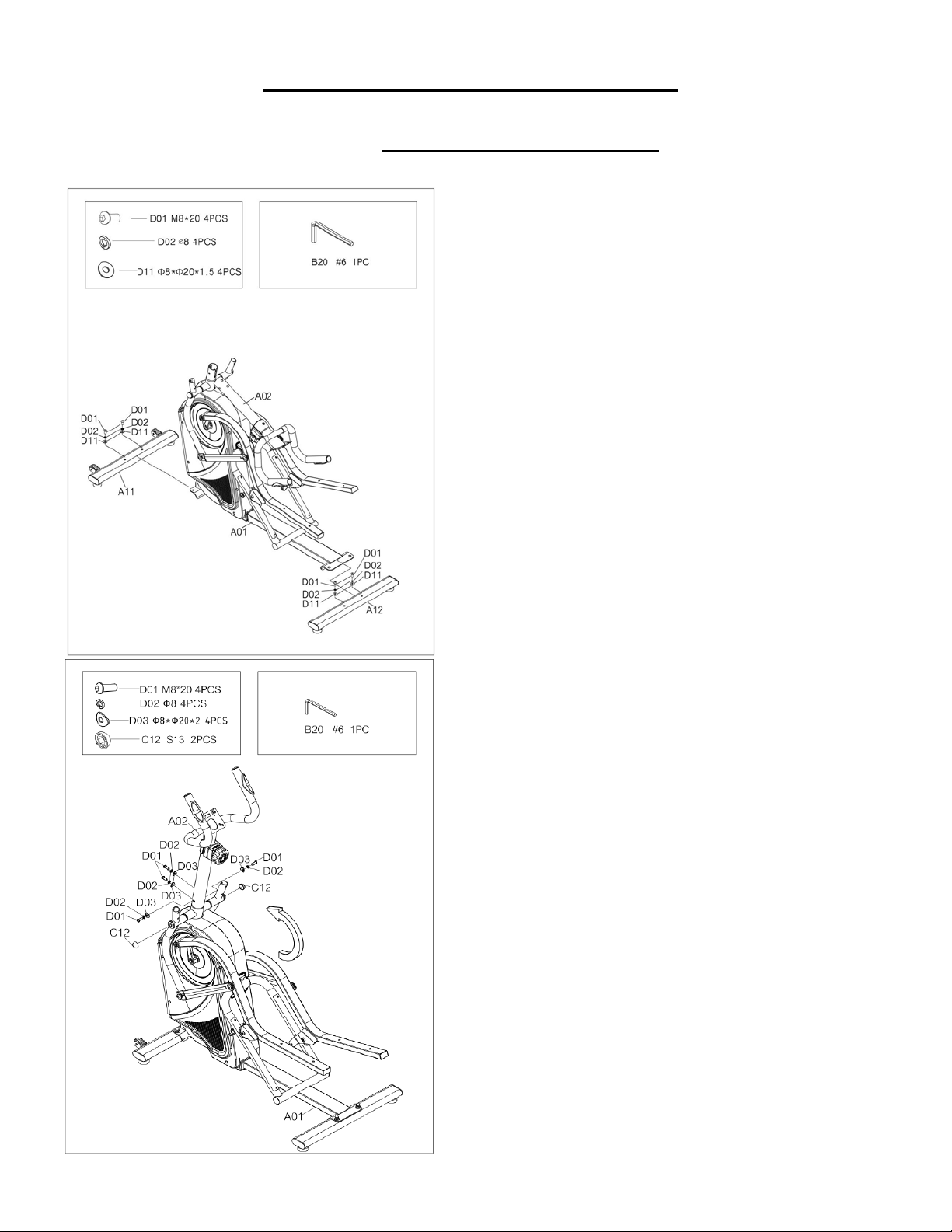

STEP 1:
Attach the Front Stabilizer (No. A11) to the
Main Frame (No. A01), using 2 Bolts (No.
D01), 2 Spring Washers (No. D02) and 2
Big Flat Washers (No. D11). Tighten and
secure with Allen Wrench (No. B20).
Attach the Rear Stabilizer (No. A12) to the
Main Frame (No. A01), using 2 Bolts (No.
D01), 2 Spring Washers (No. D02) and 2
Big Flat Washers (No. D11). Tighten and
secure with Allen Wrench (No. B20).
STEP 2:
Attach the Upright Post (No. A02) to the
Main Frame (No. A01), using 4 Bolts (No.
D01), 4 Spring Washers (No. D02) and 4
Arc Washers (No. D03).
Tighten and
secure with Allen Wrench (No. B20).
Take out of the 2 Bolt Caps (No. C12) from
the manual plastic bag and attach them to
the Main Frame (No. A01).
NOTE:
Please be careful not to clip the wires.
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

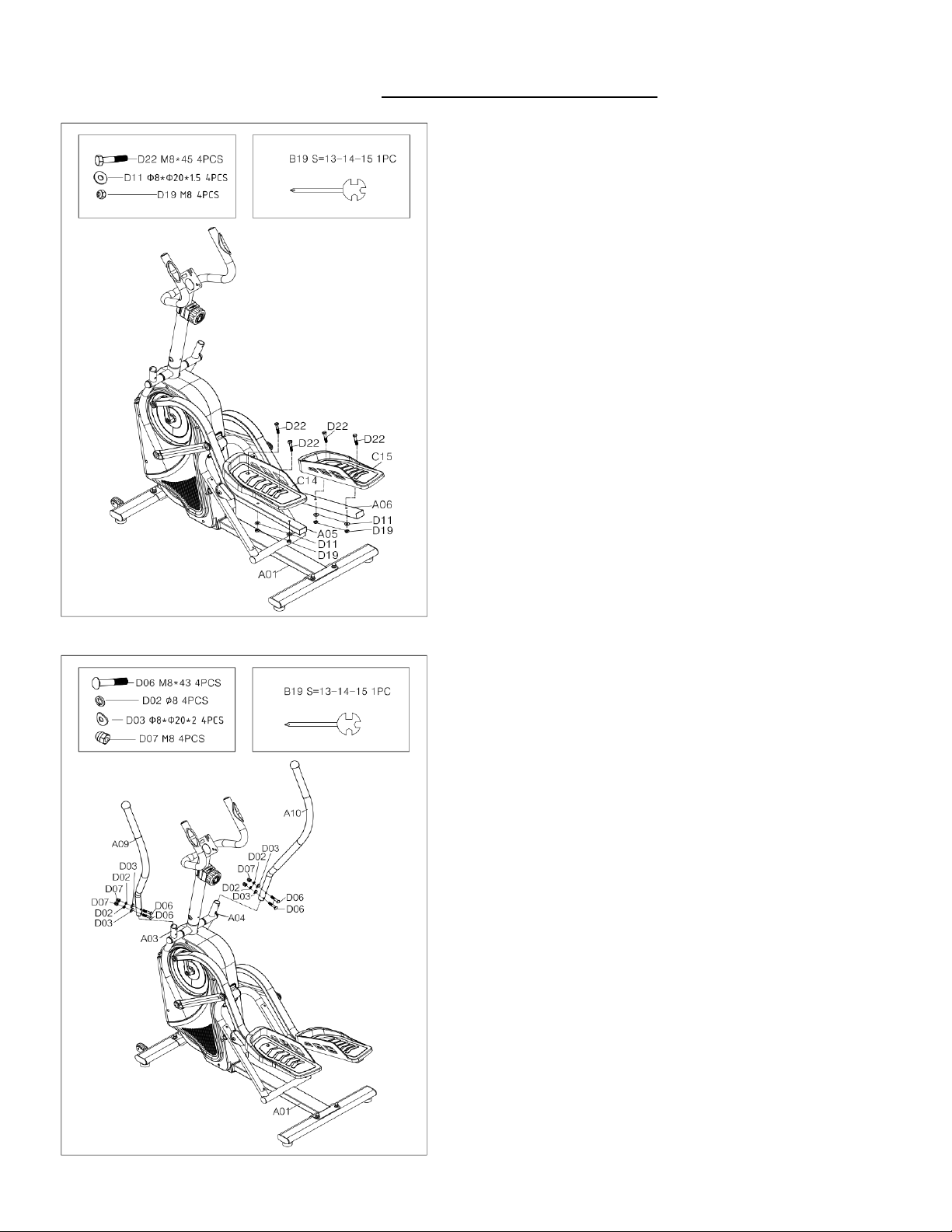

STEP 3:
Attach the Left Pedal (No. C14) to the Left
Pedal Tube (No. A05), using 2 Bolts (No.
D22), 2 Big Flat Washers (No. D11) and 2
Nuts (No. D19). Tighten and secure with
Spanner (No. B19).
Attach the Right Pedal (No. C15) to the
Right Pedal Tube (No. A06)
, using 2
Bolts (No. D22), 2 Big Flat Washers (No.
D11) and 2 Nuts (No. D19). Tighten and
secure with Spanner (No. B19).
STEP 4:
Attach Left Handlebar (No. A09) to the
Left Swing Rod (No. A03) using 2
Carriage Bolts (No. D06), 2 Arc Washers
(No. D03), 2 Spring Washers (No. D02)
and 2 Nuts (No. D07). Tighten and secure
with Spanner (No. B19).
Attach Right Handlebar (No. A10) to the
Right Swing Rod (No. A04) using 2
Carriage Bolts (No. D06), 2 Arc Washers
(No. D03), 2 Spring Washers (No. D02)
and 2 Nuts (No. D07).
Tighten and
secure with Spanner (No. B19).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

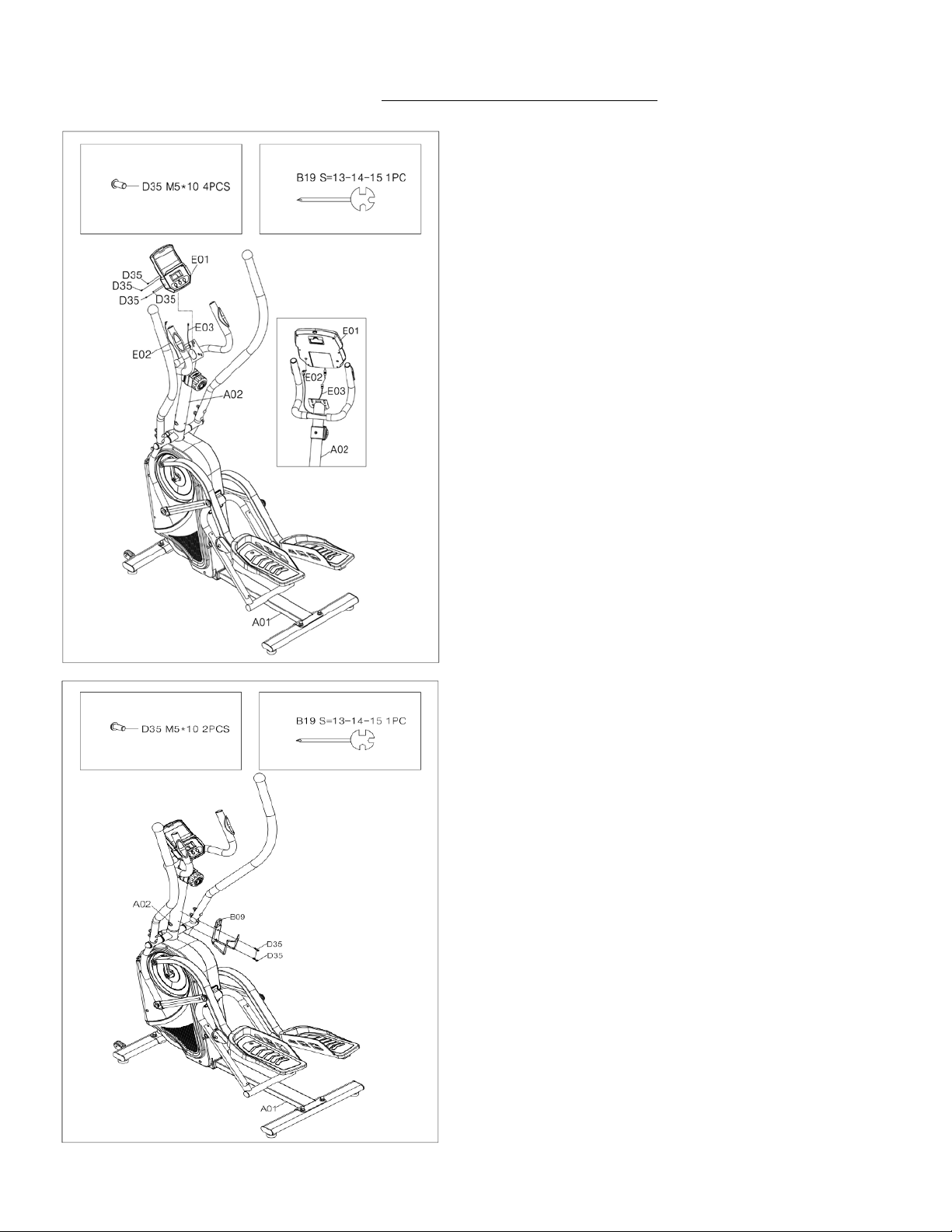

STEP 5:
Remove the 4 Bolts (No. D35) from the
back of the Computer (No. E01), set them
aside.
Connect the Sensor Wire (No. E03) to the
Computer (No. E01).
Attach the Computer (No. E01)
to the
bracket on the
Upright Post (No. A02)
using 4 Bolts (No. D35)
that were
removed. Tighten and secure with Spanner
(No. B19).
Insert the Hand Pulse Wire (No. E02) to
the Computer (No. E01) as illustrated on
the left.
STEP 6:
Remove the 2 Bolts (No. D35) that pre-
assembled on the Upright post (No. A02),
set them aside.
Attach the Bottle holder (No. B09) on the
Upright Post (No. A02) using 2 Bolts (No.
D35) that were removed
. Tighten and
secure with Spanner (No. B19).
The assembly is complete!
8

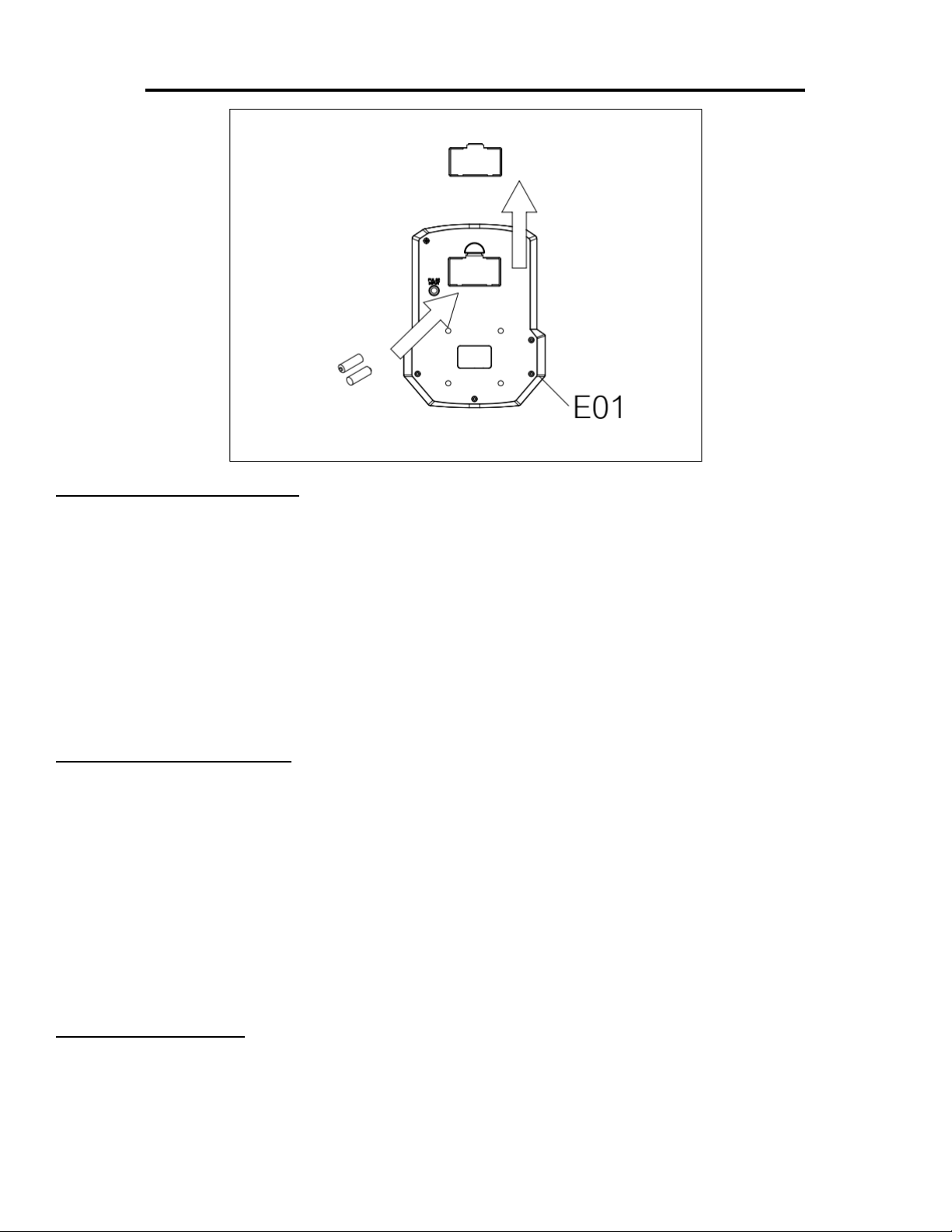

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTRALLATION
1. Take out 2 AAA Batteries from the computer box.
2. Press the buckle of battery cover on the Computer (No. E01), then remove battery cover.
3. Install 2 AAA batteries into the battery case on the back of the Computer (No. E01). Pay
attention to the battery + and - ends before installing.
4. Press the buckle of battery cover. Put the battery cover back on the Computer (No. E01).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of the battery cover on the back of the Computer (No. E01). Next, remove
battery cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Computer (No. E01). Pay attention to the battery + and - ends
before installing.
3. Press the buckle of battery cover. Put the battery cover back on the Computer (No. E01).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some batteries
may be recycled. When disposing or recycling, do not mix battery types.
9

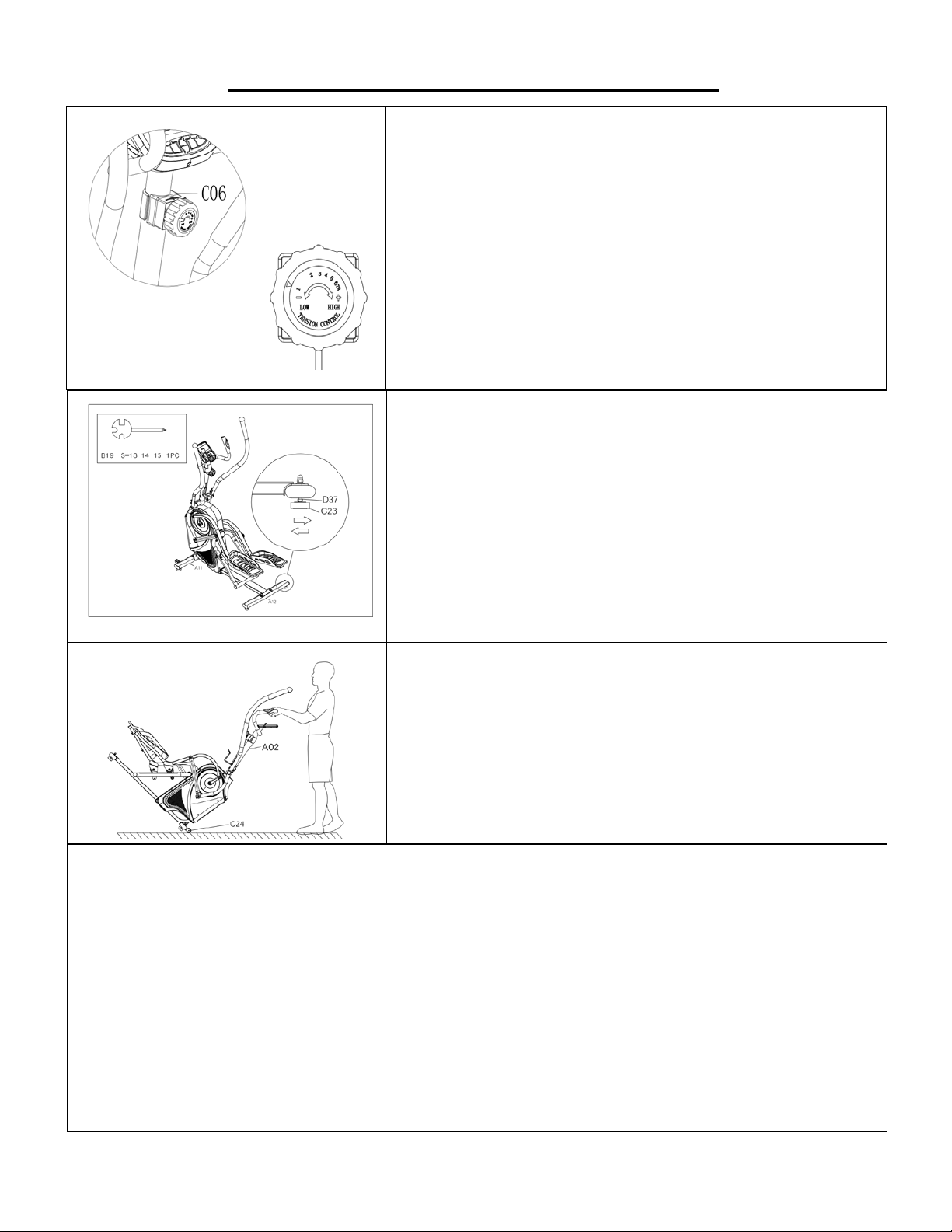

ADJUSTMENTS & USAGE GUIDE
ADJUSTING THE TENSION OF THE ELLIPTICAL
CLIMBER
Adjust the tension of the elliptical climber
by rotating the
Tension Control Knob (No. C06) clockwise
to increase
the level of resistance. Rotate the Tension Control Knob
(No. C06) counter-clockwise
to decrease the level of
resistance.
Tension levels are set at Level 1 being the lowest and
Level 8 being the highest.
ADJUSTING THE BALANCE OF THE ELLIPTICAL
CLIMBER
If you find that the climber is unbalance
d and causes
excessive movement when in use, you can adjust the
elliptical climber balance. Use the Spanner (No. B19) to
loosen the Nut (No. D37). Adjust the Foot Pad (No. C23)
on the Front & Rear Stabilizers (No. A11 & A12) of each
side if you need. After adjusting
, tighten and secure with
the Spanner (No. B19).
MOVING THE ELLIPTICAL CLIMBER
To move the elliptical climber, hold the Upright Post (No.
A02) and tilt it
until the movable wheels located on the
Transportation Wheel (No. C24) of the
Front Stabilizer
(No. A11)
touch the ground. With the wheels on the
ground, you can transport it
to the desired location with
ease.
CLEANING
The elliptical climber
can be cleaned with a soft, clean, and damp cloth. Do not use abrasives or
solvents on plastic parts. Please wipe your perspiration off the elliptical climber after each use. Be
careful not to get excessive moisture on the meter display panel as this might cause an electrical
hazard or meter failure.
Please keep the elliptical climber
, especially the computer, out of direct sunlight to prevent screen
damage.
Please inspect all assembly bolts and pedals on the machine for proper tightness every week.
STORAGE
Store the elliptical climber in a clean and dry environment away from children.
10

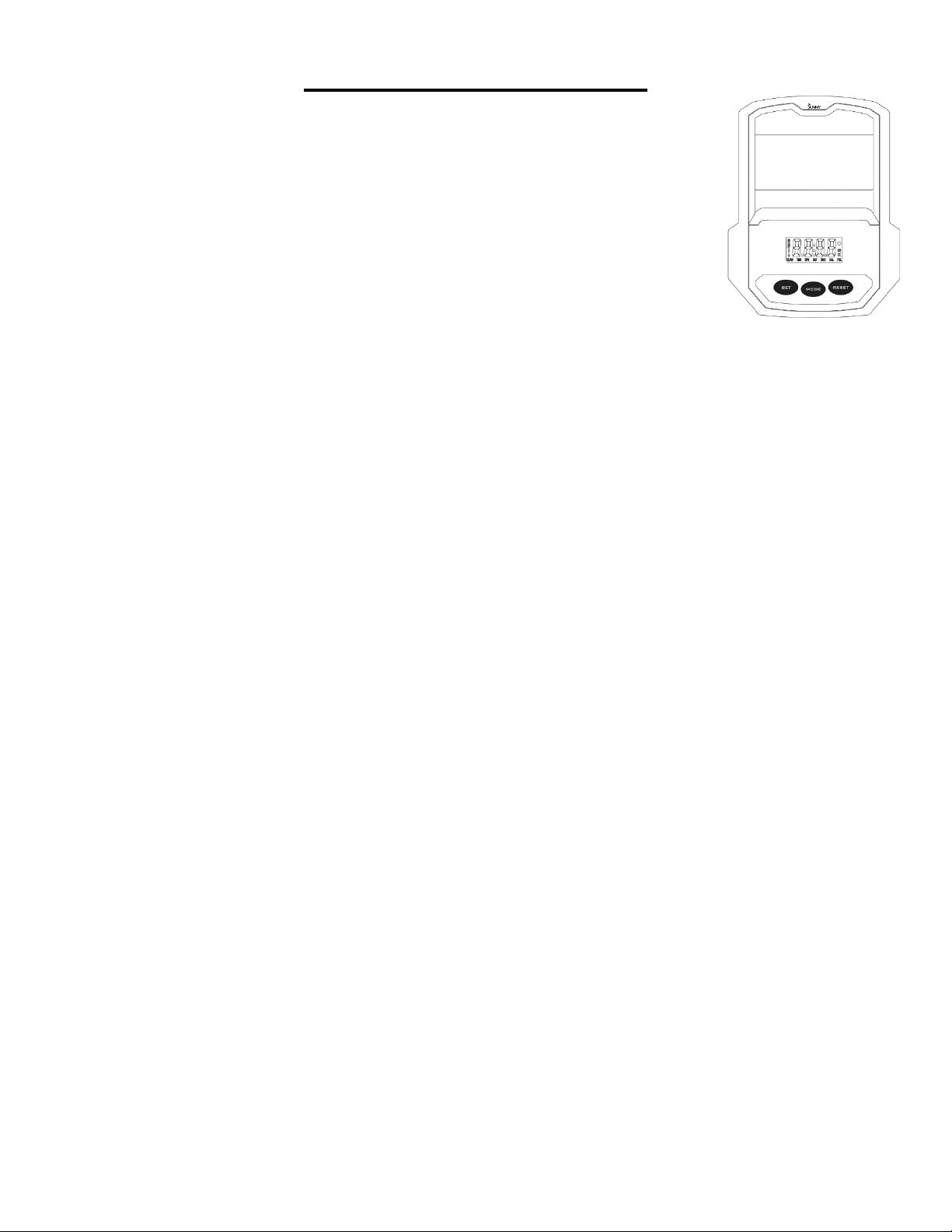

EXERCISE COMPUTER
FUNCTION BUTTONS:
MODE: Press the button to select TIME, DISTANCE, and CAL to preset.
Press the button for selection function display value on LCD or
enter after setting.
Press the button and hold for 3 seconds to reset all value except
odometer to zero.
(When user replaces the batteries, all the values will reset to ZERO
automatically).
SET: To set up the target value of TIME, DISTANCE and CAL.Press the
button and hold for 2 seconds to speed up the increments.
RESET: Press the button to reset function value when setting.
Press the button and hold for 3 seconds to reset all value except odometer to zero
(When the user replaces batteries, all the values will reset to ZERO automatically).
FUNCTIONS & OPERATIONS:
1. BATTERY INSTALLATION:
Please install 2 AAA 1.5V batteries in the battery case on the back of computer. (Whenever
batteries are removed, all the function values will be reset to zero.)
2. AUTO ON/OFF:
Once the user begins to exercise, the computer will show the workout
value automatically. After
about 4 minutes of inactivity, the computer will turn off. Odometer value does not reset to 0 when
the computer turns off. When the user starts to exercise again, the workout value of odometer will
accumulate continuously.
3. AUTO SCAN:
After the computer is powered on, press Mode key, the LCD will display all functions values from
TIME-SPEED-DISTANCE-CALORIES-ODOMETER-PULSE. Each value will be held for 6
seconds.
4. SPEED:
Displays the current training speed from 0.0 to 99.9 MPH (Miles per hour).
5. DISTANCE:
Accumulates total distance from 0.0 up to 9999
. The user may preset target time by pressing the
SET & MODE button. Each increment is 0.1 M (Miles). Automatically counts down from targeting
value during exercise.
6. TIME:
Accumulates to
tal time from 00:00 up to 99:59. The user may preset target time by pressing SET &
MODE button. Each increment is 1 minute.
Automatically counts down from targeting value during exercise.
7. CALORIES:
Accumulates calories burned during training from 0 to 9999
. The user may also preset the target
11
calorie before training by pressing the SET & MODE button. Each setting increase is 1 cal.
Automatically counts down from targeting value during exercise.
Note : This data is a rough guide which cannot be used in medical treatment.
8. ODOMETER:
Displays the total accumulated distance from 0 to 9999. User can also press mode key to display
the odometer value.
9. PULSE:
The computer will display the user's heart rate in beats per minute during training.
10. RESET:
Press the button and hold for 2 seconds to reset all value except odometer to zero.
NOTE:
1. If the computer display is abnormal, please re-
install the new batteries and try again. Always
change both batteries at the same time. Do not mix battery types and do not
mix old and new
batteries.
2. Battery Spec: 1.5V UM-4 or AAA (2PCS).
3. Dispose the batteries safely, according to your state and regional guidelines.
TROUBLESHOOTING
PROBLEM
SOLUTION
There is no display on the
meter
1. Remove the computer and verify that the wire from the
computer is properly connected to the wire that comes from the
upright post.
2. Check if the batteries are correctly positioned an
d that the
battery springs are in proper contact with batteries.
3. The batteries in the computer may be unresponsive. Change to
new batteries.
The elliptical climber
wobbles when in use
Turn the adjustable end caps on the rear stabilizer as needed to
level the elliptical climber.
The elliptical climber
makes a squeaking noise
when in use.
The bolts may have become loosened on the elliptical climber.
Please inspect all the bolts and tighten any
that may have
loosened.
Version: 1.1
