2_ Safety instructions
Safety instructions
Congratulations on your new Samsung dishwasher. This manual contains
important information on the installation, use and care of your appliance. Please
take time to read this manual to take full advantage of your dishwasher’s many
benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Please read this manual thoroughly to ensure that you know how to safely and eciently operate the
extensive features and functions of your new appliance and retain it at a safe place near the appliance for
your future reference. Use this appliance only for its intended purpose as described in this user manual.
Warning and important safety instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your dishwasher.
Because the following operating instructions cover various models, the characteristics of your dishwasher
may dier slightly from those described in this manual and not all warning signs may be applicable. If you
have any questions or concerns, contact your nearest service center or find help and information online at
www.samsung.com.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
Important safety symbols
WARNING
Hazards or unsafe practices that may result in severe personal injury and/or property
damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
dishwasher, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the appliance is grounded to prevent electric shock.
Call the service centre for help.
Note
These warning symbols are here to prevent injury to you and others.
Please follow them explicitly.
Keep these instructions in a safe place and ensure that new users are familiar with the content.
Pass them on to any future owner.
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic
precautions, including the following:
WARNING
DW5500M_DD81-02437Q-00_EN.indd 2DW5500M_DD81-02437Q-00_EN.indd 2 2019-06-25 11:13:072019-06-25 11:13:07
Safety instructions _3
1. This appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
2. For use in Europe: This appliance can be used by
children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
3. Children should be supervised to ensure that they do not
play with the appliance.
4. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualifi ed
persons in order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be
used and old hose-sets should not be reused.
6. For appliances with ventilation openings in the base, a
carpet must not obstruct the openings.
7. For use in Europe: Children of less than 3 years should
be kept away unless continuously supervised.
DW5500M_DD81-02437Q-00_EN.indd 3DW5500M_DD81-02437Q-00_EN.indd 3 2019-06-25 11:13:072019-06-25 11:13:07
4_ Safety instructions
8. CAUTION: In order to avoid a hazard due to inadvertent
resetting of the thermal cut-out, this appliance must not
be supplied through an external switching device, such
as a timer, or connected to a circuit that is regularly
switched on and o by the utility.
9. This appliance is intended to be used in household and
similar applications such as:
– sta kitchen areas in shops, o ces and other working
environments;
– farm houses;
– by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments.
10. The door should not be left in the open position since
this could present a tripping hazard.
11. WARNING: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
12. WARNING
: Some dishwasher detergents are strongly
alkaline. They can be extremely dangerous if swallowed. Avoid
contact with the skin and eyes and keep children away from the
dishwasher when the door is open. Check that the detergent
receptacle is empty after completion of the wash cycle.
Safety instructions
DW5500M_DD81-02437Q-00_EN.indd 4DW5500M_DD81-02437Q-00_EN.indd 4 2019-06-25 11:13:072019-06-25 11:13:07
Safety instructions _5
INSTRUCTIONS WHEN USING YOUR DISHWASHER
This dishwasher is not designed for commercial use. It is intended for use in domestic households and
in similar working and residential environments such as:
• Shops
• Oces and showrooms
and by residents in establishments such as:
• Hostels and guest houses.
It must only be used as a domestic appliance as specified in this user manual, for cleaning domestic
crockery and cutlery.
Any other usage is not supported by the manufacturer and could be dangerous.
The manufacturer cannot be held liable for damage resulting from incorrect or improper use or
operation.
Do not use solvents in the dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher detergent. Dishwasher detergents contain irritant or corrosive
ingredients which can cause burning in the nose, mouth and throat if swallowed, or inhibit breathing.
Consult a doctor immediately if detergent has been swallowed or inhaled.
Avoid leaving the door open unnecessarily, as you could trip over it.
Do not sit or lean on the opened door. This could cause the dishwasher to tip and be damaged, and
you could get injured.
Only use detergent and rinse aid formulated for domestic dishwashers.
Do not use washing‐up liquid.
Do not use the strong acid cleaning agent.
Do not fill the rinse aid reservoir with powder or liquid detergent. This will cause serious damage to the
reservoir.
Inadvertently filling the salt reservoir with powder or liquid dishwasher detergent will damage the water
softener. Make sure you have picked up the correct packet of dishwasher salt before filling the salt
reservoir.
Please only use special coarse grained dishwasher salt for reactivation, as other salts may contain
insoluble additives which can impair the functioning of the softener.
In an appliance with a cutlery basket (depending on model), cutlery is cleaned and dried more if placed
in eciently the basket with the handles downwards. However, to avoid the risk of injury, place knives
and forks etc. with the handles upwards.
Plastic items which cannot withstand being washed in hot water, such as disposable plastic
containers, or plastic cutlery and crockery should not be cleaned in the dishwasher.
The high temperatures in the dishwasher may cause them to melt or lose shape.
On models with Delay Start function, make sure that the dispenser is dry before adding detergent.
Wipe dry if necessary. Detergent will clog if poured into a damp dispenser and may not be thoroughly
dispersed.
Knives and other utensils with sharp points must be loaded in the basket with their points down or
placed in a horizontal position.
WARNING
WARNING
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
WARNING
DW5500M_DD81-02437Q-00_EN.indd 5DW5500M_DD81-02437Q-00_EN.indd 5 2019-06-25 11:13:082019-06-25 11:13:08
6_ Safety instructions
INSTRUCTIONS FOR PROTECTING YOUR CHILDREN
This appliance is not a toy! To avoid the risk of injury, keep children well away and do not allow them to
play in or around the dishwasher or to use the controls. They will not understand the potential dangers
posed by it. They should be supervised whenever you are working in the kitchen.
There is also a danger that children playing might shut themselves in the dishwasher.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Older children may only use the dishwasher when its operation has been clearly explained to them and
they are able to use it safely, recognising the dangers of misuse.
KEEP CHILDREN AWAY FROM DETERGENTS! Dishwasher detergents contain irritant and corrosive
ingredients which can cause burning in the mouth, nose and throat if swallowed, or inhibit breathing.
Keep children away from the dishwasher when the door is open.
There could still be detergent residues in the cabinet.
Consult a doctor immediately if your child has swallowed or inhaled detergent.
INSTRUCTIONS FOR INSTALLING YOUR DISHWASHER
Before setting up the appliance, check it for any externally visible damage. Under no circumstances
should you use a damaged appliance. A damaged appliance could be dangerous.
The dishwasher must only be plugged into the electricity supply via a suitable switched socket.
The electrical socket must be easily accessible after the dishwasher is installed so that it can be
disconnected from the electricity supply at any time. (Refer to the “Parts and features” section on
page 11.)
There must be no electrical sockets behind the dishwasher. Danger of overheating and fire risk if the
dishwasher were to be pushed up against a plug.
The dishwasher must not be installed under a hob. The high radiant temperatures which are
sometimes generated by a hob could damage the dishwasher. For the same reason it should not be
installed next to open fires or other appliances which give o heat, such as heaters etc.
Do not connect the dishwasher to the mains supply until it has been fully installed and any adjustment
has been made to the door springs.
Before connecting the appliance, check that the connection data on the data plate (voltage and
connected load) match the mains electricity supply. If in any doubt, consult a qualified electrician.
WARNING
WARNING
WARNING
WARNING
WARNING
CAUTION
WARNING
WARNING
CAUTION
Safety instructions
DW5500M_DD81-02437Q-00_EN.indd 6DW5500M_DD81-02437Q-00_EN.indd 6 2019-06-25 11:13:082019-06-25 11:13:08
Safety instructions _7
The electrical safety of this appliance can only be guaranteed when continuity is complete between it
and an eective grounding system. It is most important that this basic safety requirement is present
and regularly tested and where there is any doubt the electrical system in the house should be
checked by a qualified electrician.
The manufacturer cannot be held liable for the consequences of an inadequate grounding system (e.g.
electric shock).
Do not connect the appliance to the mains electricity supply by a multi‐socket unit or an extension
lead. These do not guarantee the required safety of the appliance (e.g. danger of overheating).
This appliance may only be installed in mobile installations such as ships if a risk assessment of the
installation has been carried out by a suitably qualified engineer.
The plastic housing of the water connection contains an electrical component. The housing must not
be submerged in water.
There are electrical wires in the hose of Aqua-Stop. Never cut the water inlet hose, even if it is too long.
Installation, maintenance and repairs may only be carried out by a suitably qualified and competent
person in strict accordance with current national and local safety regulations. Repairs and other work
by unqualified persons can be dangerous. The manufacturer cannot be held liable for unauthorised
work.
The integrated waterproof system oers protection from water damage, provided the following
conditions are met:
• The dishwasher is correctly installed and plumbed in.
• The dishwasher is properly maintained and parts are replaced where it can be seen that this is
necessary.
• The stopcock has been turned o when the appliance is not used for a longer period of time (e.g.
during holidays).
• The waterproof system will work even if the appliance is switched o. However, the appliance must
remain connected to the electricity supply.
A damaged appliance can be dangerous. If the dishwasher gets damaged, switch it o at the mains
and call your dealer or the service department.
Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer
cannot accept liability. Repairs should only be undertaken by an approved service technician.
Faulty components must only be replaced by original spare parts. Only when these parts are fitted can
the safety of the appliance can be guaranteed.
Always disconnect the dishwasher from the electrical supply for maintenance work (switch o at the
wall socket and remove the plug).
If the connection cable is damaged it must be replaced with a special cable, available from the
manufacturer. For safety reasons, this must only be fitted by the service department or an authorised
service technician.
CAUTION
CAUTION
CAUTION
WARNING
CAUTION
DW5500M_DD81-02437Q-00_EN.indd 7DW5500M_DD81-02437Q-00_EN.indd 7 2019-06-25 11:13:092019-06-25 11:13:09
8_ Safety instructions
In countries where there are areas which may be subject to infestation by cockroaches or other
vermin, pay particular attention to keeping the appliance and its surroundings in a clean condition at all
times. Any damage which may be caused by cockroaches or other vermin will not be covered by the
guarantee.
In the event of a fault or for cleaning purposes, the appliance is only completely isolated from the
electiricity supply when:
• it is switched o at the wall socket and the plug is withdrawn, or
• it is switched o at the mains, or
• the mains fuse is disconnected, or
• the screw-out fuse is removed (in countries where this is applicable).
Do not make any alterations to the appliance, unless authorised to do so by the manufacturer.
Never open the casing/housing of the appliance.
Tempering with electrical connections or components and mechanical parts is highly dangerous and
can cause operational faults or electric shock.
While the appliance is under guarantee, repairs should only be undertaken by a service technician
authorised by the manufacturer. Otherwise the guarantee will be invalidated.
When installing the product, make sure there is space at the top, left, right and back of the product to
ensure proper ventilation.
If there is insucient space between the product and the sink, it may damage the sink or allow mold to
grow.
Make sure that your dishwasher’s hardness level setting is correct as your area.
(Refer to the “Water softener mode (Water hardness level setting)” section on page 15.)
WARNING
CAUTION
CAUTION
CAUTION
Safety instructions
DW5500M_DD81-02437Q-00_EN.indd 8DW5500M_DD81-02437Q-00_EN.indd 8 2019-06-25 11:13:092019-06-25 11:13:09
Safety instructions _9
INSTRUCTION ABOUT THE WEEE MARK
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate these items from other types of
waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government oce, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.
For information on Samsung’s environmental commitments and product specific regulatory obligations e.g.
REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html
DW5500M_DD81-02437Q-00_EN.indd 9DW5500M_DD81-02437Q-00_EN.indd 9 2019-06-25 11:13:092019-06-25 11:13:09
10_ Contents
Contents
PARTS AND FEATURES
11
11 Dishwasher features
12 Control panel
14 Displays
USING THE DETERGENT AND WATER
SOFTENER
15
15 Water softener mode
(Water hardness level setting)
16 Loading the salt into the softener
17 Using detergent
18 Using rinse aid
19 Adjusting the amount of rinse aid
19 How to use the Multi tab option
LOADING THE DISHWASHER RACKS
20
20 Loading the upper basket
22 Loading the lower basket
22 Folding spikes of lower basket
23 Cutlery(silverware) tray
24 Please be aware of the following items when
loading the dishwasher
WASHING PROGRAMMES
25
25 Turning on the appliance
25 Change the programme
26 At the end of the wash cycle
26 Wash cycle table
CLEANING AND CARE
28
28 Cleaning the filters
29 Cleaning the spray arms
29 Cleaning the door
29 Caring for the dishwasher
29 Protect against freezing
30 How to maintain your dishwasher
SETTING UP YOUR DISHWASHER
31
31 Water supply and drain
33 Connection of drain hoses
33 Position the appliance
33 Start of dishwasher
INSTALLING YOUR DISHWASHER
34
34 Fully built in Dishwasher
TROUBLESHOOTING
40
40 Before calling for service
42 Information codes
APPENDIX
43
43 Specifications
43 Product dimension
DW5500M_DD81-02437Q-00_EN.indd 10DW5500M_DD81-02437Q-00_EN.indd 10 2019-06-25 11:13:092019-06-25 11:13:09
Part and features _11
01 PART AND FEATURES
Parts and features
DISHWASHER FEATURES
Front & Rear view (DW60M6070**)
10
11
4
8
95
1
2
7
3
6
1 3rd Rack
2 Upper Basket
3 Lower Basket
4 Duct Nozzle
5 Salt Container
6 Dispenser
7 Cup Shelf
8 Spray arms
9 Filter assembly
10 Inlet hose
11 Drain hose
Accessory parts - User manual, Salt funnel, cutlery basket.
DW5500M_DD81-02437Q-00_EN.indd 11DW5500M_DD81-02437Q-00_EN.indd 11 2019-06-25 11:13:102019-06-25 11:13:10
12_ Part and features
Parts and features
CONTROL PANEL
DW60M6070IB
3 4 5 10 116 8 971 2
1 Power Press this button to turn on your dishwasher : the screen lights up.
2 Cycle To select washing program press this button.
3 Upper
When you select Upper, only the upper rack nozzle is activated.
The lower nozzle will not operate.
Use this feature to wash a small load of dishes or glasses placed in the
upper rack.
When you select Upper, place dishes, glasses, etc. in the upper
rack only. The dishwasher will not wash items placed in the lower
rack.
Selecting Upper reduces both the cycle time and the amount of electricity
consumed.
4 Lower
When you select Lower, only the lower rack nozzle is activated. The
upper nozzle will not operate.
Use this feature to wash a small load of dishes or glasses placed in the
lower rack.
When you select Lower, place items, glasses, etc. in the lower rack
only. The dishwasher will not wash items placed in the upper rack.
Selecting Lower reduces both the cycle time and the amount of electricity
consumed.
5 Hygiene
Select Hygiene button for the best possible hygiene in your dishwasher.
This function is available with all programs except Auto wash,
Quick Wash and Pre Wash program.
6 Multi tab
To select Multi tab option which allows the replacement of salt and rinse
aid with a Multi tab tablet. This option can be used with all programs
except Auto wash, Quick Wash and Pre Wash.
7 Control lock
This option allows you to lock the buttons on the control panel so children
cannot accidentally start the dishwasher by pressing the buttons on the
panel.
To lock and unlock the buttons on the control panel, hold down both the
Control lock buttons for three (3) seconds.
DW5500M_DD81-02437Q-00_EN.indd 12DW5500M_DD81-02437Q-00_EN.indd 12 2019-06-25 11:13:122019-06-25 11:13:12
Part and features _13
01 PART AND FEATURES
8 Indicator
Delay start Indicator
• If the “Delay start” indicator is lit, you have selected the
“Delay start” option.
Rinse Refill Indicator
• If the “Rinse Refill” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
Salt Refill Indicator
• If the “Salt Refill” indicator is lit, it means the dishwasher is low
on dishwasher salt and needs to be refilled.
9 Display Displays the remaining time, information code, or delay time.
10 Delay start
Press this button to set the delayed time for washing. You can delay the
start of washing up to 24 hours. One press on this button delays the start
of washing by one hour.
11 Start
To start a cycle, press the Start button before closing the door.
*Reset : To cancel a currently running cycle and drain the dishwasher,
press and hold the Start button for three (3) seconds.
Once the dishwasher is reset, select a cycle and option, and then press Start
to restart the dishwasher.
You can select options (Multi tab, Half load, Delay start, Hygiene) before starting a cycle.
To prevent the touchpad from losing response sensitivity, follow these instructions:
• Touch the center of each keypad using one finger. Do not push hard.
• Clean the touch control’s surface regularly with a soft, damp cloth.
• Be careful not to touch more than one touch key pad at a time, except as directed.
kAĮ kAĮ kAĮ
DW5500M_DD81-02437Q-00_EN.indd 13DW5500M_DD81-02437Q-00_EN.indd 13 2019-06-25 11:13:122019-06-25 11:13:12
14_ Part and features
Parts and features
DISPLAYS
DW60M6070IB
321
1 Program icons Press the Program button to select each program.
Auto wash
Lightly to heavily soiled daily using items, automatic detection of the
amount of soils.
ECO
Normally soiled daily using items, with reduced energy and water
consumptions.
Intensive Heavily soiled items include pots and pans
Quick Wash Lightly soiled with very short cycle time.
Delicate Lightly soiled delicate items.
Express Normal daily used items, with short cycle time.
Pre Wash Cold water rinse for removing dirt before running another program.
2 Refill indicators
If Rinse or Salt Refill indicator is lit, it means rinse aid or salt needs
refilling.
Salt Refill indicator
If the “Salt Refill” indicator is lit, it means the dishwasher is low on
dishwasher salt and needs to be refilled.
To refill the salt reservior, refer to the “Loading the salt into the
softener” section on page 16.
Rinse Refill indicator
If Rinse is lit, it means rinse is low and needs to be refilled. To refill the
rinse reservior, refer to the “Filling the rinse aid reservoir” section on
page 18.
Delay start indicator
If the “Delay start” indicator is lit, it means, “Delay start” option is
selected.
3 Display Displays the remaining time, information code, or delay time.
DW5500M_DD81-02437Q-00_EN.indd 14DW5500M_DD81-02437Q-00_EN.indd 14 2019-06-25 11:13:132019-06-25 11:13:13
Using the detergent and water softener _15
02
USING THE DETERGENT AND WATER SOFTENER
Using the detergent and water
softener

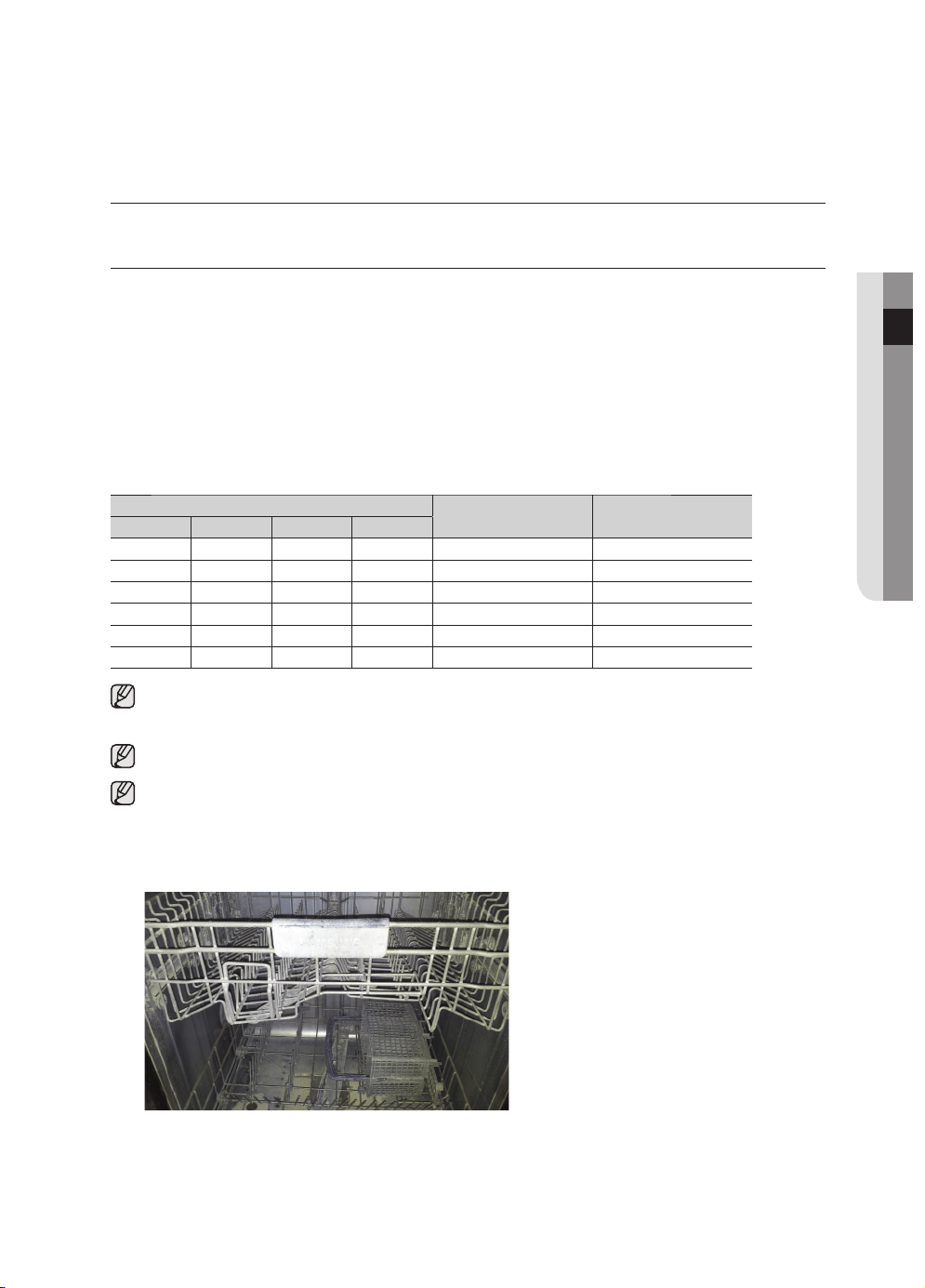

WATER SOFTENER MODE (WATER HARDNESS LEVEL SETTING)
The dishwasher is designed to adjust the amount of salt consumed based on the hardness of the water
used. This is intended to optimise the level of salt consumption. To set the salt consumption, proceed as
below:
1. Switch on the appliance;
2. Press the Express button for more than 5 seconds to start the water softener set mode within
60seconds after the appliance was switched on;
• Press the Express button to select the proper set according to your local environment, the sets
will change in the following sequence: H1 H2 H3 H4 H5 H6; It is recommended that
adjustments should be made in accordance with the following table.
* The manufactory setting: H3 (EN 50242)
3. Wait for 5 seconds to end the set up mode.
WATER HARDNESS
Selector Position
Salt consumption
(gram/cycle)
º dH º fH º Clark mmol/l
0-5 0-9 0-6 0-0.94 H1 0
6-11 10-20 7-14 1.0-2.0 H2 9
12-17 21-30 15-21 2.1-3.0 H3 12
18-22 31-40 22-28 3.1-4.0 H4 20
23-34 41-60 29-42 4.1-6.0 H5 30
35-55 61-98 43-69 6.1-9.8 H6 60
1 dH (German degree) = 0.178 mmol/l
1 Clark (British degree) = 0.143 mmol/l
1 fH (French degree) = 0.1 mmol/l
Contact your local water board for information on the hardness of your water supply.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits
may form on dishes and utensils. The appliance is equipped with a special softener that uses a salt
specifically designed to eliminate lime and minerals from the water.
[Deposits on utensils]
DW5500M_DD81-02437Q-00_EN.indd 15DW5500M_DD81-02437Q-00_EN.indd 15 2019-06-25 11:13:132019-06-25 11:13:13
16_ Using the detergent and water softener
LOADING THE SALT INTO THE SOFTENER
Always use salt intended for use with dishwasher.
The salt container is located beneath the lower rack and should be filled as follows:
ATTENTION
• Only use salt specifically designed for use in dishwashers. All other types of salt are not specifically
designed for use in a dishwasher, especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer will not cover under warranty nor
is liable for any damages caused.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any
grains of salt or salty water, which may have been split, remaining of the bottom of the machine for
any period of time, which may cause stains and corrosion.
• After the first wash cycle the control panel light expires.
1. Remove the lower basket and then unscrew and remove the cap from
the salt container.
Open
Open
2. If you are fi lling the container for the fi rst time, fi ll 2/3 of its volume with water (around 1 liter).
3. Place the end of the funnel (supplied) into the hole and pour about
1.5kg of salt. It is normal for a small amount of water to come out of
the salt container.
4. Carefully screw the cap back on.
5. Usually, the salt warning light will turn o after the salt container is fi lled with salt.
• The salt container must be refilled when the salt warning light on the control panel comes on.
Although enough salt remains in the container, the indicator light may not switch o until the salt
fully dissolves.
If there is no salt warning light on the control panel, you can judge when to load the salt into the
softener by the cycles that the dishwasher has run.
• If a lot of salt is spilt inside the dishwasher, run a pre wash program to reduce the spillage.
Using the detergent and water
softener
DW5500M_DD81-02437Q-00_EN.indd 16DW5500M_DD81-02437Q-00_EN.indd 16 2019-06-25 11:13:132019-06-25 11:13:13
Using the detergent and water softener _17
02
USING THE DETERGENT AND WATER SOFTENER
USING DETERGENT
All dishwasher cycles require detergent in the detergent compartment.
Add the correct amount of detergent for the selected cycle to ensure the best performance.
CAUTION: Use dishwasher detergent only. Regular detergent produces too much foam, which may
decrease the dishwasher’s performance or cause malfunction.
WARNING: Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher
detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have
swallowed dishwasher detergent or inhaled the fumes, seek medical attention immediately.
WARNING: Keep dishwasher detergent out of the reach of children.
Filling the detergent dispenser
1. Open the detergent dispenser fl ap by pushing the detergent
dispenser release catch.
The flap is always open at the end of a dishwashing cycle.
2. Add the recommended amount of detergent to the main
wash detergent compartment.
3. Close the fl ap by sliding it to the left and then pressing it
down.
There is no separate button that is specific to using tablet
detergents.
4. For better cleaning result, especially if you have very dirt items, add a small amount (about
8g) of detergent on the door. That will act in prewash phase.
DW5500M_DD81-02437Q-00_EN.indd 17DW5500M_DD81-02437Q-00_EN.indd 17 2019-06-25 11:13:162019-06-25 11:13:16
18_ Using the detergent and water softener
USING RINSE AID
Filling the rinse aid reservoir
When the Rinse Refill indicator lights up on the control panel, refill with rinse aid.
Your dishwasher has been designed to use liquid rinse aid only.
Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to
malfunction.
Rinse aid improves the drying performance of the dishwasher.
CAUTION: Do not add regular detergent to the rinse aid reservoir.
1. Remove the rinse aid reservoir cap by lifting up the handle.
Adding rinse aid to tablet detergents will improve drying
performance.
2. Fill the rinse aid reservoir with rinse aid.
Use the viewing port when filling the rinse aid reservoir.
CAUTION: Do not fill the reservoir above the maximum
level. Excess rinse aid can overflow during the wash cycle.
3. Close the cap after all.
Using the detergent and water
softener
DW5500M_DD81-02437Q-00_EN.indd 18DW5500M_DD81-02437Q-00_EN.indd 18 2019-06-25 11:13:182019-06-25 11:13:18
Using the detergent and water softener _19
02
USING THE DETERGENT AND WATER SOFTENER
ADJUSTING THE AMOUNT OF RINSE AID
You can adjust the amount of rinse aid by following the sequence below. A better drying performance is
achieved by setting the higher number.
1. Switch on the dishwasher.
2. Press the Express (Built-in model) or Program (Free Standing model) button for fi ve seconds, within 60
seconds from turning on the dishwasher.(same as the Softener setting mode)
3. Press the Delay start button to enter the Rinse aid setting mode.
4. The LCD shows the present rinse level. (between d1~d5)
5. Press the Express (Built-in model) or Program (Free Standing model) button to select the amount of
rinse aid you want. the sets will change in the following sequence; d1 d2 d3 d4 d5 d1.
(The default level is d4.)
6. Select the amount of rinse aid and wait 5 seconds to complete the setup.
HOW TO USE THE MULTI TAB OPTION
Your dishwasher has a Multi tab option which does not require salt and rinse aid but a 3 In1 tablet.
The Multi tab setting is only for use with Multi tab tablets. If using Multi tab tablet without this option,
the appliance will not get its best performance.
1. Put the Multi tab tablet into the container then start the Multi tab
option.
2. Close the lid and press until it locks in place.
When using Multi tab compact combination detergents ensure
that the lid can be closed correctly.
ATTENTION: Keep all detergents in a safe place out of
children’s reach. Always add the detergent in the dispenser just
before starting the dishwasher.
DW5500M_DD81-02437Q-00_EN.indd 19DW5500M_DD81-02437Q-00_EN.indd 19 2019-06-25 11:13:192019-06-25 11:13:19
20_ Loading the dishwasher racks
Loading the dishwasher racks
For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of racks and silverware baskets may vary from your
model.
Attention before or after loading the dishwasher racks
Scrape o any large amounts of leftover food. It is not necessary to rinse the dishes under running
water. Place objects in the dishwasher in the following order:
1. Items such as cups, glasses, pots/pans, etc. are stood upside down.
2. Curved items, or those with recesses, should be at a slant so that water can run o.
3. Ensure they are stacked securely and can not tip over.
4. Ensure they do not prevent the spray arms from rotating while washing takes place.
Very small items should not be washed in the dishwasher as they could easily fall out of the racks.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you empty
the lower basket first and then the upper basket.

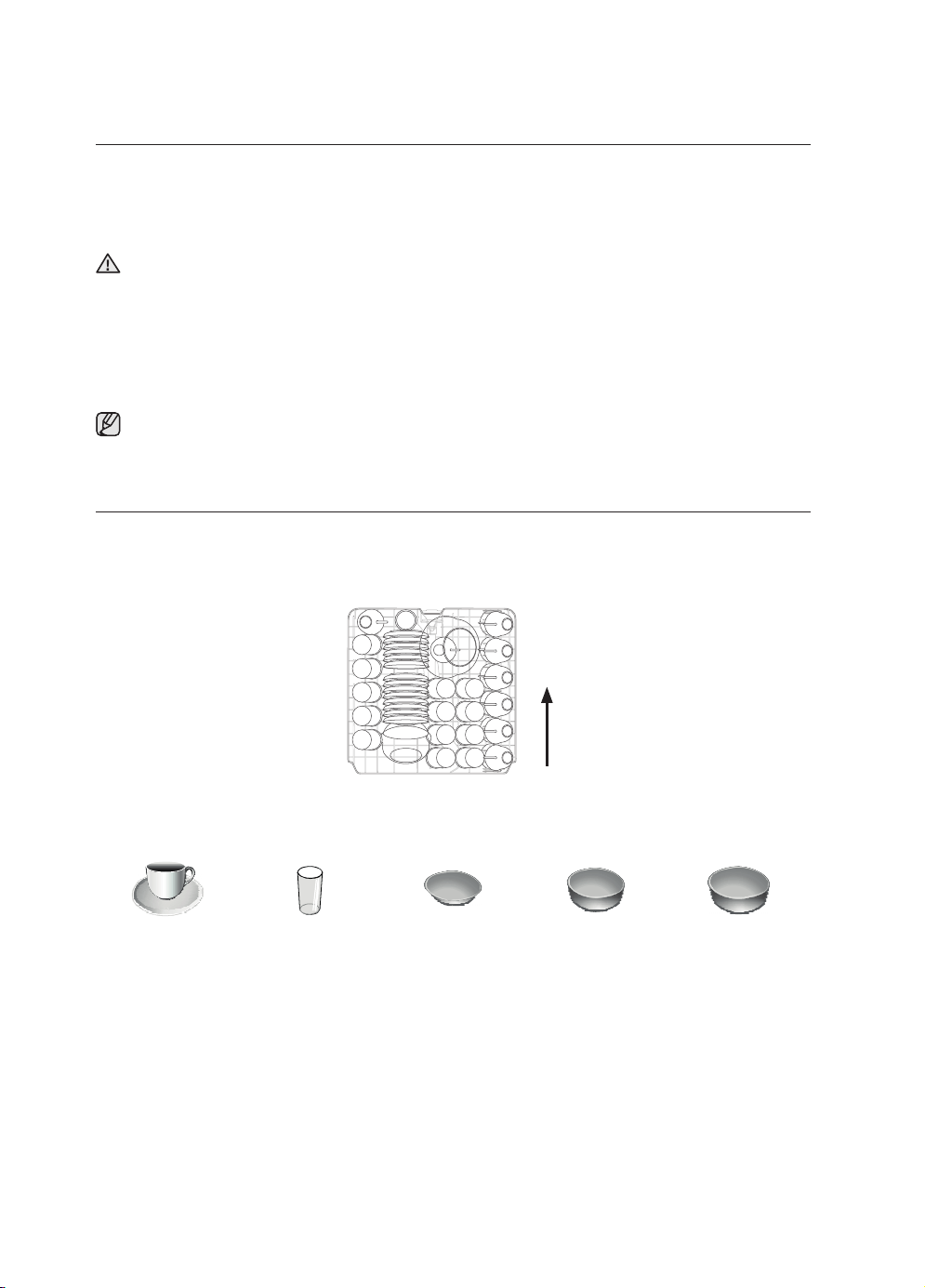

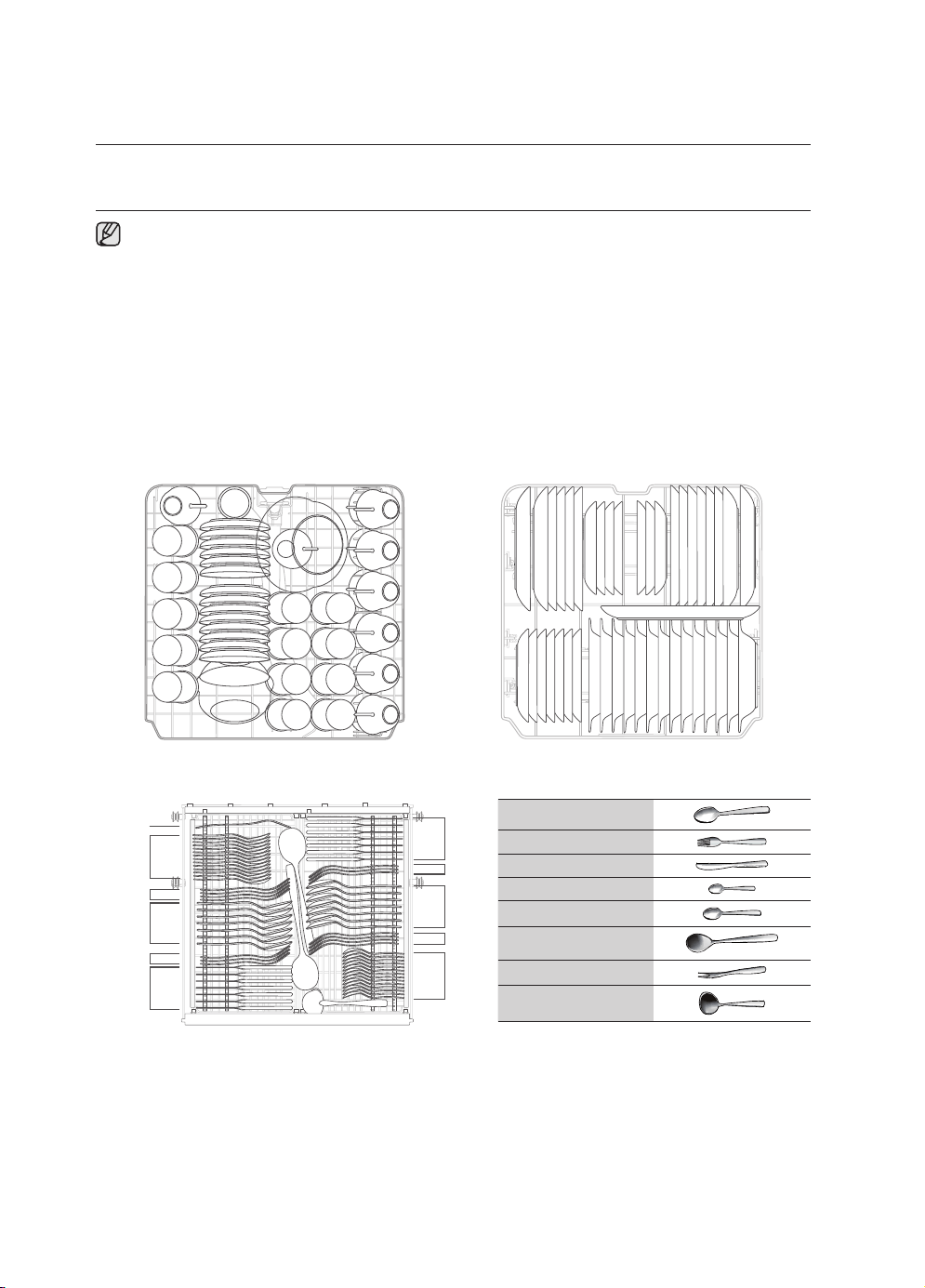

LOADING THE UPPER BASKET
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coee and tea
cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will not get moved by the spray of water. Always place
glasses, cups & bowls upside down.
1
2
3
3
3
3
4
5
6
IN
DW60M6070
(14 place setting)
Cups
1
2
Saucers
3
Glasses
4
Small serving bowl
5
Medium serving bowl
6
Large serving bowl
DW5500M_DD81-02437Q-00_EN.indd 20DW5500M_DD81-02437Q-00_EN.indd 20 2019-06-25 11:13:202019-06-25 11:13:20
Loading the dishwasher racks _21
03 LOADING THE DISHWASHER RACKS
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to create more space for large utensils
both for the upper/lower basket.

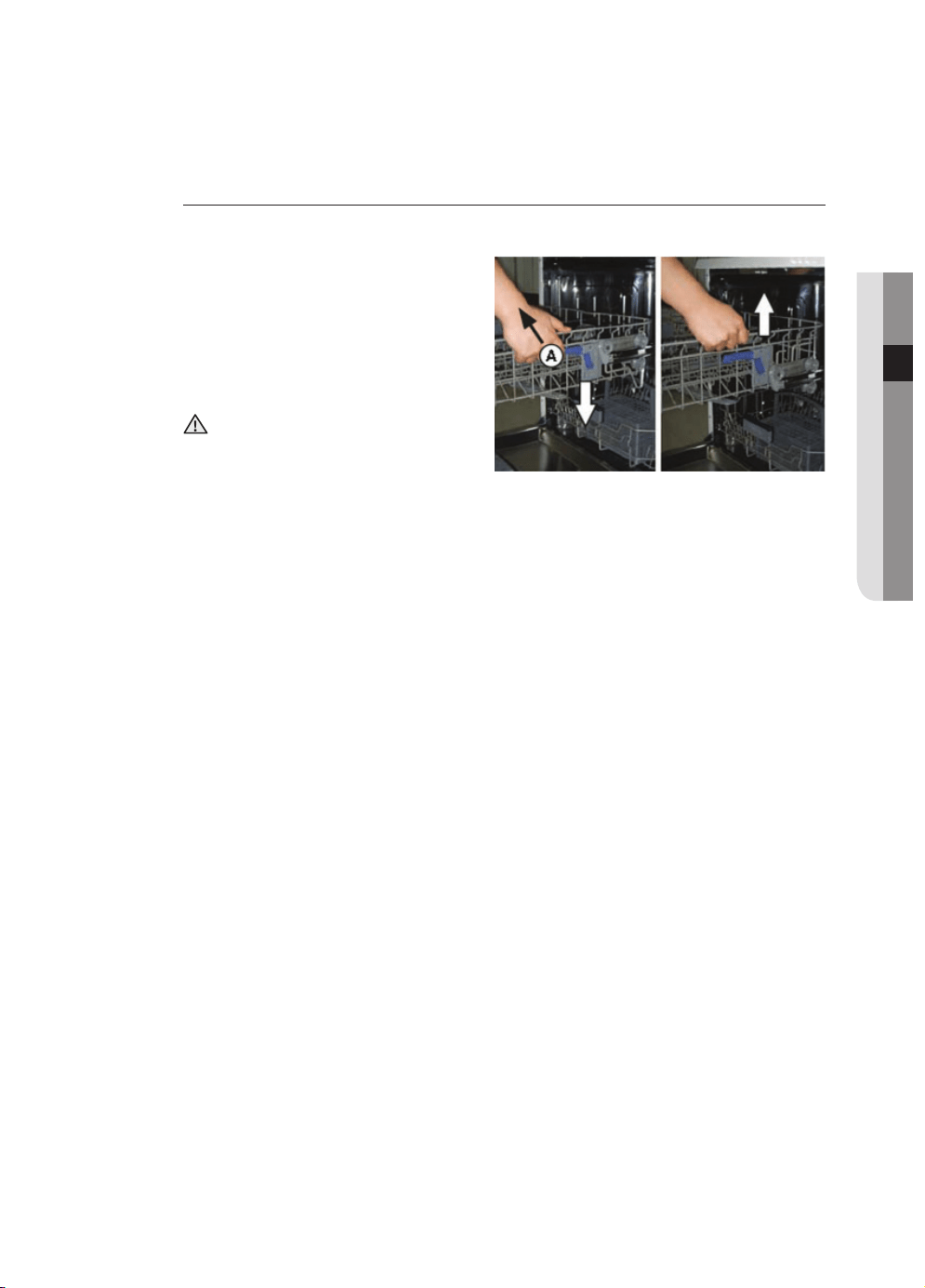

1. To lower the upper rack, press the “A”
levers located at the left and right sides
of the upper basket and push the upper
basket downwards slightly at the same
time.
2. To raise the upper rack, just pull the
upper basket upwards without operating
any levers.
CAUTION: We recommend adjusting
the height of the upper basket before
loading dishes into the basket. If you
adjust the the basket after loading the
dishes, you may damage the dishes.
To lower position To upper position
DW5500M_DD81-02437Q-00_EN.indd 21DW5500M_DD81-02437Q-00_EN.indd 21 2019-06-25 11:13:222019-06-25 11:13:22

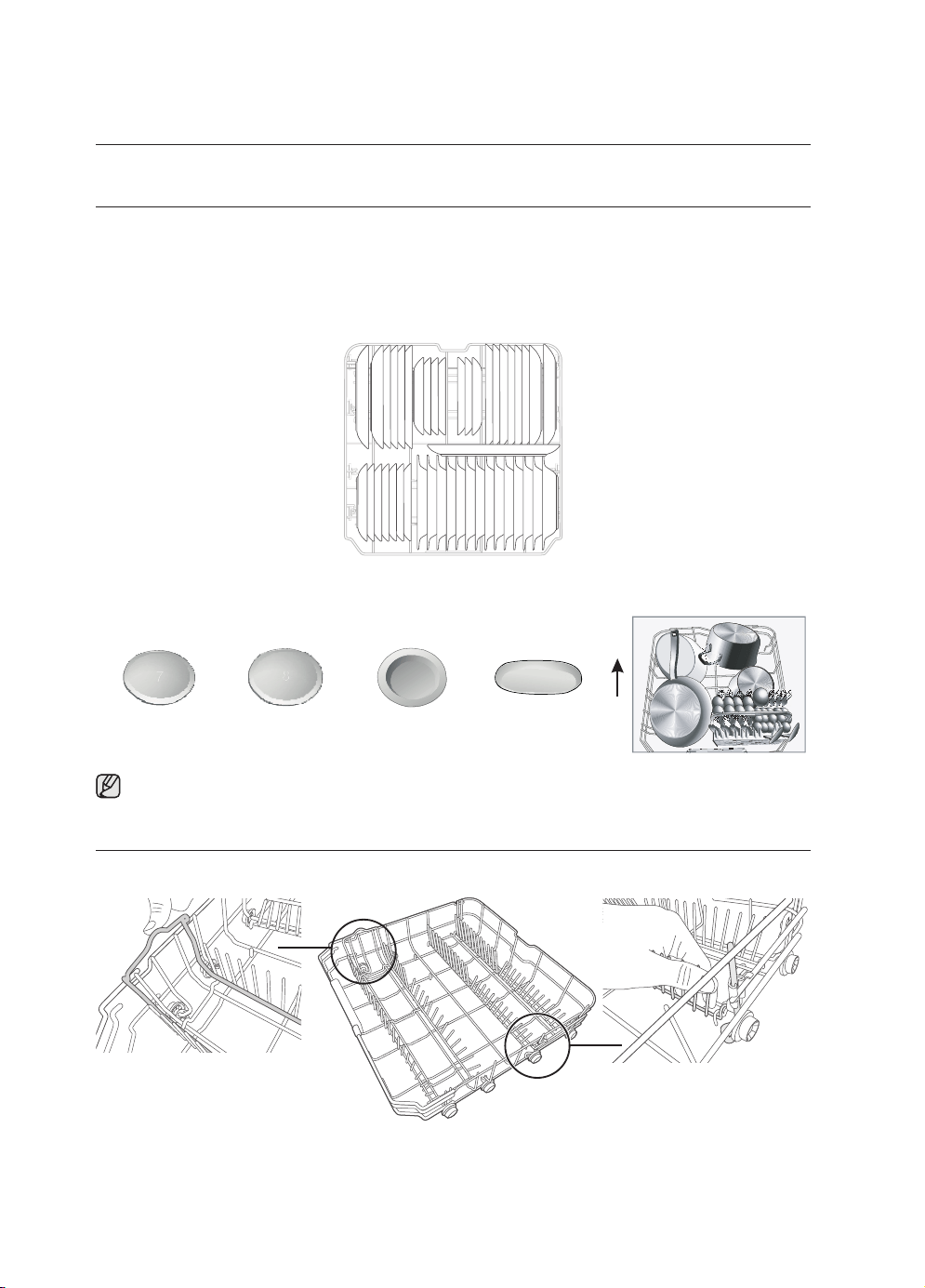

22_ Loading the dishwasher racks
LOADING THE LOWER BASKET
We recommend that you place large items which are most dicult to clean in to the lower rack: pots, pans,
lids, serving dishes and bowls, as shown in the figure to the right.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the
rotation of the top spray arm. Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
11 11
13
12
10
10
DW60M6070
(14 place setting)
10
Dessert dishes
11
Dinner plates
12
Soup bowls
13
Oval platter
IN
Long items, serving cutlery, salad servers and big knives should be placed on the shelf so that they do
not obstruct the rotation of the spray arms.
FOLDING SPIKES OF LOWER BASKET
For better stacking of pots and pans, the spikes can be folded down and/or tine removed as show in the
picture below.
Loading the dishwasher racks
DW5500M_DD81-02437Q-00_EN.indd 22DW5500M_DD81-02437Q-00_EN.indd 22 2019-06-25 11:13:222019-06-25 11:13:22
Loading the dishwasher racks _23
03 LOADING THE DISHWASHER RACKS

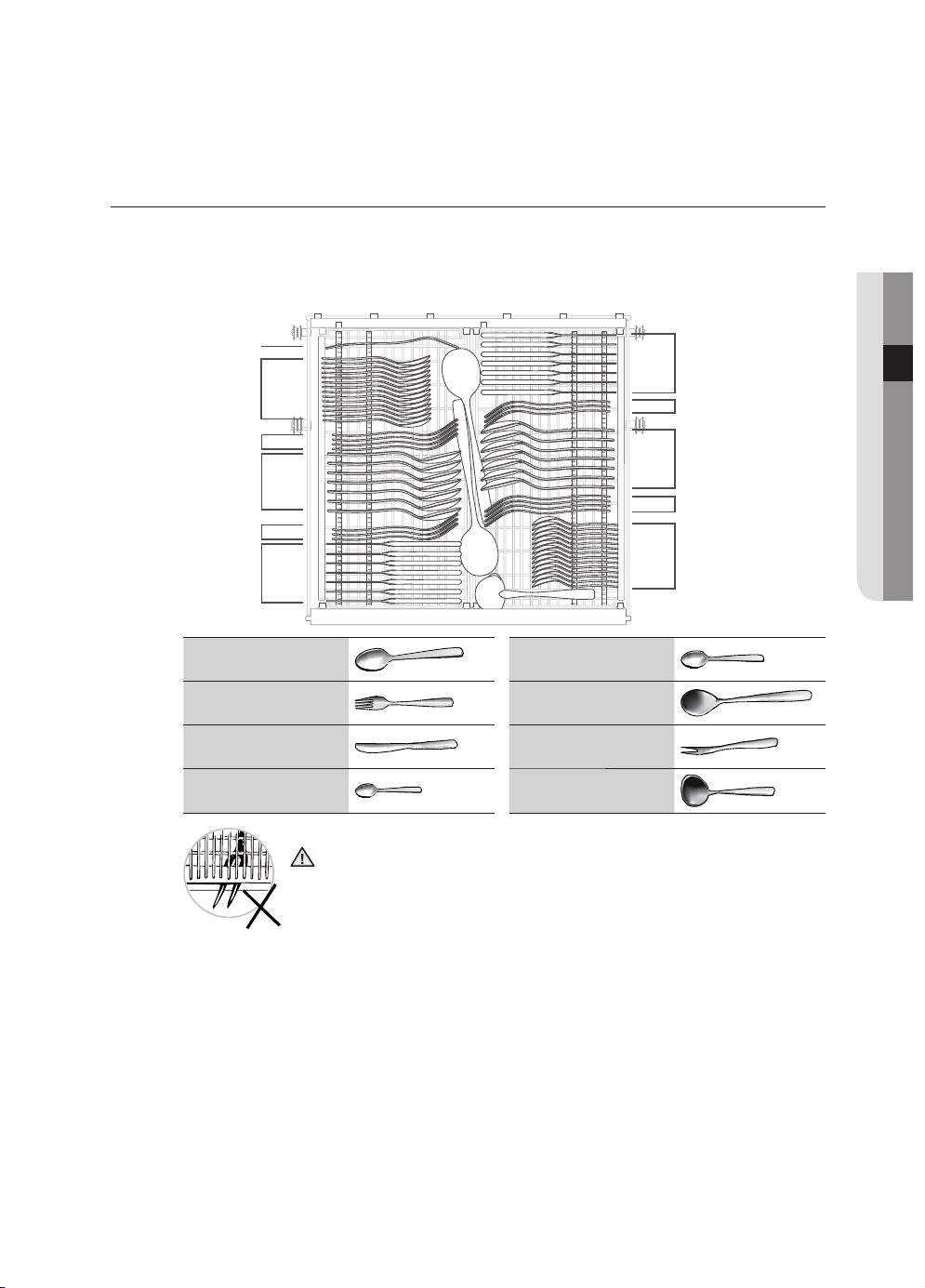

CUTLERY(SILVERWARE) TRAY
Silverware should be placed in the cutlery tray with handles at the bottom: The spoon should be loaded
individually into the appropriate slots, especially long utensils should be placed in the horizontal position at
the front of the upper basket.
DW60M6070
8
4
3
3
2
2
5
7
2
2
6
6
1
1
1 Soup spoons 5 Dessert spoons
2 Forks 6 Serving spoons
3 Knives 7 Serving forks
4 Teaspoons 8 Gravy ladles
WARNING
• Do not let any item extend through the bottom.
• Always load sharp utensils with the sharp point down!
DW5500M_DD81-02437Q-00_EN.indd 23DW5500M_DD81-02437Q-00_EN.indd 23 2019-06-25 11:13:262019-06-25 11:13:26
24_ Loading the dishwasher racks
PLEASE BE AWARE OF THE FOLLOWING ITEMS WHEN LOADING
THE DISHWASHER
Not suitable Limited suitability
Plastic items that are not heat resistant.
Older cutlery with glued parts that is not
temperature resistant.
Bonded cutlery items or dishes.
Pewter or copper items Lead crystal glass.
Steel items subject to rusting.
Wooden platters.
Items made from synthetic fibres.
Some types of glasses can become dull after a
large number of washes.
Silver and aluminium parts have a tendency to
discolour during washing.
Glazed patterns may fade if machine washed
frequently.
Do not try and wash items soiled with cigarette ash, candle wax, lacquer or paint. Please make sure
dishes are suitable for dishwashers.
Please do not overload your dishwasher. There is only space for 12 standard dishes. Do not use any
dish that are not suitable for dishwashers. This is important for good results and for reasonable energy
consumption.
When loading the dishes and cutlery
Dishes and cutlery must not impede the rotation of the spray arms.
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water
cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other
• To avoid damage to glasses, they must not touch.
• Load large items which are most dicult to clean into the lower rack.
• The upper rack is designed to hold more delicate and lighter dishware such as glasses,
coee and tea cups.
ATTENTION
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in
the upper basket.
Damage to glassware and other dishes.
Possible causes Suggested remedy
• Type of glass or manufacturing process.
Chemical composition of detergent.
• Water temperature and duration of
dishwasher programme.
• Use glassware or porcelain dishes that
have been marked dishwasher-proof by
the manufacturer.
• Use a mild detergent that is described as
kind of dishes If necessary, seek further
information from detergent manufacturers.
• Select a programme with as low a
temperature.
• To prevent damage, take glass and cutlery
out of the dishwasher as soon as possible
after the programme has ended.
Loading the dishwasher racks
DW5500M_DD81-02437Q-00_EN.indd 24DW5500M_DD81-02437Q-00_EN.indd 24 2019-06-25 11:13:262019-06-25 11:13:26
Washing programmes _25
04 WASHING PROGRAMMES
Washing programmes
TURNING ON THE APPLIANCE
Starting a cycle wash
1. Draw out the lower and upper basket, load the dishes and push them back..
It is recommended to load the lower basket fi rst, then the upper one (see the section entitled “Loading
the dishwasher racks”).
2. Pour in the detergent (see the section entitled “Using the detergent and water softener”).
3. Insert the plug into the socket. The power supply is 220-240 V~, 50 Hz. Make sure that the water
supply is turned on to proper pressure.
4. Close the door, press the Power button, to switch on the machine.
A click could be heard when the door is closed perfectly. When the washing is over, you can shut o
the switch by pressing Power button.
CHANGE THE PROGRAMME
Premise:
1. A cycle that is underway can only be modifi ed if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refi lled (see the section entitled “Filling the detergent
dispenser”).
2. Press Power button or Start button 3 seconds to cancel the programme, and turn on it again, then you
can change the programme to the desired cycle setting.
If you open the door during a wash cycle, the machine will pause. The program light will stop blinking
and the buzzer will beep every minute unless you close the door. After you close the door, the machine
will keep on working after 3 seconds automatically.
If your model has broken memory function, the machine will go on to finish the selected program after
the power cut.
Adding dishes
A forgotten dish can be added at any time before the detergent dispenser opens.
1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door, the dishwasher will work after ten seconds.
WARNING: It is dangerous to open the door when washing, because the hot water may
scald you. If the door is opened while the dishwasher is running, a safety mechanism is
activated and stops the cycle.
DW5500M_DD81-02437Q-00_EN.indd 25DW5500M_DD81-02437Q-00_EN.indd 25 2019-06-25 11:13:262019-06-25 11:13:26
26_ Washing programmes
AT THE END OF THE WASH CYCLE
When the working cycle has finished, the dishwasher buzzer will beep shortly, then stop. In the digital
display appears “0”, only in this case the programme has ended.
1. Switch o the dishwasher by pressing the Power button.
2. Turn o the water tap!
Open the door carefully. Hot steam may escape when the door is opened!
• Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around 15 minutes
before removing from the appliance.
• Open the dishwasher’s door, leave it and wait a few minutes before removing the dishes. In this
way they will be cooler and the drying will be improved.
• The fan always operates to dry inside the dishwasher when you open the door. Close the door
when the dishwasher is dry.
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
basket onto the dishes in the lower one.
WASH CYCLE TABLE
Program Description of Cycle
Detergent
(Prewash/Main wash) (g)
Running
time (min)
Energy
(kWh)
Water (ℓ)
Intensive
Pre Wash (50 °C)
5/30 175 1.6 17.5
Wash (60 °C)
Rinse
Rinse
Rinse (70 °C)
Drying
Intensive + Hygiene
Pre Wash (50 °C)
5/30 200 1.65 17.5
Wash (60 °C)
Rinse
Rinse
Rinse (70 °C)
Drying
ECO *
Pre Wash
5/30 225 0.93 10.5
Wash (50 °C)
Rinse (55 °C)
Drying
ECO + Hygiene
Pre Wash
5/30 235 1.1 10.5
Wash (50 °C)
Rinse (60 °C)
Drying
Delicate
Pre Wash
5/30 130 0.9 13
Wash (40 °C)
Rinse
Rinse (60 °C)
Drying
Delicate + Hygiene
Pre Wash
5/30 140 1.0 13
Wash (40 °C)
Rinse
Rinse (65 °C)
Drying
Washing programmes
DW5500M_DD81-02437Q-00_EN.indd 26DW5500M_DD81-02437Q-00_EN.indd 26 2019-06-25 11:13:262019-06-25 11:13:26
Washing programmes _27
04 WASHING PROGRAMMES
Program Description of Cycle
Detergent
(Prewash/Main wash) (g)
Running
time (min)
Energy
(kWh)
Water (ℓ)
Express
Pre Wash (50 °C)
5/30 60 1.15 10
Wash (60 °C)
Rinse (60 °C)
Drying
Express + Hygiene
Pre Wash (50 °C)
5/30 80 1.25 10
Wash (60 °C)
Rinse (65 °C)
Drying
Quick Wash
Wash (45 °C)
25 30 0.75 11
Rinse (50 °C)
Rinse (55 °C)
Auto wash
Pre Wash (45 °C)
5/30 150 0.9-1.3 11-15
Auto wash (45-55 °C)
Rinse
Rinse (65 °C)
Drying
Pre Wash Pre Wash / 15 0.02 4
The wash time varies depending on the pressure and temperature of the supplied water.
Quick Wash: Continuous use of the Quick Wash cycle for an extended time is not recommended. This
may reduce the performance of the water softener.
DW5500M_DD81-02437Q-00_EN.indd 27DW5500M_DD81-02437Q-00_EN.indd 27 2019-06-25 11:13:272019-06-25 11:13:27
28_ Cleaning and care
Cleaning and care

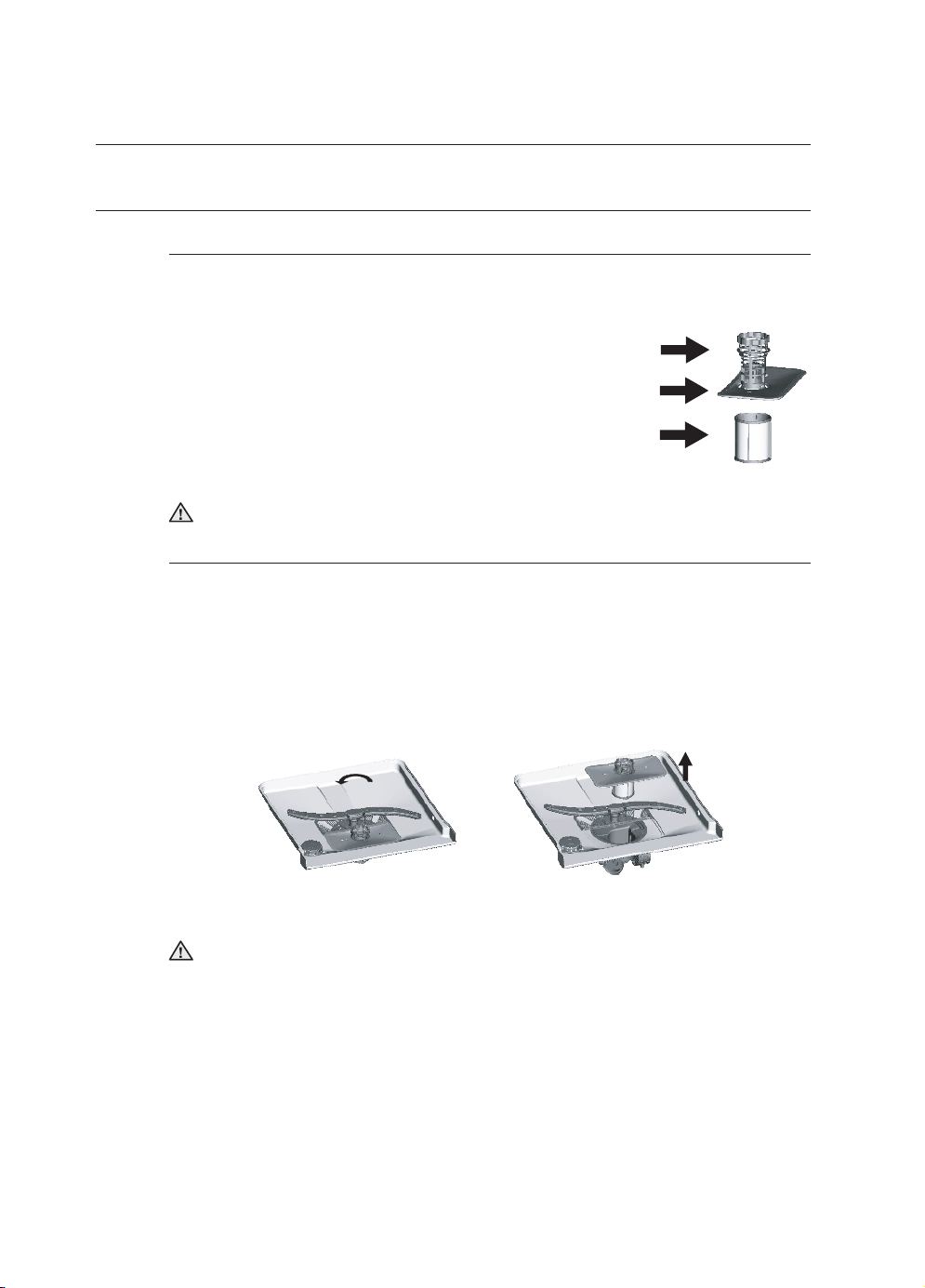

CLEANING THE FILTERS
Filtering system
For your convenience, we have placed the drain pump and filtering system within easy reach
inside the tub. There are three components of the filtering system: the main filter, the coarse filter,
and the fine filter.
1. Main fi lter: Food and soil particles trapped by this fi lter are
pulverized by a special jet on the lower spray arm and washed down
the drain.
2. Coarse fi lter: Larger items, such as pieces of bone or glass, that
could clog the drain are trapped in the coarse fi lter. To remove an
item caught in this fi lter, gently squeeze the tabs on top of this fi lter
and lift it out.
3. Fine fi lter: This fi lter holds soil and food residue in the sump area
and prevents it from being redeposited on the dishes during a cycle.
2
3
1
ATTENTION: Do not put the fine filter upside down.
Filter assembly
For best performance and results, the filter assembly must be cleaned. The filter eciently
removes food particles from the wash water, allowing it to be recirculated during the cycle.
For this reason, it is a good idea to remove the larger food particles trapped in the filter after
each wash cycle by rinsing the semicircular filter and cup under running water. To remove the
filter assembly, turn it in anti-clockwise direction and lift the filter assembly up. The entire filter
assembly should be cleaned regularly.
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reinsert the entire
assembly in the dishwasher, positioning in its seat, pressing downward, turning it clockwise
direction.
Open
Open
The dishwasher must never be used without the filters. Improper replacement of the filter may
reduce the performance level of the appliance and damage dishes and utensils.
WARNING: Never run the dishwasher without the filters in place. When cleaning the filters,
do not damage them. Otherwise the filters may not perform as intended and poor wash
results or damage to the internal parts may be encountered.
DW5500M_DD81-02437Q-00_EN.indd 28DW5500M_DD81-02437Q-00_EN.indd 28 2019-06-25 11:13:272019-06-25 11:13:27
Cleaning and care _29
05 CLEANING AND CARE
CLEANING THE SPRAY ARMS
It is necessary to clean the spray arms regularly as hard water residue can clog
the spray arm jets and bearings. To remove the middle spray arm, hold the nut,
rotate the arm clockwise to remove it. To remove the lower spray arm, pull out
the spray arm upward. Wash the arms in warm and soapy water and use a soft
brush to clean the jets. Replace them after rinsing them thoroughly.
Open
CLEANING THE DOOR
To clean the edge around the door, you should use only a soft warm, damp cloth.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the
finish. Some papers towels can also scratch or leave marks on the surface.
WARNING: Never use a spray cleaner to clvean the door panel for it could damage the door lock and
electrical components. It is not advised to use the abrasive agent or some paper towel because of the
risk of scratching or leaving spots on the stainless steel surface.
CARING FOR THE DISHWASHER
To clean the control panel use a lightly damp cloth then dry thoroughly. To clean the exterior use a good
appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
PROTECT AGAINST FREEZING
If your dishwasher is left in an unheated place during the winter:
1. Cut o electrical power to the dishwasher.
2. Turn o the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the fi lter in the tub the bottom and use a sponge sock up water.
DW5500M_DD81-02437Q-00_EN.indd 29DW5500M_DD81-02437Q-00_EN.indd 29 2019-06-25 11:13:272019-06-25 11:13:27
30_ Cleaning and care
HOW TO MAINTAIN YOUR DISHWASHER
• After Every Wash
After every wash, turn o the water supply to the appliance and leave the door slightly ajar so that
moisture and odours not trapped inside.
• Remove the Plug
Before cleaning or performing maintenance, always remove the plug from the socket.
• No Solvents or Abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning
products. use only a cloth and warm soapy water. To remove spots or stains from the surface of
the interior, Use a cloth dampened with water and a little white vinegar, or a cleaning product made
specifically for dishwashers.
• When You Go on Holiday
When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and
then remove the plug from the socket, turn o the water supply and leave the door of the appliance
slightly ajar. This will help the seals last longer and prevent odours from forming within the appliance.
• Moving the Appliance
If the appliance needs to be moved, try to keep it in the vertical position. If absolutely necessary, it can
be positioned on its back.
• Seals
One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this from occurring.
Cleaning and care
DW5500M_DD81-02437Q-00_EN.indd 30DW5500M_DD81-02437Q-00_EN.indd 30 2019-06-25 11:13:272019-06-25 11:13:27
Setting up your dishwasher _31
06 SETTING UP YOUR DISHWASHER
Setting up your dishwasher
WARNING : Electrical shock hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
ATTENTION: The installation of the pipes and electrical equipments should be done by professionals.
About electricity connecting
CAUTION, for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUNDING
PRONG FROM THE POWER CORD.
Electrical requirements
• An 220-240 V~, 50 Hz fuse or a circuit breaker.
• An individual branch circuit serving your dishwasher.
Grounding instructions
Insure proper ground exists before use
This appliance must be grounded. In the event of a malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path of least resistance of electric
current. This appliance is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment grounding conductor can result in the
risk of an electric shock. Check with a qualified electrician or service representative if you
are in doubt whether the appliance is properly grounded. Do not modify the plug provided
with the appliance.
WATER SUPPLY AND DRAIN
Cold water connection
Connect the cold water supply hose to a threaded 3/4 (inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that the
water is clear. This precaution is needed to avoid the risk of the
water inlet to be blocked and damage the appliance.
Provided water supply hose has the aqua-safe system.
Ensure that water supply hose’s aqua-safe pipe is
connected to the faucet.
DW5500M_DD81-02437Q-00_EN.indd 31DW5500M_DD81-02437Q-00_EN.indd 31 2019-06-25 11:13:272019-06-25 11:13:27
32_ Setting up your dishwasher
Hot water connection
The water supply to the appliance can also be connected to the house hot water line (centralized
system, heating system), as long as it does not exceed a temperature of 60 °C. In this case, the
wash cycle time will be shortened by about 15 minutes and the wash eciency slightly reduced.
The connection must be made to the hot water line following the same procedures as those for
the connection to the cold water line.
Positioning the appliance
Position the appliance in the desired location. The back should rest against the wall behind
it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with
water supply and drain hoses that can be positioned to the right or the left to facilitate
proper installation.
How to drain excess water from hoses
If the sink is 1000 mm higher from the floor, the excess water in hoses cannot be drained
directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, Use a similar size and quality drain hose.
It must be no longer than 4 metres; otherwise the cleaning eect of the dishwasher could be
reduced.
Syphon connection
The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum)
from the bottom of the dishwasher. The water drain hose should be fixed by a hose clip.
Aqua-safe
The Aqua-safe System is a safety valve system, preventing water leaks. If the water inlet hose
starts to leak anytime, the safety valve cuts o the running water. If the water inlet hose or the
safety valve is damaged, remove and replace it.
Do not enlarge or shorten the inlet hose.
Setting up your dishwasher
DW5500M_DD81-02437Q-00_EN.indd 32DW5500M_DD81-02437Q-00_EN.indd 32 2019-06-25 11:13:272019-06-25 11:13:27
Setting up your dishwasher _33
06 SETTING UP YOUR DISHWASHER
CONNECTION OF DRAIN HOSES
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making
sure to avoid bending or crimping it. The top of the hose must be at a height between 30 and 80 cm. The
free end of the hose must not be immersed in water to avoid the back flow of it.
Min. 30 cm
Max 80 cm
To prevent back flow for models, secure the drain hose to the side wall of the kitchen cabinet using
cable ties or other fixtures.
POSITION THE APPLIANCE
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that
can be positioned either to the right or the left sides to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned for levelling, the height of the
dishwasher may be altered via adjustment of the screwing level of the
feet. In any case, the appliance should not be inclined more than 2°.
START OF DISHWASHER
The following should be checked before starting the dishwasher.
1. the dishwasher is level and fi xed
2. the inlet valve is open
3. There is no leakage at the connections of the conducts
4. the wires are tightly connected
5. the power is switched on
6. the inlet and drain hoses are not knotted
7. All packaging materials and printings have been removed from the dishwasher
ATTENTION: After installation please put this manual in a safe place. The contents of this manual can
be useful to users.
DW5500M_DD81-02437Q-00_EN.indd 33DW5500M_DD81-02437Q-00_EN.indd 33 2019-06-25 11:13:272019-06-25 11:13:27
34_ Installing your dishwasher
Installing your dishwasher
FULLY BUILT IN DISHWASHER
Be sure that you or your installer follow these instructions closely so that your new dishwasher works
properly and that you’re not at risk of injury when washing dishes.
New installation
If the dishwasher is a new installation, most of the installation work must be done before the
dishwasher is moved into place.
Replacement
If the dishwasher is replacing an old dishwasher, you must check the exising dishwasher connections
for compatibility with the new dishwasher. Replace the existing connections as necessary.
STEP 1. SELECTING THE BEST LOCATION FOR THE DISHWASHER
The installation position of dishwasher should be near the existing inlet and drain hoses and power
cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the
dishwasher.
1. Choose a place near the sink to facilitate the installation of inlet and drain hoses.
2. Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

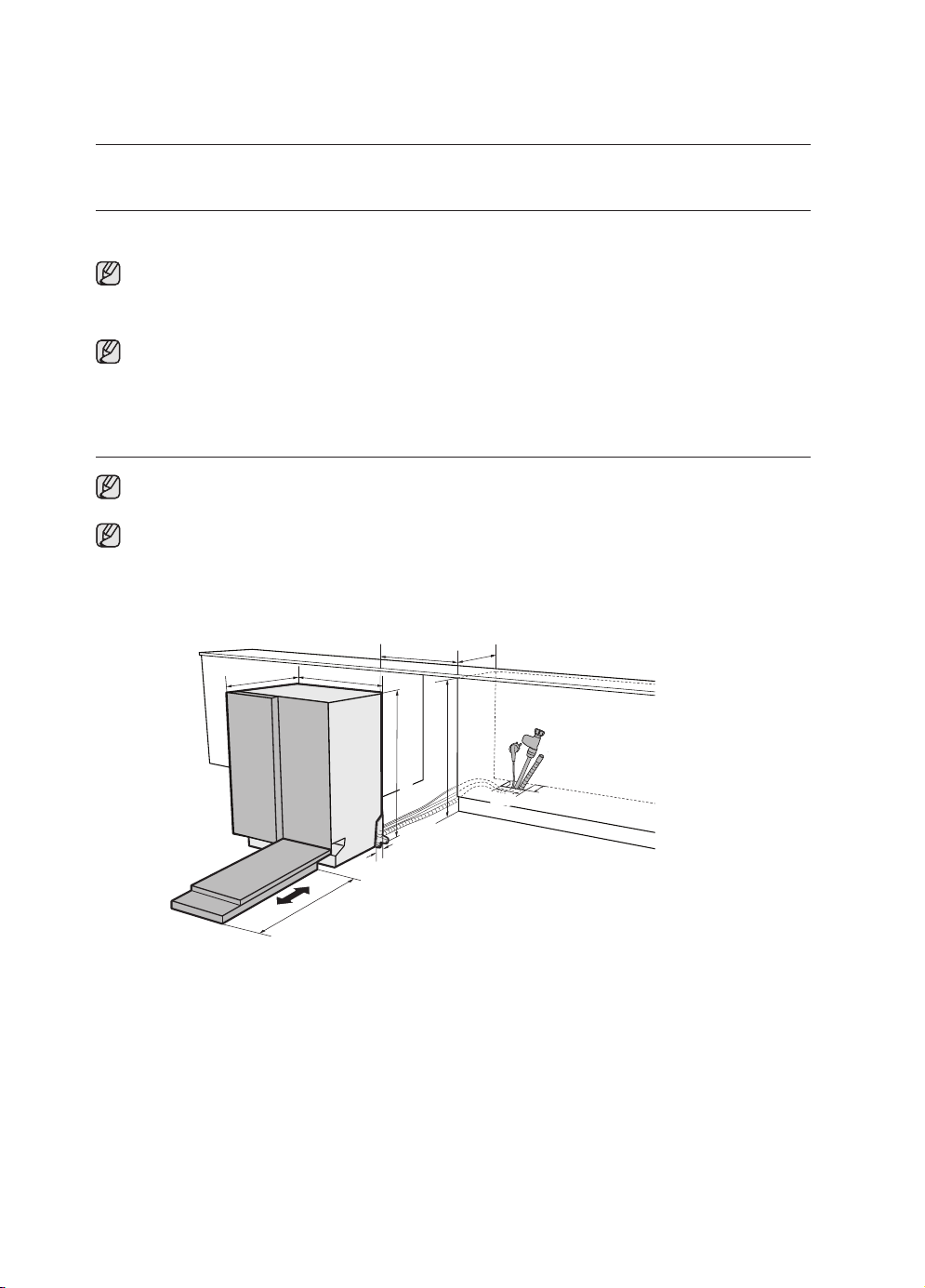

Cabinet dimensions (unit: mm)
600
550
598
670~800
580
100
100
53
088
~02
8
578
~718
568
~51
8
50
50
DW5500M_DD81-02437Q-00_EN.indd 34DW5500M_DD81-02437Q-00_EN.indd 34 2019-06-25 11:13:282019-06-25 11:13:28
Installing your dishwasher _35
07 INSTALLING YOUR DISHWASHER
3. If dishwasher is installed at the corner of the cabinet, there
should be some space when the door is opened.
cabinet
Dishwasher
Dishwasher
Door of
Door of
Dishwasher
Dishwasher
Minimum space
of 50 mm
Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.
STEP 2. CHECKING WATER SUPPLY AND ELECTRICAL
REQUIREMENTS
• The water supply line pressure must be between 0.04-1.0 MPa.
• Supply cold water only. Make sure that the water temperature does not exceed 60 ˚C.
• Do not supply hot water. Otherwise, the product may malfunction.
• Use a rated power of 220-240 V~, 50 Hz.
• Install the product while the power cord is unplugged.
• Use a power outlet with a maximum allowable current of 16 A. (The maximum current for this dish
washer is 11 A.)
• When powering the dishwasher, ensure that your power supply has:
- An 220-240 V~, 50 Hz fuse or circuit breaker.
- An individual branch circuit serving your dishwasher.
• After the installation, check if the power cord is not bent or damaged.
• Ensure that the water supply valve is turned o before connecting the water supply line to the
dishwasher.
• Seal the water supply line connections using teflon tape or sealing compound to stop any water
leakage.
CAUTION
WARNING
DW5500M_DD81-02437Q-00_EN.indd 35DW5500M_DD81-02437Q-00_EN.indd 35 2019-06-25 11:13:282019-06-25 11:13:28
36_ Installing your dishwasher

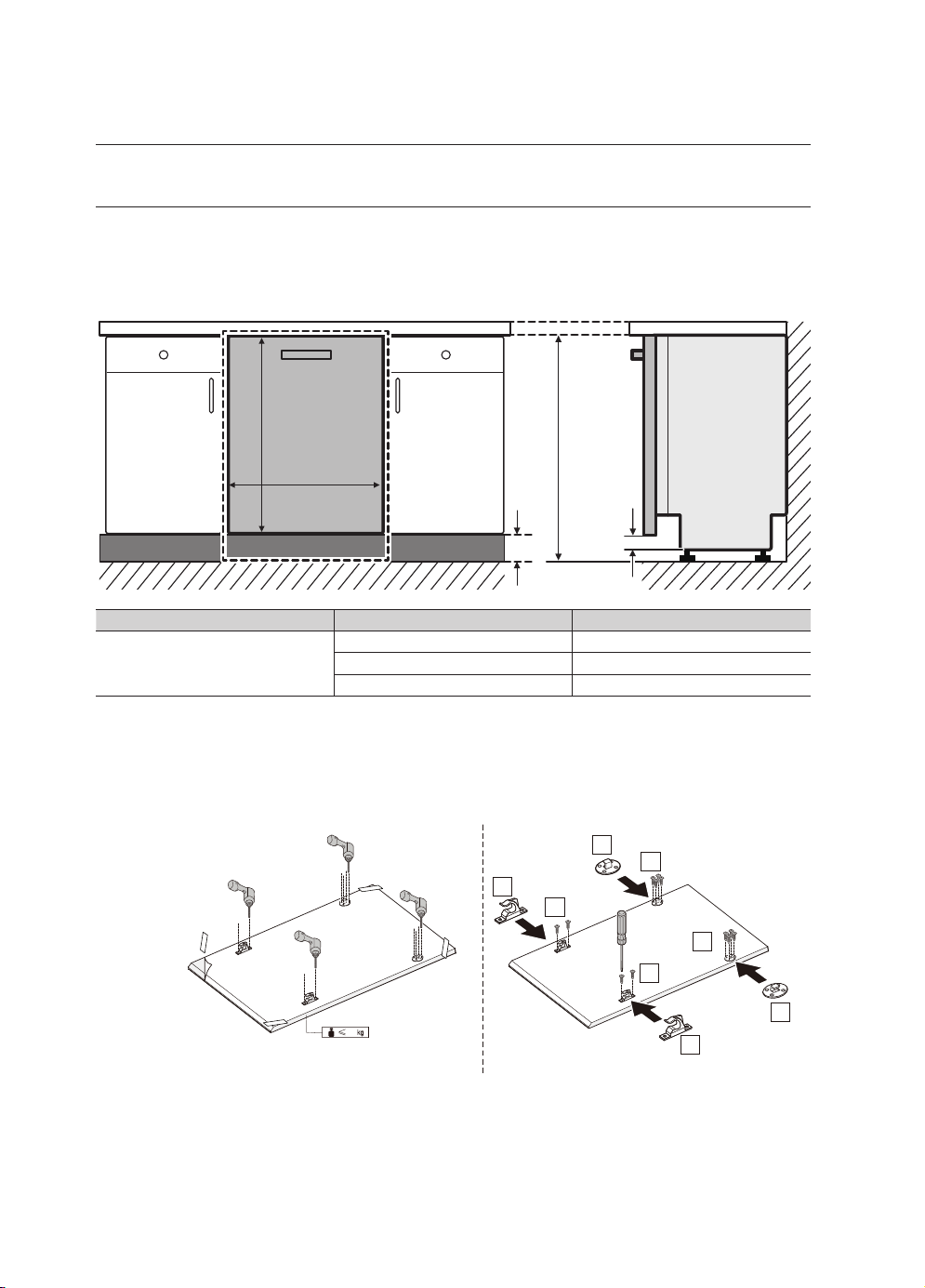

STEP 3. PREPARING THE CUSTOM PANEL
This dishwasher model is equipped with an auto-balancing system in the door. It has a sliding hinge, which
is perfect for plinth-less kitchens or for installation above a small cupboard. Custom panel’s height (A) can
be between minimum 670 mm to maximum 800 mm depending on the installation environment. Custom
panel’s weight must not exceed 10 kg. Refer to the table for the height (C) in relation to the cabinet’s height
(B), and then determine the height of the custom panel.
A
A
596 mm
596 mm
B
B
C
C
Min. 20
Min. 20
ABC
670-800 mm
820 mm 20-150 mm
850 mm 50-180 mm
880 mm 80-210 mm
1. Put the installation template on the back of the custom panel and fi x it temporarily using
transparent tape. Note that the rear of the custom panel will be attached to the dishwasher
door.
2. Mark 4 points guided on the installation template.
3. Remove the installation template and tighten the Custom panel fi xers as shown.
7
1
1
1
1
6
5
5
6
10
Installing your dishwasher
DW5500M_DD81-02437Q-00_EN.indd 36DW5500M_DD81-02437Q-00_EN.indd 36 2019-06-25 11:13:282019-06-25 11:13:28
Installing your dishwasher _37
07 INSTALLING YOUR DISHWASHER

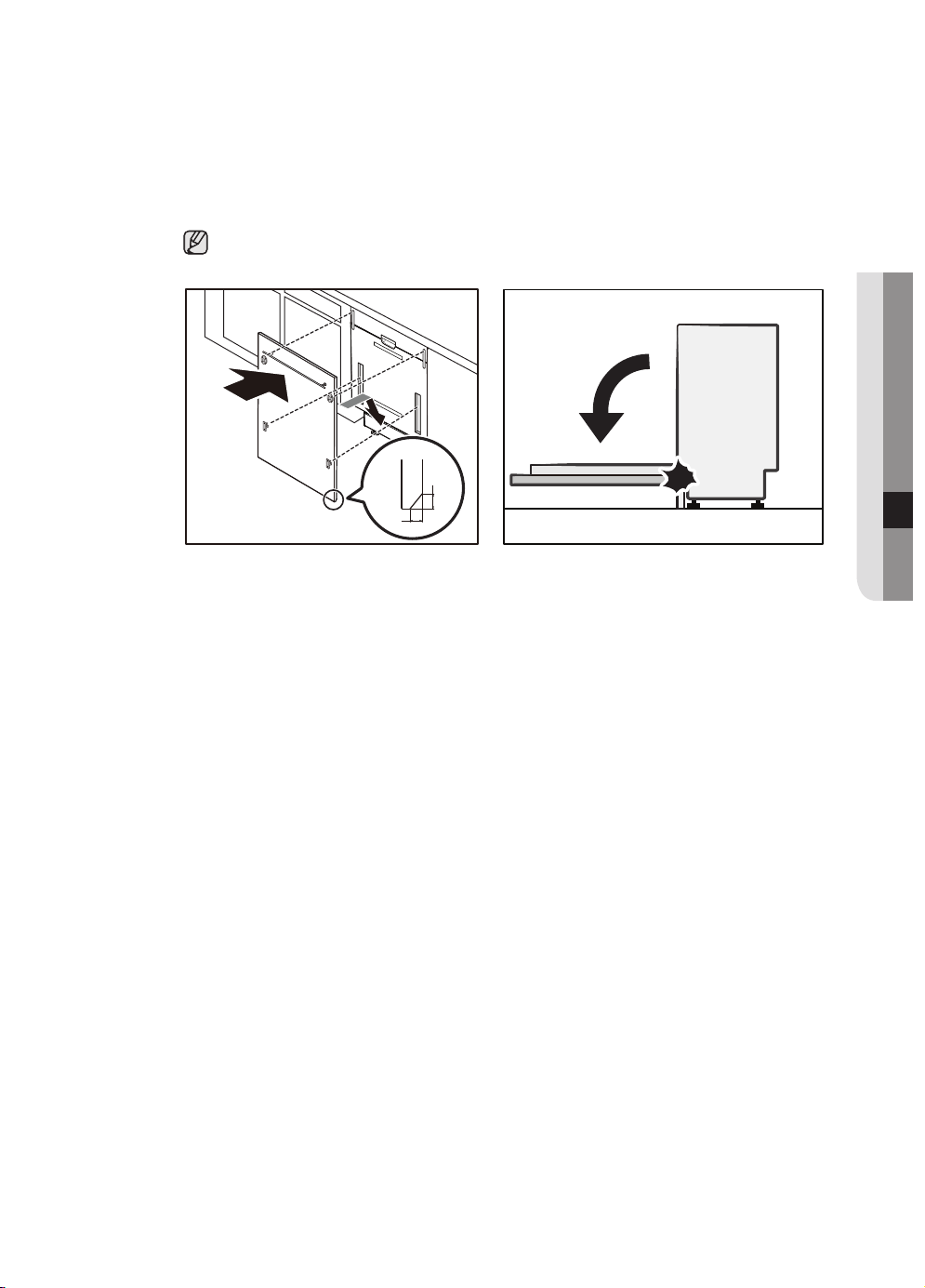

4. While holding the custom panel, attach it to the door and insert the Custom panel fi xers into
the corresponding holes at the door.
Use a custom panel between 4~10Kg.
Make sure the skirting board does not interfere with the dishwasher’s door fully opening
and closing.
12
15
DW5500M_DD81-02437Q-00_EN.indd 37DW5500M_DD81-02437Q-00_EN.indd 37 2019-06-25 11:13:282019-06-25 11:13:28
38_ Installing your dishwasher

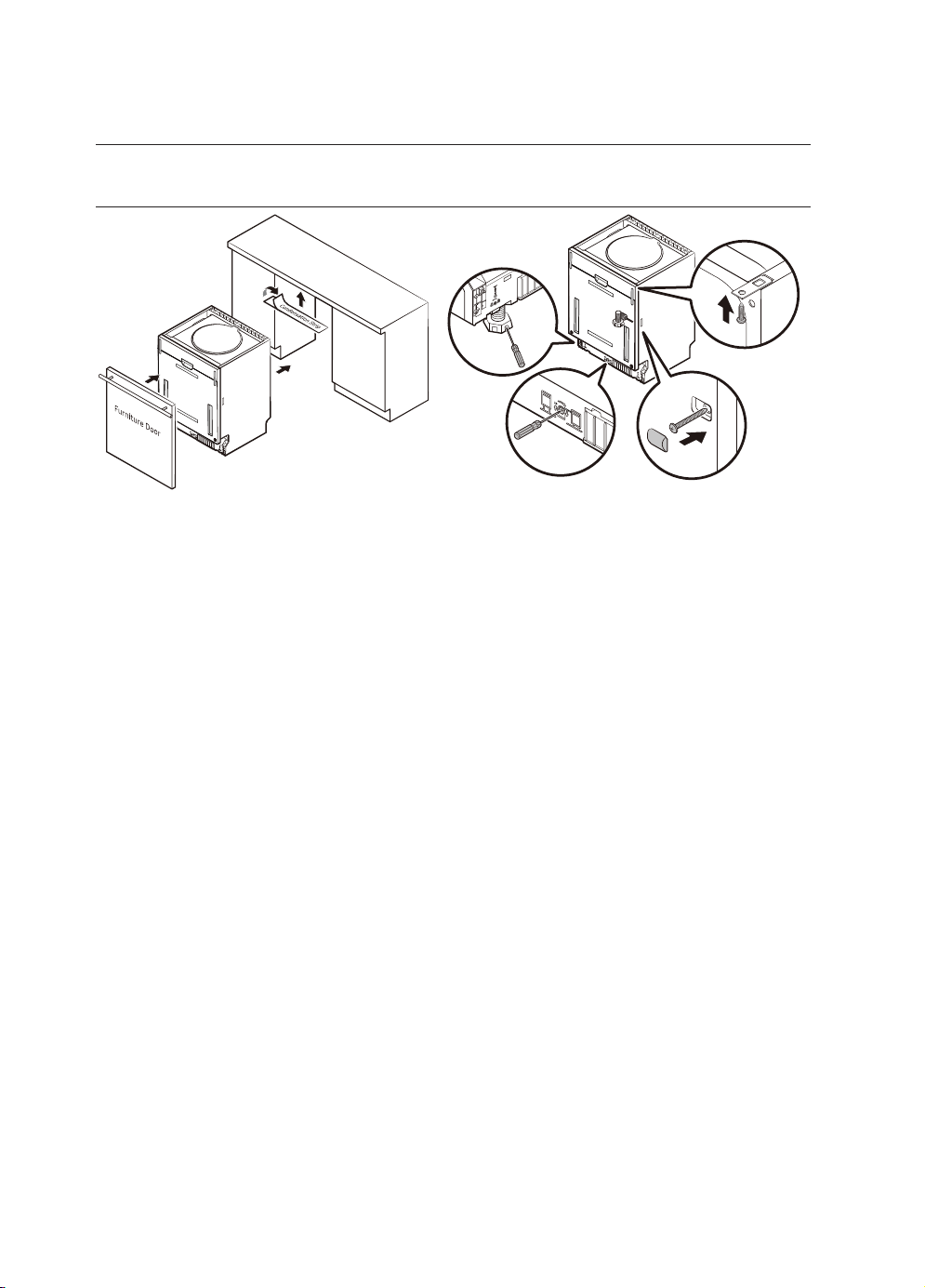

STEP 4. DISHWASHER INSTALLATION
1. Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the
template for positioning of the brackets.
2. Connect the inlet hose to the cold water supply.
3. Connect the drain hose. Refer to diagram.
4. Connect the power cord.
5. A x the condensation strip under the work surface of cabinet. Please ensure the condensation strip is
fl ush with edge of work surface.
6. Place the dishwasher into position.
7. Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning the
Allen screw in the middle of the base of dishwasher use an Allen key. To adjust the front feet, use a fl at
screw driver and turn the front feet until the dishwasher is level.
8. The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface : Put the installation hook into the slot of the side plane and se cure it to the
work surface with the wood screws.
B. Marble or granite work top : Fix the side with Screw.
Installing your dishwasher
DW5500M_DD81-02437Q-00_EN.indd 38DW5500M_DD81-02437Q-00_EN.indd 38 2019-06-25 11:13:282019-06-25 11:13:28
Installing your dishwasher _39
07 INSTALLING YOUR DISHWASHER

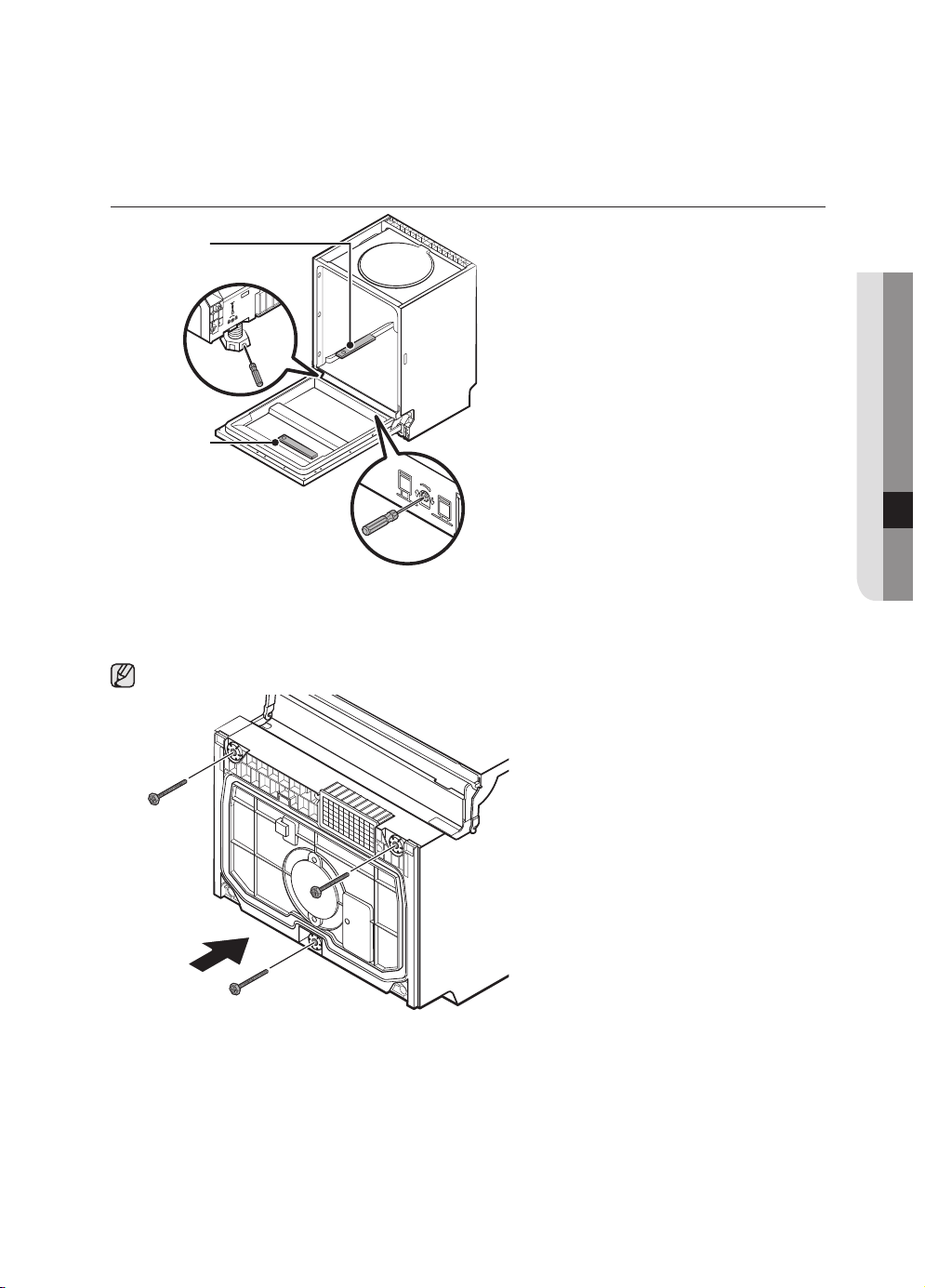

STEP 5. LEVELLING THE DISHWASHER
Check level
front to back
Check level
side to side
Ƹ
ť
U
Į
ǮĘ
Ƹť
UĮǮĘ
Dishwasher must be level for proper dish rack operation and wash performance.
1. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2. Level the dishwasher by adjusting the three levelling legs individually.
3. When level the dishwasher, please pay attention not to let the dishwasher tip over.
If the height of the leg is not high enough, use extra feet.
DW5500M_DD81-02437Q-00_EN.indd 39DW5500M_DD81-02437Q-00_EN.indd 39 2019-06-25 11:13:292019-06-25 11:13:29
40_ Troubleshooting
Troubleshooting
The manufacturer, following a policy of constant development and up-dating of
the product, may make modifications without giving prior notice.
BEFORE CALLING FOR SERVICE
PROBLEM POSSIBLE CAUSE WHAT TO DO
Dishwasher doesn’t
run
• Fuse blown or the circuit
breaker tripped.
• Replace fuse or reset circuit breaker.
Remove any other appliances sharing the
same circuit with the dishwasher.
• Power supply is not turned
on.
• Make sure the dishwasher is turned on
and the door is closed securely.
Make sure the power cord is properly
plugged into the wall socket.
• Water pressure is low. • Check that the water supply is connected
properly and the water is turned on.
Drain pump doesn’t
stop
• Overflow. • The system is designed to detect an
overflow. When it does, it shuts o the
circulation pump and turns on the drain
pump.
Noise • Some audible sounds are
normal.
• Sound from soft food shredding action
and detergent cup opening.
• Utensils are not secure in
the baskets or something
small has dropped into the
basket.
• To ensure everything is secured in the
dishwasher.
• Motor hums. • Dishwasher has not been used regularly.
If you do not use it often, remember to
set it to fill and pump out every week,
which will help keep the seal moist.
Suds in the tub • Improper detergent. • Use only the special dishwasher
detergent to avoid suds.
• If this occurs, open the dishwasher and
let suds evaporate.
• Add 1 gallon of cold water to the tub.
Close and latch the dishwasher, then
start the “soak” wash cycle to drain out
the water. Repeat if necessary.
• Spilled rinse agent. • Always wipe up rinse agent spills
immediately.
Stained tub interior • Detergent with colorant
was used.
• Make sure that the detergent is the one
without colorant.
Dishes are not dried • Rinse agent dispenser is
empty.
• Make sure that the rinse agent dispense
is filled.
Dishes and flatware
not clean
• Improper program. • Select a more intensive wash program.
• Improper rack loading. • Make sure that the action of the detergent
dispenser and spray arms are not
blocked by large dishware.
DW5500M_DD81-02437Q-00_EN.indd 40DW5500M_DD81-02437Q-00_EN.indd 40 2019-06-25 11:13:292019-06-25 11:13:29
Troubleshooting _41
08 TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE WHAT TO DO
Spots and filming on
glasses and flatware
1. Extremely hard water.
2. Low inlet temperature.
3. Overloading the
dishwasher.
4. Improper loading.
5. Old or damp powder
detergent.
6. Empty rinse agent
dispenser.
7. Incorrect dosage of
detergent.
To remove spots from glassware:
1. Take out all metal utensils out of the
dishwasher.
2. Do not add detergent.
3. Choose the longest cycle.
4. Start the dishwasher and allow it to run
for about 18 to 22 minutes, then it will be
in the main wash.
5. Open the door to pour 2 cups of white
vinegar into the bottom of the dishwasher.
6. Close the door and let the dishwasher
complete the cycle. If the vinegar does
not work: Repeat as above, except use
1/4 cup (60 ml) of citric acid crystals
instead of vinegar.
Cloudiness on
glassware
• Combination of soft water
and too much detergent.
• Use less detergent if you have soft water
and select a shortest cycle to wash the
glassware and to get them clean.
Yellow or brown film on
inside surfaces
• Tea or coee stains. • Using a solution of 1/2 cup of bleach and
3 cups warm water to remove the stains
by hand.
WARNING: Wait for 20 minutes after
a cycle to allow heating elements cool
down before cleaning interior; Failing to
follow this instruction may result in injury.
• Iron deposits in water can
cause an overall film.
• Contact a water softener company to
install specialist water filtration system on
the water supply.
White film on inside
surface
• Hard water minerals. • Clean the interior, use specialist
dishwasher cleaner or use a damp
sponge with dishwasher detergent and
wear rubber gloves. Never use any other
cleaner than dishwasher detergent for the
risk of foaming or suds.
Detergent cup lid won’t
latch
• Dial is not in the OFF
position.
• Turn the Dial to OFF position and slide the
door latch to the left.
Detergent left in
dispenser
• Dishes block detergent
dispenser.
• Re-loading the dishes properly.
Steam • Normal phenomenon. • There is some steam coming through the
vent by the door latch during drying and
water draining.
Black or gray marks on
dishes
• Aluminum utensils have
rubbed against dishes.
• Use a mild abrasive cleaner to eliminate
those marks.
Water standing in the
bottom of the tub
• This is normal. • A small amount of clean water around the
outlet on the tub bottom keeps the water
seal lubricated.
DW5500M_DD81-02437Q-00_EN.indd 41DW5500M_DD81-02437Q-00_EN.indd 41 2019-06-25 11:13:292019-06-25 11:13:29
42_ Troubleshooting
PROBLEM POSSIBLE CAUSE WHAT TO DO
Dishwasher leaks • Overfill dispenser or rinse
aid spills.
• Be careful not to overfill the rinse aid
dispenser.
Spilled rinse aid could cause overusing
and lead to overflowing.
Wipe away any spills with a damp cloth.
• Dishwasher isn’t level. • Make sure the dishwasher is level.
Buttons are not
working on power on
state
• Door is open. • When door is opened, buttons are not
working except Power button. Close the
door and press the button.
• Control lock function is
selected.
• When selected Control lock function,
buttons are not responded. To
unlock this function, hold down the
Control lock button for three (3)
seconds.
Also, Control lock function is released
when power cord is reconnected.
The result of washing performance may be caused by a power supply issue. Try another program
before contacting for service.
INFORMATION CODES
When a fault occurs, the appliance will display information codes to inform you.
Codes Meanings Possible Causes
4C Water supply check
Faucets is not opened, or water intake is
restricted,or water pressure is too low
LC Leakage Some element of dishwasher leaks.
HC Not reaching required temperature Malfunction of heating element
PC Divider valve failed Divider valve failed
AC
Failure of communication between main
PCB with sub PCB
Open circuit or break wiring for the
communication
bC2 Button pressed long time Button pressed 30 seconds
WARNING: If overflow occurs, turn o the main water supply before calling a service. If there is water
in the base pan because of an over fill or small leak, the water should be removed before restarting the
dishwasher.
Troubleshooting
DW5500M_DD81-02437Q-00_EN.indd 42DW5500M_DD81-02437Q-00_EN.indd 42 2019-06-25 11:13:292019-06-25 11:13:29
Appendix _43
09 APPENDIX
Appendix
SPECIFICATIONS
Model DW60M6070IB
Type Fully Built in
Power 220-240 V~, 50 Hz
Water pressure 0.04-1.0 Mpa
Rated power usage 1760-2100 W
Hot water connection Max 60 °C
Dry type Condensed dry system
Wash type Rotating nozzle spray
Dimensions (Width x Depth x Height) 598 x 550 x 815 mm
Wash capacity 14 Place Settings
Weight Unpacked 44.5 kg

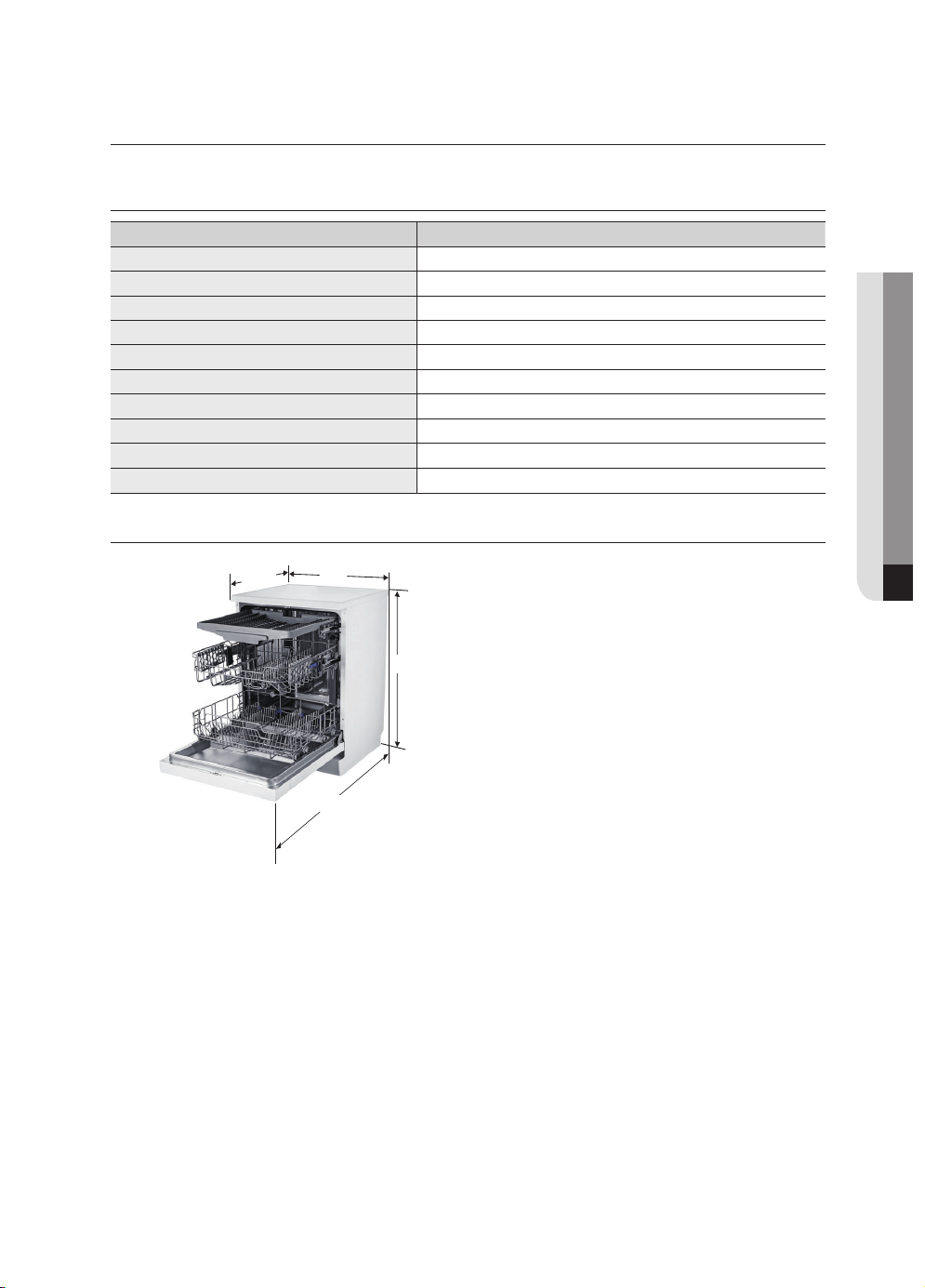

PRODUCT DIMENSION
598
1150
815
550
DW60M6070IB
DW5500M_DD81-02437Q-00_EN.indd 43DW5500M_DD81-02437Q-00_EN.indd 43 2019-06-25 11:13:292019-06-25 11:13:29
44_ For standard test
For standard test
DW60M6070**
The information for comparability test as follows:
• Washing capacity: 14 place settings
• Test standard: EN 50242
• Position of upper basket: to lower position
• Wash cycle: Eco
• Additional options: None
• Rinse aid setting: 5
• Water softener setting: H3
• Dosage of the standard detergent: pre/wash 5 g + main/wash 30 g
• For the arrangement of the items, refer below figures
<Upper basket> <Lower basket>
<Silverware basket>
8
4
3
3
2
2
5
7
2
2
6
6
1
1
1 Soup spoons
2 Forks
3 Knives
4 Teaspoons
5 Dessert spoons
6 Serving spoons
7 Serving forks
8 Gravy ladles
DW5500M_DD81-02437Q-00_EN.indd 44DW5500M_DD81-02437Q-00_EN.indd 44 2019-06-25 11:13:312019-06-25 11:13:31
Product fiche _45
Product fiche
REGULATION (EU) NO 1059/2010
Supplier SAMSUNG
Model name
DW60M6070IB
Rated Capacity (place setting)
14
Energy eciency class
A++
Annual energy consumption, (AE c) (kWh/year)
1)
266
Standard cycle energy consumption, (E t) (kWh)
0.93
Power consumption in o mode, P o (W)
0.45
Power consumption in left-on mode, P l (W)
0.49
Annual water consumption, (AW c) (L/year)
2)
2940
Drying eciency class, A (most ecient) to G (least ecient)
A
Standard programme
3)
Eco
Programme time for the standard cycle, (min)
225
Duration of the left-on mode, (T l) (min)
30
Airborne acoustical noise emissions (dBA re 1pW)
44
Model DW60M6070IB
Fully built-in Yes
Built-under
Free standing
Semi built in
1) based on 280 standard cleaning cycles using cold water fill and the consumption of the low power
modes. Actual energy consumption will depend on how the appliance is used.
2) based on 280 standard cleaning cycles. Actual water consumption will depend on how the
appliance is used.
3) ‘Standard programme’ is the standard cleaning cycle to which the information in the label and the
fi che relates, that this programme is suitable to clean normally soiled tableware, and that it is the
most e cient programme in terms of combined energy and water consumption.
4) The wash time varies depending on the pressure and temperature of the supplied water.
DW5500M_DD81-02437Q-00_EN.indd 45DW5500M_DD81-02437Q-00_EN.indd 45 2019-06-25 11:13:322019-06-25 11:13:32
46_ Terminology for dishwasher
Terminology for dishwasher
1. Circulation Motor
A motor that sucks the water remaining on the floor of the dishwater and
infects water using high pressure through the internal water passages to
the top Middle and lower nozzles.
2. Drain Pump
The pump that drains the polluted water from the dishwater generated
while the dishwater is running.
3. Heater
The healer is located on the water passages inside the dishwasher. It heats
the flowing water to increase wash eciency.
4. Flow Meter
Measure the amount of supplied water by counting the pulses of the hall IC
located at the next of the inlet valve.
5. Distributor
Located at the output end of the sump inside the dishwasher. It turns the
flow of the water that goes to the bottom part of the dishwasher on or o.
(This model does not have this part)
6. Dispenser
The location where the detergent and rinse aids are stored so they can be
used by the dishwasher.
The dispenser automatically supplies detergent and rinse aids to the inside
of the dishwasher when they are needed.
7. Tub Assy
An internal case mode of stainless steel that makes up the basic
framework of the dishwasher.
8. Sump Assy
The place inside the dishwasher where water is collected. The injected
water gathers here after circulation.
The sump Assy is connected to the circulation motor and drain pump.
9. Tub Front Assy
An internal case made of stainless steel that makes up internal part of the
front door.
10. Base Assy A plastic part that makes up the basic bottom framework.
11. Basket Assy The upper and lower racks where dishes can be loaded.
12. Middle/Lower Nozzles
Washes dishes by rotating and injecting the supplied water through the
water passage at high pressure.
13. Case Brake
A passage that adjusts the air pressure by connecting the pressure of the
inside air which is expanded at high temperature during wash and rinse
cycles and the outside air pressure.
14. Door Lock Switch
Detects whether the door of the dishwasher is open or closed if the door is
open while the dishwasher is running the cycle is temporary stopped.
DW5500M_DD81-02437Q-00_EN.indd 46DW5500M_DD81-02437Q-00_EN.indd 46 2019-06-25 11:13:322019-06-25 11:13:32
Note
DW5500M_DD81-02437Q-00_EN.indd 47DW5500M_DD81-02437Q-00_EN.indd 47 2019-06-25 11:13:322019-06-25 11:13:32
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
DD81-02437Q-00
DW5500M_DD81-02437Q-00_EN.indd 48DW5500M_DD81-02437Q-00_EN.indd 48 2019-06-25 11:13:322019-06-25 11:13:32
