LMC422
60LM21P
www.greenworkstools.com
EN OPERATOR MANUAL
LAWN MOWER
MANUAL DEL OPERADORES CORTACÉSPED
P0803191-00 Rev B
1 Description.........................................4
1.1 Purpose.............................................................. 4
1.2 Overview........................................................... 4
1.3 Packing list........................................................ 4
2 Read all instructions......................... 4
2.1 Children and Bystanders....................................4
2.2 General Operation..............................................4
2.3 Slope Operation................................................. 6
2.4 Service/Maintenance......................................... 6
3 Symbols on the product.................... 7
4 Risk levels...........................................7
5 Environmentally safe battery
disposal...............................................8
6 Proposition 65....................................8
7 Installation......................................... 8
7.1 Unpack the machine.......................................... 8
7.2 Unfold the lower handle.................................... 9
7.3 Install the upper handle .....................................9
7.4 Remove the mulch plug.....................................9
7.5 Install the grass catcher......................................9
7.6 Install the side discharge chute........................10
7.7 Set the blade height..........................................10
7.8 Install the battery pack.....................................10
7.9 Remove the battery pack................................. 10
8 Operation......................................... 10
8.1 Start the machine............................................. 11
8.2 Stop the machine..............................................11
8.3 Empty the grass catcher................................... 11
8.4 Operation tips...................................................11
9 Maintenance.....................................11
9.1 Replace the blade.............................................11
9.2 Store the machine............................................ 12
9.3 Stand the machine on end................................12
10 Troubleshooting...............................12
11 Technical data..................................13
12 Limited warranty............................ 13
13 Exploded view..................................14
3
English
EN
1 DESCRIPTION
1.1 PURPOSE
This machine is used for domestic lawn mowing. The cutting
blade should be parallel to the ground. All four wheels must
touch the ground while mowing.

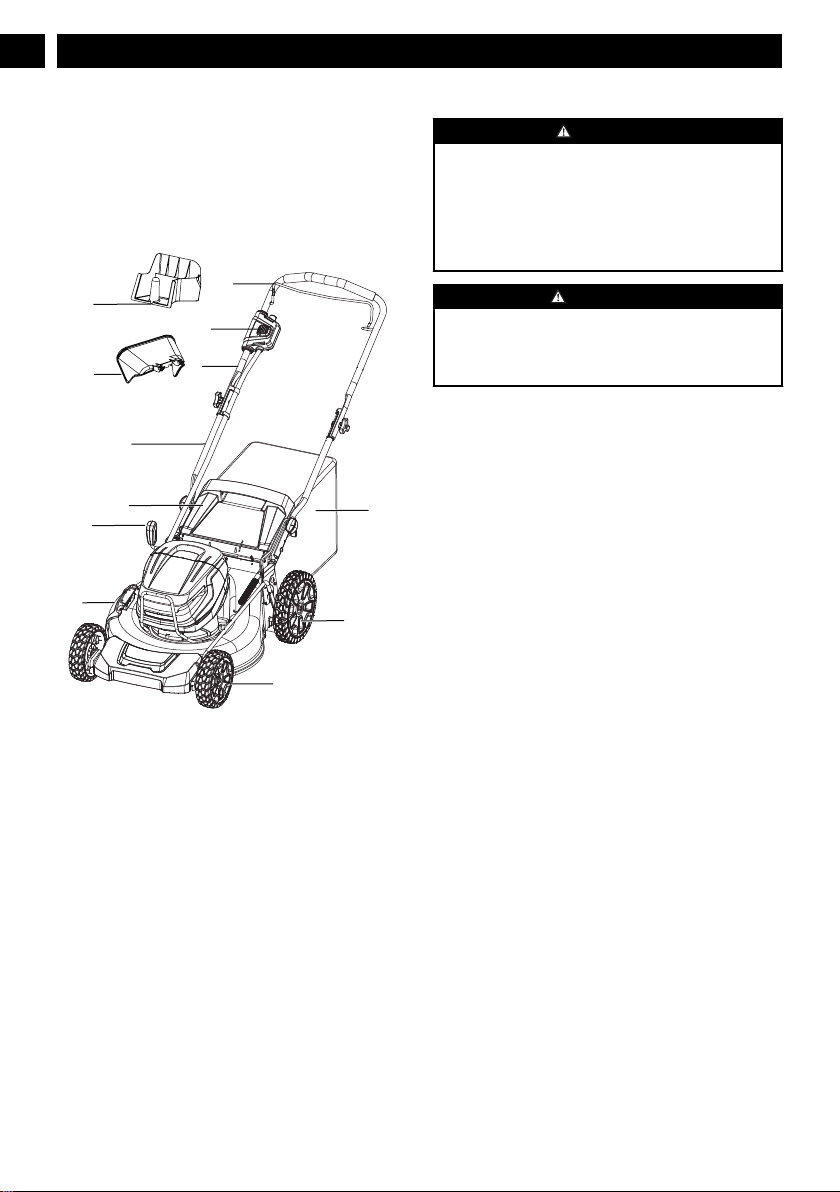

1.2 OVERVIEW
1
2
3
4
5
6
7
8
9
11
12
10
1
Bail switch
2
Start button
3
Upper handle
4
Lower handle
5
Rear discharge door
6
Height adjustment lever
7
Side discharge cover
8
Grass catcher
9
Front wheel
10
Rear wheel
11
Mulch plug
12
Side discharge chute
1.3 PACKING LIST
1
Lawn mower
2
Grass catcher
3
Side discharge chute
4
Manual
2 READ ALL INSTRUCTIONS
DANGER
This machine was built to be operated according to the rules
for safe operation included in this manual. As with any type
of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is
capable of amputating hands and feet and throwing objects.
Failure to observe all safety instructions could result in
serious injury or death.
WARNING
When using electric lawn mowers, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and personal injury. These basic precautions include
the following:
2.1 CHILDREN AND BYSTANDERS
Tragic accidents can occur if the operator is not alert to the
presence of children or bystanders.
• Keep the area of operation clear of all persons,
particularly small children, and pets.
• Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child or bystander. Keep children,
bystanders, helpers and pets at least 100 feet (30m) from
the mower while it is in operation. Stop the machine if
anyone enters the area.
• Never allow children under 14 years old to operate a
power mower. Operators 14 years old and over should
fully read and understand the operator’s manual and
safety rules. Only responsible individuals who are
familiar with these rules of safe operation should be
allowed to use this machine.
2.2 GENERAL OPERATION
• Read this operator’s manual carefully in its entirety
before assembling or operating this machine. Read,
understand, and follow all instructions on the machine
and in the manuals before operation. Familiarize yourself
with the controls and proper use of this machine before
operation. Save this manual for future and regular
reference.
• Do not use the lawn mower for any job except that for
which it is intended. Your lawn mower has been designed
to perform only one job: cut grass.
• Never attempt to make a wheel height adjustment while
the motor is running.
• Don’t force the lawn mower; it will do the job better and
more safely at the rate for which it was designed.
• Don’t overreach, keep proper footing and balance at all
times. Many injuries occur as a result of the mower being
pulled over the foot during a fall caused by slipping or
tripping. A slip and fall can cause serious personal injury.
If you feel you are losing your footing, release the control
4
English
EN
handle immediately and the blade will stop rotating
within three seconds.
• Thoroughly inspect the area where the mower is to be
used and remove all stones, sticks, wires, dog bones, and
other foreign objects.
• Prevent unintentional starting. Ensure the switch is in the
off position before connecting to battery pack, picking up
or carrying the mower. Carrying the mower with your
finger on the switch or energizing mower that has the
switch on invites accidents.
• Never pull the mower back toward you while you are
walking. If you must back the mower away from a wall or
obstruction, first look down and behind you to avoid
tripping, and then follow these steps:
• Step back from the mower in order to fully extend
your arms.
• Be sure that you are well balanced.
• Pull the mower back slowly.
• Remove the battery pack from the mower before making
any adjustments, changing accessories, or storing
appliance. Such preventive safety measures reduce the
risk of starting the mower accidentally.
• Before and while moving backwards with the mower,
look behind and down for small children and other
people.
• Do not operate the mower while under the influence of
alcohol or drugs. Stay alert and watch what you are doing
at all times. Use common sense and do not operate the
lawn mower when you are tired.
• Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects that ricochet can cause
serious injury to the eyes. Always use a face or dust mask
if the operation is dusty.
• Keep clear of the discharge opening at all times. Do not
put hands or feet near rotating parts or under the cutting
deck. Contact with the blade can amputate hands and feet.
• Plan your mowing pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against walls or obstructions,
which may cause discharged material to ricochet back
toward the operator.
• To help avoid the blade or an injury from a thrown
objects, stay in the operator zone behind the handles.
• A missing or damaged discharge cover can cause blade
contact or injuries from thrown objects.
• Objects struck by the lawn mower blade can cause severe
injuries to persons. The lawn should always be carefully
examined and cleared of all objects prior to each mowing.
• Stop the blade when crossing gravel drives, walks or
roads.
• Follow all charging instructions and do not charge the
battery pack or mower outside of the temperature range
specified in the instructions. Charging improperly or at
temperatures outside of the specified range may damage
the battery and increase the risk of fire.
• If lawn mower strikes a foreign object, follow these steps:
• Release the bail switch to disengage the motor.
• Remove the battery.
• Inspect for damage.
• Repair any damaged parts before restarting and
operating the lawn mower.
• Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
• Dress properly; do not wear loose clothing or jewelry that
can be caught in moving parts. Use of safety gloves and
proper footwear is recommended when working outdoors.
Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms and
legs and steel-toed shoes are recommended. Never
operate this machine in bare feet, sandals, slippery or
lightweight (e.g., canvas) shoes.
• Do not modify or attempt to repair the mower or the
battery pack (as applicable) except as indicated in the
instructions for use and care.
• Wear protective hair covering to contain long hair.
• Avoid dangerous environments; do not use the lawn
mower in damp/wet locations or if it is raining.
• Store idle lawn mower indoors. When not in use,
appliances should be stored indoors in dry, and high or
locked-up place – out of reach of children. Always
remove the battery from the mower before storing.
• Mow only in daylight or good artificial light. Walk, never
run while operating.
• If the mower should start to vibrate abnormally,
immediately stop the motor, remove the battery and check
for the cause. Vibration is generally a warning that the
mower is not functioning properly.
• Check bag frequently for deterioration and wear, and
replace worn bags. Check that replacement bags comply
with the original manufacturer's recommendations or
specifications.
• Before cleaning the mower, unclogging or removing the
grass bag, mulching insert, or side discharge chute, turn
the motor off and wait until the blade comes to a
complete stop, then remove the battery pack. The cutting
blade continues to rotate for a few seconds after the motor
is shut off. Never perform these functions until you are
sure the blade has stopped rotating.
• Keep cutting edges clean and sharp to ensure best
performance.
• Periodically inspect safety devices and cords for damage.
If damaged do not operate the unit until it has been
repaired by an authorized service professional.
• Never operate the mower without the proper discharge
cover, grass bag, mulching insert, side discharge chute, or
other safety devices in place and working. Never operate
the mower with damaged safety devices. Failure to do so
can result in personal injury.
• Use only approved batteries and chargers. Non-approved
batteries and chargers may cause damage to the mower or
injure the operator.
5
English
EN
• Do not dispose of the battery in a fire. The cells could
catch fire or explode. Check with local codes and waste
management for proper disposal instructions.
• When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects that can make a connection
from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
• Do not open or destroy the battery. Electrolytes contained
within the battery are corrosive and may cause damage to
eyes or skin if released. It may be toxic if swallowed.
• Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
• Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above130°C may cause explosion.
• Exercise care in handling batteries to avoid shorting the
battery with conducting materials such as rings, bracelets,
keys, etc. The battery or conductor may overheat and
cause burns if contact with said materials is made.
• Do not use a battery pack or appliance that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
2.3 SLOPE OPERATION
Slopes are a major factor related to slip-and-fall accidents,
which can result in severe injury. Operation on slopes
requires extra caution. If you feel uneasy on a slope, do not
mow it.
Do:
• Mow across the face of slopes; never mow up and down.
Exercise extreme caution when changing direction on
slopes.
• Watch for holes, roots, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles. Remove all obstacles such as rocks and tree
limbs.
• Make sure that your footing is stable. If you are out of
balance, release the switch immediately.
Do not:
• Mow excessively steep slopes.
• Mow near drop-offs, ditches or embankments; you could
lose your footing or balance.
• Mow slopes greater than 15 degrees.
• Mow on wet grass. Unstable footing could cause slipping.
WARNING
Do not mow on the slopes with incline more than 15°. If
you are not comfortable, do not mow on a slope.
TIP
In case of self-propelled mowers, please keep a low self-
propelled speed when you mow on a slope.
2.4 SERVICE/MAINTENANCE
• Check the blade and the motor (machine) mounting bolts
at frequent intervals for proper tightness.
• Replace the blade if it is bent or cracked. An unbalanced
blade causes vibration that could damage the motor drive
unit or cause personal injury.
• Keep all nuts, bolts, and screws tight in order to ensure
the equipment is in safe working condition.
• Do not wash with a hose; avoid getting water in motor
and electrical connections.
• Never remove or tamper with safety devices. Check their
proper operation regularly. Never do anything to interfere
with the intended function of a safety device or to reduce
the protection provided by a safety device.
• Keep mower free of grass, leaves, or other debris build
up. Allow mower to cool before storing.
• Never make any adjustments or repairs with the motor
running.
• Always remove battery pack from mowers before
adjusting, cleaning, or repairing.
• Check grass catcher components and the discharge guard
frequently and replace with manufacturer’s recommended
parts, when necessary.
• Sharpen a dull blade equally at each end to maintain the
balance.
• Keep guards in place and in working order. Mower blades
are sharp, and can cut. Wrap the blades or wear gloves,
and use extra caution when servicing.
• Clean the blade thoroughly and check its balance by
supporting it horizontally on a thin nail through its center
hole. The nail should also be in a horizontal position. If
either end of the blade rotates downward, remove some
metal from the heavy or lower end until the blade is
balanced. It is balanced when neither end drops.
• Use identical replacement blades only.
• Maintain lawn mower with care. Keep cutting edges
sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
Inspect lawn mower cord periodically and if damaged,
have it repaired by an authorized service facility.
• If situations occur that are not covered in this manual, use
care and good judgment or contact Customer Service for
assistance.
• Never operate the mower without proper guards, plates,
or other safety protective devices in place.
• Before each use, examine the machine for damaged,
missing, or loose parts such as screws, nuts, bolts and
caps.
• Tighten correctly all the fasteners and caps.
• Clean the machine with a dry cloth. Do not use water.
The recommended ambient temperature range:
6
English
EN
Item Temperature
Mower storage temperature range 32°F (0°C) - 113°F
(45°C)
Mower operation temperature
range
32°F (0°C) - 113°F
(45°C)
Battery charging temperature range 39°F (4°C) - 104°F
(40°C)
Charger operation temperature
range
39°F (4°C) - 104°F
(40°C)
Battery storage temperature range 32°F (0°C) - 113°F
(45°C)
Battery discharging temperature
range
32°F (0°C) - 113°F
(45°C)
3 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this mower.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
mower better and safer.
Symbol Name Explanation
V Volt Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
/min Per Minute
Revolutions, strokes, surface
speed, orbits etc., per minute
Alternating
Current
Type of current
Direct Current
Type or a characteristic of cur-
rent
n
o
No Load Speed Rotational speed, at no load
Safety Alert
Precautions that involve your
safety.
Eye Protection
Always wear eye protection
with side shields marked to
comply with ANSI Z87.1 when
operating this equipment.
WARNING ---
Wet Conditions
Do not expose the product to
rain or moist conditions.
Read Opera-
tor’s Manual
To reduce the risk of injury,
user must read and understand
operator’s manual before using
this product.
Symbol Name Explanation
Maintain Safe-
ty Devices
Do not open or remove safety
devices while the tool is run-
ning.
Look Behind
While Backing
Look down and behind first to
avoid tripping when pulling
back.
DANGER ---
Keep Hands
and Feet Away
To reduce the risk of injury,
keep hands and feet away from
rotating parts. Do not operate
unless discharge cover or grass
bag is in its proper place. If
damaged, replace immediately.
DANGER ---
Keep Bystand-
ers Away
All visitors should be kept at a
distance from work area.
DANGER ---
Thrown Debris
Remove objects that can be
thrown by the blade in any di-
rection. Wear safety glasses.
DANGER ---
Steep Slope
Hazard
Use extra caution on slopes. do
not mow slopes greater than 15
degrees.
4 RISK LEVELS
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently haz-
ardous situation, which, if not
avoided, will result in death
or serious injury.
WARNING Indicates a potentially hazard-
ous situation, which, if not
avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazard-
ous situation, which, if not
avoided, may result in minor
or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation that
may result in property dam-
age.
7
English
EN
5 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
The toxic and corrosive materials below are in the batteries
used in this machine: Lithium-Ion, a toxic material.
WARNING
Discard all toxic materials in a specified manner to prevent
contamination of the environment. Before discarding
damaged or worn out Li-ion battery, contact your local
waste disposal agency, or the local Environmental
Protection Agency for information and specific instructions.
Take the batteries to a local recycling and/or disposal center,
certified for lithium-ion disposal.
WARNING
If the battery pack cracks or breaks, with or without leaks,
do not recharge it and do not use. Discard it and replace
with a new battery pack. DO NOT TRY TO REPAIR IT! To
prevent injury and risk of fire, explosion, or electric shock,
and to avoid damage to the environment:
• Cover the terminals of the battery with heavy-duty
adhesive tape.
• DO NOT try to remove or destroy any of the battery
pack components.
• DO NOT try to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular household
trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of any
waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal center.
6 PROPOSITION 65
WARNING
This product contains a chemical known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
Save these instructions.
7 INSTALLATION
WARNING
Do not change or make accessories that are not
recommended by the manufacturer.
WARNING
Do not put in the safety key or the battery pack until you
assemble all the parts.
7.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine before
use.
WARNING
• If the parts are damaged, do not use the machine.
• If you do not have all the parts, do not operate the
machine.
• If the parts are damaged or missing, speak to the service
center.
1. Open the package.
2. Read the documentation in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and package in compliance with local
regulations.
8
English
EN

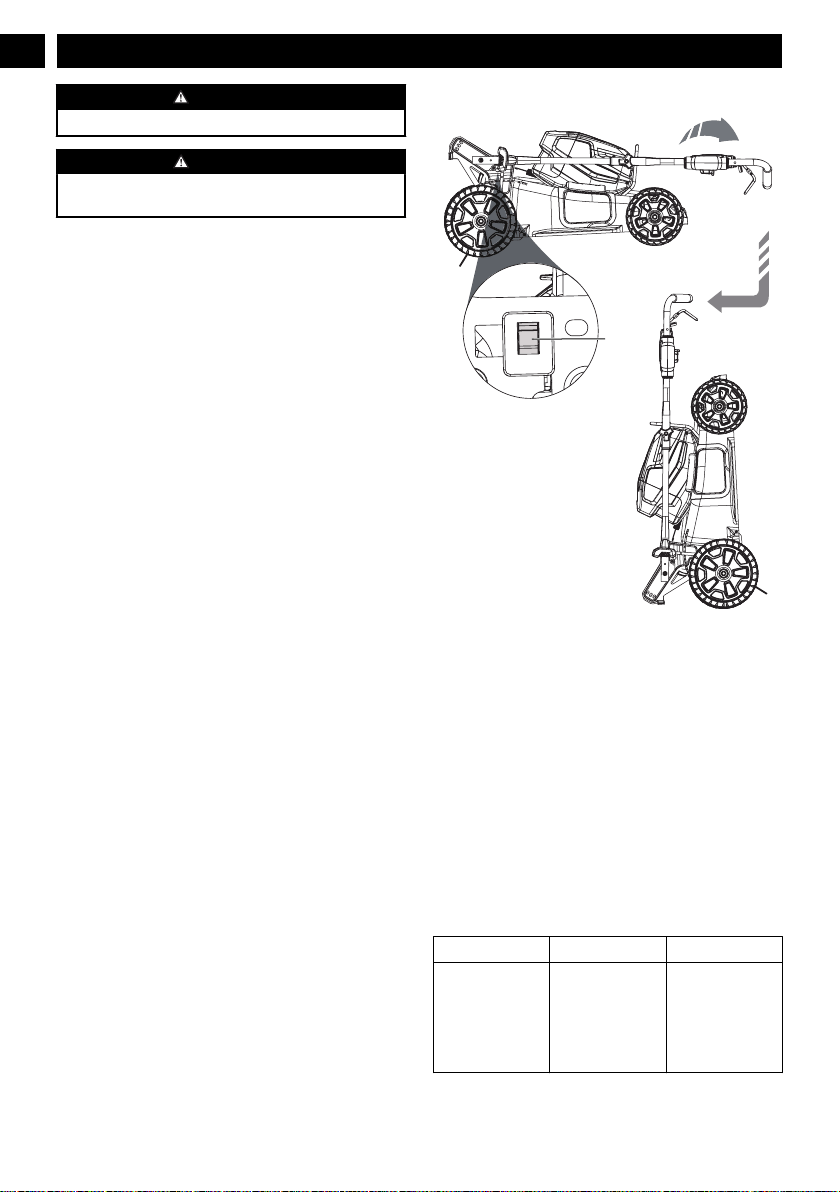

7.2 UNFOLD THE LOWER HANDLE
13
1. Pull and turn the handle knobs (13) 90°.
2. Unfold the lower handle.
3. Line up the handle knobs in one of the three positions on
the brackets.
4. Turn the handle knobs 90° until they engage the holes in
the brackets.
NOTE
Make sure that the two handle knobs are in the same
position.
WARNING
Do not damage or pinch the cables when you fold or unfold
the handle.

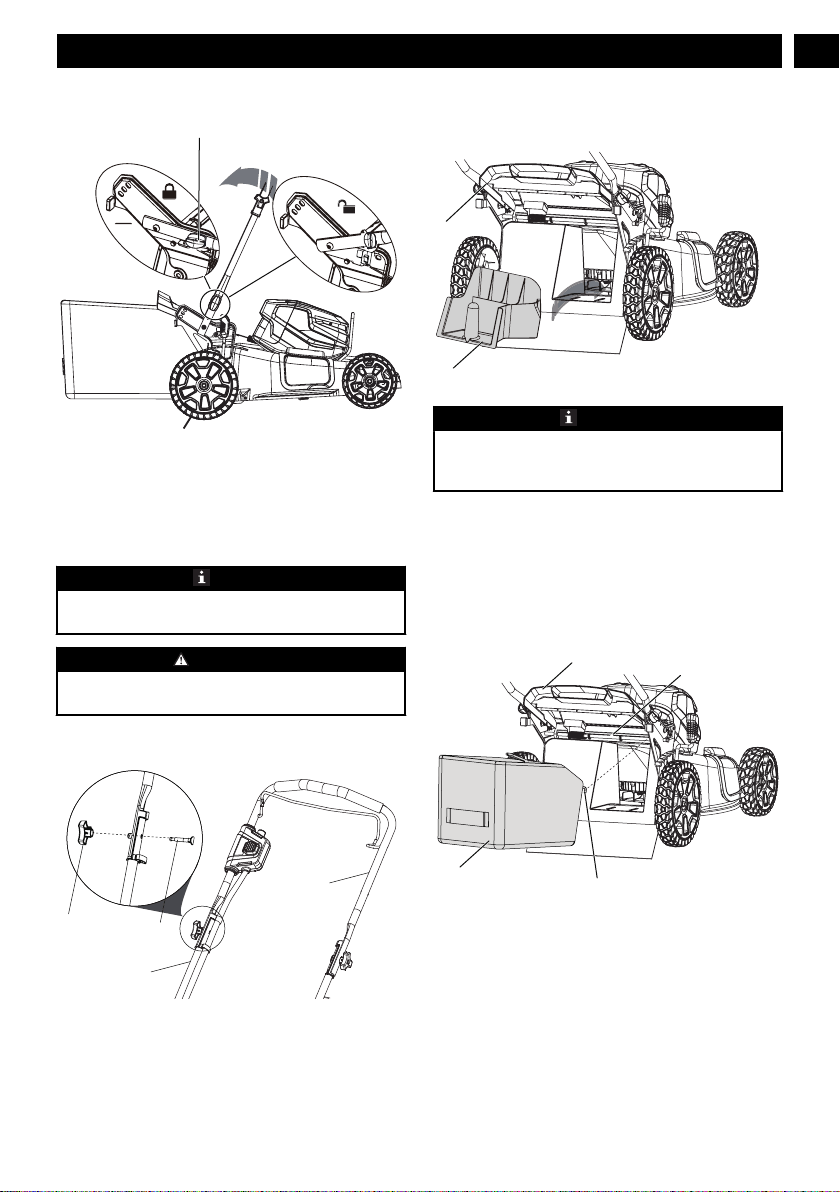

7.3 INSTALL THE UPPER HANDLE
14
4
3
15
1. Align the holes in the upper handle (3) and the lower
handle (4).
2. Put the bolts (14) through the holes.
3. Tighten the knobs (15) onto the bolts.
4. Do the same operation on the other side.
7.4 REMOVE THE MULCH PLUG
5
11
NOTICE
The mower comes with the mulch plug installed properly.
To remove the mulch plug, please follow the instructions
below:
1. Open the rear discharge door (5).
2. Grasp the handle of the mulch plug (11), lift and pull it
out with some force, as it's installed at an angle.
3. The mulch plug must be re-installed back into the
discharge chamer when the grass catcher is removed.
7.5 INSTALL THE GRASS CATCHER
5
8
16
17
1. Remove the side discharge chute.
2. Open the rear discharge door (5).
3. Remove the mulch plug.
4. Hold the the grass catcher (8) by its handle and engage
the hooks (16) on the door rod (17).
5. Close the rear discharge door.
9
English
EN
7.6 INSTALL THE SIDE DISCHARGE
CHUTE
7
12
18
12
CAUTION
When you use the side discharge chute,
• do not install the grass catcher.
• keep the mulch plug installed.
1. Open the side discharge door (7) and hold it.
2. Line up the recesses of the side discharge chute (12)
below the pivot (18).
3. Close the side discharge door.
7.7 SET THE BLADE HEIGHT
The machine can be set to different blade heights.
6
1. Pull the height adjustment lever (6) rearward to increase
the blade height.
2. Pull the height adjustment lever forward to decrease the
blade height.
7.8 INSTALL THE BATTERY PACK
19
20
21
WARNING
• If the battery pack or charger is damaged, replace the
battery pack or the charger.
• Stop the machine and wait until the engine stops before
you install or remove the battery pack.
• Read, know, and follow the instructions in the battery
and charger manual.
NOTE
The machine has a battery storage compartment that helps
store the battery pack.
1. Open the battery door.
2. Align the lift ribs on the battery pack(20) with the
grooves in the battery compartment.
3. Push the battery pack into the battery compartment until
the battery pack locks into place.
4. When you hear a click, the battery pack is installed.
5. Close the battery door.
NOTE
The engine starts only when you put in the safety key (21).
7.9 REMOVE THE BATTERY PACK
1. Open the battery door.
2. Push and hold the battery release button (19).
3. Remove the battery pack from the machine.
8 OPERATION
WARNING
Wear eye protection during operation.
10
English
EN
8.1 START THE MACHINE
1
2
1. Push and hold the start button (2).
2. While you hold the start button, pull the bail switch (1) in
the direction of the handle bar.
3. Once the machine has started you can release the start
button.
8.2 STOP THE MACHINE
1. Release the bail switch to stop the machine.
WARNING
Wait until the blades fully stop before you start the machine
again. Do not quickly turn the machine off and on.
WARNING
Always remove the battery pack after you complete the
work.
8.3 EMPTY THE GRASS CATCHER
1. Stop the machine.
2. Remove the battery pack.
3. Open the rear discharge door and hold it.
4. Hold the grass catcher by its handle and unhook it from
the door rod.
5. Close the rear discharge door.
6. Empty the grass catcher.
8.4 OPERATION TIPS
• Do not try to override the operation of the start button or
bail switch.
• Do not tilt the machine when you start it.
• Do not put hands or feet near or below the turning parts.
• Keep the discharge chute clean.
• Do not cut wet grass.
• Higher blade height is necessary for new or thick grass.
• Clean the bottom of the mower deck after each use.
Remove grass clippings, leaves, dirt, and other debris.
9 MAINTENANCE
WARNING
Remove the safety key and battery pack from the machine
before maintenance.
WARNING
Keep the motor and battery pack free from grass, leaves or
too much grease.
CAUTION
Use only approved replacement parts.
CAUTION
Do not let brake fluids, gasoline, petroleum-based materials
touch the plastic parts. Chemicals can cause damage to the
plastic, and make the plastic unserviceable.
CAUTION
Do not use strong solvents or detergents on the plastic
housing or components.
9.1 REPLACE THE BLADE
21
22
23
NOTE
This mower comes with a high lift blade. Normal stock
mower blades perform well on dry, shorter grasses, and are
optimized for efficiency, while a high lift blade works better
in extreme conditions. The high-lift blade has deeper curves
on the ends, which increase suction to circulate and expel
the clippings. The higher air flow also helps prevent
clogging when mowing tall or wet grass.
11
English
EN
WARNING
Use only approved replacement blades.
WARNING
Wear heavy gloves or wind cloth around the blade when
you touch the blade.
1. Stop the machine.
2. Make sure that the blade fully stops.
3. Remove the battery pack.
4. Turn the machine to its side.
5. Use a piece of wood to prevent the movement of the
blade.
6. Remove the mounting screw (21) with a wrench or
socket.
7. Remove the blade (22) and the fan (23).
8. Put back the fan.
9. Position a new blade with the cutting edges toward the
ground. Make sure the arrows engage the holes on the
blade.
10. Tighten the mounting screw.
9.2 STORE THE MACHINE
• Remove the safety key.
• Remove the battery pack(s).
• Clean the machine before storage.
• Make sure the motor is not hot when you store the
machine.
• Make sure that the machine does not have loose or
damaged parts. If it is necessary, follow these
instructions:
• Replace the damaged parts.
• Tighten the bolts.
• Speak to a person at an approved service center.
• Store the machine in a dry area.
• Make sure that children cannot come near the machine.
9.3 STAND THE MACHINE ON END
24
1. Remove the grass catcher.
2. Pull and turn the handle knobs 90°.
3. Fold down the handle.
4. Turn the handle knobs 90° to lock the handle into
position.
5. Stand the machine on end and make sure that the brackets
touch the floor.
Storage Switch
The machine has a storage switch (24) that prevents its
startup in the storage position.
It is necessary to remove the safety key and the battery pack
to prevent accidental startup or unapproved use. The storage
switch does not replace this function.
10 TROUBLESHOOTING
Problem Possible cause Solution
The handle is not
in position.
The bolts are not
engaged correctly.
Adjust the height
of the handle and
make sure that the
knobs and bolts
are aligned cor-
rectly.
12
English
EN
Problem Possible cause Solution
The machine does
not start.
The battery ca-
pacity is low.
Charge the battery
pack.
The bail switch is
defective.
Replace the bail
switch.
The safety key is
not put in.
Put in the safety
key.
The machine cuts
grass unevenly.
The lawn is rough. Examine the mow-
ing area.
The blade height is
not set correctly.
Adjust the blade/
cutting height to a
higher position.
The machine does
not mulch correct-
ly.
Wet grass clip-
pings attach to the
deck.
Wait until the
grass dries before
mowing.
The mulch plug is
missing.
Install the mulch
plug.
The machine is
hard to push.
The grass is too
tall, or the blade
height is too low.
Increase the blade/
cutting height.
The grass catcher
and the blade
drags in thick
grass.
Empty the grass
clippings from the
grass catcher.
There is a high vi-
bration in the ma-
chine.
The blade is un-
balanced and
worn.
Replace the blade.
The motor shaft is
bent.
1. Stop the mo-
tor.
2. Remove the
safety key and
battery pack.
3. Inspect for
damage.
4. Repair the ma-
chine before
you start it
again.
The machine stops
during mowing.
The blade height is
too low.
Increase the blade/
cutting height.
The battery pack is
out of power.
Charge the battery
pack.
The grass clip-
pings attach to the
deck or the blade.
Remove the bat-
tery pack and
check the deck.
Operation temper-
ature of the ma-
chine is too high.
Cool the machine.
* If you cannot find the solution to these problems, go to the
service center.
11 TECHNICAL DATA
Voltage 60 V
No load speed 2800 RPM
Deck Size 21"
Height adjustments 1 3/8 - 3 3/4”
Functions 3-in-1Rear bag & Side Discharge
& Mulch
Weight (without bat-
tery pack)
67.2 lbs (30.5 kg)
Battery model 60BA02/60BA03/60BA04/60BA0
6/60BA08/60BA05/60BA25 and
other BAC series
Charger model 60DP10/606P14 and other CAC
series
12 LIMITED WARRANTY
M
E
I
L
L
E
U
R
D
A
N
S
S
A
C
A
T
É
G
O
R
I
E
•
M
E
J
O
R
E
N
C
L
A
S
E
B
E
S
T
I
N
C
L
A
S
S
GARANTIE OUTIL &
BATTERIE • GARANTÍA PARA
HERRAMIENTAS Y BATERÍAS
Greenworks hereby warranties this product, to the original
purchaser with proof of purchase, for a period of four (4)
years against defects in materials, parts or workmanship.
Greenworks, at its own discretion will repair or replace any
and all parts found to be defective, through normal use, free
of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not
been hired or rented for industrial/commercial use, and that
have been maintained in accordance with the instructions in
the owners’ manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse,
commercial use, abuse, neglect, accident, improper
maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in
accordance with the owner's manual; or
3. Normal wear;
4. Routine maintenance items such as lubricants, blade
sharpening;
5. Normal deterioration of the exterior finish due to use or
exposure.
13
English
EN
HELPLINE:
Warranty service is available by calling our toll-free helpline,
at 1-855-345-3934 .
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of the
purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement
under this warranty unless such return is requested in writing
by Greenworks.
USA address: Canadian address:
Greenworks Tools Greenworks Tools Canada Inc.
P.O. Box 1238 P.O. Box 93095, Newmarket,
Ontario
Mooresville, NC 28115 L3Y 8K3
13 EXPLODED VIEW
1
5
6
8
9
7
10
11
2 3 4
No. Part No. Description Qty.
1 R0202843-00 Upper handle knob/bolt 2
2 R0202872-00 Upper control assembly 1
3 R0202877-00 Powerhead 1
4 R0202444-00 Blade kit assembly 1
5 R0202821-00 Grass catcher 1
14
English
EN
No. Part No. Description Qty.
6 R0202459-00 Lower handle knob/bolt 2
7 RB341271179A Rear wheel assembly 2
8 RB341251179A Rear cover assembly 1
9 R0201028-00 Side discharge assembly 1
10 R0200078-00 Mulch plug 1
11 RB341281179A Front wheel assembly 2
15
English
EN
