IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

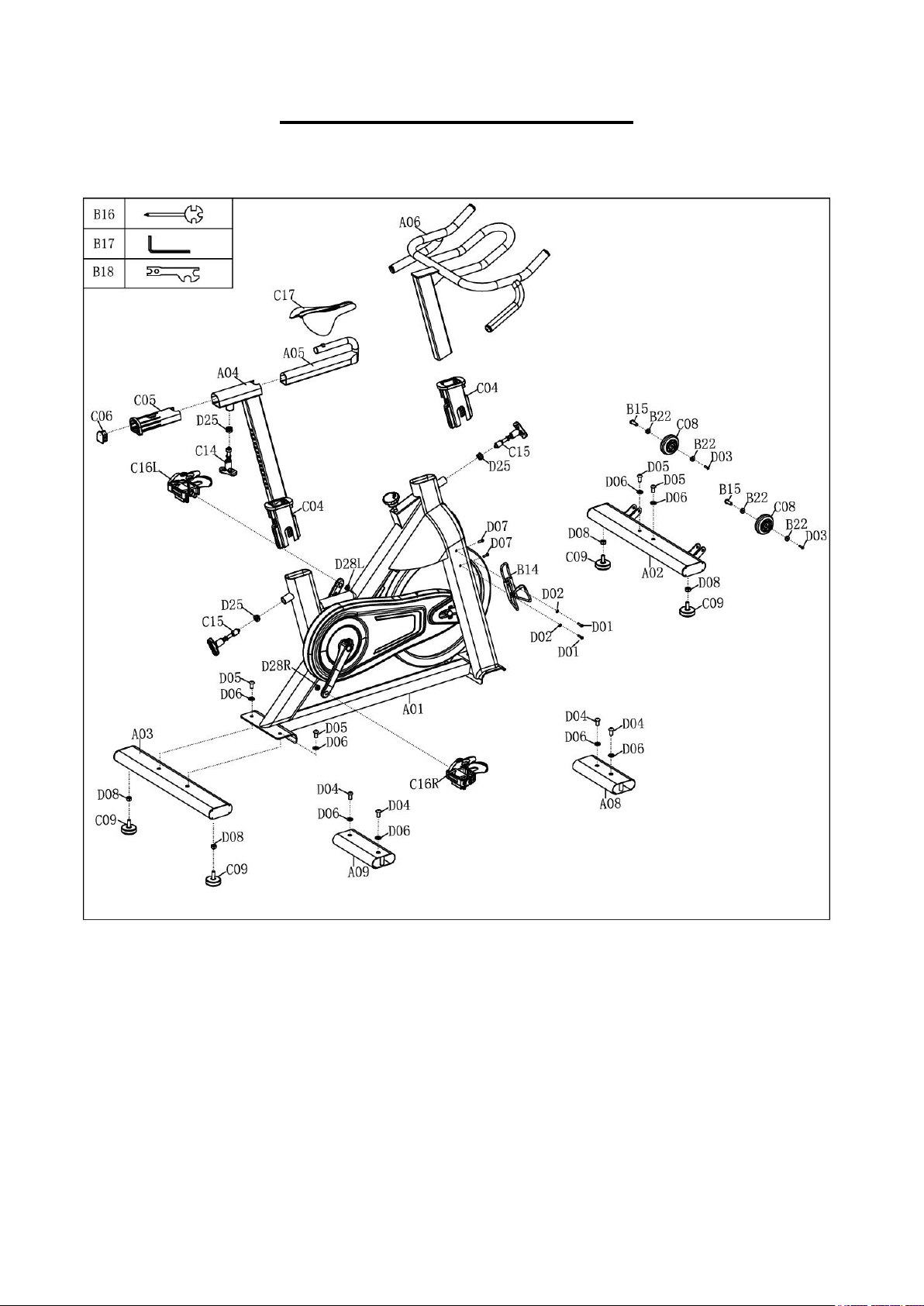

EXPLODED DIAGRAM 1
3

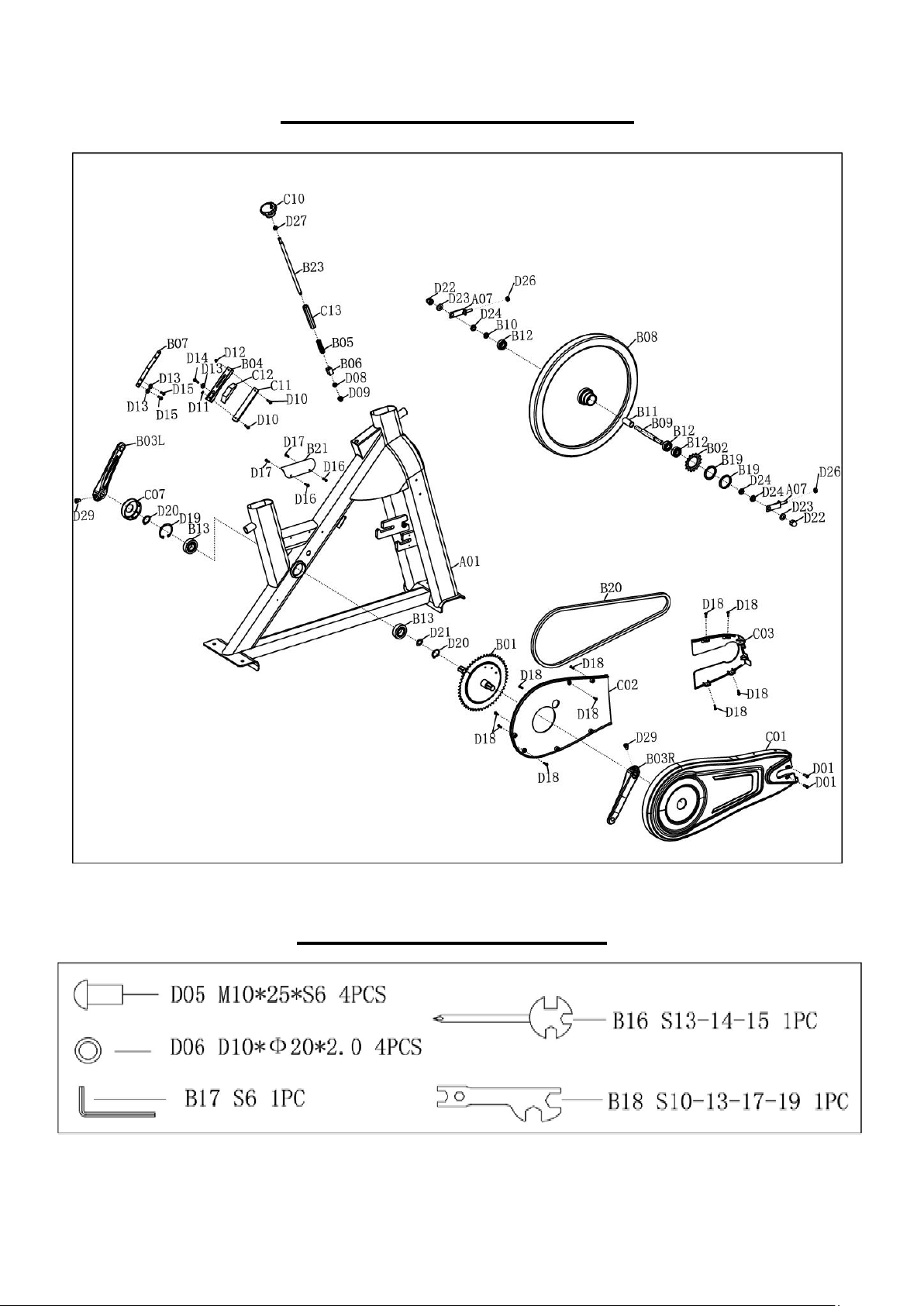

EXPLODED DIAGRAM 2
HARDWARE PACKAGE
4
PARTS LIST
No. Description Spec. QTY.
No. Description Spec. QTY.
A01 Main Frame 1 C06 End Cap 1
A02 Front Stabilizer 1 C07 Cover for Middle Axle 1
A03 Rear Stabilizer 1 C08 Transportation Wheel 2
A04 Seat Post 1 C09 Foot Pad 4
A05 Seat Slider Tube 1 C10 Tension Control Knob 1
A06 Handlebar 1 C11 Cow Leather Pad T5*25*138 1
A07 Adjusting Screw 2 C12 EVA Pad 22*75 1
A08 Shipping Front Tube 1 C13 Bushing 20*20*69.5 1
A09 Shipping Rear Tube 1 C14 T Shape Knob 1 1
B01
Chain Wheel with
Middle Axle
1 C15 T Shape Knob 2 2
B02 Small Chain Wheel 16 teeth M42 teeth 1
C16
L/R
Pedal JD014V 9/16 2
B03
L/R
Crank Arm 2 C17 Seat 1
B04 Brake Block 1 D01 Bolt M5*16*Φ8.5 4
B05 Spring 1 D02 Flat Washer D5*Φ10*1.0 2
B06 Square Nut 1 D03 Bolt M6*12*S5 2
B07 Spring Piece 1 D04 Bolt M10*16*S6 4
B08 Inertial Wheel 1 D05 Bolt M10*25*S6 4
B09 Inertial Axle 1 D06 Flat Washer D10*Φ20*2.0 8
B10 Spacer 1 D07 Rivet M5*H13*Φ7 2
B11 Septum Φ20*Φ15.1*40 1 D08 Nut M10*H7*S17 5
B12 Bearing 6202-2RZ NBK 3 D09 Nut M6*H14*S10 1
B13 Bearing 6205-2RS NBK 2 D10 Bolt M5*20*Φ8.5 2
B14 Bottle Holder 1 D11 Nut M5*H4*S8 1
B15 Screw Φ7.8*30*M6*15*S5 2 D12 Nut M5*H9*S8 1
B16 Spanner S13-14-15 1 D13 Big Flat Washer D6*Φ12*1.2 3
B17 Allen Wrench S6 1 D14 Bolt M5*12 1
B18 Spanner S10-13-17-19 1 D15 Bolt M6*12*S10 2
B19 Nut M42*1*Φ50*3.5 2 D16 Screw ST4.2*19 2
B20 Chain 1/2”*1/8*106 KYC 1 D17 Screw ST4.2*19 2
B21 Stainless Steel Board 1 D18 Screw ST4.2*16 10
B22 Bearing 608ZZ 4 D19 Circlip D52 1
B23 Brake Rod 1 D20 Circlip D25 2
C01 Outer Chain Cover 1 D21 Wave Washer D25*Φ34*0.3 1
C02 Inner Chain Cover 1 D22 Nut M12*1*H19.5*S19 2
C03 Blanking Plate 1 D23 Big Flat Washer D12*Φ24*2.0 2
C04 Bushing 2 D24 Nut M12*1*H6*S19 3
C05 Bushing 1 D25 Nut 3
5
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
No. Description Spec. QTY. No. Description Spec. QTY.
D26 Nut M8*H7.5*S13 2 D28L/R Nylon Nut 9/16"-20*H8*S19 2
D27 Nut M8*H5.5*S14 1 D29 Bolt M8*16 *S6 1
6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

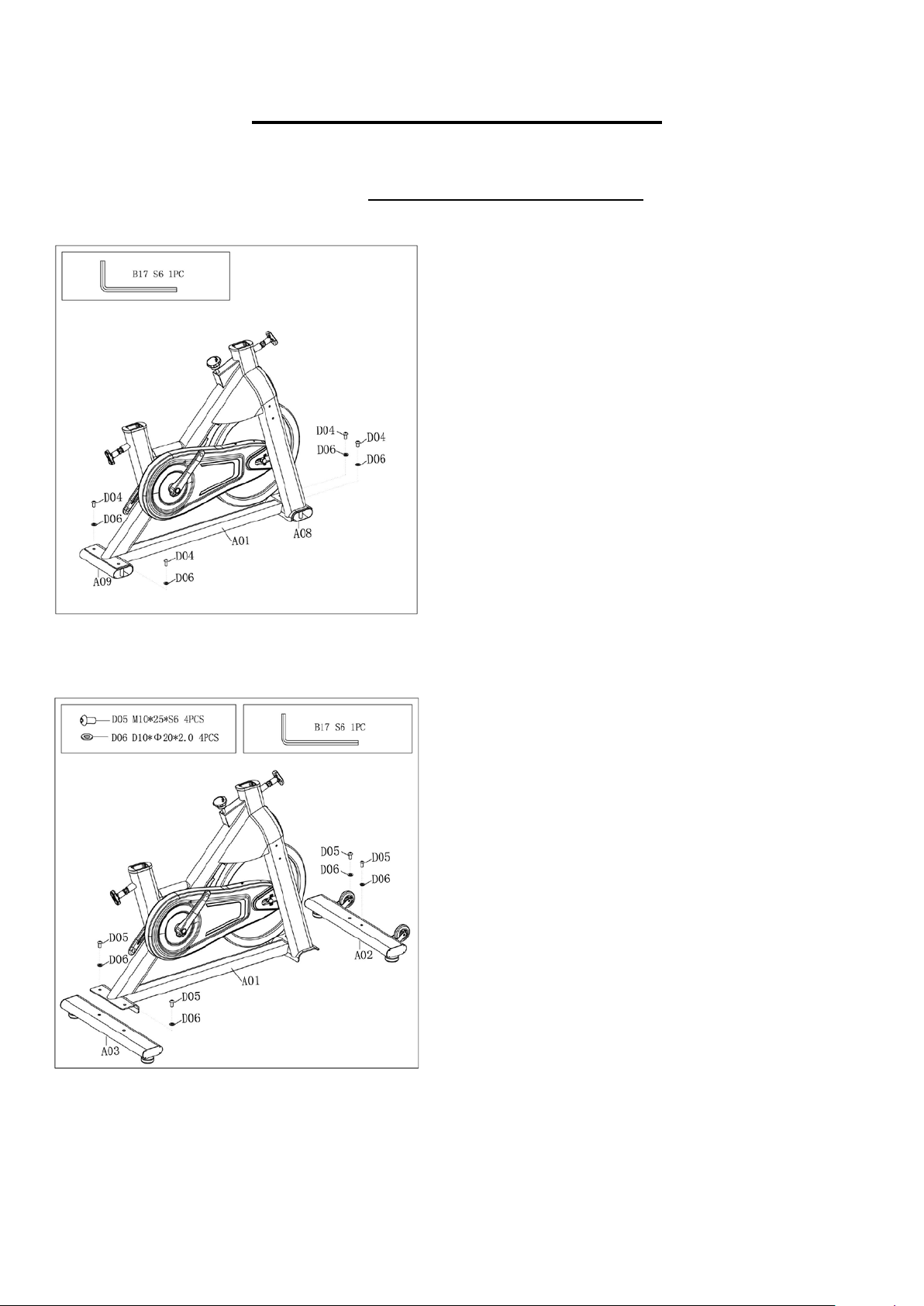

STEP 1:
Unscrew the 4 Bolts (No. D04) with Allen Wrench
(No. B17) and remove the 4 Flat Washers (No.
D06) from the Shipping Front Tube (No. A08) and
Shipping Rear Tube (No. A09).
You may save these Bolts (No. D04), Flat
Washers (No. D06), Shipping Front Tube (No.
A08) and the Shipping Rear Tube (No. A09) in
case you’d like to repackage and transport this
equipment in the future.
STEP 2:
Attach the Front and Rear Stabilizers (No. A02
and No. A03) to the Main Frame (No. A01) using 4
Bolts (No. D05) and 4 Flat Washers (No. D06).
Tighten and secure with Allen Wrench (No. B17).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
STEP 3:
WARNING!
Read instructions carefully as
improper
assembly may cause permanent
damage to your bike.
Remove the preassembled 2 Bolts (No. D01) and
2 Flat Washers (No. D02) from the Main Frame
(No. A01) using Spanner (No. B16). Attach the
Bottle Holder (No. B14) to the Main Frame (No.
A01) using the 2 Bolts (No. D01) and 2 Flat
Washers (No. D02) that were removed. Tighten
and secure with Spanner (No. B16).
Remove the 2 Nylon Nuts (No. D28L/R) located
on the Pedals (No. C16L/R). Align the Left Pedal
(No. C16L) with the Left Crank Arm (No. B03L)
at 90°. Screw the Left Pedal (No. C16L)
counter-clockwise into its corresponding Left
Crank Arm (No. B03L). Once screwed in place,
use the Spanner (No. B16) to hold the bolt of the
pedal, then screw Left Nylon Nut (No. D28L)
clockwise into the thread end of the
Left Pedal
(No. C16L). Secure with Spanner (No. B18).
Align the Right Pedal (No. C16R) with the Right
Crank Arm (No. B03R) at 90°. Screw the Right
Pedal (No. C16R) clockwise into its corresponding
Right Crank Arm (No. B03R). Once screwed in
place, use the Spanner (No. B16) to hold the bolt
of the pedal, then screw Right Nylon Nut (No.
D28R) counter-clockwise
into the thread end of
the Right Pedal (No. C16R)
. Secure with
Spanner (No. B18).
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

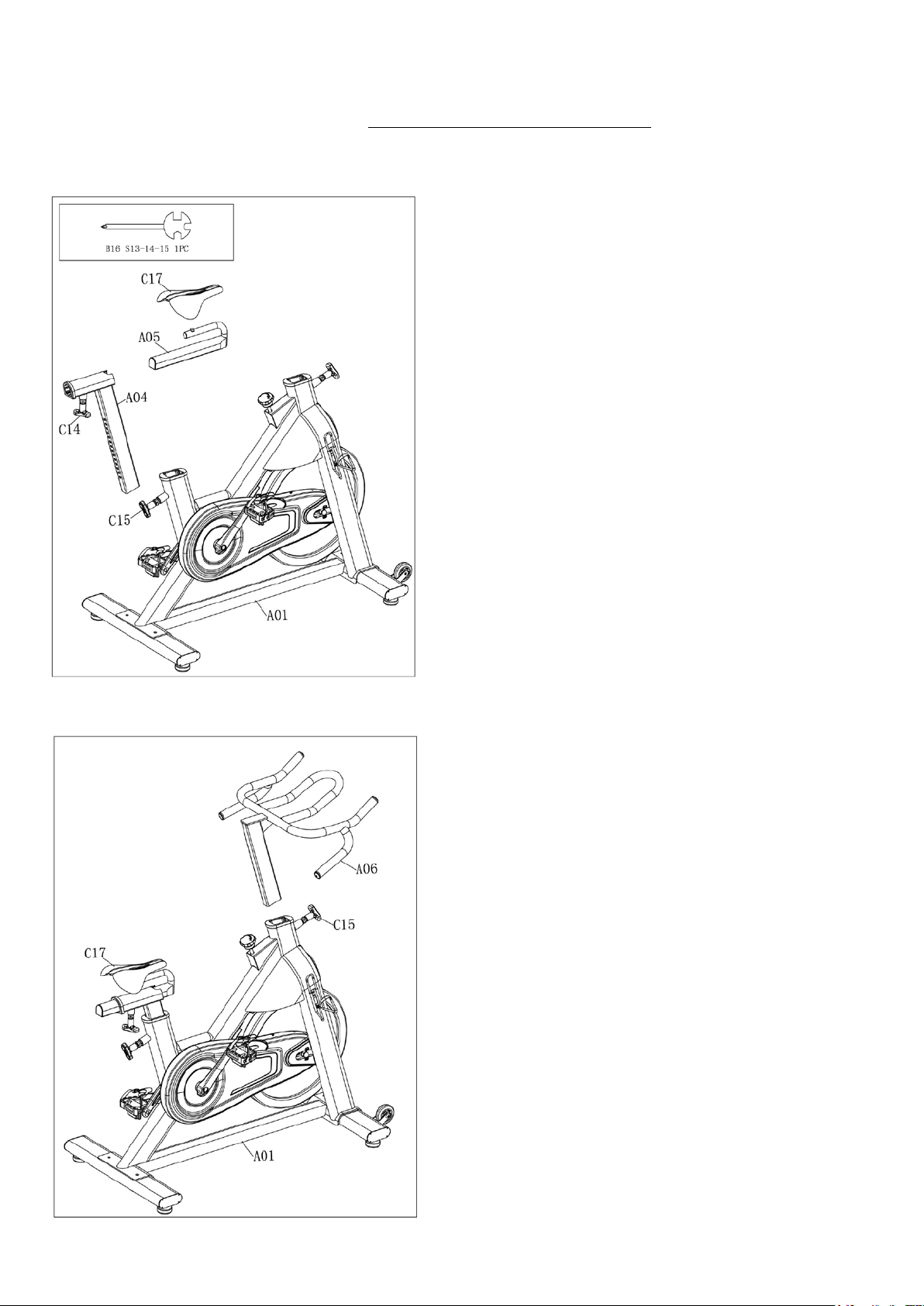

STEP 4:
Loosen and pull out the [seat] T Shape Knob 2
(No. C15). Insert the Seat Post (No. A04) into the
tube located on the back of the Main Frame (No.
A01). Adjust the Seat Post (No. A04) to the
desired height
then secure it in place by
reinserting and tightening the T Shape Knob 2
(No. C15).
Loosen and pull out the T Shape Knob 1 (No.
C14). Insert the Seat Slider Tube (No. A05) into
the Seat Post (No. A04). Adjust the Seat Slider
Tube (No. A05)
to the desired position then
secure it in place by reinserting and tightening the
T Shape Knob 1 (No. C14).
Secure Seat (No. C17) to Seat Slider Tube (No.
A05) with Spanner (No. B16).
STEP 5:
Loosen and pull out the [handlebar] T Shape
Knob 2 (No. C15). Insert the Handlebar (No.
A06) into the tube located on the front of the Main
Frame (No. A01). Adjust the Handlebar (No.
A06) to the desired height then secure it in place
by reinserting and tightening the T Shape Knob 2
(No. C15).
The assembly is complete!
9

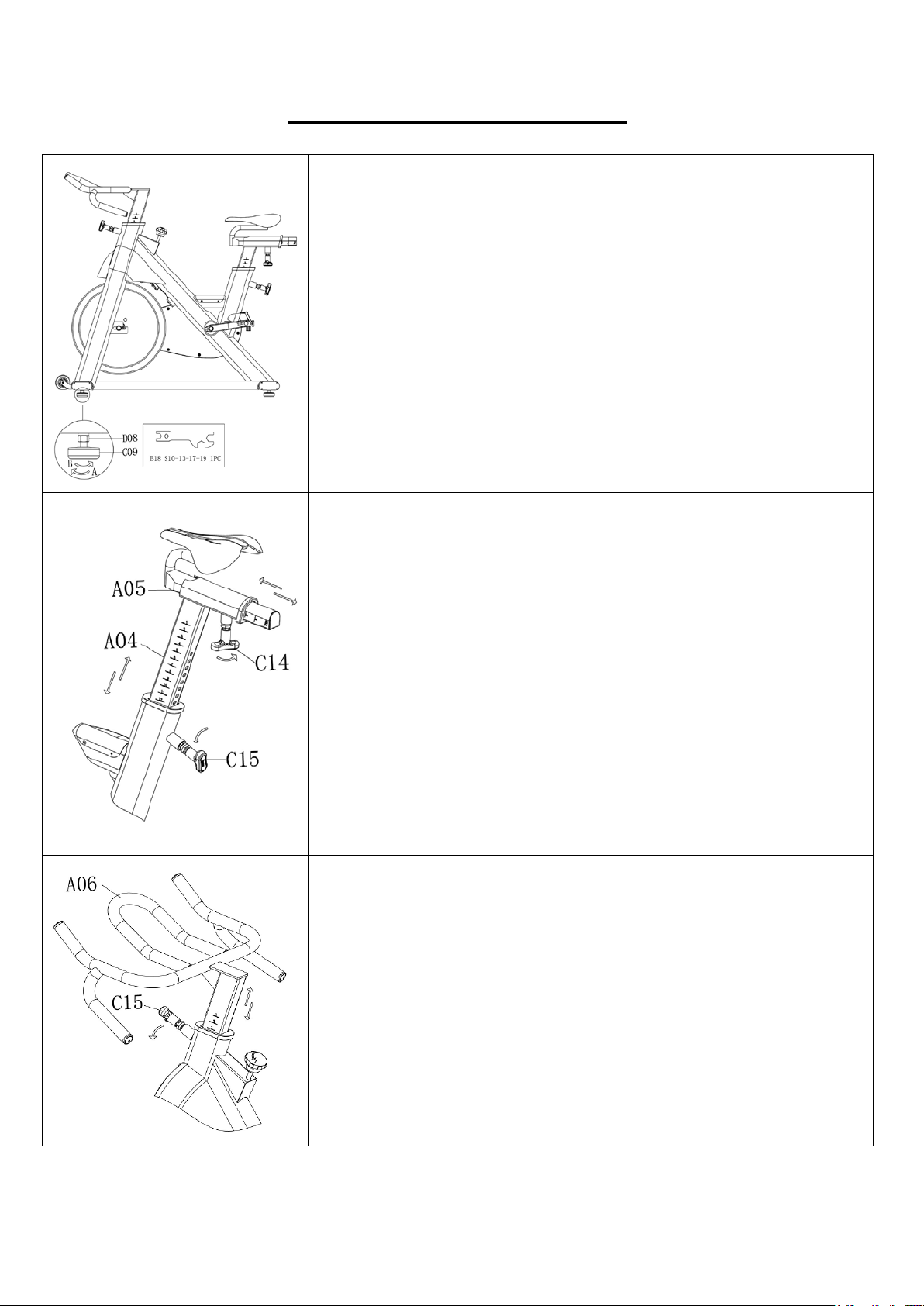

ADJUSTMENTS GUIDE
ADJUSTING THE HEIGHT AND BALANCE
In o
rder to achieve a smooth and comfortable ride, you must
ensure that the stability of the bike is secured. If you notice that the
bike is unbalanced during use, you should adjust the
Foot Pad
(No. C09) located beneath the Front and
Rear Stabilizers (No.
A02 & No. A03) of the bike. To do so, use Spanner (No. B18) to
loosen Nut (No. D08) by turning it clockwise (direction A). With the
nut loosened, rotate the Foot Pad (No. C09) until it sits level with
the surface that the bike is on. When you have finished adjusting
the foot leveler, use Spanner (No. B18) to re-tighten the Nut (No.
D08) by turning it counter-clockwise
(direction B). If required,
repeat this process to adjust the remaining foot levelers.
ADJUSTING THE SEAT
The seat of this bike is fully adjustable as it moves Up, Down, Fore
(forward), Aft (backward).
To adjust the height of the Seat Post (No. A04),
loosen and pull
the [seat] T Shape Knob 2 (No. C15) outward, then raise or lower
the seat to the desired height. Once adjusted, re-insert and tighten
the T Shape Knob 2 (No. C15) to secure the seat in place.
To adjust the seat back and forth, loosen and pull T Shape Knob 1
(No. C14) outward, then slide the Seat Slider Tube (No. A05) to
the desired position. Once positioned, re-insert and tighten the T
Shape Knob 1 (No. C14) to secure the seat slider tube in place.
ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are both set to the
correct height to your body. To adjust the handlebar height, loosen
and pull the [handlebar] T Shape Knob 2 (No. C15) outward, then
slide the Handlebar (No. A06)
up or down to the desired height.
Once adjusted, re-insert and tighten the
T Shape Knob 2 (No.
C15) to secure the handlebar in place.
10

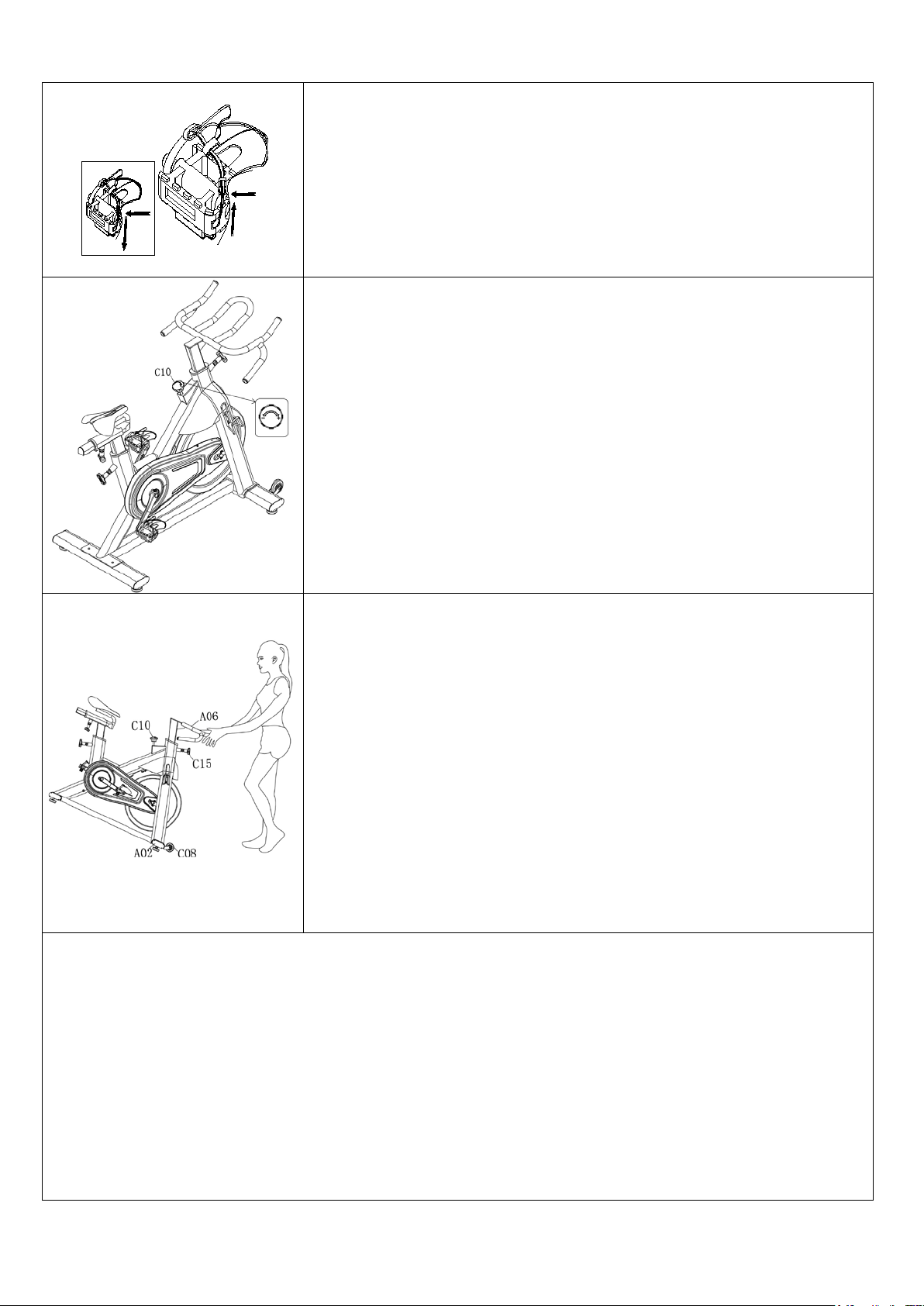

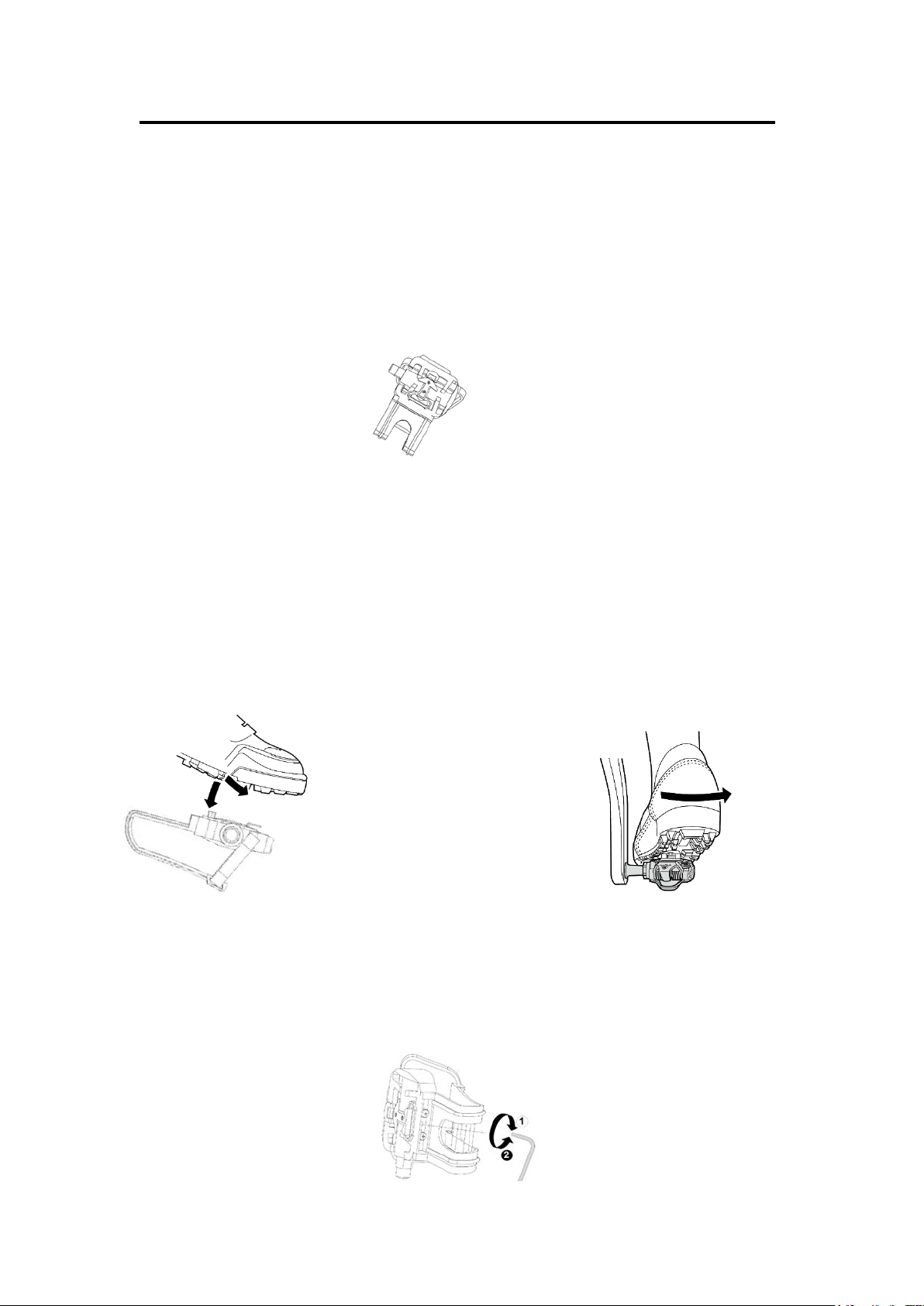

PEDAL STRAP ADJUSTMENT
Your feet should be
secured in the toe clips during exercise. Place
your feet as far forward into the toe clips as you can. With your feet
in place, turn the crank to bring one foot to within arm’s reach, grasp
the pedal strap and pull it upward to tighten the toe clip cage. Then
insert the strap back into the hoop of the toe clip. Repeat this
process to secure your other foot.
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Tension Control Knob
(No. C10). Increase the level of resistance by turning the Tension
Control Knob (No. C10) to the RIGHT (clockwise),
decrease the
level of resistance by turning the Tension Control Knob (No.C10)
to the LEFT (counter-clockwise).
EMERGENCY BRAKE
During use, users can stop the bike completely by pushing down on
the Tension Control Knob (No. C10).
Pushing down on the
Tension Control Knob (No. C10)
will enforce the brake and bring
the bike to an immediate stop.
TRANSPORTING THE BIKE
To move the bike, first ensure that the Handlebar (No. A06) is
properly secured. If the handlebar is loose, tighten the [handlebar] T
Shape Knob 2 (No. C15)
to secure it. Next, stand at the front of the
bike so that you’r
e directly in front of the handlebar. Firmly grasp
and hold each side of the handlebar, place one foot on the Front
Stabilizer (No. A02)
and tilt the bike towards you until the
Transportation Wheels (No. C08) on the Stabilizer (No. A02)
touch the ground. With the wheels on the ground, you can transport
the bike to the desired location with ease.
NOTE: When moving the bi
ke, always use caution as unexpected
impact, such as dropping the bike, may cause injury and affect the
bike’s operation.
DISMOUNTING
For your safety, it is recommended that you never attempt to dismount or remove your feet from the
pedals until both the flywheel and pedals/cranks
have come to a complete stop. Failure to follow
this recommendation may lead to loss of control and/or serious injury.
Here are a few examples of how to safely dismount the bike:
1. Reduce the pedal speed until the pedals/crank come to a complete stop.
2. Increase the resistance until the pedals/crank come to a complete stop.
3. Push and hold the Tension Control Knob (No. C10)
down until the pedals/crank come to a
complete stop.
11
REMOVING THE CRANK ARM
TO REMOVE THE CRANK ARM
Unscrew 2 Bolts (No. D29) counter-clockwise with the Allen Wrench (No. B17). Remove
the 2 Bolts (No. D29) and pull out the Left and Right Crank Arms (No. B03L/R).
NOTE: The hexagonal hole on the middle axle and the crank arm should be aligned when
assembling.
TO REASSEMBLE THE CRANK ARM
Attach the Left and Right Crank Arms (No. B03L/R) to the middle axle. Attach the 2 Bolts
(No. D29) onto the hexagonal hole of the Left and Right Crank Arms (No. B03L/R) and
secure it by turning clockwise with Allen Wrench (No. B17).
12
SPD TECHNICAL SERVICE INSTRUCTIONS
Caution!
Before use, read these instructions carefully.
Practice engaging and disengaging from the pedals several times in a stationary position before
riding.
Before using, lubricate the concave area of the clip.
Keep the cleat and pedal clean to ensure proper usage.
Before using, adjust the retention force of the pedal to suit your needs.
Note:
1. After tightening the cleat, practice engaging and releasing one shoe at a time.
2. Check your pedals everytime before you ride the bike.
3. When the pedal starts to wear on the axle, it will not function properly. We recommend you
replace the entire pedal.
USE
Engaging Disengaging
Press the cleat into the pedal. Remove by twisting your heel to the outside.
ADJUSTING THE SPRING TENSION OF THE BINDING
The tension of the spring is adjusted for each pedal (top & bottom) with the adjustment bolt in the
rear using 3mm Allen Wrench.
Turn the bolt using 3mm Allen Wrench in a clockwise direction to increase retention force, and in a
counter-clockwise direction to decrease retention force.
3mm Allen Wrench
Increase
Decrease
13
MAINTENANCE INSTRUCTIONS
This is general information for daily, weekly and monthly maintenance to be performed on your bike.
DAILY MAINTENANCE
After each exercise session, wipe down all the
equipment: seat, frame, and handlebars. Pay
special attention to the seat p
ost, handlebar
post, and belt/chain guard. Sweat is very
corrosive and may cause problems that require
parts replacement later.
1. Get on the bike and engage the drive train.
2.
Pay attention to any vibrations felt through
the pedals. If you feel any vibrations, you
may need to tighten the pedals, bottom
bracket, or adjust the drive belt/chain
tension.
3.
Use a wrench to tighten the pedals until
they are secure.
MONTHLY MAINTENANCE
1. Check if
all hardware is secure, such as: water
bottle holder, flywheel nuts, belt/
chain guard
bolts, brake caliper lock nuts and brake caliper
tension rod nuts.
2.
Inspect the brake tension rod for signs of wear
such as missing threads. Clean and lubricate
the brake tension rod.
3.
Clean and lubricate the seat post, handlebar
post and seat sl
ider. Remove any buildup of
foreign material.
WEEKLY MAINTENANCE
1.
Inspect moving parts and tighten the
hardware.
2. Inspect pull pin frame fittings to make sure
the fittings are secured. Loose frame fittings
may strip out threads over time and cause
extensive damage.
3.
Clean and lubricate pop pin assemblies.
Pull on the pin and spray a small amount of
lubricant onto the shaft.
4. Tighten the seat hardware to make sure the
seat is level and centered.
5.
Brush and treat the resistance pads.
Remove any foreign material that may have
collected on the pads. Spray the pads with
silicone lubricant. This helps to reduce
noise from friction between the pads and
the flywheel.
6.
Visually inspect the bottom bracket, toe
clips and toe straps. If any of them are
loose or disconnected, attach and tighten.
LEATHER BRAKE PAD CARE (If Applicable)
1.
Perform this maintenance when the brake pad
is first installed and for the life of the brake pad.
Following these simple guidelines can increase
the life of your brake pads.
2. Some brake pad assemblies are pre-lubricated.
Squeeze the brake pad. If lubricant is released,
then the pad has been pre-lubricated.
3.
If the brake pad is dry, then coat the brake pad
with 3-n-
1 oil. Brush the leather with a clean,
wire bristle brush, and then apply the oil. The oil
should be allowed to soak into
the pad. Repeat
4-
5 times until the pad is saturated, but not
dripping with oil. When the pad is saturated, it
will no longer absorb oil.
4.
Inspect the brake pad weekly and lubricate if
needed. The pad should not have
a glazed
appearance. If the pad appears glazed, then
brush it with wire brush and apply lubricant as
needed. If any of the sponge padding is
showing through the leather pad, the brake pad
should be replaced.
Version: 3.1
